Parts index — Yamato AZ8000Gtap a row to open its page

Page 2 — TABLE OF MODEL & DEVICE

Yamato AZ8000G parts on page 2

Ref	Part number	Part name	Qty
	AZ8000G	本体
	AZ8000G-M	本体
	AZ8003G	本体
	AZ8016G	本体
	AZ8019G	本体
	AZ8020G	本体
	AZ8025G	本体
	AZ8032G	本体
	AZ8035G	本体
	AZ8039G	本体
	AZ8045G	本体
	AZ8022G	本体
	AZ8069G	本体
	AZ8120G-8	本体

Page 4 — Contents

Yamato AZ8000G parts on page 4

Ref	Part number	Part name	Qty
	1	MISCELLANEOUS COVERS(1) / カバー関係(1)
	2	MISCELLANEOUS COVERS(2) / カバー関係(2)
	3	MISCELLANEOUS COVERS(3) / カバー関係(3)
	4	MISCELLANEOUS THREAD EYELETS / 糸道関係
	5	MISCELLANEOUS CRANKSHAFT & BUSHINGS / 主軸及びブッシュ関係
	6	NEEDLE BAR DRIVING MECHANISM / 針棒機構
	7	KNIFE DRIVING MECHANISM / メス機構
	8	PRESSER FOOT MECHANISM / 押工機構
	9	UPPER LOOPER DRIVING MECHANISM / 上ルーパ機構
	10	LOWER LOOPER DRIVING MECHANISM / 下ルーパ機構
	11	FEED DRIVING CONTROL MECHANISM / 前送り調節機構
	12	FEED DRIVING MECHANISM / 送り機構
	13	LUBRICATING MECHANISM / 給油機構
	14	EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G / 角メス及びサブモデル専用部品
	15	AZ8000G-M EXCLUSIVE PARTS / サブモデル専用部品
	16	AZ8003G EXCLUSIVE PARTS / サブモデル専用部品
	17	AZ8016G EXCLUSIVE PARTS / サブモデル専用部品
	18	AZ8016G-5 EXCLUSIVE PARTS / サブモデル専用部品

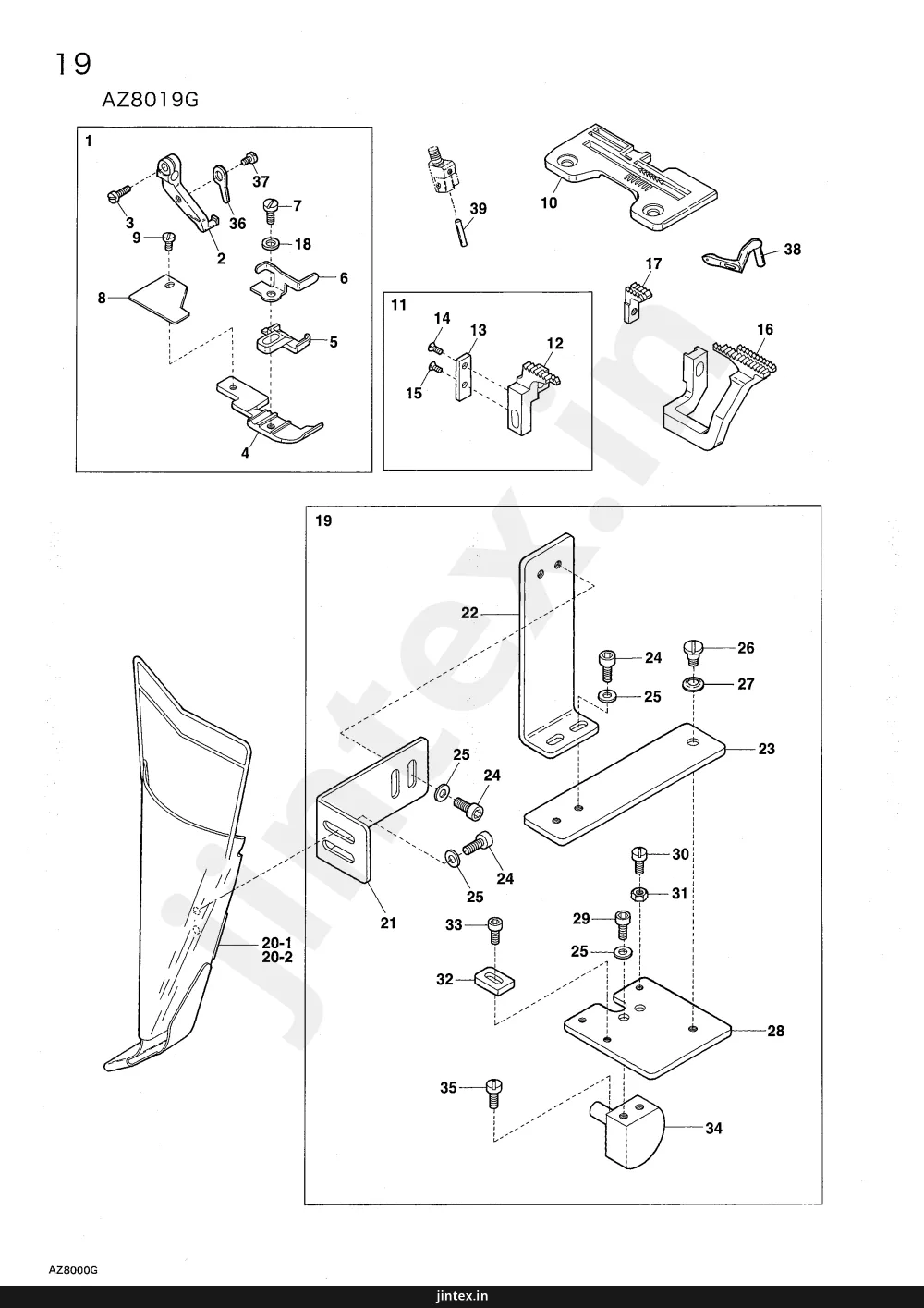

	19	AZ8019G EXCLUSIVE PARTS / サブモデル専用部品
	20	AZ8020G-X4, X5, EXCLUSIVE PARTS / サブモデル専用部品
	21	AZ8025G EXCLUSIVE PARTS / サブモデル専用部品
	22	AZ8032G, 8035G EXCLUSIVE PARTS(1) / サブモデル専用部品(1)
	23	AZ8032G, 8035G EXCLUSIVE PARTS(2) / サブモデル専用部品(2)
	24	AZ8039G EXCLUSIVE PARTS / サブモデル専用部品
	25	AZ8045G, 8045G/K2 EXCLUSIVE PARTS(1) / サブモデル専用部品(1)
	26	AZ8045G-O4/K2 EXCLUSIVE PARTS(2) / サブモデル専用部品(2)

Page 5 — Contents

Yamato AZ8000G parts on page 5

Ref	Part number	Part name	Qty
	K2装置(1)	K2 DEVICE(1)
	K2装置(2)	K2 DEVICE(2)
	C装置	C DEVICE
	B3装置	B3 DEVICE
	CH20装置(1)	CH20 DEVICE(1) for AZ8000G
	CH20装置(2)	CH20 DEVICE(2) for AZ8000G
	CH20装置(3)	CH20 DEVICE(3) for AZ8000G
	SC10装置	SC10 DEVICE
	特注部品(1)	EXTRA PARTS(1)
	特注部品(2)	EXTRA PARTS(2)
	受ケ板関係	MISCELLANEOUS SUPPORTING BOARD
	糸立台	THREAD STAND
	警告ラベル	WARNING LABEL
	主要部品リスト	LIST of MAIN SPARE PARTS
	索引	INDEX

Page 6

Yamato AZ8000G parts on page 6

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	SCREW
4	4	WASHER
5	5	WASHER
6	6	SCREW
7	7	SLEEVE
8	8	BRACKET
9	9	COLLAR
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	NUT
14	14	SCREW
15	15	PLUG
16	16	O-RING
17	17	COVER
18	18	SCREW
19	19	GASKET
20	20	GASKET
21	21	FOOT
22	22	STUD
23	23	FOOT
24	24	FOOT
26	26	STUD
27	27	WASHER
28	28	SCREW
29	29	WASHER
30	30	SCREW
32	32	BASE
33	33	SCREW
34	34	WASHER
35	35	BRACKET
36	36	SCREW

Page 7 — MISCELLANEOUS COVERS (1)

Yamato AZ8000G parts on page 7

Ref	Part number	Part name	Qty
	2100006	Cloth Plate	1
	2150210	Cloth Plate(Lower)	1
	2100014	Rubber Cushion	1
	001123	Washer	5
	000644	Spring Washer	3
	110045	Screw(M4-0.7 × 12)	3
	2100011	Cloth Plate Eccentric Bushing	1
	160001	Screw(M4-0.7 × 4)	1
	2100012	Collar(4 × 9 × 6mm)	1
	003637	Screw(1/8-44 × 2.5)	1
	2150015	Cloth Plate Spring	1
	110012	Screw(M4-0.7 × 5)	2
	100001	Lock Nut	1
	110051	Stop Screw(M4-0.7 × 12)	1
	0020004	Oil Cap	1
	0020005	O-ring(P28)	1
	2100053	Top Cover	1
	110016	Screw(M4-0.7 × 15)	6
	2150026	Top Cover Gasket	1
	2100864	Oil Reservoir Gasket	1
	2151054	Oil Reservoir	1
	000816	Screw(1/4-24 × 8)	4
	0032879	Oil Reservoir Rubber Cushion(Black-colored)	3
	0033627	Oil Reservoir Rubber Cushion(Green-colored)	1
	2100875	Oil Reservoir Positioning Bar	4
	3000004	Washer	4
	120017	Screw(M5-0.8 × 15)	6
	0020137	Drain Hole Seal	1
	005075	Drain Hole Screw(3/8-24 × 8)	1
	2151056	Wind Guide Plate	1
	110013	Screw(M4-0.7 × 8)	2
	300043	Washer	2
	2049401	Serial Number Plate	1
	000726	Rivet	2

Page 8

Yamato AZ8000G parts on page 8

Ref	Part number	Part name	Qty
2	2	SCREW
3	3	SCREW
4	4	BRACKET
5	5	SCREW
6	6	WASHER
7	7	COVER
8	8	SCREW
9	9	WASHER
10	10	BRACKET
11	11	SCREW
12	12	RING
13	13	PLUG
14	14	COVER
15	15	SCREW
16	16	LABEL
17	17	LABEL
18	18	BODY
19	19	BRACKET
20	20	COVER
21	21	SCREW
22	22	ROD
23	23	SPRING
24	24	SPRING
25	25	SPRING
26	26	SCREW
27	27	COVER
28	28	SCREW
29	29	COVER
30	30	PLATE
31	31	BRACKET
32	32	SCREW

Page 9 — MISCELLANEOUS COVERS(2)

Yamato AZ8000G parts on page 9

Ref	Part number	Part name	Qty
1	2150016	Side Cover
2	110013	Screw(M4-0.7 × 8)
3	110013	Screw(M4-0.7 × 8)[M4-0.7 × 5.4]
4	2150018	Eye Guard Holder
5	170032	Screw(M4-0.7 × 5)
6	000010	Conical Spring Washer
7	2150125	Eye Guard
8	110076	Screw(M3-0.5 × 6)
9	000444	Washer
10	2150023	Needle Bar Oil Defender
11	110012	Screw(M4-0.7 × 5)
12	2150024	Needle Bar Oil Seal
13	190015	Screw(M14-2 × 6)
14	2150025	Logo Plate
15	110106	Screw(M4-0.7 × 8)
16	390167	"AZ-G" Logo Mark
17	390165	Brand Name Plate(68mm)(Green)
18	390166	Brand Name Plate(83mm)(Green)
19	2100538	Front Cover Latch Spring
20	0024446	Front Cover Hook
21	001203	Screw(6/64-40 × 4.5)
22	0020016	Front Cover Hinge Pin
23	003637	Screw(1/8-44 × 2.5)
24	2100024	Front Cover(Right)
25	0024095	Front Cover Hinge Spring
26	2151055	Front Cover Hinge
27	2100534	Chip Guard(Openable)
28	110003	Screw(M3.5-0.6 × 6)
29	2129420	Model Plate(Green)
30	----	Threading Chart(See the Table)
31	2100856	Front Cover Latch
32	110054	Screw(M3-0.5 × 3.5)
	390650	390650
	390651	390651

Page 10

Yamato AZ8000G parts on page 10

Ref	Part number	Part name	Qty
3	3	Screw
4	4	Bushing
1	1	Cover
2	2	Gasket
7	7	Screw
6	6	Housing
5	5	O-ring
19	19	Screw
18	18	Cover
21	21	Gasket
20	20	Gasket
7	7	Screw
22	22	Plug
17	17	Pin
14	14	Washer
11	11	Plug
23	23	Cover
24	24	Gasket
25	25	Screw
11	11	Plug
10	10	Screw
15	15	Spring
14	14	Washer
13	13	Bearing
12	12	Shaft

Page 11 — MISCELLANEOUS COVERS(3)

Yamato AZ8000G parts on page 11

Ref	Part number	Part name	Qty
1	2100035	Feed Mechanism Cover
2	2100921	Feed Mechanism Cover Gasket
3	110048	Screw(M4-0.7 × 10)
4	2100047	Rubber Cushion
5	2110027	O-ring(P52)
6	2110026	Ball Bearing Holder
7	110013	Screw(M4-0.7 × 8)
8	2100318	Fan Cover
9	110012	Screw(M4-0.7 × 5)
10	150004	Screw(M4-0.7 × 6)
11	2100961	Seal Plug
12	2150022	Pushbutton
13	2100861	Oil Seal
14	0033024	Retaining Ring
15	0068517	Pushbutton Spring
16	330008	Seal Plug
17	330000	Seal Plug
18	2150017	Fabric Guide Plate
19	110064	Screw(M4-0.7 × 8)
20	2100918	Tail Cover Gasket
21	2100037	Tail Cover
22	2150069	Seal Plug
23	2100873	Ball Bearing Housing
24	2100874	Ball Bearing Housing Gasket
25	130003	Screw(M4-0.7 × 7.3)

Page 12

Yamato AZ8000G parts on page 12

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato AZ8000G parts on page 13

Ref	Part number	Part name	Qty
	2160122	Thread Guide Plate
	110013	Screw(M4-0.7 × 8)
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0024157	Lower Looper Thread Tension Spring
	0020118	Thread Tension Spring Retainer
	000178	Felt
	0031111	Tension Disc
	000177	Felt
	190016	Tension Post(Short)
	0032962	Tension Disc Eyelet
	0032952	Upper Looper Thread Tension Spring
	0032971	Needle Thread Tension Spring
	0024156	Needle Thread Tension Spring
	2150116	Tension Disc Eyelet for Needle Thread
	2150030	Oil Container
	2150031	Oil Container Plug
	310105	Felt
	2150032	Felt Holder
	110013	Screw(M4-0.7 × 8)
	2150124	Needle Thread Eyelet Holder
	110001	Screw(M4-0.7 × 5.4)
	2150115	Needle Thread Eyelet(Right)
	006035	Screw(9/64-40 × 7)
	000644	Spring Washer
	000322	Nut
	2150114	Needle Thread Eyelet(Left)
	2150110	Needle Thread Pull-off
	110073	Screw(M4-0.7 × 7.5)
	000653	Knock Pin
	2150111	Thread Retainer Plate Support
	2150112	Thread Retainer Plate
	2150132	Thread Retainer Spring
	170049	Screw(M2-0.4 × 4)
	2150027	Looper Holder Cover
	110009	Screw(M4-0.7 × 8)
	0093303	Looper Driving Shaft Oil Seal
	2100229	Looper Holder Cover Spacer(Rubber)
	2150119	Looper Thread Eyelet(Left)
	110035	Screw(M4-0.7 × 10)
	2150123	Thread Eyelet Support
	2150120	Lower Looper Thread Eyelet
	2150121	Upper Looper Thread Eyelet
	000014	Washer
	110026	Screw(M3-0.5 × 6)
	0022215	Looper Thread Pipe

Page 14

Yamato AZ8000G parts on page 14

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	SCREW
3	3	FAN
4	4	SCREW
5	5	COVER
6	6	NUT
7	7	BEARING
8	8	COLLAR
9	9	COLLAR
10	10	PULLEY
11	11	SHAFT
12	12	CLAMP
13	13	SCREW
14	14	RING
15	15	BEARING
16	16	BRACKET
17	17	COLLAR
18	18	BRACKET
19	19	BEARING
20	20	COLLAR
21	21	SHAFT
22	22	SCREW
23	23	WASHER
24	24	SHAFT
25	25	RING
26	26	PIN
27	27	COLLAR
28	28	BRACKET
29	29	BEARING
30	30	COLLAR
31	31	COLLAR
32	32	COLLAR
33	33	RING
34	34	COLLAR
35	35	SHAFT
36	36	SHAFT

Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Yamato AZ8000G parts on page 15

Ref	Part number	Part name	Qty
	2150214	Machine Pulley	1
	160007	Screw(M6-1 × 6)	6
	2110181	Oil Cooling Fan	1
	160001	Screw(M4-0.7 × 4)	5
	2110184	Wave Washer	1
	2110183	Mechanical Oil Shield	1
	0093090	Crankshaft Ball Bearing(Right)	1
	3100129	Bearing Adapter	1
	2150096	Oil Pump Driving Worm	1
	2150038	Crankshaft Bushing	1
	2150100	Crankshaft	1
	2100111	Crankshaft Counterweight	1
	110036	Screw(M3-0.5 × 6.5)	2
	160027	Screw(M3-0.5 × 3)	5
	2100872	Crankshaft Ball Bearing(Left)	1
	2150039	Crankshaft Bushing	1
	2100105	Upper Knife Driving Shaft Bushing(Right)	1
	2150043	Upper Knife Feed Bar Driving Shaft Bushing	2
	2100117	Upper Knife Driving Shaft Oil Seal	1
	2150049	Needle Bar Driving Shaft Bushing(Right)	1
	2150048	Needle Bar Driving Shaft Bushing(Left)	1
	003636	Cap Screw(5/16-32 × 3.5)	1
	000526	Gasket	1
	2150040	Needle Bar Bushing(Upper)	1
	310109	Oil Wick	1
	2150041	Needle Bar Bushing(Lower)	1
	2150046	Upper Looper Driving Shaft Bushing(Front)	1
	2150047	Upper Looper Driving Shaft Bushing(Rear)	1
	2100272	Looper Driving Shaft Oil Seal	1
	2150044	Lower Looper Driving Shaft Bushing(Front)	1
	2150045	Lower Looper Driving Shaft Bushing(Rear)	1
	2150042	Feed Bar Driving Shaft Bushing(Left)	1
	2150069	Seal Plug	1
	2100098	Control Lever Shaft Bushing	1
	2150050	Needle Bar & Needle Bar Bushing, C. Set	1
	2100642	Needle Bar	1

Page 16

Yamato AZ8000G parts on page 16

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	PIN
4	4	SCREW
5	5	BRACKET
6	6	SCREW
7	7	SPRING
8	8	SPRING
9	9	BRACKET
10	10	TUBE
11	11	WASHER
12	12	BRACKET
13	13	SCREW
14	14	BRACKET
15	15	PIN
16	16	PIN
17	17	BRACKET
18	18	SCREW
19	19	SCREW
20	20	ROD
21	21	BRACKET
22	22	NEEDLE
23	23	SPRING
24	24	BRACKET
25	25	BRACKET
26	26	PIN
27	27	SCREW
28	28	PLATE
29	29	SCREW
30-1	30-1	SPRING
30-2	30-2	SPRING
31	31	SCREW
32	32	BASE
33	33	SCREW
34	34	BUSHING
35	35	BRACKET
36	36	SCREW
37	37	BRACKET
38	38	BALL JOINT
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	BRACKET
44	44	BRACKET
45	45	PIN
46	46	ROD
47	47	SCREW
48	48	WASHER
49	49	BRACKET

Page 17 — NEEDLE BAR DRIVING MECHANISM

Yamato AZ8000G parts on page 17

Ref	Part number	Part name	Qty
	2150105	Needle Bar Driving Connecting Rod
	120049	Screw(M4-0.7 × 16)
	2100144	Needle Bar Driving Connecting Rod Pin
	160002	Screw(M4-0.7 × 5)
	2100899	Needle Bar Driving Lever
	120006	Screw(M6-1 × 12)
	2100137	Collar(12 × 20 × 10mm)
	160003	Screw(M5-0.8 × 5)
	2150054	Needle Bar Crank Arm, C. Set
	2150053	Needle Bar Driving Shaft
	2100136	Needle Bar Crank Arm
	300008	Washer
	140003	Screw(M6-1 × 18)
	2100138	Needle Bar Connecting Link
	2100176	Needle Bar Connecting Link Pin
	310089	Oil Wick
	2150051	Needle Bar Connecting Bracket
	110006	Screw(M3.5-0.6 × 10)
	160016	Screw(M4-0.7 × 4.5)
	2100642	Needle Bar
	2159102	Needle Clamp(Y)
	003637	Screw(1/8-44 × 2.5)
	2150057	Stitch Plate Support Stay, C. Set
	2150058	Stitch Plate Support Stay
	000035	Roll Pin
	110009	Screw(M4-0.7 × 8)
	2100502	Stitch Plate Support(Rear)
	110001	Screw(M4-0.7 × 5.4)
	2108004	Stitch Plate(Y5)
	2108005	Stitch Plate(Y6)
	005345	Screw(1/16-40 × 8.3)
	2100145	Stitch Plate Support(Front)
	110011	Screw(M5-0.8 × 10)
	0032604	Rubber Cushion
	2109200	Needle Guard(Front)
	110002	Screw(M3-0.5 × 5)
	2150035	HR Unit, Complete Set
	3100370	Tube Joint
	2100152	Oil Tube(70mm)
	310005	Oil Wick
	2100533	HR Felt Holder
	310001	HR Felt
	2100535	HR Felt Holder Bracket, C. Set
	2100536	HR Felt Holder Bracket
	000393	Roll Pin
	110013	Screw(M4-0.7 × 8)
	320008	Fitting Stud(Short)
	000567	Seal
	2150150	HR Unit Bracket

Page 18

Yamato AZ8000G parts on page 18

Ref	Part number	Part name	Qty
6	6	SCREW
7	7	BRACKET
5	5	BRACKET
8	8	SPRING
3	3	SHAFT
4	4	SCREW
1	1	BRACKET
2	2	SCREW
9	9	SHAFT
10	10	PIN
11	11	BRACKET
12	12	SCREW
13	13	LEVER
14	14	WASHER
15	15	SCREW
16	16	CAP
17	17	PLATE
18	18	SCREW
19	19	CAP
20	20	COVER
21	21	SCREW
22	22	SCREW
23	23	SHAFT
24	24	SPRING
25	25	SHAFT
26	26	SCREW
27	27	PIN
28	28	PLATE
29	29	BRACKET
30	30	SCREW

Page 19 — KNIFE DRIVING MECHANISM

Yamato AZ8000G parts on page 19

Ref	Part number	Part name	Qty
	2100160	Upper Knife Driving Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	2
	2100173	Driving Lever Pin	1
	160002	Screw(M4-0.7 × 5)	1
	2100162	Upper Knife Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	2100161	Collar(10 × 19 × 9mm)	1
	160003	Screw(M5-0.8 × 5)	2
	2150060	Upper Knife Driving Shaft	1
	2100165	Upper Knife Holder Positioner	1
	2100164	Upper Knife Holder(Flat Type)	1
	110035	Screw(M4-0.7 × 10)	1
	0020496	Upper Knife(Flat Type)	1
	000532	Washer	1
	110004	Screw(M3-0.6 × 8)	1
	0093864	Seal Plug	1
	2150020	Lower Knife Holder Spring Stop	1
	110012	Screw(M4-0.7 × 5)	3
	2100174	Cloth Plate Rubber Cushion	1
	2150019	Front Cover	1
	110001	Screw(M4-0.7 × 5.4)	2
	2100009	Cloth Plate Spring Pin	1
	2150021	Lower Knife Holder Locking Plate	1
	0032919	Lower Knife Holder Spring	1
	2100166	Lower Knife Holder	1
	110046	Screw(M5-0.8 × 12)	1
	000688	Guide Pin	1
	2100167	Lower Knife	1
	2100168	Lower Knife Clamp	1
	140014	Screw(M4-0.7 × 8)	1

Page 20

Yamato AZ8000G parts on page 20

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Nut
3	3	Spring
4	4	Shaft
5	5	Lever
6	6	Pin
7	7	Lever
8	8	Lever
9	9	Lever
10	10	Spring
11	11	Lever
12	12	Screw
13	13	Lever
14	14	Clip
15	15	Screw
16	16	Lever
17	17	Screw
18	18	Lever
19	19	Bracket
20	20	Screw
21	21	Lever
22	22	Screw
23	23	Nut
24	24	Spring
25	25	Bush
26	26	Screw
27	27	Shaft
28	28	Shaft
29	29	Lever
30	30	Lever
31	31	Screw
32-1	32-1	Spring
32-2	32-2	Spring
33	33	Lever
34	34	Lever
35	35	Lever
36	36	Screw
37	37	Presser Foot
38	38	Base
39	39	Screw
40-1	40-1	Presser Foot
40-2	40-2	Presser Foot
41	41	Lever
42	42	Washer
43	43	Screw
44	44	Bracket
45	45	Screw

Page 21 — PRESSER FOOT MECHANISM

Yamato AZ8000G parts on page 21

Ref	Part number	Part name	Qty
1	190088	Adjusting Screw(M10-0.75 × 30)	1
2	100073	Lock Nut	1
3	2150709	Presser Spring	1
4	2150145	Presser Bar	1
5	2100580	Presser Arm Positioning Guide Pin	1
6	340050	Spring Pin	1
7	2150146	Presser Arm Stop	1
8	110012	Screw(M4-0.7 × 5)	1
9	2150147	Presser Foot Release Lever	1
10	2150148	Presser Foot Release Lever Spring	1
11	170045	Screw(M4-0.7 × 5)	1
12	180001	Screw(M4-0.7 × 4.5)	1
13	2150154	Presser Foot Lifter Lever	1
14	000487	Wave Washer	1
15	170047	Screw(M8-1.25 × 10)	1
16	2150138	Presser Foot Lifter Lever Stop	1
17	120010	Screw(M6-1 × 10)	1
18	2100197	Presser Foot Lifter Lever Link	1
19	2100518	Presser Foot Shaft Collar	1
20	120017	Screw(M5-0.8 × 15)	1
21	2100192	Intermediate Lever	1
22	110065	Stop Screw(M4-0.7 × 12)	1
23	100001	Lock Nut	1
24	2150139	Presser Foot Lifter Lever Spring	1
25	2100099	Presser Foot Shaft Bushing	1
26	160007	Screw(M6-1 × 6)	1
27	2150140	Presser Arm, Complete Set	1
28	2100189	Presser Foot Shaft	1
29	2150141	Presser Arm	1
30	2100199	Presser Arm Hinge Pin	1
31	160001	Screw(M4-0.7 × 4)	1
32-1	2157057	Presser Foot, C. Set(Y5)	1
32-2	2157058	Presser Foot, C. Set(Y6)	1
33	2157000	Presser Foot Hinge	1
34	110004	Screw(M3.5-0.6 × 8)	1
35	2157040	Presser Foot Half-stay	1
36	110050	Screw(M3.5-0.6 × 4.5)	1
37	2157020	Presser Foot(Lower)	1
38	0034535	Thread Chain Guide	1
39	004237	Screw(3/32-56 × 2.6)	1
40-1	2157205	Presser Foot Stitch Tongue(Y5)	1
40-2	2157206	Presser Foot Stitch Tongue(Y6)	1
41	2107643	Finger Guard	1
42	000444	Washer	1
43	005036	Screw(1/8-44 × 5.6)	1
44	0020271	Thread Chain Cutting Knife	1
45	004097	Screw(3/32-56 × 4.2)	1

Page 22

Yamato AZ8000G parts on page 22

Ref	Part number	Part name	Qty
2	2	Screw
1	1	Bearing Holder
3	3	Washer
4	4	Connecting Rod
5	5	Screw
6	6	Shaft
7	7	Washer
8	8	Washer
9	9	Bearing
10	10	Screw
13	13	Housing
14	14	Housing
15	15	Bracket
16	16	Screw
17	17	Screw
18	18	Bearing
19	19	Lever
20	20	Washer
21	21	Screw
22	22	Pin
23	23	Screw
24	24	Felt
25	25	Rod
26	26	Bushing
27	27	Bearing
28	28	Washer
29	29	Spring
30	30	Screw
31	31	Pin
32	32	Screw
33	33	Clip
34	34	Lever
35	35	Washer
36	36	Screw
37	37	Housing
11	11	Bracket
12	12	Screw
27	27	Bearing
28	28	Washer
25	25	Rod
26	26	Bushing
19	19	Lever
20	20	Washer
21	21	Screw
22	22	Pin
23	23	Screw
24	24	Felt
11	11	Bracket
12	12	Screw
34	34	Lever
35	35	Washer
36	36	Screw

Page 23 — UPPER LOOPER DRIVING MECHANISM

Yamato AZ8000G parts on page 23

Ref	Part number	Part name	Qty
	2100900	Looper Driving Lever Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	4
	2100088	Connecting Rod Swing-proof	2
	2150071	Upper Looper Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	2150070	Looper Driving Shaft	1
	2150072	Driving Shaft Thrust Ring	1
	2150075	Driving Shaft Thrust Ring	1
	2100161	Collar(10 × 19 × 9mm)	1
	160001	Screw(M4-0.7 × 4)	2
	2150130	Upper Looper Thread Pull-off	1
	110009	Screw(M4-0.7 × 8)	2
	2150085	Upper Looper Bar Crank Arm, C. Set	1
	2150084	Upper Looper Bar Guide Bushing	1
	2100227	Upper Looper Bar Guide Cover	1
	130001	Screw(M2.5-0.45 × 6)	1
	110071	Screw(M2.5-0.45 × 6)	1
	2150089	Upper Looper Bar Guide, Complete Set	1
	2100221	Upper Looper Bar Crank Arm	1
	300008	Washer	1
	140004	Screw(M6-1 × 16)	1
	2100903	Upper Looper Bar Crank Arm Pin	1
	160002	Screw(M4-0.7 × 5)	1
	310089	Oil Wick	1
	2150080	Upper Looper Bar	1
	000029	Seal Plug	1
	2100892	Upper Looper Bar Guide	1
	310065	Oiling Felt	1
	2109322	Upper Looper(for Needle Size #9~14)	1
	210009	Screw(1/8-44 × 3.2)	1
	000779	Standard Pin	1
	120013	Screw(M6-1 × 15)	2
	2100854	Upper Looper Supplementary Thread Eyelet	1
	2150117	Lower Looper Thread Pull-off	1
	000014	Washer	1
	110002	Screw(M3-0.5 × 5)	1
	2150079	Upper Looper Bar, C. Set	1

Page 24

Yamato AZ8000G parts on page 24

Ref	Part number	Part name	Qty
1	1	BEARING BRACKET
2	2	SCREW
3	3	WASHER
4	4	SHAFT
5	5	SCREW
6	6	WASHER
7	7	BEARING
8	8	SCREW
9	9	SHAFT
10	10	LEVER
11	11	NUT
12	12	BOLT
13	13	BRACKET
14	14	SCREW
15	15	LEVER
16	16	LEVER
17	17	SCREW
18	18	SCREW
19	19	WASHER

Page 25 — LOWER LOOPER DRIVING MECHANISM

Yamato AZ8000G parts on page 25

Ref	Part number	Part name	Qty
1	2100215	Looper Driving Lever Connecting Rod
2	120049	Screw(M4-0.7 × 16)
3	2100088	Connecting Rod Swing-proof
4	2150076	Lower Looper Driving Lever
5	120006	Screw(M6-1 × 12)
6	2100902	Driving Shaft Thrust Ring
7	2100161	Collar(10 × 19 × 9mm)
8	160003	Screw(M5-0.8 × 5)
9	2100219	Looper Driving Shaft
10	2100211	Lower Looper Holder Arm
11	300008	Washer
12	140002	Screw(M6-1 × 14)
13	2150118	Thread Pull-off
14	110009	Screw(M4-0.7 × 8)
15	2109347	Lower Looper
16	2109201	Needle Guard(Rear)
17	110036	Screw(M3-0.5 × 6.5)
18	180014	Screwed Pin(M3-0.5 × 4.5)
19	300106	Conical Spring Washer

Page 26

Yamato AZ8000G parts on page 26

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	BRACKET
4	4	WASHER
5	5	NUT
6	6	WASHER
7	7	WASHER
8	8	E-RING
9	9	BRACKET
10	10	BUSHING
11	11	SCREW
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	BUSHING
17	17	SCREW
18	18	SHAFT
19	19	BRACKET
20	20	SLEEVE
21	21	SCREW
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	PLATE
26	26	SCREW
27	27	BRACKET
28	28	BRACKET
29	29	E-RING
30	30	SCREW
31	31	BRACKET
32	32	BRACKET
33	33	SCREW
34	34	PIN
35	35	SPRING
36	36	O-RING
37	37	LEVER
38	38	WASHER
39	39	WASHER
40	40	KNOB
41	41	SCREW
42	42	BRACKET
43	43	SCREW
44	44	NUT
45	45	SCREW
46	46	SCREW
47	47	NUT
48	48	SPRING
49	49	WASHER

Page 27 — FEED DRIVING CONTROL MECHANISM

Yamato AZ8000G parts on page 27

Ref	Part number	Part name	Qty
	2150064	Main Feed Bar Lever
	120006	Screw(M6×12)
	2100251	Main Feed Bar Lever Pin
	300000	Washer
	100002	Nut
	000669	Washer
	2150075	Thrust Plate
	0095027	Retaining Ring
	2100248	Main Feed Bar Connection
	2100249	Connection Bushing
	140001	Screw(M5×0.5×12)
	2100266	Feed Bar, Complete Set
	2100242	Main Feed Bar
	2100241	Differential Feed Bar
	2100243	Differential Feed Bar Connection
	2100244	Connection Bushing
	140000	Screw(M5×0.5×15.5)
	2150065	Feed Bar Driving Shaft
	2150066	Feed Bar Driving Shaft Lever
	2100268	Connecting Rod Pin
	160007	Screw(M6×6)
	2100671	Differential Rocker, Complete Set
	2100672	Differential Rocker
	2100673	Differential Regulating Slider
	2100674	Differential Regulating Slider Cap
	110033	Screw(M3×0.5×6)
	2100269	Differential Lever(Right), C. Set
	2100252	Slider Link
	0068202	Retaining Ring
	2100253	Slider Link Pin
	2100262	Differential Lever(Right)
	2100267	Collar(10×17×8mm)
	160001	Screw(M4×0.7×4)
	000690	Spring Pin
	2100256	Differential Lever Spring
	0020538	O-ring(P7)
	2100263	Differential Lever(Left)
	000528	Washer
	000561	Conical Spring Washer
	100000	Adjusting Nut
	190001	Adjusting Screw(M6×11.5, M4.5×0.5×4)
	2100271	Differential Feed Graduation
	110016	Screw(M4×0.7×15)
	0020350	Differential Lever Stop
	110017	Screw(M5×0.8×8)
	2100257	Adjusting Screw
	2100264	Adjusting Block
	2100259	Adjusting Block Spring
	0034293	Retaining Ring

Page 28

Yamato AZ8000G parts on page 28

Ref	Part number	Part name	Qty
	1	BRACKET
	2	BRACKET
	3	SCREW
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	BRACKET
	9	SCREW
	10	SCREW
	11	BRACKET
	12	SCREW
	13	BRACKET
	14	WASHER
	15	SCREW
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	BRACKET
	22	BRACKET
	23	SCREW
	24	SCREW
	25	WIRE
	26	BRACKET
	27	GEAR
	28	SCREW
	29	SCREW
	30-1	BRACKET
	30-2	BRACKET
	31	BRACKET
	32	BRACKET
	33	SCREW
	34	COVER
	35	SCREW

Page 29 — FEED DRIVING MECHANISM

Yamato AZ8000G parts on page 29

Ref	Part number	Part name	Qty
	2100865	Feed Bar Guide Support
	110064	Screw(M4-0.7 × 8)
	110004	Screw(M3.5-0.6 × 8)
	2100866	Feed Bar Shield(Front)
	2100867	Feed Bar Shield(Rear)
	2100869	Feed Bar Shield Guide
	2100870	Feed Bar Guide
	2100868	Feed Bar Shield(Upper)
	2150063	Feed Bar Guide Bushing
	160007	Screw(M6-1 × 6)
	2100602	Feed Bar Block(Rear) Shaft
	160001	Screw(M4-0.7 × 4)
	2100283	Feed Bar Block(Rear)
	2100281	Feed Bar Block(Rear) Lid
	130002	Screw(M3-0.5 × 6)
	2100280	Feed Bar Block(Front)
	2100284	Eccentric Pin Holder
	0020401	Feed Dog Eccentric Pin
	2100277	Feed Dog Eccentric
	2100278	Roller Bearing
	2100275	Feed Dog Driving Connecting Rod
	2100276	Feed Dog Regulating Eccentric
	180002	Screw(M3-0.5 × 4)
	110070	Screw(M3-0.5 × 6.3)
	2100289	Feed Dog Regulating Plate Spring
	0023473	Feed Dog Regulating Plate
	2100279	Feed Dog Regulating Gear
	180003	Screw(M5-0.8 × 8)
	160003	Screw(M5-0.8 × 5)
	2109005	Differential Feed Dog(Y5)
	2109009	Differential Feed Dog(Y6)
	2109006	Main Feed Dog
	2109067	Auxiliary Feed Dog
	110026	Screw(M3-0.5 × 6)
	2150067	Connecting Rod Cover
	130003	Screw(M4-0.7 × 7.3)

Page 30

Yamato AZ8000G parts on page 30

Ref	Part number	Part name	Qty
	1	PUMP ASSEMBLY
	2	GEAR
	3	SCREW
	4	SCREW
	6	WASHER
	7	TUBE
	8	FITTING
	9	CLAMP
	10	TUBE
	11	BOLT
	12	FITTING
	13	NIPPLE
	14	TUBE
	15	NIPPLE
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	TUBE
	22	TUBE
	23	PLUG
	24	BRACKET ASSEMBLY
	25	BRACKET
	26	O-RING
	27	PIN
	28	SPRING
	29	SPRING
	30	NUT
	31	HOUSING
	32	SCREW
	33	O-RING
	34	FILTER ELEMENT
	35	NIPPLE
	36	BRACKET ASSEMBLY
	37	BRACKET
	38	SPRING
	39	BRACKET ASSEMBLY
	40	BRACKET
	41	PIN
	42	SPRING
	43	BRACKET
	44	O-RING
	45	BOLT
	46	FITTING

Page 31 — LUBRICATING MECHANISM

Yamato AZ8000G parts on page 31

Ref	Part number	Part name	Qty
	2100935	Oil Pump, Complete Set	1
	2100363	Worm Wheel	1
	160001	Screw(M4-0.7 × 4)	4
	120049	Screw(M4-0.7 × 16)[M4-0.7 × 15]
	000567	Seal	1
	2150201	Oil Tube, Complete Set	1
	3100370	Oil Tube Fitting One Way End	4
	0031831	Oil Tube Clamp	7
	2150206	Oil Tube(4.6 × 6.4 × 220mm)	1
	320008	Oil Tube Fitting Stud(M6-1)	2
	2100958	Suction Tube, C. Set	1
	3100371	Oil Tube Fitting Two Way	1
	2100369	Oil Tube(4.6 × 6.4 × 36.5mm)	1
	2100957	Oil Filter	1
	2100926	Suction Pipe(Upper), C. Set	1
	2100927	Suction Tube(4 × 6 × 18mm)	1
	2100928	Suction Tube(2.5 × 4 × 60mm)	1
	2100929	Suction Pipe(Upper)	1
	310073	Felt	1
	2150202	Oil Tube, Complete Set	1
	2150207	Oil Tube(4.6 × 6.4 × 320mm)	1
	320009	Oil Tube Fitting Stud(Long)(M6-1)	1
	2150095	Oil Pressure Regulating Valve, C. Set	1
	2150094	Oil Pressure Regulating Valve	1
	0080503	Oil Pressure Regulating Ball	1
	0030748	Guide Pin	1
	2150097	Spring	1
	006861	Adjusting Screw(1/4-40 × 5)	1
	000419	Nut	1
	3100060	Oil Filter Cap	1
	110045	Screw(M4-0.7 × 12)	3
	3100061	O-ring(P42)	1
	3100345	Oil Filter	1
	3100329	Filter Housing	1
	2150055	Oil Pipe, C. Set	1
	2150056	Oil Pipe	1
	310081	Oil Wick	1
	2100896	Oil Pipe, C. Set	1
	2100895	Oil Pipe	1
	000456	Seal Plug	1
	310090	Oil Wick	1
	2100032	Oil Sight Gauge	1
	0020538	O-ring(P7)	1
	110053	Screw(M6-1 × 8)	1
	320012	Oil Tube Fitting Stud(1/4-40)

Page 32 — UPPER KNIFE(Angled Type)

Yamato AZ8000G parts on page 32

Ref	Part number	Part name	Qty
	1	UPPER KNIFE(Angled Type)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54

Page 33 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G

Yamato AZ8000G parts on page 33

Ref	Part number	Part name	Qty
	2100385	Upper Knife Holder	1
	0020491	Upper Knife	1
	2101435	Upper Knife Clamp	1
	2100354	Upper Knife Chip Guard	1
	140012	Screw(M4-0.7 × 18.5)	1
	2100349	Upper Knife Clamp Plate	1
	2100353	Upper Knife Stop	1
	110038	Screw(M2.5-0.45 × 4.5)	1
	000665	Washer	1
	2157086	Presser Foot, Complete Set(04)	1
	2157000	Presser Foot Hinge	1
	110004	Screw(M3.5-0.6 × 8)	1
	2107030	Presser Foot(Lower)	1
	2107004	Presser Foot Stitch Tongue(04)	1
	2107640	Finger Guard	1
	005036	Screw(1/8-44 × 5.6)	3
	2100050	Cloth Plate	1
	2150211	Cloth Plate(Lower)	1
	2100052	Rubber Cushion	1
	2108000	Stitch Plate(04)	1
	2109000	Differential Feed Dog	1
	2109001	Main Feed Dog	1
	2101027	Blind Hemming Guide, C. Set	1
	2101026	Overhanging Guide Hinge, C. Set	1
	0034867	Hemming Positioner	1
	000533	Washer	1
	007006	Screw(9/64-40 × 4)	1
	2101021	Blind-Hemming Edge Guide, C. Set	1
	2101020	Blind-Hemming Edge Guide	1
	009624	Screw(1/8-44 × 5.3)	1
	0022445	Swing-out Lever	1
	004150	Screw(11/64-40 × 5.2)	1
	000172	Conical Spring Washer	1
	000334	Nut	1
	0022446	Overhanging Guide Hinge Stop	1
	001331	Screw(9/64-40 × 3.8)
	0022447	Swing-out Lever Holder	1
	0022448	Swing-out Lever Stop	1
	0022435	Edge Guide Positioning Pin	2

Page 34

Yamato AZ8000G parts on page 34

Ref	Part number	Part name	Qty
	1	UPPER KNIFE (Angled Type)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54

Page 35 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G

Yamato AZ8000G parts on page 35

Ref	Part number	Part name	Qty
	0022436	Positioning Pin Holder Spring
	001225	Screw(1/8-44 × 2.8)
	001196	Screw(1/8-44 × 6)
	2101022	Edge Guide Adjusting Holder
	004106	Screw(9/64-40 × 6.5)
	007619	Screw(9/64-40 × 6.3)
	0022443	Adjusting Screw Guide Piece
	006444	Adjusting Screw(1/8-44 × 12.9)
	0022444	Edge Guide Adjusting Holder Cover
	110047	Screw(M4-0.7 × 10)
	0060297	Pin
	2157040	Presser Foot Half-stay
	110050	Screw(M3.5-0.6 × 4.5)
	2109320	Upper Looper

Page 36 — AZ8000G-M

Yamato AZ8000G parts on page 36

Ref	Part number	Part name	Qty
1	58	BRACKET
1	59	SCREW
1	3	SCREW
1	2	BRACKET
1	7	SCREW
1	6	BRACKET
1	5	BRACKET
1	4	BASE PLATE
1	8	BASE PLATE
1	9	FEED DOG
1	10	FEED DOG
1	60	BRACKET
11	16	SCREW
11	15	WASHER
12	7	SCREW
12	13	PRESSER FOOT
17	18	BRACKET
17	24	BRACKET
17	19	SCREW
17	32	BRACKET
17	33	SCREW
17	35	BRACKET
17	28	SCREW
17	37	BRACKET
17	29	LINK
17	31	SCREW
17	30	BRACKET
17	25	BRACKET
17	21	SCREW
17	22	WASHER
17	20	BRACKET
17	27	BRACKET
17	26	BRACKET
17	23	NUT
17	29	LINK
17	28	SCREW
17	38	SCREW
17	57	PIN
40	45	SCREW
40	46	BRACKET
40	42	PLATE
40	41	BRACKET
40	43	PLATE
40	44	BRACKET
40	47-1	SPRING
40	47-2	SPRING
40	48	NUT
40	49	WASHER
40	50	SCREW
39	51	COVER
39	53	SCREW
39	52	COVER
39	55	SCREW
39	54	ROD
39	56	BUSHING

Page 37 — AZ8000G-M EXCLUSIVE PARTS

Yamato AZ8000G parts on page 37

Ref	Part number	Part name	Qty
1	2157086	Presser Foot, Complete Set(O4)	1
2	2157000	Presser Foot Hinge	1
3	110004	Screw(M3.5-0.6 × 8)	1
4	2107030	Presser Foot(Lower)	1
5	2107004	Presser Foot Stitch Tongue(O4)	1
6	2107640	Finger Guard	1
7	005036	Screw(1/8-44 × 5.6)	3
8	2108032	Stitch Plate(O4)	1
9	2109000	Differential Feed Dog	1
10	2109001	Main Feed Dog	1
11	2101027	Blind-Hemming Guide, C. Set	1
12	2101026	Overhanging Guide Hinge, C. Set	1
13	0034867	Hemming Positioner	1
15	000533	Washer	1
16	007006	Screw(9/64-40 × 4)	1
17	2101021	Blind-Hemming Edge Guide, C. Set	1
18	2101020	Blind-Hemming Edge Guide	1
19	009624	Screw(1/8-44 × 5.3)	1
20	0022445	Swing-out Lever	1
21	004150	Screw(11/64-40 × 5.2)	1
22	004178	Conical Spring Washer	1
23	000334	Nut	1
24	0022446	Overhanging Guide Hinge Stop	1
25	001330	Screw(9/64-40 × 3.8)	1
26	0022447	Swing-out Lever Holder	1
27	0022448	Swing-out Lever Stop	1
28	0022435	Edge Guide Positioning Pin	2
29	0022436	Positioning Pin Holder Spring	2
30	001225	Screw(1/8-44 × 2.8)	1
31	001196	Screw(1/8-44 × 6)	3
32	2101022	Edge Guide Adjusting Holder	1
33	004106	Screw(9/64-40 × 6.5)	2
34	007619	Screw(9/64-40 × 6.3)	1
35	0022443	Adjusting Screw Guide Piece	1
36	006444	Adjusting Screw(1/8-44 × 12.9)	1
37	0022444	Edge Guide Adjusting Holder Cover	1
38	110047	Screw(M4-0.7 × 10)	2
39	2109911	B3 Device, Complete Set	1
40	2101133	Back Tack Cutting Unit	1

Page 38 — AZ8000G-M

Yamato AZ8000G parts on page 38

Ref	Part number	Part name	Qty
3	3	SCREW
2	2	BRACKET
58	58	PLATE
59	59	SCREW
7	7	SCREW
6	6	BRACKET
5	5	BRACKET
4	4	SPRING
8	8	NEEDLE PLATE
9	9	FEED DOG
10	10	FEED DOG
60	60	BRACKET
15	15	WASHER
16	16	SCREW
7	7	SCREW
13	13	PRESSER FOOT
18	18	BRACKET
19	19	SCREW
24	24	BRACKET
25	25	BRACKET
21	21	SCREW
22	22	WASHER
20	20	BRACKET
32	32	BRACKET
33	33	SCREW
34	34	SCREW
27	27	BRACKET
26	26	BRACKET
35	35	BLOCK
28	28	SCREW
23	23	NUT
29	29	LINK
37	37	BRACKET
31	31	SCREW
30	30	WASHER
38	38	SCREW
57	57	PIN
45	45	SCREW
46	46	PLATE
42	42	PLATE
43	43	PLATE
41	41	BRACKET
47-1	47-1	SPRING
47-2	47-2	SPRING
44	44	PIN
48	48	NUT
49	49	WASHER
50	50	SCREW
51	51	COVER
53	53	SCREW
52	52	COVER
55	55	SCREW
54	54	ROD
56	56	BUSH

Page 39 — AZ8000G-M EXCLUSIVE PARTS

Yamato AZ8000G parts on page 39

Ref	Part number	Part name	Qty
41	2101134	Thread Chain Cutting Knife Holder
42	0023184	Thread Chain Cutting Knife
43	0023169	Thread Chain Cutting Knife Holder Spacer
44	003637	Screw(1/8-44 × 2.5)
45	004205	Screw(11/64-40 × 18)
46	0024308	Thread Chain Holder
47	0023182	Thread Chain Holder Spring(Standard)
47-2	0033711	Thread Chain Holder Stronger(with Stringer Pressure)
48	000361	Adjusting Nut
49	000535	Washer
50	110044	Screw(M3.5-0.6 × 14)
51	2101048	Cloth Plate
52	2150211	Cloth Plate(Lower)
53	2100052	Rubber Cushion
54	0036905	Synchronizer Positioning Pin
55	110009	Screw(M4-0.7 × 8)
56	0081848	Synchronizer Cushion
57	0060297	Pin
58	2157040	Presser Foot Half-stay
59	110050	Screw(M3.5-0.6 × 4.5)
60	2109320	Upper Looper

Page 40

Yamato AZ8000G parts on page 40

Ref	Part number	Part name	Qty
	1-1	1-2
	3
	10
	2
	11
	12
	8
	7
	6
	5-1	5-2
	4
	9
	13-1	13-2
	03	only
	14
	15
	16

Page 41 — AZ8003G EXCLUSIVE PARTS

Yamato AZ8000G parts on page 41

Ref	Part number	Part name	Qty
1-1	2157049	Presser Foot, C. Set(O3)
1-2	2157050	Presser Foot, C. Set(O4)
2	2157000	Presser Foot Hinge
3	110004	Screw(M3.5-0.6 × 8)
4	2157020	Presser Foot(Lower)
5-1	2157199	Presser Foot Stitch Tongue(O3)
5-2	2157200	Presser Foot Stitch Tongue(O4)
6	2107643	Finger Guard
7	000444	Washer
8	005036	Screw(1/8-44 × 5.6)
9	0034535	Thread Chain Guide
10	004237	Screw(3/32-56 × 2.6)
11	2157040	Presser Foot Half-stay
12	110050	Screw(M3.5-0.6 × 4.5)
13-1	2108002	Stitch Plate(O3)
13-2	2108003	Stitch Plate(O4)
14	2109320	Upper Looper
15	0060297	Pin
16	2109007	Differential Feed Dog(O3)

Page 42 — 17

Yamato AZ8000G parts on page 42

Ref	Part number	Part name	Qty
1	AZ8016G	AZ8016G
2	2	2
3	3	3
6	6	6
5	5	5
4	4	4
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28

Page 43 — AZ8016G EXCLUSIVE PARTS

Yamato AZ8000G parts on page 43

Ref	Part number	Part name	Qty
1	2157185	Presser Foot, C. Set(O2)	1
2	2157002	Presser Foot Hinge	1
3	110004	Screw(M3.5-0.6 × 8)	1
4	0024505	Presser Foot(Lower)	1
5	0024421	Presser Foot Hinge Spring	1
6	004131	Screw(1/8-44 × 6)	1
7	0022156	Thread Chain Guide	1
8	004237	Screw(3/32-56 × 2.6)	1
9	0024506	Presser Foot Stitch Tongue	1
10	004138	Screw(1/8-44 × 5)	1
11	2108016	Stitch Plate, Complete Set	1
12	2108017	Stitch Plate	1
13	2108015	Stitch Plate Tongue	1
14	004204	Screw(3/32-100 × 2.2)	1
15	0025503	Stitch Plate Tongue Stop	1
16	001228	Screw(3/32-56 × 3.2)	1
17	2109017	DifferentialFeedDog(withRubberFace)	1
18	2109018	Main Feed Dog(with Rubber Face)	1
19	2109019	Auxiliary Feed Dog	1
20	000932	Rubber Cushion(Large)	1
21	000933	Rubber Cushion(Medium)	1
22	0023580	Upper Knife	1
23	2100346	Upper Knife Holder	1
24	180002	Screw(M3-0.5 × 4)	2
25	300040	Washer	1
26	2100177	Lower Knife Holder	1
27	2109320	Upper Looper	1
28	0060297	Pin	1

Page 44

Yamato AZ8000G parts on page 44

Ref	Part number	Part name	Qty
1	AZ8016G-5	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26

Page 45 — AZ8016G-5 EXCLUSIVE PARTS

Yamato AZ8000G parts on page 45

Ref	Part number	Part name	Qty
1	2157186	Presser Foot, C. Set(O2)
2	2157005	Presser Foot Hinge
3	110004	Screw(M3.5-0.6 × 8)
4	000331	Nut
5	003302	Screw(1/8-44 × 11)
6	2157031	Presser Foot Spring
7	003637	Screw(1/8-44 × 2.5)
8	2157022	Presser Foot(Lower)
9	280011	Screw(3/32-56 × 2)
10	0024506	Presser Foot Stitch Tongue(O2)
11	004138	Screw(1/8-44 × 5)
12	2157048	Thread Chain Guide
13	004237	Screw(3/32-56 × 2.6)
14	2158013	Stitch Plate, Complete Set
15	2158014	Stitch Plate
16	2108129	Stitch Plate Tongue
17	004182	Screw(3/32-56 × 2.5)
18	0060297	Pin
19	2109007	Differential Feed Dog
20	2109320	Upper Looper
21	2160100	Crankshaft
22	2150225	Upper Looper Driving Lever
23	2160051	Driving Shaft Thrust Ring
24	2150226	Lower Looper Driving Lever
25	2100900	Looper Driving Lever Connecting Rod
26	2150227	NeedleThread Pull-off

Page 46 — AZ8019G

Yamato AZ8000G parts on page 46

Ref	Part number	Part name	Qty
1	1	PRESSER BAR GUIDE
2	2	PRESSER BAR GUIDE HOLDER
3	3	SCREW
4	4	NEEDLE PLATE
5	5	NEEDLE PLATE
6	6	PRESSER FOOT
7	7	SCREW
8	8	BASE PLATE
9	9	SCREW
10	10	NEEDLE PLATE
11	11	NEEDLE BAR
12	12	NEEDLE BAR CONNECTING PIECE
13	13	NEEDLE BAR CONNECTING PIECE
14	14	SCREW
15	15	SCREW
16	16	FEED DOG
17	17	FEED DOG
18	18	WASHER
20-1	20-1	COVER
20-2	20-2	COVER
21	21	BRACKET
22	22	BRACKET
23	23	BASE PLATE
24	24	SCREW
25	25	WASHER
26	26	SCREW
27	27	WASHER
28	28	BASE PLATE
29	29	SCREW
30	30	SCREW
31	31	NUT
32	32	BRACKET
33	33	SCREW
34	34	BRACKET
35	35	SCREW
36	36	PRESSER BAR GUIDE
37	37	SCREW
38	38	PRESSER FOOT
39	39	NEEDLE BAR CONNECTING PIECE

Page 47 — AZ8019G EXCLUSIVE PARTS

Yamato AZ8000G parts on page 47

Ref	Part number	Part name	Qty
	2157096	Presser Foot, Complete Set(O5)	1
	2157000	Presser Foot Hinge	1
	110004	Screw(M3.5-0.6 × 8)	1
	2107178	Presser Foot(Lower)	1
	2107179	Presser Foot Stitch Tongue(O5)	1
	2107640	Finger Guard	1
	005036	Screw(1/8-44 × 5.6)	1
	2107180	Thread Chain Guide	1
	004237	Screw(3/32-56 × 2.6)	1
	2108107	Stitch Plate	1
	2109046	Main Feed Dog, Complete Set	1
	2109047	Main Feed Dog	1
	2109048	Main Feet Dog Positioner	1
	004139	Screw(3/32-56 × 3)	1
	004182	Screw(3/32-56 × 2.5)	1
	2109045	Differential Feed Dog	1
	2109042	Auxiliary Feed Dog	1
	000444	Washer	1
	2101378	Folder Plate, C. Set	1
	2101371	Folder(80mm)(Extra )	1
	2101379	Folder(60mm)(Extra )	1
	2101372	Folder Plate(Upper)	1
	2101373	Folder Plate(Middle)	1
	2101374	Folder Plate(Lower)	1
	005049	Screw(M5-0.8 × 8)	6
	300000	Washer	8
	004100	Screw(11/64-40 × 3.2)	1
	000010	Conical Spring Washer	1
	2101375	Folder Plate Support(Upper)	1
	009751	Screw(M5-0.8 × 10)	2
	110035	Screw(M4-0.7 × 10)	2
	000022	Nut	2
	2101377	Positioning Plate	1
	006202	Screw(M4-0.7 × 6)	1
	2101376	Folder Plate(Lower)	1
	110009	Screw(M4-0.7 × 8)	1
	2157040	Presser Foot Half-stay	1
	110050	Screw(M3.5-0.6 × 4.5)	1
	2109320	Upper Looper	1
	0060297	Pin	1

Page 48 — AZ8020G-X4, X5

Yamato AZ8000G parts on page 48

Ref	Part number	Part name	Qty
	1-1	1-1
	1-2	1-2
	2	2
	3	3
	4	4
	5-1	5-1
	5-2	5-2
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14-1	14-1
	14-2	14-2

Page 49 — AZ8020G-X4, X5 EXCLUSIVE PARTS

Yamato AZ8000G parts on page 49

Ref	Part number	Part name	Qty
1-1	2157054	Presser Foot, C. Set(X4)
1-2	2157055	Presser Foot, C. Set(X5)
2	2157000	Presser Foot Hinge
3	110004	Screw(M3.0-6 × 8)
4	2157020	Presser Foot(Lower)
5-1	2157208	Presser Foot Stitch Tongue(X4)
5-2	2157209	Presser Foot Stitch Tongue(X5)
6	2107643	Finger Guard
7	000444	Washer
8	005036	Screw(1/8-44 × 5.6)
9	0034535	Thread Chain Guide
10	004237	Screw(3/32-56 × 2.6)
11	2157040	Presser Foot Half-stay
12	110050	Screw(M3.5-0.6 × 4.5)
13	2159101	Needle Clamp(X)
14-1	2108006	Stitch Plate(X4)
14-2	2108014	Stitch Plate(X5)

Page 50 — AZ8025G

Yamato AZ8000G parts on page 50

Ref	Part number	Part name	Qty
15	3-1	3-2
5	16	10
8	14	9
7-1	4	11
13	7-2	6
5	17	15
14	16	10
4	9	8
13	11	18
19	6	12
2	20	1

Page 51 — AZ8025G EXCLUSIVE PARTS

Yamato AZ8000G parts on page 51

Ref	Part number	Part name	Qty
1	0024130	Tape Guide(Upper)	1
2	110012	Screw(M4-0.7 × 5)	2
3-1	2157118	Presser Foot, C. Set(Y5)	1
3-2	2157119	Presser Foot, C. Set(Y6)	1
4	2157000	Presser Foot Hinge	1
5	110004	Screw(M3.5-0.6 × 8)	1
6	2107631	Presser Foot(Lower)	1
7-1	2107650	Presser Foot Stitch Tongue(Y5)	1
7-2	2107651	Presser Foot Stitch Tongue(Y6)	1
8	2107643	Finger Guard	1
9	000444	Washer	1
10	005036	Screw(1/8-44 × 5.6)	1
11	2107670	Presser Foot Tape Guide	1
12	001230	Screw(3/32-56 × 3.8)	1
13	0034535	Thread Chain Guide	1
14	004237	Screw(3/32-56 × 2.6)	1
15	2157040	Presser Foot Half-stay	1
16	110050	Screw(M3.5-0.6 × 4.5)	1
17	2157116	Presser Foot, C. Set(X4)	1
18	2107652	Presser Foot Stitch Tongue(X4)	1
19	2159101	Needle Clamp(X)	1
20	2108006	Stitch Plate(X4)	1

Page 52

Yamato AZ8000G parts on page 52

Ref	Part number	Part name	Qty
1	5	BOLT
3	4	WASHER
11	11	SCREW
2	2	SHAFT
7	7	COLLAR
6	6	LINKAGE
8	8	PIN
7	7	COLLAR
9	9	LINKAGE
10	10	SCREW
11	11	SCREW
12	12	LINKAGE
13	13	SHAFT
14	14	COLLAR
34	34	COLLAR
33	33	SCREW
30	30	WASHER
29	29	COLLAR
27	27	SHAFT
28	28	COLLAR
15	16	BRACKET
17	17	BRACKET
18	18	SCREW
19	19	SCREW
20	29	COLLAR
30	30	WASHER
27	27	SHAFT
21	21	LINKAGE
22	22	WASHER
23	23	BOLT
24	24	PIN
25	25	WASHER
26	26	PIN
32	32	SCREW

Page 53 — AZ8032G, 8035G EXCLUSIVE PARTS (1)

Yamato AZ8000G parts on page 53

Ref	Part number	Part name	Qty
	2150052	Needle Bar Crank Arm, C. Set	1
	2150053	Needle Bar Driving Shaft	1
	2100136	Needle Bar Crank Arm	1
	300008	Washer	1
	140003	Screw(M6-1 × 18)	1
	2100138	Needle Bar Connecting Link	1
	2100176	Needle Bar Connecting Link Pin	2
	310089	Oil Wick	2
	2150059	Needle Bar Connecting Bracket	1
	110006	Screw(M3.5-0.6 × 10)	1
	160016	Screw(M4-0.7 × 4.5)	2
	2100946	Needle Bar Driving Lever	1
	2160050	Upper Looper Driving Lever	1
	2160051	Driving Shaft Thrust Ring	1
	2150086	Upper Looper Bar Crank Arm, C. Set	1
	2150084	Upper Looper Bar Guide Bushing	1
	2100227	Upper Looper Bar Guide Cover	1
	130001	Screw(M2.5-0.45 × 6)	1
	110071	Screw(M2.5-0.45 × 6)	1
	2150091	Upper Looper Bar Guide, C. Set	1
	2101089	Upper Looper Bar Crank Arm	1
	300008	Washer	1
	140004	Screw	1
	2100903	Upper Looper Bar Crank Arm Pin	1
	160002	Screw(M4-0.7 × 5)	1
	310089	Oil Wick	1
	2150080	Upper Looper Bar	1
	000629	Seal Plug	1
	2100892	Upper Looper Bar Guide	1
	310065	Oiling Felt	1
	210009	Screw(1/8-44 × 3.2)	1
	2109348	Lower Looper	1
	2150078	Lower Looper Driving Shaft Thrust Ring	1
	2150079	Upper Looper Bar, C. Set	1

Page 54

Yamato AZ8000G parts on page 54

Ref	Part number	Part name	Qty
1	1	1
2-1	2-1	2-1
2-2	2-2	2-2
3	3	3
4	4	4
5	5	5
6	6	6
7-1	7-1	7-1
7-2	7-2	7-2
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13-1	13-1	13-1
13-2	13-2	13-2
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24-1	24-1	24-1
24-2	24-2	24-2
24-3	24-3	24-3
25-1	25-1	25-1
25-2	25-2	25-2
26	26	26
27	27	27
28	28	28
29	29	29

Page 55 — AZ8032G, 8035G EXCLUSIVE PARTS(2)

Yamato AZ8000G parts on page 55

Ref	Part number	Part name	Qty
1	2169102	Needle Clamp(Y)	1
2-1	2108062	Stitch Plate(Y5)	1
2-2	2108063	Stitch Plate(Y6)	1
3	2109084	Differential Feed Dog(Y5, Y6)	1
4	2109086	Main Feed Dog	1
5	2109052	Auxiliary Feed Dog	1
6	2160019	Needle Thread Pull-off	1
7-1	2157118	Presser Foot, C. Set(Y5)	1
7-2	2157119	Presser Foot, C. Set(Y6)	1
8	2157000	Presser Foot Hinge	1
9	110004	Screw(M3.5-0.6 × 8)	1
10	2157040	Presser Foot Half-stay	1
11	110050	Screw(M3.5-0.6 × 4.5)	1
12	2107631	Presser Foot(Lower)	1
13-1	2107650	Presser Foot Stitch Tongue(Y5)	1
13-2	2107651	Presser Foot Stitch Tongue(Y6)	1
14	2107643	Finger Guard	1
15	000444	Washer	1
16	005036	Screw(1/8-44 × 5.6)	1
17	2107670	Presser Foot Tape Guide	1
18	001230	Screw(3/32-56 × 3.8)	1
19	0034535	Thread Chain Guide	1
20	004237	Screw(3/32-56 × 2.6)	1
21	0024130	Tape Guide(Upper)	1
22	110012	Screw(M4-0.7 × 5)	2
23	2101091	Lower Knife	1
24-1	2108043	Stitch Plate(Y5)	1
24-2	2108044	Stitch Plate(Y6)	1
24-3	2108045	Stitch Plate(Y7)	1
25-1	2109033	Differential Feed Dog(Y5)	1
25-2	2109030	Differential Feed Dog(Y6, Y7)	1
26	2109031	Main Feed Dog	1
27	2109032	Auxiliary Feed Dog	1
28	2109342	Upper Looper(for Needle Size #11~14)	1
29	--	Needle (System:DC × 27)	2

Page 56

Yamato AZ8000G parts on page 56

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19

Page 57 — AZ8039G EXCLUSIVE PARTS

Yamato AZ8000G parts on page 57

Ref	Part number	Part name	Qty
1	2157138	Presser Foot, C. Set(Y5)	1
2	2157000	Presser Foot Hinge	1
3	110004	Screw(M3.5-0.6 × 8)	1
4	2157020	Presser Foot(Lower)	1
5	2157205	Presser Foot Stitch Tongue(Y5)	1
6	2157030	Finger Guard	1
7	000444	Washer	1
8	005036	Screw(1/8-44 × 5.6)	1
9	2157045	Thread Chain Guide	1
10	001230	Screw(3/32-56 × 3.8)	1
11	2157046	Presser Foot Spring Setting Piece	1
12	110050	Screw(M3.5-0.6 × 4.5)	1
13	270011	Screw(3/32-56 × 1.8)	2
14	2107523	Presser Foot Spring	1
15	2109146	Stitch Plate(Y5)	1
16	2109038	Differential Feed Dog	1
17	2109052	Auxiliary Feed Dog	1
18	2159008	Differential Feed Dog(with Rubber Face)(Extra)	1
19	2109076	Main Feed Dog(with Rubber Face)(Extra)	1

Page 58

Yamato AZ8000G parts on page 58

Ref	Part number	Part name	Qty
	1	BRACKET
	2	BRACKET
	3	SCREW
	5	NUT
	6	BRACKET
	7	SCREW
	8	NUT
	9	BRACKET
	10	SCREW
	11	ROD
	12	BASE
	13	LEVER
	14	SCREW
	15	BRACKET
	16	BRACKET
	17	SCREW
	18	BRACKET
	19	ROD
	20	COLLAR
	21	SCREW
	22	BLOCK
	23	SPRING
	24	WASHER
	25	SCREW
	26	BRACKET
	27	STUD
	28	WASHER
	29	WASHER
	30	NUT
	31	BRACKET
	32	SCREW
	33	HANDLE
	34	NUT
	35	SPRING
	36	WASHER
	37	SCREW
	38	ROD
	39	COLLAR
	40	COLLAR
	41	BRACKET
	42	SCREW
	43	WHEEL
	44	SPRING
	45	SPRING

Page 59 — AZ8045G, 8045G/K2 EXCLUSIVE PARTS (1)

Yamato AZ8000G parts on page 59

Ref	Part number	Part name	Qty
	2159906	Ruffing Mechanism, C. Set(3)	1
	2101243	Connecting Plate(Short)	1
	170005	Screw(M4-0.7 × 6)	4
	100001	Nut	3
	2101241	Connecting Plate Lever	1
	170031	Screw(M5-0.8 × 8.5)	1
	100002	Nut	1
	2101242	Connecting Plate Lever Support	1
	110047	Screw(M4-0.7 × 10)	4
	2101244	Connecting Plate(Long)	1
	2101246	Ruffling Mechanism, C. Set(2)	1
	2101260	Ruffling Presser	1
	110001	Screw(M4-0.7 × 5.4)	3
	2101245	Ruffling Mechanism, C. Set(1)	1
	2101259	Ruffling Presser Lifter Shaft Lever	1
	160001	Screw(M4-0.7 × 4)	1
	2101248	Bracket Holder	1
	2101258	Ruffling Presser Lifter Shaft	1
	0020616	Stop Collar	1
	003637	Screw(1/8-44 × 25)	3
	2101249	Bracket Fixing Piece	1
	2101250	Bracket Spring Plate	1
	000538	Washer	1
	110031	Screw(M4-0.7 × 12)	1
	2101247	Bracket	1
	005599	Screw(1/4-40 × 14.5)	1
	000621	Conical Spring Washer	2
	000613	Washer	1
	000306	Nut	1
	2101252	Handle Holder	1
	170032	Screw(M4-0.7 × 5)	1
	2101255	Ruffling Swing-out Handle	1
	000234	Nut	1
	2101253	Swing-out Handle Holder Spring	1
	001123	Washer	3
	007627	Screw(M4-0.7 × 6)	3
	2101257	Ruffling Presser Shaft	1
	0094562	Collar(8 × 13 × 6mm)	1
	2101254	Lifter Lever Holder	1
	2101251	Ruffling Presser Lifter Lever	1
	110009	Screw(M4-0.7 × 8)	2
	0024084	Spring Cap	1
	2101268	Ruffling Presser Spring	1
	004125	Tension Post	1

Page 60 — AZ8045G-04/K2(2)

Yamato AZ8000G parts on page 60

Ref	Part number	Part name	Qty
1	AZ8045G-04/K2(2)	1
3	3	3
12	12	12
13	13	13
9	9	9
8	8	8
6	6	6
5	5	5
7	7	7
2	2	2
4	4	4
14	14	14
10	10	10
11	11	11
15	15	15

Page 61 — AZ8045G-04/K2 EXCLUSIVE PARTS (2)

Yamato AZ8000G parts on page 61

Ref	Part number	Part name	Qty
1	2157158	Presser Foot, Complete Set(O4)
2	2157000	Presser Foot Hinge
3	110004	Screw(M3.5-0.6 × 8)
4	0022153	Presser Foot(Lower)
5	2107219	Thread Chain Guide
6	004237	Screw(3/32-56 × 2.6)
7	0021876	Presser Foot Stitch Tongue(O4)
8	2107640	Finger Guard
9	005036	Screw(1/8-44 × 5.6)
10	2109020	Differential Feed Dog
11	2109021	Main Feed Dog
12	2157041	Presser Foot Half-stay
13	110050	Screw(M3.5-0.6 × 4.5)
14	2108003	Stitch Plate(O4)
15	2109320	Upper Loper

Page 62 — K2 DEVICE(1)

Yamato AZ8000G parts on page 62

Ref	Part number	Part name	Qty
33	A	PLATE
5	A	BRACKET
2	A	BRACKET
1	A	BRACKET
3	A	BRACKET
6	A	BRACKET
9	A	BRACKET
12	A	BRACKET
13	A	BRACKET
15	A	BRACKET
26	A	BRACKET
31	A	BRACKET
27	A	BRACKET
28	A	BRACKET
30	A	BRACKET
22	A	BRACKET
24	A	BRACKET
4	A	BRACKET
16	A	BRACKET
17	A	BRACKET
18	A	BRACKET
19	A	BRACKET
20	A	BRACKET
21	A	BRACKET
7	A	BRACKET
8	A	BRACKET
10	A	BRACKET
11	A	BRACKET
14	A	BRACKET
23	A	BRACKET
25	A	BRACKET
29	A	BRACKET
32	A	BRACKET

Page 63 — K2 DEVICE(1)

Yamato AZ8000G parts on page 63

Ref	Part number	Part name	Qty
	2159901	K2 Device, Complete Set
	2111050	Suction Pipe, Complete Set
	2111051	Suction Pipe
	310017	Oil Wick
	000755	Oil Wick Pin
	2111063	Suction Pipe Cover
	004237	Screw(3/32-56 × 2.6)
	004404	Screw(3/32-56 × 5.1)
	2111055	Upper Trimming Knife
	004131	Screw(1/8-44 × 6)
	004139	Screw(3/32-56 × 3)
	2111059	Lower Trimming Knife Holder Pin
	2111056	Lower Trimming Knife
	004236	Screw(3/32-56 × 4.2)
	2111057	Lower Trimming Knife Driving Plate
	2111062	Spring Sleeve
	2111061	Lower Trimming Knife Pushing Spring
	2111066	Spring Protect Washer
	2111060	Washer
	2111067	Air Shield Rubber
	007623	Screw(9/64-40 × 5.3)
	2111058	Lower Trimming Knife Guide Support
	110068	Screw(M4-0.7 × 8)
	2101011	Lower Trimming Knife Guide
	270001	Screw(1/8-44 × 3)
	0021451	Suction Power Control, C. Set
	0021457	Suction Power Control Tube(Inner)
	0021456	Suction Power Control Tube
	001892	Screw(1/8-44 × 2.9)
	0021450	Nylon Hose
	2101059	Cloth Plate Spacer
	110042	Screw(M3.5-0.6 × 4)
	2151000	Suction Pipe Support

Page 64 — K2 DEVICE(2)

Yamato AZ8000G parts on page 64

Ref	Part number	Part name	Qty
	1	AZ8003G/K2
	2	AZ8003G/K2
	3	AZ8003G/K2
	4	AZ8003G/K2
	5	AZ8003G/K2
	6	AZ8003G/K2
	7	AZ8003G/K2
	8	AZ8003G/K2
	9	AZ8003G/K2
	10	AZ8003G/K2
	11	AZ8003G/K2
	12	AZ8003G/K2
	13	AZ8003G/B3/K2
	2	AZ8003G/B3/K2
	3	AZ8003G/B3/K2
	4	AZ8003G/B3/K2
	5	AZ8003G/B3/K2
	6	AZ8003G/B3/K2
	7	AZ8003G/B3/K2
	8	AZ8003G/B3/K2
	9	AZ8003G/B3/K2
	10	AZ8003G/B3/K2
	11	AZ8003G/B3/K2
	12	AZ8003G/B3/K2
	14	AZ8003G/B3/K2
	15-1	AZ8020G/K2
	15-2	AZ8020G/K2
	15-3	AZ8020G/K2
	15-4	AZ8020G/K2
	2	AZ8020G/K2
	3	AZ8020G/K2
	4	AZ8020G/K2
	6	AZ8020G/K2
	7	AZ8020G/K2
	8	AZ8020G/K2
	9	AZ8020G/K2
	10	AZ8020G/K2
	11	AZ8020G/K2
	12	AZ8020G/K2
	16-1	AZ8020G/K2
	16-2	AZ8020G/K2
	16-3	AZ8020G/K2
	16-4	AZ8020G/K2
	17	AZ8025G/K2
	2	AZ8025G/K2
	3	AZ8025G/K2
	4	AZ8025G/K2
	6	AZ8025G/K2
	7	AZ8025G/K2
	8	AZ8025G/K2
	9	AZ8025G/K2
	10	AZ8025G/K2
	11	AZ8025G/K2
	12	AZ8025G/K2
	18	AZ8025G/K2
	19	AZ8025G/K2
	20	AZ8025G/K2
	21	AZ8025G/K2
	22	AZ8039G/K2
	2	AZ8039G/K2
	3	AZ8039G/K2
	4	AZ8039G/K2
	7	AZ8039G/K2
	8	AZ8039G/K2
	12	AZ8039G/K2
	21	AZ8039G/K2
	23	AZ8039G/K2
	24	AZ8039G/K2
	25	AZ8039G/K2
	26	AZ8039G/K2
	27	AZ8039G/K2
	28	AZ8039G/K2

Page 65

Yamato AZ8000G parts on page 65

Ref	Part number	Part name	Qty
	2157062	Presser Foot, C. Set(04)
	2157000	Presser Foot Hinge
	110004	Screw(M3.5-0.6 × 8)
	2157020	Presser Foot(Lower)
	2157200	Presser Foot Stitch Tongue(04)
	2107643	Finger Guard
	000444	Washer
	005036	Screw(1/8-44 × 5.6)
	2107219	Thread Chain Guide
	004237	Screw(3/32-56 × 2.6)
	2157040	Presser Foot Half-stay
	110050	Screw(M3.5-0.6 × 4.5)
	2157072	Presser Foot, C. Set(04)
	2157204	Presser Foot Stitch Tongue(04)
	2157102	Presser Foot, C. Set(Y5)
	2157103	Presser Foot, C. Set(Y6)
	2157100	Presser Foot, C. Set(X4)
	2157101	Presser Foot, C. Set(X5)
	2157205	Presser Foot Stitch Tongue(Y5)
	2157206	Presser Foot Stitch Tongue(Y6)
	2157208	Presser Foot Stitch Tongue(X4)
	2157209	Presser Foot Stitch Tongue(X5)
	2157121	Presser Foot, C. Set(Y5)
	2107631	Presser Foot(Lower)
	2107650	Presser Foot Stitch Tongue(Y5)
	2107670	Presser Foot Tape Guide
	001230	Screw(3/32-56 × 3.8)
	2157139	Presser Foot, C. Set(Y5)
	2157205	Presser Foot Stitch Tongue(Y5)
	2157030	Finger Guard
	2157047	Thread Chain Guide
	2157046	Presser Foot Spring Setting Piece
	270011	Screw(3/32-56 × 1.8)
	2107523	Presser Foot Spring

Page 66 — C DEVICE

Yamato AZ8000G parts on page 66

Ref	Part number	Part name	Qty
15	15	SCREW
16	16	SPRING
15	15	SCREW
18	18	BRACKET
15	15	SCREW
19	19	NUT
20	20	SCREW
21	21	VALVE
22	22	VALVE
23	23	WASHER
24	24	VALVE
10	10	SCREW
8	8	NUT
7	7	WASHER
6	6	WASHER
5	5	SCREW
11	11	NIPPLE
4	4	REGULATOR
3	3	NIPPLE
2	2	NIPPLE
12	12	TUBE
25	25	NIPPLE
26	26	TUBE
27	27	CLAMP
28	28	TUBE
31	31	SCREW
30	30	CLAMP
29	29	TUBE

Page 67 — C DEVICE

Yamato AZ8000G parts on page 67

Ref	Part number	Part name	Qty
1	2109932	C Device, Complete Set	1
2	0033939	Hose Band(1/4 inch)	1
3	1094011	Hose Nipple(φ 8-PT1/8)	1
4	1097000	Regulator(AR2000-01BG)	1
5	009960	Screw(M5-0.8 × 16)	2
6	000669	Washer	4
7	000600	Spring Washer	2
8	000009	Nut	2
9	1097001	Regulator Support	1
10	006905	Wood Screw(φ 5.1 × 20)	2
11	0010263	Connector(φ 6-PT1/8)	1
12	1096000	Nylon Hose(4 × 6 × 2000mm)	1
13	1298000	Air Valve, Complete Set	1
14	0033938	Collar(6.4 × 13 × 9mm)	1
15	005040	Screw(11/64-40 × 8.5)	5
16	0033937	Return Spring	1
17	0033936	Air Valve Holder	1
18	0033935	Air Valve Stop	1
19	000334	Nut	1
20	005505	Adjusting Screw(11/64-40 × 16)	1
21	1090133	TAC Valve, C. Set	1
22	0010052	TAC Valve	1
23	000623	Gasket	2
24	0010112	Joint(φ 6-M5)	2
25	0010290	Connector(φ 6-PT1/8)	1
26	0010310	Venturi Tube	1
27	0033940	Hose Band(3/8 inch)	2
28	1096004	Vinyl Hose(12 × 18 × 1500mm)	1
29	1096005	Vinyl Hose(12 × 18 × 500mm)	1
30	0011987	UL Clamp	3
31	009814	Wood Screw(φ 3.1 × 20)	3

Page 68 — B3 DEVICE

Yamato AZ8000G parts on page 68

Ref	Part number	Part name	Qty
7	7	BOLT
8	8	BRACKET
4	4	SPRING
5	5	SPRING
3	3	BRACKET
6	6	SCREW
9-1	9-1	SPRING
9-2	9-2	SPRING
10	10	WASHER
11	11	WASHER
12	12	SCREW
15	15	SCREW
16	16	SCREW
13	13	COVER
14	14	ARM
17	17	PRESSER FOOT
27	27	SPRING
28	28	SCREW
19	19	SPRING
26	26	SCREW
25	25	PLATE
20	20	PRESSER FOOT
18	18	BRACKET
24	24	SPRING
23	23	SPRING
22	22	SPRING
21	21	BRACKET
29	29	PRESSER FOOT
30	30	PRESSER FOOT
31	31	PRESSER FOOT
32-1	32-1	PRESSER FOOT
32-2	32-2	PRESSER FOOT
27	27	SPRING
28	28	SCREW
19	19	SPRING
26	26	SCREW
25	25	PLATE
20	20	PRESSER FOOT
18	18	BRACKET
24	24	SPRING
23	23	SPRING
22	22	SPRING
33-1	33-1	PRESSER FOOT
33-2	33-2	PRESSER FOOT
34-1	34-1	PRESSER FOOT
34-2	34-2	PRESSER FOOT
35	35	PRESSER FOOT
36	36	PRESSER FOOT

Page 69 — B3 DEVICE

Yamato AZ8000G parts on page 69

Ref	Part number	Part name	Qty
1	2109907	B3 Device, C. Set	1
2	2101133	Back Tack Cutting Unit	1
3	2101134	Thread Chain Cutting Knife Holder	1
4	0023184	Thread Chain Cutting Knife	1
5	0023169	Thread Chain Cutting Knife Holder Spacer	1
6	003637	Screw(1/8-44 × 2.5)	2
7	004205	Screw(11/64-40 × 18)	1
8	0024308	Thread Chain Holder	1
9-1	0023182	Thread Chain Holder Spring(Standard)	1
9-2	0033711	Thread Chain Holder Spring(with Stronger Pressure)	1
10	000361	Adjusting Nut	2
11	000535	Washer	1
12	110044	Screw(M3-0.6 × 14)	1
13	2101050	Cloth Plate	1
14	0036905	Synchronizer Positioning Pin	1
15	110009	Screw(M4-0.7 × 8)	1
16	0081848	Synchronizer Cushion	1
17	2157070	Presser Foot, C. Set(04)	1
18	2157000	Presser Foot Hinge	1
19	110004	Screw(M4-0.7 × 8)	1
20	2157020	Presser Foot(Lower)	1
21	2157204	Presser Foot Stitch Tongue(04)	1
22	2107643	Finger Guard	1
23	000444	Washer	1
24	005036	Screw(1/8-44 × 5.6)	1
25	0034535	Thread Chain Guide	1
26	004237	Screw(3/32-56 × 1.7)	1
27	2157040	Presser Foot Half-stay	1
28	110050	Screw(M3.5-0.6 × 4.5)	1
29	2108008	Stitch Plate(04)	1
30	2109010	Differential Feed Dog	1
31	2109011	Main Feed Dog	1
32-1	2157108	Presser Foot, C. Set(X4)	1
32-2	2157109	Presser Foot, C. Set(X5)	1
33-1	2157210	Presser Foot Stitch Tongue(X4)	1
33-2	2157211	Presser Foot Stitch Tongue(X5)	1
34-1	2108013	Stitch Plate(04)	1
34-2	2108119	Stitch Plate(X5)	1
35	2109015	Differential Feed Dog	1
36	2109016	Main Feed Dog	1

Page 70

Yamato AZ8000G parts on page 70

Ref	Part number	Part name	Qty
6	6	SCREW
5	5	BRACKET
4	4	BRACKET
3	3	BRACKET
1	1	BRACKET
53	53	SCREW
2	2	SCREW
10	10	SCREW
9	9	WASHER
8	8	SPRING
7	7	BRACKET
18	18	SCREW
11	11	SCREW
12	12	WASHER
19	19	MOTOR
17	17	COVER
47	47	SCREW
48	48	WASHER
49	49	NUT
20	20	SCREW
21	21	BRACKET
22	22	SCREW
50	50	WASHER
51	51	WASHER
52	52	BRACKET
13	13	BRACKET
46	46	ROD
25	25	SCREW
23	23	BRACKET
24	24	SHAFT
57	57	BRACKET
58	58	BRACKET
14	14	WASHER
15	15	NUT
16	16	SHAFT
28	28	BRACKET
29	29	SCREW
30	30	PLATE
6	6	SCREW
25	25	SCREW
33	33	BRACKET
27	27	WASHER
26	26	KNOB
45	45	SHAFT
44	44	BRACKET
43	43	BRACKET
41	41	BRACKET
42	42	SCREW
39	39	WASHER
38	38	WASHER
40	40	WASHER
37	37	SCREW
31	31	NUT
34	34	BRACKET
35	35	SCREW
36	36	KNOB
54	54	SHAFT
31	31	NUT
32	32	SCREW
55	55	BRACKET
56	56	SCREW
25	25	SCREW
33	33	BRACKET
6	6	SCREW
25	25	SCREW

Page 71 — CH20 DEVICE(1) for AZ8000G

Yamato AZ8000G parts on page 71

Ref	Part number	Part name	Qty
	0023714	Device Supporting Plate
	009150	Screw(11/64-40 × 11)
	0023726	Device Holder Base
	0023750	Device Holder Base Fixing Spring Plate
	0023763	Supplementary Fixing Spring Plate
	004353	Screw(9/64-40 × 7)
	0023715	Solenoid Holder Fixing Spring Plate
	0023769	Fixing Spring
	000533	Washer
	001175	Screw(9/64-40 × 8)
	005589	Screw(1/4-40 × 14.5)
	000621	Conical Spring Washer
	0023725	Solenoid Holder
	000613	Washer
	000306	Nut
	001333	Stop Screw(3/32-56 × 3.9)
	0026470	Rotary Solenoid Cover
	005000	Screw(9/64-40 × 5.7)
	0011190	Rotary Solenoid(Large)
	005550	Screw(11/64-40 × 13.5)
	0036111	Hemming Guide Interlocking Lever
	0036132	Retaining Ring
	0094491	Cord Clamp(φ 3.4-2N)
	0023711	Guide Pin
	004358	Screw(9/64-40 × 5.6)
	005585	Adjusting Screw(11/64-40 × 10)
	001049	Sticker
	0023723	Guide Collar
	003638	Screw(11/64-40 × 4)
	0023717	Solenoid Holder Cover
	000322	Lock Nut
	001326	Positioning Screw(9/64-40 × 7.5)
	0063612	Cord Clamp(φ 6.8-4N)
	0023722	Solenoid Supporting Plate
	004406	Screw(11/64-40 × 8)
	0011191	Rotary Solenoid(Small)
	007606	Adjusting Screw(9/64-40 × 20)
	000014	Washer
	000002	Spring Washer
	000012	Nut(M3)

Page 72 — CH20 DEVICE(1)

Yamato AZ8000G parts on page 72

Ref	Part number	Part name	Qty
6	6	SCREW
5	5	BRACKET
4	4	BRACKET
3	3	BRACKET
53	53	SCREW
2	2	SCREW
1	1	BRACKET
10	10	SCREW
9	9	WASHER
8	8	SPRING
7	7	LEVER
18	18	SCREW
17	17	COVER
11	11	SCREW
12	12	WASHER
20	20	SCREW
21	21	BRACKET
22	22	SPRING
19	19	MOTOR
47	47	SCREW
48	48	WASHER
49	49	COLLAR
50	50	SCREW
51	51	WASHER
52	52	SCREW
13	13	BRACKET
23	23	BRACKET
24	24	SHAFT
25	25	SCREW
58	58	BRACKET
57	57	BRACKET
16	16	BRACKET
28	28	BRACKET
29	29	SCREW
14	14	SHAFT
15	15	SHAFT
30	30	BRACKET
6	6	SCREW
25	25	SCREW
33	33	BRACKET
27	27	WASHER
26	26	KNOB
31	31	NUT
32	32	SCREW
54	54	SHAFT
55	55	BRACKET
56	56	SPRING
34	34	BRACKET
35	35	SCREW
36	36	MOTOR
37	37	SCREW
31	31	NUT
38	38	WASHER
39	39	WASHER
40	40	WASHER
41	41	BRACKET
42	42	SCREW
43	43	SHAFT
44	44	SHAFT
45	45	SHAFT
46	46	ROD
25	25	SCREW
33	33	BRACKET
30	30	BRACKET
25	25	SCREW
6	6	SCREW
31	31	NUT
25	25	SCREW
27	27	WASHER
26	26	KNOB
32	32	SCREW
31	31	NUT
15	15	SHAFT
14	14	SHAFT
16	16	BRACKET
28	28	BRACKET
29	29	SCREW
25	25	SCREW
57	57	BRACKET
58	58	BRACKET
23	23	BRACKET
24	24	SHAFT
13	13	BRACKET
52	52	SCREW
51	51	WASHER
50	50	SCREW
49	49	COLLAR
48	48	WASHER
47	47	SCREW
19	19	MOTOR
22	22	SPRING
21	21	BRACKET
20	20	SCREW
12	12	WASHER
11	11	SCREW
17	17	COVER
18	18	SCREW
7	7	LEVER
8	8	SPRING
9	9	WASHER
10	10	SCREW
1	1	BRACKET
2	2	SCREW
53	53	SCREW
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	SCREW

Page 73 — CH20 DEVICE(1) for AZ8000G

Yamato AZ8000G parts on page 73

Ref	Part number	Part name	Qty
41	0023718	Edge Guide Interlocking Lever
42	005038	Screw(11/64-40 × 8)
43	0023712	Edge Guide Interlocking Plate
44	005588	Screw(11/64-40 × 2.1)
45	0023713	Edge Guide Holding Shaft
46	0023700	Hemming Guide Interlocking Shaft
47	009931	Screw(11/64-40 × 26)
48	000550	Fiber Cushion
49	0023779	Cushion(Vinyl)
50	000010	Conical Spring Washer
51	0020538	Rubber Cushion
52	000334	Nut
53	110065	Screw(M4-0.7 × 12)
54	280000	Screwed Pin(11/64-40 × 12)
55	2110327	Adjusting Lever
56	160001	Screw(M4-0.7 × 4)
57	2101038	Adjusting Screw Guide
58	0060248	Cord Clamp(φ 5.3-3N)

Page 74 — CH20 DEVICE(2)

Yamato AZ8000G parts on page 74

Ref	Part number	Part name	Qty
5	5	SCREW
4	4	SCREW
6	6	BRACKET
8	8	SCREW
7	7	NUT
9	9	PLATE
10	10	SCREW
11	11	SCREW
14	14	SCREW
15	15	BRACKET
19	19	SCREW
18	18	BRACKET
17	17	LEVER
20	20	ROD
28	28	BRACKET
30	30	SCREW
29	29	BRACKET
32	32	BRACKET
16	16	BASE
27	27	SCREW
21	21	SPRING
22	22	SCREW
23	23	ROLLER
25	25	SPRING
24	24	SCREW
26	26	COLLAR
33	33	SCREW
35	35	PLATE
34	34	BRACKET

Page 75 — CH20 DEVICE(2) for AZ8000G

Yamato AZ8000G parts on page 75

Ref	Part number	Part name	Qty
	2101391	Blind-Hemming Guide, C. Set(for 25mm)
	0023740	Blind-Hemming Guide, C. Set(for 35mm)(Extra)
	2101390	Blind-Hemming Guide
	0023739	Blind-Hemming Guide(Extra)
	2101393	Hemming Positioner
	0023741	Hemming Positioner(Extra)
	004236	Screw(3/32-56 × 4.2)
	005036	Screw(1/8-44 × 5.6)
	0023744	Hemming Guide Bracket, C. Set
	000335	Lock Nut
	006820	Adjusting Screw(9/64-40 × 12.3)
	0036161	Anti-shock Rubber
	001202	Screw(9/64-40 × 6.6)
	003637	Screw(1/8-44 × 2.5)
	1200182	Side Seam Detector Unit
	005588	Screw(11/64-40 × 2.1)
	0023747	Blind-Hemming Edge Guide, C. Set
	0023724	Blind-Hemming Edge Guide
	0023707	Slide Edge Guide
	0023705	Slide Edge Guide Holder
	007609	Screw(9/64-40 × 9)
	0023708	Sensor
	0023737	Slide Edge Guide Pressing Spring
	005000	Screw(9/64-40 × 5.7)
	0023709	Collar(2 × 5 × 5mm)
	004237	Screw(3/32-56 × 2.6)
	0023710	Sensor Spring
	0023756	Magnet Unit
	001613	Screw(3/32-56 × 4.5)
	2101394	IC Positioner, Complete Set
	2101395	IC Positioner
	005591	Adjusting Screw(1/8-44 × 6.2)
	0023703	Raterally Sliding Plate
	004440	Screw(11/64-40 × 8.3)
	0023767	HemmingPositioner(forLightMaterials)
	0023768	Spacer(for Light Materials)

Page 76

Yamato AZ8000G parts on page 76

Ref	Part number	Part name	Qty
	1	CH20 DEVICE(3)
	2	SCREW
	3	BRACKET
	4	SCREW
	5	WASHER
	6	BRACKET
	7	SCREW
	8	SCREW
	9	BRACKET
	10	FLYWHEEL
	11	BRACKET
	12	ROD
	13-1	CABLE
	13-2	CABLE
	13-3	CABLE
	13-4	CABLE
	14	BRACKET
	15	SCREW
	16	CH20 DEVICE(3)
	17	PRINTED CIRCUIT BOARD
	18	CABLE
	19	PRINTED CIRCUIT BOARD
	20	BRACKET
	21	BRACKET
	22	DIAL
	23	SCREW
	24	WASHER
	25	KNOB
	26	BRACKET
	27	PLATE
	28	SCREW
	29	SCREW

Page 77

Yamato AZ8000G parts on page 77

Ref	Part number	Part name	Qty
1	1200006	Presser Foot Switch Unit
2	110013	Screw(M4-0.7 × 8)
3	0023734	Magnet for Presser Foot Switch
4	004353	Screw(9/64-40 × 7)
5	0023720	Switch Plate Spacer
6	2121021	Switch Plate
7	005587	Screw(9/64-40 × 8.6)
8	005512	Guide Screw(11/64-40 × 3)
9	2151013	Presser Foot Lifter Lever
10	2111011	Oil Cooling Fan Magnet Unit
11	1200095	Rotation Detector Unit
12	2101124	Cord Bushing
13-1	0011943	Power Cord(for 100 Voltage)
13-2	0011944	Power Cord(for 200 Voltage)
13-3	0011945	Power Cord(for 220 Voltage)
13-4	0011946	Power Cord(for 380 Voltage)
14	0011709	Control Box Stay
15	006905	Wood Screw(φ 5.1 × 20)
16	0011180	Control Box, Complete Set
17	0011182	Control Board
18	0011974	Voltage Regulator
19	0011183	Power Board
20	0011192	Knee Switch, Complete Set
21	0092232	Knee Switch Holder
22	0011189	Knee Switch
23	300031	Washer
24	300033	Spring Washer
25	100038	Wing Nut
26	0035722	Cord Bushing
27	2151012	Tension Disc Eyelet Support
28	110106	Screw(M4-0.7 × 8)
29	004265	Tension Post(Short)

Page 78 — SC10 DEVICE

Yamato AZ8000G parts on page 78

Ref	Part number	Part name	Qty
1	1	HANDLE
2	2	BRACKET
3	3	SCREW
4	4	SPRING
5	5	COVER
6	6	SCREW
7	7	COVER

Page 79 — SC10 DEVICE

Yamato AZ8000G parts on page 79

Ref	Part number	Part name	Qty
1	2151067	Lint Removal Pipe	1
2	2151066	Pipe Clamp	2
3	110094	Screw(M4-0.7 × 6)	2
4	2151059	Blowing Hole Screen	1
5	2151057	Wind Guide Plate(Front)	1
6	110001	Screw(M4-0.7 × 5.4)	2
7	2151058	Air Deflector	1

Page 80

Yamato AZ8000G parts on page 80

Ref	Part number	Part name	Qty
1	AZ8000G	Feed Dog plated with Rubber
2	AZ8000G	Feed Dog plated with Rubber
3-1	AZ8003G	Feed Dog plated with Rubber
3-2	AZ8020G	Feed Dog plated with Rubber
4	AZ8003G	Feed Dog plated with Rubber
5-1	AZ8003G-03	Feed Dog plated with Rubber
5-2	AZ8003G-04	Feed Dog plated with Rubber
6	AZ8003G-03	Feed Dog plated with Rubber
7	AZ8003G-03	Feed Dog plated with Rubber
8	AZ8003G-03	Feed Dog plated with Rubber
9	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
9	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
10	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
10	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
11	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
11	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
12	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
12	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
13	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
13	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
14	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
14	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
15	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
15	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
16	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
16	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
17	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
17	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
18	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
18	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
19	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
19	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
20	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
20	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
21	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
21	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
22	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
22	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
23	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
23	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
24	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
24	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
25	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
25	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
26	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
26	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
27	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
27	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
28	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
28	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
29	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
29	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
30	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
30	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth
31	AZ8003G-06	Feed Dog plated with Rubber reversed teeth
31	AZ8020G-Y6	Feed Dog plated with Rubber reversed teeth

Page 81 — EXTRA PARTS (1)

Yamato AZ8000G parts on page 81

Ref	Part number	Part name	Qty
1	2109070	Differential Feed Dog	1
2	2109074	Main Feed Dog	1
3-1	2109072	Differential Feed Dog	1
3-2	2109078	Differential Feed Dog	1
4	2109076	Main Feed Dog	1
5-1	2108093	Stitch Plate(03)	1
5-2	2108094	Stitch Plate(04)	1
6	2106100	Differential Feed Dog	1
7	2109013	Main Feed Dog	1
8	2106101	Auxiliary Feed Dog	1
9	2106012	Differential Feed Dog(06, Y6)	1
10	2109349	Lower Looper(Special coating)	1
11	2151015	Cloth Plate(Right) Unit	1
12	110003	Screw(M3.5-0.6 × 6)	1
13	000535	Washer	1
14	0020700	Edge Guide, Complete Set	1
15	110009	Screw(M4-0.7 × 8)	1
16	0022430	Edge Guide, Complete Set	1
17	0022432	Edge Guide	1
18	001330	Screw(9/64-40 × 3.8)	1
19	0022431	Edge Guide Swing-out Lever	1
20	000172	Conical Spring Washer	1
21	004150	Screw(11/64-40 × 5.2)	1
22	000334	Nut	1
23	0022434	Edge Guide Swing-out Lever Holder	1
24	005506	Screw(11/64-40 × 8)	1
25	0022433	Edge Guide Swing-out Lever Holder Support	1
26	0022437	Edge Guide Swing-out Lever Stop	1
27	001227	Screw(1/8-44 × 3.8)	1
28	0022435	Edge Guide Positioning Pin	1
29	0022436	Positioning Pin Holder Spring	1
30	001225	Screw(1/8-44 × 2.8)	1
31	110047	Screw(M4-0.7 × 10)	1

Page 82 — EXTRA PARTS(2)

Yamato AZ8000G parts on page 82

Ref	Part number	Part name	Qty
1	AZ8000G-04	non step 段なし
2	AZ8003G-03	non step 段なし
3	AZ8003G-04	non step 段なし
4	AZ8020G-X4	non step 段なし
5	AZ8020G-X5	non step 段なし
6	AZ8020G-Y5	non step 段なし
7	AZ8020G-Y6	non step 段なし
8	AZ8020G-Y6	same arranged slots with Y5 Y5 と同じ送り配列
9	AZ8020G-Y6	without non-slipper 滑り止めなし

Page 83 — EXTRA PARTS(2)

Yamato AZ8000G parts on page 83

Ref	Part number	Part name	Qty
1	2108100	Stitch Plate(O4)	1
2	2108024	Stitch Plate(O3)	1
3	2108010	Stitch Plate(O4)	1
4	2108022	Stitch Plate(X4)	1
5	2108023	Stitch Plate(X5)	1
6	2108020	Stitch Plate(Y5)	1
7	2108021	Stitch Plate(Y6)	1
8	2108097	Stitch Plate(Y6)	1
9	2108117	Stitch Plate(Y6)	1

Page 84

Yamato AZ8000G parts on page 84

Ref	Part number	Part name	Qty
1	1	COVER
2	2	SCREW
3	3	BRACKET
4	4	SCREW
5	5	BASE
6	6	KNOB
7	7	SCREW
8	8	WASHER
9	9	WASHER
10	10	BUSHING
11	11	WASHER
12	12	NUT
13	13	BRACKET
14	14	SCREW
15	15	PLATE
16	16	COVER
17	17	SCREW
18	18	SCREW
19	19	BRACKET
20	20	BUSHING
21	21	BRACKET
22	22	WASHER
23	23	KNOB
24	24	COVER
25	25	SCREW
26	26	EXTRA PARTS
27	27	BRACKET
28	28	SCREW
29	29	WHEEL
30	30	SCREW
31-1	31-1	EXTRA PARTS
31-2	31-2	EXTRA PARTS

Page 85 — MISCELLANEOUS SUPPORTING BOARD

Yamato AZ8000G parts on page 85

Ref	Part number	Part name	Qty
1	2150212	Belt Cover
2	110015	Screw(M4-0.7 × 25)
3	2150213	Supplementary Belt Cover
4	110013	Screw(M4-0.7 × 8)
5	2100339	Supporting Board
6	000070	Hanging Nut
7	009861	Hanging Bolt(Semi-submerged only)
8	2101450	Spacer(15mm)
9	2101451	Spacer(5mm) (See the below)
10	0020064	Supporting Board Rubber Cushion
11	000162	Washer(Semi-submerged)
11	000162	Washer(Full-submerged)
12	000016	Nut(Semi-submerged)
12	000016	Nut(Full-submerged)
13	2100375	Chute(Upper) Support
14	005624	Screw(M4-0.7 × 10)
15	2100337	Chute(Upper)
16	2100338	Chute(Lower)
17	009864	Hanging Bolt(Full-submerged only)
18	009871	Bolt(Full-submerged only)
19	0020057	Supporting Board Connector(Full-submerged only)
20	0020045	Supporting Board Sleeve(Full-submerged only)
21	2100336	Supplementary Chute Cover
22	000538	Washer
23	140011	Wing Bolt(M4-0.7 × 6)
24	2100374	Chip Receiver(Semi-submerged only)
25	350007	Wood Screw(φ 3.5 × 16)
26	0020078	Idler, C. Set(for Left Footing Pedal)
27	0020077	Idler Support
28	009992	Screw(M4-0.7 × 10)
29	0020076	Idler
30	009995	Screw(M3-0.5 × 5)
31-1	2150175	Timing Gauge(AZ8000G, 8500G)
31-2	2160018	Timing Gauge(AZ8032G, 8035G)

Page 86

Yamato AZ8000G parts on page 86

Ref	Part number	Part name	Qty
19	19	Screw
18	18	Washer
16	16	Bracket
17	17	Nut
20	20	Lever
21	21	Bracket
23	23	Spool Pin
24	24	Spool
25	25	Washer
26	26	Washer
12	12	Washer
13	13	Washer
14	14	Nut
2	2	Ring
3	3	Shaft
4	4	Block
7	7	Nut
8	8	Spring
9	9	Screw
10	10	Nut
6	6	Screw
11	11	Shaft
22	22	Screw
15	15	Bracket
28	28	Wire
27	27	Washer
5	5	Screw

Page 87

Yamato AZ8000G parts on page 87

Ref	Part number	Part name	Qty
1-1	9620693	Thread Stand, C. Set(3 Spools Type)	1
1-2	9620694	Thread Stand, C. Set(4 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	5(6)
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut(M16-1.5)	1
15	9620702	Thread Hanger(2 Spools Type)	4
16	9620703	Thread Hanger(3 Spools Type)	2
17	9620700	Thread Eyelet	3(4)
18	9620688	Thread Hanger Holder	2(4)
19	911060	Screw(M6-1 × 15)	2(4)
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620663	Thread Guide(3 Spools Type)	1
23	9620678	Spool Cushion	3(4)
24	9620679	Spool Pin	3(4)
25	9620680	Spool Mat	3(4)
26	9620681	Spool Seat Disc	3(4)
27	930055	Spring Washer	3(4)
28	9620665	Thread Guide(5 Spools Type)	1

Page 88 — WARNING LABEL 警告ラベル

Yamato AZ8000G parts on page 88

Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143	操作注意ラベル
	390144	DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 90 — AZ8000G Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato AZ8000G parts on page 90

Ref	Part number	Part name	Qty
	2159102	2157086
	2159102	2157049
	2159102	2157185
	2159102	2157096
	2159102	2157057
	2159101	2157054
	2159101	2157100
	2159101	2157108
	2159101	2157055
	2159101	2157101
	2159101	2157109
	2159102	2157118
	2159101	2157116
	2169102	2157057
	2169102	2157118
	2159102	2157138
	2159102	2157158

Page 91

Yamato AZ8000G parts on page 91

Ref	Part number	Part name	Qty
	2108000	""
	2108032	""
	0034535	2108002
	""	2108003
	2107219	""
	2107219	""
	0034535	2108008
	2107219	""
	0022156	2108016
	2157048	2158013
	2107180	2108107
	0034535	2108004
	2107219	""
	0034535	2108005
	2107219	""
	0034535	2108006
	2107219	""
	0034535	2108013
	2107219	""
	0034535	2108119
	0034535	2108004
	2107219	""
	0034535	""
	""	2108006
	0034535	2108062
	0034535	2108062
	""	2108063
	2157045	2108106
	2157047	""
	2107219	2108003

Page 92 — INDEX

Yamato AZ8000G parts on page 92

Ref	Part number	Part name	Qty
39	000002	000002
8	000009	000009
6	000010	000010
27	000010	000010
50	000010	000010
40	000012	000012
44	000014	000014
35	000014	000014
38	000014	000014
12	000016	000016
12	000016	000016
31	000022	000022
26	000035	000035
6	000070	000070
11	000162	000162
11	000162	000162
34	000172	000172
22	000172	000172
20	000172	000172
9	000177	000177
7	000178	000178
34	000234	000234
30	000306	000306
15	000306	000306
26	000322	000322
31	000322	000322
4	000331	000331
35	000334	000334
23	000334	000334
19	000334	000334
52	000334	000334
22	000334	000334
7	000335	000335
48	000361	000361
10	000361	000361
45	000393	000393
30	000419	000419
9	000444	000444
42	000444	000444
7	000444	000444
18	000444	000444
7	000444	000444
9	000444	000444
15	000444	000444
7	000444	000444
7	000444	000444
23	000444	000444
41	000456	000456
14	000487	000487
23	000526	000526
38	000528	000528
14	000532	000532
27	000533	000533
15	000533	000533
9	000533	000533
49	000535	000535
11	000535	000535
13	000535	000535
24	000538	000538
22	000538	000538
48	000550	000550
39	000561	000561
48	000567	000567
6	000567	000567
7	000600	000600
29	000613	000613
14	000613	000613
28	000621	000621
12	000621	000621
23	000623	000623
26	000629	000629
28	000629	000629
5	000644	000644
25	000644	000644
30	000653	000653
9	000665	000665
6	000669	000669
6	000669	000669
27	000688	000688
34	000690	000690
36	000726	000726
5	000755	000755
31	000779	000779
20	000932	000932
21	000933	000933
27	001049	001049
4	001123	001123
36	001123	001123
10	001175	001175
43	001196	001196
31	001196	001196
10	001202	001202
21	001203	001203
42	001225	001225
30	001225	001225
30	001225	001225
27	001227	001227
16	001228	001228
12	001230	001230
18	001230	001230
10	001230	001230
21	001230	001230
32	001326	001326
25	001330	001330
18	001330	001330
37	001331	001331
16	001333	001333
27	001613	001613
29	001892	001892
5	003302	003302
22	003636	003636
10	003637	003637
23	003637	003637
23	003637	003637
44	003637	003637
7	003637	003637
21	003637	003637
6	003637	003637
11	003637	003637
29	003638	003638
45	004097	004097
26	004100	004100
45	004106	004106
33	004106	004106
45	004125	004125
6	004131	004131
10	004131	004131
10	004138	004138
11	004138	004138
14	004139	004139
11	004139	004139
33	004150	004150
21	004150	004150
21	004150	004150
17	004182	004182
15	004182	004182
14	004204	004204
45	004205	004205
7	004205	004205
14	004236	004236
4	004236	004236

Page 93

Yamato AZ8000G parts on page 93

Ref	Part number	Part name	Qty
39	004237
10	004237		10
8	004237
13	004237
9	004237
10	004237
14	004237
20	004237
6	004237
7	004237
10	004237
26	004237
24	004237
29	004265
6	004353
4	004353
25	004358
8	004404
35	004406
33	004440
18	005000
22	005000
43	005036
16	005036
7	005036
8	005036
7	005036
8	005036
10	005036
16	005036
8	005036
9	005036
8	005036
24	005036
5	005036
42	005038
15	005040
24	005049
30	005075
31	005345
20	005505
24	005506
8	005512
20	005550
26	005585
7	005587
44	005588
14	005588
27	005589
11	005589
30	005591
14	005624
24	006035
33	006202
48	006444
36	006444
22	006816
8	006820
29	006861
10	006905
15	006905
28	007006
16	007006
37	007606
19	007609
46	007619
34	007619
21	007623
37	007627
2	009150
31	009624
19	009624
29	009751
31	009814
7	009861
17	009864
18	009871
47	009931
5	009960
28	009992
30	009995
22	0010052
24	0010112
11	0010263
25	0010290
26	0010310
16	0011180
17	0011182
19	0011183
22	0011189
19	0011190
36	0011191
20	0011192
14	0011709
13-1	0011943
13-2	0011944
13-3	0011945
13-4	0011946
18	0011974
30	0011987
15	0020004
16	0020005
22	0020016
20	0020045
19	0020057
10	0020064
29	0020076
27	0020077
26	0020078
6	0020118
29	0020137
44	0020271
44	0020350
18	0020401
2	0020491
13	0020496
36	0020538
44	0020538
51	0020538
20	0020616
14	0020700
30	0021450
26	0021451
28	0021456
27	0021457
7	0021876
4	0022153
7	0022156
46	0022215
16	0022430
19	0022431
17	0022432
25	0022433
23	0022434
40	0022435

Page 94 — AZ8000G

Yamato AZ8000G parts on page 94

Ref	Part number	Part name	Qty
28	00222435	28	15
41	00222436	41	14
29	00222436	29	15
29	00222436	29	35
26	00222437	26	35
47	00222443	47	14
35	00222443	35	15
49	00222444	49	14
37	00222444	37	15
32	00222445	32	14
20	00222445	20	15
36	00222446	36	14
24	00222446	24	15
38	00222447	38	14
26	00222447	26	15
39	00222448	39	14
27	00222448	27	15
43	0023169	43	15
5	0023169	5	30
47-1	0023182	47-1	15
9-1	0023182	9-1	30
42	0023184	42	15
4	0023184	4	30
26	0023473	26	12
22	0023580	22	17
46	0023700	46	31
32	0023703	32	32
18	0023705	18	32
17	0023707	17	32
20	0023708	20	32
23	0023709	23	32
25	0023710	25	32
24	0023711	24	31
43	0023712	43	31
45	0023713	45	31
1	0023714	1	31
7	0023715	7	31
30	0023717	30	31
41	0023718	41	31
5	0023720	5	33
34	0023722	34	31
28	0023723	28	31
16	0023724	16	32
13	0023725	13	31
3	0023726	3	31
3	0023734	3	33
21	0023737	21	32
2-2	0023739	2-2	32
1-2	0023740	1-2	32
3-2	0023741	3-2	32
6	0023744	6	32
15	0023747	15	32
4	0023750	4	31
26	0023756	26	32
5	0023763	5	31
34	0023767	34	32
35	0023768	35	32
8	0023769	8	31
49	0023779	49	31
4	0024083	4	4
3	0024084	3	4
43	0024084	43	25
25	0024095	25	2
1	0024130	1	21
21	0024130	21	23
14	0024156	14	4
5	0024157	5	4
46	0024308	46	15
8	0024308	8	30
5	0024421	5	17
20	0024446	20	2
15	0024503	15	17
4	0024505	4	17
9	0024506	9	17
10	0024506	10	18
17	0026470	17	31
27	0030748	27	13
8	0031111	8	4
9	0031831	9	13
34	0032604	34	6
23	0032879	23	1
24	0032919	24	7
12	0032952	12	4
11	0032962	11	4
13	0032971	13	4
14	0033024	14	3
24	0033627	24	1
47-2	0033711	47-2	15
18	0033935	18	29
17	0033936	17	29
16	0033937	16	29
14	0033938	14	29
2	0033939	2	29
27	0033940	27	29
49	0034293	49	11
38	0034535	38	8
9	0034535	9	16
9	0034535	9	20
13	0034535	13	21
19	0034535	19	23
25	0034535	25	30
25	0034867	25	14
13	0034867	13	15
26	0035722	26	33
21	0036111	21	31
22	0036132	22	31
9	0036161	9	32
54	0036905	54	15
14	0036905	14	30
58	0060248	58	31
51	0060297	51	14
57	0060297	57	15
15	0060297	15	16
28	0060297	28	17
18	0060297	18	18
39	0060297	39	19
33	0063612	33	31
29	0068202	29	11
15	0068517	15	3
26	0080503	26	13
56	0081848	56	15
16	0081848	16	30
21	0092232	21	33
7	0093090	7	5
37	0093303	37	4

Page 95 — INDEX

Yamato AZ8000G parts on page 95

Ref	Part number	Part name	Qty
16	0093864		7
23	0094491		31
39	0094562		25
8	0095027		11
40	100000		11
13	100001		1
23	100001		8
5	100001		25
5	100002		11
8	100002		25
25	100038		33
2	100073		8
22	110001		4
29	110001		6
21	110001		7
14	110001		25
6	110001		34
36	110002		6
36	110002		9
28	110003		2
12	110003		35
15	110004		7
34	110004		8
3	110004		12
12	110004		14
3	110004		15
3	110004		16
3	110004		17
3	110004		18
3	110004		19
3	110004		20
5	110004		21
9	110004		23
3	110004		24
3	110004		26
3	110004		28
18	110006		6
10	110006		22
36	110009		4
27	110009		6
12	110009		9
14	110009		10
55	110009		15
35	110009		19
42	110009		25
15	110009		30
15	110009		35
33	110011		6
12	110012		1
11	110012		2
9	110012		3
18	110012		7
8	110012		8
2	110012		21
22	110012		23
33	110013		1
2	110013		2
7	110013		3
2	110013		4
20	110013		4
46	110013		6
2	110013		33
4	110013		37
2	110015		37
18	110016		1
43	110016		11
45	110017		11
45	110026		4
33	110026		12
14	110031		1
25	110031		25
26	110033		11
40	110035		4
12	110035		7
30	110035		19
13	110036		5
17	110036		10
8	110038		14
32	110042		27
50	110044		15
12	110044		30
6	110045		1
32	110045		13
26	110046		7
50	110047		14
38	110047		15
10	110047		25
31	110047		35
3	110048		3
36	110050		8
53	110050		14
59	110050		15
12	110050		16
37	110050		19
12	110050		20
16	110050		21
11	110050		23
12	110050		24
13	110050		26
12	110050		28
28	110050		30
45	110053		13
32	110054		2
19	110064		3
2	110064		12
22	110065		8
53	110065		31
23	110068		27
24	110070		12
17	110071		9
19	110071		22
29	110073		4
8	110076		2
3	110094		34
15	110106		2
28	110106		33
6	120006		6
6	120006		7
5	120006		9
5	120006		10
2	120006		11
17	120010		8
32	120013		9
28	120017		1
20	120017		8
2	120049		6
2	120049		7
2	120049		9
2	120049		10
4	120049		13
16	130001		9
18	130001		22
15	130002		12
25	130003		3
35	130003		12
17	140000		11

Page 96 — INDEX

Yamato AZ8000G parts on page 96

Ref	Part number	Part name	Qty
11	140001	11
12	140002	10
13	140003	6
21	140004	9
23	140004	22
23	140011	37
5	140012	14
30	140014	7
10	150004	3
8	160001	1
4	160001	5
31	160001	8
10	160001	9
33	160001	11
12	160001	12
3	160001	13
17	160001	25
56	160001	31
4	160002	6
4	160002	7
23	160002	9
25	160002	22
8	160003	6
8	160003	7
8	160003	10
29	160003	12
2	160007	5
26	160007	8
21	160007	11
10	160007	12
19	160016	6
11	160016	22
14	160027	5
3	170005	25
7	170031	25
5	170032	2
32	170032	25
11	170045	8
15	170047	8
34	170049	4
12	180001	8
23	180002	12
24	180002	17
28	180003	12
18	180014	10
41	190001	11
13	190015	2
10	190016	4
1	190088	8
30	210009	9
32	210009	22
25	270001	27
13	270011	24
27	270011	28
54	280000	31
9	280011	18
4	300000	11
25	300000	19
27	300004	1
12	300008	6
20	300008	9
11	300008	10
4	300008	22
22	300008	22
23	300031	33
24	300033	33
25	300040	17
34	300043	1
19	300106	10
42	310001	6
40	310005	6
4	310017	27
28	310065	9
30	310065	22
20	310073	13
38	310081	13
16	310089	6
24	310089	9
8	310089	22
26	310089	22
42	310090	13
18	310105	4
25	310109	5
11	320008	13
23	320009	13
46	320012	13
17	330000	3
16	330008	3
6	340050	8
25	350007	37
17	390165	2
18	390166	2
16	390167	2
10	910000	38
7	910001	38
14	910003	38
6	911001	38
5	911002	38
9	911006	38
19	911060	38
12	930052	38
13	930053	38
27	930055	38
21	1090133	29
3	1094011	29
12	1096000	29
28	1096004	29
29	1096005	29
4	1097000	29
9	1097001	29
1	1200006	33
11	1200095	33
12	1200182	32
13	1298000	29
35	2049401	1
47	320008	6
1	2100006	1

Page 97 — INDEX

Yamato AZ8000G parts on page 97

Ref	Part number	Part name	Qty
22	2100009		7
7	2100011		1
9	2100012		1
3	2100014		1
24	2100024		2
43	2100032		13
1	2100035		3
21	2100037		3
4	2100047		3
17	2100050		14
19	2100052		14
53	2100052		15
17	2100053		1
3	2100088		9
3	2100088		10
34	2100098		5
25	2100099		8
17	2100105		5
12	2100111		5
19	2100117		5
11	2100135		6
3	2100136		22
7	2100137		6
14	2100138		6
6	2100138		22
3	2100144		6
32	2100145		6
39	2100152		6
1	2100160		7
7	2100161		7
9	2100161		9
7	2100161		10
5	2100162		7
11	2100164		7
10	2100165		7
25	2100166		7
28	2100167		7
29	2100168		7
3	2100173		7
19	2100174		7
15	2100176		6
7	2100176		22
26	2100177		17
28	2100189		8
21	2100192		8
18	2100197		8
30	2100199		8
10	2100211		10
1	2100215		10
9	2100219		10
19	2100221		9
15	2100227		9
17	2100227		22
38	2100229		4
14	2100241		11
13	2100242		11
15	2100243		11
16	2100244		11
9	2100248		11
10	2100249		11
3	2100251		11
28	2100252		11
30	2100253		11
35	2100256		11
46	2100257		11
48	2100259		11
31	2100262		11
37	2100263		11
47	2100264		11
12	2100266		11
32	2100267		11
27	2100269		11
42	2100271		11
29	2100272		5
21	2100275		12
22	2100276		12
19	2100277		12
20	2100278		12
27	2100279		12
16	2100280		12
14	2100281		12
13	2100283		12
17	2100284		12
20	2100288		11
25	2100289		12
8	2100318		3
21	2100336		37
15	2100337		37
16	2100338		37
5	2100339		37
23	2100346		17
6	2100349		14
7	2100353		14
4	2100354		14
2	2100363		13
14	2100369		13
24	2100374		37
13	2100375		37
1	2100385		14
28	2100502		6
19	2100518		8
41	2100533		6
27	2100534		2
43	2100535		6
44	2100536		6
19	2100538		2
5	2100580		8
11	2100602		12
36	2100642		5
20	2100642		6
22	2100671		11
23	2100672		11
24	2100673		11
25	2100674		11
33	2100854		9
31	2100856		2
13	2100861		3
20	2100864		1
1	2100865		12
4	2100866		12
5	2100867		12
8	2100868		12
6	2100869		12
7	2100870		12
15	2100872		5
23	2100873		3
24	2100874		3
26	2100875		1
27	2100892		9
29	2100892		22
40	2100895		13
39	2100896		13
5	2100899		6
1	2100900		9
25	2100900		18
6	2100902		10
22	2100903		9
24	2100903		22
20	2100918		3
2	2100921		3
16	2100926		13
17	2100927		13
18	2100928		13
19	2100929		13

Page 98 — INDEX

Yamato AZ8000G parts on page 98

Ref	Part number	Part name	Qty
1	2100935
12	2100946
15	2100957
12	2100958
11	2100961
24	2101011
30	2101020
18	2101020
29	2101021
17	2101021
44	2101022
32	2101022
24	2101026
12	2101026
23	2101027
11	2101027
57	2101038
51	2101048
13	2101050
31	2101059
21	2101089
23	2101091
12	2101124
40	2101133
2	2101133
41	2101134
3	2101134
6	2101241
9	2101242
2	2101243
11	2101244
15	2101245
12	2101246
26	2101247
18	2101248
22	2101249
23	2101250
41	2101251
31	2101252
35	2101253
40	2101254
33	2101255
38	2101257
19	2101258
16	2101259
13	2101260
44	2101268
20-1	2101371
21	2101372
22	2101373
23	2101374
28	2101375
34	2101376
32	2101377
19	2101378
20-2	2101379
2-1	2101390
1-1	2101391
3-1	2101393
28	2101394
29	2101395
3	2101435
8	2101450
9	2101451
9	2106012
6	2106100
8	2106101
14	2107004
5	2107004
13	2107030
4	2107030
4	2107178
5	2107179
8	2107180
5	2107219
9	2107219
14	2107523
28	2107523
6	2107631
12	2107631
18	2107631
15	2107640
6	2107640
6	2107640
8	2107640
41	2107643
6	2107643
6	2107643
8	2107643
14	2107643
6	2107643
22	2107643
7-1	2107650
13-1	2107650
19	2107650
7-2	2107651
13-2	2107651
18	2107652
11	2107670
17	2107670
20	2107670
20	2108000
13-1	2108002
13-2	2108003
14	2108003
30-1	2108004
30-2	2108005
14-1	2108006
20	2108006
29	2108008
3	2108010
34-1	2108013
14-2	2108014
13	2108015
11	2108016
12	2108017
6	2108020
7	2108021
4	2108022
5	2108023
2	2108024
8	2108032
24-1	2108043
24-2	2108044
24-3	2108045
2-1	2108062
2-2	2108063
5-1	2108093
5-2	2108094
8	2108097
1	2108100
15	2108106
10	2108107
9	2108117
34-2	2108119
16	2108129
21	2109000
9	2109000
22	2109001
10	2109001
30-1	2109005
31	2109006
16	2109007
19	2109007

Page 99 — INDEX

Yamato AZ8000G parts on page 99

Ref	Part number	Part name	Qty
30-2	2109009	30-2	12
30	2109010	30	30
31	2109011	30	30
7	2109013	35	35
35	2109015	30	30
36	2109016	30	30
17	2109017	17	17
18	2109018	17	17
19	2109019	17	17
10	2109020	26	26
11	2109021	26	26
25-2	2109030	23	23
26	2109031	23	23
27	2109032	23	23
25-1	2109033	23	23
16	2109038	24	24
17	2109042	19	19
16	2109045	19	19
11	2109046	19	19
12	2109047	19	19
13	2109048	19	19
5	2109052	23	23
17	2109052	24	24
32	2109067	12	12
1	2109070	35	35
3-1	2109072	35	35
2	2109074	35	35
19	2109076	24	24
4	2109076	35	35
3-2	2109078	35	35
3	2109084	23	23
4	2109086	23	23
35	2109200	6	6
16	2109201	10	10
54	2109320	14	14
60	2109320	15	15
14	2109320	16	16
27	2109320	17	17
20	2109320	18	18
38	2109320	19	19
15	2109320	26	26
29	2109322	9	9
28	2109342	23	23
15	2109347	10	10
33	2109348	22	22
10	2109349	35	35
1	2109907	30	30
39	2109911	15	15
1	2109932	29	29
6	2110026	3	3
5	2110027	3	3
3	2110181	5	5
6	2110183	5	5
5	2110184	5	5
55	2110327	31	31
10	2111011	33	33
2	2111050	27	27
3	2111051	27	27
9	2111055	27	27
13	2111056	27	27
15	2111057	27	27
22	2111058	27	27
12	2111059	27	27
19	2111060	27	27
17	2111061	27	27
16	2111062	27	27
6	2111063	27	27
18	2111066	27	27
20	211067	27	27
6	2121021	33	33
29	2129420	2	2
11	2150015	1	1
1	2150016	2	2
18	2150017	3	3
4	2150018	2	2
20	2150019	7	7
17	2150020	7	7
23	2150021	7	7
12	2150022	3	3
10	2150023	2	2
12	2150024	2	2
14	2150025	2	2
19	2150026	1	1
35	2150027	4	4
16	2150030	4	4
17	2150031	4	4
19	2150032	4	4
37	2150035	6	6
10	2150038	5	5
16	2150039	5	5
24	2150040	5	5
26	2150041	5	5
32	2150042	5	5
18	2150043	5	5
30	2150044	5	5
31	2150045	5	5
27	2150046	5	5
28	2150047	5	5
21	2150048	5	5
20	2150049	5	5
35	2150050	5	5
17	2150051	6	6
1	2150052	22	22
10	2150053	6	6
2	2150053	22	22
9	2150054	6	6
36	2150055	13	13
37	2150056	13	13
24	2150057	6	6
25	2150058	6	6
9	2150059	22	22
9	2150060	7	7
9	2150063	12	12
1	2150064	11	11
18	2150065	11	11
19	2150066	11	11
34	2150067	12	12
22	2150069	3	3
33	2150069	5	5
6	2150070	9	9
4	2150071	9	9
7	2150072	9	9
8	2150075	9	9
7	2150075	11	11
4	2150076	10	10
34	2150078	22	22
37	2150079	9	9
35	2150079	22	22
25	2150080	9	9
27	2150080	22	22
14	2150084	9	9
16	2150084	22	22
13	2150085	9	9
15	2150086	22	22
18	2150090	9	9
20	2150091	22	22
25	2150094	13	13
24	2150095	13	13
9	2150096	5	5
28	2150097	13	13
11	2150100	5	5
1	2150105	6	6
28	2150110	4	4
31	2150111	4	4

Page 100 — INDEX

Yamato AZ8000G parts on page 100

Ref	Part number	Part name	Qty
32	2150112	32	4
27	2150114	27	4
23	2150115	23	4
15	2150116	15	4
34	2150117	34	9
13	2150118	13	10
39	2150119	39	4
42	2150120	42	4
43	2150121	43	4
41	2150123	41	4
21	2150124	21	4
7	2150125	7	2
11	2150130	11	9
33	2150132	33	4
24	2150139	24	8
27	2150140	27	8
29	2150141	29	8
16	2150142	16	8
4	2150145	4	8
7	2150146	7	8
9	2150147	9	8
10	2150148	10	8
49	2150150	49	6
13	2150154	13	8
31-1	2150175	31-1	37
7	2150201	7	13
21	2150202	21	13
10	2150206	10	13
22	2150207	22	13
2	2150210	2	1
18	2150211	18	14
52	2150211	52	15
1	2150212	1	37
3	2150213	3	37
1	2150214	1	5
22	2150225	22	18
24	2150226	24	18
26	2150227	26	18
3	2150709	3	8
33	2151000	33	27
27	2151012	27	33
9	2151013	9	33
11	2151015	11	35
21	2151054	21	1
26	2151055	26	2
32	2151056	32	1
5	2151057	5	34
7	2151058	7	34
4	2151059	4	34
2	2151066	2	34
1	2151067	1	34
33	2157000	33	8
11	2157000	11	14
2	2157000	2	15
2	2157000	2	16
2	2157000	2	19
2	2157000	2	20
4	2157000	4	21
8	2157000	8	23
2	2157000	2	24
2	2157000	2	26
2	2157000	2	28
18	2157000	18	30
2	2157002	2	17
2	2157005	2	18
37	2157020	37	8
4	2157020	4	16
4	2157020	4	20
4	2157020	4	24
4	2157020	4	28
20	2157020	20	30
8	2157022	8	18
6	2157030	6	24
24	2157030	24	28
6	2157031	6	18
35	2157040	35	8
52	2157040	52	14
58	2157040	58	15
11	2157040	11	16
36	2157040	36	19
11	2157040	11	20
15	2157040	15	21
10	2157040	10	23
11	2157040	11	28
27	2157040	27	30
12	2157041	12	26
9	2157045	9	24
11	2157046	11	24
26	2157046	26	28
25	2157047	25	28
12	2157048	12	18
1-1	2157049	1-1	16
1-2	2157050	1-2	16
1-1	2157054	1-1	20
1-2	2157055	1-2	20
32-1	2157057	32-1	8
32-2	2157058	32-2	8
1	2157062	1	28
17	2157070	17	30
13	2157072	13	28
10	2157086	10	14
1	2157086	1	15
1	2157096	1	19
15-3	2157100	15-3	28
15-4	2157101	15-4	28
15-1	2157102	15-1	28
15-2	2157103	15-2	28
32-1	2157108	32-1	30
32-2	2157109	32-2	30
17	2157116	17	21
3-1	2157118	3-1	21
7-1	2157118	7-1	23
3-2	2157119	3-2	21
7-2	2157119	7-2	23
17	2157121	17	28
1	2157138	1	24
22	2157139	22	28
1	2157158	1	26
1	2157185	1	17
1	2157186	1	18
5-1	2157199	5-1	16
5-2	2157200	5-2	16
5	2157200	5	28
14	2157204	14	28
21	2157204	21	30
40-1	2157205	40-1	8
5	2157205	5	24
16-1	2157205	16-1	28
23	2157205	23	28
40-2	2157206	40-2	8
16-2	2157206	16-2	28
5-1	2157208	5-1	20
16-3	2157208	16-3	28
5-2	2157209	5-2	20
16-4	2157209	16-4	28
33-1	2157210	33-1	30
33-2	2157211	33-2	30
14	2158013	14	18
15	2158014	15	18
18	2159008	18	24
13	2159101	13	20
19	2159101	19	21
21	2159102	21	6
1	2159901	1	27

Page 101 — INDEX

Yamato AZ8000G parts on page 101

Ref	Part number	Part name	Qty
1	2159906	1
37	2160018	31-2
23	2160019	6
22	2160050	13
18	2160051	23
22	2160051	14
18	2160100	21
4	2160122	1
23	2169102	1
13	3100060	31
13	3100061	33
5	3100129	8
13	3100329	35
13	3100345	34
6	3100370	38
13	3100370	8
13	3100371	13
38	9620631	2
38	9620663	22
38	9620665	28
38	9620670	3
38	9620673	8
38	9620675	11
38	9620678	23
38	9620679	24
38	9620680	25
38	9620681	26
38	9620688	18
38	9620689	4
38	9620690	21
38	9620691	20
38	9620693	1-1
38	9620694	1-2
38	9620700	17
38	9620702	15
38	9620703	16

Part BooksPartsSearchNotes

Part Books

×

Search

×

Yamato AZ8000G — parts catalog

• Page 1 (cover): This is the cover page for the Yamato AZ8000G Overlock Stitch Machine Parts List. It features the Yamato logo, the title 'Parts List', the machine type 'SUPER HIGH SPEED OVERLOCK STITCH MACHINE', the model number 'AZ8000G', and a diagram of the machine. It also lists various models and devices associated with this machine.
• Page 2 (parts_list): This page is a table of models and devices, listing various machine models and the devices described on this book, with references to each device's parts book.
• Page 3 (text): This page provides instructions on how to read and use the parts list, including explanations of symbols and ordering procedures. It also contains a note about potential changes to the parts list.
• Page 4 (toc): This page is a table of contents listing various machine parts and mechanisms, along with their corresponding page numbers. It includes sections like 'MISCELLANEOUS COVERS', 'NEEDLE BAR DRIVING MECHANISM', 'PRESSER FOOT MECHANISM', and specific exclusive parts for models like AZ8000G, AZ8016G, AZ8019G, AZ8020G, AZ8025G, AZ8032G, AZ8035G, AZ8039G, AZ8045G, and AZ8045G-O4/K2.
• Page 5 (toc): This page is a table of contents for a parts catalog, listing various devices, parts, and sections with corresponding page numbers. It includes entries like 'K2 DEVICE(1)' to 'INDEX'.
• Page 6 (diagram): This page displays a diagram of various machine components, including covers, screws, washers, and other miscellaneous parts, with reference numbers for identification.
• Page 7 (parts_list): This page lists miscellaneous cover components for an industrial sewing machine, including various plates, screws, washers, and gaskets, with their corresponding part numbers and quantities.
• Page 8 (diagram): This page displays a diagram of various machine components, including screws, brackets, covers, and a main body assembly, with reference numbers for each part.
• Page 9 (parts_list): This page lists miscellaneous covers and related parts for sewing machines, including part numbers, descriptions, quantities, and model applicability.
• Page 10 (diagram): This page displays a diagram of sewing machine components, including various screws, gaskets, covers, and internal parts, with reference numbers for identification.
• Page 11 (parts_list): This page lists miscellaneous covers and related parts, including feed mechanism covers, screws, gaskets, and seals, with their corresponding part numbers, descriptions, and quantities required.
• Page 12 (diagram): This page displays a diagram of sewing machine components, including various screws, brackets, and other small parts, with reference numbers for identification.
• Page 13 (parts_list): This page lists miscellaneous thread eyelets with their part numbers, descriptions, and quantities required.
• Page 14 (diagram): This page displays a diagram of various machine components, including pulleys, shafts, bearings, screws, and housing parts, with reference numbers for each item.
• Page 15 (parts_list): This page lists miscellaneous crankshaft and bushings with their corresponding part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, and linkages, with reference numbers for identification.
• Page 17 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various sewing machine components, including screws, shafts, levers, and plates, with reference numbers for each part.
• Page 19 (parts_list): This page lists parts for the Knife Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 20 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and feet, with reference numbers for identification.
• Page 21 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 22 (diagram): This page displays a diagram of various sewing machine components, including screws, washers, bearings, and specialized parts, each identified by a reference number.
• Page 23 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various sewing machine components, including a shaft, bearings, levers, and fasteners, with reference numbers for each part.
• Page 25 (parts_list): This page lists parts for the Lower Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various sewing machine components, including brackets, levers, screws, nuts, and washers, with reference numbers for each part.
• Page 27 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 28 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, gears, and covers, with corresponding reference numbers for identification.
• Page 29 (parts_list): This page lists parts for the FEED DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 30 (diagram): This page displays a diagram of various machine components, including a pump assembly, filter, and various fittings and tubes, with corresponding reference numbers for identification.
• Page 31 (parts_list): This page lists parts for the lubricating mechanism, including oil pumps, worm wheels, screws, seals, oil tubes, and filters, with their corresponding part numbers and quantities.
• Page 32 (diagram): This page displays a diagram of upper knife (angled type) components for the AZ8000G sewing machine, with various parts numbered for identification.
• Page 33 (parts_list): This page lists parts for the AZ8000G Upper Knife (Angled Type), including part numbers, descriptions, and quantities required.
• Page 34 (diagram): This page displays a diagram of the upper knife (angled type) and associated parts for the AZ8000G sewing machine, with numbered components and their corresponding reference numbers.
• Page 35 (parts_list): This page lists exclusive parts for the Upper Knife (Angled Type), AZ8000G, including part numbers, descriptions, and quantities required.
• Page 36 (diagram): This page displays a diagram of various sewing machine parts for the AZ8000G-M model, including components for the B3 device.
• Page 37 (parts_list): This page lists parts for the AZ8000G-M EXCLUSIVE model, including part numbers, descriptions, and quantities required, with reference numbers from 1 to 40.
• Page 38 (diagram): This page displays a diagram of various sewing machine parts, including a needle plate, presser foot, and device components, with reference numbers and part numbers indicated.
• Page 39 (parts_list): This page lists parts for the AZ8000G-M, including part numbers, descriptions, and quantities required. It covers items from reference number 41 to 60.
• Page 40 (diagram): This page contains a diagram of sewing machine parts, including part numbers and reference numbers for items such as presser feet, needles, and other components.
• Page 41 (parts_list): This page lists exclusive parts for the AZ8003G model, including part numbers, descriptions, and quantities required.
• Page 42 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 28, with part numbers and descriptions provided for each component.
• Page 43 (parts_list): This page lists exclusive parts for the AZ8016G model, including part numbers, descriptions, and quantities required.
• Page 44 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 26, with associated part numbers and descriptions.
• Page 45 (parts_list): This page lists exclusive parts for the AZ8016G-5 sewing machine, including part numbers, descriptions, and quantities required.
• Page 46 (diagram): This page displays a diagram of various sewing machine parts, including a presser foot assembly, needle plate, and other components, with reference numbers and part numbers indicated.
• Page 47 (parts_list): This page lists parts for the AZ8019G model, including presser foot components, screws, washers, and folders, with their corresponding part numbers, descriptions, and quantities.
• Page 48 (diagram): This page displays a diagram of sewing machine parts for models AZ8020G-X4 and AZ8020G-X5, with numbered components and their corresponding part numbers.
• Page 49 (parts_list): This page lists exclusive parts for the AZ8020G-X4 and X5 models, including presser feet, screws, and stitch plates, with their corresponding part numbers, descriptions, and quantities required.
• Page 50 (diagram): This page contains diagrams and parts lists for the AZ8025G sewing machine, specifically detailing components for models AZ8025G-Y5, Y6, and AZ8025G-X4.
• Page 51 (parts_list): This page lists exclusive parts for the AZ8025G sewing machine, including part numbers, descriptions, and quantities required.
• Page 52 (diagram): This page displays a diagram of various machine parts for models AZ8032G and 8035G(1), including components like linkages, shafts, and fasteners, with reference numbers for identification.
• Page 53 (parts_list): This page lists parts for the AZ8032G, 8035G sewing machines, including part numbers, descriptions, and quantities required.
• Page 54 (diagram): This page contains diagrams of parts for sewing machine models AZ8032G, 8035G(2), AZ8035G-Y5, and Y6, along with a section for extra parts.
• Page 55 (parts_list): This page lists parts for the AZ8032G, 8035G sewing machines, including part numbers, descriptions, and quantities required.
• Page 56 (diagram): This page displays a diagram of sewing machine parts, including a main assembly and extra parts, with reference numbers and descriptions.
• Page 57 (parts_list): This page lists exclusive parts for the AZ8039G sewing machine, including part numbers, descriptions, and quantities required.
• Page 58 (diagram): This page displays a diagram of various sewing machine parts for models AZ8045G, 8045G/K2(1), with numbered components and their corresponding part numbers and descriptions.
• Page 59 (parts_list): This page lists parts for the AZ8045G, 8045G/K2 models, including part numbers, descriptions, and quantities required.
• Page 60 (diagram): This page displays a diagram of various sewing machine parts, numbered 1 through 15, with part numbers and descriptions provided in a table.
• Page 61 (parts_list): This page lists parts for the AZ8045G-04/K2 Exclusive Parts (2) with part numbers, descriptions, and quantities required.
• Page 62 (diagram): This page displays a diagram of the K2 device (1), showing various components labeled with reference numbers from 1 to 33.
• Page 63 (parts_list): This page lists parts for the K2 DEVICE (1) with part numbers, descriptions, and quantities required. It includes items like complete sets, suction pipes, screws, and various control components.
• Page 64 (diagram): This page displays diagrams and parts lists for K2 DEVICE(2) models AZ8003G/K2, AZ8003G/B3/K2, AZ8020G/K2, AZ8025G/K2, and AZ8039G/K2.
• Page 65 (parts_list): This page lists parts for K2 DEVICE(2), including part numbers, descriptions, and quantities required. It contains items from reference number 1 to 28.
• Page 66 (diagram): This page displays a diagram of the C DEVICE, showing various components labeled with reference numbers and part numbers.
• Page 67 (parts_list): This page lists parts for the C Device, including part numbers, descriptions, and quantities required, with reference numbers for each part.
• Page 68 (diagram): This page displays diagrams and part lists for B3 DEVICE, AZ8003G/B3, and AZ8020G/B3 sewing machine models, detailing various components and their reference numbers.
• Page 69 (parts_list): This page lists parts for the B3 Device, including various screws, holders, knives, and plates, with their corresponding part numbers and quantities.
• Page 70 (diagram): This page displays a diagram of the CH20 device (1) with various components labeled with reference numbers and part numbers.
• Page 71 (parts_list): This page lists parts for the CH20 DEVICE(1) for AZ8000G, including part numbers, descriptions, and quantities required.
• Page 72 (diagram): This page displays a diagram of the CH20 device (1) with various components labeled with reference numbers and part numbers.
• Page 73 (parts_list): This page lists parts for the CH20 DEVICE(1) for AZ8000G, including part numbers, descriptions, and quantities required.
• Page 74 (diagram): This page displays a diagram of the CH20 device (2), showing various components and their reference numbers, including screws, brackets, and other mechanical parts.
• Page 75 (parts_list): This page lists parts for the CH20 DEVICE(2) for AZ8000G, including part numbers, descriptions, and quantities required.
• Page 76 (diagram): This page displays a diagram of the CH20 device, showing various components with reference numbers and part numbers.
• Page 77 (parts_list): This page lists parts for the CH20 Device (3) for AZ8000G, including part numbers, descriptions, and quantities required.
• Page 78 (diagram): This page displays a diagram of the SC10 Device, with numbered parts including a frame, a handle, screws, a spring, and a cover.
• Page 79 (parts_list): This page lists parts for the SC10 Device, including part numbers, descriptions, and quantities required. It contains 7 items, such as Lint Removal Pipe, Pipe Clamp, and various screws.
• Page 80 (diagram): This page displays a diagram of extra parts for sewing machines, including feed dogs and various screws and components, with reference numbers and part numbers indicated.
• Page 81 (parts_list): This page lists extra parts for a sewing machine, including differential feed dogs, main feed dogs, stitch plates, screws, washers, and edge guides, with their corresponding part numbers and quantities required.
• Page 82 (parts_list): This page lists extra parts for sewing machines, including various presser feet with part numbers like AZ8000G-04, AZ8003G-03, and AZ8020G-X4, each with a description and a reference number.
• Page 83 (parts_list): This page lists extra parts for sewing machines, including part numbers, descriptions, and quantities.
• Page 84 (diagram): This page displays a diagram of various machine components and extra parts, including screws, nuts, washers, and specialized fittings, with reference numbers for identification.
• Page 85 (parts_list): This page lists miscellaneous supporting board parts with their part numbers, descriptions, and quantities required. It includes items like belt covers, screws, nuts, washers, and timing gauges.
• Page 86 (diagram): This page contains diagrams of sewing machine parts, labeled as Figure 1-1 and Figure 1-2, illustrating various components with reference numbers and part details.
• Page 87 (parts_list): This page lists parts for a thread stand, including part numbers, descriptions, and quantities required. It details items such as thread stand components, column pipes, thread guides, screws, nuts, washers, and spool accessories.
• Page 88 (parts_list): This page lists various warning labels for sewing machines, including their part numbers and descriptions in both English and Japanese.
• Page 89 (cover): This is the cover page of a parts list for main spare parts, with the title also provided in Japanese.
• Page 90 (parts_list): This page contains a parts list for AZ8000G Class sewing machines, detailing main parts, needle clamp, presser foot components, and stitch tongue with corresponding part numbers and models.
• Page 91 (parts_list): This page lists parts for the Thread Chain Guide, Stitch Plate, Differential Feed Dog, Main Feed Dog, Auxiliary Feed Dog, Upper Looper, and Lower Looper, with corresponding part numbers and quantities.
• Page 92 (parts_list): This page contains a parts list for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 93 (index): This page is an index of parts for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 94 (parts_list): This page contains a parts list for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights in grams.
• Page 95 (index): This page is an index for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 96 (index): This page contains an index of parts for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 97 (index): This page is an index of parts for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 98 (index): This page is an index of parts for the AZ8000G sewing machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 99 (parts_list): This page contains a parts list for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 100 (index): This page is an index of parts for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 101 (index): This page is an index of parts for the AZ8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 102 (cover): This is the cover page for a Yamato Sewing Machine Mfg. Co., Ltd. parts catalog, identified by P/N 9710060(P), No. 3-2, edited in October 2003. It includes the company's address and contact information in Japan.

Page 1 — Parts List

Yamato Parts List SUPER HIGH SPEED OVERLOCK STITCH MACHINE AZ8000G MODELS & DEVICES AZ8020G AZ8000G AZ8000G-M AZ8003G AZ8016G AZ8019G AZ8025G AZ8032G AZ8035G AZ8039G AZ8045G K2 C B3 CH20 SC10 YAMATO SEWING MACHINE MFG. CO.,LTD. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2 — TABLE OF MODEL & DEVICE

TABLE OF MODEL & DEVICE モデルと装置の記載一覧 device 装置 The devices described on this book See each device's parts book 本書に記載されてい る装置 各装置(別冊)のパーツブック参照 model 機種 machine head 本体 K2 CH 20 B3 SC 10 KT2 BT 43 MT 22 MU 44 MU 45 ABT 12 ABT 13 ABT 17 ABT 18 SEY 15 AZ8000G O AZ8000G-M O AZ8003G O O O O O O AZ8016G O O O O AZ8019G O O O O O O O O O AZ8020G O O O O O O O O O AZ8025G O O O O O O O O O AZ8032G O O O O AZ8035G O O O O AZ8039G O O O O AZ8045G O O O O The models described on this book 本書に記 載されている機種 See each model's parts book 各機種(別 冊)のパー ツブックを 参照 AZ8022G O O O O AZ8069G O O O O AZ8120G-8 O O O O <NOTICE> This table includes the main models. See the details of the gauge and others on the parts book for each device. Some models without the gauge can not be produced. This table is subject to change without notice. 《注意事項》 この表には代表機種を記載しており、ゲージ等の詳細は各パーツブックを参照してください。 一部組合せにより、生産できない事もあります。 この表の記載事項は、機種や装置の新設及び廃止により変更される場合がありますのでご了承下さい。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3

パーツリストの見方 このパーツリストはAZ8020G-Y5, Y6(平メス装備)を基本モデルにしてイラストを作成しています。項目1~ 13には基本モデルを記載しています。 項目14~サブモデル、付帯装置等を記載しています。 パーツリストに記載されているカラーの寸法は内径×外径×幅を表しています。 コネクタに表記してある数字は、接続部のサイズです。 記号の説明 (Parts No. の隣に記載されています。) [ ] 前回 のパーツリストに対して、今回変更された部品を表わしています。 [ ]内は旧Parts No. 及びネジ類の形状 ◆ 前回 のパーツリストに対して、今回追加された部品及びモデルを表わしています。 部品注文の際のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、2150210)でお願いします。 ☆ 0020004の場合は、0020004又は20004でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さを お知らせ下さい。 なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of AZ8020G-Y5, Y6 with Flat Knife. The items from No.1 to No.13 contain the standard model. The following items included No.14 contain the submodel and Device. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Numbers on a connector show sizes of joints. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. ◆ means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.2150210) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0020004", please place an order for the part by showing "0020004" or "20004". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) MISCELLANEOUS COVERS(2) MISCELLANEOUS COVERS(3) MISCELLANEOUS THREAD EYELETS MISCELLANEOUS CRANKSHAFT & BUSHINGS NEEDLE BAR DRIVING MECHANISM KNIFE DRIVING MECHANISM PRESSER FOOT MECHANISM UPPER LOOPER DRIVING MECHANISM LOWER LOOPER DRIVING MECHANISM FEED DRIVING CONTROL MECHANISM FEED DRIVING MECHANISM LUBRICATING MECHANISM EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G AZ8000G-M EXCLUSIVE PARTS AZ8003G EXCLUSIVE PARTS AZ8016G EXCLUSIVE PARTS AZ8016G-5 EXCLUSIVE PARTS AZ8019G EXCLUSIVE PARTS AZ8020G-X4, X5, EXCLUSIVE PARTS AZ8025G EXCLUSIVE PARTS AZ8032G, 8035G EXCLUSIVE PARTS(1) AZ8032G, 8035G EXCLUSIVE PARTS(2) AZ8039G EXCLUSIVE PARTS AZ8045G, 8045G/K2 EXCLUSIVE PARTS(1) AZ8045G-O4/K2 EXCLUSIVE PARTS(2) カバー関係(1) カバー関係(2) カバー関係(3) 糸道関係 主軸及びブッシュ関係 針棒機構 メス機構 押工機構 上ルーパ機構 下ルーパ機構 前送り調節機構 送り機構 給油機構 角メス及びサブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品(1)22 サブモデル専用部品(2)23 サブモデル専用部品 サブモデル専用部品(1)25 サブモデル専用部品(2)26 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 24 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5 — Contents

Contents 目次 K2 DEVICE(1) K2装置(1) 27 K2 DEVICE(2) K2装置(2) 28 C DEVICE C装置 29 B3 DEVICE B3装置 30 CH20 DEVICE(1) for AZ8000G CH20装置(1) 31 CH20 DEVICE(2) for AZ8000G CH20装置(2) 32 CH20 DEVICE(3) for AZ8000G CH20装置(3) 33 SC10 DEVICE SC10装置 34 EXTRA PARTS(1) 特注部品(1) 35 EXTRA PARTS(2) 特注部品(2) 36 MISCELLANEOUS SUPPORTING BOARD 受ケ板関係 37 THREAD STAND 糸立台 38 WARNING LABEL 警告ラベル 39 LIST of MAIN SPARE PARTS 主要部品リスト 40 INDEX 索引 41 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6

1 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7 — MISCELLANEOUS COVERS (1)

MISCELLANEOUS COVERS (1) カバー関係(1) Ref.No Parts No. Description 品 名 Amt. Req 1 2100006 Cloth Plate クロスプレート 1 2 2150210 Cloth Plate(Lower) クロスプレート(下) 1 3 2100014 Rubber Cushion クロスプレート(下)埋メ座 1 4 001123 Washer ワッシャ 5 5 000644 Spring Washer スプリングワッシャ 3 6 110045 Screw(M4-0.7 × 12) 止ネジ 3 7 2100011 Cloth Plate Eccentric Bushing エキセンブッシュ 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 2100012 Collar(4 × 9 × 6mm) カラー 1 10 003637 Screw(1/8-44 × 2.5) 止ネジ 1 11 2150015 Cloth Plate Spring クロスプレートバネ 1 12 110012 Screw(M4-0.7 × 5) 止ネジ 2 13 100001 Lock Nut ロックナット 1 14 110051 Stop Screw(M4-0.7 × 12) ストツパネジ 1 15 0020004 Oil Cap オイルキャップ 1 16 0020005 O-ring(P28) Oリング 1 17 2100053 Top Cover 上カバー 1 18 110016 Screw(M4-0.7 × 15) 止ネジ 6 19 2150026 Top Cover Gasket 上カバーパッキン 1 20 2100864 Oil Reservoir Gasket 油受ケパッキン 1 21 2151054 [2100863] Oil Reservoir 油受ケ 1 22 000816 Screw(1/4-24 × 8) 止ネジ 4 23 0032879 Oil Reservoir Rubber Cushion(Black-colored) 防振ゴム(黒色) 3 24 0033627 Oil Reservoir Rubber Cushion(Green-colored) 防振ゴム(緑色) 1 25 2100875 Oil Reservoir Positioning Bar 油受ケ固定棒 4 26 3000004 Washer ワッシャ 4 27 120017 Screw(M5-0.8 × 15) 止ネジ 6 28 0020137 Drain Hole Seal パッキン 1 29 005075 Drain Hole Screw(3/8-24 × 8) 油抜キネジ 1 30 31 2151056 [2100004] Wind Guide Plate 風案内板 1 32 110013 Screw(M4-0.7 × 8) 止ネジ 2 33 300043 Washer ワッシャ 2 34 2049401 Serial Number Plate 機番プレート 1 35 000726 Rivet 止メ鋲 2 36 From the library of: Superior Sewing Machine & Supply LLC AZ8000G

Page 8

2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 9 — MISCELLANEOUS COVERS(2)

MISCELLANEOUS COVERS(2) カバー関係(2) 2 Ref.No Parts No. Description Amt. Req 1 2150016 Side Cover 側面カバー 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 4 3 110013 [110001] Screw(M4-0.7 × 8)[M4-0.7 × 5.4] 止ネジ 1 4 2150018 Eye Guard Holder アイガード板 1 5 170032 Screw(M4-0.7 × 5) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 2 7 2150125 Eye Guard アイガード 1 8 110076 Screw(M3-0.5 × 6) 止ネジ 2 9 000444 Washer ワッシャ 2 10 2150023 Needle Bar Oil Defender 針棒油受ケ 1 11 110012 Screw(M4-0.7 × 5) 止ネジ 2 12 2150024 Needle Bar Oil Seal 針棒シール 1 13 190015 Screw(M14-2 × 6) 止ネジ 1 14 2150025 Logo Plate ロゴマーク板 2 15 110106 Screw(M4-0.7 × 8) 止ネジ 1 16 390167 "AZ-G" Logo Mark AZ-Gロゴマーク 1 17 390165 Brand Name Plate(68mm)(Green) 銘板(緑) 1 18 390166 Brand Name Plate(83mm)(Green) 銘板(緑) 1 19 2100538 Front Cover Latch Spring 前開キカバーラッチバネ 1 20 0024446 Front Cover Hook 前開キカバーフック 1 21 001203 Screw(6/64-40 × 4.5) 止ネジ 1 22 0020016 Front Cover Hinge Pin 前開キカバーヒンジピン 1 23 003637 Screw(1/8-44 × 2.5) 止ネジ 2 24 2100024 Front Cover(Right) 前開キカバー 1 25 0024095 Front Cover Hinge Spring 前開キカバーヒンジバネ 1 26 2151055 [2100855] Front Cover Hinge 前開キカバーヒンジ 1 27 2100534 Chip Guard(Openable) 切屑落シ板 1 28 110003 Screw(M3.5-0.6 × 6) 止ネジ 2 29 2129420 Model Plate(Green) 型式板(緑) 1 30 ---- Threading Chart(See the Table) 糸通シ図(下表参照) 1 31 2100856 Front Cover Latch 前開キカバーラッチ 1 32 110054 Screw(M3-0.5 × 3.5) 止ネジ 2 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注) 型式板を御注文の際は機種名(ゲージ記号、附帯装置含む)をお知らせください。 Models Parts No. Threading Chart AZ8000G 390650 8000G-M 390650 8003G 390650 8016G 390650 8019G 390651 8020G 390651 8025G 390651 8032G 390651 8035G 390651 8039G 390651 8045G 390650 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 10

3 3 4 1 2 7 6 5 19 18 21 20 7 22 17 14 11 23 24 25 11 10 15 14 13 12 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 11 — MISCELLANEOUS COVERS(3)

MISCELLANEOUS COVERS(3) カバー関係(3) 3 Ref.No Parts No. Description 品 名 Amt. Req 1 2100035 Feed Mechanism Cover 送り上カバー 1 2 2100921 Feed Mechanism Cover Gasket 送り上カバーパッキン 1 3 110048 Screw(M4-0.7 × 10) 止ネジ 5 4 2100047 Rubber Cushion 埋メ座(中) 1 5 2110027 O-ring(P52) Oリング 1 6 2110026 Ball Bearing Holder ベアリング押工 1 7 110013 Screw(M4-0.7 × 8) 止ネジ 7 8 2100318 Fan Cover ファンカバー 1 9 110012 Screw(M4-0.7 × 5) 止ネジ 2 10 150004 Screw(M4-0.7 × 6) 止ネジ 1 11 2100961 Seal Plug 詰栓 2 12 2150022 Pushbutton プッシュボタン 1 13 2100861 Oil Seal オイルシール 1 14 0033024 Retaining Ring ストップリング 2 15 0068517 Pushbutton Spring プッシュボタンバネ 1 16 330008 Seal Plug 詰栓 1 17 330000 Seal Plug 詰栓 1 18 2150017 Fabric Guide Plate 布案内板 1 19 110064 Screw(M4-0.7 × 8) 止ネジ 2 20 2100918 Tail Cover Gasket 後力カバーパッキン 1 21 2100037 Tail Cover 後力カバー 1 22 2150069 [0036518] Seal Plug 詰栓 1 23 2100873 Ball Bearing Housing ハウジング 1 24 2100874 Ball Bearing Housing Gasket ハウジングパッキン 1 25 130003 Screw(M4-0.7 × 7.3) 止ネジ 3 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 12

4 2 46 1 11 10 9 8 7 10 9 8 5 4 3 6 11 10 9 12 8 4 7 6 3 11 10 9 13 8 4 3 6 14 15 21 25 24 22 6 14 3 22 23 26 29 28 30 31 32 33 34 39 40 38 B 35 36 37 43 41 42 44 45 44 45 18 17 A 16 19 20 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 13 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 4 Ref.No Parts No. Description 品 名 Amt. Req 1 2160122 [2100063] Thread Guide Plate 糸案内板 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 2 3 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 4 4 0024083 Tension Spring Bushing 糸調子ナット回り止メ 4 5 0024157 Lower Looper Thread Tension Spring 下ルーパ糸調子バネ 1 6 0020118 Thread Tension Spring Retainer 糸調子バネキャップ(下) 4 7 000178 Felt フェルト 4 8 0031111 Tension Disc 糸調子皿 8 9 000177 Felt フェルト 4 10 190016 Tension Post(Short) 糸調子棒(短) 4 11 0032962 Tension Disc Eyelet 糸調子台糸道 3 12 0032952 Upper Looper Thread Tension Spring 上ルーパ糸調子バネ 1 13 0032971 Needle Thread Tension Spring 針糸調子バネ 1 14 0024156 Needle Thread Tension Spring 針糸調子バネ 1 15 2150116 Tension Disc Eyelet for Needle Thread 針糸調子台糸道 1 16 2150030 Oil Container SPタンク 1 17 2150031 Oil Container Plug 詰栓 1 18 310105 Felt SPフェルト 1 19 2150032 Felt Holder SPフェルト押エ 1 20 110013 [110012] Screw(M4-0.7 × 8) 止ネジ 1 21 2150124 Needle Thread Eyelet Holder 針糸道取付板 1 22 110001 Screw(M4-0.7 × 5.4) 止ネジ 3 23 2150115 Needle Thread Eyelet(Right) 針糸道(右) 1 24 006035 Screw(9/64-40 × 7) 止ネジ 1 25 000644 Spring Washer スプリングワッシャ 1 26 000322 Nut ナット 1 27 2150114 Needle Thread Eyelet(Left) 針糸道(左) 1 28 2150110 Needle Thread Pull-off 針糸繰り 1 29 110073 Screw(M4-0.7 × 7.5) 止ネジ 1 30 000653 Knock Pin ノックピン 1 31 2150111 Thread Retainer Plate Support 小調子板 1 32 2150112 Thread Retainer Plate 小調子皿 1 33 2150132 Thread Retainer Spring 小調子皿バネ 1 34 170049 Screw(M2-0.4 × 4) 止ネジ 1 35 2150027 Looper Holder Cover ルーパ台カバー 1 36 110009 Screw(M4-0.7 × 8) 止ネジ 1 37 0093303 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 38 2100229 Looper Holder Cover Spacer(Rubber) ルーパ台カバー スペーサ 1 39 2150119 Looper Thread Eyelet(Left) ルーパ糸道(左) 1 40 110035 Screw(M4-0.7 × 10) 止ネジ 3 41 2150123 Thread Eyelet Support 糸道取付板 1 42 2150120 Lower Looper Thread Eyelet 下ルーパ糸道 1 43 2150121 Upper Looper Thread Eyelet 上ルーパ糸道 1 44 000014 Washer ワッシャ 2 45 110026 Screw(M3-0.5 × 6) 止ネジ 2 46 0022215 Looper Thread Pipe 糸道パイプ 2 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 14

5 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

MISCELLANEOUS CRANKSHAFT & BUSHINGS 主軸及びブッシュ関係 5 Ref.No Parts No. Description 品 名 Amt. Req 1 2150214 Machine Pulley ミシンプーリー 1 2 160007 Screw(M6-1 × 6) 止ネジ 6 3 2110181 Oil Cooling Fan 冷却ファン 1 4 160001 Screw(M4-0.7 × 4) 止ネジ 5 5 2110184 Wave Washer 波形ワッシャ 1 6 2110183 Mechanical Oil Shield 油切り 1 7 0093090 Crankshaft Ball Bearing(Right) ボールベアリング(右) 1 8 3100129 Bearing Adapter ベアリング受ケ 1 9 2150096 Oil Pump Driving Worm ウォーム 1 10 2150038 Crankshaft Bushing 中ブッシュ 1 11 2150100 Crankshaft クランクシャフト 1 12 2100111 Crankshaft Counterweight バランスウエイト 1 13 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 14 160027 Screw(M3-0.5 × 3) 詰ネジ 5 15 2100872 Crankshaft Ball Bearing(Left) ボールベアリング(左) 1 16 2150039 Crankshaft Bushing 小ブッシュ 1 17 2100105 Upper Knife Driving Shaft Bushing(Right) 上メス軸ブッシュ(右) 1 18 2150043 Upper Knife Feed Bar Driving Shaft Bushing 上メス軸・送り軸ブッシュ 2 19 2100117 Upper Knife Driving Shaft Oil Seal 上メス軸オイルシール 1 20 2150049 Needle Bar Driving Shaft Bushing(Right) 針棒クランク軸ブッシュ(右) 1 21 2150048 Needle Bar Driving Shaft Bushing(Left) 針棒クランク軸ブッシュ(左) 1 22 003636 Cap Screw(5/16-32 × 3.5) 蓋ネジ 1 23 000526 Gasket パッキン 1 24 2150040 Needle Bar Bushing(Upper) 針棒ブッシュ(上) 1 25 310109 Oil Wick 油芯 1 26 2150041 Needle Bar Bushing(Lower) 針棒ブッシュ(下) 1 27 2150046 Upper Looper Driving Shaft Bushing(Front) 上ルーパ軸ブッシュ(前) 1 28 2150047 Upper Looper Driving Shaft Bushing(Rear) 上ルーパ軸ブッシュ(後) 1 29 2100272 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 30 2150044 Lower Looper Driving Shaft Bushing(Front) 下ルーパ軸ブッシュ(前) 1 31 2150045 Lower Looper Driving Shaft Bushing(Rear) 下ルーパ軸ブッシュ(後) 1 32 2150042 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 33 2150069 Seal Plug 詰栓 1 34 2100098 Control Lever Shaft Bushing 送り調節レバー軸ブッシュ 1 35 2150050 Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 36 2100642 Needle Bar 針棒 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G

Page 16

6 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 17 — NEEDLE BAR DRIVING MECHANISM

NEEDLE BAR DRIVING MECHANISM Ref.No Parts No. Description 品 名 Amt. Req 1 2150105 Needle Bar Driving Connecting Rod 針棒ロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 2 3 2100144 Needle Bar Driving Connecting Rod Pin 針棒クランクピン 1 4 160002 Screw(M4-0.7 × 5) 止ネジ 1 5 2100899 Needle Bar Driving Lever 針棒クランク軸腕 1 6 120006 Screw(M6-1 × 12) 止ネジ 1 7 2100137 Collar(12 × 20 × 10mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 1 9 2150054 Needle Bar Crank Arm, C. Set 針棒クランク(組) 1 10 2150053 Needle Bar Driving Shaft 針棒クランク軸 1 11 2100136 Needle Bar Crank Arm 針棒クランク 1 12 300008 Washer ワッシャ 1 13 140003 Screw(M6-1 × 18) 止ネジ 1 14 2100138 Needle Bar Connecting Link 針棒リンク 1 15 2100176 Needle Bar Connecting Link Pin 針棒リンクピン 2 16 310089 Oil Wick 油芯 2 17 2150051 Needle Bar Connecting Bracket 針棒抱キ 1 18 110006 Screw(M3.5-0.6 × 10) 止ネジ 1 19 160016 Screw(M4-0.7 × 4.5) 止ネジ 2 20 2100642 Needle Bar 針棒 1 21 2159102 Needle Clamp(Y) 針止メ 1 22 --- Needle(System : DC × 1) 針 2 23 003637 Screw(1/8-44 × 2.5) 止ネジ 2 24 2150057 Stitch Plate Support Stay, C. Set 針板取付台支工(組) 1 25 2150058 Stitch Plate Support Stay 針板取付台支工 1 26 000035 Roll Pin ロールピン 1 27 110009 Screw(M4-0.7 × 8) 止ネジ 6 28 2100502 Stitch Plate Support(Rear) 針板取付台(後) 1 29 110001 Screw(M4-0.7 × 5.4) 止ネジ 1 30-1 2108004 Stitch Plate(Y5) 針板 1 30-2 2108005 Stitch Plate(Y6) 針板 1 31 005345 Screw(1/16-40 × 8.3) 止ネジ 2 32 2100145 Stitch Plate Support(Front) 針板取付台(前) 1 33 110011 Screw(M5-0.8 × 10) 止ネジ 2 34 0032604 Rubber Cushion 埋メ座 1 35 2109200 Needle Guard(Front) 針受(前) 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 2150035 HR Unit, Complete Set HR装置(組) 1 38 3100370 Tube Joint パイプ継手 1 39 2100152 Oil Tube(70mm) 給油パイプ(70mm) 1 40 310005 Oil Wick 油芯 1 41 2100533 HR Felt Holder HR フェルト受ケ 1 42 310001 HR Felt HR フェルト 1 43 2100535 HR Felt Holder Bracket, C. Set HR取付台(組) 1 44 2100536 HR Felt Holder Bracket HR取付台 1 45 000393 Roll Pin ロールピン 1 46 110013 Screw(M4-0.7 × 8) 止ネジ 1 47 320008 Fitting Stud(Short) 管継手ボルト(短) 1 48 000567 Seal パッキン 1 49 2150150 HR Unit Bracket HR装置台 1 6 針棒機構 From the library of: Superior Sewing Machine & Supply LLC AZ8000G

Page 18

7 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19 — KNIFE DRIVING MECHANISM

KNIFE DRIVING MECHANISM メス機構 7 Ref.No Parts No. Description 品 名 Amt. Req 1 2100160 Upper Knife Driving Connecting Rod 上メスロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 2 3 2100173 Driving Lever Pin 上メス軸ピン 1 4 160002 Screw(M4-0.7 × 5) 止ネジ 1 5 2100162 Upper Knife Driving Lever 上メス軸腕 1 6 120006 Screw(M6-1 × 12) 止ネジ 1 7 2100161 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 2 9 2150060 Upper Knife Driving Shaft 上メス軸 1 10 2100165 Upper Knife Holder Positioner 上メスホルダピン 1 11 2100164 Upper Knife Holder(Flat Type) 上メスホルダ(平) 1 12 110035 Screw(M4-0.7 × 10) 止ネジ 1 13 0020496 Upper Knife(Flat Type) 上メス(平) 1 14 000532 Washer ワッシャ 1 15 110004 Screw(M3-0.6 × 8) 止ネジ 1 16 0093864 Seal Plug 詰栓 1 17 2150020 Lower Knife Holder Spring Stop 下メスバネ受ケ 1 18 110012 Screw(M4-0.7 × 5) 止ネジ 3 19 2100174 Cloth Plate Rubber Cushion 緩衝ゴム 1 20 2150019 Front Cover 前カバー 1 21 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 22 2100009 Cloth Plate Spring Pin バネ受ピン 1 23 2150021 Lower Knife Holder Locking Plate 下メス台回り止メ 1 24 0032919 Lower Knife Holder Spring 下メスバネ 1 25 2100166 Lower Knife Holder 下メス台 1 26 110046 Screw(M5-0.8 × 12) 止ネジ 1 27 000688 Guide Pin ガイドピン 1 28 2100167 Lower Knife 下メス 1 29 2100168 Lower Knife Clamp 下メス押エ 1 30 140014 Screw(M4-0.7 × 8) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 20

8 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 1 190088 [190080] Adjusting Screw(M10-0.75 × 30) 調節ネジ 1 2 100073 Lock Nut ロックナット 1 3 2150709 [2100181] Presser Spring 押工バネ 1 4 2150145 Presser Bar 押工棒 1 5 2100580 Presser Arm Positioning Guide Pin 押工腕案内ピン 1 6 340050 [000482] Spring Pin スプリングピン 1 7 2150146 Presser Arm Stop 押工腕ストッパ 1 8 110012 Screw(M4-0.7 × 5) 止ネジ 1 9 2150147 Presser Foot Release Lever 手揚ゲ 1 10 2150148 Presser Foot Release Lever Spring 手揚ゲバネ 1 11 170045 Screw(M4-0.7 × 5) 止ネジ 1 12 180001 Screw(M4-0.7 × 4.5) バネ掛ケネジ 1 13 2150154 [2100193] Presser Foot Lifter Lever 押工場ゲレバー 1 14 000487 Wave Washer 波形ワッシャ 1 15 170047 Screw(M8-1.25 × 10) 止ネジ 1 16 2150138 Presser Foot Lifter Lever Stop 押工場ゲレバーストッパ 1 17 120010 Screw(M6-1 × 10) 止ネジ 1 18 2100197 Presser Foot Lifter Lever Link 押工場ゲレバーリンク 1 19 2100518 Presser Foot Shaft Collar 押工軸カラー 1 20 120017 Screw(M5-0.8 × 15) 止ネジ 1 21 2100192 Intermediate Lever 押工軸レバー 1 22 110065 Stop Screw(M4-0.7 × 12) ストップネジ 1 23 100001 Lock Nut ロックナット 1 24 2150139 Presser Foot Lifter Lever Spring 押工場ゲレバーバネ 1 25 2100099 Presser Foot Shaft Bushing 押工軸ブッシュ 1 26 160007 Screw(M6-1 × 6) 止ネジ 1 27 2150140 Presser Arm, Complete Set 押工腕(組) 1 28 2100189 Presser Foot Shaft 押工軸 1 29 2150141 Presser Arm 押工腕 1 30 2100199 Presser Arm Hinge Pin 押工腕ヒンジピン 1 31 160001 Screw(M4-0.7 × 4) 止ネジ 1 32-1 2157057 Presser Foot, C. Set(Y5) 押工(組) 1 32-2 2157058 Presser Foot, C. Set(Y6) 押工(組) 1 33 2157000 Presser Foot Hinge 押工ヒンジ 1 34 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 35 2157040 Presser Foot Half-stay 半固定片 1 36 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 37 2157020 Presser Foot(Lower) 押工(下) 1 38 0034535 Thread Chain Guide 空環ガイド 1 39 004237 Screw(3/32-56 × 2.6) 止ネジ 1 40-1 2157205 Presser Foot Stitch Tongue(Y5) 爪 1 40-2 2157206 Presser Foot Stitch Tongue(Y6) 爪 1 41 2107643 Finger Guard フィンガード 1 42 000444 Washer ワッシャ 1 43 005036 Screw(1/8-44 × 5.6) 止ネジ 1 44 0020271 Thread Chain Cutting Knife チェインカッタ 1 45 004097 Screw(3/32-56 × 4.2) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 22

9 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 23 — UPPER LOOPER DRIVING MECHANISM

UPPER LOOPER DRIVING MECHANISM 上ルーパ機構 9 Ref.No Parts No. Description 品 名 Amt. Req 1 2100900 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 2100088 Connecting Rod Swing-proof 振止メ 2 4 2150071 Upper Looper Driving Lever 上ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 2150070 Looper Driving Shaft 上ルーパ軸 1 7 2150072 Driving Shaft Thrust Ring スラストリング 1 8 2150075 Driving Shaft Thrust Ring スラストリング 1 9 2100161 Collar(10 × 19 × 9mm) カラー 1 10 160001 Screw(M4-0.7 × 4) 止ネジ 2 11 2150130 Upper Looper Thread Pull-off 上ルーパ糸繰リ 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 2150085 Upper Looper Bar Crank Arm, C. Set 上ルーパクランク(組) 1 14 2150084 Upper Looper Bar Guide Bushing ルーパ案内メタル 1 15 2100227 Upper Looper Bar Guide Cover ルーパ案内蓋 1 16 130001 Screw(M2.5-0.45 × 6) 止ネジ 1 17 110071 Screw(M2.5-0.45 × 6) 止ネジ 1 18 2150089 Upper Looper Bar Guide, Complete Set ルーパ案内(組) 1 19 2100221 Upper Looper Bar Crank Arm 上ルーパクランク 1 20 300008 Washer ワッシャ 1 21 140004 Screw(M6-1 × 16) 止ネジ 1 22 2100903 Upper Looper Bar Crank Arm Pin 上ルーパクランクピン 1 23 160002 Screw(M4-0.7 × 5) 止ネジ 1 24 310089 Oil Wick 油芯 1 25 2150080 Upper Looper Bar ルーパ棒 1 26 000029 Seal Plug 詰栓 1 27 2100892 Upper Looper Bar Guide ルーパ案内 1 28 310065 Oiling Felt フェルト 1 29 2109322 Upper Looper(for Needle Size #9~14) 上ルーパ(針番手 #9~14用) 1 30 210009 Screw(1/8-44 × 3.2) 止ネジ 1 31 000779 Standard Pin 基準ピン 1 32 120013 Screw(M6-1 × 15) 止ネジ 2 33 2100854 Upper Looper Supplementary Thread Eyelet 上ルーパ補助糸道 1 34 2150117 Lower Looper Thread Pull-off 下ルーパ糸繰リ 1 35 000014 Washer ワッシャ 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 2150079 Upper Looper Bar, C. Set ルーパ棒(組) 1 From the library: Superior Sewing Machine & Supply LLC jintex.in AZ8000G

Page 24

10 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — LOWER LOOPER DRIVING MECHANISM

LOWER LOOPER DRIVING MECHANISM 下ルーパ機構 10 Ref.No Parts No. Description 品 名 Amt. Req 1 2100215 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 2100088 Connecting Rod Swing-proof 振止メ 1 4 2150076 Lower Looper Driving Lever 下ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 2100902 Driving Shaft Thrust Ring スラストプレート 1 7 2100161 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 3 9 2100219 Looper Driving Shaft ルーパ軸 1 10 2100211 Lower Looper Holder Arm 下ルーパ台 1 11 300008 Washer ワッシャ 1 12 140002 Screw(M6-1 × 14) 止ネジ 1 13 2150118 Thread Pull-off 下ルーパ台糸繰り 1 14 110009 Screw(M4-0.7 × 8) 止ネジ 1 15 2109347 Lower Looper 下ルーパ 1 16 2109201 Needle Guard(Rear) 針受ケ(後) 1 17 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 18 180014 Screwed Pin(M3-0.5 × 4.5) ピンネジ 1 19 300106 Conical Spring Washer 皿バネワッシャ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 26

11 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27 — FEED DRIVING CONTROL MECHANISM

FEED DRIVING CONTROL MECHANISM 前送り調節機構 11 Ref.No Parts No. Description Amt. Req 1 2150064 Main Feed Bar Lever 後送りレバー 1 2 120006 Screw(M6×12) 止ネジ 4 3 2100251 Main Feed Bar Lever Pin 後送りレバーピン 1 4 300000 Washer ワッシャ 3 5 100002 Nut ナット 1 6 000669 Washer ワッシャ 2 7 2150075 Thrust Plate スラストプレート 1 8 0095027 Retaining Ring ストツプリング 1 9 2100248 Main Feed Bar Connection 後送りリンク 1 10 2100249 Connection Bushing 後送りリンクブツシュ 1 11 140001 Screw(M5×0.5×12) 止ネジ 1 12 2100266 Feed Bar, Complete Set 前後送り台(組) 1 13 2100242 Main Feed Bar 後送り台 1 14 2100241 Differential Feed Bar 前送り台 1 15 2100243 Differential Feed Bar Connection 前送りリンク 1 16 2100244 Connection Bushing 前送りリンクブツシュ 1 17 140000 Screw(M5×0.5×15.5) 止ネジ 1 18 2150065 Feed Bar Driving Shaft 送リ軸 1 19 2150066 Feed Bar Driving Shaft Lever 送リ軸腕 1 20 2100268 Connecting Rod Pin 送リロツドピン 1 21 160007 Screw(M6×6) 止ネジ 1 22 2100671 Differential Rocker, Complete Set 前送り腕(組) 1 23 2100672 Differential Rocker 前送り腕 1 24 2100673 Differential Regulating Slider スライダ 1 25 2100674 Differential Regulating Slider Cap スライダ蓋 1 26 110033 Screw(M3×0.5×6) 止ネジ 2 27 2100269 Differential Lever(Right), C. Set 差動レバー(右)(組) 1 28 2100252 Slider Link スライダリンク 1 29 0068202 Retaining Ring ストツプリング 1 30 2100253 Slider Link Pin スライダリンクピン 1 31 2100262 Differential Lever(Right) 差動レバー(右) 1 32 2100267 Collar(10×17×8mm) カラー 1 33 160001 Screw(M4×0.7×4) 止ネジ 2 34 000690 Spring Pin スプリングピン 1 35 2100256 Differential Lever Spring 差動レバーバネ 1 36 0020538 O-ring(P7) Oリング 1 37 2100263 Differential Lever(Left) 差動レバー(左) 1 38 000528 Washer ワッシャ 1 39 000561 Conical Spring Washer 皿バネワッシャ 1 40 100000 Adjusting Nut 調節ナット 1 41 190001 Adjusting Screw(M6×11.5, M4.5×0.5×4) 調節ネジ 1 42 2100271 Differential Feed Graduation 送リ目盛板 1 43 110016 Screw(M4×0.7×15) 止ネジ 2 44 0020350 Differential Lever Stop 差動レバー ストツパ 2 45 110017 Screw(M5×0.8×8) 止ネジ 2 46 2100257 Adjusting Screw アジヤスタ 1 47 2100264 Adjusting Block アジヤスタ駒 1 48 2100259 Adjusting Block Spring アジヤスタバネ 1 49 0034293 Retaining Ring ストツプリング 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 28

12 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 29 — FEED DRIVING MECHANISM

FEED DRIVING MECHANISM 送り機構 12 Ref.No Parts No. Description 品 名 Amt. Req 1 2100865 Feed Bar Guide Support 送り台ガイドサポート 1 2 110064 Screw(M4-0.7 × 8) 止ネジ 4 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 6 4 2100866 Feed Bar Shield(Front) 送り台シール(前) 1 5 2100867 Feed Bar Shield(Rear) 送り台シール(後) 1 6 2100869 Feed Bar Shield Guide 送り台シールガイド 1 7 2100870 Feed Bar Guide 送り台ガイド 2 8 2100868 Feed Bar Shield(Upper) 送り台シール(上) 1 9 2150063 Feed Bar Guide Bushing 送り台ガイドブッシュ 1 10 160007 Screw(M6-1 × 6) 止ネジ 1 11 2100602 Feed Bar Block(Rear) Shaft 角駒(後)軸 1 12 160001 Screw(M4-0.7 × 4) 止ネジ 1 13 2100283 Feed Bar Block(Rear) 角駒(後) 1 14 2100281 Feed Bar Block(Rear) Lid 角駒(後)蓋 1 15 130002 Screw(M3-0.5 × 6) 止ネジ 1 16 2100280 Feed Bar Block(Front) 角駒(前) 1 17 2100284 Eccentric Pin Holder 送りエキセンピン取付台 1 18 0020401 Feed Dog Eccentric Pin 送りエキセンピン 1 19 2100277 Feed Dog Eccentric 送りエキセン 1 20 2100278 Roller Bearing ニードルベアリング 1 21 2100275 Feed Dog Driving Connecting Rod 送リロッド 1 22 2100276 Feed Dog Regulating Eccentric 送り調節エキセン 1 23 180002 Screw(M3-0.5 × 4) 止ネジ 2 24 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 25 2100289 Feed Dog Regulating Plate Spring 送り調節プレートバネ 1 26 0023473 Feed Dog Regulating Plate 送り調節プレート 1 27 2100279 Feed Dog Regulating Gear 送り調節ギア 1 28 180003 Screw(M5-0.8 × 8) 止ネジ 1 29 160003 Screw(M5-0.8 × 5) 止ネジ 3 30-1 2109005 Differential Feed Dog(Y5) 前送り 1 30-2 2109009 Differential Feed Dog(Y6) 前送り 1 31 2109006 Main Feed Dog 後送り 1 32 2109067 Auxiliary Feed Dog 小送り 1 33 110026 Screw(M3-0.5 × 6) 止ネジ 1 34 2150067 Connecting Rod Cover 送リロッドカバー 1 35 130003 Screw(M4-0.7 × 7.3) 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 30

13 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 31 — LUBRICATING MECHANISM

LUBRICATING MECHANISM 給油機構 13 Ref.No Parts No. Description 品 名 Amt. Req 1 2100935 Oil Pump, Complete Set ポンプ(組) 1 2 2100363 Worm Wheel ウオームホイール 1 3 160001 Screw(M4-0.7 × 4) 止ネジ 4 4 120049 [110016] Screw(M4-0.7 × 16)[M4-0.7 × 15] 止ネジ 2 5 6 000567 Seal パッキン 1 7 2150201 Oil Tube, Complete Set 給油パイプ(組) 1 8 3100370 Oil Tube Fitting One Way End 片口管継手 4 9 0031831 Oil Tube Clamp 緊束環 7 10 2150206 Oil Tube(4.6 × 6.4 × 220mm) 給油パイプ 1 11 320008 Oil Tube Fitting Stud(M6-1) 管継手ボルト 2 12 2100958 Suction Tube, C. Set 吸入パイプ(組) 1 13 3100371 Oil Tube Fitting Two Way 両口管継手 1 14 2100369 Oil Tube(4.6 × 6.4 × 36.5mm) 給油パイプ 1 15 2100957 Oil Filter 濾過網 1 16 2100926 Suction Pipe(Upper), C. Set 吸入パイプ(上)(組) 1 17 2100927 Suction Tube(4 × 6 × 18mm) 吸入パイプ 1 18 2100928 Suction Tube(2.5 × 4 × 60mm) 吸入パイプ 1 19 2100929 Suction Pipe(Upper) 吸入パイプ(上) 1 20 310073 Felt フェルト 1 21 2150202 Oil Tube, Complete Set 給油パイプ(組) 1 22 2150207 Oil Tube(4.6 × 6.4 × 320mm) 給油パイプ 1 23 320009 Oil Tube Fitting Stud(Long)(M6-1) 管継手ボルト(長) 1 24 2150095 Oil Pressure Regulating Valve, C. Set 調圧弁(組) 1 25 2150094 Oil Pressure Regulating Valve 調圧弁 1 26 0080503 Oil Pressure Regulating Ball 調圧ボール弁 1 27 0030748 Guide Pin ガイドピン 1 28 2150097 Spring バネ 1 29 006861 Adjusting Screw(1/4-40 × 5) 調節ネジ 1 30 000419 Nut ナット 1 31 3100060 Oil Filter Cap オイルフィルタキャップ 1 32 110045 Screw(M4-0.7 × 12) 止ネジ 3 33 3100061 O-ring(P42) Oリング 1 34 3100345 Oil Filter オイルフィルタ 1 35 3100329 Filter Housing オイルフィルタ継手 1 36 2150055 Oil Pipe, C. Set オイルパイプ(組) 1 37 2150056 Oil Pipe オイルパイプ 1 38 310081 Oil Wick 油芯 1 39 2100896 Oil Pipe, C. Set オイルパイプ(組) 1 40 2100895 Oil Pipe オイルパイプ 1 41 000456 Seal Plug 詰栓 1 42 310090 Oil Wick 油芯 1 43 2100032 Oil Sight Gauge オイルゲージ 1 44 0020538 O-ring(P7) Oリング 1 45 110053 Screw(M6-1 × 8) 止ネジ 1 46 320012 [320010] Oil Tube Fitting Stud(1/4-40) 管継手ボルト 2 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 32 — UPPER KNIFE(Angled Type)

14 UPPER KNIFE(Angled Type) AZ8000G 10 53 12 11 13 20 21 22 23 24 16 25 52 16 15 14 54 18 19 29 30 31 A 44 45 47 49 43 36 37 33 34 32 16 39 38 46 48 40 41 43 42 50 51 17 AZ8000G From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 33 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G

EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G 角メス及びサブモデル専用部品 14 Ref.No Parts No. Description 品 名 Amt. Req 1 2100385 Upper Knife Holder 上メスホルダ(角) 1 2 0020491 Upper Knife 上メス 1 3 2101435 Upper Knife Clamp 上メス押工 1 4 2100354 Upper Knife Chip Guard 切屑押シ 1 5 140012 Screw(M4-0.7 × 18.5) 止ネジ 1 6 2100349 Upper Knife Clamp Plate 上メス押工受ケ 1 7 2100353 Upper Knife Stop 上メスストッパ 1 8 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 9 000665 Washer ワッシャ 1 10 2157086 Presser Foot, Complete Set(04) 押工(組) 1 11 2157000 Presser Foot Hinge 押工ヒンジ 1 12 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 13 2107030 Presser Foot(Lower) 押工(下) 1 14 2107004 Presser Foot Stitch Tongue(04) 爪 1 15 2107640 Finger Guard フィンガ-ガード 1 16 005036 Screw(1/8-44 × 5.6) 止ネジ 3 17 2100050 Cloth Plate クロスプレート 1 18 2150211 Cloth Plate(Lower) クロスプレート(下) 1 19 2100052 Rubber Cushion クロスプレート(下)埋メ座 1 20 2108000 Stitch Plate(04) 針板 1 21 2109000 Differential Feed Dog 前送り 1 22 2109001 Main Feed Dog 後送り 1 23 2101027 Blind Hemming Guide, C. Set 裾引定規(組) 1 24 2101026 Overhanging Guide Hinge, C. Set 定規(組) 1 25 0034867 Hemming Positioner 裾引幅調節片 1 26 27 000533 Washer ワッシャ 1 28 007006 Screw(9/64-40 × 4) 止ネジ 1 29 2101021 Blind-Hemming Edge Guide, C. Set 裾引定規台(組) 1 30 2101020 Blind-Hemming Edge Guide 裾引定規台 1 31 009624 Screw(1/8-44 × 5.3) 止ネジ 1 32 0022445 Swing-out Lever スイングアウトレバー 1 33 004150 Screw(11/64-40 × 5.2) 止ネジ 1 34 000172 Conical Spring Washer 皿バネワッシャ 1 35 000334 Nut ナット 1 36 0022446 Overhanging Guide Hinge Stop 定規ストッパ 1 37 001331 [001330] Screw(9/64-40 × 3.8) 止ネジ 1 38 0022447 Swing-out Lever Holder スイングアウトレバー取付台 1 39 0022448 Swing-out Lever Stop スイングアウトレバーストッパ 1 40 0022435 Edge Guide Positioning Pin 定規固定ピン 2 Ref. No 41 to 54 See the following page. From the library of: Superior Sewing Machine & Supply LLC AZ8000G

Page 34

14 UPPER KNIFE (Angled Type) AZ8000G 10 53 12 11 13 20 21 23 24 16 25 52 16 15 14 54 18 19 29 30 31 A 44 45 47 49 43 36 37 33 34 32 16 39 38 46 48 A 40 41 43 42 35 40 50 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 35 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G

EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ8000G 角メス及びサブモデル専用部品 14 Ref.No Parts No. Description 品 名 Amt. Req 41 0022436 Positioning Pin Holder Spring 定規固定ピン押エバネ 2 42 001225 Screw(1/8-44 × 2.8) 止ネジ 1 43 001196 Screw(1/8-44 × 6) 止ネジ 3 44 2101022 Edge Guide Adjusting Holder 裾引調節台 1 45 004106 Screw(9/64-40 × 6.5) 止ネジ 2 46 007619 Screw(9/64-40 × 6.3) 止ネジ 1 47 0022443 Adjusting Screw Guide Piece 調節ネジガイド 1 48 006444 Adjusting Screw(1/8-44 × 12.9) 調節ネジ 1 49 0022444 Edge Guide Adjusting Holder Cover 裾引調節台蓋 1 50 110047 Screw(M4-0.7 × 10) 止ネジ 2 51 0060297 Pin ピン 1 52 2157040 Presser Foot Half-stay 半固定片 1 53 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 54 2109320 Upper Looper 上ルーパ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 36 — AZ8000G-M

15 AZ8000G-M 1 58 3 2 59 7 6 5 4 17 11 16 15 12 7 13 39 B3 DEVICE 40 45 46 42 41 43 44 47-1 47-2 48 18 24 19 A 32 33 35 A 28 37 29 31 31 30 25 27 26 23 29 28 38 57 51 53 52 49 50 55 54 56 AZ8000G From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 37 — AZ8000G-M EXCLUSIVE PARTS

AZ8000G-M EXCLUSIVE PARTS サブモデル専用部品 15 Ref.No Parts No. Description 品 名 Amt. Req 1 2157086 Presser Foot, Complete Set(O4) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 2107030 Presser Foot(Lower) 押工(下) 1 5 2107004 Presser Foot Stitch Tongue(O4) 爪 1 6 2107640 Finger Guard フィンガード 1 7 005036 Screw(1/8-44 × 5.6) 止ネジ 3 8 2108032 Stitch Plate(O4) 針板 1 9 2109000 Differential Feed Dog 前送り 1 10 2109001 Main Feed Dog 後送り 1 11 2101027 Blind-Hemming Guide, C. Set 裾引定規(組) 1 12 2101026 Overhanging Guide Hinge, C. Set 定規(組) 1 13 0034867 Hemming Positioner 裾引幅調節節片 1 14 15 000533 Washer ワッシャ 1 16 007006 Screw(9/64-40 × 4) 止ネジ 1 17 2101021 Blind-Hemming Edge Guide, C. Set 裾引定規台(組) 1 18 2101020 Blind-Hemming Edge Guide 裾引定規台 1 19 009624 Screw(1/8-44 × 5.3) 止ネジ 1 20 0022445 Swing-out Lever スイングアウトレバー 1 21 004150 Screw(11/64-40 × 5.2) 止ネジ 1 22 004178 Conical Spring Washer 皿バネワッシャ 1 23 000334 Nut ナット 1 24 0022446 Overhanging Guide Hinge Stop 定規ストッパ 1 25 001330 Screw(9/64-40 × 3.8) 止ネジ 1 26 0022447 Swing-out Lever Holder スイングアウトレバー取付台 1 27 0022448 Swing-out Lever Stop スイングアウトレバーストップ 1 28 0022435 Edge Guide Positioning Pin 定規固定ピン 2 29 0022436 Positioning Pin Holder Spring 定規固定ピン押エバネ 2 30 001225 Screw(1/8-44 × 2.8) 止ネジ 1 31 001196 Screw(1/8-44 × 6) 止ネジ 3 32 2101022 Edge Guide Adjusting Holder 裾引調節台 1 33 004106 Screw(9/64-40 × 6.5) 止ネジ 2 34 007619 Screw(9/64-40 × 6.3) 止ネジ 1 35 0022443 Adjusting Screw Guide Piece 調節ネジガイド 1 36 006444 Adjusting Screw(1/8-44 × 12.9) 調節ネジ 1 37 0022444 Edge Guide Adjusting Holder Cover 裾引調節台蓋 1 38 110047 Screw(M4-0.7 × 10) 止ネジ 2 39 2109911 B3 Device, Complete Set B3装置(組) 1 40 2101133 Back Tack Cutting Unit 空環切り装置(組) 1 Ref. No 41 to 60 See the following page. From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jintex.in

Page 38 — AZ8000G-M

15 AZ8000G-M 1 58 59 3 2 6 5 4 8 9 10 60 17 18 24 25 21 19 22 32 7 33 34 27 26 35 A 28 23 37 29 31 31 30 38 11 16 15 12 7 13 39 B3 DEVICE 40 45 46 42 43 41 47-1 47-2 44 48 49 50 55 51 53 52 54 56 AZ8000G From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 39 — AZ8000G-M EXCLUSIVE PARTS

AZ8000G-M EXCLUSIVE PARTS サブモデル専用部品 15 Ref.No Parts No. Description 品 名 Amt. Req 41 2101134 Thread Chain Cutting Knife Holder 刃取付台 1 42 0023184 Thread Chain Cutting Knife 刃 1 43 0023169 Thread Chain Cutting Knife Holder Spacer 刃取付台スペーサ 1 44 003637 Screw(1/8-44 × 2.5) 止ネジ 2 45 004205 Screw(11/64-40 × 18) 止ネジ 1 46 0024308 Thread Chain Holder 空環押工 1 47 0023182 Thread Chain Holder Spring(Standard) 空環押エバネ(標準) 1 47-2 0033711 Thread Chain Holder Stronger(with Stringer Pressure) 空環押エバネ(バネ圧強い) 1 48 000361 Adjusting Nut 空環押エバネ調節ナット 2 49 000535 Washer ワッシャ 1 50 110044 Screw(M3.5-0.6 × 14) 止ネジ 1 51 2101048 Cloth Plate クロスプレート 1 52 2150211 Cloth Plate(Lower) クロスプレート(下) 1 53 2100052 Rubber Cushion クロスプレート(下)埋メ座 1 54 0036905 Synchronizer Positioning Pin ポジショナピン 1 55 110009 Screw(M4-0.7 × 8) 止ネジ 1 56 0081848 Synchronizer Cushion ポジショナピンクッション 1 57 0060297 Pin ピン 1 58 2157040 Presser Foot Half-stay 半固定片 1 59 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 60 2109320 Upper Looper 上ルーパ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 40

16 AZ8003G 1-1 1-2 3 10 2 11 12 8 7 6 5-1 5-2 4 9 13-1 13-2 03 only 14 15 16 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 41 — AZ8003G EXCLUSIVE PARTS

AZ8003G EXCLUSIVE PARTS サブモデル専用部品 16 Ref.No Parts No. Description 品 名 Amt. Req 1-1 2157049 Presser Foot, C. Set(O3) 押工(組) 1 1-2 2157050 Presser Foot, C. Set(O4) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 2157020 Presser Foot(Lower) 押工(下) 1 5-1 2157199 Presser Foot Stitch Tongue(O3) 爪 1 5-2 2157200 Presser Foot Stitch Tongue(O4) 爪 1 6 2107643 Finger Guard フィンガード 1 7 000444 Washer ワッシャ 1 8 005036 Screw(1/8-44 × 5.6) 止ネジ 1 9 0034535 Thread Chain Guide 空環ガイド 1 10 004237 Screw(3/32-56 × 2.6) 止ネジ 1 11 2157040 Presser Foot Half-stay 半固定片 1 12 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 13-1 2108002 Stitch Plate(O3) 針板 1 13-2 2108003 Stitch Plate(O4) 針板 1 14 2109320 Upper Looper 上ルーパ 1 15 0060297 Pin ピン 1 16 2109007 Differential Feed Dog(O3) 前送り 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in AZ8000G

Page 42 — 17

17 AZ8016G 1 2 3 6 5 4 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — AZ8016G EXCLUSIVE PARTS

AZ8016G EXCLUSIVE PARTS Ref.No Parts No. Description サブモデル専用部品 17 品 名 Amt. Req 1 2157185 Presser Foot, C. Set(O2) 押工(組) 1 2 2157002 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 0024505 Presser Foot(Lower) 押工(下) 1 5 0024421 Presser Foot Hinge Spring 押工ヒンジバネ 1 6 004131 Screw(1/8-44 × 6) 止ネジ 1 7 0022156 Thread Chain Guide 空環ガイド 1 8 004237 Screw(3/32-56 × 2.6) 止ネジ 1 9 0024506 Presser Foot Stitch Tongue 爪 1 10 004138 Screw(1/8-44 × 5) 止ネジ 1 11 2108016 Stitch Plate, Complete Set 針板(組) 1 12 2108017 Stitch Plate 針板 1 13 2108015 Stitch Plate Tongue 針板爪 1 14 004204 Screw(3/32-100 × 2.2) 止ネジ 1 15 0025503 Stitch Plate Tongue Stop 針板ストッパ 1 16 001228 Screw(3/32-56 × 3.2) 止ネジ 1 17 2109017 DifferentialFeedDog(withRubberFace) 前送り(ゴム送り) 1 18 2109018 Main Feed Dog(with Rubber Face) 後送り(ゴム送り) 1 19 2109019 Auxiliary Feed Dog 小送り 1 20 000932 Rubber Cushion(Large) 埋メ座(大) 1 21 000933 Rubber Cushion(Medium) 埋メ座(中) 1 22 0023580 Upper Knife 上メス 1 23 2100346 Upper Knife Holder 上メスホルダ 1 24 180002 Screw(M3-0.5 × 4) 止ネジ 2 25 300040 Washer ワッシャ 1 26 2100177 Lower Knife Holder 下メス台 1 27 2109320 Upper Looper 上ルーパ 1 28 0060297 Pin ピン 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 44

18 AZ8016G-5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45 — AZ8016G-5 EXCLUSIVE PARTS

AZ8016G-5 EXCLUSIVE PARTS サブモデル専用部品 18 Ref.No Parts No. Description 品 名 Amt. Req 1 2157186 Presser Foot, C. Set(O2) 押工(組) 1 2 2157005 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 000331 Nut ナツト 1 5 003302 Screw(1/8-44 × 11) 止ネジ 1 6 2157031 Presser Foot Spring 押工バネ 1 7 003637 Screw(1/8-44 × 2.5) 止ネジ 1 8 2157022 Presser Foot(Lower) 押工(下) 1 9 280011 Screw(3/32-56 × 2) 止ネジ 1 10 0024506 Presser Foot Stitch Tongue(O2) 爪 1 11 004138 Screw(1/8-44 × 5) 止ネジ 1 12 2157048 Thread Chain Guide 空環ガイド 1 13 004237 Screw(3/32-56 × 2.6) 止ネジ 1 14 2158013 Stitch Plate, Complete Set 針板(組) 1 15 2158014 Stitch Plate 針板 1 16 2108129 Stitch Plate Tongue 針板爪 1 17 004182 Screw(3/32-56 × 2.5) 止ネジ 1 18 0060297 Pin ピン 1 19 2109007 Differential Feed Dog 前送り 1 20 2109320 Upper Looper 上ルーパ 1 21 2160100 Crankshaft クランクシャフト 1 22 2150225 Upper Looper Driving Lever 上ルーパ軸腕 1 23 2160051 Driving Shaft Thrust Ring スラストリング 1 24 2150226 Lower Looper Driving Lever 下ルーパ軸腕 1 25 2100900 Looper Driving Lever Connecting Rod ルーパロッド 1 26 2150227 NeedleThread Pull-off 針糸繰リ 1 From the library of: Superior Sewing Machine & Supply LLC jinttex.in AZ8000G

Page 46 — AZ8019G

19 AZ8019G 1 3 9 8 37 2 36 6 7 18 5 4 10 39 11 14 15 13 12 17 16 38 19 22 21 25 24 25 24 23 27 26 30 31 29 25 33 32 28 35 34 20-1 20-2 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 47 — AZ8019G EXCLUSIVE PARTS

AZ8019G EXCLUSIVE PARTS サブモデル専用部品 19 Ref.No Parts No. Description 品 名 Amt. Req 1 2157096 Presser Foot, Complete Set(O5) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 2107178 Presser Foot(Lower) 押工(下) 1 5 2107179 Presser Foot Stitch Tongue(O5) 爪 1 6 2107640 Finger Guard フィンガード 1 7 005036 Screw(1/8-44 × 5.6) 止ネジ 1 8 2107180 Thread Chain Guide 空環ガイド 1 9 004237 Screw(3/32-56 × 2.6) 止ネジ 1 10 2108107 Stitch Plate 針板 1 11 2109046 Main Feed Dog, Complete Set 後送リ(組) 1 12 2109047 Main Feed Dog 後送リ 1 13 2109048 Main Feet Dog Positioner 後送リ位置決メ片 1 14 004139 Screw(3/32-56 × 3) 止ネジ 1 15 004182 Screw(3/32-56 × 2.5) 止ネジ 1 16 2109045 Differential Feed Dog 前送リ 1 17 2109042 Auxiliary Feed Dog 小送リ 1 18 000444 Washer ワッシャ 1 19 2101378 Folder Plate, C. Set 定規台(組) 1 20-1 2101371 Folder(80mm)(Extra ) 定規(特注品) 1 20-2 2101379 Folder(60mm)(Extra ) 定規(特注品) 1 21 2101372 Folder Plate(Upper) 定規板(上) 1 22 2101373 Folder Plate(Middle) 定規板(中) 1 23 2101374 Folder Plate(Lower) 定規板(下) 1 24 005049 Screw(M5-0.8 × 8) 止ネジ 6 25 300000 Washer ワッシャ 8 26 004100 Screw(11/64-40 × 3.2) 止ネジ 1 27 000010 Conical Spring Washer 皿バネワッシャ 1 28 2101375 Folder Plate Support(Upper) 定規板支工(上) 1 29 009751 Screw(M5-0.8 × 10) 止ネジ 2 30 110035 Screw(M4-0.7 × 10) 止ネジ 2 31 000022 Nut ナット 2 32 2101377 Positioning Plate 位置決メ片 1 33 006202 Screw(M4-0.7 × 6) 止ネジ 1 34 2101376 Folder Plate(Lower) 定規板支工(下) 1 35 110009 Screw(M4-0.7 × 8) 止ネジ 1 36 2157040 Presser Foot Half-stay 半固定片 1 37 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 38 2109320 Upper Looper 上ルーパ 1 39 0060297 Pin ピン 1 From the library of: Superior Sewing Machine & Supply LLC jntex.in AZ8000G

Page 48 — AZ8020G-X4, X5

20 AZ8020G-X4, X5 AZ8020G-X4, X5 1-1 1-2 11 12 3 8 7 10 2 5-1 5-2 4 13 14-1 14-2 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 49 — AZ8020G-X4, X5 EXCLUSIVE PARTS

AZ8020G-X4, X5 EXCLUSIVE PARTS サブモデル専用部品 20 Ref.No Parts No. Description 品 名 Amt. Req 1-1 2157054 Presser Foot, C. Set(X4) 押工(組) 1 1-2 2157055 Presser Foot, C. Set(X5) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.0-6 × 8) 止ネジ 1 4 2157020 Presser Foot(Lower) 押工(下) 1 5-1 2157208 Presser Foot Stitch Tongue(X4) 爪 1 5-2 2157209 Presser Foot Stitch Tongue(X5) 爪 1 6 2107643 Finger Guard フィンガーガード 1 7 000444 Washer ワッシャ 1 8 005036 Screw(1/8-44 × 5.6) 止ネジ 1 9 0034535 Thread Chain Guide 空環ガイド 1 10 004237 Screw(3/32-56 × 2.6) 止ネジ 1 11 2157040 Presser Foot Half-stay 半固定片 1 12 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 13 2159101 Needle Clamp(X) 針止メ 1 14-1 2108006 Stitch Plate(X4) 針板 1 14-2 2108014 Stitch Plate(X5) 針板 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jinttex.in

Page 50 — AZ8025G

21 AZ8025G 2 1 AZ8025G-Y5, Y6 3-1 3-2 15 16 10 5 14 9 8 4 11 7-1 7-2 13 6 AZ8025G-X4 17 15 16 10 5 14 9 8 4 11 18 13 6 19 20 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 51 — AZ8025G EXCLUSIVE PARTS

AZ8025G EXCLUSIVE PARTS Ref.No Parts No. Description サブモデル専用部品 21 品 名 Amt. Req 1 0024130 Tape Guide(Upper) テープガイド(上) 1 2 110012 Screw(M4-0.7 × 5) 止ネジ 2 3-1 2157118 Presser Foot, C. Set(Y5) 押工(組) 1 3-2 2157119 Presser Foot, C. Set(Y6) 押工(組) 1 4 2157000 Presser Foot Hinge 押工ヒンジ 1 5 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 6 2107631 Presser Foot(Lower) 押工(下) 1 7-1 2107650 Presser Foot Stitch Tongue(Y5) 爪 1 7-2 2107651 Presser Foot Stitch Tongue(Y6) 爪 1 8 2107643 Finger Guard フィンガード 1 9 000444 Washer ワッシャ 1 10 005036 Screw(1/8-44 × 5.6) 止ネジ 1 11 2107670 Presser Foot Tape Guide 押工テープガイド 1 12 001230 Screw(3/32-56 × 3.8) 止ネジ 1 13 0034535 Thread Chain Guide 空環ガイド 1 14 004237 Screw(3/32-56 × 2.6) 止ネジ 1 15 2157040 Presser Foot Half-stay 半固定片 1 16 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 17 2157116 Presser Foot, C. Set(X4) 押工(組) 1 18 2107652 Presser Foot Stitch Tongue(X4) 爪 1 19 2159101 Needle Clamp(X) 針止メ 1 20 2108006 Stitch Plate(X4) 針板 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in AZ8000G

Page 52

22 AZ8032G, 8035G(1) 1 5 3 4 11 2 7 6 8 7 9 10 11 12 13 14 34 33 35 30 29 27 28 15 16 17 18 19 20 30 29 27 21 22 23 24 25 26 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 53 — AZ8032G, 8035G EXCLUSIVE PARTS (1)

AZ8032G, 8035G EXCLUSIVE PARTS (1) サブモデル専用部品(1) 22 Ref.No Parts No. Description 品 名 Amt. Req 1 2150052 Needle Bar Crank Arm, C. Set 針棒クランク(組) 1 2 2150053 Needle Bar Driving Shaft 針棒クランク軸 1 3 2100136 Needle Bar Crank Arm 針棒クランク 1 4 300008 Washer ワッシャ 1 5 140003 Screw(M6-1 × 18) 止ネジ 1 6 2100138 Needle Bar Connecting Link 針棒リンク 1 7 2100176 Needle Bar Connecting Link Pin 針棒リンクピン 2 8 310089 Oil Wick 油芯 2 9 2150059 Needle Bar Connecting Bracket 針棒抱キ 1 10 110006 Screw(M3.5-0.6 × 10) 止ネジ 1 11 160016 Screw(M4-0.7 × 4.5) 止ネジ 2 12 2100946 Needle Bar Driving Lever 針棒クランク軸腕 1 13 2160050 Upper Looper Driving Lever 上ルーパ軸腕 1 14 2160051 Driving Shaft Thrust Ring 上ルーパパスラストリング 1 15 2150086 Upper Looper Bar Crank Arm, C. Set 上ルーパクランク(組) 1 16 2150084 Upper Looper Bar Guide Bushing ルーパ案内メタル 1 17 2100227 Upper Looper Bar Guide Cover ルーパ案内蓋 1 18 130001 Screw(M2.5-0.45 × 6) 止ネジ 1 19 110071 Screw(M2.5-0.45 × 6) 止ネジ 1 20 2150091 Upper Looper Bar Guide, C. Set ルーパ案内(組) 1 21 2101089 Upper Looper Bar Crank Arm 上ルーパクランク 1 22 300008 Washer ワッシャ 1 23 140004 Screw 止ネジ 1 24 2100903 Upper Looper Bar Crank Arm Pin 上ルーパクランクピン 1 25 160002 Screw(M4-0.7 × 5) 止ネジ 1 26 310089 Oil Wick 油芯 1 27 2150080 Upper Looper Bar ルーパ棒 1 28 000629 Seal Plug 詰栓 1 29 2100892 Upper Looper Bar Guide ルーパ案内 1 30 310065 Oiling Felt フェルト 1 31 32 210009 Screw(1/8-44 × 3.2) 止ネジ 1 33 2109348 Lower Looper 下ルーパ 1 34 2150078 Lower Looper Driving Shaft Thrust Ring 下ルーパパスラストリング 1 35 2150079 Upper Looper Bar, C. Set ルーパ棒(組) 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jinte.in

Page 54

23 AZ8032G, 8035G(2) 1 29 2-1 2-2 28 5 4 3 6 AZ8035G-Y5, Y6 7-1 7-2 9 10 11 8 16 15 18 20 19 12 14 17 13-1 13-2 22 21 EXTRA PARTS 24-1 24-2 24-3 25-1 25-2 26 27 23 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 55 — AZ8032G, 8035G EXCLUSIVE PARTS(2)

AZ8032G, 8035G EXCLUSIVE PARTS(2) サブモデル専用部品(2) 23 Ref.No Parts No. Description 品 名 Amt. Req 1 2169102 Needle Clamp(Y) 針止メ 1 2-1 2108062 Stitch Plate(Y5) 針板 1 2-2 2108063 Stitch Plate(Y6) 針板 1 3 2109084 Differential Feed Dog(Y5, Y6) 前送り 1 4 2109086 Main Feed Dog 後送り 1 5 2109052 Auxiliary Feed Dog 小送り 1 6 2160019 Needle Thread Pull-off 針糸繰り 1 7-1 2157118 Presser Foot, C. Set(Y5) 押工(組) 1 7-2 2157119 Presser Foot, C. Set(Y6) 押工(組) 1 8 2157000 Presser Foot Hinge 押工ヒンジ 1 9 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 10 2157040 Presser Foot Half-stay 半固定片 1 11 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 12 2107631 Presser Foot(Lower) 押工(下) 1 13-1 2107650 Presser Foot Stitch Tongue(Y5) 爪 1 13-2 2107651 Presser Foot Stitch Tongue(Y6) 爪 1 14 2107643 Finger Guard フィンガガード 1 15 000444 Washer ワッシャ 1 16 005036 Screw(1/8-44 × 5.6) 止ネジ 1 17 2107670 Presser Foot Tape Guide 押工テープガイド 1 18 001230 Screw(3/32-56 × 3.8) 止ネジ 1 19 0034535 Thread Chain Guide 空環ガイド 1 20 004237 Screw(3/32-56 × 2.6) 止ネジ 1 21 0024130 Tape Guide(Upper) テープガイド(上) 1 22 110012 Screw(M4-0.7 × 5) 止ネジ 2 23 2101091 Lower Knife 下メス 1 24-1 2108043 Stitch Plate(Y5) 針板 1 24-2 2108044 Stitch Plate(Y6) 針板 1 24-3 2108045 Stitch Plate(Y7) 針板 1 25-1 2109033 Differential Feed Dog(Y5) 前送り 1 25-2 2109030 Differential Feed Dog(Y6, Y7) 前送り 1 26 2109031 Main Feed Dog 後送り 1 27 2109032 Auxiliary Feed Dog 小送り 1 28 2109342 Upper Looper(for Needle Size #11~14) 上ルーパ(針番手#11~14用) 1 29 -- -- Needle (System:DC × 27) 針 2 From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jinttex.in

Page 56

24 AZ8039G 1 11 13 14 3 2 10 13 9 4 8 7 6 5 15 16 17 EXTRA PARTS Feed Dog Plated with Rubber ラバー送り 18 19 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 57 — AZ8039G EXCLUSIVE PARTS

AZ8039G EXCLUSIVE PARTS サブモデル専用部品 24 Ref.No Parts No. Description 品 名 Amt. Req 1 2157138 Presser Foot, C. Set(Y5) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 2157020 Presser Foot(Lower) 押工(下) 1 5 2157205 Presser Foot Stitch Tongue(Y5) 爪 1 6 2157030 [2107643] Finger Guard フィンガード 1 7 000444 Washer ワッシャ 1 8 005036 Screw(1/8-44 × 5.6) 止ネジ 1 9 2157045 Thread Chain Guide 空環ガイド 1 10 001230 Screw(3/32-56 × 3.8) 止ネジ 1 11 2157046 Presser Foot Spring Setting Piece 押工バネ取付片 1 12 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 13 270011 Screw(3/32-56 × 1.8) 止ネジ 2 14 2107523 Presser Foot Spring 押工バネ 1 15 2109146 Stitch Plate(Y5) 針板 1 16 2109038 Differential Feed Dog 前送り 1 17 2109052 Auxiliary Feed Dog 小送り 1 18 2159008 Differential Feed Dog(with Rubber Face)(Extra) 前送り(ゴム送り)(特注品) 1 19 2109076 Main Feed Dog(with Rubber Face)(Extra) 後送り(ゴム送り)(特注品) 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jintez.in

Page 58

25 AZ8045G, 8045G/K2(1) 1 3 2 3 5 6 5 7 11 3 9 10 8 12 15 25 24 23 18 22 14 10 20 21 16 17 14 13 26 29 30 28 27 28 39 21 32 31 34 33 35 36 37 43 44 45 42 41 40 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 59 — AZ8045G, 8045G/K2 EXCLUSIVE PARTS (1)

AZ8045G, 8045G/K2 EXCLUSIVE PARTS (1) サブモデル専用部品(1) 25 Ref.No Parts No. Description 1 2159906 2 2101243 3 170005 4 5 100001 6 2101241 7 170031 8 100002 9 2101242 10 110047 11 2101244 12 2101246 13 2101260 14 110001 15 2101245 16 2101259 17 160001 18 2101248 19 2101258 20 0020616 21 003637 22 2101249 23 2101250 24 000538 25 110031 26 2101247 27 005599 28 000621 29 000613 30 000306 31 2101252 32 170032 33 2101255 34 000234 35 2101253 36 001123 37 007627 38 2101257 39 0094562 40 2101254 41 2101251 42 110009 43 0024084 44 2101268 45 004125 Ruffing Mechanism, C. Set(3) Connecting Plate(Short) Screw(M4-0.7 × 6) Nut Connecting Plate Lever Screw(M5-0.8 × 8.5) Nut Connecting Plate Lever Support Screw(M4-0.7 × 10) Connecting Plate(Long) Ruffling Mechanism, C. Set(2) Ruffling Presser Screw(M4-0.7 × 5.4) Ruffling Mechanism, C. Set(1) Ruffling Presser Lifter Shaft Lever Screw(M4-0.7 × 4) Bracket Holder Ruffling Presser Lifter Shaft Stop Collar Screw(1/8-44 × 25) Bracket Fixing Piece Bracket Spring Plate Washer Screw(M4-0.7 × 12) Bracket Screw(1/4-40 × 14.5) Conical Spring Washer Washer Nut Handle Holder Screw(M4-0.7 × 5) Ruffling Swing-out Handle Nut Swing-out Handle Holder Spring Washer Screw(M4-0.7 × 6) Ruffling Presser Shaft Collar(8 × 13 × 6mm) Lifter Lever Holder Ruffling Presser Lifter Lever Screw(M4-0.7 × 8) Spring Cap Ruffling Presser Spring Tension Post Amt. Req ラフリング装置(組3) 1 連結板(短) 1 止ネジ 4 ナット 3 連結板レバー 1 止ネジ 1 ナット 1 連結板レバー取付台 1 止ネジ 4 連結板(長) 1 ラフリング装置(組2) 1 ラフリング押エ 1 止ネジ 3 ラフリング装置(組1) 1 ラフリング押エ揚ゲ軸レバー 1 止ネジ 1 ブラケット取付台 1 ラフリング押エ揚ゲ軸 1 ストツパカラ 1 止ネジ 3 ブラケット固定片 1 ブラケット止メバネ 1 ワツシヤ 1 止ネジ 1 ブラケット 1 止ネジ 1 皿バネワツシヤ 2 ワツシヤ 1 ナット 1 押エ揚ゲハンドル取付台 1 止ネジ 1 押エ揚ゲハンドル 1 ナット 1 ハンドル取付台バネ 1 ワツシヤ 3 止ネジ 3 ラフリング押エ軸 1 カラー 1 ラフリング押エ揚ゲレバー取付台 1 ラフリング押エ揚ゲレバー 1 止ネジ 2 押エバネキャップ 1 ラフリング押エバネ 1 調子棒 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in AZ8000G

Page 60 — AZ8045G-04/K2(2)

26 AZ8045G-04/K2(2) 1 3 12 13 9 8 6 5 7 2 4 14 10 11 15 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 61 — AZ8045G-04/K2 EXCLUSIVE PARTS (2)

AZ8045G-04/K2 EXCLUSIVE PARTS (2) サブモデル専用部品(2) 26 Ref.No Parts No. Description 品 名 Amt. Req 1 2157158 Presser Foot, Complete Set(O4) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 0022153 Presser Foot(Lower) 押工(下) 1 5 2107219 Thread Chain Guide 空環ガイド 1 6 004237 Screw(3/32-56 × 2.6) 止ネジ 1 7 0021876 Presser Foot Stitch Tongue(O4) 爪 1 8 2107640 Finger Guard フィンガード 1 9 005036 Screw(1/8-44 × 5.6) 止ネジ 1 10 2109020 Differential Feed Dog 前送り 1 11 2109021 Main Feed Dog 後送り 1 12 2157041 Presser Foot Half-stay 半固定片 1 13 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 14 2108003 Stitch Plate(O4) 針板 1 15 2109320 Upper Loper 上ルーパ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 62 — K2 DEVICE(1)

27 K2 DEVICE(1) 1 2 4 5 A 3 21 6 7 8 18 19 17 16 15 13 14 12 9 10 11 20 26 27 28 29 30 25 24 22 23 A 33 31 32 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jitex.in

Page 63 — K2 DEVICE(1)

K2 DEVICE(1) K2 装置(1) 27 Ref.No Parts No. Description 品 名 Amt. Req 1 2159901 K2 Device, Complete Set K2装置(組) 1 2 2111050 Suction Pipe, Complete Set 吸込管(組) 1 3 2111051 Suction Pipe 吸込管本体 1 4 310017 Oil Wick 油芯 1 5 000755 Oil Wick Pin 止メピン 1 6 2111063 Suction Pipe Cover 吸込管カバー 1 7 004237 Screw(3/32-56 × 2.6) 止ネジ 1 8 004404 Screw(3/32-56 × 5.1) 止ネジ 2 9 2111055 Upper Trimming Knife 上刃 1 10 004131 Screw(1/8-44 × 6) 止ネジ 1 11 004139 Screw(3/32-56 × 3) 止ネジ 2 12 2111059 Lower Trimming Knife Holder Pin 下刃支持ピン 1 13 2111056 Lower Trimming Knife 下刃 1 14 004236 Screw(3/32-56 × 4.2) 止ネジ 1 15 2111057 Lower Trimming Knife Driving Plate 下刃駆動板 1 16 2111062 Spring Sleeve 下刃バネ スリーブ 1 17 2111061 Lower Trimming Knife Pushing Spring 下刃圧着バネ 1 18 2111066 Spring Protect Washer 下刃バネワッシャ 1 19 2111060 Washer ワッシャ 1 20 2111067 Air Shield Rubber 隙間防止ゴム 1 21 007623 Screw(9/64-40 × 5.3) 止ネジ 2 22 2111058 Lower Trimming Knife Guide Support 下刃ガイド取付台 1 23 110068 Screw(M4-0.7 × 8) 止ネジ 1 24 2101011 Lower Trimming Knife Guide 下刃ガイド 1 25 270001 Screw(1/8-44 × 3) 止ネジ 1 26 0021451 Suction Power Control, C. Set 吸引力調整管(組) 1 27 0021457 Suction Power Control Tube(Inner) 吸引力調整台 1 28 0021456 Suction Power Control Tube 吸引力調整管 1 29 001892 Screw(1/8-44 × 2.9) 止ネジ 1 30 0021450 Nylon Hose 吸引チューブ 1 31 2101059 Cloth Plate Spacer クロスプレートスペーサ 1 32 110042 Screw(M3.5-0.6 × 4) 止ネジ 2 33 2151000 Suction Pipe Support 吸込管取付台 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jinte.in

Page 64 — K2 DEVICE(2)

28 K2 DEVICE(2) AZ8003G/K2 1 11 12 3 2 8 7 10 6 9 4 5 AZ8020G/K2 15-1 15-2 15-3 15-4 12 11 3 2 8 7 10 6 9 4 16-1 16-2 16-3 16-4 AZ8003G/B3/K2 13 11 12 3 2 8 7 10 6 5 9 4 14 AZ8025G/K2 17 11 12 3 8 2 7 21 10 6 9 19 4 18 AZ8039G/K2 22 26 27 3 12 28 2 8 21 7 24 25 4 23 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 65

K2 DEVICE(2) 28 Ref.No Parts No. Description 品 名 Amt. Req 1 2157062 Presser Foot, C. Set(04) 押工(組) 1 2 2157000 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 2157020 Presser Foot(Lower) 押工(下) 1 5 2157200 Presser Foot Stitch Tongue(04) 爪 1 6 2107643 Finger Guard フィンガ一ガード 1 7 000444 Washer ワツシヤ 1 8 005036 Screw(1/8-44 × 5.6) 止ネジ 1 9 2107219 Thread Chain Guide 空環ガイド 1 10 004237 Screw(3/32-56 × 2.6) 止ネジ 1 11 2157040 Presser Foot Half-stay 半固定片 1 12 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 13 2157072 Presser Foot, C. Set(04) 押工(組) 1 14 2157204 Presser Foot Stitch Tongue(04) 爪 1 15-1 2157102 Presser Foot, C. Set(Y5) 押工(組) 1 15-2 2157103 Presser Foot, C. Set(Y6) 押工(組) 1 15-3 2157100 Presser Foot, C. Set(X4) 押工(組) 1 15-4 2157101 Presser Foot, C. Set(X5) 押工(組) 1 16-1 2157205 Presser Foot Stitch Tongue(Y5) 爪 1 16-2 2157206 Presser Foot Stitch Tongue(Y6) 爪 1 16-3 2157208 Presser Foot Stitch Tongue(X4) 爪 1 16-4 2157209 Presser Foot Stitch Tongue(X5) 爪 1 17 2157121 Presser Foot, C. Set(Y5) 押工(組) 1 18 2107631 Presser Foot(Lower) 押工(下) 1 19 2107650 Presser Foot Stitch Tongue(Y5) 爪 1 20 2107670 Presser Foot Tape Guide 押工テ一プガイド 1 21 001230 Screw(3/32-56 × 3.8) 止ネジ 1 22 2157139 Presser Foot, C. Set(Y5) 押工(組) 1 23 2157205 Presser Foot Stitch Tongue(Y5) 爪 1 24 2157030 Finger Guard フィンガ一ガード 1 25 2157047 Thread Chain Guide 空環ガイド 1 26 2157046 Presser Foot Spring Setting Piece 押工バネ取付片 1 27 270011 Screw(3/32-56 × 1.8) 止ネジ 2 28 2107523 Presser Foot Spring 押工バネ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G JIntex.in

Page 66 — C DEVICE

29 C DEVICE 1 13 15 17 15 19 20 21 22 23 24 10 15 16 18 12 26 27 28 9 8 7 6 5 11 4 3 2 12 25 31 30 27 29 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 67 — C DEVICE

C DEVICE C 装置 29 Ref.No Parts No. Description 品 名 Amt. Req 1 2109932 C Device, Complete Set C 装置(組) 1 2 0033939 Hose Band(1/4 inch) ホースバンド(1/4インチ) 1 3 1094011 Hose Nipple(φ 8-PT1/8) ホースニップル 1 4 1097000 Regulator(AR2000-01BG) レギュレータ 1 5 009960 Screw(M5-0.8 × 16) 止ネジ 2 6 000669 Washer ワッシャ 4 7 000600 Spring Washer スプリングワッシャ 2 8 000009 Nut ナット 2 9 1097001 Regulator Support レギュレータ取付板 1 10 006905 Wood Screw(φ 5.1 × 20) 木ネジ 2 11 0010263 Connector(φ 6-PT1/8) コネクタ 1 12 1096000 Nylon Hose(4 × 6 × 2000mm) ナイロンホース 1 13 1298000 Air Valve, Complete Set エアバルブ(組) 1 14 0033938 Collar(6.4 × 13 × 9mm) カラー 1 15 005040 Screw(11/64-40 × 8.5) 止ネジ 5 16 0033937 Return Spring エアバルブ補助バネ 1 17 0033936 Air Valve Holder エアバルブ取付台 1 18 0033935 Air Valve Stop エアバルブストッパ 1 19 000334 Nut ナット 1 20 005505 Adjusting Screw(11/64-40 × 16) 調節ネジ 1 21 1090133 TAC Valve, C. Set TACバルブ(組) 1 22 0010052 TAC Valve TACバルブ 1 23 000623 Gasket パッキン 2 24 0010112 Joint(φ 6-M5) 継手 2 25 0010290 Connector(φ 6-PT1/8) 継手 1 26 0010310 Venturi Tube ベンチュリ管 1 27 0033940 Hose Band(3/8 inch) ホースバンド(3/8インチ) 2 28 1096004 Vinyl Hose(12 × 18 × 1500mm) ビニールホース 1 29 1096005 Vinyl Hose(12 × 18 × 500mm) ビニールホース 1 30 0011987 UL Clamp UL クランプ 3 31 009814 Wood Screw(φ 3.1 × 20) 木ネジ 3 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in AZ8000G

Page 68 — B3 DEVICE

30 B3 DEVICE 1 2 7 8 4 5 3 6 9-1 9-2 10 11 12 15 14 16 13 AZ8003G/B3 17 27 28 19 26 25 20 18 24 23 22 21 29 30 31 AZ8020G/B3 32-1 32-2 27 28 19 26 25 20 18 24 23 22 33-1 33-2 35 36 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 69 — B3 DEVICE

B3 DEVICE B3 装置 30 Ref.No Parts No. Description 品 名 Amt. Req 1 2109907 B3 Device, C. Set B3 装置(組) 1 2 2101133 Back Tack Cutting Unit 空環切り装置(組) 1 3 2101134 Thread Chain Cutting Knife Holder 刃取付台 1 4 0023184 Thread Chain Cutting Knife 刃 1 5 0023169 Thread Chain Cutting Knife Holder Spacer 刃取付台スペーサ 1 6 003637 Screw(1/8-44 × 2.5) 止ネジ 2 7 004205 Screw(11/64-40 × 18) 止ネジ 1 8 0024308 Thread Chain Holder 空環押工 1 9-1 0023182 Thread Chain Holder Spring(Standard) 空環押工バネ(標準) 1 9-2 0033711 Thread Chain Holder Spring(with Stronger Pressure) 空環押工バネ(圧延強い) 1 10 000361 Adjusting Nut 空環押工バネ調節ナット 2 11 000535 Washer ワッシャ 1 12 110044 Screw(M3-0.6 × 14) 止ネジ 1 13 2101050 Cloth Plate クロスプレート 1 14 0036905 Synchronizer Positioning Pin ポジショナピン 1 15 110009 Screw(M4-0.7 × 8) 止ネジ 1 16 0081848 Synchronizer Cushion ポジショナピンクッション 1 17 2157070 Presser Foot, C. Set(04) 押工(組) 1 18 2157000 Presser Foot Hinge 押工ヒンジ 1 19 110004 Screw(M4-0.7 × 8) 止ネジ 1 20 2157020 Presser Foot(Lower) 押工(下) 1 21 2157204 Presser Foot Stitch Tongue(04) 爪 1 22 2107643 Finger Guard フィンガード 1 23 000444 Washer ワッシャ 1 24 005036 Screw(1/8-44 × 5.6) 止ネジ 1 25 0034535 Thread Chain Guide 空環ガイド 1 26 004237 Screw(3/32-56 × 1.7) 止ネジ 1 27 2157040 Presser Foot Half-stay 半固定片 1 28 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 29 2108008 Stitch Plate(04) 針板 1 30 2109010 Differential Feed Dog 前送り 1 31 2109011 Main Feed Dog 後送り 1 32-1 2157108 Presser Foot, C. Set(X4) 押工(組) 1 32-2 2157109 Presser Foot, C. Set(X5) 押工(組) 1 33-1 2157210 Presser Foot Stitch Tongue(X4) 爪 1 33-2 2157211 Presser Foot Stitch Tongue(X5) 爪 1 34-1 2108013 Stitch Plate(04) 針板 1 34-2 2108119 Stitch Plate(X5) 針板 1 35 2109015 Differential Feed Dog 前送り 1 36 2109016 Main Feed Dog 後送り 1 From the library of: Superior Sewing Machine & Supply LLC Jinte.in AZ8000G

Page 70

31 CH20 DEVICE(1) AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 71 — CH20 DEVICE(1) for AZ8000G

CH20 DEVICE(1) for AZ8000G Ref.No Parts No. Description 品名 Amt. Req 1 0023714 Device Supporting Plate 装置取付板 1 2 009150 Screw(11/64-40 × 11) 止ネジ 1 3 0023726 Device Holder Base 装置取付台 1 4 0023750 Device Holder Base Fixing Spring Plate 装置取付台固定バネ 1 5 0023763 Supplementary Fixing Spring Plate 補助バネ 1 6 004353 Screw(9/64-40 × 7) 止ネジ 4 7 0023715 Solenoid Holder Fixing Spring Plate ソレノイド取付台固定バネ 1 8 0023769 Fixing Spring 定規連結軸固定バネ 1 9 000533 Washer ワッシャ 1 10 001175 Screw(9/64-40 × 8) 止ネジ 1 11 005589 Screw(1/4-40 × 14.5) 止ネジ 1 12 000621 Conical Spring Washer 皿バネワッシャ 2 13 0023725 Solenoid Holder ソレノイド取付台 1 14 000613 Washer ワッシャ 1 15 000306 Nut ナット 1 16 001333 Stop Screw(3/32-56 × 3.9) ストップネジ 1 17 0026470 Rotary Solenoid Cover ロータリソレノイドカバー 1 18 005000 Screw(9/64-40 × 5.7) 止ネジ 2 19 0011190 Rotary Solenoid(Large) ロータリソレノイド(大) 1 20 005550 Screw(11/64-40 × 13.5) 止ネジ 1 21 0036111 Hemming Guide Interlocking Lever 定規連動レバー 1 22 0036132 Retaining Ring ストップリング 1 23 0094491 Cord Clamp(φ 3.4-2N) コードクランプ 1 24 0023711 Guide Pin ガイドピン 1 25 004358 Screw(9/64-40 × 5.6) 止ネジ 4 26 005585 Adjusting Screw(11/64-40 × 10) 調節ネジ 1 27 001049 Sticker 貼リマーク 1 28 0023723 Guide Collar ガイドカラー 1 29 003638 Screw(11/64-40 × 4) 止ネジ 1 30 0023717 Solenoid Holder Cover ソレノイド取付台カバー 1 31 000322 Lock Nut ロックナット 3 32 001326 Positioning Screw(9/64-40 × 7.5) 位置決メネジ 1 33 0063612 Cord Clamp(φ 6.8-4N) コードクランプ 2 34 0023722 Solenoid Supporting Plate ソレノイド取付板 1 35 004406 Screw(11/64-40 × 8) 止ネジ 2 36 0011191 Rotary Solenoid(Small) ロータリソレノイド(小) 1 37 007606 Adjusting Screw(9/64-40 × 20) 調節ネジ 2 38 000014 Washer ワッシャ 2 39 000002 Spring Washer スプリングワッシャ 2 40 000012 Nut(M3) ナット 2 Ref. No 41 to 58 See the following page. From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jinttex.in

Page 72 — CH20 DEVICE(1)

31 CH20 DEVICE(1) AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 73 — CH20 DEVICE(1) for AZ8000G

CH20 DEVICE(1) for AZ8000G CH20 装置(1) 31 Ref.No Parts No. Description 品 名 Amt. Req 41 0023718 Edge Guide Interlocking Lever スライド定規レバー 1 42 005038 Screw(11/64-40 × 8) 止ネジ 1 43 0023712 Edge Guide Interlocking Plate スライド定規連結桿 1 44 005588 Screw(11/64-40 × 2.1) 止ネジ 1 45 0023713 Edge Guide Holding Shaft 定規台取付軸 1 46 0023700 Hemming Guide Interlocking Shaft 定規連結軸 1 47 009931 Screw(11/64-40 × 26) 止ネジ 2 48 000550 Fiber Cushion 防振ファイバ 4 49 0023779 Cushion(Vinyl) ソレノイドクッション 2 50 000010 Conical Spring Washer 皿バネワッシャ 4 51 0020538 Rubber Cushion 防振ゴム 2 52 000334 Nut ナット 2 53 110065 Screw(M4-0.7 × 12) 止ネジ 3 54 280000 Screwed Pin(11/64-40 × 12) ピンネジ 1 55 2110327 Adjusting Lever 調節レバー 1 56 160001 Screw(M4-0.7 × 4) 止ネジ 2 57 2101038 Adjusting Screw Guide 調節ネジガイド 1 58 0060248 Cord Clamp(φ 5.3-3N) コードクランプ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 74 — CH20 DEVICE(2)

32 CH20 DEVICE(2) 5 1-1 1-2 4 6 8 7 11 9 10 14 15 19 18 17 20 28 30 29 32 16 27 A 21 22 23 25 24 26 11 33 35 34 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 75 — CH20 DEVICE(2) for AZ8000G

CH20 DEVICE(2) for AZ8000G 32 Ref.No Parts No. Description 品 名 Amt. Req 1-1 2101391 Blind-Hemming Guide, C. Set(for 25mm) 定規(組) 1 1-2 0023740 Blind-Hemming Guide, C. Set(for 35mm)(Extra) 定規(組)(特注品) 1 2-1 2101390 Blind-Hemming Guide 定規 1 2-2 0023739 Blind-Hemming Guide(Extra) 定規(特注品) 1 3-1 2101393 Hemming Positioner 裾引幅調節片 1 3-2 0023741 Hemming Positioner(Extra) 裾引幅調節片(特注品) 1 4 004236 Screw(3/32-56 × 4.2) 止ネジ 1 5 005036 Screw(1/8-44 × 5.6) 止ネジ 2 6 0023744 Hemming Guide Bracket, C. Set 定規調節台(組) 1 7 000335 Lock Nut ロックナット 1 8 006820 Adjusting Screw(9/64-40 × 12.3) 調節ネジ 1 9 0036161 Anti-shock Rubber 定規緩衝ゴム 1 10 001202 Screw(9/64-40 × 6.6) 止ネジ 1 11 003637 Screw(1/8-44 × 2.5) 止ネジ 3 12 1200182 Side Seam Detector Unit ホールIC(組) 1 13 14 005588 Screw(11/64-40 × 2.1) 止ネジ 1 15 0023747 Blind-Hemming Edge Guide, C. Set 定規台(組) 1 16 0023724 Blind-Hemming Edge Guide 定規台 1 17 0023707 Slide Edge Guide スライド定規 1 18 0023705 Slide Edge Guide Holder スライド定規受ケ 1 19 007609 Screw(9/64-40 × 9) 止ネジ 2 20 0023708 Sensor 感知子 1 21 0023737 Slide Edge Guide Pressing Spring スライド定規戻シバネ 1 22 005000 Screw(9/64-40 × 5.7) 止ネジ 1 23 0023709 Collar(2 × 5 × 5mm) カラー 1 24 004237 Screw(3/32-56 × 2.6) 止ネジ 2 25 0023710 Sensor Spring 感知子戻シバネ 1 26 0023756 Magnet Unit マグネット(組) 1 27 001613 Screw(3/32-56 × 4.5) 止ネジ 2 28 2101394 IC Positioner, Complete Set IC調節台(組) 1 29 2101395 IC Positioner IC調節台 1 30 005591 Adjusting Screw(1/8-44 × 6.2) 調節ネジ 1 31 32 0023703 Raterally Sliding Plate 左右スライド板 1 33 004440 Screw(11/64-40 × 8.3) 止ネジ 2 34 0023767 HemmingPositioner(forLightMaterials) 裾引幅調節片(薄物用) 1 35 0023768 Spacer(for Light Materials) 定規スペーサ(薄物用) 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jintex.in

Page 76

33 CH20 DEVICE(3) 1 2 3 4 5 6 7 8 9 10 11 12 13-1 13-2 13-3 13-4 14 15 16 17 18 19 20 21 22 23 24 25 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 77

CH20 DEVICE(3) for AZ8000G 33 Ref.No Parts No. Description 品 名 Amt. Req 1 1200006 Presser Foot Switch Unit 押エスイッチ(組) 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 3 3 0023734 Magnet for Presser Foot Switch マグネット 1 4 004353 Screw(9/64-40 × 7) 止ネジ 2 5 0023720 Switch Plate Spacer スイッチ板スペーサ 1 6 2121021 Switch Plate スイッチ板 1 7 005587 Screw(9/64-40 × 8.6) 止ネジ 1 8 005512 Guide Screw(11/64-40 × 3) ガイドネジ 1 9 2151013 [2101040] Presser Foot Lifter Lever 押エ揚ゲレバー 1 10 2111011 Oil Cooling Fan Magnet Unit ファンマグネット(組) 1 11 1200095 Rotation Detector Unit ホールIC(組) 1 12 2101124 Cord Bushing コードブッシュ 1 13-1 0011943 Power Cord(for 100 Voltage) 電源コード(100V用) 1 13-2 0011944 Power Cord(for 200 Voltage) 電源コード(200V用) 1 13-3 0011945 Power Cord(for 220 Voltage) 電源コード(220V用) 1 13-4 0011946 Power Cord(for 380 Voltage) 電源コード(380V用) 1 14 0011709 Control Box Stay 制御ボックスステイ 4 15 006905 Wood Screw(φ 5.1 × 20) 木ネジ 10 16 0011180 Control Box, Complete Set 制御装置(組) 1 17 0011182 Control Board CH制御基板 1 18 0011974 Voltage Regulator 定電圧IC 1 19 0011183 Power Board CH電源基板 1 20 0011192 Knee Switch, Complete Set 膝スイッチ(組) 1 21 0092232 Knee Switch Holder 膝スイッチ取付板 1 22 0011189 Knee Switch 膝スイッチ 1 23 300031 Washer ワッシャ 4 24 300033 Spring Washer スプリングワッシャ 2 25 100038 Wing Nut チョウナット 2 26 0035722 Cord Bushing コードブッシュ 1 27 2151012 Tension Disc Eyelet Support 糸道取付板 1 28 110106 Screw(M4-0.7 × 8) 止ネジ 2 29 004265 Tension Post(Short) 糸調子棒(短) 2 From the library of: Superior Sewing Machine & Supply LLC AZ8000G Jinte.in

Page 78 — SC10 DEVICE

34 SC10 DEVICE AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 79 — SC10 DEVICE

SC10 DEVICE SC10 装置 34 Ref.No Parts No. Description 品 名 Amt. Req 1 2151067 Lint Removal Pipe 集塵パイプ 1 2 2151066 Pipe Clamp パイプ固定バンド 2 3 110094 Screw(M4-0.7 × 6) 止ネジ 2 4 2151059 Blowing Hole Screen 吹出口シロ板 1 5 2151057 Wind Guide Plate(Front) 風案内板(前) 1 6 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 7 2151058 Air Deflector 風調整板 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in AZ8000G

Page 80

35 EXTRA PARTS(1) Feed Dog plated with Rubber ラバー送り AZ8000G AZ8003G, AZ8020G 1 2 3-1 3-2 4 AZ8003G-03, 04 AZ8003G-06, AZ8020G-Y6 reversed teeth 5-1 5-2 8 7 10 6 11 12 13 15 14 16 18 21 17 20 19 25 27 26 23 24 22 28 29 30 31 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 81 — EXTRA PARTS (1)

EXTRA PARTS (1) 特注部品 (1) 35 Ref.No Parts No. Description 品 名 Amt. Req 1 2109070 Differential Feed Dog 前送り 1 2 2109074 Main Feed Dog 後送り 1 3-1 2109072 Differential Feed Dog 前送り 1 3-2 2109078 Differential Feed Dog 前送り 1 4 2109076 Main Feed Dog 後送り 1 5-1 2108093 Stitch Plate(03) 針板 1 5-2 2108094 Stitch Plate(04) 針板 1 6 2106100 Differential Feed Dog 前送り 1 7 2109013 Main Feed Dog 後送り 1 8 2106101 Auxiliary Feed Dog 小送り 1 9 2106012 Differential Feed Dog(06, Y6) 前送り 1 10 2109349 Lower Looper(Special coating) 下ルーパ(特殊コーティング) 1 11 2151015 Cloth Plate(Right) Unit クロスプレート(右)(組) 1 12 110003 Screw(M3.5-0.6 × 6) 止ネジ 1 13 000535 Washer ワッシャ 1 14 0020700 Edge Guide, Complete Set 当定規(組) 1 15 110009 Screw(M4-0.7 × 8) 止ネジ 1 16 0022430 Edge Guide, Complete Set 当定規(組) 1 17 0022432 Edge Guide 当定規 1 18 001330 Screw(9/64-40 × 3.8) 止ネジ 1 19 0022431 Edge Guide Swing-out Lever スイングアウトレバー 1 20 000172 Conical Spring Washer 皿バネワッシャ 1 21 004150 Screw(11/64-40 × 5.2) 止ネジ 1 22 000334 Nut ナット 1 23 0022434 Edge Guide Swing-out Lever Holder スイングアウトレバー取付台 1 24 005506 Screw(11/64-40 × 8) 止ネジ 1 25 0022433 Edge Guide Swing-out Lever Holder Support 定規取付台 1 26 0022437 Edge Guide Swing-out Lever Stop レバー ストッパ 1 27 001227 Screw(1/8-44 × 3.8) 止ネジ 1 28 0022435 Edge Guide Positioning Pin 定規固定ピン 1 29 0022436 Positioning Pin Holder Spring 定規固定ピン押エバネ 1 30 001225 Screw(1/8-44 × 2.8) 止ネジ 1 31 110047 Screw(M4-0.7 × 10) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC AZ8000G jinttex.in

Page 82 — EXTRA PARTS(2)

36 EXTRA PARTS(2) AZ8000G-04 non step 段なし 1 AZ8020G-X4 non step 段なし 4 AZ8020G-Y6 non step 段なし 7 AZ8003G-03 non step 段なし 2 AZ8020G-X5 non step 段なし 5 AZ8020G-Y6 same arranged slots with Y5 Y5 と同じ送り配列 8 AZ8003G-04 non step 段なし 3 AZ8020G-Y5 non step 段なし 6 AZ8020G-Y6 without non-slipper 滑り止めなし 9 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 83 — EXTRA PARTS(2)

EXTRA PARTS(2) Ref.No 1 2 3 4 5 6 7 8 9 Parts No. 2108100 2108024 2108010 2108022 2108023 2108020 2108021 2108097 2108117 Description Stitch Plate(O4) Stitch Plate(O3) Stitch Plate(O4) Stitch Plate(X4) Stitch Plate(X5) Stitch Plate(Y5) Stitch Plate(Y6) Stitch Plate(Y6) Stitch Plate(Y6) 品 名 針板 針板 針板 針板 針板 針板 針板 針板 針板 Amt. Req 1 1 1 1 1 1 1 1 1 特注部品(2) 36 From the library of: Superior Sewing Machine & Supply LLC jintex.in AZ8000G

Page 84

37 Semi-submerged Only 24 25 Fully-submerged Setting 6 17 10 11 12 10 11 12 18 11 12 19 20 5 11 12 EXTRA PARTS 26 27 28 30 29 EXTRA PARTS 31-1 31-2 AZ8000G From the library of: Superior Sewing Machine & Supply LLC Jinte.in 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 21 22 23

Page 85 — MISCELLANEOUS SUPPORTING BOARD

MISCELLANEOUS SUPPORTING BOARD 受ケ板関係 37 Ref.No Parts No. Description 品 名 Amt. Req 1 2150212 Belt Cover ベルトカバー 1 2 110015 Screw(M4-0.7 × 25) 止ネジ 2 3 2150213 Supplementary Belt Cover ベルト補助カバー 1 4 110013 Screw(M4-0.7 × 8) 止ネジ 2 5 2100339 Supporting Board 受ケ板 1 6 000070 Hanging Nut 吊りナット 4 7 009861 Hanging Bolt(Semi-submerged only) 吊りボルト(半沈式のみ) 4 8 2101450 Spacer(15mm) 受ケ板スペーサ 4 9 2101451 Spacer(5mm) (See the below) 受ケ板スペーサ(下記参照) 4 10 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 8 11 000162 Washer(Semi-submerged) ワッシャ(半沈式) 4 11 000162 Washer(Full-submerged) ワッシャ(全沈式) 20 12 000016 Nut(Semi-submerged) ナット(半沈式) 8 12 000016 Nut(Full-submerged) ナット(全沈式) 20 13 2100375 Chute(Upper) Support シュー卜(上)取付板 1 14 005624 Screw(M4-0.7 × 10) 止ネジ 4 15 2100337 Chute(Upper) シュー卜(上) 1 16 2100338 Chute(Lower) シュー卜(下) 1 17 009864 Hanging Bolt(Full-submerged only) 吊りボルト(全沈式のみ) 4 18 009871 Bolt(Full-submerged only) ボルト(全沈式のみ) 4 19 0020057 Supporting Board Connector(Full-submerged only) 受ケ板支具(全沈式のみ) 2 20 0020045 Supporting Board Sleeve(Full-submerged only) 受ケ板スリーブ(全沈式のみ) 2 21 2100336 Supplementary Chute Cover シュー卜補助カバー 1 22 000538 Washer ワッシャ 1 23 140011 Wing Bolt(M4-0.7 × 6) チョウボルト 1 24 2100374 Chip Receiver(Semi-submerged only) 切屑受ケ(半沈式のみ) 1 25 350007 Wood Screw(φ 3.5 × 16) 木ネジ 2 26 0020078 Idler, C. Set(for Left Footing Pedal) アイドラ(組) 1 27 0020077 Idler Support アイドラ取付板 1 28 009992 Screw(M4-0.7 × 10) 止ネジ 2 29 0020076 Idler アイドラ 1 30 009995 Screw(M3-0.5 × 5) 止ネジ 2 31-1 2150175 Timing Gauge(AZ8000G, 8500G) タイミングゲージ 1 31-2 2160018 Timing Gauge(AZ8032G, 8035G) タイミングゲージ 1 Note : Not necessary when the thickness of Table is 45mm. (注) テーブルの厚さ45mmのときは不要。

Page 86

38 1-1 19 18 16 17 20 21 23 24 25 26 12 13 14 1-2 15 19 18 20 21 7 2 3 4 7 8 9 10 6 11 22 7 2 3 4 7 8 9 10 6 11 28 23 24 25 26 12 13 14 15 27 10 AZ8000G From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 87

THREAD STAND 糸立台 38 Ref.No Parts No. Description 品 名 Amt. Req 1-1 9620693 Thread Stand, C. Set(3 Spools Type) 糸立台(組)(3本糸用) 1 1-2 9620694 Thread Stand, C. Set(4 Spools Type) 糸立台(組)(4本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Pipe(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 5(6) 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut(M16-1.5) ナット 1 15 9620702 Thread Hanger(2 Spools Type) スレッドハンガ(2本糸用) 4 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 2 17 9620700 Thread Eyelet アイレット 3(4) 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 2(4) 19 911060 Screw(M6-1 × 15) 止ネジ 2(4) 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620663 Thread Guide(3 Spools Type) スレッドガイド(3本糸用) 1 23 9620678 Spool Cushion スプールクッション 3(4) 24 9620679 Spool Pin スプール軸 3(4) 25 9620680 Spool Mat スプールマット 3(4) 26 9620681 Spool Seat Disc 受皿 3(4) 27 930055 Spring Washer スプリングワッシャ 3(4) 28 9620665 Thread Guide(5 Spools Type) スレッドガイド(5本糸用) 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in AZ8000G

Page 88 — WARNING LABEL 警告ラベル

39 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 CAUTION 390140 CAUTION IN OPERATION Do not operate without eye guard and safety devices. Before threading, changing needle, cleaning etc. switch off main switch. 注意 動く部分けがをする。 安全保護装置をつけて 縫製作業をすること。 電源を切ってから、糸 通し、ボビンや針の交換、 掃除や調整をすること。 390143 操作注意ラベル ▲高電圧警告 このカバーを開けるときは、 電源スイッチを切った後、 5分たってから開けること。 DANGER To open this cover, turn off power supply and wait more than 5 minutes before opening. 390144 DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル 390147 EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル 390148 CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 89 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) From the library of: Superior Sewing Machine & Supply LLC Jинtex.in

Page 90 — AZ8000G Class LIST of MAIN SPARE PARTS(主要部品リスト)

40 AZ8000G Class LIST of MAIN SPARE PARTS(主要部品リスト) Main Parts Needle Presser Presser Stitch Models Clamp Foot, Foot Tongue 針止メ C. Set (Lower) 押工(組) 押工ヒンジ 押工(下) 押工の爪 AZ8000G-04(CH20) 2159102 2157086 2157000 2107030 2107004 04-M " " " " " AZ8003G-03 2159102 2157049 2157000 2157020 2157199 04 " 2157050 " " 2157200 04/K2 " 2157062 " " " 04/B3 " 2157070 " " 2157204 04/B3/K2 " 2157072 " " " AZ8016G-02 2159102 2157185 2157002 0024505 0024506 02-5 " 2157186 2157005 2157022 " AZ8019G-05 2159102 2157096 2157000 2107178 2107179 AZ8020G-Y5 2159102 2157057 2157000 2157020 2157205 Y5/K2 " 2157102 " " " Y6 " 2157058 " " 2157206 Y6/K2 " 2157103 " " " X4 2159101 2157054 " " 2157208 X4/K2 " 2157100 " " " X4/B3 " 2157108 " " 2157210 X5 " 2157055 " " 2157209 X5/K2 " 2157101 " " " X5/B3 " 2157109 " " 2157211 AZ8025G-Y5 2159102 2157118 2157000 2107631 2107650 Y5/K2 " 2157121 " " " Y6 " 2157119 " " 2107651 X4 2159101 2157116 " " 2107652 AZ8032G-Y5 2169102 2157057 2157000 2157020 2157205 AZ8035G-Y5 2169102 2157118 2157000 2107631 2107650 Y6 " 2157119 " " 2107651 AZ8039G-Y5 2159102 2157138 2157000 2157020 2157205 Y5/K2 " 2157139 " " " AZ8045G-04/K2 2159102 2157158 2157000 0022153 0021876 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 91

40 Thread Chain Guide 空環ガイド Stitch Plate 針板 Differential Feed Dog 前送り Main Feed Dog 後送り Auxiliary Feed Dog 小送り Upper Looper 上ルーパ Lower Looper 下ルーパ 0034535 2108002 2109007 2109006 2109067 2109320 2109347 "" 2108003 2109005 "" "" "" "" 2107219 "" "" "" "" "" 2107219 "" "" "" "" "" 0034535 2108008 2109010 2109011 "" "" "" 2107219 "" "" "" "" "" 0022156 2108016 2109017 2109018 2109019 2109320 2109347 2157048 2158013 2109007 2109006 2109067 "" "" 2107180 2108107 2109045 2109046 2109042 2109320 2109347 0034535 2108004 2109005 2109006 2109067 2109322 2109347 2107219 "" "" "" "" "" 0034535 2108005 2109009 "" "" "" "" 2107219 "" "" "" "" "" 0034535 2108006 2109005 "" "" "" "" 2107219 "" "" "" "" "" 0034535 2108013 2109015 2109016 "" "" "" 2107219 "" "" "" "" "" 0034535 2108119 2109015 2109016 "" "" "" 0034535 2108004 2109005 2109006 2109067 2109322 2109347 2107219 "" "" "" "" "" 0034535 "" "" "" "" "" "" 2108006 "" "" "" "" "" 0034535 2108062 2109084 2109086 2109052 2109342 2109348 0034535 2108062 2109084 2109086 2109052 2109342 2109348 "" 2108063 "" "" "" "" "" 2157045 2108106 2109038 2109006 2109052 2109322 2109347 2157047 "" "" "" "" "" 2107219 2108003 2109020 2109021 2109067 2109320 2109347 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 92 — INDEX

41 INDEX AZ8000G Page = 1 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) 000002 31 39 000487 8 14 001225 35 30 000009 29 8 000526 5 23 001227 35 27 000010 2 6 000528 11 38 001228 17 16 000010 19 27 000532 7 14 001230 21 12 000010 31 50 000533 14 27 001230 23 18 000012 31 40 000533 15 15 001230 24 10 000014 4 44 000533 31 9 001230 28 21 000014 9 35 000535 15 49 001326 31 32 000014 31 38 000535 30 11 001330 15 25 000016 37 12 000535 35 13 001330 35 18 000016 37 12 000538 25 24 001331 14 37 000022 19 31 000538 37 22 001333 31 16 000035 6 26 000550 31 48 001613 32 27 000070 37 6 000561 11 39 001892 27 29 000162 37 11 000567 6 48 000162 37 11 000567 13 6 003302 18 5 000172 14 34 000600 29 7 003636 5 22 000172 15 22 000613 25 29 003637 1 10 000172 35 20 000613 31 14 003637 2 23 000177 4 9 000621 25 28 003637 6 23 000178 4 7 000621 31 12 003637 15 44 000234 25 34 000623 29 23 003637 18 7 000306 25 30 000629 9 26 003637 25 21 000306 31 15 000629 22 28 003637 30 6 000322 4 26 000644 1 5 003637 32 11 000322 31 31 000644 4 25 003638 31 29 000331 18 4 000653 4 30 000334 14 35 000665 14 9 004097 8 45 000334 15 23 000669 11 6 004100 19 26 000334 29 19 000669 29 6 004106 14 45 000334 31 52 000688 7 27 004106 15 33 000334 35 22 000690 11 34 004125 25 45 000335 32 7 000726 1 36 004131 17 6 000361 15 48 000755 27 5 004131 27 10 000361 30 10 000779 9 31 004138 17 10 000393 6 45 000932 17 20 004138 18 11 000419 13 30 000933 17 21 004139 19 14 000444 2 9 004139 27 11 000444 8 42 001049 31 27 004150 14 33 000444 16 7 001123 1 4 004150 15 21 000444 19 18 001123 25 36 004150 35 21 000444 20 7 001175 31 10 004182 18 17 000444 21 9 001196 14 43 004182 19 15 000444 23 15 001196 15 31 004204 17 14 000444 24 7 001202 32 10 004205 15 45 000444 28 7 001203 2 21 004205 30 7 000444 30 23 001225 14 42 004236 27 14 000456 13 41 001225 15 30 004236 32 4 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 93

AZ8000G INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 004237 8 39 004237 16 10 004237 17 8 004237 18 13 004237 19 9 004237 20 10 004237 21 14 004237 23 20 004237 26 6 004237 27 7 004237 28 10 004237 30 26 004237 32 24 004265 33 29 004353 31 6 004353 33 4 004358 31 25 004404 27 8 004406 31 35 004440 32 33 005000 31 18 005000 32 22 005036 8 43 005036 14 16 005036 15 7 005036 16 8 005036 19 7 005036 20 8 005036 21 10 005036 23 16 005036 24 8 005036 26 9 005036 28 8 005036 30 24 005036 32 5 005038 31 42 005040 29 15 005049 19 24 005075 1 30 005345 6 31 005505 29 20 005506 35 24 005512 33 8 005550 31 20 005585 31 26 005587 33 7 005588 31 44 Parts No. Page No. Ref. No. Weight(g) 005588 32 14 005589 25 27 005589 31 11 005591 32 30 005624 37 14 006035 4 24 006202 19 33 006444 14 48 006444 15 36 006816 1 22 006820 32 8 006861 13 29 006905 29 10 006905 33 15 007006 14 28 007006 15 16 007606 31 37 007609 32 19 007619 14 46 007619 15 34 007623 27 21 007627 25 37 009150 31 2 009624 14 31 009624 15 19 009751 19 29 009814 29 31 009861 37 7 009864 37 17 009871 37 18 009931 31 47 009960 29 5 009992 37 28 009995 37 30 0010052 29 22 0010112 29 24 0010263 29 11 0010290 29 25 0010310 29 26 0011180 33 16 0011182 33 17 0011183 33 19 0011189 33 22 Parts No. Page No. Ref. No. Weight(g) 0011190 31 19 0011191 31 36 0011192 33 20 0011709 33 14 0011943 33 13-1 0011944 33 13-2 0011945 33 13-3 0011946 33 13-4 0011974 33 18 0011987 29 30 0020004 1 15 0020005 1 16 0020016 2 22 0020045 37 20 0020057 37 19 0020064 37 10 0020076 37 29 0020077 37 27 0020078 37 26 0020118 4 6 0020137 1 29 0020271 8 44 0020350 11 44 0020401 12 18 0020491 14 2 0020496 7 13 0020538 11 36 0020538 13 44 0020538 31 51 0020616 25 20 0020700 35 14 0021450 27 30 0021451 27 26 0021456 27 28 0021457 27 27 0021876 26 7 0022153 26 4 0022156 17 7 0022215 4 46 0022430 35 16 0022431 35 19 0022432 35 17 0022433 35 25 0022434 35 23 0022435 14 40 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 94 — AZ8000G

AZ8000G Page = 3 Parts No. Page No. Ref. No. Weight(g) 00222435 15 28 00222436 14 41 00222436 15 29 00222436 35 29 00222437 35 26 00222443 14 47 00222443 15 35 00222444 14 49 00222444 15 37 00222445 14 32 00222445 15 20 00222446 14 36 00222446 15 24 00222447 14 38 00222447 15 26 00222448 14 39 00222448 15 27 0023169 15 43 0023169 30 5 0023182 15 47-1 0023182 30 9-1 0023184 15 42 0023184 30 4 0023473 12 26 0023580 17 22 0023700 31 46 0023703 32 32 0023705 32 18 0023707 32 17 0023708 32 20 0023709 32 23 0023710 32 25 0023711 31 24 0023712 31 43 0023713 31 45 0023714 31 1 0023715 31 7 0023717 31 30 0023718 31 41 0023720 33 5 0023722 31 34 0023723 31 28 0023724 32 16 0023725 31 13 0023726 31 3 0023734 33 3 INDEX Parts No. Page No. Ref. No. Weight(g) 0023737 32 21 0023739 32 2-2 0023740 32 1-2 0023741 32 3-2 0023744 32 6 0023747 32 15 0023750 31 4 0023756 32 26 0023763 31 5 0023767 32 34 0023768 32 35 0023769 31 8 0023779 31 49 0024083 4 4 0024084 4 3 0024084 25 43 0024095 2 25 0024130 21 1 0024130 23 21 0024156 4 14 0024157 4 5 0024308 15 46 0024308 30 8 0024421 17 5 0024446 2 20 0024503 17 15 0024505 17 4 0024506 17 9 0024506 18 10 0026470 31 17 0030748 13 27 0031111 4 8 0031831 13 9 0032604 6 34 0032879 1 23 0032919 7 24 0032952 4 12 0032962 4 11 0032971 4 13 0033024 3 14 0033627 1 24 0033711 15 47-2 Parts No. Page No. Ref. No. Weight(g) 0033935 29 18 0033936 29 17 0033937 29 16 0033938 29 14 0033939 29 2 0033940 29 27 0034293 11 49 0034535 8 38 0034535 16 9 0034535 20 9 0034535 21 13 0034535 23 19 0034535 30 25 0034867 14 25 0034867 15 13 0035722 33 26 0036111 31 21 0036132 31 22 0036161 32 9 0036905 15 54 0036905 30 14 0060248 31 58 0060297 14 51 0060297 15 57 0060297 16 15 0060297 17 28 0060297 18 18 0060297 19 39 0063612 31 33 0068202 11 29 0068517 3 15 0080503 13 26 0081848 15 56 0081848 30 16 0092232 33 21 0093090 5 7 0093303 4 37 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 95 — INDEX

AZ8000G INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 0093864 7 16 0094491 31 23 0094562 25 39 0095027 11 8 100000 11 40 100001 1 13 100001 8 23 100001 25 5 100002 11 5 100002 25 8 100038 33 25 100073 8 2 110001 4 22 110001 6 29 110001 7 21 110001 25 14 110001 34 6 110002 6 36 110002 9 36 110003 2 28 110003 35 12 110004 7 15 110004 8 34 110004 12 3 110004 14 12 110004 15 3 110004 16 3 110004 17 3 110004 18 3 110004 19 3 110004 20 3 110004 21 5 110004 23 9 110004 24 3 110004 26 3 110004 28 3 110006 6 18 110006 22 10 110009 4 36 110009 6 27 110009 9 12 110009 10 14 110009 15 55 Parts No. Page No. Ref. No. Weight(g) 110009 19 35 110009 25 42 110009 30 15 110009 35 15 110011 6 33 110012 1 12 110012 2 11 110012 3 9 110012 7 18 110012 8 8 110012 21 2 110012 23 22 110013 1 33 110013 2 2 110013 3 7 110013 4 2 110013 4 20 110013 6 46 110013 33 2 110013 37 4 110015 37 2 110016 1 18 110016 11 43 110017 11 45 110026 4 45 110026 12 33 110031 1 14 110031 25 25 110033 11 26 110035 4 40 110035 7 12 110035 19 30 110036 5 13 110036 10 17 110038 14 8 110042 27 32 110044 15 50 110044 30 12 110045 1 6 110045 13 32 110046 7 26 110047 14 50 110047 15 38 110047 25 10 110047 35 31 110048 3 3 110050 8 36 110050 14 53 Parts No. Page No. Ref. No. Weight(g) 110050 15 59 110050 16 12 110050 19 37 110050 20 12 110050 21 16 110050 23 11 110050 24 12 110050 26 13 110050 28 12 110050 30 28 110053 13 45 110054 2 32 110064 3 19 110064 12 2 110065 8 22 110065 31 53 110068 27 23 110070 12 24 110071 9 17 110071 22 19 110073 4 29 110076 2 8 110094 34 3 110106 2 15 110106 33 28 120006 6 6 120006 7 6 120006 9 5 120006 10 5 120006 11 2 120010 8 17 120013 9 32 120017 1 28 120017 8 20 120049 6 2 120049 7 2 120049 9 2 120049 10 2 120049 13 4 130001 9 16 130001 22 18 130002 12 15 130003 3 25 130003 12 35 140000 11 17 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 96 — INDEX

AZ8000G INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) 140001 11 11 180003 12 28 320008 13 11 140002 10 12 180014 10 18 320009 13 23 140003 6 13 320012 13 46 140004 9 21 190001 11 41 140004 22 23 190015 2 13 330000 3 17 140011 37 23 190016 4 10 330008 3 16 140012 14 5 190088 8 1 140014 7 30 340050 8 6 210009 9 30 210009 22 32 350007 37 25 150004 3 10 270001 27 25 390165 2 17 160001 1 8 270011 24 13 390166 2 18 160001 5 4 270011 28 27 390167 2 16 160001 8 31 160001 9 10 280000 31 54 910000 38 10 160001 11 33 280011 18 9 910001 38 7 160001 12 12 910003 38 14 160001 13 3 300000 11 4 160001 25 17 300000 19 25 911001 38 6 160001 31 56 300004 1 27 911002 38 5 160002 6 4 300008 6 12 911006 38 9 160002 7 4 300008 9 20 911060 38 19 160002 9 23 300008 10 11 160002 22 25 300008 22 4 930052 38 12 160003 6 8 300008 22 22 930053 38 13 160003 7 8 300031 33 23 930055 38 27 160003 10 8 300033 33 24 160003 12 29 300040 17 25 1090133 29 21 160007 5 2 300043 1 34 160007 8 26 300106 10 19 1094011 29 3 160007 11 21 160007 12 10 310001 6 42 1096000 29 12 160016 6 19 310005 6 40 1096004 29 28 160016 22 11 310017 27 4 1096005 29 29 160027 5 14 310065 9 28 170005 25 3 310065 22 30 1097000 29 4 170031 25 7 310073 13 20 1097001 29 9 170032 2 5 310081 13 38 170032 25 32 310089 6 16 1200006 33 1 170045 8 11 310089 9 24 1200095 33 11 170047 8 15 310089 22 8 1200182 32 12 170049 4 34 310089 22 26 180001 8 12 310090 13 42 1298000 29 13 180002 12 23 310105 4 18 180002 17 24 310109 5 25 2049401 1 35 320008 6 47 2100006 1 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 97 — INDEX

AZ8000G INDEX Page =6 Parts No. Page No. Ref. No. Weight(g) 2100009 7 22 2100011 1 7 2100012 1 9 2100014 1 3 2100024 2 24 2100032 13 43 2100035 3 1 2100037 3 21 2100047 3 4 2100050 14 17 2100052 14 19 2100052 15 53 2100053 1 17 2100088 9 3 2100088 10 3 2100098 5 34 2100099 8 25 2100105 5 17 2100111 5 12 2100117 5 19 2100135 6 11 2100136 22 3 2100137 6 7 2100138 6 14 2100138 22 6 2100144 6 3 2100145 6 32 2100152 6 39 2100160 7 1 2100161 7 7 2100161 9 9 2100161 10 7 2100162 7 5 2100164 7 11 2100165 7 10 2100166 7 25 2100167 7 28 2100168 7 29 2100173 7 3 2100174 7 19 2100176 6 15 2100176 22 7 2100177 17 26 2100189 8 28 2100192 8 21 2100197 8 18 2100199 8 30 2100211 10 10 Parts No. Page No. Ref. No. Weight(g) 2100215 10 1 2100219 10 9 2100221 9 19 2100227 9 15 2100227 22 17 2100229 4 38 2100241 11 14 2100242 11 13 2100243 11 15 2100244 11 16 2100248 11 9 2100249 11 10 2100251 11 3 2100252 11 28 2100253 11 30 2100256 11 35 2100257 11 46 2100259 11 48 2100262 11 31 2100263 11 37 2100264 11 47 2100266 11 12 2100267 11 32 2100269 11 27 2100271 11 42 2100272 5 29 2100275 12 21 2100276 12 22 2100277 12 19 2100278 12 20 2100279 12 27 2100280 12 16 2100281 12 14 2100283 12 13 2100284 12 17 2100288 11 20 2100289 12 25 2100318 3 8 2100336 37 21 2100337 37 15 2100338 37 16 2100339 37 5 2100346 17 23 2100349 14 6 2100353 14 7 2100354 14 4 2100363 13 2 2100369 13 14 Parts No. Page No. Ref. No. Weight(g) 2100374 37 24 2100375 37 13 2100385 14 1 2100502 6 28 2100518 8 19 2100533 6 41 2100534 2 27 2100535 6 43 2100536 6 44 2100538 2 19 2100580 8 5 2100602 12 11 2100642 5 36 2100642 6 20 2100671 11 22 2100672 11 23 2100673 11 24 2100674 11 25 2100854 9 33 2100856 2 31 2100861 3 13 2100864 1 20 2100865 12 1 2100866 12 4 2100867 12 5 2100868 12 8 2100869 12 6 2100870 12 7 2100872 5 15 2100873 3 23 2100874 3 24 2100875 1 26 2100892 9 27 2100892 22 29 2100895 13 40 2100896 13 39 2100899 6 5 2100900 9 1 2100900 18 25 2100902 10 6 2100903 9 22 2100903 22 24 2100918 3 20 2100921 3 2 2100926 13 16 2100927 13 17 2100928 13 18 2100929 13 19 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 98 — INDEX

AZ8000G INDEX Page =7 Parts No. Page No. Ref. No. Weight(g) 2100935 13 1 2100946 22 12 2100957 13 15 2100958 13 12 2100961 3 11 2101011 27 24 2101020 14 30 2101020 15 18 2101021 14 29 2101021 15 17 2101022 14 44 2101022 15 32 2101026 14 24 2101026 15 12 2101027 14 23 2101027 15 11 2101038 31 57 2101048 15 51 2101050 30 13 2101059 27 31 2101089 22 21 2101091 23 23 2101124 33 12 2101133 15 40 2101133 30 2 2101134 15 41 2101134 30 3 2101241 25 6 2101242 25 9 2101243 25 2 2101244 25 11 2101245 25 15 2101246 25 12 2101247 25 26 2101248 25 18 2101249 25 22 2101250 25 23 2101251 25 41 2101252 25 31 2101253 25 35 2101254 25 40 2101255 25 33 2101257 25 38 2101258 25 19 2101259 25 16 2101260 25 13 2101268 25 44 2101371 19 20-1 Parts No. Page No. Ref. No. Weight(g) 2101372 19 21 2101373 19 22 2101374 19 23 2101375 19 28 2101376 19 34 2101377 19 32 2101378 19 19 2101379 19 20-2 2101390 32 2-1 2101391 32 1-1 2101393 32 3-1 2101394 32 28 2101395 32 29 2101435 14 3 2101450 37 8 2101451 37 9 2106012 35 9 2106100 35 6 2106101 35 8 2107004 14 14 2107004 15 5 2107030 14 13 2107030 15 4 2107178 19 4 2107179 19 5 2107180 19 8 2107219 26 5 2107219 28 9 2107523 24 14 2107523 28 28 2107631 21 6 2107631 23 12 2107631 28 18 2107640 14 15 2107640 15 6 2107640 19 6 2107640 26 8 2107643 8 41 2107643 16 6 2107643 20 6 2107643 21 8 2107643 23 14 2107643 28 6 2107643 30 22 2107650 21 7-1 2107650 23 13-1 2107650 28 19 2107651 21 7-2 Parts No. Page No. Ref. No. Weight(g) 2107651 23 13-2 2107652 21 18 2107670 21 11 2107670 23 17 2107670 28 20 2108000 14 20 2108002 16 13-1 2108003 16 13-2 2108003 26 14 2108004 6 30-1 2108005 6 30-2 2108006 20 14-1 2108006 21 20 2108008 30 29 2108010 36 3 2108013 30 34-1 2108014 20 14-2 2108015 17 13 2108016 17 11 2108017 17 12 2108020 36 6 2108021 36 7 2108022 36 4 2108023 36 5 2108024 36 2 2108032 15 8 2108043 23 24-1 2108044 23 24-2 2108045 23 24-3 2108062 23 2-1 2108063 23 2-2 2108093 35 5-1 2108094 35 5-2 2108097 36 8 2108100 36 1 2108106 24 15 2108107 19 10 2108117 36 9 2108119 30 34-2 2108129 18 16 2109000 14 21 2109000 15 9 2109001 14 22 2109001 15 10 2109005 12 30-1 2109006 12 31 2109007 16 16 2109007 18 19 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 99 — INDEX

AZ8000G INDEX Page =8 Parts No. Page No. Ref. No. Weight(g) 2109009 12 30-2 2109010 30 30 2109011 30 31 2109013 35 7 2109015 30 35 2109016 30 36 2109017 17 17 2109018 17 18 2109019 17 19 2109020 26 10 2109021 26 11 2109030 23 25-2 2109031 23 26 2109032 23 27 2109033 23 25-1 2109038 24 16 2109042 19 17 2109045 19 16 2109046 19 11 2109047 19 12 2109048 19 13 2109052 23 5 2109052 24 17 2109067 12 32 2109070 35 1 2109072 35 3-1 2109074 35 2 2109076 24 19 2109076 35 4 2109078 35 3-2 2109084 23 3 2109086 23 4 2109200 6 35 2109201 10 16 2109320 14 54 2109320 15 60 2109320 16 14 2109320 17 27 2109320 18 20 2109320 19 38 2109320 26 15 2109322 9 29 2109342 23 28 2109347 10 15 2109348 22 33 2109349 35 10 2109907 30 1 2109911 15 39 Parts No. Page No. Ref. No. Weight(g) 2109932 29 1 2110026 3 6 2110027 3 5 2110181 5 3 2110183 5 6 2110184 5 5 2110327 31 55 2111011 33 10 2111050 27 2 2111051 27 3 2111055 27 9 2111056 27 13 2111057 27 15 2111058 27 22 2111059 27 12 2111060 27 19 2111061 27 17 2111062 27 16 2111063 27 6 2111066 27 18 211067 27 20 2121021 33 6 2129420 2 29 2150015 1 11 2150016 2 1 2150017 3 18 2150018 2 4 2150019 7 20 2150020 7 17 2150021 7 23 2150022 3 12 2150023 2 10 2150024 2 12 2150025 2 14 2150026 1 19 2150027 4 35 2150030 4 16 2150031 4 17 2150032 4 19 2150035 6 37 2150038 5 10 2150039 5 16 2150040 5 24 2150041 5 26 2150042 5 32 2150043 5 18 2150044 5 30 2150045 5 31 Parts No. Page No. Ref. No. Weight(g) 2150046 5 27 2150047 5 28 2150048 5 21 2150049 5 20 2150050 5 35 2150051 6 17 2150052 22 1 2150053 6 10 2150053 22 2 2150054 6 9 2150055 13 36 2150056 13 37 2150057 6 24 2150058 6 25 2150059 22 9 2150060 7 9 2150063 12 9 2150064 11 1 2150065 11 18 2150066 11 19 2150067 12 34 2150069 3 22 2150069 5 33 2150070 9 6 2150071 9 4 2150072 9 7 2150075 9 8 2150075 11 7 2150076 10 4 2150078 22 34 2150079 9 37 2150079 22 35 2150080 9 25 2150080 22 27 2150084 9 14 2150084 22 16 2150085 9 13 2150086 22 15 2150090 9 18 2150091 22 20 2150094 13 25 2150095 13 24 2150096 5 9 2150097 13 28 2150100 5 11 2150105 6 1 2150110 4 28 2150111 4 31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 100 — INDEX

AZ8000G INDEX Page =9 Parts No. Page No. Ref. No. Weight(g) 2150112 4 32 2150114 4 27 2150115 4 23 2150116 4 15 2150117 9 34 2150118 10 13 2150119 4 39 2150120 4 42 2150121 4 43 2150123 4 41 2150124 4 21 2150125 2 7 2150130 9 11 2150132 4 33 2150139 8 24 2150140 8 27 2150141 8 29 2150142 8 16 2150145 8 4 2150146 8 7 2150147 8 9 2150148 8 10 2150150 6 49 2150154 8 13 2150175 37 31-1 2150201 13 7 2150202 13 21 2150206 13 10 2150207 13 22 2150210 1 2 2150211 14 18 2150211 15 52 2150212 37 1 2150213 37 3 2150214 5 1 2150225 18 22 2150226 18 24 2150227 18 26 2150709 8 3 2151000 27 33 2151012 33 27 2151013 33 9 2151015 35 11 2151054 1 21 2151055 2 26 2151056 1 32 2151057 34 5 2151058 34 7 Parts No. Page No. Ref. No. Weight(g) 2151059 34 4 2151066 34 2 2151067 34 1 2157000 8 33 2157000 14 11 2157000 15 2 2157000 16 2 2157000 19 2 2157000 20 2 2157000 21 4 2157000 23 8 2157000 24 2 2157000 26 2 2157000 28 2 2157000 30 18 2157002 17 2 2157005 18 2 2157020 8 37 2157020 16 4 2157020 20 4 2157020 24 4 2157020 28 4 2157020 30 20 2157022 18 8 2157030 24 6 2157030 28 24 2157031 18 6 2157040 8 35 2157040 14 52 2157040 15 58 2157040 16 11 2157040 19 36 2157040 20 11 2157040 21 15 2157040 23 10 2157040 28 11 2157040 30 27 2157041 26 12 2157045 24 9 2157046 24 11 2157046 28 26 2157047 28 25 2157048 18 12 2157049 16 1-1 2157050 16 1-2 2157054 20 1-1 2157055 20 1-2 2157057 8 32-1 Parts No. Page No. Ref. No. Weight(g) 2157058 8 32-2 2157062 28 1 2157070 30 17 2157072 28 13 2157086 14 10 2157086 15 1 2157096 19 1 2157100 28 15-3 2157101 28 15-4 2157102 28 15-1 2157103 28 15-2 2157108 30 32-1 2157109 30 32-2 2157116 21 17 2157118 21 3-1 2157118 23 7-1 2157119 21 3-2 2157119 23 7-2 2157121 28 17 2157138 24 1 2157139 28 22 2157158 26 1 2157185 17 1 2157186 18 1 2157199 16 5-1 2157200 16 5-2 2157200 28 5 2157204 28 14 2157204 30 21 2157205 8 40-1 2157205 24 5 2157205 28 16-1 2157205 28 23 2157206 8 40-2 2157206 28 16-2 2157208 20 5-1 2157208 28 16-3 2157209 20 5-2 2157209 28 16-4 2157210 30 33-1 2157211 30 33-2 2158013 18 14 2158014 18 15 2159008 24 18 2159101 20 13 2159101 21 19 2159102 6 21 2159901 27 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 101 — INDEX

AZ8000G INDEX Page =10 Parts No. Page No. Ref. No. Weight(g) 2159906 25 1 2160018 37 31-2 2160019 23 6 2160050 22 13 2160051 18 23 2160051 22 14 2160100 18 21 2160122 4 1 2169102 23 1 3100060 13 31 3100061 13 33 3100129 5 8 3100329 13 35 3100345 13 34 3100370 6 38 3100370 13 8 3100371 13 13 9620631 38 2 9620663 38 22 9620665 38 28 9620670 38 3 9620673 38 8 9620675 38 11 9620678 38 23 9620679 38 24 9620680 38 25 9620681 38 26 9620688 38 18 9620689 38 4 9620690 38 21 9620691 38 20 9620693 38 1-1 9620694 38 1-2 9620700 38 17 9620702 38 15 9620703 38 16 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 102

YAMATO ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO.,LTD. 4-4-12,NISHITENMA, KITA-KU, OSAKA,JAPAN TEL: 81-6-6364-1321 FAX: 81-6-6364-1307 〒530-0047 大阪市北区西天満4丁目4番12号 TEL (06)6364-1321(代) FAX (06)6365-5176 P/N 9710060(P) No. 3-2 Edited in 2003.10 (AZ8000G) Printed in Japan 2003.10.1T① From the library of: Superior Sewing Machine & Supply LLC Jinttex.in
