Page 1 — Parts List

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 1

Ref	Part number	Part name	Qty
	AZF8020G-10	AZF8000G
	AZF8025G-10	AZF8026G

Page 4

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 4

Ref	Part number	Part name	Qty
	1	COVER
	2	COVER
	3	BRACKET
	4	WASHER
	5	WASHER
	6	SCREW
	7	SLEEVE
	8	BRACKET
	9	COLLAR
	10	SCREW
	11	BRACKET
	12	SCREW
	13	NUT
	14	BOLT
	15	PLUG
	16	O-RING
	17	COVER
	18	SCREW
	19	GASKET
	20	GASKET
	21	BRACKET
	22	STUD BOLT
	23	FOOT
	24	FOOT
	26	STUD BOLT
	27	WASHER
	28	SCREW
	29	WASHER
	30	SCREW
	32	COVER
	33	SCREW
	34	WASHER
	35	BRACKET
	36	BRACKET

Page 6

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 6

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	SCREW
4	4	BRACKET
5	5	SCREW
6	6	WASHER
7	7	COVER
8	8	WASHER
9	9	SCREW
10	10	BRACKET
11	11	SCREW
12	12	RING
13	13	PLUG
14	14	COVER
15	15	SCREW
16	16	LABEL
17	17	LABEL
18	18	NAME PLATE
19	19	BRACKET
20	20	BRACKET
21	21	SCREW
22	22	SHAFT
23	23	SCREW
24	24	BRACKET
25	25	SPRING
26	26	SCREW
27	27	COVER
28	28	SCREW
29	29	COVER
30	30	COVER
31	31	BRACKET
32	32	SCREW
33	33	PLATE
34	34	SCREW
35	35	COVER
36	36	WASHER
37	37	COVER
38	38	COVER
39	39	PAD
40	40	BRACKET
41	41	BRACKET
42	42	SCREW

Page 7 — MISCELLANEOUS COVERS(2)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 7

Ref	Part number	Part name	Qty
	2160014	Side Cover
	110013	Screw(M4-0.7 × 8)	5
	110013	Screw(M4-0.7 × 8)[M4-0.7 × 5.4]
	2150018	Eye Guard Holder
	170032	Screw(M4-0.7 × 5)
	000010	Conical Spring Washer	2
	2150125	Eye Guard
	110076	Screw(M3-0.5 × 6)	2
	000444	Washer	2
	2150023	Needle Bar Oil Defender
	110012	Screw(M4-0.7 × 5)	4
	2150024	Needle Bar Oil Seal
	190015	Screw(M14-2 × 6)	4
	2150025	Logo Plate
	110106	Screw(M4-0.7 × 8)	2
	390170	"AZF-G" Logo Mark
	390165	Brand Name Plate(68mm)(Green)
	390166	Brand Name Plate(83mm)(Green)
	2100538	Front Cover Latch Spring
	0024446	Front Cover Hook
	001203	Screw(9/64-40 × 4.5)
	0020016	Front Cover Hinge Pin
	003637	Screw(1/8-44 × 2.5)	2
	2100024	Front Cover(Right)
	0024095	Front Cover Hinge Spring
	2151055	Front Cover Hinge
	2100534	Chip Guard(Openable)
	110003	Screw(M3.5-0.6 × 5)	2
	2129420	Model Plate(Green)
	2100856	Front Cover Latch
	110054	Screw(M3-0.5 × 3.5)	2
	2120062	Rear Cover Support
	110045	Screw(M4-0.7 × 12)
	2120055	Top Feed Dog Bar Rear Cover
	001123	Washer	2
	2120141	Top Feed Dog Bar Oil Receiver, C. Set
	2120053	Top Feed Dog Bar Oil Receiver
	2120138	Oil Receiver Rubber(Large)
	2120139	Oil Receiver Rubber(Small)
	2120098	Oil Receiver Fixing Plate
	110045	Screw(M4-0.7 × 12)(M4-0.7 × 8)

Page 8

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 8

Ref	Part number	Part name	Qty
3	3	Screw
4	4	Spacer
1	1	Cover
2	2	Gasket
26	26	Cover
7	7	Screw
6	6	Housing
5	5	O-ring
27	27	Nut
9	9	Screw
8	8	Plate
19	19	Screw
18	18	Bracket
21	21	Gasket
20	20	Filter
7	7	Screw
22	22	Plug
17	17	Pin
14	14	Washer
11	11	Bush
10	10	Screw
15	15	Spring
13	13	Bearing
12	12	Shaft
11	11	Bush
24	24	Gasket
23	23	Cover
25	25	Screw

Page 9 — MISCELLANEOUS COVERS (3)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 9

Ref	Part number	Part name	Qty
	2120063	Feed Mechanism Cover
	2120588	Feed Mechanism Cover Gasket
	110048	Screw(M4-0.7 × 10)
	2100047	Rubber Cushion
	2110027	O-ring(P52)
	2110026	Ball Bearing Holder
	110013	Screw(M4-0.7 × 8)
	2100318	Fan Cover
	110012	Screw(M4-0.7 × 5)
	150004	Screw(M4-0.7 × 6)
	2100961	Seal Plug
	2150022	Pushbutton
	2100861	Oil Seal
	0033024	Retaining Ring
	0068517	Pushbutton Spring
	330008	Seal Plug
	330000	Seal Plug
	2150017	Fabric Guide Plate
	110064	Screw(M4-0.7 × 8)
	2100918	Tail Cover Gasket
	2100037	Tail Cover
	2150069	Seal Plug
	2100873	Ball Bearing Housing
	2100874	Ball Bearing Housing Gasket
	130003	Screw(M4-0.7 × 7.3)
	0020218	Top Feed Shaft End Cap
	0020051	Seal Plug

Page 10

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 10

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46

Page 11 — MISCELLANEOUS THREAD EYELETS

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 11

Ref	Part number	Part name	Qty
	2160122	Thread Guide Plate
	110013	Screw(M4-0.7 × 8)
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0024157	Lower Looper Thread Tension Spring
	0020118	Thread Tension Spring Retainer
	000178	Felt
	0031111	Tension Disc
	000177	Felt
	190016	Tension Post(Short)
	0032962	Tension Disc Eyelet
	0032952	Upper Looper Thread Tension Spring
	0032971	Needle Thread Tension Spring
	0024156	Needle Thread Tension Spring
	2150116	Needle Thread Eyelet for Needle Thread
	2150030	Oil Container
	2150031	Oil Container Plug
	310105	Felt
	2150032	Felt Holder
	110013	Screw(M4-0.7 × 8)
	2150124	Needle Thread Eyelet Holder
	110001	Screw(M4-0.7 × 5.4)
	2150115	Needle Thread Eyelet(Right)
	006035	Screw(9/64-40 × 7)
	000644	Spring Washer
	000322	Nut
	2150114	Needle Thread Eyelet(Left)
	2160019	Needle Thread Pull-off
	110073	Screw(M4-0.7 × 7.5)
	000653	Knock Pin
	2150111	Thread Retainer Plate Support
	2150112	Thread Retainer Plate
	2150132	Thread Retainer Spring
	170049	Screw(M2-0.4 × 4)
	2150027	Looper Holder Cover
	110009	Screw(M4-0.7 × 8)
	0093303	Looper Driving Shaft Oil Seal
	2100229	Looper Holder Cover Spacer(Rubber)
	2150119	Looper Thread Eyelet(Left)
	110035	Screw(M4-0.7 × 10)
	2150123	Thread Eyelet Support
	2150120	Lower Looper Thread Eyelet
	2150121	Upper Looper Thread Eyelet
	000014	Washer
	110026	Screw(M3-0.5 × 6)
	0022215	Looper Thread Pipe

Page 12

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 12

Ref	Part number	Part name	Qty
	1	PUMP BODY
	2	SPRING
	3	IMPELLER
	4	SPRING
	5	GASKET
	6	SHAFT BUSHING
	7	BEARING
	8	SHAFT BUSHING
	9	SHAFT BUSHING
	10	PULLEY
	11	SHAFT
	12	SPRING
	13	SCREW
	14	SPRING
	15	COVER
	16	BEARING
	17	BEARING
	18	BEARING
	19	BEARING
	20	BEARING
	21	BEARING
	22	SCREW
	23	WASHER
	24	SHAFT
	25	SPRING
	26	BEARING
	27	BEARING
	28	BEARING
	29	BEARING
	30	BEARING
	31	BEARING
	32	BEARING
	33	WASHER
	34	BEARING
	35	SHAFT
	36	SHAFT
	37	WASHER
	38	BEARING
	39	BEARING
	40	BEARING
	41	BEARING
	42	BEARING
	43	BEARING

Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 13

Ref	Part number	Part name	Qty
	2150214	Machine Pulley	1
	160007	Screw(M6-1 × 6)	5
	2110181	Oil Cooling Fan	1
	160001	Screw(M4-0.7 × 4)	5
	2110184	Wave Washer	1
	2110183	Mechanical Oil Shield	1
	3100131	Crankshaft Ball Bearing(Right)
	2120026	Bearing Adapter	1
	2150096	Oil Pump Driving Worm	1
	2150038	Crankshaft Bushing	1
	2150100	Crankshaft	1
	2100111	Crankshaft Counterweight	1
	110036	Screw(M3-0.5 × 6.5)	2
	160027	Screw(M3-0.5 × 3)	5
	2100872	Crankshaft Ball Bearing(Left)	1
	2150039	Crankshaft Bushing	1
	2120076	Upper Knife Driving Shaft Bushing(Right)	1
	2150043	Upper Knife Feed Bar Driving Shaft Bushing	2
	2100117	Upper Knife Driving Shaft Oil Seal	1
	2150049	Needle Bar Driving Shaft Bushing(Right)	1
	2150048	Needle Bar Driving Shaft Bushing(Left)	1
	003636	Cap Screw(5/16-32 × 3.5)	1
	000526	Gasket	1
	2150040	Needle Bar Bushing(Upper)	1
	310109	Oil Wick	1
	2150041	Needle Bar Bushing(Lower)	1
	2150046	UpperLooperDrivingShaftBushing(Front)	1
	2150047	UpperLooperDrivingShaftBushing(Rear)	1
	2100272	Looper Driving Shaft Oil Seal	1
	2150044	LowerLooperDrivingShaftBushing(Front)	1
	2150045	LowerLooperDrivingShaftBushing(Rear)	1
	2150042	Feed Bar Driving Shaft Bushing(Left)	1
	2150069	Seal Plug	1
	2100098	Control Lever Shaft Bushing	1
	2150050	Needle Bar & Needle Bar Bushing, C. Set	1
	2100642	Needle Bar	1
	2120030	Top Feed Driving Connecting Rod Spacer	1
	2120074	Top Feed Shaft Bushing(Right)	1
	2120075	Top Feed Shaft Bushing(Left)	1
	2120071	VerticalMotion&RockerShaftBushing(Right)	2
	2120073	Vertical Motion Shaft Bushing(Left)	1
	0093303	Oil Seal	1
	2120072	Top Feed Rocker Shaft Bushing(Left)	1

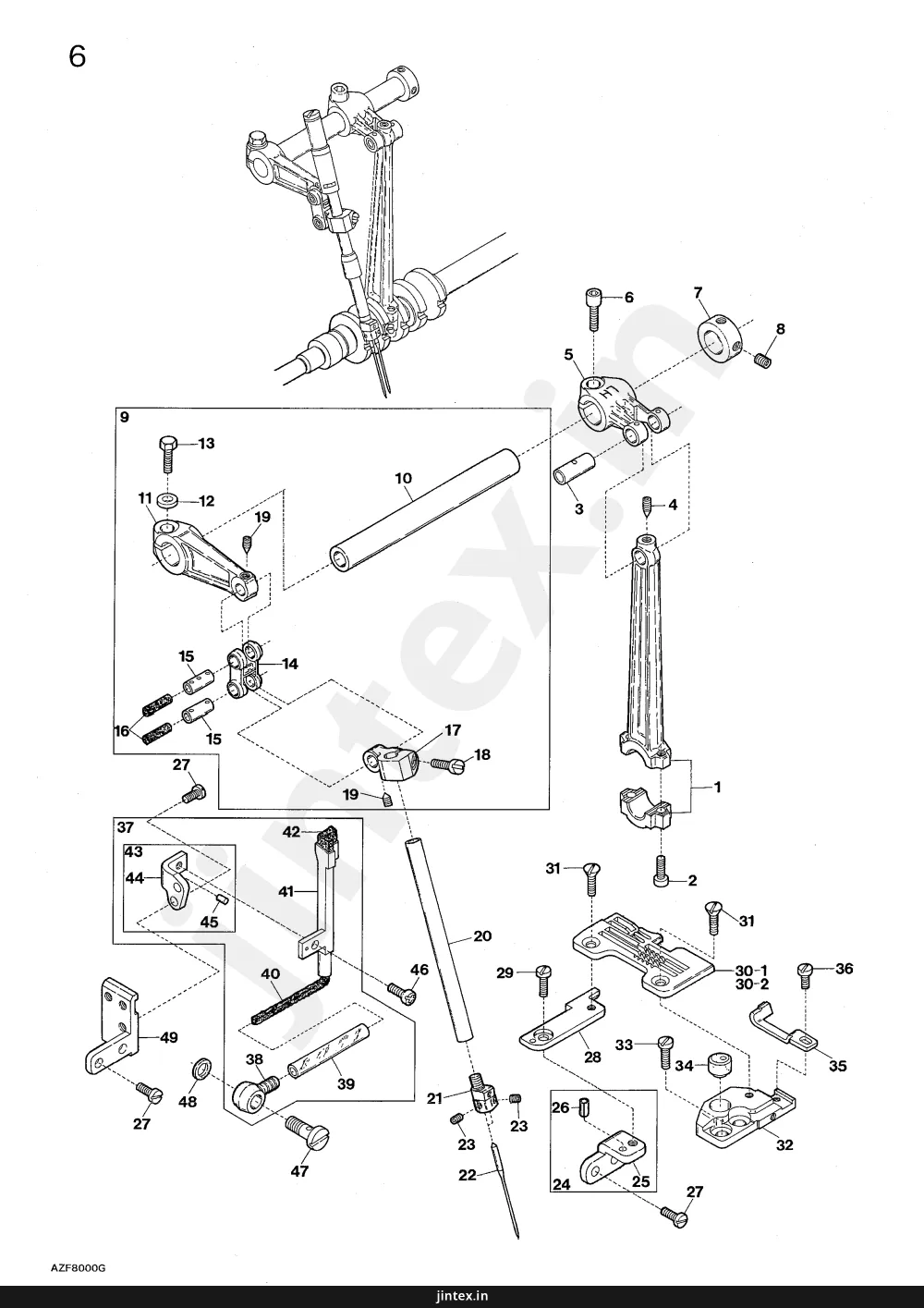

Page 14

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 14

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	PIN
4	4	SCREW
5	5	BRACKET
6	6	SCREW
7	7	WASHER
8	8	SCREW
9	9	BRACKET
10	10	SHAFT
11	11	WASHER
12	12	COLLAR
13	13	SCREW
14	14	BRACKET
15	15	PIN
16	16	SCREW
17	17	BRACKET
18	18	SCREW
19	19	SCREW
20	20	ROD
21	21	BRACKET
22	22	NEEDLE
23	23	WASHER
24	24	BRACKET
25	25	SCREW
26	26	PIN
27	27	SCREW
28	28	BRACKET
29	29	SCREW
30-1	30-1	BRACKET
30-2	30-2	BRACKET
31	31	SCREW
32	32	BRACKET
33	33	SCREW
34	34	COLLAR
35	35	BRACKET
36	36	SCREW
37	37	BRACKET
38	38	BALL JOINT
39	39	SCREW
40	40	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	BRACKET
44	44	BRACKET
45	45	BRACKET
46	46	ROD
47	47	SCREW
48	48	WASHER
49	49	BRACKET

Page 15

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 15

Ref	Part number	Part name	Qty
	2110252	Needle Bar Driving Connecting Rod	1
	120049	Screw(M4-0.7 x 16)	2
	2100144	Needle Bar Driving Connecting Rod Pin	1
	160002	Screw(M4-0.7 x 5)	1
	2100946	Needle Bar Driving Lever	1
	120006	Screw(M6-1 x 12)	1
	2100137	Collar(12 x 20 x 10mm)	1
	160003	Screw(M5-0.8 x 5)	2
	2150052	Needle Bar Crank Arm, C. Set	1
	2150053	Needle Bar Driving Shaft	1
	2100136	Needle Bar Crank Arm	1
	300008	Washer	1
	140003	Screw(M6-1 x 18)	1
	2100138	Needle Bar Connecting Link	1
	2100176	Needle Bar Connecting Link Pin	2
	310089	Oil Wick	2
	2150059	Needle Bar Connecting Bracket	1
	110006	Screw(M3.5-0.6 x 10)	1
	160016	Screw(M4-0.7 x 4.5)	2
	2100642	Needle Bar	1
	2169102	Needle Clamp(Y)	1
	---	Needle(System : DC x 27)	2
	003637	Screw(1/8-44 x 2.5)	2
	2150057	Stitch Plate Support Stay, C. Set	1
	2150058	Stitch Plate Support Stay	1
	000035	Roll Pin	1
	110009	Screw(M4-0.7 x 8)	6
	2100502	Stitch Plate Support(Rear)	1
	110001	Screw(M4-0.7 x 5.4)	1
	2108004	Stitch Plate(Y5)	1
	2108005	Stitch Plate(Y6)	1
	005345	Screw(11/64-40 x 8.3)	2
	2100145	Stitch Plate Support(Front)	1
	110011	Screw(M5-0.8 x 10)	2
	0032604	Rubber Cushion	1
	2109200	Needle Guard(Front)	1
	110002	Screw(M3-0.5 x 5)	1
	2150035	HR Unit, Complete Set	1
	3100370	Tube Joint	1
	2100152	Oil Tube(70mm)	1
	310005	Oil Wick	1
	2100533	HR Felt Holder	1
	310001	HR Felt	1
	2100535	HR Felt Holder Bracket, C. Set	1
	2100536	HR Felt Holder Bracket	1
	000393	Roll Pin	1
	110013	Screw(M4-0.7 x 8)	1
	320008	Fitting Stud(Short)	1
	000567	Seal	1
	2150150	HR Unit Bracket	1

Page 16

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 16

Ref	Part number	Part name	Qty
	1	STEERING COLUMN HOUSING
	2	STEERING COLUMN BRACKET
	3	PIN
	4	BRACKET
	5	STEERING COLUMN
	6	SCREW
	7	COLLAR
	8	WASHER
	9	TIE ROD
	10	BRACKET
	11	BRACKET
	12	SCREW
	13	BRACKET
	15	SCREW
	16	CAP
	17	PLATE
	18	SCREW
	19	CAP
	20	BRACKET
	21	SCREW
	22	BUSHING
	23	BRACKET
	24	SPRING
	25	SHAFT
	26	SCREW
	27	PIN
	28	PLATE
	29	BRACKET
	30	SCREW

Page 17 — KNIFE DRIVING MECHANISM

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 17

Ref	Part number	Part name	Qty
	2100160	Upper Knife Driving Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	2
	2100173	Driving Lever Pin	1
	160002	Screw(M4-0.7 × 5)	1
	2100162	Upper Knife Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	2100161	Collar(10 × 19 × 9mm)	1
	160003	Screw(M5-0.8 × 5)	2
	2150060	Upper Knife Driving Shaft	1
	2100165	Upper Knife Holder Positioner	1
	2100164	Upper Knife Holder(Flat Type)	1
	110035	Screw(M4-0.7 × 10)	1
	0020496	Upper Knife(Flat Type)	1
	110062	Screw(M3.5-0.6 × 8)	1
	0093864	Seal Plug	1
	2150020	Lower Knife Holder Spring Stop	1
	110012	Screw(M4-0.7 × 5)	3
	2100174	Cloth Plate Rubber Cushion	1
	2150019	Front Cover	1
	110001	Screw(M4-0.7 × 5.4)	2
	2100009	Cloth Plate Spring Pin	1
	2150021	Lower Knife Holder Locking Plate	1
	0032919	Lower Knife Holder Spring	1
	2100166	Lower Knife Holder	1
	110046	Screw(M5-0.8 × 12)	1
	000688	Guide Pin	1
	2100167	Lower Knife	1
	2100168	Lower Knife Clamp	1
	140014	Screw(M4-0.7 × 8)	1

Page 18

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 18

Ref	Part number	Part name	Qty
	1	SCREW
	2	NUT
	3	SPRING
	4	BRACKET
	5	PIN
	6	PIN
	7	SPRING
	8	SCREW
	9	SPRING
	10	BRACKET
	11	SPRING
	13	SHAFT
	14	BRACKET
	15	SCREW
	16	ARM
	17	SCREW
	18	SPRING
	19	BRACKET
	20	SCREW
	21	BRACKET
	22	SCREW
	23	NUT
	24	SPRING
	25	SHAFT
	26	SCREW
	27	RING
	28	BRACKET
	29	SCREW
	30	SHAFT
	31	BRACKET
	32	SHAFT
	33	BRACKET
	34	BRACKET
	35-1	BRACKET
	35-2	BRACKET
	36	BRACKET
	37	SCREW
	38	SPRING
	39	BRACKET
	40-1	BRACKET
	40-2	BRACKET
	41	PRESSER FOOT
	42	BRACKET
	43	SCREW
	44	BRACKET
	45	SCREW
	46	BRACKET
	47	PIN
	48	SCREW

Page 19 — PRESSER FOOT MECHANISM

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 19

Ref	Part number	Part name	Qty
1	190088	Adjusting Screw(M10-0.75 × 30)	1
2	100073	Lock Nut	1
3	2150709	Presser Spring	1
4	2150145	Presser Bar	1
5	2100580	Presser Arm Positioning Guide Pin	1
6	340050	Spring Pin	1
7	2160057	Presser Arm Stop	1
8	110008	Screw(M4-0.7 × 5)	1
9	2160055	Presser Foot Release Lever	1
10	2160058	Presser Foot Release Lever Spring	1
11	170045	Screw(M4-0.7 × 5)	1
13	2150154	Presser Foot Lifter Lever	1
14	000487	Wave Washer	1
15	170047	Screw(M8-1.25 × 10)	1
16	2150142	Presser Foot Lifter Lever Stop	1
17	120010	Screw(M6-1 × 10)	1
18	2100197	Presser Foot Lifter Lever Link	1
19	2100518	Presser Foot Shaft Collar	1
20	120017	Screw(M5-0.8 × 15)	1
21	2160033	Intermediate Lever	1
22	110065	Stop Screw(M4-0.7 × 12)	1
23	100001	Lock Nut	1
24	2150139	Presser Foot Lifter Lever Spring	1
25	2160032	Presser Foot Shaft Bushing	1
26	160007	Screw(M6-1 × 6)	1
27	3100104	O-ring(P16)	1
28	2120045	Top Feed Dog Lifting Lever	1
29	120017	Screw(M5-0.8 × 15)	1
30	2160029	Presser Arm, Complete Set	1
31	2160031	Presser Foot Shaft	1
32	2160030	Presser Arm	1
33	2100199	Presser Arm Hinge Pin	1
34	160001	Screw(M4-0.7 × 4)	1
35-1	2127240	Presser Foot, C. Set(Y5-10)	1
35-2	2127241	Presser Foot, C. Set(Y6-10)	1
36	2127003	Presser Foot Hinge	1
37	004351	Screw(9/64-40 × 7)	1
38	2127000	Presser Foot Spring	1
39	003637	Screw(1/8-44 × 2.5)	1
40-1	2127260	Presser Foot(Lower)(Y5-10)	1
40-2	2127261	Presser Foot(Lower)(Y6-10)	1
41	0026140	Presser Foot Hinge Pin	1
42	0026142	Thread Chain Guide	1
43	004237	Screw(3/32-56 × 2.6)	1
44	0020271	Thread Chain Cutting Knife	1
45	004097	Screw(3/32-56 × 4.2)	1
46	2160059	Presser Foot Release Lever Stop	1
47	2160063	Presser Bar Guide Plate	1
48	110023	Screw(M2-0.4 × 3.5)	1

Page 20

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 20

Ref	Part number	Part name	Qty
1	1	CLAMP
2	2	SPRING
3	3	COLLAR
4	4	SCREW
5	5	SPRING
6	6	BRACKET
7	7	SCREW
8	8	COLLAR
9	9	SCREW
10	10	SHAFT
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	BLOCK
17	17	LEVER
18	18	SHAFT
19	19	SCREW
20	20	ROD
21	21	COLLAR
22	22	WASHER
23	23	BLOCK
24	24	WASHER
25	25	SPRING
26	26	LEVER
27	27	SCREW
28	28	BRACKET
29	29	SCREW
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	SPRING

Page 21 — TOP FEED MECHANISM(1)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 21

Ref	Part number	Part name	Qty
	2120027	Top Feed Driving Connecting Rod	1
	120001	Screw(M4-0.7 x 14)	2
	2120028	Connecting Rod Pin	1
	330009	Seal Plug	2
	160007	Screw(M6-1 x 6)	1
	2120029	Top Feed Shaft Lever	1
	120006	Screw(M6-1 x 12)	1
	0032646	Collar	2
	009604	Screw(11/64-40 x 5.5)	4
	2120031	Top Feed Shaft	1
	000750	Seal Plug	1
	330008	Seal Plug	1
	2120002	Top Feed Rocker, Complete Set	1
	2120003	Top Feed Rocker	1
	120013	Screw(M6-1 x 15)	2
	2120004	Top Feed Regulating Slider	1
	2120005	Slider Pin Adjusting Lever, C. Set	1
	2120082	Top Feed Regulating Slider Pin	1
	160001	Screw(M4-0.7 x 14)	3
	2120007	Top Feed Shaft Lever Link	1
	0026081	Link Pin	1
	0026413	Spacer	1
	0026099	Top Feed Guide Block	1
	2120083	Spacer	1
	0033024	Retaining Ring	1
	2120006	Slider Pin Adjusting Lever	1
	120011	Screw(M6-1 x 18)	1
	2120008	Top Feed Rocker Shaft Lever	1
	0033104	Coller	1
	005550	Screw(11/64-40 x 13.5)	1
	2120032	Slider Pin Adjusting Lever Shaft	1
	2120009	Top Feed Rocker Shaft	1
	310046	Oil Wick(2.3 x 2.3 x 14mm)	1

Page 22

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 22

Ref	Part number	Part name	Qty
1	1	COLLAR
2	2	COLLAR
3	3	SCREW
4	4	SHAFT
5	5	BRACKET
6	6	SCREW
7	7	SCREW
8	8	WASHER
9	9	COLLAR
10	10	LINK
11	11	COLLAR
12	12	SCREW
13	13	BRACKET
14	14	SHAFT
15	15	NEEDLE PLATE
16	16	SCREW
17	17	BASE PLATE
18	18	BRACKET
19	19	PIN
20	20	SCREW
21	21	SPRING
22	22	LEVER
23	23	SPRING
24	24	LEVER
25	25	ARM
26	26	LEVER
29	29	SCREW
30	30	BRACKET
31	31	SCREW
32	32	BRACKET
33	33	BRACKET
34	34	SCREW
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	COLLAR
39	39	COLLAR
40	40	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	SCREW
44	44	BRACKET
45	45	SCREW
46	46	BRACKET
47	47	SCREW
48	48	SCREW
49	49	BRACKET
50	50	SHAFT
51	51	SPRING
52	52	COLLAR
53	53	SHAFT
54	54	BRACKET
55	55	NUT
56	56	SCREW
57	57	SHAFT
58	58	LEVER
59	59	SCREW
60	60	COLLAR
61	61	SHAFT
62	62	SCREW

Page 23 — TOP FEED MECHANISM(2)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 23

Ref	Part number	Part name	Qty
	0093323	Collar(Right)	1
	0033104	Collar(Left)	1
	005550	Screw(11/64-40 × 13.5)	2
	2120020	Vertical Motion Adjusting Lever, C. Set	1
	2120021	Vertical Motion Adjusting Lever	1
	120013	Screw(M6-1 × 15)	2
	004106	Screw(9/64-40 × 6.5)	1
	000533	Washer	1
	0026075	Adjusting Lever Pin	1
	2120022	Vertical Motion Lever Link	1
	0026081	Vertical Motion Lever Pin	1
	003637	Screw(1/8-44 × 2.5)	5
	2120023	Vertical Motion Lever	1
	2120019	Top Feed Vertical Motion Shaft	1
	310047	Oil Wick(2.3 × 2.3 × 11.5mm)	2
	0023234	Positioning Pin	1
	2120131	Top Feed Dog Bar, C. Set(2)	1
	2120018	Vertical Motion Link	1
	310069	Oil Wick(No. 2-210mm)	1
	000755	Pin	1
	310068	Oil Wick(No.2-120mm)	1
	0024302	Oil Wick Stay	1
	2120067	Oil Wick Holder	1
	110002	Screw(M3-0.5 × 5)	1
	2120130	Top Feed Dog Bar, C. Set(1)	1
	2120093	Top Feed Dog Bar Guide Lever	1
	2120095	Top Feed Dog Bar Guide Pin	1
	2120112	Top Feed Dog Bar Guide	1
	310054	Oil Wick(2.3 × 2.3 × 6mm)	1
	2120017	Press Bar Receiver	1
	2120132	Shield Support	1
	110050	Screw(M3.5-0.6 × 4.5)	2
	2120014	Top Feed Dog Bar	1
	2120572	Top Feed Dog Bar Shield	2
	310046	Oil Wick(2.3 × 2.3 × 14mm)	1
	0026418	Top Feed Dog Bar Connecting Pin	1
	2120015	Top Feed Rocker Link	1
	2120570	Top Feed Dog Bar Cover(Front), C. Set	1

Page 24

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 24

Ref	Part number	Part name	Qty
	1	COLLAR
	2	COLLAR
	3	SCREW
	4	BRACKET
	5	BRACKET
	6	SCREW
	7	SCREW
	8	WASHER
	9	SCREW
	10	BRACKET
	11	PIN
	12	SCREW
	13	COLLAR
	14	SHAFT
	15	SPRING
	16	SCREW
	17	FRAME
	18	PLATE
	19	LEVER
	20	SCREW
	21	SPRING
	22	LEVER
	23	SPRING
	24	SPRING
	25	BRACKET
	26	LEVER
	29	SCREW
	30	BRACKET
	31	SCREW
	32	BRACKET
	33	BRACKET
	34	SCREW
	35	BRACKET
	36	BRACKET
	37	SPRING
	38	SCREW
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	BRACKET
	43	SCREW
	44	BRACKET
	45	SCREW
	46	BRACKET
	47	SCREW
	48	SCREW
	49	BRACKET
	50	SHAFT
	51	SPRING
	52	COLLAR
	53	SHAFT
	54	BRACKET
	55	NUT
	56	SCREW
	57	BRACKET
	58	LEVER
	59	SCREW
	60	BRACKET
	61	BRACKET
	62	SCREW

Page 25 — TOP FEED MECHANISM(2)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 25

Ref	Part number	Part name	Qty
41	2120136	Top Feed Dog Bar Cover(Front)	1
42	2120571	Top Feed Dog Bar Cover Rubber	1
43	110012	Screw(M4-0.7 × 5)	1
44	2160015	Top Feed Dog Bar Support(Right)	1
45	110035	Screw(M4-0.7 × 10)	1
46	2160016	Top Feed Dog Bar Support(Left)	1
47	110004	Screw(M3.5-0.6 × 8)	2
48	000687	Knock Pin	1
49	2129078	Top Feed Dog(O4)(Diacut teeth)	1
50	2120037	Top Feed Dog Press Bar	1
51	2120038	Top Feed Dog Press Spring	1
52	100074	Lock Nut	1
53	190081	Adjusting Screw(M10-0.75 × 44)	1
54	2160028	Top Feed Dog Bar Block	1
55	100001	Nut	1
56	140032	Screw(M4-0.7 × 22)	1
	2160056	Top Feed Dog Lift Link
58	170041	Screw(M5-0.8 × 3.5)	1
59	170048	Screw(M5-0.8 × 5)	1
60	2160026	Top Feed Dog Lift Lever	1
61	2160027	Top Feed Dog Lift Shaft	1
62	009747	Screw(M4-0.7 × 10)	1

Page 26

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 26

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	SCREW
4	4	SPRING
5	5	BRACKET
6	6	SCREW
7	7	BRACKET
8	8	BRACKET
9	9	SCREW
10	10	SCREW
11	11	ROLLER
12	12	WASHER
13	13	NUT
14	14	SCREW
15	15	WASHER
16	16	NUT
17	17	BRACKET
18	18	BRACKET
19	19	COLLAR
20	20	SPRING
21	21	COLLAR
22	22	PIN
23	23	WASHER
24	24	BRACKET
25	25	SCREW
26	26	WASHER
27	27	SPRING
28	28	KNOB
29	29	SCREW

Page 27 — TOP FEED MECHANISM(3)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 27

Ref	Part number	Part name	Qty
1	2120035	Spring Hanger	1
2	000665	Washer	2
3	110013	Screw(M4-0.7 × 8)	2
4	2120036	Top Feed Dog Lever Spring	1
5	2120033	Top Feed Dog Lever	1
6	110009	Screw(M4-0.7 × 8)	3
7	2120034	Top Feed Dog Graduation	1
8	000538	Washer	2
9	110035	Screw(M4-0.7 × 10)	2
10	190039	Screw(M4-0.7, M6-1 × 19)	1
11	100029	Adjusting Nut	1
12	000663	Washer	1
13	100001	Lock Nut	1
14	005049	Screw(M5-0.8 × 8)	1
15	000554	Washer	1
16	0020350	Top Feed Dog Lever Stopper	1
17	0026434	Lever Adjusting Box, C. Set	1
18	0026427	Lever Adjusting Box	1
19	0026430	Lever Adjusting Block	1
20	0026428	Lever Adjusting Screw	1
21	0026438	Coller	1
22	003637	Screw(1/8-44 × 2.5)	3
23	0068206	O-ring(P4)	1
24	0026429	Adjusting Screw Supporting Plate	1
25	004351	Screw(9/64-40 × 7)	2
26	000280	Rubber Cushion	2
27	2020048	Adjusting Knob Spring	1
28	0026431	Adjusting Knob	1
29	110064	Screw(M4-0.7 × 8)	2

Page 28

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 28

Ref	Part number	Part name	Qty
2	2	SCREW
1	1	BRACKET
3	3	WASHER
10	10	SCREW
9	9	COLLAR
8	8	WASHER
7	7	WASHER
4	4	JOINT
5	5	SCREW
6	6	SHAFT
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	SCREW
17	17	SCREW
18	18	BRACKET
27	27	COLLAR
28	28	WASHER
30	30	SCREW
25	25	SHAFT
26	26	SCREW
37	37	BRACKET
31	31	PIN
32	32	SCREW
29	29	BRACKET
30	30	SCREW
30	55	SCREW
21	21	SCREW
20	20	WASHER
19	19	BRACKET
22	22	PIN
23	23	SCREW
24	24	WASHER
11	11	BRACKET
12	12	SCREW
33	33	BRACKET
34	34	BRACKET
35	35	WASHER
36	36	SCREW

Page 29 — UPPER LOOPER DRIVING MECHANISM

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 29

Ref	Part number	Part name	Qty
	2100900	Looper Driving Lever Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	4
	2100088	Connecting Rod Swing-proof	2
	2160050	Upper Looper Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	2150070	Looper Driving Shaft	1
	2160051	Driving Shaft Thrust Ring	1
	2150075	Driving Shaft Thrust Ring	1
	2100161	Collar(10 × 19 × 9mm)	1
	160001	Screw(M4-0.7 × 4)	2
	2150130	Upper Looper Thread Pull-off	1
	110009	Screw(M4-0.7 × 8)	2
	2150086	Upper Looper Bar Crank Arm, C. Set	1
	2150084	Upper Looper Bar Guide Bushing	1
	2100227	Upper Looper Bar Guide Cover	1
	130001	Screw(M2.5-0.45 × 6)	1
	110071	Screw(M2.5-0.45 × 6)	1
	2150091	Upper Looper Bar Guide, Complete Set	1
	2101089	Upper Looper Bar Crank Arm	1
	300008	Washer	1
	140004	Screw(M6-1 × 16)	1
	2100903	Upper Looper Bar Crank Arm Pin	1
	160002	Screw(M4-0.7 × 5)	1
	310089	Oil Wick	1
	2150080	Upper Looper Bar	1
	000629	Seal Plug	1
	2100892	Upper Looper Bar Guide	1
	310065	Oiling Felt	1
	2129300	Upper Looper(for Needle Size #9~14)	1
	210009	Screw(1/8-44 × 3.2)	1
	000779	Standard Pin	1
	120013	Screw(M6-1 × 15)	2
	2100854	UpperLooper SupplementaryThreadEyelet	1
	2150117	Lower Looper Thread Pull-off	1
	000014	Washer	1
	110002	Screw(M3-0.5 × 5)	1
	2150079	Upper Looper Bar, C. Set	1

Page 30

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 30

Ref	Part number	Part name	Qty
1	1	CLAMP
2	2	SCREW
3	3	WASHER
4	4	JOINT
5	5	SCREW
6	6	WASHER
7	7	COLLAR
8	8	SCREW
9	9	SHAFT
10	10	LEVER
11	11	WASHER
12	12	SCREW
13	13	BRACKET
14	14	SCREW
15	15	LEVER
16	16	LEVER
17	17	SCREW
18	18	SCREW
19	19	WASHER

Page 31 — LOWER LOOPER DRIVING MECHANISM

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 31

Ref	Part number	Part name	Qty
1	2100215	Looper Driving Lever Connecting Rod
2	120049	Screw(M4-0.7 × 16)
3	2100088	Connecting Rod Swing-proof
4	2150076	Lower Looper Driving Lever
5	120006	Screw(M6-1 × 12)
6	2100902	Driving Shaft Thrust Ring
7	2100161	Collar(10 × 19 × 9mm)
8	160003	Screw(M5-0.8 × 5)
9	2100219	Looper Driving Shaft
10	2100211	Lower Looper Holder Arm
11	300008	Washer
12	140002	Screw(M6-1 × 14)
13	2150118	Thread Pull-off
14	110009	Screw(M4-0.7 × 8)
15	2109347	Lower Looper
16	2109201	Needle Guard(Rear)
17	110036	Screw(M3-0.5 × 6.5)
18	180014	Screwed Pin(M3-0.5 × 4.5)
19	300106	Conical Spring Washer

Page 33

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 33

Ref	Part number	Part name	Qty
	2150064	Main Feed Bar Lever	1
	120006	Screw(M6-1 × 12)	4
	2100251	Main Feed Bar Lever Pin	1
	300000	Washer	3
	100002	Nut	1
	000669	Washer	2
	2150075	Thrust Plate	1
	0095027	Retaining Ring	1
	2100248	Main Feed Bar Connection	1
	2100249	Connection Bushing	1
	140001	Screw(M5-0.5 × 12)	1
	2100266	Feed Bar, Complete Set	1
	2100242	Main Feed Bar	1
	2100241	Differential Feed Bar	1
	2100243	Differential Feed Bar Connection	1
	2100244	Connection Bushing	1
	140000	Screw(M5-0.5 × 12.5)	1
	2150065	Feed Bar Driving Shaft	1
	2150066	Feed Bar Driving Shaft Lever	1
	2100288	Connecting Rod Pin	1
	160007	Screw(M6-1 × 6)	1
	2100671	Differential Rocker, Complete Set	1
	2100672	Differential Rocker	1
	2100673	Differential Regulating Slider	1
	2100674	Differential Regulating Slider Cap	1
	110033	Screw(M3-0.5 × 6)	2
	2100269	Differential Lever(Right), C. Set	1
	2100252	Slider Link	1
	0068202	Retaining Ring	1
	2100253	Slider Link Pin	1
	2100262	Differential Lever(Right)	1
	2100267	Collar(10 × 17 × 8mm)	1
	160001	Screw(M4-0.7 × 4)	2
	000690	Spring Pin	1
	2100256	Differential Lever Spring	1
	0020538	O-ring(P7)	1
	2100263	Differential Lever(Left)	1
	000528	Washer	1
	000561	Conical Spring Washer	1
	100000	Adjusting Nut	1
	190001	Adjusting Screw(M6-1 × 11.5, M4.5-0.5 × 4)	1
	2100271	Differential Feed Graduation	1
	110016	Screw(M4-0.7 × 15)	2
	0020350	Differential Lever Stop	2
	110017	Screw(M5-0.8 × 8)	2
	2100257	Adjusting Screw	1
	2100264	Adjusting Block	1
	2100259	Adjusting Block Spring	1
	0034293	Retaining Ring	1

Page 35

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 35

Ref	Part number	Part name	Qty
1	2100865	Feed Bar Guide Support	1
2	110064	Screw(M4-0.7 × 8)	4
3	110004	Screw(M3.5-0.6 × 8)	6
4	2100866	Feed Bar Shield(Front)	1
5	2100867	Feed Bar Shield(Rear)	1
6	2100869	Feed Bar Shield Guide	1
7	2100870	Feed Bar Guide	2
8	2100868	Feed Bar Shield(Upper)	1
9	2150063	Feed Bar Guide Bushing	1
10	160007	Screw(M6-1 × 6)	1
11	2100602	Feed Bar Block(Rear) Shaft	1
12	160001	Screw(M4-0.7 × 4)	1
13	2100283	Feed Bar Block(Rear)	1
14	2100281	Feed Bar Block(Rear) Lid	1
15	130002	Screw(M3-0.5 × 6)	1
16	2100280	Feed Bar Block(Front)	1
17	2100284	Eccentric Pin Holder	1
18	0020401	Feed Dog Eccentric Pin	1
19	2100277	Feed Dog Eccentric	1
20	2100278	Roller Bearing	1
21	2100275	Feed Dog Driving Connecting Rod	1
22	2100276	Feed Dog Regulating Eccentric	1
23	180002	Screw(M3-0.5 × 4)	2
24	110070	Screw(M3-0.5 × 6.3)	1
25	2100289	Feed Dog Regulating Plate Spring	1
26	0023473	Feed Dog Regulating Plate	1
27	2100279	Feed Dog Regulating Gear	1
28	180003	Screw(M5-0.8 × 8)	1
29	180003	Screw(M5-0.8 × 5)	3
30-1	2109005	Differential Feed Dog(Y5)	1
30-2	2109009	Differential Feed Dog(Y6)	1
31	2109006	Main Feed Dog	1
32	2109067	Auxiliary Feed Dog	1
33	110026	Screw(M3-0.5 × 6)	1
34	2150067	Connecting Rod Cover	1
35	130003	Screw(M4-0.7 × 7.3)	2

Page 36

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 36

Ref	Part number	Part name	Qty
23	23	23
25	25	25
24	24	24
28	28	28
29	29	29
30	30	30
27	27	27
26	26	26
6	6	6
22	22	22
8	8	8
9	9	9
3	3	3
45	45	45
44	44	44
46	46	46
48	48	48
41	41	41
47	47	47
19	19	19
18	18	18
20	20	20
16	16	16
17	17	17
33	33	33
34	34	34
35	35	35
32	32	32
31	31	31
11	11	11
7	7	7
10	10	10
49	49	49
1	1	1
2	2	2
3	3	3
4	4	4
12	12	12
13	13	13
9	9	9
14	14	14
9	9	9
15	15	15
36	36	36
8	8	8
9	9	9
37	37	37
9	9	9
8	8	8
23	23	23
11	11	11
39	39	39
42	42	42
41	41	41
40	40	40
3	3	3

Page 37 — LUBRICATING MECHANISM

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 37

Ref	Part number	Part name	Qty
	2100935	Oil Pump, Complete Set	1
	2100363	Worm Wheel	1
	160001	Screw(M4-0.7 × 4)	4
	120049	Screw(M4-0.7 × 16)[M4-0.7 × 15]
	000567	Seal	1
	2150201	Oil Tube, Complete Set	1
	3100370	Oil Tube Fitting One Way End	6
	0031831	Oil Tube Clamp	9
	2150206	Oil Tube (4.6 × 6.4 × 220mm)	1
	320008	Oil Tube Fitting Stud(M6-1)	2
	2100958	Suction Tube, C. Set	1
	3100371	Oil Tube Fitting Two Way	1
	2100369	Oil Tube (4.6 × 6.4 × 36.5mm)	1
	2100957	Oil Filter	1
	2100956	Suction Pipe(Upper), C. Set	1
	2100927	Suction Tube (4 × 6 × 18mm)	1
	2100928	Suction Tube (2.5 × 4 × 60mm)	1
	2100929	Suction Pipe(Upper)	1
	310073	Felt	1
	2150202	Oil Tube, Complete Set	1
	2150207	Oil Tube (4.6 × 6.4 × 315mm)	1
	320009	Oil Tube Fitting Stud(Long)(M6-1)	1
	2150710	Oil Pressure Regulating Valve, C. Set
	2150713	Oil Pressure Regulating Valve
	0080503	Oil Pressure Regulating Ball	1
	0030748	Guide Pin	1
	2150102	Spring
	006861	Adjusting Screw(1/4-40 × 5)	1
	000419	Nut	1
	3100060	Oil Filter Cap	1
	110045	Screw(M4-0.7 × 12)	3
	3100061	O-ring(P42)	1
	3100345	Oil Filter	1
	3100329	Filter Housing	1
	2160035	Oil Tube, C. Set	1
	2160040	Oil Tube (4.6 × 6.4 × 150mm)	1
	2100896	Oil Pipe, C. Set	1
	2100895	Oil Pipe	1
	000456	Seal Plug	2
	3100090	Oil Wick	1
	2100032	Oil Sight Gauge	1
	0020538	O-ring(P7)	1
	110053	Screw(M6-1 × 8)	3
	2160045	Oil Pipe, C. Set	1
	2160046	Oil Pipe	1
	310081	Oil Wick	1
	320012	Oil Tube Fitting Stud(1/4-40)

Page 38

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 38

Ref	Part number	Part name	Qty
	1	UPPER KNIFE (Angled Type)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17	TOP FEED DOG
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53

Page 39 — EXCLUSIVE PARTS for UPPER KNIFE (Angled Type), AZF8000G

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 39

Ref	Part number	Part name	Qty
1	2100385	Upper Knife Holder
2	0000491	Upper Knife
3	2101435	Upper Knife Clamp
4	2100354	Upper Knife Chip Guard
5	140012	Screw(M4-0.7 × 18.5)
6	2100349	Upper Knife Clamp Plate
7	2100353	Upper Knife Stop
8	110038	Screw(M2.5-0.45 × 4.5)
9	000665	Washer
10	2127099	Presser Foot, Complete Set(04)
11	2127004	Presser Foot Hinge
12	004351	Screw(9/64-40 × 7)
13	2127001	Presser Foot Spring
14	003637	Screw(1/8-44 × 2.5)
15	2127069	Presser Foot(Lower) (04)
16	0026140	Presser Foot Hinge Pin
17	2100050	Cloth Plate
18	2150211	Cloth Plate(Lower)
19	2100052	Rubber Cushion
20	2100000	Stitch Plate(04)
21	2109000	Differential Feed Dog
22	2101027	Main Feed Dog
23	2101027	Blind-Hemming Guide, C. Set
24	2101026	Overhanging Guide Hinge, C. Set
25	0034867	Hemming Positioner
26	005036	Screw(1/8-44 × 5.6)
27	005333	Washer
28	007006	Screw(9/64-40 × 4)
29	2101021	Blind-Hemming Edge Guide, C. Set
30	2101020	Blind-Hemming Edge Guide
31	009624	Screw(1/8-44 × 5.3)
32	0022445	Swing-out Lever
33	004150	Screw(11/64-40 × 5.2)
34	000172	Conical Spring Washer
35	000334	Nut
36	0022446	Overhanging Guide Hinge Stop
37	001331	Screw(9/64-40 × 3.8)[9/64-40 × 3.8]
38	0022447	Swing-out Lever Holder
39	0022448	Swing-out Lever Stop
40	0022435	Edge Guide Positioning Pin

Page 40

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 40

Ref	Part number	Part name	Qty
	1	UPPER KNIFE (Angled Type)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17	TOP FEED DOG
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53

Page 41 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 41

Ref	Part number	Part name	Qty
41	0022436	Positioning Pin Holder Spring
42	001225	Screw(1/8-44 × 2.8)
43	001196	Screw(1/8-44 × 6)
44	2101022	Edge Guide Adjusting Holder
45	004106	Screw(9/64-40 × 6.5)
46	007619	Screw(9/64-40 × 6.3)
47	0022443	Adjusting Screw Guide Piece
48	006444	Adjusting Screw(1/8-44 × 12.9)
49	0022444	Edge Guide Adjusting Holder Cover
50	110047	Screw(M4-0.7 × 10)
51	0060297	Pin
52	2129012	Top Feed Dog(Diacut teeth)
53	2129076	Top Feed Dog(for -10)(Diacut teeth)

Page 42 — AZF8003G-04-10

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 42

Ref	Part number	Part name	Qty
3	3	SCREW
5	5	SCREW
2	2	ARM
4	4	SPRING
9	9	SCREW
8	8	BRACKET
7	7	PIN
6	6	PRESSER FOOT
10	10	PRESSER FOOT
11	11	PIN

Page 43 — AZF8000G-10 EXCLUSIVE PARTS

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 43

Ref	Part number	Part name	Qty
1	2127245	Presser Foot, C. Set(04-10)	1
2	2127003	Presser Foot Hinge	1
3	004351	Screw(9/64-40 × 7)	1
4	2127000	Presser Foot Spring	1
5	003637	Screw(1/8-44 × 2.5)	1
6	2127265	Presser Foot(Lower)(04-10)	1
7	0026140	Presser Foot Hinge Pin	1
8	0026142	Thread Chain Guide	1
9	004237	Screw(3/32-56 × 2.6)	1
10	2108003	Stitch Plate(04)	1
11	0060297	Pin	1

Page 44 — 19

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 44

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	BRACKET
4-1	4-1	BRACKET
4-2	4-2	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	SPRING
8	8	WASHER
9-1	9-1	BRACKET
9-2	9-2	BRACKET
10	10	PIN
11	11	PRESSER FOOT
12	12	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	PRESSER FOOT
16	16	BRACKET
17	17	NEEDLE PLATE

Page 45 — AZF8025G-10 EXCLUSIVE PARTS

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 45

Ref	Part number	Part name	Qty
	0024130	Tape Guide(Upper)
	110012	Screw(M4-0.7 x 5)
	2129080	Top Feed Dog(Diacut teeth)
	2127230	Presser Foot, C. Set(Y5-10)
	2127231	Presser Foot, C. Set(Y6-10)
	2127003	Presser Foot Hinge
	004351	Screw(9/64-40 x 7)
	2127000	Presser Foot Spring
	003637	Screw(1/8-44 x 2.5)
	2127280	Presser Foot(Lower)(Y5-10)
	2127281	Presser Foot(Lower)(Y6-10)
	0026140	Presser Foot Hinge Pin
	0026366	Presser Foot Tape Guide
	004237	Screw(3/32-56 x 2.6)
	0026142	Thread Chain Guide
	2127232	Presser Foot, C. Set(X4-10)
	2127282	Presser Foot(Lower)(X4-10)
	2169101	Needle Clamp(X)
	2108006	Stitch Plate(X4)

Page 46

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 46

Ref	Part number	Part name	Qty
15	15	SCREW
4	4	BRACKET
3	3	BRACKET
2	2	BRACKET
1	1	BRACKET
7	7	SCREW
6	6	WASHER
5	5	BRACKET
11	11	SCREW
10	10	WASHER
9	9	BRACKET
8	8	NUT
12	12	SCREW
13	13	BRACKET
14	14	SCREW
18	18	SCREW
17	17	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	SPRING
22-1	22-1	BRACKET
22-2	22-2	BRACKET
24	24	SCREW
23	23	BRACKET
26	26	SCREW
25	25	SPRING
28	28	SCREW
27-1	27-1	BASE
27-2	27-2	BASE
30	30	SCREW
29	29	BRACKET
31	31	BRACKET
32-1	32-1	PLATE
32-2	32-2	PLATE
34	34	SCREW
33-1	33-1	SPRING
33-2	33-2	SPRING
33-3	33-3	SPRING
33-4	33-4	SPRING
33-5	33-5	SPRING
33-6	33-6	SPRING
33-7	33-7	SPRING
33-8	33-8	SPRING
39	39	SCREW
38	38	BRACKET
37	37	BRACKET
36	36	BRACKET

Page 47 — AZF8026G EXCLUSIVE PARTS

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 47

Ref	Part number	Part name	Qty
	0026239	Folder Support, C. Set
	0026242	Vertical Adjusting Plate
	0026243	Folder Supporting Plate
	0026241	Rateral Adjusting Plate
	0026240	Swing-out Lever
	000172	Conical Spring Washer
	004150	Screw(11/64-40 × 5.2)
	000334	Nut
	0022447	Swing-out Lever Holder
	0022448	Swing-out Lever Stop
	005036	Screw(1/8-44 × 5.6)
	0022435	Folder Positioning Pin
	0022436	Folder Positioning Pin Holder Spring
	001227	Screw(1/8-44 × 3.8)
	001331	Screw(9/64-40 × 3.8)
	110047	Screw(M4-0.7 × 10)
	0022981	Tape Guide Stay Shaft
	110009	Screw(M4-0.7 × 8)
	0022963	Tape Guide Stay
	003638	Screw(11/64-40 × 4)
	0022982	Tape Guide
	2127088	Presser Foot, C. Set(Y5)
	2127089	Presser Foot, C. Set(Y6)
	2127003	Presser Foot Hinge
	004351	Screw(9/64-40 × 7)
	2127000	Presser Foot Spring
	003637	Screw(1/8-44 × 2.5)
	2127058	Presser Foot(Lower)(Y5)
	2127059	Presser Foot(Lower)(Y6)
	0026140	Presser Foot Hinge Pin
	0026142	Presser Foot Chain Shield
	004237	Screw(3/32-56 × 2.6)
	2129009	Top Feed Dog(Diacut teeth)
	2108020	Stitch Plate(Y5)
	2108021	Stitch Plate(Y6)
	0026198	Folder(for Light Materials)(16mm)
	0026225	Folder(for Light Materials)(18mm)
	0026237	Folder(for Light Materials)(20mm)
	0026227	Folder(for Light Materials)(22mm)
	0026199	Folder(for Heavy Materials)(16mm)
	0026226	Folder(for Heavy Materials)(18mm)
	0026236	Folder(for Heavy Materials)(20mm)
	0026228	Folder(for Heavy Materials)(22mm)
	001331	Screw(9/64-40 × 3.8)
	0026238	Piping Tape Folder, C. Set
	0026246	Piping Tape Folder Support
	0026251	Piping Tape Guide Plate
	0026250	Edge Guide(Upper)
	001331	Screw(9/64-40 × 3.8)

Page 48

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 48

Ref	Part number	Part name	Qty
15	15	SCREW
4	4	BRACKET
3	3	BRACKET
2	2	BRACKET
7	7	SCREW
6	6	WASHER
5	5	BRACKET
10	10	WASHER
11	11	SCREW
9	9	BRACKET
8	8	WASHER
12	12	SCREW
13	13	BRACKET
14	14	SCREW
18	18	SCREW
17	17	BRACKET
19	19	BRACKET
20	20	SPRING
16	16	SCREW
21	21	WIRE
22-1	22-1	BRACKET
22-2	22-2	BRACKET
24	24	SCREW
23	23	BRACKET
26	26	SCREW
25	25	SPRING
27-1	27-1	PRESSER FOOT
27-2	27-2	PRESSER FOOT
28	28	SCREW
30	30	SCREW
29	29	BRACKET
34	34	SCREW
33-1	33-1	SPRING
33-2	33-2	SPRING
33-3	33-3	SPRING
33-4	33-4	SPRING
33-5	33-5	SPRING
33-6	33-6	SPRING
33-7	33-7	SPRING
33-8	33-8	SPRING
38	38	BRACKET
39	39	SCREW
37	37	BRACKET
36	36	BRACKET
39	39	SCREW

Page 49 — AZF8026G-10 EXCLUSIVE PARTS

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 49

Ref	Part number	Part name	Qty
	0026239	Folder Support, C. Set	1
	0026242	Vertical Adjusting Plate	1
	0026243	Folder Supporting Plate	1
	0026241	Rateral Adjusting Plate	1
	0026240	Swing-out Lever	1
	000172	Conical Spring Washer	1
	004150	Screw(11/64-40 × 5.2)	1
	000334	Nut	1
	0022447	Swing-out Lever Holder	1
	0022448	Swing-out Lever Stop	1
	005036	Screw(1/8-44 × 5.6)	1
	0022435	Folder Positioning Pin	2
	0022436	Folder Positioning Pin Holder Spring	2
	001227	Screw(1/8-44 × 3.8)	2
	001331	Screw(9/64-40 × 3.8)	6
	110047	Screw(M4-0.7 × 10)	2
	0022981	Tape Guide Stay Shaft	1
	110009	Screw(M4-0.7 × 8)	1
	0022963	Tape Guide Stay	1
	003638	Screw(11/64-40 × 4)	2
	0022982	Tape Guide	1
	2167005	Presser Foot, C. Set(Y5)	1
	2167006	Presser Foot, C. Set(Y6)	1
	2127003	Presser Foot Hinge	1
	004351	Screw(9/64-40 × 7)	1
	2127000	Presser Foot Spring	1
	003637	Screw(1/8-44 × 2.5)	1
	2167026	Presser Foot(Lower)(Y5)	1
	2167030	Presser Foot(Lower)(Y6)	1
	0026140	Presser Foot Hinge Pin	1
	0026142	Presser Foot Chain Shield	1
	004237	Screw(3/32-56 × 2.6)	1
	2108020	Stitch Plate(Y5)	1
	2108021	Stitch Plate(Y6)	1
	0026198	Folder(for Light Materials)(16mm)	1
	0026225	Folder(for Light Materials)(18mm)	1
	0026237	Folder(for Light Materials)(20mm)	1
	0026227	Folder(for Light Materials)(22mm)	1
	0026199	Folder(for Heavy Materials)(16mm)	1
	0026226	Folder(for Heavy Materials)(18mm)	1
	0026236	Folder(for Heavy Materials)(20mm)	1
	0026228	Folder(for Heavy Materials)(22mm)	1
	001331	Screw(9/64-40 × 3.8)	2
	0026238	Piping Tape Folder, C. Set	1
	0026246	Piping Tape Folder Support	1
	0026251	Piping Tape Guide Plate	1
	0026250	Edge Guide(Upper)	1
	001331	Screw(9/64-40 × 3.8)	4

Page 50 — K2 DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 50

Ref	Part number	Part name	Qty
	21	SCREW
	4	CORD
	5	BRACKET
	3	BRACKET
	7	SCREW
	8	SCREW
	6	COVER
	20	PLATE
	9	BRACKET
	10	SCREW
	11	SCREW
	12	BRACKET
	13	BRACKET
	14	BRACKET
	15	BRACKET
	16	COLLAR
	17	SPRING
	18	WASHER
	19	WASHER
	27	SHAFT
	29	SCREW
	28	COLLAR
	30	COLLAR
	25	SCREW
	24	BRACKET
	22	BRACKET
	23	SCREW
	33	BRACKET
	32	SCREW
	31	BRACKET

Page 51 — K2 DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 51

Ref	Part number	Part name	Qty
1	2169900	K2 Device, Complete Set	1
2	2121000	Suction Pipe, Complete Set	1
3	2111051	Suction Pipe	1
4	310017	Oil Wick(No.2-300mm)	1
5	000755	Oil Wick Pin	1
6	2121001	Suction Pipe Cover	1
7	004237	Screw(3/32-56 × 2.6)	1
8	004404	Screw(3/32-56 × 5.1)	2
9	2111055	Upper Trimming Knife	1
10	004131	Screw(1/8-44 × 6)	1
11	004139	Screw(3/32-56 × 3)	2
12	2111059	Lower Trimming Knife Holder Pin	1
13	2111056	Lower Trimming Knife	1
14	004236	Screw(3/32-56 × 4.2)	1
15	2111057	Lower Trimming Knife Driving Plate	1
16	2111062	Spring Sleeve	1
17	2111061	Lower Trimming Knife Pushing Spring	1
18	2111066	Spring Protect Washer	1
19	2111060	Washer	1
20	2111067	Air Shield Rubber	1
21	007623	Screw(9/64-40 × 5.3)	2
22	2111058	Lower Trimming Knife Guide Support	1
23	110068	Screw(M4-0.7 × 8)	1
24	2101011	Lower Trimming Knife Guide	1
25	270001	Screw(1/8-44 × 3)	1
26	0021451	Suction Power Control, C. Set	1
27	0021457	Suction Power Control Tube(Inner)	1
28	0021456	Suction Power Control Tube	1
29	001892	Screw(1/8-44 × 2.9)	1
30	0021450	Nylon Hose	1
31	2101059	Cloth Plate Spacer	1
32	110042	Screw(M3.5-0.6 × 4)	2
33	2151000	Suction Pipe Support	1

Page 52 — C DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 52

Ref	Part number	Part name	Qty
	1	C DEVICE
	2	NIPPLE
	3	NIPPLE
	4	REGULATOR
	5	SCREW
	6	WASHER
	7	WASHER
	8	NUT
	9	BRACKET
	10	SCREW
	11	NIPPLE
	12	TUBE
	13	BRACKET
	14	SCREW
	15	SCREW
	16	SPRING
	17	BRACKET
	18	BRACKET
	19	NUT
	20	SCREW
	21	VALVE
	22	VALVE
	23	WASHER
	24	SCREW
	25	NIPPLE
	26	NIPPLE
	27	CLAMP
	28	TUBE
	29	TUBE
	30	HANDLE
	31	SCREW

Page 53 — C DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 53

Ref	Part number	Part name	Qty
1	2109932	C Device, Complete Set
2	0033939	Hose Band(1/4 inch)
3	1094011	Hose Nipple(PT1/8 × 8)
4	1097000	Regulator(AR2000-01BG)
5	009960	Screw(M5-0.8 × 16)
6	000669	Washer
7	000600	Spring Washer
8	000009	Nut
9	1097001	Regulator Support
10	006905	Wood Screw($ 5.1 × 20)
11	0010263	Connector(EC6-PT1/8)
12	1096000	Nylon Hose(4 × 6 × 2000mm)
13	1298000	Air Valve, Complete Set
14	0033938	Collar(6.4 × 13 × 9mm)
15	005040	Screw(11/64-40 × 8.5)
16	0033937	Return Spring
17	0033936	Air Valve Holder
18	0033935	Air Valve Stop
19	000334	Nut
20	005505	Adjusting Screw(11/64-40 × 16)
21	1090133	TAC Valve, C. Set
22	0010052	TAC Valve
23	000623	Gasket
24	0010112	Joint(I-4)
25	0010290	Connector(EFC6-PT1/8)
26	0010310	Venturi Tube
27	0033940	Hose Band(3/8 inch)
28	1096004	Vinyl Hose(12 × 18 × 1500mm)
29	1096005	Vinyl Hose(12 × 18 × 500mm)
30	0011987	UL Clamp
31	009814	Wood Screw($ 3.1 × 20)

Page 54 — B3 DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 54

Ref	Part number	Part name	Qty
7	7	BOLT
8	8	BRACKET
9-1	9-1	SPRING
9-2	9-2	SPRING
10	10	NUT
3	3	DEVICE
4	4	COVER
5	5	COVER
6	6	SCREW
15	15	SCREW
16	16	PLUG
14	14	ROD
13	13	BASE
11	11	WASHER
12	12	SCREW
17	17	ARM
19	19	SCREW
18	18	SPRING
20	20	SPRING
25	25	SCREW
24	24	BRACKET
23	23	PIN
22	22	FOOT
26	26	BASE
27	27	FOOT
28	28	FOOT
31	31	PIN
29	29	ARM
19	19	SCREW
18	18	SPRING
20	20	SPRING
25	25	SCREW
24	24	BRACKET
23	23	PIN
30	30	FOOT
32	32	BASE
33	33	FOOT
34	34	FOOT

Page 55

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 55

Ref	Part number	Part name	Qty
1	2109907	B3 Device, C. Set	1
2	2101133	Back Tack Cutting Unit	1
3	2101134	Thread Chain Cutting Knife Holder	1
4	0023184	Thread Chain Cutting Knife	1
5	0023169	Thread Chain Cutting Knife Holder Spacer	1
6	003637	Screw(1/8-44 × 2.5)	2
7	004205	Screw(11/64-40 × 18)	1
8	0024308	Thread Chain Holder	1
9-1	0023182	Thread Chain Holder Spring(Standard)	1
9-2	0033711	Thread Chain Holder Spring(with Stronger Pressure)	1
10	000361	Adjusting Nut	2
11	000535	Washer	1
12	110044	Screw(M3.5-0.6 × 14)	1
13	2101050	Cloth Plate	1
14	0036905	Synchronizer Positioning Pin	1
15	110009	Screw(M4-0.7 × 8)	1
16	0081848	Synchronizer Cushion	1
17	2127245	Presser Foot, C. Set(04-10)	1
18	2127003	Presser Foot Hinge	1
19	004351	Screw(9/64-40 × 7)	1
20	2127000	Presser Foot Spring	1
21	003637	Screw(1/8-44 × 25)	1
22	2127265	Presser Foot(Lower)(04-10)	1
23	0026140	Presser Foot Hinge Pin	1
24	0026142	Thread Chain Guide	1
25	004237	Screw(3/32-56 × 1.7)	1
26	2108008	Stitch Plate(04)	1
27	2109010	Differential Feed Dog	1
28	2109011	Main Feed Dog	1
29	2127247	Presser Foot, C. Set(X4-10)	1
30	2127267	Presser Foot(Lower)(X4-10)	1
31	0060297	Pin	1
32	2108013	Stitch Plate(X4)	1
33	2109015	Differential Feed Dog	1
34	2109016	Main Feed Dog	1

Page 56

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 56

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	BRACKET
	4	BRACKET
	5	BRACKET
	6	SCREW
	7	LEVER
	8	SPRING
	9	WASHER
	10	SCREW
	11	SCREW
	12	WASHER
	13	BRACKET
	14	NUT
	15	WASHER
	16	BRACKET
	17	COVER
	18	SCREW
	19	MOTOR
	20	SCREW
	21	BRACKET
	22	WASHER
	23	BRACKET
	24	SHAFT
	25	SCREW
	26	KNOB
	27	WASHER
	28	BRACKET
	29	SCREW
	30	BRACKET
	31	NUT
	32	SCREW
	33	BRACKET
	34	BRACKET
	35	SCREW
	36	MOTOR
	37	SCREW
	38	WASHER
	39	NUT
	40	NUT
	41	BRACKET
	42	SCREW
	43	BRACKET
	44	BRACKET
	45	SHAFT
	46	ROD
	47	SCREW
	48	WASHER
	49	NUT
	50	WASHER
	51	WASHER
	52	BRACKET
	53	SCREW
	54	SHAFT
	55	BRACKET
	56	SCREW
	57	BRACKET
	58	BRACKET

Page 57 — CH20 DEVICE(1) for AZF8000G-04

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 57

Ref	Part number	Part name	Qty
1	0023714	Device Supporting Plate	1
2	009150	Screw(11/64-40 × 11)	1
3	0023726	Device Holder Base	1
4	0023750	Device Holder Base Fixing Spring Plate	1
5	0023763	Supplementary Fixing Spring Plate	1
6	004353	Screw(9/64-40 × 7)	4
7	0023715	Solenoid Holder Fixing Spring Plate	1
8	0023769	Fixing Spring	1
9	000533	Washer	1
10	001175	Screw(9/64-40 × 8)	1
11	005589	Screw(1/4-40 × 14.5)	1
12	000621	Conical Spring Washer	2
13	0023725	Solenoid Holder	1
14	000613	Washer	1
15	000306	Nut	1
16	001333	Stop Screw(3/32-56 × 3.9)	1
17	0026470	Rotary Solenoid Cover	1
18	005000	Screw(9/64-40 × 5.7)	2
19	0011190	Rotary Solenoid(Large)	1
20	005550	Screw(11/64-40 × 13.5)	1
21	0036111	Hemming Guide Interlocking Lever	1
22	0036132	Retaining Ring	1
23	0094491	Cord Clamp(φ 3.4-2N)	1
24	0023711	Guide Pin	1
25	004358	Screw(9/64-40 × 5.6)	4
26	005585	Adjusting Screw(11/64-40 × 10)	1
27	001049	Sticker	1
28	0023723	Guide Collar	1
29	003638	Screw(11/64-40 × 4)	1
30	0023717	Solenoid Holder Cover	1
31	000322	Lock Nut	3
32	001326	Positioning Screw(9/64-40 × 7.5)	1
33	0063612	Cord Clamp(φ 6.8-4N)	2
34	0023722	Solenoid Supporting Plate	1
35	004406	Screw(11/64-40 × 8)	2
36	0011191	Rotary Solenoid(Small)	1
37	007606	Adjusting Screw(9/64-40 × 20)	2
38	000014	Washer	2
39	000002	Spring Washer	2
40	000012	Nut(M3)	2

Page 58

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 58

Ref	Part number	Part name	Qty
6	6	SCREW
5	5	BRACKET
4	4	BRACKET
3	3	BRACKET
1	1	BRACKET
53	53	SCREW
2	2	SCREW
10	10	SCREW
9	9	WASHER
8	8	SPRING
7	7	LEVER
18	18	SCREW
17	17	COVER
11	11	SCREW
12	12	WASHER
21	21	BRACKET
20	20	SCREW
22	22	WASHER
19	19	MOTOR
47	47	SCREW
48	48	NUT
49	49	COLLAR
50	50	WASHER
51	51	WASHER
52	52	BRACKET
13	13	BRACKET
46	46	ROD
23	23	BRACKET
25	25	SCREW
24	24	PIN
57	57	BRACKET
58	58	BRACKET
16	16	BRACKET
28	28	BRACKET
29	29	SCREW
14	14	BRACKET
15	15	BRACKET
30	30	BRACKET
2	2	SCREW
6	6	SCREW
25	25	SCREW
33	33	BRACKET
26	26	KNOB
27	27	COVER
45	45	SHAFT
44	44	BRACKET
43	43	BRACKET
41	41	BRACKET
42	42	SCREW
39	39	WASHER
38	38	WASHER
40	40	NUT
37	37	SCREW
31	31	NUT
34	34	BRACKET
35	35	SCREW
36	36	MOTOR
54	54	SHAFT
32	32	SCREW
31	31	NUT
55	55	BRACKET
56	56	SCREW

Page 59 — CH20 DEVICE(1) for AZF8000G-04

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 59

Ref	Part number	Part name	Qty
41	0023718	Edge Guide Interlocking Lever	1
42	005038	Screw(11/64-40 × 8)	1
43	0023712	Edge Guide Interlocking Plate	1
44	005588	Screw(11/64-40 × 2.1)	1
45	0023713	Edge Guide Holding Shaft	1
46	0023700	Hemming Guide Interlocking Shaft	1
47	009931	Screw(11/64-40 × 26)	2
48	000550	Fiber Cushion	4
49	0023779	Cushion(Vinyl)	2
50	000010	Conical Spring Washer	4
51	0020538	Rubber Cushion	2
52	000334	Nut	2
53	110065	Screw(M4-0.7 × 12)	3
54	280000	Screwed Pin(11/64-40 × 12)	1
55	2110327	Adjusting Lever	1
56	160001	Screw(M4-0.7 × 4)	2
57	2101038	Adjusting Screw Guide	1
58	0060248	Cord Clamp(φ 5.3-3N)	1

Page 60

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 60

Ref	Part number	Part name	Qty
5	5	SCREW
4	4	SCREW
1-1	1-1	BRACKET
1-2	1-2	BRACKET
2-1	2-1	BRACKET
2-2	2-2	BRACKET
3-1	3-1	BRACKET
3-2	3-2	BRACKET
7	7	SCREW
8	8	SCREW
9	9	BRACKET
10	10	SCREW
11	11	SCREW
12	12	SWITCH
14	14	SCREW
15	15	BRACKET
16	16	BASE
17	17	BRACKET
18	18	BRACKET
19	19	SCREW
20	20	SHAFT
21	21	SPRING
22	22	SCREW
23	23	COLLAR
24	24	SCREW
25	25	SPRING
26	26	SHAFT
27	27	SCREW
28	28	BRACKET
29	29	BRACKET
30	30	SCREW
32	32	BRACKET
33	33	SCREW
34	34	BRACKET
35	35	PLATE

Page 61

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 61

Ref	Part number	Part name	Qty
	2101391	Blind-Hemming Guide, C. Set(for 25mm)	1
	0023740	Blind-Hemming Guide, C. Set(for 35mm)(Extra)	1
	2101390	Blind-Hemming Guide	1
	0023739	Blind-Hemming Guide(Extra)	1
	2101393	Hemming Positioner	1
	0023741	Hemming Positioner(Extra)	1
	004236	Screw(3/32-56 × 4.2)	1
	005036	Screw(1/8-44 × 5.6)	2
	0023744	Hemming Guide Bracket, C. Set	1
	000335	Lock Nut	1
	006820	Adjusting Screw(9/64-40 × 12.3)	1
	0036161	Anti-shock Rubber	1
	001202	Screw(9/64-40 × 6.6)	1
	003637	Screw(1/8-44 × 2.5)	3
	1200182	Side Seam Detector Unit	1
	005588	Screw(11/64-40 × 2.1)	1
	0023747	Blind-Hemming Edge Guide, C. Set	1
	0023724	Blind-Hemming Edge Guide	1
	0023707	Slide Edge Guide	1
	0023705	Slide Edge Guide Holder	1
	007609	Screw(9/64-40 × 9)	2
	0023708	Sensor	1
	0023737	Slide Edge Guide Pressing Spring	1
	005000	Screw(9/64-40 × 5.7)	1
	0023709	Collar(2 × 5 × 5mm)	1
	004237	Screw(3/32-56 × 2.6)	2
	0023710	Sensor Spring	1
	0023756	Magnet Unit	1
	001613	Screw(3/32-56 × 4.5)	2
	2101394	IC Positioner, Complete Set	1
	2101395	IC Positioner	1
	005591	Adjusting Screw(1/8-44 × 6.2)	1
	0023703	Raterally Sliding Plate	1
	004440	Screw(11/64-40 × 8.3)	2
	0023767	Hemming Positioner(for LightMaterials)	1
	0023768	Spacer(for Light Materials)	1

Page 62 — CH20 DEVICE(3)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 62

Ref	Part number	Part name	Qty
2	2	SCREW
4	4	SCREW
5	5	WASHER
7	7	SCREW
8	8	SCREW
15	15	SCREW
13-1	13-1	CABLE ASSEMBLY
13-2	13-2	CABLE ASSEMBLY
13-3	13-3	CABLE ASSEMBLY
13-4	13-4	CABLE ASSEMBLY
17	17	PRINTED CIRCUIT BOARD
18	18	CABLE ASSEMBLY
19	19	MOTOR
21	21	BRACKET
22	22	FAN
23	23	SCREW
24	24	WASHER
25	25	NUT
27	27	BRACKET
29	29	SCREW
28	28	SCREW
1	1	SWITCH
3	3	BRACKET
6	6	BRACKET
9	9	BRACKET
10	10	FAN
11	11	BRACKET
12	12	CABLE ASSEMBLY
14	14	HOLDER
16	16	CH20 DEVICE
20	20	CH20 DEVICE
15	15	SCREW

Page 63

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 63

Ref	Part number	Part name	Qty
1	1200006	Presser Foot Switch Unit	1
2	110013	Screw(M40.7 × 8)	3
3	0023734	Magnet for Presser Foot Switch	1
4	004353	Screw(9/64-40 × 7)	2
5	0023720	Switch Plate Spacer	1
6	2121021	Switch Plate	1
7	005587	Screw(9/64-40 × 8.6)	1
8	005512	Guide Screw(11/64-40 × 3)	1
9	2151013 [2101040]	Presser Foot Lifter Lever	1
10	2111011	Oil Cooling Fan Magnet Unit	1
11	1200095	Rotation Detector Unit	1
12	2101124	Cord Bushing	1
13-1	0011943	Power Cord(for 100 Voltage)	1
13-2	0011944	Power Cord(for 200 Voltage)	1
13-3	0011945	Power Cord(for 220 Voltage)	1
13-4	0011946	Power Cord(for 380 Voltage)	1
14	0011709	Control Box Stay	4
15	006905	Wood Screw($ 5.1 × 20)	10
16	0011180	Control Box, Complete Set	1
17	0011182	Control Board	1
18	0011974	Voltage Regulator	1
19	0011183	Power Board	1
20	0011192	Knee Switch, Complete Set	1
21	0092232	Knee Switch Holder	1
22	0011189	Knee Switch	1
23	300031	Washer	4
24	300033	Spring Washer	2
25	100038	Wing Nut	2
26	0035722	Cord Bushing	1
27	2151012	Tension Disc Eyelet Support	1
28	110106	Screw(M40.7 × 8)	2
29	004265	Tension Post(Short)	2

Page 64 — SC10 DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 64

Ref	Part number	Part name	Qty
1	1	HANDLE
2	2	BRACKET
3	3	SCREW
4	4	SPRING
5	5	PLATE
6	6	SCREW
7	7	COVER

Page 65 — SC10 DEVICE

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 65

Ref	Part number	Part name	Qty
1	2151067	Lint Removal Pipe	1
2	2151066	Pipe Clamp	2
3	110094	Screw(M4-0.7 × 6)	2
4	2151059	Blowing Hole Screen	1
5	2151057	Wind Guide Plate(Front)	1
6	110001	Screw(M4-0.7 × 5.4)	2
7	2151058	Air Deflector	1

Page 66 — EXTRA PARTS(1) for Small Type Presser Foot(小型押工)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 66

Ref	Part number	Part name	Qty
1-1	1-1	AZF8003G-03, 04, 05
1-2	1-2	AZF8003G-03, 04, 05
1-3	1-3	AZF8003G-03, 04, 05
2	2	AZF8003G-03, 04, 05
3	3	AZF8003G-03, 04, 05
4	4	AZF8003G-03, 04, 05
5	5	AZF8003G-03, 04, 05
6-1	6-1	AZF8003G-03, 04, 05
6-2	6-2	AZF8003G-03, 04, 05
6-3	6-3	AZF8003G-03, 04, 05
7	7	AZF8003G-03, 04, 05
8	8	AZF8003G-03, 04, 05
9	9	AZF8003G-03, 04, 05
10	10	AZF8003G-03, 04, 05
11-1	11-1	AZF8020G-Y5, Y6
11-2	11-2	AZF8020G-Y5, Y6
2	2	AZF8020G-Y5, Y6
3	3	AZF8020G-Y5, Y6
4	4	AZF8020G-Y5, Y6
5	5	AZF8020G-Y5, Y6
7	7	AZF8020G-Y5, Y6
8	8	AZF8020G-Y5, Y6
9	9	AZF8020G-Y5, Y6
12-1	12-1	AZF8020G-Y5, Y6
12-2	12-2	AZF8020G-Y5, Y6
13	13	AZF8020G-Y5, Y6
14-1	14-1	AZF8020G-X4, X5
14-2	14-2	AZF8020G-X4, X5
2	2	AZF8020G-X4, X5
3	3	AZF8020G-X4, X5
4	4	AZF8020G-X4, X5
5	5	AZF8020G-X4, X5
7	7	AZF8020G-X4, X5
8	8	AZF8020G-X4, X5
9	9	AZF8020G-X4, X5
13	13	AZF8020G-X4, X5
15-1	15-1	AZF8020G-X4, X5
15-2	15-2	AZF8020G-X4, X5

Page 67 — EXTRA PARTS(1)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 67

Ref	Part number	Part name	Qty
1-1	2127250	Presser Foot, C. Set(03)
1-2	2127251	Presser Foot, C. Set(04)
1-3	2127252	Presser Foot, C. Set(05)
2	2127291	Presser Foot Hinge
3	004351	Screw(9/64-40 × 7)
4	2127290	Presser Foot Spring
5	003637	Screw(1/8-44 × 2.5)
6-1	2127270	Presser Foot(Lower)(03)
6-2	2127271	Presser Foot(Lower)(04)
6-3	2127272	Presser Foot(Lower)(05)
7	0026140	Presser Foot Hinge Pin
8	0026142	Presser Foot Chain Shield
9	004237	Screw(3/32-56 × 2.6)
10	2129094	Top Feed Dog
11-1	2127253	Presser Foot, C. Set(Y5)
11-2	2127254	Presser Foot, C. Set(Y6)
12-1	2127273	Presser Foot(Lower)(Y5)
12-2	2127274	Presser Foot(Lower)(Y6)
13	2129095	Top Feed Dog
14-1	2127255	Presser Foot, C. Set(X4)
14-2	2127256	Presser Foor, C. Set(X5)
15-1	2127275	Presser Foot(Lower)(X4)
15-2	2127276	Presser Foot(Lower)(X5)

Page 68

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 68

Ref	Part number	Part name	Qty
1	AZF8025G-Y5-10	for Inserting Reinforce Tape (スピンテープ付け)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
14	AZF8025G-Y5	for Small Type Presser Foot (小型押工)
	3
	5
	7
	15
	16
	17
	8
	9
	18
19	AZF8003G-10, AZF8020G-10 (P=1.25)	for Angle Type (角メス用)
20	AZF8003G-10, AZF8020G-10 (P=1.25)	for Flat Type (平メス用)

Page 69 — EXTRA PARTS(2)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 69

Ref	Part number	Part name	Qty
1	0026367	Presser Foot, C. Set(Y5)	1
2	0026139	Presser Foot Hinge	1
3	004351	Screw(9/64-40 × 7)	1
4	0026141	Presser Foot Spring	1
5	003637	Screw(1/8-44 × 2.5)	1
6	0026365	Presser Foot(Lower)(Y5)	1
7	0026140	Presser Foot Hinge Pin	1
8	0026142	Presser Foot Chain Shield	1
9	004237	Screw(3/32-56 × 2.6)	1
10	0026366	Presser Foot Tape Guide	1
11	004237	Screw(3/32-56 × 2.6)	2
12	0026364	Adjusting Tape Guide	1
13	2129081	Top Feed Dog	1
14	2127258	Presser Foot, C. Set(Y5)	1
15	2127291	Presser Foot Hinge	1
16	2127290	Presser Foot Spring	1
17	2127257	Presser Foot(Lower)(Y5)	1
18	2129095	Top Feed Dog	1
19	2129077	Top Feed Dog(P=1.25)	1
20	2129079	Top Feed Dog(P=1.25)	1

Page 70

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 70

Ref	Part number	Part name	Qty
2	2	Screw
3	3	Bracket
4	4	Screw
5	5	Base
6	6	Knob
7	7	Bolt
8	8	Spacer
9	9	Washer
10	10	Nut
11	11	Washer
12	12	Nut
13	13	Bracket
14	14	Screw
15	15	Cover
16	16	Cover
17	17	Bolt
18	18	Screw
19	19	Lever
20	20	Bush
21	21	Bracket
22	22	Washer
23	23	Wing Nut
24	24	Cover
25	25	Screw
26	26	Bracket
27	27	Bracket
28	28	Screw
29	29	Pulley Assembly
30	30	Screw
31	31	Bracket

Page 71 — MISCELLANEOUS SUPPORTING BOARD

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 71

Ref	Part number	Part name	Qty
	2150212	Belt Cover	1
	110015	Screw(M4-0.7 × 25)	2
	2150213	Supplementary Belt Cover	1
	110013	Screw(M4-0.7 × 8)	2
	2100339	Supporting Board	1
	000070	Hanging Nut	4
	009861	Hanging Bolt(Semi-submerged only)	4
	2101450	Spacer(15mm)	4
	2101451	Spacer(5mm)(See the below)	4
	0020064	Supporting Board Rubber Cushion	8
	000162	Washer(Semi-submerged)	4
	000162	Washer(Full-submerged)	20
	000016	Nut(Semi-submerged)	8
	000016	Nut(Full-submerged)	20
	2100375	Chute(Upper) Support	1
	005624	Screw(M4-0.7 × 10)	4
	2100337	Chute(Upper)	1
	2100338	Chute(Lower)	1
	009864	Hanging Bolt(Full-submerged only)	4
	009871	Bolt(Full-submerged only)	4
	0020057	Supporting Board Connector(Full-submerged only)	2
	0020045	Supporting Board Sleeve(Full-submerged only)	2
	2100336	Supplementary Chute Cover	1
	000538	Washer	1
	140011	Wing Bolt(M4-0.7 × 6)	1
	2100374	Chip Receiver(Semi-submerged only)	1
	350007	Wood Screw(φ 3.5 × 16)	2
	0020078	Idler, C. Set(for Left Footing Pedal)	1
	0020077	Idler Support	1
	009992	Screw(M4-0.7 × 10)	2
	0020076	Idler	1
	009995	Screw(M3-0.5 × 5)	2
	2160018	Timming Gauge	1

Page 72

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 72

Ref	Part number	Part name	Qty
19	19	19
18	18	18
16	16	16
17	17	17
20	20	20
21	21	21
23	23	23
24	24	24
10	10	10
27	27	27
2	2	2
3	3	3
7	7	7
5	5	5
4	4	4
6	6	6
8	8	8
9	9	9
11	11	11
35	35	35
26	26	26
12	12	12
13	13	13
14	14	14
15	15	15
28	28	28
25	25	25

Page 73 — THREAD STAND

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 73

Ref	Part number	Part name	Qty
1-1	9620693	Thread Stand, C. Set(3 Spools Type)
1-2	9620694	Thread Stand, C. Set(4 Spools Type)
2	9620631	Column Cap
3	9620670	Column Pipe(Upper)
4	9620689	Thread Guide Holder(Large)
5	911002	Screw(M4-0.7 × 20)
6	911001	Screw(M4-0.7 × 12)
7	910001	Nut
8	9620673	Column Pipe Connector
9	911006	Screw(M5-0.8 × 13)
10	910000	Nut
11	9620675	Column Pipe(Lower)
12	930052	Washer
13	930053	Spring Washer
14	910003	Nut(M16-1.5)
15	9620702	Thread Hanger(2 Spools Type)
16	9620703	Thread Hanger(3 Spools Type)
17	9620700	Thread Eyelet
18	9620688	Thread Hanger Holder
19	911060	Screw(M6-1 × 15)
20	9620691	Thread Guide Arm
21	9620690	Thread Guide Holder(Small)
22	9620663	Thread Guide(3 Spools Type)
23	9620678	Spool Cushion
24	9620679	Spool Pin
25	9620680	Spool Mat
26	9620681	Spool Seat Disc
27	930055	Spring Washer
28	9620665	Thread Guide(5 Spools Type)

Page 74

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 74

Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143	操作注意ラベル
	390144	DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 76 — AZF8000G Class LIST of MAIN SPARE PARTS(主要部品リスト)

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 76

Ref	Part number	Part name	Qty
	2169102	2127240
	2127241	2127000
	2169102	2127099
	2127001	2127069
	2169102	2127245
	2127000	2127265
	2169101	2127247
	2127000	2127267
	2169102	2127230
	2127000	2127280
	2127231	2127281
	2169101	2127232
	2169102	2127088
	2167005	2167026
	2127089	2127059

Page 77

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 77

Ref	Part number	Part name	Qty
	2108004	2109005
	2108005	2109009
	2108000	2109000
	2108003	2109005
	2108008	2109010
	2108013	2109015
	2108004	2109005
	2108005	2109009
	2108006	2109005
	2108020	2109005
	"	"
	2108021	2109009

Page 78 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 78

Ref	Part number	Part name	Qty
39	000002	000002	25
8	000009	000009	23
6	000010	000010	2
50	000010	000010	25
40	000012	000012	25
44	000014	000014	4
35	000014	000014	12
38	000014	000014	25
12	000016	000016	31
12	000016	000016	31
26	000035	000035	6
6	000070	000070	31
11	000162	000162	31
11	000162	000162	31
34	000172	000172	17
6	000172	000172	20
6	000172	000172	21
9	000177	000177	4
7	000178	000178	4
26	000280	000280	11
15	000306	000306	25
26	000322	000322	4
31	000322	000322	25
35	000334	000334	17
8	000334	000334	20
8	000334	000334	21
19	000334	000334	23
52	000334	000334	25
7	000335	000335	26
10	000361	000361	24
45	000393	000393	6
30	000419	000419	16
9	000444	000444	2
41	000456	000456	16
14	000487	000487	8
23	000526	000526	5
38	000528	000528	14
8	000533	000533	10
27	000533	000533	17
9	000533	000533	25
11	000535	000535	24
8	000538	000538	11
22	000538	000538	31
48	000550	000550	25
15	000554	000554	11
39	000561	000561	14
48	000567	000567	6
6	000567	000567	16
7	000600	000600	23
14	000613	000613	25
12	000621	000621	25
23	000623	000623	23
26	000629	000629	12
5	000644	000644	1
25	000644	000644	4
30	000653	000653	4
12	000663	000663	11
2	000665	000665	11
9	000665	000665	17
6	000669	000669	14
6	000669	000669	23
48	000687	000687	10
27	000688	000688	7
34	000690	000690	14
36	000726	000726	1
11	000750	000750	9
20	000755	000755	10
5	000755	000755	22
31	000779	000779	12
27	001049	001049	25
4	001123	001123	1
36	001123	001123	2
10	001175	001175	25
43	001196	001196	17
10	001202	001202	26
21	001203	001203	2
42	001225	001225	17
14	001227	001227	20
14	001227	001227	21
32	001326	001326	25
37	001331	001331	17
15	001331	001331	20
34	001331	001331	20
39	001331	001331	20
15	001331	001331	21
34	001331	001331	21
39	001331	001331	21
16	001331	001331	25
27	001613	001613	26
29	001892	001892	22
22	003636	003636	5
10	003637	003637	1
23	003637	003637	2
23	003637	003637	6
39	003637	003637	8
12	003637	003637	10
22	003637	003637	11
14	003637	003637	17
5	003637	003637	18
8	003637	003637	19
26	003637	003637	20
26	003637	003637	21
6	003637	003637	24
21	003637	003637	24
11	003637	003637	26
5	003637	003637	29
5	003637	003637	30
20	003638	003638	20
20	003638	003638	21
29	003638	003638	25
45	004097	004097	8
7	004106	004106	10
45	004106	004106	17
10	004131	004131	22
11	004139	004139	22
33	004150	004150	17
7	004150	004150	20
7	004150	004150	21
7	004205	004205	24
14	004236	004236	22
4	004236	004236	26
43	004237	004237	8
9	004237	004237	18
12	004237	004237	19
30	004237	004237	20
30	004237	004237	21
7	004237	004237	22
25	004237	004237	24
24	004237	004237	26
9	004237	004237	29
9	004237	004237	30
11	004237	004237	30
29	004265	004265	27
37	004351	004351	8
25	004351	004351	11
12	004351	004351	17
3	004351	004351	18
6	004351	004351	19
24	004351	004351	20
24	004351	004351	21
19	004351	004351	24

Page 79 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 79

Ref	Part number	Part name	Qty
3	004351
3	004351
6	004353
4	004353
25	004358
8	004404
35	004406
33	004440
18	005000
22	005000
26	005036
11	005036
11	005036
5	005036
42	005038
15	005040
14	005049
30	005075
31	005345
20	005505
8	005512
30	005550
3	005550
20	005550
26	005585
7	005587
44	005588
14	005588
11	005589
30	005591
14	005624
24	006035
48	006444
22	006816
8	006820
29	006861
10	006905
15	006905
28	007006
37	007606
19	007609
46	007619
21	007623
2	009150
9	009604
31	009624
62	009747
31	009814
7	009861
17	009864
18	009871
47	009931
5	009960
28	009992
30	009995
22	0010052
24	0010112
11	0010263
25	0010290
26	0010310
16	0011180
17	0011182
19	0011183
22	0011189
19	0011190
36	0011191
20	0011192
14	0011709
13-1	0011943
13-2	0011944
13-3	0011945
13-4	0011946
18	0011974
30	0011987
15	0020004
16	0020005
22	0020016
31	0020045
3	0020051
31	0020057
31	0020064
31	0020076
31	0020077
31	0020078
4	0020118
1	0020137
3	0020218
8	0020271
11	0020350
44	0020350
18	0020401
2	0020491
13	0020496
36	0020538
44	0020538
51	0020538
30	0021450
26	0021451
28	0021456
27	0021457
46	0022215
40	0022435
12	0022435
12	0022435
41	0022436
13	0022436
13	0022436
47	0022443
49	0022444
32	0022445
36	0022446
38	0022447
9	0022447
9	0022447
39	0022448
10	0022448
10	0022448
19	0022963
19	0022963
17	0022981
17	0022981
21	0022982
21	0022982
5	0023169
9-1	0023182
4	0023184
16	0023234
26	0023473
46	0023700
32	0023703
18	0023705
17	0023707
20	0023708
23	0023709

Page 80 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 80

Ref	Part number	Part name	Qty
25	0023710	26 25
24	0023711	25 24
43	0023712	25 43
45	0023713	25 45
1	0023714	25 1
7	0023715	25 7
30	0023717	25 30
41	0023718	25 41
5	0023720	27 5
34	0023722	25 34
28	0023723	25 28
16	0023724	26 16
13	0023725	25 13
3	0023726	25 3
3	0023734	27 3
21	0023737	26 21
2-2	0023739	26 2-2
1-2	0023740	26 1-2
3-2	0023741	26 3-2
6	0023744	26 6
15	0023747	26 15
4	0023750	25 4
26	0023756	26 26
5	0023763	25 5
34	0023767	26 34
35	0023768	26 35
8	0023769	25 8
49	0023779	25 49
4	0024083	4 4
3	0024084	4 3
25	0024095	2 25
1	0024130	19 1
14	0024156	4 14
5	0024157	4 5
22	0024302	10 22
8	0024308	24 8
20	0024446	2 20
9	0026075	10 9
21	0026081	9 21
11	0026081	10 11
23	0026099	9 23
2	0026139	30 2
41	0026140	8 41
16	0026140	17 16
7	0026140	18 7
10	0026140	19 10
28	0026140	20 28
23	0026140	24 23
7	0026140	29 7
7	0026140	30 7
4	0026141	30 4
42	0026142	8 42
8	0026142	18 8
13	0026142	19 13
29	0026142	20 29
29	0026142	21 29
24	0026142	24 24
8	0026142	29 8
8	0026142	30 8
33-1	0026198	20 33-1
33-5	0026199	20 33-5
33-5	0026199	21 33-5
33-2	0026225	20 33-2
33-2	0026225	21 33-2
33-6	0026226	20 33-6
33-6	0026226	21 33-6
33-4	0026227	20 33-4
33-4	0026227	21 33-4
33-8	0026228	20 33-8
33-8	0026228	21 33-8
33-7	0026236	20 33-7
33-7	0026236	21 33-7
33-3	0026237	20 33-3
33-3	0026237	21 33-3
35	0026238	20 35
35	0026238	21 35
1	0026239	20 1
1	0026239	21 1
5	0026240	20 5
5	0026240	21 5
4	0026241	20 4
4	0026241	21 4
2	0026242	20 2
2	0026242	21 2
3	0026243	20 3
3	0026243	21 3
36	0026246	20 36
36	0026246	21 36
38	0026250	20 38
38	0026250	21 38
37	0026251	20 37
37	0026251	21 37
12	0026364	30 12
6	0026365	30 6
11	0026366	19 11
10	0026366	30 10
1	0026367	30 1
22	0026413	9 22
38	0026418	10 38
18	0026427	11 18
20	0026428	11 20
24	0026429	11 24
19	0026430	11 19
28	0026431	11 28
17	0026434	11 17
21	0026438	11 21
17	0026470	25 17
27	0030748	16 27
8	0031111	4 8
9	0031831	16 9
34	0032604	6 34
8	0032646	9 8
23	0032879	1 23
24	0032919	7 24
12	0032952	4 12
11	0032962	4 11
13	0032971	4 13
14	0033024	3 14
25	0033024	9 25
29	0033104	9 29
2	0033104	10 2
24	0033627	1 24
9-2	0033711	24 9-2
18	0033935	23 18
17	0033936	23 17
16	0033937	23 16
14	0033938	23 14
2	0033939	23 2
27	0033940	23 27
49	0034293	14 49
25	0034867	17 25
26	0035722	27 26
21	0036111	25 21
22	0036132	25 22
9	0036161	26 9

Page 81 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 81

Ref	Part number	Part name	Qty
14	0036905		14
58	0060248		25
51	0060297		17
11	0060297		18
31	0060297		24
33	0063612		25
29	0068202		14
23	0068206		11
15	0068517		3
26	0080503		16
16	0081848		24
21	0092232		27
37	0093303		4
42	0093303		5
1	0093323		10
16	0093864		7
23	0094491		25
8	0095027		14
40	100000		14
13	100001		1
23	100001		8
55	100001		10
13	100001		11
5	100002		14
11	100029		11
25	100038		27
2	100073		8
52	100074		10
22	110001		4
29	110001		6
21	110001		7
6	110001		28
36	110002		6
24	110002		10
36	110002		12
28	110003		2
47	110004		10
3	110004		15
18	110006		6
8	110008		8
36	110009		4
27	110009		6
6	110009		11
12	110009		12
14	110009		13
18	110009		20
18	110009		21
15	110009		24
33	110011		6
12	110012		1
11	110012		2
9	110012		3
18	110012		7
43	110012		10
2	110012		19
33	110013		1
2	110013		2
3	110013		2
7	110013		3
2	110013		4
20	110013		4
46	110013		6
3	110013		11
2	110013		27
4	110013		31
2	110015		31
18	110016		1
43	110016		14
45	110017		14
48	110023		8
45	110026		4
33	110026		15
14	110031		1
26	110033		14
40	110035		4
12	110035		7
45	110035		10
9	110035		11
13	110036		5
17	110036		13
8	110038		17
32	110042		22
12	110044		24
6	110045		1
34	110045		2
42	110045		2
32	110045		16
26	110046		7
50	110047		17
16	110047		20
16	110047		21
3	110048		3
34	110050		10
45	110053		16
32	110054		2
15	110062		7
19	110064		3
29	110064		11
2	110064		15
22	110065		8
53	110065		25
23	110068		22
24	110070		15
17	110071		12
29	110073		4
8	110076		2
3	110094		28
15	110106		2
28	110106		27
2	120001		9
6	120006		6
6	120006		7
7	120006		9
5	120006		12
5	120006		13
2	120006		14
17	120010		8
27	120011		9
15	120013		9
6	120013		10
32	120013		12
28	120017		1
20	120017		8
29	120017		8
2	120049		6
2	120049		7
2	120049		12
2	120049		13
4	120049		16
16	130001		12
15	130002		15

Page 82 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 82

Ref	Part number	Part name	Qty
25	130003
35	130003
17	140000
11	140001
12	140002
13	140003
21	140004
23	140011
5	140012
30	140014
56	140032
10	150004
8	160001
4	160001
34	160001
19	160001
10	160001
33	160001
12	160001
3	160001
56	160001
4	160002
4	160002
23	160002
8	160003
8	160003
8	160003
29	160003
2	160007
26	160007
5	160007
21	160007
10	160007
19	160016
14	160027
5	170032
58	170041
11	170045
15	170047
59	170048
34	170049
23	180002
28	180003
18	180014
41	190001
13	190015
10	190016
10	190039
53	190081
1	190088
30	210009
25	270001
54	280000
4	300000
27	300004
12	300008
20	300008
11	300008
23	300031
24	300033
34	300043
19	300106
42	310001
40	310005
4	310017
33	310046
37	310046
15	310047
31	310054
28	310065
21	310068
19	310069
20	310073
48	310081
16	310089
24	310089
42	310090
18	310105
25	310109
47	320008
11	320008
23	320009
49	320012
17	330000
16	330008
12	330008
4	330009
6	340050
25	350007
17	390165
18	390166
16	390170
10	910000
7	910001
14	910003
6	911001
5	911002
9	911006
19	911060
12	930052
13	930053
27	930055
21	1090133
3	1094011
12	1096000
28	1096004
29	1096005
4	1097000
9	1097001
1	1200006
11	1200095
12	1200182
13	1298000
27	2020048
35	2049401
1	2100006

Page 83 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 83

Ref	Part number	Part name	Qty
	2100009	AZF8000G
	2100009	Page =6
22	2100009	7
7	2100011	1
9	2100012	1
3	2100014	1
24	2100024	2
43	2100032	16
21	2100037	3
4	2100047	3
17	2100050	17
19	2100052	17
17	2100053	1
3	2100088	12
3	2100088	13
34	2100098	5
12	2100111	5
19	2100117	5
11	2100136	6
7	2100137	6
14	2100138	6
3	2100144	6
32	2100145	6
39	2100152	6
1	2100160	7
7	2100161	7
9	2100161	12
7	2100161	13
5	2100162	7
11	2100164	7
10	2100165	7
25	2100166	7
28	2100167	7
29	2100168	7
3	2100173	7
19	2100174	7
15	2100176	6
18	2100197	8
33	2100199	8
10	2100211	13
1	2100215	13
9	2100219	13
15	2100227	12
38	2100229	4
14	2100241	14
13	2100242	14
15	2100243	14
16	2100244	14
9	2100248	14
10	2100249	14
3	2100251	14
28	2100252	14
30	2100253	14
35	2100256	14
46	2100257	14
48	2100259	14
31	2100262	14
37	2100263	14
47	2100264	14
12	2100266	14
32	2100267	14
27	2100269	14
42	2100271	14
29	2100272	5
21	2100275	15
22	2100276	15
19	2100277	15
20	2100278	15
27	2100279	15
16	2100280	15
14	2100281	15
13	2100283	15
17	2100284	15
20	2100288	14
25	2100289	15
8	2100318	3
21	2100336	31
15	2100337	31
16	2100338	31
5	2100339	31
6	2100349	17
7	2100353	17
4	2100354	17
2	2100363	16
14	2100369	16
24	2100374	31
13	2100375	31
1	2100385	17
28	2100502	6
19	2100518	8
41	2100533	6
27	2100534	2
43	2100535	6
44	2100536	6
19	2100538	2
5	2100580	8
11	2100602	15
36	2100642	5
20	2100642	6
22	2100671	14
23	2100672	14
24	2100673	14
25	2100674	14
33	2100854	12
31	2100856	2
13	2100861	3
20	2100864	1
1	2100865	15
4	2100866	15
5	2100867	15
8	2100868	15
6	2100869	15
7	2100870	15
15	2100872	5
23	2100873	3
24	2100874	3
26	2100875	1
27	2100892	12
40	2100895	16
39	2100896	16
1	2100900	12
6	2100902	13
22	2100903	12
20	2100918	3
16	2100926	16
17	2100927	16
18	2100928	16
19	2100929	16
1	2100935	16
5	2100946	6
15	2100957	16
12	2100958	16
11	2100961	3
24	2101011	22
30	2101020	17
29	2101021	17
44	2101022	17
24	2101026	17
23	2101027	17
57	2101038	25
13	2101050	24
31	2101059	22
19	2101089	12
12	2101124	27
2	2101133	24

Page 84 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 84

Ref	Part number	Part name	Qty
3	2101134
2-1	2101390
1-1	2101391
3-1	2101393
28	2101394
29	2101395
3	2101435
8	2101450
9	2101451
20	2108000
10	2108003
630-1	2108004
630-2	2108005
17	2108006
26	2108008
32	2108013
32-1	2108020
32-1	2108020
32-2	2108021
32-2	2108021
21	2109000
22	2109001
1530-1	2109005
31	2109006
1530-2	2109009
27	2109010
28	2109011
33	2109015
34	2109016
32	2109067
35	2109200
16	2109201
15	2109347
1	2109907
1	2109932
6	2110026
5	2110027
3	2110181
6	2110183
5	2110184
1	2110252
55	2110327
10	2111011
3	2111051
9	2111055
13	2111056
15	2111057
22	2111058
12	2111059
19	2111060
17	2111061
16	2111062
18	2111066
20	2111067
13	2120002
14	2120003
16	2120004
17	2120005
26	2120006
20	2120007
28	2120008
32	2120009
35	2120014
39	2120015
32	2120017
18	2120018
14	2120019
4	2120020
5	2120021
10	2120022
13	2120023
8	2120026
1	2120027
3	2120028
6	2120029
37	2120030
10	2120031
31	2120032
5	2120033
7	2120034
1	2120035
4	2120036
50	2120037
51	2120038
28	2120045
38	2120053
35	2120055
33	2120062
1	2120063
23	2120067
40	2120071
43	2120072
41	2120073
38	2120074
39	2120075
17	2120076
18	2120082
24	2120083
26	2120093
29	2120095
41	2120098
30	2120112
25	2120130
17	2120131
33	2120132
41	2120136
39	2120138
40	2120139
37	2120141
40	2120570
42	2120571
36	2120572
2	2120588
2	2121000
6	2121001
6	2121021
38	2127000
4	2127000
7	2127000
25	2127000
25	2127000
20	2127000
13	2127001
36	2127003
2	2127003
5	2127003
23	2127003
23	2127003
18	2127003
11	2127004
20 27-1	2127058
20 27-2	2127059
15	2127069
20 22-1	2127088
20 22-2	2127089
10	2127099
4-1	2127230

Page 85 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 85

Ref	Part number	Part name	Qty
4-2	2127231	4-2	19
14	2127232	14	19
835-1	2127240	835-1	835-1
835-2	2127241	835-2	835-2
1	2127245	1	18
17	2127245	17	24
29	2127247	29	24
1-1	2127250	1-1	29
1-2	2127251	1-2	29
1-3	2127252	1-3	29
11-1	2127253	11-1	29
11-2	2127254	11-2	29
14-1	2127255	14-1	29
14-2	2127256	14-2	29
17	2127257	17	30
14	2127258	14	30
840-1	2127260	840-1	840-1
840-2	2127261	840-2	840-2
6	2127265	6	18
22	2127265	22	24
30	2127267	30	24
6-1	2127270	6-1	29
6-2	2127271	6-2	29
6-3	2127272	6-3	29
12-1	2127273	12-1	29
12-2	2127274	12-2	29
15-1	2127275	15-1	29
15-2	2127276	15-2	29
9-1	2127280	9-1	19
9-2	2127281	9-2	19
15	2127282	15	19
4	2127290	4	29
16	2127290	16	30
2	2127291	2	29
15	2127291	15	30
31	2129009	31	20
52	2129012	52	17
53	2129076	53	17
19	2129077	19	30
49	2129078	49	10
20	2129079	20	30
3	2129080	3	19
13	2129081	13	30
10	2129094	10	29
13	2129095	13	29
18	2129095	18	30
29	2129300	29	12
29	2129420	29	2
11	2150015	11	1
18	2150017	18	3
4	2150018	4	2
20	2150019	20	7
17	2150020	17	7
23	2150021	23	7
12	2150022	12	3
10	2150023	10	2
12	2150024	12	2
14	2150025	14	2
19	2150026	19	1
35	2150027	35	4
16	2150030	16	4
17	2150031	17	4
19	2150032	19	4
37	2150035	37	6
10	2150038	10	5
16	2150039	16	5
24	2150040	24	5
26	2150041	26	5
32	2150042	32	5
18	2150043	18	5
30	2150044	30	5
31	2150045	31	5
27	2150046	27	5
28	2150047	28	5
21	2150048	21	5
20	2150049	20	5
35	2150050	35	5
9	2150052	9	6
10	2150053	10	6
24	2150057	24	6
25	2150058	25	6
17	2150059	17	6
9	2150060	9	7
9	2150063	9	15
1	2150064	1	14
18	2150065	18	14
19	2150066	19	14
34	2150067	34	15
22	2150069	22	3
33	2150069	33	5
6	2150070	6	12
8	2150075	8	12
7	2150075	7	14
4	2150076	4	13
37	2150079	37	12
25	2150080	25	12
14	2150084	14	12
13	2150086	13	12
18	2150091	18	12
9	2150096	9	5
11	2150100	11	5
28	2150102	28	16
31	2150111	31	4
32	2150112	32	4
27	2150114	27	4
23	2150115	23	4
15	2150116	15	4
34	2150117	34	12
13	2150118	13	13
39	2150119	39	4
42	2150120	42	4
43	2150121	43	4
41	2150123	41	4
21	2150124	21	4
7	2150125	7	2
11	2150130	11	12
33	2150132	33	4
24	2150139	24	8
16	2150142	16	8
4	2150145	4	8
49	2150150	49	6
13	2150154	13	8
7	2150201	7	16
21	2150202	21	16
10	2150206	10	16
22	2150207	22	16
2	2150210	2	1
18	2150211	18	17
1	2150212	1	31
3	2150213	3	31
1	2150214	1	5
3	2150709	3	8
24	2150710	24	16
25	2150713	25	16
33	2151000	33	22
27	2151012	27	27
9	2151013	9	27
21	2151054	21	1
26	2151055	26	2
32	2151056	32	1
5	2151057	5	28

Page 86 — INDEX

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY parts on page 86

Ref	Part number	Part name	Qty
7	2151058		28
4	2151059		28
2	2151066		28
1	2151067		28
1	2160014		2
44	2160015		10
46	2160016		10
31	2160018		31
28	2160019		4
60	2160026		10
61	2160027		10
54	2160028		10
30	2160029		8
32	2160030		8
31	2160031		8
25	2160032		8
21	2160033		8
36	2160035		16
37	2160040		16
46	2160045		16
47	2160046		16
4	2160050		12
7	2160051		12
9	2160055		8
57	2160056		10
7	2160057		8
10	2160058		8
46	2160059		8
47	2160063		8
1	2160122		4
22-1	2167005		21
22-2	2167006		21
27-1	2167026		21
27-2	2167030		21
16	2169101		19
21	2169102		6
1	2169900		22
31	3100060		16
33	3100061		16
27	3100104		8
7	3100131		5
35	3100329		16
34	3100345		16
38	3100370		6
8	3100370		16
13	3100371		16
2	9620631		32
22	9620663		32
28	9620665		32
3	9620670		32
8	9620673		32
11	9620675		32
23	9620678		32
24	9620679		32
25	9620680		32
26	9620681		32
18	9620688		32
4	9620689		32
21	9620690		32
20	9620691		32
1-1	9620693		32
1-2	9620694		32
17	9620700		32
15	9620702		32
16	9620703		32

Part BooksPartsSearchNotes

Part Books

×

Search

×

YAMATO AZF8020G-10-AZF8000G-AZF8003G-10-AZF8025G-10-AZF8026G-AZF8026G HEAVY — parts catalog

• Page 1 (cover): This is the cover page for the Yamato AZF8000G High Speed Overlock Stitch Machine Parts List, featuring a diagram of the machine and listing various models it applies to.
• Page 2 (text): This page provides instructions on how to read and use the parts list, including explanations of symbols and how to place orders. It also contains a disclaimer about potential changes to the parts list.
• Page 3 (toc): This page is a table of contents for a parts catalog, listing various machine components and their corresponding page numbers in both English and Japanese.
• Page 4 (diagram): This page displays an exploded view diagram of various components of an industrial sewing machine, including covers, screws, bolts, and other miscellaneous parts, with reference numbers for each item.
• Page 6 (diagram): This page displays a diagram of various machine components, including brackets, covers, screws, and other hardware, with reference numbers for each part.
• Page 7 (parts_list): This page lists miscellaneous covers and related parts, including screws, washers, plates, and hinges, with their corresponding part numbers and quantities required.
• Page 8 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, gaskets, covers, and internal parts, with reference numbers for each item.
• Page 9 (parts_list): This page lists miscellaneous cover parts for the sewing machine, including part numbers, descriptions, and quantities required.
• Page 10 (diagram): This page displays a diagram of engine components, with numbered parts and their corresponding references.
• Page 11 (parts_list): This page lists miscellaneous thread eyelet parts with their part numbers, descriptions, and quantities required. It includes items like thread guide plates, screws, springs, and felt components.
• Page 12 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a pump assembly, shaft, bearings, and housing parts, with reference numbers for each part.
• Page 13 (parts_list): This page lists miscellaneous crankshaft and bushings with their corresponding part numbers, descriptions, and quantities required.
• Page 14 (diagram): This page displays a diagram of various sewing machine components, including linkages, shafts, screws, and brackets, with reference numbers for each part.
• Page 15 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of steering column components, with numbered parts and their corresponding references.
• Page 17 (parts_list): This page lists parts for the KNIFE DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and a presser foot assembly, with corresponding reference numbers for identification.
• Page 19 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 20 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and brackets, with reference numbers for each part.
• Page 21 (parts_list): This page lists parts for the TOP FEED MECHANISM (1) with part numbers, descriptions, and quantities required.
• Page 22 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, shafts, and springs, with reference numbers for each component.
• Page 23 (parts_list): This page lists parts for the TOP FEED MECHANISM (2), including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, screws, springs, and other hardware, with corresponding reference numbers.
• Page 25 (parts_list): This page lists parts for the TOP FEED MECHANISM(2) with part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various sewing machine components, including springs, screws, brackets, and a roller, with corresponding reference numbers for identification.
• Page 27 (parts_list): This page lists parts for the TOP FEED MECHANISM (3) with part numbers, descriptions, and quantities required.
• Page 28 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
• Page 29 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 30 (diagram): This page displays a diagram of various machine parts, including screws, washers, clamps, and levers, with reference numbers for identification.
• Page 31 (parts_list): This page lists parts for the LOWER LOOPER DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 33 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 35 (parts_list): This page lists parts for the feed driving mechanism, including part numbers, descriptions, and quantities required.
• Page 36 (diagram): This page displays a diagram of various engine components, including filter housings, fuel lines, and mounting brackets, with corresponding part numbers and reference indicators.
• Page 37 (parts_list): This page lists parts for the lubricating mechanism, including part numbers, descriptions, and quantities required.
• Page 38 (diagram): This page displays a diagram of upper knife and top feed dog components for the AZF8000G-04 sewing machine, with numbered parts for identification.
• Page 39 (parts_list): This page lists parts for the EXCLUSIVE PARTS for UPPER KNIFE (Angled Type), AZF8000G, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of upper knife components, top feed dog, and various other machine parts labeled with reference numbers and part numbers, including the model AZF8000G-04.
• Page 41 (parts_list): This page lists exclusive parts for the Upper Knife (Angled Type), AZF8000G, including part numbers, descriptions, and quantities required.
• Page 42 (diagram): This page displays a diagram of sewing machine parts, including part numbers and reference numbers for components like screws, springs, and presser feet.
• Page 43 (parts_list): This page lists exclusive parts for the AZF8000G-10 sewing machine, including part numbers, descriptions, and quantities.
• Page 44 (diagram): This page displays diagrams of parts for the AZF8025G-Y5-10, Y6-10, and X4-10 sewing machine models, with numbered parts and their corresponding references.
• Page 45 (parts_list): This page lists exclusive parts for the AZF8025G-10 sewing machine, including part numbers, descriptions, and quantities required.
• Page 46 (diagram): This page displays a diagram of various sewing machine parts for models AZF8026G-Y5 and Y6, including brackets, screws, and extra parts.
• Page 47 (parts_list): This page lists parts for the AZF8026G model, including part numbers, descriptions, and quantities required. It covers a range of components from screws and nuts to specialized folder and presser foot parts.
• Page 48 (diagram): This page displays a diagram of various machine parts, including brackets, screws, and extra parts, with reference numbers and part names.
• Page 49 (parts_list): This page lists parts for the AZF8026G-10, including part numbers, descriptions, and quantities required.
• Page 50 (diagram): This page displays a diagram of the K2 device, illustrating various components with reference numbers.
• Page 51 (parts_list): This page lists parts for the K2 Device, including various screws, pipes, knives, and control components, with their respective part numbers, descriptions, and quantities required.
• Page 52 (diagram): This page displays a diagram of the C Device, with numbered parts and their corresponding details.
• Page 53 (parts_list): This page lists parts for the C DEVICE, including part numbers, descriptions, and quantities required. It contains 31 listed parts.
• Page 54 (diagram): This page displays diagrams of B3 DEVICE components, including parts for AZF8003G-04-10/B3 and AZF8020G-X4-10/B3 models.
• Page 55 (parts_list): This page lists parts for the B3 DEVICE for AZF8003G-04-10, 8020G-X4-10, including part numbers, descriptions, and quantities.
• Page 56 (diagram): This page displays a diagram of the CH20 DEVICE(1) with numbered parts, including screws, brackets, levers, and a motor.
• Page 57 (parts_list): This page lists parts for the CH20 Device(1) for AZF8000G-04, including part numbers, descriptions, and quantities required.
• Page 58 (diagram): This page displays a diagram of the CH20 DEVICE(1) with various parts labeled with reference numbers.
• Page 59 (parts_list): This page lists parts for the CH20 DEVICE(1) for AZF8000G-04, including part numbers, descriptions, and quantities.
• Page 60 (diagram): This page displays a diagram of the CH20 DEVICE(2) with various components labeled with reference numbers and part numbers.
• Page 61 (parts_list): This page lists parts for the CH20 DEVICE(2) for AZF8000G-04, including part numbers, descriptions, and quantities required.
• Page 62 (diagram): This page displays a diagram of the CH20 device, including various components like screws, brackets, a fan, a circuit board, and a cable assembly, with reference numbers for each part.
• Page 63 (parts_list): This page lists parts for the CH20 DEVICE(3) for AZF8000G-C4, including part numbers, descriptions, and quantities required.
• Page 64 (diagram): This page displays a diagram of the SC10 DEVICE, with numbered parts including a handle, brackets, screws, a spring, a plate, and a cover.
• Page 65 (parts_list): This page lists parts for the SC10 Device, including part numbers, descriptions, and quantities required.
• Page 66 (diagram): This page contains diagrams and parts lists for extra parts for small type presser feet, including models AZF8003G-03, 04, 05, AZF8020G-Y5, Y6, and AZF8020G-X4, X5.
• Page 67 (parts_list): This page lists extra parts for an industrial sewing machine, including presser feet, screws, and top feed dogs, with their corresponding part numbers and quantities.
• Page 68 (diagram): This page displays diagrams and part information for various sewing machine components, including parts for inserting reinforce tape, small type presser feet, and angle/flat type presser feet.
• Page 69 (parts_list): This page lists extra parts for an industrial sewing machine, including presser feet, hinges, screws, and tape guides, with their corresponding part numbers and quantities.
• Page 70 (diagram): This page displays a diagram of various machine components and extra parts, including screws, nuts, brackets, and a roller assembly, with reference numbers for each part.
• Page 71 (parts_list): This page lists miscellaneous supporting board parts with their part numbers, descriptions, and quantities required. It includes items like belt covers, screws, nuts, washers, and timing gauges.
• Page 72 (diagram): This page contains diagrams of machine components, labeled with reference numbers and part numbers, for two different configurations (1-1 and 1-2).
• Page 73 (parts_list): This page lists parts for a thread stand, including part numbers, descriptions, and quantities required.
• Page 74 (parts_list): This page lists various warning labels for industrial sewing machines, including their part numbers and descriptions in English and Japanese.
• Page 75 (cover): This is the cover page of a parts list for main spare parts, with the title also provided in Japanese.
• Page 76 (parts_list): This page lists the main spare parts for the AZF8000G Class sewing machine, including needle clamp, presser foot sets, and presser foot hinges.
• Page 77 (parts_list): This page contains a parts list for various feed dog and looper components, with part numbers and descriptions.
• Page 78 (parts_list): This page contains a parts list for the AZF8000G machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 79 (index): This page is an index of parts for the AZF8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 80 (index): This page is an index of parts for the AZF8000G machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 81 (index): This page contains an index of parts for the AZF8000G sewing machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 82 (index): This page is an index for the AZF8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 83 (index): This page is an index of parts for the AZF8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 84 (index): This page is an index for the AZF8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 85 (parts_list): This page contains a parts list for the AZF8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 86 (index): This page is an index of parts for the AZF8000G, listing part numbers, page numbers, reference numbers, and weights.
• Page 87 (index): This page is an index for the AZF8000G, listing parts with their corresponding page numbers, reference numbers, and weights.
• Page 88 (cover): This is the cover page of the Yamato Sewing Machine Mfg. Co., Ltd. parts catalog, identified by P/N 9710063(P), No. 2, edited in October 2003.

Page 1 — Parts List

Yamato Parts List HIGH SPEED OVERLOCK STITCH MACHINE WITH VARIABLE TOP FEEDER AZF8000G MODELS & DEVICES AZF8020G-10 AZF8000G AZF8003G-10 AZF8025G-10 AZF8026G AZF8026G-10 K2 C B3 CH20 SC10 YAMATO SEWING MACHINE MFG. CO.,LTD. jintex.in

Page 2

パーツリストの見方 このパーツリストはAZF8020G-Y5-10, Y6-10(平メス装備)を基本モデルにしてイラストを作成しています。 項目1~16には基本モデルを記載しています。 項目17~サブモデル、付帯装置等を記載しています。 パーツリストに記載されているカラーの寸法は内径×外径×幅を表わしています。 コネクタに表記してある数字は、接続部のサイズです。 記号の説明 (Parts No. の隣に記載されています。) [ ] 前回 のパーツリストに対して、今回変更された部品を表わしています。 [ ] 内は旧Parts No. 及びネジ類形状。 前回 のパーツリストに対して、今回追加された部品及びモデルを表わしています。 部品注文の際のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、2150210)でお願いします。 ☆ 0020004の場合は、0020004又は20004でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さを お知らせ下さい。 なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of AZF8020G-Y5-10, Y6-10 with Flat Knife. The items from No.1 to No.16 contain the standard model. The following items included No.17 contain the submodel and Device. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Numbers on a connector show sizes of joints. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. means this part and model is added to the previous Parts List. How to place an order for the parts When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.2150210) which you require so that we can deliver the correct Parts to you. When the Part No. is "0020004", please place an order for the part by showing "0020004" or "20004". When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) MISCELLANEOUS COVERS(2) MISCELLANEOUS COVERS(3) MISCELLANEOUS THREAD EYELETS MISCELLANEOUS CRANKSHAFT & BUSHINGS NEEDLE BAR DRIVING MECHANISM KNIFE DRIVING MECHANISM PRESSER FOOT MECHANISM TOP FEED MECHANISM(1) TOP FEED MECHANISM(2) TOP FEED MECHANISM(3) UPPER LOOPER DRIVING MECHANISM LOWER LOOPER DRIVING MECHANISM FEED DRIVING CONTROL MECHANISM FEED DRIVING MECHANISM LUBRICATING MECHANISM EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G AZF8003G-10 EXCLUSIVE PARTS AZF8025G-10 EXCLUSIVE PARTS AZF8026G EXCLUSIVE PARTS AZF8026G-10 EXCLUSIVE PARTS K2 DEVICE C DEVICE B3 DEVICE for AZF8003G-O4-10, 8020G-X4-10 CH20 DEVICE(1) for AZF8000G-O4 CH20 DEVICE(2) for AZF8000G-O4 CH20 DEVICE(3) for AZF8000G-O4 SC10 DEVICE EXTRA PARTS(1) EXTRA PARTS(2) MISCELLANEOUS SUPPORTING BOARD THREAD STAND WARNING LABEL LIST of MAIN SPARE PARTS INDEX カバー関係(1) カバー関係(2) カバー関係(3) 糸道関係 主軸及びブッシュ関係 針棒機構 メス機構 押工機構 上送り機構(1) 上送り機構(2) 上送り機構(3) 上ルーパ機構 下ルーパ機構 前送り調節機構 送り機構 給油機構 魚メス及びサブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 K2装置 C装置 B3装置 CH20装置(1) CH20装置(2) CH20装置(3) SC10装置 特注部品(1) 特注部品(2) 受ケ板関係 糸立台 警告ラベル 主要部品リスト 索引 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 jintex.in

Page 4

1 AZF8000G jintex.in

Page 6

2 13 17 14 15 16 1 2 5 6 3 4 2 36 34 35 2 36 37 39 38 11 41 13 A 33 B 28 27 30 32 31 23 20 19 18 Yamato 21 22 11 10 D 11 25 29 Yamato 26 2 40 AZF8000G jintex.in

Page 7 — MISCELLANEOUS COVERS(2)

MISCELLANEOUS COVERS(2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 1 2160014 [2150016] Side Cover 側面カバー 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 5 3 110013 [110001] Screw(M4-0.7 × 8)[M4-0.7 × 5.4] 止ネジ 1 4 2150018 Eye Guard Holder アイガード板 1 5 170032 Screw(M4-0.7 × 5) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 2 7 2150125 Eye Guard アイガード 1 8 110076 Screw(M3-0.5 × 6) 止ネジ 2 9 000444 Washer ワッシャ 2 10 2150023 Needle Bar Oil Defender 針棒油受 1 11 110012 Screw(M4-0.7 × 5) 止ネジ 4 12 2150024 Needle Bar Oil Seal 針棒シール 1 13 190015 Screw(M14-2 × 6) 止ネジ 4 14 2150025 Logo Plate ロゴマーク板 1 15 110106 Screw(M4-0.7 × 8) 止ネジ 2 16 390170 "AZF-G" Logo Mark AZF-G ロゴマーク 1 17 390165 Brand Name Plate(68mm)(Green) 銘板(緑) 1 18 390166 Brand Name Plate(83mm)(Green) 銘板(緑) 1 19 2100538 Front Cover Latch Spring 前開キカバーラッチバネ 1 20 0024446 Front Cover Hook 前開キカバーフック 1 21 001203 Screw(9/64-40 × 4.5) 止ネジ 1 22 0020016 Front Cover Hinge Pin 前開キカバーヒンジピン 1 23 003637 Screw(1/8-44 × 2.5) 止ネジ 2 24 2100024 Front Cover(Right) 前開キカバー 1 25 0024095 Front Cover Hinge Spring 前開キカバーヒンジバネ 1 26 2151055 [2100855] Front Cover Hinge 前開キカバーヒンジ 1 27 2100534 Chip Guard(Openable) 切屑落シ板 1 28 110003 Screw(M3.5-0.6 × 5) 止ネジ 2 29 2129420 Model Plate(Green) 型式板(緑) 1 30 --- Threading Chart(See the Table) 糸通シ図(下表参照) 1 31 2100856 Front Cover Latch 前開キカバーラッチ 1 32 110054 Screw(M3-0.5 × 3.5) 止ネジ 2 33 2120062 Rear Cover Support 後カバー取付台 1 34 110045 Screw(M4-0.7 × 12) 止ネジ 1 35 2120055 Top Feed Dog Bar Rear Cover 上送り台後カバー 1 36 001123 Washer ワッシャ 2 37 2120141 Top Feed Dog Bar Oil Receiver, C. Set 上送り台油受ケ(組) 1 38 2120053 Top Feed Dog Bar Oil Receiver 上送り台油受ケ 1 39 2120138 Oil Receiver Rubber(Large) 油受ゴム(大) 1 40 2120139 Oil Receiver Rubber(Small) 油受ゴム(小) 1 41 2120098 Oil Receiver Fixing Plate 油受ケ押工板 1 42 110045 [110013] Screw(M4-0.7 × 12)(M4-0.7 × 8) 止ネジ 1 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注)型式板を御注文の際は機種名(ゲージ記号、附帯装置含む)をお知らせください。 Models Parts No. Threading Chart AZF8000G 390650 AZF8003G 390650 AZF8000G-2 390651 AZF8003G-12 390651 Models Parts No. Threading Chart AZF8020G 390651 AZF8025G 390651 AZF8026G 390651 jintex.in AZF8000G

Page 8

3 3 4 1 2 19 18 21 20 7 22 23 25 11 24 AZF8000G 16 17 14 15 13 12 11 10 8 9 26 7 5 jintex.in

Page 9 — MISCELLANEOUS COVERS (3)

MISCELLANEOUS COVERS (3) カバー関係(3) 3 Ref.No Parts No. Description 品 名 Amt. Req 1 2120063 Feed Mechanism Cover 送り上カバー 1 2 2120588 Feed Mechanism Cover Gasket 送り上カバーパッキン 1 3 110048 Screw(M4-0.7 × 10) 止ネジ 5 4 2100047 Rubber Cushion 埋メ座(中) 1 5 2110027 O-ring(P52) Oリング 1 6 2110026 Ball Bearing Holder ベアリング押工 1 7 110013 Screw(M4-0.7 × 8) 止ネジ 10 8 2100318 Fan Cover ファンカバー 1 9 110012 Screw(M4-0.7 × 5) 止ネジ 2 10 150004 Screw(M4-0.7 × 6) 止ネジ 1 11 2100961 Seal Plug 詰栓 2 12 2150022 Pushbutton プッシュボタン 1 13 2100861 Oil Seal オイルシール 1 14 0033024 Retaining Ring ストツプリング 2 15 0068517 Pushbutton Spring プツシユボタンバネ 1 16 330008 Seal Plug 詰栓 1 17 330000 Seal Plug 詰栓 1 18 2150017 Fabric Guide Plate 布案内板 1 19 110064 Screw(M4-0.7 × 8) 止ネジ 2 20 2100918 Tail Cover Gasket 後力バーパツキン 1 21 2100037 Tail Cover 後力バー 1 22 2150069 [0036518] Seal Plug 詰栓 1 23 2100873 Ball Bearing Housing ハウジング 1 24 2100874 Ball Bearing Housing Gasket ハウジングパツキン 1 25 130003 Screw(M4-0.7 × 7.3) 止ネジ 3 26 0020218 Top Feed Shaft End Cap 上送り軸腕 1 27 0020051 Seal Plug 詰栓 1 jintex.in AZF8000G

Page 10

4 2 1 46 11 10 9 8 7 10 6 5 4 3 11 6 10 9 12 8 4 3 7 10 9 13 8 4 3 7 15 6 14 4 3 30 28 22 21 25 24 26 23 29 27 31 32 33 34 39 40 18 17 A 16 19 20 38 B 35 36 37 43 41 44 45 44 45 AZF8000G jintex.in

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 4 糸道関係 Ref.No Parts No. Description 品 名 Amt.Req 1 2160122 [2100063] Thread Guide Plate 糸案内板 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 2 3 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 4 4 0024083 Tension Spring Bushing 糸調子ナット回り止メ 4 5 0024157 Lower Looper Thread Tension Spring 下ルーパ糸調子バネ 1 6 0020118 Thread Tension Spring Retainer 糸調子バネキャップ(下) 4 7 000178 Felt フェルト 4 8 0031111 Tension Disc 糸調子皿 8 9 000177 Felt フェルト 4 10 190016 Tension Post(Short) 糸調子棒(短) 4 11 0032962 Tension Disc Eyelet 糸調子台糸道 3 12 0032952 Upper Looper Thread Tension Spring 上ルーパ糸調子バネ 1 13 0032971 Needle Thread Tension Spring 針糸調子バネ 1 14 0024156 Needle Thread Tension Spring 針糸調子バネ 1 15 2150116 Needle Thread Eyelet for Needle Thread 針糸調子台糸道 1 16 2150030 Oil Container SPタンク 1 17 2150031 Oil Container Plug 詰栓 1 18 310105 Felt SPフェルト 1 19 2150032 Felt Holder SPフェルト押工 1 20 110013 [110012] Screw(M4-0.7 × 8)[M4-0.7 × 8] 止ネジ 1 21 2150124 Needle Thread Eyelet Holder 針糸道取付板 1 22 110001 Screw(M4-0.7 × 5.4) 止ネジ 3 23 2150115 Needle Thread Eyelet(Right) 針糸道(右) 1 24 006035 Screw(9/64-40 × 7) 止ネジ 1 25 000644 Spring Washer スプリングワッシャ 1 26 000322 Nut ナット 1 27 2150114 Needle Thread Eyelet(Left) 針糸道(左) 1 28 2160019 Needle Thread Pull-off 針糸繰り 1 29 110073 Screw(M4-0.7 × 7.5) 止ネジ 1 30 000653 Knock Pin ノックピン 1 31 2150111 Thread Retainer Plate Support 小調子板 1 32 2150112 Thread Retainer Plate 小調子皿 1 33 2150132 [2150113] Thread Retainer Spring 小調子皿バネ 1 34 170049 [170046] Screw(M2-0.4 × 4)[M2-0.4 × 4] 止ネジ 1 35 2150027 Looper Holder Cover ルーパ台カバー 1 36 110009 Screw(M4-0.7 × 8) 止ネジ 1 37 0093303 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 38 2100229 Looper Holder Cover Spacer(Rubber) ルーパ台カバー スペーサ 1 39 2150119 Looper Thread Eyelet(Left) ルーパ糸道(左) 1 40 110035 Screw(M4-0.7 × 10) 止ネジ 3 41 2150123 Thread Eyelet Support 糸道取付板 1 42 2150120 Lower Looper Thread Eyelet 下ルーパ糸道 1 43 2150121 Upper Looper Thread Eyelet 上ルーパ糸道 1 44 000014 Washer ワッシャ 2 45 110026 Screw(M3-0.5 × 6) 止ネジ 2 46 0022215 Looper Thread Pipe 糸道パイプ 2 jinttex.in AZF8000G

Page 12

5 AZF8000G jintex.in

Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

MISCELLANEOUS CRANKSHAFT & BUSHINGS 主軸及びブッシュ関係 5 Ref.No Parts No. Description 品 名 Amt. Req 1 2150214 Machine Pulley ミシンブーリ 1 2 160007 Screw(M6-1 × 6) 止ネジ 5 3 2110181 Oil Cooling Fan 冷却ファン 1 4 160001 Screw(M4-0.7 × 4) 止ネジ 5 5 2110184 Wave Washer 波形ワッシャ 1 6 2110183 Mechanical Oil Shield 油切り 1 7 3100131 [0093090] Crankshaft Ball Bearing(Right) ボールベアリング(右) 1 8 2120026 Bearing Adapter ベアリング受ケ 1 9 2150096 Oil Pump Driving Worm ウォーム 1 10 2150038 Crankshaft Bushing 中ブッシュ 1 11 2150100 Crankshaft クランクシャフト 1 12 2100111 Crankshaft Counterweight バランスウエイト 1 13 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 14 160027 Screw(M3-0.5 × 3) 詰ネジ 5 15 2100872 Crankshaft Ball Bearing(Left) ボールベアリング(左) 1 16 2150039 Crankshaft Bushing 小ブッシュ 1 17 2120076 Upper Knife Driving Shaft Bushing(Right) 上メス軸ブッシュ(右) 1 18 2150043 Upper Knife Feed Bar Driving Shaft Bushing 上メス軸・送り軸ブッシュ 2 19 2100117 Upper Knife Driving Shaft Oil Seal 上メス軸オイルシール 1 20 2150049 Needle Bar Driving Shaft Bushing(Right) 針棒クランク軸ブッシュ(右) 1 21 2150048 Needle Bar Driving Shaft Bushing(Left) 針棒クランク軸ブッシュ(左) 1 22 003636 Cap Screw(5/16-32 × 3.5) 蓋ネジ 1 23 000526 Gasket パッキン 1 24 2150040 Needle Bar Bushing(Upper) 針棒ブッシュ(上) 1 25 310109 Oil Wick 油芯 1 26 2150041 Needle Bar Bushing(Lower) 針棒ブッシュ(下) 1 27 2150046 UpperLooperDrivingShaftBushing(Front) 上ルーパ軸ブッシュ(前) 1 28 2150047 UpperLooperDrivingShaftBushing(Rear) 上ルーパ軸ブッシュ(後) 1 29 2100272 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 30 2150044 LowerLooperDrivingShaftBushing(Front) 下ルーパ軸ブッシュ(前) 1 31 2150045 LowerLooperDrivingShaftBushing(Rear) 下ルーパ軸ブッシュ(後) 1 32 2150042 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 33 2150069 Seal Plug 詰栓 1 34 2100098 Control Lever Shaft Bushing 送り調節レバー軸ブッシュ 1 35 2150050 Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 36 2100642 Needle Bar 針棒 1 37 2120030 Top Feed Driving Connecting Rod Spacer 上送りロッドスペーサ 1 38 2120074 Top Feed Shaft Bushing(Right) 上送り軸ブッシュ(右) 1 39 2120075 Top Feed Shaft Bushing(Left) 上送り軸ブッシュ(左) 1 40 2120071 VerticalMotion&RockerShaftBushing(Right) 上下・前後軸ブッシュ(右) 2 41 2120073 Vertical Motion Shaft Bushing(Left) 上送り上下軸ブッシュ(左) 1 42 0093303 Oil Seal オイルシール 1 43 2120072 Top Feed Rocker Shaft Bushing(Left) 上送り前後軸ブッシュ(左) 1 AZF8000G

Page 14

6 AZF8000G jintex.in

Page 15

NEEDLE BAR DRIVING MECHANISM Ref.No Parts No. Description 針棒機構 6 品 名 Amt.Req 1 2110252 [2150105] Needle Bar Driving Connecting Rod 針棒ロッド 1 2 120049 Screw(M4-0.7 x 16) 止ネジ 2 3 2100144 Needle Bar Driving Connecting Rod Pin 針棒クランクピン 1 4 160002 Screw(M4-0.7 x 5) 止ネジ 1 5 2100946 Needle Bar Driving Lever 針棒クランク軸腕 1 6 120006 Screw(M6-1 x 12) 止ネジ 1 7 2100137 Collar(12 x 20 x 10mm) カラー 1 8 160003 Screw(M5-0.8 x 5) 止ネジ 2 9 2150052 Needle Bar Crank Arm, C. Set 針棒クランク(組) 1 10 2150053 Needle Bar Driving Shaft 針棒クランク軸 1 11 2100136 Needle Bar Crank Arm 針棒クランク 1 12 300008 Washer ワッシャ 1 13 140003 Screw(M6-1 x 18) 止ネジ 1 14 2100138 Needle Bar Connecting Link 針棒リンク 1 15 2100176 [2100620] Needle Bar Connecting Link Pin 針棒リンクピン 2 16 310089 Oil Wick 油芯 2 17 2150059 Needle Bar Connecting Bracket 針棒抱キ 1 18 110006 Screw(M3.5-0.6 x 10) 止ネジ 1 19 160016 Screw(M4-0.7 x 4.5) 止ネジ 2 20 2100642 Needle Bar 針棒 1 21 2169102 Needle Clamp(Y) 針止メ 1 22 --- Needle(System : DC x 27) 針 2 23 003637 Screw(1/8-44 x 2.5) 止ネジ 2 24 2150057 Stitch Plate Support Stay, C. Set 針板取付台支工(組) 1 25 2150058 Stitch Plate Support Stay 針板取付台支工 1 26 000035 Roll Pin ロールピン 1 27 110009 Screw(M4-0.7 x 8) 止ネジ 6 28 2100502 Stitch Plate Support(Rear) 針板取付台(後) 1 29 110001 Screw(M4-0.7 x 5.4) 止ネジ 1 30-1 2108004 Stitch Plate(Y5) 針板 1 30-2 2108005 Stitch Plate(Y6) 針板 1 31 005345 Screw(11/64-40 x 8.3) 止ネジ 2 32 2100145 Stitch Plate Support(Front) 針板取付台(前) 1 33 110011 Screw(M5-0.8 x 10) 止ネジ 2 34 0032604 Rubber Cushion 埋メ座 1 35 2109200 Needle Guard(Front) 針受(前) 1 36 110002 Screw(M3-0.5 x 5) 止ネジ 1 37 2150035 HR Unit, Complete Set HR装置(組) 1 38 3100370 Tube Joint パイプ継手 1 39 2100152 Oil Tube(70mm) 給油パイプ(70mm) 1 40 310005 Oil Wick 油芯 1 41 2100533 HR Felt Holder HR フェルト受ケ 1 42 310001 HR Felt HR フェルト 1 43 2100535 HR Felt Holder Bracket, C. Set HR取付台(組) 1 44 2100536 HR Felt Holder Bracket HR取付台 1 45 000393 Roll Pin ロールピン 1 46 110013 Screw(M4-0.7 x 8) 止ネジ 1 47 320008 Fitting Stud(Short) 管継手ボルト(短) 1 48 000567 Seal パッキン 1 49 2150150 HR Unit Bracket HR装置台 1 AZF8000G

Page 16

7 AZF8000G jintex.in

Page 17 — KNIFE DRIVING MECHANISM

KNIFE DRIVING MECHANISM Ref.No Parts No. Description 品 名 Amt. Req 1 2100160 Upper Knife Driving Connecting Rod 上メスロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 2 3 2100173 Driving Lever Pin 上メス軸腕ピン 1 4 160002 Screw(M4-0.7 × 5) 止ネジ 1 5 2100162 Upper Knife Driving Lever 上メス軸腕 1 6 120006 Screw(M6-1 × 12) 止ネジ 1 7 2100161 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 2 9 2150060 Upper Knife Driving Shaft 上メス軸 1 10 2100165 Upper Knife Holder Positioner 上メスホルダピン 1 11 2100164 Upper Knife Holder(Flat Type) 上メスホルダ(平) 1 12 110035 Screw(M4-0.7 × 10) 止ネジ 1 13 0020496 Upper Knife(Flat Type) 上メス(平) 1 14 15 110062 Screw(M3.5-0.6 × 8) 止ネジ 1 16 0093864 Seal Plug 詰栓 1 17 2150020 Lower Knife Holder Spring Stop 下メスバネ受ケ 1 18 110012 Screw(M4-0.7 × 5) 止ネジ 3 19 2100174 Cloth Plate Rubber Cushion 緩衝ゴム 1 20 2150019 Front Cover 前カバー 1 21 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 22 2100009 Cloth Plate Spring Pin バネ受ケピン 1 23 2150021 Lower Knife Holder Locking Plate 下メス台回り止メ 1 24 0032919 Lower Knife Holder Spring 下メスバネ 1 25 2100166 Lower Knife Holder 下メス台 1 26 110046 Screw(M5-0.8 × 12) 止ネジ 1 27 000688 Guide Pin ガイドピン 1 28 2100167 Lower Knife 下メス 1 29 2100168 Lower Knife Clamp 下メス押工 1 30 140014 Screw(M4-0.7 × 8) 止ネジ 1 AZF8000G 7 メス機構

Page 18

8 AZF8000G jintex.in

Page 19 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt.Req 1 190088 [190080] Adjusting Screw(M10-0.75 × 30) 調節ネジ 1 2 100073 Lock Nut ロックナット 1 3 2150709 [2100181] Presser Spring 押工バネ 1 4 2150145 Presser Bar 押工棒 1 5 2100580 Presser Arm Positioning Guide Pin 押工腕案内ピン 1 6 340050 [340044] Spring Pin スプリングピン 1 7 2160057 [2150146] Presser Arm Stop 押工腕ストッパ 1 8 110008 [110008] Screw(M4-0.7 × 5) [M4-0.7 × 4.8] 止ネジ 1 9 2160055 [2160023] Presser Foot Release Lever 手揚ゲ 1 10 2160058 [2150148] Presser Foot Release Lever Spring 手揚ゲバネ 1 11 170045 Screw(M4-0.7 × 5) 止ネジ 1 12 13 2150154 [2100193] Presser Foot Lifter Lever 押工揚ゲレバー 1 14 000487 Wave Washer 波形ワッシャ 1 15 170047 Screw(M8-1.25 × 10) 止ネジ 1 16 2150142 [2150138] Presser Foot Lifter Lever Stop 押工揚ゲレバー ストッパ 1 17 120010 Screw(M6-1 × 10) 止ネジ 1 18 2100197 Presser Foot Lifter Lever Link 押工揚ゲレバーリンク 1 19 2100518 Presser Foot Shaft Collar 押工軸カラー 1 20 120017 Screw(M5-0.8 × 15) 止ネジ 1 21 2160033 Intermediate Lever 押工軸レバー 1 22 110065 Stop Screw(M4-0.7 × 12) ストップネジ 1 23 100001 Lock Nut ロックナット 1 24 2150139 Presser Foot Lifter Lever Spring 押工揚ゲレバーバネ 1 25 2160032 Presser Foot Shaft Bushing 押工軸ブッシュ 1 26 160007 Screw(M6-1 × 6) 止ネジ 1 27 3100104 O-ring(P16) Oリング 1 28 2120045 Top Feed Dog Lifting Lever リフトレバー 1 29 120017 Screw(M5-0.8 × 15) 止ネジ 1 30 2160029 Presser Arm, Complete Set 押工腕(組) 1 31 2160031 Presser Foot Shaft 押工軸 1 32 2160030 Presser Arm 押工腕 1 33 2100199 Presser Arm Hinge Pin 押工腕ヒンジピン 1 34 160001 Screw(M4-0.7 × 4) 止ネジ 1 35-1 2127240 Presser Foot, C. Set(Y5-10) 押工(組) 1 35-2 2127241 Presser Foot, C. Set(Y6-10) 押工(組) 1 36 2127003 Presser Foot Hinge 押工ヒンジ 1 37 004351 Screw(9/64-40 × 7) 止ネジ 1 38 2127000 Presser Foot Spring 押工バネ 1 39 003637 Screw(1/8-44 × 2.5) 止ネジ 1 40-1 2127260 Presser Foot(Lower)(Y5-10) 押工(下) 1 40-2 2127261 Presser Foot(Lower)(Y6-10) 押工(下) 1 41 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 42 0026142 Thread Chain Guide 空環ガイド 1 43 004237 Screw(3/32-56 × 2.6) 止ネジ 1 44 0020271 Thread Chain Cutting Knife チェインカッタ 1 45 004097 Screw(3/32-56 × 4.2) 止ネジ 1 46 2160059 Presser Foot Release Lever Stop 手揚ゲストッパ 1 47 2160063 Presser Bar Guide Plate 押工棒ガイド板 1 48 110023 Screw(M2-0.4 × 3.5) 止ネジ 1 AZF8000G

Page 20

9 AZF8000G jintex.in

Page 21 — TOP FEED MECHANISM(1)

TOP FEED MECHANISM(1) 9 Ref.No Parts No. Description 品 名 Amt.Req 1 2120027 Top Feed Driving Connecting Rod 上送りリロッド 1 2 120001 Screw(M4-0.7 x 14) 止ネジ 2 3 2120028 Connecting Rod Pin 上送りロッドピン 1 4 330009 Seal Plug 詰栓 2 5 160007 Screw(M6-1 x 6) 止ネジ 1 6 2120029 Top Feed Shaft Lever 上送り軸腕 1 7 120006 Screw(M6-1 x 12) 止ネジ 1 8 0032646 Collar カラー 2 9 009604 Screw(11/64-40 x 5.5) 止ネジ 4 10 2120031 Top Feed Shaft 上送り軸 1 11 000750 Seal Plug 詰栓 1 12 330008 Seal Plug 詰栓 1 13 2120002 Top Feed Rocker, Complete Set 上送り腕(組) 1 14 2120003 Top Feed Rocker 上送り腕 1 15 120013 Screw(M6-1 x 15) 止ネジ 2 16 2120004 Top Feed Regulating Slider スライダ 1 17 2120005 Slider Pin Adjusting Lever, C. Set スライダ調節レバー(組) 1 18 2120082 Top Feed Regulating Slider Pin スライダピン 1 19 160001 Screw(M4-0.7 x 14) 止ネジ 3 20 2120007 Top Feed Shaft Lever Link 上送り軸腕リンク 1 21 0026081 Link Pin リンクピン 1 22 0026413 Spacer スペーサ 1 23 0026099 Top Feed Guide Block 上送り前後駒 1 24 2120083 Spacer スペーサ 1 25 0033024 Retaining Ring ストップリング 1 26 2120006 Slider Pin Adjusting Lever スライダ調節レバー 1 27 120011 Screw(M6-1 x 18) 止ネジ 1 28 2120008 Top Feed Rocker Shaft Lever 上送り前後軸腕 1 29 0033104 Collar カラー 1 30 005550 Screw(11/64-40 x 13.5) 止ネジ 1 31 2120032 Slider Pin Adjusting Lever Shaft スライダ調節レバー軸 1 32 2120009 Top Feed Rocker Shaft 上送り前後軸 1 33 310046 Oil Wick(2.3 x 2.3 x 14mm) 油芯 1 AZF8000G

Page 22

10 AZF8000G jintex.in

Page 23 — TOP FEED MECHANISM(2)

TOP FEED MECHANISM(2) 上送り機構(2) 10 Ref.No Parts No. Description 品 名 Amt. Req 1 0093323 Collar(Right) カラー(右) 1 2 0033104 Collar(Left) カラー(左) 1 3 005550 Screw(11/64-40 × 13.5) 止ネジ 2 4 2120020 Vertical Motion Adjusting Lever, C. Set 上送り上下調節レバー(組) 1 5 2120021 Vertical Motion Adjusting Lever 上送り上下調節レバー 1 6 120013 Screw(M6-1 × 15) 止ネジ 2 7 004106 Screw(9/64-40 × 6.5) 止ネジ 1 8 000533 Washer ワッシャ 1 9 0026075 Adjusting Lever Pin 上下調節レバーピン 1 10 2120022 Vertical Motion Lever Link 上下レバーリンク 1 11 0026081 Vertical Motion Lever Pin 上下レバーピン 1 12 003637 Screw(1/8-44 × 2.5) 止ネジ 5 13 2120023 Vertical Motion Lever 上送り上下レバー 1 14 2120019 Top Feed Vertical Motion Shaft 上送り上下軸 1 15 310047 Oil Wick(2.3 × 2.3 × 11.5mm) 油芯 2 16 0023234 Positioning Pin 位置決メピン 1 17 2120131 Top Feed Dog Bar, C. Set(2) 上送り台(組2) 1 18 2120018 Vertical Motion Link 上送り上下リンク 1 19 310069 Oil Wick(No. 2-210mm) 油芯 1 20 000755 Pin 油芯止メピン 1 21 310068 Oil Wick(No.2-120mm) 油芯 1 22 0024302 Oil Wick Stay 油芯支工 1 23 2120067 Oil Wick Holder 油芯押工 1 24 110002 Screw(M3-0.5 × 5) 止ネジ 1 25 2120130 Top Feed Dog Bar, C. Set(1) 上送り台(組1) 1 26 2120093 Top Feed Dog Bar Guide Lever 上送り台ガイド腕 1 27 28 29 2120095 Top Feed Dog Bar Guide Pin 上送り台ガイドピン 1 30 2120112 Top Feed Dog Bar Guide 上送り台ガイド 1 31 310054 Oil Wick(2.3 × 2.3 × 6mm) 油芯 1 32 2120017 Press Bar Receiver バネ受ケ 1 33 2120132 Shield Support シールサポート 1 34 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 2 35 2120014 Top Feed Dog Bar 上送り台 1 36 2120572 Top Feed Dog Bar Shield 上送り台シール 2 37 310046 Oil Wick(2.3 × 2.3 × 14mm) 油芯 1 38 0026418 Top Feed Dog Bar Connecting Pin 上送り台ピン 1 39 2120015 Top Feed Rocker Link 上送り前後リンク 1 40 2120570 Top Feed Dog Bar Cover(Front), C. Set 上送り台カバー(前)(組) 1 Ref. No 41 to 62 See the following page. AZF8000G

Page 24

10 AZF8000G jintex.in

Page 25 — TOP FEED MECHANISM(2)

TOP FEED MECHANISM(2) 上送り機構(2) 10 Ref.No Parts No. Description 品 名 Amt. Req 41 2120136 Top Feed Dog Bar Cover(Front) 上送り台カバー(前) 1 42 2120571 Top Feed Dog Bar Cover Rubber 上送り台カバーゴム 1 43 110012 Screw(M4-0.7 × 5) 止ネジ 1 44 2160015 Top Feed Dog Bar Support(Right) 上送り台サポート(右) 1 45 110035 Screw(M4-0.7 × 10) 止ネジ 1 46 2160016 Top Feed Dog Bar Support(Left) 上送り台サポート(左) 1 47 110004 Screw(M3.5-0.6 × 8) 止ネジ 2 48 000687 Knock Pin ノックピン 1 49 2129078 Top Feed Dog(O4)(Diacut teeth) 上送りダイヤカット) 1 50 2120037 Top Feed Dog Press Bar 上送り台押工棒 1 51 2120038 Top Feed Dog Press Spring 上送り押エバネ 1 52 100074 Lock Nut ロックナット 1 53 190081 Adjusting Screw(M10-0.75 × 44) 調節ネジ 1 54 2160028 Top Feed Dog Bar Block 上送り台ブロック 1 55 100001 Nut ナット 1 56 140032 Screw(M4-0.7 × 22) 止ネジ 1 57 2160056 [2160024] Top Feed Dog Lift Link 上送り揚ゲリンク 1 58 170041 Screw(M5-0.8 × 3.5) 止ネジ 1 59 170048 Screw(M5-0.8 × 5) 止ネジ 1 60 2160026 Top Feed Dog Lift Lever 上送り揚ゲ軸腕 1 61 2160027 Top Feed Dog Lift Shaft 上送り揚ゲ軸 1 62 009747 Screw(M4-0.7 × 10) 止ネジ 1 jintex.in AZF8000G

Page 26

11 AZF8000G jintex.in

Page 27 — TOP FEED MECHANISM(3)

TOP FEED MECHANISM(3) 上送り機構(3) 11 Ref.No Parts No. Description 品 名 Amt. Req 1 2120035 Spring Hanger バネ掛ケ 1 2 000665 Washer ワッシャ 2 3 110013 Screw(M4-0.7 × 8) 止ネジ 2 4 2120036 Top Feed Dog Lever Spring 上送りレバーバネ 1 5 2120033 Top Feed Dog Lever 上送りレバー 1 6 110009 Screw(M4-0.7 × 8) 止ネジ 3 7 2120034 Top Feed Dog Graduation 上送り目盛板 1 8 000538 Washer ワッシャ 2 9 110035 Screw(M4-0.7 × 10) 止ネジ 2 10 190039 Screw(M4-0.7, M6-1 × 19) 止ネジ 1 11 100029 Adjusting Nut 調節ナット 1 12 000663 Washer ワッシャ 1 13 100001 Lock Nut ロックナット 1 14 005049 Screw(M5-0.8 × 8) 止ネジ 1 15 000554 Washer ワッシャ 1 16 0020350 Top Feed Dog Lever Stopper レバー ストッパ 1 17 0026434 Lever Adjusting Box, C. Set レバー調節台(組) 1 18 0026427 Lever Adjusting Box レバー調節台 1 19 0026430 Lever Adjusting Block レバー調節駒 1 20 0026428 Lever Adjusting Screw レバー調節ネジ 1 21 0026438 Coller カラー 1 22 003637 Screw(1/8-44 × 2.5) 止ネジ 3 23 0068206 O-ring(P4) Oリング 1 24 0026429 Adjusting Screw Supporting Plate 調節ネジ支エ板 1 25 004351 Screw(9/64-40 × 7) 止ネジ 2 26 000280 Rubber Cushion ラバークッション 2 27 2020048 Adjusting Knob Spring 調節ツマミバネ 1 28 0026431 Adjusting Knob 調節ツマミ 1 29 110064 Screw(M4-0.7 × 8) 止ネジ 2 AZF8000G jintex.in

Page 28

12 AZF8000G jintex.in

Page 29 — UPPER LOOPER DRIVING MECHANISM

UPPER LOOPER DRIVING MECHANISM 上ルーパ機構 12 Ref.No Parts No. Description 品 名 Amt.Req 1 2100900 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 2100088 Connecting Rod Swing-proof 振止メ 2 4 2160050 Upper Looper Driving Lever 上ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 2150070 Looper Driving Shaft 上ルーパ軸 1 7 2160051 Driving Shaft Thrust Ring スラストリング 1 8 2150075 Driving Shaft Thrust Ring スラストリング 1 9 2100161 Collar(10 × 19 × 9mm) カラー 1 10 160001 Screw(M4-0.7 × 4) 止ネジ 2 11 2150130 Upper Looper Thread Pull-off 上ルーパ糸繰り 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 2150086 Upper Looper Bar Crank Arm, C. Set 上ルーパクランク(組) 1 14 2150084 Upper Looper Bar Guide Bushing ルーパ案内メタル 1 15 2100227 Upper Looper Bar Guide Cover ルーパ案内蓋 1 16 130001 Screw(M2.5-0.45 × 6) 止ネジ 1 17 110071 Screw(M2.5-0.45 × 6) 止ネジ 1 18 2150091 Upper Looper Bar Guide, Complete Set ルーパ案内(組) 1 19 2101089 Upper Looper Bar Crank Arm 上ルーパクランク 1 20 300008 Washer ワッシャ 1 21 140004 Screw(M6-1 × 16) 止ネジ 1 22 2100903 Upper Looper Bar Crank Arm Pin 上ルーパクランクピン 1 23 160002 Screw(M4-0.7 × 5) 止ネジ 1 24 310089 Oil Wick 油芯 1 25 2150080 Upper Looper Bar ルーパ棒 1 26 000629 Seal Plug 詰栓 1 27 2100892 Upper Looper Bar Guide ルーパ案内 1 28 310065 Oiling Felt フェルト 1 29 2129300 Upper Looper(for Needle Size #9~14) 上ルーパ(針番手 #9~14用) 1 30 210009 Screw(1/8-44 × 3.2) 止ネジ 1 31 000779 Standard Pin 基準ピン 1 32 120013 Screw(M6-1 × 15) 止ネジ 2 33 2100854 UpperLooper SupplementaryThreadEyelet 上ルーパ補助糸道 1 34 2150117 Lower Looper Thread Pull-off 下ルーパ糸繰り 1 35 000014 Washer ワッシャ 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 2150079 Upper Looper Bar, C. Set ルーパ棒(組) 1 AZF8000G

Page 30

13 AZF8000G jintex.in

Page 31 — LOWER LOOPER DRIVING MECHANISM

LOWER LOOPER DRIVING MECHANISM 下ルーパ機構 13 Ref.No Parts No. Description 品 名 Amt. Req 1 2100215 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 2100088 Connecting Rod Swing-proof 振止メ 1 4 2150076 Lower Looper Driving Lever 下ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 2100902 Driving Shaft Thrust Ring スラストプレート 1 7 2100161 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 3 9 2100219 Looper Driving Shaft ルーパ軸 1 10 2100211 Lower Looper Holder Arm 下ルーパ台 1 11 300008 Washer ワッシャ 1 12 140002 Screw(M6-1 × 14) 止ネジ 1 13 2150118 Thread Pull-off 下ルーパ台糸繰り 1 14 110009 Screw(M4-0.7 × 8) 止ネジ 1 15 2109347 Lower Looper 下ルーパ 1 16 2109201 Needle Guard(Rear) 針受ケ(後) 1 17 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 18 180014 Screwed Pin(M3-0.5 × 4.5) ピンネジ 1 19 300106 Conical Spring Washer 皿バネワッシャ 1 AZF8000G

Page 33

FEED DRIVING CONTROL MECHANISM 前送り調節機構 14 Ref.No Parts No. Description 品 名 Amt. Req 1 2150064 Main Feed Bar Lever 後送りレバー 1 2 120006 Screw(M6-1 × 12) 止ネジ 4 3 2100251 Main Feed Bar Lever Pin 後送りレバーピン 1 4 300000 Washer ワッシャ 3 5 100002 Nut ナット 1 6 000669 Washer ワッシャ 2 7 2150075 Thrust Plate スラストプレート 1 8 0095027 Retaining Ring ストップリング 1 9 2100248 Main Feed Bar Connection 後送りリンク 1 10 2100249 Connection Bushing 後送りリンクブッシュ 1 11 140001 Screw(M5-0.5 × 12) 止ネジ 1 12 2100266 Feed Bar, Complete Set 前送り台(組) 1 13 2100242 Main Feed Bar 後送り台 1 14 2100241 Differential Feed Bar 前送り台 1 15 2100243 Differential Feed Bar Connection 前送りリンク 1 16 2100244 Connection Bushing 前送りリンクブッシュ 1 17 140000 Screw(M5-0.5 × 12.5) 止ネジ 1 18 2150065 Feed Bar Driving Shaft 送り軸 1 19 2150066 Feed Bar Driving Shaft Lever 送り軸腕 1 20 2100288 Connecting Rod Pin 送りロッドピン 1 21 160007 Screw(M6-1 × 6) 止ネジ 1 22 2100671 Differential Rocker, Complete Set 前送り腕(組) 1 23 2100672 Differential Rocker 前送り腕 1 24 2100673 Differential Regulating Slider スライダ 1 25 2100674 Differential Regulating Slider Cap スライダ蓋 1 26 110033 Screw(M3-0.5 × 6) 止ネジ 2 27 2100269 Differential Lever(Right), C. Set 差動レバー(右)(組) 1 28 2100252 Slider Link スライダリンク 1 29 0068202 Retaining Ring ストップリング 1 30 2100253 Slider Link Pin スライダリンクピン 1 31 2100262 Differential Lever(Right) 差動レバー(右) 1 32 2100267 Collar(10 × 17 × 8mm) カラー 1 33 160001 Screw(M4-0.7 × 4) 止ネジ 2 34 000690 Spring Pin スプリングピン 1 35 2100256 Differential Lever Spring 差動レバーバネ 1 36 0020538 O-ring(P7) Oリング 1 37 2100263 Differential Lever(Left) 差動レバー(左) 1 38 000528 Washer ワッシャ 1 39 000561 Conical Spring Washer 皿バネワッシャ 1 40 100000 Adjusting Nut 調節ナット 1 41 190001 Adjusting Screw(M6-1 × 11.5, M4.5-0.5 × 4) 調節ネジ 1 42 2100271 Differential Feed Graduation 送り目盛板 1 43 110016 Screw(M4-0.7 × 15) 止ネジ 2 44 0020350 Differential Lever Stop 差動レバー ストッパ 2 45 110017 Screw(M5-0.8 × 8) 止ネジ 2 46 2100257 Adjusting Screw アジャスタ 1 47 2100264 Adjusting Block アジャスタ駒 1 48 2100259 Adjusting Block Spring アジャスタバネ 1 49 0034293 Retaining Ring ストップリング 1 jintex.in AZF8000G

Page 35

FEED DRIVING MECHANISM 送り機構 15 Ref.No Parts No. Description 品 名 Amt. Req 1 2100865 Feed Bar Guide Support 送り台ガイドサポート 1 2 110064 Screw(M4-0.7 × 8) 止ネジ 4 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 6 4 2100866 Feed Bar Shield(Front) 送り台シール(前) 1 5 2100867 Feed Bar Shield(Rear) 送り台シール(後) 1 6 2100869 Feed Bar Shield Guide 送り台シールガイド 1 7 2100870 Feed Bar Guide 送り台ガイド 2 8 2100868 Feed Bar Shield(Upper) 送り台シール(上) 1 9 2150063 Feed Bar Guide Bushing 送り台ガイドブッシュ 1 10 160007 Screw(M6-1 × 6) 止ネジ 1 11 2100602 Feed Bar Block(Rear) Shaft 角駒(後)軸 1 12 160001 Screw(M4-0.7 × 4) 止ネジ 1 13 2100283 Feed Bar Block(Rear) 角駒(後) 1 14 2100281 Feed Bar Block(Rear) Lid 角駒(後)蓋 1 15 130002 Screw(M3-0.5 × 6) 止ネジ 1 16 2100280 Feed Bar Block(Front) 角駒(前) 1 17 2100284 Eccentric Pin Holder 送りエキセンピン取付台 1 18 0020401 Feed Dog Eccentric Pin 送りエキセンピン 1 19 2100277 Feed Dog Eccentric 送りエキセン 1 20 2100278 Roller Bearing ニードルベアリング 1 21 2100275 Feed Dog Driving Connecting Rod 送りロッド 1 22 2100276 Feed Dog Regulating Eccentric 送り調節エキセン 1 23 180002 Screw(M3-0.5 × 4) 止ネジ 2 24 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 25 2100289 Feed Dog Regulating Plate Spring 送り調節プレートバネ 1 26 0023473 Feed Dog Regulating Plate 送り調節プレート 1 27 2100279 Feed Dog Regulating Gear 送り調節ギア 1 28 180003 Screw(M5-0.8 × 8) 止ネジ 1 29 180003 Screw(M5-0.8 × 5) 止ネジ 3 30-1 2109005 Differential Feed Dog(Y5) 前送り 1 30-2 2109009 Differential Feed Dog(Y6) 前送り 1 31 2109006 Main Feed Dog 後送り 1 32 2109067 Auxiliary Feed Dog 小送り 1 33 110026 Screw(M3-0.5 × 6) 止ネジ 1 34 2150067 Connecting Rod Cover 送りロッドカバー 1 35 130003 Screw(M4-0.7 × 7.3) 止ネジ 2 AZF8000G

Page 36

16 23 25 24 28 29 30 27 26 6 22 8 9 3 45 44 46 48 41 47 19 18 20 16 17 B A C 36 8 9 37 9 8 23 11 39 42 41 40 3 D 33 34 35 32 31 11 8 9 7 10 9 49 1 2 3 4 12 13 9 14 9 15 AZF8000G jintex.in

Page 37 — LUBRICATING MECHANISM

LUBRICATING MECHANISM 給油機構 16 Ref.No Parts No. Description 品 名 Amt. Req 1 2100935 Oil Pump, Complete Set ポンプ(組) 1 2 2100363 Worm Wheel ウォームホイール 1 3 160001 Screw(M4-0.7 × 4) 止ネジ 4 4 120049 [110016] Screw(M4-0.7 × 16)[M4-0.7 × 15] 止ネジ 2 5 6 000567 Seal パッキン 1 7 2150201 Oil Tube, Complete Set 給油パイプ(組) 1 8 3100370 Oil Tube Fitting One Way End 片口継手 6 9 0031831 Oil Tube Clamp 緊束環 9 10 2150206 Oil Tube (4.6 × 6.4 × 220mm) 給油パイプ 1 11 320008 Oil Tube Fitting Stud(M6-1) 管継手ボルト 2 12 2100958 Suction Tube, C. Set 吸入パイプ(組) 1 13 3100371 Oil Tube Fitting Two Way 両口管継手 1 14 2100369 Oil Tube (4.6 × 6.4 × 36.5mm) 給油パイプ 1 15 2100957 Oil Filter 濾過網 1 16 2100956 Suction Pipe(Upper), C. Set 吸入パイプ(上)(組) 1 17 2100927 Suction Tube (4 × 6 × 18mm) 吸入パイプ 1 18 2100928 Suction Tube (2.5 × 4 × 60mm) 吸入パイプ 1 19 2100929 Suction Pipe(Upper) 吸入パイプ(上) 1 20 310073 Felt フェルト 1 21 2150202 Oil Tube, Complete Set 給油パイプ(組) 1 22 2150207 Oil Tube (4.6 × 6.4 × 315mm) 給油パイプ 1 23 320009 Oil Tube Fitting Stud(Long)(M6-1) 管継手ボルト(長) 1 24 2150710 [2150095] Oil Pressure Regulating Valve, C. Set 調圧弁(組) 1 25 2150713 [2150094] Oil Pressure Regulating Valve 調圧弁 2 26 0080503 Oil Pressure Regulating Ball 調圧ボール弁 1 27 0030748 Guide Pin ガイドピン 1 28 2150102 [2150097] Spring バネ 1 29 006861 Adjusting Screw(1/4-40 × 5) 調節ネジ 1 30 000419 Nut ナット 1 31 3100060 Oil Filter Cap オイルフィルタキャップ 1 32 110045 Screw(M4-0.7 × 12) 止ネジ 3 33 3100061 O-ring(P42) Oリング 1 34 3100345 Oil Filter オイルフィルタ 1 35 3100329 Filter Housing オイルフィルタ継手 1 36 2160035 Oil Tube, C. Set 給油パイプ(組) 1 37 2160040 Oil Tube (4.6 × 6.4 × 150mm) 給油パイプ 1 38 39 2100896 Oil Pipe, C. Set オイルパイプ(組) 1 40 2100895 Oil Pipe オイルパイプ 1 41 000456 Seal Plug 詰栓 2 42 3100090 Oil Wick 油芯 1 43 2100032 Oil Sight Gauge オイルゲージ 1 44 0020538 O-ring(P7) Oリング 1 45 110053 Screw(M6-1 × 8) 止ネジ 3 46 2160045 Oil Pipe, C. Set オイルパイプ(組) 1 47 2160046 Oil Pipe オイルパイプ 1 48 310081 Oil Wick 油芯 1 49 320012 [320010] Oil Tube Fitting Stud(1/4-40) 管継手ボルト 3 jintex.in AZF8000G

Page 38

17 UPPER KNIFE (Angled Type) TOP FEED DOG AZF8000G-04 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 AZF8000G jintex.in

Page 39 — EXCLUSIVE PARTS for UPPER KNIFE (Angled Type), AZF8000G

EXCLUSIVE PARTS for UPPER KNIFE (Angled Type), AZF8000G 角メス及びサブモデル専用部品 17 Ref.No Parts No. Description 品 名 Amt.Req 1 2100385 Upper Knife Holder 上メスホルダ(角) 1 2 0000491 Upper Knife 上メス 1 3 2101435 Upper Knife Clamp 上メス押工 1 4 2100354 Upper Knife Chip Guard 切屑押シ 1 5 140012 Screw(M4-0.7 × 18.5) 止ネジ 1 6 2100349 Upper Knife Clamp Plate 上メス押工受ケ 1 7 2100353 Upper Knife Stop 上メスストッパ 1 8 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 9 000665 Washer ワッシャ 1 10 2127099 Presser Foot, Complete Set(04) 押工(組) 1 11 2127004 Presser Foot Hinge 押工ヒンジ 1 12 004351 Screw(9/64-40 × 7) 止ネジ 1 13 2127001 Presser Foot Spring 押工バネ 1 14 003637 Screw(1/8-44 × 2.5) 止ネジ 1 15 2127069 Presser Foot(Lower) (04) 押工(下) 1 16 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 17 2100050 Cloth Plate クロスプレート 1 18 2150211 Cloth Plate(Lower) クロスプレート(下) 1 19 2100052 Rubber Cushion クロスプレート(下)埋メ座 1 20 2100000 Stitch Plate(04) 針板 1 21 2109000 Differential Feed Dog 前送り 1 22 2101027 Main Feed Dog 後送り 1 23 2101027 Blind-Hemming Guide, C. Set 裾引定規(組) 1 24 2101026 Overhanging Guide Hinge, C. Set 定規(組) 1 25 0034867 Hemming Positioner 裾引幅調節節片 1 26 005036 Screw(1/8-44 × 5.6) 止ネジ 2 27 005333 Washer ワッシャ 1 28 007006 Screw(9/64-40 × 4) 止ネジ 1 29 2101021 Blind-Hemming Edge Guide, C. Set 裾引定規台(組) 1 30 2101020 Blind-Hemming Edge Guide 裾引定規台 1 31 009624 Screw(1/8-44 × 5.3) 止ネジ 1 32 0022445 Swing-out Lever スイングアウトレバー 1 33 004150 Screw(11/64-40 × 5.2) 止ネジ 1 34 000172 Conical Spring Washer 皿バネワッシャ 1 35 000334 Nut ナット 1 36 0022446 Overhanging Guide Hinge Stop 定規ストッパ 1 37 001331 [001330] Screw(9/64-40 × 3.8) [9/64-40 × 3.8] 止ネジ 1 38 0022447 Swing-out Lever Holder スイングアウトレバー取付台 1 39 0022448 Swing-out Lever Stop スイングアウトレバーストッパ 1 40 0022435 Edge Guide Positioning Pin 定規固定ピン 2 Ref. No 41 to 53 See the following page. AZF8000G

Page 40

17 UPPER KNIFE (Angled Type) TOP FEED DOG AZF8000G-04 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 AZF8000G jintex.in

Page 41 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G

EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G 角メス及びサブモデル専用部品 17 Ref.No Parts No. Description 品 名 Amt.Req 41 0022436 Positioning Pin Holder Spring 規定固定ピン押エバネ 2 42 001225 Screw(1/8-44 × 2.8) 止ネジ 1 43 001196 Screw(1/8-44 × 6) 止ネジ 3 44 2101022 Edge Guide Adjusting Holder 裾引調節台 1 45 004106 Screw(9/64-40 × 6.5) 止ネジ 2 46 007619 Screw(9/64-40 × 6.3) 止ネジ 1 47 0022443 Adjusting Screw Guide Piece 調節ネジガイド 1 48 006444 Adjusting Screw(1/8-44 × 12.9) 調節ネジ 1 49 0022444 Edge Guide Adjusting Holder Cover 裾引調節台蓋 1 50 110047 Screw(M4-0.7 × 10) 止ネジ 2 51 0060297 Pin ピン 1 52 2129012 Top Feed Dog(Diacut teeth) 上送り(ダイヤカット) 1 53 2129076 Top Feed Dog(for -10)(Diacut teeth) 上送り(-10用)(ダイヤカット) 1 AZF8000G jintex.in

Page 42 — AZF8003G-04-10

18 AZF8003G-04-10 1 3 2 5 4 7 6 9 8 10 11 AZF8000G jintex.in

Page 43 — AZF8000G-10 EXCLUSIVE PARTS

AZF8000G-10 EXCLUSIVE PARTS サブモデル専用部品 18 Ref.No Parts No. Description 品 名 Amt. Req 1 2127245 Presser Foot, C. Set(04-10) 押工(組) 1 2 2127003 Presser Foot Hinge 押工ヒンジ 1 3 004351 Screw(9/64-40 × 7) 止ネジ 1 4 2127000 Presser Foot Spring 押工バネ 1 5 003637 Screw(1/8-44 × 2.5) 止ネジ 1 6 2127265 Presser Foot(Lower)(04-10) 押工(下) 1 7 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 8 0026142 Thread Chain Guide 空環ガイド 1 9 004237 Screw(3/32-56 × 2.6) 止ネジ 1 10 2108003 Stitch Plate(04) 針板 1 11 0060297 Pin ピン 1 AZF8000G jinte.in

Page 44 — 19

19 AZF8025G-Y5-10, Y6-10, X4-10 2 1 3 AZF8025G-Y5-10, Y6-10 4-1 4-2 6 5 8 12 7 13 11 9-1 9-2 10 AZF8025G-X4-10 14 6 5 8 12 7 13 10 15 12 11 16 17 AZF8000G jintex.in

Page 45 — AZF8025G-10 EXCLUSIVE PARTS

AZF8025G-10 EXCLUSIVE PARTS サブモデル専用部品 19 Ref.No Parts No. Description 品 名 Amt.Req 1 0024130 Tape Guide(Upper) テープガイド(上) 1 2 110012 Screw(M4-0.7 x 5) 止ネジ 2 3 2129080 Top Feed Dog(Diacut teeth) 上送り(ダイヤカット) 1 4-1 2127230 Presser Foot, C. Set(Y5-10) 押工(組) 1 4-2 2127231 Presser Foot, C. Set(Y6-10) 押工(組) 1 5 2127003 Presser Foot Hinge 押工ヒンジ 1 6 004351 Screw(9/64-40 x 7) 止ネジ 1 7 2127000 Presser Foot Spring 押工バネ 1 8 003637 Screw(1/8-44 x 2.5) 止ネジ 1 9-1 2127280 Presser Foot(Lower)(Y5-10) 押工(下) 1 9-2 2127281 Presser Foot(Lower)(Y6-10) 押工(下) 1 10 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 11 0026366 Presser Foot Tape Guide 押工テープガイド 1 12 004237 Screw(3/32-56 x 2.6) 止ネジ 2 13 0026142 Thread Chain Guide 空環ガイド 1 14 2127232 Presser Foot, C. Set(X4-10) 押工(組) 1 15 2127282 Presser Foot(Lower)(X4-10) 押工(下) 1 16 2169101 Needle Clamp(X) 針止メ 1 17 2108006 Stitch Plate(X4) 針板 1 AZF8000G

Page 46

20 AZF8026G-Y5, Y6 1 3 15 4 15 2 11 10 12 13 14 22-1 22-2 24 26 28 27-1 27-2 EXTRA PARTS 34 33-1 33-2 33-3 33-4 33-5 33-6 33-7 33-8 7 6 5 9 8 12 13 14 23 25 29 30 31 32-1 32-2 35 EXTRA PARTS 38 37 36 39 39 AZF8000G Jinttex.in

Page 47 — AZF8026G EXCLUSIVE PARTS

AZF8026G EXCLUSIVE PARTS サブモデル専用部品 20 Ref.No Parts No. Description 品 名 Amt. Req 1 0026239 Folder Support, C. Set 定規取付台(組) 1 2 0026242 Vertical Adjusting Plate 上下調節板 1 3 0026243 Folder Supporting Plate 定規取付板 1 4 0026241 Rateral Adjusting Plate 左右調節板 1 5 0026240 Swing-out Lever スイングアウトレバー 1 6 000172 Conical Spring Washer 皿バネワッシャ 1 7 004150 Screw(11/64-40 × 5.2) 止ネジ 1 8 000334 Nut ナット 1 9 0022447 Swing-out Lever Holder スイングアウトレバー取付台 1 10 0022448 Swing-out Lever Stop スイングアウトレバー ストッパ 1 11 005036 Screw(1/8-44 × 5.6) 止ネジ 1 12 0022435 Folder Positioning Pin 定規固定ピン 2 13 0022436 Folder Positioning Pin Holder Spring 定規固定ピン押エバネ 2 14 001227 Screw(1/8-44 × 3.8) 止ネジ 2 15 001331 Screw(9/64-40 × 3.8) 止ネジ 6 16 110047 Screw(M4-0.7 × 10) 止ネジ 2 17 0022981 Tape Guide Stay Shaft テープガイド支工取付軸 1 18 110009 Screw(M4-0.7 × 8) 止ネジ 1 19 0022963 Tape Guide Stay テープガイド支工 1 20 003638 Screw(11/64-40 × 4) 止ネジ 2 21 0022982 Tape Guide テープガイド 1 22-1 2127088 Presser Foot, C. Set(Y5) 押工(組) 1 22-2 2127089 Presser Foot, C. Set(Y6) 押工(組) 1 23 2127003 Presser Foot Hinge 押工ヒンジ 1 24 004351 Screw(9/64-40 × 7) 止ネジ 1 25 2127000 Presser Foot Spring 押エバネ 1 26 003637 Screw(1/8-44 × 2.5) 止ネジ 1 27-1 2127058 Presser Foot(Lower)(Y5) 押工(下) 1 27-2 2127059 Presser Foot(Lower)(Y6) 押工(下) 1 28 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 29 0026142 Presser Foot Chain Shield 空糸押工 1 30 004237 Screw(3/32-56 × 2.6) 止ネジ 1 31 2129009 Top Feed Dog(Diacut teeth) 上送り(ダイヤカット) 1 32-1 2108020 Stitch Plate(Y5) 針板 1 32-2 2108021 Stitch Plate(Y6) 針板 1 33-1 0026198 Folder(for Light Materials)(16mm) 定規(薄物用) 1 33-2 0026225 Folder(for Light Materials)(18mm) 定規(薄物用) 1 33-3 0026237 Folder(for Light Materials)(20mm) 定規(薄物用) 1 33-4 0026227 Folder(for Light Materials)(22mm) 定規(薄物用) 1 33-5 0026199 Folder(for Heavy Materials)(16mm) 定規(厚物用) 1 33-6 0026226 Folder(for Heavy Materials)(18mm) 定規(厚物用) 1 33-7 0026236 Folder(for Heavy Materials)(20mm) 定規(厚物用) 1 33-8 0026228 Folder(for Heavy Materials)(22mm) 定規(厚物用) 1 34 001331 Screw(9/64-40 × 3.8) 止ネジ 2 35 0026238 Piping Tape Folder, C. Set パイピングテープ定規(組) 1 36 0026246 Piping Tape Folder Support 定規取付台 1 37 0026251 Piping Tape Guide Plate テープガイド板 1 38 0026250 Edge Guide(Upper) 当テ定規(上) 1 39 001331 Screw(9/64-40 × 3.8) 止ネジ 4 AZF8000G jintex.in

Page 48

21 AZF8026G-Y5-10, Y6-10 1 15 4 3 15 2 10 11 7 6 5 9 12 13 14 8 12 13 14 18 17 19 20 16 21 22-1 22-2 24 23 26 25 27-1 27-2 28 30 29 EXTRA PARTS 34 33-1 33-2 33-3 33-4 33-5 33-6 33-7 33-8 35 EXTRA PARTS 38 39 37 36 39 AZF8000G jintex.in

Page 49 — AZF8026G-10 EXCLUSIVE PARTS

AZF8026G-10 EXCLUSIVE PARTS サブモデル専用部品 21 Ref.No Parts No. Description 品 名 Amt. Req 1 0026239 Folder Support, C. Set 定規取付台(組) 1 2 0026242 Vertical Adjusting Plate 上下調節板 1 3 0026243 Folder Supporting Plate 定規取付板 1 4 0026241 Rateral Adjusting Plate 左右調節板 1 5 0026240 Swing-out Lever スイングアウトレバー 1 6 000172 Conical Spring Washer 皿バネワッシャ 1 7 004150 Screw(11/64-40 × 5.2) 止ネジ 1 8 000334 Nut ナット 1 9 0022447 Swing-out Lever Holder スイングアウトレバー取付台 1 10 0022448 Swing-out Lever Stop スイングアウトレバーストッパ 1 11 005036 Screw(1/8-44 × 5.6) 止ネジ 1 12 0022435 Folder Positioning Pin 定規固定ピン 2 13 0022436 Folder Positioning Pin Holder Spring 定規固定ピン押エバネ 2 14 001227 Screw(1/8-44 × 3.8) 止ネジ 2 15 001331 Screw(9/64-40 × 3.8) 止ネジ 6 16 110047 Screw(M4-0.7 × 10) 止ネジ 2 17 0022981 Tape Guide Stay Shaft テープガイド支エ取付軸 1 18 110009 Screw(M4-0.7 × 8) 止ネジ 1 19 0022963 Tape Guide Stay テープガイド支エ 1 20 003638 Screw(11/64-40 × 4) 止ネジ 2 21 0022982 Tape Guide テープガイド 1 22-1 2167005 Presser Foot, C. Set(Y5) 押工(組) 1 22-2 2167006 Presser Foot, C. Set(Y6) 押工(組) 1 23 2127003 Presser Foot Hinge 押工ヒンジ 1 24 004351 Screw(9/64-40 × 7) 止ネジ 1 25 2127000 Presser Foot Spring 押工バネ 1 26 003637 Screw(1/8-44 × 2.5) 止ネジ 1 27-1 2167026 Presser Foot(Lower)(Y5) 押工(下) 1 27-2 2167030 Presser Foot(Lower)(Y6) 押工(下) 1 28 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 29 0026142 Presser Foot Chain Shield 空糸押工 1 30 004237 Screw(3/32-56 × 2.6) 止ネジ 1 31 004237 Screw(3/32-56 × 2.6) 止ネジ 1 32-1 2108020 Stitch Plate(Y5) 針板 1 32-2 2108021 Stitch Plate(Y6) 針板 1 33-1 0026198 Folder(for Light Materials)(16mm) 定規(薄物用) 1 33-2 0026225 Folder(for Light Materials)(18mm) 定規(薄物用) 1 33-3 0026237 Folder(for Light Materials)(20mm) 定規(薄物用) 1 33-4 0026227 Folder(for Light Materials)(22mm) 定規(薄物用) 1 33-5 0026199 Folder(for Heavy Materials)(16mm) 定規(厚物用) 1 33-6 0026226 Folder(for Heavy Materials)(18mm) 定規(厚物用) 1 33-7 0026236 Folder(for Heavy Materials)(20mm) 定規(厚物用) 1 33-8 0026228 Folder(for Heavy Materials)(22mm) 定規(厚物用) 1 34 001331 Screw(9/64-40 × 3.8) 止ネジ 2 35 0026238 Piping Tape Folder, C. Set パイピングテープ定規(組) 1 36 0026246 Piping Tape Folder Support 定規取付台 1 37 0026251 Piping Tape Guide Plate テープガイド板 1 38 0026250 Edge Guide(Upper) 当テ定規(上) 1 39 001331 Screw(9/64-40 × 3.8) 止ネジ 4 AZF8000G

Page 50 — K2 DEVICE

22 K2 DEVICE 1 2 21 4 A 5 3 7 8 19 18 6 20 9 10 11 12 13 14 15 16 26 27 28 29 30 25 24 22 23 33 A 32 31 AZF8000G jintex.in

Page 51 — K2 DEVICE

K2 DEVICE K2 装置 22 Ref.No Parts No. Description 品 名 Amt. Req 1 2169900 K2 Device, Complete Set K2装置(組) 1 2 2121000 Suction Pipe, Complete Set 吸込管(組) 1 3 2111051 Suction Pipe 吸込管本体 1 4 310017 Oil Wick(No.2-300mm) 油芯 1 5 000755 Oil Wick Pin 止メピン 1 6 2121001 Suction Pipe Cover 吸込管カバー 1 7 004237 Screw(3/32-56 × 2.6) 止ネジ 1 8 004404 Screw(3/32-56 × 5.1) 止ネジ 2 9 2111055 Upper Trimming Knife 上刃 1 10 004131 Screw(1/8-44 × 6) 止ネジ 1 11 004139 Screw(3/32-56 × 3) 止ネジ 2 12 2111059 Lower Trimming Knife Holder Pin 下刃支持ピン 1 13 2111056 Lower Trimming Knife 下刃 1 14 004236 Screw(3/32-56 × 4.2) 止ネジ 1 15 2111057 Lower Trimming Knife Driving Plate 下刃駆動板 1 16 2111062 Spring Sleeve 下刃バネースリーブ 1 17 2111061 Lower Trimming Knife Pushing Spring 下刃圧着バネ 1 18 2111066 Spring Protect Washer 下刃バネワッシャ 1 19 2111060 Washer ワッシャ 1 20 2111067 Air Shield Rubber 隙間防止ゴム 1 21 007623 Screw(9/64-40 × 5.3) 止ネジ 2 22 2111058 Lower Trimming Knife Guide Support 下刃ガイド取付台 1 23 110068 Screw(M4-0.7 × 8) 止ネジ 1 24 2101011 Lower Trimming Knife Guide 下刃ガイド 1 25 270001 Screw(1/8-44 × 3) 止ネジ 1 26 0021451 Suction Power Control, C. Set 吸引力調整管(組) 1 27 0021457 Suction Power Control Tube(Inner) 吸引力調整台 1 28 0021456 Suction Power Control Tube 吸引力調整管 1 29 001892 Screw(1/8-44 × 2.9) 止ネジ 1 30 0021450 Nylon Hose 吸引チューブ 1 31 2101059 Cloth Plate Spacer クロスプレートスペーサ 1 32 110042 Screw(M3.5-0.6 × 4) 止ネジ 2 33 2151000 Suction Pipe Support 吸込管取付台 1 jintex.in AZF8000G

Page 52 — C DEVICE

23 C DEVICE 1 10 13 15 14 9 8 7 6 4 2 3 15 16 17 5 11 12 15 18 19 21 20 22 23 24 26 25 12 31 30 27 28 27 29 AZF8000G jintex.in

Page 53 — C DEVICE

C DEVICE 品 名 23 Amt. Req Ref.No Parts No. Description 1 2109932 C Device, Complete Set C装置(組) 1 2 0033939 Hose Band(1/4 inch) ホースバンド(1/4インチ) 1 3 1094011 Hose Nipple(PT1/8 × 8) ホースニップル 1 4 1097000 Regulator(AR2000-01BG) レギュレータ 1 5 009960 Screw(M5-0.8 × 16) 止ネジ 2 6 000669 Washer ワッシャ 4 7 000600 Spring Washer スプリングワッシャ 2 8 000009 Nut ナット 2 9 1097001 Regulator Support レギュレータ取付板 1 10 006905 Wood Screw($ 5.1 × 20) 木ネジ 2 11 0010263 Connector(EC6-PT1/8) コネクタ 1 12 1096000 Nylon Hose(4 × 6 × 2000mm) ナイロンホース 1 13 1298000 Air Valve, Complete Set エアバルブ(組) 1 14 0033938 Collar(6.4 × 13 × 9mm) エアバルブ補助バネカラー 1 15 005040 Screw(11/64-40 × 8.5) 止ネジ 5 16 0033937 Return Spring エアバルブ補助バネ 1 17 0033936 Air Valve Holder エアバルブ取付台 1 18 0033935 Air Valve Stop エアバルブストッパ 1 19 000334 Nut ナット 1 20 005505 Adjusting Screw(11/64-40 × 16) 調節ネジ 1 21 1090133 TAC Valve, C. Set TACバルブ(組) 1 22 0010052 TAC Valve TACバルブ 1 23 000623 Gasket パッキン 2 24 0010112 Joint(I-4) 継手 2 25 0010290 Connector(EFC6-PT1/8) 継手 1 26 0010310 Venturi Tube ベンチュリ管 1 27 0033940 Hose Band(3/8 inch) ホースバンド(3/8インチ) 2 28 1096004 Vinyl Hose(12 × 18 × 1500mm) ビニールホース 1 29 1096005 Vinyl Hose(12 × 18 × 500mm) ビニールホース 1 30 0011987 UL Clamp ULクランプ 3 31 009814 Wood Screw($ 3.1 × 20) 木ネジ 3 AZF8000G

Page 54 — B3 DEVICE

24 B3 DEVICE 1 2 7 8 3 9-1 9-2 10 15 14 13 11 12 AZF8003G-04-10/B3 17 19 18 20 21 25 24 23 22 26 27 28 31 AZF8020G-X4-10/B3 29 19 18 20 21 25 24 23 30 32 33 34 AZF8000G jintex.in

Page 55

B3 DEVICE for AZF8003G-04-10, 8020G-X4-10 B3 装置 24 Ref.No Parts No. Description 品 名 Amt. Req 1 2109907 B3 Device, C. Set B3 装置(組) 1 2 2101133 Back Tack Cutting Unit 空環切り装置(組) 1 3 2101134 Thread Chain Cutting Knife Holder 刃取付台 1 4 0023184 Thread Chain Cutting Knife 刃 1 5 0023169 Thread Chain Cutting Knife Holder Spacer 刃取付台スペーサ 1 6 003637 Screw(1/8-44 × 2.5) 止ネジ 2 7 004205 Screw(11/64-40 × 18) 止ネジ 1 8 0024308 Thread Chain Holder 空環工 1 9-1 0023182 Thread Chain Holder Spring(Standard) 空環押エバネ(標準) 1 9-2 0033711 Thread Chain Holder Spring(with Stronger Pressure) 空環押エバネ(バネ圧強い) 1 10 000361 Adjusting Nut 空環押エバネ調節ナット 2 11 000535 Washer ワッシャ 1 12 110044 Screw(M3.5-0.6 × 14) 止ネジ 1 13 2101050 Cloth Plate クロスプレート 1 14 0036905 Synchronizer Positioning Pin ポジショナピン 1 15 110009 Screw(M4-0.7 × 8) 止ネジ 1 16 0081848 [0022837] Synchronizer Cushion ポジショナピンクッション 1 17 2127245 Presser Foot, C. Set(04-10) 押工(組) 1 18 2127003 Presser Foot Hinge 押工ヒンジ 1 19 004351 Screw(9/64-40 × 7) 止ネジ 1 20 2127000 Presser Foot Spring 押エバネ 1 21 003637 Screw(1/8-44 × 25) 止ネジ 1 22 2127265 Presser Foot(Lower)(04-10) 押工(下) 1 23 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 24 0026142 Thread Chain Guide 空環ガイド 1 25 004237 Screw(3/32-56 × 1.7) 止ネジ 1 26 2108008 Stitch Plate(04) 針板 1 27 2109010 Differential Feed Dog 前送り 1 28 2109011 Main Feed Dog 後送り 1 29 2127247 Presser Foot, C. Set(X4-10) 押工(組) 1 30 2127267 Presser Foot(Lower)(X4-10) 押工(下) 1 31 0060297 Pin ピン 1 32 2108013 Stitch Plate(X4) 針板 1 33 2109015 Differential Feed Dog 前送り 1 34 2109016 Main Feed Dog 後送り 1 AZF8000G

Page 56

25 CH20 DEVICE(1) AZF8000G jintex.in

Page 57 — CH20 DEVICE(1) for AZF8000G-04

CH20 DEVICE(1) for AZF8000G-04 CH20 装置(1) 25 Ref.No Parts No. Description 品 名 Amt. Req 1 0023714 Device Supporting Plate 装置取付板 1 2 009150 Screw(11/64-40 × 11) 止ネジ 1 3 0023726 Device Holder Base 装置取付台 1 4 0023750 Device Holder Base Fixing Spring Plate 装置取付台固定バネ 1 5 0023763 Supplementary Fixing Spring Plate 補助バネ 1 6 004353 Screw(9/64-40 × 7) 止ネジ 4 7 0023715 Solenoid Holder Fixing Spring Plate ソレノイド取付台固定バネ 1 8 0023769 Fixing Spring 定規連結軸固定バネ 1 9 000533 Washer ワッシャ 1 10 001175 Screw(9/64-40 × 8) 止ネジ 1 11 005589 Screw(1/4-40 × 14.5) 止ネジ 1 12 000621 Conical Spring Washer 皿バネワッシャ 2 13 0023725 Solenoid Holder ソレノイド取付台 1 14 000613 Washer ワッシャ 1 15 000306 Nut ナット 1 16 001333 Stop Screw(3/32-56 × 3.9) ストップネジ 1 17 0026470 Rotary Solenoid Cover ロータリソレノイドカバー 1 18 005000 Screw(9/64-40 × 5.7) 止ネジ 2 19 0011190 Rotary Solenoid(Large) ロータリソレノイド(大) 1 20 005550 Screw(11/64-40 × 13.5) 止ネジ 1 21 0036111 Hemming Guide Interlocking Lever 定規連動レバー 1 22 0036132 Retaining Ring ストップリング 1 23 0094491 Cord Clamp(φ 3.4-2N) コードクランプ 1 24 0023711 Guide Pin ガイドピン 1 25 004358 Screw(9/64-40 × 5.6) 止ネジ 4 26 005585 Adjusting Screw(11/64-40 × 10) 調節ネジ 1 27 001049 Sticker 貼りマーク 1 28 0023723 Guide Collar ガイドカラー 1 29 003638 Screw(11/64-40 × 4) 止ネジ 1 30 0023717 Solenoid Holder Cover ソレノイド取付台カバー 1 31 000322 Lock Nut ロックナット 3 32 001326 Positioning Screw(9/64-40 × 7.5) 位置決メネジ 1 33 0063612 Cord Clamp(φ 6.8-4N) コードクランプ 2 34 0023722 Solenoid Supporting Plate ソレノイド取付板 1 35 004406 Screw(11/64-40 × 8) 止ネジ 2 36 0011191 Rotary Solenoid(Small) ロータリソレノイド(小) 1 37 007606 Adjusting Screw(9/64-40 × 20) 調節ネジ 2 38 000014 Washer ワッシャ 2 39 000002 Spring Washer スプリングワッシャ 2 40 000012 Nut(M3) ナット 2 Ref. No 41 to 58 See the following page. AZF8000G jinttex.in

Page 58

25 CH20 DEVICE(1) AZF8000G jintex.in

Page 59 — CH20 DEVICE(1) for AZF8000G-04

CH20 DEVICE(1) for AZF8000G-04 CH20 装置(1) 25 Ref.No Parts No. Description 品 名 Amt.Req 41 0023718 Edge Guide Interlocking Lever スライド定規レバー 1 42 005038 Screw(11/64-40 × 8) 止ネジ 1 43 0023712 Edge Guide Interlocking Plate スライド定規連結棒 1 44 005588 Screw(11/64-40 × 2.1) 止ネジ 1 45 0023713 Edge Guide Holding Shaft 定規台取付軸 1 46 0023700 Hemming Guide Interlocking Shaft 定規連結軸 1 47 009931 Screw(11/64-40 × 26) 止ネジ 2 48 000550 Fiber Cushion 防振ファイバ 4 49 0023779 Cushion(Vinyl) ソレノイドクッション 2 50 000010 Conical Spring Washer 皿バネワッシャ 4 51 0020538 Rubber Cushion 防振ゴム 2 52 000334 Nut ナット 2 53 110065 Screw(M4-0.7 × 12) 止ネジ 3 54 280000 Screwed Pin(11/64-40 × 12) ピンネジ 1 55 2110327 Adjusting Lever 調節レバー 1 56 160001 Screw(M4-0.7 × 4) 止ネジ 2 57 2101038 Adjusting Screw Guide 調節ネジガイド 1 58 0060248 Cord Clamp(φ 5.3-3N) コードクランプ 1 AZF8000G

Page 60

26 CH20 DEVICE(2) 5 1-1 1-2 4 6 7 8 9 11 10 12 14 15 19 18 17 20 24 35 34 28 29 30 32 16 A 27 21 22 23 25 24 26 11 33 AZF8000G jintex.in

Page 61

CH20 DEVICE(2) for AZF8000G-04 26 Ref.No Parts No. Description 品 名 Amt. Req 1-1 2101391 Blind-Hemming Guide, C. Set(for 25mm) 定規(組) 1 1-2 0023740 Blind-Hemming Guide, C. Set(for 35mm)(Extra) 定規(組)(特注品) 1 2-1 2101390 Blind-Hemming Guide 定規 1 2-2 0023739 Blind-Hemming Guide(Extra) 定規(特注品) 1 3-1 2101393 Hemming Positioner 裾引調節片 1 3-2 0023741 Hemming Positioner(Extra) 裾引調節節片(特注品) 1 4 004236 Screw(3/32-56 × 4.2) 止ネジ 1 5 005036 Screw(1/8-44 × 5.6) 止ネジ 2 6 0023744 Hemming Guide Bracket, C. Set 定規調節台(組) 1 7 000335 Lock Nut ロックナット 1 8 006820 Adjusting Screw(9/64-40 × 12.3) 調節ネジ 1 9 0036161 Anti-shock Rubber 定規緩衝ゴム 1 10 001202 Screw(9/64-40 × 6.6) 止ネジ 1 11 003637 Screw(1/8-44 × 2.5) 止ネジ 3 12 1200182 Side Seam Detector Unit ホールIC(組) 1 13 14 005588 Screw(11/64-40 × 2.1) 止ネジ 1 15 0023747 Blind-Hemming Edge Guide, C. Set 定規台(組) 1 16 0023724 Blind-Hemming Edge Guide 定規台 1 17 0023707 Slide Edge Guide スライド定規 1 18 0023705 Slide Edge Guide Holder スライド定規受ケ 1 19 007609 Screw(9/64-40 × 9) 止ネジ 2 20 0023708 Sensor 感知子 1 21 0023737 Slide Edge Guide Pressing Spring スライド定規戻シバネ 1 22 005000 Screw(9/64-40 × 5.7) 止ネジ 1 23 0023709 Collar(2 × 5 × 5mm) カラー 1 24 004237 Screw(3/32-56 × 2.6) 止ネジ 2 25 0023710 Sensor Spring 感知子戻シバネ 1 26 0023756 Magnet Unit マグネット(組) 1 27 001613 Screw(3/32-56 × 4.5) 止ネジ 2 28 2101394 IC Positioner, Complete Set IC調節台(組) 1 29 2101395 IC Positioner IC調節台 1 30 005591 Adjusting Screw(1/8-44 × 6.2) 調節ネジ 1 31 32 0023703 Raterally Sliding Plate 左右スライド板 1 33 004440 Screw(11/64-40 × 8.3) 止ネジ 2 34 0023767 Hemming Positioner(for LightMaterials) 裾引調節節片(薄物用) 1 35 0023768 Spacer(for Light Materials) 定規スペーサ(薄物用) 1 AZF8000G

Page 62 — CH20 DEVICE(3)

27 CH20 DEVICE(3) 1 2 3 4 5 6 7 8 9 10 11 12 13-1 13-2 13-3 13-4 14 15 16 17 18 19 20 21 22 23 24 25 15 AZF8000G jintex.in

Page 63

CH20 DEVICE(3) for AZF8000G-C4 CH20 装置(3) 27 Ref.No Parts No. Description 品 名 Amt.Req 1 1200006 Presser Foot Switch Unit 押エスイッチ(組) 1 2 110013 Screw(M40.7 × 8) 止ネジ 3 3 0023734 Magnet for Presser Foot Switch マグネット 1 4 004353 Screw(9/64-40 × 7) 止ネジ 2 5 0023720 Switch Plate Spacer スイッチ板スペーサ 1 6 2121021 Switch Plate スイッチ板 1 7 005587 Screw(9/64-40 × 8.6) 止ネジ 1 8 005512 Guide Screw(11/64-40 × 3) ガイドネジ 1 9 2151013 [2101040] Presser Foot Lifter Lever 押エ揚ゲレバー 1 10 2111011 Oil Cooling Fan Magnet Unit ファンマグネット(組) 1 11 1200095 Rotation Detector Unit ホールIC(組) 1 12 2101124 Cord Bushing コードブッシュ 1 13-1 0011943 Power Cord(for 100 Voltage) 電源コード(100V用) 1 13-2 0011944 Power Cord(for 200 Voltage) 電源コード(200V用) 1 13-3 0011945 Power Cord(for 220 Voltage) 電源コード(220V用) 1 13-4 0011946 Power Cord(for 380 Voltage) 電源コード(380V用) 1 14 0011709 Control Box Stay 制御ボックススティ 4 15 006905 Wood Screw($ 5.1 × 20) 木ネジ 10 16 0011180 Control Box, Complete Set 制御装置(組) 1 17 0011182 Control Board CH制御基板 1 18 0011974 Voltage Regulator 定電圧IC 1 19 0011183 Power Board CH電源基板 1 20 0011192 Knee Switch, Complete Set 膝スイッチ(組) 1 21 0092232 Knee Switch Holder 膝スイッチ取付板 1 22 0011189 Knee Switch 膝スイッチ 1 23 300031 Washer ワッシャ 4 24 300033 Spring Washer スプリングワッシャ 2 25 100038 Wing Nut チョウナット 2 26 0035722 Cord Bushing コードブッシュ 1 27 2151012 Tension Disc Eyelet Support 糸道取付板 1 28 110106 Screw(M40.7 × 8) 止ネジ 2 29 004265 Tension Post(Short) 糸調子棒(短) 2 jintex.in AZF8000G

Page 64 — SC10 DEVICE

28 SC10 DEVICE AZF8000G jintex.in

Page 65 — SC10 DEVICE

SC10 DEVICE SC10 装置 28 Ref.No Parts No. Description 品名 Amt.Req 1 2151067 Lint Removal Pipe 集塵パイプ 1 2 2151066 Pipe Clamp パイプ固定バンド 2 3 110094 Screw(M4-0.7 × 6) 止ネジ 2 4 2151059 Blowing Hole Screen 吹キ出シ口板 1 5 2151057 Wind Guide Plate(Front) 風案内板(前) 1 6 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 7 2151058 Air Deflector 風調整板 1 jintex.in AZF8000G

Page 66 — EXTRA PARTS(1) for Small Type Presser Foot(小型押工)

29 EXTRA PARTS(1) for Small Type Presser Foot(小型押工) AZF8003G-03, 04, 05 1-1 1-2 1-3 2 3 5 7 6-1 6-2 6-3 9 8 4 10 AZF8020G-Y5, Y6 11-1 11-2 3 2 5 7 12-1 12-2 9 4 8 13 AZF8020G-X4, X5 14-1 14-2 3 2 5 7 15-1 15-2 9 4 8 13 AZF8000G jintex.in

Page 67 — EXTRA PARTS(1)

EXTRA PARTS(1) 特注部品(1) 29 Ref.No Parts No. Description 品名 Amt.Req 1-1 2127250 Presser Foot, C. Set(03) 押工(組) 1 1-2 2127251 Presser Foot, C. Set(04) 押工(組) 1 1-3 2127252 Presser Foot, C. Set(05) 押工(組) 1 2 2127291 Presser Foot Hinge 押工ヒンジ 1 3 004351 Screw(9/64-40 × 7) 止ネジ 1 4 2127290 Presser Foot Spring 押工バネ 1 5 003637 Screw(1/8-44 × 2.5) 止ネジ 1 6-1 2127270 Presser Foot(Lower)(03) 押工(下) 1 6-2 2127271 Presser Foot(Lower)(04) 押工(下) 1 6-3 2127272 Presser Foot(Lower)(05) 押工(下) 1 7 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 8 0026142 Presser Foot Chain Shield 空糸押工 1 9 004237 Screw(3/32-56 × 2.6) 止ネジ 1 10 2129094 Top Feed Dog 上送り 1 11-1 2127253 Presser Foot, C. Set(Y5) 押工(組) 1 11-2 2127254 Presser Foot, C. Set(Y6) 押工(組) 1 12-1 2127273 Presser Foot(Lower)(Y5) 押工(下) 1 12-2 2127274 Presser Foot(Lower)(Y6) 押工(下) 1 13 2129095 Top Feed Dog 上送り 1 14-1 2127255 Presser Foot, C. Set(X4) 押工(組) 1 14-2 2127256 Presser Foor, C. Set(X5) 押工(組) 1 15-1 2127275 Presser Foot(Lower)(X4) 押工(下) 1 15-2 2127276 Presser Foot(Lower)(X5) 押工(下) 1 jintex.in AZF8000G

Page 68

30 EXTRA PARTS(2) AZF8025G-Y5-10 for Inserting Reinforce Tape (スピンテープ付け) 1 2 3 5 6 7 4 9 8 11 10 11 12 13 AZF8025G-Y5 for Small Type Presser Foot (小型押工) 14 3 15 5 7 17 16 8 18 AZF8003G-10, AZF8020G-10 (P=1.25) for Angle Type (角メス用) 19 AZF8003G-10, AZF8020G-10 (P=1.25) for Flat Type (平メス用) 20 AZF8000G Jinte.in

Page 69 — EXTRA PARTS(2)

EXTRA PARTS(2) Ref.No Parts No. Description 品 名 Amt.Req 1 0026367 Presser Foot, C. Set(Y5) 押工(組) 1 2 0026139 Presser Foot Hinge 押工ヒンジ 1 3 004351 Screw(9/64-40 × 7) 止ネジ 1 4 0026141 Presser Foot Spring 押工バネ 1 5 003637 Screw(1/8-44 × 2.5) 止ネジ 1 6 0026365 Presser Foot(Lower)(Y5) 押工(下) 1 7 0026140 Presser Foot Hinge Pin 押工ヒンジピン 1 8 0026142 Presser Foot Chain Shield 空糸押工 1 9 004237 Screw(3/32-56 × 2.6) 止ネジ 1 10 0026366 Presser Foot Tape Guide 押工テープガイド 1 11 004237 Screw(3/32-56 × 2.6) 止ネジ 2 12 0026364 Adjusting Tape Guide テープ調節ガイド 1 13 2129081 Top Feed Dog 上送り 1 14 2127258 Presser Foot, C. Set(Y5) 押工(組) 1 15 2127291 Presser Foot Hinge 押工ヒンジ 1 16 2127290 Presser Foot Spring 押工バネ 1 17 2127257 Presser Foot(Lower)(Y5) 押工(下) 1 18 2129095 Top Feed Dog 上送り 1 19 2129077 Top Feed Dog(P=1.25) 上送り 1 20 2129079 Top Feed Dog(P=1.25) 上送り 1 特注部品(2) 30 jintex.in AZF8000G

Page 70

31 Semi-submerged Only 24 25 Fully-submerged Setting 6 17 11 10 11 12 11 10 11 12 18 19 5 13 14 14 15 A 16 21 A 22 23 EXTRA PARTS 26 27 28 29 30 EXTRA PARTS 31 AZF8000G jintex.in

Page 71 — MISCELLANEOUS SUPPORTING BOARD

MISCELLANEOUS SUPPORTING BOARD Ref.No Parts No. Description 受ケ板関係 31 Amt. Req 1 2150212 Belt Cover ベルトカバー 2 110015 Screw(M4-0.7 × 25) 止ネジ 1 2150213 Supplementary Belt Cover ベルト補助カバー 2 110013 Screw(M4-0.7 × 8) 止ネジ 1 2100339 Supporting Board 受ケ板 4 000070 Hanging Nut 吊りナット 4 009861 Hanging Bolt(Semi-submerged only) 吊りボルト(半沈式のみ) 4 2101450 Spacer(15mm) 受ケ板スペーサ 4 2101451 Spacer(5mm)(See the below) 受ケ板スペーサ(下記参照) 8 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 000162 Washer(Semi-submerged) ワッシャ(半沈式) 20 000162 Washer(Full-submerged) ワッシャ(全沈式) 8 000016 Nut(Semi-submerged) ナット(半沈式) 20 000016 Nut(Full-submerged) ナット(全沈式) 1 2100375 Chute(Upper) Support シュー ト(上)取付板 4 005624 Screw(M4-0.7 × 10) 止ネジ 1 2100337 Chute(Upper) シュー ト(上) 1 2100338 Chute(Lower) シュー ト(下) 4 009864 Hanging Bolt(Full-submerged only) 吊りボルト(全沈式のみ) 4 009871 Bolt(Full-submerged only) ボルト(全沈式のみ) 2 0020057 Supporting Board Connector(Full-submerged only)受ケ板支工具(全沈式のみ) 2 0020045 Supporting Board Sleeve(Full-submerged only)受ケ板スリーブ(全沈式のみ) 1 2100336 Supplementary Chute Cover シュー ト補助カバー 1 000538 Washer ワッシャ 1 140011 Wing Bolt(M4-0.7 × 6) チョウボルト 1 2100374 Chip Receiver(Semi-submerged only) 切受ケ(半沈式のみ) 2 350007 Wood Screw(φ 3.5 × 16) 木ネジ 1 0020078 Idler, C. Set(for Left Footing Pedal) アイドラ(組) 1 0020077 Idler Support アイドラ取付板 2 009992 Screw(M4-0.7 × 10) 止ネジ 1 0020076 Idler アイドラ 2 009995 Screw(M3-0.5 × 5) 止ネジ 1 2160018 Timming Gauge タイミングゲージ Note : Not necessary when the thickness of Table is 45mm. (注)テーブルの厚さ45mmのときは不要。

Page 72

32 1-1 19 18 16 17 20 21 23 24 10 27 1-2 15 19 18 17 20 21 23 24 15 27 10 AZF8000G 2 3 7 5 4 7 8 9 10 6 11 35 26 12 13 14 2 7 3 5 4 7 8 9 10 6 11 25 26 12 13 14 19 28 19 15 jintex.in

Page 73 — THREAD STAND

THREAD STAND 糸立台 32 Ref.No Parts No. Description 品 名 Amt. Req 1-1 9620693 Thread Stand, C. Set(3 Spools Type) 糸立台(組)(3本糸用) 1 1-2 9620694 Thread Stand, C. Set(4 Spools Type) 糸立台(組)(4本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Pipe(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 5(6) 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut(M16-1.5) ナット 1 15 9620702 Thread Hanger(2 Spools Type) スレッドハンガ(2本糸用) 4 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 2 17 9620700 Thread Eyelet アイレット 3(4) 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 2(4) 19 911060 Screw(M6-1 × 15) 止ネジ 2(4) 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620663 Thread Guide(3 Spools Type) スレッドガイド(3本糸用) 1 23 9620678 Spool Cushion スプールクッション 3(4) 24 9620679 Spool Pin スプール軸 3(4) 25 9620680 Spool Mat スプールマット 3(4) 26 9620681 Spool Seat Disc 受ケ皿 3(4) 27 930055 Spring Washer スプリングワッシャ 3(4) 28 9620665 Thread Guide(5 Spools Type) スレッドガイド(5本糸用) 1 AZF8000G jintex.in

Page 74

33 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 CAUTION 390140 CAUTION IN OPERATION Do not operate without eye guard and safety devices. Before threading, changing needle, cleaning etc. switch off main switch. 注意 動く部分だけがをする。 安全保護装置をつけて 縫製作業をすること。 電源を切ってから、糸 通し、ボビンや針の交換、 掃除や調整をすること。 390143 操作注意ラベル ▲ DANGER このカバーを開けるときは、 電源スイッチを切った後、 5分たってから開けること。 To open this cover, turn off power supply and wait more than 5 minutes before opening. 390144 DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS 390147 ケガ注意ラベル ▲ CAUTION CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意 CAUTION 390148 高温注意ラベル jintex.in

Page 75 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) jintex.in

Page 76 — AZF8000G Class LIST of MAIN SPARE PARTS(主要部品リスト)

34 AZF8000G Class LIST of MAIN SPARE PARTS(主要部品リスト) Models Main Parts Needle Clamp 針止メ Presser Foot, C. Set 押工(組) Presser Foot Hinge 押工ヒンジ Presser Foot Spring 押工バネ Presser Foot (Lower) 押工(下) AZF8020G-Y5-10(/K2) 2169102 2127240 2127003 2127000 2127260 AZF8020G-Y6-10(/K2) " 2127241 " " 2127261 AZF8000G-04(CH20) 2169102 2127099 2127004 2127001 2127069 AZF8003G-04-10(K2) 2169102 2127245 2127003 2127000 2127265 AZF8003G-04-10/B3 " " " " AZF8020G-X4-10/B3 2169101 2127247 2127003 2127000 2127267 AZF8025G-Y5-10 2169102 2127230 2127003 2127000 2127280 AZF8025G-Y6-10 " 2127231 " " 2127281 AZF8025G-X4-10 2169101 2127232 " " 2127282 AZF8026G-Y5 2169102 2127088 2127003 2127000 2127058 AZF8026G-Y5-10 " 2167005 " " 2167026 AZF8026G-Y6 " 2127089 " " 2127059 jintex.in

Page 77

34 Stitch Plate Differential Feed Dog Main Feed Dog Auxiliary Feed Dog Top Feed Dog Upper Looper Lower Looper 針板 前送り 後送り 小送り 上送り 上ルーパ 下ルーパ 2108004 2109005 2109006 2109067 2129078 2129300 2109347 2108005 2109009 " " " " 2108000 2109000 2109001 2109067 2129012 2129300 2109347 2108003 2109005 2109006 2109067 2129078 2129300 2109347 2108008 2109010 2109011 " " " " 2108013 2109015 2109016 2109067 2129078 2129300 2109347 2108004 2109005 2109006 2109067 2129080 2129300 2109347 2108005 2109009 " " " " 2108006 2109005 " " " " 2108020 2109005 2109006 2109067 2129009 2129300 2109347 " " " 2129078 " " 2108021 2109009 " " 2129009 " " jintex.in

Page 78 — INDEX

35 INDEX AZF8000G Page = 1 Parts No. Page No. Ref. No. Weight(g) 000002 25 39 000009 23 8 000010 2 6 000010 25 50 000012 25 40 000014 4 44 000014 12 35 000014 25 38 000016 31 12 000016 31 12 000035 6 26 000070 31 6 000162 31 11 000162 31 11 000172 17 34 000172 20 6 000172 21 6 000177 4 9 000178 4 7 000280 11 26 000306 25 15 000322 4 26 000322 25 31 000334 17 35 000334 20 8 000334 21 8 000334 23 19 000334 25 52 000335 26 7 000361 24 10 000393 6 45 000419 16 30 000444 2 9 000456 16 41 000487 8 14 000526 5 23 000528 14 38 000533 10 8 000533 17 27 000533 25 9 000535 24 11 000538 11 8 000538 31 22 000550 25 48 000554 11 15 000561 14 39 000567 6 48 000567 16 6 Parts No. Page No. Ref. No. Weight(g) 000600 23 7 000613 25 14 000621 25 12 000623 23 23 000629 12 26 000644 1 5 000644 4 25 000653 4 30 000663 11 12 000665 11 2 000665 17 9 000669 14 6 000669 23 6 000687 10 48 000688 7 27 000690 14 34 000726 1 36 000750 9 11 000755 10 20 000755 22 5 000779 12 31 001049 25 27 001123 1 4 001123 2 36 001175 25 10 001196 17 43 001202 26 10 001203 2 21 001225 17 42 001227 20 14 001227 21 14 001326 25 32 001331 17 37 001331 20 15 001331 20 34 001331 20 39 001331 21 15 001331 21 34 001331 21 39 001331 25 16 001613 26 27 001892 22 29 003636 5 22 003637 1 10 003637 2 23 003637 6 23 Parts No. Page No. Ref. No. Weight(g) 003637 8 39 003637 10 12 003637 11 22 003637 17 14 003637 18 5 003637 19 8 003637 20 26 003637 21 26 003637 24 6 003637 24 21 003637 26 11 003637 29 5 003637 30 5 003638 20 20 003638 21 20 003638 25 29 004097 8 45 004106 10 7 004106 17 45 004131 22 10 004139 22 11 004150 17 33 004150 20 7 004150 21 7 004205 24 7 004236 22 14 004236 26 4 004237 8 43 004237 18 9 004237 19 12 004237 20 30 004237 21 30 004237 22 7 004237 24 25 004237 26 24 004237 29 9 004237 30 9 004237 30 11 004265 27 29 004351 8 37 004351 11 25 004351 17 12 004351 18 3 004351 19 6 004351 20 24 004351 21 24 004351 24 19 jintex.in

Page 79 — INDEX

AZF8000G INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 004351 29 3 004351 30 3 004353 25 6 004353 27 4 004358 25 25 004404 22 8 004406 25 35 004440 26 33 005000 25 18 005000 26 22 005036 17 26 005036 20 11 005036 21 11 005036 26 5 005038 25 42 005040 23 15 005049 11 14 005075 1 30 005345 6 31 005505 23 20 005512 27 8 005550 9 30 005550 10 3 005550 25 20 005585 25 26 005587 27 7 005588 25 44 005588 26 14 005589 25 11 005591 26 30 005624 31 14 006035 4 24 006444 17 48 006816 1 22 006820 26 8 006861 16 29 006905 23 10 006905 27 15 007006 17 28 007606 25 37 007609 26 19 007619 17 46 007623 22 21 009150 25 2 Parts No. Page No. Ref. No. Weight(g) 009604 9 9 009624 17 31 009747 10 62 009814 23 31 009861 31 7 009864 31 17 009871 31 18 009931 25 47 009960 23 5 009992 31 28 009995 31 30 0010052 23 22 0010112 23 24 0010263 23 11 0010290 23 25 0010310 23 26 0011180 27 16 0011182 27 17 0011183 27 19 0011189 27 22 0011190 25 19 0011191 25 36 0011192 27 20 0011709 27 14 0011943 27 13-1 0011944 27 13-2 0011945 27 13-3 0011946 27 13-4 0011974 27 18 0011987 23 30 0020004 1 15 0020005 1 16 0020016 2 22 0020045 31 20 0020051 3 27 0020057 31 19 0020064 31 10 0020076 31 29 0020077 31 27 0020078 31 26 0020118 4 6 0020137 1 29 0020218 3 26 0020271 8 44 0020350 11 16 Parts No. Page No. Ref. No. Weight(g) 0020350 14 44 0020401 15 18 0020491 17 2 0020496 7 13 0020538 14 36 0020538 16 44 0020538 25 51 0021450 22 30 0021451 22 26 0021456 22 28 0021457 22 27 0022215 4 46 0022435 17 40 0022435 20 12 0022435 21 12 0022436 17 41 0022436 20 13 0022436 21 13 0022443 17 47 0022444 17 49 0022445 17 32 0022446 17 36 0022447 17 38 0022447 20 9 0022447 21 9 0022448 17 39 0022448 20 10 0022448 21 10 0022963 20 19 0022963 21 19 0022981 20 17 0022981 21 17 0022982 20 21 0022982 21 21 0023169 24 5 0023182 24 9-1 0023184 24 4 0023234 10 16 0023473 15 26 0023700 25 46 0023703 26 32 0023705 26 18 0023707 26 17 0023708 26 20 0023709 26 23 jintex.in

Page 80 — INDEX

AZF8000G INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 0023710 26 25 0023711 25 24 0023712 25 43 0023713 25 45 0023714 25 1 0023715 25 7 0023717 25 30 0023718 25 41 0023720 27 5 0023722 25 34 0023723 25 28 0023724 26 16 0023725 25 13 0023726 25 3 0023734 27 3 0023737 26 21 0023739 26 2-2 0023740 26 1-2 0023741 26 3-2 0023744 26 6 0023747 26 15 0023750 25 4 0023756 26 26 0023763 25 5 0023767 26 34 0023768 26 35 0023769 25 8 0023779 25 49 0024083 4 4 0024084 4 3 0024095 2 25 0024130 19 1 0024156 4 14 0024157 4 5 0024302 10 22 0024308 24 8 0024446 2 20 0026075 10 9 0026081 9 21 0026081 10 11 0026099 9 23 0026139 30 2 0026140 8 41 0026140 17 16 0026140 18 7 0026140 19 10 Parts No. Page No. Ref. No. Weight(g) 0026140 20 28 0026140 24 23 0026140 29 7 0026140 30 7 0026141 30 4 0026142 8 42 0026142 18 8 0026142 19 13 0026142 20 29 0026142 21 29 0026142 24 24 0026142 29 8 0026142 30 8 0026198 20 33-1 0026199 20 33-5 0026199 21 33-5 0026225 20 33-2 0026225 21 33-2 0026226 20 33-6 0026226 21 33-6 0026227 20 33-4 0026227 21 33-4 0026228 20 33-8 0026228 21 33-8 0026236 20 33-7 0026236 21 33-7 0026237 20 33-3 0026237 21 33-3 0026238 20 35 0026238 21 35 0026239 20 1 0026239 21 1 0026240 20 5 0026240 21 5 0026241 20 4 0026241 21 4 0026242 20 2 0026242 21 2 0026243 20 3 0026243 21 3 0026246 20 36 0026246 21 36 0026250 20 38 0026250 21 38 0026251 20 37 0026251 21 37 0026364 30 12 0026365 30 6 Parts No. Page No. Ref. No. Weight(g) 0026366 19 11 0026366 30 10 0026367 30 1 0026413 9 22 0026418 10 38 0026427 11 18 0026428 11 20 0026429 11 24 0026430 11 19 0026431 11 28 0026434 11 17 0026438 11 21 0026470 25 17 0030748 16 27 0031111 4 8 0031831 16 9 0032604 6 34 0032646 9 8 0032879 1 23 0032919 7 24 0032952 4 12 0032962 4 11 0032971 4 13 0033024 3 14 0033024 9 25 0033104 9 29 0033104 10 2 0033627 1 24 0033711 24 9-2 0033935 23 18 0033936 23 17 0033937 23 16 0033938 23 14 0033939 23 2 0033940 23 27 0034293 14 49 0034867 17 25 0035722 27 26 0036111 25 21 0036132 25 22 0036161 26 9 jintex.in

Page 81 — INDEX

AZF8000G INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 0036905 24 14 0060248 25 58 0060297 17 51 0060297 18 11 0060297 24 31 0063612 25 33 0068202 14 29 0068206 11 23 0068517 3 15 0080503 16 26 0081848 24 16 0092232 27 21 0093303 4 37 0093303 5 42 0093323 10 1 0093864 7 16 0094491 25 23 0095027 14 8 100000 14 40 100001 1 13 100001 8 23 100001 10 55 100001 11 13 100002 14 5 100029 11 11 100038 27 25 100073 8 2 100074 10 52 110001 4 22 110001 6 29 110001 7 21 110001 28 6 110002 6 36 110002 10 24 110002 12 36 110003 2 28 110004 10 47 Parts No. Page No. Ref. No. Weight(g) 110004 15 3 110006 6 18 110008 8 8 110009 4 36 110009 6 27 110009 11 6 110009 12 12 110009 13 14 110009 20 18 110009 21 18 110009 24 15 110011 6 33 110012 1 12 110012 2 11 110012 3 9 110012 7 18 110012 10 43 110012 19 2 110013 1 33 110013 2 2 110013 2 3 110013 3 7 110013 4 2 110013 4 20 110013 6 46 110013 11 3 110013 27 2 110013 31 4 110015 31 2 110016 1 18 110016 14 43 110017 14 45 110023 8 48 110026 4 45 110026 15 33 110031 1 14 110033 14 26 110035 4 40 110035 7 12 110035 10 45 110035 11 9 110036 5 13 110036 13 17 110036 17 8 110042 22 32 110044 24 12 110045 1 6 110045 2 34 Parts No. Page No. Ref. No. Weight(g) 110045 2 42 110045 16 32 110046 7 26 110047 17 50 110047 20 16 110047 21 16 110048 3 3 110050 10 34 110053 16 45 110054 2 32 110062 7 15 110064 3 19 110064 11 29 110064 15 2 110065 8 22 110065 25 53 110068 22 23 110070 15 24 110071 12 17 110073 4 29 110076 2 8 110094 28 3 110106 2 15 110106 27 28 120001 9 2 120006 6 6 120006 7 6 120006 9 7 120006 12 5 120006 13 5 120006 14 2 120010 8 17 120011 9 27 120013 9 15 120013 10 6 120013 12 32 120017 1 28 120017 8 20 120017 8 29 120049 6 2 120049 7 2 120049 12 2 120049 13 2 120049 16 4 130001 12 16 130002 15 15 jintex.in

Page 82 — INDEX

AZF8000G INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) 130003 3 25 130003 15 35 140000 14 17 140001 14 11 140002 13 12 140003 6 13 140004 12 21 140011 31 23 140012 17 5 140014 7 30 140032 10 56 150004 3 10 160001 1 8 16001 5 4 160001 8 34 160001 9 19 160001 12 10 160001 14 33 160001 15 12 160001 16 3 160001 25 56 160002 6 4 160002 7 4 160002 12 23 160003 6 8 160003 7 8 160003 13 8 160003 15 29 160007 5 2 160007 8 26 160007 9 5 160007 14 21 160007 15 10 160016 6 19 160027 5 14 170032 2 5 170041 10 58 170045 8 11 170047 8 15 170048 10 59 170049 4 34 180002 15 23 180003 15 28 Parts No. Page No. Ref. No. Weight(g) 180014 13 18 190001 14 41 190015 2 13 190016 4 10 190039 11 10 190081 10 53 190088 8 1 210009 12 30 270001 22 25 280000 25 54 300000 14 4 300004 1 27 300008 6 12 300008 12 20 300008 13 11 300031 27 23 300033 27 24 300043 1 34 300106 13 19 310001 6 42 310005 6 40 310017 22 4 310046 9 33 310046 10 37 310047 10 15 310054 10 31 310065 12 28 310068 10 21 310069 10 19 310073 16 20 310081 16 48 310089 6 16 310089 12 24 310090 16 42 310105 4 18 310109 5 25 320008 6 47 320008 16 11 320009 16 23 320012 16 49 Parts No. Page No. Ref. No. Weight(g) 330000 3 17 330008 3 16 330008 9 12 330009 9 4 340050 8 6 350007 31 25 390165 2 17 390166 2 18 390170 2 16 910000 32 10 910001 32 7 910003 32 14 911001 32 6 911002 32 5 911006 32 9 911060 32 19 930052 32 12 930053 32 13 930055 32 27 1090133 23 21 1094011 23 3 1096000 23 12 1096004 23 28 1096005 23 29 1097000 23 4 1097001 23 9 1200006 27 1 1200095 27 11 1200182 26 12 1298000 23 13 2020048 11 27 2049401 1 35 2100006 1 1 jintex.in

Page 83 — INDEX

AZF8000G INDEX Page =6 Parts No. Page No. Ref. No. Weight(g) 2100009 7 22 2100011 1 7 2100012 1 9 2100014 1 3 2100024 2 24 2100032 16 43 2100037 3 21 2100047 3 4 2100050 17 17 2100052 17 19 2100053 1 17 2100088 12 3 2100088 13 3 2100098 5 34 2100111 5 12 2100117 5 19 2100136 6 11 2100137 6 7 2100138 6 14 2100144 6 3 2100145 6 32 2100152 6 39 2100160 7 1 2100161 7 7 2100161 12 9 2100161 13 7 2100162 7 5 2100164 7 11 2100165 7 10 2100166 7 25 2100167 7 28 2100168 7 29 2100173 7 3 2100174 7 19 2100176 6 15 2100197 8 18 2100199 8 33 2100211 13 10 2100215 13 1 2100219 13 9 2100227 12 15 2100229 4 38 2100241 14 14 2100242 14 13 2100243 14 15 2100244 14 16 2100248 14 9 2100249 14 10 Parts No. Page No. Ref. No. Weight(g) 2100251 14 3 2100252 14 28 2100253 14 30 2100256 14 35 2100257 14 46 2100259 14 48 2100262 14 31 2100263 14 37 2100264 14 47 2100266 14 12 2100267 14 32 2100269 14 27 2100271 14 42 2100272 5 29 2100275 15 21 2100276 15 22 2100277 15 19 2100278 15 20 2100279 15 27 2100280 15 16 2100281 15 14 2100283 15 13 2100284 15 17 2100288 14 20 2100289 15 25 2100318 3 8 2100336 31 21 2100337 31 15 2100338 31 16 2100339 31 5 2100349 17 6 2100353 17 7 2100354 17 4 2100363 16 2 2100369 16 14 2100374 31 24 2100375 31 13 2100385 17 1 2100502 6 28 2100518 8 19 2100533 6 41 2100534 2 27 2100535 6 43 2100536 6 44 2100538 2 19 2100580 8 5 2100602 15 11 2100642 5 36 Parts No. Page No. Ref. No. Weight(g) 2100642 6 20 2100671 14 22 2100672 14 23 2100673 14 24 2100674 14 25 2100854 12 33 2100856 2 31 2100861 3 13 2100864 1 20 2100865 15 1 2100866 15 4 2100867 15 5 2100868 15 8 2100869 15 6 2100870 15 7 2100872 5 15 2100873 3 23 2100874 3 24 2100875 1 26 2100892 12 27 2100895 16 40 2100896 16 39 2100900 12 1 2100902 13 6 2100903 12 22 2100918 3 20 2100926 16 16 2100927 16 17 2100928 16 18 2100929 16 19 2100935 16 1 2100946 6 5 2100957 16 15 2100958 16 12 2100961 3 11 2101011 22 24 2101020 17 30 2101021 17 29 2101022 17 44 2101026 17 24 2101027 17 23 2101038 25 57 2101050 24 13 2101059 22 31 2101089 12 19 2101124 27 12 2101133 24 2 jintex.in

Page 84 — INDEX

AZF8000G INDEX Page =7 Parts No. Page No. Ref. No. Weight(g) 2101134 24 3 2101390 26 2-1 2101391 26 1-1 2101393 26 3-1 2101394 26 28 2101395 26 29 2101435 17 3 2101450 31 8 2101451 31 9 2108000 17 20 2108003 18 10 2108004 630-1 2108005 630-2 2108006 19 17 2108008 24 26 2108013 24 32 2108020 20 32-1 2108020 21 32-1 2108021 20 32-2 2108021 21 32-2 2109000 17 21 2109001 17 22 2109005 15 30-1 2109006 15 31 2109009 15 30-2 2109010 24 27 2109011 24 28 2109015 24 33 2109016 24 34 2109067 15 32 2109200 6 35 2109201 13 16 2109347 13 15 2109907 24 1 2109932 23 1 2110026 3 6 2110027 3 5 2110181 5 3 2110183 5 6 2110184 5 5 2110252 6 1 2110327 25 55 2111011 27 10 2111051 22 3 Parts No. Page No. Ref. No. Weight(g) 2111055 22 9 2111056 22 13 2111057 22 15 2111058 22 22 2111059 22 12 2111060 22 19 2111061 22 17 2111062 22 16 2111066 22 18 2111067 22 20 2120002 9 13 2120003 9 14 2120004 9 16 2120005 9 17 2120006 9 26 2120007 9 20 2120008 9 28 2120009 9 32 2120014 10 35 2120015 10 39 2120017 10 32 2120018 10 18 2120019 10 14 2120020 10 4 2120021 10 5 2120022 10 10 2120023 10 13 2120026 5 8 2120027 9 1 2120028 9 3 2120029 9 6 2120030 5 37 2120031 9 10 2120032 9 31 2120033 11 5 2120034 11 7 2120035 11 1 2120036 11 4 2120037 10 50 2120038 10 51 2120045 8 28 2120053 2 38 2120055 2 35 2120062 2 33 2120063 3 1 2120067 10 23 2120071 5 40 Parts No. Page No. Ref. No. Weight(g) 2120072 5 43 2120073 5 41 2120074 5 38 2120075 5 39 2120076 5 17 2120082 9 18 2120083 9 24 2120093 10 26 2120095 10 29 2120098 2 41 2120112 10 30 2120130 10 25 2120131 10 17 2120132 10 33 2120136 10 41 2120138 2 39 2120139 2 40 2120141 2 37 2120570 10 40 2120571 10 42 2120572 10 36 2120588 3 2 2121000 22 2 2121001 22 6 2121021 27 6 2127000 8 38 2127000 18 4 2127000 19 7 2127000 20 25 2127000 21 25 2127000 24 20 2127001 17 13 2127003 8 36 2127003 18 2 2127003 19 5 2127003 20 23 2127003 21 23 2127003 24 18 2127004 17 11 2127058 20 27-1 2127059 20 27-2 2127069 17 15 2127088 20 22-1 2127089 20 22-2 2127099 17 10 2127230 19 4-1 jintex.in

Page 85 — INDEX

AZF8000G INDEX Page =8 Parts No. Page No. Ref. No. Weight(g) 2127231 19 4-2 2127232 19 14 2127240 835-1 2127241 835-2 2127245 18 1 2127245 24 17 2127247 24 29 2127250 29 1-1 2127251 29 1-2 2127252 29 1-3 2127253 29 11-1 2127254 29 11-2 2127255 29 14-1 2127256 29 14-2 2127257 30 17 2127258 30 14 2127260 840-1 2127261 840-2 2127265 18 6 2127265 24 22 2127267 24 30 2127270 29 6-1 2127271 29 6-2 2127272 29 6-3 2127273 29 12-1 2127274 29 12-2 2127275 29 15-1 2127276 29 15-2 2127280 19 9-1 2127281 19 9-2 2127282 19 15 2127290 29 4 2127290 30 16 2127291 29 2 2127291 30 15 2129009 20 31 2129012 17 52 2129076 17 53 2129077 30 19 2129078 10 49 2129079 30 20 2129080 19 3 2129081 30 13 2129094 29 10 2129095 29 13 2129095 30 18 2129300 12 29 Parts No. Page No. Ref. No. Weight(g) 2129420 2 29 2150015 1 11 2150017 3 18 2150018 2 4 2150019 7 20 2150020 7 17 2150021 7 23 2150022 3 12 2150023 2 10 2150024 2 12 2150025 2 14 2150026 1 19 2150027 4 35 2150030 4 16 2150031 4 17 2150032 4 19 2150035 6 37 2150038 5 10 2150039 5 16 2150040 5 24 2150041 5 26 2150042 5 32 2150043 5 18 2150044 5 30 2150045 5 31 2150046 5 27 2150047 5 28 2150048 5 21 2150049 5 20 2150050 5 35 2150052 6 9 2150053 6 10 2150057 6 24 2150058 6 25 2150059 6 17 2150060 7 9 2150063 15 9 2150064 14 1 2150065 14 18 2150066 14 19 2150067 15 34 2150069 3 22 2150069 5 33 2150070 12 6 2150075 12 8 2150075 14 7 2150076 13 4 Parts No. Page No. Ref. No. Weight(g) 2150079 12 37 2150080 12 25 2150084 12 14 2150086 12 13 2150091 12 18 2150096 5 9 2150100 5 11 2150102 16 28 2150111 4 31 2150112 4 32 2150114 4 27 2150115 4 23 2150116 4 15 2150117 12 34 2150118 13 13 2150119 4 39 2150120 4 42 2150121 4 43 2150123 4 41 2150124 4 21 2150125 2 7 2150130 12 11 2150132 4 33 2150139 8 24 2150142 8 16 2150145 8 4 2150150 6 49 2150154 8 13 2150201 16 7 2150202 16 21 2150206 16 10 2150207 16 22 2150210 1 2 2150211 17 18 2150212 31 1 2150213 31 3 2150214 5 1 2150709 8 3 2150710 16 24 2150713 16 25 2151000 22 33 2151012 27 27 2151013 27 9 2151054 1 21 2151055 2 26 2151056 1 32 2151057 28 5 jintex.in

Page 86 — INDEX

AZF8000G INDEX Page =9 Parts No. Page No. Ref. No. Weight(g) 2151058 28 7 2151059 28 4 2151066 28 2 2151067 28 1 2160014 2 1 2160015 10 44 2160016 10 46 2160018 31 31 2160019 4 28 2160026 10 60 2160027 10 61 2160028 10 54 2160029 8 30 2160030 8 32 2160031 8 31 2160032 8 25 2160033 8 21 2160035 16 36 2160040 16 37 2160045 16 46 2160046 16 47 2160050 12 4 2160051 12 7 2160055 8 9 2160056 10 57 2160057 8 7 2160058 8 10 2160059 8 46 2160063 8 47 2160122 4 1 2167005 21 22-1 2167006 21 22-2 2167026 21 27-1 2167030 21 27-2 2169101 19 16 2169102 6 21 2169900 22 1 3100060 16 31 3100061 16 33 3100104 8 27 3100131 5 7 3100329 16 35 3100345 16 34 3100370 6 38 Parts No. Page No. Ref. No. Weight(g) 3100370 16 8 3100371 16 13 9620631 32 2 9620663 32 22 9620665 32 28 9620670 32 3 9620673 32 8 9620675 32 11 9620678 32 23 9620679 32 24 9620680 32 25 9620681 32 26 9620688 32 18 9620689 32 4 9620690 32 21 9620691 32 20 9620693 32 1-1 9620694 32 1-2 9620700 32 17 9620702 32 15 9620703 32 16 Parts No. Page No. Ref. No. Weight(g) jintex.in

Page 87 — INDEX

AZF8000G INDEX Page = 10 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g)

Page 88

Yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO., LTD. P/N 9710063(P) No. 2 Edited in 2003.10 (AZF8000G) Printed in Japan 2003.10.3H jintex.in
