Yamato CF2300M — Part Book

Yamato CF2300M — parts catalog

Page 1 (cover): This is the cover page for the Yamato CF2300M and CF2303M Flat Bed Chainstitch Machine Parts Number List.
Page 2 (diagram): This page displays a diagram of sewing machine components, with numbered parts and their corresponding references. It includes parts like screws, plates, and covers, with some parts labeled with model information.
Page 5 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities for various sewing machine components.
Page 7 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities. It lists parts from 1 to 52.
Page 8 (diagram): This page displays a diagram of various sewing machine components, with numbered parts indicated for reference.
Page 10 (diagram): This page displays a diagram of various sewing machine components, including shafts, pulleys, brackets, and screws, with reference numbers for each part.
Page 11 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities required for various sewing machine components.
Page 12 (diagram): This page displays a diagram of various machine components, including gears, shafts, belts, and fasteners, with reference numbers for each part.
Page 13 (parts_list): This page lists parts with reference numbers, part numbers, and quantities. It includes parts numbered from 1 to 40.
Page 14 (diagram): This page displays a diagram of various sewing machine parts, including needle components, presser feet, and other miscellaneous parts, with corresponding reference numbers and part details.
Page 15 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts from 1 to 42-3.
Page 16 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, levers, and needle components, with corresponding reference numbers.
Page 17 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities. It includes parts numbered from 1 to 48.
Page 18 (diagram): This page contains a diagram of various machine components, including a bearing assembly, levers, rods, and fasteners, with reference numbers for each part.
Page 19 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities required. It lists parts from reference number 1 to 26.
Page 20 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, shafts, and levers, with reference numbers for each part.
Page 21 (parts_list): This page contains a parts list for sewing machine components, with columns for reference number, part number, and quantity required. It lists parts from reference number 1 to 39.
Page 22 (diagram): This page displays a diagram of various sewing machine components, with parts numbered from 1 to 50, illustrating their assembly and relationships.
Page 23 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities required for various components.
Page 24 (diagram): This page displays a diagram of various sewing machine components, including screws, shafts, gears, and mounting plates, with corresponding reference numbers for identification.
Page 25 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities for various machine components, spanning from reference number 1 to 40.
Page 26 (diagram): This page displays a diagram of various machine components, including a pump assembly, linkages, and fasteners, with corresponding reference numbers for identification.
Page 27 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities. It lists parts from reference number 1 to 43.
Page 28 (diagram): This page displays a diagram of machine parts, including various components labeled with reference numbers and types P, Q, and R. It also shows a part number CF2303M (1).
Page 29 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities required for various components.
Page 30 (diagram): This page displays diagrams of sewing machine parts, including a presser foot assembly, needle plate, and other components, with associated part numbers and reference indicators.

Page 1 — Parts Number List

Yamato Parts Number List FLAT BED CHAINSTITCH MACHINE CF2300M class MODELS CF2300M CF2303M 本零件号码列表以CF2300M-1 □□为基本型式描图。如果需要订货,请告知 PARTS NO. (零件号码) (例:6100247) ☆隔距标注在图上 REF. NO. 后 (例:4-1 (3.2 ~ 5.6) 表示 REF. NO. 4-1 对应针距 3.2, 4.0, 4.8, 5.6 各隔距) ☆关于EXTRA 零件,标注在图上 REF. NO. 后 (EXTRA) (例:37-2(EXTRA))。本零件号码列表之记载事项,如有改良随时更改。以实际产品为准,恕不另行通知。 P/N 6810005(P From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2

Yamato CF2300M parts on page 2
Ref	Part number	Part name
14	14	Screw
15	15	Washer
15	15	Washer
17	17	Screw
11	11	Plate
12	12	Gasket
2	2	Screw
20	20	Nut
18	18	Roller
19	19	Screw
13	13	Cover
2	2	Screw
7	7	Cover
8	8	Gasket
9	9	Screw
27	27	Screw
26	26	Screw
25	25	Screw
24	24	Screw
3	3	Plate
5	5	Cap
4	4	Knob
21	21	Screw
22	22	Screw
1	1	Cover
29	29	Screw
30	30	Screw
33	33	Tube
32	32	Screw
32	32	Screw
32	32	Screw
35	35	Washer
36	36	Screw
34	34	Base
16	16	Shaft

1 2 14 15 15 17 11 12 2 20 18 19 13 2 7 8 CF 9 27 26 25 24 3 5 21 22 4 Yamato 32 29 Yamato 2300M 33 32 35 36 34 30 32 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 5

Yamato CF2300M parts on page 5
Ref	Part number	Qty
1	61 000006	1
2	009749	3
3	009747	1
4-1	61 00033	1
4-2	61 00034	1
5	006004	1
6	61 00330	1
7	61 00035	1
8	1 10030	2
9	61 01 052	1
10	130003	1
11	130004	1
12	61 00055	1
13	110013	9
14	110079	2
15	61 00036	1
16	61 00037	1
17	00761 0	8
18	130006	2
19	61 00861	1
20	61 00859	1
21	000538	2
22	110031	2
23	61 00331	1
24	61 00332	1
25	61 00333	1
26	61 00043	1
27	61 0001 7	6
28	61 00621	1
29	61 00046	1
30	61 00047	1
31	61 00048	1
32	61 00334	1
33	1 10048	3
34	61 00038	1
36	61 0049	1
37	110009	2
38	61 00335	2
39	61 00050	1
40	61 00053	1
41	61 00001	1
42	110016	2
43 -1	61 01 050	1
43 -2	61 01 053	1
44	170020	1
45	3001 00	2
46	1 60001	1
47	18001 7	1
48	61 00021	2
49	61 00054	1
50	110012	2
51	18001 8	1
52	61 00336	1
53	61 01 040	1
54	130002	2
55	61 01 041	1
56	61 00859	1
57	61 00860	1
58	0041 82	1
59	61 00861	1
60	000538	2
61	110031	2

Ref. No. Parts No. Amt Req. 1 61 000006 1 2 009749 3 3 009747 1 4-1 61 00033 1 4-2 61 00034 1 5 006004 1 6 61 00330 1 7 61 00035 1 8 1 10030 2 9 61 01 052 1 10 130003 1 11 130004 1 12 61 00055 1 13 110013 9 14 110079 2 15 61 00036 1 16 61 00037 1 17 00761 0 8 18 130006 2 19 61 00861 1 20 61 00859 1 Ref. No. Parts No. Amt Req. 21 000538 2 22 110031 2 23 61 00331 1 24 61 00332 1 25 61 00333 1 26 61 00043 1 27 61 0001 7 6 28 61 00621 1 29 61 00046 1 30 61 00047 1 31 61 00048 1 32 61 00334 1 33 1 10048 3 34 61 00038 1 35 1 36 61 0049 1 37 110009 2 38 61 00335 2 39 61 00050 1 40 61 00053 1 Ref. No. Parts No. Amt Req. 41 61 00001 1 42 110016 2 43 -1 61 01 050 1 43 -2 61 01 053 1 44 170020 1 45 3001 00 2 46 1 60001 1 47 18001 7 1 48 61 00021 2 49 61 00054 1 50 110012 2 51 18001 8 1 52 61 00336 1 53 61 01 040 1 54 130002 2 55 61 01 041 1 56 61 00859 1 57 61 00860 1 58 0041 82 1 59 61 00861 1 60 000538 2 61 110031 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7

Yamato CF2300M parts on page 7
Ref	Part number	Part name	Qty
1	6100056	6100056	5
2	6100057	6100057	5
3	6100058	6100058	3
4	6100059	6100059	2
5	6100060	6100060	5
6	000177	000177	5
7	6100062	6100062	10
8	290029	290029	5
9	6100064	6100064	5
10	6100065	6100065	1
11	6100066	6100066	5
12	6100067	6100067	5
13	6100068	6100068	1
14	110013	110013	6
15	6100069	6100069	1
17	6100070	6100070	1
18	6100071	6100071	1
19	110009	110009	6
20	6100072	6100072	1
21	6100073	6100073	2
22	6100074	6100074	2
23	000532	000532	2
24	004353	004353	2
25	6100075	6100075	1
26	6100076	6100076	1
27	000538	000538	2
28	6100340	6100340	1
30	6100088	6100088	1
31	6100077	6100077	1
32	6100341	6100341	2
33	6100078	6100078	1
34	6100079	6100079	1
35	350009	350009	2
37	6100080	6100080	1
39	6100081	6100081	1
40	130003	130003	1
46	6100083	6100083	1
47	6100084	6100084	1
48	6100085	6100085	1
49	6100086	6100086	2
50	6100087	6100087	1
51	000360	000360	1
52	6100082	6100082	1

Ref. No. Parts No. Amt Req. 1 6100056 5 2 6100057 5 3 6100058 3 4 6100059 2 5 6100060 5 6 000177 5 7 6100062 10 8 290029 5 9 6100064 5 10 6100065 1 11 6100066 5 12 6100067 5 13 6100068 1 14 110013 6 15 6100069 1 16 17 6100070 1 18 6100071 1 19 110009 6 20 6100072 1 Ref. No. Parts No. Amt Req. 21 6100073 2 22 6100074 2 23 000532 2 24 004353 2 25 6100075 1 26 6100076 1 27 000538 2 28 6100340 1 29 30 6100088 1 31 6100077 1 32 6100341 2 33 6100078 1 34 6100079 1 35 350009 2 36 37 6100080 1 38 39 6100081 1 40 130003 1 Ref. No. Parts No. Amt Req. 41 42 43 44 45 46 6100083 1 47 6100084 1 48 6100085 1 49 6100086 2 50 6100087 1 51 000360 1 52 6100082 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 8

Yamato CF2300M parts on page 8
Ref	Part number	Part name
1	1	1
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41

4 41 3 30 6 27 28 25 20 29 22 1 26 23 24 10 12 11 5 13 14 15 16 17 18 19 32 33 40 39 36 38 37 35 34 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10

Yamato CF2300M parts on page 10
Ref	Part number	Part name
1	1	PULLEY
2	2	SCREW
3	3	SCREW
6	6	PULLEY
7	7	PULLEY
8	8	PULLEY
9	9	COLLAR
10	10	COLLAR
11	11	PULLEY
12	12	SHAFT
13	13	COLLAR
14	14	COVER
15	15	SCREW
16	16	PULLEY
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	COLLAR
21	21	COLLAR
22	22	SCREW
23	23	SCREW
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	CLAMP
28	28	SCREW
29	29	SHAFT
30	30	COLLAR
31	31	COLLAR
32	32	PULLEY
33	33	WASHER
34	34	NUT
35	35	COLLAR
36	36	COLLAR
37-1	37-1	BRACKET
37-2	37-2	(EXTRA)
38	38	SCREW
39	39	BRACKET
40	40	SCREW
41	41	BRACKET
42	42	SCREW
43	43	BRACKET
44	44	SCREW
46	46	BRACKET
47	47	BRACKET
48	48	SCREW
49	49	COLLAR
50	50	BRACKET
51	51	COLLAR
52	52	COLLAR
53	53	SCREW
54	54	BRACKET
55	55	SCREW
56	56	COLLAR
57	57	COLLAR
58	58	SCREW
59	59	SCREW

5 1 2 6 3 7 3 2 8 9 3 10 11 12 13 2 A 48 47 46 43 49 40 39 42 29 30 31 32 37-1 37-2(EXTRA) 27 28 36 38 53 52 51 50 58 51 57 56 54 55 17 18 19 20 21 22 23 24 25 26 26 33 34 35 From the library of: Superior Sewing Machine & Supply LLC Jjtex.in

Page 11

Yamato CF2300M parts on page 11
Ref	Part number	Qty
1	6100122	1
2	160005	5
3	160007	9
6	6100123	1
7	6100124	1
8	6100125	1
9	6100126	1
10	6100127	1
11	6100128	1
12	6100129	1
13	6100130	1
14	6100131	1
15	008047	2
16	6100132	1
17	6100133	1
18	6100134	1
19	6100135	1
20	110005	2
21	6100136	1
22	160003	2
23	6100137	1
24	6100138	1
25	005650	1
26	160000	2
27	6100139	1
28	110036	2
29	6100140	1
30	310035	1
31	160001	2
32	6100142	1
33	6100343	1
34	6100143	1
35	6100145	1
36	6100146	1
37-1	6109201	1
37-2	6109200	1
38	110083	1
39	6100147	1
40	110048	2
41	6100148	1
42	110009	1
43	6100149	1
44	130002	2
46	6100150	2
47	000014	2
48	001227	2
49	6100071	1
50	001818	1
51	6100086	2
52	6100087	1
53	000360	1
54	6100152	1
55	001223	1
56	6100153	1
57	000532	1
58	004106	1
59	160030	2

Ref. No. Parts No. Amt. Req. Ref. No. Parts No. Amt. Req. Ref. No. Parts No. Amt. Req. 1 6100122 1 21 6100136 1 41 6100148 1 2 160005 5 22 160003 2 42 110009 1 3 160007 9 23 6100137 1 43 6100149 1 4 24 6100138 1 44 130002 2 5 25 005650 1 45 6 6100123 1 26 160000 2 46 6100150 2 7 6100124 1 27 6100139 1 47 000014 2 8 6100125 1 28 110036 2 48 001227 2 9 6100126 1 29 6100140 1 49 6100071 1 10 6100127 1 30 310035 1 50 001818 1 11 6100128 1 31 160001 2 51 6100086 2 12 6100129 1 32 6100142 1 52 6100087 1 13 6100130 1 33 6100343 1 53 000360 1 14 6100131 1 34 6100143 1 54 6100152 1 15 008047 2 35 6100145 1 55 001223 1 16 6100132 1 36 6100146 1 56 6100153 1 17 6100133 1 37-1 6109201 1 57 000532 1 18 6100134 1 37-2 6109200 1 58 004106 1 19 6100135 1 38 110083 1 59 160030 2 20 110005 2 39 6100147 1 40 110048 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 12

Yamato CF2300M parts on page 12
Ref	Part number	Part name	Qty
	1	GEAR
	2	PULLEY
	3	SCREW
	4	WASHER
	5	BEARING
	6	COVER
	7	BELT
	8	GEAR
	9	SHAFT
	10	COUPLING
	11	CAM
	12	SCREW
	13	SHAFT
	18	PULLEY
	19	BEARING
	20	WASHER
	21	SCREW
	23	BRACKET
	24	BRACKET
	25	SCREW
	26	BRACKET
	27	SCREW
	28	SHAFT
	29	SCREW
	30	SCREW
	31	WASHER
	32	WASHER
	33	ROD
	34	BRACKET
	35	WASHER
	36	SCREW
	37	BRACKET
	38	BRACKET
	39	SCREW
	40	BRACKET

6 3 4 2 7 8 3 9 10 5 3 13 11 12 21 21 20 18 19 23 24 26 27 25 29 28 30 31 32 33 34 35 36 40 37 38 39 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13

Yamato CF2300M parts on page 13
Ref	Part number	Qty
1	6100154	1
2	160005	1
3	160007	11
4	6100155	1
5	6100125	2
6	6100127	1
7	6100156	1
8	6100157	1
9	6100158	1
10	6100159	1
11	6100160	1
12	110009	2
13	6100161	1
18	6100162	1
19	6100163	2
20	000926	1
21	160004	2
23	6100165	1
24	005071	2
25	001174	2
26	6100166	1
27	004312	2
28	6100167	1
29	120013	1
30	120015	1
31	000555	1
32	6100168	1
33	6100169	1
34	6100171	1
35	000600	1
36	005650	1
37	6100172	1
38	6100173	1
39	110004	2
40	6100170	1

Ref. No. Parts No. Amt. Req. 1 6100154 1 2 160005 1 3 160007 11 4 6100155 1 5 6100125 2 6 6100127 1 7 6100156 1 8 6100157 1 9 6100158 1 10 6100159 1 11 6100160 1 12 110009 2 13 6100161 1 18 6100162 1 19 6100163 2 20 000926 1 Ref. No. Parts No. Amt. Req. 21 160004 2 22 23 6100165 1 24 005071 2 25 001174 2 26 6100166 1 27 004312 2 28 6100167 1 29 120013 1 30 120015 1 31 000555 1 32 6100168 1 33 6100169 1 34 6100171 1 35 000600 1 36 005650 1 37 6100172 1 38 6100173 1 39 110004 2 40 6100170 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14

Yamato CF2300M parts on page 14
Ref	Part number	Part name
2	2	Screw
1	1	Thread take-up lever
5	5	Lever
6	6	Screw
7-1(4.8)	7-1(4.8)	Screw
7-2(5.6)	7-2(5.6)	Screw
7-3(6.4)	7-3(6.4)	Screw
8	8	Presser foot
9	9	Screw
10	10	Bracket
13-1(4.8M)	13-1(4.8M)	Screw
13-2(5.6M)	13-2(5.6M)	Screw
13-3(6.4M)	13-3(6.4M)	Screw
14	14	Screw
15	15	Arm shaft
16	16	Arm shaft housing
17	17	Screw
18	18	Washer
19	19	Feed dog
20	20	Connecting rod
21	21	Feed dog spring
23	23	Feed dog
24	24	Feed shaft
25	25	Presser bar
26	26	Presser bar guide
27	27	Presser bar
28	28	Screw
29	29	Needle bar
30	30	Presser foot holder
31	31	Presser foot bar
32	32	Screw
33	33	Presser foot
34	34	Presser foot holder
35	35	Screw
36	36	Screw
37	37	Presser foot
38	38	Screw
39	39	Screw
40	40	Screw
41-1(3.2)	41-1(3.2)	Needle
41-2(4.0)	41-2(4.0)	Needle
41-3(4.8)	41-3(4.8)	Needle
42-1(3.2M)	42-1(3.2M)	Needle plate
42-2(4.0M)	42-2(4.0M)	Needle plate
42-3(4.8M)	42-3(4.8M)	Needle plate

7 2 1 15 40 16 18 19 23 21 24 20 27 26 25 28 35 6 7-1(4.8) 7-2(5.6) 7-3(6.4) 9 36 37 38 8 14 13-1(4.8M) 13-2(5.6M) 13-3(6.4M) 10 2 Needle 41-1(3.2) 41-2(4.0) 41-3(4.8) 29 32 31 9 34 42-1(3.2M) 42-2(4.0M) 42-3(4.8M) 30 33 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15

Yamato CF2300M parts on page 15
Ref	Part number	Qty
1	6100775	1
2	004358	1
5	6100175	1
6	110035	1
7-1	6109107	1
7-2	6109108	1
7-3	6109109	1
9	001900	3
10	6100176	1
13-1	6108007	1
13-2	6108008	1
13-3	6108009	1
14	009142	2
15	6100777	1
16	6100178	1
17	120015	1
18	6100180	1
19	6100778	1
20	6100443	1
21	6100182	1
23	000321	1
24	6100184	1
25	6100785	1
26	6100186	1
27	6100431	1
28	110010	2
29	6100188	1
30	6100189	1
31	6100190	1
32	6100017	1
33	310036	1
34	6100192	1
35	006219	1
36	6100193	1
37	6100194	1
38	6100195	1
39	001093	1
40	260000	2
41-1	6109100	1
41-2	6109101	1
41-3	6109102	1
42-1	6108000	1
42-2	6108001	1
42-3	6108002	1

Ref. No. Parts No. Amt. Req. 1 6100775 1 2 004358 1 3 4 5 6100175 1 6 110035 1 7-1 6109107 1 7-2 6109108 1 7-3 6109109 1 8 4 9 001900 3 10 6100176 1 11 12 13-1 6108007 1 13-2 6108008 1 13-3 6108009 1 14 009142 2 15 6100777 1 Ref. No. Parts No. Amt. Req. 16 6100178 1 17 120015 1 18 6100180 1 19 6100778 1 20 6100443 1 21 6100182 1 22 23 000321 1 24 6100184 1 25 6100785 1 26 6100186 1 27 6100431 1 28 110010 2 29 6100188 1 30 6100189 1 Ref. No. Parts No. Amt. Req. 31 6100190 1 32 6100017 1 33 310036 1 34 6100192 1 35 006219 1 36 6100193 1 37 6100194 1 38 6100195 1 39 001093 1 40 260000 2 41-1 6109100 1 41-2 6109101 1 41-3 6109102 1 42-1 6108000 1 42-2 6108001 1 42-3 6108002 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16

Yamato CF2300M parts on page 16
Ref	Part number	Part name	Qty
	1	1
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16-1(4.8)	16-1(4.8)
	16-2(5.6)	16-2(5.6)
	16-3(6.4)	16-3(6.4)
	17	17
	18	18
	19	19
	20	20
	21-1(3.2)	21-1(3.2)
	21-2(4.0)	21-2(4.0)
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48

8 1 3 25 4 24 27 26 28 32 31 33 7 8 23 5 27 28 29 34 35 22 23 10 14 15 11 12 13 39 40 38 36 37 42 43 44 16-1(4.8) 16-2(5.6) 16-3(6.4) 17 18 19 20 46 2 Needle 21-1(3.2) 21-2(4.0) 17 18 19 20 45 46 48 47 45 48 47 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17

Yamato CF2300M parts on page 17
Ref	Part number	Qty
1	6100196	1
3	6100197	1
4	6100199	1
5	6100198	1
6	004440	1
7	6100200.	1
8	004441	2
9	6100201	1
10	6100202	1
11	6100203	1
12	6100204	1
13	001459	2
14	6100205	1
15	110002	1
16-1	6307050	1
16-2	6307052	1
16-3	6307054	1
17	110004	1
18	110084	1
19	000327	1
20	260006	1
21-1	6307000	1
21-2	6307002	1
22	6100206	1
23	006038	2
24	6100207	1
25	6100349	1
26	6100208	1
27	6100209	2
28	009604	4
29	6100350	1
31	6100210	1
32	120017	1
33	6100351	2
34	6100352	2
35	6100211	1
36	6100212	1
37	004591	1
38	6100213	1
39	6100214	1
40	004358	2
41	6100215	1
42	005542	1
43	6100216	1
44	6100044	1
45	61007005	1
46	61007006	1
47	6107033	1
48	130016	1

Ref. No. Parts No. Amt. Rep. 1 6100196 1 2 3 6100197 1 4 6100199 1 5 6100198 1 6 004440 1 7 6100200. 1 8 004441 2 9 6100201 1 10 6100202 1 11 6100203 1 12 6100204 1 13 001459 2 14 6100205 1 15 110002 1 Ref. No. Parts No. Amt. Req. 16-1 6307050 1 16-2 6307052 1 16-3 6307054 1 17 110004 1 18 110084 1 19 000327 1 20 260006 1 21-1 6307000 1 21-2 6307002 1 22 6100206 1 23 006038 2 24 6100207 1 25 6100349 1 26 6100208 1 27 6100209 2 28 009604 4 29 6100350 1 30 Ref. No. Parts No. Amt. Req. 31 6100210 1 32 120017 1 33 6100351 2 34 6100352 2 35 6100211 1 36 6100212 1 37 004591 1 38 6100213 1 39 6100214 1 40 004358 2 41 6100215 1 42 005542 1 43 6100216 1 44 6100044 1 45 61007005 1 46 61007006 1 47 6107033 1 48 130016 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18

Yamato CF2300M parts on page 18
Ref	Part number	Part name
1	1	BEARING ASSEMBLY
2	2	COLLAR
3	3	SCREW
4	4	BEARING
5	5	COLLAR
6	6	COLLAR
7	7	SCREW
8	8	WASHER
9	9	SCREW
10	10	WASHER
11	11	NUT
12	12	COLLAR
13	13	SCREW
14	14	BRACKET
15	15	SCREW
16	16	ROD
17	17	LINK
18	18	SCREW
19	19	PIN
20	20	POST
21	21	WASHER
22	22	COLLAR
23	23	SCREW
24	24	LEVER
25	25	ARM
26	26	SCREW

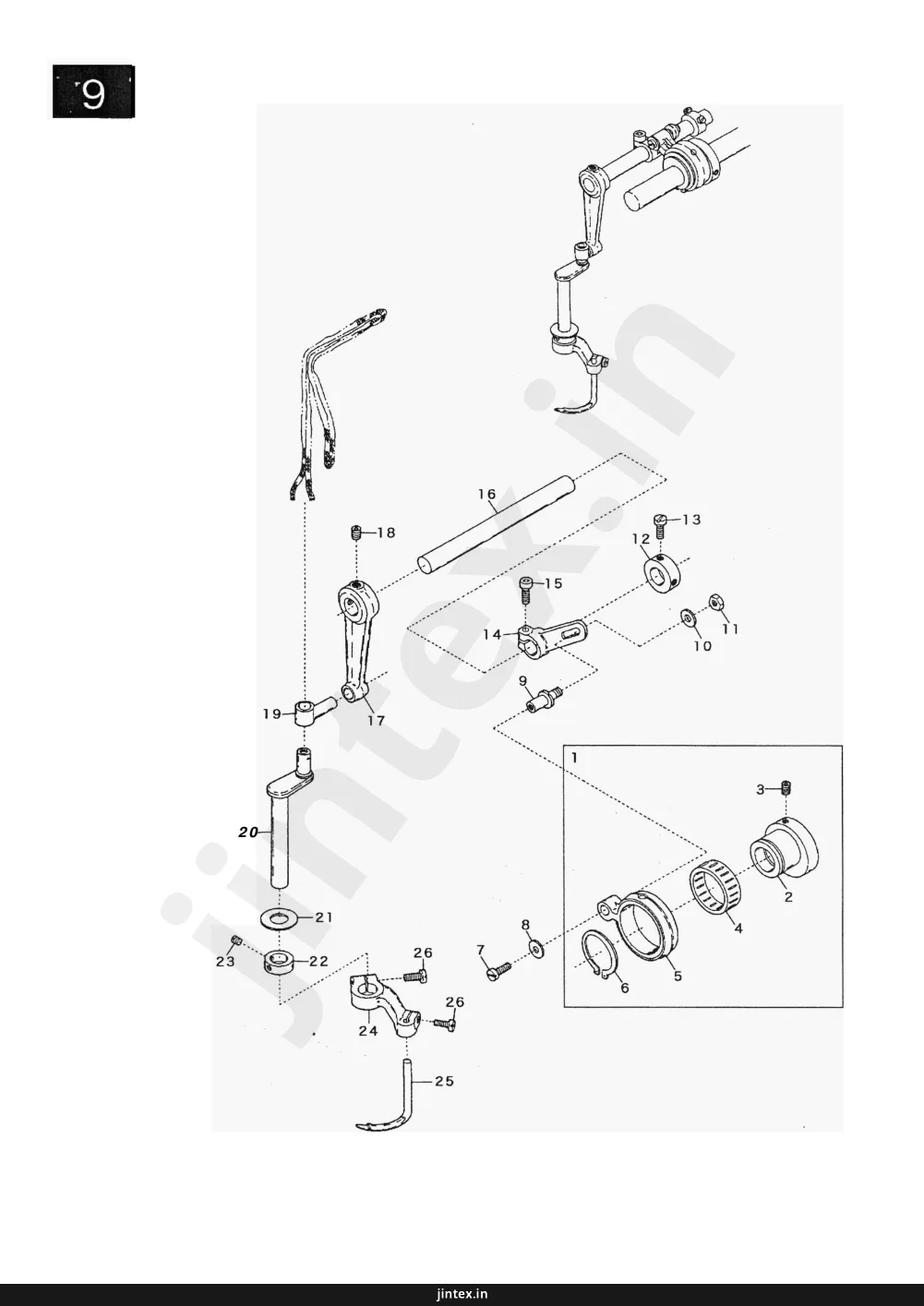

9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 19

Yamato CF2300M parts on page 19
Ref	Part number	Qty
1	6100217	1
2	6100218	1
3	160003	2
4	6100219	1
5	6100220	1
6	6100144	1
7	110009	1
8	300006	1
9	6100379	1
10	000528	1
11	100003	1
12	6100053	1
13	009604	2
14	6100221	1
15	120013	1
16	6100222	1
17	6100224	1
18	160007	2
19	6100355	1
20	6100225	1
21	6100226	1
22	6100227	1
23	009526	2
24	6100228	1
25	3109305	1
26	110031	2

Ref. No. Parts No. Amt. Req 1 6100217 1 2 6100218 1 3 160003 2 4 6100219 1 5 6100220 1 6 6100144 1 7 110009 1 8 300006 1 9 6100379 1 10 000528 1 11 100003 1 12 6100053 1 13 009604 2 14 6100221 1 15 120013 1 16 6100222 1 17 6100224 1 18 160007 2 19 6100355 1 20 6100225 1 Ref. No. Parts No. Amt. Req 21 6100226 1 22 6100227 1 23 009526 2 24 6100228 1 25 3109305 1 26 110031 2 Ref. No. Parts No. Amt Rea. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20

Yamato CF2300M parts on page 20
Ref	Part number	Part name
4	4	SCREW
3	3	BRACKET
5	5	COLLAR
6	6	SCREW
13	13	BRACKET
14	14	SCREW
12	12	SCREW
8	8	WASHER
7	7	SCREW
11	11	SCREW
10	10	SCREW
16	16	SCREW
15	15	BEARING
23	23	BRACKET
4	4	SCREW
24	24	SHAFT
22	22	BRACKET
17	17	SHAFT
19	19	BRACKET
18	18	BRACKET
11	11	SCREW
21	21	BRACKET
31	31	BRACKET
4	4	SCREW
32	32	SHAFT
28	28	PIN
29	29	BRACKET
30	30	SCREW
27	27	BRACKET
26	26	SCREW
25	25	BRACKET
38	38	SCREW
37	37	LEVER
35	35	BRACKET
36	36	SCREW
39	39	SCREW
34	34	SPRING
33	33	BRACKET

10 1 2 4 3 5 6 6 13 14 12 8 7 11 10 16 16 15 23 4 24 22 17 19 18 11 21 31 4 32 28 29 30 27 26 25 38 37 35 36 39 34 33 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 21

Yamato CF2300M parts on page 21
Ref	Part number	Qty
1	61 00229	1
2	61 00230	1
3	61 00231	1
4	120001	5
5	61 00232	1
6	160003	2
7	61 00356	1
8	300000	1
9	100002	1
10	61 00233	1
11	005650	1
12	61 00234	1
13	1 10007	2
14	1 70021	1
15	61 00235	1
16	1 60001	2
17	61 00236	1
18	61 00237	1
19	61 00238	1
21	61 00240	1
22	160009	1
23	61 00241	1
24	61 00380	1
25	009604	1
26	61 00242	1
27	001 457	1
28	61 00358	1
29	61 00243	1
30	160007	2
31	61 00244	1
32	61 00245	1
33	61 00246	1
34	000669	1
35	61 09301	1
36	1 10057	1
37	61 09202	1
38	004263	1
39	009934	1

Ref. No. Parts No. Amt. Req. 1 61 00229 1 2 61 00230 1 3 61 00231 1 4 120001 5 5 61 00232 1 6 160003 2 7 61 00356 1 8 300000 1 9 100002 1 10 61 00233 1 11 005650 1 12 61 00234 1 13 1 10007 2 14 1 70021 1 15 61 00235 1 16 1 60001 2 17 61 00236 1 18 61 00237 1 19 61 00238 1 20 Ref. No. Parts No. Amt. Req. 21 61 00240 1 22 160009 1 23 61 00241 1 24 61 00380 1 25 009604 1 26 61 00242 1 27 001 457 1 28 61 00358 1 29 61 00243 1 30 160007 2 31 61 00244 1 32 61 00245 1 33 61 00246 1 34 000669 1 35 61 09301 1 36 1 10057 1 37 61 09202 1 38 004263 1 39 009934 1 Ref. No. Parts No. Amt. Req. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22

Yamato CF2300M parts on page 22
Ref	Part number	Part name	Qty
	1	ROD
	2	BRACKET
	3	SCREW
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	SCREW
	9	COLLAR
	10	SCREW
	11	BRACKET
	12	BRACKET
	13	SPRING
	14	SCREW
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	SCREW
	20	WASHER
	21	COLLAR
	22	COLLAR
	23	SCREW
	24	COLLAR
	25	COLLAR
	26	SPRING
	27	COLLAR
	28	SCREW
	29	SPRING
	30	SPRING
	31	PIN
	32	SHAFT
	33	BRACKET
	34	BRACKET
	36	BRACKET
	37	SCREW
	38	SCREW
	39	NUT
	40	BRACKET
	41	BRACKET
	42	WASHER
	43	COLLAR
	44	SCREW
	45	SPRING
	46	SHAFT
	47	BRACKET
	48	SPRING
	49	BRACKET
	50	COLLAR

11 1 2 3 12 13 14 15 30 31 28 27 38 29 37 39 40 41 42 43 44 45 46 47 48 49 50 3 4 5 6 7 8 9 10 16 23 20 24 25 26 17 18 19 32 33 34 From the library of: Superior Sewing Machine & Supply LLC Jjtex.in

Page 23

Yamato CF2300M parts on page 23
Ref	Part number	Qty
1	6100247	1
2	6100248	1
3	120006	3
4	6100249	1
5	6100250	1
6	6100251	1
7	6100252	1
8	110033	2
9	6100253	1
10	005000	2
11	6100254	1
12	6100255	1
13	6100343	1
14	6100360	1
15	6100256	1
16	6100257	1
17	6100258	1
18	6100259	1
19	140018	1
20	300000	2
21	6100260	1
22	6100261	1
23	140017	1
24	6100262	1
25	6100263	1
26	6100361	1
27	6100235	1
28	160001	2
29	6100349	1
30	6100264	1
31	6100363	1
32	6100265	1
33	6100266	1
34	110013	1
36	6100267	1
37	110045	2
38	310072	1
39	000210	1
40	005511	1
41	6100269	2
42	000669	2
43	000600	2
44	005049	2
45	310071	1
46	6100364	1
47	6100273	1
48	6100365	1
49	6100275	1
50	6100276	1

Ref. No. Parts No. Amt. Req. 1 6100247 1 2 6100248 1 3 120006 3 4 6100249 1 5 6100250 1 6 6100251 1 7 6100252 1 8 110033 2 9 6100253 1 10 005000 2 11 6100254 1 12 6100255 1 13 6100343 1 14 6100360 1 15 . 6100256 1 16 6100257 1 17 6100258 1 18 6100259 1 19 140018 1 20 300000 2 Ref. No. Parts No. Amt. Req. 21 6100260 1 22 6100261 1 23 140017 1 24 6100262 1 25 6100263 1 26 6100361 1 27 6100235 1 28 160001 2 29 6100349 1 30 6100264 1 31 6100363 1 32 6100265 1 33 6100266 1 34 110013 1 35 36 6100267 1 37 110045 2 38 310072 1 39 000210 1 40 005511 1 Ref. No. Parts No. Amt. Req. 41 6100269 2 42 000669 2 43 000600 2 44 005049 2 45 310071 1 46 6100364 1 47 6100273 1 48 6100365 1 49 6100275 1 50 6100276 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 24

Yamato CF2300M parts on page 24
Ref	Part number	Part name
2	2	SCREW
3	3	BRACKET
4	4	SCREW
7	7	SHAFT
11	11	PLATE
12	12	SCREW
13	13	NUT
14	14	BRACKET
15	15	SHAFT
16	16	SCREW
17	17	COLLAR
18	18	BRACKET
19	19	SCREW
20	20	GEAR
21	21	SHAFT
22	22	PIN
23	23	BRACKET
24	24	SCREW
25	25	SCREW
26	26	BRACKET
27	27	GEAR
28	28	SCREW
	30-1	SCREW
	30-2	SCREW
31	31	SCREW
32	32	BRACKET
33	33	SCREW
34	34	PLATE
35	35	BRACKET
36	36	SCREW
37	37	SCREW
38	38	SCREW
39	39	WASHER
40	40	SCREW

12 2 3 4 7 13 12 11 14 16 15 22 21 20 18 19 24 23 26 36 27 28 25 24 35 34 34 32 37 33 38 30-1(3.2~5.6) 30-2(6.4) 39 31 From the library of: Superior Sewing Machine & Supply LLC Jjinte.in

Page 25

Yamato CF2300M parts on page 25
Ref	Part number	Qty
1	6100271	1
2	110080	2
3	6100272	1
4	160007	3
7	6100274	1
11	6100277	1
12	160003	2
13	6100366	1
14	6100278	1
15	6100279	1
16	120006	1
17	6100367	1
18	6100280	1
19	6100281	1
20	6100282	1
21	6100283	1
22	160016	1
23	6100284	1
24	180002	2
25	6100285	1
26	6100286	1
27	6100287	1
28	180003	2
29 -1	61009000	1
29 -2	6109001	1
30 -1	6109002	1
30 -2	6109003	1
31	110039	1
32	6100288	1
33	130003	1
34	6100289	2
35	6100290	1
36	110070	1
37	130024	1
38	110079	1
39	300050	1
40	110004	1

Ref. No. Parts No. Amt Req. 1 6100271 1 2 110080 2 3 6100272 1 4 160007 3 5 6 7 6100274 1 8 9 10 11 6100277 1 12 160003 2 13 6100366 1 14 6100278 1 15 6100279 1 16 120006 1 17 6100367 1 18 6100280 1 19 6100281 1 20 6100282 1 Ref. No. Parts No. Amt Req. 21 6100283 1 22 160016 1 23 6100284 1 24 180002 2 25 6100285 1 26 6100286 1 27 6100287 1 28 180003 2 29 -1 61009000 1 29 -2 6109001 1 30 -1 6109002 1 30 -2 6109003 1 31 110039 1 32 6100288 1 33 130003 1 34 6100289 2 35 6100290 1 Ref. No. Parts No. Amt Req. 36 110070 1 37 130024 1 38 110079 1 39 300050 1 40 110004 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26

Yamato CF2300M parts on page 26
Ref	Part number	Part name
1	1	BASE
2	2	SCREW
3	3	WASHER
4	4	BRACKET
5	5	O-RING
6	6	BRACKET
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
11	11	SCREW
12	12	COVER
13	13	SCREW
14	14	BRACKET
15	15	OIL FILTER
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	TUBE
26	26	O-RING
27	27	O-RING
28	28	BRACKET
29	29	SHAFT
30	30	BRACKET
31	31	SCREW
32	32	WASHER
33	33	BRACKET
34	34	BRACKET
35	35	PUMP
36	36	SHAFT
37	37	SCREW
38	38	SCREW
39	39	BRACKET
40	40	NUT
41	41	BRACKET
42	42	COVER
43	43	BRACKET

13 2 3 1 4 9 11 7 8 6 14 5 15 13 12 16 17 26 27 25 24 23 22 19 18 20 23 28 A 29 31 30 23 31 33 30 34 23 31 31 41 40 32 35 36 37 A 42 2 38 39 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 27

Yamato CF2300M parts on page 27
Ref	Part number	Qty
1	6100291	1
2	110012	5
3	000234	1
4	310026	1
5	6100293	1
6	160001	1
7	310027	1
8	6100369	1
9	6100295	1
11	006233	1
12	6100002	1
13	110045	3
14	6100370	1
15	6100296	1
16	6100297	1
17	6100298	1
18	6100299	1
19	6100300	1
20	6100301	1
22	6100302	1
23	6100303	6
24	6100304	1
25	6100305	1
26	6100306	1
27	6100307	1
28	6100308	1
29	6100309	1
30	6100310	3
31	004124	4
32	000567	1
33	6100313	1
34	6100314	1
35	6100315	1
36	6100316	1
37	160001	2
38	120006	2
39	6100317	1
40	000419	1
41	6100318	1
42	6100319	1
43	6100320	1

Ref. No. Parts No. Amt. Req. 1 6100291 1 2 110012 5 3 000234 1 4 310026 1 5 6100293 1 6 160001 1 7 310027 1 8 6100369 1 9 6100295 1 10 11 006233 1 12 6100002 1 13 110045 3 14 6100370 1 15 6100296 1 16 6100297 1 17 6100298 1 18 6100299 1 19 6100300 1 20 6100301 1 Ref. No. Parts No. Amt. Req. 21 22 6100302 1 23 6100303 6 24 6100304 1 25 6100305 1 26 6100306 1 27 6100307 1 28 6100308 1 29 6100309 1 30 6100310 3 31 004124 4 32 000567 1 33 6100313 1 34 6100314 1 35 6100315 1 36 6100316 1 37 160001 2 38 120006 2 39 6100317 1 40 000419 1 Ref. No. Parts No. Amt. Req. 41 6100318 1 42 6100319 1 43 6100320 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28

Yamato CF2300M parts on page 28
Ref	Part number	Part name	Qty
	1-1	Type P
	1-2	Type Q
	1-3	Type R
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22

14 CF2303M (1) 1-1 1-2 1-3 Type P Type Q Type R 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 29

Yamato CF2300M parts on page 29
Ref	Part number	Qty
1 -1	6101006	1
1 -2	6101007	1
1 -3	6101008	1
2	6101009	1
3	009932	2
4	009554	1
5	6101010	1
6'	6101011	1
7	140019	2
8	6101000	1
9	6101001	1
10	110013	3
11	6101002	1
12	6100337	1
13	110103	1
14	6101003	1
15	110104	2
16	6101004	1
17	6100007	1
18	6100004	1
19	6100020	1
20	6100022	1
21	18001a	1
22	610023	1

Ref. No. Parts No. Amt. Req. Ref. No. Parts No. Amt. Req. Ref. No. Parts No. Amt. Req. 1 -1 6101006 1 16 6101004 1 1 -2 6101007 1 17 6100007 1 1 -3 6101008 1 18 6100004 1 2 6101009 1 19 6100020 1 3 009932 2 20 6100022 1 4 009554 1 5 6101010 1 21 18001a 1 6' 6101011 1 22 610023 1 7 140019 2 8 6101000 1 9 6101001 1 10 110013 3 11 6101002 1 12 6100337 1 13 110103 1 14 6101003 1 15 110104 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30 — CF2303M(2)

Yamato CF2300M parts on page 30
Ref	Part number	Part name
1	1-1	(5.6)
1	1-2	(6.4)
2	2	Screw
3	3	Spring
4	4	Screw
5	5	Screw
6	6	Screw
7	7	Pin
8	8	Presser Foot
9	9	Screw
10-1	10-1	(5.6M)
10-2	10-2	(6.4M)
11	11	Presser Foot
12	12	Presser Foot
15-1	15-1	(3.2)
15-2	15-2	(4.0)
15-3	15-3	(4.8)
13-1	13-1	43.2
13-3	13-3	4.8
14	14	Screw
16-1	16-1	(3.2M)
16-2	16-2	(4.0M)
16-3	16-3	(4.8M)

15 CF2303M(2) 1-1(5.6) 1-2(6.4) 2 3 4 9 8 5 6 7 10-1(5.6M) 10-2(6.4M) 11 12 2 Needle 15-1(3.2) 15-2(4.0) 15-3(4.8) 4 3 8 9 5 6 2 7 13-143.2 13-3 4.8 14 16-1(3.2M) 16-2(4.0M) 16-3(4.8M) 11 12 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Part Books

Search

Ref	Part number	Part name
1	1	1
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41

Ref	Part number	Part name
1	1	1
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41

Ref	Part number	Part name
1	1	1
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
