Parts index — Yamato CZ6000tap a row to open its page

Page 3 — Contents

Yamato CZ6000 parts on page 3

Ref	Part number	Part name	Qty
	1	MISCELLANEOUS COVERS(1)
	2	MISCELLANEOUS COVERS(2)
	3	MISCELLANEOUS COVERS(3)
	4	MISCELLANEOUS THREAD EYELETS
	5	MISCELLANEOUS CRANKSHAFT & BUSHINGS
	6	NEEDLE BAR DRIVING MECHANISM
	7	KNIFE DRIVING MECHANISM
	8	PRESSER FOOT MECHANISM
	9	UPPER LOOPER DRIVING MECHANISM
	10	LOWER LOOPER DRIVING MECHANISM
	11	FEED DRIVING CONTROL MECHANISM
	12	FEED DRIVING MECHANISM
	13	LUBRICATING MECHANISM
	14	CZ6000 EXCLUSIVE PARTS
	15	CZ6003 EXCLUSIVE PARTS
	16	CZ6016 EXCLUSIVE PARTS
	17	CZ6016-61 EXCLUSIVE PARTS
	18	CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(1)
	19	CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(2)
	20	K2 DEVICE(1)
	21	K2 DEVICE(2)
	22	B3 DEVICE
	23	MT22 DEVICE(1)
	24	MT22 DEVICE(2)
	25	MISCELLANEOUS SUPPORTING BOARD
	26	THREAD STAND
	27	WARNING LABEL

Page 4

Yamato CZ6000 parts on page 4

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	BRACKET
4	4	WASHER
5	5	WASHER
6	6	SCREW
7	7	SLEEVE
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	NUT
14	14	BOLT
15	15	PLUG
16	16	O-RING
17	17	COVER
18	18	SCREW
19	19	GASKET
20	20	PLATE
21	21	BASE
22	22	STUD
23	23	FOOT
24	24	FOOT
26	26	STUD
27	27	WASHER
28	28	SCREW
29	29	WASHER
30	30	PLUG
32	32	PLATE
33	33	SCREW
34	34	WASHER
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	SPRING
39	39	SPRING
40	40	PLUG

Page 5 — MISCELLANEOUS COVERS(1)

Yamato CZ6000 parts on page 5

Ref	Part number	Part name	Qty
	6200066	Cloth Plate	1
	6200302	Cloth Plate(Lower)	1
	6200072	Rubber Cushion	1
	001123	Washer	3
	000644	Spring Washer	3
	110045	Screw(M4-0.7 × 12)	3
	6200070	Cloth Plate Eccentric Bushing	1
	160001	Screw(M4-0.7 × 4)	1
	6200071	Collar(4 × 9 × 6mm)	1
	003637	Screw(1/8-44 × 2.5)	1
	6200529	Cloth Plate Latch, C. Set	1
	110073	Screw(M4-0.7 × 5)	2
	100001	Lock Nut	1
	110031	Stop Screw(M4-0.7 × 12)	1
	6200015	Oil Cap	1
	6200016	O-ring(P28)	1
	6200078	Top Cover	1
	110016	Screw(M4-0.7 × 15)	6
	6200228	Top Cover Gasket	1
	6200172	Oil Reservoir Gasket	1
	6200309	Oil Reservoir	1
	006816	Screw(1/4-24 × 8)	4
	6200029	OilReservoirRubberCushion(Black-colored)	3
	6200033	OilReservoirRubberCushion(Green-colored)	1
	6200182	Oil Reservoir Positioning Bar	4
	300004	Washer	4
	120017	Screw(M5-0.8 × 15)	6
	6100029	Drain Hole Seal	1
	005075	Drain Hole Screw(3/8-24 × 8)	1
	6200512	Wind Guide Plate	1
	110013	Screw(M4-0.7 × 8)	2
	300043	Washer	2
	6209401	Serial Number Plate	1
	000726	Rivet	2
	6200530	Cloth Plate Latch Holder	1
	6200531	Cloth Plate Latch	1
	6200532	Cloth Plate Latch Spring	1
	170067	Screw(M5-0.8 × 6)	1

Page 6

Yamato CZ6000 parts on page 6

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	4	BRACKET
	5	SCREW
	6	WASHER
	7	COVER
	8	SCREW
	9	WASHER
	10	HOLDER
	11	SCREW
	12	WASHER
	13	SPRING
	14	COVER
	15	SCREW
	16	BRACKET
	17	WASHER
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	SHAFT
	23	SCREW
	24	COVER
	25	SPRING
	26	BRACKET
	27	COVER
	28	SCREW
	30	COVER
	31	BRACKET
	32	SCREW

Page 7 — MISCELLANEOUS COVERS (2)

Yamato CZ6000 parts on page 7

Ref	Part number	Part name	Qty
	6200465	Side Cover
	110013	Screw(M4-0.7 × 8)
	6200220	Eye Guard Holder
	170032	Screw(M4-0.7 × 5)
	000010	Conical Spring Washer
	6200285	Eye Guard
	110076	Screw(M3-0.5 × 6)
	000444	Washer
	6200225	Needle Bar Oil Defender
	110012	Screw(M4-0.7 × 5)
	6200226	Needle Bar Oil Seal
	190015	Screw(M14-2 × 6)
	6200227	Logo Plate
	110106	Screw(M4-0.7 × 8)
	6200375	Tape Guide(Upper)
	000538	Washer
	6200159	Front Cover Latch Spring
	6200027	Front Cover Hook
	001203	Screw(9/64-40 × 4.5)
	6200017	Front Cover Hinge Pin
	003637	Screw(1/8-44 × 2.5)
	6200073	Front Cover (Right)
	6200024	Front Cover Hinge Spring
	6200310	Front Cover Hinge
	6200156	Chip Guard(Openable)
	110003	Screw(M3.5-0.6 × 6)
	6200170	Front Cover Latch
	110054	Screw(M3-0.5 × 3.5)

Page 8

Yamato CZ6000 parts on page 8

Ref	Part number	Part name	Qty
3	3	Screw
4	4	Spacer
1	1	Cover
2	2	Gasket
19	19	Screw
18	18	Bracket
21	21	Gasket
20	20	Cover
7	7	Screw
22	22	Plug
11	11	Plug
24	24	Gasket
23	23	Cover
25	25	Screw
16	16	Bush
5	5	O-ring
6	6	Cover
9	9	Screw
8	8	Housing
17	17	Washer
14	14	Washer
15	15	Spring
13	13	Bearing
11	11	Plug
12	12	Shaft
10	10	Screw

Page 9 — MISCELLANEOUS COVERS (3)

Yamato CZ6000 parts on page 9

Ref	Part number	Part name	Qty
1	6200075	Feed Mechanism Cover	1
2	6200192	Feed Mechanism Cover Gasket	1
3	110048	Screw(M4-0.7 × 10)	5
4	6200077	Rubber Cushion	1
5	6200212	O-ring(P52)	1
6	6200211	Ball Bearing Holder	1
7	110013	Screw(M4-0.7 × 8)	7
8	6200511	Fan Cover	1
9	110012	Screw(M4-0.7 × 5)	2
10	150004	Screw(M4-0.7 × 6)	1
11	6200209	Seal Plug	2
12	6200224	Pushbutton	1
13	6200171	Oil Seal	1
14	6100333	Retaining Ring	2
15	6200036	Pushbutton Spring	1
16	330008	Seal Plug	1
17	330000	Seal Plug	1
18	6200219	Fabric Guide Plate	1
19	110064	Screw(M4-0.7 × 8)	2
20	6200191	Tail Cover Gasket	1
21	6200076	Tail Cover	1
22	6200259	Seal Plug	1
23	6200180	Ball Bearing Housing	1
24	6200181	Ball Bearing Housing Gasket	1
25	130003	Screw(M4-0.7 × 7.3)	3

Page 10

Yamato CZ6000 parts on page 10

Ref	Part number	Part name	Qty
1	1	Lever
2	2	Screw
3	3	Knob
4	4	Washer
5	5	Spring
6	6	Collar
7	7	Disc
8	8	Disc
9	9	Disc
10	10	Screw
11	11	Bracket
12	12	Collar
13	13	Collar
14	14	Collar
15	15	Bracket
16	16	Housing
17	17	Cover
18	18	Needle
19	19	Screw
20	20	Screw
21	21	Bracket
22	22	Screw
23	23	Bracket
24	24	Screw
25	25	Washer
26	26	Nut
27	27	Bracket
28	28	Lever
29	29	Screw
30	30	Pin
31	31	Clip
32	32	Washer
33	33	Washer
34	34	Screw
35	35	Plate
36	36	Screw
37	37	Washer
38	38	Pin
39	39	Bracket
40	40	Screw
41	41	Bracket
42	42	Bracket
43	43	Bracket
44	44	Washer
45	45	Screw
46	46	Pin
47	47	Washer

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato CZ6000 parts on page 11

Ref	Part number	Part name	Qty
	6200079	Thread Guide Plate	1
	110013	Screw(M4-0.7 × 8)	2
	6100056	Thread Tension Spring Cap	4
	6100057	Tension Spring Bushing	4
	6200026	Lower Looper Thread Tension Spring	1
	6200019	Thread Tension Spring Retainer	4
	000178	Felt	4
	6100062	Tension Disc	8
	000177	Tension Post(Short)	4
	190016	Tension Disc Eyelet	3
	6200031	Upper Looper Thread Tension Spring	1
	6100059	Needle Thread Tension Spring	1
	6200032	Needle Thread Tension Spring	1
	6200025	Tension Disc Eyelet for Needle Thread	1
	6200277	Oil Container	1
	6200447	Oil Container Plug	1
	310105	Felt	1
	6200449	Felt Holder	1
	110013	Screw(M4-0.7 × 8)	1
	6200284	Needle Thread Eyelet Holder	1
	110001	Screw(M4-0.7 × 5.4)	3
	6200276	Needle Thread Eyelet(Right)	1
	006035	Screw(9/64-40 × 7)	1
	000644	Spring Washer	1
	000322	Nut	1
	6200275	Needle Thread Eyelet(Left)	1
	6200272	Needle Thread Pull-off	1
	110064	Screw(M4-0.7 × 8)	1
	000653	Knock Pin	1
	6200466	Thread Retainer Plate Support	1
	6200467	Thread Retainer Plate	1
	6200468	Thread Retainer Spring	1
	170060	Screw(M2.5-0.45 × 4)	1
	6200229	Looper Crank Cover	1
	110009	Screw(M4-0.7 × 8)	1
	6100111	Looper Driving Shaft Oil Seal	1
	6200164	Spacer(Rubber)	1
	6200280	Looper Thread Eyelet(Left)	1
	110035	Screw(M4-0.7 × 10)	3
	6200283	Thread Eyelet Support	1
	6200282	Lower Looper Thread Eyelet	1
	6200439	Upper Looper Thread Eyelet	1
	000014	Washer	2
	110026	Screw(M3-0.5 × 6)	2
	6200023	Looper Thread Pipe	2
	000644	Spring Washer	1

Page 12

Yamato CZ6000 parts on page 12

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	SCREW
3	3	FAN COVER
4	4	WASHER
5	5	FAN
6	6	NUT
7	7	BEARING
8	8	COLLAR
9	9	SHAFT
10	10	PULLEY
11	11	SHAFT
12	12	PIN
14	14	BEARING
15	15	PULLEY
16	16	BEARING
17	17	SHAFT
18	18	BEARING
19	19	BEARING
20	20	BEARING
21	21	SHAFT
22	22	SCREW
23	23	WASHER
25	25	WASHER
27	27	BEARING
28	28	BEARING
29	29	BEARING
30	30	BEARING
31	31	BEARING
32	32	BEARING
33	33	WASHER
34	34	BEARING
35	35	SPRING

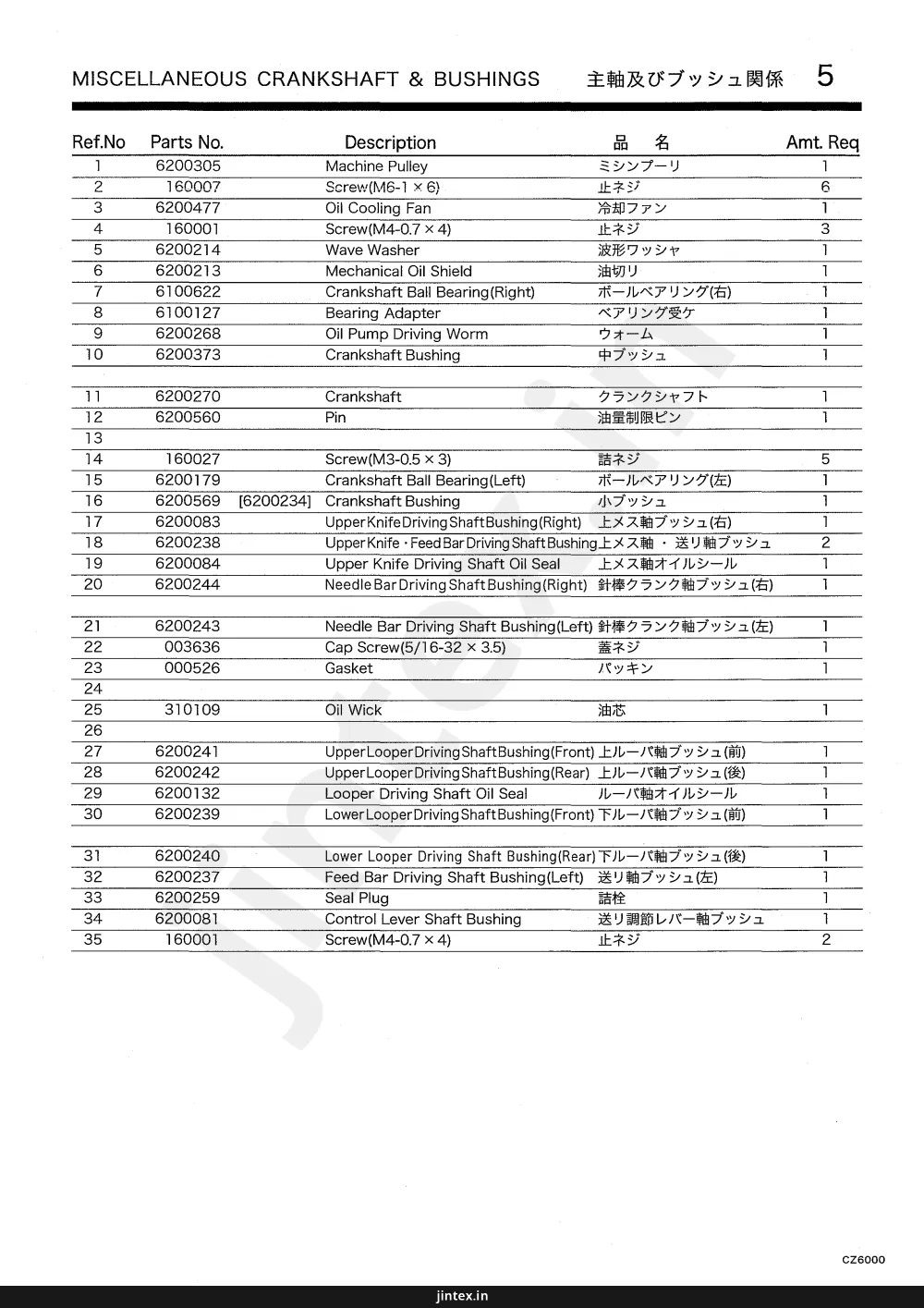

Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Yamato CZ6000 parts on page 13

Ref	Part number	Part name	Qty
	6200305	Machine Pulley	1
	160007	Screw(M6-1 × 6)	6
	6200477	Oil Cooling Fan	1
	160001	Screw(M4-0.7 × 4)	3
	6200214	Wave Washer	1
	6200213	Mechanical Oil Shield	1
	6100622	Crankshaft Ball Bearing(Right)	1
	6100127	Bearing Adapter	1
	6200268	Oil Pump Driving Worm	1
	6200373	Crankshaft Bushing	1
	6200270	Crankshaft	1
	6200560	Pin	1
	160027	Screw(M3-0.5 × 3)	5
	6200179	Crankshaft Ball Bearing(Left)	1
6200234	6200569	Crankshaft Bushing
	6200083	Upper Knife Driving Shaft Bushing(Right)	1
	6200238	Upper Knife Feed Bar Driving Shaft Bushing	2
	6200084	Upper Knife Driving Shaft Oil Seal	1
	6200244	Needle Bar Driving Shaft Bushing(Right)	1
	6200243	Needle Bar Driving Shaft Bushing(Left)	1
	003636	Cap Screw(5/16-32 × 3.5)	1
	000526	Gasket	1
	310109	Oil Wick	1
	6200241	UpperLooperDrivingShaftBushing(Front)	1
	6200242	UpperLooperDrivingShaftBushing(Rear)	1
	6200132	Looper Driving Shaft Oil Seal	1
	6200239	LowerLooperDrivingShaftBushing(Front)	1
	6200240	Lower Looper Driving Shaft Bushing(Rear)	1
	6200237	Feed Bar Driving Shaft Bushing(Left)	1
	6200259	Seal Plug	1
	6200081	Control Lever Shaft Bushing	1
	160001	Screw(M4-0.7 × 4)	2

Page 14

Yamato CZ6000 parts on page 14

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	COLLAR
	4	BRACKET
	5	BRACKET
	6	SCREW
	7	COLLAR
	8	SCREW
	9	BRACKET
	10	SHAFT
	11	WASHER
	12	SCREW
	13	SCREW
	14	BRACKET
	15	BRACKET
	16	SCREW
	17	BRACKET
	18	SCREW
	19	SCREW
	20	BRACKET
	21-1	BRACKET
	21-2	BRACKET
	22	PIN
	23	SCREW
	24	BRACKET
	25	SCREW
	26	SCREW
	27	SCREW
	28	BRACKET
	29	SCREW
	30-1	BRACKET
	30-2	BRACKET
	30-3	BRACKET
	30-4	BRACKET
	31	SCREW
	32	BRACKET
	33	SCREW
	34	COLLAR
	35	BRACKET
	36	SCREW
	37	BRACKET
	38	SCREW
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	BRACKET
	43	BRACKET
	44	BRACKET
	45	SCREW
	46	SCREW
	47	SCREW
	48	WASHER
	49	BRACKET

Page 15

Yamato CZ6000 parts on page 15

Ref	Part number	Part name	Qty
	6200271	Needle Bar Driving Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	2
	6200088	Needle Bar Driving Connecting Rod Pin	1
	160002	Screw(M4-0.7 × 5)	1
	6200187	Needle Bar Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	6200086	Collar(12 × 20 × 10mm)	1
	160003	Screw(M5-0.8 × 5)	2
	6200307	Needle Bar Crank Arm, C. Set	1
	6200568	Needle Bar Driving Shaft	1
	6200085	Needle Bar Crank Arm	1
	300008	Washer	1
	140003	Screw(M6 × 18)	1
	6200087	Needle Bar Connecting Link	1
	6200101	Needle Bar Connecting Link Pin	2
	310089	Oil Wick	2
	6200246	Needle Bar Connecting Bracket	1
	110006	Screw(M3.5-0.6 × 10)	1
	160016	Screw(M4-0.7 × 4.5)	2
	6200245	Needle Bar & Needle Bar Bushing, C. Set	1
	6209103	Needle Clamp(Y)	1
	6209102	Needle Clamp(X)	1
	001900	Needle(System : DC × 1)	2
	6200249	Screw(1/8-44 × 2.5)	2
	6200250	Stitch Plate Support Stay, C. Set	1
	6200250	Stitch Plate Support Stay	1
	000035	Roll Pin	1
	110009	Screw(M4-0.7 × 8)	6
	6200153	Stitch Plate Support(Rear)	1
	110001	Screw(M5-0.8 × 10)	1
	6208000	Stitch Plate(Y5)	1
	6208002	Stitch Plate(Y6)	1
	6208012	Stitch Plate(X4)	1
	6208025	Stitch Plate(X5)	1
	005345	Screw(11/64-40 × 8.3)	2
	6200089	Stitch Plate Support(Front)	1
	110011	Screw(M5-0.8 × 10)	2
	6100020	Rubber Cushion	1
	6209200	Needle Guard(Front)	1
	110002	Screw(M3-0.5 × 5)	1
	6200232	HR Unit, Complete Set	1
	6100310	Tube Joint	1
	6200090	Oil Tube(70mm)	1
	310005	Oil Wick	1

Page 16

Yamato CZ6000 parts on page 16

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	COLLAR
	4	BRACKET
	5	BRACKET
	6	SCREW
	7	COLLAR
	8	SCREW
	9	BRACKET
	10	SHAFT
	11	WASHER
	12	COLLAR
	13	SCREW
	14	BRACKET
	15	LINK
	16	LINK
	17	BRACKET
	18	SCREW
	19	SCREW
	20	SHAFT
	21-1	BRACKET
	21-2	BRACKET
	22	NEEDLE BAR
	23	SCREW
	24	BRACKET
	25	BRACKET
	26	SCREW
	27	SCREW
	28	BRACKET
	29	SCREW
	30-1	BRACKET
	30-2	BRACKET
	30-3	BRACKET
	30-4	BRACKET
	31	SCREW
	32	BRACKET
	33	SCREW
	34	COLLAR
	35	BRACKET
	36	SCREW
	37	BRACKET
	38	BRACKET
	39	SHAFT
	40	BRACKET
	41	BRACKET
	42	BRACKET
	43	BRACKET
	44	BRACKET
	45	BRACKET
	46	SCREW
	47	BRACKET
	48	WASHER
	49	BRACKET

Page 17 — NEEDLE BAR DRIVING MECHANISM

Yamato CZ6000 parts on page 17

Ref	Part number	Part name	Qty
41	6200155	HR Felt Holder
42	310001	HR Felt
43	6200157	HR Felt Holder Bracket, C. Set
44	6200158	HR Felt Holder Bracket
45	000393	Roll Pin
46	110013	Screw(M4-0.7 × 8)
47	320008	Fitting Stud(Short)
48	000567	Seal
49	6200296	HR Unit Bracket

Page 18

Yamato CZ6000 parts on page 18

Ref	Part number	Part name	Qty
6	6	Screw
7	7	Bracket
5	5	Bracket
8	8	Spring
3	3	Pin
4	4	Link
1	1	Lever
2	2	Lever
9	9	Shaft
10	10	Pin
11	11	Bracket
12	12	Screw
13	13	Lever
14	14	Washer
15	15	Screw
16	16	Knob
17	17	Gasket
18	18	Screw
19	19	Cap
20	20	Cover
21	21	Screw
22	22	Screw
23	23	Lever
24	24	Spring
25	25	Shaft
26	26	Screw
27	27	Screw
28	28	Lever
29	29	Bracket
30	30	Screw

Page 20

Yamato CZ6000 parts on page 20

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Nut
3	3	Spring
4	4	Base
5	5	Knob
6	6	Pin
7	7	Lever
8	8	Lever
9	9	Lever
10	10	Spring
11	11	Screw
12	12	Screw
13	13	Arm
15	15	Screw
16	16	Washer
17	17	Screw
18	18	Wire
19	19	Housing
20	20	Screw
21	21	Lever
22	22	Screw
23	23	Nut
24	24	Spring
25	25	Shaft
26	26	Screw
27	27	Shaft
28	28	Shaft
29	29	Arm
30	30	Pin
31	31	Screw
32-1	32-1	Presser Foot
32-2	32-2	Presser Foot
32-3	32-3	Presser Foot
33	33	Lever
34	34	Screw
35	35	Lever
36	36	Screw
37	37	Presser Foot
38	38	Cover
39	39	Screw
40-1	40-1	Presser Foot
40-2	40-2	Presser Foot
40-3	40-3	Presser Foot
41	41	Presser Foot
42	42	Spring
43	43	Screw
44	44	Presser Foot
45	45	Screw
46	46	Lever
47	47	Screw
48	48	Pin
49	49	Base
50-1	50-1	Presser Foot
50-2	50-2	Presser Foot
50-3	50-3	Presser Foot
51-1	51-1	Presser Foot
51-2	51-2	Presser Foot
51-3	51-3	Presser Foot

Page 21 — PRESSER FOOT MECHANISM

Yamato CZ6000 parts on page 21

Ref	Part number	Part name	Qty
	190088	Adjusting Screw(M10-0.75 × 30)	1
	100073	Lock Nut	1
	6200469	Presser Spring	1
	6200470	Presser Bar	1
	6200160	Presser Arm Positioning Guide Pin	1
	340061	Pin	1
	6200472	Presser Arm Stop	1
	110012	Screw(M4-0.7 × 5)	1
	6200473	Presser Foot Release Lever	1
	6200474	Presser Foot Release Lever Spring	1
	170045	Screw(M4-0.7 × 5)	1
	180001	Screw(M4-0.7 × 4.5)	1
	6200513	Presser Foot Lifter Lever	1
	170065	Screw(M8-1.25 × 10)	1
	6200291	Presser Foot Lifter Lever Stop	1
	120010	Screw(M6-1 × 10)	1
	6200514	Presser Foot Lifter Lever Link	1
	6200154	Presser Foot Shaft Collar	1
	120017	Screw(M5-0.8 × 15)	1
	6200104	Intermediate Lever	1
	110065	Stop Screw(M4-0.7 × 12)	1
	100001	Lock Nut	1
	6200288	Presser Foot Lifter Lever Spring	1
	6200082	Presser Foot Shaft Bushing	1
	160007	Screw(M6-1 × 6)	1
	6200527	Presser Arm, Complete Set	1
	6200103	Presser Foot Shaft	1
	6200528	Presser Arm	1
	6200106	Presser Arm Hinge Pin	1
	160001	Screw(M4-0.7 × 4)	1
	6207021	Presser Foot, C. Set(Y5, Y6)	1
	6207060	Presser Foot, C. Set(X4)	1
	6207094	Presser Foot, C. Set(X4/B3) (Extra)	1
	6207001	Presser Foot Hinge	1
	110004	Screw(M3.5-0.6 × 8)	1
	6207003	Presser Foot Half-stay	1
	110050	Screw(M4-0.7 × 4.5)	1
	6207019	Presser Foot(Lower)	1
	6200034	Thread Chain Guide	1
	004237	Screw(3/32-56 × 2.6)	1
	6207022	Presser Foot Stitch Tongue(Y5, Y6)	1
	6207051	Presser Foot Stitch Tongue(X4)	1
	6207095	Presser Foot Stitch Tongue(X4/B3) (Extra)	1

Page 22

Yamato CZ6000 parts on page 22

Ref	Part number	Part name	Qty
	1	SCREW
	2	NUT
	3	SPRING
	4	PRESSER BAR GUIDE
	5	PRESSER BAR GUIDE
	6	PIN
	7	LEVER
	8	LEVER
	9	SPRING
	10	SCREW
	11	SCREW
	12	SCREW
	13	BRACKET
	15	SCREW
	16	SPRING
	17	SCREW
	18	SPRING
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	SCREW
	23	NUT
	24	SPRING
	25	SLEEVE
	26	SCREW
	27	ARM
	28	SHAFT
	29	ARM
	30	PIN
	31	SCREW
	32-1	PRESSER FOOT
	32-2	PRESSER FOOT
	32-3	PRESSER FOOT
	33	LEVER
	34	SCREW
	35	LEVER
	36	SCREW
	37	PRESSER FOOT
	38	COVER
	39	SCREW
	40-1	PRESSER FOOT
	40-2	PRESSER FOOT
	40-3	PRESSER FOOT
	41	PRESSER FOOT
	42	SPRING
	43	SCREW
	44	PRESSER FOOT
	45	SCREW
	46	LEVER
	47	SCREW
	48	PIN
	49	BASE PLATE
	50-1	PRESSER FOOT
	50-2	PRESSER FOOT
	50-3	PRESSER FOOT
	51-1	PRESSER FOOT
	51-2	PRESSER FOOT
	51-3	PRESSER FOOT

Page 23 — PRESSER FOOT MECHANISM

Yamato CZ6000 parts on page 23

Ref	Part number	Part name	Qty
41	6207000	Finger Guard
42	000444	Washer
43	005036	Screw(1/8-44 × 5.6)
44	6207018	Presser Foot Tape Guide
45	001230	Screw(3/32-56 × 3.8)
46	6200020	Thread Chain Cutting Knife
47	004097	Screw(3/32-56 × 4.2)
48	6200471	Presser Bar, C. Set
49	6207002	Presser Foot(Lower)
50-1	6207044	Presser Foot, C. Set(Y5, Y6)
50-2	6207061	Presser Foot, C. Set(X4)
50-3	6207092	Presser Foot, C. Set(X5)
51-1	6207046	Presser Foot Stitch Tongue(Y5, Y6)
51-2	6207057	Presser Foot Stitch Tongue(X4)
51-3	6207093	Presser Foot Stitch Tongue(X5)

Page 24

Yamato CZ6000 parts on page 24

Ref	Part number	Part name	Qty
1	1	CLAMP
2	2	SCREW
3	3	WASHER
4	4	YOKE
5	5	SCREW
6	6	SHAFT
7	7	BEARING
8	8	WASHER
9	9	CLAMP
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	HOUSING
14	14	HOUSING
15	15	BRACKET
16	16	SCREW
17	17	SCREW
18	18	HOUSING
19	19	BRACKET
20	20	WASHER
21	21	SCREW
22	22	PIN
23	23	SCREW
24	24	SPRING
25	25	SHAFT
26	26	BUSHING
27	27	HOUSING
28	28	PLATE
29	29	LEVER
30	30	SCREW
32	32	SCREW
33	33	BRACKET
34	34	BRACKET
35	35	WASHER
36	36	SCREW
37	37	HOUSING
38	38	BRACKET
39	39	SCREW
40	40	SCREW

Page 25 — UPPER LOOPER DRIVING MECHANISM

Yamato CZ6000 parts on page 25

Ref	Part number	Part name	Qty
	6200188	Looper Driving Lever Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	4
	6200080	Connecting Rod Swing-proof	2
	6200261	Upper Looper Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	6200260	Looper Driving Shaft	1
	6200262	Driving Shaft Thrust Ring	1
	6200263	Driving Shaft Thrust Ring	1
	6200566	Collar	1
	120049	Screw(M4-0.7 × 16)	1
	6200286	Upper Looper Thread Pull-off	1
	110009	Screw(M4-0.7 × 8)	1
	6200117	Upper Looper Bar Crank Arm, C. Set	1
	6200114	Upper Looper Bar Guide Bushing	1
	6200110	Upper Looper Bar Guide Cover	1
	130001	Screw(M2.5-0.45 × 6)	1
	110071	Screw(M2.5-0.45 × 6)	1
	6200116	Upper Looper Bar Guide, Complete Set	1
	6200111	Upper Looper Bar Crank Arm	1
	300008	Washer	1
	140004	Screw(M6-1 × 16)	1
	6200113	Upper Looper Bar Crank Arm Pin	1
	160002	Screw(M4-0.7 × 5)	1
	310089	Oil Wick	1
	6200112	Upper Looper Bar	1
	000629	Seal Plug	1
	6200115	Upper Looper Bar Guide	1
	310065	Oiling Felt	1
	6209300	Upper Looper(for Needle Size #9~14)	1
	210009	Screw(1/8-44 × 3.2)	1
	120013	Screw(M6-1 × 15)	2
	6200169	Upper Looper Supplementary Thread Eyelet	1
	6200278	Lower Looper Thread Pull-off	1
	000014	Washer	1
	110002	Screw(M3-0.5 × 5)	1
	6200120	Upper Looper Bar, C. Set	1
	6200453	Upper Looper Bar Guide Bushing Postioner	1
	009746	Screw(M4-0.7 × 8)	1
	110001	Screw(M4-0.7 × 5.4)	1

Page 26

Yamato CZ6000 parts on page 26

Ref	Part number	Part name	Qty
2	2	SCREW
2	2	SCREW
1	1	BRACKET
3	3	WASHER
4	4	SHAFT
5	5	SCREW
6	6	WASHER
7	7	BRACKET
8	8	SCREW
8	8	SCREW
9	9	SHAFT
10	10	BRACKET
11	11	WASHER
12	12	SCREW
13	13	BRACKET
14	14	SCREW
15	15	LEVER
16	16	LEVER
17	17	SCREW
18	18	SCREW
19	19	WASHER

Page 27 — LOWER LOOPER DRIVING MECHANISM

Yamato CZ6000 parts on page 27

Ref	Part number	Part name	Qty
1	6200108	Looper Driving Lever Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	4
3	6200080	Connecting Rod Swing-proof	1
4	6200377	Lower Looper Driving Lever	1
5	120006	Screw(M6-1 × 12)	1
6	6200189	Driving Shaft Thrust Ring	1
7	6200092	Collar(10 × 19 × 9mm)	1
8	160003	Screw(M5-0.8 × 5)	3
9	6200109	Looper Driving Shaft	1
10	6200107	Lower Looper Holder Arm	1
11	300008	Washer	1
12	140002	Screw(M6-1 × 14)	1
13	6200279	Thread Pull-off	1
14	110009	Screw(M4-0.7 × 8)	1
15	6209301	Lower Looper	1
16	6209201	Needle Guard(Rear)	1
17	110036	Screw(M3-0.5 × 6.5)	1
18	180014	Screwed Pin(M3-0.5 × 4.5)	1
19	300106	Conical Spring Washer	1

Page 29

Yamato CZ6000 parts on page 29

Ref	Part number	Part name	Qty
	6200254	Main Feed Bar Lever	1
	120006	Screw(M6-1×12)	4
	6200119	Main Feed Bar Lever Pin	1
	300000	Washer	3
	100002	Nut	1
	000669	Washer	2
	6200263	Thrust Plate	1
	6200038	Retaining Ring	1
	6100262	Main Feed Bar Connection	1
	6200118	Connection Bushing	1
	140001	Screw(M5-0.5 × 12)	1
	6200127	Feed Bar, Complete Set	1
	6200184	Main Feed Bar	1
	6200183	Differential Feed Bar	1
	6200190	Differential Feed Bar Connection	1
	6200265	Connection Bushing	1
	140000	Screw(M5-0.5 × 15.5)	1
	6200255	Feed Bar Driving Shaft	1
	6200256	Feed Bar Driving Shaft Lever	1
	6200142	Connecting Rod Pin	1
	160007	Screw(M6-1 × 6)	1
	6200165	Differential Rocker, Complete Set	1
	6200166	Differential Rocker	1
	6200167	Differential Regulating Slider	1
	6200168	Differential Regulating Slider Cap	1
	110033	Screw(M3-0.5 × 6)	2
	6200130	Differential Lever(Right), C. Set	1
	6100255	Slider Link	1
	6100343	Retaining Ring	1
	6100360	Slider Link Pin	1
	6200125	Differential Lever(Right)	1
	6100235	Collar(10 × 17 × 8mm)	1
	160001	Screw(M4-0.7 × 4)	2
	000690	Spring Pin	1
	6200123	Differential Lever Spring	1
	6100363	O-ring(P7)	1
	6200126	Differential Lever(Left)	1
	000528	Washer	1
	000561	Conical Spring Washer	1
	100000	Adjusting Nut	1
	190001	Adjusting Screw(M6-1 × 11.5,M4.5-0.5×4)	1
	6200131	Differential Feed Graduation	1
	110016	Screw(M4-0.7 × 15)	2
	6100269	Differential Lever Stop	2
	110017	Screw(M5-0.8 × 8)	2

Page 31

Yamato CZ6000 parts on page 31

Ref	Part number	Part name	Qty
	6200173	Feed Bar Guide Support	1
	110064	Screw(M4-0.7 × 8)	4
	110004	Screw(M3.5-0.6 × 8)	6
	6200174	Feed Bar Shield(Front)	1
	6200175	Feed Bar Shield(Rear)	1
	6200177	Feed Bar Shield Guide	1
	6200178	Feed Bar Guide	2
	6200176	Feed Bar Shield(Upper)	1
	6200253	Feed Bar Guide Bushing	1
	160007	Screw(M6-1 × 6)	1
	6200161	Feed Bar Block(Rear) Shaft	1
	160001	Screw(M4-0.7 × 4)	1
	6200140	Feed Bar Block(Rear)	1
	6200139	Feed Bar Block(Rear) Lid	1
	130002	Screw(M3-0.5 × 6)	1
	6200138	Feed Bar Block(Front)	1
	6200141	Eccentric Pin Holder	1
	6100366	Feed Dog Eccentric Pin	1
	6100281	Feed Dog Eccentric	1
	6100282	Roller Bearing	1
	6200133	Feed Dog Driving Connecting Rod	1
	6100284	Feed Dog Regulating Eccentric	1
	180002	Screw(M3-0.5 × 4)	2
	110070	Screw(M3-0.5 × 6.3)	1
	6100285	Feed Dog Regulating Plate Spring	1
	6100286	Feed Dog Regulating Plate	1
	6200137	Feed Dog Regulating Gear	1
	180003	Screw(M5-0.8 × 8)	1
	160003	Screw(M5-0.8 × 5)	3
	6209000	Differential Feed Dog(X4, X5)	1
	6209006	Differential Feed Dog(Y5, Y6)	1
	6209001	Main Feed Dog	1
	6209002	Auxiliary Feed Dog	1
	110026	Screw(M3-0.5 × 6)	1
	6200257	Connecting Rod Cover	1
	130003	Screw(M4-0.7 × 7.3)	2

Page 32

Yamato CZ6000 parts on page 32

Ref	Part number	Part name	Qty
5	5	SCREW
23	23	BRACKET
24	24	BRACKET
29	29	SPRING
28	28	SPRING
30	30	NUT
27	27	PIN
26	26	WASHER
25	25	BRACKET
6	6	WASHER
21	21	BRACKET
8	8	BALL JOINT
9	9	CLIP
22	22	TUBE
46	46	SCREW
34	34	FILTER ELEMENT
35	35	SCREW
33	33	O-RING
32	32	SCREW
31	31	COVER
11	11	BOLT
3	3	SPRING
7	7	TUBE
10	10	TUBE
45	45	SCREW
44	44	WASHER
17	17	SHAFT
16	16	BRACKET
18	18	SHAFT
19	19	BRACKET
20	20	SHAFT
43	43	BRACKET
1	1	PUMP HOUSING
2	2	SHAFT
4	4	SCREW
9	9	CLIP
12	12	BRACKET
13	13	BRACKET
8	8	BALL JOINT
14	14	TUBE
9	9	CLIP
15	15	BRACKET
39	39	BRACKET
40	40	SHAFT
41	41	SHAFT
42	42	SPRING
3	3	SPRING
37	37	SHAFT

Page 33 — LUBRICATING MECHANISM

Yamato CZ6000 parts on page 33

Ref	Part number	Part name	Qty
	6200506	Oil Pump, Complete Set	1
	6200475	Worm Wheel	1
	160001	Screw(M4-0.7 × 4)	4
	120049	Screw(M4-0.7 × 16)	2
	320009	Oil Tube Fitting Stud(Long)(M6-1)	1
	000567	Seal	1
	6200507	Oil Tube, Complete Set	1
	6100310	Oil Tube Fitting One Way End	4
	6100303	Oil Tube Clamp	7
	6200508	Oil Tube(4.6 × 6.4 × 220mm)	1
	320008	Oil Tube Fitting Stud(M6-1)	2
	6200509	Suction Tube, C. Set	1
	6100308	Oil Tube Fitting Two Way	1
	6200510	Oil Tube(4.6 × 6.4 × 242.5mm)	1
	6200206	Oil Filter	1
	6200518	Suction Pipe(Upper), C. Set	1
	6200519	Suction Tube(4 × 6 × 18mm)	1
	6200195	Suction Tube(2.5 × 4 × 60mm)	1
	6200196	Suction Pipe(Upper)	1
	310073	Felt	1
	6200299	Oil Tube, Complete Set	1
	6200301	Oil Tube(4.6 × 6.4 × 320mm)	1
	6200450	Oil Pressure Regulating Valve	1
	6200451	Oil Pressure Regulating Valve, C. Set	1
	6200450	Oil Pressure Regulating Valve	1
	6200037	Oil Pressure Regulating Ball	1
	6200028	Guide Pin	1
	6200476	Spring	1
	006861	Adjusting Screw(1/4-40 × 5)	1
	000419	Nut	1
	6100002	Oil Filter Cap	1
	110045	Screw(M4-0.7 × 12)	3
	6100370	O-ring(P42)	1
	6100296	Oil Filter	1
	6100297	Filter Housing	1
	6200248	Oil Pipe	1
	6200186	Oil Pipe, C. Set	1
	6200185	Oil Pipe	1
	000456	Seal Plug	1
	310090	Oil Wick	1
	6200074	Oil Sight Gauge	1
	6100363	O-ring(P7)	1
	110053	Screw(M6-1 × 8)	1
	320012	Oil Tube Fitting Stud(1/4-40)	3

Page 34 — 14

Yamato CZ6000 parts on page 34

Ref	Part number	Part name	Qty
	1	Lever
	2	Lever
	3	Screw
	4	Lever
	5	Screw
	6	Base Plate
	7	Presser Foot
	8	Presser Foot Spring
	9	Screw
	10	Cover
	11	Cover
	12	Screw
	13	Pin
	14	Needle Plate
	15	Presser Foot
	16	Presser Foot
	17	Lever
	18	Presser Bar Holder
	19	Presser Foot
	20	Presser Foot
	21	Washer
	22	Screw
	23	Presser Foot Holder
	24	Presser Foot Holder
	25	Screw
	26	Lever
	27	Screw
	28	Washer
	29	Nut
	30	Bracket
	31	Screw
	32	Lever
	33	Washer
	34	Screw
	35	Lever
	36	Screw
	37	Screw
	38	Bracket
	39	Screw
	40	Screw
	41	Block
	42	Screw
	43	Lever
	44	Screw

Page 35

Yamato CZ6000 parts on page 35

Ref	Part number	Part name	Qty
1	6207025	Presser Foot, Complete Set(O4)	1
2	6207001	Presser Foot Hinge	1
3	110004	Screw(M3.5-0.6 × 8)	1
4	6207003	Presser Foot Half-stay	1
5	110050	Screw(M3.5-0.6 × 4.5)	1
6	6207026	Presser Foot(Lower)	1
7	6207027	Presser Foot Stitch Tongue(O4)	1
8	6207000	Finger Guard	1
9	005036	Screw(1/8-44 × 5.6)	3
10	6201000	Cloth Plate	1
11	6201001	Cloth Plate(Lower)	1
12	6201002	Rubber Cushion	1
13	6201017	Pin	1
14	6208004	Stitch Plate(O4)	1
15	6209009	Differential Feed Dog	1
16	6209010	Main Feed Dog	1
17	6209302	Upper Looper	1
18	6201003	Blind Hemming Guide, C. Set	1
19	6201004	Overhanging Guide Hinge, C. Set	1
20	6201005	Hemming Positioner	1
21	000533	Washer	1
22	007006	Screw(9/64-40 × 4)	1
23	6201006	Blind-Hemming Edge Guide, C. Set	1
24	6201007	Blind-Hemming Edge Guide	1
25	009624	Screw(1/8-44 × 5.3)	1
26	6201008	Swing-out Lever	1
27	004150	Screw(11/64-40 × 5.2)	1
28	000172	Conical Spring Washer	1
29	000334	Nut	1
30	6201009	Overhanging Guide Hinge Stop	1
31	001331	Screw(9/64-40 × 3.8)	1
32	6201010	Swing-out Lever Holder	1
33	6201011	Swing-out Lever Stop	1
34	6201012	Edge Guide Positioning Pin	2
35	6201013	Positioning Pin Holder Spring	2
36	001225	Screw(1/8-44 × 2.8)	1
37	001196	Screw(1/8-44 × 6)	3
38	6201014	Edge Guide Adjusting Holder	1
39	004106	Screw(9/64-40 × 6.5)	2
40	007619	Screw(9/64-40 × 6.3)	1
41	6201015	Adjusting Screw Guide Piece	1
42	006444	Adjusting Screw(1/8-44 × 12.9)	1
43	6201016	Edge Guide Adjusting Holder Cover	1
44	110047	Screw(M4-0.7 × 10)	2

Page 36 — CZ6003

Yamato CZ6000 parts on page 36

Ref	Part number	Part name	Qty
	1	PRESSER FOOT ASSEMBLY
	2	PRESSER BAR GUIDE
	3	SCREW
	4	NEEDLE PLATE
	5	NEEDLE PLATE SCREW
	6	NEEDLE PLATE SCREW
	7	NEEDLE PLATE SCREW
	8	NEEDLE PLATE SCREW
	9	PRESSER FOOT SPRING
	10	SCREW
	11	PRESSER BAR
	12	SCREW
	13-1	NEEDLE PLATE
	13-2	NEEDLE PLATE
	14	PRESSER FOOT
	15	PRESSER FOOT SCREW
	16	PRESSER FOOT

Page 37 — CZ6003 EXCLUSIVE PARTS

Yamato CZ6000 parts on page 37

Ref	Part number	Part name	Qty
	6207043	Presser Foot C. Set(04)
	6207001	Presser Foot Hinge
	110004	Screw(M3.5-0.6 × 8)
	6207002	Presser Foot(Lower)
	6207045	Presser Foot Stitch Tongue(04)
	6207000	Finger Guard
	000444	Washer
	005036	Screw(1/8-44 × 5.6)
	6200034	Thread Chain Guide
	004237	Screw(3/32-56 × 2.6)
	6207003	Presser Foot Half-stay
	110050	Screw(M3.5-0.6 × 4.5)
	6208044	Stitch Plate(03)
	6208011	Stitch Plate(04)
	6209302	Upper Looper
	6201017	Pin
	6209000	Differential Feed Dog(04)

Page 38

Yamato CZ6000 parts on page 38

Ref	Part number	Part name	Qty
1	1	Lever
2	2	Lever
3	3	Screw
4	4	Lever
5	5	Screw
6	6	Base Plate
7	7	Cover
8	8	Screw
9	9	Lever
10	10	Lever
11	11	Screw
12	12	Base Plate
13	13	Base Plate
14	14	Washer
15	15	Screw
16	16	Lever
17	17	Shaft
18	18	Screw
19	19	Base Plate
20	20	Base Plate
21	21	Base Plate
22	22	Extra Parts
23	23	Lever
24	24	Base Plate
25	25	Bracket
26	26	Screw
27	27	Lever
28	28	Lever
29	29	Screw
30	30	Base Plate
31	31	Base Plate
32	32	Lever
33	33	Screw
34	34	Washer
35	35	Screw
36	36	Washer
37	37	Washer
38	38	Base Plate
39	39	Base Plate
40	40	Base Plate
41	41	Shaft
42	42	Lever
43	43	Lever

Page 39

Yamato CZ6000 parts on page 39

Ref	Part number	Part name	Qty
	6207073	Presser Foot, C. Set(O2)	1
	6207001	Presser Foot Hinge	1
	110004	Screw(M3.5-0.6 × 8)	1
	6207003	Presser Foot Half-stay	1
	110050	Screw(M3.5-0.6 × 4.5)	1
	6207089	Presser Foot (Lower)	1
	6200034	Thread Chain Guide	1
	004237	Screw(3/32-56 × 2.6)	1
	6207072	Presser Foot Stitch Tongue	1
	6207112	Finger Guard	1
	005036	Screw(1/8-44 × 5.6)	1
	6208035	Stitch Plate, C. Set(O2)	1
	6208034	Stitch Plate(O2)	1
	6208023	Stitch Plate Tongue	1
	004182	Screw(3/32-56 × 2.5)	1
	6209302	Upper Looper	1
	6201017	Pin	1
	180002	Screw(M3-0.5 × 4)	2
	6209031	Differential Feed Dog	1
	6209032	Main Feed Dog	1
	6209013	Auxiliary Feed Dog	1
	6207029	Presser Foot, C. Set(O2)	1
	6207055	Presser Foot Hinge	1
	6207030	Presser Foot(Lower)	1
	6207031	Presser Foot Hinge Spring	1
	004131	Screw(1/8-44 × 6)	1
	6207032	Thread Chain Guide	1
	6207033	Presser Foot Stitch Tongue	1
	004138	Screw(1/8-44 × 5)	1
	6208005	Stitch Plate, Complete Set	1
	6208006	Stitch Plate	1
	6208007	Stitch Plate Tongue	1
	004204	Screw(3/32-100 × 2.2)	1
	6208008	Stitch Plate Tongue Stop	1
	001228	Screw(3/32-56 × 3.2)	1
	000933	Rubber Cushion(Medium)	1
	300040	Washer	1
	6209012	Main Feed Dog(with Rubber Face)	1
	6209011	Differential Feed Dog(with Rubber Face)	1
	000932	Rubber Cushion(Large)	1
	6201020	Lower Knife Holder	1
	6201019	Upper Knife Holder	1
	6201018	Upper Knife	1

Page 40 — CZ6016-61

Yamato CZ6000 parts on page 40

Ref	Part number	Part name	Qty
1	1	Lever
2	2	Lever
3	3	Screw
4	4	Lever
5	5	Screw
6	6	Base
7	7	Cover
8	8	Screw
9	9	Spring
10	10	Lever
11	11	Screw
12-1	12-1	Base
12-2	12-2	Base
13	13	Base
14-1	14-1	Screw
14-2	14-2	Washer
15	15	Screw
16	16	Presser Foot
17	17	Pin
18	18	Shaft

Page 41 — CZ6016-61 EXCLUSIVE PARTS

Yamato CZ6000 parts on page 41

Ref	Part number	Part name	Qty
	6207073	Presser Foot, Complete Set(02, 03)	1
	6207001	Presser Foot Hinge	1
	110004	Screw(M3.5-0.6 × 8)	1
	6207003	Presser Foot Half-stay	1
	110050	Screw(M3.5-0.6 × 4.5)	1
	6207089	Presser Foot(Lower)	1
	6200034	Thread Chain Guide	1
	004237	Screw(3/32-56 × 2.6)	1
	6207072	Presser Foot Stitch Tongue	1
	6207112	Finger Guard	1
	005036	Screw(1/8-44 × 5.6)	1
	6208023	Stitch Plate, Complete Set(02)	1
	6208018	Stitch Plate, Complete Set(03)	1
	6208019	Stitch Plate	1
	6208022	Stitch Plate Tongue(02)	1
	6208020	Stitch Plate Tongue(03)	1
	004182	Screw(3/32-56 × 2.5)	1
	6209023	Differential Feed Dog	1
	6201017	Pin	1
	180002	Screw(M3-0.5 × 4)	2

Page 42 — 18

Yamato CZ6000 parts on page 42

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29-1	29-1
	29-2	29-2
	29-3	29-3
	29-4	29-4
	30	30
	31	31

Page 43 — CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(1) サブモデル専用部品(1) 18

Yamato CZ6000 parts on page 43

Ref	Part number	Part name	Qty
	6200058	Needle Bar Driving Lever
	6200134	Crankshaft
	6200135	Needle Thread Pull-off
	6200136	Upper Knife Holder(Flat Type)
	6200308	Upper Knife(Flat Type)
	6100058	Tension Spring(Needle)
	6200128	Eye Guard Spacer
	100001	Nut
	6209304	Upper Looper
	6200455	Upper Looper Driving Lever
	6200488	Driving Shaft Thrust Ring
	6200108	Looper Driving Lever Connecting Rod
	6200457	Lower Looper Driving Lever
	6200517	Driving Shaft Thrust Ring
	6200459	Looper Thread Pull-off
	6200460	Looper Holder Cover
	110001	Screw(M4-0.7 × 5.4)
	6200461	Upper Looper Thread Eyelet
	6200462	Lower Looper Thread Eyelet
	000014	Washer	2
	110002	Screw(M3-0.5 × 5)
	110026	Screw(M3-0.5 × 6)
	6200463	Lower Looper Thread Pull-off
	6200464	Looper Thread Eyelet(Left)
	130020	Screw(M4-0.7 × 6.3)
	390663	Thread Chart
	6208000	Stitch Plate(Y5)
	6208002	Stitch Plate(Y6)
	6208014	Stitch Plate(Y7)
	6208016	Stitch Plate(Y8)
	6208026	Adjustable Stitch Tongue
	110064	Screw(M4-0.7 × 8)	2

Page 44 — CZ6120, 6120-40, 6125(2)

Yamato CZ6000 parts on page 44

Ref	Part number	Part name	Qty
1	1-1	1-1
1	1-2	1-2
1	1-3	1-3
4	4	4
5	5	5
12	12	12
11	11	11
3	3	3
8	8	8
2	2	2
10	10	10
7	7	7
9-1	9-1	9-1
9-2	9-2	9-2
9-3	9-3	9-3
13-1	13-1	13-1
13-2	13-2	13-2
17	17	17
16	16	16
15-1	15-1	15-1
15-2	15-2	15-2
14	14	14
18	18	18
19	19	19
23	23	23
22	22	22
21	21	21
25	25	25
20	20	20
24	24	24
27	27	27
26	26	26

Page 45

Yamato CZ6000 parts on page 45

Ref	Part number	Part name	Qty
1-1	6207044	Presser Foot, C. Set(Y5, Y6)	1
1-2	6207063	Presser Foot, C. Set(Y7)	1
1-3	6207067	Presser Foot, C. Set(Y8)	1
2	6207001	Presser Foot Hinge	1
3	110004	Screw(M3.5-0.6 × 8)	1
4	6207003	Presser Foot Half-stay	1
5	110050	Screw(M3.5-0.6 × 4.5)	1
6	6207002	Presser Foot (Lower)	1
7	6200034	Thread Chain Guide	1
8	004237	Screw(3/32-56 × 2.6)	1
9-1	6207046	Presser Foot Stitch Tongue(Y5, Y6)	1
9-2	6207058	Presser Foot Stitch Tongue(Y7)	1
9-3	6207070	Presser Foot Stitch Tongue(Y8)	1
10	6207018	Finger Guard	1
11	000444	Washer	1
12	005036	Screw(1/8-44 × 5.6)	1
13-1	6207021	Presser Foot, C. Set(Y5, Y6)	1
13-2	6207059	Presser Foot, C. Set(Y7)	1
14	6207019	Presser Foot (Lower)	1
15-1	6207022	Presser Foot Stitch Tongue(Y5, Y6)	1
15-2	6207056	Presser Foot Stitch Tongue(Y7)	1
16	6207018	Presser Foot Tape Guide	1
17	001230	Screw(3/32-56 × 3.8)	1
18	6207113	Presser Foot, C. Set(Y5)	1
19	6207114	Presser Foot Hinge	1
20	6207115	Presser Foot (Lower)	1
21	6207116	Presser Foot Stitch Tongue(Y5)	1
22	6207117	Finger Guard	1
23	110121	Screw(1/8-44 × 5.6)	1
24	6207118	Presser Foot Chip	1
25	004236	Screw(3/32-56 × 4.2)	1
26	6200567	Edge Guide Unit	1
27	110009	Screw(M4-0.7 × 8)	1

Page 46

Yamato CZ6000 parts on page 46

Ref	Part number	Part name	Qty
4	4	CORD
5	5	BRACKET
3	3	GUIDE
7	7	SCREW
8	8	SCREW
6	6	BRACKET
10	10	SCREW
11	11	SCREW
12	12	BRACKET
13	13	BRACKET
14	14	SCREW
15	15	BRACKET
16	16	WASHER
17	17	SPRING
18	18	WASHER
19	19	NUT
20	20	PLATE
21	21	SCREW
22	22	KNOB
23	23	SCREW
24	24	WASHER
25	25	SCREW
27	27	SHAFT
28	28	COLLAR
29	29	PIN
30	30	TUBE
31	31	BRACKET
32	32	SCREW
33	33	BRACKET

Page 47 — K2 DEVICE(1)

Yamato CZ6000 parts on page 47

Ref	Part number	Part name	Qty
	6201021	K2 Device, Complete Set	1
	6201022	Suction Pipe, Complete Set	1
	6201023	Suction Pipe	1
	310017	Oil Wick	1
	000755	Oil Wick Pin	1
	6201024	Suction Pipe Cover	1
	004237	Screw(3/32-56 × 2.6)	1
	004404	Screw(3/32-56 × 5.1)	2
	6201025	Upper Trimming Knife	1
	004131	Screw(1/8-44 × 6)	1
	004139	Screw(3/32-56 × 3)	2
	6201026	Lower Trimming Knife Holder Pin	1
	6201027	Lower Trimming Knife	1
	004236	Screw(3/32-56 × 4.2)	1
	6201040	Lower Trimming Knife Driving Plate	1
	6201041	Spring Sleeve	1
	6201042	Lower Trimming Knife Pushing Spring	1
	6201043	Spring Protect Washer	1
	6201044	Washer	1
	6201045	Air Shield Rubber	1
	001202	Screw(9/64-44 × 6.6)[9/64-40 × 5.3]	2
	6201046	Lower Trimming Knife Guide Support	1
	110006	Screw(M3.5-0.6 × 10)	1
	6201047	Lower Trimming Knife Guide	1
	270001	Screw(1/8-44 × 3)	1
	6201048	Suction Power Control, C. Set	1
	6201039	Suction Power Control Tube(Inner)	1
	6201049	Suction Power Control Tube	1
	001892	Screw(1/8-44 × 2.9)	1
	6201050	Nylon Hose	1
	6201051	Cloth Plate Spacer	1
	110042	Screw(M3.5-0.6 × 4)	2
	6201052	Suction Pipe Support	1

Page 48 — K2 DEVICE(2)

Yamato CZ6000 parts on page 48

Ref	Part number	Part name	Qty
3	1-1	1-2
10	1-1	1-2
2	1-1	1-2
9	1-1	1-2
4	1-1	1-2
11	1-1	1-2
12	1-1	1-2
8	1-1	1-2
7	1-1	1-2
6	1-1	1-2
5-1	1-1	5-1
5-2	1-1	5-2
3	13-1	13-2
10	13-1	13-2
2	13-1	13-2
9	13-1	13-2
4	13-1	13-2
11	13-1	13-2
12	13-1	13-2
8	13-1	13-2
7	13-1	13-2
6	13-1	13-2
14-1	13-1	14-1
14-2	13-1	14-2
3	15	15
10	15	15
2	15	15
9	15	15
4	15	15
11	15	15
12	15	15
8	15	15
20	15	15
7	15	15
6	15	15
19	15	15
18	15	15
16	15	15
3	21	21
10	21	21
2	21	21
9	21	21
4	21	21
11	21	21
12	21	21
8	21	21
20	21	21
7	21	21
6	21	21
19	21	21
22	21	21
16	21	21

Page 49

Yamato CZ6000 parts on page 49

Ref	Part number	Part name	Qty
1-1	6207178	Presser Foot, C. Set(03)
1-2	6207054	Presser Foot, C. Set(04)
2	6207001	Presser Foot Hinge
3	110004	Screw(M3.5-0.6 × 8)
4	6207002	Presser Foot(Lower)
5-1	6207179	Presser Foot Stitch Tongue(03)
5-2	6207045	Presser Foot Stitch Tongue(04)
6	6207000	Finger Guard
7	000444	Washer
8	005036	Screw(1/8-44 × 5.6)
9	6207047	Thread Chain Guide
10	004237	Screw(3/32-56 × 2.6)
11	6207003	Presser Foot Half-stay
12	110050	Screw(M3.5-0.6 × 4.5)
13-1	6207049	Presser Foot, C. Set(Y5, Y6)
13-2	6207262	Presser Foot, C. Set(X4)
14-1	6207046	Presser Foot Stitch Tongue(Y5, Y6)
14-2	6207057	Presser Foot Stitch Tongue(X4)
15	6207050	Presser Foot, C. Set(X4)
16	6207019	Presser Foot(Lower)
18	6207051	Presser Foot Stitch Tongue(X4)
19	6207018	Presser Foot Tape Guide
20	001230	Screw(3/32-56 × 3.8)
21	6207098	Presser Foot, C. Set(Y5, Y6)
22	6207022	Presser Foot Stitch Tongue(Y5, Y6)

Page 50 — B3 DEVICE

Yamato CZ6000 parts on page 50

Ref	Part number	Part name	Qty
7	7	BOLT
8	8	BRACKET
4	4	WASHER
5	5	WASHER
3	3	BASE
9-1	9-1	SPRING
9-2	9-2	SPRING
10	10	NUT
6	6	SCREW
15	15	SCREW
14	14	COVER
13	13	COVER
11	11	WASHER
12	12	SCREW
17-1	17-1	ARM
17-2	17-2	ARM
28	28	SCREW
27	27	SPRING
19	19	SHAFT
23	23	SPRING
22	22	SPRING
21-1	21-1	NEEDLE PLATE
21-2	21-2	NEEDLE PLATE
26	26	SCREW
25	25	PLATE
20	20	PRESSER FOOT
24	24	SPRING
18	18	SHAFT
30	30	PRESSER FOOT
29-1	29-1	PRESSER FOOT
29-2	29-2	PRESSER FOOT
31	31	PRESSER FOOT

Page 51 — B3 DEVICE

Yamato CZ6000 parts on page 51

Ref	Part number	Part name	Qty
1	6201054	B3 Device, C. Set	1
2	6201037	Back Tack Cutting Unit	1
3	6201028	Thread Chain Cutting Knife Holder	1
4	6201053	Thread Chain Cutting Knife	1
5	6201029	Thread Chain Cutting Knife Holder Spacer	1
6	003637	Screw(1/8-44 × 2.5)	2
7	004205	Screw(11/64-40 × 18)	1
8	6201036	Thread Chain Holder	1
9-1	6201035	Thread Chain Holder Spring(Standard)	1
9-2	6201034	Thread Chain Holder Spring(with Stronger Pressure)	1
10	000361	Adjusting Nut	2
11	000535	Washer	1
12	110044	Screw(M3-0.6 × 14)	1
13	6201033	Cloth Plate	1
14	6201030	Synchronizer Positioning Pin	1
15	110009	Screw(M4-0.7 × 8)	1
16	6200552	Synchronizer Cushion	1
17-1	6207180	Presser Foot, C. Set(O3)	1
17-2	6207052	Presser Foot, C. Set(O4)	1
18	6207001	Presser Foot Hinge	1
19	110004	Screw(M4-0.7 × 8)	1
20	6207002	Presser Foot(Lower)	1
21-1	6207181	Presser Foot Stitch Tongue(O3)	1
21-2	6207053	Presser Foot Stitch Tongue(O4)	1
22	6207000	Finger Guard	1
23	000444	Washer	1
24	005036	Screw(1/8-44 × 5.6)	1
25	6200034	Thread Chain Guide	1
26	004277	Screw(3/32-56 × 1.7)	1
27	6207003	Presser Foot Half-stay	1
28	110050	Screw(M3.5-0.6 × 4.5)	1
29-1	6208045	Stitch Plate(O3)	1
29-2	6208013	Stitch Plate(O4)	1
30	6209015	Differential Feed Dog	1
31	6209016	Main Feed Dog	1

Page 52 — MT22 DEVICE(1)

Yamato CZ6000 parts on page 52

Ref	Part number	Part name	Qty
1	1	COVER
2	2	SCREW
3	3	MT22 DEVICE
4	4	NUT
5	5	BRACKET
6	6	SCREW
7	7	PIN
8	8	CAM
9	9	SCREW
10	10	NUT
11	11	NUT
12	12	SPRING
13	13	BRACKET
14	14	SHAFT
15	15	SCREW
16	16	PLATE
17	17	SCREW
18	18	WASHER
19	19	WASHER
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	SCREW
24	24	BRACKET
25	25	SCREW
26	26	SHAFT
27	27	COLLAR
28	28	PIN
29	29	SPRING
30	30	BRACKET
31	31	SCREW
32	32	BRACKET
33	33	SCREW
34	34	WASHER
35	35	WASHER
36	36	SCREW
37	37	WASHER
38	38	WASHER
39	39	BRACKET
40	40	SCREW

Page 53

Yamato CZ6000 parts on page 53

Ref	Part number	Part name	Qty
	6201175	Solenoid Cover	1
	006233	Screw(M3-0.5 × 5)	2
	6201169	Solenoid	1
	000206	Nut	2
	6201171	Solenoid Holder	1
	009976	Screw(M6-1 × 15)	2
	340003	Pin	1
	6201174	Drive Gear	1
	009749	Screw(M4-0.7 × 16)	1
	000339	Nut	1
	006638	Screw(5/32-40 × 9.5)	1
	6201172	Solenoid Spring	1
	6201179	Trimming Device C. Set	1
	6201173	Driven Gear	1
	160001	Screw(M4-0.7 × 10)	2
	6201178	Upper Knife Holder	1
	110039	Screw(M3.5-0.6 × 10)	1
	300050	Spring Washer	1
	000532	Washer	1
	6200516	Upper Knife Rubber Cushion	1
	6201166	Lower Knife	1
	6201167	Lower Knife Fabric Guide	1
	001230	Screw(3/32-56 × 3.8)	2
	6201177	Fabric Guide(Finger guard)	1
	004404	Screw(3/32-56 × 5.1)	1
	6201170	Upper Knife	1
	6201164	Collar(6 × 9 × 5mm)	1
	003637	Screw(1/8-44 × 2.5)	1
	6201165	Upper Knife Spring	1
	6201176	Upper Knife Holder Fixing Block	1
	004358	Screw(9/64-40 × 5.6)	2
	6201063	Trimming Device Support	1
	009748	Screw(M4-0.7 × 12)	1
	000644	Spring Washer	1
	000665	Washer	1
	009976	Screw(M6-1 × 15)	1
	000661	Spring Washer	1
	000425	Washer	1
	6201185	Cloth Plate Spacer	1
	110042	Screw(M3.5-0.6 × 4)	2

Page 54 — MT22 DEVICE(2)

Yamato CZ6000 parts on page 54

Ref	Part number	Part name	Qty
3	3	SCREW
2	2	BRACKET
4	4	SCREW
14	14	SCREW
13	13	CLAMP
10	10	CABLE
9	9	WASHER
5	5	BOX
6	6	BRACKET
8	8	SCREW
7	7	SCREW
16	16	CONNECTOR
15	15	COVER
17	17	SWITCH

Page 55 — MT22 DEVICE(2)

Yamato CZ6000 parts on page 55

Ref	Part number	Part name	Qty
1	6201183	Manual Switch, C. Set
2	6201187	Switch Support
3	180025	Screw(M4-0.7 × 4.5)
4	110106	Screw(M4-0.7 × 8)
5	6201182	Switch
6	6201186	Switch Cover
7	009993	Screw(M3-0.6 × 16)
8	6201157	Cord Bushing
9	009995	Screw(M3-0.6 × 5)
10	6201180	Manual Switch Plate
11	000002	Spring Washer
12	000488	Nut
13	6201181	Cord Clamp(3.4-2N)
14	110012	Screw(M4-0.7 × 5)
15	6201184	Control Box, C. Set
16	6101118	Control Stay
17	006905	Wood Screw(Φ 5.1 × 5)

Page 56

Yamato CZ6000 parts on page 56

Ref	Part number	Part name	Qty
1	1	COVER
2	2	SCREW
3	3	BRACKET
4	4	SCREW
5	5	BASE
6	6	KNOB
7	7	STUD
8	8	COLLAR
9	9	WASHER
10	10	BUSHING
11	11	WASHER
12	12	NUT
13	13	BRACKET
14	14	SCREW
15	15	COVER
16	16	COVER
17	17	COVER
18	18	SCREW
19	19	BRACKET
20	20	SCREW
21	21	SCREW
22	22	WASHER

Page 57 — MISCELLANEOUS SUPPORTING BOARD

Yamato CZ6000 parts on page 57

Ref	Part number	Part name	Qty
	6200303	Belt Cover	1
	110015	Screw(M4-0.7 × 25)	2
	6200304	Supplementary Belt Cover	1
	110013	Screw(M4-0.7 × 8)	2
	6200148	Supporting Board	1
	000070	Hanging Nut	4
	009861	Hanging Bolt	4
	6200210	Spacer(15mm)	4
	6101005	Spacer(5mm) (See the below)	4
	6100326	Supporting Board Rubber Cushion	8
	000162	Washer	4
	000016	Nut	8
	6200152	Chute(Upper) Support	1
	005624	Screw(M4-0.7 × 10)	4
	6200146	Chute(Upper)	1
	6200147	Chute(Lower)	1
	6200151	Chip Receiver	1
	350007	Wood Screw(φ 3.5 × 16)	2
	6200524	Edge Guide Holder	1
	110035	Screw(M4-0.7 × 10)	2
	110009	Screw(M4-0.7 × 8)	1
	000665	Washer	1

Page 58

Yamato CZ6000 parts on page 58

Ref	Part number	Part name	Qty
	1	BRACKET
	2	COLLAR
	3	SHAFT
	4	BRACKET
	5	WASHER
	6	SCREW
	7	NUT
	8	SPRING
	9	SCREW
	10	BRACKET
	11	SHAFT
	12	WASHER
	13	WASHER
	14	NUT
	15	BRACKET
	16	SCREW
	17	SCREW
	18	SCREW
	19	BRACKET
	20	ROD
	21	BRACKET
	22	BRACKET
	23	SPOOL HOLDER
	24	SHAFT
	25	SPOOL
	26	SPOOL
	27	BRACKET

Page 59 — THREAD STAND

Yamato CZ6000 parts on page 59

Ref	Part number	Part name	Qty
	6802629	Thread Stand, C. Set(4 Spools Type)	1
	6802601	Column Cap	1
	6802602	Column Pipe(Upper)	1
	6802603	Thread Guide Holder(Large)	1
	911002	Screw(M4-0.7 × 20)	1
	911001	Screw(M4-0.7 × 12)	3
	910001	Nut	4
	6802604	Column Pipe Connector	1
	911006	Screw(M5-0.8 × 13)	2
	910000	Nut	6
	6802605	Column Pipe(Lower)	1
	930052	Washer	1
	930053	Spring Washer	1
	910003	Nut(M16-1.5)	1
	6802606	Thread Hanger(2 Spools Type)	4
	6802608	Thread Eyelet	4
	6802609	Thread Hanger Holder	4
	911060	Screw(M6-1 × 15)	4
	6802610	Thread Guide Arm	1
	6802611	Thread Guide Holder(Small)	1
	6802612	Thread Guide(5 Spools Type)	1
	6802613	Spool Cushion	4
	6802614	Spool Pin	4
	6802615	Spool Mat	4
	6802616	Spool Seat Disc	4
	930055	Spring Washer	4

Page 60

Yamato CZ6000 parts on page 60

Ref	Part number	Part name	Qty
	390220	SAFETY INSTRUCTON LABEL
	390144	DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Part BooksPartsSearchNotes

Part Books

×

Search

×

Yamato CZ6000 — parts catalog

• Page 1 (cover): This is the cover page for the Yamato High Speed Overlock Stitch Machine CZ6000 parts list. It features the Yamato logo, the title 'Parts List', the machine model 'CZ6000', an illustration of the machine, and a list of applicable models.
• Page 2 (text): This page provides instructions on how to read the parts list, including explanations of symbols and how to place an order. It also states that the parts list is subject to change.
• Page 3 (toc): This page contains the table of contents for the parts catalog, listing various machine components and their corresponding page numbers in both English and Japanese.
• Page 4 (diagram): This page displays a diagram of various components and sub-assemblies of an industrial sewing machine, including covers, fasteners, and internal mechanisms, with numbered references for each part.
• Page 5 (parts_list): This page lists miscellaneous covers and related parts for an industrial sewing machine, including various screws, washers, plates, and gaskets, along with their part numbers and quantities.
• Page 6 (diagram): This page displays a diagram of machine components with reference numbers for various parts, including screws, brackets, and covers.
• Page 7 (parts_list): This page lists miscellaneous covers and related parts for sewing machines, including part numbers, descriptions, and quantities required, along with a threading chart for specific models.
• Page 8 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, gaskets, covers, and other mechanical parts, each identified by a reference number.
• Page 9 (parts_list): This page lists miscellaneous covers and related parts for an industrial sewing machine, including part numbers, descriptions, and quantities required.
• Page 10 (diagram): This page displays a diagram of various components and sub-assemblies for an industrial sewing machine, including screws, brackets, and specialized parts, each identified by a reference number.
• Page 11 (parts_list): This page lists miscellaneous thread eyelets with their part numbers, descriptions, and quantities required.
• Page 12 (diagram): This page displays a diagram of various components of an industrial sewing machine, including pulleys, shafts, bearings, and housing parts, with reference numbers for each component.
• Page 13 (parts_list): This page lists miscellaneous crankshaft and bushings with their part numbers, descriptions, and quantities required.
• Page 14 (diagram): This page displays a diagram of various machine components, including linkages, shafts, screws, and brackets, with reference numbers for each part.
• Page 15 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of various sewing machine parts, including linkages, shafts, screws, and brackets, with reference numbers for identification.
• Page 17 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various machine components, including screws, brackets, and linkages, with reference numbers for each part.
• Page 20 (diagram): This page displays a diagram of various sewing machine parts, including a presser foot assembly, tension components, and other miscellaneous parts, with reference numbers and some part numbers indicated.
• Page 21 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 22 (diagram): This page displays a diagram of various sewing machine parts, including presser feet, levers, springs, and screws, with reference numbers for each component.
• Page 23 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various machine parts, including clamps, bearings, shafts, and fasteners, with reference numbers for identification.
• Page 25 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various machine components, including screws, brackets, shafts, and levers, with reference numbers for each part.
• Page 27 (parts_list): This page lists parts for the Lower Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 29 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 31 (parts_list): This page lists parts for the FEED DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 32 (diagram): This page displays a diagram of various components and sub-assemblies, including part numbers and reference indicators, for an industrial sewing machine.
• Page 33 (parts_list): This page lists parts for the Lubricating Mechanism, including oil pumps, screws, seals, tubes, filters, and gauges, with their corresponding part numbers and quantities.
• Page 34 (diagram): This page displays a diagram of various sewing machine parts for the CZ6000 model, including levers, feet, and covers, with corresponding reference numbers.
• Page 35 (parts_list): This page lists parts for the CZ6000 sewing machine, including presser foot components, screws, guides, and other accessories, with their corresponding part numbers and quantities.
• Page 36 (diagram): This page displays a diagram of various sewing machine parts, including a presser foot assembly, needle plate, and other components, with reference numbers for identification.
• Page 37 (parts_list): This page lists exclusive parts for the CZ6003 model, including part numbers, descriptions, and quantities required.
• Page 38 (diagram): This page displays a diagram of sewing machine parts for model CZ6016, including main components and extra parts, with reference numbers for each item.
• Page 39 (parts_list): This page lists exclusive parts for the CZ6016 model, including presser feet, screws, stitch plates, loopers, and knife holders, with their respective part numbers and quantities.
• Page 40 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions.
• Page 41 (parts_list): This page lists parts for the CZ6016-61 model, including presser foot components, stitch plates, screws, and other accessories, with their respective part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers 1 through 31, and lists model numbers CZ6120, 6120-40, and 6125(1).
• Page 43 (parts_list): This page lists parts for CZ6120, 6120-40, and 6125 sewing machines, including part numbers, descriptions, and quantities required.
• Page 44 (diagram): This page displays diagrams of parts for models CZ6120, CZ6125, and CZ6120-40, with numbered components indicated.
• Page 45 (parts_list): This page lists parts for CZ6120, 6120-40, 6125 models, including presser feet, screws, washers, and guides, with their respective part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays a diagram of the K2 device, showing various components labeled with reference numbers for identification.
• Page 47 (parts_list): This page lists parts for the K2 DEVICE(1) with part numbers, descriptions, and quantities required.
• Page 48 (diagram): This page displays diagrams of K2 devices for models CZ6003/K2, CZ6020/K2, CZ6025/K2, and CZ6125/K2, detailing various components with reference numbers.
• Page 49 (parts_list): This page lists parts for K2 DEVICE(2) with part numbers, descriptions, and quantities required.
• Page 50 (diagram): This page displays diagrams for the B3 Device and CZ6003/B3 components, detailing various parts with reference numbers and descriptions.
• Page 51 (parts_list): This page lists parts for the B3 Device, including various screws, holders, plates, and other components with their corresponding part numbers and quantities.
• Page 52 (diagram): This page displays a diagram of the MT22 DEVICE(1) with numbered parts and their corresponding references.
• Page 53 (parts_list): This page lists parts for the MT22 DEVICE (1) with part numbers, descriptions, and quantities required.
• Page 54 (diagram): This page displays a diagram of the MT22 device, showing various components labeled with reference numbers and corresponding part numbers.
• Page 55 (parts_list): This page lists parts for MT22 DEVICE(2) with part numbers, descriptions, and quantities required.
• Page 56 (diagram): This page displays a diagram of various machine components and hardware, including brackets, screws, nuts, and other fasteners, with reference numbers for identification.
• Page 57 (parts_list): This page lists parts for the MISCELLANEOUS SUPPORTING BOARD, including part numbers, descriptions, and quantities required.
• Page 58 (diagram): This page displays a diagram of various machine components, including brackets, shafts, spools, and fasteners, with corresponding reference numbers for identification.
• Page 59 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities required.
• Page 60 (parts_list): This page lists various warning labels for the machine, including safety instructions, high voltage warnings, and caution labels for rotating parts and hot surfaces.
• Page 61 (unknown): This page contains a watermark and a website address at the bottom.

Page 1 — Parts List

Yamato Parts List HIGHT SPEED OVERLOCK STITCH MACHINE CZ6000 MODELS & DEVICES CZ6000 CZ6003 CZ6016 CZ6016-61 CZ6020 CZ6025 CZ6120 CZ6120-40 CZ6125 K2 B3 MT22 YAMATO SEWING MACHINE MFG. CO.,LTD. jintex.in

Page 2 — How to use this Parts List

本零件号码表的查阅方法 本零件号码列表以 CZ6025-Y□DF, X□DF (CZ6020-Y□DF, X□DF) 为基本型插图. 项目 14 以下记载了下属机型及附属装置. 本零件号码表中接管的尺寸为内径 × 外径 × 宽度. 连接器处的数字为接头部的大小. 符号说明 [ ] 表示相对旧版零件号码表中有变动. [ ] 内为旧零件号码及螺丝类的形状. ◆表示相对旧版零件号码表, 在本版零件表中追加了此零件或机型. 订购零件时的注意事项 ☆如需订货, 请告知 PARTS No. (零件号码) (例如 6200066). ☆订购气管时, 请告知零件号码及长度. 本零件号码列表之记载事项, 如有改良随时更改。以实际产品为准, 恕不另行通知. How to use this Parts List The illustrations in this Parts List are drawn on the basis of CZ6025-Y□DF, X□DF (CZ6020-Y□DF, X□DF). The items from No.1 to No.13 relate to the standard model. The items after No.14 relate to the submodel and device. The dimension of collar in this Parts List is shown as inside diameter × outside diameter × width. Number beside connector shows size of joint. Mark explanation [] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. ◆ means this part or model is newly added in this Parts List. How to place an order for the parts ☆ When placing an order, please tell us Parts No. (e. g. 6200066). ☆ For Air tube, please inform us of the part No. and the length. This Parts List is subject to change for improvement without notice. jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) MISCELLANEOUS COVERS(2) MISCELLANEOUS COVERS(3) MISCELLANEOUS THREAD EYELETS MISCELLANEOUS CRANKSHAFT & BUSHINGS NEEDLE BAR DRIVING MECHANISM KNIFE DRIVING MECHANISM PRESSER FOOT MECHANISM UPPER LOOPER DRIVING MECHANISM LOWER LOOPER DRIVING MECHANISM FEED DRIVING CONTROL MECHANISM FEED DRIVING MECHANISM LUBRICATING MECHANISM CZ6000 EXCLUSIVE PARTS CZ6003 EXCLUSIVE PARTS CZ6016 EXCLUSIVE PARTS CZ6016-61 EXCLUSIVE PARTS CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(1) CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(2) K2 DEVICE(1) K2 DEVICE(2) B3 DEVICE MT22 DEVICE(1) MT22 DEVICE(2) MISCELLANEOUS SUPPORTING BOARD THREAD STAND WARNING LABEL カバー関係(1) カバー関係(2) カバー関係(3) 糸道関係 主軸及びブッシュ関係 針棒機構 メス機構 押工機構 上ルーパ機構 下ルーパ機構 前送り調節機構 送り機構 給油機構 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品 サブモデル専用部品(1) サブモデル専用部品(2) K2装置(1) K2装置(2) B3装置 MT22装置(1) MT22装置(2) 受ケ板関係 糸立台 警告ラベル 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 jintex.in

Page 4

1 13 14 15 16 17 18 19 3 4 5 6 7 2 10 9 8 37 11 12 38 39 40 20 21 22 23 24 35 36 26 27 28 29 30 32 33 CZ6000 jintex.in

Page 5 — MISCELLANEOUS COVERS(1)

MISCELLANEOUS COVERS(1) カバー関係(1) 1 Ref.No Parts No. Description Amt. Req 1 6200066 Cloth Plate クロスプレート 1 2 6200302 Cloth Plate(Lower) クロスプレート(下) 1 3 6200072 Rubber Cushion クロスプレート(下)埋メ座 1 4 001123 Washer ワッシャ 3 5 000644 Spring Washer スプリングワッシャ 3 6 110045 Screw(M4-0.7 × 12) 止ネジ 3 7 6200070 Cloth Plate Eccentric Bushing エキセンブッシュ 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 6200071 Collar(4 × 9 × 6mm) カラー 1 10 003637 Screw(1/8-44 × 2.5) 止ネジ 1 11 6200529 Cloth Plate Latch, C. Set 開閉レバー(組) 1 12 110073 Screw(M4-0.7 × 5) 止ネジ 2 13 100001 Lock Nut ロックナット 1 14 110031 Stop Screw(M4-0.7 × 12) ストツプネジ 1 15 6200015 Oil Cap オイルキャップ 1 16 6200016 O-ring(P28) Oリング 1 17 6200078 Top Cover 上カバー 1 18 110016 Screw(M4-0.7 × 15) 止ネジ 6 19 6200228 Top Cover Gasket 上カバーパツキン 1 20 6200172 Oil Reservoir Gasket 油受ケパツキン 1 21 6200309 Oil Reservoir 油受ケ 1 22 006816 Screw(1/4-24 × 8) 止ネジ 4 23 6200029 OilReservoirRubberCushion(Black-colored) 防振ゴム(黒色) 3 24 6200033 OilReservoirRubberCushion(Green-colored) 防振ゴム(緑色) 1 25 26 6200182 Oil Reservoir Positioning Bar 油受ケ固定棒 4 27 300004 Washer ワッシャ 4 28 120017 Screw(M5-0.8 × 15) 止ネジ 6 29 6100029 Drain Hole Seal パツキン 1 30 005075 Drain Hole Screw(3/8-24 × 8) 油抜キネジ 1 31 32 6200512 Wind Guide Plate 風案内板 1 33 110013 Screw(M4-0.7 × 8) 止ネジ 2 34 300043 Washer ワッシャ 2 35 6209401 Serial Number Plate 機番プレート 1 36 000726 Rivet 止メ釘 2 37 6200530 Cloth Plate Latch Holder 開閉レバー台 1 38 6200531 Cloth Plate Latch 開閉レバー 1 39 6200532 Cloth Plate Latch Spring 開閉レバーバネ 1 40 170067 Screw(M5-0.8 × 6) 止ネジ 1 CZ6000

Page 6

2 11 17 16 14 15 CZ 13 7 1 2 5 6 4 2 9 8 12 10 11 13 30 27 25 21 22 24 26 2 28 32 31 20 19 CZ6000 jintex.in

Page 7 — MISCELLANEOUS COVERS (2)

MISCELLANEOUS COVERS (2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 1 6200465 Side Cover 側面カバー 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 6 3 4 6200220 Eye Guard Holder アイガード板 1 5 170032 Screw(M4-0.7 × 5) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 2 7 6200285 Eye Guard アイガード 1 8 110076 Screw(M3-0.5 × 6) 止ネジ 2 9 000444 Washer ワッシャ 2 10 6200225 Needle Bar Oil Defender 針棒油受ケ 1 11 110012 Screw(M4-0.7 × 5) 止ネジ 4 12 6200226 Needle Bar Oil Seal 針棒シール 1 13 190015 Screw(M14-2 × 6) 止ネジ 2 14 6200227 Logo Plate ロゴマーク板 1 15 110106 Screw(M4-0.7 × 8) 止ネジ 2 16 6200375 Tape Guide(Upper) テープガイド(上) 1 17 000538 Washer ワッシャ 2 18 19 6200159 Front Cover Latch Spring 前開キカバーラッチバネ 1 20 6200027 Front Cover Hook 前開キカバーフック 1 21 001203 Screw(9/64-40 × 4.5) 止ネジ 1 22 6200017 Front Cover Hinge Pin 前開キカバーヒンジピン 1 23 003637 Screw(1/8-44 × 2.5) 止ネジ 2 24 6200073 Front Cover (Right) 前開キカバー 1 25 6200024 Front Cover Hinge Spring 前開キカバーヒンジバネ 1 26 6200310 Front Cover Hinge 前開キカバーヒンジ 1 27 6200156 Chip Guard(Openable) 切屑落シ板 1 28 110003 Screw(M3.5-0.6 × 6) 止ネジ 2 29 30 Threading Chart(See the Table) 糸通シ図(下表参照) 1 31 6200170 Front Cover Latch 前開キカバーラッチ 1 32 110054 Screw(M3-0.5 × 3.5) 止ネジ 2 Models Parts No. Threading Chart CZ6000 390662 CZ6003 390662 CZ6016 390662 CZ6020 390660 CZ6025 390660 CZ6000

Page 8

3 3 4 1 2 19 18 21 20 7 22 11 24 23 25 16 5 6 7 9 8 17 14 15 13 11 12 10 CZ6000 jintex.in

Page 9 — MISCELLANEOUS COVERS (3)

MISCELLANEOUS COVERS (3) カバー関係 (3) 3 Ref.No Parts No. Description 品 名 Amt. Req 1 6200075 Feed Mechanism Cover 送り上カバー 1 2 6200192 Feed Mechanism Cover Gasket 送り上カバーパッキン 1 3 110048 Screw(M4-0.7 × 10) 止ネジ 5 4 6200077 Rubber Cushion 埋メ座(中) 1 5 6200212 O-ring(P52) Oリング 1 6 6200211 Ball Bearing Holder ベアリング押工 1 7 110013 Screw(M4-0.7 × 8) 止ネジ 7 8 6200511 Fan Cover ファンカバー 1 9 110012 Screw(M4-0.7 × 5) 止ネジ 2 10 150004 Screw(M4-0.7 × 6) 止ネジ 1 11 6200209 Seal Plug 詰栓 2 12 6200224 Pushbutton プッシュボタン 1 13 6200171 Oil Seal オイルシール 1 14 6100333 Retaining Ring ストップリング 2 15 6200036 Pushbutton Spring プッシュボタンバネ 1 16 330008 Seal Plug 詰栓 1 17 330000 Seal Plug 詰栓 1 18 6200219 Fabric Guide Plate 布案内板 1 19 110064 Screw(M4-0.7 × 8) 止ネジ 2 20 6200191 Tail Cover Gasket 後カバーパッキン 1 21 6200076 Tail Cover 後カバー 1 22 6200259 Seal Plug 詰栓 1 23 6200180 Ball Bearing Housing ハウジング 1 24 6200181 Ball Bearing Housing Gasket ハウジングパッキン 1 25 130003 Screw(M4-0.7 × 7.3) 止ネジ 3 jintex.in CZ6000

Page 10

4 2 1 46 11 10 9 8 7 10 9 6 8 5 4 3 11 6 10 12 9 8 4 7 11 6 13 9 4 3 7 15 21 25 24 6 14 4 3 22 29 47 28 30 27 31 32 33 34 22 26 23 39 40 38 B 35 36 37 43 41 42 44 45 40 44 44 A 18 17 16 19 20 CZ6000 jintex.in

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 4 Ref.No Parts No. Description 品 名 Amt. Req 1 6200079 Thread Guide Plate 糸案内板 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 2 3 6100056 Thread Tension Spring Cap 糸調子バネキャップ(上) 4 4 6100057 Tension Spring Bushing 糸調子ナット廻り止メ 4 5 6200026 Lower Looper Thread Tension Spring 下ルーパ糸調子バネ 1 6 6200019 Thread Tension Spring Retainer 糸調子バネキャップ(下) 4 7 000178 Felt フェルト 4 8 6100062 Tension Disc 糸調子皿 8 9 000177 Tension Post(Short) 糸調子棒(短) 4 10 190016 Tension Disc Eyelet 糸調子台糸道 3 11 6200031 Upper Looper Thread Tension Spring 上ルーパ糸調子バネ 1 12 6100059 Needle Thread Tension Spring 針糸調子バネ 1 13 6200032 Needle Thread Tension Spring 針糸調子バネ 1 14 6200025 Tension Disc Eyelet for Needle Thread 針糸調子台糸道 1 15 6200277 Oil Container SPタンク 1 16 6200447 Oil Container Plug 詰栓 1 17 310105 Felt SP フェルト 1 18 6200449 Felt Holder SP フェルト押工 1 19 110013 Screw(M4-0.7 × 8) 止ネジ 1 20 6200284 Needle Thread Eyelet Holder 針糸道取付板 1 21 110001 Screw(M4-0.7 × 5.4) 止ネジ 3 22 6200276 Needle Thread Eyelet(Right) 針糸道(右) 1 23 006035 Screw(9/64-40 × 7) 止ネジ 1 24 000644 Spring Washer スプリングワッシャ 1 25 000322 Nut ナット 1 26 6200275 Needle Thread Eyelet(Left) 針糸道(左) 1 27 6200272 Needle Thread Pull-off 針糸繰りリ 1 28 110064 Screw(M4-0.7 × 8) 止ネジ 1 29 000653 Knock Pin ノックピン 1 30 6200466 Thread Retainer Plate Support 小調子板 1 31 6200467 Thread Retainer Plate 小調子皿 1 32 6200468 Thread Retainer Spring 小調子皿バネ 1 33 170060 Screw(M2.5-0.45 × 4) 止ネジ 1 34 6200229 Looper Crank Cover ルーパクランクカバー 1 35 110009 Screw(M4-0.7 × 8) 止ネジ 1 36 6100111 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 37 6200164 Spacer(Rubber) スペーサ 1 38 6200280 Looper Thread Eyelet(Left) ルーパ糸道(左) 1 39 110035 Screw(M4-0.7 × 10) 止ネジ 3 40 6200283 Thread Eyelet Support 糸道取付板 1 41 6200282 Lower Looper Thread Eyelet 下ルーパ糸道 1 42 6200439 Upper Looper Thread Eyelet 上ルーパ糸道 1 43 000014 Washer ワッシャ 2 44 110026 Screw(M3-0.5 × 6) 止ネジ 2 45 6200023 Looper Thread Pipe 糸道パイプ 2 46 000644 Spring Washer スプリングワッシャ 1 CZ6000 jintex.in

Page 12

5 CZ6000 jintex.in

Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

MISCELLANEOUS CRANKSHAFT & BUSHINGS 主軸及びブッシュ関係 5 Ref.No Parts No. Description 品 名 Amt. Req 1 6200305 Machine Pulley ミシンプーリ 1 2 160007 Screw(M6-1 × 6) 止ネジ 6 3 6200477 Oil Cooling Fan 冷却ファン 1 4 160001 Screw(M4-0.7 × 4) 止ネジ 3 5 6200214 Wave Washer 波形ワッシャ 1 6 6200213 Mechanical Oil Shield 油切り 1 7 6100622 Crankshaft Ball Bearing(Right) ボールベアリング(右) 1 8 6100127 Bearing Adapter ベアリング受ケ 1 9 6200268 Oil Pump Driving Worm ウォーム 1 10 6200373 Crankshaft Bushing 中ブッシュ 1 11 6200270 Crankshaft クランクシャフト 1 12 6200560 Pin 油量制限ピン 1 13 14 160027 Screw(M3-0.5 × 3) 詰ネジ 5 15 6200179 Crankshaft Ball Bearing(Left) ボールベアリング(左) 1 16 6200569 [6200234] Crankshaft Bushing 小ブッシュ 1 17 6200083 Upper Knife Driving Shaft Bushing(Right) 上メス軸ブッシュ(右) 1 18 6200238 Upper Knife Feed Bar Driving Shaft Bushing 上メス軸・送り軸ブッシュ 2 19 6200084 Upper Knife Driving Shaft Oil Seal 上メス軸オイルシール 1 20 6200244 Needle Bar Driving Shaft Bushing(Right) 針棒クランク軸ブッシュ(右) 1 21 6200243 Needle Bar Driving Shaft Bushing(Left) 針棒クランク軸ブッシュ(左) 1 22 003636 Cap Screw(5/16-32 × 3.5) 蓋ネジ 1 23 000526 Gasket パッキン 1 24 25 310109 Oil Wick 油芯 1 26 27 6200241 UpperLooperDrivingShaftBushing(Front) 上ルーパ軸ブッシュ(前) 1 28 6200242 UpperLooperDrivingShaftBushing(Rear) 上ルーパ軸ブッシュ(後) 1 29 6200132 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 30 6200239 LowerLooperDrivingShaftBushing(Front) 下ルーパ軸ブッシュ(前) 1 31 6200240 Lower Looper Driving Shaft Bushing(Rear) 下ルーパ軸ブッシュ(後) 1 32 6200237 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 33 6200259 Seal Plug 詰栓 1 34 6200081 Control Lever Shaft Bushing 送り調節レバー軸ブッシュ 1 35 160001 Screw(M4-0.7 × 4) 止ネジ 2 CZ6000

Page 14

6 CZ6000 jintex.in

Page 15

NEEDLE BAR DRIVING MECHANISM 針棒機構 6 Ref.No Parts No. Description 品 名 Amt. Req 1 6200271 Needle Bar Driving Connecting Rod 針棒ロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 2 3 6200088 Needle Bar Driving Connecting Rod Pin 針棒クランクピン 1 4 160002 Screw(M4-0.7 × 5) 止ネジ 1 5 6200187 Needle Bar Driving Lever 針棒クランク軸腕 1 6 120006 Screw(M6-1 × 12) 止ネジ 1 7 6200086 Collar(12 × 20 × 10mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 2 9 6200307 Needle Bar Crank Arm, C. Set 針棒クランク(組) 1 10 6200568 Needle Bar Driving Shaft 針棒クランク軸 1 11 6200085 Needle Bar Crank Arm 針棒クランク 1 12 300008 Washer ワッシャ 1 13 140003 Screw(M6 × 18) 止ネジ 1 14 6200087 Needle Bar Connecting Link 針棒リンク 1 15 6200101 Needle Bar Connecting Link Pin 針棒リンクピン 2 16 310089 Oil Wick 油芯 2 17 6200246 Needle Bar Connecting Bracket 針棒抱キ 1 18 110006 Screw(M3.5-0.6 × 10) 止ネジ 1 19 160016 Screw(M4-0.7 × 4.5) 止ネジ 2 20 6200245 Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 21-1 6209103 Needle Clamp(Y) 針止メ 1 21-2 6209102 Needle Clamp(X) 針止メ 1 22 -- 001900 Needle(System : DC × 1) 針 2 23 6200249 Screw(1/8-44 × 2.5) 止ネジ 2 24 6200250 Stitch Plate Support Stay, C. Set 針板取付台支工(組) 1 25 6200250 Stitch Plate Support Stay 針板取付台支工 1 26 000035 Roll Pin ロールピン 1 27 110009 Screw(M4-0.7 × 8) 止ネジ 6 28 6200153 Stitch Plate Support(Rear) 針板取付台(後) 1 29 110001 Screw(M5-0.8 × 10) 止ネジ 1 30-1 6208000 Stitch Plate(Y5) 針板 1 30-2 6208002 Stitch Plate(Y6) 針板 1 30-3 6208012 Stitch Plate(X4) 針板 1 30-4 6208025 Stitch Plate(X5) 針板 1 31 005345 Screw(11/64-40 × 8.3) 止ネジ 2 32 6200089 Stitch Plate Support(Front) 針板取付台(前) 1 33 110011 Screw(M5-0.8 × 10) 止ネジ 2 34 6100020 Rubber Cushion 埋メ座 1 35 6209200 Needle Guard(Front) 針受ケ(前) 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 6200232 HR Unit, Complete Set HR装置(組) 1 38 6100310 Tube Joint パイプ継手 1 39 6200090 Oil Tube(70mm) 給油パイプ(70mm) 1 40 310005 Oil Wick 油芯 1 Ref. No. 41 to 49 See the following page. CZ6000

Page 16

6 CZ6000 jintex.in 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21-1 21-2 22 23 24 25 26 27 28 29 30-1 30-2 30-3 30-4 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49

Page 17 — NEEDLE BAR DRIVING MECHANISM

NEEDLE BAR DRIVING MECHANISM Ref.No 41 42 43 44 45 46 47 48 49 Parts No. 6200155 310001 6200157 6200158 000393 110013 320008 000567 6200296 Description HR Felt Holder HR Felt HR Felt Holder Bracket, C. Set HR Felt Holder Bracket Roll Pin Screw(M4-0.7 × 8) Fitting Stud(Short) Seal HR Unit Bracket 品 名 HR フェルト受ケ HR フェルト HR取付台(組) HR取付台 ロールピン 止ネジ 管継手ボルト(短) パッキン HR 装置台 Amt. Req 1 1 1 1 1 1 1 1 1 針棒機構 6 CZ6000 jintex.in

Page 18

7 CZ6000 jintex.in

Page 20

8 CZ6000 jintex.in 1 2 3 4 5 6 7 8 9 10 11 12 13 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 34 35 36 37 38 39 41 42 43 44 45 46 47 48 49 50-1 50-2 50-3 51-1 51-2 51-3 32-1 32-2 32-3 40-1 40-2 40-3 CZ6020

Page 21 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 1 190088 Adjusting Screw(M10-0.75 × 30) 調節ネジ 1 2 100073 Lock Nut ロックナット 1 3 6200469 Presser Spring 押工バネ 1 4 6200470 Presser Bar 押工棒 1 5 6200160 Presser Arm Positioning Guide Pin 押工腕案内ピン 1 6 340061 Pin ピン 1 7 6200472 Presser Arm Stop 押工腕ストッパ 1 8 110012 Screw(M4-0.7 × 5) 止ネジ 1 9 6200473 Presser Foot Release Lever 手揚 1 10 6200474 Presser Foot Release Lever Spring 手揚バネ 1 11 170045 Screw(M4-0.7 × 5) 止ネジ 1 12 180001 Screw(M4-0.7 × 4.5) バネ掛ケネジ 1 13 6200513 Presser Foot Lifter Lever 押工ゲレバー 1 14 Screw(M8-1.25 × 10) 止ネジ 1 15 170065 Presser Foot Lifter Lever Stop 押工ゲレバー ストッパ 1 16 6200291 Screw(M6-1 × 10) 止ネジ 1 17 120010 Presser Foot Lifter Lever Link 押工ゲレバーリンク 1 18 6200514 Presser Foot Shaft Collar 押工軸カラー 1 19 6200154 Screw(M5-0.8 × 15) 止ネジ 1 20 120017 Intermediate Lever 押工レバー 1 21 6200104 Stop Screw(M4-0.7 × 12) ストップネジ 1 22 110065 Lock Nut ロックナット 1 23 100001 Presser Foot Lifter Lever Spring 押工ゲレバーバネ 1 24 6200288 Presser Foot Shaft Bushing 押工軸ブッシュ 1 25 6200082 Screw(M6-1 × 6) 止ネジ 1 26 160007 Presser Arm, Complete Set 押工腕(組) 1 27 6200527 Presser Foot Shaft 押工軸 1 28 6200103 Presser Arm 押工腕 1 29 6200528 Presser Arm Hinge Pin 押工腕ヒンジピン 1 30 6200106 Screw(M4-0.7 × 4) 止ネジ 1 31 160001 Presser Foot, C. Set(Y5, Y6) 押工(組) 1 32-1 6207021 Presser Foot, C. Set(X4) 押工(組) 1 32-2 6207060 Presser Foot, C. Set(X4/B3) (Extra) 押工(組)(特注部品) 1 32-3 6207094 Presser Foot Hinge 押工ヒンジ 1 33 6207001 Screw(M3.5-0.6 × 8) 止ネジ 1 34 110004 Presser Foot Half-stay 半固定片 1 35 6207003 Screw(M4-0.7 × 4.5) 止ネジ 1 36 110050 Presser Foot(Lower) 押工(下) 1 37 6207019 Thread Chain Guide 空環ガイド 1 38 6200034 Screw(3/32-56 × 2.6) 止ネジ 1 39 004237 Presser Foot Stitch Tongue(Y5, Y6) 爪 1 40-1 6207022 Presser Foot Stitch Tongue(X4) 爪 1 40-2 6207051 Presser Foot Stitch Tongue(X4/B3) (Extra) 爪(特注部品) 1 40-3 6207095 Ref. No. 41 to 51 See the following page. CZ6000

Page 22

8 CZ6000 jintex.in

Page 23 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 41 6207000 Finger Guard フィンガード 1 42 000444 Washer ワッシャ 1 43 005036 Screw(1/8-44 × 5.6) 止ネジ 1 44 6207018 Presser Foot Tape Guide 押工テープガイド 1 45 001230 Screw(3/32-56 × 3.8) 止ネジ 1 46 6200020 Thread Chain Cutting Knife チェインカッタ 1 47 004097 Screw(3/32-56 × 4.2) 止ネジ 1 48 6200471 Presser Bar, C. Set 押工棒(組) 1 49 6207002 Presser Foot(Lower) 押工(下) 1 50-1 6207044 Presser Foot, C. Set(Y5, Y6) 押工(組) 1 50-2 6207061 Presser Foot, C. Set(X4) 押工(組) 1 50-3 6207092 Presser Foot, C. Set(X5) 押工(組) 1 51-1 6207046 Presser Foot Stitch Tongue(Y5, Y6) 爪 1 51-2 6207057 Presser Foot Stitch Tongue(X4) 爪 1 51-3 6207093 Presser Foot Stitch Tongue(X5) 爪 1 CZ6000

Page 24

9 CZ6000 jintex.in

Page 25 — UPPER LOOPER DRIVING MECHANISM

UPPER LOOPER DRIVING MECHANISM 上ルーパ機構 9 Ref.No Parts No. Description 品 名 Amt. Req 1 6200188 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 6200080 Connecting Rod Swing-proof 振止メ 2 4 6200261 Upper Looper Driving Lever 上ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 6200260 Looper Driving Shaft 上ルーパ軸 1 7 6200262 Driving Shaft Thrust Ring スラストリング 1 8 6200263 Driving Shaft Thrust Ring スラストリング 1 9 6200566 Collar カラー 1 10 120049 Screw(M4-0.7 × 16) 止ネジ 1 11 6200286 Upper Looper Thread Pull-off 上ルーパ糸繰り 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 1 13 6200117 Upper Looper Bar Crank Arm, C. Set 上ルーパクランク(組) 1 14 6200114 Upper Looper Bar Guide Bushing ルーパ案内メタル 1 15 6200110 Upper Looper Bar Guide Cover ルーパ案内蓋 1 16 130001 Screw(M2.5-0.45 × 6) 止ネジ 1 17 110071 Screw(M2.5-0.45 × 6) 止ネジ 1 18 6200116 Upper Looper Bar Guide, Complete Set ルーパ案内(組) 1 19 6200111 Upper Looper Bar Crank Arm 上ルーパクランク 1 20 300008 Washer ワッシャ 1 21 140004 Screw(M6-1 × 16) 止ネジ 1 22 6200113 Upper Looper Bar Crank Arm Pin 上ルーパクランクピン 1 23 160002 Screw(M4-0.7 × 5) 止ネジ 1 24 310089 Oil Wick 油芯 1 25 6200112 Upper Looper Bar ルーパ棒 1 26 000629 Seal Plug 詰栓 1 27 6200115 Upper Looper Bar Guide ルーパ案内 1 28 310065 Oiling Felt フェルト 1 29 6209300 Upper Looper(for Needle Size #9~14) 上ルーパ(針番手 #9~14用) 1 30 210009 Screw(1/8-44 × 3.2) 止ネジ 1 31 32 120013 Screw(M6-1 × 15) 止ネジ 2 33 6200169 Upper Looper Supplementary Thread Eyelet 上ルーパ補助糸道 1 34 6200278 Lower Looper Thread Pull-off 下ルーパ糸繰り 1 35 000014 Washer ワッシャ 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 6200120 Upper Looper Bar, C. Set ルーパ棒(組) 1 38 6200453 Upper Looper Bar Guide Bushing Postioner 位置決メ板 1 39 009746 Screw(M4-0.7 × 8) 止ネジ 1 40 110001 Screw(M4-0.7 × 5.4) 止ネジ 1 CZ6000

Page 26

10 CZ6000 jintex.in

Page 27 — LOWER LOOPER DRIVING MECHANISM

LOWER LOOPER DRIVING MECHANISM 下ルーパ機構 10 Ref.No Parts No. Description 品 名 Amt. Req 1 6200108 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 6200080 Connecting Rod Swing-proof 振レ止メ 1 4 6200377 Lower Looper Driving Lever 下ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 6200189 Driving Shaft Thrust Ring スラストプレート 1 7 6200092 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 3 9 6200109 Looper Driving Shaft ルーパ軸 1 10 6200107 Lower Looper Holder Arm 下ルーパ台 1 11 300008 Washer ワッシャ 1 12 140002 Screw(M6-1 × 14) 止ネジ 1 13 6200279 Thread Pull-off 下ルーパ台糸繰り 1 14 110009 Screw(M4-0.7 × 8) 止ネジ 1 15 6209301 Lower Looper 下ルーパ 1 16 6209201 Needle Guard(Rear) 針受ケ(後) 1 17 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 18 180014 Screwed Pin(M3-0.5 × 4.5) ピンネジ 1 19 300106 Conical Spring Washer 皿バネワッシャ 1 CZ6000

Page 29

FEED DRIVING CONTROL MECHANISM 前送り調節機構 11 Ref.No Parts No. Description 品 名 Amt. Req 1 6200254 Main Feed Bar Lever 後送りレバー 1 2 120006 Screw(M6-1×12) 止ネジ 4 3 6200119 Main Feed Bar Lever Pin 後送りレバーピン 1 4 300000 Washer ワッシャ 3 5 100002 Nut ナット 1 6 000669 Washer ワッシャ 2 7 6200263 Thrust Plate スラストプレート 1 8 6200038 Retaining Ring ストップリング 1 9 6100262 Main Feed Bar Connection 後送りリンク 1 10 6200118 Connection Bushing 後送りリンクブッシュ 1 11 140001 Screw(M5-0.5 × 12) 止ネジ 1 12 6200127 Feed Bar, Complete Set 前後送り台(組) 1 13 6200184 Main Feed Bar 後送り台 1 14 6200183 Differential Feed Bar 前送り台 1 15 6200190 Differential Feed Bar Connection 前送りリンク 1 16 6200265 Connection Bushing 前送りリンクブッシュ 1 17 140000 Screw(M5-0.5 × 15.5) 止ネジ 1 18 6200255 Feed Bar Driving Shaft 送リ軸 1 19 6200256 Feed Bar Driving Shaft Lever 送リ軸腕 1 20 6200142 Connecting Rod Pin 送リロッドピン 1 21 160007 Screw(M6-1 × 6) 止ネジ 1 22 6200165 Differential Rocker, Complete Set 前送り腕(組) 1 23 6200166 Differential Rocker 前送り腕 1 24 6200167 Differential Regulating Slider スライダ 1 25 6200168 Differential Regulating Slider Cap スライダ蓋 1 26 110033 Screw(M3-0.5 × 6) 止ネジ 2 27 6200130 Differential Lever(Right), C. Set 差動レバー(右)(組) 1 28 6100255 Slider Link スライダリンク 1 29 6100343 Retaining Ring ストップリング 1 30 6100360 Slider Link Pin スライダリンクピン 1 31 6200125 Differential Lever(Right) 差動レバー(右) 1 32 6100235 Collar(10 × 17 × 8mm) カラー 1 33 160001 Screw(M4-0.7 × 4) 止ネジ 2 34 000690 Spring Pin スプリングピン 1 35 6200123 Differential Lever Spring 差動レバーバネ 1 36 6100363 O-ring(P7) Oリング 1 37 6200126 Differential Lever(Left) 差動レバー(左) 1 38 000528 Washer ワッシャ 1 39 000561 Conical Spring Washer 皿バネワッシャ 1 40 100000 Adjusting Nut 調節ナット 1 41 190001 Adjusting Screw(M6-1 × 11.5,M4.5-0.5×4) 調節ネジ 1 42 6200131 Differential Feed Graduation 送り目盛板 1 43 110016 Screw(M4-0.7 × 15) 止ネジ 2 44 6100269 Differential Lever Stop 差動レバー ストッパ 2 45 110017 Screw(M5-0.8 × 8) 止ネジ 2 CZ6000

Page 31

FEED DRIVING MECHANISM 送り機構 12 Ref.No Parts No. Description 品 名 Amt. Req 1 6200173 Feed Bar Guide Support 送り台ガイドサポート 1 2 110064 Screw(M4-0.7 × 8) 止ネジ 4 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 6 4 6200174 Feed Bar Shield(Front) 送り台シール(前) 1 5 6200175 Feed Bar Shield(Rear) 送り台シール(後) 1 6 6200177 Feed Bar Shield Guide 送り台シールガイド 1 7 6200178 Feed Bar Guide 送り台ガイド 2 8 6200176 Feed Bar Shield(Upper) 送り台シール(上) 1 9 6200253 Feed Bar Guide Bushing 送り台ガイドブッシュ 1 10 160007 Screw(M6-1 × 6) 止ネジ 1 11 6200161 Feed Bar Block(Rear) Shaft 角駒(後)軸 1 12 160001 Screw(M4-0.7 × 4) 止ネジ 1 13 6200140 Feed Bar Block(Rear) 角駒(後) 1 14 6200139 Feed Bar Block(Rear) Lid 角駒(後)蓋 1 15 130002 Screw(M3-0.5 × 6) 止ネジ 1 16 6200138 Feed Bar Block(Front) 角駒(前) 1 17 6200141 Eccentric Pin Holder 送りエキセンピン取付台 1 18 6100366 Feed Dog Eccentric Pin 送りエキセンピン 1 19 6100281 Feed Dog Eccentric 送りエキセン 1 20 6100282 Roller Bearing ニードルベアリング 1 21 6200133 Feed Dog Driving Connecting Rod 送りリロッド 1 22 6100284 Feed Dog Regulating Eccentric 送り調節エキセン 1 23 180002 Screw(M3-0.5 × 4) 止ネジ 2 24 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 25 6100285 Feed Dog Regulating Plate Spring 送り調節プレートバネ 1 26 6100286 Feed Dog Regulating Plate 送り調節プレート 1 27 6200137 Feed Dog Regulating Gear 送り調節ギア 1 28 180003 Screw(M5-0.8 × 8) 止ネジ 1 29 160003 Screw(M5-0.8 × 5) 止ネジ 3 30-1 6209000 Differential Feed Dog(X4, X5) 前送り 1 30-2 6209006 Differential Feed Dog(Y5, Y6) 前送り 1 31 6209001 Main Feed Dog 後送り 1 32 6209002 Auxiliary Feed Dog 小送り 1 33 110026 Screw(M3-0.5 × 6) 止ネジ 1 34 6200257 Connecting Rod Cover 送りリロッドカバー 1 35 130003 Screw(M4-0.7 × 7.3) 止ネジ 2 CZ6000

Page 32

13 5 24 23 21 34 33 32 29 8 46 35 31 30 28 9 25 22 11 27 26 6 8 9 3 7 10 9 46 45 44 11 16 17 18 19 20 43 1 2 3 B 9 12 13 9 46 4 14 9 15 A 39 40 41 42 3 37 CZ6000 jintex.in

Page 33 — LUBRICATING MECHANISM

LUBRICATING MECHANISM 給油機構 13 Ref.No Parts No. Description 品 名 Amt. Req 1 6200506 Oil Pump, Complete Set ポンプ(組) 1 2 6200475 Worm Wheel ウオームホイール 1 3 160001 Screw(M4-0.7 × 4) 止ネジ 4 4 120049 Screw(M4-0.7 × 16) 止ネジ 2 5 320009 Oil Tube Fitting Stud(Long)(M6-1) 管継手ボルト(長) 1 6 000567 Seal パッキン 1 7 6200507 Oil Tube, Complete Set 給油パイプ(組) 1 8 6100310 Oil Tube Fitting One Way End 片口管継手 4 9 6100303 Oil Tube Clamp 緊束環 7 10 6200508 Oil Tube(4.6 × 6.4 × 220mm) 給油パイプ 1 11 320008 Oil Tube Fitting Stud(M6-1) 管継手ボルト 2 12 6200509 Suction Tube, C. Set 吸入パイプ(組) 1 13 6100308 Oil Tube Fitting Two Way 両口管継手 1 14 6200510 Oil Tube(4.6 × 6.4 × 242.5mm) 給油パイプ 1 15 6200206 Oil Filter 濾過網 1 16 6200518 Suction Pipe(Upper), C. Set 吸入パイプ(上)(組) 1 17 6200519 Suction Tube(4 × 6 × 18mm) 吸入パイプ 1 18 6200195 Suction Tube(2.5 × 4 × 60mm) 吸入パイプ 1 19 6200196 Suction Pipe(Upper) 吸入パイプ(上) 1 20 310073 Felt フェルト 1 21 6200299 Oil Tube, Complete Set 給油パイプ(組) 1 22 6200301 Oil Tube(4.6 × 6.4 × 320mm) 給油パイプ 1 23 6200450 Oil Pressure Regulating Valve 調圧弁 1 24 6200451 Oil Pressure Regulating Valve, C. Set 調圧弁(組) 1 25 6200450 Oil Pressure Regulating Valve 調圧弁 1 26 6200037 Oil Pressure Regulating Ball 調圧ボール弁 1 27 6200028 Guide Pin ガイドピン 1 28 6200476 Spring バネ 1 29 006861 Adjusting Screw(1/4-40 × 5) 調節ネジ 1 30 000419 Nut ナット 1 31 6100002 Oil Filter Cap オイルフィルタキャップ 1 32 110045 Screw(M4-0.7 × 12) 止ネジ 3 33 6100370 O-ring(P42) Oリング 1 34 6100296 Oil Filter オイルフィルタ 1 35 6100297 Filter Housing オイルフィルタ継手 1 36 6200248 Oil Pipe オイルパイプ 1 37 6200186 Oil Pipe, C. Set オイルパイプ(組) 1 38 6200185 Oil Pipe オイルパイプ 1 39 000456 Seal Plug 詰栓 1 40 310090 Oil Wick 油芯 1 41 6200074 Oil Sight Gauge オイルゲージ 1 42 6100363 O-ring(P7) Oリング 1 43 110053 Screw(M6-1 × 8) 止ネジ 1 44 320012 Oil Tube Fitting Stud(1/4-40) 管継手ボルト 3 jintex.in CZ6000

Page 34 — 14

14 CZ6000 1 2 3 4 5 9 8 7 6 14 15 16 18 19 9 20 23 24 25 38 39 41 A 43 37 17 11 10 13 12 26 30 31 27 28 32 33 34 42 35 37 36 34 35 44 CZ6000 jintex.in

Page 35

CZ6000 EXCLUSIVE PARTS サブモデル専用部品 14 Ref.No Parts No. Description 品 名 Amt. Req 1 6207025 Presser Foot, Complete Set(O4) 押工(組) 1 2 6207001 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 6207003 Presser Foot Half-stay 半固定片 1 5 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 6 6207026 Presser Foot(Lower) 押工(下) 1 7 6207027 Presser Foot Stitch Tongue(O4) 爪 1 8 6207000 Finger Guard フィンガード 1 9 005036 Screw(1/8-44 × 5.6) 止ネジ 3 10 6201000 Cloth Plate クロスプレート 1 11 6201001 Cloth Plate(Lower) クロスプレート(下) 1 12 6201002 Rubber Cushion クロスプレート(下)埋メ座 1 13 6201017 Pin ピン 1 14 6208004 Stitch Plate(O4) 針板 1 15 6209009 Differential Feed Dog 前送り 1 16 6209010 Main Feed Dog 後送り 1 17 6209302 Upper Looper 上ルーパ 1 18 6201003 Blind Hemming Guide, C. Set 裾引定規(組) 1 19 6201004 Overhanging Guide Hinge, C. Set 定規(組) 1 20 6201005 Hemming Positioner 裾引幅調節片 1 21 000533 Washer ワッシャ 1 22 007006 Screw(9/64-40 × 4) 止ネジ 1 23 6201006 Blind-Hemming Edge Guide, C. Set 裾引定規台(組) 1 24 6201007 Blind-Hemming Edge Guide 裾引定規台 1 25 009624 Screw(1/8-44 × 5.3) 止ネジ 1 26 6201008 Swing-out Lever スイングアウトレバー 1 27 004150 Screw(11/64-40 × 5.2) 止ネジ 1 28 000172 Conical Spring Washer 皿バネワッシャ 1 29 000334 Nut ナット 1 30 6201009 Overhanging Guide Hinge Stop 定規ストッパ 1 31 001331 Screw(9/64-40 × 3.8) 止ネジ 1 32 6201010 Swing-out Lever Holder スイングアウトレバー取付台 1 33 6201011 Swing-out Lever Stop スイングアウトレバー ストッパ 1 34 6201012 Edge Guide Positioning Pin 定規固定ピン 2 35 6201013 Positioning Pin Holder Spring 定規固定ピン押エバネ 2 36 001225 Screw(1/8-44 × 2.8) 止ネジ 1 37 001196 Screw(1/8-44 × 6) 止ネジ 3 38 6201014 Edge Guide Adjusting Holder 裾引調節台 1 39 004106 Screw(9/64-40 × 6.5) 止ネジ 2 40 007619 Screw(9/64-40 × 6.3) 止ネジ 1 41 6201015 Adjusting Screw Guide Piece 調節ネジガイド 1 42 006444 Adjusting Screw(1/8-44 × 12.9) 調節ネジ 1 43 6201016 Edge Guide Adjusting Holder Cover 裾引調節台蓋 1 44 110047 Screw(M4-0.7 × 10) 止ネジ 2 CZ6000

Page 36 — CZ6003

15 CZ6003 1 3 10 9 4 11 2 12 8 7 6 5 13-1 13-2 15 14 16 CZ6000 jintex.in

Page 37 — CZ6003 EXCLUSIVE PARTS

CZ6003 EXCLUSIVE PARTS サブモデル専用部品 15 Ref.No Parts No. Description 品 名 Amt. Req 1 6207043 Presser Foot C. Set(04) 押工(組) 1 2 6207001 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 6207002 Presser Foot(Lower) 押工(下) 1 5 6207045 Presser Foot Stitch Tongue(04) 爪 1 6 6207000 Finger Guard フィンガード 1 7 000444 Washer ワッシャ 1 8 005036 Screw(1/8-44 × 5.6) 止ネジ 1 9 6200034 Thread Chain Guide 空環ガイド 1 10 004237 Screw(3/32-56 × 2.6) 止ネジ 1 11 6207003 Presser Foot Half-stay 半固定片 1 12 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 13-1 6208044 Stitch Plate(03) 針板 1 13-2 6208011 Stitch Plate(04) 針板 1 14 6209302 Upper Looper 上ルーパ 1 15 6201017 Pin ピン 1 16 6209000 Differential Feed Dog(04) 前送り 1 jinte.in CZ6000

Page 38

16 CZ6016 1 3 2 8 7 12 13 15 14 6 16 17 18 20 21 19 EXTRA PARTS 22 23 8 29 27 28 30 32 33 31 26 25 24 34 35 36 38 39 40 37 41 42 43 CZ6000 jintex.in

Page 39

CZ6016 EXCLUSIVE PARTS サブモデル専用部品 16 Ref.No Parts No. Description 品 名 Amt. Req 1 6207073 Presser Foot, C. Set(O2) 押工(組) 1 2 6207001 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 6207003 Presser Foot Half-stay 半固定片 1 5 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 6 6207089 Presser Foot (Lower) 押工(下) 1 7 6200034 Thread Chain Guide 空環ガイド 1 8 004237 Screw(3/32-56 × 2.6) 止ネジ 1 9 6207072 Presser Foot Stitch Tongue 爪 1 10 6207112 Finger Guard フィンガード 1 11 005036 Screw(1/8-44 × 5.6) 止ネジ 1 12 6208035 Stitch Plate, C. Set(O2) 針板(組) 1 13 6208034 Stitch Plate(O2) 針板 1 14 6208023 Stitch Plate Tongue 針板爪 1 15 004182 Screw(3/32-56 × 2.5) 止ネジ 1 16 6209302 Upper Looper 上ルーパ 1 17 6201017 Pin ピン 1 18 180002 Screw(M3-0.5 × 4) 止ネジ 2 19 6209031 Differential Feed Dog 前送り 1 20 6209032 Main Feed Dog 後送り 1 21 6209013 Auxiliary Feed Dog 小送り 1 22 6207029 Presser Foot, C. Set(O2) 押工(組) 1 23 6207055 Presser Foot Hinge 押工ヒンジ 1 24 6207030 Presser Foot(Lower) 押工(下) 1 25 6207031 Presser Foot Hinge Spring 押工ヒンジバネ 1 26 004131 Screw(1/8-44 × 6) 止ネジ 1 27 6207032 Thread Chain Guide 空環ガイド 1 28 6207033 Presser Foot Stitch Tongue 爪 1 29 004138 Screw(1/8-44 × 5) 止ネジ 1 30 6208005 Stitch Plate, Complete Set 針板(組) 1 31 6208006 Stitch Plate 針板 1 32 6208007 Stitch Plate Tongue 針板爪 1 33 004204 Screw(3/32-100 × 2.2) 止ネジ 1 34 6208008 Stitch Plate Tongue Stop 針板爪ストッパ 1 35 001228 Screw(3/32-56 × 3.2) 止ネジ 1 36 000933 Rubber Cushion(Medium) 埋メ座(中) 1 37 300040 Washer ワッシャ 1 38 6209012 Main Feed Dog(with Rubber Face) 後送り(ゴム送り) 1 39 6209011 Differential Feed Dog(with Rubber Face) 前送り(ゴム送り) 1 40 000932 Rubber Cushion(Large) 埋メ座(大) 1 41 6201020 Lower Knife Holder 下メス台 1 42 6201019 Upper Knife Holder 上メスホルダ 1 43 6201018 Upper Knife 上メス 1 jintex.in CZ6000

Page 40 — CZ6016-61

17 CZ6016-61 1 3 2 8 7 11 10 9 6 12-1 12-2 13 15 14-1 14-2 16 18 17 CZ6000 jintex.in

Page 41 — CZ6016-61 EXCLUSIVE PARTS

CZ6016-61 EXCLUSIVE PARTS サブモデル専用部品 17 Ref.No Parts No. Description 品 名 Amt. Req 1 6207073 Presser Foot, Complete Set(02, 03) 押工(組) 1 2 6207001 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 6207003 Presser Foot Half-stay 半固定片 1 5 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 6 6207089 Presser Foot(Lower) 押工(下) 1 7 6200034 Thread Chain Guide 空環ガイド 1 8 004237 Screw(3/32-56 × 2.6) 止ネジ 1 9 6207072 Presser Foot Stitch Tongue 爪 1 10 6207112 Finger Guard フィンガード 1 11 005036 Screw(1/8-44 × 5.6) 止ネジ 1 12-1 6208023 Stitch Plate, Complete Set(02) 針板(組) 1 12-2 6208018 Stitch Plate, Complete Set(03) 針板(組) 1 13 6208019 Stitch Plate 針板 1 14-1 6208022 Stitch Plate Tongue(02) 針板爪 1 14-2 6208020 Stitch Plate Tongue(03) 針板爪 1 15 004182 Screw(3/32-56 × 2.5) 止ネジ 1 16 6209023 Differential Feed Dog 前送り 1 17 6201017 Pin ピン 1 18 180002 Screw(M3-0.5 × 4) 止ネジ 2 jintex.in CZ6000

Page 42 — 18

18 CZ6120, 6120-40, 6125(1) 1 2 3 5 6 7 8 9 10 11 12 13 14 15 17 18 19 20 21 22 23 24 25 26 27 28 29-1 29-2 29-3 29-4 30 31 CZ6000 jintex.in

Page 43 — CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(1) サブモデル専用部品(1) 18

CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(1) サブモデル専用部品(1) 18 Ref.No Parts No. Description 品 名 Amt. Req 1 6200058 Needle Bar Driving Lever 針棒クランク軸腕 1 2 6200134 Crankshaft クランクシャフト 1 3 6200135 Needle Thread Pull-off 針糸繰り 1 4 5 6200136 Upper Knife Holder(Flat Type) 上メスホルダ(平) 1 6 6200308 Upper Knife(Flat Type) 上メス(平) 1 7 6100058 Tension Spring(Needle) 糸調子バネ(針糸) 1 8 6200128 Eye Guard Spacer アイガートスペーサー 1 9 100001 Nut ナット 1 10 6209304 Upper Looper 上ルーパ 1 11 6200455 Upper Looper Driving Lever 上ルーパ軸腕 1 12 6200488 Driving Shaft Thrust Ring スラストリング 1 13 6200108 Looper Driving Lever Connecting Rod ルーパ・パロッド 1 14 6200457 Lower Looper Driving Lever 下ルーパ軸腕 1 15 6200517 Driving Shaft Thrust Ring スラストリング 1 16 17 6200459 Looper Thread Pull-off ルーパ糸繰り 1 18 6200460 Looper Holder Cover ルーパ台カバー 1 19 110001 Screw(M4-0.7 × 5.4) 止ネジ 1 20 6200461 Upper Looper Thread Eyelet 上ルーパ糸道 1 21 6200462 Lower Looper Thread Eyelet 下ルーパ糸道 1 22 000014 Washer ワッシャ 2 23 110002 Screw(M3-0.5 × 5) 止ネジ 1 24 110026 Screw(M3-0.5 × 6) 止ネジ 1 25 6200463 Lower Looper Thread Pull-off 下ルーパ糸繰り 1 26 6200464 Looper Thread Eyelet(Left) ルーパ糸道(左) 1 27 130020 Screw(M4-0.7 × 6.3) 止ネジ 1 28 390663 Thread Chart 糸通シ図 1 29-1 6208000 Stitch Plate(Y5) 針板 1 29-2 6208002 Stitch Plate(Y6) 針板 1 29-3 6208014 Stitch Plate(Y7) 針板 1 29-4 6208016 Stitch Plate(Y8) 針板 1 30 6208026 Adjustable Stitch Tongue 移動式爪 1 31 110064 Screw(M4-0.7 × 8) 止ネジ 2 CZ6000 jintex.in

Page 44 — CZ6120, 6120-40, 6125(2)

19 CZ6120, 6120-40, 6125(2) CZ6120 1-1 1-2 1-3 4 5 12 3 11 8 2 10 7 9-1 9-2 9-3 CZ6125 13-1 13-2 4 5 12 3 11 17 8 2 10 16 15-1 15-2 7 14 CZ6120-40 18 4 5 3 8 19 7 20 23 22 21 25 24 27 26 CZ6000 jintex.in

Page 45

CZ6120, 6120-40, 6125 EXCLUSIVE PARTS(2) サブモデル専用部品(2) 19 Ref.No Parts No. Description 品 名 Amt. Req 1-1 6207044 Presser Foot, C. Set(Y5, Y6) 押工(組) 1 1-2 6207063 Presser Foot, C. Set(Y7) 押工(組) 1 1-3 6207067 Presser Foot, C. Set(Y8) 押工(組) 1 2 6207001 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 6207003 Presser Foot Half-stay 半固定片 1 5 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 6 6207002 Presser Foot (Lower) 押工(下) 1 7 6200034 Thread Chain Guide 空環ガイド 1 8 004237 Screw(3/32-56 × 2.6) 止ネジ 1 9-1 6207046 Presser Foot Stitch Tongue(Y5, Y6) 爪 1 9-2 6207058 Presser Foot Stitch Tongue(Y7) 爪 1 9-3 6207070 Presser Foot Stitch Tongue(Y8) 爪 1 10 6207018 Finger Guard フィンガード 1 11 000444 Washer ワッシャ 1 12 005036 Screw(1/8-44 × 5.6) 止ネジ 1 13-1 6207021 Presser Foot, C. Set(Y5, Y6) 押工(組) 1 13-2 6207059 Presser Foot, C. Set(Y7) 押工(組) 1 14 6207019 Presser Foot (Lower) 押工(下) 1 15-1 6207022 Presser Foot Stitch Tongue(Y5, Y6) 爪 1 15-2 6207056 Presser Foot Stitch Tongue(Y7) 爪 1 16 6207018 Presser Foot Tape Guide 押工テープガイド 1 17 001230 Screw(3/32-56 × 3.8) 止ネジ 1 18 6207113 Presser Foot, C. Set(Y5) 押工(組) 1 19 6207114 Presser Foot Hinge 押工ヒンジ 1 20 6207115 Presser Foot (Lower) 押工(下) 1 21 6207116 Presser Foot Stitch Tongue(Y5) 爪 1 22 6207117 Finger Guard フィンガード 1 23 110121 Screw(1/8-44 × 5.6) 止ネジ 1 24 6207118 Presser Foot Chip 押工チップ 1 25 004236 Screw(3/32-56 × 4.2) 止ネジ 1 26 6200567 Edge Guide Unit 当テ定規(組) 1 27 110009 Screw(M4-0.7 × 8) 止ネジ 1 CZ6000

Page 46

20 K2 DEVICE(1) 1 2 4 A 5 3 7 8 6 10 11 12 13 14 15 16 17 18 19 20 26 27 28 29 30 22 23 24 25 31 32 33 A CZ6000 jintex.in

Page 47 — K2 DEVICE(1)

K2 DEVICE(1) Ref.No Parts No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 6201021 6201022 6201023 310017 000755 6201024 004237 004404 6201025 004131 004139 6201026 6201027 004236 6201040 6201041 6201042 6201043 6201044 6201045 001202 6201046 110006 6201047 270001 6201048 6201039 6201049 001892 6201050 6201051 110042 6201052 [007623] Description K2 Device, Complete Set Suction Pipe, Complete Set Suction Pipe Oil Wick Oil Wick Pin Suction Pipe Cover Screw(3/32-56 × 2.6) Screw(3/32-56 × 5.1) Upper Trimming Knife Screw(1/8-44 × 6) Screw(3/32-56 × 3) Lower Trimming Knife Holder Pin Lower Trimming Knife Screw(3/32-56 × 4.2) Lower Trimming Knife Driving Plate Spring Sleeve Lower Trimming Knife Pushing Spring Spring Protect Washer Washer Air Shield Rubber Screw(9/64-44 × 6.6)[9/64-40 × 5.3] Lower Trimming Knife Guide Support Screw(M3.5-0.6 × 10) Lower Trimming Knife Guide Screw(1/8-44 × 3) Suction Power Control, C. Set Suction Power Control Tube(Inner) Suction Power Control Tube Screw(1/8-44 × 2.9) Nylon Hose Cloth Plate Spacer Screw(M3.5-0.6 × 4) Suction Pipe Support K2 装置(1) 品 名 K2装置(組) 吸込管(組) 吸込管本体 油芯 止メピン 吸込管カバー 止ネジ 止ネジ 上刃 止ネジ 止ネジ 下刃支持ピン 下刃 止ネジ 下刃駆動板 下刃バネスリーブ 下刃圧着バネ 下刃バネワッシャ ワッシャ 隙間防止ゴム 止ネジ 下刃ガイド取付台 止ネジ 下刃ガイド 止ネジ 吸引力調整管(組) 吸引力調整台 吸引力調整管 止ネジ 吸引チューブ クロスプレートスペーサ 止ネジ 吸込管取付台 Amt. Req 1 1 1 1 1 1 1 2 1 1 2 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 2 1 20 CZ6000

Page 48 — K2 DEVICE(2)

21 K2 DEVICE(2) CZ6003/K2 1-1 1-2 3 10 2 9 4 11 12 8 7 6 5-1 5-2 CZ6020/K2 13-1 13-2 3 10 2 9 4 11 12 8 7 6 14-1 14-2 CZ6025/K2 15 3 10 2 9 4 11 12 8 20 7 6 19 18 16 CZ6125/K2 21 3 10 2 9 4 11 12 8 20 7 6 19 22 16 CZ6000 jintex.in

Page 49

K2 DEVICE(2) K2 装置(2) 21 Ref.No Parts No. Description 品 名 Amt. Req 1-1 6207178 Presser Foot, C. Set(03) 押工(組) 1 1-2 6207054 Presser Foot, C. Set(04) 押工(組) 1 2 6207001 Presser Foot Hinge 押工ヒンジ 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 6207002 Presser Foot(Lower) 押工(下) 1 5-1 6207179 Presser Foot Stitch Tongue(03) 爪 1 5-2 6207045 Presser Foot Stitch Tongue(04) 爪 1 6 6207000 Finger Guard フィンガガード 1 7 000444 Washer ワッシャ 1 8 005036 Screw(1/8-44 × 5.6) 止ネジ 1 9 6207047 Thread Chain Guide 空環ガイド 1 10 004237 Screw(3/32-56 × 2.6) 止ネジ 1 11 6207003 Presser Foot Half-stay 半固定片 1 12 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 13-1 6207049 Presser Foot, C. Set(Y5, Y6) 押工(組) 1 13-2 6207262 Presser Foot, C. Set(X4) 押工(組) 1 14-1 6207046 Presser Foot Stitch Tongue(Y5, Y6) 爪 1 14-2 6207057 Presser Foot Stitch Tongue(X4) 爪 1 15 6207050 Presser Foot, C. Set(X4) 押工(組) 1 16 6207019 Presser Foot(Lower) 押工(下) 1 17 18 6207051 Presser Foot Stitch Tongue(X4) 爪 1 19 6207018 Presser Foot Tape Guide 押工テープガイド 1 20 001230 Screw(3/32-56 × 3.8) 止ネジ 1 21 6207098 Presser Foot, C. Set(Y5, Y6) 押工(組) 1 22 6207022 Presser Foot Stitch Tongue(Y5, Y6) 爪 1 CZ6000

Page 50 — B3 DEVICE

22 B3 DEVICE 1 2 7 8 4 5 3 9-1 9-2 10 15 14 13 11 12 CZ6003/B3 17-1 17-2 28 27 19 26 25 20 21-1 21-2 24 23 22 30 29-1 29-2 31 CZ6000 jintex.in

Page 51 — B3 DEVICE

B3 DEVICE 22 Ref.No Parts No. Description 品 名 Amt. Req 1 6201054 B3 Device, C. Set B3装置(組) 1 2 6201037 Back Tack Cutting Unit 空環切り装置(組) 1 3 6201028 Thread Chain Cutting Knife Holder 刃取付台 1 4 6201053 Thread Chain Cutting Knife 刃 1 5 6201029 Thread Chain Cutting Knife Holder Spacer 刃取付台スペーサー 1 6 003637 Screw(1/8-44 × 2.5) 止ネジ 2 7 004205 Screw(11/64-40 × 18) 止ネジ 1 8 6201036 Thread Chain Holder 空環押工 1 9-1 6201035 Thread Chain Holder Spring(Standard) 空環押工バネ(標準) 1 9-2 6201034 Thread Chain Holder Spring(with Stronger Pressure) 空環押工バネ(バネ圧強い) 1 10 000361 Adjusting Nut 空環押工バネ調節ナット 2 11 000535 Washer ワッシャ 1 12 110044 Screw(M3-0.6 × 14) 止ネジ 1 13 6201033 Cloth Plate クロスプレート 1 14 6201030 Synchronizer Positioning Pin ポジショナピン 1 15 110009 Screw(M4-0.7 × 8) 止ネジ 1 16 6200552 Synchronizer Cushion ポジショナピンクッション 1 17-1 6207180 Presser Foot, C. Set(O3) 押工(組) 1 17-2 6207052 Presser Foot, C. Set(O4) 押工(組) 1 18 6207001 Presser Foot Hinge 押工ヒンジ 1 19 110004 Screw(M4-0.7 × 8) 止ネジ 1 20 6207002 Presser Foot(Lower) 押工(下) 1 21-1 6207181 Presser Foot Stitch Tongue(O3) 爪 1 21-2 6207053 Presser Foot Stitch Tongue(O4) 爪 1 22 6207000 Finger Guard フィンガード 1 23 000444 Washer ワッシャ 1 24 005036 Screw(1/8-44 × 5.6) 止ネジ 1 25 6200034 Thread Chain Guide 空環ガイド 1 26 004277 Screw(3/32-56 × 1.7) 止ネジ 1 27 6207003 Presser Foot Half-stay 半固定片 1 28 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 1 29-1 6208045 Stitch Plate(O3) 針板 1 29-2 6208013 Stitch Plate(O4) 針板 1 30 6209015 Differential Feed Dog 前送り 1 31 6209016 Main Feed Dog 後送り 1

Page 52 — MT22 DEVICE(1)

23 MT22 DEVICE(1) 1 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 CZ6000 jintex.in

Page 53

MT22 DEVICE(1) MT22 装置 (1) 23 Ref.No Parts No. Description 品 名 Amt. Req 1 6201175 Solenoid Cover ソレノイドカバー 1 2 006233 Screw(M3-0.5 × 5) 止ネジ 2 3 6201169 Solenoid ソレノイド 1 4 000206 Nut ナット 2 5 6201171 Solenoid Holder ソレノイド取付台 1 6 009976 Screw(M6-1 × 15) 止ネジ 2 7 340003 Pin バネ掛ケピン 1 8 6201174 Drive Gear 駆動ギヤ 1 9 009749 Screw(M4-0.7 × 16) 止ネジ 1 10 000339 Nut ナット 1 11 006638 Screw(5/32-40 × 9.5) 止ネジ 1 12 6201172 Solenoid Spring ソレノイドバネ 1 13 6201179 Trimming Device C. Set メス装置(組) 1 14 6201173 Driven Gear 従ギヤ 1 15 160001 Screw(M4-0.7 × 10) 止ネジ 2 16 6201178 Upper Knife Holder 上メス台 1 17 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 18 300050 Spring Washer スプリングワッシャ 1 19 000532 Washer ワッシャ 1 20 6200516 Upper Knife Rubber Cushion 上メス クッション 1 21 6201166 Lower Knife 下メス 1 22 6201167 Lower Knife Fabric Guide 下メス布案内 1 23 001230 Screw(3/32-56 × 3.8) 止ネジ 2 24 6201177 Fabric Guide(Finger guard) 布ガイド 1 25 004404 Screw(3/32-56 × 5.1) 止ネジ 1 26 6201170 Upper Knife 上メス 1 27 6201164 Collar(6 × 9 × 5mm) カラー 1 28 003637 Screw(1/8-44 × 2.5) 止ネジ 1 29 6201165 Upper Knife Spring 上メスバネ 1 30 6201176 Upper Knife Holder Fixing Block 上メス固定台 1 31 004358 Screw(9/64-40 × 5.6) 止ネジ 2 32 6201063 Trimming Device Support メス装置取付板 1 33 009748 Screw(M4-0.7 × 12) 止ネジ 1 34 000644 Spring Washer スプリングワッシャ 1 35 000665 Washer ワッシャ 1 36 009976 Screw(M6-1 × 15) 止ネジ 1 37 000661 Spring Washer スプリングワッシャ 1 38 000425 Washer ワッシャ 1 39 6201185 Cloth Plate Spacer クロスプレートスペーサ 1 40 110042 Screw(M3.5-0.6 × 4) 止ネジ 2 jintex.in CZ6000

Page 54 — MT22 DEVICE(2)

24 MT22 DEVICE(2) 3 1 2 14 13 10 9 5 6 8 7 16 15 17 CZ6000 jintex.in

Page 55 — MT22 DEVICE(2)

MT22 DEVICE(2) MT22 装置(2) 24 Ref.No Parts No. Description 品 名 Amt. Req 1 6201183 Manual Switch, C. Set スイッチ(図) 1 2 6201187 Switch Support スイッチ取付板 1 3 180025 Screw(M4-0.7 × 4.5) 止ネジ 1 4 110106 Screw(M4-0.7 × 8) 止ネジ 2 5 6201182 Switch スイッチ 1 6 6201186 Switch Cover スイッチカバー 1 7 009993 Screw(M3-0.6 × 16) 止ネジ 1 8 6201157 Cord Bushing コードブッシュ 1 9 009995 Screw(M3-0.6 × 5) 止ネジ 1 10 6201180 Manual Switch Plate スイッチ板 1 11 000002 Spring Washer スプリングワッシャ 1 12 000488 Nut ナット 1 13 6201181 Cord Clamp(3.4-2N) コードクランプ 2 14 110012 Screw(M4-0.7 × 5) 止ネジ 2 15 6201184 Control Box, C. Set 制御装置(組) 1 16 6101118 Control Stay 制御ボックスステイ 2 17 006905 Wood Screw(Φ 5.1 × 5) 木ネジ 6 jintex.in CZ6000

Page 56

25 CZ6000 jintex.in

Page 57 — MISCELLANEOUS SUPPORTING BOARD

MISCELLANEOUS SUPPORTING BOARD 受ケ板関係 25 Ref.No Parts No. Description 品 名 Amt. Req 1 6200303 Belt Cover ベルトカバー 1 2 110015 Screw(M4-0.7 × 25) 止ネジ 2 3 6200304 Supplementary Belt Cover ベルト補助カバー 1 4 110013 Screw(M4-0.7 × 8) 止ネジ 2 5 6200148 Supporting Board 受ケ板 1 6 000070 Hanging Nut 吊りナット 4 7 009861 Hanging Bolt 吊りボルト 4 8 6200210 Spacer(15mm) 受ケ板スペーサ 4 9 6101005 Spacer(5mm) (See the below) 受ケ板スペーサ(下記参照) 4 10 6100326 Supporting Board Rubber Cushion 受ケ板ゴム座 8 11 000162 Washer ワッシャ 4 12 000016 Nut ナット 8 13 6200152 Chute(Upper) Support シュー ト(上)取付板 1 14 005624 Screw(M4-0.7 × 10) 止ネジ 4 15 6200146 Chute(Upper) シュー ト(上) 1 16 6200147 Chute(Lower) シュー ト(下) 1 17 6200151 Chip Receiver 切屑受ケ 1 18 350007 Wood Screw(φ 3.5 × 16) 木ネジ 2 19 6200524 Edge Guide Holder 定規取付台 1 20 110035 Screw(M4-0.7 × 10) 止ネジ 2 21 110009 Screw(M4-0.7 × 8) 止ネジ 1 22 000665 Washer ワッシャ 1 Note : Not necessary when the thickness of Table is 45mm. (注) テーブルの厚さ45mmのときは不要。

Page 58

26 1 19 18 15 2 7 3 5 17 20 4 7 21 11 25 26 23 24 15 12 27 10 13 14 15 6 7 8 9 22 15 19 18 15 CZ6000 jintex.in

Page 59 — THREAD STAND

THREAD STAND Ref.No Parts No. Description Amt. Req 1 6802629 Thread Stand, C. Set(4 Spools Type) 1 2 6802601 Column Cap 1 3 6802602 Column Pipe(Upper) 1 4 6802603 Thread Guide Holder(Large) 1 5 911002 Screw(M4-0.7 × 20) 1 6 911001 Screw(M4-0.7 × 12) 3 7 910001 Nut 4 8 6802604 Column Pipe Connector 1 9 911006 Screw(M5-0.8 × 13) 2 10 910000 Nut 6 11 6802605 Column Pipe(Lower) 1 12 930052 Washer 1 13 930053 Spring Washer 1 14 910003 Nut(M16-1.5) 1 15 6802606 Thread Hanger(2 Spools Type) 4 16 17 6802608 Thread Eyelet 4 18 6802609 Thread Hanger Holder 4 19 911060 Screw(M6-1 × 15) 4 20 6802610 Thread Guide Arm 1 21 6802611 Thread Guide Holder(Small) 1 22 6802612 Thread Guide(5 Spools Type) 1 23 6802613 Spool Cushion 4 24 6802614 Spool Pin 4 25 6802615 Spool Mat 4 26 6802616 Spool Seat Disc 4 27 930055 Spring Washer 4 糸立台 26 CZ6000 jintex.in

Page 60

27 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 390220 SAFETY INSTRUCTON LABEL ▲高電圧警告 このカバーを開けるときは、 電源スイッチを切った後、 5分たってから開けること。 DANGER To open this cover, turn off power supply and wait more than 5 minutes before opening. 390144 DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル 390147 EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES ケガ注意 CAUTION BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル 390148 CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意 CAUTION 高温注意ラベル jintex.in

Page 61

jinttex.in jintex.in
