Yamato CZ6500 Parts Book (PDF)
Text index — Yamato CZ6500
Page 5 — MISCELLANEOUS COVERS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200066 | Cloth Plate | 1 |
| 2 | 6200302 | Cloth Plate(Lower) | 1 |
| 3 | 6200072 | Rubber Cushion | 1 |
| 4 | 001123 | Washer | 3 |
| 5 | 000644 | Spring Washer | 3 |
| 6 | 110045 | Screw(M4-0.7 x 12) | 3 |
| 7 | 6200070 | Cloth Plate Eccentric Bushing | 1 |
| 8 | 160001 | Screw(M4-0.7 x 4) | 1 |
| 9 | 6200071 | Collar(4 x 9 x 6mm) | 1 |
| 10 | 003637 | Screw(1/8-44 x 2.5) | 1 |
| 11 | 6200217 | Cloth Plate Latch, C. Set | 1 |
| 12 | 110012 | Screw(M4-0.7 x 5)[M4-0.7 x 5] | 2 |
| 13 | 100001 | Lock Nut | 1 |
| 14 | 110031 | Stop Screw(M4-0.7 x 12) | 1 |
| 15 | 6200015 | Oil Cap | 1 |
| 16 | 6200016 | O-ring(P28) | 1 |
| 17 | 6200078 | Top Cover | 1 |
| 18 | 110016 | Screw(M4-0.7 x 15) | 6 |
| 19 | 6200228 | Top Cover Gasket | 1 |
| 20 | 6200172 | Oil Reservoir Gasket | 1 |
| 21 | 6200309 | Oil Reservoir | 1 |
| 22 | 006816 | Screw(1/4-24 x 8) | 4 |
| 23 | 6200029 | OilReservoirRubberCushion(Black-colored) | 3 |
| 24 | 6200033 | OilReservoirRubberCushion(Green-colored) | 1 |
| 26 | 6200182 | Oil Reservoir Positioning Bar | 4 |
| 27 | 300004 | Washer | 4 |
| 28 | 120017 | Screw(M5-0.8 x 15) | 6 |
| 29 | 6100029 | Drain Hole Seal | 1 |
| 30 | 005075 | Drain Hole Screw(3/8-24 x 8) | 1 |
| 32 | 6200512 | Wind Guide Plate | 1 |
| 33 | 110013 | Screw(M4-0.7 x 8) | 2 |
| 34 | 300043 | Washer | 2 |
| 35 | 6109401 | Serial Number Plate | 1 |
| 36 | 000726 | Rivet | 2 |
| 37 | 6200530 | Cloth Plate Latch Holder | 1 |
| 38 | 6200531 | Cloth Plate Latch | 1 |
| 39 | 6200532 | Cloth Plate Latch Spring | 1 |
| 40 | 170067 | Screw(M5-0.8 x 6) | 1 |
Page 7 — MISCELLANEOUS COVERS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200465 | Side Cover | 1 |
| 2 | 110013 | Screw(M4-0.7 X 8) | 6 |
| 4 | 6200220 | Eye Guard Holder | 1 |
| 5 | 170032 | Screw(M4-0.7 X 5) | 1 |
| 6 | 000010 | Conical Spring Washer | 2 |
| 7 | 6200285 | Eye Guard | 1 |
| 8 | 110076 | Screw(M3-0.5 X 6) | 2 |
| 9 | 000444 | Washer | 2 |
| 10 | 6200225 | Needle Bar Oil Defender | 1 |
| 11 | 110012 | Screw(M4-0.7 X 5) | 4 |
| 12 | 6200226 | Needle Bar Oil Seal | 1 |
| 13 | 190015 | Screw(M14-2 X 6) | 2 |
| 14 | 6200227 | Logo Plate | 1 |
| 15 | 110106 | Screw(M4-0.7 X 8) | 2 |
| 19 | 6200159 | Front Cover Latch Spring | 1 |
| 20 | 6200027 | Front Cover Hook | 1 |
| 21 | 001203 | Screw(9/64-40 X 4.5) | 1 |
| 22 | 6200017 | Front Cover Hinge Pin | 1 |
| 23 | 003637 | Screw(1/8-44 X 2.5) | 2 |
| 24 | 6200073 | Front Cover(Right) | 1 |
| 25 | 6200024 | Front Cover Hinge Spring | 1 |
| 26 | 6200310 | Front Cover Hinge | 1 |
| 27 | 6200351 | Chip Guard(Openable) | 1 |
| 28 | 110003 | Screw(M3.5-0.6 X 6) | 2 |
| 31 | 6200170 | Front Cover Latch | 1 |
| 32 | 110054 | Screw(M3-0.5 X 3.5) | 2 |
| 33 | 390513 | Threading Chart(Left) | 1 |
| 390677 | Threading Chart | ||
| 390679 | Threading Chart | ||
| 390678 | Threading Chart |
Page 9 — MISCELLANEOUS COVERS(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200075 | Feed Mechanism Cover | 1 |
| 2 | 6200192 | Feed Mechanism Cover Gasket | 1 |
| 3 | 110048 | Screw(M4-0.7 × 10) | 5 |
| 4 | 6200077 | Rubber Cushion | 1 |
| 5 | 6200212 | O-ring(P52) | 1 |
| 6 | 6200211 | Ball Bearing Holder | 1 |
| 7 | 110013 | Screw(M4-0.7 × 8) | 7 |
| 8 | 6200511 | Fan Cover | 1 |
| 9 | 110012 | Screw(M4-0.7 × 5) | 2 |
| 10 | 150004 | Screw(M4-0.7 × 6) | 1 |
| 12 | 6200224 | Pushbutton | 1 |
| 13 | 6200171 | Oil Seal | 1 |
| 14 | 6100333 | Retaining Ring | 2 |
| 15 | 6200036 | Pushbutton Spring | 1 |
| 16 | 330008 | Seal Plug | 1 |
| 17 | 330000 | Seal Plug | 1 |
| 18 | 6200219 | Fabric Guide Plate | 1 |
| 19 | 110064 | Screw(M4-0.7 × 8) | 2 |
| 20 | 6200191 | Tail Cover Gasket | 1 |
| 21 | 6200076 | Tail Cover | 1 |
| 22 | 6200259 | Seal Plug | 1 |
| 23 | 6200352 | Ball Bearing Housing | 1 |
| 24 | 6200181 | Ball Bearing Housing Gasket | 1 |
| 25 | 130003 | Screw(M4-0.7 × 7.3) | 3 |
| 26 | 6100074 | Looper Thread Pipe Stay | 1 |
| 27 | 6200321 | Looper Thread Pipe | 1 |
Page 11 — MISCELLANEOUS THREAD EYELETS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200079 | Thread Guide Plate | 1 |
| 2 | 110013 | Screw(M4-0.7 × 8) | 2 |
| 3 | 6100056 | Thread Tension Spring Cap | 4 |
| 4 | 6100057 | Tension Spring Bushing | 4 |
| 5 | 6200026 | Tension Spring(Lower Looper Thread) | 1 |
| 6 | 6200019 | Thread Tension Spring Retainer | 4 |
| 7 | 000178 | Felt | 4 |
| 8 | 6100062 | Tension Disc | 8 |
| 9 | 000177 | Felt | 4 |
| 10 | 190016 | Tension Post | 4 |
| 11 | 6200031 | Tension Disc Eyelet | 3 |
| 12 | 6100059 | Tension Spring(Upper Looper Thread) | 1 |
| 13 | 6100058 | Tension Spring(Double Chain Thread) | 1 |
| 14 | 6200025 | Tension Spring(Needle Thread) | 1 |
| 15 | 6200277 | Tension Disc Eyelet for Needle Thread | 1 |
| 16 | 6200023 | Looper Thread Pipe | 2 |
| 17 | 6200329 | DoubleChainingLooperThreadEyelet(Rear) | 1 |
| 18 | 110009 | Screw(M4-0.7 × 8) | 4 |
| 19 | 6200447 | Oil Container | 1 |
| 20 | 6200448 | Oil Container Plug | 1 |
| 21 | 310105 | Felt | 1 |
| 22 | 6200449 | Felt Holder | 1 |
| 23 | 110013 | Screw(M4-0.7 × 8) | 1 |
| 24 | 6200284 | Needle Thread Eyelet Holder | 1 |
| 25 | 110001 | Screw(M4-0.7 × 5.4) | 2 |
| 26 | 6200276 | Needle Thread Eyelet(Right) | 1 |
| 27 | 006035 | Screw(9/64-40 × 7) | 1 |
| 28 | 000644 | Spring Washer | 1 |
| 29 | 000322 | Nut | 1 |
| 30 | 6200361 | Needle Thread Eyelet Holder(Double Chain) | 1 |
| 31 | 6200357 | Needle Thread Eyelet(Right)(Double Chain) | 1 |
| 32 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 33 | 6200354 | Needle Thread Eyelet(Left) | 1 |
| 34 | 130026 | Screw(M4-0.7 × 5.8) | 1 |
| 35 | 6200365 | NeedleThreadEyelet(Left)(DoubleChain) | 1 |
| 36 | 6200356 | Needle Thread Pull-off | 1 |
| 37 | 110064 | Screw(M4-0.7 × 8)[M4-0.7 × 8] | 1 |
| 38 | 000653 | Knock Pin | 1 |
| 39 | 6200359 | Double Chaining Looper Thread Eyelet(Left) | 1 |
| 40 | 110008 | Screw(M4-0.7 × 5) | 2 |
Page 13 — MISCELLANEOUS THREAD EYELETS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 6200355 | Thread Eyelet Stopper | 1 |
| 42 | 110091 | Screw(M3-0.5 × 3) | 1 |
| 43 | 6200314 | Tension Disc Eyelet | 1 |
| 44 | 190002 | Tension Post | 1 |
| 45 | 6200315 | Tension Disc | 2 |
| 46 | 6200316 | Double Chaining Looper Tension | 1 |
| 47 | 6200317 | Tension Spring Bushing | 1 |
| 48 | 000182 | Adjusting Nut | 1 |
| 49 | 6200320 | Double Chaining Looper Thread Eyelet | 1 |
| 50 | 009853 | Screw(11/64-40 × 6.5) | 1 |
| 51 | 6200318 | Thread Eyelet Bracket | 1 |
| 52 | 000010 | Conical Spring Washer | 1 |
| 53 | 190000 | Screw(M4-0.7 × 7) | 1 |
| 54 | 6200319 | Thread Retaining Finger | 1 |
| 55 | 6200358 | Thread Retainer Plate Support | 1 |
| 56 | 6200274 | Thread Retainer Plate | 1 |
| 57 | 6200287 | Thread Retainer Spring | 1 |
| 58 | 170049 | Screw(M2-0.4 × 4)[M2-0.4 × 4] | 1 |
| 59 | 6200229 | Looper Crank Cover | 1 |
| 60 | 6100111 | Looper Driving Shaft Oil Seal | 1 |
| 61 | 6200164 | Spacer(Rubber) | 1 |
| 62 | 6200280 | Looper Thread Eyelet(Left) | 1 |
| 63 | 110035 | Screw(M4-0.7 × 10) | 3 |
| 64 | 6200283 | Thread Eyelet Support | 1 |
| 65 | 6200282 | Lower Looper Thread Eyelet | 1 |
| 66 | 6200439 | Upper Looper Thread Eyelet | 1 |
| 67 | 000014 | Washer | 2 |
| 68 | 110026 | Screw(M3-0.5 × 6) | 2 |
| 69 | 000644 | Spring Washer | 1 |
Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200305 | Machine Pulley | 1 |
| 2 | 160007 | Screw(M6-1 × 6) | 5 |
| 3 | 6200477 | Oil Cooling Fan | 1 |
| 4 | 160001 | Screw(M4-0.7 × 4) | 5 |
| 5 | 6200214 | Wave Washer | 1 |
| 6 | 6200213 | Mechanical Oil Shield | 1 |
| 7 | 6100622 | Crankshaft Ball Bearing(Right) | 1 |
| 8 | 6100127 | Bearing Adapter | 1 |
| 9 | 6200268 | Oil Pump Driving Worm | 1 |
| 10 | 6200373 | Crankshaft Bushing | 1 |
| 11 | 6200270 | Crankshaft | 1 |
| 12 | 6200560 | Pin | 1 |
| 14 | 160027 | Screw(M3-0.5 × 3) | 5 |
| 15 | 6200179 | Crankshaft Ball Bearing(Left) | 1 |
| 16 | 6200353 | DoubleChainingLooperThreadTake-up | 1 |
| 17 | 6200330 | Thread Take-up Pin | 1 |
| 18 | 6200234 | Crankshaft Bushing | 1 |
| 19 | 6200083 | Upper Knife Driving Shaft Bushing(Right) | 1 |
| 20 | 6200238 | UpperKnife・FeedBarDrivingShaftBushing | 2 |
| 21 | 6200084 | Upper Knife Driving Shaft Oil Seal | 1 |
| 22 | 6200244 | Needle Bar Driving Shaft Bushing(Right) | 1 |
| 23 | 6200243 | Needle Bar Driving Shaft Bushing(Left) | 1 |
| 24 | 003636 | Cap Screw(5/16-32 × 3.5) | 1 |
| 25 | 000526 | Gasket | 1 |
| 27 | 310109 | Oil Wick | 1 |
| 29 | 6200241 | UpperLooperDrivingShaftBushing(Front) | 1 |
| 30 | 6200242 | UpperLooperDrivingShaftBushing(Rear) | 1 |
| 31 | 6200132 | Looper Driving Shaft Oil Seal | 1 |
| 32 | 6200239 | LowerLooperDrivingShaftBushing(Front) | 1 |
| 33 | 6200240 | LowerLooperDrivingShaftBushing(Rear) | 1 |
| 34 | 6200323 | Looper Shaft Oil Seal | 1 |
| 35 | 6200331 | DoubleChainingLooperShaftBushing(Front) | 1 |
| 36 | 6200332 | DoubleChainingLooperShaftBushing(Rear) | 1 |
| 37 | 6200237 | Feed Bar Driving Shaft Bushing(Left) | 1 |
| 38 | 6200259 | Seal Plug | 1 |
| 39 | 6200333 | Looper Rocker Shaft Bushing | 2 |
| 40 | 6200334 | Seal Plug | 1 |
| 41 | 6200081 | Control Lever Shaft Bushing | 1 |
| 42 | 160001 | Screw(M4-0.7 × 4) | 2 |

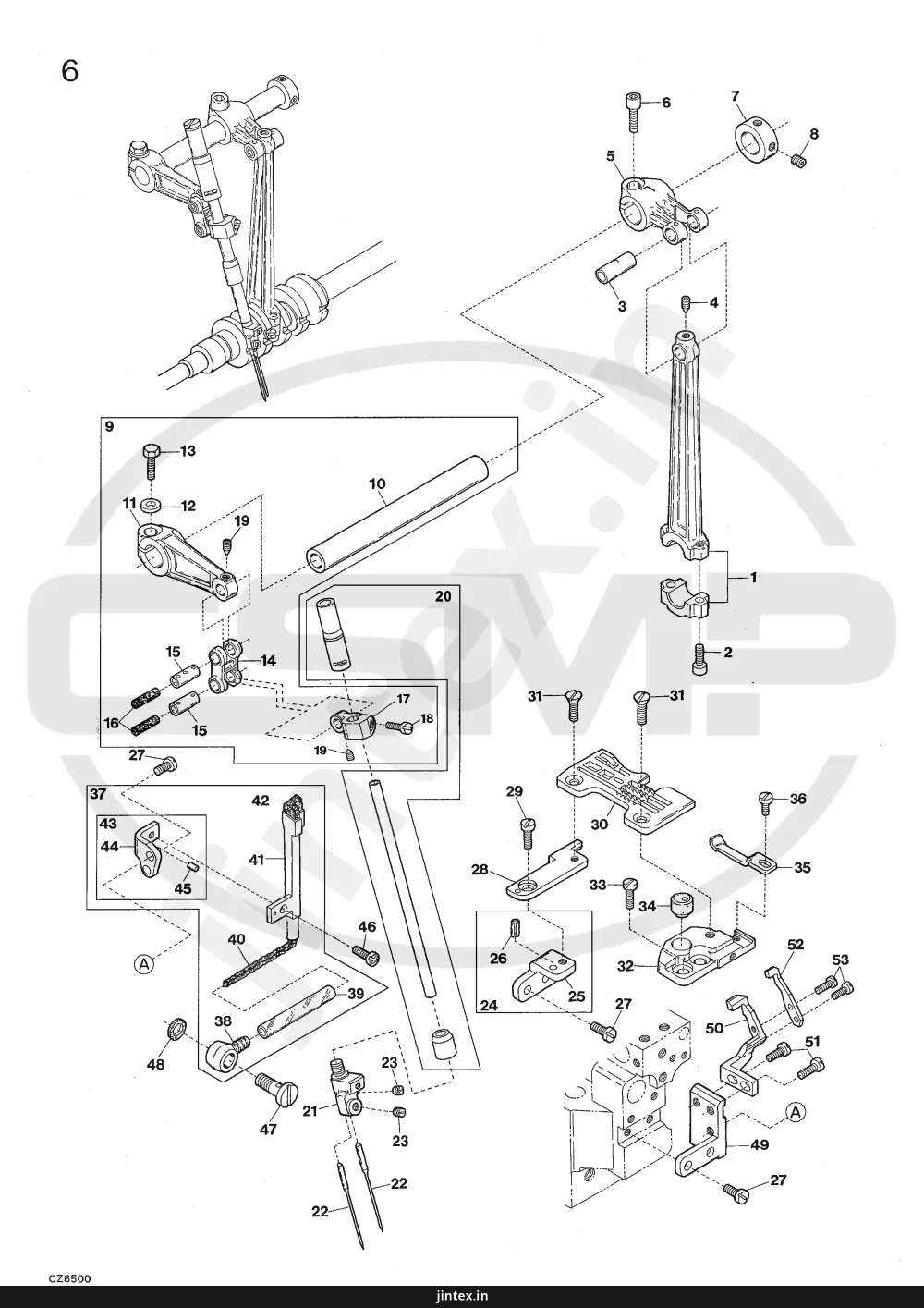

Page 17 — NEEDLE BAR DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200271 | Needle Bar Driving Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 2 |
| 3 | 6200088 | Needle Bar Driving Connecting Rod Pin | 1 |
| 4 | 160002 | Screw(M4-0.7 × 5) | 1 |
| 5 | 6200187 | Needle Bar Driving Lever | 1 |
| 6 | 120006 | Screw(M6-1 × 12) | 1 |
| 7 | 6200086 | Collar(12 × 20 × 10mm) | 1 |
| 8 | 160003 | Screw(M5-0.8 × 5) | 2 |
| 9 | 6200307 | Needle Bar Crank Arm, C. Set | 1 |
| 10 | 6200568 | Needle Bar Driving Shaft | 1 |
| 11 | 6200085 | Needle Bar Crank Arm | 1 |
| 12 | 300008 | Washer | 1 |
| 13 | 140003 | Screw(M6-1 × 18) | 1 |
| 14 | 6200087 | Needle Bar Connecting Link | 1 |
| 15 | 6200101 | Needle Bar Connecting Link Pin | 2 |
| 16 | 310089 | Oil Wick | 2 |
| 17 | 6200246 | Needle Bar Connecting Bracket | 1 |
| 18 | 110006 | Screw(M3.5-0.6 × 10) | 1 |
| 19 | 160016 | Screw(M4-0.7 × 4.5) | 2 |
| 20 | 6200245 | Needle Bar & Needle Bar Bushing, C. Set | 1 |
| 21 | 6209111 | Needle Clamp(A) | 1 |
| 23 | 001900 | Screw(1/8-44 × 2.5)[1/8-44 × 2.5] | 2 |
| 24 | 6200249 | Stitch Plate Support Stay, C. Set | 1 |
| 25 | 6200250 | Stitch Plate Support Stay | 1 |
| 26 | 000035 | Roll Pin | 1 |
| 27 | 110009 | Screw(M4-0.7 × 8) | 6 |
| 28 | 6200153 | Stitch Plate Support(Rear) | 1 |
| 29 | 110001 | Screw(M4-0.7 × 5.4) | 1 |
| 30 | 6208003 | Stitch Plate(A4) | 1 |
| 31 | 005345 | Screw(11/64-40 × 8.3) | 2 |
| 32 | 6200089 | Stitch Plate Support(Front) | 1 |
| 33 | 110011 | Screw(M5-0.8 × 10) | 2 |
| 34 | 6100020 | Rubber Cushion | 1 |
| 35 | 6209203 | NeedleGuard(Front)(DoubleChainStitch) | 1 |
| 36 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 37 | 6200232 | HR Unit, Complete Set | 1 |
| 38 | 6100310 | Tube Joint | 1 |
| 39 | 6200090 | Oil Tube(70mm) | 1 |
| 40 | 310005 | Oil Wick | 1 |
Page 19 — NEEDLE BAR DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 6200155 | HR Felt Holder | 1 |
| 42 | 310001 | HR Felt | 1 |
| 43 | 6200157 | HR Felt Holder Bracket, C. Set | 1 |
| 44 | 6200158 | HR Felt Holder Bracket | 1 |
| 45 | 000393 | Roll Pin | 1 |
| 46 | 110013 | Screw(M4-0.7 × 8) | 1 |
| 47 | 320008 | Fitting Stud(Short) | 1 |
| 48 | 000567 | Seal | 1 |
| 49 | 6200296 | HR Unit Bracket | 1 |
| 50 | 6209204 | Needle Guard(Rear)(Double Chain Stitch) | 1 |
| 51 | 007627 | Screw(M4-0.7 × 6) | 2 |
| 52 | 6209202 | Needle Guard(Front)(Overlock Stitch) | 1 |
| 53 | 110027 | Screw(M2.5-0.45 × 3.5) | 2 |
Page 21 — KNIFE DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200091 | Upper Knife Driving Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 2 |
| 3 | 6100367 | Driving Lever Pin | 1 |
| 4 | 160002 | Screw(M4-0.7 × 5) | 1 |
| 5 | 6200093 | Upper Knife Driving Lever | 1 |
| 6 | 120006 | Screw(M6-1 × 12) | 1 |
| 7 | 6200092 | Collar(10 × 19 × 9mm) | 1 |
| 8 | 160003 | Screw(M5-0.8 × 5) | 2 |
| 9 | 6200251 | Upper Knife Driving Shaft | 1 |
| 10 | 6200095 | Upper Knife Holder Positioner | 1 |
| 11 | 6200335 | Upper Knife Holder(Flat Type) | 1 |
| 12 | 110035 | Screw(M4-0.7 × 10) | 1 |
| 13 | 6200022 | Upper Knife(Flat Type) | 1 |
| 14 | 000532 | Washer | 1 |
| 15 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 16 | 6100017 | Seal Plug | 1 |
| 17 | 6200222 | Lower Knife Holder Spring Stop | 1 |
| 18 | 110012 | Screw(M4-0.7 × 5) | 3 |
| 19 | 6200100 | Cloth Plate Rubber Cushion | 1 |
| 20 | 6200221 | Front Cover | 1 |
| 21 | 110001 | Screw(M4-0.7 × 5.4) | 2 |
| 22 | 180040 | Screwed Pin | 1 |
| 23 | 6200223 | Lower Knife Holder Locking Plate | 1 |
| 24 | 6200030 | Lower Knife Holder Spring | 1 |
| 25 | 6200336 | Lower Knife Holder | 1 |
| 26 | 110046 | Screw(M5-0.8 × 12) | 1 |
| 27 | 000688 | Guide Pin | 1 |
| 28 | 6200097 | Lower Knife | 1 |
| 29 | 6200098 | Lower Knife Clamp | 1 |
| 30 | 140014 | Screw(M4-0.7 × 8) | 1 |
Page 23 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 190088 | Adjusting Screw(M10-0.75 × 30) | 1 |
| 2 | 100073 | Lock Nut | 1 |
| 3 | 6200469 | Presser Spring | 1 |
| 4 | 6200470 | Presser Bar | 1 |
| 5 | 6200160 | Presser Arm Positioning Guide Pin | 1 |
| 6 | 340061 | Pin | 1 |
| 7 | 6200472 | Presser Arm Stop | 1 |
| 8 | 110012 | Screw(M4-0.7 × 5) | 1 |
| 9 | 6200473 | Presser Foot Release Lever | 1 |
| 10 | 6200474 | Presser Foot Release Lever Spring | 1 |
| 11 | 170045 | Screw(M4-0.7 × 5) | 1 |
| 12 | 180001 | Screw(M4-0.7 × 4.5) | 1 |
| 13 | 6200513 | Presser Foot Lifter Lever | 1 |
| 15 | 170065 | Screw(M8-1.25 × 10)[M8-1.25 × 10] | 1 |
| 16 | 6200291 | Presser Foot Lifter Lever Stop | 1 |
| 17 | 120010 | Screw(M6-1 × 10) | 1 |
| 18 | 6200514 | Presser Foot Lifter Lever Link | 1 |
| 19 | 6200154 | Presser Foot Shaft Collar | 1 |
| 20 | 120017 | Screw(M5-0.8 × 15) | 1 |
| 21 | 6200104 | Intermediate Lever | 1 |
| 22 | 110065 | Stop Screw(M4-0.7 × 12) | 1 |
| 23 | 100001 | Lock Nut | 1 |
| 24 | 6200288 | Presser Foot Lifter Lever Spring | 1 |
| 25 | 6200082 | Presser Foot Shaft Bushing | 1 |
| 26 | 160007 | Screw(M6-1 × 6) | 1 |
| 27 | 6200527 | Presser Arm, Complete Set | 1 |
| 28 | 6200103 | Presser Foot Shaft | 1 |
| 29 | 6200528 | Presser Arm | 1 |
| 30 | 6200106 | Presser Arm Hinge Pin | 1 |
| 31 | 160001 | Screw(M4-0.7 × 4) | 1 |
| 32 | 6207016 | Presser Foot, C. Set(A4) | 1 |
| 33 | 6207012 | Presser Foot Hinge | 1 |
| 34 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 35 | 6207015 | Presser Foot Spring(Large) | 1 |
| 36 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 37 | 6207010 | Presser Foot(Front/Rear) Unit(A4) | 1 |
| 38 | 004136 | Screw(1/8-44 × 2.7) | 1 |
| 39 | 6207023 | Thread Chain Guide | 1 |
| 40 | 004141 | Screw(3/32-56 × 2.1) | 1 |
| 41 | 6207007 | Presser Foot Spring(Small) | 1 |
| 42 | 006093 | Screw(3/32-56 × 5.6) | 1 |
| 43 | 6207008 | Presser Foot(Rear) Adjusting Plate | 1 |
| 44 | 000216 | Nut | 1 |
| 45 | 000747 | Pin | 1 |
| 46 | 6207071 | Presser Foot Stitch Tongue(A4) | 1 |
| 47 | 6207011 | Presser Foot Adjusting Plate | 1 |
| 48 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 49 | 6200020 | Thread Chain Cutting Knife | 1 |
| 50 | 004097 | Screw(3/32-56 × 4.2) | 1 |
| 51 | 6200471 | Presser Bar, Complete Set | 1 |
| 52 | 000531 | Washer | 1 |
Page 25 — UPPER LOOPER DRIVING MECHANISM / 上ルーパ機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200188 | Looper Driving Lever Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 4 |
| 3 | 6200080 | Connecting Rod Swing-proof | 2 |
| 4 | 6200261 | Upper Looper Driving Lever | 1 |
| 5 | 120006 | Screw(M6-1 × 12) | 1 |
| 6 | 6200260 | Looper Driving Shaft | 1 |
| 7 | 6200262 | Driving Shaft Thrust Ring | 1 |
| 8 | 6200263 | Driving Shaft Thrust Ring | 1 |
| 9 | 6200566 | Collar | 1 |
| 10 | 120049 | Screw(M4-0.7 × 16) | 1 |
| 11 | 6200286 | Upper Looper Thread Pull-off | 1 |
| 12 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 13 | 6200117 | Upper Looper Bar Crank Arm, C. Set | 1 |
| 14 | 6200114 | Upper Looper Bar Guide Bushing | 1 |
| 15 | 6200110 | Upper Looper Bar Guide Cover | 1 |
| 16 | 130001 | Screw(M2.5-0.45 × 6) | 1 |
| 17 | 110071 | Screw(M2.5-0.45 × 6) | 1 |
| 18 | 6200116 | Upper Looper Bar Guide,Complete Set | 1 |
| 19 | 6200111 | Upper Looper Bar Crank Arm | 1 |
| 20 | 300008 | Washer | 1 |
| 21 | 140004 | Screw(M6-1 × 16) | 1 |
| 22 | 6200113 | Upper Looper Bar Crank Arm Pin | 1 |
| 23 | 160002 | Screw(M4-0.7 × 5) | 1 |
| 24 | 310089 | Oil Wick | 1 |
| 25 | 6200112 | Upper Looper Bar | 1 |
| 26 | 000629 | Seal Plug | 1 |
| 27 | 6200115 | Upper Looper Bar Guide | 1 |
| 28 | 310065 | Oiling Felt | 1 |
| 29 | 6209302 | Upper Looper(for Needle Size #9~14) | 1 |
| 30 | 210009 | Screw(1/8-44 × 3.2) | 1 |
| 32 | 120013 | Screw(M6-1 × 15) | 2 |
| 33 | 6200169 | Upper Looper Supplementary Thread Eyelet | 1 |
| 34 | 6200278 | Lower Looper Thread Pull-off | 1 |
| 35 | 000014 | Washer | 1 |
| 36 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 37 | 6200120 | Upper Looper Bar, C. Set | 1 |
| 38 | 6200453 | Upper Looper Bar Guide Bushing Postioner | 1 |
| 39 | 009746 | Screw(M4-0.7 × 8) | 1 |
| 40 | 110001 | Screw(M4-0.7 × 5.4)[M4-0.7 × 8] | 1 |
Page 27 — LOWER LOOPER DRIVING MECHANISM 下ルーパ機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200108 | Looper Driving Lever Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 4 |
| 3 | 6200080 | Connecting Rod Swing-proof | 1 |
| 4 | 6200360 | Lower Looper Driving Lever | 1 |
| 5 | 160024 | Screw(M6-1 × 8) | 2 |
| 6 | 6200189 | Driving Shaft Thrust Ring | 1 |
| 7 | 6200092 | Collar(10 × 19 × 9mm) | 1 |
| 8 | 160003 | Screw(M5-0.8 × 5) | 4 |
| 9 | 6200364 | Looper Driving Shaft | 1 |
| 10 | 6200107 | Lower Looper Holder Arm | 1 |
| 11 | 300008 | Washer | 1 |
| 12 | 140002 | Screw(M6-1 × 14) | 2 |
| 13 | 6200279 | Thread Pull-off | 1 |
| 14 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 15 | 6209301 | Lower Looper | 1 |
| 16 | 6209201 | Needle Guard(Rear) | 1 |
| 17 | 110036 | Screw(M3-0.5 × 6.5) | 1 |
| 18 | 180014 | Screwed Pin(M3-0.5 × 4.5) | 1 |
| 19 | 6200363 | DoubleChainingLooperDrivingConnection | 1 |
| 20 | 6200118 | Bushing | 1 |
| 21 | 300000 | Washer | 1 |
| 22 | 140005 | Screw(M5-0.5 × 17)[M5-0.5 × 12] | 1 |
| 23 | 6200362 | Double Chaining Looper Driving Lever | 1 |
| 24 | 120006 | Screw(M6-1 × 10) | 1 |
| 25 | 6200337 | Looper Driving Connecting Pin(Left) | 1 |
| 26 | 160001 | Screw(M4-0.7 × 4) | 1 |
| 27 | 6200340 | Looper Slide Block Holder(Front) | 1 |
| 28 | 6200342 | Looper Slide Block Holder(Rear) | 1 |
| 29 | 120018 | Screw(M4-0.7 × 10) | 2 |
| 30 | 6200341 | Looper Slide Block | 1 |
| 31 | 000740 | Seal Plug | 1 |
| 32 | 6200368 | Double Chaining Looper Driving Shaft | 1 |
| 33 | 6200343 | Double Chaining Looper Holder Arm | 1 |
| 34 | 6209303 | Double Chaining Looper | 1 |
| 35 | 000035 | Position Pin | 1 |
| 36 | 300032 | Washer | 1 |
| 37 | 300106 | Conical Spring Washer | 1 |
| 38 | 100044 | Nut | 1 |
| 39 | 300067 | Washer | 1 |
Page 29 — FEED DRIVING CONTROL MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200254 | Main Feed Bar Lever | 1 |
| 2 | 120006 | Screw(M6-1 × 12) | 4 |
| 3 | 6200119 | Main Feed Bar Lever Pin | 1 |
| 4 | 300000 | Washer | 3 |
| 5 | 100002 | Nut | 1 |
| 6 | 000669 | Washer | 2 |
| 7 | 6200263 | Thrust Plate | 1 |
| 8 | 6200038 | Retaining Ring | 1 |
| 9 | 6100262 | Main Feed Bar Connection | 1 |
| 10 | 6200118 | Connection Bushing | 1 |
| 11 | 140001 | Screw(M5-0.5 × 12) | 1 |
| 12 | 6200127 | Feed Bar, Complete Set | 1 |
| 13 | 6200184 | Main Feed Bar | 1 |
| 14 | 6200183 | Differential Feed Bar | 1 |
| 15 | 6200190 | Differential Feed Bar Connection | 1 |
| 16 | 6200265 | Connection Bushing | 1 |
| 17 | 140000 | Screw(M5-0.5 × 15.5) | 1 |
| 18 | 6200255 | Feed Bar Driving Shaft | 1 |
| 19 | 6200256 | Feed Bar Driving Shaft Lever | 1 |
| 20 | 6200142 | Connecting Rod Pin | 1 |
| 21 | 160007 | Screw(M6-1 × 6) | 1 |
| 22 | 6200165 | Differential Rocker, Complete Set | 1 |
| 23 | 6200166 | Differential Rocker | 1 |
| 24 | 6200167 | Differential Regulating Slider | 1 |
| 25 | 6200168 | Differential Regulating Slider Cap | 1 |
| 26 | 110033 | Screw(M3-0.5 × 6) | 2 |
| 27 | 6200130 | Differential Lever(Right), C. Set | 1 |
| 28 | 6100255 | Slider Link | 1 |
| 29 | 6100343 | Retaining Ring | 1 |
| 30 | 6100360 | Slider Link Pin | 1 |
| 31 | 6200125 | Differential Lever(Right) | 1 |
| 32 | 6100235 | Collar(10 × 17 × 8mm) | 1 |
| 33 | 160001 | Screw(M4-0.7 × 4) | 2 |
| 34 | 000690 | Spring Pin | 1 |
| 35 | 6200123 | Differential Lever Spring | 1 |
| 36 | 6100363 | O-ring(P7) | 1 |
| 37 | 6200126 | Differential Lever(Left) | 1 |
| 38 | 000528 | Washer | 1 |
| 39 | 000561 | Conical Spring Washer | 1 |
| 40 | 100000 | Adjusting Nut | 1 |
| 41 | 190001 | Adjusting Screw(M6-1 ×11.5, M4.5-0.5 ×4) | 1 |
| 42 | 6200131 | Differential Feed Graduation | 1 |
| 43 | 110016 | Screw(M4-0.7 × 15) | 2 |
| 44 | 6100269 | Differential Lever Stop | 2 |
| 45 | 110017 | Screw(M5-0.8 × 8) | 2 |
Page 31 — FEED DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200173 | Feed Bar Guide Support | 1 |
| 2 | 110064 | Screw(M4-0.7 × 8) | 4 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 6 |
| 4 | 6200174 | Feed Bar Shield(Front) | 1 |
| 5 | 6200175 | Feed Bar Shield(Rear) | 1 |
| 6 | 6200177 | Feed Bar Shield Guide | 1 |
| 7 | 6200178 | Feed Bar Guide | 2 |
| 8 | 6200176 | Feed Bar Shield(Upper) | 1 |
| 9 | 6200253 | Feed Bar Guide Bushing | 1 |
| 10 | 160007 | Screw(M6-1 × 6) | 1 |
| 11 | 6200161 | Feed Bar Block(Rear) Shaft | 1 |
| 12 | 160001 | Screw(M4-0.7 × 25) | 1 |
| 13 | 6200140 | Feed Bar Block(Rear) | 1 |
| 14 | 6200139 | Feed Bar Block(Rear) Lid | 1 |
| 15 | 130002 | Screw(M3-0.5 × 6) | 1 |
| 16 | 6200338 | Looper Rocker Shaft Lever | 1 |
| 17 | 6200119 | Looper Slide Block Pin | 1 |
| 18 | 300000 | Washer | 1 |
| 19 | 100072 | Nut | 1 |
| 20 | 6200344 | Looper Rocker Shaft | 1 |
| 21 | 003655 | Screw(M4-0.7 × 10) | 2 |
| 22 | 6200345 | Collar(9 × 17 × 8mm) | 1 |
| 23 | 300001 | Washer | 1 |
| 24 | 6200313 | Retaining Ring | 1 |
| 25 | 6200339 | Looper Rocker Connecting Rod Pin | 1 |
| 26 | 6200346 | Petaining Ring | 1 |
| 27 | 6200138 | Feed Bar Block(Front) | 1 |
| 28 | 6200348 | Retaining Ring | 1 |
| 29 | 6200349 | Looper Rocker Connecting Rod | 1 |
| 30 | 6200322 | Roller Bearing | 1 |
| 31 | 6200347 | Looper Rocker Eccentric | 1 |
| 32 | 6100366 | Feed Dog Eccentric Pin | 1 |
| 33 | 6100281 | Feed Dog Eccentric | 1 |
| 34 | 6100282 | Roller Bearing | 1 |
| 35 | 6200133 | Feed Dog Driving Connecting Rod | 1 |
| 36 | 6100284 | Feed Dog Regulating Eccentric | 1 |
| 37 | 180002 | Screw(M3-0.5 × 4) | 2 |
| 38 | 6100285 | Feed Dog Regulating Plate Spring | 1 |
| 39 | 110070 | Screw(M3-0.5 × 6.3) | 1 |
| 40 | 6100286 | Feed Dog Regulating Plate | 1 |
| 41 | 6200137 | Feed Dog Regulating Gear | 1 |
| 42 | 180003 | Screw(M5-0.8 × 8) | 1 |
| 43 | 160003 | Screw(M5-0.8 × 5) | 3 |
| 44 | 6209007 | Differential Feed Dog(A4) | 1 |
| 45 | 6209008 | Main Feed Dog | 1 |
| 46 | 6209002 | Auxiliary Feed Dog | 1 |
| 47 | 110026 | Screw(M3-0.5 × 6) | 1 |
| 48 | 6200257 | Connecting Rod Cover | 1 |
| 49 | 130003 | Screw(M4-0.7 × 7.3) | 2 |
Page 33 — LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200506 | Oil Pump, Complete Set | 1 |
| 2 | 6200475 | Worm Wheel | 1 |
| 3 | 160001 | Screw(M4-0.7 x 4) | 4 |
| 4 | 120049 | Screw(M4-0.7 x 16)[M4-0.7 x 15] | 2 |
| 5 | 320009 | Oil Tube Fitting Stud(Long)(M6-1) | 1 |
| 6 | 000567 | Seal | 1 |
| 7 | 6200507 | Oil Tube, Complete Set | 1 |
| 8 | 6100310 | Oil Tube Fitting One Way End | 4 |
| 9 | 6100303 | Oil Tube Clamp | 7 |
| 10 | 6200508 | Oil Tube(4.6 x 6.4 x 220mm) | 1 |
| 11 | 320008 | Oil Tube Fitting Stud(M6-1) | 2 |
| 12 | 6200509 | Suction Tube, C. Set | 1 |
| 13 | 6100308 | Oil Tube Fitting Two Way | 1 |
| 14 | 6200510 | Oil Tube(4.6 x 6.4 x 242.5mm) | 1 |
| 15 | 6200206 | Oil Filter | 1 |
| 16 | 6200518 | Suction Pipe(Upper), C. Set | 1 |
| 17 | 6200519 | Suction Tube(4 x 6 x 18mm) | 1 |
| 18 | 6200195 | Suction Tube(2.5 x 4 x 60mm) | 1 |
| 19 | 6200196 | Suction Pipe(Upper) | 1 |
| 20 | 310073 | Felt | 1 |
| 21 | 6200299 | Oil Tube, Complete Set | 1 |
| 22 | 6200301 | Oil Tube(4.6 x 6.4 x 320mm) | 1 |
| 23 | 6200450 | Oil Pressure Regulating Valve | 1 |
| 24 | 6200451 | Oil Pressure Regulating Valve, C. Set | 1 |
| 25 | 6200450 | Oil Pressure Regulating Valve | 1 |
| 26 | 6200037 | Oil Pressure Regulating Ball | 1 |
| 27 | 6200028 | Guide Pin | 1 |
| 28 | 6200476 | Spring | 1 |
| 29 | 006861 | Adjusting Screw(1/4-40 x 5) | 1 |
| 30 | 000419 | Nut | 1 |
| 31 | 6100002 | Oil Filter Cap | 1 |
| 32 | 110045 | Screw(M4-0.7 x 12) | 3 |
| 33 | 6100370 | O-ring(P42) | 1 |
| 34 | 6100296 | Oil Filter | 1 |
| 35 | 6100297 | Filter Housing | 1 |
| 37 | 6200248 | Oil Pipe | 1 |
| 39 | 6200186 | Oil Pipe, C. Set | 1 |
| 40 | 6200185 | Oil Pipe | 1 |
| 41 | 000456 | Seal Plug | 1 |
| 42 | 310090 | Oil Wick | 1 |
| 43 | 6200074 | Oil Sight Gauge | 1 |
| 44 | 6100363 | O-ring(P7) | 1 |
| 45 | 110053 | Screw(M6-1 x 8) | 1 |
| 46 | 320012 | Oil Tube Fitting Stud(1/4-40) | 3 |
Page 35 — CZ6500-C5 EXCLUSIVE PARTS / サブモデル専用部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207024 | Presser Foot, C. Set(C5) | 1 |
| 2 | 6207014 | Presser Foot Hinge(C) | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 004136 | Screw(1/8-44 × 2.7) | 1 |
| 5 | 6207013 | Presser Foot(Front/Rear) Unit(C5) | 1 |
| 6 | 6207009 | Presser Foot Stitch Tongue(C5) | 1 |
| 7 | 6207011 | Presser Foot Adjusting Plate | 1 |
| 8 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 9 | 6207006 | Thread Chain Guide(C) | 1 |
| 10 | 004141 | Screw(3/32-56 × 2.1) | 1 |
| 11 | 6207007 | Presser Foot Spring(Small) | 1 |
| 12 | 006093 | Screw(3/32-56 × 5.6) | 1 |
| 13 | 6207008 | Presser Foot(Rear) Adjusting Plate | 1 |
| 14 | 000216 | Nut | 1 |
| 15 | 000747 | Pin | 1 |
| 16 | 6207015 | Presser Foot Spring(Large) | 1 |
| 17 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 18 | 6209112 | Needle Clamp(C) | 1 |
| 19 | 6208001 | Stitch Plate(C5) | 1 |
| 20 | 6209003 | Differential Feed Dog | 1 |
| 21 | 6209004 | Main Feed Dog | 1 |
| 22 | 000531 | Washer | 1 |
Page 37 — CZ6520-AY, 6525-AY EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6100056 | Thread Tension Spring Cap | 1 |
| 2 | 6100057 | Tension Spring Bushing | 1 |
| 3 | 6200032 | Tension Spring(Needle Thread) | 1 |
| 4 | 6200019 | Thread Tension Spring Retainer | 1 |
| 5 | 000178 | Felt(2.5mm) | 1 |
| 6 | 6200062 | Tension Disc | 2 |
| 7 | 000177 | Felt(1.0mm) | 1 |
| 8 | 190016 | Tension Post | 1 |
| 9 | 6200441 | Tension Disc Eyelet for Needle Thread | 1 |
| 10 | 6200442 | Tension Disc Eyelet(Right) | 1 |
| 11 | 100001 | Nut | 1 |
| 13 | 6209310 | Upper Looper(for Needle Size #9~14) | 1 |
| 15-1 | 6207034 | Presser Foot, Complete Set(AY5) | 1 |
| 15-2 | 6207035 | Presser Foot, Complete Set(AY6) | 1 |
| 16 | 6207012 | Presser Foot Hinge | 1 |
| 17 | 110004 | Screw(M3.5-0.6 x 8) | 1 |
| 18 | 004136 | Screw(1/8-44 x 2.7) | 1 |
| 19-1 | 6207039 | Presser Foot(Front/Rear) Unit | 1 |
| 19-2 | 6207040 | Presser Foot(Front/Rear) Unit | 1 |
| 20-1 | 6207041 | Presser Foot Stitch Tongue(AY5) | 1 |
| 20-2 | 6207042 | Presser Foot Stitch Tongue(AY6) | 1 |
| 21 | 6207011 | Presser Foot Adjusting Plate | 1 |
| 22 | 005036 | Screw(1/8-44 x 5.6) | 1 |
| 23 | 6207023 | Thread Chain Guide | 1 |
| 24 | 004141 | Screw(3/32-56 x 2.1) | 1 |
| 25 | 6207007 | Presser Foot Spring(Small) | 1 |
| 26 | 006093 | Screw(3/32 - 56 x 5.6) | 1 |
| 27 | 6207008 | Presser Foot(Rear) Adjusting Plate | 1 |
| 28 | 000216 | Nut | 1 |
| 29 | 000747 | Pin | 1 |
| 30 | 6207015 | Presser Foot Spring(Large) | 1 |
| 31 | 110002 | Screw(M3-0.5 x 5) | 1 |
| 32 | 6209113 | Needle Clamp(AY) | 1 |
| 33 | 001900 | Screw(1/8-44 x 2.4) | 1 |
| 34-1 | 6208009 | Stitch Plate(AY5) | 1 |
| 34-2 | 6208010 | Stitch Plate(AY6) | 1 |
| 35 | 6209014 | Differential Feed Dog | 1 |
| 36 | 6207065 | Presser Foot, Complete Set(AY5) | 1 |
| 37 | 6207066 | Presser Foot(Front/Rear) Unit | 1 |
| 38 | 6207069 | Presser Foot Stitch Tongue(AY6) | 1 |
| 39 | 6207081 | Presser Foot Tape Guide | 1 |
| 40 | 6207080 | Presser Foot Adjusting Plate | 1 |
| 41 | 210000 | Screw(1/8-44 x 7) | 1 |
| 42 | 0024130 | Tape Guide(Upper) | 1 |
| 43 | 110012 | Screw(M4-0.7 x 5) | 2 |
| 44 | 000531 | Washer | 1 |
| 45 | 000538 | Washer | 2 |
Page 39 — CZ6500-31 EXCLUSIVE PARTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200058 | Needle Bar Driving Lever | 1 |
| 2 | 6200134 | Crankshaft | 1 |
| 3 | 6200598 | Needle Thread Pull-off | 1 |
| 4 | 6200599 | Upper Knife Holder(Flat Type) | 1 |
| 5 | 6200308 | Upper Knife(Flat Type) | 1 |
| 6 | 6200128 | Eye Guard Spacer | 1 |
| 7 | 100001 | Nut | 1 |
| 8 | 6200108 | Looper Driving Lever Connecting Rod | 1 |
| 9 | 6200455 | Upper Looper Driving Lever | 1 |
| 10 | 6200488 | Driving Shaft Thrust Ring | 1 |
| 11 | 6200588 | Collar(10 x 16 x 6mm) | 1 |
| 12 | 003657 | Screw(M4-0.7 x 3) | 1 |
| 13 | 6200463 | Lower Looper Thread Pull-off | 1 |
| 14 | 6209304 | Upper Looper | 1 |
| 15 | 6200559 | Thread Retainer Plate Support | 1 |
| 16 | 6200467 | Thread Retainer Plate | 1 |
| 17 | 6200468 | Thread Retainer Spring | 1 |
| 18 | 170060 | Screw(M2.5-0.45 x 4) | 1 |
| 19 | 6200565 | Looper Holder Cover | 1 |
| 20 | 110001 | Screw(M4-0.7 x 5.4) | 1 |
| 21 | 6200586 | Lower Looper Thread Eyelet | 1 |
| 22 | 110036 | Screw(M3-0.5 x 6.5) | 1 |
| 23 | 000014 | Washer | 1 |
| 24 | 6200589 | Spacer | 1 |
| 25 | 6200587 | Auxiliary Looper Holder Cover | 1 |
| 26 | 110085 | Screw(M3-0.5 x 4.5) | 2 |
| 27 | 6200464 | Looper Thread Eyelet(Left) | 1 |
| 28 | 130020 | Screw(M4-0.7 x 6.3) | 1 |
| 29 | 6200461 | Upper Looper Thread Eyelet | 1 |
| 30 | 6200600 | Lower Looper Driving Lever | 1 |
| 31 | 6200517 | Driving Shaft Thrust Ring | 1 |
| 32 | 6200459 | Thread Pull-off | 1 |
Page 41 — CZ6500-31 EXCLUSIVE PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207119 | Presser Foot, C. Set(A4) | 1 |
| 2 | 6207012 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 004136 | Screw(1/8-44 × 2.7) | 1 |
| 5 | 6207120 | Presser Foot(Front/Rear) Unit | 1 |
| 6 | 6207121 | Presser Foot Fabric Guard | 1 |
| 7 | 6207122 | Presser Foot Adjusting Plate | 1 |
| 8 | 004138 | Screw(1/8-44 × 5) | 1 |
| 9 | 6207023 | Thread Chain Guide | 1 |
| 10 | 004141 | Screw(3/32-56 × 2.1) | 1 |
| 11 | 6207007 | Presser Foot Spring(Small) | 1 |
| 12 | 006093 | Screw(3/32-56 × 5.6) | 1 |
| 13 | 6207008 | Presser Foot(Rear) Adjusting Plate | 1 |
| 14 | 000216 | Nut | 1 |
| 15 | 000747 | Pin | 1 |
| 16 | 6207015 | Presser Foot Spring(Large) | 1 |
| 17 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 18 | 6209115 | Needle Clamp(A) | 1 |
| 19 | 6208038 | Stitch Plate(A4) | 1 |
| 20 | 6209033 | Differential Feed Dog(A) | 1 |
| 21 | 6207123 | Presser Foot, C. Set(C5) | 1 |
| 22 | 6207014 | Presser Foot Hinge | 1 |
| 23 | 6207124 | Presser Foot(Front/Rear) Unit | 1 |
| 24 | 6209116 | Needle Clamp(C) | 1 |
| 25 | 6208037 | Stitch Plate(C5) | 1 |
| 26 | 6209003 | Differential Feed Dog(C) | 1 |
| 27 | 6209004 | Main Feed Dog | 1 |
| 28 | 000531 | Washer | 1 |

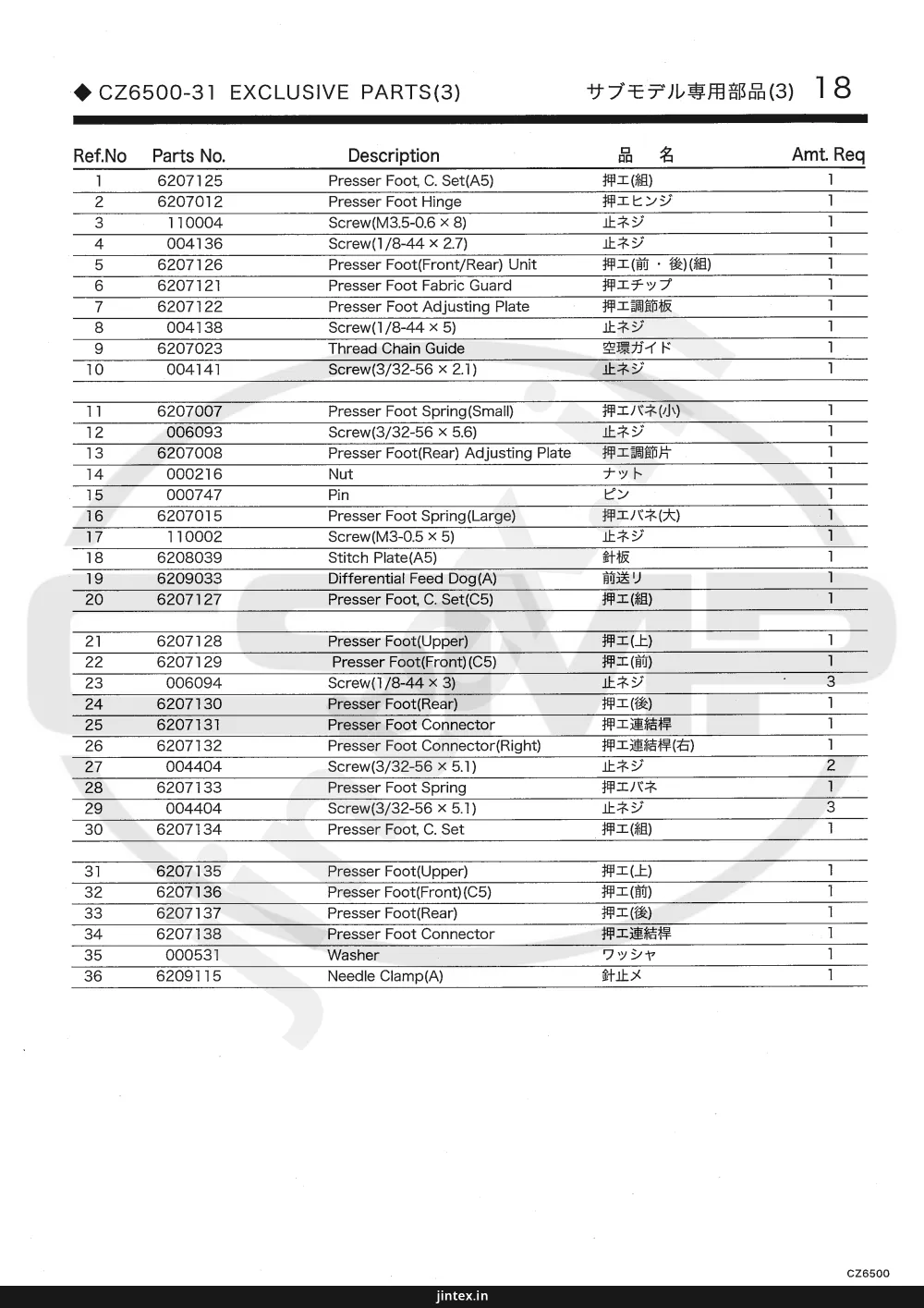

Page 43 — CZ6500-31 EXCLUSIVE PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207125 | Presser Foot, C. Set(A5) | 1 |
| 2 | 6207012 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 004136 | Screw(1/8-44 × 2.7) | 1 |
| 5 | 6207126 | Presser Foot(Front/Rear) Unit | 1 |
| 6 | 6207121 | Presser Foot Fabric Guard | 1 |
| 7 | 6207122 | Presser Foot Adjusting Plate | 1 |
| 8 | 004138 | Screw(1/8-44 × 5) | 1 |
| 9 | 6207023 | Thread Chain Guide | 1 |
| 10 | 004141 | Screw(3/32-56 × 2.1) | 1 |
| 11 | 6207007 | Presser Foot Spring(Small) | 1 |
| 12 | 006093 | Screw(3/32-56 × 5.6) | 1 |
| 13 | 6207008 | Presser Foot(Rear) Adjusting Plate | 1 |
| 14 | 000216 | Nut | 1 |
| 15 | 000747 | Pin | 1 |
| 16 | 6207015 | Presser Foot Spring(Large) | 1 |
| 17 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 18 | 6208039 | Stitch Plate(A5) | 1 |
| 19 | 6209033 | Differential Feed Dog(A) | 1 |
| 20 | 6207127 | Presser Foot, C. Set(C5) | 1 |
| 21 | 6207128 | Presser Foot(Upper) | 1 |
| 22 | 6207129 | Presser Foot(Front)(C5) | 1 |
| 23 | 006094 | Screw(1/8-44 × 3) | 3 |
| 24 | 6207130 | Presser Foot(Rear) | 1 |
| 25 | 6207131 | Presser Foot Connector | 1 |
| 26 | 6207132 | Presser Foot Connector(Right) | 1 |
| 27 | 004404 | Screw(3/32-56 × 5.1) | 2 |
| 28 | 6207133 | Presser Foot Spring | 1 |
| 29 | 004404 | Screw(3/32-56 × 5.1) | 3 |
| 30 | 6207134 | Presser Foot, C. Set | 1 |
| 31 | 6207135 | Presser Foot(Upper) | 1 |
| 32 | 6207136 | Presser Foot(Front)(C5) | 1 |
| 33 | 6207137 | Presser Foot(Rear) | 1 |
| 34 | 6207138 | Presser Foot Connector | 1 |
| 35 | 000531 | Washer | 1 |
| 36 | 6209115 | Needle Clamp(A) | 1 |
Page 45 — K1 DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6201031 | K1 Device, Complete Set | 1 |
| 2 | 6201055 | Suction Pipe Cover | 1 |
| 3 | 004314 | Screw(1/8-44 × 5.6) | 1 |
| 4 | 001230 | Screw(3/32-56 × 3.8) | 2 |
| 5 | 6201057 | Lower Trimming Knife Driving Arm | 1 |
| 6 | 110006 | Screw(M3.5-0.6 × 10) | 1 |
| 7 | 6201056 | Suction Pipe, Complete Set | 1 |
| 8 | 6201032 | Suction Pipe | 1 |
| 9 | 6201058 | Upper Trimming Knife | 1 |
| 10 | 005112 | Screw(3/32-56 × 6) | 3 |
| 11 | 000240 | Oil Wick | 1 |
| 12 | 6201070 | Trimming Knife Holder Pin | 1 |
| 13 | 6201071 | Holder Pin Support | 1 |
| 14 | 004139 | Screw(3/32-56 × 3) | 2 |
| 15 | 6201072 | Lower Trimming Knife | 1 |
| 16 | 110036 | Screw(M3-0.5 × 6.5) | 1 |
| 17 | 160001 | Screw(M4-0.7 × 4) | 1 |
| 18 | 6201059 | Guide Block Holder | 1 |
| 19 | 6201073 | Lower Trimming Knife Guide Block | 1 |
| 20 | 6201074 | Lower Trimming Knife Driving Link | 1 |
| 21 | 170010 | Screw(M4-0.7 × 4) | 1 |
| 22 | 6201060 | Lower Trimming Knife Pushing Plate | 1 |
| 23 | 6201061 | Driving Link Presser | 1 |
| 24 | 6201062 | Oil Wick Clamp | 1 |
| 25 | 001196 | Screw(1/8-44 × 6) | 1 |
| 26 | 310011 | Felt | 1 |
| 27 | 007623 | Screw(9/64-40 × 5.3) | 2 |
| 28 | 6201063 | Suction Pipe Support | 1 |
Page 47 — MISCELLANEOUS SUPPORTING BOARD
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200303 | Belt Cover | 1 |
| 2 | 110015 | Screw(M4-0.7 × 25) | 2 |
| 3 | 6200304 | Supplementary Belt Cover | 1 |
| 4 | 110013 | Screw(M4-0.7 × 8) | 2 |
| 5 | 6200148 | Supporting Board | 1 |
| 6 | 000070 | Hanging Nut | 4 |
| 7 | 009861 | Hanging Bolt | 4 |
| 8 | 6200210 | Spacer(15mm) | 4 |
| 9 | 6101005 | Spacer(5mm)(See the below) | 4 |
| 10 | 6100326 | Supporting Board Rubber Cushion | 8 |
| 11 | 000162 | Washer | 4 |
| 12 | 000016 | Nut | 8 |
| 13 | 6200152 | Chute(Upper) Support | 1 |
| 14 | 005624 | Screw(M4-0.7 × 10) | 4 |
| 15 | 6200146 | Chute(Upper) | 1 |
| 16 | 6200147 | Chute(Lower) | 1 |
| 17 | 6200151 | Chip Receiver | 1 |
| 18 | 350007 | Wood Screw(φ 3.5 × 16) | 2 |
| 19 | 6200524 | Edge Guide Holder | 1 |
| 20 | 110035 | Screw(M4-0.7 × 10) | 2 |
| 21 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 22 | 000665 | Washer | 1 |
Page 49 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 9620695 | Thread Stand, C. Set(5 Spools Type) | 1 |
| 1-2 | 9620696 | Thread Stand, C. Set(6 Spools Type) | 1 |
| 2 | 9620631 | Column Cap | 1 |
| 3 | 9620670 | Column Pipe(Upper) | 1 |
| 4 | 9620689 | Thread Guide Holder(Large) | 1 |
| 5 | 911002 | Screw(M4-0.7 × 20) | 1 |
| 6 | 911001 | Screw(M4-0.7 × 12) | 3 |
| 7 | 910001 | Nut | 4 |
| 8 | 9620673 | Column Pipe Connector | 1 |
| 9 | 911006 | Screw(M5-0.8 × 13) | 2 |
| 10 | 910000 | Nut | 7(8) |
| 11 | 9620675 | Column Pipe(Lower) | 1 |
| 12 | 930052 | Washer | 1 |
| 13 | 930053 | Spring Washer | 1 |
| 14 | 910003 | Nut(M16-1.5) | 1 |
| 15 | 9620702 | Thread Hanger(2 Spools Type) | 2 |
| 16 | 9620703 | Thread Hanger(3 Spools Type) | 2(4) |
| 17 | 9620700 | Thread Eyelet | 5(6) |
| 18 | 9620688 | Thread Hanger Holder | 4 |
| 19 | 911060 | Screw(M6-1 × 15) | 4 |
| 20 | 9620691 | Thread Guide Arm | 1 |
| 21 | 9620690 | Thread Guide Holder(Small) | 1 |
| 22 | 9620665 | Thread Guide(5 Spools Type) | 1 |
| 23 | 9620678 | Spool Cushion | 5(6) |
| 24 | 9620679 | Spool Pin | 5(6) |
| 25 | 9620680 | Spool Mat | 5(6) |
| 26 | 9620681 | Spool Seat Disc | 5(6) |
| 27 | 930055 | Spring Washer | 5(6) |
| 28 | 9620666 | Thread Guide(6 Spools Type) | 1 |
Page 50 — WARNING LABEL 警告ラベル
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 390220 | SAFETY INSTRUCTON LABEL | ||
| 390144 | DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE | ||
| 390145 | "Be sure to connect earth line". | ||
| 390146 | ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION | ||
| 390147 | EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS | ||
| 390148 | CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID |
Yamato CZ6500 — parts catalog
- Page 1 (cover): This is the cover page for the Yamato CZ6500 High Speed Safety Stitch Machine Parts List. It features the Yamato logo, the title 'Parts List', the machine model 'CZ6500', and lists various models and devices including CZ6500-A, CZ6520-AY, CZ6500-A-31, CZ6525-AY, and CZ6500-C-31. The page also includes the manufacturer's name, Yamato Sewing Machine Mfg. Co., Ltd., and a website address.
- Page 2 (text): This page provides instructions on how to use the parts list, explains symbols used, and gives guidance on ordering parts, stating that the list is subject to change without notice.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms and parts with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of various components of an industrial sewing machine, including covers, screws, gaskets, and other mechanical parts, with reference numbers for each item.
- Page 5 (parts_list): This page lists miscellaneous covers and related parts for an industrial sewing machine, including various plates, screws, washers, and gaskets, with their corresponding part numbers and quantities.
- Page 6 (diagram): This page displays a diagram of machine components with numbered parts, including screws, brackets, and covers, with the brand name "Yamato" visible on a component.
- Page 7 (parts_list): This page lists miscellaneous covers and related parts for sewing machine models CZ6500, CZ6520, CZ6525, and CZ6500-31. It includes part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various components, including a cover, gasket, O-ring, screws, and other mechanical parts, with reference numbers for identification.
- Page 9 (parts_list): This page lists miscellaneous covers and related parts with their part numbers, descriptions, and quantities required.
- Page 10 (diagram): This page displays a diagram of various sewing machine components, including screws, washers, springs, and specialized parts, each identified by a reference number.
- Page 11 (parts_list): This page lists miscellaneous thread eyelet parts with their part numbers, descriptions, and quantities required.
- Page 12 (diagram): This page displays a diagram of various components and sub-assemblies for a sewing machine, including screws, brackets, rollers, and other mechanical parts, each identified by a reference number.
- Page 13 (parts_list): This page lists miscellaneous thread eyelets and related parts with their part numbers, descriptions, and quantities required.
- Page 14 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a pulley, shaft, bearings, and housing parts, with reference numbers for each component.
- Page 15 (parts_list): This page lists miscellaneous crankshaft and bushing parts, including part numbers, descriptions, and quantities required.
- Page 16 (diagram): This page displays a diagram of various mechanical components and sub-assemblies for a sewing machine, with numbered parts indicated for identification.
- Page 17 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 18 (diagram): This page displays a diagram of various sewing machine parts, including linkages, brackets, and fasteners, with reference numbers for identification.
- Page 19 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 20 (diagram): This page displays a diagram of various machine parts, including screws, brackets, and levers, with reference numbers from 1 to 30.
- Page 21 (parts_list): This page lists parts for the KNIFE DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
- Page 22 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and other components, with reference numbers for identification.
- Page 23 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
- Page 24 (diagram): This page displays a diagram of various machine parts, including clamps, bolts, washers, and linkages, with reference numbers for identification.
- Page 25 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 26 (diagram): This page displays a diagram of various machine components, including brackets, bolts, washers, and levers, with reference numbers for each part.
- Page 27 (parts_list): This page lists parts for the Lower Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 29 (parts_list): This page lists parts for the Feed Driving Control Mechanism, including part numbers, descriptions, and quantities required.
- Page 30 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, shafts, and other mechanical parts, each identified by a reference number.
- Page 31 (parts_list): This page lists parts for the Feed Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 32 (diagram): This page displays a diagram of various engine components, including a filter assembly, fuel system parts, and internal engine elements, with corresponding reference numbers for identification.
- Page 33 (parts_list): This page lists parts for the lubricating mechanism, including oil pumps, worm wheels, screws, seals, oil tubes, filters, and regulating valves, with their corresponding part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, and plates, with reference numbers and part numbers indicated.
- Page 35 (parts_list): This page lists parts for the CZ6500-C5 Exclusive series, including presser feet, screws, nuts, and other components with their corresponding part numbers and quantities.
- Page 36 (diagram): This page displays diagrams and parts lists for CZ6520-AY, 6525-AY, CZ6520-AY5, AY6, and CZ6525-AY5 models, detailing various components with reference numbers and part names.
- Page 37 (parts_list): This page lists parts for CZ6520-AY and 6525-AY exclusive models, including part numbers, descriptions, and quantities required.
- Page 38 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification.
- Page 39 (parts_list): This page lists parts for the CZ6500-31 Exclusive Parts (1) with part numbers, descriptions, and quantities required.
- Page 40 (diagram): This page contains diagrams and parts lists for models CZ6500-A4-31 and CZ6500-C5-31, detailing various components with reference numbers and part numbers.
- Page 41 (parts_list): This page lists parts for the CZ6500-31 sewing machine, including presser foot components, screws, nuts, and washers, with their corresponding part numbers and quantities.
- Page 42 (diagram): This page displays extra parts for the CZ6500-31(3) model, including diagrams and part numbers for CZ6500-A5-31 and CZ6500-C5-31 configurations, as well as a 'Tractor Type' section.
- Page 43 (parts_list): This page lists parts for the CZ6500-31 sewing machine, including part numbers, descriptions, and quantities required.
- Page 44 (diagram): This page displays a diagram of the K1 DEVICE, illustrating various components with reference numbers for identification.
- Page 45 (parts_list): This page lists parts for the K1 Device, including part numbers, descriptions, and quantities required.
- Page 46 (diagram): This page displays a diagram of various machine components, including frame parts, brackets, screws, and other hardware, with reference numbers for identification.
- Page 47 (parts_list): This page lists parts for the MISCELLANEOUS SUPPORTING BOARD, including part numbers, descriptions, and quantities required.
- Page 48 (diagram): This page displays diagrams of sewing machine components, labeled with reference numbers and part numbers, illustrating different assemblies and parts.
- Page 49 (parts_list): This page lists parts for a Thread Stand, including part numbers, descriptions, and quantities required.
- Page 50 (parts_list): This page lists various warning labels for the industrial sewing machine, including their part numbers and descriptions in English and Japanese.
- Page 51 (cover): This is the cover page for the Yamato Sewing Machine (Ningbo) Co., Ltd. parts catalog, P/N 6810002(P), Edition No. 3, edited in 2007.7.
