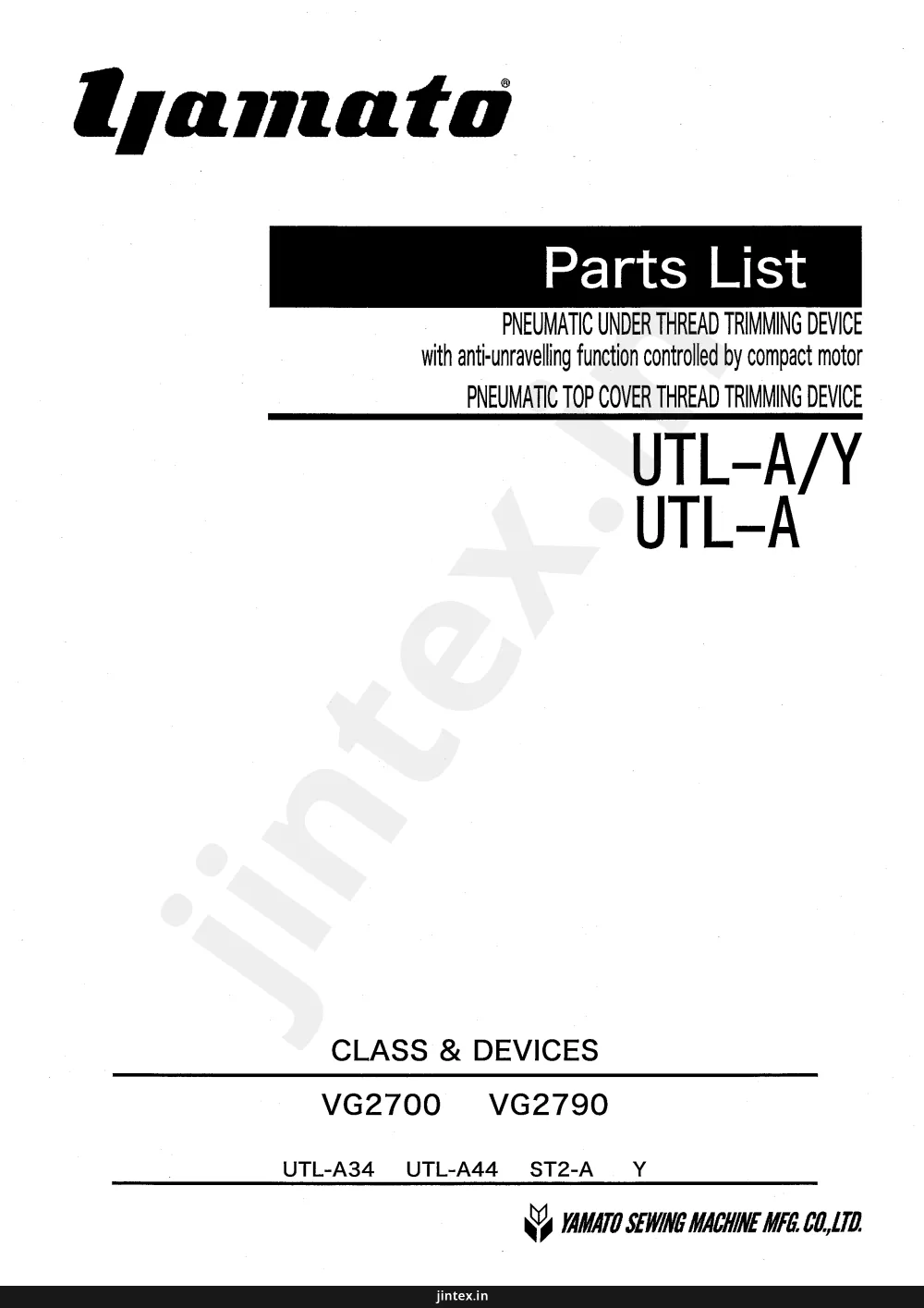

Yamato VC2700 UT Parts Book PDF — View & Download

Parts index — Yamato VC2700 UTtap a row to open its page

Page 3 — Contents

Yamato VC2700 UT parts on page 3
Ref	Part number	Part name	Qty
	UTL-A/Y, UTL-A DEVICE(1)	UTL-A/Y, UTL-A装置(1)
	UTL-A/Y, UTL-A DEVICE(2)	UTL-A/Y, UTL-A装置(2)
	UTL-A/Y, UTL-A DEVICE(3)	UTL-A/Y, UTL-A装置(3)
	UTL-A/Y, UTL-A DEVICE(4) for VG2700, 2735	UTL-A/Y, UTL-A装置(4)
	UTL-A/Y, UTL-A DEVICE(4) for VG2790	UTL-A/Y, UTL-A装置(4)
	UTL-A/Y, UTL-A DEVICE(5)	UTL-A/Y, UTL-A装置(5)
	UTL-A34/Y DEVICE(6)	UTL-A34/Y装置(6)
	UTL-A34 DEVICE(6)	UTL-A34装置(6)
	UTL-A44/Y DEVICE(7)	UTL-A44/Y装置(7)
	UTL-A44 DEVICE(7)	UTL-A44装置(7)
	ST2-A DEVICE	ST2-A装置
	UTL-A/Y DEVICE(8)	UTL-A/Y装置(8)
	UTL-A/Y DEVICE(9)	UTL-A/Y装置(9)
	UTL-A/Y DEVICE(10)	UTL-A/Y装置(10)

Page 4

Yamato VC2700 UT parts on page 4
Ref	Part number	Part name	Qty
	1	DEVICE
	5	PIN
	4-1	BRACKET
	4-2	BRACKET
	6	BRACKET
	7	WASHER
	8	SCREW
	9	PLATE
	10	SHAFT
	11	SPRING
	12	CIRCLIP
	13	HOLDER
	14	SCREW
	15	VALVE
	16	SCREW
	17	LINK
	18	COLLAR
	19	SCREW
	20	PIN
	21	LEVER
	22	SPRING
	23	SPRING

Page 5

Yamato VC2700 UT parts on page 5
Ref	Part number	Part name	Qty
1	1095007	Speed Controller	1
2	110013	Screw(M4-0.7 × 8)[M4-0.7 × 5]	1
3	110012	Screw(M4-0.7 × 5)	2
4-1	0094491	Cord Clamp(2N- φ 3.4)	1
4-2	0063612	Cord Clamp(4N- φ 6.8)(for ST2-A)	1
5	1096029	Air Tube(4 × 2.5mm)(Black)
6	3151012	Air Wiper	1
7	000538	Washer	2
8	110009	Screw(M4-0.7 × 8)	2
9	3100529	Thread Pull-off Eyelet	1
10	3500530	Thread Pull-off Bar	1
11	0063076	Swing-proof Spring	1
12	0077179	Retaining Ring	1
13	3500516	Thread Pull-off Hook Unit	5
14	003657	Screw(M4-0.7 × 3)	5
15	0094396	Thread Pull-off Bar Holder	1
16	007006	Screw(9/64-40 × 4)	1
17	0033024	Retaining Ring	1
18	3500360	Collar(9 × 15 × 7.5mm)	1
19	160001	Screw(M4-0.7 × 4)	2
20	0011795	Wrapping Band(2.3 × 92)	1
21	0022836	Synchronizer Positioning Pin(UTL-A)	1
22	0022837	Synchronizer Cushion(UTL-A)	1
23	009736	Screw(M4-0.7 × 6)(UTL-A)	1

Page 6

Yamato VC2700 UT parts on page 6
Ref	Part number	Part name	Qty
	1	BRACKET
	2	BRACKET
	3	SCREW M4X8
	4	BRACKET
	5	SCREW M4X8
	6	SCREW M4X8
	7	BRACKET
	8	SCREW M4X8
	9	BRACKET
	10	SCREW M4X6
	11	WASHER
	12	NUT M5
	13	BRACKET
	14	AIR CYLINDER
	15	ELBOW JOINT
	16	TUBE JOINT
	17	WASHER
	18	BRACKET
	19	SCREW M5X12
	20	SPRING
	21	BRACKET
	22	PIN
	23	SPRING
	24	BRACKET
	25	NUT M4
	26	SPRING
	27	BRACKET

Page 7

Yamato VC2700 UT parts on page 7
Ref	Part number	Part name	Qty
	0063608	Switch Guide
	000014	Washer
	110002	Screw(M3-0.5 × 5)
	3101587	Tension Release Connecting Plate
	110009	Screw(M4-0.7 × 8)
	170009	Screw(M4-0.7 × 4)
	3101588	Tension Release Block
	009976	Screw(M5-1 × 15)
	3100567	Collar
	120001	Screw(M4-0.7 × 14)
	0014120	Anti-shock Rubber
	1091164	Air Cylinder
	3101586	Switch Holder
	0010057	Elbow Connector(φ 4-PT1/8)
	0010254	Speed Controller
	1096029	Air Tube(4 × 2.5mm)(Black)
	000498	Washer
	3101585	Air Cylinder Bracket
	120006	Screw(M6-1 × 12)
	0012071	Cylinder Return Spring
	3101590	Plunger
	180006	Screwed Pin(M5-0.8 × 6)
	3100523	Connecting Block(Right)SupportSpring
	3120157	Connecting Block(Right)
	100002	Nut
	190029	Connecting Rod(M5-0.8 × 40)
	3100538	Connecting Block(Left)

Page 8 — 3

Yamato VC2700 UT parts on page 8
Ref	Part number	Part name
3	3	SCREW
2	2	BRACKET
7	7	SCREW
8	8	BRACKET
6	6	BRACKET
25	25	SCREW
23	23	SCREW
4	4	BRACKET
5	5	BRACKET
9	9	BRACKET
22	22	BRACKET
26	26	BRACKET
31	31	SCREW
27	27	BRACKET
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
32	32	BRACKET
33	33	SCREW
10	10	SCREW
18	18	BASE PLATE
36	36	BRACKET
37	37	SCREW
35	35	BRACKET
15	15	SCREW
14	14	WASHER
11	11	SCREW
12	12	BRACKET
13	13	BRACKET
17	17	SCREW
16	16	SPRING
34	34	BRACKET
20	20	SCREW
19	19	BRACKET

Page 9

Yamato VC2700 UT parts on page 9
Part number	Part name	Qty
3500501	Trimming Machanism, C. Set	1
3100506	Lower Knife Driving Lever	1
170005	Screw(M4-0.7 × 6)	2
3100502	Lower Knife Carrier	1
3500513	Looper Thread Pull-off	1
3100513	Lower Knife	1
110030	Screw(M3-0.5 × 2.6)	3
3500560	Supplementary Spring	1
3500503	Upper Knife Carrier	1
190006	Screw(M4-0.7 × 4)	2
100006	Nut	2
3100503	Knife Guide Lever	2
3100504	Knife Guide Lever Ring(Left)	1
3100505	Knife Guide Lever Ring(Right)	1
130003	Screw(M4-0.7 × 7.3)	2
3100515	Upper Knife Carrier Spring	1
170006	Screw(M4-0.7 × 2.5)	1
3500502	Crank Chamber Cover	1
3500510	Upper Knife Carrier Stopper	1
130021	Screw(M4-0.7 × 6)	2
3100512	Upper Knife	1
110024	Screw(M2-0.4 × 6)	2
110025	Screw(M2-0.4 × 10)	1
110023	Screw(M2-0.4 × 3.5)	1
3100507	Upper Knife Guide	1
3100508	Clamp Spring	1
3100509	Clamp Spring Pressure	1
3100510	Clamp Spring Pressure Holder	1
3100511	Clamp Spring Pressure Adjusting Piece	1
130005	Screw(M2-0.4 × 4)	2
3100516	Lower Knife Carrier Support Spring	1
110034	Screw(M2-0.4 × 2)	2
3500511	Thread Guide	1
110054	Screw(M3-0.5 × 3.5)	3
3500504	Knife Carrier Guide	1
110009	Screw(M4-0.7 × 8)	2
3500506	Lower Knife Carrier Stopper	1

Page 10 — UTL-A□□/Y, UTL-A□□ DEVICE(4) for VG2700, 2735

Yamato VC2700 UT parts on page 10
Ref	Part number	Part name
4	4	SCREW
3	3	BRACKET
2	2	BRACKET
6	6	SCREW
5	5	COLLAR
7	7	SPRING
13	13	ROD
14	14	ROD
15	15	SCREW
11	11	CYLINDER
12	12	BRACKET
8	8	CYLINDER
9	9	SCREW
10	10	SPRING
24	24	TUBE
20	20	SCREW
16	16	BRACKET
18	18	WHEEL
17	17	SCREW
21	21	BRACKET
19	19	BRACKET

Page 11

Yamato VC2700 UT parts on page 11
Part number	Part name	Qty
3501434	UTL Device, Complete Set 1	1
3501423	Hook Holder	1
3501426	Hook	1
110030	Screw(M3-0.5 × 2.6)	2
3501432	Collar(4 × 9 × 6)	1
160000	Screw(M3-0.5 × 3)	2
0077179	Retaining Ring	1
1091169	Air Cylinder	1
110058	Screw(M3-0.5 × 20)	2
1094077	Bamboo Joint(Φ 4-M3)	1
1094076	Elbow Connector(Φ 4-M3)	1
3501427	Cylinder Holder	1
3501421	Guide Shaft(1)	1
3501421	Guide Shaft(2)	1
160000	Screw(M3-0.5 × 3)	2
009746	Screw(M4-0.7 × 8)	1
006202	Screw(M4-0.7 × 6)	1
3501428	Seal Plug	1
3501431	Needle Guide Lever Cover	1
110012	Screw(M4-0.7 × 5)	2
--	Main Feed Dog(See the below)	1
0063612	Cord Clamp(4N- Φ 6.8)	1
006202	Screw(M4-0.7 × 6)	1
1096029	Air Tube(4 × 2.5mm)(Black)
3509049	VG2700
3509049	VG2700-8
3509050	VG2700-31-8
3509049	VG2700P(R)
3509049	VG2713
3509049	VG2713-8
3509050	VG2713-31-8
3509049	VG2713P
3509049	VG2730
3509049	VG2730P(R)
3509069	VG2735-31-8
3509049	VG2740
3509049	VG2740-8
3509049	VG2740P
3509049	VG2740P-8
3509049	VG2745P

Page 12 — UTL-A /Y, UTL-A DEVICE(4) for VG2790

Yamato VC2700 UT parts on page 12
Ref	Part number	Part name
4	4	SCREW
3	3	BRACKET
2	2	BRACKET
5	5	COLLAR
6	6	SCREW
7	7	BRACKET
1	1	BRACKET
8	8	CYLINDER
9	9	SCREW
10	10	NUT
11	11	JOINT
12	12	BRACKET
13	13	PIN
14	14	PIN
15	15	SCREW
16-2	16-2	SCREW
17	17	PULLER
16-1	16-1	SCREW
19	19	SCREW
18	18	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	SCREW
23	23	TUBE

Page 13

Yamato VC2700 UT parts on page 13
Ref	Part number	Part name	Qty
	3501433	UTL Device, Complete Set 1
	3501423	Hook Holder
	3501426	Hook
	110030	Screw(M3-0.5 × 2.6)
	3501432	Collar(4 × 9 × 6)
	160000	Screw(M3-0.5 × 3)
	0077179	Retaining Ring
	1091169	Air Cylinder
	110058	Screw(M3-0.5 × 20)
	1094077	Bamboo Joint(Φ 4-M3)
	1094076	Elbow Connector(Φ 4-M3)
	3501424	Cylinder Holder
	3501422	Guide Shaft(1)
	3501421	Guide Shaft(2)
	160000	Screw(M3-0.5 × 3)
	009746	Screw(M4-0.7 × 8)
	110041	Screw(M4-0.7 × 8)
	3501428	Seal Plug
	3501431	Needle Guide Lever Cover
	110012	Screw(M4-0.7 × 5)
	---	Main Feed Dog(See the below)
	0063612	Cord Clamp(4N- Φ 6.8)
	006202	Screw(M4-0.7 × 6)
	1096029	Air Tube(4 × 2.5mm)(Black)
	3509049	VG 2790
	3509049	VG2790-8
	3509049	VG2790P
	3509051	VG2790P-140M-SM
	3509057	VG2790P-148M-SM
	3509049	VG2790P-8
	3509049	VG2792
	3509049	VG2792P

Page 14

Yamato VC2700 UT parts on page 14
Ref	Part number	Part name
1	1	REGULATOR
2	2	SCREW
3	3	WASHER
4	4	BRACKET
6	6	BRACKET
7	7	SCREW
8	8	BRACKET
9	9	UNION
10	10	UNION
11	11	UNION
12	12	PIN
13	13	CYLINDER
14	14	BRACKET
15	15	BRACKET
16	16	NUT
17	17	WASHER
18	18	SCREW
19	19	PIN
20	20	BRACKET
21	21	SCREW
22	22	VALVE
24	24	BRACKET
25	25	CABLE
26	26	BRACKET
27	27	BRACKET
28	28	SCREW
29	29	SCREW
30	30	CONNECTOR
31	31	SCREW
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	CONNECTOR
36	36	CONNECTOR
37	37	BRACKET
38	38	SCREW
39	39	SCREW
40	40	PIN

Page 15

Yamato VC2700 UT parts on page 15
Ref	Part number	Part name	Qty
	1097009	Regulator	1
	110017	Screw(M5-0.8 × 8)	2
	000426	Washer	2
	000600	Spring Washer	2
	1253240	Regulator Support	1
	006905	Wood Screw(Φ 5.1 × 20)	2
8	099815	Hose Union
	0010108	Hose Union	1
	0010264	Connector(Φ 6-PT1/4)	1
	1096030	Air Tube(6 × 4mm)(Black)
	0011795	Wrapping Band(2.3 × 92)	2
	3500550	Presser Foot Lifter Cylinder, C. Set	1
	1091146	Air Cylinder	1
	3201037	Cylinder Rod Chip	1
	3500505	Cylinder Bracket	1
	000425	Washer	4
	120013	Screw(M6-1 × 15)	2
	0010055	Connector(Φ 4-PT1/8)	2
	3501429	Solenoid Valve Holder	1
	120006	Screw(M6-1 × 12)	2
	0023381	Cord Clamp(6N- Φ 10.6)	1
	1066143	Switch, Complete Set	1
	3500553	Switch Support	1
	1066142	Switch	1
	0063609	Switch Cover	1
	009994	Screw(M2.3-0.4 × 10)	2
	110062	Screw(M3.5-0.6 × 8)	2
30	----	R Connector(See the below)

Page 16

Yamato VC2700 UT parts on page 16
Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	WASHER
	4	NUT
	6	BRACKET
	7	SCREW
	8	BRACKET
	9	PLUG
	10	PLUG
	11	PLUG
	12	PIN
	13	REGULATOR
	14	BRACKET
	15	NUT
	16	NUT
	17	WASHER
	18	SCREW
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	VALVE
	24	BRACKET
	25	CABLE
	26	BRACKET
	27	BRACKET
	28	SCREW
	29	SCREW
	30	CONNECTOR
	31	SCREW
	32	BRACKET
	33	CABLE
	34	BRACKET
	35	CONNECTOR
	36	CONNECTOR
	37	BRACKET
	38	SCREW
	39	SCREW
	40	PIN

Page 17

Yamato VC2700 UT parts on page 17
Ref	Part number	Part name
31	110089	Screw(M4-0.7 x 35)
32	1066138	Switch, Complete Set
33	0063607	Switch Support
34	1066127	Switch
35	0011720	Connector Cover
36	0010923	Connector
37	0063609	Switch Cover
38	009984	Screw(M2.5-0.4 x 10)
39	110062	Screw(M3.5-0.6 x 8)
40	1096029	Air Tube(4 x 2.5mm)(Black)

Page 18 — 7 UTL-A34/Y DEVICE(6)

Yamato VC2700 UT parts on page 18
Ref	Part number	Part name
1	1	DEVICE
2	2	DEVICE
3	3	DEVICE
4	4	DEVICE
5	5	DEVICE
6	6	DEVICE
7	7	DEVICE
8	8	DEVICE
9	9	DEVICE

Page 19 — UTL-A34/Y DEVICE(6)

Yamato VC2700 UT parts on page 19
Ref	Part number	Part name
1	1090249	Solenoid Valve, C. Set
2	1090187	Manifold
3	1090242	Solenoid Valve
4	0010119	Blank Plug
5	1097007	Silencer
6	1094056	Connector(φ 6-PT1/8)
7	1094055	Plug
8	1096029	Air Tube(4× 2.5mm)(Black)
9	1200484	Intermediate Cable

Page 20 — UTL-A34 DEVICE(6)

Yamato VC2700 UT parts on page 20
Ref	Part number	Part name
1	1	VALVE UNIT
2	2	MANIFOLD
3	3	SOLENOID
4	4	PLUG
5	5	COIL
6	6	COIL
7	7	PIN
8	8	PIN
9	9	HARNESS

Page 21 — UTL-A34 DEVICE(6)

Yamato VC2700 UT parts on page 21
Ref	Part number	Part name
1	1090249	Solenoid Valve, C. Set
2	1090187	Manifold
3	1090242	Solenoid Valve
4	0010119	Blank Plug
5	1097007	Silencer
6	1094056	Connector(φ 6-PT1/8)
7	1094055	Plug
8	1096029	Air Tube(4 × 2.5mm)(Black)
9	1200490	Intermediate Cable

Page 22 — UTL-A44/Y DEVICE(7)

Yamato VC2700 UT parts on page 22
Ref	Part number	Part name
1	1	MANIFOLD
2	2	MANIFOLD
3	3	VALVE
4	4	PLUG
5	5	PLUG
6	6	PLUG
7	7	PLUG
8	8	TUBE
9	9	HARNESS
10	10	PLUG

Page 23 — UTL-A44/Y DEVICE(7)

Yamato VC2700 UT parts on page 23
Ref	Part number	Part name
1	1090250	Solenoid Valve, C. Set
2	1090199	Manifold
3	1090242	Solenoid Valve
4	0010119	Blank Plug
5	1097007	Silencer
6	1094056	Connector(φ 6-PT1/8)
7	1094055	Plug
8	1096029	Air Tube(4×2.5mm)(Black)
9	1200486	Intermediate Cable
10	1094055	Plug

Page 24 — 10

Yamato VC2700 UT parts on page 24
Ref	Part number	Part name
1	1	UTL-A44 DEVICE(7)
2	2	UTL-A44
3	3	UTL-A44/ST2-A
4	4	UTL-A44 DEVICE(7)
5	5	UTL-A44
6	6	UTL-A44/ST2-A
7	7	UTL-A44 DEVICE(7)
8	8	UTL-A44
9	9	UTL-A44/ST2-A
10	10	UTL-A44 DEVICE(7)

Page 25

Yamato VC2700 UT parts on page 25
Ref	Part number	Part name	Qty
1	1090250	Solenoid Valve, C. Set	1
2	1090199	Manifold	1
3	1090242	Solenoid Valve	5
4	0010119	Blank Plug	3
5	1097007	Silencer	2
6	1094056	Connector(φ 6-PT1/8)	1
7	1094055	Plug	2
8	1096029	Air Tube(4 × 2.5mm)(Black)
9	1200491	Intermediate Cable	1
10	1094055	Plug	1

Page 26 — ST2-A DEVICE

Yamato VC2700 UT parts on page 26
Ref	Part number	Part name	Qty
	30	30
	22	22
	20	20
	21	21
	19	19
	2	2
	5	5
	4	4
	3	3
	8	8
	6	6
	10	10
	18	18
	17	17
	16	16
	15	15
	13	13
	14	14
	9	9
	12	12
	11	11
	7	7
	23	23
	31	31
	22	22
	28	28
	27	27
	26	26
	25	25
	24	24
	29	29
	28	28

Page 27

Yamato VC2700 UT parts on page 27
Ref	Part number	Part name	Qty
1	3509958	ST2-A Device, C. Set	1
2	3101800	Trimming Device, Complete Set	1
3	3101805	Bracket	1
4	1091145	Air Cylinder	1
5	1095001	Speed Controller	2
6	3101809	Movable Trimming Knife Holder	1
7	3101801	Movable Trimming Knife	1
8	270019	Screw(1/8-44 × 3)	1
9	3101806	Knife Guide	1
10	110001	Screw(M4-0.7 × 5.4)	2
11	3101802	Fixed Trimming Knife	1
12	110023	Screw(M2-0.4 × 3.5)	4
13	3101810	Thread Clamp	1
14	100058	Nut	1
15	3101808	Thread Clamp Spring	1
16	009791	Adjusting Screw(M3-0.5 × 6)	1
17	110054	Screw(M3-0.5 × 3.5)	3
18	3101804	Holder Support	1
19	3501395	Positioning Plate(Upper)	1
20	000665	Washer	4
21	120052	Screw(M4-0.7 × 8)	2
22	006202	Screw(M4-0.7 × 6)	4
23	3501396	Positioning Plate(Lower)	1
24	3100711	Top Cover Thread Eyelet	1
25	006035	Screw(9/64-40 × 7)	1
26	000644	Spring Washer	1
27	000322	Nut	1
28	0036133	Cord Clamp(5N- Φ 8.4)	2
29	110013	Screw(M4-0.7 × 8)	1
30	1096029	Air Tube(4 × 2.5mm)(Black)
31	001123	Washer	2

Page 28 — 12 UTL-A /Y DEVICE(8)

Yamato VC2700 UT parts on page 28
Ref	Part number	Part name
1	1	MAIN FRAME
2	2	SCREW
3	3	BELT COVER
4	4	WASHER
5	5	SCREW
6	6	WASHER
7	7	WING SCREW
9	9	PULLEY
10	10	SCREW
11	11	SCREW
12	12	BELT
13	13	PULLEY
14	14	COVER
15	15	SCREW
16	16	WASHER
17	17	BRACKET
18	18	SCREW
19	19	MOTOR
20	20	SCREW
21	21	BRACKET
22	22	SCREW
23	23	SHAFT
24	24	WASHER

Page 30 — 13 UTL-A /Y DEVICE(9)

Yamato VC2700 UT parts on page 30
Ref	Part number	Part name
1	1	DEVICE
2	2	DEVICE
3	3	DEVICE
4	4	SCREW
5	5	DEVICE
6	6	DEVICE
7	7	DEVICE
8	8	DEVICE
9	9	DEVICE

Page 31 — UTL-A□□/Y DEVICE(9)

Yamato VC2700 UT parts on page 31
Ref	Part number	Part name
1	9613365	Control Box, C. Set
2	1057152	Control Board
3	1057153	Panel Board
4	350014	Wood Screw($5 × 25)
5	1670181	Fuse(0.6A)
6	1070182	Fuse(15A)
7	9611077	Pitman
8	9613362	Pedal Sensor, C. Set
9	1057154	Pedal Sensor Board

Page 32 — 14 UTL-A□□/Y DEVICE(10)

Yamato VC2700 UT parts on page 32
Ref	Part number	Part name
1	1	BRACKET
2	2	BRACKET
3	3	RUBBER
4	4	SCREW
5	5	KNOB
6	6	SCREW
7	7	WASHER
8	8	NUT
9	9	WASHER
10	10	NUT

Page 33 — UTL-A□□/Y DEVICE(10)

Yamato VC2700 UT parts on page 33
Ref	Part number	Part name	Qty
1	3100008	Supporting Board	1
2	3501416	Supporting Board(Long)	1
3	3500614	Oil Reservoir Rubber Cushion	4
4	180009	Setting Screw(M6-1 × 16)	4
5	000070	Hanging Nut	4
6	009858	Hanging Bolt(M8-1.25 × 75)	4
7	000162	Washer	8
8	0020064	Supporting Board Rubber Cushion	4
9	0063010	SupportingBoardRubberCushion(Lower)	4
10	000016	Nut	8

Yamato VC2700 UT — parts catalog

Page 1 — Parts List

Yamato Parts List PNEUMATIC UNDER THREAD TRIMMING DEVICE with anti-unravelling function controlled by compact motor PNEUMATIC TOP COVER THREAD TRIMMING DEVICE UTL-A/Y UTL-A CLASS & DEVICES VG2700 VG2790 UTL-A34 UTL-A44 ST2-A Y YAMATO SEWING MACHINE MFG. CO.,LTD. jintex.in

Page 2 — パーツリストの見方

パーツリストの見方パーツリストに記載されているカラーの寸法は内径×外径×幅を表しています。コネクタに表記してある数字は、接続部のサイズです。記号の説明 (Parts No. の隣に記載されています。) [ ] 前回のパーツリストに対して、今回変更された部品を表しています。 [ ] 内は旧Parts No. 及びネジ類の形状 ◆ 前回のパーツリストに対して、今回追加された部品及びモデルを表しています。部品注文のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、3500201) でお願いします。 ☆ 0068011 の場合は、0068011又は68011でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さをお知らせ下さい。なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Numbers on a connector show sizes of joints. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. ◆ means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.3500201) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0068011", please place an order for the part by showing "0068011" or "68011". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. jintex.in

Page 3 — Contents

Contents 目次 UTL-A/Y, UTL-A DEVICE(1) 1 UTL-A/Y, UTL-A DEVICE(2) 2 UTL-A/Y, UTL-A DEVICE(3) 3 UTL-A/Y, UTL-A DEVICE(4) for VG2700, 2735 UTL-A/Y, UTL-A DEVICE(4) for VG2790 UTL-A/Y, UTL-A DEVICE(5) UTL-A34/Y DEVICE(6) UTL-A34 DEVICE(6) UTL-A44/Y DEVICE(7) UTL-A44 DEVICE(7) ST2-A DEVICE UTL-A/Y DEVICE(8) UTL-A/Y DEVICE(9) UTL-A/Y DEVICE(10) UTL-A/Y, UTL-A装置(1) 1 UTL-A/Y, UTL-A装置(2) 2 UTL-A/Y, UTL-A装置(3) 3 UTL-A/Y, UTL-A装置(4) 4 UTL-A/Y, UTL-A装置(4) 5 UTL-A/Y, UTL-A装置(5) 6 UTL-A34/Y装置(6) 7 UTL-A34装置(6) 8 UTL-A44/Y装置(7) 9 UTL-A44装置(7) 10 ST2-A装置 11 UTL-A/Y装置(8) 12 UTL-A/Y装置(9) 13 UTL-A/Y装置(10) 14 jintex.in

Page 4

1 UTL-A□□/Y, UTL-A□□ DEVICE(1) 20 5 4-1 4-2 UTL-A only 23 21 22 6 8 7 11 12 10 13 14 13 14 13 14 13 14 15 16 17 9 3 18 19 VG2700/UTL-A jintex.in

Page 5

UTL-A /Y, UTL-A DEVICE(1) UTL-A VG2700/UTL-A Ref.No Parts No. Description 品名 Amt. Req 1 1095007 Speed Controller スピードコントローラ 1 2 110013 [110012] Screw(M4-0.7 × 8)[M4-0.7 × 5] 止ネジ 1 3 110012 Screw(M4-0.7 × 5) 止ネジ 2 4-1 0094491 Cord Clamp(2N- φ 3.4) コードクランプ 1 4-2 0063612 Cord Clamp(4N- φ 6.8)(for ST2-A) コードクランプ 1 5 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - 6 3151012 Air Wiper エアワイパ 1 7 000538 Washer ワッシャ 2 8 110009 Screw(M4-0.7 × 8) 止ネジ 2 9 3100529 Thread Pull-off Eyelet 糸緩メ糸道 1 10 3500530 Thread Pull-off Bar 糸緩メ棒 1 11 0063076 Swing-proof Spring 糸緩メ棒防振バネ 1 12 0077179 Retaining Ring ストップリング 1 13 3500516 Thread Pull-off Hook Unit 糸緩メフック(組) 5 14 003657 Screw(M4-0.7 × 3) 止ネジ 5 15 0094396 Thread Pull-off Bar Holder 糸緩メ棒連結片 1 16 007006 Screw(9/64-40 × 4) 止ネジ 1 17 0033024 Retaining Ring ストップリング 1 18 3500360 Collar(9 × 15 × 7.5mm) カラー 1 19 160001 Screw(M4-0.7 × 4) 止ネジ 2 20 0011795 Wrapping Band(2.3 × 92) 結束バンド 1 21 0022836 Synchronizer Positioning Pin(UTL-A) ポジショナピン 1 22 0022837 Synchronizer Cushion(UTL-A) ポジショナピンクッション 1 23 009736 Screw(M4-0.7 × 6)(UTL-A) 止ネジ 1 jintex.in

Page 6

2 UTL-A□□/Y, UTL-A□□ DEVICE(2) VG2700/UTL-A jintex.in

Page 7

UTL-A/Y, UTL-ADEVICE(2) UTL-A/Y, UTL-A装置(2) 2 Ref.No Parts No. Description1 1 0063608 Switch Guide スイッチガイド 1 2 000014 Washer ワッシャ 2 3 110002 Screw(M3-0.5 × 5) 止ネジ 2 4 3101587 Tension Release Connecting Plate 糸緩連結板 1 5 110009 Screw(M4-0.7 × 8) 止ネジ 2 6 170009 Screw(M4-0.7 × 4) 止ネジ 1 7 3101588 Tension Release Block 糸緩メブロック 1 8 009976 Screw(M5-1 × 15) 止ネジ 1 9 3100567 Collar カラー 1 10 120001 Screw(M4-0.7 × 14) 止ネジ 1 11 0014120 Anti-shock Rubber 緩衝ゴム 1 12 1091164 Air Cylinder エアシリンダ 1 13 3101586 Switch Holder スイッチ台 1 14 0010057 Elbow Connector(φ 4-PT1/8) エルボコネクタ 1 15 0010254 Speed Controller スピードコントローラ 1 16 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - 17 000498 Washer ワッシャ 1 18 3101585 Air Cylinder Bracket エアシリンダ台 1 19 120006 Screw(M6-1 × 12) 止ネジ 2 20 21 0012071 Cylinder Return Spring シリンダ戻バネ 1 22 3101590 Plunger プランジャ 1 23 180006 Screwed Pin(M5-0.8 × 6) ピンネジ 1 24 3100523 Connecting Block(Right)SupportSpring 連結ブロック支エバネ 1 25 3120157 Connecting Block(Right) 連結ブロック(右) 1 26 100002 Nut ナット 3 27 190029 Connecting Rod(M5-0.8 × 40) 連結棒 1 28 3100538 Connecting Block(Left) 連結ブロック(左) 1 jintex.in VG2700/UTL-A

Page 8 — 3

3 UTL-A□□/Y, UTL-A□□ DEVICE(3) 1 3 2 3 7 8 25 23 6 4 5 9 22 26 31 27 28 29 30 32 33 35 15 14 11 12 13 A B C 10 18 36 37 35 20 20 19 34 VG2700/UTL-A jintex.in

Page 9

UTL-A□□/Y, UTL-A□□DEVICE(3) 3 Ref.No Parts No. Description 品名 Amt. Req 1 3500501 Trimming Machanism, C. Set UT 機構(組) 1 2 3100506 Lower Knife Driving Lever 下メス駆動レバー 1 3 170005 Screw(M4-0.7 × 6) 止ネジ 2 4 3100502 Lower Knife Carrier 下メス台 1 5 3500513 Looper Thread Pull-off ルーパ糸緩メ 1 6 3100513 Lower Knife 下メス 1 7 110030 Screw(M3-0.5 × 2.6) 止ネジ 3 8 3500560 Supplementary Spring 上メス台補助バネ 1 9 3500503 Upper Knife Carrier 上メス台 1 10 190006 Screw(M4-0.7 × 4) 止ネジ 2 11 100006 Nut ナット 2 12 3100503 Knife Guide Lever メスガイドレバー 2 13 3100504 Knife Guide Lever Ring(Left) メスガイドレバーリング(左) 1 14 3100505 Knife Guide Lever Ring(Right) メスガイドレバーリング(右) 1 15 130003 Screw(M4-0.7 × 7.3) 止ネジ 2 16 3100515 Upper Knife Carrier Spring 上メス台バネ 1 17 170006 Screw(M4-0.7 × 2.5) 止ネジ 1 18 3500502 Crank Chamber Cover ナカカバー 1 19 3500510 Upper Knife Carrier Stopper 上メス台ストッパ 1 20 130021 Screw(M4-0.7 × 6) 止ネジ 2 21 3100512 Upper Knife 上メス 1 22 110024 Screw(M2-0.4 × 6) 止ネジ 2 23 110025 Screw(M2-0.4 × 10) 止ネジ 1 24 110023 Screw(M2-0.4 × 3.5) 止ネジ 1 25 3100507 Upper Knife Guide 上メスガイド 1 26 3100508 Clamp Spring 糸挟ミバネ 1 27 3100509 Clamp Spring Pressure 糸挟ミバネ押シ 1 28 3100510 Clamp Spring Pressure Holder 糸挟ミバネ押シ取付板 1 29 3100511 Clamp Spring Pressure Adjusting Piece 糸挟ミバネ押シ調節片 1 30 3100511 Clamp Spring Pressure Adjusting Piece 糸挟ミバネ押シ調節片 1 31 130005 Screw(M2-0.4 × 4) 止ネジ 2 32 3100516 Lower Knife Carrier Support Spring 下メス台支エバネ 1 33 110034 Screw(M2-0.4 × 2) 止ネジ 2 34 3500511 Thread Guide 糸ガイド 1 35 110054 Screw(M3-0.5 × 3.5) 止ネジ 3 36 3500504 Knife Carrier Guide メス台ガイド 1 37 110009 Screw(M4-0.7 × 8) 止ネジ 2 38 3500506 Lower Knife Carrier Stopper 下メス台ストッパ 1 VG2700/UTL-A

Page 10 — UTL-A□□/Y, UTL-A□□ DEVICE(4) for VG2700, 2735

4 UTL-A□□/Y, UTL-A□□ DEVICE(4) for VG2700, 2735 1 4 3 2 6 5 6 7 13 14 15 11 12 15 8 9 10 24 24 20 16 20 18 17 21 19 A B A B VG2700/UTL-A jintex.in

Page 11

UTL-A/Y, UTL-A装置(4) for VG2700, 2735 UTL-A装置(4) Ref.No Parts No. Description 品名 Amt. Req 1 3501434 UTL Device, Complete Set 1 UTL装置(組1) 1 2 3501423 Hook Holder フック取付台 1 3 3501426 Hook フック 1 4 110030 Screw(M3-0.5 × 2.6) 止ネジ 2 5 3501432 Collar(4 × 9 × 6) カラー 1 6 160000 Screw(M3-0.5 × 3) 止ネジ 2 7 0077179 Retaining Ring ストツプリング 1 8 1091169 Air Cylinder エアシリンダ 1 9 110058 Screw(M3-0.5 × 20) 止ネジ 2 10 1094077 Bamboo Joint(Φ 4-M3) バンブ継手 1 11 1094076 Elbow Connector(Φ 4-M3) エルボコネクタ 1 12 3501427 Cylinder Holder シリンダ取付台 1 13 3501421 Guide Shaft(1) ガイド軸(1) 1 14 3501421 Guide Shaft(2) ガイド軸(2) 1 15 160000 Screw(M3-0.5 × 3) 止ネジ 2 16 009746 Screw(M4-0.7 × 8) 止ネジ 1 17 006202 Screw(M4-0.7 × 6) 止ネジ 1 18 3501428 Seal Plug 詰栓 1 19 3501431 Needle Guide Lever Cover 針受ケ腕カバー 1 20 110012 Screw(M4-0.7 × 5) 止ネジ 2 21 -- Main Feed Dog(See the below) 後送り(下記参照) 1 22 0063612 Cord Clamp(4N- Φ 6.8) コードクランプ 1 23 006202 Screw(M4-0.7 × 6) 止ネジ 1 24 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - Parts List of Main Feed Dog (後送り品番表) Model Parts No. Model Parts No. 機種品番機種品番 VG2700 3509049 VG2730 3509049 VG2700-8 3509049 VG2730P(R) 3509049 VG2700-31-8 3509050 VG2735-31-8 3509069 VG2700P(R) 3509049 VG2740 3509049 VG2713 3509049 VG2740-8 3509049 VG2713-8 3509049 VG2740P 3509049 VG2713-31-8 3509050 VG2740P-8 3509049 VG2713P 3509049 VG2745P 3509049 VG2700/UTL-A

Page 12 — UTL-A /Y, UTL-A DEVICE(4) for VG2790

5 UTL-A /Y, UTL-A DEVICE(4) for VG2790 1 2 3 4 6 5 6 7 11 8 9 10 13 14 15 12 23 21 22 with Puller 16-2 19 16-1 19 18 A B B 20 VG2700/UTL-A jintex.in

Page 13

UTL-A/Y, UTL-A装置(4) for VG2790 UTL-A装置(4) 5 Ref.No Parts No. Description1 1 3501433 UTL Device, Complete Set 1 UTL 装置(組1) 1 2 3501423 Hook Holder フック取付台 1 3 3501426 Hook フック取付台 1 4 110030 Screw(M3-0.5 × 2.6) 止ネジ 2 5 3501432 Collar(4 × 9 × 6) カラー 1 6 160000 Screw(M3-0.5 × 3) 止ネジ 2 7 0077179 Retaining Ring ストツプリング 1 8 1091169 Air Cylinder エアシリンダ 1 9 110058 Screw(M3-0.5 × 20) 止ネジ 2 10 1094077 Bamboo Joint(Φ 4-M3) バンブ継手 1 11 1094076 Elbow Connector(Φ 4-M3) エルボコネクタ 1 12 3501424 Cylinder Holder シリンダ取付台 1 13 3501422 Guide Shaft(1) ガイド軸(1) 1 14 3501421 Guide Shaft(2) ガイド軸(2) 1 15 160000 Screw(M3-0.5 × 3) 止ネジ 2 16-1 009746 Screw(M4-0.7 × 8) 止ネジ 2 16-2 110041 Screw(M4-0.7 × 8) 止ネジ 2 17 3501428 Seal Plug 詰栓 1 18 3501431 Needle Guide Lever Cover 針受ケ腕カバー 1 19 110012 Screw(M4-0.7 × 5) 止ネジ 2 20 --- Main Feed Dog(See the below) 後送り(下記参照) 1 21 0063612 Cord Clamp(4N- Φ 6.8) コードクランプ 1 22 006202 Screw(M4-0.7 × 6) 止ネジ 1 23 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - Parts List of Main Feed Dog (後送り品番表) Model Parts No. 機種品番 VG 2790 3509049 VG2790-8 3509049 VG2790P 3509049 VG2790P-140M-SM 3509051 VG2790P-148M-SM 3509057 VG2790P-8 3509049 VG2792 3509049 VG2792P 3509049 jintex.in VG2700/UTL-A

Page 14

6 UTL-A /Y, UTL-A DEVICE(5) 13 19 18 17 16 15 14 40 1 6 7 8 2 3 9 10 11 12 20 21 A UTL-A/Y 24 28 27 26 25 29 UTL-A 32 38 37 34 39 33 30 31 22 A 36 35 VG2700/UTL-A jintex.in

Page 15

UTL-A/Y, UTL-ADEVICE(5) 6 Ref.No Parts No. Description1 1097009 Regulator レギュレ1 2 110017 Screw(M5-0.8 × 8) 止ネジ 2 3 000426 Washer ワッシャ 2 4 000600 Spring Washer スプリングワッシャ 2 5 6 1253240 Regulator Support レギュレ取付板 1 7 006905 Wood Screw(Φ 5.1 × 20) 木ネジ 2 8 099815 [0033939] Hose Union ホースユニオン 1 9 0010108 Hose Union ホースユニオン 1 10 0010264 Connector(Φ 6-PT1/4) コネクタ 1 11 1096030 Air Tube(6 × 4mm)(Black) エアチューブ(黒) - 12 0011795 Wrapping Band(2.3 × 92) 束線バンド 2 13 3500550 Presser Foot Lifter Cylinder, C. Set 押工揚ゲシリンダ(組) 1 14 1091146 Air Cylinder 押工揚ゲシリンダ 1 15 3201037 Cylinder Rod Chip シリンダロッドチップ 1 16 3500505 Cylinder Bracket シリンダ台 1 17 000425 Washer ワッシャ 4 18 120013 Screw(M6-1 × 15) 止ネジ 2 19 0010055 Connector(Φ 4-PT1/8) コネクタ 2 20 3501429 Solenoid Valve Holder 電磁弁台 1 21 120006 Screw(M6-1 × 12) 止ネジ 2 22 0023381 Cord Clamp(6N- Φ 10.6) コードクランプ 1 23 24 1066143 Switch, Complete Set スイッチ(組) 1 25 3500553 Switch Support スイッチ取付板 1 26 1066142 Switch スイッチ 1 27 0063609 Switch Cover スイッチカバー 1 28 009994 Screw(M2.3-0.4 × 10) 止ネジ 2 29 110062 Screw(M3.5-0.6 × 8) 止ネジ 2 30 --- R Connector(See the below) Rコネクタ(下記参照) 1 Ref. No. 31 to 40 See the following page. Parts List of R Connector (R コネクタ部品表) Model Parts No. Model Parts No. Model Parts No. Model Parts No. 機種品番機種品番機種品番機種品番 VG2700 1070195 VG2730 1070195 VG2790 1070195 VG2700-8 1070196 VG2730P(R) 1070198 VG2790-8 1070196 VG2700-31-8 1070196 VG2735-31-8 1070197 VG2790P 1070198 VG2700P(R) 1070198 VG2740 1070195 VG2790P-8 1070198 VG2713 1070195 VG2740-8 1070196 VG2790P-SM 1070198 VG2713-8 1070196 VG2740P 1070198 VG2792 1070195 VG2713-31-8 1070196 VG2740P-8 1070198 VG2792P 1070198 VG2713P 1070198 VG2745P 1070198 Jintex.in VG2700/UTL-A

Page 16

6 UTL-A /Y, UTL-A DEVICE(5) 13 19 40 18 17 16 15 14 1 10 11 2 3 9 8 7 12 20 21 A 17 UTL-A/Y 24 28 27 26 25 29 UTL-A 32 38 37 33 34 39 31 22 30 36 35 VG2700/UTL-A jintex.in

Page 17

UTL-A/Y, UTL-ADEVICE(5) UTL-A装置(5) 6 Ref.No Parts No. Description 31 110089 Screw(M4-0.7 x 35) 32 1066138 Switch, Complete Set 33 0063607 Switch Support 34 1066127 Switch 35 0011720 Connector Cover 36 0010923 Connector 37 0063609 Switch Cover 38 009984 Screw(M2.5-0.4 x 10) 39 110062 Screw(M3.5-0.6 x 8) 40 1096029 Air Tube(4 x 2.5mm)(Black) 品名 Amt. Req 止ネジ 2 スイッチ(組) 1 スイッチ取付板 1 スイッチ 1 コネクタカバー 1 コネクタ 1 スイッチカバー 1 止ネジ 2 エアチューブ(黒) - VG2700/UTL-A

Page 18 — 7 UTL-A34/Y DEVICE(6)

7 UTL-A34/Y DEVICE(6) UTL-A34/Y 9 UTL-A34/ST2-A/Y 9 1 4 3 2 8 7 5 6 5 1 4 3 2 8 5 6 5 VG2700/UTL-A jintex.in

Page 19 — UTL-A34/Y DEVICE(6)

UTL-A34/Y DEVICE(6) UTL-A34/Y 装置(6) 7 Ref.No Parts No. Description 品名 Amt. Req 1 1090249 Solenoid Valve, C. Set 電磁弁(組) 1 2 1090187 Manifold マニフォールド 1 3 1090242 Solenoid Valve 電磁弁 4 4 0010119 Blank Plug メクラプラグ 3 5 1097007 Silencer サイレンサ 2 6 1094056 Connector(φ 6-PT1/8) コネクタ 1 7 1094055 Plug プラグ 1 8 1096029 Air Tube(4× 2.5mm)(Black) エアチューブ(黒) - 9 1200484 Intermediate Cable 中継ケーブル 1 jintex.in VG2700/UTL-A

Page 20 — UTL-A34 DEVICE(6)

8 UTL-A34 DEVICE(6) UTL-A34 9 UTL-A34/ST2-A 9 1 4 3 2 8 7 5 6 5 1 4 3 2 8 5 6 5 VG2700/UTL-A jintex.in

Page 21 — UTL-A34 DEVICE(6)

UTL-A34 DEVICE(6) UTL-A34 装置(6) 8 Ref.No Parts No. Description 品名 Amt. Req 1 1090249 Solenoid Valve, C. Set 電磁弁(組) 1 2 1090187 Manifold マニフォ 1 3 1090242 Solenoid Valve 電磁弁 4 4 0010119 Blank Plug メクラプラグ 3 5 1097007 Silencer サイレンサ 2 6 1094056 Connector(φ 6-PT1/8) コネクタ 1 7 1094055 Plug プラグ 1 8 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - 9 1200490 Intermediate Cable 中継ケーブル 1 VG2700/UTL-A

Page 22 — UTL-A44/Y DEVICE(7)

9 UTL-A44/Y DEVICE(7) UTL-A44/Y 9 8 7 5 6 5 UTL-A44/ST2-A/Y 9 8 10 5 6 5 1 4 3 2 1 4 3 2 VG2700/UTL-A jintex.in

Page 23 — UTL-A44/Y DEVICE(7)

UTL-A44/Y DEVICE(7) UTL-A44/Y 装置(7) 9 Ref.No Parts No. Description 品名 Amt. Req 1 1090250 Solenoid Valve, C. Set 電磁弁(組) 1 2 1090199 Manifold マニフォールド 1 3 1090242 Solenoid Valve 電磁弁 5 4 0010119 Blank Plug メクラプラグ 3 5 1097007 Silencer サイレンサ 2 6 1094056 Connector(φ 6-PT1/8) コネクタ 1 7 1094055 Plug プラグ 2 8 1096029 Air Tube(4×2.5mm)(Black) エアチューブ(黒) - 9 1200486 Intermediate Cable 中継ケーブル 1 10 1094055 Plug プラグ 1 jintex.in VG2700/UTL-A

Page 24 — 10

10 UTL-A44 DEVICE(7) UTL-A44 9 8 7 5 6 2 3 4 UTL-A44/ST2-A 9 8 10 5 6 2 3 4 1 VG2700/UTL-A jintex.in

Page 25

UTL-A44 DEVICE(7) UTL-A44 装置(7) 10 Ref.No Parts No. Description 品名 Amt. Req 1 1090250 Solenoid Valve, C. Set 電磁弁(組) 1 2 1090199 Manifold マニフォールド 1 3 1090242 Solenoid Valve 電磁弁 5 4 0010119 Blank Plug メクラプラグ 3 5 1097007 Silencer サイレンサ 2 6 1094056 Connector(φ 6-PT1/8) コネクタ 1 7 1094055 Plug プラグ 2 8 1096029 Air Tube(4 × 2.5mm)(Black) エアーチューブ(黒) - 9 1200491 Intermediate Cable 中継ケーブル 1 10 1094055 Plug プラグ 1 jintex.in VG2700/UTL-A

Page 26 — ST2-A DEVICE

11 ST2-A DEVICE 1 2 30 22 20 20 21 19 A 5 4 3 23 31 22 28 27 26 25 VG2700/UTL-A 8 6 10 18 17 17 16 15 13 14 9 12 11 7 29 28 24 jintex.in

Page 27

ST2-A DEVICE 11 Ref.No Parts No. Description 品名 Amt. Req 1 3509958 ST2-A Device, C. Set ST2-A装置(組) 1 2 3101800 Trimming Device, Complete Set メス装置(組) 1 3 3101805 Bracket ブラケット 1 4 1091145 Air Cylinder エアシリンダ 1 5 1095001 Speed Controller スピードコントローラ 2 6 3101809 3101809 Movable Trimming Knife Holder 動メス台 1 7 3101801 Movable Trimming Knife 動メス 1 8 270019 Screw(1/8-44 × 3) 止ネジ 1 9 3101806 Knife Guide メスガイド 1 10 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 11 3101802 Fixed Trimming Knife 固定メス 1 12 110023 Screw(M2-0.4 × 3.5) 止ネジ 4 13 3101810 Thread Clamp 糸挟ミ 1 14 100058 Nut ナット 1 15 3101808 Thread Clamp Spring 糸挟ミバネ 1 16 009791 Adjusting Screw(M3-0.5 × 6) 調節ネジ 1 17 110054 Screw(M3-0.5 × 3.5) 止ネジ 3 18 3101804 Holder Support 動メス台支工 1 19 3501395 Positioning Plate(Upper) 位置決メ板(上) 1 20 000665 Washer ワッシャ 4 21 120052 Screw(M4-0.7 × 8) 止ネジ 2 22 006202 Screw(M4-0.7 × 6) 止ネジ 4 23 3501396 Positioning Plate(Lower) 位置決メ板(下) 1 24 3100711 Top Cover Thread Eyelet 飾り糸道 1 25 006035 Screw(9/64-40 × 7) 止ネジ 1 26 000644 Spring Washer スプリングワッシャ 1 27 000322 Nut ナット 1 28 0036133 Cord Clamp(5N- Φ 8.4) コードクランプ 2 29 110013 Screw(M4-0.7 × 8) 止ネジ 1 30 1096029 Air Tube(4 × 2.5mm)(Black) エアチューブ(黒) - 31 001123 Washer ワッシャ 2 VG2700/UTL-A

Page 28 — 12 UTL-A /Y DEVICE(8)

12 UTL-A /Y DEVICE(8) 14 15 16 18 21 24 18 6 17 18 6 11 13 11 10 12 19 20 2 3 4 5 7 6 B A 22 1 B 23 VG2700/UTL-A jintex.in

Page 30 — 13 UTL-A /Y DEVICE(9)

13 UTL-A /Y DEVICE(9) 1 2 3 4 5 6 7 8 9 VG2700/UTL-A jintex.in

Page 31 — UTL-A□□/Y DEVICE(9)

UTL-A□□/Y DEVICE(9) 13 Ref.No Parts No. Description 1 9613365 Control Box, C. Set 2 1057152 Control Board 3 1057153 Panel Board 4 350014 Wood Screw($5 × 25) 5 1670181 Fuse(0.6A) 6 1070182 Fuse(15A) 7 9611077 Pitman 8 9613362 Pedal Sensor, C. Set 9 1057154 Pedal Sensor Board 品名 Amt. Req 制御ボックス(組) 1 制御基板 1 パネル基板 1 木ネジ 7 ヒューズ(0.6A) 1 ヒューズ(15A) 1 ピットマン 1 ペダルセンサ(組) 1 ペダルセンサ基板 1 Note: When ordering the Part No. 9613365 of Ref. No. 1 and the Part No. 1057152 of Ref. No. 2, please inform us of the CODE that describes to the sticker on the back of the Control Box, C. Set with Part No.. (注) Ref. No. 1 Parts No. 9613365 及びRef. No. 2 Parts No. 1057152 をご注文の際は、品番と共に制御ボックス(組)裏面のステッカーに記載しておりますCODE(コード)をお知らせください。 PARTS NO. 9613365 MODEL: V□□□/Y CODE: Y3 Control Box, C. Set 制御ボックス(組) VG2700/UTL-A

Page 32 — 14 UTL-A□□/Y DEVICE(10)

14 UTL-A□□/Y DEVICE(10) 3 4 1 2 5 6 7 8 9 7 10 10 VG2700/UTL-A jintex.in

Page 33 — UTL-A□□/Y DEVICE(10)

UTL-A□□/Y DEVICE(10) UTL-A□□/Y装置(10) 14 Ref.No Parts No. Description 品名 Amt. Req 1 3100008 Supporting Board 受ケ板 1 2 3501416 Supporting Board(Long) 受ケ板(長) 1 3 3500614 Oil Reservoir Rubber Cushion ゴム座 4 4 180009 Setting Screw(M6-1 × 16) 取付ケネジ 4 5 000070 Hanging Nut 吊リナット 4 6 009858 Hanging Bolt(M8-1.25 × 75) 吊リボルト 4 7 000162 Washer ワッシャ 8 8 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 9 0063010 SupportingBoardRubberCushion(Lower) 受ケ板ゴム座(下) 4 10 000016 Nut ナット 8 jintex.in VG2700/UTL-A

Page 34

Yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO., LTD. P/N 9710132(P) No. 2 Edited in 2006.8 (VG2700/UTL-A) Printed in Japan 2006.9.1H jintex.in

Page 3 — Contents

Page 4

Page 5

Page 6

Page 7

Page 8 — 3

Page 9

Page 10 — UTL-A□□/Y, UTL-A□□ DEVICE(4) for VG2700, 2735

Page 11

Page 12 — UTL-A /Y, UTL-A DEVICE(4) for VG2790

Page 13

Page 14

Page 15

Page 16

Page 17

Page 18 — 7 UTL-A34/Y DEVICE(6)

Page 19 — UTL-A34/Y DEVICE(6)

Page 20 — UTL-A34 DEVICE(6)

Page 21 — UTL-A34 DEVICE(6)

Page 22 — UTL-A44/Y DEVICE(7)

Page 23 — UTL-A44/Y DEVICE(7)

Page 24 — 10

Page 25

Page 26 — ST2-A DEVICE

Page 27

Page 28 — 12 UTL-A /Y DEVICE(8)

Page 30 — 13 UTL-A /Y DEVICE(9)

Page 31 — UTL-A□□/Y DEVICE(9)

Page 32 — 14 UTL-A□□/Y DEVICE(10)

Page 33 — UTL-A□□/Y DEVICE(10)

Part Books

Search

Ref	Part number	Part name	Qty
	30	30
	22	22
	20	20
	21	21
	19	19
	2	2
	5	5
	4	4
	3	3
	8	8
	6	6
	10	10
	18	18
	17	17
	16	16
	15	15
	13	13
	14	14
	9	9
	12	12
	11	11
	7	7
	23	23
	31	31
	22	22
	28	28
	27	27
	26	26
	25	25
	24	24
	29	29
	28	28

Ref	Part number	Part name	Qty
	30	30
	22	22
	20	20
	21	21
	19	19
	2	2
	5	5
	4	4
	3	3
	8	8
	6	6
	10	10
	18	18
	17	17
	16	16
	15	15
	13	13
	14	14
	9	9
	12	12
	11	11
	7	7
	23	23
	31	31
	22	22
	28	28
	27	27
	26	26
	25	25
	24	24
	29	29
	28	28

Ref	Part number	Part name	Qty
	30	30
	22	22
	20	20
	21	21
	19	19
	2	2
	5	5
	4	4
	3	3
	8	8
	6	6
	10	10
	18	18
	17	17
	16	16
	15	15
	13	13
	14	14
	9	9
	12	12
	11	11
	7	7
	23	23
	31	31
	22	22
	28	28
	27	27
	26	26
	25	25
	24	24
	29	29
	28	28
