Yamato VC2700 Parts Book (PDF)

Coverstitch · also listed as 2700Download PDF

Text index — Yamato VC2700

Page 5 — MISCELLANEOUS COVERS (1)

Yamato VC2700 parts on page 5
Ref	Part number	Part name	Qty
1	3210002	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	11
3	3500430	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	1
9	3204040	Head Cover	1
10	3500431	Head Cover Gasket	1
11	0093864	Head Cover Seal Plug	1
13	3180023	Side Cover Hinge	1
14	3180024	Side Cover Hinge Gasket	2
15	110048	Screw(M4-0.7 × 10)	2
16	3100042	Side Cover Hinge Pin	1
17	160000	Screw(M3-0.5 × 3)	1
18	3180025	Side Cover	1
19	3180026	Side Cover Gasket	1
20	000924	Seal Plug(Rubber)	1
21	3100045	Cloth Plate	1
22	110041	Screw(M4-0.7 × 8)	2
23	0094201	Cover Latch Spring	1
24	110012	Screw(M4-0.7 × 5)	1
25	3100046	Side Cover Hook	1
26	300101	Conical Spring Washer	1
27	170002	Screw(M4-0.7 × 5)	1
28	3100004	Oil Reservoir	1
29	3100005	Oil Reservoir Gasket	1
33	0020137	Drain Hole Seal	1
34	005075	Screw(3/8-24 × 8)	1
35	3180004	Machine Frame Unit	1
36	120016	Screw(M8-1.25 × 20)	4
37	340000	Machine Frame Supporting Bar	4
38	4109403	Model Plate(See the below)	1
39	000726	Rivet	5
40	2049401	Serial Number Plate	1

Page 7 — MISCELLANEOUS COVERS(2)

Yamato VC2700 parts on page 7
Ref	Part number	Part name	Qty
1	3180027	Cloth Plate(Large)	1
2	120009	Screw(M4-0.7 × 12)	5
3-1	3180037	Slide Cover(48, 56)	1
3-2	3180038	Slide Cover(64)	1
4	3100020	Crank Chamber Cover	1
5	3180035	Crank Chamber Cover Gasket	1
6	130003	Screw(M1-0.7 × 7.3)	7
7	0093864	Seal Plug	4
8	0065275	Seal Plug	1
9	3500432	Rear Cover Gasket	1
10	3100016	Rear Cover	1
11	110013	Screw(M4-0.7 × 8)	6
12	3100113	Needle Bar Guard	1
13-1	3180029	Supplementary Slide Cover(48, 56)	1
13-2	3180030	Supplementary Slide Cover(64)	1
14	330011	Seal Plug	1
15	3100058	Stitch Plate Support	1
16	110041	Screw(M4-0.7 × 8)	2
17	3100050	Feed Regulating Pushbutton	1
18	3100051	Feed Regulating Pushbutton Spring	1
19	0033024	Retaining Ring	1
20	3100053	Oil Defender	1
21	110012	Screw(M4-0.7 × 5)	3
22	190005	Screw(M4-0.7 × 5)	2
23	000665	Washer	2
24	000015	Nut	1
25	3040040	Front Cover Hinge	1
26	110016	Screw(M4-0.7 × 14)	2
27	3180032	Front Cover(Lower)	1
28	170001	Screw(M4-0.7 × 8)	1
29	300100	Conical Spring Washer	2
30	160001	Screw(M4-0.7 × 4)	1
31	180005	Screw(M5-0.8 × 8)	1
32	3100630	Fabric Edge Guide(Left)	1
33	3100631	Fabric Edge Guide(Right)	1
34	000538	Washer	2
35	0095367	Fabric Edge Guide Chip	1
36	004182	Screw(3/32-56 × 2.5)	1
37	3180033	Front Cover(Upper)	1
38	130002	Screw(M3-0.5 × 6)	3
39	110031	Screw(M4-0.7 × 12)	2
40	0094201	Cover Latch Spring	1
41	3100034	Supplementary Tension Disc Cover	1
42	110101	Screw(M3-0.5 × 3)	2
43	110009	Screw(M4-0.7 × 8)	2
44	110079	Screw(M4-0.7 × 8)	2
45	3100006	Seal Plug	1
46	0020759	Seal Plug	1
47	160015	Screw(M6-1 × 6)	1
48	110031	Screw(M4-0.7 × 12)[M4-0.7 × 12]	1

Page 9 — MISCELLANEOUS THREAD EYELETS

Yamato VC2700 parts on page 9
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	5
2	0024083	Tension Spring Bushing	5
3	0030255	Tension Spring(Needle)	3
4	0032952	Tension Spring (Looper, Top Cover)	2
5	0090071	Thread Tension Spring Retainer	5
6	000177	Felt	5
7	0031111	Tension Disc	10
8	290029	Tension Post	5
9	0090812	Tension Post Ferrule	5
10	3500287	Tension Disc Separator	1
11	0090856	Tension Disc Eyelet	5
12	0090807	Thread Lead-in Guide	5
13	3500286	Tension Post Support	1
14	110013	Screw(M4-0.7 × 8)	6
15	3200048	Top Cover Thread Eyelet(Left)	1
16	110009	Screw(M4-0.7 × 8)	5
17	0093556	Looper Thread Eyelet(Long)	1
18	3100088	Supplementary Tension Spring	1
19	3100085	Supplementary Tension Disc(Lower)	1
20	3100084	Supplementary Tension Disc(Upper)	1
21	170004	Screw(M3-0.5 × 9.6)	1
22	3100076	Tension Disc Guide	1
23	110101	Screw(M3-0.5 × 3)	1
24	3100083	Looper Thread Guard	1
25	3100082	Looper Thread Eyelet(Center)	1
26	110100	Screw(M3-0.5 × 6)	1
27	0020119	Thread Eyelet Pipe	2
28	3500285	Thread Eyelet Pipe Holder	1
31	3500284	Thread Guide Plate	1
32	3200047	Top Cover Thread Eyelet(Right)	1
33	000538	Washer	2
34	000651	Guide Pin	1
35	3100383	SP Device, Complete Set	1
36	3100384	SP Container	1
37	3100386	Felt	1
38	3100387	Needle Thread Eyelet	1
39	350009	Wood Screw(φ 5.5 × 6)	2
40	0090068	Needle Thread Guide	1

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VC2700 parts on page 11
Ref	Part number	Part name	Qty
41	3100442	Needle Thread Take-up Guard	1
42	130003	Screw(M4-0.7 × 4.5)	1
43	3100087	Needle Thread Retainer Support	1
44	0036175	Thread Retainer Disc Support	1
45	0032425	Needle Thread Retainer Dice	1
46	0032426	Needle Thread Retainer Spring	1
47	001093	Screw(1/8-44 × 2.2)	1
48	3100081	Top Cover Thread Guide	1
49	0063074	Supplementary Thread Guide	1
50	001818	Tension Post	1
51	0037108	Supplementary Tension Disc	2
52	0035813	Supplementary Tension Spring	1
53	000360	Nut	1
54	110054	Screw(M3-0.5 × 3.5)	1
55	3103000	Needle Thread Retainer Support, C. Set	1
56	3103001	Top Cover Thread Guide, C. Set	1
57	000505	Spacer	2
58	110014	Screw(M4-0.7 × 18)[M4-0.7 × 8]	2

Page 13 — MISCELLANEOUS BUSHINGS

Yamato VC2700 parts on page 13
Ref	Part number	Part name	Qty
1	3500309	Oil Seal	2
3	3100099	Presser Bar Bushing	1
4	3204021	Oil Seal	2
5	3100100	Spreader Driving Bar Bushing	1
6	0063055	Oil Seal	1
7	3200063	Spreader Driving Shaft Bushing(Left)	1
8	3200064	Spreader Driving Shaft Bushing(Right)	1
9	3160136	Foot Lifter Lever Bushing	1
10	3200068	Needle Thread Take-up Bushing(Front)	1
11	3100098	Needle Thread Take-up Bushing(Rear)	1
12	3100090	Lower Shaft Bushing(Left)	1
13	3100091	Lower Shaft Bushing(Right)	1
14	3100094	Differential Feed Bar Shaft Bushing(Left)	1
15	3100095	Differential Feed Bar Shaft Bushing(Right)	1
16	3100096	Feed Bar Lift Shaft Bushing(Left)	1
17	3100097	Feed Bar Lift Shaft Bushing(Right)	1
18	3100006	Seal Plug	2
19	3100092	Looper Driving Shaft Bushing(Front)	1
20	3100093	Looper Driving Shaft Bushing(Rear)	1
21	3150020	Adjusting Screw Bushing	1
22	3101199	Eye Guard, Complete Set	1
23	3101200	Eye Guard Support	1
24	009784	Screw(M6-1 × 10)	2
25	0060176	Eye Guard	1
26	004236	Screw(3/32-56 × 4.2)	2
27	0060175	Eye Guard Holder	1
28	006004	Screw(11/64-40 × 9.7)	1
29	000010	Conical Spring Washer	1
30	000547	Washer	1
31	000334	Nut	1
32	000195	Oil Wick	1

Page 15 — MAIN SHAFT DRIVING MECHANISM

Yamato VC2700 parts on page 15
Ref	Part number	Part name	Qty
1	3100130	Pulley	1
2	160005	Screw(M6-1 × 8)	4
3	160007	Screw(M6-1 × 6)	6
4	0093089	Ball Bearing(Right)	1
5	3100128	Main Shaft Sprocket(Lower)	1
6	3100131	Ball Bearing(Middle)	1
7	3100132	Lower Shaft(Right)	1
8	3100122	Oil Pump Driving Worm	1
9	3100127	Counterweight(Small)	1
10	110009	Screw(M4-0.7 × 8)	2
11	3100123	Ball Bearing(Left)	1
12	3100121	Lower Crankshaft	1
13	160004	Screw(M6-1 × 4.8)	2
14	001107	Roll Pin	1
15	310132	Oil Wick(No.4-190mm)	1
16	3180060	Lower Shaft(Left)	1
17	000397	Oil Wick	4
18	310093	Oil Wick(No.3-40mm)	1
19	000304	Oil Wick	1
20	3100126	Collar(14 × 21 × 5.5mm)	1
21	160000	Screw(M3-0.5 × 3)	2
22	3100125	Looper Thread Take-up	1
23	150000	Screw(M5-0.8 × 4)	2
24	3100263	Supporting Plate	1
25	110002	Screw(M3-0.5 × 5)	3
26	000463	Laced Wire	1
27	3100264	Thread Take-up Eyelet(Left)	1
28	3100265	Thread Take-up Eyelet(Right)	1
29	110027	Screw(M2.5-0.45 × 3.5)	2
30	3100262	Supporting Plate Basement	1
31	160001	Screw(M4-0.7 × 4)	2
32	160008	Stop Screw(M6-1 × 35)	1
33	000234	Lock Nut	1
34	3100267	Supporting Plate Return Spring	1
35	110026	Screw(M3-0.6 × 6)	1
36	340004	Pin	1
37	3100260	Basement Shaft	1
38	3100261	Collar(6 × 11 × 5mm)	1
39	3100266	Cast-off Plate	1
40	000531	Washer	1
41	3100268	Stop Bracket	1
42	110013	Screw(M4-0.7 × 8)	2
43	3100270	Supporting Plate Stop	1
44	3100269	Stop Spring	1
45	170003	Screw(M3-0.5 × 3)	1
46	3100272	Basement Cushion	1
47	3100271	Supporting Plate Stop, C. Set	1
48	3180059	Lower Shaft, C. Set	1

Page 17 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VC2700 parts on page 17
Ref	Part number	Part name	Qty
1	6100709	Handwheel	1
2	160005	Screw(M6-1 × 8)	1
3	160007	Screw(M6-1 × 6)	11
4	000989	Handwheel Mark	1
5	3100131	Ball Bearing	2
6	3100129	Handwheel Adapter	1
7	0095214	Timing Belt	1
8	3100281	Upper Shaft Sprocket(Upper)	1
9	3100275	Upper Shaft(Right)	1
10	3100283	Upper Shaft Joint	1
11	3100127	Counterweight(Small)	1
12	110009	Screw(M4-0.7 × 8)	2
13	3200100	Upper Crankshaft	1
14	310040	Oil Wick	1
15	110012	Screw(M4-0.7 × 4)	1
16	3200226	Oil Sleeve	1
17	000290	Oil Wick	1
18	0060057	Retaining Ring	1
19	0093154	Ball Bearing	2
20	000926	Rubber Seat	1
21	160004	Screw(M6-1 × 4.8)	2
23	0095170	Connecting Rod	1
24	005071	Screw(11/64-32 × 14)	2
25	001174	Screw(9/64-40 × 10.3)	2
26	0095168	Guide Fork	1
27	004312	Screw(1/8-44 × 7.9)	2
28	3100285	Driving Lever	1
29	120013	Screw(M6-1 × 15)	1
30	120015	Screw(M5-0.8 × 10)	1
31	000555	Washer	1
32	3100286	Spacer	1
33	3100287	Driving Shaft	1
34	3100078	Bracket	1
35	000600	Spring Washer	1
36	005650	Screw(M5-0.8 × 14)	1
37	0063096	Needle Thread Take-up	1
38	3200049	Top Cover Thread Take-up	1
39	110004	Screw(M3.5-0.6 × 8)	2

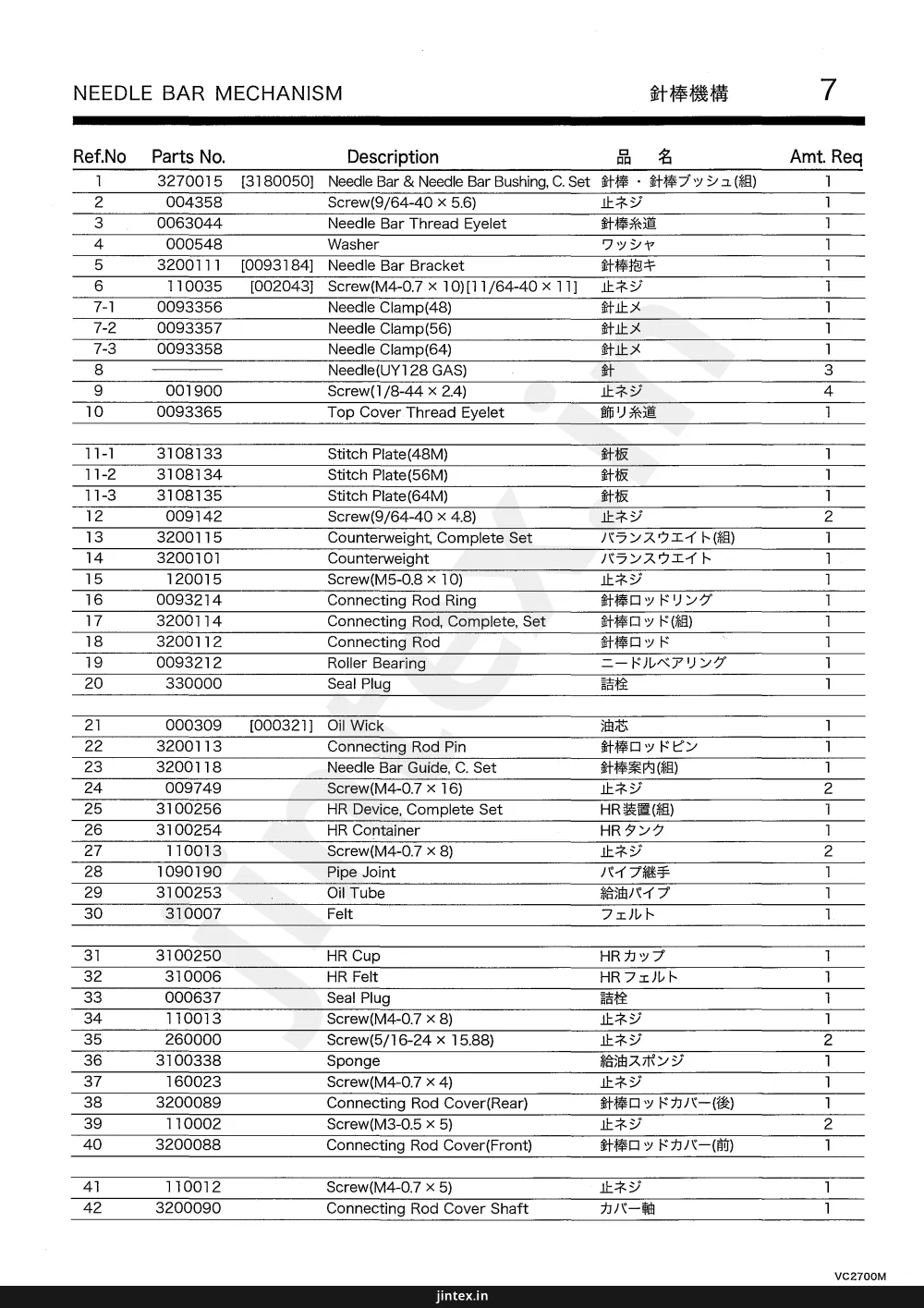

Page 19 — NEEDLE BAR MECHANISM

Yamato VC2700 parts on page 19
Ref	Part number	Part name	Qty
1	[3180050]	Needle Bar & Needle Bar Bushing, C. Set	1
2	004358	Screw(9/64-40 × 5.6)	1
3	0063044	Needle Bar Thread Eyelet	1
4	000548	Washer	1
5	[0093184]	Needle Bar Bracket	1
6	[002043]	Screw(M4-0.7 × 10)[11/64-40 × 11]	1
7-1	0093356	Needle Clamp(48)	1
7-2	0093357	Needle Clamp(56)	1
7-3	0093358	Needle Clamp(64)	1
9	001900	Screw(1/8-44 × 2.4)	4
10	0093365	Top Cover Thread Eyelet	1
11-1	3108133	Stitch Plate(48M)	1
11-2	3108134	Stitch Plate(56M)	1
11-3	3108135	Stitch Plate(64M)	1
12	009142	Screw(9/64-40 × 4.8)	2
13	3200115	Counterweight, Complete Set	1
14	3200101	Counterweight	1
15	120015	Screw(M5-0.8 × 10)	1
16	0093214	Connecting Rod Ring	1
17	3200114	Connecting Rod, Complete, Set	1
18	3200112	Connecting Rod	1
19	0093212	Roller Bearing	1
20	330000	Seal Plug	1
21	[000321]	Oil Wick	1
22	3200113	Connecting Rod Pin	1
23	3200118	Needle Bar Guide, C. Set	1
24	009749	Screw(M4-0.7 × 16)	2
25	3100256	HR Device, Complete Set	1
26	3100254	HR Container	1
27	110013	Screw(M4-0.7 × 8)	2
28	1090190	Pipe Joint	1
29	3100253	Oil Tube	1
30	310007	Felt	1
31	3100250	HR Cup	1
32	310006	HR Felt	1
33	000637	Seal Plug	1
34	110013	Screw(M4-0.7 × 8)	1
35	260000	Screw(5/16-24 × 15.88)	2
36	3100338	Sponge	1
37	160023	Screw(M4-0.7 × 4)	1
38	3200089	Connecting Rod Cover(Rear)	1
39	110002	Screw(M3-0.5 × 5)	2
40	3200088	Connecting Rod Cover(Front)	1
41	110012	Screw(M4-0.7 × 5)	1
42	3200090	Connecting Rod Cover Shaft	1

Page 21 — PRESSER FOOT MECHANISM

Yamato VC2700 parts on page 21
Ref	Part number	Part name	Qty
1	0077270	Presser Spring Regulator	1
2	000445	Lock Nut	1
3	0065372	Presser Bar Spring(Outer)	1
4	0063087	Presser Bar Connecting Bracket	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093483	Presser Bar Guide	1
7	004441	Screw(11/64-40 × 16)	2
8	0060142	Presser Bar Spring(Inner)	1
9	3100110	Presser Bar	1
10	3100112	Finger Guard	1
11	110002	Screw(M3-0.5 × 5)	1
12	0093611	Oil Protector Ring	1
13	3100310	Collar(9 × 17 × 7mm)	1
14	160001	Screw(M4-0.7 × 4)	1
15	0020271	Thread Chain Cutting Knife	1
16	110054	Screw(M3-0.52 × 3.5)	1
17-1	3507050	Presser Foot, Complete Set(48)	1
17-2	3507052	Presser Foot, Complete Set(56)	1
17-3	3507054	Presser Foot, Complete Set(64)	1
18	110004	Screw(M3.5-0.6 × 8)	1
19	3107303	Presser Foot Spring(Left)	1
20	3107304	Presser Foot Spring(Right)	1
21	130016	Screw(M2.5-0.45 × 6)	4
22	3107306	Presser Foot Hinge Pin	1
23	110084	Screw(M3.5-0.5 × 4.2)	1
24	000327	Lock Nut	1
25	260006	Adjusting Screw(1/8-44 × 9.5)	1
26	0093487	Lifter Link	1
27	006038	Screw(3/16-32 × 2.2)	2
28	0063083	Lifter Link Lever	1
29	000690	Fastener Pin	1
30	0063084	Lifter Spring	1
31	0093491	Collar(8 × 16 × 8mm)	2
32	009604	Screw(11/64-40 × 5.5)	4
33	0093479	Lifter Shaft	1
34	3100294	Intermediate Lever	1
35	120017	Screw(M5-0.8 × 15)	1
36	0077179	Retaining Ring	2
37	0093507	Connecting Plate	1
38	0093509	Connecting Pin	2
39	0093508	Lifter Lever(Small)	1
40	004591	Screw(15/64-28 × 9.5)[15/64-28 × 9.5)	1

Page 23 — PRESSER FOOT MECHANISM

Yamato VC2700 parts on page 23
Ref	Part number	Part name	Qty
41	3160168	Lifter Spring	1
42	3500305	Cap	1
43	3120416	Presser Foot Lifter Lever	1
44	3101216	Lifter Lever Stop	1
45	004358	Screw(9/64-40 × 5.6)	2
46	3500299	Tension Release Lever Connector	1
47	170009	Screw(M4-0.7 × 4)	1
48	170038	Screw(M4-0.7 × 5)	1
49	3100533	Tension Release Lever	1
50	120001	Screw(M4-0.7 × 14)	1
51	0094387	Tension Release Shaft	1
52	0063515	Thread Pull-off Lever	1
53	000690	Spring Pin(4 × 16mm)	1
54	0094390	Tension Release Adjusting Eccentric	1
55	0095334	Swing-proof Spring	1
56	001170	Screw(9/64-40 × 12)	1
57	340014	Roll Pin(3 × 12mm)	1

Page 25 — SPREADER MECHANISM

Yamato VC2700 parts on page 25
Ref	Part number	Part name	Qty
1	3100302	Connecting Rod, Complete Set	1
2	3100300	Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	0077322	Roller Bearing	1
5	3100301	Connecting Rod	1
6	0094566	Retaining Ring	1
7	110009	Screw(M4-0.7 × 8)	1
8	300006	Washer	1
9	3100309	Adjusting Lever Pin	1
10	000528	Washer	1
11	100003	Nut(M6-1.0)	1
12	0032646	Collar(12 × 20 × 8mm)	1
13	009604	Screw(11/64-40 × 5.5)	2
14	3100303	Adjusting Lever	1
15	120013	Screw(M6-1 × 15)	1
16	3100304	Driving Shaft	1
17	3100305	Rocking Arm	1
18	160007	Screw(M6-1 × 6)	2
19	0063051	Rocking Pin	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	0063057	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2

Page 27 — LOOPPER DRIVING MECHANISM

Yamato VC2700 parts on page 27
Ref	Part number	Part name	Qty
1-1	3109300	Looper(32, 40, 56, 64)	1
1-2	3109302	Looper(48)	1
2	160040	Screw(M4-0.7 × 5)	1
3	3180100	Looper Holder	1
4	110039	Screw(M3.5-0.6 × 10)	1
5	300500	Spacer(Fiber)	2
6	3100154	Looper Bar Bushing	1
7	160024	Screw(M6-1 × 8)	2
8	3100410	Looper Thread Eyelet	1
9	110101	Screw(M3-0.5 × 3)	1
10	340008	Roll Pin	1
11	3100156	Bushing Spacer	1
12	3100152	Looper Bar Guide	1
13	3100157	Slider	1
14	3100158	Slider Holder	1
15	110005	Screw(M3.5-0.6 × 12)	1
17	3100159	Slider Presser	1
18	160001	Screw(M4-0.7 × 4)	1
19	3100160	Thrust Washer	1
20	330002	Seal Plug(Kurk)	1
21	3100161	Looper Bar	1
22	3100153	Guide Shaft Bushing	1
23	3100155	Looper Bar Guide Shaft	1
24	110019	Screw(M5-0.8 × 35)	1
25	300000	Washer	2
26	3100151	Looper Rocker Adjusting Pin	1
27	340001	Roll Pin	1
28	100002	Nut	1
29	3100150	Looper Rocker Connecting Rod, C. Set	1
30	3100147	Looper Rocker Regulating Eccentric	1
31	160003	Screw(M5-0.8 × 5)	1
32	0065389	Roller Bearing	1
33	3100149	Looper Rocker Connecting Rod	1
34	3100140	Looper Connecting Rod	1
35	005071	Screw(11/64-32 × 14)	4
36	3100355	Oil Splasher	1
37	3100141	Guide Fork	1
38	004440	Screw(11/64-40 × 8.3)	2
39	3100142	Looper Driving Lever	1
40	000637	Seal Plug	1
41	3100143	Looper Rocker Arm	1
42	120011	Screw(M6-1 × 18)	1
43	3100146	Thrust Washer	3
44	3100145	Thrust Roller Bearing	2
45	3100144	Looper Shaft	1
46	000740	Seal Plug	2
47	160029	Screw(M8-1.25 × 8)	2
48	001123	Washer	2

Page 29 — FEED DRIVING CONTROL MECHANISM

Yamato VC2700 parts on page 29
Ref	Part number	Part name	Qty
1	3100217	Feed Lift Lever	1
2	160007	Screw(M6-1 × 6)	6
3	0032799	Connecting Rod Pin	1
4	160002	Screw(M4-0.7 × 2)	4
5	3100216	Feed Lift Connecting Rod	1
6	3100192	Retaining Ring	2
7	3100190	Roller Bearing	2
8	3100189	Differential Feed Eccentric	1
9	006212	Screw(M5-0.8 × 6)	2
10	3100191	Differential Feed Connecting Rod	1
11	3100193	Connecting Rod Pin	2
12	3100194	Lever Link(Long)	1
13	3100195	Lever Link(Short)	1
14	3100196	Lever Link Pin	1
15	300006	Washer	1
16	110009	Screw(M4-0.7 × 8)	1
17	3100197	Differential Feed Shaft Lever	1
18	120009	Screw(M4-0.7 × 12)	1
19	3100199	Control Bracket	1
20	3100202	Connecting Rod Guide	1
21	3100200	Control Bracket Spring	1
22	340003	Pin	2
23	3100103	Control Lever Shaft Bushing	1
24	3100104	O-ring(P16)	1
25	0093303	Oil Seal	1
26	3100201	Control Lever Shaft	1
27	3100211	Control Link Pin	1
28	3100203	Control Link	1
29	3100208	Control Nut	1
30	001107	Roll Pin	1
31	3100205	O-ring(P12)	1
32	3100204	Adjusting Screw	1
33	3100207	Adjusting Stop Pin	1
34	160001	Screw(M4-0.7 × 4)	1
35	3100206	Adjusting Knob	1
36	130011	Screw(M3-0.5 × 4)	1
37	3100235	Differential Feed Control Lever, C. Set	1
38	3100210	Differential Feed Control Lever	1
39	3100209	Differential Feed Graduations	1
40	130004	Screw(M4-0.7 × 11)	2
41	000505	Spacer	2
42	0020350	Control Lever Stop	1
43	000669	Washer	1
44	000600	Spring Washer	1
45	005049	Screw(M5-0.8 × 8)	1
46	190004	Screw(M6-1 × 7.5, M4.5-0.5 × 3)	1
47	100005	Nut	1
48	000561	Conical Spring Washer	1
49	3100220	Feed Lift Connecting Rod, C. Set	1
50	110013	Screw(M4-0.7 × 8)	1

Page 31 — NEEDLE GUARD & FEED MECHANISM

Yamato VC2700 parts on page 31
Ref	Part number	Part name	Qty
1	3100243	Needle Guard(Front) Eccentric	1
2	160003	Screw(M5-0.8 x 5)	2
3	3100242	Needle Guard(Front) Lever	1
4	110022	Screw(M3-0.5 x 10)	2
5	3100241	Needle Guard(Front) Holder	1
6	3139200	Needle Guard(Front)	1
7	110036	Screw(M3-0.5 x 6.5)	2
8	3100246	Needle Guard(Rear) Lever	1
9	3100245	Needle Guard(Rear) Holder	1
10	[3109201]	Needle Guard(Rear)	1
11	3100187	Feed Regulating Stop	1
12	110004	Screw(M3.5-0.6 x 8)	3
13	340001	Roll Pin	1
14	3100186	Conical Spring Presser	1
15	130005	Screw(M2-0.4 x 4)	2
16	3100185	Conical Spring	1
17	3100183	Eccentric Cam	1
18	340025	Stop Pin	1
19	3100184	Eccentric Pin	1
20	3100182	Main Feed Eccentric, Complete Set	1
21	110072	Screw(M3.5-0.6 x 6)	1
22	110023	Screw(M2-0.4 x 3.5)	1
23	009736	Screw(M4-0.7 x 6)	2
24	[3100188]	Main Feed Bar Driving Connection	1
25	110021	Screw(M5-0.8 x 18)	2
26	0032853	Driving Connection Bushing	1
27	3100225	Feed Bar Guide(Upper/Left)	1
28	160007	Screw(M6-1 x 6)	2
29	[3100229]	Feed Mechanism, C. Set	1
30	3100221	Differential Feed Bar	1
31	3100222	MainFeed Bar	1
32	3100231	Feed Dog Key	2
33	3100224	Feed Lift Block(Rear)	1
34-1	3106000	Main Feed Dog(48, 56)(P=1.6mm)	1
34-2	3106001	Main Feed Dog(64)(P=1.6mm)	1
35-1	3109000	Differential Feed Dog(48, 56)(P=1.6mm)	1
35-2	3109002	Differential Feed Dog(64)(P=1.6mm)	1
36	3100226	Feed Bar Guide(Lower)	1
37	110035	Screw(M4-0.7 x 10)	2
38	3100213	Differential Feed Bar Driving Connection	1
39	3100215	Oscillation Adjusting Eccentric	1
40	000199	Oil Wick	1

Page 33 — NEEDLE GUARD & FEED DRIVING MECHANISM

Yamato VC2700 parts on page 33
Ref	Part number	Part name	Qty
41	3100214	Driving Connection Pin	1
42	160006	Screw(M3-0.5 × 6)	1
43	000750	Seal Plug	1
44	3100212	Differential Feed Shaft	1
45	0093389	Feed Lift Block(Front)	1
46	3100218	Feed Lift Shaft	1
47	000397	Oil Wick	1
48	000401	Oil Wick(280mm)	1
49	330015	Seal Plug	1
50	3100219	Collar(11 × 18 × 11mm)	2
51	160004	Screw(M6-1 × 4.8)	2
52	3101300	Feed Bar Guide(Upper/Right)	1
53	3100179	Main Feed Eccentric, C. Set(2)	1
54	310068	Oil Wick(120mm)	1
55	000775	Pin	1
56	3130047	Needle Guard Lever Cover	1

Page 35 — LUBRICATING MECHANISM (1)

Yamato VC2700 parts on page 35
Ref	Part number	Part name	Qty
1	0065453	Oil Receiver	1
2	110012	Screw(M4-0.7 × 5)	6
3	[3200229]	Lubricant Guiding Block	1
4	320006	Top Nozzle Cap	1
5	3200230	Oil Adjusting Screw	1
6	000636	Seal Plug	1
7	300000	Washer	1
8	000600	Spring Washer	1
9	100002	Nut	1
10	2150325	Oil Filter Cap	1
11	110045	Screw(M4-0.7 × 12)	3
12	3100061	O-ring(P42)	1
13	3100345	Oil Filter	1
14	3100329	Oil Filter Connector	1
15	3200237	Felt	1
16	0063217	Oil Filter Screen Clamp	1
17	0063216	Oil Filter Screen	1
18	3180084	Draining Felt	1
19	[3150143]	Oil Pump, Complete Set	1
20	[0030711]	Oil Pump Driving Worm Gear	1
21	160001	Screw(M4-0.7 × 4)	2
22	000567	Seal	1
23	[000419]	Nut	1
24	[3100349]	Oil Nozzle for Worm Gear	1
25	3150155	Dust Proof Plate	1
26	3100330	Oil Tube Stay	1
27	0021010	Oil Sight Gauge	1
28	[120013]	Screw(M6-1 × 18)[M6-1 × 15]	2
29	3100331	Oil Tube(4 × 6 × 31mm)	1

Page 37 — LUBRICATING MECHANISM (2)

Yamato VC2700 parts on page 37
Ref	Part number	Part name	Qty
1	3200236	Suction Pipe	1
2	0093617	Suction Pipe Bushing	1
3	3200238	Oil Tube(3 × 5 × 440mm)	1
4	0065452	Draining Pipe	1
5	3200227	Oil Sight Top Nozzle	1
6	0031831	Oil Tube Clamp	10
7	3100357	Oil Tube(Long), Complete Set	1
8	3100354	Oil Tube(4 × 6 × 290mm)	1
9	3100392	Oil Tube(2.5×4×35mm)[4×6×75mm]	1
10	3100371	Oil Tube Joint, Two Way	2
11	3100332	Oil Tube(4 × 6 × 37mm)	1
12	320010	Fitting Stud(Short)	4
13	3100342	Lower Shaft Oiling Outlet	1
14	3100358	Oil Tube(Middle), Complete Set	1
15	3100331	Oil Tube(4 × 6 × 31mm)	2
16	3100343	Lower Shaft Oiling Shower	1
17	3100334	Oil Tube(4 × 6 × 110mm)	1
18	110013	Screw(M4-0.7 × 8)	2
19	3100356	Oil Tube(Short), Complete Set	1
20	3100370	Oil Tube Joint, One Way	2
22	0010017	Bamboo Joint(I-4)	2
23	3500425	Oil Tube(3.5 × 5 × 350mm)	1
24	0011795	Wrapping Band(2.3 × 92)	1
25	3180080	Draining Pipe	1

Page 39 — PULLER MECHANISM EXCLUSIVE PARTS(1)

Yamato VC2700 parts on page 39
Ref	Part number	Part name	Qty
1	3180110	Upper Feed Roller Shaft Bracket	1
2	120019	Screw(M6-1 × 18)	4
3	000779	Knock Pin	2
4	3100006	Seal Plug	1
5	3100607	Roller Shaft Bushing(Right)	1
6	3100604	Upper Feed Roller Shaft Lever	1
7	160007	Screw(M6-1 × 6)	2
8	0065398	Collar(14 × 22 × 10mm)	1
9	009604	Screw(11/64-40 × 5.5)	2
10	3100626	Roller Shaft Bushing(Left)	1
11	0065395	Oil Seal	1
12	3100605	Upper Feed Roller Shaft	1
14	3100608	Upper Feed Roller Lever	1
15	120012	Screw(M6-1 × 20)	1
16	0065401	Upper Feed Roller Lever Pin	1
17	000613	Washer	1
18	000306	Nut	2
19	3501281	Upper Feed Roller Lever Rod	1
20	240010	Screw(1/4-40 × 11)	1
21	310063	Oil Wick	1
22	0032921	Upper Feed Roller Driving Rod Pin	1
23	160001	Screw(M4-0.7 × 4)	1
24	3100602	Upper Feed Roller Driving Rod	1
25	3100192	Retaining Ring	1
26	3100623	Roller Bearing	1
27	3100603	Upper Feed Roller Regulator, C. Set	1
28	3100601	Upper Feed Roller Eccentric	1
29	3100600	Upper Feed Roller Regulator	1
30	160003	Screw(M5-0.8 × 5)	2
31	190007	Adjusting Screw(M5-0.8 × 6)	1
32	120008	Screw(M4-0.7 × 8)	1
33	300045	Spacer	1
34	3180112	Upper Feed Roller Shaft Bracket, C. Set	1

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS (2)

Yamato VC2700 parts on page 41
Ref	Part number	Part name	Qty
2	3100611	Upper Feed Roller Yoke	1
3	120012	Screw(M6-1 × 20)	1
4	3100612	Upper Feed Roller Yoke Guide	1
5	120008	Screw(M4-0.7 × 8)	2
6	3100613	Upper Feed Roller Yoke Pin	1
7	160007	Screw(M6-1 × 6)	1
8	3200133	Wire(0.9 × 45mm)	1
9	180005	Screw(M4-0.7 × 6)	1
10	160001	Screw(M4-0.7 × 4)	2
11	160003	Screw(M5-0.8 × 5)	3
12	0060056	Retaining Ring	1
13	2100902	Thrust Ring	1
14	3501270	Clutch Driving Shaft	1
15	3100616	Clutch Driving Shaft Bushing(Left)	1
16	0065414	Clutch Driving Shaft Bushing(Right)	1
17	0065421	Clutch Tension Sleeve	1
18	3501283	Adjusting Collar	1
20	3501284	Adjusting Screw Stay	1
21	110002	Screw(M3-0.5 × 5)	2
22	110097	Screw(M5-0.8 × 12)	1
23	3501282	Clutch Tension Spring	1
24	3501280	Clutch Driving Lever	1
25	130003	Screw(M4-0.7 × 7.3)	3
26	3501276	Clutch Sleeve(Right)	1
27	3501272	Thrust Plate	2
28	3501271	Clutch Spacer	1
29	160005	Screw(M6-1 × 8)	1
30	3501275	Clutch Sleeve(Left)	1
31	3501290	Upper Feed Roller(30 teeth)(Standard)	1
32	007621	Screw(9/64-40 × 8.5)	3
33	3160183	Lower Feed Roller Support, C. Set(Extra)	1
34	0065461	Lower Feed Roller(15 teeth)(Standard)	1
35	000492	Wave Washer	1
36	3100620	Lower Feed Roller Support	1
37	120041	Screw(M6-1 × 12)	2
38	000779	Knock Pin	2
39	3100622	Lower Feed Roller Shaft	1
40	150001	Screw(M4-0.7 × 4)	2
41	3100621	Lower Feed Roller Cover	1
42	130002	Screw(M3-0.5 × 6)	2
43	3501295	Upper Feed Roller	1
44	0067028	Lower Feed Roller	1
45	0065431	Supplementary Roller Support	1
46	000538	Washer	2
47	110009	Screw(M4-0.7 × 8)	2
48	0065435	Supplementary Roller	1
49	0065436	Supplementary Roller Stay(A)	1
50	0065437	Supplementary Roller Stay(B)	1
51	009730	Screw(1/8-44 × 5.3)	4

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(3)

Yamato VC2700 parts on page 43
Ref	Part number	Part name	Qty
1	0065381	Upper Feed Roller Lifter(Right)	1
2	110009	Screw(M4-0.7 × 8)	2
3	000538	Washer	3
4	000334	Nut	2
5	0034979	Flexible Wire Clamp Bushing	2
6	006075	Screw(11/64-40 × 6)	2
7	0067126	Lifter Connecting Plate	1
8	0065374	Upper Feed Roller Lifter(Left)	1
9	0065375	Upper Feed Roller Lifter Pin	1
10	0095027	Retaining Ring	2
11	0065376	LifterConnecting Plate	1
12	006038	Screw(3/16-32 × 2.2)	2
13	0065407	Roller Press Bar Bracket	1
14	005650	Screw(M5-0.8 × 14)	1
15	0065402	Lifting Lever Sleeve	1
16	006411	Screw(11/64-40 × 5.5)	1
17	000340	Nut	1
18	009931	Stop Screw(11/64-40 × 26)	1
19	3100614	Roller Press Spring	1
20	3180111	Upper Feed Roller Bracket	1
21	009753	Screw(M6-1 × 35)	2
22	000779	Knock Pin	2
23	0065405	Roller Press Bar Bushing(Upper)	1
24	160007	Screw(M6-1 × 6)	1
25	3100609	Roller Press Bar Bushing(Lower)	1
26	0065404	Upper Feed Roller Press Bar	1
27	0034117	Retaining Ring	1
28	000690	Stop Pin	1
29	000613	Washer	1
30	0067111	Upper Feed Roller Lifting Lever	1
31	000487	Wave Washer	1
32	170008	Screw(M6-1 × 9)	1
33	3180113	Upper Feed Roller Bracket, C. Set	1

Page 45 — VC2713M EXCLUSIVE PARTS

Yamato VC2700 parts on page 45
Ref	Part number	Part name	Qty
1	3107311	Fabric Guide	1
2	110027	Screw(M2.5-0.45 × 3.5)	1
3	3101320	Fabric Guide(Left)	1
4	3101321	Fabric Guide(Right)	1
5	001228	Screw(3/32-56 × 3.2)[M2.5-0.45 × 4.5]	2
6	3108221	Stitch Plate(56M-K4N)	1
7	3139028	Differential Feed Dog	1
8	3109098	Differential Feed Dog(Middle)	1
9	110038	Screw(M2.5-0.45 × 4.5)	1

Page 47 — EXTRA PARTS(1)

Yamato VC2700 parts on page 47
Ref	Part number	Part name	Qty
1	0022836	Synchroniser Positioning Pin	1
2	0022837	Synchroniser Cushion	1
3	007610	Screw(M4-0.7 x 10)	1
5	0093690	Timing Gauge	1
6	0095220	Looper Timing Gauge	1
7	3100490	Timing Gauge	1
8	3101206	Supplementary Rear Cover Support	1
9	120006	Screw(M6-1 x 12)	2
10	3101205	Supplementary Rear Cover	1
11	130003	Screw(M4-0.7 x 7.3)	2
12	3101207	Supplementary Front Cover(Large)	1
13	000538	Washer	3
14	110009	Screw(M4-0.7 x 8)	3
15	3100033	Supplementary Front Cover	1
16	000426	Washer	2
17	110103	Screw(M5-0.8 x 8)	2
18	3109210	Needle Guard(Rear)	1
19	3109201	Needle Guard(Rear)	1
20-1	3109301	Looper(32, 40, 56, 64)(hard plating)	1
20-2	3109303	Looper(48)(hard plating)	1
21	3108225	Stitch Plate(56NM)	1

Page 49 — EXTRA PARTS(2)

Yamato VC2700 parts on page 49
Ref	Part number	Part name	Qty
1-1	0093351	Needle Clamp(32)	1
1-2	0093352	Needle Clamp(40)	1
2-1	3108130	Stitch Plate(32M)	1
2-2	3108131	Stitch Plate(40M)	1
3-1	3507000	Presser Foot, C. Set(32)	1
3-2	3507002	Presser Foot, C. Set(40)	1
4	110004	Screw(M3.5-0.6 x 8)	1
5	3107303	Presser Foot Spring(Left)	1
6	3107304	Presser Foot Spring(Right)	1
7	130016	Screw(M2.5-0.45 x 6)	4
8	3107306	Presser Foot Hinge Pin	1
9	110084	Screw(M3-0.5 x 4.2)	1
10	000327	Lock Nut	1
11	260006	Adjusting Screw(1/8-44 x 9.5)	1

Page 51 — THREAD STAND & ACCESSORIES (1)

Yamato VC2700 parts on page 51
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut	1
16	9620703	Thread Hanger(3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620666	Thread Guide(6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6
28	3101101	Edge Guide(Right)	1
29	3101100	Edge Guide(Left)	1
32	3500700	Belt Cover	1
33	110028	Screw(M6-1 × 46)	2
34	962003	Bag	1
36	0099094	Screwdriver(2.5 × 75mm)	1
37	0099091	Screwdriver(5.5 × 200mm)	1
38	0099051	Thread Tweezers	1
39	9620202	Hexagonal Wrench(2.0mm)	1
40-1	9720236	Instruction Book	1
40-2	9720235		1
41	9710111	Parts Book	1
42	9620008	SF Oil 28(1ℓ)	1

Page 53 — ACCESSORIES (2)

Yamato VC2700 parts on page 53
Ref	Part number	Part name	Qty
1	0063009	Oil Reservoir Rubber Cushion	4
2	180008	Setting Screw(M6-1 × 63)	4
3	000528	Washer	8
4	000667	Spring Washer	4
5	000011	Nut	4
6	3100036	Belt Cover(Lower)	1
7	006905	Wood Screw(φ 5.1 × 20)	3
8	0037988	Screwdriver(Short)	1
12	0037912	Chain	1
13	9611074	Presser Foot Pedal	1
14	000070	Hanging Nut	4
15	009858	Hanging Bolt(M8-1.25 × 75)	4
16	000162	Washer	8
17	0020064	Supporting Board Rubber Cushion	4
18	0063010	SupportingBoardRubberCushion(Lower)	4
19	000016	Nut	8
20	3100008	Supporting Board	2
21	0063009	Oil Reservoir Rubber Cushion	4
22	180009	Setting Screw(M6-1 × 16)	4

Page 54 — WARNING LABEL 警告ラベル

Yamato VC2700 parts on page 54
Ref	Part number	Part name	Qty
	390220	SAFETY INSTRUCTON LABEL
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 56 — VC2700M Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato VC2700 parts on page 56
Ref	Part number	Part name	Qty
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093358	Needle Clamp
	0093351	Needle Clamp
	0093552	Needle Clamp
	0093357	Needle Clamp
	3507050	Presser Foot, C. Set
	3507052	Presser Foot, C. Set
	3507054	Presser Foot, C. Set
	3507000	Presser Foot, C. Set
	3507002	Presser Foot, C. Set
	3507052	Presser Foot, C. Set
	3108133	Stitch Plate
	3108134	Stitch Plate
	3108135	Stitch Plate
	3108130	Stitch Plate
	3108131	Stitch Plate
	3108221	Stitch Plate
	3109000	Differential Feed Dog
	3109000	Differential Feed Dog
	3109002	Differential Feed Dog
	3109000	Differential Feed Dog
	3109098	Differential Feed Dog (Middle)

Page 57

Yamato VC2700 parts on page 57
Ref	Part number	Part name	Qty
	3106000	Main Feed Dog
	3100630	Folder (Left)
	3100631	Folder (Right)
	3109302	Looper
	3109300	Looper
	3106001	Main Feed Dog
	3106000	Main Feed Dog
	3100630	Folder (Left)
	3100631	Folder (Right)
	3109300	Looper
	3106000	Main Feed Dog
	3101320	Fabric Guide (Left)
	3101321	Fabric Guide (Right)
	3107311	Fabric Guide
	3109300	Looper

Page 58 — INDEX

Yamato VC2700 parts on page 58
Ref	Part number	Qty
29	000010	4
10	000011	27
5	000011	31
43	000012	26
20	000012	28
2	000014	20
37	000014	25
24	000015	2
5	000016	27
19	000016	31
3	000070	27
14	000070	31
4	000140	25
20	000145	25
4	000162	27
16	000162	31
6	000177	3
32	000195	4
40	000199	12
33	000234	5
17	000290	6
18	000304	5
18	000306	15
13	000306	27
21	000321	7
27	000322	23
45	000322	28
24	000327	8
10	000327	18
31	000334	4
4	000334	17
17	000340	17
53	000360	3
17	000397	5
47	000397	12
48	000401	12
23	000419	13
16	000425	22
3	000426	22
16	000426	29
2	000445	8
26	000463	5
31	000487	17
35	000492	16
17	000498	20
41	000505	11
10	000528	9
11	000528	27
3	000528	31
40	000531	5
34	000538	2
33	000538	3
46	000538	16
3	000538	17
12	000538	19
13	000538	29
30	000547	4
4	000548	7
31	000555	6
48	000561	11
22	000567	13
12	000588	27
6	000597	25
5	000598	25
35	000600	6
44	000600	11
8	000600	13
4	000600	22
17	000613	15
29	000613	17
18	000629	28
6	000636	13
33	000637	7
40	000637	10
26	000644	23
44	000644	28
34	000651	3
23	000665	2
20	000665	23
38	000665	28
4	000667	31
43	000669	11
7	000676	27
29	000690	8
28	000690	17
39	000726	1
46	000740	10
43	000750	12
3	000779	15
38	000779	16
22	000779	17
20	000924	1
20	000926	6
4	000989	6
47	001093	3
14	001107	5
30	001107	11
48	001123	10
31	001123	23
48	001123	28
56	001170	8
25	001174	6
22	001457	25
21	001459	19
18	001459	24
50	001818	3
9	001900	7
6	002043	7
36	004182	2
26	004236	4
27	004312	6
2	004358	7
45	004358	8
5	004440	8
38	004440	10
7	004441	8
45	005049	11
27	005049	22
24	005071	6
35	005071	10
34	005075	1
36	005650	6
14	005650	17
8	005650	25
28	006004	4
25	006035	23
43	006035	28
27	006038	8
12	006038	17
6	006075	17
22	006202	23
40	006202	28
9	006212	11
16	006411	17
6	006905	22
7	006905	31
24	007006	19

Page 59 — INDEX

Yamato VC2700 parts on page 59
Ref	Part number	Part name	Qty
21	007006
28	007610
3	007610
11	007611
32	007621
12	009142
40	009200
28	009508
23	009526
32	009604
13	009604
9	009604
51	009730
23	009736
8	009736
3	009736
10	009737
17	009746
24	009749
21	009753
24	009784
16	009791
34	009791
19	009853
15	009858
6	009865
18	009931
9	009970
8	009976
36	009984
16	009984
11	009985
22	0010017
18	0010055
14	0010057
8	0010108
22	0010119
15	0010254
9	0010264
34	0010923
33	0011720
8	0011733
24	0011795
11	0011795
2	0011801
1	0011802
21	0012071
11	0014120
17	0020064
27	0020119
33	0020137
15	0020271
42	0020350
5	0020759
46	0020759
27	0021010
6	0022836
1	0022836
1	0022836
7	0022837
2	0022837
2	0022837
3	0023381
2	0024083
1	0024084
3	0030255
20	0030711
7	0031111
6	0031831
45	0032425
46	0032426
12	0032646
20	0032786
3	0032799
26	0032853
22	0032921
4	0032952
19	0033024
25	0033024
22	0033024
17	0033024
7	0033939
27	0034117
5	0034979
16	0035301
52	0035813
28	0036133
28	0036133
19	0036133
46	0036133
44	0036175
51	0037108
21	0037912
12	0037912
8	0037988
12	0060056
18	0060057
8	0060142
27	0060175
25	0060176
1	0063009
21	0063009
18	0063010
3	0063044
19	0063051
20	0063053
6	0063055
21	0063056
22	0063057
49	0063074
18	0063076
14	0063076
28	0063083
30	0063084
4	0063087
37	0063096
17	0063216
16	0063217
52	0063515
3	0063579
10	0063586
14	0063606
30	0063607
12	0063607

Page 60 — INDEX

Yamato VC2700 parts on page 60
Ref	Part number	Part name	Qty
1	0063608
17	0063608
35	0063609
15	0063609
11	0063610
4-2	0063612
6	0063612
14	0064045
15	0064046
18	0064047
8	0065275
35	0065340
1	0065340
3	0065372
8	0065374
9	0065375
11	0065376
1	0065381
32	0065389
11	0065395
8	0065398
16	0065401
15	0065402
26	0065404
23	0065405
13	0065407
16	0065414
17	0065421
45	0065431
48	0065435
49	0065436
50	0065437
4	0065452
1	0065453
44	0067028
30	0067111
7	0067126
4	0068011
4	0068206
36	0077179
19	0077179
15	0077179
46	0077179
1	0077270
4	0077322
7	0077410
40	0090068
5	0090071
12	0090807
9	0090812
11	0090856
4	0093089
19	0093154
5	0093184
10	0093201
19	0093212
16	0093214
25	0093303
1-1	0093351
1-2	0093352
7-1	0093356
7-2	0093357
7-3	0093358
10	0093365
45	0093389
33	0093479
6	0093483
26	0093487
31	0093491
27	0093491
37	0093507
39	0093508
38	0093509
38	0093521
17	0093556
12	0093611
2	0093617
5	0093690
11	0093864
7	0093864
23	0094201
40	0094201
51	0094387
54	0094390
23	0094396
20	0094396
4-1	0094491
6	0094566
10	0095027
26	0095168
23	0095170
7	0095214
6	0095220
55	0095334
29	0095336
35	0095367
21	0095388
23	0095389
14	0096025
38	0099051
37	0099091
36	0099094
12	100001
28	100002
9	100002
26	100002
33	100002
11	100003
47	100005
9	100006
9	100006
5	100020
14	100058
32	100058
10	110001
23	110001
25	110002
39	110002
11	110002
21	110002
3	110002
22	110002
18	110002
22	110002
55	110002
39	110004
18	110004
12	110004
4	110004
13	110004

Page 61 — INDEX

Yamato VC2700 parts on page 61
Ref	Part number	Qty
15	110005	10
43	110009	2
16	110009	3
10	110009	5
12	110009	6
7	110009	9
16	110009	11
47	110009	16
2	110009	17
13	110009	19
5	110009	20
20	110009	21
30	110009	24
20	110009	26
41	110009	26
14	110009	29
24	110012	1
21	110012	2
15	110012	6
41	110012	7
2	110012	13
5	110012	19
16	110012	19
7	110012	24
58	110012	26
11	110013	2
14	110013	3
42	110013	5
27	110013	7
34	110013	7
50	110013	11
18	110013	14
29	110013	22
29	110013	23
26	110013	24
47	110013	28
26	110016	2
2	110017	22
24	110019	10
25	110021	12
4	110022	12
22	110023	12
26	110023	21
12	110023	23
26	110023	26
29	110023	28
24	110024	21
24	110024	26
25	110025	21
25	110025	26
35	110026	5
29	110027	5
13	110027	18
33	110028	30
6	110030	21
39	110031	2
26	110031	9
34	110034	21
34	110034	26
37	110035	12
7	110036	12
16	110038	18
20	110038	18
4	110039	10
22	110041	1
16	110041	2
7	110041	28
2	110045	1
48	110045	2
11	110045	13
15	110048	1
54	110054	3
16	110054	8
17	110054	23
35	110054	28
9	110060	28
31	110062	20
36	110062	25
21	110072	12
44	110079	2
23	110084	8
9	110084	18
25	110089	22
22	110097	16
26	110100	3
42	110101	2
23	110101	3
9	110101	10
17	110103	29
50	120001	8
10	120001	20
19	120006	20
9	120006	29
32	120008	15
5	120008	16
2	120009	2
18	120009	11
42	120011	10
15	120012	15
3	120012	16
29	120013	6
15	120013	9
28	120013	13
17	120013	22
10	120013	25
30	120015	6
15	120015	7
36	120016	1
35	120017	8
2	120019	15
37	120041	16
21	120052	23
39	120052	28
38	130002	2
42	130002	16
6	130003	2
42	130003	3
25	130003	16
13	130003	21
13	130003	26
11	130003	29
40	130004	11
36	130004	21
36	130004	26
15	130005	12
32	130005	21
32	130005	26
36	130011	11
21	130016	8
7	130016	18
18	130021	21
18	130021	26
48	140010	26
45	140014	26
23	150000	5
40	150001	16
24	150001	24
17	160000	1

Page 62 — INDEX

Yamato VC2700 parts on page 62
Ref	Part number	Part name	Qty
21	160000
30	160001
31	160001
14	160001
18	160001
34	160001
21	160001
23	160001
10	160001
4	160002
3	160003
31	160003
2	160003
30	160003
11	160003
25	160003
13	160004
21	160004
51	160004
2	160005
2	160005
29	160005
42	160006
3	160007
3	160007
18	160007
2	160007
28	160007
7	160007
7	160007
24	160007
32	160008
47	160015
37	160023
7	160024
47	160029
2	160040
15	170000
28	170001
27	170002
45	170003
21	170004
2	170005
2	170005
15	170006
15	170006
32	170008
47	170009
6	170009
31	170009
48	170038
31	180005
9	180005
23	180006
30	180006
2	180008
22	180009
46	190004
22	190005
8	190006
8	190006
31	190007
27	190029
34	190029
24	190079
53	240009
20	240010
35	260000
25	260006
11	260006
8	270019
27	270019
8	290029
25	300000
7	300000
8	300006
15	300006
33	300045
29	300100
26	300101
5	300500
32	310006
30	310007
14	310040
21	310063
15	310093
4	320006
12	320010
20	330000
20	330002
14	330011
49	330015
37	340000
27	340001
13	340001
22	340003
36	340004
10	340008
57	340014
18	340025
39	350009
6	390165
12	390203
8	390204
10	910000
7	910001
14	910003
6	911001
5	911002
9	911006
19	911060
12	930052
13	930053
27	930055
34	962003
42	1062035
3	1062037
32	1066127
29	1066138
33	1090185
28	1090190
20	1090207
21	1090242

Page 63 — INDEX

Yamato VC2700 parts on page 63
Ref	Part number	Part name	Qty
34	1090242
19	1090247
32	1090248
4	1091145
13	1091146
12	1091160
30	1094055
24	1094056
5	1095001
1	1095007
2	1096029
16	1096029
37	1096029
30	1096029
10	1096030
23	1097007
1	1097009
36	1098013
35	1200391
31	1200395
5	1253240
40	2049401
13	2100902
10	2150325
28	3100004
29	3100005
45	3100006
18	3100006
4	3100006
20	3100008
10	3100016
4	3100020
15	3100033
41	3100034
6	3100036
16	3100042
21	3100045
25	3100046
17	3100050
18	3100051
20	3100053
15	3100058
12	3100061
22	3100076
34	3100078
48	3100081
25	3100082
24	3100083
20	3100084
19	3100085
43	3100087
18	3100088
12	3100090
13	3100091
19	3100092
20	3100093
14	3100094
15	3100095
16	3100096
17	3100097
11	3100098
3	3100099
5	3100100
23	3100103
24	3100104
9	3100110
10	3100112
12	3100113
12	3100121
8	3100122
11	3100123
22	3100125
20	3100126
9	3100127
11	3100127
5	3100128
6	3100129
1	3100130
6	3100131
5	3100131
7	3100132
34	3100140
37	3100141
39	3100142
41	3100143
45	3100144
44	3100145
43	3100146
30	3100147
33	3100149
29	3100150
26	3100151
12	3100152
22	3100153
6	3100154
23	3100155
11	3100156
13	3100157
14	3100158
17	3100159
19	3100160
21	3100161
53	3100179
20	3100182
17	3100183
19	3100184
16	3100185
14	3100186
11	3100187
24	3100188
8	3100189
7	3100190
10	3100191
6	3100192
25	3100192
11	3100193
12	3100194
13	3100195
14	3100196
17	3100197
19	3100199
21	3100200
26	3100201
20	3100202
28	3100203
32	3100204
31	3100205
35	3100206
33	3100207
29	3100208
39	3100209
38	3100210

Page 64 — INDEX

Yamato VC2700 parts on page 64
Ref	Part number	Part name	Qty
27	3100211
44	3100212
38	3100213
41	3100214
39	3100215
5	3100216
1	3100217
46	3100218
50	3100219
49	3100220
30	3100221
31	3100222
33	3100224
27	3100225
36	3100226
29	3100229
32	3100231
37	3100235
5	3100241
3	3100242
1	3100243
9	3100245
8	3100246
31	3100250
29	3100253
26	3100254
25	3100256
37	3100260
38	3100261
30	3100262
24	3100263
27	3100264
28	3100265
39	3100266
34	3100267
41	3100268
44	3100269
43	3100270
47	3100271
46	3100272
9	3100275
8	3100281
10	3100283
28	3100285
32	3100286
33	3100287
34	3100294
2	3100300
5	3100301
1	3100302
14	3100303
16	3100304
17	3100305
24	3100307
9	3100309
13	3100310
14	3100329
26	3100330
29	3100331
15	3100331
11	3100332
17	3100334
9	3100336
36	3100338
13	3100342
16	3100343
13	3100345
24	3100349
8	3100354
36	3100355
19	3100356
7	3100357
14	3100358
20	3100370
10	3100371
35	3100383
36	3100384
37	3100386
3-2	3100400
8	3100410
41	3100442
7	3100490
3	3100502
3	3100502
10	3100503
10	3100503
11	3100504
11	3100504
12	3100505
12	3100505
1	3100506
1	3100506
27	3100507
27	3100507
28	3100508
28	3100508
29	3100509
29	3100509
30	3100510
30	3100510
31	3100511
31	3100511
23	3100512
23	3100512
5	3100513
5	3100513
4	3100514
4	3100514
14	3100515
14	3100515
33	3100516
33	3100516
19	3100517
19	3100517
21	3100518
21	3100518
24	3100520
24	3100520
31	3100523
9	3100524
29	3100525
27	3100526
15	3100529
12	3100529
38	3100530
38	3100530
26	3100532
49	3100533
9	3100535
8	3100536
28	3100538
35	3100538
35	3100560
35	3100560
9	3100567
2	3100570
1	3100571
16	3100579
16	3100579
37	3100580
37	3100580
29	3100600
28	3100601
24	3100602

Page 65 — INDEX

Yamato VC2700 parts on page 65
Ref	Part number	Qty
27	3100603	15
6	3100604	15
12	3100605	15
5	3100607	15
14	3100608	15
25	3100609	17
2	3100611	16
4	3100612	16
6	3100613	16
19	3100614	17
15	3100616	16
36	3100620	16
41	3100621	16
39	3100622	16
26	3100623	15
10	3100626	15
32	3100630	2
33	3100631	2
24	3100711	23
42	3100711	28
29	3101100	30
28	3101101	30
22	3101199	4
23	3101200	4
25	3101202	24
10	3101205	29
8	3101206	29
12	3101207	29
44	3101216	8
26	3101242	22
15	3101243	22
12	3101244	22
20	3101275	19
17	3101275	24
22	3101276	19
19	3101276	24
52	3101300	12
14	3101320	18
15	3101321	18
18	3101585	20
13	3101586	20
4	3101587	20
7	3101588	20
22	3101590	20
2	3101800	23
7	3101801	23
26	3101801	28
11	3101802	23
28	3101802	28
18	3101804	23
36	3101804	28
3	3101805	23
9	3101806	23
30	3101806	28
31	3101807	28
15	3101808	23
33	3101808	28
6	3101809	23
25	3101809	28
13	3101810	23
2	3101830	28
21	3101831	28
6	3101832	28
19	3101833	28
16	3101834	28
13	3101835	28
22	3101836	28
8	3101837	28
55	3103000	3
56	3103001	3
34-1	3106000	12
34-2	3106001	12
19	3107303	8
5	3107303	18
20	3107304	8
6	3107304	18
22	3107306	8
8	3107306	18
12	3107311	18
2-1	3108130	18
2-2	3108131	18
11-1	3108133	7
11-2	3108134	7
11-3	3108135	7
17	3108221	18
35-1	3109000	12
35-2	3109002	12
19	3109098	18
10	3109201	12
18	3109210	29
1	3109300	10
25	3120157	20
32	3120157	25
43	3120416	8
18	3139028	18
6	3139200	12
21	3150020	4
19	3150143	13
25	3150155	13
9	3151010	19
10	3151011	19
11	3151012	19
9	3160136	4
41	3160168	8
40	3161015	26
54	3161016	26
49	3161019	26
47	3161020	26
51	3161021	26
50	3161022	26
44	3161025	26
57	3161026	26
52	3161027	26
39	3169920	26
35	3180004	1
13	3180023	1
14	3180024	1
18	3180025	1
19	3180026	1
1	3180027	2
13-1	3180029	2
13-2	3180030	2
25	3180031	2
27	3180032	2
37	3180033	2
5	3180035	2
3-1	3180037	2
34	3180050	4
48	3180059	5
16	3180060	5

Page 66 — INDEX

Yamato VC2700 parts on page 66
Ref	Part number	Qty
25	3180080	14
18	3180084	13
3	3180100	10
1	3180110	15
20	3180111	17
34	3180112	15
33	3180113	17
32	3200047	3
15	3200048	3
38	3200049	6
1	3200058	4
7	3200063	4
8	3200064	4
40	3200088	7
38	3200089	7
42	3200090	7
13	3200100	6
14	3200101	7
18	3200112	7
22	3200113	7
17	3200114	7
13	3200115	7
23	3200118	7
8	3200133	16
16	3200226	6
5	3200227	14
3	3200229	13
5	3200230	13
1	3200236	14
15	3200237	13
3	3200238	14
14	3201037	22
33	3204020	4
4	3204021	4
9	3204040	1
1	3210002	1
2	3500088	4
31	3500284	3
28	3500285	3
13	3500286	3
10	3500287	3
46	3500299	8
42	3500305	8
23	3500360	24
23	3500425	14
3	3500430	1
10	3500431	1
9	3500432	2
7	3500503	21
7	3500503	26
17	3500510	21
17	3500510	26
17	3500530	19
13	3500530	24
19	3500555	23
37	3500555	28
23	3500556	23
41	3500556	28
32	3500700	30
14	3501270	16
28	3501271	16
27	3501272	16
30	3501275	16
26	3501276	16
24	3501280	16
19	3501281	15
23	3501282	16
18	3501283	16
20	3501284	16
31	3501290	16
43	3501295	16
3-1	3507000	18
3-2	3507002	18
17-1	3507050	8
17-2	3507052	8
17-3	3507054	8
19	3509202	29
25	3509320	9
1	3509335	23
1	3509952	28
38	4109403	1
1	6100709	6
13	9611074	31
42	9620008	30
39	9620202	30
2	9620631	30
22	9620666	30
3	9620670	30
8	9620673	30
11	9620675	30
23	9620678	30
24	9620679	30
25	9620680	30
26	9620681	30
18	9620688	30
4	9620689	30
21	9620690	30
20	9620691	30
1	9620696	30
17	9620700	30
16	9620703	30
41	9710111	30
40-2	9720235	30
40-1	9720236	30

Page 5 — MISCELLANEOUS COVERS (1)

Page 7 — MISCELLANEOUS COVERS(2)

Page 9 — MISCELLANEOUS THREAD EYELETS

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS BUSHINGS

Page 15 — MAIN SHAFT DRIVING MECHANISM

Page 17 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 19 — NEEDLE BAR MECHANISM

Page 21 — PRESSER FOOT MECHANISM

Page 23 — PRESSER FOOT MECHANISM

Page 25 — SPREADER MECHANISM

Page 27 — LOOPPER DRIVING MECHANISM

Page 29 — FEED DRIVING CONTROL MECHANISM

Page 31 — NEEDLE GUARD & FEED MECHANISM

Page 33 — NEEDLE GUARD & FEED DRIVING MECHANISM

Page 35 — LUBRICATING MECHANISM (1)

Page 37 — LUBRICATING MECHANISM (2)

Page 39 — PULLER MECHANISM EXCLUSIVE PARTS(1)

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS (2)

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(3)

Page 45 — VC2713M EXCLUSIVE PARTS

Page 47 — EXTRA PARTS(1)

Page 49 — EXTRA PARTS(2)

Page 51 — THREAD STAND & ACCESSORIES (1)

Page 53 — ACCESSORIES (2)

Page 54 — WARNING LABEL 警告ラベル

Page 56 — VC2700M Class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 57

Page 58 — INDEX

Page 59 — INDEX

Page 60 — INDEX

Page 61 — INDEX

Page 62 — INDEX

Page 63 — INDEX

Page 64 — INDEX

Page 65 — INDEX

Page 66 — INDEX

Yamato VC2700 — parts catalog
