Yamato VC2700 parts on page 3

Ref	Part number	Part name	Qty
	(1)	MISCELLANEOUS COVERS
	(2)	MISCELLANEOUS COVERS
	(1)	LUBRICATING MECHANISM
	(2)	LUBRICATING MECHANISM
	(1)	PULLER MECHANISM EXCLUSIVE PARTS
	(2)	PULLER MECHANISM EXCLUSIVE PARTS
	(3)	PULLER MECHANISM EXCLUSIVE PARTS
	(1)	EXTRA PARTS
	(2)	EXTRA PARTS
	(1)	THREAD STAND & ACCESSORIES
	(2)	ACCESSORIES

Page 4

Yamato VC2700 parts on page 4

Ref	Part number	Part name	Qty
2	2	Screw
4	4	Oil level gauge
5	5	Oil filler cap
9	9	Cover
10	10	Packing
11	11	Screw
13	13	Cover
14	14	Packing
15	15	Screw
16	16	Pin
17	17	Packing
18	18	Cover
19	19	Packing
20	20	Screw
21	21	Cover
22	22	Screw
23	23	Screw
24	24	Screw
25	25	Screw
26	26	Screw
27	27	Screw
29	29	Base
33	33	Screw
34	34	Washer
35	35	Bracket
36	36	Screw
37	37	Pin
38	38	Name plate
39	39	Screw
40	40	Screw

Page 5 — MISCELLANEOUS COVERS (1)

Yamato VC2700 parts on page 5

Ref	Part number	Part name	Qty
1	3210002	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	11
3	3500430	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	1
9	3204040	Head Cover	1
10	3500431	Head Cover Gasket	1
11	0093864	Head Cover Seal Plug	1
13	3180023	Side Cover Hinge	1
14	3180024	Side Cover Hinge Gasket	2
15	110048	Screw(M4.0-0.7 × 10)	2
16	3100042	Side Cover Hinge Pin	1
17	160000	Screw(M3-0.5 × 3)	1
18	3180025	Side Cover	1
19	3180026	Side Cover Gasket	1
20	000924	Seal Plug(Rubber)	1
21	3100045	Cloth Plate	1
22	110041	Screw(M4-0.7 × 8)	2
23	0094201	Cover Latch Spring	1
24	110012	Screw(M4-0.7 × 5)	1
25	3100046	Side Cover Hook	1
26	300101	Conical Spring Washer	1
27	170002	Screw(M4-0.7 × 5)	1
28	3100004	Oil Reservoir	1
29	3100005	Oil Reservoir Gasket	1
33	0020137	Drain Hole Seal	1
34	005075	Screw(3/8-24 × 8)	1
35	3180004	Machine Frame Unit	1
36	120016	Screw(M8-1.25 × 20)	4
37	340000	Machine Frame Supporting Bar	4
38	4109403	Model Plate(See the below)	1
39	000726	Rivet	5
40	2049401	Serial Number Plate	1

Page 6

Yamato VC2700 parts on page 6

Ref	Part number	Part name	Qty
1	1	COVER PLATE
2	2	SCREW
3-1	3-1	BRACKET
3-2	3-2	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	WASHER
8	8	BUSHING
9	9	COVER
10	10	COVER
11	11	COVER
12	12	COVER
13-1	13-1	BRACKET
13-2	13-2	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	BRACKET
17	17	PLUG
18	18	SPRING
19	19	SPRING
20	20	BRACKET
21	21	SCREW
22	22	SCREW
23	23	WASHER
24	24	NUT
25	25	BRACKET
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	WASHER
30	30	SCREW
31	31	PIN
32	32	BRACKET
33	33	BRACKET
34	34	WASHER
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	SCREW
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	SCREW
44	44	SCREW
45	45	BUSHING
46	46	BUSHING
47	47	SCREW
48	48	SCREW

Page 7 — MISCELLANEOUS COVERS(2)

Yamato VC2700 parts on page 7

Ref	Part number	Part name	Qty
	3180027	Cloth Plate(Large)	1
	120009	Screw(M4-0.7 × 12)	5
	3180037	Slide Cover(48, 56)	1
	3100023	Slide Cover(48, 56)	1
	3180038	Slide Cover(64)	1
	3100400	Slide Cover(64)	1
	3100020	Crank Chamber Cover	1
	3180035	Crank Chamber Cover Gasket	1
	130003	Screw(M1-0.7 × 7.3)	7
	0093864	Seal Plug	4
	0065275	Seal Plug	1
	3500432	Rear Cover Gasket	1
	3100016	Rear Cover	1
	110013	Screw(M4-0.7 × 8)	6
	3100113	Needle Bar Guard	1
	3180029	Supplementary Slide Cover(48, 56)	1
	3180030	Supplementary Slide Cover(64)	1
	330011	Seal Plug	1
	3100058	Stitch Plate Support	1
	110041	Screw(M4-0.7 × 8)	2
	3100050	Feed Regulating Pushbutton	1
	3100050	Feed Regulating Pushbutton Spring	1
	0033024	Retaining Ring	1
	3100053	Oil Defender	1
	110012	Screw(M4-0.7 × 5)	3
	190005	Screw(M4-0.7 × 5)	2
	000665	Washer	2
	000015	Nut	1
	3040040	Front Cover Hinge	1
	3180031	Front Cover Hinge	1
	110016	Screw(M4-0.7 × 14)	2
	3180032	Front Cover(Lower)	1
	170001	Screw(M4-0.7 × 8)	1
	300100	Conical Spring Washer	2
	160001	Screw(M4-0.7 × 4)	1
	180005	Screw(M5-0.8 × 8)	1
	3100630	Fabric Edge Guide(Left)	1
	3100631	Fabric Edge Guide(Right)	1
	000538	Washer	2
	0095367	Fabric Edge Guide Chip	1
	004182	Screw(3/32-56 × 2.5)	1
	3180033	Front Cover(Upper)	1
	130002	Screw(M3-0.5 × 6)	3
	110031	Screw(M4-0.7 × 12)	2
	0094201	Cover Latch Spring	1
	3100034	Supplementary Tension Disc Cover	1
	110101	Screw(M3-0.5 × 3)	2
	110009	Screw(M4-0.7 × 8)	2
	110079	Screw(M4-0.7 × 8)	2
	3100006	Seal Plug	1
	0020759	Seal Plug	1
	160015	Screw(M6-1 × 6)	1
	110031	Screw(M4-0.7 × 12)[M4-0.7 × 12]	1
	110045	Screw(M4-0.7 × 12)[M4-0.7 × 12]	1

Page 8

Yamato VC2700 parts on page 8

Ref	Part number	Part name	Qty
	1	Knob
	2	Washer
	3	Spring
	4	Spring
	5	Cylinder
	6	Washer
	7	Washer
	8	Screw
	9	Screw
	10	Bracket
	11	Bracket
	12	Bracket
	13	Plate
	14	Screw
	15	Lever
	16	Screw
	17	Bracket
	18	Screw
	19	Plate
	20	Plate
	21	Screw
	22	Bracket
	23	Screw
	24	Bracket
	25	Screw
	26	Screw
	27	Shaft
	28	Bracket
	31	Bracket
	32	Lever
	33	Screw
	34	Pin
	35	Housing
	36	Housing
	37	Block
	38	Bracket
	39	Screw
	40	Lever
	41	Bracket
	42	Screw
	43	Bracket
	44	Screw
	45	Washer
	46	Washer
	47	Screw
	48	Screw
	49	Lever
	50	Shaft
	51	Washer
	52	Spring
	53	Washer
	54	Screw
	55	Bracket
	56	Bracket
	57	Roller
	58	Screw

Page 9 — MISCELLANEOUS THREAD EYELETS

Yamato VC2700 parts on page 9

Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0030255	Tension Spring(Needle)
	0032952	Tension Spring (Looper, Top Cover)
	0090071	Thread Tension Spring Retainer
	000177	Felt
	0031111	Tension Disc
	290029	Tension Post
	0090812	Tension Post Ferrule
	3500287	Tension Disc Separator
	0090856	Tension Disc Eyelet
	0090807	Thread Lead-in Guide
	3500286	Tension Post Support
	110013	Screw(M4-0.7 × 8)
	3200048	Top Cover Thread Eyelet(Left)
	110009	Screw(M4-0.7 × 8)
	0093556	Looper Thread Eyelet(Long)
	3100088	Supplementary Tension Spring
	3100085	Supplementary Tension Disc(Lower)
	3100084	Supplementary Tension Disc(Upper)
	170004	Screw(M3-0.5 × 9.6)
	3100076	Tension Disc Guide
	110101	Screw(M3-0.5 × 3)
	3100083	Looper Thread Guard
	3100082	Looper Thread Eyelet(Center)
	110100	Screw(M3-0.5 × 6)
	0020119	Thread Eyelet Pipe
	3500285	Thread Eyelet Pipe Holder
	3500284	Thread Guide Plate
	3200047	Top Cover Thread Eyelet(Right)
	000538	Washer
	000651	Guide Pin
	3100383	SP Device, Complete Set
	3100384	SP Container
	3100386	Felt
	3100387	Needle Thread Eyelet
	350009	Wood Screw(φ 5.5 × 6)
	0090068	Needle Thread Guide

Page 10

Yamato VC2700 parts on page 10

Ref	Part number	Part name	Qty
39	39	Screw
38	38	Bracket
37	37	Insulator
36	36	Cover
33	33	Washer
16	16	Spring
32	32	Lever
31	31	Bracket
27	27	Shaft
28	28	Bracket
14	14	Screw
26	26	Screw
25	25	Bracket
24	24	Cover
23	23	Screw
22	22	Lever
21	21	Screw
20	20	Washer
19	19	Washer
18	18	Screw
17	17	Lever
40	40	Lever
42	42	Screw
41	41	Bracket
43	43	Bracket
44	44	Screw
45	45	Screw
46	46	Screw
47	47	Screw
54	54	Screw
15	15	Lever
56	56	Bracket
48	48	Lever
49	49	Lever
50	50	Shaft
51	51	Washer
52	52	Spring
53	53	Nut
57	57	Roller
12	12	Bracket
11	11	Bracket
13	13	Plate
10	10	Lever
9	9	Screw
8	8	Shaft
7	7	Washer
6	6	Disc
5	5	Spring
4	4	Spring
3	3	Spring
2	2	Knob
1	1	Knob

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VC2700 parts on page 11

Ref	Part number	Part name	Qty
41	3100442	Needle Thread Take-up Guard
42	130003	Screw(M4-0.7 × 4.5)
43	3100087	Needle Thread Retainer Support
44	0036175	Thread Retainer Disc Support
45	0032425	Needle Thread Retainer Dice
46	0032426	Needle Thread Retainer Spring
47	001093	Screw(1/8-44 × 2.2)
48	3100081	Top Cover Thread Guide
49	0063074	Supplementary Thread Guide
50	001818	Tension Post
51	0037108	Supplementary Tension Disc
52	0035813	Supplementary Tension Spring
53	000360	Nut
54	110054	Screw(M3-0.5 × 3.5)
55	3103000	Needle Thread Retainer Support, C. Set
56	3103001	Top Cover Thread Guide, C. Set
57	000505	Spacer
58	110014	Screw(M4-0.7 × 18)[M4-0.7 × 8]

Page 12

Yamato VC2700 parts on page 12

Ref	Part number	Part name	Qty
1	1	BEARING
3	3	SHAFT
4	4	WASHER
5	5	SHAFT
6	6	BEARING
7	7	BRACKET
8	8	BRACKET
9	9	SHAFT
10	10	SHAFT
11	11	BRACKET
12	12	SHAFT
13	13	SHAFT
14	14	BEARING
15	15	SHAFT
16	16	BEARING
17	17	SHAFT
18	18	BEARING
19	19	SHAFT
20	20	BEARING
21	21	SHAFT
22	22	BRACKET
23	23	BRACKET
24	24	SCREW
25	25	PLATE
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	WASHER
30	30	WASHER
31	31	WASHER
32	32	SPRING

Page 13 — MISCELLANEOUS BUSHINGS

Yamato VC2700 parts on page 13

Ref	Part number	Part name	Qty
	3500309	Oil Seal
	3100099	Presser Bar Bushing
	3204021	Oil Seal
	3100100	Spreader Driving Bar Bushing
	0063055	Oil Seal
	3200063	Spreader Driving Shaft Bushing(Left)
	3200064	Spreader Driving Shaft Bushing(Right)
	3160136	Foot Lifter Lever Bushing
	3200068	Needle Thread Take-up Bushing(Front)
	3100098	Needle Thread Take-up Bushing(Rear)
	3100090	Lower Shaft Bushing(Left)
	3100091	Lower Shaft Bushing(Right)
	3100094	Differential Feed Bar Shaft Bushing(Left)
	3100095	Differential Feed Bar Shaft Bushing(Right)
	3100096	Feed Bar Lift Shaft Bushing(Left)
	3100097	Feed Bar Lift Shaft Bushing(Right)
	3100006	Seal Plug
	3100092	Looper Driving Shaft Bushing(Front)
	3100093	Looper Driving Shaft Bushing(Rear)
	3150020	Adjusting Screw Bushing
	3101199	Eye Guard, Complete Set
	3101200	Eye Guard Support
	009784	Screw(M6-1 × 10)
	0060176	Eye Guard
	004236	Screw(3/32-56 × 4.2)
	0060175	Eye Guard Holder
	006004	Screw(11/64-40 × 9.7)
	000010	Conical Spring Washer
	000547	Washer
	000334	Nut
	000195	Oil Wick

Page 14

Yamato VC2700 parts on page 14

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	SCREW
3	3	SCREW
4	4	PULLEY
5	5	PULLEY
6	6	PULLEY
7	7	SHAFT
8	8	PULLEY
9	9	BRACKET
10	10	SCREW
11	11	PULLEY
12	12	SHAFT
13	13	SCREW
14	14	PIN
15	15	NEEDLE BAR
16	16	SHAFT
17	17	BEARING
18	18	NEEDLE BAR
19	19	NEEDLE BAR
20	20	COLLAR
21	21	SCREW
22	22	PULLEY
23	23	SCREW
24	24	BASE
25	25	SCREW
26	26	BELT
27	27	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	BLOCK
31	31	SCREW
32	32	SCREW
33	33	SPRING
34	34	BRACKET
35	35	SCREW
36	36	SCREW
37	37	PIN
38	38	COLLAR
39	39	COLLAR
40	40	COLLAR
41	41	BRACKET
42	42	SCREW
43	43	LEVER
44	44	SPRING
45	45	PIN
46	46	SCREW
47	47	BRACKET
48	48	CAM SHAFT

Page 15 — MAIN SHAFT DRIVING MECHANISM

Yamato VC2700 parts on page 15

Ref	Part number	Part name	Qty
	3100130	Pulley	1
	160005	Screw(M6-1 × 8)	4
	160007	Screw(M6-1 × 6)	6
	0093089	Ball Bearing(Right)	1
	3100128	Main Shaft Sprocket(Lower)	1
	3100131	Ball Bearing(Middle)	1
	3100132	Lower Shaft(Right)	1
	3100122	Oil Pump Driving Worm	1
	3100127	Counterweight(Small)	1
	110009	Screw(M4-0.7 × 8)	2
	3100123	Ball Bearing(Left)	1
	3100121	Lower Crankshaft	1
	160004	Screw(M6-1 × 4.8)	2
	001107	Roll Pin	1
	310132	Oil Wick(No.4-190mm)
	3180060	Lower Shaft(Left)	1
	000397	Oil Wick	4
	310093	Oil Wick(No.3-40mm)	1
	000304	Oil Wick	1
	3100126	Collar(14 × 21 × 5.5mm)	1
	160000	Screw(M3-0.5 × 3)	2
	3100125	Looper Thread Take-up	1
	150000	Screw(M4-0.5 × 4)	2
	3100263	Supporting Plate	1
	110002	Screw(M3-0.5 × 5)	3
	000463	Laced Wire	1
	3100264	Thread Take-up Eyelet(Left)	1
	3100265	Thread Take-up Eyelet(Right)	1
	110027	Screw(M2.5-0.45 × 3.5)	2
	3100262	Supporting Plate Basement	1
	160001	Screw(M4-0.7 × 4)	2
	160008	Stop Screw(M6-1 × 35)	1
	000234	Lock Nut	1
	3100267	Supporting Plate Return Spring	1
	110026	Screw(M3-0.6 × 6)	1
	340004	Pin	1
	3100260	Basement Shaft	1
	3100261	Collar(6 × 11 × 5mm)	1
	3100266	Cast-off Plate	1
	000531	Washer	1
	3100268	Stop Bracket	1
	110013	Screw(M4-0.7 × 8)	2
	3100270	Supporting Plate Stop	1
	3100269	Stop Spring	1
	170003	Screw(M3-0.5 × 3)	1
	3100272	Basement Cushion	1
	3100271	Supporting Plate Stop, C. Set	1
	3180059	Lower Shaft, C. Set	1

Page 16

Yamato VC2700 parts on page 16

Ref	Part number	Part name	Qty
1	1	GEAR
2	2	BEARING
3	3	SCREW
4	4	WASHER
5	5	PULLEY
6	6	BELT
7	7	BELT
8	8	GEAR
9	9	SHAFT
10	10	COLLAR
11	11	BRACKET
12	12	SCREW
13	13	SHAFT
14	14	PIN
15	15	SPRING
16	16	BRACKET
17	17	PIN
18	18	RING
19	19	PULLEY
20	20	WASHER
21	21	SCREW
23	23	BRACKET
24	24	SCREW
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	ARM
29	29	SCREW
30	30	SCREW
31	31	WASHER
32	32	WASHER
33	33	SHAFT
34	34	BRACKET
35	35	WASHER
36	36	SCREW
37	37	BRACKET
38	38	SCREW
39	39	SCREW

Page 17 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VC2700 parts on page 17

Ref	Part number	Part name	Qty
	6100709	Handwheel
	160005	Screw(M6-1 × 8)
	160007	Screw(M6-1 × 6)
	000989	Handwheel Mark
	3100131	Ball Bearing
	3100129	Handwheel Adapter
	0095214	Timing Belt
	3100281	Upper Shaft Sprocket(Upper)
	3100275	Upper Shaft(Right)
	3100283	Upper Shaft Joint
	3100127	Counterweight(Small)
	110009	Screw(M4-0.7 × 8)
	3200100	Upper Crankshaft
	310040	Oil Wick
	110012	Screw(M4-0.7 × 4)
	3200226	Oil Sleeve
	000290	Oil Wick
	0060057	Retaining Ring
	0093154	Ball Bearing
	000926	Rubber Seat
	160004	Screw(M6-1 × 4.8)
	0095170	Connecting Rod
	005071	Screw(11/64-32 × 14)
	001174	Screw(9/64-40 × 10.3)
	001168	Guide Fork
	004312	Screw(1/8-44 × 7.9)
	3100285	Driving Lever
	120013	Screw(M6-1 × 15)
	120015	Screw(M5-0.8 × 10)
	000555	Washer
	3100286	Spacer
	3100287	Driving Shaft
	3100287	Bracket
	3100078	Spring Washer
	000600	Screw(M5-0.8 × 14)
	005650	Needle Thread Take-up
	0063096	Top Cover Thread Take-up
	3200049	Screw(M3.5-0.6 × 8)

Page 18

Yamato VC2700 parts on page 18

Ref	Part number	Part name	Qty
1	1	Presser Bar
2	2	Screw
3	3	Presser Bar Connecting Link
5	5	Feed Rock Shaft
6	6	Screw
7-1	7-1	Feed Dog
7-2	7-2	Feed Dog
7-3	7-3	Feed Dog
8	8	Needle Clamp
9	9	Screw
10	10	Feed Dog Adjusting Screw
11-1	11-1	Needle Plate
11-2	11-2	Needle Plate
11-3	11-3	Needle Plate
12	12	Screw
13	13	Cover
14	14	Bobbin Case Holder
15	15	Spring
16	16	Washer
17	17	Needle Bar
18	18	Connecting Rod
19	19	Needle Bar Bushing
20	20	Screw
21	21	Needle Bar Connecting Screw
22	22	Needle Bar Bushing
23	23	Presser Bar Guide
24	24	Screw
25	25	Feed Lifting Link
26	26	Feed Lifting Link
27	27	Screw
28	28	Screw
29	29	Feed Rock Shaft
30	30	Feed Rock Shaft
31	31	Feed Lifting Link
32	32	Felt
33	33	Screw
34	34	Screw
35	35	Spring
36	36	Feed Lifting Link
37	37	Screw
38	38	Cover
39	39	Screw
40	40	Cover
41	41	Screw
42	42	Shaft

Page 19 — NEEDLE BAR MECHANISM

Yamato VC2700 parts on page 19

Ref	Part number	Part name	Qty
	3270015 [3180050]	Needle Bar & Needle Bar Bushing, C. Set	1
	004358	Screw(9/64-40 × 5.6)	1
	0063044	Needle Bar Thread Eyelet	1
	000548	Washer	1
	3200111 [0093184]	Needle Bar Bracket	1
	110035 [002043]	Screw(M4-0.7 × 10)[11/64-40 × 11]	1
	0093356	Needle Clamp(48)	1
	0093357	Needle Clamp(56)	1
	0093358	Needle Clamp(64)	1
	8	Needle(UY128 GAS)	3
	001900	Screw(1/8-44 × 2.4)	4
	0093365	Top Cover Thread Eyelet	1
	3108133	Stitch Plate(48M)	1
	3108134	Stitch Plate(56M)	1
	3108135	Stitch Plate(64M)	1
	009142	Screw(9/64-40 × 4.9)	2
	3200115	Counterweight, Complete Set	1
	3200101	Counterweight	1
	120015	Screw(M5-0.8 × 10)	1
	0093214	Connecting Rod Ring	1
	3200114	Connecting Rod, Complete, Set	1
	3200112	Connecting Rod	1
	0093212	Roller Bearing	1
	330000	Seal Plug	1
	000309 [000321]	Oil Wick	1
	3200113	Connecting Rod Pin	1
	3200118	Needle Bar Guide, C. Set	1
	009749	Screw(M4-0.7 × 16)	2
	3100256	HR Device, Complete Set	1
	3100254	HR Container	1
	110013	Screw(M4-0.7 × 8)	2
	1090190	Pipe Joint	1
	3100253	Oil Tube	1
	310007	Felt	1
	3100250	HR Cup	1
	310006	HR Felt	1
	000637	Seal Plug	1
	110013	Screw(M4-0.7 × 8)	1
	260000	Screw(5/16-24 × 15.88)	2
	3100338	Sponge	1
	160023	Screw(M4-0.7 × 4)	1
	3200089	Connecting Rod Cover(Rear)	1
	110002	Screw(M3-0.5 × 5)	2
	3200088	Connecting Rod Cover(Front)	1
	110012	Screw(M4-0.7 × 5)	1
	3200090	Connecting Rod Cover Shaft	1

Page 20

Yamato VC2700 parts on page 20

Ref	Part number	Part name	Qty
	1	Shaft
	2	Ring
	3	Spring
	4	Lever
	5	Screw
	6	Bracket
	7	Screw
	8	Shaft
	9	Shaft
	10	Bracket
	11	Screw
	12	Washer
	13	Collar
	14	Screw
	15	Lever
	16	Screw
	17-1	Spring
	17-2	Spring
	17-3	Spring
	18	Screw
	19	Lever
	20	Shaft
	21	Screw
	22	Pin
	23	Screw
	24	Nut
	25	Spring
	26	Lever
	27	Screw
	28	Lever
	29	Pin
	30	Spring
	31	Collar
	32	Screw
	33	Shaft
	34	Bracket
	35	Screw
	36	Washer
	37	Lever
	38	Pin
	39	Bracket
	40	Screw
	41	Spring
	42	Pin
	43	Lever
	44	Bracket
	45	Screw
	46	Lever
	47	Screw
	48	Screw
	49	Lever
	50	Screw
	51	Shaft
	52	Lever
	53	Pin
	54	Collar
	55	Washer
	56	Screw
	57	Pin

Page 21 — PRESSER FOOT MECHANISM

Yamato VC2700 parts on page 21

Ref	Part number	Part name	Qty
1	0077270	Presser Spring Regulator	1
2	000445	Lock Nut	1
3	0065372	Presser Bar Spring(Outer)	1
4	0063087	Presser Bar Connecting Bracket	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093483	Presser Bar Guide	1
7	004441	Screw(11/64-40 × 16)	2
8	0060142	Presser Bar Spring(Inner)	1
9	3100110	Presser Bar	1
10	3100112	Finger Guard	1
11	110002	Screw(M3-0.5 × 5)	1
12	0093611	Oil Protector Ring	1
13	3100310	Collar(9 × 17 × 7mm)	1
14	160001	Screw(M4-0.7 × 4)	1
15	000271	Thread Chain Cutting Knife	1
16	110054	Screw(M3-0.52 × 3.5)	1
17-1	3507050	Presser Foot, Complete Set(48)	1
17-2	3507052	Presser Foot, Complete Set(56)	1
17-3	3507054	Presser Foot, Complete Set(64)	1
18	110004	Screw(M3.5-0.6 × 8)	1
19	3107303	Presser Foot Spring(Left)	1
20	3107304	Presser Foot Spring(Right)	1
21	130016	Screw(M2.5-0.45 × 6)	4
22	3107306	Presser Foot Hinge Pin	1
23	110084	Screw(M3.5-0.5 × 4.2)	1
24	000327	Lock Nut	1
25	260006	Adjusting Screw(1/8-44 × 9.5)	1
26	0093487	Lifter Link	1
27	006038	Screw(3/16-32 × 2.2)	2
28	0063083	Lifter Link Lever	1
29	000690	Fastener Pin	1
30	0063084	Lifter Spring	1
31	0093491	Collar(8 × 16 × 8mm)	2
32	009604	Screw(11/64-40 × 5.5)	4
33	0093479	Lifter Shaft	1
34	3100294	Intermediate Lever	1
35	120017	Screw(M5-0.8 × 15)	1
36	0077179	Retaining Ring	2
37	0093507	Connecting Plate	1
38	0093509	Connecting Pin	2
39	0093508	Lifter Lever(Small)	1
40	004591	Screw(15/64-28 × 9.5)[15/64-28 × 9.5]	1

Page 22

Yamato VC2700 parts on page 22

Ref	Part number	Part name	Qty
	1	Shaft
	2	Nut
	3	Spring
	4	Lever
	5	Screw
	6	Bracket
	7	Screw
	8	Spring
	9	Shaft
	10	Bracket
	11	Screw
	12	Washer
	13	Collar
	14	Screw
	15	Lever
	16	Screw
	17-1	Spring
	17-2	Spring
	17-3	Spring
	18	Screw
	19	Wire
	20	Base
	21	Screw
	22	Screw
	23	Screw
	24	Nut
	25	Spring
	26	Lever
	27	Screw
	28	Lever
	29	Pin
	30	Spring
	31	Collar
	32	Screw
	33	Shaft
	34	Bracket
	35	Screw
	36	Washer
	37	Lever
	38	Screw
	39	Bracket
	40	Screw
	41	Spring
	42	Pin
	43	Lever
	44	Bracket
	45	Screw
	46	Lever
	47	Screw
	48	Screw
	49	Lever
	50	Screw
	51	Shaft
	52	Lever
	53	Pin
	54	Collar
	55	Washer
	56	Screw
	57	Screw

Page 23 — PRESSER FOOT MECHANISM

Yamato VC2700 parts on page 23

Ref	Part number	Part name	Qty
41	3160168	Lifter Spring
42	3500305	Cap
43	3120416	Presser Foot Lifter Lever
44	3101216	Lifter Lever Stop
45	004358	Screw(9/64-40 × 5.6)
46	3500299	Tension Release Lever Connector
47	170009	Screw(M4-0.7 × 4)
48	170038	Screw(M4-0.7 × 5)
49	3100533	Tension Release Lever
50	120001	Screw(M4-0.7 × 14)
51	0094387	Tension Release Shaft
52	0063515	Thread Pull-off Lever
53	000690	Spring Pin(4 × 16mm)
54	0094390	Tension Release Adjusting Eccentric
55	0095334	Swing-proof Spring
56	001170	Screw(9/64-40 × 12)
57	340014	Roll Pin(3 × 12mm)

Page 24

Yamato VC2700 parts on page 24

Ref	Part number	Part name	Qty
	1	BOBBIN CASE ASSEMBLY
	2	BOBBIN CASE
	3	BOBBIN CASE SPRING
	4	BOBBIN
	5	BOBBIN CASE HOLDER
	6	BOBBIN CASE HOLDER SPRING
	7	SCREW
	8	WASHER
	9	NEEDLE BAR CONNECTING LINK
	10	SCREW
	11	SCREW
	12	COLLAR
	13	SCREW
	14	NEEDLE BAR CONNECTING LINK
	15	SCREW
	16	NEEDLE BAR
	17	PRESSER BAR CONNECTING LINK
	18	SCREW
	19	PRESSER BAR CONNECTING LINK
	20	PRESSER BAR
	21	WASHER
	22	COLLAR
	23	SCREW
	24	PRESSER BAR CONNECTING LINK
	25	NEEDLE BAR
	26	SCREW

Page 25 — SPREADER MECHANISM

Yamato VC2700 parts on page 25

Ref	Part number	Part name	Qty
1	3100302	Connecting Rod, Complete Set	1
2	3100300	Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	0077322	Roller Bearing	1
5	3100301	Connecting Rod	1
6	0094566	Retaining Ring	1
7	110009	Screw(M4-0.7 × 8)	1
8	300006	Washer	1
9	3100309	Adjusting Lever Pin	1
10	000528	Washer	1
11	100003	Nut(M6-1.0)	1
12	0032646	Collar(12 × 20 × 8mm)	1
13	009604	Screw(11/64-40 × 5.5)	2
14	3100303	Adjusting Lever	1
15	120013	Screw(M6-1 × 15)	1
16	3100304	Driving Shaft	1
17	3100305	Rocking Arm	1
18	160007	Screw(M6-1 × 6)	2
19	0063051	Rocking Pin	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	0063057	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2

Page 26

Yamato VC2700 parts on page 26

Ref	Part number	Part name	Qty
1-1	1-1	1-2
1-2	1-2	1-1
2	2	NEEDLE BAR BUSHING
3	3	NEEDLE BAR BUSHING
4	4	SCREW
5	5	WASHER
6	6	NEEDLE BAR
7	7	SCREW
8	8	SPRING
9	9	SCREW
10	10	PIN
11	11	RING
12	12	PRESSER BAR GUIDE
13	13	BRACKET
14	14	PRESSER BAR
15	15	SPRING
17	17	SCREW
18	18	WASHER
19	19	SPRING
20	20	PIN
21	21	PRESSER BAR
22	22	CAP
23	23	NEEDLE BAR
24	24	SCREW
25	25	WASHER
26	26	BRACKET
27	27	PIN
28	28	NUT
29	29	BRACKET
30	30	GEAR
31	31	SPRING
32	32	GEAR
33	33	BRACKET
34	34	BRACKET
35	35	SCREW
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	ARM
40	40	PIN
41	41	PIN
42	42	SCREW
43	43	WASHER
44	44	WASHER
45	45	SHAFT
46	46	PIN
47	47	SCREW
48	48	NUT

Page 27 — LOOPPER DRIVING MECHANISM

Yamato VC2700 parts on page 27

Ref	Part number	Part name	Qty
1-1	3109300	Looper(32, 40, 56, 64)
1-2	3109302	Looper(48)
2	160040	Screw(M4-0.7 × 5)
3	3180100	Looper Holder
4	110039	Screw(M3.5-0.6 × 10)
5	300500	Spacer(Fiber)
6	3100154	Looper Bar Bushing
7	160024	Screw(M6-1 × 8)
8	3100410	Looper Thread Eyelet
9	110101	Screw(M3-0.5 × 3)
10	340008	Roll Pin
11	110106	Bushing Spacer
12	3100152	Looper Bar Guide
13	3100157	Slider
14	3100158	Slider Holder
15	110005	Screw(M3.5-0.6 × 12)
17	3100159	Slider Presser
18	160001	Screw(M4-0.7 × 4)
19	3100160	Thrust Washer
20	330002	Seal Plug(Kurk)
21	3100161	Looper Bar
22	3100153	Guide Shaft Bushing
23	3100155	Looper Bar Guide Shaft
24	110019	Screw(M5-0.8 × 35)
25	300000	Washer
26	3100151	Looper Rocker Adjusting Pin
27	340001	Roll Pin
28	100002	Nut
29	3100150	Looper Rocker Connecting Rod, C. Set
30	3100147	Looper Rocker Regulating Eccentric
31	160005	Screw(M5-0.8 × 5)
32	0065389	Roller Bearing
33	3100149	Looper Rocker Connecting Rod
34	3100140	Looper Connecting Rod
35	005071	Screw(11/64-32 × 14)
36	3100355	Oil Sphasher
37	3100141	Guide Fork
38	004440	Screw(11/64-40 × 8.3)
39	3100142	Looper Driving Lever
40	000637	Seal Plug
41	3100143	Looper Rocker Arm
42	120011	Screw(M6-1 × 18)
43	3100146	Thrust Washer
44	3100145	Thrust Roller Bearing
45	3100144	Looper Shaft
46	000740	Seal Plug
47	160029	Screw(M8-1.25 × 8)
48	001123	Washer

Page 28

Yamato VC2700 parts on page 28

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	BRACKET
	4	SCREW
	5	BRACKET
	6	CIR CLIP
	7	BEARING
	8	HOLDER
	9	SCREW
	10	BRACKET
	11	COLLAR
	12	BRACKET
	13	BRACKET
	14	COLLAR
	15	WASHER
	16	SCREW
	17	BRACKET
	18	SCREW
	19	BASE PLATE
	20	BRACKET
	21	SPRING
	22	PIN
	23	HOLDER
	24	CIR CLIP
	25	BEARING
	26	COLLAR
	27	SCREW
	28	BRACKET
	29	COLLAR
	30	PIN
	31	O-RING
	32	SHAFT
	33	PIN
	34	SCREW
	35	KNOB
	36	SCREW
	37	BRACKET
	38	BRACKET
	39	BRACKET
	40	SCREW
	41	BRACKET
	42	BRACKET
	43	WASHER
	44	WASHER
	45	SCREW
	46	SCREW
	47	GEAR
	48	WASHER
	49	SHAFT
	50	SPRING

Page 29 — FEED DRIVING CONTROL MECHANISM

Yamato VC2700 parts on page 29

Ref	Part number	Part name	Qty
	3100217	Feed Lift Lever
	160007	Screw(M6-1 × 6)
	0032799	Connecting Rod Pin
	160002	Screw(M4-0.7 × 2)
	3100216	Feed Lift Connecting Rod
	3100192	Retaining Ring
	3100190	Roller Bearing
	3100189	Differential Feed Eccentric
	006212	Screw(M5-0.8 × 6)
	3100191	Differential Feed Connecting Rod
	3100193	Connecting Rod Pin
	3100194	Lever Link(Long)
	3100195	Lever Link(Short)
	3100196	Lever Link Pin
	300006	Washer
	110009	Screw(M4-0.7 × 8)
	3100197	Differential Feed Shaft Lever
	120009	Screw(M4-0.7 × 12)
	3100199	Control Bracket
	3100202	Connecting Rod Guide
	3100200	Control Bracket Spring
	340003	Pin
	3100103	Control Lever Shaft Bushing
	3100104	O-ring(P16)
	0093303	Oil Seal
	3100201	Control Lever Shaft
	3100211	Control Link Pin
	3100203	Control Link
	3100208	Control Nut
	001107	Roll Pin
	3100205	O-ring(P12)
	3100204	Adjusting Screw
	3100207	Adjusting Stop Pin
	160001	Screw(M4-0.7 × 4)
	3100206	Adjusting Knob
	130011	Screw(M3-0.5 × 4)
	3100235	Differential Feed Control Lever, C. Set
	3100210	Differential Feed Control Lever
	3100209	Differential Feed Graduations
	130004	Screw(M4-0.7 × 11)
	000505	Spacer
	0020350	Control Lever Stop
	000669	Washer
	000600	Spring Washer
	005049	Screw(M5-0.8 × 8)
	190004	Screw(M6-1 × 7.5, M4.5-0.5 × 3)
	100005	Nut
	000561	Conical Spring Washer
	3100220	Feed Lift Connecting Rod, C. Set
	110013	Screw(M4-0.7 × 8)

Page 30

Yamato VC2700 parts on page 30

Ref	Part number	Part name	Qty
34-1	34-1	34-2
35-1	35-1	35-2

Page 31 — NEEDLE GUARD & FEED MECHANISM

Yamato VC2700 parts on page 31

Ref	Part number	Part name	Qty
	3100243	Needle Guard(Front) Eccentric
	160003	Screw(M5-0.8 × 5)
	3100242	Needle Guard(Front) Lever
	110022	Screw(M3-0.5 × 10)
	3100241	Needle Guard(Front) Holder
	3139200	Needle Guard(Front)
	110036	Screw(M3-0.5 × 6.5)
	3100246	Needle Guard(Rear) Lever
	3100245	Needle Guard(Rear) Holder
	3509202	Needle Guard(Rear)
	3100187	Feed Regulating Stop
	110004	Screw(M3.5-0.6 × 8)
	340001	Roll Pin
	3100186	Conical Spring Presser
	130005	Screw(M2-0.4 × 4)
	3100185	Conical Spring
	3100183	Eccentric Cam
	340025	Stop Pin
	3100184	Eccentric Pin
	3100182	Main Feed Eccentric, Complete Set
	110072	Screw(M3.5-0.6 × 6)
	110023	Screw(M2-0.4 × 3.5)
	009756	Screw(M4-0.7 × 6)
	3180091	Main Feed Bar Driving Connection
	110021	Screw(M5-0.8 × 18)
	0032853	Driving Connection Bushing
	3100225	Feed Bar Guide(Upper/Left)
	160007	Screw(M6-1 × 6)
	3180090	Feed Mechanism, C. Set
	3100221	Differential Feed Bar
	3100222	MainFeed Bar
	3100231	Feed Dog Key
	3100224	Feed Lift Block(Rear)
	3106000	Main Feed Dog(48, 56)(P=1.6mm)
	3106001	Main Feed Dog(64)(P=1.6mm)
	3109000	Differential Feed Dog(48, 56)(P=1.6mm)
	3109002	Differential Feed Dog(64)(P=1.6mm)
	3100226	Feed Bar Guide(Lower)
	110035	Screw(M4-0.7 × 10)
	3100213	Differential Feed Bar Driving Connection
	3100215	Oscillation Adjusting Eccentric
	000199	Oil Wick

Page 32

Yamato VC2700 parts on page 32

Ref	Part number	Part name	Qty
1	1	SHAFT
2	2	SCREW
3	3	LEVER
4	4	SCREW
5	5	SHAFT
6	6	LEVER
7	7	SCREW
8	8	BRACKET
9	9	SHAFT
10	10	BRACKET
11	11	PLATE
12	12	SCREW
13	13	PIN
14	14	WASHER
15	15	SCREW
16	16	PLATE
17	17	SHAFT
18	18	SCREW
19	19	SCREW
20	20	HOUSING
21	21	SCREW
22	22	SCREW
23	23	SCREW
24	24	SCREW
25	25	SCREW
26	26	BRACKET
27	27	SHAFT
28	28	SCREW
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	PIN
33	33	BLOCK
34-1	34-1	LEVER
34-2	34-2	LEVER
35-1	35-1	BRACKET
35-2	35-2	BRACKET
36	36	BRACKET
37	37	SCREW
38	38	LINK
39	39	BLOCK
40	40	SCREW
41	41	BRACKET
42	42	SCREW
43	43	PIN
44	44	SHAFT
45	45	BLOCK
46	46	SHAFT
47	47	SCREW
48	48	CORD
49	49	SHAFT
50	50	COLLAR
51	51	SCREW
52	52	SHAFT
53	53	BRACKET
54	54	SPRING
55	55	SPRING
56	56	COVER

Page 33 — NEEDLE GUARD & FEED DRIVING MECHANISM

Yamato VC2700 parts on page 33

Ref	Part number	Part name	Qty
41	3100214	Driving Connection Pin
42	160006	Screw(M3-0.5 × 6)
43	000750	Seal Plug
44	3100212	Differential Feed Shaft
45	0093389	Feed Lift Block(Front)
46	3100218	Feed Lift Shaft
47	000397	Oil Wick
48	000401	Oil Wick(280mm)
49	330015	Seal Plug
50	3100219	Collar(11 × 18 × 11mm)
51	160004	Screw(M6-1 × 4.8)
52	3101300	Feed Bar Guide(Upper/Right)
53	3100179	Main Feed Eccentric, C. Set(2)
54	310068	Oil Wick(120mm)
55	000775	Pin
56	3130047	Needle Guard Lever Cover

Page 34

Yamato VC2700 parts on page 34

Ref	Part number	Part name	Qty
1	1	COVER
2	2	SCREW
3	3	BRACKET
4	4	NUT
5	5	SCREW
6	6	WASHER
7	7	WASHER
8	8	WASHER
9	9	NUT
10	10	COVER
11	11	SCREW
12	12	O-RING
13	13	OIL FILTER
14	14	PLUG
15	15	CONNECTOR
16	16	CIRCLIP
17	17	SCREEN
18	18	BRACKET
19	19	STARTER MOTOR
20	20	PINION
21	21	SCREW
22	22	NUT
23	23	WASHER
24	24	BRACKET
25	25	COVER
26	26	BRACKET
27	27	BRACKET
28	28	SCREW
29	29	PIN

Page 35 — LUBRICATING MECHANISM (1)

Yamato VC2700 parts on page 35

Ref	Part number	Part name	Qty
1	0065453	Oil Receiver
2	110012	Screw(M4-0.7 × 5)
3	3200243	Lubricant Guiding Block
4	320006	Top Nozzle Cap
5	3200230	Oil Adjusting Screw
6	000636	Seal Plug
7	300000	Washer
8	000000	Spring Washer
9	100002	Nut
10	2150325	Oil Filter Cap
11	110045	Screw(M4-0.7 × 12)
12	3100061	O-ring(P42)
13	3100345	Oil Filter
14	3100329	Oil Filter Connector
15	3200237	Felt
16	0063217	Oil Filter Screen Clamp
17	0063216	Oil Filter Screen
18	3180084	Draining Felt
19	3150195	Oil Pump, Complete Set
20	2040033	Oil Pump Driving Worm Gear
21	160001	Screw(M4-0.7 × 4)
22	000567	Seal
23	100014	Nut
24	3150151	Oil Nozzle for Worm Gear
25	3150155	Dust Proof Plate
26	3100330	Oil Tube Stay
27	0021010	Oil Sight Gauge
28	120011	Screw(M6-1 × 18)[M6-1 × 15]
29	3100331	Oil Tube(4 × 6 × 31mm)

Page 36

Yamato VC2700 parts on page 36

Ref	Part number	Part name	Qty
1	1	TUBE
2	2	WASHER
3	3	TUBE
4	4	TUBE
5	5	TUBE
6	6	CLAMP
7	7	TUBE
8	8	TUBE
9	9	TUBE
10	10	TUBE
11	11	TUBE
12	12	SCREW
13	13	TUBE
14	14	BRACKET
15	15	TUBE
16	16	TUBE
17	17	TUBE
18	18	SCREW
19	19	BRACKET
20	20	EYELET
21	21	TUBE
22	22	SCREW
23	23	TUBE
24	24	BRACKET
25	25	LEVER

Page 37 — LUBRICATING MECHANISM (2)

Yamato VC2700 parts on page 37

Ref	Part number	Part name	Qty
	3200236	Suction Pipe
	0093617	Suction Pipe Bushing
	3200238	Oil Tube(3 × 5 × 440mm)
	0065452	Draining Pipe
	3200227	Oil Sight Top Nozzle
	0031831	Oil Tube Clamp
	3100357	Oil Tube(Long), Complete Set
	3100354	Oil Tube(4 × 6 × 290mm)
	3100392	Oil Tube(2.5×4×35mm) [4×6×75mm]
	3100371	Oil Tube Joint, Two Way
	3100332	Oil Tube(4 × 6 × 37mm)
	320010	Fitting Stud(Short)
	3100342	Lower Shaft Oiling Outlet
	3100358	Oil Tube(Middle), Complete Set
	3100331	Oil Tube(4 × 6 × 31mm)
	3100343	Lower Shaft Oiling Shower
	3100334	Oil Tube(4 × 6 × 110mm)
	110013	Screw(M4-0.7 × 8)
	3100356	Oil Tube(Short), Complete Set
	3100370	Oil Tube Joint, One Way
	0010017	Bamboo Joint(1-4)
	3500425	Oil Tube(3.5 × 5 × 350mm)
	0011795	Wrapping Band(2.3 × 92)
	3180080	Draining Pipe

Page 38 — PULLER MECHANISM(1)

Yamato VC2700 parts on page 38

Ref	Part number	Part name	Qty
1	1	PULLER MECHANISM HOUSING
2	2	SCREW
3	3	PIN
4	4	WASHER
5	5	COLLAR
6	6	PULLER ROCKER
7	7	SCREW
8	8	BUSHING
9	9	SCREW
10	10	BUSHING
11	11	WASHER
12	12	SHAFT
13	13	BRACKET
14	14	LINK
15	15	SCREW
16	16	SCREW
17	17	WASHER
18	18	NUT
19	19	COLLAR
20	20	SCREW
21	21	PIN
22	22	PIN
23	23	SCREW
24	24	CONNECTING ROD
25	25	CIRCLIP
26	26	GEAR
27	27	PULLER HOOK HOUSING
28	28	PULLER HOOK
29	29	SPRING
30	30	SCREW
31	31	SCREW
32	32	SPRING
33	33	WASHER
34	34	HOUSING

Page 39 — PULLER MECHANISM EXCLUSIVE PARTS(1)

Yamato VC2700 parts on page 39

Ref	Part number	Part name	Qty
1	3180110	Upper Feed Roller Shaft Bracket	1
2	120019	Screw(M6-1 × 18)	4
3	000779	Knock Pin	2
4	3100006	Seal Plug	1
5	3100607	Roller Shaft Bushing(Right)	1
6	3100604	Upper Feed Roller Shaft Lever	1
7	160007	Screw(M6-1 × 6)	2
8	009604	Collar(14 × 22 × 10mm)	1
9	009604	Screw(11/64-40 × 5.5)	2
10	3100626	Roller Shaft Bushing(Left)	1
11	0065395	Oil Seal	1
12	3100605	Upper Feed Roller Shaft	1
13	3100608	See page 17
14	3100608	Upper Feed Roller Lever	1
15	120012	Screw(M4-1 × 20)	1
16	0065401	Upper Feed Roller Lever Pin	1
17	000613	Washer	1
18	000306	Nut	2
19	3501281	Upper Feed Roller Lever Rod	1
20	240010	Screw(1/4-40 × 11)	1
21	310063	Oil Wick	1
22	0032921	Upper Feed Roller Driving Rod Pin	1
23	160001	Screw(M4-0.7 × 4)	1
24	3100602	Upper Feed Roller Driving Rod	1
25	3100192	Retaining Ring	1
26	3100623	Roller Bearing	1
27	3100603	Upper Feed Roller Regulator, C. Set	1
28	3100601	Upper Feed Roller Eccentric	1
29	3100600	Upper Feed Roller Regulator	1
30	160003	Screw(M5-0.8 × 5)	2
31	190007	Adjusting Screw(M5-0.8 × 6)	1
32	120008	Screw(M4-0.7 × 8)	1
33	300045	Spacer	1
34	3180112	Upper Feed Roller Shaft Bracket, C. Set	1

Page 40 — PULLER MECHANISM(2)

Yamato VC2700 parts on page 40

Ref	Part number	Part name	Qty
3	3	Screw
4	4	Bracket
5	5	Screw
6	6	Shaft
7	7	Spring
8	8	Pin
9	9	Screw
10	10	Lever
11	11	Screw
12	12	Washer
13	13	Washer
14	14	Shaft
15	15	Bush
16	16	Lever
17	17	Roller
18	18	Shaft
20	20	Bracket
21	21	Screw
22	22	Screw
23	23	Gear
24	24	Lever
25	25	Screw
26	26	Roller
27	27	Washer
28	28	Roller
29	29	Shaft
30	30	Roller
31	31	Roller
32	32	Screw
34	34	Roller
35	35	Washer
36	36	Base
37	37	Screw
38	38	Pin
39	39	Shaft
40	40	Screw
41	41	Bracket
42	42	Screw
43	43	Roller
44	44	Roller
45	45	Bracket
46	46	Washer
47	47	Screw
48	48	Shaft
49	49	Bracket
50	50	Bracket
51	51	Screw

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS (2)

Yamato VC2700 parts on page 41

Ref	Part number	Part name	Qty
2	3100611	Upper Feed Roller Yoke	1
3	120012	Screw(M6-1 × 20)	1
4	3100612	Upper Feed Roller Yoke Guide	1
5	120008	Screw(M4-0.7 × 8)	2
6	3100613	Upper Feed Roller Yoke Pin	1
7	160007	Screw(M6-1 × 6)	1
8	3200133	Wire(0.9 × 45mm)	1
9	180005	Screw(M4-0.7 × 6)	1
10	160001	Screw(M4-0.7 × 4)	2
11	160003	Screw(M5-0.8 × 5)	3
12	0060056	Retaining Ring	1
13	2100902	Thrust Ring	1
14	3501270	Clutch Driving Shaft	1
15	3100616	Clutch Driving Shaft Bushing(Left)	1
16	0065414	Clutch Driving Shaft Bushing(Right)	1
17	0065421	Clutch Tension Sleeve	1
18	3501283	Adjusting Collar	1
19	3501284	Adjusting Screw Stay	1
20	110002	Screw(M3-0.5 × 5)	2
21	110097	Screw(M5-0.8 × 12)	1
22	3501282	Clutch Tension Spring	1
23	3501280	Clutch Driving Lever	1
24	130003	Screw(M4-0.7 × 7.3)	3
25	3501276	Clutch Sleeve(Right)	1
26	3501272	Thrust Plate	2
27	3501271	Clutch Spacer	1
28	160005	Screw(M6-1 × 8)	1
29	3501275	Clutch Sleeve(Left)	1
30	3501290	Upper Feed Roller(30 teeth)(Standard)	1
31	007621	Screw(9/64-40 × 8.5)	3
32	3160183	Lower Feed Roller Support, C. Set(Extra)	1
33	0065461	Lower Feed Roller(15 teeth)(Standard)	1
34	000492	Wave Washer	1
35	3100620	Lower Feed Roller Support	1
36	120041	Screw(M6-1 × 12)	2
37	000779	Knock Pin	2
38	3100622	Lower Feed Roller Shaft	1
39	150001	Screw(M4-0.7 × 4)	2
40	3100621	Lower Feed Roller Cover	1
41	130002	Screw(M3-0.5 × 6)	2
42	3501295	Upper Feed Roller	1
43	0067028	Lower Feed Roller	1
44	0065431	Supplementary Roller Support	1
45	000538	Washer	2
46	110009	Screw(M4-0.7 × 8)	2
47	0065435	Supplementary Roller	1
48	0065436	Supplementary Roller Stay(A)	1
49	0065437	Supplementary Roller Stay(B)	1
50	009730	Screw(1/8-44 × 5.3)	4

Page 42 — PULLER MECHANISM (3)

Yamato VC2700 parts on page 42

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	WASHER
4	4	NUT
5	5	COLLAR
6	6	SCREW
7	7	LINK
8	8	BRACKET
9	9	SHAFT
10	10	CLIP
11	11	BRACKET
12	12	SCREW
13	13	BLOCK
14	14	SCREW
15	15	COLLAR
16	16	SCREW
17	17	NUT
18	18	SCREW
19	19	SPRING
20	20	ARM
21	21	SCREW
22	22	PIN
23	23	SLEEVE
24	24	SCREW
25	25	COLLAR
26	26	ROD
27	27	CLIP
28	28	PIN
29	29	WASHER
30-1	30-1	BRACKET
31	31	CLIP
32	32	SCREW
33	33	PULLER MECHANISM

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(3)

Yamato VC2700 parts on page 43

Ref	Part number	Part name	Qty
1	0065381	Upper Feed Roller Lifter(Right)	1
2	110009	Screw(M4-0.7 × 8)	2
3	000538	Washer	3
4	000334	Nut	2
5	0034979	Flexible Wire Clamp Bushing	2
6	006075	Screw(11/64-40 × 6)	2
7	0067126	Lifter Connecting Plate	1
8	0065374	Upper Feed Roller Lifter(Left)	1
9	0065375	Upper Feed Roller Lifter Pin	1
10	0095027	Retaining Ring	2
11	0065376	Lifter Connecting Plate	1
12	006038	Screw(3/16-32 × 2.2)	2
13	0065407	Roller Press Bar Bracket	1
14	005650	Screw(M5-0.8 × 14)	1
15	0065402	Lifting Lever Sleeve	1
16	006411	Screw(11/64-40 × 5.5)	1
17	000340	Nut	1
18	009931	Stop Screw(11/64-40 × 26)	1
19	3100614	Roller Press Spring	1
20	3180111	Upper Feed Roller Bracket	1
21	009753	Screw(M6-1 × 35)	2
22	000779	Knock Pin	2
23	0065405	Roller Press Bar Bushing(Upper)	1
24	160007	Screw(M6-1 × 6)	1
25	3100609	Roller Press Bar Bushing(Lower)	1
26	0065404	Upper Feed Roller Press Bar	1
27	0034117	Retaining Ring	1
28	000690	Stop Pin	1
29	000613	Washer	1
30	0067111	Upper Feed Roller Lifting Lever	1
31	000487	Wave Washer	1
32	170008	Screw(M6-1 × 9)	1
33	3180113	Upper Feed Roller Bracket, C. Set	1

Page 44 — VC2713M-156M-K4N

Yamato VC2700 parts on page 44

Ref	Part number	Part name	Qty
1	VC2713M-156M-K4N	VC2713M
2	2	Screw
3	3	Bracket
4	4	Bracket
5	5	Screw
6	6	Base Plate
7	7	Presser Foot
8	8	Presser Foot
9	9	Screw

Page 45 — VC2713M EXCLUSIVE PARTS

Yamato VC2700 parts on page 45

Ref	Part number	Part name	Qty
1	3107311	Fabric Guide
2	110027	Screw(M2.5-0.45 × 3.5)
3	3101320	Fabric Guide(Left)
4	3101321	Fabric Guide(Right)
5	001228	Screw(3/32-56 × 3.2)[M2.5-0.45 × 4.5]
6	3108221	Stitch Plate(56M-K4N)
7	3139028	Differential Feed Dog
8	3109098	Differential Feed Dog(Middle)
9	110038	Screw(M2.5-0.45 × 4.5)

Page 46 — EXTRA PARTS(1)

Yamato VC2700 parts on page 46

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
20-1	20-1	20-1
20-2	20-2	20-2
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	for heavy material 厚物用
19	19	for light material 薄物用
21	21	VC2700M-156NM

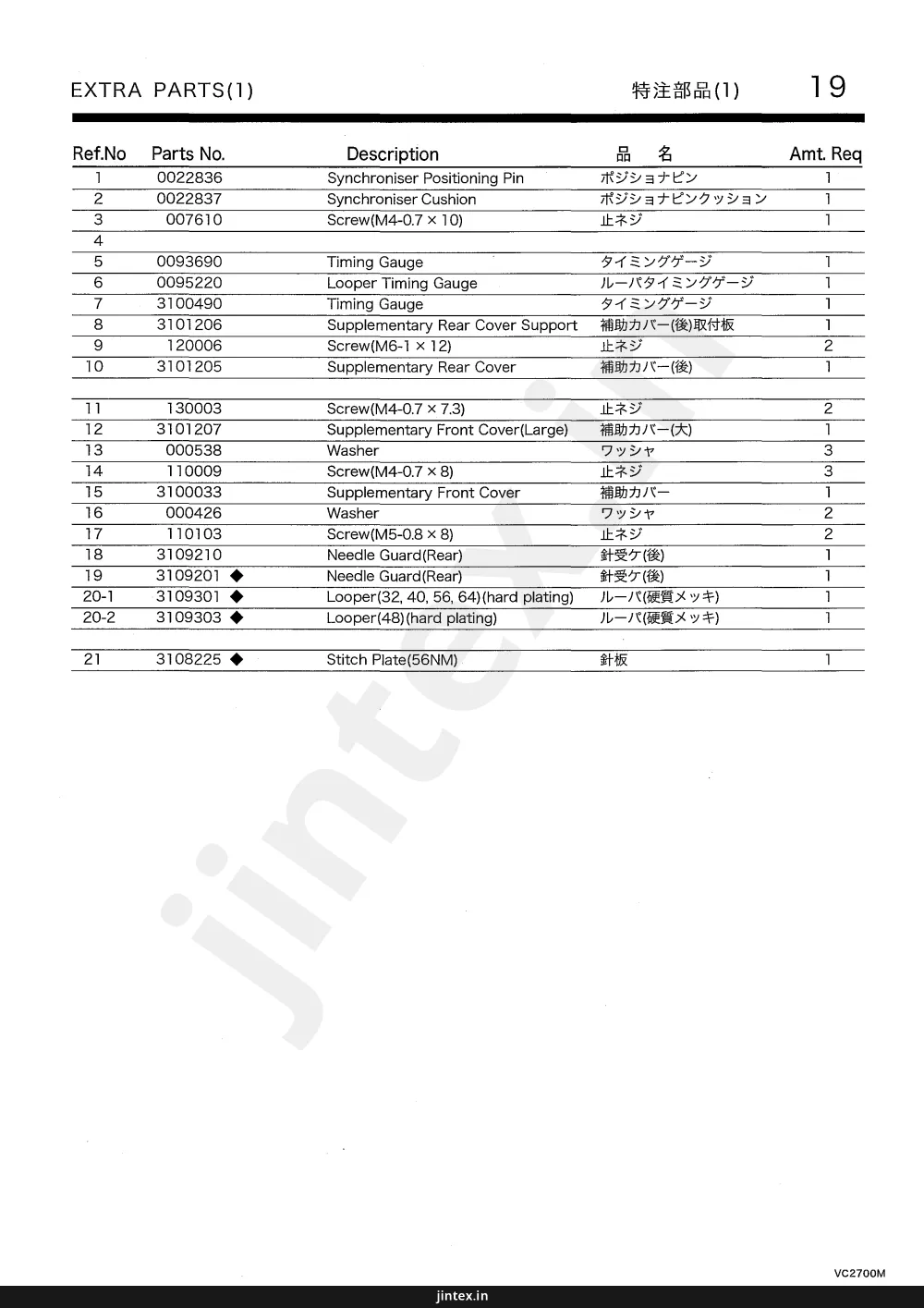

Page 47 — EXTRA PARTS(1)

Yamato VC2700 parts on page 47

Ref	Part number	Part name	Qty
1	0022836	Synchroniser Positioning Pin
2	0022837	Synchroniser Cushion
3	007610	Screw(M4-0.7 × 10)
5	0093690	Timing Gauge
6	0095220	Looper Timing Gauge
7	3100490	Timing Gauge
8	3101206	Supplementary Rear Cover Support
9	120006	Screw(M6-1 × 12)
10	3101205	Supplementary Rear Cover
11	130003	Screw(M4-0.7 × 7.3)
12	3101207	Supplementary Front Cover(Large)
13	000538	Washer
14	110009	Screw(M4-0.7 × 8)
15	3100033	Supplementary Front Cover
16	000426	Washer
17	110103	Screw(M5-0.8 × 8)
18	3109210	Needle Guard(Rear)
19	3109211	Needle Guard(Rear)
20-1	3109301	Looper(32, 40, 56, 64)(hard plating)
20-2	3109303	Looper(48)(hard plating)
21	3108225	Stitch Plate(56NM)

Page 48 — EXTRA PARTS(2)

Yamato VC2700 parts on page 48

Ref	Part number	Part name	Qty
1-1	1-1	Needle Bar
1-2	1-2	Needle Bar
2-1	2-1	Needle Plate
2-2	2-2	Needle Plate
3-1	3-1	Presser Foot
3-2	3-2	Presser Foot
4	4	Screw
5	5	Spring
6	6	Presser Bar
7	7	Screw
8	8	Screw
9	9	Screw
10	10	Nut
11	11	Screw

Page 49 — EXTRA PARTS(2)

Yamato VC2700 parts on page 49

Ref	Part number	Part name	Qty
1-1	0093351	Needle Clamp(32)	1
1-2	0093352	Needle Clamp(40)	1
2-1	3108130	Stitch Plate(32M)	1
2-2	3108131	Stitch Plate(40M)	1
3-1	3507000	Presser Foot, C. Set(32)	1
3-2	3507002	Presser Foot, C. Set(40)	1
4	110004	Screw(M3.5-0.6 × 8)	1
5	3107303	Presser Foot Spring(Left)	1
6	3107304	Presser Foot Spring(Right)	1
7	130016	Screw(M2.5-0.45 × 6)	4
8	3107306	Presser Foot Hinge Pin	1
9	110084	Screw(M3-0.5 × 4.2)	1
10	000327	Lock Nut	1
11	260006	Adjusting Screw(1/8-44 × 9.5)	1

Page 50

Yamato VC2700 parts on page 50

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	32	32
	33	33
	34	34
	35	NEEDLES
	36	36
	37	37
	38	38
	39	39
	40-1	40-1
	40-2	40-2
	41	41
	42	yamato SF OIL 2B

Page 51 — THREAD STAND & ACCESSORIES (1)

Yamato VC2700 parts on page 51

Ref	Part number	Part name	Qty
	9620696	Thread Stand, C. Set(6 Spools Type)	1
	9620631	Column Cap	1
	9620670	Column Pipe(Upper)	1
	9620689	Thread Guide Holder(Large)	1
	911002	Screw(M4-0.7 × 20)	1
	911001	Screw(M4-0.7 × 12)	3
	910001	Nut	4
	9620673	Column Pipe Connector	1
	911006	Screw(M5-0.8 × 13)	2
	910000	Nut	8
	9620675	Column Pipe(Lower)	1
	930052	Washer	1
	930053	Spring Washer	1
	910003	Nut	1
	9620703	Thread Hanger(3 Spools Type)	4
	9620700	Thread Eyelet	6
	9620688	Thread Hanger Holder	4
	911060	Screw(M6-1 × 15)	4
	9620691	Thread Guide Arm	1
	9620690	Thread Guide Holder(Small)	1
	9620666	Thread Guide(6 Spools Type)	1
	9620678	Spool Cushion	6
	9620679	Spool Pin	6
	9620680	Spool Mat	6
	9620681	Spool Seat Disc	6
	930055	Spring Washer	6
	3101101	Edge Guide(Right)	1
	3101100	Edge Guide(Left)	1
	3500700	Belt Cover	1
	110028	Screw(M6-1 × 46)	2
	962003	Bag	1
	0099094	Screwdriver(2.5 × 75mm)	1
	0099091	Screwdriver(5.5 × 200mm)	1
	0099051	Thread Tweezers	1
	9620202	Hexagonal Wrench(2.0mm)	1
	9720236	Instruction Book	1
	9710111	Parts Book	1
	9620008	SF Oil 28(1ℓ)	1

Page 52

Yamato VC2700 parts on page 52

Ref	Part number	Part name	Qty
1	1	Cone
2	2	Shaft
3	3	Washer
4	4	Washer
5	5	Nut
6	6	Bracket
7	7	Screw
8	8	Knob
12	12	Chain
13	13	Base
14	14	Knob
15	15	Bolt
16	16	Washer
17	17	Bush
18	18	Washer
19	19	Nut
20	20	Plate
21	21	Cone
22	22	Shaft

Page 53 — ACCESSORIES (2)

Yamato VC2700 parts on page 53

Ref	Part number	Part name	Qty
1	0063009	Oil Reservoir Rubber Cushion
2	180008	Setting Screw(M6-1 × 63)
3	000528	Washer
4	000667	Spring Washer
5	000011	Nut
6	3100036	Belt Cover(Lower)
7	006905	Wood Screw($ 5.1 × 20)
8	0037988	Screwdriver(Short)
12	0037912	Chain
13	9611074	Presser Foot Pedal
14	000070	Hanging Nut
15	009858	Hanging Bolt(M8-1.25 × 75)
16	000162	Washer
17	0020064	Supporting Board Rubber Cushion
18	0063010	Supporting Board Rubber Cushion(Lower)
19	000016	Nut
20	3100008	Supporting Board
21	0063009	Oil Reservoir Rubber Cushion
22	180009	Setting Screw(M6-1 × 16)

Page 54

Yamato VC2700 parts on page 54

Ref	Part number	Part name	Qty
	390220	SAFETY INSTRUCTON LABEL
	390144	DANGER: WARNING OF ELECTRIC SHOCK BY HIGH VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 56 — VC2700M Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato VC2700 parts on page 56

Ref	Part number	Part name	Qty
	0093356	Needle Clamp
	3507050	Presser Foot, C. Set
	3108133	Stitch Plate
	3109000	Differential Feed Dog
	0093357	Needle Clamp
	3507052	Presser Foot, C. Set
	3108134	Stitch Plate
	0093358	Needle Clamp
	3507054	Presser Foot, C. Set
	3108135	Stitch Plate
	3109002	Differential Feed Dog (Middle)
	0093351	Needle Clamp
	3507000	Presser Foot, C. Set
	3108130	Stitch Plate
	3109000	Differential Feed Dog
	0093352	Needle Clamp
	3507002	Presser Foot, C. Set
	3108131	Stitch Plate
	0093357	Needle Clamp
	3507052	Presser Foot, C. Set
	3108221	Stitch Plate
	3109000	Differential Feed Dog
	3109098	Differential Feed Dog (Middle)

Page 57

Yamato VC2700 parts on page 57

Ref	Part number	Part name	Qty
	3106000	後送り
	3100630	定規(左)
	3100631	定規(右)
	3109302	布ガイド(左)
	3109300	布ガイド(右)
	3108001	ルーパ
	3106000
	3100630
	3100631
	3109300
	3106000
	3100630
	3100631
	3101320
	3101321
	3107311
	3109300

Page 58 — INDEX

Yamato VC2700 parts on page 58

Ref	Part number	Part name	Qty
29	000010	000010	4
10	000011	000011	27
5	000011	000011	31
43	000012	000012	26
20	000012	000012	28
2	000014	000014	20
37	000014	000014	25
24	000015	000015	2
5	000016	000016	27
19	000016	000016	31
3	000070	000070	27
14	000070	000070	31
4	000140	000140	25
20	000145	000145	25
4	000162	000162	27
16	000162	000162	31
6	000177	000177	3
32	000195	000195	4
40	000199	000199	12
33	000234	000234	5
17	000290	000290	6
18	000304	000304	5
18	000306	000306	15
13	000306	000306	27
21	000321	000321	7
27	000322	000322	23
45	000322	000322	28
24	000327	000327	8
10	000327	000327	18
31	000334	000334	4
4	000334	000334	17
17	000340	000340	17
53	000360	000360	3
17	000397	000397	5
47	000397	000397	12
48	000401	000401	12
23	000419	000419	13
16	000425	000425	22
3	000426	000426	22
16	000426	000426	29
2	000445	000445	8
26	000463	000463	5
31	000487	000487	17
35	000492	000492	16
17	000498	000498	20
41	000505	000505	11
10	000528	000528	9
11	000528	000528	27
3	000528	000528	31
40	000531	000531	5
34	000538	000538	2
33	000538	000538	3
46	000538	000538	16
3	000538	000538	17
12	000538	000538	19
13	000538	000538	29
30	000547	000547	4
4	000548	000548	7
31	000555	000555	6
48	000561	000561	11
22	000567	000567	13
12	000588	000588	27
6	000597	000597	25
5	000598	000598	25
35	000600	000600	6
44	000600	000600	11
8	000600	000600	13
4	000600	000600	22
17	000613	000613	15
29	000613	000613	17
18	000629	000629	28
6	000636	000636	13
33	000637	000637	7
40	000637	000637	10
26	000644	000644	23
44	000644	000644	28
34	000651	000651	3
23	000665	000665	2
20	000665	000665	23
38	000665	000665	28
4	000667	000667	31
43	000669	000669	11
7	000676	000676	27
29	000690	000690	8
28	000690	000690	17
39	000726	000726	1
46	000740	000740	10
43	000750	000750	12
3	000779	000779	15
38	000779	000779	16
22	000779	000779	17
20	000924	000924	1
20	000926	000926	6
4	000989	000989	6
47	001093	001093	3
14	001107	001107	5
30	001107	001107	11
48	001123	001123	10
31	001123	001123	23
48	001123	001123	28
56	001170	001170	8
25	001174	001174	6
22	001457	001457	25
21	001459	001459	19
18	001459	001459	24
50	001818	001818	3
9	001900	001900	7
6	002043	002043	7
36	004182	004182	2
26	004236	004236	4
27	004312	004312	6
2	004358	004358	7
45	004358	004358	8
5	004440	004440	8
38	004440	004440	10
7	004441	004441	8
45	005049	005049	11
27	005049	005049	22
24	005071	005071	6
35	005071	005071	10
34	005075	005075	1
36	005650	005650	6
14	005650	005650	17
8	005650	005650	25
28	006004	006004	4
25	006035	006035	23
43	006035	006035	28
27	006038	006038	8
12	006038	006038	17
6	006075	006075	17
22	006202	006202	23
40	006202	006202	28
9	006212	006212	11
16	006411	006411	17
6	006905	006905	22
7	006905	006905	31
24	007006	007006	19

Page 59 — INDEX

Yamato VC2700 parts on page 59

Ref	Part number	Part name	Qty
21	007006
28	007610
3	007610
11	007611
32	007621
12	009142
40	009200
28	009508
23	009526
32	009604
13	009604
9	009604
51	009730
23	009736
8	009736
3	009736
10	009737
17	009746
24	009749
21	009753
24	009784
16	009791
34	009791
19	009853
15	009858
6	009865
18	009931
9	009970
8	009976
36	009984
16	009984
11	009985
22	0010017
18	0010055
14	0010057
8	0010108
22	0010119
15	0010254
9	0010264
34	0010923
33	0011720
8	0011733
24	0011795
11	0011795
2	0011801
1	0011802
21	0012071
11	0014120
17	0020064
27	0020119
33	0020137
15	0020271
42	0020350
5	0020759
46	0020759
27	0021010
6	0022836
1	0022836
1	0022836
7	0022837
2	0022837
2	0022837
3	0023381
2	0024083
1	0024084
3	0030255
20	0030711
7	0031111
6	0031831
45	0032425
46	0032426
12	0032646
20	0032786
3	0032799
26	0032853
22	0032921
4	0032952
19	0033024
25	0033024
22	0033024
17	0033024
7	0033939
27	0034117
5	0034979
16	0035301
52	0035813
28	0036133
28	0036133
19	0036133
46	0036133
44	0036175
51	0037108
21	0037912
12	0037912
8	0037988
12	0060056
18	0060057
8	0060142
27	0060175
25	0060176
1	0063009
21	0063009
18	0063010
3	0063044
19	0063051
20	0063053
6	0063055
21	0063056
22	0063057
49	0063074
18	0063076
14	0063076
28	0063083
30	0063084
4	0063087
37	0063096
17	0063216
16	0063217
52	0063515
3	0063579
10	0063586
14	0063606
30	0063607
12	0063607

Page 60 — INDEX

Yamato VC2700 parts on page 60

Ref	Part number	Part name	Qty
1	0063608	0063608
17	0063608	0063608
35	0063609	0063609
15	0063609	0063609
11	0063610	0063610
4-2	0063612	0063612
6	0063612	0063612
14	0064045	0064045
15	0064046	0064046
18	0064047	0064047
8	0065275	0065275
35	0065340	0065340
1	0065340	0065340
3	0065372	0065372
8	0065374	0065374
9	0065375	0065375
11	0065376	0065376
1	0065381	0065381
32	0065389	0065389
11	0065395	0065395
8	0065398	0065398
16	0065401	0065401
15	0065402	0065402
26	0065404	0065404
23	0065405	0065405
13	0065407	0065407
16	0065414	0065414
17	0065421	0065421
45	0065431	0065431
48	0065435	0065435
49	0065436	0065436
50	0065437	0065437
4	0065452	0065452
1	0065453	0065453
44	0067028	0067028
30	0067111	0067111
7	0067126	0067126
4	0068011	0068011
4	0068206	0068206
36	0077179	0077179
19	0077179	0077179
15	0077179	0077179
46	0077179	0077179
1	0077270	0077270
4	0077322	0077322
7	0077410	0077410
40	0090068	0090068
5	0090071	0090071
12	0090807	0090807
9	0090812	0090812
11	0090856	0090856
4	0093089	0093089
19	0093154	0093154
5	0093184	0093184
10	0093201	0093201
19	0093212	0093212
16	0093214	0093214
25	0093303	0093303
1-1	0093351	0093351
1-2	0093352	0093352
7-1	0093356	0093356
7-2	0093357	0093357
7-3	0093358	0093358
10	0093365	0093365
45	0093389	0093389
33	0093479	0093479
6	0093483	0093483
26	0093487	0093487
31	0093491	0093491
27	0093491	0093491
37	0093507	0093507
39	0093508	0093508
38	0093509	0093509
38	0093521	0093521
17	0093556	0093556
12	0093611	0093611
2	0093617	0093617
5	0093690	0093690
11	0093864	0093864
7	0093864	0093864
23	0094201	0094201
40	0094201	0094201
51	0094387	0094387
54	0094390	0094390
23	0094396	0094396
20	0094396	0094396
4-1	0094491	0094491
6	0094566	0094566
10	0095027	0095027
26	0095168	0095168
23	0095170	0095170
7	0095214	0095214
6	0095220	0095220
55	0095334	0095334
29	0095336	0095336
35	0095367	0095367
21	0095388	0095388
23	0095389	0095389
14	0096025	0096025
38	0099051	0099051
37	0099091	0099091
36	0099094	0099094
12	100001	100001
28	100002	100002
9	100002	100002
26	100002	100002
33	100002	100002
11	100003	100003
47	100005	100005
9	100006	100006
9	100006	100006
5	100020	100020
14	100058	100058
32	100058	100058
10	110001	110001
23	110001	110001
25	110002	110002
39	110002	110002
11	110002	110002
21	110002	110002
3	110002	110002
22	110002	110002
18	110002	110002
22	110002	110002
55	110002	110002
39	110004	110004
18	110004	110004
12	110004	110004
4	110004	110004
13	110004	110004

Page 61 — INDEX

Yamato VC2700 parts on page 61

Ref	Part number	Part name	Qty
15	110005	10 15	10
43	110009	2 43	2
16	110009	3 16	3
10	110009	5 10	5
12	110009	6 12	6
7	110009	9 7	9
16	110009	11 16	11
47	110009	16 47	16
2	110009	17 2	17
13	110009	19 13	19
5	110009	20 5	20
20	110009	21 20	21
30	110009	24 30	24
20	110009	26 20	26
41	110009	26 41	26
14	110009	29 14	29
24	110012	1 24	1
21	110012	2 21	2
15	110012	6 15	6
41	110012	7 41	7
2	110012	13 2	13
5	110012	19 5	19
16	110012	19 16	19
7	110012	24 7	24
58	110012	26 58	26
11	110013	2 11	2
14	110013	3 14	3
42	110013	5 42	5
27	110013	7 27	7
34	110013	7 34	7
50	110013	11 50	11
18	110013	14 18	14
29	110013	22 29	22
29	110013	23 29	23
26	110013	24 26	24
47	110013	28 47	28
26	110016	2 26	2
2	110017	22 2	22
24	110019	10 24	10
25	110021	12 25	12
4	110022	12 4	12
22	110023	12 22	12
26	110023	21 26	21
12	110023	23 12	23
26	110023	26 26	26
29	110023	28 29	28
24	110024	21 24	21
24	110024	26 24	26
25	110025	21 25	21
25	110025	26 25	26
35	110026	5 35	5
29	110027	5 29	5
13	110027	18 13	18
33	110028	30 33	30
6	110030	21 6	21
39	110031	2 39	2
26	110031	9 26	9
34	110034	21 34	21
34	110034	26 34	26
37	110035	12 37	12
7	110036	12 7	12
16	110038	18 16	18
20	110038	18 20	18
4	110039	10 4	10
22	110041	1 22	1
16	110041	2 16	2
7	110041	28 7	28
2	110045	1 2	1
48	110045	2 48	2
11	110045	13 11	13
15	110048	1 15	1
54	110054	3 54	3
16	110054	8 16	8
17	110054	23 17	23
35	110054	28 35	28
9	110060	28 9	28
31	110062	20 31	20
36	110062	25 36	25
21	110072	12 21	12
44	110079	2 44	2
23	110084	8 23	8
9	110084	18 9	18
25	110089	22 25	22
22	110097	16 22	16
26	110100	3 26	3
42	110101	2 42	2
23	110101	3 23	3
9	110101	10 9	10
17	110103	29 17	29
50	120001	8 50	8
10	120001	20 10	20
19	120006	20 19	20
9	120006	29 9	29
32	120008	15 32	15
5	120008	16 5	16
2	120009	2 2	2
18	120009	11 18	11
42	120011	10 42	10
15	120012	15 15	15
3	120012	16 3	16
29	120013	6 29	6
15	120013	9 15	9
28	120013	13 28	13
17	120013	22 17	22
10	120013	25 10	25
30	120015	6 30	6
15	120015	7 15	7
36	120016	1 36	1
35	120017	8 35	8
2	120019	15 2	15
37	120041	16 37	16
21	120052	23 21	23
39	120052	28 39	28
38	130002	2 38	2
42	130002	16 42	16
6	130003	2 6	2
42	130003	3 42	3
25	130003	16 25	16
13	130003	21 13	21
13	130003	26 13	26
11	130003	29 11	29
40	130004	11 40	11
36	130004	21 36	21
36	130004	26 36	26
15	130005	12 15	12
32	130005	21 32	21
32	130005	26 32	26
36	130011	11 36	11
21	130016	8 21	8
7	130016	18 7	18
18	130021	21 18	21
18	130021	26 18	26
48	140010	26 48	26
45	140014	26 45	26
23	150000	5 23	5
40	150001	16 40	16
24	150001	24 24	24
17	160000	1 17	1

Page 62 — INDEX

Yamato VC2700 parts on page 62

Ref	Part number	Part name	Qty
21	160000
30	160001
31	160001
14	160001
18	160001
34	160001
21	160001
23	160001
10	160001
4	160002
3	160003
31	160003
2	160003
30	160003
11	160003
25	160003
13	160004
21	160004
51	160004
2	160005
2	160005
29	160005
42	160006
3	160007
3	160007
18	160007
2	160007
28	160007
7	160007
7	160007
24	160007
32	160008
47	160015
37	160023
7	160024
47	160029
2	160040
15	170000
28	170001
27	170002
45	170003
21	170004
2	170005
2	170005
15	170006
15	170006
32	170008
47	170009
6	170009
31	170009
48	170038
31	180005
9	180005
23	180006
30	180006
2	180008
22	180009
46	190004
22	190005
8	190006
8	190006
31	190007
27	190029
34	190029
24	190079
53	240009
20	240010
35	260000
25	260006
11	260006
8	270019
27	270019
8	290029
25	300000
7	300000
8	300006
15	300006
33	300045
29	300100
26	300101
5	300500
32	310006
30	310007
14	310040
21	310063
15	310093
4	320006
12	320010
20	330000
20	330002
14	330011
49	330015
37	340000
27	340001
13	340001
22	340003
36	340004
10	340008
57	340014
18	340025
39	350009
6	390165
12	390203
8	390204
10	910000
7	910001
14	910003
6	911001
5	911002
9	911006
19	911060
12	930052
13	930053
27	930055
34	962003
42	1062035
3	1062037
32	1066127
29	1066138
33	1090185
28	1090190
20	1090207
21	1090242

Page 63 — INDEX

Yamato VC2700 parts on page 63

Ref	Part number	Part name	Qty
34	1090242
19	1090247
32	1090248
4	1091145
13	1091146
12	1091160
30	1094055
24	1094056
5	1095001
1	1095007
2	1096029
16	1096029
37	1096029
30	1096029
10	1096030
23	1097007
1	1097009
36	1098013
35	1200391
31	1200395
5	1253240
40	2049401
13	2100902
10	2150325
28	3100004
29	3100005
45	3100006
18	3100006
4	3100006
20	3100008
10	3100016
4	3100020
15	3100033
41	3100034
6	3100036
16	3100042
21	3100045
25	3100046
17	3100050
18	3100051
20	3100053
15	3100058
12	3100061
22	3100076
34	3100078
48	3100081
25	3100082
24	3100083
20	3100084
19	3100085
43	3100087
18	3100088
12	3100090
13	3100091
19	3100092
20	3100093
14	3100094
15	3100095
16	3100096
17	3100097
11	3100098
3	3100099
5	3100100
23	3100103
24	3100104
9	3100110
10	3100112
12	3100113
12	3100121
8	3100122
11	3100123
22	3100125
20	3100126
9	3100127
11	3100127
5	3100128
6	3100129
1	3100130
6	3100131
5	3100131
7	3100132
34	3100140
37	3100141
39	3100142
41	3100143
45	3100144
44	3100145
43	3100146
30	3100147
33	3100149
29	3100150
26	3100151
12	3100152
22	3100153
6	3100154
23	3100155
11	3100156
13	3100157
14	3100158
17	3100159
19	3100160
21	3100161
53	3100179
20	3100182
17	3100183
19	3100184
16	3100185
14	3100186
11	3100187
24	3100188
8	3100189
7	3100190
10	3100191
6	3100192
25	3100192
11	3100193
12	3100194
13	3100195
14	3100196
17	3100197
19	3100199
21	3100200
26	3100201
20	3100202
28	3100203
32	3100204
31	3100205
35	3100206
33	3100207
29	3100208
39	3100209
38	3100210

Page 64 — INDEX

Yamato VC2700 parts on page 64

Ref	Part number	Part name	Qty
27	3100211
44	3100212
38	3100213
41	3100214
39	3100215
5	3100216
1	3100217
46	3100218
50	3100219
49	3100220
30	3100221
31	3100222
33	3100224
27	3100225
36	3100226
29	3100229
32	3100231
37	3100235
5	3100241
3	3100242
1	3100243
9	3100245
8	3100246
31	3100250
29	3100253
26	3100254
25	3100256
37	3100260
38	3100261
30	3100262
24	3100263
27	3100264
28	3100265
39	3100266
34	3100267
41	3100268
44	3100269
43	3100270
47	3100271
46	3100272
9	3100275
8	3100281
10	3100283
28	3100285
32	3100286
33	3100287
34	3100294
2	3100300
5	3100301
1	3100302
14	3100303
16	3100304
17	3100305
24	3100307
9	3100309
13	3100310
14	3100329
26	3100330
29	3100331
15	3100331
11	3100332
17	3100334
9	3100336
36	3100338
13	3100342
16	3100343
13	3100345
24	3100349
8	3100354
36	3100355
19	3100356
7	3100357
14	3100358
20	3100370
10	3100371
35	3100383
36	3100384
37	3100386
3-2	3100400
8	3100410
41	3100442
7	3100490
3	3100502
3	3100502
10	3100503
10	3100503
11	3100504
11	3100504
12	3100505
12	3100505
1	3100506
1	3100506
27	3100507
27	3100507
28	3100508
28	3100508
29	3100509
29	3100509
30	3100510
30	3100510
31	3100511
31	3100511
23	3100512
23	3100512
5	3100513
5	3100513
4	3100514
4	3100514
14	3100515
14	3100515
33	3100516
33	3100516
19	3100517
19	3100517
21	3100518
21	3100518
24	3100520
24	3100520
31	3100523
9	3100524
29	3100525
27	3100526
15	3100529
12	3100529
38	3100530
38	3100530
26	3100532
49	3100533
9	3100535
8	3100536
28	3100538
35	3100538
35	3100560
35	3100560
9	3100567
2	3100570
1	3100571
16	3100579
16	3100579
37	3100580
37	3100580
29	3100600
28	3100601
24	3100602

Page 65 — INDEX

Yamato VC2700 parts on page 65

Ref	Part number	Part name	Qty
27	3100603		15
6	3100604		15
12	3100605		15
5	3100607		15
14	3100608		15
25	3100609		17
2	3100611		16
4	3100612		16
6	3100613		16
19	3100614		17
15	3100616		16
36	3100620		16
41	3100621		16
39	3100622		16
26	3100623		15
10	3100626		15
32	3100630		2
33	3100631		2
24	3100711		23
42	3100711		28
29	3101100		30
28	3101101		30
22	3101199		4
23	3101200		4
25	3101202		24
10	3101205		29
8	3101206		29
12	3101207		29
44	3101216		8
26	3101242		22
15	3101243		22
12	3101244		22
20	3101275		19
17	3101275		24
22	3101276		19
19	3101276		24
52	3101300		12
14	3101320		18
15	3101321		18
18	3101585		20
13	3101586		20
4	3101587		20
7	3101588		20
22	3101590		20
2	3101800		23
7	3101801		23
26	3101801		28
11	3101802		23
28	3101802		28
18	3101804		23
36	3101804		28
3	3101805		23
9	3101806		23
30	3101806		28
31	3101807		28
15	3101808		23
33	3101808		28
6	3101809		23
25	3101809		28
13	3101810		23
2	3101830		28
21	3101831		28
6	3101832		28
19	3101833		28
16	3101834		28
13	3101835		28
22	3101836		28
8	3101837		28
55	3103000		3
56	3103001		3
34-1	3106000		12
34-2	3106001		12
19	3107303		8
5	3107303		18
20	3107304		8
6	3107304		18
22	3107306		8
8	3107306		18
12	3107311		18
2-1	3108130		18
2-2	3108131		18
11-1	3108133		7
11-2	3108134		7
11-3	3108135		7
17	3108221		18
35-1	3109000		12
35-2	3109002		12
19	3109098		18
10	3109201		12
18	3109210		29
1	3109300		10
25	3120157		20
32	3120157		25
43	3120416		8
18	3139028		18
6	3139200		12
21	3150020		4
19	3150143		13
25	3150155		13
9	3151010		19
10	3151011		19
11	3151012		19
9	3160136		4
41	3160168		8
40	3161015		26
54	3161016		26
49	3161019		26
47	3161020		26
51	3161021		26
50	3161022		26
44	3161025		26
57	3161026		26
52	3161027		26
39	3169920		26
35	3180004		1
13	3180023		1
14	3180024		1
18	3180025		1
19	3180026		1
1	3180027		2
13-1	3180029		2
13-2	3180030		2
25	3180031		2
27	3180032		2
37	3180033		2
5	3180035		2
3-1	3180037		2
34	3180050		4
48	3180059		5
16	3180060		5

Page 66 — INDEX

Yamato VC2700 parts on page 66

Ref	Part number	Part name	Qty
25	3180080		14
18	3180084		13
3	3180100		10
1	3180110		15
20	3180111		17
34	3180112		15
33	3180113		17
32	3200047		3
15	3200048		3
38	3200049		6
1	3200058		4
7	3200063		4
8	3200064		4
40	3200088		7
38	3200089		7
42	3200090		7
13	3200100		6
14	3200101		7
18	3200112		7
22	3200113		7
17	3200114		7
13	3200115		7
23	3200118		7
8	3200133		16
16	3200226		6
5	3200227		14
3	3200229		13
5	3200230		13
1	3200236		14
15	3200237		13
3	3200238		14
14	3201037		22
33	3204020		4
4	3204021		4
9	3204040		1
1	3210002		1
2	3500088		4
31	3500284		3
28	3500285		3
13	3500286		3
10	3500287		3
46	3500299		8
42	3500305		8
23	3500360		24
23	3500425		14
3	3500430		1
10	3500431		1
9	3500432		2
7	3500503		21
7	3500503		26
17	3500510		21
17	3500510		26
17	3500530		19
13	3500530		24
19	3500555		23
37	3500555		28
23	3500556		23
41	3500556		28
32	3500700		30
14	3501270		16
28	3501271		16
27	3501272		16
30	3501275		16
26	3501276		16
24	3501280		16
19	3501281		15
23	3501282		16
18	3501283		16
20	3501284		16
31	3501290		16
43	3501295		16
3-1	3507000		18
3-2	3507002		18
17-1	3507050		8
17-2	3507052		8
17-3	3507054		8
19	3509202		29
25	3509320		9
1	3509335		23
1	3509952		28
38	4109403		1
1	6100709		6
13	9611074		31
42	9620008		30
39	9620202		30
2	9620631		30
22	9620666		30
3	9620670		30
8	9620673		30
11	9620675		30
23	9620678		30
24	9620679		30
25	9620680		30
26	9620681		30
18	9620688		30
4	9620689		30
21	9620690		30
20	9620691		30
1	9620696		30
17	9620700		30
16	9620703		30
41	9710111		30
40-2	9720235		30
40-1	9720236		30

Part BooksPartsSearchNotes

Part Books

×

Search

×

Yamato VC2700 — parts catalog

• Page 1 (cover): This is the cover page for the Yamato VC2700M High Speed Cylinder Bed Chainstitch Machine Parts List. It features the Yamato logo, the title 'Parts List', the machine model and type, and a line drawing of the machine.
• Page 2 (text): This page provides instructions on how to read the parts list, including explanations of symbols and how to place orders for parts. It also mentions that the parts list is subject to change without notice.
• Page 3 (toc): This page is a table of contents listing various mechanisms and parts of the sewing machine, along with their corresponding page numbers.
• Page 4 (diagram): This page displays a diagram of sewing machine components, including various covers, screws, and internal parts, with reference numbers for identification.
• Page 5 (parts_list): This page lists miscellaneous cover components with their part numbers, descriptions, and quantities. It includes notes regarding ordering model plates and details about side cover hinge gaskets.
• Page 6 (diagram): This page displays a diagram of various machine components, including screws, plates, and housing parts, with reference numbers for identification.
• Page 7 (parts_list): This page lists miscellaneous cover parts for an industrial sewing machine, including screws, covers, gaskets, and springs, with their corresponding part numbers and quantities required.
• Page 8 (diagram): This page displays a diagram of various machine components, including brackets, screws, and other small parts, with reference numbers for identification.
• Page 9 (parts_list): This page lists miscellaneous thread eyelets with their part numbers, descriptions, and quantities required.
• Page 10 (diagram): This page displays a diagram of various sewing machine components, including brackets, screws, and other mechanical parts, with reference numbers for identification.
• Page 11 (parts_list): This page lists miscellaneous thread eyelets with part numbers, descriptions, and quantities required.
• Page 12 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated by reference numbers. It includes a list of parts with their corresponding part numbers and descriptions.
• Page 13 (parts_list): This page lists miscellaneous bushings and related parts with their part numbers, descriptions, and quantities required.
• Page 14 (diagram): This page displays a diagram of various sewing machine components, including pulleys, shafts, screws, and levers, with corresponding reference numbers.
• Page 15 (parts_list): This page lists parts for the Main Shaft Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of various sewing machine components, including gears, belts, shafts, and mounting hardware, with reference numbers for each part.
• Page 17 (parts_list): This page lists parts for the Upper Shaft & Needle Thread Take-Up Mechanism, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various sewing machine components, including a needle plate, feed dog assembly, presser bar, and other miscellaneous parts, each identified by a reference number.
• Page 19 (parts_list): This page lists parts for the Needle Bar Mechanism, including part numbers, descriptions, and quantities required.
• Page 20 (diagram): This page displays a diagram of various sewing machine components, including shafts, springs, levers, and fasteners, with reference numbers for each part.
• Page 21 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 22 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and brackets, with corresponding reference numbers for identification.
• Page 23 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various sewing machine components, including a needle bar linkage, presser bar mechanism, and a bobbin case assembly, with numbered references for each part.
• Page 25 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various sewing machine parts, including a needle bar mechanism, presser bar, and related components, with reference numbers and some part numbers indicated.
• Page 27 (parts_list): This page lists parts for the Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 28 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification and assembly.
• Page 29 (parts_list): This page lists parts for the Feed Driving Control Mechanism, including part numbers, descriptions, and quantities required.
• Page 30 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, shafts, and other mechanical parts, each identified by a reference number.
• Page 31 (parts_list): This page lists parts for the Needle Guard & Feed Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 32 (diagram): This page displays a diagram of various sewing machine components, including screws, levers, shafts, and housing parts, with reference numbers for identification.
• Page 33 (parts_list): This page lists parts for the Needle Guard & Feed Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 34 (diagram): This page displays a diagram of engine components, including various screws, nuts, washers, filters, and a starter motor assembly, with reference numbers for each part.
• Page 35 (parts_list): This page lists parts for the Lubricating Mechanism (1) with part numbers, descriptions, and quantities required.
• Page 36 (diagram): This page displays a diagram of various machine components, including tubes, clamps, screws, and linkages, with reference numbers for each part.
• Page 37 (parts_list): This page lists parts for the Lubricating Mechanism (2) with part numbers, descriptions, and quantities required.
• Page 38 (diagram): This page displays a diagram of the puller mechanism (1) for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 39 (parts_list): This page lists parts for the Puller Mechanism, including part numbers, descriptions, and quantities required. It covers items from reference number 1 to 34.
• Page 40 (diagram): This page displays a diagram of the puller mechanism (2) with various parts labeled with reference numbers. It also includes sections for extra parts and rubber rollers.
• Page 41 (parts_list): This page lists parts for the Puller Mechanism Exclusive Parts (2) section, including part numbers, descriptions, and quantities required.
• Page 42 (diagram): This page displays a diagram of the puller mechanism (3) with numbered parts for identification.
• Page 43 (parts_list): This page lists parts for the Puller Mechanism, including part numbers, descriptions, and quantities required. It also contains notes referencing other parts and pages.
• Page 44 (diagram): This page displays a diagram of various sewing machine parts, including part numbers and reference numbers for identification.
• Page 45 (parts_list): This page lists exclusive parts for the VC2713M model, including part numbers, descriptions, and quantities required.
• Page 46 (diagram): This page displays a diagram of extra parts (1) for the sewing machine, including various components labeled with reference numbers.
• Page 47 (parts_list): This page lists extra parts for an industrial sewing machine, including synchronizer pins, cushions, screws, timing gauges, loopers, and stitch plates, with their corresponding part numbers and quantities.
• Page 48 (diagram): This page displays a diagram of extra parts for the VC2700M-132M and 140M 2-Needle sewing machine, including a needle bar, needle plate, and various screws and components.
• Page 49 (parts_list): This page lists extra parts for a sewing machine, including needle clamps, stitch plates, presser feet, screws, and nuts, with their corresponding part numbers and quantities.
• Page 50 (diagram): This page displays a diagram of various sewing machine parts, including thread guides, spools, a glass plate, screwdrivers, tweezers, an Allen wrench, instruction manuals, and oil. It also highlights specific parts for the VC2700M model.
• Page 51 (parts_list): This page lists parts for the Thread Stand & Accessories (1) with part numbers, descriptions, and quantities required.
• Page 52 (diagram): This page displays diagrams for table top installation and semi-submerged installation of sewing machine components, with numbered parts for reference.
• Page 53 (parts_list): This page lists accessories for industrial sewing machines, including parts like rubber cushions, screws, washers, nuts, chains, and pedals, along with their part numbers and quantities.
• Page 54 (parts_list): This page lists various warning labels for the sewing machine, including their part numbers, descriptions in English and Japanese, and associated symbols.
• Page 55 (cover): This is the cover page for a list of main spare parts, with the title also provided in Japanese.
• Page 56 (parts_list): This page lists main spare parts for the VC2700M class sewing machine, including part numbers and descriptions for various models like VC2700M-148M, VC2700M-132M, and VC2713M-156M-K4N.
• Page 57 (parts_list): This page lists parts for sewing machines, including Main Feed Dog, Folders, Fabric Guides, and Loopers, with corresponding part numbers and descriptions.
• Page 58 (index): This page is an index for the VC2700M model, listing part numbers, page numbers, reference numbers, and weights.
• Page 59 (index): This page contains an index of parts for the VC2700M, listing part numbers, page numbers, reference numbers, and weights.
• Page 60 (index): This page is an index for the VC2700M, listing part numbers, page numbers, reference numbers, and weights.
• Page 61 (index): This page is an index for the VC2700M, listing part numbers, page numbers, reference numbers, and weights.
• Page 62 (index): This page is an index of parts for the VC2700M, listing part numbers, page numbers, reference numbers, and weights.
• Page 63 (parts_list): This page contains a parts list for the VC2700M, with part numbers, page numbers, reference numbers, and weights listed in three columns.
• Page 64 (index): This page is an index for the VC2700M, listing part numbers, page numbers, reference numbers, and weights.
• Page 65 (index): This page is an index of parts for the VC2700M, listing part numbers, page numbers, reference numbers, and weights.
• Page 66 (index): This page contains an index of parts for the VC2700M, listing part numbers, page numbers, reference numbers, and weights across three columns.
• Page 67 (cover): This is the cover page for a Yamato Sewing Machine Mfg. Co., Ltd. parts catalog, version No. 3, edited in 2007.3. It includes the company's address and contact information in Japan.

Page 1 — Parts List

Yamato Parts List HIGH SPEED CYLINDER BED CHAINSTITCH MACHINE VC2700M MODELS VC2700M VC2713M VC2713MP YAMATO SEWING MACHINE MFG. CO.,LTD. From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 2

パーツリストの見方 このパーツリストはVC2700M-148M, 156M, 164Mを基本モデルにしてイラストを作成しています。 項目1~14には基本モデルを記載しています。 項目15~サブモデル、付帯装置等を記載しています。 パーツリストに記載されているカラーの寸法は内径×外径×幅を表わしています。 記号の説明 (Parts No. の隣に記載されています。) [ ] 前回 のパーツリストに対して、今回変更された部品を表わしています。 [ ] 内は旧Parts No. 及びネジ類の形状 ◆ 前回 のパーツリストに対して、今回追加された部品及びモデルを表わしています。 部品注文の際のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、3500201)でお願いしま す。 ☆ 0068011の場合は、0068011又は68011でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さを お知らせ下さい。 なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of VC2700M-148M, 156M, 164M. The items from No.1 to No.14 contain the standerd model. The following items included No.15 contain the submodel and Devices. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.3500201) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0068011", please place an order for the part by showing "0068011" or "68011". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) 1 MISCELLANEOUS COVERS(2) 2 MISCELLANEOUS THREAD EYELETS 3 MISCELLANEOUS BUSHINGS 4 MAIN SHAFT DRIVING MECHANISM 5 UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 6 NEEDLE BAR MECHANISM 7 PRESSER FOOT MECHANISM 8 SPREADER MECHANISM 9 LOOPER DRIVING MECHANISM 10 FEED DRIVING CONTROL MECHANISM 11 NEEDLE GUARD & FEED DRIVING MECHANISM 12 LUBRICATING MECHANISM(1) 13 LUBRICATING MECHANISM(2) 14 PULLER MECHANISM EXCLUSIVE PARTS(1) 15 PULLER MECHANISM EXCLUSIVE PARTS(2) 16 PULLER MECHANISM EXCLUSIVE PARTS(3) 17 VC2713M EXCLUSIVE PARTS 18 EXTRA PARTS(1) 19 EXTRA PARTS(2) 20 THREAD STAND & ACCESSORIES(1) 21 ACCESSORIES(2) 22 WARNING LABEL 23 LIST of MAIN SPARE PARTS 24 INDEX 25 カバー関係(1) カバー関係(2) 糸道関係 プッシュ関係 下軸機構 上軸及び針糸繰り機構 針棒機構 押工機構 節り糸ルーパ機構 ルーパ機構 前送り調節機構 針受ケ及び送り機構 給油機構(1) 給油機構(2) プラー機構専用部品(1) プラー機構専用部品(2) プラー機構専用部品(3) サブモデル専用部品 特注部品(1) 特注部品(2) 糸立台及びアクセサリー関係(1) アクセサリー関係(2) 警告ラベル 主要部品リスト 索引 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4

1 2 3 4 5 9 10 11 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 33 34 35 36 37 38 39 40 Yamato VC2700M From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5 — MISCELLANEOUS COVERS (1)

MISCELLANEOUS COVERS (1) カバー関係(1) 1 Ref.No Parts No. Description 品 名 Amt. Req 1 3210002 Top Cover 上カバー 1 2 110045 Screw(M4-0.7 × 12) 止ネジ 11 3 3500430 Top Cover Gasket 上カバーパッキン 1 4 0068011 Oil Sight Window オイル確認窓 1 5 0020759 Top Cover Seal Plug 上カバー詰栓 1 6 7 8 9 3204040 Head Cover ヘッドカバー 1 10 3500431 Head Cover Gasket ヘッドカバーパッキン 1 11 0093864 Head Cover Seal Plug 詰栓 1 12 13 3180023 Side Cover Hinge 横開キカバーヒンジ 1 14 3180024 Side Cover Hinge Gasket 横開キカバーヒンジパッキン 2 15 110048 Screw(M4.0-0.7 × 10) 止ネジ 2 16 3100042 Side Cover Hinge Pin 横開キカバーヒンジピン 1 17 160000 Screw(M3-0.5 × 3) 止ネジ 1 18 3180025 Side Cover 横開キカバー 1 19 3180026 Side Cover Gasket 横開キカバーパッキン 1 20 000924 Seal Plug(Rubber) 詰栓(ゴム) 1 21 3100045 Cloth Plate クロスプレート 1 22 110041 Screw(M4-0.7 × 8) 止ネジ 2 23 0094201 Cover Latch Spring カバーラッチバネ 1 24 110012 Screw(M4-0.7 × 5) 止ネジ 1 25 3100046 Side Cover Hook 横開キカバーフック 1 26 300101 Conical Spring Washer 皿バネワッシャ 1 27 170002 Screw(M4-0.7 × 5) 止ネジ 1 28 3100004 Oil Reservoir 油受ケ 1 29 3100005 Oil Reservoir Gasket 油受ケパッキン 1 30 31 32 33 0020137 Drain Hole Seal 油抜キネジパッキン 1 34 005075 Screw(3/8-24 × 8) 油抜キネジ 1 35 3180004 Machine Frame Unit アームベッド(組) 1 36 120016 Screw(M8-1.25 × 20) 止ネジ 4 37 340000 Machine Frame Supporting Bar ベット支工棒 4 38 4109403 Model Plate(See the below) 型式板(下記参照) 1 39 000726 Rivet 止メ鋲 5 40 2049401 Serial Number Plate 機番プレート 1 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注) 型式板を御注文の際は機種名(ゲージ記号、附帯装置含む)をお知らせください。 Note : Ref. No. 14 Side Cover Hinge Gasket is adhered with two plates. (注) Ref. No. 14の横開キカバーヒンジパッキンは、2枚セット(接着)です。 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 6

2 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 7 — MISCELLANEOUS COVERS(2)

MISCELLANEOUS COVERS(2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 1 3180027 Cloth Plate(Large) クロスプレート(大) 1 2 120009 Screw(M4-0.7 × 12) 止ネジ 5 3-1 3180037 [3100023] Slide Cover(48, 56) 滑り板 1 3-2 3180038 [3100400] Slide Cover(64) 滑り板 1 4 3100020 Crank Chamber Cover ナカカバー 1 5 3180035 Crank Chamber Cover Gasket ナカカバーパッキン 1 6 130003 Screw(M1-0.7 × 7.3) 止ネジ 7 7 0093864 Seal Plug 詰栓 4 8 0065275 Seal Plug 詰栓 1 9 3500432 Rear Cover Gasket 後カバーパッキン 1 10 3100016 Rear Cover 後カバー 1 11 110013 Screw(M4-0.7 × 8) 止ネジ 6 12 3100113 Needle Bar Guard 針棒ガード 1 13-1 3180029 Supplementary Slide Cover(48, 56) 滑り板補助板 1 13-2 3180030 Supplementary Slide Cover(64) 滑り板補助板 1 14 330011 Seal Plug 詰栓 1 15 3100058 Stitch Plate Support 針板取付板 1 16 110041 Screw(M4-0.7 × 8) 止ネジ 2 17 3100050 Feed Regulating Pushbutton プッシュボタン 1 18 3100050 Feed Regulating Pushbutton Spring プッシュボタンバネ 1 19 0033024 Retaining Ring ストップリング 1 20 3100053 Oil Defender 油受ケ 1 21 110012 Screw(M4-0.7 × 5) 止ネジ 3 22 190005 Screw(M4-0.7 × 5) バネ掛ケネジ 2 23 000665 Washer ワッシャ 2 24 000015 Nut ナット 1 25 3040040 [3180031] Front Cover Hinge 前開キカバーヒンジ 1 26 110016 Screw(M4-0.7 × 14) 止ネジ 2 27 3180032 Front Cover(Lower) 前開キカバー(下) 1 28 170001 Screw(M4-0.7 × 8) 止ネジ 1 29 300100 Conical Spring Washer 皿バネワッシャ 2 30 160001 Screw(M4-0.7 × 4) 止ネジ 1 31 180005 Screw(M5-0.8 × 8) 止ネジ 1 32 3100630 Fabric Edge Guide(Left) 定規(左) 1 33 3100631 Fabric Edge Guide(Right) 定規(右) 1 34 000538 Washer ワッシャ 2 35 0095367 Fabric Edge Guide Chip 定規チップ 1 36 004182 Screw(3/32-56 × 2.5) 止ネジ 1 37 3180033 Front Cover(Upper) 前開キカバー(上) 1 38 130002 Screw(M3-0.5 × 6) 止ネジ 3 39 110031 Screw(M4-0.7 × 12) 止ネジ 2 40 0094201 Cover Latch Spring カバーラッチバネ 1 41 3100034 Supplementary Tension Disc Cover 小調皿カバー 1 42 110101 Screw(M3-0.5 × 3) 止ネジ 2 43 110009 Screw(M4-0.7 × 8) 止ネジ 2 44 110079 Screw(M4-0.7 × 8) 止ネジ 2 45 3100006 Seal Plug 詰栓 1 46 0020759 Seal Plug 詰栓 1 47 160015 Screw(M6-1 × 6) 詰ネジ 1 48 110031 [110045] Screw(M4-0.7 × 12)[M4-0.7 × 12] 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 8

3 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 9 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 糸調関係 3 Ref.No Parts No. Description 品 名 Amt. Req 1 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 5 2 0024083 Tension Spring Bushing 糸調子ナット回り止メ 5 3 0030255 Tension Spring(Needle) 糸調子バネ(針) 3 4 0032952 Tension Spring (Looper, Top Cover) 糸調子バネ(ルーパ,飾り) 2 5 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 5 6 000177 Felt フェルト 5 7 0031111 Tension Disc 糸調子皿 10 8 290029 Tension Post 糸調子棒 5 9 0090812 Tension Post Ferrule 糸調子棒糸摺レ 5 10 3500287 Tension Disc Separator 糸緩メ板 1 11 0090856 Tension Disc Eyelet 糸調子皿糸道 5 12 0090807 Thread Lead-in Guide 糸調子台糸道 5 13 3500286 Tension Post Support 糸調子台 1 14 110013 Screw(M4-0.7 × 8) 止ネジ 6 15 3200048 Top Cover Thread Eyelet(Left) 飾り糸道(左) 1 16 110009 Screw(M4-0.7 × 8) 止ネジ 5 17 0093556 Looper Thread Eyelet(Long) ルーパ糸道(長) 1 18 3100088 Supplementary Tension Spring 小調子バネ 1 19 3100085 Supplementary Tension Disc(Lower) 小調子皿(下) 1 20 3100084 Supplementary Tension Disc(Upper) 小調子皿(上) 1 21 170004 Screw(M3-0.5 × 9.6) 止ネジ 1 22 3100076 Tension Disc Guide 小調子皿ガイド 1 23 110101 Screw(M3-0.5 × 3) 止ネジ 1 24 3100083 Looper Thread Guard ルーパ糸ガード 1 25 3100082 Looper Thread Eyelet(Center) ルーパ糸道(中) 1 26 110100 Screw(M3-0.5 × 6) 止ネジ 1 27 0020119 Thread Eyelet Pipe 糸道パイプ 2 28 3500285 Thread Eyelet Pipe Holder 糸道パイプ押工 1 29 30 31 3500284 Thread Guide Plate 糸案内板 1 32 3200047 Top Cover Thread Eyelet(Right) 飾り糸道(右) 1 33 000538 Washer ワッシャ 2 34 000651 Guide Pin ガイドピン 1 35 3100383 SP Device, Complete Set SP装置(組) 1 36 3100384 SP Container SPタンク 1 37 3100386 Felt SPフェルト 1 38 3100387 [0093521] Needle Thread Eyelet 針糸道 1 39 350009 Wood Screw(φ 5.5 × 6) 木ネジ 2 40 0090068 Needle Thread Guide 針糸受ケ 1 Ref. No 41 to 58 See the following page. From the library of: Superior Sewing Machine & Supply LLC VC2700M JIntex.in

Page 10

3 35 37 39 38 36 33 16 32 31 27 28 14 26 25 24 23 22 21 20 19 18 17 14 16 40 55 41 42 14 44 45 46 47 54 15 56 48 49 50 16 51 52 53 12 57 11 13 12 11 10 9 8 7 6 5 4 3 2 1 9 8 7 6 5 4 3 2 1 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 糸調関係 3 Ref.No Parts No. Description 品名 Amt. Req 41 3100442 Needle Thread Take-up Guard 針糸繰りガード 1 42 130003 Screw(M4-0.7 × 4.5) 止ネジ 1 43 3100087 Needle Thread Retainer Support 小調子台 1 44 0036175 Thread Retainer Disc Support 小調子板 1 45 0032425 Needle Thread Retainer Dice 小調子皿 1 46 0032426 Needle Thread Retainer Spring 小調子バネ 1 47 001093 Screw(1/8-44 × 2.2) 止ネジ 1 48 3100081 Top Cover Thread Guide 飾り糸案内 1 49 0063074 Supplementary Thread Guide 小調子台糸道 1 50 001818 Tension Post 糸調子棒 1 51 0037108 Supplementary Tension Disc 小調子皿 2 52 0035813 Supplementary Tension Spring 飾り糸調子バネ 1 53 000360 Nut ナット 1 54 110054 Screw(M3-0.5 × 3.5) 止ネジ 1 55 3103000 Needle Thread Retainer Support, C. Set 小調子台(組) 1 56 3103001 Top Cover Thread Guide, C. Set 飾り糸案内(組) 1 57 000505 Spacer スペーサ 2 58 110014 [110013] Screw(M4-0.7 × 18)[M4-0.7 × 8] 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC Jinte.in VC2700M

Page 12

4 32 1 8 9 7 10 11 5 3 18 6 4 12 14 16 21 13 17 19 15 18 22 23 31 24 30 27 29 28 26 25 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 13 — MISCELLANEOUS BUSHINGS

MISCELLANEOUS BUSHINGS Ref.No Parts No. Description ブッシュ関係 4 Amt. Req 1 3500309 [3204020] Oil Seal オイルシール 2 3100099 Presser Bar Bushing 押工棒ブッシュ 1 3204021 Oil Seal オイルシール 2 3100100 Spreader Driving Bar Bushing 飾リルーパ棒ブッシュ 1 0063055 Oil Seal オイルシール 1 3200063 Spreader Driving Shaft Bushing(Left) 飾リルーパ軸ブッシュ(左) 1 3200064 Spreader Driving Shaft Bushing(Right) 飾リルーパ軸ブッシュ(右) 1 3160136 Foot Lifter Lever Bushing 押工場ゲ軸ブッシュ 1 3200068 [0093201] Needle Thread Take-up Bushing(Front) 針糸繰リ軸ブッシュ(前) 1 11 3100098 Needle Thread Take-up Bushing(Rear) 針糸繰リ軸ブッシュ(後) 1 12 3100090 Lower Shaft Bushing(Left) 下軸ブッシュ(左) 1 13 3100091 Lower Shaft Bushing(Right) 下軸ブッシュ(右) 1 14 3100094 Differential Feed Bar Shaft Bushing(Left) 前送り軸ブッシュ(左) 1 15 3100095 Differential Feed Bar Shaft Bushing(Right) 前送り軸ブッシュ(右) 1 16 3100096 Feed Bar Lift Shaft Bushing(Left) 送リ上下軸ブッシュ(左) 1 17 3100097 Feed Bar Lift Shaft Bushing(Right) 送リ上下軸ブッシュ(右) 1 18 3100006 Seal Plug 詰栓 2 19 3100092 Looper Driving Shaft Bushing(Front) ルーパ軸ブッシュ(前) 1 20 3100093 Looper Driving Shaft Bushing(Rear) ルーパ軸ブッシュ(後) 1 21 3150020 Adjusting Screw Bushing 前送り調節ネジブッシュ 1 22 3101199 Eye Guard, Complete Set アイガード(組) 1 23 3101200 Eye Guard Support アイガード取付板 1 24 009784 Screw(M6-1 × 10) 止ネジ 2 25 0060176 Eye Guard アイガード 1 26 004236 Screw(3/32-56 × 4.2) 止ネジ 2 27 0060175 Eye Guard Holder アイガードホルダ 1 28 006004 Screw(11/64-40 × 9.7) 止ネジ 1 29 000010 Conical Spring Washer 皿バネワッシャ 1 30 000547 Washer ワッシャ 1 31 000334 Nut ナット 1 32 000195 Oil Wick 油芯 1 From the library of: Superior Sewing Machine & Supply LLC Jinte.in VC2700M

Page 14

5 VC2700M From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15 — MAIN SHAFT DRIVING MECHANISM

MAIN SHAFT DRIVING MECHANISM 下軸機構 5 Ref.No Parts No. Description 品 名 Amt. Req 1 3100130 Pulley プーリー 1 2 160005 Screw(M6-1 × 8) 止ネジ 4 3 160007 Screw(M6-1 × 6) 止ネジ 6 4 0093089 Ball Bearing(Right) ボールベアリング(右) 1 5 3100128 Main Shaft Sprocket(Lower) ベルトプーリー(下) 1 6 3100131 Ball Bearing(Middle) ボールベアリング(中) 1 7 3100132 Lower Shaft(Right) 下軸(右) 1 8 3100122 Oil Pump Driving Worm ウオーム 1 9 3100127 Counterweight(Small) バランスウエイト(小) 1 10 110009 Screw(M4-0.7 × 8) 止ネジ 2 11 3100123 Ball Bearing(Left) ボールベアリング(左) 1 12 3100121 Lower Crankshaft 下軸クランク 1 13 160004 Screw(M6-1 × 4.8) 止ネジ 2 14 001107 Roll Pin ロールピン 1 15 310132 [310093] Oil Wick(No.4-190mm) 油芯 1 16 3180060 Lower Shaft(Left) 下軸(左) 1 17 000397 Oil Wick 油芯 4 18 310093 Oil Wick(No.3-40mm) 油芯 1 19 000304 Oil Wick 油芯 1 20 3100126 Collar(14 × 21 × 5.5mm) カラー 1 21 160000 Screw(M3-0.5 × 3) 止ネジ 2 22 3100125 Looper Thread Take-up 下糸調子カム 1 23 150000 Screw(M4-0.5 × 4) 止ネジ 2 24 3100263 Supporting Plate カム糸道取付板 1 25 110002 Screw(M3-0.5 × 5) 止ネジ 3 26 000463 Laced Wire モール(糸巻き付防止) 1 27 3100264 Thread Take-up Eyelet(Left) カム糸道(左) 1 28 3100265 Thread Take-up Eyelet(Right) カム糸道(右) 1 29 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 2 30 3100262 Supporting Plate Basement カム糸道取付台 1 31 160001 Screw(M4-0.7 × 4) 止ネジ 2 32 160008 Stop Screw(M6-1 × 35) ストップネジ 1 33 000234 Lock Nut ロックナット 1 34 3100267 Supporting Plate Return Spring 戻シバネ 1 35 110026 Screw(M3-0.6 × 6) 止ネジ 1 36 340004 Pin ピン 1 37 3100260 Basement Shaft 取付台軸 1 38 3100261 Collar(6 × 11 × 5mm) カラー 1 39 3100266 Cast-off Plate 糸案内 1 40 000531 Washer ワッシャ 1 41 3100268 Stop Bracket ストップ台 1 42 110013 Screw(M4-0.7 × 8) 止ネジ 2 43 3100270 Supporting Plate Stop 取付板ストップ 1 44 3100269 Stop Spring 取付板ストップバネ 1 45 170003 Screw(M3-0.5 × 3) 止ネジ 1 46 3100272 Basement Cushion 取付台クッション 1 47 3100271 Supporting Plate Stop, C. Set 取付板ストップ(組) 1 48 3180059 Lower Shaft, C. Set 下軸(組) 1 From the library of: Superior Sewing Machine & Supply LLC Jinte.in VC2700M

Page 16

6 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 17 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 上軸及び針糸繰り機構 6 Ref.No Parts No. Description Amt. Req 1 6100709 Handwheel ハンドホイール 1 2 160005 Screw(M6-1 × 8) 止ネジ 1 3 160007 Screw(M6-1 × 6) 止ネジ 11 4 000989 Handwheel Mark ハンドホイールマーク 1 5 3100131 Ball Bearing ボールベアリング 2 6 3100129 Handwheel Adapter アダプタ 1 7 0095214 Timing Belt タイミングベルト 1 8 3100281 Upper Shaft Sprocket(Upper) ベルトプーリ(上) 1 9 3100275 Upper Shaft(Right) 上軸(右) 1 10 3100283 Upper Shaft Joint 上軸継手 1 11 3100127 Counterweight(Small) バランスウエイト(小) 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 3200100 Upper Crankshaft 上軸クランク 1 14 310040 Oil Wick 油芯 1 15 110012 Screw(M4-0.7 × 4) 詰ネジ 1 16 3200226 Oil Sleeve オイルスリーブ 1 17 000290 Oil Wick 油芯 1 18 0060057 Retaining Ring 止メ輪 1 19 0093154 Ball Bearing ボールベアリング 2 20 000926 Rubber Seat ゴム座 1 21 160004 Screw(M6-1 × 4.8) 止ネジ 2 22 0095170 Connecting Rod 針糸繰りロッド 1 23 005071 Screw(11/64-32 × 14) 止ネジ 2 24 001174 Screw(9/64-40 × 10.3) 止ネジ 2 25 001168 Guide Fork 振レ止メ 1 26 004312 Screw(1/8-44 × 7.9) 止ネジ 2 27 3100285 Driving Lever 針糸繰り軸腕 1 28 120013 Screw(M6-1 × 15) 止ネジ 1 29 120015 Screw(M5-0.8 × 10) 止ネジ 1 30 000555 Washer ワッシャ 1 31 3100286 Spacer スペーサ 1 32 3100287 Driving Shaft 針糸繰り軸 1 33 3100287 Bracket 針糸繰り台 1 34 3100078 Spring Washer スプリングワッシャ 1 35 000600 Screw(M5-0.8 × 14) 止ネジ 1 36 005650 Needle Thread Take-up 針糸繰り糸道 1 37 0063096 Top Cover Thread Take-up 飾り糸繰り 1 38 3200049 Screw(M3.5-0.6 × 8) 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC VC2700M Jintek.in

Page 18

7 2 3 1 5 6 7-1 7-2 7-3 9 10 8 12 11-1 11-2 11-3 17 19 20 21 22 18 23 39 38 42 40 41 13 15 16 14 35 35 24 34 25 27 26 29 30 31 33 32 28 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinatex.in

Page 19 — NEEDLE BAR MECHANISM

NEEDLE BAR MECHANISM 7 Ref.No Parts No. Description 品 名 Amt. Req 1 3270015 [3180050] Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 2 004358 Screw(9/64-40 × 5.6) 止ネジ 1 3 0063044 Needle Bar Thread Eyelet 針棒糸道 1 4 000548 Washer ワッシャ 1 5 3200111 [0093184] Needle Bar Bracket 針棒抱キ 1 6 110035 [002043] Screw(M4-0.7 × 10)[11/64-40 × 11] 止ネジ 1 7-1 0093356 Needle Clamp(48) 針止メ 1 7-2 0093357 Needle Clamp(56) 針止メ 1 7-3 0093358 Needle Clamp(64) 針止メ 1 8 Needle(UY128 GAS) 針 3 9 001900 Screw(1/8-44 × 2.4) 止ネジ 4 10 0093365 Top Cover Thread Eyelet 飾り糸道 1 11-1 3108133 Stitch Plate(48M) 針板 1 11-2 3108134 Stitch Plate(56M) 針板 1 11-3 3108135 Stitch Plate(64M) 針板 1 12 009142 Screw(9/64-40 × 4.9) 止ネジ 2 13 3200115 Counterweight, Complete Set バランスウエイト(組) 1 14 3200101 Counterweight バランスウエイト 1 15 120015 Screw(M5-0.8 × 10) 止ネジ 1 16 0093214 Connecting Rod Ring 針棒ロッドリング 1 17 3200114 Connecting Rod, Complete, Set 針棒ロッド(組) 1 18 3200112 Connecting Rod 針棒ロッド 1 19 0093212 Roller Bearing ニードルベアリング 1 20 330000 Seal Plug 詰栓 1 21 000309 [000321] Oil Wick 油芯 1 22 3200113 Connecting Rod Pin 針棒ロッドピン 1 23 3200118 Needle Bar Guide, C. Set 針棒案内(組) 1 24 009749 Screw(M4-0.7 × 16) 止ネジ 2 25 3100256 HR Device, Complete Set HR装置(組) 1 26 3100254 HR Container HRタンク 1 27 110013 Screw(M4-0.7 × 8) 止ネジ 2 28 1090190 Pipe Joint パイプ継手 1 29 3100253 Oil Tube 給油パイプ 1 30 310007 Felt フェルト 1 31 3100250 HR Cup HRカップ 1 32 310006 HR Felt HRフェルト 1 33 000637 Seal Plug 詰栓 1 34 110013 Screw(M4-0.7 × 8) 止ネジ 1 35 260000 Screw(5/16-24 × 15.88) 止ネジ 2 36 3100338 Sponge 給油スポンジ 1 37 160023 Screw(M4-0.7 × 4) 止ネジ 1 38 3200089 Connecting Rod Cover(Rear) 針棒ロッドカバー(後) 1 39 110002 Screw(M3-0.5 × 5) 止ネジ 2 40 3200088 Connecting Rod Cover(Front) 針棒ロッドカバー(前) 1 41 110012 Screw(M4-0.7 × 5) 止ネジ 1 42 3200090 Connecting Rod Cover Shaft カバー軸 1 From the library of: Superior Sewing Machine & Supply LLC Jinteх.in VC2700M

Page 20

8 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 21 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 1 0077270 Presser Spring Regulator 押工調節ネジ 1 2 000445 Lock Nut ロックナット 1 3 0065372 Presser Bar Spring(Outer) 押工棒バネ(太) 1 4 0063087 Presser Bar Connecting Bracket 押工棒抱キ 1 5 004440 Screw(11/64-40 × 8.3) 止ネジ 1 6 0093483 Presser Bar Guide 押工棒案内 1 7 004441 Screw(11/64-40 × 16) 止ネジ 2 8 0060142 Presser Bar Spring(Inner) 押工棒バネ(細) 1 9 3100110 Presser Bar 押工棒 1 10 3100112 Finger Guard フィンガード 1 11 110002 Screw(M3-0.5 × 5) 止ネジ 1 12 0093611 Oil Protector Ring 油切りリング 1 13 3100310 Collar(9 × 17 × 7mm) カラー 1 14 160001 Screw(M4-0.7 × 4) 止ネジ 1 15 000271 Thread Chain Cutting Knife チェインカッタ 1 16 110054 Screw(M3-0.52 × 3.5) 止ネジ 1 17-1 3507050 Presser Foot, Complete Set(48) 押工(組) 1 17-2 3507052 Presser Foot, Complete Set(56) 押工(組) 1 17-3 3507054 Presser Foot, Complete Set(64) 押工(組) 1 18 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 19 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 20 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 21 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 22 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 23 110084 Screw(M3.5-0.5 × 4.2) 止ネジ 1 24 000327 Lock Nut ロックナット 1 25 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 26 0093487 Lifter Link 吊りリンク 1 27 006038 Screw(3/16-32 × 2.2) 止ネジ 2 28 0063083 Lifter Link Lever 吊りリンクレバー 1 29 000690 Fastener Pin 止メピン 1 30 0063084 Lifter Spring 押工揚ゲバネ 1 31 0093491 Collar(8 × 16 × 8mm) カラー 2 32 009604 Screw(11/64-40 × 5.5) 止ネジ 4 33 0093479 Lifter Shaft 押工揚ゲ軸 1 34 3100294 Intermediate Lever 押工揚ゲ中レバー 1 35 120017 Screw(M5-0.8 × 15) 止ネジ 1 36 0077179 Retaining Ring ストップリング 2 37 0093507 Connecting Plate 連結桿 1 38 0093509 Connecting Pin 連結ピン 2 39 0093508 Lifter Lever(Small) 押工揚ゲレバー(小) 1 40 004591 [009200] Screw(15/64-28 × 9.5)[15/64-28 × 9.5] 止ネジ 1 Ref. No 41 to 57 See the following page. From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 22

8 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 23 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 41 3160168 Lifter Spring 押工揚ゲバネ 1 42 3500305 Cap キャップ 1 43 3120416 Presser Foot Lifter Lever 押工揚ゲレバー 1 44 3101216 Lifter Lever Stop 押工揚ゲレバー ストップ 1 45 004358 Screw(9/64-40 × 5.6) 止ネジ 2 46 3500299 Tension Release Lever Connector 糸緩メ腕連結板 1 47 170009 Screw(M4-0.7 × 4) 止ネジ 1 48 170038 Screw(M4-0.7 × 5) 止ネジ 1 49 3100533 Tension Release Lever 糸緩メ腕 1 50 120001 Screw(M4-0.7 × 14) 止ネジ 1 51 0094387 Tension Release Shaft 糸緩メ軸 1 52 0063515 Thread Pull-off Lever 糸緩メレバー 1 53 000690 Spring Pin(4 × 16mm) スプリングピン 1 54 0094390 Tension Release Adjusting Eccentric 糸緩メ板調節コロ 1 55 0095334 Swing-proof Spring 防振バネ 1 56 001170 Screw(9/64-40 × 12) 止ネジ 1 57 340014 Roll Pin(3 × 12mm) ロールピン 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 24

9 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 25 — SPREADER MECHANISM

SPREADER MECHANISM Ref.No Parts No. Description 品 名 Amt. Req 1 3100302 Connecting Rod, Complete Set ルーパロッド(組) 1 2 3100300 Eccentric ルーパエキセン 1 3 160003 Screw(M5-0.8 × 5) 止ネジ 2 4 0077322 Roller Bearing ニードルベアリング 1 5 3100301 Connecting Rod ルーパロッド 1 6 0094566 Retaining Ring ストップリング 1 7 110009 Screw(M4-0.7 × 8) 止ネジ 1 8 300006 Washer ワッシャ 1 9 3100309 Adjusting Lever Pin 調節レバーピン 1 10 000528 Washer ワッシャ 1 11 100003 Nut(M6-1.0) ナット 1 12 0032646 Collar(12 × 20 × 8mm) カラー 1 13 009604 Screw(11/64-40 × 5.5) 止ネジ 2 14 3100303 Adjusting Lever 調節レバー 1 15 120013 Screw(M6-1 × 15) 止ネジ 1 16 3100304 Driving Shaft ルーパ軸 1 17 3100305 Rocking Arm ルーパ振り腕 1 18 160007 Screw(M6-1 × 6) 止ネジ 2 19 0063051 Rocking Pin ルーパ振りピン 1 20 0063053 Spreader Bar ルーパ棒 1 21 0063056 Bushing Ring ブッシュリング 1 22 0063057 Collar(10 × 18 × 7mm) カラー 1 23 009526 Screw(9/64-40 × 4.4) 止ネジ 2 24 3100307 Spreader Holder 飾り糸ルーパ台 1 25 3509320 Spreader 飾り糸ルーパ 1 26 110031 Screw(M4-0.7 × 12) 止ネジ 2 節リ糸ルーパ機構 9 From the library of: Superior Sewing Machine & Supply LLC VC2700M

Page 26

10 1-1 1-2 11 9 8 7 6 2 5 4 3 23 7 21 22 25 12 13 24 19 20 14 15 26 17 18 27 A 33 32 30 29 31 35 37 38 34 48 36 45 46 43 44 40 39 47 41 42 43 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 27 — LOOPPER DRIVING MECHANISM

LOOPPER DRIVING MECHANISM ルーパ機構 10 Ref.No Parts No. Description 品 名 Amt. Req 1-1 3109300 Looper(32, 40, 56, 64) ルーパ 1 1-2 3109302 Looper(48) ルーパ 1 2 160040 Screw(M4-0.7 × 5) 止ネジ 1 3 3180100 Looper Holder ルーパ台 1 4 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 5 300500 Spacer(Fiber) スペーサ(ファイバ) 2 6 3100154 Looper Bar Bushing ルーパ棒ブッシュ 1 7 160024 Screw(M6-1 × 8) 止ネジ 2 8 3100410 Looper Thread Eyelet ルーパ糸道 1 9 110101 Screw(M3-0.5 × 3) 止ネジ 1 10 340008 Roll Pin ロールピン 1 11 110106 Bushing Spacer ブッシュスペーサ 1 12 3100152 Looper Bar Guide ルーパ棒ガイド 1 13 3100157 Slider スライダ 1 14 3100158 Slider Holder スライダ取付台 1 15 110005 Screw(M3.5-0.6 × 12) 止ネジ 1 16 17 3100159 Slider Presser スライダ押シ 1 18 160001 Screw(M4-0.7 × 4) 止ネジ 1 19 3100160 Thrust Washer スラストワッシャ 1 20 330002 Seal Plug(Kurk) 詰栓(コルク) 1 21 3100161 Looper Bar ルーパ棒 1 22 3100153 Guide Shaft Bushing ガイド軸ブッシュ 1 23 3100155 Looper Bar Guide Shaft ガイド軸 1 24 110019 Screw(M5-0.8 × 35) 止ネジ 1 25 300000 Washer ワッシャ 2 26 3100151 Looper Rocker Adjusting Pin ルーパ前後調節ピン 1 27 340001 Roll Pin ロールピン 1 28 100002 Nut ナット 1 29 3100150 Looper Rocker Connecting Rod, C. Set ルーパ前後ロッド(組) 1 30 3100147 Looper Rocker Regulating Eccentric ルーパ前後エキセン 1 31 160005 Screw(M5-0.8 × 5) 止ネジ 1 32 0065389 Roller Bearing ニードルベアリング 1 33 3100149 Looper Rocker Connecting Rod ルーパ前後ロッド 1 34 3100140 Looper Connecting Rod ルーパロッド 1 35 005071 Screw(11/64-32 × 14) 止ネジ 4 36 3100355 Oil Sphasher オイル スプラッシャ 1 37 3100141 Guide Fork 振止メ 1 38 004440 Screw(11/64-40 × 8.3) 止ネジ 2 39 3100142 Looper Driving Lever ルーパ軸腕 1 40 000637 Seal Plug 詰栓 1 41 3100143 Looper Rocker Arm ルーパ振り腕 1 42 120011 Screw(M6-1 × 18) 止ネジ 1 43 3100146 Thrust Washer スラストワッシャ 3 44 3100145 Thrust Roller Bearing スラストベアリング 2 45 3100144 Looper Shaft ルーパ軸 1 46 000740 Seal Plug 詰栓 2 47 160029 Screw(M8-1.25 × 8) 止ネジ 2 48 001123 Washer ワッシャ 2 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 28

11 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 29 — FEED DRIVING CONTROL MECHANISM

FEED DRIVING CONTROL MECHANISM 前送り調節機構 11 Ref.No Parts No. Description 品 名 Amt. Req 1 3100217 Feed Lift Lever 送り上下軸腕 1 2 160007 Screw(M6-1 × 6) 止ネジ 6 3 0032799 Connecting Rod Pin ロッドピン 1 4 160002 Screw(M4-0.7 × 2) 止ネジ 4 5 3100216 Feed Lift Connecting Rod 送り上下ロッド 1 6 3100192 Retaining Ring 止メ輪 2 7 3100190 Roller Bearing ニードルベアリング 2 8 3100189 Differential Feed Eccentric 前送りエキセン 1 9 006212 Screw(M5-0.8 × 6) 止ネジ 2 10 3100191 Differential Feed Connecting Rod 前送りロッド 1 11 3100193 Connecting Rod Pin ロッドピン 2 12 3100194 Lever Link(Long) 前送りレバーリンク(長) 1 13 3100195 Lever Link(Short) 前送りレバーリンク(短) 1 14 3100196 Lever Link Pin 前送りレバーリンクピン 1 15 300006 Washer ワッシャ 1 16 110009 Screw(M4-0.7 × 8) 止ネジ 1 17 3100197 Differential Feed Shaft Lever 前送り軸レバー 1 18 120009 Screw(M4-0.7 × 12) 止ネジ 1 19 3100199 Control Bracket 前送り調節ブラケット 1 20 3100202 Connecting Rod Guide 前送りロッドガイド 1 21 3100200 Control Bracket Spring ブラケットバネ 1 22 340003 Pin ピン 2 23 3100103 Control Lever Shaft Bushing 調節レバー軸ブッシュ 1 24 3100104 O-ring(P16) Oリング 1 25 0093303 Oil Seal オイルシール 1 26 3100201 Control Lever Shaft 前送り調節レバー軸 1 27 3100211 Control Link Pin 前送り調節リンクピン 1 28 3100203 Control Link 前送り調節リンク 1 29 3100208 Control Nut 前送り調節ナット 1 30 001107 Roll Pin ロールピン 1 31 3100205 O-ring(P12) Oリング 1 32 3100204 Adjusting Screw 調節ネジ 1 33 3100207 Adjusting Stop Pin ストップピン 1 34 160001 Screw(M4-0.7 × 4) 止ネジ 1 35 3100206 Adjusting Knob 調節ツマミ 1 36 130011 Screw(M3-0.5 × 4) 止ネジ 1 37 3100235 Differential Feed Control Lever, C. Set 前送り調節レバー(組) 1 38 3100210 Differential Feed Control Lever 前送り調節レバー 1 39 3100209 Differential Feed Graduations 前送り目盛板 1 40 130004 Screw(M4-0.7 × 11) 止ネジ 2 41 000505 Spacer スペーサ 2 42 0020350 Control Lever Stop 前送り調節レバー ストップ 1 43 000669 Washer ワッシャ 1 44 000600 Spring Washer スプリングワッシャ 1 45 005049 Screw(M5-0.8 × 8) 止ネジ 1 46 190004 Screw(M6-1 × 7.5, M4.5-0.5 × 3) 止ネジ 1 47 100005 Nut ナット 1 48 000561 Conical Spring Washer 皿バネワッシャ 1 49 3100220 Feed Lift Connecting Rod, C. Set 送り上下ロッド(組) 1 50 110013 Screw(M4-0.7 × 8) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 30

12 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 31 — NEEDLE GUARD & FEED MECHANISM

NEEDLE GUARD & FEED MECHANISM 針受ケ及び送り機構 12 Ref.No Parts No. Description 品 名 Amt. Req 1 3100243 Needle Guard(Front) Eccentric 針受ケ(前)エキセン 1 2 160003 Screw(M5-0.8 × 5) 止ネジ 2 3 3100242 Needle Guard(Front) Lever 針受ケ(前)腕 1 4 110022 Screw(M3-0.5 × 10) 止ネジ 2 5 3100241 Needle Guard(Front) Holder 針受ケ(前)台 1 6 3139200 Needle Guard(Front) 針受ケ(前) 1 7 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 8 3100246 Needle Guard(Rear) Lever 針受ケ(後)腕 1 9 3100245 Needle Guard(Rear) Holder 針受ケ(後)台 1 10 3509202 [3109201] Needle Guard(Rear) 針受ケ(後) 1 11 3100187 Feed Regulating Stop 送り調節ストップ 1 12 110004 Screw(M3.5-0.6 × 8) 止ネジ 3 13 340001 Roll Pin ロールピン 1 14 3100186 Conical Spring Presser 皿バネ押エ 1 15 130005 Screw(M2-0.4 × 4) 止ネジ 2 16 3100185 Conical Spring 皿バネ 1 17 3100183 Eccentric Cam 送リリキセンカム 1 18 340025 Stop Pin ストツプピン 1 19 3100184 Eccentric Pin 送リリキセンピン 1 20 3100182 Main Feed Eccentric, Complete Set 送リリキセン(組) 1 21 110072 Screw(M3.5-0.6 × 6) 止ネジ 1 22 110023 Screw(M2-0.4 × 3.5) 止ネジ 1 23 009756 Screw(M4-0.7 × 6) 止ネジ 2 24 3180091 [3100188] Main Feed Bar Driving Connection 後送リリンク 1 25 110021 Screw(M5-0.8 × 18) 止ネジ 2 26 0032853 Driving Connection Bushing 後送リリンクブツシユ 1 27 3100225 Feed Bar Guide(Upper/Left) 送リ台ガイド(上左) 1 28 160007 Screw(M6-1 × 6) 止ネジ 2 29 3180090 [3100229] Feed Mechanism, C. Set 送リ機構(組) 1 30 3100221 Differential Feed Bar 前送リ台 1 31 3100222 MainFeed Bar 後送リ台 1 32 3100231 Feed Dog Key キー 2 33 3100224 Feed Lift Block(Rear) 角駒(後) 1 34-1 3106000 Main Feed Dog(48, 56)(P=1.6mm) 後送リ(ピツチ1.6mm) 1 34-2 3106001 Main Feed Dog(64)(P=1.6mm) 後送リ(ピツチ1.6mm) 1 35-1 3109000 Differential Feed Dog(48, 56)(P=1.6mm) 前送リ(ピツチ1.6mm) 1 35-2 3109002 Differential Feed Dog(64)(P=1.6mm) 前送リ(ピツチ1.6mm) 1 36 3100226 Feed Bar Guide(Lower) 送リ台ガイド(下) 1 37 110035 Screw(M4-0.7 × 10) 止ネジ 2 38 3100213 Differential Feed Bar Driving Connection 前送リリンク 1 39 3100215 Oscillation Adjusting Eccentric 前送リ前後調節エキセン 1 40 000199 Oil Wick 油芯 1 Ref. No 41 to 56 See the following page. From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 32

12 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 33 — NEEDLE GUARD & FEED DRIVING MECHANISM

NEEDLE GUARD & FEED DRIVING MECHANISM Ref.No 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 Parts No. 3100214 160006 000750 3100212 0093389 3100218 000397 000401 330015 3100219 160004 3101300 3100179 310068 000775 3130047 Description Driving Connection Pin Screw(M3-0.5 × 6) Seal Plug Differential Feed Shaft Feed Lift Block(Front) Feed Lift Shaft Oil Wick Oil Wick(280mm) Seal Plug Collar(11 × 18 × 11mm) Screw(M6-1 × 4.8) Feed Bar Guide(Upper/Right) Main Feed Eccentric, C. Set(2) Oil Wick(120mm) Pin Needle Guard Lever Cover 品 名 前送リンクピン 止ネジ 詰栓 前送り軸 角駒(前) 送り上下軸 油芯 油芯 詰栓 カラー 止ネジ 送り台ガイド(上右) 送りリエキセン(組2) 油芯 ピン 針受ケ腕カバー Amt. Req 1 1 1 1 1 1 1 1 2 2 1 1 1 1 1 12 From the library of: Superior Sewing Machine & Supply LLC jintex.in VC2700M

Page 34

13 6 5 4 3 2 1 7 8 9 12 13 11 10 15 16 17 27 A 26 2 29 25 24 19 20 23 22 21 A 18 28 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 35 — LUBRICATING MECHANISM (1)

LUBRICATING MECHANISM (1) 給油機構(1) 13 Ref.No Parts No. Description 品名 Amt. Req 1 0065453 Oil Receiver 油受皿 1 2 110012 Screw(M4-0.7 × 5) 止ネジ 6 3 3200243 [3200229] Lubricant Guiding Block 給油ブロック 1 4 320006 Top Nozzle Cap オイルノズルキャップ 1 5 3200230 Oil Adjusting Screw 給油量調節ネジ 1 6 000636 Seal Plug 詰栓 1 7 300000 Washer ワッシャ 1 8 000000 Spring Washer スプリングワッシャ 1 9 100002 Nut ナット 1 10 2150325 Oil Filter Cap オイルフィルタキャップ 1 11 110045 Screw(M4-0.7 × 12) 止ネジ 3 12 3100061 O-ring(P42) Oリング 1 13 3100345 Oil Filter オイルフィルタ 1 14 3100329 Oil Filter Connector オイルフィルタ継手 1 15 3200237 Felt フェルト 1 16 0063217 Oil Filter Screen Clamp 濾過網押工 1 17 0063216 Oil Filter Screen 濾過網 1 18 3180084 Draining Felt 排油フェルト 1 19 3150195 [3150143] Oil Pump, Complete Set ポンプ(組) 1 20 2040033 [0030711] Oil Pump Driving Worm Gear ウォームギア 1 21 160001 Screw(M4-0.7 × 4) 止ネジ 2 22 000567 Seal パッキン 1 23 100014 [000419] Nut ノズル止メナット 1 24 3150151 [3100349] Oil Nozzle for Worm Gear 給油パイプ 1 25 3150155 Dust Proof Plate 防塵板 1 26 3100330 Oil Tube Stay オイルパイプ支工 1 27 0021010 Oil Sight Gauge オイルゲージ 1 28 120011 [120013] Screw(M6-1×18)[M6-1×15] 止ネジ 2 29 3100331 Oil Tube(4×6×31mm) オイルパイプ 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VC2700M

Page 36

14 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 37 — LUBRICATING MECHANISM (2)

LUBRICATING MECHANISM (2) 14 Ref.No Parts No. Description 品 名 Amt. Req 1 3200236 Suction Pipe 吸入パイプ 1 2 0093617 Suction Pipe Bushing 吸入パイプブッシュ 1 3 3200238 Oil Tube(3 × 5 × 440mm) オイルパイプ 1 4 0065452 Draining Pipe 排油パイプ 1 5 3200227 Oil Sight Top Nozzle ノズル 1 6 0031831 Oil Tube Clamp 緊束環 10 7 3100357 Oil Tube(Long), Complete Set 給油パイプ(長)(組) 1 8 3100354 Oil Tube(4 × 6 × 290mm) オイルパイプ 1 9 3100392 [3100336] Oil Tube(2.5×4×35mm) [4×6×75mm] オイルパイプ 1 10 3100371 Oil Tube Joint, Two Way 両口管継手 2 11 3100332 Oil Tube(4 × 6 × 37mm) オイルパイプ 1 12 320010 Fitting Stud(Short) 管継手ボルト(短) 4 13 3100342 Lower Shaft Oiling Outlet 下軸油管 1 14 3100358 Oil Tube(Middle), Complete Set 給油パイプ(中)(組) 1 15 3100331 Oil Tube(4 × 6 × 31mm) オイルパイプ 2 16 3100343 Lower Shaft Oiling Shower 下軸油給油シャワ 1 17 3100334 Oil Tube(4 × 6 × 110mm) オイルパイプ 1 18 110013 Screw(M4-0.7 × 8) 止ネジ 2 19 3100356 Oil Tube(Short), Complete Set 給油パイプ(短)(組) 1 20 3100370 Oil Tube Joint, One Way 片口管継手 2 21 22 0010017 Bamboo Joint(1-4) バンブ継手 2 23 3500425 Oil Tube(3.5 × 5 × 350mm) オイルパイプ 1 24 0011795 Wrapping Band(2.3 × 92) 束線バンド 1 25 3180080 Draining Pipe 排油パイプ 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M

Page 38 — PULLER MECHANISM(1)

15 PULLER MECHANISM(1) 34 2 1 3 5 4 8 9 6 7 10 11 12 19 20 15 14 16 13 23 27 31 33 30 28 29 32 30 26 24 25 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 39 — PULLER MECHANISM EXCLUSIVE PARTS(1)

PULLER MECHANISM EXCLUSIVE PARTS(1) プラー機構専用部品(1) 15 Ref.No Parts No. Description 品 名 Amt. Req 1 3180110 Upper Feed Roller Shaft Bracket 上ローラ軸ブラケット 1 2 120019 Screw(M6-1 × 18) 止ネジ 4 3 000779 Knock Pin ノックピン 2 4 3100006 Seal Plug 詰栓 1 5 3100607 Roller Shaft Bushing(Right) 上ローラ軸ブッシュ(右) 1 6 3100604 Upper Feed Roller Shaft Lever 上ローラ軸腕 1 7 160007 Screw(M6-1 × 6) 止ネジ 2 8 009604 Collar(14 × 22 × 10mm) カラー 1 9 009604 Screw(11/64-40 × 5.5) 止ネジ 2 10 3100626 Roller Shaft Bushing(Left) 上ローラ軸ブッシュ(左) 1 11 0065395 Oil Seal オイルシール 1 12 3100605 Upper Feed Roller Shaft 上ローラ軸 1 13 3100608 See page 17 17ページ参照 - 14 3100608 Upper Feed Roller Lever 上ローラレバー 1 15 120012 Screw(M4-1 × 20) 止ネジ 1 16 0065401 Upper Feed Roller Lever Pin 上ローラレバーピン 1 17 000613 Washer ワッシャ 1 18 000306 Nut ナット 2 19 3501281 Upper Feed Roller Lever Rod 上ローラレバーロッド 1 20 240010 Screw(1/4-40 × 11) 止ネジ 1 21 310063 Oil Wick 油芯 1 22 0032921 Upper Feed Roller Driving Rod Pin 上ローラロッドピン 1 23 160001 Screw(M4-0.7 × 4) 止ネジ 1 24 3100602 Upper Feed Roller Driving Rod 上ローラロッド 1 25 3100192 Retaining Ring ストップリング 1 26 3100623 Roller Bearing ニードルベアリング 1 27 3100603 Upper Feed Roller Regulator, C. Set 上ローラ調節器(組) 1 28 3100601 Upper Feed Roller Eccentric 上ローラエキセン 1 29 3100600 Upper Feed Roller Regulator 上ローラ調節器 1 30 160003 Screw(M5-0.8 × 5) 止ネジ 2 31 190007 Adjusting Screw(M5-0.8 × 6) 調節ネジ 1 32 120008 Screw(M4-0.7 × 8) 止ネジ 1 33 300045 Spacer スペーサ 1 34 3180112 Upper Feed Roller Shaft Bracket, C. Set 上ローラ軸ブラケット(組) 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 40 — PULLER MECHANISM(2)

16 PULLER MECHANISM(2) 1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 21 20 22 24 26 27 28 29 30 31 32 33 EXTRA PARTS 42 41 34 35 40 37 39 36 38 RUBBER ROLLER 44 43 EXTRA PARTS 47 46 51 49 50 45 48 51 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS (2)

PULLER MECHANISM EXCLUSIVE PARTS (2) ブラ ー機構専用部品(2) 16 Ref.No Parts No. Description 品 名 Amt. Req 1 See page 17 17ページ参照 1 2 3100611 Upper Feed Roller Yoke 上ローラヨーク 1 3 120012 Screw(M6-1 × 20) 止ネジ 1 4 3100612 Upper Feed Roller Yoke Guide 上ローラヨークガイド 1 5 120008 Screw(M4-0.7 × 8) 止ネジ 2 6 3100613 Upper Feed Roller Yoke Pin 上ローラヨークピン 1 7 160007 Screw(M6-1 × 6) 止ネジ 1 8 3200133 Wire(0.9 × 45mm) 鉄線 1 9 180005 Screw(M4-0.7 × 6) 止ネジ 1 10 160001 Screw(M4-0.7 × 4) 止ネジ 2 11 160003 Screw(M5-0.8 × 5) 止ネジ 3 12 0060056 Retaining Ring ストツプリング 1 13 2100902 Thrust Ring スラストリング 1 14 3501270 Clutch Driving Shaft クラッチ軸 1 15 3100616 Clutch Driving Shaft Bushing(Left) クラッチ軸ブツシュ(左) 1 16 0065414 Clutch Driving Shaft Bushing(Right) クラッチ軸ブツシュ(右) 1 17 0065421 Clutch Tension Sleeve クラッチテンションスリーブ 1 18 3501283 Adjusting Collar 調節カラー 1 19 3501284 Adjusting Screw Stay 調節ネジ支工 1 20 110002 Screw(M3-0.5 × 5) 止ネジ 2 21 110097 Screw(M5-0.8 × 12) 止ネジ 1 22 3501282 Clutch Tension Spring クラッチテンションバネ 1 23 3501280 Clutch Driving Lever クラッチ板(右) 1 24 130003 Screw(M4-0.7 × 7.3) 止ネジ 3 25 3501276 Clutch Sleeve(Right) クラッチスリーブ(右) 1 26 3501272 Thrust Plate スラストプレート 2 27 3501271 Clutch Spacer クラツチスペーサ 1 28 160005 Screw(M6-1 × 8) 止ネジ 1 29 3501275 Clutch Sleeve(Left) クラッチスリーブ(左) 1 30 3501290 Upper Feed Roller(30 teeth)(Standard) 上ローラ(30山)(標準) 1 31 007621 Screw(9/64-40 × 8.5) 止ネジ 3 32 3160183 Lower Feed Roller Support, C. Set(Extra) 下ローラサポート(組)(特注部品) 1 33 0065461 Lower Feed Roller(15 teeth)(Standard) 下ローラ(15山)(標準) 1 34 000492 Wave Washer 波形ワツシヤ 1 35 3100620 Lower Feed Roller Support 下ローラサポート 1 36 120041 Screw(M6-1 × 12) 止ネジ 2 37 000779 Knock Pin ノツクピン 2 38 3100622 Lower Feed Roller Shaft 下ローラ軸 1 39 150001 Screw(M4-0.7 × 4) 止ネジ 2 40 3100621 Lower Feed Roller Cover 下ローラ補助カバー 1 41 130002 Screw(M3-0.5 × 6) 止ネジ 2 42 3501295 Upper Feed Roller 上ローラ 1 43 0067028 Lower Feed Roller 下ローラ 1 44 0065431 Supplementary Roller Support 補助ローラ取付板 1 45 000538 Washer ワツシヤ 2 46 110009 Screw(M4-0.7 × 8) 止ネジ 2 47 0065435 Supplementary Roller 補助ローラ 1 48 0065436 Supplementary Roller Stay(A) 補助ローラ支工(A) 1 49 0065437 Supplementary Roller Stay(B) 補助ローラ支工(B) 1 50 009730 Screw(1/8-44 × 5.3) 止ネジ 4 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 42 — PULLER MECHANISM (3)

17 PULLER MECHANISM (3) 33 6 7 5 1 3 4 2 3 5 8 10 9 23 21 12 11 18 19 17 13 24 20 15 16 14 22 29 28 25 26 31 30-1 32 27 VC2700M From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(3)

PULLER MECHANISM EXCLUSIVE PARTS(3) プラー機構専用部品(3) 17 Ref.No Parts No. Description 品 名 Amt. Req 1 0065381 Upper Feed Roller Lifter(Right) 上ローラ揚ゲ(右) 1 2 110009 Screw(M4-0.7 × 8) 止ネジ 2 3 000538 Washer ワッシャ 3 4 000334 Nut ナット 2 5 0034979 Flexible Wire Clamp Bushing ワイヤ止メブッシュ 2 6 006075 Screw(11/64-40 × 6) 止ネジ 2 7 0067126 Lifter Connecting Plate 上ローラ揚ゲ連結板 1 8 0065374 Upper Feed Roller Lifter(Left) 上ローラ揚ゲ(左) 1 9 0065375 Upper Feed Roller Lifter Pin 上ローラ揚ゲピン 1 10 0095027 Retaining Ring ストップリング 2 11 0065376 Lifter Connecting Plate 上ローラ吊リ 1 12 006038 Screw(3/16-32 × 2.2) 止ネジ 2 13 0065407 Roller Press Bar Bracket 上ローラ押工棒抱キ 1 14 005650 Screw(M5-0.8 × 14) 止ネジ 1 15 0065402 Lifting Lever Sleeve 上ローラレバースリーブ 1 16 006411 Screw(11/64-40 × 5.5) 止ネジ 1 17 000340 Nut ロックナット 1 18 009931 Stop Screw(11/64-40 × 26) ストッパネジ 1 19 3100614 Roller Press Spring 上ローラ押エバネ 1 20 3180111 Upper Feed Roller Bracket 上ローラブラケット 1 21 009753 Screw(M6-1 × 35) 止ネジ 2 22 000779 Knock Pin ノツクピン 2 23 0065405 Roller Press Bar Bushing(Upper) 上ローラ押工棒ブッシュ(上) 1 24 160007 Screw(M6-1 × 6) 止ネジ 1 25 3100609 Roller Press Bar Bushing(Lower) 上ローラ押工棒ブッシュ(下) 1 26 0065404 Upper Feed Roller Press Bar 上ローラ押工棒 1 27 0034117 Retaining Ring ストップリング 1 28 000690 Stop Pin ストップピン 1 29 000613 Washer ワッシャ 1 30 0067111 Upper Feed Roller Lifting Lever 手揚ゲ 1 31 000487 Wave Washer 波形ワッシャ 1 32 170008 Screw(M6-1 × 9) 止ネジ 1 33 3180113 Upper Feed Roller Bracket, C. Set 上ローラブラケット(組) 1 Note : Part No. 3180113 of Ref No. 33 contains the part numbers of Ref. No. 13 on page 15 and Ref. No. 1 on page 16. Puller Mechanism, C. Set 3180114 = 3180113+3180112(page 15, Ref. No. 34)+3160183 (page 16, Ref. No. 52) (注) Ref. No. 33 の Part No. 3180113 は、15ページの Ref. No. 13 及び 16 ページの Ref. No. 1 の部品を 含んだ品番です。 プラー機構(組)3180114=3180113+3180112(15ページ Ref. No.34)+3160183(16ページRef.No.52) From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 44 — VC2713M-156M-K4N

18 VC2713M VC2713M-156M-K4N 1 2 3 4 5 6 7 8 9 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 45 — VC2713M EXCLUSIVE PARTS

VC2713M EXCLUSIVE PARTS サブモデル専用部品 18 Ref.No Parts No. Description 品 名 Amt. Req 1 3107311 Fabric Guide 布ガイド 1 2 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 1 3 3101320 Fabric Guide(Left) 布ガイド(左) 1 4 3101321 Fabric Guide(Right) 布ガイド(右) 1 5 001228 [110038] Screw(3/32-56 × 3.2)[M2.5-0.45 × 4.5] 止ネジ 2 6 3108221 Stitch Plate(56M-K4N) 針板 1 7 3139028 Differential Feed Dog 前送り 1 8 3109098 Differential Feed Dog(Middle) 中送り 1 9 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 46 — EXTRA PARTS(1)

19 EXTRA PARTS(1) 1 2 3 5 6 7 8 9 10 11 12 20-1 20-2 13 14 15 16 17 for heavy material 厚物用 18 for light material 薄物用 19 VC2700M-156NM 21 VC2700M From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47 — EXTRA PARTS(1)

EXTRA PARTS(1) 特注部品(1) 19 Ref.No Parts No. Description 品 名 Amt. Req 1 0022836 Synchroniser Positioning Pin ポジショナピン 1 2 0022837 Synchroniser Cushion ポジショナピンクッション 1 3 007610 Screw(M4-0.7 × 10) 止ネジ 1 4 5 0093690 Timing Gauge タイミングゲージ 1 6 0095220 Looper Timing Gauge ルーパタイミングゲージ 1 7 3100490 Timing Gauge タイミングゲージ 1 8 3101206 Supplementary Rear Cover Support 補助カバー(後)取付板 1 9 120006 Screw(M6-1 × 12) 止ネジ 2 10 3101205 Supplementary Rear Cover 補助カバー(後) 1 11 130003 Screw(M4-0.7 × 7.3) 止ネジ 2 12 3101207 Supplementary Front Cover(Large) 補助カバー(大) 1 13 000538 Washer ワッシャ 3 14 110009 Screw(M4-0.7 × 8) 止ネジ 3 15 3100033 Supplementary Front Cover 補助カバー 1 16 000426 Washer ワッシャ 2 17 110103 Screw(M5-0.8 × 8) 止ネジ 2 18 3109210 Needle Guard(Rear) 針受ケ(後) 1 19 3109211 Needle Guard(Rear) 針受ケ(後) 1 20-1 3109301 Looper(32, 40, 56, 64)(hard plating) ルーパ(硬質メッキ) 1 20-2 3109303 Looper(48)(hard plating) ルーパ(硬質メッキ) 1 21 3108225 Stitch Plate(56NM) 針板 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VC2700M

Page 48 — EXTRA PARTS(2)

20 EXTRA PARTS(2) VC2700M-132M, 140M 2-Needle 1-1 1-2 2-1 2-2 3-1 3-2 4 9 10 11 5 6 7 8 VC2700M From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 49 — EXTRA PARTS(2)

EXTRA PARTS(2) 特注部品(2) 20 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0093351 Needle Clamp(32) 針止メ 1 1-2 0093352 Needle Clamp(40) 針止メ 1 2-1 3108130 Stitch Plate(32M) 針板 1 2-2 3108131 Stitch Plate(40M) 針板 1 3-1 3507000 Presser Foot, C. Set(32) 押工(組) 1 3-2 3507002 Presser Foot, C. Set(40) 押工(組) 1 4 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 5 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 6 3107304 Presser Foot Spring(Right) 小押工バネ(右) 1 7 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 8 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 9 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 10 000327 Lock Nut ロックナット 1 11 260006 Adjusting Screw(1/8-44 × 9.5) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jinttex.in

Page 50

21 1 VC2700M only 28 29 34 33 32 35 NEEDLES 36 37 38 39 41 40-1 40-2 42 yamato SF OIL 2B VC2700M From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 51 — THREAD STAND & ACCESSORIES (1)

THREAD STAND & ACCESSORIES (1) 糸立台及びアクセサリー関係(1) 21 Ref.No Parts No. Description Amt. Req 1 9620696 Thread Stand, C. Set(6 Spools Type) 糸立台(組)(6本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Pipe(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 8 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut ナット 1 15 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 4 17 9620700 Thread Eyelet アイレット 6 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 4 19 911060 Screw(M6-1 × 15) 止ネジ 4 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620666 Thread Guide(6 Spools Type) スレッドガイド(6本糸用) 1 23 9620678 Spool Cushion スプールクッション 6 24 9620679 Spool Pin スプール軸 6 25 9620680 Spool Mat スプールマット 6 26 9620681 Spool Seat Disc 受ケ皿 6 27 930055 Spring Washer スプリングワッシャ 6 28 3101101 Edge Guide(Right) 定規(右) 1 29 3101100 Edge Guide(Left) 定規(左) 1 30 31 32 3500700 Belt Cover ベルトカバー 1 33 110028 Screw(M6-1 × 46) 止ネジ 2 34 962003 Bag 袋 1 35 Needle(System : UY × 128GAS) 針 5 36 0099094 Screwdriver(2.5 × 75mm) ドライバ 1 37 0099091 Screwdriver(5.5 × 200mm) ドライバ 1 38 0099051 Thread Tweezers ピンセット 1 39 9620202 Hexagonal Wrench(2.0mm) 6角レンチ 1 40-1 9720236 Instruction Book 取扱説明書 1 40-2 9720235 41 9710111 Parts Book パーツブック 1 42 9620008 SF Oil 28(1ℓ) 油 1 From the library of: Superior Sewing Machine & Supply LLC VC2700M jintex.in

Page 52

22 Table top installation 上乗せ式 (with UT-A, UT Device) 1 2 3 4 5 6 7 8 Semi-submerged installation 半沈式 (without UT-A, UT Device) 12 13 14 15 16 17 18 19 20 21 22 VC2700M From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 53 — ACCESSORIES (2)

ACCESSORIES (2) アクセサリ関係 (2) 22 Ref.No Parts No. Description 品 名 Amt. Req 1 0063009 Oil Reservoir Rubber Cushion ゴム座 4 2 180008 Setting Screw(M6-1 × 63) 取付ケネジ 4 3 000528 Washer ワッシャ 8 4 000667 Spring Washer スプリングワッシャ 4 5 000011 Nut ナット 4 6 3100036 Belt Cover(Lower) ベルトカバー(下) 1 7 006905 Wood Screw($ 5.1 × 20) 木ネジ 3 8 0037988 Screwdriver(Short) ミニドライバ 1 9 10 11 12 0037912 Chain 鎖 1 13 9611074 Presser Foot Pedal 押工揚ペダル 1 14 000070 Hanging Nut 吊りナット 4 15 009858 Hanging Bolt(M8-1.25 × 75) 吊りボルト 4 16 000162 Washer ワッシャ 8 17 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 18 0063010 Supporting Board Rubber Cushion(Lower) 受ケ板ゴム座(下) 4 19 000016 Nut ナット 8 20 3100008 Supporting Board 油受ケ板 2 21 0063009 Oil Reservoir Rubber Cushion ゴム座 4 22 180009 Setting Screw(M6-1 × 16) 取付ケネジ 4 From the library of: Superior Sewing Machine & Supply LLC VC2700M Jaintex.in

Page 54

23 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 1 2 390220 SAFETY INSTRUCTON LABEL ▲高電圧警告 このカバーを開けるときは、 DANGER 電源スイッチを切った後、 5分たってから開けること。 4 To open this cover, turn off power supply and wait more than 5 minutes before opening. 390144 DANGER: WARNING OF ELECTRIC SHOCK BY HIGH VOLTAGE 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル ケガ注意 390147 EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS CAUTION 高温注意 390148 CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID CAUTION 高温注意ラベル From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 55 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 56 — VC2700M Class LIST of MAIN SPARE PARTS(主要部品リスト)

24 VC2700M Class LIST of MAIN SPARE PARTS(主要部品リスト) Main Parts Needle Clamp Presser Foot, C. Set Stitch Plate Differential Feed Dog Differential Feed Dog (Middle) Models 針止メ 押工(組) 針板 前送り 中送り VC2700M-148M 0093356 3507050 3108133 3109000 156M 0093357 3507052 3108134 164M 0093358 3507054 3108135 3109002 VC2700M-132M * 0093351 3507000 3108130 3109000 140M * 0093352 3507002 3108131 VC2713M-156M-K4N 0093357 3507052 3108221 3109000 3109098 VC2713MP-156M-K4N // // // // // Note : The models with * have 2 needls. (注) * の付いている機種は2本針です。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 57

24 Main Feed Dog Folder (Left) Folder (Right) Fabric Guide (Left) Fabric Guide (Right) Fabric Guide Looper 後送り 定規(左) 定規(右) 布ガイド(左) 布ガイド(右) 布ガイド ルーパ 3106000 3100630 3100631 3109302 " " 3109300 3108001 " 3106000 3100630 3100631 3109300 " " " " 3101320 3101321 3107311 3109300 " " " " From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 58 — INDEX

25 VC2700M Page = 1 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) 000010 4 29 000528 31 3 001093 3 47 000011 27 10 000531 5 40 001107 5 14 000011 31 5 000538 2 34 001107 11 30 000012 26 43 000538 3 33 001123 10 48 000012 28 20 000538 16 46 001123 23 31 000014 20 2 000538 17 3 001123 28 48 000014 25 37 000538 19 12 001170 8 56 000015 2 24 000538 29 13 001174 6 25 000016 27 5 000547 4 30 001457 25 22 000016 31 19 000548 7 4 001459 19 21 000070 27 3 000555 6 31 001459 24 18 000070 31 14 000561 11 48 001818 3 50 000140 25 4 000567 13 22 001900 7 9 000145 25 20 000588 27 12 000162 27 4 000597 25 6 002043 7 6 000162 31 16 000598 25 5 000177 3 6 000600 6 35 004182 2 36 000195 4 32 000600 11 44 004236 4 26 000199 12 40 000600 13 8 004312 6 27 000234 5 33 000600 22 4 004358 7 2 000290 6 17 000613 15 17 004358 8 45 000304 5 18 000613 17 29 004440 8 5 000306 15 18 000629 28 18 004440 10 38 000306 27 13 000636 13 6 004441 8 7 000321 7 21 000637 7 33 000322 23 27 000637 10 40 005049 11 45 000322 28 45 000644 23 26 005049 22 27 000327 8 24 000644 28 44 005071 6 24 000327 18 10 000651 3 34 005071 10 35 000334 4 31 000665 2 23 005075 1 34 000334 17 4 000665 23 20 005650 6 36 000340 17 17 000665 28 38 005650 17 14 000360 3 53 000667 31 4 005650 25 8 000397 5 17 000669 11 43 000397 12 47 000676 27 7 006004 4 28 000401 12 48 000690 8 29 006035 23 25 000419 13 23 000690 17 28 006035 28 43 000425 22 16 000690 17 28 006038 8 27 000426 22 3 000726 1 39 006038 17 12 000426 29 16 000740 10 46 006075 17 6 000445 8 2 000750 12 43 006202 23 22 000463 5 26 000779 15 3 006202 28 40 000487 17 31 000779 16 38 006212 11 9 000492 16 35 000779 17 22 006411 17 16 000498 20 17 000924 1 20 006905 22 6 000505 11 41 000926 6 20 006905 31 7 000528 9 10 000989 6 4 000528 27 11 007006 19 24 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59 — INDEX

VC2700M INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 007006 24 21 007610 24 28 007610 29 3 007611 28 11 007621 16 32 009142 7 12 009200 8 40 009508 25 28 009526 9 23 009604 8 32 009604 9 13 009604 15 9 009730 16 51 009736 12 23 009736 19 8 009736 24 3 009737 28 10 009746 28 17 009749 7 24 009753 17 21 009784 4 24 009791 23 16 009791 28 34 009853 27 19 009858 31 15 009865 27 6 009931 17 18 009970 27 9 009976 20 8 009984 20 36 009984 25 16 009985 24 11 0010017 14 22 0010055 22 18 0010057 20 14 0010108 22 8 0010119 22 22 0010254 20 15 0010264 22 9 0010923 20 34 0011720 20 33 0011733 27 8 0011795 14 24 0011795 22 11 0011801 25 2 Parts No. Page No. Ref. No. Weight(g) 0011802 25 1 0012071 20 21 0014120 20 11 0020064 31 17 0020119 3 27 0020137 1 33 0020271 8 15 0020350 11 42 0020759 1 5 0020759 2 46 0021010 13 27 0022836 19 6 0022836 24 1 0022836 29 1 0022837 19 7 0022837 24 2 0022837 29 2 0023381 19 3 0024083 3 2 0024084 3 1 0030255 3 3 0030711 13 20 0031111 3 7 0031831 14 6 0032425 3 45 0032426 3 46 0032646 9 12 0032786 27 20 0032799 11 3 0032853 12 26 0032921 15 22 0032952 3 4 0033024 2 19 0033024 19 25 0033024 24 22 0033024 27 17 0033939 22 7 Parts No. Page No. Ref. No. Weight(g) 0034117 17 27 0034979 17 5 0035301 27 16 0035813 3 52 0036133 22 28 0036133 23 28 0036133 25 19 0036133 28 46 0036175 3 44 0037108 3 51 0037912 27 21 0037912 31 12 0037988 31 8 0060056 16 12 0060057 6 18 0060142 8 8 0060175 4 27 0060176 4 25 0063009 31 1 0063009 31 21 0063010 31 18 0063044 7 3 0063051 9 19 0063053 9 20 0063055 4 6 0063056 9 21 0063057 9 22 0063074 3 49 0063076 19 18 0063076 24 14 0063083 8 28 0063084 8 30 0063087 8 4 0063096 6 37 0063216 13 17 0063217 13 16 0063515 8 52 0063579 25 3 0063586 24 10 0063606 25 14 0063607 20 30 0063607 25 12 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 60 — INDEX

VC2700M INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 0063608 20 1 0063608 25 17 0063609 20 35 0063609 25 15 0063610 25 11 0063612 19 4-2 0063612 24 6 0064045 27 14 0064046 27 15 0064047 27 18 0065275 2 8 0065340 4 35 0065340 7 1 0065372 8 3 0065374 17 8 0065375 17 9 0065376 17 11 0065381 17 1 0065389 10 32 0065395 15 11 0065398 15 8 0065401 15 16 0065402 17 15 0065404 17 26 0065405 17 23 0065407 17 13 0065414 16 16 0065421 16 17 0065431 16 45 0065435 16 48 0065436 16 49 0065437 16 50 0065452 14 4 0065453 13 1 0067028 16 44 0067111 17 30 0067126 17 7 0068011 1 4 0068206 28 4 0077179 8 36 0077179 19 19 0077179 24 15 Parts No. Page No. Ref. No. Weight(g) 0077179 26 46 0077270 8 1 0077322 9 4 0077410 25 7 0090068 3 40 0090071 3 5 0090807 3 12 0090812 3 9 0090856 3 11 0093089 5 4 0093154 6 19 0093184 7 5 0093201 4 10 0093212 7 19 0093214 7 16 0093303 11 25 0093351 18 1-1 0093352 18 1-2 0093356 7 7-1 0093357 7 7-2 0093358 7 7-3 0093365 7 10 0093389 12 45 0093479 8 33 0093483 8 6 0093487 8 26 0093491 8 31 0093491 25 27 0093507 8 37 0093508 8 39 0093509 8 38 0093521 3 38 0093556 3 17 0093611 8 12 0093617 14 2 0093690 29 5 0093864 1 11 0093864 2 7 0094201 1 23 0094201 2 40 0094387 8 51 0094390 8 54 0094396 19 23 0094396 24 20 0094491 19 4-1 Parts No. Page No. Ref. No. Weight(g) 0094566 9 6 0095027 17 10 0095168 6 26 0095170 6 23 0095214 6 7 0095220 29 6 0095334 8 55 0095336 25 29 0095367 2 35 0095388 25 21 0095389 25 23 0096025 28 14 0099051 30 38 0099091 30 37 0099094 30 36 100001 28 12 100002 10 28 100002 13 9 100002 20 26 100002 25 33 100003 9 11 100005 11 47 100006 21 9 100006 26 9 100020 28 5 100058 23 14 100058 28 32 110001 23 10 110001 28 23 110002 5 25 110002 7 39 110002 8 11 110002 16 21 110002 20 3 110002 21 22 110002 25 18 110002 26 22 110002 26 55 110004 6 39 110004 8 18 110004 12 12 110004 18 4 110004 25 13 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 61 — INDEX

VC2700M INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 110005 10 15 110009 2 43 110009 3 16 110009 5 10 110009 6 12 110009 9 7 110009 11 16 110009 16 47 110009 17 2 110009 19 13 110009 20 5 110009 21 20 110009 24 30 110009 26 20 110009 26 41 110009 29 14 110012 1 24 110012 2 21 110012 6 15 110012 7 41 110012 13 2 110012 19 5 110012 19 16 110012 24 7 110012 26 58 110013 2 11 110013 3 14 110013 5 42 110013 7 27 110013 7 34 110013 11 50 110013 14 18 110013 22 29 110013 23 29 110013 24 26 110013 28 47 110016 2 26 110017 22 2 110019 10 24 110021 12 25 110022 12 4 110023 12 22 110023 21 26 110023 23 12 110023 26 26 110023 28 29 110024 21 24 110024 26 24 Parts No. Page No. Ref. No. Weight(g) 110025 21 25 110025 26 25 110026 5 35 110027 5 29 110027 18 13 110028 30 33 110030 21 6 110031 2 39 110031 9 26 110034 21 34 110034 26 34 110035 12 37 110036 12 7 110038 18 16 110038 18 20 110039 10 4 110041 1 22 110041 2 16 110041 28 7 110045 1 2 110045 2 48 110045 13 11 110048 1 15 110054 3 54 110054 8 16 110054 23 17 110054 28 35 110060 28 9 110062 20 31 110062 25 36 110072 12 21 110079 2 44 110084 8 23 110084 18 9 110089 22 25 110097 16 22 110100 3 26 110101 2 42 110101 3 23 110101 10 9 110103 29 17 Parts No. Page No. Ref. No. Weight(g) 120008 16 5 120009 2 2 120009 11 18 120011 10 42 120012 15 15 120012 16 3 120013 6 29 120013 9 15 120013 13 28 120013 22 17 120013 25 10 120015 6 30 120015 7 15 120016 1 36 120017 8 35 120019 15 2 120041 16 37 120052 23 21 120052 28 39 130002 2 38 130002 16 42 130003 2 6 130003 3 42 130003 16 25 130003 21 13 130003 26 13 130003 29 11 130004 11 40 130004 21 36 130004 26 36 130005 12 15 130005 21 32 130005 26 32 130011 11 36 130016 8 21 130016 18 7 130021 21 18 130021 26 18 140010 26 48 140014 26 45 150000 5 23 150001 16 40 150001 24 24 160000 1 17 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 62 — INDEX

VC2700M INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) 160000 5 21 170009 8 47 320006 13 4 160001 2 30 170009 20 6 320010 14 12 160001 5 31 170009 24 31 160001 8 14 170038 8 48 330000 7 20 160001 10 18 330002 10 20 160001 11 34 180005 2 31 330011 2 14 160001 13 21 180005 16 9 330015 12 49 160001 15 23 180006 20 23 160001 16 10 180006 25 30 340000 1 37 160002 11 4 180008 31 2 340001 10 27 160003 9 3 180009 31 22 340001 12 13 160003 10 31 340003 11 22 160003 12 2 190004 11 46 340004 5 36 160003 15 30 190005 2 22 340008 10 10 160003 16 11 190006 21 8 340014 8 57 160003 25 25 190006 26 8 340025 12 18 160004 5 13 190007 15 31 160004 6 21 190029 20 27 350009 3 39 160004 12 51 190029 25 34 160005 5 2 190079 28 24 390165 1 6 160005 6 2 390203 1 12 160005 16 29 240009 26 53 390204 1 8 160006 12 42 240010 15 20 160007 5 3 910000 30 10 160007 6 3 260000 7 35 910001 30 7 160007 9 18 260006 8 25 910003 30 14 160007 11 2 260006 18 11 160007 12 28 911001 30 6 160007 15 7 270019 23 8 911002 30 5 160007 16 7 270019 28 27 911006 30 9 160007 17 24 911060 30 19 160008 5 32 290029 3 8 160015 2 47 930052 30 12 160023 7 37 300000 10 25 930053 30 13 160024 10 7 300000 13 7 930055 30 27 160029 10 47 300006 9 8 160040 10 2 300006 11 15 962003 30 34 300045 15 33 170000 28 15 300100 2 29 1062035 26 42 170001 2 28 300101 1 26 1062037 28 3 170002 1 27 300500 10 5 170003 5 45 1066127 20 32 170004 3 21 310006 7 32 1066138 20 29 170005 21 2 310007 7 30 170005 26 2 310040 6 14 1090185 22 33 170006 21 15 310063 15 21 1090190 7 28 170006 26 15 310093 5 15 1090207 22 20 170008 17 32 1090242 22 21 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 63 — INDEX

VC2700M INDEX Page =6 Parts No. Page No. Ref. No. Weight(g) 1090242 22 34 1090247 22 19 1090248 22 32 1091145 23 4 1091146 22 13 1091160 20 12 1094055 22 30 1094056 22 24 1095001 23 5 1095007 19 1 1096029 19 2 1096029 20 16 1096029 22 37 1096029 23 30 1096030 22 10 1097007 22 23 1097009 22 1 1098013 22 36 1200391 22 35 1200395 22 31 1253240 22 5 2049401 1 40 2100902 16 13 2150325 13 10 3100004 1 28 3100005 1 29 3100006 2 45 3100006 4 18 3100006 15 4 3100008 31 20 3100016 2 10 3100020 2 4 3100033 29 15 3100034 2 41 3100036 31 6 3100042 1 16 Parts No. Page No. Ref. No. Weight(g) 3100045 1 21 3100046 1 25 3100050 2 17 3100051 2 18 3100053 2 20 3100058 2 15 3100061 13 12 3100076 3 22 3100078 6 34 3100081 3 48 3100082 3 25 3100083 3 24 3100084 3 20 3100085 3 19 3100087 3 43 3100088 3 18 3100090 4 12 3100091 4 13 3100092 4 19 3100093 4 20 3100094 4 14 3100095 4 15 3100096 4 16 3100097 4 17 3100098 4 11 3100099 4 3 3100100 4 5 3100103 11 23 3100104 11 24 3100110 8 9 3100112 8 10 3100113 2 12 3100121 5 12 3100122 5 8 3100123 5 11 3100125 5 22 3100126 5 20 3100127 5 9 3100127 6 11 3100128 5 5 3100129 6 6 3100130 5 1 3100131 5 6 3100131 6 5 3100132 5 7 3100140 10 34 3100141 10 37 3100142 10 39 Parts No. Page No. Ref. No. Weight(g) 3100143 10 41 3100144 10 45 3100145 10 44 3100146 10 43 3100147 10 30 3100149 10 33 3100150 10 29 3100151 10 26 3100152 10 12 3100153 10 22 3100154 10 6 3100155 10 23 3100156 10 11 3100157 10 13 3100158 10 14 3100159 10 17 3100160 10 19 3100161 10 21 3100179 12 53 3100182 12 20 3100183 12 17 3100184 12 19 3100185 12 16 3100186 12 14 3100187 12 11 3100188 12 24 3100189 11 8 3100190 11 7 3100191 11 10 3100192 11 6 3100192 15 25 3100193 11 11 3100194 11 12 3100195 11 13 3100196 11 14 3100197 11 17 3100199 11 19 3100200 11 21 3100201 11 26 3100202 11 20 3100203 11 28 3100204 11 32 3100205 11 31 3100206 11 35 3100207 11 33 3100208 11 29 3100209 11 39 3100210 11 38 From the library jintex.in

Page 64 — INDEX

VC2700M INDEX Page = 7 Parts No. Page No. Ref. No. Weight(g) 3100211 11 27 3100212 12 44 3100213 12 38 3100214 12 41 3100215 12 39 3100216 11 5 3100217 11 1 3100218 12 46 3100219 12 50 3100220 11 49 3100221 12 30 3100222 12 31 3100224 12 33 3100225 12 27 3100226 12 36 3100229 12 29 3100231 12 32 3100235 11 37 3100241 12 5 3100242 12 3 3100243 12 1 3100245 12 9 3100246 12 8 3100250 7 31 3100253 7 29 3100254 7 26 3100256 7 25 3100260 5 37 3100261 5 38 3100262 5 30 3100263 5 24 3100264 5 27 3100265 5 28 3100266 5 39 3100267 5 34 3100268 5 41 3100269 5 44 3100270 5 43 3100271 5 47 3100272 5 46 3100275 6 9 3100281 6 8 3100283 6 10 3100285 6 28 3100286 6 32 3100287 6 33 3100294 8 34 3100300 9 2 Parts No. Page No. Ref. No. Weight(g) 3100301 9 5 3100302 9 1 3100303 9 14 3100304 9 16 3100305 9 17 3100307 9 24 3100309 9 9 3100310 8 13 3100329 13 14 3100330 13 26 3100331 13 29 3100331 14 15 3100332 14 11 3100334 14 17 3100336 14 9 3100338 7 36 3100342 14 13 3100343 14 16 3100345 13 13 3100349 13 24 3100354 14 8 3100355 10 36 3100356 14 19 3100357 14 7 3100358 14 14 3100370 14 20 3100371 14 10 3100383 3 35 3100384 3 36 3100386 3 37 3100400 2 3-2 3100410 10 8 3100442 3 41 3100490 29 7 3100502 21 3 3100502 26 3 3100503 21 10 3100503 26 10 3100504 21 11 3100504 26 11 3100505 21 12 3100505 26 12 3100506 21 1 3100506 26 1 3100507 21 27 3100507 26 27 3100508 21 28 3100508 26 28 Parts No. Page No. Ref. No. Weight(g) 3100509 21 29 3100509 26 29 3100510 21 30 3100510 26 30 3100511 21 31 3100511 26 31 3100512 21 23 3100512 26 23 3100513 21 5 3100513 26 5 3100514 21 4 3100514 26 4 3100515 21 14 3100515 26 14 3100516 21 33 3100516 26 33 3100517 21 19 3100517 26 19 3100518 21 21 3100518 26 21 3100520 25 24 3100520 20 24 3100523 25 31 3100524 25 9 3100525 24 29 3100526 24 27 3100529 19 15 3100529 24 12 3100530 21 38 3100530 26 38 3100532 25 26 3100533 8 49 3100535 24 9 3100536 24 8 3100538 20 28 3100538 25 35 3100560 21 35 3100560 26 35 3100567 20 9 3100570 27 2 3100571 27 1 3100579 21 16 3100579 26 16 3100580 21 37 3100580 26 37 3100600 15 29 3100601 15 28 3100602 15 24 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 65 — INDEX

VC2700M INDEX Page =8 Parts No. Page No. Ref. No. Weight(g) 3100603 15 27 3100604 15 6 3100605 15 12 3100607 15 5 3100608 15 14 3100609 17 25 3100611 16 2 3100612 16 4 3100613 16 6 3100614 17 19 3100616 16 15 3100620 16 36 3100621 16 41 3100622 16 39 3100623 15 26 3100626 15 10 3100630 2 32 3100631 2 33 3100711 23 24 3100711 28 42 3101100 30 29 3101101 30 28 3101199 4 22 3101200 4 23 3101202 24 25 3101205 29 10 3101206 29 8 3101207 29 12 3101216 8 44 3101242 22 26 3101243 22 15 3101244 22 12 3101275 19 20 3101275 24 17 3101276 19 22 3101276 24 19 3101300 12 52 3101320 18 14 3101321 18 15 3101585 20 18 3101586 20 13 3101587 20 4 3101588 20 7 3101590 20 22 3101800 23 2 3101801 23 7 3101801 28 26 Parts No. Page No. Ref. No. Weight(g) 3101802 23 11 3101802 28 28 3101804 23 18 3101804 28 36 3101805 23 3 3101806 23 9 3101806 28 30 3101807 28 31 3101808 23 15 3101808 28 33 3101809 23 6 3101809 28 25 3101810 23 13 3101830 28 2 3101831 28 21 3101832 28 6 3101833 28 19 3101834 28 16 3101835 28 13 3101836 28 22 3101837 28 8 3103000 3 55 3103001 3 56 3106000 12 34-1 3106001 12 34-2 3107303 8 19 3107303 18 5 3107304 8 20 3107304 18 6 3107306 8 22 3107306 18 8 3107311 18 12 3108130 18 2-1 3108131 18 2-2 3108133 7 11-1 3108134 7 11-2 3108135 7 11-3 3108221 18 17 3109000 12 35-1 3109002 12 35-2 3109098 18 19 3109201 12 10 3109210 29 18 Parts No. Page No. Ref. No. Weight(g) 3109300 10 1 3120157 20 25 3120157 25 32 3120416 8 43 3139028 18 18 3139200 12 6 3150020 4 21 3150143 13 19 3150155 13 25 3151010 19 9 3151011 19 10 3151012 19 11 3160136 4 9 3160168 8 41 3161015 26 40 3161016 26 54 3161019 26 49 3161020 26 47 3161021 26 51 3161022 26 50 3161025 26 44 3161026 26 57 3161027 26 52 3169920 26 39 3180004 1 35 3180023 1 13 3180024 1 14 3180025 1 18 3180026 1 19 3180027 2 1 3180029 2 13-1 3180030 2 13-2 3180031 2 25 3180032 2 27 3180033 2 37 3180035 2 5 3180037 2 3-1 3180050 4 34 3180059 5 48 3180060 5 16 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 66 — INDEX

VC2700M INDEX Page = 9 Parts No. Page No. Ref. No. Weight(g) 3180080 14 25 3180084 13 18 3180100 10 3 3180110 15 1 3180111 17 20 3180112 15 34 3180113 17 33 3200047 3 32 3200048 3 15 3200049 6 38 3200058 4 1 3200063 4 7 3200064 4 8 3200088 7 40 3200089 7 38 3200090 7 42 3200100 6 13 3200101 7 14 3200112 7 18 3200113 7 22 3200114 7 17 3200115 7 13 3200118 7 23 3200133 16 8 3200226 6 16 3200227 14 5 3200229 13 3 3200230 13 5 3200236 14 1 3200237 13 15 3200238 14 3 3201037 22 14 3204020 4 33 3204021 4 4 3204040 1 9 3210002 1 1 3500088 4 2 3500284 3 31 3500285 3 28 3500286 3 13 3500287 3 10 3500299 8 46 3500305 8 42 Parts No. Page No. Ref. No. Weight(g) 3500360 24 23 3500425 14 23 3500430 1 3 3500431 1 10 3500432 2 9 3500503 21 7 3500503 26 7 3500510 21 17 3500510 26 17 3500530 19 17 3500530 24 13 3500555 23 19 3500555 28 37 3500556 23 23 3500556 28 41 3500700 30 32 3501270 16 14 3501271 16 28 3501272 16 27 3501275 16 30 3501276 16 26 3501280 16 24 3501281 15 19 3501282 16 23 3501283 16 18 3501284 16 20 3501290 16 31 3501295 16 43 3507000 18 3-1 3507002 18 3-2 3507050 8 17-1 3507052 8 17-2 3507054 8 17-3 3509202 29 19 3509320 9 25 3509335 23 1 3509952 28 1 4109403 1 38 6100709 6 1 9611074 31 13 9620008 30 42 Parts No. Page No. Ref. No. Weight(g) 9620202 30 39 9620631 30 2 9620666 30 22 9620670 30 3 9620673 30 8 9620675 30 11 9620678 30 23 9620679 30 24 9620680 30 25 9620681 30 26 9620688 30 18 9620689 30 4 9620690 30 21 9620691 30 20 9620696 30 1 9620700 30 17 9620703 30 16 9710111 30 41 9720235 30 40-2 9720236 30 40-1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in

Page 67

yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO.,LTD. 4-4-12,NISHITENMA, KITA-KU, OSAKA,JAPAN TEL : 81-6-6364-1321 FAX : 81-6-6364-1307 〒530-0047 大阪市北区西天満4丁目4番12号 TEL (06)6364-1321(代) FAX (06)6365-5176 P/N 9710111(P) No. 3 Edited in 2007.3 (VC2700M) From the library of: Superior Sewing Machine & Supply LLC jintex.in Printed in Japan 2007.4.3H(1)
