Yamato Z7000SD Parts Book (PDF)
Text index — Yamato Z7000SD
Page 5 — MISCELLANEOUS COVERS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200066 | Cloth Plate | 1 |
| 2 | 6200302 | Cloth Plate(Lower) | 1 |
| 3 | 6200072 | Rubber Cushion | 1 |
| 4 | 001123 | Washer | 3 |
| 5 | 000644 | Spring Washer | 3 |
| 6 | 110045 | Screw(M4-0.7 x 12) | 3 |
| 7 | 6200070 | Cloth Plate Eccentric Bushing | 1 |
| 8 | 160001 | Screw(M4-0.7 x 4) | 1 |
| 9 | 6200071 | Collar(4 x 9 x 6mm) | 1 |
| 10 | 003637 | Screw(1/8-44 x 2.5) | 1 |
| 11 | 6200529 | Cloth Plate Latch, C. Set | 1 |
| 12 | 110073 | Screw(M4-0.7 x 5) | 2 |
| 13 | 100001 | Lock Nut | 1 |
| 14 | 110031 | Stop Screw(M4-0.7 x 12) | 1 |
| 15 | 6200015 | Oil Cap | 1 |
| 16 | 6200016 | O-ring(P28) | 1 |
| 17 | 6200601 | Top Cover | 1 |
| 18 | 110016 | Screw(M4-0.7 x 15) | 6 |
| 19 | 6200228 | Top Cover Gasket | 1 |
| 20 | 6200172 | Oil Reservoir Gasket | 1 |
| 21 | 6200309 | Oil Reservoir | 1 |
| 22 | 006816 | Screw(1/4-24 x 8) | 4 |
| 23 | 6200029 | OilReservoirRubberCushion(Black-colored) | 3 |
| 24 | 6200033 | OilReservoirRubberCushion(Green-colored) | 1 |
| 26 | 6200182 | Oil Reservoir Positioning Bar | 4 |
| 27 | 300004 | Washer | 4 |
| 28 | 120017 | Screw(M5-0.8 x 15) | 6 |
| 29 | 6100029 | Drain Hole Seal | 1 |
| 30 | 005075 | Drain Hole Screw(3/8-24 x 8) | 1 |
| 32 | 6200512 | Wind Guide Plate | 1 |
| 33 | 110013 | Screw(M4-0.7 x 8) | 2 |
| 34 | 300043 | Washer | 2 |
| 35 | 6209401 | Serial Number Plate | 1 |
| 36 | 000726 | Rivet | 2 |
| 37 | 6200530 | Cloth Plate Latch Holder | 1 |
| 38 | 6200531 | Cloth Plate Latch | 1 |
| 39 | 6200532 | Cloth Plate Latch Spring | 1 |
| 40 | 170067 | Screw(M5-0.8 x 6) | 1 |
Page 7 — MISCELLANEOUS COVERS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200465 | Side Cover | 1 |
| 2 | 110013 | Screw(M4-0.7 × 8) | 6 |
| 4 | 6200220 | Eye Guard Holder | 1 |
| 5 | 170032 | Screw(M4-0.7 × 5) | 1 |
| 6 | 000010 | Conical Spring Washer | 2 |
| 7 | 6200285 | Eye Guard | 1 |
| 8 | 110076 | Screw(M3-0.5 × 6) | 2 |
| 9 | 000444 | Washer | 2 |
| 10 | 6200225 | Needle Bar Oil Defender | 1 |
| 11 | 110012 | Screw(M4-0.7 × 5) | 2 |
| 12 | 6200226 | Needle Bar Oil Seal | 1 |
| 13 | 190015 | Screw(M14-2 × 6) | 2 |
| 14 | 6200227 | Logo Plate | 1 |
| 15 | 110106 | Screw(M4-0.7 × 8) | 2 |
| 19 | 6200159 | Front Cover Latch Spring | 1 |
| 20 | 6200027 | Front Cover Hook | 1 |
| 21 | 001203 | Screw(9/64-40 × 4.5) | 1 |
| 22 | 6200017 | Front Cover Hinge Pin | 1 |
| 23 | 003637 | Screw(1/8-44 × 2.5) | 2 |
| 24 | 6200073 | Front Cover(Right) | 1 |
| 25 | 6200024 | Front Cover Hinge Spring | 1 |
| 26 | 6200310 | Front Cover Hinge | 1 |
| 27 | 6200156 | Chip Guard(Openable) | 1 |
| 28 | 110003 | Screw(M3.5-0.6 × 6) | 2 |
| 30 | ------ | Threading Chart(See the Table) | 1 |
| 31 | 6200170 | Front Cover Latch | 1 |
| 32 | 110054 | Screw(M3-0.5 × 3.5) | 2 |
Page 9 — MISCELLANEOUS COVERS(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200075 | Feed Mechanism Cover | 1 |
| 2 | 6200192 | Feed Mechanism Cover Gasket | 1 |
| 3 | 110048 | Screw(M4-0.7 × 10) | 5 |
| 4 | 6200077 | Rubber Cushion | 1 |
| 5 | 6200212 | O-ring(P52) | 1 |
| 6 | 6200211 | Ball Bearing Holder | 1 |
| 7 | 110013 | Screw(M4-0.7 × 8) | 7 |
| 8 | 6200511 | Fan Cover | 1 |
| 9 | 110012 | Screw(M4-0.7 × 5) | 2 |
| 10 | 150004 | Screw(M4-0.7 × 6) | 1 |
| 11 | 6200209 | Seal Plug | 2 |
| 12 | 6200224 | Pushbutton | 1 |
| 13 | 6200171 | Oil Seal | 1 |
| 14 | 6100333 | Retaining Ring | 2 |
| 15 | 6200036 | Pushbutton Spring | 1 |
| 16 | 330008 | Seal Plug | 1 |
| 17 | 330000 | Seal Plug | 1 |
| 18 | 6200219 | Fabric Guide Plate | 1 |
| 19 | 110064 | Screw(M4-0.7 × 8) | 2 |
| 20 | 6200191 | Tail Cover Gasket | 1 |
| 21 | 6200076 | Tail Cover | 1 |
| 22 | 6200259 | Seal Plug | 1 |
| 23 | 6200180 | Ball Bearing Housing | 1 |
| 24 | 6200181 | Ball Bearing Housing Gasket | 1 |
| 25 | 130003 | Screw(M4-0.7 × 7.3) | 3 |
Page 11 — MISCELLANEOUS THREAD EYELETS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200079 | Thread Guide Plate | 1 |
| 2 | 110013 | Screw(M4-0.7 × 8) | 2 |
| 3 | 6100056 | Thread Tension Spring Cap | 4 |
| 4 | 6100057 | Tension Spring Bushing | 4 |
| 5 | 6200026 | Lower Looper Thread Tension Spring | 1 |
| 6 | 6200019 | Thread Tension Spring Retainer | 4 |
| 7 | 000178 | Felt | 4 |
| 8 | 6100062 | Tension Disc | 8 |
| 9 | 000177 | Felt | 4 |
| 10 | 190016 | Tension Post(Short) | 4 |
| 11 | 6200031 | Tension Disc Eyelet | 3 |
| 12 | 6100059 | Upper Looper Thread Tension Spring | 1 |
| 13 | 6100058 | Needle Thread Tension Spring | 1 |
| 14 | 6200025 | Needle Thread Tension Spring | 1 |
| 15 | 6200277 | Tension Disc Eyelet for Needle Thread | 1 |
| 16 | 6200447 | Oil Container | 1 |
| 17 | 6200448 | Oil Container Plug | 1 |
| 18 | 310105 | Felt | 1 |
| 19 | 6200449 | Felt Holder | 1 |
| 20 | 110013 | Screw(M4-0.7 × 8) | 1 |
| 21 | 6200284 | Needle Thread Eyelet Holder | 1 |
| 22 | 110001 | Screw(M4-0.7 × 5.4) | 4 |
| 23 | 6200276 | Needle Thread Eyelet(Right) | 1 |
| 24 | 006035 | Screw(9/64-40 × 7) | 1 |
| 25 | 000644 | Spring Washer | 2 |
| 26 | 000322 | Nut | 1 |
| 27 | 6200275 | Needle Thread Eyelet(Left) | 1 |
| 28 | 6200521 | Needle Thread Pull-off | 1 |
| 29 | 110064 | Screw(M4-0.7 × 7.5) | 1 |
| 30 | 000653 | Knock Pin | 1 |
| 31 | 6200466 | Thread Retainer Plate Support | 1 |
| 32 | 6200467 | Thread Retainer Plate | 1 |
| 33 | 6200468 | Thread Retainer Spring | 1 |
| 34 | 170060 | Screw(M2.5-0.45 × 4) | 1 |
| 35 | 6200565 | Looper Crank Cover | 1 |
| 36 | 110009 | Screw(M4-0.7 × 8) | 2 |
| 37 | 6100111 | Looper Driving Shaft Oil Seal | 1 |
| 38 | 6200164 | Spacer(Rubber) | 1 |
| 39 | 6200464 | Looper Thread Eyelet(Left) | 1 |
| 40 | 130020 | Screw(M4-0.7 × 8.3) | 1 |
| 41 | 6200586 | Lower Looper Thread Eyelet | 1 |
| 42 | 000014 | Washer | 2 |
| 43 | 110036 | Screw() | 1 |
| 44 | 6200589 | Spacer | 1 |
| 45 | 6200461 | Upper Looper Thread Eyelet | 1 |
| 46 | 110026 | Screw(M3-0.5 × 6) | 1 |
| 47 | 6200587 | Looper Holder Auxiliary Cover | 1 |
| 48 | 110054 | Screw(M3-0.5 × 3.5) | 2 |
| 49 | 6200023 | Looper Thread Pipe | 2 |
Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200305 | Machine Pulley | 1 |
| 2 | 160007 | Screw(M6-1 × 6) | 6 |
| 3 | 6200477 | Oil Cooling Fan | 1 |
| 4 | 160001 | Screw(M4-0.7 × 4) | 5 |
| 5 | 6200214 | Wave Washer | 1 |
| 6 | 6200213 | Mechanical Oil Shield | 1 |
| 7 | 6100622 | Crankshaft Ball Bearing(Right) | 1 |
| 8 | 6100127 | Bearing Adapter | 1 |
| 9 | 6200268 | Oil Pump Driving Worm | 1 |
| 10 | 6200373 | Crankshaft Bushing | 1 |
| 11 | 6200270 | Crankshaft | 1 |
| 12 | 6200560 | Pin | 1 |
| 14 | 160027 | Screw(M3-0.5 × 3) | 5 |
| 15 | 6200179 | Crankshaft Ball Bearing(Left) | 1 |
| 16 | 6200234 | Crankshaft Bushing | 1 |
| 17 | 6200083 | Upper Knife Driving Shaft Bushing(Right) | 1 |
| 18 | 6200238 | Upper Knife · Feed Bar Driving Shaft Bushing | 2 |
| 19 | 6200084 | Upper Knife Driving Shaft Oil Seal | 1 |
| 20 | 6200244 | Needle Bar Driving Shaft Bushing(Right) | 1 |
| 21 | 6200243 | Needle Bar Driving Shaft Bushing(Left) | 1 |
| 22 | 003636 | Cap Screw(5/16-32 × 3.5) | 1 |
| 23 | 000526 | Gasket | 1 |
| 25 | 310109 | Oil Wick | 1 |
| 27 | 6200241 | Upper Looper Driving Shaft Bushing(Front) | 1 |
| 28 | 6200242 | Upper Looper Driving Shaft Bushing(Rear) | 1 |
| 29 | 6200132 | Looper Driving Shaft Oil Seal | 1 |
| 30 | 6200239 | Lower Looper Driving Shaft Bushing(Front) | 1 |
| 31 | 6200240 | Lower Looper Driving Shaft Bushing(Rear) | 1 |
| 32 | 6200237 | Feed Bar Driving Shaft Bushing(Left) | 1 |
| 33 | 6200259 | Seal Plug | 1 |
| 34 | 6200081 | Control Lever Shaft Bushing | 1 |
Page 15 — NEEDLE BAR DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200271 | Needle Bar Driving Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 2 |
| 3 | 6200088 | Needle Bar Driving Connecting Rod Pin | 1 |
| 4 | 160002 | Screw(M4-0.7 × 5) | 1 |
| 5 | 6200187 | Needle Bar Driving Lever | 1 |
| 6 | 120006 | Screw(M6-1 × 12) | 1 |
| 7 | 6200086 | Collar(12 × 20 × 10mm) | 1 |
| 8 | 160003 | Screw(M5-0.8 × 5) | 2 |
| 9 | 6200307 | Needle Bar Crank Arm, C. Set | 1 |
| 10 | 6200568 | Needle Bar Driving Shaft | 1 |
| 11 | 6200085 | Needle Bar Crank Arm | 1 |
| 12 | 300008 | Washer | 1 |
| 13 | 140003 | Screw(M6-1 × 18) | 1 |
| 14 | 6200087 | Needle Bar Connecting Link | 1 |
| 15 | 6200101 | Needle Bar Connecting Link Pin | 2 |
| 16 | 310089 | Oil Wick | 2 |
| 17 | 6200246 | Needle Bar Connecting Bracket | 1 |
| 18 | 110006 | Screw(M3.5-0.6 × 10) | 1 |
| 19 | 160016 | Screw(M4-0.7 × 4.5) | 2 |
| 20 | 6200245 | Needle Bar & Needle Bar Bushing, C. Set | 1 |
| 21 | 6209103 | Needle Clamp(Y) | 1 |
| 22 | ------ | Needle(System : DC × 1) | 2 |
| 23 | 001900 | Screw(1/8-44 × 2.5)[1/8-44 × 2.5] | 2 |
| 24 | 6200249 | Stitch Plate Support Stay, C. Set | 1 |
| 25 | 6200250 | Stitch Plate Support Stay | 1 |
| 26 | 000035 | Roll Pin | 1 |
| 27 | 110009 | Screw(M4-0.7 × 8) | 6 |
| 28 | 6200153 | Stitch Plate Support(Rear) | 1 |
| 29 | 110001 | Screw(M4-0.7 × 5.4) | 1 |
| 30-1 | 6208030 | Stitch Plate(Y5) | 1 |
| 30-2 | 6208041 | Stitch Plate(Y6) | 1 |
| 31 | 005345 | Screw(11/64-40 × 8.3) | 2 |
| 32 | 6200089 | Stitch Plate Support(Front) | 1 |
| 33 | 110011 | Screw(M5-0.8 × 10) | 2 |
| 34 | 6100020 | Rubber Cushion | 1 |
| 35 | 6209200 | Needle Guard(Front) | 1 |
| 36 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 37 | 6200232 | HR Unit, Complete Set | 1 |
| 38 | 6100310 | Tube Joint | 1 |
| 39 | 6200090 | Oil Tube(70mm) | 1 |
| 40 | 310005 | Oil Wick | 1 |
| 41 | 6200155 | HR Felt Holder | 1 |
| 42 | 310001 | HR Felt | 1 |
| 43 | 6200157 | HR Felt Holder Bracket, C. Set | 1 |
| 44 | 6200158 | HR Felt Holder Bracket | 1 |
| 45 | 000393 | Roll Pin | 1 |
| 46 | 110013 | Screw(M4-0.7 × 8) | 1 |
| 47 | 320008 | Fitting Stud(Short) | 1 |
| 48 | 000567 | Seal | 1 |
| 49 | 6200296 | HR Unit Bracket | 1 |
Page 17 — KNIFE DRIVING MECHANISM / メス機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200590 | Upper Knife Driving Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 2 |
| 3 | 6100367 | Driving Lever Pin | 1 |
| 4 | 160002 | Screw(M4-0.7 × 5) | 1 |
| 5 | 6200093 | Upper Knife Driving Lever | 1 |
| 6 | 120006 | Screw(M6-1 × 12) | 1 |
| 7 | 6200092 | Collar(10 × 19 × 9mm) | 1 |
| 8 | 160003 | Screw(M5-0.8 × 5) | 2 |
| 9 | 6200251 | Upper Knife Driving Shaft | 1 |
| 10 | 6200095 | Upper Knife Holder Positioner | 1 |
| 11 | 6200094 | Upper Knife Holder(Flat Type) | 1 |
| 12 | 110035 | Screw(M4-0.7 × 10) | 1 |
| 13 | 6200022 | Upper Knife(Flat Type) | 1 |
| 14 | 000532 | Washer | 1 |
| 15 | 110004 | Screw(M3-0.6 × 8) | 1 |
| 16 | 6100017 | Seal Plug | 1 |
| 17 | 6200222 | Lower Knife Holder Spring Stop | 1 |
| 18 | 110012 | Screw(M4-0.7 × 5) | 3 |
| 19 | 6200100 | Cloth Plate Rubber Cushion | 1 |
| 20 | 6200221 | Front Cover | 1 |
| 21 | 110001 | Screw(M4-0.7 × 5.4) | 2 |
| 22 | 180040 | Cloth Plate Spring Pin | 1 |
| 23 | 6200223 | Lower Knife Holder Locking Plate | 1 |
| 24 | 6200030 | Lower Knife Holder Spring | 1 |
| 25 | 6200096 | Lower Knife Holder | 1 |
| 26 | 110046 | Screw(M5-0.8 × 12) | 1 |
| 27 | 000688 | Guide Pin | 1 |
| 28 | 6200097 | Lower Knife | 1 |
| 29 | 6200098 | Lower Knife Clamp | 1 |
| 30 | 140014 | Screw(M4-0.7 × 8) | 1 |
Page 19 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 190088 | Adjusting Screw(M10-0.75 × 30) | 1 |
| 2 | 100073 | Lock Nut | 1 |
| 3 | 6200469 | Presser Spring | 1 |
| 4 | 6200470 | Presser Bar | 1 |
| 5 | 6200160 | Presser Arm Positioning Guide Pin | 1 |
| 6 | 340061 | Pin | 1 |
| 7 | 6200472 | Presser Arm Stop | 1 |
| 8 | 110012 | Screw(M4-0.7 × 5) | 1 |
| 9 | 6200473 | Presser Foot Release Lever | 1 |
| 10 | 6200474 | Presser Foot Release Lever Spring | 1 |
| 11 | 170045 | Screw(M4-0.7 × 5) | 1 |
| 12 | 180001 | Screw(M4-0.7 × 4.5) | 1 |
| 13 | 6200513 | Presser Foot Lifter Lever | 1 |
| 15 | 170065 | Screw(M8-1.25 × 10) | 1 |
| 16 | 6200291 | Presser Foot Lifter Lever Stop | 1 |
| 17 | 120010 | Screw(M6-1 × 10) | 1 |
| 18 | 6200514 | Presser Foot Lifter Lever Link | 1 |
| 19 | 6200154 | Presser Foot Shaft Collar | 1 |
| 20 | 120017 | Screw(M5-0.8 × 15) | 1 |
| 21 | 6200104 | Intermediate Lever | 1 |
| 22 | 110065 | Stop Screw(M4-0.7 × 12) | 1 |
| 23 | 100001 | Lock Nut | 1 |
| 24 | 6200288 | Presser Foot Lifter Lever Spring | 1 |
| 25 | 6200082 | Presser Foot Shaft Bushing | 1 |
| 26 | 160007 | Screw(M6-1 × 6) | 1 |
| 27 | 6200527 | Presser Arm, Complete Set | 1 |
| 28 | 6200103 | Presser Foot Shaft | 1 |
| 29 | 6200528 | Presser Arm | 1 |
| 30 | 6200106 | Presser Arm Hinge Pin | 1 |
| 31 | 160001 | Screw(M4-0.7 × 4) | 1 |
| 32-1 | 6207004 | Presser Foot, C. Set(Y5) | 1 |
| 32-2 | 6207044 | Presser Foot, C. Set(Y6) | 1 |
| 33 | 6207001 | Presser Foot Hinge | 1 |
| 34 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 35 | 6207003 | Presser Foot Half-stay | 1 |
| 36 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 37 | 6207002 | Presser Foot(Lower) | 1 |
| 38 | 6200034 | Thread Chain Guide | 1 |
| 39 | 004237 | Screw(3/32-56 × 2.6) | 1 |
| 40-1 | 6207005 | Presser Foot Stitch Tongue(Y5) | 1 |
| 40-2 | 6207046 | Presser Foot Stitch Tongue(Y6) | 1 |
| 41 | 6207000 | Finger Guard | 1 |
| 42 | 000444 | Washer | 1 |
| 43 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 44 | 6200020 | Thread Chain Cutting Knife | 1 |
| 45 | 004097 | Screw(3/32-56 × 4.2) | 1 |
| 46 | 6200471 | Presser Bar, C. Set | 1 |
Page 21 — UPPER LOOPER DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200188 | Looper Driving Lever Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 5 |
| 3 | 6200080 | Connecting Rod Swing-proof | 2 |
| 4 | 6200261 | Upper Looper Driving Lever | 1 |
| 5 | 120006 | Screw(M6-1 × 12) | 1 |
| 6 | 6200260 | Looper Driving Shaft | 1 |
| 7 | 6200262 | Driving Shaft Thrust Ring | 1 |
| 8 | 6200263 | Driving Shaft Thrust Ring | 1 |
| 9 | 6200566 | Collar | 1 |
| 11 | 6200286 | Upper Looper Thread Pull-off | 1 |
| 12 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 13 | 6200580 | Upper Looper Bar Crank Arm, C. Set | 1 |
| 14 | 6200114 | Upper Looper Bar Guide Bushing | 1 |
| 15 | 6200110 | Upper Looper Bar Guide Cover | 1 |
| 16 | 130001 | Screw(M2.5-0.45 × 6) | 1 |
| 17 | 110071 | Screw(M2.5-0.45 × 6) | 1 |
| 18 | 6200581 | Upper Looper Bar Guide,Complete Set | 1 |
| 19 | 6200111 | Upper Looper Bar Crank Arm | 1 |
| 20 | 300008 | Washer | 1 |
| 21 | 140004 | Screw(M6-1 × 16) | 1 |
| 22 | 6200612 | Upper Looper Bar Crank Arm Pin | 1 |
| 23 | 160002 | Screw(M4-0.7 × 5) | 1 |
| 24 | 310089 | Oil Wick | 1 |
| 25 | 6200112 | Upper Looper Bar | 1 |
| 26 | 000629 | Seal Plug | 1 |
| 27 | 6200611 | Upper Looper Bar Guide | 1 |
| 28 | 310065 | Oiling Felt | 1 |
| 29 | 6209310 | Upper Looper(for Needle Size #9~14) | 1 |
| 30 | 210009 | Screw(1/8-44 × 3.2) | 1 |
| 32 | 120013 | Screw(M6-1 × 15) | 2 |
| 33 | 6200169 | Upper Looper Supplementary Thread Eyelet | 1 |
| 34 | 6200463 | Lower Looper Thread Pull-off | 1 |
| 35 | 000014 | Washer | 1 |
| 36 | 110002 | Screw(M3-0.5 × 5) | 1 |
| 37 | 6200585 | Upper Looper Bar, C. Set | 1 |
| 38 | 6200613 | Upper Looper Bar Guide Oil Seal | 1 |
| 39 | 6200614 | Sponge | 1 |
| 40 | 6200588 | Collar(10 × 16 × 6mm) | 1 |
| 41 | 003657 | Screw(M4-0.7 × 3) | 1 |
| 42 | 6200453 | UpperLooperBarGuideBushingPostioner | 1 |
| 43 | 009746 | Screw(M4-0.7 × 8) | 1 |
| 44 | 110001 | Screw(M4-0.7 × 5.4) | 1 |

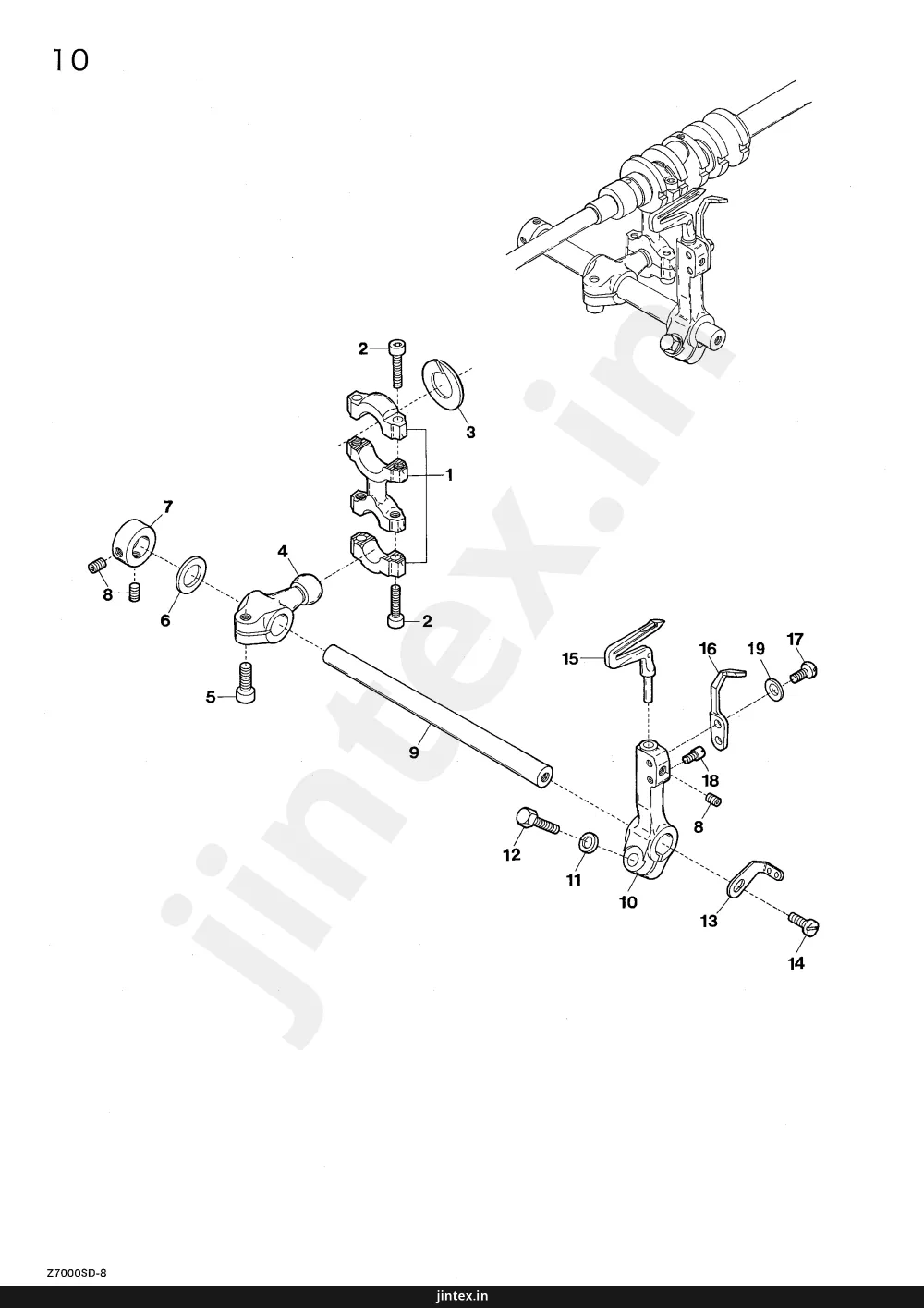

Page 23 — LOWER LOOPER DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200108 | Looper Driving Lever Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7 × 16) | 4 |
| 3 | 6200080 | Connecting Rod Swing-proof | 1 |
| 4 | 6200377 | Lower Looper Driving Lever | 1 |
| 5 | 120006 | Screw(M6-1 × 12) | 1 |
| 6 | 6200189 | Driving Shaft Thrust Ring | 1 |
| 7 | 6200092 | Collar(10 × 19 × 9mm) | 1 |
| 8 | 160003 | Screw(M5-0.8 × 5) | 3 |
| 9 | 6200109 | Looper Driving Shaft | 1 |
| 10 | 6200107 | Lower Looper Holder Arm | 1 |
| 11 | 300008 | Washer | 1 |
| 12 | 140002 | Screw(M6-1 × 14) | 1 |
| 13 | 6200549 | Thread Pull-off | 1 |
| 14 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 15 | 6209301 | Lower Looper | 1 |
| 16 | 6209201 | Needle Guard(Rear) | 1 |
| 17 | 110036 | Screw(M3-0.5 × 6.5) | 1 |
| 18 | 180014 | Screwed Pin(M3-0.5 × 4.5) | 1 |
| 19 | 300106 | Conical Spring Washer | 1 |
Page 25 — FEED DRIVING CONTROL MECHANISM 前送リ調節機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200254 | Main Feed Bar Lever | 1 |
| 2 | 120006 | Screw(M6-1 × 12) | 4 |
| 3 | 6200119 | Main Feed Bar Lever Pin | 1 |
| 4 | 300000 | Washer | 3 |
| 5 | 100002 | Nut | 1 |
| 6 | 000669 | Washer | 2 |
| 7 | 6200263 | Thrust Plate | 1 |
| 8 | 6200038 | Retaining Ring | 1 |
| 9 | 6100262 | Main Feed Bar Connection | 1 |
| 10 | 6200118 | Connection Bushing | 1 |
| 11 | 140001 | Screw(M5-0.5 × 12) | 1 |
| 12 | 6200127 | Feed Bar, Complete Set | 1 |
| 13 | 6200184 | Main Feed Bar | 1 |
| 14 | 6200183 | Differential Feed Bar | 1 |
| 15 | 6200190 | Differential Feed Bar Connection | 1 |
| 16 | 6200265 | Connection Bushing | 1 |
| 17 | 140000 | Screw(M5-0.5 × 15.5) | 1 |
| 18 | 6200255 | Feed Bar Driving Shaft | 1 |
| 19 | 6200256 | Feed Bar Driving Shaft Lever | 1 |
| 20 | 6200142 | Connecting Rod Pin | 1 |
| 21 | 160007 | Screw(M6-1 × 6) | 1 |
| 22 | 6200165 | Differential Rocker, Complete Set | 1 |
| 23 | 6200166 | Differential Rocker | 1 |
| 24 | 6200167 | Differential Regulating Slider | 1 |
| 25 | 6200168 | Differential Regulating Slider Cap | 1 |
| 26 | 110033 | Screw(M3-0.5 × 6) | 2 |
| 27 | 6200130 | Differential Lever(Right), C. Set | 1 |
| 28 | 6100255 | Slider Link | 1 |
| 29 | 6100343 | Retaining Ring | 1 |
| 30 | 6100360 | Slider Link Pin | 1 |
| 31 | 6200125 | Differential Lever(Right) | 1 |
| 32 | 6100235 | Collar(10 × 17 × 8mm) | 1 |
| 33 | 160001 | Screw(M4-0.7 × 4) | 2 |
| 34 | 000690 | Spring Pin | 1 |
| 35 | 6200123 | Differential Lever Spring | 1 |
| 36 | 6100363 | O-ring(P7) | 1 |
| 37 | 6200126 | Differential Lever(Left) | 1 |
| 38 | 000528 | Washer | 1 |
| 39 | 000561 | Conical Spring Washer | 1 |
| 40 | 100000 | Adjusting Nut | 1 |
| 41 | 190001 | Adjusting Screw(M6-1 ×11.5, M4.5-0.5 ×4) | 1 |
| 42 | 6200131 | Differential Feed Graduation | 1 |
| 43 | 110016 | Screw(M4-0.7 × 15) | 2 |
| 44 | 6100269 | Differential Lever Stop | 2 |
| 45 | 110017 | Screw(M5-0.8 × 8) | 2 |
Page 27 — FEED DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200173 | Feed Bar Guide Support | 1 |
| 2 | 110064 | Screw(M4-0.7 × 8) | 4 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 6 |
| 4 | 6200174 | Feed Bar Shield(Front) | 1 |
| 5 | 6200175 | Feed Bar Shield(Rear) | 1 |
| 6 | 6200177 | Feed Bar Shield Guide | 1 |
| 7 | 6200178 | Feed Bar Guide | 2 |
| 8 | 6200176 | Feed Bar Shield(Upper) | 1 |
| 9 | 6200253 | Feed Bar Guide Bushing | 1 |
| 10 | 160007 | Screw(M6-1 × 6) | 1 |
| 11 | 6200594 | Feed Bar Block(Rear) Shaft | 1 |
| 12 | 120027 | Screw(M4-0.7 × 25) | 1 |
| 13 | 6200140 | Feed Bar Block(Rear) | 1 |
| 14 | 6200593 | Feed Bar Block(Rear) Lid | 1 |
| 15 | 130002 | Screw(M3-0.5 × 6) | 1 |
| 16 | 6200138 | Feed Bar Block(Front) | 1 |
| 17 | 6200141 | Eccentric Pin Holder | 1 |
| 18 | 6100366 | Feed Dog Eccentric Pin | 1 |
| 19 | 6100281 | Feed Dog Eccentric | 1 |
| 20 | 6100282 | Roller Bearing | 1 |
| 21 | 6200133 | Feed Dog Driving Connecting Rod | 1 |
| 22 | 6100284 | Feed Dog Regulating Eccentric | 1 |
| 23 | 180002 | Screw(M3-0.5 × 4) | 2 |
| 24 | 110070 | Screw(M3-0.5 × 6.3) | 1 |
| 25 | 6100285 | Feed Dog Regulating Plate Spring | 1 |
| 26 | 6100286 | Feed Dog Regulating Plate | 1 |
| 27 | 6200137 | Feed Dog Regulating Gear | 1 |
| 28 | 180003 | Screw(M5-0.8 × 8) | 1 |
| 29 | 160003 | Screw(M5-0.8 × 5) | 3 |
| 30-1 | 6209000 | Differential Feed Dog(X4, X5, Y5) | 1 |
| 30-2 | 6209006 | Differential Feed Dog(Y6) | 1 |
| 31 | 6209001 | Main Feed Dog | 1 |
| 32 | 6209002 | Auxiliary Feed Dog | 1 |
| 33 | 110026 | Screw(M3-0.5 × 6) | 1 |
| 34 | 6200257 | Connecting Rod Cover | 1 |
| 35 | 130003 | Screw(M4-0.7 × 7.3) | 2 |
| 36 | 6200595 | Collar(7 × 15 × 10mm) | 1 |
| 37 | 160001 | Screw(M4-0.7 × 25) | 1 |
Page 29 — LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200506 | Oil Pump, Complete Set | 1 |
| 2 | 6200475 | Worm Wheel | 1 |
| 3 | 160001 | Screw(M4-0.7 × 4) | 4 |
| 4 | 120049 | Screw(M4-0.7 × 16) | 2 |
| 5 | 320009 | Oil Tube Fitting Stud(Long)(M6-1) | 1 |
| 6 | 000567 | Seal | 1 |
| 7 | 6200507 | Oil Tube, Complete Set | 1 |
| 8 | 6100310 | Oil Tube Fitting One Way End | 6 |
| 9 | 6100303 | Oil Tube Clamp | 9 |
| 10 | 6200508 | Oil Tube(4.6 × 6.4 × 220mm) | 1 |
| 11 | 320008 | Oil Tube Fitting Stud(M6-1) | 5 |
| 12 | 6200509 | Suction Tube, C. Set | 1 |
| 13 | 6100308 | Oil Tube Fitting Two Way | 1 |
| 14 | 6200510 | Oil Tube(4.6 × 6.4 × 242.5mm) | 1 |
| 15 | 6200206 | Oil Filter | 1 |
| 16 | 6200518 | Suction Pipe(Upper), C. Set | 1 |
| 17 | 6200519 | Suction Tube(4 × 6 × 18mm) | 1 |
| 18 | 6200195 | Suction Tube(2.5 × 4 × 60mm) | 1 |
| 19 | 6200196 | Suction Pipe(Upper) | 1 |
| 20 | 310073 | Felt | 1 |
| 21 | 6200299 | Oil Tube, Complete Set | 1 |
| 22 | 6200301 | Oil Tube(4.6 × 6.4 × 320mm) | 1 |
| 24 | 6200451 | Oil Pressure Regulating Valve, C. Set | 1 |
| 25 | 6200450 | Oil Pressure Regulating Valve | 2 |
| 26 | 6200037 | Oil Pressure Regulating Ball | 1 |
| 27 | 6200028 | Guide Pin | 1 |
| 28 | 6200476 | Spring | 1 |
| 29 | 006861 | Adjusting Screw(1/4-40 × 5) | 1 |
| 30 | 000419 | Nut | 1 |
| 31 | 6500261 | Oil Filter Cap | 1 |
| 32 | 110045 | Screw(M4-0.7 × 12) | 3 |
| 33 | 6100370 | O-ring(P42) | 1 |
| 34 | 6100296 | Oil Filter | 1 |
| 35 | 6100297 | Filter Housing | 1 |
| 37 | 6200248 | Oil Pipe | 1 |
| 39 | 6200186 | Oil Pipe, C. Set | 1 |
| 40 | 6200185 | Oil Pipe | 1 |
| 41 | 000456 | Seal Plug | 1 |
| 42 | 310090 | Oil Wick | 1 |
| 43 | 6200074 | Oil Sight Gauge | 1 |
| 44 | 6100363 | O-ring(P7) | 1 |
| 45 | 110053 | Screw(M6-1 × 8) | 1 |
| 46 | 320012 | Oil Tube Fitting Stud(1/4-40) | 1 |
| 47 | 6200597 | Suction Tube, C. Set | 1 |
| 48 | 6200610 | Oil Tube(4.6 × 6.4 × 15mm) | 1 |
| 49 | 6200592 | Felt | 1 |
| 50 | 320017 | Oil Tube Fitting Stud(M6-1) | 1 |
| 51 | 160015 | Screw(M6-1 × 6) | 1 |
Page 31 — Z7000SD-8 EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207025 | Presser Foot, Complete Set(O4) | 1 |
| 2 | 6207001 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 6207003 | Presser Foot Half-stay | 1 |
| 5 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 6 | 6207026 | Presser Foot(Lower) | 1 |
| 7 | 6207027 | Presser Foot Stitch Tongue(O4) | 1 |
| 8 | 6207000 | Finger Guard | 1 |
| 9 | 005036 | Screw(1/8-44 × 5.6) | 3 |
| 10 | 6201000 | Cloth Plate | 1 |
| 11 | 6201001 | Cloth Plate(Lower) | 1 |
| 12 | 6201002 | Rubber Cushion | 1 |
| 13 | 6201017 | Pin | 1 |
| 14 | 6208004 | Stitch Plate(O4) | 1 |
| 15 | 6209009 | Differential Feed Dog | 1 |
| 16 | 6209010 | Main Feed Dog | 1 |
| 17 | 6209302 | Upper Looper | 1 |
| 18 | 6201003 | Blind Hemming Guide, C. Set | 1 |
| 19 | 6201004 | Overhanging Guide Hinge, C. Set | 1 |
| 20 | 6201005 | Hemming Positioner | 1 |
| 21 | 000533 | Washer | 1 |
| 22 | 007006 | Screw(9/64-40 × 4) | 1 |
| 23 | 6201006 | Blind-Hemming Edge Guide, C. Set | 1 |
| 24 | 6201007 | Blind-Hemming Edge Guide | 1 |
| 25 | 009624 | Screw(1/8-44 × 5.3) | 1 |
| 26 | 6201008 | Swing-out Lever | 1 |
| 27 | 004150 | Screw(11/64-40 × 5.2) | 1 |
| 28 | 000172 | Conical Spring Washer | 1 |
| 29 | 000334 | Nut | 1 |
| 30 | 6201009 | Overhanging Guide Hinge Stop | 1 |
| 31 | 001331 | Screw(9/64-40 × 3.8) | 1 |
| 32 | 6201010 | Swing-out Lever Holder | 1 |
| 33 | 6201011 | Swing-out Lever Stop | 1 |
| 34 | 6201012 | Edge Guide Positioning Pin | 2 |
| 35 | 6201013 | Positioning Pin Holder Spring | 2 |
| 36 | 001225 | Screw(1/8-44 × 2.8) | 1 |
| 37 | 001196 | Screw(1/8-44 × 6) | 3 |
| 38 | 6201014 | Edge Guide Adjusting Holder | 1 |
| 39 | 004106 | Screw(9/64-40 × 6.5) | 2 |
| 40 | 007619 | Screw(9/64-40 × 6.3) | 1 |
| 41 | 6201015 | Adjusting Screw Guide Piece | 1 |
| 42 | 006444 | Adjusting Screw(1/8-44 × 12.9) | 1 |
| 43 | 6201016 | Edge Guide Adjusting Holder Cover | 1 |
| 44 | 110047 | Screw(M4-0.7 × 10) | 2 |
Page 33 — Z7003SD-8, 7025SD-8 EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207043 | Presser Foot, C. Set(O4) | 1 |
| 2 | 6207001 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 6207002 | Presser Foot(Lower) | 1 |
| 5 | 6207045 | Presser Foot Stitch Tongue(O4) | 1 |
| 6 | 6207000 | Finger Guard | 1 |
| 7 | 000444 | Washer | 1 |
| 8 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 9 | 6200034 | Thread Chain Guide | 1 |
| 10 | 004237 | Screw(3/32-56 × 2.6) | 1 |
| 11 | 6207003 | Presser Foot Half-stay | 1 |
| 12 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 13 | 6208042 | Stitch Plate(O4) | 1 |
| 14 | 6209302 | Upper Looper | 1 |
| 15 | 6201017 | Pin | 1 |
| 16-1 | 6207020 | Presser Foot, C. Set(Y5) | 1 |
| 16-2 | 6207021 | Presser Foot, C. Set(Y6) | 1 |
| 17 | 6207019 | Presser Foot(Lower) | 1 |
| 18-1 | 6207017 | Presser Foot Stitch Tongue(Y5) | 1 |
| 18-2 | 6207022 | Presser Foot Stitch Tongue(Y6) | 1 |
| 19 | 6207018 | Presser Foot Tape Guide | 1 |
| 20 | 001230 | Screw(3/32-56 × 3.8) | 1 |
| 21 | 6200375 | Tape Guide(Upper) | 1 |
| 22 | 110012 | Screw(M4-0.7 × 5) | 2 |
| 23 | 000538 | Washer | 2 |
Page 35 — Z7016SD-8 EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207073 | Presser Foot, C. Set(O2) | 1 |
| 2 | 6207001 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 6207003 | Presser Foot Half-stay | 1 |
| 5 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 6 | 6207089 | Presser Foot (Lower) | 1 |
| 7 | 6200034 | Thread Chain Guide | 1 |
| 8 | 004237 | Screw(3/32-56 × 2.6) | 1 |
| 9 | 6207072 | Presser Foot Stitch Tongue | 1 |
| 10 | 6207112 | Finger Guard | 1 |
| 11 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 12 | 6208035 | Stitch Plate, C. Set(O2) | 1 |
| 13 | 6208034 | Stitch Plate(O2) | 1 |
| 14 | 6208023 | Stitch Plate Tongue | 1 |
| 15 | 004182 | Screw(3/32-56 × 2.5) | 1 |
| 16 | 6209302 | Upper Looper | 1 |
| 17 | 6201017 | Pin | 1 |
| 18 | 180002 | Screw(M3-0.5 × 4) | 2 |
| 19 | 6209031 | Differential Feed Dog | 1 |
| 20 | 6209032 | Main Feed Dog | 1 |
| 21 | 6209013 | Auxiliary Feed Dog | 1 |
| 22 | 6207029 | Presser Foot, C. Set(O2) | 1 |
| 23 | 6207055 | Presser Foot Hinge | 1 |
| 24 | 6207030 | Presser Foot(Lower) | 1 |
| 25 | 6207031 | Presser Foot Hinge Spring | 1 |
| 26 | 004131 | Screw(1/8-44 × 6) | 1 |
| 27 | 6207032 | Thread Chain Guide | 1 |
| 28 | 6207033 | Presser Foot Stitch Tongue | 1 |
| 29 | 004138 | Screw(1/8-44 × 5) | 1 |
| 30 | 6208005 | Stitch Plate, Complete Set | 1 |
| 31 | 6208006 | Stitch Plate | 1 |
| 32 | 6208007 | Stitch Plate Tongue | 1 |
| 33 | 004204 | Screw(3/32-100 × 2.2) | 1 |
| 34 | 6208008 | Stitch Plate Tongue Stop | 1 |
| 35 | 001228 | Screw(3/32-56 × 3.2) | 1 |
| 36 | 000933 | Rubber Cushion(Medium) | 1 |
| 37 | 300040 | Washer | 1 |
| 38 | 6209012 | Main Feed Dog(with Rubber Face) | 1 |
| 39 | 6209011 | DifferentialFeedDog(withRubberFace) | 1 |
| 40 | 000932 | Rubber Cushion(Large) | 1 |
| 41 | 6201020 | Lower Knife Holder | 1 |
| 42 | 6201019 | Upper Knife Holder | 1 |
| 43 | 6201018 | Upper Knife | 1 |
Page 37 — Z7016SD-61 EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207073 | Presser Foot, Complete Set(02, 03) | 1 |
| 2 | 6207001 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 6207003 | Presser Foot Half-stay | 1 |
| 5 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 6 | 6207089 | Presser Foot(Lower) | 1 |
| 7 | 6200034 | Thread Chain Guide | 1 |
| 8 | 004237 | Screw(3/32-56 × 2.6) | 1 |
| 9 | 6207072 | Presser Foot Stitch Tongue | 1 |
| 10 | 6207112 | Finger Guard | 1 |
| 11 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 12-1 | 6208023 | Stitch Plate, Complete Set(O2) | 1 |
| 12-2 | 6208018 | Stitch Plate, Complete Set(O3) | 1 |
| 13 | 6208019 | Stitch Plate | 1 |
| 14-1 | 6208022 | Stitch Plate Tongue(O2) | 1 |
| 14-2 | 6208020 | Stitch Plate Tongue(O3) | 1 |
| 15 | 004182 | Screw(3/32-56 × 2.5) | 1 |
| 16 | 6209023 | Differential Feed Dog | 1 |
| 17 | 6201017 | Pin | 1 |
| 18 | 180002 | Screw(M3-0.5 × 4) | 2 |
Page 39 — Z7120SD-8, 7125SD-8 EXCLUSIVE PARTS / サブモデル専用部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200058 | Needle Bar Driving Lever | 1 |
| 2 | 6200134 | Crankshaft | 1 |
| 3 | 6200135 | Needle Thread Pull-off | 1 |
| 5 | 6200136 | Upper Knife Holder(Flat Type) | 1 |
| 6 | 6200308 | Upper Knife(Flat Type) | 1 |
| 7 | 6100058 | Tension Spring(Needle) | 1 |
| 8 | 6200128 | Eye Guard Spacer | 1 |
| 9 | 100001 | Nut | 1 |
| 10 | 6200091 | Upper Knife Driving Connecting Rod | 1 |
| 11 | 6200455 | Upper Looper Driving Lever | 1 |
| 12 | 6200488 | Driving Shaft Thrust Ring | 1 |
| 13 | 6200108 | Looper Driving Lever Connecting Rod | 1 |
| 14-1 | 6208000 | Stitch Plate(Y5) | 1 |
| 14-2 | 6208002 | Stitch Plate(Y6) | 1 |
| 14-3 | 6208014 | Stitch Plate(Y7) | 1 |
| 14-4 | 6208016 | Stitch Plate(Y8) | 1 |
| 15 | 6209304 | Upper Looper | 1 |
| 16 | 6200457 | Lower Looper Driving Lever | 1 |
| 17 | 6200517 | Driving Shaft Thrust Ring | 1 |
| 18-1 | 6207044 | Presser Foot, C. Set(Y5, Y6) | 1 |
| 18-2 | 6207063 | Presser Foot, C. Set(Y7) | 1 |
| 18-3 | 6207067 | Presser Foot, C. Set(Y8) | 1 |
| 19 | 6207001 | Presser Foot Hinge | 1 |
| 20 | 110004 | Screw(M3.5-0.6 x 8) | 1 |
| 21 | 6207003 | Presser Foot Half-stay | 1 |
| 22 | 110050 | Screw(M3.5-0.6 x 4.5) | 1 |
| 23 | 6207002 | Presser Foot (Lower) | 1 |
| 24 | 6200034 | Thread Chain Guide | 1 |
| 25 | 004237 | Screw(3/32-56 x 2.6) | 1 |
| 26-1 | 6207046 | Presser Foot Stitch Tongue(Y5, Y6) | 1 |
| 26-2 | 6207058 | Presser Foot Stitch Tongue(Y7) | 1 |
| 26-3 | 6207070 | Presser Foot Stitch Tongue(Y8) | 1 |
| 27 | 6207018 | Finger Guard | 1 |
| 28 | 000444 | Washer | 1 |
| 29 | 005036 | Screw(1/8-44 x 5.6) | 1 |
| 30-1 | 6207021 | Presser Foot, C. Set(Y5, Y6) | 1 |
| 30-2 | 6207059 | Presser Foot, C. Set(Y7) | 1 |
| 31 | 6207019 | Presser Foot (Lower) | 1 |
| 32-1 | 6207022 | Presser Foot Stitch Tongue(Y5, Y6) | 1 |
| 32-2 | 6207056 | Presser Foot Stitch Tongue(Y7) | 1 |
| 33 | 6207018 | Presser Foot Tape Guide | 1 |
| 34 | 001230 | Screw(3/32-56 x 3.8) | 1 |
| 35 | 6200375 | Tape Guide(Upper) | 1 |
| 36 | 110012 | Screw(M4-0.7 x 5) | 2 |
| 37 | 000538 | Washer | 2 |
| 38 | 6208026 | Adjustable Stitch Tongue | 1 |
| 39 | 110064 | Screw(M4-0.7 x 8) | 2 |
Page 41 — K2 DEVICE(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6201021 | K2 Device, Complete Set | 1 |
| 2 | 6201022 | Suction Pipe, Complete Set | 1 |
| 3 | 6201023 | Suction Pipe | 1 |
| 4 | 310017 | Oil Wick | 1 |
| 5 | 000755 | Oil Wick Pin | 1 |
| 6 | 6201024 | Suction Pipe Cover | 1 |
| 7 | 004237 | Screw(3/32-56 × 2.6) | 1 |
| 8 | 004404 | Screw(3/32-56 × 5.1) | 2 |
| 9 | 6201025 | Upper Trimming Knife | 1 |
| 10 | 004131 | Screw(1/8-44 × 6) | 1 |
| 11 | 004139 | Screw(3/32-56 × 3) | 2 |
| 12 | 6201026 | Lower Trimming Knife Holder Pin | 1 |
| 13 | 6201027 | Lower Trimming Knife | 1 |
| 14 | 004236 | Screw(3/32-56 × 4.2) | 1 |
| 15 | 6201040 | Lower Trimming Knife Driving Plate | 1 |
| 16 | 6201041 | Spring Sleeve | 1 |
| 17 | 6201042 | Lower Trimming Knife Pushing Spring | 1 |
| 18 | 6201043 | Spring Protect Washer | 1 |
| 19 | 6201044 | Washer | 1 |
| 20 | 6201045 | Air Shield Rubber | 1 |
| 21 | 007623 | Screw(9/64-40 × 5.3) | 2 |
| 22 | 6201046 | Lower Trimming Knife Guide Support | 1 |
| 23 | 110006 | Screw(M3.5-0.6 × 10) | 1 |
| 24 | 6201047 | Lower Trimming Knife Guide | 1 |
| 25 | 270001 | Screw(1/8-44 × 3) | 1 |
| 26 | 6201048 | Suction Power Control, C. Set | 1 |
| 27 | 6201039 | Suction Power Control Tube(Inner) | 1 |
| 28 | 6201049 | Suction Power Control Tube | 1 |
| 29 | 001892 | Screw(1/8-44 × 2.9) | 1 |
| 30 | 6201050 | Nylon Hose | 1 |
| 31 | 6201051 | Cloth Plate Spacer | 1 |
| 32 | 110042 | Screw(M3.5-0.6 × 4) | 2 |
| 33 | 6201052 | Suction Pipe Support | 1 |
Page 43 — K2 DEVICE(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6207054 | Presser Foot, C. Set(O4) | 1 |
| 2 | 6207001 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6 × 8) | 1 |
| 4 | 6207002 | Presser Foot (Lower) | 1 |
| 5 | 6207045 | Presser Foot Stitch Tongue(O4) | 1 |
| 6 | 6207000 | Finger Guard | 1 |
| 7 | 000444 | Washer | 1 |
| 8 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 9 | 6207047 | Thread Chain Guide | 1 |
| 10 | 004237 | Screw(3/32-56 × 2.6) | 1 |
| 11 | 6207003 | Presser Foot Half-stay | 1 |
| 12 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 13-1 | 6207048 | Presser Foot, C. Set(Y5) | 1 |
| 13-2 | 6207049 | Presser Foot, C. Set(Y6) | 1 |
| 14-1 | 6207005 | Presser Foot Stitch Tongue(Y5) | 1 |
| 14-2 | 6207046 | Presser Foot Stitch Tongue(Y6) | 1 |
| 15 | 6207097 | Presser Foot, C. Set(Y5) | 1 |
| 16 | 6207108 | Presser Foot(Lower) | 1 |
| 17 | 6207017 | Presser Foot Stitch Tongue(Y5) | 1 |
| 18 | 6207018 | Presser Foot Tape Guide | 1 |
| 19 | 001230 | Screw(3/32-56 × 3.8) | 1 |
Page 45 — B3 DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6201054 | B3 Device, C. Set | 1 |
| 2 | 6201037 | Back Tack Cutting Unit | 1 |
| 3 | 6201028 | Thread Chain Cutting Knife Holder | 1 |
| 4 | 6201053 | Thread Chain Cutting Knife | 1 |
| 5 | 6201029 | Thread Chain Cutting Knife Holder Spacer | 1 |
| 6 | 003637 | Screw(1/8-44 × 2.5) | 2 |
| 7 | 004205 | Screw(11/64-40 × 18) | 1 |
| 8 | 6201036 | Thread Chain Holder | 1 |
| 9-1 | 6201035 | Thread Chain Holder Spring(Standard) | 1 |
| 9-2 | 6201034 | Thread Chain Holder Spring(with Stronger Pressure) | 1 |
| 10 | 000361 | Adjusting Nut | 2 |
| 11 | 000535 | Washer | 1 |
| 12 | 110044 | Screw(M3-0.6 × 14) | 1 |
| 13 | 6201033 | Cloth Plate | 1 |
| 14 | 6201030 | Synchronizer Positioning Pin | 1 |
| 15 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 16 | 6200552 | Synchronizer Cushion | 1 |
| 17 | 6207052 | Presser Foot, C. Set(O4) | 1 |
| 18 | 6207001 | Presser Foot Hinge | 1 |
| 19 | 110004 | Screw(M4-0.7 × 8) | 1 |
| 20 | 6207002 | Presser Foot(Lower) | 1 |
| 21 | 6207053 | Presser Foot Stitch Tongue(O4) | 1 |
| 22 | 6207000 | Finger Guard | 1 |
| 23 | 000444 | Washer | 1 |
| 24 | 005036 | Screw(1/8-44 × 5.6) | 1 |
| 25 | 6200034 | Thread Chain Guide | 1 |
| 26 | 004237 | Screw(3/32-56 × 1.7) | 1 |
| 27 | 6207003 | Presser Foot Half-stay | 1 |
| 28 | 110050 | Screw(M3.5-0.6 × 4.5) | 1 |
| 29 | 6208013 | Stitch Plate(O4) | 1 |
| 30 | 6209015 | Differential Feed Dog | 1 |
| 31 | 6209016 | Main Feed Dog | 1 |
Page 47 — MT22 DEVICE(1) / MT22装置(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6201175 | Solenoid Cover | 1 |
| 2 | 006233 | Screw(M3-0.5 x 5) | 2 |
| 3 | 6201169 | Solenoid | 1 |
| 4 | 000206 | Nut | 2 |
| 5 | 6201171 | Solenoid Holder | 1 |
| 6 | 009976 | Screw(M6-1 x 15) | 2 |
| 7 | 340003 | Pin | 1 |
| 8 | 6201174 | Drive Gear | 1 |
| 9 | 009749 | Screw(M4-0.7 x 16) | 1 |
| 10 | 000339 | Nut | 1 |
| 11 | 006638 | Screw(5/32-40 x 9.5) | 1 |
| 12 | 6201172 | Solenoid Spring | 1 |
| 13 | 6201179 | Trimming Device C. Set | 1 |
| 14 | 6201173 | Driven Gear | 1 |
| 15 | 160001 | Screw(M4-0.7 x 10) | 2 |
| 16 | 6201178 | Upper Knife Holder | 1 |
| 17 | 110039 | Screw(M3.5-0.6 x 10) | 1 |
| 18 | 300050 | Spring Washer | 1 |
| 19 | 000532 | Washer | 1 |
| 20 | 6200516 | Upper Knife Rubber Cushion | 1 |
| 21 | 6201166 | Lower Knife | 1 |
| 22 | 6201167 | Lower Knife Fabric Guide | 1 |
| 23 | 001230 | Screw(3/32-56 x 3.8) | 2 |
| 24 | 6201177 | Fabric Guide(Finger guard) | 1 |
| 25 | 004404 | Screw(3/32-56 x 5.1) | 1 |
| 26 | 6201170 | Upper Knife | 1 |
| 27 | 6201164 | Collar(6 x 9 x 5mm) | 1 |
| 28 | 003637 | Screw(1/8-44 x 2.5) | 1 |
| 29 | 6201165 | Upper Knife Spring | 1 |
| 30 | 6201176 | Upper Knife Holder Fixing Block | 1 |
| 31 | 004358 | Screw(9/64-40 x 5.6) | 2 |
| 32 | 6201063 | Trimming Device Support | 1 |
| 33 | 009748 | Screw(M4-0.7 x 12) | 1 |
| 34 | 000644 | Spring Washer | 1 |
| 35 | 000665 | Washer | 1 |
| 36 | 009976 | Screw(M6-1 x 15) | 1 |
| 37 | 000661 | Spring Washer | 1 |
| 38 | 000425 | Washer | 1 |
| 39 | 6201185 | Cloth Plate Spacer | 1 |
| 40 | 110042 | Screw(M3.5-0.6 x 4) | 2 |
Page 49 — MT22 DEVICE(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6201183 | Manual Switch, C. Set | 1 |
| 2 | 6201187 | Switch Support | 1 |
| 3 | 180025 | Screw(M4-0.7 × 4.5) | 1 |
| 4 | 110106 | Screw(M4-0.7 × 8) | 2 |
| 5 | 6201182 | Switch | 1 |
| 6 | 6201186 | Switch Cover | 1 |
| 7 | 009993 | Screw(M3-0.6 × 16) | 1 |
| 8 | 6201157 | Cord Bushing | 1 |
| 9 | 009995 | Screw(M3-0.6 × 5) | 1 |
| 10 | 6201180 | Manual Switch Plate | 1 |
| 11 | 000002 | Spring Washer | 1 |
| 12 | 000488 | Nut | 1 |
| 13 | 6201181 | Cord Clamp(3.4-2N) | 2 |
| 14 | 110012 | Screw(M4-0.7 × 5) | 2 |
| 15 | 6201184 | Control Box, C. Set | 1 |
| 16 | 6101118 | Control Stay | 2 |
| 17 | 006905 | Wood Screw(Φ 5.1 × 5) | 6 |
Page 51 — MISCELLANEOUS SUPPORTING BOARD
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200303 | Belt Cover | 1 |
| 2 | 110015 | Screw(M4-0.7 × 25) | 2 |
| 3 | 6200304 | Supplementary Belt Cover | 1 |
| 4 | 110013 | Screw(M4-0.7 × 8) | 2 |
| 5 | 6200148 | Supporting Board | 1 |
| 6 | 000070 | Hanging Nut | 4 |
| 7 | 009861 | Hanging Bolt | 4 |
| 8 | 6200210 | Spacer(15mm) | 4 |
| 9 | 6101005 | Spacer(5mm)(See the below) | 4 |
| 10 | 6100326 | Supporting Board Rubber Cushion | 8 |
| 11 | 000162 | Washer | 4 |
| 12 | 000016 | Nut | 8 |
| 13 | 6200152 | Chute(Upper) Support | 1 |
| 14 | 005624 | Screw(M4-0.7 × 10) | 4 |
| 15 | 6200146 | Chute(Upper) | 1 |
| 16 | 6200147 | Chute(Lower) | 1 |
| 17 | 6200151 | Chip Receiver | 1 |
| 18 | 350007 | Wood Screw(φ 3.5 × 16) | 2 |
| 19 | 6200524 | Edge Guide Holder | 1 |
| 20 | 110035 | Screw(M4-0.7 × 10) | 2 |
| 21 | 110009 | Screw(M4-0.7 × 8) | 1 |
| 22 | 000665 | Washer | 1 |
Page 53 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6802629 | Thread Stand, C. Set(4 Spools Type) | 1 |
| 2 | 6802601 | Column Cap | 1 |
| 3 | 6802602 | Column Pipe(Upper) | 1 |
| 4 | 6802603 | Thread Guide Holder(Large) | 1 |
| 5 | 911002 | Screw(M4-0.7 × 20) | 1 |
| 6 | 911001 | Screw(M4-0.7 × 12) | 3 |
| 7 | 910001 | Nut | 4 |
| 8 | 6802604 | Column Pipe Connector | 1 |
| 9 | 911006 | Screw(M5-0.8 × 13) | 2 |
| 10 | 910000 | Nut | 6 |
| 11 | 6802605 | Column Pipe(Lower) | 1 |
| 12 | 930052 | Washer | 1 |
| 13 | 930053 | Spring Washer | 1 |
| 14 | 910003 | Nut(M16-1.5) | 1 |
| 15 | 6802606 | Thread Hanger(2 Spools Type) | 4 |
| 17 | 6802608 | Thread Eyelet | 4 |
| 18 | 6802609 | Thread Hanger Holder | 4 |
| 19 | 911060 | Screw(M6-1 × 15) | 4 |
| 20 | 6802610 | Thread Guide Arm | 1 |
| 21 | 6802611 | Thread Guide Holder(Small) | 1 |
| 22 | 6802612 | Thread Guide(5 Spools Type) | 1 |
| 23 | 6802613 | Spool Cushion | 4 |
| 24 | 6802614 | Spool Pin | 4 |
| 25 | 6802615 | Spool Mat | 4 |
| 26 | 6802616 | Spool Seat Disc | 4 |
| 27 | 930055 | Spring Washer | 4 |
Page 54 — WARNING LABEL 警告ラベル
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 390220 | SAFETY INSTRUCTON LABEL | ||
| 390144 | DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE | ||
| 390145 | "Be sure to connect earth line". | ||
| 390146 | ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION | ||
| 390147 | EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS | ||
| 390148 | CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID |
Yamato Z7000SD — parts catalog
- Page 1 (cover): This is the cover page for the Yamato Z7000SD-8 High Speed Overlock Stitch Machine Parts List. It displays the Yamato logo, the title 'Parts List', the machine model 'Z7000SD-8', an illustration of the machine, and a list of related models and devices.
- Page 2 (text): This page provides instructions on how to use the parts list, including explanations of symbols and how to place an order for parts. It also includes a disclaimer that the parts list is subject to change.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing various machine components and their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of various components of an industrial sewing machine, including covers, fasteners, and internal mechanisms, with reference numbers for each part.
- Page 5 (parts_list): This page lists miscellaneous cover components for an industrial sewing machine, including various plates, screws, washers, and gaskets with their corresponding part numbers and quantities.
- Page 6 (diagram): This page displays a diagram of various machine components, including brackets, covers, screws, and labels, with reference numbers for each part.
- Page 7 (parts_list): This page lists miscellaneous covers and related parts for sewing machines, including part numbers, descriptions, quantities, and model information.
- Page 8 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, gaskets, seals, and housing parts, with reference numbers for identification.
- Page 9 (parts_list): This page lists miscellaneous covers and related parts for an industrial sewing machine, including part numbers, descriptions, quantities, and some Japanese text.
- Page 10 (diagram): This page displays a diagram of various components and sub-assemblies of an industrial sewing machine, including screws, brackets, levers, and other mechanical parts, each identified by a reference number.
- Page 11 (parts_list): This page lists miscellaneous thread eyelet parts with their corresponding part numbers, descriptions, and quantities required.
- Page 12 (diagram): This page displays a diagram of various components of an industrial sewing machine, with parts numbered from 1 to 36. It includes a main housing, shafts, spools, and fasteners.
- Page 13 (parts_list): This page lists miscellaneous crankshaft and bushings with their part numbers, descriptions, and quantities required.
- Page 14 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification.
- Page 15 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 16 (diagram): This page displays a diagram of various machine parts, including screws, plates, and linkages, with reference numbers from 1 to 30.
- Page 17 (parts_list): This page lists parts for the KNIFE DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
- Page 18 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and brackets, with corresponding reference numbers for identification.
- Page 19 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
- Page 20 (diagram): This page displays a diagram of various machine parts, including screws, washers, brackets, and other components, with reference numbers for identification.
- Page 21 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 22 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification.
- Page 23 (parts_list): This page lists parts for the lower looper driving mechanism, including part numbers, descriptions, and quantities required.
- Page 25 (parts_list): This page lists parts for the feed driving control mechanism, including part numbers, descriptions, and quantities required.
- Page 27 (parts_list): This page lists parts for the FEED DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
- Page 28 (diagram): This page displays a diagram of various engine components, including filters, hoses, bolts, and engine block parts, with corresponding reference numbers for identification.
- Page 29 (parts_list): This page lists parts for lubricating mechanism, including oil pumps, worm wheels, screws, seals, oil tubes, filters, suction pipes, felt, guide pins, springs, nuts, oil filter caps, O-rings, oil pipes, seal plugs, oil wicks, oil gauges, and adjusting screws.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, including a presser foot assembly, feed dog, and other components, with corresponding reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Z7000SD-8, including part numbers, descriptions, and quantities required.
- Page 32 (diagram): This page contains diagrams of parts for Z7003SD-8, 7025SD-8 and Z7025SD-Y5-8, Y6-8 sewing machines.
- Page 33 (parts_list): This page lists parts for Z7003SD-8, 7025SD-8 EXCLUSIVE PARTS, including part numbers, descriptions, and quantities required.
- Page 34 (diagram): This page displays diagrams of various sewing machine parts, including main components and extra parts, with reference numbers for identification.
- Page 35 (parts_list): This page lists parts for the Z7016SD-8 Exclusive Parts, including part numbers, descriptions, and quantities required.
- Page 36 (diagram): This page displays a diagram of various sewing machine parts, including levers, screws, plates, and a presser foot assembly, with reference numbers and part numbers indicated for each component.
- Page 37 (parts_list): This page lists parts for the Z7016SD-61 exclusive parts, including part numbers, descriptions, and quantities required.
- Page 38 (diagram): This page displays diagrams of various sewing machine parts for models Z7120SD-8, 7125SD-8, Z7120SD-Y5-8, Y6-8, Y7-8, and Z7125SD-Y5-8, Y6-8, Y7-8, with numbered references for each part.
- Page 39 (parts_list): This page lists parts for Z7120SD-8 and 7125SD-8 sewing machines, including part numbers, descriptions, and quantities required.
- Page 40 (diagram): This page displays a diagram of the K2 DEVICE(1) with various parts labeled with reference numbers. It includes components such as screws, plates, springs, and other mechanical parts.
- Page 41 (parts_list): This page lists parts for the K2 DEVICE (1) with part numbers, descriptions, and quantities required.
- Page 42 (diagram): This page displays diagrams of K2 device parts for models Z7003SD-04-8/K2, Z7020SD-Y5-8/K2, Y6-8/K2, and Z7125SD-Y5-8/K2.
- Page 43 (parts_list): This page lists parts for K2 DEVICE(2) with part numbers, descriptions, and quantities required. It includes items like presser feet, screws, and guides.
- Page 44 (diagram): This page displays diagrams and parts lists for the B3 Device and Z7003SD-8/B3 components, including various screws, brackets, and other machine parts with their corresponding reference numbers.
- Page 45 (parts_list): This page lists parts for the B3 Device, including part numbers, descriptions, and quantities required. It details items such as the B3 Device C Set, Back Tack Cutting Unit, various screws, nuts, and presser foot components.
- Page 46 (diagram): This page displays a diagram of the MT22 device, showing various components labeled with reference numbers and part numbers.
- Page 47 (parts_list): This page lists parts for the MT22 DEVICE(1) with part numbers, descriptions, and quantities required.
- Page 48 (diagram): This page displays a diagram of the MT22 DEVICE(2) with numbered parts, including screws, brackets, and the main device housing.
- Page 49 (parts_list): This page lists parts for the MT22 Device (2), including part numbers, descriptions, and quantities required.
- Page 50 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts and their corresponding references.
- Page 51 (parts_list): This page lists parts for the MISCELLANEOUS SUPPORTING BOARD, including part numbers, descriptions, and quantities required.
- Page 52 (diagram): This page displays a diagram of various components, including brackets, shafts, spools, and fasteners, with reference numbers for each part.
- Page 53 (parts_list): This page lists parts for a Thread Stand, including part numbers, descriptions, and quantities required.
- Page 54 (parts_list): This page lists various warning labels for the machine, including safety instructions, electrical shock warnings, earth line connection reminders, rotating direction symbols, eye protection, and high temperature cautions, each with a corresponding part number.
- Page 55 (cover): This is the cover page for the Yamato Sewing Machine catalog, featuring the company name, address, contact information, and catalog identification details.
