Brother B-438 Parts Book (PDF)
Text index — Brother B-438
Page 9 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 152830106 | TOP COVER | 1 |
| 3 | 062761412 | SCREW 595-28X14 | 6 |
| 4 | 152831006 | FACE PLATE ASSEMBLY | 1 |
| 4-1 | 152832106 | FACE PLATE | 1 |
| 4-2 | 152833001 | PACKING | 1 |
| 5 | 062711412 | SCREW 476-32X14 | 2 |
| 6 | 062710712 | SCREW 476-32X7 | 1 |
| 7 | 153868106 | SIDE COVER | 1 |
| 8 | 062711412 | SCREW 476-32X14 | 4 |
| 9 | 152835006 | BED COVER (R) | 1 |
| 10 | 100315002 | WASHER | 1 |
| 11 | 025770232 | WASHER 6.35 | 1 |
| 12 | 145480001 | STUD SCREW 6.35 | 1 |
| 13 | 152836006 | BED COVER (L) ASSEMBLY | 1 |
| 14 | 152841003 | THREAD TAKE-UP COVER | 1 |
| 15 | 062670812 | SCREW 357-40X8 | 1 |
| 16-1 | 152842006 | SHUTTLE RACE COVER ASSEMBLY | 1 |
| 16-2 | S01888006 | オオカマカバークミC | 1 |
| 17 | 115493002 | STUD SCREW 5.95 | 2 |
| 18 | 109239002 | WASHER | 2 |
| 19 | 152846006 | BELT COVER | 1 |
| 20 | 152989001 | BELT COVER SPRING PLATE | 1 |
| 21 | 152986001 | BELT COVER STOPPER | 1 |
| 22 | 062680812 | SCREW 437-40X8 | 1 |
| 27 | 117936001 | OIL CAP | 14 |
| 28 | 140392001 | OIL CAP | 1 |
| 29 | 117934001 | OIL CAP | 2 |
| 30 | 108520001 | OIL CAP | 1 |
| 31 | 104450101 | OIL CAP | 1 |
| 32 | 159808001 | OIL PAN ASSEMBLY | 1 |
| 32-1 | 154738101 | OIL PAN | 1 |
| 32-2 | 152852101 | TENSION PULLEY ASSEMBLY | 1 |
| 32-2-1 | 048320242 | STOP RING C32 | 1 |
| 32-2-2 | 141860001 | SCREW 6.35 | 1 |
| 32-3 | 018081222 | BOLT 8X12 | 1 |
| 32-4 | 025080232 | WASHER 8 | 1 |
| 32-5 | 028080242 | SPRING WASHER 2-8 | 1 |
| 32-6 | 152857001 | HEAD SUPPORTER LEVER | 1 |
| 32-7 | 152858001 | HEAD SUPPORTER LEVER SHAFT | 1 |
| 32-8 | 013719412 | SCREW 4.76 | 1 |
| 32-9 | 152859001 | HEAD SUPPORTER LEVER SPRING | 1 |
| 32-10 | 152860001 | BED CUSHION | 4 |
| 32-11 | 152861101 | MOTOR BASE PLATE | 1 |
| 32-12 | 152862001 | MOTOR BASE PLATE SHAFT | 1 |
| 32-13 | 048100142 | STOP RING C10 | 2 |
| 32-14 | 152865101 | L BOLT M10 | 1 |
| 32-15 | 021100202 | NUT 10 | 2 |
| 32-16 | 025100132 | WASHER 10 | 2 |
| 32-17 | 028100242 | SPRING WASHER 2-10 | 1 |
| 51 | 152866001 | HEAD SUPPORTER PIN | 1 |
| 52 | 013760612 | SCREW 5.95 | 1 |
| 53 | 152867000 | HINGE SHAFT | 2 |
| 54 | 151604002 | SCREW 5.95 | 2 |
| 55 | 152868000 | HEAD CUSHION | 2 |
| 56 | 153100000 | EYE GUARD ASSEMBLY | 1 |
| 56-1 | 153102001 | EYE GUARD HINGE ASSEMBLY | 1 |
| 56-2 | 153098000 | EYE GUARD | 1 |
| 56-3 | 102538007 | SCREW 3.57 | 2 |
| 56-4 | 106129001 | NUT 3.57 | 2 |
| 57 | 062670512 | SCREW 357-40X5 | 2 |
| 58 | 114985001 | BED COVER STOP SPRING | 1 |
| 59 | 062680612 | SCREW 437-40X6 | 1 |

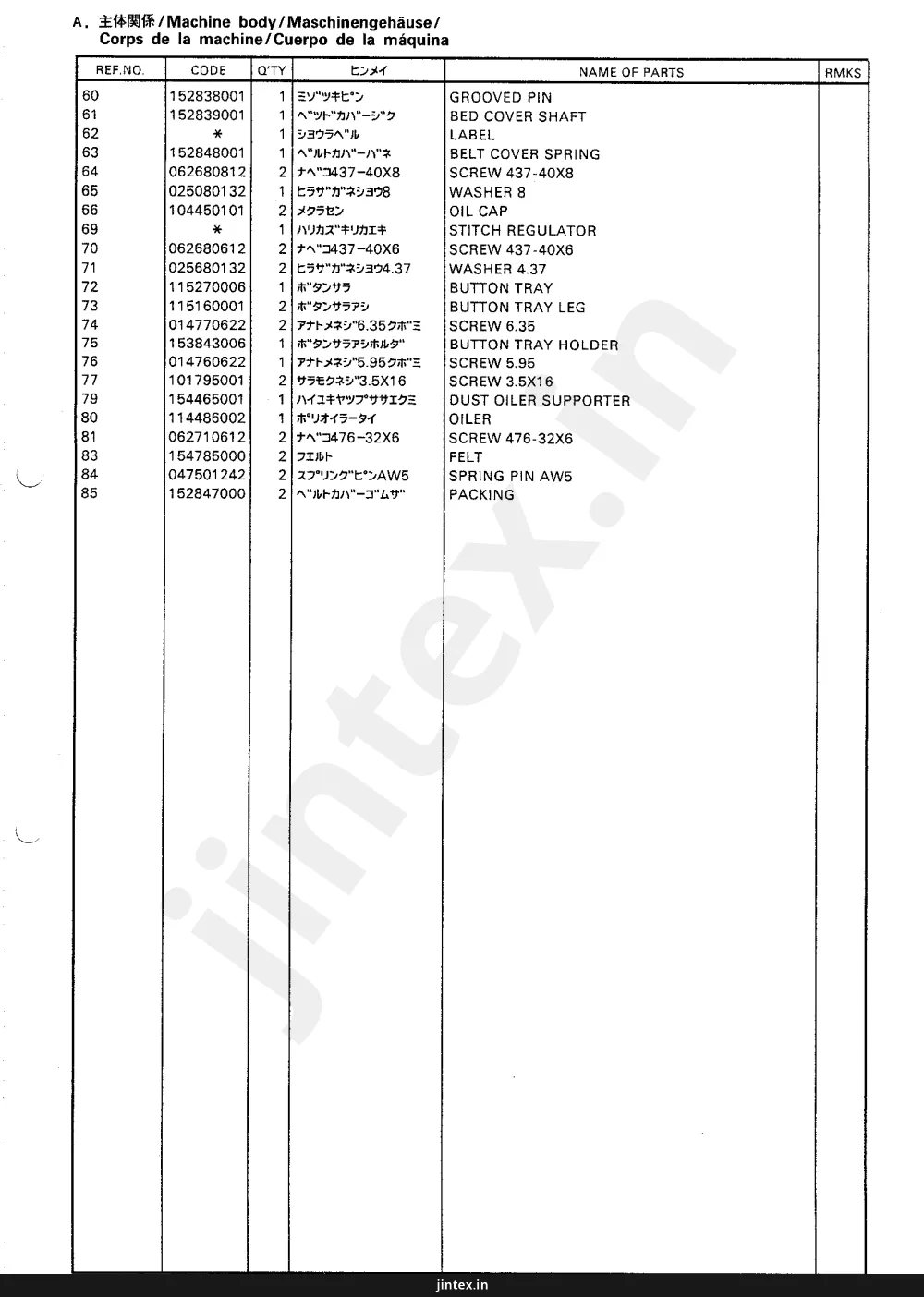

Page 11 — A. 主体関係 / Machine body / Maschinengehäuse / Corps de la machine / Cuerpo de la máquina
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 60 | 152838001 | GROOVED PIN | 1 |
| 61 | 152839001 | BED COVER SHAFT | 1 |
| 62 | * | LABEL | 1 |
| 63 | 152848001 | BELT COVER SPRING | 1 |
| 64 | 062680812 | SCREW 437-40X8 | 2 |
| 65 | 025080132 | WASHER 8 | 1 |
| 66 | 104450101 | OIL CAP | 2 |
| 69 | * | STITCH REGULATOR | 1 |
| 70 | 062680612 | SCREW 437-40X6 | 2 |
| 71 | 025680132 | WASHER 4.37 | 2 |
| 72 | 115270006 | BUTTON TRAY | 1 |
| 73 | 115160001 | BUTTON TRAY LEG | 2 |
| 74 | 014770622 | SCREW 6.35 | 2 |
| 75 | 153843006 | BUTTON TRAY HOLDER | 1 |
| 76 | 014760622 | SCREW 5.95 | 1 |
| 77 | 101795001 | SCREW 3.5X16 | 2 |
| 79 | 154465001 | DUST OILER SUPPORTER | 1 |
| 80 | 114486002 | OILER | 1 |
| 81 | 062710612 | SCREW 476-32X6 | 2 |
| 83 | 154785000 | FELT | 2 |
| 84 | 047501242 | SPRING PIN AW5 | 2 |
| 85 | 152847000 | PACKING | 2 |
Page 13 — B. クラッチ関係 / Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151886001 | CLUTCH LEVER | 1 |
| 2 | 151927001 | CLUTCH FELT | 1 |
| 3 | 151887001 | CLUTCH LEVER SHAFT | 1 |
| 4 | 048180142 | STOP RING C18 | 1 |
| 5 | 152756001 | THRUST WASHER 18 | 1 |
| 6 | 014821022 | SCREW 7.94 | 1 |
| 7 | 151929000 | THRUST WASHER 18 | 1 |
| 8 | 152728001 | THRUST WASHER 8 | 1 |
| 9 | 151163001 | BOLT 8X15 | 1 |
| 10 | 151888101 | BALL PRESSER PLATE | 1 |
| 11 | 018082522 | BOLT 8X25 | 2 |
| 12 | 028080242 | SPRING WASHER 2-8 | 2 |
| 13 | 115012002 | SCREW 6.35 | 1 |
| 14 | 150554002 | NUT 6.35 | 1 |
| 15 | 151889001 | CLUTCH STOPPER | 1 |
| 16 | 151890000 | CUSHION RUBBER | 1 |
| 17 | 151891001 | CLUTCH SPRING | 1 |
| 18 | 151892001 | SPRING HOLDER | 2 |
| 19 | 115018001 | CUSHION RUBBER | 2 |
| 20 | 025800332 | WASHER 7.14 | 1 |
| 21 | 151893001 | STOPPER BAR | 1 |
| 22 | 021800102 | NUT 7.14 | 1 |
| 23 | 104689002 | NUT 7.14 | 1 |
| 24 | 151894101 | BRAKE LEVER | 1 |
| 25 | 151895000 | BRAKE ASSEMBLY | 1 |
| 26 | 151898001 | BRAKE SHAFT | 1 |
| 27 | 048040342 | STOP RING E4 | 2 |
| 28 | 151899001 | SPRING | 1 |
| 29 | 151900001 | BRAKE LEVER SHAFT | 1 |
| 30 | 142628001 | HORIZONTAL FEED CRANK RING | 2 |
| 31 | 048110142 | STOP RING C11 | 2 |
| 32 | 013761410 | SCREW 5.95 | 1 |
| 33 | 151901001 | BRAKE SLIDE PIN | 1 |
| 34 | 014760622 | SCREW 5.95 | 1 |
| 35 | 151902001 | BRAKE SPRING | 1 |
| 36 | 151903001 | SPRING HOOK | 1 |
| 37 | 106147002 | NUT 7.94 | 1 |
| 38 | 110251001 | SPRING HOOK | 1 |
| 39 | 151904101 | CLUTCH LEVER ROD ASSEMBLY | 1 |
| 39-1 | 151905101 | CLUTCH LEVER ROD | 1 |
| 39-2 | 107744001 | ROLLER | 1 |
| 39-3 | 151906101 | ROLLER STUD | 1 |
| 39-4 | 048030342 | STOP RING E3 | 1 |
| 39-5 | 113431002 | WASHER | 1 |
| 39-6 | 025680132 | WASHER 4.37 | 1 |
| 39-7 | 021680202 | NUT 4.37 | 1 |
| 40 | 151907001 | STUD SCREW 5.95 | 1 |
| 41 | 151908001 | NUT 5.95 | 1 |
| 42 | 155501001 | CLUTCH LEVER SPRING | 1 |
| 43 | 151910001 | SPRING HOOK | 1 |
| 44 | 117363001 | BOLT 4.76 | 2 |
| 45 | 028050242 | SPRING WASHER 2-5 | 2 |
| 46 | 152808101 | CONNECTING ROD ASSEMBLY | 1 |
| 46-1 | 154332001 | CONNECTING ROD | 1 |
| 46-2 | 154333001 | CONNECTING JOINT | 1 |
| 46-3 | 150556001 | NUT 6.35 | 1 |
| 47 | 151912001 | STUD SCREW 6.35 | 1 |
| 48 | 150556001 | NUT 6.35 | 1 |
| 49 | 151913001 | STUD SCREW 6.35 | 1 |
| 50 | 151914001 | COLLAR 13 | 1 |
| 51 | 150556001 | NUT 6.35 | 1 |
| 52 | 151915001 | CLUTCH ACTUATING LEVER ASSEMBLY | 1 |
Page 15 — B. クラッチ関係 /Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52-1 | 107030001 | TAPER PIN | 1 |
| 53 | 150553001 | NUT 5.95 | 1 |
| 54 | 151907001 | STUD SCREW 5.95 | 1 |
| 55 | 151939001 | CLUTCH CAM LEVER ASSEMBLY | 1 |
| 55-1 | 152913001 | ROLLER STUD | 1 |
| 55-2 | 152914001 | ROLLER | 1 |
| 55-3 | 048040342 | STOP RING E4 | 1 |
| 56 | 018062022 | BOLT 6X20 | 1 |
| 57 | 151919101 | STARTING LEVER | 1 |
| 58 | 151920001 | STARTING SAFETY LEVER | 1 |
| 59 | 017711412 | BOLT 4.76X14 | 2 |
| 60 | 028050242 | SPRING WASHER 2-5 | 2 |
| 61 | 113431002 | WASHER | 2 |
| 62 | 155499001 | STARTING LEVER PLATE | 1 |
| 63 | 154155101 | STOPPER SCREW | 1 |
| 64 | 150553001 | NUT 5.95 | 1 |
| 65 | 151922001 | CHAIN HOOK | 1 |
| 66 | 017762202 | BOLT 5.95X22 | 1 |
| 67 | 110251001 | SPRING HOOK | 1 |
| 68 | 151923001 | SPRING | 1 |
| 69 | 151924001 | SPRING HOOK | 1 |
| 70 | 151925001 | STARTING LEVER SHAFT | 1 |
| 71 | 142628001 | HORIZONTAL FEED CRANK RING | 2 |
| 72 | 110505001 | WASHER | 1 |
| 73 | 048110142 | STOP RING C11 | 1 |
| 74 | 014760622 | SCREW 5.95 | 1 |
| 75 | 111865001 | CAP FOR OIL INLET | 1 |
| 76 | 155500001 | STARTING LEVER STOPPER | 1 |
| 77 | 018061622 | BOLT 6X16 | 2 |
| 78 | 025060132 | WASHER 6 | 2 |
| 79 | 028060242 | SPRING WASHER 2-6 | 2 |
| 80 | 025060232 | WASHER 6 | 1 |
Page 17 — Upper shaft and needle bar mechanism/Obere Welle und Nadelstange/Mécanisme de arbre supérieur et barre à aiguille/Mecanismo de carreta de potencia
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151995001 | UPPER SHAFT | 1 |
| 2 | 153040001 | CRANK ROD ASSEMBLY | 1 |
| 2-1 | 144712002 | SCREW 4.76 | 2 |
| 3 | 048150142 | STOP RING C15 | 1 |
| 4 | 151997000 | BALL BEARING CASE | 1 |
| 5 | 072630260 | BEARING 6302VV | 2 |
| 6 | 151998000 | BEARING COLLAR | 1 |
| 7 | 151999001 | BEARING CAP | 1 |
| 8 | 102843004 | SCREW 3.57 | 3 |
| 9 | 017761412 | BOLT 5.95X14 | 3 |
| 10 | 025060232 | WASHER 6 | 3 |
| 11 | 140726000 | UPPER SHAFT BUSHING (M) | 1 |
| 13 | 152000001 | UPPER SHAFT BUSHING (F) | 1 |
| 14 | 013761412 | SCREW 5.95 | 1 |
| 15 | 154623000 | COUNTER WEIGHT B | 1 |
| 16 | 100250001 | SCREW 7.14 | 1 |
| 17 | 014770622 | SCREW 6.35 | 1 |
| 18 | 123006001 | SCREW 6.35 | 1 |
| 19 | 014770622 | SCREW 6.35 | 1 |
| 20 | 154561001 | THREAD TAKE-UP LEVER ASSEMBLY | 1 |
| 20-1 | 153330001 | THREAD TAKE-UP ASSEMBLY | 1 |
| 20-2 | 152236001 | THREAD TAKE-UP LEVER SUPPORTER STUD | 1 |
| 20-3 | 154624001 | NEEDLE BAR CRANK B | 1 |
| 20-4 | 100253001 | SCREW 3.57L | 1 |
| 20-5 | 152238001 | NEEDLE BAR CONNECTOR | 1 |
| 20-6 | 152239001 | NEEDLE BAR CLAMP | 1 |
| 20-7 | 062680812 | SCREW 437-40X8 | 1 |
| 21 | 013761412 | SCREW 5.95 | 1 |
| 22 | 154701001 | NEEDLE BAR D | 1 |
| 24 | 144458001 | SCREW 3.57 | 1 |
| 25 | 152242001 | NEEDLE BAR BUSHING (U) | 1 |
| 26 | 154627001 | NEEDLE BAR BUSHING (DS) | 1 |
| 27 | 115053016 | NEEDLE TQX1 #16 | 1 |
| 33 | 142211001 | SLIDE BLOCK | 1 |
| 34 | 152244000 | NEEDLE BAR GUIDE | 1 |
| 35 | 062781412 | SCREW 635-28X14 | 2 |
| 36 | 116920001 | THRUST RING | 1 |
Page 19 — D. パワー押工関係/Power lift mechanism/Heberbetätigungsyorrichtung/ Mécanisme de leveur/Mecanismo de carreta de potencia
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151928001 | POWER PULLEY SHAFT | 1 |
| 2 | 048170142 | STOP RING C17 | 2 |
| 3 | 151930201 | POWER PULLEY ASSEMBLY | 1 |
| 6 | 072600360 | BEARING 6003VV | 1 |
| 8 | 151932001 | BEARING COVER | 1 |
| 9 | 107231002 | SCREW 4.76 | 1 |
| 10 | 155523001 | POWER CAM SET | 1 |
| 10-1 | 151933001 | POWER CAM ASSEMBLY | 1 |
| 10-1-1 | 151935000 | DV BUSHING | 2 |
| 10-2 | 151940001 | POWER CAM STOPPER A | 1 |
| 10-3 | 018060822 | BOLT 6X8 | 1 |
| 10-4 | 151941101 | POWER CAM STOPPER B ASSEMBLY | 1 |
| 11 | 151936001 | POWER CLUTCH SPRING | 1 |
| 12 | 151937001 | THRUST WASHER 17 | 1 |
| 13 | 151938001 | WASHER | 1 |
| 19 | 151944001 | CLUTCH ACTUATING LEVER ASSEMBLY | 1 |
| 19-1 | 151947101 | ROLLER 11 | 2 |
| 19-2 | 151948001 | ROLLER STUD | 2 |
| 19-3 | 014760622 | SCREW 5.95 | 2 |
| 20 | 151949001 | ROLLER STUD ASSEMBLY | 1 |
| 21 | 014760622 | SCREW 5.95 | 1 |
| 22 | 151951001 | SPRING | 1 |
| 23 | 141472002 | SPRING HOOK | 2 |
| 24 | 151952001 | CLUTCH ACTUATING LEVER SHAFT | 1 |
| 25 | 151953001 | THRUST WASHER 16 | 2 |
| 26 | 048160142 | STOP RING C16 | 2 |
| 27 | 111865001 | CAP FOR OIL INLET | 1 |
| 28 | 151954001 | SCREW | 1 |
| 29 | 014821022 | SCREW 7.94 | 1 |
| 30 | 014760622 | SCREW 5.95 | 1 |
Page 21 — E. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'alimentation
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 152742001 | TACK LENGTH LEVER | 1 |
| 1-2 | 153041001 | TACK LENGTH SLIDE BLOCK ASSEMBLY | 1 |
| 1-3 | 151602002 | SCREW 4.37 | 1 |
| 2 | 152745001 | BUSHING | 1 |
| 3 | 014760622 | SCREW 5.95 | 1 |
| 4 | 153820101 | TACK LENGTH REGULATOR LEVER ASSEMBLY | 1 |
| 4-1 | 018082022 | BOLT 8X20 | 1 |
| 6-1 | 153042001 | TACK REGULATOR SHAFT ASSEMBLY | 1 |
| 6-2 | 152752001 | TACK LENGTH LEVER | 1 |
| 6-3 | 153988001 | FEED CAM ROLLER A ASSEMBLY | 1 |
| 6-4 | 014760622 | SCREW 5.95 | 1 |
| 7 | 152749001 | WASHER | 1 |
| 8 | 152750001 | NUT | 1 |
| 11 | 152755001 | TACK LENGTH LEVER SHAFT | 1 |
| 12 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 12-1 | 018063022 | BOLT 6X30 | 1 |
| 14 | 152756001 | THRUST WASHER 18 | 1 |
| 15 | 048180142 | STOP RING C18 | 1 |
| 16 | 154174001 | TACK WIDTH LEVER ASSEMBLY | 1 |
| 16-1 | 116231001 | PIN | 2 |
| 17 | 152759001 | TACK WIDTH SHAFT | 1 |
| 18 | 014760622 | SCREW 5.95 | 1 |
| 19 | 152756001 | THRUST WASHER 18 | 1 |
| 20 | 152760001 | TACK WIDTH LEVER SHAFT | 1 |
| 21 | 152756001 | THRUST WASHER 18 | 1 |
| 22 | 048180142 | STOP RING C18 | 1 |
| 23 | 014760622 | SCREW 5.95 | 1 |
| 26-1 | 153042001 | TACK REGULATOR SHAFT ASSEMBLY | 1 |
| 26-2 | 153823001 | TACK WIDTH REGULATOR LEVER | 1 |
| 27 | 152749001 | WASHER | 1 |
| 28 | 152750001 | NUT | 1 |
| 30-1 | 153824001 | TACK WIDTH FEED LEVER | 1 |
| 30-2 | 153989001 | FEED CAM ROLLAR (B) ASSEMBLY | 1 |
| 30-3 | 014760622 | SCREW 5.95 | 1 |
| 30-4 | 018082022 | BOLT 8X20 | 1 |
| 31 | 152745001 | BUSHING | 1 |
| 32 | 014760622 | SCREW 5.95 | 1 |
| 33 | 152766001 | FEED GUIDE PLATE | 1 |
| 34 | 145318001 | SCREW 4.37 | 8 |
| 36 | 152769001 | FEED GUIDE ASSEMBLY | 1 |
| 36-1 | 152771000 | WASHER | 2 |
| 36-2 | 152773001 | BUSHING | 1 |
| 36-3 | 141331001 | BUSHING | 1 |
| 37 | 152772001 | WASHER | 2 |
| 38 | 071047650 | STEEL BALL 3/16 | 2 |
| 39 | 025060232 | WASHER 6 | 2 |
| 40 | 017761212 | BOLT 5.95X12 | 2 |
| 41 | 159971001 | FEED PLATE FLAT11 | 1 |
| 42 | 153057002 | FEED PLATE SCREW | 2 |
| 43 | 153035000 | PRESSER ARM FELT | 1 |
| 44 | 153826001 | TACK LENGTH INDICATOR | 1 |
| 45 | 060660512 | SCREW 318-40X5 | 1 |
| 46 | 025030132 | WASHER 3 | 1 |
Page 23 — F. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo de levantador de ménsula de trabajo
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 153831001 | WORK CLAMP LIFTING ROD | 1 |
| 2-1 | 152798001 | WORK CLAMP LIFTER LEVER | 1 |
| 2-2 | 152744001 | TACK LENGTH SLIDE BLOCK PIN | 1 |
| 3 | 152799001 | WORK CLAMP LIFTER LEVER SHAFT | 1 |
| 4 | 014760622 | SCREW 5.95 | 1 |
| 5 | 013760612 | SCREW 5.95 | 1 |
| 6 | 152800201 | SPRING | 1 |
| 7 | 152801001 | PIN | 1 |
| 8 | 102630001 | NEEDLE BAR GUIDE SLIDE BLOCK | 1 |
| 9 | 152802001 | WORK CLAMP LIFTER ROD SHAFT A | 1 |
| 10 | 014760622 | SCREW 5.95 | 1 |
| 11 | 107153002 | WASHER | 1 |
| 12 | 048060342 | STOP RING E6 | 1 |
| 13 | 152803001 | WORK CLAMP LIFTER ROD A | 1 |
| 14-1 | 152805101 | CONNECTING LEVER | 1 |
| 14-2 | 152806001 | CONNECTING LEVER SHAFT B | 2 |
| 15 | 158686001 | LIFTING LEVER SHAFT | 1 |
| 16 | 014760622 | SCREW 5.95 | 1 |
| 18 | 107153002 | WASHER | 2 |
| 19 | 048060342 | STOP RING E6 | 2 |
| 20 | 152808101 | CONNECTING ROD ASSEMBLY | 1 |
| 20-1 | 154332001 | CONNECTING ROD | 1 |
| 20-2 | 154333001 | CONNECTING JOINT | 1 |
| 20-3 | 150556001 | NUT 6.35 | 1 |
| 21 | 141583001 | STUD SCREW 6.35 | 1 |
| 22 | 150556001 | NUT 6.35 | 1 |
| 23 | 152811001 | CONNECTING LEVER ASSEMBLY | 1 |
| 24 | 158687001 | DRIVING SHAFT | 1 |
| 26 | 142628001 | HORIZONTAL FEED CRANK RING | 1 |
| 27 | 048110142 | STOP RING C11 | 1 |
| 28 | 014760622 | SCREW 5.95 | 1 |
| 29 | 153828001 | ROLLER STUD | 1 |
| 30 | 107744001 | ROLLER | 1 |
| 31 | 153484001 | WASHER 4.76 | 1 |
| 32 | 105234003 | NUT 4.37 | 2 |
Page 25 — G. ボタンツマミ作動関係/Button clamp mechanism/Knopfhaltevorrichtung/Mécanisme du pince-boutons/Mecanismo de la ménsula de resorte
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 153835006 | LEVER HOLDER BRACKET | 1 |
| 1-2 | 153836101 | BUTTON CLAMP LIFTING LEVER | 1 |
| 1-3 | 153838001 | BUTTON CLAMP LEVER SHAFT | 1 |
| 1-4 | 014760622 | SCREW 5.95 | 1 |
| 2 | 018062022 | BOLT 6X20 | 2 |
| 3 | 025060232 | WASHER 6 | 2 |
| 10 | 153830006 | BUTTON CLAMP HOLDER | 1 |
| 11 | 153827001 | BUTTON CLAMP HOLDER SHAFT | 1 |
| 12 | 014680622 | SCREW 4.37 | 2 |
| 13 | 151968001 | BUTTON CLAMP HOLDER HOOK ASSEMBLY | 1 |
| 13-1 | 151969001 | BUTTON CLAMP HOLDER HOOK | 1 |
| 13-2 | 107744001 | ROLLER | 2 |
| 13-3 | 153484001 | WASHER 4.76 | 1 |
| 13-4 | 105234003 | NUT 4.37 | 2 |
| 14 | 014760622 | SCREW 5.95 | 1 |
| 15 | 153834001 | BUTTON CLAMP HOLDER BRACKET | 1 |
| 16 | 017711412 | BOLT 4.76X14 | 2 |
| 17 | 146354001 | WASHER | 2 |
| 18 | 146994001 | PRESSER SPRING ADJUSTING SCREW | 2 |
| 19 | 115148101 | PRESSER SPRING ADJUSTING SCREW | 1 |
| 20 | 115147001 | BUTTON CLAMP PRESSER SPRING | 1 |
| 21 | 156107201 | BUTTON CLAMP C ASSEMBLY | 1 |
| 21-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 21-2 | S03465101 | BUTTON CLAMP (L) | 1 |
| 21-3 | 159941001 | BOTTAN CLAMP (L) PLATE SPRING | 1 |
| 21-4 | S03466101 | BUTTON CLAMP (R) | 1 |
| 21-5 | 159942001 | BOTTAN CLAMP (R) PLATE SPRING | 1 |
| 21-6 | 115156001 | GUIDE PIN | 2 |
| 21-7 | 062680512 | SCREW 437-40X5 | 2 |
| 21-8 | 047250642 | SPRING PIN AW2.5 | 2 |
| 21-9 | 115158001 | STUD SCREW 4.76 | 2 |
| 21-10 | S03467001 | BUTTON CLAMP M ASSEMBLY | 1 |
| 21-11 | S03659001 | BUTTON CLAMP PLATE | 1 |
| 21-12 | 062680812 | SCREW 437-40X8 | 2 |
| 21-13 | S03468001 | SCREW 4.37 | 1 |
| 21-14 | S03657001 | NUT 4.37 | 1 |
| 21-15 | 115163001 | BUTTON CLAMP SPRING PLATE | 1 |
| 21-16 | 115164001 | BUTTON CLAMP ADJUSTING PLATE | 1 |
| 21-17 | 115165001 | STUD SCREW 4.37 | 1 |
| 21-18 | 115166001 | STUD SCREW 4.37 | 1 |
| 21-19 | 159938001 | SPRING STOPPER | 1 |
| 21-20 | 159939001 | SPRING A | 1 |
| 21-21 | 062710612 | SCREW 476-32X6 | 1 |
| 21-22 | 110215002 | SCREW 3.57 | 1 |
| 21-23 | 025660132 | WASHER 3.18 | 1 |
Page 27 — H. カム伝導関係 / Feed cam mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | * | WORM | 1 |
| 2 | 152718001 | SCREW 5.95 | 6 |
| 3 | 147151000 | WASHER | 1 |
| 4 | * | WORM WHEEL | 1 |
| 5 | 152713001 | THRUST WASHER | 1 |
| 6 | 152709000 | SLEEVE | 1 |
| 7 | 152710001 | WASHER | 1 |
| 8 | 018062022 | BOLT 6X20 | 1 |
| 9 | 159977000 | VERTICAL SHAFT BUSHING (U) | 1 |
| 10 | 014760622 | SCREW 5.95 | 1 |
| 11 | 159978001 | VERTICAL SHAFT BUSHING (L) | 1 |
| 12 | 159979001 | VERTICAL SHAFT ASSEMBLY | 1 |
| 13 | 159984001 | THRUST WASHER 40 | 1 |
| 15 | 152719000 | CHANGE GEAR 28W | 1 |
| 16 | 152720000 | CHANGE GEAR 28C | 1 |
| 17 | 153104001 | WASHER | 1 |
| 18 | 018062222 | BOLT 6X22 | 3 |
| 19 | 152724001 | TACK LENGTH FEED CAM SHAFT | 1 |
| 20 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 20-1 | 018063022 | BOLT 6X30 | 1 |
| 22 | * | FEED CAM | 1 |
| 23 | 152728001 | THRUST WASHER 8 | 1 |
| 24 | 151163001 | BOLT 8X15 | 1 |
| 25 | 018062022 | BOLT 6X20 | 3 |
| 26 | 109893002 | WASHER | 3 |
| 27 | 028060242 | SPRING WASHER 2-6 | 3 |
| 28 | * | CLUTCH CAM | 1 |
| 29 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 29-1 | 018063022 | BOLT 6X30 | 1 |
| 31 | * | KNIFE CAM | 1 |
| 32 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 32-1 | 018063022 | BOLT 6X30 | 1 |
| 34 | 152723001 | STOP RING | 1 |
| 35 | 152731001 | ROLLER HOLDER | 1 |
| 36 | 152732001 | SHAFT | 1 |
| 37 | 013710712 | SCREW 4.76 | 1 |
| 38 | 152914001 | ROLLER | 1 |
| 39 | 153845001 | STITCH CONTROL LEVER | 1 |
| 40 | 013710712 | SCREW 4.76 | 1 |
| 41 | 152734001 | ROLLER HOLDER LEVER | 1 |
| 42 | 018061622 | BOLT 6X16 | 1 |
| 43 | 152735101 | ROLLER HOLDER CAM LEVER ASSEMBLY | 1 |
| 43-1 | 153332001 | ROLLER HOLDER CAM LEVER SHAFT ASSEMBLY | 1 |
| 43-1-1 | 046302020 | TAPAR PIN 3X20 | 1 |
| 43-2 | 152739001 | ROLLER STUD | 1 |
| 43-3 | 153195001 | ROLLER | 1 |
| 43-4 | 048040342 | STOP RING E4 | 1 |
| 43-5 | 155337001 | SPRING HOOK | 1 |
| 43-1 | 153320001 | ROLLER HOLDER CAM LEVER SHAFT ASSEMBLY | 1 |
| 44 | 110027001 | SET COLLAR | 1 |
| 45 | 014760622 | SCREW 5.95 | 2 |
| 46 | 155336001 | SPRING | 1 |
| 47 | 141334001 | SPRING HOOK | 1 |
| 48 | 153141001 | ROLLER HOLDER COVER | 1 |
| 49 | 062670412 | SCREW 357-40X4 | 2 |
Page 29 — J. 下軸関係/Lower shaft mechanism/Untere Welle Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141786001 | CRANK ROD STUD SCREW | 1 |
| 2 | 104689002 | NUT 7.14 | 1 |
| 3 | 014680622 | SCREW 4.37 | 1 |
| 4 | 152245001 | ROCK GEAR | 1 |
| 5 | 152246001 | ROCK GEAR SHAFT | 1 |
| 6 | 014760622 | SCREW 5.95 | 1 |
| 7 | 152247001 | ROCK SHAFT BUSHING | 1 |
| 8 | 014760622 | SCREW 5.95 | 1 |
| 9 | 152191001 | LOWER SHAFT ASSEMBLY | 1 |
| 9-1 | 046301620 | TAPER PIN 3X16 | 1 |
| 10 | 152250001 | LOWER SHAFT BUSHING | 1 |
| 11 | 014760622 | SCREW 5.95 | 1 |
| 12 | 152678001 | SHUTTLE HOOK ADJUSTING STUD | 1 |
| 13 | 081003670 | O RING PW3 | 1 |
| 14 | 110495003 | SET COLLAR | 1 |
| 15 | 014770622 | SCREW 6.35 | 2 |
| 16 | S00327001 | SHUTTLE RACE BODY ASSEMBLY | 1 |
| 16-1 | 152677001 | SHUTTLE RACE BODY | 1 |
| 16-2 | 152679001 | SHUTTLE RACE THREAD GUIDE (R) | 1 |
| 16-3 | 152680001 | SHUTTLE RACE THREAD GUIDE (L) | 1 |
| 16-4 | 062660412 | SCREW 318-40X4 | 2 |
| 16-5 | 152683001 | SHUTTLE RACE RING SET CLAW | 2 |
| 16-6 | 152684001 | SPRING | 2 |
| 16-7 | 402887001 | WASHER 3.2 | 2 |
| 16-8 | 062660712 | SCREW 318-40X7 | 2 |
| 16-9 | 153050000 | SHUTTLE RACE BODY FELT | 2 |
| 16-10 | 155489000 | WICK (270MM) | 1 |
| 16-11 | S00400000 | WICK 2.5X220 | 1 |
| 17 | 014760622 | SCREW 5.95 | 1 |
| 18 | 152678001 | SHUTTLE HOOK ADJUSTING STUD | 1 |
| 19 | 081003670 | O RING PW3 | 1 |
| 23 | 048080342 | STOP RING E8 | 1 |
| 24 | 152681101 | DRIVER | 1 |
| 25 | 018501422 | BOLT 5X14 | 1 |
| 26 | 152682001 | SHUTTLE RACE RING A | 1 |
| 31 | 152685101 | SHUTTLE HOOK A | 1 |
| 34 | 141808001 | PIN | 1 |
| 35 | 159610101 | BOBBIN CASE A ASSEMBLY | 1 |
| 36 | 159613001 | BOBBIN | 1 |
Page 31 — K．給油・潤滑関係/Lubrication/Schmierung Lubrification/Lubricatión
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152948001 | OIL GUAGE WINDOW | 1 |
| 2 | 152949001 | WICK SUPPORTER ASSEMBLY | 1 |
| 2-1 | 152950001 | WICK SUPPORTER | 1 |
| 2-2 | 152951001 | FELT | 1 |
| 2-3 | 152952001 | FELT | 1 |
| 2-4 | 153918001 | WICK 6X6 (660MM) | 1 |
| 2-5 | 140423000 | OIL TUBE | 1 |
| 2-6 | 147745000 | OIL TUBE L | 1 |
| 2-7 | 153919001 | WICK 6X6 (370MM) | 1 |
| 3 | 062681012 | SCREW 437-40X10 | 2 |
| 4 | 152958001 | WICK SUPPORTER ASSEMBLY | 1 |
| 4-1 | 152959001 | WICK SUPPORTER | 1 |
| 4-2 | 152955001 | WICK (160MM) | 1 |
| 4-3 | 152956001 | WICK 4X4 (1000MM) | 1 |
| 5 | 062680612 | SCREW 437-40X6 | 1 |
| 6 | 144694001 | OIL TUBE | 1 |
| 7 | 152956001 | WICK 4X4 (500MM) | 1 |
| 8 | 152962001 | WICK SUPPORTER | 1 |
| 9 | 152960001 | WICK (65MM) | 1 |
| 10 | 104567001 | WICK SUPPORTER | 1 |
| 11 | 152948001 | OIL GUAGE WINDOW | 1 |
| 12 | 152961001 | FELT SUPPORTER ASSEMBLY | 1 |
| 12-1 | 152966001 | FELT SUPPORTER | 1 |
| 12-2 | 152967001 | FELT | 1 |
| 12-3 | 062670812 | SCREW 357-40X8 | 2 |
| 12-4 | 025350332 | WASHER 3.5 | 3 |
| 12-5 | 152963001 | WICK 4X4 | 1 |
| 12-6 | 141692001 | TUBE STOPPER C | 1 |
| 12-7 | 021670202 | NUT 3.57 | 1 |
| 12-8 | 062671412 | SCREW 357-40X14 | 1 |
| 13 | 062670612 | SCREW 357-40X6 | 2 |
| 14 | 148921000 | OIL TUBE | 1 |
| 15 | 147745000 | OIL TUBE L | 1 |
| 17 | 152964001 | WICK 6X6 (620MM) | 1 |
| 18 | 152965001 | WICK 4X4 (400MM) | 1 |
| 19 | 152964001 | WICK 6X6 (310MM) | 1 |
| 20 | 152969001 | CORD SUPPORTER | 1 |
| 21 | 062670512 | SCREW 357-40X5 | 1 |
| 22 | 104567001 | WICK SUPPORTER | 2 |
| 23 | 146375000 | OIL TUBE | 1 |
| 24 | 152992001 | WICK (820MM) | 1 |
| 25 | 117150001 | CORD SUPPORTER | 1 |
| 26 | 062670512 | SCREW 357-40X5 | 1 |
| 28 | 140423000 | OIL TUBE | 2 |
| 29 | 152971001 | WICK 4X4 | 1 |
| 31 | 112669001 | VINYL TUBE | 2 |
| 32 | 152969001 | CORD SUPPORTER | 1 |
| 33 | 062670512 | SCREW 357-40X5 | 1 |
| 34 | 113006001 | FELT | 1 |
| 36-1 | 152973001 | WICK 4X4 (160MM) | 1 |
| 36-2 | 153921001 | WICK 4X4 (180MM) | 1 |
| 37 | 047251640 | SPRING PIN AW2.5 | 2 |
| 38 | 117150001 | CORD SUPPORTER | 1 |
| 39 | 062670512 | SCREW 357-40X5 | 1 |
| 40 | 104567001 | WICK SUPPORTER | 1 |
| 41 | 152974001 | WICK 4X4 (250MM) | 1 |
| 42 | 112669001 | VINYL TUBE | 1 |
| 43 | 147745000 | OIL TUBE L | 1 |
| 44 | 153922001 | WICK 4X4 (340MM) | 1 |
| 45 | 152953001 | WICK 6X6 (360MM) | 1 |
| 46 | 152985001 | WICK 4X4 (750MM) | 1 |
| 47 | 153763001 | WICK SUPPORTER | 1 |
Page 33 — Lubrication/Lubricación
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 062670512 | SCREW 357-40X5 | 1 |
| 49 | 152976001 | WICK HOLDER | 1 |
| 50 | 062670512 | SCREW 357-40X5 | 2 |
| 51 | 028040242 | SPRING WASHER2-4 | 2 |
| 52 | 152977001 | WICK (50MM) | 1 |
| 53 | 152978001 | TUBE SUPPORTER | 1 |
| 54 | 062680812 | SCREW 437-40X8 | 1 |
| 55 | 153927001 | WICK 6X6 | 1 |
| 56 | 112669001 | VINYL TUBE | 1 |
| 58 | 153922001 | WICK 4X4 (500MM) | 1 |
| 59 | 107149001 | FELT | 1 |
| 60 | 152968001 | WICK 4X4 (100MM) | 1 |
| 61 | 153529001 | FELT | 1 |
| 62 | 153530001 | FELT | 1 |
| 63-1 | 153531001 | FELT | 1 |
| 63-2 | 153562001 | WICK (220MM) | 1 |
| 64 | 153528001 | FELT SUPPORTER | 1 |
| 65 | 105248003 | WASHER | 1 |
| 66 | 153924001 | FELT | 1 |
| 67 | 152973001 | WICK 4X4 (180MM) | 1 |
| 68 | 153925001 | WICK 4X4 (30MM) | 1 |
| 69 | 153926001 | WICK (10MM) | 1 |
| 70 | 152980001 | WICK 6X6 (150MM) | 1 |
| 71 | 152980001 | WICK 6X6 (140MM) | 1 |
Page 35 — L. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung Mécanisme de la enhebrado
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152869001 | ARM THREAD GUIDE | 1 |
| 2 | 062710712 | SCREW 476-32X7 | 1 |
| 3 | 152870001 | ARM THREAD GUIDE | 1 |
| 4 | 062670612 | SCREW 357-40X6 | 1 |
| 5 | 113316001 | ARM THREAD GUIDE | 1 |
| 6 | 112751003 | SCREW 3.57 | 1 |
| 7 | 153049001 | UPPER THREAD GUIDE BAR | 1 |
| 8 | 152872001 | TENSION BRACKET | 1 |
| 9 | 100398001 | TENSION STUD | 1 |
| 10 | 100402004 | SCREW 3.57 | 1 |
| 11 | 145519001 | THREAD TAKE-UP SPRING | 1 |
| 12 | 145446001 | TENSION DISC | 2 |
| 13 | 159805001 | TENSION DISC WASHER | 1 |
| 14 | 107606001 | TENSION SPRING | 1 |
| 15 | 100136001 | TENSION CONTROL NUT | 1 |
| 16 | 152873001 | TENSION RELEASE PIN | 1 |
| 17 | 114294001 | O RING | 1 |
| 18 | 103950003 | SCREW 5.95 | 1 |
| 19 | 152874001 | SUB TENSION RELEASE BAR | 1 |
| 20 | 152875001 | SUB TENSION CONTROL STUD | 1 |
| 21 | 152876001 | SUB TENSION RELEASE PIN | 1 |
| 22 | 145446001 | TENSION DISC | 2 |
| 23 | 152877001 | TENSION DISC WASHER | 1 |
| 24 | 152878001 | TENSION SPRING | 1 |
| 25 | 152879101 | SUB TENSION SPRING | 1 |
| 26 | 152880001 | SPRING HOLDER | 1 |
| 27 | 100136001 | TENSION CONTROL NUT | 1 |
| 28 | 014680422 | SCREW 4.37 | 1 |
| 29 | 140208001 | WASHER | 1 |
| 30 | 048040342 | STOP RING E4 | 1 |
| 31 | 152881001 | NEEDLE COOLER BODY | 1 |
| 32 | 013760612 | SCREW 5.95 | 1 |
| 33 | 152886001 | THREAD TAKE-UP GUIDE | 1 |
| 34 | 014680422 | SCREW 4.37 | 1 |
| 35 | 152887001 | THREAD TAKE-UP LEVER GUIDE STUD | 1 |
| 36 | 152888101 | THREAD TAKE-UP LEVER | 1 |
| 37 | 141528001 | STUD SCHEW 6.35 | 1 |
| 38 | 115077003 | STUD SCREW 4.76 | 1 |
| 39 | 152889001 | THREAD RETAINER | 1 |
| 40 | 062670612 | SCREW 357-40X6 | 2 |
| 41 | 152890001 | NEEDLE BAR THREAD GUIDE A | 1 |
| 42 | 154626001 | NEEDLE BAR BUSHING D THREAD GUIDE | 1 |
| 43 | 152883000 | FELT 8X15.5 | 1 |
| 44 | 152884001 | NEEDLE COOLER THREAD GUIDE | 1 |
| 45 | 062670412 | SCREW 357-40X4 | 1 |
| 46 | 153138001 | WASHER | 1 |
Page 37 — M. 糸巻関係/Bobbin winder mechanism/Spuler Mécanisme de bobineur/Mecanismo del devanador de la canilla
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152982101 | BOBBIN WINDER ASSEMBLY | 1 |
| 1-1 | 152983001 | BOBBIN WINDER BRACKET | 1 |
| 1-2 | 152984001 | BOBBIN WINDER LEVER | 1 |
| 1-3 | 152933001 | BOBBIN WINDER SHAFT | 1 |
| 1-4 | 152934001 | BOBBIN WINDER LEVER SHAFT | 1 |
| 1-5 | 102716004 | SCREW 4.37 | 1 |
| 1-6 | 152935001 | BOBBIN PRESSER | 1 |
| 1-7 | 152936001 | PLATE SPRING | 1 |
| 1-8 | 152937001 | WASHER | 1 |
| 1-9 | 062670712 | SCREW 357-40X7 | 1 |
| 1-10 | 152938001 | KNIFE | 1 |
| 1-11 | 062680712 | SCREW 437-40X7 | 1 |
| 1-12 | 152939001 | SPRING | 1 |
| 1-13 | 115138001 | SPRING HOOK | 1 |
| 1-14 | 141550001 | SPRING HOOK | 1 |
| 1-15 | 152940001 | CLAW STUD FOR BOBBIN WINDER | 1 |
| 1-16 | 142566001 | CLAW FOR BOBBIN WINDER | 1 |
| 1-17 | 048050342 | STOP RING E5 | 2 |
| 1-18 | 014680422 | SCREW 4.37 | 2 |
| 1-19 | 062670712 | SCREW 357-40X7 | 1 |
| 1-20 | 152941001 | SPRING | 1 |
| 1-21-1 | 154528001 | BOBBIN WINDER WHEEL | 1 |
| 1-21-2 | 120448001 | RUBBER RING | 1 |
| 1-22 | 102716004 | SCREW 4.37 | 2 |
| 2 | 062761412 | SCREW 595-28X14 | 2 |
| 3 | S01300001 | LOWER THREAD TENSION ASSEMBLY | 1 |
| 3-1 | 152945001 | LOWER THREAD TENSION BRACKET ASSEMBLY | 1 |
| 3-2 | 145446001 | TENSION DISC | 2 |
| 3-3 | 104525001 | TENSION SPRING | 1 |
| 3-4 | 108265001 | TENSION CONTROL NUT | 1 |
| 7 | 062681012 | SCREW 437-40X10 | 2 |
Page 39 — N. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung / Mécanisme de coupe-fil/Mecanismo de recortdora de orillos
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152892001 | THREAD TRIMMING CONNECTING ROD | 1 |
| 2 | 152896001 | THREAD TRIMMING ARM A ASSEMBLY | 1 |
| 3 | 018681022 | BOLT 4.37X10 | 1 |
| 4 | 152893101 | THREAD TRIMMING ARM B | 1 |
| 5 | 048050342 | STOP RING E5 | 1 |
| 6-1 | 152995001 | NEEDLE PLATE S | 1 |
| 6-2 | S01887001 | ハリイタC | 1 |
| 7 | 152981001 | KNIFE ARM C | 1 |
| 8 | 153222001 | SCREW 4.37 | 1 |
| 9 | 152897201 | KNIFE CONNECTING ROD ASSEMBLY | 1 |
| 10 | 152901001 | MOVABLE KNIFE ASSEMBLY | 1 |
| 11 | 152904001 | SCREW 4.37 | 1 |
| 12 | 152905001 | FIXED KNIFE | 1 |
| 13 | 111140002 | SCREW 2.38 | 2 |
| 16 | 100360003 | SCREW 2.38 | 2 |
| 17 | 159940001 | NEEDLE HOLE PLATE H | 1 |
| 18-1 | 152912001 | THREAD TRIMMING CAM LEVER | 1 |
| 18-2 | 152913001 | ROLLER STUD | 1 |
| 18-3 | 048040342 | STOP RING E4 | 1 |
| 18-4 | 152914001 | ROLLER | 1 |
| 18-5 | 154789001 | SPRING HOOK | 1 |
| 18-6 | 152919001 | PIN | 1 |
| 19 | 152915001 | THREAD TRIMMING CAM LEVER CLAW | 1 |
| 20 | 062761412 | SCREW 595-28X14 | 1 |
| 21 | 025060132 | WASHER 6 | 1 |
| 22 | 152916001 | THREAD TRIMMING CAM LEVER SHAFT | 1 |
| 23 | 152917001 | WASHER | 1 |
| 24 | 048120142 | STOP RING C12 | 1 |
| 25 | 154788001 | KNIFE CAM LEVER SPRING | 1 |
| 26 | 014760622 | SCREW 5.95 | 1 |
| 27 | 140208001 | WASHER | 1 |
| 28 | 048040342 | STOP RING E4 | 1 |
| 29 | 152920001 | STUD | 1 |
| 30 | 014760622 | SCREW 5.95 | 1 |
| 31 | 152921001 | THREAD TRIMMING LINK | 1 |
| 32 | 151907001 | STUD SCREW 5.95 | 1 |
| 33 | 150553001 | NUT 5.95 | 1 |
| 34 | 152922001 | THREAD TRIMMING LEVER | 1 |
| 35 | 152923001 | THREAD TRIMMING ROLLER | 1 |
| 36 | 112468001 | WASHER | 1 |
| 37 | 048050342 | STOP RING E5 | 1 |
| 38 | 153482001 | DRIVING SHAFT | 1 |
| 39 | 142628001 | HORIZONTAL FEED CRANK RING | 1 |
| 40 | 048110142 | STOP RING C11 | 1 |
| 41 | 111865001 | CAP FOR OIL INLET | 1 |
| 42 | 014760622 | SCREW 5.95 | 1 |
| 43 | 100032004 | SCREW 4.37 | 2 |
| 44 | 153208002 | SCREW 4.37 | 2 |
| 45 | 153220001 | KNIFE ARM C COLLAR | 1 |
| 46 | 153219001 | MOVABLE KNIFE COLLAR | 1 |
| 48 | 141334001 | SPRING HOOK | 1 |
| 50 | 152906101 | THREAD RETAINER A | 1 |
| 51 | 153598001 | SCREW 4.37 | 1 |
| 52 | 081008070 | O RING P8 | 1 |
| 53 | 153597001 | THREAD RETAINER COLLAR | 1 |
| 54 | 153596001 | WASHER | 1 |
Page 41 — P. 糸払イ関係/Thread wiper mechanism/Fadenwischvorrichtung Mécanisme de tire-fil/Mecanismo de limpiador de hilos Q. 糸締メ関係/Thread nipper mechanism/Fadenspannvorrichtung Mécanisme de pince-fil/Mecanismo de mordaza para hilos
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152815001 | THREAD WIPER ROD SHAFT | 1 |
| 2 | 152816001 | THREAD WIPER ROD ASSEMBLY | 1 |
| 3 | 014680622 | SCREW 4.37 | 1 |
| 4 | 048060342 | STOP RING E6 | 1 |
| 5 | 116629001 | WASHER | 2 |
| 6 | 152822001 | THREAD WIPER SHAFT | 1 |
| 7 | 025770232 | WASHER 6.35 | 1 |
| 8 | 048040342 | STOP RING E4 | 1 |
| 9 | 014680622 | SCREW 4.37 | 1 |
| 10 | 152823001 | THREAD WIPER ARM ASSEMBLY | 1 |
| 11 | 048030342 | STOP RING E3 | 1 |
| 12 | 152827001 | OIL CAP | 1 |
| 13 | 013710712 | SCREW 4.76 | 1 |
| 14 | 156206001 | ワイパーA | 1 |
| 15 | 062670512 | SCREW 357-40X5 | 1 |
| 16 | S00926101 | FINGER GUARD | 1 |
| 17 | 025350132 | WASHER | 1 |
| 152925101 | TENSION RELEASE BAR | 1 | |
| 062671012 | SCREW 357-40X10 | 2 | |
| 025350332 | WASHER 3.5 | 2 | |
| 152988001 | TENSION RELEASE LEVER ASSEMBLY | 1 | |
| 048050342 | STOP RING E5 | 1 | |
| 014760622 | SCREW 5.95 | 1 |
Page 43 — R. 動車・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 153044001 | STOP CAM ASSEMBLY | 1 |
| 1-1 | 152693001 | BRAKE CAM SEGMENT | 1 |
| 1-2 | 152694001 | BRAKE CAM SEGMENT SPRING | 1 |
| 1-3 | 115003001 | FLANGE CAM SEGMENT | 1 |
| 1-4 | 153058001 | CAM SEGMENT STUD | 2 |
| 1-5 | 048040342 | STOP RING E4 | 2 |
| 7 | 147111001 | TAPER PIN 6X35 | 1 |
| 8 | 014770622 | SCREW 6.35 | 1 |
| 9 | 156935101 | PULLEY ASSEMBLY | 2 |
| 9-1 | 152695201 | PULLEY ASSEMBLY | 2 |
| 9-2 | 072600760 | BALL BEARING 6007VV | 2 |
| 12 | 152698001 | SLIDE METAL | 1 |
| 13 | 048350142 | STOP RING C35 | 2 |
| 14 | 152699001 | WASHER | 1 |
| 15 | 048240242 | STOP RING C24 | 1 |
| 16 | 152700000 | SLIDE BUSH A | 1 |
| 17 | 151946000 | SLIDE BUSH B | 1 |
| 18 | 152701001 | CLUTCH SPRING | 1 |
| 19 | 152702001 | CLUTCH PLATE | 1 |
| 20 | 152703100 | SPACER | 5 |
| 21 | S02878000 | KEY 3X3X13 | 1 |
| 22 | 152705001 | NUT 10 | 1 |
| 23 | 152706001 | BALL BEARING | 1 |
| 24 | 062660712 | SCREW 318-40X7 | 4 |
| 25 | 071095250 | STEEL BALL 3/8 | 1 |
| 1 | 154694006 | SHANK BUTTON ATTACHMENT | 1 |
| 1-1 | 142689206 | SHANK BUTTON CLAMP ASSEMBLY | 1 |
| 1-1-1 | 154684006 | SHANK BUTTON CLAMP | 1 |
| 1-1-2 | 142677001 | BUTTON CLAMP A | 1 |
| 1-1-3 | 142678001 | BUTTON CLAMP B | 1 |
| 1-1-4 | 062670812 | SCREW 357-40X8 | 1 |
| 1-1-5 | 102707003 | WASHER | 1 |
| 1-1-6 | 142681001 | BUTTON PRESSER STUD | 1 |
| 1-1-7 | 154685001 | SPRING | 1 |
| 1-1-8 | 142706001 | SET COLLAR | 2 |
| 1-1-9 | 062670712 | SCREW 357-40X7 | 2 |
| 1-1-10 | 154686001 | BUTTON PRESSER ARM | 1 |
| 1-1-11 | 013719412 | SCREW 4.76 | 1 |
| 1-1-12 | 142680001 | BUTTON PRESSER | 1 |
| 1-1-13 | 120990001 | SCREW 4.37 | 1 |
| 1-2 | 154695001 | BUTTON PRESSER ARM LIFTER | 1 |
| 1-3 | 154696001 | BUTTON PRESSER ARM LIFTER STUD | 1 |
| 1-4 | 014680422 | SCREW 4.37 | 1 |
| 1-5 | 154697001 | FEED PLATE BASE | 1 |
| 1-6 | 156336001 | SHANK BUTTON FEED PLATE | 1 |
| 1-7 | 154713001 | SCREW 4.76 | 2 |
| 1-8 | 021710212 | NUT 4.76 | 2 |
| 1-9 | 025710232 | WASHER 4.76 | 2 |
| 1-10 | 142686001 | CLOTH RECEIVER S | 1 |
| 1-11 | 060670512 | SCREW 357-40X5 | 1 |
| 1-12 | 152901001 | MOVABLE KNIFE ASSEMBLY | 1 |
| 1-13 | 115040016 | NEEDLE TQX7 #16 | 10 |
| 1-14 | S03641001 | BUTTON CLAMP D | 1 |
| 1-15 | 156154001 | NEEDLE HOLE PLATE F | 1 |
Page 45 — Z．付属品関係 / Accessories / Zubehör / Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 122991001 | ACCESSORY BAG | 1 |
| 3-1 | 142443001 | SCREW DRIVER 1.9X52 | 1 |
| 3-2 | 118837001 | SCREW DRIVER 3.4X70 | 1 |
| 3-3 | 101572101 | SCREW DRIVER 5.5X190 | 1 |
| 4-1 | 107779001 | SPANNER 6X7 | 1 |
| 4-2 | 100887001 | SPANNER 8X9 | 1 |
| 4-3 | 107780001 | SPANNER 10X12 | 1 |
| 5-1 | 142002001 | ALLEN WRENCH 2 | 1 |
| 5-2 | 142721001 | ALLEN WRENCH 3 | 1 |
| 5-3 | 118064001 | ALLEN WRENCH 4 | 1 |
| 5-4 | 150335001 | ALLEN WRENCH 5 | 1 |
| 5-5 | 115157001 | ALLEN WRENCH 6 | 1 |
| 6-1 | 105343001 | WRENCH 8X9 | 1 |
| 6-2 | 152765001 | WRENCH 10 | 1 |
| 7 | 159613001 | BOBBIN | 4 |
| 9 | 115053016 | NEEDLE TQX1 #16 | 4 |
| 10 | 114483002 | OILER | 1 |
| 11 | 154702001 | OIL TANK | 1 |
| 12 | 116185202 | PEDAL ASSEMBLY | 1 |
| 12-1 | 117437102 | PEDAL | 1 |
| 12-2 | 021400106 | NUT 4 | 2 |
| 12-3 | 062401416 | SCREW 4X14 | 2 |
| 12-4 | 116016001 | PEDAL STOPPER | 2 |
| 13 | * | MOTOR PULLEY | 1 |
| 14 | 014760622 | SCREW 5.95 | 2 |
| 15-1 | 082104890 | V BELT 48 | 1 |
| 15-2 | * | V BELT M | 1 |
| 17 | S02761001 | COTTON STAND ASSEMBLY 2 | 1 |
| 17-1 | 150189002 | COTTON STAND BASE | 1 |
| 17-2 | S02773001 | COTTON STAND BASE SCREW SET | 1 |
| 17-2-1 | 062060806 | SCREW 6X8 | 2 |
| 17-2-2 | 031452206 | SCREW 45X22 | 3 |
| 17-3 | 150172002 | COLUMN PIPE | 2 |
| 17-4 | 150106002 | COLUMN JOINT ASSEMBLY | 1 |
| 17-4-1 | 062501406 | SCREW 5X14 | 2 |
| 17-4-2 | 021500106 | NUT 5 | 2 |
| 17-5 | 150174000 | COLUMN CAP | 1 |
| 17-6 | S02778001 | SPOOL HOLDER 2 | 1 |
| 17-7 | S02780001 | SPOOL SCREW SET 2 | 1 |
| 17-7-1 | 150179002 | SPOOL SHAFT B | 2 |
| 17-7-2 | 028050246 | SPRING WASHER 2-5 | 2 |
| 17-7-3 | 021500106 | NUT 5 | 4 |
| 17-7-4 | 062503006 | SCREW 5X30 | 1 |
| 17-7-5 | 062501406 | SCREW 5X14 | 1 |
| 17-7-6 | 026050136 | WASHER 5 | 2 |
| 17-8 | 150180000 | SPOOL STAND BASE | 2 |
| 17-9 | 150182000 | SPOOL MAT | 2 |
| 17-10 | 126863001 | SPOOL CUSHION | 2 |
| 17-11 | S02786001 | THREAD HANGER ASSEMBLY 2 | 1 |
| 18 | 149247001 | CHAIN ASSEMBLY | 1 |
| 19 | 106030001 | SCREW 6.2X32 | 4 |
| 20 | 152863001 | CUSHION COLLAR | 4 |
| 21 | 152864000 | CUSHION | 8 |
| 22 | 025800332 | WASHER 7.14 | 12 |
| 23 | 017062503 | BOLT 6X25 | 4 |
| 24 | 021060102 | NUT 6 | 4 |
| 25 | 144226001 | HEAD COVER | 1 |
| 26 | 028060242 | SPRING WASHER 2-6 | 4 |
| 28 | 153574201 | TABLE SHEET | 1 |
| 29 | 154179001 | ALLEN WRENCH 4 | 1 |
| 30 | 120448001 | RUBBER RING | 1 |
| 31 | 154760001 | PIPE | 1 |
Page 47 — Accessories / Zubeh6ér Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 33 | 150398101 | BUTTON CLAMP (L) PLATE SPRING | 1 |
| 34 | 150401101 | BUTTON CLAMP (R) PLATE SPRING | 1 |
Page 49 — OPTION PARTS /SONDERZUBEHOR PIECES EN OPTION/PIEZAS EN OPCION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 154665101 | FEED PLATE | 1 |
| 2 | S03636001 | SNAP BUTTON CLAMP ASSEMBLY | 1 |
| 2-1 | S03464001 | BUTTON CLAMP BRACKET | 1 |
| 2-2 | 118539001 | SNAP CLAMP (R) | 1 |
| 2-3 | 118541001 | SNAP CLAMP (L) | 1 |
| 2-4 | 115158001 | STUD SCREW 4.76 | 2 |
| 2-5 | 115156001 | PIN | 2 |
| 2-6 | S03712001 | BUTTON CLAMP BRACKET ASSEMBLY | 1 |
| 2-7 | S03659001 | BUTTON CLAMP PLATE | 1 |
| 2-8 | 062680812 | SCREW 437-40×8 | 2 |
| 2-9 | S03468001 | SCREW 4.37 | 1 |
| 2-10 | S03657001 | NUT 4.37 | 1 |
| 2-11 | 115163001 | SPRING | 1 |
| 2-12 | 115164001 | BUTTON CLAMP ADJUSTING PLATE | 1 |
| 2-13 | 115165001 | STUD SCREW 4.37 | 1 |
| 2-14 | 115166001 | STUD SCREW 4.37 | 1 |
| 3-1 | 156149001 | NEEDLE HOLE PLATE A | 1 |
| 3-2 | 156150001 | NEEDLE HOLE PLATE B | 1 |
| 3-3 | 156151001 | NEEDLE HOLE PLATE C | 1 |
| 3-4 | 156152001 | NEEDLE HOLE PLATE D | 1 |
| 4-1 | S08612001 | BUTTON CLAMP (L) Assembly | 1 |
| 4-1-1 | S08613001 | BUTTON CLAMP (L) | 1 |
| 4-1-2 | 150398101 | BUTTON CLAMP (L) PLATE SPRING | 1 |
| 4-1-3 | S08615001 | BUTTON CLAMP (L) PLATE SPRING D | 1 |
| 4-1-4 | 062681012 | SCREW 437-40 x 10 | 1 |
| 4-1-5 | 021680202 | NUT 4.37 | 1 |
| 4-1-6 | 047250642 | SPRING PIN AW 2.5 | 1 |
| 4-1-7 | 103978002 | SCREW 3.18 | 1 |
| 4-1-8 | 021660102 | NUT 3.18 | 1 |
| 4-2 | S08616001 | BUTTON CLAMP (R) ASSEMBLY | 1 |
| 4-2-1 | S08617001 | BUTTON CLAMP (R) | 1 |
| 4-2-2 | 150401101 | BUTTON CLAMP (R) PLATE SPRING | 1 |
| 4-2-3 | S08619001 | BUTTON CLAMP (R) PLATE SPRING D | 1 |
| 4-2-4 | 062681012 | SCREW 437-40 x 10 | 1 |
| 4-2-5 | 021680202 | NUT 4.37 | 1 |
| 4-2-6 | 047250642 | SPRING PIN AW 2.5 | 1 |
| 4-2-7 | 103978002 | SCREW 3.18 | 1 |
| 4-2-8 | 021660102 | NUT 3.18 | 1 |
| $03636001 | SNAP BUTTON CLAMP ASSEMBLY | 1 | |
| 503464001 | BUTTON CLAMP BRACKET | T | |
| $03712001 | BUTTON CLAMP BRACKET ASSEMBLY | 1 | |
| 503659001 | BUTTON CLAMP PLATE | 1 | |
| $03468001 | SCREW 4.37 | 1 | |
| 503657001 | NUT 4.37 | 1 | |
| 508612001 | BUTTON CLAMP (L) Assembly | 1 | |
| $08613001 | BUTTON CLAMP (L) | 1 | |
| 508615001 | BUTTON CLAMP (L) PLATE SPRING D | 1 | |
| $08616001 | BUTTON CLAMP (R) ASSEMBLY | T | |
| $08617001 | BUTTON CLAMP (R) | 1 | |
| $08619001 | BUTTON CLAMP (R) PLATE SPRING D | 1 |
Page 51 — SCAbin / OPTION PARTS LIST/SONDERZUBEHOR
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 156440001 | BUTTON SPACER ASSEMBLY | 1 |
| 1-1 | 156441001 | SPACER ROD | 1 |
| 1-2 | 122257001 | WASHER | 2 |
| 1-3 | 156443001 | SPACER | 1 |
| 1-4 | 129984001 | SCREW 3.57 | 1 |
| 1-5 | 116662004 | WASHER | 2 |
| 1-6 | 154835001 | BOLT | 2 |
| 1-7 | 156342001 | SPACER B | 1 |
| 1-8 | 014680422 | SCREW 4.37 | 1 |
Page 52 — 仕様別部品一覧表 / DIFFERENT PARTS LIST / ZUBEHÖRLISTE LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2-15 -2 | 082105130 | V BELT M51 | |
| A-62 | 153056102 | LABEL | |
| A-69 | 153846001 | STITCH REGULATOR | |
| H-1 | 153841001 (36) | WORM | |
| H-4 | 153840000(36) | WORM WHEEL | |
| H-22 | 156101001 | FEED CAM | |
| H-28 | 153842001 (36) | CLUTCH CAM | |
| H-31 | 152730001 | KNIFE CAM | |
| Z-13 | 153107001 | MOTOR PULLEY 2000/50 | |
| Z-13 | 153106001 | MOTOR PULLEY 2000/60 | |
| Z-15-2 | 082105190 | V BELT M51 | |
| Z-15-2 | 082105290 | V BELT M52 | |
| A-62 | 1653056102 | LABEL | |
| A-62 | 153056103 | LABEL | |
| A-62 | 153056104 | LABEL | |
| A-69 | 156493001 (B) | STITCH REGULATOR | |
| H-t | 452707001 | WORM | |
| H-4 | 152708000 | WORM WHEEL | |
| H-22 | 1561401001 | FEED CAM | |
| H-22 | 156102001 | FEED CAM | |
| H-22 | 156103001 | FEED CAM | |
| H-28 | i 56446001 (14) | CLUTCH CAM | |
| Ct | 1 56445001 (14) | KNIFE CAM |
Page 53
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| $00327001 | J - 16 | 22 | |
| $00400000 | J - 16-11 | 22 | |
| $00926101 | P - 16 | 34 | |
| $01300001 | M-3 | 30 | |
| $01887001 | N - 6-2 | 32 | |
| S01888006 | A - 16-2 | 2 | |
| 014770622 | |A - 74 | 4 | |
| $02761001 | Z-17 | 38 | |
| $02773001 | Z - 17-2 | 38 | |
| $02778001 | Z - 17-6 | 38 | |
| $02780001 | Z - 17-7 | 38 | |
| $02786001 | Z - 17-11 | 38 | |
| 014821022 | B - 6 | 6 | |
| S02878000 | R - 21 | 36 | |
| $03464101 | G - 21-1 | 18 | |
| 017062503 | |Z - 23 | 38 | |
| S03465101 | G - 21-2 | 18 | |
| 017711412 | B - 59 | 8 | |
| S03466101 | G - 21-4 | 18 | |
| 017761212 | E - 40 | 14 | |
| $03641001 | G - 21-10 | 18 | |
| 017761412 | c-9 | 10 | |
| S03468001 | G - 21-13 | 18 | |
| 017762202 | B - 66 | 8 | |
| $03657001 | G - 21-14 | 18 | |
| 018060822 | D - 10-3 | 12 | |
| $03659001 | G - 21-11 | 18 | |
| 018061622 | B -77 | 8 | |
| $09132001 | E - 12 | 14 | |
| 018062022 | B - 56 | 8 | |
| H - 20 | |||
| G -2 | |||
| H - 29 | |||
| H - 8 | |||
| 013710712 | H - 37 | 20 | |
| H - 25 | |||
| H - 40 | |||
| 018062222 | H - 18 | 20 | |
| P - 13 | |||
| 018063022 | E - 12-1 | 14 | |
| 013719412 | A - 32-8 | 2 | |
| H - 20-1 | |||
| S - 1-1-11 | |||
| H - 29-1 | |||
| 013760612 | A - 52 | 2 | |
| H - 32-1 | |||
| F-5 | |||
| 018081222 | A - 32-3 | 2 | |
| L - 32 | |||
| 018082022 | E - 4-1 | 14 | |
| 013761410 | B - 32 | 6 | |
| E - 30-4 | |||
| 013761412 | C - 14 | 10 | |
| 018082522 | B- 11 | 6 | |
| C - 21 | |||
| 018501422 | |J - 25 | 22 | |
| 014680422 | L - 28 | 28 | |
| 018681022 | N - 3 | 32 | |
| L - 34 | |||
| 021060102 | |Z - 24 | 38 | |
| M - 1-18 | |||
| 021100202 | [A - 32-15 | 2 | |
| S - 1-4 | |||
| 021400106 | Z - 12-2 | 38 | |
| 014680622 | G - 12 | 18 | |
| 021500106 | {|Z - 17-4-2 | 38 | |
| J -3 | |||
| Z - 17-7-3 | |||
| P - 3 | |||
| 021670202 | K - 12-7 | 24 | |
| P -9 | |||
| 021680202 | B - 39-7 | 6 | |
| 014760622 | A - 76 | 4 | |
| 021710212 | |S - 1-8 | 36 | |
| B - 34 | |||
| 021800102 | B - 22 | 6 | |
| B - 74 | |||
| 025030132 | E - 46 | 14 | |
| D - 19-3 | |||
| 025060132 | B - 78 | 8 | |
| D - 21 | |||
| N - 21 | |||
| D - 30 | |||
| 025060232 | B - 80 | 8 | |
| E -3 | |||
| Cc - 10 | |||
| E - 6-4 | |||
| E - 39 | |||
| E - 18 | |||
| G -3 | |||
| E - 23 | |||
| 025080132 | | A - 65 | 4 | |
| E - 30-3 | |||
| 025080232 | | A - 32-4 | 2 | |
| E - 32 | |||
| 025100132 | [A - 32-16 | 2 | |
| F-4 | |||
| 025350132 | P - 17 | 34 | |
| F - 10 | |||
| 025350332 | K - 12-4 | 24 | |
| F - 16 | |||
| Q-4 | |||
| F - 28 | |||
| 025660132 | G - 21-23 | 18 | |
| G - 1-4 | |||
| 025680132 | {A - 71 | 4 | |
| G - 14 | |||
| B - 39-6 | |||
| H - 10 | |||
| 025710232 | S - 1-9 | 36 | |
| H - 45 | |||
| 025770232 | | A - 11 | 2 | |
| J -6 | |||
| P -7 | |||
| J -8 | |||
| Q-9 | |||
| J- 14 | |||
| 025800332 | B - 20 | 6 | |
| J -17 | |||
| Z - 22 |
Page 54
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 0260501 | 36 Z - 17-7-6 | 38 | |
| 062670512 | K - 39 | 24 | |
| 028040242 | K - 51 | 26 | |
| 028040242 | K - 48 | 26 | |
| 028050242 | B - 45 | 6 | |
| 028050242 | K - 50 | 26 | |
| 028050242 | B - 60 | 8 | |
| 028050242 | P - 15 | 34 | |
| 028050246 | Z - 17-7-2 | 38 | |
| 062670612 | K - 13 | 24 | |
| 028060242 | B - 79 | 8 | |
| 028060242 | L - 4 | 28 | |
| 028060242 | H - 27 | 20 | |
| 028060242 | L - 40 | 28 | |
| 028060242 | Z - 26 | 38 | |
| 062670712 | M - 1-9 | 30 | |
| 028080242 | A - 32-5 | 2 | |
| 028080242 | M - 1-19 | 30 | |
| 028080242 | B - 12 | 6 | |
| 028080242 | S - 1-1-9 | 36 | |
| 028100242 | A - 32-17 | 2 | |
| 062670812 | A - 15 | 2 | |
| 031452206 | Z - 17-2-2 | 38 | |
| 031452206 | K - 12-3 | 24 | |
| 031452206 | S - 1-1-4 | 36 | |
| 046301620 | J - 9-1 | 22 | |
| 046302020 | H - 43-1-1 | 20 | |
| 062671012 | Q - 3 | 34 | |
| 047250642 | G - 21-8 | 18 | |
| 062671412 | K - 12-8 | 24 | |
| 047251640 | K - 37 | 24 | |
| 062680512 | G - 21-7 | 18 | |
| 047501242 | A - 84 | 4 | |
| 062680612 | A - 59 | 2 | |
| 048030342 | B - 39-4 | 6 | |
| 048030342 | A - 70 | 4 | |
| 048030342 | K - 5 | 24 | |
| 048040342 | B - 27 | 6 | |
| 062680712 | M- 1-11 | 30 | |
| 048040342 | B - 55-3 | s) | |
| 06268081 | 2 A - 22 | 2 | |
| 048040342 | H - 43-4 | 20 | |
| 048040342 | A - 64 | 4 | |
| 048040342 | L - 30 | 28 | |
| 048040342 | C - 20-7 | 10 | |
| 048040342 | N - 18-3 | 32 | |
| 048040342 | G - 21-12 | 18 | |
| 048040342 | N - 28 | 32 | |
| 048040342 | K - 64 | 26 | |
| 048040342 | P - 8 | 34 | |
| 062681012 | K - 3 | 24 | |
| 048040342 | Q- 6 | 34 | |
| 048040342 | M- 7 | 30 | |
| 048040342 | R - 1-5 | 36 | |
| 062710612 | A - 81 | 4 | |
| 048050342 | M - 1-17 | 30 | |
| 048050342 | G - 21-21 | 18 | |
| 048050342 | N - 5 | 32 | |
| 062710712 | A - 6 | 2 | |
| 048050342 | N - 37 | 32 | |
| 048050342 | L -2 | 28 | |
| {Q- 8 | 062711412 | ||
| 048050342 | A -5 | 2 | |
| 048060342 | F - 12 | 16 | |
| 048060342 | A - 8 | 2 | |
| 048060342 | F - 19 | 16 | |
| 062761412 | A - 3 | 2 | |
| 048060342 | P -4 | 34 | |
| 048060342 | M- 2 | 30 | |
| 048080342 | J - 23 | 22 | |
| 048080342 | N - 20 | 32 | |
| 048100142 | A - 32-13 | 2 | |
| 062781412 | C - 35 | 10 | |
| 048110142 | B - 31 | 6 | |
| 071047650 | E - 38 | 14 | |
| 048110142 | B - 73 | 8 | |
| 071095250 | R - 25 | 36 | |
| 048110142 | F - 27 | 16 | |
| 072600360 | D - 6 | 12 | |
| 048110142 | N - 40 | 32 | |
| 072600760 | R - 9-2 | 36 | |
| 048120142 | N - 24 | 32 | |
| 072630260 | Cc - 5 | 10 | |
| 048150142 | C - 3 | 10 | |
| 081003670 | J 13 | 22 | |
| 048160142 | D - 26 | 12 | |
| 081003670 | J 19 | 22 | |
| 048170142 | D-2 | 12 | |
| 081008070 | N - 82 | 32 | |
| 048180142 | B - 4 | 6 | |
| 082104890 | Z 15-1 | 38 | |
| 048180142 | E - 15 | 14 | |
| 082105190 | Z - 15-2 | 38 | |
| 048180142 | E - 22 | 14 | |
| 082105290 | Z 15-2 | 38 | |
| 048240242 | R - 15 | 36 | |
| 100032004 | N - 43 | 32 | |
| 048320242 | A - 32-2-1 | 2 | |
| 100136001 | L 15 | 28 | |
| 048350142 | R - 13 | 36 | |
| 048350142 | L - 27 | 28 | |
| 060660512 | E - 45 | 14 | |
| 100250001 | C - 16 | 10 | |
| 060670512 | S - 1-11 | 36 | |
| 100253001 | C - 20-4 | 10 | |
| 062060806 | Z - 17-2-1 | 38 | |
| 100315002 | A - 10 | 2 | |
| 062401416 | Z - 12-3 | 38 | |
| 100360003 | N - 16 | 32 | |
| 062501406 | Z - 17-4-1 | 38 | |
| 100398001 | L - 9 | 28 | |
| 062501406 | Z - 17-7-5 | 38 | |
| 100402004 | L - 10 | 28 | |
| 062503006 | Z - 17-7-4 | 38 | |
| 100887001 | Z - 4-2 | 38 | |
| 062660412 | J - 16-4 | 22 | |
| 101572101 | Z - 3-3 | 38 | |
| 062660712 | J - 16-8 | 22 | |
| 101795001 | A - 77 | 4 | |
| 062660712 | R - 24 | 36 | |
| 102538007 | A - 56-3 | 2 | |
| 062670412 | H - 49 | 20 | |
| 102630001 | F - 8 | 16 | |
| 062670412 | L - 45 | 28 | |
| 102707003 | . S - 1-1-5 | 36 | |
| 062670512 | A - 57 | 2 | |
| 102716004 | M - 1-5 | 30 | |
| 062670512 | K - 21 | 24 | |
| 062670512 | M - 1-22 | 30 | |
| 062670512 | K - 26 | 24 | |
| 102843004 | C - 8 | 10 | |
| 062670512 | K - 33 | 24 | |
| 103950003 | L 18 | 28 |
Page 55
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31 | 104450101 | A | |
| 66 | 104450101 | A | |
| 3-3 | 104525001 | M | |
| 10 | 104567001 | K | |
| 22 | 104567001 | K | |
| 40 | 104567001 | K | |
| 23 | 104689002 | B | |
| 2 | 104689002 | J | |
| 32 | 105234003 | F | |
| 13-4 | 105234003 | G | |
| 65 | 105248003 | K | |
| 6-1 | 105343001 | Z | |
| 19 | 106030001 | Zz | |
| 56-4 | 106129001 | A | |
| 37 | 106147002 | B | |
| 52-1 | 107030001 | B | |
| 59 | 107149001 | K | |
| 11 | 107153002 | F | |
| 18 | 107153002 | F | |
| 9 | 107231002 | D | |
| 14 | 107606001 | L | |
| 39-2 | 107744001 | B | |
| 30 | 107744001 | F | |
| 13-2 | 107744001 | G | |
| 4-1 | 107779001 | Z | |
| 4-3 | 107780001 | Z | |
| 3-4 | 108265001 | M | |
| 30 | 108520001 | A | |
| 18 | 109239002 | A | |
| 26 | 109893002 | H | |
| 44 | 110027001 | H | |
| 21-22 | 110215002 | G | |
| 38 | 110251001 | B | |
| 67 | 110251001 | B | |
| 14 | 110495003 | J | |
| 72 | 110505001 | B | |
| 13 | 111140002 | N | |
| 75 | 111865001 | B | |
| 27 | 111865001 | D | |
| 41 | 111865001 | N | |
| 36 | 112468001 | N | |
| 31 | 112669001 | K | |
| 42 | 112669001 | K | |
| 56 | 112669001 | K | |
| 6 | 112751003 | L | |
| 34 | 113006001 | K | |
| 5 | 113316001 | L | |
| 39-5 | 113431002 | B | |
| 61 | 113431002 | B | |
| 17 | 114294001 | L | |
| 10 | 114483002 | Z | |
| 80 | 114486002 | A | |
| 58 | 114985001 | A | |
| 1-3 | 115003001 | R | |
| 13 | 115012002 | B | |
| 19 | 115018001 | B | |
| 1-13 | 115040016 | S | |
| 27 | 115053016 | C | |
| 9 | 115053016 | z | |
| 38 | 115077003 | L | |
| 1-13 | 115138001 | M | |
| 20 | 115147001 | G | |
| 19 | 115148101 | G | |
| 21-6 | 115156001 | G | |
| 5-5 | 115157001 | Z | |
| 21-9 | 115158001 | G | |
| 73 | 115160001 | A | |
| 21-15 | 115163001 | G | |
| 21-16 | 115164001 | G | |
| 21-17 | 115165001 | G | |
| 21-18 | 115166001 | G | |
| 72 | 115270006 | A | |
| 17 | 115493002 | A | |
| 12-4 | 116016001 | Z | |
| 12 | 116185202 | Z | |
| 16-1 | 116231001 | E | |
| 5 | 116629001 | P | |
| 36 | 116920001 | C | |
| 25 | 117150001 | K | |
| 38 | 117150001 | K | |
| 44 | 117363001 | B | |
| 12-1 | 117437102 | Z | |
| 29 | 117934001 | A | |
| 27 | 117936001 | A | |
| 5-3 | 118064001 | Z | |
| 3-2 | 118837001 | Z | |
| 1-21-2 | 120448001 | M | |
| 30 | 120448001 | Z | |
| 1-1-13 | 120990001 | S | |
| 1 | 122991001 | Z | |
| 18 | 123006001 | C | |
| 17-10 | 126863001 | Z | |
| 29 | 140208001 | L | |
| 27 | 140208001 | N | |
| 28 | 140392001 | A | |
| 2-5 | 140423000 | K | |
| 28 | 140423000 | K | |
| 11 | 140726000 | C | |
| 36-3 | 141331001 | E | |
| 47 | 141334001 | H | |
| 48 | 141334001 | N | |
| 23 | 141472002 | D | |
| 37 | 141528001 | L | |
| 1-14 | 141550001 | M | |
| 24 | 141583001 | F | |
| 12-6 | 141692001 | K | |
| 1 | 141786001 | J | |
| 34 | 141808001 | J | |
| 32-2-2 | 141860001 | A | |
| 5-4 | 142002001 | Z | |
| 33 | 142211001 | C | |
| 3-1 | 142443001 | Z | |
| 1-16 | 142566001 | M | |
| 30 | 142628001 | B | |
| 71 | 142628001 | B | |
| 26 | 142628001 | F | |
| 39 | 142628001 | N | |
| 1-1-2 | 142677001 | S | |
| 1-1-3 | 142678001 | S | |
| 1-11-12 | 142680001 | S | |
| 1-1-6 | 142681001 | S | |
| 1-1 | 142686001 | S | |
| 1-1 | 142689206 | S | |
| 1-1-8 | 142706001 | S | |
| 5-2 | 142721001 | Z | |
| 25 | 144226001 | Z | |
| 24 | 144458001 | C | |
| 6 | 144694001 | K | |
| 2-1 | 144712002 | C | |
| 34 | 145318001 | E | |
| 12 | 145446001 | L | |
| 22 | 145446001 | L | |
| 3-2 | 145446001 | M | |
| 12 | 145480001 | A |
Page 56
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11 | 145519001 | L | |
| 8 | 151925001 | B - 70 | |
| 17 | 146354001 | G | |
| 6 | 151927001 | B- 2 | |
| 23 | 146375000 | K | |
| 12 | 151928001 | D- 1 | |
| 18 | 146994001 | G | |
| 6 | 151929000 | B-7 | |
| 7 | 147111001 | R | |
| 12 | 151930201 | D- 3 | |
| 3 | 147151000 | H | |
| 12 | 151932001 | D- 8 | |
| 2-6 | 147745000 | K | |
| 12 | 151933001 | D - 10-1 | |
| 12 | 151935000 | D - 10-1-1 | |
| 12 | 151936001 | D - 11 | |
| 14 | 148921000 | K | |
| 12 | 151937001 | D - 12 | |
| 18 | 149247001 | Z- | |
| 12 | 151938001 | D- 13 | |
| 17-4 | 150106002 | Z - | |
| 8 | 151939001 | B - 55 | |
| 17-3 | 150172002 | Z - | |
| 12 | 151940001 | D - 10-2 | |
| 17-5 | 150174000 | Z - | |
| 12 | 151941104 | D - 10-4 | |
| 17-7-1 | 150179002 | Z - | |
| 12 | 151944001 | D- 19 | |
| 17-8 | 150180000 | Z - | |
| 36 | 151946000 | R - 17 | |
| 17-9 | 150182000 | Z - | |
| 12 | 151947101 | D - 19-1 | |
| 17-1 | 150189002 | Z - | |
| 12 | 161948001 | D - 19-2 | |
| 5-4 | 150335001 | Z - | |
| 12 | 151949001 | D - 20 | |
| 33 | 150398101 | Z - | |
| 12 | 151951001 | D - 22 | |
| 34 | 150401101 | Z - | |
| 12 | 151952001 | D - 24 | |
| 53 | 150553001 | B - | |
| 12 | 151953001 | D - 25 | |
| 12 | 151954001 | D - 28 | |
| 18 | 151968001 | G - 13 | |
| 14 | 150554002 | B - | |
| 18 | 151969001 | G - 13-1 | |
| 46-3 | 150556001 | B - | |
| 10 | 151995001 | Cc - 1 | |
| 10 | 151997000 | C -4 | |
| 10 | 151998000 | C - 6 | |
| 10 | 151999001 | C -7 | |
| 10 | 152000001 | C - 13 | |
| 9 | 151163001 | B - | |
| 22 | 152191001 | J 9 | |
| 10 | 152236001 | C - 20-2 | |
| 1-3 | 151602002 | E - | |
| 10 | 152238001 | C - 20-5 | |
| 54 | 151604002 | A - | |
| 10 | 152239001 | C - 20-6 | |
| 1 | 151886001 | B- | |
| 10 | 152242001 | C - 25 | |
| 3 | 151887001 | B - | |
| 10 | 152244000 | C - 34 | |
| 10 | 151888101 | B - | |
| 22 | 152245001 | J 4 | |
| 15 | 151889001 | B - | |
| 22 | 152246001 | J 5 | |
| 16 | 151890000 | B - | |
| 22 | 152247001 | J 7 | |
| 17 | 151891001 | B - | |
| 22 | 152250001 | J 10 | |
| 18 | 151892001 | B - | |
| 22 | 152677001 | J 16-1 | |
| 21 | 151893001 | B - | |
| 22 | 152678001 | J 12 | |
| 24 | 151894101 | B - | |
| 22 | 152679001 | J 16-2 | |
| 25 | 151895000 | B - | |
| 22 | 152680001 | J 16-3 | |
| 26 | 151898001 | B - | |
| 22 | 152681101 | J 24 | |
| 28 | 151899001 | B - | |
| 22 | 152682001 | J 26 | |
| 29 | 151900001 | B - | |
| 22 | 152683001 | J 16-5 | |
| 33 | 151901001 | B - | |
| 22 | 152684001 | J 16-6 | |
| 35 | 151902001 | B - | |
| 22 | 152685101 | J 31 | |
| 36 | 151903001 | B - | |
| 36 | 152693001 | R - 1-1 | |
| 39 | 151904101 | B - | |
| 36 | 152694001 | R - 1-2 | |
| 39-1 | 151905101 | B - | |
| 36 | 152695201 | R - 9-1 | |
| 39-3 | 151906101 | B - | |
| 36 | 152698001 | R - 1 | |
| 40 | 151907001 | B - | |
| 36 | 152699001 | R - 14 | |
| 36 | 152700000 | R - 16 | |
| 6 | 151908001 | B - 41 | |
| 36 | 152701001 | R - 18 | |
| 6 | 151910001 | B - 43 | |
| 36 | 152702001 | R - 19 | |
| 6 | 151912001 | B - 47 | |
| 36 | 152703100 | R - 20 | |
| 6 | 151913001 | B - 49 | |
| 36 | 152705001 | R - 22 | |
| 6 | 151914001 | B - 50 | |
| 36 | 152706001 | R - 23 | |
| 6 | 151915001 | B - 52 | |
| 20 | 152707001 | H - 4 | |
| 8 | 151919101 | B - 57 | |
| 20 | 152708000 | H - 4 | |
| 8 | 151920001 | B - 58 | |
| 20 | 152709000 | H - 6 | |
| 8 | 151922001 | B - 65 | |
| 20 | 152710001 | H- 7 | |
| 8 | 151923001 | B - 68 | |
| 20 | 152713001 | H - § | |
| 8 | 151924001 | B - 69 | |
| 20 | 152718001 | H - 2 |
Page 57
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H - 15 | 152719000 | ||
| H - 16 | 152720000 | ||
| H - 34 | 152723001 | ||
| H - 19 | 152724001 | ||
| B - 8 | 152728001 | ||
| H - 31 | 152730001 | ||
| H - 35 | 152731001 | ||
| H - 36 | 152732001 | ||
| H - 41 | 152734001 | ||
| H - 43 | 152735101 | ||
| H - 43-2 | 152739001 | ||
| E - 1-1 | 152742001 | ||
| F - 2-2 | 152744001 | ||
| E - 2 | 152745001 | ||
| E - 7 | 152749001 | ||
| E - 8 | 152750001 | ||
| E - 6-2 | 152752001 | ||
| E - 11 | 152755001 | ||
| B - 5 | 152756001 | ||
| E - 17 | 152759001 | ||
| E - 20 | 152760001 | ||
| Z - 6-2 | 152765001 | ||
| E - 33 | 152766001 | ||
| E - 36 | 152769001 | ||
| E - 36-1 | 152771000 | ||
| E - 37 | 152772001 | ||
| E - 36-2 | 152773001 | ||
| F - 2-1 | 152798001 | ||
| F - 3 | 152799001 | ||
| F - 6 | 152800201 | ||
| F - 7 | 152801001 | ||
| F - 9 | 152802001 | ||
| F - 13 | 152803001 | ||
| F - 14-1 | 152805101 | ||
| F - 14-2 | 152806001 | ||
| B - 46 | 1528081 01 | ||
| F - 23 | 152811001 | ||
| P - 1 | 152815001 | ||
| P - 2 | 152816001 | ||
| P - 6 | 152822001 | ||
| P - 10 | 152823001 | ||
| P - 12 | 152827001 | ||
| A - 2 | 152830106 | ||
| A - 4 | 152831006 | ||
| A - 4-1 | 152832106 | ||
| A - 4-2 | 152833001 | ||
| A - 9 | 152835006 | ||
| A - 13 | 152836006 | ||
| A - 60 | 152838001 | ||
| A - 61 | 152839001 | ||
| A - 14 | 152841003 | ||
| A - 16-1 | 152842006 | ||
| A - 19 | 152846006 | ||
| A - 85 | 152847000 | ||
| A - 63 | 152848001 | ||
| A - 32-2 | 152852101 | ||
| A - 32-6 | 152857001 | ||
| A - 32-7 | 152858001 | ||
| A - 32-9 | 152859001 | ||
| 152860001 | A - 32-10 | 2 | |
| 152861101 | A - 32-11 | 2 | |
| 152862001 | A - 32-12 | 2 | |
| 152863001 | Z - 20 | 38 | |
| 152864000 | Z - 21 | 38 | |
| 152865101 | A - 32-14 | 2 | |
| 152866001 | A - 51 | 2 | |
| 152867000 | A - 53 | 2 | |
| 152868000 | A - 55 | 2 | |
| 152869001 | L - 1 | 28 | |
| 152870001 | L - 3 | 28 | |
| 152872001 | L - 8 | 28 | |
| 152873001 | L - 16 | 28 | |
| 152874001 | L - 19 | 28 | |
| 152875001 | L - 20 | 28 | |
| 152876001 | L - 21 | 28 | |
| 152877001 | L - 23 | 28 | |
| 152878001 | L - 24 | 28 | |
| 152879101 | L - 25 | 28 | |
| 152880001 | L - 26 | 28 | |
| 152881001 | tL - 31 | 28 | |
| 152883000 | L - 43 | 28 | |
| 152884001 | L - 44 | 28 | |
| 152886001 | L - 33 | 28 | |
| 152887001 | L - 35 | 28 | |
| 152888101 | L - 36 | 28 | |
| 152889001 | iL - 39 | 28 | |
| 152890001 | iL - 41 | 28 | |
| 152892001 | N - 1 | 32 | |
| 152893101 | N - 4 | 32 | |
| 152896001 | N - 2 | 32 | |
| 152897201 | N - 9 | 32 | |
| 152901001 | N - 10 | 32 | |
| 152904001 | N - 11 | 32 | |
| 152905001 | N - 12 | 32 | |
| 152906101 | N - 50 | 32 | |
| 152912001 | N - 18-1 | 32 | |
| 152913001 | B - 55-1 | 8 | |
| 152914001 | B - 55-2 | 8 | |
| 152915001 | N - 19 | 32 | |
| 152916001 | N - 22 | 32 | |
| 152917001 | N - 23 | 32 | |
| 152919001 | N - 18-6 | 32 | |
| 1652920001 | N - 29 | 32 | |
| 152921001 | N - 31 | 32 | |
| 152922001 | N - 34 | 32 | |
| 152923001 | N - 35 | 32 | |
| 152925101 | Q- 1 | 34 | |
| 152926001 | Q- 2 | 34 | |
| 152929001 | Q-7 | 34 | |
| 152933001 | M- 1-3 | 30 | |
| 152934001 | M- 1-4 | 30 | |
| 152935001 | M - 1-6 | 30 | |
| 152936001 | M - 1-7 | 30 | |
| 152937001 | M- 1-8 | 30 | |
| 152938001 | M - 1-10 | 30 | |
| 152939001 | M - 1-12 | 30 | |
| 152940001 | M- 1-15 | 30 | |
| 152941001 | M - 1-20 | 30 | |
| 152945001 | M - 3-1 | 30 | |
| 152948001 | K - 1 | 24 | |
| 152949001 | K - 2 | 24 |
Page 58
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2-1 | 152950001 | K | |
| 20-1 | 153330001 | C | |
| 2-2 | 152951001 | K | |
| 43-1 | 153332001 | H | |
| 2-3 | 152952001 | K | |
| 38 | 153482001 | N | |
| 45 | 152953001 | K | |
| 31 | 153484001 | F | |
| 4-2 | 152955001 | K | |
| G | |||
| 4-3 | 152956001 | K | |
| 64 | 153528001 | K | |
| K | |||
| 61 | 153529001 | K | |
| 4 | 152958001 | K | |
| 62 | 153530001 | K | |
| 4-1 | 152959001 | K | |
| 63-1 | 153531001 | K | |
| 9 | 152960001 | K | |
| ~- 63-2 | 153562001 | K | |
| 12 | 152961001 | K | |
| 28 | 153574201 | Z | |
| 8 | 152962001 | K | |
| 54 | 153596001 | N | |
| 12-5 | 152963001 | K | |
| 53 | 153597001 | N | |
| 17 | 152964001 | K | |
| 51 | 153598001 | N | |
| K | |||
| 47 | 153763001 | K | |
| 18 | 152965001 | K | |
| 4 | 153820101 | E | |
| 42-1 | 152966001 | K | |
| 26-2 | 153823001 | E | |
| 12-2 | 152967001 | K | |
| 30-1 | 153824001 | E | |
| 60 | 152968001 | K | |
| 44 | 153826001 | E | |
| 20 | 152969001 | K | |
| 11 | 153827001 | G | |
| K | |||
| 29 | 153828001 | F | |
| 29 | 152971001 | K | |
| 10 | 153830006 | G | |
| 36-1 | 152973001 | K | |
| 1 | 153831001 | F | |
| K | |||
| 15 | 153834001 | G | |
| 41 | 152974001 | K | |
| 1-1 | 153835006 | G | |
| 49 | 152976001 | K | |
| 1-2 | 153836101 | G | |
| 52 | 152977001 | K | |
| 1-3 | 153838001 | G | |
| 53 | 152978001 | K | |
| 4 | 153840000 | H | |
| 70 | 152980001 | K | |
| 1 | 153841001 | H | |
| K | |||
| 28 | 153842001 | H | |
| 7 | 152981001 | N | |
| 75 | 153843006 | A | |
| 1 | 152982101 | M | |
| 39 | 153845001 | H | |
| 1-1 | 152983001 | M | |
| 69 | 153846001 | A | |
| 1-2 | 152984001 | M | |
| 7 | 153868106 | A | |
| 46 | 152985001 | K | |
| 2-4 | 153918001 | K | |
| 21 | 152986001 | A | |
| 2-7 | 153919001 | K | |
| 5 | 152988001 | Q | |
| 36-2 | 153921001 | K | |
| 20 | 152989001 | A | |
| 44 | 1653922001 | K | |
| 24 | 152992001 | K | |
| K | |||
| 6-4 | 152995001 | N | |
| 66 | 153924001 | K | |
| 43 | 153035000 | E | |
| 68 | 153925001 | K | |
| 2 | 153040001 | C | |
| 69 | 153926001 | K | |
| 1-2 | 153041001 | E | |
| 55 | 153927001 | K | |
| 6-1 | 153042001 | E | |
| 6-3 | 153988001 | E | |
| E | |||
| 30-2 | 153989001 | E | |
| 1 | 153044001 | R | |
| 63 | 154155101 | B | |
| 7 | 153049001 | L | |
| 16 | 154174001 | E | |
| 16-9 | 153050000 | J | |
| 29 | 154179001 | Z | |
| 62 | 153056102 | A | |
| 46-1 | 154332001 | B | |
| 62 | 153056103 | A | |
| F | |||
| 62 | 153056104 | A | |
| 46-2 | 154333001 | B | |
| 62 | 153056107 | A | |
| F | |||
| 42 | 153057002 | E | |
| 79 | 154465001 | A | |
| 1-4 | 153058001 | R | |
| 1-21-1 | 154528001 | M | |
| 56-2 | 153098000 | A | |
| 20 | 154561001 | C | |
| 56 | 153100000 | A | |
| 15 | 154623000 | C | |
| 56-1 | 153102001 | A | |
| 20-3 | 154624001 | C | |
| 17 | 153104001 | H | |
| 42 | 154626001 | L | |
| 13 | 153106001 | Z | |
| 26 | 154627001 | C | |
| 13 | 153107001 | Z | |
| 1-1-1 | 154684006 | S | |
| 46 | 153138001 | L | |
| 1-1-7 | 154685001 | S | |
| 48 | 153141001 | H | |
| 1-1-10 | 154686001 | S | |
| 43-3 | 153195001 | H | |
| 1 | 154694006 | S | |
| 44 | 153208002 | N | |
| $s | |||
| 46 | 153219001 | N | |
| 1-3 | 154696001 | S | |
| 45 | 153220001 | N | |
| 1-5 | 154697001 | ||
| 8 | 153222001 | N | |
| 22 | 154701001 | C |
Page 59
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 154702001 | Z- 11 | ||
| 154713001 | S - 1-7 | ||
| 154738101 | A - 32-1 | ||
| 154760001 | Z - 31 | ||
| 154785000 | A - 83 | ||
| 154788001 | N - 25 | ||
| 154789001 | N - 18-5 | ||
| 155336001 | H - 46 | ||
| 155337001 | H - 43-5 | ||
| 155489000 | J - 16-10 | ||
| 155499001 | B - 62 | ||
| 155500001 | B - 76 | ||
| 155501001 | B - 42 | ||
| 155523001 | D - 10 | ||
| 156101001 | H - 22 | ||
| 156102001 | H - 22 | ||
| 156103001 | H - 22 | ||
| 156107201 | G - 21 | ||
| 156154001 | S - 1-15 | ||
| 156206001 | P - 14 | ||
| 156336001 | S - 1-6 | ||
| 156445001 | H - 31 | ||
| 156446001 | H - 28 | ||
| 156447001 | H - 22 | ||
| 156493001 | A - 69 | ||
| 156935101 | R-9 | ||
| 158686001 | F - 15 | ||
| 158687001 | F - 24 | ||
| 159610101 | J - 35 | ||
| 159613001 | J - 36 | ||
| Z-7 | Z-7 | ||
| 159805001 | L - 13 | ||
| 159808001 | A - 32 | ||
| 159938001 | G - 21-19 | ||
| 153939001 | G - 21-20 | ||
| 159940001 | N - 417 | ||
| 159941001 | G - 21-3 | ||
| 159942001 | G - 21-5 | ||
| 159971001 | E - 41 | ||
| 159977000 | H - 9 | ||
| 159978001 | H - 11 | ||
| 159979001 | H - 12 | ||
| 159984001 | H - 13 | ||
| 402887001 | J - 16-7 |
Brother B-438 — parts catalog
- Page 1 (cover): This is the cover page for the Brother LK3-B438 high-speed lock stitch button sewing machine parts book, available in multiple languages.
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (toc): This page is the table of contents for the parts book, listing various sections related to the sewing machine's components and their corresponding page numbers.
- Page 4 (toc): This page provides notes for using the parts book and a table of contents listing various mechanisms and their corresponding page numbers.
- Page 5 (toc): This page contains the table of contents for the parts list book, including sections like machine housing, coupling device, upper shaft and needle bar, and various other mechanisms, along with general notes on how to use the book.
- Page 6 (toc): This page provides notes on the use of the parts manual and a table of contents listing various mechanisms and accessories with their corresponding page numbers.
- Page 7 (toc): This page provides notes on how to use the parts book and an index of the mechanisms and accessories, along with their corresponding page numbers.
- Page 8 (diagram): This page displays a diagram of the machine body and related components, including various parts and their reference numbers.
- Page 9 (parts_list): This page lists parts for the machine body, including covers, screws, washers, and various components for the belt and oil systems.
- Page 10 (diagram): This page displays a detailed diagram of the machine body and its components, including various parts and their reference numbers.
- Page 11 (parts_list): This page lists parts for the machine body, including various screws, pins, shafts, springs, washers, caps, regulators, trays, oilers, felt, and packing.
- Page 12 (diagram): This page displays a detailed diagram of the clutch mechanism, including various components and their reference numbers.
- Page 13 (parts_list): This page lists parts for the clutch mechanism, including levers, shafts, washers, screws, nuts, springs, and brake components.
- Page 14 (diagram): This page displays a detailed diagram of the clutch mechanism for an industrial sewing machine, with various components labeled with reference numbers.
- Page 15 (parts_list): This page lists parts for the clutch mechanism, including taper pins, nuts, stud screws, clutch cam lever assemblies, rollers, stop rings, bolts, starting levers, spring washers, starting lever plates, stopper screws, chain hooks, spring hooks, springs, starting lever shafts, horizontal feed crank rings, washers, stop rings, screws, and cap for oil inlet.
- Page 16 (diagram): This page illustrates the upper shaft and needle bar mechanism with an exploded view of its components.
- Page 17 (parts_list): This page lists parts for the upper shaft and needle bar mechanism, including various screws, bearings, and levers.
- Page 18 (diagram): This page illustrates the components of the power lift mechanism, including various shafts, bearings, washers, and springs.
- Page 19 (parts_list): This page lists parts for the power lift mechanism, including shafts, rings, bearings, screws, and various assemblies and components.
- Page 20 (diagram): This page illustrates the feed mechanism components with an exploded view diagram.
- Page 21 (parts_list): This page lists parts for the feed mechanism, including various levers, screws, bushings, washers, and other components.
- Page 22 (diagram): This page illustrates the work clamp lifter mechanism, Stoffhalterhebervorrichtung, Mecanisme de leveur du pinceur, and Mecanismo de levantador de ménsula de trabajo with a detailed diagram showing various components and their reference numbers.
- Page 23 (parts_list): This page lists parts for the work clamp lifter mechanism, including rods, levers, pins, screws, washers, and nuts, with their corresponding part numbers and quantities.
- Page 24 (diagram): This page illustrates the button clamp mechanism and spring bracket mechanism with an exploded view diagram and corresponding reference numbers.
- Page 25 (parts_list): This page lists parts for the button clamp mechanism, including various levers, screws, washers, nuts, springs, and guide pins.
- Page 26 (diagram): This page illustrates the feed cam mechanism and vertical shaft components of an industrial sewing machine.
- Page 27 (parts_list): This page lists parts for the feed cam mechanism and vertical shaft, including worms, screws, washers, sleeves, bolts, and various assemblies.
- Page 28 (diagram): This page illustrates the lower shaft mechanism of an industrial sewing machine, showing various components and their interconnections.
- Page 29 (parts_list): This page lists parts for the lower shaft mechanism, including screws, gears, bushings, and shuttle race components.
- Page 30 (diagram): This page displays a diagram of lubrication and oiling components for an industrial sewing machine.
- Page 31 (parts_list): This page lists parts for lubrication and lubrication/schmierung, including part numbers, codes, quantities, and names of parts.
- Page 32 (diagram): This page displays a diagram of lubrication and lubrication components for an industrial sewing machine, with various parts numbered for identification.
- Page 33 (parts_list): This page lists lubrication and lubrication-related parts for industrial sewing machines, including screws, wick holders, felt, and washers, with their corresponding part numbers and descriptions.
- Page 34 (diagram): This page displays a diagram of the threading mechanism and related components of a sewing machine, with numbered parts indicated for reference.
- Page 35 (parts_list): This page lists parts for the L. Threading mechanism/Fadenführungsvorrichtung/Mécanisme de la enhebrado, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of the bobbin winder mechanism/spooler, detailing various parts with their corresponding reference numbers.
- Page 37 (parts_list): This page lists parts for the Bobbin winder mechanism/Spuler, including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of the thread trimmer mechanism, also known as the Fadenabschneidevorrichtung or Mecanismo de recorte de orillos, with various parts labeled with reference numbers.
- Page 39 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page contains diagrams and parts lists for the Thread wiper mechanism and the Thread nipper mechanism.
- Page 41 (parts_list): This page contains parts lists for the Thread wiper mechanism and the Thread nipper mechanism, detailing part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays diagrams for the Drive pulley and idler pulley mechanism and the Shank attachment (Option parts).
- Page 43 (parts_list): This page lists parts for the Drive pulley and idler pulley mechanism and the Shank attachment device, including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of accessories and spare parts for the sewing machine, with various components labeled with reference numbers and part numbers.
- Page 45 (parts_list): This page lists accessories and spare parts for sewing machines, including part numbers, descriptions, quantities, and remarks.
- Page 46 (diagram): This page displays a diagram of various sewing machine accessories and parts, including tools, belts, and oil bottles, with corresponding reference numbers for identification.
- Page 47 (parts_list): This page lists parts for accessories, including button clamp plate springs, with reference numbers, part codes, quantities, and names.
- Page 48 (diagram): This page displays a diagram of various sewing machine parts, including screws, nuts, levers, and plates, with reference numbers and part numbers indicated for each component.
- Page 49 (parts_list): This page lists option parts for sewing machines, including feed plates, snap button clamp assemblies, needle hole plates, and various screws, nuts, and springs, with part numbers, quantities, and descriptions.
- Page 50 (parts_list): This page lists the Upper Shaft Assembly (438) with part number S01689-001, and includes a reference number 1-3 and quantity 3.
- Page 51 (parts_list): This page lists optional parts for the SCAbin, including button spacer assemblies, spacers, washers, screws, and bolts, with their respective part numbers, quantities, and remarks.
- Page 52 (parts_list): This page lists various parts for sewing machines, including labels, stitch regulators, worm gears, feed cams, clutch cams, knife cams, motor pulleys, and V-belts, along with their corresponding part numbers and quantities.
- Page 53 (index): This page is an index listing part codes, reference numbers, and corresponding page numbers in the catalog.
- Page 54 (parts_list): This page lists various parts with their corresponding part numbers, reference numbers, and page references. It includes part numbers like 0260501, 062670512, and 100032004.
- Page 55 (unknown): This page lists part numbers, reference numbers, and page references, likely from a parts catalog index or a cross-reference section.
- Page 56 (parts_list): This page lists part numbers with their corresponding reference numbers and page references, organized in two columns.
- Page 57 (parts_list): This page lists various parts with their corresponding reference numbers and page references, organized into two columns. It includes part numbers like 152719000 and 152860001.
- Page 58 (parts_list): This page lists part numbers, reference numbers, and page references for various sewing machine components, organized in two columns.
- Page 59 (unknown): This page lists part numbers with their corresponding reference numbers and page numbers, likely for an index or cross-reference within a parts catalog.
- Page 60 (cover): This is the cover page of the Brother industrial sewing machine parts catalog, featuring the Brother logo and company information.
