brother LK3-B438 高速本縫筒型ボタン付けミシン HIGH-SPEED LOCK STITCH BUTTON SEWING MACHINE VERRIEGELUNGSSTICH-SCHNELLNÄHER ZUM ANNÄHEN VON KNÖPFEN MACHINE ULTRA-RAPIDE À POINT D'ARRÊT ET BRAS CYLINDRIQUE POUR LA POSE DES BOUTONS MÁQUINA DE COSER BOTONES DE COBLE PESPUNTE CON BARRA CILÍNDRICA Y DE ALTA VELOCIDAD パーツブック PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS P438401 jintex.in
jintex.in

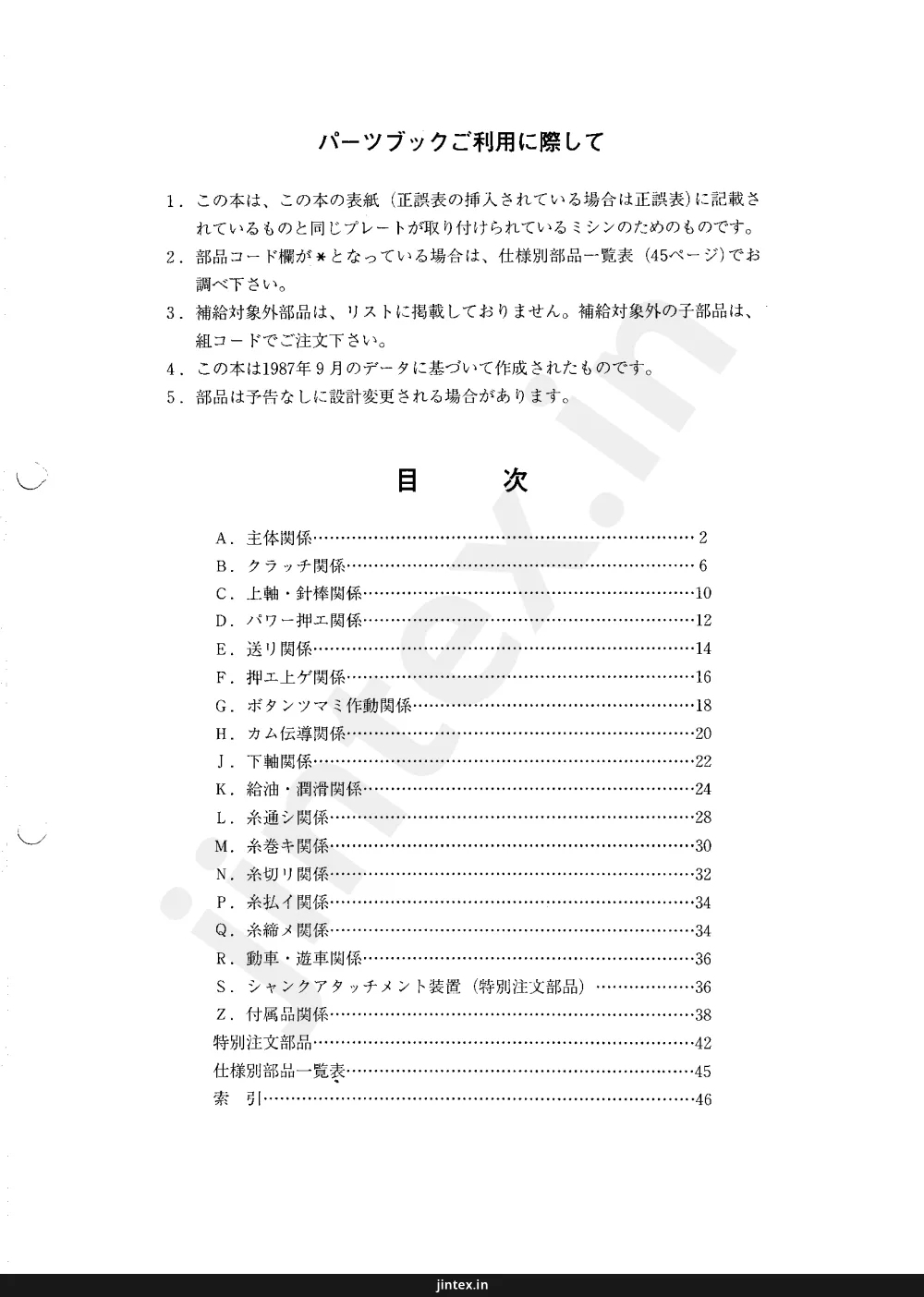

パーツブックご利用に際して 1. この本は、この本の表紙(正誤表の挿入されている場合は正誤表)に記載さ れているものと同じプレートが取り付けられているミシンのためのものです。 2. 部品コード欄が*となっている場合は、仕様別部品一覧表(45ページ)でお 調べ下さい。 3. 補給対象外部品は、リストに掲載しておりません。補給対象外の子部品は、 組コードでご注文下さい。 4. この本は1987年9月のデータに基づいて作成されたものです。 5. 部品は予告なしに設計変更される場合があります。 目 次 A. 主体関係……………………………………………………………2 B. クラッチ関係………………………………………………………6 C. 上軸・針棒関係……………………………………………………10 D. パワー押工関係……………………………………………………12 E. 送り関係……………………………………………………………14 F. 押工上ゲ関係………………………………………………………16 G. ボタンツマミ作動関係……………………………………………18 H. カム伝導関係………………………………………………………20 J. 下軸関係……………………………………………………………22 K. 給油・潤滑関係……………………………………………………24 L. 糸通シ関係…………………………………………………………28 M. 糸巻キ関係…………………………………………………………30 N. 糸切り関係…………………………………………………………32 P. 糸払イ関係…………………………………………………………34 Q. 糸締メ関係…………………………………………………………34 R. 動車・遊車関係……………………………………………………36 S. シャンクアタッチメント装置(特別注文部品)…………………36 Z. 付属品関係…………………………………………………………38 特別注文部品…………………………………………………………42 仕様別部品一覧表……………………………………………………45 索 引…………………………………………………………………46 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A. | Machine body | 2 | |
| B. | Clutch mechanism | 6 | |
| C. | Upper shaft and needle bar mechanism | 10 | |
| D. | Power lift mechanism | 12 | |
| E. | Feed mechanism | 14 | |
| F. | Work clamp lifter mechanism | 16 | |
| G. | Button clamp mechanism | 18 | |
| H. | Feed cam mechanism | 20 | |
| J. | Lower shaft mechanism | 22 | |
| K. | Lubrication | 24 | |
| L. | Threading mechanism | 28 | |
| M. | Bobbin winder mechanism | 30 | |
| N. | Thread trimmer mechanism | 32 | |
| P. | Thread wiper mechanism | 34 | |
| Q. | Thread nipper mechanism | 34 | |
| R. | Drive pulley and idler pulley mechanism | 36 | |
| S. | Shank attachment (Option parts) | 36 | |
| Z. | Accessories | 38 | |
| OPTION PARTS | 42 | ||
| DIFFERENT PARTS LIST | 45 | ||
| INDEX | 46 |
Notes for using this parts book 1. This book is applicable to sewing machines which have the same plate number as shown on the cover of this book (or correction sheet). 2. If the symbol * is found in the “Parts No.” column, refer to the different parts list on page 45. 3. Parts which are not supplied separately are not included in the parts list. For assembly components of parts which are not supplied separately, order by the assembly number. 4. This book was prepared based on information available in September 1987. 5. Parts are subject to changes in design without prior notice. CONTENTS A. Machine body .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
ANMERKUNGEN ZUM GEBRAUCH DIESES STÜCKLISTEBUCHES 1. Dieses Buch bezieht sich auf die Nähmaschinen mit derselben Kennungs- nummer wie auf diesem Buchumschlag (oder auf dem Korrekturblatt). 2. Dieses Zeichen * in der Spalte "Parts No. (Teilnummer)" verweist auf die Gesonderte Stückliste auf Seite 45. 3. In der Teileliste sind die Teile, die nicht separat lieferbar sind, nicht aufgeführt. Für die Bestellung dieser Teile wird auf die betreffende Bauteilnummer verwiesen. 4. Dieses Buch basiert auf den Informationen vom September 1987. 5. Modelländerungen sind vorbehalten. INHALTSVERZEICHNS A. Maschinengehäuse .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A. | Corps de la machine | ||
| B. | Mécanisme de l'embrayage | ||
| C. | Mécanisme de arbre supérieur et barre à aiguille | ||
| D. | Mécanisme de leveur | ||
| E. | Mécanisme de l'entraînement | ||
| F. | Mécanisme de leveur du pinceur | ||
| G. | Mécanisme du pince-boutons | ||
| H. | Mécanisme d'arbre vertical | ||
| J. | Mécanisme de l'arbre inférieur | ||
| K. | Lubrification | ||
| L. | Mécanisme de l'enfilage | ||
| M. | Mécanisme de bobineur | ||
| N. | Mécanisme de coupe-fil | ||
| P. | Mécanisme de tire-fil | ||
| Q. | Mécanisme de pince-fil | ||
| R. | Mécanisme de poulie d'entraînement et poulie folle | ||
| S. | Accessoire de talon (Pièces en option) | ||
| Z. | Accessoires | ||
| PIECES EN OPTION | |||
| LISTE DES PIECES ACCESSOIRES | |||
| INDEX |
Notes sur l'utilisation de ce manuel de pièces détachées 1. Ce manuel est destiné aux machines à coudre ayant le même numéro de plaque montré sur la couverture de ce manuel (ou sur la feuille de corrections). 2. Si le symbole * se trouve dans la colonne "Parts No. (N° de pièce)" veuillez la vous référer à la liste de pièces annexe page 45. 3. Les pièces fournies séparément ne sont pas comprises dans la liste des pièces. Pour ce qui concerne les composants de montage des pièces qui ne sont pas fournies séparément, faire les commandes en se reportant au numéro de montage. 4. Ce manuel a été fait d'après les renseignements valables au mois de Septembre 1987. 5. Les pièces peuvent être sujettes à des modifications sans préavis. TABLE DES MATIERES A. Corps de la machine .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Notas para usar este Libro de Piezas 1. Este libro sivtre para todas las máquinas de coser que llevan la misma placa de identificación que la que se puede ver en la tape de este libro (o en la hoja de erratas). 2. De haber un símbolo * junto al “Parts No. (Número de Pieza)”, habrá que mirar la lista de piezas separada de la página 45. 3. Las piezas que no se venden por separado no se incluyen en la lista de piezas. Para las piezas individuales de un conjunto que no se venden por separado, realizar el pedido usando el número de pieza del conjunto. 4. Este libro ha sido compilado basándose en los datos de que se disponía en septiembre 1987. 5. Las piezas quedan sujetas a cambios de diseño sin aviso previo. INDICE A. Cuerpo de la máquina ................................................................. 2 B. Mecanismo de embrague ............................................................ 6 C. Mecanismo de eje superior y barra de aguja .............................. 10 D. Mecanismo de carreta de potencia .............................................. 12 E. Mecanismo de la alimentación ................................................... 14 F. Mecanismo de levantador de ménsula de trabajo ........................ 16 G. Mecanismo de la ménsula de resorte .......................................... 18 H. Mecanismo de eje vertical .......................................................... 20 J. Mecanismo de la eje inferior ...................................................... 22 K. Lubricatión ................................................................................ 24 L. Mecanismo de la enhebrado ....................................................... 28 M. Mecanismo del devanador de la canilla ...................................... 30 N. Mecanismo de recortdora de orillos ........................................... 32 P. Mecanismo de limpiador de hilos ............................................... 34 Q. Mecanismo de mordaza para hilos .............................................. 34 R. Mecanismo de polea impulsora y polea tensora .......................... 36 S. Mecanismo de la caña (Piezas opcion) ....................................... 36 Z. Accesorios ................................................................................. 38 PIEZAS EN OPCION ..................................................................... 42 LISTA DE PIEZAS ACCESORIAS ................................................. 45 INDICE .......................................................................................... 46 jintex.in
A. 主体関係/Machine body/Maschinengehäuse/ Corps de la máquina/Cuerpo de la máquina 83 2 3 19 84 70 71 69 5 4-1 4-2 28 27 27 15 27 29 8 7 14 brother 20 22 63 21 64 27 29 6 57 56-1 56-2 56-4 66 56-3 27 85 輸出用/ for Export 16-2 66 62 72 30 74 54 53 12 65 10 9 31 18 17 73 77 11 輸出用/ for Export 16-1 32-10 51 52 32-8 13 32-7 61 32-10 32-9 75 76 58 59 60 32-1 32-14 32-15 32-16 32-4 32-5 32-3 79 32-11 81 32-16 32-17 32-15 32-13 32-12 80 32-2 32-2-1 32-2 32-2-2 Jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 152830106 | TOP COVER | 1 |
| 3 | 062761412 | SCREW 595-28X14 | 6 |
| 4 | 152831006 | FACE PLATE ASSEMBLY | 1 |
| 4-1 | 152832106 | FACE PLATE | 1 |
| 4-2 | 152833001 | PACKING | 1 |
| 5 | 062711412 | SCREW 476-32X14 | 2 |
| 6 | 062710712 | SCREW 476-32X7 | 1 |
| 7 | 153868106 | SIDE COVER | 1 |
| 8 | 062711412 | SCREW 476-32X14 | 4 |
| 9 | 152835006 | BED COVER (R) | 1 |
| 10 | 100315002 | WASHER | 1 |
| 11 | 025770232 | WASHER 6.35 | 1 |
| 12 | 145480001 | STUD SCREW 6.35 | 1 |
| 13 | 152836006 | BED COVER (L) ASSEMBLY | 1 |
| 14 | 152841003 | THREAD TAKE-UP COVER | 1 |
| 15 | 062670812 | SCREW 357-40X8 | 1 |
| 16-1 | 152842006 | SHUTTLE RACE COVER ASSEMBLY | 1 |
| 16-2 | S01888006 | -------- | 1 |
| 17 | 115493002 | STUD SCREW 5.95 | 2 |
| 18 | 109239002 | WASHER | 2 |
| 19 | 152846006 | BELT COVER | 1 |
| 20 | 152989001 | BELT COVER SPRING PLATE | 1 |
| 21 | 152986001 | BELT COVER STOPPER | 1 |
| 22 | 062680812 | SCREW 437-40X8 | 1 |
| 27 | 117936001 | OIL CAP | 14 |
| 28 | 140392001 | OIL CAP | 1 |
| 29 | 117934001 | OIL CAP | 2 |
| 30 | 108520001 | OIL CAP | 1 |
| 31 | 104450101 | OIL CAP | 1 |
| 32 | 159808001 | OIL PAN ASSEMBLY | 1 |
| 32-1 | 154738101 | OIL PAN | 1 |
| 32-2 | 152852101 | TENSION PULLEY ASSEMBLY | 1 |
| 32-2-1 | 048320242 | STOP RING C32 | 1 |
| 32-2-2 | 141860001 | SCREW 6.35 | 1 |
| 32-3 | 018081222 | BOLT 8X12 | 1 |
| 32-4 | 025080232 | WASHER 8 | 1 |
| 32-5 | 028080242 | SPRING WASHER 2-8 | 1 |
| 32-6 | 152857001 | HEAD SUPPORTER LEVER | 1 |
| 32-7 | 152858001 | HEAD SUPPORTER LEVER SHAFT | 1 |
| 32-8 | 013719412 | SCREW 4.76 | 1 |
| 32-9 | 152859001 | HEAD SUPPORTER LEVER SPRING | 1 |
| 32-10 | 152860001 | BED CUSHION | 4 |
| 32-11 | 152861101 | MOTOR BASE PLATE | 1 |
| 32-12 | 152862001 | MOTOR BASE PLATE SHAFT | 1 |
| 32-13 | 048100142 | STOP RING C10 | 2 |
| 32-14 | 152865101 | L BOLT M10 | 1 |
| 32-15 | 021100202 | NUT 10 | 2 |
| 32-16 | 025100132 | WASHER 10 | 2 |
| 32-17 | 028100242 | SPRING WASHER 2-10 | 1 |
| 51 | 152866001 | HEAD SUPPORTER PIN | 1 |
| 52 | 013760612 | SCREW 5.95 | 1 |
| 53 | 152867000 | HINGE SHAFT | 2 |
| 54 | 151604002 | SCREW 5.95 | 2 |
| 55 | 152868000 | HEAD CUSHION | 2 |
| 56 | 153100000 | EYE GUARD ASSEMBLY | 1 |
| 56-1 | 153102001 | EYE GUARD HINGE ASSEMBLY | 1 |
| 56-2 | 153098000 | EYE GUARD | 1 |
| 56-3 | 102538007 | SCREW 3.57 | 2 |
| 56-4 | 106129001 | NUT 3.57 | 2 |
| 57 | 062670512 | SCREW 357-40X5 | 2 |
| 58 | 114985001 | BED COVER STOP SPRING | 1 |
| 59 | 062680612 | SCREW 437-40X6 | 1 |
A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 2 152830106 1 ウワフタ TOP COVER 3 062761412 6 ナベコ595-28X14 SCREW 595-28X14 4 152831006 1 メンイタクミ FACE PLATE ASSEMBLY 4-1 152832106 1 メンイタ FACE PLATE 4-2 152833001 1 メンイタパツキン PACKING 5 062711412 2 ナベコ476-32X14 SCREW 476-32X14 6 062710712 1 ナベコ476-32X7 SCREW 476-32X7 7 153868106 1 ソクメンカバー SIDE COVER 8 062711412 4 ナベコ476-32X14 SCREW 476-32X14 9 152835006 1 ベツドカバーR BED COVER (R) 10 100315002 1 ナミバネ WASHER 11 025770232 1 ヒラザガネチユウ6.35 WASHER 6.35 12 145480001 1 ダンネジ6.35 STUD SCREW 6.35 13 152836006 1 ベツドカバーLクミ BED COVER (L) ASSEMBLY 14 152841003 1 テンビンカバー THREAD TAKE-UP COVER 15 062670812 1 ナベコ357-40X8 SCREW 357-40X8 16-1 152842006 1 -------- SHUTTLE RACE COVER ASSEMBLY 16-2 S01888006 1 オオカマカバークミC -------- 17 115493002 2 ダンネジ5.95 STUD SCREW 5.95 18 109239002 2 ナミバネザガネ WASHER 19 152846006 1 ベルトカバー BELT COVER 20 152989001 1 ベルトカバーバネウケ BELT COVER SPRING PLATE 21 152986001 1 ベルトカバーバネササエ BELT COVER STOPPER 22 062680812 1 ナベコ437-40X8 SCREW 437-40X8 27 117936001 14 メクラセン OIL CAP 28 140392001 1 オイルフタ OIL CAP 29 117934001 2 メクラセン OIL CAP 30 108520001 1 メクラセン OIL CAP 31 104450101 1 メクラセン OIL CAP 32 159808001 1 オイルパンクミ OIL PAN ASSEMBLY 32-1 154738101 1 オイルパン OIL PAN 32-2 152852101 1 テンシヨンプーリクミ TENSION PULLEY ASSEMBLY 32-2-1 048320242 1 トメワアナヨウC32 STOP RING C32 32-2-2 141860001 1 シメネジ6.35 SCREW 6.35 32-3 018081222 1 アナボルト8X12 BOLT 8X12 32-4 025080232 1 ヒラザガネチユウ8 WASHER 8 32-5 028080242 1 バネザガネ2-8 SPRING WASHER 2-8 32-6 152857001 1 トウブササエレバー HEAD SUPPORTER LEVER 32-7 152858001 1 トウブササエレバージク HEAD SUPPORTER LEVER SHAFT 32-8 013719412 1 シメネジ4.76クボミ SCREW 4.76 32-9 152859001 1 トウブササエレバーバネ HEAD SUPPORTER LEVER SPRING 32-10 152860001 4 ベツドクツシヨン BED CUSHION 32-11 152861101 1 モーターダイ MOTOR BASE PLATE 32-12 152862001 1 モーターダイジク MOTOR BASE PLATE SHAFT 32-13 048100142 2 トメワジクヨウC10 STOP RING C10 32-14 152865101 1 LガタボルトM10 L BOLT M10 32-15 021100202 2 ナツト10 NUT 10 32-16 025100132 2 ヒラザガネシヨウ10 WASHER 10 32-17 028100242 1 バネザガネ2-10 SPRING WASHER 2-10 51 152866001 1 トウブササエピン HEAD SUPPORTER PIN 52 013760612 1 トメネジ5.95クボミ SCREW 5.95 53 152867000 2 ベツドヒンジジク HINGE SHAFT 54 151604002 2 トメネジ5.95 SCREW 5.95 55 152868000 2 ベツドヒンジクツシヨン HEAD CUSHION 56 153100000 1 -------- EYE GUARD ASSEMBLY 56-1 153102001 1 -------- EYE GUARD HINGE ASSEMBLY 56-2 153098000 1 -------- EYE GUARD 56-3 102538007 2 -------- SCREW 3.57 56-4 106129001 2 -------- NUT 3.57 57 062670512 2 -------- SCREW 357-40X5 58 114985001 1 ベツドカバー トメバネ BED COVER STOP SPRING 59 062680612 1 ナベコ437-40X6 SCREW 437-40X6 jintex.in
A. 主体関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina 83 2 3 19 5 4-1 4-2 28 27 15 27 29 8 7 84 70 71 69 14 brother 20 22 63 21 64 29 6 27 57 56-1 56-2 56-4 56-3 輸出用/ for Export 16-2 66 27 27 66 27 30 85 62 72 74 54 53 12 65 10 9 55 18 17 73 77 11 輸出用/ for Export 31 16-1 13 32-10 32-7 32-6 51 52 32-8 75 76 61 32-10 58 59 60 32-1 32-14 32-19 32-18 32-16 32-4 32-5 32-3 79 32-11 81 32-16 32-17 32-15 32-13 32-12 80 32-2 32-2-1 32-2-2 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 60 | 152838001 | GROOVED PIN | 1 |
| 61 | 152839001 | BED COVER SHAFT | 1 |
| 62 | * | LABEL | 1 |
| 63 | 152848001 | BELT COVER SPRING | 1 |
| 64 | 062680812 | SCREW 437-40X8 | 2 |
| 65 | 025080132 | WASHER 8 | 1 |
| 66 | 104450101 | OIL CAP | 2 |
| 69 | * | STITCH REGULATOR | 1 |
| 70 | 062680612 | SCREW 437-40X6 | 2 |
| 71 | 025680132 | WASHER 4.37 | 2 |
| 72 | 115270006 | BUTTON TRAY | 1 |
| 73 | 115160001 | BUTTON TRAY LEG | 2 |
| 74 | 014770622 | SCREW 6.35 | 2 |
| 75 | 153843006 | BUTTON TRAY HOLDER | 1 |
| 76 | 014760622 | SCREW 5.95 | 1 |
| 77 | 101795001 | SCREW 3.5X16 | 2 |
| 79 | 154465001 | DUST OILER SUPPORTER | 1 |
| 80 | 114486002 | OILER | 1 |
| 81 | 062710612 | SCREW 476-32X6 | 2 |
| 83 | 154785000 | FELT | 2 |
| 84 | 047501242 | SPRING PIN AW5 | 2 |
| 85 | 152847000 | PACKING | 2 |
A. 主体関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 60 152838001 1 ミゾツキピン GROOVED PIN 61 152839001 1 ベッドカバージク BED COVER SHAFT 62 * 1 ラベル LABEL 63 152848001 1 ベルトカバーバネ BELT COVER SPRING 64 062680812 2 ナベコ437-40X8 SCREW 437-40X8 65 025080132 1 ヒラザガネショウ8 WASHER 8 66 104450101 2 オイルセン OIL CAP 69 * 1 ハリカズキリカエキ STITCH REGULATOR 70 062680612 2 ナベコ437-40X6 SCREW 437-40X6 71 025680132 2 ヒラザガネショウ4.37 WASHER 4.37 72 115270006 1 ボタンサラ BUTTON TRAY 73 115160001 2 ボタンサラアシ BUTTON TRAY LEG 74 014770622 2 アナトメネジ6.35クボミ SCREW 6.35 75 153843006 1 ボタンサラアシホルダ BUTTON TRAY HOLDER 76 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 77 101795001 2 ザラモクネジ3.5X16 SCREW 3.5X16 79 154465001 1 ハイユキヤツプササエキ DUST OILER SUPPORTER 80 114486002 1 ホリオイラータイ OILER 81 062710612 2 ナベコ476-32X6 SCREW 476-32X6 83 154785000 2 フエルト FELT 84 047501242 2 スプリングピンAW5 SPRING PIN AW5 85 152847000 2 ベルトカバーゴムザ PACKING jintex.in
B. クラッチ関係 / Clutch mechanism / Kupplungsvorrichtung / Mécanisme de l'embrayage/Mecanismo de embrague 39-4 39-5 39-2 39-3 43 45 44 34 39-1 52 53 39-6 52-1 39-7 40 42 41 20 31 30 32 24 30 31 15 25 56 38 55 37 36 35 29 27 26 27 55-2 21 55-1 55-3 33 10 13 14 2 1 6 12 11 4 3 5 7 8 9 34 16 19 18 20 22 23 17 48 47 46-2 46-3 69 68 18 58 61 60 59 46-1 71 80 67 73 64 74 70 71 75 57 72 65 66 51 50 49 63 62 76 78 79 77 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151886001 | CLUTCH LEVER | 1 |
| 2 | 151927001 | CLUTCH FELT | 1 |
| 3 | 151887001 | CLUTCH LEVER SHAFT | 1 |
| 4 | 048180142 | STOP RING C18 | 1 |
| 5 | 152756001 | THRUST WASHER 18 | 1 |
| 6 | 014821022 | SCREW 7.94 | 1 |
| 7 | 151929000 | THRUST WASHER 18 | 1 |
| 8 | 152728001 | THRUST WASHER 8 | 1 |
| 9 | 151163001 | BOLT 8X15 | 1 |
| 10 | 151888101 | BALL PRESSER PLATE | 1 |
| 11 | 018082522 | BOLT 8X25 | 2 |
| 12 | 028080242 | SPRING WASHER 2-8 | 2 |
| 13 | 115012002 | SCREW 6.35 | 1 |
| 14 | 150554002 | NUT 6.35 | 1 |
| 15 | 151889001 | CLUTCH STOPPER | 1 |
| 16 | 151900000 | CUSHION RUBBER | 1 |
| 17 | 151891001 | CLUTCH SPRING | 1 |
| 18 | 151892001 | SPRING HOLDER | 2 |
| 19 | 115018001 | CUSHION RUBBER | 2 |
| 20 | 025800332 | WASHER 7.14 | 1 |
| 21 | 151893001 | STOPPER BAR | 1 |
| 22 | 021800102 | NUT 7.14 | 1 |
| 23 | 104689002 | NUT 7.14 | 1 |
| 24 | 151894101 | BRAKE LEVER | 1 |
| 25 | 151895000 | BRAKE ASSEMBLY | 1 |
| 26 | 151898001 | BRAKE SHAFT | 1 |
| 27 | 048040342 | STOP RING E4 | 2 |
| 28 | 151899001 | SPRING | 1 |
| 29 | 151900001 | BRAKE LEVER SHAFT | 1 |
| 30 | 142628001 | HORIZONTAL FEED CRANK RING | 2 |
| 31 | 048110142 | STOP RING C11 | 2 |
| 32 | 013761410 | SCREW 5.95 | 1 |
| 33 | 151901001 | BRAKE SLIDE PIN | 1 |
| 34 | 014760622 | SCREW 5.95 | 1 |
| 35 | 151902001 | BRAKE SPRING | 1 |
| 36 | 151903001 | SPRING HOOK | 1 |
| 37 | 106147002 | NUT 7.94 | 1 |
| 38 | 110251001 | SPRING HOOK | 1 |
| 39 | 151904101 | CLUTCH LEVER ROD ASSEMBLY | 1 |
| 39-1 | 151905101 | CLUTCH LEVER ROD | 1 |
| 39-2 | 107744001 | ROLLER | 1 |
| 39-3 | 151906101 | ROLLER STUD | 1 |
| 39-4 | 048030242 | STOP RING E3 | 1 |
| 39-5 | 113431002 | WASHER | 1 |
| 39-6 | 025680132 | WASHER 4.37 | 1 |
| 39-7 | 021680202 | NUT 4.37 | 1 |
| 40 | 151907001 | STUD SCREW 5.95 | 1 |
| 41 | 151908001 | NUT 5.95 | 1 |
| 42 | 155501001 | CLUTCH LEVER SPRING | 1 |
| 43 | 151910001 | SPRING HOOK | 1 |
| 44 | 117363001 | BOLT 4.76 | 2 |
| 45 | 028050242 | SPRING WASHER 2-5 | 2 |
| 46 | 152808101 | CONNECTING ROD ASSEMBLY | 1 |
| 46-1 | 154332001 | CONNECTING ROD | 1 |
| 46-2 | 154333001 | CONNECTING JOINT | 1 |
| 46-3 | 150556001 | NUT 6.35 | 1 |
| 47 | 151912001 | STUD SCREW 6.35 | 1 |
| 48 | 150556001 | NUT 6.35 | 1 |
| 49 | 151913001 | STUD SCREW 6.35 | 1 |
| 50 | 151914001 | COLLAR 13 | 1 |
| 51 | 150556001 | NUT 6.35 | 1 |
| 52 | 151915001 | CLUTCH ACTUATING LEVER ASSEMBLY | 1 |
B. クラッチ関係 / Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 151886001 1 クラッチレバー CLUTCH LEVER 2 151927001 1 クラッチフェルト CLUTCH FELT 3 151887001 1 クラッチレバーシク CLUTCH LEVER SHAFT 4 048180142 1 トメワC18 STOP RING C18 5 152756001 1 スラストザガネ18 THRUST WASHER 18 6 014821022 1 アナトメネジ"7.94クボミ SCREW 7.94 7 151929000 1 スラストザガネ18 THRUST WASHER 18 8 152728001 1 スラストザガネ8 THRUST WASHER 8 9 151163001 1 アナボルト8X15 BOLT 8X15 10 151888101 1 ボールオサエイタ BALL PRESSER PLATE 11 018082522 2 アナボルト8X25 BOLT 8X25 12 028080242 2 バネザガネ2-8 SPRING WASHER 2-8 13 115012002 1 トメネジ6.35 SCREW 6.35 14 150554002 1 ナット6.35 NUT 6.35 15 151889001 1 ストッパタイ CLUTCH STOPPER 16 151900000 1 ストッパゴム CUSHION RUBBER 17 151891001 1 クラッチバネ CLUTCH SPRING 18 151892001 2 バネウケ SPRING HOLDER 19 115018001 2 カンショウゴム CUSHION RUBBER 20 025800332 1 ヒラザガネダイ7.14 WASHER 7.14 21 151893001 1 ストッパシク STOPPER BAR 22 021800102 1 ナット1シュ7.14 NUT 7.14 23 104689002 1 ナット7.14 NUT 7.14 24 151894101 1 ブレーキレバー BRAKE LEVER 25 151895000 1 ブレーキクミ BRAKE ASSEMBLY 26 151898001 1 ブレーキシク BRAKE SHAFT 27 048040342 2 トメワE4 STOP RING E4 28 151899001 1 ブレーキシュウバネ SPRING 29 151900001 1 ブレーキレバーシク BRAKE LEVER SHAFT 30 142628001 2 スイヘイオクリクランクリング HORIZONTAL FEED CRANK RING 31 048110142 2 トメワジクヨウC11 STOP RING C11 32 013761410 1 トメネジ"5.95クボミ SCREW 5.95 33 151901001 1 ブレーキサドーピン BRAKE SLIDE PIN 34 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 35 151902001 1 ブレーキバネ BRAKE SPRING 36 151903001 1 ブレーキバネカケネジ SPRING HOOK 37 106147002 1 ナット7.94 NUT 7.94 38 110251001 1 メノオサエウデ"バネカケ SPRING HOOK 39 151904101 1 クラッチレバーレンカンクミ CLUTCH LEVER ROD ASSEMBLY 39-1 151905101 1 クラッチレバーレンカン CLUTCH LEVER ROD 39-2 107744001 1 コロ ROLLER 39-3 151906101 1 レンカンコロジク ROLLER STUD 39-4 048030242 1 トメワE3 STOP RING E3 39-5 113431002 1 ザガネ WASHER 39-6 025680132 1 ヒラザガネショウ4.37 WASHER 4.37 39-7 021680202 1 ナット2シュ4.37 NUT 4.37 40 151907001 1 ダンネジ5.95 STUD SCREW 5.95 41 151908001 1 ナット5.95 NUT 5.95 42 155501001 1 クラッチレバーバネ CLUTCH LEVER SPRING 43 151910001 1 クラッチレバーバネカケ SPRING HOOK 44 117363001 2 ボルト4.76 BOLT 4.76 45 028050242 2 バネザガネ2-5 SPRING WASHER 2-5 46 152808101 1 チョウセツロッド"クミ CONNECTING ROD ASSEMBLY 46-1 154332001 1 オサエアゲチョウセツロッド" CONNECTING ROD 46-2 154333001 1 オサエアゲチョウセツツギテ CONNECTING JOINT 46-3 150556001 1 ナット6.35 NUT 6.35 47 151912001 1 ヘンシンダンネジ"6.35 STUD SCREW 6.35 48 150556001 1 ナット6.35 NUT 6.35 49 151913001 1 ダンネジ"6.35 STUD SCREW 6.35 50 151914001 1 カラー13 COLLAR 13 51 150556001 1 ナット6.35 NUT 6.35 52 151915001 1 クラッチサドーレバークミ CLUTCH ACTUATING LEVER ASSEMBLY jintex.in
B. クラッチ関係 /Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague 38-4 39-4 39-5 39-2 39-3 43 45 44 54 39-1 52 53 42 41 29 31 30 38-1 52-1 39-6 32 24 30 31 40 48 15 25 56 38 36 55 35 28 27 55-2 37 21 55-1 55-3 33 10 13 14 12 11 4 3 5 7 8 9 19 16 20 18 22 17 23 47 46-2 69 68 18 46-3 58 61 60 59 46-1 70 71 75 57 72 73 64 74 51 50 49 63 62 65 66 76 78 79 77 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52-1 | 107030001 | TAPER PIN | 1 |
| 53 | 150553001 | NUT 5.95 | 1 |
| 54 | 151907001 | STUD SCREW 5.95 | 1 |
| 55 | 151939001 | CLUTCH CAM LEVER ASSEMBLY | 1 |
| 55-1 | 152913001 | ROLLER STUD | 1 |
| 55-2 | 152914001 | ROLLER | 1 |
| 55-3 | 048040342 | STOP RING E4 | 1 |
| 56 | 018062022 | BOLT 6X20 | 1 |
| 57 | 151919101 | STARTING LEVER | 1 |
| 58 | 151920001 | STARTING SAFETY LEVER | 1 |
| 59 | 017711412 | BOLT 4.76X14 | 2 |
| 60 | 028050242 | SPRING WASHER 2-5 | 2 |
| 61 | 113431002 | WASHER | 2 |
| 62 | 155499001 | STARTING LEVER PLATE | 1 |
| 63 | 154155101 | STOPPER SCREW | 1 |
| 64 | 150553001 | NUT 5.95 | 1 |
| 65 | 151922001 | CHAIN HOOK | 1 |
| 66 | 017762202 | BOLT 5.95X22 | 1 |
| 67 | 110251001 | SPRING HOOK | 1 |
| 68 | 151923001 | SPRING | 1 |
| 69 | 151924001 | SPRING HOOK | 1 |
| 70 | 151925001 | STARTING LEVER SHAFT | 1 |
| 71 | 142628001 | HORIZONTAL FEED CRANK RING | 2 |
| 72 | 110505001 | WASHER | 1 |
| 73 | 048110142 | STOP RING C11 | 1 |
| 74 | 014760622 | SCREW 5.95 | 1 |
| 75 | 111865001 | CAP FOR OIL INLET | 1 |
| 76 | 155500001 | STARTING LEVER STOPPER | 1 |
| 77 | 018061622 | BOLT 6X16 | 2 |
| 78 | 025060132 | WASHER 6 | 2 |
| 79 | 028060242 | SPRING WASHER 2-6 | 2 |
| 80 | 025060232 | WASHER 6 | 1 |
B. クラッチ関係 /Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 52-1 107030001 1 テーパピン TAPER PIN 53 150553001 1 ナット5.95 NUT 5.95 54 151907001 1 ダシネジ5.95 STUD SCREW 5.95 55 151939001 1 クラッチカムレバークミ CLUTCH CAM LEVER ASSEMBLY 55-1 152913001 1 コロジク ROLLER STUD 55-2 152914001 1 コロ ROLLER 55-3 048040342 1 トメワE4 STOP RING E4 56 018062022 1 アナボルト6X20 BOLT 6X20 57 151919101 1 キドーレバー STARTING LEVER 58 151920001 1 キドーセフレバー STARTING SAFETY LEVER 59 017711412 2 ボルト4.76X14 BOLT 4.76X14 60 028050242 2 バネザガネ2-5 SPRING WASHER 2-5 61 113431002 2 ザガネ WASHER 62 155499001 1 Pキドーレバー STARTING LEVER PLATE 63 154155101 1 ストッパネジ STOPPER SCREW 64 150553001 1 ナット5.95 NUT 5.95 65 151922001 1 クサリカケカラー CHAIN HOOK 66 017762202 1 ボルト5.95X22 BOLT 5.95X22 67 110251001 1 ヌノオサエウデバネカケ SPRING HOOK 68 151923001 1 バネ SPRING 69 151924001 1 サドーレバーバネカケ SPRING HOOK 70 151925001 1 キドーレバージク STARTING LEVER SHAFT 71 142628001 2 スイヘイオクリクランクリグ HORIZONTAL FEED CRANK RING 72 110505001 1 ザガネ WASHER 73 048110142 1 トメワジクヨウC11 STOP RING C11 74 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 75 111865001 1 オイルメクラセン CAP FOR OIL INLET 76 155500001 1 キドーベストッパ STARTING LEVER STOPPER 77 018061622 2 アナボルト6X16 BOLT 6X16 78 025060132 2 ヒラザガネチュウ6 WASHER 6 79 028060242 2 バネザガネチュウ6 SPRING WASHER 2-6 80 025060232 1 ヒラザガネチュウ6 WASHER 6 jintex.in
C. 上軸・針棒関係/Upper shaft and needle bar mechanism/Obere Welle und Nadelstange/ Mécanisme de arbre supérieur et barre à aiguille/Mecanismo de carreta de potencia 35 25 20-2 21 20-1 19 14 16 13 1 11 20-4 20-520-3 34 33 17 18 15 20-7 22 20-6 26 24 27 2-1 3 36 2 5 6 5 7 8 10 9 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151995001 | UPPER SHAFT | 1 |
| 2 | 153040001 | CRANK ROD ASSEMBLY | 1 |
| 2-1 | 144712002 | SCREW 4.76 | 2 |
| 3 | 048150142 | STOP RING C15 | 1 |
| 4 | 151997000 | BALL BEARING CASE | 1 |
| 5 | 072630260 | BEARING 6302VV | 2 |
| 6 | 151998000 | BEARING COLLAR | 1 |
| 7 | 151999001 | BEARING CAP | 1 |
| 8 | 102843004 | SCREW 3.57 | 3 |
| 9 | 017761412 | BOLT 5.95X14 | 3 |
| 10 | 025060232 | WASHER 6 | 3 |
| 11 | 140726000 | UPPER SHAFT BUSHING (M) | 1 |
| 12 | 152000001 | UPPER SHAFT BUSHING (F) | 1 |
| 13 | 013761412 | SCREW 5.95 | 1 |
| 14 | 154623000 | COUNTER WEIGHT B | 1 |
| 15 | 100250001 | SCREW 7.14 | 1 |
| 16 | 014770622 | SCREW 6.35 | 1 |
| 17 | 123006001 | SCREW 6.35 | 1 |
| 18 | 014770622 | SCREW 6.35 | 1 |
| 19 | 154561001 | THREAD TAKE-UP LEVER ASSEMBLY | 1 |
| 20 | 153330001 | THREAD TAKE-UP ASSEMBLY | 1 |
| 20-1 | 152236001 | THREAD TAKE-UP LEVER SUPPORTER STUD | 1 |
| 20-2 | 154624001 | NEEDLE BAR CRANK B | 1 |
| 20-3 | 100253001 | SCREW 3.57L | 1 |
| 20-4 | 152238001 | NEEDLE BAR CONNECTOR | 1 |
| 20-5 | 152239001 | NEEDLE BAR CLAMP | 1 |
| 20-6 | 062680812 | SCREW 437-40X8 | 1 |
| 20-7 | 013761412 | SCREW 5.95 | 1 |
| 21 | 154701001 | NEEDLE BAR D | 1 |
| 22 | 144458001 | SCREW 3.57 | 1 |
| 24 | 152242001 | NEEDLE BAR BUSHING (U) | 1 |
| 25 | 154627001 | NEEDLE BAR BUSHING (DS) | 1 |
| 26 | 115053016 | NEEDLE TQX1 #16 | 1 |
| 27 | 142211001 | SLIDE BLOCK | 1 |
| 33 | 152244000 | NEEDLE BAR GUIDE | 1 |
| 34 | 062781412 | SCREW 635-28X14 | 2 |
| 35 | 116920001 | THRUST RING | 1 |
C. 上軸・針棒関係/Upper shaft and needle bar mechanism/Obere Welle und Nadelstange/ Mécanisme de arbre supérieur et barre à aiguille/Mecanismo de carreta de potencia REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 151995001 1 ウワジク UPPER SHAFT 2 153040001 1 クランクロットクミ CRANK ROD ASSEMBLY 2-1 144712002 2 シメネジ4.76 SCREW 4.76 3 048150142 1 トメワC15 STOP RING C15 4 151997000 1 タマシジウケケース BALL BEARING CASE 5 072630260 2 ベアリング6302VV BEARING 6302VV 6 151998000 1 ベアリングカンザ BEARING COLLAR 7 151999001 1 タマシジウケフタ BEARING CAP 8 102843004 3 サラネジ3.57 SCREW 3.57 9 017761412 3 ボルト5.95X14 BOLT 5.95X14 10 025060232 3 ヒラザガネチュウ6 WASHER 6 11 140726000 1 ウワジクメタルM UPPER SHAFT BUSHING (M) 12 152000001 1 ウワジクメタルF UPPER SHAFT BUSHING (F) 13 013761412 1 ナベコネジ5.95クボミ SCREW 5.95 14 154623000 1 ツリアイクランクB COUNTER WEIGHT B 15 100250001 1 シメネジ7.14 SCREW 7.14 16 014770622 1 アナトメネジ6.35クボミ SCREW 6.35 17 123006001 1 アナトメネジ6.35クボミ SCREW 6.35 18 014770622 1 アナトメネジ6.35クボミ SCREW 6.35 19 154561001 1 ハリボウレンカンクミ THREAD TAKE-UP LEVER ASSEMBLY 20 153330001 1 テンビンクミ THREAD TAKE-UP ASSEMBLY 20-1 152236001 1 テンビンササエジク THREAD TAKE-UP LEVER SUPPORTER STUD 20-2 154624001 1 ハリボウクランクB NEEDLE BAR CRANK B 20-3 100253001 1 サラネジ3.57L SCREW 3.57L 20-4 152238001 1 ハリボウレンカン NEEDLE BAR CONNECTOR 20-5 152239001 1 ハリボウウダキ NEEDLE BAR CLAMP 20-6 062680812 1 ナベコ437-40X8 SCREW 437-40X8 20-7 013761412 1 ナベコネジ5.95クボミ SCREW 5.95 21 154701001 1 ハリボウD NEEDLE BAR D 22 144458001 1 アタマツキネジ3.57 SCREW 3.57 24 152242001 1 ハリボウメタルU NEEDLE BAR BUSHING (U) 25 154627001 1 ハリボウメタルDS NEEDLE BAR BUSHING (DS) 26 115053016 1 ミシンハリTQX1#16 NEEDLE TQX1 #16 27 142211001 1 カクコマ SLIDE BLOCK 33 152244000 1 ハリボウアンナイ NEEDLE BAR GUIDE 34 062781412 2 ナベコ635-28X14 SCREW 635-28X14 35 116920001 1 オクリジクスラストリング THRUST RING jintex.in
D. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/ Mécanisme de leveur/Mecanismo de carreta de potencia jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151928001 | POWER PULLEY SHAFT | 1 |
| 2 | 048170142 | STOP RING C17 | 2 |
| 3 | 151930201 | POWER PULLEY ASSEMBLY | 1 |
| 6 | 072600360 | BEARING 6003VV | 1 |
| 8 | 151932001 | BEARING COVER | 1 |
| 9 | 107231002 | SCREW 4.76 | 1 |
| 10 | 155523001 | POWER CAM SET | 1 |
| 10-1 | 151933001 | POWER CAM ASSEMBLY | 1 |
| 10-1-1 | 151935000 | DV BUSHING | 2 |
| 10-2 | 151940001 | POWER CAM STOPPER A | 1 |
| 10-3 | 018060822 | BOLT 6X8 | 1 |
| 10-4 | 151941101 | POWER CAM STOPPER B ASSEMBLY | 1 |
| 11 | 151936001 | POWER CLUTCH SPRING | 1 |
| 12 | 151937001 | THRUST WASHER 17 | 1 |
| 13 | 151938001 | WASHER | 1 |
| 19 | 151944001 | CLUTCH ACTUATING LEVER ASSEMBLY | 1 |
| 19-1 | 151947101 | ROLLER 11 | 2 |
| 19-2 | 151948001 | ROLLER STUD | 2 |
| 19-3 | 014760622 | SCREW 5.95 | 2 |
| 20 | 151949001 | ROLLER STUD ASSEMBLY | 1 |
| 21 | 014760622 | SCREW 5.95 | 1 |
| 22 | 151951001 | SPRING | 1 |
| 23 | 141472002 | SPRING HOOK | 2 |
| 24 | 151952001 | CLUTCH ACTUATING LEVER SHAFT | 1 |
| 25 | 151953001 | THRUST WASHER 16 | 2 |
| 26 | 048160142 | STOP RING C16 | 2 |
| 27 | 111865001 | CAP FOR OIL INLET | 1 |
| 28 | 151954001 | SCREW | 1 |
| 29 | 014821022 | SCREW 7.94 | 1 |
| 30 | 014760622 | SCREW 5.95 | 1 |
D. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/ Mécanisme de leveur/Mecanismo de carreta de potencia REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 151928001 1 Pプーリジク POWER PULLEY SHAFT 2 048170142 2 トメワジクC17 STOP RING C17 3 151930201 1 Pプーリクミ POWER PULLEY ASSEMBLY 6 072600360 1 タマジクウケ6003VV BEARING 6003VV 8 151932001 1 ジクウケフタ BEARING COVER 9 107231002 1 サラネジ4.76 SCREW 4.76 10 155523001 1 パワーカムセット POWER CAM SET 10-1 151933001 1 パワーカムクミ POWER CAM ASSEMBLY 10-1-1 151935000 2 DVブッシュ DV BUSHING 10-2 151940001 1 パワーカムストッパA POWER CAM STOPPER A 10-3 018060822 1 アナボルト6X8 BOLT 6X8 10-4 151941101 1 パワーカムストッパーBクミ POWER CAM STOPPER B ASSEMBLY 11 151936001 1 クラッチバネ POWER CLUTCH SPRING 12 151937001 1 スラストザガネ17 THRUST WASHER 17 13 151938001 1 ザガネ WASHER 19 151944001 1 クドーレバークミ CLUTCH ACTUATING LEVER ASSEMBLY 19-1 151947101 2 コロ11 ROLLER 11 19-2 151948001 2 クドーレバーコロジク ROLLER STUD 19-3 014760622 2 アナトメネジ5.95クボミ SCREW 5.95 20 151949001 1 オサエアゲコロジククミ ROLLER STUD ASSEMBLY 21 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 22 151951001 1 クドーレバーヒキバネ SPRING 23 141472002 2 シタイトキリレバーハネカケ SPRING HOOK 24 151952001 1 クドーレバージク CLUTCH ACTUATING LEVER SHAFT 25 151953001 2 スラストザガネ16 THRUST WASHER 16 26 048160142 2 トメワジクC16 STOP RING C16 27 111865001 1 オイルメクラセン CAP FOR OIL INLET 28 151954001 1 アンナイヒラネジ SCREW 29 014821022 1 アナトメネジ7.94クボミ SCREW 7.94 30 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 jintex.in
E. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación 1-2 1-3 1-1 4-1 4 3 2 45 46 44 6-1 6-2 6-3 6-4 11 12 12-1 14 15 40 39 41 16-1 22 28 21 27 16 19 20 23 8 7 18 26-1 26-2 32 31 30-1 30-3 30-4 30-2 42 43 17 33 34 38-3 38-2 38 37 36-1 Jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 152742001 | TACK LENGTH LEVER | 1 |
| 1-2 | 153041001 | TACK LENGTH SLIDE BLOCK ASSEMBLY | 1 |
| 1-3 | 151602002 | SCREW 4.37 | 1 |
| 2 | 152745001 | BUSHING | 1 |
| 3 | 014760622 | SCREW 5.95 | 1 |
| 4 | 153820101 | TACK LENGTH REGULATOR LEVER ASSEMBLY | 1 |
| 4-1 | 018082022 | BOLT 8X20 | 1 |
| 6-1 | 153042001 | TACK REGULATOR SHAFT ASSEMBLY | 1 |
| 6-2 | 152752001 | TACK LENGTH LEVER | 1 |
| 6-3 | 153988001 | FEED CAM ROLLER A ASSEMBLY | 1 |
| 6-4 | 014760622 | SCREW 5.95 | 1 |
| 7 | 152749001 | WASHER | 1 |
| 8 | 152760001 | NUT | 1 |
| 11 | 152755001 | TACK LENGTH LEVER SHAFT | 1 |
| 12 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 12-1 | 018063022 | BOLT 6X30 | 1 |
| 14 | 152756001 | THRUST WASHER 18 | 1 |
| 15 | 048180142 | STOP RING C18 | 1 |
| 16 | 154174001 | TACK WIDTH LEVER ASSEMBLY | 1 |
| 16-1 | 116231001 | PIN | 2 |
| 17 | 152758001 | TACK WIDTH SHAFT | 1 |
| 18 | 014760622 | SCREW 5.95 | 1 |
| 19 | 152756001 | THRUST WASHER 18 | 1 |
| 20 | 152760001 | TACK WIDTH LEVER SHAFT | 1 |
| 21 | 152756001 | THRUST WASHER 18 | 1 |
| 22 | 048180142 | STOP RING C18 | 1 |
| 23 | 014760622 | SCREW 5.95 | 1 |
| 26-1 | 153042001 | TACK REGULATOR SHAFT ASSEMBLY | 1 |
| 26-2 | 153823001 | TACK WIDTH REGULATOR LEVER | 1 |
| 27 | 152749001 | WASHER | 1 |
| 28 | 152760001 | NUT | 1 |
| 30-1 | 153824001 | TACK WIDTH FEED LEVER | 1 |
| 30-2 | 153989001 | FEED CAM ROLLLAR (B) ASSEMBLY | 1 |
| 30-3 | 014760622 | SCREW 5.95 | 1 |
| 30-4 | 018082022 | BOLT 8X20 | 1 |
| 31 | 152745001 | BUSHING | 1 |
| 32 | 014760622 | SCREW 5.95 | 1 |
| 33 | 152766001 | FEED GUIDE PLATE | 1 |
| 34 | 145318001 | SCREW 4.37 | 8 |
| 36 | 152769001 | FEED GUIDE ASSEMBLY | 1 |
| 36-1 | 152771000 | WASHER | 2 |
| 36-2 | 152773001 | BUSHING | 1 |
| 36-3 | 141331001 | BUSHING | 1 |
| 37 | 152772001 | WASHER | 2 |
| 38 | 071047650 | STEEL BALL 3/16 | 2 |
| 39 | 025060232 | WASHER 6 | 2 |
| 40 | 017761212 | BOLT 5.95X12 | 2 |
| 41 | 159971001 | FEED PLATE FLAT11 | 1 |
| 42 | 153057002 | FEED PLATE SCREW | 2 |
| 43 | 153035000 | PRESSER ARM FELT | 1 |
| 44 | 153826001 | TACK LENGTH INDICATOR | 1 |
| 45 | 060660512 | SCREW 318-40X5 | 1 |
| 46 | 025030132 | WASHER 3 | 1 |
E. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'alimentation REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1-1 152742001 1 ヨコオクリレバー TACK LENGTH LEVER 1-2 153041001 1 ヨコオクリカクゴマクミ TACK LENGTH SLIDE BLOCK ASSEMBLY 1-3 151602002 1 トメネジ"4.37 SCREW 4.37 2 152745001 1 オクリメタル BUSHING 3 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 4 153820101 1 ヨコチヨウセツレバークミ TACK LENGTH REGULATOR LEVER ASSEMBLY 4-1 018082022 1 アナボルト8X20 BOLT 8X20 6-1 153042001 1 ヨコチヨウセツジククミ TACK REGULATOR SHAFT ASSEMBLY 6-2 152752001 1 ヨコオクリカムレバー TACK LENGTH LEVER 6-3 153988001 1 オクリカムコロシ"クミA FEED CAM ROLLER A ASSEMBLY 6-4 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 7 152749001 1 オクリチヨウセツザガネ WASHER 8 152760001 1 オクリチヨウセツナット NUT 11 152755001 1 ヨコオクリカムレバーシ"ク TACK LENGTH LEVER SHAFT 12 S09132001 1 ピンチスリーブクミ SLEEVE ASSEMBLY 12-1 018063022 1 アナボルト6X30 BOLT 6X30 14 152756001 1 スラストザガネ18 THRUST WASHER 18 15 048180142 1 トメワC18 STOP RING C18 16 154174001 1 タテオクリレバークミ TACK WIDTH LEVER ASSEMBLY 16-1 116231001 2 トメピン PIN 17 152758001 1 タテオクリジク TACK WIDTH SHAFT 18 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 19 152756001 1 スラストザガネ18 THRUST WASHER 18 20 152760001 1 タテオクリレバーシ"ク TACK WIDTH LEVER SHAFT 21 152756001 1 スラストザガネ18 THRUST WASHER 18 22 048180142 1 トメワC18 STOP RING C18 23 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 26-1 153042001 1 オクリチヨウセツジククミ TACK REGULATOR SHAFT ASSEMBLY 26-2 153823001 1 タテオクリチヨウセツレバー TACK WIDTH REGULATOR LEVER 27 152749001 1 オクリチヨウセツザガネ WASHER 28 152760001 1 オクリチヨウセツナット NUT 30-1 153824001 1 タテオクリカムレバー TACK WIDTH FEED LEVER 30-2 153989001 1 オクリカムコロシ"クミB FEED CAM ROLLLAR (B) ASSEMBLY 30-3 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 30-4 018082022 1 アナボルト8X20 BOLT 8X20 31 152745001 1 オクリメタル BUSHING 32 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 33 152766001 1 オクリダイアンナイイタ FEED GUIDE PLATE 34 145318001 8 シメネジ4.37 SCREW 4.37 36 152769001 1 オクリダイクミ FEED GUIDE ASSEMBLY 36-1 152771000 2 オクリダイカンザ WASHER 36-2 152773001 1 キユウメンブッシュメタル BUSHING 36-3 141331001 1 キユウメンブッシュ BUSHING 37 152772001 2 カンザ WASHER 38 071047650 2 コウキユウ3/16 STEEL BALL 3/16 39 025060232 2 ヒラザガネチユウ6 WASHER 6 40 017761212 2 ボルト5.95X12 BOLT 5.95X12 41 159971001 1 オクリダイ11ヒラ FEED PLATE FLAT11 42 153057002 2 オクリダイシメネジ FEED PLATE SCREW 43 153035000 1 オサエウデ"フエルト PRESSER ARM FELT 44 153826001 1 ヨコオクリメモイタ TACK LENGTH INDICATOR 45 060660512 1 バインド"318-40X5 SCREW 318-40X5 46 025030132 1 ヒラザガネシヨウ3 WASHER 3 jintex.in
F. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo de levantador de ménsula de trabajo 15 16 14-1 19 18 14-2 12 11 13 9 10 5 4 20-1 2-1 2-2 20-3 20-2 22 23 21 28 24 26 27 32 31 30 29 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 153831001 | WORK CLAMP LIFTING ROD | 1 |
| 2-1 | 152798001 | WORK CLAMP LIFTER LEVER | 1 |
| 2-2 | 152744001 | TACK LENGTH SLIDE BLOCK PIN | 1 |
| 3 | 152799001 | WORK CLAMP LIFTER LEVER SHAFT | 1 |
| 4 | 014760622 | SCREW 5.95 | 1 |
| 5 | 013760612 | SCREW 5.95 | 1 |
| 6 | 152800201 | SPRING | 1 |
| 7 | 152801001 | PIN | 1 |
| 8 | 102630001 | NEEDLE BAR GUIDE SLIDE BLOCK | 1 |
| 9 | 152802001 | WORK CLAMP LIFTER ROD SHAFT A | 1 |
| 10 | 014760622 | SCREW 5.95 | 1 |
| 11 | 107153002 | WASHER | 1 |
| 12 | 048060342 | STOP RING E6 | 1 |
| 13 | 152803001 | WORK CLAMP LIFTER ROD A | 1 |
| 14-1 | 152805101 | CONNECTING LEVER | 1 |
| 14-2 | 152806001 | CONNECTING LEVER SHAFT B | 2 |
| 15 | 158686001 | LIFTING LEVER SHAFT | 1 |
| 16 | 014760622 | SCREW 5.95 | 1 |
| 18 | 107153002 | WASHER | 2 |
| 19 | 048060342 | STOP RING E6 | 2 |
| 20 | 152808101 | CONNECTING ROD ASSEMBLY | 1 |
| 20-1 | 154332001 | CONNECTING ROD | 1 |
| 20-2 | 154333001 | CONNECTING JOINT | 1 |
| 20-3 | 150556001 | NUT 6.35 | 1 |
| 21 | 141583001 | STUD SCREW 6.35 | 1 |
| 22 | 150556001 | NUT 6.35 | 1 |
| 23 | 152811001 | CONNECTING LEVER ASSEMBLY | 1 |
| 24 | 158687001 | DRIVING SHAFT | 1 |
| 26 | 142628001 | HORIZONTAL FEED CRANK RING | 1 |
| 27 | 048110142 | STOP RING C11 | 1 |
| 28 | 014760622 | SCREW 5.95 | 1 |
| 29 | 153828001 | ROLLER STUD | 1 |
| 30 | 107744001 | ROLLER | 1 |
| 31 | 153484001 | WASHER 4.76 | 1 |
| 32 | 105234003 | NUT 4.37 | 2 |
F. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo de levantador de ménsula de trabajo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 153831001 1 オサエアゲロツト" WORK CLAMP LIFTING ROD 2-1 152798001 1 オサエアゲレバー WORK CLAMP LIFTER LEVER 2-2 152744001 1 ヨコオクリカクゴマピン TACK LENGTH SLIDE BLOCK PIN 3 152799001 1 オサエアゲレバージク WORK CLAMP LIFTER LEVER SHAFT 4 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 5 013760612 1 トメネジ"5.95クボミ SCREW 5.95 6 152800201 1 オサエアゲバネ SPRING 7 152801001 1 ハネカケピン PIN 8 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 9 152802001 1 オサエアゲロツト"ジクA WORK CLAMP LIFTER ROD SHAFT A 10 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 11 107153002 1 ザガネ WASHER 12 048060342 1 トメワE6 STOP RING E6 13 152803001 1 オサエアゲロツト"A WORK CLAMP LIFTER ROD A 14-1 152805101 1 オサエアゲレンケツレバー CONNECTING LEVER 14-2 152806001 2 オサエアゲロツト"ジクB CONNECTING LEVER SHAFT B 15 158686001 1 レンケツレバージク LIFTING LEVER SHAFT 16 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 18 107153002 2 ザガネ WASHER 19 048060342 2 トメワE6 STOP RING E6 20 152808101 1 チヨウセツロツト"クミ CONNECTING ROD ASSEMBLY 20-1 154332001 1 オサエアゲチヨウセツロツト" CONNECTING ROD 20-2 154333001 1 オサエアゲチヨウセツツギテ CONNECTING JOINT 20-3 150556001 1 ナツト6.35 NUT 6.35 21 141583001 1 ダンネジ"6.35 STUD SCREW 6.35 22 150556001 1 ナツト6.35 NUT 6.35 23 152811001 1 サト"ウレバークミ CONNECTING LEVER ASSEMBLY 24 158687001 1 サト"ウレバージク DRIVING SHAFT 26 142628001 1 スイヘイオクリクランクリング" HORIZONTAL FEED CRANK RING 27 048110142 1 トメワジクヨウC11 STOP RING C11 28 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 29 153828001 1 コロジク ROLLER STUD 30 107744001 1 コロ ROLLER 31 153484001 1 ザガネ4.76 WASHER 4.76 32 105234003 2 ナツト4.37 NUT 4.37 jintex.in
G. ボタンツマミ作動関係/Button clamp mechanism/Knopfhaltevorrichtung/ Mécanisme du pince-bowtons/Mecanismo de la ménsula de resorte 1-3 1-2 1-1 3 2 1-4 13-4 13-3 19 13-2 21-17 13-1 21-16 21-1821-13 16 17 20 21-21 21-19 21-23 21-22 21-20 18 12 11 21-1 10 14 15 21-7 21-3 21-8 21-2 21-10 21-5 21-4 21-6 21-9 21-15 21-11 21-12 21-14 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 153835006 | LEVER HOLDER BRACKET | 1 |
| 1-2 | 153836101 | BUTTON CLAMP LIFTING LEVER | 1 |
| 1-3 | 153838001 | BUTTON CLAMP LEVER SHAFT | 1 |
| 1-4 | 014760622 | SCREW 5.95 | 1 |
| 2 | 018062022 | BOLT 6X20 | 2 |
| 3 | 025060232 | WASHER 6 | 2 |
| 10 | 153830006 | BUTTON CLAMP HOLDER | 1 |
| 11 | 153827001 | BUTTON CLAMP HOLDER SHAFT | 1 |
| 12 | 014680622 | SCREW 4.37 | 2 |
| 13 | 151968001 | BUTTON CLAMP HOLDER HOOK ASSEMBLY | 1 |
| 13-1 | 151969001 | BUTTON CLAMP HOLDER HOOK | 1 |
| 13-2 | 107744001 | ROLLER | 2 |
| 13-3 | 153484001 | WASHER 4.76 | 1 |
| 13-4 | 105234003 | NUT 4.37 | 1 |
| 14 | 014760622 | SCREW 5.95 | 1 |
| 15 | 153834001 | BUTTON CLAMP HOLDER BRACKET | 1 |
| 16 | 017711412 | BOLT 4.76X14 | 2 |
| 17 | 146354001 | WASHER | 2 |
| 18 | 146994001 | PRESSER SPRING ADJUSTING SCREW | 2 |
| 19 | 115148101 | PRESSER SPRING ADJUSTING SCREW | 1 |
| 20 | 115147001 | BUTTON CLAMP PRESSER SPRING | 1 |
| 21 | 156107201 | BUTTON CLAMP C ASSEMBLY | 1 |
| 21-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 21-2 | S03465101 | BUTTON CLAMP (L) | 1 |
| 21-3 | 159941001 | BOTTAN CLAMP (L) PLATE SPRING | 1 |
| 21-4 | S03466101 | BOTTAN CLAMP (R) | 1 |
| 21-5 | 159942001 | BOTTAN CLAMP (R) PLATE SPRING | 1 |
| 21-6 | 115166001 | GUIDE PIN | 2 |
| 21-7 | 062680512 | SCREW 437-40X5 | 2 |
| 21-8 | 047250642 | SPRING PIN AW2.5 | 2 |
| 21-9 | 115158001 | STUD SCREW 4.76 | 2 |
| 21-10 | S03467001 | BUTTON CLAMP M ASSEMBLY | 1 |
| 21-11 | S03659001 | BUTTON CLAMP PLATE | 1 |
| 21-12 | 062680812 | SCREW 437-40X8 | 2 |
| 21-13 | S03468001 | SCREW 4.37 | 1 |
| 21-14 | S03657001 | NUT 4.37 | 1 |
| 21-15 | 115163001 | BUTTON CLAMP SPRING PLATE | 1 |
| 21-16 | 115164001 | BUTTON CLAMP ADJUSTING PLATE | 1 |
| 21-17 | 115165001 | STUD SCREW 4.37 | 1 |
| 21-18 | 115166001 | STUD SCREW 4.37 | 1 |
| 21-19 | 159938001 | SPRING STOPPER | 1 |
| 21-20 | 159939001 | SPRING A | 1 |
| 21-21 | 062710612 | SCREW 476-32X6 | 1 |
| 21-22 | 110215002 | SCREW 3.57 | 1 |
| 21-23 | 025660132 | WASHER 3.18 | 1 |
G. ボタンツマミ作動関係/Button clamp mechanism/Knopfhaltevorrichtung/ Mécanisme du pince-boutons/Mecanismo de la ménsula de resorte REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1-1 153835006 1 レバーホルダー LEVER HOLDER BRACKET 1-2 153836101 1 ボタンツカミアゲレバー BUTTON CLAMP LIFTING LEVER 1-3 153838001 1 ボタンツカミレバージク BUTTON CLAMP LEVER SHAFT 1-4 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 2 018062022 2 アナボルト6X20 BOLT 6X20 3 025060232 2 ヒラザガネチュウ6 WASHER 6 10 153830006 1 ボタンツカミホルダー BUTTON CLAMP HOLDER 11 153827001 1 ボタンツカミホルダージク BUTTON CLAMP HOLDER SHAFT 12 014680622 2 アナトメネジ4.37クボミ SCREW 4.37 13 151968001 1 ボタンホルダーフッククミ BUTTON CLAMP HOLDER HOOK ASSEMBLY 13-1 151969001 1 ボタンホルダーフック BUTTON CLAMP HOLDER HOOK 13-2 107744001 2 コロ ROLLER 13-3 153484001 1 ザガネ4.76 WASHER 4.76 13-4 105234003 1 ナット4.37 NUT 4.37 14 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 15 153834001 1 ボタンツカミホルダーサザエ BUTTON CLAMP HOLDER BRACKET 16 017711412 2 ボルト4.76X14 BOLT 4.76X14 17 146354001 2 ザガネ WASHER 18 146994001 2 オサエハバネチョウシネジ PRESSER SPRING ADJUSTING SCREW 19 115148101 1 オサエハバネチョウセツネジ PRESSER SPRING ADJUSTING SCREW 20 115147001 1 ボタンツカミオサエオシバネ BUTTON CLAMP PRESSER SPRING 21 156107201 1 ボタンツカミCクミ BUTTON CLAMP C ASSEMBLY 21-1 S03464101 1 ボタンツカミタイ BUTTON CLAMP BRACKET 21-2 S03465101 1 ボタンツカミL BUTTON CLAMP (L) 21-3 159941001 1 ボタンツカミLイタバネ BOTTAN CLAMP (L) PLATE SPRING 21-4 S03466101 1 ボタンツカミR BOTTAN CLAMP (R) 21-5 159942001 1 ボタンツカミRイタバネ BOTTAN CLAMP (R) PLATE SPRING 21-6 115166001 2 ボタンツカミアンナイピン GUIDE PIN 21-7 062680512 2 ナベコ437-40X5 SCREW 437-40X5 21-8 047250642 2 スプリングピンAW2.5 SPRING PIN AW2.5 21-9 115158001 2 ダンネジ4.76 STUD SCREW 4.76 21-10 S03467001 1 ボタンツカミMクミ BUTTON CLAMP M ASSEMBLY 21-11 S03659001 1 ボタンツカミイタカム BUTTON CLAMP PLATE 21-12 062680812 1 ナベコ437-40X8 SCREW 437-40X8 21-13 S03468001 1 シメネジ4.37 SCREW 4.37 21-14 S03657001 1 マルナット4.37 NUT 4.37 21-15 115163001 1 ボタンツカミハバネ BUTTON CLAMP SPRING PLATE 21-16 115164001 1 ボタンツカミチョウセツイタ BUTTON CLAMP ADJUSTING PLATE 21-17 115165001 1 ダンネジ4.37 STUD SCREW 4.37 21-18 115166001 1 ダンネジ4.37 STUD SCREW 4.37 21-19 159938001 1 ボタンツカシバネサザエ SPRING STOPPER 21-20 159939001 1 ボタンツカシバネA SPRING A 21-21 062710612 1 ナベコ476-32X6 SCREW 476-32X6 21-22 110215002 1 シメネジ3.57 SCREW 3.57 21-23 025660132 1 ヒラザガネショウ3.18 WASHER 3.18 jintex.in
H. カム伝導関係/Feed cam mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical 1 3 2 6 7 4 5 8 10 9 12 28 29 29-1 19 20 20-1 16 22 26 27 25 23 24 39 49 48 35 40 36 37 38 31 34 11 13 32 32-1 15 17 18 41 42 43-1 44 45 43-5 46 47 43-1-1 43-2 43-3 43-4 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | * | WORM | 1 |
| 2 | 152718001 | SCREW 5.95 | 6 |
| 3 | 147151000 | WASHER | 1 |
| 4 | * | WORM WHEEL | 1 |
| 5 | 152713001 | THRUST WASHER | 1 |
| 6 | 152709000 | SLEEVE | 1 |
| 7 | 152710001 | WASHER | 1 |
| 8 | 018062022 | BOLT 6X20 | 1 |
| 9 | 159977000 | VERTICAL SHAFT BUSHING (U) | 1 |
| 10 | 014760622 | SCREW 5.95 | 1 |
| 11 | 159978001 | VERTICAL SHAFT BUSHING (L) | 1 |
| 12 | 159979001 | VERTICAL SHAFT ASSEMBLY | 1 |
| 13 | 159984001 | THRUST WASHER 40 | 1 |
| 15 | 152719000 | CHANGE GEAR 28W | 1 |
| 16 | 152720000 | CHANGE GEAR 28C | 1 |
| 17 | 153104001 | WASHER | 1 |
| 18 | 018062222 | BOLT 6X22 | 3 |
| 19 | 152724001 | TACK LENGTH FEED CAM SHAFT | 1 |
| 20 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 20-1 | 018063022 | BOLT 6X30 | 1 |
| 22 | * | FEED CAM | 1 |
| 23 | 152728001 | THRUST WASHER 8 | 1 |
| 24 | 151163001 | BOLT 8X15 | 1 |
| 25 | 018062022 | BOLT 6X20 | 3 |
| 26 | 109893002 | WASHER | 3 |
| 27 | 028060242 | SPRING WASHER 2-6 | 3 |
| 28 | * | CLUTCH CAM | 1 |
| 29 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 29-1 | 018063022 | BOLT 6X30 | 1 |
| 31 | * | KNIFE CAM | 1 |
| 32 | S09132001 | SLEEVE ASSEMBLY | 1 |
| 32-1 | 018063022 | BOLT 6X30 | 1 |
| 34 | 152723001 | STOP RING | 1 |
| 35 | 152731001 | ROLLER HOLDER | 1 |
| 36 | 152732001 | SHAFT | 1 |
| 37 | 013710712 | SCREW 4.76 | 1 |
| 38 | 152914001 | ROLLER | 1 |
| 39 | 153845001 | STITCH CONTROL LEVER | 1 |
| 40 | 013710712 | SCREW 4.76 | 1 |
| 41 | 152734001 | ROLLER HOLDER LEVER | 1 |
| 42 | 018061622 | BOLT 6X16 | 1 |
| 43 | 152735101 | ROLLER HOLDER CAM LEVER ASSEMBLY | 1 |
| 43-1 | 153320001 | ROLLER HOLDER CAM LEVER SHAFT ASSEMBLY | 1 |
| 43-1-1 | 046302020 | TAPAR PIN 3X20 | 1 |
| 43-2 | 152739001 | ROLLER STUD | 1 |
| 43-3 | 153195001 | ROLLER | 1 |
| 43-4 | 048040342 | STOP RING E4 | 1 |
| 43-5 | 155337001 | SPRING HOOK | 1 |
| 44 | 110027001 | SET COLLAR | 1 |
| 45 | 014760622 | SCREW 5.95 | 2 |
| 46 | 155336001 | SPRING | 1 |
| 47 | 141334001 | SPRING HOOK | 1 |
| 48 | 153141001 | ROLLER HOLDER COVER | 1 |
| 49 | 062670412 | SCREW 357-40X4 | 2 |
H. カム伝導関係 / Feed cam mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 1 * 1 ウォーム WORM 2 152718001 6 アナトメネジ"5.95 SCREW 5.95 3 147151000 1 トメザガネ WASHER 4 * 1 ウォームホイル WORM WHEEL 5 152713001 1 スラストザガネ THRUST WASHER 6 152709000 1 スリーブ SLEEVE 7 152710001 1 ザガネ WASHER 8 018062022 1 アナボルト6X20 BOLT 6X20 9 159977000 1 タテジクメタルU VERTICAL SHAFT BUSHING (U) 10 014760622 1 アナトメネジ"5.95クロミ SCREW 5.95 11 159978001 1 タテジクメタルL VERTICAL SHAFT BUSHING (L) 12 159979001 1 タテジククミ VERTICAL SHAFT ASSEMBLY 13 159984001 1 スラストザガネ40 THRUST WASHER 40 15 152719000 1 チェンジギヤ28W CHANGE GEAR 28W 16 152720000 1 チェンジギヤ28C CHANGE GEAR 28C 17 153104001 1 チェンジギヤザガネ WASHER 18 018062222 3 アナボルト6X22 BOLT 6X22 19 152724001 1 カムジク TACK LENGTH FEED CAM SHAFT 20 S09132001 1 ピンチスリーブクミ SLEEVE ASSEMBLY 20-1 018063022 1 アナボルト6X30 BOLT 6X30 22 * 1 オクリカム FEED CAM 23 152728001 1 スラストザガネ8 THRUST WASHER 8 24 151163001 1 アナボルト8X15 BOLT 8X15 25 018062022 3 アナボルト6X20 BOLT 6X20 26 109893002 3 ザガネ WASHER 27 028060242 3 バネザガネ2-6 SPRING WASHER 2-6 28 * 1 クラッチカム CLUTCH CAM 29 S09132001 1 ピンチスリーブクミ SLEEVE ASSEMBLY 29-1 018063022 1 アナボルト6X30 BOLT 6X30 31 * 1 イトキリカム KNIFE CAM 32 S09132001 1 ピンチスリーブクミ SLEEVE ASSEMBLY 32-1 018063022 1 アナボルト6X30 BOLT 6X30 34 152723001 1 イトキリカムトメリング STOP RING 35 152731001 1 セイギヨタイ ROLLER HOLDER 36 152732001 1 セイギヨタイコロジク SHAFT 37 013710712 1 トメネジ"4.76クロミ SCREW 4.76 38 152914001 1 コロ ROLLER 39 153845001 1 ハリカス"キリカエレバー STITCH CONTROL LEVER 40 013710712 1 トメネジ"4.76クロミ SCREW 4.76 41 152734001 1 セイギヨレバー ROLLER HOLDER LEVER 42 018061622 1 アナボルト6X16 BOLT 6X16 43 152735101 1 セイギヨカムレバークミ ROLLER HOLDER CAM LEVER ASSEMBLY 43-1 153320001 1 セイギヨカムレバージククミ ROLLER HOLDER CAM LEVER SHAFT ASSEMBLY 43-1-1 046302020 1 テーパピン3X20 TAPAR PIN 3X20 43-2 152739001 1 コロジク ROLLER STUD 43-3 153195001 1 コロ ROLLER 43-4 048040342 1 トメワE4 STOP RING E4 43-5 155337001 1 バネカケ SPRING HOOK 44 110027001 1 セットカラー SET COLLAR 45 014760622 2 アナトメネジ"5.95クロミ SCREW 5.95 46 155336001 1 セイギヨバネ SPRING 47 141334001 1 バネカケ SPRING HOOK 48 153141001 1 セイギヨタイカバー ROLLER HOLDER COVER 49 062670412 2 ナベネジ"357-40X4 SCREW 357-40X4 jintex.in
J. 下軸関係/Lower shaft mechanism/Untere Welle Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior 16-4 24 25 23 16-3 16-2 16-1 34 16-9 16-7 16-5 17 18 19 35 36 26 31 16-10 16-6 16-8 16-11 10 9 9-1 1 3 2 11 12 14 15 13 7 8 4 5 6 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141786001 | CRANK ROD STUD SCREW | 1 |
| 2 | 104689002 | NUT 7.14 | 1 |
| 3 | 014680622 | SCREW 4.37 | 1 |
| 4 | 152245001 | ROCK GEAR | 1 |
| 5 | 152246001 | ROCK GEAR SHAFT | 1 |
| 6 | 014760622 | SCREW 5.95 | 1 |
| 7 | 152247001 | ROCK SHAFT BUSHING | 1 |
| 8 | 014760622 | SCREW 5.95 | 1 |
| 9 | 152191001 | LOWER SHAFT ASSEMBLY | 1 |
| 9-1 | 046301620 | TAPER PIN 3X16 | 1 |
| 10 | 152250001 | LOWER SHAFT BUSHING | 1 |
| 11 | 014760622 | SCREW 5.95 | 1 |
| 12 | 152678001 | SHUTTLE HOOK ADJUSTING STUD | 1 |
| 13 | 081003670 | O RING PW3 | 1 |
| 14 | 110495003 | SET COLLAR | 1 |
| 15 | 014770622 | SCREW 6.35 | 2 |
| 16 | S00327001 | SHUTTLE RACE BODY ASSEMBLY | 1 |
| 16-1 | 152677001 | SHUTTLE RACE BODY | 1 |
| 16-2 | 152679001 | SHUTTLE RACE THREAD GUIDE (R) | 1 |
| 16-3 | 152680001 | SHUTTLE RACE THREAD GUIDE (L) | 1 |
| 16-4 | 062660412 | SCREW 318-40X4 | 2 |
| 16-5 | 152683001 | SHUTTLE RACE RING SET CLAW | 2 |
| 16-6 | 152684001 | SPRING | 2 |
| 16-7 | 402887001 | WASHER 3.2 | 2 |
| 16-8 | 062660712 | SCREW 318-40X7 | 2 |
| 16-9 | 153050000 | SHUTTLE RACE BODY FELT | 2 |
| 16-10 | 155489000 | WICK (270MM) | 1 |
| 16-11 | S00400000 | WICK 2.5X220 | 1 |
| 17 | 014760622 | SCREW 5.95 | 1 |
| 18 | 152678001 | SHUTTLE HOOK ADJUSTING STUD | 1 |
| 19 | 081003670 | O RING PW3 | 1 |
| 23 | 048080342 | STOP RING E8 | 1 |
| 24 | 152681101 | DRIVER | 1 |
| 25 | 018501422 | BOLT 5X14 | 1 |
| 26 | 152682001 | SHUTTLE RACE RING A | 1 |
| 31 | 152685101 | SHUTTLE HOOK A | 1 |
| 34 | 141808001 | PIN | 1 |
| 35 | 159610101 | BOBBIN CASE A ASSEMBLY | 1 |
| 36 | 159613001 | BOBBIN | 1 |
J. 下軸関係/Lower shaft mechanism/Untere Welle Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 141786001 1 クランクロッド"ダンネジ" CRANK ROD STUD SCREW 2 104689002 1 ナット7.14 NUT 7.14 3 014680622 1 アナトメネジ"4.37クボミ SCREW 4.37 4 152245001 1 ヨウト"ウキヤ ROCK GEAR 5 152246001 1 ヨウト"ウキヤジク ROCK GEAR SHAFT 6 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 7 152247001 1 ヨウト"ウシジクメタル ROCK SHAFT BUSHING 8 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 9 152191001 1 シタジククミ LOWER SHAFT ASSEMBLY 9-1 046301620 1 テーパーピン3X16 TAPER PIN 3X16 10 152250001 1 シタジクメタル LOWER SHAFT BUSHING 11 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 12 152678001 1 カマチョウセツシジク SHUTTLE HOOK ADJUSTING STUD 13 081003670 1 Oリング"PW3 O RING PW3 14 110495003 1 セットカラー SET COLLAR 15 014770622 2 アナトメネジ"6.35クボミ SCREW 6.35 16 S00327001 1 オオカマタイクミ SHUTTLE RACE BODY ASSEMBLY 16-1 152677001 1 オオカマタイ SHUTTLE RACE BODY 16-2 152679001 1 カマイトアンナイR SHUTTLE RACE THREAD GUIDE (R) 16-3 152680001 1 カマイトアンナイL SHUTTLE RACE THREAD GUIDE (L) 16-4 062660412 2 ナベコ"318-40X4 SCREW 318-40X4 16-5 152683001 2 オオカマトリツケヅメ SHUTTLE RACE RING SET CLAW 16-6 152684001 2 オオカマトリツケバネ SPRING 16-7 402887001 2 ザガネ"3.2 WASHER 3.2 16-8 062660712 2 ナベコ"318-40X7 SCREW 318-40X7 16-9 153050000 2 オオカマタイフエルト SHUTTLE RACE BODY FELT 16-10 155489000 1 クミヒモ(270MM) WICK (270MM) 16-11 S00400000 1 クミヒモ2.5X220 WICK 2.5X220 17 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 18 152678001 1 カマチョウセツシジク SHUTTLE HOOK ADJUSTING STUD 19 081003670 1 Oリング"PW3 O RING PW3 23 048080342 1 トメワE8 STOP RING E8 24 152681101 1 ドライバー DRIVER 25 018501422 1 アナボルト5X14 BOLT 5X14 26 152682001 1 オオカマA SHUTTLE RACE RING A 31 152685101 1 ナカカマA SHUTTLE HOOK A 34 141808001 1 オオカマアンナイピン PIN 35 159610101 1 ボビンケースクミA BOBBIN CASE A ASSEMBLY 36 159613001 1 ボビン BOBBIN jintex.in
K. 給油・潤滑関係/Lubrication/Schmierung Lubrication/Lubricatión 2-7 2-6 2-3 2-4 2-5 2-2 3 62 2-1 64 4-1 4-3 68 61 52 5 4-2 6 59 55 1 60 10 23 49 51 50 7 26 25 8 9 14 21 20 15 22 37 41 67 24 42 58 54 66 17 71 53 19 56 31 36-2 22 18 33 69 36-1 38 40 70 44 32 29 34 28 39 11 43 45 47 65 46 63-1 48 13 12-7 63-2 12-1 12-5 12-2 12-4 12-6 12-3 12-4 12-8 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 152948001 | OIL GUAGE WINDOW | 1 | |
| 152949001 | WICK SUPPORTER ASSEMBLY | 1 | |
| 152950001 | WICK SUPPORTER | 1 | |
| 152951001 | FELT | 1 | |
| 152952001 | FELT | 1 | |
| 153918001 | WICK 6X6 (660MM) | 1 | |
| 140423000 | OIL TUBE | 1 | |
| 147745000 | OIL TUBE L | 1 | |
| 153919001 | WICK 6X6 (370MM) | 1 | |
| 062681012 | SCREW 437-40X10 | 2 | |
| 152958001 | WICK SUPPORTER ASSEMBLY | 1 | |
| 152959001 | WICK SUPPORTER | 1 | |
| 152955001 | WICK 6X4 (60MM) | 1 | |
| 152956001 | WICK 6X4 (1000MM) | 1 | |
| 062680612 | SCREW 437-40X6 | 1 | |
| 144694001 | OIL TUBE | 1 | |
| 152956001 | WICK 6X4 (500MM) | 1 | |
| 152962001 | WICK SUPPORTER | 1 | |
| 152960001 | WICK (65MM) | 1 | |
| 104567001 | WICK SUPPORTER | 1 | |
| 152948001 | OIL GUAGE WINDOW | 1 | |
| 152961001 | FELT SUPPORTER ASSE | 1 | |
| 152966001 | FELT SUPPORTER | 1 | |
| 152967001 | FELT | 1 | |
| 062670812 | SCREW 357-40X8 | 2 | |
| 025350332 | WASHER 3.5 | 3 | |
| 152963001 | WICK 4X4 | 1 | |
| 141692001 | TUBE STOPPER C | 1 | |
| 021670202 | NUT 2.57 | 1 | |
| 062671412 | SCREW 357-40X14 | 1 | |
| 062670612 | SCREW 357-40X6 | 2 | |
| 148921000 | OIL TUBE | 1 | |
| 147745000 | OIL TUBE L | 1 | |
| 152964001 | WICK 6X6 (620MM) | 1 | |
| 152965001 | WICK 6X4 (400MM) | 1 | |
| 152964001 | WICK 6X6 (310MM) | 1 | |
| 152969001 | CORD SUPPORTER | 1 | |
| 062670512 | SCREW 357-40X5 | 1 | |
| 104567001 | WICK SUPPORTER | 2 | |
| 146375000 | OIL TUBE | 1 | |
| 152992001 | WICK (820MM) | 1 | |
| 117150001 | CORD SUPPORTER | 1 | |
| 062670512 | SCREW 357-40X5 | 1 | |
| 140423000 | OIL TUBE | 2 | |
| 152971001 | WICK 4X4 | 1 | |
| 112669001 | VINYL TUBE | 1 | |
| 152969001 | CORD SUPPORTER | 1 | |
| 062670512 | SCREW 357-40X5 | 1 | |
| 113006001 | FELT | 1 | |
| 152973001 | WICK 4X4 (160MM) | 1 | |
| 153921001 | WICK 4X4 (180MM) | 1 | |
| 047251640 | SPRING PIN AW2.5 | 2 | |
| 117150001 | CORD SUPPORTER | 1 | |
| 062670512 | SCREW 357-40X5 | 1 | |
| 104567001 | WICK SUPPORTER | 1 | |
| 152974001 | WICK 4X4 (250MM) | 1 | |
| 112669001 | VINYL TUBE | 1 | |
| 147745000 | OIL TUBE L | 1 | |
| 153922001 | WICK 4X4 (340MM) | 1 | |
| 153920001 | WICK 6X6 (360MM) | 1 | |
| 152985001 | WICK 4X4 (750MM) | 1 | |
| 153763001 | WICK SUPPORTER | 1 |
K. 給油・潤滑関係/Lubrication/Schmierung Lubrication/Lubrication REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152948001 1 オイルポットマ OIL GUAGE WINDOW 2 152949001 1 ウワジククユウサエキミ WICK SUPPORTER ASSEMBLY 2-1 152950001 1 ウワジククユウサエ WICK SUPPORTER 2-2 152951001 1 ウオームキユウユエルト FELT 2-3 152952001 1 ロツト"キユウユエルト FELT 2-4 153918001 1 クミヒモ6X6(660MM) WICK 6X6 (660MM) 2-5 140423000 1 ビニルチューフ OIL TUBE 2-6 147745000 1 ハイユパイフ°L OIL TUBE L 2-7 153919001 1 クミヒモ6X6(370MM) WICK 6X6 (370MM) 3 062681012 2 ナベコ437-40X10 SCREW 437-40X10 4 152958001 1 テンビンキユウサエキミ WICK SUPPORTER ASSEMBLY 4-1 152959001 1 テンビンキユウサエ WICK SUPPORTER 4-2 152955001 1 クミヒモ6X4(60MM) WICK 6X4 (60MM) 4-3 152956001 1 クミヒモ6X4(1000MM) WICK 6X4 (1000MM) 5 062680612 1 ナベコ437-40X6 SCREW 437-40X6 6 144694001 1 ハイユパイフ° OIL TUBE 7 152956001 1 クミヒモ6X4(500MM) WICK 6X4 (500MM) 8 152962001 1 ハリボウメチルモササエ WICK SUPPORTER 9 152960001 1 ヒラ クミヒモ(65MM) WICK (65MM) 10 104567001 1 クミヒモササエ WICK SUPPORTER 11 152948001 1 オイルポットマ OIL GUAGE WINDOW 12 152961001 1 シタジククユウサエキミ FELT SUPPORTER ASSE 12-1 152966001 1 シタジククユウサエ FELT SUPPORTER 12-2 152967001 1 シタジククユウユエルト FELT 12-3 062670812 2 ナベコ357-40X8 SCREW 357-40X8 12-4 025350332 3 ヒラザガネ3.5 WASHER 3.5 12-5 152963001 1 クミヒモ4X4 WICK 4X4 12-6 141692001 1 ビニルチューフササエC TUBE STOPPER C 12-7 021670202 1 ナット2.57 NUT 2.57 12-8 062671412 1 ナベコ357-40X14 SCREW 357-40X14 13 062670612 2 ナベコ357-40X6 SCREW 357-40X6 14 148921000 1 ビニルチューフ OIL TUBE 15 147745000 1 ハイユパイフ°L OIL TUBE L 17 152964001 1 クミヒモ6X6(620MM) WICK 6X6 (620MM) 18 152965001 1 クミヒモ6X4(400MM) WICK 6X4 (400MM) 19 152964001 1 クミヒモ6X6(310MM) WICK 6X6 (310MM) 20 152969001 1 コード"ササエカネ CORD SUPPORTER 21 062670512 1 ナベコ357-40X5 SCREW 357-40X5 22 104567001 2 クミヒモササエ WICK SUPPORTER 23 146375000 1 ビニルチューフ OIL TUBE 24 152992001 1 ヒラクミヒモ(820MM) WICK (820MM) 25 117150001 1 コード"ササエカネ CORD SUPPORTER 26 062670512 1 ナベコ357-40X5 SCREW 357-40X5 28 140423000 2 ビニルチューフ OIL TUBE 29 152971001 1 クミヒモ4X4 WICK 4X4 31 112669001 1 ビニルチューフ VINYL TUBE 32 152969001 1 コード"ササエカネ CORD SUPPORTER 33 062670512 1 ナベコ357-40X5 SCREW 357-40X5 34 113006001 1 フエルト FELT 36-1 152973001 1 クミヒモ4X4(160MM) WICK 4X4 (160MM) 36-2 153921001 1 クミヒモ4X4(180MM) WICK 4X4 (180MM) 37 047251640 2 スプリングピンAW2.5 SPRING PIN AW2.5 38 117150001 1 コード"ササエカネ CORD SUPPORTER 39 062670512 1 ナベコ357-40X5 SCREW 357-40X5 40 104567001 1 クミヒモササエ WICK SUPPORTER 41 152974001 1 クミヒモ4X4(250MM) WICK 4X4 (250MM) 42 112669001 1 ビニルチューフ VINYL TUBE 43 147745000 1 ハイユパイフ°L OIL TUBE L 44 153922001 1 クミヒモ4X4(340MM) WICK 4X4 (340MM) 45 153920001 1 クミヒモ6X6(360MM) WICK 6X6 (360MM) 46 152985001 1 クミヒモ4X4(750MM) WICK 4X4 (750MM) 47 153763001 1 キュウヒモササエ WICK SUPPORTER jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 円筒ころ軸受 | ||
| 2-1 | リンク | ||
| 2-2 | リンク | ||
| 2-3 | リンク | ||
| 2-4 | リンク | ||
| 2-5 | リンク | ||
| 2-6 | リンク | ||
| 2-7 | リンク | ||
| 3 | ねじ | ||
| 4-1 | ブラケット | ||
| 4-2 | ブラケット | ||
| 4-3 | ブラケット | ||
| 5 | ねじ | ||
| 6 | オイルパイプ | ||
| 7 | ワッシャー | ||
| 8 | ワッシャー | ||
| 9 | グリースニップル | ||
| 10 | クリップ | ||
| 11 | ワッシャー | ||
| 12-1 | ブラケット | ||
| 12-2 | オイルポンプ | ||
| 12-3 | ねじ | ||
| 12-4 | ワッシャー | ||
| 12-5 | オイルパイプ | ||
| 12-6 | ねじ | ||
| 12-7 | ナット | ||
| 12-8 | ねじ | ||
| 13 | オイルパイプ | ||
| 14 | オイルパイプ | ||
| 15 | オイルパイプ | ||
| 17 | オイルパイプ | ||
| 18 | オイルパイプ | ||
| 19 | オイルパイプ | ||
| 20 | オイルパイプ | ||
| 21 | オイルパイプ | ||
| 22 | オイルパイプ | ||
| 23 | オイルパイプ | ||
| 24 | オイルパイプ | ||
| 25 | オイルパイプ | ||
| 26 | オイルパイプ | ||
| 28 | オイルパイプ | ||
| 29 | オイルパイプ | ||
| 31 | オイルパイプ | ||
| 32 | ワッシャー | ||
| 33 | ねじ | ||
| 34 | オイルパイプ | ||
| 36-1 | オイルパイプ | ||
| 38 | オイルパイプ | ||
| 39 | オイルパイプ | ||
| 40 | オイルパイプ | ||
| 41 | オイルパイプ | ||
| 43 | オイルパイプ | ||
| 44 | オイルパイプ | ||
| 45 | オイルパイプ | ||
| 46 | オイルパイプ | ||
| 47 | ワッシャー | ||
| 48 | ワッシャー | ||
| 49 | ブラケット | ||
| 50 | ねじ | ||
| 51 | ワッシャー | ||
| 52 | オイルフィルター | ||
| 53 | オイルパイプ | ||
| 54 | ワッシャー | ||
| 56 | オイルパイプ | ||
| 58 | オイルパイプ | ||
| 59 | オイルパイプ | ||
| 60 | オイルパイプ | ||
| 61 | オイルパイプ | ||
| 62 | オイルパイプ | ||
| 63-1 | オイルパイプ | ||
| 63-2 | オイルパイプ | ||
| 64 | オイルパイプ | ||
| 65 | ワッシャー | ||
| 66 | オイルパイプ | ||
| 67 | オイルパイプ | ||
| 68 | オイルパイプ | ||
| 69 | オイルパイプ | ||
| 70 | オイルパイプ | ||
| 71 | オイルパイプ |
K. 給油・潤滑関係/Lubrication/Schmierung Lubrification/Lubricación 2-7 2-6 2-1 2-5 2-4 2-2 2-3 3 62 64 61 59 53 52 49 51 50 4-1 4-3 5 4-2 6 10 7 8 9 26 25 21 20 15 14 22 67 24 66 17 71 58 54 53 56 31 33 32 69 36-1 38 39 40 34 28 11 43 45 47 65 46 48 63-1 13 12-1 12-7 12-5 12-7 12-4 12-3 12-8 12-6 12-4 63-2 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 062670512 | SCREW 357-40X5 | 1 | |
| 152976001 | WICK HOLDER | 1 | |
| 062670512 | SCREW 357-40X5 | 2 | |
| 028040242 | SPRING WASHER2-4 | 2 | |
| 152977001 | WICK (50MM) | 1 | |
| 152978001 | TUBE SUPPORTER | 1 | |
| 062680812 | SCREW 437-40X8 | 1 | |
| 153927001 | WICK 6X6 | 1 | |
| 112669001 | VINYL TUBE | 1 | |
| 153922001 | WICK 4X4 (500MM) | 1 | |
| 107149001 | FELT | 1 | |
| 152968001 | WICK 4X4 (100MM) | 1 | |
| 153529001 | FELT | 1 | |
| 153530001 | FELT | 1 | |
| 153531001 | FELT | 1 | |
| 153562001 | WICK (220MM) | 1 | |
| 153528001 | FELT SUPPORTER | 1 | |
| 105248003 | WASHER | 1 | |
| 153924001 | FELT | 1 | |
| 152973001 | WICK 4X4 (180MM) | 1 | |
| 153925001 | WICK 4X4 (30MM) | 1 | |
| 153926001 | WICK (10MM) | 1 | |
| 152980001 | WICK 6X6 (150MM) | 1 | |
| 152980001 | WICK 6X6 (140MM) | 1 |
K. 給油・潤滑関係/Lubrication/Schmierung Lubrication/Lubricación REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 48 062670512 1 ナベコ357-40X5 SCREW 357-40X5 49 152976001 1 ボールキュウユヒモササエ WICK HOLDER 50 062670512 2 ナベコ357-40X5 SCREW 357-40X5 51 028040242 2 ハネザガネ2-4 SPRING WASHER2-4 52 152977001 1 ヒラヌミモ(50MM) WICK (50MM) 53 152978001 1 チューブオサエ TUBE SUPPORTER 54 062680812 1 ナベコ437-40X8 SCREW 437-40X8 55 153927001 1 クミヒモ6X6 WICK 6X6 56 112669001 1 ビニルチューブ VINYL TUBE 58 153922001 1 クミヒモ4X4(500MM) WICK 4X4 (500MM) 59 107149001 1 フエルト FELT 60 152968001 1 クミヒモ4X4(100MM) WICK 4X4 (100MM) 61 153529001 1 ホイールキュウユフエルト FELT 62 153530001 1 スイアゲフエルト FELT 63-1 153531001 1 ヘツト"L"フエルト FELT 63-2 153562001 1 ヒラヌミモ(220MM) WICK (220MM) 64 153528001 1 ウォームキュウユフエルトササエ FELT SUPPORTER 65 105248003 1 ザガネ WASHER 66 153924001 1 フエルト FELT 67 152973001 1 クミヒモ4X4(180MM) WICK 4X4 (180MM) 68 153925001 1 クミヒモ4X4(30MM) WICK 4X4 (30MM) 69 153926001 1 タコヒモ(10MM) WICK (10MM) 70 152980001 1 クミヒモ6X6(150MM) WICK 6X6 (150MM) 71 152980001 1 クミヒモ6X6(140MM) WICK 6X6 (140MM) jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BRACKET | ||
| 2 | BRACKET | ||
| 3 | BRACKET | ||
| 4 | SCREW | ||
| 5 | BRACKET | ||
| 6 | SCREW | ||
| 7 | PIN | ||
| 8 | CYLINDER | ||
| 9 | SPRING | ||
| 10 | SPRING | ||
| 11 | SPRING | ||
| 12 | WASHER | ||
| 13 | WASHER | ||
| 14 | WASHER | ||
| 15 | WASHER | ||
| 16 | SHAFT | ||
| 17 | SPRING | ||
| 18 | SPRING | ||
| 19 | BRACKET | ||
| 20 | SPRING | ||
| 21 | SPRING | ||
| 22 | SPRING | ||
| 23 | SPRING | ||
| 24 | SPRING | ||
| 25 | WASHER | ||
| 26 | WASHER | ||
| 27 | WASHER | ||
| 28 | SPRING | ||
| 29 | SPRING | ||
| 30 | SPRING | ||
| 31 | CYLINDER | ||
| 32 | BRACKET | ||
| 33 | BRACKET | ||
| 34 | BRACKET | ||
| 35 | BRACKET | ||
| 36 | BRACKET | ||
| 37 | SPRING | ||
| 38 | PIN | ||
| 39 | BRACKET | ||
| 40 | SCREW | ||
| 41 | BRACKET | ||
| 42 | BRACKET | ||
| 43 | CYLINDER | ||
| 44 | SPRING | ||
| 45 | SCREW | ||
| 46 | SPRING |
L. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung Mécanisme de l'enfilage/Mecanismo de la enhebrado 19 29 30 32 45 44 43 31 39 40 7 3 5 6 42 41 33 34 35 36 21 28 20 22 10 18 46 23 24 25 26 27 8 16 11 9 12 13 14 15 1 2 38 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152869001 | アームイトミチ | 1 |
| 2 | 062710712 | ナベコ357-32X7 | 1 |
| 3 | 152870001 | アームイトカケ | 1 |
| 4 | 062670612 | ナベコ357-40X6 | 1 |
| 5 | 113316001 | アームイトアンナイ | 1 |
| 6 | 112751003 | シメネジ"3.57 | 1 |
| 7 | 153049001 | ウワイトアンナイボウ | 1 |
| 8 | 152872001 | イトチョウシダイ | 1 |
| 9 | 100398001 | イトチョウシボウ | 1 |
| 10 | 100402004 | トメネジ"5.95 | 1 |
| 11 | 145519001 | イトトリハネ | 1 |
| 12 | 145446001 | イトチョウシサラ | 2 |
| 13 | 159805001 | イトチョウシサラオサエ | 1 |
| 14 | 107606001 | イトチョウシハネ | 1 |
| 15 | 100136001 | イトチョウシナツト | 1 |
| 16 | 152873001 | イトユルメピン | 1 |
| 17 | 114294001 | Oリング | 1 |
| 18 | 103950003 | トメネジ"5.95 | 1 |
| 19 | 152874001 | フクイトユルメボウ | 1 |
| 20 | 152875001 | フクイトチョウシボウ | 1 |
| 21 | 152876001 | フクイトユルメピン | 1 |
| 22 | 145446001 | イトチョウシサラ | 2 |
| 23 | 152877001 | イトチョウシサラオサエ | 1 |
| 24 | 152878001 | ウワイトオサエハネ | 1 |
| 25 | 152879101 | フクチョウシハネ | 1 |
| 26 | 152880001 | バネウケ | 1 |
| 27 | 100136001 | イトチョウシナツト | 1 |
| 28 | 014680422 | アナトメネジ"4.37クボミ | 1 |
| 29 | 140208001 | ザガネ | 1 |
| 30 | 048040342 | トメE4 | 1 |
| 31 | 152881001 | エキレイクミ | 1 |
| 32 | 013760612 | トメネジ"5.95クボミ | 1 |
| 33 | 152886001 | イトトリアンナイジクウケ | 1 |
| 34 | 014680422 | アナトメネジ"4.37クボミ | 1 |
| 35 | 152870001 | イトトリアンナイジク | 1 |
| 36 | 15288101 | イトトリアンナイ | 1 |
| 37 | 141528001 | ダンネジ"6.35 | 1 |
| 38 | 115077003 | ダンネジ"4.76 | 1 |
| 39 | 152889001 | ミツメイトカケ | 1 |
| 40 | 062670612 | ナベコ357-40X6 | 2 |
| 41 | 152890001 | ハリボウイトアンナイA | 1 |
| 42 | 154626001 | ハリボウメタルDイトアンナイ | 1 |
| 43 | 152883000 | フエルト8X15.5 | 1 |
| 44 | 152884001 | エキレイトカケ | 1 |
| 45 | 062670412 | ナベコ357-40X4 | 1 |
| 46 | 153138001 | ザガネ | 1 |
L. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung Mécanisme de la enhebrado REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152869001 1 アームイトミチ ARM THREAD GUIDE 2 062710712 1 ナベコ357-32X7 SCREW 476-32X7 3 152870001 1 アームイトカケ ARM THREAD GUIDE 4 062670612 1 ナベコ357-40X6 SCREW 357-40X6 5 113316001 1 アームイトアンナイ ARM THREAD GUIDE 6 112751003 1 シメネジ"3.57 SCREW 3.57 7 153049001 1 ウワイトアンナイボウ UPPER THREAD GUIDE BAR 8 152872001 1 イトチョウシダイ TENSION BRACKET 9 100398001 1 イトチョウシボウ TENSION STUD 10 100402004 1 トメネジ"5.95 SCREW 5.95 11 145519001 1 イトトリハネ THREAD TAKE-UP SPRING 12 145446001 2 イトチョウシサラ TENSION DISC 13 159805001 1 イトチョウシサラオサエ TENSION DISC WASHER 14 107606001 1 イトチョウシハネ TENSION SPRING 15 100136001 1 イトチョウシナツト TENSION CONTROL NUT 16 152873001 1 イトユルメピン TENSION RELEASE PIN 17 114294001 1 Oリング O RING 18 103950003 1 トメネジ"5.95 SCREW 5.95 19 152874001 1 フクイトユルメボウ SUB TENSION RELEASE BAR 20 152875001 1 フクイトチョウシボウ SUB TENSION CONTROL STUD 21 152876001 1 フクイトユルメピン SUB TENSION RELEASE PIN 22 145446001 2 イトチョウシサラ TENSION DISC 23 152877001 1 イトチョウシサラオサエ TENSION DISC WASHER 24 152878001 1 ウワイトオサエハネ TENSION SPRING 25 152879101 1 フクチョウシハネ SUB TENSION SPRING 26 152880001 1 バネウケ SPRING HOLDER 27 100136001 1 イトチョウシナツト TENSION CONTROL NUT 28 014680422 1 アナトメネジ"4.37クボミ SCREW 4.37 29 140208001 1 ザガネ WASHER 30 048040342 1 トメE4 STOP RING E4 31 152881001 1 エキレイクミ NEEDLE COOLER BODY 32 013760612 1 トメネジ"5.95クボミ SCREW 5.95 33 152886001 1 イトトリアンナイジクウケ THREAD TAKE-UP GUIDE 34 014680422 1 アナトメネジ"4.37クボミ SCREW 4.37 35 152870001 1 イトトリアンナイジク THREAD TAKE-UP LEVER GUIDE STUD 36 15288101 1 イトトリアンナイ THREAD TAKE-UP LEVER 37 141528001 1 ダンネジ"6.35 STUD SCREW 6.35 38 115077003 1 ダンネジ"4.76 STUD SCREW 4.76 39 152889001 1 ミツメイトカケ THREAD RETAINER 40 062670612 2 ナベコ357-40X6 SCREW 357-40X6 41 152890001 1 ハリボウイトアンナイA NEEDLE BAR THREAD GUIDE A 42 154626001 1 ハリボウメタルDイトアンナイ NEEDLE BAR BUSHING D THREAD GUIDE 43 152883000 1 フエルト8X15.5 FELT 8X15.5 44 152884001 1 エキレイトカケ NEEDLE COOLER THREAD GUIDE 45 062670412 1 ナベコ357-40X4 SCREW 357-40X4 46 153138001 1 ザガネ WASHER jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3-4 | Nut | ||
| 3-3 | Washer | ||
| 3-2 | Spring | ||
| 7 | Lever | ||
| 3-1 | Screw | ||
| 1-21-2 | Ring | ||
| 1-21-1 | Bobbin winder spindle | ||
| 1-4 | Shaft | ||
| 1-18 | Screw | ||
| 1-20 | Spring | ||
| 1-1 | Base | ||
| 1-13 | Screw | ||
| 1-17 | Clip | ||
| 1-16 | Screw | ||
| 1-5 | Spool pin | ||
| 1-2 | Lever | ||
| 1-9 | Screw | ||
| 1-8 | Washer | ||
| 1-7 | Plate | ||
| 1-3 | Shaft | ||
| 1-14 | Spring | ||
| 1-12 | Spring | ||
| 1-6 | Lever | ||
| 1-10 | Lever | ||
| 1-11 | Screw | ||
| 1-15 | Shaft | ||
| 1-17 | Clip | ||
| 1-19 | Screw | ||
| 1-22 | Screw |
M. 糸巻キ関係/Bobbin winder mechanism/Spuler M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M 3-4 3-3 3-2 7 3-1 1-21-2 1-21-1 1-4 1-18 1-20 1-1 1-13 1-17 1-16 1-5 1-2 1-9 1-8 1-7 1-3 1-14 1-12 1-6 1-10 1-11 1-15 1-17 1-19 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 152982101 | イトマキクミ | 1 |
| 1-1 | 152983001 | イトマキダイ | 1 |
| 1-2 | 152984001 | イトマキレバー | 1 |
| 1-3 | 152933001 | イトマキシジク | 1 |
| 1-4 | 152934001 | イトマキレバーシジク | 1 |
| 1-5 | 102716004 | トメネジ4.37 | 1 |
| 1-6 | 152935001 | ボビンオサエ | 1 |
| 1-7 | 152936001 | イタバネ | 1 |
| 1-8 | 152937001 | ザガネ | 1 |
| 1-9 | 062670712 | ナベコ357-40X7 | 1 |
| 1-10 | 152938001 | メス | 1 |
| 1-11 | 062680712 | ナベコ437-40X7 | 1 |
| 1-12 | 152939001 | イトマキレバーヒキハネ | 1 |
| 1-13 | 115138001 | レバーヒキハネカケ | 1 |
| 1-14 | 141550001 | テイシレバーハネカケ | 1 |
| 1-15 | 152940001 | イトマキツメシジク | 1 |
| 1-16 | 142566001 | イトマキツメ | 1 |
| 1-17 | 048050342 | トメワE5 | 2 |
| 1-18 | 014680422 | アナトメネジ4.37ホボミ | 2 |
| 1-19 | 062670712 | ナベコ357-40X7 | 1 |
| 1-20 | 152941001 | イトマキツメシジハネ | 1 |
| 1-21 | 154550001 | イトマキクルマ | 1 |
| 1-21-2 | 120448001 | ゴムワ | 1 |
| 1-22 | 102716004 | トメネジ4.37 | 2 |
| 2 | 062761412 | ナベコ595-28X14 | 2 |
| 3 | S01300001 | シタイトチョウシクミ | 1 |
| 3-1 | 152945001 | シタイトチョウシブラケツトクミ | 1 |
| 3-2 | 145446001 | イトチョウシサラ | 2 |
| 3-3 | 104525001 | イトチョウシハネ | 1 |
| 3-4 | 104525001 | イトチョウシナット | 1 |
| 7 | 062681012 | ナベコ437-40X10 | 2 |
M. 糸巻関係/Bobbin winder mechanism/Spuler Mécanisme de bobineur/Mecanismo del devanador de la canilla REF. NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 152982101 1 イトマキクミ BOBBIN WINDER ASSEMBLY 1-1 152983001 1 イトマキダイ BOBBIN WINDER BRACKET 1-2 152984001 1 イトマキレバー BOBBIN WINDER LEVER 1-3 152933001 1 イトマキシジク BOBBIN WINDER SHAFT 1-4 152934001 1 イトマキレバーシジク BOBBIN WINDER LEVER SHAFT 1-5 102716004 1 トメネジ4.37 SCREW 4.37 1-6 152935001 1 ボビンオサエ BOBBIN PRESSER 1-7 152936001 1 イタバネ PLATE SPRING 1-8 152937001 1 ザガネ WASHER 1-9 062670712 1 ナベコ357-40X7 SCREW 357-40X7 1-10 152938001 1 メス KNIFE 1-11 062680712 1 ナベコ437-40X7 SCREW 437-40X7 1-12 152939001 1 イトマキレバーヒキハネ SPRING 1-13 115138001 1 レバーヒキハネカケ SPRING HOOK 1-14 141550001 1 テイシレバーハネカケ SPRING HOOK 1-15 152940001 1 イトマキツメシジク CLAW STUD FOR BOBBIN WINDER 1-16 142566001 1 イトマキツメ CLAW FOR BOBBIN WINDER 1-17 048050342 2 トメワE5 STOP RING E5 1-18 014680422 2 アナトメネジ4.37ホボミ SCREW 4.37 1-19 062670712 1 ナベコ357-40X7 SCREW 357-40X7 1-20 152941001 1 イトマキツメシジハネ SPRING 1-21 154550001 1 イトマキクルマ BOBBIN WINDER WHEEL 1-21-2 120448001 1 ゴムワ RUBBER RING 1-22 102716004 2 トメネジ4.37 SCREW 4.37 2 062761412 2 ナベコ595-28X14 SCREW 595-28X14 3 S01300001 1 シタイトチョウシクミ LOWER THREAD TENSION ASSEMBLY 3-1 152945001 1 シタイトチョウシブラケツトクミ LOWER THREAD TENSION BRACKET ASSEMBLY 3-2 145446001 2 イトチョウシサラ TENSION DISC 3-3 104525001 1 イトチョウシハネ TENSION SPRING 3-4 104525001 1 イトチョウシナット TENSION CONTROL NUT 7 062681012 2 ナベコ437-40X10 SCREW 437-40X10 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 6-2 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | WASHER | |
| 44 | 44 | SCREW | |
| 9 | 9 | LEVER | |
| 10 | 10 | PLATE | |
| 50 | 50 | LEVER | |
| 53 | 53 | WASHER | |
| 54 | 54 | WASHER | |
| 52 | 52 | WASHER | |
| 51 | 51 | PIN | |
| 13 | 13 | SCREW | |
| 45 | 45 | SPRING | |
| 7 | 7 | LEVER | |
| 8 | 8 | SPRING | |
| 46 | 46 | SPRING | |
| 11 | 11 | SPRING | |
| 18-3 | 18-3 | WASHER | |
| 18-4 | 18-4 | COLLAR | |
| 18-2 | 18-2 | PIN | |
| 20 | 20 | SCREW | |
| 21 | 21 | WASHER | |
| 19 | 19 | BLADE | |
| 25 | 25 | SPRING | |
| 18-5 | 18-5 | SPRING | |
| 18-6 | 18-6 | PIN | |
| 22 | 22 | SHAFT | |
| 26 | 26 | SPRING | |
| 27 | 27 | SPRING | |
| 28 | 28 | SPRING | |
| 1 | 1 | SHAFT | |
| 4 | 4 | LEVER | |
| 3 | 3 | SCREW | |
| 2 | 2 | CIRCLIP | |
| 5 | 5 | SPRING | |
| 18-1 | 18-1 | SCREW | |
| 30 | 30 | SCREW | |
| 24 | 24 | SPRING | |
| 23 | 23 | SPRING | |
| 31 | 31 | LEVER | |
| 32 | 32 | SCREW | |
| 42 | 42 | SHAFT | |
| 38 | 38 | SHAFT | |
| 34 | 34 | BRACKET | |
| 39 | 39 | WASHER | |
| 40 | 40 | WASHER | |
| 41 | 41 | SCREW | |
| 37 | 37 | SPRING | |
| 36 | 36 | COLLAR | |
| 35 | 35 | SCREW | |
| 6-1 | 6-1 | BASE PLATE | |
| 12 | 12 | PLATE |
N. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung Mécanisme de coupe-fil/Mecanismo de recortdora de orillos 輸出用/for Export 6-1 6-2 43 16 17 44 9 10 50 53 54 52 51 13 45 7 8 46 11 18-3 18-4 18-2 20 21 19 25 18-5 18-6 22 26 27 28 1 4 3 2 5 18-1 30 24 23 31 32 42 38 34 39 40 41 37 36 35 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 152892001 | イトキリレンケツツロット | ||
| 152896001 | イトキリウデ"Aクミ | ||
| 018681022 | アナボルト4.37X10 | ||
| 152893101 | イトキリウデ"B | ||
| 048050342 | トメワE5 | ||
| 152995001 | --- | ||
| S01887001 | ハリイタC | ||
| 152981001 | イトキリウデ"C | ||
| 153222001 | シメネジ"4.37 | ||
| 152897201 | イトキリレンケツクミ | ||
| 152901001 | イトウハクミ | ||
| 152904001 | シメネジ"4.37 | ||
| 152905001 | フテイ | ||
| 111140002 | シメネジ"2.38 | ||
| 100360003 | サラネジ"2.38 | ||
| 159940001 | ハリイタH | ||
| 152912001 | イトキリカムレバー | ||
| 152913001 | コロジク | ||
| 048040342 | トメワE4 | ||
| 152914001 | コロ | ||
| 154789001 | バネカケ | ||
| 152919001 | イトキリロット"ピン | ||
| 152915001 | イトキリカムレバーツメ | ||
| 062761412 | ナベコ595-28X14 | ||
| 025060132 | ヒラザガネショウ6 | ||
| 152916001 | イトキリカムレバーシヤク | ||
| 152917001 | ザガネ | ||
| 048120142 | トメワジクC12 | ||
| 154788001 | イトキリカムレバーバネ | ||
| 14760622 | アナトメワ5.95クボミ | ||
| 140208001 | ザガネ | ||
| 048040342 | トメワE4 | ||
| 152920001 | イトキリリンクチヨウセツシク | ||
| 014760622 | アナトメネジ"5.95クボミ | ||
| 152921001 | イトキリリンク | ||
| 151907001 | ダンネジ"5.95 | ||
| 150553001 | ナット5.95 | ||
| 152922001 | イトキリサドルレバー | ||
| 152923001 | イトキリサドルレバーコロ | ||
| 112468001 | ザガネ | ||
| 048050342 | トメワE5 | ||
| 153482001 | イトキリサドルレバーシヤク | ||
| 142628001 | スイヘイオウクリツクランクリング | ||
| 048110142 | トメワジクC11 | ||
| 111865001 | オイルメクラセン | ||
| 014760622 | アナトメネジ"5.95クボミ | ||
| 100032004 | サラネジ"4.37 | ||
| 153208002 | シメネジ"4.37 | ||
| 153220001 | イトキリクデ"Cカラー | ||
| 153219001 | イトドウハカラー | ||
| 141334001 | バネカケ | ||
| 152906101 | シタイサハキ"A | ||
| 153598001 | シメネジ"4.37 | ||
| 08108070 | 0リングP8 | ||
| 153597001 | シタイサハキカラー | ||
| 153596001 | ザガネ |
N. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung/Mecanismo de corte-fil/Mecanismo de recortdora de orillos REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152892001 1 イトキリレンケツツロット THREAD TRIMMING CONNECTING ROD 2 152896001 1 イトキリウデ"Aクミ THREAD TRIMMING ARM A ASSEMBLY 3 018681022 1 アナボルト4.37X10 BOLT 4.37X10 4 152893101 1 イトキリウデ"B THREAD TRIMMING ARM B 5 048050342 1 トメワE5 STOP RING E5 6-1 152995001 1 --- NEEDLE PLATE S 6-2 S01887001 1 ハリイタC 7 152981001 1 イトキリウデ"C KNIFE ARM C 8 153222001 1 シメネジ"4.37 SCREW 4.37 9 152897201 1 イトキリレンケツクミ KNIFE CONNECTING ROD ASSEMBLY 10 152901001 1 イトウハクミ MOVABLE KNIFE ASSEMBLY 11 152904001 1 シメネジ"4.37 SCREW 4.37 12 152905001 1 フテイ FIXED KNIFE 13 111140002 2 シメネジ"2.38 SCREW 2.38 16 100360003 2 サラネジ"2.38 SCREW 2.38 17 159940001 1 ハリイタH NEEDLE HOLE PLATE H 18-1 152912001 1 イトキリカムレバー THREAD TRIMMING CAM LEVER 18-2 152913001 1 コロジク ROLLER STUD 18-3 048040342 1 トメワE4 STOP RING E4 18-4 152914001 1 コロ ROLLER 18-5 154789001 1 バネカケ SPRING HOOK 18-6 152919001 1 イトキリロット"ピン PIN 19 152915001 1 イトキリカムレバーツメ THREAD TRIMMING CAM LEVER CLAW 20 062761412 1 ナベコ595-28X14 SCREW 595-28X14 21 025060132 1 ヒラザガネショウ6 WASHER 6 22 152916001 1 イトキリカムレバーシヤク THREAD TRIMMING CAM LEVER SHAFT 23 152917001 1 ザガネ WASHER 24 048120142 1 トメワジクC12 STOP RING C12 25 154788001 1 イトキリカムレバーバネ KNIFE CAM LEVER SPRING 26 14760622 1 アナトメワ5.95クボミ SCREW 5.95 27 140208001 1 ザガネ WASHER 28 048040342 1 トメワE4 STOP RING E4 29 152920001 1 イトキリリンクチヨウセツシク STUD 30 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 31 152921001 1 イトキリリンク THREAD TRIMMING LINK 32 151907001 1 ダンネジ"5.95 STUD SCREW 5.95 33 150553001 1 ナット5.95 NUT 5.95 34 152922001 1 イトキリサドルレバー THREAD TRIMMING LEVER 35 152923001 1 イトキリサドルレバーコロ THREAD TRIMMING ROLLER 36 112468001 1 ザガネ WASHER 37 048050342 1 トメワE5 STOP RING E5 38 153482001 1 イトキリサドルレバーシヤク DRIVING SHAFT 39 142628001 1 スイヘイオウクリツクランクリング HORIZONTAL FEED CRANK RING 40 048110142 1 トメワジクC11 STOP RING C11 41 111865001 1 オイルメクラセン CAP FOR OIL INLET 42 014760622 1 アナトメネジ"5.95クボミ SCREW 5.95 43 100032004 2 サラネジ"4.37 SCREW 4.37 44 153208002 2 シメネジ"4.37 SCREW 4.37 45 153220001 1 イトキリクデ"Cカラー KNIFE ARM C COLLAR 46 153219001 1 イトドウハカラー MOVABLE KNIFE COLLAR 48 141334001 1 バネカケ SPRING HOOK 50 152906101 1 シタイサハキ"A THREAD RETAINER A 51 153598001 1 シメネジ"4.37 SCREW 4.37 52 08108070 1 0リングP8 O RING P8 53 153597001 1 シタイサハキカラー THREAD RETAINER COLLAR 54 153596001 1 ザガネ WASHER jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PIN | |
| 2 | 2 | BRACKET | |
| 3 | 3 | SCREW | |
| 4 | 4 | WASHER | |
| 5 | 5 | WASHER | |
| 6 | 6 | PIN | |
| 7 | 7 | PIN | |
| 8 | 8 | SPRING WASHER | |
| 9 | 9 | SPRING WASHER | |
| 10 | 10 | PIN | |
| 11 | 11 | SPRING | |
| 12 | 12 | CAP | |
| 13 | 13 | SCREW | |
| 14 | 14 | LEVER | |
| 15 | 15 | SCREW | |
| 16 | 16 | SPRING | |
| 17 | 17 | WASHER |
P. 糸払イ関係/Thread wiper mechanism/Fadenwischvorrichtung Mécanisme de tire-fil/Mecanismo de limpiador de hilos 輸出用/for Export Q. 糸締メ関係/Thread nipper mechanism/Fadenspannvorrichtung Mécanisme de pince-fil/Mecanismo de mordaza para hilos jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 152815001 | THREAD WIPER ROD SHAFT | 1 | |
| 152816001 | THREAD WIPER ROD ASSEMBLY | 1 | |
| 014680622 | SCREW 4.37 | 1 | |
| 048060342 | STOP RING E6 | 1 | |
| 116629001 | WASHER | 2 | |
| 152822001 | THREAD WIPER SHAFT | 1 | |
| 025770232 | WASHER 6.35 | 1 | |
| 048040342 | STOP RING E4 | 1 | |
| 014680622 | SCREW 4.37 | 1 | |
| 152823001 | THREAD WIPER ARM ASSEMBLY | 1 | |
| 048030342 | STOP RING E3 | 1 | |
| 152827001 | OIL CAP | 1 | |
| 013710712 | SCREW 4.76 | 1 | |
| 156206001 | WASHER | 1 | |
| 062670512 | SCREW 357-40X5 | 1 | |
| S00926101 | FINGER GUARD | 1 | |
| 025350132 | WASHER | 1 | |
| 152925101 | TENSION RELEASE BAR | 1 | |
| 152926001 | TENSION RELEASE BAR PLATE | 1 | |
| 062671012 | SCREW 357-40X10 | 2 | |
| 025350332 | WASHER 3.5 | 2 | |
| 152988001 | TENSION RELEASE LEVER ASSEMBLY | 1 | |
| 048040342 | STOP RING E4 | 1 | |
| 152929001 | TENSION RELEASE LEVER SHAFT | 1 | |
| 048050342 | STOP RING E5 | 1 | |
| 025770232 | WASHER 6.35 | 1 | |
| 014760622 | SCREW 5.95 | 1 |
P. 糸払イ関係/Thread wiper mechanism/Fadenwischvorrichtung M ecanisme de tire-fil/Mecanismo de limpiador de hilos REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152815001 1 ワイヤ ーロツト"ジク THREAD WIPER ROD SHAFT 2 152816001 1 ワイヤ ーロツト"クミ THREAD WIPER ROD ASSEMBLY 3 014680622 1 アナトメネジ4.37クボミ SCREW 4.37 4 048060342 1 トメワE6 STOP RING E6 5 116629001 2 ザガネ WASHER 6 152822001 1 ワイヤ ージク THREAD WIPER SHAFT 7 025770232 1 ヒラザガネチユウ6.35 WASHER 6.35 8 048040342 1 トメワE4 STOP RING E4 9 014680622 1 アナトメネジ4.37クボミ SCREW 4.37 10 152823001 1 ワイヤ ーウデ"クミ THREAD WIPER ARM ASSEMBLY 11 048030342 1 トメワE3 STOP RING E3 12 152827001 1 オイルキリセン OIL CAP 13 013710712 1 トメネジ4.76クボミ SCREW 4.76 14 156206001 1 ワイヤ ー 15 062670512 1 ナベコ357-40X5 SCREW 357-40X5 16 S00926101 1 FINGER GUARD 17 025350132 1 ヒラザガネシヨウ WASHER Q. 糸締メ関係/Thread nipper mechanism/Fadenspannvorrichtung M M ecanisme de pince-fil/Mecanismo de mordaza para hilos REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152925101 1 ウワイトユル メボウ TENSION RELEASE BAR 2 152926001 1 ユルメボウササエタ TENSION RELEASE BAR PLATE 3 062671012 2 ナベコ357-40X10 SCREW 357-40X10 4 025350332 2 ヒラザガネダイ3.5 WASHER 3.5 5 152988001 1 ウワイトユル メレバークミ TENSION RELEASE LEVER ASSEMBLY 6 048040342 1 トメワE4 STOP RING E4 7 152929001 1 ウワイトユルメレバーシク TENSION RELEASE LEVER SHAFT 8 048050342 1 トメワE5 STOP RING E5 9 025770232 1 ヒラザガネチユウ6.35 WASHER 6.35 10 014760622 1 アナトメネジ5.95クボミ SCREW 5.95 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Drive pulley and idler pulley mechanism | ||
| 7 | Drive pulley and idler pulley mechanism | ||
| 8 | Drive pulley and idler pulley mechanism | ||
| 9-1 | Drive pulley and idler pulley mechanism | ||
| 9-3 | Drive pulley and idler pulley mechanism | ||
| 13 | Drive pulley and idler pulley mechanism | ||
| 14 | Drive pulley and idler pulley mechanism | ||
| 16 | Drive pulley and idler pulley mechanism | ||
| 17 | Drive pulley and idler pulley mechanism | ||
| 18 | Drive pulley and idler pulley mechanism | ||
| 19 | Drive pulley and idler pulley mechanism | ||
| 20 | Drive pulley and idler pulley mechanism | ||
| 21 | Drive pulley and idler pulley mechanism | ||
| 22 | Drive pulley and idler pulley mechanism | ||
| 23 | Drive pulley and idler pulley mechanism | ||
| 24 | Drive pulley and idler pulley mechanism | ||
| 25 | Drive pulley and idler pulley mechanism | ||
| 1-1 | Shank attachment (Option parts) | ||
| 1-2 | Shank attachment (Option parts) | ||
| 1-3 | Shank attachment (Option parts) | ||
| 1-4 | Shank attachment (Option parts) | ||
| 1-5 | Shank attachment (Option parts) | ||
| 1-6 | Shank attachment (Option parts) | ||
| 1-7 | Shank attachment (Option parts) | ||
| 1-8 | Shank attachment (Option parts) | ||
| 1-9 | Shank attachment (Option parts) | ||
| 1-10 | Shank attachment (Option parts) | ||
| 1-11 | Shank attachment (Option parts) | ||
| 1-12 | Shank attachment (Option parts) | ||
| 1-13 | Shank attachment (Option parts) | ||
| 1-14 | Shank attachment (Option parts) | ||
| 1-15 | Shank attachment (Option parts) |
R. 動車・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe Mécanisme de poulie d'entraînement et poulie folle/Mecanismo de polea impulsora y polea tensora 9-1 13 9-3 9-1 17 18 16 13 12 21 19 22 24 23 25 1-1 1-2 1-3 1-4 1-5 S. シャンクアタッチメント装置(特別注文部品)/Shank attachment (Option parts)/Knopfannähvorrichtung (Sonderzubehör) Accessoire de talon (Pieces en option)/Mecanismo de la caña (Piezas opcion) 1-1-13 1-1-12 1-1-11 1-1-10 1-1-9 1-1-8 1-1-7 1-1-6 1-1-5 1-1-4 1-1-3 1-1-2 1-1-1 1-14 1-15 1-12 1-13 1-7 1-5 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 153044001 | STOP CAM ASSEMBLY | 1 | |
| 152693001 | BRAKE CAM SEGMENT | 1 | |
| 152694001 | BRAKE CAM SEGMENT SPRING | 1 | |
| 115003001 | FLANGE CAM SEGMENT | 1 | |
| 153058001 | CAM SEGMENT STUD | 2 | |
| 048040342 | STOP RING E4 | 2 | |
| 147111001 | TAPER PIN 6X35 | 1 | |
| 014770622 | SCREW 6.35 | 1 | |
| 156935101 | PULLEY ASSEMBLY | 2 | |
| 152695201 | PULLEY ASSEMBLY | 2 | |
| 072600760 | BALL BEARING 6007VV | 2 | |
| 152698001 | SLIDE METAL | 1 | |
| 048350142 | STOP RING C35 | 2 | |
| 152699001 | WASHER | 1 | |
| 048240242 | STOP RING C24 | 1 | |
| 152700000 | SLIDE BUSH A | 1 | |
| 151946000 | SLIDE BUSH B | 1 | |
| 152701001 | CLUTCH SPRING | 1 | |
| 152702001 | CLUTCH PLATE | 1 | |
| 152703100 | SPACER | 5 | |
| S02878000 | KEY 3X3X13 | 1 | |
| 152705001 | NUT 10 | 1 | |
| 152706001 | BALL BEARING | 1 | |
| 062660712 | SCREW 318-40X7 | 4 | |
| 071095250 | STEEL BALL 3/8 | 1 | |
| 154694006 | SHANK BUTTON ATTACHMENT | 1 | |
| 142689206 | SHANK BUTTON CLAMP ASSEMBLY | 1 | |
| 154684006 | SHANK BUTTON CLAMP | 1 | |
| 142677001 | BUTTON CLAMP A | 1 | |
| 142678001 | BUTTON CLAMP B | 1 | |
| 062670812 | SCREW 357-40X8 | 1 | |
| 102707003 | WASHER | 1 | |
| 142681001 | BUTTON PRESSER STUD | 1 | |
| 154685001 | SPRING | 1 | |
| 142678001 | SET COLLAR | 2 | |
| 062670712 | SCREW 357-40X7 | 2 | |
| 154686001 | BUTTON PRESSER ARM | 1 | |
| 013719412 | SCREW 4.76 | 1 | |
| 142680001 | BUTTON PRESSER | 1 | |
| 120990001 | SCREW 4.37 | 1 | |
| 154695001 | BUTTON PRESSER ARM LIFTER | 1 | |
| 154696001 | BUTTON PRESSER ARM LIFTER STUD | 1 | |
| 014680422 | SCREW 4.37 | 1 | |
| 154697001 | FEED PLATE BASE | 1 | |
| 156336001 | SHANK BUTTON FEED PLATE | 1 | |
| 154713001 | SCREW 4.76 | 2 | |
| 021710212 | NUT 4.76 | 2 | |
| 025710232 | WASHER 4.76 | 2 | |
| 142686001 | CLOTH RECEIVER S | 1 | |
| 060670512 | SCREW 357-40X5 | 1 | |
| 152901001 | MOVABLE KNIFE ASSEMBLY | 1 | |
| 115040016 | NEEDLE TQX7 #16 | 10 | |
| S03641001 | BUTTON CLAMP D | 1 | |
| 156154001 | NEEDLE HOLE PLATE F | 1 |
R. 動車・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe Mécanisme de poulie d'entraînement et poulie folle/Mecanismo de polea impulsora y polea tensora REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 153044001 1 ストップカムクミ STOP CAM ASSEMBLY 1-1 152693001 1 セイトウカムヘン BRAKE CAM SEGMENT 1-2 152694001 1 セイトウカムヘンバネ BRAKE CAM SEGMENT SPRING 1-3 115003001 1 カンシヨウカムヘン FLANGE CAM SEGMENT 1-4 153058001 2 カムヘンジク CAM SEGMENT STUD 1-5 048040342 2 トメワE4 STOP RING E4 7 147111001 1 テーパピン6X35 TAPER PIN 6X35 8 014770622 1 アナトメネジ"6.35クボミ SCREW 6.35 9 156935101 2 プーリツクミ PULLEY ASSEMBLY 9-1 152695201 2 プーリツクミ PULLEY ASSEMBLY 9-2 072600760 2 タマツツクウケ6007VV BALL BEARING 6007VV 12 152698001 1 スライドメタル SLIDE METAL 13 048350142 2 トメワヒンクC35 STOP RING C35 14 152699001 1 ナミワツシヤ WASHER 15 048240242 1 トメワアナC24 STOP RING C24 16 152700000 1 スライド"ブツシユA SLIDE BUSH A 17 151946000 1 スライド"ブツシユB SLIDE BUSH B 18 152701001 1 クラツチバネ CLUTCH SPRING 19 152702001 1 クラツチバン CLUTCH PLATE 20 152703100 5 スペーサ SPACER 21 S02878000 1 ヘイコウキ3X3X13 KEY 3X3X13 22 152705001 1 ナット10ヒダリ NUT 10 23 152706001 1 ボールウケ BALL BEARING 24 062660712 4 ナベコ318-40X7 SCREW 318-40X7 25 071095250 1 コウキユウ3/8 STEEL BALL 3/8 S. シャンクアタッチメント装置(特別注文部品)/Shank attachment (Option parts)/Knopfannhvorrichtung (Sonderzubehör) Accessoire de talon (Pieces en option)/Mecanismo de la caña (Piezas opcion) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 154694006 1 シャンクボタンアタッチメント SHANK BUTTON ATTACHMENT 1-1 142689206 1 シャンクボタンクミツマミタイクミ SHANK BUTTON CLAMP ASSEMBLY 1-1-1 154684006 1 シャンクボタンツマミタイ SHANK BUTTON CLAMP 1-1-2 142677001 1 ボタンツマミA BUTTON CLAMP A 1-1-3 142678001 1 ボタンツマミB BUTTON CLAMP B 1-1-4 062670812 1 ナベコ357-40X8 SCREW 357-40X8 1-1-5 102707003 1 ザガネ WASHER 1-1-6 142681001 1 ボタンオサエジク BUTTON PRESSER STUD 1-1-7 154685001 1 ボタンオサエジクハネ SPRING 1-1-8 142678001 2 セットカラー SET COLLAR 1-1-9 062670712 2 ナベコ357-40X7 SCREW 357-40X7 1-1-10 154686001 1 ボタンオサエアーム BUTTON PRESSER ARM 1-1-11 013719412 1 トメネジ4.76クボミ SCREW 4.76 1-1-12 142680001 1 ボタンオサエ BUTTON PRESSER 1-1-13 120990001 1 アナマツキトメネジ4.37 SCREW 4.37 1-2 154695001 1 ボタンオサエアームヒラ BUTTON PRESSER ARM LIFTER 1-3 154696001 1 ボタンオサエアームジクハネ BUTTON PRESSER ARM LIFTER STUD 1-4 014680422 1 アナトメネジ4.37クボミ SCREW 4.37 1-5 154697001 1 オクリイタダイ FEED PLATE BASE 1-6 156336001 1 シャンクボタンオクリイタ SHANK BUTTON FEED PLATE 1-7 154713001 2 シメネジ4.76 SCREW 4.76 1-8 021710212 2 ナット2シユ4.76 NUT 4.76 1-9 025710232 2 ヒラサガネチユウ4.76 WASHER 4.76 1-10 142686001 1 ヌノウケダイS CLOTH RECEIVER S 1-11 060670512 1 バインド"357-40X5 SCREW 357-40X5 1-12 152901001 1 イトウハクミ MOVABLE KNIFE ASSEMBLY 1-13 115040016 10 ミシンハリTQX7#16 NEEDLE TQX7 #16 1-14 S03641001 1 ボタンツカミD BUTTON CLAMP D 1-15 156154001 1 ハリアナイタF NEEDLE HOLE PLATE F jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TABLE SHEET | ||
| 3-1 | SCREW DRIVER | ||
| 3-2 | SCREW DRIVER | ||
| 3-3 | SCREW DRIVER | ||
| 5-1 | WRENCH | ||
| 5-2 | WRENCH | ||
| 5-3 | WRENCH | ||
| 5-4 | WRENCH | ||
| 5-5 | WRENCH | ||
| 6-1 | WRENCH | ||
| 6-2 | OIL CAN | ||
| 7 | ROLLER | ||
| 9 | NEEDLE | ||
| 10 | OIL BOTTLE | ||
| 11 | OIL BOTTLE | ||
| 12-1 | BASE PLATE | ||
| 12-2 | SCREW | ||
| 12-3 | WASHER | ||
| 12-4 | BRACKET | ||
| 13 | PULLEY | ||
| 14 | SCREW | ||
| 15-1 | BELT | ||
| 15-2 | BELT | ||
| 17-1 | POST | ||
| 17-2-1 | SCREW | ||
| 17-2-2 | SCREW | ||
| 17-3 | POST | ||
| 17-4 | CLAMP | ||
| 17-4-1 | SCREW | ||
| 17-4-2 | NUT | ||
| 17-5 | COLLAR | ||
| 17-6 | SCREW | ||
| 17-7-1 | SHAFT | ||
| 17-7-2 | WASHER | ||
| 17-7-3 | NUT | ||
| 17-7-4 | NUT | ||
| 17-7-5 | SCREW | ||
| 17-7-6 | WASHER | ||
| 17-8 | PLATE | ||
| 17-9 | PLATE | ||
| 17-10 | SHAFT | ||
| 17-11 | BRACKET | ||
| 18 | CHAIN | ||
| 19 | SCREW | ||
| 20 | WASHER | ||
| 21 | WASHER | ||
| 22 | NUT | ||
| 23 | SCREW | ||
| 24 | NUT | ||
| 25 | DUST COVER | ||
| 26 | WASHER | ||
| 28 | MANUAL | ||
| 30 | RING | ||
| 31 | ROD | ||
| 33 | BRACKET | ||
| 34 | BRACKET |
Z. 付属品関係/Accessories/Zubehör Accessoires/Accesorios 輸出用/for Export 1 25 5-1 5-2 5-3 5-4 5-5 3-1 3-2 3-3 15-2 15-1 13 14 28 30 430 SERIES TABLE SHEET 29 9 19 7 17-7-4 17-7-5 31 6-1 23 22 20 21 17-11 17-3 6-2 4-3 4-2 10 11 17-4-2 17-4 17-4-1 21 22 18 26 24 17-7-1 17-10 17-9 17-8 17-6 17-7-6 17-7-4 17-7-2 17-7-3 17-1 12-1 17-2-1 12-4 12-2 12-3 33 34 17-2-2 ◎ 付属品の明細は変更することがあります。 The details of included accessories are subject to change. Änderungen in der Aufstellung der mitgelieferten Zubehöre sind vorbehalten. Les détails des accessoires inclus sont sujets à des changements. Los detalles del los accesorios incluidos pueden variar. jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 122991001 | ACCESSORY BAG | 1 |
| 3-1 | 142443001 | SCREW DRIVER 1.9X52 | 1 |
| 3-2 | 118837001 | SCREW DRIVER 3.4X70 | 1 |
| 3-3 | 101572101 | SCREW DRIVER 5.5X190 | 1 |
| 4-1 | 107779001 | SPANNER 6X7 | 1 |
| 4-2 | 100887001 | SPANNER 8X9 | 1 |
| 4-3 | 107780001 | SPANNER 10X12 | 1 |
| 5-1 | 142002001 | ALLEN WRENCH 2 | 1 |
| 5-2 | 142721001 | ALLEN WRENCH 3 | 1 |
| 5-3 | 118064001 | ALLEN WRENCH 4 | 1 |
| 5-4 | 150335001 | ALLEN WRENCH 5 | 1 |
| 5-5 | 115157001 | ALLEN WRENCH 6 | 1 |
| 6-1 | 105343001 | WRENCH 8X9 | 1 |
| 6-2 | 152765001 | WRENCH 10 | 1 |
| 7 | 159613001 | BOBBIN | 4 |
| 9 | 115053016 | NEEDLE TQX1 #16 | 4 |
| 10 | 114483002 | OILER | 1 |
| 11 | 154702001 | OIL TANK | 1 |
| 12 | 116185202 | PEDAL ASSEMBLY | 1 |
| 12-1 | 117437102 | PEDAL | 1 |
| 12-2 | 021400106 | NUT 4 | 2 |
| 12-3 | 062401416 | SCREW 4X14 | 2 |
| 12-4 | 116016001 | PEDAL STOPPER | 2 |
| 13 | * | MOTOR PULLEY | 1 |
| 14 | 014760622 | SCREW 5.95 | 2 |
| 15-1 | 082104890 | V BELT 48 | 1 |
| 15-2 | * | V BELT M | 1 |
| 17 | S02761001 | COTTON STAND ASSEMBLY 2 | 1 |
| 17-1 | 150189002 | COTTON STAND BASE | 1 |
| 17-2 | S02773001 | COTTON STAND BASE SCREW SET | 1 |
| 17-2-1 | 062060806 | SCREW 6X8 | 2 |
| 17-2-2 | 031452206 | SCREW 45X22 | 3 |
| 17-3 | 150172002 | COLUMN PIPE | 2 |
| 17-4 | 150106002 | COLUMN JOINT ASSEMBLY | 1 |
| 17-4-1 | 062501406 | SCREW 5X14 | 2 |
| 17-4-2 | 021500106 | NUT 5 | 2 |
| 17-5 | 150174000 | COLUMN CAP | 1 |
| 17-6 | S02778001 | SPOOL HOLDER 2 | 1 |
| 17-7 | S02780001 | SPOOL SCREW SET 2 | 1 |
| 17-7-1 | 150179002 | SPOOL SHAFT B | 2 |
| 17-7-2 | 028050246 | SPRING WASHER 2-5 | 2 |
| 17-7-3 | 021500106 | NUT 5 | 4 |
| 17-7-4 | 062503006 | SCREW 5X30 | 1 |
| 17-7-5 | 062501406 | SCREW 5X14 | 1 |
| 17-7-6 | 026050136 | WASHER 5 | 2 |
| 17-8 | 150180000 | SPOOL STAND BASE | 2 |
| 17-9 | 150182000 | SPOOL MAT | 2 |
| 17-10 | 126863001 | SPOOL CUSHION | 2 |
| 17-11 | S02786001 | THREAD HANGER ASSEMBLY 2 | 1 |
| 18 | 149247001 | CHAIN ASSEMBLY | 1 |
| 19 | 106030001 | SCREW 6.2X32 | 4 |
| 20 | 152863001 | CUSHION COLLAR | 4 |
| 21 | 152864000 | CUSHION | 8 |
| 22 | 025800332 | WASHER 7.14 | 12 |
| 23 | 017062503 | BOLT 6X25 | 4 |
| 24 | 021000106 | NUT 6 | 4 |
| 25 | 144226001 | HEAD COVER | 1 |
| 26 | 028060242 | SPRING WASHER 2-6 | 4 |
| 28 | 153574201 | TABLE SHEET | 1 |
| 29 | 154179001 | ALLEN WRENCH 4 | 1 |
| 30 | 120448001 | RUBBER RING | 1 |
| 31 | 154760001 | PIPE | 1 |
Z. 付属部品関係 / Accessories / Zubehör Accessoires/Accesorios REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 122991001 1 フツクヒンポリフクロ ACCESSORY BAG 3-1 142443001 1 ネジマワシ1.9X52 SCREW DRIVER 1.9X52 3-2 118837001 1 ネジマワシ3.4X70 SCREW DRIVER 3.4X70 3-3 101572101 1 ネジマワシ5.5X190 SCREW DRIVER 5.5X190 4-1 107779001 1 スパナ6X7 SPANNER 6X7 4-2 100887001 1 スパナ8X9 SPANNER 8X9 4-3 107780001 1 スパナ10X12 SPANNER 10X12 5-1 142002001 1 6カクボウスパナ2 ALLEN WRENCH 2 5-2 142721001 1 6カクボウスパナ3 ALLEN WRENCH 3 5-3 118064001 1 6カクボウスパナ4 ALLEN WRENCH 4 5-4 150335001 1 6カクボウスパナ5 ALLEN WRENCH 5 5-5 115157001 1 6カクボウスパナ6 ALLEN WRENCH 6 6-1 105343001 1 メガネスレンチ8X9 WRENCH 8X9 6-2 152765001 1 メガネスレンチ10 WRENCH 10 7 159613001 4 ボビン BOBBIN 9 115053016 4 ミシンハリTQ X1 #16 NEEDLE TQX1 #16 10 114483002 1 ホリオリラークミ OILER 11 154702001 1 オイルタンク OIL TANK 12 116185202 1 ペタルクミ PEDAL ASSEMBLY 12-1 117437102 1 オサエエアフミイタ PEDAL 12-2 021400106 2 1 シユナツト4 NUT 4 12-3 062401416 2 ナベコ4X14 SCREW 4X14 12-4 116016001 2 ペタルストツパー PEDAL STOPPER 13 * 1 モータプーリ MOTOR PULLEY 14 014760622 2 アナトメネジ5.95クボミ SCREW 5.95 15-1 082104890 1 Vヘルト48 V BELT 48 15-2 * 1 VヘルトM51 V BELT M 17 S02761001 1 イトタテダイクミ2 COTTON STAND ASSEMBLY 2 17-1 150189002 1 ブラケツト COTTON STAND BASE 17-2 S02773001 1 ブラケツトネシセツト COTTON STAND BASE SCREW SET 17-2-1 062060806 2 ナベコ6X8 SCREW 6X8 17-2-2 031452206 3 マルモク45X22 SCREW 45X22 17-3 150172002 2 コラムパイプ COLUMN PIPE 17-4 150106002 1 コラムジヨイントクミ COLUMN JOINT ASSEMBLY 17-4-1 062501406 2 ナベコ5X14 SCREW 5X14 17-4-2 021500106 2 1 シユナツト5 NUT 5 17-5 150174000 1 コラムキヤツプ COLUMN CAP 17-6 S02778001 1 スプールホルダ-2 SPOOL HOLDER 2 17-7 S02780001 1 スプールネシセツト2 SPOOL SCREW SET 2 17-7-1 150179002 2 スプールシジクB SPOOL SHAFT B 17-7-2 028050246 2 ハネジナカネ2-5 SPRING WASHER 2-5 17-7-3 021500106 4 1 シユナツト5 NUT 5 17-7-4 062503006 1 ナベコ5X30 SCREW 5X30 17-7-5 062501406 1 ナベコ5X14 SCREW 5X14 17-7-6 026050136 2 ヒラザガネコガタ5 WASHER 5 17-8 150180000 2 ウケザラ SPOOL STAND BASE 17-9 150182000 2 スプールマット SPOOL MAT 17-10 126863001 2 スプールクツシヨン SPOOL CUSHION 17-11 S02786001 1 スレツトハンガーアセンブリ2 THREAD HANGER ASSEMBLY 2 18 149247001 1 クサリクミ CHAIN ASSEMBLY 19 106030001 4 サラモクネジ6.2X32 SCREW 6.2X32 20 152863001 4 クツシヨンカラー CUSHION COLLAR 21 152864000 8 クツシヨン CUSHION 22 025800332 12 ヒラザガネ7.14 WASHER 7.14 23 017062503 4 6カクボルト6X25 BOLT 6X25 24 021000106 4 ナツト6 NUT 6 25 144226001 1 ------ HEAD COVER 26 028060242 4 ハネジナカネ2-6 SPRING WASHER 2-6 28 153574201 1 テーブ儿シート TABLE SHEET 29 154179001 1 6カクボウスパナ4 ALLEN WRENCH 4 30 120448001 1 ゴムワ RUBBER RING 31 154760001 1 ホウズパナパイプ PIPE jintex.in
