Brother BAS-326H-484 Parts Book (PDF)

also listed as BAS326H, 326HDownload PDF

Text index — Brother BAS-326H-484

Page 7 — A. 主体関係 / Machine body

Brother BAS-326H-484 parts on page 7
Ref	Part number	Part name	Qty
1	SA4596001	RUBBER CAP 20-15	1
2	104821001	RUBBER CAP, 10.5	3
3	SB1277001	THREAD TAKE-UP LEVER COVER	1
4	062401016	SCREW PAN M4X10	1
5	SA4604101	STEPPING COVER	1
6	SA3306001	SHOULDER SCREW,7-3	1
7	120265002	SPRING WASHER	1
8	S07350002	WASHER PLAIN	1
9	SB5978001	GRIP SCREW M5	1
10	SA9826001	LABEL CAUTION	1
11	S37060001	LABEL GROUNDING	1
12	S20164001	RUBBER CAP, 13	2
13	SA8679001	FINGER GUARD	1
14	SB2456001	WASHER PLAIN 3.5	2
15	SB3310001	FINGER GUARD 484	1
16	012500536	SET SCREW SOCKET (FT) M5X5	1
17	159163000	RUBBER CAP 29	1
18	159163000	RUBBER CAP 29	1
19	SA9957001	INJURY MARK	3
20	SA9957002	INJURY MARK	2
21	104450101	RUBBER CAP, 8	2
22	SA4600102	FACE PLATE	1
23	104449001	RUBBER CAP, 15.5	1
24	SA4601001	F-PLATE PACKING	1
25	062061016	SCREW PAN M6X10	3
26	SB3304002	HOOK COVER 484 ASSY	1
27	SA6272001	SHUTTLE RACE COVER HOOK D	1
28	004300513	SCREW, FLAT M3X5	2
29	SA3264101	NUT PLATE	1
30	SA6207001	HINGE	1
31	062300506	SCREW PAN M3X5	4
32	021300103	NUT, 1 M3	2
33	SB4413001	THREAD TRIMMER COVER	1
34	062501216	SCREW PAN M5X12	2
35	SB4385101	RUBBER CUSHION	5
36	SB4384001	COLLAR	5
37	062401016	SCREW PAN M4X10	5
38	025040332	WASHER PLAIN L 4	5
39	S44010001	RUBBER CAP, 11.5	2
40	104449001	RUBBER CAP, 15.5	1
41	SB5097001	ARM COVER	1
42	0A5401006	SCREW PAN (S/P WASHER) M4X10	4
43	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother BAS-326H-484 parts on page 9
Ref	Part number	Part name	Qty
1	SB0009001	UPPER SHAFT P	1
2	SA3591001	THREAD TAKE-UP CRANK B	1
3	S25235001	SCREW M8	1
4	S23651001	SET SCREW SOCKET (FT) M6X6	4
5	012060636	SET SCREW SOCKET (FT) M6X6	2
6	110367001	WASHER, PLAIN SPECIAL 8	1
7	SB3316001	THREAD TAKE-UP LEVER 484 SET	1
8	SA2958001	SCREW FLAT M5X6	1
9	012500536	SET SCREW SOCKET (FT) M5X5	1
10	062400816	SCREW PAN M4X8	1
11	145465001	SCREW, SM3.57-40X6 L	1
12	142211001	SLIDE BLOCK	1
13	SA3528001	SLIDE BLOCK GUIDE	1
14	018401636	BOLT SOCKET M4X16	2
15	SB0013001	NEEDLE BAR P	1
16	144458001	SET SCREW SM3.57-40X4.5	1
17	145646025	NEEDLE, DPX17	1
18	SA4666001	NEEDLE BAR BUSH UK	1
19	SA3224001	NEEDLE BAR BUSH D	1
20	012060536	SET SCREW, SOCKET (FT) M6X5	1
21	SA3206001	BALL BEARING BUSH	1
22	SA4179001	BALL BEARING 6904DDUNR	1
23	SA4180001	BALL BEARING 6904DDU	1
24	S23651001	SET SCREW SOCKET (FT) M6X6	2
25	SB4500001	PULLEY GEAR R	1
26	012500536	SET SCREW SOCKET (FT) M5X5	2
27	SA3206001	BALL BEARING BUSH	1
28	SA4177001	BALL BEARING 6004DDUNR	1
29	S23651001	SET SCREW SOCKET (FT) M6X6	2
30	SB5093101	TIMING PULLEY U	1
31	S23651001	SET SCREW SOCKET (FT) M6X6	2
32	SB6899001	BELT 756-D3GT-15	1
33	SB5103001	IDLER BRACKET C	1
34	SB5096001	IDLER PULLEY	1
35	048220242	RETAINING RING INTERNAL C22	2
36	SB5104001	IDLER SHAFT	1
37	048080142	RETAINING RING EXTERNAL C8	1
38	012060636	SET SCREW SOCKET (FT) M6X6	2
39	SA2972001	BOLT SOCKET(S/P WASHER)M6X18	2
40	SA4608101	JOINT G	1
41	SA4178001	BALL BEARING 6204DDUNR	1
42	S23651001	SET SCREW SOCKET (FT) M6X6	4
43	S38713100	FAN	1
44	062400816	SCREW PAN M4X8	3
45	018501636	BOLT SOCKET M5X16	4
46	SB2097001	PULLEY SHAFT	1
47	SB1038001	PULLEY BUSH	1
48	SB1041001	PULLEY SPRING	1
49	047402042	PIN SPRING ROLL AW4	2
50	SB4270001	PULLEY GEAR L	1
51	012500536	SET SCREW SOCKET (FT) M5X5	2
52	SB0910201	PULLEY	1
53	SB1040001	SCREW	1
54	048280142	RETAINING RING EXTERNAL C28	1
55	SB3444001	BALL BEARING 608ZZ	2
56	SA4797101	DRIVING WHEEL B-WINDER	1
57	S23651001	SET SCREW SOCKET (FT) M6X6	2

Page 11 — C1. 送り関係 / Feed mechanism

Brother BAS-326H-484 parts on page 11
Ref	Part number	Part name	Qty
1	SB5968001	LINEAR GUIDE 13X384	2
2	018301036	BOLT SOCKET M3X10	24
3	018300536	BOLT SOCKET M3X5	8
4	018062536	BOLT SOCKET M6X25	8
5	SB5967001	LINEAR GUIDE 10X182	2
6	018301036	BOLT SOCKET M3X10	12
7	SB3847001	WASHER_PLAIN_M_3	12
8	028030246	WASHER SPRING 2-3	12
9	021300103	NUT, 1 M3	12
10	018300536	BOLT SOCKET M3X5	12
11	SB5966001	TIMING BELT	1
12	SB4341001	BELT WORK CLAMP PLATE	1
13	018400836	BOLT SOCKET M4X8	4
14	SB5475001	TIMING PULLEY ASSY	1
15	SA4647001	BALL BEARING 6900ZZNR	2
16	SB4339001	X-PULLEY FULCRUM SHAFT	1
17	SB4340001	X-PULLEY BRACKET	1
18	012060636	SET SCREW SOCKET (FT) M6X6	4
19	012060636	SET SCREW SOCKET (FT) M6X6	4
20	SA2972001	BOLT SOCKET(S/P WASHER)M6X18	4
21	SB4282001	X-FEED GEAR	1
22	012060636	SET SCREW SOCKET (FT) M6X6	2
23	SA4647001	BALL BEARING 6900ZZNR	1
24	SB4469001	BALL BEARING 6000ZZNR	2
25	SB5475001	TIMING PULLEY ASSY	1
26	048100142	RETAINING RING EXTERNAL C10	1
27	SB4338001	X-PULLEY DRIVING SHAFT	1
28	SA5593001	LINEAR BUSH 16	2
29	SB5848001	Y RACK SHAFT ASSY	1
30	SB5969001	LINEAR GUIDE 13X300	1
31	018301236	BOLT SOCKET M3X12	4
32	028030246	WASHER SPRING 2-3	4
33	SB3847001	WASHER_PLAIN_M_3	4
34	018301036	BOLT SOCKET M3X10	6
35	SB3847001	WASHER_PLAIN_M_3	6
36	021300103	NUT, 1 M3	6
37	018301036	BOLT SOCKET M3X10	2
38	SB3847001	WASHER_PLAIN_M_3	2
39	S55487001	BOLT SOCKET (S/P WASHER)M5X16	4
40	SB5931001	FIXATION COVER	2
41	SB5932101	COVER RAIL L	2
42	SB5933101	COVER RAIL R	2
43	SA3538001	SCREW,M4X8	16
44	SB3848001	WASHER_PLAIN_M_4	4
45	028040246	WASHER SPRING 2-4	4
46	021400216	NUT 2 M4	4
47	SB5934101	OUTSIDE COVER	2
48	SB5974001	INSIDE COVER L ASSY	1
49	SB5975001	INSIDE COVER R ASSY	1
50	SB4362001	BELLOW NUT	1
51	SB4362001	BELLOW NUT	1
52	SB5077001	BELLOW	1
53	SB5937001	BELLOW PRESSER F	1
54	SB4361001	BELLOW PRESSER R	1
55	062300416	SCREW PAN M3X4	4
56	0A5401206	SCREW PAN (S/P WASHER) M4X12	4
57	SA3538001	SCREW,M4X8	2
58	SA9191001	SCREW M3X5.5	2
59	SA3538001	SCREW,M4X8	2
60	SB6670001	SPACER 2.5	1
61	SA3538001	SCREW,M4X8	2

Page 13 — C2. 送り関係 / Feed mechanism

Brother BAS-326H-484 parts on page 13
Ref	Part number	Part name	Qty
1	SB5925001	AUXILIARY PLATE	1
2	SA4677101	AUXILIARY PLATE CUSHION	4
3	SA8560001	SCREW M4X12	10
4	021400216	NUT 2 M4	10
5	SA4676201	AUXILIARY PLATE BRACKET	4
6	SB4407101	AUXILIARY PLATE BRACKET L	1
7	SB4408101	AUXILIARY PLATE BRACKET R	1
8	SB5926001	AUXILIARY PLATE BRACKET	2
9	SA8672001	AUXILIARY PLATE CUSHION B	2
10	018501036	BOLT SOCKET M5X10	4
11	028050246	WASHER SPRING 2-5	4
12	146354002	WASHER, PLAIN 5	4
13	S42446001	BOLT SOCKET (S/P WASHER)M6X14	8

Page 15 — C3. 送り関係 / Feed mechanism

Brother BAS-326H-484 parts on page 15
Ref	Part number	Part name	Qty
1	SA4852201	FEED PLATE 220X100	1
2	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
3	SB4343001	X SENSOR PLATE	1
4	018400836	BOLT SOCKET M4X8	2
5	SB4342001	Y SENSOR PLATE	1
6	018400836	BOLT SOCKET M4X8	2
7	SB4458001	X-FEED MOTOR L ASSY	1
8	SB4275001	PULSE MOTOR ASSY X	1
9	SB4334001	X MOTOR SETTING PLATE	1
10	018401036	BOLT SOCKET M4X10	4
11	SA3707101	GEAR 16	1
12	012060536	SET SCREW, SOCKET (FT) M6X5	2
13	SA6450101	BEARING HOLDER BASE	1
14	SA6451101	BEARING HOLDER ASSY	1
15	018401036	BOLT SOCKET M4X10	2
16	018501036	BOLT SOCKET M5X10	2
17	SA4224001	MARK ATTENTION 30×40	1
18	S42446001	BOLT SOCKET (S/P WASHER)M6X14	3
19	SB4459201	Y-FEED MOTOR L ASSY	1
20	SB4276001	PULSE MOTOR ASSY Y	1
21	SB4188001	Y MOTOR SETTING PLATE	1
22	018401036	BOLT SOCKET M4X10	4
23	SA4197101	FEED GEAR	1
24	012060536	SET SCREW, SOCKET (FT) M6X5	2
25	SA6450101	BEARING HOLDER BASE	1
26	SB4364101	BEARING HOLDER SPACER	2
27	SA6451101	BEARING HOLDER ASSY	1
28	018401236	BOLT SOCKET M4X12	2
29	018501036	BOLT SOCKET M5X10	2
30	SB5071001	Y-PLATE PACKING M	1
31	SB4181001	Y-PLATE PACKING	1
32	S55485001	BOLT SOCKET (S/P WASHER)M5X12	3

Page 17 — C4. 送り関係 / Feed mechanism

Brother BAS-326H-484 parts on page 17
Ref	Part number	Part name	Qty
1	SB5938001	WORK CLAMP U ASSY	1
2	SA4717001	CYLINDER SHAFT	1
3	012060636	SET SCREW SOCKET (FT) M6X6	2
4	SA4719001	AIR CYLINDER ASSY	2
5	048050142	RETAINING RING EXTERNAL C5	2
6	SA4720001	CYLINDER JOINT	2
7	SA4721001	CYLINDER JOINT SHAFT	2
8	048060142	RETAINING RING EXTERNAL C6	4
9	SB4371101	WORK CLAMP LIFTER LEVER R AIR	1
10	SB4370101	WORK CLAMP LIFTER LEVER L AIR	1
11	SB4369001	WORK CLAMP LIFTER LEVER AIR	2
12	018400836	BOLT SOCKET M4X8	2
13	028040246	WASHER SPRING 2-4	2
14	100645004	WASHER	2
15	SA4692001	WORK CLAMP LIFTER SHAFT	1
16	012060636	SET SCREW SOCKET (FT) M6X6	1
17	048080142	RETAINING RING EXTERNAL C8	1
18	110367001	WASHER, PLAIN SPECIAL 8	1
19	SA3231001	SET SCREW COLLAR,B	1
20	012060536	SET SCREW, SOCKET (FT) M6X5	2
21	SA4863001	WORK CLAMP GUIDE A ASSY	1
22	S23849101	SCREW M4X16	2
23	SA4864001	WORK CLAMP GUIDE B ASSY	2
24	S55482001	BOLT SOCKET (S/P WASHER)M4X14	4
25	SA4712001	WORK CLAMP SLIDER ASSY R	1
26	SA4706101	WORK CLAMP RETAINER ASSY	2
27	SA4714001	WORK CLAMP SLIDER ASSY L	1
28	SA4706101	WORK CLAMP RETAINER ASSY	2
29	SB4455001	WORK CLAMP ASSY R	1
30	S55485001	BOLT SOCKET (S/P WASHER)M5X12	1
31	012501031	SET SCREW SOCKET (FT) M5X10	2
32	021500216	NUT 2 M5	2
33	SA4709001	SHOULDER SCREW	2
34	SB4456001	WORK CLAMP ASSY L	1
35	S55485001	BOLT SOCKET (S/P WASHER)M5X12	1
36	012501031	SET SCREW SOCKET (FT) M5X10	2
37	021500216	NUT 2 M5	2
38	SA4709001	SHOULDER SCREW	2
39	SB4810001	BOLT M5X16	4
40	SB3849001	WASHER_PLAIN_M_5	4
41	028050246	WASHER SPRING 2-5	4
42	SA4870201	WORK CLAMP 326R ASSY	1
43	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
44	SA4871201	WORK CLAMP 326L ASSY	1
45	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
46	SB4525001	SET SCREW SOCKET (FT) M4X10	4
47	021400106	NUT 1 M4	4

Page 19 — C5. 送り関係 (オプション部品) / Feed mechanism (Option parts)

Brother BAS-326H-484 parts on page 19
Ref	Part number	Part name	Qty
1	SA7141001	311 FEED PLATE CHANGE B SET	1
2	SA6604001	FEED PLATE COVER 311-1	1
3	S23418001	SCREW M4X5	2
4	SA6603001	FEED PLATE SPACER	1
5	S23418001	SCREW M4X5	2
6	025040236	WASHER PLAIN M 4	2
7	SA6595001	WORK CLAMP 311F TYPE	1
8	SA6599001	WORK CLAMP 311F R TYPE	1
9	SA6600001	WORK CLAMP 311F L TYPE	1
10	SA7385001	CASSETTE BOARD 311G ASSY	1
11	SA6640101	ORIGIN STANDARD PLATE	1

Page 21 — D1. 押え上げ関係 / Work clamp lifter mechanism

Brother BAS-326H-484 parts on page 21
Ref	Part number	Part name	Qty
1	SA4759001	STEPPING CLAMP CAM	1
2	SA4760001	STEPPING CLAMP CON.ROD	1
3	SA4763001	WASHER STEPPING CLAMP CAM	1
4	SA7704001	BALL BEARING 6805VV	1
5	S23651001	SET SCREW SOCKET (FT) M6X6	2
6	062400616	SCREW PAN M4X6	2
7	SA4761001	ROLLER SHAFT STEPPING CLAMP	1
8	SA4762001	ROLLER STEPPING CLAMP	1
9	SA4302001	WASHER	2
10	021060106	NUT 1 M6	2
11	SA4764001	STEPPING CLAMP ARM R	1
12	017061213	BOLT M6X12	1
13	SA4765001	STEPPING CLAMP ARM F	1
14	012060636	SET SCREW SOCKET (FT) M6X6	1
15	S23651001	SET SCREW SOCKET (FT) M6X6	1
16	SA4766001	BUSH STEPPING CLAMP F	1
17	SA4767001	BUSH STEPPING CLAMP R	1
18	SA4768001	STEPPING CLAMP LINK A	1
19	SA4769101	SHOULDER SCREW 6	4
20	062300416	SCREW PAN M3X4	4
21	SA4770001	STEPPING CLAMP LINK B	1
22	SA4772001	STEPPING CLAMP LINK	1
23	SA4773001	SHAFT STEPPING CLAMP LINK	1
24	012060636	SET SCREW SOCKET (FT) M6X6	1
25	012400436	SET SCREW SOCKET (FT) M4X4	1
26	SA4777001	STEPPING CLAMP LIFTER LINK	1
27	SA4771001	SHAFT STEPPING CLAMP LIFT LINK	1
28	SA2161001	WASHER	1
29	048080142	RETAINING RING EXTERNAL C8	1
30	012060636	SET SCREW SOCKET (FT) M6X6	1
31	012400436	SET SCREW SOCKET (FT) M4X4	1
32	SA4779101	STEPPING CLAMP LIFTER	1
33	SA4781001	ROLLER STEPPING CLAMP LIFTER	1
34	141362001	ROLLER	1
35	SA4780001	SHAFT STEPPING CLAMP LIFTER	1
36	012060636	SET SCREW SOCKET (FT) M6X6	1
37	S25310101	SCREW, FLAT M4	1
38	SA4775101	STEPPING CLAMP LIFTER ROD	1
39	SA4853001	JOINT STEPPING CLAMP LIFTER	1
40	SA8684001	ROUND JOINT ASSY	2
41	021060306	NUT 3 M6	2
42	SA3227001	NUT(FT),M6	1
43	SA8689001	SCREW M6X12	1
44	017061612	BOLT M6X16	1
45	017065002	BOLT M6X50	1
46	SA4778001	PRESSER BAR CLAMP	1
47	018400836	BOLT SOCKET M4X8	1
48	SA1174002	PRESSER ADJUSTING SCREW M14	1
49	SA1175002	ADJUST SCREW NUT	1
50	SA5300001	PRESSER BAR SPRING	1
51	S10112101	PRESSER BAR SPRING GUIDE	1
52	SA5301001	COLLAR PRESSER BAR SPRING	1
53	SA2195001	PRESSER BAR BUSH	1
54	012060536	SET SCREW, SOCKET (FT) M6X5	1
55	111466121	PRESSER BAR	1
57	S13399001	SCREW, SM3.57X12	1
58	151439102	WASHER	1

Page 23 — D1. 押え上げ関係 / Work clamp lifter mechanism

Brother BAS-326H-484 parts on page 23
Ref	Part number	Part name	Qty
59	SB3309001	PRESSER BAR BUNG	1
60	SA4780001	SHAFT STEPPING CLAMP LIFTER	1
61	012060636	SET SCREW SOCKET (FT) M6X6	1
62	S25310101	SCREW, FLAT M4	1
63	012060536	SET SCREW SOCKET (FT) M6X5	1

Page 25 — D2. 押上げ関係 (-484 SF用) / Work clamp lifter mechanism (For -484 SF)

Brother BAS-326H-484 parts on page 25
Ref	Part number	Part name	Qty
1	SA4741301	MOTOR BRACKET	1
2	SB4382001	WORK CLAMP MOTOR PLATE	1
3	018501036	BOLT SOCKET M5X10	2
4	SB4277201	PULSE MOTOR ASSY P	1
5	018401036	BOLT SOCKET M4X10	4
6	SA4743001	WORK CLAMP DRIVING GEAR	1
7	012060636	SET SCREW SOCKET (FT) M6X6	2
8	SA4744001	WORK CLAMP FULCRUM SHAFT	1
9	SA4647001	BALL BEARING 6900ZZNR	2
10	048100142	RETAINING RING EXTERNAL C10	2
11	062400616	SCREW PAN M4X6	1
12	SB3848001	WASHER_PLAIN_M_4	1
13	SA4745001	WORK CLAMP CAM GEAR	1
14	016061031	SET SCREW SOCKET (CN) M6X10	1
15	012060636	SET SCREW SOCKET (FT) M6X6	1
16	SA4747001	WORK CLAMP H-POSITION DOG	1
17	018400636	BOLT SOCKET M4X6	1
18	SA4748101	WORK CLAMP LEVER SHAFT	1
19	012060636	SET SCREW SOCKET (FT) M6X6	1
20	SA6210001	STEPPING W-CLAMP DRIVING LEVER	1
21	SA3441101	W-CLAMP LIFTER ROLLER SHAFT	1
22	070696800	BALL BEARING RADIAL 696ZZ	1
23	109763022	WASHER	1
24	012500536	SET SCREW SOCKET (FT) M5X5	1
25	SA4753001	WORK CLAMP SENSOR PLATE	1
26	018400836	BOLT SOCKET M4X8	2
27	018061236	BOLT SOCKET M6X12	2
28	SA4757101	SET SCREW COLLAR	1
29	012060636	SET SCREW SOCKET (FT) M6X6	2
30	012060636	SET SCREW SOCKET (FT) M6X6	1
31	SA4224001	MARK ATTENTION 30X40	1

Page 27 — E. かま関係 / Rotary hook mechanism

Brother BAS-326H-484 parts on page 27
Ref	Part number	Part name	Qty
1	S00691501	BOBBIN CASE B ASSY	1
2	S15609001	SPRING	1
3	S15610001	SCREW, FLAT M1.85	1
4	181937001	ADJUSTING SCREW	1
5	181938001	SET SCREW	1
6	S00711101	LOWER THREAD TENSION SPRING, B	1
7	S01767001	ANTI-SPIN SPRING	1
8	S00871101	BOBBIN B	1
9	SB3212001	HOOK STOPPER SETTING BASE	1
10	S55481001	BOLT SOCKET (S/P WASHER)M4X12	2
11	S57657001	B-CASE HOLDER POSITION BRACKET	1
12	062680612	SCREW PAN SM4.37-40X6	2
13	SB6672001	ROTARY HOOK SHAFT	1
14	SB6969001	ROTARY HOOK SHAFT BUSH	1
15	SB1050001	OIL FEEDING PIPE S	1
16	012060636	SET SCREW SOCKET (FT) M6X6	2
17	SA6705001	BALL BEARING 6001ZZNR	1
18	SB5095001	TIMING PULLEY D	1
19	S23651001	SET SCREW SOCKET (FT) M6X6	2
20	SA8599001	BALL BEARING 6201ZZNR	1
21	SB0026001	BALL BEARING BUSH D	1
22	S23651001	SET SCREW SOCKET (FT) M6X6	2
23	SB5102101	IDLER BRACKET B	1
24	SB5096001	IDLER PULLEY	1
25	SB3444001	BALL BEARING 608ZZ	2
26	048220242	RETAINING RING INTERNAL C22	2
27	SB5104001	IDLER SHAFT	1
28	048080142	RETAINING RING EXTERNAL C8	1
29	012060636	SET SCREW SOCKET (FT) M6X6	2
30	S55487001	BOLT SOCKET (S/P WASHER)M5X16	2
31	SB5101101	IDLER BRACKET A	1
32	SB5096001	IDLER PULLEY	1
33	SB3444001	BALL BEARING 608ZZ	2
34	048220242	RETAINING RING INTERNAL C22	2
35	SB5104001	IDLER SHAFT	1
36	048080142	RETAINING RING EXTERNAL C8	1
37	012060636	SET SCREW SOCKET (FT) M6X6	2
38	S55487001	BOLT SOCKET (S/P WASHER)M5X16	2
39	SA2036101	SHUTTLE HOOK ASSY W/BOXS06545	1
	SC4019201	HOOK ASSY BOX SC4018
	SB9208301	HOOK ASSY BOX SB9155
	SB9209301	HOOK ASSY BOX SB9156
	SC9331001	BOBBIN CASE BS ASSY
	SC9330001	BOBBIN BS
	SB9155	SB9155カマハコウミ

Page 29 — F. 給油潤滑関係 / Lubrication

Brother BAS-326H-484 parts on page 29
Ref	Part number	Part name	Qty
1	SA4788001	WICK SUPPORT	1
2	SA6593001	FLAT WICK L=180	1
3	SB0317001	WICK 3X3 L=580	1
4	S07459100	OIL TUBE L=240	1
5	SA7178001	OIL TUBE	1
6	S38265000	TERMINAL, L	1
7	142274101	RUBBER CAP, 4.2	1
8	062400616	SCREW PAN M4X6	1
9	SA6087001	WICK SUPPORT	1
10	104567101	WICK SUPPORT	1
11	142274101	RUBBER CAP, 4.2	1
12	SA6897001	WICK 3X3	1
13	S48189000	OIL TUBE L=280	1
14	SA5339101	OIL FEEDING PIPE	1
15	S49992000	OIL GAUGE WINDOW	1
16	SA4786101	FELT	1
17	145547021	TUBE HOLDER	1
18	026040136	WASHER PLAIN S 4	1
19	062400616	SCREW PAN M4X6	1
20	S49957000	WICK, 4X4 L=700	1
21	SA4791101	OIL TUBE L=620	1
22	SB6613001	CORD HOLDER	1
23	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
24	SB5947001	TUBE SUPPORT	1
25	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
26	SA4785101	CRANK COVER	1
27	SB4155001	BAND	1
28	062061016	SCREW PAN M6X10	3
29	145751001	FELT	1
30	S09043000	FELT	2
31	107149001	FELT	3
32	S59886001	FELT, L=360	1
33	SA6576001	OIL TUBE L=210	1
34	SB4468001	TERMINAL	1
35	SA2929001	RUBBER CAP, 12.5	1
36	S38266000	ROTARY HOOK SHAFT FELT	1
37	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
38	SB4037001	VINYL TUBE	1
39	S59886001	FELT, L=360	1
40	SA5339101	OIL FEEDING PIPE	1
41	S49992000	OIL GAUGE WINDOW	1
42	SB4464101	FELT ASSY	1
43	SB4392001	OIL TUBE L=380	1
44	SB3233001	WICK SUPPORT 484	1
45	062400616	SCREW PAN M4X6	2
46	525664000	CORD HOLDER #6	2
47	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
48	S50359001	TUBE SUPPORT, D	1
49	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
50	525567000	CORD HOLDER #8	1
51	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
52	SA1394101	CORD HOLDER U3	1
53	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
54	SB4387001	OIL COVER	1
55	SB4388001	OIL COVER PACKING	1
56	018401036	BOLT SOCKET M4X10	10
57	SB0057001	FELT	1

Page 31 — G. 糸通し関係 / Threading mechanism

Brother BAS-326H-484 parts on page 31
Ref	Part number	Part name	Qty
1	SB6587101	THREAD BREAKAGE UNIT	1
2	S07350002	WASHER PLAIN	1
3	120265002	SPRING WASHER	1
4	SA3306001	SHOULDER SCREW,7-3	1
5	SA2636001	THREAD RETAINER	1
6	012500536	SET SCREW SOCKET (FT) M5X5	2
7	S55485001	BOLT SOCKET (S/P WASHER)M5X12	1
8	SA4333001	ARM THREAD GUIDE,B	1
9	062500616	SCREW PAN M5X6	1
10	SA6391001	ARM THREAD GUIDE C	1
11	062500616	SCREW PAN M5X6	1
12	SB1086001	ARM THREAD GUIDE D	1
13	062500616	SCREW PAN M5X6	1
14	SB6566001	PRE-TENSION ASSY A	1
15	SA3256001	TENSION STUD A	1
16	100136001	TENSION NUT	1
17	SA3416101	TENSION SPRING LL	1
18	S20681000	WASHER	1
19	145446001	DISC TENSION	2
20	SA6193301	THREAD TAKE-UP SPRING C	1
21	SA3255001	TENSION STUD	1
22	S31032002	TENSION NUT	1
23	S12441001	WASHER	1
24	107606101	TENSION SPRING H	1
25	159805001	TENSION DISC PRESSER	1
26	145446001	DISC TENSION	2
27	SA3254001	TENSION BRACKET	1
28	100402004	SET SCREW SM3.57	1
29	SA4143001	SET SCREW, (FT) M6X6	1
30	S12699000	TENSION RELEASE PIN	1
31	SA3258001	N-BAR BUSH THREAD GUIDE,D	1
32	SA4815201	NEEDLE BAR THREAD GUIDE B	1
33	152881101	NEEDLE COOLER ASSY	1
34	012060636	SET SCREW SOCKET (FT) M6X6	1
35	152883000	FELT, 8X15.5	1
36	152884001	NEEDLE COOLER THREAD GUIDE	1
37	062670412	SCREW PAN SM3.57-40X4	1

Page 33 — H. 糸巻関係 / Bobbin winder mechanism

Brother BAS-326H-484 parts on page 33
Ref	Part number	Part name	Qty
1	SB4389001	TOP COVER 311H	1
2	SA3290001	SHAFT,BW-LEVER	1
3	012500536	SET SCREW SOCKET (FT) M5X5	1
4	SA3291001	BOBBIN WINDER LEVER	1
5	SA4171001	SPRING HOOK	1
6	SB0066001	PLATE SPRING	1
7	152937001	WASHER	1
8	062350616	SCREW PAN M3.5X6	1
9	155559021	WASHER PLAIN	1
10	048050342	RETAINING RING E5	1
11	SA3293001	STUD B-WINDER CLAW	1
12	SA1984001	BOBBIN PRESSER ARM	1
13	018401236	BOLT SOCKET M4X12	1
14	SB0067001	BOBBIN PRESSER P	1
15	S23418002	SCREW M4X5	1
16	SA3295001	CLAW B-WINDER	1
17	012400436	SET SCREW SOCKET (FT) M4X4	2
18	S10438001	SPRING, TWIST	1
19	048050342	RETAINING RING E5	2
20	SA4796001	SPACER COLLER	1
21	SB3221001	BOBBIN WINDER SHAFT 484	1
22	SA3297001	WHEEL,B-WINDER	1
23	120448001	BOBBIN WINDER RUBBER BAND	1
24	012400436	SET SCREW SOCKET (FT) M4X4	2
25	155559021	WASHER PLAIN	2
26	SA1988001	BOBBIN SUPPORT	1
27	S10268001	SPRING	1
28	SA3298001	STOPPER SHAFT,B-WINDER	1
29	SA3299001	KNIFE	1
30	062500616	SCREW PAN M5X6	1
31	062061016	SCREW PAN M6X10	6
32	SB1253001	BOBBIN WINDER TENSION ASSY	1
33	S31032002	TENSION NUT	1
34	145446002	DISC TENSION	2
35	S12441001	WASHER	1
36	100401022	TENSION SPRING	1
37	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 35 — J. 糸切り関係 / Thread trimmer mechanism

Brother BAS-326H-484 parts on page 35
Ref	Part number	Part name	Qty
1	SB0069001	THREAD TRIMMER CAM P	1
2	S23651001	SET SCREW SOCKET (FT) M6X6	2
3	SA4798001	SETTING PLATE SOLENOID	1
4	SB6577001	THREAD TRIMMER SOLENOID	1
5	021400216	NUT 2 M4	2
6	028040246	WASHER SPRING 2-4	2
7	SB3848001	WASHER_PLAIN_M_4	2
8	SA3307001	SOLENOID LEVER	1
9	012400436	SET SCREW SOCKET (FT) M4X4	1
10	154599000	SOLENOID CUSHION	1
11	S02652021	WASHER	1
12	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
13	SA4799001	PUSHING LEVER D-LEVER	1
14	SA3306001	SHOULDER SCREW,7-3	1
15	231071001	BUSH, 8X15	1
16	SA3312201	GUIDE SHAFT	1
17	S23651001	SET SCREW SOCKET (FT) M6X6	1
18	SA3313101	SPRING,COMPRESSION	1
19	SA3309201	TR-DRIVING LEVER	1
20	SA3310001	COLLAR TR-TRIMMER	1
21	SA3311001	COLLAR SHAFT	1
22	S46903001	SET SCREW, M4X5	1
23	048040342	RETAINING RING E4	1
24	SB4416001	THREAD TRIMMER ROD ASSY V	1
25	SB4393001	THREAD TRIMMER ROD V	1
26	S32465101	BALL JOINT ASSY	2
27	021060306	NUT 3 M6	2
28	SB4401001	SHOULDER SCREW 6.35-6	1
29	021060306	NUT 3 M6	1
30	154596000	CUSHION	1
31	S25475101	SET SCREW M6X19	1
32	021060106	NUT 1 M6	1
33	SB4397101	THREAD TRIMMER LEVER	1
34	SB4401001	SHOULDER SCREW 6.35-6	1
35	021060306	NUT 3 M6	1
36	SB4399001	SHAFT TR-TRIMMER LEVER	1
37	SA4545001	SPACER	2
38	012060636	SET SCREW SOCKET (FT) M6X6	2
39	SB4398001	SPRING HOOK	1
40	SA3321001	SPRING,EXTENSION	1
41	SB4395001	MOVING KNIFE LEVER	1
42	SB4401001	SHOULDER SCREW 6.35-6	1
43	021060306	NUT 3 M6	1
44	018061636	BOLT SOCKET M6X16	1
45	SB4415001	THREAD TRIMMER ROD ASSY H	1
46	SB4391001	THREAD TRIMMER ROD H	1
47	S32465101	BALL JOINT ASSY	2
48	021060306	NUT 3 M6	2
49	SB4401001	SHOULDER SCREW 6.35-6	1
50	021060306	NUT 3 M6	1
51	SB4396001	SHAFT MOVABLE KNIFE LEVER	1
52	SB4400001	THRUST WASHER	2
53	SA4588001	SET COLLAR	1
54	012500536	SET SCREW SOCKET (FT) M5X5	2
55	SB5099001	M-KNIFE CONNECTING PLATE	1
56	SA4354001	SHOULDER SCREW,6-1.8	1
57	SB3210001	NEEDLE PLATE 484	1
58	SB3214001	MOVABLE KNIFE 484 ASSY	1
59	S10209101	SCREW, SM4.37	1
60	SB7118001	BOLT SOCKET M5×50	3

Page 37 — J. 糸切り関係 / Thread trimmer mechanism

Brother BAS-326H-484 parts on page 37
Ref	Part number	Part name	Qty
61	S00705001	MOVABLE KNIFE COLLAR	1
62+	S10208001	MOVABLE KNIFE SPACER	1
62+	S10208002	MOVABLE KNIFE SPACER	1
62+	S10208003	MOVABLE KNIFE SPACER	1
62+	S10208004	MOVABLE KNIFE SPACER	1
63	S57670001	FIXED KNIFE, 484	1
64	111140002	SCREW, SM2.38	2
65	S40217001	NEEDLE HOLE PLATE, 3	1
66	100360003	SCREW	2
67	SB5094001	NEEDLE PLATE SPACER	1
68	S25310101	SCREW, FLAT M4	2
69	SA6273101	SHUTTLE RACE COVER HOOK U	1
70	SB3847001	WASHER_PLAIN_M_3	2
71	028030246	WASHER SPRING 2-3	2
72	062300416	SCREW PAN M3X4	2
73	S25310101	SCREW, FLAT M4	2
74	SA3538001	SCREW,M4X8	4
75	SB5955001	CYLINDER CDQ2 ASSY	1
76	SB6867001	CYLINDER CDQ2	1
77	SB3224001	AUTO SWITCH	1
78	SB6973001	JOINT KQ2H04-01AS	2
79	SB5100001	HEXAGON STUD BOLT	1

Page 39 — K. 糸払い関係 / Thread wiper mechanism

Brother BAS-326H-484 parts on page 39
Ref	Part number	Part name	Qty
1	SB4379001	T-WIPER SOLENOID SETTING PLATE	1
2	SB3293001	CYLINDER CJ2B16-10 ASSY	1
3	SB3292001	CYLINDER CJ2B16-10	1
4	S12150000	TUBE ELBOW, M-5HL-4	2
5	SB3290001	CYLINDER SUPPORT PLATE	1
6	062350616	SCREW PAN M3.5X6	4
7	S31778000	STOPPER, CYLINDER	1
8	SA7164001	JOINT CYLINDER	1
9	S25456001	PLUNGER PIN	1
10	SA5219001	THREAD WIPER ROD	1
11	SB4378001	THREAD WIPER SHAFT BRACKET	1
12	018400836	BOLT SOCKET M4X8	1
13	SB3848001	WASHER_PLAIN_M_4	1
14	SA8057001	THREAD WIPER CRANK ASSY	1
15	048040342	RETAINING RING E4	1
16	S25454021	SET SCREW COLLAR	1
17	S25279101	SET SCREW (CP) M3.5-5	1
18	SA2287001	SPRING	1
19	149097000	SILENT SHEET	1
20	110735022	WASHER	1
21	048030342	RETAINING RING E3	1
22	S10470201	WIPER	1
23	060400516	SCREW BIND M4X5	1
24	146288021	THREAD WIPER STUD COLLAR	1
25	S03677001	WASHER	1
26	SA5213001	STOP SWITCH ASSY	1
27	SB2178001	AIR TUBE 3 L=1500	1
28	SB2178002	AIR TUBE 3 L=1500	1
29	SA4806101	SOLENOID COVER	1
30	0A4300806	SCREW PAN (S/P WASHER) M3X8	2
31	S55485001	BOLT SOCKET (S/P WASHER) M5X12	2

Page 41 — L. 糸ゆるめ関係 (糸ゆるめソレノイド) / Tension release mechanism (Tension release solenoid)

Brother BAS-326H-484 parts on page 41
Ref	Part number	Part name	Qty
1	SB6261001	SHAFT 3X50	1
2	SB1192001	TENSION RELEASE BAR BUSH	2
3	SB4155001	BAND	1
4	SB4467101	TENSION RELEASE ASSY	1
5	SB4345001	TENSION RELEASE SOLENOID	1
6	SB1179001	SOLENOID CUSHION	1
7	025040332	WASHER PLAIN L 4	1
8	017400802	BOLT M4X8	2
9	028040246	WASHER SPRING 2-4	2
10	SB3848001	WASHER_PLAIN_M_4	2
11	017401415	BOLT M4X14	1
12	021400306	NUT 3 M4	1
13	SB4380001	SETTING PLATE SOLENOID	1
14	SB4486001	TENSION RELEASE SPRING	1
15	062500816	SCREW PAN M5X8	2
16	SB0787101	SOLENOID COVER	1
17	060400516	SCREW BIND M4X5	2

Page 43 — M. 糸取り付け関係 / Thread take-up mechanism

Brother BAS-326H-484 parts on page 43
Ref	Part number	Part name	Qty
1	S56531001	SETTING PLATE	1
2	SB3238001	SETTING PLATE SPACER	1
3	018503036	BOLT SOCKET M5X30	2
4	026050136	WASHER PLAIN S 5	2
5	028050246	WASHER SPRING 2-5	2
6	SB3294001	PIN CYLINDER ASSY	1
7	SB0103001	PIN CYLINDER	1
8	SB0105001	MALE ELBOW 4XM3	2
9	S56532001	STOPPER BRACKET	1
10	S50051000	NUT, M12	1
11	S50050000	KNUCKLE	1
12	S50049000	PIN	1
13	S32259001	PRE-TENSION NUT	1
14	018401636	BOLT SOCKET M4X16	1
15	028040246	WASHER SPRING 2-4	1
16	SB6971001	THREAD TAKE-UP LEVER	1
17	SB3237001	LEVER BASE	1
18	018401636	BOLT SOCKET M4X16	2
19	SA9294001	SHOULDER SCREW 4	2
20	107017001	WAVE WASHER	2
21	SB0532001	WASHER PLAIN	2

Page 45 — N1. コントロールボックス関係 / Control box

Brother BAS-326H-484 parts on page 45
Ref	Part number	Part name	Qty
1	SB6414001	MAIN PCB ASSY 311H S/A	1
2	SB4541101	MOTOR PCB ASSY 311H	1
3	J04417001	G FUSE 10A-250V:FGMB	2
4	SA9500201	POWER PCB ASSY	1
5	S37060001	LABEL, GROUNDING	1
6	S37059001	LABEL, PE	1
7	SA9893001	BOLT M8X65	4
8	025080336	WASHER PLAIN L 8	4
9	028080246	WASHER SPRING 2-8	4
10	021080206	NUT 2 M8	8
11	SA9725001	LABEL ELECTRICAL SHOCK 36X150	1
12	SA9559001	CE FILTER BOX ASSY	1
13	SA9564001	CE FILTER CASE	1
14	SA9565001	CE FILTER PCB ASSY	1
15	S03816001	WOOD SCREW M4.5X16	4
16	200190001	STAPLE 10X20	5

Page 47 — N2. コントロールボックス関係 / Control box

Brother BAS-326H-484 parts on page 47
Ref	Part number	Part name	Qty
1+	SA9616001	POWER SWITCH ASSY SJT	1
1+	SA9831001	POWER SWITCH ASSY SJT#2	1
2+	SA9535001	POWER SUPPLY SWITCH ASSY CCC	1
2+	BMP3010-0000001-3S00	POWER SWITCH 220V	1
3	S03816001	WOOD SCREW M4.5X16	2
4	200190001	STAPLE 10X20	2
5+	SB1229001	TRANS BOX 100V SUPPLY	1
5+	BMP3010-0000000-2ST1	TRANSFORMER BOX	1
6+	BMP3010-0000000-3ST4	TRANSFORMER BOX	1
6+	BMP3010-0000001-3ST4	TRANSFORMER BOX	1
6+	BMP3010-0000000-4ST4	TRANSFORMER BOX	1
7	SA9914001	LABEL ELECTRICAL SHOCK 25 X 28	1

Page 49 — P. 空圧関係 / Air pressure mechanism

Brother BAS-326H-484 parts on page 49
Ref	Part number	Part name	Qty
1	SA6405001	AIR TUBE R	1
2	SA6405002	AIR TUBE R	1
3	SA6406001	AIR TUBE L	1
4	SA6406002	AIR TUBE L	1
5	SA6407001	SPIRAL,500S	1
6	149547000	CORD HOLDER 4N	1
7	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
8	525664000	CORD HOLDER #6	1
9	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
10	228475000	FASTENING BAND 1.9X80	3
11	SB3313001	AIR TUBE 5 L=600	1
12	SB3313002	AIR TUBE 5 L=600	1
13	SA2783001	AIR TUBE 4A L=1100	1
14	SA2784001	AIR TUBE 4B L=1100	1
15	SB3249101	SOLENOID VALVE ASSY 5A	1
16	SA5290001	MANIFOLD5	1
17	S39116100	VALVE VQZ2151S-5	4
18	S39115100	VALVE, VQZ2151-5	1
19	SA5283001	SILENCER AN10-1	1
20	153274001	CAP, 1/8	2
21	SA5282001	FILTER REGULATOR AW20-02G	1
22	S09228000	NIPPLE 1/4X1/8	1
23	SA7588001	ELBOW PT 1/4	1
24	SB0445001	FINGER VALVE	1
25	SA5286101	SETTING PLATE VALVE	1
26	028050246	WASHER SPRING 2-5	2
27	018503036	BOLT SOCKET M5X30	2
28	SB3235001	VALVE HARNESS X3 ASSY	1
29	SB3312001	VALVE HARNESS X2 ASSY	1
30	032422003	WOOD SCREW, ROUND 2 M4.1X20	2
31	148847001	WASHER PLAIN 4.76	2

Page 51 — Q. 電装部品関係 / Power supply equipment

Brother BAS-326H-484 parts on page 51
Ref	Part number	Part name	Qty
1	525567000	CORD HOLDER #8	4
2	0A5401006	SCREW PAN (S/P WASHER) M4X10	4
3	149547000	CORD HOLDER 4N	2
4	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
5	552907000	CORD HOLDER #10	1
6	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
7+	SB4511001	H-POSITION SENSOR L ASSY	1
7+	SB6870001	XY H-POSITION SENSOR L ASSY	1
8	062300816	SCREW PAN M3X8	3
9	SB4296101	SWITCH ASSY MACHINE HEAD	1
10	0A5301605	SCREW PAN (S/P WASHER) M3X16	2
11	SB1200101	SWITCH MACHINE HEAD PLATE	1
12	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
13	SB4259001	STOP SWITCH HARNESS 311H	1
14	SB4261001	GROUND WIRE HEAD-BOX	1
15	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
16	SB4096001	CORD HOLDER #12	1
17	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
18	S00470000	CORD HOLDER 16N	1
19	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
20	218859001	BINDER M150	2
21	SB4155001	BAND	2
22	SA6366001	SPIRAL TUBE	1
23	SB4155001	BAND	1

Page 53 — R. モーター・液晶パネル関係 / Motor mechanism and LCD panel

Brother BAS-326H-484 parts on page 53
Ref	Part number	Part name	Qty
1	SB0752201	MOTOR 430 SUPPLY	1
2	SB6019001	PROGRAMMER MAIN PCB ASSY	1
3	SB6313001	PROGRAMMER HARNESS 3100	1
4	SB6472001	MN-KEY HARNESS	1
5	SB6525001	PROGRAMMER KEY PCB ASSY	1
6	SB6538001	EARTH PLATE	1
7	SB6539001	KEYBOARD	1
8	SB6540001	CURSOR KEY	1
9	SB6541001	PUSH KEY	3
10	SB6542001	REAR COVER ASSY	1
11	SB6545001	SIDE COVER SD	1
12	SB6546001	SIDE COVER USB	1
13	SB6547001	SIDE COVER BCR	1
14	SB6551001	REAR COVER CAP	1
15	SB6552001	REAR STAND	1
16	085310816	TAPTITE BIND B M3X8	5
17	085311016	TAPTITE BIND B M3X10	8
18	SB6657001	RUBBER CUSHION	1
19	SB6554001	PROGRAMMER CRADLE	1
20	SB6555001	CRADLE MOUNTING PLATE	1
21	SB6548001	PEN ASSY	1
22	0B0452006	WOOD SCREW ROUND M4.5X20	4
23	004400803	SCREW, FLAT M4×8	1
24	200190001	STAPLE 10×20	2
25+	SB6532001	FRONT COVER ASSY	1
26+	SB6581001	PANEL PROGRAMMER ASSY	1
25+	SB6532002	FRONT COVER ASSY	1
26+	SB6581002	PANEL PROGRAMMER ASSY	1

Page 55 — S. 踏板関係 / Foot switch pedal mechanism

Brother BAS-326H-484 parts on page 55
Ref	Part number	Part name	Qty
1	SB1565001	CONVERSION HARNESS FOOT SW	1
2	SA6038101	2-PEDAL FOOT SW ASSY	1

Page 57 — T1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 57
Ref	Part number	Part name	Qty
1	S53982000	BLANKING PLATE ASSY	1
2	SA7166101	VALVE HARNESS ASSY X1	1
3	SB3342001	LONG NIPPLE 1/8X1/8	1
4+	SA7171001	OPTION ADD VALVE ASSY	1
5+	S39116100	VALVE VQZ2151S-5	1
4+	SA71710E1	OPTION ADD VALVE ASSY	1
5+	SA74521E0	VALVE VQZ2151S-5 WEEE	1
6	SA7167101	OP VALVE HARNESS SG	1
7	SA7197201	2-STEP THREAD TENSION DEVICE	1
8	S34706000	AIR CYLINDER, 10X10	1
9	018302036	BOLT SOCKET M3X20	2
10	S12150000	TUBE ELBOW, M-5HL-4	2
11	S34533001	COUNTERSINK CLAW	1
12	S34534101	SUB TENSION BRACKET ASSY	1
13	155510001	TENSION NUT	1
14	146060000	SPRING	1
15	146059001	PRE-TENSION NUT	1
16	146058001	PRE-TENSION SPRING	1
17	146206009	DISC PRESSER, T-GUIDE	1
18	144504001	THREAD GUIDE DISC	2
19	SA7199001	SETTING BRACKET CYLINDER	1
20	017081606	BOLT M8X16	2
21	S15031010	AIR TUBE, 4X2.5	2
22	SA3416101	TENSION SPRING LL	1
23	S20681000	WASHER	1
24	S48140002	WASHER	1
25	SA7155001	SPACER	2
26	S00480000	CORD HOLDER 5N	2
27	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
28	525907000	CORD HOLDER #9	1

Page 59 — T2. 付属装置関係（オプション部品）/ Attachment set (Option parts)

Brother BAS-326H-484 parts on page 59
Ref	Part number	Part name	Qty
1	SA5559101	NEEDLE COOLER SET	1
2	S18027201	NEEDLE BLOWER	1
3	062400816	SCREW PAN M4X8	2
4	S15031010	AIR TUBE, 4X2.5	1
5	S04897000	PLUG 4	1
6	SA7155001	SPACER	2
7	S10243000	CORD HOLDER:NK-3N	2
8	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
9	525907000	CORD HOLDER #9	1

Page 61 — T3. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 61
Ref	Part number	Part name	Qty
1	SA7189101	INNER CLAMPING DEVICE SET	1
2	S12633309	WORK CLAMP CRANK ASSY LA	1
3	S12634109	WORK CLAMP CRANK HOLDER A	1
4	S12635009	WORK CLAMP CRANK HOLDER, B	1
5	S12636001	WORK CLAMP CRANK HOLDER, C	1
6	S12641009	SPACER, CRNK HOLDER	1
7	S59894001	BOLT, SOCKET SM4.37-40X12	2
8	SA6373001	REVERSE CYLINDER BASE	1
9	018301236	BOLT SOCKET M3X12	2
10	018301036	BOLT SOCKET M3X10	2
11	S05665001	WORK CLAMP CRANK, LA	1
12	154235001	REVERSE GEAR	1
13	154236001	REVERSE RACK	1
14	145087001	WASHER	1
15	149831101	SET SCREW, SM3.18	1
16	154237101	WORK CLAMP PLATE HOLDER L	1
17	025350132	WASHER PLAIN S 3.5	1
18	100242003	SCREW, SM3.57-40X5	1
19	S12637009	REVERSE ROD	1
20	SA6362001	REVERSE CYLINDER	1
21	S12642009	BOLT SOCKET M3X35	2
22	SA7193001	REVERSE SHAFT JOINT	1
23	018400836	BOLT SOCKET M4X8	1
24	018300836	BOLT SOCKET M3X8	1
25	017501216	BOLT M5X12	1
26	021500216	NUT 2 M5	1
27	S18415101	HALF UNION :Q4M5	2
28	S12643001	OUTER WORK CLAMP, 312-1	1
29	117291002	SCREW, FLAT SM3.18	2
30	154252001	POSITIONING PLATE, L	1
31	154253001	POSITIONING PLATE, R	1
32	062670512	SCREW PAN SM3.57-40X5	4
33	SB2456001	WASHER PLAIN 3.5	4
34	028350242	WASHER SPRING 2-3.5	4
35	154256101	WORK CLAMP PLATE BLANK, A	1
36	SA7460001	FEED PLATE BLANK 311G	1
37	S12165000	REGULATOR	1
38	S04905000	HALF UNION	2
39	018400636	BOLT SOCKET M4X6	2
40	SB3848001	WASHER_PLAIN_M_4	2
41	S03803000	AIR TUBE	2
42	S28741000	AIR TUBE, 4 L=300	1
43	SA6617001	WORK CLAMP CRANK SPACER L	1
44	SA6616001	WORK CLAMP CRANK SPACER R	1
45	S55484001	BOLT SOCKET (S/P WASHER)M5X10	2
46	S55484001	BOLT SOCKET (S/P WASHER)M5X10	2
47	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
48	552907000	CORD HOLDER #10	1
49	S12644001	OUTER WORK CLAMP, 312-2	1
50	S10542001	INNER CLAMP, LL	1
51	S04516001	WORK CLAMP CRANK, SS	1
52	154297001	WORK CLAMP CRANK, S	1
53	154291101	WORK CLAMP PLATE HOLDER S	1
54	156492101	WORK CLAMP PLATE BLANK 7.5-A	1

Page 63 — T4. 付属装置関係 (オプション部品）/ Attachment set (Option parts)

Brother BAS-326H-484 parts on page 63
Ref	Part number	Part name	Qty
1+	SC5554201	BOBBIN CHANGER RH3 SET	1
1+	SC55542E1	BOBBIN CHANGER RH3 SET	1

Page 65 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 65
Ref	Part number	Part name	Qty
2	SC5667001	BC COL-BOX SETTING PLATE	1
3	060400816	SCREW BIND M4X8	2
4	SB4155001	BAND	1
5	SC5642001	COVER L BCRH3	1
6	SC9297001	TRIM1.6-58	1
7	060400816	SCREW BIND M4X8	3
8	SC5648001	BOTTOM COVER F BCRH3	1
9	060400816	SCREW BIND M4X8	4
10	SC5647101	TOP COVER R BCRH3	1
11	SB9427001	MAGNET CATCH	1
12	060400816	SCREW BIND M4X8	2
13	021400202	NUT 2 M4	2
14	060400816	SCREW BIND M4X8	2
15	SC5644001	SPIRAL TUBE 19	1
16	SC5680001	SENSOR EX HARNESS ASSY 345	1
17	SC5656001	MAGAZINE ASSY BCRH3	2
18	SC5657101	MAGAZINE BASE BCRH3	2
19	SC9136001	PIN 3X10	4
20	SC5664001	MZ POSITIONING PLATE BCRH3	2
21	SB7957101	LOW HEAD BOLT SOCKET M4X8	4
22	SC9151001	SPACER 5-10-8	2
23	062501216	SCREW PAN M5X12	2
24	SC5660001	SHAFT-236 BCRH3	2
25	SC5662001	MAGAZINE COLLAR BCRH3	2
26	SC5661001	MAGAZINE SPRING BCRH3	2
27	SD0728001	SET COLLAR 4-18-10	2
28	012300336	SET SCREW SOCKET (FT) M3X3	4
29	SC5659001	MAGAZINE LOWER PLATE BCRH3	2
30	018301036	BOLT SOCKET M3X10	4
31	062400816	SCREW PAN M4X8	8
32	SC9137001	NYLON HANDLE28-52	2
33	S55485001	BOLT SOCKET (S/P WASHER)M5X12	4
34	SC5665001	BC COLLECTION BOX ASSY	1
35	SC5666001	BC COLLECTION BOX	1
36	SC9153001	CUSHION SHEET110X110	1
37	SC5649101	MIDDLE COVER F BCRH3	1
38	SC5674001	PLATE NUT M4	1
39	060400816	SCREW BIND M4X8	2
40	SC7449001	TORQUE HINGE	2
41	SC5674001	PLATE NUT M4	2
42	060401016	SCREW BIND M4X10	4
43	S47269001	BOLT SOCKET (S/P WASHER)M6X20	1
44	SC9151001	SPACER 5-10-8	1
45	018502032	BOLT SOCKET M5X20	1
46	018061036	BOLT SOCKET M6X10	4
47	060400816	SCREW BIND M4X8	4
48	SC5678001	SENSOR EX HARNESS ASSY 1	1
49	SC5679001	SENSOR EX HARNESS ASSY 2	1
50	SC5673001	SENSOR EX HARNESS ASSY 6	1
51	SC5681001	SENSOR EX HARNESS ASSY 7	1
52	SC9573001	JIG BOBBIN BCRH3	1
53	S25475101	SET SCREW M6X19	1
54	SC9574001	JIG SHAFT BCRH3	1

Page 67 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 67
Ref	Part number	Part name	Qty
55	SC5645101	BOTTOM COVER R BCRH3	1
56	060400816	SCREW BIND M4X8	4
57	SC5625101	MIDDLE COVER R2 BCRH3	1
58	SC5643101	SW HARNESS ASSY VX-014-1A3	1
59	0A5301605	SCREW PAN (S/P WASHER) M3X16	2
60	021300206	NUT 2 M3	2
61	SB4155001	BAND	2
62	SC9773005	CABLE CLAMP UC	1
63	0A5400806	SCREW PAN (S/P WASHER) M4X8	1
64	060400816	SCREW BIND M4X8	2
65	SC5646001	MIDDLE COVER R BCRH3	1
66	060400816	SCREW BIND M4X8	4
67	SA9957002	INJURY MARK	2

Page 69 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 69
Ref	Part number	Part name	Qty
68	SC5626001	CHUCK ASSY BCRH3	1
69	SC5671001	CHUCK PLATE3 BCRH3	1
70	SC9136001	PIN 3X10	2
71	SC5627001	CHUCK PLATE1 BCRH3	1
72	SC9136001	PIN 3X10	4
73	018501436	BOLT SOCKET M5X14	2
74	SC5629001	CHUCK PLATE2 BCRH3	1
75	SC5630001	CHUCK STOPPER	1
76	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
77	SC9144001	LINEAR GUIDE 10X75	1
78	018300836	BOLT SOCKET M3X8	4
79	SC9142001	CYLINDER 12X35	1
80	SC4680001	JOINT	2
81	SC5579001	AIR TUBE D4 L1140 2A	1
82	SC5580001	AIR TUBE D4 L1140 2B	1
83	SC5631001	SENSOR HARNESS ASSY DMSH3	1
84	SC5676001	SENSOR HARNESS ASSY DMSH4	1
85	SC9143001	FLANGE WASHER 5-12	1
86	SC5632001	PLATE NUT M5	1
87	018401436	BOLT SOCKET M4X14	2
88	018501436	BOLT SOCKET M5X14	2
89	SC5628001	BOBBIN GUARD PLATE	1
90	SC9140001	CUSHION SHEET30X20	1
91	S12150000	TUBE ELBOW, M-5HL-4	1
92	SC5651001	AIR TUBE D4 L1150 4A-2	1
93	018400636	BOLT SOCKET M4X6	2
94	SC5634001	CHUCK BLOCK2 BCRH3	1
95	SC9147001	PIN 3X20	2
96	SC5636001	CHUCK PLATE BCRH3	2
97	018300836	BOLT SOCKET M3X8	4
98	SC5635001	CHUCK SPRING PLATE BCRH3	1
99	018300536	BOLT SOCKET M3X5	1
100	SC5637001	CHUCK CLAW BCRH3	1
101	SC5638001	TORSION SPRING	1
102	SC5655001	SHOULDER SCREW M4	1
103	102707002	WASHER	1
104	SC5639001	SENSOR HARNESS ASSY APS2.5	1
105	SC5677001	SENSOR EX2 HARNESS ASSY 5	1
106	SC9329001	PLATE APS-KNG8	1
107	018300836	BOLT SOCKET M3X8	1
108	SC5633001	CHUCK BLOCK1 BCRH3	1
109	SC9145001	BUSH 4-6-5	1
110	SC9146001	CYLINDER 8X15	1
111	S12150000	TUBE ELBOW, M-5HL-4	1
112	SC5581001	AIR TUBE D4 L1260 3A	1
113	SC5640001	CYLINDER JOINT PLATE	1
114	018300836	BOLT SOCKET M3X8	2
115	018401036	BOLT SOCKET M4X10	2
116	SC9773001	CABLE CLAMP UC	1
117	0A5400806	SCREW PAN (S/P WASHER) M4X8	1
118	018301236	BOLT SOCKET M3X12	2
119	SC9773005	CABLE CLAMP UC	1
120	0A5400806	SCREW PAN (S/P WASHER) M4X8	1
121	SB4155001	BAND	2
122	SC9773006	CABLE CLAMP UC	4
123	0A5400806	SCREW PAN (S/P WASHER) M4X8	4

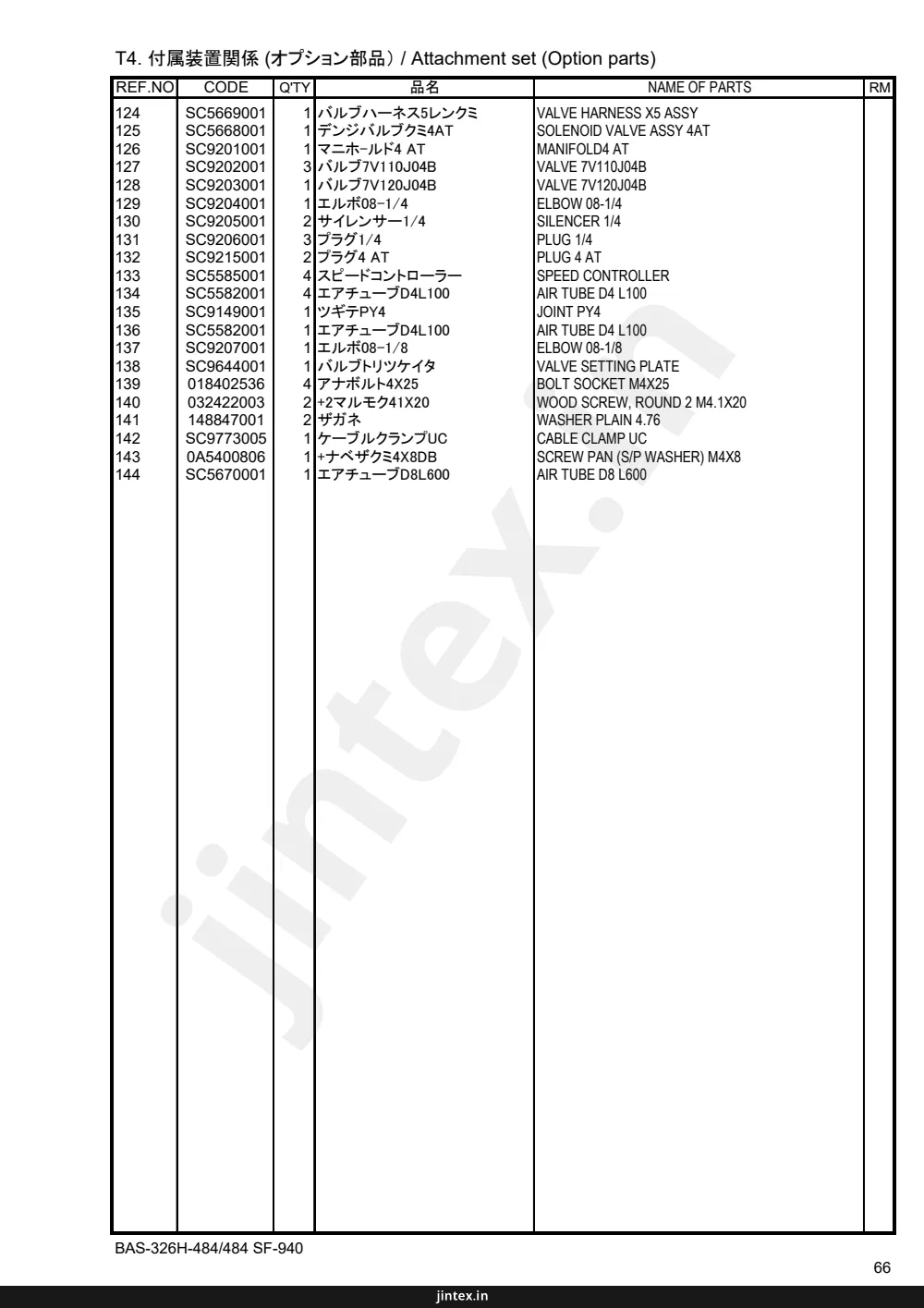

Page 71 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 71
Ref	Part number	Part name	Qty
124	SC5669001	VALVE HARNESS X5 ASSY	1
125	SC5668001	SOLENOID VALVE ASSY 4AT	1
126	SC9201001	MANIFOLD4 AT	1
127	SC9202001	VALVE 7V110J04B	3
128	SC9203001	VALVE 7V120J04B	1
129	SC9204001	ELBOW 08-1/4	1
130	SC9205001	SILENCER 1/4	2
131	SC9206001	PLUG 1/4	3
132	SC9215001	PLUG 4 AT	2
133	SC5585001	SPEED CONTROLLER	4
134	SC5582001	AIR TUBE D4 L100	4
135	SC9149001	JOINT PY4	1
136	SC5582001	AIR TUBE D4 L100	1
137	SC9207001	ELBOW 08-1/8	1
138	SC9644001	VALVE SETTING PLATE	1
139	018402536	BOLT SOCKET M4X25	4
140	032422003	WOOD SCREW, ROUND 2 M4.1X20	2
141	148847001	WASHER PLAIN 4.76	2
142	SC9773005	CABLE CLAMP UC	1
143	0A5400806	SCREW PAN (S/P WASHER) M4X8	1
144	SC5670001	AIR TUBE D8 L600	1

Page 73 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother BAS-326H-484 parts on page 73
Ref	Part number	Part name	Qty
145	SC9134001	CYLINDER 16X200	1
146	SC4680001	JOINT	2
147	SC5567001	AIR TUBE D4 L520 1A	1
148	SC5578001	AIR TUBE D4 L520 1B	1
149	SC5583001	SENSOR HARNESS ASSY DMSH1	1
150	SC5675001	SENSOR HARNESS ASSY DMSH2	1
151	SC5621001	BASE PLATE1 BCRH3	1
152	SC9136001	PIN 3X10	4
153	018501436	BOLT SOCKET M5X14	4
154	SC5622001	MZ BASE PLATE1 BCRH3	1
155	SC9136001	PIN 3X10	2
156	018501036	BOLT SOCKET M5X10	4
157	SC5620001	LOWER COVER	1
158	SC9296001	TRIM1.6-42	1
159	S55484001	BOLT SOCKET (S/P WASHER)M5X10	4
160	SD0238001	MZ BASE PLATE2 BCRH3	1
161	S12150000	TUBE ELBOW, M-5HL-4	1
162	SC5641001	AIR TUBE D4 L870 4A-1	1
163	SB8060101	EJECT SENSOR ASSY	1
164	SC5624001	SENSOR EX2 HARNESS ASSY 6	1
165	018300636	BOLT SOCKET M3X6	1
166	SC9138001	MAGNET20	1
167	SD0239001	POSITIONING PIN	2
168	SB4901001	WASHER PLAIN 4.2 T1.5	1
169	018401036	BOLT SOCKET M4X10	1
170	SC9136001	PIN 3X10	2
171	018501036	BOLT SOCKET M5X10	2
172	SC9773006	CABLE CLAMP UC	4
173	0A5400806	SCREW PAN (S/P WASHER) M4X8	4
174	SC9141001	CABLE CARRIER	1
175	018400636	BOLT SOCKET M4X6	8
176	018401036	BOLT SOCKET M4X10	4
177	SC5654001	BASE PLATE2	1
178	S42446001	BOLT SOCKET (S/P WASHER)M6X14	3

Page 75 — U. 付属品番関係 / Accessories

Brother BAS-326H-484 parts on page 75
Ref	Part number	Part name	Qty
1	SB4412201	REAR COVER	1
2	114486002	OILER	1
3+	SA8239201	OIL TANK ASSY	1
3+	SA8239202	OIL TANK ASSY	1
4	SB1270001	OIL WARNING LABEL EN	1
5	SB1271001	OIL WARNING LABEL JP	1
6	SB0557301	EYE GUARD SET E	1
7	SB0556001	EYE GUARD HOLDER B	1
8	SB4169001	EYE GUARD	1
9	018300636	BOLT SOCKET M3X6	2
10	026030233	WASHER PLAIN M 3	2
11	SB0559101	EYE GUARD HOLDER A	1
12	018400836	BOLT SOCKET M4X8	1
13	018400836	BOLT SOCKET M4X8	2
14	026040136	WASHER PLAIN S 4	2
15	SB0468001	SHOCK ABSORBER GAS ASSY 311G	1
16	SA4846002	HOLDER ABSORBER	2
17	SB4516001	ABSORBER SETTING PLATE	1
18	S42446001	BOLT SOCKET (S/P WASHER)M6X14	2
19	SA4605001	HEAD REST	1
20	SB4403001	SIDE COVER	1
21	062501216	SCREW PAN M5X12	4
22	062501216	SCREW PAN M5X12	4
23	S42446001	BOLT SOCKET (S/P WASHER)M6X14	4
24	109714000	NAIL	6
25	S00871101	BOBBIN B	1
26	S40574409	COTTON STAND ASSY 2DTHF	1
27	S51283001	SPOOL STAND BASE	2
28	150182000	SPOOL MAT	2
29	S51282101	SPOOL CUSHION	2
30	S04109001	THREAD GUIDE SUPPORT BAR	1
31	142997001	THREAD GUIDE, 3	1
32	150179002	SPOOL SHAFT B	2
33	028050243	WASHER, SPRING 2-5	2
34	021500203	NUT, 2 M5	2
35	SA6607001	SPOOL HOLDER 2	1
36	SA6607001	SPOOL HOLDER 2	1
37	150183000	THREAD HANGER BASE	2
38	142990001	THREAD BUSH	2
39	SA6609001	SPOOL HOLDER SUPPORTER	2
40	SA6615001	THREAD GUIDE HOLDER	1
41	138843201	JOINT	1
42	062061603	SCREW PAN M6X16	2
43	014060632	SET SCREW SOCKET (CP) M6X6	2
44	021500203	NUT, 2 M5	1
45	S37037001	SCREW PAN (S/P WASHER) M5X32	1
46	062061003	SCREW PAN M6X10	1
47	SA3384101	PIN	2
48	012060636	SET SCREW SOCKET (FT) M6X6	2
49	SA3385001	HINGE HOLDER	2
50	SA3395001	RUBBER CUSHION	2
51	SA3392101	SPACER	2
52	018066036	BOLT SOCKET M6X60	4
53	213650001	WASHER 2.3X8.5X38ST	4
54	021060106	NUT 1 M6	4
55	018066036	BOLT SOCKET M6X60	2

Page 77 — U. 付属品関係 / Accessories

Brother BAS-326H-484 parts on page 77
Ref	Part number	Part name	Qty
56	025060236	WASHER PLAIN M 6	2
57	213650001	WASHER 2.3X8.5X38ST	2
58	028060246	WASHER SPRING 2-6	2
59	021060106	NUT 1 M6	2
60	SA5251001	SPACER	1
61	018064031	BOLT SOCKET M6X40	1
62	021060106	NUT 1 M6	1
63	SB4517001	SHAFT U	1
64	SB2356001	WASHER PLAIN S 8	2
65	048060342	RETAINING RING E6	2
66	S17974101	SHAFT D	1
67	S17975200	SHAFT COLLAR GAS	2
68	SB2356001	WASHER PLAIN S 8	2
69	048060342	RETAINING RING E6	2
70	SA6261002	HOLDER ABSORBER COVER	1
71	S55479001	BOLT SOCKET (S/P WASHER) M4X8	6
72	SB4515001	OIL PAN ASSY	1
73	SB4383001	OIL PAN	1
74	SB4168001	DUST OILER	1
75	037301215	TAPPING SCREW PAN V M3X12	2
76	S21728001	BOLT M6X80	2
77	213650001	WASHER 2.3X8.5X38ST	2
78	S06706001	SILICONE OIL	1

Page 78 — Wa. 警告ラベル / Warning labels

Brother BAS-326H-484 parts on page 78
Ref	Part number	Part name	Qty
	SA9725-001	Label electrical shock 36 X 150
	SA9914-001	Label electrical shock 25 X 28
	SA9826-001	Label caution
	SA9957-001	Injury mark
	SA9957-002	Injury mark
	S37060-001	Label, grounding
	S37059-001	Label, PE
	SA4224-001	Mark attention 30 X 40

Page 79 — Wa. 警告ラベル / Warning labels

Brother BAS-326H-484 parts on page 79
Ref	Part number	Part name	Qty
	SB1271-001	Oil warning label JP
	SB1270-001	Oil warning label EN

Page 80 — Ga. ゲージ部品一覧表 / Gauge parts list

Brother BAS-326H-484 parts on page 80
Ref	Part number	Part name	Qty
	S40217-001
	E / S10212-101
	F / S10213-101
	4 / SC9264-001
	S42843-001
	B / S42844-001
	C / S42845-001
	D / S42846-001
	E / S42847-001
	F / 157237-001
	G / 158592-001
	J / S42848-001
	S40214-001
	B-L / S49448-001
	XA / S42849-101
	H / SA4811-001
	S10212-101	E
	S10213-101	F
	SC9264-001
	S42844-001	B
	S42845-001	C
	S42846-001	D
	S42847-001	E
	157237-001	F
	158592-001	G
	S42848-001	J
	S49448-001	B-L
	S42849-101	XA
	SA4811-001	H

Page 81 — 索引 / Index

Brother BAS-326H-484 parts on page 81
Ref	Part number	Part name
- 28	004300513	A
- 23	004400803	R
- 20	012060536	B
- 5	012060636	B
- 18	012060636	C1
- 19	012060636	C1
- 22	012060636	C1
- 12	012060636	C3
- 24	012060636	C3
- 20	012060636	C4
- 54	012060636	D1
- 63	012060636	D1
- 52	018066036	U
- 3	018300536	C1
- 99	018300636	T4
- 24	018300836	T3
- 78	018300836	T4
- 97	018300836	T4
- 107	018300836	T4
- 114	018300836	T4
- 2	018301036	C1
- 3	018301236	C1
- 6	018301236	C1
- 34	018301236	C1
- 37	018301236	C1
- 10	018301236	T3
- 30	018301236	T4
- 31	018301236	C1
- 9	018301236	T3
- 118	018301236	T4
- 9	018302036	T1
- 17	018400636	D2
- 39	018400636	T3
- 93	018400636	T4
- 175	018400636	T4
- 4	018400836	C3
- 6	018400836	C3
- 12	018400836	C4
- 47	018400836	D1
- 28	012300336	T4
- 25	012400436	D1
- 31	012400436	D1
- 17	012400436	H
- 24	012400436	H
- 9	012400436	J
- 16	012500536	A
- 43	012500536	A
- 9	012500536	B
- 26	012500536	B
- 51	012500536	B
- 24	012500536	D2
- 6	012500536	G
- 3	012500536	H
- 37	012500536	H
- 54	012500536	J
- 31	012501031	C4
- 36	012501031	C4
- 43	014060632	U
- 14	016061031	D2
- 12	017061213	D1
- 44	017061612	D1
- 45	017065002	D1
- 20	017081606	T1
- 8	017400802	L
- 11	017401415	L
- 25	017501216	T3
- 46	018061036	T4
- 27	018061236	D2
- 44	018061636	J
- 4	018062536	C1
- 61	018064031	U
- 10	018501036	C3
- 15	018501036	C3
- 22	018501036	C3
- 3	018501036	D2
- 156	018501036	T4
- 171	018501036	T4
- 73	018501436	T4
- 88	018501436	T4
- 153	018501436	T4
- 45	018501636	B
- 45	018502032	T4
- 3	018503036	M
- 3	018503036	M
- 43	019060632	U
- 10	021060106	D1
- 32	021060106	J
- 54	021060106	U
- 59	021060106	U
- 62	021060106	U
- 41	021060306	D1
- 27	021060306	J
- 35	021060306	J
- 43	021060306	J
- 48	021060306	J
- 50	021060306	J
- 10	021080206	N1
- 32	021300103	A
- 9	021300103	C1
- 36	021300103	C1
- 60	021300206	T4
- 47	021400106	C4
- 13	021400202	T4
- 46	021400216	C1
- 4	021400216	C2
- 12	021400306	L
- 34	021500203	U
- 44	021500203	U
- 32	021500216	C4
- 37	021500216	C4
- 26	021500216	T3
- 6	025040236	C5
- 38	025040332	A
- 56	025060236	U
- 8	025080336	N1
- 17	025350132	T3
- 10	026030233	U
- 18	026040136	F
- 14	026040136	U
- 4	026050136	M
- 8	028030246	C1
- 32	028030246	C1
- 71	028030246	J
- 45	028040246	C1
- 13	028040246	C4
- 6	028040246	J
- 9	028040246	L
- 15	028040246	M
- 33	028050243	U
- 11	028050246	C2
- 41	028050246	C4
- 30	032422003	P
- 75	037301215	U
- 49	047402042	B
- 21	048030342	K
- 23	048040342	J
- 5	048050142	C4
- 10	048050342	H
- 19	048050342	H
- 8	048060142	C4
- 65	048060342	U
- 69	048060342	U
- 37	048080142	B
- 17	048080142	C4
- 29	048080142	D1
- 28	048080142	E
- 36	048080142	E
- 37	048080142	E
- 26	048100142	C1
- 26	048100142	C1
- 10	048100142	D2
- 26	048100142	E
- 34	048100142	E
- 35	048220242	B
- 34	048220242	E
- 34	048280142	E
- 45	048280142	F
- 23	060400516	K
- 3	060400516	L
- 7	060400816	T4
- 9	060400816	T4
- 12	060400816	T4
- 14	060400816	T4
- 39	060400816	T4
- 47	060400816	T4
- 56	060400816	T4
- 64	060400816	T4
- 66	060400816	T4
- 42	060401016	T4
- 46	062061003	U
- 25	062061016	A
- 28	062061016	F
- 31	062061016	H
- 42	062061603	U
- 55	062300416	C1
- 20	062300416	D1
- 72	062300416	J
- 31	062300506	A
- 8	062300816	Q
- 8	062350616	H
- 6	062350616	K
- 6	062400616	D1
- 11	062400616	D2
- 8	062400616	F
- 19	062400616	F
- 45	062400616	F
- 10	062400816	B
- 44	062400816	B
- 3	062400816	T2
- 31	062400816	T4
- 9	062500616	G
- 11	062500616	G
- 13	062500616	G
- 30	062500616	H
- 15	062500816	L
- 34	062501216	A
- 23	062501216	T4
- 21	062501216	U
- 22	062501216	U
- 37	062670412	G
- 32	062670512	T3

Page 82

Brother BAS-326H-484 parts on page 82
Ref	Part number	Part name
- 12	062680612	E
- 22	070696800	D2
- 16	085310816	R
- 17	085311016	R
- 30	0A4300806	K
- 10	0A5301605	Q
- 59	0A5400806	T4
- 63	0A5400806	T4
- 117	0A5400806	T4
- 120	0A5400806	T4
- 123	0A5400806	T4
- 143	0A5400806	T4
- 42	0A5401006	A
- 23	0A5401006	F
- 25	0A5401006	F
- 37	0A5401006	F
- 47	0A5401006	F
- 49	0A5401006	F
- 51	0A5401006	F
- 53	0A5401006	F
- 7	0A5401006	P
- 9	0A5401006	P
- 2	0A5401006	Q
- 4	0A5401006	Q
- 6	0A5401006	Q
- 12	0A5401006	Q
- 15	0A5401006	Q
- 17	0A5401006	Q
- 19	0A5401006	Q
- 56	0A5401206	A
- 22	0B0452006	R
- 16	100136001	G
- 18	100242003	T3
- 66	100360003	J
- 36	100401022	H
- 28	100402004	G
- 14	100645004	C4
- 103	102707002	T4
- 23	104449001	A
- 40	104450101	A
- 21	104567101	A
- 2	104821001	A
- 20	107017001	M
- 31	107149001	F
- 24	107606101	G
- 24	109714000	U
- 23	109763022	D2
- 6	110367001	B
- 18	110367001	C4
- 20	110735022	K
- 64	111140002	J
- 55	111466121	D1
- 2	114486002	U
- 29	117291002	T3
- 7	120265002	A
- 3	120265002	G
- 23	120448001	H
- 41	138843201	U
- 34	141362001	D1
- 12	142211001	B
- 7	142274101	F
- 38	142990001	U
- 31	142997001	U
- 16	144458001	B
- 18	14504001	T1
- 14	145087001	T3
- 26	145446001	G
- 34	145446002	H
- 17	145547021	F
- 17	145646025	B
- 29	145751001	F
- 16	1458001	T1
- 15	146058001	T1
- 15	146059001	T1
- 14	14606000	T1
- 17	14620600	T1
- 24	146288021	K
- 12	14635400	C2
- 31	148847001	P
- 141	148847001	T4
- 19	149097000	K
- 6	149547000	P
- 15	149831101	T3
- 32	150179002	U
- 28	150182000	U
- 37	150183000	U
- 58	151439102	D1
- 33	152288101	G
- 36	152584001	G
- 7	152937001	H
- 20	153274001	P
- 12	154235001	T3
- 13	154236001	T3
- 16	154252001	T3
- 30	154253001	T3
- 31	154256001	T3
- 35	154291001	T3
- 53	154297001	T3
- 30	154590000	J
- 10	154599000	J
- 13	155510000	T1
- 9	15559021	H
- 54	156492101	T3
- 75	157237001	Ga
- 75	158592001	Ga
- 17	159163000	A
- 18	159163000	A
- 25	159805001	G
- 4	159193001	E
- 5	181937001	E
- 16	200190001	N1
- 4	200190001	N2
- 20	218859001	Q
- 10	228475000	P
- 15	231071001	J
- 50	525567000	F
- 46	525664000	F
- 28	525907000	T1
- 5	552907000	Q
- 5+	BMP3010-0000000-2ST1	N2
- 5+	BMP3010-0000000-2ST4	N2
- 5+	BMP3010-0000000-3ST4	N2
- 5+	BMP3010-0000000-4ST4	N2
- 56+	P.63	D1
- 18	S00470000	Q
- 26	S00480000	T1
- 1	S00691501	E
- 61	S00705001	J
- 6	S00711101	E
- 8	S00711101	E
- 7	S01767001	E
- 11	S02652021	J
- 25	S03677001	K
- 41	S03803000	T3
- 15	S03816001	N1
- 30	S04109001	U
- 51	S04516001	T3
- 5	S04897000	T2
- 38	S04905000	T3
- 11	S05665001	T3
- 78	S06706001	U
- 8	S07350002	A
- 4	S07459100	F
- 30	S09043000	P
- 22	S09228000	P
- 51	S10112101	D1
- 62+	S10208001	J
- 62+	S10208002	J
- 62+	S10208003	J
- 59	S10209101	J
- 7	S10243000	T2
- 27	S10268001	H
- 18	S10438001	H
- 22	S10470201	K
- 50	S10542001	T3
- 4	S12150000	K
- 10	S12150000	T1
- 91	S12150000	T4
- 111	S12150000	T4
- 161	S12150000	T4
- 37	S12165000	T3
- 23	S12441001	G
- 35	S12441001	H
- 2	S12633309	T3
- 3	S12634109	T3
- 4	S12635009	T3
- 5	S12636001	T3
- 6	S12641009	T3
- 28	S12643001	T3
- 49	S12644001	T3
- 30	S12699000	G
- 57	S13399001	D1
- 21	S15031010	T1
- 2	S15609001	E
- 3	S15610001	E
- 66	S17974101	U
- 67	S17975200	U
- 2	S18027201	T2
- 27	S18415101	T3
- 12	S20164001	A
- 18	S20681000	G
- 76	S21728001	U
- 3	S23418001	C5
- 5	S23418002	C5
- 15	S23418002	H
- 4	S23651001	B
- 24	S23651001	B
- 29	S23651001	B
- 31	S25475101	J
- 31	S25475101	B
- 42	S25475101	B
- 57	S25475101	B
- 5	S25475101	D1
- 15	S25475101	D1
- 19	S25475101	E
- 22	S25475101	E
- 2	S25475101	J
- 17	S25475101	J
- 22	S25475101	C4
- 3	S25235001	B
- 17	S25279101	K
- 37	S25310101	D1
- 62	S25310101	D1
- 68	S25454021	J
- 73	S25456001	K
- 16	S25475101	K
- 9	S25475101	K
- 31	S25475101	J
- 42	S28741000	T3
- 22	S31032002	G
- 33	S31778000	H
- 13	S32259001	M
- 26	S32465101	J
- 11	S34533001	T1
- 12	S34534101	T1
- 8	S34706000	T1
- 45	S37037001	U
- 6	S37059001	N1

Page 83 — 索引 / Index

Brother BAS-326H-484 parts on page 83
Ref	Part number	Part name
73	S37059001	Wa
- 11	S37060001	A
- 5	S37060001	N1
73	S37060001	Wa
- 6	S38265000	F
- 36	S38266000	F
- 43	S38713100	B
- 18	S39115100	P
- 18	S39116100	P
- 5+	S39116100	T1
75	S40214001	Ga
- 65	S40217001	J
- 26	S40574409	U
- 13	S42446001	C2
- 18	S42446001	C3
- 178	S42446001	T4
- 18	S42446001	U
- 23	S42446001	U
75	S42843001	Ga
75	S42844001	Ga
75	S42845001	Ga
75	S42846001	Ga
75	S42847001	Ga
75	S42848001	Ga
75	S42849101	Ga
- 39	S44010001	A
- 22	S46903001	J
- 43	S47269001	T4
- 24	S48140002	T1
- 13	S48189000	F
75	S49448001	Ga
- 20	S49957000	F
- 15	S49992000	F
- 41	S49992000	F
- 12	S50049000	M
- 11	S50050000	M
- 10	S50051000	M
- 48	S50359001	F
- 29	S51282101	U
- 27	S51283001	U
- 1	S53982000	T1
- 71	S55479001	U
- 10	S55481001	E
- 24	S55482001	C4
- 45	S55484001	T3
- 46	S55484001	T3
- 159	S55484001	T4
- 2	S55485001	C3
- 32	S55485001	C3
- 30	S55485001	C4
- 35	S55485001	C4
- 43	S55485001	C4
- 45	S55485001	C4
- 7	S55485001	G
- 12	S55485001	J
- 31	S55485001	K
- 47	S55485001	T3
- 33	S55485001	T4
- 39	S55487001	C1
- 30	S55487001	E
- 38	S55487001	E
- 1	S56531001	M
- 11	SA3707101	C3
- 29	SA4143001	G
- 5	SA4170001	H
- 28	SA4177001	B
- 41	SA4178001	B
- 22	SA4179001	B
- 23	SA4180001	B
- 23	SA4197101	C3
- 31	SA4224001	D2
73	SA4224001	Wa
- 9	SA4302001	D1
- 8	SA4333001	G
- 56	SA4354001	J
- 37	SA4545001	J
- 53	SA4588001	J
- 1	SA4596002	A
- 22	SA4600101	A
- 24	SA4601001	A
- 5	SA4604101	A
- 19	SA4605001	U
- 40	SA4608101	B
- 15	SA4647001	C1
- 18	SA4666001	B
- 5	SA4676201	C2
- 15	SA4692001	C4
- 26	SA4706101	C4
- 33	SA4709001	C4
- 25	SA4712001	C4
- 27	SA4714001	C4
- 2	SA4717001	C4
- 4	SA4719001	C4
- 6	SA4720001	C4
- 7	SA4721001	C4
- 1	SA4741301	D2
- 6	SA4743001	D2
- 8	SA4744001	D2
- 13	SA4745001	D2
- 16	SA4747001	D2
- 18	SA4748101	D2
- 25	SA4753001	D2
- 28	SA4757101	D2
- 1	SA4759001	D1
- 7	SA4760001	D1
- 2	SA4761001	D1
- 16	SA4762001	D1
- 3	SA4763001	D1
- 11	SA4764001	D1
- 13	SA4765001	D1
- 16	SA4766001	D1
- 17	SA4767001	D1
- 18	SA4768001	D1
- 19	SA4769101	D1
- 21	SA4770001	D1
- 27	SA4771001	D1
- 22	SA4772001	D1
- 23	SA4773001	D1
- 38	SA4775101	D1
- 50	SA5300001	D1
- 52	SA5301001	D1
- 14	SA5339101	F
- 40	SA5339101	F
- 1	SA5559101	T2
- 28	SA5593001	C1
- 2	SA6038101	S
- 9	SA6087001	F
- 20	SA6193301	G
- 30	SA6207001	A
- 20	SA6210001	D2
- 70	SA6261002	U
- 27	SA6272001	A
- 69	SA6273101	J
- 20	SA6362001	T3
- 22	SA6366001	Q
- 8	SA6373001	T3
- 10	SA6391001	G
- 1	SA6405001	P
- 2	SA6405002	P
- 3	SA6406001	P
- 4	SA6406002	P
- 5	SA6407001	P
- 13	SA6450101	C3
- 25	SA6451101	C3
- 14	SA6451101	C3
- 27	SA6451101	C3
- 33	SA6576001	F
- 2	SA6593001	F
- 7	SA6595001	C5
- 8	SA6599001	C5
- 9	SA6600001	C5

Page 85

Brother BAS-326H-484 parts on page 85
Ref	Part number	Part name	Qty
	SB5966001	C1 - 11
	SB5967001	C1 - 5
	SB5968001	C1 - 1
	SB5969001	C1 - 30
	SB5974001	C1 - 48
	SB5975001	C1 - 49
	SB5977001	C1 - 1
	SB6019001	R - 2
	SB6313001	R - 3
	SB6414001	N1 - 1
	SB6472001	R - 4
	SB6525001	R - 5
	SB6532001	R - 25+
	SB6532002	R - 25+
	SB6538001	R - 6
	SB6539001	R - 7
	SB6540001	R - 8
	SB6541001	R - 9
	SB6542001	R - 10
	SB6545001	R - 11
	SB6546001	R - 12
	SB6547001	R - 13
	SB6548001	R - 21
	SB6551001	R - 14
	SB6555001	R - 15
	SB6556001	G - 14
	SB6557001	R - 20
	SB6558001	R - 20
	SB6560001	G - 14
	SB6577001	J - 4
	SB6581001	R - 26+
	SB6581002	R - 26+
	SB6613001	F - 22
	SB6657001	R - 18
	SB6670001	C1 - 60
	SB6672001	E - 13
	SB6676001	Q - 76
	SB6899001	B - 32
	SB6969001	E - 14
	SB6971001	M - 16
	SB6973001	J - 78
	SB7118001	J - 60
	SB7957101	T4 - 21
	SB8060101	T4 - 163
	SC4680001	T4 - 80
	SC5554201	T4 - 1+
	SC55542E1	T4 - 1+
	SC5567001	T4 - 147
	SC5578001	T4 - 148
	SC5579001	T4 - 81
	SC5580001	T4 - 82
	SC5581001	T4 - 112
	SC5582001	T4 - 134
	SC5582001	T4 - 136
	SC5583001	T4 - 149
	SC5585001	T4 - 133
	SC5620001	T4 - 157
	SC5621001	T4 - 151
	SC5622001	T4 - 154
	SC5624001	T4 - 164
	SC5625101	T4 - 57
	SC5626001	T4 - 68
	SC5627001	T4 - 71
	SC5628001	T4 - 89
	SC5629001	T4 - 74
	SC5630001	T4 - 75
	SC5631001	T4 - 83
	SC5632001	T4 - 86
	SC5633001	T4 - 108
	SC5634001	T4 - 94
	SC5635001	T4 - 98
	SC5636001	T4 - 96
	SC5637001	T4 - 100
	SC5638001	T4 - 101
	SC5639001	T4 - 104
	SC5640001	T4 - 113
	SC5641001	T4 - 162
	SC5642001	T4 - 5
	SC5643101	T4 - 58
	SC5644001	T4 - 15
	SC5645101	T4 - 55
	SC5646001	T4 - 65
	SC5647001	T4 - 10
	SC5648001	T4 - 8
	SC5649101	T4 - 37
	SC5651001	T4 - 92
	SC5654001	T4 - 177
	SC5655001	T4 - 102
	SC5656001	T4 - 17
	SC5657101	T4 - 18
	SC5659001	T4 - 29
	SC5660001	T4 - 24
	SC5661001	T4 - 26
	SC5662001	T4 - 25
	SC5664001	T4 - 20
	SC5665001	T4 - 34
	SC5666001	T4 - 35
	SC5667001	T4 - 2
	SC5668001	T4 - 125
	SC5669001	T4 - 124
	SC5670001	T4 - 144
	SC5671001	T4 - 69
	SC5673001	T4 - 50
	SC5674001	T4 - 38
	SC5674001	T4 - 41
	SC5675001	T4 - 150
	SC5676001	T4 - 84
	SC5677001	T4 - 105
	SC5678001	T4 - 49
	SC5680001	T4 - 16
	SC5681001	T4 - 51
	SC7449001	T4 - 40
	SC9134001	T4 - 145
	SC9136001	T4 - 19
	SC9136001	T4 - 70
	SC9136001	T4 - 72
	SC9137001	T4 - 152
	SC9137001	T4 - 155
	SC9137001	T4 - 170
	SC9137001	T4 - 32
	SC9138001	T4 - 166
	SC9140001	T4 - 90
	SC9141001	T4 - 174
	SC9142001	T4 - 79
	SC9143001	T4 - 85
	SC9144001	T4 - 77
	SC9145001	T4 - 109
	SC9146001	T4 - 110
	SC9147001	T4 - 95
	SC9150001	T4 - 105
	SC9151001	T4 - 22
	SC9151001	T4 - 44
	SC9153001	T4 - 36
	SC9201001	T4 - 126
	SC9202001	T4 - 127
	SC9203001	T4 - 128
	SC9204001	T4 - 129
	SC9205001	T4 - 130
	SC9206001	T4 - 131
	SC9207001	T4 - 137
	SC9215001	T4 - 132
	SC9296001	T4 - 158
	SC9297001	T4 - 6
	SC9299001	T4 - 106
	SC9573001	T4 - 52
	SC9574001	T4 - 54
	SC9644001	T4 - 138
	SC9773001	T4 - 116
	SC9773005	T4 - 62
	SC9773005	T4 - 119
	SC9773005	T4 - 142
	SC9773006	T4 - 122
	SD0238001	T4 - 160
	SD0239001	T4 - 167
	SD0728001	T4 - 27

Page 7 — A. 主体関係 / Machine body

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 11 — C1. 送り関係 / Feed mechanism

Page 13 — C2. 送り関係 / Feed mechanism

Page 15 — C3. 送り関係 / Feed mechanism

Page 17 — C4. 送り関係 / Feed mechanism

Page 19 — C5. 送り関係 (オプション部品) / Feed mechanism (Option parts)

Page 21 — D1. 押え上げ関係 / Work clamp lifter mechanism

Page 23 — D1. 押え上げ関係 / Work clamp lifter mechanism

Page 25 — D2. 押上げ関係 (-484 SF用) / Work clamp lifter mechanism (For -484 SF)

Page 27 — E. かま関係 / Rotary hook mechanism

Page 29 — F. 給油潤滑関係 / Lubrication

Page 31 — G. 糸通し関係 / Threading mechanism

Page 33 — H. 糸巻関係 / Bobbin winder mechanism

Page 35 — J. 糸切り関係 / Thread trimmer mechanism

Page 37 — J. 糸切り関係 / Thread trimmer mechanism

Page 39 — K. 糸払い関係 / Thread wiper mechanism

Page 41 — L. 糸ゆるめ関係 (糸ゆるめソレノイド) / Tension release mechanism (Tension release solenoid)

Page 43 — M. 糸取り付け関係 / Thread take-up mechanism

Page 45 — N1. コントロールボックス関係 / Control box

Page 47 — N2. コントロールボックス関係 / Control box

Page 49 — P. 空圧関係 / Air pressure mechanism

Page 51 — Q. 電装部品関係 / Power supply equipment

Page 53 — R. モーター・液晶パネル関係 / Motor mechanism and LCD panel

Page 55 — S. 踏板関係 / Foot switch pedal mechanism

Page 57 — T1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 59 — T2. 付属装置関係（オプション部品）/ Attachment set (Option parts)

Page 61 — T3. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 63 — T4. 付属装置関係 (オプション部品）/ Attachment set (Option parts)

Page 65 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 67 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 69 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 71 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 73 — T4. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 75 — U. 付属品番関係 / Accessories

Page 77 — U. 付属品関係 / Accessories

Page 78 — Wa. 警告ラベル / Warning labels

Page 79 — Wa. 警告ラベル / Warning labels

Page 80 — Ga. ゲージ部品一覧表 / Gauge parts list

Page 81 — 索引 / Index

Page 82

Page 83 — 索引 / Index

Page 85

Brother BAS-326H-484 — parts catalog
