Brother BAS-6150 Parts Book (PDF)

Pocket Welting · also listed as BAS6150, 6150Download PDF

Text index — Brother BAS-6150

Page 5 — A.主体関係 / Machine body

Brother BAS-6150 parts on page 5
Ref	Part number	Part name	Qty
2	113386000	POSITIONING PIN	1
4-1	153011016	NEEDLE, MTX190 (#16)...<#16>	2
4-2	153011014	NEEDLE, MTX190 (#14)...<#14>	2
4-3	153011018	NEEDLE, MTX190 (#18)...<#18>	2
8	104821001	RUBBER CAP, 10.5	1
9	159928000	RUBBER CAP, 15	1
10	S52523001	HOLDER BLOCK	1
11	018501636	BOLT, SOCKET M5X16	2
12	S52486101	FACE PLATE	1
13	S39110001	BOLT, W/SOCKET SM5.95-28X14	3
1	S38295000	BUSH, L ;R-HOOK BASE	1
2-1	S48724001	PLUNGER PUMP ASSY	1
3	014781032	SET SCREW, SOCKET (CP) SM6.35	2
4	S38253001	LOWER SHAFT, TR.	1
5	S12445051	SPIRAL GEAR ASSY, A	2
5-1	112684001	SET SCREW, SM6.35	2
5-2	100251001	SET SCREW, (CP) SM6.35-40X6.5	4
5-3	131007001	SET SCREW, (CP) SM6.35	6
6	S07446001	BALL BEARING ASSY	1
6-1	S07447001	BUSH, ;BALL BEARING	1
6-2	072600480	BALL BEARING, 6004ZZNR	1
	148821001	SET SCREW, SOCKET (CN) SM6.35	1
	014771022	SET SCREW, SOCKET (CP) SM6.35	1
	S38237001	TIMING PULLEY SET, D	1
	S38245051	TIMING PULLEY ASSY, D	1
	158115001	BALL BEARING, 6204ZZNR	1
	144875001	PLUNGER	1
	S48732001	SPRING, COMPRESSION	1
	112467002	SCREW, SM6.35X5	1

Page 7 — C.上軸関係 / Upper shaft mechanism

Brother BAS-6150 parts on page 7
Ref	Part number	Part name	Qty
1	S38270001	BUSH, L ;U-SHAFT	1
2	014781032	SET SCREW, SOCKET (CP) SM6.35	1
5	S52487001	UPPER SHAFT	1
6	S38396000	THREAD TAKE-UP CRANK	1
7	100250001	SCREW, SM7.14	1
8	146141001	SET SCREW, SM7.14-28X14	1
9	S38398001	CRANKSHAFT, ;N-BAR	1
10	113014000	PUSHER	1
11	101706001	SET SCREW, SM6.35-40X5.5	1
12	100251001	SET SCREW, (CP) SM6.35-40X6.5	1
13	112576001	RING, T/TAKE-UP CRANK	1
14	S38241051	TIMING PULLEY ASSY, U	1
15	014771022	SET SCREW, SOCKET (CP) SM6.35	1
16	016771032	SET SCREW, SOCKET (CN) SM6.35	1
17	S38244100	TIMING BELT	1
18	158115001	BALL BEARING, 6204ZZNR	1
19	S57535000	SENSOR DOG ASSY	1
19-1	014761030	SET SCREW, SOCKET(CP)SM5.95X10	2
21	S38404001	THREAD TAKE-UP LEVER ASSY, L2	1
21-1	S03289001	WICK, 4X4 L=40	1
21-2	142274101	LUBBER CAP, 4.2	1
22	S07334001	SHAFT, T/TAKE-UP LEVER	1
23	014781032	SET SCREW, SOCKET (CP) SM6.35	2
24	S07338001	SLIDE BLOCK, T/TAKE-UP LEVER	1
25	113024000	PUSHER	1
26	S07339209	COVER, T/TAKE-UP LEVER	1
27	062670512	SCREW, PAN SM3.57-40X5	2
28	S52491001	STOPPER COLLAR	1
29	018401036	BOLT, SOCKET M4X10	2
30	028040246	WASHER, SPRING 2-4	2

Page 9 — D.針棒揺動関係 / Needle bar rocking mechanism

Brother BAS-6150 parts on page 9
Ref	Part number	Part name	Qty
1	S52495101	ROCKER SHAFT ASSY, N-BAR	1
1-1	112590001	GUIDE PLATE	2
1-2	102731004	SCREW, FLAT SM2.38-56X4.5	4
1-3	S59045001	NEEDLE BAR	1
1-4	S29863001	NEEDLE BAR CLAMP W/SCREW	1
1-4-1	112592001	NEEDLE BAR CLAMP	1
1-4-2	062670812	SCREW, PAN SM3.57-40X8	1
1-5	112593001	CRANK ROD, N-BAR	1
1-6	112721001	SLIDE BLOCK	1
1-7	S52497001	KNIFE BAR	1
1-8	S52498001	GUIDE, K-BAR	1
1-9	S52499001	CONNECTING ROD, B	1
1-10	062670812	SCREW, PAN SM3.57-40X8	2
1-11	S52500001	ROCKER SHAFT, L	1
1-12	014780622	SET SCREW, SOCKET (CP) SM6.35	1
1-13	S52524001	GUIDE, K-BAR	1
1-14	062681412	SCREW, PAN SM4.37-40X14	2
1-15	025680132	WASHER, PLAIN S 4.37	2
2	112594051	BUSH, L	1
200	153012101	STOPPER	1
201	014781032	SET SCREW, SOCKET (CP) SM6.35	1
202	S09132051	PINCH SLEEVE ASSY	1
202-1	152725000	PINCH SLEEVE	1
202-2	018063022	BOLT, SOCKET M6X30	1

Page 11 — F.メス関係 / Knife mechanism

Brother BAS-6150 parts on page 11
Ref	Part number	Part name	Qty
1	S52507001	ECCENTRIC WHEEL W/SCREW	1
1-1	S52508001	DRIVING ECCENTRIC WHEEL	1
1-2	014771022	SET SCREW, SOCKET (CP) SM6.35	2
2	S48715000	CONNECTING ROD, ;ECCENTRIC	1
3	118954000	NEEDLE BEARING	1
4	S48716001	ECCENTRIC CRANK	1
5	150936001	SCREW, SM6.35-28X14	1
6	150937101	COLLAR	1
7	150938201	HINGE SCREW	1
8	151090001	WASHER, THRUST	1
9	107017002	WASHER, WAVE SPRING 6.45	1
10	110744002	NUT, SM6.35	1
11	S48776000	BUSH, ;U-FEED SHAFT	2
12	S52509001	ROCKER ARM	1
13	S53180001	COLLAR	1
14	S52512001	CONNECTING ROD, A ;I-KNIFE	2
15	S16350001	SCREW, SM4.37	2
17	S52514001	DRIVING ROD, I-KNIFE	1
18	S59149001	KNIFE HOLDER, U	1
19	105216001	SCREW, SM3.57X7	1
22	S59150001	KNIFE HOLDER, D	1
23	S59152001	UPPER KNIFE, C	1
24	S59151001	KNIFE SUPPORT	1
25	108960002	SCREW, FLAT SM3.57	2
26	S36355001	FIXED KNIFE, CERAMIC	1
27	148539101	SHOULDER SCREW, SM2.38	2
28	S52518000	CYLINDER ASSY	1
28-1	S52519000	CYLNDR,16X45	1
28-2	S53168000	JOINT, KQ2K04M5	1
28-3	S53488000	JOINT	1
29	S53167000	NUT, M10	1
30	S52520001	CYLINDR BRACKET	1
31	062681212	SCREW, PAN SM4.37-40X12	1
32	S32843001	CAM ROLLER	2
33	153057102	SCREW, ROUND W/SOCKET SM4.37	2
34	S53169001	JOINT ASSY, M5	1
35	S06994001	SCREW, SM6.35	1
36	S53174001	SPACER	1
37	S52521001	CYLINDER SUPPORT	1
38	S20849101	BOLT, FLANGE M6X16	3
39	S55896001	STOPPER BRACKET, INNER KNIFE	1
40	018401436	BOLT, SOCKET M4X14	2
41	028040246	WASHER, SPRING 2-4	2
42	025040136	WASHER, PLAIN S 4	2
43	S14874000	SHOCK ABSORBER	1
44	025100232	WASHER, PLAIN M 10	1
	S36350001	FIXED KNIFE, CERAMIC	1
	S5896001	BOLT, FLANGE M6X16	1

Page 13 — G1.ゲージ関係 / Gauge parts

Brother BAS-6150 parts on page 13
Ref	Part number	Part name	Qty
1-1	S59140001	NEEDLE CLAMP ASSY, 10 UP	1
1-1-1	146427001	SET SCREW, SOCKET (CP) SM3.18	2
3-1	S52562001	NEEDLE PLATE ASSY, 10	1
4-1	S52537001	LOOP GUIDE, 10	1
1-2	S59141001	NEEDLE CLAMP ASSY, 12 UP	1
1-2-1	146427001	SET SCREW, SOCKET (CP) SM3.18	2
3-2	S52563001	NEEDLE PLATE ASSY, 12	1
4-2	S52538001	LOOP GUIDE, 12	1
5	S21921001	SCREW, FLAT SM2.38X8	2
7	153208002	SCREW, SM4.37-40X7	2
8	S52525001	GUIDE, N-PLATE	1
9	153208002	SCREW, SM4.37-40X7	2
1-3	※	NEEDLE CLAMP ASSY	1
3-3	※	NEEDLE PLATE ASSY	1
4-3	※	LOOP GUIDE, 10	1
6	※	NEEDLE PLATE SET	1

Page 15 — G2.ゲージ関係 / Gauge parts

Brother BAS-6150 parts on page 15
Ref	Part number	Part name	Qty
1-1	S58675000	SLIDE PLATE SET, 8-12	1
1-1-1	S53429000	SLIDE PLATE ASSY, 8-12	1
1-1-1-1	S53430001	SLIDE PLATE	1
1-1-1-2	S53431001	PIN	1
1-1-1-3	004401414	SCREW, FLAT M4X14	1
1-1-1-4	021400206	NUT, 2 M4	1
1-1-2	S53432000	SEPARATOR	1
1-1-3	S53433000	SPACER, A	1
1-1-4	S53434000	SPACER, B	1
1-1-5	004300513	SCREW, FLAT M3X5	2
1-1-6	S53518001	COLLAR	1
1-1-7	018300836	BOLT, SOCKET M3X8	1
1-1-8	028030246	WASHER, SPRING 2-3	1
30	S59275000	ジﾞヨウキﾞクミ10W-17	1
30-1	S59041000	ジﾞヨウキﾞWクミ	1
30-2	S54655000	ジﾞヨウキﾞ10W-17	1
30-3	W01519001	0サラコ3シユ2X4	5
50	S59279000	BINDER ASSY, 12W-21	1
50-1	S59041000	BINDER ASSY, W	1
50-2	S54659000	BINDER, 12W-21	1
50-3	W01519001	SCREW, FLAT #0 M2X4	5
1-2	※	SLIDE PLATE SET, XX-YY	1
1-2-1	※	SLIDE PLATE ASSY, XX-YY	1
1-2-1-1	※	SLIDE PLATE	1
1-2-1-2	S53431001	PIN	1
1-2-1-3	004401414	SCREW, FLAT M4X14	1
1-2-1-4	021400206	NUT, 2 M4	1
1-2-3	S53433000	SPACER, A	1
1-2-4	S53434000	SPACER, B	1
1-2-5	004300513	SCREW, FLAT M3X5	2
1-2-6	S53518001	COLLAR	1
1-2-7	018300836	BOLT, SOCKET M3X8	1
1-2-8	028030246	WASHER, SPRING 2-3	1
10	※	BINDER ASSY, XXW-YY	1
10-1	S59041000	BINDER ASSY, W	1
10-2	※	BINDER, XXW-YY	1
10-3	W01519001	SCREW, FLAT #0 M2X4	5
20	※	BINDER ASSY, XXS-YY	1
20-1	S59042000	BINDER ASSY, S	1
20-2	※	BINDER, XXS-YY	1
20-3	W01519001	SCREW, FLAT #0 M2X4	5
	S586750001
	S534290001

Page 17 — H.カマ関係 / Rotary hook mechanism

Brother BAS-6150 parts on page 17
Ref	Part number	Part name	Qty
3	062782512	SCREW, PAN SM6.35-28X25	2
4	100197002	WASHER	2
5	S09259001	BUSH, U	2
6-1	S09260001	THRUST RING, A ;1.2MM	2
6-2	S09261001	THRUST RING, B ;1.4MM	2
7	S07420000	NEEDLE BEARING	2
8	S07419001	RETAINING RING	2
9	S07417001	BUSH, D	2
10	013710512	SET SCREW, (CP) SM4.76-32X5	2
11	150967101	OPENER LINK	2
12-1	S38213051	OPENER LEVER, L	2
12-2	148005001	SHAFT, O-LINK	2
12-3	025710232	WASHER, PLAIN M 4.76	2
12-4	110161006	NUT, SM4.76	2
16	S13021001	SHAFT, O-LEVER	2
17	013711012	SET SCREW, (CP) SM4.76-32X10	2
23	S52675902	ROTARY FOOK ASSY, W/BOX	1
23-1-1-1	151027001	SET SCREW	4
23-1-2	S09273001	INNER ROTARY HOOK ASSY	2
23-2	S52677001	CAP ASSY	2
23-2-1	155479001	TENSION SPRING	2
23-2-2	151029001	TENSION ADJUSTING SCREW	2
23-2-3	151030001	SET SCREW	2
23-2-4	159802001	SCREW, SM1.59X2	2
23-2-5	S09284001	HOLDING PLATE, ;L-THREAD	2
24	S07436001	GEAR GUIDE, L	1
25	S07437001	GEAR GUIDE, R	1
26	108960002	SCREW, FLAT SM3.57	4
27	S07658001	PINCH SLEEVE ASSY	2
27-1	112700001	SCREW, SM5.95-28X32	2
41	S09285051	BOBBIN, 2	2
42	S09286000	SPRING, ANTI-SPIN	2
50	S38212001	OPENER	1
51	S38212001	OPENER	1
52	154965001	BOLT, SOCKET SM3.57X8	1
53	154965001	BOLT, SOCKET SM3.57X8	1

Page 19 — J.給油潤滑関係 / Lubrication

Brother BAS-6150 parts on page 19
Ref	Part number	Part name	Qty
3	S38248001	SCREW, PAN (S/P WASHER) SM3.57	8
4	S07477000	RUBBER RING	2
5	S07478000	RUBBER PRESSER	2
6	S38292001	OIL ADJUSTING SCREW	2
7	S38299001	OIL ADJUSTING SPRING	2
9	150988001	OIL STOPPER PLATE	1
10	112717001	HOLDER, O-STOPPER PLATE	1
11	062711212	SCREW, PAN SM4.76-32X12	1
16	112753001	FELT	2
17	S09043000	FELT	2
22	S07471001	WICK HOLDER	2
23	062670512	SCREW, PAN SM3.57-40X5	2
24	S55770000	WICK, L = 28	3
25	S55770000	WICK, L = 28	3
29	148394000	CAP, N-BAR	1
30	140890009	OIL CAP	5
31	104821001	RUBBER CAP, 10.5	3
35	S38266000	FELT	2
36	S07476000	FELT	2
37	148762001	FELT	1
38	S38269000	FELT	1
39	S07571000	FELT	1
40	112753001	FELT	2
41	S52550001	OIL TANK ASSY	1
41-1	S52551000	OIL TANK	1
41-2	S07333001	PIPE, S	2
41-3	S52560001	OIL FEEDING PIPE, L	1
42	S52552000	CAP, O-TANK	1
43	S52553000	PACKING	1
44	004401003	SCREW, FLAT M4X10	4
45	S52556000	OIL TUBE, L=340	1
46	S52557000	OIL TUBE, L=580	1
47	S52558000	WICK, L=730	1
48	S52559000	OIL TUBE	1
49	152948001	OIL WINDOW	1
50	013710512	SET SCREW, (CP) SM4.76-32X5	1
55	S07465000	WICK, L=200	1
56	112728001	WICK, L=50	1
57	114693001	WICK, L=30	1
58	112735000	WICK, L=45	1
58	112735000	WICK, L=45	1
61	S53195000	WICK	1
63	S38481000	WICK, L=41	2
64	108802001	WICK, 4X4 L=250	2
69	S07462000	WICK, L=25	1
70	S07463000	WICK, L=70	2
75	S38541000	OIL RING	2
76	S48734000	FELT, D	1
78	062671412	SCREW, PAN SM3.57-40X14	1
82	S21195001	FELT SUPPORT	2
83	062670512	SCREW, PAN SM3.57-40X5	2
91	S07876101	TUBE CLIP	7
101	062670612	SCREW, PAN SM3.57-40X6	2
108	S48737000	PACKING, R	1
109	S48738000	PACKING, L	1
110	S48739001	CAP, R	1
111	S48740001	CAP, L	1
119	S38251000	OIL SEAL	1
120	S38261001	TUBE SUPPORT BRACKET, L	1
121	S38264001	OIL TUBE SUPPORT	1
123	062710612	SCREW, PAN SM4.76-32X6	2

Page 21 — J.給油潤滑関係 / Lubrication

Brother BAS-6150 parts on page 21
Ref	Part number	Part name	Qty
124	S38292001	OIL ADJUSTING SCREW	1
125	S38299001	OIL ADJUSTING SPRING	1
126	S07478000	RUBBER PRESSER	1
129	S52679001	OIL CASE ASSY	1
129-1	S48763001	OIL CASE	1
129-2	S53175000	OIL TUBE, L=450	1
129-3	S53176000	OIL TUBE, D ;L=355	1
129-4	S53177000	OIL TUBE, U ;L=170	1
129-5	S53178000	WICK, L=300	1
129-6	S53179000	DRAIN TUBE, L=300	1
129-7	S07469001	TUBE CALKING	1
130	060681212	SCREW, BIND SM4.37-40X12	2
131	111865001	CAP, 6	1
132	S49564002	RUBBER CAP, 12.5	1
133	117934001	RUBBER CAP, 13.5	1
134	S21196001	FELT	2
135	104821001	RUBBER CAP, 10.5	1
139	S02606000	OIL GAUGE WINDOW	1
140	081014670	O RING, PW14	1
143	112758001	OIL CAP	1
144	S07481009	OIL MARK SHEET	1
145	S53184001	OIL TUBE JOINT	1
147	S07327001	CORD HOLDER, L	1
148	062670512	SCREW, PAN SM3.57-40X5	1
149	S04557000	BAND, PLT1M	1
150	S55898000	FELT	1
151	062670612	SCREW, PAN SM3.57-40X6	1
152	025040135	WASHER, PLAIN S 4	1
200	S54993001	TERMINAL ASSY	1
200-1	S14189100	TERMINAL	1
200-2	S38448000	OIL TUBE, L=200	1
200-3	S07459100	OIL TUBE, L=240	1
200-4	142274101	RUBBER CAP, 4.2	1
200-5	S07464100	WICK, L=530	1
201	S55769000	WICK, 4X4	1
202	S55769000	WICK, 4X4	1
203	S55304000	WICK, 4X4	1
	S54959001	TERMINAL ASSY	1

Page 23 — K.糸通し関係 / Threading mechanism

Brother BAS-6150 parts on page 23
Ref	Part number	Part name	Qty
1	S15584509	UPPER THREAD TENSION ASSY, D	1
1-1	S08604001	TENSION STUD	1
1-2	S08607001	THREAD TAKE-UP SPRING, L	1
1-3	S08608001	THREAD TAKE-UP SPRING, R	1
1-4	108254001	GUIDE ASSY, ;T/TAKE-UP SPRING	2
1-5	146124001	SCREW, SM2.38	1
1-6	108265009	TENSION NUT	1
1-7	158768001	PIN, 2.6X20	2
1-8	S07487101	TENSION RELEASE PLATE	1
1-9	S38274001	SPRING, T-RELEASE	1
1-10	112712001	SHOULDER SCREW, SM3.57	2
1-11	S07488001	TENSION RELEASE PIN, L	1
1-12	158769001	TENSION RELEASE PIN, R	1
1-13	145446001	DISC, TENSION	4
1-14	159805001	DISC PRESSER, ;TENSION	2
1-15	149566109	TENSION NUT	2
1-16	144504001	DISC, THREAD GUIDE	4
1-17	154560001	SPRING, ;PRE-TENSION (A)	2
1-18	155510001	TENSION NUT	2
1-19	S07490001	TENSION SPRING	2
1-20	112709001	STOPPER	1
1-21	062670512	SCREW, PAN SM3.57-40X5	1
1-22	S08605101	SPACER	1
1-23	S08606001	COLLAR	1
1-24	S08609201	STOPPER SUPPORT	1
1-25	S08610101	ADJUSTING THUMB	1
1-26	013660612	SET SCREW, (CP) SM3.18	1
1-27	151148001	STOPPER, ML	2
2	100064002	SCREW, SM3.57X8	1
3	112709001	STOPPER	1
4	062670512	SCREW, PAN SM3.57-40X5	1
5	S14677001	TENSION RELEASE SHAFT	1
6	062680812	SCREW, PAN SM4.37-40X8	1
7	108266001	THREAD GUIDE, U ;ARM	1
8	S54023001	THREAD GUIDE, M	1
10	108960002	SCREW, FLAT SM3.57	3
12	S49529001	THREAD GUIDE ASSY, D	1
12-1	S48760001	THREAD GUIDE, D	1
12-2	S48761001	THREAD CLAMP	1
12-3	112301001	SHOULDER SCREW, SM3.18	1
12-4	S49530001	SPRING, COMPRESSION	1
13	S30505001	THREAD RETAINER ASSY	2
13-1	140527001	THREAD RETAINER	2
13-2	150553003	NUT, SM5.95	2

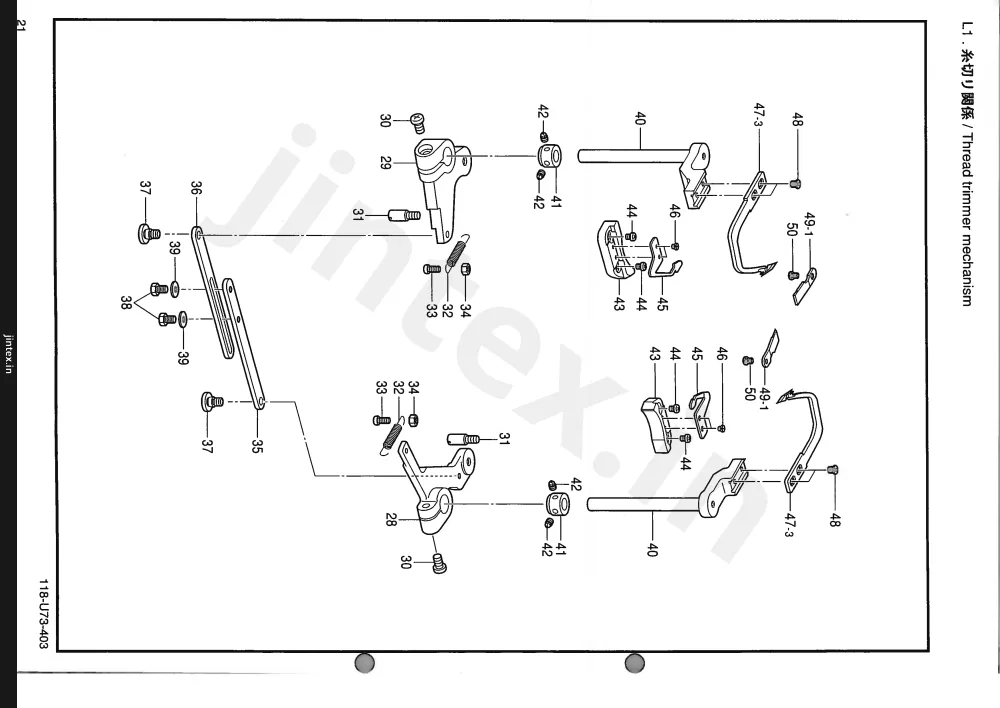

Page 25 — L1.糸切り関係 / Thread trimmer mechanism

Brother BAS-6150 parts on page 25
Ref	Part number	Part name	Qty
28	S38419001	THREAD TRIMMER LEVER, R	1
29	S38420001	THREAD TRIMMER LEVER, L	1
30	062681212	SCREW, PAN SM4.37-40X12	2
31	S07519001	STOPPER SCREW, SM4.76	2
32	S07520001	SPRING, EXTENSION	2
33	062671412	SCREW, PAN SM3.57-40X14	2
34	021670102	NUT, 1 SM3.57	2
35	S07521001	CONNECTING ROD, R ;TR	1
36	S07522001	CONNECTING ROD, L ;TR	1
37	144526001	SHOULDER SCREW, SM4.37	2
38	146360002	BOLT, SM4.76X7	2
39	025710232	WASHER, PLAIN M 4.76	2
40	S53172001	LEVER, M-KNIFE	2
41	120752001	SET SCREW COLLAR	2
42	100251001	SET SCREW, (CP) SM6.35-40X6.5	4
43	S07524101	MOVABLE KNIFE BRACKET	2
44	062670812	SCREW, PAN SM3.57-40X8	4
45	S07525000	SPRING, PLATE	2
46	141544001	SCREW, SM3.18-40X3	4
47-3	S52549001	MOVABLE KNIFE	2
48	148536001	SCREW, W/SOCKET SM4.37-40X4.2	4
49-1	S07527001	FIXED KNIFE	2
50	148539101	SHOULDER SCREW, SM2.38	2
	S07500000	SPRING, PLATE	2

Page 27 — L2.糸切り関係 / Thread trimmer mechanism

Brother BAS-6150 parts on page 27
Ref	Part number	Part name	Qty
1	S59235001	KNIFE GUIDE	1
2-2	S53494001	FIXED KNIFE, 10-12	1
3-2	S53498001	N/THREAD KNIFE ASSY, 10-12	1
4-2	S53507001	THREAD HOLDING PLATE, 10-12	1
5	S59032000	GUIDE PLATE	1
6	018300636	BOLT, SOCKET M3X6	2
7	S53512101	SETTING SHAFT	1
8	012500536	SET SCREW, SOCKET (FT) M5X5	2
9	S53513001	CYLINDER BASE	1
10	062682012	SCREW, PAN SM4.37-40X20	2
10	06262012	SCREW, PAN SM4.37-40X20	2
11	S53514001	ECCENTRIC SHAFT	1
12	048100142	RETAINING RING, EXTERNAL C10	1
13	048060142	RETAINING RING, C6	1
14	012060636	SET SCREW, SOCKET (FT) M6X6	1
15	S53515000	CYLINDER ASSY	1
15-1	S53516000	AIR CYLINDER, 15X20	1
15-2	S16603000	TUBE ELBOW, W/VALVE	2
20	S59155000	CYLINDER ASSY	1
20-1	S59156000	AIR CYLINDER, 12X25	1
20-2	S53488000	JOINT	2
21	S59036001	SETTING BASE	1
22	S59158001	COLLAR	1
23	S53492001	SPRING	1
24	012500536	SET SCREW, SOCKET (FT) M5X5	1
25	018301236	BOLT, SOCKET M3X12	2
2-3	XX-YY	FIXED KNIFE, XX-YY	1
3-3	XX-YY	N/THREAD KNIFE ASSY, XX-YY	1
4-3	XX-YY	THREAD HOLDING PLATE, XX-YY	1

Page 29 — M.糸締め関係 / Tension release mechanism N. モータ関係 / Motor mechanism

Brother BAS-6150 parts on page 29
Ref	Part number	Part name	Qty
1	S53171000	CYLINDER ASSY	1
1-1	S15097000	CYLINDER, 10X5	1
1-2	S53488000	JOINT	1
1-3	S14677001	TENSION RELEASE SHAFT	1
1	S52493001	MOTOR BRACKET, H	1
2	018063036	BOLT, SOCKET M6X30	3
4	152914001	ROLLER	2
5	S59357001	BOLT, TORX SOCKET M4X20	2
6	100645003	WASHER	2
7	028040246	WASHER, SPRING 2-4	2
8	S53166000	COUPLING, 14X15	1
10	018062536	BOLT, SOCKET M6X25	4
11	028060246	WASHER, SPRING 2-6	4
12	J80869001	MOTOR ASSY, CIM	1

Page 31 — Q. 糸切れ検出機構 / Thread breakage detector mechanism (Option parts)

Brother BAS-6150 parts on page 31
Ref	Part number	Part name	Qty
1	S53425001	THREAD BREAKAGE BOX ASSY	1
1-1	S53426001	FIXING PLATE, SENSOR	1
1-2	S52966000	SENSOR PCB ASSY	1
1-3	S52758000	SPACER, EP-3	2
1-4	0A4300805	SCREW, PAN (S/P WASHER) M3X8	2
1-5	11743600 1	THREAD GUIDE	4
1-6	S53427001	PROTECTOR CAP	1
1-7	04720064 2	PIN, SPRING ROLL AW2	2
1-10	00840080 4	SCREW, TRUSS M4X8	2
1-11	S52468000	SENSOR HARNESS, S-M/PCB	1
1-12	S10243000	CORD HOLDER, NK-3N	1
1-13	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1
1	SS937100 1	DETECTOR SENSOR ASSY	1
1-1	S52469000	DETECTOR SENSOR, L-THREAD	1
1-2	S52961000	FIBER, FD-G4	2
1-3	S52962000	SIDE LENS	2
1-4	06230060 6	SCREW, PAN M3X6	4
1-5	S53421000	TUBE, L=950	1
1-6	S53423000	TUBE, L=700	1
1-7	S53422000	SENSOR HOLDER	2
1-8	06230060 6	SCREW, PAN M3X6	2
1-9	06230060 6	SCREW, PAN M3X6	2
1-10	S53617000	AIR TUBE, 0604U0085B	1
1-11	S53618000	AIR TUBE, 0604U0080B	1
1-12	S53978000	BRANCH, Y	1
1-13	S11433000	HOSE NIPPLE, 4M5	2
1-14	02150031 6	NUT, 3 M5	2
1-20	S52490001	BOBBIN	2
1-21	S39115100	VALVE, VOZ2151-5	1
1-22	S53983000	PLUG, 4	1

Page 33 — R.スタッカー関係(オプション部品) / Stacker mechanism (Option parts)

Brother BAS-6150 parts on page 33
Ref	Part number	Part name	Qty
1	S58179001	BAR STACKER ASSY, L	1
1-1	S58180001	STACKER BASE	1
1-2	S54115001	TAP PLATE	1
1-4	018108036	SCREW, SOCKET M10X80	4
1-5	028100246	WASHER, SPRING 2-10	4
1-6	025100236	WASHER, PLAIN L 10	4
1-27	S54123001	FIXING PLATE, L	1
1-28	S54122001	FIXING PLATE, R	1
1-29	018102036	BOLT, SOCKET M10X20	4
1-30	028100246	WASHER, SPRING 2-10	4
1-31	025100236	WASHER, PLAIN L 10	4
1-32	S54108001	SHAFT, L=126	1
1-33	S54117001	FULCRUM SHAFT	1
1-34	018082036	BOLT, SOCKET M8X20	3
1-35	028080246	WASHER, SPRING 2-8	3
1-36	025080236	WASHER, PLAIN M 8	3
1-37	018502036	BOLT, SOCKET M5X20	1
1-38	028050246	WASHER, SPRING 2-5	1
1-41	S54596000	SET SCREW COLLAR	2
1-42	018501622	BOLT, SOCKET M5X16	2
1-43	S54140001	CLAMP LINK	1
1-44	S54137000	CYLINDER ASSY	1
1-44-1	S54136000	AIR CYLINDER, 20X100	1
1-44-2	S53981000	ELBOW, KQWL0601S	2
1-44-3	S54135000	KNUCKLE JOINT	1
1-45	S54118001	CYLINDER HOLDER	1
1-46	018063036	BOLT, SOCKET M6X30	1
1-48	S54126001	SHAFT	1
1-49	S54127001	END PLATE	1
1-50	018081636	BOLT, SOCKET M8X16	1
1-51	028080246	WASHER, SPRING 2-8	1
1-52	S54120001	WIPER LINK	1
1-53	S54595000	BALL BEARING, 6004DDUNR	2
1-54	048200142	RETAINING RING, EXTERNAL C20	1
1-55	S46191001	SPACER	1
1-56	S54119001	PIPE	1
1-57	S54106001	HOLDER	2
1-58	018061036	BOLT, SOCKET M6X10	2
1-59	S59031000	CYLINDER ASSY	1
1-59-1	S54592000	AIR CYLINDER, 20X150	1
1-59-2	S53981000	ELBOW, KQWL0601S	2
1-60	S54594000	ROD END	1
1-61	028080246	WASHER, SPRING 2-8	1
1-62	025080236	WASHER, PLAIN M 8	1
1-63	021080206	NUT, 2 M8	1
1-64	S58181001	STACKER TABLE	1
1-65	S58182100	STACKER RUBBER	1
1-80	S54130001	CONNECTING LINK, B	1
1-81	018083036	BOLT, SOCKET M8X30	1
1-82	028080246	WASHER, SPRING 2-8	1
1-83	025080236	WASHER, PLAIN M 8	2
1-84	021080206	NUT, 2 M8	1
1-85	018064036	BOLT, SOCKET M6X40	1
1-86	028060246	WASHER, SPRING 2-6	1
1-87	025060236	WASHER, PLAIN M 6	2
1-88	021060206	NUT, 2 M6	1
1-99	S54132001	GUARD	1
1-100	S54133001	PIPE COLLAR	2
1-101	018083036	BOLT, SOCKET M8X30	2
1-102	028080246	WASHER, SPRING 2-8	2
1-103	025080236	WASHER, PLAIN M 8	2
	018100236	アナボルト M10X20	4

Page 35 — R.スタッカー関係(オプション部品) / Stacker mechanism (Option parts)

Brother BAS-6150 parts on page 35
Ref	Part number	Part name	Qty
1-105	S54605000	CHAIN	1
1-106	018061236	BOLT, SOCKET M6X12	1
1-107	018063036	BOLT, SOCKET M6X30	1
1-108	028060246	WASHER, SPRING 2-6	2
1-109	025060236	WASHER, PLAIN M 6	2
1-110	021060206	NUT, 2 M6	1
1-111	S58183000	VALVE UNIT, 2	1
1-111-1	S58184000	MANIFOLD, 2	1
1-111-2	S39116100	VALVE, VQZ2151S-5	2
1-111-3	S59368000	JOINT, KQ2H0801S	1
1-111-4	140682001	SILENCER	1
1-111-5	153274001	CAP, 1/8	2
1-112	018503036	BOLT, SOCKET M5X30	2
1-113	028050246	WASHER, SPRING 2-5	2
1-117	S54602000	AIR TUBE, 060U035B	2
1-118	S59387000	AIR TUBE, 060U050B	2
1-130	S04557000	BAND, PLT1M	2
12	S52991000	STACKER HARNESS, L	1
13	S58693000	AIR TUBE, 0806U175B	1
100	S39821000	CORD CLAMP, 19P7	1
101	S04557000	BAND, PLT1M	2

Page 37 — S.糸巻関係 / Bobbin winder mechanism

Brother BAS-6150 parts on page 37
Ref	Part number	Part name	Qty
1	152651401	BOBBIN WINDER ASSY	1
1-1	152356301	BOBBIN WINDER BASE	1
1-2	S39902001	SUPPORT PLATE, ;B-W/MOTOR	1
1-3	004300513	SCREW, FLAT M3X5	4
1-4	154024001	BOBBIN PRESSER	1
1-5	152645001	BOBBIN HOLDER	1
1-6	062300616	SCREW, PAN M3X6	1
1-7	025030233	WASHER, PLAIN M 3	1
1-8	154092001	BOBBIN WINDER CLAW	1
1-9	014680422	SET SCREW, SOCKET (CP) SM4.37	2
1-10	152361001	LEVER, ;B-WINDER	1
1-11	152362001	SHOULDER SCREW	1
1-12	111942001	SPRING, PLATE	1
1-13	111943001	WASHER	1
1-14	060660512	SCREW, BIND SM3.18-40X5	1
1-15	152363001	SPRING, TWIST A	1
1-16	047301042	SPRING PIN	1
1-17	145571101	GUIDE BRACKET ASSY, ;B-WINDER	1
1-18	145446001	DISC, TENSION	2
1-19	100401001	TENSION SPRING	1
1-20	100136001	NUT, TENSION	1
1-21	146197001	THREAD NIPPER ASSY	1
1-22	028040243	WASHER, SPRING 2-4	1
1-23	025040233	WASHER, PLAIN M 4	2
1-24	062401006	SCREW, PAN M4X10	1
1-25	021400103	NUT, 1 M4	1
1-26	S39847001	MOTOR ASSY, ;B-WINDER	1
1-27	S35032101	SCREW, M2.6X5.5	2
1-28	028260242	WASHER, SPRING 2-2.6	2
1-29	S39901001	SHAFT, ;B-WINDER	1
1-30	014300332	SET SCREW, SOCKET (CP) M3X3	2
1-31	152364001	COLLAR	2
1-32	158597001	STOPPER, ;B-WINDER	1
1-33	S16669000	PROTECTOR, 0.5A	1
2	032311306	WOOD SCREW, ROUND M3.1X13	5
3	S52459000	BOBBIN WINDER HARNESS	1
4	S52460000	GROUND WIRE	1
5	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1

Page 39 — T.空気関係 / Air pressure mechanism

Brother BAS-6150 parts on page 39
Ref	Part number	Part name	Qty
1	S55571001	VALVE UNIT, 10	1
1-1	S39116100	VALVE, VQZ2151S-5	3
1-2	S39115100	VALVE, VQZ2151-5	6
1-3	S53982000	BLANKING PLATE ASSY	1
1-4	S53981000	ELBOW, KQWL0601S	1
1-5	S53983000	PLUG, 4	3
1-6	140682001	SILENCER	1
1-7	153274001	CAP, 1/8	2
2	S55300101	VALVE UNIT, 7	1
2-1	S39115100	VALVE, VQZ2151-5	4
2-2	S53982000	BLANKING PLATE ASSY	3
2-3	S59372000	ELBOW, KJL0601S	1
2-4	140682001	SILENCER	1
2-5	153274001	CAP, 1/8	2
3	018503036	BOLT, SOCKET M5X30	2
4	028050246	WASHER, SPRING 2-5	2
5	S56868000	FILTER REGULATOR ASSY	1
5-1	S09231000	BALL VALVE, 1/4	1
5-2	153252000	PT-JOINT	1
5-3	S56869000	PLUMBING MODULE ASSY	1
5-4	S59219000	HALF UNION, ;KQ2H08-02S	1
5-5	S53985000	PLUG, 8	1
6	S55484001	SCREW, SOCKET (S/P W) M5X10	2
9	S59217000	AIR GUN ASSY	1
9-1	S59218000	AIR GUN	1
9-2	S59219000	HALF UNION, ;KQ2H08-02S	1
9-3	S59220000	AIR TUBE, COIL ;TCU0805B	1
9-4	S12506000	AIR GUN HOOK	1
9-5	008400604	SCREW, TRUSS M4X6	2
13	S53985000	PLUG, 8	1
18	S39116100	VALVE, VQZ2151S-5	2
20	149796001	AIR HOSE, W/CONNECTOR	1
21	S53960000	AIR TUBE, 0425U045B1	1
22	S53961000	AIR TUBE, 0425U045B2	1
23	S53962000	AIR TUBE, 0425U025B	1
24	S53963000	AIR TUBE, 0425U026B	1
25	S58039000	AIR TUBE, 0425S024B	2
26	S58040000	AIR TUBE, 0425S028B	2
33	S53958000	AIR TUBE, 0425U050B1	1
34	S53959000	AIR TUBE, 0425U050B2	1
35	S53964000	AIR TUBE, 0425U032B	1
36	S53965000	AIR TUBE, 0425U030B	1
37	S58037000	AIR TUBE, 0604U128B	1
38	S58038000	AIR TUBE, 0604U146B	1
39	S58035000	AIR TUBE, 0604U091B	1
40	S58036000	AIR TUBE, 0604U103B	1
43	S53952000	AIR TUBE, 0425S115B	1
45	S58034000	AIR TUBE, 0425S123B	1
47	S55009000	AIR TUBE, 0425S066B	1
48	S55010000	AIR TUBE, 0425S070B	1
49	S53951000	AIR TUBE, 0425S107B	1

Page 41 — T.空圧関係 / Air pressure mechanism

Brother BAS-6150 parts on page 41
Ref	Part number	Part name	Qty
50	S55013000	AIR TUBE, 0424S088B	1
51	S53954000	AIR TUBE, 0254S110B	1
52	S53952000	AIR TUBE, 0425S115B	1
53	S54614000	AIR TUBE, 0425S122B	1
54	S54615000	AIR TUBE, 0425S125B	1
55	S54615000	AIR TUBE, 0425S125B	1
56	S53973000	AIR TUBE, 0604S051B	1
57	S54104000	AIR TUBE, 0604U190B	1
70	S52973000	REPEATE CABLE TIE, RF100	3
71	S04557000	BAND, PLT1M	1
72	149287000	CORD HOLDER, 7N	1
73	552908000	CORD HOLDER, 14N	1
74	158581000	CORD HOLDER, 24N	1
75	0A5401005	SCREW, PAN (S/P WASHER) M4X10	3
76	S39821000	CORD CLAMP, 19P7	2
77	S10859001	CLAMP	3
78	002300603	SCREW, PAN M3X6	3
79	S55303000	SPIRAL, 80S	1
	55290000		1
	552581000		1

Page 43 — U.電装部品関係 / Power supply equipment mechanism

Brother BAS-6150 parts on page 43
Ref	Part number	Part name	Qty
1	S52760000	TRANSFORMER, 1.4KVA	1
2	S55476001	BOLT, SOCKET(S/P WASHER)M6X12	4
5-1	S52472001	POWER SUPPLY SWITCH ASSY, 3P	1
5-2	S52968001	POWER SUPPLY SWITCH ASSY, 2P	1
6	0A5400805	SCREW, PAN (S/P WASHER) M4X8	2
7-1	S47900000	BREAKER, M ;10A	1
7-2	S52437000	BRAEKER, M ;5A	1
8	S52727000	TERMINAL COVER	1
9	S52475000	HARNESS, BR-NF	1
10	S40620000	SETTING PLATE, ;PCB	1
11	0A5400805	SCREW, PAN (S/P WASHER) M4X8	2
12	S40616001	NOISE FILTER ASSY, EMC	1
13	0A5400805	SCREW, PAN (S/P WASHER) M4X8	4
14	S52478000	GROUND WIRE, PE	1
15	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1
16	S52476000	HARNESS, NF-T	1
17	S52439000	HARNESS, T-AVR	1
18	S52440000	PCB HARNESS, A ;T-P/PCB	1
19	S52441000	PCB HARNESS, B ;T-P/PCB	1
20	S46738000	POWER SUPPLY, SWITCHING	1
21	0A5300805	SCREW, PAN (S/P WASHER) M3X8	2
23	S00554000	SUPPORT, 6NS	7
24	S38111000	SUPPORT, 6S	2
25	S52443000	POWER SUPPLY HARNESS, P-M/PCB	1
26	S52444000	INVERTER HARNESS, P-M/PCB	1
27	S52457000	FOOT SW HARNESS, M/PCB-BOX	1
28	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1
29	S52952001	SERVO AMPLIFIER ASSY, 62X	1
30	018061436	BOLT, SOCKET M6X14	2
31	028060246	WASHER, SPRING 2-6	2
32	S52442000	SERVO POWER HARNESS, T-AMP	1
33	S52445000	SERVO HARNESS, M/PCB-AMP	1
34	S52447000	ENCODER HARNESS, AMP-MOT	1
35	S52448000	M/POWER HARNESS, AMP-MOT	1
36	S52446000	MOTOR POWER HARNESS, P/PCB-MOT	1
37	0A5401005	SCREW, PAN (S/P WASHER) M4X10	1
38	552908000	CORD HOLDER, 14N	1
39	0A5401005	SCREW, PAN (S/P WASHER) M4X10	1
40	S52732000	GROUND WIRE, L=1600	1
41	S52733000	GROUND WIRE, L=1050	2
42	0A5400805	SCREW, PAN (S/P WASHER) M4X8	4
43	S52450000	MAIN VALVE HARNESS	1
44	S12463001	SENSOR PCB ASSY, 1	2
45	0A4300605	SCREW, PAN (S/P WASHER) M3X6	2
46	S52449000	M/SENSOR HARNESS, CYC-M/PCB	1
47	S52744000	SWITCH, A222E-M-11	1
48	S52461000	EM/SW HARNESS, EM/SW-M/PCB	1
70	S00480000	CORD HOLDER, 5N	2
71	552907000	CORD HOLDER, 10N	1
72	0A5401005	SCREW, PAN (S/P WASHER) M4X10	3

Page 45 — U.電装部品関係 / Power supply equipment mechanism

Brother BAS-6150 parts on page 45
Ref	Part number	Part name	Qty
73	149287000	CORD HOLDER, 7N	1
74	S09141000	CORD CLAMP, 16-L	6
75	S09142000	CORD CLAMP, 20-L	1
76	S31760000	CORD CLAMP, 26-L	4

Page 47 — V1.布制御関係 / Cloth control system mechanism

Brother BAS-6150 parts on page 47
Ref	Part number	Part name	Qty
1	S53531000	CARRIAGE FEED ASSY, 220	1
1-1	S53532001	CARRIAGE FEED ASSY, R-220	1
1-1-1	S53558001	CARRIAGE FEED LEVER ASSY, R	1
1-1-2	S53564001	COUPLING	1
1-1-3	012060636	SET SCREW, SOCKET (FT) M6X6	1
1-1-4	S53533001	SETTING LEVER, R	1
1-1-5	018062036	BOLT, SOCKET M6X20	2
1-1-6	028060246	WASHER, SPRING 2-6	2
1-1-7	025060236	WASHER, PLAIN M 6	2
1-1-8	S53534100	CARRIAGE FEED SPRING	1
1-1-9	008400604	SCREW, TRUSS M4X6	2
1-1-10	S53535001	SHOULDER SCREW, SM6.35	1
1-1-11	S53536001	CARRIAGE FEED, R	1
1-1-12	S53537001	SUPPORT BRACKET	1
1-1-13	018501236	BOLT, SOCKET M5X12	2
1-1-14	028050246	WASHER, SPRING 2-5	2
1-1-15	S53538101	STOPPER & POSITIONING PLATE	1
1-1-16	060400812	SCREW, BIND M4X8	2
1-1-17	S53539001	COLLAR	1
1-1-18	S58204001	SCREW, COLLAR PRESS	1
1-1-19	S53540001	CYLINDER BASE	1
1-1-20	115503001	SCREW, SM4.37	1
1-1-21	018501036	BOLT, SOCKET M5X10	1
1-1-22	S53541000	CYLINDER ASSY	1
1-1-22-1	S14666000	CYLINDER, 16X20	1
1-1-22-2	S12150000	TUBE ELBOW, M-5HL-4	1
1-1-22-3	S11433000	HOSE NIPPLE, 4M5	1
1-1-23	S53543001	JOINT	1
1-1-24	S53544001	PIN, 002	1
1-1-25	048025342	RETAINING RING, E2.5	1
1-1-26	S53545001	LINK LEVER	1
1-1-27	002300603	SCREW, PAN M3X6	1
1-1-28	S53546001	LINK SHAFT	1
1-1-29	S53547001	HOLDER PLATE	4
1-1-30	S31258001	SCREW, FLAT M4X6	4
1-1-31	S53548000	SPRING HOLDER PLATE ASSY	2
1-1-32	008300604	SCREW, TRUSS M3X6	4
1-1-33	S55454001	FOLDING PLATE ASSY, R	1
1-1-33-1	S57533000	REFLECTING SHEET	1
1-1-34	S53552000	SPRING, PLATE	2
1-1-35	S53553000	SPRING, PLATE	2
1-2	S53554001	CARRIAGE FEED ASSY, L-220	1
1-2-1	S53562001	CARRIAGE FEED LEVER ASSY, L	1
1-2-2	S53564001	COUPLING	1
1-2-3	012060636	SET SCREW, SOCKET (FT) M6X6	1
1-2-4	S53555001	SETTING LEVER, L	1
1-2-5	018062036	BOLT, SOCKET M6X20	2
1-2-6	028060246	WASHER, SPRING 2-6	2
1-2-7	025060236	WASHER, PLAIN M 6	2
1-2-8	S53534100	CARRIAGE FEED SPRING	1
1-2-9	008400604	SCREW, TRUSS M4X6	2
1-2-10	S53535001	SHOULDER SCREW, SM6.35	1
1-2-11	S53556001	CARRIAGE FEED, L	1
1-2-12	S53537001	SUPPORT BRACKET	1
1-2-13	018501236	BOLT, SOCKET M5X12	2
1-2-14	028050246	WASHER, SPRING 2-5	2
1-2-15	S53538101	STOPPER & POSITIONING PLATE	1
1-2-16	060400812	SCREW, BIND M4X8	2
1-2-17	S53539001	COLLAR	1
1-2-18	S58204001	SCREW, COLLAR PRESS	1
1-2-19	S53540001	CYLINDER BASE	1

Page 49 — V1.布制御関係 / Cloth control system mechanism

Brother BAS-6150 parts on page 49
Ref	Part number	Part name	Qty
1-2-20	115503001	SCREW, SM4.37	1
1-2-21	018501036	BOLT, SOCKET M5X10	1
1-2-22	S53541000	CYLINDER ASSY	1
1-2-22-1	S14666000	CYLINDER, 16X20	1
1-2-22-2	S12150000	TUBE ELBOW, M-5HL-4	1
1-2-22-3	S11433000	HOSE NIPPLE, 4M5	1
1-2-23	S53543001	JOINT	1
1-2-24	S53544001	PIN, 002	1
1-2-25	048025342	RETAINING RING, E2.5	1
1-2-26	S53545001	LINK LEVER	1
1-2-27	002300603	SCREW, PAN M3X6	1
1-2-28	S53546001	LINK SHAFT	1
1-2-29	S53547001	HOLDER PLATE	4
1-2-30	S31258001	SCREW, FLAT M4X6	4
1-2-31	S53548000	SPRING HOLDER PLATE ASSY	2
1-2-32	008300604	SCREW, TRUSS M3X6	4
1-2-33	S55455001	FOLDING PLATE ASSY, L	1
1-2-33-1	S57533000	REFLECTING SHEET	1
1-2-34	S53552000	SPRING, PLATE	2
1-2-35	S53553000	SPRING, PLATE	2
2-1	S56006000	CARRIAGE FEED RUBBER ASSY, A	2
2-2	S56007000	CARRIAGE FEED RUBBER ASSY, B	2
2-3	S56008000	CARRIAGE FEED RUBBER ASSY, 1.5	2
2-4	S56009000	CARRIAG FEED RUBBER ASSY, 2	2
2-5	S56010000	CARRIAGE FEED RUBBER ASSY3	2
2-6	S58903000	CARRIAGE FEED RUBBER ASSY, C	2
3	S58900000	SCREW, M2	6

Page 51 — V2.布制御関係(オプション部品)/ Cloth control system mechanism (Option parts)

Brother BAS-6150 parts on page 51
Ref	Part number	Part name	Qty
50	S53565000	FLAP CLAMP ASSY, R	1
50-1	S53566000	AUXILIARY PLATE	1
50-2	008400604	SCREW, TRUSS M4X6	5
50-3	S53567001	FULCRUM SHAFT	1
50-4	S53568001	NUT PLATE, M5	1
50-5	004501606	SCREW, FLAT M5X16	2
50-6	S53569001	FLAP CLAMP, R	1
50-7	S53540001	CYLINDER BASE	1
50-8	115503001	SCREW, SM4.37	1
50-9	018501036	BOLT, SOCKET M5X10	1
50-10	S53541000	CYLINDER ASSY	1
50-10-1	S14666000	CYLINDER, 16X20	1
50-10-2	S12150000	TUBE ELBOW, M-5HL-4	1
50-10-3	S53542000	JOINT, W/SCREW M5	1
50-11	S53571001	JOINT	1
50-12	S53572001	SHOULDER SCREW, M5	1
50-13	021500216	NUT, 2 M5	1
50-14	S53573001	FLAP CLAMP BLADE, A	1
50-15	S53574000	FLAP CLAMP BLADE, B	1
50-16	S53575001	FLAP CLAMP BLADE, C	1
50-17	S53989000	SPONGE, 258X8X3	1
50-18	008300604	SCREW, TRUSS M3X6	4
50-19	S53576001	STUD, 8 W/SCREW M5	2
50-20	021500216	NUT, 2 M5	2
50-21	S53577000	FLAP GAUGE ASSY	1
50-22	S53580001	FLAP STOPPER	2
50-23	002300603	SCREW, PAN M3X6	2
51	S53581000	FLAP CLAMP ASSY, L	1
51-1	S53566000	AUXILIARY PLATE	1
51-2	008400604	SCREW, TRUSS M4X6	5
51-3	S53567001	FULCRUM SHAFT	1
51-4	S53568001	NUT PLATE, M5	1
51-5	004501606	SCREW, FLAT M5X16	2
51-6	S53582001	FLAP CLAMP, L	1
51-7	S53540001	CYLINDER BASE	1
51-8	115503001	SCREW, SM4.37	1
51-9	018501036	BOLT, SOCKET M5X10	1
51-10	S53541000	CYLINDER ASSY	1
51-10-1	S14666000	CYLINDER, 16X20	1
51-10-2	S12150000	TUBE ELBOW, M-5HL-4	1
51-11	S53542000	JOINT, W/SCREW M5	1
51-12	S53571001	JOINT	1
51-13	S53572001	SHOULDER SCREW, M5	1
51-14	021500216	NUT, 2 M5	1
51-15	S53573001	FLAP CLAMP BLADE, A	1
51-16	S53574000	FLAP CLAMP BLADE, B	1
51-17	S53575001	FLAP CLAMP BLADE, C	1
51-18	S53989000	SPONGE, 258X8X3	1
51-19	008300604	SCREW, TRUSS M3X6	4
51-20	S53576001	STUD, 8 W/SCREW M5	2
51-21	021500216	NUT, 2 M5	2
51-22	S53577000	FLAP GAUGE ASSY	1
51-23	S53580001	FLAP STOPPER	2
51-24	002300603	SCREW, PAN M3X6	2
100	S52454000	FLAP SENSOR	1
101	S52961000	FIBER, FD-G4	2
102	S52962000	SIDE LENS	2
103	S52965001	DIN RAIL, 75	1
104	008400604	SCREW, TRUSS M4X6	2
105	S53588000	SPIRAL, 720SS	2
106	002300603	SCREW, PAN M3X6	4
	S3565000	FLAP CLAMP ASSY, R	1
	S3566000	AUXILIARY PLATE	1
	S3567001	FULCRUM SHAFT	1
	S3568001	NUT PLATE, M5	1
	S3569001	FLAP CLAMP, R	1
	S3540001	CYLINDER BASE	1
	S3541000	CYLINDER ASSY	1
	S3542000	JOINT, W/SCREW M5	1
	S3571001	JOINT	1
	S3572001	SHOULDER SCREW, M5	1
	S3573001	FLAP CLAMP BLADE, A	1
	S3574000	FLAP CLAMP BLADE, B	1
	S3575001	FLAP CLAMP BLADE, C	1
	S3598000	SPONGE, 258X8X3	1
	S3576001	STUD, 8 W/SCREW M5	2
	S3577000	FLAP GAUGE ASSY	1
	S3580001	FLAP STOPPER	2
	S3581000	FLAP CLAMP ASSY, L	1
	S3582001	FLAP CLAMP, L	1
	S2454000	FLAP SENSOR	1
	S2961000	FIBER, FD-G4	2
	S2962000	SIDE LENS	2
	S2965001	DIN RAIL, 75	1
	S3588000	SPIRAL, 720SS	2

Page 53 — V2. 布制御関係(オプション部品) / Cloth control system mechanism (Option parts)

Brother BAS-6150 parts on page 53
Ref	Part number	Part name	Qty
107	S53583000	SENSOR HOLDER, R	1
108	S53584000	SENSOR HOLDER, L	1
109	S53585001	SENSOR GUIDE	2
110	018300636	BOLT, SOCKET M3X6	2
111	S53586001	SENSOR STUD, M5	2
120	S10243000	CORD HOLDER, ;NK-3N	1
121	149287000	CORD HOLDER, 7N	1
122	0A5400805	SCREW, PAN (S/P WASHER) M4X8	2

Page 55 — W.プリント基板関係 / Printed circuit board mechanism X.マーカー関係 / Marker mechanism

Brother BAS-6150 parts on page 55
Ref	Part number	Part name	Qty
1	S53000001	MAIN PCB ASSY	1
2	S52963000	FAN, KD2404	1
3	062302506	SCREW, PAN M3X25	2
4	028030242	WASHER, SPRING 2-3	2
5	S52749000	PROM, BAS620 ;MAIN	1
6	S52750000	PROM, BAS620 ;SEW	1
7	S52751000	PROM, BAS620 ;MT	1
8	S53007001	POWER SUPPLY PCB ASSY	1
8-1	152566000	FUSE, C ;2A/125V	1
8-2	152565000	FUSE, B ;5A/125V	2
8-3	S52741000	GLASS FUSE, 6A/125V	1
8-4	S08030000	FUSE, 5A ;FB	1
8-5	153242000	FUSE, 6A	2
8-6	S30229000	FUSE HOLDER, ;F219P	14
8-7	J02727001	GLASS FUSE, 2A/250V	1
9	0A5400805	SCREW, PAN (S/P WASHER) M4X8	5
10	0A5401205	SCREW, PAN (S/P WASHER) M4X12	1
1	S52989000	MARKING LIGHT ASSY, 1	2
1-1	S52465000	MARKING LIGHT, 1	2
1-2	S57942000	MARKING FOLDER	2
2	018400836	BOLT, SOCKET M4X8	2
3	025040236	WASHER, PLAIN M 4	2
4	S57620001	MARKING LIGHT BASE PLATE	1
5	018501236	BOLT, SOCKET M5X12	2
6	028050246	WASHER, SPRING 2-5	2
7	S40494000	SWITCH CAP	1
10	S52985000	ML-HARNESS, L ;M/PCB-ML	1
11	S04557000	BAND, PLT1M	1

Page 57 — Y.操作パネル関係 / Operation panel mechanism AA.踏板関係 / Foot switch pedal mechanism

Brother BAS-6150 parts on page 57
Ref	Part number	Part name	Qty
1	S52975001	OPERATION PANEL ASSY, 615	1
1-1	S52976000	FRONT FRAME ASSY	1
1-1-1	S49491000	FRONT FRAME	1
1-1-2	S52977000	PANEL SHEET	1
1-1-3	S52978000	PANEL SHEET BACK PLATE	1
1-2	S52979000	REAR FRAME	1
1-3	S49495000	PANEL SIDE COVER	1
1-4	S49496001	COVR GUIDE, ;SIDE	1
1-5	S52092000	RUBBER SHEET	1
1-6	S53010001	PANEL PCB ASSY	1
1-7	087310815	TAPTITE, CUP B M3X8	2
1-8	087311015	TAPTITE, CUP B M3X10	2
1-9	XA2220050	BOARD PRESSER	2
1-10	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
1-11	018300636	BOLT, SOCKET M3X6	4
2	S52980000	PANEL PROM 6150	1
3	032422505	WOOD SCREW, ROUND M4.1X25	4
8	S52458000	PANEL HARNESS	1
	S52960001	3-PEDAL FOOT SWITCH	1
	S38166000	FOOT PEDAL BASE	3
	S42867001	TREADLE AUXILIARY PLATE	1
	004400603	SCREW, FLAT M4X6	6
	S38170001	SPRING, COMPRESSION	3
	S52959000	3-PEDAL FOOT SW HARNESS ASSY	1
	S44807000	3-PEDAL FOOT SW HARNESS	1
	S36260000	MICRO SWITCH, VX ;PIN BUTTON	3
	062301205	SCREW, PAN M3X12	6
	228475000	FASTENING BAND, 1.9X80	10
	S38174000	FOOT PEDAL	3
	S38175001	PROTECTION PLATE, ;PEDAL	3
	S38176101	SPRING, PLATE	3
	002300403	SCREW, PAN M3X4	6
	028030246	WASHER, PLAIN M3	6
	025030236	WASHER, PLAIN M3	6
	S38177001	SHAFT, ;F-PEDAL	3
	048050346	STOP RING	3
	052400606	SCREW, PAN (S/P WASHER) M4X6	3
	117936001	RUBBER CAP, 9.4	14
	S52957000	CONNECTOR, 172172-1	1
	S52958000	CONNECTOR COVER, 527163	1
	S38059000	RUBBER CAP, ;NG79F	3

Page 59 — AB.動力台関係 / Power table

Brother BAS-6150 parts on page 59
Ref	Part number	Part name	Qty
1-1	S40884000	CASTER W/STOPPER, 100	4
1-2	S53624001	FULCRUM SHAFT, H	1
1-3	017082016	BOLT, M8X20	2
1-4	028080246	WASHER, SPRING 2-8	2
1-5	025080236	WASHER, PLAIN M 8	2
1-6	S53625001	SET SCREW COLLAR	1
1-7	012060636	SET SCREW, SOCKET (FT) M6X6	2
1-8	S53626001	SPACER, 24	1
1-9	S57538001	SUPPORT PLATE, A	1
1-10	S57539001	SUPPORT PLATE, B	1
1-11	S42446001	BOLT, SOCKET (S/P WASHER)M6X14	4
1-12	S53633001	SUPPORT SHAFT, F	1
1-13	S53634001	SHAFT W/SCREW	1
1-14	S53635001	SHAFT STOPEER	1
1-15	021080206	NUT, 2 M8	1
1-16	025080336	WASHER, PLAIN L 8	1
1-17	S42619001	SET SCREW COLLAR	1
1-18	012400436	SET SCREW, SOCKET (FT) M4X4	1
1-19	153568001	SPRING, A ;COMPRESSION	1
1-20	018401236	BOLT, SOCKET M4X12	1
1-21	S53636001	SPRING HOLDER, A	1
1-22	S53637001	SPRING HOLDER, B	2
1-23	004401003	SCREW, FLAT M4X10	2
2	S53627101	TABLE	1
3	018102036	BOLT, SOCKET M10X20	2
4	025100236	WASHER, PLAIN L 10	2
5	028100246	WASHER, SPRING 2-10	2
6	S53628001	CONNECTING SHAFT	1
7	018103036	BOLT, SOCKET M10X30	1
8	028100246	WASHER, SPRING 2-10	1
9	025100236	WASHER, PLAIN L 10	1
10	S07356001	SET SCREW, (FT) SM6.35-28X17	1
11	S53629000	RUBBER LEG	2
12	S55485001	SCREW, SOCKET (S/P W) M5X12	2
14	S10661109	RUBBER	4
15	S03999009	BEAM CAP	3
31	S53638000	SUPPORT METAL FITTINGS	1
32	S42466001	BOLT, SOCKET (S/P WASHER) M6X1 4	2
35	S53639001	HOOK	1
36	144526001	SHOULDER SCREW, SM4.37	2
37	151951001	SPRING, EXTENSION	1
38	S53640001	SPRING HOOK	1
39	S17971000	SHOCK ABSORBER, GAS	1
40	S49638001	LINK SHAFT, D	2
41	107153002	WASHER	4
42	S37968001	SNAP PIN, 8	4
44	S53643001	SUPPORT BASE, D	1
45	018500836	BOLT, SOCKET M5X8	2
48	S53644001	LEVER, A	1
49	S53645001	LEVER, B	1
50	159027001	PRESSER ROLLER	3
51	017061616	BOLT, M6X16	3
52	028060246	WASHER, SPRING 2-6	3
53	S53646000	BED SUPPORT	4
54	S53647000	CUSHION	4
55	S53648001	CUSHIN COLLAR	4
56	018063036	BOLT, SOCKET M6X30	4
57	028060246	WASHER, SPRING 2-6	4
58	154886001	WASHER	4
59	S53649001	POSITIONING PLATE	2
60	018401636	BOLT, SOCKET M4X16	4

Page 60 — AB.動力台関係 / Power table

Brother BAS-6150 parts on page 60
Ref	Part number	Part name	Qty
61	028040246	WASHER, SPRING 2-4	4
62	S53650000	CORRNER KNIFE TABLE ASSY	1
62-1	S53651001	CORRNER KNIFE TABLE	1
62-2	118550001	PIN, DOWEL	2
63	012081636	SET SCREW, SOCKET (FT) M8X16	4
64	S53652001	TABLE SPACER, W/SCREW	3
65	021080306	NUT, 3 M8	3
66	S53653000	AUXILIARY TABLE, R	1
67	S53685001	SET SCREW, M8X16	2
68	008400604	SCREW, TRUSS M4X6	3
69	S53654001	BRACKET, A	1
70	S53655001	BRACKET, B	1
71	S55485001	SCREW, SOCKET (S/P W) M5X12	8
74	S53656000	AUXILIARY TABLE	1
75	008400604	SCREW, TRUSS M4X6	4
81	S53659000	SLIDE PLATE, C	1
82	008400604	SCREW, TRUSS M4X6	2
83	S53660000	TABLE, L	1
84	017083016	BOLT, M8X30	3
85	028080246	WASHER, SPRING 2-8	3
86	025080236	WASHER, PLAIN M 8	3
87	S53661000	TABLE, R	1
88	S55486001	SCREW, SOCKET (S/P W) M5X14	4
91	S02738009	ACCESSORY CASE	1
92	S02740000	FELT	1
93	S02739000	RUBBER MAGNET TAPE	1
94	039411215	TAPPING SCREW, TRUSS 1 M4X12	2
95	S38820000	BUSHING, 35	3
96	S46583000	BUSHING, TB-2533	1
97	S52970000	BUSHING, TB-1116	1
98	S40583000	HOLE PLUGE, 35	1
100	S55310001	BREAKER COVER	1
101	008400604	SCREW, TRUSS M4X6	2
150	S53671000	HOLDEING BRACKET	1
151	018082036	BOLT, SOCKET M8X20	2
152	S53672000	CURVED BAR	1
153	S53673000	FIXING BLOCK	2
154	018501436	BOLT, SOCKET M5X14	2
155	S53674000	CLOTH SUPPORTER	1
156	004401003	SCREW, FLAT M4X10	4
157	S54117001	FULCRUM SHAFT	1
158	018501022	BOLT, SOCKET M5X10	1
159	159150000	RUBBER CAP, 20.5	2
162	S53675001	BOX COVER	1
163	008400604	SCREW, TRUSS M4X6	8
164	S53676001	ARM COVER	1
165	008400604	SCREW, TRUSS M4X6	4
166	S55308001	SWITCH COVER	1
167	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
168	S53691001	OIL FENCE	1
169	105173004	SCREW, SM4.76	2
170	S53677000	OIL PAN ASSY, BAS	1
170-1	S53678001	OIL PAN, BAS	1
170-2	153230101	DRAIN	1
170-3	062670512	SCREW, PAN SM3.57-40X5	2
171	S53679000	CATCH CLIP	1
172	S53680000	HINGE	1
173	S53681000	BAND, 252X20X0.5	1

Page 61 — AB.動力台関係 / Power table

Brother BAS-6150 parts on page 61
Ref	Part number	Part name	Qty
174	S53682001	NUT PLATE, A	1
175	S53683001	NUT PLATE, B	1
176	018300836	BOLT, SOCKET M3X8	2
177	018300636	BOLT, SOCKET M3X6	6
180	133172003	BRACKET, ;OIL	1
181	008400604	SCREW, TRUSS M4X6	1
190	S53684001	MOTOR COVER, BAS620	1
191	S55479001	SCREW, SOCKET (S/P W) M4X8	2
194	S41964000	BUSH	1
195	008400604	SCREW, TRUSS M4X6	3
200	S53689001	CHAIN ASSY	3
201	018300636	BOLT, SOCKET M3X6	2
202	S53690001	HOOK HOLDER	3
203	062400805	SCREW, 4X8	3
204	028040246	WASHER, SPRING 2-4	3
205	S08205000	CUSHION	4
210	S39821000	CORD CLAMP, 19P7	7

Page 63 — AC.コーナーメス関係 / Corner knife mechanism

Brother BAS-6150 parts on page 63
Ref	Part number	Part name	Qty
1	S53700000	CORNER KNIFE DRIVING ASSY, A	1
1-1	S42445001	BOLT, SOCKET (S/P WASHER)M8X25	4
1-2	S53702000	LINEAR GUIDE	1
1-3	018062036	BOLT, SOCKET M6X20	5
1-5	S10133000	X-PULLEY BASE, B	1
1-6	018501636	BOLT, SOCKET M5X16	4
1-7	028050246	WASHER, SPRING 2-5	4
1-8	025050236	WASHER, PLAIN M 5	4
1-9	018502036	BOLT, SOCKET M5X20	1
1-10	530138001	MICRO BEARING, 8	2
1-11	048160242	RETAINING RING, INTERNAL C16	2
1-12	S10087101	TIMING PULLEY, B	1
1-13	012400436	SET SCREW, SOCKET (FT) M4X4	2
1-14	S10134001	X-PULLEY SHAFT, B	1
1-15	048080142	RETAINING RING, C8	2
1-16	S53703000	TIMING BELT	1
1-17	S10078001	SPACER, T-BELT	2
1-18	S10079101	BELT HOLDER	1
1-19	018401036	BOLT, SOCKET M4X10	2
1-20	028040246	WASHER, SPRING 2-4	2
1-21	S43192200	PULSE MOTOR ASSY, X	1
1-22	S27844201	TIMING PULLEY, A	1
1-23	014770622	SET SCREW, SOCKET (CP) SM6.35	2
1-24	018401236	BOLT, SOCKET M4X12	4
1-25	028040243	WASHER, SPRING 2-4	4
1-26	S53705001	CYLINDER SUPPORT, L	1
1-27	018501636	BOLT, SOCKET M5X16	2
1-28	028050246	WASHER, SPRING 2-5	2
1-29	S53706001	SENSOR DOG	1
1-30	008400604	SCREW, TRUSS M4X6	2
1-31	S53707001	FIXING BLOCK	1
1-32	018501436	BOLT, SOCKET M5X14	2
1-33	028040246	WASHER, SPRING 2-4	2
1-34	025050236	WASHER, PLAIN M 5	2
1-35	018062036	BOLT, SOCKET M6X20	1
1-36	S53708001	CYLINDER SUPPORT, R	1
1-37	018501236	BOLT, SOCKET M5X12	2
1-38	028050246	WASHER, SPRING 2-5	2
1-39	S53709000	CYLINDER ASSY, 25X75	2
1-39-1	S53710000	CYLINDER, 25X75	2
1-39-2	S53734000	ELBOW, KQ2L06M5	4
1-40	S32294001	BOLT, SOCKET M4X35	8
20	S57541001	C-KNIFE SETTING BRACKET	2
21	018061436	BOLT, SOCKET M6X14	2
22	S14753001	KNIFE BASE SHAFT	2
23	012500536	SET SCREW, SOCKET (FT) M5X5	2
24-1	S11521001	KNIFE BASE ASSY, 8	2
24-2	S11522001	KNIFE BASE ASSY, 10	2
24-3	S11523001	KNIFE BASE ASSY, 12	2
24-4	S11524001	KNIFE BASE ASSY, 14	2
24-5	S11525001	KNIFE BASE ASSY, 16	2
24-6	S11526001	KNIFE BASE ASSY, 18	2
24-7	S11527001	KNIFE BASE ASSY, 20	2
25-1	S14050001	CERAMIC CORNER KNIFE, S	4
25-2	S14051001	CERAMIC CORNER KNIFE, L	4
	S53722000	ELBOW, KQ2L06M5	4

Page 65 — AC.コーナーメス関係 / Corner knife mechanism

Brother BAS-6150 parts on page 65
Ref	Part number	Part name	Qty
26	111140002	SCREW, SM2.38	4
27	018401236	BOLT, SOCKET M4X12	2
28	028040246	WASHER, SPRING 2-4	2
29	025040236	WASHER, PLAIN M 4	2
100	S52453000	C/K POWER HARNESS, M/PCB-MT	1
102	S52986000	HOME POSITION SENSOR, C/K	1
103	062301006	SCREW, PAN M3X10	1
104	S52724000	SENSOR HARNESS, C/K	1
120	S39821000	CORD CLAMP, 19P7	4
121	625010000	CORD HOLDER, NK-2N	1
122	552907000	CORD HOLDER, 10N	1
123	0A5401005	SCREW, PAN (S/P WASHER) M4X10	2
124	S04557000	BAND, PLT1M	1
125	S55302000	SPIRAL, L=400	1
126	S55305000	SPIRAL, L=220	1

Page 67 — AD.送り装置関係 / Feed device mechanism

Brother BAS-6150 parts on page 67
Ref	Part number	Part name	Qty
1-1	S53742001	PULLEY SETTING BRACKET	1
1-2	018062022	BOLT, SOCKET M6X20	2
1-3	025060236	WASHER, PLAIN M 6	2
1-4	028060246	WASHER, SPRING 2-6	2
1-5	S12078000	BALL BEARING, 2 DEEP GROOVE	2
1-6	S53785001	TIMING PULLEY, A	1
1-7	S12079000	COLLAR, 2	2
1-8	S12076000	PULLEY SHAFT, D	1
1-9	012500536	SET SCREW, SOCKET (FT) M5X5	2
1-10	S53743000	TIMING BELT	1
1-11	076002450	BALL BEARING, 6002DD	2
1-12	S53744001	PULLEY SHAFT	1
1-13	S12067000	KEY, 5X35	1
1-14	048150142	RETAINING RING, EXTERNAL C15	1
1-15	S53787001	TIMING PULLEY, B	1
1-16	116920001	RING, THRUST	1
1-17	012060636	SET SCREW, SOCKET (FT) M6X6	2
1-18	S53745000	SPUR GEAR, 66 ;PA	1
1-19	012500536	SET SCREW, SOCKET (FT) M5X5	1
1-20	S53747000	KEY, 5X30	1
1-21	S53748001	MOTOR SETTING PLATE	1
1-22	018501236	BOLT, SOCKET M5X12	4
1-23	S53749000	LINEAR GUIDE, 15X700	2
1-24	018401436	BOLT, SOCKET M4X14	14
1-25	028040246	WASHER, SPRING 2-4	14
1-26	S53750001	FEED BRACKET	1
1-27	018401636	BOLT, SOCKET M4X16	8
1-28	028040246	WASHER, SPRING 2-4	8
1-29	S53751001	BELT HOLDER	1
1-30	018501636	BOLT, SOCKET M5X16	4
1-31	S53752001	LIMIT PLATE	2
1-32	018501236	BOLT, SOCKET M5X12	4
1-33	104821001	RUBBER CAP, 10.5	4
1-34	S53753000	CYLINDER ASSY	2
1-34-1	S53754000	AIR CYLINDER, 25X12	2
1-34-2	S53786000	SPEED CONTROLLER	4
1-35	018061422	BOLT, SOCKET M6X14	8
1-36	S53756001	CYLINDER SUPPORT	2
1-37	S53757001	FULCRUM SHAFT	2
1-38	018301036	BOLT, SOCKET M3X10	4
1-39	S53758001	CYLINDER GUIDE	1
1-40	018502036	BOLT, SOCKET M5X20	2
1-41	S53759001	CORD SUPPORT BRACKET	1
1-42	062061012	SCREW, PAN M6X10	2
1-43	S53760000	RUNER FLEX	1
1-44	002501003	SCREW, PAN M5X10	2
1-45	025050236	WASHER, PLAIN M 5	2
1-46	S56861001	SHAFT	1
1-47	018500836	BOLT, SOCKET M5X8	2
1-48	S56862001	SET SCREW COLLAR	6
1-49	012500536	SET SCREW, SOCKET (FT) M5X5	12
1-50	S53773001	SENSOR DOG, F/B	1
1-51	008400604	SCREW, TRUSS M4X6	2
1-52	S53774001	FEED BRACKER COVER, L	1
1-53	018501636	BOLT, SOCKET M5X16	4
1-54	S29742001	BOLT, SOCKET M5X50	1
1-55	021500216	NUT, 2 M5	1
1-56	S53775001	FEED BRACKET COVER, R	1
1-57	018061636	BOLT, SOCKET M6X16	4
1-58	026060136	WASHER, PLAIN S 6	4
1-59	S53783001	SENSOR SETTING PLATE	2

Page 69 — AD.送り装置機構 / Feed device mechanism

Brother BAS-6150 parts on page 69
Ref	Part number	Part name	Qty
1-60	008400604	SCREW, TRUSS M4X6	4
4	S53776000	MAGENTIC CATCH	2
5	002300603	SCREW, PAN M3X6	4
6	025030236	WASHER, PLAIN M 3	4
10	S53777001	HINGE	2
11	S56870001	COVER 615	1
12	008400604	SCREW, TRUSS M4X6	4
13	S53779001	REAR COVER	1
14	008400604	SCREW, TRUSS M4X6	9
15	S53780001	FEED BRACKET SUPPORT, F	1
16	018502036	BOLT, SOCKET M5X20	5
17	028050246	WASHER, SPRING 2-5	5
18	018062036	BOLT, SOCKET M6X20	4
19	S53781001	FEED BRACKET SUPPORT	1
20	S55488001	BOLT, SOCKET (S/P WASHER)M8X16	4
21	S42445001	BOLT, SOCKET (S/P WASHER)M8X25	4
22	S53782001	ANGLE	2
23	017082016	BOLT, M8X20	4
24	028080246	WASHER, SPRING 2-8	4
100	S52452000	AREA SENSOR	1
101	S53917000	SENSOR BRACKET, MS-GLB	2
102	062300806	SCREW, PAN M3X8	3
105	625010000	CORD HOLDER, NK-2N	5
106	S52907000	CORD HOLDER 10N	2
107	S04505000	CORD CLAMP 13-H	2
108	0A5401005	SCREW, PAN (S/P WASHER) M4X10	7
109	S52451000	AREA SENSOR HARNESS	1
120	S52974000	SERVO MOTOR, 200W ASSY	1
121	018501236	BOLT, SOCKET M5X12	4
122	S53784000	SPUR GEAR, 20	1
123	012060636	SET SCREW, SOCKET (FT) M6X6	2

Page 71 — AE. バインダー機構 / Binder mechanism

Brother BAS-6150 parts on page 71
Ref	Part number	Part name	Qty
9-58	028030246	WASHER, SPRING 2-3	2
9-57	018301236	BOLT, SOCKET M3X12	2
9-56	S590480001	PLATE SPRING BASE, F	1
9-55	028050246	WASHER, SPRING 2-5	2
9-54	018501636	BOLT, SOCKET M5X16	2
9-53	S590460001	BINDER SETTING PLATE, B	1
9-52	018062036	BOLT, SOCKET M6X20	1
9-51	S538060001	BINDER SETTING PLATE, A	1
9-50	S082800000	KEY, 4X4X16	2
9-49	028050246	WASHER, SPRING 2-5	2
9-48	018501636	BOLT, SOCKET M5X16	2
9-47	S538050001	SETTING PLATE	1
9-46	021500216	NUT, 2 M5	1
9-45	028050246	WASHER, SPRING 2-5	1
9-44	025050236	WASHER, PLAIN M 5	2
9-43	S585940000	CAM FOLLOWER	1
9-42	018501036	BOLT, SOCKET M5X10	1
9-41	S538040001	SET SCREW COLLAR	1
9-40	S082339000	WASHER, THRUST	4
9-39	S082380000	BEARING, THRUST	2
9-38	S319210000	BUSH, BM1208FB	1
9-37	012060636	SET SCREW, SOCKET (FT) M6X6	1
9-36	S083390001	LOOSENESS STOPPER	1
9-35	S083380001	PRE-LOAD NUT	1
9-34	S538030001	FULCRUM SHAFT, BINDER	1
9-33	021120304	NUT, 3 M12	1
9-32	S538020001	FULCRUM SHAFT	1
9-31	S083420001	THRUST BEARING COVER	1
9-30	S082440000	WASHER, THRUST	2
9-29	S082390000	WASHER, THRUST	2
9-28	S082380000	BEARING, THRUST	2
9-27	S083320000	BUSH, BM1212FB	1
9-26	S538010001	ARM	1
9-25	S536400001	SPRING HOOK	1
9-24	S538000001	SPRING, EXTENSION 13.1X71.1	1
9-23	025080236	WASHER, PLAIN M 8	2
9-22	021080206	NUT, 2 M8	2
9-21	S537990000	SPRING HOOK POST	1
9-20	028040246	WASHER, SPRING 2-4	2
9-19	018401036	BOLT, SOCKET M4X10	2
9-18	S537980001	SPRING HOOK PLATE	1
9-17	025080236	WASHER, PLAIN M 8	2
9-16	028080246	WASHER, SPRING 2-8	1
9-15	018082536	BOLT, SOCKET M8X25	1
9-14	028050246	WASHER, SPRING 2-5	4
9-13	018501036	BOLT, SOCKET M5X10	4
9-12	S083520000	ROD END	1
9-11-3	S538190000	ELBOW, 04-1/8	2
9-11-2	S538200000	SUPPORT BRACKET	1
9-11-1	S579380000	AIR CYLINDER, 20X50	1
9-11	S579370000	CYLINDER ASSY	1
9-10	004501003	SCREW, FLAT M5X10	2
9-9	S537950001	CYLINDER PLATE	1
9-8	S175330000	PLUNGER	1
9-7	028050246	WASHER, SPRING 2-5	2
9-6	018503036	BOLT, SOCKET M5X30	2
9-5	S537940001	INDEX PLATE	1
9-4	028050246	WASHER, SPRING 2-5	4
9-3	018501636	BOLT, SOCKET M5X16	4
9-2	S537930001	PLATE	2
9-1	S537920001	MAIN PLATE	1

Page 73 — AE.バインダー関係 / Binder mechanism

Brother BAS-6150 parts on page 73
Ref	Part number	Part name	Qty
9-59	S59035000	SPRING, PLATE	1
9-60	018301236	BOLT, SOCKET M3X12	2
9-61	S59044001	CLOTH GUIDE ARM, R	1
9-62	S59043001	CLOTH GUIDE ARM, L	1
9-63	018300836	BOLT, SOCKET M3X8	2
9-64	018301236	BOLT, SOCKET M3X12	4
9-65	021300303	NUT, 3 M3	4
9-68	S59034000	CLOTH GUIDE, R	1
9-69	S59033000	CLOTH GUIDE, L	1
9-70	S58692001	SCREW, FLAT M2X3	4
9-71	S21008001	FULCRUM SHAFT, C/GUIDE	1
9-72	S21009001	SLEEVE, C/GUIDE	2
9-73	S30014001	SCREW, M3	2
9-74	012400436	SET SCREW, SOCKET (FT) M4X4	1
9-77	018082036	BOLT, SOCKET M8X20	1
9-81	018061436	BOLT, SOCKET M6X14	1
9-82	021060206	NUT, 2 M6	1
9-85	S59047001	BINDER SETTING PLATE, C	1
9-86	004301016	SCREW, FLAT M3X10	2
9-90	025030236	WASHER, PLAIN M 3	2
9-91	025030236	WASHER, PLAIN M 3	1
10	S14703001	THREAD TAKE-UP ARM	1
11	141598001	SHOULDER SCREW, SM4.76	1
12	S53815001	CURVED WIRE	1
13	012300336	SET SCREW, SOCKET (FT) M3X3	2
14	S53816100	CYLINDER ASSY	1
14-1	S53817100	AIR CYLINDER 10X5	1
14-2	S12150000	TUBE ELBOW, M-5HL-4	2
14-3	S39122000	KNUCKLE JOINT, M4	1
15	018400836	BOLT, SOCKET M4X8	2
16	S53818001	FULCRUM PIN	2
17	012500536	SET SCREW, SOCKET (FT) M5X5	4
18	S53686001	POSITIONING PLATE	1
19	S20355002	SCREW, M3X8.5	2
100	S52759000	MICRO SWITCH, D3M-01K2-3	1
101	002021205	SCREW, PAN M2X12	2
102	S52468000	SWITCH HARNESS, SW-M/PCB	1
103	S10243000	CORD HOLDER, ;NK-3N	1
104	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1
109	625010000	CORD HOLDER, NK-2N	1
110	0A4300605	SCREW, PAN (S/P WASHER) M3X6	1

Page 75 — Z1.付属品関係 / Accessories

Brother BAS-6150 parts on page 75
Ref	Part number	Part name	Qty
7	153011416	NEEDLE ASSY, MTX190 (#16)	1
7-1	153011016	NEEDLE, MTX190 (#16)	4
8	S09285051	BOBBIN, 2	4
16	S59152001	UPPER KNIFE, C	1
30	S54022001	THREAD GUIDE	1
31	S02767409	COTTON SATND ASSY, 3THF	1
31-1	150189109	COTTON STAND BRACKET	1
31-3-1	062060806	SCREW, PAN M6X8	2
31-4	S51283001	SPOOL STAND BASE	3
31-5	150182000	SPOOL MAT	3
31-6	126863001	SPOOL CUSHION	3
31-7	S04109001	SUPPORT BAR, ;TR-GUIDE	1
31-9	S40639001	COLUMN PIPE W/CAP	1
31-9-1	150174000	COLUMN CAP	1
31-10	150173003	COLUMN JOINT	1
31-11	S21798001	SPOOL & SCREW SET	3
31-11-1	150179002	SPOOL SHAFT, B	3
31-11-2	028050246	WASHER, SPRING 2-5	3
31-11-3	021500106	NUT, 1 M5	3
31-12	150185009	THREAD GUIDE HOLDER	1
31-13	138843001	JOINT	1
31-15	S02779009	SPOOL HOLDER, 3	1
31-16	S02788009	THREAD HANGER ASSY, 3	1
31-16-1	S02789009	THREAD HANGER, 3	1
31-16-2	150183000	THREAD HANGER BASE	3
31-16-3	142990001	THREAD BUSH	3
31-17	150172003	COLUMN PIPE	1
31-18	S40641001	SPOOL SHAFT & SCREW SET, A	1
31-18-1	021500106	NUT, 1 M5	4
31-18-2	062501406	SCREW, PAN M5X14	1
31-18-3	062503506	SCREW, PAN M5X35	1
31-18-4	062501406	SCREW, PAN M5X14	2
31-18-6	026050136	WASHER, PLAIN S 5	2
31-19	S40643001	HOLDER JOINT & SCREW SET	1
31-19-1	014060632	SET SCREW, SOCKET (CP) M6X6	2
31-19-2	021500106	NUT, 1 M5	1
31-19-3	062503506	SCREW, PAN M5X35	1
33	008400604	SCREW, TRUSS M4X6	3

Page 77 — Z2.付属品関係 / Accessories

Brother BAS-6150 parts on page 77
Ref	Part number	Part name	Qty
1	115157001	HEXAGONAL WRENCH, 6	1
2	150335001	HEXAGONAL WRENCH, 5	1
3	118064001	HEXAGONAL WRENCH, 4	1
4	142721001	HEXAGONAL WRENCH, 3	1
5	154125001	HEXAGONAL WRENCH, 2.5	1
6	142002001	HEXAGONAL WRENCH, 2	1
7	S07783001	HEXAGONAL WRENCH, 1.5	1
8	S14696001	SPANNER 11X13	1
9	107780001	WRENCH, 10X12	1
10	100887001	WRENCH, 8X9	1
11	142205001	WRENCH, 7X8	1
12	S08132001	WRENCH, 5.5	1
13	S08170001	SCREW DRIVER, ;Z-TYPE	1
15	122991001	ACCESSORY BAG	1
16	142443001	SCREW DRIVER, 1.9X52	1
17	118837001	SCREW DRIVER, 3.4X70	1
18	101572101	SCREW DRIVER, 5.5X190	1
19	S01943001	SCREW DRIVER, HEX. 1.6	1
20	117466000	PINCETTE	1
21	S55663001	OIL TANK ASSY	1
22	114483002	OILER ASSY	1
32	114486002	OILER	1
34	S59338001	JIG, CENTER KNIFE	1
35	S59350001	GAUGE, N-BAR HIGHT	1
40	S57533000	REFLECTING SHEET	2
50	152566000	FUSE, C ;2A/125V	1
51	152565000	FUSE, B ;5A/125V	2
52	S52741000	GLASS FUSE, 6A/125V	1
53	S08030000	FUSE, 5A ;FB	1
54	153242000	FUSE, 6A	2
55	J02727001	GLASS FUSE, 2A/250V	1
70	S52490001	BOBBIN	4

Page 78 — Ga1. ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Brother BAS-6150 parts on page 78
Ref	Part number	Part name
G1-1-3	S59139-001	Needle clamp assy, 8mm
G1-1-3	S59140-001	Needle clamp assy, 10mm
G1-1-3	S59141-001	Needle clamp assy, 12mm
G1-1-3	S59142-001	Needle clamp assy, 14mm
G1-1-3	S59143-001	Needle clamp assy, 16mm
G1-6	S52572-001	針板10セット Needle plate set, 10
G1-6	S52573-001	針板12セット Needle plate set, 12
G1-6	S52574-001	針板14セット Needle plate set, 14
G1-6	S52575-001	針板16セット Needle plate set, 16
G1-3-3	S52562-001	針板10組 Needle plate assy, 10
G1-3-3	S52563-001	針板12組 Needle plate assy, 12
G1-3-3	S52564-001	針板14組 Needle plate assy, 14
G1-3-3	S52565-001	針板16組 Needle plate assy, 16
G1-4-3	S52536-001	ループガイド8 Loop guide, 8
G1-4-3	S52537-001	ループガイド10 Loop guide, 10
G1-4-3	S52539-001	ループガイド14 Loop guide, 14
G2-1-2	S53428-000	滑り板セット8-12 Slide plate set, 8-12
G2-1-2	S53435-000	滑り板セット14-16 Slide plate set, 14-16
G2-1-2-1	S53429-000	滑り板組8-12 Slide plate assy, 8-12
G2-1-2-1	S53436-000	滑り板組14-16 Slide plate assy, 14-16
G2-1-2-2	S53430-001	生地滑り板 Slide plate
G2-1-2-2	S53430-002	生地滑り板 Slide plate
G2-10	S59271-000	定規組8W-13 Binder assy, 8W-13
G2-10	S59275-000	定規組10W-17 Binder assy, 10W-17
G2-10	S59279-000	定規組12W-21 Binder assy, 12W-21
G2-10	S59283-000	定規組14W-25 Binder assy, 14W-25
G2-10	S59287-000	定規組16W-29 Binder assy, 16W-29
G2-20	S59272-000	定規組8W-14 Binder assy, 8W-14
G2-20	S59276-000	定規組10W-18 Binder assy, 10W-18
G2-20	S59280-000	定規組12W-22 Binder assy, 12W-22
G2-20	S59284-000	定規組14W-26 Binder assy, 14W-26
G2-20	S59288-000	定規組16W-30 Binder assy, 16W-30
G2-20	S59273-000	定規組8S-14 Binder assy, 8S-14
G2-20	S59277-000	定規組10S-18 Binder assy, 10S-18
G2-20	S59281-000	定規組12S-22 Binder assy, 12S-22
G2-20	S59285-000	定規組14S-26 Binder assy, 14S-26
G2-20	S59289-000	定規組16S-30 Binder assy, 16S-30
AC-24	S11522-001	メスダイ10組 Knife base assy, 10
AC-24	S11523-001	メスダイ12組 Knife base assy, 12
AC-24	S11524-001	メスダイ14組 Knife base assy, 14
AC-24	S11525-001	メスダイ16組 Knife base assy, 16
L2-2-2, 2-3	S53495-001	固定刃14-16 Fixed knife, 14-16
L2-3-2, 3-3	S53522-101	上糸メス組8 N/Thread knife assy, 8
L2-3-2, 3-3	S53498-001	上糸メス10-12組 N/Thread knife assy, 10-12
L2-4-2, 4-3	S53523-001	糸保持板8 Thread holding plate, 8
L2-4-2, 4-3	S53507-001	糸保持板10-12 Thread holding plate, 10-12
L2-4-2, 4-3	S53508-001	糸保持板14-16 Thread holding plate, 14-16

Page 79 — Ga1. ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Brother BAS-6150 parts on page 79
Ref	Part number	Part name
G1-1-3	S59144-001	Needle clamp assy, 18mm
G1-1-3	S59145-001	Needle clamp assy, 20mm
G1-6	S52576-001	Needle plate set, 18
G1-6	S52577-001	Needle plate set, 20
G1-3-3	S52566-001	Needle plate assy, 18
G1-3-3	S52567-001	Needle plate assy, 20
G1-4-3	S52541-001	Loop guide, 18
G1-4-3	S52542-001	Loop guide, 20
G2-1-2	S53437-000	Slide plate set, 18-20
G2-1-2-1	S53438-000	Slide plate assy, 18-20
G2-1-2-2	S53430-003	Slide plate
G2-10	S59291-000	Binder assy, 18W-33
G2-10	S59295-000	Binder assy, 20W-37
G2-10	S59292-000	Binder assy, 18W-34
G2-10	S59296-000	Binder assy, 20W-38
G2-20	S59293-000	Binder assy, 18S-34
G2-20	S59297-000	Binder assy, 20S-38
G2-20	S59294-000	Binder assy, 18S-35
G2-20	S59298-000	Binder assy, 20S-39
AC-25-1,25-2	S14051-001	Ceramic corner knife, L
AC-24	S11526-001	Knife base assy, 10
AC-24	S11527-001	Knife base assy, 20
L2-2-2, 2-3	S53496-001	Fixed knife, 18-20
L2-3-2, 3-3	S53503-101	N/Thread knife assy, 18-20
L2-4-2, 4-3	S53509-001	Thread holding plate, 18-20
	AC-24	メスダイ組 Knife base assy

Page 80 — Ga2 . ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Brother BAS-6150 parts on page 80
Ref	Part number	Part name	Qty
	S54651-000	Binder, 8W-13
	S54655-000	Binder, 10W-17
	S54659-000	Binder, 12W-21
	S54663-000	Binder, 14W-25
	S54667-000	Binder, 16W-29
	S53445-000	Binder, 8W-14
	S53451-000	Binder, 10W-18
	S53455-000	Binder, 12W-22
	S53459-000	Binder, 14W-26
	S53463-000	Binder, 16W-30
	S54653-000	Binder, 8S-14
	S54657-000	Binder, 10S-18
	S54661-000	Binder, 12S-22
	S54665-000	Binder, 14S-26
	S54669-000	Binder, 16S-30
	S53449-000	Binder, 8S-15
	S53453-000	Binder, 10S-19
	S53457-000	Binder, 12S-23
	S53461-000	Binder, 14S-27
	S53465-000	Binder, 16S-31

Page 81 — Ga2 . ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Brother BAS-6150 parts on page 81
Ref	Part number	Part name	Qty
	S54671-000	Binder, 18W-33
	S54675-000	Binder, 20W-37
	S53467-000	Binder, 18W-34
	S53471-000	Binder, 20W-38
	S54673-000	Binder, 18S-34
	S54677-000	Binder, 20S-38
	S53469-000	Binder, 18S-35
	S53473-000	Binder 20S-39

Page 82 — Wa.警告ラベル / Warning labels

Brother BAS-6150 parts on page 82
Ref	Part number	Part name	Qty
	S38353-101	Label, elec. shock 4 lang.
	S38352-101	Label, elec. shock 4 lang.
	S38357-001	Label, operation(BAS)Eng.
	S38357-002	Label, operation(BAS)Eng.
	S38571-001	Label, operation(BAS)Eng.
	S38571-002	Label, operation(BAS)Eng.
	S36924-001	Mark, injury
	S36924-002	Mark, injury
	S37058-001	Label, arrow
	S37059-001	Label, PE
	S37060-001	Label, grounding

Page 83 — 索引 / INDEX

Brother BAS-6150 parts on page 83
Ref	Part number	Part name	Qty
	002021205
	002300403
	002300603
	1-1-27
	1-2-27
	50-23
	51-24
	106
	002501003
	004300513
	1-4-3
	004301016
	004400603
	004401003
	1-23
	004401414
	1-2-1-3
	004501003
	004501016
	51-5
	008300604
	1-2-32
	50-18
	51-19
	008400604
	1-9
	1-2-9
	50-2
	51-2
	104
	75
	82
	101
	163
	165
	181
	195
	1-30
	1-51
	1-60
	008400804
	012060636
	1-1-3
	1-2-3
	1-7
	1-17
	123
	9-37
	012081636
	012300336
	012400436
	1-13
	9-74
	012500536
	30
	1-19
	1-49
	17
	013660612
	013710512
	50
	013711012
	014060632
	014300332
	014680422
	014761030
	014770622
	014771022	B6-4
	B16
	15
	014780622
	014781032
	1-3
	1-12
	23
	016771032
	017061616
	017082016
	017083016
	018060636
	018061236
	018061422
	018061436
	018061636
	018062022
	018062036
	1-2-5
	1-3
	1-35
	18
	018062536
	018063022
	018063036	N2
	1-46
	1-107
	018064036
	018081636
	018082036
	018083036
	018102036
	3
	018103036
	018108036
	018300636
	1-11
	177
	201
	018300836
	1-2-7
	176
	9-63
	018301036
	018301236
	9-57
	9-60
	9-64
	018400836	X2
	1-19
	9-19
	1-20
	1-24
	018401236
	1-24
	018401436
	1-24
	018401636
	1-27
	018500836
	1-47
	018501022
	018501036
	1-21
	50-5
	51-9
	9-13
	018501236
	1-2-13
	X5
	1-37
	1-22
	1-32
	121
	018501436
	1-32
	018501622
	A11
	1-6
	018501636	A11
	1-6
	1-27
	021060206
	021080206
	1-84
	1-15
	9-22
	021080306
	9-33
	021120304
	021300303
	021400103
	021400206
	1-2-5
	021500106
	31-18-1
	31-19-2
	021500216
	50-20
	51-14
	51-21
	1-55
	021500316	P1-14
	021670102
	025030233
	025030236
	X3
	025050236
	1-34
	1-45
	9-44
	025060236
	1-1-7
	1-2-7
	1-3
	025060236
	025080236
	1-62
	1-83
	1-103
	1-5
	86
	025080336
	9-23
	025100232
	025100236
	1-31
	4
	9
	025680132
	025710232
	39
	026050136
	026060136

Page 84

Brother BAS-6150 parts on page 84
Ref	Part number	Part name
52	028030242	W4
12	028030246
12	028030246
68	028040243
34	028040243
60	028040243
4	028040246
8	028040246
57	028040246
58	028040246
60	028040246
60	028040246
4	028050246
64	028050246
64	028050246
68	028050246
26	028050246	N7
36	028050246
30	028050246
44	028050246
44	028050246
52	028050246
60	028050246	X6
60	028050246
60	028050246
60	028050246
66	028050246
68	028050246
68	028050246
68	028050246
68	028050246
68	028050246
72	028050246
26	028060246	N11
30	028060246
32	028060246
40	028060246
44	028060246
44	028060246
56	028060246
56	028060246
64	028060246
30	028080246
30	028080246
30	028080246
30	028080246
30	028080246
56	028080246
57	028080246
66	028080246
68	028100246
30	028100246
30	028100246
56	028100246
56	028260242
34	028260242
34	032311306
54	032422505
57	039411215
28	047200642	Q1-7
34	047301042
44	048025342
54	048050346
24	048060142
40	048060142
24	048100142
64	048150142
60	048160242
30	048200142
54	052400606
44	060400812
44	060660512
18	060681212
72	062060806
28	062061012	P1-4
28	062300606	P1-8
28	062300606	P1-9
34	062300616
66	062300806
66	062301006
54	062301205
52	062302506	W3
58	062400805
34	062401006
72	062501406
72	062503506
72	062670512
4	062670512
16	062670612
18	062670612
16	062670812
6	062670812
6	062670812
16	062671412
22	062671412
20	062680812
30	062681212
12	062681412
24	062681412
16	062682012
16	062710612
14	062711212
2	062782512	B6-2
64	072600480
70	076002450
54	081014670
40	087310815
70	087311015
1	0A4300605
28	0A4300805	Q1-4
54	0A4400805
40	0A5300805
28	0A5400805	Q1-13
34	0A5400805
40	0A5400805
40	0A5400805
40	0A5400805
40	0A5400805
40	0A5400805
40	0A5400805
50	0A5400805
38	0A5401005
40	0A5401005
40	0A5401005
40	0A5401005
62	0A5401005
57	0A5401006
52	0A5401205	W10
20	100064002
34	100136001
14	100197002
4	100250001
2	100251001	B5-2
4	100251001
22	100251001
18	100401001
26	100645003	N6
74	100887001
74	101572101
4	101706001
6	102731004
2	104821001	A8
16	104821001
18	104821001
64	104821001
57	105173004
8	105216001
8	107017002
56	107153002
74	107780001
20	108254001
20	108265009
20	108266001
16	108802001
6	112592001
6	112593001
6	112594001
2	112684001	B5-1
14	112700001
20	112709001
20	112709001
20	112712001
16	112717001
6	112721001
16	112728001
16	112735001
16	112753001
16	112753001
18	112758001
4	113014000
4	113024000
2	113386000	A2
74	114483002
74	114486002
16	114693001
74	115157001
44	115503001
46	115503001
48	115503001
48	115503001
64	116920001
28	117436001	Q1-5
74	117466000
54	117936001
74	117936001
74	118064001
57	118550001
74	118837001
8	118954000
22	120752001
74	122991001
72	126863001
2	131007001	B5-3
58	133172003
72	138843001
20	140527001
32	140682001
36	140682001
36	140682001
16	140890009
22	141544001
70	141598001
74	142002001
74	142205001
4	142274101
18	142274101
74	142443001
74	142721001
72	142990001
20	144504001
22	144526001
2	144875001	B13
20	145446001
34	145446001
34	145480001

Page 85 — 索引 / INDEX

Brother BAS-6150 parts on page 85
Ref	Part number	Part name	Qty
	145446001
	145571101
	146124001
	146141001
	146197001
	146360002
	146427001
	146427001
	148005001
	148394000
	148536001
	148539101
	148762001
	148821001	B6-3
	148821001	B17
	149287000
	149287000
	149287000
	149566109
	149796001
	150172003
	150173003
	150174000
	150179002
	150182000
	150183000
	150185009
	150189109
	150235001
	150335001
	150936001
	150937101
	150938201
	150967101
	150988001
	151027001
	151029001
	151030001
	151090001
	151148001
	151951001
	152356301
	152361001
	152362001
	152363001
	152364001
	152565000	W8-2
	152566000	W8-1
	152645001
	152651401
	152725000
	152914001	N4
	153011014	A4-2
	153011016
	153011016	A4-1
	153011018	A4-3
	153011416
	153012101
	153057102
	153208002
	153230101
	153242000	W8-5
	153252000
	153274001
	153568001
	154024001
	154125001
	154250001
	154560001
	154886001
	154965001
	155479001
	15551000
	15811500
	15815000
	158581001
	158597001
	158768001
	158769001
	159027001
	15915000
	159805001	A9
	159805001
	159928000
	62501000
	J02727001	W8-7
	J80869001	N12
	S00480000
	S00554000
	S01943001
	S02606000
	S02738000
	S02739000
	S02740000
	S02767409
	S02779000
	S02788000
	S02789000
	S03999000
	S04109000
	S04505000
	S04557000
	S04557000
	S04557000
	S04557000
	S04557000	X11
	S06994001
	S07327001
	S07333001
	S07334001
	S07338001
	S07339200
	S07417001
	S07436001
	S07446001
	S07459100
	S07462000
	S07463000
	S07464100
	S07465000
	S07469001
	S07471001
	S07476000
	S07477000
	S07478000
	S07481009
	S07487101
	S07490001
	S07519001
	S07520001
	S07521001
	S07522001
	S07524101
	S07525000
	S07527001
	S07571000
	S07658001
	S07783001
	S07876101
	S08030000	W8-4
	S08132001
	S08170001
	S08205000
	S08238000
	S08239000
	S08240000
	S08280000
	S08320000
	S08338001
	S08339001
	S08342001
	S08352000
	S08604001
	S08605101
	S08606001
	S08607001
	S08608001
	S08609201
	S08610101
	S09043000
	S09132051
	S09141000
	S09142000
	S09200001
	S09259001
	S09260001
	S09261001
	S09273001
	S09284001
	S09285051
	S09295000
	S10078001
	S10079101
	S10087101
	S10133000
	S10134001
	S10243000
	S10243000
	S10243000	Q1-12
	S10661109
	S10859001
	S11433000
	S11433000
	S11433000	P1-13
	S11521001
	S11522001
	S11523001
	S11524001
	S11525001
	S11526001
	S11527001
	S12067000
	S12076000
	S12078000
	S12079000
	S12150000
	S12150000
	S12150000
	S12150000
	S12150000
	S12445051	B5
	S12463001
	S12506000
	S13021001
	S14050001

Page 86 — 索引 / INDEX

Brother BAS-6150 parts on page 86
Ref	Part number	Part name	Qty
	S14050001
	S14051001	Ga1
	S14051001	Ga1
	S14189100
	S14666000
	S14666000
	S14666000
	S14666000
	S14677001
	S14677001	M1-3
	S14696001
	S14703001
	S14753001
	S14874000
	S15097000	M1-1
	S15584509
	S16350001
	S16603000
	S16669000
	S17533000
	S17971000
	S20355002
	S20849101
	S21008001
	S21009001
	S21195001
	S21196001
	S21798001
	S21931001
	S27844201
	S29742001
	S29863001
	S30014001
	S30229000	W8-6
	S30505001
	S31258001
	S31258001
	S31760000
	S31921000
	S32294001
	S32843001
	S35032101
	S36260000
	S36355001
	S36924001	Wa
	S36924002	Wa
	S37058001	Wa
	S37059001	Wa
	S37060001	Wa
	S37968001
	S38059000
	S3811000
	S38166000
	S38170001
	S38174001
	S38175001
	S38176101
	S38177001
	S38212001
	S38212001
	S38213051
	S38237001	B7
	S38241051
	S38244100
	S38245051	B7-1
	S38248001
	S38251000
	S38253001	B4
	S38261001
	S38264001
	S38266000
	S38270001
	S38274001
	S38292001
	S38295000	B1
	S38299001
	S38352101	Wa
	S38353101	Wa
	S38357001	Wa
	S38357002	Wa
	S38360001
	S38396001
	S38398001
	S38404001
	S38419001
	S38420001
	S38448000
	S38541000
	S38541007
	S38571001	Wa
	S38571002	Wa
	S38820000
	S39110001	A13
	S39115100	P1-21
	S39115100
	S39115100
	S39116100
	S39116100
	S39116100
	S39122000
	S39821000
	S39902001
	S40494000	X7
	S40583000
	S40616001
	S40620001
	S40639001
	S40641001
	S40643001
	S40884000
	S41964000
	S42445001
	S42446001
	S42466001
	S42619001
	S42867001
	S43192200
	S44807000
	S46191001
	S46583000
	S46738000
	S47900000
	S48715000
	S48716001	A
	S48724001	B2-1
	S48732001	B14
	S48734000
	S48737000
	S48738000
	S48739001
	S48740001
	S48760001
	S48761001
	S48763001
	S48776000
	S49491000
	S49495000
	S49529001
	S49530001
	S49564002
	S49638001
	S51283001
	S52092000
	S52427000
	S52439000
	S52440000
	S52441000
	S52442000
	S52443000
	S52444000
	S52445000
	S52446000
	S52447000
	S52448000
	S52449000
	S52450000
	S52451000
	S52452000
	S52453000
	S52454000
	S52457000
	S52458000
	S52459000
	S52460000
	S52461000
	S52462000	Q1-11
	S52465000	X1-1
	S52468000
	S52469000	P1-1
	S52470001
	S52475000
	S52476000
	S52478000
	S52486101	A12
	S52487001
	S52490001	P1-20
	S52490001
	S52491001
	S52493001	N1
	S52495101
	S52497001
	S52498001
	S52499001
	S52500001
	S52507001
	S52508001
	S52509001
	S52510001
	S52514001
	S52518000
	S52519000
	S52521001
	S52523001	A10
	S52524001
	S52525001
	S52536001
	S52536001	Ga1
	S52537001
	S52537001	Ga1
	S52538001
	S52538001	Ga1
	S52539001
	S52539001	Ga1
	S52540001
	S52540001	Ga1
	S52541001
	S52541001	Ga1
	S52542001
	S52542001	Ga1
	S52549001
	S52550001
	S52551000
	S52552000
	S52553000
	S52556000
	S52557000
	S52558000
	S52559000
	S52560001
	S52561001
	S52561001	Ga1

Page 87 — 索引 / INDEX

Brother BAS-6150 parts on page 87
Ref	Part number	Part name
10	S52571001
75	S52572001	Ga1
75	S52573001	Ga1
10	S52574001
75	S52575001	Ga1
10	S52576001
75	S52577001	Ga1
14	S52579002
14	S52675902
14	S52677001
18	S52679001
62	S52724000
40	S52727000
40	S52732000
40	S52733000
52	S52741000	WB-3
40	S52744000
52	S52749000	W5
52	S52750000	W6
52	S52751000	W7
28	S52758000	Q1-3
70	S52759000
40	S52760000
40	S52952001
54	S52957000
54	S52958000
54	S52959000
54	S52960001
28	S52961000	P1-2
48	S52962000	P1-3
48	S52963000
52	S52963000
48	S52965001
28	S52966000	Q1-2
40	S52968001
57	S52970000
38	S52973000
66	S52974000
54	S52975001
54	S52976000
54	S52977000
54	S52978000
54	S52979000
54	S52980000
52	S52985000	X10
62	S52986000
52	S52989000	X1
32	S52991000
52	S53000001	W1
52	S53007001	W8
54	S53010001
26	S53166000	N8
8	S53167000
8	S53168000
8	S53169001
26	S53171000	M1
22	S53172001
18	S53174000
18	S53175000
18	S53176000
18	S53177000
18	S53178000
18	S53179000
8	S53180000
18	S53195000
28	S53422000	P1-6
28	S53423000	P1-7
28	S53425001	Q1
28	S53426001	Q1-1
28	S53427001	Q1-6
75	S53428000	Ga1
12	S53430001
12	S53430001
12	S53430002
75	S53430002	Ga1
12	S53431001
76	S53431001	Ga1
12	S53432000
12	S53432000	Ga1
12	S53434000
12	S53434000	Ga1
12	S53435000
12	S53436000
75	S53436000	Ga1
12	S53437000
76	S53438000	Ga1
12	S53445000
77	S53445000	Ga2
77	S53449000
12	S53451000
77	S53453000	Ga2
12	S53460000
77	S53460000	Ga2
12	S53461000
77	S53461000	Ga2
12	S53463000
77	S53463000	Ga2
12	S53465000
77	S53465000	Ga2
12	S3467000
78	S3467000	Ga2
12	S53469000
78	S53469000	Ga2
12	S53471000
78	S53471000	Ga2
12	S53473000
78	S53473000	Ga2
12	S53488000
46	S53488000
24	S53490001	M1-2
75	S53490001
24	S53490001	Ga1
75	S53495001
28	S53495001	Ga1
24	S53496001
75	S53496001	Ga1
24	S53498001
75	S53498001	Ga1
24	S53501101
75	S53501101	Ga1
24	S53503101
75	S53503101	Ga1
24	S53507001
75	S53507001	Ga1
24	S53508001
76	S53508001	Ga1
24	S53509001
75	S53509001	Ga1
44	S53541000
46	S53541000
48	S53541000
48	S53541000
48	S53542000
48	S53542000
44	S53543001
46	S53543001
44	S53544001
46	S53544001
44	S53545001
46	S53545001
44	S53546001
46	S53546001
44	S53547001
46	S53547001
44	S53548000
46	S53548000
44	S53552000
46	S53552000
44	S53553000
46	S53553000
44	S53554001
46	S53554001
44	S53555001
44	S53560001
44	S53562001
44	S53564001
44	S53564001
48	S53565000
48	S53566000
48	S53567001
48	S53567001
48	S53568001
48	S53568001
48	S53569001
48	S53571001
48	S53571001
48	S53572001
48	S53572001
48	S53573001
48	S53573001
48	S53574000
48	S53574000
48	S53575001
48	S53575001
48	S53576001
48	S53576001
48	S53577000
48	S53577000
48	S53580001
48	S53580001
50	S53581000
48	S53581000
50	S53582001
50	S53584000
50	S53585001
50	S53586001
48	S53588000
28	S53617000	P1-10

Page 89 — 索引 / INDEX

Brother BAS-6150 parts on page 89
Ref	Part number	Part name	Qty
	S57938000
	S57942000	X1-2
	S58034000
	S58035000
	S58036000
	S58037000
	S58038000
	S58039000
	S58040000
	S58179001
	S58180001
	S58181001
	S58181101
	S58183000
	S58184000
	S58204001
	S58204001
	S58594000
	S58675000
	S58692001
	S58693000
	S58900000
	S58903000
	S59031000
	S59032000
	S59033000
	S59034000
	S59035000
	S59036001
	S59041000
	S59041000
	S59041000
	S59042000
	S59043001
	S59044001
	S59045001
	S59046001
	S59047001
	S59048001
	S59139001
	S59139001	Ga1
	S59140001
	S59140001	Ga1
	S59141001
	S59141001	Ga1
	S59142001
	S59142001	Ga1
	S59143001
	S59143001	Ga1
	S59144001
	S59144001	Ga1
	S59145001
	S59145001	Ga1
	S59149001
	S59150001
	S59151001
	S59152001
	S59155000
	S59156000
	S59158001
	S59217000
	S59218000
	S59219000
	S59235001
	S59271000
	S59271000
	S59271000	Ga1
	S59272000
	S59272000	Ga1
	S59273000
	S59273000	Ga1
	S59274000
	S59274000	Ga1
	S59275000
	S59275000
	S59275000	Ga1
	S59276000
	S59276000	Ga1
	S59277000
	S59277000	Ga1
	S59278000
	S59278000	Ga1
	S59279000
	S59279000
	S59279000	Ga1
	S59280000
	S59280000	Ga1
	S59281000
	S59281000	Ga1
	S59282000
	S59282000	Ga1
	S59283000
	S59283000	Ga1
	S59284000
	S59284000	Ga1
	S59285000
	S59285000	Ga1
	S59286000
	S59286000	Ga1
	S59287000
	S59287000	Ga1
	S59288000
	S59288000	Ga1
	S59289000
	S59289000	Ga1
	S59290000
	S59290000	Ga1
	S59291000
	S59291000	Ga1
	S59292000
	S59292000	Ga1
	S59293000
	S59293000	Ga1
	S59294000
	S59294000	Ga1
	S59295000
	S59295000	Ga1
	S59296000
	S59296000	Ga1
	S59297000
	S59297000	Ga1
	S59298000
	S59298000	Ga1
	S59338001
	S59350001
	S59357001	N5
	S59368000
	S59371001	P1
	S59372000
	S59387000
	W01519001
	W01519001
	W01519001
	W01519001
	XA2220050

Page 5 — A.主体関係 / Machine body

Page 7 — C.上軸関係 / Upper shaft mechanism

Page 9 — D.針棒揺動関係 / Needle bar rocking mechanism

Page 11 — F.メス関係 / Knife mechanism

Page 13 — G1.ゲージ関係 / Gauge parts

Page 15 — G2.ゲージ関係 / Gauge parts

Page 17 — H.カマ関係 / Rotary hook mechanism

Page 19 — J.給油潤滑関係 / Lubrication

Page 21 — J.給油潤滑関係 / Lubrication

Page 23 — K.糸通し関係 / Threading mechanism

Page 25 — L1.糸切り関係 / Thread trimmer mechanism

Page 27 — L2.糸切り関係 / Thread trimmer mechanism

Page 29 — M.糸締め関係 / Tension release mechanism N. モータ関係 / Motor mechanism

Page 31 — Q. 糸切れ検出機構 / Thread breakage detector mechanism (Option parts)

Page 33 — R.スタッカー関係(オプション部品) / Stacker mechanism (Option parts)

Page 35 — R.スタッカー関係(オプション部品) / Stacker mechanism (Option parts)

Page 37 — S.糸巻関係 / Bobbin winder mechanism

Page 39 — T.空気関係 / Air pressure mechanism

Page 41 — T.空圧関係 / Air pressure mechanism

Page 43 — U.電装部品関係 / Power supply equipment mechanism

Page 45 — U.電装部品関係 / Power supply equipment mechanism

Page 47 — V1.布制御関係 / Cloth control system mechanism

Page 49 — V1.布制御関係 / Cloth control system mechanism

Page 51 — V2.布制御関係(オプション部品)/ Cloth control system mechanism (Option parts)

Page 53 — V2. 布制御関係(オプション部品) / Cloth control system mechanism (Option parts)

Page 55 — W.プリント基板関係 / Printed circuit board mechanism X.マーカー関係 / Marker mechanism

Page 57 — Y.操作パネル関係 / Operation panel mechanism AA.踏板関係 / Foot switch pedal mechanism

Page 59 — AB.動力台関係 / Power table

Page 60 — AB.動力台関係 / Power table

Page 61 — AB.動力台関係 / Power table

Page 63 — AC.コーナーメス関係 / Corner knife mechanism

Page 65 — AC.コーナーメス関係 / Corner knife mechanism

Page 67 — AD.送り装置関係 / Feed device mechanism

Page 69 — AD.送り装置機構 / Feed device mechanism

Page 71 — AE. バインダー機構 / Binder mechanism

Page 73 — AE.バインダー関係 / Binder mechanism

Page 75 — Z1.付属品関係 / Accessories

Page 77 — Z2.付属品関係 / Accessories

Page 78 — Ga1. ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Page 79 — Ga1. ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Page 80 — Ga2 . ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Page 81 — Ga2 . ゲージ部品一覧表 (BAS-6150) / Gauge parts List (BAS-6150)

Page 82 — Wa.警告ラベル / Warning labels

Page 83 — 索引 / INDEX

Page 84

Page 85 — 索 引 / INDEX

Page 86 — 索引 / INDEX

Page 87 — 索引 / INDEX

Page 89 — 索引 / INDEX

Brother BAS-6150 — parts catalog

Page 85 — 索引 / INDEX
