Page 9 — A. 主体関係 / Machine body / Maschinen gehäuse / Corps de la máquina B. 針数変換関係 / Stitch number conversion / Stitchzahlrechnung / Conversion de nombre de points / Conversión de número de puntadas
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | S36590009 | BED BASE ASSY | 1 |
| 10-1 | S36591000 | BED BASE | 1 |
| 10-2 | S03372109 | BED COVER (R) ASSY | 1 |
| 10-3 | 114984000 | BED COVER SHAFT | 1 |
| 10-4 | 151605002 | SET SCREW, M5.95 | 2 |
| 10-5 | S07995001 | CLUTCH LEVER ASSY | 1 |
| 10-5-1 | 142307001 | CLUTCH DRIVING LEVER ASSY | 1 |
| 10-5-2 | 115025001 | CLUTCH DRIVING LEVER PLATE | 1 |
| 10-5-3 | 115268002 | SCREW, M5.56 | 1 |
| 10-5-4 | 021750112 | NUT, 1 M556-32 | 1 |
| 10-6 | 062711212 | SCREW, PAN M4.76-32X12 | 2 |
| 10-7 | 025710232 | WASHER, PLAIN M 4.76 | 2 |
| 10-8 | S36816001 | SPRING | 1 |
| 10-9 | 100251001 | SET SCREW, M6.35 | 2 |
| 11 | 114982000 | BED BASE FELT | 1 |
| 12 | S03374109 | BED COVER (L) ASSY | 1 |
| 13 | 114984000 | BED COVER SHAFT | 1 |
| 14 | 114985001 | SPRING, PLATE | 2 |
| 15 | 062680512 | SCREW, PAN M4.37-40X5 | 2 |
| 16 | 114986101 | BOLT | 1 |
| 17 | 115275001 | LOOPER COVER | 1 |
| 18 | S03376001 | COVER | 1 |
| 19 | 105329001 | WASHER | 1 |
| 20 | 114988001 | SHOULDER SCREW, M4.37 | 1 |
| 21 | 108520009 | OIL CAP | 1 |
| 22 | 117934009 | OIL CAP | 1 |
| 23 | 117936009 | OIL CAP | 2 |
| 24 | 110104000 | OIL CAP | 1 |
| 27 | 106436001 | FELT (L = 30) | 4 |
| 28 | 147691000 | FELT (L = 18) | 2 |
| 1 | ※ | STITCH CONTROL CAM ASSY | 1 |
| 1-1 | 014821022 | SET SCREW, SOCKET (CP) M7.94 | 2 |
| 1-2 | S03433001 | STITCH CONTROL CAM SEGMENT | 1 |
| 1-3 | 115113001 | SCREW, M4.37 | 1 |
| 1-4 | 115114001 | STITCH CONTROL KNOB | 1 |
| 1-5 | 115115001 | SPRING, COMPRESSION | 1 |
| 1-6 | 115116001 | SHOULDER SCREW, M4.37 | 1 |
| 2 | S03436001 | STITCH CHANGING (M) GEAR | 1 |
| 3 | 115118001 | STITCH CHANGING (M) GEAR STUD | 1 |
| 4 | S03437001 | STITCH CHANGING GEAR | 1 |
| 5 | S03438001 | SHOULDER SCREW, M4.37 | 1 |
| 6 | S03439001 | ROLLER 7.94 | 1 |
| 7 | S03440001 | STITCH 32 LEVER | 1 |
| 8 | S03441001 | SHOULDER SCREW, M4.76 | 1 |
| 9 | S03442001 | SET SCREW COLLAR ASSY | 1 |
| 9-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 10 | S05724001 | RETAINING RING | 1 |
Page 11 — C. 駆動・停止関係 / Driving clutch and brake mechanism / Antriebskupplung Und Stoppmechanismus / Emrayage d'entraînement et mécanisme d'arrêt / Embrague de mando y mecanismo de detención
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 115215100 | DRIVING SHAFT BUSH (L) | 1 |
| 2 | S03378000 | DRIVING SHAFT BUSH (R) | 1 |
| 3 | 013760712 | SET SCREW, (CP) M5.95 | 2 |
| 4 | S03379101 | PULLEY ASSY | 1 |
| 4-1 | S34341001 | PULLEY | 1 |
| 4-2 | 114992000 | NEEDLE BEARING | 2 |
| 4-3 | S34340001 | BALL HOLDER | 1 |
| 4-4 | 112751003 | SCREW, M3.57 | 3 |
| 5 | 071079450 | BEARING BALL 5/16 | 1 |
| 6 | 114997001 | SPRING | 1 |
| 7 | 071055650 | BEARING BALL 7/32 | 1 |
| 8 | S03381101 | STOP CAM ASSY | 1 |
| 8-1 | S03382101 | STOP CAM | 1 |
| 8-2 | S03383001 | BRAKE CAM SEGMENT | 1 |
| 8-3 | S03384001 | STOP CAM SEGMENT | 1 |
| 8-4 | S03385000 | CUSHION RUBBER | 1 |
| 8-5 | S03386001 | SPRING | 1 |
| 8-6 | 115004001 | CAM SEGMENT STUD | 2 |
| 8-7 | S03387001 | CLUTCH PLATE | 1 |
| 8-8 | S05725001 | SCREW, M5.56 | 2 |
| 8-9 | 115000000 | TOOTHED WASHER | 2 |
| 8-10 | 021750112 | NUT, 1 M556-32 | 2 |
| 8-11 | S03388001 | DRIVING SHAFT | 1 |
| 8-12 | 149996001 | STOP CAM SET SCREW | 1 |
| 8-13 | 014821022 | SET SCREW, SOCKET (CP) M7.94 | 1 |
| 9 | S10668001 | WASHER | 1 |
| 10 | 115008000 | BALL BEARING | 1 |
| 11 | S36615001 | CLUTCH BODY ASSY | 1 |
| 11-1 | S36616001 | CLUTCH BODY | 1 |
| 11-2 | S03392001 | BALL PRESSER PLATE | 1 |
| 11-3 | 115011201 | BOLT, M6.35 | 1 |
| 11-4 | 115012002 | SET SCREW, M6.35 | 1 |
| 11-5 | 150554002 | NUT, M6.35 | 1 |
| 11-6 | S03393001 | STOPPER BRACKET | 1 |
| 11-7 | S03394001 | STOPPER SHAFT | 1 |
| 11-8 | 025800332 | WASHER, PLAIN L 7.14 | 1 |
| 11-9 | S03395000 | CUSHION RUBBER | 1 |
| 11-10 | S34806001 | SPRING HOLDER | 1 |
| 11-11 | S36693001 | CLUTCH STOPPER SPRING | 1 |
| 11-12 | 115018001 | CUSHION RUBBER | 4 |
| 11-13 | 025800332 | WASHER, PLAIN L 7.14 | 1 |
| 11-14 | 021800102 | NUT, 1 M7.14 | 2 |
| 11-15 | 149996001 | STOP CAM SET SCREW | 1 |
| 11-16 | S03401001 | SPRING HOOK | 1 |
| 12 | S03402001 | SPRING | 1 |
| 13 | 115022001 | SPRING HOOK | 1 |
| 14 | 102571003 | NUT, M4.37 | 1 |
| 15 | S03403001 | STOPPER SCREW | 1 |
| 16 | S36694001 | REGULATING LEVER ASSY | 1 |
| 16-1 | S03405101 | STITCH CONTROL LEVER | 1 |
| 16-2 | S36695001 | CLAW | 1 |
| 16-3 | S03407001 | ROLLER | 1 |
| 16-4 | S03408001 | SHOULDER SCREW | 1 |
| 16-5 | 110161004 | NUT, M4.76 | 1 |
| 16-6 | 018062022 | BOLT, SOCKET M6X20 | 1 |
| 17 | S35727001 | CLUTCH BODY SHAFT | 1 |
| 18 | S37362001 | BRAKE LEVER ASSY | 1 |
| 21 | S36642001 | BRAKE LEVER SHAFT | 1 |
| 22 | 014710522 | SET SCREW, SOCKET (CP) M4.76 | 1 |
| 23 | S37133001 | BRAKE SHAFT | 1 |
| 24 | 014710522 | SET SCREW, SOCKET (CP) M4.76 | 1 |
| 25 | S20740101 | SCREW, SEAL M4X10 | 1 |
| 26 | 048080142 | RETAINING RING, C8 | 1 |
| 27 | 153596001 | WASHER | 1 |
| 28 | S36700001 | SPRING | 1 |
Page 13 — D. 針棒駆動関係 / Needle bar and driving clutch mechanism / Nadelstange und antriebskupplung / Barre à aiguille et mécanisme d'embrayage d'entraînement / Barra de aguja y mecanismo de embrague de mando
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S03409001 | NEEDLE BAR DRIVING ASSY | 1 |
| 1-1 | S03410001 | CRANK ROD ASSY | 1 |
| 1-1-1 | S03719001 | LOWER CRANK ROD (L) ASSY | 1 |
| 1-1-1-1 | 142658001 | SCREW, M4.37 | 2 |
| 1-1-1-2 | S03412000 | FELT | 1 |
| 1-1-1-3 | 015770812 | SET SCREW, SOCKET (CN) M6.35 | 1 |
| 1-1-1-4 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 1 |
| 1-1-2 | S03720001 | UPPER CRANK ROD (S) ASSY | 1 |
| 1-1-2-1 | 148425002 | BOLT 4.37X14 | 2 |
| 1-1-3 | S03414001 | CRANK ROD | 1 |
| 1-1-4 | 021800102 | NUT, 1 M7.14 | 1 |
| 1-1-5 | 115042001 | NUT 7.14 | 1 |
| 1-2 | S03415001 | NEEDLE BAR DRIVING LEVER ASSY | 1 |
| 1-2-1 | 115048101 | NEEDLE BAR BRACKET | 1 |
| 1-3 | S03417000 | FELT | 1 |
| 1-4 | S03418000 | WASHER | 1 |
| 1-5 | 105812003 | NUT, M7.94 | 1 |
| 2 | S03419001 | WASHER | 1 |
| 3 | S03420001 | NEEDLE BAR DRIVING LEVER SHFT | 1 |
| 4 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 2 |
| 5 | S03421001 | SET SCREW COLLAR ASSY | 1 |
| 5-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 6 | S03423001 | NEEDLE BAR | 1 |
| 7 | S03424000 | NEEDLE BAR BUSH (U) | 1 |
| 8 | S03425000 | NEEDLE BAR BUSH (D) | 1 |
| 9 | 115053016 | NEEDLE TQX1 (#16) | 1 |
| 10 | 140553102 | SET SCREW, M3.18 | 1 |
| 11 | S03426101 | NEEDLE BAR CLAMP ASSY | 1 |
| 11-1 | S03427101 | NEEDLE BAR CLAMP | 1 |
| 11-2 | S03428001 | THREAD TAKE-UP | 1 |
| 11-3 | 062671212 | SCREW, PAN M3.57-40X12 | 1 |
| 12 | S03429101 | NEEDLE GUIDE | 1 |
| 13 | 062710612 | SCREW, PAN M4.76-32X6 | 1 |
| 14 | S36622001 | NEEDLE PLATE | 1 |
| 15 | S01702001 | SCREW, OVAL M4.37X10 | 3 |

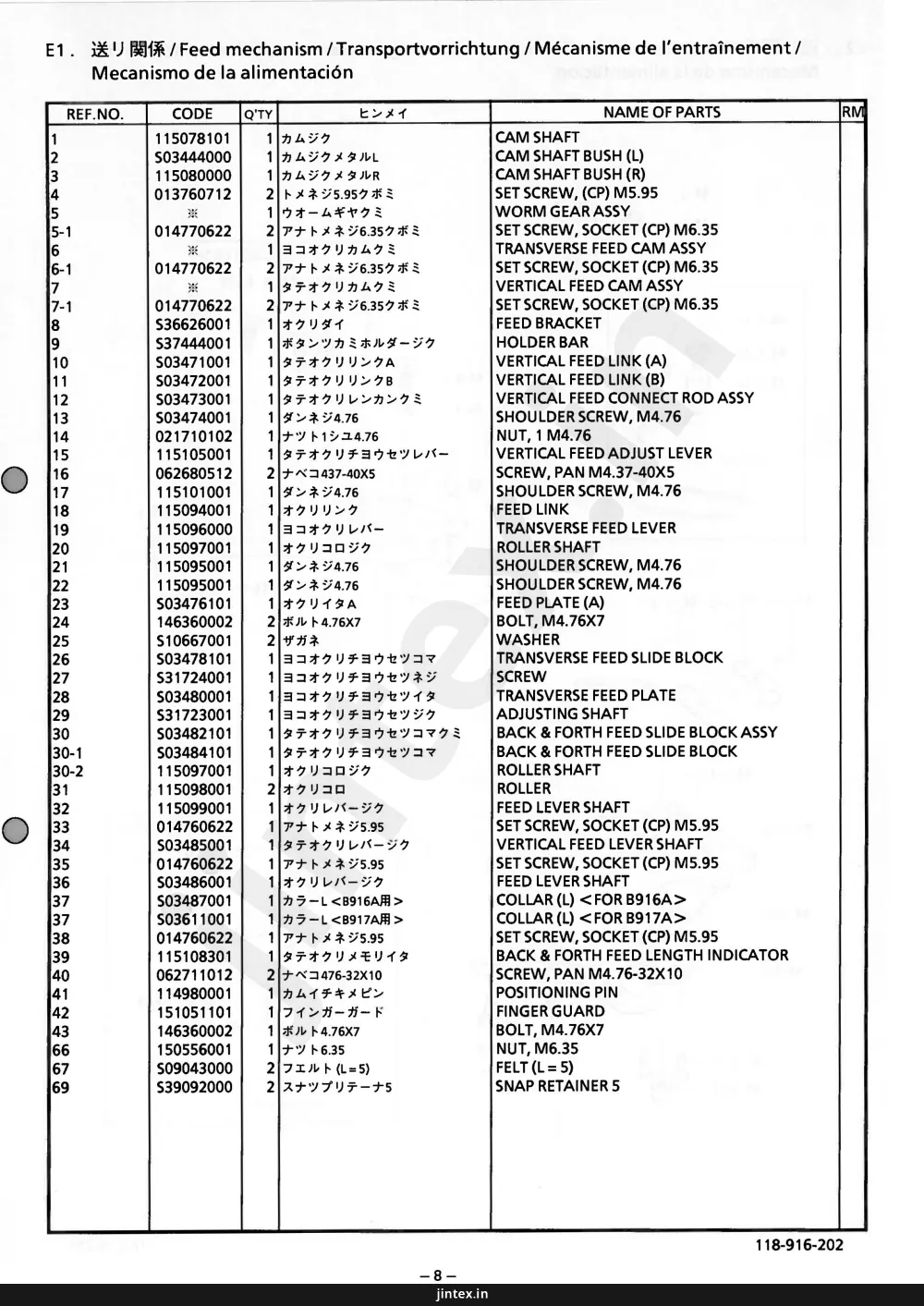

Page 15 — E1. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 115078101 | CAM SHAFT | 1 |
| 2 | S03444000 | CAM SHAFT BUSH (L) | 1 |
| 3 | 115080000 | CAM SHAFT BUSH (R) | 1 |
| 4 | 013760712 | SET SCREW, (CP) M5.95 | 2 |
| 5 | ※ | WORM GEAR ASSY | 1 |
| 5-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 6 | ※ | TRANSVERSE FEED CAM ASSY | 1 |
| 6-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 7 | ※ | VERTICAL FEED CAM ASSY | 1 |
| 7-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 8 | S36626001 | FEED BRACKET | 1 |
| 9 | S37444001 | HOLDER BAR | 1 |
| 10 | S03471001 | VERTICAL FEED LINK (A) | 1 |
| 11 | S03472001 | VERTICAL FEED LINK (B) | 1 |
| 12 | S03473001 | VERTICAL FEED CONNECT ROD ASSY | 1 |
| 13 | S03474001 | SHOULDER SCREW, M4.76 | 1 |
| 14 | 021710102 | NUT, 1 M4.76 | 1 |
| 15 | 115105001 | VERTICAL FEED ADJUST LEVER | 1 |
| 16 | 062680512 | SCREW, PAN M4.37-40X5 | 2 |
| 17 | 115101001 | SHOULDER SCREW, M4.76 | 1 |
| 18 | 115094001 | FEED LINK | 1 |
| 19 | 115096000 | TRANSVERSE FEED LEVER | 1 |
| 20 | 115097001 | ROLLER SHAFT | 1 |
| 21 | 115095001 | SHOULDER SCREW, M4.76 | 1 |
| 22 | 115095001 | SHOULDER SCREW, M4.76 | 1 |
| 23 | S03476101 | FEED PLATE (A) | 1 |
| 24 | 146360002 | BOLT, M4.76X7 | 2 |
| 25 | S10667001 | WASHER | 2 |
| 26 | S03478101 | TRANSVERSE FEED SLIDE BLOCK | 1 |
| 27 | S31724001 | SCREW | 1 |
| 28 | S03480001 | TRANSVERSE FEED PLATE | 1 |
| 29 | S31723001 | ADJUSTING SHAFT | 1 |
| 30 | S03482101 | BACK & FORTH FEED SLIDE BLOCK ASSY | 1 |
| 30-1 | S03484101 | BACK & FORTH FEED SLIDE BLOCK | 1 |
| 30-2 | 115097001 | ROLLER SHAFT | 1 |
| 31 | 115098001 | ROLLER | 2 |
| 32 | 115099001 | FEED LEVER SHAFT | 1 |
| 33 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 34 | S03485001 | VERTICAL FEED LEVER SHAFT | 1 |
| 35 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 36 | S03486001 | FEED LEVER SHAFT | 1 |
| 37 | S03487001 | COLLAR (L) | 1 |
| 37 | S03611001 | COLLAR (L) | 1 |
| 38 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 39 | 115108301 | BACK & FORTH FEED LENGTH INDICATOR | 1 |
| 40 | 062711012 | SCREW, PAN M4.76-32X10 | 2 |
| 41 | 114980001 | POSITIONING PIN | 1 |
| 42 | 151051101 | FINGER GUARD | 1 |
| 43 | 146360002 | BOLT, M4.76X7 | 1 |
| 66 | 150556001 | NUT, M6.35 | 1 |
| 67 | S09043000 | FELT (L=5) | 2 |
| 69 | S39092000 | SNAP RETAINER 5 | 2 |
Page 17 — E2. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Meccanismo de la alimentación
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44-1 | S37352009 | PRESSER ARM | 1 |
| 44-2 | S03459001 | PRESSER ADJUST PLATE ASSY | 1 |
| 44-3 | S03695001 | WASHER 6 | 1 |
| 44-4 | 018061022 | BOLT, SOCKET M6X10 | 1 |
| 44-5-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 44-5-2 | S29998001 | BUTTON CLAMP (L) | 1 |
| 44-5-3 | S30001001 | SPRING, PLATE | 1 |
| 44-5-4 | S29999001 | BUTTON CLAMP (R) | 1 |
| 44-5-5 | S30002001 | SPRING, PLATE | 1 |
| 44-5-6 | 115156001 | PIN | 2 |
| 44-5-7 | 062680512 | SCREW, PAN M4.37-40X5 | 2 |
| 44-5-8 | 047250642 | PIN, SPRING ROLL AW2.5 | 2 |
| 44-5-9 | 115158001 | SHOULDER SCREW, M4.76 | 2 |
| 44-5-10 | S29954001 | BUTTON CLAMP (M) ASSY | 1 |
| 44-5-11 | S03468001 | SCREW, M4.37 | 1 |
| 44-5-12 | S03657001 | NUT, M4.37 | 1 |
| 44-5-17 | S03659001 | BUTTON CLAMP PLATE CAM | 1 |
| 44-5-18 | 062680812 | SCREW, PAN M4.37-40X8 | 2 |
| 44-6 | 017711412 | BOLT, M4.76X14 | 2 |
| 44-7 | 146354001 | WASHER | 2 |
| 44-8 | 014680622 | SET SCREW, SOCKET (CP) M4.37 | 2 |
| 44 | S37437009 | PRESSER ARM ASSY 916 | 1 |
| 44-5 | S30015001 | BUTTON CLAMP ASSY | 1 |
| 44-5-13 | 115163001 | SPRING, PLATE | 1 |
| 44-5-14 | 115164001 | BUTTON CLAMP ADJUST PLATE | 1 |
| 44-5-15 | 115165001 | SHOULDER SCREW, M4.37 | 1 |
| 44-5-16 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 44 | S37438009 | PRESSER ARM ASSY 917 | 1 |
| 44-5 | S30016001 | BUTTON CLAMP ASSY | 1 |
| 44-5-13 | S03610001 | SPRING | 1 |
| 44-9 | S03600001 | SIZE ADJUST PLATE ASSY | 1 |
| 44-10 | S03604001 | BUTTON OPENER CLAW | 1 |
| 44-11 | S03605001 | SCREW, M6.35 | 1 |
| 44-12 | 150556001 | NUT, M6.35 | 1 |
| 44-13 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 44-14 | S03606001 | STOPPER SCREW | 1 |
| 44-15 | S03607001 | SPRING | 1 |
| 44-16 | S03608001 | SPRING HOOK | 1 |
| 44-17 | 025680232 | WASHER, PLAIN M 4.37 | 1 |
Page 19 — F. 押工上ゲ関係 / Presser foot lifter mechanism / Stoffhaltervorrichtung / Mécanisme de leveur du pinceur / Mecanismo del levantador de ménsula de trabajo
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S03488001 | DRIVING CAM ASSY | 1 |
| 1-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 2 | S03489101 | BUTTON CLAMP DRIVING FORK | 1 |
| 3 | 115126001 | BUTTON CLAMP DRIVING FORK SHAFT | 1 |
| 4 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 2 |
| 5 | S03490001 | SET SCREW COLLAR ASSY | 2 |
| 5-1 | 013710512 | SET SCREW, (CP) M4.76 | 4 |
| 6 | S36629001 | DRIVING CONNECTOR ASSY | 1 |
| 6-1 | S36630001 | CONNECTOR ASSY | 1 |
| 6-2 | S03496101 | DRIVING ROD CLAW | 1 |
| 6-3 | 018680822 | BOLT, SOCKET M4.37X8 | 1 |
| 8 | S03500001 | PRESSER DRIVING LEVER ASSY | 1 |
| 8-1 | S03501000 | PRESSER DRIVING LEVER | 1 |
| 8-2 | S03502001 | PRESSER LIFTER CONNECT PLATE | 1 |
| 8-3 | S03503001 | PRESSER CONNECT STUD | 1 |
| 8-4 | 014680622 | SET SCREW, SOCKET (CP) M4.37 | 1 |
| 8-5 | S03504001 | TENSION RELEASE CONNECT ROD ASSY | 1 |
| 8-6 | S03508001 | TENSION RELEASE ADJUST STUD | 1 |
| 8-7 | 048050342 | RETAINING RING, E5 | 1 |
| 8-8 | 014680622 | SET SCREW, SOCKET (CP) M4.37 | 2 |
| 9 | S03509001 | PRESSER DRIVING LEVER SHAFT | 1 |
| 10 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 2 |
| 11 | S03704002 | SET SCREW COLLAR ASSY | 1 |
| 11-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 13 | S03503001 | PRESSER CONNECT STUD | 1 |
| 15 | S36633001 | SPRING, EXTENSION | 1 |
| 17 | S03512001 | STOPPER SCREW ASSY | 2 |
| 18 | 100507000 | WASHER | 2 |
| 19 | 013710712 | SET SCREW, (CP) M4.76 | 2 |
| 20-1 | S03516001 | PRESSER LIFTER BRACKET | 1 |
| 20-2 | S03517101 | PRESSER LIFTER ARM | 1 |
| 20-3 | S03518001 | PRESSER LIFTER ARM STUD | 1 |
| 20-4 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 21 | 018062022 | BOLT, SOCKET M6X20 | 2 |
| 22 | 145480101 | SHOULDER SCREW, M6.35 | 1 |
| 23 | S09146001 | SPRING GUIDE ASSY (B) | 1 |
| 23-1 | S09147001 | SPRING GUIDE (B) | 1 |
| 23-2 | 110744002 | NUT, M6.35 | 2 |
| 24 | S03521001 | SPRING | 1 |
| 71 | 062761612 | SCREW, PAN M5.95-28X16 | 1 |
| 72 | 156874001 | SHOULDER SCREW, M4.37 | 1 |
| 73 | 110161004 | NUT, M4.76 | 1 |
| 20 | S03515001 | PRESSER LIFTER ARM ASSY | 1 |
| 70 | S36632000 | BUTTON CLAMP DRIVING LEVER | 1 |
| 20 | S03612001 | PRESSER LIFTER ARM ASSY | 1 |
| 20-5 | S03613001 | CLAW ADJUSTING PLATE | 1 |
| 20-6 | 062780812 | SCREW, PAN M6.35-28X8 | 1 |
| 20-7 | 025060232 | WASHER, PLAIN M 6 | 1 |
| 20-8 | S03614001 | BUTTON OPENER CLAW (B) | 1 |
| 20-9 | 146360002 | BOLT, M4.76X7 | 1 |
| 20-10 | 146354001 | WASHER | 1 |
| 70 | S37439000 | BUTTON CLAMP DRIVING LEVER | 1 |
Page 21 — G. 下軸関係 / Lower shaft mechanism / Untere Welle / Mécanisme del eje inferior H. ホサバキ関係 / Loop spreading mechanism / Schleifenzieher / Etirement de boucle / Ensanche de bucle
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S03522001 | HELICAL GEAR ASSY | 1 |
| 1-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 2 | S03523001 | LOWER SHAFT | 1 |
| 3 | S03524000 | LOWER SHAFT BUSH (F) | 1 |
| 4 | S03525000 | LOWER SHAFT BUSH (B) | 1 |
| 5 | S03526001 | LOWER SHAFT GEAR ASSY | 1 |
| 5-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| 6 | 147151000 | WASHER | 1 |
| 7 | S10668001 | WASHER | 1 |
| 8 | 115008000 | BALL BEARING | 1 |
| 9-1 | 014770622 | SET SCREW, SOCKET (CP) M6.35 | 3 |
| 10 | 147151000 | WASHER | 1 |
| 11 | 181995001 | SET SCREW COLLAR ASSY | 1 |
| 11-1 | 101706001 | SET SCREW, M6.35 | 2 |
| 12 | 107153001 | WASHER | 1 |
| 13 | S03533001 | GROOVED CAM ASSY | 1 |
| 13-1 | 110124001 | SET SCREW, M5.56 | 2 |
| 15 | S03536001 | ROTARY LOOPER | 1 |
| 16 | S36699001 | TRIANGULAR CAM ASSY | 1 |
| 16-1 | 115066000 | LOOPER SETTING SHAFT | 1 |
| 16-2 | 013750512 | SET SCREW, (CP) M5.56 | 2 |
| 16-3 | 115067001 | THREAD HANDLER TRIANGULAR CAM | 1 |
| 16-4 | 151601002 | SET SCREW, M4.37 | 2 |
| 16-5 | 115068001 | SET SCREW COLLAR | 1 |
| 16-6 | 151602001 | SET SCREW, M4.37 | 1 |
| 1 | S03567001 | THREAD HANDLER BRACKET | 1 |
| 2 | S01696001 | SCREW, FLAT M3.57X6 | 2 |
| 3 | S36624001 | THREAD HANDLER GUIDE PLATE | 1 |
| 4 | S36625001 | THREAD HANDLER | 1 |
| 5 | 115073001 | THREAD HANDLER LINK ASSY | 1 |
| 6 | 115076001 | THREAD HANDLER LINK ROLLER | 1 |
| 7 | 115077001 | SHOULDER SCREW, M4.76 | 1 |
Page 23 — J. 糸通シ関係 / Threading mechanism / Fadenführungsvorrichtung / Mécanisme de l'enfilage / Mecanismo del enhebrado
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | S03538109 | TOP COVER | 1 |
| 1-3 | S03540001 | SHOULDER SCREW, M4.76 | 2 |
| 1-4 | S03541001 | ROTOR BASE | 1 |
| 1-5 | S03542001 | ROTOR ASSY | 1 |
| 1-6 | 062710612 | SCREW, PAN M4.76-32X6 | 1 |
| 1-7 | 146354001 | WASHER | 1 |
| 1-8 | S03543101 | ROTOR SHAFT | 1 |
| 1-9 | 013710712 | SET SCREW, (CP) M4.76 | 1 |
| 1-10 | S03544101 | SUB TENSION STUD ASSY | 1 |
| 1-10-1 | S03545001 | SUB TENSION STUD | 1 |
| 1-10-2 | S03546001 | PIN | 1 |
| 1-10-3 | 115187101 | TENSION DISC | 2 |
| 1-10-4 | 159805001 | TENSION DISC PRESSER | 1 |
| 1-10-5 | 148924101 | TENSION SPRING | 1 |
| 1-10-6 | 100136001 | TENSION NUT | 2 |
| 1-11 | 013710712 | SET SCREW, (CP) M4.76 | 1 |
| 1-12 | S06057001 | MAIN TENSION STUD ASSY | 1 |
| 1-12-1 | 115186001 | MAIN THREAD TENSION STUD | 1 |
| 1-12-2 | 115187101 | TENSION DISC | 2 |
| 1-12-3 | 115188002 | TENSION SPRING | 1 |
| 1-12-4 | 100136001 | TENSION NUT | 1 |
| 1-13 | 115183101 | THREAD GUIDE | 1 |
| 1-14 | 062710612 | SCREW, PAN M4.76-32X6 | 1 |
| 1-15 | S03549001 | THREAD PRESSER TENSION STUD ASSY | 1 |
| 1-15-1 | S03550001 | THREAD PRESSER TENSION STUD | 1 |
| 1-15-2 | 115187101 | TENSION DISC | 1 |
| 1-15-3 | 159805001 | TENSION DISC PRESSER | 1 |
| 1-15-4 | S06432001 | TENSION SPRING | 1 |
| 1-15-5 | 100136001 | TENSION NUT | 2 |
| 1-16 | 150556001 | NUT, M6.35 | 1 |
| 1-17 | S03551001 | PIN | 4 |
| 1-22 | S03556001 | PIN 3 | 1 |
| 1-23 | S03557001 | SPRING, EXTENSION | 1 |
| 1-24 | S03558001 | SPRING HOOK | 1 |
| 1-25 | S06253201 | THREAD GUIDE | 1 |
| 1-26 | 014680622 | SET SCREW, SOCKET (CP) M4.37 | 1 |
| 1-27 | S16253001 | THREAD DIAGRAM | 1 |
| 2 | 062711012 | SCREW, PAN M4.76-32X10 | 5 |
| 3 | S03617001 | THREAD TAKE-UP LEVER | 1 |
| 4 | 062711012 | SCREW, PAN M4.76-32X10 | 1 |
| 5 | 146354001 | WASHER | 1 |
| 10 | S03560001 | THREAD TAKE-UP LEVER SFAFT | 1 |
| 11 | 013710712 | SET SCREW, (CP) M4.76 | 1 |
| 12 | S03561201 | FACE PLATE ASSY | 1 |
| 12-1 | S03377101 | FACE PLATE SMALL ASSY | 1 |
| 12-2 | 144504001 | THREAD GUIDE DISC | 2 |
| 12-3 | 144505000 | SPRING | 1 |
| 12-4 | 155510001 | TENSION NUT | 1 |
| 13 | S03564001 | SUB TENSION THREAD GUIDE | 1 |
| 14 | S03565001 | FACE PLATE THREAD GUIDE | 1 |
| 15 | S03566001 | FACE PLATE THREAD HOOK | 1 |
| 16 | 062711012 | SCREW, PAN M4.76-32X10 | 4 |
| 17 | 112758009 | OIL CAP | 1 |
| 1 | S03537109 | TOP COVER ASSY 916 | 1 |
| 1-2 | S03539101 | SLIDER ASSY (A) | 1 |
| 1-18 | S03552001 | TENSION RELEASER | 1 |
| 1-19 | S03553001 | SHOULDER SCREW, M4.76 | 1 |
| 1-20 | S03554001 | TENSION RELEASE SPRING | 1 |
| 1-21 | S03555001 | STOPPER PIN | 1 |
| 1 | S03615109 | TOP COVER ASSY | 1 |
| 1-2 | S03616101 | SLIDER ASSY (B) | 1 |
Page 25 — K. 糸切り 関係 / Thread trimmer mechanism / Fadenabschneidevorrichtung / Mécanisme de coupe-fil / Mecanismo de la cortadura de hiros
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S37369001 | THREAD TRIMMER LEVER ASSY | 1 |
| 1-1 | S36617001 | THREAD TRIMMER LEVER | 1 |
| 1-2 | S03406101 | CLAW | 1 |
| 1-3 | S03407001 | ROLLER | 1 |
| 1-4 | S03408001 | SHOULDER SCREW | 1 |
| 1-5 | 110161004 | NUT, M4.76 | 1 |
| 1-6 | S34278001 | SPRING HANGER SHAFT | 1 |
| 1-7 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 1-8 | S03621001 | CONNECTING BAR | 1 |
| 1-9 | S03622101 | CONNECTING LEVER | 1 |
| 1-10 | S03623001 | CONNECTING BAR SHAFT | 1 |
| 1-11 | 048050342 | RETAINING RING, E5 | 1 |
| 1-12 | 150553001 | NUT, M5.95 | 1 |
| 1-13 | 025060232 | WASHER, PLAIN M 6 | 1 |
| 1-14 | 048040342 | RETAINING RING, E4 | 1 |
| 1-15 | 155559001 | WASHER, PLAIN | 1 |
| 2 | 151932001 | BEARING COVER | 1 |
| 3 | 107231002 | SCREW, FLAT M4.76 | 1 |
| 4 | S03624001 | SPRING | 1 |
| 5 | S34298001 | DOWEL PIN | 1 |
| 6 | S03626001 | THREAD TRIMMER CONNECTING ROD ASSY | 1 |
| 7 | S03627001 | MOVABLE KNIFE | 1 |
| 8 | S03628001 | MOVABLE KNIFE SHOULDER SCREW | 1 |
| 9 | S03629001 | FIXED KNIFE | 1 |
| 10 | 106629002 | SCREW, M4.37 | 1 |
| 1 | S03476101 | FEED PLATE (A) | 1 |
| 1 | S03630101 | FEED PLATE (B) | 1 |
| 1 | 115085001 | FEED PLATE (C) | 1 |
| 1 | S03632101 | FEED PLATE (D) | 1 |
| 1 | S16121101 | FEED PLATE (E) | 1 |
Page 27 — L2. オプションパーツ/Option parts / Sondezubehör / Pièces en opt
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S03701001 | BUTTON CLAMP SET (A) | 1 |
| 2-1 | S30015001 | BUTTON CLAMP ASSY | 1 |
| 2-1-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 2-1-2 | S29998001 | BUTTON CLAMP (L) | 1 |
| 2-1-3 | S30001001 | SPRING, PLATE | 1 |
| 2-1-4 | S29999001 | BUTTON CLAMP (R) | 1 |
| 2-1-5 | S30002001 | SPRING, PLATE | 1 |
| 2-1-6 | 115156001 | PIN | 2 |
| 2-1-7 | 062680512 | SCREW, PAN M4.37-40X5 | 2 |
| 2-1-8 | 047250642 | PIN, SPRING ROLL AW2.5 | 2 |
| 2-1-9 | 115158001 | SHOULDER SCREW, M4.76 | 2 |
| 2-1-10 | S29954001 | BUTTON CLAMP (M) ASSY | 1 |
| 2-1-11 | S03468001 | SCREW, M4.37 | 1 |
| 2-1-12 | S03657001 | NUT, M4.37 | 1 |
| 2-1-13 | 115163001 | SPRING, PLATE | 1 |
| 2-1-14 | 115164001 | BUTTON CLAMP ADJUST PLATE | 1 |
| 2-1-15 | 115165001 | SHOULDER SCREW, M4.37 | 1 |
| 2-1-16 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 2-1-17 | S03659001 | BUTTON CLAMP PLATE CAM | 1 |
| 2-1-18 | 062680812 | SCREW, PAN M4.37-40X8 | 2 |
| 2-2 | S03610001 | SPRING | 1 |
| 2 | S03633001 | BUTTON CLAMP SET (B) | 1 |
| 2-1 | S03634001 | BUTTON CLAMP ASSY (B) | 1 |
| 2-1-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 2-1-2 | S03650001 | BUTTON CLAMP (LB) | 1 |
| 2-1-3 | S11079001 | SPRING, PLATE | 1 |
| 2-1-4 | S03649001 | BUTTON CLAMP (RB) | 1 |
| 2-1-5 | S11080001 | SPRING, PLATE | 1 |
| 2-1-6 | 115156001 | PIN | 2 |
| 2-1-7 | 062680512 | SCREW, PAN M4.37-40X5 | 2 |
| 2-1-8 | 047250642 | PIN, SPRING ROLL AW2.5 | 2 |
| 2-1-9 | 115158001 | SHOULDER SCREW, M4.76 | 2 |
| 2-1-10 | S03467001 | BUTTON CLAMP (M) ASSY | 1 |
| 2-1-11 | S03468001 | SCREW, M4.37 | 1 |
| 2-1-12 | S03657001 | NUT, M4.37 | 1 |
| 2-1-13 | 115163001 | SPRING, PLATE | 1 |
| 2-1-14 | 115164001 | BUTTON CLAMP ADJUST PLATE | 1 |
| 2-1-15 | 115165001 | SHOULDER SCREW, M4.37 | 1 |
| 2-1-16 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 2-1-17 | S03659001 | BUTTON CLAMP PLATE CAM | 1 |
| 2-1-18 | 062680812 | SCREW, PAN M4.37-40X8 | 2 |
| 2-2 | S03610001 | SPRING | 1 |
Page 29 — L3. オプションパーツ / Option parts / Sondeubehör / Pièces en option / Piezas opcionales
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 142570009 | SHANK BUTTON ATTACHMENT | 1 |
| 5-1 | 142689209 | SHANK BUTTON CLAMP ASSY | 1 |
| 5-1-1 | 154684009 | SHANK BUTTON CLAMP BRACKET | 1 |
| 5-1-2 | 142677001 | BUTTON CLAMP (A) | 1 |
| 5-1-3 | 142678001 | BUTTON CLAMP (B) | 1 |
| 5-1-4 | 062670812 | SCREW, PAN M3.57-40X8 | 1 |
| 5-1-5 | 102707003 | WASHER | 1 |
| 5-1-6 | 142681001 | BUTTON PRESSER STUD | 1 |
| 5-1-7 | 154685001 | SPRING | 1 |
| 5-1-8 | 142706001 | SET SCREW COLLAR | 2 |
| 5-1-9 | 062670712 | SCREW, PAN M3.57-40X7 | 2 |
| 5-1-10 | 154686001 | BUTTON PRESSER ARM | 1 |
| 5-1-11 | 013719412 | SET SCREW, (CP) M4.76 | 1 |
| 5-1-12 | 142680001 | BUTTON PRESSER | 1 |
| 5-1-13 | 120990001 | SET SCREW, M4.37 | 1 |
| 5-2 | 142683101 | BUTTON PRESSER ARM LIFTER | 1 |
| 5-3 | 142684001 | BUTTON PRESSER ARM LIFTER BAR | 1 |
| 5-4 | 120990001 | SET SCREW, M4.37 | 1 |
| 5-5 | 062711012 | SCREW, PAN M4.76-32X10 | 1 |
| 5-6 | 156336001 | SHANK BUTTON FEED PLATE | 1 |
| 5-7 | 060670512 | SCREW, BIND M3.57-40X5 | 1 |
| 5-8 | 142686001 | CLOTH RECEIVER (S) | 1 |
| 5-9 | S03641001 | BOTTON CLAMP (D) | 1 |
| 5-10 | 142687001 | CLOTH RECEIVER (MIDDLE) | 1 |
| 5-11 | 142688001 | CLOTH RECEIVER (LARGE) | 1 |
| 12 | S10654001 | SHANK GAUGE KIT | 1 |
| 12-1 | S10560001 | BUTTON CLAMP (E) | 1 |
| 12-2 | S10651001 | BUTTON CLAMP (F) | 1 |
| 12-3 | 105161003 | WASHER | 1 |
| 12-4 | S39086001 | SCREW, PAN M3.57-40X3.5 | 1 |
| 12-5 | S10652000 | BUTTON GUIDE (1.5) | 5 |
| 12-6 | S10653000 | BUTTON GUIDE (1.0) | 5 |
| 13 | S10655001 | BUTTON GUIDE SET | 1 |
| 13-1 | S10652000 | BUTTON GUIDE (1.5) | 10 |
| 13-2 | S10653000 | BUTTON GUIDE (1.0) | 10 |
Page 31 — L4. オプションパーツ/Option parts/Sondezubehör / Pièces en option/Piezas opcionales
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | S39822009 | SHANK DEVICE SET | 1 |
| 6-1 | S39823009 | SHANK BUTTON CLAMP ASSY | 1 |
| 6-1-1 | 142689209 | SHANK BUTTON CLAMP ASSY | 1 |
| 6-1-1-1 | 154684009 | SHANK BUTTON CLAMP BRACKET | 1 |
| 6-1-1-2 | 142677001 | BUTTON CLAMP (A) | 1 |
| 6-1-1-3 | 142678001 | BUTTON CLAMP (B) | 1 |
| 6-1-1-4 | 062670812 | SCREW, PAN M3.57-40X8 | 1 |
| 6-1-1-5 | 102707003 | WASHER | 1 |
| 6-1-1-6 | 142681001 | BUTTON PRESSER STUD | 1 |
| 6-1-1-7 | 154685001 | SPRING | 1 |
| 6-1-1-8 | 142706001 | SET SCREW COLLAR | 2 |
| 6-1-1-9 | 062670712 | SCREW, PAN M3.57-40X7 | 2 |
| 6-1-1-10 | 154686001 | BUTTON PRESSER ARM | 1 |
| 6-1-1-11 | 013719412 | SET SCREW, (CP) M4.76 | 1 |
| 6-1-1-12 | 142680001 | BUTTON PRESSER | 1 |
| 6-1-1-13 | 120990001 | SET SCREW, M4.37 | 1 |
| 6-1-2 | S37352009 | PRESSER ARM | 1 |
| 6-1-3 | S03459001 | PRESSER ADJUST PLATE ASSY | 1 |
| 6-1-4 | 018061022 | BOLT, SOCKET M6X10 | 1 |
| 6-1-5 | S03695001 | WASHER 6 | 1 |
| 6-1-6 | 017711412 | BOLT, M4.76X14 | 2 |
| 6-1-7 | 146354001 | WASHER | 2 |
| 6-1-8 | 014680622 | SET SCREW, SOCKET (CP) M4.37 | 2 |
| 6-2 | 142683101 | BUTTON PRESSER ARM LIFTER | 1 |
| 6-3 | 142684001 | BUTTON PRESSER ARM LIFTER BAR | 1 |
| 6-4 | 120990001 | SET SCREW, M4.37 | 1 |
| 6-5 | 062711012 | SCREW, PAN M4.76-32X10 | 1 |
| 6-6 | 156336001 | SHANK BUTTON FEED PLATE | 1 |
| 6-7 | 060670512 | SCREW, BIND M3.57-40X5 | 1 |
| 6-8 | 142686001 | CLOTH RECEIVER (S) | 1 |
| 6-9 | S03641001 | BOTTON CLAMP (D) | 1 |
| 6-10 | 142687001 | CLOTH RECEIVER (MIDDLE) | 1 |
| 6-11 | 142688001 | CLOTH RECEIVER (LARGE) | 1 |
| 7 | S03655002 | MECHANICAL TWO-PEDAL SET | 1 |
| 7-1 | S03714001 | PRESSER LIFTER LEVER ASSY | 1 |
| 7-1-1 | S03705001 | BASE PLATE | 1 |
| 7-1-2 | S03706001 | PRESSER LIFTER LEVER | 1 |
| 7-1-3 | S03707001 | GUIDE PLATE | 1 |
| 7-1-4 | 062710612 | SCREW, PAN M4.76-32X6 | 1 |
| 7-1-5 | S03625001 | SPRING HOOK | 1 |
| 7-1-6 | 110161004 | NUT, M4.76 | 1 |
| 7-2 | S37805001 | PRESSER LIFTER SPRING ASSY | 1 |
| 7-2-1 | 018061422 | BOLT, SOCKET M6X14 | 2 |
| 7-2-2 | S03625001 | SPRING HOOK | 1 |
| 7-2-3 | S03624001 | SPRING | 1 |
| 7-3 | 116185209 | PEDAL ASSY | 1 |
| 7-3-1 | 117437109 | FOOT LIFTER PEDAL | 1 |
| 7-3-2 | 021400106 | NUT, 1 M4 | 2 |
| 7-3-3 | 062401416 | SCREW, PAN M4X14 | 2 |
| 7-3-4 | 116016001 | PEDAL STOPPER | 2 |
| 7-4 | 142656001 | CHAIN ASSY | 1 |
Page 33 — L5. オプションパーツ / Option parts / Sondeubehör / Pièces en option / Piezas opcionales
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | S03692001 | LABEL ATTACHMENT | 1 |
| 8-1 | S09144001 | LABEL CLAMP | 1 |
| 8-2 | S09143001 | STOPPER | 1 |
| 8-3 | S09145001 | CLAMP SPRING | 1 |
| 8-4 | S01295001 | SCREW, M2.38X3.5 | 2 |
| 9 | S03693001 | STAY BUTTON ATTACHMENT (S) | 1 |
| 9-1 | S09482001 | STAY BUTTON FEED PLATE | 1 |
| 9-2 | S09483001 | BUTTON RECEIVER (D) | 1 |
| 9-3 | S09484001 | BUTTON RECEIVER (U) | 1 |
| 9-4 | S09494001 | SCREW, M3.18-44X3.4 | 1 |
| 9-5 | S09485001 | RECEIVER GUIDE (L) | 1 |
| 9-6 | S09486001 | RECEIVER GUIDE (R) | 1 |
| 9-7 | S09493001 | SCREW, M3.18-44X4 | 4 |
| 9-8 | S09487001 | RECEIVER SUPPORT SPRING | 1 |
| 11 | 150416001 | BUTTON ROOT WRAPPING ATTACHMENT | 1 |
| 11-1 | S09488001 | LIFTING GAUGE | 1 |
| 11-2 | S09564001 | WRAPPING GAUGE ASSY | 1 |
| 11-2-1 | S09489001 | ROOT WRAPPING BUTTON FEED PLATE | 1 |
| 11-2-2 | S09490001 | BUTTON ROOT WRAPPING RECEIVER (A) | 1 |
| 11-2-3 | S09491001 | BUTTON ROOT WRAPPING RECEIVER (B) | 1 |
| 11-2-4 | S09492001 | THREAD CLAMP | 1 |
| 11-2-5 | S09496001 | SCREW, M2.38-56X1.9 | 2 |
| 11-2-6 | S09495001 | BOLT, M4.37-40X4.5 | 1 |
Page 35 — L6 . オプションパーツ / Option parts / Sondezubehör / Pièces en option / Piezas opcionales
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4 | S03635001 | SNAP CLAMP SET | 1 |
| 4-1 | S03636001 | SNAP CLAMP ASSY | 1 |
| 4-1-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 4-1-2 | 118541001 | SNAP CLAMP (L) | 1 |
| 4-1-3 | 118539001 | SNAP CLAMP (R) | 1 |
| 4-1-4 | 115156001 | PIN | 2 |
| 4-1-5 | 115158001 | SHOULDER SCREW, M4.76 | 2 |
| 4-1-6 | S03712001 | SNAP CLAMP (M) ASSY | 1 |
| 4-1-7 | S03468001 | SCREW, M4.37 | 1 |
| 4-1-8 | S03657001 | NUT, M4.37 | 1 |
| 4-1-9 | 115163001 | SPRING, PLATE | 1 |
| 4-1-10 | 115164001 | BUTTON CLAMP ADJUST PLATE | 1 |
| 4-1-11 | 115165001 | SHOULDER SCREW, M4.37 | 1 |
| 4-1-12 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 4-1-13 | S03659001 | BUTTON CLAMP PLATE CAM | 1 |
| 4-1-14 | 062680812 | SCREW, PAN M4.37-40X8 | 2 |
| 4-2 | S03610001 | SPRING | 1 |
| 20 | S09655001 | BUTTON SPACER SET | 1 |
| 20-1 | S09656001 | BUTTON SPACER ASSY | 1 |
| 20-1-1 | S09657001 | BASE | 1 |
| 20-1-2 | S09658001 | SCALE | 1 |
| 20-1-3 | S09686001 | BOLT, M4.37-40X7 | 2 |
| 20-1-4 | S02745001 | WASHER | 2 |
| 20-1-5 | S09659001 | POSITIONING SET PLATE (A) | 1 |
| 20-1-6 | S09660001 | POSITIONING SET PLATE (B) | 1 |
| 20-1-7 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 21 | S38181001 | BUTTON HOLDER HOOK ASSY | 1 |
| 21-1 | S36813001 | BUTTON HOLDER HOOK | 1 |
| 21-2 | 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 22 | S37370001 | FEED SPACER | 1 |
Page 37 — Z1 . 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 122991001 | ACCESSORY BAG | 1 |
| 2-1 | 118837001 | SCREW DRIVER 3.4X70 | 1 |
| 2-2 | 101572101 | SCREW DRIVER 5.5X190 | 1 |
| 3-1 | 107780001 | WRENCH 10X12 | 1 |
| 3-2 | 142205001 | WRENCH 7X8 | 1 |
| 4-1 | 142721001 | HEXAGONAL WRENCH 3 | 1 |
| 4-2 | 146049001 | HEXAGONAL WRENCH 2 | 1 |
| 4-3 | 118064001 | HEXAGONAL WRENCH 4 | 1 |
| 5 | 115053014 | NEEDLE TQX1 (#14) | 2 |
| 5 | 115053016 | NEEDLE TQX1 (#16) | 2 |
| 5 | 115053018 | NEEDLE TQX1 (#18) | 2 |
| 6 | S20130009 | COTTON STAND WITH SCREW | 1 |
| 6-1 | S20131009 | COTTON STAND ASSY | 1 |
| 6-1-1 | S20132009 | DISC | 1 |
| 6-1-2 | S20133001 | THREAD GUIDE | 1 |
| 6-1-3 | S20134001 | SCREW W476X10 | 1 |
| 6-1-4 | S20135001 | SPOOL PIN | 1 |
| 6-2 | 035412006 | WOOD SCREW, OVAL M4.1X20 | 2 |
| 7-1 | 116185209 | PEDAL ASSY | 1 |
| 7-1-1 | 117437109 | FOOT LIFTER PEDAL | 1 |
| 7-1-2 | 021400106 | NUT, 1 M4 | 2 |
| 7-1-3 | 062401416 | SCREW, PAN M4X14 | 2 |
| 7-1-4 | 116016001 | PEDAL STOPPER | 2 |
| 8 | 142656001 | CHAIN ASSY | 1 |
| 9 | 144543001 | BOLT, M6X63 | 4 |
| 10 | 025060232 | WASHER, PLAIN M 6 | 4 |
| 11 | 021060102 | NUT, 1 M6 | 4 |
| 12 | 115947001 | WASHER | 4 |
| 16 | 144224001 | HEAD COVER | 1 |
| 20 | S37135001 | NEEDLE BAR COVER | 1 |
| 21 | S18642009 | BUTTON TRAY | 1 |
| 24 | S37137001 | EYE GUARD ASSY | 1 |
| 24-1 | S37132001 | EYE GUARD HINGE ASSY | 1 |
| 24-2 | 143966001 | EYE GUARD | 1 |
| 24-3 | S01700001 | SCREW, FLAT M3.18X7 | 2 |
| 24-4 | 025030232 | WASHER, PLAIN M 3 | 2 |
| 24-5 | 021660102 | NUT, 1 M3.18 | 2 |
| 40 | 018400632 | BOLT, SOCKET M4X6 | 1 |
Page 39 — Z2. 付属部品関係 (オプションパーツ) / Accessories (Option parts) / Zubehör (Sondezubehör) / Accessoires (Pièces en option) / Accesorios (Piezas opcionales)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7-2 | S01603009 | TREADLE ASSY (FOR Z-TYPE STAND) | 1 |
| 7-2-1 | S01199003 | TREADLE PEDAL | 1 |
| 7-2-2 | 133188001 | TREADLE SHAFT | 1 |
| 7-2-3 | 119707003 | TREADLE SHAFT BRACKET | 2 |
| 7-2-4 | 119708001 | TREADLE SHAFT BRACKET COLLAR | 2 |
| 7-2-5 | 017082206 | BOLT, M8X22 | 2 |
| 7-2-6 | 116694001 | NUT, M8 | 2 |
| 7-2-7 | 028080240 | WASHER, SPRING 2-8 | 2 |
| 7-2-8 | 025080236 | WASHER, PLAIN M 8 | 2 |
| 25 | 119270001 | N65 PULLEY ASSY (FOR 60HZ) | 1 |
| 25 | 119271001 | N75 PULLEY ASSY (FOR 50HZ) | 1 |
| 25-1 | 105730001 | SET SCREW, M6.35 | 2 |
| 26 | 133824001 | CUSHION RUBBER | 8 |
| 27 | S18707124 | V-BELT M (WHITE) (FOR 50HZ) | 1 |
| 27 | S18707123 | V-BELT M (WHITE) (FOR 60HZ) | 1 |
| 100 | S38636001 | PULLEY COVER ASSY | 2 |
| 101 | 032422003 | WOOD SCREW, M4.0X20 | 4 |
Page 40 — 仕 様 別 部品 一覧 表 / Diffrent parts list / Zubehörliste / Liste des pieces accessoires / Lista de piezas accesorias
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S36696001 | Stitch control cam assy | ||
| S03445001 | Worm gear assy | ||
| S03446001 | Transverse feed cam assy | ||
| S03451001 | Vertical feed cam assy | ||
| S03528001 | Worm assy | ||
| S36696001 | Stitch control cam assy | ||
| S03445001 | Worm gear assy | ||
| S03447001 | Transverse feed cam assy | ||
| S03451001 | Vertical feed cam assy | ||
| S03528001 | Worm assy | ||
| S36696001 | Stitch control cam assy | ||
| S03445001 | Worm gear assy | ||
| S03446001 | Transverse feed cam assy | ||
| S03452001 | Vertical feed cam assy | ||
| S03528001 | Worm assy | ||
| S36696001 | Stitch control cam assy | ||
| S03445001 | Worm gear assy | ||
| S03446001 | Transverse feed cam assy | ||
| S03596001 | Vertical feed cam assy | ||
| S03528001 | Worm assy | ||
| S36697001 | Stitch control cam assy | ||
| S03651001 | Worm gear assy | ||
| S03448001 | Transverse feed cam assy | ||
| S03451001 | Vertical feed cam assy | ||
| S03653001 | Worm assy | ||
| S36697001 | Stitch control cam assy | ||
| S03651001 | Worm gear assy | ||
| S03449001 | Transverse feed cam assy | ||
| S03451001 | Vertical feed cam assy | ||
| S03653001 | Worm assy | ||
| S36697001 | Stitch control cam assy | ||
| S03651001 | Worm gear assy | ||
| S03448001 | Transverse feed cam assy | ||
| S03454001 | Vertical feed cam assy | ||
| S03653001 | Worm assy | ||
| S36697001 | Stitch control cam assy | ||
| S03651001 | Worm gear assy | ||
| S03448001 | Transverse feed cam assy | ||
| S03597001 | Vertical feed cam assy | ||
| S03653001 | Worm assy |
Page 41 — 警告ラベル／Warning labels／Warnschilder／Etiquettes d'avertissement／Etiquetas de advertencia
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S38353-001 | |||
| S38352-001 | Label, elec. shock 4 lang. | ||
| S38350-001 | |||
| S38350-002 | |||
| S38349-001 | Label, operation Eng. | ||
| S38349-002 | Label, operation Eng. | ||
| S38351-001 | Label, high temp. | ||
| S38354-001 | Label, entanglement |
Page 42
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S36924-001 | Mark, injury | ||
| S37058-001 | Mark, arrow | ||
| S37059-001 | Mark, PE | ||
| S37060-001 | Mark, grounding |
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S01199003 | Z2 -7-2-1 | ||
| S01295001 | L5 -8-4 | ||
| S01603009 | Z2 -7-2 | ||
| S01696001 | H -2 | ||
| S01700001 | Z1 -24-3 | ||
| S01702001 | D -15 | ||
| S02745001 | L7 -20-1-4 | ||
| S03374109 | A -12 | ||
| S03376001 | A -18 | ||
| S03377101 | J -12-1 | ||
| S03378000 | C -2 | ||
| S03379101 | C -8-1 | ||
| S03381101 | C -8 | ||
| S03382101 | C -8-1 | ||
| S03383001 | C -8-3 | ||
| S03384001 | C -8-3 | ||
| S03386001 | C -8-4 | ||
| S03387001 | C -8-7 | ||
| S03388001 | C -8-11 | ||
| S03392001 | C -11-2 | ||
| S03393001 | C -11-6 | ||
| S03394001 | C -11-7 | ||
| S03395000 | C -11-9 | ||
| S03401001 | C -11-16 | ||
| S03402001 | C -12 | ||
| S03403001 | C -15 | ||
| S03405101 | C -16-1 | ||
| S03406101 | K -1-2 | ||
| S03407001 | C -16-3 | ||
| S03408001 | C -16-4 | ||
| S03409001 | D -1 | ||
| S03410001 | D -1-1 | ||
| S03412000 | D -1-1-1-2 | ||
| S03414001 | D -1-1-3 | ||
| S03415001 | D -1-2 | ||
| S03417000 | D -1-3 | ||
| S03418000 | D -1-4 | ||
| S03419001 | D -2 | ||
| S03420001 | D -3 | ||
| S03421001 | D -5 | ||
| S03423001 | D -6 | ||
| S03424000 | D -7 | ||
| S03425000 | D -8 | ||
| S03426101 | D -11 | ||
| S03427101 | D -11-1 | ||
| S03428001 | D -11-2 | ||
| S03429101 | D -12 | ||
| S03433001 | B -1-2 | ||
| S03436001 | B -2 | ||
| S03437001 | B -4 | ||
| S03438001 | B -5 | ||
| S03439001 | B -6 | ||
| S03440001 | B -7 | ||
| S03441001 | B -8 | ||
| S03442001 | B -9 | ||
| S03444000 | E1 -2 | ||
| S03445001 | E1 -5 | ||
| S03446001 | E1 -6 | ||
| S03447001 | E1 -6 | ||
| S03448001 | E1 -6 | ||
| S03449001 | E1 -6 | ||
| S03451001 | E1 -7 | ||
| S03452001 | E1 -7 | ||
| S03454001 | E1 -7 | ||
| S03459001 | E2 -44-2 | ||
| S03464101 | L4 -6-1-3 | ||
| S03464101 | L2 -2-1-1 | ||
| S03464101 | L2 -2-1-1 | ||
| S03464101 | L6 -4-1-7 | ||
| S03467001 | L2 -2-1-10 | ||
| S03468001 | E2 -44-11 | ||
| S03468001 | L2 -2-1-1 | ||
| S03468001 | L2 -2-1-1 | ||
| S03468001 | L6 -4-1-7 | ||
| S03471001 | E1 -10 | ||
| S03472001 | E1 -11 | ||
| S03473001 | E1 -12 | ||
| S03474001 | E1 -13 | ||
| S03476101 | E1 -23 | ||
| S03476101 | L1 -1 | ||
| S03478101 | E1 -26 | ||
| S03480001 | E1 -28 | ||
| S03482101 | E1 -30 | ||
| S03484101 | E1 -30-1 | ||
| S03485001 | E1 -34 | ||
| S03486001 | E1 -36 | ||
| S03487001 | E1 -37 | ||
| S03488001 | F -1 | ||
| S03489101 | F -2 | ||
| S03490001 | F -5 | ||
| S03496101 | F -6-2 | ||
| S03500001 | F -8 | ||
| S03501000 | F -8-1 | ||
| S03502001 | F -8-2 | ||
| S03503001 | F -8-3 | ||
| S03503001 | F -13 | ||
| S03504001 | F -8-5 | ||
| S03508001 | F -8-6 | ||
| S03509001 | F -9 | ||
| S03512001 | F -17 | ||
| S03515001 | F -20 | ||
| S03516001 | F -20-1 | ||
| S03517101 | F -20-2 | ||
| S03518001 | F -20-3 | ||
| S03521001 | F -24 | ||
| S03522001 | G -1 | ||
| S03523001 | G -2 | ||
| S03524000 | G -3 | ||
| S03525000 | G -4 | ||
| S03526001 | G -5 | ||
| S03528001 | G -9 | ||
| S03533001 | G -13 | ||
| S03536001 | G -15 | ||
| S03537109 | J -1 | ||
| S03538109 | J -1-1 | ||
| S03539101 | J -1-2 | ||
| S03540001 | J -1-3 | ||
| S03541001 | J -1-4 | ||
| S03543101 | J -1-8 | ||
| S03544101 | J -1-10 | ||
| S03545001 | J -1-10-1 | ||
| S03546001 | J -1-10-2 | ||
| S03549001 | J -1-15 | ||
| S03550001 | J -1-15-1 | ||
| S03551001 | J -1-17 | ||
| S03552001 | J -1-18 | ||
| S03553001 | J -1-19 | ||
| S03554001 | J -1-20 | ||
| S03555001 | J -1-21 | ||
| S03556001 | J -1-22 | ||
| S03557001 | J -1-23 | ||
| S03558001 | J -1-24 | ||
| S03559001 | J -1-10 | ||
| S03560001 | J -1-10 | ||
| S03564001 | J -13 | ||
| S03565001 | J -14 | ||
| S03566001 | J -15 | ||
| S03567001 | H -1 | ||
| S03596001 | E1 -7 | ||
| S03597001 | E1 -7 | ||
| S03600001 | E2 -44-9 | ||
| S03604001 | E2 -44-10 | ||
| S03605001 | E2 -44-11 | ||
| S03606001 | E2 -44-14 | ||
| S03607001 | E2 -44-15 | ||
| S03608001 | E2 -44-16 | ||
| S03610001 | E2 -44-5-13 | ||
| S03610001 | L2 -2-2 | ||
| S03610001 | L2 -2-2 | ||
| S03610001 | L6 -4-2 | ||
| S03611001 | E1 -37 | ||
| S03612001 | F -20 | ||
| S03613001 | F -20-5 | ||
| S03614001 | F -20-8 | ||
| S03615109 | J -1 | ||
| S03616101 | J -1-2 | ||
| S03617001 | J -3 | ||
| S03621001 | K -1-8 | ||
| S03622101 | K -1-9 | ||
| S03623001 | K -1-10 | ||
| S03624001 | K -4 | ||
| S03624001 | L4 -7-2-3 | ||
| S03625001 | L4 -7-1-5 | ||
| S03625001 | L4 -7-2-2 | ||
| S03626001 | K -6 | ||
| S03627001 | K -7 | ||
| S03628001 | K -8 | ||
| S03629001 | K -9 | ||
| S03630101 | L1 -1 | ||
| S03631001 | L1 -1 | ||
| S03633001 | L2 -2 | ||
| S03634001 | L2 -2-1 | ||
| S03635001 | L6 -4 | ||
| S03636001 | L6 -4-1 | ||
| S03641001 | L3 -5-9 | ||
| S03649001 | L2 -2-1-4 | ||
| S03650001 | L2 -2-1-2 | ||
| S03651001 | E1 -5 | ||
| S03653001 | G -9 | ||
| S03655002 | L4 -7 | ||
| S03657001 | E2 -44-5-12 |
Page 44
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S03657001 | L2 -2-1-12 | ||
| S03657001 | L2 -2-1-12 | ||
| S03657001 | L6 -4-1-8 | ||
| S03659001 | E2 -44-5-17 | ||
| S03659001 | L2 -2-1-17 | ||
| S03659001 | L2 -2-1-17 | ||
| S03659001 | L6 -4-1-13 | ||
| S03692001 | L5 -8 | ||
| S03693001 | E2 -9 | ||
| S03695001 | E2 -44-3 | ||
| S03695001 | L4 -6-1-5 | ||
| S03701001 | L2 -2 | ||
| S03704002 | F -11 | ||
| S03705001 | L4 -7-1-1 | ||
| S03706001 | L4 -7-1-2 | ||
| S03707001 | L4 -7-1-3 | ||
| S03712001 | L6 -4-1-6 | ||
| S03714001 | L4 -7-1 | ||
| S03719001 | D -1-1-1 | ||
| S03720001 | D -1-1-2 | ||
| S05724001 | B -10 | ||
| S05725001 | C -8-8 | ||
| S06057001 | J -1-12 | ||
| S06253201 | J -1-25 | ||
| S06432001 | J -1-15-4 | ||
| S07995001 | A -10-5 | ||
| S09043000 | E1 -67 | ||
| S09143001 | L5 -8-2 | ||
| S09144001 | L5 -8-1 | ||
| S09145001 | L5 -8-3 | ||
| S09146001 | F -23 | ||
| S09147001 | F -23-1 | ||
| S09482001 | L5 -9-1 | ||
| S09483001 | L5 -9-2 | ||
| S09484001 | L5 -9-3 | ||
| S09485001 | L5 -9-5 | ||
| S09486001 | L5 -9-6 | ||
| S09487001 | L5 -9-8 | ||
| S09488001 | L5 -11-1 | ||
| S09489001 | L5 -11-2-1 | ||
| S09490001 | L5 -11-2-2 | ||
| S09491001 | L5 -11-2-3 | ||
| S09492001 | L5 -11-2-4 | ||
| S09493001 | L5 -9-7 | ||
| S09494001 | L5 -9-4 | ||
| S09495001 | L5 -11-2-6 | ||
| S09496001 | L5 -11-2-5 | ||
| S09564001 | L5 -11-2 | ||
| S09655001 | L7 -20 | ||
| S09656001 | L7 -20-1 | ||
| S09658001 | L7 -20-1-2 | ||
| S09659001 | L7 -20-1-5 | ||
| S09660001 | L7 -20-1-6 | ||
| S09686001 | L7 -20-1-3 | ||
| S10560001 | L3 -12-1 | ||
| S10651001 | L3 -12-2 | ||
| S10652000 | L3 -12-5 | ||
| S10652000 | L3 -13-1 | ||
| S10653000 | L3 -12-6 | ||
| S10653000 | L3 -13-2 | ||
| S10654001 | L3 -12 | ||
| S10655001 | L3 -13 | ||
| S10667001 | E1 -25 | ||
| S10668001 | C -9 | ||
| S10668001 | G -7 | ||
| S11079001 | L2 -2-1-3 | ||
| S11080001 | L2 -2-1-5 | ||
| S16121101 | L1 -1 | ||
| S16253001 | J -1-27 | ||
| S18642009 | Z1 -21 | ||
| S18707123 | Z2 -27 | ||
| S18707124 | Z2 -27 | ||
| S20130009 | Z1 -6 | ||
| S20131009 | Z1 -6-1 | ||
| S20132009 | Z1 -6-1-1 | ||
| S20133001 | Z1 -6-1-2 | ||
| S20134001 | Z1 -6-1-3 | ||
| S20740101 | C -25 | ||
| S29954001 | E2 -44-5-10 | ||
| S29954001 | L2 -2-1-10 | ||
| S29998001 | E2 -44-5-2 | ||
| S29998001 | L2 -2-1-2 | ||
| S29999001 | E2 -44-5-4 | ||
| S29999001 | L2 -2-1-4 | ||
| S30001001 | E2 -44-5-3 | ||
| S30001001 | L2 -2-1-3 | ||
| S30002001 | E2 -44-5-5 | ||
| S30002001 | L2 -2-1-5 | ||
| S30015001 | E2 -44-5 | ||
| S30015001 | L2 -2-1 | ||
| S30016001 | E2 -44-5 | ||
| S31723001 | E1 -29 | ||
| S31724001 | E1 -27 | ||
| S34278001 | K -1-6 | ||
| S34298001 | K -5 | ||
| S34340001 | C -4-3 | ||
| S34341001 | C -4-1 | ||
| S34806001 | C -11-10 | ||
| S35727001 | C -17 | ||
| S36590009 | A -10 | ||
| S36591000 | A -10-1 | ||
| S36615001 | C -11 | ||
| S36616001 | C -11-1 | ||
| S36617001 | K -1-1 | ||
| S36622001 | D -14 | ||
| S36624001 | H -3 | ||
| S36625001 | H -4 | ||
| S36626001 | E1 -8 | ||
| S36629001 | F -6 | ||
| S36630001 | F -6-1 | ||
| S36632000 | F -70 | ||
| S36633001 | F -15 | ||
| S36642001 | C -21 | ||
| S36693001 | C -11-11 | ||
| S36694001 | C -16 | ||
| S36695001 | C -16-2 | ||
| S36696001 | B -1 | ||
| S36697001 | C -1 | ||
| S36699001 | G -16 | ||
| S36700001 | C -28 | ||
| S36813001 | L7 -21-1 | ||
| S36816001 | A -10-8 | ||
| S37132001 | Z1 -24-1 | ||
| S37133001 | C -23 | ||
| S37135001 | Z1 -20 | ||
| S37137001 | Z1 -24 | ||
| S37352009 | E2 -44-1 | ||
| S37352009 | L4 -6-1-2 | ||
| S37362001 | C -18 | ||
| S37369001 | K -1 | ||
| S37370001 | L7 -22 | ||
| S37370009 | E2 -44 | ||
| S37438009 | E2 -44 | ||
| S37439000 | F -70 | ||
| S37444001 | E1 -9 | ||
| S37805001 | L4 -7-2 | ||
| S38181001 | L7 -21 | ||
| S38636001 | Z2 -100 | ||
| S39086001 | L3 -12-4 | ||
| S39092000 | E1 -69 | ||
| S39822009 | L4 -6 | ||
| S39823009 | L4 -6-1 | ||
| 013710512 | F -5-1 | ||
| 013710712 | J -1-9 | ||
| 013710712 | J -1-11 | ||
| 013710712 | J -11 | ||
| 013719412 | L3 -5-1-11 | ||
| 013719412 | L4 -6-1-11 | ||
| 013750512 | G -16-2 | ||
| 013760712 | C -3 | ||
| 013760712 | E1 -4 | ||
| 014680622 | F -8-4 | ||
| 014680622 | F -8-8 | ||
| 014680622 | J -1-26 | ||
| 014710522 | E2 -44-8 | ||
| 014710522 | L4 -6-1-8 | ||
| 014710522 | C -22 | ||
| 014710522 | C -24 | ||
| 014760622 | D -4 | ||
| 014760622 | F -4 | ||
| 014760622 | F -10 | ||
| 014760622 | F -20-4 | ||
| 014760622 | K -1-7 | ||
| 014760622 | E1 -33 | ||
| 014760622 | E1 -35 | ||
| 014760622 | E1 -38 | ||
| 014770622 | L7 -21-2 | ||
| 014770622 | B -9-1 | ||
| 014770622 | D -1-1-1-4 | ||
| 014770622 | D -5-1 | ||
| 014770622 | F -1-1 | ||
| 014770622 | F -11-1 | ||
| 014770622 | G -1-1 | ||
| 014770622 | G -5-1 | ||
| 014821022 | C -8-13 | ||
| 015770812 | D -1-1-1-3 | ||
| 017082206 | Z2 -7-2-5 | ||
| 017711412 | E2 -44-6 | ||
| 017711412 | L4 -6-1-6 | ||
| 018061022 | E2 -44-4 | ||
| 018061022 | L4 -6-1-4 |
Page 45
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 018061422 | L4 - 7.2-1 | ||
| 018062022 | C - 16-6 | ||
| 018400632 | Z1 - 40 | ||
| 018680822 | F - 6-3 | ||
| 021060102 | Z1 - 11 | ||
| 021400106 | L4 - 7-3-2 | ||
| 021400106 | Z1 - 7-1-2 | ||
| 021660102 | Z1 - 24-5 | ||
| 021710102 | E1 - 14 | ||
| 021750112 | A - 10-5-4 | ||
| 021750112 | C - 8-10 | ||
| 021800102 | D - 1-1-4 | ||
| 025030232 | Z1 - 24-4 | ||
| 025060232 | F - 20-7 | ||
| 025060232 | K - 1-13 | ||
| 025060232 | Z1 - 10 | ||
| 025080236 | Z2 - 7-2-8 | ||
| 025680232 | E2 - 44-17 | ||
| 025710232 | A - 10-7 | ||
| 025800332 | C - 11-8 | ||
| 025800332 | C - 11-13 | ||
| 028080240 | Z2 - 7-2-7 | ||
| 032422003 | Z2 - 101 | ||
| 035412006 | Z1 - 6-2 | ||
| 047250642 | E2 - 44-5-8 | ||
| 047250642 | L2 - 2-1-8 | ||
| 047250642 | L2 - 2-1-8 | ||
| 048040342 | K - 1-14 | ||
| 048050342 | F - 8-7 | ||
| 048050342 | K - 1-11 | ||
| 048080142 | C - 26 | ||
| 060670512 | L3 - 5-7 | ||
| 060670512 | L4 - 6-7 | ||
| 062401416 | L4 - 7-3-3 | ||
| 062401416 | Z1 - 7-1-3 | ||
| 062670712 | L3 - 5-1-9 | ||
| 062670712 | L4 - 6-1-1-9 | ||
| 062670812 | L3 - 5-1-4 | ||
| 062670812 | L4 - 6-1-1-4 | ||
| 062671212 | D - 11-3 | ||
| 062680512 | A - 15 | ||
| 062680512 | E1 - 16 | ||
| 062680512 | E2 - 44-5-7 | ||
| 062680512 | L2 - 2-1-7 | ||
| 062680512 | L2 - 2-1-7 | ||
| 062680812 | E2 - 44-18 | ||
| 062680812 | L2 - 2-1-18 | ||
| 062680812 | L2 - 2-1-18 | ||
| 062680812 | L6 - 4-1-14 | ||
| 062710612 | D - 13 | ||
| 062710612 | J - 1-6 | ||
| 062710612 | J - 1-14 | ||
| 062710612 | L4 - 7-1-4 | ||
| 062711012 | J - 2 | ||
| 062711012 | J - 4 | ||
| 062711012 | J - 16 | ||
| 062711012 | E1 - 40 | ||
| 062711012 | L3 - 5-5 | ||
| 062711012 | L4 - 6-5 | ||
| 062711212 | A - 10-6 | ||
| 062761612 | F - 71 | ||
| 062780812 | F - 20-6 | ||
| 071055650 | C - 7 | ||
| 071079450 | C - 5 | ||
| 100136001 | J - 1-10-6 | ||
| 100136001 | J - 1-12-4 | ||
| 100136001 | J - 1-15-5 | ||
| 100251001 | A - 10-9 | ||
| 100507000 | F - 18 | ||
| 101572101 | Z1 - 2-2 | ||
| 101706001 | G - 11-1 | ||
| 102571003 | C - 14 | ||
| 102707003 | L3 - 5-1-5 | ||
| 105161003 | L3 - 12-3 | ||
| 105329001 | A - 19 | ||
| 105730001 | Z2 - 25-1 | ||
| 105812003 | D - 1-5 | ||
| 106436001 | A - 27 | ||
| 106629002 | K - 10 | ||
| 107153001 | G - 12 | ||
| 107231002 | K - 3 | ||
| 107780001 | Z1 - 3-1 | ||
| 108520009 | A - 21 | ||
| 110104000 | A - 24 | ||
| 110124001 | G - 13-1 | ||
| 110161004 | C - 16-5 | ||
| 110161004 | F - 73 | ||
| 110161004 | K - 1-5 | ||
| 110161004 | L4 - 7-1-6 | ||
| 110744002 | F - 23-2 | ||
| 112751003 | C - 4-4 | ||
| 114980001 | E1 - 41 | ||
| 114981000 | A - 11 | ||
| 114982000 | A - 10-3 | ||
| 114982000 | A - 13 | ||
| 114985001 | A - 14 | ||
| 114986101 | A - 16 | ||
| 114988001 | A - 20 | ||
| 114997001 | C - 6 | ||
| 115000000 | C - 8-9 | ||
| 115004001 | C - 8-6 | ||
| 115008000 | C - 10 | ||
| 115008000 | G - 8 | ||
| 115011201 | C - 11-3 | ||
| 115012002 | C - 11-4 | ||
| 115018001 | C - 11-12 | ||
| 115022001 | C - 13 | ||
| 115025001 | A - 10-5-2 | ||
| 115041001 | D - 1-1-5 | ||
| 115048101 | D - 1-2-1 | ||
| 115053014 | Z1 - 5 | ||
| 115053016 | D - 9 | ||
| 115053016 | Z1 - 5 | ||
| 115053018 | Z1 - 5 | ||
| 115066000 | G - 16-1 | ||
| 115067001 | G - 16-3 | ||
| 115068001 | G - 16-5 | ||
| 115073001 | H - 5 | ||
| 115076001 | H - 6 | ||
| 115077001 | H - 7 | ||
| 115078101 | E1 - 1 | ||
| 115080000 | E1 - 3 | ||
| 115085001 | L1 - 1 | ||
| 115094001 | E1 - 18 | ||
| 115095001 | E1 - 21 | ||
| 115095001 | E1 - 22 | ||
| 115096000 | E1 - 19 | ||
| 115097001 | E1 - 20 | ||
| 115097001 | E1 - 30-2 | ||
| 115098001 | E1 - 31 | ||
| 115099001 | E1 - 32 | ||
| 115101001 | E1 - 17 | ||
| 115105001 | E1 - 15 | ||
| 115108301 | E1 - 39 | ||
| 115113001 | B - 1-3 | ||
| 115114001 | B - 1-4 | ||
| 115115001 | B - 1-5 | ||
| 115116001 | B - 1-6 | ||
| 115118001 | B - 3 | ||
| 115126001 | F - 3 | ||
| 115156001 | E2 - 44-5-6 | ||
| 115156001 | L2 - 2-1-6 | ||
| 115156001 | L2 - 2-1-6 | ||
| 115156001 | L6 - 4-1-4 | ||
| 115158001 | E2 - 44-5-9 | ||
| 115158001 | L2 - 2-1-9 | ||
| 115158001 | L2 - 2-1-9 | ||
| 115158001 | L6 - 4-1-5 | ||
| 115163001 | E2 - 44-5-13 | ||
| 115163001 | L2 - 2-1-13 | ||
| 115163001 | L2 - 2-1-13 | ||
| 115163001 | L6 - 4-1-9 | ||
| 115164001 | E2 - 44-5-14 | ||
| 115164001 | L2 - 2-1-14 | ||
| 115164001 | L2 - 2-1-14 | ||
| 115164001 | L6 - 4-1-10 | ||
| 115165001 | E2 - 44-5-15 | ||
| 115165001 | L2 - 2-1-15 | ||
| 115165001 | L2 - 2-1-15 | ||
| 115165001 | L6 - 4-1-11 | ||
| 115166001 | E2 - 44-5-16 | ||
| 115166001 | E2 - 44-13 | ||
| 115166001 | L2 - 2-1-16 | ||
| 115166001 | L2 - 2-1-16 | ||
| 115166001 | L6 - 4-1-12 | ||
| 115183101 | L7 - 20-1-7 | ||
| 115186001 | J - 1-13 | ||
| 115187101 | J - 1-12-1 | ||
| 115187101 | J - 1-10-3 | ||
| 115187101 | J - 1-12-2 | ||
| 115187101 | J - 1-15-2 | ||
| 115188002 | J - 1-12-3 | ||
| 115215100 | C - 1 | ||
| 115268002 | A - 10-5-3 | ||
| 115275001 | A - 17 | ||
| 115947001 | Z1 - 12 | ||
| 116016001 | L4 - 7-3-4 | ||
| 116016001 | Z1 - 7-1-4 | ||
| 116185209 | L4 - 7-3 | ||
| 116185209 | Z1 - 7-1 | ||
| 116694001 | Z2 - 7-2-6 | ||
| 117437109 | L4 - 7-3-1 | ||
| 117437109 | Z1 - 7-1-1 | ||
| 117934009 | A - 22 |
Page 46
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 117936009 | A - 23 | |
| 30 | 118064001 | Z1 - 4-3 | |
| 28 | 118539001 | L6 - 4-1-3 | |
| 28 | 118541001 | L6 - 4-1-2 | |
| 30 | 118837001 | Z1 - 2-1 | |
| 32 | 119270001 | Z2 - 25 | |
| 32 | 119271001 | Z2 - 25 | |
| 32 | 119707001 | Z2 - 7-2-3 | |
| 32 | 119708001 | Z2 - 7-2-4 | |
| 22 | 120990001 | L3 - 5-1-13 | |
| 22 | 120990001 | L3 - 5-4 | |
| 24 | 120990001 | L4 - 6-1-1-13 | |
| 24 | 122991001 | Z1 - 6-4 | |
| 32 | 133188001 | Z2 - 7-2-2 | |
| 32 | 133824001 | Z2 - 26 | |
| 6 | 140553102 | D - 10 | |
| 30 | 142205001 | Z1 - 3-2 | |
| 2 | 142307001 | A - 10-5-1 | |
| 22 | 142570009 | L3 - 5 | |
| 24 | 142656001 | L4 - 7-4 | |
| 30 | 142656001 | Z1 - 8 | |
| 6 | 142658001 | D - 1-1-1-1 | |
| 22 | 142677001 | L3 - 5-1-2 | |
| 24 | 142677001 | L4 - 6-1-2 | |
| 22 | 142678001 | L3 - 5-1-3 | |
| 24 | 142678001 | L4 - 6-1-3 | |
| 22 | 142680001 | L3 - 5-1-12 | |
| 24 | 142680001 | L4 - 6-1-12 | |
| 22 | 142681001 | L3 - 5-1-6 | |
| 24 | 142681001 | L4 - 6-1-6 | |
| 22 | 142683101 | L3 - 5-2 | |
| 24 | 142683101 | L4 - 6-2 | |
| 22 | 142684001 | L3 - 5-3 | |
| 24 | 142684001 | L4 - 6-3 | |
| 22 | 142686001 | L3 - 5-8 | |
| 24 | 142686001 | L4 - 6-8 | |
| 22 | 142687001 | L3 - 5-10 | |
| 24 | 142687001 | L4 - 6-10 | |
| 22 | 142688001 | L3 - 5-11 | |
| 24 | 142688001 | L4 - 6-11 | |
| 22 | 142689209 | L3 - 5-1 | |
| 24 | 142689209 | L4 - 6-1-1 | |
| 22 | 142706001 | L3 - 5-1-8 | |
| 24 | 142706001 | L4 - 6-1-1-8 | |
| 30 | 142721001 | Z1 - 4-1 | |
| 30 | 143966001 | Z1 - 24-2 | |
| 30 | 144224001 | Z1 - 16 | |
| 16 | 144504001 | J - 12-2 | |
| 16 | 144505000 | J - 12-3 | |
| 30 | 144545001 | Z1 - 9 | |
| 12 | 145480101 | F - 22 | |
| 30 | 146049001 | Z1 - 4-2 | |
| 12 | 146354001 | F - 20-10 | |
| 16 | 146354001 | J - 1-7 | |
| 16 | 146354001 | J - 5 | |
| 10 | 146354001 | E2 - 44-7 | |
| 24 | 146354001 | L4 - 6-1-7 | |
| 12 | 146360002 | F - 20-9 | |
| 8 | 146360002 | E1 - 24 | |
| 8 | 146360002 | E1 - 43 | |
| 14 | 147151000 | G - 6 | |
| 14 | 147151000 | G - 10 | |
| 2 | 147691000 | A - 28 | |
| 6 | 148425002 | D - 1-1-2-1 | |
| 16 | 148924101 | J - 1-10-5 | |
| 4 | 149996001 | C - 8-12 | |
| 4 | 149996001 | C - 11-15 | |
| 26 | 150416001 | L5 - 11 | |
| 18 | 150553001 | K - 1-12 | |
| 4 | 150554002 | C - 11-5 | |
| 16 | 150556001 | J - 1-16 | |
| 8 | 150556001 | E1 - 66 | |
| 10 | 150556001 | E2 - 44-12 | |
| 8 | 151051101 | E1 - 42 | |
| 14 | 151601002 | G - 16-4 | |
| 14 | 151602001 | G - 16-6 | |
| 2 | 151603002 | A - 10-4 | |
| 18 | 151932001 | K - 2 | |
| 4 | 153596001 | C - 27 | |
| 22 | 154684009 | L3 - 5-1-1 | |
| 24 | 154684009 | L4 - 6-1-1 | |
| 22 | 154685001 | L3 - 5-1-7 | |
| 24 | 154685001 | L4 - 6-1-7 | |
| 22 | 154686001 | L3 - 5-1-10 | |
| 24 | 154686001 | L4 - 6-1-10 | |
| 16 | 155510001 | J - 12-4 | |
| 18 | 155559001 | K - 1-15 | |
| 22 | 156336001 | L3 - 5-6 | |
| 24 | 156336001 | L4 - 6-6 | |
| 12 | 156874001 | F - 72 | |
| 16 | 159805001 | J - 1-10-4 | |
| 16 | 159805001 | J - 1-15-3 | |
| 14 | 181995001 | G - 11 |
Brother BM-916A / BM-917A — parts catalog
- Page 1 (cover): This is the cover page for the Brother BM-916A and BM-917A parts book, listing the title in multiple languages and showing an illustration of a screw.
- Page 2 (cover): This is the cover page of the parts manual for the Juki BM-410 sewing machine.
- Page 3 (toc): This page is a table of contents for a parts manual, listing sections from 'A. Main Body Assembly' to 'Index' with corresponding page numbers.
- Page 5 (toc): This page contains the table of contents for the parts list, detailing sections like machine housings, stitch counters, drive couplings, and various accessories, along with their corresponding page numbers.
- Page 6 (toc): Table of Contents for the manual, listing sections like "Corps de la machine" and "Accessoires" with corresponding page numbers.
- Page 8 (diagram): This page contains diagrams of the machine body and stitch number conversion components, with numbered parts for identification.
- Page 9 (parts_list): This page lists parts for Machine body / Corps de la machine and Stitch number conversion / Stitchzahlrechnung, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of the driving clutch and brake mechanism, with various parts labeled with reference numbers and part numbers.
- Page 11 (parts_list): This page lists parts for the driving clutch and brake mechanism, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of the needle bar and driving clutch mechanism, detailing various components with reference numbers and part numbers.
- Page 13 (parts_list): This page lists parts for the needle bar and driving clutch mechanism, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists parts for the feed mechanism, including cam shafts, set screws, feed links, and rollers, with their corresponding part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of the feed mechanism, including various screws, levers, and springs labeled with part numbers.
- Page 17 (parts_list): This page lists common parts and parts for model B917A, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of the presser foot lifter mechanism, detailing various components with their corresponding reference numbers and part numbers.
- Page 19 (parts_list): This page lists parts for the Presser foot lift mechanism, including common parts and specific components for models like B916A. It details part numbers, names, quantities, and references.
- Page 20 (diagram): This page displays diagrams for the lower shaft mechanism and the loop spreading mechanism, with numbered parts for identification.
- Page 21 (parts_list): This page contains parts lists for the Lower shaft mechanism and the Loop spreading mechanism, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of the threading mechanism, including various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page lists common parts for the threading mechanism, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of the thread trimmer mechanism, labeled as <B917A>, with various parts numbered from 1 to 15. It also includes a section for option parts.
- Page 25 (parts_list): This page lists thread trimmer mechanism parts and optional parts including feed plates with their respective part numbers, quantities, and descriptions.
- Page 26 (diagram): This page displays a diagram of option parts for a sewing machine, with various components labeled with reference numbers and part numbers.
- Page 27 (parts_list): This page lists option parts for button sizes Ø10~Ø20 and Ø10~Ø30, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of optional parts for a sewing machine, including various feet, screws, and other components with their corresponding part numbers.
- Page 29 (parts_list): This page lists option parts for sewing machines, including part numbers, descriptions, and quantities. It details various clamps, screws, washers, and guides.
- Page 30 (diagram): This page displays a diagram of option parts for a sewing machine, including various components labeled with part numbers such as 6-1-1-1, 6-1-1-2, 6-1-1-4, 6-1-1-5, 6-1-1-6, 6-1-1-7, 6-1-1-8, 6-1-1-9, 6-1-1-10, 6-1-1-11, 6-1-1-12, 6-1-1-13, 6-1-2, 6-1-3, 6-1-4, 6-1-5, 6-1-6, 6-1-7, 6-1-8, 6-2, 6-3, 6-4, 6-5, 6-6, 6-7, 6-8, 6-9, 6-10, 6-11, 7-1-1, 7-1-2, 7-1-3, 7-1-4, 7-1-5, 7-1-6, 7-2-1, 7-2-2, 7-2-3, 7-3-1, 7-3-2, 7-3-3, 7-3-4, and 7-4.
- Page 31 (parts_list): This page lists option parts for sewing machines, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of option parts for sewing machines, with parts numbered 8-1 through 8-4 and 9-1 through 9-7, as well as parts 11-1 through 11-2-6.
- Page 33 (parts_list): This page lists optional parts for sewing machines, including labels, clamps, screws, and receivers, with their corresponding codes and names.
- Page 34 (diagram): This page displays diagrams and part numbers for optional parts, categorized under L6 and L7. It includes various screws, brackets, and plates with their corresponding reference numbers.
- Page 35 (parts_list): This page lists option parts for sewing machines, including snap clamp sets, screws, nuts, springs, and spacers, with their corresponding part numbers and descriptions.
- Page 36 (diagram): This page displays a diagram of various sewing machine accessories and parts, including tools, chains, and a dust cover, with corresponding reference numbers.
- Page 37 (parts_list): This page lists accessories and their corresponding part numbers, including items like accessory bags, screwdrivers, wrenches, and various hardware components.
- Page 38 (diagram): This page displays a diagram of accessory and option parts for sewing machines, including various screws, washers, a bracket, a pulley, and belts, with corresponding reference numbers.
- Page 39 (parts_list): This page lists accessory parts for sewing machines, including treadle assemblies, shafts, bolts, nuts, washers, pulleys, belts, and screws, with their corresponding codes and quantities.
- Page 40 (parts_list): This page lists parts for different stitch forms including stitch control cam assy, worm gear assy, transverse feed cam assy, and vertical feed cam assy, with corresponding part numbers and quantities.
- Page 41 (parts_list): Table of warning label parts for an industrial sewing machine, listing names, sizes in mm, and codes for electric shock, operation caution, high temperature, and entanglement labels.
- Page 42 (parts_list): This page lists various marks and their corresponding codes and sizes, including warning marks, arrow marks, PE marks, and grounding marks.
- Page 43 (index): This page contains an index of parts for industrial sewing machines, listing part codes, reference numbers, and corresponding page numbers.
- Page 44 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, reference numbers, and corresponding page numbers. The parts listed are S03657001 through S10655001, S10667001 through S31724001, S37135001 through S37133001, and 013710512 through 018061022.
- Page 45 (parts_list): This page contains a parts list with columns for CODE, REF.NO., and Page. It lists various part numbers and their corresponding reference numbers and page locations.
- Page 46 (parts_list): This page contains a parts list with part numbers, reference numbers, and page numbers for various sewing machine components. It is divided into two main columns, each with a CODE, REF.NO., and Page section.
- Page 47 (unknown): This page contains a watermark and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC, with the website jinte.in.
- Page 48 (cover): This is the cover page of a Brother parts book, featuring the Brother logo and titles in multiple languages including English, German, French, and Spanish. It also includes contact information for Brother Industries, Ltd. in Japan and printing details.
