Brother BM-916A / BM-917A — parts catalog
- Page 16 (diagram): This page displays a diagram of the feed mechanism, including various screws, levers, and springs labeled with part numbers.
- Page 17 (parts_list): This page lists common parts and parts for model B917A, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of the presser foot lifter mechanism, detailing various components with their corresponding reference numbers and part numbers.
- Page 19 (parts_list): This page lists parts for the Presser foot lift mechanism, including common parts and specific components for models like B916A. It details part numbers, names, quantities, and references.
- Page 20 (diagram): This page displays diagrams for the lower shaft mechanism and the loop spreading mechanism, with numbered parts for identification.
- Page 21 (parts_list): This page contains parts lists for the Lower shaft mechanism and the Loop spreading mechanism, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of the threading mechanism, including various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page lists common parts for the threading mechanism, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of the thread trimmer mechanism, labeled as <B917A>, with various parts numbered from 1 to 15. It also includes a section for option parts.
- Page 25 (parts_list): This page lists thread trimmer mechanism parts and optional parts including feed plates with their respective part numbers, quantities, and descriptions.
- Page 26 (diagram): This page displays a diagram of option parts for a sewing machine, with various components labeled with reference numbers and part numbers.
- Page 27 (parts_list): This page lists option parts for button sizes Ø10~Ø20 and Ø10~Ø30, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of optional parts for a sewing machine, including various feet, screws, and other components with their corresponding part numbers.
- Page 29 (parts_list): This page lists option parts for sewing machines, including part numbers, descriptions, and quantities. It details various clamps, screws, washers, and guides.
- Page 30 (diagram): This page displays a diagram of option parts for a sewing machine, including various components labeled with part numbers such as 6-1-1-1, 6-1-1-2, 6-1-1-4, 6-1-1-5, 6-1-1-6, 6-1-1-7, 6-1-1-8, 6-1-1-9, 6-1-1-10, 6-1-1-11, 6-1-1-12, 6-1-1-13, 6-1-2, 6-1-3, 6-1-4, 6-1-5, 6-1-6, 6-1-7, 6-1-8, 6-2, 6-3, 6-4, 6-5, 6-6, 6-7, 6-8, 6-9, 6-10, 6-11, 7-1-1, 7-1-2, 7-1-3, 7-1-4, 7-1-5, 7-1-6, 7-2-1, 7-2-2, 7-2-3, 7-3-1, 7-3-2, 7-3-3, 7-3-4, and 7-4.
Page 16
Brother BM-916A / BM-917A parts on page 16| Ref | Part number | Part name | Qty |
|---|
| 44-2 | | |
| 44-4 | | |
| 44-3 | | |
| 44-12 | | |
| 44-14 | | |
| 44-16 | | |
| 44-5-16 | | |
| 44-5-15 | | |
| 44-5-14 | | |
| 44-6 | | |
| 44-7 | | |
| 44-5-11 | | |
| 44-1 | | |
| 44-8 | | |
| 44-5-13 | | |
| 44-5-7 | | |
| 44-5-3 | | |
| 44-5-8 | | |
| 44-5-1 | | |
| 44-5-2 | | |
| 44-5-10 | | |
| 44-5-17 | | |
| 44-5-4 | | |
| 44-13 | | |
| 44-17 | | |
| 44-9 | | |
| 44-5-5 | | |
| 44-10 | | |
| 44-15 | | |
| 44-11 | | |
| 44-5-6 | | |
| 44-5-9 | | |
| 44-5-18 | | |
| 44-5-12 | | |
| 44-5-13 | | |
E2. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement /
Mecanismo de la alimentación
44-2
44-4
44-3
<B917A>
44-12 44-14 44-16
44-5-16
44-5-15
44-5-14
44-6
44-7
44-5-11
44-1
44-8
44-5-13
44-5-7 44-5-3 44-5-8
44-5-1
44-5-2
44-5-10
44-5-17
44-5-4
<B917A>
44-13
44-17
44-9
44-5-5
44-10
44-15
44-11
44-5-6 44-5-9
44-5-18
44-5-12
44-5-13
118-916-202
From the library of: Superior Sewing Machine & Supply LLC
JIntex.in
Page 17 — E2. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Meccanismo de la alimentación
Brother BM-916A / BM-917A parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 44-1 | S37352009 | PRESSER ARM | 1 |
| 44-2 | S03459001 | PRESSER ADJUST PLATE ASSY | 1 |
| 44-3 | S03695001 | WASHER 6 | 1 |
| 44-4 | 018061022 | BOLT, SOCKET M6X10 | 1 |
| 44-5-1 | S03464101 | BUTTON CLAMP BRACKET | 1 |
| 44-5-2 | S29998001 | BUTTON CLAMP (L) | 1 |
| 44-5-3 | S30001001 | SPRING, PLATE | 1 |
| 44-5-4 | S29999001 | BUTTON CLAMP (R) | 1 |
| 44-5-5 | S30002001 | SPRING, PLATE | 1 |
| 44-5-6 | 115156001 | PIN | 2 |
| 44-5-7 | 062680512 | SCREW, PAN M4.37-40X5 | 2 |
| 44-5-8 | 047250642 | PIN, SPRING ROLL AW2.5 | 2 |
| 44-5-9 | 115158001 | SHOULDER SCREW, M4.76 | 2 |
| 44-5-10 | S29954001 | BUTTON CLAMP (M) ASSY | 1 |
| 44-5-11 | S03468001 | SCREW, M4.37 | 1 |
| 44-5-12 | S03657001 | NUT, M4.37 | 1 |
| 44-5-17 | S03659001 | BUTTON CLAMP PLATE CAM | 1 |
| 44-5-18 | 062680812 | SCREW, PAN M4.37-40X8 | 2 |
| 44-6 | 017711412 | BOLT, M4.76X14 | 2 |
| 44-7 | 146354001 | WASHER | 2 |
| 44-8 | 014680622 | SET SCREW, SOCKET (CP) M4.37 | 2 |
| 44 | S37437009 | PRESSER ARM ASSY 916 | 1 |
| 44-5 | S30015001 | BUTTON CLAMP ASSY | 1 |
| 44-5-13 | 115163001 | SPRING, PLATE | 1 |
| 44-5-14 | 115164001 | BUTTON CLAMP ADJUST PLATE | 1 |
| 44-5-15 | 115165001 | SHOULDER SCREW, M4.37 | 1 |
| 44-5-16 | 115166001 | SHOULDER SCREW, M4.37 | 1 |
| 44 | S37438009 | PRESSER ARM ASSY 917 | 1 |
| 44-5 | S30016001 | BUTTON CLAMP ASSY | 1 |
| 44-5-13 | S03610001 | SPRING | 1 |
| 44-9 | S03600001 | SIZE ADJUST PLATE ASSY | 1 |
| 44-10 | S03604001 | BUTTON OPENER CLAW | 1 |
| 44-11 | S03605001 | SCREW, M6.35 | 1 |
| 44-12 | 150556001 | NUT, M6.35 | 1 |
| 44-13 | S03606001 | SHOULDER SCREW, M4.37 | 1 |
| 44-14 | S03606001 | STOPPER SCREW | 1 |
| 44-15 | S03607001 | SPRING | 1 |
| 44-16 | S03608001 | SPRING HOOK | 1 |
| 44-17 | 025680232 | WASHER, PLAIN M 4.37 | 1 |
E2. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement /
Meccanismo de la alimentación
REF. NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
<共通部品/COMMON PARTS>
44-1
S37352009
1
サエウデ
PRESSER ARM
44-2
S03459001
1
サエチヨウセツイツタクミ
PRESSER ADJUST PLATE ASSY
44-3
S03695001
1
ガネ 6
WASHER 6
44-4
018061022
1
アナボルト 6X10
BOLT, SOCKET M6X10
44-5-1
S03464101
1
ボタンカミタイ
BUTTON CLAMP BRACKET
44-5-2
S29998001
1
ボタンカミL
BUTTON CLAMP (L)
44-5-3
S30001001
1
ボタンカミLイタバネ
SPRING, PLATE
44-5-4
S29999001
1
ボタンカミR
BUTTON CLAMP (R)
44-5-5
S30002001
1
ボタンカミRイタバネ
SPRING, PLATE
44-5-6
115156001
2
ナベコ 437-40X5
PIN
44-5-7
062680512
2
ナベコ 437-40X5
SCREW, PAN M4.37-40X5
44-5-8
047250642
2
スプリングピンAW2.5
PIN, SPRING ROLL AW2.5
44-5-9
115158001
2
ダンネジ 4.76
SHOULDER SCREW, M4.76
44-5-10
S29954001
1
ボタンカミMクミ
BUTTON CLAMP (M) ASSY
44-5-11
S03468001
1
シメネジ 4.37
SCREW, M4.37
44-5-12
S03657001
1
マルナツト 4.37
NUT, M4.37
44-5-17
S03659001
1
ボタンカミイタカム
BUTTON CLAMP PLATE CAM
44-5-18
062680812
2
ナベコ 437-40X8
SCREW, PAN M4.37-40X8
44-6
017711412
2
ボルト 4.76X14
BOLT, M4.76X14
44-7
146354001
2
ガネ
WASHER
44-8
014680622
2
アナトメネジ4.37クボミ
SET SCREW, SOCKET (CP) M4.37
<B916A>
44
S37437009
1
サエウデクミ 916
PRESSER ARM ASSY 916
44-5
S30015001
1
ボタンカミクミ
BUTTON CLAMP ASSY
44-5-13
115163001
1
ボタンカミモドシバネ
SPRING, PLATE
44-5-14
115164001
1
ボタンツカミチヨウセツイタ
BUTTON CLAMP ADJUST PLATE
44-5-15
115165001
1
ダンネジ 4.37
SHOULDER SCREW, M4.37
44-5-16
115166001
1
ダンネジ 4.37
SHOULDER SCREW, M4.37
<B917A>
44
S37438009
1
サエウデクミ 917
PRESSER ARM ASSY 917
44-5
S30016001
1
ボタンカミクミ 917
BUTTON CLAMP ASSY
44-5-13
S03610001
1
ボタンカミモドシバネ
SPRING
44-9
S03600001
1
サイズチョウセツイタクミ
SIZE ADJUST PLATE ASSY
44-10
S03604001
1
ボタンヒラキツメ
BUTTON OPENER CLAW
44-11
S03605001
1
シメネジ 6.35
SCREW, M6.35
44-12
150556001
1
ナット 6.35
NUT, M6.35
44-13
S03606001
1
ダンネジ 4.37
SHOULDER SCREW, M4.37
44-14
S03606001
1
ストツパーネジ
STOPPER SCREW
44-15
S03607001
1
ボタンヒラキツメバネ
SPRING
44-16
S03608001
1
バネカケ
SPRING HOOK
44-17
025680232
1
ヒラガネチュウ 4.37
WASHER, PLAIN M 4.37
118-916-202
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 18 — F. 押工上ゲ関係 / Presser foot lifter mechanism / Stoffhalterhebevorrichtung / Mécanisme de leveur du pinceur / Mecanismo del levantador de ménsula de trabajo
Brother BM-916A / BM-917A parts on page 18| Ref | Part number | Part name | Qty |
|---|
| 20-3 | 20-3 | SCREW | |
| 20-6 | 20-6 | SPRING | |
| 20-7 | 20-7 | SPRING | |
| 20-5 | 20-5 | BRACKET | |
| 20-9 | 20-9 | SCREW | |
| 20-10 | 20-10 | WASHER | |
| 20-8 | 20-8 | BRACKET | |
| 22 | 22 | BRACKET | |
| 20-2 | 20-2 | BRACKET | |
| 8-5 | 8-5 | BRACKET | |
| 15 | 15 | SPRING | |
| 8-6 | 8-6 | BRACKET | |
| 8-7 | 8-7 | BRACKET | |
| 8-8 | 8-8 | SCREW | |
| 9 | 9 | SHAFT | |
| 10 | 10 | SCREW | |
| 13 | 13 | PIN | |
| 8-1 | 8-1 | BRACKET | |
| 19 | 19 | SPRING | |
| 18 | 18 | SPRING | |
| 17 | 17 | SCREW | |
| 11 | 11 | BRACKET | |
| 11-1 | 11-1 | BRACKET | |
| 8-2 | 8-2 | BRACKET | |
| 8-4 | 8-4 | BRACKET | |
| 6-1 | 6-1 | BRACKET | |
| 71 | 71 | SCREW | |
| 73 | 73 | WASHER | |
| 20-1 | 20-1 | BRACKET | |
| 20-4 | 20-4 | SCREW | |
| 21 | 21 | SCREW | |
| 23-1 | 23-1 | SPRING | |
| 23-2 | 23-2 | WASHER | |
| 6-2 | 6-2 | BRACKET | |
| 6-3 | 6-3 | SCREW | |
| 5 | 5 | BRACKET | |
| 5-1 | 5-1 | BRACKET | |
| 24 | 24 | SPRING | |
| 70 | 70 | BRACKET | |
| 72 | 72 | SCREW | |
| 3 | 3 | SHAFT | |
| 4 | 4 | SCREW | |
| 1 | 1 | BRACKET | |
| 1-1 | 1-1 | BRACKET | |
F. 押工上ゲ関係 / Presser foot lifter mechanism / Stoffhalterhebevorrichtung /
Mécanisme de leveur du pinceur / Mecanismo del levantador de ménsula de trabajo
20-3
<B917A>
20-5
20-9
20-10
20-8
22
20-2
20-6
-20-7
8-5
15
8-7 8-8
9
13
8-8
8-2
24
23-1
23-2
5
2
3
4
1
1-1
6-1
71
73
6-2
6-3
8-1
19 18
17
11
11-1
<B916A>
70
72
118-916-204
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 19 — F. 押工上ゲ関係 / Presser foot lifter mechanism / Stoffhaltervorrichtung / Mécanisme de leveur du pinceur / Mecanismo del levantador de ménsula de trabajo
Brother BM-916A / BM-917A parts on page 19| Ref | Part number | Part name | Qty |
|---|
| S03488001 | DRIVING CAM ASSY | 1 |
| 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| S03489101 | BUTTON CLAMP DRIVING FORK | 1 |
| 115126001 | BUTTON CLAMP DRIVING FORK SHAFT | 1 |
| 014760622 | SET SCREW, SOCKET (CP) M5.95 | 2 |
| S03490001 | SET SCREW COLLAR ASSY | 2 |
| 013710512 | SET SCREW, (CP) M4.76 | 4 |
| S36629001 | DRIVING CONNECTOR ASSY | 1 |
| S36630001 | CONNECTOR ASSY | 1 |
| S03496101 | DRIVING ROD CLAW | 1 |
| 018680822 | BOLT, SOCKET M4.37X8 | 1 |
| S03500001 | PRESSER DRIVING LEVER ASSY | 1 |
| S03501000 | PRESSER DRIVING LEVER | 1 |
| S03502001 | PRESSER LIFTER CONNECT PLATE | 1 |
| S03503001 | PRESSER CONNECT STUD | 1 |
| 014680622 | SET SCREW, SOCKET (CP) M4.37 | 1 |
| S03504001 | TENSION RELEASE CONNECT ROD ASSY | 1 |
| S03508001 | TENSION RELEASE ADJUST STUD | 1 |
| 048050342 | RETAINING RING, E5 | 1 |
| 014680622 | SET SCREW, SOCKET (CP) M4.37 | 1 |
| S03509001 | PRESSER DRIVING LEVER SHAFT | 1 |
| 014760622 | SET SCREW, SOCKET (CP) M5.95 | 2 |
| S03704002 | SET SCREW COLLAR ASSY | 1 |
| 014770622 | SET SCREW, SOCKET (CP) M6.35 | 2 |
| S36633001 | SPRING, EXTENSION | 1 |
| S03512001 | STOPPER SCREW ASSY | 2 |
| 100507000 | WASHER | 2 |
| 013710712 | SET SCREW, (CP) M4.76 | 2 |
| S03516001 | PRESSER LIFTER BRACKET | 1 |
| S03517101 | PRESSER LIFTER ARM | 1 |
| S03518001 | PRESSER LIFTER ARM STUD | 1 |
| 014760622 | SET SCREW, SOCKET (CP) M5.95 | 1 |
| 018062022 | BOLT, SOCKET M6X20 | 2 |
| 145480101 | SHOULDER SCREW, M6.35 | 1 |
| S09146001 | SPRING GUIDE ASSY (B) | 1 |
| S09147001 | SPRING GUIDE (B) | 1 |
| 110740002 | NUT, M6.35 | 2 |
| S03521001 | SPRING | 1 |
| 062761612 | SCREW, PAN M5.95-28X16 | 1 |
| 156874001 | SHOULDER SCREW, M4.37 | 1 |
| 110161004 | NUT, M4.76 | 1 |
| S03515001 | PRESSER LIFTER ARM ASSY | 1 |
| S36632000 | BUTTON CLAMP DRIVING LEVER | 1 |
| S03612001 | PRESSER LIFTER ARM ASSY | 1 |
| S03613001 | CLAW ADJUSTING PLATE | 1 |
| 062780812 | SCREW, PAN M6.35-28X8 | 1 |
| 025060232 | WASHER, PLAIN M 6 | 1 |
| S03614001 | BUTTON OPENER CLAW (B) | 1 |
| 146360002 | BOLT, M4.76X7 | 1 |
| 146354001 | WASHER | 1 |
| S37439000 | BUTTON CLAMP DRIVING LEVER | 1 |
F. 押工上ゲ関係 / Presser foot lifter mechanism / Stoffhaltervorrichtung / Mécanisme de leveur du pinceur / Mecanismo del levantador de ménsula de trabajo
REF. NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
<共通部品/COMMON PARTS>
1
S03488001
1
サドウカムクミ
DRIVING CAM ASSY
1-1
014770622
2
アナトメネジ6.35クボミ
SET SCREW, SOCKET (CP) M6.35
2
S03489101
1
ボタンツカミサドウフタマタ
BUTTON CLAMP DRIVING FORK
3
115126001
1
ボタンツカミクシ
BUTTON CLAMP DRIVING FORK SHAFT
4
014760622
2
アナトメネジ5.95
SET SCREW, SOCKET (CP) M5.95
5
S03490001
2
セットカラークミ
SET SCREW COLLAR ASSY
6
013710512
4
トメネジ4.76クボミ
SET SCREW, (CP) M4.76
6-1
S36629001
1
ドライビングコネクタークミ
DRIVING CONNECTOR ASSY
6-2
S36630001
1
レンカンクミ
CONNECTOR ASSY
6-3
S03496101
1
ドライビングロツドクミ
DRIVING ROD CLAW
8
018680822
1
アナボルト4.37X8
BOLT, SOCKET M4.37X8
8-1
S03500001
1
オサエツリレバークミ
PRESSER DRIVING LEVER ASSY
8-2
S03501000
1
オサエツリレバー
PRESSER DRIVING LEVER
8-3
S03502001
1
オサエアゲレンケツツイタ
PRESSER LIFTER CONNECT PLATE
8-4
S03503001
1
オサエアゲレンケツジク
PRESSER CONNECT STUD
8-5
014680622
1
アナトメネジ4.37クボミ
SET SCREW, SOCKET (CP) M4.37
8-6
S03504001
1
イトユルメカシコネクミ
TENSION RELEASE CONNECT ROD ASSY
8-7
S03508001
1
イトユルメカシヨウセツジク
TENSION RELEASE ADJUST STUD
8-8
048050342
1
リテイニングリング E5
RETAINING RING, E5
9
014680622
1
アナトメネジ4.37クボミ
SET SCREW, SOCKET (CP) M4.37
10
S03509001
1
オサエツリレバークミ
PRESSER DRIVING LEVER SHAFT
11
014760622
2
アナトメネジ5.95
SET SCREW, SOCKET (CP) M5.95
11-1
S03704002
1
セットカラー
SET SCREW COLLAR ASSY
13
014770622
2
アナトメネジ6.35クボミ
SET SCREW, SOCKET (CP) M6.35
15
S36633001
1
ヒキバネ
SPRING, EXTENSION
17
S03512001
2
ストツパーネジクミ
STOPPER SCREW ASSY
18
100507000
2
ワッシャー
WASHER
19
013710712
2
トメネジ4.76クボミ
SET SCREW, (CP) M4.76
20-1
S03516001
1
オサエアゲブラケツト
PRESSER LIFTER BRACKET
20-2
S03517101
1
オサエアゲアーム
PRESSER LIFTER ARM
20-3
S03518001
1
オサエアゲアームジク
PRESSER LIFTER ARM STUD
20-4
014760622
1
アナトメネジ5.95
SET SCREW, SOCKET (CP) M5.95
21
018062022
2
アナボルト6X20
BOLT, SOCKET M6X20
22
145480101
1
ダンネジ6.35
SHOULDER SCREW, M6.35
23
S09146001
1
オサエバネアンナイクミB
SPRING GUIDE ASSY (B)
23-1
S09147001
1
オサエバネアンナイB
SPRING GUIDE (B)
23-2
110740002
2
ナット6.35
NUT, M6.35
24
S03521001
1
ボタンツカミサオエシバネ
SPRING
71
062761612
1
ナベコ595-28X16
SCREW, PAN M5.95-28X16
72
156874001
1
ダンネジ4.76
SHOULDER SCREW, M4.37
73
110161004
1
ナット4.76
NUT, M4.76
<B916A>
20
S03515001
1
オサエアゲテツクミ
PRESSER LIFTER ARM ASSY
70
S36632000
1
ボタンツカミサドウレバー
BUTTON CLAMP DRIVING LEVER
<B917A>
20
S03612001
1
オサエアゲテツクミ
PRESSER LIFTER ARM ASSY
20-5
S03613001
1
ツメチョウセツイタ
CLAW ADJUSTING PLATE
20-6
062780812
1
ナベコ635-28X8
SCREW, PAN M6.35-28X8
20-7
025060232
1
ヒラガネチユウ6
WASHER, PLAIN M 6
20-8
S03614001
1
ボタンオプナー クミB
BUTTON OPENER CLAW (B)
20-9
146360002
1
ボルト4.76X7
BOLT, M4.76X7
20-10
146354001
1
ザガネ
WASHER
70
S37439000
1
ボタンツカミサドウレバー
BUTTON CLAMP DRIVING LEVER
118-916-204
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 20
Brother BM-916A / BM-917A parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 16-5 | 16-5 | |
| 16-4 | 16-4 | |
| 16-3 | 16-3 | |
| 16-2 | 16-2 | |
| 16-1 | 16-1 | |
| 15 | 15 | |
| 16-6 | 16-6 | |
| 3 | 3 | |
| 12 | 12 | |
| 13 | 13 | |
| 13-1 | 13-1 | |
| 2 | 2 | |
| 5 | 5 | |
| 5-1 | 5-1 | |
| 6 | 6 | |
| 1 | 1 | |
| 1-1 | 1-1 | |
| 9-1 | 9-1 | |
| 8 | 8 | |
| 7 | 7 | |
| 4 | 4 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 11-1 | 11-1 | |
| 4 | 4 | |
| 3 | 3 | |
| 2 | 2 | |
| 1 | 1 | |
| 7 | 7 | |
| 5 | 5 | |
| 6 | 6 | |
G. 下軸関係 / Lower shaft mechanism / Untere Welle / Mécanisme de l'arbre inférieur /
Mecanismo del eje inferior
16-5 16-4 16-3 16-2 16-1
15
16-6
3
12
13
13-1
2
5
5-1
6
1
1-1
9-1
8 7
4
9
10
11
11-1
118-916-305
H. 糸サバ関係 / Loop spreading mechanism / Schleifenzieher / Etirement de boucle /
Ensanache de bucle
4
3
2
1
7
5
6
118-916-411
Page 21 — G. 下軸関係 / Lower shaft mechanism / Untere Welle / Mécanisme del eje inferior
H. ホサバキ関係 / Loop spreading mechanism / Schleifenzieher / Etirement de boucle / Ensanche de bucle
Brother BM-916A / BM-917A parts on page 21| Ref | Part number | Part name | Qty |
|---|
| S03522001 | ヘリカルギヤクミ | |
| 014770622 | アナトメネジ6.35クボミ | 2 |
| S03523001 | シタジク | |
| S03524000 | シタジクメタルF | |
| S03525000 | シタジクメタルB | |
| S03526001 | シタジクヘリカルギヤクミ | |
| 014770622 | アナトメネジ6.35クボミ | 2 |
| 147151000 | トメザガネ | |
| S10668001 | ザガネ | |
| 115008000 | タマツクウケ | |
| 014770622 | アナトメネジ6.35クボミ | 3 |
| 147151000 | トメザガネ | |
| 181995001 | セットカラ | |
| 101706001 | トメネジ6.35 | 2 |
| 107153001 | ザガネ | |
| S03533001 | イトサバキミゾカムクミ | |
| 110124001 | トメネジ5.56 | 2 |
| S03536001 | ルーバー | |
| S36699001 | デルタカムクミ | |
| 115066000 | ルーバートリツケジク | |
| 013750512 | トメネジ5.56クボミ | 2 |
| 115067001 | イトサバキデルタカム | |
| 151601002 | トメネジ4.37 | 2 |
| 115068001 | セットカラー | |
| 151602001 | トメネジ4.37 | |
| S03567001 | イトサバキダイ | |
| S01696001 | サラネジ3.57X6 | 2 |
| S36624001 | イトサバキアンナイイタ | |
| S36625001 | イトサバキ | |
| 115073001 | イトサバキリンククミ | |
| 115076001 | イトサバキリンクコロ | |
| 115077001 | ダンネジ4.76 | |

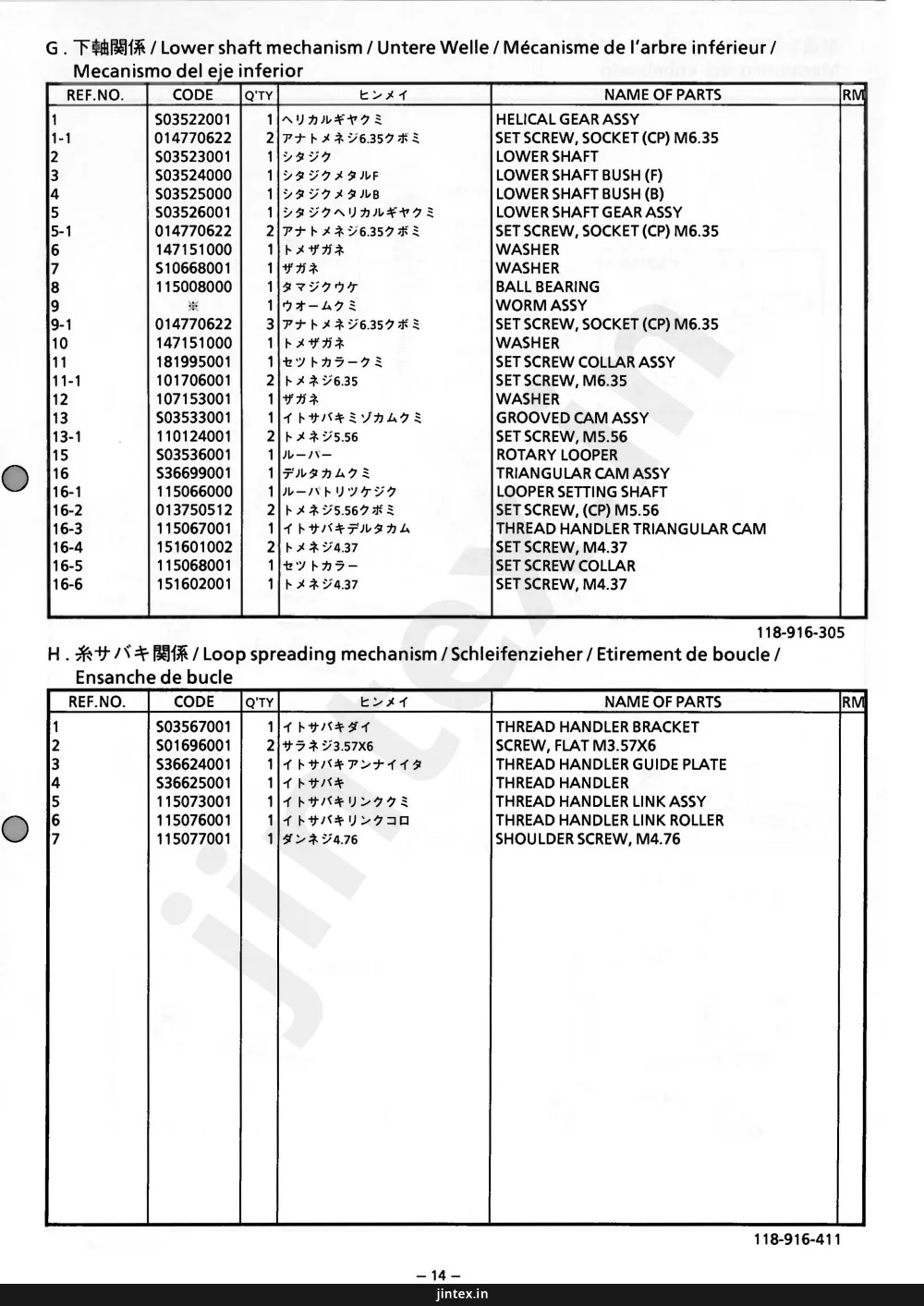

G. 下軸関係 / Lower shaft mechanism / Untere Welle / Mécanisme del eje inferior
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
1
S03522001
1
ヘリカルギヤクミ
HELICAL GEAR ASSY
1-1
014770622
2
アナトメネジ6.35クボミ
SET SCREW, SOCKET (CP) M6.35
2
S03523001
1
シタジク
LOWER SHAFT
3
S03524000
1
シタジクメタルF
LOWER SHAFT BUSH (F)
4
S03525000
1
シタジクメタルB
LOWER SHAFT BUSH (B)
5
S03526001
1
シタジクヘリカルギヤクミ
LOWER SHAFT GEAR ASSY
5-1
014770622
2
アナトメネジ6.35クボミ
SET SCREW, SOCKET (CP) M6.35
6
147151000
1
トメザガネ
WASHER
7
S10668001
1
ザガネ
WASHER
8
115008000
1
タマツクウケ
BALL BEARING
9
※
1
ウオームクミ
WORM ASSY
9-1
014770622
3
アナトメネジ6.35クボミ
SET SCREW, SOCKET (CP) M6.35
10
147151000
1
トメザガネ
WASHER
11
181995001
1
セットカラ
SET SCREW COLLAR ASSY
11-1
101706001
2
トメネジ6.35
SET SCREW, M6.35
12
107153001
1
ザガネ
WASHER
13
S03533001
1
イトサバキミゾカムクミ
GROOVED CAM ASSY
13-1
110124001
2
トメネジ5.56
SET SCREW, M5.56
15
S03536001
1
ルーバー
ROTARY LOOPER
16
S36699001
1
デルタカムクミ
TRIANGULAR CAM ASSY
16-1
115066000
1
ルーバートリツケジク
LOOPER SETTING SHAFT
16-2
013750512
2
トメネジ5.56クボミ
SET SCREW, (CP) M5.56
16-3
115067001
1
イトサバキデルタカム
THREAD HANDLER TRIANGULAR CAM
16-4
151601002
2
トメネジ4.37
SET SCREW, M4.37
16-5
115068001
1
セットカラー
SET SCREW COLLAR
16-6
151602001
1
トメネジ4.37
SET SCREW, M4.37
118-916-305
H. ホサバキ関係 / Loop spreading mechanism / Schleifenzieher / Etirement de boucle /
Ensanche de bucle
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
1
S03567001
1
イトサバキダイ
THREAD HANDLER BRACKET
2
S01696001
2
サラネジ3.57X6
SCREW, FLAT M3.57X6
3
S36624001
1
イトサバキアンナイイタ
THREAD HANDLER GUIDE PLATE
4
S36625001
1
イトサバキ
THREAD HANDLER
5
115073001
1
イトサバキリンククミ
THREAD HANDLER LINK ASSY
6
115076001
1
イトサバキリンクコロ
THREAD HANDLER LINK ROLLER
7
115077001
1
ダンネジ4.76
SHOULDER SCREW, M4.76
118-916-411
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 22 — J. 糸通シ関係 / Threading mechanism / Fadeneinführungsvorrichtung / Mécanisme de l'enfilage / Mecanismo del enhebrado
Brother BM-916A / BM-917A parts on page 22| Ref | Part number | Part name | Qty |
|---|
| 1-15-5 | 1-15-5 | |
| 1-19 | <B916A> | |
| 1-15-4 | 1-15-4 | |
| 1-10-6 | 1-10-6 | |
| 1-15-3 | 1-15-3 | |
| 1-10-5 | 1-10-5 | |
| 1-12-4 | 1-12-4 | |
| 1-15-2 | 1-15-2 | |
| 1-10-4 | 1-10-4 | |
| 1-12-3 | 1-12-3 | |
| 1-15-1 | 1-15-1 | |
| 1-10-3 | 1-10-3 | |
| 1-12-2 | 1-12-2 | |
| 1-17 | 1-17 | |
| 1-10-1 | 1-10-1 | |
| 1-18 | 1-18 | |
| 1-12-1 | 1-12-1 | |
| 1-16 | 1-16 | |
| 1-10-2 | 1-10-2 | |
| 1-20 | 1-20 | |
| 1-17 | 1-17 | |
| 1-21 | 1-21 | |
| 1-25 | 1-25 | |
| 1-26 | 1-26 | |
| 1-8 | 1-8 | |
| 1-14 | 1-14 | |
| 1-6 | 1-6 | |
| 1-17 | 1-17 | |
| 1-7 | 1-7 | |
| 1-22 | 1-22 | |
| 1-13 | 1-13 | |
| 1-5 | 1-5 | |
| 1-17 | 1-17 | |
| 2 | 2 | |
| 1-4 | 1-4 | |
| 1-1 | 1-1 | |
| 1-24 | 1-24 | |
| 1-27 | 1-27 | |
| 1-9 | 1-9 | |
| 1-23 | 1-23 | |
| 1-2 | 1-2 | |
| 1-3 | 1-3 | |
| 1-3 | 1-3 | |
| 15 | 15 | |
| 16 | 16 | |
| 12-1 | 12-1 | |
| 14 | 14 | |
| 16 | 16 | |
| 13 | 13 | |
| 12-4 | 12-4 | |
| 12-3 | 12-3 | |
| 12-2 | 12-2 | |
| 1-2 | 1-2 | |
| <B917A> | <B917A> | |
| 11 | 11 | |
| 10 | 10 | |
J. 糸通シ関係 / Threading mechanism / Fadeneinführungsvorrichtung / Mécanisme de l'enfilage / Mecanismo del enhebrado
1-15-5
1-19- <B916A>
1-15-4
1-10-6
1-15-3
1-10-5
1-12-4
1-15-2
1-10-4
1-12-3
1-15-1
1-10-3
1-12-2
1-17
1-10-1
1-18
1-12-1
1-16
1-10-2
1-20
1-17
1-21
1-25
1-26
1-8
1-14
1-6
1-17
1-7
1-22
1-13
1-5
1-17
2
1-4
1-1
<B916A>
1-24
1-27
1-9
1-23
1-2
1-3
1-3
15
16
<B917A>
1-2
14
12-1
16
13 12-4 12-312-2
118-916-401
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 23
Brother BM-916A / BM-917A parts on page 23| Ref | Part number | Part name | Qty |
|---|
| S03538109 | TOP COVER | 1 |
| S03540001 | SHOULDER SCREW, M4.76 | 2 |
| S03541001 | ROTOR BASE | 1 |
| S03542001 | ROTOR ASSY | 1 |
| 062710612 | SCREW, PAN M4.76-32X6 | 1 |
| 146354001 | WASHER | 1 |
| S03543101 | ROTOR SHAFT | 1 |
| 013710712 | SET SCREW, (CP) M4.76 | 1 |
| S03544101 | SUB TENSION STUD ASSY | 1 |
| S03545001 | SUB TENSION STUD | 1 |
| S03546001 | PIN | 1 |
| 115187101 | TENSION DISC | 1 |
| 159805001 | TENSION DISC PRESSER | 1 |
| 148924101 | TENSION SPRING | 1 |
| 100136001 | TENSION NUT | 1 |
| 013710712 | SET SCREW, (CP) M4.76 | 1 |
| S06057001 | MAIN TENSION STUD ASSY | 1 |
| 115186001 | MAIN TENSION STUD | 1 |
| 115187101 | TENSION DISC | 2 |
| 115188002 | TENSION SPRING | 1 |
| 100136001 | TENSION NUT | 1 |
| 115183101 | THREAD GUIDE | 1 |
| 062710612 | SCREW, PAN M4.76-32X6 | 1 |
| S03549001 | THREAD PRESSER TENSION STUD ASSY | 1 |
| S03550001 | THREAD PRESSER TENSION STUD | 1 |
| 115187101 | TENSION DISC | 1 |
| 159805001 | TENSION DISC PRESSER | 1 |
| 148924101 | TENSION SPRING | 1 |
| 100136001 | TENSION NUT | 2 |
| 150556001 | NUT, M6.35 | 1 |
| S03551001 | PIN | 4 |
| S03560001 | PIN 3 | 1 |
| S03557001 | SPRING, EXTENSION | 1 |
| S03558001 | SPRING HOOK | 1 |
| S06253201 | THREAD GUIDE | 1 |
| 014680622 | SET SCREW, SOCKET (CP) M4.37 | 1 |
| S16253001 | THREAD DIAGRAM | 1 |
| 062711012 | SCREW, PAN M4.76-32X10 | 5 |
| S03617001 | THREAD TAKE-UP LEVER | 1 |
| 062711012 | SCREW, PAN M4.76-32X10 | 1 |
| 146354001 | WASHER | 1 |
| S03560001 | THREAD TAKE-UP LEVER SHAFT | 1 |
| 013710712 | SET SCREW, (CP) M4.76 | 1 |
| S03561201 | FACE PLATE ASSY | 1 |
| S03377101 | FACE PLATE SMALL ASSY | 1 |
| 144504001 | THREAD GUIDE DISC | 2 |
| 144505000 | SPRING | 1 |
| 155510001 | TENSION NUT | 1 |
| S03564001 | SUB TENSION THREAD GUIDE | 1 |
| S03565001 | FACE PLATE THREAD GUIDE | 1 |
| S03566001 | FACE PLATE THREAD HOOK | 1 |
| 062711012 | SCREW, PAN M4.76-32X10 | 4 |
| 112758009 | OIL CAP | 1 |
| S03537109 | TOP COVER ASSY 916 | 1 |
| S03539101 | SLIDER ASSY (A) | 1 |
| S03552001 | TENSION RELEASER | 1 |
| S03553001 | SHOULDER SCREW, M4.76 | 1 |
| S03554001 | TENSION RELEASE SPRING | 1 |
| S03555001 | STOPPER PIN | 1 |
| S03615109 | TOP COVER ASSY | 1 |
| S03616101 | SLIDER ASSY (B) | 1 |
J. 糸通シ関係 / Threading mechanism / Fad enführungsvorrichtung / Mécanisme de l'enfilage /
Mecanismo del enhebrado
REF. NO. CODE Q'TY
HINMEI
NAME OF PARTS
RM
<共通部品/COMMON PARTS>
1-1 S03538109 1 ウワフタ
TOP COVER
1-3 S03540001 2 ダンネジ4.76
SHOULDER SCREW, M4.76
1-4 S03541001 1 ローターベース
ROTOR BASE
1-5 S03542001 1 ロータークミ
ROTOR ASSY
1-6 062710612 1 ナベコ476-32X6
SCREW, PAN M4.76-32X6
1-7 146354001 1 ザガネ
WASHER
1-8 S03543101 1 ローターシク
ROTOR SHAFT
1-9 013710712 1 トメネジ4.76クボミ
SET SCREW, (CP) M4.76
1-10 S03544101 1 フクイトチョウシボウクミ
SUB TENSION STUD ASSY
1-10-1 S03545001 1 フクイトチョウシボウ
SUB TENSION STUD
1-10-2 S03546001 1 エルメン
PIN
1-10-3 115187101 1 イトチョウシサラ
TENSION DISC
1-10-4 159805001 1 イトチョウシサラオサエ
TENSION DISC PRESSER
1-10-5 148924101 1 イトチョウシバネ
TENSION SPRING
1-10-6 100136001 1 イトチョウシナツト
TENSION NUT
1-11 013710712 1 ナベネジ4.76クボミ
SET SCREW, (CP) M4.76
1-12 S06057001 1 シュイトチョウシボウクミ
MAIN TENSION STUD ASSY
1-12-1 115186001 1 シュイトチョウシボウ
MAIN TENSION STUD
1-12-2 115187101 2 イトチョウシサラ
TENSION DISC
1-12-3 115188002 1 シュイトチョウシバネ
TENSION SPRING
1-12-4 100136001 1 イトチョウシナツト
TENSION NUT
1-12-5 115183101 1 イトカケ
THREAD GUIDE
1-14 062710612 1 ナベコ476-32X6
SCREW, PAN M4.76-32X6
1-15 S03549001 1 イトオサエチョウシボウクミ
THREAD PRESSER TENSION STUD ASSY
1-15-1 S03550001 1 イトオサエチョウシボウ
THREAD PRESSER TENSION STUD
1-15-2 115187101 1 イトチョウシサラ
TENSION DISC
1-15-3 159805001 1 イトチョウシサラオサエ
TENSION DISC PRESSER
1-15-4 148924101 1 イトチョウシバネ
TENSION SPRING
1-15-5 100136001 2 イトチョウシナツト
TENSION NUT
1-16 150556001 1 ナツト6.35
NUT, M6.35
1-17 S03551001 4 ユルメピン
PIN
1-22 S03560001 1 ピン3
PIN 3
1-23 S03557001 1 スライダーヒキバネ
SPRING, EXTENSION
1-24 S03558001 1 バネカケ
SPRING HOOK
1-25 S06253201 1 ロータージクイトカケ
THREAD GUIDE
1-26 014680622 1 ナトメネジ4.37クボミ
SET SCREW, SOCKET (CP) M4.37
1-27 S16253001 1 イトオシセツメイイタ
THREAD DIAGRAM
2 062711012 5 ナベコ476-32X10
SCREW, PAN M4.76-32X10
3 S03617001 1 イトトリレバー
THREAD TAKE-UP LEVER
4 062711012 1 ナベコ476-32X10
SCREW, PAN M4.76-32X10
5 146354001 1 ザガネ
WASHER
10 S03560001 1 イトトリレバージク
THREAD TAKE-UP LEVER SHAFT
11 013710712 1 ナベネジ4.76クボミ
SET SCREW, (CP) M4.76
12 S03561201 1 メンイタクミ
FACE PLATE ASSY
12-1 S03377101 1 メンイタクミコ
FACE PLATE SMALL ASSY
12-2 144504001 2 イトアンナイバネ
THREAD GUIDE DISC
12-3 144505000 1 イトアンナイバネ
SPRING
12-4 155510001 1 サブテンションナツト
TENSION NUT
13 S03564001 1 サブテンションイトアンナイ
SUB TENSION THREAD GUIDE
14 S03565001 1 メンイタイトアンナイ
FACE PLATE THREAD GUIDE
15 S03566001 1 メンイタイトカケ
FACE PLATE THREAD HOOK
16 062711012 4 ナベコ476-32X10
SCREW, PAN M4.76-32X10
17 112758009 1 ベツドオイルフタ
OIL CAP
<B916A>
1 S03537109 1 ウワフタ クミ916
TOP COVER ASSY 916
1-2 S03539101 1 フライダークミA
SLIDER ASSY (A)
1-18 S03552001 1 イトユルメ
TENSION RELEASER
1-19 S03553001 1 ダンネジ4.76
SHOULDER SCREW, M4.76
1-20 S03554001 1 イトユルメバネ
TENSION RELEASE SPRING
1-21 S03555001 1 ストツパーピン
STOPPER PIN
<B917A>
1 S03615109 1 ウワフタ クミ917
TOP COVER ASSY
1-2 S03616101 1 フライダークミB
SLIDER ASSY (B)
From the library of: Superior Sewing Machine & Supply LLC 118-916-401
jintex.in
Page 24
Brother BM-916A / BM-917A parts on page 24| Ref | Part number | Part name | Qty |
|---|
| 1-1 | Thread trimmer mechanism | |
| 1-2 | Thread trimmer mechanism | |
| 1-3 | Thread trimmer mechanism | |
| 1-4 | Thread trimmer mechanism | |
| 1-5 | Thread trimmer mechanism | |
| 1-6 | Thread trimmer mechanism | |
| 1-7 | Thread trimmer mechanism | |
| 1-8 | Thread trimmer mechanism | |
| 1-9 | Thread trimmer mechanism | |
| 1-10 | Thread trimmer mechanism | |
| 1-11 | Thread trimmer mechanism | |
| 1-12 | Thread trimmer mechanism | |
| 1-13 | Thread trimmer mechanism | |
| 1-14 | Thread trimmer mechanism | |
| 1-15 | Thread trimmer mechanism | |
| 1 | Option parts | |
| 2 | Thread trimmer mechanism | |
| 3 | Thread trimmer mechanism | |
| 4 | Thread trimmer mechanism | |
| 5 | Thread trimmer mechanism | |
| 6 | Thread trimmer mechanism | |
| 7 | Thread trimmer mechanism | |
| 8 | Thread trimmer mechanism | |
| 9 | Thread trimmer mechanism | |
| 10 | Thread trimmer mechanism | |
K. 糸切り関係 / Thread trimmer mechanism / Fadenabschneidevorrichtung /
M
e
c
a
n
i
s
m
e
de
coupe-fil / Mecanismo de la cortadura de hiros
<B917A>
3
2
1-5 1-2
6
8
7
1-1
1-7
1-11
1-8
1-13 1-12
1-9
1-10
1-15
1-14
1-6
4
5
10
9
118-916-403
L1. オプションパーツ / Option parts / Sondezubehör / Pi
eces en option / Piezas opcionales
118-916-940
Page 25 — K. 糸切り 関係 / Thread trimmer mechanism / Fadenabschneidevorrichtung / Mécanisme de coupe-fil / Mecanismo de la cortadura de hiros
Brother BM-916A / BM-917A parts on page 25| Ref | Part number | Part name | Qty |
|---|
| S37369001 | イトキリレバークミ | |
| S36617001 | イトキリレバー | |
| S03406101 | ツメ | |
| S03407001 | コロ | |
| S03408001 | コロダンネジ | |
| 110161004 | ナット4.76 | |
| S34278001 | バネケジク | |
| 014760622 | アナトメネジ5.95 | |
| S03621001 | イトキリレンケツカン | |
| S03622101 | イトキリレンケツレバー | |
| S03623001 | イトキリレンケツカンジク | |
| 048050342 | トメワE5 | |
| 025060232 | ナット5.95 | |
| 048040342 | トメワE4 | |
| 15555001 | ヒラザガネ | |
| 151932001 | ヒラザガネ | |
| 107231002 | ジクウケフタ | |
| S03624001 | サラネジ4.76 | |
| S03626001 | イトキリレバーバネ | |
| S034298001 | ミゾツキピン | |
| S03626001 | イトキリレンカンクミ | |
| S03627001 | イドウハ | |
| S03628001 | イドウハダンネジ | |
| S03629001 | テイハ | |
| 106629002 | シメネジ4.37 | |
| S03476101 | オク リタA | |
| S03630101 | オク リタB | |
| 115085001 | オク リタC | |
| S03632101 | オク リタD | |
| S16121101 | オク リタE | |
K. 糸切り 関係 / Thread trimmer mechanism / Fadenabschneidevorrichtung /
M
ecanisme de coupe-fil / Mecanismo de la cortadura de hiros
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
<B917A>
1
S37369001
1
イトキリレバークミ
THREAD TRIMMER LEVER ASSY
1-1
S36617001
1
イトキリレバー
THREAD TRIMMER LEVER
1-2
S03406101
1
ツメ
CLAW
1-3
S03407001
1
コロ
ROLLER
1-4
S03408001
1
コロダンネジ
SHOULDER SCREW
1-5
110161004
1
ナット4.76
NUT, M4.76
1-6
S34278001
1
バネケジク
SPRING HANGER SHAFT
1-7
014760622
1
アナトメネジ5.95
SET SCREW, SOCKET (CP) M5.95
1-8
S03621001
1
イトキリレンケツカン
CONNECTING BAR
1-9
S03622101
1
イトキリレンケツレバー
CONNECTING LEVER
1-10
S03623001
1
イトキリレンケツカンジク
CONNECTING BAR SHAFT
1-11
048050342
1
トメワE5
RETAINING RING, E5
1-12
025060232
1
ナット5.95
NUT, M5.95
1-13
048040342
1
トメワE4
RETAINING RING, E4
1-14
15555001
1
ヒラザガネ
WASHER, PLAIN
1-15
151932001
1
ヒラザガネ
WASHER, PLAIN
2
107231002
1
ジクウケフタ
BEARING COVER
3
S03624001
1
サラネジ4.76
SCREW, FLAT M4.76
4
S03626001
1
イトキリレバーバネ
SPRING
5
S034298001
1
ミゾツキピン
DOWEL PIN
6
S03626001
1
イトキリレンカンクミ
THREAD TRIMMER CONNECTING ROD ASSY
7
S03627001
1
イドウハ
MOVABLE KNIFE
8
S03628001
1
イドウハダンネジ
MOVABLE KNIFE SHOULDER SCREW
9
S03629001
1
テイハ
FIXED KNIFE
10
106629002
1
シメネジ4.37
SCREW, M4.37
118-917-403
L1. オプションパーツ / Option parts / SondeZubehör / Pi
èces en option / Piezas opcionales
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
a x b x h
1
S03476101
1
オク リタA
FEED PLATE (A)
4.8 x 4.8 x 1
1
S03630101
1
オク リタB
FEED PLATE (B)
4.8 x 4.8 x 0
1
115085001
1
オク リタC
FEED PLATE (C)
7x7x0
1
S03632101
1
オク リタD
FEED PLATE (D)
7x7x1
1
S16121101
1
オク リタE
FEED PLATE (E)
8x2x0
118-916-940
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 26
Brother BM-916A / BM-917A parts on page 26| Ref | Part number | Part name | Qty |
|---|
| 2-1-15 | 2-1-15 | |
| 2-1-14 | 2-1-14 | |
| 2-1-16 | 2-1-16 | |
| 2-1-1 | 2-1-1 | |
| 2-1-7 | 2-1-7 | |
| 2-1-3 | 2-1-3 | |
| 2-1-8 | 2-1-8 | |
| 2-1-2 | 2-1-2 | |
| 2-1-10 | 2-1-10 | |
| 2-1-17 | 2-1-17 | |
| 2-1-5 | 2-1-5 | |
| 2-1-4 | 2-1-4 | |
| 2-1-18 | 2-1-18 | |
| 2-1-12 | 2-1-12 | |
| 2-2 | 2-2 | |
| 2-1-11 | 2-1-11 | |
| 2-1-13 | 2-1-13 | |
| 2-1-6 | 2-1-6 | |
| 2-1-9 | 2-1-9 | |
L2. オプションパーツ / Option parts / Sondezubehör / Pièces en option / Piezas opcionales
2-1-15
2-1-14
2-1-16
2-1-1
2-1-7
2-1-3
2-1-8
2-1-2
2-1-10
2-1-17
2-1-5
2-1-4
2-1-18
2-1-12
2-2
2-1-11
2-1-13
2-1-6
2-1-9
118-916-940
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 27 — L2. オプションパーツ/Option parts / Sondezubehör / Pièces en opt
Brother BM-916A / BM-917A parts on page 27| Ref | Part number | Part name | Qty |
|---|
| S03701001 | ボタンカミセットA | 1 |
| S30015001 | ボタンカミクミ | 1 |
| S03464101 | ボタンカミタイ | 1 |
| S29998001 | ボタンカミL | 1 |
| S30001001 | ボタンカミLイタバネ | 1 |
| S29999001 | ボタンカミR | 1 |
| S30002001 | ボタンカミRイタバネ | 1 |
| 115156001 | ボタンカミアソイピン | 2 |
| 062680512 | ナベコ437-40X5 | 2 |
| 047250642 | スプリングピンAW2.5 | 2 |
| 115158001 | ダンネジ4.76 | 2 |
| S29994001 | ボタンカミMクミ | 1 |
| S03468001 | シメネジ4.37 | 1 |
| S03657001 | マルナット4.37 | 1 |
| 115163001 | ボタンカミイタバネ | 1 |
| 115164001 | ボタンカミチョウセツイタ | 1 |
| 115165001 | ダンネジ4.37 | 1 |
| 115166001 | ダンネジ4.37 | 1 |
| S03659001 | ボタンカミイタカム | 1 |
| 062680812 | コ437-40X8 | 2 |
| S03610001 | ボタンカミモドシバネ | 1 |
| S03633001 | ボタンカミセットB | 1 |
| S03634001 | ボタンカミクミB | 1 |
| S03464101 | ボタンカミタイ | 1 |
| S03650001 | ボタンカミLB | 1 |
| S11079001 | ボタンカミLイタバネ | 1 |
| S03649001 | ボタンカミRB | 1 |
| S11080001 | ボタンカミRイタバネ | 1 |
| 115156001 | ボタンカミアソイピン | 2 |
| 062680512 | ナベコ437-40X5 | 2 |
| 047250642 | スプリングピンAW2.5 | 2 |
| 115158001 | ダンネジ4.76 | 2 |
| S03467001 | ボタンカミMクミ | 1 |
| S03468001 | シメネジ4.37 | 1 |
| S03657001 | マルナット4.37 | 1 |
| 115163001 | ボタンカミイタバネ | 1 |
| 115164001 | ボタンカミチョウセツイタ | 1 |
| 115165001 | ダンネジ4.37 | 1 |
| 115166001 | ダンネジ4.37 | 1 |
| S03659001 | ボタンカミイタカム | 1 |
| 062680812 | コ437-40X8 | 2 |
| S03610001 | ボタンカミモドシバネ | 1 |
L2. オプションパーツ/Option parts / Sondezubehör / Pièces en opt
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
<ボタン サイズ Ø10~Ø20用 / FOR BUTTON SIZE Ø10~Ø20>
2
S03701001
1
ボタンカミセットA
BUTTON CLAMP SET (A)
2-1
S30015001
1
ボタンカミクミ
BUTTON CLAMP ASSY
2-1-1
S03464101
1
ボタンカミタイ
BUTTON CLAMP BRACKET
2-1-2
S29998001
1
ボタンカミL
BUTTON CLAMP (L)
2-1-3
S30001001
1
ボタンカミLイタバネ
SPRING, PLATE
2-1-4
S29999001
1
ボタンカミR
BUTTON CLAMP (R)
2-1-5
S30002001
1
ボタンカミRイタバネ
SPRING, PLATE
2-1-6
115156001
2
ボタンカミアソイピン
PIN
2-1-7
062680512
2
ナベコ437-40X5
SCREW, PAN M4.37-40X5
2-1-8
047250642
2
スプリングピンAW2.5
PIN, SPRING ROLL AW2.5
2-1-9
115158001
2
ダンネジ4.76
SHOULDER SCREW, M4.76
2-1-10
S29994001
1
ボタンカミMクミ
BUTTON CLAMP (M) ASSY
2-1-11
S03468001
1
シメネジ4.37
SCREW, M4.37
2-1-12
S03657001
1
マルナット4.37
NUT, M4.37
2-1-13
115163001
1
ボタンカミイタバネ
SPRING, PLATE
2-1-14
115164001
1
ボタンカミチョウセツイタ
BUTTON CLAMP ADJUST PLATE
2-1-15
115165001
1
ダンネジ4.37
SHOULDER SCREW, M4.37
2-1-16
115166001
1
ダンネジ4.37
SHOULDER SCREW, M4.37
2-1-17
S03659001
1
ボタンカミイタカム
BUTTON CLAMP PLATE CAM
2-1-18
062680812
2
コ437-40X8
SCREW, PAN M4.37-40X8
2-2
S03610001
1
ボタンカミモドシバネ
SPRING
<ボタン サイズ Ø10~Ø30用 / FOR BUTTON SIZE Ø10~Ø30>
2
S03633001
1
ボタンカミセットB
BUTTON CLAMP SET (B)
2-1
S03634001
1
ボタンカミクミB
BUTTON CLAMP ASSY (B)
2-1-1
S03464101
1
ボタンカミタイ
BUTTON CLAMP BRACKET
2-1-2
S03650001
1
ボタンカミLB
BUTTON CLAMP (LB)
2-1-3
S11079001
1
ボタンカミLイタバネ
SPRING, PLATE
2-1-4
S03649001
1
ボタンカミRB
BUTTON CLAMP (RB)
2-1-5
S11080001
1
ボタンカミRイタバネ
SPRING, PLATE
2-1-6
115156001
2
ボタンカミアソイピン
PIN
2-1-7
062680512
2
ナベコ437-40X5
SCREW, PAN M4.37-40X5
2-1-8
047250642
2
スプリングピンAW2.5
PIN, SPRING ROLL AW2.5
2-1-9
115158001
2
ダンネジ4.76
SHOULDER SCREW, M4.76
2-1-10
S03467001
1
ボタンカミMクミ
BUTTON CLAMP (M) ASSY
2-1-11
S03468001
1
シメネジ4.37
SCREW, M4.37
2-1-12
S03657001
1
マルナット4.37
NUT, M4.37
2-1-13
115163001
1
ボタンカミイタバネ
SPRING, PLATE
2-1-14
115164001
1
ボタンカミチョウセツイタ
BUTTON CLAMP ADJUST PLATE
2-1-15
115165001
1
ダンネジ4.37
SHOULDER SCREW, M4.37
2-1-16
115166001
1
ダンネジ4.37
SHOULDER SCREW, M4.37
2-1-17
S03659001
1
ボタンカミイタカム
BUTTON CLAMP PLATE CAM
2-1-18
062680812
2
コ437-40X8
SCREW, PAN M4.37-40X8
2-2
S03610001
1
ボタンカミモドシバネ
SPRING
From the library of: Superior-Sewing Machine & Supply LLC
118-916-940
jintex.in
Page 28
Brother BM-916A / BM-917A parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 5-5 | 5-1-12 | |
| 5-1-13 | 5-1-10 | |
| 5-1-9 | 5-1-8 | |
| 5-1-7 | 5-1-9 | |
| 5-1-8 | | |
| 5-3 | | |
| 5-4 | | |
| 5-2 | | |
| 5-1-11 | 5-1-6 | |
| 5-1-1 | | |
| 5-1-4 | 5-1-5 | |
| 5-1-2 | 5-1-3 | |
| 5-7 | | |
| 5-9 | 5-10 | |
| 5-11 | | |
| 5-8 | 5-6 | |
| 13-2 | 12-6 | |
| 13-1 | 12-5 | |
| 12-4 | 12-3 | |
| 12-2 | 12-1 | |
L3 . オプションパーツ / Option parts / Sondezubehör / Pièces en option / Piezas opcionales
5-5
5-1-12
5-1-13 5-1-10
5-1-9
5-1-8
5-1-7
5-1-9
5-1-8
5-3
5-4
5-2
5-1-11 5-1-6
5-1-1
5-1-4 5-1-5 5-1-2
5-1-3
5-7
5-9
5-10
5-11
5-8
5-6
13-2
12-6
13-1
12-5
12-4 12-3
12-2
12-1
118-916-940
From the library of: Superior Sewing Machine & Supply LLC
Jinttex.in
Page 29 — L3. オプションパーツ / Option parts / Sondeubehör / Pièces en option / Piezas opcionales
Brother BM-916A / BM-917A parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 142570009 | シャンクアタッチメントクミ | 1 |
| 142689209 | シャンクボタンツマミタイクミ | 1 |
| 154684009 | シャンクボタンツマミタイ | 1 |
| 142677001 | ボタンツマミA | 1 |
| 142678001 | ボタンツマミB | 1 |
| 062670812 | ナベコ3.57-40X8 | 1 |
| 102707003 | ザガネ | 1 |
| 142681001 | ボタンオサエジク | 1 |
| 154685001 | ボタンオサエジクバネ | 1 |
| 142706001 | セットカラー | 2 |
| 062670712 | ナベコ357-40X7 | 2 |
| 154686001 | ボタンオサエウデ | 1 |
| 013719412 | トメネジ4.76クボミ | 1 |
| 142680001 | ボタンオサエ | 1 |
| 120990001 | アタツメネジ4.37 | 1 |
| 142683101 | ボタンオサエウデアゲ | 1 |
| 142684001 | オサエウデアゲジク | 1 |
| 120990001 | アタツメネジ4.37 | 1 |
| 062711012 | ナベコ476-32X10 | 1 |
| 156336001 | シャンクボタンフエイトプレート | 1 |
| 060670512 | バインド357-40X5 | 1 |
| 142686001 | ヌノケダイS | 1 |
| S03641001 | ボタンツカミD | 1 |
| 142687001 | ヌノケダイM | 1 |
| 142688001 | ヌノケダイL | 1 |
| S10654001 | シャンクゲージキット | 1 |
| S10656001 | ボタンツマミE | 1 |
| S10651003 | ボタンツマミF | 1 |
| 105161003 | ザガネ | 1 |
| S39086001 | ナベコ3.57-40X3.5 | 1 |
| S10652000 | ボタンガイド1.5 | 5 |
| S10653000 | ボタンガイド1.0 | 5 |
| S10655001 | ボタンガイドクミ | 1 |
| S10652000 | ボタンガイド1.5 | 10 |
| S10653000 | ボタンガイド1.0 | 10 |
L3. オプションパーツ / Option parts / Sondeubehör / Pièces en option / Piezas opcionales
REF.NO.
CODE
QTY
ヒンメイ
NAME OF PARTS
RM
5
142570009
1
シャンクアタッチメントクミ
SHANK BUTTON ATTACHMENT
5-1
142689209
1
シャンクボタンツマミタイクミ
SHANK BUTTON CLAMP ASSY
5-1-1
154684009
1
シャンクボタンツマミタイ
SHANK BUTTON CLAMP BRACKET
5-1-2
142677001
1
ボタンツマミA
BUTTON CLAMP (A)
5-1-3
142678001
1
ボタンツマミB
BUTTON CLAMP (B)
5-1-4
062670812
1
ナベコ3.57-40X8
SCREW, PAN M3.57-40X8
5-1-5
102707003
1
ザガネ
WASHER
5-1-6
142681001
1
ボタンオサエジク
BUTTON PRESSER STUD
5-1-7
154685001
1
ボタンオサエジクバネ
SPRING
5-1-8
142706001
2
セットカラー
SET SCREW COLLAR
5-1-9
062670712
2
ナベコ357-40X7
SCREW, PAN M3.57-40X7
5-1-10
154686001
1
ボタンオサエウデ
BUTTON PRESSER ARM
5-1-11
013719412
1
トメネジ4.76クボミ
SET SCREW, (CP) M4.76
5-1-12
142680001
1
ボタンオサエ
BUTTON PRESSER
5-1-13
120990001
1
アタツメネジ4.37
SET SCREW, M4.37
5-2
142683101
1
ボタンオサエウデアゲ
BUTTON PRESSER ARM LIFTER
5-3
142684001
1
オサエウデアゲジク
BUTTON PRESSER ARM LIFTER BAR
5-4
120990001
1
アタツメネジ4.37
SET SCREW, M4.37
5-5
062711012
1
ナベコ476-32X10
SCREW, PAN M4.76-32X10
5-6
156336001
1
シャンクボタンフエイトプレート
SHANK BUTTON FEED PLATE
5-7
060670512
1
バインド357-40X5
SCREW, BIND M3.57-40X5
5-8
142686001
1
ヌノケダイS
CLOTH RECEIVER (S)
5-9
S03641001
1
ボタンツカミD
BOTTON CLAMP (D)
5-10
142687001
1
ヌノケダイM
CLOTH RECEIVER (MIDDLE)
5-11
142688001
1
ヌノケダイL
CLOTH RECEIVER (LARGE)
12
S10654001
1
シャンクゲージキット
SHANK GAUGE KIT
12-1
S10656001
1
ボタンツマミE
BUTTON CLAMP (E)
12-2
S10651003
1
ボタンツマミF
BUTTON CLAMP (F)
12-3
105161003
1
ザガネ
WASHER
12-4
S39086001
1
ナベコ3.57-40X3.5
SCREW, PAN M3.57-40X3.5
12-5
S10652000
5
ボタンガイド1.5
BUTTON GUIDE (1.5)
12-6
S10653000
5
ボタンガイド1.0
BUTTON GUIDE (1.0)
13
S10655001
1
ボタンガイドクミ
BUTTON GUIDE SET
13-1
S10652000
10
ボタンガイド1.5
BUTTON GUIDE (1.5)
13-2
S10653000
10
ボタンガイド1.0
BUTTON GUIDE (1.0)
118-916-940
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 30 — L4. オプションパーツ / Option parts / Sondezubehör / Pièces en option / Piezas opcionales
Brother BM-916A / BM-917A parts on page 30| Ref | Part number | Part name | Qty |
|---|
| 7-1-1 | 7-1-1 | |
| 7-1-3 | 7-1-3 | |
| 7-2-2 | 7-2-2 | |
| 7-1-2 | 7-1-2 | |
| 7-2-1 | 7-2-1 | |
| 7-1-4 | 7-1-4 | |
| 7-2-3 | 7-2-3 | |
| 6-1-3 | 6-1-3 | |
| 7-1-5 | 7-1-5 | |
| 6-1-6 | 6-1-6 | |
| 7-1-6 | 7-1-6 | |
| 6-1-7 | 6-1-7 | |
| 6-1-4 | 6-1-4 | |
| 6-1-5 | 6-1-5 | |
| 6-1-2 | 6-1-2 | |
| 6-1-8 | 6-1-8 | |
| 6-7 | 6-7 | |
| 6-1-1-12 | 6-1-1-12 | |
| 6-1-1-10 | 6-1-1-10 | |
| 6-1-1-9 | 6-1-1-9 | |
| 6-1-1-7 | 6-1-1-7 | |
| 6-1-1-13 | 6-1-1-13 | |
| 6-1-1-8 | 6-1-1-8 | |
| 6-1-1-8 | 6-1-1-8 | |
| 6-1-1-9 | 6-1-1-9 | |
| 6-1-1-1 | 6-1-1-1 | |
| 6-1-1-6 | 6-1-1-6 | |
| 6-1-1-11 | 6-1-1-11 | |
| 6-5 | 6-5 | |
| 6-3 | 6-3 | |
| 6-2 | 6-2 | |
| 6-4 | 6-4 | |
| 6-1-1-5 | 6-1-1-5 | |
| 6-1-1-3 | 6-1-1-3 | |
| 6-1-1-4 | 6-1-1-4 | |
| 6-1-1-2 | 6-1-1-2 | |
| 7-4 | 7-4 | |
| 6-9 | 6-9 | |
| 6-10 | 6-10 | |
| 6-11 | 6-11 | |
| 7-3-1 | 7-3-1 | |
| 7-3-3 | 7-3-3 | |
| 7-3-4 | 7-3-4 | |
| 7-3-2 | 7-3-2 | |
L4. オプションパーツ / Option parts / Sondezubehör / Pièces en option / Piezas opcionales
7-1-1 7-1-3 7-2-2
7-1-2 7-2-1
7-1-4 7-2-3
6-1-3
7-1-5
6-1-6
7-1-6
6-1-7
6-1-4 6-1-5
6-1-2
6-1-8
6-7
6-1-1-12 6-1-1-10 6-1-1-9
6-1-1-7
6-1-1-13
6-1-1-8
6-1-1-8
6-1-1-9
6-1-1-1
6-1-1-6
6-1-1-11
6-5
6-3
6-2
6-4
6-1-1-5
6-1-1-3
6-1-1-4 6-1-1-2
7-4
6-9
6-10
6-11
7-3-1
7-3-3
7-3-4
7-3-2
118-916-940
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
