Brother CB3-B913 / CB3-B915 Parts Book PDF — View & Download

Parts index — Brother CB3-B913 / CB3-B915tap a row to open its page

Page 1 — CB3-B913 CB3-B915

Brother CB3-B913 / CB3-B915 parts on page 1
Ref	Part number	Part name	Qty
	CB3-B913-1	CB3-B913-1
	CB3-B915-1	CB3-B915-1

Page 3 — Notes sur l'utilisation de ce manuel de pièces détachées

Brother CB3-B913 / CB3-B915 parts on page 3
Ref	Part number	Part name	Qty
	CB3-B913	bouttonnière à interrupteur à point de chaînette simple modèle no.
	CB3-B915	bouttonnière à interrupteur à point de chaînette simple modèle no.
	CB3-B913	máquina de coser botones de punto de cadeneta simple modelo
	CB3-B915	máquina de coser botones de punto de cadeneta simple provista de cortahílos automático modelo

Page 6 — A. Machine body / Maschinengehäuse Corps de la machine / Denominación del mecanismo

Brother CB3-B913 / CB3-B915 parts on page 6
Ref	Part number	Part name	Qty
17	154224-003	Bed Cover Assembly (Right)	1
18	114984-000	Bed Cover Shaft	2
19	013750-610	Screw 5.56 x 6	1
20	013770-610	Bed Cover Stop Spring	2
21	06-680-712	Screw 4.37-40 x 7	2
23	115270-003	Bolt	1
24	115275-001	Looper Cover	1
25	114986-001	Washer	1
26	105329-001	Screw 4.37	1
27	115270-003	Button Tray	1
28	114988-001	Button Tray Leg	1
29	013770-610	Screw 6.35	4
30	013711-010	Screw 4.76 x 10	1
31	013751-010	Screw 5.56 x 10	1
32	013711-010	Screw 4.76 x 10	2
33	110104-000	Oil Cap	1
1	1	Arm Bed	1
2	2	Name Plate	2
4	4	Model Plate	1
5	5	Pin	2
6	114976-003	Rear Cover	1
7	129986-001	Screw 3.57	2
8	021670-202	Nut 3.57	1
9	114977-001	Stud Screw 3.57	1
10	114978-103	Arm Cover (Right)	1
11	114979-103	Arm Cover (Left)	1
12	106629-002	Screw 4.37	4
13	114980-001	Pin	2
14	1	Bed Base	1
15	114982-000	Felt	1
16	154225-003	Bed Cover Assembly (Left)	1
3	3	Pin	4

Page 7

Brother CB3-B913 / CB3-B915 parts on page 7
Part number	Part name	Qty
114989-001	Driving Shaft	1
115215-000	Bushing (Left)	1
115214-100	Bushing (Right)	1
114991-001	Pulley	1
114992-000	Bearing	2
114993-000	Grease Seal	1
114994-001	Grease Seal Cap	1
114995-001	Ball Holder	1
071079-450	Steel Ball 5/16	1
013710-712	Screw 4.76	2
114997-001	Spring	1
114998-000	Clutch Plate	1
114999-001	Screw 5.56	2
115000-000	Washer	2
021750-102	Nut 5.56	2
149995-001	Stop Cam (for B913)	1
153542-001	Stop Cam (for B915)	1
115002-101	Brake Cam Segment	1
115003-001	Flange Cam Segment	1
115004-001	Pin	2
149996-001	Set Screw	1
014821-022	Screw 7.95 x 10	3
115007-001	Washer	1
115008-000	Thrust Bearing	1
115010-001	Clutch Body	1
115011-001	Ball Presser Plate	1
115012-002	Bolt 6.35	1
150554-002	Screw 6.35	1
115014-001	Nut 6.35	1
115015-101	Set Screw	1
115016-001	Stopper Bracket	1
115017-001	Stopper Shaft	1
115018-001	Washer	31
025800-332	Cushion Rubber	4
021800-102	Washer 7.14	1
115013-001	Nut 7.14	1
115020-001	Clutch Body Shaft	1
115021-001	Spring	1
115022-001	Pin	1
115268-002	Spring Hanger	1
142307-001	Screw 5.56	1
025710-232	Clutch Driving Lever	1
115268-002	Washer 4.76	2
021750-102	Nut 5.56	1
115025-001	Clutch Drive Lever Plate	1
115026-001	Spring	1
062711-212	Screw 476-32 x 12	2
115027-101	Stitch Regulating Lever	1
017822-212	Bolt 7.94 x 22	1
102571-003	Nut 4.37	1
144509-000	Brake Drum	1
013750-610	Screw 5.56 x 6	2
144510-001	Brake Shoe Assembly	1
144513-001	Brake Spring Plate	1
144514-001	Stud Screw 4.76	1
144515-001	Spring Hook	1
144516-001	Spring	1
144517-001	Brake Adjuster Knob	1
144518-001	Brake Adjuster	1
144519-001	Washer	1
107793-000	Screw 5.95	1
151604-001	Brake Lever	1
144520-001	Stud Screw 4.76	1
144523-001	Slide Block	1
144524-000	Roller	1
105872-101	Stud	1
144525-001	Nut 4.76	1
110161-004	Stud Screw 4.37	1
144526-001	Stud Screw 4.37	1

Page 8 — C. Needle bar and driving clutch mechanism / Nadelstange und Antriebskupplung Barre à aiguille et mécanisme d'entraînement / Barra de aguja y mecanismo de embrague de mando D. Loop spreading mechanism / Schleifenzieher Etirement de boucle / Ensanche de bu

Brother CB3-B913 / CB3-B915 parts on page 8
Part number	Part name	Qty
142658-001	Lower Crank Rod	1
115053-016	Needle Bar Driving Cam	1
014770-622	Screw 6.35 x 6	1
015770-812	Screw 6.35	1
148425-002	Screw 4.37 x 14	2
115041-001	Crank Rod	1
021800-102	Nut 7.14	1
115042-001	Nut 7.14	1
144701-001	Wick	1
107155-001	Felt	1
115046-001	Needle Bar Driving Lever Shaft	1
115050-001	Needle Bar	1
115051-000	Needle Bar Bushing (Upper)	1
115052-000	Needle Bar Bushing (Lower)	1
115050-001	Needle Bar	1
140553-102	Screw 3.18	1
115054-101	Needle Guide	1
062710-712	Screw 4.76-32 x 7	1
115055-001	Needle Plate Subordinate (for B913)	1
144711-001	Needle Plate (for B913)	1
S01702-001	Screw 4.37 x 10 (for B913)	4
115048-001	Needle Bar Bracket	1
017751-412	Bolt 5.56 x 14	2
144657-000	Washer	1
021750-102	Nut 5.56	1
151991-000	Thread Handler Bracket	1
S01696-001	Screw 3.57 x 6	2
115071-001	Thread Handler Guide Plate (for B913)	1
151992-001	Thread Handler Guide Plate (for B915)	1
115072-001	Thread Handler (for B913)	1
151993-001	Thread Handler (for B915)	1
115073-001	Thread Handler Link	1
115076-001	Thread Handler Link Roller	1
115077-001	Stud Screw 4.76	1

Page 9 — E. Lower shaft mechanism / Untere Welle Mécanisme de l'arbre inférieur / Mecanismo de la eje inferior F. Stitch number conversion / Stichzahlrechnung Conversion de nombre de points / Conversión de número de puntadas

Brother CB3-B913 / CB3-B915 parts on page 9
Part number	Part name	Qty
115057-001	Lower Shaft	1
115058-100	Lower Shaft Bushing (Front)	1
115059-000	Lower Shaft Bushing (Rear)	1
115060-001	Lower Shaft Gear	1
014770-622	Screw 6.35 x 6	2
115061-001	Spiral Gear	1
014770-622	Screw 6.35 x 6	2
115007-001	Washer	1
115008-000	Thrust Bearing	1
1	Worm	1
014770-622	Screw 6.35 x 6	2
114973-001	Fastening Ring	1
014770-622	Screw 6.35 x 6	1
115063-001	Collar	1
014770-622	Screw 6.35 x 6	2
115064-101	Distance Collar	1
115065-000	Grooved Cam	1
110124-001	Screw 5.56	2
115066-000	Shaft	1
013750-610	Screw 5.56 x 6	2
115067-001	Triangular Cam	1
151601-002	Screw 4.37	1
115068-001	Collar	1
151602-001	Screw 4.37	1
115069-001	Rotary Looper	1
101028-000	Washer	1
101028-000	Washer	2
142628-001	Horizontal Feed Crank Ring	1
F-1-1	Stitch Control Cam	1
115109-101	Stitch Control Cam Gear	1
014821-022	Screw 7.94 x 10	2
115113-001	Stitch Control Cam Segment	1
115114-001	Screw 4.37	1
115115-001	Stitch Control Knob	1
115116-001	Spring	1
115117-000	Stud Screw 4.37	1
115118-001	Stitch Changing (M) Gear	1
115119-001	Stud	1
115120-001	Stitch Changing Gear	1
115121-101	Pin	1
147114-001	Lever for 32-Stitches (Major)	1
117363-001	Lever for 32-Stitches (Minor)	1
025710-232	Bolt 4.76	1
062661-212	Washer 4.76	1
021660-102	Screw 318-40 x 12	1
1	Nut 3.18	1

Page 10

Brother CB3-B913 / CB3-B915 parts on page 10
Part number	Part name	Qty
115078-001	Cam Shaft	1
115079-000	Cam Shaft Bushing (Left)	1
115080-000	Cam Shaft Bushing (Right)	1
151605-002	Worm Gear	1
14770-622	Screw 6.35 x 6	2
115084-000	Transverse-Feed Cam	1
014770-622	Screw 6.35 x 6	4
115084-000	Back & Forth Feed Cam	1
014770-622	Screw 6.35 x 6	4
144659-101	Feed Plate (A)	1
146360-002	Bolt 4.76 x 7	2
146354-001	Washer	2
115087-000	Feed Bracket (for B913)	1
115088-001	Transverse-Feed Slide Block	1
115089-001	Screw	1
115090-001	Transverse-Feed Plate	1
115092-001	Transverse-Feed Length Indicator	1
115093-001	Supporting Plate	1
117291-002	Screw 3.18	2
115094-001	Feed Link	1
115095-001	Stud Screw 4.76	2
115096-000	Transverse-Feed Lever	1
115097-001	Stud	1
115098-001	Roller	1
115099-001	Feed Lever Shaft	1
151605-002	Screw 5.95	1
115100-001	Back & Forth Feed Link	1
115101-001	Stud Screw 4.76	2
115094-001	Feed Link	1
115097-001	Stud	1
021710-102	Nut 4.76	1
115103-001	Back & Forth Feed Connector	1
115104-001	Bushing	1
115105-001	Back & Forth Feed Adjusting Lever	1
062680-712	Screw 437-40 x 7	2
115106-001	Back & Forth Feed Slide Block	1
115097-001	Back & Forth Feed Lever	1
115097-001	Stud	1
115098-001	Roller	1
115099-001	Feed Lever Shaft	1
117685-001	Screw 5.95	1
115108-001	Back & Forth Feed Length Indicator	1
062710-712	Screw 476-32 x 7	2
115091-001	Transverse-Feed Adjusting Nut	1

Page 11 — H. Threading mechanism / fadenführungsvorrichtung Mécanisme de fénfilage / Mecanismo de la enhebrado

Brother CB3-B913 / CB3-B915 parts on page 11
Part number	Part name	Qty
115171-001	Thread Release Cam	1
115172-001	Stud Screw 6.35	1
115173-001	Thread Release Connecting Bar	1
115174-001	Guide Bracket	1
062711-212	Screw 476-32 x 12	2
115175-001	Pin	1
115176-001	Spring (for B913)	1
151994-001	Spring (B) (for B915)	1
115177-001	Spring Hanger	1
021660-102	Nut 3.18	1
115178-001	Thread Release Lever	1
117363-001	Bolt 4.76	1
146354-001	Washer	1
115179-001	Adjuster	1
117363-001	Bolt 4.76	1
146354-001	Washer	1
115180-001	Presser Lever Bracket	1
062710-712	Screw 476-32 x 7	1
146354-001	Washer	1
115183-101	Thread Retainer	1
062710-712	Screw 476-32 x 7	1
115184-001	Main Tension Thread Guide	1
115186-001	Main Tension Stud	1
115187-101	Tension Disc	2
100136-001	Spring	1
115189-001	Tension Control Nut	1
115190-001	Pin	1
115187-101	Tension Stud	1
104525-001	Tension Disc	2
159805-001	Tension Disc Washer	1
115191-001	Pin	1
100136-001	Tension Control Nut	1
115192-001	Pin	1
110249-001	Stud Screw 5.56	1
115204-001	Arm Thread Guide	1
062711-012	Screw 476-32 x 10	1
117879-001	Face Plate Assembly	1
153808-001	Needle Bar Thread Guide	1
062671-012	Screw 357-40 x 10	1
115212-101	Face Plate Thread Guide	1
062711-012	Screw 476-32 x 10	5
013710-512	Screw 4.76	1
142360-001	Sub Tension Plate	1
112300-001	Needle Thread Guard	1
151880-000	Sub Tension Spring	1
151879-001	Sub Tension Stud	1
107682-001	Tension Control Nut	1
116323-001	Screw 3.57	1
048030-342	Stop Ring E3	1
142672-001	Thread Guide	1
144486-001	Thread Releaser	1
144669-001	Thread Take-Up Lever Assembly	1
144670-001	Thread Presser lever	1
025060-132	Stud Screw 5.56	1
144671-001	Washer 6	1
151970-001	Spring (for B913)	1
144672-001	Spring (for B915)	1
144674-000	Indicator Plate	1
100546-001	Thread Presser Shaft	2
048030-346	Spring (for B913)	1
062711-012	Pre-Tension Disc	2
062711-012	Screw 476-32 x 10	2

Page 12 — [B913]

Brother CB3-B913 / CB3-B915 parts on page 12
Part number	Part name	Qty
115124-001	Cam	1
014770-622	Screw 6.35 x 6	2
115125-101	Button Clamp Driving Fork	1
115126-001	Button Clamp Driving Shaft	1
013751-010	Screw 5.56 x 10	2
115127-001	Collar	2
013710-512	Screw 4.76	4
115128-100	Button Clamp Driving Lever	1
062751-612	Screw 556-32 x 16	1
115130-001	Button Clamp Driving Link	1
115131-101	Button Clamp Driving Link Guide	1
014770-622	Screw 6.35 x 6	2
156874-001	Stud Screw 4.76	1
110161-004	Nut 4.76	1
115133-001	Stud Screw 4.76	1
115134-101	Button Clamp Driving Connector	1
115101-001	Stud Screw 4.76	1
115135-101	Button Clamp Lifter Lever	1
117873-101	Stopper	1
107407-003	Screw 4.37	1
115137-001	Spring	1
115138-001	Spring Hook	1
014770-622	Screw 6.35	1
115143-202	Button Clamp Holder	1
115144-001	Button Clamp Holder Bar	1
115145-001	Snap	1
115146-001	Hook	1
014770-622	Screw 6.35	1
115147-001	Screw	1
115148-101	Screw	1
146994-001	Tension Control Nut	2
115149-001	Stopper	1
107282-002	Nut 5.56	1
115151-000	Button Clamp Bracket	1
150397-101	Button Clamp (Left)	1
150398-001	Spring	1
150399-101	Button Clamp (Right)	1
150401-001	Spring Pin	1
115156-001	Screw 437-40 x 5	1
062680-512	Spring Pin	2
047250-642	Stud Screw 4.76	2
115158-001	Button Clamp (Middle)	2
150402-001	Button Clamp Plate	1
115269-001	Screw 357-40 x 8	1
062670-812	Stud Screw 3.57	2
115161-001	Nut 3.57	1
115162-001	Spring	1
115163-001	Button Clamp Adjusting Plate	1
115164-001	Stud Screw 4.37	1
115165-001	Stud Screw 4.37	1
115166-001	Bolt 4.76 x 14	1
017711-412	Washer	2
146354-001	Button Clamp Lifter	2
115139-001	Roller	1
107744-001	Stop Ring E3	2
048030-342	Washer	1
142308-001	Clamp Lifter Assembly 150403-101	1
146354-001	Finger Guard	1
151051-001	Bolt 4.76 x 7	1
146360-002	Finger Guard	1

Page 13 — [B915]

Brother CB3-B913 / CB3-B915 parts on page 13
Part number	Part name	Qty
151961-001	Cam	1
014770-622	Screw 6.35 x 6	2
115125-101	Button Clamp Driving Fork	1
115126-001	Button Clamp Driving Shaft	1
013751-010	Screw 5.56 x 10	2
115127-001	Collar	2
013710-512	Screw 4.76	4
115128-100	Button Clamp Driving Lever	1
062751-612	Screw 556-32 x 16	1
115130-001	Button Clamp Driving Link	1
115131-101	Button Clamp Driving Link Guide	1
014770-622	Screw 6.35 x 6	2
156874-001	Stud Screw 4.76	1
110161-004	Nut 4.76	1
115133-001	Stud Screw 4.76	1
115134-101	Button Clamp Driving Connector	1
151962-001	Stud Screw 4.76	1
151963-101	Button Clamp Lifter Lever	1
117873-101	Stopper	1
107407-003	Screw 4.37	1
115137-001	Spring	1
115138-001	Spring Hook	1
115143-202	Button Clamp Holder	1
115144-001	Button Clamp Holder Bar	1
115145-001	Snap	1
151969-001	Button Clamp Holder Hook	1
107744-001	Roller	2
153484-001	Washer 4.76	1
105234-003	Nut 4.37	2
014770-622	Screw 6.35 x 6	1
115147-001	Spring	1
115148-101	Tension Control Nut	2
146994-001	Stopper	1
115149-001	Nut 5.56	1
107282-002	Button Clamp Lifter Bracket	1
151964-001	Bolt 6 x 14	2
018061-422	Button Clamp Lifter	1
115389-002	Stud Screw 6.35	1
151965-001	Button Clamp Lifter Link	1
115449-001	Screw	1
151966-001	Stud Screw 6.35	1
118735-002	Washer	1
110744-002	Nut 6.35	1
115151-000	Button Clamp Bracket	1
150397-101	Button Clamp (Left)	1
150398-001	Spring	1
150399-101	Button Clamp (Right)	1
150401-001	Spring	1
115156-001	Pin	1
062680-512	Screw 437-40 x 5	2
047250-642	Spring Pin	2
115158-001	Stud Screw 4.76	2
150402-001	Button Clamp (Middle)	1
150403-101	Button Clamp Plate	1
115269-001	Screw 357-40 x 8	1
062670-812	Stud Screw 3.57	2
115161-001	Spring	2
115162-001	Button Clamp Adjusting Plate	1
115163-001	Stud Screw 4.37	1
115164-001	Stud Screw 4.37	1
115165-001	Bolt 4.76 x 14	1
115166-001	Washer	2
017711-412	Nut 6.35	2
146354-001	Washer	1
150556-001	Finger Guard	1
146354-001	Bolt 4.76 x 7	1

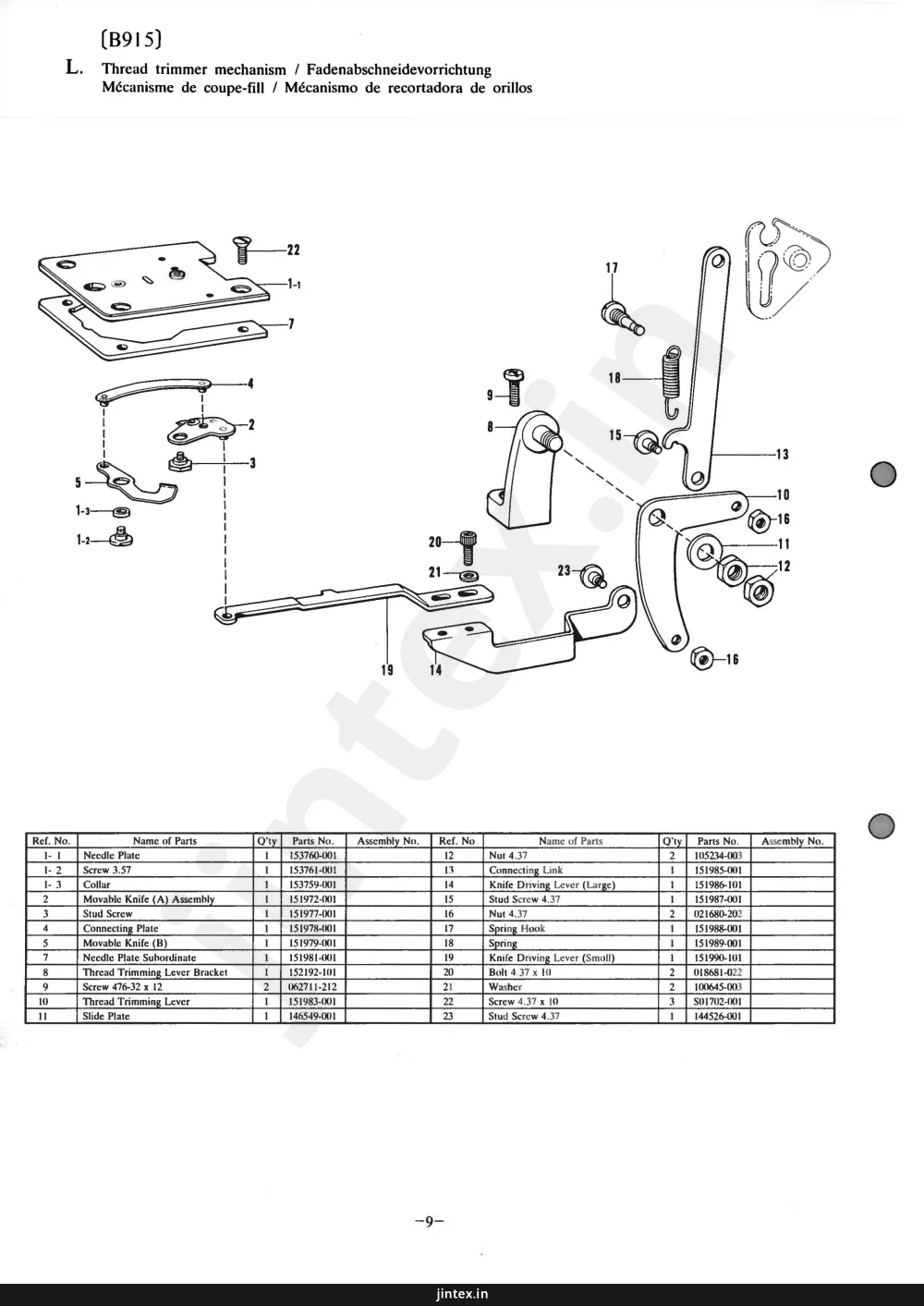

Page 14

Brother CB3-B913 / CB3-B915 parts on page 14
Ref	Part number	Part name	Qty
1-1	153760-001	Needle Plate	1
1-2	153761-001	Screw 3.57	1
1-3	153759-001	Collar	1
2	151972-001	Movable Knife (A) Assembly	1
3	151977-001	Stud Screw	1
4	151978-001	Connecting Plate	1
5	151979-001	Movable Knife (B)	1
7	151981-001	Needle Plate Subordinate	1
8	152192-101	Thread Trimming Lever Bracket	1
9	062711-212	Screw 476-32 x 12	2
10	151983-001	Thread Trimming Lever	1
11	146549-001	Slide Plate	1
12	105234-003	Nut 4.37	2
13	151985-001	Connecting Link	1
14	151986-101	Knife Driving Lever (Large)	1
15	021680-202	Stud Screw 4.37	2
16	151988-001	Nut 4.37	1
17	151989-001	Spring Hook	1
18	151990-101	Spring	1
19	151990-101	Knife Driving Lever (Small)	1
20	018681-022	Bolt 4.37 x 10	2
21	100645-003	Washer	2
22	S01702-001	Screw 4.37 x 10	1
23	144526-001	Stud Screw 4.37	1

Page 15

Brother CB3-B913 / CB3-B915 parts on page 15
Ref	Part number	Part name	Qty
1	122991-001	Vinyl Bag	1
3- 1	105344-001	Screw Driver 2.6 x 70	1
3- 2	118837-001	Screw Driver 3.4 x 70	1
3- 3	101572-101	Screw Driver 5.5 x 190	1
4- 2	107780-001	Spanner 10 x 12	1
4- 4	142205-001	Spanner 7 x 8	1
5- 2	143272-001	Spanner 5	1
5- 3	118064-001	Spanner 4	1
6	115123-001	Worm Adjusting Bar	1
7	115053-014	Needle TQ x 1 #14	2
7	115053-016	Needle TQ x 1 #16	2
7	115053-018	Needle TQ x 1 #18	2
8- 1	109854-001	Spool Stand	1
8- 2	100447-001	Screw 4.5 x 32	2
9	117437-101	Oiler	1
10- 1- 1	117437-101	Pedal	1
10- 1- 2	021400-106	Nut 4	2
10- 1- 3	001401-416	Screw 4 x 14	2
10- 1- 4	116016-001	Pedal Stopper	2
10- 1- 1	133188-001	Pedal	1
10- 2- 2	119707-001	Pedal Shaft	1
10- 2- 3	119707-001	Pedal Shaft Bracket	2
10- 2- 4	119705-001	Pedal Shaft Collar	2
10- 2- 5	017082-206	Bolt 8 x 22	2
10- 2- 6	116694-001	Nut 8	2
10- 2- 7	028080-240	Spring Washer 2-8	2
10- 2- 8	025080-236	Washer 8	2
11	142656-001	Chain Assembly	1
12	144543-001	Bolt 6 x 63	4
13	025060-232	Washer 6	4
14	115017-001	Nut 6	2
15	115017-001	Washer	2
16	144224-001	Head Cover	1
19	115947-001	Washer	4
23	156540-001	Needle Bar Guard	1

Page 16 — Different parts list / Zubehörliste Liste des pièces accessoires / Lista de piezas accesorias Option / Option / Option / Opción

Brother CB3-B913 / CB3-B915 parts on page 16
Ref	Part number	Part name	Qty
	115081-001	Worm Gear
	115082-000	Transverse-Feed Cam
	115062-001	Worm
	118544-001	Worm Gear
	118542-000	Transverse-Feed Cam
	115084-000	Back & Forth Feed Cam
	118543-001	Worm
	115081-001	Worm Gear
	153566-000	Transverse-Feed Cam
	115062-001	Worm
	118544-001	Worm Gear
	118542-000	Transverse-Feed Cam
	S01663-000	Back & Forth Feed Cam
	118543-001	Worm
	S00863-000	Back & Forth Feed Cam

Page 17

Brother CB3-B913 / CB3-B915 parts on page 17
Ref	Part number	Part name	Qty
1	143964-001	Eye Guard Hinge Assem	1
2	153197-001	Eye Guard	1
3	S01700-001	Screw 3.18 x 7	2
4	025030-232	Washer 3.18	2
5	021660-102	Nut 3.18	2
G-10	144659-101	Feed Plate (A)	7
G-10	115085-001	Feed Plate (B)	7
G-10	151960-001	Feed Plate (C)	7
	115167-001	Snap Holder Assembly
	142570-101	Shank Button Attachment
	150416-001	Wrapping button Attachment

Page 18 — INDEX / VERZEICHNIS INDEX / INDICE

Brother CB3-B913 / CB3-B915 parts on page 18
Ref	Part number	Part name	Qty
	S00863-000	G- 8
	047250-642	K- 50- 8
	114982-000	A- 15
	115072-001	D- 4
	S01199-001	Z- 10- 2- 1
	048030-342	H- 50
	114984-000	A- 18
	115073-001	D- 5
	S01603-001	Z- 10- 2
	J- 44- 3	114985-001
	115076-001	D- 6
	S01663-000	G- 8
	048030-346	H- 64
	114986-001	A- 23
	115077-001	D- 7
	S01696-001	D- 2
	062670-812	J- 12
	114988-001	A- 26
	115078-101	G- 1
	S01702-001	C- 15
	J- 40- 12	114989-001
	115079-000	G- 2
	L- 22	114990-001
	115080-000	G- 3
	001401-416	Z- 10- 1- 3
	062671-012	H- 39
	114991-001	B- 4- 1
	115081-001	G- 4
	013710-512	J- 7
	062680-512	J- 40- 7
	114992-000	B- 4- 2
	115082-000	G- 6
	K- 7	114993-000
	115084-000	G- 8
	013710-712	B- 4- 7
	062680-712	A- 21
	114994-001	B- 4- 4
	115085-001	G- 10
	013710-712	A- 30
	062710-712	C- 12
	114995-001	B- 4- 5
	115087-000	G- 13
	A- 32	114997-001
	115088-001	G- 14
	013750-610	A- 19
	H- 17	114998-000
	115089-001	G- 15
	B- 38	114999-001
	115090-001	G- 16
	E- 20	115000-000
	115091-001	G- 43
	013751-010	A- 31
	062711-012	H- 36
	115002-101	B- 10
	115092-001	G- 17
	J- 5	115003-001
	115093-001	G- 18
	K- 5	062711-212
	115004-001	B- 12
	115094-001	G- 20
	013770-610	A- 29
	115007-001	B- 15
	115095-001	G- 29
	014770-622	C- 1- 4
	H- 5	115008-000
	115096-000	G- 22
	E- 5	062751-612
	J- 9	115010-001
	115097-001	G- 23
	E- 7	K- 9
	115011-001	B- 17- 3
	115098-001	G- 24
	E- 11	071079-450
	115012-002	B- 17- 4
	G- 37	115099-001
	E- 13	100136-001
	115013-001	B- 17- 6
	G- 39	115100-001
	E- 15	100447-001
	115014-001	B- 17- 7
	115101-001	G- 28
	G- 5	100546-001
	115015-101	B- 17- 8
	J- 16	115102-001
	G- 7	101028-000
	115016-001	B- 17- 9
	115103-001	G- 32
	G- 9	115018-001
	115104-001	G- 33
	J- 2	101572-101
	115105-001	G- 34
	J- 12	102571-003
	115020-001	B- 19
	115106-001	G- 36- 1
	K- 2	104525-001
	115021-001	B- 20
	115108-001	G- 41
	K- 12	105234-003
	115022-001	B- 21
	115109-101	F- 1- 1
	K- 27	L- 12
	115025-001	B- 27
	115112-101	F- 1- 3
	014821-022	B- 14
	115026-001	B- 28
	115113-001	F- 1- 4
	105329-001	A- 25
	115027-101	B- 30
	115114-001	F- 1- 5
	015770-812	C- 1- 5
	105344-001	Z- 3- 1
	115041-001	C- 1- 11
	115115-001	F- 1- 6
	017082-206	Z- 10- 2- 5
	105872-101	B- 52
	115042-001	C- 1- 13
	115116-001	F- 1- 7
	017711-412	J- 41
	106629-002	A- 12
	115046-001	C- 2
	115117-000	F- 2
	K- 51	107155-001
	115047-001	C- 3
	115118-001	F- 3
	017751-412	C- 17
	107282-002	J- 33
	115048-001	C- 16- 1
	115119-001	F- 4
	017822-212	B- 31
	107407-003	J- 19
	115050-001	C- 6
	115120-001	F- 5
	018061-422	K- 34
	K- 19	115051-000
	115121-101	F- 6
	018681-022	L- 20
	107682-001	H- 48
	115052-000	C- 8
	115123-001	Z- 6
	021060-102	Z- 14
	J- 44- 2	115053-014
	115124-001	J- 1
	021400-106	Z- 10- 1- 2
	107744-001	Z- 4- 2
	115053-016	C- 9
	J- 1	115126-001
	021660-102	F- 12
	115053-018	Z- 7
	K- 4	115127-001
	H- 9	107780-001
	115054-101	C- 11
	K- 6	115128-100
	021670-202	A- 8
	107793-000	B- 47
	115055-001	C- 13
	K- 8	115130-001
	L- 16	110104-001
	115057-001	E- 1
	K- 10	115131-101
	021710-102	G- 31
	110124-001	E- 13
	115058-100	E- 2
	K- 11	115133-001
	021750-102	B- 8
	110161-004	B- 54
	115059-000	E- 3
	K- 14	115134-101
	B- 26	115060-001
	K- 15	115135-101
	C- 19	J- 13- 2
	115061-001	E- 6
	021800-102	B- 17- 12
	110249-001	H- 34
	115062-001	E- 10
	C- 1- 12	110744-002
	115063-001	E- 14
	025060-132	H- 58
	112300-001	H- 45
	115064-101	E- 16
	025060-232	Z- 13
	114483-002	Z- 9
	115065-000	E- 17
	025080-236	Z- 10- 2- 8
	114973-001	E- 12
	115066-000	E- 19
	025710-232	B- 24
	114976-003	A- 6
	115067-001	E- 21
	F- 10	114977-001
	115068-001	E- 23
	025800-332	B- 17- 11
	114978-103	A- 10
	115069-001	E- 25
	028080-240	Z- 10- 2- 7
	114979-103	A- 11
	115071-001	D- 3
	047250-642	J- 40- 8
	114980-001	A- 13

Page 19

Brother CB3-B913 / CB3-B915 parts on page 19
Ref	Part number	Part name	Qty
	115137-001	J- 21
	115389-002	K- 36
	146354-001	G- 12
	151993-001	D- 4
	115138-001	K- 21
	115449-001	K- 38
	115-	12
	151994-001	H- 7
	115138-001	J- 22
	115947-001	Z- 19
	H- 15
	152192-101	L- 8
	115139-001	J- 44- 1
	116016-001	Z- 10- 1- 4
	H- 18
	153484-001	K- 26- 3
	115143-202	J- 24
	116185-201	Z- 10- 1
	J- 42
	153542-001	B- 9
	115143-202	K- 23
	116323-001	H- 49
	J- 47
	153566-000	G- 6
	115144-001	J- 25
	116694-001	Z- 10- 2- 6
	K- 52
	153759-001	L- 1- 3
	115144-001	K- 24
	117363-001	F- 9
	K- 56
	153760-001	L- 1- 1
	115145-001	J- 26
	117437-101	H- 11
	146360-002	G- 11
	153761-001	L- 1- 2
	115145-001	K- 25
	117683-001	H- 14
	J- 46
	153808-001	H- 38
	115146-001	J- 27
	117929-001	Z- 10- 1- 1
	K- 54
	154224-003	A- 16
	115146-001	K- 28
	117873-101	C- 40
	146549-001	L- 11
	154225-003	A- 15
	115147-001	J- 29
	117879-001	Z- 5- 3
	146994-001	J- 31
	156874-001	J- 13- 1
	115147-001	K- 30
	118064-001	S- 3
	147114-001	K- 30
	115148-101	J- 30
	118542-000	G- 6
	148425-002	C- 1- 7
	159805-001	H- 30
	115148-101	K- 29
	118543-001	E- 10
	149995-001	B- 9
	180910-001	G- 36
	115149-001	J- 32
	118544-001	G- 4
	149996-001	B- 13
	180982-001	F- 1
	115149-001	K- 31
	118735-002	K- 40
	150397-101	J- 40- 2
	182350-001	C- 16
	115151-000	J- 40- 1
	118837-001	Z- 3- 2
	150398-001	K- 50- 2
	115151-000	K- 50- 1
	119707-001	Z- 10- 2- 3
	150399-101	J- 40- 3
	115156-001	J- 40- 6
	119708-001	Z- 10- 2- 4
	150401-001	K- 50- 3
	115156-001	K- 50- 6
	122991-001	Z- 1
	150401-001	J- 40- 4
	115158-001	J- 40- 9
	133188-001	A- 7
	150402-001	K- 50- 4
	115158-001	K- 50- 9
	140553-102	Z- 10- 2- 2
	150402-001	J- 40- 5
	115160-001	A- 28
	142205-001	C- 10
	150403-101	K- 50- 5
	115161-001	J- 40- 13
	142307-001	Z- 4- 4
	150403-101	J- 40- 10
	115161-001	K- 50- 13
	142308-001	B- 23
	150554-002	K- 50- 10
	115162-001	J- 40- 14
	142360-001	J- 44
	150556-001	B- 17- 5
	115162-001	K- 50- 14
	142628-001	E- 30
	151051-001	K- 55
	115163-001	J- 40- 15
	142656-001	Z- 11
	151972-001	L- 2
	115163-001	K- 50- 15
	142658-001	C- 1- 2
	151977-001	L- 3
	115164-001	J- 40- 16
	142721-001	H- 53
	151978-001	L- 4
	115164-001	K- 50- 16
	144224-001	Z- 5- 2
	151979-001	L- 5
	115165-001	J- 40- 17
	144509-000	B- 37
	151981-001	L- 7
	115165-001	K- 50- 17
	144510-001	B- 39
	151983-001	L- 10
	115166-001	J- 40- 18
	144513-001	B- 40
	151985-001	L- 13
	115166-001	K- 50- 18
	144514-001	B- 41
	151986-101	L- 14
	115171-001	H- 1
	144515-001	B- 42
	151987-001	L- 15
	115172-001	H- 2
	144516-001	B- 43
	151988-001	L- 17
	115173-001	H- 3
	144517-001	B- 44
	151989-101	L- 18
	115174-001	H- 4
	144518-001	B- 45
	151990-101	L- 19
	115175-001	H- 6
	144519-001	B- 46
	151991-000	D- 1
	115176-001	H- 7
	144520-001	B- 49
	151992-001	D- 3
	115177-001	H- 8
	144523-001	B- 50
	115178-001	H- 10
	144524-000	B- 51
	115179-001	H- 13
	144525-001	B- 53
	115180-001	H- 16
	144526-001	B- 55
	115183-101	H- 19
	144700-101	L- 23
	115184-001	H- 21
	144701-000	Z- 12
	115186-001	H- 22
	144711-001	C- 18
	115187-101	H- 23
	144657-000	G- 10
	115188-001	H- 24
	144659-101	H- 56
	115189-001	H- 26
	144669-101	H- 57
	115190-001	H- 27
	144670-001	H- 59
	115191-001	H- 31
	144671-001	H- 60
	115192-001	H- 33
	144672-001	H- 61
	115204-001	H- 35
	144673-001	H- 62
	115212-101	H- 40
	144700-101	C- 1
	115214-100	B- 3
	144701-000	C- 1-14
	115215-000	B- 2
	144711-001	C- 14
	115268-002	B- 22
	144747-201	B- 17
	115269-001	J- 40-11
	115269-001	K- 50-11
	115270-003	A- 27
	115275-001	A- 24

Brother CB3-B913 / CB3-B915 — parts catalog

Page 1 — CB3-B913 CB3-B915

brother Single-chaine stitch buttoning machine Knopfnähmaschine für Einfachkettenstitch Machine à boutonner à point chaînette simple Máquina de coser botones de punto de cadeneta simple CB3-B913 CB3-B915 PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS brother CB3-B913-1 CB3-B915-1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2

Notes for using this parts book 1. This book is for model CB3-B913 single-chain stitch buttoner and for model CB3-B915 single chain stitch buttoner with automatic thread trimmer. 2. If the symbol is found in the "Parts No." column or the "Assembly No." column, refer to the different parts list on page 11. 3. The symbol in the "Parts No." column indicates that the parts is not available for supply. If, however, there is a number in the "Assembly No." column, the parts can be ordered as an assembly. Please, therefore, order by using the assembly No. 4. This book was prepared based on information available in January, 1984. 5. Parts are subject to changes in design without prior notice. Anmerkungen zum Gebrauch dieses Stückliste buches 1. Diese Bedienungsanleitung ist für das Modell CB3-B913, Knopfnähmaschine für Einfachkettenstich und für das Modell CB3-B915, Knopfnähmaschine für Einfachket- tenstich mit automatischem Fadenabschneider. 2. Dieses Zeichen in der Spalte "Parts No. (Teilnummer)" oder "Assembly No. (Gerätesatznummer)" verweist auf die Gesonderte Stückliste auf Seite 11. 3. Dieses Zeichen in der Spalte "Teilnummer" bedeutet, daß dieser Teil nicht lieferbar ist. Wenn jedoch in der Spalte "Gerätesatznummer" eine Nummer steht, kann dieser Teil als ein Geräeteilsatz bestellt werden. Bestellen Sie daher bitte mit dieser Gerätesatznummer. 4. Dieses Buch basiert auf den Informationen vom Januar, 1984. 5. Modelländerungen sind vorbehalten. From the library: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — Notes sur l'utilisation de ce manuel de pièces détachées

Notes sur l'utilisation de ce manuel de pièces détachées 1. Ce manuel s'applique à la bouttonnière à interrupteur à point de chaînette simple modèle no. CB3-B913 et à la bouttonnière à interrupteur à point de chaînette simple modèle no. CB3-B915, avec coupe-fils automatique. 2. Si le symbole se trouve dans la colonne "Parts No. (N° de pièce)" ou dans la colonne "Assembly No. (N° jeu de pces)", veuillez vous référer à la liste de pièces annexe page 11. 3. Le symbole dans la colonne "N° de pièce" signifie que la pièce ne peut être fournie. Si, dans la colonne "N° jeu de pces", il y a un numéro de nomenclature, la pièce peut être commandée comme faisant partie d'un jeu de pièces. Donc, pour toute commande, veuillez spécifier le n° du jeu de pièces. 4. Ce manuel a été fait d'après les renseignements valables au mois de Janvier 1984. 5. Les pièces peuvent être sujettes à des modifications sans préavis. Notas para usar este Libro de Piezas 1. Este manual corresponde a la máquina de coser botones de punto de cadeneta simple modelo CB3-B913, y a la máquina de coser botones de punto de cadeneta simple provista de cortahílos automático modelo CB3-B915. 2. De haber un símbolo junto al "Parts No. (Número de Pieza)" o en la columna del "Assembly No. (Número de Juego)", habrá que mirar la lista de piezas separada de la página 11. 3. El símbolo , que se encuentra en la columna del "Número de Pieza", quiere decir que no se dispone de dicha pieza sola. Cuando, empero, hay un número en la columna del "Número de Juego", se podrá ordenar la pieza con todo el juego. Por lo tanto, será mejor hacer el pedido recurriendo al número del juego respectivo. 4. Este libro ha sido compilado basándose en los datos de que se disponía en enero de 1984. 5. Las piezas quedan sujetas a cambios de diseño sin aviso previo. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — A. Machine body / Maschinengehäuse Corps de la machine / Denominación del mecanismo

A. Machine body / Maschinengehäuse Corps de la machine / Denominación del mecanismo 1 33 31 24 25 26 15 27 29 11 10 12 23 2 3 16 17 4 CB3- MADE IN JAPAN 19 14 18 30 32 20 21 -1- From the library of: Superior Sewing Machine & Supply LLC jintex.in Ref. No. Name of Parts Q'ty Parts No. Assembly No. Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1 Arm Bed 1 17 Bed Cover Assembly (Right) 1 154224-003 2 Name Plate 2 18 Bed Cover Shaft 2 114984-000 3 Pin 4 19 Screw 5.56 x 6 1 013750-610 4 Model Plate 1 20 Bed Cover Stop Spring 2 013770-610 5 Pin 2 21 Screw 4.37-40 x 7 2 06-680-712 6 Rear Cover 1 114976-003 23 Bolt 1 115270-003 7 Screw 3.57 2 129986-001 24 Looper Cover 1 115275-001 8 Nut 3.57 1 021670-202 25 Washer 1 114986-001 9 Stud Screw 3.57 1 114977-001 26 Screw 4.37 1 105329-001 10 Arm Cover (Right) 1 114978-103 27 Button Tray 1 115270-003 11 Arm Cover (Left) 1 114979-103 28 Button Tray Leg 1 114988-001 12 Screw 4.37 4 106629-002 29 Screw 6.35 4 013770-610 13 Pin 2 114980-001 30 Screw 4.76 x 10 1 013711-010 14 Bed Base 1 31 Screw 5.56 x 10 1 013751-010 15 Felt 1 114982-000 32 Screw 4.76 x 10 2 013711-010 16 Bed Cover Assembly (Left) 1 154225-003 33 Oil Cap 1 110104-000

Page 7

B. Driving clutch and brake mechanism / Antriebskupplung und Stoppmechanismus Embrayage d'entraînement et mécanisme d'arrêt / Embrague de mando y mecanismo de detención Ref. No. 1 2 3 4-1 4-2 4-3 4-4 4-5 4-6 4-7 4-8 5 6 7 8 9 10 11 12 13 14 15 16 17-1 17-2 17-3 17-4 17-5 17-6 17-7 17-8 17-9 17-10 17-11 Name of Parts Driving Shaft Bushing (Left) Bushing (Right) Pulley Bearing Grease Seal Grease Seal Cap Ball Holder Steel Ball 5/16 Screw 4.76 Spring Clutch Plate Screw 5.56 Washer Nut 5.56 Stop Cam (for B913) Stop Cam (for B915) Brake Cam Segment Flange Cam Segment Pin Set Screw Screw 7.95 x 10 Washer Thrust Bearing Clutch Body Ball Presser Plate Bolt 6.35 Screw 6.35 Nut 6.35 Set Screw Stopper Bracket Stopper Shaft Washer Cushion Rubber Washer 7.14 Q'ty 1 1 1 1 2 1 1 1 1 2 1 1 2 2 2 1 1 1 1 2 1 3 1 1 1 1 1 1 1 1 1 1 1 1 Parts No. 114989-001 115215-000 115214-100 114991-001 114992-000 114993-000 114994-001 114995-001 071079-450 013710-712 114997-001 114998-000 114999-001 115000-000 021750-102 149995-001 153542-001 115002-101 115003-001 115004-001 149996-001 014821-022 115007-001 115008-000 115010-001 115011-001 115012-002 150554-002 115014-001 115015-101 115016-001 115017-001 115018-001 025800-332 Assembly No. B-4 Pulley Assembly 114990-001 Ref. No. 17-12 18 19 20 21 22 23 24 25 26 27 28 29 30 31 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 Name of Parts Nut 7.14 Clutch Body Shaft Spring Pin Spring Hanger Screw 5.56 Clutch Driving Lever Washer 4.76 Nut 5.56 Clutch Drive Lever Plate Spring Screw 476-32 x 12 Stitch Regulating Lever Bolt 7.94 x 22 Nut 4.37 Brake Drum Screw 5.56 x 6 Brake Shoe Assembly Brake Spring Plate Stud Screw 4.76 Spring Hook Spring Brake Adjuster Knob Brake Adjuster Washer Screw 5.95 Brake Lever Stud Screw 4.76 Slide Block Roller Stud Nut 4.76 Stud Screw 4.37 Q'ty 1 1 1 1 1 1 1 2 1 1 1 1 2 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Parts No. 021800-102 115013-001 115020-001 115021-001 115022-001 115268-002 142307-001 025710-232 115268-002 021750-102 115025-001 115026-001 062711-212 115027-101 017822-212 102571-003 144509-000 013750-610 144510-001 144513-001 144514-001 144515-001 144516-001 144517-001 144518-001 144519-001 107793-000 151604-001 144520-001 144523-001 144524-000 105872-101 144525-001 110161-004 144526-001 Assembly No. B-17 144747-201 -2- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 8 — C. Needle bar and driving clutch mechanism / Nadelstange und Antriebskupplung Barre à aiguille et mécanisme d'entraînement / Barra de aguja y mecanismo de embrague de mando D. Loop spreading mechanism / Schleifenzieher Etirement de boucle / Ensanche de bu

C. Needle bar and driving clutch mechanism / Nadelstange und Antriebskupplung Barre à aiguille et mécanisme d'entraînement / Barra de aguja y mecanismo de embrague de mando Ref. No. Name of Parts Q'ty Parts No. Assembly No. Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1-1 Lower Crank Rod 1 142658-001 7 Needle Bar Bushing (Upper) 1 115051-000 1-2 Screw 4.37 2 8 Needle Bar Bushing (Lower) 1 115052-000 1-3 Needle Bar Driving Cam 1 115053-016 9 Needle Bar 1 115050-001 1-4 Screw 6.35 x 6 1 014770-622 10 Screw 3.18 1 140553-102 1-5 Screw 6.35 1 015770-812 11 Needle Guide 1 115054-101 1-6 Upper Crank Rod 1 C-1 12 Screw 4.76-32 x 7 1 062710-712 1-7 Screw 4.37 x 14 2 148425-002 Crank Rod 13 Needle Plate Subordinate (for B913) 1 115055-001 1-8 Round Joint 1 144700-101 14 Needle Plate (for B913) 1 144711-001 1-11 Crank Rod 1 115041-001 15 Screw 4.37 x 10 (for B913) 4 S01702-001 C-16 1-12 Nut 7.14 1 021800-102 16-1 Needle Bar Bracket 1 115048-001 Needle Bar 1-13 Nut 7.14 1 115042-001 16-2 Needle Bar Driving Lever 1 182350-001 Driving Lever 1-14 Wick 1 144701-001 2 Needle Bar Driving Lever Shaft 1 115046-001 17 Bolt 5.56 x 14 2 017751-412 1-15 Felt 1 107155-001 18 Washer 1 144657-000 6 Needle Bar 1 115050-001 19 Nut 5.56 1 021750-102 D. Loop spreading mechanism / Schleifenzieher Etirement de boucle / Ensanche de bucle Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1 Thread Handler Bracket 1 151991-000 2 Screw 3.57 x 6 2 S01696-001 3 Thread Handler Guide Plate (for B913) 1 115071-001 Thread Handler Guide Plate (for B915) 1 151992-001 4 Thread Handler (for B913) 1 115072-001 Thread Handler (for B915) 1 151993-001 5 Thread Handler Link 1 115073-001 6 Thread Handler Link Roller 1 115076-001 7 Stud Screw 4.76 1 115077-001 -3- From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 9 — E. Lower shaft mechanism / Untere Welle Mécanisme de l'arbre inférieur / Mecanismo de la eje inferior F. Stitch number conversion / Stichzahlrechnung Conversion de nombre de points / Conversión de número de puntadas

E. Lower shaft mechanism / Untere Welle Mécanisme de l'arbre inférieur / Mecanismo de la eje inferior 25 23 24 21 22 19 20 18 17 2 30 16 15 5 9 11 14 4 6 7 1 10 12 28 13 26 Ref. No. Name of Parts Q'ty Parts No. Assembly No. Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1 Lower Shaft 1 115057-001 15 Screw 6.35 x 6 2 014770-622 2 Lower Shaft Bushing (Front) 1 115058-100 16 Distance Collar 1 115064-101 3 Lower Shaft Bushing (Rear) 1 115059-000 17 Grooved Cam 1 115065-000 4 Lower Shaft Gear 1 115060-001 18 Screw 5.56 2 110124-001 5 Screw 6.35 x 6 2 014770-622 19 Shaft 1 115066-000 6 Spiral Gear 1 115061-001 20 Screw 5.56 x 6 2 013750-610 7 Screw 6.35 x 6 2 014770-622 21 Triangular Cam 1 115067-001 8 Washer 1 115007-001 22 Screw 4.37 1 151601-002 9 Thrust Bearing 1 115008-000 23 Collar 1 115068-001 10 Worm 1 24 Screw 4.37 1 151602-001 11 Screw 6.35 x 6 2 014770-622 25 Rotary Looper 1 115069-001 12 Fastening Ring 1 114973-001 26 Washer 1 101028-000 13 Screw 6.35 x 6 1 014770-622 28 Washer 2 101028-000 14 Collar 1 115063-001 30 Horizontal Feed Crank Ring 1 142628-001 F. Stitch number conversion / Stichzahlrechnung Conversion de nombre de points / Conversión de número de puntadas 1-7 1-6 1-5 1-4 1-1-3 Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1-1-1 Stitch Control Cam 1 F-1-1 1-1-2 Stitch Control Cam Gear 1 Stitch Control 1-1-3 Screw 7.94 x 10 2 014821-022 Cam Assembly 115109-101 1-3 Stitch Control Cam Segment 1 F-1 1-4 Screw 4.37 1 115113-001 1-5 Stitch Control Knob 1 115114-001 F-1 Stitch Control 1-1-2 1-1-1 1-6 Spring 1 115115-001 Assembly 1-7 Stud Screw 4.37 1 115116-001 180982-001 2 Stitch Changing (M) Gear 1 115117-000 3 Stud 1 115118-001 4 Stitch Changing Gear 1 115119-001 5 Pin 1 115120-001 6 Lever for 32-Stitches (Major) 1 115121-101 7 Lever for 32-Stitches (Minor) 1 147114-001 9 Bolt 4.76 1 117363-001 10 Washer 4.76 1 025710-232 11 Screw 318-40 x 12 1 062661-212 12 Nut 3.18 1 021660-102 -4- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10

G. Feed mechanism / Transportvorrichtung Mécanisme de l'entraînement / Mecanismo de la alimentación -5- From the library of: Superior Sewing Machine & Supply LLC jintex.in Ref. No. Name of Parts Q'ty Parts No. Assembly No. Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1 Cam Shaft 1 115078-001 24 Roller 1 115098-001 2 Cam Shaft Bushing (Left) 1 115079-000 25 Feed Lever Shaft 1 115099-001 3 Cam Shaft Bushing (Right) 1 115080-000 26 Screw 5.95 1 151605-002 4 Worm Gear 1 27 Back & Forth Feed Link 1 115100-001 5 Screw 6.35 x 6 2 14770-622 28 Stud Screw 4.76 2 115101-001 6 Transverse-Feed Cam 1 29 Feed Link 1 115094-001 7 Screw 6.35 x 6 4 014770-622 30 Stud 1 115097-001 8 Back & Forth Feed Cam 1 115084-000 31 Nut 4.76 1 021710-102 9 Screw 6.35 x 6 4 014770-622 32 Back & Forth Feed Connector 1 115103-001 10 Feed Plate (A) 1 144659-101 33 Bushing 1 115104-001 11 Bolt 4.76 x 7 2 146360-002 34 Back & Forth Feed Adjusting Lever 1 115105-001 12 Washer 2 146354-001 35 Screw 437-40 x 7 2 062680-712 13 Feed Bracket (for B913) 1 115087-000 36-1 Back & Forth Feed Slide Block 1 115106-001 G-36 14 Transverse-Feed Slide Block 1 115088-001 Back & Forth 15 Screw 1 115089-001 36-2 Back & Forth Feed Lever 1 115097-001 Feed Adjusting Assembly 16 Transverse-Feed Plate 1 115090-001 37 Stud 1 115097-001 180910-001 17 Transverse-Feed Length Indicator 1 115092-001 38 Roller 1 115098-001 18 Supporting Plate 1 115093-001 39 Feed Lever Shaft 1 115099-001 19 Screw 3.18 2 117291-002 40 Screw 5.95 1 117685-001 20 Feed Link 1 115094-001 41 Back & Forth Feed Length Indicator 1 115108-001 21 Stud Screw 4.76 2 115095-001 42 Screw 476-32 x 7 2 062710-712 22 Transverse-Feed Lever 1 115096-000 43 Transverse-Feed Adjusting Nut 1 115091-001 23 Stud 1 115097-001

Page 11 — H. Threading mechanism / fadenführungsvorrichtung Mécanisme de fénfilage / Mecanismo de la enhebrado

H. Threading mechanism / fadenführungsvorrichtung Mécanisme de fénfilage / Mecanismo de la enhebrado 32 29 25 24 21 23 22 31 28 27 30 14 15 17 16 18 34 35 36 37 38 39 41 42 41 53 50 56 57 59 58 62 63 65 64 60 Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Name of Parts Thread Release Cam Stud Screw 6.35 Thread Release Connecting Bar Guide Bracket Screw 476-32 x 12 Pin Spring (for B913) Spring (B) (for B915) Spring Hanger Nut 3.18 Thread Release Lever Bolt 4.76 Washer Adjuster Bolt 4.76 Washer Presser Lever Bracket Screw 476-32 x 7 Washer Thread Retainer Screw 476-32 x 7 Main Tension Thread Guide Main Tension Stud Tension Disc Spring Tension Control Nut Pin Tension Stud Tension Disc Tension Disc Washer Pin Q'ty 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 2 1 1 Parts No. 115171-001 115172-001 115173-001 115174-001 062711-212 115175-001 115176-001 151994-001 115177-001 021660-102 115178-001 117363-001 146354-001 115179-001 117363-001 146354-001 115180-001 062710-712 146354-001 115183-101 062710-712 115184-001 115186-001 115187-101 100136-001 115189-001 115190-001 115187-101 104525-001 159805-001 115191-001 Assembly No. Ref. No. 32 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 49 50 51 52 53 54 56 57 58 59 60 61 62 63 64 65 Name of Parts Tension Control Nut Pin Stud Screw 5.56 Arm Thread Guide Screw 476-32 x 10 Face Plate Assembly Needle Bar Thread Guide Screw 357-40 x 10 Face Plate Thread Guide Screw 476-32 x 10 Screw 4.76 Sub Tension Plate Needle Thread Guard Sub Tension Spring Sub Tension Stud Tension Control Nut Screw 3.57 Stop Ring E3 Thread Guide Thread Releaser Thread Take-Up Lever Assembly Thread Presser lever Stud Screw 5.56 Washer 6 Spring (for B913) Spring (for B915) Indicator Plate Thread Presser Shaft Spring (for B913) Pre-Tension Disc Stop Ring E3 Screw 476-32 x 10 Q'ty 1 1 1 1 1 1 1 1 1 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 2 Parts No. 100136-001 115192-001 110249-001 115204-001 062711-012 117879-001 153808-001 062671-012 115212-101 062711-012 013710-512 142360-001 112300-001 151880-000 151879-001 107682-001 116323-001 048030-342 142672-001 144486-001 144669-001 144670-001 025060-132 144671-001 151970-001 144672-001 144674-000 100546-001 048030-346 062711-012 Assembly No. -6- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 12 — [B913]

J. (B913) Button clamp mechanism / Knopfhaltevorrichtung Mécanisme du pince-boutons / Mecanismo de la ménsula del botón 23 44-1 44-2 44-3 45 46 40-13 40-17 40-16 40-18 40-1 40-11 40-12 40-14 19 47 18 16 21 22 17 33 29 32 31 24 27 28 25 26 40-7 40-3 40-8 40-2 40-10 40-5 40-4 40-6 15 14 13-2 13-1 10 9 11 12 8 2 3 4 5 7 6 Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13-1 13-2 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29 30 Name of Parts Cam Screw 6.35 x 6 Button Clamp Driving Fork Button Clamp Driving Shaft Screw 5.56 x 10 Collar Screw 4.76 Button Clamp Driving Lever Screw 556-32 x 16 Button Clamp Driving Link Button Clamp Driving Link Guide Screw 6.35 x 6 Stud Screw 4.76 Nut 4.76 Stud Screw 4.76 Button Clamp Driving Connector Stud Screw 4.76 Button Clamp Lifter Lever Stopper Screw 4.37 Spring Spring Hook Screw 6.35 Button Clamp Holder Button Clamp Holder Bar Snap Hook Screw 6.35 Screw Screw Q'ty 1 2 1 1 2 2 4 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Parts No. 115124-001 014770-622 115125-101 115126-001 013751-010 115127-001 013710-512 115128-100 062751-612 115130-001 115131-101 014770-622 156874-001 110161-004 115133-001 115134-101 115101-001 115135-101 117873-101 107407-003 115137-001 115138-001 014770-622 115143-202 115144-001 115145-001 115146-001 014770-622 115147-001 115148-101 Assembly No. Ref. No. 31 32 33 40-1 40-2 40-3 40-4 40-5 40-6 40-7 40-8 40-9 40-10 40-11 40-12 40-13 40-14 40-15 40-16 40-17 40-18 41 42 44-1 44-2 44-3 Option 45 46 47 Name of Parts Tension Control Nut Stopper Nut 5.56 Button Clamp Bracket Button Clamp (Left) Spring Button Clamp (Right) Spring Pin Screw 437-40 x 5 Spring Pin Stud Screw 4.76 Button Clamp (Middle) Button Clamp Plate Screw 357-40 x 8 Stud Screw 3.57 Nut 3.57 Spring Button Clamp Adjusting Plate Stud Screw 4.37 Stud Screw 4.37 Bolt 4.76 x 14 Washer Button Clamp Lifter Roller Stop Ring E3 Finger Guard Bolt 4.76 x 7 Washer Q'ty 2 1 1 1 1 1 1 1 1 2 2 2 1 1 2 1 1 1 1 1 2 2 1 2 1 1 1 Parts No. 146994-001 115149-001 107282-002 115151-000 150397-101 150398-001 150399-101 150401-001 115156-001 062680-512 047250-642 115158-001 150402-001 115269-001 062670-812 115161-001 115162-001 115163-001 115164-001 115165-001 115166-001 017711-412 146354-001 115139-001 107744-001 048030-342 142308-001 146354-001 Assembly No. J-40 Clamp Lifter Assembly 150403-101 -7- From the library of: Superior Sewing Machine & Supply LLC jintex.in }

Page 13 — [B915]

[B915] K. Button clamp mechanism / Knopfhaltevorrichtung Mécanisme du pince-boutons / Mecanismo de la ménsula del botón Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13- 1 13- 2 14 15 16 17 18 19 21 22 23 24 25 26- 1 26- 2 26- 3 26- 4 27 28 29 30 31 32 Name of Parts Cam Screw 6.35 x 6 Button Clamp Driving Fork Button Clamp Driving Shaft Screw 5.56 x 10 Collar Screw 4.76 Button Clamp Driving Lever Screw 556-32 x 16 Button Clamp Driving Link Button Clamp Driving Link Guide Screw 6.35 x 6 Stud Screw 4.76 Nut 4.76 Stud Screw 4.76 Button Clamp Driving Connector Stud Screw 4.76 Button Clamp Lifter Lever Stopper Screw 4.37 Spring Spring Hook Button Clamp Holder Button Clamp Holder Bar Snap Button Clamp Holder Hook Roller Washer 4.76 Nut 4.37 Screw 6.35 x 6 Spring Tension Control Nut Stopper Nut 5.56 Q'ty 1 2 1 1 2 2 4 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 2 1 1 1 1 Parts No. 151961-001 014770-622 115125-101 115126-001 013751-010 115127-001 013710-512 115128-100 062751-612 115130-001 115131-101 014770-622 156874-001 110161-004 115133-001 115134-101 151962-001 151963-101 117873-101 107407-003 115137-001 115138-001 115143-202 115144-001 115145-001 151969-001 107744-001 153484-001 105234-003 014770-622 115147-001 115148-101 146994-001 115149-001 107282-002 Assembly No. Ref. No. 33 34 35 36 37 38 39 40 41 50- 1 50- 2 50- 3 50- 4 50- 5 50- 6 50- 7 50- 8 50- 9 50-10 50-11 50-12 50-13 50-14 50-15 50-16 50-17 50-18 51 52 55 Option 53 54 Name of Parts Button Clamp Lifter Bracket Bolt 6 x 14 Button Clamp Lifter Stud Screw 6.35 Button Clamp Lifter Link Screw Stud Screw 6.35 Washer Nut 6.35 Button Clamp Bracket Button Clamp (Left) Spring Button Clamp (Right) Spring Pin Screw 437-40 x 5 Spring Pin Stud Screw 4.76 Button Clamp (Middle) Button Clamp Plate Screw 357-40 x 8 Stud Screw 3.57 Spring Button Clamp Adjusting Plate Stud Screw 4.37 Stud Screw 4.37 Bolt 4.76 x 14 Washer Nut 6.35 Washer Finger Guard Bolt 4.76 x 7 Q'ty 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 2 2 1 1 1 2 2 1 1 Parts No. 151964-001 018061-422 115389-002 151965-001 115449-001 151966-001 118735-002 110744-002 115151-000 150397-101 150398-001 150399-101 150401-001 115156-001 062680-512 047250-642 115158-001 150402-001 150403-101 115269-001 062670-812 115161-001 115162-001 115163-001 115164-001 115165-001 115166-001 017711-412 146354-001 150556-001 146354-001 151051-001 146360-002 Assembly No. K-50 Assembly -8- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14

[B915] L. Thread trimmer mechanism / Fadenabschneidevorrichtung Mecanisme de coupe-fill / Mecanismo de recortadora de orillos 22 1-1 7 2 3 5 1-3 1-2 4 17 18 9 8 15 20 21 23 19 14 13 10 16 11 12 Ref. No. Name of Parts Q'ty Parts No. Assembly No. Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1-1 Needle Plate 1 153760-001 12 Nut 4.37 2 105234-003 1-2 Screw 3.57 1 153761-001 13 Connecting Link 1 151985-001 1-3 Collar 1 153759-001 14 Knife Driving Lever (Large) 1 151986-101 2 Movable Knife (A) Assembly 1 151972-001 15 Stud Screw 4.37 2 021680-202 3 Stud Screw 1 151977-001 16 Nut 4.37 1 151988-001 4 Connecting Plate 1 151978-001 17 Spring Hook 1 151989-001 5 Movable Knife (B) 1 151979-001 18 Spring 1 151990-101 7 Needle Plate Subordinate 1 151981-001 19 Knife Driving Lever (Small) 1 151990-101 8 Thread Trimming Lever Bracket 1 152192-101 20 Bolt 4.37 x 10 2 018681-022 9 Screw 476-32 x 12 2 062711-212 21 Washer 2 100645-003 10 Thread Trimming Lever 1 151983-001 22 Screw 4.37 x 10 1 S01702-001 11 Slide Plate 1 146549-001 23 Stud Screw 4.37 1 144526-001 -9- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15

Z. Accessories / Zubehör Accessoires / Accesorios Ref. No. Name of Parts Q'ty Parts No. Assembly No. Ref. No. Name of Parts Q'ty Parts No. Assembly No. 1 Vinyl Bag 1 122991-001 10- 1- 4 Pedal Stopper 2 116016-001 Z-10-1 3- 1 Screw Driver 2.6 x 70 1 105344-001 10- 1- 1 Pedal 1 133188-001 3- 2 Screw Driver 3.4 x 70 1 118837-001 10- 2- 2 Pedal Shaft 1 119707-001 Z-10-2 3- 3 Screw Driver 5.5 x 190 1 101572-101 10- 2- 3 Pedal Shaft Bracket 2 119707-001 Assembly 4- 2 Spanner 10 x 12 1 107780-001 10- 2- 4 Pedal Shaft Collar 2 119705-001 (for Z Type 4- 4 Spanner 7 x 8 1 142205-001 10- 2- 5 Bolt 8 x 22 2 017082-206 Stand) 5- 2 Spanner 5 1 143272-001 10- 2- 6 Nut 8 2 116694-001 S01603-001 5- 3 Spanner 4 1 118064-001 10- 2- 7 Spring Washer 2-8 2 028080-240 6 Worm Adjusting Bar 1 115123-001 10- 2- 8 Washer 8 2 025080-236 7 Needle TQ x 1 #14 2 115053-014 11 Chain Assembly 1 142656-001 Needle TQ x 1 #16 2 115053-016 12 Bolt 6 x 63 4 144543-001 Needle TQ x 1 #18 2 115053-018 13 Washer 6 4 025060-232 8- 1 Spool Stand 1 109854-001 14 Nut 6 2 115017-001 8- 2 Screw 4.5 x 32 2 100447-001 15 Washer 2 115017-001 9 Oiler 1 117437-101 16 Head Cover 1 144224-001 10- 1- 1 Pedal 1 117437-101 Z-10-1 19 Washer 4 115947-001 10- 1- 2 Nut 4 2 021400-106 Pedal 23 Needle Bar Guard 1 156540-001 10- 1- 3 Screw 4 x 14 2 001401-416 116185-201 -10- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16 — Different parts list / Zubehörliste Liste des pièces accessoires / Lista de piezas accesorias Option / Option / Option / Opción

Different parts list / Zubehörliste Liste des pièces accessoires / Lista de piezas accesorias Ref. No. G-4 G-6 G-8 E-10 Name of Parts Sub- class Stitch Form Number of Stitch Worm Gear Transverse-Feed Cam Back & Forth Feed Cam Worm -1 8, 16, 32 115081-001 115082-000 115062-001 -2 6, 12, 24 118544-001 118542-000 115084-000 118543-001 -3 8, 16, 32 115081-001 153566-000 115062-001 Option / Option / Option / Opción Ref. No. G-4 G-6 G-8 E-10 Name of Parts Stitch Form Number of Stitch Worm Gear Transverse-Feed Cam Back & Forth Feed Cam Worm 6, 12, 24 118544-001 118542-000 S01663-000 118543-001 (Attach label) S00863-000 (for B915) -11- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17

Option / Option / Option Ref. No. 1 2 3 4 5 Name of Parts Eye Guard Hinge Assem Eye Guard Screw 3.18 x 7 Washer 3.18 Nut 3.18 Q'ty 1 1 2 2 2 Parts No. 143964-001 153197-001 S01700-001 025030-232 021660-102 Assembly No. Eye Guard Assembly 153196-001 Ref. No. G-10 Name of Parts Feed Plate (A) Feed Plate (B) Feed Plate (C) Parts No. 144659-101 115085-001 151960-001 a x b x h 4.8 x 4.8 x 0.8 7 x 7 x 0 7 x 7 x 0.8 Snap Holder Assembly 115167-001 Shank Button Attachment 142570-101 Wrapping button Attachment 150416-001 -12- From the library of: Superior Sewing Machine & Supply LLC Jinte x.in

Page 18 — INDEX / VERZEICHNIS INDEX / INDICE

INDEX / VERZEICHNIS INDEX / INDICE Parts No. Ref No. Remark Parts No. Ref No. Remark Parts No. Ref No. Remark S00863-000 G- 8 047250-642 K- 50- 8 114982-000 A- 15 115072-001 D- 4 S01199-001 Z- 10- 2- 1 048030-342 H- 50 114984-000 A- 18 115073-001 D- 5 S01603-001 Z- 10- 2 J- 44- 3 114985-001 A- 20 115076-001 D- 6 S01663-000 G- 8 048030-346 H- 64 114986-001 A- 23 115077-001 D- 7 S01696-001 D- 2 062670-812 J- 12 114988-001 A- 26 115078-101 G- 1 S01702-001 C- 15 J- 40- 12 114989-001 B- 1 115079-000 G- 2 L- 22 K- 50- 12 114990-001 B- 4 115080-000 G- 3 001401-416 Z- 10- 1- 3 062671-012 H- 39 114991-001 B- 4- 1 115081-001 G- 4 013710-512 J- 7 062680-512 J- 40- 7 114992-000 B- 4- 2 115082-000 G- 6 K- 7 K- 50- 7 114993-000 B- 4- 3 115084-000 G- 8 013710-712 B- 4- 7 062680-712 A- 21 114994-001 B- 4- 4 115085-001 G- 10 013710-712 A- 30 G- 35 114995-001 B- 4- 5 115087-000 G- 13 A- 32 062710-712 C- 12 114997-001 B- 4- 8 115088-001 G- 14 013750-610 A- 19 H- 17 114998-000 B- 5 115089-001 G- 15 B- 38 H- 20 114999-001 B- 6 115090-001 G- 16 E- 20 H- 36 115000-000 B- 7 115091-001 G- 43 013751-010 A- 31 H- 41 115002-101 B- 10 115092-001 G- 17 J- 5 H- 65 115003-001 B- 11 115093-001 G- 18 K- 5 062711-212 B- 29 115004-001 B- 12 115094-001 G- 20 013770-610 A- 29 H- 5 115007-001 B- 15 115095-001 G- 29 014770-622 C- 1- 4 L- 9 E- 8 115096-000 G- 22 E- 5 062751-612 J- 9 115008-000 B- 16 115097-001 G- 23 E- 7 K- 9 E- 9 E- 11 071079-450 B- 4- 6 115010-001 B- 17- 2 115098-001 G- 24 E- 13 100136-001 H- 25 115011-001 B- 17- 3 G- 37 E- 15 H- 32 115012-002 B- 17- 4 115099-001 G- 25 G- 5 100447-001 Z- 8- 2 115013-001 B- 17- 6 G- 39 G- 7 100546-001 L- 21 115014-001 B- 17- 7 115100-001 G- 27 G- 9 101028-000 E- 26 115015-101 B- 17- 8 115101-001 G- 28 J- 2 E- 28 115016-001 B- 17- 9 J- 16 J- 12 115018-001 Z- 15 115102-001 G- 30 K- 2 101572-101 B- 17- 10 115103-001 G- 32 K- 12 102571-003 B- 19 115020-001 B- 19 115104-001 G- 33 K- 27 104525-001 E- 29 115021-001 B- 20 115105-001 G- 34 014821-022 B- 14 105234-003 K- 26- 4 115022-001 B- 21 115106-001 G- 36- 1 C- 1- 4 L- 12 115025-001 B- 27 115108-001 G- 41 015770-812 C- 1- 5 105329-001 A- 25 115026-001 B- 28 115109-101 F- 1- 1 017082-206 Z- 10- 2- 5 105344-001 Z- 3- 1 115027-101 B- 30 115112-101 F- 1- 3 017711-412 J- 41 105872-101 B- 52 115041-001 C- 1- 11 115113-001 F- 1- 4 K- 51 106629-002 A- 12 115042-001 C- 1- 13 115114-001 F- 1- 5 017751-412 C- 17 107155-001 C- 1- 15 115046-001 C- 2 115115-001 F- 1- 6 017822-212 B- 31 107282-002 J- 33 115047-001 C- 3 115116-001 F- 1- 7 018061-422 K- 34 K- 32 115048-001 C- 16- 1 115117-000 F- 2 018681-022 L- 20 107407-003 J- 19 115050-001 C- 6 115118-001 F- 3 021060-102 Z- 14 K- 19 115051-000 C- 7 115119-001 F- 4 021400-106 Z- 10- 1- 2 107682-001 H- 48 115052-000 C- 8 115120-001 F- 5 021660-102 F- 12 J- 44- 2 115053-014 Z- 7 115121-101 F- 6 H- 9 K- 26- 2 115053-016 C- 9 115123-001 Z- 6 021670-202 A- 8 107744-001 Z- 4- 2 C- 9 115124-001 J- 1 L- 16 B- 47 115053-018 Z- 7 J- 1 110104-001 Z- 8- 1 115054-101 C- 11 K- 3 021710-102 G- 31 110124-001 E- 13 115126-001 J- 4 021750-102 B- 8 110161-004 B- 54 115055-001 C- 13 K- 4 B- 26 J- 13- 2 115057-001 E- 1 115127-001 J- 6 C- 19 K- 13- 2 115058-100 E- 2 K- 6 021800-102 B- 17- 12 110249-001 H- 34 115059-000 E- 3 115128-100 J- 8 C- 1- 12 110744-002 K- 41 115060-001 E- 4 K- 8 025060-132 H- 58 112300-001 H- 45 115061-001 E- 6 115130-001 J- 10 025060-232 Z- 13 114483-002 Z- 9 115062-001 E- 10 K- 10 025080-236 Z- 10- 2- 8 114973-001 E- 12 115063-001 E- 14 115131-101 J- 11 025710-232 B- 24 114976-003 A- 6 115064-101 E- 16 K- 11 F- 10 114977-001 A- 9 115065-000 E- 17 115133-001 J- 14 025800-332 B- 17- 11 114978-103 A- 10 115066-000 E- 19 K- 14 028080-240 Z- 10- 2- 7 114979-103 A- 11 115067-001 E- 21 115134-101 J- 15 047250-642 J- 40- 8 114980-001 A- 13 115068-001 E- 23 K- 15 -13- 115069-001 E- 25 115135-101 J- 17 115071-001 D- 3 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19

Parts No. Ref No. Remark Parts No. Ref No. Remark Parts No. Ref No. Remark Parts No. Ref No. Remark 115137-001 J- 21 115389-002 K- 36 146354-001 G- 12 151993-001 D- 4 115138-001 K- 21 115449-001 K- 38 115- 12 151994-001 H- 7 J- 22 115947-001 Z- 19 H- 15 152192-101 L- 8 115139-001 J- 44- 1 116016-001 Z- 10- 1- 4 H- 18 153484-001 K- 26- 3 115143-202 J- 24 116185-201 Z- 10- 1 153542-001 B- 9 K- 23 116323-001 H- 49 153566-000 G- 6 115144-001 J- 25 116694-001 Z- 10- 2- 6 153759-001 L- 1- 3 K- 24 117363-001 F- 9 146360-002 G- 11 153760-001 L- 1- 1 115145-001 J- 26 117437-101 H- 11 153761-001 L- 1- 2 K- 25 H- 14 153808-001 H- 38 115146-001 J- 27 117683-001 Z- 10- 1- 1 146549-001 L- 11 154224-003 A- 16 K- 28 117929-001 C- 40 146994-001 J- 31 154225-003 A- 15 115147-001 J- 29 117873-101 E- 10 147114-001 K- 30 156874-001 J- 13- 1 K- 30 148425-002 C- 1- 7 115148-101 J- 30 149995-001 B- 9 K- 29 117879-001 S- 3 149996-001 B- 13 159805-001 H- 30 115149-001 J- 32 118064-001 Z- 5- 3 150397-101 J- 40- 2 180910-001 G- 36 K- 31 118542-000 G- 6 150398-001 K- 50- 2 180982-001 F- 1 115151-000 J- 40- 1 118543-001 E- 10 150399-101 J- 40- 3 182350-001 C- 16 K- 50- 1 118544-001 G- 4 150401-001 K- 50- 3 115156-001 J- 40- 6 118735-002 K- 40 150401-001 J- 40- 4 K- 50- 6 118837-001 Z- 3- 2 150402-001 K- 50- 4 115158-001 J- 40- 9 119707-001 Z- 10- 2- 3 150402-001 J- 40- 5 K- 50- 9 119708-001 Z- 10- 2- 4 150403-001 K- 50- 5 115160-001 A- 28 122991-001 Z- 1 150403-001 J- 40- 10 115161-001 J- 40- 13 133188-001 A- 7 150554-002 K- 50- 10 K- 50- 13 140553-102 Z- 10- 2- 2 150556-001 B- 17- 5 115162-001 J- 40- 14 142205-001 C- 10 151051-001 K- 55 K- 50- 14 142307-001 Z- 4- 4 151972-001 L- 2 115163-001 J- 40- 15 142308-001 B- 23 151977-001 L- 3 K- 50- 15 142360-001 J- 44 151978-001 L- 4 115164-001 J- 40- 16 142628-001 E- 30 151979-001 L- 5 K- 50- 16 142656-001 Z- 11 151981-001 L- 7 115165-001 J- 40- 17 142658-001 C- 1- 2 151983-001 L- 10 K- 50- 17 142721-001 H- 53 151985-001 L- 13 115166-001 J- 40- 18 144224-001 Z- 5- 2 151986-101 L- 14 K- 50- 18 144509-000 B- 37 151987-001 L- 15 115171-001 H- 1 144510-001 B- 39 151988-001 L- 17 115172-001 H- 2 144513-001 B- 40 151989-101 L- 18 115173-001 H- 3 144514-001 B- 41 151990-101 L- 19 115174-001 H- 4 144515-001 B- 42 151991-000 D- 1 115175-001 H- 6 144516-001 B- 43 151992-001 D- 3 115176-001 H- 7 144517-001 B- 44 115177-001 H- 8 144518-001 B- 45 115178-001 H- 10 144519-001 B- 46 115179-001 H- 13 144520-001 B- 49 115180-001 H- 16 144523-001 B- 50 115183-101 H- 19 144524-000 B- 51 115184-001 H- 21 144525-001 B- 53 115186-001 H- 22 144526-001 B- 55 115187-101 H- 23 144700-101 L- 23 115188-001 H- 24 144701-000 Z- 12 115189-001 H- 26 144711-001 C- 18 115190-001 H- 27 144657-000 G- 10 115191-001 H- 31 144659-101 H- 56 115192-001 H- 33 144669-101 H- 57 115204-001 H- 35 144670-001 H- 59 115212-101 H- 40 144671-001 H- 60 115214-100 B- 3 144672-001 H- 61 115215-000 B- 2 144673-001 H- 62 115268-002 B- 22 144700-101 C- 1 B- 25 144701-000 C- 1-14 115269-001 J- 40-11 144711-001 C- 14 K- 50-11 144747-201 B- 17 115270-003 A- 27 115275-001 A- 24 -14- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20

OTHER INDUSTRIES, LTD. NAGOYA, JAPAN. Prof: Superior Sewing Machine & Supply Co. 118-913-915 195915-202 1984, 3 Impreso en Japón jinxtex.in

Page 1 — CB3-B913 CB3-B915

Page 3 — Notes sur l'utilisation de ce manuel de pièces détachées

Page 6 — A. Machine body / Maschinengehäuse Corps de la machine / Denominación del mecanismo

Page 7

Page 8 — C. Needle bar and driving clutch mechanism / Nadelstange und Antriebskupplung Barre à aiguille et mécanisme d'entraînement / Barra de aguja y mecanismo de embrague de mando D. Loop spreading mechanism / Schleifenzieher Etirement de boucle / Ensanche de bu

Page 9 — E. Lower shaft mechanism / Untere Welle Mécanisme de l'arbre inférieur / Mecanismo de la eje inferior F. Stitch number conversion / Stichzahlrechnung Conversion de nombre de points / Conversión de número de puntadas

Page 10

Page 11 — H. Threading mechanism / fadenführungsvorrichtung Mécanisme de fénfilage / Mecanismo de la enhebrado

Page 12 — [B913]

Page 13 — [B915]

Page 14

Page 15

Page 16 — Different parts list / Zubehörliste Liste des pièces accessoires / Lista de piezas accesorias Option / Option / Option / Opción

Page 17

Page 18 — INDEX / VERZEICHNIS INDEX / INDICE

Page 19

Part Books

Search
