Parts index — Brother DH4-B981tap a row to open its page

Page 2

Brother DH4-B981 parts on page 2

Ref	Part number	Part name	Qty
	RH-981A-	00 : 紳士服、婦人服 / Men's clothes and ladies' clothes
	RH-981A-	01 : 紳士服、婦人服 / Men's clothes and ladies' clothes
	RH-981A-	52 : ジーンズ、ワーキング / Jeans and work clothes

Page 3 — 目次

Brother DH4-B981 parts on page 3

Ref	Part number	Part name	Qty
	1	主体関係
	5	針棒・天秤関係
	9	上軸関係
	9	針振関係
	11	針棒揺動関係
	13	押工関係
	15	押工関係
	17	押工関係(ジーンズ仕様)
	21	送り関係
	25	カッター関係
	27	テンションプーリー関係
	27	下軸関係
	29	二重環ルーパ関係
	33	二重環ルーパ関係
	35	ルーパ関係
	35	スプレダー関係
	37	給油潤滑関係
	39	糸通シ関係
	43	糸切り関係
	45	糸切り関係(ジーンズ仕様)
	47	上糸切り関係
	47	針位置検出関係
	49	コントロールボックス関係
	53	コントロールボックス関係
	57	空気関係
	61	空気関係
	65	電装品関係
	67	布制御関係
	71	踏板関係
	73	付属装置関係
	77	付属装置関係
	79	付属装置関係
	83	付属装置関係
	85	付属品関係
	89	仕様別部品一覧表
	91	仕様別部品一覧表
	92	仕様別部品一覧表
	93	仕様別部品一覧表
	94	警告ラベル

Page 5 — A. 主体関係 / Machine body

Brother DH4-B981 parts on page 5

Ref	Part number	Part name	Qty
4	4	SCREW
2	2	COVER
3	3	COVER
37	37	BRACKET
38	38	SCREW
39	39	WASHER
5	5	COVER
6	6	SCREW
7	7	FRAME
8	8	COVER
9	9	COVER
10	10	SCREW
11	11	COVER
1-1-1	1-1-1	COVER
1-1-2	1-1-2	SCREW
12	12	SCREW
13	13	COVER
14	14	COVER
15	15	COVER
17	17	BOLT
18	18	WASHER
19	19	WASHER
20	20	SCREW
22	22	WASHER
23	23	BRACKET
24	24	SCREW
26	26	BRACKET
27	27	SCREW
30	30	PIN
34	34	BRACKET
35	35	SCREW
40	40	ROD
41	41	BRACKET
42	42	SCREW
43	43	WASHER
44	44	SCREW
45	45	WASHER
47	47	BRACKET
48	48	SCREW
51	51	BRACKET
52	52	COVER
53	53	BASE
54	54	SCREW
55	55	PIN
56	56	SCREW
57	57	SCREW
58	58	WASHER
59	59	SPRING
60	60	SCREW
61	61	LEVER
62	62	COVER
62-1	62-1	COVER
62-2	62-2	BRACKET
62-3	62-3	BRACKET
62-4	62-4	SCREW
62-5	62-5	SCREW
66	66	BRACKET
67	67	BUSH
68	68	SCREW
69	69	BRACKET
70	70	SCREW
71	71	SCREW
75	75	COVER
76	76	SPRING
77	77	SCREW
78	78	BRACKET
79	79	BRACKET
80	80	SCREW
81	81	BUSH
82	82	SCREW
83	83	WASHER
89	89	SCREW
90	90	WASHER
91	91	SCREW
92	92	WASHER
93	93	COVER
93-1	93-1	COVER
93-1-1	93-1-1	BRACKET
93-1-2	93-1-2	BRACKET
93-1-3	93-1-3	SCREW
93-1-4	93-1-4	SPRING
93-1-5	93-1-5	WASHER
93-2	93-2	COVER
93-3	93-3	SCREW
93-4	93-4	WASHER
95	95	SCREW
96	96	SCREW

Page 6

Brother DH4-B981 parts on page 6

Ref	Part number	Part name	Qty
	S51215001	BUSH, LOOPER BASE	1
	S23616101	SCREW, M4X10	3
	S35232009	TOP COVER	1
	S35231000	PACKING, TOP COVER	1
	062501202	SCREW, PAN M5X12	4
	S35230009	FACE PLATE	1
	062500804	SCREW, PAN M5X8	2
	S35229000	PACKING, FACE PLATE	1
	S35227009	BELT COVER, F	1
	S35228009	BELT COVER, R	1
	062501202	SCREW, PAN M5X12	3
	S35226001	BELT COVER SUPPORT	1
	062400812	SCREW, PAN M4X8	1
	S34956209	BED BASE	1
	158827009	BED BASE CUSHION, A	4
	S35225000	BED BASE CUSHION	4
	S21728001	BOLT, M6X80	4
	159458009	RUBBER SHEET	4
	115947001	WASHER, PLAIN 6.35	4
	025060332	WASHER, PLAIN L 6	4
	021060102	NUT, 1 M6	1
	S35203001	COVER SUPPORT PLATE, R	1
	062400812	SCREW, PAN M4X8	2
	S35224001	COVER SUPPORT PLATE, L	1
	062400812	SCREW, PAN M4X8	2
	047502242	PIN, SPRING ROLL AW5	8
	S35223101	COVER	1
	018400832	BOLT, SOCKET M4X8	4
	S35222001	COVER, Z-WINDOW	1
	S35221001	SHOULDER SCREW, M4	1
	107017002	WASHER, WAVE SPRING 6.45	1
	S35201000	GS-SPRING	1
	S35220101	SUPPORT PLATE, GS	1
	018501222	BOLT, SOCKET M5X12	2
	028050242	WASHER, SPRING 2-5	2
	S35219001	SUPPORT PIN, R;GS	1
	048080142	RETAINING RING, C8	2
	S35218001	SUPPORT PIN, F;GS	1
	048080142	RETAINING RING, C8	2
	047502242	PIN, SPRING ROLL AW5	1
	154465001	DUST OILER SUPPORT ASSY	1
	114486002	OILER	1
	062500812	SCREW, PAN M5X8	2
	S35217001	SUPPORT SHAFT, H-LEVER	1
	014060632	SET SCREW, SOCKET (CP) M6X6	1
	S35216001	SHAFT, H-LEVER	1
	014060632	SET SCREW, SOCKET (CP) M6X6	1
	S35215001	SET SCREW COLLAR	1
	018061236	BOLT, SOCKET M6X12	1
	S17965001	HEAD SUPPORT LEVER	1
	S46496009	BED BASE COVER	1
	S46497009	BED BASE COVER	1
	S44204000	HINGE, SPRING	2
	062300616	SCREW, PAN M3X6	4
	021300206	NUT, 2 M3	4
	025030232	WASHER, PLAIN M 3	4
	S35211009	FRONT COVER ASSY	1
	S35207001	HINGE, B	2
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S35206201	FINGER GUARD	1
	S35221001	SHOULDER SCREW, M4	2

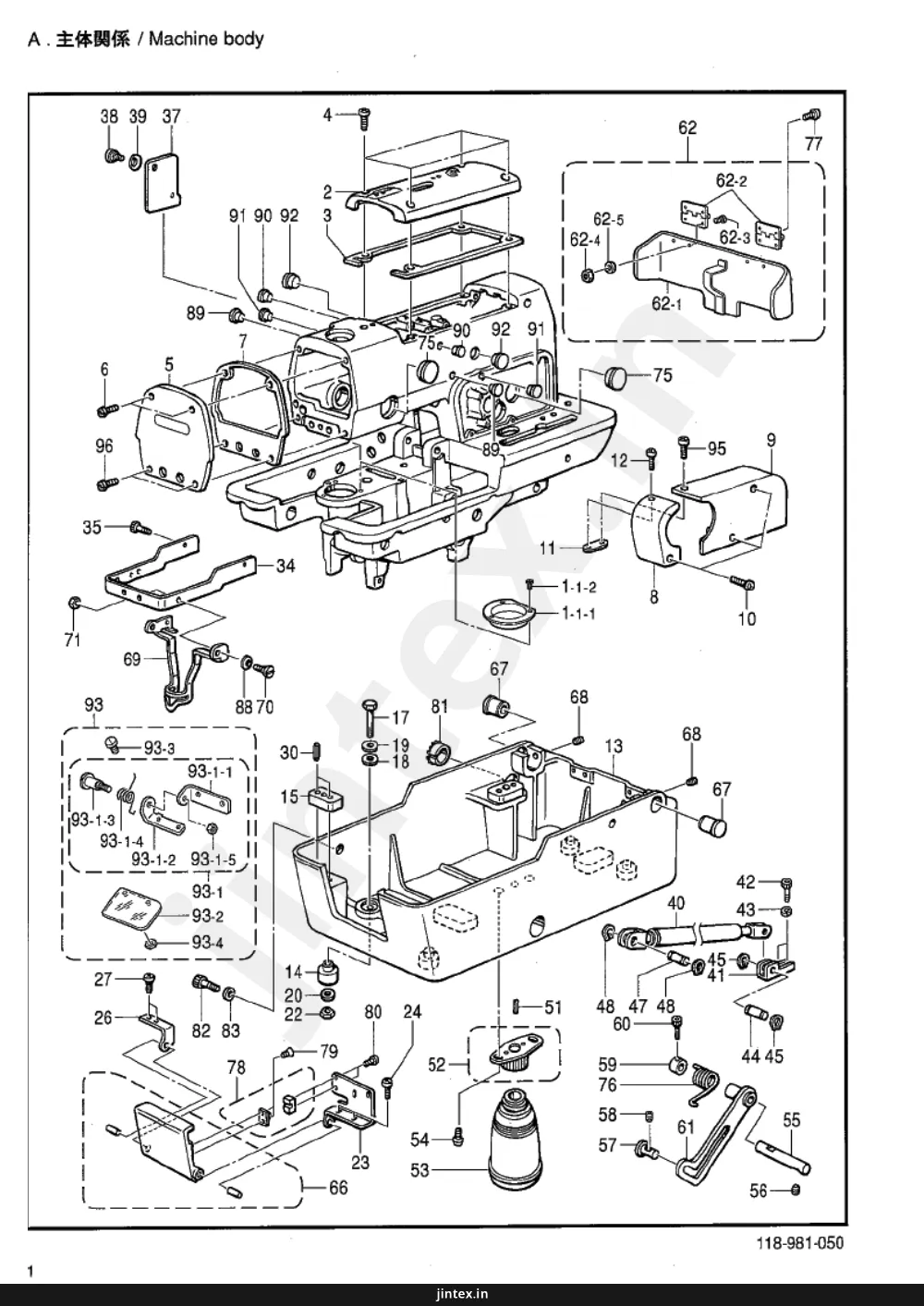

Page 7 — A . 主体関係 / Machine body

Brother DH4-B981 parts on page 7

Ref	Part number	Part name	Qty
	4	Screw
	38	Screw
	39	Washer
	37	Cover
	91	Screw
	90	Screw
	92	Screw
	2	Cover
	3	Bracket
	62	Base
	77	Screw
	62-1	Cover
	62-2	Bracket
	62-3	Bracket
	62-4	Screw
	62-5	Screw
	89	Screw
	7	Frame
	90	Screw
	92	Screw
	91	Screw
	6	Screw
	5	Cover
	75	Screw
	95	Screw
	9	Cover
	96	Screw
	12	Screw
	35	Screw
	34	Bracket
	11	Bracket
	1-1-2	Screw
	1-1-1	Washer
	8	Cover
	10	Screw
	71	Screw
	69	Bracket
	67	Bush
	68	Screw
	93	Assembly
	88	Screw
	70	Screw
	17	Screw
	81	Nut
	13	Cover
	93-1	Base Plate
	15	Screw
	67	Bush
	93-1-3	Lever
	93-1-4	Spring
	93-1-2	Plate
	93-1-5	Screw
	93-2	Screw
	93-4	Screw
	40	Shaft
	42	Screw
	43	Nut
	27	Bracket
	20	Screw
	22	Washer
	80	Screw
	24	Screw
	48	Screw
	47	Screw
	48	Screw
	60	Screw
	44	Screw
	45	Screw
	41	Bracket
	26	Bracket
	79	Bracket
	51	Cover
	59	Screw
	76	Spring
	78	Cover
	58	Screw
	55	Pin
	54	Screw
	57	Screw
	23	Screw
	53	Base
	66	Screw
	61	Lever
	56	Screw

Page 8 — A . 主体関係 / Machine body

Brother DH4-B981 parts on page 8

Ref	Part number	Part name	Qty
	021400202	NUT, 2 M4	2
	150607000	RUBBER CAP, 32.8	2
	S35204001	SPRING	1
	062300512	SCREW, PAN M3X5	4
	S33899000	BALL CATCH ASSY	1
	004300513	SCREW, FLAT M3X5	2
	062300616	SCREW, PAN M3X6	2
	S35202000	BUSH, UNIVERSAL	1
	018082036	BOLT, SOCKET M8X20	1
	025080132	WASHER, PLAIN S 8	1
	107017002	WASHER, WAVE SPRING 6.45	2
	17936001	RUBBER CAP, 9.4	1
	158437001	RUBBER CAP, 10	2
	S32264001	RUBBER CAP, 11.5	2
	150756000	RUBBER CAP, 18.5	2
	S37084001	EYE GUARD ASSY	1
	S37085001	SETTING PLATE ASSY, ;E-GUIDE	1
	S37086001	EYE GUARD BRACKET	1
	S34844001	SETTING PLATE, ;E-GUARD	1
	S36071001	SCREW	1
	S36070001	SPRING, EYE GUARD	1
	106129002	NUT, SM3.57	1
	153098000	EYE GUARD	1
	100257010	SCREW, SM3.57X6	2
	106129002	NUT, SM3.57	2
	062400812	SCREW, PAN M4X8	1
	062500804	SCREW, PAN M5X8	2

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother DH4-B981 parts on page 9

Ref	Part number	Part name	Qty
1	1	GEAR
2	2	NEEDLE BAR
3	3	SCREW
7	7	SCREW
8	8	THREAD TAKE UP LEVER
9	9	SCREW
10	10	SHAFT
11	11	SCREW
12	12	COLLAR
13	13	FORK
14	14	SPRING
15	15	BRACKET
16	16	SCREW
17	17	POST
17-1	17-1	POST
18	18	SCREW
19	19	NUT
20	20	BASE
21	21	SCREW
22	22	RING
23	23	BRACKET
23-1	23-1	SCREW
25	25	SHAFT
26	26	COLLAR
27	27	SCREW
28	28	SPRING
29	29	SPRING
30	30	BRACKET
31	31	SCREW
32	32	SCREW
33	33	SCREW
34	34	NEEDLE BAR
35	35	LEVER
35-1	35-1	LEVER
35-2	35-2	LEVER
35-3	35-3	LEVER
35-4	35-4	LEVER
35-5	35-5	LEVER
36	36	SHAFT
37	37	SCREW
38	38	COLLAR
39	39	COLLAR
40	40	SPRING
41	41	SCREW
42	42	COLLAR
43	43	WASHER
44	44	WASHER
45	45	WASHER
46	46	WASHER
47	47	SCREW
52	52	BRACKET
53	53	SCREW
54	54	SCREW
59	59	COLLAR
60	60	PLATE
63	63	BRACKET
64	64	SCREW
65	65	BRACKET
65-1	65-1	BRACKET
65-2	65-2	BRACKET
66	66	WASHER
67	67	POST
68	68	SCREW
69	69	SCREW

Page 10 — B . 針棒 ・ 天秤関係 / Needle bar and thread take-up mechanism

Brother DH4-B981 parts on page 10

Ref	Part number	Part name	Qty
	S35346101	DRIVING ROD ASSY	1
	S35339101	SHAFT, ;D-GEAR	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S35340001	PIN	1
	S35337101	N-BAR DRIVING LEVER ASSY	1
	014060632	SET SCREW, SOCKET (CP) M6X6	1
	S35338001	SHAFT, ;D-LEVER	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S35335001	SET SCREW COLLAR ASSY	1
	S35334001	NEEDLE BAR YOKE	1
	S35333001	LEVEL FEED LINK, ;N-BAR	1
	S35332001	BOLT, SOCKET M3X12	2
	018301236	BOLT, SOCKET M3X12	2
	S35331101	NEEDLE BAR ASSY	1
	S35150001	NEEDLE BAR YARN FEEDER	1
	140553102	SET SCREW, SM3.18	1
	S35148001	BUSH, U ;N-BAR	1
	S51195001	HOLDER BASE, B ;N-BUSH	1
	018402032	BOLT, SOCKET M4X20	3
	S35144001	LEVEL FEED LINK, ;N-BAR	1
	S37432001	BLOCK CLAMP ASSY, ;N-BAR	1
	018301632	BOLT, SOCKET M3X16	1
	S35142001	NEEDLE BAR BLOCK ASSY	1
	S35138001	GUIDE COLLAR, ;N-BAR	1
	153675001	SET SCREW, SOCKET SM4.37	2
	S35137001	GUIDE, ;N-BAR	2
	S35136001	SPRING	2
	S35135001	SUPPORT PLATE, ;N-BAR GUIDE	1
	062300616	SCREW, PAN M3X6	2
	S35134001	SUPPORT, A ;GEAR	1
	018501036	FELT, ;N-BAR	2
	S35133016	NEEDLE, DOX558 (#16)	1
	S35133014	NEEDLE, DOX558 (#14)	1
	S35133018	NEEDLE, DOX558 (#18)	1
	S35132101	THREAD TAKE-UP LEVER ASSY	1
	S35131001	THREAD TAKE-UP LEVER	1
	S35130001	THREAD GUIDE	1
	S35129001	ROLLER SHAFT	1
	021500303	NUT, 3 M5	1
	S35911101	SPRING BASE	1
	S35128001	SUPPORT SHAFT	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S23612051	SET SCREW COLLAR ASSY	1
	S35127001	CAM ROLLER, ;T/TAKE-UP	1
	S35126001	SPRING	1
	S35078001	SPRING HOOK	1
	S35125000	BEARING, ;25/20	1
	S35124000	BEARING, ;THRUST	1
	S35123000	WASHER, ;THRUST	1
	S35120000	FELT	1
	S35121000	FELT, ;N-BAR	1
	S35121000	SET SCREW, SOCKET (CP) SM3.57	1
	141514001	GUIDE, A	1
	141514002	SHOULDER SCREW	1

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother DH4-B981 parts on page 11

Ref	Part number	Part name	Qty
	65	65
	3	3
	3	3
	1	1
	7	7
	65-2	65-2
	65-1	65-1
	2	2
	17-1	17-1
	41	41
	40	40
	12	12
	8	8
	9	9
	21	21
	20	20
	19	19
	60	60
	59	59
	46	46
	16	16
	15	15
	14	14
	15	15
	23-1	23-1
	23	23
	22	22
	66	66
	18	18
	17	17
	35	35
	35-2	35-2
	11	11
	11	11
	10	10
	35-1	35-1
	38	38
	47	47
	42	42
	43	43
	44	44
	45	45
	35-5	35-5
	37	37
	36	36
	37	37
	35-4	35-4
	35-3	35-3
	39	39
	63	63
	64	64
	29	29
	28	28
	25	25
	26	26
	27	27
	30	30
	31	31
	32	32
	33	33
	34	34

Page 12 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother DH4-B981 parts on page 12

Ref	Part number	Part name	Qty
	S35118001	TENSION SPRING	1
	S35117001	NUT, U ;N-B/BUSH	1
	S35116001	SPRING, PLATE	1
	S35114001	SUPPORT, B ;GEAR	1
	018400832	BOLT, SOCKET M4X8	2
	S17608009	SET SCREW COLLAR	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S35113001	COLLAR, ;N BAR BLOCK	1
	S51194001	NEEDLE BAR GUARD	1
	018400632	BOLT, SOCKET M4X6	3
	S41251001	HOLDER PLATE, A ;N-THREAD	1

Page 13

Brother DH4-B981 parts on page 13

Ref	Part number	Part name	Qty
16	16	washer
5	5	screw
6	6	screw
3	3	gear
4	4	screw
20	20	roller
2	2	bearing
22	22	flange
21	21	nut
11	11	washer
14	14	screw
13	13	nut
12	12	pulley
18	18	screw
1	1	shaft
10	10	bearing
8	8	screw
7	7	washer
17	17	ring
24	24	bracket
24-2	24-2	screw
24-1	24-1	screw
19	19	washer
13	13	nut
11	11	screw
17	17	screw
20	20	fork
15	15	shaft
1	1	bracket
9	9	nut
2	2	screw
26	26	washer
3	3	nut

Page 14

Brother DH4-B981 parts on page 14

Ref	Part number	Part name	Qty
	S43710001	UPPER SHAFT	1
	072620260	BALL BEARING, 6202VVC2	2
	S35247001	GEAR, ;N-BAR	1
	S23651001	SET SCREW, SOCKET (FT) M6X6	2
	S35246001	ZIGZAG CAM	1
	S23651001	SET SCREW, SOCKET (FT) M6X6	2
	S35245001	TENSION PULLEY ASSY, ;U-SHAFT	1
	S23651001	SET SCREW, SOCKET (FT) M6X6	2
	076002450	BALL BEARING, 6002DD	1
	048150142	RETAINING RING, EXTERNAL C15	2
	S43708009	PULLEY ASSY	1
	014060632	SET SCREW, SOCKET (CP) M6X6	1
	016061031	SET SCREW, SOCKET (CN) M6X10	1
	S35249001	WASHER, THRUST	1
	048350242	RETAINING RING, INTERNAL C35	1
	S43711000	COLLAR, ;U-SHAFT	1
	151998000	BEARING COLLAR	1
	116920001	RING, THRUST	1
	141276001	BALL BEARING CAP, S	1
	102843004	SCREW, FLAT SM3.57	3
	S35264001	ZIGZAG FORK	1
	S35263101	SUPPORT PIN, ;Z-FORK	1
	021080306	NUT, 3 M8	1
	S35262001	CONNECTING ROD ASSY, ;ZIGZAG	1
	S35260001	SHOULDER SCREW, M6	1
	S35259001	SHOULDER SCREW, ;Z-CRANK	1
	15559001	WASHER, PLAIN	1
	021060102	NUT, 1 M6	2
	S35258001	ZIGZAG CRANK	1
	018062022	BOLT, SOCKET M6X20	1
	S35257000	BUSH, ;C-SHAFT	1
	014060632	SET SCREW, SOCKET (CP) M6X6	1
	S35256001	ROCKER SHAFT, ;ZIGZAG	1
	S35255001	N-POSITION CONTROL PLATE ASSY	1
	S35250001	SPACER, 0.6	1
	148727001	SPACER, 0.6	1
	S35251001	ZIGZAG LEVER	1
	S35332001	NUT, M6	1
	S35332001	NEEDLE BAR	1
	018301236	BOLT, SOCKET M3X12	1
	S35143001	BLOCK CLAMP ASSY, ;N-BAR	1
	018301632	BLOCK CLAMP, ;N-BAR	1
	153596001	BOLT, SOCKET M3X16	1
	153596001	WASHER	1

Page 15 — E. 針棒揺動関係 / Needle bar rocking mechanism

Brother DH4-B981 parts on page 15

Ref	Part number	Part name	Qty
1-3	1-3	SCREW
1-4	1-4	WASHER
1-2	1-2	BRACKET
50	50	MOTOR
1-1	1-1	BRACKET
2	2	SCREW
1-5-1	1-5-1	SHAFT
1-5-2	1-5-2	COLLAR
1-6	1-6	SCREW
1-5-3	1-5-3	GEAR
11-3	11-3	RING
11-2	11-2	BEARING
23-2	23-2	BEARING
23-3	23-3	RING
14	14	SCREW
24	24	WASHER
23-1	23-1	COLLAR
23-5	23-5	RING
31	31	BELT
17	17	PULLEY
18	18	SHAFT
33	33	COLLAR
34	34	WASHER
35	35	COLLAR
36	36	SCREW
16	16	PULLEY
11-4	11-4	BRACKET
23-4	23-4	BRACKET
11-3	11-3	RING
11-1	11-1	COLLAR
11-5	11-5	RING
32	32	BELT
15	15	SHAFT
1-5	1-5	GEAR ASSEMBLY

Page 16 — E . 針棒揺動関係 / Needle bar rocking mechanism

Brother DH4-B981 parts on page 16

Ref	Part number	Part name	Qty
	S35276101	MOTOR BASE	1
	S43285000	PULSE MOTOR ASSY, R	1
	018501422	BOLT, SOCKET M5X14	4
	025050232	WASHER, PLAIN M 5	4
	S35283001	NEEDLE ROTATION PULLEY ASSY	1
	S35435000	NEEDLE ROTATION PULLEY ASSY, M	1
	S35282000	NEEDLE PIN, 5X23.8	1
	128652001	MAGNET REC16W	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	018061622	BOLT, SOCKET M6X16	4
	S35291101	TENSION PULLEY ASSY, D	1
	S35284101	TENSION PULLEY	1
	076000000	BALL BEARING, 6000ZZ	1
	048260242	RETAINING RING, INTERNAL C26	2
	S35290001	TENSION PULLEY ARM ASSY, D	1
	048100142	RETAINING RING, EXTERNAL C10	1
	018400832	BOLT, SOCKET M4X8	2
	S35296001	DRIVING LOOPER SHAFT ASSY	1
	072620180	BALL BEARING, 6201ZZ	1
	S35297000	T-PULLEY ASSY, U;V-SHAFT	1
	018401636	BOLT, SOCKET M4X16	1
	S35288101	TENSION PULLEY ASSY, U	1
	S35284101	TENSION PULLEY	1
	076000000	BALL BEARING, 6000ZZ	1
	048260242	RETAINING RING, INTERNAL C26	2
	S35287001	ARM ASSY, U;T-PULLEY	1
	048100142	RETAINING RING, EXTERNAL C10	1
	018400832	BOLT, SOCKET M4X8	2
	S35300000	TIMING BELT, D	1
	S35299000	TIMING BELT, U	1
	076001850	BALL BEARING, 6001ZZ	1
	142627001	WASHER	1
	S35302001	SET SCREW COLLAR	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S43349100	PULSE MOTOR CORD, R	1

Page 17 — F1. 押工関係 / Presser foot mechanism

Brother DH4-B981 parts on page 17

Ref	Part number	Part name	Qty
3	3	SCREW
1	1	PRESSER BAR GUIDE
1-1	1-1	PRESSER BAR GUIDE
1-2	1-2	PRESSER BAR GUIDE
1-3	1-3	PRESSER BAR GUIDE
1-4	1-4	PRESSER BAR GUIDE
15	15	WASHER
14	14	COLLAR
73	73	SPRING GUIDE
72	72	SPRING
44	44	PIN
45	45	PIN
55	55	SCREW
54	54	BRACKET
16	16	PLATE
17	17	SCREW
19	19	WASHER
6	6	WASHER
7	7	SCREW
8	8	SCREW
11	11	SCREW
65	65	SCREW
71	71	BRACKET
62	62	BRACKET
64	64	BRACKET
63	63	BRACKET
57	57	SCREW
58	58	WASHER
56	56	BRACKET
12	12	WASHER
55	55	SCREW
53	53	PLATE
35	35	PIN
40	40	SCREW
38	38	SCREW
36	36	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	WASHER
11	11	SCREW
63	63	BRACKET
65	65	SCREW
57	57	SCREW
71	71	BRACKET
58	58	WASHER
64	64	BRACKET
62	62	BRACKET
56	56	BRACKET
53	53	PLATE
55	55	SCREW
2	2	PRESSER BAR
2-1	2-1	PRESSER BAR
2-2	2-2	PRESSER BAR
2-3	2-3	PRESSER BAR
2-4	2-4	PRESSER BAR
3	3	SCREW
39	39	BRACKET
35	35	PIN
43	43	WASHER
41	41	BRACKET
42	42	BRACKET
74	74	BRACKET
72	72	SPRING
44	44	PIN
45	45	PIN
13	13	BRACKET
15	15	WASHER

Page 18 — F1 . 押工関係 / Presser foot mechanism

Brother DH4-B981 parts on page 18

Ref	Part number	Part name	Qty
	S34957001	ヒラキレンカンLクミ
	S34965001	ジテンレバープレートL
	102630001	ハリホウ ウアンナイカクマ
	109763002	ザガネ
	048050342	トメワE5
	S34963001	ヒラキレンカンRウミ
	S34964001	ジテンレバープレートR
	102630001	ハリホウ ウアンナイカクマ
	109763002	ザガネ
	048050342	トメワE5
	S34966001	ダンネジ M4	6
	S35429001	ヒラキトメワ	1
	S34967001	ヒラキレンカンストツバ	2
	025040232	ヒラサガネチユウ4	2
	062400812	ナベコ4X8	2
	062301016	ナベコM3X10	2
	S34968000	スピード ナット M3	2
	S34970001	ヒラキシリンダーロッド	2
	S34969001	シリンダーロッドピンB	2
	048030342	トメワE3	4
	S35169001	ヒラキシリンダーサエ	2
	062400812	ナベコ4X8	4
	028040242	バネザガネ2.4	4
	S35239101	クランプレバーシク	2
	S35240001	クランプレバー-B	2
	062501202	ナベコM5X12	2
	S35303201	オサエトウレバー	2
	062501202	ナベコM5X12	2
	S35166001	ナベシリンダーロッド	2
	S35305001	シリンダーロッドピン	2
	048030342	トメワE3	4
	S35304001	クランプシリンダーサエ	2
	014400532	クランプネジ	2
	S35321001	プレートガイドイタA	3
	S35322001	プレートガイドイタB	1
	S06696004	サラコネジ 3X6	11
	S35323001	プレートオサエ	2
	S35324001	ダンネジ M4	2
	S36345000	マキワッシャー	2
	S35327001	ヒラキシリンダーストツパ	2
	017401415	ボルト4X14	2
	021400202	2シュナット4	2
	062400812	ナベコ4X8	4
	S35328001	ヒラキストツパイタ	2
	028040242	バネザガネ2.4	4
	S35456001	オサエトツバネ	2
	S35457001	ハネカツL	1
	S35458001	ハネカツR	1
	S35321001	プレートガイドイタA	1

Page 19 — F2 . 押工関係 / Presser foot mechanism

Brother DH4-B981 parts on page 19

Ref	Part number	Part name	Qty
81-1-3	81-1-3	SCREW
81-1-2	81-1-2	PRESSER FOOT HOLDER
81-1-17	81-1-17	SPRING
81-1-16	81-1-16	PRESSER FOOT
81-1-11	81-1-11	SCREW
81-1-10	81-1-10	SHAFT
81-1-8	81-1-8	LEVER
81-1-11	81-1-11	SCREW
81-1-1	81-1-1	BASE PLATE
81-1-14	81-1-14	ARM
81-1-5	81-1-5	SPRING
81-1-13	81-1-13	SCREW
81-1-1-1	81-1-1-1	PLATE
81-1-15	81-1-15	WASHER
81-1-1-2	81-1-1-2	SCREW
81-1-9	81-1-9	SCREW
81-1-7	81-1-7	SPRING
81-1-20	81-1-20	SCREW
81-1-19	81-1-19	PLATE
81-1-4	81-1-4	LEVER
81-1-6	81-1-6	SCREW
81-1-18	81-1-18	PLATE
81-1-12	81-1-12	LEVER
80-1-3	80-1-3	SCREW
80-1-17	80-1-17	SPRING
80-1-2	80-1-2	PLATE
80-1-16	80-1-16	PRESSER FOOT
80-1-11	80-1-11	SCREW
80-1-8	80-1-8	LEVER
80-1-10	80-1-10	SHAFT
80-1-11	80-1-11	SCREW
80-1-1	80-1-1	BASE PLATE
80-1-14	80-1-14	ARM
80-1-13	80-1-13	SCREW
80-1-15	80-1-15	WASHER
80-1-1-1	80-1-1-1	PLATE
80-1-1-2	80-1-1-2	SCREW
80-1-9	80-1-9	SCREW
80-1-5	80-1-5	SPRING
80-1-6	80-1-6	SCREW
80-1-4	80-1-4	LEVER
80-1-7	80-1-7	SPRING
80-1-18	80-1-18	PLATE
80-1-12	80-1-12	LEVER

Page 20 — F2 . 押工関係 / Presser foot mechanism

Brother DH4-B981 parts on page 20

Ref	Part number	Part name	Qty
	S35474401	オサエプレートノウクミ	1
	S35318001	WORK CLAMP PLATE SET, R	1
	S37684101	ヌノサエプレートRウクミ	1
	S37680001	ハリイタR-50	1
	S37680001	ヌノサエIR-50	1
	S35478401	オサエプレートRSウクミ	1
	S35319001	WORK CLAMP PLATE SET, RS	1
	S35309101	ヌノサエプレートRSウクミ	1
	S35452001	ハリイタR	1
	S35330001	ヌノサエIRL	1
	S35330001	キンジ オサエイタH	1
	S35316001	カクマサエイタ	1
	060020416	ハインド M2X4	2
	S06696004	サラコネジ 3X6	2
	S35236000	マゲザガネ3.2	1
	S35235001	クランプサエピン	1
	021300302	3シュナット3	1
	S35238001	クランプシクウケ	1
	062401016	ナベコ 4X10	2
	S35237001	クランプシテンク	1
	048050142	トメワコウC5	2
	S35234201	クランプレバー-R	1
	018501236	アナボルト 5X12	1
	S35167001	クランプアームR	1
	014400532	アナボルト 4X5	2
	S35347000	ヌノガイド R	1
	S35326001	シメネジ M3.5	1
	S35475401	オサエプレートLウクミ	1
	S35310001	WORK CLAMP PLATE SET, L	1
	S37683101	ヌノサエプレートLウクミ	1
	S37679001	ハリイタL-50	1
	S38335000	イトホシイタ	1
	S35326001	シメネジ M3.5	1
	S35476401	オサエプレートLSウクミ	1
	S35317001	WORK CLAMP PLATE SET, LS	1
	S35308101	ヌノサエプレートLSウクミ	1
	S35453001	ハリイタL	1
	S35329001	ヌノサエILL	1
	S35329001	キンジ オサエイタL	1
	S35316001	カクマサエイタ	1
	060020416	ハインド M2X4	2
	S06696004	サラコネジ 3X6	2
	S35236000	マゲザガネ3.2	1
	S35235001	クランプサエピン	1
	021300302	3シュナット3	1
	S35238001	クランプシクウケ	1
	062401016	ナベコ 4X10	2
	S35237001	クランプシテンク	1
	048050142	トメワコウC5	2
	S35233201	クランプレバー-L	1
	018501236	アナボルト 5X12	1
	S35168001	クランプアームL	1
	014400532	アナボルト 4X5	2
	S35348000	ヌノガイド L	1
	S35326001	シメネジ M3.5	1

Page 21 — F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification)

Brother DH4-B981 parts on page 21

Ref	Part number	Part name	Qty
	92	92
	94	94
	90	90
	96	96
	102	102
	100	100
	97	97
	99	99
	91	91
	93	93
	98	98
	81-2-10	81-2-10
	81-2-8	81-2-8
	101	101
	81-2-17	81-2-17
	81-2-3	81-2-3
	81-2-16	81-2-16
	81-2-11	81-2-11
	81-2-2	81-2-2
	81-2-1	81-2-1
	81-2-14	81-2-14
	81-2-1-1	81-2-1-1
	81-2-5	81-2-5
	81-2-13	81-2-13
	81-2-1-2	81-2-1-2
	81-2-11	81-2-11
	81-2-9	81-2-9
	81-2-7	81-2-7
	75	75
	81-2-4	81-2-4
	81-2-6	81-2-6
	81-2-12	81-2-12
	104	104
	80-2-3	80-2-3
	80-2-17	80-2-17
	80-2-11	80-2-11
	80-2-8	80-2-8
	80-2-10	80-2-10
	80-2-2	80-2-2
	80-2-11	80-2-11
	80-2-16	80-2-16
	80-2-1	80-2-1
	80-2-14	80-2-14
	80-2-13	80-2-13
	80-2-5	80-2-5
	80-2-1-1	80-2-1-1
	80-2-1-2	80-2-1-2
	80-2-9	80-2-9
	80-2-15	80-2-15
	80-2-6	80-2-6
	80-2-7	80-2-7
	80-2-12	80-2-12
	80-2-4	80-2-4

Page 22 — F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification)

Brother DH4-B981 parts on page 22

Ref	Part number	Part name	Qty
	S37756401	オサエプレートJR1ツクミ
	S37644101	ハリイタL1R
	S37754001	ヌノオサエR-JL1
	S37727401	オサエプレートJR2ツクミ
	S37646101	ハリイタL2R
	S37690001	ヌノオサエR-JL2
	S37733401	オサエプレートJR3ツクミ
	S37648101	ハリイタL3R
	S37692001	ヌノオサエR-JL3
	S37757401	オサエプレートJR4ツクミ
	S37650101	ハリイタL4R
	S37758001	ヌノオサエR-JL4
	S40830101	オサエプレートJR5ツクミ
	S40822001	ハリイタL5R
	S41483001	ヌノオサエR-JL5
	S41489101	オサエプレートJR6ツクミ
	S41479001	ハリイタL6R
	S41485001	ヌノオサエR-JL6
	S41491101	オサエプレートJR7ツクミ
	S41481001	ハリイタL7R
	S41487001	ヌノオサエR-JL7
	S37729101	ヌノオサエプレートJRクミ
	S40828001	ヌノオサエプレートJRクミB
	S35316001	カクコマサエイタ
	060020416	ハインド M2X4	2
	S06696004	サラコネジ 3X6	2
	S35236000	マゲザガネ3.2
	S35235001	クランプサエピン
	021300302	シュウナット 3	1
	S35238001	クランプシシク
	062401016	ナベコ4X10	2
	S35237001	クランプシシク
	048050142	トメワシヨウC5	2
	S35234201	クランプレバー-R
	018501236	アナボルト5X12
	S37695001	クランプアームR-J
	S40826001	クランプアームR-J-B
	014400532	アナボルト4X5	2

Page 23 — F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification)

Brother DH4-B981 parts on page 23

Ref	Part number	Part name	Qty
	S35347000	CLOTH GUIDE, R	1
	S35326001	SCREW, M3.5	1
	S37731301	WORK CLAMP PLATE SET, J L1	1
	S37643201	NEEDLE PLATE, L L1	1
	S37755001	WORK CLAMP, L-J L1	1
	S37728301	WORK CLAMP PLATE SET, J L2	1
	S37645101	NEEDLE PLATE, L L2	1
	S37689001	WORK CLAMP, L-J L2	1
	S37735301	WORK CLAMP PLATE SET, J L3	1
	S37647101	NEEDLE PLATE, L L3	1
	S37691001	WORK CLAMP, L-J L3	1
	S37732301	WORK CLAMP PLATE SET, J L4	1
	S37649101	NEEDLE PLATE, L L4	1
	S37759001	WORK CLAMP, L-J L4	1
	S40831101	WORK CLAMP PLATE SET, J L5	1
	S40823001	NEEDLE PLATE, L L5	1
	S41484001	WORK CLAMP, L-J L5	1
	S41490101	WORK CLAMP PLATE SET, J L6	1
	S41480001	NEEDLE PLATE, L L6	1
	S41486001	WORK CLAMP, L-J L6	1
	S41492101	WORK CLAMP PLATE SET, J L7	1
	S41482001	NEEDLE PLATE, L L7	1
	S41488001	WORK CLAMP, L-J L7	1
	S37730001	WORK CLAMP PLATE ASSY, JL	1
	S35310001	WORK CLAMP PLATE ASSY, L	1
	S35316001	SUPPORT PLATE, ;S-BLOCK	1
	060020416	SCREW, BIND M2X4	2
	S06696004	SCREW, FLAT M3X6	2
	S35235001	WASHER, BENDING 3.2	1
	021300302	SUPPORT PIN, CLAMP	1
	S37712001	NUT, 3 M3	1
	062401016	CLAMP SHAFT HOLDER	2
	S37711001	SCREW, PAN M4X10	1
	048050142	CLAMP FULCRUM SHAFT	2
	S35233201	RETAINING RING, C5	1
	018501236	BOLT, SOCKET M5X12	1

Page 24 — F3. 押工関係(ジーンズ仕様) / Presser foot mechanism (Jeans specification)

Brother DH4-B981 parts on page 24

Ref	Part number	Part name	Qty
	S37694001	<L1-L4 14-30mm> CLAMP ARM, L-J	1
	S40827001	<L5-L7 28-40mm> CLAMP ARM, L-J-B	1
	014400532	SET SCREW, SOCKET (CP) M4X5	2
	S35348000	CLOTH GUIDE, L	1
	S35326001	SCREW, M3.5	1
	S37693001	GUIDE PLATE, C	1
	S37714001	FULCRUM BRACKET, AUX.CLAMP	1
	S37713001	FULCRUM SHAFT, AUX.CLAMP	1
	048050142	RETAINING RING, C5	2
	S37718000	AUXILIARY CLAMP ARM	1
	018401032	BOLT, SOCKET M4X10	1
	S05356000	BUTTON CLAMP, A	1
	S08808001	STOPPER SCREW	1
	021660102	NUT, 1 SM3.18	1
	S37753001	SPRING, EXTENSION	1
	S37744001	CYLINDER SUPPORT ASSY	1
	062400812	SCREW, PAN M4X8	2
	S37717101	AUX. CLAMP LINK ASSY	1
	S34922101	SHOULDER SCREW, M4	1
	021400202	NUT, 2 M4	1
	S37870000	"OPTION PARTS" CLOTH GUIDE, J	1

Page 25

Brother DH4-B981 parts on page 25

Ref	Part number	Part name	Qty
77	10378	77
21	11B-981-202	21

Page 26

Brother DH4-B981 parts on page 26

Ref	Part number	Part name	Qty
	S34950209	FEED BRACKET	1
	S35176001	FEED BRACKET COVER, L	1
	S35177001	FEED BRACKET COVER, R	1
	S29410001	SCREW, FLAT M4	12
	S43192200	PULSE MOTOR ASSY, X	1
	S43193200	PULSE MOTOR, 103H7523	1
	018401622	BOLT, SOCKET M4X16	4
	025040132	WASHER, PLAIN S 4	4
	S43717201	GEAR, 15.75	1
	014770622	SET SCREW, SOCKET (CP) SM6.35	2
	S35181001	X-FEED SHAFT HOLDER, L	1
	S35180000	X-FEED SHAFT HOLDER, L	1
	417526000	SENSOR MAGNET, 9	1
	S35178001	X-RACK	2
	018501631	BOLT, SOCKET M5X16	4
	S35179000	X-FEED SHAFT HOLDER, R	1
	S35188001	Y-FEED GUIDE SHAFT	2
	014060632	SET SCREW, SOCKET (CP) M6X6	4
	S12004000	LINEAR BUSH	4
	S02460001	RETAINING RING, EXTERNAL C19	8
	S35182001	X-FEED GUIDE SHAFT, A	1
	018401636	BOLT, SOCKET M4X16	4
	025040232	WASHER, PLAIN M 4	4
	S35183000	LINEAR BUSH, 12	4
	S35184001	STOPPER, BALL BEARING	4
	062300416	SCREW, PAN M3X4	4
	S43719001	Y-FEED BASE, B	1
	018061622	BOLT, SOCKET M6X16	4
	S43194200	PULSE MOTOR ASSY, Y	1
	S43193200	PULSE MOTOR, 103H7523	1
	018401622	BOLT, SOCKET M4X16	4
	025040132	WASHER, PLAIN IS 4	4
	S43718001	DRIVING GEAR, 25	1
	014760622	SET SCREW, SOCKET SM5.95	2
	S35174001	Y-PULLEY SUPPORT, L	1
	018501422	BOLT, SOCKET M5X14	2
	S27844201	TIMING PULLEY, A	1
	014770622	SET SCREW, SOCKET (CP) SM6.35	2
	S35186001	Y-PULLEY SHAFT, R	1
	530138001	MICRO BEARING, 8	2
	048060342	RETAINING RING, E6	2
	S27844201	TIMING PULLEY, A	1
	014770622	SET SCREW, SOCKET (CP) SM6.35	2
	S35189001	Y-PULLEY SHAFT, R	1
	530138001	MICRO BEARING, 8	2
	048060342	RETAINING RING, E6	2
	048160242	RETAINING RING, INTERNAL C16	4
	S43720001	IDLER GEAR, 40	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S10077100	TIMING BELT	1
	S35190001	Y-SHAFT	1
	S02460001	RETAINING RING, EXTERNAL C19	2
	S12004000	LINEAR BUSH	2
	S35184001	STOPPER, BALL BEARING	1
	S35191001	BALL BEARING	1
	S12004000	LINEAR BUSH	1
	S02460001	RETAINING RING, EXTERNAL C19	2
	018061222	BOLT, SOCKET M6X12	2
	028060242	WASHER, SPRING 2-6	2
	S31568000	Y-DRIVING SHAFT HOLDER	1
	S10078001	SPACER, T-BELT	1

Page 27 — G. 送り関係 / Feed mechanism

Brother DH4-B981 parts on page 27

Ref	Part number	Part name	Qty
4	4	Screw
2	2	Base
3	3	Cover
18	18	Shaft
19	19	Bearing
13	13	Screw
17	17	Screw
11-1	11-1	Lever
11-2	11-2	Lever
12	12	Block
27	27	Clip
28	28	Screw
26	26	Roller
15	15	Shaft
23	23	Shaft
25	25	Washer
24	24	Screw
16	16	Shaft
96	96	Shaft
97	97	Screw
99	99	Screw
73	73	Nut
72	72	Bush
79	79	Shaft
83	83	Screw
80	80	Bracket
184-1	184-1	Screw
84-2	84-2	Screw
84	84	Bracket
81	81	Screw
82	82	Screw
71	71	Washer
70	70	Shaft
103	103	Screw
78	78	Nut
77	77	Washer
91	91	Shaft
93	93	Washer
92	92	Bearing
5	5	Screw
8	8	Screw
6	6	Screw
90	90	Gear
89	89	Gear
10	10	Motor
87	87	Bracket
88	88	Screw
5-1	5-1	Motor
65	65	Screw
64	64	Washer
52	52	Screw
66	66	Washer
61	61	Pulley
62	62	Screw
63	63	Shaft
42	42	Bracket
45	45	Motor
49	49	Screw
50	50	Screw
51	51	Bracket
54	54	Screw
53	53	Pulley
57	57	Screw
55	55	Shaft
56	56	Nut
67	67	Gear
68	68	Screw
150	150	Wire
46	46	Screw
48	48	Screw
45-1	45-1	Wire
151	151	Wire

Page 28 — G . 送り関係 / Feed mechanism

Brother DH4-B981 parts on page 28

Ref	Part number	Part name	Qty
	S10079101	BELT HOLDER	1
	018680822	BOLT, SOCKET SM4.37X8	2
	018501631	BOLT, SOCKET M6X16	1
	S35192001	SENSOR PARTITION PLATE ASSY	1
	S35193000	SENSOR PARTITION PLATE	1
	128652001	MAGNET REC16W	1
	S35194001	Y-GUIDE SHAFT	1
	012500536	SET SCREW, SOCKET (FT) M5X5	2
	S43749001	MOTOR SUPPORT, B	1
	018061622	BOLT, SOCKET M6X16	3
	S35196100	IDLER GEAR	2
	014060632	SET SCREW, SOCKET (CP) M6X6	4
	S35195001	GEAR SHAFT, IDLER	1
	076001800	BALL-BEARING 6001ZZ(8482.10)	2
	048280242	RETAINING RING, INTERNAL C28	2
	S35187001	X-FEED GUIDE SHAFT, B	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	062300416	SCREW, PAN M3X4	1
	018502022	BOLT, SOCKET M5X20	1
	148782001	SPACER	1
	025060232	WASHER, PLAIN M 6	2
	S43347000	PULSE MOTOR CORD, X	1
	S43348000	PULSE MOTOR CORD, Y	1

Page 29 — H.カッター関係 / Cutter mechanism

Brother DH4-B981 parts on page 29

Ref	Part number	Part name	Qty
	1-1	CUTTER MECHANISM
	1-2	BRACKET
	1-3	PIN
	1-4	SPRING
	1-5	PIN
	2	SHAFT
	3	WASHER
	5	SCREW
	6	NUT
	7	ARM
	8	PIN
	9	NUT
	10	CYLINDER
	11	PIN
	12	SPRING
	13	CYLINDER
	14	WASHER
	15	SHAFT
	16	BRACKET
	17	BLOCK
	18	SHAFT
	19	BRACKET
	23	PIN
	24	BRACKET
	25-1	BASE
	25-2	SPRING
	25-3	SCREW
	25-4	SPRING
	25-5	SCREW
	26	SCREW
	27	BRACKET
	34-1	COVER
	34-2	COVER
	39	BLADE HOLDER
	40	SCREW
	45	SPRING
	46	SPRING
	47	SPRING
	48	SCREW
	51	SPRING
	52	PLATE
	53	SCREW
	54	BRACKET
	55	SCREW
	56	WASHER
	58	BRACKET

Page 30 — H. カッター関係 / Cutter mechanism

Brother DH4-B981 parts on page 30

Ref	Part number	Part name	Qty
	S35074201	カッターウデクミ	1
	S35075201	カッターウデ	1
	S35076101	カッターカートリッジプレッサー	1
	S35077000	ニードルローラー4X25.8	1
	S35078001	ハネカケ	1
	S35079000	ニードルローラー3X11.8	1
	S35080001	カッターウデシノブ	1
	016061031	アナカシメ 6X10	1
	S35081001	カッターウデ オサエネジ	2
	S35082001	リンクA	1
	S35088001	リンク	1
	S35085001	リンクC	1
	014060632	アナカシメ 6X6	1
	S35087001	リンクC	1
	S35086001	リンク2B	1
	014060632	アナカシメ 6X6	1
	S35083001	リンク7A	1
	014060632	アナカシメ 6X6	1
	S35084001	シリンダーロッド シク	1
	014060632	アナカシメ 6X6	1
	S35090001	シリンダーロッド	1
	S35091001	シリンダーササエシク	1
	014060632	アナカシメ 6X6	2
	S35091001	ツマミネジ M5	1
	S35093001	ハンマー-38	1
	S37702001	ハンマー-S12	1
	S37704001	ハンマー-S16	1
	S37706001	ハンマー-S20	1
	S37708001	ハンマー-S24	1
	S37197001	ハンマー-26	1
	S37199001	ハンマー-30	1
	S37201001	ハンマー-34	1
	S35473301	メスト・ダイクウミ	1
	S35094301	メスト・ダイ	1
	S35097001	メスフロックオサエ	1
	018501622	アナボルト 5X16	1
	S35098000	フワロックツルイツタ	1
	062300416	ナベコ M3X4	1
	018501222	アナボルト 5X12	2
	018062522	アナボルト 6X25	1
	S35436101	メス2.8X4.3-50	1
	S35437101	メス2.8X4.3-38	1
	S45269001	カッターセンサキリイタS	1
	062400812	ナベコ 4X8	2
	S35078001	ハネカケ	1
	142642001	サトウチョウセツヒキハネ	1
	S35100001	メスチョウセツサエ	1
	062400812	ナベコ 4X8	1
	S35101001	メスチョウセツネジ	1
	S35102001	メスト・ダイイアンナイ	1
	018400832	アナボルト 4X8	3
	S35104001	メスパイプクミ	1
	062400812	ナベコ 4X8	2
	028040242	ハネガキガネ2.4	2
	S43375000	メスデカバー	1

Page 31

Brother DH4-B981 parts on page 31

Ref	Part number	Part name	Qty
1	1-1	BRACKET
5	1-2	PULLEY
1-3	1-3	COLLAR
1-4	1-4	BEARING
1-5	1-5	WASHER
2	2	BOLT
4	4	WASHER
6	6	BEARING
7	7	CIR-CLIP
10	10	SHAFT
11	11	KEY
12	12	BRACKET
13	13	PIN
14	14	PIN
18	18	COVER
3	3	BELT
12-1	12-1	BRACKET
12-1-1	12-1-1	BRACKET
12-2	12-2	BEARING
12-3	12-3	BEARING
12-4	12-4	COLLAR
12-5	12-5	COLLAR
2	2	BOLT
5	5	PULLEY
8	8	GEAR
9	9	KEY
10	10	SHAFT
11	11	KEY
16	16	BEARING
17	17	BOLT

Page 32 — J. テンションプーリ関係 / Tension pulley mechanism K. 下軸関係 / Lower shaft mechanism

Brother DH4-B981 parts on page 32

Ref	Part number	Part name	Qty
	S35112101	T7-リクミ
	S35431101	T-PULLEY SUPPORT PLATE ASSY
	S35110001	テンションプーリ
	048280242	トメワアナヨウC28
	048120142	タマシクウケ6001ZZ
	018081622	トメワヨウC12
	028080242	アトメボルト8X16
	028080242	バネザガネ2-8
	S35108001	イドラプーリ
	076002800	タマシクウケ6002ZZ
	048320242	トメワアナヨウC32
	S35107001	イドラプーリシク
	116920001	オクリバネ、スラストリング
	014060632	アナツメ6X6
	S35106001	ベッドササエシク
	014060632	アナツメ6X6
	S18707129	VベルトMシロ
	S18707137	VベルトMシロ
	076003850	タマシクウケ6003ZZ
	048150142	トメワヨウC15
	S35275100	タイミングベルト665
	S35273001	シタジクカムシク
	076202850	タマシクウケ6202ZZ
	S35274001	セツトカラー
	S23651001	アトメヒラ6X6ホソメ
	S35272001	シタジクプーリクミ
	S23651001	アトメヒラ6X6ホソメ
	S35270001	シタジクカム
	S23651001	アトメヒラ6X6ホソメ
	S35269101	テンションプーリクミ
	S35268101	テンションプーリウデクミ
	S35267101	テンションプーリウデ
	S35265001	テンションプーリ
	076001800	タマシクウケ6001ZZ
	048280242	トメワアナヨウC28
	048120142	トメワヨウC12
	018502036	アトボルト5X20
	025050232	ヒラザガネチユウ5
	S43376001	シタジクプーリカバー

Page 33 — L1, Double chain stitch looper mechanism

Brother DH4-B981 parts on page 33

Ref	Part number	Part name	Qty
49-1	49-1	LOOPER
46-1	46-1	LOOPER
45	45	LOOPER
25	25	LOOPER
42	42	LOOPER
27	27	LOOPER
48	48	LOOPER
51	51	LOOPER
50	50	LOOPER
52	52	LOOPER
47	47	LOOPER
96	96	LOOPER
26	26	LOOPER
53	53	LOOPER
95	95	LOOPER
43	43	LOOPER
44	44	LOOPER
32	32	LOOPER
33	33	LOOPER
28	28	LOOPER
73	73	LOOPER
64	64	LOOPER
62	62	LOOPER
60	60	LOOPER
59	59	LOOPER
56	56	LOOPER
58	58	LOOPER
34	34	LOOPER
35	35	LOOPER
71	71	LOOPER
72	72	LOOPER
66	66	LOOPER
65	65	LOOPER
67	67	LOOPER
70	70	LOOPER
69	69	LOOPER
68	68	LOOPER
19	19	LOOPER
20	20	LOOPER
17	17	LOOPER
21	21	LOOPER
22	22	LOOPER
18	18	LOOPER
23	23	LOOPER
24	24	LOOPER
16	16	LOOPER
15	15	LOOPER
14-1	14-1	LOOPER
14-2	14-2	LOOPER
14-3	14-3	LOOPER
11	11	LOOPER
10	10	LOOPER
9	9	LOOPER
7-1	7-1	LOOPER
7-2	7-2	LOOPER
7	7	LOOPER
3	3	LOOPER
2	2	LOOPER
4	4	LOOPER
93	93	LOOPER
1	1	LOOPER
57	57	LOOPER
12	12	LOOPER
13	13	LOOPER
30	30	LOOPER
90	90	LOOPER
94	94	LOOPER
37	37	LOOPER
63	63	LOOPER
61	61	LOOPER

Page 34 — L1 . 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother DH4-B981 parts on page 34

Ref	Part number	Part name	Qty
	S34948101	レースト・ダイ	1
	S35007000	レースプ・リクミ	1
	062351615	ナベコ 35X16	1
	S37432001	ハリ・ホウ・ロツクタクミ	1
	S35143001	ハリ・ホウ・ロツクタクミ	1
	018301632	アナホルト 3X16	1
	S35053001	スプ・レタ・リンク・シク	1
	S35011001	ルーパ・リンク・テン	1
	062501202	ナベコ M5X12	1
	S35012001	LS・スライド・アンナイ	1
	062300612	ナベコ 3X6	3
	S35015101	ルーパ・リンク・クミ	1
	S52821001	ルーパ・リンク・クミ	1
	S52832000	フエルト	2
	S52824001	フエルトオサエ	2
	SA0030001	ルーパ・リンク・カラー	2
	SA0029001	ルーパ・リンク・ネジ	2
	S35016001	スプ・レタ・リンク・タイ	1
	062501202	ナベコ M5X12	1
	S35017001	スプ・レタ・カム・リンク	1
	S35018001	カム・リンク・カラー	1
	S35014001	ダンネジ M4	1
	S35019001	ダンネジ M4	1
	S35020001	スプ・レタ・ハネ	2
	S35021000	スプ・レタ・ハネ・アンナイ	2
	S35022101	スプ・レタ・サト・ウカム	1
	S35023001	LSホルダ・ブラケット	1
	014060832	アナトメネジ 6X8ワセミ	1
	S35024101	バインド・ホルダ	1
	060400516	ハトメコ M3X10	1
	062301016	ナベコ M3X10	1
	021300302	3シュ・ナット・3	1
	S35027001	Uイトリハネ	1
	S35028000	タウエルピン 3X16	1
	105288001	シメネジ 2.38	1
	S35030001	イトアンナイ・パイプ	1
	S36660101	ハリウケサエ	1
	062300612	ナベコ 3X6	2
	S35410001	ルーパ・R	1
	S35411001	アイ・ルーパ	1
	S35032101	シメネジ 2.6X5.5	2
	S35412101	スプ・レタ・R	1
	S35413101	スプ・レタ・L	1
	S35034001	スプ・レタ・ストツプ・R	1
	S35033001	スプ・レタ・ストツプ・L	1
	S35032101	シメネジ 2.6X5.5	2
	S35035101	スプ・レタ・ハネ・R	1
	S35036101	スプ・レタ・ハネ・L	1
	S35037001	ガイド・シヤフト	1
	021400202	2シュ・ナット・4	1
	S35038001	イトトリハネ	1
	S35039000	Lイトトリハネ・ササエ	1
	060300416	バインド・3X4	1
	S35018001	Lイトトリハネ・アンナイ	1
	S35018001	カム・リンク・カラー	1
	062401416	ナベコ M4X14	1
	S35040000	イトササエ・イタ	1
	S35043001	Lイトオサエ・ダイ	1
	S35042000	Lイトオサエ	1
	S35044001	Lイトチヨウシボウ	1

Page 35 — L1. 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother DH4-B981 parts on page 35

Ref	Part number	Part name	Qty
	1	LOOPER SHAFT
	2	LOOPER GEAR
	3	WASHER
	4	LOOPER SHAFT COLLAR
	7	LOOPER SHAFT COLLAR SET
	7-1	COLLAR
	7-2	SET SCREW
	9	LOOPER SHAFT
	10	LOOPER SHAFT HOLDER
	11	SCREW
	12	BRACKET
	13	SCREW
	14	LOOPER ROCK SHAFT
	14-1	LOOPER ROCK SHAFT
	14-2	COLLAR
	14-3	CIR CLIP
	15	SCREW
	16	SCREW
	17	LOOPER ROCK SHAFT ARM
	18	SCREW
	19	SCREW
	20	COLLAR
	21	LOOPER ROCK SHAFT ARM
	22	SCREW
	23	SPRING
	24	SCREW
	25	LOOPER SHAFT HOLDER
	26	LOOPER SHAFT HOLDER
	27	SCREW
	28	PIN
	30	BRACKET
	32	SCREW
	33	COLLAR
	34	SPRING
	35	PIN
	37	SCREW
	43	SCREW
	44	SCREW
	45	LOOPER
	46-1	LOOPER
	47	SCREW
	48	LOOPER
	49-1	LOOPER
	50	LOOPER
	51	LOOPER
	52	LOOPER SHAFT HOLDER
	53	SPRING
	54	SPRING
	56	SCREW
	57	SCREW
	58	SCREW
	59	SCREW
	60	SCREW
	61	COLLAR
	62	COLLAR
	63	SCREW
	64	BRACKET
	65	BRACKET
	66	COLLAR
	67	SCREW
	68	COLLAR
	69	SCREW
	70	WASHER
	71	SCREW
	72	COLLAR
	73	PIN
	90	BRACKET
	93	BEARING
	94	BRACKET
	95	BRACKET
	96	SCREW

Page 36 — L1 . 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother DH4-B981 parts on page 36

Ref	Part number	Part name	Qty
68	154562001	SPRING, B :PRE-TENSION	1
69	155510001	TENSION NUT	1
70	144504001	DISC, THREAD GUIDE	2
71	S35045001	SHOULDER SCREW, M3	1
72	S35118001	TENSION SPRING	1
73	S35046000	NEEDLE PIN, 3X17.8	2
90	S35326001	SCREW, M3.5	1
93	076003850	BALL BEARING, 6003ZZ	2
94	014300832	SET SCREW, SOCKET (CP) M3X8	1
95	S36659001	NEEDLE GUARD, U	1
96	018300532	BOLT, SOCKET M3X5	1

Page 37 — L2 . 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother DH4-B981 parts on page 37

Ref	Part number	Part name	Qty
	36-1	Upper thread trimmer
	39-1	38-1
	31-1	Upper & lower thread trimmer
	29-1	Upper & lower thread trimmer
	89-2	Upper & lower thread trimmer
	36-2	Jeans specification
	115-2	Jeans specification
	103	Jeans specification
	105	Jeans specification
	104-1	Jeans specification
	39-2	Jeans specification
	115-1	Jeans specification
	115-3	Jeans specification
	83-2	Jeans specification
	82-2	Jeans specification
	80	Jeans specification
	31-2	Jeans specification
	78	Jeans specification
	77	Jeans specification
	76	Jeans specification
	79	Jeans specification
	75	Jeans specification
	92	Jeans specification
	89-1	Upper & lower thread trimmer
	29-2	Upper & lower thread trimmer
	82-1	Upper & lower thread trimmer
	83-1	Upper & lower thread trimmer
	81	Upper & lower thread trimmer
	46-2	OPTION PARTS
	49-2	OPTION PARTS
	86	OPTION PARTS
	87	OPTION PARTS
	84	OPTION PARTS
	82-1	OPTION PARTS
	82-1	OPTION PARTS
	46-3	OPTION PARTS
	49-3	OPTION PARTS
	88	OPTION PARTS
	83-1	OPTION PARTS
	78	OPTION PARTS
	89-3	OPTION PARTS
	85	OPTION PARTS
	77	OPTION PARTS
	76	OPTION PARTS
	79	OPTION PARTS
	75	OPTION PARTS
	92	OPTION PARTS

Page 38 — L2. 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother DH4-B981 parts on page 38

Ref	Part number	Part name	Qty
	S35054001	<00,上糸切り用>
	S35025001	<01,下糸切り用>
	S35029001	1 シイトアンナイC	1
	S35026001	1 イトキリレバートダイ	1
	060300416	1 ウワイト ウハA	1
	S47033001	1 ウワイト ウハダイ	1
	S47033001	1 スロートブレート1.6	1
	S37696101	<02, ジーンズ仕様>
	S37726001	1 シイトアンナイC-J	1
	S37723001	1 イトキリレバートダイ B	1
	060350616	1 ウワイト ウハB	1
	S35048101	1 ハインド 3.5X6	1
	S35049001	1 イトツメルレバー	1
	025680132	1 イトツメルレバーバジク	1
	048030342	2 ヒラザガネシヨウ4.37	2
	S35050001	2 トメワE3	2
	S35051001	1 ルーバーイトツメル	1
	025350236	1 イトツメルメチヨウセイツイタ	1
	062350516	2 ヒラザガネチヨウ3.5	2
	S37752001	2 ナベコ3.5X5	2
	S35057001	1 スロートブレート1.8-J	1
	S37724001	1 スプリング 2.38	1
	S37725001	1 シイトオサエバネ	1
	S47932001	1 シイトオサエ	1
	S41252000	1 ナツト238-56	1
	S35118001	1 シイトオサエジヤケツト	1
	1S9113001	1 シイトオサエジヤケツト	1
	S47512001	1 シイトオサエダイ	1
	S37721001	1 シイトオサエダイ	1
	S37720001	1 シイトオサエ	1
	148407001	1 ヨコアンナイミシンピン	1
	S35048101	<-01,上糸切り用>
	S35049001	1 イトツメルレバー	1
	025680132	1 イトツメルレバーバジク	1
	048030342	2 ヒラザガネシヨウ4.37	2
	S35050001	2 トメワE3	2
	S35051001	1 ルーバーイトツメル	1
	S35365101	1 イトツメルメチヨウセイツイタ	1
	025350236	3 ヒラザガネチヨウ3.5	3
	062350516	3 ナベコ3.5X5	3
	S35366001	1 イトツメルメサイ	1
	062400812	2 ナベコ4X8	2
	S35055001	1 イトツメルメサイ	1
	S35056001	1 イトツメルメサイ	1
	S35057001	1 タンネジ M4	1
	S35057001	1 イトツメルレバーバネ	1
	S35471001	1 アイ ルーパ B	1
	S49078001	1 ルーパ L-S	1
	S35472101	1 スプレダー LB	1
	S49079001	1 スプレダー L-S	1
	S47034001	1 スロートブレート1.1	1

Page 39

Brother DH4-B981 parts on page 39

Ref	Part number	Part name	Qty
1-1	1-1	Looper mechanism
1-2	1-2	Looper mechanism
1-3	1-3	Looper mechanism
1-4	1-4	Looper mechanism
2	2	Looper mechanism
6	6	Looper mechanism
7	7	Looper mechanism
8	8	Looper mechanism
9	9	Looper mechanism
14	14	Looper mechanism
15	15	Looper mechanism
1	1	Spreader mechanism
2-1	2-1	Spreader mechanism
2-2	2-2	Spreader mechanism
2-3	2-3	Spreader mechanism
3	3	Spreader mechanism
4	4	Spreader mechanism
5	5	Spreader mechanism
6	6	Spreader mechanism
8	8	Spreader mechanism
9	9	Spreader mechanism
10	10	Spreader mechanism

Page 40 — M. Looper mechanism / N. Spreader / Double chain stitch looper mechanism

Brother DH4-B981 parts on page 40

Ref	Part number	Part name	Qty
	S35066001	LOOPER LINK ASSY	1
	S35067001	LOOPER LINK	1
	S35063001	CAM ROLLER, LOOPER	1
	S35064001	ROLLER PIN, CAM	1
	014060632	SET SCREW, SOCKET (CP) M6X6	1
	S35065001	SUPPORT SHAFT, L-LINK	1
	S35062001	LOOPER DRIVING PLATE	1
	S35061000	SPRING, PLATE	2
	S10439001	BOLT, SOCKET M3	4
	028030242	WASHER, SPRING 2-3	4
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S23612051	SET SCREW COLLAR ASSY	1
	S35073001	SPREADER DRIVING LEVER	1
	S35072101	SPREADER LEVER ASSY	1
	S35071001	CAM LEVER, SPREADER	1
	S35070101	ROLLER PIN, SPREADER CAM	1
	S35069001	ROLLER, SPREADER CAM	1
	062400812	SCREW, PAN M4X8	2
	025040232	WASHER, PLAIN M 4	2
	S35068001	SET SCREW, M3.5	1
	021350106	NUT, 1 M3.5	1
	S35065001	SUPPORT SHAFT, L-LINK	1
	S23612051	SET SCREW COLLAR ASSY	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2

Page 41

Brother DH4-B981 parts on page 41

Ref	Part number	Part name	Qty
	1	BRACKET
	2	BRACKET
	3	SCREW
	4	SCREW
	5	TUBE
	6	NUT
	7	BRACKET
	8	SCREW
	9	BRACKET
	10	SCREW
	11	BRACKET
	12	BRACKET
	13	TUBE
	14	NUT
	15	BRACKET
	17	BRACKET
	27	TUBE
	28	SCREW
	29	TUBE
	30	TUBE
	31	TUBE
	32	BRACKET
	33	BRACKET
	34	BRACKET
	35	WASHER
	36	BRACKET
	37	SCREW
	38	SCREW
	39	WASHER
	40	WASHER
	42	BRACKET
	43	BRACKET
	44	SCREW
	45	WASHER
	46	BRACKET
	47	BRACKET
	48	SCREW
	49	WASHER
	50	WASHER
	51	NUT
	52	BRACKET

Page 42 — P . 給油潤滑関係 / Lubrication

Brother DH4-B981 parts on page 42

Ref	Part number	Part name	Qty
	S35003201	トウシンサエル	1
	S35002100	トウシンサエルフェルト	1
	S35001000	ナイロンリベット	5
	062350616	ナベコM3.5X6	2
	S43724001	ルーハオイルアンナイ	1
	062401212	ナベコM4X12	1
	S34999001	トウシンサエルD	1
	062400616	ナベコM4X6	2
	S34998001	シクカムカバー	1
	062400616	ナベコM4X6	2
	S34997001	ルーハトウシンサエ	1
	062400616	ナベコM3X6	1
	S34996001	レースフエルトサエ	1
	113006001	フエルト	1
	S34995000	レースフエルトA	1
	062400416	ナベコM3X4	1
	S34986000	ビニルチューブ	1
	S34985000	ビニルチューブ	1
	S34984000	ビニルチューブ	1
	S34983000	ビニルチューブ	1
	S34982000	ビニルチューブ	1
	S34981000	ビニルチューブ	1
	S34980000	フエルト	1
	S34979100	フエルトクミ	1
	152948001	オイルポットマ	2
	117150001	コードサエカネ	2
	062350616	ナベコM3.5X6	2
	S3497000	フエルト	1
	143196001	オイルニシグチ	2
	143196001	オイルニシグチ	2
	S34972000	ビニルチューブ	1
	S34971001	クミヒモサエ	1
	060300416	パイント3X4	1
	143196001	オイルニシグチ	1
	S37173000	クミヒモ3X3	1
	S43880000	レースフエルトB	1
	062350616	ナベコM3.5X6	1
	025350332	ヒラザガネタイ13.5	1
	105248001	ザガネ	1
	025040332	ヒラザガネタイ4	1
	112754001	フエルト	2

Page 43 — Q. 糸通シ関係 / Threading mechanism

Brother DH4-B981 parts on page 43

Ref	Part number	Part name	Qty
	1-4	1-4
	1-3	1-3
	1-2	1-2
	1-1	1-1
	2	2
	40	40
	41	41
	42	42
	47	47
	46-1	46-1
	46-4	46-4
	46-2	46-2
	46-5	46-5
	46-7	46-7
	46-6	46-6
	46-3	46-3
	46-8	46-8
	49	49
	48	48
	62	62
	61	61
	60	60
	57-2	57-2
	68	68
	69	69
	59	59
	58	58
	56	56
	55	55
	54	54
	70	70
	37	37
	36	36
	10	10
	13	13
	11	11
	18	18
	19	19
	20	20
	22	22
	21	21
	6-1	6-1
	6-2	6-2
	6	6
	26	26
	27	27
	7	7
	32	32
	33	33
	44	44
	30	30
	31	31
	45	45
	51	51
	50	50
	57-1	57-1
	53	53
	39	39
	52	52
	38	38
	29	29
	1	1

Page 44

Brother DH4-B981 parts on page 44

Ref	Part number	Part name	Qty
	S37874101	ウワイトテンションダイクミ
	S34917001	ウワイトテンションダイ
	S34918101	ウワイトトリレバークミ
	S34966001	タンゲ M4
	S34922101	タンゲ M4
	018401236	アナボルト4X12
	146926001	イトアンナイクミ
	146927001	イトアンナイ
	146924000	イトアンブツシュ
	062350616	ナベコM3.5X6
	159220101	イトエルメピン
	14546001	イトウウンサフ
	S34923001	ウワイトウンサウン
	159805001	イトウウンサラオサエ
	144103009	イトウウンサラオサエ
	159221001	イトウウンハネ
	S20682102	イトウウンナット
	S20681000	チョウシバネエサガネ
	062400612	ウワイトトリレバーアンナイ
	062350616	ナベコM3.5X6
	062400812	ナベコ4X8
	S35466001	ミツメイトカケ
	021060306	3シュナット 6
	150540009	イトアンナイパイプ S
	150540036	セトアンナイ4X6
	S43723001	シイトアンナイパイプ A
	062400612	ナベコM4X6
	S34928001	イトアンナイB
	062400612	ナベコM4X6
	S20698121	イトウウンスタッド
	144504001	イトアンナイイラ
	154562001	プレテンションハ
	155510001	イトウウンナット
	152889001	シイトメイトカケ
	062670616	ナベコ357-40X6
	S34944101	シイトトリレバークミ
	S34936001	シイトトリササエ
	S34937001	シイトトリレバー
	S34938101	シイトトリササエ
	S34940001	シイトトリハネ
	S34941001	タンゲ M4
	S35018001	カムリンクカラー
	S34943001	タンゲ M4
	021400106	ナット 1シュ4
	S35428001	サトウイタモトシハネ
	062400812	ナベコ4X8
	S34939001	シイトアンナイ
	062400812	ナベコ4X8
	S34942001	シイトアンナイ
	062400812	ナベコ4X8
	S35430001	シイトアンナイB
	S34934001	シイトアンナイSクミ
	062400812	ナベコ4X8
	S20695001	DLイトアンナイパイプ
	S20696001	イトアンナイパイプ ササエ

Page 45 — Q. 糸通シ関係 / Threading mechanism

Brother DH4-B981 parts on page 45

Ref	Part number	Part name	Qty
	1-4	1-4
	1-3	1-3
	1-2	1-2
	1-1	1-1
	47	47
	46-1	46-1
	46-4	46-4
	46-2	46-2
	46-5	46-5
	46-7	46-7
	46-6	46-6
	46-9	46-9
	46-3	46-3
	46-8	46-8
	49	49
	48	48
	67	67
	66	66
	63	63
	64	64
	65	65
	62	62
	61	61
	60	60
	57-2	57-2
	69	69
	58	58
	59	59
	70	70
	37	37
	36	36
	56	56
	55	55
	54	54
	10	10
	13	13
	11	11
	18	18
	19	19
	20	20
	22	22
	21	21
	26	26
	27	27
	7	7
	6-1	6-1
	6-2	6-2
	6	6
	30	30
	31	31
	32	32
	33	33
	44	44
	45	45
	53	53
	39	39
	52	52
	38	38
	1	1
	2	2
	43	43
	29	29

Page 46

Brother DH4-B981 parts on page 46

Ref	Part number	Part name	Qty
	062400812	SCREW, PAN M4X8	2
	062400812	SCREW, PAN M4X8	1
	S35912001	THREADING DIAGRAM	1
	S20696001	PIPE SUPPORT, TR-GUIDE	1
	S37697001	THREAD GUIDE, J ;GIMP	1
	144504001	DISC, THREAD GUIDE	2
	154562001	SPRING, B :PRE-TENSION	1
	155510001	TENSION NUT	1
	S51219001	TENSION RELEASE PLATE, ;GIMP	1
	S37749001	SPRING, TWIST	1
	S51220001	COLLAR	1
	025040332	WASHER, PLAIN L 4	1
	062401212	SCREW, PAN M4X12	1
	S37750001	TR TAKE-UP GUIDE, J ;GIMP	1
	062400812	SCREW, PAN M4X8	2

Page 47 — R1 . 糸切り関係 / Thread trimmer mechanism

Brother DH4-B981 parts on page 47

Ref	Part number	Part name	Qty
	1-34	Upper & lower thread trimmer
	1-35	Screw
	1-20	Screw
	1-19-1	Spring
	1-19	Thread trimmer lever
	1-21	Screw
	1-26	Screw
	1-30	Thread trimmer mechanism
	1-30-6	Nut
	1-22	Screw
	1-37	Screw
	1-36	Screw
	1-30-1	Lever
	1-39	Screw
	1-17	Lever
	1-30-3	Lever
	1-31	Screw
	1-30-4	Lever
	1-30-2	Lever
	1-30-5	Lever
	1-18	Screw
	1-27	Lever
	1-33	Lever
	1-32	Lever
	1-25	Lever
	1-29	Screw
	1-28	Base
	1-16	Screw
	1-23	Bracket
	1-2	Screw
	1-1	Bracket
	1-3	Bracket
	1-14	Spring pin
	1-13	Spring
	1-10	Screw
	1-4	Lever
	1-12	Screw
	1-41	Screw
	1-24	Screw
	1-40	Nut
	1-6	Lever
	1-11	Screw
	1-15	Screw
	1-7	Screw
	1-8	Lever
	1-9	Screw
	1-5	Screw

Page 48 — R1 .糸切り関係 / Thread trimmer mechanism

Brother DH4-B981 parts on page 48

Ref	Part number	Part name	Qty
	S34914001	<-01,上下糸切り用>	1
	018400832	アナルホルト4X8	2
	S34913001	イトキリシリンダ	1
	S34910101	イトキリリンクレバーアセンミ	1
	S34881001	ダンネジ M4	1
	S34906100	イトキリウデメタル	1
	062260612	ナベコ2.6X6	2
	S34905101	イトキリレバーウデ	1
	018401032	アナルホルト4X10	1
	S37858000	ニードルピン 4X8	1
	S34883001	バネ	1
	S34883001	イトキリバネ	1
	S34902001	バネ	1
	021350106	シユナツト35	1
	062260406	ナベコ26X4	1
	S34901001	イトキリウデ	1
	S34900001	イトツカミオープナー	1
	153219001	イトツカミカラー	1
	S34899001	イトツカミ	1
	S34898001	イトキリシリンダピン1.4	1
	141542001	サラネジ3.18	3
	S34897001	イトキリサキ	1
	S01694001	サラネジ2.38X4	1
	S34896001	コテイハツキ	1
	061300416	ナベコM3X4	2
	S34895001	コテイ	1
	018260832	アナルホルト26X8	2
	S34994001	イトアンナイタ	1
	S34893001	イトツカミプレート	1
	062300512	ナベコ3X5	2
	S34889101	イトキリミ	1
	S34890001	イトキリミU	1
	S34691101	イトキリミD	1
	S34888101	イトキリミM	1
	S34892001	イトツカミオープナーピン	1
	062020416	ナベコ2.2X4	2
	021020106	ナツト1シュ2	2
	542515001	シメネジ 2.6X3.5	2
	S34887001	コテイハサエバネ	1
	S34886001	コテイハサエバネU	1
	S34885001	サエプレートU	1
	004401003	ナベコ4X10	2
	152904001	シメネジ 4.37	1
	104336003	シメネジ 2.38	1
	S34884000	オープナー	1
	060630312	バインド238-56X3	2
	021400202	ナツトM4	2
	062300416	ナベコM3X4	2

Page 49 — R2. 糸切り関係 (ジーンズ仕様) / Thread trimmer mechanism (Jeans specification)

Brother DH4-B981 parts on page 49

Ref	Part number	Part name	Qty
28	28	SCREW
4	4	SPRING
5	5	LEVER
6	6	SCREW
3	3	BLADE
2	2	SHAFT
25	25	SCREW
24	24	COVER
10	10	SCREW
16	16	SPRING
15	15	SCREW
13	13	SCREW
8	8	SHAFT
9	9	SPRING
7	7	SCREW
17	17	SPRING
14	14	BASE PLATE
19	19	BRACKET
18	18	SCREW
20	20	SCREW
11	11	LEVER
22	22	SPRING
21	21	SHAFT
23	23	SCREW
12	12	BRACKET
27	27	SCREW
26-1	26-1	OPTION PARTS
27	27	SCREW
26-2	26-2	OPTION PARTS

Page 50 — R2 .糸切り関係 / Thread trimmer mechanism

Brother DH4-B981 parts on page 50

Ref	Part number	Part name	Qty
	S37673101	MOVABLE KNIFE, R L1	1
	S37669101	MOVABLE KNIFE, L L1	1
	S37665000	THREAD HANDLER, L1	1
	S37661101	MOVABLE KNIFE DRIVING CAM, L1	1
	S37674101	MOVABLE KNIFE, R L2	1
	S37670101	MOVABLE KNIFE, L L2	1
	S37666000	THREAD HANDLER, L2	1
	S37662101	MOVABLE KNIFE DRIVING CAM, L2	1
	S37675101	MOVABLE KNIFE, R L3	1
	S37671101	MOVABLE KNIFE, L L3	1
	S37667000	THREAD HANDLER, L3	1
	S37663101	MOVABLE KNIFE DRIVING CAM, L3	1
	S37676101	MOVABLE KNIFE, R L4	1
	S37672101	MOVABLE KNIFE, L L4	1
	S37668000	THREAD HANDLER, L4	1
	S37664101	MOVABLE KNIFE DRIVING CAM, L4	1
	S37660101	SHOULDER SCREW, M4	1
	021400202	NUT, 2 M4	1
	S37654000	WASHER, WAVE	1
	S37655101	WASHER, ;KNIFE SUPPORT	1
	141542001	SCREW, 3.18	2
	S37656001	T-TRIMMER LINK LEVER ASSY, J	1
	S34881001	SHOULDER SCREW, M4	1
	021400202	NUT, 2 M4	1
	S37820001	LINK FULCRUM PLATE ASSY	1
	062400616	SCREW, PAN M4X6	2
	S37652001	SPRING, L TWIST	1
	S37653001	SPRING, R TWIST	1
	062300416	SCREW, PAN M3X4	2
	S34906100	BUSH, ;TR TRIMMER ARM	1
	062260612	SCREW, PAN M2.6X6	2
	S37659001	THREAD TRIMMER LEVER ARM, B	1
	S21716001	SCREW, BUTTON HEAD M4X10	1
	S37858000	NEEDLE PIN, 4X8	1
	S56025001	PRESSER PLATE, U	1
	060400516	SCREW, BIND M4X5	2
	153787001	SCREW, SM2.38	2
	S37698000	MOVABLE KNIFE COVER, L1-2	1
	S37699000	MOVABLE KNIFE COVER, L3-4	1
	S35326001	SCREW, M3.5	2

Page 51

Brother DH4-B981 parts on page 51

Ref	Part number	Part name	Qty
1	118-981-409	Upper thread trimmer mechanism
1	118-981-501	Synchronizer
2	2	Screw
3	3	Screw
4	4	Clip
5	5	Shaft
6	6	Screw
7	7	Screw
8	8	Washer
9	9	Nut
10	10	Screw
11	11	Nut
12	12	Screw
13	13	Nut
15	15	Screw
16	16	Screw

Page 52 — S. Upper thread trimmer mechanism T. Synchronizer

Brother DH4-B981 parts on page 52

Ref	Part number	Part name	Qty
	S35058001	LEVER SHAFT, ;TR	1
	S35059001	LEVER, ;TR	1
	048050342	RETAINING RING, E5	1
	S35060001	SET SCREW COLLAR	1
	014400432	SET SCREW, SOCKET (CP) M4X4	1
	S35361001	HAMMER, ;TR-LEVER	1
	S35362001	ADJUSTING SCREW	1
	021350106	NUT, 1 M3.5	1
	S35235001	SUPPORT PIN, ;CLAMP	1
	021300302	NUT, 3 M3	1
	S35364001	SET SCREW, M4X26	2
	021400202	NUT, 2 M4	2
	018401032	BOLT, SOCKET M4X10	2
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	S43707001	NP SUPPORT BRACKET, B	1
	062401016	SCREW, PAN M4X10	2
	S48674001	SYNCHRONIZER ASSY, B	1
	062400612	SCREW, PAN M4X6	2
	S38080001	MAGNET ASSY, D	1
	S43747001	MAGNET ASSY, S ;N-UNDER	2
	062681412	SCREW, PAN SM4.37-40X14	3
	025680132	WASHER, PLAIN S 4.37	3

Page 53 — U1. コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 53

Ref	Part number	Part name	Qty
	3-1-1	CONTROL BOX
	3-1-2	CONTROL BOX
	3-1-3	CONTROL BOX
	3-3	BRACKET
	3-5	BRACKET
	3-6	BRACKET
	3-4	BRACKET
	3-9	BRACKET
	3-7	BRACKET
	3-8	BRACKET
	3-10	BRACKET
	3-2	BRACKET
	3-13	HARNESS
	3-12	HARNESS
	1-42	BRACKET
	1-37	BRACKET
	1-5	BRACKET
	1-4	BRACKET
	1-40	BRACKET
	1-3	BRACKET
	1-8	SCREW
	1-7	WASHER
	1-6	NUT
	21	BRACKET
	20	BRACKET
	H-※-2	MOTOR
	1-39-5	TERMINAL
	1-39-19	TERMINAL
	1-39-10	TERMINAL
	1-39-18	TERMINAL
	1-39-2	TERMINAL
	1-39-15	TERMINAL
	1-39-4	TERMINAL
	1-39-3	TERMINAL
	1-39-1	TERMINAL
	1-39-12	TERMINAL
	1-39-21	TERMINAL
	1-39-14	TERMINAL
	1-39-6	TERMINAL
	1-39-7	TERMINAL
	1-39-20	TERMINAL
	1-39-11	TERMINAL
	1-39-16	TERMINAL
	1-39-17	TERMINAL
	1-39-9	TERMINAL
	1-28	BRACKET
	1-1	CONTROL BOX
	1-9	BRACKET
	1-10	BRACKET
	1-36	BRACKET
	1-12	BRACKET
	1-11	BRACKET
	1-13	BRACKET
	1-26	BRACKET
	1-14	BRACKET
	1-35	BRACKET
	1-32	BRACKET
	1-38	BRACKET
	1-30	BRACKET
	1-29	BRACKET
	1-25	BRACKET
	1-2	BRACKET
	1-33	BRACKET
	1-31	BRACKET
	1-24	HARNESS
	1-22	HARNESS
	1-23	HARNESS
	1-18	HARNESS
	1-41-2	HARNESS
	1-41-1	HARNESS
	1-15	HARNESS
	1-16	HARNESS
	1-41-3	HARNESS
	1-41-4	HARNESS
	1-41-5	HARNESS
	1-19	HARNESS
	1-20	HARNESS
	1-17	HARNESS
	1-39	TERMINAL
	1-43	BRACKET
	1-44	BRACKET
	1-43-1	BRACKET
	1-44-1	BRACKET

Page 54 — U1. コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 54

Ref	Part number	Part name	Qty
	S59701001	BOX ASSY, 981	1
	S43300009	POWER SUPPLY BOX ASSY, 981	1
	S43171009	SETTING PLATE, PCB	1
	S59000001	PANEL CAP ASSY, 981	1
	S43356001	PCB BASE PLATE, R	1
	0A5400806	SCREW, PAN (S/P WASHER) M4X8	1
	018061022	BOLT, SOCKET M6X10	2
	028060246	WASHER, SPRING 2-6	2
	025060232	WASHER, PLAIN M 6	2
	S38094100	DC-FAN MOTOR ASSY	1
	0A5403006	SCREW, PAN (S/P WASHER) M4X30	2
	S43355000	DC-FAN MOTOR ASSY, 60	1
	0A5403006	SCREW, PAN (S/P WASHER) M4X30	4
	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
	0A5401006	SCREW, PAN (S/P WASHER) M4X10	3
	S16568000	CONNECTOR, 3191-03R1	1
	S43350000	MOTOR CORD	1
	S42260000	FOOT SWITCH HARNESS ASSY, 434	1
	S38107100	POWER SUPPLY HARNESS, CONTROL	1
	S38108000	POWER SUPPLY HARNESS, MOTOR	1
	S38109100	POWER SUPPLY HARNESS, H-P	1
	S38110000	POWER HARNESS	1
	S43304000	DC55 CORD	1
	S43306000	RPMD CORD	1
	S58995000	TYPE HARNESS	1
	S11949000	RUBBER BUSH	1
	150592001	RUBBER CAP, 16	1
	S43274000	BUSH, TB-2938	1
	S43308000	BUSH, TB-2533	1
	S43275000	CORD CLAMP, WS2NS	10
	S43318000	CLAMP, LW8S8 2.5W	5
	S00554000	SUPPORT, 6NS	22
	S31760000	CORD CLAMP, 26-L	2
	008400604	SCREW, TRUSS M4X6	12
	S43309000	FRAGMENT PROTECTOR NET	1
	S37059001	LABEL, PE	1
	S37060001	LABEL, GROUNDING	1
	228475000	FASTENING BAND, 1.9X80	3
	228475000	FASTENING BAND, 1.9X80	1
	S49939101	POWER SUPPLY PCB ASSY	1
	S43170000	IC MA3830	1
	S43186000	PHOTO COUPLER :PC923	2
	S49586000	TRANSISTOR, FET :2SK1941	2
	S47680000	DIODE, AR :PA905C6	1
	S38203000	DIODE :YG802C04R	1
	SA0037000	VARISTOR :V14D511	2
	232384001	SURGE ABSORBER :DSA362MA	1
	S49071000	DIODE BRIDGE :25XB60	1
	S38205000	CAPACITOR, ALUM-ELEC :250B182	1
	SA1034000	CAPACITOR, ALUM-ELEC :63B562	1
	S43175000	TRANSFORMER :54AA159	1
	S43176000	TRANSFORMER :35AD199	1
	S43181000	COIL :49AD289AC	1
	S38208000	RELAY :JW1AFSN/DC 5V	1
	153242000	FUSE, 6A	2
	S08030000	FUSE, 5A :FB	1
	S48580000	FUSE, 7A :FB	1
	0A4301005	SCREW, PAN (S/P WASHER) M3X10	8
	S43189000	HARNESS, PCB :E1	1
	S43187000	HARNESS, PCB :E2	1
	S49472000	THERMISTOR :6D-22	1

Page 55 — U1.コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 55

Ref	Part number	Part name	Qty
	S59708001	PMD PCB ASSY	1
	S53884001	MAIN PCB ASSY	1
	S49485000	TRANSISTOR, FET :FX6KMJ-2	10
	S49484000	TRANSISTOR, FET :FS10KMJ-2	10
	S38155000	TRANSISTOR, FET :2SK1306	4
	S49471000	TRANSISTOR, FET :FK18SM-12	6
	U32744000	DIP SWITCH:DSS708	2
	S45261000	R-PCB RELAY CORD	1
	S59702000	PROM RH981A MAIN ASSY	1
	UA4897000	EPROM:27C2001	1
	S59703000	PROM ASSY, RH981A MOTOR	1
	U85274000	CMOS LSI:27C512	1
	S59730001	OPERATION PANEL ASSY	1
	S58997001	FRONT FRAME	1
	S58975000	FRONT FRAME	1
	S58998000	PANEL SHEET	1
	S52978000	PANEL SHEET BACK PLATE	1
	S52979000	REAR FRAME	1
	S49495000	PANEL SIDE COVER	1
	S49496001	PANEL SIDE COVER GUIDE	1
	S53010101	PANEL PCB ASSY	1
	087310815	TAPTITE, CUP B M3X8	2
	087311015	TAPTITE, CUP B M3X10	2
	XA2220050	BOARD PRESSER	2
	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
	018300636	BOLT, SOCKET M3X6	4
	S59704000	PROM 981A PANEL ASSY	1
	S58976000	P/M HARNESS ASSY	1
	S59740000	PRG/M HARNESS 981 ASSY	1
	S38352101	LABEL, ELEC. SHOCK 4 LANG.	2
	S38353101	LABEL, ELEC. SHOCK 4 LANG.	2
	S59711001	MOTOR UNIT, A1	1
	S59721001	BOX SET, 981 A1	1
	S44758000	TOTALLY ENCLOSED 3-PHASE MOTOR	1
	S59730001	OPERATION PANEL ASSY	1
	S59712001	MOTOR UNIT, A2	1
	S59722001	BOX SET, 981 A2	1
	S44758000	TOTALLY ENCLOSED 3-PHASE MOTOR	1
	S59730001	OPERATION PANEL ASSY	1
	S59713001	MOTOR UNIT, B1	1
	S59723001	BOX SET, 981 B1	1
	S44758000	TOTALLY ENCLOSED 3-PHASE MOTOR	1
	S59730001	OPERATION PANEL ASSY	1
	S59714001	MOTOR UNIT, B2	1
	S59724001	BOX SET, 981 B2	1
	S44758000	TOTALLY ENCLOSED 3-PHASE MOTOR	1
	S59730001	OPERATION PANEL ASSY	1

Page 56 — U1 . コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 56

Ref	Part number	Part name	Qty
	S59715001	モータユニットコンポウC1	1
	S59725001	981ボックスノウクミC1	1
	S44758000	ゼンヘイ3ツウモータ	1
	S59730001	ツサパネルクミ	1
	S59716001	モータユニットコンポウC2	1
	S59726001	981ボックスノウクミC2	1
	S44758000	ゼンヘイ3ツウモータ	1
	S59730001	ツサパネルクミ	1
	S59717001	モータユニットコンポウC3	1
	S59727001	981ボックスノウクミC3	1
	S44758000	ゼンヘイ3ツウモータ	1
	S59730001	ツサパネルクミ	1
	S59718001	モータユニットコンポウE	1
	S59728001	981ボックスノウクミE	1
	S44758000	ゼンヘイ3ツウモータ	1
	S40623000	EMIコアTR-40-27	2
	0A5401605	ネジザクメ4X16DB	2
	025040236	ヒラガネチュウ4	2
	021400106	ナット1シュ4	2
	S59730001	ツサパネルクミ	1
	S59719001	モータユニットコンポウF	1
	S59729001	981ボックスノウクミF	1
	S44758000	ゼンヘイ3ツウモータ	1
	S40623000	EMIコアTR-40-27	2
	0A5401605	ネジザクメ4X16DB	2
	025040236	ヒラガネチュウ4	2
	021400106	ナット1シュ4	2
	S59730001	ツサパネルクミ	1

Page 57

Brother DH4-B981 parts on page 57

Ref	Part number	Part name	Qty
	2-1-1	2-1-1
	2-1-2	2-1-2
	2-1-3	2-1-3
	2-1-4	2-1-4
	2-1-5	2-1-5
	10-1	10-1
	2-2-1	2-2-1
	2-2-2	2-2-2
	2-2-3	2-2-3
	2-2-4	2-2-4
	2-2-5	2-2-5
	10-2-1	10-2-1
	10-2-2	10-2-2
	2-3-1	2-3-1
	2-3-2	2-3-2
	2-3-3	2-3-3
	2-3-4	2-3-4
	2-3-5	2-3-5
	10-3-1	10-3-1
	10-3-2	10-3-2
	11	11
	12	12
	13	13
	2-4-1	2-4-1
	2-4-2	2-4-2
	2-4-3	2-4-3
	2-4-4	2-4-4
	2-4-5	2-4-5
	10-1	10-1
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	10-2-1	10-2-1
	10-2-2	10-2-2
	11	11
	12	12
	13	13
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	10-3-1	10-3-1
	10-3-2	10-3-2
	11	11
	12	12
	13	13
	2-5	2-5
	2-6	2-6
	10-3-1	10-3-1
	10-3-2	10-3-2
	10-4	10-4
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50

Page 58 — U2 . コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 58

Ref	Part number	Part name	Qty
	S38112001	<三相200V, 220V用>	1
	S38113000	デンケン SWクミ A	1
	S38133000	デンケン INコード A	1
	J02657001	3PオシSW#17	1
	224514001	ゼツエンイタ	2
	218859001	バインダー M150	2
	S38114000	<単相100V用>	1
	S38115000	デンケン SWクミ B	1
	S38116000	デンケン INコード B	1
	J02657001	3PオシSW#17	1
	224514001	ゼツエンイタ	2
	218859001	バインダー M150	2
	S38117000	<三相415V, 380V用>	1
	S38115000	デンケン SWクミ C	1
	S38133000	デンケン INコード B	1
	J02657001	デンケンコード	1
	224514001	3PオシSW#17	1
	218859001	ゼツエンイタ	2
	S47592000	<単相220V用>	1
	S38113000	デンケン SWクミ D	1
	S47595000	デンケン INコード A	1
	J02657001	デンケンコード ユウシュウ	1
	224514001	3PオシSW#17	1
	218859001	ゼツエンイタ	2
	S47594000	<単相110V, 240V用>	1
	S38115000	デンケン SWクミ G	1
	S47595000	デンケン INコード B	1
	J02657001	デンケンコード	1
	224514001	3PオシSW#17	1
	218859001	ゼツエンイタ	2
	S38123000	<単相220V, 三相200V, 220V用>	1
	S43369000	<単相100V, 110V用>	1
	S43367000	ヘカン トランス XB	1
	S38126000	ヘカン トランス B	1
	S43370000	<単相220V,	1
	S43368000	ヘカン トランス XC	1
	S38126000	ヘカン トランス C	1

Page 59 — U2. コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 59

Ref	Part number	Part name	Qty
	2-1-1	2-1-1
	2-1-2	2-1-2
	2-1-3	2-1-3
	2-1-4	2-1-4
	2-1-5	2-1-5
	10-1	10-1
	2-4-1	2-4-1
	2-4-2	2-4-2
	2-4-3	2-4-3
	2-4-4	2-4-4
	2-4-5	2-4-5
	10-1	10-1
	2-2-1	2-2-1
	2-2-2	2-2-2
	2-2-3	2-2-3
	2-2-4	2-2-4
	2-2-5	2-2-5
	10-2-1	10-2-1
	10-2-2	10-2-2
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	10-2-1	10-2-1
	11	11
	12	12
	13	13
	2-3-1	2-3-1
	2-3-2	2-3-2
	2-3-3	2-3-3
	2-3-4	2-3-4
	2-3-5	2-3-5
	10-3-1	10-3-1
	10-3-2	10-3-2
	11	11
	12	12
	13	13
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	10-3-1	10-3-1
	10-3-2	10-3-2
	11	11
	12	12
	13	13
	2-5	2-5
	2-6	2-6
	10-3-1	10-3-1
	10-3-2	10-3-2
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	10-4	10-4

Page 60 — U2 . コントロールボックス関係 / Control box mechanism

Brother DH4-B981 parts on page 60

Ref	Part number	Part name	Qty
	018061022	BOLT, SOCKET M6X10	4
	028060246	WASHER, SPRING 2-6	4
	025060232	WASHER, PLAIN M 6	4
	S52245000	FUSE, 8A ;250FB	1
	S45035000	POWER SUPPLY IN HARNESS, EH	1
	S40635001	NOISE FILTER ASSY, 430E	1
	S40616001	NOISE FILTER ASSY, EMC	1
	S40624000	NOISE FILTER HARNESS, A	1
	S45036000	POWER SUPPLY IN HARNESS, FH	1
	S43201000	AC HARNESS, F :IN	1
	S40616001	NOISE FILTER ASSY, EMC	1
	0A4400605	SCREW, PAN (S/P WASHER) M4X6	4
	S55473000	DIODE, AR :PA905C6-F	1

Page 61 — V1 . 空圧関係 / Air presure mechanism

Brother DH4-B981 parts on page 61

Ref	Part number	Part name	Qty
31-1-2	31-1-2	31-1-2
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-2	31-1-2	31-1-2
8-1	8-1	8-1
50-1	50-1	50-1
50-2	50-2	50-2
50-3	50-3	50-3
50-1	50-1	50-1
9-1	9-1	9-1
9-2	9-2	9-2
9-3	9-3	9-3
10-1	10-1	10-1
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
14-1	14-1	14-1
14-1	14-1	14-1
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-2	31-1-2	31-1-2
31-1-2	31-1-2	31-1-2
1-1	1-1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
25	25	25
26	26	26
27	27	27
28	28	28
31	31	31
8	8	8
8-1	8-1	8-1
26	26	26
25	25	25
50	50	50
53	53	53
54	54	54
50-1	50-1	50-1
50-2	50-2	50-2
50-3	50-3	50-3
57	57	57
56	56	56
55	55	55
57	57	57
29	29	29
30	30	30
9-3	9-3	9-3
9-2	9-2	9-2
9-1	9-1	9-1
9	9	9
6	6	6
37	37	37
34	34	34
35	35	35
5	5	5
36	36	36
38	38	38
39	39	39
4	4	4
3	3	3
1-3	1-3	1-3
1-2	1-2	1-2
1-1	1-1	1-1
44	44	44
21	21	21
45	45	45
7	7	7
22	22	22
32	32	32
24	24	24
44	44	44
45	45	45
16	16	16
15	15	15
14	14	14
14-1	14-1	14-1
14-1	14-1	14-1
41	41	41
40	40	40
13	13	13
12	12	12
10-2	10-2	10-2
10-3	10-3	10-3
10	10	10
17	17	17
18	18	18
10-1	10-1	10-1
13	13	13
60	60	60
59	59	59
58	58	58
1	1	1
19	19	19
20	20	20

Page 62 — V1 . 空圧関係 / Air pressure mechanism

Brother DH4-B981 parts on page 62

Ref	Part number	Part name	Qty
	S35349101	シリンダ 10X15クミ
	S12150000	ホースエルボ M-5HL-4	2
	S34925101	イトコルメンリダササエ
	S35351001	シリンダ ロッド
	S35305001	シリンダ ロッド ピン
	048030342	トメワ E3	2
	149287000	ナイロンクランプ
	062400812	ナベコ 4X8
	S35350000	シリンダ 16X10	2
	S44530000	シリンダ 16X15クミ A
	S12150000	ホースエルボ M-5HL-4	2
	S43731001	シリンダ 10X15
	S12150000	ホースエルボ M-5HL-4	2
	S35351001	シリンダ ロッド
	S34916001	シリンダ ロッド ピン
	S35305001	シリンダ ロッド ピン
	048030342	トメワ E3	2
	S35360000	シリンダ 63X100クミ
	S35370000	エルボ 10-4	2
	S35417000	エアーホース10X6.5-1
	S35409000	エアーホース10X6.5-18
	S35377000	エアーホース4X2.5-9
	S35368000	エアーホース4X2.5-10
	S35369000	エアーホース4X2.5-7
	S35370000	エアーホース4X2.5-8
	S35371000	エアーホース4X2.5-14
	S35372000	エアーホース4X2.5-17
	S35374000	エアーホース4X2.5-1
	S35375000	エアーホース4X2.5-12
	S35376000	エアーホース4X2.5-13
	S35377100	エアーホース4X2.5-3
	S35378100	エアーホース4X2.5-4
	S44531000	シリンダ 16X15クミ B
	S44532000	ホースニップル	2
	S01524000	ユニバーサルチーズ
	S11433000	ホースニップル 4M5	2
	S12104000	ユニオン Y4
	158581000	コードホルダ 24N	3
	032422003	マルモクネジ 4.1X20	2
	S11817000	クランプ NK-18N
	062400816	ナベコ 4X8
	S04557000	バンド PLT1M	7
	340400001	エンタイバンド	4
	152969001	コード ササエ
	062350616	ナベコ M3.5X6
	S35460000	スピードコントローラー	2
	S14955000	エアマフラ	2
	S40677000	エアーホース M5ALN
	S40676000	エアーホース M5ALN
	625010000	ナイロンクランプ NK-2N	2
	S43772000	シリンダ 16X30クミ B
	S12150000	ホースエルボ M-5HL-4
	S43357000	シタOFFセンサーコード
	S35398100	ホースニップル 4M5
	S35398100	エアーホース4X2.5-5
	S35399100	エアーホース4X2.5-6

Page 63 — V1 . 空圧関係 / Air presure mechanism

Brother DH4-B981 parts on page 63

Ref	Part number	Part name	Qty
31-1-2	31-1-2	31-1-2
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-2	31-1-2	31-1-2
8-1	8-1	8-1
50-1	50-1	50-1
50-2	50-2	50-2
50-3	50-3	50-3
50-1	50-1	50-1
9-1	9-1	9-1
9-2	9-2	9-2
9-3	9-3	9-3
10-1	10-1	10-1
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
14-1	14-1	14-1
14-1	14-1	14-1
1-1	1-1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-1	31-1-1	31-1-1
31-1-2	31-1-2	31-1-2
31-1-2	31-1-2	31-1-2
25	25	25
26	26	26
27	27	27
8	8	8
8-1	8-1	8-1
26	26	26
25	25	25
50	50	50
53	53	53
54	54	54
50-1	50-1	50-1
50-2	50-2	50-2
50-3	50-3	50-3
57	57	57
56	56	56
55	55	55
57	57	57
29	29	29
30	30	30
9-1	9-1	9-1
9-2	9-2	9-2
9	9	9
9-3	9-3	9-3
6	6	6
37	37	37
5	5	5
36	36	36
38	38	38
39	39	39
34	34	34
35	35	35
4	4	4
3	3	3
44	44	44
21	21	21
45	45	45
7	7	7
32	32	32
22	22	22
44	44	44
45	45	45
16	16	16
41	41	41
40	40	40
13	13	13
12	12	12
10-2	10-2	10-2
10-1	10-1	10-1
13	13	13
10-1	10-1	10-1
17	17	17
18	18	18
19	19	19
20	20	20
15	15	15
14	14	14
14-1	14-1	14-1
14-1	14-1	14-1
10	10	10
10-3	10-3	10-3
59	59	59
58	58	58
60	60	60
59	59	59
28	28	28
31	31	31
1	1	1
51	51	51
52	52	52

Page 64 — V1 . 空圧関係 / Air pressure mechanism

Brother DH4-B981 parts on page 64

Ref	Part number	Part name	Qty
	S37737001	<02, ジーンズ仕様>	1
	S12150000	ホースエルボ M-5HL-4	2
	S35351001	シリンダ ロッド	1
	S37866000	クレビス ピン	1
	S35305001	シリンダ ロッド ピン	1
	048030342	リテイニングE3	1
	S37738000	エアーホース4X2.5-20	1
	S37739000	エアーホース4X2.5-21	1
	S37863000	エアーホース4X2.5-3J	1
	S37864000	エアーホース4X2.5-4J	1
	S12104000	ユニオン Y4	2

Page 65 — V2 . 空圧関係 / Air pressure mechanism

Brother DH4-B981 parts on page 65

Ref	Part number	Part name	Qty
	61-1	FILTER ELEMENT
	61-2-1	CAP
	61-2	FILTER CASE
	61-3	DRAIN COCK
	42-1	AIR PRESSURE MECHANISM
	42-1-3	REGULATOR
	42-1-5	BRACKET
	42-1-4	PRESSURE GAUGE
	42-1-2	FILTER
	42-1-1-3	ELBOW JOINT
	42-1-1-4	STRAIGHT JOINT
	42-1-6	COVER
	42-1-1-8	JOINT
	42-1-1-1	JOINT
	42-5	TUBE
	42-2	BRACKET
	42-3-1-4	JOINT
	42-3-1-7	JOINT
	42-3-1-2	SCREW
	42-3-1-1	VALVE UNIT
	42-3-1-6	JOINT
	42-3-1-5	JOINT
	42-3-3	WASHER
	42-3-2	SCREW
	42-3-8	SPRING WASHER
	42-3-9	BRACKET
	42-3-4-2	JOINT
	42-3-4-3	JOINT
	42-3-7	JOINT
	42-3-5	JOINT
	42-3-4-4	JOINT
	42-3-4-5	JOINT
	42-3-4-6	JOINT
	42-3-4-1	JOINT
	42-3-1	VALVE UNIT
	42-3-4	JOINT
	42-3	VALVE UNIT

Page 66

Brother DH4-B981 parts on page 66

Ref	Part number	Part name	Qty
	S35389001	エアーユニットクミ
	S35386000	FRユニットクミ
	S40628000	ボールバルブ 1/4
	S40629000	バレルニップル
	S40630000	ニップル
	S46328000	PTエルボ
	S35382000	ダイバータ
	S35395000	レギュレーターR55
	S35423000	コネクタ10-3/8
	S35424000	エルボ 10-1/4
	S35425001	エアーユニットトリツケイタ
	031553202	マルモクネジ 5.5X32
	031553202	マルモクネジ 5.5X32
	S43769000	エアーホース10X6.5-1
	S43770000	エアーホース10X6.5-1
	S43344000	バルブコードクミ
	S44220001	バルブユニットクミ
	S44221000	ソレノイドバルブクミ
	S44231000	マニホルド 4
	S43683001	デンシバルブ
	S44223000	デンシバルブ
	S44224000	メイルエルボ 10R-01M
	S23880000	エアーマフラー
	S44225000	プラグ R1/8
	S44226000	プラグ RP-4
	062403512	ナベコ4X35
	028040246	バネザガネ2-4
	S44215000	デンシベンケミ
	S44216000	デンシベンチヤ-RCS240
	S44228000	ツキテ3109-10
	S44229000	エアーマフラSL-2
	S44217000	スロットルバルブ ET02
	S44218000	ツキテ1/4X1/4-M5
	S44230000	ツキテ3199-4
	062403512	ナベコ4X35
	028040246	バネザガネ2-4
	026040136	ヒラサガネコガネ4
	026040136	ヒラサガネコガネ4
	S44219001	バルブトリツケイタ
	S44213001	バルブユニット5クミ
	S44221000	ソレノイドバルブクミ
	S44222000	マニホルド 5
	S43683001	デンシバルブ
	S44223000	デンシバルブ

Page 67 — V2 . 空圧関係 / Air pressure mechanism

Brother DH4-B981 parts on page 67

Ref	Part number	Part name	Qty
	61-1	FILTER ELEMENT
	61-2-1	CAP
	61-2	FILTER
	61-3	BODY
	42-1	AIR PRESSURE MECHANISM
	42-1-5	BRACKET
	42-1-3	REGULATOR
	42-1-4	PRESSURE GAUGE
	42-1-2	BRACKET
	42-1-1	AIR FILTER
	42-6	TUBE
	42-7	HARNESS
	42-3-1-4	ELBOW JOINT
	42-3-1-7	JOINT
	42-3-1-2	SCREW
	42-3-1-1	MANIFOLD
	42-3-1-6	FILTER
	42-3-1-5	FILTER
	42-3-3	WASHER
	42-3-2	SCREW
	42-3-8	SCREW
	42-5	TUBE
	42-3-9	BRACKET
	42-3-1	BRACKET
	42-3-4-2	JOINT
	42-3-4-3	JOINT
	42-3-7	WASHER
	42-3-6	SCREW
	42-3-5	SCREW
	42-3-4-5	JOINT
	42-3-4-6	JOINT
	42-3-4-1	JOINT
	42-4	SCREW
	42-3	VALVE UNIT
	42-3-4-4	JOINT
	42-3-4-2	JOINT
	42-3-4-3	JOINT
	42-3-7	WASHER
	42-3-5	SCREW
	42-3-4-5	JOINT
	42-3-4-6	JOINT
	42-3-4-1	JOINT
	42-3-4	VALVE UNIT
	42-3	VALVE UNIT

Page 68 — V2 . 空圧関係 / Air pressure mechanism

Brother DH4-B981 parts on page 68

Ref	Part number	Part name	Qty
42-3-5	062403512	SCREW, PAN M4X35	2
42-3-6	028040246	WASHER, SPRING 2-4	2
42-3-7	026040136	WASHER, PLAIN S 4	2
42-3-8	026040136	WASHER, PLAIN S 4	2
42-3-9	S44219001	SETTING PLATE, VALVE	1
61-1	S46477000	FILTER ELEMENT	1
61-2	S46478000	PLASTIC BOWL ASSY	1
61-2-1	S46480000	DRAIN COCK ASSY	1
61-3	S46479000	BALL GUARD	1

Page 69

Brother DH4-B981 parts on page 69

Ref	Part number	Part name	Qty
18	18	Screw
23	23	Screw
30	30	Screw
17	17	Bracket
45	45	Gasket
16-1	16-1	Cord
16-2	16-2	Cord
16	16	Cord
3	3	Screw
2	2	Plate
4	4	Washer
27	27	Clip
30	30	Screw
45	45	Screw
2-3	2-3	Screw
2-2	2-2	Screw
2-1	2-1	Screw
51	51	Lever
50	50	Screw
42	42	Lever
26	26	Lever
43	43	Connector
44	44	Clip
29	29	Screw
30	30	Screw
52	52	Connector
28	28	Clip
1-3	1-3	Screw
1-1	1-1	Lever
1-1-1	1-1-1	Lever
1-2	1-2	Lever
6	6	Bracket
6-1	6-1	Bracket
6-1-1	6-1-1	Bracket
14-1	14-1	Plate
14-1-1	14-1-1	Cord
14-2	14-2	Plate
14	14	Plate
14-4	14-4	Screw
14-5	14-5	Clip
14-3	14-3	Screw
10	10	Screw
8	8	Screw
5-3	5-3	Screw
5-1-1	5-1-1	Connector
5-1	5-1	Connector
5-2	5-2	Connector
5-4	5-4	Connector
5	5	Connector
34	34	Screw
33	33	Screw
46	46	Knob
47	47	Knob
9	9	Washer
7	7	Screw
49	49	Chain

Page 70

Brother DH4-B981 parts on page 70

Ref	Part number	Part name	Qty
	S43320001	Xセンサ3B
	S43321000	XORGコードクミ
	S43322000	XORGコード
	S35185101	Xセンサトリツケケイタ
	S10856001	+サラネジ 2X8
	S43323001	Yセンサ3B
	S43324000	YORGコード
	S10856001	+サラネジ 2X8
	S35164101	Yセンサトリツケケイタ
	062400812	ナベコ 4X8
	025040234	ヒラザガネチュウ4
	S43325001	Rセンサ3B
	S43326000	RORGコードクミ
	S35154000	Rセンサ
	S35298001	Rセンサトリツケケイタ
	S10856001	+サラネジ 2X8
	S04557000	バンタイPLT1M
	S43328000	アンゼンSWコードクミ
	S43329000	アンゼンSWコード
	S10546000	スイツチD2MVローラ
	025030232	ヒラザガネチュウ3
	062401606	ナベコ 3X16
	021300206	シンユウナット 3
	028030243	バネザガネ2-3
	S45264001	カツターセンサ3B-S
	S45265000	カツターセンサコードクミB
	S45266000	カツターセンサコード B-S
	S35162101	カツターセンサトリツケケイター
	062300806	ナベコ 3X8
	028030243	バネザガネ2-3
	S04567000	バンタイPLT1M
	062400812	ナベコ 4X8
	S43334000	EMSWクミB
	S32335100	SW-AVS311N
	S43335000	EMSWコード B
	S36651009	スイツチカバー-B
	062400812	ナベコ 4X8
	625010000	ナイロンクランプ NK-2N
	062400812	ナベコ 4X8
	S10243000	ナイロンクランプ NK-3N
	149547000	コード オサエ
	625010000	ナイロンクランプ NK-2N
	S10243000	ナイロンクランプ NK-3N
	552907000	ユート・ホルダ #10
	062400812	ナベコ 4X8
	062400812	ナベコ 4X8
	025040232	ヒラザガネチュウ4
	062400812	ナベコ 4X8
	062401212	ナベコ 4X12
	S04557000	バンタイPLT1M
	S37057001	EMスイッチスペーサ #3
	060400416	バインド M4X4
	S44287000	アースヒモ1050
	S43358000	センサチュウケイコード
	S40621000	EMIコアESD-SR-15
	S40622000	EMIコアESD-SR-25
	340400001	ユナイトバンド

Page 71 — X . 布制御関係 / Cloth control system mechanism

Brother DH4-B981 parts on page 71

Ref	Part number	Part name	Qty
	1-15-3	1-15-3
	1-15-2	1-15-2
	1-15-1	1-15-1
	1-24	1-24
	1-77	1-77
	1-5-2	1-5-2
	1-22	1-22
	1-76	1-76
	1-30	1-30
	1-20	1-20
	1-75	1-75
	1-26	1-26
	1-28	1-28
	1-76	1-76
	1-21	1-21
	1-27	1-27
	1-23-1	1-23-1
	1-23	1-23
	1-5-1	1-5-1
	1-7	1-7
	1-3	1-3
	1-19	1-19
	1-2	1-2
	1-27	1-27
	1-12	1-12
	1-25	1-25
	1-6	1-6
	1-4	1-4
	1-8	1-8
	1-9	1-9
	1-13	1-13
	1-14	1-14
	1-1	1-1
	1-28	1-28
	1-45	1-45
	1-48	1-48
	1-49	1-49
	1-29	1-29
	1-16	1-16
	1-18	1-18
	1-10	1-10
	1-47	1-47
	1-38	1-38
	1-18	1-18
	1-17	1-17
	1-11	1-11
	1-46	1-46
	1-55	1-55
	1-40	1-40
	1-56	1-56
	1-44	1-44
	1-76	1-76
	1-53	1-53
	1-50	1-50
	1-54	1-54
	1-75	1-75
	1-73	1-73
	1-74	1-74
	1-59	1-59
	1-52	1-52
	1-51	1-51
	1-41	1-41
	1-58	1-58
	1-60-1-3	1-60-1-3
	1-60-2	1-60-2
	1-42	1-42
	1-77	1-77
	1-36	1-36
	1-57	1-57
	1-35	1-35
	1-35-1	1-35-1
	1-62	1-62
	1-37	1-37
	1-75	1-75
	1-34	1-34
	1-68	1-68
	1-32-2	1-32-2
	1-61	1-61
	1-33	1-33
	1-31	1-31
	1-60-1-1	1-60-1-1
	1-60-1-5	1-60-1-5
	1-60-4	1-60-4
	1-60-1-6	1-60-1-6
	1-60-3	1-60-3
	1-69	1-69
	1-72	1-72
	1-67	1-67
	1-71	1-71
	1-70	1-70
	1-78	1-78
	1-63	1-63
	1-64	1-64
	1-65	1-65

Page 72

Brother DH4-B981 parts on page 72

Ref	Part number	Part name	Qty
	S44279101	981インデクサーウクミ	1
	S43809001	ヌノクリツターL1L2	1
	S44281101	981インデクサーウクミ	1
	S42139101	ヌノクリツターR	1
	S42111101	オクリツタィル	1
	018501636	アナルドM5X16	1
	021500216	ニユツト, M5	1
	S42112100	ヌノクリツターロツク	1
	S42113000	シリンダー10X5エルボクミ	1
	S42114000	シリンダー10X5	1
	S11426000	エルボユニオン4M5	1
	S42115101	シリンダートリツケイタ	1
	018401236	アナルドM4X12	2
	S42116000	リニアボールベアリング	1
	048120142	トメワジクヨウC12	1
	S42117101	チヤツクガイドイタ	1
	018401236	アナルドM4X12	2
	S42118001	チヤツクピン	1
	026040136	ヒラザガネコカク94	1
	S42119001	オシバネ	1
	S42120100	シリンダー10X60クミ	1
	S42121000	シリンダー10X60	1
	S42122000	シリンダーセンサ	1
	S12150000	ホースエルボM-5HL-4	2
	S42123001	シリンダーロツド	1
	S42124001	ヌノクリツトトビン	1
	048030342	トメワE3	2
	S42125100	ストツパーロツク	1
	018401636	アナルドM4X16	1
	S42126101	スイツチトリツケイタ	1
	018401236	アナルドM4X12	1
	S42127000	リミツトスイツチクミL	1
	S36261000	スイツチVXローレバー	1
	062301414	ナベコM3X14	2
	S24325001	セツトカラー	2
	014400532	アナルドM4X5	2
	S42128101	ヌノクリツトガイド	2
	018401236	アナルドM4X12	4
	S42129101	オクリウガイトLクミ	1
	018400836	アナルドM4X8	2
	S42132001	オクリツタィR	1
	S42133000	シリンダー10X5クミ	1
	S42114000	シリンダー10X5	1
	S11433000	ホースニツプル4M5	1
	S05356000	ボタンクランプA	1
	S42134101	オクリウガイトRクミ	1
	S42136000	リミツトスイツチクミR	1
	S36261000	スイツチVXローレバー	1
	062301414	ナベコM3X14	2
	060400516	アナルドM4X5	2
	S42137001	ヌノクリツボウ	1
	S42138101	ヌノクリツタイL	1
	003300812	サラネジ3X8	2
	003300812	サラネジ3X8	3
	S42140100	ヌノセツトガイドタテ	1
	060400516	アナルドM4X5	2
	S42141100	ヌノセツトガイドヨコL	1

Page 73 — X. 布制御関係 / Cloth control system mechanism

Brother DH4-B981 parts on page 73

Ref	Part number	Part name	Qty
	1-15-3
	1-15-2
	1-15-1
	1-22
	1-76
	1-30
	1-20	1-76
	1-25
	1-28
	1-76
	1-3
	1-2
	1-48
	1-49
	1-47
	1-46
	1-56
	1-1
	1-45
	1-39
	1-55
	1-59
	1-58
	1-60-1
	1-57
	1-62
	1-60-4
	1-60-3
	1-19
	1-29
	1-40
	1-50
	1-51
	1-52
	1-60-1-3
	1-60-1-1
	1-60-1-5
	1-6
	1-24
	1-77
	1-73
	1-26
	1-16	1-18
	1-18
	1-28
	1-27
	1-30
	1-38	1-18
	1-18
	1-44
	1-76
	1-54
	1-55
	1-43
	1-41
	1-60-2
	1-60-1-2
	1-60-1-4
	1-68
	1-61
	1-66
	1-63	1-64
	1-64	1-65
	1-65
	1-72
	1-67
	1-71
	1-70
	1-78
	1-23-1
	1-23
	1-72
	1-21
	1-27
	1-30
	1-26
	1-18
	1-17
	1-75
	1-73
	1-74
	1-35
	1-36
	1-77
	1-32-2
	1-32-1
	1-31
	1-69
	1-5-2
	1-5-1
	1-7
	1-4
	1-8
	1-9
	1-10
	1-11
	1-12
	1-25
	1-13
	1-14
	1-35-1
	1-72
	1-37
	1-76
	1-34

Page 74 — X. 布制御関係 / Cloth control system mechanism

Brother DH4-B981 parts on page 74

Ref	Part number	Part name	Qty
	S42143100	SPRING, PLATE	1
	060300416	SCREW, BIND M3X4	2
	06000416	SCREW, BIND M4X4	2
	025040234	WASHER, PLAIN M 4	2
	S42142100	CLOTH SET GUIDE, R;HORIZONTAL	1
	S42143100	SPRING, PLATE	1
	060300416	SCREW, BIND M3X4	2
	06000416	SCREW, BIND M4X4	2
	025040234	WASHER, PLAIN M 4	2
	S42144101	PLATE PRESSER, I	2
	S42145001	PRESSER PLATE,	1
	S4141001	UPPER THREAD PRESSER SUPPORT	1
	S41452000	UPPER THREAD PRESSER PLATE	1
	062350516	SCREW, PAN M3.5X5	1
	S42142020	VALVE UNIT SET	1
	S42142001	VALVE UNIT ASSY	1
	S39115100	VALVE, VQZ2151-5	2
	140682001	SILENCER	1
	153274001	CAP, 1/8	1
	S01542000	ELBOW UNION, 61	1
	S04897000	PLUG, 4	2
	S39116100	VALVE, VQZ2151S-5	1
	S42148101	SETTING PLATE, ;VALVE	1
	018503036	BOLT, SOCKET M5X30	2
	028050243	WASHER, SPRING 2-5	2
	032422003	WOOD SCREW, ROUND M4.1X20	2
	S42149000	VALVE HARNESS	1
	S42150100	AIR TUBE, 4X2.5-50 L=1500	1
	S42151100	AIR TUBE, 4X2.5-51 L=1500	1
	S42152100	AIR TUBE, 4X2.5-52 L=1500	1
	S42153000	AIR TUBE, 4X2.5-53 L=1900	1
	S42154000	HALF UNION	1
	S01522000	PLUG, 4	1
	S04897000	CONNECTOR, 5025-15RT	2
	S42170000	CONNECTOR CAP	1
	S42158000	BAND, PLT1M	1
	S04557000	CORD HOLDER, 5N	8
	S00480000	WASHER, PLAIN M 6	2
	025060236	SCREW, PAN M4X16	1
	062401616	WASHER, PLAIN M 4	7
	025040234	WASHER, SPRING 2-3	4
	028030243	INDEXER CORD	1
	S43359000	INDEXER CORD	1

Page 75 — Y. 踏板関係 / Foot switch pedal mechanism

Brother DH4-B981 parts on page 75

Ref	Part number	Part name	Qty
	2-15	2-8
	2-14	2-9
	2-10	2-13
	2-12	2-11
	2-1	2-17
	2-3	2-7
	2-2	2-2
	2-16	2-5-2
	2-5-1	2-5-2
	2-5	2-6
	2-19	2-6
	2-16	2-16
	1-8	1-5
	1-13	1-2
	1-7	1-6
	1-11	1-4
	1-9	1-12
	1-8	1-3
	1-10	1-1

Page 76

Brother DH4-B981 parts on page 76

Ref	Part number	Part name	Qty
	S43346001	HAND START SWITCH ASSY, B	1
	S39913001	SETTING PLATE, SWITCH	1
	S39914001	SPRING, SWITCH LEVER	1
	S43345001	HAND START SWITCH, B	1
	S39910001	SWITCH COVER	1
	S39911001	SWITCH LEVER, L	1
	S39912001	SWITCH LEVER, R	1
	S34922101	SHOULDER SCREW, M4	1
	S34966001	SHOULDER SCREW, M4	2
	021400202	NUT, M4	3
	146124001	SCREW, SM2.38	2
	060300616	SCREW, BIND M3X6	2
	S04557000	BAND, PLT1M	1
	060400816	SCREW, BIND M4X8	2
	S42838101	2-PEDAL FOOT SWITCH, 2	1
	S38166000	FOOT PEDAL BASE	2
	S42867001	TREADLE AUXILIARY PLATE	1
	004400603	SCREW, FLAT M4X6	4
	S38170001	SPRING, COMPRESSION	2
	S38029000	2-PEDAL FOOT SW HARNESS ASSY	1
	S38030000	2-PEDAL FOOT SW HARNESS	2
	S36260000	MICRO SWITCH, VX :PIN BUTTON	2
	062301205	SCREW, PAN M3X12	4
	228475000	FASTENING BAND, 1.9X80	10
	S38174000	FOOT PEDAL	2
	S38175001	PROTECTION PLATE, PEDAL	2
	S38176101	SPRING, PLATE	2
	002300403	SCREW, PAN M3X4	4
	028030246	WASHER, SPRING 2-3	4
	025030236	WASHER, PLAIN M 3	4
	S38177001	SHAFT, F-PEDAL	2
	048050346	RETAINING RING, E5	4
	052400606	SCREW, PAN (S/P WASHER) M4X6	2
	117936001	RUBBER CAP, 9.4	12
	S38180000	CONNECTOR, 172169-1	1
	S38060000	CONNECTOR CAP, 18X19	1
	S38059000	RUBBER CAP, NG79F	2

Page 77 — AA1 . 付属装置関係 / Attachment set

Brother DH4-B981 parts on page 77

Ref	Part number	Part name	Qty
	1-2-4	1-2-4
	1-2-6	1-2-6
	1-2-2	1-2-2
	1-2-8	1-2-8
	1-5	1-5
	1-6	1-6
	1-2-3	1-2-3
	1-2-5	1-2-5
	1-2-9	1-2-9
	1-2-7	1-2-7
	1-2-10	1-2-10
	1-2-1-10	1-2-1-10
	1-2-1-8	1-2-1-8
	1-3	1-3
	1-2-1-17	1-2-1-17
	1-2-1-3	1-2-1-3
	1-2-1-16	1-2-1-16
	1-2-1-11	1-2-1-11
	1-2-1-2	1-2-1-2
	1-4	1-4
	1-2-1-11	1-2-1-11
	1-2-1-11-1	1-2-1-11-1
	1-2-1-14	1-2-1-14
	1-2-1-5	1-2-1-5
	1-2-1-13	1-2-1-13
	1-2-1-1-2	1-2-1-1-2
	1-2-1-9	1-2-1-9
	1-2-1-7	1-2-1-7
	1-2-1-15	1-2-1-15
	1-1-6	1-1-6
	1-2-14	1-2-14
	1-2-1-12	1-2-1-12
	1-1-25	1-1-25
	1-1-24	1-1-24
	1-1-26	1-1-26
	1-1-4	1-1-4
	1-1-3	1-1-3
	1-1-2	1-1-2
	1-1-8	1-1-8
	1-1-9	1-1-9
	1-1-15	1-1-15
	1-1-16	1-1-16
	1-1-17	1-1-17
	1-1-5	1-1-5
	1-1-1-17	1-1-1-17
	1-1-1-16	1-1-1-16
	1-1-1-8	1-1-1-8
	1-1-1-10	1-1-1-10
	1-1-1-11	1-1-1-11
	1-1-1-14	1-1-1-14
	1-1-1-5	1-1-1-5
	1-1-1-13	1-1-1-13
	1-1-1-11-1	1-1-1-11-1
	1-1-1-11-2	1-1-1-11-2
	1-1-1-9	1-1-1-9
	1-1-1-10	1-1-1-10
	1-1-1-7	1-1-1-7
	1-1-1-6	1-1-1-6
	1-1-1-12	1-1-1-12
	1-1-1-19	1-1-1-19
	1-1-1-4	1-1-1-4
	1-1-14-1	1-1-14-1
	1-1-18	1-1-18
	1-1-11-1	1-1-11-1
	1-1-12	1-1-12
	1-1-22	1-1-22
	1-1-21	1-1-21
	1-1-23	1-1-23
	1-1-20	1-1-20

Page 78 — AA1 . 付属装置関係 / Attachment set

Brother DH4-B981 parts on page 78

Ref	Part number	Part name	Qty
	※	クミカエヒンセツト (L ※)	1
	※	L※ブレートワ	1
	※	オサエプレートJR※ワ	1
	S37729101	ヌノサエプレートJRワミ	1
	S40828001	ヌノサエプレートJRワミB	1
	S35315001	ヒラカクコマ	1
	060020416	ハインド M2X4	2
	※	ハイトル R	1
	S06696004	サラネジ 3X6	2
	※	ヌノサエJR-JL	1
	S35236000	マガザネ 3.2	1
	S35235001	クランプサエヒン	1
	021300302	3シュナツト3	1
	S35238001	クランプツケクケ	1
	062401016	ナベコ4X10	2
	S35237001	クランプシテンク	1
	048050142	トメワシジヨウC5	2
	S35234201	クランプレバー-R	1
	018501236	アナボルト 5X12	1
	S37695001	クランプアーム-R-J	1
	S40826001	クランプアーム-JR-B	1
	014400532	アナホボルト M4X5	2
	S35347100	ヌノガイド R	1
	05035016	ハインド 3.5X6	1
	※	イトウウル ※R	1
	※	イトウウル ※L	1
	※	イトウサハキ L	1
	※	イトウウツトウカム L	1
	S37660101	タンネシ M4	1
	021400202	2シュナツト4	1
	S37654000	ナミサガネ	1
	S37655101	メスササエガネ	1
	141542001	サラネジ 3.18	2
	S37656001	イトウキリンクレバー-Jワミ	1
	S34881001	タンネシ M4	1
	021400202	2シュナツト4	1
	S37820001	リンクシテンプレートワミ	1
	062400016	ナベコ M4X6	2
	S37652001	モトシハネ L	1
	S37653001	モトシハネ R	1
	062300416	サラネジ M3X4	2
	S34906100	イトウキリウデメタル	1
	062260612	ナベコ 2.6X6	2
	S37659001	イトウキルバーテ B	1
	S21716001	ボタンヘッドネジ 4X1	1
	S37858000	ニードルピン 4X8	1
	S56025001	オサエプレート U	1
	060400516	ハインド M4X5	2
	153787001	シメネジ 2.38	2

Page 79

Brother DH4-B981 parts on page 79

Ref	Part number	Part name	Qty
	1-2-4	1-2-4
	1-2-6	1-2-6
	1-2-2	1-2-2
	1-2-8	1-2-8
	1-2-3	1-2-3
	1-2-5	1-2-5
	1-5	1-5
	1-6	1-6
	1-2-7	1-2-7
	1-2-10	1-2-10
	1-2-1-17	1-2-1-17
	1-2-1-16	1-2-1-16
	1-2-1-10	1-2-1-10
	1-2-1-8	1-2-1-8
	1-3	1-3
	1-2-1-3	1-2-1-3
	1-2-1-2	1-2-1-2
	1-2-1-1	1-2-1-1
	1-2-1-14	1-2-1-14
	1-2-1-11	1-2-1-11
	1-4	1-4
	1-2-1-1-1	1-2-1-1-1
	1-2-1-1-2	1-2-1-1-2
	1-2-1-9	1-2-1-9
	1-2-1-5	1-2-1-5
	1-2-1-13	1-2-1-13
	1-2-1-7	1-2-1-7
	1-2-1-4	1-2-1-4
	1-2-1-6	1-2-1-6
	1-2-1-12	1-2-1-12
	1-1-6	1-1-6
	1-1-25	1-1-25
	1-1-1-3	1-1-1-3
	1-1-24	1-1-24
	1-1-26	1-1-26
	1-1-1-2	1-1-1-2
	1-1-4	1-1-4
	1-1-17	1-1-17
	1-1-3	1-1-3
	1-1-2	1-1-2
	1-1-8	1-1-8
	1-1-5	1-1-5
	1-1-9	1-1-9
	1-1-15	1-1-15
	1-1-16	1-1-16
	1-1-1-1-1	1-1-1-1-1
	1-1-1-1-2	1-1-1-1-2
	1-1-1-17	1-1-1-17
	1-1-1-16	1-1-1-16
	1-1-1-8	1-1-1-8
	1-1-1-10	1-1-1-10
	1-1-1-11	1-1-1-11
	1-1-1-14	1-1-1-14
	1-1-1-5	1-1-1-5
	1-1-1-13	1-1-1-13
	1-1-14-1	1-1-14-1
	1-1-1-9	1-1-1-9
	1-1-1-6	1-1-1-6
	1-1-1-7	1-1-1-7
	1-1-1-15	1-1-1-15
	1-1-1-12	1-1-1-12
	1-1-18	1-1-18
	1-1-11-1	1-1-11-1
	1-1-12	1-1-12
	1-1-25	1-1-25
	1-1-23	1-1-23
	1-1-22	1-1-22
	1-1-21	1-1-21
	1-1-20	1-1-20

Page 80

Brother DH4-B981 parts on page 80

Ref	Part number	Part name	Qty
	※	L※プレートLクミ
	※	サエプレートJL※ソウクミ
	S37730001	サエプレートJLクミ
	S35310001	ヌノサエプレートLクミ
	S35316001	カクコマサエイタ
	060020416	バインド M2X4
	※	サエプレートL
	S06696004	サラコネジ 3X6
	※	ヌノサエプレートJL※
	S35236000	マゲザガネ3.2
	S35235001	クランプサエピン
	021300302	ヨウナット3
	S37712001	クランプシャフト
	062401016	ナベコ 4X10
	S37711001	クランプシシクク
	048050142	トメワジクヨウC5
	S35233201	クランプレバーL
	018501236	アナボルト5X12
	S37694001	クランプアームL-J
	S40827001	クランプアームL-J-B
	014400532	アナカミ4X5
	S35348100	ヌノカイトL
	060350616	バインド M3.5X6
	S37714001	ホンヨウエキテンジイ
	S37713001	ホンヨウエキテンジク
	048050142	トメワジクヨウC5
	S37718000	ホウヨウクランプアーム
	016401032	アナボルト4X10
	S05356000	ホウヨウサエエ
	S08808001	ストツプネジ
	021660102	ナット1シュ3.18
	S37753001	ホンヨウエキテンジクハネ
	※	981ショウハースL1
	S04557000	バンタイPLT1M
	※	ハンマー
	※	ハンマー

Page 81 — AA2 . 付属装置関係 / Attachment set

Brother DH4-B981 parts on page 81

Ref	Part number	Part name	Qty
2-1-12	2-1-12	SCREW
2-1-11	2-1-11	WASHER
2-1-8	2-1-8	BRACKET
2-1-9	2-1-9	SPRING
2-1-10	2-1-10	SPRING
2-1-7	2-1-7	SCREW
2-1-3	2-1-3	SCREW
2-1-6	2-1-6	WASHER
2-1-5	2-1-5	WASHER
2-1-15	2-1-15	PIN
2-1-2	2-1-2	BRACKET
2-2	2-2	SCREW
2-1-14	2-1-14	PIN
2-1-19	2-1-19	TUBE
2-1-20	2-1-20	JOINT
2-1-1	2-1-1	BRACKET
2-1-18	2-1-18	TUBE
2-1-4	2-1-4	WASHER
2-1-21	2-1-21	CLIP
2-1-20	2-1-20	JOINT
2-1-17	2-1-17	TUBE
2-1-16	2-1-16	TUBE
2-1-13-1	2-1-13-1	JOINT
2-1-13-3	2-1-13-3	SCREW
2-1-13	2-1-13	CYLINDER
2-1-13-2	2-1-13-2	JOINT
2-12	2-12	SCREW
2-11	2-11	BRACKET
2-6	2-6	SCREW
2-7	2-7	BRACKET
2-8	2-8	SCREW
2-5	2-5	WASHER
2-9-4	2-9-4	WASHER
2-9-3	2-9-3	SCREW
2-9-2	2-9-2	BRACKET
2-9-1	2-9-1	BRACKET
2-4	2-4	SCREW
2-3	2-3	ARM
2-10-9	2-10-9	SPRING
2-10-8	2-10-8	SPRING
2-10-5	2-10-5	SCREW
2-10-2	2-10-2	SCREW
2-10-7	2-10-7	BRACKET
2-10-6	2-10-6	BRACKET
2-10-3-1	2-10-3-1	BRACKET
2-10-4	2-10-4	WASHER
2-10-3-2	2-10-3-2	BRACKET
2-10-3-3	2-10-3-3	TUBE
2-10-10	2-10-10	SCREW
2-10-1	2-10-1	BRACKET

Page 82

Brother DH4-B981 parts on page 82

Ref	Part number	Part name	Qty
2	S38584001	EXCHANGE PARTS SET, -2	1
2-1	S38585001	CYLINDER SUPPORT SET	1
2-1-1	S37744001	CYLINDER SUPPORT ASSY	1
2-1-2	S37717101	AUX. CLAMP LINK ASSY	1
2-1-3	S34922101	SHOULDER SCREW, M4	1
2-1-4	021400202	NUT, 2 M4	1
2-1-5	144504001	DISC, THREAD GUIDE	2
2-1-6	154562001	SPRING, B :PRE-TENSION	1
2-1-7	155510001	TENSION NUT	1
2-1-8	S51219001	TENSION RELEASE PLATE, ;GIMP	1
2-1-9	S37749001	SPRING, TWIST	1
2-1-10	S51220001	COLLAR	1
2-1-11	025040332	WASHER, PLAIN L 4	1
2-1-12	062401212	SCREW, PAN M4X12	1
2-1-13	S37737001	CYLINDER ASSY, 10X15J	1
2-1-13-1	S12150000	TUBE ELBOW, M-5HL-4	2
2-1-13-2	S35351001	CYLINDER ROD	1
2-1-13-3	S37866000	CLEVIS PIN	1
2-1-14	S35305001	ROD PIN, CYLINDER	1
2-1-15	048030342	RETAINING RING, E3	2
2-1-16	S37738000	AIR TUBE, 4X2.5-20 L=1350	1
2-1-17	S37773000	AIR TUBE, 4X2.5-21 L=1400	1
2-1-18	S37863000	AIR TUBE, 4X2.5-3J L=100	1
2-1-19	S37864000	AIR TUBE, 4X2.5-4J L=100	1
2-1-20	S12104000	UNION, Y 4	2
2-1-21	S04557000	BAND, PLT1M	1
2-2	062400812	SCREW, PAN M4X8	2
2-3	S37750001	TR TAKE-UP GUIDE, J ;GIMP	1
2-4	062400812	SCREW, PAN M4X8	2
2-5	S37697001	THREAD GUIDE, J ;GIMP	1
2-6	062400812	SCREW, PAN M4X8	1
2-7	S37752001	THROAT PLATE, 1.8-J	1
2-8	S35326001	SCREW, M3.5	1
2-9	S39109101	GIMP GUIDE ASSY, C-J	1
2-9-1	S37696101	GIMP GUIDE, C-J	1
2-9-2	S41252000	GIMP THREAD CLAMP PLATE, J	1
2-9-3	159113001	SHOULDER SCREW, SM3.18	1
2-9-4	S35118001	TENSION SPRING	1
2-10	S39108001	LEVER BRACKET ASSY, B	1
2-10-1	S37726001	T-TRIMMER LEVER BRACKET, B	1
2-10-2	062301016	SCREW, PAN M3X10	1
2-10-3	S47512001	LOWER THREAD PRESSER ASSY, J	1
2-10-3-1	S37720001	LOWER THREAD PRESSER	1
2-10-3-2	S37721001	LOWER THREAD PRESSER BRACKET	1
2-10-3-3	148407001	DOWEL PIN, L	1
2-10-4	021300302	NUT, 3 M3	1
2-10-5	S37774001	SCREW, SM2.38	1
2-10-6	S37725001	SPRING, COMPRESSION	1
2-10-7	S47932001	NUT, SM2.38-56	1
2-10-8	S37723001	MOVABLE KNIFE, B ;UPPER	1
2-10-9	105288001	SCREW, SM2.38	1
2-10-10	060350616	SCREW, BIND M3.5X6	1
2-11	S37693001	GUIDE PLATE, C	1
2-12	S06696004	SCREW, FLAT M3X6	2

Page 83 — AA3 . 付属装置関係 / Attachment set

Brother DH4-B981 parts on page 83

Ref	Part number	Part name	Qty
1-5	1-5	1-5
1-3	1-3	1-3
1-2	1-2	1-2
1-1	1-1	1-1
1-4	1-4	1-4
1-10	1-10	1-10
1-9	1-9	1-9
1-8	1-8	1-8
1-7	1-7	1-7
1-6	1-6	1-6
1-11	1-11	1-11
1-12	1-12	1-12

Page 84

Brother DH4-B981 parts on page 84

Ref	Part number	Part name	Qty
	S44275001	EXCHANGE PARTS ASSY, L1	1
	S37673101	MOVABLE KNIFE, R L1	1
	S37669101	MOVABLE KNIFE, L L1	1
	S37665000	THREAD HANDLER, L1	1
	S37661101	MOVABLE KNIFE DRIVING CAM, L1	1
	153787001	SCREW, SM2.38	2
	S37644101	NEEDLE PLATE, R L1	1
	S37643201	NEEDLE PLATE, L L1	1
	S37754001	WORK CLAMP, R-J L1	1
	S37755001	WORK CLAMP, L-J L1	1
	S43337000	HARNESS, 981 L1	1
	S37702001	HAMMER, S12	1
	S37704001	HAMMER, S16	1
	S44276001	EXCHANGE PARTS ASSY, L2	1
	S37674101	MOVABLE KNIFE, R L2	1
	S37671101	MOVABLE KNIFE, L L2	1
	S37666000	THREAD HANDLER, L2	1
	S37662101	MOVABLE KNIFE DRIVING CAM, L2	1
	153787001	SCREW, SM2.38	2
	S37648101	NEEDLE PLATE, R L2	1
	S37647101	NEEDLE PLATE, L L2	1
	S37690001	WORK CLAMP, R-J L2	1
	S37689001	WORK CLAMP, L-J L2	1
	S43339000	HARNESS, 981 L2	1
	S37704001	HAMMER, S16	1
	S37706001	HAMMER, S20	1
	S44277001	EXCHANGE PARTS ASSY, L3	1
	S37675101	MOVABLE KNIFE, R L3	1
	S37671101	MOVABLE KNIFE, L L3	1
	S37667000	THREAD HANDLER, L3	1
	S37663101	MOVABLE KNIFE DRIVING CAM, L3	1
	153787001	SCREW, SM2.38	2
	S37648101	NEEDLE PLATE, R L3	1
	S37647101	NEEDLE PLATE, L L3	1
	S37692001	WORK CLAMP, R-J L3	1
	S37691001	WORK CLAMP, L-J L3	1
	S43339000	HARNESS, 981 L3	1
	S37706001	HAMMER, S20	1
	S37708001	HAMMER, S24	1
	S44278001	EXCHANGE PARTS ASSY, L4	1
	S37676101	MOVABLE KNIFE, R L4	1
	S37672101	MOVABLE KNIFE, L L4	1
	S37668000	THREAD HANDLER, L4	1
	S37664101	MOVABLE KNIFE DRIVING CAM, L4	1
	153787001	SCREW, SM2.38	2
	S37650101	NEEDLE PLATE, R L4	1
	S37649101	NEEDLE PLATE, L L4	1
	S37758001	WORK CLAMP, R-J L4	1
	S37759001	WORK CLAMP, L-J L4	1
	S43340000	HARNESS, 981 L4	1
	S37708001	HAMMER, S24	1
	S42053001	HAMMER, S28	1

Page 85 — AA3 . 付属装置関係 / Attachment set

Brother DH4-B981 parts on page 85

Ref	Part number	Part name	Qty
1-5	1-5	Screw
1-3	1-3	Bracket
1-2	1-2	Lever
1-1	1-1	Lever
1-4	1-4	Plate
1-10	1-10	Cable
1-9	1-9	Bracket
1-8	1-8	Lever
1-7	1-7	Plate
1-11	1-11	Bracket
1-5	1-5	Plate
1-12	1-12	Bracket

Page 86

Brother DH4-B981 parts on page 86

Ref	Part number	Part name	Qty
	S44283001	<L5 28-32mm> EXCHANGE PARTS ASSY, L5	1
	S37674101	MOVABLE KNIFE, R L2	1
	S37670101	MOVABLE KNIFE, L L2	1
	S37666000	THREAD HANDLER, L2	1
	S37662101	MOVABLE KNIFE DRIVING CAM, L2	1
	153787001	SCREW, SM2.38	2
	S40822001	NEEDLE PLATE, R L5	1
	S40823001	NEEDLE PLATE, L L5	1
	S41483001	WORK CLAMP, R-J L5	1
	S41484001	WORK CLAMP, L-J L5	1
	S43341000	HAMNESS, 981 L5	1
	S37197001	HAMMER, 26	1
	S37199001	HAMMER, 30	1
	S44284001	<L6 32-36mm> EXCHANGE PARTS ASSY, L6	1
	S37675101	MOVABLE KNIFE, R L3	1
	S37671101	MOVABLE KNIFE, L L3	1
	S37667000	THREAD HANDLER, L3	1
	S37663101	MOVABLE KNIFE DRIVING CAM, L3	1
	153787001	SCREW, SM2.38	2
	S41479001	NEEDLE PLATE, R L6	1
	S41480001	NEEDLE PLATE, L L6	1
	S41485001	WORK CLAMP, R-J L6	1
	S41486001	WORK CLAMP, L-J L6	1
	S43342000	HAMNESS, 981 L6	1
	S37199001	HAMMER, 30	1
	S37201001	HAMMER, 34	1
	S44285001	<L7 36-40mm> EXCHANGE PARTS ASSY, L7	1
	S37675101	MOVABLE KNIFE, R L4	1
	S37672101	MOVABLE KNIFE, L L4	1
	S37668000	THREAD HANDLER, L4	1
	S37664101	MOVABLE KNIFE DRIVING CAM, L4	1
	153787001	SCREW, SM2.38	2
	S41479001	NEEDLE PLATE, R L7	1
	S41482001	NEEDLE PLATE, L L7	1
	S41487001	WORK CLAMP, R-J L7	1
	S41488001	WORK CLAMP, L-J L7	1
	S43343000	HAMNESS, 981 L7	1
	S37201001	HAMMER, 34	1
	S35093001	HAMMER, 38	1

Page 87 — AA4 . 付属装置関係 / Attachment set

Brother DH4-B981 parts on page 87

Ref	Part number	Part name	Qty
	11-1-1-4	11-1-1-4
	11-1-1-2	11-1-1-2
	11-1-2-2	11-1-2-2
	11-1-1-5	11-1-1-5
	11-1-2-4	11-1-2-4
	11-1-1-1	11-1-1-1
	11-1-2-3	11-1-2-3
	11-1-2-1	11-1-2-1
	11-1-2-5	11-1-2-5

Page 88

Brother DH4-B981 parts on page 88

Ref	Part number	Part name	Qty
	S43701001	<For waist belt presser, L3>	1
	S43702001	WORK CLAMP SET, L3W	1
	S43408001	WORK CLAMP ASSY, L-L3W	1
	S43450001	WORK CLAMP, L-L3W	1
	S35235001	CLAMP ARM, L-JW	1
	S35236000	SUPPORT PIN, CLAMP	1
	021300302	WASHER, BENDING 3.2	1
	S43703001	NUT, 3 M3	1
	S43409001	WORK CLAMP ASSY, R-L3W	1
	S43451001	WORK CLAMP, R-L3W	1
	S35235001	CLAMP ARM, R-JW	1
	S35236000	SUPPORT PIN, CLAMP	1
	021300302	WASHER, BENDING 3.2	1
	S43704001	NUT, 3 M3	1
	S43705001	<For waist belt presser, L4>	1
	S43410001	WORK CLAMP SET, L4W	1
	S43450001	WORK CLAMP ASSY, L-L4W	1
	S35235001	WORK CLAMP, L-L4W	1
	S35236000	CLAMP ARM, L-JW	1
	021300302	SUPPORT PIN, CLAMP	1
	S43706001	WASHER, BENDING 3.2	1
	S43411001	NUT, 3 M3	1
	S35235001	WORK CLAMP ASSY, R-L4W	1
	S35236000	WORK CLAMP, R-L4W	1
	021300302	CLAMP ARM, R-JW	1
	S43701001	SUPPORT PIN, CLAMP	1
	S43702001	WASHER, BENDING 3.2	1
	S43408001	NUT, 3 M3	1

Page 89 — Z. 付属品関係 / Accessories

Brother DH4-B981 parts on page 89

Ref	Part number	Part name	Qty
	19	Accessory
	8	Accessory
	9	Accessory
	21	Accessory
	5	Accessory
	18	Accessory
	50	Accessory
	53	Accessory
	52	Accessory
	51	Accessory
	82	Accessory
	81	Accessory
	7	Accessory
	4-11	Accessory
	4-11-1	Accessory
	4-11-2	Accessory
	4-11-3	Accessory
	4-12-1	Accessory
	4-12-1	Accessory
	4-3	Accessory
	4-2	Accessory
	4-1	Accessory
	4-13-1	Accessory
	4-9	Accessory
	4-13-2	Accessory
	55	Accessory
	54	Accessory
	60	Accessory
	59	Accessory
	61	Accessory
	83	Accessory
	62	Accessory
	57	Accessory
	68	Accessory
	63	Accessory
	56	Accessory
	67	Accessory
	65	Accessory
	66	Accessory
	64	Accessory
	69	Accessory
	70	Accessory
	58	Accessory
	-02	ジーンズ仕様 / For -02, Jeans specification
	-52	フラインデクサー仕様 / For -52, Fly indexer specification
	3-3	Accessory
	71	Accessory
	72	Accessory
	73	Accessory
	75	Accessory
	74	Accessory
	77	Accessory
	76	Accessory
	-00	上糸切り用 / For -00, Upper thread trimmer
	-01	上下糸切り用 / For -01, Upper & lower thread trimmer
	3-1	Accessory
	3-2	Accessory
	4-12-1	Accessory
	4-7-1	Accessory
	4-7	Accessory
	4-12-5	Accessory
	4-12-2	Accessory
	4-12-4	Accessory
	4-5	Accessory
	4-12-5	Accessory
	4-12-3	Accessory
	4-10	Accessory
	4-13-3	Accessory
	4-8-2	Accessory
	4-4	Accessory
	4-8-3	Accessory
	4-4-1	Accessory
	4-4-2	Accessory
	4-8-1	Accessory
	20	Accessory
	79	Accessory
	80	Accessory

Page 90 — Z. 付属 品 関係 / Accessories

Brother DH4-B981 parts on page 90

Ref	Part number	Part name	Qty
	S35092001	<00, 上糸切り用>
	S37197001	<01, 下糸切り用>
	S37704001	ハンマー-20
	S37706001	ハンマー-26
	S37708001	<02, ジーンズ仕様>
	S42053001	<-52, フラインデクサー仕様>
	S37199001	ハンマー-S16
	S37704001	ハンマー-S20
	S37706001	ハンマー-S24
	S37708001	ハンマー-S28
	S42053001	ハンマー-30
	S37199001	ハンマー-34
	S35093001	ハンマー-38
	S02766209	1 イタダケ イクミ3D	1
	S51283001	3 ウケザラ	3
	150182000	3 スプールマット	3
	S51282001	3 スプールクツシヨン	3
	S02775001	1 パイプネジセットA	1
	150206002	1 ヒラザガネ16	1
	S38648001	1 6カクナットU5/8	1
	156112003	1 コラムパイプD	1
	150173003	1 コラムジョイント	1
	S40640001	1 コラムパイプキャップツキ	1
	150174000	1 コラムキャップ	1
	S21798001	3 スプールネジセット	3
	150179002	3 スプールシクB	3
	028050246	3 バネガネ2-5	3
	021500106	1 シュナット5	1
	150188009	1 スプールホルダーサポートA	1
	S02779009	1 スプールホルダー-3	1
	S02788009	1 スレッドハンガーアツシ3	1
	S02789009	1 スレッドハンガー-3	1
	150183000	3 イトカケハンガーダイ	3
	142990001	3 スレッドブツシユ	3
	S40641001	1 スプールネジクミセット	1
	021500106	1 シュナット5	1
	062501406	1 ナベコM5X14	1
	S59931001	1 ナベコM5X32	1
	062501406	2 ナベコM5X14	2
	S30302000	1 ホリフクロス	1
	026050136	2 ヒラザガネ5	2
	S40644001	1 ホルダーツキネジセット	1
	021500106	1 シュナット5	1
	031452206	1 マルモク45X22	1
	062501006	1 ナベコ5X10	1
	S34915000	1 イトトン	1
	149796001	1 ゴムホースカクブツキ	1
	S35133116	<00, 上糸切り用>	1
	S35133114	<01, 上下糸切り用>	1
	S35133118	<02, ジーンズ仕様>	1
	118837001	1 ネジマワシ3.4X70	1
	101572101	1 ネジマワシ5.5X190	1
	107779001	1 スパナ6X7	1

Page 91 — Z. 付属品関係 / Accessories

Brother DH4-B981 parts on page 91

Ref	Part number	Part name	Qty
	19	ACCESSORIES
	8	ACCESSORIES
	9	ACCESSORIES
	21	ACCESSORIES
	5	ACCESSORIES
	50	ACCESSORIES
	18	ACCESSORIES
	7	ACCESSORIES
	4-11	ACCESSORIES
	4-11-1	ACCESSORIES
	4-11-2	ACCESSORIES
	4-11-3	ACCESSORIES
	4-12-1	ACCESSORIES
	4-7	ACCESSORIES
	4-7-1	ACCESSORIES
	4-12-5	ACCESSORIES
	4-12-2	ACCESSORIES
	4-12-1	ACCESSORIES
	4-8	ACCESSORIES
	4-12-4	ACCESSORIES
	6	ACCESSORIES
	4-8-1	ACCESSORIES
	4-12-1	ACCESSORIES
	4-3	ACCESSORIES
	4-5	ACCESSORIES
	4-2	ACCESSORIES
	4-1	ACCESSORIES
	4-12-5	ACCESSORIES
	4-13-1	ACCESSORIES
	4-12-3	ACCESSORIES
	4-9	ACCESSORIES
	4-13-2	ACCESSORIES
	4-13-3	ACCESSORIES
	4-8-2	ACCESSORIES
	4-4-1	ACCESSORIES
	4-4	ACCESSORIES
	4-4-2	ACCESSORIES
	53	ACCESSORIES
	52	ACCESSORIES
	51	ACCESSORIES
	82	ACCESSORIES
	81	ACCESSORIES
	78	ACCESSORIES
	55	ACCESSORIES
	54	ACCESSORIES
	60	ACCESSORIES
	59	ACCESSORIES
	61	ACCESSORIES
	62	ACCESSORIES
	63	ACCESSORIES
	57	ACCESSORIES
	56	ACCESSORIES
	68	ACCESSORIES
	67	ACCESSORIES
	65	ACCESSORIES
	66	ACCESSORIES
	71	ACCESSORIES
	72	ACCESSORIES
	20	ACCESSORIES
	73	ACCESSORIES
	77	ACCESSORIES
	75	ACCESSORIES
	74	ACCESSORIES
	76	ACCESSORIES
	79	ACCESSORIES
	80	ACCESSORIES
	-02	ジーンズ仕様 / For -02, jeans specification
	-52	フライインデクサー仕様 / For -52, Fly indexer specification
	-00	上糸切り用 / For -00, Upper thread trimmer
	-01	上下糸切り用 / For -01, Upper & lower thread trimmer
	3-3	ACCESSORIES
	3-1	ACCESSORIES
	3-2	ACCESSORIES

Page 92

Brother DH4-B981 parts on page 92

Ref	Part number	Part name	Qty
11	100887001	スパナ8X9	1
12	107780001	スパナ10X12	1
13	142002001	6カクホウ スパナ 2	1
14	142721001	6カクホウ スパナ 3	1
15	118064001	6カクホウ スパナ 4	1
16	150335001	6カクホウ スパナ 5	1
17	115157001	6カクホウ スパナ 6	1
18	114483002	ボイオイラーグミ	1
19	117466000	ピンセット	1
20	S55663001	オイルタンククミ	1
21	140342001	ソケットレンチクミ	1
22	018084032	アナホルト 8X40	4
23	028080242	ハネザガネ 2-8	4
24	025080232	ヒラザガネ チュウ8	4
25	159150000	ゴムセン 20.5	4
50	S43729000	オニメナット M6X20	8
51	018065022	アナホルト 6X50	4
52	028060242	ハネザガネ 2-6	4
53	122257001	サガネ	4
54	S43715001	モータシンイタ	1
55	S43716001	Lガタホルトシンイタ	1
56	018065022	アナホルト 6X50	4
57	028060242	ハネザガネ 2-6	4
58	152861101	モータシンイタ	1
59	152865001	モータシンイタジク	1
60	048100142	トメワシヨウC10	2
61	152863001	LガタホルトM10	1
62	021100202	ナツト2シュ10	2
63	025100132	ヒラザガネ ネジヨウ10	2
64	028100332	クツシヨンカラー	4
65	152863001	クツシヨン	4
66	152864000	ヒラザガネ ネジヨウ14	8
67	025800332	ヒラザガネ ネジヨウ14	8
68	017062503	6カクホルト6X25	4
69	021060106	1シュナツト6	4
70	028060242	ハネザガネ 2-6	4
71	S43714000	モータカバー-981	1
72	S43713001	モータウシロカバーササエ	1
73	052400806	ハコバネネジ 4X8	3
74	101118001	マルモクネジ 4.5X20	2
75	025050232	ヒラザガネ ネジウ5	2
76	S38041000	モータプーリ	1
77	105073001	アタマツキメネジ 5.95	1
78	032461606	マルモクネジ 4.5X16	2+
79	S08030000	GEユーズ 5AFB	1
80	153420000	ヒューズ 6A	1
81	200190001	ステツプル	1
82	032422505	マルモクネジ 4.1X25	4+
83	025060332	ヒラザガネ 16	4

Page 93 — Sp1. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Brother DH4-B981 parts on page 93

Ref	Part number	Part name	Qty
AA1-1	S44238-001	クミカエヒンセット (L1) EXCHANGE PARTS SET, L1	1
AA1-1	S44239-001	クミカエヒンセット (L2) EXCHANGE PARTS SET, L2	1
AA1-1	S44240-001	クミカエヒンセット (L3) EXCHANGE PARTS SET, L3	1
AA1-1	S44271-001	クミカエヒンセット (L4) EXCHANGE PARTS SET, L4	1
AA1-1-1	S38576-401	L1 プレートRクミ L1 PLATE ASSY, R	1
AA1-1-1	S38578-401	L2 プレートRクミ L2 PLATE ASSY, R	1
AA1-1-1	S38580-401	L3 プレートRクミ L3 PLATE ASSY, R	1
AA1-1-1	S38582-401	L4 プレートRクミ L4 PLATE ASSY, R	1
AA1-1-1-1	S37756-401	オサエプレート JR1 ソウクミ WORK CLAMP PLATE SET, JR1	1
AA1-1-1-1	S37727-401	オサエプレート JR2 ソウクミ WORK CLAMP PLATE SET, JR2	1
AA1-1-1-1	S37733-401	オサエプレート JR3 ソウクミ WORK CLAMP PLATE SET, JR3	1
AA1-1-1-1	S37757-401	オサエプレート JR4 ソウクミ WORK CLAMP PLATE SET, JR4	1
AA1-1-1-2	S37644-101	ハリイタ L1R NEEDLE PLATE, R L1	1
AA1-1-1-2	S37646-101	ハリイタ L2R NEEDLE PLATE, R L2	1
AA1-1-1-2	S37648-101	ハリイタ L3R NEEDLE PLATE, R L3	1
AA1-1-1-2	S37650-101	ハリイタ L4R NEEDLE PLATE, R L4	1
AA1-1-1-4	S37754-001	ヌノオサエ R-JL1 WORK CLAMP, R-J L1	1
AA1-1-1-4	S37690-001	ヌノオサエ R-JL2 WORK CLAMP, R-J L2	1
AA1-1-1-4	S37692-001	ヌノオサエ R-JL3 WORK CLAMP, R-J L3	1
AA1-1-1-4	S37758-001	ヌノオサエ R-JL4 WORK CLAMP, R-J L4	1
AA1-1-2	S37673-101	イドウハ L1R MOVABLE KNIFE, R L1	1
AA1-1-2	S37674-101	イドウハ L2R MOVABLE KNIFE, R L2	1
AA1-1-2	S37675-101	イドウハ L3R MOVABLE KNIFE, R L3	1
AA1-1-2	S37676-101	イドウハ L4R MOVABLE KNIFE, R L4	1
AA1-1-3	S37669-101	イドウハ L1L MOVABLE KNIFE, L L1	1
AA1-1-3	S37670-101	イドウハ L2L MOVABLE KNIFE, L L2	1
AA1-1-3	S37671-101	イドウハ L3L MOVABLE KNIFE, L L3	1
AA1-1-3	S37672-101	イドウハ L4L MOVABLE KNIFE, L L4	1
AA1-1-4	S37665-000	イトサバキ L1 THREAD HANDLER, L1	1
AA1-1-4	S37666-000	イトサバキ L2 THREAD HANDLER, L2	1
AA1-1-4	S37667-000	イトサバキ L3 THREAD HANDLER, L3	1
AA1-1-4	S37668-000	イトサバキ L4 THREAD HANDLER, L4	1
AA1-1-5	S37661-101	イドウハクドウカムL1 MOVABLE KNIFE DRIVING CAM, L1	1
AA1-1-5	S37662-101	イドウハクドウカムL2 MOVABLE KNIFE DRIVING CAM, L2	1
AA1-1-5	S37663-101	イドウハクドウカムL3 MOVABLE KNIFE DRIVING CAM, L3	1
AA1-1-5	S37664-101	イドウハクドウカムL4 MOVABLE KNIFE DRIVING CAM, L4	1
AA1-1-2	S38577-201	L1 プレート Lクミ L1 PLATE ASSY, L	1
AA1-1-2	S38579-201	L2 プレート Lクミ L2 PLATE ASSY, L	1
AA1-1-2	S38581-201	L3 プレート Lクミ L3 PLATE ASSY, L	1
AA1-1-2	S38583-201	L4 プレート Lクミ L4 PLATE ASSY, L	1
AA1-1-2-1	S37731-301	オサエプレート JL1 ソウクミ WORK CLAMP PLATE SET, JL1	1
AA1-1-2-1	S37728-301	オサエプレート JL2 ソウクミ WORK CLAMP PLATE SET, JL2	1
AA1-1-2-1	S37735-301	オサエプレート JL3 ソウクミ WORK CLAMP PLATE SET, JL3	1
AA1-1-2-1	S37732-301	オサエプレート JL4 ソウクミ WORK CLAMP PLATE SET, JL4	1
AA1-1-2-1-2	S37643-201	ハリイタ L1L NEEDLE PLATE, L L1	1
AA1-1-2-1-2	S37645-201	ハリイタ L2L NEEDLE PLATE, L L2	1
AA1-1-2-1-2	S37647-201	ハリイタ L3L NEEDLE PLATE, L L3	1
AA1-1-2-1-2	S37649-101	ハリイタ L4L NEEDLE PLATE, L L4	1
AA1-1-2-1-4	S37755-001	ヌノオサエ L-JL1 WORK CLAMP, L-J L1	1
AA1-1-2-1-4	S37689-001	ヌノオサエ L-JL2 WORK CLAMP, L-J L2	1
AA1-1-2-1-4	S37691-001	ヌノオサエ L-JL3 WORK CLAMP, L-J L3	1
AA1-1-2-1-4	S37759-001	ヌノオサエ L-JL4 WORK CLAMP, L-J L4	1
AA1-1-3	S43337-000	981 ショウハーネス L1 HARNESS, 981 L1	1
AA1-1-3	S43338-000	981 ショウハーネス L2 HARNESS, 981 L2	1
AA1-1-3	S43339-000	981 ショウハーネス L3 HARNESS, 981 L3	1
AA1-1-3	S43340-000	981 ショウハーネス L4 HARNESS, 981 L4	1
AA1-1-5	S37702-001	ハンマー S12 HAMMER, S12	1
AA1-1-5	S37704-001	ハンマー S16 HAMMER, S16	1
AA1-1-5	S37706-001	ハンマー S20 HAMMER, S20	1
AA1-1-5	S37708-001	ハンマー S24 HAMMER, S24	1
AA1-1-6	S37704-001	ハンマー S16 HAMMER, S16	1
AA1-1-6	S37706-001	ハンマー S20 HAMMER, S20	1
AA1-1-6	S37708-001	ハンマー S24 HAMMER, S24	1
AA1-1-6	S42053-001	ハンマー S28 HAMMER, S28	1

Page 94 — Sp1. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Brother DH4-B981 parts on page 94

Ref	Part number	Part name	Qty
	S44272-001	クミカエピンセット (L5) EXCHANGE PARTS SET, L5
	S44273-001	クミカエピンセット (L6) EXCHANGE PARTS SET, L6
	S44274-001	クミカエピンセット (L7) EXCHANGE PARTS SET, L7
	S41470-201	L5 プレート Rクミ L5 PLATE ASSY, R
	S41472-201	L6 プレート Rクミ L6 PLATE ASSY, R
	S41474-201	L7 プレート Rクミ L7 PLATE ASSY, R
	S40830-101	オサエプレート JR5ソウクミ WORK CLAMP PLATE SET, JR5
	S41489-101	オサエプレート JR6ソウクミ WORK CLAMP PLATE SET, JR6
	S41491-101	オサエプレート JR7ソウクミ WORK CLAMP PLATE SET, JR7
	S40822-001	ハリイタ L5R NEEDLE PLATE, R L5
	S41479-001	ハリイタ L6R NEEDLE PLATE, R L6
	S41481-001	ハリイタ L7R NEEDLE PLATE, R L7
	S41483-001	ヌノサエ R-JL5 WORK CLAMP, R-J L5
	S41485-001	ヌノサエ R-JL6 WORK CLAMP, R-J L6
	S41487-001	ヌノサエ R-JL7 WORK CLAMP, R-J L7
	S37574-101	イトウハ L2R MOVABLE KNIFE, R L2
	S37675-101	イトウハ L3R MOVABLE KNIFE, R L3
	S37676-101	イトウハ L4R MOVABLE KNIFE, R L4
	S37670-101	イトウハ L2L MOVABLE KNIFE, L L2
	S37671-101	イトウハ L3L MOVABLE KNIFE, L L3
	S37672-101	イトウハ L4L MOVABLE KNIFE, L L4
	S37666-000	イトサバキ L3 THREAD HANDLER, L2
	S37667-000	イトサバキ L3 THREAD HANDLER, L3
	S37668-000	イトサバキ L4 THREAD HANDLER, L4
	S37662-101	イドウハドウカム L2 MOVABLE KNIFE DRIVING CAM, L2
	S37663-101	イドウハドウカム L3 MOVABLE KNIFE DRIVING CAM, L3
	S37664-101	イドウハドウカム L4 MOVABLE KNIFE DRIVING CAM, L4
	S41471-101	L5 プレート Lクミ L5 PLATE ASSY, L
	S41473-101	L6 プレート Lクミ L6 PLATE ASSY, L
	S41475-101	L7 プレート Lクミ L7 PLATE ASSY, L
	S40831-101	オサエプレート JL5ソウクミ WORK CLAMP PLATE SET, JL5
	S41490-101	オサエプレート JL6ソウクミ WORK CLAMP PLATE SET, JL6
	S41492-101	オサエプレート JL7ソウクミ WORK CLAMP PLATE SET, JL7
	S40823-001	ハリイタ L5L NEEDLE PLATE, L L5
	S41480-001	ハリイタ L6L NEEDLE PLATE, L L6
	S41482-001	ハリイタ L7L NEEDLE PLATE, L L7
	S41484-001	ヌノサエ L-JL5 WORK CLAMP, L-J L5
	S41486-001	ヌノサエ L-JL6 WORK CLAMP, L-J L6
	S41488-001	ヌノサエ L-JL7 WORK CLAMP, L-J L7
	S43341-000	981 ショウハーネス L5 HARNESS, 981 L5
	S43342-000	981 ショウハーネス L6 HARNESS, 981 L6
	S43343-000	981 ショウハーネス L7 HARNESS, 981 L7
	S37197-001	ハンマー 26 HAMMER, 26
	S37199-001	ハンマー 30 HAMMER, 30
	S37201-001	ハンマー 34 HAMMER, 34
	S37199-001	ハンマー 30 HAMMER, 30
	S37201-001	ハンマー 34 HAMMER, 34
	S35093-001	ハンマー 38 HAMMER, 38

Page 95 — Sp2. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Brother DH4-B981 parts on page 95

Ref	Part number	Part name	Qty
	S35455-101	Work clamp (F2-80-1-4, 81-1-4)
	S39929-001	Work clamp (F2-80-1-4, 81-1-4)
	S35197-001	Work clamp (F2-80-1-4, 81-1-4)
	S39931-001	Work clamp (F2-80-1-4, 81-1-4)
	S35454-101	Work clamp (F2-80-1-4, 81-1-4)
	S39930-001	Work clamp (F2-80-1-4, 81-1-4)
	S35198-001	Work clamp (F2-80-1-4, 81-1-4)
	S39932-001	Work clamp (F2-80-1-4, 81-1-4)
	S35453-001	Work clamp (F2-80-1-4, 81-1-4)
	S35200-101	Work clamp (F2-80-1-4, 81-1-4)
	S37679-001	Work clamp (F2-80-1-4, 81-1-4)
	S37677-101	Work clamp (F2-80-1-4, 81-1-4)
	S35452-001	Work clamp (F2-80-1-4, 81-1-4)
	S35199-101	Work clamp (F2-80-1-4, 81-1-4)
	S37680-001	Work clamp (F2-80-1-4, 81-1-4)
	S37678-101	Work clamp (F2-80-1-4, 81-1-4)
	S37755-001	Work clamp (F3-80-2-4, 81-2-4)
	S37689-001	Work clamp (F3-80-2-4, 81-2-4)
	S37691-001	Work clamp (F3-80-2-4, 81-2-4)
	S37759-001	Work clamp (F3-80-2-4, 81-2-4)
	S37754-001	Work clamp (F3-80-2-4, 81-2-4)
	S37690-001	Work clamp (F3-80-2-4, 81-2-4)
	S37692-001	Work clamp (F3-80-2-4, 81-2-4)
	S37758-001	Work clamp (F3-80-2-4, 81-2-4)
	S41484-001	Work clamp (F3-80-2-4, 81-2-4)
	S41486-001	Work clamp (F3-80-2-4, 81-2-4)
	S41488-001	Work clamp (F3-80-2-4, 81-2-4)
	S43408-001	Work clamp (F3-80-2-4, 81-2-4)
	S43410-001	Work clamp (F3-80-2-4, 81-2-4)
	S41483-001	Work clamp (F3-80-2-4, 81-2-4)
	S41485-001	Work clamp (F3-80-2-4, 81-2-4)
	S41487-001	Work clamp (F3-80-2-4, 81-2-4)
	S43409-001	Work clamp (F3-80-2-4, 81-2-4)
	S43411-001	Work clamp (F3-80-2-4, 81-2-4)

Page 96 — Sp3. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Brother DH4-B981 parts on page 96

Ref	Part number	Part name	Qty
	S35308-101(L)	S35308-101(L)
	S35307-101(SL)	S35307-101(SL)
	S37683-101(L-50)	S37683-101(L-50)
	S37681-101(SL-50)	S37681-101(SL-50)
	S35309-101(R)	S35309-101(R)
	S35306-101(SR)	S35306-101(SR)
	S37684-101(R-50)	S37684-101(R-50)
	S37682-101(SR-50)	S37682-101(SR-50)
	S37643-201(L1L)	S37643-201(L1L)
	S37645-201(L2L)	S37645-201(L2L)
	S37647-101(L3L)	S37647-101(L3L)
	S37649-101(L4L)	S37649-101(L4L)
	S37644-101(L1R)	S37644-101(L1R)
	S37646-101(L2R)	S37646-101(L2R)
	S37648-101(L3R)	S37648-101(L3R)
	S37650-101(L4R)	S37650-101(L4R)
	S40823-001(L5L)	S40823-001(L5L)
	S41480-001(L6L)	S41480-001(L6L)
	S41482-001(L7L)	S41482-001(L7L)
	S40822-001(L5R)	S40822-001(L5R)
	S41479-001(L6R)	S41479-001(L6R)
	S41481-001(L7R)	S41481-001(L7R)
	S37211-001	S37211-001	10
	S37210-001	S37210-001	12
	S37209-001	S37209-001	14
	S37208-001	S37208-001	16
	S37194-001	S37194-001	18
	S35092-001	S35092-001	20
	S37195-001	S37195-001	22
	S37196-001	S37196-001	24
	S37197-001	S37197-001	26
	S37198-001	S37198-001	28
	S37199-001	S37199-001	30
	S37200-001	S37200-001	32
	S37201-001	S37201-001	34
	S37202-001	S37202-001	36
	S35093-001	S35093-001	38
	S35479-001	S35479-001	50
	S37701-001	S37701-001	S10
	S37702-001	S37702-001	S12
	S37703-001	S37703-001	S14
	S37704-001	S37704-001	S16
	S37705-001	S37705-001	18
	S37706-001	S37706-001	S20
	S37707-001	S37707-001	S22
	S37708-001	S37708-001	S24
	S37709-001	S37709-001	S26
	S42053-001	S42053-001	S28

Page 97 — Sp4. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Brother DH4-B981 parts on page 97

Ref	Part number	Part name	Qty
	S35439-101	メス / Knife (H-34-1, 34-2)
	S35437-101	メス / Knife (H-34-1, 34-2)
	S35480-101	メス / Knife (H-34-1, 34-2)
	S35482-101	メス / Knife (H-34-1, 34-2)
	S55247-001	メス / Knife (H-34-1, 34-2)
	S35408-101 (S)	メス / Knife (H-34-1, 34-2)
	S35438-101	メス / Knife (H-34-1, 34-2)
	S35436-101	メス / Knife (H-34-1, 34-2)
	S35481-101	メス / Knife (H-34-1, 34-2)
	S35483-101	メス / Knife (H-34-1, 34-2)
	S35409-101 (S)	メス / Knife (H-34-1, 34-2)
	S43336-000	仕様
	S43337-000	部品コード
	S43338-000	部品コード
	S43339-000	部品コード
	S43340-000	部品コード
	S43341-000	部品コード
	S43342-000	部品コード
	S43343-000	部品コード
	S43360-000	部品コード
	S43361-000	部品コード
	S43362-000	部品コード
	S43363-000	部品コード
	S43364-000	部品コード
	S43365-000	部品コード
	S43366-000	部品コード

Page 99 — 索引/INDEX

Brother DH4-B981 parts on page 99

Ref	Part number	Part name	Qty
	002300403	2-11	72
	003300812	1-40	68
	003300812	1-42	68
	004300513	79	4
	004400603	2-3	72
	004401003	1-35	44
	008400604	1-33	50
	012400636	33	40
	012500536	86	24
	01400632	56	2
	01400632	65-2	8
	01400632	13	10
	01400632	13	10
	01400632	1-6	12
	01400632	36	17
	01400632	17	22
	01400632	68	22
	01400632	90	24
	01400632	97	26
	01400632	9	26
	01400632	12	26
	01400632	14	26
	01400632	16	20
	014060832	94	44
	01400632	1-9	15
	01400632	1-2-6	48
	01401622	40	1-2-6
	01401622	1-7	68
	01401622	1-11	68
	01401622	1-22	68
	01401622	1-28	68
	01401622	22	6
	01401622	46	22
	01401636	18	12
	01401636	46	22
	01401636	30	22
	01401636	32	21
	01401636	33	22
	018061622	88	11
	018062022	11	10
	018062522	27	26
	018065022	51	88
	018081622	56	88
	018084032	2	28
	018084032	23	88
	01809632	26	44
	01809636	1-26	32
	01830036	9-10	51
	018301236	10
	018301236	1-5	6
	018301632	23-1	10
	018301632	23-2	10
	018301632	1-5	2
	018400632	68	8
	018400636	14	2
	018400636	1-4	12
	018400636	1-14	12
	018400636	1-22	22
	018400636	1-28	22
	018400636	1-20	44
	018401622	94	48
	018401622	1-9	25
	018401622	1-2-6	26
	018401622	1-7	68
	018401622	1-11	68
	018401622	1-22	68
	018401622	1-28	68
	018401622	22	6
	018401622	46	22
	018401636	18	12
	018401636	46	22
	018401636	30	22
	018401636	32	21
	018401636	33	22
	018501036	33	19
	018501222	1-26	20
	018501236	80-1-13	15
	018501236	81-1-13	16
	018501236	80-2-13	18
	018501236	81-2-13	19
	018501236	1-1-1-13	74
	018501236	1-2-1-13	76
	014760622	10	54
	014760622	54	22
	014760622	62	22
	016061031	14	3
	016061031	3	26
	017062503	68	88
	017401415	63	14
	018061022	1-6	50
	018061022	11	56
	018061222	77	22
	018061236	60	2
	018061622	2	43
	018061622	88	11
	018062022	11	10
	018062522	27	26
	018065022	51	88
	018081622	56	88
	018084032	2	28
	018084032	23	88
	01809632	26	44
	01809636	1-26	32
	01830036	9-10	51
	018301236	10
	018301236	1-5	6
	018301632	23-1	10
	018301632	23-2	10
	018301632	1-5	2
	018400632	68	8
	018400636	14	2
	018400636	1-4	12
	018400636	1-14	12
	018400636	1-22	22
	018400636	1-28	22
	018400636	1-20	44
	018401622	94	48
	018401622	1-9	25
	018401622	1-2-6	26
	018401622	1-7	68
	018401622	1-11	68
	018401622	1-22	68
	018401622	1-28	68
	018401622	22	6
	018401622	46	22
	018401636	18	12
	018401636	46	22
	018401636	30	22
	018401636	32	21
	018401636	33	22
	018501036	33	19
	018501222	1-26	20
	018501236	80-1-13	15
	018501236	81-1-13	16
	018501236	80-2-13	18
	018501236	81-2-13	19
	018501236	1-1-1-13	74
	018501236	1-2-1-13	76
	014760622	10	54
	014760622	54	22
	014760622	62	22
	016061031	14	3
	016061031	3	26
	017062503	68	88
	017401415	63	14
	018061022	1-6	50
	018061022	11	56
	018061222	77	22
	018061236	60	2
	018061622	2	43

Page 100 — 索 引 / INDEX

Brother DH4-B981 parts on page 100

Ref	Part number	Part name	Qty
14	048030342	43
34	048030342	78
34	048030342	78
58	048030342	4
58	048030342	13
60	048030342	52
68	048030342	1-18
78	048030342	2-1-15
16	048050142	80-1-11
16	048050142	81-1-11
18	048050142	81-2-11
19	048050142	81-2-11
74	048050142	1-1-1-11
76	048050142	1-2-1-11
76	048050142	1-2-4
14	048050342	1-4
14	048050342	2-4
48	048050342	4
72	048050346	2-15
22	048050346	57
22	048060342	65
2	048060342	45
12	048100142	11-5
12	048100142	23-5
88	048100142	60
28	048120142	1-5
28	048120142	12-5
68	048120142	1-9
28	048150142	11
28	048150142	2
22	048160242	66
12	048260242	11-3
12	048260242	23-3
24	048280242	93
28	048280242	1-3
28	048280242	12-4
28	048320242	7
10	048350242	17
72	052400606	2-16
88	052400806	73
16	060020416	80-1-1-2
16	060020416	81-1-1-2
18	060020416	80-2-1-2
19	060020416	81-2-1-2
74	060020416	1-1-1-1-2
76	060020416	1-2-1-1-2
30	060300416	60
34	060300416	39-1
38	060300416	44
70	060300416	1-47
70	060300416	1-52
72	060300616	1-11
34	060350616	39-2
74	060350616	1-1-1-17
76	060350616	1-2-1-17
78	060350616	2-10-10
66	060400416	50
70	060400416	1-48
70	060400416	1-53
14	060400516	30
46	060400516	25
68	060400516	1-37
68	060400516	1-44
74	060400816	1-1-25
72	060400816	1-13
44	060630312	1-39
44	061300418	1-24
44	062020416	1-30-5
44	062260406	1-15
44	062260612	1-7
22	062300418	2-28
24	062300418	2-29
26	062300418	25-5
74	062300512	1-1-18
44	062300512	4
44	062300612	1-29
30	062300612	13
2	062300616	62-3
66	062300805	14-3
32	062301016	11
78	062301016	2-10-2
72	062301205	2-6
68	062301414	1-24
68	062301414	1-36
66	062301606	8
34	062350518	83-2
34	062350518	83-1
70	062350518	1-59
38	062350616	4
38	062350616	37
38	062350616	46
40	062350616	7
40	062350616	27
58	062350616	41
30	062351615	3
40	062400612	37
40	062400612	39
26	062400812	40
26	062400812	48
26	062400812	55
34	062400812	85
40	062400812	3
40	062400812	29
40	062400812	47
40	062400812	49
40	062400812	51
42	062400812	53
42	062400812	56
42	062400812	58
58	062400812	69
58	062400812	3
66	062400812	15
66	062400812	18
66	062400812	22
66	062400812	30
78	062400812	31
78	062400812	33
78	062400812	2-2
58	062400812	2-4
16	062400812	2-6
16	062400816	37
16	062401016	80-1-9
16	062401016	80-1-9
19	062401016	80-2-9
48	062401016	81-2-9
42	062401212	1-1-9
66	062401212	1-2-1-9
78	062401212	57
78	062401212	42
12	062401212	63
12	062401212	1-12
30	062401416	63
70	062401416	1-75
62	062401416	42-3-2
62	062401416	42-3-5
62	062401416	42-3-2
64	062401416	42-3-5
2	062500804	6
4	062500804	96
2	062500812	54
19	062501006	4-13-3
11	062501202	4
10	062501202	10
36	062501406	4-12-2
19	062501406	4-12-4
89	062670616	45
72	062670616	7
15	062681412	7
88	072620180	16
86	072620260	2
12	076000800	11-2
12	076000800	23-2
28	076001800	1-4
28	076001800	12-3
24	076001800	92
12	076001850	33
10	076002450	10
28	076002800	6
28	076003850	1
32	076003850	93
28	076202850	5
51	087310815	3-6
51	087311015	3-7
50	0A4301005	1-39-18
56	0A4400605	42
51	0A4400805	3-9
50	0A5400806	1-5
50	0A5401006	1-13
50	0A5401006	1-14
52	0A5401605	H-8-4
52	0A5401605	H-9-4
50	0A5403006	1-10
50	0A5403006	1-12
88	100257010	93-3
88	100887001	11
88	101118001	74
86	101572101	9
14	102630001	1-2
14	102630001	2-2
10	102843004	23
44	104336003	1-37
88	105079001	77
38	105248003	50
30	105288001	37
78	106129002	2-10-9
4	106129002	93-1-5
4	106129002	93-4
2	107017002	39
4	107779001	10
88	107780001	12
14	109763002	1-3
14	109763002	2-3
38	112754001	52
38	113006001	14
88	114483002	18
2	114486002	53
88	115157001	17
2	115947001	19
10	116920001	21
28	116920001	11
38	117150001	36
88	117466000	19
4	117936001	89
72	118064001	2-17
88	118837001	15
88	122257001	53
12	128652001	1-5-3
24	128652001	84-2
88	140342001	21
6	140553102	18
70	140682001	1-60-1-2
10	141276001	22

Page 101

Brother DH4-B981 parts on page 101

Ref	Part number	Part name	Qty
	141514002	53
	141542001	1-20
	141542001	10
	141542001	1-1-10
	142002001	13
	142627001	34
	142642001	46
	142721001	14
	142990001	4-11-3
	143196001	39
	143196001	40
	143196001	45
	144103009	19
	144504001	70
	144504001	41
	144504001	60
	144504001	2-1-5
	145448001	11
	146124001	1-10
	146924000	6-2
	146926001	6
	146927001	6-1
	148294001	47
	148294001	115-3
	148294001	2-10-3-3
	148707001	19
	148782001	101
	149267000	5
	149547000	26
	149706001	6
	150173003	4-6
	150174000	4-7-1
	150179002	4-8-1
	150182000	4-2
	150183000	4-11-2
	150188009	4-9
	150206002	4-4-1
	150335001	16
	150592001	1-26
	150607000	75
	150644009	32
	150756000	92
	151998000	20
	152861101	58
	152862001	59
	152863001	65
	152864000	66
	152865201	61
	152889001	44
	152904001	1-36
	152948001	35
	152969001	40
	153098000	93-2
	153219001	1-18
	153242000	1-39-15
	153242000	80
	153274001	1-60-1-3
	153596001	26
	153675001	27
	153787001	28
	153787001	1-1-26
	153787001	1-5
	153787001	1-5
	153787001	1-5
	153787001	1-5
	153787001	1-5
	153787001	1-5
	153787001	52
	153787001	68
	153787001	42
	153787001	61
	155510001	69
	155559001	7
	156112003	4-5
	158437001	90
	158581000	34
	158827009	14
	159113001	108
	159150000	26
	159220101	10
	159221001	20
	159458009	18
	159805001	81
	200190001	1-1-5
	218859001	1-1-5
	224514001	2-1-4
	224514001	2-2-5
	224514001	2-3-5
	224514001	2-4-5
	224514001	2-7-5
	228475000	1-37
	228475000	1-38
	228475000	2-7
	232384001	1-39-7
	340400001	39
	340400001	49
	417526000	11-2
	530138001	56
	530138001	64
	542515001	1-31
	552907000	29
	625010000	21
	J02657001	2-1-3
	J02657001	2-2-3
	J02657001	2-3-3
	J02657001	2-4-3
	J02657001	2-7-3
	150908000	1-73
	150910000	1-31
	150122000	1-68
	S01524000	31-1-1
	S01542000	1-60-1-4
	S01694001	1-22
	S02460001	19
	S02460001	71
	S02766209	4
	S02775001	4-4
	S02779009	4-10
	S02788009	4-11
	S02789009	4-11-1
	S04557000	36
	S04557000	5-4
	S04557000	14-5
	S04557000	1-72
	S04557000	1-12
	S04557000	1-4
	S04897000	1-60-1-5
	S04897000	1-69
	S05356000	95
	S05356000	1-33
	S05356000	1-2-7
	S06696004	80-1-3
	S06696004	81-1-3
	S06696004	80-2-3
	S06696004	81-2-3
	S06696004	1-1-1-3
	S06696004	1-2-1-3
	S08030000	1-39-16
	S08030000	79
	S08808001	96
	S08808001	1-2-8
	S10077100	69
	S10078001	80
	S10079101	81
	S10243000	23
	S10439001	8
	S10546000	6-1-1
	S10856001	1-3
	S10856001	2-2
	S10856001	5-3
	S11426000	1-5-2
	S11433000	31-1-2
	S11433000	9-3
	S11433000	1-32-2
	S11817000	36
	S11949000	1-25
	S12004000	18
	S12104000	32
	S12104000	57
	S12104000	2-1-20
	S12150000	9-1
	S12150000	50-1
	S12150000	1-15-3
	S12150000	2-1-13-1
	S12150000	1-1
	S12150000	8-1
	S12150000	10-1
	S13955000	45
	S16568000	1-15
	S17608009	65-1
	S17965001	61
	S18707129	17
	S18707137	18
	S20681000	22
	S20682102	21
	S20695001	54
	S20696001	55
	S20698121	40
	S21716001	22
	S21728001	17
	S21798001	4-8
	S23612051	15
	S23612051	9
	S23616101	1-1-2
	S23651001	4
	S23651001	6
	S23651001	8
	S23651001	7
	S23651001	9
	S23651001	11
	S23880000	42-3-1-5
	S23880000	42-3-1-5
	S24325001	1-25
	S27842001	53
	S27842001	61
	S29410001	4
	S30302000	4-12-5
	S31568000	79
	S31760000	1-32
	S32264001	91
	S32335100	16-1
	S33899000	78
	S34844001	93-1-2
	S34881001	1-5
	S34881001	12
	S34885001	1-1-12
	S34885001	1-12
	S34886001	1-33
	S34887001	1-34
	S34888101	1-30-3
	S34890001	1-30
	S34891101	1-30-1
	S34892001	1-30-2
	S34893001	1-30-4
	S34894001	1-26
	S34895001	1-27
	S34896001	1-25
	S34897001	1-23
	S34897001	1-21

Page 102 — 索引 / INDEX

Brother DH4-B981 parts on page 102

Ref	Part number	Part name	Qty
	S34898001	1-19-1
	S34899001	1-19
	S34900001	1-17
	S34901001	1-16
	S34902001	1-13
	S34903001	1-11
	S34905101	1-8
	S34906100	1-6
	19	19
	1-1-19	1-1-19
	S34910101	1-4
	S34913001	1-3
	S34914001	1-1
	S34915000	5
	S34916001	10-3
	S34917001	1-1
	S34918101	1-2
	S34922101	102
	1-4	1-4
	1-7	1-7
	2-1-3	2-1-3
	S34923001	13
	S34924001	26
	S34925101	1-2
	S34934001	52
	S34936001	46-1
	S34937001	46-2
	S34938101	46-3
	S34940001	48
	S34941001	46-5
	S34942001	50
	S34943001	46-7
	S34944101	46
	S34948101	1
	S34952091	1
	S34956001	13
	S34957001	1
	S34963001	2
	S34964001	2-1
	S34965001	1-1
	S34966001	3
	1-3	1-3
	1-8	1-8
	S34967001	6
	S34968000	12
	S34969001	14
	S34970001	13
	S34971001	43
	S34972000	42
	S34974000	38
	S34979100	34
	S34980000	33
	S34981000	32
	S34982000	31
	S34983000	30
	S34984000	29
	S34985000	28
	S34986000	27
	S34995000	15
	S34996001	13
	S34997001	11
	S34998001	9
	S34999001	7
	S35001000	3
	S35002100	2
	S35003201	1
	S35007000	2
	S35010001	4
	S35011001	10
	S35012001	12
	S35014001	21
	S35015101	14
	S35016001	17
	S35017001	19
	S35018001	20
	S35019001	22
	S35020001	23
	S35021000	24
	S35022101	25
	S35023001	26
	S35024101	28
	S35025001	31
	S35026001	38-1
	S35027001	34
	S35028000	35
	S35029001	36-1
	S35030001	48
	S35031001	52
	S35032101	47
	S35033001	51
	S35034001	50
	S35035101	53
	S35036101	54
	S35037001	56
	S35038001	58
	S35039000	59
	S35040000	61
	S35041000	64
	S35042000	66
	S35043001	65
	S35044001	67
	S35045001	71
	S35046000	73
	S35048101	75
	S35049001	76
	S35050001	79
	S35051001	80
	S35052001	86
	S35053001	9
	S35054001	29-1
	S35055001	87
	S35056001	88
	S35057001	92
	S35058001	1
	S35059001	2
	S35060001	7
	S35061000	7
	S35062001	6
	S35063001	1-2
	S35064001	1-3
	S35065001	2
	S35066001	1
	S35067001	1-1
	S35069001	5
	S35070101	2-2
	S35071001	2-1
	S35072101	2
	S35073001	1
	S35074201	1
	S35075201	1-1
	S35076101	1-2
	S35077000	1-3
	S35078001	41
	S35079000	1-4
	S35080001	1-5
	S35081001	8
	S35082001	11
	S35083001	13
	S35084001	15
	S35085001	8
	S35086001	11
	S35087001	10
	S35088001	7
	S35089001	17
	S35090001	18
	S35091001	23
	S35092001	3-1
	S35093001	24
	S35094001	24
	S35097001	25-1
	S35097001	25-2
	S35098000	25-4
	S35100001	47
	S35101001	51
	S35102001	52
	S35104001	54
	S35106001	13
	S35107001	10
	S35108001	5
	S35110001	1-2
	S35112101	1
	S35113001	66
	S35114001	63
	S35116001	60
	S35117001	59
	S35118001	54
	S35118001	72
	107	107
	2-9-4	2-9-4
	S35121000	46
	S35122000	45
	S35123000	44
	S35124000	43
	S35125000	42
	S35126001	40
	S35127001	39
	S35128001	36
	S35130001	35-3
	S35130001	35-2
	S35131001	35-1
	S35132101	35
	S35133014	34
	S35133016	34
	S35133018	34
	S35133114	7
	S35133116	7
	S35133118	7
	S35134001	32
	S35135001	30
	S35136001	29
	S35137001	28
	S35138001	26
	S35142001	25
	S35143001	24-1
	S35144001	22
	S35148001	19
	S35150001	17-1
	S35154000	5-1-1
	S35162101	14-2
	S35164101	2-3
	S35166001	41
	S35167001	80-1-14
	S35168001	81-1-14
	S35169001	16
	S35174001	51
	S35176001	2
	S35177001	3
	S35178001	12
	S35179000	15
	S35180000	11-1
	S35181001	11
	S35182001	23
	S35183000	26
	S35184001	27
	S35185101	1-2
	S35186001	55
	S35187001	96
	S35188001	16
	S35189001	63
	S35190001	70
	S35191001	74
	S35192001	84
	S35193000	84-1
	S35194001	85
	S35195001	91

Page 103 — INDEX

Brother DH4-B981 parts on page 103

Ref	Part number	Part name	Qty
	S35196100	89
	S35197001	81-1-4
	S35198001	80-1-4
	S35199101	80-1-4
	S35200101	81-1-4
	S35201000	40
	S35202000	81
	S35203001	23
	S35204001	67
	S35206201	69
	S35207001	59
	S35211009	66
	S35215001	57
	S35216001	59
	S35217001	55
	S35218001	47
	S35219001	44
	S35220101	41
	S35221001	38
	S35222001	37
	S35223101	34
	S35224001	26
	S35225000	15
	S35226001	11
	S35227009	8
	S35228009	9
	S35229000	7
	S35230009	5
	S35231000	3
	S35232009	2
	S35233201	81-1-12
	S35233201	81-2-12
	S35233201	1-2-1-12
	S35234201	80-1-12
	S35234201	80-2-12
	S35234201	1-1-1-12
	S35235001	80-1-6
	S35235001	81-1-6
	S35235001	80-2-6
	S35235001	81-2-6
	S35235001	10
	S35236000	80-1-5
	S35236000	81-1-5
	S35236000	80-2-5
	S35236000	81-2-5
	S35236000	1-1-1-5
	S35236000	1-2-1-5
	S35236000	11-1-1-4
	S35236000	11-1-2-4
	S35236000	11-1-3-4
	S35236000	11-1-4-4
	S35237001	80-1-10
	S35237001	81-1-10
	S35237001	80-2-10
	S35237001	1-1-1-10
	S35238001	80-1-8
	S35238001	81-1-8
	S35238001	1-1-1-8
	S35239101	74
	S35240001	14
	S35245001	7
	S35246001	10
	S35247001	10
	S35249001	10
	S35250001	120
	S35251001	2
	S35252001	18
	S35255001	17
	S35256001	15
	S35257000	12
	S35258001	10
	S35259001	5
	S35260001	5
	S35261001	2
	S35262001	2
	S35263101	2
	S35264001	11-2
	S35265001	12-2
	S35267101	1-2
	S35268101	12-1
	S35269101	12-1-1
	S35270001	10
	S35271001	8
	S35274001	8
	S35275100	1
	S35276101	1-2
	S35282000	1-5-2
	S35283001	1-6
	S35284101	1-5
	S35290001	23-1
	S35290001	11-4
	S35291101	15
	S35296001	11
	S35297000	17
	S35298001	5-2
	S35299000	32
	S35300000	31
	S35302001	39
	S35303201	14
	S35304001	44
	S35305001	42
	S35306101	3
	S35307101	12
	S35308101	51
	S35309101	2-1-14
	S35310001	1-6
	S35310001	10-2
	S35310001	50-2
	S35310001	2-1-13-2
	S35315001	1-1-1-1-1
	S35316001	80-1-1-1
	S35317001	81-1-1-1
	S35318001	80-1-1
	S35319001	80-1-1
	S35321001	53
	S35322001	75
	S35323001	56
	S35324001	57
	S35326001	80-1-17
	S35326001	81-1-20
	S35326001	81-1-17
	S35326001	80-2-17
	S35326001	81-2-17
	S35327001	22
	S35328001	67
	S35329001	80-1-18
	S35330001	80-1-18
	S35331101	17
	S35332001	15
	S35333001	14
	S35334001	13
	S35335001	12
	S35337101	8
	S35338001	10
	S35339101	2
	S35340001	7
	S35346101	1
	S35347000	80-1-16
	S35347000	80-2-16
	S35347100	1-1-1-16
	S35348000	81-1-16
	S35348000	81-2-16
	S35348100	1-2-1-16
	S35349101	1
	S35350000	7
	S35351001	1-3
	S35360000	14
	S35361001	7
	S35362001	8
	S35364001	12
	S35365101	81
	S35366001	84
	S35367000	17
	S35368000	18
	S35369000	19
	S35370000	20
	S35371000	21
	S35372000	22
	S35374000	24
	S35375000	25
	S35376000	26
	S35377100	27
	S35378100	28
	S35382000	42-1-2
	S35386000	42-1-1
	S35389001	42-1
	S35395000	42-1-3
	S35398100	29
	S35399100	30
	S35408101	34-2
	S35409101	34-1
	S35410001	45
	S35411001	46-1
	S35412101	48
	S35413101	49-1
	S35417000	15
	S35423000	42-1-4
	S35424000	42-1-5
	S35425001	42-1-6
	S35426000	14-1
	S35428001	46-9
	S35429001	5
	S35430001	57-1
	S35431101	1-1
	S35435000	1-5-1
	S35436101	24-1
	S35437101	34-2
	S35438101	34-1
	S35439101	34-2
	S35452001	80-1-4
	S35453001	81-1-4
	S35454101	80-1-4
	S35455101	81-1-4
	S35456001	72
	S35457001	73
	S35458001	74
	S35460000	44
	S35466001	30
	S35471001	46-2
	S35472101	49-2
	S35473301	25
	S35474401	80-1
	S35475401	81-1
	S35476401	81-1
	S35478401	80-1
	S35479001	24
	S35480101	34-2
	S35481101	34-1
	S35482101	34-2
	S35909000	16
	S35911101	35-5
	S35912001	59

Page 104 — 索引 / INDEX

Brother DH4-B981 parts on page 104

Ref	Part number	Part name	Qty
4	S36070001	93-1-4
4	S36071001	93-1-3
72	S36260000	2-5-2
68	S36261000	1-23-1
	1-35-1	68
14	S36345000	58
66	S36651009	17
32	S36659001	95
30	S36660101	43
66	S37057001	45
50	S37059001	1-35
4	S37059001	93
4	S37080001	93-1
4	S37085001	93-1
4	S37086001	93-1-1
38	S37173000	46
92	S37194001	24
92	S37195001	24
92	S37196001	24
	1-5	90
92	S37198001	24
26	S37199001	24
	1-11	82
	3-2	86
	1-5	90
	24	92
92	S37200001	24
26	S37201001	24
	1-12	82
	1-11	82
	3-3	86
	1-5	90
	1-6	90
	24	92
92	S37202001	24
92	S37208001	24
92	S37209001	24
92	S37210001	24
92	S37211001	24
6	S37432001	23
	24	10
19	S37643201	81-2-2
	1-7	80
	1-2-1-2	89
	81-2-2	92
18	S37644101	80-2-2
	1-6	80
	1-1-1-2	89
	80-2-2	92
19	S37645101	81-2-2
	1-7	80
	1-2-1-2	89
	81-2-2	92
18	S37646101	80-2-2
	1-6	80
	1-1-1-2	89
	80-2-2	92
19	S37649101	81-2-2
	1-7	80
	1-2-1-2	89
	81-2-2	92
18	S37650101	80-2-2
	1-6	80
	1-1-1-2	89
	80-2-2	92
46	S37652001	16
	1-1-16	74
	1-1-17	74
46	S37654000	8
	1-1-8	74
46	S37655101	9
	1-1-9	74
46	S37656001	11
	1-1-11-1	74
46	S37659001	21
	1-1-21	74
46	S37660101	6
	1-1-6	74
46	S37661101	5
	1-4	80
	1-1-5	89
46	S37662101	5
	1-4	80
	1-4	82
	1-1-5	89
	1-1-5	90
46	S37663101	5
	1-4	80
	1-4	82
	1-1-5	89
	1-1-5	90
46	S37664101	5
	1-4	80
46	S37665000	4
	1-3	80
	1-1-4	89
46	S37666000	4
	1-3	80
	1-3	82
	1-1-4	89
	1-1-4	90
46	S37667000	4
	1-3	80
80	S37646101	1-6
	1-1-1-2	89
	1-1-2	90
80	S37647101	1-7
	1-2-2	92
	80-2-2	92
80	S37648101	1-6
	1-1-1-2	89
	80-2-2	92
19	S37649101	81-2-2
	1-7	80
	1-2-1-2	89
	81-2-2	92
18	S37650101	80-2-2
	1-6	80
	1-1-1-2	89
	80-2-2	92
46	S37652001	16
	1-1-16	74
	1-1-17	74
46	S37654000	8
	1-1-8	74
46	S37655101	9
	1-1-9	74
46	S37656001	11
	1-1-11-1	74
46	S37659001	21
	1-1-21	74
46	S37660101	6
	1-1-6	74
46	S37661101	5
	1-4	80
	1-1-5	89
46	S37662101	5
	1-4	80
	1-4	82
	1-1-5	89
	1-1-5	90
46	S37663101	5
	1-4	80
	1-4	82
	1-1-5	89
	1-1-5	90
46	S37664101	5
	1-4	80
46	S37665000	4
	1-3	80
	1-1-4	89
46	S37666000	4
	1-3	80
	1-3	82
	1-1-4	89
	1-1-4	90
46	S37667000	4
	1-3	80
82	S37667000	1-3
	1-1-4	89
	1-1-4	90
46	S37668000	4
	1-3	80
	1-3	80
	1-1-4	89
	1-1-4	90
46	S37669101	3
	1-2	80
	1-1-3	89
	1-1-3	91
46	S37671101	3
	1-2	80
	1-2	82
	1-1-3	89
	1-1-3	90
46	S37672101	3
	1-2	80
	1-2	82
	1-1-3	89
	1-1-3	90
46	S37673101	2
	1-1	80
	1-1-2	89
	1-1-2	90
46	S37674101	2
	1-1	80
	1-1	82
	1-1-2	89
	1-1-2	90
46	S37675101	2
	1-1	80
	1-1	82
	1-1-2	89
	1-1-2	90
46	S37676101	2
	1-1	80
	1-1	82
	1-1-2	89
	1-1-2	90
91	S37677101	81-1-4
16	S37678101	80-1-4
91	S37679001	81-1-4
16	S37680001	80-1-4
	80-1-4	91
92	S37681101	81-1-2
16	S37682101	80-1-2
92	S37683101	81-1-2
16	S37684101	80-1-2
19	S37689001	81-2-4
	1-9	80
	1-2-1-4	89
	81-2-4	91
18	S37690001	80-2-4
80	S37690001	1-8
	1-1-1-4	89
	80-2-4	91
19	S37691001	1-2-1-4
	1-9	80
	1-2-1-4	89
	81-2-4	91
18	S37692001	80-2-4
	1-8	80
	1-1-1-4	89
	80-2-4	91
20	S37694001	81-2-14
	1-2-1-14	76
18	S37695001	80-2-14
	1-1-1-14	74
34	S37696101	29-2
	29-1	78
42	S37697001	57-2
	2-5	78
46	S37698000	26-1
46	S37699000	26-2
92	S37701001	24
26	S37702001	24
	1-11	80
	1-5	89
	24	92
92	S37703001	24
26	S37704001	24
	1-12	80
	1-11	80
	3-3	86
	1-5	89
	1-6	89
	24	92
92	S37705001	24
26	S37706001	24
	1-12	80
	1-11	80
	3-3	86
	1-5	89
	1-6	89
	24	92
92	S37707001	24
26	S37708001	24
	1-12	80
	1-11	80
92	S37709001	24
19	S37711001	81-2-10
	1-2-1-10	76
19	S37712001	81-2-8
	1-2-1-8	76
20	S37713001	91
	1-2-3	76
20	S37714001	90
	1-2-2	76

Page 105

Brother DH4-B981 parts on page 105

Ref	Part number	Part name	Qty
20	S37717101	101
78	S37718000	2-1-2
76	S37720001	1-5
34	S37720001	115-2
78	S37720001	2-10-3-1
34	S37721001	115-1
78	S37721001	2-10-3-2
34	S37723001	36-2
78	S37723001	2-10-8
34	S37724001	103
78	S37724001	2-10-5
34	S37725001	104-1
78	S37725001	2-10-6
34	S37726001	31-2
78	S37726001	2-10-1
18	S37727401	80-2
89	S37727401	1-1-1
19	S37728301	81-2
89	S37728301	1-2-1
18	S37729101	80-2-1
74	S37729101	1-1-1-1
19	S37730001	81-2-1
76	S37730001	1-2-1-1
19	S37731301	81-2
89	S37731301	1-2-1
19	S37732301	81-2
89	S37732301	1-2-1
18	S37733401	80-2
89	S37733401	1-1-1
19	S37735301	81-2
89	S37735301	1-2-1
60	S37737001	50
78	S37737001	2-1-13
60	S37738000	53
78	S37738000	2-1-16
60	S37739000	54
78	S37739000	2-1-17
20	S37740001	99
78	S37740001	2-1-1
42	S37749001	64
78	S37749001	2-1-9
42	S37750001	68
78	S37750001	2-3
34	S37752001	89-1
78	S37752001	2-7
20	S37753001	98
76	S37753001	1-2-10
18	S37754001	80-2-4
80	S37754001	1-8
89	S37754001	1-1-1-4
91	S37755001	80-2-4
19	S37755001	81-2-4
80	S37755001	1-9
89	S37755001	1-2-1-4
18	S37756401	80-2
89	S37756401	1-1-1
18	S37757401	80-2
89	S37757401	1-1-1
18	S37758001	80-2-4
80	S37758001	1-8
89	S37758001	1-1-1-4
19	S37759001	81-2-4
80	S37759001	1-9
89	S37759001	1-2-1-4
91	S37759001	81-2-4
74	S37820001	14
74	S37820001	1-1-14-1
44	S37858000	1-10
46	S37858000	23
74	S37860001	1-1-23
60	S37863000	55
78	S37864000	2-1-18
78	S37864000	2-1-19
60	S37866000	50-3
78	S37866000	2-1-13-3
72	S37870000	104
40	S37874101	1
72	S38029000	2-5
72	S38030000	2-5-1
72	S38041000	76
72	S38059000	2-20
72	S38060000	2-19
48	S38080001	5
50	S38094100	1-9
50	S38107100	1-18
50	S38108000	1-19
50	S38109100	1-20
54	S38110000	2-1
54	S38111001	2-4
60	S38113000	2-2
78	S38114000	2-6
78	S38115000	2-3-1
78	S38117000	2-7
54	S38118000	2-2-2
54	S38123000	10-1
54	S38126000	10-2
54	S38133000	10-3-2
51	S38155000	1-41-3
72	S38166000	2-1
72	S38170001	2-4
72	S38171000	2-8
72	S38174000	2-9
72	S38175001	2-10
72	S38176101	2-14
72	S38177001	2-18
50	S38180000	1-39-5
50	S38203000	1-39-9
50	S38205000	1-39-14
16	S38335000	81-1-19
51	S38352101	20
51	S3853101	21
89	S38576401	1-1
89	S38577201	1-2
89	S38578401	1-1
89	S38579201	1-2
89	S38580401	1-1
89	S38581201	1-2
89	S38582401	1-1
89	S38583201	1-2
78	S38584001	2
78	S38585001	2-1
86	S38648001	4-4-2
78	S39108001	2-10
78	S39109101	2-9
70	S39110100	1-60-1-6
72	S39111001	1-4
72	S39112001	1-5
72	S39113001	1-6
72	S3913001	1-1
72	S3914001	1-2
91	S39929001	81-1-4
91	S39930001	80-1-4
91	S39931001	81-1-4
91	S39932001	80-1-4
56	S40616001	40-1-1
56	S40621000	46
66	S40622000	47
52	S40623000	H-8-3
52	S40624000	40-2-1
62	S40629000	42-1-1-2
62	S40630000	42-1-1-3
56	S40635001	40
86	S40640001	4-7
86	S40641001	4-12
86	S40644001	4-13
58	S40676000	59
58	S40677000	58
18	S40822001	80-2-2
82	S40822001	1-6
90	S40822001	1-1-1-2
92	S40822001	80-2-2
19	S40823001	81-2-2
82	S40823001	1-7
90	S40823001	1-2-1-2
92	S40823001	81-2-2
18	S40826001	80-2-14
74	S40826001	1-1-1-14
20	S40827001	81-2-14
78	S40827001	1-2-1-14
18	S40828001	80-2-1
74	S40828001	1-1-1-1
18	S40830101	80-2
90	S40830101	1-1-1
19	S40831101	81-2
90	S40831101	1-2-1
8	S41251001	69
34	S41252000	106
78	S41252000	2-9-2
6	S41310001	52
70	S41451001	1-57
70	S41452000	1-58
90	S41470201	1-1
90	S41471101	1-2
90	S41472201	1-1
90	S41473101	1-2
90	S41474201	1-1
90	S41475101	1-2
18	S41479001	80-2-2
82	S41479001	1-6
90	S41479001	1-1-2
92	S41479001	80-2-2
82	S41480001	1-6
90	S41480001	1-1-2
92	S41480001	80-2-2
19	S41481001	81-2-2
82	S41481001	1-6
90	S41481001	1-1-2
92	S41481001	80-2-2
19	S41482001	81-2-2
82	S41482001	1-7
90	S41482001	1-2-1-2
92	S41482001	81-2-2
18	S41483001	80-2-4
82	S41483001	1-8
90	S41483001	1-1-1-4
91	S41483001	80-2-4
19	S41484001	81-2-4
82	S41484001	1-9
90	S41484001	1-2-1-4
91	S41484001	81-2-4
18	S41485001	80-2-4
82	S41485001	1-8
90	S41485001	1-1-1-4
91	S41485001	80-2-4
19	S41486001	81-2-4
82	S41486001	1-9
90	S41486001	1-2-1-4
91	S41486001	81-2-4
18	S41487001	80-2-4
82	S41487001	1-8
90	S41487001	1-1-1-4
91	S41487001	80-2-4
19	S41488001	81-2-4
82	S41488001	1-9
90	S41488001	1-2-1-4
91	S41488001	81-2-4
18	S41489101	80-2
19	S41489101	81-2
90	S41489101	1-2-1
18	S41489101	80-2
19	S41490101	81-2
90	S41490101	1-2-1
18	S41491101	80-2
90	S41491101	1-1-1
19	S41492101	81-2
90	S41492101	1-2-1
80	S42053001	1-12
86	S42053001	3-3
89	S42053001	1-6
68	S42111101	1-1
68	S42112100	1-4

Page 106 — 索引 / INDEX

Brother DH4-B981 parts on page 106

Ref	Part number	Part name	Qty
68	S42113000	1-5
68	S42114000	1-5-1
68	S42115101	1-6
68	S42116000	1-8
68	S42117101	1-10
68	S42118001	1-12
68	S42119001	1-14
68	S42120100	1-15
68	S42121000	1-15-1
68	S42122000	1-15-2
68	S42123000	1-16
68	S42124001	1-17
68	S42125100	1-19
68	S42126101	1-21
68	S42127000	1-23
68	S42128101	1-27
68	S42129101	1-29
68	S42130001	1-31
68	S42133000	1-32
68	S42134101	1-34
68	S42136000	1-35
68	S42137001	1-38
68	S42138101	1-39
68	S42139101	1-41
68	S42140100	1-43
68	S42141100	1-45
70	S42142100	1-50
70	S42143100	1-46
70	S42144101	1-55
70	S42145001	1-56
70	S42146201	1-60
70	S42147201	1-60-1
70	S42148101	1-60-2
70	S42149000	1-62
70	S42150100	1-63
70	S42151100	1-64
70	S42152100	1-65
70	S42153000	1-66
70	S42154000	1-67
70	S42157000	1-70
70	S42158000	1-71
50	S42260000	1-17
72	S42838101	2
72	S42867001	2-2
50	S43171009	1-2
50	S43175000	1-39-11
50	S43176000	1-39-12
50	S43177000	1-39-1
50	S43181000	1-39-13
50	S43184000	1-39-2
50	S43187000	1-39-20
22	S43189000	1-39-19
22	S43192200	5
22	S43193200	5-1
22	S43194200	45
56	S43201000	10-4
50	S43274000	1-27
50	S43275000	1-29
12	S43285000	1-2
50	S43300009	1-1
50	S43304000	1-23
50	S43306000	1-23
50	S43308000	1-28
50	S43318000	1-30
66	S43320001	1
66	S43321001	1-1
66	S43322001	1-1
66	S43323001	2
66	S43324000	2-1
66	S43325001	5
66	S43326000	5-1
66	S43328000	6
66	S43329000	6-1
66	S43334000	16
66	S43335000	16-2
93	S43336000	43
80	S43337000	1-10
89	S43338000	1-3
80	S43339000	1-10
89	S43340000	1-3
82	S43341000	1-10
90	S43342000	1-3
93	S43343000	43
62	S43344000	42-7
72	S43345001	1-3
72	S43346001	1
24	S43347000	150
24	S43348000	151
50	S43349100	50
50	S43350000	1-16
50	S43356001	1-4
58	S43357000	9-2
66	S43358000	52
70	S43359000	1-78
93	S43360000	43
93	S43361000	43
93	S43362000	43
93	S43363000	43
93	S43364000	43
93	S43365000	43
93	S43366000	43
54	S43367000	10-2-1
54	S43368000	10-3-1
54	S43369000	10-2
54	S43370000	10-3
54	S43375000	58
84	S43376001	18
91	S43408001	11-1-1
84	S43409001	11-1-2-1
84	S43410001	11-1-1-1
84	S43411001	11-1-2-1
84	S43450001	11-1-1-2
84	S43451001	11-1-2-2
62	S43683001	42-3-1-2
84	S43701001	11-1
84	S43702001	11-1-1
84	S43703001	11-1-2
84	S43704001	11-1
84	S43705001	11-1-1
84	S43706001	11-1-2
84	S43707001	1
10	S43708009	12
10	S43710001	1
10	S43711000	18
88	S43713001	72
88	S43714000	71
88	S43715001	54
88	S43716001	55
88	S43717201	9
22	S43718001	49
22	S43719001	42
22	S43720001	67
40	S43723001	36
38	S43724001	5
88	S43729000	50
58	S43731001	10
48	S43747001	6
24	S43749001	87
62	S43769000	42-5
62	S43770000	42-6
58	S43772000	9
38	S43809001	1-41
2	S43880000	47
62	S44204000	62-2
62	S44213001	42-3
62	S44214000	42-3-1
62	S44215000	42-3-4
62	S44216000	42-3-4-1
62	S44217000	42-3-4-1
62	S44218000	42-3-4-4
62	S44219001	42-3-4-5
62	S44220001	42-3
62	S44221000	42-3-1
62	S44222000	42-3-1-1
62	S44223000	42-3-1-3
62	S44224000	42-3-1-4
62	S44225000	42-3-1-6
62	S44226000	42-3-1-7
62	S44228000	42-3-4-2
62	S44229000	42-3-4-3
62	S44230000	42-3-4-6
62	S44231000	42-3-1-1
89	S44238001	1
89	S44239001	1
89	S44240001	1
89	S44270001	1
90	S44271001	1
90	S44273001	1
90	S44274001	1
80	S44275001	1
80	S44276001	1
80	S44277001	1
80	S44278001	1
68	S44279101	1
82	S44281001	1
82	S44283001	1
82	S44284001	1
82	S44285001	1
66	S44287000	51
58	S44530000	8
58	S44531000	31
58	S44532000	31-1
51	S44758000	H-1-2
56	S45035000	2-5
56	S45036000	2-6
51	S45261000	1-42
66	S45264001	14
66	S45265000	14-1
66	S45266000	14-1-1
26	S45269001	39
64	S46477000	61-1
64	S46478000	61-2
64	S46479000	61-3
64	S46480000	61-2-1
2	S46496009	62
2	S46497009	62-1
34	S47033001	89-2
34	S47034001	89-3

Page 107

Brother DH4-B981 parts on page 107

Ref	Part number	Part name	Qty
34	S47512001	115
78	S47592000	2-4
54	S47594000	2-7
54	S47595000	2-4-2
50	S47668000	1-39-4
34	S47932001	105
78	S48326000	2-10-7
54	S48580000	1-1-4
50	S48674001	1-39-17
78	S49071000	3
50	S49078001	1-39-8
34	S49079001	46-3
34	S49471000	49-3
51	S49472000	1-41-4
50	S49484000	1-39-21
51	S49485000	1-41-2
51	S49495000	1-41-1
51	S49496001	3-3
51	S49586000	3-4
50	S49939101	1-39-3
50	S51194001	1-39
8	S51195001	67
6	S51215001	20
2	S51219001	1-1-1
42	S51220001	63
78	S51282001	2-1-8
78	S51283001	2-1-10
86	S52245000	4-3
86	S52821001	4-1
56	S52824001	35
30	S52832000	14-1
30	S52978000	14-3
30	S52979000	14-2
51	S53010101	3-1-3
51	S53884001	3-2
51	S55247001	1-41
56	S55473000	34-2
93	S55663001	43
56	S56025001	20
88	S58975000	24
46	S58976000	1-1-24
74	S58995000	3-1-1
51	S58997001	3-12
51	S58998000	1-24
50	S59000001	3-1
51	S59701001	3-1-2
50	S59702000	1-3
50	S59703000	1
51	S59704000	1-43
51	S59708001	1-44
51	S59711001	3-11
51	S59712001	1-40
51	S59713001	H-1
51	S59714001	H-2
51	S59715001	H-3
51	S59716001	H-4
52	S59717001	H-5
52	S59718001	H-6
52	S59719001	H-7
52	S59721001	H-8
52	S59722001	H-9
51	S59723001	H-1-1
51	S59724001	H-2-1
51	S59725001	H-3-1
51	S59726001	H-4-1
52	S59727001	H-5-1
52	S59728001	H-6-1
52	S59729001	H-7-1
52	S59730001	H-8-1
52	S59740000	H-9-1
51	S59931001	3
51	SA0029001	H-1-3
51	SA0030001	H-2-3
51	SA0037000	H-3-3
51	SA1034000	H-4-3
52	U85274000	H-5-3
52	U85274000	H-6-3
52	UA4897000	H-7-3
52	XA2220050	H-8-7
52	XA2220050	H-9-7
51	XA2220050	1-44-1
51	XA2220050	1-43-1
51	XA2220050	3-8

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother DH4-B981 — parts catalog

• Page 1 (cover): This is the cover page for the Brother RH-981A Parts Book, which details the Electronic Eyelet Button Holder.
• Page 2 (parts_list): This page lists part numbers and descriptions for Brother Industries, Ltd. RH-981A- models, including categories for men's and ladies' clothes, and jeans and work clothes.
• Page 3 (toc): This page is a table of contents for a parts manual, listing various machine components and their corresponding page numbers. It also includes introductory notes about the manual's creation date and how to interpret part information.
• Page 5 (diagram): This page displays a diagram of the machine body and its components, with various parts labeled with reference numbers and part numbers.
• Page 6 (parts_list): This page lists parts for the Machine body, including reference numbers, codes, quantities, Japanese descriptions, and English names of parts such as screws, plates, and covers.
• Page 7 (diagram): This page displays a diagram of the machine body and its components, with numbered parts indicated for reference.
• Page 8 (parts_list): This page lists parts for the Machine body, including nuts, rubber caps, springs, screws, ball catch assy, washers, and eye guards, with their corresponding codes and quantities.
• Page 9 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism for an industrial sewing machine, with numbered parts and their corresponding details.
• Page 10 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 11 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with numbered parts and their corresponding details.
• Page 12 (parts_list): This page lists parts for the Needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 13 (diagram): This page displays diagrams for the Upper shaft mechanism and the Zigzag mechanism of an industrial sewing machine, with numbered parts for identification.
• Page 14 (parts_list): This page lists parts for the Upper shaft mechanism and Zigzag mechanism, including part numbers, descriptions, and quantities.
• Page 15 (diagram): This page displays a diagram of the needle bar rocking mechanism, illustrating various components with reference numbers and part numbers for identification and assembly.
• Page 16 (parts_list): This page lists parts for the Needle bar rocking mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 17 (diagram): This page displays a diagram of the presser foot mechanism, with various parts numbered for identification and assembly reference.
• Page 18 (parts_list): This page lists parts for the F1. Presser foot mechanism, including part numbers, descriptions, and quantities.
• Page 19 (diagram): This page displays a diagram of the presser foot mechanism, detailing various components with their corresponding part numbers and reference numbers.
• Page 20 (parts_list): This page lists parts for the Presser foot mechanism, including part numbers, descriptions, and quantities for various components like clamps, screws, and plates.
• Page 21 (diagram): This page displays a diagram of the presser foot mechanism for jeans specification, with numbered parts and their corresponding part numbers.
• Page 22 (parts_list): This page lists parts for the Presser foot mechanism (Jeans specification) with reference numbers, codes, quantities, and names of parts.
• Page 23 (parts_list): This page lists parts for the presser foot mechanism (Jeans specification) with part numbers, descriptions, and quantities.
• Page 24 (parts_list): This page lists parts for the presser foot mechanism (Jeans specification) with reference numbers, codes, quantities, and names in both Japanese and English.
• Page 25 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with various parts labeled with reference numbers and some part numbers provided.
• Page 26 (parts_list): This page lists parts for the G. 送り関係 / Feed mechanism section, including part numbers, descriptions, quantities, and reference numbers.
• Page 27 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with various components labeled with reference numbers and part numbers.
• Page 28 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 29 (diagram): This page displays a diagram of the cutter mechanism, with numbered parts and their corresponding references.
• Page 30 (parts_list): This page lists parts for the Cutter mechanism, including part numbers, descriptions, and quantities.
• Page 31 (diagram): This page displays diagrams for the Tension pulley mechanism and the Lower shaft mechanism, detailing various components with reference numbers and part identifiers.
• Page 32 (parts_list): This page lists parts for the Tension pulley mechanism and the Lower shaft mechanism, including part numbers, descriptions, and quantities.
• Page 33 (diagram): This page displays a diagram of the double chain stitch looper mechanism, with various parts numbered for identification.
• Page 34 (parts_list): This page lists parts for the L1. Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
• Page 35 (diagram): This page displays a diagram of the double chain stitch looper mechanism, with numbered parts and their corresponding details.
• Page 36 (parts_list): This page lists parts for the L1. Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
• Page 37 (diagram): This page displays diagrams of the double chain stitch looper mechanism, including parts for upper and lower thread trimmers and jeans specifications, along with optional parts.
• Page 38 (parts_list): This page lists parts for the L2. Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
• Page 39 (diagram): This page contains diagrams and parts lists for the Looper mechanism and the Spreader mechanism of an industrial sewing machine.
• Page 40 (parts_list): This page lists parts for the M. Looper mechanism and the N. Spreader / Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of lubrication-related components for an industrial sewing machine, with numbered parts indicated for reference.
• Page 42 (parts_list): This page lists parts for lubrication, including various screws, oil tubes, and felt components with their corresponding codes and names.
• Page 43 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, detailing various parts with their reference numbers and descriptions.
• Page 44 (parts_list): This page lists parts for the threading mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 45 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, detailing various parts with their corresponding reference numbers and some specific model applicability.
• Page 46 (parts_list): This page lists parts for the threading mechanism, including screws, guides, springs, washers, and collars, with their corresponding part numbers and descriptions.
• Page 47 (diagram): This page displays a diagram of the thread trimmer mechanism, detailing various components with their corresponding reference numbers and part numbers.
• Page 48 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 49 (diagram): This page displays a diagram of the thread trimmer mechanism for jeans specification, including various numbered parts and optional parts.
• Page 50 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, and quantities for various components like knives, handlers, and screws.
• Page 51 (diagram): This page contains diagrams and parts lists for the Upper thread trimmer mechanism and the Synchronizer.
• Page 52 (parts_list): This page lists parts for the Upper thread trimmer mechanism and Synchronizer sections of the machine, including part numbers, descriptions, and quantities.
• Page 53 (diagram): This page displays a diagram of the control box mechanism, illustrating various components and their interconnections with reference numbers and part numbers.
• Page 54 (parts_list): This page lists parts for the U1 Control Box Mechanism, including part numbers, descriptions, and quantities.
• Page 55 (parts_list): This page lists parts for the U1 Control Box, including various PCB assemblies, transistors, switches, relays, and motor units, with part numbers, descriptions, and quantities.
• Page 56 (parts_list): This page lists parts for control box mechanisms, including part numbers, descriptions, and quantities for various motor units and associated components.
• Page 57 (diagram): This page displays diagrams of control box mechanisms for various voltage configurations, including 3-phase 200V/220V, 1-phase 220V, 1-phase 110V, 3-phase 415V/380V, 1-phase 240V, and 1-phase 230V, along with optional parts.
• Page 58 (parts_list): This page lists parts for the control box mechanism, including various power supply switches, harnesses, and transformers for different voltage and phase configurations.
• Page 59 (diagram): This page displays diagrams of control box mechanisms for various voltage and phase configurations, including 3-phase 200V/220V AC, 1-phase 220V AC, 100V for Japan only, 110V AC, 3-phase 415V/380V AC, 1-phase 240V AC, 3-phase 400V AC, and 1-phase 230V AC, along with optional parts.
• Page 60 (parts_list): This page lists parts for the U2 control box mechanism, including bolts, washers, fuses, and noise filters, with their corresponding part numbers and descriptions.
• Page 61 (diagram): This page displays a diagram of the air pressure mechanism for the sewing machine, detailing various components with their respective part numbers and reference indicators.
• Page 62 (parts_list): This page lists parts for air pressure mechanism, including part numbers, descriptions, and quantities.
• Page 63 (diagram): This page displays a diagram of the air pressure mechanism, detailing various components with their respective part numbers and references.
• Page 64 (parts_list): This page lists parts for air pressure mechanism, including part numbers, descriptions, and quantities.
• Page 65 (diagram): This page displays a diagram of air pressure mechanism components, including various valves, fittings, and related parts, with part numbers and reference indicators.
• Page 66 (parts_list): This page lists air pressure mechanism parts, including reference numbers, codes, quantities, and names of parts, with some parts also specifying applicable machine models.
• Page 67 (diagram): This page displays a diagram of the air pressure mechanism, including various valves, filters, and connectors, with specific part numbers and references for each component.
• Page 68 (parts_list): This page lists parts for air pressure mechanism, including screws, washers, and filter elements with their corresponding codes and names.
• Page 69 (diagram): This page displays a diagram of power supply equipment mechanisms, detailing various components with reference numbers and part numbers for identification and replacement.
• Page 70 (parts_list): This page lists parts for the Power supply equipment mechanism, including part numbers, descriptions, and quantities.
• Page 71 (diagram): This page displays a diagram of the cloth control system mechanism, illustrating various components with their corresponding reference numbers and part numbers.
• Page 72 (parts_list): This page lists parts for the cloth control system mechanism, including part numbers, descriptions, quantities, and references.
• Page 73 (diagram): This page displays a diagram of the cloth control system mechanism, illustrating various components with their corresponding part numbers and reference indicators.
• Page 74 (parts_list): This page lists parts for the cloth control system mechanism, including reference numbers, codes, quantities, and names of parts such as springs, screws, washers, and plates.
• Page 75 (diagram): This page displays a diagram of the foot switch pedal mechanism, illustrating various components with their corresponding reference numbers and part numbers.
• Page 76 (parts_list): This page lists parts for the Y. Foot switch pedal mechanism, including part numbers, descriptions, and quantities.
• Page 77 (diagram): This page displays a diagram of attachment set components for an industrial sewing machine, with various parts numbered for identification.
• Page 78 (parts_list): This page lists parts for attachment sets, including part numbers, descriptions, and quantities.
• Page 79 (diagram): This page displays a diagram of attachment set components, with various parts numbered for identification.
• Page 80 (parts_list): This page lists parts for attachment sets, including part numbers, descriptions, and quantities, with some entries specifying applicable models.
• Page 81 (diagram): This page displays a diagram of attachment set components, with various parts labeled with reference numbers and part numbers.
• Page 82 (parts_list): This page lists parts for the AA2 attachment set, including part numbers, descriptions, and quantities.
• Page 83 (diagram): This page displays a diagram of attachment set components, with parts numbered from 1-1 to 1-12.
• Page 84 (parts_list): This page lists parts for attachment sets, including part numbers, descriptions, and quantities for various models.
• Page 85 (diagram): This page displays a diagram of attachment set components, with parts labeled from 1-1 to 1-12.
• Page 86 (parts_list): This page lists parts for attachment sets, including part numbers, descriptions, quantities, and model applicability.
• Page 87 (diagram): This page displays a diagram of attachment set components, with part numbers such as 11-1-1-4, 11-1-1-2, 11-1-2-2, 11-1-1-5, 11-1-2-4, 11-1-1-1, 11-1-2-3, 11-1-2-1, and 11-1-2-5.
• Page 88 (parts_list): This page lists parts for attachment sets, including part numbers, descriptions, and quantities. It details components for waist belt pressers.
• Page 89 (diagram): This page displays a diagram of accessories and related parts for an industrial sewing machine, including various tools, components for thread trimming, and specification-related parts. It lists part numbers and their corresponding descriptions.
• Page 90 (parts_list): This page lists accessories for the sewing machine, including thread trimmers, hammers, spool components, screws, nuts, washers, and other hardware, with part numbers, descriptions, and quantities.
• Page 91 (diagram): This page displays a diagram of accessories and related parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 92 (parts_list): This page lists parts for the Z. Accessories section, including wrenches, bolts, washers, and other components with their corresponding part numbers and descriptions.
• Page 93 (parts_list): This page lists different parts for various models of industrial sewing machines, categorized by size (L1 to L4) and including part numbers, names, and descriptions.
• Page 94 (parts_list): This page lists different parts for models L5, L6, and L7, including various plates, clamps, and hammers with their corresponding part numbers and descriptions.
• Page 95 (parts_list): This page lists different work clamp parts for various specifications, including their part numbers, applicable sizes, and corresponding diagrams.
• Page 96 (parts_list): This page lists different needle plates and hammers for various machine models, including their part numbers and specifications.
• Page 97 (parts_list): This page lists different parts for knives and harnesses, including part numbers, specifications, and applicable models.
• Page 99 (index): This page contains an index of part numbers and their corresponding page numbers, organized into multiple columns.
• Page 100 (parts_list): This page contains a parts list with columns for CODE, REF.NO, and Page. It lists various part numbers and their corresponding reference numbers and page locations.
• Page 101 (index): This page is an index of part numbers and their corresponding reference numbers and page numbers. It lists parts from various sections of the catalog.
• Page 102 (parts_list): This page contains a parts list for industrial sewing machines, with part numbers, reference numbers, and page numbers listed in a tabular format across multiple columns.
• Page 103 (index): This page is an index of part numbers and their corresponding reference numbers and page numbers. It lists parts from S35196100 to S35912001.
• Page 104 (parts_list): This page contains a parts list for industrial sewing machines, with part numbers, reference numbers, and page numbers.
• Page 105 (index): This page is an index of parts for an industrial sewing machine, listing part codes, reference numbers, and corresponding page numbers.
• Page 106 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers. It is organized into multiple columns for efficient lookup.
• Page 107 (index): This page is an index listing part codes, reference numbers, and page numbers for various sewing machine components. It is organized into three columns of part information.
• Page 108 (unknown): This page contains a watermark and a website address at the bottom.
• Page 109 (cover): This is the cover page of the Brother Parts Book, featuring the Brother logo, a diagram of a screw, the title "PARTS BOOK", company information, and publication details.

Page 1

RH-981A パーツブック PARTS BOOK 電子鳩目穴かがりミシン ELECTRONIC EYELET BUTTON HOLDER brother. jintex.in

Page 2

BROTHER INDUSTRIES, LTD. RH-981A- MADE IN JAPAN 00 : 紳士服、婦人服 / Men's clothes and ladies' clothes 01 : 紳士服、婦人服 / Men's clothes and ladies' clothes 52 : ジーンズ、ワーキング / Jeans and work clothes

Page 3 — 目次

パーツブックご利用に際して 1. この本は、2002年5月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、破線で示しております。 4. 部品コード欄が*となっている場合は、仕様別部品一覧表(P89~P93)でお調べください。 目 次 A. 主体関係 1 S. 上糸切り関係 47 B. 針棒・天秤関係 5 T. 針位置検出関係 47 C. 上軸関係 9 U1. コントロールボックス関係 49 D. 針振関係 9 U2. コントロールボックス関係 53 E. 針棒揺動関係 11 V1. 空気関係 57 F1. 押工関係 13 V2. 空気関係 61 F2. 押工関係 15 W. 電装品関係 65 F3. 押工関係(ジーンズ仕様) 17 X. 布制御関係 67 G. 送り関係 21 Y. 踏板関係 71 H. カッター関係 25 AA1. 付属装置関係 73 J. テンションプーリー関係 27 AA2. 付属装置関係 77 K. 下軸関係 27 AA3. 付属装置関係 79 L1. 二重環ルーパ関係 29 AA4. 付属装置関係 83 L2. 二重環ルーパ関係 33 Z. 付属品関係 85 M. ルーパ関係 35 Sp1. 仕様別部品一覧表 89 N. スプレダー関係 35 Sp2. 仕様別部品一覧表 91 P. 給油潤滑関係 37 Sp3. 仕様別部品一覧表 92 Q. 糸通シ関係 39 Sp4. 仕様別部品一覧表 93 R1. 糸切り関係 43 Wa. 警告ラベル 94 R2. 糸切り関係(ジーンズ仕様) 45 jintex.in

Page 5 — A. 主体関係 / Machine body

A. 主体関係 / Machine body 4 38 39 37 2 3 91 90 92 89 6 5 96 35 71 69 34 7 12 11 1-1-2 1-1-1 62 62-5 62-4 62-1 62-2 62-3 75 9 8 10 95 67 93 93-3 93-1-1 93-1-3 93-1-2 93-1-5 93-1 93-2 93-4 30 15 17 18 19 81 67 68 13 40 42 43 41 45 44 48 47 48 60 59 76 58 57 61 56 27 26 82 83 78 20 22 79 80 24 52 54 53 23 66 51 55 118-981-050 1 jintex.in

Page 6

A . 主体関係 / Machine body REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1-1 S51215001 1 レースド タイメタル BUSH, LOOPER BASE 1-1-2 S23616101 3 シメネジ 4X10 SCREW, M4X10 2 S35232009 1 ワツフタ TOP COVER 3 S35231000 1 ワツフフツキン PACKING, TOP COVER 4 062501202 4 ナベコ M5X12 SCREW, PAN M5X12 5 S35230009 1 メンイタ FACE PLATE 6 062500804 2 ナベコ 5X8 SCREW, PAN M5X8 7 S35229000 1 メンイタツキン PACKING, FACE PLATE 8 S35227009 1 ベルトカバー-F BELT COVER, F 9 S35228009 1 ベルトカバー-R BELT COVER, R 10 062501202 3 ナベコ M5X12 SCREW, PAN M5X12 11 S35226001 1 ベルト サポート BELT COVER SUPPORT 12 062400812 1 ナベコ M4X8 SCREW, PAN M4X8 13 S34956209 1 ヘツトタイ BED BASE 14 158827009 4 ヘツトタイ クツシヨンA BED BASE CUSHION, A 15 S35225000 4 ヘツトタイ クツシヨン BED BASE CUSHION 17 S21728001 4 ボルト 6X80 BOLT, M6X80 18 159458009 4 ゴムシート RUBBER SHEET 19 115947001 4 ザガネ WASHER, PLAIN 6.35 20 025060332 4 ヒラザガネタテイ6 WASHER, PLAIN L 6 22 021060102 1 ナツト 1シュ6 NUT, 1 M6 23 S35203001 1 カバー ササイタR COVER SUPPORT PLATE, R 24 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 26 S35224001 1 カバー ササイタL COVER SUPPORT PLATE, L 27 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 30 047502242 8 スプリング ピン AW5 PIN, SPRING ROLL AW5 34 S35223101 1 ハリガイド ウカパー COVER 35 018400832 4 アナホルト 4X8 BOLT, SOCKET M4X8 37 S35222001 1 ハリフリマド フタ COVER, Z-WINDOW 38 S35221001 1 ダンネジ M4 SHOULDER SCREW, M4 39 107017002 1 ナミハネ ザガネ WASHER, WAVE SPRING 6.45 40 S35201000 1 ガ スプリング GS-SPRING 41 S35220101 1 GSサイエタ SUPPORT PLATE, GS 42 018501222 2 アナホルト 5X12 BOLT, SOCKET M5X12 43 028050242 2 ハネザガネ 2-5 WASHER, SPRING 2-5 44 S35219001 1 GSサヒエピンR SUPPORT PIN, R;GS 45 048080142 2 トメワシ ヨウC8 RETAINING RING, C8 47 S35218001 1 GSサヒエピンF SUPPORT PIN, F;GS 48 048080142 2 トメワシ ヨウC8 RETAINING RING, C8 51 047502242 1 スプリング ピン AW5 PIN, SPRING ROLL AW5 52 154465001 1 ハイクツプ サエグミ DUST OILER SUPPORT ASSY 53 114486002 1 ボリイラータイ OILER 54 062500812 2 ナベコ 5X8 SCREW, PAN M5X8 55 S35217001 1 ヒンジ レバー サエジツク SUPPORT SHAFT, H-LEVER 56 014060632 1 アナクボミ 6X6 SET SCREW, SOCKET (CP) M6X6 57 S35216001 1 ヒンジ レバーテンジツク SHAFT, H-LEVER 58 014060632 1 アナクボミ 6X6 SET SCREW, SOCKET (CP) M6X6 59 S35215001 1 セツトカラー SET SCREW COLLAR 60 018061236 1 アナホルト 6X12 BOLT, SOCKET M6X12 61 S17965001 1 トウブ サエレーバー HEAD SUPPORT LEVER 62 S46496009 1 ヘツトタイ クツシヨン BED BASE COVER 62-1 S46497009 1 ヘツトタイ BED BASE COVER 62-2 S44204000 2 スプリング チョウハン HINGE, SPRING 62-3 062300616 4 ナベコ M3X6 SCREW, PAN M3X6 62-4 021300206 2 ジユツト 3 NUT, 2 M3 62-5 025030232 4 ヒラザガネ ネチュウ3 WASHER, PLAIN M 3 66 S35211009 1 マエカバークミ FRONT COVER ASSY 67 S35207001 2 ヒンジ B HINGE, B 68 014060632 2 アナクボミ 6X6 SET SCREW, SOCKET (CP) M6X6 69 S35206201 1 フィンガーガード FINGER GUARD 70 S35221001 2 ダンネジ M4 SHOULDER SCREW, M4 118-981-050 jintex.in 2

Page 7 — A . 主体関係 / Machine body

A . 主体関係 / Machine body 4 38 39 37 62 77 91 90 92 2 62-1 3 62-2 62-3 62-4 62-5 89 7 6 5 96 75 95 9 12 35 34 11 1-1-2 1-1-1 8 10 71 69 67 68 93 88 70 17 81 13 93-1 15 67 93-1-3 93-1-4 93-1-2 93-1-5 40 42 93-1 43 93-2 93-4 45 41 27 20 22 80 24 48 47 48 60 26 82 83 79 51 44 45 52 59 76 78 58 55 54 57 23 53 66 61 56 3 118-981-050 jintex.in

Page 8 — A . 主体関係 / Machine body

A . 主体関係 / Machine body REF.NO 71 75 76 77 78 79 80 81 82 83 88 89 90 91 92 93 93-1 93-1-1 93-1-2 93-1-3 93-1-4 93-1-5 93-2 93-3 93-4 95 96 CODE 021400202 150607000 S35204001 062300512 S33899000 004300513 062300616 S35202000 018082036 025080132 107017002 17936001 158437001 S32264001 150756000 S37084001 S37085001 S37086001 S34844001 S36071001 S36070001 106129002 153098000 100257010 106129002 062400812 062500804 Q'TY 2 2 1 4 1 2 2 1 1 1 2 1 2 2 2 1 1 1 1 1 1 1 1 2 2 1 2 ヒンメイ 2 ナツト M4 ゴムセン32.8 1 ベツトヒンクハネ ナベコ3X5 1 ボールキャツチクミ 2 サラコ3X5 2 ナベコM3X6 1 シヤサイブツシユ 1 アナボルトM8X20 1 ヒラザガネヨウ8 2 ナベリネガネ 1 ゴムセン9.4 2 ゴムセン10 2 ゴムセン11.5 2 ゴムセン18.5 1 アイガートクミ 1 アイガートトリツケイタクミ 1 アイガートブラケツト 1 アイガートトリツケイタ 1 アイガートテンネンシ 1 アイガートモトシハネ 1 ナツト3.57 1 アイガート 2 シメナベ3.57 2 ナツト3.57 1 ナベコ4X8 2 ナベコ5X8 NAME OF PARTS NUT, 2 M4 RUBBER CAP, 32.8 SPRING SCREW, PAN M3X5 BALL CATCH ASSY SCREW, FLAT M3X5 SCREW, PAN M3X6 BUSH, UNIVERSAL BOLT, SOCKET M8X20 WASHER, PLAIN S 8 WASHER, WAVE SPRING 6.45 RUBBER CAP, 9.4 RUBBER CAP, 10 RUBBER CAP, 11.5 RUBBER CAP, 18.5 EYE GUARD ASSY SETTING PLATE ASSY, ;E-GUIDE EYE GUARD BRACKET SETTING PLATE, ;E-GUARD SCREW SPRING, EYE GUARD NUT, SM3.57 EYE GUARD SCREW, SM3.57X6 NUT, SM3.57 SCREW, PAN M4X8 SCREW, PAN M5X8 RM 118-981-050 4 jintex.in

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism 65 65-2 65-1 3 3 2 1 7 17-1 21 20 19 60 59 46 16 14 15 23-1 23 22 66 18 17 30 32 33 31 41 40 13 12 47 52 69 54 53 52 42 44 43 45 35-2 35-1 38 35-5 35-4 35-3 37 36 37 39 63 64 29 28 25 26 27 34 118-981-101 5 jintex.in

Page 10 — B . 針棒 ・ 天秤関係 / Needle bar and thread take-up mechanism

B . 針棒 ・ 天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35346101 1 クトウロッドクミ DRIVING ROD ASSY 2 S35339101 1 ハリクトウキヤシク SHAFT, ;D-GEAR 3 014060632 2 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 7 S35340001 1 クトウロッドピン PIN 8 S35337101 1 ハリクトウウレバークミ N-BAR DRIVING LEVER ASSY 9 014060632 1 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 10 S35338001 1 ハリクトウウレバーシク SHAFT, ;D-LEVER 11 014060632 2 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 12 S35335001 1 セツトカラークミ SET SCREW COLLAR ASSY 13 S35334001 1 ハリクトウヨーク NEEDLE BAR YOKE 14 S35333001 1 ハリクトウウスイヘイリンク LEVEL FEED LINK, ;N-BAR 15 S35332001 2 アナクボミ3X12 BOLT, SOCKET M3X12 16 018301236 2 アナクボルト3X12 BOLT, SOCKET M3X12 17 S35331101 1 ハリクトウクミ NEEDLE BAR ASSY 17-1 S35150001 1 ハリクトウイトクチ NEEDLE BAR YARN FEEDER 18 140553102 1 アタマツメトメシ3.18 SET SCREW, SM3.18 19 S35148001 1 ハリクトウメタル BUSH, U ;N-BAR 20 S51195001 1 ハリクトウメタルサオエタ1B HOLDER BASE, B ;N-BUSH 21 018402032 3 アナクボルト4X20 BOLT, SOCKET M4X20 22 S35144001 1 ハリクトウウスイヘイリンク LEVEL FEED LINK, ;N-BAR 23 S37432001 1 ハリクトウウブロツククミ BLOCK CLAMP ASSY, ;N-BAR 23-1 018301632 1 アナクボルト3X16 BOLT, SOCKET M3X16 25 S35142001 1 ハリクトウブロツククミ NEEDLE BAR BLOCK ASSY 26 S35138001 1 ハリクトウウ、カラー GUIDE COLLAR, ;N-BAR 27 153675001 2 アナトメシ 4.37 SET SCREW, SOCKET SM4.37 28 S35137001 2 ハリクトウカイト GUIDE, ;N-BAR 29 S35136001 2 ハリクトウカイトハネ SPRING 30 S35135001 1 ハリクトウヴァンナイサエイトア SUPPORT PLATE, ;N-BAR GUIDE 31 062300616 2 ナベコM3X6 SCREW, PAN M3X6 32 S35134001 1 ハリクトウサオエタ SUPPORT, A ;GEAR 33 018501036 2 アナクボルト5X10 FELT, ;N-BAR 34 S35133016 <00, 上糸切り用> 1 ミシンハドDOX558<16> <For-00, Upper thread trimmer> NEEDLE, DOX558 (#16) 34 S35133014 <01, 上下糸切り用> 1 ミシンハドDOX558<14> <For-01, Upper & lower thread trimmer> NEEDLE, DOX558 (#14) 34 S35133018 <02, ジーンズ仕様> 1 ミシンハドDOX558<18> <For-02, jeans specification> NEEDLE, DOX558 (#18) 35 S35132101 1 テンビンクミ THREAD TAKE-UP LEVER ASSY 35-1 S35131001 1 テンビン THREAD TAKE-UP LEVER 35-2 S35130001 1 テンビンガイド THREAD GUIDE 35-3 S35129001 1 テンビンカムコロシク ROLLER SHAFT 35-4 021500303 1 ナツト3X5 NUT, 3 M5 35-5 S35911101 1 テンビンバネケツ SPRING BASE 36 S35128001 1 テンビンサオエタ SUPPORT SHAFT 37 014060632 2 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 38 S23612051 1 セツトカラークミ SET SCREW COLLAR ASSY 39 S35127001 1 テンビンカムコロ CAM ROLLER, ;T/TAKE-UP 40 S35126001 1 テンビンバネ SPRING 41 S35078001 1 バネカク SPRING HOOK 42 S35125000 1 ベアリング, 25/20 BEARING, ;25/20 43 S35124000 1 スラストベアリング BEARING, ;THRUST 44 S35123000 1 スラストワツシヤ WASHER, ;THRUST 45 S35120000 1 ハリクトウウブロツクフエルト FELT 46 S35121000 1 ハリクトウフエルト FELT, ;N-BAR 47 S35121000 1 アナトメシ 3.57ワキヨミ SET SCREW, SOCKET (CP) SM3.57 52 141514001 1 ハリトアンナイ GUIDE, A 53 141514002 1 ハサミダンネジ SHOULDER SCREW 118-981-101 6 jintex.in

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism 65 3 3 1 7 65-2 65-1 2 17-1 41 40 12 8 9 21 20 19 60 59 46 16 15 14 15 23-1 23 22 66 18 17 35 35-2 11 11 10 35-1 38 47 42 43 44 45 35-5 37 36 37 35-4 35-3 39 63 64 29 28 25 26 27 30 31 32 33 34 118-981-101 7 jintex.in

Page 12 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 54 S35118001 1 バリトチョウシバネ TENSION SPRING 59 S35117001 1 バリトウメタルハツト NUT, U ;N-B/BUSH 60 S35116001 1 バリトウメタルハツト SPRING, PLATE 63 S35114001 1 バリトウキヤツサエIB SUPPORT, B ;GEAR 64 018400832 2 アナボルト4X8 BOLT, SOCKET M4X8 65-1 S17608009 1 セツトカラー SET SCREW COLLAR 65-2 014060632 2 アナホツミ6X6 SET SCREW, SOCKET (CP) M6X6 66 S35113001 1 バリトウロツクカラー COLLAR, ;N BAR BLOCK 67 S51194001 1 バリトウガード NEEDLE BAR GUARD 68 018400632 3 アナボルト4X6 BOLT, SOCKET M4X6 69 S41251001 1 バリトオサエイツタA HOLDER PLATE, A ;N-THREAD 118-981-101 8

Page 13

C. 上軸関係 / Upper shaft mechanism 16 5 6 3 4 20 2 22 21 11 14 12 18 11 10 8 8 7 17 2 118-981-109 D. 針振関係 / Zigzag mechanism 24 12 21 7 10 6 5 4 3 26 1 9 24-2 24-1 19 13 11 17 23 22 2 9 15 20 118-981-110 3 jintex.in

Page 14

C. 上軸関係 / Upper shaft mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S43710001 1 ワツシク UPPER SHAFT 2 072620260 2 タマシクク6202VVC2 BALL BEARING, 6202VVC2 3 S35247001 1 ハリボウキヤ GEAR, ;N-BAR 4 S23651001 2 アナヒラ6X6ホノメ SET SCREW, SOCKET (FT) M6X6 5 S35246001 1 ハリフリカム ZIGZAG CAM 6 S23651001 2 アナヒラ6X6ホノメ SET SCREW, SOCKET (FT) M6X6 7 S35245001 1 ワツシクプーリクミ TENSION PULLEY ASSY, ;U-SHAFT 8 S23651001 2 アナヒラ6X6ホノメ SET SCREW, SOCKET (FT) M6X6 10 076002450 1 タマシクク6002DD BALL BEARING, 6002DD 11 048150142 2 トメワシクヨウC15 RETAINING RING, EXTERNAL C15 12 S43708009 1 プーリクミ PULLEY ASSY 13 014060632 1 アナクホミ6X6 SET SCREW, SOCKET (CP) M6X6 14 016061031 1 アナトツホリ6X10 SET SCREW, SOCKET (CN) M6X10 16 S35249001 1 スラストサガネ WASHER, THRUST 17 048350242 1 トメワヨウC35 RETAINING RING, INTERNAL C35 18 S43711000 1 ワツシクカラー COLLAR, ;U-SHAFT 20 151998000 1 ベアリングコンサ BEARING COLLAR 21 116920001 1 オクリシクスクラツトリンク RING, THRUST 22 141276001 1 タマシククケタS BALL BEARING CAP, S 23 102843004 3 サラネジ 3.57 SCREW, FLAT SM3.57 118-981-109 D. 針振り関係 / Zigzag mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35264001 1 ハリフリタマタ ZIGZAG FORK 2 S35263101 1 ハリフリタマタサエピン SUPPORT PIN, ;Z-FORK 3 021080306 1 ナットヨシヨ NUT, 3 M8 4 S35262001 1 ハリフリレンカンクミ CONNECTING ROD ASSY, ;ZIGZAG 5 S35260001 1 ダンネジ M6 SHOULDER SCREW, M6 6 S35259001 1 ハリフリクランクダンネジ SHOULDER SCREW, ;Z-CRANK 7 15559001 1 ヒラサガネ WASHER, PLAIN 9 021060102 2 ナットヨシヨ6 NUT, 1 M6 10 S35258001 1 ハリフリクランク ZIGZAG CRANK 11 018062022 1 アナホルトEX20 BOLT, SOCKET M6X20 12 S35257000 1 クランクジクメタル BUSH, ;C-SHAFT 13 014060632 1 アナクホミ6X6 SET SCREW, SOCKET (CP) M6X6 15 S35256001 1 ハリフリヨウセツタイクミ ROCKER SHAFT, ;ZIGZAG 17 S35255001 1 N-POSITION CONTROL PLATE ASSY 18 S35250001 1 スペーサー-0.6 SPACER, 0.6 19 148727001 1 スペーサー-0.6 SPACER, 0.6 20 S35251001 1 ハリフリウテ ZIGZAG LEVER 21 S35332001 1 ナット6 NUT, M6 22 S35332001 1 ハリヨウタキ NEEDLE BAR 23 018301236 1 アナボルト3X12 BOLT, SOCKET M3X12 24-1 S35143001 1 ハリフリウプクランクタキミ BLOCK CLAMP ASSY, ;N-BAR 24-2 018301632 1 ハリフリウプクランクタキ BLOCK CLAMP, ;N-BAR 26 153596001 1 アナボルト3X16 BOLT, SOCKET M3X16 1 サガネ WASHER 118-981-110 10

Page 15 — E. 針棒揺動関係 / Needle bar rocking mechanism

E. 針棒揺動関係 / Needle bar rocking mechanism 31 1-3 1-4 1-3 1-4 17 1-2 50 18 33 1-1 34 36 35 2 36 16 11-4 23-4 1-5-1 1-5-2 1-6 1-5-3 1-6 11-3 23-2 11-2 23-3 11-3 14 24 23-1 11-1 23-5 11-5 32 11 118-981-115 jintex.in

Page 16 — E . 針棒揺動関係 / Needle bar rocking mechanism

E . 針棒揺動関係 / Needle bar rocking mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1 S35276101 1 モータベース MOTOR BASE 1-2 S43285000 1 パルスモータRウミ PULSE MOTOR ASSY, R 1-3 018501422 4 アツホルト5X14 BOLT, SOCKET M5X14 1-4 025050232 4 ヒラサガネチユウ5 WASHER, PLAIN M 5 1-5 S35283001 1 ハリガイドウプーリーウミ NEEDLE ROTATION PULLEY ASSY 1-5-1 S35435000 1 ハリガイドウプーリーウミ M NEEDLE ROTATION PULLEY ASSY, M 1-5-2 S35282000 1 ニードルピン 5X23.8 NEEDLE PIN, 5X23.8 1-5-3 128652001 1 マグネットREC16W MAGNET REC16W 1-6 014060632 2 アツホルト6X6 SET SCREW, SOCKET (CP) M6X6 2 018061622 4 アツホルト6X16 BOLT, SOCKET M6X16 11 S35291101 1 テンションプーリーDウミ TENSION PULLEY ASSY, D 11-1 S35284101 1 テンションプーリー TENSION PULLEY 11-2 076000000 1 タマシクウケ6000ZZ BALL BEARING, 6000ZZ 11-3 048260242 2 トメワアナヨウC26 RETAINING RING, INTERNAL C26 11-4 S35290001 1 テンションプーリーアームウミ TENSION PULLEY ARM ASSY, D 11-5 048100142 1 トメワアナヨウC10 RETAINING RING, EXTERNAL C10 14 018400832 2 アツホルト4X8 BOLT, SOCKET M4X8 15 S35296001 1 レースカイトウンプーリーウミ DRIVING LOOPER SHAFT ASSY 16 072620180 1 タマシクウケ6201ZZ BALL BEARING, 6201ZZ 17 S35297000 1 テンシヨンTプーリーUウミ T-PULLEY ASSY, U;V-SHAFT 18 018401636 1 アツホルト4X16 BOLT, SOCKET M4X16 23 S35288101 1 テンションプーリーUウミ TENSION PULLEY ASSY, U 23-1 S35284101 1 テンションプーリー TENSION PULLEY 23-2 076000000 1 タマシクウケ6000ZZ BALL BEARING, 6000ZZ 23-3 048260242 2 トメワアナヨウC26 RETAINING RING, INTERNAL C26 23-4 S35287001 1 テンションプーリーアームウミ ARM ASSY, U;T-PULLEY 23-5 048100142 1 トメワアナヨウC10 RETAINING RING, EXTERNAL C10 24 018400832 2 アツホルト4X8 BOLT, SOCKET M4X8 31 S35300000 1 タイミングベルトD TIMING BELT, D 32 S35299000 1 タイミングベルトU TIMING BELT, U 33 076001850 1 タマシクウケ6001ZZ BALL BEARING, 6001ZZ 34 142627001 1 サガネ WASHER 35 S35302001 1 セットカラー SET SCREW COLLAR 36 014060632 2 アツホルト6X6 SET SCREW, SOCKET (CP) M6X6 50 S43349100 1 パルスモータコード R PULSE MOTOR CORD, R 118-981-115 12 jintex.in

Page 17 — F1. 押工関係 / Presser foot mechanism

F1. 押工関係 / Presser foot mechanism 3 1 1-1 1-2 1-3 1-4 15 14 73 72 44 45 55 54 16 17 19 16 6 7 8 11 65 71 62 64 63 57 58 56 12 55 53 35 40 38 36 41 42 43 11 63 65 57 71 58 64 62 56 53 55 2 2-1 2-2 2-3 2-4 3 39 35 43 41 42 74 72 44 45 13 15 118-981-201 13 jintex.in

Page 18 — F1 . 押工関係 / Presser foot mechanism

F1 . 押工関係 / Presser foot mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S34957001 1 ヒラキレンカンLクミ OPENING CONNECTING ROD ASSY, L 1-1 S34965001 1 ジテンレバープレートL FULCRUM LEVER PLATE, L 1-2 102630001 1 ハリホウ ウアンナイカクマ SLIDE BLOCK, N-BAR GUIDE 1-3 109763002 1 ザガネ WASHER 1-4 048050342 1 トメワE5 RETAINING RING, E5 2 S34963001 1 ヒラキレンカンRウミ OPENING CONNECTING ROD ASSY, R 2-1 S34964001 1 ジテンレバープレートR FULCRUM LEVER PLATE, R 2-2 102630001 1 ハリホウ ウアンナイカクマ SLIDE BLOCK, N-BAR GUIDE 2-3 109763002 1 ザガネ WASHER 2-4 048050342 1 トメワE5 RETAINING RING, E5 3 S34966001 6 ダンネジ M4 SHOULDER SCREW, M4 5 S35429001 1 ヒラキトメワ SPRING, EXTENSION 6 S34967001 2 ヒラキレンカンストツバ STOPPER PLATE, OPENING 7 025040232 2 ヒラサガネチユウ4 WASHER, PLAIN M4 8 062400812 2 ナベコ4X8 SCREW, PAN M4X8 11 062301016 2 ナベコM3X10 SCREW, PAN M3X10 12 S34968000 2 スピード ナット M3 SPEED NUT, M3 13 S34970001 2 ヒラキシリンダーロッド CYLINDER ROD, OPENING 14 S34969001 2 シリンダーロッドピンB ROD PIN, B ;CYLINDER 15 048030342 4 トメワE3 RETAINING RING, E3 16 S35169001 2 ヒラキシリンダーサエ CYLINDER SUPPORT, OPENING 17 062400812 4 ナベコ4X8 SCREW, PAN M4X8 19 028040242 4 バネザガネ2.4 WASHER, SPRING 2-4 35 S35239101 2 クランプレバーシク CLAMP LEVER SHAFT 36 S35240001 2 クランプレバー-B CLAMP LEVER, B 38 062501202 2 ナベコM5X12 SCREW, PAN M5X12 39 S35303201 2 オサエトウレバー DRIVING LEVER 40 062501202 2 ナベコM5X12 SCREW, PAN M5X12 41 S35166001 2 ナベシリンダーロッド CLAMP CYLINDER ROD 42 S35305001 2 シリンダーロッドピン ROD PIN, CYLINDER 43 048030342 4 トメワE3 RETAINING RING, E3 44 S35304001 2 クランプシリンダーサエ CYLINDER SUPPORT, CLAMP 45 014400532 2 クランプネジ SET SCREW, SOCKET (CP) M4X5 53 S35321001 3 プレートガイドイタA GUIDE PLATE, A 54 S35322001 1 プレートガイドイタB GUIDE PLATE, B 55 S06696004 11 サラコネジ 3X6 SCREW, FLAT M3X6 56 S35323001 2 プレートオサエ PLATE PRESSER 57 S35324001 2 ダンネジ M4 SHOULDER SCREW, M4 58 S36345000 2 マキワッシャー WASHER, BENDING 62 S35327001 2 ヒラキシリンダーストツパ STOPPER, ;O-CYLINDER 63 017401415 2 ボルト4X14 BOLT, M4X14 64 021400202 2 2シュナット4 NUT, 2 M4 65 062400812 4 ナベコ4X8 SCREW, PAN M4X8 67 S35328001 2 ヒラキストツパイタ STOPPER PLATE 71 028040242 4 バネザガネ2.4 WASHER, SPRING 2-4 72 S35456001 2 オサエトツバネ SPRING 73 S35457001 1 ハネカツL SPRING HOOK, L 74 S35458001 1 ハネカツR SPRING HOOK, R 75 S35321001 1 プレートガイドイタA GUIDE PLATE, A 118-981-201 14

Page 19 — F2 . 押工関係 / Presser foot mechanism

F2 . 押工関係 / Presser foot mechanism 81-1-3 81-1-2 81-1-17 81-1-16 81-1-11 81-1-10 81-1-8 81-1-11 81-1-1 81-1-14 81-1-5 81-1-13 81-1-1-1 81-1-15 81-1-1-2 81-1-9 81-1-7 < -00, 上糸切り用 / For -00, Upper thread trimmer > 81-1-20 81-1-4 81-1-6 81-1-19 81-1-18 81-1-12 80-1-3 80-1-17 80-1-11 80-1-8 80-1-2 80-1-16 80-1-10 80-1-11 80-1-1 80-1-14 80-1-13 80-1-1-1 80-1-15 80-1-1-2 80-1-9 80-1-5 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 80-1-6 80-1-4 80-1-7 80-1-18 80-1-12 15 118-981-201 jintex.in

Page 20 — F2 . 押工関係 / Presser foot mechanism

F2 . 押工関係 / Presser foot mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 80-1 S35474401 1 <--00,上糸切り用> <For-00,Upper thread trimmer> 80-1-1 S35318001 1 オサエプレートノウクミ WORK CLAMP PLATE SET, R 80-1-2 S37684101 1 ヌノサエプレートRウクミ WORK CLAMP PLATE ASSY, R 80-1-4 S37680001 1 ハリイタR-50 NEEDLE PLATE, R-50 1 ヌノサエIR-50 WORK CLAMP, R-50 80-1 S35478401 <--01, 上下糸切り用> <For-01,Upper & lower thread trimmer> 1 オサエプレートRSウクミ WORK CLAMP PLATE SET, RS 80-1-1 S35319001 1 ヌノサエプレートRSウクミ WORK CLAMP PLATE ASSY, RS 80-1-2 S35309101 1 ハリイタR NEEDLE PLATE, R 80-1-4 S35452001 1 ヌノサエIRL WORK CLAMP, RL 80-1-18 S35330001 1 キンジ オサエイタH WORK CLAMP PLATE, R 80-1-1-1 S35316001 1 カクマサエイタ SUPPORT PLATE, S-BLOCK 80-1-1-2 060020416 2 ハインド M2X4 SCREW, BIND M2X4 80-1-3 S06696004 2 サラコネジ 3X6 SCREW, FLAT M3X6 80-1-5 S35236000 1 マゲザガネ3.2 WASHER, BENDING 3.2 80-1-6 S35235001 1 クランプサエピン SUPPORT PIN, CLAMP 80-1-7 021300302 1 3シュナット3 NUT, M3 80-1-8 S35238001 1 クランプシクウケ SHAFT HOLDER, CLAMP 80-1-9 062401016 2 ナベコ 4X10 SCREW, PAN M4X10 80-1-10 S35237001 1 クランプシテンク FULCRUM SHAFT, CLAMP 80-1-11 048050142 2 トメワコウC5 RETAINING RING, C5 80-1-12 S35234201 1 クランプレバー-R CLAMP LEVER, R 80-1-13 018501236 1 アナボルト 5X12 BOLT, SOCKET M5X12 80-1-14 S35167001 1 クランプアームR CLAMP ARM, R 80-1-15 014400532 2 アナボルト 4X5 SET SCREW, SOCKET (CP) M4X5 80-1-16 S35347000 1 ヌノガイド R CLOTH GUIDE, R 80-1-17 S35326001 1 シメネジ M3.5 SCREW, M3.5 80-1 S35475401 <--00,上糸切り用> <For-00,Upper thread trimmer> 81-1-1 S35310001 1 オサエプレートLウクミ WORK CLAMP PLATE SET, L 81-1-2 S37683101 1 ヌノサエプレートLウクミ WORK CLAMP PLATE ASSY, L 81-1-4 S37679001 1 ハリイタL-50 NEEDLE PLATE, L-50 81-1-19 S38335000 1 イトホシイタ WORK CLAMP, L-50 81-1-20 S35326001 1 シメネジ M3.5 THREAD HOLDING PLATE SCREW, M3.5 80-1 S35476401 <--01, 上下糸切り用> <For-01,Upper & lower thread trimmer> 81-1-1 S35317001 1 オサエプレートLSウクミ WORK CLAMP PLATE SET, LS 81-1-2 S35308101 1 ヌノサエプレートLSウクミ WORK CLAMP PLATE ASSY, LS 81-1-4 S35453001 1 ハリイタL NEEDLE PLATE, L 81-1-18 S35329001 1 ヌノサエILL WORK CLAMP, L 1 キンジ オサエイタL WORK CLAMP PLATE, L 81-1-1-1 S35316001 1 カクマサエイタ SUPPORT PLATE, S-BLOCK 81-1-1-2 060020416 2 ハインド M2X4 SCREW, BIND M2X4 81-1-3 S06696004 2 サラコネジ 3X6 SCREW, FLAT M3X6 81-1-5 S35236000 1 マゲザガネ3.2 WASHER, BENDING 3.2 81-1-6 S35235001 1 クランプサエピン SUPPORT PIN, CLAMP 81-1-7 021300302 1 3シュナット3 NUT, M3 81-1-8 S35238001 1 クランプシクウケ SHAFT HOLDER, CLAMP 81-1-9 062401016 2 ナベコ 4X10 SCREW, PAN M4X10 81-1-10 S35237001 1 クランプシテンク FULCRUM SHAFT, CLAMP 81-1-11 048050142 2 トメワコウC5 RETAINING RING, C5 81-1-12 S35233201 1 クランプレバー-L CLAMP LEVER, L 81-1-13 018501236 1 アナボルト 5X12 BOLT, SOCKET M5X12 81-1-14 S35168001 1 クランプアームL CLAMP ARM, L 81-1-15 014400532 2 アナボルト 4X5 SET SCREW, SOCKET (CP) M4X5 81-1-16 S35348000 1 ヌノガイド L CLOTH GUIDE, L 81-1-17 S35326001 1 シメネジ M3.5 SCREW, M3.5 118-981-201 16 jintex.in

Page 21 — F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification)

F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification) 92 94 90 96 102 100 97 99 91 93 98 81-2-10 81-2-8 101 81-2-17 81-2-3 81-2-16 81-2-11 81-2-2 81-2-1 81-2-14 81-2-1-1 81-2-5 81-2-13 81-2-1-2 81-2-11 81-2-9 81-2-7 75 81-2-4 81-2-6 81-2-12 " オプション部品 / OPTION PARTS " 80-2-3 80-2-17 80-2-11 80-2-8 80-2-10 80-2-2 80-2-11 80-2-16 80-2-1 80-2-14 104 80-2-13 80-2-5 80-2-1-1 80-2-1-2 80-2-9 80-2-15 80-2-6 80-2-7 80-2-12 80-2-4 17 118-981-201 jintex.in

Page 22 — F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification)

F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 80-2 S37756401 1 オサエプレートJR1ツクミ <L1 14-18mm> WORK CLAMP PLATE SET, J R1 80-2-2 S37644101 1 ハリイタL1R NEEDLE PLATE, R L1 80-2-4 S37754001 1 ヌノオサエR-JL1 WORK CLAMP, R-J L1 80-2 S37727401 <L2 18-22mm> 1 オサエプレートJR2ツクミ <L2 18-22mm> WORK CLAMP PLATE SET, J R2 80-2-2 S37646101 1 ハリイタL2R NEEDLE PLATE, R L2 80-2-4 S37690001 1 ヌノオサエR-JL2 WORK CLAMP, R-J L2 80-2 S37733401 <L3 22-26mm> 1 オサエプレートJR3ツクミ <L3 22-26mm> WORK CLAMP PLATE SET, J R3 80-2-2 S37648101 1 ハリイタL3R NEEDLE PLATE, R L3 80-2-4 S37692001 1 ヌノオサエR-JL3 WORK CLAMP, R-J L3 80-2 S37757401 <L4 26-30mm> 1 オサエプレートJR4ツクミ <L4 26-30mm> WORK CLAMP PLATE SET, J R4 80-2-2 S37650101 1 ハリイタL4R NEEDLE PLATE, R L4 80-2-4 S37758001 1 ヌノオサエR-JL4 WORK CLAMP, R-J L4 80-2 S40830101 <L5 28-32mm> 1 オサエプレートJR5ツクミ <L5 28-32mm> WORK CLAMP PLATE SET, J R5 80-2-2 S40822001 1 ハリイタL5R NEEDLE PLATE, R L5 80-2-4 S41483001 1 ヌノオサエR-JL5 WORK CLAMP, R-J L5 80-2 S41489101 <L6 32-36mm> 1 オサエプレートJR6ツクミ <L6 32-36mm> WORK CLAMP PLATE SET, J R6 80-2-2 S41479001 1 ハリイタL6R NEEDLE PLATE, R L6 80-2-4 S41485001 1 ヌノオサエR-JL6 WORK CLAMP, R-J L6 80-2 S41491101 <L7 36-40mm> 1 オサエプレートJR7ツクミ <L7 36-40mm> WORK CLAMP PLATE SET, J R7 80-2-2 S41481001 1 ハリイタL7R NEEDLE PLATE, R L7 80-2-4 S41487001 1 ヌノオサエR-JL7 WORK CLAMP, R-J L7 80-2-1 S37729101 <L1-L4 14-30mm> 1 ヌノオサエプレートJRクミ <L1-L4 14-30mm> WORK CLAMP PLATE ASSY, JR 80-2-1 S40828001 <L5-L7 28-40mm> 1 ヌノオサエプレートJRクミB <L5-L7 28-40mm> WORK CLAMP PLATE ASSY, JR;B 80-2-1-1 S35316001 1 カクコマサエイタ SUPPORT PLATE, ;S-BLOCK 80-2-1-2 060020416 2 ハインド M2X4 SCREW, BIND M2X4 80-2-3 S06696004 2 サラコネジ 3X6 SCREW, FLAT M3X6 80-2-5 S35236000 1 マゲザガネ3.2 WASHER, BENDING 3.2 80-2-6 S35235001 1 クランプサエピン SUPPORT PIN, ;CLAMP 80-2-7 021300302 1 シュウナット 3 NUT, 3 M3 80-2-8 S35238001 1 クランプシシク SHAFT HOLDER, ;CLAMP 80-2-9 062401016 2 ナベコ4X10 SCREW, PAN M4X10 80-2-10 S35237001 1 クランプシシク FULCRUM SHAFT, ;CLAMP 80-2-11 048050142 2 トメワシヨウC5 RETAINING RING, C5 80-2-12 S35234201 1 クランプレバー-R CLAMP LEVER, R 80-2-13 018501236 1 アナボルト5X12 BOLT, SOCKET M5X12 80-2-14 S37695001 <L1-L4 14-30mm> 1 クランプアームR-J <L1-L4 14-30mm> CLAMP ARM, R-J 80-2-14 S40826001 <L5-L7 28-40mm> 1 クランプアームR-J-B <L5-L7 28-40mm> CLAMP ARM, R-J-B 80-2-15 014400532 2 アナボルト4X5 SET SCREW, SOCKET (CP) M4X5 118-981-201 18

Page 23 — F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification)

F3. 押工関係 (ジーンズ仕様) / Presser foot mechanism (Jeans specification) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 80-2-16 S35347000 1 ヌノガイド R CLOTH GUIDE, R 80-2-17 S35326001 1 シメネジ M3.5 SCREW, M3.5 81-2 S37731301 <L1 14-18mm> <L1 14-18mm> 81-2-2 S37643201 1 オサエプレートJL1ツクミ WORK CLAMP PLATE SET, J L1 81-2-4 S37755001 1 ハリイタL1 NEEDLE PLATE, L L1 1 ヌノサエール-JL1 WORK CLAMP, L-J L1 81-2 S37728301 <L2 18-22mm> <L2 18-22mm> 81-2-2 S37645101 1 オサエプレートJL2ツクミ WORK CLAMP PLATE SET, J L2 81-2-4 S37689001 1 ハリイタL2 NEEDLE PLATE, L L2 1 ヌノサエール-JL2 WORK CLAMP, L-J L2 81-2 S37735301 <L3 22-26mm> <L3 22-26mm> 81-2-2 S37647101 1 オサエプレートJL3ツクミ WORK CLAMP PLATE SET, J L3 81-2-4 S37691001 1 ハリイタL3 NEEDLE PLATE, L L3 1 ヌノサエール-JL3 WORK CLAMP, L-J L3 81-2 S37732301 <L4 26-30mm> <L4 26-30mm> 81-2-2 S37649101 1 オサエプレートJL4ツクミ WORK CLAMP PLATE SET, J L4 81-2-4 S37759001 1 ハリイタL4 NEEDLE PLATE, L L4 1 ヌノサエール-JL4 WORK CLAMP, L-J L4 81-2 S40831101 <L5 28-32mm> <L5 28-32mm> 81-2-2 S40823001 1 オサエプレートJL5ツクミ WORK CLAMP PLATE SET, J L5 81-2-4 S41484001 1 ハリイタL5L NEEDLE PLATE, L L5 1 ヌノサエール-JL5 WORK CLAMP, L-J L5 81-2 S41490101 <L6 32-36mm> <L6 32-36mm> 81-2-2 S41480001 1 オサエプレートJL6ツクミ WORK CLAMP PLATE SET, J L6 81-2-4 S41486001 1 ハリイタL6L NEEDLE PLATE, L L6 1 ヌノサエール-JL6 WORK CLAMP, L-J L6 81-2 S41492101 <L7 36-40mm> <L7 36-40mm> 81-2-2 S41482001 1 オサエプレートJL7ツクミ WORK CLAMP PLATE SET, J L7 81-2-4 S41488001 1 ハリイタL7L NEEDLE PLATE, L L7 1 ヌノサエール-JL7 WORK CLAMP, L-J L7 81-2-1 S37730001 <L1-L4 14-30mm> <L1-L4 14-30mm> 1 オサエプレートJLクミ WORK CLAMP PLATE ASSY, JL 81-2-1 S35310001 <L5-L7 28-40mm> <L5-L7 28-40mm> 1 ヌノサエールプレート WORK CLAMP PLATE ASSY, L 81-2-1-1 S35316001 1 カクマサエイタ SUPPORT PLATE, ;S-BLOCK 81-2-1-2 060020416 2 ハインド M2X4 SCREW, BIND M2X4 81-2-3 S06696004 2 サラネジ M3X6 SCREW, FLAT M3X6 81-2-5 S35235001 1 クランプササエピン WASHER, BENDING 3.2 81-2-6 021300302 1 3シュナツト SUPPORT PIN, CLAMP 81-2-7 S37712001 1 クランプシツクウケ NUT, 3 M3 81-2-9 062401016 2 ナベコ4X10 CLAMP SHAFT HOLDER 81-2-10 S37711001 1 クランプテンシツク SCREW, PAN M4X10 81-2-11 048050142 2 トメワジクウケC5 CLAMP FULCRUM SHAFT 81-2-12 S35233201 1 クランプレバー-L RETAINING RING, C5 81-2-13 018501236 1 アナボルト5X12 CLAMP LEVER, L BOLT, SOCKET M5X12 19 118-981-201 jintex.in

Page 24 — F3. 押工関係(ジーンズ仕様) / Presser foot mechanism (Jeans specification)

F3. 押工関係(ジーンズ仕様) / Presser foot mechanism (Jeans specification) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 81-2-14 S37694001 1 <L1-L4 14-30mm> クランプアームL-J <L1-L4 14-30mm> CLAMP ARM, L-J 81-2-14 S40827001 1 <L5-L7 28-40mm> クランプアームL-J-B <L5-L7 28-40mm> CLAMP ARM, L-J-B 81-2-15 014400532 2 アサホミ4X5 SET SCREW, SOCKET (CP) M4X5 81-2-16 S35348000 1 ヌノガイド L CLOTH GUIDE, L 81-2-17 S35326001 1 シメネジ M3.5 SCREW, M3.5 75 S37693001 1 プレートガイドイタC GUIDE PLATE, C 80 S37714001 1 ホンヨウヨウセンタリングイ FULCRUM BRACKET, AUX.CLAMP 90 S37713001 1 ホンヨウヨウセンタリングク FULCRUM SHAFT, AUX.CLAMP 91 048050142 2 トウシヨウC5 RETAINING RING, C5 92 S37718000 1 ホンヨウヨウアーム AUXILIARY CLAMP ARM 93 018401032 1 アサホルト4X10 BOLT, SOCKET M4X10 94 S05356000 1 ボタンサエA BUTTON CLAMP, A 95 S08808001 1 ストツプネジ STOPPER SCREW 96 021660102 1 ナツト1SM3.18 NUT, 1 SM3.18 97 S37753001 1 ホンヨウヨウエトシバネ SPRING, EXTENSION 98 S37744001 1 Fオサエシリンダササエミ CYLINDER SUPPORT ASSY 99 062400812 2 ナベコ4X8 SCREW, PAN M4X8 100 S37717101 1 ホンヨウヨウリンクアーム AUX. CLAMP LINK ASSY 101 S34922101 1 ダンネジ M4 SHOULDER SCREW, M4 102 021400202 1 2シュナツト4 NUT, 2 M4 104 S37870000 "オプシヨン部品" "OPTION PARTS" 1 ヌノガイド J CLOTH GUIDE, J 118-981-201 20 jintex.in

Page 25

G. 送り関係 / Feed mechanism 1 2 3 4 18 19 17 11 27 13 11-1 17 11-2 12 25 24 27 28 26 15 17 23 97 25 24 71 72 83 79 80 184-1 84-2 84 81 82 86 76 75 74 10378 77 91 93 92 5 8 6 76 92 93 90 89 87 88 10 9 5-1 101 62 63 64 65 66 61 62 68 150 151 54 52 43 49 50 42 45 46 48 45-1 51 100 53 57 55 56 66 66 56 11B-981-202 21 jintex.in

Page 26

G . 送り関係 / Feed mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S34950209 1 オクリダイ FEED BRACKET 2 S35176001 1 オクリダイカバー-L FEED BRACKET COVER, L 3 S35177001 1 オクリダイカバー-R FEED BRACKET COVER, R 4 S29410001 12 サラネジ M4 SCREW, FLAT M4 5 S43192200 1 パルスモータ クミ PULSE MOTOR ASSY, X 5-1 S43193200 1 パルスモータ103H7523 PULSE MOTOR, 103H7523 6 018401622 4 アナボルト 4X16 BOLT, SOCKET M4X16 8 025040132 4 ヒラザガネショウ 4 WASHER, PLAIN S 4 9 S43717201 1 クドウキヤ 15.75 GEAR, 15.75 10 014770622 2 アナネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 11 S35181001 1 XオクリダイクウケLクミ X-FEED SHAFT HOLDER, L 11-2 S35180000 1 XオクリダイクウケL X-FEED SHAFT HOLDER, L 11-2 417526000 1 センサマグネット 9 SENSOR MAGNET, 9 12 S35178001 2 Xラツク X-RACK 13 018501631 4 アナボルト 5X16 BOLT, SOCKET M5X16 15 S35179000 1 XオクリダイクウケR X-FEED SHAFT HOLDER, R 16 S35188001 2 Yオクリダインクク Y-FEED GUIDE SHAFT 17 014060632 4 アナネジ 6X6 SET SCREW, SOCKET (CP) M6X6 18 S12004000 4 リニアブツシユ LINEAR BUSH 19 S02460001 8 トメワジヨウC19 RETAINING RING, EXTERNAL C19 23 S35182001 1 XオクリダインククA X-FEED GUIDE SHAFT, A 24 018401636 4 アナボルト 4X16 BOLT, SOCKET M4X16 25 025040232 4 ヒラザガネチユウ 4 WASHER, PLAIN M 4 26 S35183000 4 リニアブツシユ 12 LINEAR BUSH, 12 27 S35184001 4 タマシウケトメイヤ STOPPER, BALL BEARING 28 062300416 4 ナベコ M3X4 SCREW, PAN M3X4 42 S43719001 1 YオクリベースB Y-FEED BASE, B 43 018061622 4 アナボルト 6X16 BOLT, SOCKET M6X16 45 S43194200 1 パルスモータY PULSE MOTOR ASSY, Y 45-1 S43193200 1 パルスモータ103H7523 PULSE MOTOR, 103H7523 46 018401622 4 アナボルト 4X16 BOLT, SOCKET M4X16 48 025040132 4 ヒラザガネショウ 4 WASHER, PLAIN IS 4 49 S43718001 1 クドウキヤ 25 DRIVING GEAR, 25 50 014760622 2 アナネジ 5.95 SET SCREW, SOCKET SM5.95 51 S35174001 1 Yプーリサポ-トL Y-PULLEY SUPPORT, L 52 018501422 2 アナボルト 5X14 BOLT, SOCKET M5X14 53 S27844201 1 タイミングプーリ A TIMING PULLEY, A 54 014770622 2 アナネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 55 S35186001 1 Yプーリサポ-ト Y-PULLEY SHAFT, R 56 530138001 2 マイクロベアリング 8 MICRO BEARING, 8 57 048060342 2 トメワE6 RETAINING RING, E6 61 S27844201 1 タイミングプーリ A TIMING PULLEY, A 62 014770622 2 アナネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 63 S35189001 1 Yプーリサポ-トR Y-PULLEY SHAFT, R 64 530138001 2 マイクロベアリング 8 MICRO BEARING, 8 65 048060342 2 トメワE6 RETAINING RING, E6 66 048160242 4 トメワジヨウC16 RETAINING RING, INTERNAL C16 67 S43720001 1 アイドルギヤ 40 IDLER GEAR, 40 68 014060632 2 アナボルト 6X6 SET SCREW, SOCKET (CP) M6X6 69 S10077100 1 タイミングベルト TIMING BELT 70 S35190001 1 Yジク Y-SHAFT 71 S02460001 2 トメワジヨウC19 RETAINING RING, EXTERNAL C19 72 S12004000 2 リニアブツシユ LINEAR BUSH 73 S35184001 1 タマシウケトメイヤ STOPPER, BALL BEARING 74 S35191001 1 ジクウエ BALL BEARING 75 S12004000 1 リニアブツシユ LINEAR BUSH 76 S02460001 2 トメワジヨウC19 RETAINING RING, EXTERNAL C19 77 018061222 2 アナボルト 6X12 BOLT, SOCKET M6X12 78 028060242 2 バネザガネ2-6 WASHER, SPRING 2-6 79 S31568000 1 Yドウジクホルダ Y-DRIVING SHAFT HOLDER 80 S10078001 1 Tベルトスペーサ SPACER, T-BELT 118-981-202 22

Page 27 — G. 送り関係 / Feed mechanism

G. 送り関係 / Feed mechanism 4 2 18 19 13 17 11-1 17 25 24 11-2 12 27 28 27 26 12 15 23 17 27 26 86 76 75 74 85 10378 77 72 91 93 92 76 5 90 92 93 10 89 9 88 87 5-1 4 3 1 16 16 96 97 99 73 72 79 83 80 184-1 84-2 84 81 82 65 64 52 66 61 62 63 42 66 64 68 150 45 49 54 53 43 51 50 46 45-1 151 118-981-202 23 jintex.in

Page 28 — G . 送り関係 / Feed mechanism

G . 送り関係 / Feed mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 81 S10079101 1 ベルトホルダ BELT HOLDER 82 018680822 2 アアボルト4.37X8 BOLT, SOCKET SM4.37X8 83 018501631 1 アアボルトM6X16 BOLT, SOCKET M6X16 84 S35192001 1 センサリイタ SENSOR PARTITION PLATE ASSY 84-1 S35193000 1 センサリイタ SENSOR PARTITION PLATE 84-2 128652001 1 マグネットREC16W MAGNET REC16W 85 S35194001 1 Y-ガイドシンク Y-GUIDE SHAFT 86 012500536 2 アアヒラ5X5 SET SCREW, SOCKET (FT) M5X5 87 S43749001 1 モータササエB MOTOR SUPPORT, B 88 018061622 3 アアボルトM6X16 BOLT, SOCKET M6X16 89 S35196100 2 アアイトルギヤ IDLER GEAR 90 014060632 4 アアボルトM6X6 SET SCREW, SOCKET (CP) M6X6 91 S35195001 1 アアイトルギヤシヤフ GEAR SHAFT, IDLER 92 076001800 2 タマシクウツ6001ZZ BALL-BEARING 6001ZZ(8482.10) 93 048280242 2 トメワアナヨウC28 RETAINING RING, INTERNAL C28 96 S35187001 1 XオクリアンナイシンクB X-FEED GUIDE SHAFT, B 97 014060632 2 アアヒラミ6X6 SET SCREW, SOCKET (CP) M6X6 99 062300416 1 ナベコM3X4 SCREW, PAN M3X4 100 018502022 1 アアボルトM5X20 BOLT, SOCKET M5X20 101 148782001 1 スペーサー SPACER 103 025060232 2 ヒラサガネチユウ6 WASHER, PLAIN M 6 150 S43347000 1 パルスモータコード X PULSE MOTOR CORD, X 151 S43348000 1 パルスモータコード Y PULSE MOTOR CORD, Y 118-981-202 24 jintex.in

Page 29 — H.カッター関係 / Cutter mechanism

H.カッター関係 / Cutter mechanism 1-1 1-2 1-3 1-4 1-5 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 23 24 25-1 25-2 25-3 25-4 25-5 26 27 34-1 34-2 39 40 45 46 47 48 51 52 53 54 55 56 58 118-981-218 25 jintex.in

Page 30 — H. カッター関係 / Cutter mechanism

H. カッター関係 / Cutter mechanism REF. NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35074201 1 カッターウデクミ CUTTER LEVER ASSY 1-1 S35075201 1 カッターウデ CUTTER LEVER 1-2 S35076101 1 カッターカートリッジプレッサー CUTTER CARTRIDGE PRESSER 1-3 S35077000 1 ニードルローラー4X25.8 NEEDLE ROLLER, 4X25.8 1-4 S35078001 1 ハネカケ SPRING HOOK 1-5 S35079000 1 ニードルローラー3X11.8 NEEDLE ROLLER, 3X11.8 2 S35080001 1 カッターウデシノブ CUTTER LEVER SHAFT 3 016061031 1 アナカシメ 6X10 SET SCREW, SOCKET (CN) M6X10 5 S35081001 2 カッターウデ オサエネジ SUPPORT SCREW 6 S35082001 1 リンクA NUT, 3 M14 7 S35088001 1 リンク LINK, A 8 S35085001 1 リンクC LINK, C 9 014060632 1 アナカシメ 6X6 SET SCREW, SOCKET (CP) M6X6 10 S35087001 1 リンクC LINK, C 11 S35086001 1 リンク2B LINK SHAFT, B 12 014060632 1 アナカシメ 6X6 SET SCREW, SOCKET (CP) M6X6 13 S35083001 1 リンク7A LINK SHAFT, A 14 014060632 1 アナカシメ 6X6 SET SCREW, SOCKET (CP) M6X6 15 S35084001 1 シリンダーロッド シク CYLINDER ROD SHAFT 16 014060632 1 アナカシメ 6X6 SET SCREW, SOCKET (CP) M6X6 17 S35090001 1 シリンダーロッド CYLINDER ROD 18 S35091001 1 シリンダーササエシク CYLINDER SUPPORT SHAFT 19 014060632 2 アナカシメ 6X6 SET SCREW, SOCKET (CP) M6X6 23 S35091001 1 ツマミネジ M5 KNOB SCREW, M5 <00. 上糸切り用> <For-00, Upper thread trimmer> 24 <01. 下糸切り用> <For-01, Upper & lower thread trimmer> 24 S35093001 1 ハンマー-38 HAMMER, 38 <02. ジーンズ仕様> <For-02, Jeans specification> <52. フライパンデッカー仕様> <For-52, Fly-hooker specification> 24 S37702001 1 ハンマー-S12 L1 HAMMER, S12 L1 24 S37704001 1 ハンマー-S16 L2 HAMMER, S16 L2 24 S37706001 1 ハンマー-S20 L3 HAMMER, S20 L3 24 S37708001 1 ハンマー-S24 L4 HAMMER, S24 L4 24 S37197001 1 ハンマー-26 L5 HAMMER, 26 L5 24 S37199001 1 ハンマー-30 L6 HAMMER, 30 L6 24 S37201001 1 ハンマー-34 L7 HAMMER, 34 L7 25 S35473301 1 メスト・ダイクウミ KNIFE BRACKET SET 25-1 S35094301 1 メスト・ダイ KNIFE BRACKET ASSY 25-2 S35097001 1 メスフロックオサエ KNIFE BLOCK HOLDER 25-3 018501622 1 アナボルト 5X16 BOLT, SOCKET, M5X16 25-4 S35098000 1 フワロックツルイツタ STOPPER PLATE, BLOCK 25-5 062300416 1 ナベコ M3X4 SCREW, PAN M3X4 26 018501222 2 アナボルト 5X12 BOLT, SOCKET, M5X12 27 018062522 1 アナボルト 6X25 BOLT, SOCKET, M6X25 34-1 S35436101 1 メス2.8X4.3-50 KNIFE, 2.8X4.3-50 34-2 S35437101 1 メス2.8X4.3-38 KNIFE, 2.8X4.3-38 39 S45269001 1 カッターセンサキリイタS PARTITION PLATE, C-SENSOR 40 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 45 S35078001 1 ハネカケ SPRING HOOK 46 142642001 1 サトウチョウセツヒキハネ SPRING, EXTENSION 47 S35100001 1 メスチョウセツサエ KNIFE ADJUSTING SUPPORT 48 062400812 1 ナベコ 4X8 SCREW, PAN M4X8 51 S35101001 1 メスチョウセツネジ ADJUSTING SCREW 52 S35102001 1 メスト・ダイイアンナイ KNIFE BRACKET GUIDE 53 018400832 3 アナボルト 4X8 BOLT, SOCKET, M4X8 54 S35104001 1 メスパイプクミ KNIFE PIPE ASSY 55 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 56 028040242 2 ハネガキガネ2.4 WASHER, SPRING-2-4 58 S43375000 1 メスデカバー KNIFE LEVER COVER 118-981-218 26 jintex.in

Page 31

J. テンションプーリー関係 / Tension pulley mechanism 1-3 1-4 1-3 1-5 1-1 1-2 1 2 4 13 14 5 6 7 10 18 12 17 118-981-126 < 下軸関係 / Lower shaft mechanism 3 18 12-4 12-3 12-1 12-5 12-2 12-1-1 12 5 8 9 11 10 17 17 16 7 6 4 7 118-981-305 27 jintex.in

Page 32 — J. テンションプーリ関係 / Tension pulley mechanism K. 下軸関係 / Lower shaft mechanism

J. テンションプーリ関係 / Tension pulley mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35112101 1 T7-リクミ TENSION PULLEY ASSY 1-1 S35431101 1 T-PULLEY SUPPORT PLATE ASSY 1-2 S35110001 1 テンションプーリ TENSION PULLEY 1-3 048280242 2 トメワアナヨウC28 RETAINING RING, INTERNAL C28 1-4 048120142 1 タマシクウケ6001ZZ BALL-BEARING 6001ZZ(8482.10) 1-5 018081622 1 トメワヨウC12 RETAINING RING, EXTERNAL C12 2 028080242 2 アトメボルト8X16 BOLT, SOCKET M8X16 4 028080242 2 バネザガネ2-8 WASHER, SPRING 2-8 5 S35108001 1 イドラプーリ IDLER PULLEY 6 076002800 2 タマシクウケ6002ZZ BALL BEARING, 6002ZZ 7 048320242 2 トメワアナヨウC32 RETAINING RING, INTERNAL C32 10 S35107001 1 イドラプーリシク PULLEY SHAFT 11 116920001 2 オクリバネ、スラストリング RING, THRUST 12 014060632 1 アナツメ6X6 SET SCREW, SOCKET (CP) M6X6 13 S35106001 1 ベッドササエシク BED SUPPORT SHAFT 14 014060632 1 アナツメ6X6 SET SCREW, SOCKET (CP) M6X6 17 S18707129 1 VベルトMシロ BELT, VM ;WHITE 18 S18707137 1 VベルトMシロ BELT, VM ;WHITE 118-981-126 K. 下軸関係 / Lower shaft mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 076003850 1 タマシクウケ6003ZZ BALL BEARING, 6003ZZ 2 048150142 1 トメワヨウC15 RETAINING RING, EXTERNAL C15 3 S35275100 1 タイミングベルト665 TIMING BELT, 665 4 S35273001 1 シタジクカムシク CAM SHAFT 5 076202850 1 タマシクウケ6202ZZ BALL BEARING, 6202ZZ 6 S35274001 1 セツトカラー SET SCREW COLLAR 7 S23651001 2 アトメヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 8 S35272001 1 シタジクプーリクミ TENSION PULLEY ASSY, L-SHAFT 9 S23651001 2 アトメヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 10 S35270001 1 シタジクカム LOWER SHAFT CAM 11 S23651001 2 アトメヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 12 S35269101 1 テンションプーリクミ TENSION PULLEY ASSY 12-1 S35268101 1 テンションプーリウデクミ ARM ASSY, T-PULLEY 12-1-1 S35267101 1 テンションプーリウデ ARM, T-PULLEY 12-2 S35265001 1 テンションプーリ TENSION PULLEY 12-3 076001800 1 タマシクウケ6001ZZ BALL-BEARING 6001ZZ(8482.10) 12-4 048280242 2 トメワアナヨウC28 RETAINING RING, EXTERNAL C28 12-5 048120142 1 トメワヨウC12 RETAINING RING, EXTERNAL C12 16 018502036 2 アトボルト5X20 BOLT, SOCKET M5X20 17 025050232 2 ヒラザガネチユウ5 WASHER, PLAIN M 5 18 S43376001 1 シタジクプーリカバー PULLEY COVER, L-SHAFT 118-981-305 jintex.in 28

Page 33 — L1, Double chain stitch looper mechanism

L1, 二重環ルーパ関係 / Double chain stitch looper mechanism 118-981-309 29 jintex.in

Page 34 — L1 . 二重環ルーパ関係 / Double chain stitch looper mechanism

L1 . 二重環ルーパ関係 / Double chain stitch looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S34948101 1 レースト・ダイ LOOPER BASE 2 S35007000 1 レースプ・リクミ LOOPER PULLY ASSY 3 062351615 1 ナベコ 35X16 SCREW, PAN M3.5X16 7 S37432001 1 ハリ・ホウ・ロツクタクミ DRIVING SHAFT, ;LOOPER 7-1 S35143001 1 ハリ・ホウ・ロツクタクミ BLOCK CLAMP ASSY, ;N-BAR 7-2 018301632 1 アナホルト 3X16 BOLT, SOCKET M3X16 9 S35053001 1 スプ・レタ・リンク・シク LINK SHAFT, ;SPREADER 10 S35011001 1 ルーパ・リンク・テン LOOPER LINK CLAMP 11 062501202 1 ナベコ M5X12 SCREW, PAN M5X12 12 S35012001 1 LS・スライド・アンナイ LS-SLIDE GUIDE 13 062300612 3 ナベコ 3X6 SCREW, PAN M3X6 14 S35015101 1 ルーパ・リンク・クミ LOOPER LINK UNIT 14-1 S52821001 1 ルーパ・リンク・クミ LOOPER LINK ASSY 14-2 S52832000 2 フエルト FELT 14-3 S52824001 2 フエルトオサエ FELT SUPPORT 15 SA0030001 2 ルーパ・リンク・カラー LOOPER LINK COLLAR 16 SA0029001 2 ルーパ・リンク・ネジ LOOPER LINK SCREW 17 S35016001 1 スプ・レタ・リンク・タイ SPREADER LINK BASE 18 062501202 1 ナベコ M5X12 SCREW, PAN M5X12 19 S35017001 1 スプ・レタ・カム・リンク CAM LINK, ;SPREADER 20 S35018001 1 カム・リンク・カラー COLLAR, ;CAM LINK 21 S35014001 1 ダンネジ M4 SHOULDER SCREW, M4 22 S35019001 1 ダンネジ M4 SHOULDER SCREW, M4 23 S35020001 2 スプ・レタ・ハネ SPRING, COMPRESSION 24 S35021000 2 スプ・レタ・ハネ・アンナイ SPRING GUIDE, ;SPREADER 25 S35022101 1 スプ・レタ・サト・ウカム DRIVING CAM, ;SPREADER 26 S35023001 1 LSホルダ・ブラケット LS-HOLDER BRACKET 27 014060832 1 アナトメネジ 6X8ワセミ SCREW 6X8 28 S35024101 1 バインド・ホルダ SUPPORT SHAFT, ;HOLDER 30 060400516 1 ハトメコ M3X10 SCREW, BIND M4X5 32 062301016 1 ナベコ M3X10 SCREW, PAN M3X10 33 021300302 1 3シュ・ナット・3 NUT, 3 M3 34 S35027001 1 Uイトリハネ SPRING, EXTENSION 35 S35028000 1 タウエルピン 3X16 PIN, DOWEL 3X16 37 105288001 1 シメネジ 2.38 SCREW, SM2.38 42 S35030001 1 イトアンナイ・パイプ PIPE, ;TR-GUIDE 43 S36660101 1 ハリウケサエ SUPPORT, ;N-GUARD 44 062300612 2 ナベコ 3X6 SCREW, PAN M3X6 45 S35410001 1 ルーパ・R LOOPER, R 46-1 S35411001 1 アイ・ルーパ EYE LOOPER 47 S35032101 2 シメネジ 2.6X5.5 SCREW, M2.6X5.5 48 S35412101 1 スプ・レタ・R SPREADER, R 49-1 S35413101 1 スプ・レタ・L SPREADER, L 50 S35034001 1 スプ・レタ・ストツプ・R STOPPER, R ;SPREADER 51 S35033001 1 スプ・レタ・ストツプ・L STOPPER, L ;SPREADER 52 S35032101 2 シメネジ 2.6X5.5 SCREW, M2.6X5.5 53 S35035101 1 スプ・レタ・ハネ・R SPRING, TWIST ;R 54 S35036101 1 スプ・レタ・ハネ・L SPRING, TWIST ;L 56 S35037001 1 ガイド・シヤフト GUIDE SHAFT, ;SPRING 57 021400202 1 2シュ・ナット・4 NUT, 2 M4 58 S35038001 1 イトトリハネ THREAD TAKE-UP SPRING 59 S35039000 1 Lイトトリハネ・ササエ SUPPORT, TR. TAKE-UP SPRING 60 060300416 1 バインド・3X4 SCREW, BIND M3X4 61 S35018001 1 Lイトトリハネ・アンナイ SPRING GUIDE, ;L-TR TAKE-UP 62 S35018001 1 カム・リンク・カラー COLLAR, ;CAM LINK 63 062401416 1 ナベコ M4X14 SCREW, PAN M4X14 64 S35040000 1 イトササエ・イタ SUPPORT PLATE 65 S35043001 1 Lイトオサエ・ダイ L-THREAD PRESSER BASE 66 S35042000 1 Lイトオサエ L-THREAD PRESSER 67 S35044001 1 Lイトチヨウシボウ L-TENSION STUD 118-981-309 30 jintex.in

Page 35 — L1. 二重環ルーパ関係 / Double chain stitch looper mechanism

L1. 二重環ルーパ関係 / Double chain stitch looper mechanism 31 118-981-309 jintex.in

Page 36 — L1 . 二重環ルーパ関係 / Double chain stitch looper mechanism

L1 . 二重環ルーパ関係 / Double chain stitch looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 68 154562001 1 プレテンションバネ SPRING, B :PRE-TENSION 69 155510001 1 イトチョウナット TENSION NUT 70 144504001 2 イトアンナイザラ DISC, THREAD GUIDE 71 S35045001 1 ダンネジ M3 SHOULDER SCREW, M3 72 S35118001 1 イトチョウバネ TENSION SPRING 73 S35046000 2 ニードルピン 3X17.8 NEEDLE PIN, 3X17.8 90 S35326001 1 シメネジ M3.5 SCREW, M3.5 93 076003850 2 タマシクウケ6003ZZ BALL BEARING, 6003ZZ 94 014300832 1 アナクホミ M3X8 SET SCREW, SOCKET (CP) M3X8 95 S36659001 1 ハリウケU NEEDLE GUARD, U 96 018300532 1 アナクホルト3X5 BOLT, SOCKET M3X5 118-981-309 32 jintex.in

Page 37 — L2 . 二重環ルーパ関係 / Double chain stitch looper mechanism

L2 . 二重環ルーパ関係 / Double chain stitch looper mechanism < -00, 上糸切り用 / For -00, Upper thread trimmer > < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 36-1 39-1 38-1 31-1 29-1 89-2 < -02, ジーンズ仕様 / For -02, Jeans specification > 36-2 115-2 103 105 104-1 39-2 115-1 115-3 83-2 82-2 80 31-2 82-2 78 77 76 79 75 92 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > " オプション部品 / OPTION PARTS " 82-1 83-1 81 46-2 49-2 86 87 84 82-1 82-1 46-3 49-3 88 83-1 78 89-3 85 77 76 79 75 92 33 118-981-309 jintex.in

Page 38 — L2. 二重環ルーパ関係 / Double chain stitch looper mechanism

L2. 二重環ルーパ関係 / Double chain stitch looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 29-1 S35054001 <00,上糸切り用> <For-00,Upper thread trimmer> 31-1 S35025001 <01,下糸切り用> <For-01,Upper & lower thread trimmer> 36-1 S35029001 1 シイトアンナイC GIMP GUIDE, C 38-1 S35026001 1 イトキリレバートダイ THREAD TRIMMER LEVER BRACKET 39-1 060300416 1 ウワイト ウハA MOVABLE KNIFE, A ;UPPER 89-2 S47033001 1 ウワイト ウハダイ BRACKET, ;U-MOVABLE KNIFE 1 スロートブレート1.6 SCREW, BIND M3X4 THROAT PLATE, 1.6 29-2 S37696101 <02, ジーンズ仕様> <For-02, jeans specification> 31-2 S37726001 1 シイトアンナイC-J GIMP GUIDE, C-J 36-2 S37723001 1 イトキリレバートダイ B THREAD TRIMMER LEVER BRACKET, B 39-2 060350616 1 ウワイト ウハB MOVABLE KNIFE, B ;UPPER 75 S35048101 1 ハインド 3.5X6 SCREW, BIND M3.5X6 76 S35049001 1 イトツメルレバー TENSION RELEASE LEVER 77 025680132 1 イトツメルレバーバジク LEVER SHAFT, ;T-RELEASE 78 048030342 2 ヒラザガネシヨウ4.37 WASHER, PLAIN S 4.37 79 S35050001 2 トメワE3 RETAINING RING, E3 80 S35051001 1 ルーバーイトツメル LOOPER TENSION RELEASE 82-2 025350236 1 イトツメルメチヨウセイツイタ TENSION RELEASE PLATE 83-2 062350516 2 ヒラザガネチヨウ3.5 WASHER, PLAIN M 3.5 89-1 S37752001 2 ナベコ3.5X5 SCREW, PAN M3.5X5 92 S35057001 1 スロートブレート1.8-J THROAT PLATE, 1.8-J 103 S37724001 1 スプリング 2.38 SPRING, TWIST 104-1 S37725001 1 シイトオサエバネ SCREW, SM2.38 105 S47932001 1 シイトオサエ SPRING, COMPRESSION 106 S41252000 1 ナツト238-56 NUT, SM2.38-56 107 S35118001 1 シイトオサエジヤケツト GIMP THREAD CLAMP PLATE, J 108 1S9113001 1 シイトオサエジヤケツト TENSION SPRING 115 S47512001 1 シイトオサエダイ SHOULDER SCREW, SM3.18 115-1 S37721001 1 シイトオサエダイ LOWER THREAD PRESSER ASSY, J 115-2 S37720001 1 シイトオサエ LOWER THREAD PRESSER BRACKET 115-3 148407001 1 ヨコアンナイミシンピン LOWER THREAD PRESSER DOWEL PIN, L 75 S35048101 <-01,上糸切り用> <For-01, Upper & lower thread trimmer> 76 S35049001 1 イトツメルレバー TENSION RELEASE LEVER 77 025680132 1 イトツメルレバーバジク LEVER SHAFT, ;T-RELEASE 78 048030342 2 ヒラザガネシヨウ4.37 WASHER, PLAIN S 4.37 79 S35050001 2 トメワE3 RETAINING RING, E3 80 S35051001 1 ルーバーイトツメル LOOPER TENSION RELEASE 81 S35365101 1 イトツメルメチヨウセイツイタ TENSION RELEASE PLATE 82-1 025350236 3 ヒラザガネチヨウ3.5 TENSION RELEASE LEVER CLAW 83-1 062350516 3 ナベコ3.5X5 WASHER, PLAIN M 3.5 84 S35366001 1 イトツメルメサイ SCREW, PAN M3.5X5 85 062400812 2 ナベコ4X8 TENSION RELEASE CLAW SUPPORT 86 S35055001 1 イトツメルメサイ SCREW, PAN M4X8 87 S35056001 1 イトツメルメサイ TENSION RELEASE CLAW 88 S35057001 1 タンネジ M4 SPRING, TWIST 92 S35057001 1 イトツメルレバーバネ SHOULDER SCREW, M4 SPRING, TWIST "オプション部品" "OPTION PARTS" 46-2 S35471001 1 アイ ルーパ B <太糸用> EYE LOOPER, B <For heavy-weight thread> 46-3 S49078001 1 ルーパ L-S <単糸用> LOOPER, L-S <For chain stitch> 49-2 S35472101 1 スプレダー LB <太糸用> SPREADER, L-B <For heavy-weight thread> 49-3 S49079001 1 スプレダー L-S <単糸用> SPREADER, L-S <For chain stitch> 89-3 S47034001 1 スロートブレート1.1 <小穴用> THROAT PLATE, 1.1 <For small hole> 118-981-309 34 jintex.in

Page 39

M. ルーパー関係 / Looper mechanism 15 7 6 8 9 8 9 8 9 8 9 1-1 1-4 2 14 1-2 1-3 118-981-306 N. スプレダー関係 / Spreader mechanism 8 10 10 3 4 9 2-2 2-3 2-1 5 6 118-981-310 15 jintex.in

Page 40 — M. Looper mechanism / N. Spreader / Double chain stitch looper mechanism

M.ルーバー関係 / Looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35066001 1 ルーバーリンククミ LOOPER LINK ASSY 1-1 S35067001 1 ルーバーリンク LOOPER LINK 1-2 S35063001 1 ルーバーカムコロ CAM ROLLER, LOOPER 1-3 S35064001 1 ルーバーカムコピン ROLLER PIN, CAM 1-4 014060632 1 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 2 S35065001 1 ルーバーリンクササエジク SUPPORT SHAFT, L-LINK 6 S35062001 1 ルーバーサトウタイ LOOPER DRIVING PLATE 7 S35061000 2 ルーバーリンクハネ SPRING, PLATE 8 S10439001 4 アナボルト3X6 BOLT, SOCKET M3 9 028030242 4 バネザガネ2-3 WASHER, SPRING 2-3 14 014060632 2 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 15 S23612051 1 セットカラークミ SET SCREW COLLAR ASSY 118-981-306 N. スプレダー関係 / Double chain stitch looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35073001 1 スプレダー・クトウレバー SPREADER DRIVING LEVER 2 S35072101 1 スプレダーレバークミ SPREADER LEVER ASSY 2-1 S35071001 1 スプレダー・カムレバー CAM LEVER, SPREADER 2-2 S35070101 1 スプレダー・カムコピン ROLLER PIN, SPREADER CAM 2-3 S35069001 1 スプレダー・カムコロ ROLLER, SPREADER CAM 3 062400812 2 ナベコ4X8 SCREW, PAN M4X8 4 025040232 2 ヒラザガネ4 WASHER, PLAIN M 4 5 S35068001 1 トメネジ M3.5 SET SCREW, M3.5 6 021350106 1 トメネジ M3.5 NUT, 1 M3.5 8 S35065001 1 ルーバーリンクササエジク SUPPORT SHAFT, L-LINK 9 S23612051 1 セットカラークミ SET SCREW COLLAR ASSY 10 014060632 2 アナクボミ6X6 SET SCREW, SOCKET (CP) M6X6 118-981-310 36

Page 41

P. 給油潤滑関係 / Lubrication 30 29 3 2 4 1 34 28 37 39 36 35 38 40 45 32 11 12 33 7 27 8 31 44 43 42 17 48 49 50 47 15 14 13 51 6 5 9 10 35 46 118-981-350 37 jintex.in

Page 42 — P . 給油潤滑関係 / Lubrication

P . 給油潤滑関係 / Lubrication REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35003201 1 トウシンサエル WICK SUPPORT, L 2 S35002100 1 トウシンサエルフェルト FELT 3 S35001000 5 ナイロンリベット NYLON RIVET 4 062350616 2 ナベコM3.5X6 SCREW, PAN M3.5X6 5 S43724001 1 ルーハオイルアンナイ OIL GUIDE, ;LOOPER 6 062401212 1 ナベコM4X12 SCREW, PAN M4X12 7 S34999001 1 トウシンサエルD WICK SUPPORT, D 8 062400616 2 ナベコM4X6 SCREW, PAN M4X6 9 S34998001 1 シクカムカバー COVER, L-SHAFT CAM 10 062400616 2 ナベコM4X6 SCREW, PAN M4X6 11 S34997001 1 ルーハトウシンサエ WICK SUPPORT, ;LOOPER 12 062400616 1 ナベコM3X6 SCREW, PAN M3X4 13 S34996001 1 レースフエルトサエ FELT SUPPORT 14 113006001 1 フエルト FELT 15 S34995000 1 レースフエルトA FELT 17 062400416 1 ナベコM3X4 SCREW, PAN M3X4 27 S34986000 1 ビニルチューブ OIL TUBE, L=135 28 S34985000 1 ビニルチューブ OIL TUBE, L=90 29 S34984000 1 ビニルチューブ OIL TUBE, L=150 30 S34983000 1 ビニルチューブ OIL TUBE, L=160 31 S34982000 1 ビニルチューブ OIL TUBE, L=70 32 S34981000 1 ビニルチューブ OIL TUBE, L=50 33 S34980000 1 フエルト FELT 34 S34979100 1 フエルトクミ FELT ASSY 35 152948001 2 オイルポットマ OIL WINDOW 36 117150001 2 コードサエカネ CORD HOLDER 37 062350616 2 ナベコM3.5X6 SCREW, PAN M3.5X6 38 S3497000 1 フエルト FELT 39 143196001 2 オイルニシグチ OIL CAP 40 143196001 2 オイルニシグチ OIL CAP 42 S34972000 1 ビニルチューブ OIL TUBE 43 S34971001 1 クミヒモサエ WICK-SUPPORT 44 060300416 1 パイント3X4 SCREW, BIND M3X4 45 143196001 1 オイルニシグチ OIL CAP 46 S37173000 1 クミヒモ3X3 WICK, 3X3 L=50 47 S43880000 1 レースフエルトB FELT, B 48 062350616 1 ナベコM3.5X6 SCREW, PAN M3.5X6 49 025350332 1 ヒラザガネタイ13.5 WASHER, PLAIN L 3.5 50 105248001 1 ザガネ WASHER 51 025040332 1 ヒラザガネタイ4 WASHER, PLAIN L 4 52 112754001 2 フエルト FELT 118-981-350 38

Page 43 — Q. 糸通シ関係 / Threading mechanism

Q. 糸通シ関係 / Threading mechanism 1-4 1-3 1-2 1-1 2 40 41 42 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 47 46-1 46-4 46-2 46-5 46-7 46-6 46-3 46-8 49 48 < -02, ジーンズ仕様 / For -02, Jeans specification > 62 61 60 69 57-2 68 59 58 56 55 54 36 37 70 10 13 11 18 19 20 22 21 6-1 6-2 6 26 27 7 32 33 44 30 31 45 51 50 57-1 53 39 38 52 39 118-981-401 jintex.in

Page 44

Q . 糸通し関係 / Threading mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S37874101 1 ウワイトテンションダイクミ U-THREAD TENSION BRACKET ASSY 1-1 S34917001 1 ウワイトテンションダイ U-THREAD TENSION BRACKET 1-2 S34918101 1 ウワイトトリレバークミ U-THREAD TAKE-UP LEVER ASSY 1-3 S34966001 1 タンゲ M4 SHOULDER SCREW, M4 1-4 S34922101 1 タンゲ M4 SHOULDER SCREW, M4 2 018401236 2 アナボルト4X12 BOLT, SOCKET (FT) M4X12 6 146926001 1 イトアンナイクミ THREAD GUIDE ASSY 6-1 146927001 1 イトアンナイ THREAD GUIDE 6-2 146924000 1 イトアンブツシュ THREAD BUSH 7 062350616 1 ナベコM3.5X6 SCREW, PAN M3.5X6 10 159220101 1 イトエルメピン TENSION RELEASE PIN 11 14546001 1 イトウウンサフ DISC, TENSION 13 S34923001 1 ウワイトウンサウン TENSION STUD, U-THREAD 18 159805001 1 イトウウンサラオサエ DISC PRESSER, TENSION 19 144103009 1 イトウウンサラオサエ DISC PRESSER, TENSION 20 159221001 1 イトウウンハネ TENSION SPRING 21 S20682102 1 イトウウンナット TENSION NUT, GREEN 22 S20681000 1 チョウシバネエサガネ WASHER 26 062400612 1 ウワイトトリレバーアンナイ LEVER GUIDE 27 062350616 1 ナベコM3.5X6 SCREW, PAN M3.5X6 29 062400812 2 ナベコ4X8 SCREW, PAN M4X8 30 S35466001 1 ミツメイトカケ THREAD RETAINER 31 021060306 1 3シュナット 6 NUT, 3 M6 32 150540009 1 イトアンナイパイプ S THREAD GUIDE PIPE, S 33 150540036 1 セトアンナイ4X6 SET SCREW, SOCKET (FT) M4X6 36 S43723001 1 シイトアンナイパイプ A GUIDE PIPE, A ;L-THREAD 37 062400612 1 ナベコM4X6 SCREW, PAN M4X6 38 S34928001 1 イトアンナイB GUIDE, B ;GIMP 39 062400612 1 ナベコM4X6 SCREW, PAN M4X6 40 S20698121 1 イトウウンスタッド TENSION STUD 41 144504001 2 イトアンナイイラ DISC, THREAD GUIDE 42 154562001 1 プレテンションハ SPRING, B ;PRE-TENSION 43 155510001 1 イトウウンナット TENSION NUT 44 152889001 1 シイトメイトカケ THREAD RETAINER 45 062670616 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 46 S34944101 <01, 上糸切り用> <For-01, Upper & lower thread trimmer> 1 シイトトリレバークミ GIMP THREAD TAKE-UP LEVER ASSY 46-1 S34936001 1 シイトトリササエ SUPPORT PLATE, ;G-THR TAKE-UP 46-2 S34937001 1 シイトトリレバー GIMP THREAD TAKE-UP LEVER 46-3 S34938101 1 シイトトリササエ DRIVING PLATE, ;G-THR TAKE-UP 46-4 S34940001 1 シイトトリハネ GIMP THREAD TAKE-UP SPRING 46-5 S34941001 1 タンゲ M4 SHOULDER SCREW, M4 46-6 S35018001 1 カムリンクカラー COLLAR, ;CAM LINK 46-7 S34943001 1 タンゲ M4 SHOULDER SCREW, M4 46-8 021400106 1 ナット 1シュ4 NUT, 1 M4 46-9 S35428001 1 サトウイタモトシハネ SPRING, EXTENSION 47 062400812 2 ナベコ4X8 SCREW, PAN M4X8 48 S34939001 1 シイトアンナイ GUIDE, ;G-THREAD TAKE-UP 49 062400812 2 ナベコ4X8 SCREW, PAN M4X8 50 S34942001 <00, 上糸切り用> <For-00, Upper thread trimmer> 1 シイトアンナイ <For-01, Upper & lower thread trimmer> 51 062400812 1 ナベコ4X8 SCREW, PAN M4X8 57-1 S35430001 1 シイトアンナイB THREAD GUIDE, B ;GIMP 52 S34934001 1 シイトアンナイSクミ GIMP THREAD GUIDE ASSY, S 53 062400812 1 ナベコ4X8 SCREW, PAN M4X8 54 S20695001 1 DLイトアンナイパイプ GUIDE PIPE 55 S20696001 1 イトアンナイパイプ ササエ PIPE SUPPORT, ;TR-GUIDE 118-981-401 40 jintex.in

Page 45 — Q. 糸通シ関係 / Threading mechanism

Q. 糸通シ関係 / Threading mechanism 1 1-4 1-3 1-2 1-1 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 47 46-1 46-4 46-2 46-5 46-7 46-6 46-9 46-3 46-8 49 48 < -02, ジーンズ仕樣 / For -02, Jeans specification > 67 66 63 64 65 62 61 60 57-2 69 58 59 70 37 36 56 55 54 10 13 11 18 19 20 22 21 26 27 7 6-1 6-2 6 30 31 32 33 44 45 53 39 52 38 118-981-401 41 jintex.in

Page 46

Q . 糸通し関係 / Threading mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 56 062400812 2 ナベコ4X8 SCREW, PAN M4X8 58 062400812 1 ナベコ4X8 SCREW, PAN M4X8 59 S35912001 1 イトトンセツメイハン THREADING DIAGRAM 70 S20696001 1 イトンナイパイプ サエ PIPE SUPPORT, TR-GUIDE 57-2 S37697001 <02, Jeans specification> 60 144504001 1 シントアンナイJ THREAD GUIDE, J ;GIMP 61 154562001 2 イトアンナイサラ DISC, THREAD GUIDE 62 155510001 1 プレテンションバネB SPRING, B :PRE-TENSION 63 S51219001 1 イトチョウナット TENSION NUT 64 S37749001 1 シントルメイテキ TENSION RELEASE PLATE, ;GIMP 65 S51220001 1 スプリング SPRING, TWIST 66 025040332 1 カラー COLLAR 67 062401212 1 ヒラザガネイ4 WASHER, PLAIN L 4 68 S37750001 1 ナベコ4X12 SCREW, PAN M4X12 69 062400812 1 シントリアンナイJ TR TAKE-UP GUIDE, J ;GIMP 2 ナベコ4X8 SCREW, PAN M4X8 118-981-401 42 jintex.in

Page 47 — R1 . 糸切り関係 / Thread trimmer mechanism

R1 . 糸切り関係 / Thread trimmer mechanism < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 1-34 1-35 1-20 1-19-1 1-19 1-21 1-26 1-30 1-30-6 1-37 1-22 1-36 1-30-1 1-39 1-17 1-30-3 1-31 1-30-4 1-30-2 1-30-5 1-18 1-27 1-33 1-32 1-25 1-29 1-28 1-23 1-16 1-2 1-1 1-3 1-14 1-13 1-10 1-4 1-12 1-41 1-24 1-40 1-6 1-11 1-15 1-7 1-8 1-9 1-5 43 jintex.in 118-981-403

Page 48 — R1 .糸切り関係 / Thread trimmer mechanism

R1 .糸切り関係 / Thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1 S34914001 1 <-01,上下糸切り用> <For-01,Upper & lower thread trimmer> 1-2 018400832 2 アナルホルト4X8 SUPPORT PLATE, ;CYLINDER BOLT, SOCKET M4X8 1-3 S34913001 1 イトキリシリンダ THREAD TRIMMER CYLINDER CLAW 1-4 S34910101 1 イトキリリンクレバーアセンミ THREAD TRIMMER LINK LEVER ASSY 1-5 S34881001 1 ダンネジ M4 SHOULDER SCREW, M4 1-6 S34906100 1 イトキリウデメタル BUSH, ;TR TRIMMER ARM 1-7 062260612 2 ナベコ2.6X6 SCREW, PAN M2.6X6 1-8 S34905101 1 イトキリレバーウデ THREAD CUTTER LEVER ARM 1-9 018401032 1 アナルホルト4X10 BOLT, SOCKET M4X10 1-10 S37858000 1 ニードルピン 4X8 NEEDLE PIN, 4X8 1-11 S34883001 1 バネ SPRING HOOK 1-12 S34883001 1 イトキリバネ SPRING, EXTENSION 1-13 S34902001 1 バネ SPRING HOOK 1-14 021350106 1 シユナツト35 NUT, 1 M3.5 1-15 062260406 1 ナベコ26X4 SCREW, PAN M2.6X4 1-16 S34901001 1 イトキリウデ THREAD TRIMMER ARM 1-17 S34900001 1 イトツカミオープナー OPENER, ;T-NIPPER 1-18 153219001 1 イトツカミカラー COLLAR, ;MOVABLE KNIFE 1-19 S34899001 1 イトツカミ MOVABLE KNIFE ASSY 1-19-1 S34898001 1 イトキリシリンダピン1.4 PIN, SPRING 1.4 1-20 141542001 3 サラネジ3.18 SCREW 3.18 1-21 S34897001 1 イトキリサキ THREAD HANDLER 1-22 S01694001 1 サラネジ2.38X4 SCREW, FLAT SM2.38X4 1-23 S34896001 1 コテイハツキ BRACKET, ;FIXED KNIFE 1-24 061300416 2 ナベコM3X4 SCREW, FLAT M3X4 1-25 S34895001 1 コテイ FIXED KNIFE 1-26 018260832 2 アナルホルト26X8 BOLT, SOCKET M2.6X8 1-27 S34994001 1 イトアンナイタ THREAD GUIDE PLATE 1-28 S34893001 1 イトツカミプレート SETTING BRACKET, ;FIXED KNIFE 1-29 062300512 2 ナベコ3X5 SCREW, PAN M3X5 1-30 S34889101 1 イトキリミ THREAD NIPPER ASSY 1-30-1 S34890001 1 イトキリミU THREAD NIPPER, U 1-30-2 S34691101 1 イトキリミD THREAD NIPPER, D 1-30-3 S34888101 1 イトキリミM THREAD NIPPER, M 1-30-4 S34892001 1 イトツカミオープナーピン OPENER PIN 1-30-5 062020416 2 ナベコ2.2X4 SCREW, PAN M2X4 1-30-6 021020106 2 ナツト1シュ2 NUT 1-31 542515001 2 シメネジ 2.6X3.5 SCREW, M2.6X3.5 1-32 S34887001 1 コテイハサエバネ SPRING, PLATE ;F-KNIFE 1-33 S34886001 1 コテイハサエバネU SPRING, U PLATE ;F-KNIFE 1-34 S34885001 1 サエプレートU PRESSER PLATE, U 1-35 004401003 2 ナベコ4X10 SCREW, FLAT M4X10 1-36 152904001 1 シメネジ 4.37 SCREW, SM4.37 1-37 104336003 1 シメネジ 2.38 SCREW, SM2.38 1-38 S34884000 1 オープナー OPENER SPRING 1-39 060630312 2 バインド238-56X3 SCREW, BIND SM2.38X3 1-40 021400202 2 ナツトM4 NUT, 2 M4 1-41 062300416 2 ナベコM3X4 SCREW, PAN M3X4 118-981-403 44 jintex.in

Page 49 — R2. 糸切り関係 (ジーンズ仕様) / Thread trimmer mechanism (Jeans specification)

R2. 糸切り関係 (ジーンズ仕様) / Thread trimmer mechanism (Jeans specification) " オプション部品 / OPTION PARTS " 28 4 5 6 3 2 25 24 10 16 15 13 8 9 7 17 14 19 18 20 11 22 21 23 12 27 26-1 27 26-2 45 118-981-403 jintex.in

Page 50 — R2 .糸切り関係 / Thread trimmer mechanism

R2 .糸切り関係 / Thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 2 S37673101 1 <L1 14-18mm> イトウクルR <L1 14-18mm> MOVABLE KNIFE, R L1 3 S37669101 1 イトウクルL MOVABLE KNIFE, L L1 4 S37665000 1 イトサバキL1 THREAD HANDLER, L1 5 S37661101 1 イトウクルカムAL1 MOVABLE KNIFE DRIVING CAM, L1 2 S37674101 1 <L2 18-22mm> イトウクル2R <L2 18-22mm> MOVABLE KNIFE, R L2 3 S37670101 1 イトウクル2L MOVABLE KNIFE, L L2 4 S37666000 1 イトサバキL2 THREAD HANDLER, L2 5 S37662101 1 イトウクルカムAL2 MOVABLE KNIFE DRIVING CAM, L2 2 S37675101 1 <L3 22-26mm> イトウクル3R <L3 22-26mm> MOVABLE KNIFE, R L3 3 S37671101 1 イトウクル3L MOVABLE KNIFE, L L3 4 S37667000 1 イトサバキL3 THREAD HANDLER, L3 5 S37663101 1 イトウクルカムAL3 MOVABLE KNIFE DRIVING CAM, L3 2 S37676101 1 <L4 26-30mm> イトウクル4R <L4 26-30mm> MOVABLE KNIFE, R L4 3 S37672101 1 イトウクル4L MOVABLE KNIFE, L L4 4 S37668000 1 イトサバキL4 THREAD HANDLER, L4 5 S37664101 1 イトウクルカムAL4 MOVABLE KNIFE DRIVING CAM, L4 6 S37660101 1 ダンネジ M4 SHOULDER SCREW, M4 7 021400202 1 2シュナット 4 NUT, 2 M4 8 S37654000 1 リンクテンプレートクミ WASHER, WAVE 9 S37655101 1 メスサエザガネ WASHER, ;KNIFE SUPPORT 10 141542001 2 サラネジ 3.18 SCREW, 3.18 11 S37656001 1 イトキリリンクレバーアッシー T-TRIMMER LINK LEVER ASSY, J 12 S34881001 1 ダンネジ M4 SHOULDER SCREW, M4 13 021400202 1 2シュナット 4 NUT, 2 M4 14 S37820001 1 リンクフルクラムプレートアッシー LINK FULCRUM PLATE ASSY 15 062400616 2 ナベコM4X6 SCREW, PAN M4X6 16 S37652001 1 モトシバ礼 SPRING, L TWIST 17 S37653001 1 モトシバR SPRING, R TWIST 18 062300416 2 ナベコM3X4 SCREW, PAN M3X4 19 S34906100 1 イトキリウデメタル BUSH, ;TR TRIMMER ARM 20 062260612 2 ナベコM2.6X6 SCREW, PAN M2.6X6 21 S37659001 1 イトキリレバーアッシー B THREAD TRIMMER LEVER ARM, B 22 S21716001 1 ボタンヘッドネジ 4X1 SCREW, BUTTON HEAD M4X10 23 S37858000 1 ニードルピン 4X8 NEEDLE PIN, 4X8 24 S56025001 1 オサエプレートU PRESSER PLATE, U 25 060400516 2 バインド M4X5 SCREW, BIND M4X5 28 153787001 2 シメネジ 2.38 SCREW, SM2.38 "オプシヨン部品" "OPTION PARTS" 26-1 S37698000 1 イトウクルカバー-L1-2 MOVABLE KNIFE COVER, L1-2 26-2 S37699000 1 イトウクルカバー-L3-4 MOVABLE KNIFE COVER, L3-4 27 S35326001 2 シメネジ M3.5 SCREW, M3.5 118-981-403 46 jintex.in

Page 51

S. 上糸切り関係 / Upper thread trimmer mechanism 7 9 8 10 11 6 4 5 2 12 13 16 1 15 118-981-409 T. 針位置検出器関係 / Synchronizer 1 2 3 6 4 5 8 7 118-981-501 47 jintex.in

Page 52 — S. Upper thread trimmer mechanism T. Synchronizer

S. 上糸切り関係 / Upper thread trimmer mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S35058001 1イトキリバーニシク LEVER SHAFT, ;TR 2 S35059001 1イトキリバー LEVER, ;TR 4 048050342 1トメワE5 RETAINING RING, E5 5 S35060001 1セットカラー SET SCREW COLLAR 6 014400432 1アナツメミ4X4 SET SCREW, SOCKET (CP) M4X4 7 S35361001 1イトキリバーハンマ HAMMER, ;TR-LEVER 8 S35362001 1イトキリチョウセツネジ ADJUSTING SCREW 9 021350106 11シュナツト35 NUT, 1 M3.5 10 S35235001 1クランプササエピン SUPPORT PIN, ;CLAMP 11 021300302 13シュナツト3 NUT, 3 M3 12 S35364001 2トメネジ 4X26 SET SCREW, M4X26 13 021400202 2シュナツト4 NUT, 2 M4 15 018401032 2アナツメミ4X10 BOLT, SOCKET M4X10 16 014060632 2アナツメミ6X6 SET SCREW, SOCKET (CP) M6X6 118-981-409 T. 針位置検出器関係 / Synchronizer REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S43707001 1NPサエダイB NP SUPPORT BRACKET, B 2 062401016 2ナベコ4X10 SCREW, PAN M4X10 3 S48674001 1シンクロナイザクミB SYNCHRONIZER ASSY, B 4 062400612 2ナベコ4X6 SCREW, PAN M4X6 5 S38080001 1ハリシタシヤクミ MAGNET ASSY, D 6 S43747001 2ハリシタシヤクミS MAGNET ASSY, S ;N-UNDER 7 062681412 3ナベコ437-40X14 SCREW, PAN SM4.37-40X14 8 025680132 3ヒラザガネショウ4.37 WASHER, PLAIN S 4.37 118-981-501 48 jintex.in

Page 53 — U1. コントロールボックス関係 / Control box mechanism

U1. コントロールボックス関係 / Control box mechanism 3-1-1 3-1-2 3-1-3 3-3 3-5 3-6 3-4 3-9 3-7 3-8 3-10 3-2 3-13 3-12 3 1-42 1-37 1-5 1-4 1-40 1-3 1-8 1-7 1-6 21 20 H-※-2 1-39-5 1-39-19 1-39-10 1-39-18 1-39-2 1-39-15 1-39-11 1-39-16 1-39-17 1-39-4 1-39-3 1-39-1 1-39-12 1-39-21 1-39-14 1-39-15 1-39-6 1-39-7 1-39-20 1-39-9 1-28 1-1 1-9 1-10 1-36 1-12 1-11 1-13 1-26 1-14 1-35 1-32 1-38 1-30 1-29 1-25 1-2 1-33 1-31 1-24 1-22 1-23 1-18 1-41-2 1-41-1 1-15 1-16 1-41-3 1-41-4 1-41-5 1-19 1-20 1-17 1-39 1-43 1-44 1-43-1 1-44-1 118-981-502 49 jintex.in

Page 54 — U1. コントロールボックス関係 / Control box mechanism

U1. コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S59701001 1 981ボックスアッ BOX ASSY, 981 1-1 S43300009 1 981デンケンボックス POWER SUPPLY BOX ASSY, 981 1-2 S43171009 1 キバン トリツケケイタ SETTING PLATE, PCB 1-3 S59000001 1 981パネルフタ PANEL CAP ASSY, 981 1-4 S43356001 1 RBバンサシイタ PCB BASE PLATE, R 1-5 0A5400806 1 +ナベザガネ4X8DB SCREW, PAN (S/P WASHER) M4X8 1-6 018061022 2 ナベボルト6X10 BOLT, SOCKET M6X10 1-7 028060246 2 バネザガネ2-6 WASHER, SPRING 2-6 1-8 025060232 2 ヒラザガネチュウ6 WASHER, PLAIN M 6 1-9 S38094100 1 DCファンモータ DC-FAN MOTOR ASSY 1-10 0A5403006 2 +ナベザガネ4X30DB SCREW, PAN (S/P WASHER) M4X30 1-11 S43355000 1 DCファンモータ DC-FAN MOTOR ASSY, 60 1-12 0A5403006 4 +ナベザガネ4X30DB SCREW, PAN (S/P WASHER) M4X30 1-13 0A5401006 1 ナベコ 3X10 SCREW, PAN (S/P WASHER) M4X10 1-14 0A5401006 3 +ナベコ 3X10 SCREW, PAN (S/P WASHER) M4X10 1-15 S16568000 1 コネクタ3191-03R1 CONNECTOR, 3191-03R1 1-16 S43350000 1 モータコード MOTOR CORD 1-17 S42260000 1 フットスイッチコード 434クミ FOOT SWITCH HARNESS ASSY, 434 1-18 S38107100 1 セイキデンゲンコード POWER SUPPLY HARNESS, CONTROL 1-19 S38108000 1 モータデンゲンコード POWER SUPPLY HARNESS, MOTOR 1-20 S38109100 1 ゲートデンゲンコード POWER SUPPLY HARNESS, H-P 1-21 S38110000 1 電源コード POWER HARNESS 1-22 S43304000 1 DC55コード DC55 CORD 1-23 S43306000 1 RPMコード RPMD CORD 1-24 S58995000 1 TYPEハーネス TYPE HARNESS 1-25 S11949000 1 ゴムブッシュ RUBBER BUSH 1-26 150592001 1 ゴムセン16 RUBBER CAP, 16 1-27 S43274000 1 ブッシュTB-2938 BUSH, TB-2938 1-28 S43308000 1 ブッシュTB-2533 BUSH, TB-2533 1-29 S43275000 10 コードクランプWS2NS CORD CLAMP, WS2NS 1-30 S43318000 5 クランプLW8S2.5W CLAMP, LW8S8 2.5W 1-31 S00554000 22 サポート6NS SUPPORT, 6NS 1-32 S31760000 2 CKSクランプ26L CORD CLAMP, 26-L 1-33 008400604 12 +トラスコ4X6 SCREW, TRUSS M4X6 1-34 S43309000 1 ホウジンアミ FRAGMENT PROTECTOR NET 1-35 S37059001 1 PEマーク LABEL, PE 1-36 S37060001 1 アースマーク LABEL, GROUNDING 1-37 228475000 3 ケツノバンド 1.9X8 FASTENING BAND, 1.9X80 1-38 228475000 1 ケツノバンド 1.9X8 FASTENING BAND, 1.9X80 1-39 S49939101 1 デンケンバンクセミ POWER SUPPLY PCB ASSY 1-39-1 S43170000 1 ICMA3830 IC MA3830 1-39-2 S43186000 2 PHO'S コウ923 PHOTO COUPLER :PC923 1-39-3 S49586000 2 MOSFET2SK1941 TRANSISTOR, FET :2SK1941 1-39-4 S47680000 1 SIDPA905C6 DIODE, AR :PA905C6 1-39-5 S38203000 1 SBDYG802C04R DIODE :YG802C04R 1-39-6 SA0037000 2 バリス夕V14D511 VARISTOR :V14D511 1-39-7 232384001 1 SF'ツバDSA362MA SURGE ABSORBER :DSA362MA 1-39-8 S49071000 1 DBRD25XB60 DIODE BRIDGE :25XB60 1-39-9 S38205000 1 デンC250B182 CAPACITOR, ALUM-ELEC :250B182 1-39-10 SA1034000 1 デンC63B562 CAPACITOR, ALUM-ELEC :63B562 1-39-11 S43175000 1 トランスETS54AA159 TRANSFORMER :54AA159 1-39-12 S43176000 1 トランスETS35AD199 TRANSFORMER :35AD199 1-39-13 S43181000 1 コイル:49AD289A COIL :49AD289AC 1-39-14 S38208000 1 RYJW1AFSN/DC 5V RELAY :JW1AFSN/DC 5V 1-39-15 153242000 2 ヒューズ 6A FUSE, 6A 1-39-16 S08030000 1 GFUSE 5AFB FUSE, 5A :FB 1-39-17 S48580000 1 GFUSE7AFB FUSE, 7A :FB 1-39-18 0A4301005 8 +ナベザガネ3X10DA SCREW, PAN (S/P WASHER) M3X10 1-39-19 S43189000 1 PCBE1コード HARNESS, PCB :E1 1-39-20 S43187000 1 PCBE2コード HARNESS, PCB :E2 1-39-21 S49472000 1 サーミスタ6D-22 THERMISTOR :6D-22 118-981-502 50

Page 55 — U1.コントロールボックス関係 / Control box mechanism

U1.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-40 S59708001 1 PMD PCB ASSY 1-41 S53884001 1 MAIN PCB ASSY 1-41-1 S49485000 10 TRANSISTOR, FET :FX6KMJ-2 1-41-2 S49484000 10 TRANSISTOR, FET :FS10KMJ-2 1-41-3 S38155000 4 TRANSISTOR, FET :2SK1306 1-41-4 S49471000 6 TRANSISTOR, FET :FK18SM-12 1-41-5 U32744000 2 DIP SWITCH:DSS708 1-42 S45261000 1 R-PCB RELAY CORD 1-43 S59702000 1 PROM RH981A MAIN ASSY 1-43-1 UA4897000 1 EPROM:27C2001 1-44 S59703000 1 PROM ASSY, RH981A MOTOR 1-44-1 U85274000 1 CMOS LSI:27C512 3 S59730001 1 OPERATION PANEL ASSY 3-1 S58997001 1 FRONT FRAME 3-1-1 S58975000 1 FRONT FRAME 3-1-2 S58998000 1 PANEL SHEET 3-1-3 S52978000 1 PANEL SHEET BACK PLATE 3-2 S52979000 1 REAR FRAME 3-3 S49495000 1 PANEL SIDE COVER 3-4 S49496001 1 PANEL SIDE COVER GUIDE 3-5 S53010101 1 PANEL PCB ASSY 3-6 087310815 2 TAPTITE, CUP B M3X8 3-7 087311015 2 TAPTITE, CUP B M3X10 3-8 XA2220050 2 BOARD PRESSER 3-9 0A4400805 1 SCREW, PAN (S/P WASHER) M4X8 3-10 018300636 4 BOLT, SOCKET M3X6 3-11 S59704000 1 PROM 981A PANEL ASSY 3-12 S58976000 1 P/M HARNESS ASSY 3-13 S59740000 1 PRG/M HARNESS 981 ASSY 20 S38352101 <輸出用> 2 デンゲキラベル.4コク <For Export only> LABEL, ELEC. SHOCK 4 LANG. 21 S38353101 <国内用> 2 デンゲキラベル.7 <For Japan only> H-1 S59711001 <三相200V, 220V用> 1 モーターユニットコンポA1 <For " 3-phase 200V & 220V AC "> MOTOR UNIT, A1 H-1-1 S59721001 1 BOX SET, 981 A1 H-1-2 S44758000 1 TOTALLY ENCLOSED 3-PHASE MOTOR H-1-3 S59730001 1 OPERATION PANEL ASSY H-2 S59712001 <単相220V用> 1 モーターユニットコンポA2 <For " 1-phase 220V AC "> MOTOR UNIT, A2 H-2-1 S59722001 1 BOX SET, 981 A2 H-2-2 S44758000 1 TOTALLY ENCLOSED 3-PHASE MOTOR H-2-3 S59730001 1 OPERATION PANEL ASSY H-3 S59713001 <単相100V用> 1 モーターユニットコンポB1 <For Japan only> MOTOR UNIT, B1 H-3-1 S59723001 1 BOX SET, 981 B1 H-3-2 S44758000 1 TOTALLY ENCLOSED 3-PHASE MOTOR H-3-3 S59730001 1 OPERATION PANEL ASSY H-4 S59714001 <単相110V用> 1 モーターユニットコンポB2 <For " 1-phase 110V AC "> MOTOR UNIT, B2 H-4-1 S59724001 1 BOX SET, 981 B2 H-4-2 S44758000 1 TOTALLY ENCLOSED 3-PHASE MOTOR H-4-3 S59730001 1 OPERATION PANEL ASSY 51 118-981-502 jintex.in

Page 56 — U1 . コントロールボックス関係 / Control box mechanism

U1 . コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM H-5 S59715001 1 <三相415V> <For " 3-phase 415V AC "> ※ H-5-1 S59725001 1 モータユニットコンポウC1 ※ MOTOR UNIT, C1 H-5-2 S44758000 1 981ボックスノウクミC1 BOX SET, 981 C1 ※ H-5-3 S59730001 1 ゼンヘイ3ツウモータ TOTALLY ENCLOSED 3-PHASE MOTOR ※ ツサパネルクミ OPERATION PANEL ASSY H-6 S59716001 1 <三相380V用> <For " 3-phase 380V AC "> ※ H-6-1 S59726001 1 モータユニットコンポウC2 MOTOR UNIT, C2 ※ H-6-2 S44758000 1 981ボックスノウクミC2 BOX SET, 981 C2 ※ H-6-3 S59730001 1 ゼンヘイ3ツウモータ TOTALLY ENCLOSED 3-PHASE MOTOR ※ ツサパネルクミ OPERATION PANEL ASSY H-7 S59717001 1 <単相240V用> <For " 1-phase 240V AC "> ※ H-7-1 S59727001 1 モータユニットコンポウC3 MOTOR UNIT, C3 ※ H-7-2 S44758000 1 981ボックスノウクミC3 BOX SET, 981 C3 ※ H-7-3 S59730001 1 ゼンヘイ3ツウモータ TOTALLY ENCLOSED 3-PHASE MOTOR ※ ツサパネルクミ OPERATION PANEL ASSY H-8 S59718001 1 <三相400V> <For " 3-phase 400V AC "> ※ H-8-1 S59728001 1 モータユニットコンポウE MOTOR UNIT, E ※ H-8-2 S44758000 1 981ボックスノウクミE BOX SET, 981 E ※ H-8-3 S40623000 2 EMIコアTR-40-27 TOTALLY ENCLOSED 3-PHASE MOTOR ※ H-8-4 0A5401605 2 EMI CORE, TR-40-27 ※ H-8-5 025040236 2 ネジザクメ4X16DB SCREW, PAN (S/P WASHER) M4X16 ※ H-8-6 021400106 2 ヒラガネチュウ4 WASHER, PLAIN M 4 ※ H-8-7 S59730001 1 ナット1シュ4 NUT, 1 M4 ※ ツサパネルクミ OPERATION PANEL ASSY H-9 S59719001 1 <単相230V用> <For " 1-phase 230V AC "> ※ H-9-1 S59729001 1 モータユニットコンポウF MOTOR UNIT, F ※ H-9-2 S44758000 1 981ボックスノウクミF BOX SET, 981 F ※ H-9-3 S40623000 2 EMIコアTR-40-27 TOTALLY ENCLOSED 3-PHASE MOTOR ※ H-9-4 0A5401605 2 EMI CORE, TR-40-27 ※ H-9-5 025040236 2 ネジザクメ4X16DB SCREW, PAN (S/P WASHER) M4X16 ※ H-9-6 021400106 2 ヒラガネチュウ4 WASHER, PLAIN M 4 ※ H-9-7 S59730001 1 ナット1シュ4 NUT, 1 M4 ※ ツサパネルクミ OPERATION PANEL ASSY 118-981-502 RM欄に※が付いている部品をご注文頂きますと、基板等必要な部品がー式入ったセットになっております。 When ordering parts which have an asterisk(*) in the RM column, these parts will be supplied as a set together with other necessary parts such as circuit boards. 52

Page 57

U2. コントロールボックス関係 / Control box mechanism < 三相200V,220V用 / For "3-Phase 200V & 220V AC" > 2-1-3 2-1-1 2-1 2-1-4 2-1-5 2-1-2 10-1 < 単相100V用 / For Japan only > 2-2 2-2-1 2-2-3 2-2-4 2-2-5 2-2-2 10-2-2 10-2-1 < 三相415V,380V用 / For "3-Phase 415V & 380V AC" > 2-3 2-3-1 2-3-3 2-3-4 2-3-5 2-3-2 10-3-2 10-3-1 13 12 11 " オプション部品 / OPTION PARTS " < 三相400用 / For "3-Phase 400V AC" > 48 2.5 50 10-3-2 10-3-1 40 49 42 43 45 46 44 47 45 46 44 47 45 46 44 47 < 単相220V用 / For "1-Phase 220V AC" > 2-4 2-4-1 2-4-3 2-4-4 2-4-5 2-4-2 10-1 < 単相110V用 / For "1-Phase 110V AC" > 2-7 2-7-1 2-7-3 2-7-4 2-7-5 2-7-2 10-2-2 10-2-1 13 12 11 < 単相240V用 / For "1-Phase 240V AC" > 2-7 2-7-1 2-7-3 2-7-4 2-7-5 2-7-2 10-3-2 10-3-1 13 12 11 < 単相230V用 / For "1-Phase 230V AC" > 2-6 50 49 48 43 42 41 10-4 45 46 44 47 45 46 44 47 45 46 44 47 53 118-981-502 jintex.in

Page 58 — U2 . コントロールボックス関係 / Control box mechanism

U2 . コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 2-1 S38112001 1 <三相200V, 220V用> <For " 3-phase 200V & 220V AC " > 2-1-1 S38113000 1 デンケン SWクミ A P-SUPPLY SWITCH ASSY, A 2-1-2 S38133000 1 デンケン INコード A POWER SUPPLY HARNESS, A :IN 2-1-3 J02657001 1 3PオシSW#17 POWER SUPPLY HARNESS PUSH SWITCH, 3P #17 2-1-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-1-5 218859001 2 バインダー M150 BINDER, M150 <For Japan only> 2-2 S38114000 1 <単相100V用> <For Japan only> 2-2-1 S38115000 1 デンケン SWクミ B <For Japan only> 2-2-2 S38116000 1 デンケン INコード B <For Japan only> 2-2-3 J02657001 1 3PオシSW#17 <For Japan only> 2-2-4 224514001 2 ゼツエンイタ <For Japan only> 2-2-5 218859001 2 バインダー M150 <For Japan only> 2-3 S38117000 1 <三相415V, 380V用> <For " 3-phase 415V & 380V AC " > 2-3-1 S38115000 1 デンケン SWクミ C POWER SUPPLY SWITCH ASSY, C 2-3-2 S38133000 1 デンケン INコード B POWER SUPPLY HARNESS, B :IN 2-3-3 J02657001 1 デンケンコード POWER SUPPLY HARNESS 2-3-4 224514001 1 3PオシSW#17 PUSH SWITCH, 3P #17 2-3-5 218859001 2 ゼツエンイタ INSULATION PLATE 2 バインダー M150 BINDER, M150 2-4 S47592000 1 <単相220V用> <For " 1-phase 220V AC " > 2-4-1 S38113000 1 デンケン SWクミ D P-SUPPLY SWITCH ASSY, D 2-4-2 S47595000 1 デンケン INコード A POWER SUPPLY HARNESS, A :IN 2-4-3 J02657001 1 デンケンコード ユウシュウ POWER SUPPLY HARNESS, EXP. 2-4-4 224514001 1 3PオシSW#17 PUSH SWITCH, 3P #17 2-4-5 218859001 2 ゼツエンイタ INSULATION PLATE 2 バインダー M150 BINDER, M150 2-7 S47594000 1 <単相110V, 240V用> <For " 1-phase 110V & 240V AC " > 2-7-1 S38115000 1 デンケン SWクミ G P-SUPPLY SWITCH ASSY, G 2-7-2 S47595000 1 デンケン INコード B POWER SUPPLY HARNESS, B :IN 2-7-3 J02657001 1 デンケンコード POWER SUPPLY HARNESS, EXP. 2-7-4 224514001 1 3PオシSW#17 PUSH SWITCH, 3P #17 2-7-5 218859001 2 ゼツエンイタ INSULATION PLATE 2 バインダー M150 BINDER, M150 10-1 S38123000 1 <単相220V, <For " 1-phase 220V AC 三相200V, 220V用> 3-phase 200V & 220V AC " > ACコネクタミ AC CONNECTOR ASSY, IN 10-2 S43369000 1 <単相100V, 110V用> <For " 1-phase 100V & 110V AC " > 10-2-1 S43367000 1 ヘカン トランス XB CONVERSION TRANSFORMER ASSY, B 10-2-2 S38126000 1 ヘカン トランス B CONVERSION TRANSFORMER, B 1 ACINコード AC HARNESS, IN 10-3 S43370000 1 <単相220V, <For " 1-phase 220V AC 10-3-1 S43368000 1 ヘカン トランス XC 3-phase 400V, 415V, 380V AC " > CONVERSION TRANSFORMER ASSY, C 10-3-2 S38126000 1 ヘカン トランス C CONVERSION TRANSFORMER, C 1 ACINコード AC HARNESS, IN 118-981-502 54 jintex.in

Page 59 — U2. コントロールボックス関係 / Control box mechanism

U2. コントロールボックス関係 / Control box mechanism <三相200V,220V用 / For "3-Phase 200V & 220V AC"> <単相220V用 / For "1-Phase 220V AC"> 2-1-3 2-1-1 2-1 2-1-4 2-1-5 2-1-2 10-1 2-4-3 2-4-1 2-4 10-1 2-4-4 2-4-5 2-4-2 <単相100V用 / For Japan only> <単相110V用 / For "1-Phase 110V AC"> 10-2-2 10-2-1 2-2 2-7 2-2-1 2-2-3 2-7-1 2-7-3 2-2-4 2-2-5 2-2-2 2-7-4 2-7-5 2-7-2 13 11 12 13 11 12 <三相415V,380V用 / For "3-Phase 415V & 380V AC"> <単相240V用 / For "1-Phase 240V AC"> 10-3-2 10-3-1 2-3 10-3-2 10-3-1 2-3-1 2-3-3 2-7-1 2-7-3 2-3-4 2-3-5 2-3-2 2-7-4 2-7-5 2-7-2 13 11 12 13 11 12 " オプション部品 / OPTION PARTS " <三相400V用 / For "3-Phase 400V AC"> <単相230V用 / For "1-Phase 230V AC"> 10-3-2 10-3-1 2-5 2-6 50 49 42 48 41 43 49 42 40 10-4 45 45 45 46 46 46 44 44 44 47 47 47 43 47 47 47 55 118-981-502 jintex.in

Page 60 — U2 . コントロールボックス関係 / Control box mechanism

U2 . コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 11 018061022 4 <200V, 220V以外用> <Except for "200V & 220V AC "> 12 028060246 4 アアボルトM6X10 ハネザガネ2-6 BOLT, SOCKET M6X10 13 025060232 4 ヒラザガネ12-6 WASHER, SPRING 2-6 WASHER, PLAIN M 6 35 S52245000 1 GFUSE8A250FB FUSE, 8A ;250FB "オプション部品 " "OPTION PARTS " 2-5 S45035000 1 <三相400V用> デンゲンINコード EH <For " 3-phase 400V AC "> POWER SUPPLY IN HARNESS, EH 40 S40635001 1 ノイズフィルタ30Eクミ NOISE FILTER ASSY, 430E 40-1-1 S40616001 1 ノイズフィルタEMCクミ NOISE FILTER ASSY, EMC 40-2-1 S40624000 1 ノイズフィルタターネスA NOISE FILTER HARNESS, A 2-6 S45036000 1 <単相230V用> デンゲンINコード FH <For " 1-phase 230V AC "> POWER SUPPLY IN HARNESS, FH 10-4 S43201000 1 AC INコード F AC HARNESS, F :IN 41 S40616001 1 ノイズフィルタEMCクミ NOISE FILTER ASSY, EMC 42 0A4400605 4 <単相230V用,三相400V用> ナベザクミ4X6DA <For " 1-phase 230V AC & 3-phase 400V AC "> SCREW, PAN (S/P WASHER) M4X6 43 S55473000 1 SIDPA905C6-F DIODE, AR :PA905C6-F 118-981-502 56 jintex.in

Page 61 — V1 . 空圧関係 / Air presure mechanism

V1 . 空圧関係 / Air presure mechanism 25 28 31 31-1-2 31-1-1 31-1-1 31-1-2 31-1-2 31-1-2 26 27 8 8-1 26 25 < -02, ジーンズ仕様 / For -02, Jeans specification > 52 50 53 54 50-1 50-2 50-3 57 56 55 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > < -02, ジーンズ仕様 / For -02, Jeans specification > 29 9-3 9-2 9-1 9 6 37 34 35 5 36 38 39 4 3 1-3 1-2 1-1 44 21 45 7 22 32 24 44 45 16 15 14 14-1 14-1 41 40 13 12 10-2 10-3 10 17 18 10-1 13 60 59 58 118-981-514 57 Jinte.in

Page 62 — V1 . 空圧関係 / Air pressure mechanism

V1 . 空圧関係 / Air pressure mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S35349101 1 シリンダ 10X15クミ CYLINDER ASSY, 10X15 1-1 S12150000 2 ホースエルボ M-5HL-4 TUBE ELBOW, M-5HL-4 1-2 S34925101 1 イトコルメンリダササエ CYLINDER SUPPORT, ;T-RELEASE 1-3 S35351001 1 シリンダ ロッド CYLINDER ROD 3 S35305001 1 シリンダ ロッド ピン ROD PIN, ;CYLINDER 4 048030342 2 トメワ E3 RETAINING RING, E3 5 149287000 1 ナイロンクランプ CORD HOLDER, 7N 6 062400812 1 ナベコ 4X8 SCREW, PAN M4X8 7 S35350000 2 シリンダ 16X10 CYLINDER, 16X10 8 S44530000 1 シリンダ 16X15クミ A CYLINDER ASSY, A 16X15 8-1 S12150000 2 ホースエルボ M-5HL-4 TUBE ELBOW, M-5HL-4 10 S43731001 1 シリンダ 10X15 CYLINDER ASSY, 10X15 10-1 S12150000 2 ホースエルボ M-5HL-4 TUBE ELBOW, M-5HL-4 10-2 S35351001 1 シリンダ ロッド CYLINDER ROD 10-3 S34916001 1 シリンダ ロッド ピン CYLINDER SUPPORT 12 S35305001 1 シリンダ ロッド ピン ROD PIN, ;CYLINDER 13 048030342 2 トメワ E3 RETAINING RING, E3 14 S35360000 1 シリンダ 63X100クミ CYLINDER ASSY, 63X100 14-1 S35370000 2 エルボ 10-4 ELBOW, 10-4 15 S35417000 1 エアーホース10X6.5-1 AIR TUBE, 10X6.5-11 L=1100 16 S35409000 1 エアーホース10X6.5-18 AIR TUBE, 10X6.5-18 L=1100 17 S35377000 1 エアーホース4X2.5-9 AIR TUBE, 4X2.5-9 L=1130 18 S35368000 1 エアーホース4X2.5-10 AIR TUBE, 4X2.5-10 L=1090 19 S35369000 1 エアーホース4X2.5-7 AIR TUBE, 4X2.5-7 L=1150 20 S35370000 1 エアーホース4X2.5-8 AIR TUBE, 4X2.5-8 L=1100 21 S35371000 1 エアーホース4X2.5-14 AIR TUBE, 4X2.5-14 L=1370 22 S35372000 1 エアーホース4X2.5-17 AIR TUBE, 4X2.5-17 L=1595 24 S35374000 1 エアーホース4X2.5-1 AIR TUBE, 4X2.5-1 L=100 25 S35375000 1 エアーホース4X2.5-12 AIR TUBE, 4X2.5-12 L=360 26 S35376000 1 エアーホース4X2.5-13 AIR TUBE, 4X2.5-13 L=320 27 S35377100 1 エアーホース4X2.5-3 AIR TUBE, 4X2.5-3 L=1445 28 S35378100 1 エアーホース4X2.5-4 AIR TUBE, 4X2.5-4 L=1395 31 S44531000 1 シリンダ 16X15クミ B CYLINDER ASSY, B 16X15 31-1 S44532000 2 ホースニップル TUBE NIPPLE ASSY 31-1-1 S01524000 1 ユニバーサルチーズ T-JOINT, UNIVERSAL 31-1-2 S11433000 2 ホースニップル 4M5 HOSE NIPPLE, 4M5 32 S12104000 1 ユニオン Y4 UNION, Y 4 34 158581000 3 コードホルダ 24N CORD HOLDER, 24N 35 032422003 2 マルモクネジ 4.1X20 WOOD SCREW, ROUND M4.1X20 36 S11817000 1 クランプ NK-18N CLAMP, NK-18N 37 062400816 1 ナベコ 4X8 SCREW, PAN M4X8 38 S04557000 7 バンド PLT1M BAND, PLT1M 39 340400001 4 エンタイバンド BEAD BAND 40 152969001 1 コード ササエ CORD SUPPORT 41 062350616 1 ナベコ M3.5X6 SCREW, PAN M3.5X6 44 S35460000 2 スピードコントローラー SPEED CONTROLLER 45 S14955000 2 エアマフラ AIR BOLSTER 58 S40677000 1 エアーホース M5ALN VALVE ELBOW M5ALN4 59 S40676000 1 エアーホース M5ALN VALVE ELBOW M5ALN4 60 625010000 2 ナイロンクランプ NK-2N CORD HOLDER, NK-2N <01. 上下糸切り用> <-01. Upper & lower thread trimmer> <-02. ジーンズ仕様> <-For-02, jeans specification> 9 S43772000 1 シリンダ 16X30クミ B CYLINDER ASSY, B 16X30 9-1 S12150000 1 ホースエルボ M-5HL-4 TUBE ELBOW, M-5HL-4 9-2 S43357000 1 シタOFFセンサーコード LOWER OFF SENSOR CORD 9-3 S35398100 1 ホースニップル 4M5 HOSE NIPPLE, 4M5 29 S35398100 1 エアーホース4X2.5-5 AIR TUBE, 4X2.5-5 L=1480 30 S35399100 1 エアーホース4X2.5-6 AIR TUBE, 4X2.5-6 L=1530 118-981-514 58 jintex.in

Page 63 — V1 . 空圧関係 / Air presure mechanism

V1 . 空圧関係 / Air presure mechanism 25 28 31 31-1-2 31-1-1 31-1-1 31-1-2 31-1-2 31-1-2 26 27 8 8-1 26 25 < -02, ジーンズ仕様 / For -02, Jeans specification > 52 51 50 50-1 50-2 53 50-3 54 57 56 55 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > < -02, ジーンズ仕様 / For -02, Jeans specification > 29 9-3 9-2 9-1 9 6 37 5 36 38 39 34 35 4 3 1-3 1-2 44 21 45 7 32 22 44 45 16 41 40 13 12 10-2 10-1 13 1-1 1 19 20 15 14 14-1 14-1 10 10-3 17 18 59 58 60 59 118-981-514 9 jintex.in

Page 64 — V1 . 空圧関係 / Air pressure mechanism

V1 . 空圧関係 / Air pressure mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 50 S37737001 1 <02, ジーンズ仕様> <For-02, jeans specification> 50-1 S12150000 2 ホースエルボ M-5HL-4 CYLINDER ASSY, 10X15J 50-2 S35351001 1 シリンダ ロッド TUBE ELBOW, M-5HL-4 50-3 S37866000 1 クレビス ピン CYLINDER ROD 51 S35305001 1 シリンダ ロッド ピン CLEVIS PIN 52 048030342 1 リテイニングE3 ROD PIN, CYLINDER 53 S37738000 1 エアーホース4X2.5-20 RETAINING RING, E3 54 S37739000 1 エアーホース4X2.5-21 AIR TUBE, 4X2.5-20 L=1350 55 S37863000 1 エアーホース4X2.5-3J AIR TUBE, 4X2.5-21 L=1400 56 S37864000 1 エアーホース4X2.5-4J AIR TUBE, 4X2.5-3J L=100 57 S12104000 2 ユニオン Y4 AIR TUBE, 4X2.5-4J L=100 UNION, Y 4 118-981-514 60 jintex.in

Page 65 — V2 . 空圧関係 / Air pressure mechanism

V2 . 空圧関係 / Air pressure mechanism < 補給用部品 / For supply parts > 61-1 61-2-1 61-2 61-3 42-1 42-1-3 42-1-5 42-1-4 42-1-2 42-1-1-3 42-5 42-3-1-4 42-3-1-7 42-3-1-2 42-3-1-1 42-3-1-6 42-3-1-5 42-3-3 42-3-2 42-3-8 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 42-1-1-4 42-1-6 42-1-1-8 42-1-1-1 42-2 42-3-4-2 42-3-4-3 42-3-7 42-3-5 42-3-9 42-3-4-4 42-3-4-2 42-3-4-5 42-3-4-6 42-3-4-1 42-3-1 42-3-4 42-3-9 42-3-1-4 42-3-1-7 42-3-1-1 42-3-1-2 42-3-1-6 42-3-1-5 42-3-3 42-3-2 42-3-8 42-3-4-2 42-3-4-3 42-3-7 42-3-5 42-3-4-4 42-3-4-5 42-3-4-2 42-3-4-6 42-3-4-1 42-3-1 42-3-4 42-3 31 118-981-514 jintex.in

Page 66

V1 . 空圧関係 / Air pressure mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 42-1 S35389001 1 エアーユニットクミ AIR UNIT ASSY 42-1-1 S35386000 1 FRユニットクミ FR-UNIT ASSY 42-1-1-1 S40628000 1 ボールバルブ 1/4 BALL VALVE, 1/4 42-1-1-2 S40629000 1 バレルニップル BARREL NIPPLE 42-1-1-3 S40630000 1 ニップル NIPPLE 42-1-1-4 S46328000 1 PTエルボ ELBOW, PT 42-1-2 S35382000 1 ダイバータ DIVERTER 42-1-3 S35395000 1 レギュレーターR55 REGULATOR, R55 42-1-4 S35423000 1 コネクタ10-3/8 CONNECTOR, 10-3/8 42-1-5 S35424000 1 エルボ 10-1/4 ELBOW, 10-1/4 42-1-6 S35425001 1 エアーユニットトリツケイタ SETTING PLATE, A-UNIT 42-2 031553202 2 マルモクネジ 5.5X32 WOOD SCREW, ROUND M5.5X32 42-4 031553202 2 マルモクネジ 5.5X32 WOOD SCREW, ROUND M5.5X32 42-5 S43769000 1 エアーホース10X6.5-1 AIR TUBE, 10X6.5-15 L=370 42-6 S43770000 1 エアーホース10X6.5-1 AIR TUBE, 10X6.5-16 L=480 42-7 S43344000 1 バルブコードクミ VALVE CORD ASSY 42-3 S44220001 <00, 上糸切り用> 1 バルブユニットクミ <For-00, Upper thread trimmer> VALVE UNIT ASSY, 4 42-3-1 S44221000 1 ソレノイドバルブクミ SOLENOID VALVE ASSY, 4 42-3-1-1 S44231000 1 マニホルド 4 MANIFOLD, 4 42-3-1-2 S43683001 1 デンシバルブ SOLENOID VALVE 42-3-1-3 S44223000 3 デンシバルブ SOLENOID VALVE 42-3-1-4 S44224000 1 メイルエルボ 10R-01M ELBOW, 10R-01ML 42-3-1-5 S23880000 2 エアーマフラー AIR MUFFLER 42-3-1-6 S44225000 3 プラグ R1/8 PLUG, R 1/8 42-3-1-7 S44226000 1 プラグ RP-4 PLUG, R P-4 42-3-2 062403512 2 ナベコ4X35 SCREW, PAN M4X35 42-3-3 028040246 2 バネザガネ2-4 WASHER, SPRING 2-4 42-3-4 S44215000 1 デンシベンケミ AIR VALVE ASSY 42-3-4-1 S44216000 1 デンシベンチヤ-RCS240 SOLENOID VALVE, RCS2408 42-3-4-2 S44228000 3 ツキテ3109-10 JOINT, 3109-10 42-3-4-3 S44229000 1 エアーマフラSL-2 AIR MAFLER, SL-2 42-3-4-4 S44217000 1 スロットルバルブ ET02 VALVE, ET02 42-3-4-5 S44218000 1 ツキテ1/4X1/4-M5 JOINT, 1/4X1/4-M5 42-3-4-6 S44230000 1 ツキテ3199-4 JOINT, 3199-4 42-3-5 062403512 2 ナベコ4X35 SCREW, PAN M4X35 42-3-6 028040246 2 バネザガネ2-4 WASHER, SPRING 2-4 42-3-7 026040136 2 ヒラサガネコガネ4 WASHER, PLAIN S 4 42-3-8 026040136 2 ヒラサガネコガネ4 WASHER, PLAIN S 4 42-3-9 S44219001 1 バルブトリツケイタ SETTING PLATE, ;VALVE 42-3 S44213001 <01, 上下糸切り用> 1 バルブユニット5クミ <For-01, Upper & lower thread trimmer> VALVE UNIT ASSY, 5 42-3-1 S44221000 1 ソレノイドバルブクミ SOLENOID VALVE ASSY, 5 42-3-1-1 S44222000 1 マニホルド 5 MANIFOLD, 5 42-3-1-2 S43683001 2 デンシバルブ SOLENOID VALVE 42-3-1-3 S44223000 3 デンシバルブ SOLENOID VALVE 118-981-514 62 jintex.in

Page 67 — V2 . 空圧関係 / Air pressure mechanism

V2 . 空圧関係 / Air pressure mechanism < 補給用部品 / For supply parts > 61-1 61-2-1 61-2 61-3 42-1 42-1-5 42-1-3 42-1-4 42-1-2 42-1-1 42-6 42-7 42-3-1-4 42-3-1-7 42-3-1-2 42-3-3 42-3-2 42-3-8 42-3-1-1 42-3-1-6 42-3-1-5 42-5 42-3-9 42-3-1 42-3-4-2 42-3-4-3 42-3-7 42-3-6 42-3-5 42-3-4-5 42-3-4-6 42-3-4-1 42-4 42-3 42-3-1-4 42-3-1-7 42-3-1-2 42-3-1-1 42-3-1-6 42-3-1-5 42-3-3 42-3-2 42-3-8 42-3-9 42-3-4-2 42-3-4-3 42-3-4-4 42-3-7 42-3-5 42-3-4-5 42-3-4-6 42-3-4-1 42-3-4 42-3 < -01, 上下糸切り用 / For -01, Upper & lower thread trimmer > 53 118-981-514 jintex.in

Page 68 — V2 . 空圧関係 / Air pressure mechanism

V2 . 空圧関係 / Air pressure mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 42-3-5 062403512 2 ナベコ4X35 SCREW, PAN M4X35 42-3-6 028040246 2 ハネザガネ2-4 WASHER, SPRING 2-4 42-3-7 026040136 2 ヒラサガネコガネタ4 WASHER, PLAIN S 4 42-3-8 026040136 2 ヒラサガネコガネタ4 WASHER, PLAIN S 4 42-3-9 S44219001 1 バルブトリツケイタ SETTING PLATE, VALVE 61-1 S46477000 1 フィルタエレメント <For supply parts> FILTER ELEMENT 61-2 S46478000 1 プラスチツクボウルクミ PLASTIC BOWL ASSY 61-2-1 S46480000 1 ドレンコックASSY DRAIN COCK ASSY 61-3 S46479000 1 ボウルガード BALL GUARD 118-981-514 64 jintex.in

Page 69

W. 電装品関係 / Power supply equipment mechanism 18 23 30 17 45 16-1 16-2 16 2 3 4 27 30 2-3 2-2 2-1 51 50 42 26 43 44 29 30 52 28 6 6-1 14-1 14-2 14 14-4 14-5 14-3 10 8 5-3 5-1-1 5-1 5-2 5-4 5 34 33 " オプション部品 / OPTION PARTS " 46 47 9 7 49 65 118-981-515 jintex.in

Page 70

W . 電装部品関係 / Power supply equipment mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S43320001 1 Xセンサ3B X-SENSOR ASSY, B 1-1 S43321000 1 XORGコードクミ CORD ASSY, XORG 1-1 S43322000 1 XORGコード ORG CORD 1-2 S35185101 1 Xセンサトリツケケイタ SETTING PLATE, ;X-SENSOR 1-3 S10856001 1 +サラネジ 2X8 SCREW, FLAT M2X8 2 S43323001 1 Yセンサ3B Y-SENSOR ASSY, B 2-1 S43324000 1 YORGコード YORG CORD 2-2 S10856001 1 +サラネジ 2X8 SCREW, FLAT M2X8 2-3 S35164101 1 Yセンサトリツケケイタ SETTING PLATE, ;Y-SENSOR 3 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 4 025040234 2 ヒラザガネチュウ4 WASHER, PLAIN M 4 5 S43325001 1 Rセンサ3B R-SENSOR ASSY, B 5-1 S43326000 1 RORGコードクミ CORD ASSY, RORG 5-1-1 S35154000 1 Rセンサ R-SENSOR 5-2 S35298001 1 Rセンサトリツケケイタ SETTING PLATE, ;R SENSOR 5-3 S10856001 1 +サラネジ 2X8 SCREW, FLAT M2X8 5-4 S04557000 1 バンタイPLT1M BAND, PLT1M 6 S43328000 1 アンゼンSWコードクミ CORD, ;S-SWITCH 6-1 S43329000 1 アンゼンSWコード CORD, ;S-SWITCH 6-1-1 S10546000 1 スイツチD2MVローラ MICRO SWITCH, D2MV ROLLER 7 025030232 2 ヒラザガネチュウ3 WASHER, PLAIN M 3 8 062401606 2 ナベコ 3X16 SCREW, PAN M3X16 9 021300206 2 シンユウナット 3 NUT, 2 M3 10 028030243 2 バネザガネ2-3 WASHER, SPRING 2-3 14 S45264001 1 カツターセンサ3B-S CUTTER SENSOR ASSY, B-S 14-1 S45265000 1 カツターセンサコードクミB CUTTER SENSOR CORD ASSY, BS 14-1-1 S45266000 1 カツターセンサコード B-S CUTTER SENSOR CORD, B-S 14-2 S35162101 1 カツターセンサトリツケケイター SETTING PLATE, ;C-SENSOR 14-3 062300806 2 ナベコ 3X8 SCREW, PAN M3X8 14-4 028030243 2 バネザガネ2-3 WASHER, SPRING 2-3 14-5 S04567000 2 バンタイPLT1M BAND, PLT1M 15 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 16 S43334000 1 EMSWクミB EM-SWITCH ASSY, B 16-1 S32335100 1 SW-AVS311N SWITCH :AVS311N 16-2 S43335000 1 EMSWコード B EM-SWITCH CORD, B 17 S36651009 1 スイツチカバー-B SWITCH COVER, B 18 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 21 625010000 3 ナイロンクランプ NK-2N CORD HOLDER, NK-2N 22 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 23 S10243000 2 ナイロンクランプ NK-3N CORD HOLDER, NK-3N 26 149547000 1 コード オサエ CORD HOLDER, 4N 27 625010000 1 ナイロンクランプ NK-2N CORD HOLDER, NK-2N 28 S10243000 1 ナイロンクランプ NK-3N CORD HOLDER, NK-3N 29 552907000 2 ユート・ホルダ #10 CORD HOLDER, 10N 30 062400812 6 ナベコ 4X8 SCREW, PAN M4X8 31 062400812 3 ナベコ 4X8 SCREW, PAN M4X8 32 025040232 2 ヒラザガネチュウ4 WASHER, PLAIN M 4 33 062400812 2 ナベコ 4X8 SCREW, PAN M4X8 42 062401212 1 ナベコ 4X12 SCREW, PAN M4X12 43 ※ 1 981ショウハーネス HARNESS, 981 44 S04557000 2 バンタイPLT1M BAND, PLT1M 45 S37057001 1 EMスイッチスペーサ #3 SPACER, 3 :EM-SWITCH 50 060400416 1 バインド M4X4 SCREW, BIND M4X4 51 S44287000 4 アースヒモ1050 GROUND WIRE, 1050 52 S43358000 1 センサチュウケイコード CORD, SENSOR 46 S40621000 9 EMIコアESD-SR-15 "OPTION PARTS" EMI CORE, ESD-SR-15 47 S40622000 2 EMIコアESD-SR-25 EMI CORE, ESD-SR-25 49 340400001 19 ユナイトバンド BEAD BAND 118-981-515 66

Page 71 — X . 布制御関係 / Cloth control system mechanism

X . 布制御関係 / Cloth control system mechanism 1-15-3 1-15-2 1-24 1-77 1-5-2 1-23-1 1-15-1 1-76 1-30 1-20 1-75 1-26 1-28 1-76 1-21 1-27 1-23 1-5-1 1-7 1-4 1-3 1-19 1-2 1-27 1-8 1-12 1-25 1-9 1-13 1-14 1-1 1-28 1-45 1-48 1-49 1-29 1-16 1-18 1-10 1-47 1-38 1-18 1-17 1-11 1-46 1-55 1-40 1-56 1-44 1-76 1-53 1-50 1-54 1-75 1-73 1-74 1-59 1-52 1-51 1-41 1-58 1-60-1-3 1-60-2 1-42 1-77 1-36 1-57 1-35 1-35-1 1-62 1-37 1-75 1-34 1-68 1-32-2 1-61 1-33 1-31 1-60-1-1 1-60-1-5 1-60-4 1-60-1-6 1-60-3 1-69 1-72 1-67 1-71 1-70 1-78 1-63 1-64 1-65 67 118-981-516 jintex.in

Page 72

X . 布制御関係 / Cloth control system mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S44279101 1 <L1,L2,L5用> 981インデクサーウクミ <For L1,L2,L5> 981 INDEXER ASSY, 981 1-41 S43809001 1 ヌノクリツターL1L2 CLOTH FEED PLATE, R-L1,L2 1 S44281101 1 <L3,L4,L6,L7用> 981インデクサーウクミ <For L3,L4,L6,L7> 981 INDEXER ASSY, 981 1-41 S42139101 1 ヌノクリツターR CLOTH FEED PLATE, R 1-1 S42111101 1 オクリツタィル FEED BASE, L 1-2 018501636 1 アナルドM5X16 BOLT, SOCKET M5X16 1-3 021500216 1 ニユツト, M5 NUT, 2 M5 1-4 S42112100 1 ヌノクリツターロツク FEED MOVABLE BLOCK 1-5 S42113000 1 シリンダー10X5エルボクミ CYLINDER ELBOW ASSY, 10X5 1-5-1 S42114000 1 シリンダー10X5 CYLINDER, 10X5 1-5-2 S11426000 1 エルボユニオン4M5 ELBOW UNION, 4M5 1-6 S42115101 1 シリンダートリツケイタ SETTING PLATE, ;CYLINDER 1-7 018401236 2 アナルドM4X12 BOLT, SOCKET M4X12 1-8 S42116000 1 リニアボールベアリング LINEAR BALL BEARING 1-9 048120142 1 トメワジクヨウC12 RETAINING RING, EXTERNAL C12 1-10 S42117101 1 チヤツクガイドイタ GUIDE PLATE, ;C-PIN 1-11 018401236 2 アナルドM4X12 BOLT, SOCKET M4X12 1-12 S42118001 1 チヤツクピン PIN 1-13 026040136 1 ヒラザガネコカク94 WASHER, PLAIN S 4 1-14 S42119001 1 オシバネ SPRING 1-15 S42120100 1 シリンダー10X60クミ CYLINDER ASSY, 10X60 1-15-1 S42121000 1 シリンダー10X60 CYLINDER, 10X60 1-15-2 S42122000 1 シリンダーセンサ SENSOR, ;CYLINDER 1-15-3 S12150000 2 ホースエルボM-5HL-4 TUBE ELBOW, M-5HL-4 1-16 S42123001 1 シリンダーロツド CYLINDER ROD 1-17 S42124001 1 ヌノクリツトトビン ROD PIN, ;CYLINDER 1-18 048030342 2 トメワE3 RETAINING RING, E3 1-19 S42125100 1 ストツパーロツク STOPPER BLOCK 1-20 018401636 1 アナルドM4X16 BOLT, SOCKET M4X16 1-21 S42126101 1 スイツチトリツケイタ SETTING PLATE, ;SWITCH 1-22 018401236 1 アナルドM4X12 BOLT, SOCKET M4X12 1-23 S42127000 1 リミツトスイツチクミL LIMIT SWITCH ASSY, L 1-23-1 S36261000 1 スイツチVXローレバー MICRO SWITCH, VX ;R-LEVER 1-24 062301414 2 ナベコM3X14 SCREW, PAN M3X14 1-25 S24325001 2 セツトカラー SET SCREW COLLAR 1-26 014400532 2 アナルドM4X5 SET SCREW, SOCKET (CP) M4X5 1-27 S42128101 2 ヌノクリツトガイド GUIDE SHAFT, ;FEED 1-28 018401236 4 アナルドM4X12 BOLT, SOCKET M4X12 1-29 S42129101 1 オクリウガイトLクミ FEED BAR GUIDE ASSY, L 1-30 018400836 2 アナルドM4X8 BOLT, SOCKET M4X8 1-31 S42132001 1 オクリツタィR FEED BASE, R 1-32 S42133000 1 シリンダー10X5クミ CYLINDER ASSY, 10X5 1-32-1 S42114000 1 シリンダー10X5 CYLINDER, 10X5 1-32-2 S11433000 1 ホースニツプル4M5 HOSE NIPPLE, 4M5 1-33 S05356000 1 ボタンクランプA BUTTON CLAMP, A 1-34 S42134101 1 オクリウガイトRクミ FEED BAR GUIDE ASSY, R 1-35 S42136000 1 リミツトスイツチクミR LIMIT SWITCH ASSY 1-35-1 S36261000 1 スイツチVXローレバー MICRO SWITCH, VX ;R-LEVER 1-36 062301414 2 ナベコM3X14 SCREW, PAN M3X14 1-37 060400516 2 アナルドM4X5 SCREW, BIND M4X5 1-38 S42137001 1 ヌノクリツボウ CLOTH FEED BAR 1-39 S42138101 1 ヌノクリツタイL CLOTH FEED PLATE, L 1-40 003300812 2 サラネジ3X8 SCREW, FLAT M3X8 1-42 003300812 3 サラネジ3X8 SCREW, FLAT M3X8 1-43 S42140100 1 ヌノセツトガイドタテ CLOTH SET GUIDE, ;VERTICAL 1-44 060400516 2 アナルドM4X5 SCREW, BIND M4X5 1-45 S42141100 1 ヌノセツトガイドヨコL CLOTH SET GUIDE, L;HORIZONTAL 118-981-516 68

Page 73 — X. 布制御関係 / Cloth control system mechanism

X. 布制御関係 / Cloth control system mechanism 1-15-3 1-15-2 1-22 1-76 1-30 1-20 1-76 1-25 1-28 1-76 1-15-1 1-3 1-2 1-48 1-49 1-47 1-46 1-56 1-1 1-45 1-39 1-55 1-59 1-58 1-60-1 1-57 1-62 1-60-4 1-60-3 1-19 1-29 1-40 1-50 1-51 1-52 1-60-1-3 1-60-1-1 1-60-1-5 1-6 1-24 1-77 1-73 1-26 1-16 1-18 1-28 1-27 1-30 1-38 1-18 1-44 1-76 1-54 1-55 1-43 1-41 1-60-2 1-60-1-2 1-60-1-4 1-68 1-61 1-66 1-63 1-64 1-65 1-72 1-67 1-71 1-70 1-78 1-23-1 1-23 1-72 1-21 1-27 1-30 1-26 1-18 1-17 1-75 1-73 1-74 1-35 1-36 1-77 1-32-2 1-32-1 1-31 1-69 1-5-2 1-5-1 1-7 1-4 1-8 1-9 1-10 1-11 1-12 1-25 1-13 1-14 1-35-1 1-72 1-37 1-76 1-34 118-981-516 69 jintex.in

Page 74 — X. 布制御関係 / Cloth control system mechanism

X. 布制御関係 / Cloth control system mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-46 S42143100 1 イタツキ SPRING, PLATE 1-47 060300416 2 バインド M3X4 SCREW, BIND M3X4 1-48 06000416 2 バインド M4X4 SCREW, BIND M4X4 1-49 025040234 2 ヒラザガネチュウ4 WASHER, PLAIN M 4 1-50 S42142100 1 メツセツトガイトヨコR CLOTH SET GUIDE, R;HORIZONTAL 1-51 S42143100 1 イタツキ SPRING, PLATE 1-52 060300416 2 バインド M3X4 SCREW, BIND M3X4 1-53 06000416 2 バインド M4X4 SCREW, BIND M4X4 1-54 025040234 2 ヒラザガネチュウ4 WASHER, PLAIN M 4 1-55 S42144101 2 プレートオサエ PLATE PRESSER, I 1-56 S42145001 1 オサエプレート PRESSER PLATE, 1-57 S4141001 1 ウワイトオサエササエ UPPER THREAD PRESSER SUPPORT 1-58 S41452000 1 ウワイトオサエタテ UPPER THREAD PRESSER PLATE 1-59 062350516 1 ナベ 33.5X5 SCREW, PAN M3.5X5 1-60 S42142020 1 バルブ ユニットツクミ VALVE UNIT SET 1-60-1 S42142001 1 バルブ ユニットクミ VALVE UNIT ASSY 1-60-1-1 S39115100 2 バルブ VQZ2151-5 VALVE, VQZ2151-5 1-60-1-2 140682001 1 サイレンサー SILENCER 1-60-1-3 153274001 1 CAP, 1/8 CAP, 1/8 1-60-1-4 S01542000 1 エルボ ユニオン61 ELBOW UNION, 61 1-60-1-5 S04897000 2 プラグ 4 PLUG, 4 1-60-1-6 S39116100 1 バルブ VQZ2151S-5 VALVE, VQZ2151S-5 1-60-2 S42148101 1 バルブ トリツケイタ SETTING PLATE, ;VALVE 1-60-3 018503036 2 アナホルト5X30 BOLT, SOCKET M5X30 1-60-4 028050243 2 バネザガネ2-5 WASHER, SPRING 2-5 1-61 032422003 2 マルモクネジ4.1X20 WOOD SCREW, ROUND M4.1X20 1-62 S42149000 1 バルブ ハーネス VALVE HARNESS 1-63 S42150100 1 エアーホース4X2.5-50 AIR TUBE, 4X2.5-50 L=1500 1-64 S42151100 1 エアーホース4X2.5-51 AIR TUBE, 4X2.5-51 L=1500 1-65 S42152100 1 エアーホース4X2.5-52 AIR TUBE, 4X2.5-52 L=1500 1-66 S42153000 1 エアーホース4X2.5-53 AIR TUBE, 4X2.5-53 L=1900 1-67 S42154000 1 ハーフユニオン HALF UNION 1-68 S01522000 1 プラグ 4 PLUG, 4 1-69 S04897000 2 コネクタ5025-15R1 CONNECTOR, 5025-15RT 1-70 S42170000 1 コネクタキャップ CONNECTOR CAP 1-71 S42158000 1 パンタイPLT1M BAND, PLT1M 1-72 S04557000 8 コードホルダ #5 CORD HOLDER, 5N 1-73 S00480000 2 ヒラザガネチュウ6 WASHER, PLAIN M 6 1-74 025060236 1 ナベ 4X16 SCREW, PAN M4X16 1-75 062401616 7 ヒラザガネチュウ4 WASHER, PLAIN M 4 1-76 025040234 4 バネザガネ2-3 WASHER, SPRING 2-3 1-77 028030243 1 インデクサーコード INDEXER CORD 1-78 S43359000 1 インデクサーコード INDEXER CORD 118-981-516 70

Page 75 — Y. 踏板関係 / Foot switch pedal mechanism

Y. 踏板関係 / Foot switch pedal mechanism 2 2-16 2-5-2 2-5 2-15 2-8 2-5-1 2-6 2-14 2-5-2 2-5-1 2-9 2-20 2-10 2-13 2-12 2-11 2-4 2-7 2-1 2-17 2-3 2-16 2-19 2-5 2-16 1-8 1-5 1-13 1-2 1-7 1-6 1-11 1-4 1-9 1-12 1-8 1-10 1-3 1-1 2-2 71 118-981-651 jintex.in

Page 76

Y . 踏板関係 / Foot switch pedal mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S43346001 1 テ トスイツチクミB HAND START SWITCH ASSY, B 1-1 S39913001 1 スイツチトリツケケイタ SETTING PLATE, SWITCH 1-2 S39914001 1 スイツチレバーハネ SPRING, SWITCH LEVER 1-3 S43345001 1 テ トスイツチB HAND START SWITCH, B 1-4 S39910001 1 スイツチカバ SWITCH COVER 1-5 S39911001 1 スイツチレバー-L SWITCH LEVER, L 1-6 S39912001 1 スイツチレバー-R SWITCH LEVER, R 1-7 S34922101 1 ダンネジ M4 SHOULDER SCREW, M4 1-8 S34966001 2 ダンネジ M4 SHOULDER SCREW, M4 1-9 021400202 3 2ユ ナツト4 NUT, M4 1-10 146124001 2 シメネジ 2.38 SCREW, SM2.38 1-11 060300616 2 ハ トハト 3X6 SCREW, BIND M3X6 1-12 S04557000 1 ハ トハトPLT1M BAND, PLT1M 1-13 060400816 2 ハ トハト 4X8 SCREW, BIND M4X8 <52. フ イ デ ク サ 仕 様> <-52. Fly indexer specification> 2 S42838101 1 2レンフツト2SW 2-PEDAL FOOT SWITCH, 2 2-1 S38166000 2 フ トペダルダイ FOOT PEDAL BASE 2-2 S42867001 1 フ ミタネシヨイタ TREADLE AUXILIARY PLATE 2-3 004400603 4 +サラコネジ 4X6 SCREW, FLAT M4X6 2-4 S38170001 2 フ トペダルハネ SPRING, COMPRESSION 2-5 S38029000 2 2レンフツトSWハーネス 2-PEDAL FOOT SW HARNESS ASSY 2-5-1 S38030000 2 2レンフツトSWハーネス 2-PEDAL FOOT SW HARNESS 2-5-2 S36260000 2 スイツチVXピンボタン MICRO SWITCH, VX :PIN BUTTON 2-6 062301205 4 ナベコ 3X12 SCREW, PAN M3X12 2-7 228475000 10 ケ ツ クバ ド 1.9X8 FASTENING BAND, 1.9X80 2-8 S38174000 2 フ トペダル FOOT PEDAL 2-9 S38175001 2 ペダルホコイタ PROTECTION PLATE, PEDAL 2-10 S38176101 2 スイツチオサエハネ SPRING, PLATE 2-11 002300403 4 ナベコ 3X4 SCREW, PAN M3X4 2-12 028030246 4 ハ ラサガネ 2-3 WASHER, SPRING 2-3 2-13 025030236 4 ヒラサガネチユウ3 WASHER, PLAIN M 3 2-14 S38177001 2 フ トペダルシヤフト SHAFT, F-PEDAL 2-15 048050346 4 トメワ RETAINING RING, E5 2-16 052400606 2 ナベコ レ サガネ 4X6 SCREW, PAN (S/P WASHER) M4X6 2-17 117936001 12 ゴムセン 9.4 RUBBER CAP, 9.4 2-18 S38180000 1 コネクタ172169-1 CONNECTOR, 172169-1 2-19 S38060000 1 コネクタキヤツプ 18X19 CONNECTOR CAP, 18X19 2-20 S38059000 2 ゴムロツトNG79F RUBBER CAP, NG79F 118-981-651 72 jintex.in

Page 77 — AA1 . 付属装置関係 / Attachment set

AA1 . 付属装置関係 / Attachment set 1-2-4 1-2-6 1-2-2 1-2-8 1-5 1-6 1-2-3 1-2-5 1-2-9 1-2-7 1-2-10 1-2-1-10 1-2-1-8 1-3 1-2-1-17 1-2-1-3 1-2-1-16 1-2-1-11 1-2-1-2 1-4 1-2-1-11 1-2-1-11-1 1-2-1-14 1-2-1-5 1-2-1-13 1-2-1-1-2 1-2-1-9 1-2-1-7 1-2-1-15 1-1-6 1-2-14 1-2-1-12 1-1-25 1-1-24 1-1-26 1-1-4 1-1-3 1-1-2 1-1-8 1-1-9 1-1-15 1-1-16 1-1-17 1-1-5 1-1-1-17 1-1-1-16 1-1-1-8 1-1-1-10 1-1-1-11 1-1-1-14 1-1-1-5 1-1-1-13 1-1-1-11-1 1-1-1-11-2 1-1-1-9 1-1-1-10 1-1-1-7 1-1-1-6 1-1-1-12 1-1-1-19 1-1-1-4 1-1-14-1 1-1-18 1-1-11-1 1-1-12 1-1-22 1-1-21 1-1-23 1-1-20 73 118-981-940 jintex.in

Page 78 — AA1 . 付属装置関係 / Attachment set

AA1 . 付属装置関係 / Attachment set REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 1 ※ ※ 1 1 1 クミカエヒンセツト (L ※) 1 L※ブレートワ 1 オサエプレートJR※ワ EXCHANGE PARTS SET, L L PLATE ASSY, R WORK CLAMP PLATE SET, JR 1-1 1-1 1-1-1 1-1-1-1 S37729101 1 ヌノサエプレートJRワミ <L1-L4 14-30mm> <L1-L4 14-30mm> WORK CLAMP PLATE ASSY, JR 1-1-1-1 S40828001 1 ヌノサエプレートJRワミB <L5-L7 28-40mm> <L5-L7 28-40mm> WORK CLAMP PLATE ASSY, JR ;B 1-1-1-1-1 S35315001 1 ヒラカクコマ SLIDE BLOCK, OPENING 1-1-1-1-2 060020416 2 ハインド M2X4 SCREW, BIND M2X4 1-1-1-1-2 ※ 1 ハイトル R NEEDLE PLATE, R 1-1-1-3 S06696004 2 サラネジ 3X6 SCREW, FLAT M3X6 1-1-1-4 ※ 1 ヌノサエJR-JL WORK CLAMP, R-J L 1-1-1-5 S35236000 1 マガザネ 3.2 WASHER, BENDING 3.2 1-1-1-6 S35235001 1 クランプサエヒン SUPPORT PIN, ;CLAMP 1-1-1-7 021300302 1 3シュナツト3 NUT, 3 M3 1-1-1-8 S35238001 1 クランプツケクケ SHAFT HOLDER, ;CLAMP 1-1-1-9 062401016 2 ナベコ4X10 SCREW, PAN M4X10 1-1-1-10 S35237001 1 クランプシテンク FULCRUM SHAFT, ;CLAMP 1-1-1-11 048050142 2 トメワシジヨウC5 RETAINING RING, C5 1-1-1-12 S35234201 1 クランプレバー-R CLAMP LEVER, R 1-1-1-13 018501236 1 アナボルト 5X12 BOLT, SOCKET M5X12 1-1-1-14 S37695001 1 クランプアーム-R-J <L1-L4 14-30mm> <L1-L4 14-30mm> CLAMP ARM, R-J 1-1-1-14 S40826001 1 クランプアーム-JR-B <L5-L7 28-40mm> <L5-L7 28-40mm> CLAMP ARM, R-J-B 1-1-1-15 014400532 2 アナホボルト M4X5 SET SCREW, SOCKET (CP) M4X5 1-1-1-16 S35347100 1 ヌノガイド R CLOTH GUIDE, R 1-1-1-17 05035016 1 ハインド 3.5X6 SCREW, BIND M3.5X6 1-1-2 ※ 1 イトウウル ※R MOVABLE KNIFE, R L 1-1-3 ※ 1 イトウウル ※L MOVABLE KNIFE, L L 1-1-4 ※ 1 イトウサハキ L THREAD HANDLER, L 1-1-5 ※ 1 イトウウツトウカム L MOVABLE KNIFE DRIVING CAM, L 1-1-6 S37660101 1 タンネシ M4 SHOULDER SCREW, M4 1-1-7 021400202 1 2シュナツト4 NUT, 2 M4 1-1-8 S37654000 1 ナミサガネ WASHER, WAVE 1-1-9 S37655101 1 メスササエガネ WASHER, ;KNIFE SUPPORT 1-1-10 141542001 2 サラネジ 3.18 SCREW 3.18 1-1-11-1 S37656001 1 イトウキリンクレバー-Jワミ T-TRIMMER LINK LEVER ASSY, J 1-1-12 S34881001 1 タンネシ M4 SHOULDER SCREW, M4 1-1-13 021400202 1 2シュナツト4 NUT, 2 M4 1-1-14-1 S37820001 1 リンクシテンプレートワミ LINK FULCRUM PLATE ASSY 1-1-15 062400016 2 ナベコ M4X6 SCREW, PAN M4X6 1-1-16 S37652001 1 モトシハネ L SPRING, L TWIST 1-1-17 S37653001 1 モトシハネ R SPRING, R TWIST 1-1-18 062300416 2 サラネジ M3X4 SCREW, PAN M3X4 1-1-19 S34906100 1 イトウキリウデメタル BUSH, ;TR TRIMMER ARM 1-1-20 062260612 2 ナベコ 2.6X6 SCREW, PAN M2.6X6 1-1-21 S37659001 1 イトウキルバーテ B THREAD TRIMMER LEVER ARM, B 1-1-22 S21716001 1 ボタンヘッドネジ 4X1 SCREW, BUTTON HEAD M4X10 1-1-23 S37858000 1 ニードルピン 4X8 NEEDLE PIN, 4X8 1-1-24 S56025001 1 オサエプレート U PRESSER PLATE, U 1-1-25 060400516 2 ハインド M4X5 SCREW, BIND M4X5 1-1-26 153787001 2 シメネジ 2.38 SCREW, SM2.38 118-981-940 74 jintex.in

Page 79

AA1 . 付属装置関係 / Attachment set 1-2-4 1-2-6 1-2-2 1-2-8 1-2-3 1-2-5 1-2-7 1-2-1-3 1-2-1-2 1-2-1-1-1 1-2-1-1-2 1-2-1-9 1-2-1-7 1-1-6 1-1-26 1-1-4 1-1-3 1-1-2 1-1-8 1-1-9 1-1-14-1 1-1-18 1-1-11-1 1-1-12 1-2-10 1-2-1-17 1-2-1-16 1-2-1-10 1-2-1-11 1-2-1-14 1-2-1-5 1-2-1-4 1-2-1-6 1-1-25 1-1-24 1-1-5 1-1-15 1-1-16 1-1-13 1-1-23 1-1-22 1-1-21 1-5 1-6 1-2-1-8 1-2-1-1 1-2-1-13 1-2-1-12 1-1-1-3 1-1-1-2 1-1-17 1-1-1-1-1 1-1-1-1-2 1-1-1-9 1-1-10 1-1-7 1-1-19 1-1-20 1-4 1-3 1-1-1-17 1-1-1-16 1-1-1-8 1-1-1-10 1-1-1-11 1-1-1-14 1-1-1-5 1-1-1-13 1-1-1-6 1-1-1-7 1-1-1-15 1-1-1-12 75 118-981-940 jintex.in

Page 80

AA1 . 付属装置関係 / Attachment set . REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-2 1-2-1 1 L※プレートLクミ 1 サエプレートJL※ソウクミ L PLATE ASSY, L WORK CLAMP PLATE SET, J L※ 1-2-1-1 S37730001 1 <L1-L4 14-30mm> サエプレートJLクミ <L1-L4 14-30mm> WORK CLAMP PLATE ASSY, JL 1-2-1-1 S35310001 <L5-L7 28-40mm> ヌノサエプレートLクミ <L5-L7 28-40mm> WORK CLAMP PLATE ASSY, L 1-2-1-1-1 S35316001 1 カクコマサエイタ SUPPORT PLATE, ;S-BLOCK 1-2-1-1-2 060020416 2 バインド M2X4 SCREW, BIND M2X4 1-2-1-2 ※ 1 サエプレートL NEEDLE PLATE, L※ 1-2-1-3 S06696004 2 サラコネジ 3X6 SCREW, FLAT M3X6 1-2-1-4 ※ 1 ヌノサエプレートJL※ WORK CLAMP, L JL※ 1-2-1-5 S35236000 1 マゲザガネ3.2 WASHER, BENDING 3.2 1-2-1-6 S35235001 1 クランプサエピン SUPPORT PIN, ;CLAMP 1-2-1-7 021300302 1 ヨウナット3 NUT, 3 M3 1-2-1-8 S37712001 1 クランプシャフト CLAMP SHAFT HOLDER 1-2-1-9 062401016 2 ナベコ 4X10 SCREW, PAN M4X10 1-2-1-10 S37711001 1 クランプシシクク CLAMP FULCRUM SHAFT 1-2-1-11 048050142 2 トメワジクヨウC5 RETAINING RING, C5 1-2-1-12 S35233201 1 クランプレバーL CLAMP LEVER, L 1-2-1-13 018501236 1 アナボルト5X12 BOLT, SOCKET M5X12 1-2-1-14 S37694001 <L1-L4 14-30mm> クランプアームL-J <L1-L4 14-30mm> CLAMP ARM, L-J 1-2-1-14 S40827001 <L5-L7 28-40mm> クランプアームL-J-B <L5-L7 28-40mm> CLAMP ARM, L-J-B 1-2-1-15 014400532 2 アナカミ4X5 SET SCREW, SOCKET (CP) M4X5 1-2-1-16 S35348100 1 ヌノカイトL CLOTH GUIDE, L 1-2-1-17 060350616 1 バインド M3.5X6 SCREW, BIND M3.5X6 1-2-2 S37714001 1 ホンヨウエキテンジイ FULCRUM BRACKET, ;AUX.CLAMP 1-2-3 S37713001 1 ホンヨウエキテンジク FULCRUM SHAFT, ;AUX.CLAMP 1-2-4 048050142 2 トメワジクヨウC5 RETAINING RING, C5 1-2-5 S37718000 1 ホウヨウクランプアーム AUXILIARY CLAMP ARM 1-2-6 016401032 1 アナボルト4X10 BOLT, SOCKET M4X10 1-2-7 S05356000 1 ホウヨウサエエ CLAMP, A 1-2-8 S08808001 1 ストツプネジ STOPPER SCREW 1-2-9 021660102 1 ナット1シュ3.18 NUT, 1 SM3.18 1-2-10 S37753001 1 ホンヨウエキテンジクハネ SPRING, EXTENSION 1-3 ※ 1 981ショウハースL1 HARNESS, 981 L1 1-4 S04557000 1 バンタイPLT1M BAND, PLT1M 1-5 ※ 1 ハンマー HAMMER 1-6 ※ 1 ハンマー HAMMER 118-981-940 76

Page 81 — AA2 . 付属装置関係 / Attachment set

AA2 . 付属装置関係 / Attachment set 2-1-12 2-1-11 2-1-8 2-1-9 2-1-10 2-1-7 2-1-3 2-1-6 2-1-5 2-1-15 2-1-2 2-2 2-1-14 2-1-19 2-1-20 2-1-1 2-1-18 2-1-4 2-1-21 2-1-20 2-1-17 2-1-16 2-1-13-1 2-1-13-3 2-1-13 2-1-13-2 2-12 2-6 2-7 2-8 2-11 2-5 2-9-4 2-9-3 2-9-2 2-9-1 2-4 2-3 2-10-9 2-10-8 2-10-5 2-10-2 2-10-7 2-10-6 2-10-3-1 2-10-4 2-10-3-2 2-10-3-3 2-10-10 2-10-1 77 jintex.in 118-981-940

Page 82

AA2 . 付属装置関係 / Attachment set . REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 2 S38584001 1 クミカエフヒンクミ (-2) EXCHANGE PARTS SET, -2 2-1 S38585001 1 シリンダーササエミ CYLINDER SUPPORT SET 2-1-1 S37744001 1 シリンダーササエミ CYLINDER SUPPORT ASSY 2-1-2 S37717101 1 ホンヨサエリンクミ AUX. CLAMP LINK ASSY 2-1-3 S34922101 1 ダンネジ M4 SHOULDER SCREW, M4 2-1-4 021400202 1 2シュナット4 NUT, 2 M4 2-1-5 144504001 2 イトアンナイサラ DISC, THREAD GUIDE 2-1-6 154562001 1 プレテンションバネ B SPRING, B :PRE-TENSION 2-1-7 155510001 1 イトチョウシナット TENSION NUT 2-1-8 S51219001 1 シンイトユルメイタ TENSION RELEASE PLATE, ;GIMP 2-1-9 S37749001 1 シンイトユルメイタバネ SPRING, TWIST 2-1-10 S51220001 1 カラー COLLAR 2-1-11 025040332 1 ヒラサガネタテ 4 WASHER, PLAIN L 4 2-1-12 062401212 1 ナベコ4X12 SCREW, PAN M4X12 2-1-13 S37737001 1 シリンダー 10X15Jクミ CYLINDER ASSY, 10X15J 2-1-13-1 S12150000 2 ホースエルボ M-5HL-4 TUBE ELBOW, M-5HL-4 2-1-13-2 S35351001 1 シリンダーロッド CYLINDER ROD 2-1-13-3 S37866000 1 クレビスピン CLEVIS PIN 2-1-14 S35305001 1 シリンダーロッド・ピン ROD PIN, CYLINDER 2-1-15 048030342 2 トメワE3 RETAINING RING, E3 2-1-16 S37738000 1 エアーホース4X2.5-20 L=1350 AIR TUBE, 4X2.5-20 L=1350 2-1-17 S37773000 1 エアーホース4X2.5-21 L=1400 AIR TUBE, 4X2.5-21 L=1400 2-1-18 S37863000 1 エアーホース4X2.5-3J L=100 AIR TUBE, 4X2.5-3J L=100 2-1-19 S37864000 1 エアーホース4X2.5-4J L=100 AIR TUBE, 4X2.5-4J L=100 2-1-20 S12104000 2 ユニオンY4 UNION, Y 4 2-1-21 S04557000 1 バンドPLT1M BAND, PLT1M 2-2 062400812 2 ナベコ4X8 SCREW, PAN M4X8 2-3 S37750001 1 シリンダーアンナイJ TR TAKE-UP GUIDE, J ;GIMP 2-4 062400812 2 ナベコ4X8 SCREW, PAN M4X8 2-5 S37697001 1 シリンダーアンナイJ THREAD GUIDE, J ;GIMP 2-6 062400812 1 ナベコ4X8 SCREW, PAN M4X8 2-7 S37752001 1 スロートプレート1.8-J THROAT PLATE, 1.8-J 2-8 S35326001 1 シメネジ M3.5 SCREW, M3.5 2-9 S39109101 1 シントアンナイC-Jクミ GIMP GUIDE ASSY, C-J 2-9-1 S37696101 1 シントアンナイC-J GIMP GUIDE, C-J 2-9-2 S41252000 1 シントアンナイプレート GIMP THREAD CLAMP PLATE, J 2-9-3 159113001 1 ダンネジ 3.18 SHOULDER SCREW, SM3.18 2-9-4 S35118001 1 ハリトチョウバネ TENSION SPRING 2-10 S39108001 1 レバーブラケットクミ B LEVER BRACKET ASSY, B 2-10-1 S37726001 1 T-キリルトレバーブラケット B T-TRIMMER LEVER BRACKET, B 2-10-2 062301016 1 ナベコ M3X10 SCREW, PAN M3X10 2-10-3 S47512001 1 シタトオサエジクミ LOWER THREAD PRESSER ASSY, J 2-10-3-1 S37720001 1 シタトオサエ LOWER THREAD PRESSER 2-10-3-2 S37721001 1 シタトオサエダイ LOWER THREAD PRESSER BRACKET 2-10-3-3 148407001 1 ヨコアンナイピン DOWEL PIN, L 2-10-4 021300302 1 3シュナット3 NUT, 3 M3 2-10-5 S37774001 1 シメネジ 2.38 SCREW, SM2.38 2-10-6 S37725001 1 シタトオサエバネ SPRING, COMPRESSION 2-10-7 S47932001 1 ナット238-56 NUT, SM2.38-56 2-10-8 S37723001 1 ウワイトウヘB MOVABLE KNIFE, B ;UPPER 2-10-9 105288001 1 シメネジ 2.38 SCREW, SM2.38 2-10-10 060350616 1 バンド 3.5X6 SCREW, BIND M3.5X6 2-11 S37693001 1 プレートガイドイタC GUIDE PLATE, C 2-12 S06696004 2 サラコネジ 3X6 SCREW, FLAT M3X6 118-981-940 78 jintex.in

Page 83 — AA3 . 付属装置関係 / Attachment set

AA3 . 付属装置関係 / Attachment set 1-5 1-3 1-2 1-1 1-4 1-10 1-9 1-8 1-7 1-6 1-11 1-12 79 118-981-940 jintex.in

Page 84

AA3 . 付属装置関係 / Attachment set . REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S44275001 1 <L1 14-18mm> コクハンパーツL1クミ EXCHANGE PARTS ASSY, L1 1-1 S37673101 1 イトウクルAL1R MOVABLE KNIFE, R L1 1-2 S37669101 1 イトウクルL1L MOVABLE KNIFE, L L1 1-3 S37665000 1 イトウサバキL1 THREAD HANDLER, L1 1-4 S37661101 1 イトウハクトウカムL1 MOVABLE KNIFE DRIVING CAM, L1 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S37644101 1 ハリイタL1R NEEDLE PLATE, R L1 1-7 S37643201 1 ハリイタL1L NEEDLE PLATE, L L1 1-8 S37754001 1 ヌノオサエR-JL1 WORK CLAMP, R-J L1 1-9 S37755001 1 ヌノオサエL-JL1 WORK CLAMP, L-J L1 1-10 S43337000 1 981ショウハーネスL1 HARNESS, 981 L1 1-11 S37702001 1 ハンマー-S12 HAMMER, S12 1-12 S37704001 1 ハンマー-S16 HAMMER, S16 1 S44276001 1 <L2 18-22mm> コクハンパーツL2クミ <L2 18-22mm> EXCHANGE PARTS ASSY, L2 1-1 S37674101 1 イトウクル2R MOVABLE KNIFE, R L2 1-2 S37671101 1 イトウクル2L MOVABLE KNIFE, L L2 1-3 S37666000 1 イトウサバキL2 THREAD HANDLER, L2 1-4 S37662101 1 イトウハクトウカムL2 MOVABLE KNIFE DRIVING CAM, L2 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S37648101 1 ハリイタL2R NEEDLE PLATE, R L2 1-7 S37647101 1 ハリイタL2L NEEDLE PLATE, L L2 1-8 S37690001 1 ヌノオサエR-JL2 WORK CLAMP, R-J L2 1-9 S37689001 1 ヌノオサエL-JL2 WORK CLAMP, L-J L2 1-10 S43339000 1 981ショウハーネスL2 HARNESS, 981 L2 1-11 S37704001 1 ハンマー-S16 HAMMER, S16 1-12 S37706001 1 ハンマー-S20 HAMMER, S20 1 S44277001 1 <L3 22-26mm> コクハンパーツL3クミ <L3 22-26mm> EXCHANGE PARTS ASSY, L3 1-1 S37675101 1 イトウクル3R MOVABLE KNIFE, R L3 1-2 S37671101 1 イトウクル3L MOVABLE KNIFE, L L3 1-3 S37667000 1 イトウサバキL3 THREAD HANDLER, L3 1-4 S37663101 1 イトウハクトウカムL3 MOVABLE KNIFE DRIVING CAM, L3 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S37648101 1 ハリイタL3R NEEDLE PLATE, R L3 1-7 S37647101 1 ハリイタL3L NEEDLE PLATE, L L3 1-8 S37692001 1 ヌノオサエR-JL3 WORK CLAMP, R-J L3 1-9 S37691001 1 ヌノオサエL-JL3 WORK CLAMP, L-J L3 1-10 S43339000 1 981ショウハーネスL3 HARNESS, 981 L3 1-11 S37706001 1 ハンマー-S20 HAMMER, S20 1-12 S37708001 1 ハンマー-S24 HAMMER, S24 1 S44278001 1 <L4 26-30mm> コクハンパーツL4クミ <L4 26-30mm> EXCHANGE PARTS ASSY, L4 1-1 S37676101 1 イトウクル4R MOVABLE KNIFE, R L4 1-2 S37672101 1 イトウクル4L MOVABLE KNIFE, L L4 1-3 S37668000 1 イトウサバキL4 THREAD HANDLER, L4 1-4 S37664101 1 イトウハクトウカムL4 MOVABLE KNIFE DRIVING CAM, L4 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S37650101 1 ハリイタL4R NEEDLE PLATE, R L4 1-7 S37649101 1 ハリイタL4L NEEDLE PLATE, L L4 1-8 S37758001 1 ヌノオサエR-JL4 WORK CLAMP, R-J L4 1-9 S37759001 1 ヌノオサエL-JL4 WORK CLAMP, L-J L4 1-10 S43340000 1 981ショウハーネスL4 HARNESS, 981 L4 1-11 S37708001 1 ハンマー-S24 HAMMER, S24 1-12 S42053001 1 ハンマー-S28 HAMMER, S28 118-981-940 80

Page 85 — AA3 . 付属装置関係 / Attachment set

AA3 . 付属装置関係 / Attachment set 1-5 1-3 1-2 1-1 1-4 1-10 1-9 1-8 1-7 1-11 1-5 1-12 81 jintex.in 118-981-940

Page 86

AA3 . 付属装置関係 / Attachment set . REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S44283001 1 <L5 28-32mm> コクカンパーツL5クミ <L5 28-32mm> EXCHANGE PARTS ASSY, L5 1-1 S37674101 1 イトウクル2R MOVABLE KNIFE, R L2 1-2 S37670101 1 イトウクル2L MOVABLE KNIFE, L L2 1-3 S37666000 1 イトサハキL2 THREAD HANDLER, L2 1-4 S37662101 1 イトウクルカカムL2 MOVABLE KNIFE DRIVING CAM, L2 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S40822001 1 ハリイタL5R NEEDLE PLATE, R L5 1-7 S40823001 1 ハリイタL5L NEEDLE PLATE, L L5 1-8 S41483001 1 ヌノオサエR-JL5 WORK CLAMP, R-J L5 1-9 S41484001 1 ヌノオサエL-JL5 WORK CLAMP, L-J L5 1-10 S43341000 1 981ショウハーネスL5 HAMNESS, 981 L5 1-11 S37197001 1 バンマー-26 HAMMER, 26 1-12 S37199001 1 バンマー-30 HAMMER, 30 1 S44284001 1 <L6 32-36mm> コクカンパーツL6クミ <L6 32-36mm> EXCHANGE PARTS ASSY, L6 1-1 S37675101 1 イトウクル3R MOVABLE KNIFE, R L3 1-2 S37671101 1 イトウクル3L MOVABLE KNIFE, L L3 1-3 S37667000 1 イトサハキL3 THREAD HANDLER, L3 1-4 S37663101 1 イトウクルカカムL3 MOVABLE KNIFE DRIVING CAM, L3 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S41479001 1 ハリイタL6R NEEDLE PLATE, R L6 1-7 S41480001 1 ハリイタL6L NEEDLE PLATE, L L6 1-8 S41485001 1 ヌノオサエR-JL6 WORK CLAMP, R-J L6 1-9 S41486001 1 ヌノオサエL-JL6 WORK CLAMP, L-J L6 1-10 S43342000 1 981ショウハーネスL6 HAMNESS, 981 L6 1-11 S37199001 1 バンマー-30 HAMMER, 30 1-12 S37201001 1 バンマー-34 HAMMER, 34 1 S44285001 1 <L7 36-40mm> コクカンパーツL7フミ <L7 36-40mm> EXCHANGE PARTS ASSY, L7 1-1 S37675101 1 イトウクル4R MOVABLE KNIFE, R L4 1-2 S37672101 1 イトウクル4L MOVABLE KNIFE, L L4 1-3 S37668000 1 イトサハキL4 THREAD HANDLER, L4 1-4 S37664101 1 イトウクルカカムL4 MOVABLE KNIFE DRIVING CAM, L4 1-5 153787001 2 シメネジ 2.38 SCREW, SM2.38 1-6 S41479001 1 ハリイタL7R NEEDLE PLATE, R L7 1-7 S41482001 1 ハリイタL7L NEEDLE PLATE, L L7 1-8 S41487001 1 ヌノオサエR-JL7 WORK CLAMP, R-J L7 1-9 S41488001 1 ヌノオサエL-JL7 WORK CLAMP, L-J L7 1-10 S43343000 1 981ショウハーネスL7 HAMNESS, 981 L7 1-11 S37201001 1 バンマー-34 HAMMER, 34 1-12 S35093001 1 バンマー-38 HAMMER, 38 118-981-940 82 Jinte.in

Page 87 — AA4 . 付属装置関係 / Attachment set

AA4 . 付属装置関係 / Attachment set 11-1-1-4 11-1-1-2 11-1-2-2 11-1-1-5 11-1-1-1 11-1-2-3 11-1-2-1 11-1-2-4 11-1-2-5 83 118-981-940 jintex.in

Page 88

AA4 . 付属装置関係 / Attachment set . REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 11-1 S43701001 1 <ウエストベルト押IL3用> <For waist belt presser, L3> 11-1-1 S43702001 1 ヌノサエL3Wセット WORK CLAMP SET, L3W 11-1-1-1 S43408001 1 ヌノサエL3Wミ WORK CLAMP ASSY, L-L3W 11-1-1-2 S43450001 1 ヌノサエL-L3W WORK CLAMP, L-L3W 11-1-1-3 S35235001 1 クランプアームL-JW CLAMP ARM, L-JW 11-1-1-4 S35236000 1 クランプサエピン SUPPORT PIN, CLAMP 11-1-1-5 021300302 1 マゲザガネ3.2 WASHER, BENDING 3.2 11-1-2 1 シュナツト3 NUT, 3 M3 11-1-2-1 S43703001 1 ヌノサエR-L3Wミ WORK CLAMP ASSY, R-L3W 11-1-2-2 S43409001 1 ヌノサエR-L3W WORK CLAMP, R-L3W 11-1-2-3 S43451001 1 クランプアームR-JW CLAMP ARM, R-JW 11-1-2-4 S35235001 1 クランプサエピン SUPPORT PIN, CLAMP 11-1-2-5 S35236000 1 マゲザガネ3.2 WASHER, BENDING 3.2 021300302 1 シュナツト3 NUT, 3 M3 11-1 S43704001 <ウエストベルト押IL4用> <For waist belt presser, L4> 11-1-1 S43705001 1 ヌノサエL4Wセット WORK CLAMP SET, L4W 11-1-1-1 S43410001 1 ヌノサエL-L4Wミ WORK CLAMP ASSY, L-L4W 11-1-1-2 S43450001 1 ヌノサエL-L4W WORK CLAMP, L-L4W 11-1-1-3 S35235001 1 クランプアームL-JW CLAMP ARM, L-JW 11-1-1-4 S35236000 1 クランプサエピン SUPPORT PIN, CLAMP 11-1-1-5 021300302 1 マゲザガネ3.2 WASHER, BENDING 3.2 11-1-2 1 シュナツト3 NUT, 3 M3 11-1-2-1 S43706001 1 ヌノサエR-L4Wミ WORK CLAMP ASSY, R-L4W 11-1-2-2 S43411001 1 ヌノサエR-L4W WORK CLAMP, R-L4W 11-1-2-3 S43451001 1 クランプアームR-JW CLAMP ARM, R-JW 11-1-2-4 S35235001 1 クランプサエピン SUPPORT PIN, CLAMP 11-1-2-5 S35236000 1 マゲザガネ3.2 WASHER, BENDING 3.2 021300302 1 シュナツト3 NUT, 3 M3 118-981-940 84 jintex.in

Page 89 — Z. 付属品関係 / Accessories

Z. 付属品関係 / Accessories 19 8 9 21 5 18 50 53 52 51 82 81 7 4-11 4-11-1 4-11-2 4-11-3 4-12-1 4-12-1 4-3 4-2 4-1 4-13-1 4-9 4-13-2 55 54 60 59 61 83 62 57 68 63 56 67 65 66 64 69 70 58 -02, ジーンズ仕様 / For -02, Jeans specification -52, フラインデクサー仕様 / For -52, Fly indexer specification 3-3 71 72 73 75 74 77 76 -00, 上糸切り用 / For -00, Upper thread trimmer -01, 上下糸切り用 / For -01, Upper & lower thread trimmer 3-1 3-2 4-12-1 4-7-1 4-7 4-12-5 4-12-2 4-12-4 4-5 4-12-5 4-12-3 4-10 4-13-3 4-8-2 4-4 4-8-3 4-4-1 4-4-2 4-8-1 20 79 80 85 118-981-910 jintex.in

Page 90 — Z. 付属 品 関係 / Accessories

Z. 付属 品 関係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 3-1 S35092001 <00, 上糸切り用> <For-00,Upper thread trimmer> 3-2 S37197001 <01, 下糸切り用> <For-01,Upper & lower thread trimmer> ハンマー-20 HAMMER, 20 3-3 S37704001 ハンマー-26 HAMMER, 26 S37706001 <02, ジーンズ仕様> <For-02, jeans specification> S37708001 <-52, フラインデクサー仕様> <For-52, Fly indexer specification> S42053001 ハンマー-S16 L1 HAMMER, S16 L1 S37199001 ハンマー-S20 L2 HAMMER, S20 L2 3-3 S37704001 ハンマー-S24 L3 HAMMER, S24 L3 3-3 S37706001 ハンマー-S28 L4 HAMMER, S28 L4 3-3 S37708001 ハンマー-30 L5 HAMMER, 30 L5 3-3 S42053001 ハンマー-34 L6 HAMMER, 34 L6 3-3 S37199001 ハンマー-38 L7 HAMMER, 38 L7 4 S02766209 1 イタダケ イクミ3D COTTON STAND ASSY, 3D 4-1 S51283001 3 ウケザラ SPOOL STAND BASE 4-2 150182000 3 スプールマット SPOOL MAT 4-3 S51282001 3 スプールクツシヨン SPOOL CUSHION 4-4 S02775001 1 パイプネジセットA PIPE SCREW SET, A 4-4-1 150206002 1 ヒラザガネ16 WASHER, PLAIN 16 4-4-2 S38648001 1 6カクナットU5/8 NUT, U5/8-28 4-5 156112003 1 コラムパイプD COLUMN PIPE, D 4-6 150173003 1 コラムジョイント COLUMN JOINT 4-7 S40640001 1 コラムパイプキャップツキ COLUMN PIPE W/CAP 4-7-1 150174000 1 コラムキャップ COLUMN CAP 4-8 S21798001 3 スプールネジセット SPOOL & SCREW SET 4-8-1 150179002 3 スプールシクB SPOOL SHAFT, B 4-8-2 028050246 3 バネガネ2-5 WASHER, SPRING 2-5 4-8-3 021500106 1 シュナット5 NUT, 1 M5 4-9 150188009 1 スプールホルダーサポートA SPOOL HOLDER SUPPORT, A 4-10 S02779009 1 スプールホルダー-3 SPOOL HOLDER, 3 4-11 S02788009 1 スレッドハンガーアツシ3 THREAD HANGER ASSY, 3 4-11-1 S02789009 1 スレッドハンガー-3 THREAD HANGER, 3 4-11-2 150183000 3 イトカケハンガーダイ THREAD HANGER BASE 4-11-3 142990001 3 スレッドブツシユ THREAD BUSH 4-12 S40641001 1 スプールネジクミセット SPOOL SHAFT & SCREW SET, A 4-12-1 021500106 1 シュナット5 NUT, 1 M5 4-12-2 062501406 1 ナベコM5X14 SCREW, PAN M5X14 4-12-3 S59931001 1 ナベコM5X32 SCREW, PAN M5X32 4-12-4 062501406 2 ナベコM5X14 SCREW, PAN M5X14 4-12-5 S30302000 1 ホリフクロス PE. BAG, 70X70 4-12-6 026050136 2 ヒラザガネ5 WASHER, PLAIN S 5 4-13 S40644001 1 ホルダーツキネジセット HOLDER JOINT & SCREW SET 4-13-1 021500106 1 シュナット5 NUT, 1 M5 4-13-2 031452206 1 マルモク45X22 WOOD SCREW, ROUND M4.5X22 4-13-3 062501006 1 ナベコ5X10 SCREW, PAN M5X10 5 S34915000 1 イトトン THREADER 6 149796001 1 ゴムホースカクブツキ AIR HOSE, W/CONNECTOR 7 S35133116 <00, 上糸切り用> 1 ミシンバリDOX558クミ<#16> <For-00,Upper thread trimmer> NEEDLE ASSY, DOX558 (#16) 7 S35133114 <01, 上下糸切り用> 1 ミシンバリDOX558クミ<#14> <For-01,Upper & lower thread trimmer> NEEDLE ASSY, DOX558 (#14) 7 S35133118 <02, ジーンズ仕様> 1 ミシンバリDOX558クミ<#18> <For-02, jeans specification> NEEDLE ASSY, DOX558 (#18) 8 118837001 1 ネジマワシ3.4X70 SCREW DRIVER, 3.4X70 9 101572101 1 ネジマワシ5.5X190 SCREW DRIVER, 5.5X190 10 107779001 1 スパナ6X7 WRENCH, 6X7 118-981-910 86 jintex.in

Page 91 — Z. 付属品関係 / Accessories

Z. 付属品関係 / Accessories 19 8 9 21 5 50 18 4-12-1 4-7-1 7 4-11 4-7 4-12-5 4-11-1 4-12-2 4-11-2 4-12-1 4-8 4-12-4 6 4-8-1 4-12-1 4-3 4-5 4-2 4-1 4-12-5 4-13-1 4-12-3 4-9 4-10 4-13-2 4-13-3 4-8-2 4-4-1 4-4 4-4-2 53 52 51 82 81 78 55 54 60 59 61 62 63 57 56 68 67 65 66 71 72 20 73 77 75 74 76 79 80 -02, ジーンズ仕様 / For -02, jeans specification -52, フライインデクサー仕様 / For -52, Fly indexer specification -00, 上糸切り用 / For -00, Upper thread trimmer -01, 上下糸切り用 / For -01, Upper & lower thread trimmer 3-3 3-1 3-2 37 118-981-910 jintex.in

Page 92

Z. 付属関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 11 100887001 1 スパナ8X9 WRENCH, 8X9 12 107780001 1 スパナ10X12 WRENCH, 10X12 13 142002001 1 6カクホウ スパナ 2 HEXAGONAL WRENCH, 2 14 142721001 1 6カクホウ スパナ 3 HEXAGONAL WRENCH, 3 15 118064001 1 6カクホウ スパナ 4 HEXAGONAL WRENCH, 4 16 150335001 1 6カクホウ スパナ 5 HEXAGONAL WRENCH, 5 17 115157001 1 6カクホウ スパナ 6 HEXAGONAL WRENCH, 6 18 114483002 1 ボイオイラーグミ OILER ASSY 19 117466000 1 ピンセット PINCETTE 20 S55663001 1 オイルタンククミ OIL TANK ASSY 21 140342001 1 ソケットレンチクミ SOCKET WRENCH ASSY 22 018084032 4 アナホルト 8X40 BOLT, SOCKET M8X40 23 028080242 4 ハネザガネ 2-8 WASHER, SPRING 2-8 24 025080232 4 ヒラザガネ チュウ8 WASHER, PLAIN M 8 25 159150000 4 ゴムセン 20.5 RUBBER CAP, 20.5 50 S43729000 8 オニメナット M6X20 NUT 51 018065022 4 アナホルト 6X50 BOLT, SOCKET M6X50 52 028060242 4 ハネザガネ 2-6 WASHER, SPRING 2-6 53 122257001 4 サガネ WASHER 54 S43715001 1 モータシンイタ MOTOR PLATE 55 S43716001 1 Lガタホルトシンイタ HOLDER PLATE, ; BOLT 56 018065022 4 アナホルト 6X50 BOLT, SOCKET M6X50 57 028060242 4 ハネザガネ 2-6 WASHER, SPRING 2-6 58 152861101 1 モータシンイタ MOTOR BASE PLATE 59 152865001 1 モータシンイタジク MOTOR BASE PLATE SHAFT 60 048100142 2 トメワシヨウC10 RETAINING RING, EXTERNAL C10 61 152863001 1 LガタホルトM10 BOLT, L-TYPE M10 62 021100202 2 ナツト2シュ10 NUT, 2 M10 63 025100132 2 ヒラザガネ ネジヨウ10 WASHER, PLAIN S 10 64 028100332 4 クツシヨンカラー CUSHION COLLAR 65 152863001 4 クツシヨン CUSHION 66 152864000 8 ヒラザガネ ネジヨウ14 WASHER, PLAIN L 7.14 67 025800332 8 ヒラザガネ ネジヨウ14 WASHER, PLAIN L 7.14 68 017062503 4 6カクホルト6X25 BOLT, M6X25 69 021060106 4 1シュナツト6 NUT, 1 M6 70 028060242 4 ハネザガネ 2-6 WASHER, SPRING 2-6 71 S43714000 1 モータカバー-981 MOTOR COVER, 981 72 S43713001 1 モータウシロカバーササエ MOTOR REAR COVER SUPPORT 73 052400806 3 ハコバネネジ 4X8 SCREW, PAN (S/P WASHER) M4X8 74 101118001 2 マルモクネジ 4.5X20 WOOD SCREW, ROUND M4.5X20 75 025050232 2 ヒラザガネ ネジウ5 WASHER, PLAIN M 5 76 S38041000 1 モータプーリ MOTOR PULLEY 77 105073001 1 アタマツキメネジ 5.95 SET SCREW, SM5.95 78 032461606 2+マルモクネジ 4.5X16 WOOD SCREW, ROUND M4.5X16 79 S08030000 1 GEユーズ 5AFB FUSE, 5A :FB 80 153420000 1 ヒューズ 6A FUSE, 6A 81 200190001 1 ステツプル STAPLE 82 032422505 4+マルモクネジ 4.1X25 WOOD SCREW, ROUND M4.1X25 83 025060332 4 ヒラザガネ 16 WASHER, PLAIN L 6 118-981-910 88 jintex.in

Page 93 — Sp1. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Sp1. 仕様別部品一覧表 / DIFFERENT PARTS LIST REF. NO. L1 14-18mm L2 18-22mm L3 22-26mm L4 26-30mm AA1 S44238-001 S44239-001 S44240-001 S44271-001 -1 クミカエヒンセット (L1) クミカエヒンセット (L2) クミカエヒンセット (L3) クミカエヒンセット (L4) EXCHANGE PARTS SET, L1 EXCHANGE PARTS SET, L2 EXCHANGE PARTS SET, L3 EXCHANGE PARTS SET, L4 AA1 S38576-401 S38578-401 S38580-401 S38582-401 -1-1 L1 プレートRクミ L2 プレートRクミ L3 プレートRクミ L4 プレートRクミ L1 PLATE ASSY, R L2 PLATE ASSY, R L3 PLATE ASSY, R L4 PLATE ASSY, R AA1 S37756-401 S37727-401 S37733-401 S37757-401 -1-1-1 オサエプレート JR1 ソウクミ オサエプレート JR2 ソウクミ オサエプレート JR3 ソウクミ オサエプレート JR4 ソウクミ WORK CLAMP PLATE SET, JR1 WORK CLAMP PLATE SET, JR2 WORK CLAMP PLATE SET, JR3 WORK CLAMP PLATE SET, JR4 AA1 S37644-101 S37646-101 S37648-101 S37650-101 -1-1-1-2 ハリイタ L1R ハリイタ L2R ハリイタ L3R ハリイタ L4R NEEDLE PLATE, R L1 NEEDLE PLATE, R L2 NEEDLE PLATE, R L3 NEEDLE PLATE, R L4 AA1 S37754-001 S37690-001 S37692-001 S37758-001 -1-1-1-4 ヌノオサエ R-JL1 ヌノオサエ R-JL2 ヌノオサエ R-JL3 ヌノオサエ R-JL4 WORK CLAMP, R-J L1 WORK CLAMP, R-J L2 WORK CLAMP, R-J L3 WORK CLAMP, R-J L4 AA1 S37673-101 S37674-101 S37675-101 S37676-101 -1-1-2 イドウハ L1R イドウハ L2R イドウハ L3R イドウハ L4R MOVABLE KNIFE, R L1 MOVABLE KNIFE, R L2 MOVABLE KNIFE, R L3 MOVABLE KNIFE, R L4 AA1 S37669-101 S37670-101 S37671-101 S37672-101 -1-1-3 イドウハ L1L イドウハ L2L イドウハ L3L イドウハ L4L MOVABLE KNIFE, L L1 MOVABLE KNIFE, L L2 MOVABLE KNIFE, L L3 MOVABLE KNIFE, L L4 AA1 S37665-000 S37666-000 S37667-000 S37668-000 -1-1-4 イトサバキ L1 イトサバキ L2 イトサバキ L3 イトサバキ L4 THREAD HANDLER, L1 THREAD HANDLER, L2 THREAD HANDLER, L3 THREAD HANDLER, L4 AA1 S37661-101 S37662-101 S37663-101 S37664-101 -1-1-5 イドウハクドウカムL1 イドウハクドウカムL2 イドウハクドウカムL3 イドウハクドウカムL4 MOVABLE KNIFE DRIVING CAM, L1 MOVABLE KNIFE DRIVING CAM, L2 MOVABLE KNIFE DRIVING CAM, L3 MOVABLE KNIFE DRIVING CAM, L4 AA1 S38577-201 S38579-201 S38581-201 S38583-201 -1-2 L1 プレート Lクミ L2 プレート Lクミ L3 プレート Lクミ L4 プレート Lクミ L1 PLATE ASSY, L L2 PLATE ASSY, L L3 PLATE ASSY, L L4 PLATE ASSY, L AA1 S37731-301 S37728-301 S37735-301 S37732-301 -1-2-1 オサエプレート JL1 ソウクミ オサエプレート JL2 ソウクミ オサエプレート JL3 ソウクミ オサエプレート JL4 ソウクミ WORK CLAMP PLATE SET, JL1 WORK CLAMP PLATE SET, JL2 WORK CLAMP PLATE SET, JL3 WORK CLAMP PLATE SET, JL4 AA1 S37643-201 S37645-201 S37647-201 S37649-101 -1-2-1-2 ハリイタ L1L ハリイタ L2L ハリイタ L3L ハリイタ L4L NEEDLE PLATE, L L1 NEEDLE PLATE, L L2 NEEDLE PLATE, L L3 NEEDLE PLATE, L L4 AA1 S37755-001 S37689-001 S37691-001 S37759-001 -1-2-1-4 ヌノオサエ L-JL1 ヌノオサエ L-JL2 ヌノオサエ L-JL3 ヌノオサエ L-JL4 WORK CLAMP, L-J L1 WORK CLAMP, L-J L2 WORK CLAMP, L-J L3 WORK CLAMP, L-J L4 AA1 S43337-000 S43338-000 S43339-000 S43340-000 -1-3 981 ショウハーネス L1 981 ショウハーネス L2 981 ショウハーネス L3 981 ショウハーネス L4 HARNESS, 981 L1 HARNESS, 981 L2 HARNESS, 981 L3 HARNESS, 981 L4 AA1 S37702-001 S37704-001 S37706-001 S37708-001 -1-5 ハンマー S12 ハンマー S16 ハンマー S20 ハンマー S24 HAMMER, S12 HAMMER, S16 HAMMER, S20 HAMMER, S24 AA1 S37704-001 S37706-001 S37708-001 S42053-001 -1-6 ハンマー S16 ハンマー S20 ハンマー S24 ハンマー S28 HAMMER, S16 HAMMER, S20 HAMMER, S24 HAMMER, S28 89 118-981-Sp1

Page 94 — Sp1. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Sp1. 仕様別部品一覧表 / DIFFERENT PARTS LIST REF. NO. L5 28-32mm L6 32-36mm L7 36-40mm AA1 S44272-001 S44273-001 S44274-001 -1 クミカエピンセット (L5) クミカエピンセット (L6) クミカエピンセット (L7) EXCHANGE PARTS SET, L5 EXCHANGE PARTS SET, L6 EXCHANGE PARTS SET, L7 AA1 S41470-201 S41472-201 S41474-201 -1-1 L5 プレート Rクミ L6 プレート Rクミ L7 プレート Rクミ L5 PLATE ASSY, R L6 PLATE ASSY, R L7 PLATE ASSY, R AA1 S40830-101 S41489-101 S41491-101 -1-1-1 オサエプレート JR5ソウクミ オサエプレート JR6ソウクミ オサエプレート JR7ソウクミ WORK CLAMP PLATE SET, JR5 WORK CLAMP PLATE SET, JR6 WORK CLAMP PLATE SET, JR7 AA1 S40822-001 S41479-001 S41481-001 -1-1-1-2 ハリイタ L5R ハリイタ L6R ハリイタ L7R NEEDLE PLATE, R L5 NEEDLE PLATE, R L6 NEEDLE PLATE, R L7 AA1 S41483-001 S41485-001 S41487-001 -1-1-1-4 ヌノサエ R-JL5 ヌノサエ R-JL6 ヌノサエ R-JL7 WORK CLAMP, R-J L5 WORK CLAMP, R-J L6 WORK CLAMP, R-J L7 AA1 S37574-101 S37675-101 S37676-101 -1-2 イトウハ L2R イトウハ L3R イトウハ L4R MOVABLE KNIFE, R L2 MOVABLE KNIFE, R L3 MOVABLE KNIFE, R L4 AA1 S37670-101 S37671-101 S37672-101 -1-1-3 イトウハ L2L イトウハ L3L イトウハ L4L MOVABLE KNIFE, L L2 MOVABLE KNIFE, L L3 MOVABLE KNIFE, L L4 AA1 S37666-000 S37667-000 S37668-000 -1-1-4 イトサバキ L3 イトサバキ L4 THREAD HANDLER, L2 THREAD HANDLER, L3 THREAD HANDLER, L4 AA1 S37662-101 S37663-101 S37664-101 -1-1-5 イドウハドウカム L2 イドウハドウカム L3 イドウハドウカム L4 MOVABLE KNIFE DRIVING CAM, L2 MOVABLE KNIFE DRIVING CAM, L3 MOVABLE KNIFE DRIVING CAM, L4 AA1 S41471-101 S41473-101 S41475-101 -1-2 L5 プレート Lクミ L6 プレート Lクミ L7 プレート Lクミ L5 PLATE ASSY, L L6 PLATE ASSY, L L7 PLATE ASSY, L AA1 S40831-101 S41490-101 S41492-101 -1-2-1 オサエプレート JL5ソウクミ オサエプレート JL6ソウクミ オサエプレート JL7ソウクミ WORK CLAMP PLATE SET, JL5 WORK CLAMP PLATE SET, JL6 WORK CLAMP PLATE SET, JL7 AA1 S40823-001 S41480-001 S41482-001 -1-2-1-2 ハリイタ L5L ハリイタ L6L ハリイタ L7L NEEDLE PLATE, L L5 NEEDLE PLATE, L L6 NEEDLE PLATE, L L7 AA1 S41484-001 S41486-001 S41488-001 -1-2-1-4 ヌノサエ L-JL5 ヌノサエ L-JL6 ヌノサエ L-JL7 WORK CLAMP, L-J L5 WORK CLAMP, L-J L6 WORK CLAMP, L-J L7 AA1 S43341-000 S43342-000 S43343-000 -1-3 981 ショウハーネス L5 981 ショウハーネス L6 981 ショウハーネス L7 HARNESS, 981 L5 HARNESS, 981 L6 HARNESS, 981 L7 AA1 S37197-001 S37199-001 S37201-001 -1-5 ハンマー 26 ハンマー 30 ハンマー 34 HAMMER, 26 HAMMER, 30 HAMMER, 34 AA1 S37199-001 S37201-001 S35093-001 -1-6 ハンマー 30 ハンマー 34 ハンマー 38 HAMMER, 30 HAMMER, 34 HAMMER, 38 118-981-Sp1 90

Page 95 — Sp2. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Sp2. 仕様別部品一覧表 / DIFFERENT PARTS LIST -00の場合は10～50mm 10 to 15 mm are available for -00 specification. -01の場合は10～38mmが取付可能 10 to 38 mm are available for -01 specification. 布押え / Work clamp (F2-80-1-4, 81-1-4) (L) S35455-101 S39929-001 S35197-001 S39931-001 (R) S35454-101 S39930-001 S35198-001 S39932-001 < 10~18mm用 > < 18~22mm用 > < 22~26mm用 > < 26~30mm用 > -00 -01 用 S35453-001 S35200-101 S37679-001 S37677-101 S35452-001 S35199-101 S37680-001 S37678-101 < 26~38mm用 > < 38mm用 > < 50mm用 > < 50mm用 > 布押え / Work clamp (F3-80-2-4, 81-2-4) (L) S37755-001 S37689-001 S37691-001 S37759-001 (R) S37754-001 S37690-001 S37692-001 S37758-001 L1< 14~18mm用 > L2< 18~22mm用 > L3< 22~26mm用 > L4< 26~30mm用 > -02 -S2 用 S41484-001 S41486-001 S41488-001 S43408-001 S43410-001 S41483-001 S41485-001 S41487-001 S43409-001 S43411-001 L5< 28~32mm用 > L6< 32~36mm用 > L7< 36~40mm用 > L3W< 22~26mm用 > L4W< 26~30mm用 > < ウエストベルト押工用 / For waist belt presser > 91 118-981-Sp2

Page 96 — Sp3. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Sp3. 仕様別部品一覧表 / DIFFERENT PARTS LIST -00の場合は38mm, 50mm共取付可能 Both 38 mm and 50 mm are available for -00 specification. -01の場合は38mmのみ取付可能 Only 38 mm is available for -01 specification. 針板 / Needle plate (F2-60-1-2, 61-1-2) (L) S35308-101(L) S35307-101(SL) S37683-101(L-50) S37681-101(SL-50) (R) S35309-101(R) S35306-101(SR) S37684-101(R-50) S37682-101(SR-50) < 38mm用 > < 38mm用 > < 50mm用 > < 50mm用 > -00 -01 用 針板 / Needle plate (F3-80-2-2, 61-2-2) (L) S37643-201(L1L) S37645-201(L2L) S37647-101(L3L) S37649-101(L4L) (R) S37644-101(L1R) S37646-101(L2R) S37648-101(L3R) S37650-101(L4R) L1< 14~18mm用 > L2< 18~22mm用 > L3< 22~26mm用 > L4< 26~30mm用 > -02 -52 用 S40823-001(L5L) S40822-001(L5R) S41480-001(L6L) S41479-001(L6R) S41482-001(L7L) S41481-001(L7R) L5< 28~32mm用 > L6< 32~36mm用 > L7< 36~40mm用 > ハンマー/Hammer (H-24 Z-3-1, 3-2, 3-3) (一) -00 ハンマーサイズ(mm) 部品コード ハンマーサイズ(mm) 10 S37211-001 18 12 S37210-001 20 14 S37209-001 22 16 S37208-001 24 -01 部品コード S37194-001 S35092-001 S37195-001 S37196-001 用 ハンマーサイズ(mm) 26 28 30 32 部品コード S37197-001 S37198-001 S37199-001 S37200-001 ハンマーサイズ(mm) 34 36 38 50 部品コード S37201-001 S37202-001 S35093-001 S35479-001 -02 ハンマーサイズ(mm) S10 S12 S14 S16 -52 部品コード S37701-001 S37702-001 S37703-001 S37704-001 用 ハンマーサイズ(mm) 18 S20 S22 S24 部品コード S37705-001 S37706-001 S37707-001 S37708-001 ハンマーサイズ(mm) S26 S28 部品コード S37709-001 S42053-001 118-981-Sp3 jintex.in 92

Page 97 — Sp4. 仕様別部品一覧表 / DIFFERENT PARTS LIST

Sp4. 仕様別部品一覧表 / DIFFERENT PARTS LIST メス / Knife (H-34-1, 34-2) S35439-101 < 38mm用 > S35437-101 < 38mm用 > S35480-101 < 38mm用 > S35482-101 < 38mm用 > S55247-001 < 38mm用 > S35408-101 (S) < 38mm用 > S35438-101 < 50mm用 > S35436-101 < 50mm用 > S35481-101 < 50mm用 > S35483-101 < 50mm用 > S35409-101 (S) < 50mm用 > 仕様ハーネス / Harness (W-43) -00 -01 用 仕様 部品コード S43336-000 L1 L2 L3 L4 -02 部品コード S43337-000 S43338-000 S43339-000 S43340-000 用 仕様 L5 L6 L7 部品コード S43341-000 S43342-000 S43343-000 -52 仕様 L1 L2 L3 L4 用 部品コード S43360-000 S43361-000 S43362-000 S43363-000 仕様 L5 L6 L7 部品コード S43364-000 S43365-000 S43366-000 93 118-981-Sp4 jintex.in

Page 99 — 索引/INDEX

索引/INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 002300403 2-11 72 018061622 88 021060106 69 025040332 66 42 003300812 1-40 68 018062022 11 10 021060306 31 10 025050232 25 78 1-42 68 018062522 27 26 021080306 3 3 025060232 103 12 004300513 79 4 018065022 51 88 021100202 62 22 117 75 88 004400603 2-3 72 018081622 56 88 021300206 62-4 88 103 56 004401003 1-35 44 018084032 2 28 025060236 1-74 70 008400604 1-33 50 018084032 2 28 021300302 80-1-7 16 1-8 13 24 012400636 33 40 018084032 23 88 81-1-7 16 13 56 012500536 86 24 01809632 26 44 80-2-7 18 025060332 83 88 01400632 56 2 01809636 1-26 32 81-2-7 19 33 88 65-2 8 01830036 9-10 51 33 30 025080132 83 88 13 10 018301236 10 0 11 49 025080232 25 88 13 10 1-5 6 1-1-7 76 025100132 63 34 1-6 12 018301632 23-1 10 1-1-1-7 76 025350236 82-2 34 36 17 23-2 10 1-2-1-7 76 82-1 38 17 22 1-5 2 11-1-2-5 84 025350332 49 34 68 22 018400632 68 8 11-1-2-5 84 77 34 90 24 018400636 14 2 11-1-2-5 84 77 34 97 26 1-4 12 021350106 6 36 8 48 9 26 1-14 12 1-14 8 88 12 26 1-22 22 1-14 44 026040136 42-3-7 62 14 26 1-28 22 021400106 46-8 40 42-3-8 64 16 20 018400636 1-20 44 1-46 48 42-3-7 62 01400632 94 48 H-8-6 52 42-3-8 64 1-9 25 48 H-9-6 52 1-13 68 15 26 1-9 40 021400202 71 14 026050136 4-12-6 86 1-2-6 26 64 103 20 026030242 9 36 01401622 40 1-2-6 26 103 57 72 026030243 10 66 1-7 68 1-40 40 14-4 66 1-11 28 1-7 70 1-77 70 1-22 28 1-11 72 1-28 22 1-22 12 026040246 2-12 72 22 6 1-28 14 026040242 19 14 01401622 46 1-4 36 026040246 42-3-3 62 46 10 018401636 18 1-4 14 74 42-3-6 64 18 14 10 36 026040246 42-3-3 62 30 40 018401636 24 1-20 22 1-1-7 74 42-3-6 64 32 21 1-20 68 1-1-13 74 026050242 43 2 33 22 018501036 33 6 2-1-4 78 026050243 1-60-4 70 19 018501222 21 6 4-8-3 86 026050246 4-8-2 86 1-26 19 1-3 26 021500106 4-12-1 86 026060242 78 22 1-7 20 018501236 80-1-13 16 021660102 97 20 026060242 1-7 50 80-1-15 15 81-1-13 16 1-2-9 76 57 88 81-1-15 16 80-2-13 18 025030232 62-5 72 57 88 1-26 68 81-2-13 19 7 22 026060246 1-7 50 1-1-1-15 74 1-1-1-13 74 025030236 2-13 72 1-2-1-15 76 1-2-1-13 76 8 22 014760622 10 018501422 22 1-3 76 025040132 4 28 54 22 018501622 22 025040232 7 88 62 22 018501631 25-3 26 48 028100242 64 88 016061031 14 10 018501631 13 22 4 86 3 26 22 32 031452206 4-13-2 62 017062503 68 018501636 3 24 025040234 4 34 42-2 62 017401415 63 14 018502022 100 24 025040234 4 66 032422003 35 58 018061022 1-6 50 018503036 16 28 1-49 70 35 70 11 56 018503036 1-20 36 1-54 70 032422505 82 88 018061222 77 22 018680822 82 24 1-76 70 032461606 78 88 018061236 60 2 021020106 1-30-6 44 025040236 H-8-5 52 047502242 30 2 018061622 2 43 021060102 22 10 025040332 51 52 048030342 15 2 95 jintex.in

Page 100 — 索 引 / INDEX

索 引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 048030342 43 14 060400516 30 26 062400812 40 26 076001800 1-4 28 78 34 25 46 48 26 12-3 28 78 34 1-37 68 55 26 076001850 33 12 4 58 1-44 74 85 3 076002450 10 10 13 58 060400816 1-1-25 74 3 29 076002800 6 28 52 60 1-13 72 47 3 076003850 1 28 1-18 68 060630312 1-39 44 49 40 93 32 2-1-15 78 061300418 1-24 44 51 40 076202850 5 28 048050142 80-1-11 16 062020416 1-30-5 44 53 40 087310815 3-6 51 81-1-11 16 062260406 1-15 44 55 40 087311015 3-7 51 81-2-11 18 062260612 1-7 44 56 42 0A4301005 1-39-18 50 81-2-11 19 20 46 58 42 0A4400605 42 56 1-1-1-11 74 062300418 2-28 22 69 58 0A5400806 1-5 50 1-2-1-11 76 2-29 24 3 58 0A5401006 1-13 50 1-2-4 76 25-5 26 15 66 1-14 50 048050342 1-4 14 12 38 18 22 66 0A5401605 H-8-4 52 2-4 14 17 30 30 66 H-9-4 52 4 48 1-41 44 31 66 0A5403006 1-10 50 048050346 2-15 72 18 33 66 1-12 50 57 22 062300512 1-1-18 74 2-2 78 100257010 93-3 88 65 22 4 44 2-4 78 100887001 11 88 048060342 45 2 1-29 44 2-6 78 101118001 74 88 42 12 062300612 13 30 062400816 37 58 101572101 9 86 048100142 11-5 12 44 30 1-1-9 58 102630001 1-2 14 23-5 12 062300616 62-3 2 062401016 80-1-9 16 2-2 14 60 88 80-1-9 16 102843004 23 10 048120142 1-5 28 31 5 80-2-9 16 104336003 1-37 44 12-5 28 062300805 14-3 66 81-2-9 19 105079001 77 88 1-9 68 062301016 11 32 105248003 50 38 048150142 11 30 2-10-2 78 105288001 37 30 2 28 062301205 2-6 72 062401212 1-1-9 42 106129002 2-10-9 78 1-3 4 93-4 4 12 062301414 1-24 68 57 42 107017002 39 2 23-3 12 1-36 68 1-2 66 11-3 12 062301606 8 66 62 107779001 10 12 048260242 93 28 062350518 83-2 34 062401416 63 78 107780001 12 1-3 28 83-1 34 1-75 62 109763002 1-3 14 048320242 7 28 1-59 70 42-3-2 62 2-3 14 048350242 17 10 062350616 4 38 42-3-5 62 112754001 52 38 052400606 2-16 72 37 38 42-3-2 64 113006001 14 38 052400806 73 88 46 42-3-5 64 114483002 18 88 060020416 80-1-1-2 16 7 40 062500804 6 2 114486002 53 2 81-1-1-2 16 27 40 96 2 115157001 17 88 80-2-1-2 18 41 58 062500812 54 86 115947001 19 2 81-2-1-2 19 062351615 3 30 062501006 4-13-3 19 116920001 21 10 1-1-1-1-2 74 062400612 37 40 062501202 4 11 1-2-1-1-2 76 39 40 10 14 117150001 36 88 060300416 60 30 48 38 14 117466000 19 88 39-1 34 062400816 5 38 11 117936001 89 4 44 10 18 118064001 2-17 72 1-47 70 1-1-15 74 062501406 4-12-2 86 118837001 15 88 1-52 70 062400812 2 4-12-4 12 122257001 53 88 060300616 1-11 72 24 2 062670616 45 12 128652001 1-5-3 12 060350616 39-2 34 27 2 062681412 7 24 84-2 24 1-1-1-17 74 95 4 072620180 16 88 140342001 21 88 1-2-1-17 76 8 14 072620260 2 10 140553102 18 6 2-10-10 78 17 14 076000800 11-2 12 140682001 1-60-1-2 70 060400416 50 65 14 23-2 12 141276001 22 10 1-48 70 100 20 076001800 92 24 1-53 70 96 jintex.in

Page 101

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 141514002 53 6 153787001 1-5 80 S01524000 31-1-1 58 S12150000 9-1 58 141542001 1-20 44 1-5 80 S01542000 1-60-1-4 70 50-1 60 10 46 1-5 80 S01694001 1-22 4 1-15-3 68 1-1-10 74 1-5 80 S02460001 19 22 2-1-13-1 78 142002001 13 88 154465001 1-5 82 71 22 S13955000 45 58 142627001 34 12 1-5 82 S02766209 76 22 S16568000 1-15 50 142642001 46 26 154562001 1-5 82 S02775001 4 86 S17608009 65-1 8 142721001 14 88 1-5 82 S02779009 4-4 86 S17965001 61 2 142990001 4-11-3 86 1-5 82 S02788009 4-10 86 S18707129 17 28 143196001 39 38 52 2 S02789009 4-11 86 S18707137 18 28 40 38 68 32 S02790009 4-11-1 86 S20681000 22 40 45 38 42 40 S04557000 36 86 S20682102 21 40 144103009 19 40 155510001 69 42 S04897000 5-4 66 S20695001 54 40 144504001 70 32 43 40 14-5 66 S20696001 55 40 41 40 62 42 1-72 66 55 42 60 42 78 1-12 70 S20698121 40 40 2-1-5 78 155559001 7 10 1-4 72 S21716001 22 46 145448001 11 40 156112003 4-5 86 1-4 76 S21728001 17 74 146124001 1-10 72 158437001 90 4 76 S21798001 4-8 86 146924000 6-2 40 158581000 34 58 S04897000 1-60-1-5 70 S23612051 15 36 146926001 6 40 158827009 14 S05356000 1-69 72 9 36 146927001 6-1 40 159113001 108 95 1-33 68 2-1-2 2 148294001 47 34 159150000 26 1-2-7 76 S23616101 1-1-2 36 115-3 78 159220101 10 S06696004 80-1-3 16 S23651001 4 10 148707001 19 10 159221001 20 81-1-3 16 6 10 148782001 101 24 159458009 18 81-1-3 16 8 10 149267000 5 58 159805001 81 80-2-3 18 7 28 149547000 26 66 200190001 1-1-1-3 19 9 28 149706001 6 86 218859001 1-1-5 54 1-1-3 74 S23880000 42-3-1-5 62 150173003 4-6 86 2-2-5 54 1-2-1-3 76 42-3-1-5 62 150174000 4-7-1 86 2-3-5 54 1-2-12 78 S24325001 1-25 68 150179002 4-8-1 86 2-4-5 54 S08030000 1-39-16 14 S27842001 53 22 150182000 4-2 86 2-7-5 54 79 88 S29410001 4 22 150183000 4-11-2 86 224514001 2-1-4 54 S08808001 96 22 S30302000 4-12-5 86 150188009 4-9 86 2-2-4 54 1-2-8 20 22 150206002 4-4-1 86 2-3-4 54 S10077100 69 22 S31568000 79 22 150335001 16 88 2-4-4 54 S10078001 80 24 S31760000 1-32 50 150592001 1-26 50 2-7-4 54 S10079101 81 66 S32264001 91 4 150607000 75 4 228475000 1-37 50 S10243000 23 66 S32335100 16-1 66 150644009 32 40 1-38 50 28 66 S33899000 78 4 150756000 92 4 2-7 72 S10439001 8 36 S34844001 93-1-2 4 151998000 20 10 232384001 1-39-7 50 S10546000 6-1-1 66 S34881001 1-5 44 152861101 58 88 340400001 39 58 S10856001 1-3 66 12 46 152862001 59 88 49 66 2-2 66 S34885001 1-1-12 74 152863001 65 88 417526000 11-2 22 5-3 66 1-12 44 152864000 66 88 530138001 56 22 S11426000 1-5-2 66 S34886001 1-33 44 152865201 61 88 64 22 S11433000 31-1-2 58 S34887001 1-34 44 152889001 44 40 542515001 1-31 44 9-3 58 S34888001 1-35 44 152904001 1-36 44 552907000 29 44 S11817000 36 58 S34890001 1-36 44 152948001 35 38 625010000 21 66 S11949000 1-25 50 S34891001 1-30-2 44 152969001 40 58 27 66 S12040000 18 58 S34891101 1-30-3 44 153098000 93-2 4 2-1-3 54 75 22 S34892001 1-30-4 44 153219001 1-18 44 J02657001 2-2-3 54 57 22 S34893001 1-26 44 153242000 1-39-15 50 2-3-3 54 S12104000 32 58 S34894001 1-27 44 80 2-4-3 54 57 60 S34895001 1-25 44 153274001 1-60-1-3 70 2-7-3 54 2-1-20 78 S34896001 1-23 44 153596001 26 10 150908000 1-73 50 S12150000 1-1 58 S34897001 1-21 44 153675001 27 46 150910000 1-31 58 8-1 58 153787001 28 74 150122000 1-68 70 10-1 58 97 jintex.in

Page 102 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S34898001 1-19-1 44 S34996001 13 38 S35058001 1 48 S35118001 72 32 S34899001 1-19 44 S34997001 11 38 S35059001 2 48 107 34 S34900001 1-17 44 S34998001 9 38 S35060001 7 48 2-9-4 78 S34901001 1-16 44 S34999001 7 38 S35061000 7 36 S35121000 46 6 S34902001 1-13 44 S35001000 3 38 S35062001 6 36 S35122000 45 6 S34903001 1-11 44 S35002100 2 38 S35063001 1-2 36 S35123000 44 6 S34905101 1-8 44 S35003201 1 38 S35064001 1-3 36 S35124000 43 6 S34906100 1-6 44 S35007000 2 30 S35065001 2 36 S35125000 42 6 19 46 S35010001 4 30 S35066001 1 36 S35126001 40 6 1-19 74 S35011001 10 30 S35067001 1-1 36 S35127001 39 6 S34910101 1-4 44 S35012001 12 30 S35069001 5 36 S35128001 36 6 S34913001 1-3 44 S35014001 21 30 S35070101 2-2 36 S35130001 35-3 6 S34914001 1-1 44 S35015101 14 30 S35071001 2-1 26 S35130001 35-2 6 S34915000 5 86 S35016001 17 30 S35072101 2 26 S35131001 35-1 6 S34916001 10-3 58 S35017001 19 30 S35073001 1 26 S35132101 35 6 S34917001 1-1 40 S35018001 20 30 S35074201 1 26 S35133014 34 6 S34918101 1-2 40 S35019001 22 30 S35075201 1-1 26 S35133016 34 6 S34922101 102 46 S35020001 23 30 S35076101 1-2 26 S35133018 34 6 1-4 20 S35021000 24 30 S35077000 1-3 26 S35133114 7 86 1-7 72 S35022101 25 30 S35078001 41 26 S35133116 7 86 2-1-3 40 S35023001 26 30 S35079000 1-4 26 S35133118 7 86 S34923001 13 40 S35024101 28 30 S35080001 1-5 26 S35134001 32 6 S34924001 26 40 S35025001 31 34 S35081001 8 26 S35135001 30 6 S34925101 1-2 40 S35026001 38-1 34 S35082001 11 26 S35136001 29 6 S34934001 52 40 S35027001 34 34 S35083001 13 26 S35137001 28 6 S34936001 46-1 40 S35028000 35 34 S35084001 15 26 S35138001 26 6 S34937001 46-2 40 S35029001 36-1 34 S35085001 8 26 S35142001 25 6 S34938101 46-3 40 S35030001 48 34 S35086001 11 26 S35143001 24-1 10 S34940001 48 40 S35031001 52 30 S35087001 10 26 S35144001 22 30 S34941001 46-5 40 S35032101 47 30 S35088001 7 26 S35148001 19 6 S34942001 50 40 S35033001 51 30 S35089001 17 26 S35150001 17-1 66 S34943001 46-7 40 S35034001 50 30 S35090001 18 26 S35154000 5-1-1 66 S34944101 46 40 S35035101 53 30 S35091001 23 26 S35162101 14-2 66 S34948101 1 40 S35036101 54 30 S35092001 3-1 26 S35164101 2-3 66 S34952091 1 40 S35037001 56 30 S35093001 24 26 S35166001 41 14 S34956001 13 22 S35038001 58 30 S35094001 24 26 S35167001 80-1-14 16 S34957001 1 14 S35039000 59 30 S35097001 25-1 26 S35168001 81-1-14 16 S34963001 2 14 S35040000 61 30 S35097001 25-2 26 S35169001 16 14 S34964001 2-1 14 S35041000 64 30 S35098000 25-4 26 S35174001 51 22 S34965001 1-1 14 S35042000 66 30 S35100001 47 26 S35176001 2 22 S34966001 3 14 S35043001 65 30 S35101001 51 26 S35177001 3 22 1-3 40 S35044001 67 30 S35102001 52 26 S35178001 12 22 1-8 72 S35045001 71 30 S35104001 54 26 S35179000 15 22 S34967001 6 14 S35046000 73 30 S35106001 13 26 S35180000 11-1 22 S34968000 12 14 S35048101 75 30 S35107001 10 26 S35181001 11 22 S34969001 14 14 S35049001 76 34 S35108001 5 26 S35182001 23 22 S34970001 13 14 S35050001 79 34 S35110001 1-2 26 S35183000 26 22 S34971001 43 38 S35051001 80 34 S35112101 1 26 S35184001 27 22 S34972000 42 38 S35052001 86 34 S35113001 66 8 S35185101 73 66 S34974000 38 38 S35053001 9 30 S35114001 63 8 S35186001 55 22 S34979100 34 38 S35054001 87 34 S35116001 60 8 S35189001 96 24 S34980000 33 38 S35055001 88 34 S35117001 59 8 S35190001 70 22 S34981000 32 38 S35056001 92 34 S35118001 54 8 S35191001 74 22 S34982000 31 38 S35057001 92 34 S35119001 47 8 S35192001 84 24 S34983000 30 38 S35058001 76 34 S35120001 51 8 S35193000 84-1 24 S34984000 29 38 S35059001 76 34 S35121001 52 8 S35194001 85 24 S34985000 28 38 S35060001 79 34 S35122001 54 8 S35195001 91 24 S34986000 27 38 S35061001 80 34 S35123001 13 8 S34995000 15 38 S35062001 86 34 S35124001 10 8 S35063001 9 30 S35125001 5 8 S35064001 29-1 34 S35126001 1-2 8 S35065001 87 34 S35127001 1 8 S35066001 88 34 S35128001 23 8 S35067001 92 34 S35129001 24 8 S35068001 92 34 S35130001 24 8 S35069001 1-6 34 S35131001 1-12 8 S35070001 24 34 S35132001 3-3 8 S35071001 25-1 32 S35133001 1-6 8 S35072001 25-2 32 S35134001 24 8 S35073001 25-4 34 S35074001 47 34 98 jintex.in

Page 103 — INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S35196100 89 24 S35237001 1-1-1-10 74 S35310001 81-2-1 19 S35371000 21 58 S35197001 81-1-4 91 S35238001 80-1-8 16 S35315001 1-1-1-1-1 74 S35372000 22 58 S35198001 80-1-4 91 81-1-8 16 S35316001 80-1-1-1 16 S35374000 24 58 S35199101 80-1-4 91 1-1-1-8 18 S35317001 81-1-1-1 16 S35376000 26 58 S35200101 81-1-4 91 S35239101 74 S35318001 80-1-1 16 S35377100 27 58 S35201000 40 2 S35240001 14 S35319001 80-1-1 16 S35378100 28 58 S35202000 81 4 S35245001 7 1-2-1-1-1 76 S35382000 42-1-2 62 S35203001 23 2 S35246001 10 S35317001 80-1-1 16 S35386000 42-1-1 62 S35204001 67 2 S35247001 10 S35318001 80-1-1 16 S35389001 42-1 62 S35206201 69 2 S35249001 10 S35319001 80-1-1 16 S35395000 42-1-3 62 S35207001 59 2 S35250001 120 10 S35321001 52 14 S35398100 29 58 S35211009 66 2 S35251001 2 10 S35322001 75 14 S35399100 30 58 S35215001 57 2 S35252001 18 10 S35323001 54 14 S35408101 34-2 93 S35216001 59 2 S35255001 17 10 S35324001 57 14 S35409101 34-1 93 S35217001 55 2 S35256001 15 10 S35326001 80-1-17 16 S35410001 45 30 S35218001 47 2 S35257000 12 10 81-1-20 16 S35411001 46-1 30 S35219001 44 2 S35258001 10 10 81-1-17 16 S35412101 48 30 S35220101 41 2 S35259001 5 10 80-2-17 19 S35413101 49-1 30 S35221001 38 2 S35260001 5 10 81-2-17 19 S35417000 15 58 S35222001 37 2 S35261001 2 10 S35423000 42-1-4 62 S35223101 34 2 S35262001 2 10 S35424000 42-1-5 62 S35224001 26 2 S35263101 2 10 S35425001 42-1-6 62 S35225000 15 2 S35264001 11-2 10 S35426000 14-1 58 S35226001 11 2 S35265001 12-2 28 S35327001 22 78 S35428001 46-9 40 S35227009 8 2 S35267101 1-2 28 S35328001 67 14 S35429001 5 14 S35228009 9 2 S35268101 12-1 28 S35329001 80-1-18 16 S35430001 57-1 40 S35229000 7 2 S35269101 12-1-1 28 S35330001 80-1-18 16 S35431101 1-1 28 S35230009 5 2 S35270001 10 28 S35331101 17 6 S35435000 1-5-1 12 S35231000 3 2 S35271001 8 28 S35332001 15 6 S35436101 24-1 26 S35232009 2 2 S35274001 8 28 S35333001 14 6 S35437101 34-2 93 S35233201 81-1-12 16 S35275100 1 28 S35334001 13 6 S35438101 34-1 93 81-2-12 19 S35276101 1-2 28 S35335001 12 6 S35439101 34-2 93 1-2-1-12 76 S35282000 1-5-2 12 S35337101 8 6 S35452001 80-1-4 16 S35234201 80-1-12 16 S35283001 1-6 12 S35338001 10 6 S35453001 81-1-4 91 80-2-12 18 S35284101 1-5 12 S35339101 2 6 S35454101 80-1-4 91 1-1-1-12 74 S35290001 23-1 12 S35340001 7 6 S35455101 81-1-4 91 S35235001 80-1-6 16 S35290001 11-4 12 S35346101 1 6 S35456001 72 14 81-1-6 16 S35291101 15 12 S35347000 80-1-16 16 S35457001 73 14 80-2-6 18 S35296001 11 12 80-2-16 19 S35458001 74 14 81-2-6 19 S35297000 17 12 S35347100 1-1-1-16 74 S35460000 44 58 1-1-1-6 74 S35298001 5-2 12 S35348000 81-1-16 16 S35466001 30 40 1-2-1-6 76 S35299000 32 12 81-2-16 20 S35467001 46-2 34 11-1-1-3 84 S35300000 31 12 S35348100 1-2-1-16 76 S35472101 49-2 34 11-1-2-3 84 S35302001 39 12 S35349101 1 58 11-1-3-3 84 S35303201 14 12 S35350000 7 58 S35236000 80-1-5 16 S35304001 44 14 S35351001 1-3 58 81-1-5 16 S35305001 42 14 S35360000 14 58 80-2-5 18 S35306101 7 14 S35361001 7 48 81-2-5 19 S35307101 12 14 S35362001 8 48 1-1-1-5 74 S35308101 81-1-2 92 S35364001 12 48 1-2-1-5 76 S35309101 80-1-2 92 S35365101 81 34 11-1-1-4 84 S35310001 1-1-1 16 S35366001 84 34 11-1-2-4 84 S35311001 80-1-10 16 S35367000 17 58 11-1-3-4 84 S35312001 81-1-10 16 S35368000 18 58 11-1-4-4 84 S35313001 80-2-10 18 S35369000 19 58 S35237001 80-1-10 16 S35314001 1-1-1-10 74 S35370000 20 58 99 jintex.in S35373301 25 26 S35474401 80-1 16 S35475401 81-1 16 S35476401 81-1 16 S35478401 80-1 16 S35479001 24 92 S35480101 34-2 93 S35481101 34-1 93 S35482101 34-2 93 S35909000 16 58 S35911101 35-5 6 S35912001 59 42

Page 104 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S36070001 93-1-4 4 S37646101 1-6 80 S37667000 1-3 82 S37690001 1-8 80 S36071001 93-1-3 4 1-1-1-2 89 1-1-4 89 1-1-1-4 89 S36260000 2-5-2 72 1-1-2 90 1-1-4 90 80-2-4 91 S36261000 1-23-1 68 S37647101 1-7 80 S37668000 4 46 1-2-1-4 89 1-35-1 68 1-2-2 92 1-3 80 81-2-4 91 S36345000 58 14 80-2-2 92 1-3 80 S37691001 80-2-4 19 S36651009 17 66 S37648101 1-6 80 1-1-4 89 1-8 80 S36659001 95 32 1-1-1-2 89 1-1-4 90 1-2-1-4 89 S36660101 43 30 80-2-2 92 1-1-3 91 81-2-4 91 S37057001 45 66 S37649101 81-2-2 19 S3769101 3 80-2-4 18 S37059001 1-35 50 1-7 80 1-2 89 S37692001 1-8 80 S37059001 93 4 1-2-1-2 89 1-1-3 91 1-1-1-4 89 S37080001 93-1 4 81-2-2 92 S37694001 81-2-14 20 S37085001 93-1 4 S37650101 80-2-2 18 S37695001 1-1-1-14 76 S37086001 93-1-1 4 1-6 80 S37696101 29-2 34 S37173000 46 38 1-1-1-2 89 29-1 78 S37194001 24 92 80-2-2 92 S37697001 57-2 42 S37195001 24 92 S37652001 16 46 1-1-3 90 2-5 78 S37196001 24 92 1-1-16 74 S37672101 3 46 S37698000 26-2 46 1-5 90 1-1-17 74 1-2 80 S37699000 26-2 46 S37198001 24 92 S37654000 8 46 1-1-3 82 S37701001 24 92 S37199001 24 26 S37655101 9 46 1-1-3 89 S37702001 24 26 1-11 82 1-1-9 74 S37673101 2 1-11 80 3-2 86 S37656001 11 74 1-1 89 1-5 89 1-5 90 1-1-11-1 74 1-1-2 90 24 92 24 92 S37659001 21 46 1-1-2 91 S37703001 24 92 S37200001 24 92 S37660101 6 74 1-1 80 S37704001 24 26 S37201001 24 26 S37661101 5 1-1-2 89 1-12 80 1-12 82 1-4 80 1-1-2 90 1-11 80 1-11 82 1-1-5 89 S37675101 2 3-3 86 3-3 86 1-4 90 1-1 89 1-5 89 1-5 90 S37662101 5 80 1-1-2 90 1-6 89 1-6 90 1-1-5 82 1-1-2 91 S37705001 24 92 24 92 S37663101 5 89 1-1 89 S37706001 24 26 S37202001 24 92 1-4 80 1-1-2 90 1-12 80 S37208001 24 92 1-1-5 89 S37676101 2 1-11 80 S37209001 24 92 1-4 90 1-1 89 3-3 86 S37210001 24 92 1-1-5 91 1-1-2 90 1-5 89 S37211001 24 6 S37664101 5 80 1-1-2 91 S37707001 24 89 S37432001 23 10 1-4 89 S37677101 81-1-4 80 1-6 92 24 10 1-1-5 90 S37678101 80-1-4 16 24 92 S37643201 81-2-2 19 S37665000 4 46 S37679001 81-1-4 91 S37708001 24 26 1-7 80 1-3 80 1-1-4 16 1-12 80 1-2-1-2 89 1-1-4 89 1-1-2 92 1-11 80 81-2-2 92 S37666000 4 46 1-2 92 3-3 86 S37644101 80-2-2 18 1-3 80 S37680001 80-1-4 19 1-5 89 1-6 80 1-1-4 89 1-1-4 80 S37709001 24 89 1-1-1-2 89 S37667000 4 46 1-2-4 91 1-6 92 80-2-2 92 1-3 80 S37681101 81-1-2 92 24 92 S37645101 81-2-2 19 S37667000 4 46 S37682101 80-1-2 26 S3771001 81-2-10 19 1-7 80 1-3 80 S37683101 81-1-2 76 1-2-1-10 76 1-2-1-2 89 1-1-4 89 S37684101 80-1-2 16 1-2-1-8 76 81-2-2 92 S37667000 4 46 S37689001 81-2-4 92 S37711001 91 20 S37646101 80-2-2 18 1-3 80 1-9 76 1-2-3 76 1-4 80 1-1-4 89 1-2-1-4 20 S37713001 90 20 1-1-5 89 1-1-4 91 81-2-4 76 1-2-2 76 1-1-5 90 100 jintex.in

Page 105

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S37717101 101 20 S37758001 1-8 89 S38578401 1-1 89 S41452000 1-58 70 S37718000 20 1-1-4 89 S38579201 1-2 89 S41470201 1-1 90 1-2-1-2 78 1-1-1-4 91 S38580401 1-1 89 S41471101 1-2 90 S37720001 1-5 76 S37759001 81-2-4 19 S38581201 1-2 89 S41472201 1-1 90 115-2 34 1-9 80 S38582401 1-1 89 S41473101 1-2 90 2-10-3-1 78 1-2-1-4 89 S38583201 1-2 89 S41474201 1-1 90 S37721001 115-1 34 81-2-4 91 S38584001 2 78 S41475101 1-2 90 2-10-3-2 78 S37820001 14 74 S38585001 2-1 78 S41479001 80-2-2 18 S37723001 36-2 34 1-1-14-1 74 S38648001 4-4-2 86 S41480001 1-6 82 2-10-8 78 S37858000 1-10 46 S39108001 2-10 78 1-1-2 90 S37724001 103 34 23 74 S39109101 2-9 78 S41481001 80-2-2 19 2-10-5 78 S37860001 1-1-23 74 S39110100 1-60-1-6 70 1-2-1-2 92 S37725001 104-1 34 S37863000 55 70 S39111001 1-4 72 S41481001 81-2-2 18 2-10-6 78 S37864000 2-1-18 78 S39112001 1-5 72 1-6 82 S37726001 31-2 34 2-1-19 78 S39113001 1-6 72 S41482001 1-1-2 90 2-10-1 78 S37866000 50-3 60 S3913001 1-1 72 80-2-2 92 S37727401 80-2 18 2-1-13-3 78 S3914001 1-2 72 S41483001 81-2-2 19 1-1-1 89 S37870000 104 72 S39929001 81-1-4 91 1-7 82 S37728301 81-2 19 S37874101 1 40 S39930001 80-1-4 91 1-2-1-2 90 1-2-1 89 S38029000 2-5 72 S39931001 81-1-4 91 81-2-2 92 S37730001 80-2-1 18 S38030000 2-5-1 72 S39932001 80-1-4 91 S41484001 80-2-4 18 1-1-1-1 74 S38041000 76 72 S40616001 40-1-1 56 1-8 82 S37731301 81-2-1 19 S38059000 2-20 72 S40621000 46 58 1-1-1-4 90 1-2-1-1 76 S38060000 2-19 72 S40622000 47 58 80-2-4 91 S37732301 81-2 19 S38094100 1-9 60 S40623000 H-8-3 52 S41485001 81-2-4 19 1-2-1 89 S38107100 1-18 50 S40624000 40-2-1 52 1-9 82 S37733401 80-2 18 S38108000 1-19 50 S40629000 42-1-1-2 62 S41486001 1-2-1-4 90 1-1-1 89 S38109100 1-20 50 S40630000 42-1-1-3 62 81-2-4 91 S37735301 81-2 19 S38110000 2-1 50 S40635001 40 56 S41487001 80-2-4 18 1-2-1 89 S38111001 2-4 54 S40640001 4-7 86 1-8 82 S37737001 50 2-1-13 78 S40641001 4-12 86 S41488001 1-1-1-4 90 2-1-13 78 S38113000 2-2 60 S40644001 4-13 86 80-2-2 92 S37738000 53 S38114000 2-6 78 S40676000 59 58 S41489001 81-2-2 19 2-1-16 78 S38115000 2-3-1 78 S40677000 58 1-7 82 S37739000 54 S38117000 2-7 78 S40822001 80-2-2 18 S41490101 1-2-1-2 90 2-1-17 78 S38118000 2-2-2 54 1-6 82 81-2-2 92 S37740001 99 S38123000 10-1 54 1-1-1-2 90 S41491101 80-2 18 2-1-1 78 S38126000 10-2 54 80-2-2 92 1-6 82 S37749001 64 S38133000 10-3-2 54 S40823001 81-2-2 19 S41492101 1-1-2 90 2-1-9 78 S38155000 2-3 54 1-7 82 80-2-2 92 S37750001 68 S38166000 1-41-3 51 1-2-1-2 90 S42053001 81-2-4 19 2-3 78 S38170001 2-1-14 72 81-2-2 92 1-9 80 S37752001 89-1 S38174000 2-8 72 S40826001 80-2-14 18 S42111101 3-3 86 2-7 78 S38175001 2-9 72 1-1-1-14 74 1-6 89 S37753001 98 S38176101 2-10 72 S40830101 80-2 18 S42112100 24 92 1-2-10 76 S38177001 2-14 72 1-1-1 90 1-1 68 S37754001 80-2-4 18 S38180000 1-39-5 50 S40831101 81-2 19 1-4 68 1-8 89 S38203000 1-39-9 50 1-2-1 90 1-1-1-4 89 S38205000 1-39-14 50 S41251001 68 81-2 92 80-2-4 91 S38335000 81-1-19 16 S41252000 106 S37755001 81-2-4 19 S38352101 20 51 S41310001 52 1-9 80 S3853101 21 51 S41451001 1-57 70 1-2-1-4 90 S37756401 80-2 18 S38576401 1-1 89 1-1-1 89 S38577201 1-2 89 S37757401 80-2 1-1-1 S37758001 80-2-4 18 101 jintex.in

Page 106 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S42113000 1-5 68 S43285000 1-2 12 S43369000 10-2 54 S44221000 42-3-1 62 S42114000 1-5-1 68 S43300009 1-1 50 S43370000 10-3 54 S44222000 42-3-1-1 62 S42115101 1-6 68 S43304000 1-23 50 S43375000 58 54 S44223000 42-3-1-3 62 S42116000 1-8 68 S43306000 1-23 50 S43376001 18 84 S44224000 42-3-1-4 62 S42117101 1-10 68 S43308000 1-28 50 S43408001 11-1-1 91 42-3-1-5 62 S42118001 1-12 68 S43318000 1-30 50 S43409001 11-1-2-1 84 42-3-1-6 62 S42119001 1-14 68 S43320001 1 66 80-2-4 91 42-3-1-7 62 S42120100 1-15 68 S43321001 1-1 66 S43410001 11-1-1-1 84 S44226000 42-3-1-6 62 S42121000 1-15-1 68 S43322001 1-1 66 81-2-4 91 42-3-1-7 62 S42122000 1-15-2 68 S43323001 2 66 S43411001 11-1-2-1 84 S44228000 42-3-4-2 62 S42123000 1-16 68 S43324000 2-1 66 80-2-4 91 42-3-4-3 62 S42124001 1-17 68 S43325001 5 66 S43450001 11-1-1-2 84 S44229000 42-3-4-3 62 S42125100 1-19 68 S43326000 5-1 66 11-1-2 84 42-3-4-4 62 S42126101 1-21 68 S43328000 6 66 S43451001 11-1-2-2 84 S44230000 42-3-4-3 62 S42127000 1-23 68 S43329000 6-1 66 11-1-2-2 84 42-3-4-6 62 S42128101 1-27 68 S43334000 16 66 S43683001 42-3-1-2 62 S44231000 42-3-1-1 62 S42129101 1-29 68 S43335000 16-2 66 42-3-1-2 62 S44238001 1 89 S42130001 1-31 68 S43336000 43 93 S43701001 11-1 84 S44239001 1 89 S42133000 1-32 68 S43337000 1-10 80 S43702001 11-1-1 84 S44240001 1 89 S42134101 1-34 68 1-3 89 S43703001 11-1-2 84 S44270001 1 90 S42136000 1-35 68 S43338000 1-10 80 S43704001 11-1 84 S44271001 1 90 S42137001 1-38 68 1-3 89 S43705001 11-1-1 84 S44273001 1 90 S42138101 1-39 68 43 93 S43706001 11-1-2 84 S44274001 1 90 S42139101 1-41 68 S43339000 1-10 80 S43707001 1 84 S44275001 1 80 S42140100 1-43 68 1-3 89 S43708009 12 10 S44276001 1 80 S42141100 1-45 70 43 93 S43710001 1 10 S44277001 1 80 S42142100 1-50 70 S43711000 18 88 S44278001 1 80 S42143100 1-46 70 S43340000 1-10 80 S43713001 72 88 S44279101 1 68 S42144101 1-55 70 1-3 89 S43714000 71 88 S44281001 1 82 S42145001 1-56 70 S43341000 1-10 82 S43715001 54 88 S44283001 1 82 S42146201 1-60 70 1-3 90 S43716001 55 88 S44284001 1 82 S42147201 1-60-1 70 43 93 S43717201 9 88 S44285001 1 82 S42148101 1-60-2 70 S43342000 1-10 82 S43718001 49 22 S44530000 8 58 S42149000 1-62 70 1-3 90 S43719001 42 22 S44531000 31 58 S42150100 1-63 70 43 93 S43720001 67 22 S44532000 31-1 58 S42151100 1-64 70 S43343000 1-10 82 S43723001 36 40 S44758000 H-1-2 51 S42152100 1-65 70 1-3 90 S43724001 5 38 S44758000 H-2-2 51 S42153000 1-66 70 43 93 S43731001 10 88 S44758000 H-3-2 51 S42154000 1-67 70 S43344000 42-7 62 S43747001 6 58 S44758000 H-4-2 51 S42157000 1-70 70 S43345001 1-3 72 S43749001 87 24 S44758000 H-5-2 52 S42158000 1-71 70 S43346001 1 72 S43769000 42-5 62 S44758000 H-6-2 52 S42260000 1-17 50 S43347000 150 24 S43770000 42-6 62 S44758000 H-7-2 52 S42838101 2 72 S43348000 151 24 S43772000 9 62 S44758000 H-8-2 52 S42867001 2-2 72 S43349100 50 12 S43809001 1-41 58 S45035000 2-5 56 S43171009 1-2 50 S43350000 1-16 50 S43880000 47 56 S45036000 2-6 56 S43175000 1-39-11 50 S43356001 1-4 50 S44204000 62-2 62 S45261000 14-1 51 S43176000 1-39-12 50 S43357000 9-2 58 S44213000 42-3 62 S45264001 14 66 S43177000 1-39-1 50 S43358000 52 66 S44214000 42-3-1 62 S45265000 14-1 66 S43181000 1-39-13 50 S43359000 1-78 70 S44215000 42-3-4 62 S45266000 14-1-1 66 S43184000 1-39-2 50 S43360000 43 93 S44216000 42-3-4-1 62 S45269001 39 26 S43187000 1-39-20 50 S43361000 43 93 S44217000 42-3-4-1 62 S46477000 61-1 64 S43189000 1-39-19 22 S43362000 43 93 S44218000 42-3-4-4 62 S46478000 61-2 64 S43192200 5 22 S43363000 43 93 S44219001 42-3-4-5 62 S46479000 61-3 64 S43193200 5-1 22 S43364000 43 93 S44220001 42-3 62 S46480000 61-2-1 64 S43194200 45 22 S43365000 43 93 S44221000 42-3-9 62 S46496009 62 2 S43201000 10-4 56 S43366000 43 93 S44221000 42-3-9 62 S46497009 62-1 2 S43274000 1-27 50 S43367000 10-2-1 54 S44223000 42-3-4-6 62 S47033001 89-2 34 S43275000 1-29 50 S43368000 10-3-1 54 S44224000 42-3-4-6 62 S47034001 89-3 34 jintex.in 102

Page 107

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S47512001 115 34 S59716001 H-6 52 S47592000 2-4 78 S59717001 H-7 52 S47594000 2-7 54 S59718001 H-8 52 S47595000 2-4-2 54 S59719001 H-9 52 S47668000 1-39-4 50 S59721001 H-1-1 51 S47932001 105 54 S59722001 H-2-1 51 2-10-7 78 S59723001 H-3-1 51 S48326000 1-1-4 54 S59724001 H-4-1 51 S48580000 1-39-17 50 S59725001 H-5-1 52 S48674001 3 78 S59726001 H-6-1 52 S49071000 1-39-8 50 S59727001 H-7-1 52 S49078001 46-3 34 S59728001 H-8-1 52 S49079001 49-3 34 S59730001 H-9-1 52 S49471000 1-41-4 51 3 51 S49472000 1-39-21 50 H-1-3 51 S49484000 1-41-2 51 H-2-3 51 S49485000 1-41-1 51 H-3-3 51 S49495000 3-3 51 H-4-3 51 S49496001 3-4 51 H-5-3 52 S49586000 1-39-3 50 H-6-3 52 S49939101 1-39 50 H-7-3 52 S51194001 67 51 S59740000 H-8-7 52 S51195001 20 46 S59931001 H-9-7 52 S51215001 1-1-1 6 SA0029001 1-44-1 51 S51219001 63 2 SA0030001 1-43-1 51 2-1-8 78 SA0037000 3-8 51 S51220001 68 42 SA1034000 1-39-6 50 2-1-10 78 U85274000 1-39-10 50 S51282001 4-3 86 U85274000 1-41-5 51 S51283001 4-1 86 UA4897000 1-43-1 51 S52245000 35 56 X A2220050 3-8 51 S52821001 14-1 30 S52824001 14-3 30 S52832000 14-2 30 S52978000 3-1-3 51 S52979000 3-2 51 S53010101 3-5 51 S53884001 1-41 51 S55247001 34-2 56 S55473000 43 93 S55663001 20 56 S56025001 24 88 1-1-24 46 S58975000 3-1-1 74 S58976000 3-12 51 S58995000 1-24 51 S58997001 3-1 50 S58998000 3-1-2 51 S59000001 1-3 51 S59701001 1 50 S59702000 1-43 50 S59703000 1-44 51 S59704000 3-11 51 S59708001 1-40 51 S59711001 H-1 51 S59712001 H-2 51 S59713001 H-3 51 S59714001 H-4 51 S59715001 H-5 51 52 103 jintex.in

Page 108

jinttex.in jintex.in

Page 109 — PARTS BOOK

brother. パーツブック PARTS BOOK ブラザー工業株式会社 BROTHER INDUSTRIES, LTD Printed in Japan 118-981 SA0281-001 2002.08.F (1) jintex.in
