Brother HE-800A (85 pages) Parts Book (PDF)

Buttonhole · also listed as HE800A, 800ADownload PDF

Text index — Brother HE-800A (85 pages)

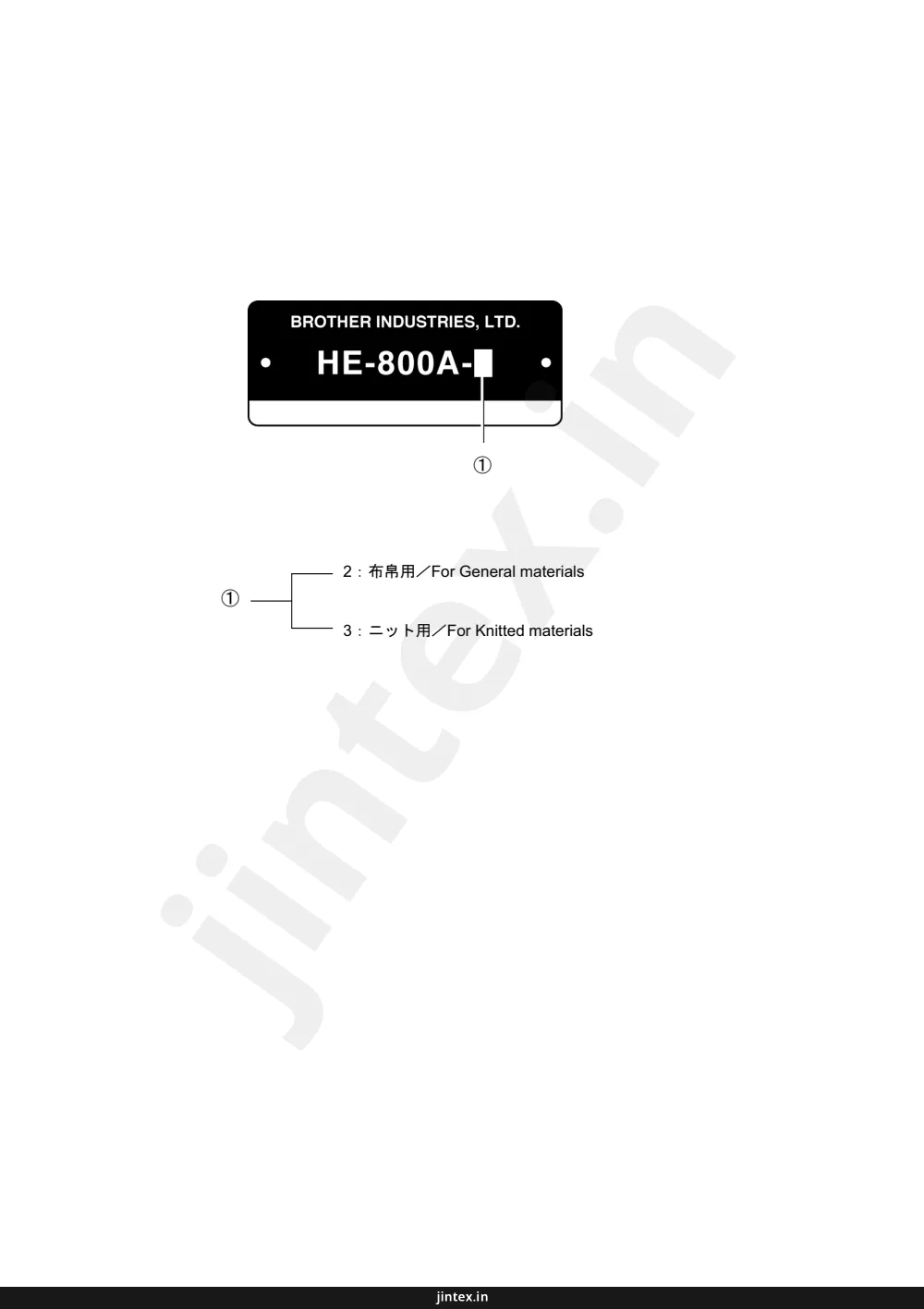

Page 6 — A.主体関係 / Machine body

Brother HE-800A (85 pages) parts on page 6
Ref	Part number	Part name	Qty
2	S50124001	FACE PLATE	1
3	062711012	SCREW, PAN SM4.76-32X10	4
4	S50125001	THREAD TAKE-UP LEVER COVER	1
5	062680612	SCREW, PAN SM4.37-40X6	1
6	S50126001	REAR COVER	1
7	062711012	SCREW, PAN SM4.76-32X10	6
8	S50127001	TOP COVER	1
9	062711612	SCREW, PAN SM4.76-32X16	6
10	S50128101	ROTARY HOOK COVER	1
11	104450101	RUBBER CAP, 8	1
12	158879001	SHAFT, ;R-HOOK COVER	1
13	S00306001	HINGE PLATE SPRING	1
14	025080132	WASHER, PLAIN S 8	1
15	048060342	RETAINING RING, E6	1
16	014760632	SET SCREW, SOCKET SM5.95-28X6	1
17	117143003	SCREW, FLAT SM4.37	2
19	021680202	NUT, 2 SM4.37-40	2
20	014760632	SET SCREW, SOCKET SM5.95-28X6	2
21	158830001	BED HINGE	2
22	158831001	PIN	2
23	158832000	PIN SUPPORT RUBBER	2
24	159150000	RUBBER CAP, 20.5	1
26	159150000	RUBBER CAP, 20.5	1
27	104449001	RUBBER CAP, 15.5	1
28	104451101	RUBBER CAP, 23.9	1
29	104450101	RUBBER CAP, 8	2
30	104450101	RUBBER CAP, 8	2
31	104450101	RUBBER CAP, 8	1
32	104449001	RUBBER CAP, 15.5	1
33	104449001	RUBBER CAP, 15.5	1
34	104450101	RUBBER CAP, 8	1
35	104450101	RUBBER CAP, 8	1
36	104450101	RUBBER CAP, 8	1
37	104450101	RUBBER CAP, 8	2
38	104450101	RUBBER CAP, 8	1
39	104449001	RUBBER CAP, 15.5	2
40	S32263001	RUBBER CAP, 8.5	3
55	S50131001	THREADING DIAGRAM	1
56	104449001	RUBBER CAP, 15.5	1
57	S50340000	BED BASE CUSHION	2
58	120263001	SHOULDER SCREW,SM4.37	2
59	117936001	RUBBER CAP, 9.4	1
60	S44629002	E-MARK	1
61	SA0792001	LABEL, CAUTION JPN/ENG
62	SA0793001	LABEL, CAUTION CHN/ENG	1
63	S36924001	INJURY MARK	2
64	S37060001	LABEL, GROUNDING	2

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother HE-800A (85 pages) parts on page 8
Ref	Part number	Part name	Qty
1	S50132000	THREAD TAKE-UP CRANK	1
2	100250001	SCREW, SM7.14	1
3	014770632	SET SCREW, SOCKET SM6.35-40X6	1
4	110367001	WASHER, PLAIN SPECIAL 8	1
5	SA4047001	NEEDLE BAR CONNECTING ROD SET	1
5-1	145465001	SCREW, SM3.57-40X6 L	1
5-2	S50136001	NEEDLE BAR CLAMP SET	1
5-2-1	140004001	SCREW, SM3.57-40X7	1
5-3	S52943101	SUPPORT SHAFT	1
5-4	140430001	WICK, 3X40	1
5-5	S50142000	WICK, 3X290	1
5-6	S50271000	WICK, 2X35	1
5-7	S50272000	WICK, 3X15	1
6	S52248001	N-BAR BRACKET SLIDE BLOCK	1
7	014770632	SET SCREW, SOCKET SM6.35-40X6	2
8	014760632	SET SCREW, SOCKET SM5.95-28X6	1
9	S50143001	NEEDLE BAR BRACKET SET	1
9-1	S50144001	NEEDLE BAR BASE ASSY	1
9-2	159624001	N-BAR BRACKET SLIDE BLOCK	1
9-3	S50146001	STOPPER PLATE	1
10	158888001	N-BAR BASE SUPPORT SHAFT	1
11	014760632	SET SCREW, SOCKET SM5.95-28X6	1
12	S50147001	NEEDLE BAR BASE GUIDE	1
13	014760632	SET SCREW, SOCKET SM5.95-28X6	1
14	S50180090	NEEDLE,134, NM90…#14 NM90	1
14	S50180075	NEEDLE, 134, NM75…#11 NM75	1
14	S50180065	NEEDLE,134, NM65…#9 NM65	1
14	S50180070	NEEDLE,134, NM70…#10 NM70	1
14	S50180080	NEEDLE,134, NM80…#12 NM80	1
14	S50180085	NEEDLE,134, NM85…#13 NM85	1
14	S48371060	NEEDLE, 134SUK, NM60…#14 NM90	1
14	S48371065	NEEDLE, 134SUK, NM65…#9 NM65	1
14	S48371070	NEEDLE, 134SUK, NM70…#10 NM70	1
14	S48371075	NEEDLE, 134SUK, NM75…#11 NM75	1
14	S48371080	NEEDLE, 134SUK, NM80…#12 NM80	1
14	S48371090	NEEDLE, 134SUK, NM90…#14 NM90	1
15-1	SA2921001	NEEDLE BAR	1
15-2	S50149101	NEEDLE BAR THREAD GUIDE	1
16	140553102	SET SCREW, SM3.18	1
17	S50150001	CRANK ROD GUIDE	1
18	S31808001	SCREW, PAN SM4.37-40X25	1
19	150382001	BOLT, SOCKET SM4.37X18	2
20	S50152001	NEEDLE BAR GUIDE	1
21	154965001	BOLT, SOCKET SM3.57X8	2
22	S50153101	STOPPER	1
23	153483001	SET SCREW, SM4.76	1
24	021710202	NUT, 2 SM4.76-32	1
25	013761410	SET SCREW, (CP) SM5.95-28X14	1
26	100022005	NUT, SM5.95	1
27	062681012	SCREW, PAN SM4.37-40X10	2

Page 10 — C.上軸関係 / Upper shaft mechanism

Brother HE-800A (85 pages) parts on page 10
Ref	Part number	Part name	Qty
1-1	S50154001	UPPER SHAFT	1
1-2	048150142	RETAINING RING, EXTERNAL C15	2
1-3	072630260	BALL BEARING, THRUST 6302VV	1
4	SA4065001	BUSH, F	1
5	158893000	BUSH, M	1
6-1	S50156001	SET SCREW COLLAR	1
6-2	014780632	SET SCREW, SOCKET SM6.35-28X6	2
8	S50157001	PULLEY ASSY	1
9	014760632	SET SCREW, SOCKET SM5.95-28X6	2
10	S50159001	T-PULLEY ASSY, U	1
10-1	S50160001	T-PULLEY, U	1
10-2	S48034001	RING	2
10-3	014780632	SET SCREW, SOCKET SM6.35-28X6	2
11	S50161000	TIMMING BELT	1
12-1	S50163001	TENSION PULLEY PLATE	1
12-2	S50164001	TENSION PULLEY	1
12-3	S50165001	COLLAR	1
12-4	018102536	BOLT, SOCKET M10X25	1
12-5	021100302	NUT, 3 M10	1
12-6	048300242	RETAINING RING, INTERNAL C30	2
12-7	076200800	BALL BEARING, RADIAL 6200ZZ	1
13	018061632	BOLT, SOCKET M6X16	2
14	025060232	WASHER, PLAIN M 6	2
15	SA3031001	IDLER PULLY	1
16	S50167001	SHAFT	1
17	S50168001	COLLAR	1
18	070608800	BALL BEARING, ARDIAL 608ZZ	2
19	048220242	RETAINING RING, INTERNAL C22	2
20	014760632	SET SCREW, SOCKET SM5.95-28X6	2
21	111865009	CAP, 6	1

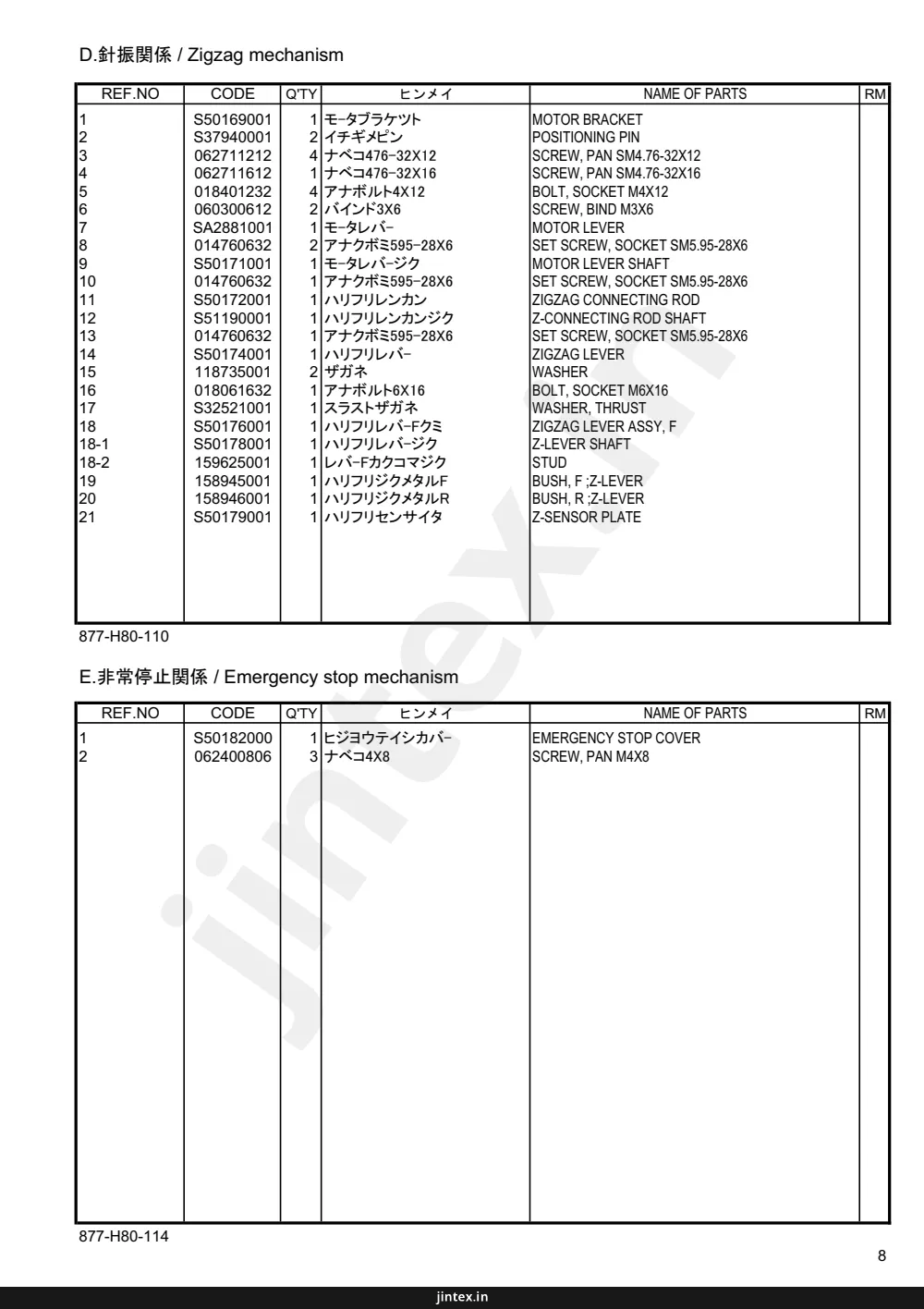

Page 12 — D.針振関係 / Zigzag mechanism

Brother HE-800A (85 pages) parts on page 12
Ref	Part number	Part name	Qty
1	S50169001	MOTOR BRACKET	1
2	S37940001	POSITIONING PIN	2
3	062711212	SCREW, PAN SM4.76-32X12	4
4	062711612	SCREW, PAN SM4.76-32X16	1
5	018401232	BOLT, SOCKET M4X12	4
6	060300612	SCREW, BIND M3X6	2
7	SA2881001	MOTOR LEVER	1
8	014760632	SET SCREW, SOCKET SM5.95-28X6	2
9	S50171001	MOTOR LEVER SHAFT	1
10	014760632	SET SCREW, SOCKET SM5.95-28X6	1
11	S50172001	ZIGZAG CONNECTING ROD	1
12	S51190001	Z-CONNECTING ROD SHAFT	1
13	014760632	SET SCREW, SOCKET SM5.95-28X6	1
14	S50174001	ZIGZAG LEVER	1
15	118735001	WASHER	2
16	018061632	BOLT, SOCKET M6X16	1
17	S32521001	WASHER, THRUST	1
18	S50176001	ZIGZAG LEVER ASSY, F	1
18-1	S50178001	Z-LEVER SHAFT	1
18-2	159625001	STUD	1
19	158945001	BUSH, F ;Z-LEVER	1
20	158946001	BUSH, R ;Z-LEVER	1
21	S50179001	Z-SENSOR PLATE	1
1	S50182000	EMERGENCY STOP COVER	1
2	062400806	SCREW, PAN M4X8	3

Page 14 — F.押え関係 / Presser foot mechanism

Brother HE-800A (85 pages) parts on page 14
Ref	Part number	Part name	Qty
1	S50183001	PRESSER DRIVING ARM	1
2	018061032	BOLT, SOCKET M6X10	4
4	S43717201	GEAR, 15.75	1
5	014770632	SET SCREW, SOCKET SM6.35-40X6	2
6	S50184001	GUIDE BRACKET	1
7	S42116000	LINEAR BUSH	2
8	S50185001	BEARING HOLDER	1
9	018400832	BOLT, SOCKET M4X8	1
10	S50186001	GUIDE SHAFT	2
11	014760632	SET SCREW, SOCKET SM5.95-28X6	4
12	S50187001	DRIVING ARM PRESSER	1
13	110367001	WASHER, PLAIN SPECIAL 8	1
14	014760632	SET SCREW, SOCKET SM5.95-28X6	1
15	018401232	BOLT, SOCKET M4X12	3
16-1-1	S50189001	P-LOFTER CONNECTING ROD	1
16-1-2	S50190001	SHOULDER SCREW	1
16-1-3	S50191001	ROLLER	1
16-1-4	110161004	NUT, SM4.76	1
16-1-5	028050242	WASHER, SPRING 2-5	1
16-2	S50192001	SPACER	1
16-3	SA3001001	WASHER, PLAIN L 4.7 :D	1
16-4	117363001	BOLT, SM4.76	1
16-5	S38761001	LIFTER LEVER, KNEE	1
17	S50192001	SPACER	1
18	SA3001001	WASHER, PLAIN L 4.7 :D	1
19	117363001	BOLT, SM4.76	1
21	S50193001	LIFTER SHAFT, A	1
22	014760632	SET SCREW, SOCKET SM5.95-28X6	1
23-1	S50195001	U-THREAD TRIMMER DRIVING LINK	1
23-2	S38761001	LIFTER LEVER, KNEE	1
23-3	145478101	SHOULDER SCREW, SOCKET SM4.76	1
24	S50196001	LIFTER SHAFT	1
25	025080132	WASHER, PLAIN S 8	1
26	048060342	RETAINING RING, E6	1
27	014760622	SET SCREW, SOCKET SM5.95-28X6	1
28	145478101	SHOULDER SCREW, SOCKET SM4.76	2
29-1	S50198001	PRESSER BAR GUIDE BRACKET	1
29-2	S50199001	PRESSER BAR LINK	1
29-3	145478101	SHOULDER SCREW, SOCKET SM4.76	1
29-4	014760632	SET SCREW, SOCKET SM5.95-28X6	1
30	111466101	PRESSER BAR	1
31	141208001	SPRING GUIDE	1
32	S50200001	PRESSER BAR SPRING	1
33	S31013001	PRESSER ADJUSTING NUT	1
34	S31012001	PRESSER ADJUSTING SCREW	1
35	140407001	WASHER	1
36	145472001	PRESSER BAR BUSH	1
37	S50201001	P-BAR ROLLER BRACKET	1
38	S50202001	ROLLER	1
39	062671212	SCREW, PAN SM3.57-40X12	1
40	025060132	WASHER, PLAIN S 6	1
41	048060142	RETAINING RING, EXTERNAL C6	1
42	S50203001	ROLLER	1
43	S50204001	ROLLER SHAFT	1
44	014760632	SET SCREW, SOCKET SM5.95-28X6	1
45	S37927000	NEEDLE BAR GUIDE	1
46	100242003	SCREW, SM3.57-40X5	2
47	155578000	RUBBER CAP, 7.2	2
48	S50205001	CLAMP SENSOR DOG	1
49	060670512	SCREW, BIND SM3.57-40X5	2
50	S50206001	CLAMP SENSORPLATE	1
51	102538002	SCREW, FLAT SM3.57	1
52	025040232	WASHER, PLAIN M 4	3

Page 16 — G.送り関係 / Feed mechanism

Brother HE-800A (85 pages) parts on page 16
Ref	Part number	Part name	Qty
1	S50207001	MOTOR MOUNTING BRACKET	1
2	062761012	SCREW, PAN SM5.95-28X10	3
3	025060232	WASHER, PLAIN M 6	3
4	018401032	BOLT, SOCKET M4X10	4
5-1	S50208001	PULLEY, A	1
5-2	014060632	SET SCREW, SOCKET (CP) M6X6	2
6-1	S50110001	PULLEY, B	1
6-2	014060632	SET SCREW, SOCKET (CP) M6X6	2
8	S50209000	TIMING BELT	1
9	S50210001	SUPPORT SHAFT	1
10	070688850	BALL BEARING, RADIAL 688ZZ	2
11	S50211001	BELT HOLDER	1
12	S59890001	BOLT, SOCKET SM4.37-40X8	2
13-1	S50212001	FEED ARM SUPPORT	1
14-1	S50213001	FEED GUIDE SHAFT, B	1
15	014760632	SET SCREW, SOCKET SM5.95-28X6	1
16-1	S50214001	FEED GIIDE SHAFT, A	1
17	S59894001	BOLT, SOCKET SM4.37-40X12	2
18	S12004000	LINEAR BUSH	3
19	S02460001	RETAINING RING, EXTERNAL C19	2
20-1	S35184001	BALL BEARING STOPPER	2
21	060660416	SCREW, BIND SM3.18-40X4	2
22	S50215101	FEED SENSOR SUPPORT PLATE	1
23	062680812	SCREW, PAN SM4.37-40X8	2
24	025680132	WASHER, PLAIN S 4.37	2
25	S50216001	SUPPORT SHAFT	1
26	012500536	SET SCREW, SOCKET (FT) M5X5	1
27-1-1	S50217001	FEED ARM	1
27-1-2	S50218001	SUPPORT PLATE	1
27-1-3	S50219101	CAM	1
27-1-4	S59893001	BOLT, SOCKET SM4.37-40X10	2
27-1-5	S59892001	BOLT, SOCKET SM4.37-40X5	2
27-1-6	110735002	WASHER	4
33-1	S50220001	LENGTH FEED PLATE, -2	1
33-2	S50225001	LENGTH FEED PLATE, -3	1
34	S59893001	BOLT, SOCKET SM4.37-40X10	2
35	028680242	WASHER, SPRING 2-4.37	2
36	S50221001	FEED PRESSER PLATE	2
37	105130001	SCREW, SM3.57	4
38	S50222001	FEED ARM SUPPORT	1
39	S50223100	COVER	1
40	S59890001	BOLT, SOCKET SM4.37-40X8	1
41	025680132	WASHER, PLAIN S 4.37	1
42	S50224001	FEED MOTOR COVER	1
43	062680612	SCREW, PAN SM4.37-40X6	2
44	159078001	SPRING	1
45	S50562001	SHOULDER SCREW, SM6.35	1
46-1	159765202	WORK CLAMP ASSY, 25RS	1
46-1-1	159762002	WORK CLAMP, 25RS	1
46-1-2	159926001	PIN, L	1
46-1-3	107401001	SPRING, PLATE	2
46-1-4	107404001	SCREW, SM1.98-64X2	2
46-1-5	159927001	PIN, S	1
46-2	S37100102	WORK CLAMP ASSY, 25RS W/F-G	1

Page 18 — G.送り関係 / Feed mechanism

Brother HE-800A (85 pages) parts on page 18
Ref	Part number	Part name	Qty
46-3	S01467201	WORK CLAMP ASSY, 25-K	1
46-3-1	144630001	WORK CLAMP, 25-K	1
46-3-2	159926001	PIN, L	1
46-3-3	144707001	SPRING, PLATE	2
46-3-4	107404001	SCREW, SM1.98-64X2	2
46-3-5	159927001	PIN, S	1
46-4	S37102101	WORK CLAMP ASSY, 25-K W/F-G	1
47-1	159080000	FINGER GUARD, M	1
48	018502032	BOLT, SOCKET M5X20	1
50	021500216	NUT, 2 M5	1

Page 20 — H.カッター関係 / Cutter mechanism

Brother HE-800A (85 pages) parts on page 20
Ref	Part number	Part name	Qty
1	S50283001	CUTTER DRIVING ARM SHAFT	1
2	014760632	SET SCREW, SOCKET SM5.95-28X6	1
3	S50284001	CUTTER DRIVING SHAFT	1
4	S50285001	DRIVING SHAFT HOLDER ASSY	1
4-1	S50286001	CUTTER DRIVING SHAFT HOLDER	1
4-2	S50287001	CUTTER DRIVING LINK SHAFT	1
4-3	014780622	SET SCREW, SOCKET SM6.35-28X6	3
5	S50288001	CUTTER DRIVING LINK	2
6	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
7	SA2385001	GUIDE,;C-BAR	2
8	062761012	SCREW, PAN SM5.95-28X10	4
9	159117001	BUSH, ;C-DRIVING SHAFT	1
10	S50289001	ADJUSTING SCREW ASSY	1
10-1	S50290001	ADJUSTING SCREW	1
10-2	S50291001	CUSHION SPRING	1
10-3	S50292001	CUSHION SUPPORT	1
10-4	S50293001	SHOULDER SCREW, SM3.57	1
11	021910302	NUT, 3 SM12.70-20	1
12	S50294001	CUTTER HOLDER	1
13	S59893001	BOLT, SOCKET SM4.37-40X10	1
14	S50295001	CUTTER HOLDER, M	1
15	S59891001	BOLT, SOCKET SM4.37-40X6	2
16	S50296001	CUTTER HOLDER, DL	1
17	153057102	SCREW, ROUND W/SOCKET SM4.37	2
18-1	S51352001	CUTTER, 1/2	1
19	S50297001	CUTTER HOLDER	1
20	115503001	SCREW, SM4.37	1
21-1	S09212001	SET SCREW COLLAR	1
21-2	014770632	SET SCREW, SOCKET SM6.35-40X6	2
22	S50298101	CUTTER DRIVING ARM ASSY	1
22-1	S50299101	CUTTER DRIVING ARM	1
22-2	159104001	PIN	1
22-3	014680632	SET SCREW, SOCKET SM4.37-40X6	1
22-4	159379001	PIN, DOWEL BX6X18	1
23	S50300001	CUTTER LINK SHAFT	1
24	014760632	SET SCREW, SOCKET SM5.95-28X6	1
26	048060342	RETAINING RING, E6	1
27	110367001	WASHER, PLAIN SPECIAL 8	1
28	SA2412001	CUTTER LINK BRACKET	1
29	S59894001	BOLT, SOCKET SM4.37-40X12	1
31	S50362001	CUTTER SOLENOID BRACKET	1
32	062711412	SCREW, PAN SM4.76-32X14	4
33	018501022	BOLT, SOCKET M5X10	3
34	S50363000	STOPPER CUSHION	1
35	S50364001	SOLENOID STOPPER	1
36	028080242	WASHER, SPRING 2-8	1
37	021080202	NUT, 2 M8	2
38	S50365101	CUTTER SENSOR SETTING PLATE	1
39	062710812	SCREW, PAN SM4.76-32X8	1
40	S50366001	SPRING	1

Page 22 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

Brother HE-800A (85 pages) parts on page 22
Ref	Part number	Part name	Qty
1	S50273000	THREAD GUIDE	1
2	025060232	WASHER, PLAIN M 6	1
3	025350332	WASHER, PLAIN L 3.5	1
4	060670612	SCREW, BIND SM3.57-40X6	1
5	159145001	SHAFT, ;TR-BREAKAGE PERCEIVING	1
6-1	141619001	FIXEING PLATE, ;C-BAR	1
6-2	141620001	BALANCER	1
6-3	101671002	SCREW, SM4.37	1
7	014760632	SET SCREW, SOCKET SM5.95-28X6	1
10	S50274001	LEVER STOPPER	2
11	062400612	SCREW, PAN M4X6	2
12	S50275001	THREAD BREAKAGE SENSOR PLATE	1
13	062400612	SCREW, PAN M4X6	2
	SA3033001
	076002450	Rタマシクウケ6002DD
	183827001
	104521001
	014770632	アナクボミ635-40X6
	S38735001
	062670612	ナベコ357-40X6

Page 24 — L.カマ関係 / Rotary hook mechanism

Brother HE-800A (85 pages) parts on page 24
Ref	Part number	Part name	Qty
1	S50226001	ROTARY HOOK SHAFT BUSH	1
2	S56388001	ROTARY HOOK JOINT UNIT	1
2-1	014760632	SET SCREW, SOCKET SM5.95-28X6	4
2-2	S56389001	ROTARY HOOK JOINT ASSY	1
2-2-1	S56390001	ROTARY HOOK JOINT	1
2-2-2	S56392000	FELT	1
2-2-3	S56391001	SET SCREW, SM3.18	1
2-2-4	021660306	NUT, 3 SM3.18-40	1
2-2-5	159101000	RUBBER CAP, 3.4	1
4	S50230001	B-CASE HOLDER POSITION BRACKET	1
5	100644005	SCREW, SM4.37	2
6	S50232000	ROTARY HOOK FELT	1
7	S50231100	COLLAR	1
8	S07478000	RUBBER PRESSER	1
9	S54741001	SCREW, SM6.35	1
10	S50233001	SPRING	1
11	S50111000	SPRING	1
20	SA1744001	ROTARY HOOK ASSY W/BOX S50234	1
20-1	SA1745001	ROTARY HOOK ASSY W/BOX S50235	1
20-1-1	183526001	SCREW	2
20-1-2	S50236001	SCREW	1
20-1-3	183598001	SCREW	1
20-2	S50237001	BOBBIN CASE ASSY	1
20-2-1	S09477001	SPRING	1
20-2-2	180721001	SCREW	1
20-2-3	183507001	ADJUSTING SCREW	1
20-2-4	S50239001	SPRING, ANTI-SPIN	1
22	159158051	BOBBIN	1
21	S50239001	SPRING, ANTI-SPIN	1

Page 26 — M.給油潤滑関係 / Lubrication

Brother HE-800A (85 pages) parts on page 26
Ref	Part number	Part name	Qty
1	144875001	PLUNGER	2
2	S52764001	SPRING, COMPRESSION	2
4	552907000	CORD HOLDER, #10	2
5	062670612	SCREW, PAN SM3.57-40X6	2
6	025350132	WASHER, PLAIN S 3.5	2
7	112467002	SCREW, SM6.35X5	2
8	S50356001	OIL FILTER BRACKET ASSY	1
9	062680812	SCREW, PAN SM4.37-40X8	3
10	144872101	PUMP FILTER	1
11	144874001	SPRING	2
12	062670512	SCREW, PAN SM3.57-40X5	2
13	S50359001	TUBE SUPPORT, D	1
14	062680612	SCREW, PAN SM4.37-40X6	1
15	S50360001	ROTARY HOOK FELT SUPPORT	1
16	060670612	SCREW, BIND SM3.57-40X6	2
17	S50556000	FELT	1
18	S50563000	WICK, 4X200	1
19	SA4063001	WICK, 2X460	1
20	S50559001	TUBE SUPPORT	1
21	060670612	SCREW, BIND SM3.57-40X6	1
22	S50557000	OIL TUBE	1
23	S50558000	OIL TUBE, L=180	1
24	S50513100	FACE PLATE PACKING	1
25	S50514000	REAR COVER PACKING	1
26	S50515000	TOP COVER PACKING	1
27	S50516001	WICK BASE SUPPORT	1
28	062670612	SCREW, PAN SM3.57-40X6	2
29	159187000	FELT BASE, A	1
30	S50517001	CAP	1
31	062680712	SCREW, PAN SM4.73-40X7	2
32	S50518000	FELT	1
33	S50519000	OIL TERMINAL	1
34	062680612	SCREW, PAN SM4.37-40X6	2
35	S50520000	PACKING	1
36	S50521000	OIL CAP	1
37	159193000	OIL PIPE, B	1
38	S50522000	OIL TUBE	1
39	S52763000	WICK, 2X140	1
40	S50524000	WICK, 3X160	1
41	S50525000	WICK, 3X290	1
43	S50527000	OIL TUBE	1
44	S50528000	WICK, 3X280	1
45	S50529000	OIL TUBE, L=320	1
46	S50530000	WICK, 3X355	1
47	S50531000	OIL TUBE	1
48	S50532000	OIL TUBE	1
49	228475000	FASTENING BAND, 1.9X80	2
50	S00480000	CORD HOLDER, 5N	1
51	062670612	SCREW, PAN SM3.57-40X6	1
52	025350132	WASHER, PLAIN S 3.5	1
53	106436001	FELT	1
54	107149001	FELT	2
55	151927001	FELT, ;CLUTCH	3
56	S50533000	OIL TUBE ASSY	1
57	S50536001	FELT HOLDER	1
58	062670512	SCREW, PAN SM3.57-40X5	1
59	S25328001	FELT	1
60	S50537000	WICK, 4X50	1
61	S50538001	OIL WINDOW SUPPORT	1
62	S50539000	OIL REJECTOR	2

Page 28 — M.給油潤滑関係 / Lubrication

Brother HE-800A (85 pages) parts on page 28
Ref	Part number	Part name	Qty
63	S50540001	TUBE SUPPORT	1
64	062680612	SCREW, PAN SM4.37-40X6	1
65	S50541001	TUBE SUPPORT, U	1
66	060670612	SCREW, BIND SM3.57-40X6	1
67	S50542001	TUBE SUPPORT, M	1
68	062400612	SCREW, PAN M4X6	1
69-1	S50543001	FELT SUPPORT	1
69-2	S50544000	FELT	1
71	062400612	SCREW, PAN M4X6	1
72	S50545000	WICK, 3X180	1
73	S50546000	WICK, 3X370	1
74	S50537000	WICK, 4X50	1
75	S50547000	OIL TUBE	1
76	228475000	FASTENING BAND, 1.9X80	2
77	S50548001	TUBE SUPPORT, R	1
78	060670612	SCREW, BIND SM3.57-40X6	1
79	S50549000	FELT	1
80	S50550001	FELT SUPPORT	1
81	062670512	SCREW, PAN SM3.57-40X5	1
82	S50551001	TUBE SUPPORT	1
83	002300603	SCREW, PAN M3X6	1
84	S50552000	WICK, 4X70	1
87	S51020000	COLLAR	1
88	S25328001	FELT	2
89	SA4066001	OIL TUBE, L=40	1
90	SA4067001	WICK, 3X150	1

Page 30 — N.糸通し関係 / Threading mechanism

Brother HE-800A (85 pages) parts on page 30
Ref	Part number	Part name	Qty
1	S50368001	T-RELEASE DRIVING LEVER ASSY	1
1-1	S50369001	TENSION RELEASE DRIVING LEVER	1
1-2	S35095000	NEEDLE ROLLER, 4X13.8	1
1-3	014400432	SET SCREW, SOCKET (CP) M4X4	1
2	014760632	SET SCREW, SOCKET SM5.95-28X6	1
3	S50370001	TENSION RELEASE SHAFT	1
4	081005070	O RING, P5	1
5	S50371101	TENSION RELEASE CAM	1
6	014760632	SET SCREW, SOCKET SM5.95-28X6	1
7-1	S50372001	LEVER	1
7-2	S50373001	ADJUSTING LEVER	1
7-3	060670512	SCREW, BIND SM3.57-40X5	1
7-4	100645003	WASHER	1
7-5	S50374001	LEVER LINK	1
7-6	S50375001	TENSION TAKE-UP LEVER	1
7-7	S50376001	SHOULDER SCREW, SM4.37	2
10	100645003	WASHER	1
11	062680612	SCREW, PAN SM4.37-40X6	1
14	025680234	WASHER, PLAIN M 4.37	1
15	S50376001	SHOULDER SCREW, SM4.37	1
16	S50377001	SOLENOID HOLDER	1
17	062670612	SCREW, PAN SM3.57-40X6	2
18	S50378001	PLATE	1
19	018300636	BOLT, SOCKET M3X6	1
20	062300502	SCREW, PAN M3X5	2
21	SA0992001	TENSION RELEASERSOLENOID LINK	1
22	S25456001	PLUNGER PIN	1
23	S50380000	SPRING	1
24	SA0990001	TENSION RELEASER RUBBER ASSY	1
25	S50382001	TENSION RELEASE LINK	1
26	S50376001	SHOULDER SCREW, SM4.37	2
27	141590001	THREADING BAR, U	1
28	150553003	NUT, SM5.95	1
29	S50383001	THREAD RETAINER	1
30	062670612	SCREW, PAN SM3.57-40X6	2
31	S51184001	SUB THREAD TENSION ASSY	1
31-1	159219101	SUB TENSION STUD	1
31-2	145446001	DISC, TENSION	2
31-3	159805001	TENSION DISC PRESSER	1
31-4	144103009	TENSION DISC PRESSER	1
31-5	144110001	TENSION ADJUSTING SPRING	1
31-6	S30564000	WASHER	1
31-7	S30565003	TENSION NUT	1
32	S50384101	TENSION RELEASE PIN	1
39	S50385001	TENSION RELEASE LEVER BRACKET	1
40	S51183001	TENSION STUD ASSY	1
40-1	145440001	TENSION STUD	1
40-2	145446001	DISC, TENSION	2
40-3	159805001	TENSION DISC PRESSER	1
40-4	144103009	TENSION DISC PRESSER	1
40-5	S50386001	TENSION SPRING	1
40-6	S50387001	COLLAR	1
40-7	S12441001	WASHER	1
40-8	S30565005	TENSION NUT	1
48	S50388001	TENSION RELEASE LEVER	1
49	114988001	SHOULDER SCREW, M4.37	1
50	S50389001	SPRING	1
51	S51182101	TENSION STUD BRACKET ASSY	1
51-1	S50390101	TENSION STUD BRACKET	1
51-2	S50391001	TENSION STUD, L	1

Page 32 — N.糸通し関係 / Threading mechanism

Brother HE-800A (85 pages) parts on page 32
Ref	Part number	Part name	Qty
51-3	100402004	SET SCREW, SM3.57	1
51-4	081014870	O RING, S14	1
51-5	145519001	THREAD TAKE-UP SPRING	1
51-6	145446001	DISC, TENSION	2
51-7	159805001	TENSION DISC PRESSER	1
51-8	159221001	TENSION SPRING	1
51-9	S30564000	WASHER	1
51-10	S31032001	TENSION NUT	1
56	S50384101	TENSION RELEASE PIN	1
62	S55975001	SET SCREW, SOCKET SM5.95	1
63	159224001	THREAD GUIDE, ARM	1
64	S50392001	ARM THREAD GUIDE	1
65	060670512	SCREW, BIND SM3.57-40X5	1
66	113316001	ARM THREAD GUIDE	1
67	060670512	SCREW, BIND SM3.57-40X5	1
68	S50393000	THREADING PLATE	1
69	159917201	THREAD GUIDE, L ;ARM	1
70	112751003	SCREW, SM3.57X7	1
71	048060342	RETAINING RING, E6	1
72	SA3035001	THREAD GUIDE COVER	1
73	025030136	WASHER, PLAIN S 3	1

Page 34 — P.糸関係 / Bobbin winder mechanism

Brother HE-800A (85 pages) parts on page 34
Ref	Part number	Part name	Qty
1	S50276001	B-WINDER SHAFT BRACKET ASSY	1
2	S50278001	BOBBIN WINDER SHAFT	1
3	S25410050	BOBBIN WINDER WHEEL	1
4	012400636	SET SCREW, SOCKET (FT) M4X6	2
5	S25789000	RUBBER RING, 29	1
6	S50279001	BOBBIN WINDER ARM SHAFT	1
7	025080132	WASHER, PLAIN S 8	1
8	048060342	RETAINING RING, E6	1
10	S25413101	BOBBIN PRESSER SHAFT ASSY	1
11	S25417001	SPRING	1
12	S25418101	SPRING	1
13	S50280001	BOBBIN WINDER STOPPER	1
14	062400816	SCREW, PAN M4X8	1
15	S25420051	BOBBIN PRESSER, R	1
16	062400616	SCREW, PAN M4X6	1
17	026040236	WASHER, PLAIN M 4	1
18	S10174000	DUST GUARD PLATE	1
21	157968001	KNIFE	1
22	062400616	SCREW, PAN M4X6	1
23	047200642	PIN, SPRING ROLL AW2	1
24	S38736101	BOBBIN WINDER TENSION ASSY	1
24-1	145446001	DISC, TENSION	2
24-2	115188001	TENSION SPRING	1
24-3	108265009	TENSION NUT	1
25	012400636	SET SCREW, SOCKET (FT) M4X6	1
26	048040342	RETAINING RING, E4	1
27	S50281000	BOBBIN WINDER PULLEY	1
28	014780622	SET SCREW, SOCKET SM6.35-28X6	2
29	S50282000	B-WINDER LEVER CUSHION	1

Page 36 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (85 pages) parts on page 36
Ref	Part number	Part name	Qty
1	S50394001	UPPER T-TRIMMER FULCRUM SHAFT	1
2-1	110027001	SET SCREW COLLAR	1
2-2	014760632	SET SCREW, SOCKET SM5.95-28X6	2
3	S23337001	RUBBER CAP, 18.5	1
4	S52761001	WASHER, RECTANGLE 15X32X2.4	1
5	S19817001	SHOULDER SCREW, SM5.95	2
6-1	S50395101	U-THREAD TRIMMER LEVER ASSY	1
6-2	S50398001	STOP PLATE	1
6-3	S50399101	BACK PLATE	1
6-4	S50400001	COLLAR	2
6-5	062670712	SCREW, PAN SM3.57-40X7	2
6-6	S50401001	SPRING	1
6-7	S50402001	SPRING HOOK PLATE	1
6-8	062670512	SCREW, PAN SM3.57-40X5	1
14	S02563001	SPRING, EXTENSION	1
15	S02563001	SPRING, EXTENSION	1
16-1	S50403001	SETTING PLATE	1
16-2	159343001	SUPPORT STUD	1
16-3	021680202	NUT, 2 SM4.37-40	1
16-4	025680132	WASHER, PLAIN S 4.37	1
17	062680612	SCREW, PAN SM4.37-40X6	2
18	025680232	WASHER, PLAIN M 4.37	2
22	S50404201	UPPER THREAD TRIMMER ASSY	1
22-1	S50405101	THREAD TRIMMER ASSY, D	1
22-2	S50113101	UPPER THREAD TRIMMER, M	1
22-3	141513001	UPPER THREAD TRIMMER, UPPER	1
22-4	141514001	SHOULDER SCREW, SM3.18	1
22-5	S52431000	U-THREAD TRIMMER STOPPER	1
23	100644005	SCREW, SM4.37	1
24-1	S50408001	OPENING CAM SETTING PLATE	1
24-2	S58098001	OPENING CAM	1
24-3	018300836	BOLT, SOCKET M3X8	2
24-4	S56251001	WASHER, PLAIN	1
24-5	028030246	WASHER, SPRING 2-3	2
24-6	021300206	NUT, 2 M3	2
25	107093002	SCREW, SM4.37	2
26	025680232	WASHER, PLAIN M 4.37	1
27	028680242	WASHER, SPRING 2-4.37	1
28	S50410001	THREAD TRIMMER DRIVING LEVER	2
29	S50411001	DRIVING LEVER ROLLER	1
30	S50412000	BALL BEARING, 106ZZS	1
31	S50413101	SHOULDER SCREW	2
32	081012070	O RING, P12	2
33-1	S50414001	LONGITUDINAL FEED ARM	1
33-2	S50415001	L-FEED ARM PIN	1
33-3	S50416001	L-FEED ARM ROLLER	1
33-4	048040342	RETAINING RING, E4	2
33-5	014680632	SET SCREW, SOCKET SM4.37-40X6	1
34	018061632	BOLT, SOCKET M6X16	1
35-1	S50417001	THREAD TRIMMER DRIVING ARM	1
35-2	S50418001	SUPPORT PLATE	1
35-3	S59893001	BOLT, SOCKET SM4.37-40X10	1
35-4	025680132	WASHER, PLAIN S 4.37	1
35-5	S50420001	ROLLER SHAFT	1
35-6	028050242	WASHER, SPRING 2-5	1
35-7	021500312	NUT, 3 M5	1
35-8	048060142	RETAINING RING, EXTERNAL C6	1
35-9	S50511001	DIFFERENTIAL ARM ROLLER	1
35-10	S50512001	STOPPER	1
35-11	S59893001	BOLT, SOCKET SM4.37-40X10	1
35-12	025680132	WASHER, PLAIN S 4.37	1
36	018061632	BOLT, SOCKET M6X16	1

Page 38 — R.下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (85 pages) parts on page 38
Ref	Part number	Part name	Qty
1-1	S50246001	LOWER THREAD TRIMMER CAM LEVER	1
1-2	107744001	ROLLER	1
1-3	141519001	ROLLER SHAFT	1
1-4	110161004	NUT, SM4.76	1
1-5	048030342	RETAINING RING, E3	1
2	159267001	CAM SHAFT, ;L-TR	1
3	110494001	WASHER, PLAIN 9.5	1
4	048080342	RETAINING RING, E8	1
5	014760632	SET SCREW, SOCKET SM5.95-28X6	1
10-1	S50247001	LOWER THREAD TRIMMER CAM	1
10-2	S50411001	DRIVING LEVER ROLLER	1
10-3	145478101	SHOULDER SCREW, SOCKET SM4.76	1
10-4	S50248001	L-THREAD TRI.CAM CONNECTIN ROD	1
11	150491101	LEVER SHAFT	2
12	014760632	SET SCREW, SOCKET SM5.95-28X6	2
16	159269001	SHOULDER SCREW, SM4.37	1
17	S50249101	LOWER THREAD TRIMMER LINK ASSY	1
17-1	S59987001	LOWER THREAD CONNECTING ROD, A	1
17-2	062680512	SCREW, PAN SM4.37-40X5	2
17-3	SA2915001	LOW THREAD TRIMMER LINK A ASSY	1
18	149127001	SHOULDER SCREW, SM6.35	1
19	S50252001	KNIFE DRIVING LEVER	1
20	113730001	SHOULDER SCREW, SM4.37	1
21	159272001	SHOULDER SCREW	1
22	S00903001	COLLAR	1
23	S00901001	WASHER, PLAIN L 6.4 :U	1
24	SA3001001	WASHER, PLAIN L 4.7 :D	1
25	S50253001	LEVER ASSY	1
26	S50257001	COLLAR	1
27	S00712101	SCREW, SM4.37	1
28	S50258101	LOWER THREAD RETAINER	1
29	110215002	SCREW SM3.57	2
30	S50259101	LOWER FIXED KNIFE UNIT	1
30-1	S50260101	LOWER FIXED KNIFE ASSY	1
30-2	S50263001	MOVABLE KNIFE	1
30-3	S50264000	WASHER	1
30-4	025040132	WASHER, PLAIN S 4	1
30-5	060630312	SCREW, BIND SM2.38-56X3	1
31	060670412	SCREW, BIND SM3.57-40X4	2
32	S50265001	LOWER THREAD CLAMP PLATE ASSY	1
33	141514001	SHOULDER SCREW, SM3.18	1
34	025040132	WASHER, PLAIN S 4	1
35	S50269000	WASHER	1
36	S50270000	LOWER THREAD PRESSER	1
37	145371001	SHOULDER SCREW, SM2.38	1
38	110215002	SCREW SM3.57	1
39-1	S52433001	OPENING PLATE, A	1
39-2	110167001	ROLLER	1
39-3	110168001	ROLLER SHAFT	1
39-4	S52434001	OPENING PLATE, B	1
39-5	141514001	SHOULDER SCREW, SM3.18	1
39-6	123185001	SCREW, ROUND SM3.57X4.5	1
40	149127001	SHOULDER SCREW, SM6.35	1
41	105970001	SCREW, SM2.38	1
42	S52778001	BASE PLATE ASSY	1
42-1	S50303001	BASE PLATE	1
42-2	S52770000	NEEDLE PLATE COVER	1
43	106629002	SCREW, SM4.37	4
49	S01696001	SCREW, FLAT SM3.57X6	2
50	S50323000	BOBBIN PRESSER	1

Page 40 — R. 下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (85 pages) parts on page 40
Ref	Part number	Part name	Qty
51	S01998001	SET SCREW, SM3.57-40X6	1
52-1	S50324001	BOBBIN PRESSER BRACKET	1
52-2	107639001	SPRING HOOK, U	1
53	159924001	SHOULDER SCREW	1
54	062671612	SCREW, PAN SM3.57-40X16	1
55	021670202	NUT, 2 SM3.57-40	1
56	062680512	SCREW, PAN SM4.37-40X5	2
57	S50325001	AUXILIARY PLATE	1
58	S50326001	OPENING PLATE	1
59	159113001	SHOULDER SCREW, SM3.18	1
60	105237002	SHOULDER SCREW, SM3.57	1
61	159379001	PIN, DOWEL BX6X18	1
62	S50327001	EXTENSION SPRING	2
63	S50328001	PLATE SPRING	1
64	159379001	PIN, DOWEL BX6X18	1
65	S50329000	COVER	1
66-1	S50664001	NEEDLE PLATE, 1.4S	1
66-2	S51248101	NEEDLE PLATE, 1.2S-3	1

Page 42 — S.針位置検出器関係 / Synchronizer

Brother HE-800A (85 pages) parts on page 42
Ref	Part number	Part name	Qty
1	S50657001	SYNCHRONIZER ASSY, H80	1
2	062400806	SCREW, PAN M4X8	2
4	S50354000	MAGNET ASSY, U	1
5	S38082001	NEEDLE UPPER MAGNET ASSY, U	1
6	062681412	SCREW, PAN SM4.37-40X14	2
7	025680132	WASHER, PLAIN S 4.37	2
1	SA3081001	OPERATION PANEL UNIT	1
1-1	SA3082001	OPERATION PANEL ASSY	1
1-1-1	SA3083001	FRONT FRAME ASSY	1
1-1-2	S49492000	OPERATION PANEL REAR FRAME	1
1-1-3	S49495000	PANEL SIDE COVER	1
1-1-4	S49496001	PANEL SIDE COVER GUIDE	1
1-1-5	087310815	TAPTITE, CUP B M3X8	2
1-1-6	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
1-1-7	S50453000	PANEL PCB ASSY	1
1-1-7-1	S46703000	LED :PG5307S	6
1-1-7-2	S50455000	LED, BR5307S	1
1-1-7-3	S29023000	LED :GL9P040	6
1-1-7-4	S48579000	SWITCH :B3F-4050	8
1-1-7-5	U34870001	DIP SWITCH:KSP08	2
1-1-7-6	S30280000	BUZZER :PKB24SPC36	1
1-1-7-7	S50456000	CONNECTOR:XG4A-2031	1
1-1-8	S50457000	PANEL CABLE ASSY	1
1-1-9	XA2220050	BOARD PRESSER	2
1-1-10	087311015	TAPTITE, CUP B M3X10	2
1-2	062300806	SCREW, PAN M3X8	4
3	S53181000	PANEL CABLE ASSY, L	1

Page 44 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 44
Ref	Part number	Part name	Qty
1	SA3076001	BOX ASSY A	1
1-1	SA3077001	POWER SUPPLY BOX	1
1-2	S50567001	MAIN PCB SETTING PLATE	1
1-3	SA3078001	SUB-PCB SETTING PLATE	1
1-4	S50660000	FAN MOTOR ASSY, DC	2
1-5	0A5403005	SCREW, PAN (S/P WASHE) M4X30	6
1-6	SA4024001	TRANSFORMER ASSY	1
1-6-1	S47749101	TRANSFORMER SETTING PLATE, EZ	2
1-7	025050236	WASHER, PLAIN M 5	4
1-8	028050246	WASHER, SPRING 2-5	4
1-9	018501236	BOLT, SOCKET M5X12	4
1-10	S43186000	BUSH, BU687B	1
1-11	S09142000	CORD CLAMP, 20-L	2
1-12	S43275000	CORD CLAMP, WS2NS	14
1-13	S43276000	CORD CLAMP, WS3NS	1
1-14	S50422000	CORD CLAMP, W2SWS	6
1-15	S43318000	CLAMP, LWS8S 2.5W	10
1-16	S51118001	CORD BUSH	1
1-17	S38820000	BUSHING, 35	1
1-18	S50423000	BUSHING, TB-1926	1
1-19	S42227009	RUBBER CAP, MG-3	1
1-20	S50424000	FRAGMENT PROTECTOR NET	1
1-21	008400604	SCREW, TRUSS M4X6	12
1-22	S00554000	SUPPORT, 6NS	23
1-23	S47721101	POWER SUPPLY PCB ASSY, EZ	1
1-23-1-1	J02443001	I-POWER MODULE, PM20CSJ060	1
1-23-1-2	J03284001	TRANSISTOR, FET :FS5UM-18R	1
1-23-1-3	J03285001	TRANSISTOR, FET :FS3KM-18A	1
1-23-1-4	SA2371001	DIODE BRIDGE:S30VT80 ASSY	1
1-23-1-5	J03324001	CAPACITOR, C450B471	3
1-23-1-6	S47735000	TRANSFORMER, 28AG1L9AD	1
1-23-1-7	J02441001	RELAY, G2R-1A6V	1
1-23-1-8	S38201000	VARISTOR :V14D471	4
1-23-1-9	J03283001	SURGE ABSORBER, :DSA362M	1
1-23-1-10	S47733000	COIL, :NF10TP102	1
1-23-1-11	SA2870001	GLASS FUSE,15A	2
1-23-1-12	J01684001	FUSE HOLDER, F062	4
1-23-1-13	J02727001	GLASS FUSE, 2A/250V	2
1-23-1-14	S47734000	CONNECTOR, B4P5-VB-2	3
1-23-1-15	J02449001	CONNECTOR, 5281-02A	1
1-23-1-16	S47730000	IPM CORD, P	1
1-23-1-17	S47728000	HARNESS, P DC 300V	1
1-23-1-18	S47727000	MOTOR HARNESS, P	1
1-23-1-19	S47725000	POWER SUPPLY HARNESS, P	1
1-23-1-20	S47726000	GROUND WIRE, P	1
1-23-1-21	J03296001	HEATSINK, ;PR1616-25-PB	1
1-23-1-22	S47729000	HEATSINK, :OSH-1025-MP	1
1-23-1-23	0A4301005	SCREW, PAN (S/P WASHE) M3X10	2
1-23-1-24	J03291001	CORE, ESD-R-25B	1
1-23-3	S47694000	F-RESISTOR ASSY, MR-A40J101	1
1-23-4	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1
1-23-5	S47693000	SPACER, 4EP-12	2
1-23-6	S47724000	SPACER, 7NS	5
1-23-7	229017001	SCREW, PAN (S/P WASHER) M4X10	4
1-23-8	0A5402005	SCREW, PAN (S/P WASHE) M4X20	2
1-23-9	S39819000	CORD CLAMP, 1259	1
1-23-10	S40621000	EMI CORE, ESD-SR-15	1
1-24	S50425001	POWER SUPPLY PCB ASSY, EH	1
1-24-1	S38200000	TRANSISTOR, :2SK1938	2
1-24-2	232384001	SURGE ABSORBER :DSA362MA	1

Page 46 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 46
Ref	Part number	Part name	Qty
1-24-3	S38201000	VARISTOR :V14D471	2
1-24-4	S08030000	FUSE, 5A :FB	1
1-24-5	SA2823001	FUSE,6A	2
1-25	S50431001	SUB PCB ASSY	1
1-25-1	U38337000	TRANSISTOR, FET:2SJ350	10
1-25-2	U38338000	TRANSISTOR, FET:2SK2202	10
1-25-3	S38155000	TRANSISTOR, FET:2SK1306	4
1-25-4	S50645000	TRANSISTOR, FET:2SK1307	1
1-25-5	S49486000	TRANSISTOR, FET:2SJ222	1
1-26	018401236	BOLT, SOCKET M4X12	5
1-27	S50437000	CORD, PER	1
1-28	S50438000	HARNESS, EX32	1
1-29	S50439000	HARNESS, EX26	1
1-30	S50440000	POWER SUPPLY HARNESS, AC	1
1-31	S50441000	POWER SUPPLY HARNESS, DC	1
1-32	S37059001	LABEL, PE	1
1-33	S37060001	LABEL, GROUNDING	2
1-34	0A5401006	SCREW, PAN (S/P WASHE) M4X10	2
1-35	S50484000	GROUND WIRE	1
1-36	0A5401006	SCREW, PAN (S/P WASHE) M4X10	1
1-37	0A5401006	SCREW, PAN (S/P WASHE) M4X10	1
1-38	S50644001	GROUND WIRE	1
1-39	150592001	RUBBER CAP, 16	1
3	SA3079001	PROM ASSY,800A	1
4	S20345001	RUBBER CAP, 14	2
32	228475000	FASTENING BAND, 1.9X80	1
5	S43186000	BUSH, BU687B	2
32	228475000	FASTENING BAND, 1.9X80	3
6	J04115001	LABEL, ELEC. SHOCK 6 LANG.	2
31	S38146000	CONNECTOR :3191-04R	1
52	S50483100	CONVERSION HARNESS, B-OUT	2
53	S38146000	CONNECTOR :3191-04R	2
101	0A5501005	SCREW, PAN (S/P WASHE) M5X10	3
102	J80814001	TREADLE UNIT, EZ	1
102-1	J03674001	TREADLE BASE ASSY	1
102-1-1	J03640001	SPRING, HERICAL ;28.8X30E	1
102-1-2	J00649001	SPRING, EXTENSION 12.6X86	1
102-2	J80813001	PS PCB, EZ	1
102-3	J02130001	WASHER, WAVE 03X4.3X8	3
102-4	037401015	TAPPING SCREW, PAN V M4X10	3
103	J03417001	GROUND WIRE ASSY	1
104	229017001	SCREW, PAN (S/P WASHER) M4X10	1
105	S41216000	GROUND WIRE	1
2	SA3197001	BOX ASSY B	1
2-40	SA3189001	CORD, EMC-PER	1
2-41	SA3196001	HARNESS, EMC-EZACIN	1
2-42	SA3195001	HARNESS, EMC-EZMT	1
2-43	SA3921001	HARNESS, EMC-CUTTER	1
2-44	SA3193001	HARNESS, EMC-FTPM	1
2-45	SA3192001	HARNESS, EMC-FDPM	1
2-46	SA3191001	HARNESS, EMC-EX26	1
2-47	SA3190001	HARNESS, EMC-EX32	1
2-48	SA3176001	PH PCB ASSY	1

Page 48 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 48
Ref	Part number	Part name	Qty
2-49	S50498001	NOISE FILTER ASSY, EH	1
2-49-1	S40616001	NOISE FILTER ASSY, EMC	1
2-49-1-1	S40617000	CAPACITOR, CERAMIC:ECKDNA102MB	1
2-49-1-2	S40618000	CAPACITOR, POLYESTER :250B474	2
2-49-1-3	S40619000	TERMINAL BLOCK, 2P	1
2-49-1-4	414900001	HEADER :5219-03A	1
2-49-1-5	S35598000	COIL :SC0520J	1
2-49-2	S50499000	NOISE FILTER HARNESS	1
2-50	S40620000	PCB SETTING PLATE	1
2-51	0A4400605	SCREW, PAN (S/P WASHER) M4X6	2
2-52	0A4400605	SCREW, PAN (S/P WASHER) M4X6	4
2-53	SA3194001	HARNESS, EMC-NPM	1
2-54	S52167000	CORE, NFR-251215	1
2-55	S52167000	CORE, NFR-251215	4
2-56	S52167000	CORE, NFR-251215	3
2-57	S52164000	CORE, NFC-28	5
2-58	0A5401206	SCREW, PAN (S/P WASHE) M4X12	5
2-59	021400106	NUT, 1 M4	5
2-60	S52163000	CORE, NF-130	5
2-61	S52162000	CORE, NF-65	5
H-1	SA3090001	BOX UNIT, B1V	1
H-2	SA3085001	BOX UNIT, A1V	1
H-3	SA3088001	BOX UNIT, A3VA	1
H-4	SA3093001	BOX UNIT, C2VA	1
H-5	SA3091001	BOX UNIT, B2V	1
H-6	SA3086001	BOX UNIT, A2V	1
H-9	SA3097001	BOX UNIT, FV	1
H-10	SA3096001	BOX UNIT, EV	1
H-7	SA3089001	BOX UNIT, A3VB	1
H-8	SA3094001	BOX UNIT, C2VB	1

Page 49 — U2. コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 49
Ref	Part number	Part name	Qty
	30-1-3
	30-1-2
	30-1-5
	30-1-4
	30-1-8
	30-2-3
	30-2-2
	30-2-5
	30-2-6
	30-2-8
	50-1-7
	50-1-7-3
	50-1-8
	50-1-10
	50-1-9
	50-1-3
	50-1-6
	50-1
	50-2-7
	50-2-7-3
	50-2-8
	50-2-10
	50-2-9
	50-2-3
	50-2-6
	50-2
	30-3-3
	30-3-2
	30-3-6
	30-3-4
	30-3-8

Page 50 — U2.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 50
Ref	Part number	Part name	Qty
30-1	SA3938001	POWER SUPPLY SWITCH ASSY, A1	1
30-1-1	S50443000	POWER SUPPLY CORD, A1	1
30-1-2	S38133000	POWER SUPPLY HARNESS	1
30-1-3	J02657001	3P. PUSH SWITCH, #17	1
30-1-4	224514001	INSULATION PLATE	2
30-1-5	218859001	BINDER, M150	3
30-1-6	S52164000	CORE, NFC-28	1
30-1-7	0A4401205	SCREW, PAN (S/P WASHE) M4X12	1
30-1-8	021040105	NUT, 1 M4	1
30-2	SA3936001	POWER SUPPLY SWITCH ASSY, B	1
30-2-1	S50445000	POWER SUPPLY CORD, B	1
30-2-2	S47595000	POWER SUPPLY HARNESS, EXP.	1
30-2-3	J04252001	3P.PUSH SWITCH,#117	1
30-2-4	224514001	INSULATION PLATE	2
30-2-5	218859001	BINDER, M150	3
30-2-6	S52164000	CORE, NFC-28	1
30-2-7	0A4401205	SCREW, PAN (S/P WASHE) M4X12	1
30-2-8	021040105	NUT, 1 M4	1
30-3	SA3939001	デンゲンSWクミC	1
30-3-1	S50445000	デンゲンコードB	1
30-3-2	S38118000		1
30-3-3	J02657001	3Pオシ SW#17	1
30-3-4	224514001		2
30-3-5	218859001	バインダM150	3
30-3-6	S52164000	コアNFC-28	1
30-3-7	0A4401205	+ナベザクミ4X12DA	1
30-3-8	021040105		1
50-1	SA4015001	ヘンカントランスB100クミ	1
50-1-1	S54027001		1
50-1-2	S54028001		1
50-1-3	S50474000		2
50-1-4	S41964000		1
50-1-5	062500602	ナベコ5X6	4
50-1-6	S23618001	シメネジ6X10	4
50-1-7	SA4016001	ヘンカントランスB100	1
50-1-7-1	SA4017001	ヘンカントランスB	1
50-1-7-2	S50485100	TR-INハーネス	1
50-1-7-3	S50486100	TR-OUTハーネス	1
50-1-8	018060831	アナボルト6X8	4
50-1-9	025060236		4
50-1-10	028060246		4
50-1-11	S10820000		1
50-1-12	0A4400606	+ナベザクミ4X6DA	1
50-2	SA4018001	TRANSFORMER ASSY, B110 :CONV.	1
50-2-1	S54027001	BASE PLATE, TRANS.	1
50-2-2	S54028001	COVER, TRANS.	1
50-2-3	S50474000	HANDLE	2
50-2-4	S41964000	BUSH	1
50-2-5	062500602	SCREW, PAN M5X6	4
50-2-6	S23618001	SCREW, M6X10	4
50-2-7	SA4019001	TRANSFORMER, B100 :CONV.	1
50-2-7-1	SA4017001	CONVERSION TRANSFORMER, B	1

Page 51 — U2. コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 51
Ref	Part number	Part name	Qty
	30-1-3
	30-1-2
	30-1
	30-1-4
	30-1-7
	30-2-3
	30-2-2
	30-2
	30-2-6
	30-2-7
	30-2-8
	50-1-7
	50-1-7-3
	50-1-8
	50-1-10
	50-1-9
	50-1-3
	50-1-6
	50-1
	30-3-3
	30-3-2
	30-3
	30-3-6
	30-3-7
	50-2-7
	50-2-7-3
	50-2-8
	50-2-10
	50-2-9
	50-2-3
	50-2-6
	50-2

Page 52 — U2.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 52
Ref	Part number	Part name	Qty
50-2-7-2	S50485100	HARNESS, TR-IN	1
50-2-7-3	S50486100	HARNESS, TR-OUT	1
50-2-8	018060831	BOLT, SOCKET M6X8	4
50-2-9	025060236	WASHER, PLAIN M 6	4
50-2-10	028060246	WASHER, SPRING 2-6	4
50-2-11	S10820002	VOLTAGE LABEL AC	1
50-2-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1

Page 54 — U3.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 54
Ref	Part number	Part name	Qty
30-4	SA3937001	POWER SUPPLY SWITCH ASSY, D	1
30-4-1	S50445000	POWER SUPPLY CORD, B	1
30-4-2	S38133000	POWER SUPPLY HARNESS	1
30-4-3	J04252001	3P.PUSH SWITCH,#117	1
30-4-4	224514001	INSULATION PLATE	2
30-4-5	218859001	BINDER, M150	3
30-4-6	S52164000	CORE, NFC-28	1
30-4-7	0A4401205	SCREW, PAN (S/P WASHE) M4X12	1
30-4-8	021040105	NUT, 1 M4	1
30-5	S50448000	POWER SUPPLY CORD, E	1
30-6	S50500000	AC CORD, F	1
30-7	SA3935001	POWER SUPPLY SWITCH ASSY, A2	1
30-7-1	S50443000	POWER SUPPLY CORD, A1	1
30-7-2	S38133000	POWER SUPPLY HARNESS	1
30-7-3	J04252001	3P.PUSH SWITCH,#117	1
30-7-4	224514001	INSULATION PLATE	2
30-7-5	218859001	BINDER, M150	3
30-7-6	S52164000	CORE, NFC-28	1
30-7-7	0A4401205	SCREW, PAN (S/P WASHE) M4X12	1
30-7-8	021040105	NUT, 1 M4	1
51-2	SA3968001	TRANSFORMER ASSY, C380 :CONV.	1
51-2-1	S54027001	BASE PLATE, TRANS.	1
51-2-2	S54028001	COVER, TRANS.	1
51-2-3	S50474000	HANDLE	2
51-2-4	S41964000	BUSH	1
51-2-5	062500602	SCREW, PAN M5X6	4
51-2-6	S23618001	SCREW, M6X10	4
51-2-7	SA4021001	TRANSFORMER, C380 :CONV.	1
51-2-7-1	SA3931001	CONVERSION TRANSFORMER, E	1
51-2-7-2	S50485100	HARNESS, TR-IN	1
51-2-7-3	S50486100	HARNESS, TR-OUT	1
51-2-8	018060831	BOLT, SOCKET M6X8	4
51-2-9	025060236	WASHER, PLAIN M 6	4
51-2-10	028060246	WASHER, SPRING 2-6	4
51-2-11	S10820006	VOLTAGE LABEL AC	1
51-2-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1
51-3	SA3969001	TRANSFORMER ASSY, C400 :CONV.	1
51-3-1	S54027001	BASE PLATE, TRANS.	1
51-3-2	S54028001	COVER, TRANS.	1
51-3-3	S50474000	HANDLE	2
51-3-4	S41964000	BUSH	1
51-3-5	062500602	SCREW, PAN M5X6	4
51-3-6	S23618001	SCREW, M6X10	4
51-3-7	SA4023001	TRANSFORMER, C400 :CONV.	1
51-3-7-1	SA3931001	CONVERSION TRANSFORMER, E	1
51-3-7-2	S50485100	HARNESS, TR-IN	1
51-3-7-3	S50486100	HARNESS, TR-OUT	1
51-3-8	018060831	BOLT, SOCKET M6X8	4
51-3-9	025060236	WASHER, PLAIN M 6	4

Page 56 — U3.コントロールボックス関係 / Control box mechanism

Brother HE-800A (85 pages) parts on page 56
Ref	Part number	Part name	Qty
51-3-10	028060246	WASHER, SPRING 2-6	4
51-3-11	S10820008	VOLTAGE LABEL AC	1
51-3-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1

Page 58 — V.電装品関係 / Power supply equipment mechanism

Brother HE-800A (85 pages) parts on page 58
Ref	Part number	Part name	Qty
1	S50458100	PULSE MOTOR ASSY, FD	1
2	S50459100	PULSE MOTOR ASSY, FT	1
3	S50460000	PULSE MOTOR ASSY, N	1
4	S50461000	CUTTER SOLENOID	1
5	S50462000	TENSION RELEASE SOLENOID	1
6	228475000	FASTENING BAND, 1.9X80	2
7	S50463000	SENSOR ASSY	1
7-1	S50464000	SENSOR, GL-N12	1
8	062300806	SCREW, PAN M3X8	1
9	S50464000	SENSOR, GL-N12	1
10	062300806	SCREW, PAN M3X8	1
11	S50465000	SENSOR, GL-N12	1
12	062300806	SCREW, PAN M3X8	1
13	625010000	NYLON CLAMP NK-2N	1
14	062670812	SCREW, PAN SM3.57-40X8	1
15	025350132	WASHER, PLAIN S 3.5	1
16	S50466000	CUTTER SENSOR ASSY	1
16-1	S50467000	SENSOR, GL-N12	1
17	062300806	SCREW, PAN M3X8	1
18	S50468000	DC FAN MOTOR ASSY, 40	1
19	0A5302005	SCREW, PAN (S/P WASHE) M3X20	2
20	S00480000	CORD HOLDER, 5N	3
21	062670612	SCREW, PAN SM3.57-40X6	3
22	025350132	WASHER, PLAIN S 3.5	3
24	SA3113001	STOP SWITCH HARNESS ASSY	1
24-1	SA3112001	SWITCH, A22-TB-11M	1
24-2	S50472000	SWITC HARNESS, EM	1
24-3	S50473000	SENSOR, GL-N12	1
25	062300806	SCREW, PAN M3X8	1
26	S10243000	CORD HOLDER, NK-3N	4
27	0A5400806	SCREW, PAN (S/P WASHER) M4X8	4
28	152969001	CORD HOLDER	1
29	002300603	SCREW, PAN M3X6	1
30	228475000	FASTENING BAND, 1.9X80	2
31	218859001	BINDER, M150	1
50	S50565001	CORD BUSH	1
51	552907000	CORD HOLDER, #10	2
52	0A5401006	SCREW, PAN (S/P WASHE) M4X10	2
53	552908000	CORD HOLDER, #14	1
54	0A5401006	SCREW, PAN (S/P WASHE) M4X10	1
55	552908000	CORD HOLDER, #14	1
56	0A5401006	SCREW, PAN (S/P WASHE) M4X10	1
57	S38145000	GROUND WIRE, 2	1
59	0A5401006	SCREW, PAN (S/P WASHE) M4X10	2
60	S41216000	GROUND WIRE	1
61	S50644000	GROUND WIRE	1
63	SA0287000	QUICK TUBE ASSY, 30X350	1

Page 60 — W.プリント基板関係 / Printed circuit board mechanism

Brother HE-800A (85 pages) parts on page 60
Ref	Part number	Part name	Qty
1	S53902301	SUPPLY MAIN PCB ASSY	1
1-1	S08047000	REGULATOR:SI3052V	1
1-2	S47664000	REGULATOR, :AN78L18M	6
1-3	S47665000	REGULATOR, :AN78M18F	1
1-4	S46454000	REGULATOR, :TA7810S	1
1-5	S46455000	TRANSITOR, FET :FK10KM-10	10
1-6	S38155000	TRANSISTOR, FET:2SK1306	1
1-7	S38200000	TRANSISTOR, :2SK1938	1
1-8	S47668000	DIODE, AR :PA905C6	1
1-9	S47669000	DIODE, BR :D5SB20	1
1-10	S47670000	DIODE, :SIZB60	9
1-11	Y42215591	CAPACITOR, ALUM-ELEC :50B221	5
1-12	Y44715591	CAPACITOR, ALUM-ELEC :50B471	4
1-13	S47673000	CAPACITOR, ALUM-ELEC :50B472	1
1-14	S47678000	CAPACITOR, ALUM-ELEC :450B101	1
1-15	S30209000	CAPACITOR, POLYESTER 400B105	1
1-16	S30205000	PHOTO COUPLER, :TLP112A	2
1-17	SA2353001	PHOTO COUPLER, TLP181	2
1-18	S43178000	PHOTO COUPLER:PC9231	11
1-19	J02621001	PHOTO COUPLER, :TLP120	1
1-20	U32744000	DIP SWITCH:DSS708	2
1-21	S47680000	GLASS FUSE, 8A	1
1-22	S47681000	COIL, :SK40S120-700	1
1-23	S58731000	THERMISTOR ASSY	1
1-24	0A4301005	SCREW, PAN (S/P WASHE) M3X10	19
1-25	021300206	NUT, 2 M3	1
1-26	028030246	WASHER, SPRING 2-3	1
1-27	025030136	WASHER, PLAIN S 3	1

Page 62 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (85 pages) parts on page 62
Ref	Part number	Part name	Qty
1-1	S51361001	NEEDL PLATE SET, 1.2RB	1
1-1-1	S50304001	NEEDLE PLATE ASSY, 1.2S-RB	1
1-1-2	S50297001	CUTTER HOLDER	1
1-1-3	S50341001	POSITIONING PLATE	1
1-1	S51362001	NEEDLE PLATE SET, 1.4RB	1
1-1-1	S50309001	NEEDLE PLATE ASSY, 1.4S-RB	1
1-1-2	S50297001	CUTTER HOLDER	1
1-1-3	S50341001	POSITIONING PLATE	1
1-1	S51363001	NEEDLE PLATE SET, 1.6RB	1
1-1-1	S50311001	NEEDLE PLATE ASSY, 1.6S-RB	1
1-1-2	S50297001	CUTTER HOLDER	1
1-1-3	S50341001	POSITIONING PLATE	1
1-2	S51364001	NEEDLE PLATE SET, 1.2RB-3	1
1-2-1	S50313101	NEEDLE PLATE ASSY, 1.2-RB-3	1
1-2-2	S50297001	CUTTER HOLDER	1
1-2-3	S50341001	POSITIONING PLATE	1
1-2	S51365001	NEEDLE PLATE SET, 1.4RB-3	1
1-2-1	S50317101	NEEDLE PLATE ASSY, 1.4S-RB-3	1
1-2-2	S50297001	CUTTER HOLDER	1
1-2-3	S50341001	POSITIONING PLATE	1
1-2	S51366001	NEEDLE PLATE SET, 1.6RB-3	1
1-2-1	S50319101	NEEDLE PLATE ASSY, 1.6S-RB-3	1
1-2-2	S50297001	CUTTER HOLDER	1
1-2-3	S50341001	POSITIONING PLATE	1
2	J80081040	PEDAL,STAND OPE VARIABLE 40#6	1
3	S47750000	S-OPE. HARNESS	1
4	J80380040	PEDAL,STAND OPE DD 3P VARI 40	1
5	S53996101	AUXILIARY TABLE ASSY	1
5-1	S53997000	AUXILIARY TABLE	1
5-2	S53998001	AUX. TABLE SUPPORT	3
5-3	031351006	WOOD SCREW, ROUND M3.5X10	6
5-4	S13650001	BOTTOM FEED ARM, D	3
5-5	S59890001	BOLT, SOCKET SM4.37-40X8	3
5-6	032422003	WOOD SCREW, ROUND 2 M4.1X20	3

Page 63 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (85 pages) parts on page 63
Ref	Part number	Part name	Qty
	11-1	< 欧州向け/For Europe >
	11-10	< アジア向け/For Asia >
	11-4
	11-1-1
	11-1-5
	11-1-4
	11-1-3
	11-1-18
	11-1-9
	11-1-10
	11-1-13
	11-2
	11-3
	11-1-15
	11-1-13
	11-1-7
	11-1-8
	11-1-2
	11-1-16
	11-1-14
	11-1-12
	11-1-17
	11-1-19	< 欧州向け/For Europe >
	11-10-19	< アジア向け/For Asia >
	17
	15
	16
	18
	12
	13
	11-1-6
	11-1-11

Page 64 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (85 pages) parts on page 64
Ref	Part number	Part name	Qty
11-1	S58971101	PROGRAMMER ASSY, A	1
11-10	SA2833001	PROGRAMMER ASSY, B	1
11-1-1	S43250100	PROGRAMMER TOP COVER	1
11-1-2	S43251000	PROGRAMMER LOWER COVER	1
11-1-3	S43252000	KEYBOARD SPACER	1
11-1-4	S43253000	KEYBOARD RUBBER SHEET	1
11-1-5	SA2899001	KEYBOARD SHEET	1
11-1-6	037301015	TAPPING SCREW, PAN V M3X10	4
11-1-7	S43255000	LCD COVER	1
11-1-8	S43256000	LCD	1
11-1-9	S43257000	INVERTER, LCD	1
11-1-10	037200615	TAPPING SCREW, PAN V M2X6	4
11-1-11	S43271000	MAGNET, A	1
11-1-12	S43272000	MAGNET, B	1
11-1-13	037300615	TAPPING SCREW, PAN V M3X6	6
11-1-14	S43267000	PROGRAMMER HARNESS	1
11-1-15	S43268000	INVERTER HARNESS	1
11-1-16	S43270000	CORD BUSH, KR51	1
11-1-17	S43981000	PROGRAMMER UNDER COVER	2
11-1-18	S58978001	PROGRAMMER PCB ASSY, A	1
15	S58974000	HARNESS ASSY, PRG/M	1
16	021300206	NUT, 2 M3	1
17	S58987001	HARNESS SETTING PLATE	1
18	062300806	SCREW, PAN M3X8	2
11-1-19	S58973000	PROM PROGRAMMER ASSY	1
11-10-19	S58992000	PROM PROGRAMMER ASSY	1
11-2	S42890001	PROGRAMMER SUPPORT	1
11-3	032422003	WOOD SCREW, ROUND 2 M4.1X20	2
11-4	0B1351606	WOOD SCREW, FLAT M3.5X16	2
12	S40621000	EMI CORE, ESD-SR-15	1
13	149809000	BEAD BAND, L=200	1
14	S58984000	PRG/M HARNESS L ASSY	1

Page 66 — Y. モータ関係 / Moter mechanism

Brother HE-800A (85 pages) parts on page 66
Ref	Part number	Part name	Qty
1	J80863001	MOTOR ASSY,INV#EH	1
1-3	076202801	BALL BEARING, RADIAL 6202ZZ	2
1-7	203684001	WASHER, WAVE M 0.3X27.5X34.9	11
1-8	J02537001	BOLT, HEX (S/P WASHER) M5X110	4
1-10	J02525001	MOTOR FAN, INV	1
1-11	014500632	SET SCREW, SOCKET (CP) M5X6	1
1-12	J02278001	PULLEY, Q90	1
1-13	216205000	KEY, 4X13#2	1
1-14	028100246	WASHER, SPRING 2-10	1
1-15	J02493001	NUT, 3 M10X1.0	1
1-16	J03457001	SCREW, PAN (S/P WASHER) M5X20	4
1-17	J02989001	COLLAR, D5.1XT0.6XL9	4
1-18	J02991001	RUBBER CUSHION, INV	4
1-19	J02990001	GROUND WIRE ASSY, MOTOR	1
1-20	229017001	SCREW, PAN (S/P WASHER) M4X10	1
2	J00107001	MD806 BASE #2	1
3	J02517001	PIN, 9.9X116	1
4	J03275001	BOLT ASSY, L M10-V	1
5	021100206	NUT, 2 M10	1
6	025100236	WASHER, PLAIN L 10	2
7	028100246	WASHER, SPRING 2-10	1
8	J03410001	SETTING PLATE, EZ-MOTOR	1
9	062401063	SCREW, PAN M4X10	1
10	028040245	WASHER, SPRING 2-4	1
11	025040173	WASHER, PLAIN S 4	1
13	002401006	SCREW, PAN M4X10	1
14	215082001	SCREW 4 X 12	1

Page 68 — AA.カバー関係／Safety cover; Z1. 付属品関係 / Accessories

Brother HE-800A (85 pages) parts on page 68
Ref	Part number	Part name	Qty
1	J02513001	MOTOR COVER, INV	1
2	0A4401605	SCREW, PAN (S/P WASHE) M4X16	3
3	J03763001	BELT COVER	1
4	229017001	SCREW, PAN (S/P WASHER) M4X10	1
5	217071001	SCREW 4X18DA	1
6	J03764001	BELT SUB COVER	1
8	J02293001	FINGER PROTECTION BAR	1
9	229017001	SCREW, PAN (S/P WASHER) M4X10	1
10	J00351001	BELT CLAMP PLATE 2	1
11	229017001	SCREW, PAN (S/P WASHER) M4X10	1
54	S02761409	COTTON STAND ASSY, 2	1
54-1	150189109	COTTON STAND BRACKET	1
54-2-1	062060806	SCREW, PAN M6X8	2
54-2-2	031452206	WOOD SCREW, ROUND M4.5X22	3
54-3	S51283001	SPOOL STAND BASE	2
54-4	150182000	SPOOL MAT	2
54-5	S51282101	SPOOL CUSHION	2
54-6	150172003	COLUMN PIPE	1
54-6-1	150174000	COLUMN CAP	1
54-7	150173003	COLUMN JOINT	1
54-8-1	150179002	SPOOL SHAFT, B	2
54-8-2	028050246	WASHER, SPRING 2-5	2
54-8-3	021500106	NUT, 1 M5	2
54-9	S02778002	SPOOL HOLDER, 2	1
54-10	S02786002	THREAD HANGER ASSY, 2	1
54-10-1	S02787002	THREAD HANGER, 2	1
54-10-2	150183000	THREAD HANGER BASE	2
54-10-3	142990001	THREAD BUSH	2
54-11	150172003	COLUMN PIPE	1
54-12-1	021500106	NUT, 1 M5	4
54-12-2	S37038001	SCREW, PAN(S/P WASHER) M5X14	1
54-12-3	S37037001	SCREW, PAN (S/P WASHER) M5X32	1
54-12-4	062501406	SCREW, PAN M5X14	2

Page 70 — Z2. 付属部品関係 / Accessories

Brother HE-800A (85 pages) parts on page 70
Ref	Part number	Part name	Qty
1	S50330101	BED BASE ASSY	1
1-1	S50331000	BED BASE	1
1-2	S50332000	OIL PACKING	1
1-3	S54768001	DRAIN PLATE	1
1-4	S50334000	PACKING	1
1-5	037401415	TAPPING SCREW, PAN V M4X14	3
1-6	081007070	O RING, P7	1
1-7	140518001	SCREW, SM7.94X10	1
1-8	S50335000	BED BASE CUSHION, A	5
1-9	S50336000	BED BASE CUSHION, B	4
1-10	S50337000	BED BASE CUSHION, C	2
2	S50338000	OIL STOPPER PLATE	1
3	S24250001	BOLT, M8X90	4
4	S50342000	FLANGE NUT, M8	4
6	028080246	WASHER, SPRING 2-8	4
7	101118001	WOOD SCREW, ROUND M4.5X20	3
8	S50339001	COLLAR	4
9	104449001	RUBBER CAP, 15.5	2
10	025050236	WASHER, PLAIN M 5	3
13	SA1743014	NEEDLE 4PIECE ASSY, S50180...#14 NM90	1
13	SA1743011	NEEDLE 4PIECE ASSY, S50180...#11 NM75	1
14	S18707153	BELT, VM WHITE	1
22-1	S13595201	TIMING GAUGE, -2	1
22-2	S13596201	TIMING GAUGE, -3	1
25	142443001	SCREW-DRIVER, 1.9X52	1
26	118837001	SCREW-DRIVER, 3.4X70	1
27	101572101	SCREW-DRIVER, 5.5X190	1
32	159158051	BOBBIN	1
33	117466000	PINCETTE	1
34-1	S51290001	CUTTER, 3/8	1
34-2	S51354001	CUTTER, 5/8	1
34-3	S51356001	CUTTER, 3/4	1
34-4	S51358001	CUTTER, 1	1
35	S55663001	OIL TANK ASSY	1
36	114483002	OILER ASSY	1
37	159384009	HEAD REST	1
38	133740006	BOLT, SQUARE M6X70	4
39	021060106	NUT, 1 M6	8
40	025060336	WASHER, PLAIN L 6	4
41	S00617000	RUBBER COLLAR	4
42	146256001	CUSHION COLLAR	4
43	146255000	CUSHION	4

Page 72 — Z2. 付属品関係 / Accessories

Brother HE-800A (85 pages) parts on page 72
Ref	Part number	Part name	Qty
44	032461606	WOOD SCREW, ROUND 2 M4.5X16	2
45	031412506	WOOD SCREW, ROUND M4.1X25	4
55	S50343000	BELT COVER	1
56	062401006	SCREW, PAN M4X10	3
57	025040236	WASHER, PLAIN M 4	1
58	104450101	RUBBER CAP, 8	2
59	S50344001	BELT COVER PLATE	1
60	032461606	WOOD SCREW, ROUND 2 M4.5X16	2
63	200190001	STAPLE	6
65	S37111001	EYE GUARD ASSY	1
65-1	S01700001	SCREW, OVAL SM3.18X7	2
65-2	025030232	WASHER, PLAIN M 3	2
65-3	021660102	NUT, 1 SM3.18-40	2
66	062710612	SCREW, PAN SM4.76-32X6	1
67	148847001	WASHER, PLAIN 4.76	1
68	S50345001	EYE GUARD SUPPORT	1
69	062680812	SCREW, PAN SM4.37-40X8	1
70	144226001	HEAD COVER	1
71	218469001	FUSE 15A #2	2
72	S08030000	FUSE, 5A :FB	1
73	153242000	FUSE, 6A	2
74	J03411001	SETTING PLATE, EZ-TREADLE	1
75	J00353001	SCREW, PAN (S/P WASHER) M5X14	3
76	J02036001	BUSHING, V CORD	1
78	112525000	MAGNET	1
80	S50346001	TAPE GUARD WINDER ASSY	1
80-1	S51896001	TAPE GUARD ASSY	1
80-1-1	144998001	TAPE GUARD, B	1
80-1-2	105288002	SCREW, SM2.38	2
80-1-3	144997001	TAPE GUARD, A	1
80-1-4	122771051	SCREW, SM2.38	2
80-1-5	144999001	TAPE GUIDE, C	1
80-1-6	144628001	TAPE GUARD, F	1
80-1-7	122771051	SCREW, SM2.38	1
80-1-8	105970001	SCREW, SM2.38	1
80-1-9	110067001	COLLAR	1
80-1-10	143749001	TAPE GUIDE, LOWER	1
80-1-11	143748001	TAPE GUIDE, UPPER	1
80-1-12	062660412	SCREW, PAN SM3.18-40X4	2
80-2	143767102	TAPE WINDER ASSY	1
80-2-1	143980001	SCREW	1
80-2-2	108494001	WASHER	1
80-2-3	108495001	SPRING, COMPRESSION	1
80-2-4	100136001	TENSION NUT	1
80-3	S50348001	TAPE GUIDE, U	1
80-4	062400812	SCREW, PAN M4X8	1
80-5	S50349001	TAPE WINDER SETTING PLATE	1
80-6	062400812	SCREW, PAN M4X8	1
80-7	107407003	SCREW, SM4.37X9	2
150	S54767000	AUXILIARY SHEET	1

Page 73 — Z3. 付属品関係 (オプション部品) / Accessories (Option parts)

Brother HE-800A (85 pages) parts on page 73
Ref	Part number	Part name	Qty
	100-6
	100-7
	100-5
	100-2
	100-1
	100-3
	100-4
	100-9
	100-10
	100-8
	100-11
	100
	120-2
	120-3
	120-1
	120
	130-2-4
	130-2-5
	130-2
	130-1-2
	130-2-2
	130-1-1
	130-1-4
	130-1-3
	130-1-5
	130-1-2
	131
	151

Page 74 — Z3. 付属品関係(オプションパーツ)/ Accessories (Option parts)

Brother HE-800A (85 pages) parts on page 74
Ref	Part number	Part name	Qty
100	S50477001	RULER ASSY	1
100-1	S06139001	RULER, A	1
100-2	S06140001	RULER, B	1
100-3	062680512	SCREW, PAN SM4.37-40X5	2
100-4	025680232	WASHER, PLAIN M 4.37	2
100-5	146000001	THREAD TRIMMER SUPPORT	1
100-6	062670412	SCREW, PAN SM3.57-40X4	2
100-7	105161003	WASHER, PLAIN	2
100-8	141620001	BALANCER	1
100-9	101671002	SCREW, SM4.37	2
100-10	025680132	WASHER, PLAIN S 4.37	2
100-11	S36522001	SCREW, SM4.37	2
120	S50350001	RULER ASSY, 800E	1
120-1	S50476001	RULER	1
120-2	S36522001	SCREW, SM4.37	2
120-3	S50351001	RULER SPACER	1
130	133797101	CONNECTING ROD ASSY	1
130-1	119710001	CONNECTING ROD ASSY	1
130-1-1	119711001	CONNECTING ROD	2
130-1-2	021060106	NUT, 1 M6	2
130-1-3	119101001	CONNECTING ROD CLAMP	1
130-1-4	017841606	BOLT, SM7.94-18X16	1
130-1-5	133643006	NUT, SM7.94-18	1
130-2	133792101	JOINT ASSY	2
130-2-4	021060106	NUT, 1 M6	2
130-2-5	028060243	WASHER, SPRING 2-6	2
131	114859001	COLLAR	1
151	S55361100	PANEL LABEL	1

Page 75 — Ga1. ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (85 pages) parts on page 75
Ref	Part number	Part name	Qty
	S51117-001
	S51290-001
	S51351-001
	S51352-001
	S51353-001
	S51354-001
	S51355-001
	S51356-001
	S25642-001
	S51357-001
	S51358-001
	S51359-001
	S51360-001
	S01271-001
	S01272-001
	S01273-001
	S03280-001
	S01274-001
	S01275-001
	S01276-001
	S35630-001

Page 76 — Ga2. ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (85 pages) parts on page 76
Ref	Part number	Part name
※1	S37101-102	(16mmRS)
※1	S37100-102	(25mmRS)
※1	S55347-002	(25mmRSW)
※2	159764-202	(16mmRS)
※2	159765-202	(25mmRS)
※2	S55346-002	(25mmRSW)
※3	159079-000	フィンガーガード / Finger guard
※3	159080-000	フィンガーガード / Finger guard
※3	159080-000	フィンガーガード / Finger guard
※4	159761-002	布つかみ / Work clamp
※4	159762-002	布つかみ / Work clamp
※4	S55345-002	布つかみ / Work clamp
※1	S37109-102	(32mmRS)
※1	S37103-101	(16mm)
※1	S37102-101	(25mm)
※2	159766-202	(32mmRS)
※2	S01466-201	(16mm)
※2	S01467-201	(25mm)
※3	159081-000	フィンガーガード / Finger guard
※3	159079-000	フィンガーガード / Finger guard
※3	159080-000	フィンガーガード / Finger guard
※4	159763-002	布つかみ / Work clamp
※4	145136-001	布つかみ / Work clamp
※4	144630-001	布つかみ / Work clamp
※1	S55350-001	(25mmW)
※1	S37110-101	(32mm)
※2	S55349-001	(25mmW)
※2	S01468-201	(32mm)
※3	159080-000	フィンガーガード / Finger guard
※3	159081-000	フィンガーガード / Finger guard
※4	S55348-001	布つかみ / Work clamp
※4	144632-001	布つかみ / Work clamp

Page 77 — Ga3. ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (85 pages) parts on page 77
Ref	Part number	Part name	Qty
	S50663-001
	S50664-001
	S50665-001
	S51248-101
	S51249-101
	S51250-101
	S50321-001	Needle plate
	151843-001	Plastic plate
	S50322-101	Needle plate
	156612-001	Plastic plate

Page 78 — Wa. 警告ラベル / Warning labels

Brother HE-800A (85 pages) parts on page 78
Ref	Part number	Part name	Qty
	J04115-001	Label, elc. shock 6 lang.
	SA0792-001	Label, operation J / E.
	SA0793-001	Label, operation C / E.
	S36924-001	Mark,injury
	S37059-001	Mark, grounding
	S37060-001	Mark, grounding

Page 79 — 索引 / INDEX

Brother HE-800A (85 pages) parts on page 79
Ref	Part number	Part name	Qty
24	002300603
54	002300603
40	008400604
30	012400636
30	012400636
12	012500536
4	013761410
12	014060632
12	014060632
26	014400432
62	014500632
16	014680632
32	014680632
10	014760622
2	014760632
2	014760632
4	014760632
4	014760632
4	014760632
6	014760632
6	014760632
8	014760632
8	014760632
8	014760632
10	014760632
10	014760632
10	014760632
10	014760632
10	014760632
12	014760632
16	014760632
16	014760632
18	014760632
18	014760632
20	014760632
26	014760632
26	014760632
32	014760632
34	014760632
4	014770632
4	014770632
10	014770632
16	014770632
18	014770632
16	014780622
30	014780628
6	014780632
6	014780632
70	017841606
46	018060831
48	018060831
50	018060831
50	018060831
10	018061032
6	018061632
8	018061632
32	018061632
6	018102536
26	018300636
32	018300836
12	018401032
8	018401232
10	018401232
42	018401236
16	018501022
40	018502032
14	018502032
46	021040105
46	021040105
46	021040105
50	021040105
66	021060106
70	021060106
70	021060106
16	021080202
62	021080206
6	021100302
32	021300206
56	021300206
60	021400106
44	021500106
64	021500106
64	021500106
14	021500216
32	021500312
68	021660102
20	021660306
36	021670202
2	021680202
32	021680202
4	021710202
16	021910302
28	025030136
56	025030136
68	025030232
34	025040132
34	025040132
62	025040173
10	025040232
68	025040236
40	025050236
66	025050236
10	025060132
12	025060232
18	025060232
46	025060236
48	025060236
50	025060236
66	025060336
2	025080132
10	025080132
30	025080132
62	025100236
54	025350132
54	025350132
18	025350132
12	025680132
32	025680132
32	025680132
32	025680132
38	025680132
32	025680132
32	025680232
38	025680232
70	025680232
26	025680234
56	028030246
56	028030246
62	028040245
62	028050246
32	028050246
64	028050246
70	028060243
46	028060246
48	028060246
50	028060246
52	028060246
16	028080242
68	028080246
60	028100246
60	028680242
56	028680242
62	031351006
10	031412506
16	031452206
28	032422003
30	032422003
34	032461606
34	032461606
6	037200615
6	037300615
68	037301015
60	037401015
60	037401015
42	047200642
66	048030342
30	048030342
32	048040342
10	048060142
32	048060342
10	048060342
16	048060342
28	048060342
30	048060342
3	048080342
6	048150142
22	048220242
22	048300242
8	060300612
34	060630312
12	060660416
34	060670412
10	060670512
26	060670512
28	060670512
28	060670512
18	060670612
22	060670612
22	060670612
24	060670612
64	060680606
26	062300502
38	062300806
54	062300806
54	062300806
54	062300806
54	062300806
54	062300806
18	062400612
18	062400612
24	062400612
24	062400612
30	062400612
30	062400612
8	062400806
38	062400806
68	062400806
68	062400812
30	062400816
68	062401006
62	062401063
46	062500602
46	062500602
50	062500602
50	062500602
64	062501406
68	062660412
70	062670412
22	062670512
22	062670512
24	062670512
32	062670512
18	062670612
22	062670612
22	062670612
22	062670612
26	062670612
26	062670612
54	062670612
54	062670712
10	062670712
10	062671212
36	062671212
34	062680512
36	062680512
70	062680512
2	062680612
12	062680612

Page 80 — 索引 / INDEX

Brother HE-800A (85 pages) parts on page 80
Ref	Part number	Part name	Qty
	062680612
	062680612
	062680612
	062680612
	062680612
	062680712
	062680812
	062680812
	062680812
	062681012
	062681412
	062710612
	062710812
	062711012
	062711012
	062711212
	062711412
	062711612
	062711612
	062761012
	062761012
	070608800
	070688850
	072630260
	076002450
	076200800
	076202801
	081005070
	081007070
	081012070
	081014870
	087310815
	087311015
	0A4301005
	0A4301005
	0A4400605
	0A4400605
	0A4400606
	0A4400606
	0A4400606
	0A4400606
	0A4400805
	0A4401205
	0A4401205
	0A4401205
	0A4401205
	0A4401205
	0A4401605
	0A5302005
	0A5400805
	0A5400806
	0A5401006
	0A5401006
	0A5401006
	0A5401006
	0A5401006
	0A5401006
	0A5401006
	0A5401206
	0A5402005
	0A5403005
	0A5501005
	0B1351606
	100022005
	100136001
	100242003
	100250001
	100402004
	100644005
	100644005
	100645003
	100645003
	101118001
	101572101
	101671002
	101671002
	102538002
	102630001
	104449001
	104449001
	104449001
	104449001
	104449001
	104449001
	104450101
	104450101
	104450101
	104450101
	104450101
	104450101
	104450101
	104450101
	104450101
	104450101
	104451101
	104521001
	105130001
	105161003
	105237002
	105288002
	105970001
	105970001
	106436001
	106629002
	107093002
	107149001
	107401001
	107404001
	107404001
	107407003
	107639001
	107744001
	108265009
	108494001
	108495001
	110027001
	110067001
	110161004
	110161004
	110167001
	110168001
	110215002
	110215002
	110367001
	110367001
	110367001
	110494001
	110735002
	111466101
	111865009
	112467002
	112525000
	112751003
	113730001
	114483002
	114859001
	114988001
	115188001
	115503001
	117143003
	117363001
	117363001
	117466000
	117936001
	118735001
	118837001
	119101001
	119710001
	119711001
	120263001
	122771051
	123185001
	133643006
	133740006
	133792101
	133797101
	140004001
	140407001
	140430001
	140518001
	140553102
	141208001
	141513001
	141514001
	141514001
	141514001
	141519001
	141590001
	141619001
	141620001
	141620001
	142274101
	142990001
	143748001
	143749001
	143767102
	143980001
	144103009
	144103009
	144110001
	144226001
	144260001
	144630001
	144630001
	144632001
	144707001
	144872101
	144875001
	144970001
	144990001
	144990001
	145371001
	145440001
	145446001
	145446001
	145446001
	145465001
	145472001
	145478101
	145478101
	145478101
	145478101
	145519001
	146000001
	146255000
	146256001
	148847001
	149127001
	149127001
	149809000
	150172003
	150172003
	150172003
	150174000
	150179002
	150182000
	150183000
	150189109
	150382001
	150491101
	150553003
	150592001
	151843001
	151927001
	152969001
	153057102
	153242000
	153483001
	154965001
	155578000
	156612001
	157968001
	158830001
	158831001
	158832000
	158879001
	158880001
	158893000

Page 84 — 索引 / INDEX

Brother HE-800A (85 pages) parts on page 84
Ref	Part number	Part name
71	S51290001
71	S51351001
71	S51352001
71	S51352001
71	S51353001
66	S51354001
71	S51354001
71	S51355001
66	S51356001
71	S51356001
71	S51357001
66	S51358001
71	S51358001
71	S51359001
71	S51360001
58	S51361001
58	S51362001
58	S51363001
58	S51364001
58	S51365001
58	S51366001
68	S51896001
44	S52161000
44	S52162000
44	S52164000
46	S52164000
46	S52164000
46	S52164000
50	S52164000
50	S52164000
44	S52167000
44	S52167000
44	S52167000
4	S52248001
32	S52431000
34	S52433001
34	S52434001
32	S52761001
22	S52763000
22	S52764001
34	S52770000
34	S52778001
4	S52943101
38	S53181000
56	S53902301
58	S53996101
58	S53997001
58	S53998001
46	S54027001
46	S54027001
50	S54027001
50	S54027001
46	S54028001
50	S54028001
50	S54028001
20	S54741001
68	S54767000
66	S54768001
72	S55345002
72	S55346002
72	S55347002
72	S55348001
72	S55349001
72	S55350001
70	S55361100
66	S55663001
28	S55975001
32	S56251001
20	S56388001
20	S56389001
20	S56390001
32	S56392000
20	S56392000
32	S58731000
60	S58971101
60	S58971101
60	S58984000
60	S58984001
60	S58978001
60	S58986000
60	S58986001
60	S58992000
12	S58990001
12	S59890001
58	S59890001
16	S59891001
12	S59893001
12	S59893001
12	S59893001
16	S59893001
32	S59893001
32	S59893001
12	S59894001
16	S59894001
34	S59797001
2	S60200001
2	S62079001
62	SA0792001
74	SA0793001
26	SA0990001
26	SA0990001
66	SA1743011
66	SA1743014
20	SA1744001
20	SA1745001
56	SA2353001
40	SA2823001
16	SA2835001
16	SA2833001
42	SA2870001
60	SA2823001
40	SA2870001
8	SA2899001
60	SA2899001
34	SA3001001
4	SA3001001
10	SA3001001
10	SA3001001
34	SA3031001
6	SA3031001
18	SA3033001
28	SA3035001
40	SA3076001
40	SA3077001
40	SA3078001
40	SA3079001
38	SA3081001
38	SA3082001
38	SA3083001
44	SA3085001	H-2
44	SA3086001	H-6
44	SA3088001	H-3
44	SA3089001	H-7
44	SA3090001	H-1
44	SA3091001	H-5
44	SA3093001	H-4
44	SA3094001	H-8
44	SA3096001	H-10
44	SA3097001	H-9
54	SA3112001
54	SA3113001
42	SA3176001
42	SA3189001
42	SA3190001
42	SA3191001
42	SA3192001
42	SA3193001
42	SA3194001
42	SA3195001
42	SA3196001
50	SA3197001
46	SA3921001
50	SA3935001
46	SA3936001
50	SA3937001
46	SA3938001
46	SA3939001
4	SA4047001
22	SA4063001
6	SA4065001
24	SA4066001
24	SA4067001
56	U32744000
38	U34870001
42	U38337000
42	U38338000
38	XA2220050
56	Y42215591
56	Y44715591

Page 6 — A.主体関係 / Machine body

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 10 — C.上軸関係 / Upper shaft mechanism

Page 12 — D.針振関係 / Zigzag mechanism

Page 14 — F.押え関係 / Presser foot mechanism

Page 16 — G.送り関係 / Feed mechanism

Page 18 — G.送り関係 / Feed mechanism

Page 20 — H.カッター関係 / Cutter mechanism

Page 22 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

Page 24 — L.カマ関係 / Rotary hook mechanism

Page 26 — M.給油潤滑関係 / Lubrication

Page 28 — M.給油潤滑関係 / Lubrication

Page 30 — N.糸通し関係 / Threading mechanism

Page 32 — N.糸通し関係 / Threading mechanism

Page 34 — P.糸関係 / Bobbin winder mechanism

Page 36 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 38 — R.下糸切り関係 / Lower thread trimmer mechanism

Page 40 — R. 下糸切り関係 / Lower thread trimmer mechanism

Page 42 — S.針位置検出器関係 / Synchronizer

Page 44 — U1.コントロールボックス関係 / Control box mechanism

Page 46 — U1.コントロールボックス関係 / Control box mechanism

Page 48 — U1.コントロールボックス関係 / Control box mechanism

Page 49 — U2. コントロールボックス関係 / Control box mechanism

Page 50 — U2.コントロールボックス関係 / Control box mechanism

Page 51 — U2. コントロールボックス関係 / Control box mechanism

Page 52 — U2.コントロールボックス関係 / Control box mechanism

Page 54 — U3.コントロールボックス関係 / Control box mechanism

Page 56 — U3.コントロールボックス関係 / Control box mechanism

Page 58 — V.電装品関係 / Power supply equipment mechanism

Page 60 — W.プリント基板関係 / Printed circuit board mechanism

Page 62 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 63 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 64 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 66 — Y. モータ関係 / Moter mechanism

Page 68 — AA.カバー関係／Safety cover; Z1. 付属品関係 / Accessories

Page 70 — Z2. 付属部品関係 / Accessories

Page 72 — Z2. 付属品関係 / Accessories

Page 73 — Z3. 付属品関係 (オプション部品) / Accessories (Option parts)

Page 74 — Z3. 付属品関係(オプションパーツ)/ Accessories (Option parts)

Page 75 — Ga1. ゲージ部品一覧表 / Gauge parts List

Page 76 — Ga2. ゲージ部品一覧表 / Gauge parts List

Page 77 — Ga3. ゲージ部品一覧表 / Gauge parts List

Page 78 — Wa. 警告ラベル / Warning labels

Page 79 — 索引 / INDEX

Page 80 — 索引 / INDEX

Page 84 — 索引 / INDEX

Brother HE-800A (85 pages) — parts catalog
