Page 1 — HE-800A ELECTRONIC LOCKSTITCH BUTTON HOLDER PARTS BOOK

HE-800A パーツブック PARTS BOOK 本縫電子ボタン穴かがりミシン ELECTRONIC LOCKSTITCH BUTTON HOLDER brother. 最新の部品情報は Parts Navigation でご覧いただけます。http://partsbook.brother.co.jp/partsnavi/jpn/ The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnavi/eng/ jintex.in

Page 2 — パーツブックご利用に際して

パーツブックご利用に際して 1. この本は、2007年11月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、破線で示してあります。 目 次 A. 主体関係 .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3

Notes for using this parts book 1. This book was prepared based on information available in November 2007. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line. CONTENTS A. Machine body .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 4

A. 主体関係 / Machine body 6 5 8 7 28 2 1 31 32 36 4 3 37 27 44 24 23 26 25 37 37 30 33 34 20 34 35 36 39 29 18 19 21 41 22 15 10 45 < 中国向 / For China > 46 < 中国向以外 / Except for China > 42 43 40 11 17 12 16 38 13 14 9 38 HE-800A-050 1 jintex.in

Page 5 — A. 主体関係 / Machine body

A. 主体関係 / Machine body REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50124001 1 メンイタ FACE PLATE 2 062711012 4 ナベコ476-32X10 SCREW PAN SM4.76-32X10 3 SA4206001 1 テンビンカバー THREAD TAKE-UP LEVER COVER 4 062680612 1 ナベコ437-40X6 SCREW PAN SM4.37-40X6 5 S50126001 1 ガワイタ REAR COVER 6 062711012 6 ナベコ476-32X10 SCREW PAN SM4.76-32X10 7 S50127101 1 ウワフタ TOP COVER 8 062711612 6 ナベコ476-32X16 SCREW PAN SM4.76-32X16 9 S50128201 1 カマカバー ROTARY HOOK COVER 10 104450101 1 ゴムセン8 RUBBER CAP, 8 11 158879001 1 カマカバージク SHAFT, ; R-HOOK COVER 12 S00306001 1 ヒンジイタバネ HINGE PLATE SPRING 13 025080132 1 ヒラザガネショウ8 WASHER PLAIN S8 14 048060342 1 トメワE6 RETAINING RING E6 15 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 16 117143003 2 サラネジ4.37 SCREW, FLAT SM4.37 17 021680202 2 2シュナット437-40 NUT 2 SM4.37-40 18 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 19 158830001 2 ヒンジ BED HINGE 20 158831001 2 ヒンジピン PIN 21 158832000 2 ヒンジピンササエゴム PIN SUPPORT RUBBER 22 159150000 1 ゴムセン20.5 RUBBER CAP, 20.5 23 159150000 1 ゴムセン20.5 RUBBER CAP, 20.5 24 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 25 104451101 1 ゴムセン23.9 RUBBER CAP, 23.9 26 104450101 2 ゴムセン8 RUBBER CAP, 8 27 104450101 2 ゴムセン8 RUBBER CAP, 8 28 104450101 1 ゴムセン8 RUBBER CAP, 8 29 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 30 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 31 104450101 1 ゴムセン8 RUBBER CAP, 8 32 104450101 1 ゴムセン8 RUBBER CAP, 8 33 104450101 1 ゴムセン8 RUBBER CAP, 8 34 104450101 2 ゴムセン8 RUBBER CAP, 8 35 104450101 1 ゴムセン8 RUBBER CAP, 8 36 104449001 2 ゴムセン15.5 RUBBER CAP, 15.5 37 S32263001 3 ゴムセン8.5 RUBBER CAP, 8.5 38 S36924001 2 ワーニングマーク INJURY MARK 39 S37060001 2 アースマーク LABEL, GROUNDING 40 S50131001 1 イトトオシセツメイイタ THREADING DIAGRAM 41 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 42 S50340000 2 ベッドダイクッション BED BASE CUSHION 43 120263001 2 ダンネジ4.37 SHOULDER SCREW,SM4.37 44 117936001 1 ゴムセン9.4 RUBBER CAP, 9.4 <中国向> <For China> 45 SA0793001 1 ラベルチュウイ.チュウエイ LABEL CAUTION CHN/ENG <中国向以外> <Except for China> 46 SA0792001 1 ラベルチュウイ.ワエイ LABEL CAUTION JPN/ENG HE-800A-050 jintex.in 2

Page 6

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism 16 5 17 22 9 13 21 10 6 29 28 32 31 18 12 11 38 34 33 14 35 8 30 19 7 24 2 20 23 37 36 1 3 25 4 15 26 27 < P.59 参照 > < Refer to P.59 > HE-800A-101 3 jintex.in

Page 7 — Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50132000 1 テンビンクランク THREAD TAKE-UP CRANK 2 100250001 1 シメネジ7.14 SCREW, SM7.14 3 014770632 1 アナクボミ635-40X6 SET SCREW SOCKET SM6.35-40X6 4 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 5 SA4047301 1 ハリボウレンカンオオクミ NEEDLE BAR CONNECTING ROD SET 6 145465001 1 シメネジ3.57L SCREW, SM3.57-40X6 L 7 S50136101 1 ハリボウダキソウクミ NEEDLE BAR CLAMP SET 8 14004001 1 シメネジ3.57 SCREW, SM3.57-40X7 9 S52943101 1 ササエジク SUPPORT SHAFT 10 140430001 1 クミヒモ3X40 WICK, 3X40 11 S50271000 1 クミヒモ2X35 WICK, 2X35 12 S50272000 1 クミヒモ3X15 WICK, 3X15 13 S50142000 1 クミヒモ3X290 WICK, 3X290 14 S52248001 1 ハリボウダイカクコマ N-BAR BRACKET SLIDE BLOCK 15 014770632 2 アナクボミ635-40X6 SET SCREW SOCKET SM6.35-40X6 16 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 17 S50143001 1 ハリボウダイソウクミ NEEDLE BAR BRACKET SET 18 S50144001 1 ハリボウダイクミ NEEDLE BAR BASE ASSY 19 159624001 1 ハリボウダイカクコマ N-BAR BRACKET SLIDE BLOCK 20 S50146001 1 ストッパ STOPPER PLATE 21 158888001 1 ハリボウダイササエジク N-BAR BASE SUPPORT SHAFT 22 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 23 S50147001 1 ハリボウダイアンナイ NEEDLE BAR BASE GUIDE 24 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 25 SA2921101 1 ハリボウ NEEDLE BAR 26 S50149101 1 アタマツキトメネジ NEEDLE BAR THREAD GUIDE 27 140553102 1 アタマツキトメネジ3.18 SET SCREW, SM3.18 28 S50150001 1 クランクロッドアンナイ CRANK ROD GUIDE 29 S31808001 1 ナベコ437-40X25 SCREW, PAN SM4.37-40X25 30 150382001 2 アナボルト4.37X18 BOLT, SOCKET SM4.37X18 31 S50152001 1 ハリボウアンナイ NEEDLE BAR GUIDE 32 154965001 2 アナボルト3.57X8 BOLT, SOCKET SM3.57X8 33 S50153101 1 ハリボウダイストッパ STOPPER 34 153483001 1 トメネジ4.76 SET SCREW, SM4.76 35 021710202 1 2シュナット476-32 NUT 2 SM4.76-32 36 013761410 1 トメクボミ595-28X14 SET SCREW (CP) SM5.95-28X14 37 100022005 1 ナット5.95 NUT, SM5.95 38 062681012 2 ナベコ437-40X10 SCREW PAN SM4.37-40X10 HE-800A-101 4 jintex.in

Page 8 — C. 上軸関係 / Upper shaft mechanism

C. 上軸関係 / Upper shaft mechanism 9 9 8 14 6 7 5 1 4 30 7 10 11 13 2 3 12 12 22 23 16 17 19 15 25 20 21 20 18 24 28 27 28 26 29 5 HE-800A-109 jintex.in

Page 9 — C. 上軸関係 / Upper shaft mechanism

C. 上軸関係 / Upper shaft mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50154001 1 ウワジク UPPER SHAFT 2 048150142 2 トメワジクヨウC15 RETAINING RING EXTERNAL C15 3 072630260 1 Tタマジクウケ6302VV BALL BEARING, THRUST 6302VV 4 SA4065001 1 ウワジクメタルF BUSH, F 5 158893100 1 ウワジクメタルM BUSH M 6 S50156001 1 セットカラー SET SCREW COLLAR 7 014780632 2 アナクボミ635-28X6 SET SCREW SOCKET SM6.35-28X6 8 S50157001 1 プーリクミ PULLEY ASSY 9 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 10 S50159001 1 タイミングプーリUクミ T-PULLEY ASSY, U 11 S50160001 1 タイミングプーリU T-PULLEY, U 12 S48034001 2 タイミングプーリリング RING 13 014780632 2 アナクボミ635-28X6 SET SCREW SOCKET SM6.35-28X6 14 S50161000 1 タイミングベルト TIMMING BELT 15 S50163001 1 テンションプーリイタ TENSION PULLEY PLATE 16 S50164001 1 テンションプーリ TENSION PULLEY 17 S50165001 1 テンションプーリカラー COLLAR 18 018102536 1 アナボルト10X25 BOLT SOCKET M10X25 19 021100302 1 3シュナット10 NUT 3 M10 20 048300242 2 トメワアナヨウC30 RETAINING RING INTERNAL C30 21 076200800 1 Rタマジクウケ6200ZZ BALL BEARING RADIAL 6200ZZ 22 018061632 2 アナボルト6X16 BOLT SOCKET M6X16 23 025060232 2 ヒラザガネチュウ6 WASHER PLAIN M 6 24 S50166001 1 アイドラプーリ IDLER PULLEY 25 S50167001 1 アイドラプーリジク SHAFT 26 S50168001 1 アイドラプーリカラー COLLAR 27 070608800 2 Rタマジクウケ608ZZ BALL BEARING RADIAL 608ZZ 28 048220242 2 トメワアナヨウC22 RETAINING RING INTERNAL C22 29 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 30 111865009 1 セン6 CAP, 6 HE-800A-109 6

Page 10 — D . 針振り関係 / Zigzag mechanism

D . 針振り関係 / Zigzag mechanism 7 jintex.in HE-800A-110

Page 11 — D. 針振り関係 / Zigzag mechanism

D. 針振り関係 / Zigzag mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50169001 1 モータブラケット MOTOR BRACKET 2 S37940001 2 イチギメピン POSITIONING PIN 3 062711212 4 ナベコ476-32X12 SCREW PAN SM4.76-32X12 4 062711612 1 ナベコ476-32X16 SCREW PAN SM4.76-32X16 5 018401232 4 アナボルト4X12 BOLT SOCKET M4X12 6 060300612 2 バインド3X6 SCREW BIND M3X6 7 SA2881001 1 モータレバー MOTOR LEVER 8 S50171001 1 モータレバージク MOTOR LEVER SHAFT 9 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 10 S50172001 1 ハリフリレンカン ZIGZAG CONNECTING ROD 11 S51190001 1 ハリフリレンカンジク Z-CONNECTING ROD SHAFT 12 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 13 S50174001 1 ハリフリレバー ZIGZAG LEVER 14 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 15 118735001 2 ザガネ WASHER 16 018062032 1 アナボルト6X20 BOLT SOCKET M6X20 17 S32521001 1 スラストザガネ WASHER, THRUST 18 S50176001 1 ハリフリレバーFクミ ZIGZAG LEVER ASSY, F 19 S50178001 1 ハリフリレバージク Z-LEVER SHAFT 20 159625001 1 レバーFカクコマジク STUD 21 158945001 1 ハリフリジクメタルF BUSH, F; Z-LEVER 22 158946001 1 ハリフリジクメタルR BUSH, R; Z-LEVER 23 S50179001 1 ハリフリセンサイタ Z-SENSOR PLATE HE-800A-110 jintex.in 8

Page 12 — E . 非常停止関係 / Emergency stop mechanism

E . 非常停止関係 / Emergency stop mechanism 1 2 9 HE-800A-114 jintex.in

Page 13 — E. 非常停止関係 / Emergency stop mechanism

E. 非常停止関係 / Emergency stop mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50182000 1 ヒジョウテイシカバー EMERGENCY STOP COVER 2 062400806 3 ナベコ4X8 SCREW PAN M4X8 HE-800A-114 jintex.in 10

Page 14

F. 押え関係 / Presser foot mechanism 22 21 20 10 45 18 23 19 44 17 8 16 28 42 15 7 27 6 5 43 2 1 46 13 24 25 12 26 11 14 63 4 59 38 37 62 60 58 57 56 39 40 61 36 50 41 47 48 49 30 31 29 55 33 34 54 35 32 53 51 52 36 HE-800A-201 11 jintex.in

Page 15 — F. 押え関係 / Presser foot mechanism

F. 押え関係 / Presser foot mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50183001 1 オサエクトウウデ PRESSER DRIVING ARM 2 018061032 4 アナボルト6X10 BOLT SOCKET M6X10 3 S43717201 1 クドウギヤ15.75 GEAR, 15.75 4 014770632 2 アナクボミ635-40X6 SET SCREW SOCKET SM6.35-40X6 5 S50184001 1 オサエドウアンナイダイ GUIDE BRACKET 6 S42116000 2 リニアブッシュ LINEAR BUSH 7 S50185001 1 ベアリングオサエ BEARING HOLDER 8 018040032 1 アナボルト4X8 BOLT SOCKET M4X8 9 S50186001 2 アンナイジク GUIDE SHAFT 10 014760632 4 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 11 S50187001 1 クドウウデオサエ DRIVING ARM PRESSER 12 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 13 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 14 018040132 3 アナボルト4X12 BOLT SOCKET M4X12 15 S50189001 1 オサエアゲレンカン P-LOFTER CONNECTING ROD 16 S50190001 1 オサエレンカンダンネジ SHOULDER SCREW 17 S50191001 1 レンカンコロ ROLLER 18 110161004 1 ナット4.76 NUT, SM4.76 19 028050242 1 バネザガネ2-5 WASHER SPRING 2-5 20 S50192101 1 オサエアゲカンザ SPACER 21 SA3001001 1 メスサドウレバザガネD WASHER, PLAIN L 4.8: D 22 117363001 1 ボルト4.76 BOLT, SM4.76 23 S38761201 1 ヒザアゲレバー LIFTER LEVER KNEE 24 S50192101 1 オサエアゲカンザ SPACER 25 SA3001001 1 メスサドウレバザガネD WASHER, PLAIN L 4.8: D 26 117363001 1 ボルト4.76 BOLT, SM4.76 27 S50193001 1 オサエアゲレバージクA LIFTER SHAFT, A 28 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 29 S50195001 1 ウワイトキリクドウリンク U-THREAD TRIMMER DRIVING LINK 30 S38761201 1 ヒザアゲレバー LIFTER LEVER KNEE 31 145478101 1 ダンネジ4.76 SHOULDER SCREW, SOCKET SM4.76 32 S50196001 1 オサエアゲレバージク LIFTER SHAFT 33 025080132 1 ヒラザガネショウ8 WASHER PLAIN S 8 34 048060342 1 トメワE6 RETAINING RING E6 35 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 36 145478101 2 ダンネジ4.76 SHOULDER SCREW, SOCKET SM4.76 37 S50198001 1 オサエボウダキ PRESSER BAR GUIDE BRACKET 38 S50199101 1 オサエアゲリンク PRESSER BAR LINK 39 145478101 1 ダンネジ4.76 SHOULDER SCREW, SOCKET SM4.76 40 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 41 111466121 1 オサエボウ PRESSER BAR 42 SA7607001 1 オサエバネアンナイ SPRING GUIDE 43 S50200001 1 オサエバネ PRESSER BAR SPRING 44 S31013001 1 チョウセツネジツマミナット PRESSER ADJUSTING NUT 45 S31012001 1 オサエチョウセツネジ PRESSER ADJUSTING SCREW 46 140407001 1 ザガネ WASHER 47 145472001 1 オサエボウメタル PRESSER BAR BUSH 48 S50201001 1 P-BARローラダイ P-BAR ROLLER BRACKET 49 S50202001 1 ハサミササエジクコロ ROLLER 50 062671212 1 ナベネジ357-40X12 SCREW PAN SM3.57-40X12 51 025060132 1 ヒラザガネショウ6 WASHER PLAIN S 6 52 048060142 1 トメワジクコウC6 RETAINING RING EXTERNAL C6 53 S50203101 1 オサエコロ ROLLER 54 S50204001 1 オサエコロジク ROLLER SHAFT 55 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 56 S37927000 1 ハリボウアンナイ NEEDLE BAR GUIDE 57 100242003 2 シメネジ3.57 SCREW, SM3.57-40X5 58 155578000 2 ゴムセン7.2 RUBBER CAP, 7.2 59 S50205001 1 オサエセンサードグ CLAMP SENSOR DOG 60 060670512 2 バインド357-40X5 SCREW BIND SM3.57-40X5 61 S50206001 1 オサエセンサーイタ CLAMP SENSORPLATE 62 102538002 1 サラネジ3.57 SCREW, FLAT SM3.57 63 025040232 3 ヒラザガネチュウ4 WASHER PLAIN M 4 HE-800A-201 jintex.in 12

Page 16

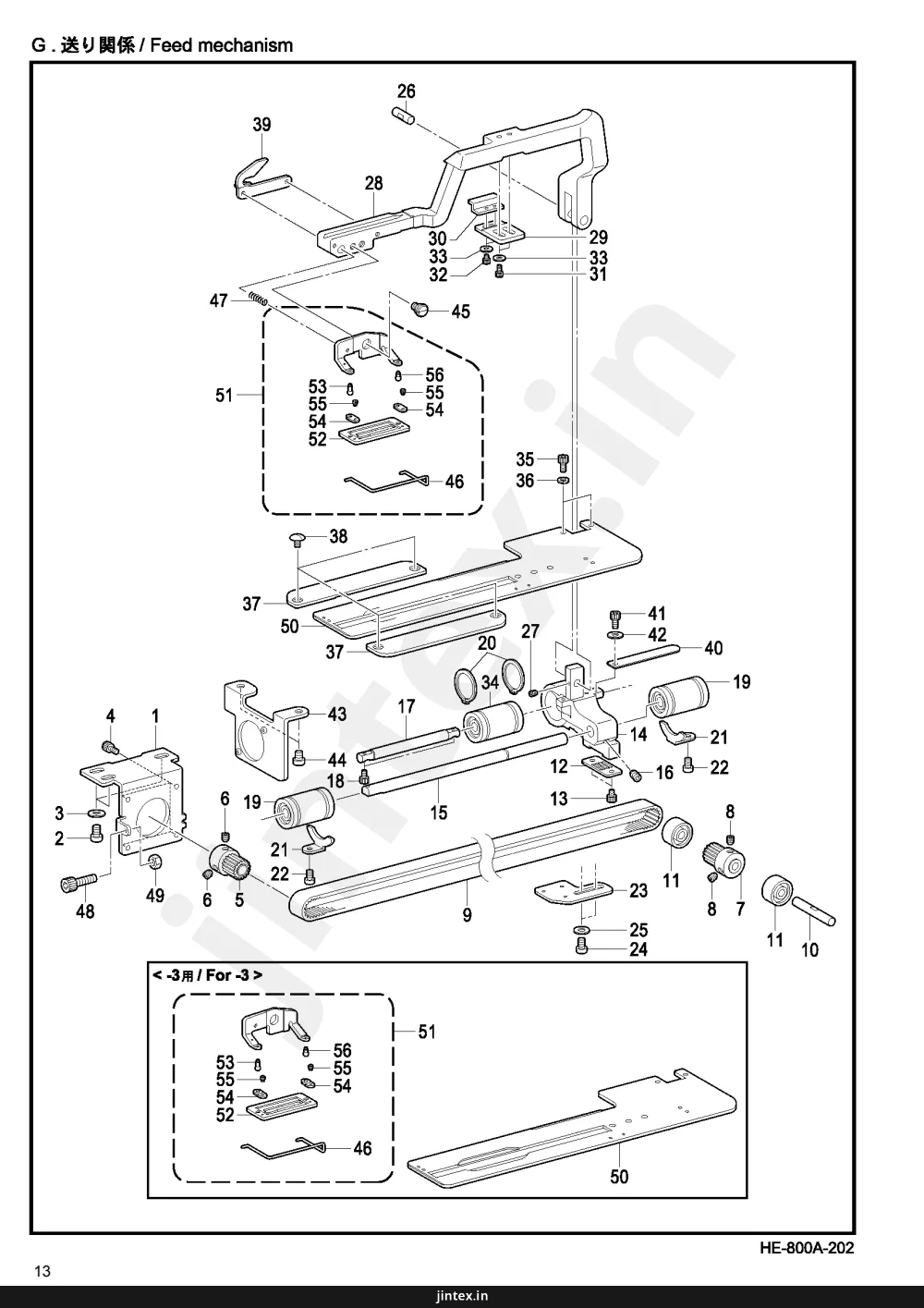

G. 送り関係 / Feed mechanism 39 26 28 30 33 32 29 33 31 47 45 51 53 55 54 52 56 55 54 35 36 46 38 37 50 27 41 42 37 20 40 34 19 4 1 43 17 14 21 44 12 16 22 18 13 3 6 19 15 8 2 21 22 48 49 6 5 23 11 9 8 7 25 24 11 10 <-3用 / For -3> 51 53 55 54 52 56 55 54 46 50 HE-800A-202 13 jintex.in

Page 17 — G. 送り関係 / Feed mechanism

G. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50207001 1 モータササエイタ MOTOR MOUNTING BRACKET 2 062761012 3 ナベコ595-28X10 SCREW PAN SM5.95-28X10 3 025060232 3 ヒラザガネチュウ6 WASHER PLAIN M 6 4 018401032 4 アナボルト4X10 BOLT, SOCKET M4X10 5 S50208001 1 オクリドウプーリA PULLEY, A 6 014060632 2 アナクボミ6X6 SET SCREW SOCKET (CP) M6X6 7 S50110001 1 オクリドウプーリB PULLEY, B 8 014060632 2 アナクボミ6X6 SET SCREW SOCKET (CP) M6X6 9 S50209000 1 オクリタイミングベルト TIMING BELT 10 S50210001 1 オクリプーリササエジク SUPPORT SHAFT 11 070688850 2 Rタマジクウケ688ZZ BALL BEARING RADIAL 688ZZ 12 S50211101 1 オクリベルトホルダ BELT HOLDER 13 S59890001 2 アナボルト437-40X8 BOLT, SOCKET SM4.37-40X8 14 S50212001 1 オクリウデササエイ FEED ARM SUPPORT 15 S50213001 1 オクリアンナイジクB FEED GUIDE SHAFT, B 16 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 17 S50214001 1 オクリアンナイジクA FEED GUIDE SHAFT, A 18 S59894001 2 アナボルト437-40X12 BOLT, SOCKET SM4.37-40X12 19 S12004000 2 リニアブッシュ LINEAR BUSH 20 S02460001 2 トメワジクヨウC19 RETAINING RING, EXTERNAL C19 21 S35184001 2 タマジクウケテイタ BALL BEARING STOPPER 22 060660416 2 バインド318-40X4 SCREW BIND SM3.18-40X4 23 S50215101 1 オクリセンサササエイタ FEED SENSOR SUPPORT PLATE 24 062680812 2 ナベコ437-40X8 SCREW PAN SM4.37-40X8 25 025680132 2 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 26 S50216101 1 オクリウデササエジク SUPPORT SHAFT 27 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 28 S50217001 1 オクリウデ FEED ARM 29 S50218001 1 ニガシカムササエイタ SUPPORT PLATE 30 S50219101 1 ウワイトキリニガシカム CAM 31 S59893001 2 アナボルト437-40X10 BOLT, SOCKET SM4.37-40X10 32 S59892001 2 アナボルト437-40X5 BOLT, SOCKET SM4.37-40X5 33 110735002 4 ザガネ WASHER 34 S12004000 1 リニアブッシュ LINEAR BUSH 35 S59893001 2 アナボルト437-40X10 BOLT, SOCKET SM4.37-40X10 36 028680242 2 バネザガネ2-4.37 WASHER SPRING 2-4.37 37 S50221101 2 オクリオサエイタ FEED PRESSER PLATE 38 105130001 4 シメネジ3.57 SCREW, SM3.57 39 S50222001 1 オクリウデササエ FEED ARM SUPPORT 40 S50223100 1 オクリカバー COVER 41 S59890001 1 アナボルト437-40X8 BOLT, SOCKET SM4.37-40X8 42 025680132 1 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 43 S50224001 1 オクリモータカバー FEED MOTOR COVER 44 062680812 2 ナベコ437-40X8 SCREW PAN SM4.37-40X8 45 S50562101 1 ダンネジ6.35 SHOULDER SCREW SM6.35 46 159080100 1 フィンガーガードM FINGER GUARD, M 47 159078001 1 ヌノツカミササエバネ SPRING 48 018502032 1 アナボルト5X20 BOLT SOCKET M5X20 49 021500216 1 2シュナット5 NUT 2 M5 <-2用> 50 S50220001 1 ナガサオクリイタ-2 LENGTH FEED PLATE, -2 51 S37100302 1 ヌノツカミ25RSクミF WORK CLAMP ASSY 25RS W/F-G 52 159762002 1 ヌノツカミ25RS WORK CLAMP 25RS 53 159926001 1 ヌノツカミササエピン L PIN, L 54 107401001 2 ヌノツカミササエイタバネ SPRING, PLATE 55 107404001 2 シメネジ1.98 SCREW, SM1.98-64X2 56 159927001 1 ヌノツカミササエピン S PIN, S HE-800A-202 14

Page 18

G. 送り関係 / Feed mechanism 26 39 28 30 33 32 29 33 31 47 45 51 53 55 54 52 56 55 54 35 36 46 38 37 50 37 20 27 41 42 40 34 19 4 1 43 17 14 21 44 18 12 16 22 6 19 13 3 2 15 8 21 22 49 6 5 23 11 48 9 8 7 25 24 11 10 <-3用 / For -3> 51 53 55 54 52 56 55 54 46 50 HE-800A-202 15 jintex.in

Page 19 — G. 送り関係 / Feed mechanism

G. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM <-3用> <For -3> 50 S50225001 1 ナガサオクリイター3 LENGTH FEED PLATE, -3 51 S37102301 1 ニットヨウヌノツカミ25クミF WORK CLAMP ASSY 25-K W/F-G 52 144630001 1 ニットヨウヌノツカミ WORK CLAMP 25-K 53 159926001 1 ヌノツカミササエピン L PIN, L 54 144707001 2 ヌノツカミササエイタバネ SPRING, PLATE 55 107404001 2 シメネジ1.98 SCREW, SM1.98-64X2 56 159927001 1 ヌノツカミササエピン S PIN, S HE-800A-202 16

Page 20

H. カッター関係 / Cutter mechanism 13 14 15 16 17 18 41 40 42 43 46 44 45 46 48 47 3 12 20 19 21 22 23 24 25 26 <オプション部品 / Option parts > 50 17 29 32 31 9 11 11 10 10 33 30 49 35 39 38 8 37 34 36 28 28 27 6 5 7 8 4 2 1 HE-800A-218 jintex.in

Page 21 — H. カッター関係 / Cutter mechanism

H. カッター関係 / Cutter mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50283001 1 カッタークドウウデジク CUTTER DRIVING ARM SHAFT 2 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 3 S50284101 1 カッターサドウジク CUTTER DRIVING SHAFT 4 S50285101 1 サドウジクホルダクミ DRIVING SHAFT HOLDER ASSY 5 S50286101 1 カッターサドウジクホルダ CUTTER DRIVING SHAFT HOLDER 6 S50287001 1 カッターリンクジク CUTTER DRIVING LINK SHAFT 7 014780632 3 アナクボミ635-28X6 SET SCREW SOCKET SM6.35-28X6 8 S50288001 2 カッタークドウリンク CUTTER DRIVING LINK 9 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 10 SA2385001 2 カッターボウアンナイ GUIDE, ; C-BAR 11 062761012 4 ナベコ595-28X10 SCREW PAN SM5.95-28X10 12 159117001 1 カッターサドウジクメタル BUSH, ; C-DRIVING SHAFT 13 S50289001 1 チョウセツネジクミ ADJUSTING SCREW ASSY 14 S50290001 1 チョウセツネジ ADJUSTING SCREW 15 S50291001 1 クッションバネ CUSHION SPRING 16 S50292001 1 クッションウケ CUSHION SUPPORT 17 S50293001 1 ダンネジ3.57 SHOULDER SCREW, SM3.57 18 021910302 1 シュナット1270-20 NUT 3 SM12.70-20 19 S50294001 1 カッターホルダ CUTTER HOLDER 20 S59893001 1 アナボルト437-40X10 BOLT, SOCKET SM4.37-40X10 21 S50295001 1 カッターホルダM CUTTER HOLDER, M 22 S59891001 2 アナボルト437-40X6 BOLT, SOCKET SM4.37-40X6 23 S50296001 1 カッターホルダDL CUTTER HOLDER, DL 24 153057102 2 オクリイタシメネジ SCREW, ROUND W/SOCKET SM4.37 25 S51352001 1 カッター1/2 CUTTER, 1/2 26 115030001 1 シメネジ4.37 SCREW, SM4.37 27 S09212001 1 セットカラー SET SCREW COLLAR 28 014770632 2 アナクボミ635-40X6 SET SCREW SOCKET SM6.35-40X6 29 S50298101 1 カッタークドウウデクミ CUTTER DRIVING ARM ASSY 30 S50299101 1 カッタークドウウデ CUTTER DRIVING ARM 31 159104001 1 Cサドウデピン PIN 32 014680632 1 アナクボミ437-40X6 SET SCREW SOCKET SM4.37-40X6 33 159379001 1 ミゾツキピンBX6X18 PIN, DOWEL BX6X18 34 S50300001 1 カッターリンクジク CUTTER LINK SHAFT 35 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 36 048060342 1 トメワE6 RETAINING RING E6 37 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 38 SA2412001 1 カッターリンクダイ CUTTER LINK BRACKET 39 S59894001 1 アナボルト437-40X12 BOLT, SOCKET SM4.37-40X12 40 S50362001 1 カッターソレノイドダイ CUTTER SOLENOID BRACKET 41 062711412 4 ナベコ476-32X14 SCREW PAN SM4.76-32X14 42 018501032 3 アナボルト5X10 BOLT SOCKET M5X10 43 S50363000 1 ストッパクッション STOPPER CUSHION 44 S50364001 1 ソレノイドストッパ SOLENOID STOPPER 45 028080242 1 バネザガネ2-8 WASHER SPRING 2-8 46 021080202 2 2シュナット8 NUT 2 M8 47 S50365101 1 カッターセンサトリツケイタ CUTTER SENSOR SETTING PLATE 48 062710812 1 ナベコ476-32X8 SCREW PAN SM4.76-32X8 49 S50366001 1 カッターモドシバネ SPRING <オプション部品> 50 S50297001 1 カッターオサエ <OPTION PARTS> CUTTER HOLDER HE-800A-218 18 jintex.in

Page 22 — J. 糸切れ感知関係 / Thread breakage detector mechanism

J. 糸切れ感知関係 / Thread breakage detector mechanism 9 6 8 7 11 10 5 11 10 13 12 2 3 4 1 HE-800A-219 19 jintex.in

Page 23 — J. 糸切れ感知関係 / Thread breakage detector mechanism

J. 糸切れ感知関係 / Thread breakage detector mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50273000 1 イトキレカンチトアンナイ THREAD GUIDE 2 025060232 1 ヒラザガネチュウ6 WASHER PLAIN M 6 3 025350332 1 ヒラザガネダイ3.5 WASHER PLAIN L 3.5 4 060670612 1 バインド357-40X6 SCREW BIND SM3.57-40X6 5 159145001 1 イトキレカンチレバージク TR-BREAKAGE PERCEIVING SHAFT 6 141619001 1 カツタオチボウシイタ FIXEING PLATE, ; C-BAR 7 141620001 1 ボウシイタバランス BALANCER 8 101671002 1 シメネジ4.37 SCREW, SM4.37 9 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 10 S50274001 2 レバーストッパ LEVER STOPPER 11 062400612 2 ナベコ4X6 SCREW PAN M4X6 12 S50275001 1 イトキレカンチセンサイタ THREAD BREAKAGE SENSOR PLATE 13 062400612 2 ナベコ4X6 SCREW PAN M4X6 HE-800A-219 20

Page 24 — K. かま関係 / Rotary hook mechanism

K. かま関係 / Rotary hook mechanism 1 7 9 14 10 3 8 6 11 13 12 4 5 2 19 17 15 20 21 18 16 22 < 補給用部品 / For supply parts > 24 25 23 HE-800A-301 21 jintex.in

Page 25 — K. かま関係 / Rotary hook mechanism

K. かま関係 / Rotary hook mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50226001 1 カマジクメタル ROTARY HOOK SHAFT BUSH 2 SA7405001 1 カマツギテソウクミ ROTARY HOOK JOINT UNIT 3 014760632 4 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 4 S56391001 1 トメネジ3.18 SET SCREW, SM3.18 5 021660306 1 3シュナット318-40 NUT 3 SM3.18-40 6 SA7402001 1 ゴムセン3.7 RUBBER CAP 3.7 7 S50230001 1 カマトメ B-CASE HOLDER POSITION BRACKET 8 100644005 2 シメネジ4.37 SCREW, SM4.37 9 S50232000 1 カマフエルト ROTARY HOOK FELT 10 S50231200 1 トウシンカラー COLLAR 11 S07478000 1 ゴムオサエ RUBBER PRESSER 12 S54741001 1 シメネジ6.35 SCREW, SM6.35 13 S50233001 1 ゴムオサエバネ SPRING 14 S50111100 1 フエルトオサエバネ SPRING 15 SA9138001 1 ボビンケースクミ BOBBIN CASE ASSY 16 SA8126001 1 クウテンボウシバネ ANTI-SPIN SPRING 17 183526001 2 ナカカマオサエシメネジ SCREW 18 S50236001 1 ナカカマオサエシメネジB SCREW 19 183598001 1 ウライタシメネジ SCREW 20 S09477001 1 ボビンチョウシバネ SPRING 21 180721001 1 チョウシバネシメネジ SCREW 22 183507001 1 チョウシネジ ADJUSTING SCREW 23 159158051 1 ボビン BOBBIN <補給用部品> <For Supply parts> 24 SA9140001 1 SA9139カマハコグミ ROTARY HOOK ASSY W/BOX SA9139 25 SA9141001 1 SA9137カマハコグミ ROTARY HOOK ASSY W/BOX SA9137 HE-800A-301 jintex.in 22

Page 26 — L. 下軸関係 / Lower shaft mechanism

L. 下軸関係 / Lower shaft mechanism 1 4 11 9 7 3 6 7 2 11 10 12 13 5 8 23 jintex.in HE-800A-305

Page 27 — L. 下軸関係 / Lower shaft mechanism

L. 下軸関係 / Lower shaft mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50240001 1 シタジク LOWER SHAFT 2 SA3033001 1 タイミングプーリクミ TIMMING PULLEY ASSY 3 076002450 1 Rタマジクウケ6002DDNR BALL BEARING RADIAL 6002DDNR 4 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 5 183827001 1 セットカラークミ SET SCREW COLLAR ASSY 6 104521001 1 セットカラー SET SCREW COLLAR 7 014770632 2 アナクボミ635-40X6 SET SCREW SOCKET SM6.35-40X6 8 S50243101 1 シタジクメタルMクミ BUSH ASSY M 9 S50244101 1 シタジクメタルM BUSH M 10 S38735001 4 オイルクチ OIL FEEDING PIPE 11 142274101 4 ゴムセン4.2 RUBBER CAP, 4.2 12 S50245001 1 シタジクメタルMカバー COVER 13 062670612 2 ナベコ357-40X6 SCREW PAN SM3.57-40X6 HE-800A-305 jintex.in 24

Page 28 — M . 給油潤滑関係 / Lubrication

M . 給油潤滑関係 / Lubrication 24 25 69 68 71 81 80 67 59 35 74 72 57 70 34 33 73 36 83 30 38 47 29 32 42 64 28 26 27 44 63 31 41 61 62 37 85 76 86 75 39 47 53 52 23 60 58 49 50 48 65 66 77 84 52 40 60 51 56 55 7879 84 54 46 16 45 18 19 20 1 2 3 4 5 6 21 12 13 22 8 8 7 15 14 17 9 10 11 9 10 11 HE-800A-350 25 jintex.in

Page 29 — M. 給油潤滑関係 / Lubrication

M. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 144875001 2 プランジャー PLUNGER 2 S52764001 2 プランジャーバネ SPRING COMPRESSION 3 552907000 2 コードホルダ#10 CORD HOLDER #10 4 062670612 2 ナベコ357-40X6 SCREW PAN SM3.57-40X6 5 025350132 2 ヒラザガネショウ3.5 WASHER PLAIN S 3.5 6 112467002 2 シメネジ6.35 SCREW, SM6.35X5 7 S50356001 1 オイルフィルタトリツケイタクミ OIL FILTER BRACKET ASSY 8 062680812 3 ナベコ437-40X8 SCREW PAN SM4.37-40X8 9 144872101 1 ポンプフィルター PUMP FILTER 10 144874001 2 フィルターバネ SPRING 11 062670512 2 ナベコ357-40X5 SCREW PAN SM3.57-40X5 12 S50359001 1 チューブササエD TUBE SUPPORT, D 13 062680612 1 ナベコ437-40X6 SCREW PAN SM4.37-40X6 14 S5036001 1 カマフエルトササエ ROTARY HOOK FELT SUPPORT 15 060670612 2 バインド357-40X6 SCREW BIND SM3.57-40X6 16 S50556000 1 フエルト FELT 17 S50563000 1 クミヒモ4X200 WICK, 4X200 18 SA4063001 1 クミヒモ2X460 WICK, 2X460 19 S50559001 1 チューブササエ TUBE SUPPORT 20 060670612 1 バインド357-40X6 SCREW BIND SM3.57-40X6 21 S50557000 1 ビニルチューブ OIL TUBE 22 S50558000 1 ビニルチューブ OIL TUBE, L=180 23 S50513100 1 メンイタパツキン FACE PLATE PACKING 24 S50514000 1 ガワイタパツキン REAR COVER PACKING 25 S50515000 1 ウワフタパツキン TOP COVER PACKING 26 S50516001 1 トウシンベースササエ WICK BASE SUPPORT 27 062670612 2 ナベコ357-40X6 SCREW PAN SM3.57-40X6 28 159187000 1 トウシンベースA FELT BASE, A 29 S50517001 1 トウシンベースフタ CAP 30 062680712 2 ナベコ437-40X7 SCREW PAN SM4.37-40X7 31 S50518000 1 トウシンベースフエルト FELT 32 S50519000 1 オイルターミナル OIL TERMINAL 33 062680612 2 ナベコ437-40X6 SCREW PAN SM4.37-40X6 34 S50520000 1 パツキン PACKING 35 S50521000 1 オイルマド OIL CAP 36 159193000 1 オイルパイプB OIL PIPE, B 37 S50522000 1 ビニルチューブ OIL TUBE 38 S52763000 1 クミヒモ2X140 WICK, 2X140 39 S50524000 1 クミヒモ3X160 WICK, 3X160 40 S50525000 1 クミヒモ3X290 WICK, 3X290 41 S50527000 1 ビニルチューブ OIL TUBE 42 S50528000 1 クミヒモ3X280 WICK, 3X280 43 S50529000 1 ビニルチューブ OIL TUBE, L=320 44 S50530000 1 クミヒモ3X355 WICK, 3X355 45 S50531000 1 ビニルチューブ OIL TUBE 46 S50532000 1 ビニルチューブ OIL TUBE 47 228475000 2 ケツソクバンド1.9X80 FASTENING BAND 1.9X80 48 S00480000 1 コードホルダ#5 CORD HOLDER 5N 49 062670612 1 ナベコ357-40X6 SCREW PAN SM3.57-40X6 50 025350132 1 ヒラザガネショウ3.5 WASHER PLAIN S 3.5 51 106436001 1 フエルト FELT 52 107149001 2 フエルト FELT 53 151927001 3 クラツチフエルト FELT, CLUTCH 54 S50533000 1 スイアゲチューブクミ OIL TUBE ASSY 55 S50536001 1 フエルトオサエ FELT HOLDER 56 062670512 1 ナベコ357-40X5 SCREW PAN SM3.57-40X5 57 S25328001 1 フエルト FELT 58 S50537000 1 クミヒモ4X50 WICK, 4X50 59 S50538001 1 アブラマドササエ OIL WINDOW SUPPORT 60 S50539000 2 アブラキリ OIL REJECTOR 61 S50540001 1 ハイユチューブササエ TUBE SUPPORT 62 062680612 1 ナベコ437-40X6 SCREW PAN SM4.37-40X6 63 S50541001 1 チューブササエU TUBE SUPPORT, U HE-800A-350 jintex.in 26

Page 30 — M . 給油潤滑関係 / Lubrication

M . 給油潤滑関係 / Lubrication 24 25 69 68 71 81 80 67 72 57 59 35 74 70 34 33 36 83 73 30 38 47 29 32 42 64 28 26 63 44 27 41 31 61 62 37 76 85 86 75 39 47 53 52 23 60 58 49 84 50 65 66 77 48 52 40 60 51 56 55 82 7879 84 54 45 16 brother 46 18 19 20 12 21 1 3 5 13 2 4 6 22 8 7 15 14 8 17 9 10 10 11 11 27 HE-800A-350 jintex.in

Page 31 — M. 給油潤滑関係 / Lubrication

M. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 64 060670612 1 バインド357-40X6 SCREW BIND SM3.57-40X6 65 S50542001 1 チューブササエM TUBE SUPPORT, M 66 062400612 1 ナベコ4X6 SCREW PAN M4X6 67 S50543001 1 ハリフリフエルトササエ FELT SUPPORT 68 S50544000 1 フエルト FELT 69 062400612 1 ナベコ4X6 SCREW PAN M4X6 70 S50545000 1 クミヒモ3X180 WICK, 3X180 71 S50546000 1 クミヒモ3X370 WICK, 3X370 72 S50547000 1 クミヒモ4X50 WICK, 4X50 73 S50570000 1 ビニルチューブ OIL TUBE 74 228475000 2 ケツソクバンド1.9X80 FASTENING BAND 1.9X80 75 S50548001 1 ハイユチューブササエR TUBE SUPPORT, R 76 060670612 1 バインド357-40X6 SCREW BIND SM3.57-40X6 77 S50549000 1 クランクロッドフエルト FELT 78 S50550001 1 フエルトオサエイタ FELT SUPPORT 79 062670512 1 ナベコ357-40X5 SCREW PAN SM3.57-40X5 80 S50551001 1 ハリフリチューブササエ TUBE SUPPORT 81 002300603 1 +ナベコ3X6 SCREW PAN M3X6 82 S50552000 1 クミヒモ4X70 WICK, 4X70 83 S51020000 1 トウシンカラー COLLAR 84 S25328001 2 フエルト FELT 85 SA4066001 1 ビニルチューブ OIL TUBE, L=40 86 SA4067001 1 クミヒモ3X150 WICK, 3X150 HE-800A-350 28

Page 32 — N . 糸通し関係 / Threading mechanism

N . 糸通し関係 / Threading mechanism 25 21 82 24 22 27 31 26 28 23 29 32 31 30 5 33 4 2 1 9 8 3 80 34 7 6 19 35 18 11 45 36 10 72 37 17 13 15 73 74 38 12 14 46 39 40 16 71 20 41 75 76 78 42 44 81 79 43 47 57 58 48 56 49 50 77 70 51 59 52 68 53 67 54 69 66 55 60 61 62 63 64 65 HE-800A-401 29 jintex.in

Page 33 — N. 糸通し関係 / Threading mechanism

N. 糸通し関係 / Threading mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50368001 1 イトユルメドウレバークミ T-RELEASE DRIVING LEVER ASSY 2 S50369001 1 イトユルメドウレバー TENSION RELEASE DRIVING LEVER 3 S35095000 1 ニードルローラ4X13.8 NEEDLE ROLLER, 4X13.8 4 014400432 1 アナクボミ4X4 SET SCREW SOCKET (CP) M4X4 5 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 6 S50370001 1 イトユルメジク TENSION RELEASE SHAFT 7 081005070 1 OリングP5 O RING P5 8 S50371101 1 イトユルメカム TENSION RELEASE CAM 9 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 10 S50372101 1 イトクリダシレバー LEVER 11 S50373101 1 イトトリチョウセツレバー ADJUSTING LEVER 12 060670512 1 バインド357-40X5 SCREW BIND SM3.57-40X5 13 100645003 1 ザガネ WASHER 14 S50374001 1 イトトリレバーリンク LEVER LINK 15 S50375001 1 イトトリレバー TENSION TAKE-UP LEVER 16 S50376101 2 ダンネジ4.37 SHOULDER SCREW SM4.37 17 100645003 1 ザガネ WASHER 18 062680612 1 ナベコ437-40X6 SCREW PAN SM4.37-40X6 19 025680234 1 ヒラザガネチュウ4.37 WASHER PLAIN M SM4.37 20 SA6113001 1 ダンネジ4.37-5.5 SHOULDER SCREW SM4.37-5.5 21 S50377001 1 イトユルメソレノイドホルダ SOLENOID HOLDER 22 062670612 2 ナベコ357-40X6 SCREW PAN SM3.57-40X6 23 S50378001 1 プランジャオサエイタ PLATE 24 018300636 1 アナボルト3X6 BOLT SOCKET M3X6 25 062300502 2 ナベコ3X5 SCREW PAN M3X5 26 SA0992001 1 イトユルメソレノイドリンク TENSION RELEASE SOLENOID LINK 27 S25456001 1 プランジャピン PLUNGER PIN 28 S50380000 1 プランジャモドシバネ SPRING 29 SA0990001 1 イトユルメゴムクミ TENSION RELEASE RUBBER ASSY 30 S50382001 1 イトユルメリンク TENSION RELEASE LINK 31 S50376101 2 ダンネジ4.37 SHOULDER SCREW SM4.37 32 141590001 1 イトオンボウ THREADING BAR, U 33 150553003 1 ナット5.95 NUT, SM5.95 34 S50383001 1 イトカケ THREAD RETAINER 35 062670612 2 ナベコ357-40X6 SCREW PAN SM3.57-40X6 36 S51184201 1 フクイトチョウシクミ SUB THREAD TENSION ASSY 37 SA4232001 1 フクイトチョウシボウ SUB TENSION STUD 38 145446001 2 イトチョウシサラ DISC, TENSION 39 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 40 144103009 1 イトチョウシサラオサエ TENSION DISC PRESSER 41 144110101 1 シタルーパイトチョウシバネ TENSION ADJUSTING SPRING 42 S30564000 1 チョウシバネウエザガネ WASHER 43 S30565003 1 イトチョウシナット TENSION NUT 44 SA4233001 1 ツマミストッパ KNOB NUT STOPPER 45 S50384101 1 イトユルメピン TENSION RELEASE PIN 46 S50385001 1 イトユルメレバーダイ TENSION RELEASE LEVER BRACKET 47 S51183101 1 イトチョウシボウクミ TENSION STUD ASSY 48 145440001 1 イトチョウシボウ TENSION STUD 49 145446001 2 イトチョウシサラ DISC, TENSION 50 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 51 144103009 1 イトチョウシサラオサエ TENSION DISC PRESSER 52 S50386101 1 イトチョウシバネ TENSION SPRING 53 S50387001 1 イトチョウシナットカラー COLLAR 54 151148001 1 MLマワリドメ STOPPER ML 55 S30565005 1 イトチョウシナット TENSION NUT 56 S50388001 1 イトユルメレバー TENSION RELEASE LEVER 57 114988001 1 ダンネジ4.37 SHOULDER SCREW, M4.37 58 S50389001 1 イトユルメレバーバネ SPRING 59 S51182501 1 イトチョウシボウダイクミ TENSION STUD BRACKET ASSY 60 S50391001 1 イトチョウシボウL TENSION STUD, L 61 145446001 2 イトチョウシサラ DISC, TENSION 62 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 63 159221101 1 イトチョウシバネ TENSION SPRING HE-800A-401 30

Page 34

N. 糸通し関係 / Threading mechanism 25 21 82 24 22 27 31 26 28 23 29 32 31 30 5 33 1 4 2 9 8 3 80 34 7 6 19 18 35 11 45 36 10 72 37 17 13 15 12 73 74 38 16 46 39 14 71 40 16 75 76 41 78 42 44 81 79 43 47 57 48 58 56 49 50 77 70 51 59 52 68 53 67 54 69 66 55 60 61 62 63 64 65 HE-800A-401 31 jintex.in

Page 35 — N. 糸通し関係 / Threading mechanism

N. 糸通し関係 / Threading mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 64 S30564000 1 チョウシバネウエザガネ WASHER 65 S31032001 1 イトチョウシナツト TENSION NUT 66 SA9058001 1 イトトリバネ THREAD TAKE-UP SPRING 67 S50390101 1 イトチョウシボウダイ TENSION STUD BRACKET 68 100402004 1 トメネジ3.57 SET SCREW, SM3.57 69 081014870 1 OリングS14 O RING S14 70 S50384101 1 イトユルミピン TENSION RELEASE PIN 71 S5975001 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 72 159224001 1 アームイトカケ THREAD GUIDE, ARM 73 S50392001 1 アームイトアンナイ ARM THREAD GUIDE 74 060670512 1 バインド357-40X5 SCREW BIND SM3.57-40X5 75 113316001 1 アームイトアンナイ ARM THREAD GUIDE 76 060670512 1 バインド357-40X5 SCREW BIND SM3.57-40X5 77 S50393000 1 イトオシイタ THREADING PLATE 78 159917201 1 アームイトアンナイシタ THREAD GUIDE, L ;ARM 79 112751003 1 シメネジ3.57 SCREW, SM3.57X7 80 048060342 1 トメワE6 RETAINING RING E6 81 SA3035001 1 イトアンナイオサエ THREAD GUIDE COVER 82 025030136 1 ヒラザガネショウ3 WASHER PLAIN S 3 HE-800A-401 jintex.in 32

Page 36

P . 糸巻関係 / Bobbin winder mechanism 24 23 22 21 15 16 14 2 20 19 18 25 17 28 6 27 28 11 9 29 13 12 10 1 26 4 3 4 5 7 8 HE-800A-402 33 jintex.in

Page 37 — P. 糸巻関係 / Bobbin winder mechanism

P. 糸巻関係 / Bobbin winder mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50276001 1 イトマキジクウケクミ B-WINDER SHAFT BRACKET ASSY 2 S50278001 1 イトマキジク BOBBIN WINDER SHAFT 3 S25410050 1 イトマキクルマ BOBBIN WINDER WHEEL 4 012400636 2 アナヒラ4X6 SET SCREW SOCKET (FT) M4X6 5 S25789000 1 ゴムワ29 RUBBER RING, 29 6 S50279101 1 イトマキウデジク BOBBIN WINDER ARM SHAFT 7 025080132 1 ヒラザガネショウ8 WASHER PLAIN S 8 8 048060342 1 トメワE6 RETAINING RING E6 9 S25413101 1 ボビンオサエジククミ BOBBIN PRESSER SHAFT ASSY 10 S25417001 1 イトマキバネ SPRING 11 S25418101 1 イトマキモドシバネ SPRING 12 S50280001 1 イトマキストッパ BOBBIN WINDER STOPPER 13 062400816 1 ナベコ4X8 SCREW PAN M4X8 14 S25420051 1 ボビンオサエR BOBBIN PRESSER R 15 062400816 1 ナベコ4X8 SCREW PAN M4X8 16 026040236 1 ヒラザガネミガキ4 WASHER PLAIN M 4 17 S10174000 1 ホコリヨケイタ DUST GUARD PLATE 18 157968001 1 メス KNIFE 19 062400616 1 ナベコ4X6 SCREW PAN M4X6 20 047200642 1 スプリングピンAW2 PIN SPRING ROLL AW2 21 S38736301 1 イトマキイトチョウシクミ BOBBIN WINDER TENSION ASSY 22 145446002 2 イトチョウシサラ DISC, TENSION 23 115188101 1 シュイトチョウシバネ TENSION SPRING 24 108265009 1 イトチョウシナツト TENSION NUT 25 012400636 1 アナヒラ4X6 SET SCREW SOCKET (FT) M4X6 26 048040342 1 トメワE4 RETAINING RING E4 27 S50281000 1 イトマキプーリ BOBBIN WINDER PULLEY 28 014780632 2 アナクボミ635-28X6 SET SCREW SOCKET SM6.35-28X6 29 S50282000 1 イトマキレバークッション B-WINDER LEVER CUSHION HE-800A-402 jintex.in 34

Page 38 — Upper thread trimmer mechanism

Q . 上糸切り関係 / Upper thread trimmer mechanism 63 41 52 53 55 54 58 57 59 56 60 62 61 24 30 38 25 39 28 27 26 29 20 21 22 23 18 17 19 14 15 13 51 41 45 40 43 44 6 5 33 35 34 37 31 32 36 46 47 49 48 50 8 12 7 10 9 11 45 40 42 44 16 4 1 3 3 2 HE-800A-409 35 jintex.in

Page 39 — Q. 上糸切り関係 / Upper thread trimmer mechanism

Q. 上糸切り関係 / Upper thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50394001 1 ウワイトキリシンテンジク UPPER T-TRIMMER FULCRUM SHAFT 2 110027001 1 セットカラー SET SCREW COLLAR 3 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 4 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 5 S52761101 1 ウワイトキリレバーザガネ WASHER RECTANGLE 15X32X2.4 6 S19817001 2 ダンネジ5.95 SHOULDER SCREW, SM5.95 7 S50395201 1 ウワイトキリレバークミ U-THREAD TRIMMER LEVER ASSY 8 S50398001 1 ハサミモドリトメイタ STOP PLATE 9 S50399101 1 ハサミモドシイタ BACK PLATE 10 S50400001 2 モドシイタカラー COLLAR 11 062670712 2 ナベコ357-40X7 SCREW PAN SM3.57-40X7 12 S50401001 1 ウワイトキリモドシバネ SPRING 13 SA9165001 1 チョウセイイタ ADJUSTING PLATE 14 144075001 2 ボルト3.57 BOLT, SM3.57 15 105161003 2 ザガネ WASHER, PLAIN 16 S02563001 1 モドシバネ SPRING, EXTENSION 17 S02563001 1 モドシバネ SPRING, EXTENSION 18 S50403101 1 ハサミトリツケイタ SETTING PLATE 19 159343001 1 ハサミササエジク SUPPORT STUD 20 021680202 1 2シュナット437-40 NUT 2 SM4.37-40 21 025680132 1 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 22 062680612 2 ナベコ437-40X6 SCREW PAN SM4.37-40X6 23 025680232 2 ヒラザガネチュウ4.37 WASHER PLAIN M SM4.37 24 S50404401 1 ハサミクミ UPPER THREAD TRIMMER ASSY 25 S50405301 1 ハサミDクミ THREAD TRIMMER ASSY D 26 S50113101 1 ハサミM UPPER THREAD TRIMMER, M 27 141513001 1 ハサミU UPPER THREAD TRIMMER UPPER 28 141514001 1 ハサミダンネジ SHOULDER SCREW, SM3.18 29 S52431000 1 ハサミストッパ U-THREAD TRIMMER STOPPER 30 100644005 1 シメネジ4.37 SCREW, SM4.37 31 SA9166001 1 ヒラカミトリツケイタ OPENING CAM SETTING PLATE 32 SA9167001 1 ヒラカミクミ OPENING CAM 33 018300836 2 アナボルト3X8 BOLT SOCKET M3X8 34 SA9168001 1 ヒラカミザガネ WASHER PLAIN 35 028030246 2 バネザガネ2-3 WASHER SPRING 2-3 36 021300206 2 2シュナット3 NUT 2 M3 37 107093002 2 シメネジ4.37 SCREW, SM4.37 38 025680232 1 ヒラザガネチュウ4.37 WASHER PLAIN M SM4.37 39 028680242 1 バネザガネ2-4.37 WASHER SPRING 2-4.37 40 S50410101 2 イトキリクトウレバー THREAD TRIMMER DRIVING LEVER 41 117936001 2 ゴムセン9.4 RUBBER CAP, 9.4 42 S50411101 1 クドウレバーコロ DRIVING LEVER ROLLER 43 S50412000 1 タマシマクウケ106ZZS BALL BEARING, 106ZZS 44 S50413101 2 クドウレバーダンネジ SHOULDER SCREW 45 081012070 2 OリングP12 O RING P12 46 S50414001 1 ゼンゴサドウウデ LONGITUDINAL FEED ARM 47 S50415001 1 ゼンゴウデピン L-FEED ARM PIN 48 S50416001 1 ゼンゴウデコロ L-FEED ARM ROLLER 49 048040342 2 トメワE4 RETAINING RING E4 50 014680632 1 アナクボミ437-40X6 SET SCREW SOCKET SM4.37-40X6 51 018061632 1 アナボルト6X16 BOLT SOCKET M6X16 52 SA9169001 1 イトキリサドウウデ THREAD TRIMMER DRIVING ARM 53 SA9170001 1 ウデコロササエイタ SUPPORT PLATE 54 S59893001 1 アナボルト437-40X10 BOLT, SOCKET SM4.37-40X10 55 025680132 1 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 56 SA9172001 1 ウデコロンダンネジ ROLLER, SHOULDER SCREW 57 028050243 1 バネザガネ2-5 WASHER, SPRING 2-5 58 021500316 1 3シュナット5 NUT 3 M5 59 S50511101 1 サドウウデコロ DIFFERENTIAL ARM ROLLER 60 SA9171001 1 ハサミモドシストッパ STOPPER 61 S59893001 1 アナボルト437-40X10 BOLT, SOCKET SM4.37-40X10 62 025680132 1 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 63 018061632 1 アナボルト6X16 BOLT SOCKET M6X16 HE-800A-409 36

Page 40 — R . 下糸切り関係 / Lower thread trimmer mechanism

R . 下糸切り関係 / Lower thread trimmer mechanism <-3用 / For -3 > 76 37 HE-800A-410 jintex.in

Page 41 — R. 下糸切り関係 / Lower thread trimmer mechanism

R. 下糸切り関係 / Lower thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50246001 1 シタイトキリカムレバー LOWER THREAD TRIMMER CAM LEVER 2 107744001 1 コロ ROLLER 3 141519001 1 イトキリサドウカムコロジク ROLLER SHAFT 4 110161004 1 ナット4.76 NUT, SM4.76 5 048030342 1 トメワE3 RETAINING RING E3 6 159267001 1 シタイトキリカムジク CAM SHAFT, ; L-TR 7 110494001 1 ザガネ WASHER, PLAIN 9.5 8 048030342 1 トメワE8 RETAINING RING E8 9 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 10 S50247101 1 シタイトキリカム LOWER THREAD TRIMMER CAM 11 S50411101 1 クドウレバーコロ DRIVING LEVER ROLLER 12 145478101 1 ダンネジ4.76 SHOULDER SCREW, SOCKET SM4.76 13 S50248101 1 シタイトキリカムレンカン L-THREAD TRI.CAM CONNECTIN ROD 14 150491101 2 レバージク LEVER SHAFT 15 014760632 2 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 16 159269001 1 シタイトキリリンクダンネジ SHOULDER SCREW, SM4.37 17 S50249201 1 シタイトキリリンククミ LOWER THREAD TRIMMER LINK ASSY 18 S59987101 1 シタイトキリレンカンA LOWER THREAD CONNECTING ROD A 19 062680512 2 ナベコ437-40X5 SCREW PAN SM4.37-40X5 20 149127001 1 ダンネジ6.35 SHOULDER SCREW, SM6.35 21 S50252001 1 メスサドウレバー KNIFE DRIVING LEVER 22 113730001 1 ダンネジ4.37 SHOULDER SCREW, SM4.37 23 159272001 1 メスサドウレバーダンネジ SHOULDER SCREW 24 S00903001 1 メスサドウレバーカラー COLLAR 25 S00901001 1 メスサドウレバーザガネU WASHER, PLAIN L 6.4: U 26 SA3001001 1 メスサドウレバーザガネD WASHER, PLAIN L 4.8: D 27 S50253001 1 サバキクドウレバークミ LEVER ASSY 28 S50257001 1 サバキクドウレバーカラー COLLAR 29 S00712101 1 シメネジ4.37 SCREW, SM4.37 30 S50258201 1 シタイトサバキ LOWER THREAD RETAINER 31 110215002 2 シメネジ3.57 SCREW SM3.57 32 S50259101 1 シタイトテイハソウクミ LOWER FIXED KNIFE UNIT 33 S50260101 1 シタイトテイハクミ LOWER FIXED KNIFE ASSY 34 S50263001 1 シタイドウハ MOVABLE KNIFE 35 S50264000 1 マゲワッシャー4302 WASHER 36 025040132 1 ヒラザガネショウ4 WASHER PLAIN S 4 37 060630312 1 バインド238-56X3 SCREW BIND SM2.38-56X3 38 060670412 2 バインド357-40X4 SCREW BIND SM3.57-40X4 39 S50265001 1 シタイトツカミイタクミ LOWER THREAD CLAMP PLATE ASSY 40 141514001 1 ハサミダンネジ SHOULDER SCREW, SM3.18 41 025040132 1 ヒラザガネショウ4 WASHER PLAIN S 4 42 S50269000 1 マゲワッシャー5011 WASHER 43 S50270000 1 シタイトオサエ LOWER THREAD PRESSER 44 145371001 1 ダンネジ2.38 SHOULDER SCREW, SM2.38 45 110215002 1 シメネジ3.57 SCREW SM3.57 46 S52433001 1 シタイトツカミヒラキイタA OPENING PLATE A 47 110167001 1 コロ ROLLER 48 110168001 1 コロジク ROLLER SHAFT 49 S52434001 1 シタイトツカミヒラキイタB OPENING PLATE, B 50 141514001 1 ハサミダンネジ SHOULDER SCREW, SM3.18 51 123185001 1 マルヒラネジ3.57X4.5 SCREW, ROUND SM3.57X4.5 52 149127001 1 ダンネジ6.35 SHOULDER SCREW, SM6.35 53 105970001 1 シメネジ2.38 SCREW, SM2.38 54 S52778101 1 ハリイタベースクミ BASE PLATE ASSY 55 S50303101 1 ハリイタベース BASE PLATE 56 S52770000 1 ハリイタカバー NEEDLE PLATE COVER 57 106629002 4 シメネジ4.37 SCREW, SM4.37 58 S01696001 2 サラネジ3.57X6 SCREW, FLAT SM3.57X6 59 S50323000 1 ボビンオサエ BOBBIN PRESSER 60 S01998001 1 アタマツキトメネジ3.57 SET SCREW, SM3.57-40X6 61 S50324001 1 ボビンオサエダイ BOBBIN PRESSER BRACKET 62 107639001 1 バネカケU SPRING HOOK, U 63 159924001 1 ストップレバーダンネジ SHOULDER SCREW HE-800A-410 38

Page 42 — R . 下糸切り関係 / Lower thread trimmer mechanism

R . 下糸切り関係 / Lower thread trimmer mechanism <-3用 / For -3 > 76 57 58 76 46 49 51 50 56 52 47 48 54 55 74 66 72 53 39 42 41 40 43 45 9 65 62 27 28 61 44 64 30 6 60 31 29 59 63 26 1 21 5 70 67 24 2 68 25 3 69 23 17 4 7 8 19 18 12 11 71 73 20 22 10 33 38 34 35 36 37 13 32 15 14 16 75 HE-800A-410 39 jintex.in

Page 43 — R. 下糸切り関係 / Lower thread trimmer mechanism

R. 下糸切り関係 / Lower thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 64 062671612 1 ナベコ357-40X16 SCREW PAN SM3.57-40X16 65 021670202 1 2シュナット357-40 NUT 2 SM3.57-40 66 062680512 2 ナベコ437-40X5 SCREW PAN SM4.37-40X5 67 S50325001 1 カバーヒラキホジョイタ AUXILIARY PLATE 68 S50326001 1 ボビンオサエヒラキイタ OPENING PLATE 69 159113101 1 ダンネジ3.18 SHOULDER SCREW SM3.18 70 105237002 1 ダンネジ3.57 SHOULDER SCREW SM3.57 71 159379001 1 ミゾツキピンBX6X18 PIN, DOWEL BX6X18 72 S50327001 2 ボビンオサエヒキバネ EXTENSION SPRING 73 S50328001 1 シタイトツミヒラキイタバネ PLATE SPRING 74 159379001 1 ミゾツキピンBX6X18 PIN, DOWEL BX6X18 75 S50329000 1 シタイトキリレンカンカバー COVER <-2用> 76 S50664001 1 ハリイタ1.4S <For -2> NEEDLE PLATE, 1.4S <-3用> 76 S51248101 1 ハリイタ1.2S-3 <For -3> NEEDLE PLATE, 1.2S-3 HE-800A-410 40 jintex.in

Page 44 — S. 針位置検出器関係 / Synchronizer

S. 針位置検出器関係 / Synchronizer 1 2 4 6 5 3 41 HE-800A-501 jintex.in

Page 45 — S. 針位置検出器関係 / Synchronizer

S. 針位置検出器関係 / Synchronizer REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50657001 1 シンクロナイザクミH80 SYNCHRONIZER ASSY H80 2 062400806 2 ナベコ4X8 SCREW PAN M4X8 3 S50354000 1 ジシャククミ MAGNET ASSY, U 4 S38082001 1 ハリウエジシャククミ NEEDLE UPPER MAGNET ASSY, U 5 062681412 2 ナベコ437-40X14 SCREW PAN SM4.37-40X14 6 025680132 2 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 HE-800A-501 jintex.in 42

Page 46 — T1. コントロールボックス関係 / Control box mechanism

T1. コントロールボックス関係 / Control box mechanism < 欧州向け / For Europe > < 欧州向け / For Europe > HE-800A-502 43 jintex.in

Page 47 — T1. コントロールボックス関係 / Control box mechanism

T1. コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA4024001 1 トランスクミ TRANSFORMER ASSY 2 S00554000 23 サポート6NS SUPPORT, 6NS 3 S47721301 1 デンゲンEZキバンクミ POWER SUPPLY PCB ASSY EZ 4 J03466001 1 IPM 6MBP20RH060 IPM 6MBP20RH060-50 5 S38201000 4 バリスタV14D471 VARISTOR: V14D471 6 SA2870001 2 Gヒューズ15A GLASS FUSE,15A 7 J02727001 2 カンヒューズ2A GLASS FUSE, 2A 8 S50425101 1 デンゲンEHキバンクミ POWER SUPPLY PCB ASSY EH 9 S38200000 2 MOSFET2SK1938 TRANSISTOR, 2SK1938 10 232384001 1 SアブゾバDSA362MA SURGE ABSORBER: DSA362MA 11 S38201000 2 バリスタV14D471 VARISTOR: V14D471 12 S08030000 1 GFUUSE5AFB GLASS FUSE 5AFB 46 SA8886001 1 DアレイD20LC40 DIODE AR: D20LC40 13 SA2823001 2 ヒューズ 6A FUSE, 6A 14 S50431101 1 サブキバンクミ SUB PCB ASSY 15 SA6302001 10 FET2SJ350 TRANSISTOR, FET: 2SJ350 16 SA6303001 10 FET2SK2202 TRANSISTOR, FET: 2SK2202 17 S38155000 4 MOSFET2SK1306 TRANSISTOR, FET: 2SK1306 18 S50645000 1 MOSFET2SK1307 TRANSISTOR, FET: 2SK1307 19 S49486000 1 MOSFET2SJ222 TRANSISTOR, FET: 2SJ222 20 S50437000 1 PERコード CORD, PER 21 S50438000 1 EX32ハーネス HARNESS, EX32 22 S50439000 1 EX26ハーネス HARNESS, EX26 23 SA8391001 1 デンゲンACハーネス POWER SUPPLY HARNESS AC 24 S50441000 1 デンゲンDCハーネス POWER SUPPLY HARNESS DC 25 S50484000 1 アースコード GROUND WIRE 26 S50484000 1 アースコード GROUND WIRE 27 J80814001 1 TREALE UNIT EZ TREALE UNIT EZ 42 SA3797001 2 DCファンモータクミ DC-FAN MOTOR ASSY 43 S37059001 1 PEマーク LABEL, PE 44 S37060001 2 アースマーク LABEL, GROUNDING 45 J04115001 2 ラベルカンデン6カコク LABEL, ELEC. SHOCK 6 LANG. 28 SA3101001 1 <中国向 単相220V, 三相380V用> PROMHE800AクミC <For China, 1-Phase 220V and 3-Phase 380V AC> PROM ASSY C 800A 28 SA3079001 1 <中国向以外> PROMHE800Aクミ <Except for China > PROM ASSY, 800A 29 S38146000 2 <100V, 110V, 380V, 400V用> コネクタ3191-04R <For 100V, 110V, 380V and 400V AC> CONNECTOR: 3191-04R 30 SA3189001 1 <230V,400V用,欧州向け> EMC-PERコード <For 230V and 400V Europe> CORD EMC-PER 31 SA3196001 1 EMC-EZACINハーネス HARNESS EMC-EZACIN 32 SA3195001 1 EMC-EZMTハーネス HARNESS EMC-EZMT 33 SA3921001 1 EMC-CUTTERハーネス HARNESS EMC-CUTTER 34 SA3193001 1 EMC-FTPMハーネス HARNESS EMC-FTPM 35 SA3192001 1 EMC-FDPMハーネス HARNESS EMC-FDPM 36 SA3191001 1 EMC-EX26ハーネス HARNESS EMC-EX26 37 SA3176101 1 PHキバンクミ PH PCB ASSY 38 S50498001 1 ノイズフィルタEHクミ NOISE FILTER ASSY EH 39 S40620000 1 キバントリツケイタ PCB SETTING PLATE 40 SA3194001 1 EMC-NPMハーネス HARNESS EMC-NPM HE-800A-502 44

Page 48 — T2.コントロールボックス関係 / Control box mechanism

T2.コントロールボックス関係 / Control box mechanism < 三相200V用 / For 3-Phase 200V AC. > 1 < 単相110V, 220V用 / For 1-Phase 110V, 220V AC. > 2 < 単相100V用, 日本向け / For 1-Phase 100V, Japan. > 3 4 < 単相110V用 / For 1-Phase 110V AC. > 2 5 < 三相380V用 / For 3-Phase 380V AC. > 6 8 < 三相400V用 / For 3-Phase 400V AC. > 9 < 三相220V用 / For 3-Phase 220V AC. > 7 45 HE-800A-502 jintex.in

Page 49 — T2. コントロールボックス関係 / Control box mechanism

T2. コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50442001 1 <三相200V用> デンゲンSWクミA <For 3-Phase 200V AC> POWER SUPPLY SWITCH ASSY A 2 S50444001 1 <単相110V, 220V用> デンゲンSWクミB <For 1-Phase 110V,220V AC> POWER SUPPLY SWITCH ASSY B 3 S50446001 1 <単相100V用, 日本向け> デンゲンSWクミC <For 1-Phase 100V,Japan> POWER SUPPLY SWITCH ASSY C 4 SA3966001 1 <単相100V用, 日本向け> トランスコンポウB1 <For 1-Phase 100V,Japan> TRANSFORMER PACKAGE ASSY B1 5 SA3967001 1 <単相110V用> トランスコンポウB2 <For 1-Phase 110V AC> TRANSFORMER ASSY, B110: CONV. 6 S50447001 1 <三相380V用> デンゲンSWクミD <For 3-Phase 380V AC> POWER SUPPLY SWITCH ASSY D 7 S50442001 1 <三相220V用> デンゲンSWクミA <For 3-Phase 220V AC> POWER SUPPLY SWITCH ASSY A 8 SA4020001 1 <三相380V用> ヘンカントランスC380クミ <For 3-Phase 380V AC> TRANSFORMER ASSY C380 :CONV. 9 SA3969001 1 <三相400V用> トランスコンポウE <For 3-Phase 400V AC> TRANSFORMER PACKAGE ASSY E HE-800A-502 jintex.in 46

Page 50

T3.コントロールボックス関係(電源基板)/Control box (PCB) mechanism 1 2 4 5 2 3 6 4 5 2 3 6 47 jintex.in HE-800A-518

Page 51 — T3. コントロールボックス関係 (電源基板) / Control box (PCB) mechanism

T3. コントロールボックス関係 (電源基板) / Control box (PCB) mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S53902301 1 ホキユウメインキバンクミ SUPPLY MAIN PCB ASSY 2 S46455000 10 FETFK10KM-10 TRANSITOR, FET: FK10KM-10 3 S38155000 1 MOSFET2SK1306 TRANSISTOR, FE: 2SK1306 4 S38200000 1 MOSFET2SK1938 TRANSISTOR, : 2SK1938 5 S47668000 1 SIDPA905C6 DIODE, AR: PA905C6 6 S47680000 1 GFUSE8A GLASS FUSE, 8A HE-800A-518 jintex.in 48

Page 52 — U. 電装品関係 / Power supply equipment mechanism

U. 電装品関係 / Power supply equipment mechanism 33 32 7 8 31 30 25 11 10 17 18 9 35 27 47 19 3 26 28 34 4 29 5 6 22 24 23 1 45 13 2 20 14 46 16 15 21 12 36 38 37 38 37 39 40 44 43 41 42 HE-800A-515 49 jintex.in

Page 53 — U. 電装品関係 / Power supply equipment mechanism

U. 電装品関係 / Power supply equipment mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50458100 1 パルスモータFDクミ PULSE MOTOR ASSY FD 2 S50459100 1 パルスモータFTクミ PULSE MOTOR ASSY FT 3 S50460000 1 パルスモータNクミ PULSE MOTOR ASSY N 4 S50461000 1 カッターソレノイド CUTTER SOLENOID 5 S50462000 1 イトユルメソレノイド TENSION RELEASE SOLENOID 6 228475000 1 ケツソクバンド1.9X80 FASTENING BAND 1.9X80 7 S50463000 1 センサクミ SENSOR ASSY 8 S50464000 1 センサGL-N12 SENSOR, GL-N12 9 062300806 1 ナベコ3X8 SCREW PAN M3X8 10 S50465000 1 センサGL-N12 SENSOR, GL-N12 11 062300806 1 ナベコ3X8 SCREW PAN M3X8 12 S50464000 1 センサGL-N12 SENSOR, GL-N12 13 062300806 1 ナベコ3X8 SCREW PAN M3X8 14 625010000 1 ナイロンクランプNK-2N NYLON CLAMP NK-2N 15 062670812 1 +ナベコ357-40X8 SCREW PAN SM3.57-40X8 16 025350132 1 ヒラザガネショウ3.5 WASHER PLAIN S 3.5 17 S50466000 1 カツターセンサクミ CUTTER SENSOR ASSY 18 S50467000 1 センサGL-N12 SENSOR, GL-N12 19 062300806 1 ナベコ3X8 SCREW PAN M3X8 20 S50468000 1 DCファンモータ40クミ DC FAN MOTOR ASSY 40 21 0A5302005 2 +ナベザクミ3X20DB SCREW PAN (S/P WASHER) M3X20 22 S00480000 3 コードホルダ#5 CORD HOLDER 5N 23 062670612 3 ナベコ357-40X6 SCREW PAN SM3.57-40X6 24 025350132 3 ヒラザガネショウ3.5 WASHER PLAIN S 3.5 25 SA3113001 1 テイシSWハーネスクミ STOP SWITCH HARNESS ASSY 26 SA7488001 1 スイツチHW1B-M211B SWITCH HW1B-M211B 27 S50472000 1 EMSWハーネス SWITCH HARNESS EM 28 S50473000 1 センサGL-N12 SENSOR, GL-N12 29 062300806 1 ナベコ3X8 SCREW PAN M3X8 30 S10243000 4 ナイロンクランプNK-3N CORD HOLDER: NK-3N 31 0A5400806 4 +ナベザクミ4X8DB SCREW PAN (S/P WASHER) M4X8 32 152969001 1 コードササエカネ CORD HOLDER 33 002300603 1 +ナベコ3X6 SCREW, PAN M3X6 34 228475000 2 ケツソクバンド1.9X80 FASTENING BAND 1.9X80 35 218859001 1 バインダM150 BINDER M150 36 S50565001 1 コードブッシュ CORD BUSH 37 552907000 2 コードホルダ#10 CORD HOLDER #10 38 0A5401006 2 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 39 552908000 1 コードホルダ#14 CORD HOLDER #14 40 0A5401006 1 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 41 552908000 1 コードホルダ#14 CORD HOLDER #14 42 0A5401006 1 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 43 S38145000 1 アースセン2 GROUND WIRE 2 44 0A5401006 2 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 45 S41216000 1 アースセン GROUND WIRE 46 S50644000 1 アースコード GROUND WIRE 47 SA0287000 1 クイツクチューブ30X350 QUICK TUBE ASSY, 30X350 HE-800A-515 50

Page 54 — V. 操作パネル関係 / Operation panel mechanism

V. 操作パネル関係 / Operation panel mechanism 2 3 6 5 4 1 7 51 HE-800A-530 jintex.in

Page 55 — V 操作パネル関係 / Operation panel mechanism

V 操作パネル関係 / Operation panel mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3081001 1 ソウサパネルソウクミ OPERATION PANEL UNIT 2 087310816 2 カップBタイト3X8 TAPTITE CUP B M3X8 3 0A4400606 1 +ナベザクミ4X6DA SCREW PAN (S/P WASHER) M4X6 4 S50453100 1 パネルキバンクミ PANEL PCB ASSY 5 S50457000 1 パネルケーブルクミ PANEL CABLE ASSY 6 087311016 2 カップBタイト3X10 TAPTITE CUP B M3X10 7 062300806 4 ナベコ3X8 SCREW PAN M3X8 HE-800A-530 52

Page 56 — W. モータ関係 / Motor mechanism

W. モータ関係 / Motor mechanism 1 9 10 11 12 3 13 8 6 7 5 2 4 6 HE-800A-631 53 jintex.in

Page 57 — W. モータ関係 / Motor mechanism

W. モータ関係 / Motor mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 J80863001 1 INVモータクミ#EHホキュウ MOTOR ASSY, INV#EH 2 J00107001 1 MD806コテイダイ#2 MD806 BASE #2 3 J02517001 1 ピン9.9X116 PIN, 9.9X116 4 J03275001 1 Lガタボルト10クミ-V BOLT ASSY, L M10-V 5 02110206 1 シュナット10 NUT, 2 M10 6 025100236 2 ヒラザガネチュウ10 WASHER, PLAIN L 10 7 028100246 1 バネザガネ2-10 WASHER, SPRING 2-10 8 J03410001 1 EZモータトリツケイタ SETTING PLATE, EZ-MOTOR 9 062401063 1 ナベコ4X10 SCREW, PAN M4X10 10 028040245 1 バネザガネ2-4 WASHER, SPRING 2-4 11 025040173 1 ヒラザガネショウ4 WASHER, PLAIN S 4 12 002401006 1 +ナベコ4X10 SCREW, PAN M4X10 13 215082001 1 +ナベセット4X12DA SCREW 4 X 12 HE-800A-631 54

Page 58 — X. カバー関係 / Safety cover

X. カバー関係 / Safety cover 55 HE-800A-631

Page 59 — X. カバー関係/Safety cover

X. カバー関係/Safety cover REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 J02513001 1 モータカバーINV MOTOR COVER, INV 2 0A4401605 3 +ナベザクミ4X16DA SCREW, PAN (S/P WASHE) M4X16 3 J03763001 1 ベルトカバーLCM BELT COVER 4 229017001 1 +ナベセット4X10DA SCREW, PAN (S/P WASHER) M4X10 5 217071001 1 +ナベセット4X18DA SCREW 4X18DA 6 J03764001 1 ベルトSカバーLCM BELT SUB COVER 7 J02293001 1 ユビホゴグ FINGER PROTECTION BAR 8 229017001 1 +ナベセット4X10DA SCREW, PAN (S/P WASHER) M4X10 9 J00351001 1 ベルトハズレボウシング2 BELT CLAMP PLATE 2 10 229017001 1 +ナベセット4X10DA SCREW, PAN (S/P WASHER) M4X10 HE-800A-631 jintex.in 56

Page 60 — Y.付属装置関係(オプション部品)/Attachment set (Option parts)

Y.付属装置関係(オプション部品)/Attachment set (Option parts) <布帛用 / For General materials > 1 4 3 2 <ニット用 / For Knitted materials > 1 4 3 2 <立作業用 / For Standing operation > 6 5 brother 57 HE-800A-940 jintex.in

Page 61 — Y. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Y. 付属装置関係 (オプション部品) / Attachment set (Option parts) REF.NO CODE Q'TY 品名 NAME OF PARTS RM <布帛用> <針穴: 1.2X5.4mm> 1 S51361001 1 ハリイタ1.2RBセット NEEDLE PLATE SET, 1.2RB 2 S50304001 1 ハリイタ1.2S-RBクミ NEEDLE PLATE ASSY, 1.2S-RB 3 S50297001 1 カツターオサエ CUTTER HOLDER 4 S50341001 1 カツターホルダイチギメイタ POSITIONING PLATE <針穴: 1.4X7.3mm> 1 S51362001 1 ハリイタ1.4RBセット NEEDLE PLATE SET, 1.4RB 2 S50309001 1 ハリイタ1.4S-RBクミ NEEDLE PLATE ASSY, 1.4S-RB 3 S50297001 1 カツターオサエ CUTTER HOLDER 4 S50341001 1 カツターホルダイチギメイタ POSITIONING PLATE <針穴: 1.6X7.3mm> 1 S51363001 1 ハリイタ1.6RBセット NEEDLE PLATE SET, 1.6RB 2 S50311001 1 ハリイタ1.6S-RBクミ NEEDLE PLATE ASSY, 1.6S-RB 3 S50297001 1 カツターオサエ CUTTER HOLDER 4 S50341001 1 カツターホルダイチギメイタ POSITIONING PLATE <ニット用> <針穴: 1.2X5.4mm> 1 S51364001 1 ハリイタ1.2RB-3セット NEEDLE PLATE SET, 1.2RB-3 2 S50313101 1 ハリイタ1.2S-RBクミ-3 NEEDLE PLATE ASSY, 1.2-RB-3 3 S50297001 1 カツターオサエ CUTTER HOLDER 4 S50341001 1 カツターホルダイチギメイタ POSITIONING PLATE <針穴: 1.4X6.8mm> 1 S51365001 1 ハリイタ1.4RB-3セット NEEDLE PLATE SET, 1.4RB-3 2 S50317101 1 ハリイタ1.4S-RBクミ-3 NEEDLE PLATE ASSY, 1.4S-RB-3 3 S50297001 1 カツターオサエ CUTTER HOLDER 4 S50341001 1 カツターホルダイチギメイタ POSITIONING PLATE <針穴: 1.6X6.8mm> 1 S51366001 1 ハリイタ1.6RB-3セット NEEDLE PLATE SET, 1.6RB-3 2 S50319101 1 ハリイタ1.6S-RBクミ-3 NEEDLE PLATE ASSY, 1.6S-RB-3 3 S50297001 1 カツターオサエ CUTTER HOLDER 4 S50341001 1 カツターホルダイチギメイタ POSITIONING PLATE <立作業用: 欧州向以外> 5 J80380040 1 DDタチペタル3Pカヘン40 <For Standing operation: except for Europe> PEDAL STAND OPE DD 3P VARI 40 <立作業用: 欧州向> 5 J803800E0 1 DDタチペタル3Pカヘン40 <For Standing operation: for Europe> PEDAL STAND OPE DD 3P VARI 40 6 S47750000 1 タチペタルヨウハーネス S-OPE. HARNESS HE-800A-940 58

Page 62

Z1.付属品関係/Accessories 18 16 19 3 2 8 7 10 1 12 13 15 17 14 11 5 4 6 9 24 20 25 21 22 23 28 29 27 30 26 31 32 33 39 <-2用/For-2> 38 37 40 36 35 34 <-3用/For-3> 40 HE-800A-910 59 jintex.in

Page 63 — Z1. 付属品関係 / Accessories

Z1. 付属品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50330101 1 ベッドダイクミ BED BASE ASSY 2 S50331000 1 ベッドダイ BED BASE 3 S50332000 1 オイルパッキン OIL PACKING 4 S54768001 1 アブラトリダシイタ DRAIN PLATE 5 S50334000 1 アブラトリダシパッキン PACKING 6 037401415 3 Vナベタッピン4X14 TAPPING SCREW PAN V M4X14 7 081007070 1 OリングP7 O RING P7 8 140518001 1 シメネジ7.94 SCREW, SM7.94X10 9 S50335000 5 ベッドダイクッションA BED BASE CUSHION, A 10 S50336000 4 ベッドダイクッションB BED BASE CUSHION, B 11 S50337000 2 ベッドダイクッションC BED BASE CUSHION, C 12 S50338000 1 アブラヨケイタ OIL STOPPER PLATE 13 S24250001 4 ボルト8X90 BOLT M8X90 14 S50342000 4 オニメナット8 FLANGE NUT, M8 15 028080246 4 バネザガネ2-8 WASHER SPRING 2-8 16 101118001 3 マルモクネジ4.5X20 WOOD SCREW, ROUND M4.5X20 17 S50339001 4 ベッドダイカラー COLLAR 18 104449001 2 ゴムセン15.5 RUBBER CAP, 15.5 19 025050236 3 ヒラザガネチュウ5 WASHER PLAIN M 5 20 S18707153 1 VベルトMシロ BELT, VM WHITE 21 142443001 1 ネジマワシ1.9X52 SCREW-DRIVER, 1.9X52 22 118837001 1 ネジマワシ3.4X70 SCREW-DRIVER, 3.4X70 23 10152102 1 ネジマワシ5.5X190 SCREW-DRIVER 5.5X190 24 159158051 1 ボビン BOBBIN 25 117466000 1 ピンセット PINCETTE 26 S51290001 1 カツタ3/8 CUTTER, 3/8 27 S51354001 1 カツタ5/8 CUTTER, 5/8 28 S51358001 1 カツタ1 CUTTER, 1 29 S51356001 1 カツタ3/4 CUTTER, 3/4 30 S55663001 1 オイルタンククミ OIL TANK ASSY 31 114483002 1 ポリオイラークミ OILER ASSY 32 159384009 1 トウフサエマクラ HEAD REST 33 133740006 4 カクネボルト6X70 <コントロールボックス取付用> <For setting the Control box> BOLT SQUARE M6X70 34 021060106 8 1シュナット6 NUT 1 M6 35 025060336 4 ヒラザガネダイ6 WASHER PLAIN L 6 36 S00617000 4 ボウシンゴムカラー RUBBER COLLAR 37 146256001 4 クッションカナグ CUSHION COLLAR 38 146255000 4 クッション CUSHION 39 SA9254014 1 SA9253ハリ4コイリクミ:#14 NM90 <-2用> <For -2> NEEDLE 4PIECE ASSY SA9253: #14 NM90 40 S13595201 1 デイアイゲージ-2 TIMING GAUGE, -2 39 SA9254011 1 SA9253ハリ4コイリクミ:#11 NM75 <-3用> <For -3> NEEDLE 4PIECE ASSY SA9253: #11 NM75 40 S13596201 1 デイアイゲージ-3 TIMING GAUGE, -3 HE-800A-910 jintex.in 60

Page 64 — Z2 . 付属品関係 / Accessories

Z2 . 付属品関係 / Accessories 1 9 8 18 17 21 15 16 20 11 10 7 22 18 19 6 5 21 14 4 12 13 2 3 49 50 50 52 51 52 51 26 24 25 28 33 38 27 39 32 34 35 40 29 23 41 27 42 30 27 36 37 54 45 47 43 48 31 44 53 46 HE-800A-910 61 jintex.in

Page 65 — Z2. 付属品関係 / Accessories

Z2. 付属品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S02761509 1 イトタテダイクミ2 COTTON STAND ASSY 2 2 150189109 1 ブラケット COTTON STAND BRACKET 3 062060804 2 ナベコ6X8 SCREW PAN M6X8 4 031452204 3 マルモク45X22 WOOD SCREW ROUND M4.5X22 5 S51283001 2 ウケザラ SPOOL STAND BASE 6 150182000 2 スプールマット SPOOL MAT 7 S51282101 2 スプールクッション SPOOL CUSHION 8 150172003 1 コラムパイプ COLUMN PIPE 9 150174000 1 コラムキャップ COLUMN CAP 10 SA6606001 1 コラムジョイント COLUMN JOINT 11 150179002 2 スプールジクB SPOOL SHAFT B 12 028050244 2 バネザガネ2-5 WASHER SPRING 2-5 13 021500104 2 シュナット5 NUT 1 M5 14 SA6607001 1 スプールホルダー2 SPOOL HOLDER 2 15 SA6607001 1 スプールホルダー2 SPOOL HOLDER 2 16 150183000 2 イトカケハンガーダイ THREAD HANGER BASE 17 142990001 2 スレッドブッシュ THREAD BUSH 18 SA6609001 2 スプールホルダーササエ SPOOL HOLDER SUPPORTER 19 150172003 1 コラムパイプ COLUMN PIPE 20 021500104 2 シュナット5 NUT 1 M5 21 062061604 2 ナベコ6X16 SCREW PAN M6X16 22 062501404 2 ナベコ5X14 SCREW PAN M5X14 23 SA9157001 1 ベルトカバー BELT COVER 24 SA9158001 1 ベルトカバーD BELT COVER D 25 SA9159001 1 ベルトカバーDフタ BELT COVER D PLATE 26 100666002 2 マルモクネジ5.5X20 WOOD SCREW ROUND M5.5X20 27 SA3025001 3 ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 28 104450101 2 ゴムセン8 RUBBER CAP, 8 29 S50344001 1 ベルトカバーイタ BELT COVER PLATE 30 032461606 2 +2マルモク45X16 WOOD SCREW ROUND 2 M4.5X16 31 200190001 6 ステップル 10X20 STAPLE 10X20 32 S37111001 1 アイガードクミ EYE GUARD ASSY 33 S01700001 2 マルサラネジ3.18X7 SCREW, OVAL SM3.18X7 34 025030232 2 ヒラザガネチュウ3 WASHER PLAIN M 3 35 021660102 2 シュナット318-40 NUT 1 SM3.18-40 36 062710612 1 ナベコ4.76-32X6 SCREW PAN SM4.76-32X6 37 148847001 1 ザガネ WASHER PLAIN 4.76 38 S50345001 1 アイガードササエイタ EYE GUARD SUPPORT 39 062800812 1 ナベコ4.37-40X8 SCREW PAN SM4.37-40X8 40 SA2870001 2 GFUSE15A GLASS FUSE 15A 41 S08030000 1 GFUSE5AFB GLASS FUSE 5AFB 42 153242000 2 GFUSE6A GLASS FUSE 6A 43 J03411001 1 EZフコミミトリツケイタ SETTING PLATE, EZ-TREADLE 44 J00353001 3 +ナベセット5X14DB SCREW PAN (S/P WASHER) M5X14 45 J02036001 1 テモトコードブッシングV BUSHING, V CORD 46 112525000 1 シュウジンマグネット MAGNET 47 S54767000 1 ホジョシート AUXILIARY SHEET 48 144226001 1 トウブカバー HEAD COVER 49 SA9160001 1 ホジョテーブル AUXILIARY TABLE 50 SA9161001 2 テーブルササエイタ TABLE SUPPORT PLATE 51 018400636 2 アナボルト4X6 BOLT SOCKET M4X6 52 018061036 2 アナボルト6X10 BOLT SOCKET M6X10 53 032461606 2 <電源スイッチ取付用> +2マルモク45X16 <For setting the Power supply switch> WOOD SCREW ROUND 2 M4.5X16 54 031412506 4 <操作パネル取付用> マルモク41X25 <For setting the Opreation panel> WOOD SCREW ROUND M4.1X25 HE-800A-910 62 jintex.in

Page 66 — Z3 . 付属品関係 / Accessories

Z3 . 付属品関係 / Accessories 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 63 HE-800A-910 jintex.in

Page 67 — Z3. 付属品関係 / Accessories

Z3. 付属品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S50346001 1 <オプション用> TAPE GUARD WINDER ASSY 2 S51896001 1 テープオサエワインダー クミ TAPE GUARD ASSY 3 144998001 1 テープオサエB TAPE GUARD, B 4 105288002 2 シメネジ2.38 SCREW SM2.38 5 144997001 1 テープオサエA TAPE GUARD, A 6 122771051 2 シメネジ2.38 SCREW, SM2.38 7 144999001 1 テープオサエC TAPE GUIDE, C 8 144628001 1 テープオサエF TAPE GUARD, F 9 122771051 1 シメネジ2.38 SCREW, SM2.38 10 105970001 1 シメネジ2.38 SCREW, SM2.38 11 110067001 1 カラー COLLAR 12 143749001 1 テープアンナイシタ TAPE GUIDE, LOWER 13 143748001 1 テープアンナイウエ TAPE GUIDE, UPPER 14 062660412 2 ナベコ318-40X4 SCREW PAN SM3.18-40X4 15 143767102 1 テープワインダークミ TAPE WINDER ASSY 16 143980001 1 ツマミネジ SCREW 17 108494001 1 ザガネ WASHER 18 108495001 1 テープワインダオシバネ SPRING, COMPRESSION 19 100136001 1 イトチョウシナツト TENSION NUT 20 S50348001 1 テープアンナイウエ TAPE GUIDE, U 21 062400812 1 ナベコ4X8 SCREW PAN M4X8 22 S50349001 1 テープワインダトリツケイタ TAPE WINDER SETTING PLATE 23 062400812 1 ナベコ4X8 SCREW PAN M4X8 24 107407003 2 シメネジ4.37 SCREW SM4.37X9 25 S50477001 1 ジヨウギクミ RULER ASSY 26 S06139001 1 ジヨウギA RULER, A 27 S06140001 1 ジヨウギB RULER, B 28 062680512 2 ナベコ437-40X5 SCREW PAN SM4.37-40X5 29 025680232 2 ヒラザガネチュウ4.37 WASHER PLAIN M SM4.37 30 146000001 1 ハサミササエ THREAD TRIMMER SUPPORT 31 062670412 2 ナベコ357-40X4 SCREW PAN SM3.57-40X4 32 105161003 2 ザガネ WASHER, PLAIN 33 141620001 1 ボウシイタバランス BALANCER 34 101671002 2 シメネジ4.37 SCREW, SM4.37 35 025680132 2 ヒラザガネショウ4.37 WASHER PLAIN S SM4.37 36 S36522001 2 シメネジ4.37 SCREW, SM4.37 37 S50350001 1 ジヨウギクミ800E RULER ASSY, 800E 38 S50476001 1 ヨコジヨウギ RULER 39 S36522001 2 シメネジ4.37 SCREW, SM4.37 40 S50351001 1 ヨコジヨウギスペーサー RULER SPACER 41 133797121 1 レンケツカンクミ CONNECTING ROD ASSY 42 119710021 1 レンカンクミ CONNECTING ROD ASSY 43 119711021 2 レンカン CONNECTING ROD 44 S36119021 2 1シュナット6 NUT 1 M6 45 119101021 1 レンカンクミ CONNECTING ROD CLAMP 46 S36114021 1 ボルト8X16 BOLT M8X16 47 S36120021 1 ナット1シュ8 NUT 1 M8 48 133792121 2 ジョイントクミ JOINT ASSY 49 S36119021 2 1シュナット6 NUT 1 M6 50 S36121021 2 バネザガネ2-6 WASHER SPRING 2-6 51 114859001 1 レンカンカラー COLLAR 52 S55361200 1 パネルラベルクロイリ PANEL LABEL HE-800A-910 64

Page 68 — Ga1 . ゲージ部品一覧表 / Gauge parts list

Ga1 . ゲージ部品一覧表 / Gauge parts list カッター / Cutter S51117-001 8 1/4F 19 34.5 6.4 1/4 S51290-001 10 3/8K 19.1 34.5 9.5 3/8 S51351-001 11 7/16L 19.1 34.5 11.1 7/16 S51352-001 13 1/2L 19.1 34.5 12.7 1/2 S51353-001 14 9/16V 19.1 34.5 14.3 9/16 S51354-001 18 5/8M 19 34.5 15.9 5/8 S51355-001 18 11/16A 19 34.5 11 17.5 11/16 S51356-001 19 3/4N 19 34.5 10.8 19.1 3/4 S25642-001 21 13/16 19 34.1 11.1 20.6 13/16 S51357-001 22 7/8P 19 34.5 11 22.2 7/8 S51358-001 25 1Q 19 34.5 10.5 25.4 1 S51359-001 28 1 1/8R 19 34.5 10 28.6 29 S51360-001 28 1 1/8S 20.7 34.8 11.2 31.8 32 S01271-001 10 = 3/8 19 30 9.5 3/8 S01272-001 11 = 7/16 19 30 11.1 7/16 S01273-001 13 = 1/2 19 30 12.7 1/2 S03280-001 14 = 9/16 19 30 14.3 9/16 S01274-001 16 = 5/8 19 30 15.9 5/8 S01275-001 19 = 3/4 19 30 6.5 19.1 3/4 S01276-001 22 = 7/8 19 30 6.5 22.2 7/8 S35630-001 25 = 1 19 28 4 25.4 1 65 HE-800A-Ga1 jintex.in

Page 69 — Ga2. ゲージ部品一覧表 / Gauge parts list

Ga2. ゲージ部品一覧表 / Gauge parts list ※1 布つかみ組フィンガーガード付 / Work clamp assy, W/F-G ※2 フィンガーガード / Finger guard ※3 布つかみ / Work clamp <-2用 / For -2 > ※1 S37101-202 (16mmRS) ※2 159079-100 ※3 159761-002 ※2 ※3 39 24.5 18 5.4 縫製エリア 4 X 20 <-2用 / For -2 > ※1 S37109-202 (32mmRS) ※2 159081-100 ※3 159763-002 ※2 ※3 61 47 18 7.3 縫製エリア 6 X 40 <-3用 / For -3 > ※1 S5350-201 (25mmW) ※2 159080-100 ※3 S55348-001 ※2 ※3 50 36 15.5 6.8 縫製エリア 5.4 X 32 <-2用 / For -2 > ※1 S37100-302 (25mmRS) ※2 159080-100 ※3 159762-002 ※2 ※3 50 36 18 5.4 縫製エリア 4 X 32 <-3用 / For -3 > ※1 S37103-201 (16mm) ※2 159079-100 ※3 145136-001 ※2 ※3 39 24.5 14 5.4 縫製エリア 4 X 20 <-3用 / For -3 > ※1 S37110-201 (32mm) ※2 159081-100 ※3 144632-001 ※2 ※3 61 47 18 6.8 縫製エリア 5.4 X 40 <-2用 / For -2 > ※1 S55347-202 (25mmRSW) ※2 159080-100 ※3 S55345-002 ※2 ※3 50 36 18 7.3 縫製エリア 6 X 32 <-3用 / For -3 > ※1 S37102-301 (25mm) ※2 159080-100 ※3 144630-001 ※2 ※3 50 36 15.5 5.4 縫製エリア 4 X 32 HE-800A-Ga2 jintex.in 66

Page 70 — Ga3 . ゲージ部品一覧表 / Gauge parts list

Ga3 . ゲージ部品一覧表 / Gauge parts list 針板 / Needle plate <-2用 / For -2 > S50663-001 (1.2mmS) S50664-001 (1.4mmS) S50665-001 (1.6mmS) 5.4 1.2 7.3 1.4 7.3 1.6 3.2 3.2 3.2 <-3用 / For -3 > S51248-101 (1.2mm) S51249-101 (1.4mm) S51250-101 (1.6mm) 5.4 1.2 6.8 1.4 6.8 1.6 3.2 3.2 3.2 平カッター用 / For flat cutter <-2用 / For -2 > 針板 / Needle plate S50321-001 (1.2mmS) カッターウケ / Plastic plate 151843-001 5.4 1.2 1.9 34 34 5.5 3.2 <-3用 / For -3 > 針板 / Needle plate S50322-101 (1.2mm) カッターウケ / Plastic plate 156612-001 5.4 1.2 2.4 30 5.5 30 3.2 HE-800A-Ga3 67 jintex.in

Page 71 — 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ラベル感電6ヶ国 Label, elec. shock 6 lang 50 X 118 J04115-001 ラベル注意・和英 Label, caution Jpn / Eng 52 X 84 SA0792-001 ラベル注意・中英 Label, caution Chn / Eng 52 X 84 SA0793-001 R ワーニングマーク Mark, injury L=16 R=0.8 S36924-001 PE PE マーク Label, PE 7.5 X 12.5 S37059-001 アースマーク Label, grounding φ 12 S37060-001 HE-800A-Wa jintex.in 68

Page 72

索引 / Index CODE REF.NO Page 002300603 M - 81 28 U - 33 50 002401006 W - 12 54 012400636 P - 4 34 P - 25 34 012500536 G - 27 14 013761410 B - 36 4 014060632 G - 6 14 G - 8 14 014400432 N - 4 30 014680632 H - 32 18 Q - 50 36 014760632 A - 15 2 A - 18 2 B - 16 4 B - 22 4 B - 24 4 C - 9 6 C - 29 6 D - 9 8 D - 12 8 D - 14 8 F - 10 12 F - 13 12 F - 28 12 F - 35 12 F - 40 12 F - 55 12 G - 16 14 H - 2 18 H - 35 18 J - 9 20 K - 3 22 L - 4 24 N - 5 30 N - 9 30 Q - 3 36 R - 9 38 R - 15 38 014770632 B - 3 4 B - 15 4 F - 4 12 H - 28 18 L - 7 24 014780632 C - 7 6 C - 13 6 H - 7 18 P - 28 34 018061032 F - 2 12 018061036 Z2 - 52 62 018061036 Q - 51 36 Q - 63 36 018062032 D - 16 8 018102536 C - 18 6 018300636 N - 24 30 018300836 Q - 33 36 018400636 Z2 - 51 62 018400832 F - 8 12 018401032 G - 4 14 018401232 D - 5 8 F - 14 12 018501032 H - 42 18 CODE REF.NO Page 018502032 G - 48 14 021060106 Z1 - 34 60 021080202 H - 46 18 021100206 W - 5 54 021100302 C - 19 6 021300206 Q - 36 36 021500104 Z2 - 13 62 Z2 - 20 62 021500216 G - 49 14 021500316 Q - 58 36 021660102 Z2 - 35 62 021660306 K - 5 22 021670202 R - 65 40 021680202 A - 17 2 Q - 20 36 021710202 B - 35 4 021910302 H - 18 18 025030136 N - 82 32 025030232 Z2 - 34 62 025040132 R - 36 38 R - 41 38 025040173 W - 11 54 025040232 F - 63 12 025050236 Z1 - 19 60 025060132 F - 51 12 025060232 C - 23 6 G - 3 14 J - 2 20 025060336 Z1 - 35 60 025080132 A - 13 2 F - 33 12 P - 7 34 025100236 W - 6 54 025350132 M - 5 26 M - 50 26 U - 16 50 U - 24 50 025350332 J - 3 20 025680132 G - 25 14 G - 42 14 Q - 21 36 Q - 55 36 Q - 62 36 S - 6 42 Z3 - 35 64 025680232 Q - 23 36 Q - 38 36 Z3 - 29 64 025680234 N - 19 30 026040236 P - 16 34 026040246 Q - 35 36 026040245 W - 10 54 028030242 F - 19 12 028040246 Q - 57 36 028050242 Z2 - 12 62 028050243 Q - 45 36 028050244 Z2 - 15 62 028080242 H - 45 18 028100246 W - 7 54 028680242 G - 36 14 Q - 39 36 031412506 Z2 - 54 62 031452204 Z2 - 4 62 032461606 Z2 - 30 62 CODE REF.NO Page 032461606 Z2 - 53 62 037401415 Z1 - 6 60 047200642 P - 20 34 048030342 R - 5 38 048040342 P - 26 34 Q - 49 36 048060142 F - 52 12 A - 14 2 048060342 F - 34 12 H - 36 18 N - 80 32 P - 8 34 R - 8 38 048080342 R - 8 38 048150142 C - 2 6 048220242 C - 28 6 048300242 C - 20 6 060300612 D - 6 8 060630312 R - 37 38 060660416 G - 22 14 060670412 R - 38 38 060670512 F - 60 12 N - 12 30 N - 74 32 N - 76 32 060670612 J - 4 20 M - 15 26 M - 20 26 M - 64 28 M - 76 28 062060804 Z2 - 3 62 062061604 Z2 - 21 62 062300502 N - 25 30 062300806 U - 9 50 U - 11 50 U - 13 50 U - 19 50 U - 29 50 V - 7 52 062400612 J - 11 20 J - 13 20 M - 66 28 M - 69 28 062400616 P - 19 34 062400806 E - 2 10 S - 2 42 062400812 Z3 - 21 64 Z3 - 23 64 062400816 P - 13 34 P - 15 34 062401063 W - 9 54 062501404 Z2 - 22 62 062660412 Z3 - 14 64 062670412 Z3 - 31 64 062670512 M - 11 26 M - 56 26 M - 79 26 062670612 L - 13 24 M - 4 26 M - 27 26 M - 49 26 N - 22 30 N - 35 30 U - 23 50 CODE REF.NO Page 062670712 Q - 11 36 062670812 U - 15 50 062671212 F - 50 12 062671612 R - 64 40 062680512 R - 19 38 R - 66 40 Z3 - 28 64 062680612 A - 4 2 H - 13 18 M - 33 26 M - 62 26 M - 72 28 N - 18 30 Q - 22 36 062680712 M - 30 26 062680812 G - 24 14 G - 44 14 M - 8 26 Z2 - 39 62 062681012 B - 38 4 062681412 S - 5 42 062710612 Z2 - 36 62 062710812 H - 48 18 062711012 A - 2 2 A - 6 2 062711212 D - 3 8 062711412 H - 41 18 062711612 A - 8 2 D - 4 8 062761012 G - 2 14 H - 11 18 070608800 C - 27 6 070608850 G - 11 14 072630260 C - 3 6 076002450 L - 3 24 076200800 C - 21 6 081005070 N - 7 30 081007070 Z1 - 7 60 081012070 Q - 45 36 081014870 N - 69 32 087310816 V - 2 52 087311016 V - 6 52 0A4400606 V - 3 52 0A4401605 X - 2 56 0A5302005 U - 21 50 0A5400806 U - 31 50 0A5401006 U - 38 50 U - 40 50 U - 42 50 U - 44 50 100220005 B - 37 4 100136001 Z3 - 19 64 100242003 F - 57 12 100250001 B - 2 4 100402004 N - 68 32 100644005 K - 8 22 Q - 30 36 100645003 N - 13 30 N - 17 30 100666002 Z2 - 26 62 101118001 Z1 - 16 60 101572102 Z1 - 23 60 101671002 J - 8 20 Z3 - 34 64 69 jintex.in

Page 73 — 索引 / Index

索引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 102538002 F - 62 12 115188101 P - 23 34 145446002 P - 22 34 159379001 H - 33 18 102630001 H - 9 18 115503001 H - 26 18 145465001 B - 6 4 R - 71 40 104449001 A - 24 2 117143003 A - 16 2 145472001 F - 47 12 R - 74 40 A - 29 2 117363001 F - 22 12 145478101 F - 31 12 159384009 Z1 - 32 60 A - 30 2 F - 26 12 F - 36 12 159624001 B - 19 4 A - 36 2 117466000 Z1 - 25 60 F - 39 12 159625001 D - 20 8 A - 41 2 117936001 A - 44 2 146000001 R - 30 38 159761002 Ga2 66 Z1 - 18 60 Q - 41 36 146000001 Z3 - 30 64 159762002 G - 52 14 104450101 A - 10 2 118735001 D - 15 8 146255000 Z1 - 38 60 Ga2 66 A - 26 2 118837001 Z1 - 22 60 146256001 Z1 - 37 60 159763002 Ga2 66 A - 27 2 119101021 Z3 - 45 64 148847001 Z2 - 37 62 159805001 N - 39 30 A - 28 2 119710021 Z3 - 42 64 149127001 R - 20 38 N - 50 30 A - 31 2 119711021 Z3 - 43 64 R - 52 38 N - 62 30 A - 32 2 120263001 A - 43 2 150172003 Z2 - 8 62 159917201 N - 78 32 A - 33 2 122771051 Z3 - 6 64 Z2 - 19 62 159924001 R - 63 38 A - 34 2 Z3 - 9 64 150174000 Z2 - 9 62 159926001 G - 53 14 A - 35 2 123185001 R - 51 38 150179002 Z2 - 11 62 G - 53 16 Z2 - 28 62 133740006 Z1 - 33 60 150182000 Z2 - 6 62 159927001 G - 56 14 104451101 A - 25 2 133792121 Z3 - 48 64 150183000 Z2 - 16 62 G - 56 16 104521001 L - 6 24 Z3 - 41 64 150189109 Z2 - 2 62 180721001 K - 21 22 105130001 G - 38 14 140004001 B - 8 4 150382001 B - 30 4 183507001 K - 22 22 105161003 Q - 15 36 140407001 F - 46 12 150491101 R - 14 38 183526001 K - 17 22 Z3 - 32 64 140430001 B - 10 4 150553003 N - 33 30 183598001 K - 19 22 105237002 R - 70 40 140518001 Z1 - 8 60 151148001 N - 54 30 183827001 L - 5 24 105288002 Z3 - 4 64 140553102 B - 27 4 151843001 Ga3 67 200190001 Z2 - 31 62 105970001 R - 53 38 141513001 Q - 27 36 151927001 M - 53 26 215082001 W - 13 54 Z3 - 10 64 141514001 Q - 28 36 152969001 U - 32 50 217071001 X - 5 56 106436001 M - 51 26 R - 40 38 153057102 H - 24 18 218859001 U - 35 50 106629002 R - 57 38 R - 50 38 153242000 Z2 - 42 62 228475000 M - 47 26 107093002 Q - 37 36 141519001 R - 3 38 153483001 B - 34 4 M - 74 28 107149001 M - 52 26 141590001 N - 32 30 154965001 B - 32 4 U - 6 50 107401001 G - 54 14 141619001 J - 6 20 155578000 F - 58 12 U - 34 50 107404001 G - 55 14 141620001 J - 7 20 156612001 Ga3 67 229017001 X - 4 56 G - 55 16 Z3 - 33 64 157968001 P - 18 34 X - 8 56 107407003 Z3 - 24 64 142274101 L - 11 24 158830001 A - 19 2 X - 10 56 107639001 R - 62 38 142443001 Z1 - 21 60 158831001 A - 20 2 232384001 T1 - 10 44 107744001 R - 2 38 142990001 Z2 - 17 62 158832000 A - 21 2 552907000 M - 3 26 108265009 P - 24 34 143748001 Z3 - 13 64 158879001 A - 11 2 U - 37 50 108494001 Z3 - 17 64 143749001 Z3 - 12 64 158880001 B - 21 4 552908000 U - 39 50 108495001 Z3 - 18 64 143767102 Z3 - 15 64 158893100 C - 5 6 U - 41 50 110027001 Q - 2 36 143980001 Z3 - 16 64 158945001 D - 21 8 625010000 U - 14 50 Z3 - 11 64 144075001 Q - 14 36 158946001 D - 22 8 J00107001 W - 2 54 110161004 F - 18 12 144103009 N - 40 30 159078001 G - 47 14 J00351001 X - 9 56 R - 4 38 N - 51 30 159079100 Ga2 66 J00353001 Z2 - 44 62 110167001 R - 47 38 144110101 N - 41 30 159080100 G - 46 14 J02036001 Z2 - 45 62 110168001 R - 48 38 144226001 Z2 - 48 62 Ga2 66 J02293001 X - 7 56 110215002 R - 31 38 144628001 Z3 - 8 64 159081100 Ga2 66 J02513001 X - 1 56 R - 45 38 144630001 G - 52 16 159104001 H - 31 18 J02517001 W - 3 54 110367001 B - 4 4 Ga2 66 159113101 R - 69 40 J02727001 T1 - 7 44 F - 12 12 144632001 Ga2 66 159117001 H - 12 18 J0275001 T1 - 4 44 H - 37 18 144707001 G - 54 16 159145001 J - 5 20 J0310001 W - 8 54 110494001 R - 7 38 144872101 M - 9 26 159150000 A - 22 2 J03410001 Z2 - 43 62 110735002 G - 33 14 144874001 M - 10 26 A - 23 2 J03410001 T1 - 43 44 111466121 F - 41 12 144875001 M - 1 26 159158051 K - 23 22 J03471001 T1 - 4 44 111865009 C - 30 6 144997001 Z3 - 5 64 Z1 - 24 60 J03763001 X - 3 56 112467002 M - 6 26 144998001 Z3 - 3 64 159187000 M - 28 26 J03764001 X - 6 56 112525000 Z2 - 46 62 144999001 Z3 - 7 64 159193000 M - 36 26 J04115001 T1 - 45 44 112751003 N - 79 32 145136001 Ga2 66 159221101 N - 63 30 Wa 68 113316001 N - 75 32 145371001 R - 44 38 159224001 N - 72 32 J80380040 Y - 5 58 113730001 R - 22 38 145440001 N - 48 30 159267001 R - 6 38 J803800E0 Y - 5 58 114483002 Z1 - 31 60 145446001 N - 49 30 159269001 R - 16 38 J80814001 T1 - 27 44 114859001 Z3 - 51 64 N - 38 30 159272001 R - 23 38 J80863001 W - 1 54 114988001 N - 57 30 N - 61 30 159343001 Q - 19 36 S00306001 A - 12 2 S00480000 M - 48 26 jintex.in 70
