Parts index — Brother KE-430Ctap a row to open its page

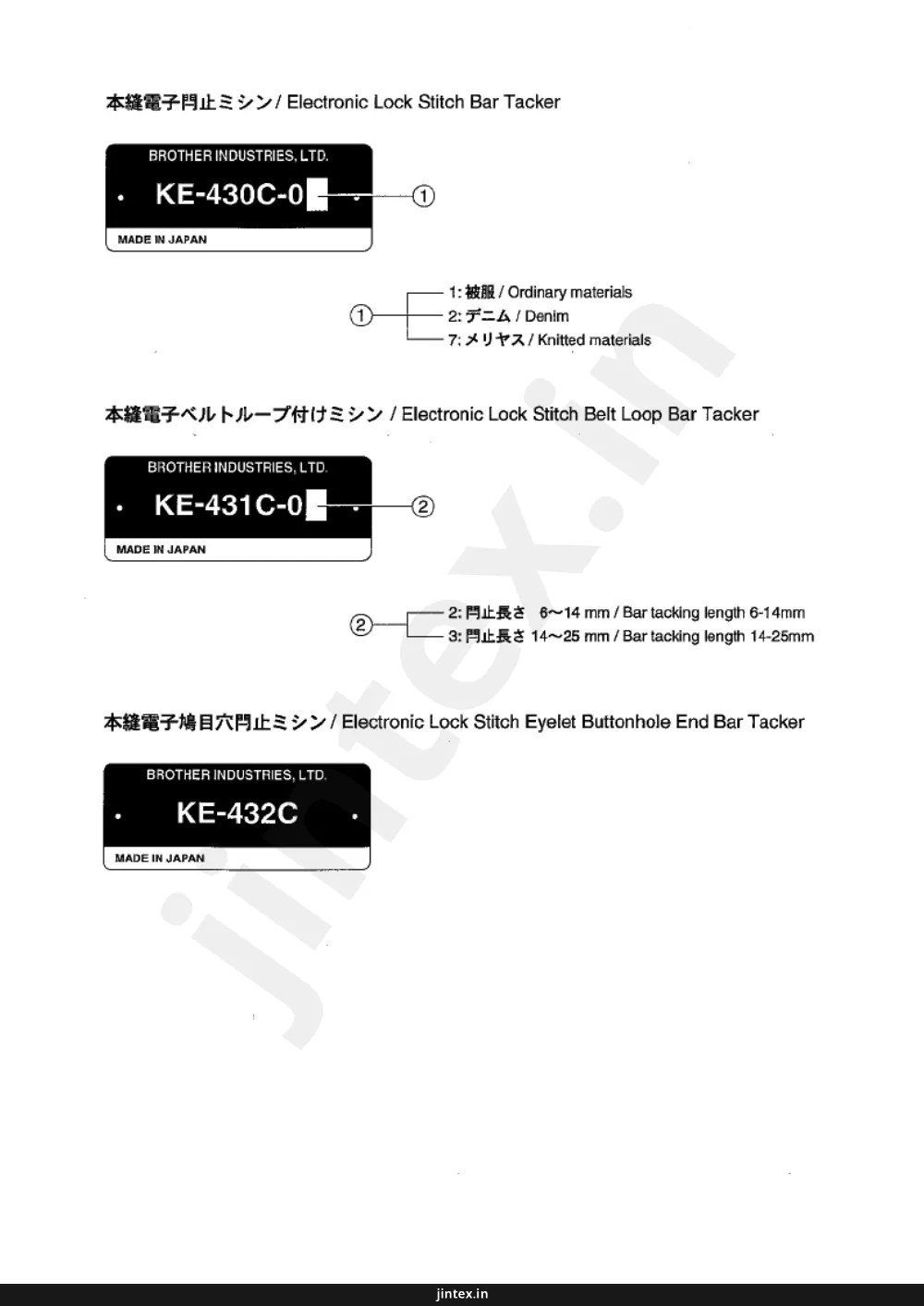

Page 2

Brother KE-430C parts on page 2

Ref	Part number	Part name	Qty
	KE-430C-0	BROTHER INDUSTRIES, LTD.
	KE-431C-0	BROTHER INDUSTRIES, LTD.
	KE-432C	BROTHER INDUSTRIES, LTD.

Page 3 — 目 次

Brother KE-430C parts on page 3

Ref	Part number	Part name	Qty
	1	主体関係
	53	操作パネル関係
	3	上軸・針棒関係
	53	動力台関係
	5	上軸・針棒関係
	55	踏板関係
	7	送り関係
	57	踏板関係 (オプション部品)
	9	送り関係 (KE-430C)
	59	踏板関係 (オプション部品)
	11	送り関係 (KE-431C)
	61	付属装置関係 (オプション部品)
	13	送り関係 (KE-432C)
	63	付属部品関係
	17	押工上ゲ関係 (KE-430C, KE-431C)
	67	付属部品関係
	19	押工上ゲ関係 (KE-432C)
	70	仕様別部品一覧表 (KE-430C)
	21	下軸関係
	71	仕様別部品一覧表 (KE-430C)
	25	給油潤滑関係
	72	仕様別部品一覧表
	27	糸通シ関係
	72	(KE-431C, KE-432C)
	29	糸巻関係
	73	仕様別部品一覧表
	31	糸切り関係
	73	(KE-431C, KE-432C)
	35	糸払イ関係
	74	ゲージ部品一覧表 (KE-430C)
	35	糸取り関係
	75	ゲージ部品一覧表 (KE-430C)
	37	糸締メ関係
	76	ゲージ部品一覧表 (KE-430C)
	39	針位置検出器関係
	77	ゲージ部品一覧表 (KE-431C)
	39	プリント基板関係
	78	ゲージ部品一覧表
	41	コントロールボックス関係
	79	警告ラベル
	45	コントロールボックス関係
	80	索引
	49	電装品関係

Page 4 — CONTENTS

Brother KE-430C parts on page 4

Ref	Part number	Part name	Qty
	A	Machine body
	B1	Upper shaft and needle bar mechanism
	B2	Upper shaft and needle bar mechanism
	C1	Feed mechanism
	C2	Feed mechanism (KE-430C)
	C3	Feed mechanism (KE-431C)
	C4	Feed mechanism (KE-432C)
	D1	Work clamp lifter mechanism
	KE-430C, KE-431C
	D2	Work clamp lifter mechanism (KE-432C)
	E	Lower shaft mechanism
	F	Lubrication
	G	Threading mechanism
	H	Bobbin winder mechanism
	J	Thread trimmer mechanism
	K	Thread wiper mechanism
	L	Thread take-up mechanism
	M	Thread nipper mechanism
	N	Synchronizer
	P	Printed circuit board mechanism
	Q1	Control box mechanism
	Q2	Control box mechanism
	R	Power supply equipment mechanism
	S	Operation panel mechanism
	T	Power table
	U1	Foot switch pedal mechanism
	U2	Foot switch pedal mechanism
	(Option parts)
	U3	Foot switch pedal mechanism
	(Option parts)
	V	Attachment set (Option parts)
	Z1	Accessories
	Z2	Accessories
	Sp1	Different Parts list (KE-430C)
	Sp1	Different Parts list (KE-430C)
	Sp2	Different Parts list
	(KE-431C & KE-432C)
	Sp2	Different Parts list
	(KE-431C & KE-432C)
	Ga1	Gauge parts list (KE-430C)
	Ga1	Gauge parts list (KE-430C)
	Ga1	Gauge parts list (KE-431C)
	Ga2	Gauge parts list (KE-431C)
	Ga3	Gauge parts list
	Wa	Warning labels

Page 5 — A . 主体関係 / Machine body

Brother KE-430C parts on page 5

Ref	Part number	Part name	Qty
	40	Machine body
	42	Screw
	14	Screw
	33	Cap
	15	Screw
	13-1	Cover
	13-2	Cover
	41	Screw
	29	Washer
	30	Washer
	6	Plug
	4	Washer
	5	Bush
	7	Washer
	11	Washer
	12	Screw
	28	Screw
	920	Machine body
	18	Screw
	17-3	Cover
	17-1	Cover
	17-2	Gasket
	17	Cover
	101	Screw
	100	Lever
	10	Washer
	26	Screw
	34	Washer
	25	Handle
	31	Washer
	16	Screw
	35	Washer
	24	Washer
	23	Screw
	22-1	Cover
	22-2	Cover

Page 6 — A . 主体関係 / Machine body

Brother KE-430C parts on page 6

Ref	Part number	Part name	Qty
	104450101	ゴムセン8	6
	140392009	オイルフタ	1
	117934001	ゴムセン13.5	1
	140392009	オイルフタ	2
	104450101	ゴムセン8	3
	104449001	ゴムセン15.5	1
	S37915009	ヘッドカバー-R	1
	S53119001	ヘッドカバー-LF	1
	S53120001	ヘッドカバー-LR	1
	106629002	シメネジ4.37	9
	017680512	ボルト4.37X5	2
	S23337001	ゴムセン18.5	1
	S49960109	メンイタケ	1
	S49961109	メンイタ	1
	S49962000	メンイタパッキン	1
	117934001	ゴムセン13.5	1
	060671212	バインド357-40X12	3
	152842059	オオカマカバークミ	1
	S49681009	オオカマカバークミC	1
	S57925001	ダンネジ6.35	2
	109239002	ナミハネザガネ8	2
	S55208000	テンピンカバー	1
	062681012	ナベコ437-40X10	1
	S20164001	ゴムセン13	1
	150592001	ゴムセン16	2
	104821001	ゴムセン10.5	1
	S44010001	ゴムセン11.5	1
	S51460009	グロメットMG-9	1
	100645003	ザガネ	1
	025080132	ヒラサガネショウ8	2
	S51098000	ソクメンカバー-IM	1
	S59920001	ベルトカバーシュウ	2
	062711072	ナベコ476-32X10	4
	S49999201	ワインカーガード	1
	011679312	トメネジ3.57ヒラ	2
	S44629001	Eマーク	1

Page 7 — B1. Upper shaft and needle bar mechanism

Brother KE-430C parts on page 7

Ref	Part number	Part name	Qty
1	1	SHAFT
2	2	CONNECTING ROD
3	3	COLLAR
4	4	COLLAR
5	5	COLLAR
6	6	SHAFT
7	7	BALL BEARING
8	8	COLLAR
9	9	WASHER
12	12	BRACKET
13	13	SCREW
14	14	SCREW
15	15	SCREW
16-1	16-1	LEVER
16-2	16-2	LEVER
16-3	16-3	PIN
16-4	16-4	SHAFT
16-5	16-5	SCREW
16-6	16-6	CONNECTING ROD
16-7	16-7	BRACKET
16-8	16-8	SCREW
16-9	16-9	COLLAR
17	17	SCREW
18	18	BRACKET
19	19	NEEDLE BAR GUIDE
20	20	SCREW
21	21	WASHER
22	22	NEEDLE BAR
23	23	SPRING
24	24	NEEDLE BAR
25	25	NEEDLE BAR
26	26	NEEDLE

Page 8 — B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430C parts on page 8

Ref	Part number	Part name	Qty
	S49688001	ウワジク	1
	S45147101	クランクロツドクミ	1
	144712001	シメジ4.76	2
	S49582001	ウワジクメタルF	1
	S49583001	スラストザガネ	1
	014780622	アナトメネジ6.35クホミ	1
	140726000	ウワジクメタルM	1
	072630260	ベアリング6302VV	2
	116920001	オクリジクストリング	1
	014160142	トメワアウターC15	1
	S49564000	ツリアイクランクD	1
	100250001	シメジ4.14	1
	014770632	アナトメネジ6.35-40X6	2
	S55877001	トメネジ6.35クホミ	1
	S49585001	ハリボウレンカンクミ	1
	S49567001	テンビンササエ	1
	S49588001	テンビントウ	1
	S47001001	テンビンササエジク	1
	S49589001	ハリボウクランク	1
	145465001	シメネジ3.57L	1
	S49689001	ハリボウレンカン	1
	S37926101	ハリボウクランプ	1
	062660812	ナベコ437-40X8	1
	14777000	ニードルベアリング	2
	014780622	アナトメネジ6.35クホミ	1
	102630001	ハリボウアンナイカクコマ	1
	S49593000	ハリボウアンナイ	1
	152242001	シメネジ3.57	1
	155578000	ゴムセン7.2	2
	152240101	ハリボウA	1
	144458001	アナトメネジメ3.57	1
	152242001	ハリボウメタルU	1
	152243001	ハリボウメタルD	1
	*	ミシンバリ	1

Page 9 — B2. 上軸・針関係 / Upper shaft and needle bar mechanism

Brother KE-430C parts on page 9

Ref	Part number	Part name	Qty
30-1	30-1	30-1
30-2	30-2	30-2
30-3	30-3	30-3
30-4	30-4	30-4
30-5	30-5	30-5
31	31	31
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
47	47	47
48	48	48
49	49	49

Page 10 — B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430C parts on page 10

Ref	Part number	Part name	Qty
	S52834201	TIMING PULLEY ASSY, U	1
	S56017000	UPPER SHAFT PULLEY	1
	S56018000	PULLEY SPACER	1
	S56019001	PULLEY WASHER	1
	018401236	BOLT, SOCKET M4X12	3
	028040246	WASHER, SPRING 2-4	3
	S55572001	SET SCREW, SOCKET(CP)SM5.95X10	2
	S52838000	UPPER SHAFT TIMING BELT	1
	S52839200	MOTOR BRACKET, IM	1
	018083022	BOLT, SOCKET M8X30	3
	028080242	WASHER, SPRING 2-8	3
	025080232	WASHER, PLAIN M8	3
	S52840001	BELT ADJUSTING PLATE	1
	018061022	BOLT, SOCKET M6X10	1
	018062522	BOLT, SOCKET M6X25	1
	021060102	NUT, 1 M6	1
	S47270001	BOLT, SOCKET (S/P WASHER) M6X30	4
	S52836000	MOTOR TIMING PULLEY ASSY	1
	S55572001	SET SCREW, SOCKET(CP)SM5.95X10	1
	017680512	BOLT, SM4.37X5	1

Page 11 — C1 . 送り関係 / Feed mechanism

Brother KE-430C parts on page 11

Ref	Part number	Part name	Qty
	16	16
	12	12
	15	15
	14	14
	13	13
	18	18
	11	11
	17	17
	33	33
	30	30
	27	27
	29	29
	28	28
	34	34
	24	24
	20	20
	23	23
	22	22
	19	19
	25	25
	1-4	1-4
	1-8	1-8
	1-2	1-2
	1-3	1-3
	1-5	1-5
	1-6	1-6
	1-7	1-7
	4-1	4-1
	4-4	4-4
	4-2	4-2
	4-3	4-3
	9	9
	8	8
	4	4
	7	7
	10	10
	3	3
	3-2	3-2
	3-1	3-1
	49	49

Page 12 — C1 . 送り関係 / Feed mechanism

Brother KE-430C parts on page 12

Ref	Part number	Part name	Qty
	S37930201	X-FEED LEVER ASSY	1
	S37931101	X-FEED LEVER	1
	S59912001	T-LENGTH FEED SLIDE BLOCK ASSY	1
	151602002	SET SCREW, SM4.37-40X5	1
	153924001	FELT	1
	108802001	WICK, 4X4 L=250	1
	S37932101	FEED CAM ROLLER	1
	S37933001	ROLLER SHAFT	1
	014760622	SET SCREW, SOCKET SM5.95	1
	S37934001	X-FEED LEVER BUSH	1
	183493001	F-SHAFT SET SCREW COLLAR ASSY	1
	S09212001	SET SCREW COLLAR	1
	101706001	SET SCREW, SM6.35-40X5.5	2
	S59913001	Y-FEED LEVER ASSY	1
	S59914001	Y-FEED LEVER	1
	S37932101	FEED CAM ROLLER	1
	S37933001	ROLLER SHAFT	1
	014760622	SET SCREW, SOCKET SM5.95	1
	014760622	SET SCREW, SOCKET SM5.95	1
	152760051	TACK WIDTH FEED LEVER SHAFT	1
	048180142	RETAINING RING, EXTERNAL C18	1
	152756001	WASHER, THRUST 18	2
	014760622	SET SCREW, SOCKET SM5.95	1
	S37937001	FEED CAM BRACKET	1
	S37938001	FEED CAM, X	1
	014760622	SET SCREW, SOCKET SM5.95	2
	S37939001	CAM SHAFT	1
	048060342	RETAINING RING, E6	1
	070688850	BALL BEARING, 688ZZNR	2
	S37940001	POSITIONING PIN	2
	062681012	SCREW, PAN SM4.37-40X10	2
	S37937001	FEED CAM BRACKET	1
	S37941001	FEED CAM, Y	1
	014760622	SET SCREW, SOCKET SM5.95	2
	S37939001	CAM SHAFT	1
	048060342	RETAINING RING, E6	1
	070688850	BALL BEARING, 688ZZNR	2
	S37940001	POSITIONING PIN	2
	062681012	SCREW, PAN SM4.37-40X10	2
	S37942100	COUPLING HUB, 8	2
	S37943100	COUPLING HUB, 6.35	2
	S37944000	COUPLING SPACER	2
	014760622	SET SCREW, SOCKET SM5.95	8
	S49590001	FEED HOME POSITION DOG	2
	060300512	SCREW, BIND M3X5	2
	S49683001	HOME SENSOR SETTING PLATE	2
	062680612	SCREW, PAN SM4.37-40X6	2
	S23337001	RUBBER CAP, 18.5	1

Page 13 — C2. 送り関係 (KE-430C) / Feed mechanism (KE-430C)

Brother KE-430C parts on page 13

Ref	Part number	Part name	Qty
	46	46
	47	47
	48	48
	37-3	37-3
	37-5	37-5
	37-6	37-6
	37-25	37-25
	37-3	37-3
	37-1	37-1
	37-4	37-4
	37-7	37-7
	37-23	37-23
	37-10	37-10
	37-11	37-11
	37-10	37-10
	37-9	37-9
	37-8	37-8
	37-21	37-21
	37-22	37-22
	37-12	37-12
	37-24	37-24
	37-18	37-18
	37-19	37-19
	37-13	37-13
	37-16	37-16
	37-20	37-20
	37-2	37-2
	37-17	37-17
	37-14	37-14
	37-15	37-15
	41	41
	42	42
	43	43
	44	44
	45	45
	5	5
	31	31
	32	32
	100	100
	50	50
	53	53
	52	52
	40	40
	39	39
	500-5	500-5
	500-7	500-7
	500-2	500-2
	500-6	500-6
	500-4	500-4
	500-3	500-3
	500-1	500-1
	500-2	500-2
	500-7	500-7
	500-6	500-6
	500-5	500-5
	38	38
	38-1	38-1
	51	51

Page 14

Brother KE-430C parts on page 14

Ref	Part number	Part name	Qty
	S59915001	タテオクリシク	1
	S59916001	オクリダイアンナイタ	1
	145318001	シメネジ 4.37	8
	*	オサエウデクミ	1
	S49592200	オサエウデ	1
	S37949101	オサエウデレバー-R	1
	S37950101	オサエウデレバー-L	1
	S34839001	オサエウデレバーシク	1
	116629001	ザガネ	2
	048050342	トメワE5	2
	014760622	アナトメシ 5.95	1
	*	オサエウデ	1
	*	オサエウデ	1
	152783001	オサエアシ オサエイタ	2
	152784001	オサエアシ オサエイタB	1
	107038003	サラネジ 3.57	4
	S37951101	オサエウデレバーイタ	2
	146354001	ザガネ	2
	018500822	アナボルト5X8	2
	153570101	オサエハネ アンナイロッド	2
	145678101	ダンネジ 4.76	2
	S48646001	オサエハネ D	2
	152788000	オサエハネカンザ	2
	153567000	オサエハネカラー	2
	156495201	フィンガーガード	1
	062671012	ナベコ357-40X10	2
	S49595001	オサエウデササエジク	1
	014760622	アナトメシ 5.95	1
	S59927001	オサエウデハネ	1
	S59918001	オクリダイクミ	1
	152771000	オクリダイカンザ	2
	S59921001	カンザ 4.8	2
	07107650	コウキュウ3/16	2
	025060232	ヒラザガネチユウ6	2
	017761412	ボルト5.95X14	2
	S49595001	オクリイタシメネジ	1
	153057101	オクリイタシメネジ	1
	153035000	オサエウデフェルト	1
	S59917001	オサエウデササエイタ	1
	018400822	アナボルト4X8	2
	071039750	コウキュウ5/32	3
	S59919000	ロッドエンド PB-8	1
	S10209101	シメネジ 4.37	1
	S59923000	オクリダイカバー-R	1
	060680512	バインド437-40X5	2
	*	オクリイタ	1
	S41328101	オサエウイックチェンジセット	1
	S41324001	QCオサエウデレバー	1
	S41325001	QCレバーササエ	2
	S41326101	QCオサエウデレバー-R	1
	S41327101	QCオサエウデレバー-L	1
	018501022	アナボルト5X10	2
	028050242	ハネガネ2-5	2
	025050232	ヒラガネチユウ5	2

Page 15 — C3. 送り関係 (KE-431C) / Feed mechanism (KE-431C)

Brother KE-430C parts on page 15

Ref	Part number	Part name	Qty
	46	Cover
	48	Screw
	47	Screw
	37-4	Screw
	37-9	Lever
	37-8	Spring
	37-7	Screw
	37-19	Pin
	37-16	Spring
	37-14	Shaft
	37-21	Screw
	37-2	Arm
	37-5	Shaft
	37-17	Washer
	37-18	Shaft
	37-1-2	Guide
	37-1-1	Bracket
	37-1-3	Screw
	37-1	Base
	37-10	Screw
	37-20	Shaft
	37-11	Lever
	37-3	Screw
	37-13	Screw
	37-12	Washer
	42	Screw
	41	Washer
	43	Screw
	44	Screw
	5	Pin
	31	Base plate
	32	Screw
	100	Feed dog
	45	Washer
	50	Washer
	53	Screw
	52	Washer
	40	Screw
	39	Washer
	38	Bracket
	38-1	Bracket
	51	Screw

Page 16

Brother KE-430C parts on page 16

Ref	Part number	Part name	Qty
	S59915001	TACK WIDTH FEED SHAFT	1
	S59916001	FEED BRACKET GUIDE PLATE	1
	145318001	SCREW, SM4.37	8
	*	WORK CLAMP ASSY, 431	1
	S51849101	WORK CLAMP ARM ASSY	1
	159825200	WORK CLAMP ARM, 431	1
	159827001	WORK CLAMP GUIDE BRACKET, B	2
	062671212	SCREW, PAN SM3.57-40X12	4
	154413001	WORK CLAMP LEVER, A	1
	S41230001	WORK CLAMP LEVER, B	1
	154415001	WORK CLAMP LEVER, C	1
	153944001	LEVER SHAFT BUSH	1
	014760622	SET SCREW, SOCKET SM5.95	1
	140407002	WASHER	1
	018500822	BOLT, SOCKET M5X8	1
	014770622	SET SCREW, SOCKET (CP) SM6.35	2
	*	WORK CLAMP, 431	1
	S37951101	WORK CLAMP ARM LEVER PLATE	1
	140407002	WASHER	1
	018500822	BOLT, SOCKET M5X8	1
	15988101	SPRING GUIDE ROD, B	1
	14478101	SHOULDER SCREW, SOCKET SM4.76	1
	153569001	PRESSER SPRING, B	1
	152788000	PRESSER SPRING COLLAR	1
	153567000	PRESSER SPRING COLLAR	1
	S49595001	WORK CLAMP ARM SUPPORT SHAFT	1
	014760622	SET SCREW, SOCKET SM5.95	1
	S59927001	SUPPORT SHAFT PUSH SPRING	1
	S59918001	FEED BRACKET ASSY	1
	152771000	FEED BRACKET SPACER	1
	S59921001	SPACER, 4.8	2
	071047650	BEARING BALL, 3/16	2
	025060232	WASHER, PLAIN M 6	2
	017761412	BOLT, SM5.95X14	2
	S49595001	SCREW, W/SOCKET SM4.37	1
	15307101	SCREW, W/SOCKET SM4.37	1
	153035000	WORK CLAMP FELT	1
	S59917001	WORK CLAMP ARM SUPPORT PLATE	1
	018400822	BOLT, SOCKET M4X8	2
	071039750	BEARING BALL, 5/32	3
	S59919000	ROD END, PB-8	1
	S10209101	SCREW, SM4.37	1
	S59923000	FEED BRACKET COVER, R	1
	060680512	SCREW, BIND SM4.37-40X5	2
	*	FEED PLATE, 431	1

Page 17 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C parts on page 17

Ref	Part number	Part name	Qty
212	212	SCREW
213	213	WASHER
211	211	SCREW
210	210	BRACKET
219	219	BRACKET
230	230	SCREW
231	231	WASHER
209	209	BRACKET
232	232	BRACKET
206	206	BOLT
207	207	WASHER
214	214	BRACKET
208	208	NUT
200	200	BRACKET
201	201	BRACKET
37	37	FEED MECHANISM
202	202	BRACKET
37-5	37-5	SCREW
37-6	37-6	SCREW
37-7	37-7	WASHER
37-4	37-4	BRACKET
37-33	37-33	WASHER
37-32	37-32	BRACKET
37-31	37-31	BRACKET
37-26	37-26	BRACKET
37-2	37-2	BRACKET
37-15	37-15	BRACKET
37-8	37-8	BRACKET
37-16	37-16	BRACKET
37-1	37-1	BRACKET
37-21	37-21	BRACKET
37-23	37-23	BRACKET
37-28	37-28	BRACKET
37-22	37-22	BRACKET
37-27	37-27	BRACKET
37-24	37-24	BRACKET
37-25	37-25	BRACKET
37-36	37-36	SCREW
37-35	37-35	BRACKET
37-13	37-13	WASHER
37-12	37-12	WASHER
37-11	37-11	WASHER
37-14	37-14	WASHER
37-17	37-17	WASHER
37-34	37-34	WASHER
37-10	37-10	SCREW
37-9	37-9	SCREW
215	215	BEARING
225	225	BOLT
223	223	NUT
222	222	WASHER
224	224	BRACKET
226	226	WASHER
227	227	SPRING
229	229	BRACKET
228	228	BRACKET
221	221	BOLT
220	220	SHAFT
100	100	BRACKET
43	43	SCREW
44	44	SCREW
5	5	BOLT
31	31	BRACKET
32	32	BRACKET
50	50	BEARING
53	53	BRACKET
39	39	BRACKET
205	205	SCREW
38	38	BRACKET
204	204	SHAFT
51	51	BRACKET
42	42	SCREW
41	41	WASHER
203	203	BRACKET
45	45	WASHER
218	218	CLAMP
217	217	CLAMP
216	216	BRACKET

Page 18 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C parts on page 18

Ref	Part number	Part name	Qty
	S59915001	TACK WIDTH FEED SHAFT	1
	S59916001	FEED BRACKET GUIDE PLATE	1
	145318001	SCREW, SM4.37	8
	S41024100	WORK CLAMP ARM ASSY, Z32	1
	S41025100	WORK CLAMP FRAME, Z32	1
	150553001	NUT, SM5.95	1
	118258001	STOP LEVER SPRING	1
	118256001	STOP LEVER	1
	118257001	SHOULDER SCREW, SM5.95	1
	118259001	BOLT, SM4.37	1
	021680202	NUT, 2 SM4.37	1
	15562101	WORK CLAMP CARRIER PLATE	1
	018401622	BOLT, SOCKET M4X16	1
	025710232	WASHER, PLAIN M 4.76	1
	118247001	COLLAR	1
	118247001	COLLAR	1
	021400102	NUT, 1 M4	1
	155576001	ROLLER	1
	155577001	SCREW, SM4.76	1
	025710232	WASHER, PLAIN M 4.76	1
	048040342	RETAINING RING, E4	1
	021710212	NUT, 2 SM4.76	1
	S41265001	BUTTON HOLE GUIDE, Z32	1
	062761012	SCREW, PAN SM5.95-28X10	2
	118248101	STOP POSITION ADJUSTING PLATE	1
	S41288001	WORK CLAMP GUIDE PLATE, Z32	1
	118252001	SCREW	2
	025710132	WASHER, PLAIN S 4.76	2
	062681212	SCREW, PAN SM4.37-40X12	2
	118247001	COLLAR	2
	117143001	SCREW, FLAT SM4.37	2
	118244001	SHOULDER SCREW, SM5.95	2
	118249001	WORK CLAMP, R	1
	118250001	WORK CLAMP, L	1
	S06533001	PRESSER ADJUSTING PLATE ASSY	1
	025060232	WASHER, PLAIN M 6	1
	018061022	BOLT, SOCKET M6X10	1
	025710132	WASHER, PLAIN S 4.76	1
	S41011001	LEVER	1
	123882001	SHOULDER SCREW, SM4.37	1
	S59918001	FEED BRACKET ASSY	1
	152771000	FEED BRACKET SPACER	2
	S59921001	SPACER, 4.8	1
	071047650	BEARING BALL, 3/16	2
	025060232	WASHER, PLAIN M 6	2
	017761212	BOLT, SM5.95X12	2
	S49955001	SCREW, W/SOCKET SM4.37	1
	153057101	SCREW, W/SOCKET SM4.37	1
	153035000	WORK CLAMP FELT	1
	S59919000	ROD END, PB-6	1
	S10209101	SCREW, SM4.37	1
	S59923000	FEED BRACKET COVER, R	1
	060850051	SCREW, BIND SM4.37-40X5	2
	S51084001	FEED PLATE, 432	1
	155567001	ADJUSTING SCREW	1
	115147001	COMPRESSION SPRING	1
	146994001	NUT, ROUND SM6.35-40	2
	153834101	BUTTON CLAMP HOLDER SUPPORT	1
	153827001	BUTTON CLAMP HOLDER SHAFT	1
	014680622	SET SCREW, SOCKET (CP) SM4.37	2

Page 19

Brother KE-430C parts on page 19

Ref	Part number	Part name	Qty
212	212	Screw
213	213	Washer
211	211	Screw
213	213	Washer
210	210	Bracket
219	219	Screw
230	230	Screw
231	231	Washer
209	209	Screw
232	232	Washer
206	206	Bolt
207	207	Washer
214	214	Screw
208	208	Nut
200	200	Screw
201	201	Screw
202	202	Nut
37	37	Feed mechanism
37-6	37-6	Screw
37-5	37-5	Lever
37-7	37-7	Washer
37-4	37-4	Pin
37-3	37-3	Spring
37-19	37-19	Screw
37-20	37-20	Washer
37-26	37-26	Lever
37-33	37-33	Screw
37-31	37-31	Lever
37-32	37-32	Screw
37-21	37-21	Plate
37-2	37-2	Lever
37-23	37-23	Screw
37-28	37-28	Screw
37-22	37-22	Screw
37-27	37-27	Washer
37-24	37-24	Washer
37-25	37-25	Nut
37-36	37-36	Screw
37-35	37-35	Lever
37-13	37-13	Washer
37-12	37-12	Washer
37-11	37-11	Washer
37-1	37-1	Base
37-17	37-17	Screw
37-34	37-34	Washer
37-14	37-14	Washer
37-15	37-15	Screw
37-8	37-8	Screw
37-16	37-16	Washer
37-18	37-18	Washer
37-10	37-10	Screw
37-9	37-9	Washer
215	215	Bush
225	225	Screw
223	223	Washer
222	222	Washer
224	224	Bracket
220	220	Rod
229	229	Screw
221	221	Screw
228	228	Clip
226	226	Washer
227	227	Clip
100	100	Base
43	43	Screw
44	44	Screw
5	5	Screw
31	31	Screw
32	32	Washer
39	39	Screw
40	40	Washer
50	50	Bush
53	53	Screw
52	52	Lever
38-1	38-1	Screw
205	205	Screw
38	38	Base
204	204	Rod
51	51	Washer
42	42	Screw
41	41	Washer
203	203	Base
45	45	Washer
218	218	Screw
217	217	Washer
216	216	Screw

Page 20 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C parts on page 20

Ref	Part number	Part name	Qty
	017781412	ポルト.6.35X14
	118735002	ザガネ
	150556001	ナット.6.35
	S41290301	OYSトリツケイタパツキン
	S41060109	タクシイタ
	062710812	ナベコ476-32X8
	062711012	ナベコ476-32X10
	025710232	ヒラザガネチユウ4.76
	152827001	オイルキリセン
	S23337001	ゴムセン18.5
	228475000	ケツグンバンド1.9X80
	525664000	コードホルダ #6
	062680612	ナベコ4.37-40X6
	062710812	ナベコ476-32X8
	S41264001	オサエヨセロツトクミ
	018062036	アナボルト6X20
	118735002	ザガネ
	021060306	3シユナツト6
	S41010001	センサイタ
	S41012001	OYソレノイドピン
	140407001	ザガネ
	S19662001	スナツプピン5
	S18523001	オサエアゲハネ
	S41009001	OYソレノイドストツパー
	062710812	ナベコ476-32X8
	025710232	ヒラザガネチユウ4.76
	S52098201	OYソレノイドトリツケイタ

Page 21 — D1. 押工上ケ関係 / Work clamp lifter mechanism

Brother KE-430C parts on page 21

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	BRACKET
4	4	SHAFT
5	5	SHAFT
6	6	SHAFT
7	7	SHAFT
8	8	WASHER
9	9	PIN
10	10	PIN
11	11	SHAFT
12	12	COLLAR
13	13	SCREW
14	14	SPRING
15	15	BRACKET
16	16	SCREW
17	17	BRACKET
18	18	SCREW
19	19	WASHER
20	20	SCREW
21	21	BRACKET
22	22	SCREW
23	23	BRACKET
24	24	SCREW
25	25	WASHER
26	26	SCREW

Page 22 — D1. 押上関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C)

Brother KE-430C parts on page 22

Ref	Part number	Part name	Qty
	S49630001	リンクA	1
	S49631001	リンクB	1
	S49632001	リンクCクミ	1
	S49635001	リンクシクA	1
	S49636001	リンクシクB	1
	S49637001	リンクシクC	1
	S49638001	リンクシクD	1
	100281001	ザガネ	4
	S37968001	スナップピン8	6
	S19662001	スナップピン5	2
	S58890001	オサエイタ	1
	S55157000	オサエイタヨウメタル	1
	014760622	アナトメジ5.95	2
	S10105001	リンクドシバネ	2
	S49639001	センサトリツケダイ	1
	062680612	ナベコ4.37-40X6	1
	S49640101	センサカンチイタ	1
	S55479001	アナボルトザクミ4X8	1
	S49641001	ソレノイドトリツケイタA	1
	060661212	バインド437-40X12	4
	S49642001	ソレノイドトリツケイタB	1
	060501016	バインドM5X10	2
	S49643001	ガイド	1
	060680712	バインド437-40X7	2
	S59763000	オサエアゲストツパーゴム	1
	018501422	アナボルト5X14	2

Page 23 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

Brother KE-430C parts on page 23

Ref	Part number	Part name	Qty
24	24	SCREW
20	20	SCREW
19	19	BRACKET
23	23	SPRING
13	13	PIN
16	16	SCREW
15	15	BRACKET
21	21	BODY
22	22	SCREW
26	26	SCREW
37	37	SCREW
36	36	BRACKET
39	39	BOLT
33	33	WASHER
38	38	NUT
35	35	WASHER
34	34	SPRING
11	11	SHAFT
32	32	NUT
31	31	WASHER
18	18	BRACKET
9	9	PIN
7	7	SHAFT
1	1	BRACKET
8	8	WASHER
2	2	BRACKET
14	14	SPRING
6	6	SHAFT
10	10	PIN
12	12	SLEEVE
25	25	WASHER
27	27	WASHER
28	28	WASHER
30	30	PIN
29	29	BOLT
3	3	BRACKET
4	4	PIN
5	5	PIN

Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

Brother KE-430C parts on page 24

Ref	Part number	Part name	Qty
	S49630001	リンクA
	S49631001	リンクB
	S49632001	リンククミ
	S49635001	リンククミA
	S49636001	リンククミB
	S49637001	リンククミC
	S49638001	リンククミD
	100281001	ザガネ	4
	S37968001	スナップピン8	6
	S19662001	スナップピン5	2
	S41015101	オサエエダツロツド	1
	S55157000	オサエエダツロツド	1
	014760622	アナトメシ5.95	2
	S10105001	リンクモトシハネ	2
	S49639001	センサセツテイングダイ	1
	062680612	ナベコ4.37-40X6	1
	S49640101	センサカンテイタ	1
	S55479001	アナボルトザクミ4X8	1
	S49641001	ソレノイドトリツケイタA	1
	060681212	バインド 437-40X12	4
	S49642001	ソレノイドトリツケイタB	1
	060501016	バインドM5X10	2
	S49643001	ガイド	1
	060680712	バインド 437-40X7	2
	120448001	ゴムワ	1
	018501422	アナボルト5X14	2
	150206002	ヒラガネ16	1
	048150142	トノウシクヨウC15	1
	153828001	コジク	1
	107744001	コジク	1
	153484001	ザガネ4.76	1
	105234003	ナット4.37	2
	S41014009	レバーホルダ	1
	018061622	アナボルト6X16	2
	025060232	ヒラガネチユウ6	2
	S41016001	オサエヤレバー	1
	153838001	ボタンツカミレバーシク	1
	014760622	アナトメシ5.95	1
	017821813	ボルト7.94X18	1

Page 25 — E. Lower shaft mechanism

Brother KE-430C parts on page 25

Ref	Part number	Part name	Qty
	14-1	LOWER SHAFT MECHANISM
	14-1-3	SCREW
	14-1-2	BRACKET
	14-1-8	HOUSING
	14-1-1	SHAFT
	14-1-10	SPRING
	14-1-4	PIN
	14-1-9	WASHER
	14-1-6	COLLAR
	14-1-5	COLLAR
	14-1-7	SPRING
	24	UPPER SHAFT MECHANISM
	24-2	HOUSING
	24-1	SHAFT
	24-3	COLLAR
	25	COLLAR
	22	COLLAR
	19	SPRING
	18	WASHER
	20	SCREW
	14-2	FOR SUPPLY PARTS
	14-2-1	UPPER SHAFT MECHANISM
	14-2-1-3	SCREW
	14-2-1-2	BRACKET
	14-2-1-8	HOUSING
	14-2-1-1	SHAFT
	14-2-2	COLLAR
	14-2-1-11	SPRING
	14-2-1-4	PIN
	14-2-1-9	WASHER
	14-2-2	COLLAR
	14-2-1-5	COLLAR
	14-2-1-6	COLLAR
	14-2-1-7	SPRING
	14-2-1-10	SPRING
	14-2-2	COLLAR
	14-2-1-9	WASHER
	13-1	COLLAR
	13	SHAFT
	9	SHAFT
	8	GEAR
	10	COLLAR
	11	COLLAR
	12	WASHER
	6	SHAFT
	6-1	COLLAR
	3	COLLAR
	2	COLLAR
	4	BRACKET
	5	COLLAR
	7	SCREW
	27	BRACKET
	28	COVER
	29	WASHER
	32	WASHER
	31	WASHER
	30	SCREW
	23	PIN
	15	COLLAR
	16	COLLAR
	17	COLLAR

Page 26 — E . 下軸関係 / Lower shaft mechanism

Brother KE-430C parts on page 26

Ref	Part number	Part name	Qty
1	141786001	クランクロッドダンネジ	1
2	100090004	ナット.7.14	1
3	014680622	アナトメネジ 4.37クホミ	1
4	152245101	ヨウドウギヤ	1
5	S37978251	ヨウドウギヤジヤンク	1
6	181995001	セットカラクーミ	1
6-1	101706001	アナトメネジ 6.35	2
7	014760622	アナトメネジ 5.95	2
8	S49605001	シタシククミ	1
9	S55213001	シタシクメタル	1
10	014760622	アナトメネジ 5.95	1
11	152678201	アナトメジクミ	1
12	081003670	OリングPW3	1
13	S4980001	セットカラクーミ	1
13-1	017770622	アナトメネジ 5.95クホミ	2
14-1	S55927101	オオカマタイクミ	1
14-1-1	S55216101	オオカマタイ	1
14-1-2	S02429101	カイトアンナイ	1
14-1-3	062660412	ナベコ318-40X4	2
14-1-4	152683101	オオカマトツケツメ	2
14-1-5	152684101	オオカマトツケツハネ	2
14-1-6	402887001	ザガネ3.2	2
14-1-7	062660712	ナベコ318-40X7	2
14-1-8	S09043000	フエルト	2
14-1-9	S49981000	クミヒモ3X3	2
14-1-10	S49828000	クミヒモ3X3	1
14-1-11	S49685000	クミヒモ3X3	1
15	014760622	アナトメネジ 5.95	1
16	152678201	アナトメジクミ	1
17	081003670	OリングPW3	1
18	048070342	トメワE7	1
19	S55215001	ドライバーHR	1
20	018501232	アナボルト5X12	1
21	*	オオカマ	1
22	*	ナカカマハコグミ	1
23	S16290001	ニードルローラー4X19.8	1
24	*	ボビンケースクミ	1
24-1	*	ボビンケーススヨウシハネ	1
24-2	*	ボビンケーススバネ	1
24-3	*	クウテンボウスバネ	1
25	*	ボビン	1
27	S5658000	カマフエルト	1
28	S55214000	カマフエルトリツケエ	1
29	S55140001	サポ-ト	1
30	123882001	ダンネジ 4.37	1
31	103810002	ナミガタハネガネ	1
32	025770232	ヒラサガネチユウ6.35	1
14-2	S59888001	オオカマタイクミセット	1
14-2-1	S59885001	オオカマタイクミ	1
14-2-1-1	S55216001	オオカマタイ	1
14-2-1-2	S02429101	カイトアンナイ	1
14-2-1-3	062660412	ナベコ318-40X4	2
14-2-1-4	152683101	オオカマトツケツメ	2
14-2-1-5	152684101	オオカマトツケツハネ	2
14-2-1-6	402887001	ザガネ3.2	2
14-2-1-7	062660712	ナベコ318-40X7	2
14-2-1-8	S09043000	フエルト	2
14-2-1-9	S59886001	フエルト	2

Page 27 — E. Lower shaft mechanism

Brother KE-430C parts on page 27

Ref	Part number	Part name	Qty
14-1-3	14-1-3	SCREW
14-1-2	14-1-2	BRACKET
14-1-8	14-1-8	HOUSING
14-1-1	14-1-1	SHAFT
14-1-4	14-1-4	PIN
14-1-9	14-1-9	WASHER
14-1-11	14-1-11	SPRING
14-1-7	14-1-7	COLLAR
14-1-6	14-1-6	COLLAR
14-1-5	14-1-5	COLLAR
14-1-10	14-1-10	SHAFT
23	23	PIN
15	15	SPRING
16	16	SPRING
17	17	SPRING
24-2	24-2	COVER
24-3	24-3	COLLAR
24-1	24-1	COVER
21	21	SHAFT
22	22	SHAFT
19	19	COLLAR
18	18	COLLAR
20	20	SCREW
14-2-1	14-2-1	SHAFT
14-2-1-3	14-2-1-3	SCREW
14-2-1-2	14-2-1-2	BRACKET
14-2-1-8	14-2-1-8	HOUSING
14-2-1-1	14-2-1-1	SHAFT
14-2-2	14-2-2	COLLAR
14-2-1-11	14-2-1-11	SPRING
14-2-1-4	14-2-1-4	PIN
14-2-2	14-2-2	COLLAR
14-2-1-9	14-2-1-9	WASHER
14-2-1-7	14-2-1-7	COLLAR
14-2-1-6	14-2-1-6	COLLAR
14-2-1-5	14-2-1-5	COLLAR
14-2-1-10	14-2-1-10	SHAFT
27	27	BRACKET
28	28	BRACKET
29	29	WASHER
32	32	WASHER
31	31	WASHER
30	30	SCREW
13-1	13-1	COLLAR
13	13	SHAFT
9	9	SHAFT
8	8	GEAR
10	10	SCREW
11	11	COLLAR
12	12	COLLAR
6	6	SHAFT
6-1	6-1	COLLAR
1	1	SHAFT
3	3	COLLAR
2	2	COLLAR
4	4	SHAFT
5	5	COLLAR
7	7	SCREW

Page 28 — E. 下軸関係 / Lower shaft mechanism

Brother KE-430C parts on page 28

Ref	Part number	Part name	Qty
14-2-1-10	S57965000	WICK, 3X3 L=515	1
14-2-1-11	S59886001	FELT, L=360	1
14-2-2	S50529000	OIL TUBE, L=320	4

Page 29 — F. Lubrication

Brother KE-430C parts on page 29

Ref	Part number	Part name	Qty
45	45	OIL LEVEL GAUGE
20	20	OIL TUBE
19	19	OIL TUBE
47	47	OIL FILTER
44	44	OIL TUBE
17	17	OIL TUBE
5	5	OIL TUBE
12	12	OIL TUBE
10	10	OIL TUBE
7	7	SCREW
9	9	WASHER
8	8	WASHER
6	6	OIL TUBE
13	13	OIL TUBE
16	16	OIL TUBE
18	18	OIL TUBE
15	15	OIL TUBE
21	21	OIL TUBE
25	25	OIL TUBE
3	3	OIL TUBE
2	2	OIL TUBE
4	4	OIL TUBE
14	14	OIL TUBE
28	28	OIL TUBE
30	30	OIL TUBE
46	46	OIL TUBE
29	29	OIL TUBE
22	22	OIL TUBE
23	23	OIL TUBE
24	24	OIL TUBE
26	26	OIL TUBE
41	41	OIL TUBE
51	51	OIL TUBE
32	32	OIL TUBE
52	52	OIL TUBE
40	40	OIL TUBE
48	48	OIL TUBE
34	34	OIL TUBE
49	49	OIL TUBE
50	50	OIL TUBE
42	42	OIL TUBE
33	33	OIL TUBE
54	54	OIL TUBE
36	36	OIL TUBE
35	35	OIL TUBE
53	53	OIL TUBE
39	39	OIL TUBE
38	38	OIL TUBE
1	1	OIL TUBE

Page 30 — F. 給油潤滑関係 / Lubrication

Brother KE-430C parts on page 30

Ref	Part number	Part name	Qty
	S49992000	オイルポットマ
	S07333001	オイルクチパイプ S
	S07456000	ビニールチューブ
	148738000	クミヒモ
	107149001	フェルト
	S37983001	ウツシクキュウササエ
	062680612	ナベコ 4.37-40X6
	025680232	ヒラザガネチユウ4.37
	028680242	バネザガネ2-4.37
	S10478000	ロッド・キュウユフェルト
	S34986000	ビニールチューブ
	S49982000	クミヒモ4X4
	107149001	フェルト
	S49950001	テンビンキュウササエ
	S10162201	ハリホウヒモササエ
	060670512	バインド 357-40X5
	S49620000	ビニールチューブ
	S49957000	クミヒモ4X4
	S49622000	クミヒモ4X4
	S49983000	クミヒモ4X4
	S49984000	ヒラクセミモ
	104567101	クミヒモササエ
	159565000	クミヒモ2.5X150
	S37985000	スイアゲフェルト
	S37986000	ビニールチューブ
	S18093100	クミヒモ4X4
	145547001	チューブホルダー
	062670512	ナベコ 357-40X5
	S37987001	シタジクキュウササエ
	S37988000	シタジクキュウユフェルト
	062680612	ナベコ 4.37-40X6
	S09043000	フェルト
	152948001	オイルポットマ
	S49623000	ビニールチューブ
	S49624000	ビニールチューブ
	S49625000	ビニールチューブ
	152969001	コードササエ
	062670512	ナベコ 357-40X5
	148738000	クミヒモ
	148738000	クミヒモ
	152956001	クミヒモ4X4
	228475000	ケツソクバンド1.9X8
	153924001	フェルト
	S49957000	クミヒモ4X4
	S49958000	クミヒモ4X4
	S49985000	ビニールチューブ
	S49986000	ビニールチューブ
	S49987000	ビニールチューブ
	S49995001	コードササエ
	062670512	ナベコ 357-40X5
	S49618000	ビニールチューブ
	S55659000	クミヒモ

Page 31

Brother KE-430C parts on page 31

Ref	Part number	Part name	Qty
	32	For Thread breakage detector
	1
	2
	5
	6
	3
	4
	11
	17
	18
	8
	9
	10
	12
	16
	15
	14-1
	33
	13
	14-1	For Denim
	25-1
	14-2	For Knitted & Ordinary materials
	25-2
	23
	24
	28
	29
	30
	31
	27
	19
	22
	21
	20

Page 32 — G . 糸通シ関係 / Threading mechanism

Brother KE-430C parts on page 32

Ref	Part number	Part name	Qty
	152869001	アームイトミチ	1
	062670612	ナベコ357-40X6	1
	S49627001	アームイトカケ	1
	060670612	バインド357-40X6	1
	S51859101	アームイトアンナイ	1
	060670612	バインド357-40X6	1
	152872001	イトチョウシダイ	1
	114294001	Oリング	1
	*	イトトリハネ	1
	S12699000	イトユルメピン	1
	116922001	イトチョウシボウ	1
	S31032001	イトチョウシナット	1
	104525001	<メリヤス、被服用> イトチョウシハネ	1
	107606001	<デニム用> イトチョウシハネ	1
	159805001	イトチョウサラオサエ	1
	145446001	イトチョウサラ	2
	100400004	トメネジ 3.57	1
	S10469001	アナトメネジ 5.95	1
	115186001	シュイトチョウシボウ	1
	100136001	イトチョウシナット	1
	115186001	シュイトチョウシハネ	1
	145446001	イトチョウサラ	2
	152889001	ミツメイトカケ	1
	062670612	ナベコ357-40X6	2
	152890001	<デニム用> ハリボウイトアンナイA	1
	S41222101	<メリヤス、被服用> ハリボウイトアンナイB	1
	152891101	ハリボウメタルDアンナ	1
	S12441001	チョウシハネウエサカネ	1
	152881001	エキレイトクイミ	1
	014760632	アナトメニ595-28X6	1
	152883000	フエルト8X15.5	1
	152884001	エキレイトカケ	1
	062670412	ナベコ357-40X4	1
	S45083001	<糸切れ検知用> メンイトアンナイ	1

Page 33 — H. 糸巻関係 / Bobbin winder mechanism

Brother KE-430C parts on page 33

Ref	Part number	Part name	Qty
2	2	Screw
4	4	Washer
3	3	Screw
1-20	1-20	Cap
1-25	1-25	Shaft
1-23	1-23	Washer
1-21	1-21	Spring
1-22	1-22	Washer
1-26	1-26	Nut
1-19	1-19	Shaft
1-24	1-24	Screw
1-1	1-1	Base
1-6	1-6	Lever
1-7	1-7	Pin
1-10	1-10	Screw
1-5	1-5	Shaft
1-27	1-27	Washer
1-15	1-15	Pulley
1-9	1-9	Screw
1-8	1-8	Bracket
1-11	1-11	Shaft
1-16	1-16	Spring
1-2	1-2	Base
1-4	1-4	Clip
1-3	1-3	Shaft
1-12	1-12	Pulley
1-14	1-14	Screw
1-13	1-13	Ring
5	5	Shaft

Page 34 — H . 糸巻関係 / Bobbin winder mechanism

Brother KE-430C parts on page 34

Ref	Part number	Part name	Qty
	S37991109	TOP COVER	1
	S37992100	BOBBIN WINDER ARM	1
	S37993000	PLATE SPRING	1
	048100142	RETAINING RING, EXTERNAL C10	1
	S37994001	BOBBIN WINDER CLAW STUD	1
	S37995101	BOBBIN PRESSER	1
	100402004	SET SCREW, SM3.57	1
	S37996001	BOBBIN WINDER CLAW	1
	014680622	SET SCREW, SOCKET (CP) SM4.37	1
	048050342	RETAINING RING, E5	1
	S37997001	BOBBIN WINDER SHAFT	1
	154528001	BOBBIN WINDER WHEEL	1
	120448001	RUBBER BAND	1
	120990001	SET SCREW, (CP) SM4.37-40X8	2
	S10174000	DUST GUARD PLATE	1
	S37998001	SPRING	1
	157968001	KNIFE	1
	062680512	SCREW, PAN SM4.37-40X5	1
	159574101	TENSION STUD	1
	100136001	TENSION NUT	1
	144110001	TENSION ADJUSTING SPRING	1
	145446001	TENSION DISC	2
	144105000	TENSION SPRING FLANGE WASHER	2
	021680202	NUT, 2 SM4.37	1
	141590001	THREADING BAR, U	1
	100022004	NUT, SM5.95	2
	025680232	WASHER, PLAIN M 4.37	1
	02681212	SCREW, PAN SM4.37-40X12	1
	062680612	SCREW, PAN SM4.37-40X6	1
	025680232	WASHER, PLAIN M 4.37	3
	S47335101	BOBBIN WINDER PULLEY ASSY	1

Page 35 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C parts on page 35

Ref	Part number	Part name	Qty
1	1	CAM
2	2	SCREW
3	3	BRACKET
5	5	SCREW
6	6	WASHER
7	7	WASHER
8-1	8-1	SHAFT
8-2	8-2	SHAFT
9	9	BLADE
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	SHAFT
15	15	SPRING
16	16	SHAFT
17	17	SLEEVE
18	18	SPRING
19	19	CIRCLIP
20	20	WASHER
21	21	WASHER
22	22	BRACKET
22-1	22-1	BRACKET
22-2	22-2	BRACKET
22-3	22-3	BRACKET
22-4	22-4	BRACKET
22-5	22-5	BRACKET
22-6	22-6	BRACKET
23	23	SPRING
24	24	SCREW
25	25	NUT
26-1	26-1	ROD
26-2	26-2	BRACKET
26-3	26-3	NUT
29	29	SCREW
30	30	PIN
31	31	WASHER
32	32	SPRING
33	33	PIN
34	34	SPRING
35	35	SPRING
36	36	SCREW
37	37	NUT
38	38	NUT
40	40	ROD
41	41	SCREW
42	42	SCREW
43-1	43-1	BASE
43-2	43-2	BASE
44	44	BRACKET
45	45	BRACKET
46	46	WASHER
47	47	WASHER
48	48	SCREW
49	49	SPRING
50	50	SCREW
51	51	SCREW
52	52	SCREW
53	53	BRACKET
54	54	SCREW
55	55	SPRING

Page 36 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C parts on page 36

Ref	Part number	Part name	Qty
	S49629201	イトキリカム
	014770622	アナトメシ 6.35クホミ
	S38002201	ソルノイドトリツケタ
	060681212	バインド437-40X12
	154599000	ソルノイドクツシヨン
	S02652001	ザガネ
	S23836001	ソルノイドレバークミ
	S02654001	ソルノイドレバー
	014680622	アナトメシ 4.37クホミ
	S38003101	クドウレバーオンレバー
	S49645001	ダンネシ 4.76
	S38004003	クドウレバー ストツパー
	S38004004	クドウレバー ストツパー
	S59893001	アナボルト437-40X10
	148847001	ザガネ
	159905001	トメネジチョウセツネシ
	105812003	ナット7.94
	S49644001	クドウレバー アンナイシク
	231071001	メタル8X15
	S3235001	ヌノサエバネ
	048070342	トメワE7
	153596001	ザガネ
	154596000	イトキリカムレバークツシヨン
	S49646101	イトキリドウレバークミ
	S59874001	イトキリドウレバー
	S59872001	イトキリドウレバー
	S59871001	ダンネシ 4.37
	S59873001	ザガネ
	SA0049001	ナット4.37
	028680242	ハネザガネ2-4.37
	014770622	アナトメシ 6.35クホミ
	S02354001	タマツギダンネシ B
	100022005	ナット9.95
	S49648001	イトキリロツドクミ
	S49649001	イトキリロツド
	141492001	タマツギテツミ
	100022005	ナット9.95
	S49650001	イトキリレバー
	S10195101	イトキリレバーシク
	110367001	ザガネ
	048060342	トメワE6
	014776062	アナトメシ 5.95
	S38011001	イトキリモトシハネ
	S49651001	ハネカケ
	110233001	ダンネシ 4.76
	110161004	ナット4.76
	S49994001	ザガネ 4.76
	S38012001	レンカンレバークミ
	S10202001	レンカンレバーシク
	121007001	アマツキトメシ 4.37
	S38015001	ザガネ
	S40916001	ハリイタ
	S38016001	イトキリレンカン
	S49988001	イドウハンクミ
	S10208001	イドウハンカンザ
	S10208002	イドウハンカンザ
	S10208003	イドウハンカンザ

Page 37 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C parts on page 37

Ref	Part number	Part name	Qty
1	1	CAM
2	2	PIN
3	3	BRACKET
5	5	SCREW
6	6	WASHER
7	7	WASHER
8	8	BRACKET
8-1	8-1	SHAFT
8-2	8-2	PIN
9	9	BLADE
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	SHAFT
15	15	SPRING
16	16	SHAFT
17	17	COLLAR
18	18	SPRING
19	19	WASHER
20	20	SPRING
21	21	WASHER
22	22	BRACKET
22-1	22-1	BRACKET
22-2	22-2	COLLAR
22-3	22-3	PIN
22-4	22-4	BRACKET
22-5	22-5	NUT
22-6	22-6	WASHER
23	23	SPRING
24	24	BOLT
25	25	NUT
26	26	LEVER
26-1	26-1	LEVER
26-2	26-2	BRACKET
26-3	26-3	NUT
29	29	PIN
30	30	PIN
31	31	WASHER
32	32	SPRING
33	33	PIN
34	34	SPRING
35	35	SPRING
36	36	NUT
37	37	NUT
38	38	WASHER
40	40	SHAFT
41	41	SCREW
42	42	PIN
43-1	43-1	BASE
43-2	43-2	BASE
44	44	BRACKET
45	45	WASHER
46	46	WASHER
47	47	WASHER
48	48	NUT
49	49	SPRING
50	50	SCREW
51	51	SCREW
52	52	SCREW
53	53	BRACKET
54	54	SCREW
55	55	SPRING

Page 38 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C parts on page 38

Ref	Part number	Part name	Qty
47	S00705001	MOVABLE KNIFE COLLAR	1
48	S10209101	SCREW, SM4.37	1
49	S10210201	FIXED KNIFE	1
50	111140002	SCREW, SM2.38	2
51	100032004	SCREW, FLAT SM4.37-40X8	2
52	S11244001	SCREW, SM4.37	2
53	*	NEEDLE HOLE PLATE	1
54	100360003	SCREW, FLAT SM2.38	2
55	228475000	FASTENING BAND, 1.9X80	2

Page 39

Brother KE-430C parts on page 39

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	COLLAR
3	3	WASHER
4	4	SPRING
5	5	SCREW
6	6	COLLAR
7	7	ROD
8	8	SCREW
9	9	SPRING
10	10	WASHER
11	11	SPRING
12	12	SHAFT
13	13	CAP
14	14	SCREW
15	15	LEVER
16	16	SCREW
17	17	SCREW
18	18	SHAFT
19	19	SPRING
20	20	ARM
21	21	SCREW

Page 40 — K. Thread wiper mechanism / L. Thread take-up mechanism

Brother KE-430C parts on page 40

Ref	Part number	Part name	Qty
	S49652101	ワイパーダウレバー
	152822101	ワイパーシク
	025770232	ヒラザガネチユウ6.35
	048040342	トメワE4
	014760622	アナトメシ5.95
	S36024001	ワイパーロツドジク
	S38025001	ワイパーロツドアツ
	145992001	アナトツメシ4.37
	048060342	トメワE6
	116629001	ザガネ
	152823001	ワイパーウテケミ
	S41284301	ワイパーウテミ
	048030342	トメワE3
	152827001	オイルキリセン
	014710522	アナトメシ4.76クボミ
	156206601	ワイパーA
	062670512	ナベコ3.57-40X5.
	025350132	ヒラザガネシヨウ
	S49659001	ソレノイドトリツケイタ
	062710812	ナベコ476-32X8
	S49660101	イトトリレバー
	107321003	ダンネジ4.76
	S19748001	サトウクランククツシヨン
	047401442	スプリングピンAW4
	S49661101	ソレノイドツキテ
	S01998001	アナマキトメネジ3.57
	110251001	ヌノオサエウデバネカケ
	021670102	ナツト1シ3.57
	S34883001	イトキリハネ
	S19748001	サトウクランククツシヨン
	S49663001	ナツト3.57
	062671012	ナベコ357-40X10
	028350242	ヒラザガネ2-3.5
	025350332	ヒラザガネL3.5
	S49662001	イトトリレバークランク
	15559001	ヒラザガネ
	048040342	トメワE4
	S49664000	イトトリレノドカバー
	062670612	ナベコ357-40X6

Page 41 — M. 糸締メ関係 / Thread nipper mechanism

Brother KE-430C parts on page 41

Ref	Part number	Part name	Qty
1-1	1-1	Lever
1-2	1-2	Shaft
1-3	1-3	Shaft
2	2	Screw
3	3	Screw
4	4	Nut
5	5	Thread nipper mechanism
5-1	5-1	Lever
5-2	5-2	Lever
5-3	5-3	Shaft
5-4	5-4	Screw
5-5	5-5	Washer
5-6	5-6	Spring
6	6	Lever
7	7	Bracket
8	8	Screw
9	9	Screw
11	11	Lever
12	12	Screw
13	13	Screw
14	14	Washer
15	15	Spring
17	17	Spring
18	18	Lever
19	19	Screw
21	21	Pin
22	22	Pin

Page 42 — M . 糸締メ関係 / Thread nipper mechanism

Brother KE-430C parts on page 42

Ref	Part number	Part name	Qty
	S49665001	イトエルメロツドクミ
	S49666001	イトエルメロツド
	141492001	タマツキテクセミ
	100022005	ナット5.95
	145478101	ダンネジ 4.76
	S02354001	タマツキテタンネジ B
	100022005	ナット5.95
	S49653001	イトエルメクドウレバー
	S49654001	イトエルメクドウレバー
	153597001	シタイトサハキカラー
	S30033001	ダンネジ 3.57
	S49655001	カラー
	106129002	ナット3.57
	028350242	バネガネカー3.5
	S49656001	イトエルメレバーU
	S49657001	イトエルメレバーUストツパ
	S19748001	サトウクランククツシヨン
	062680812	ナベコ437-40X8
	S38032001	イトエルメレバー
	S46734001	オサエアゲレバーシヤフト
	S01998001	アタマツキトメネジ 3.57
	S38033001	カラー-13
	048040342	トメワE4
	SA0703001	イトエルメレバーバネ
	S31006001	オサエアゲテコ
	S39051001	ナベザクミ35X12
	S31952001	オサエアゲクランク
	S10239001	イトエルメボウ

Page 43

Brother KE-430C parts on page 43

Ref	Part number	Part name	Qty
	1	針位置検出器関係 / Synchronizer
	2
	4
	5
	6
	7
	1-1
	1-2
	1-3
	1-4
	1-5
	1-6
	1-7
	1-8
	1-9
	1-10
	1-11
	1-12
	1-13
	1-14
	1-15

Page 44 — N. 針位置検出器関係 / Synchronizer

Brother KE-430C parts on page 44

Ref	Part number	Part name	Qty
1	S48866001	SYNCHRONIZER ASSY	1
2	062400806	SCREW, PAN M4X8	2
4	S38080001	NEEDLE LOWER MAGNET ASSY, D	1
5	S38082001	NEEDLE UPPER MAGNET ASSY, U	2
6	062681412	SCREW, PAN SM4.37-40X14	3
7	025680132	WASHER, PLAIN S 4.37	3
1	S49479001	MAIN PCB ASSY	1
1-1	S29019000	IC:M54640P	4
1-2	S43178000	PHOTO COUPLER:PC9231	6
1-3	093650008	IC:74HC08F	1
1-4	093650032	IC:74HC32F	1
1-5	091170009	IC:74LS09F-T	2
1-6	S49484000	TRANSISTOR, FET:FS10KMJ-2	8
1-7	S49485000	TRANSISTOR, FET:FX6KMJ-2	8
1-8	S49471000	TRANSISTOR, FET:FK18SM-12	6
1-9	S38155000	TRANSISTOR, FET:2SK1306	3
1-10	S50645000	TRANSISTOR, FET:2SK1307	1
1-11	S49486000	TRANSISTOR, FET:2SJ222	1
1-12	U32744000	DIP SWITCH:DSS708	1
1-13	0A4301005	SCREW, PAN (S/P WASHER) M3X10	31
1-14	S48578000	GLASS FUSE, 5A W/LEED WIRE	1
1-15	Y51030150	CAPACITOR, POLYESTER 50B103	1

Page 45 — Q1. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 45

Ref	Part number	Part name	Qty
	1-5	1-5
	1-4	1-4
	1-8	1-8
	1-7	1-7
	1-6	1-6
	1-10	1-10
	1-20	1-20
	10	10
	10-1	10-1
	11	11
	11-1	11-1
	54	54
	1-23	1-23
	1-2	1-2
	1-21	1-21
	12	12
	1-19	1-19
	1-22	1-22
	1-16	1-16
	1-1	1-1
	1-11	1-11
	1-3	1-3
	1-22	1-22
	1-17	1-17
	1-24	1-24
	1-18	1-18
	1-15	1-15
	1-14	1-14
	1-13	1-13
	1-12	1-12
	1-26-4	1-26-4
	1-26-3	1-26-3
	1-26-5	1-26-5
	1-26-19	1-26-19
	1-26-18	1-26-18
	1-26-10	1-26-10
	1-26-2	1-26-2
	1-26-13	1-26-13
	1-26-11	1-26-11
	1-26-16	1-26-16
	1-26-17	1-26-17
	1-26-12	1-26-12
	1-26-21	1-26-21
	1-26-14	1-26-14
	1-26-15	1-26-15
	1-26-6	1-26-6
	1-26-8	1-26-8
	1-26-1	1-26-1
	1-26-7	1-26-7
	1-26-20	1-26-20
	1-26-9	1-26-9
	1-26	1-26
	20	20
	21	21

Page 46 — Q1 . コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 46

Ref	Part number	Part name	Qty
	S49467001	ボックスクミ
	S49468001	デンケンボックス
	S49469001	メインキハンドツケケイタ
	S49470001	ボックスフタ
	S38093000	コードオサエタ
	0A5401206	+ナベザクミ4X12DB	2
	021400206	ナット4	2
	S47692000	DCファンモータクミ
	0A5403006	+ナベザクミ4X30DB	2
	0A5400806	+ナベザクミ4X8DB	1
	0A5401206	+ナベザクミ4X12DB	2
	S42260000	フットSWコード 434クミ
	S38107100	セイキヨウデンケンコード
	S38108000	モータデンケンコード
	S38109100	ゲートデンケンコード
	S38110000	PERコード
	S11949000	ゴムブッシュ
	S00554000	サポート6NS	17
	S31760000	CKSクランプ26L	2
	S43275000	コードクランプWS2NS	6
	S43276000	コードクランプWS3NS	4
	S43277000	コードクランプWS4NS	1
	008400604	+トラスコ4X6	12
	S38116000	フラグメントアミ
	S37059001	PEマーク
	S37060001	アースマーク
	S49939101	デンケンキバンクミ
	S43177000	ICMA3830
	S43184000	PHカプラPC0923	2
	S49586000	MOSFET2SK1941	2
	S38203000	SBDYG802C04R
	SA0037000	バリスタV14D511	2
	232384001	SURGE ABSORBER :DSA362MA
	S49071000	DBRD25XB60
	S38205000	デンC250B182
	SA1034000	デンC63B562
	S43175000	トランスETS54AA159
	S43176000	トランスETS35AD199
	S43181000	コイル:49AD289A
	S38208000	RYJW1AFSNDC5V
	153242000	ヒューズ*6A	2
	S08030000	GLヒューズ5AFB
	S48560000	GFUSE7AFB
	0A4301005	+ナベザクミ3X10DA	8
	S43189000	PCBE1コード
	S43187000	PCBE2コード
	S49472000	サーミスタ6D-22
	S49938000	ゼツエンシート
	S49477000	PROMセイギョクミ
	UA4817000	MOSLSI27C2001
	S53032000	PROM-IMクミ
	S38143000	CMOSLSI27C512
	228475000	ケツツバンド1.9X8
	S38352101	デンキラベル.4コ	2

Page 47 — Q1. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 47

Ref	Part number	Part name	Qty
	1-5	1-5
	1-4	1-4
	1-8	1-8
	1-7	1-7
	1-6	1-6
	1-10	1-10
	1-20	1-20
	1-22	1-22
	10	10
	10-1	10-1
	1-23	1-23
	1-21	1-21
	12	12
	1-19	1-19
	1-2	1-2
	11	11
	11-1	11-1
	54	54
	1-9	1-9
	1-16	1-16
	1-25	1-25
	1-11	1-11
	1-3	1-3
	1-17	1-17
	1-1	1-1
	1-22	1-22
	1-15	1-15
	1-14	1-14
	1-24	1-24
	1-13	1-13
	1-26-4	1-26-4
	1-26-3	1-26-3
	1-26-22	1-26-22
	1-12	1-12
	1-26-1	1-26-1
	1-26-5	1-26-5
	1-26-18	1-26-18
	1-26-10	1-26-10
	1-26-2	1-26-2
	1-26-12	1-26-12
	1-26-21	1-26-21
	1-26-14	1-26-14
	1-26-15	1-26-15
	1-26-6	1-26-6
	1-26-13	1-26-13
	1-26-8	1-26-8
	1-26-11	1-26-11
	1-26-16	1-26-16
	1-26-17	1-26-17
	1-26-20	1-26-20
	1-26-19	1-26-19
	1-26-9	1-26-9
	1-26	1-26
	1-26-15	1-26-15
	1-26-6	1-26-6
	1-26-7	1-26-7
	1-26-20	1-26-20
	1-26-10	1-26-10
	1-26-5	1-26-5
	1-26-4	1-26-4
	1-26-3	1-26-3
	1-26-2	1-26-2
	1-26-1	1-26-1
	1-26-9	1-26-9
	1-26-17	1-26-17
	1-26-13	1-26-13
	1-26-11	1-26-11
	1-26-16	1-26-16
	1-26-20	1-26-20

Page 48 — Q1 . コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 48

Ref	Part number	Part name	Qty
	S38353101	デンキラベル.7	2
	S55627001	IM LABEL	1
	S5031001	ボックスソウクミA1-IM	1
	S53033001	ボックスソウクミA2-IM	1
	S53034001	ボックスソウクミB1-IM	1
	S53035001	ボックスソウクミB2-IM	1
	S53036001	ボックスソウクミC1-IM	1
	S53037001	ボックスソウクミC2-IM	1
	S53038001	ボックスソウクミC3-IM	1
	S53039001	ボックスソウクミE-IM	1
	S53040001	ボックスソウクミF-IM	1

Page 49 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 49

Ref	Part number	Part name	Qty
	2-1-1	2-1-1
	2-1-2	2-1-2
	2-1-3	2-1-3
	2-1-4	2-1-4
	2-1-5	2-1-5
	3-1	3-1
	2-4-1	2-4-1
	2-4-2	2-4-2
	2-4-3	2-4-3
	2-4-4	2-4-4
	2-4-5	2-4-5
	3-1	3-1
	3-2-1	3-2-1
	3-2-2	3-2-2
	2-2-1	2-2-1
	2-2-2	2-2-2
	2-2-3	2-2-3
	2-2-4	2-2-4
	2-2-5	2-2-5
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	3-2-1	3-2-1
	3-2-2	3-2-2
	4	4
	5	5
	6	6
	7	7
	3-3-1	3-3-1
	3-3-2	3-3-2
	2-3-1	2-3-1
	2-3-2	2-3-2
	2-3-3	2-3-3
	2-3-4	2-3-4
	2-3-5	2-3-5
	3-3-1	3-3-1
	3-3-2	3-3-2
	4	4
	5	5
	6	6
	7	7
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	3-3-1	3-3-1
	3-3-2	3-3-2
	4	4
	5	5
	6	6
	7	7
	2-5	2-5
	3-3-2	3-3-2
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	2-6	2-6
	3-4	3-4
	40-1	40-1
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52

Page 50 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 50

Ref	Part number	Part name	Qty
	S38112001	デンケンSWクミA
	S38113000	デンケンINコード A
	S38133000	デンケンコード
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38114000	デンケンSWクミB
	S38115000	デンケンINコード B
	S38118000	デンケンコード
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38117000	デンケンSWクミC
	S38115000	デンケンINコード B
	S38133000	デンケンコード
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S47592000	デンケンSWクミD
	S38113000	デンケンINコード A
	S47595000	デンケンコードユシュツ
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38120000	デンケンINコード E
	S43188000	デンケンINコード F
	S47594000	デンケンSWクミG
	S38115000	デンケンINコード B
	S47595000	デンケンコードユシュツ
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38123000	ACINコネクタクミ
	S49473000	ヘンカントランスBクミ
	S49474000	ヘンカントランスB
	S38126000	ACINコード

Page 51 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 51

Ref	Part number	Part name	Qty
	2-1-1	2-1-1
	2-1-2	2-1-2
	2-1-3	2-1-3
	2-1-4	2-1-4
	2-1-5	2-1-5
	3-1	3-1
	2-2-1	2-2-1
	2-2-2	2-2-2
	2-2-3	2-2-3
	2-2-4	2-2-4
	2-2-5	2-2-5
	3-2-1	3-2-1
	3-2-2	3-2-2
	2-4-1	2-4-1
	2-4-2	2-4-2
	2-4-3	2-4-3
	2-4-4	2-4-4
	2-4-5	2-4-5
	3-1	3-1
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	3-2-1	3-2-1
	3-2-2	3-2-2
	2-3-1	2-3-1
	2-3-2	2-3-2
	2-3-3	2-3-3
	2-3-4	2-3-4
	2-3-5	2-3-5
	3-3-1	3-3-1
	3-3-2	3-3-2
	2-7-1	2-7-1
	2-7-2	2-7-2
	2-7-3	2-7-3
	2-7-4	2-7-4
	2-7-5	2-7-5
	3-3-1	3-3-1
	3-3-2	3-3-2
	2-5	2-5
	3-3-1	3-3-1
	3-3-2	3-3-2
	40	40
	40-1	40-1
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	2-6	2-6
	3-4	3-4
	40-1	40-1
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52

Page 52 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 52

Ref	Part number	Part name	Qty
	S49475000	ヘンカントランスCワミ	1
	S49476000	ヘンカントランスC	1
	S38126000	ACINコード	1
	S43201000	ACINコード F	1
	018061436	アナトボルト6X14	4
	025060236	ヒラザガネチュウ6	8
	021060106	1シュナット6	1
	028060246	バネザガネー6	4
	S40635001	ノイズフィルタ430Eワミ	1
	S40616001	ノイズフィルタEMCワミ	1
	S40620000	キャントリツケイタ	1
	0A4400605	+ナベザクミ4X6DA	6
	S40621000	EMIコアESD-SR-15	1
	S40622000	EMIコアESD-SR-25	1
	149809000	タイラップL	2
	S40621000	EMIコアESD-SR-15	3
	S40622000	EMIコアESD-SR-25	2
	S40623000	タイラップL	5
	149809000	EMIコアTR-40-27	1
	0A5401606	+ナベザクミ4X16DB	1
	025040236	ヒラザガネチュウ4	1
	021400108	ナット1シュ4	1

Page 53 — R . 電装品関係 / Power supply equipment mechanism

Brother KE-430C parts on page 53

Ref	Part number	Part name	Qty
14-1	14-1-114-1-2	14-1
14-4	14-4	14-4
36	36	36
37	37	37
35	35	35
34	34	34
18	18	18
20	20	20
19	19	19
6-4	6-4	6-4
205	205	205
206	206	206
201	201	201
202	202	202
200	200	200
30-2-1	30-2-1	30-2-1
30-2	30-2	30-2
30-1	30-1	30-1
30	30	30
31	31	31
30-2-2	30-2-2	30-2-2
33	33	33
32	32	32
15	15	15
14-2	14-2	14-2
1	1	1
3	3	3
2	2	2
6-1	6-1	6-1
8	8	8
6-2	6-2	6-2
6-3	6-3	6-3
9	9	9
14-3	14-3	14-3
13	13	13
12	12	12
40-5	40-5	40-5
40-6	40-6	40-6
40-1	40-1	40-1
40-4	40-4	40-4
40-8	40-8	40-8
40-7	40-7	40-7
40-9	40-9	40-9
40-2	40-2	40-2
40-10	40-10	40-10
40-3	40-3	40-3
40	40	40
41	41	41
10	10	10
11	11	11
16	16	16
17	17	17
43	43	43
4	4	4
5	5	5
25	25	25
42	42	42
21	21	21
22	22	22
24	24	24
23	23	23

Page 54

Brother KE-430C parts on page 54

Ref	Part number	Part name	Qty
	S38134100	パルスモータクミ
	S38136100	パルスモータクミ
	0184012222	アナボルト4X12	8
	552907000	コードホルダ#10	2
	0A5401006	ナベコバネヒラ4X10	2
	S49463100	トウブセンサクミ	1
	S56167000	キンセツセンサGL-N12F	1
	S56167001	キンセツセンサGL-N12F	1
	S56167003	キンセツセンサGL-N12F	1
	S48581100	トウブセンサ432クミ	1
	S56167000	キンセツセンサGL-N12F	1
	S56167001	キンセツセンサGL-N12F	1
	S56167003	キンセツセンサGL-N12F	1
	S48582000	センサハーネス	1
	062300806	ナベコ3X8	2
	062300806	ナベコ3X8	1
	552907000	コードホルダ#10	2
	0A5401006	ナベコバネヒラ4X10	2
	152969001	コードサエカネ	1
	062670512	ナベコ357-40X5	1
	S49979400	オサエルノイドクミ	1
	S5936000	ダンパ1	1
	S59367000	ダンパ2	1
	S38144100	イトキリツノイドクミ	1
	S38146000	コネクタ3191-04R	1
	S38147000	マークチューブ5	1
	060501016	バインドM5X10	4
	S38148000	アースセン1	1
	0A5400806	ナベザクミ4X8DB	1
	S49464000	イトトリツケノイドクミ	1
	S00460000	コードホルダ#5	3
	060670612	バインド357-40X6	3
	S49465009	ショウリカリエコネクタクミ	1
	S49465001	ショウリカリエコネクタクミ	1
	S49465002	ショウリカリエコネクタクミ	1
	228475000	ケツソクバンド1.9X8	1
	117150001	コードサエカネ	1
	062670612	ナベコ357-40X6	1
	218859001	バインドM150	1
	S00480000	コードホルダ#5	2
	060670612	バインド357-40X6	2
	060670612	バインド357-40X6	1
	060400616	バインドM4X6	1
	S49934009	EMロックSWクミ	1
	S37057001	EMスイッチスペーサ3	1
	S49482000	EMロックSWハーネスクミ	1
	S32335100	SW-AVS311N	1

Page 55 — R. 電装品関係 / Power supply equipment mechanism

Brother KE-430C parts on page 55

Ref	Part number	Part name	Qty
14-1	14-1	14-1-114-1-2
14-4	14-4	14-4
6-1	6-1	6-1
8	8	8
6-2	6-2	6-2
8	8	8
14-3	14-3	14-3
36	36	36
37	37	37
35	35	35
34	34	34
13	13	13
12	12	12
18	18	18
20	20	20
19	19	19
6-4	6-4	6-4
205	205	205
203	203	203
206	206	206
204	204	204
201	201	201
200	200	200
30-2-1	30-2-1	30-2-1
30-2	30-2	30-2
30-1	30-1	30-1
31	31	31
30-2-2	30-2-2	30-2-2
33	33	33
32	32	32
40-5	40-5	40-5
40-6	40-6	40-6
40-1	40-1	40-1
40-4	40-4	40-4
40-8	40-8	40-8
40-7	40-7	40-7
40-3	40-3	40-3
40-10	40-10	40-10
40-9	40-9	40-9
40-2	40-2	40-2
40	40	40
10	10	10
11	11	11
16	16	16
17	17	17
43	43	43
42	42	42
25	25	25
24	24	24
23	23	23
21	21	21
22	22	22
41	41	41
4	4	4
5	5	5
1	1	1
3	3	3
2	2	2
15	15	15
14-2	14-2	14-2
9	9	9

Page 56

Brother KE-430C parts on page 56

Ref	Part number	Part name	Qty
	S49466000	OPTION PARTS	1
	062710812	EM-SWITCH HARNESS	2
	149287000	SCREW, PAN SM4.76-32X8	3
	060670612	CORD HOLDER, 7N	3
	060670612	SCREW, BIND SM3.57-40X6	3
	S55629101	HEAD SEITCH ASSY	1
	S55630001	MICRO SWITCH ASSY	1
	S38744101	SWITCH PLATE SPRING	1
	S55632001	SWITCH BRACKET	1
	062020806	SCREW, PAN M2X8	2
	140647101	CORD HOLDER	1
	062400616	SCREW, PAN M4X6	1
	062401216	SCREW, PAN M4X12	1
	026040236	WASHER, PLAIN 4	1
	154514001	SPACER	1
	021400106	NUT, 1 M4	1
	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
	552907000	CORD HOLDER, 10N	1
	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
	S48583001	SOLENOID ASSY	1
	062501212	SCREW, PAN M5X12	4
	025050232	WASHER, PLAIN M 5	4
	S36046000	PROXIMITY SENSOR, E2R	1
	062300612	SCREW, PAN M3X6	1
	S10243000	CORD HOLDER, NK-3N	1
	062300612	SCREW, PAN M3X8	1

Page 57

Brother KE-430C parts on page 57

Ref	Part number	Part name	Qty
	1-1-1	Operation panel mechanism
	1-1-2	Power table
	1-1-3
	1-1-4
	1-1-5
	1-1-6
	1-1-7
	1-1-7-1
	1-1-7-2
	1-1-7-3
	1-1-7-4
	1-1-7-5
	1-1-7-6
	1-1-8
	1-1-9
	1-1-10
	1	Motor
	1-2
	2

Page 58 — S. 操作パネル関係 / Operation panel mechanism

Brother KE-430C parts on page 58

Ref	Part number	Part name	Qty
	S5589001	ソウサパネルソウクミ	1
	S55890001	ソウサパネルIMクミ	1
	S55891000	マエフレームIMクミ	1
	S52091000	ウシロフレームクミ	1
	S49495000	パネルヨコカバー	1
	S49496001	パネルヨコカバーガイド	1
	087310815	カップBタイト3X8	2
	0A4400805	+ヘザクミ4X8DA	1
	S49497001	パネルキバンクミ	1
	S29023000	LEDGL9P040	4
	S46703000	LEDPG5307S	7
	S48579000	SWB3F-4050	10
	U34870001	DIP SW KSP08	1
	S30280000	ブザー-PKB24SPC3	1
	UL0025000	コネクタ3429-6002S	1
	S49510000	パネルケーブルクミ	1
	087311015	カップBタイト3X10	2
	XA2220050	キバンオサエ	2
	D62300806	ナベコ3X8	4
	J80868001	CIMモータ430クミ	1
	S53055100	IMハーネスクミ	1

Page 59 — U1 . 踏板関係 / Foot switch pedal mechanism

Brother KE-430C parts on page 59

Ref	Part number	Part name	Qty
	1-1-1-13	1-1-1-13
	1-1-1-9	1-1-1-9
	1-1-1-12	1-1-1-12
	1-1-1-10	1-1-1-10
	1-1-1-14	1-1-1-14
	1-1-1-15	1-1-1-15
	1-1-1-11	1-1-1-11
	1-1-8	1-1-8
	1-1-1-7	1-1-1-7
	1-1-1-7-1	1-1-1-7-1
	1-1-1-7-1-1	1-1-1-7-1-1
	1-1-1-7-1-2	1-1-1-7-1-2
	1-1-1-19	1-1-1-19
	1-1-1-1	1-1-1-1
	1-1-1-2	1-1-1-2
	1-1-1-3	1-1-1-3
	1-1-1-16	1-1-1-16
	1-1-1-5	1-1-1-5
	1-1-1-4	1-1-1-4
	1-1-7	1-1-7
	1-1-8	1-1-8
	1-1-9	1-1-9
	1-1-1	1-1-1
	1-1-10	1-1-10
	1-1-11	1-1-11
	1-1-12	1-1-12
	1-1-1-7-2	1-1-1-7-2
	1-1-1-8	1-1-1-8
	1-1-1-17	1-1-1-17
	1-1-1-18	1-1-1-18
	1-1-4	1-1-4
	1-1-5	1-1-5
	1-1-6	1-1-6
	1-1-2	1-1-2
	1-1-3	1-1-3

Page 60 — U1 . 踏板関係 / Foot switch pedal mechanism

Brother KE-430C parts on page 60

Ref	Part number	Part name	Qty
	S49667101	2ダンフットSWセット	1
	S49668101	2ダンフットSWクミ	1
	S49669100	フットペダルダイクミ	1
	S49672001	2ダンSWピン	1
	S38168001	アツシユクハネ	1
	S38169201	フットSWジシタB	1
	004400603	サラコネジ・メ4	2
	S38170001	フットペダルハネ	1
	S54648000	フットSWハーネスクミ	1
	S54646000	フットSWハーネス	1
	S54644000	サシコミタンシヌス	2
	S36260000	ゼツエンカバー	2
	062302506	スイツチVXピンボタン	2
	S51451000	フットペダル	1
	S49673000	ペダルホゴイタ	1
	S49674001	スイツチオサエハネ	1
	S38177001	フットペダルジク	1
	048050346	トメワE5	2
	052400606	ナベコバネヒラ4X6	2
	025040236	ヒラザガネチユウ4	1
	117936001	ゴムセン9.4	4
	S38180000	コネクタ172169-1	1
	S36682000	コネクタキャップ	1
	S46694000	コードブツシユKR61A	1
	S38178101	フットSWジシタA	1
	S38179101	フットSWジシタC	1
	018082536	アナボルト8X25	2
	028080246	バネザガネ2-8	2
	025080236	ヒラザガネチユウ8	2
	018501036	アナボルト5X10	2
	028050246	バネザガネ2-5	2
	025050236	ヒラザガネチユウ5	2
	018401236	アナボルト4X12	2
	028040246	バネザガネ2-4	2
	025040236	ヒラザガネチユウ4	2

Page 61

Brother KE-430C parts on page 61

Ref	Part number	Part name	Qty
	1-2-1-12	Screw
	1-2-1-8	Cover
	1-2-1-11	Shaft
	1-2-1-9	Base
	1-2-1-13	Screw
	1-2-1-5	Cord
	1-2-1-5-1	Cord
	1-2-1-5-1-1	Cord
	1-2-1-5-1-2	Cord
	1-2-1-6	Cord
	1-2-1-14	Washer
	1-2-1-10	Lever
	1-2-1-4	Spring
	1-2-1-18	Connector
	1-2-1-1	Base
	1-2-1-7	Clip
	1-2-1-16	Plug
	1-2-1-15	Screw
	1-2-1-17	Cord
	1-2-1-2	Base
	1-2-1-3	Screw
	1-2-1	Foot switch pedal mechanism
	1-2-7	Screw
	1-2-8	Washer
	1-2-9	Washer
	1-2-4	Screw
	1-2-5	Washer
	1-2-6	Washer
	1-2-2	Bracket
	1-2-3	Base
	1-2-10	Screw
	1-2-11	Washer
	1-2-12	Washer

Page 62 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C parts on page 62

Ref	Part number	Part name	Qty
	S49675101	2-PEDAL FOOT SWITCH SET	1
	S49676101	2-PEDAL FOOT SWITCH ASSY	1
	S49669100	FOOT PEDAL BASE ASSY	2
	S38169201	FOOT SWITCH SUPPORT PLATE, B	2
	004400603	SCREW, FLAT M4X6	4
	S38170001	FOOT PEDAL SPRING	2
	S54649000	2-PEDAL FOOT SW HARNESS ASSY	1
	S54647000	2-PEDAL FOOT SWITCH HARNESS	2
	S54644000	TERMINAL, FEMALE	4
	S54645000	INSULATION COVER	4
	S36260000	MICRO SWITCH, VX-PIN BUTTON	2
	062301205	SCREW, PAN M3X12	4
	228475000	FASTENING BAND, 1.9X80	8
	S51451000	FOOT PEDAL	2
	S49673000	PEDAL PROTECTION PLATE	2
	S49674001	SWITCH PRESSER SPRING	2
	S38177001	FOOT PEDAL SHAFT	2
	048050346	RETAINING RING, E5	4
	052400606	SCREW, PAN (S/P WASHER) M4X6	4
	025040236	WASHER, PLAIN M 4	2
	117936001	RUBBER CAP, 9.4	8
	S38180000	CONNECTOR :172169-1	1
	S38060000	CONNECTOR CAP, 18X19	1
	S46694000	CORD BUSH :KR61A	2
	S38178101	FOOT SWITCH SUPPORT PLATE, A	2
	S38179101	FOOT SWITCH SUPPORT PLATE, C	2
	018082536	BOLT, SOCKET M8X25	4
	028080246	WASHER, SPRING 2-8	4
	025080236	WASHER, PLAIN M 8	4
	018501036	BOLT, SOCKET M5X10	4
	028050236	WASHER, SPRING 2-5	4
	025050236	WASHER, PLAIN M 5	4
	018401236	BOLT, SOCKET M4X12	4
	028040236	WASHER, SPRING 2-4	4
	025040236	WASHER, PLAIN M 4	4

Page 63 — U3 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C parts on page 63

Ref	Part number	Part name	Qty
2-1	2-1	FOOT SWITCH PEDAL MECHANISM
2-1-7	2-1-7	CORD
2-1-8	2-1-8	SWITCH
2-1-9	2-1-9	SCREW
2-1-10	2-1-10	WASHER
2-1-11	2-1-11	SCREW
2-1-12	2-1-12	BRACKET
2-1-5	2-1-5	NUT
2-1-1	2-1-1	BASE
2-1-6	2-1-6	SPRING
2-1-4	2-1-4	WASHER
2-2	2-2	SCREW
2-1-3	2-1-3	SCREW
2-1-2	2-1-2	BRACKET
2-3	2-3	BRACKET
2-5	2-5	SPRING
2-4-1	2-4-1	PEDAL
2-4-2	2-4-2	PIN
2-4-4	2-4-4	PIN
2-4-5	2-4-5	SCREW
2-4-7	2-4-7	WASHER
2-4-8	2-4-8	WASHER
2-4-3	2-4-3	BRACKET
2-4-6	2-4-6	NUT
3	3	SCREW

Page 64 — U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C parts on page 64

Ref	Part number	Part name	Qty
	S46131001	2-STEP FOOT SWITCH SET, OP	1
	S46132001	2-STEP FOOT SWITCH ASSY, OP	1
	S46133001	SWITCH BRACKET	1
	S46134001	FOOT SWITCH LEVER	1
	148904001	SHOULDER SCREW, SM7.94	1
	025080236	WASHER, PLAIN M 8	1
	101268002	NUT, SM7.94	1
	S46135001	FOOT SWITCH SPRING	1
	S46136000	FOOT SWITCH HARNESS ASSY, OP	1
	UD2390001	SCREW, PAN (S/P WASHER) M3X20	4
	025030236	WASHER, PLAIN M 3	2
	021300206	NUT, 2 M3	2
	052400806	SCREW, PAN (S/P WASHER) M4X8	2
	S00480000	CORD HOLDER, #5	1
	100666002	WOOD SCREW, ROUND M5.5X20	2
	200190001	STAPLE	3
	S01603009	TREADLE ASSY	1
	S01199003	TREADLE PEDAL	1
	133188001	TREADLE SHAFT	1
	119707003	TREADLE SHAFT BRACKET	2
	119708001	TREASLE BUSHING COLLAR	2
	017082206	BOLT, M6X22	2
	116694001	NUT, SQUARE M8	2
	028080240	WASHER, SPRING 2-8	2
	025080236	WASHER, PLAIN M 8	2
	142656001	CHAIN ASSY	1
	S49443000	CONTACT: 170364-1	1

Page 65

Brother KE-430C parts on page 65

Ref	Part number	Part name	Qty
	20-5-7-1	20-5-7-1
	20-5-7-2	20-5-7-2
	20-5-8	20-5-8
	20-15	20-15
	20-16	20-16
	20-14	20-14
	20-5-7	20-5-7
	20-5	20-5
	20-5-10	20-5-10
	20-5-9	20-5-9
	20-5-12	20-5-12
	20-5-11	20-5-11
	20-10	20-10
	20-11	20-11
	20-8	20-8
	20-5-6	20-5-6
	20-9	20-9
	20-1	20-1
	20-12	20-12
	20-5-1	20-5-1
	20-5-5	20-5-5
	20-5-2	20-5-2
	20-3	20-3
	20-5-1-1	20-5-1-1
	20-2	20-2
	20-7	20-7
	20-5-13	20-5-13
	20-17	20-17
	20-5-4	20-5-4
	20-5-3	20-5-3
	20-6	20-6
	20-4	20-4
	20-13	20-13

Page 66 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother KE-430C parts on page 66

Ref	Part number	Part name	Qty
	S49815009	デンジワイパーアツミ
	S41656001	イトハライレンカンクミ
	S44600001	ワイパーアームアツミ
	153112001	ダンネジ3.57
	021670202	ナツト2シュ3.57
	S49616009	ソレノイドボックスクミ
	S49619001	イトハライソレノイドクミ
	S41204050	プランジヤゴム
	062300612	ナベコ3X6
	S41205001	ヒラザガネ
	S41206001	イトハライバネ
	S25456001	プランジヤピン
	S42017109	Wソレノイドトリケイタ
	S49482000	EMロツクSWハーネススミ
	S32335000	SW-AVS311N
	S49466000	EMSWハーネス
	S37057001	EMスイッチスペーサ3
	S42018109	Wソレノイドカバー
	008400604	トラスコ4X6
	S37806109	ソレノイドカバーEフタ
	008400604	トラスコ4X6
	115007001	ザガネ
	S41207000	スペーサゴム
	S25456001	プランジヤピン
	018400632	アナボルト4X6
	100645003	ザガネ
	S41657001	イトユルミロツドDW
	061350616	ザラコ35X6
	062680812	ナベコ437-40X8
	156206001	ワイパーA
	S49947000	コネクタVHR-5N
	060670612	バインド357-40X6
	149287000	ナイロンクランプ
	104449001	ゴムセン15.5

Page 67 — Z1. 付属品関係 / Accessories

Brother KE-430C parts on page 67

Ref	Part number	Part name	Qty
4	4	4
4-4	4-4	4-4
5	5	5
4-2	4-2	4-2
4-3	4-3	4-3
4-1	4-1	4-1
21	21	21
20	20	20
16	16	16
17	17	17
12	12	12
10	10	10
11	11	11
9	9	9
921	921	921
59	59	59
920	920	920
14	14	14
19	19	19
18	18	18
61	61	61
42	42	42
55	55	55
52	52	52
62	62	62
103	103	103
101	101	101
102	102	102
6	6	6
71	71	71
70	70	70
31	31	31
30	30	30
29	29	29
51	51	51
22	22	22
57	57	57
56	56	56
58	58	58
75	75	75
75-1	75-1	75-1
75-2	75-2	75-2
27	27	27
28	28	28
26	26	26
32	32	32
33	33	33
34	34	34
23	23	23
76	76	76
15	15	15
24	24	24
903	903	903
902	902	902
911	911	911
912	912	912
901	901	901
64	64	64

Page 68 — Z1 . 付属 品 関係 / Accessories

Brother KE-430C parts on page 68

Ref	Part number	Part name	Qty
	S38039209	オイルパンクミ	1
	S38040209	オイルパン	1
	154467001	ハイクキャップ	1
	037301215	Vナベタツピン3X12	2
	S18093100	クミモ4X4	1
	109714000	クギ	5
	114486002	ポリオリイラータイ	1
	143882001	トウブヒンジ	2
	014760622	アナトメシ5.95	2
	S49603000	トウブヒンジウケゴム	2
	109714000	クギ	4
	122991001	フククヒンホリクロ	1
	*	ボビン	3
	*	ハリ4コイリクミ	1
	S10208001	イトウカンザ	1
	S10208002	イトウカンザ	1
	S10208003	イトウカンザ	1
	S38045109	マクラクミ	1
	S49604000	トウブウケゴム	2
	109714000	クギ	2
	114486002	ポリオリイラー	1
	S55663001	オイルタンククミ	1
	S08170001	ZK ガタネシマワシ	1
	142443001	ネジマワシ1.9X52	1
	118837001	ネジマワシ3.4X70	1
	101572101	ネジマワシ5.5X190	1
	107779001	スパナ6X7	1
	100887001	スパナ8X9	1
	107780001	スパナ10X12	1
	142721001	6カクホススパナ3	1
	118064001	6カクホススパナ4	1
	200190001	ステップル	5
	144226001	トウブカバー	1
	S33006001	モータスペーサ	4
	133740006	カクネボルト6X70	4
	021060106	1 シュナット6	8
	025060336	ヒラザガネダイ6	4
	032461606	マルモクネジ4.5X16	2
	S38044001	ヒンジオサエ	1
	031412506	マルモクネジ4.1X25	4
	200190001	ステップル	3
	S41222101	ハリホウイトアンナイB	1
	S55633001	スイツチオシイタ	1
	032422003	マルモクネジ4.1X20	2

Page 69 — Z1. 付属品関係 / Accessories

Brother KE-430C parts on page 69

Ref	Part number	Part name	Qty
	4	4
	4-4	4-4
	5	5
	4-2	4-2
	4-3	4-3
	4-1	4-1
	21	21
	16	16
	20	20
	17	17
	103	103
	101	101
	102	102
	6	6
	31	31
	30	30
	29	29
	75	75
	75-1	75-1
	75-2	75-2
	76	76
	903	903
	911	911
	912	912
	902	902
	901	901
	12	12
	10	10
	11	11
	9	9
	19	19
	71	71
	70	70
	22	22
	28	28
	27	27
	26	26
	32	32
	33	33
	34	34
	23	23
	15	15
	64	64
	59	59
	921	921
	920	920
	18	18
	61	61
	55	55
	52	52
	57	57
	56	56
	58	58
	62	62
	42	42
	24	24
	14	14

Page 70 — Z1.付属品関係 / Accessories

Brother KE-430C parts on page 70

Ref	Part number	Part name	Qty
	S55311001	ベルトカバーIMミ	1
	S51097000	ベルトカバーIM	1
	S38350001	ソウチュウイラベル.ワ	1
	S55311002	ベルトカバーIMミ	1
	S51097000	ベルトカバーIM	1
	S38349001	ソウチュウイラベル.エイ	1
	062401006	ナベコ4X10	2
	S08030000	ヒューズ5AFB	1
	153242000	ヒューズ6A	1
	S48580000	GFUSE7AFB	1
	018405032	アナボルト4X50	2
	021400102	ナット1シュ4	2
	S06706001	シリコンオイル	1
	UA4817000	MOSLSI27C2001	1
	S60400000	ドウデンパツト30X50	2
	S60711001	PROM イレハコ	1
	156006001	オサエアシ	2
	017660512	ボルト4.37X5	2

Page 71

Brother KE-430C parts on page 71

Ref	Part number	Part name	Qty
	35-1	35-1-
	67-1-1-1	67-1-1-1
	67-1-1-7	67-1-1-7
	67-1-1-6	67-1-1-6
	67-1-1-3	67-1-1-3
	67-1-1-5	67-1-1-5
	67-1-1-2	67-1-1-2
	67-1-1-4	67-1-1-4
	67-1-2	67-1-2
	35-1-5-1	35-1-5-1
	35-1-11-1	35-1-11-1
	35-1-10-2	35-1-10-2
	35-1-10-3	35-1-10-3
	35-1-4-5	35-1-4-5
	35-1-10-1	35-1-10-1
	35-1-11-1	35-1-11-1
	35-1-3	35-1-3
	35-1-2	35-1-2
	35-1-1	35-1-1
	35-1-8-3	35-1-8-3
	35-1-9	35-1-9
	35-1-8-2	35-1-8-2
	35-1-4-4	35-1-4-4
	35-1-4-1	35-1-4-1
	35-1-4-2	35-1-4-2
	35-1-4-3	35-1-4-3
	35-1-5	35-1-5
	35-1-11-5	35-1-11-5
	35-1-11-2	35-1-11-2
	35-1-7	35-1-7
	35-1-11-4	35-1-11-4
	35-1-6	35-1-6
	35-1-11-5	35-1-11-5
	35-1-11-3	35-1-11-3
	35-2	35-2-
	67-2-1	67-2-1
	67-2-1-1	67-2-1-1
	67-2-2	67-2-2
	67-2-1-5	67-2-1-5
	67-2-1-2	67-2-1-2
	67-2-1-3	67-2-1-3
	67-2-1-4	67-2-1-4
	35-2-7-1	35-2-7-1
	35-2-15-1	35-2-15-1
	35-2-14-2	35-2-14-2
	35-2-14-3	35-2-14-3
	35-2-14-1	35-2-14-1
	35-2-6	35-2-6
	35-2-16-1	35-2-16-1
	35-2-12	35-2-12
	35-2-10-1	35-2-10-1
	35-2-15-1	35-2-15-1
	35-2-16-2	35-2-16-2
	35-2-13	35-2-13
	35-2-10-2	35-2-10-2
	35-2-10-3	35-2-10-3
	35-2-4-1	35-2-4-1
	35-2-4-2	35-2-4-2
	35-2-7	35-2-7
	35-2-15-5	35-2-15-5
	35-2-15-2	35-2-15-2
	35-2-9	35-2-9
	35-2-15-4	35-2-15-4
	35-2-16-3	35-2-16-3
	35-2-11	35-2-11
	35-2-8	35-2-8
	35-2-15-5	35-2-15-5
	35-2-15-3	35-2-15-3

Page 72 — Z2. 付属品関係 / Accessories

Brother KE-430C parts on page 72

Ref	Part number	Part name	Qty
	S02763402	COTTON STAND ASSY, 2DR	1
	S51283001	SPOOL STAND BASE	2
	150182000	SPOOL MAT	2
	S51282001	SPOOL CUSHION	2
	S02777001	PIPE (D) SCREW SET, B	1
	150206002	WASHER, PLAIN 16	1
	S38648001	NUT, U5/8-28	16
	150174000	COLUMN CAP	1
	S01005000	RUBBER WASHER	1
	S02747101	SPRING	1
	S40640001	COLUMN PIPE W/CAP	1
	150174000	COLUMN CAP	1
	156112003	COLUMN PIPE, D	1
	150173003	COLUMN JOINT	1
	S21796001	SPOOL & SCREW SET	2
	150179002	SPOOL SHAFT, B	2
	028050246	WASHER, SPRING 2-5	2
	021500106	NUT, 1 M5	2
	S02778002	SPOOL HOLDER, 2	1
	S02776002	THREAD HANGER ASSY, 2	1
	S02767000	THREAD HANGER, 2	1
	150163000	THREAD HANGER BASE	2
	142990001	THREAD BUSH	2
	S40641001	SPOOL SHAFT & SCREW SET, A	1
	021500106	NUT, 1 M5	4
	062501406	SCREW, PAN M5X14	1
	S59931001	SCREW, PAN M5X32	1
	062501406	SCREW, PAN M5X14	2
	026050136	WASHER, PLAIN S 5	2
	S49602201	EYE GUARD SET, C	1
	S44493101	EYE GUARD ASSY	1
	S44483001	HINGE ASSY	1
	S44485001	EYE GUARD	1
	061660806	SCREW, FLAT SM3.18-40X8	2
	021660102	NUT, 1 SM3.18	2
	026030232	WASHER, PLAIN M 3	2
	S44486101	EYE GUARD HOLDER, A	1
	062670512	SCREW, PAN SM3.57-40X5	2
	062671016	SCREW, PAN SM3.57-40X10	2
	S40574109	COTTON STAND ASSY, 2DTHF	1
	S51283001	SPOOL STAND BASE	2
	150182000	SPOOL MAT	2
	S51282001	SPOOL CUSHION	2
	S02775001	PIPE SCREW SET, A	1
	150206002	WASHER, PLAIN 16	1
	S38648001	NUT, U5/8-28	16
	S04109001	THREAD GUIDE SUPPORT BAR	1
	142997001	THREAD GUIDE, 3	1
	S40640001	COLUMN PIPE W/CAP	1
	150174000	COLUMN CAP	1
	156112003	COLUMN PIPE, D	1
	150173003	COLUMN JOINT	1

Page 73 — Z2.付属品関係 / Accessories

Brother KE-430C parts on page 73

Ref	Part number	Part name	Qty
	S21798001	スプールネジセット	2
	150179002	SPOOL & SCREW SET	2
	028050246	バネザガネ2-5	2
	021500106	SPOOL SHAFT, B	2
	150185009	シュナット5	1
	138843001	NUT, 1 M5	1
	S02778002	イトアンナイホルダー	1
	S02786002	THREAD GUIDE HOLDER	1
	S02787002	サエボウツキテ	1
	150183000	JOINT	2
	142990001	スプールホルダー-2	2
	S40641001	SPOOL HOLDER, 2	1
	021500106	スレッドハンガーアセン2	4
	062501406	THREAD HANGER ASSY, 2	1
	S59931001	シュナット5	1
	062501406	NUT, 1 M5	2
	026050136	ナベコ5X14	2
	S40643001	SCREW, PAN M5X14	1
	014060632	ナベコM5X32	2
	021500106	SCREW, PAN M5X32	1
	S59931001	サラガネコウタ5	1
	S50000201	WASHER, PLAIN S 5	1
	S36665101	ホルダーツキテネジセット	1
	S36666101	HOLDER JOINT & SCREW SET	1
	S52097001	ナベコ6X6	1
	062660712	SET SCREW, SOCKET (CP) M6X6	2
	025660132	シュナット5	2
	021660102	NUT, 1 M5	2
	062671016	SCREW, PAN M5X32	2
	S21798001	アイガードセットD	1
	S36665101	EYE GUARD SET, D	1
	S36666101	アイガードクミ	1
	S52097001	EYE GUARD ASSY	1
	062660712	アイガードササエタイ	2
	025660132	EYE GUARD SUPPORT PLATE	2
	021660102	アイガード	2
	062671016	EYE GUARD	2
	S59931001	ナベコ318-40X7	1
	062501406	SCREW, PAN SM3.18-40X7	2
	026050136	サラガネコウシヨウ3.18	2
	S40643001	WASHER, PLAIN S 3.18	1
	014060632	ナット1シュ3.18	2
	021500106	NUT, 1 SM3.18	1
	S59931001	ナベコ357-40X10	1
	062501406	SCREW, PAN SM3.57-40X10	2

Page 74 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Brother KE-430C parts on page 74

Ref	Part number	Part name	Qty
	S10212-101	Needle hole plate
	S49980-001	Needle hole plate
	S10211-001	Needle hole plate
	152690-401	Bobbin case assy
	159610-301	Bobbin case assy
	159610-301	Bobbin case assy
	S59221-001	Tension spring
	154340-101	Tension spring
	154339-101	Tension spring
	S48664-001	Screw
	154341-001	Screw
	154341-001	Screw
	S16492-101	Spring, anti-spin
	154342-001	Spring, anti-spin
	159612-001	Spring, anti-spin
	159612-001	Spring, anti-spin
	S15667-001	Spring, anti-spin
	S15667-001	Spring, anti-spin
	159613-051	Bobbin
	159613-051	Bobbin
	S15665-001	Bobbin
	SA1882-001	Shuttle hook assy, w/box
	SA1881-001	Shuttle hook assy, w/box
	SA1881-001	Shuttle hook assy, w/box
	SA1890-001	Shuttle race body
	SA2173-001	Shuttle race body
	152686-101	Shuttle race body
	152682-101	Shuttle race body
	107606-001	Spring, tension
	104525-001	Spring, tension
	144588-001	Thread take-up spring
	145519-001	Thread take-up spring

Page 75 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Brother KE-430C parts on page 75

Ref	Part number	Part name	Qty
A	152890-001	Needle bar Thread guide
B	S41222-101	Needle bar Thread guide
	SA1579-019	Needle assy
	SA1752-014	Needle assy
	SA1752-009	Needle assy
	S37928-019	Needle
	107415-014	Needle
	107415-009	Needle
	S49591-301	Work clamp assy
	S49594-301	Work clamp assy
	S51095-301	Work clamp assy
	153608-101	Work clamp
	152777-001	Work clamp
	S49695-001	Work clamp
	154527-001	Work clamp
	152778-001	Work clamp
	S49694-001	Work clamp
	S49697-001	Feed plate
	S49698-001	Feed plate
	S49696-001	Feed plate

Page 79 — Ga1. ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C parts on page 79

Ref	Part number	Part name	Qty
	153203-001	R
	S00906-001	(25.4mm)
	S33747-001	(30mm)
	S59903-001	(AW / 30X26mm用)
	153204-001	L
	S00907-001	(25.4mm)
	S33748-001	(30mm)
	S59909-001	(W / 30X26mm用)
	S49944-001	< PS >
	S49946-001	(25.4mm)
	S49948-001	(30mm)
	155994-000	Bolt, socket SM 4.37x5
	S49976-100
	S49977-100
	S49978-100
	S46771-001	(線押止/ For straight bar tacking)
	S46771-001	(線門・沈/ For straight tacking/submerged)
	S46770-001	(線押止/ For straight bar tacking)
	S46770-001	(線門・沈/ For straight tacking/submerged)
	S49970-001	(線押止/ For straight bar tacking)
	S49974-001	(線門・沈/ For straight tacking/submerged)
	S49941-001	< PM >
	S49945-001	<MS >

Page 80 — Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C parts on page 80

Ref	Part number	Part name	Qty
	S46774-001	(糊門止/For vertical bar tacking)
	S46774-001	(糊門止/For vertical bar tacking/submerged)
	S46777-001	(糊穴/For circular stitching)
	S46780-001	(半月円/For crescent bar tacking)
	S46773-001	(糊門止/For vertical bar tacking)
	S46775-001	(糊門止/For vertical bar tacking/submerged)
	S46776-001	(糊穴/For circular stitching)
	S46779-001	(半月円/For crescent bar tacking)
	S49971-001	(糊門止/For vertical bar tacking)
	S49975-001	(糊門止/For vertical bar tacking/submerged)
	S49972-001	(糊穴/For circular stitching)
	S49973-001	(半月円/For crescent bar tacking)
	156006-001	Work clamp
	017680-512	Work clamp
	156006-001	Work clamp
	017680-512	Work clamp

Page 81 — Gauge parts List (KE-431C)

Brother KE-430C parts on page 81

Ref	Part number	Part name	Qty
	S51848-101	Work clamp arm assy
	154416-201	Work clamp arm assy
	S51851-101	Work clamp arm assy
	154417-201	Work clamp arm assy
	S51853-001	Work clamp
	S51852-001	Work clamp
	S42902-001	Home position standard plate / Screw
	S42903-001	Gauge assy
	S10352-101	Gauge assy

Page 82 — Ga3. ゲージ部品一覧表 / Gauge parts List

Brother KE-430C parts on page 82

Ref	Part number	Part name	Qty
	S10211-001	Needle hole plate
	S51449-001	Needle hole plate
	S41013-001	Needle hole plate
	S29997-001	Needle hole plate
	S10212-101	Needle hole plate
	S30925-001	Needle hole plate
	S10213-001	Needle hole plate
	S30926-001	Needle hole plate
	S49980-001	Needle hole plate
	S59620-001	Needle hole plate
	S30450-001	Needle hole plate
	S25127-001	Needle hole plate
	S34348-001	Needle hole plate
	S40217-001	Needle hole plate
	S10212-101	Needle hole plate
	S49980-001	Needle hole plate
	S10211-001	Needle hole plate
	S49980-001	Needle hole plate
	S49980-001	Needle hole plate

Page 83 — Wa. 警告ラベル / Warning labels

Brother KE-430C parts on page 83

Ref	Part number	Part name	Qty
	S38353-101	電撃ラベル・和
	S38352-101	Label, elec. shock 4 lang.
	S38350-001	操作注意ラベル・和
	S38349-001	Label, operation Eng.
	S37059-001	PE マーク Label, PE
	S37060-001	アースマーク Label, grounding

Page 84

Brother KE-430C parts on page 84

Ref	Part number	Part name	Qty
56	004400603	U1-1-1-5
58	004400603	U2-1-2-1-3
42	008400604	Q1-1-22
62	008400604	V-20-5-10
62	008400604	V-20-5-12
2	011679312	A-101
69	014060632	Z2-35-16-1
14	014680622	C4-205
22	014680622	E-3
30	014680622	H-1-9
32	014680622	J-8-2
36	014710522	K-14
8	014780622	C1-4-4
8	014780622	C1-6
8	014780622	C1-10
8	014780622	C1-13
8	014780622	C1-21
8	014780622	C1-30
10	014780622	C2-37-7
10	014780622	C2-37-24
12	014780622	C3-37-6
12	014780622	C3-37-20
18	014780622	D1-13
20	014780622	D2-13
20	014780622	D2-36
22	014780622	E-7
22	014780622	E-10
22	014780622	E-15
32	014780622	J-33
36	014780622	K-5
64	014780622	Z1-10
28	014760632	G-28
12	014770622	C3-37-9
22	014770622	E-13-1
32	014770622	J-2
32	014770622	J-23
4	014770632	B1-4
4	014780622	B1-5
4	014780622	B1-17
60	017082206	U3-2-45
2	017680512	A-15
6	017680512	B2-49
66	017680512	Z1-912
75	017680512	Ga1-211
14	017761212	C4-42
10	017781412	C2-42
12	017781412	C3-42
16	017781412	C4-206
20	017813733	D2-39
6	018051022	B2-41
14	018061436	C4-37-33
20	018061622	D2-34
16	018062036	C4-221
6	018062522	B2-42
56	018082536	U1-1-1-4
58	018082536	U2-1-2-4
6	018083022	B2-37
62	018400632	V-20-8
10	018400822	C2-47
12	018400822	C3-47
50	018401222	R-3
6	018401236	B2-30-4
56	018401236	U1-1-1-10
58	018401236	U2-1-2-10
58	018401622	U2-1-2-10
66	018405032	Z1-920
10	018500822	C2-37-15
12	018500822	C3-37-8
12	018500822	C3-37-13
10	018501022	C2-500-5
56	018501036	U1-1-1-7
58	018501036	U2-1-2-7
18	018501232	D1-28
20	018501422	D2-26
20	018501422	D2-36
75	018680252	Ga1
6	021060102	B2-43
48	021060106	Q2-6
64	021060106	Z1-56
16	021060306	C4-223
60	021300206	U3-2-1-10
14	021400102	C4-37-13
66	021400102	Z1-921
48	021400106	Q2-52
42	021400206	Q1-1-6
68	021500106	Z2-35-1-8-3
68	021500106	Z2-35-1-11-1
69	021500106	Z2-35-2-10-3
69	021500106	Z2-35-2-15-1
69	021500106	Z2-35-2-16-2
68	021660102	Z2-67-1-4
69	021660102	Z2-67-2-1-5
36	021670102	L-10
62	021670202	V-20-4
14	021680202	C4-37-7
14	021710212	C4-37-18
60	025030236	U3-2-1-9
48	025040236	Q2-51
56	025040236	U1-1-1-15
56	025040236	U1-1-1-12
58	025040236	U2-1-2-14
58	025040236	U2-1-2-12
10	025050232	C2-500-7
52	025050232	R-202
56	025050236	U1-1-1-9
58	025050236	U2-1-2-9
10	025060232	C2-41
12	025060232	C3-41
14	025060232	C4-37-32
14	025060232	C4-41
20	025060232	D2-35
48	025060236	Q2-5
2	025060336	A-35
6	025060336	B2-39
56	025060336	U1-1-1-6
58	025060336	U2-1-2-6
60	025060336	U3-2-1-4
60	025060336	U3-2-4-8
36	025350132	K-17
36	025350132	L-16
69	025350132	Z2-67-2-1-4
40	025660132	N-7
26	025660232	F-8
30	025660232	H-1-27
14	025710132	C4-37-24
14	025710132	C4-37-34
14	025710232	C4-37-10
14	025710232	C4-37-16
16	025710232	C4-213
16	025710232	C4-231
22	025770232	E-27
36	025770232	K-3
69	026040232	Z2-67-1-1-5
68	026050136	Z2-35-1-11-5
69	026050136	Z2-35-1-15-5
6	026040246	B2-30-5
56	026040246	U1-1-1-11
58	026040246	U2-1-2-11
10	026050242	C2-500-6
56	026050242	U1-1-1-8
58	026050246	U2-1-2-8
68	026050246	Z2-35-1-8-2
69	026050246	Z2-35-2-10-2
60	026060240	U3-2-4-7
6	026060242	B2-38
56	026060242	U1-1-1-5
58	026060242	U2-1-2-5
36	026350242	L-15
36	026350242	M-5-6
26	026600242	F-9
32	026600242	J-22-6
64	031412506	Z1-61
64	032422003	Z1-71
64	032461606	Z1-58
64	037301215	Z1-4-3
36	047401442	L-6
36	048030342	K-12
14	048030342	C4-37-17
36	048030342	K-4
36	048030342	L-19
36	048030342	M-15
56	048050346	U1-1-1-13
58	048050346	U2-1-2-12
10	048050346	C2-37-6
30	048050346	H-1-10
8	048060342	C1-15
8	048060342	C1-23
32	048060342	J-32
22	048070342	E-18
32	048070342	J-19
4	046100142	H-1-4
4	046150142	B1-9
20	046150142	D2-28
8	046180142	C1-8
56	052400606	U1-1-1-14
58	052400606	U2-1-2-13
60	052400806	U3-2-1-11
50	060400616	R-37
18	060501016	D1-22
20	060501016	D2-22
50	060501016	R-15
26	060670512	F-16
2	060670512	A-18
28	060670512	G-4
28	060670512	G-6
50	060670512	R-20
50	060670512	R-35
50	060670512	R-36
52	060670512	R-33
62	060670512	V-20-15
10	060670512	C2-53
14	060670512	C3-53
18	060670512	D1-24
20	060670512	D2-24
18	060670512	D1-20
20	060670512	D2-20
32	060670512	J-5
62	060670512	V-20-11
68	060670512	Z2-67-1-1-3
52	060670512	R-40-4
52	060670512	R-204
62	060670512	V-20-5-2
50	060670512	R-8
50	060670512	R-9
54	060670512	S-1-2
52	060670512	R-206
58	060670512	U2-1-2-1-6
56	060670512	U1-1-1-6
52	060670512	R-40-6
40	062400606	N-2
66	062401006	Z1-76
52	062401216	R-40-7
52	062501212	R-201
68	062501406	Z2-35-1-11-2
68	062501406	Z2-35-1-11-4
69	062501406	Z2-35-2-15-2
69	062501406	Z2-35-2-15-4
22	062660412	E-14-1-3
22	062660412	E-14-2-1-3
22	062660712	E-14-1-7
22	062660712	E-14-2-1-7
69	062660712	Z2-67-2-1-3
28	062670412	G-31
26	062670512	F-28
26	062670512	F-39
26	062670512	F-52
36	062670512	K-16
28	062670612	G-2
28	062670612	G-24
36	062670612	L-21
50	062670612	R-24
10	062671012	C2-37-22
36	062671012	L-14
68	062671016	Z2-67-1-2
69	062671016	Z2-67-2-2
12	062671212	C3-37-1-3
30	062680512	H-1-18
8	062680512	C1-36
16	062680512	C4-218

Page 86

Brother KE-430C parts on page 86

Ref	Part number	Part name	Qty
18	062680612	D1-16
20	062680612	D2-16
26	062680612	F-7
26	062680612	H-3
62	062680812	V-20-12
38	062680812	M-9
2	062681012	A-26
8	062681012	C1-18
8	062681012	C1-26
14	062681212	C4-37-25
30	062681212	H-2
40	062681412	N-6
16	062710612	C4-211
16	062710612	C4-219
16	062710612	C4-230
36	062710612	L-2
52	062710712	R-31
2	062710712	A-42
16	062710712	C4-212
16	062761012	C4-219
16	062761012	C4-224
10	071039750	C3-48
10	071039750	C3-48
12	071047650	C2-40
12	071047650	C3-40
14	071047650	C4-40
4	072630260	B1-7
22	081003670	E-12
22	087310815	E-17
54	087311015	S-1-1-5
54	087311015	S-1-1-9
40	091170009	P-1-5
40	093650006	P-1-3
40	093650032	P-1-4
40	0A4301005	P-1-13
42	0A4301005	Q1-1-26-17
48	0A4400605	Q2-42
54	0A4400606	S-1-1-6
42	0A5400606	Q1-1-9
50	0A5400606	R-17
50	0A5401006	R-5
50	0A5401006	R-11
52	0A5401006	R-41
52	0A5401006	R-43
42	0A5401206	Q1-1-5
42	0A5401206	Q1-1-10
20	100020004	C2-25
30	100022004	H-1-26
32	100022005	J-25
38	100022005	M-1-3
38	100022005	M-4
34	100032004	J-51
22	100090004	E-2
28	100135001	G-20
30	100135001	H-1-20
4	100242003	B1-20
4	100250001	B1-13
18	100261001	D1-8
20	100281001	D2-8
34	100360003	J-54
28	100402004	G-17
2	100645003	A-34
62	100666002	V-20-9
64	100667001	Z1-30
60	101268002	U3-2-1-5
64	101572101	Z1-28
8	101706001	C1-3-2
30	101706001	H-2
22	102630001	E-6-1
22	103810002	E-26
2	104449001	A-11
2	104450101	A-4
2	10450101	A-10
28	104525001	G-14-1
70	104567101	Sp1-G-14
70	104567101	Sp1-G-14
70	104567101	Sp1-G-14
72	104567101	Sp2-G-14
72	104567101	Sp2-G-14
72	104567101	Sp2-G-14
26	104567101	F-22
32	105234003	D2-32
32	105612003	J-15
32	105912003	J-15
36	106129002	M-5-5
2	106290002	A-14
10	107038003	C2-37-12
26	107149001	F-13
38	107321003	L-4
71	107415009	Sp1-B1-26
71	107415014	Sp1-B1-26
71	107415014	Sp1-B1-26
73	107415014	Sp2-B1-26
73	107415014	Sp2-B1-26
73	107415014	Sp2-B1-26
20	107606001	D2-30
64	107744001	Z1-29
64	107760001	Z1-31
8	108802001	C1-5
2	109239002	A-24
64	109714000	Z1-5
32	110161004	J-37
32	110233001	J-36
36	110251001	L-9
32	110357001	J-31
34	111400002	J-50
64	114430002	Z1-22
64	114486002	Z1-6
62	115007001	V-20-5-13
14	115147001	C4-201
28	115186001	G-19
28	115189001	G-21
10	116629001	C2-37-5
36	116694001	K-10
60	116924001	U3-2-4-6
4	116920001	B1-8
4	116920001	G-12
14	117143001	C4-37-27
28	117150001	R-23
2	117934001	A-6
2	117936001	A-17-3
56	117936001	U1-1-1-16
56	117936001	U2-1-2-1-15
64	118064001	Z1-34
14	118244001	C4-37-28
14	118247001	C4-37-11
14	118248101	C4-37-21
14	118249001	C4-37-29
73	118249001	Sp2-C4-37-29
14	118250001	C4-37-30
73	118250001	Sp2-C4-37-30
14	118252001	C4-37-23
14	118256001	C4-37-4
14	118257001	C4-37-5
14	118258001	C4-37-3
14	118259001	C4-37-6
16	118735002	C4-207
64	118837001	Z1-22
60	119707003	U3-2-4-3
60	119708001	U3-2-4-4
20	120440001	C2-25
30	120990001	H-1-13
30	120990001	H-1-14
32	121007001	J-42
64	122991001	Z1-14
14	123880001	C4-37-36
22	133188001	E-25
64	133740006	Z1-55
60	138843001	Z2-35-2-12
60	138843001	Z2-35-2-12
2	140392009	A-5
16	140407001	C4-226
16	140407001	C4-226
12	140407002	C3-37-7
52	140647101	R-40-5
4	140726000	B1-6
32	141492001	J-26-2
38	141590001	M-1-2
30	141590001	H-1-25
22	141786001	E-1
64	142443001	Z1-26
60	142656001	U3-2-5
64	142721001	Z1-33
68	142990001	Z2-35-1-10-3
69	142997001	Z2-35-2-14-3
68	142997001	Z2-35-2-6
64	143852001	Z1-9
30	144105000	H-1-23
30	144110001	H-1-21
64	144226001	Z1-51
4	144458001	B1-23
28	144588001	G-22
4	144712001	B1-2-1
10	145318001	C2-32
28	145446001	G-16
4	145465001	B1-16-5
10	145478101	C2-37-17
12	145478101	C3-37-15
70	145519001	Sp1-G-10
70	145519001	Sp1-G-10
72	145519001	Sp2-G-10
72	145519001	Sp2-G-10
72	145519001	Sp2-G-10
26	145547001	F-27
36	145992001	K-8
10	146354001	C2-37-14
14	146994001	C4-202
4	14777000	B1-16-9
26	148738000	F-4
26	148738000	F-40
26	148738000	F-41
32	148904001	U3-2-1-3
32	148904001	U3-2-1-3
52	149287000	R-32
48	149809000	Q2-45
48	149809000	Q2-48
68	150173003	Z2-35-1-7
68	150173003	Z2-35-2-9
68	150174000	Z2-35-1-4-3
68	150174000	Z2-35-1-5-1
68	150174000	Z2-35-2-7-1
68	150179002	Z2-35-1-8-1
69	150179002	Z2-35-2-10-1
68	150182000	Z2-35-1-2
68	150182000	Z2-35-2-2
68	150183000	Z2-35-1-10-2
69	150183000	Z2-35-2-14-2
69	150185009	Z2-35-2-11
20	150206002	D2-27
68	150206002	Z2-35-1-4-1
68	150206002	Z2-35-2-4-1
14	150553001	C4-37-2
16	150559001	C4-208
2	150592001	A-29
8	151602002	C1-3-3
4	152240101	B1-22
4	152242001	B1-24
4	152243001	B1-25
22	152245101	E-4
22	152678201	E-11
22	152678201	E-16
70	152682101	Sp1-E-21
70	152682101	Sp1-E-21
70	152682101	Sp1-E-21
72	152682101	Sp2-E-21
72	152682101	Sp2-E-21
72	152682101	Sp2-E-21
22	152693101	E-14-1-4

Page 87 — 索引 / INDEX

Brother KE-430C parts on page 87

Ref	Part number	Part name	Qty
	15268101	E-14-2-1-4
	152684101	E-14-2-1-5
	152686101	E-14-2-1-5
	152690401	Sp1-E24
	15275001	C1-9
	15276001	C1-7
	152771000	C2-38-1
	152771000	C3-38-1
	152771000	C4-38-1
	15277001	Sp1-C2-37-8
	15277001	Ga1-C2-37-8
	15277001	Ga1-C2-37-9
	152776001	Ga1-C2-37-9
	152776001	Ga1-C2-37-8
	152780001	Ga1-C2-37-8
	152780001	Ga1-C2-37-9
	152781001	Ga1-C2-37-8
	152782001	C2-37-10
	152783001	C2-37-11
	152786000	C2-37-19
	152786000	C3-37-17
	152822101	K-2
	152823001	K-11
	152827001	C4-214
	152827001	K-13
	152842059	G-1
	152869001	G-1
	152872001	G-8
	152881001	G-27
	152883000	G-29
	152884001	G-30
	152889001	G-23
	152890001	G-25-1
	152890001	Sp1-G-25
	152891101	G-26
	152948001	F-33
	152956001	F-42
	152969001	R-12
	153035000	C2-45
	153035000	C3-45
	153035000	C4-45
	153057101	C2-44
	153057101	C3-44
	153057101	C4-44
	153112001	V-20-3
	153112001	Ga1-C2-37-8
	153112001	Ga1-C2-37-8
	153202001	Ga1-C2-37-9
	153202001	Ga1-C2-37-9
	153203001	Ga1-C2-37-8
	153204001	Ga1-C2-37-9
	153242000	Q1-1-26-14
	153242000	Z1-102
	153484001	D2-31
	153567000	C2-37-20
	153567000	C3-37-18
	153569001	C3-37-16
	153570101	M-20
	153580001	J-20
	153597001	M-5-2
	153608101	Sp1-C2-37-8
	153608101	Sp1-C2-37-8
	153638001	Ga1-C2-37-8
	153628001	D2-29
	153634101	C4-203
	153638001	D2-37
	153624001	C1-1-4
	153644001	Sp1-E-24-1
	154339101	Sp1-E-24-1
	154339101	Sp1-E-24-1
	154339101	Sp2-E-24-1
	154339101	Sp2-E-24-1
	154340101	Sp1-E-24-1
	154341001	Sp1-E-24-2
	154341001	Sp1-E-24-2
	154341001	Sp2-E-24-2
	154341001	Sp2-E-24-2
	154342001	Sp2-E-24-2
	154343001	Sp1-E-24-3
	154352001	Sp2-C3-37-1
	154416201	Sp2-C3-37-10
	154416201	Sp2-C3-37-10
	154416201	Sp2-C3-37-10
	154417201	Sp2-C3-37-10
	154417201	Sp2-C3-37-10
	154417201	Ga1-C2-37-10
	154417201	Z1-42
	154467001	R-40-9
	154514001	Sp1-C2-37-9
	154514001	Sp1-C2-37-9
	154514001	Ga1-C2-37-9
	154528001	J-21
	154596000	J-21
	155590001	J-6
	155590001	J-6
	155590001	L-18
	15562101	C4-37-8
	155670001	C4-37-14
	155770001	C4-37-15
	155780000	B1-21
	155940000	Ga1-C2-212
	156006001	Z1-911
	156006001	Ga1-210
	156112003	Z2-35-1-6
	156112003	Z2-35-2-8
	156170001	C4-37-12
	156206001	V-20-13
	156495201	C2-37-21
	157968001	H-1-17
	159565000	F-23
	159574101	H-1-19
	159610301	Sp1-E24
	159610301	Sp1-E24
	159610301	Sp1-E24
	159610301	Sp2-E24
	159610301	Sp2-E24
	159610301	Sp2-E24
	159612001	Sp1-E-24-3
	159612001	Sp1-E-24-3
	159612001	Sp1-E-24-3
	159612001	Sp2-E-24-3
	159612001	Sp2-E-24-3
	159613051	Sp1-E-25
	159613051	Sp1-E-25
	159613051	Sp1-E-25
	159613051	Sp2-E-25
	159613051	Sp2-E-25
	159613051	Sp2-E-25
	159613051	G-15
	159805001	G-15
	159825001	C3-37-1-1
	159826101	C3-37-14
	159905001	J-14
	181995001	E-6
	183493001	C1-3
	200190001	U3-2-3
	200190001	Z1-42
	200190001	Z1-62
	224514001	Q2-2-1-5
	224514001	Q2-2-2-5
	224514001	Q2-2-3-5
	224514001	Q2-2-4-5
	224514001	Q2-2-5-5
	224514001	R-25
	224514001	Q2-2-1-4
	224514001	Q2-2-2-4
	224514001	Q2-2-3-4
	224514001	Q2-2-4-4
	224514001	Q2-2-7-4
	228475000	C4-216
	228475000	F-44
	228475000	J-55
	228475000	Q1-12
	228475000	R-22
	228475000	U2-1-2-1-7
	231071001	J-17
	232364001	Q1-1-26-6
	402887001	E-14-1-6
	402887001	E-14-2-1-6
	500554000	Q1-1-17
	500705001	J-47
	500906001	Ga1-C2-37-8
	500907001	Ga1-C2-37-9
	501005000	Z2-35-1-4-4
	501199003	U3-2-4-1
	501603009	U3-2-4
	501996001	M-13
	502354001	M-3
	502354001	J-24
	502429101	E-14-1-2
	502429101	E-14-1-2-2
	502652001	J-7
	502654001	J-8-1
	502747101	Z2-35-1-4-5
	502763402	Z2-35-1
	502775001	Z2-35-2-4
	502777001	Z2-35-1-4
	502778002	Z2-35-2-13
	502778002	Z2-35-2-14
	502780002	Z2-35-2-10-1
	502787002	Z2-35-2-14
	502787002	Z2-35-2-14-1
	504109001	Z2-35-2-5
	506533001	C4-37-31
	506706001	Z1-15
	507333001	F-2
	507456000	F-3
	508030000	Q1-1-26-15
	508170001	Z1-24
	509043000	E-14-1-8
	509043000	E-14-2-1-8
	509212001	C1-3-1
	510105001	D1-14
	510105001	D1-14
	510162201	F-15
	510174000	H-1-15
	510195101	J-30
	510202201	J-41
	510208001	J-46
	510208001	Z1-18
	510208001	J-46
	510208001	Z1-18
	510208003	J-46
	510208003	Z1-18
	510209101	C2-51
	510209101	C3-51
	510209101	C4-51
	510209101	J-48
	510210201	J-49
	510211001	Sp1-J-53
	510211001	Ga3-J-53
	510212101	Sp1-J-53
	510212101	Ga3-J-53
	510213001	Ga3-J-53
	510239001	M-22
	510243000	R-205
	510352101	Ga2-C1-200-2
	510469001	G-18

Page 90

Brother KE-430C parts on page 90

Ref	Part number	Part name	Qty
75	S49977100	Ga1-C2-100
75	S49978100	Ga1-C2-100
60	S49979400	R-14-1
72	S49980001	Sp1-J-53
	Sp2-J-53	72
	Sp2-J-53	72
	Ga3-J-53	78
22	S49981000	E-14-1-9
26	S49982000	F-12
26	S49983000	F-20
26	S49984000	F-21
26	S49985000	F-49
26	S49987000	F-50
26	S49988001	F-55
26	S49992000	F-1
32	S49994001	J-38
26	S49995001	F-51
2	S49999001	A-100
69	S50000201	Z2-67-2
24	S50529000	E-14-2-2
40	S50645000	P-1-10
14	S51064001	C4-100
	Sp2-C4-100	73
	Sp2-C4-100	73
74	S51085301	Ga1-C2-37
66	S51097000	Z1-75-1
2	S51098000	A-40
68	S51208001	Z2-35-1-3
68	S51282001	Z2-35-1-3
68	S51283001	Z2-35-2
68	S51283001	Z2-35-1
68	S51283001	Z2-35-2-1
78	S51449001	Ga3-J-53
56	S51451000	U1-1-1-1-9
	U2-1-2-1-8	56
2	S51460009	A-33
73	S51848101	Sp2-C3-37
	Ga2-C3-37	77
12	S51849101	C3-37-1
73	S51851101	Sp2-C3-37
	Ga2-C3-37	77
73	S51852001	Sp2-C3-100
	Ga2-C3-100	77
	Sp2-C3-100	73
73	S51853001	Sp2-C3-100
	Ga2-C3-100	77
	Sp2-C3-100	73
28	S51859101	G-5
54	S52091000	B-1-1-2
69	S52097001	Z2-67-2-1-2
16	S52098201	C4-232
6	S52834201	B2-30
6	S52836000	B2-47
6	S52838000	B2-35
6	S52839200	B2-36
6	S52840001	B2-40
42	S53030001	D1-11
44	S53031001	Q1-H-1
44	S53034001	Q1-H-3
44	S53035001	Q1-H-4
44	S53036001	Q1-H-5
44	S53037001	Q1-H-6
44	S53038001	Q1-H-7
44	S53039001	Q1-H-9
54	S53055100	T-2
2	S53119001	A-13-1
2	S53120001	A-13-2
56	S54440000	U1-1-1-7-1-1
56	S54645000	U1-1-1-7-1-2
	U2-1-2-1-5-1-1	58
56	S54646000	U1-1-1-7
	U1-1-1-7-1-5	56
56	S5470000	U1-1-1-7-1-5
58	S54840000	U2-1-2-1-5-1
58	S54841000	U2-1-2-1-5
22	S55140000	E-24
20	S55157000	D1-12
20	S55208000	D2-12
2	S55213001	A-26
22	S55214000	E-9
	E-23	22
22	S55215001	E-19
22	S55216001	E-14-2-1-1
	E-14-1-1	22
66	S55311001	Z1-75
66	S55311002	Z1-75
18	S55479001	D1-18
20	S55572001	D2-18
	B2-31	6
44	S55627001	Q1-54
52	S55629101	R-40
52	S55630001	R-40-1
52	S55632001	R-40-3
64	S55633001	Z1-70
22	S55656000	E-22
26	S55659000	F-54
64	S55663001	Z1-23
4	S5577001	B1-15
54	S55877001	S-1
54	S55889001	S-1-1
54	S55891001	S-1-1-1
54	S55891001	S-1-1-1-1
6	S56017000	B2-30-1
6	S56018000	B2-30-2
6	S56019001	B2-30-3
50	S56167000	R-6-1
	R-6-2	50
50	S56167001	R-6-2
	R-6-3	50
50	S56167003	R-6-3
2	S57925001	A-23
24	S57965000	E-14-2-1-10
18	S58690001	D1-11
50	S59360000	R-14-1-1
50	S59367000	R-14-1-2
78	S59620001	Ga3-J-53
18	S59763000	D1-25
32	S59871001	J-22-3
32	S59872001	J-22-2
32	S59873001	J-22-4
32	S59874001	J-22-1
22	S5988001	E-14-2-1
22	S59886001	E-14-2-1-9
	E-14-2-1-11	22
32	S59893001	J-12
74	S59903001	Ga1-C2-37
74	S59909001	Ga1-C2-37-8
8	S59912001	C1-1-2
8	S59914001	C1-4
	C1-4-1	8
	C2-5	10
	C3-5	10
14	S59916001	C2-31
	C3-31	14
	C4-31	14
10	S59917001	C2-46
	C3-46	10
	C4-38	10
14	S59918001	C2-38
	C3-38	14
	C4-38	14
10	S59919000	C2-50
	C3-50	10
	C4-50	14
2	S59920001	A-41
10	S59921001	C2-39
	C3-39	12
	C4-39	14
	Sp1-E24	70
	Sp1-E24	70
	Sp1-E24	70
10	S59923000	C2-52
	Sp2-E24	72
	Sp2-E24	72
	Sp2-E24	72
10	S59927001	C2-52
	C3-52	12
	C4-52	14
68	S59931001	Z2-35-1-11
	Z2-35-2-15-3	69
	Z2-35-2-16-3	69
66	S60400000	Z1-902
66	S60711001	Z1-903
42	SA0037000	Q1-1-26-5
32	SA0049001	J-22-5
38	SA0703001	M-17
42	SA1034000	Q1-1-26-9
71	SA1579019	Sp1-Z1-17
71	SA1752009	Sp1-Z1-17
71	SA1752014	Sp1-Z1-17
	Sp1-Z1-17	71
	Sp2-Z1-17	73
	Sp2-Z1-17	73
	Sp2-Z1-17	73
70	SA1881001	Sp1-E-22
	Sp1-E-22	70
	Sp1-E-22	70
	Sp2-E-22	72
	Sp2-E-22	72
	Sp2-E-22	72
70	SA1890001	Sp1-E-22

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother KE-430C — parts catalog

• Page 1 (cover): This is the cover page for the Brother KE-430C, KE-431C, KE-432C Parts Book, featuring the "E Series" logo and the Brother brand.
• Page 2 (parts_list): This page lists parts for Brother Industries, Ltd. electronic lock stitch bar tackers, including models KE-430C-0, KE-431C-0, and KE-432C, with details on materials and tacking lengths.
• Page 3 (toc): This page is a table of contents for a parts manual, listing various machine components and their corresponding page numbers. It also includes introductory notes on how to use the manual.
• Page 4 (toc): This page contains the table of contents for the parts book, listing various mechanisms and components with their corresponding page numbers.
• Page 5 (diagram): This page displays a diagram of the machine body and its related components, including various screws, washers, and covers, with reference numbers for each part.
• Page 6 (parts_list): This page lists parts for the Machine body, including part numbers, descriptions, quantities, and remarks.
• Page 7 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, with numbered parts indicated for identification.
• Page 8 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including part numbers, descriptions, and quantities.
• Page 9 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, illustrating various components with reference numbers.
• Page 10 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including part numbers, descriptions, and quantities.
• Page 11 (diagram): This page displays a diagram of the feed mechanism, with various parts numbered for identification. It includes a title in English and Japanese.
• Page 12 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 13 (diagram): This page displays a diagram of the feed mechanism for the KE-430C sewing machine, including various parts and their reference numbers. It also includes a section for "OPTION PARTS".
• Page 14 (parts_list): This page lists parts for the C2 Feed mechanism (KE-430C), including part numbers, descriptions, quantities, and other details in a table format.
• Page 15 (diagram): This page displays a diagram of the feed mechanism (KE-431C) for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
• Page 16 (parts_list): This page lists parts for the C3, Feed mechanism (KE-431C) with reference numbers, codes, quantities, descriptions in Japanese and English, and RM values.
• Page 17 (diagram): This page displays a diagram of the feed mechanism for the KE-432C sewing machine, detailing various components and their assembly.
• Page 18 (parts_list): This page lists parts for the Feed mechanism (KE-432C) with part numbers, descriptions, and quantities.
• Page 19 (diagram): This page displays a diagram of the feed mechanism for the KE-432C sewing machine, detailing various components and their reference numbers.
• Page 20 (parts_list): This page lists parts for the Feed mechanism (KE-432C) with reference numbers, codes, quantities, and names in both Japanese and English.
• Page 21 (diagram): This page displays a diagram of the work clamp lifter mechanism, with numbered parts and their corresponding details.
• Page 22 (parts_list): This page contains a parts list for the Work clamp lifter mechanism (KE-430C, KE-431C) with part numbers, descriptions, and quantities.
• Page 23 (diagram): This page displays a diagram of the work clamp lifter mechanism for the KE-432C model, with numbered parts indicated.
• Page 24 (parts_list): This page lists parts for the KE-432C Work clamp lifter mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 25 (diagram): This page displays a diagram of the lower shaft mechanism, detailing various components with their corresponding part numbers and reference indicators.
• Page 26 (parts_list): This page lists parts for the lower shaft mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 27 (diagram): This page displays a diagram of the lower shaft mechanism, detailing various components with their corresponding part numbers and reference indicators.
• Page 28 (parts_list): This page lists parts for the Lower shaft mechanism, including reference numbers, codes, quantities, and names of parts like WICK, FELT, and OIL TUBE.
• Page 29 (diagram): This page displays a diagram of the lubrication system for the sewing machine, illustrating various components and their connections with reference numbers.
• Page 30 (parts_list): This page lists lubrication-related parts for a sewing machine, including oil gauges, tubes, wicks, screws, washers, and felt components, with their corresponding part numbers and descriptions.
• Page 31 (diagram): This page displays a diagram of the threading mechanism, including parts for thread breakage detection, denim, and knitted or ordinary materials.
• Page 32 (parts_list): This page lists parts for the G. 糸通シ関係 / Threading mechanism, including part numbers, descriptions, and quantities.
• Page 33 (diagram): This page displays a diagram of the bobbin winder mechanism, detailing various components with their corresponding reference numbers and part numbers.
• Page 34 (parts_list): This page lists parts for the Bobbin winder mechanism, including part numbers, descriptions, and quantities.
• Page 35 (diagram): This page displays a diagram of the thread trimmer mechanism for sewing machine models KE-430C, KE-431C, and KE-432C, with numbered parts for identification.
• Page 36 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 37 (diagram): This page displays a diagram of the thread trimmer mechanism, detailing various components with reference numbers and some specific model applicability notes.
• Page 38 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 39 (diagram): This page contains diagrams and parts lists for the thread wiper mechanism and the thread take-up mechanism of an industrial sewing machine.
• Page 40 (parts_list): This page lists parts for the K. Thread wiper mechanism and the L. Thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of the thread nipper mechanism for an industrial sewing machine, with various parts labeled with reference numbers and some part numbers indicated.
• Page 42 (parts_list): This page lists parts for the Thread nipper mechanism, including part numbers, descriptions, and quantities.
• Page 43 (diagram): This page contains diagrams of a synchronizer and a printed circuit board mechanism, with associated part numbers and references.
• Page 44 (parts_list): This page lists parts for the Synchronizer and Printed circuit board mechanism, including part numbers, descriptions, and quantities.
• Page 45 (diagram): This page displays a diagram of the control box mechanism, detailing various components and their assembly.
• Page 46 (parts_list): This page lists parts for the Control box mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 47 (diagram): This page displays a diagram of the control box mechanism, illustrating various components and their interconnections with part numbers and reference indicators.
• Page 48 (parts_list): This page lists parts for the control box mechanism, including part numbers, descriptions, and specifications for various voltage requirements.
• Page 49 (diagram): This page displays diagrams of control box mechanisms for various voltage configurations, including 3-phase 200V/220V AC, 1-phase 220V/230V AC, 1-phase 100V, 1-phase 110V/120V AC, 3-phase 415V/380V AC, 1-phase 240V AC, 3-phase 400V AC, and 1-phase 230V AC, along with a section for option parts.
• Page 50 (parts_list): This page lists parts for control box mechanisms, including various power supply components, switches, and harnesses for different voltage requirements.
• Page 51 (diagram): This page displays diagrams of control box mechanisms for various voltage configurations, including 3-phase 200V/220V AC, 1-phase 220V/230V AC, 1-phase 100V, 1-phase 110V/120V AC, 3-phase 415V/380V AC, 1-phase 240V AC, 3-phase 400V AC, and 1-phase 230V AC, along with associated parts.
• Page 52 (parts_list): This page lists parts for the control box mechanism, including various AC power components, filters, and hardware, with part numbers, descriptions, and quantities.
• Page 53 (diagram): This page displays a diagram of power supply equipment mechanisms, including various components labeled with reference numbers and part numbers.
• Page 54 (parts_list): This page lists parts for KE-430C, 431C, and 432C models, including various screws, sensors, connectors, and other components with their respective part numbers and descriptions.
• Page 55 (diagram): This page displays a diagram of power supply equipment mechanisms, including various components like motors, switches, and connectors, with reference numbers for identification.
• Page 56 (parts_list): This page lists parts for the power supply mechanism, including screws, holders, and sensors, with their corresponding part numbers and descriptions.
• Page 57 (diagram): This page contains diagrams of the operation panel mechanism and the power table, with various components labeled with reference numbers and part numbers.
• Page 58 (parts_list): This page contains parts lists for the Operation Panel Mechanism and the Power Table, including part numbers, descriptions, and quantities.
• Page 59 (diagram): This page displays a diagram of the foot switch pedal mechanism, detailing various components with their corresponding part numbers.
• Page 60 (parts_list): This page lists parts for the foot switch pedal mechanism, including part numbers, descriptions, and quantities.
• Page 61 (diagram): This page displays a diagram of the foot switch pedal mechanism, including various components and their corresponding part numbers.
• Page 62 (parts_list): This page lists parts for the foot switch pedal mechanism (Option parts), including part numbers, descriptions, and quantities.
• Page 63 (diagram): This page displays a diagram of the foot switch pedal mechanism, including various parts with their corresponding reference numbers and part numbers.
• Page 64 (parts_list): This page lists parts for the foot switch pedal mechanism (option parts), including part numbers, descriptions, and quantities.
• Page 65 (diagram): This page displays a diagram of attachment sets and option parts for an industrial sewing machine, with various components labeled with part numbers.
• Page 66 (parts_list): This page lists parts for attachment set (option parts) with reference numbers, codes, quantities, Japanese names, and English names.
• Page 67 (diagram): This page displays a diagram of various accessories and parts for sewing machines, including screws, tools, and specialized components, with reference numbers and part names.
• Page 68 (parts_list): This page lists accessories for the sewing machine, including oil pans, screws, nails, wrenches, and staples, with their corresponding part numbers and descriptions.
• Page 69 (diagram): This page displays a diagram of various accessories and parts for industrial sewing machines, including screws, bottles, tools, and specialized components, with reference numbers and part names.
• Page 70 (parts_list): This page lists accessories for the sewing machine, including belt covers, screws, fuses, and other components, with their corresponding part numbers and descriptions for both domestic and export markets.
• Page 71 (diagram): This page displays diagrams of accessories for KE-430C, KE-432C, and KE-431C models, detailing various part numbers and their corresponding components.
• Page 72 (parts_list): This page lists parts for KE-430C and KE-430C models, including reference numbers, codes, quantities, and descriptions in both Japanese and English.
• Page 73 (parts_list): This page lists accessories and parts for sewing machines, including part numbers, descriptions, quantities, and model applicability.
• Page 74 (parts_list): This page lists different parts for the KE-430C sewing machine, including part numbers, names, and specifications.
• Page 75 (parts_list): This page contains a parts list for the KE-430C model, detailing various parts with their specifications, part numbers, and diagrams. It also includes a note about parts common with the BAS-311F model and standard sizes for work clamps and feed plates.
• Page 79 (parts_list): This page lists gauge parts for the KE-430C model, including various clamps, feed plates, and associated hardware with their part numbers and descriptions.
• Page 80 (parts_list): This page lists gauge parts for the KE-430C sewing machine, including part numbers, descriptions, and diagrams for various components like work clamps and feed plates.
• Page 81 (parts_list): This page lists gauge parts for model KE-431C, including work clamp assemblies, feed plates, and screws, with their corresponding part numbers and diagrams.
• Page 82 (parts_list): This page lists needle hole plates for various sewing machine models, including their part numbers, specifications, and diagrams.
• Page 83 (parts_list): This page lists warning labels for industrial sewing machines, including their descriptions, sizes, and part codes.
• Page 84 (index): This page is an index of parts for an industrial sewing machine, listing part codes, reference numbers, and page numbers where they can be found in the catalog.
• Page 85 (text): This page contains the number 150, likely a page number, and a watermark "jinte.in".
• Page 86 (parts_list): This page lists parts with codes, reference numbers, and page numbers. It includes parts like 062680612, 100281001, and 116629001.
• Page 87 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 90 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 91 (cover): This is the cover page of the Brother Parts Book for model 118-V30, 118-V31, and 118-V32, with part number S96V30-401, printed in October 2002 in Japan.

Page 1

KE-430C, KE-431C KE-432C E Series Electronic Excellent Economical パーツブック PARTS BOOK 本縫電子門止ミシン [ KE-430 ] 本縫電子ベルトループ付けミシン [ KE-431C ] 本縫電子鳩目穴止ミシン [ KE-432C ] ELECTRONIC LOCKSTITCH BAR TACKER [ KE-430C ] ELECTRONIC LOCKSTITCH BELT LOOP BAR TACKER [ KE-431C ] ELECTRONIC LOCKSTITCH EYELET BUTTONHOLE END BAR TACKER [ KE-432C ] brother. jintex.in

Page 2

本縫電子閂止ミシン / Electronic Lock Stitch Bar Tacker BROTHER INDUSTRIES, LTD. KE-430C-0 MADE IN JAPAN 1: 被服 / Ordinary materials 2: デニム / Denim 7: メリヤス / Knitted materials 本縫電子ベルトループ付けミシン / Electronic Lock Stitch Belt Loop Bar Tacker BROTHER INDUSTRIES, LTD. KE-431C-0 MADE IN JAPAN 2: 閂止長さ 6~14 mm / Bar tacking length 6-14mm 3: 閂止長さ 14~25 mm / Bar tacking length 14-25mm 本縫電子鳩目穴止ミシン / Electronic Lock Stitch Eyelet Buttonhole End Bar Tacker BROTHER INDUSTRIES, LTD. KE-432C MADE IN JAPAN jintex.in

Page 3 — 目 次

パーツブックご利用に際して 1. この本は、2002年10月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は破線で示してあります。 4. 部品コード欄が*となっている場合は、仕様別部品一覧表及びゲージ部品一覧表でお調べ下さい。 目 次 A. 主体関係 1 S. 操作パネル関係 53 B1. 上軸・針棒関係 3 T. 動力台関係 53 B2. 上軸・針棒関係 5 U1. 踏板関係 55 C1. 送り関係 7 U2. 踏板関係 (オプション部品) 57 C2. 送り関係 (KE-430C) 9 U3. 踏板関係 (オプション部品) 59 C3. 送り関係 (KE-431C) 11 V. 付属装置関係 (オプション部品) 61 C4. 送り関係 (KE-432C) 13 Z1. 付属部品関係 63 D1. 押工上ゲ関係 (KE-430C, KE-431C) 17 Z2. 付属部品関係 67 D2. 押工上ゲ関係 (KE-432C) 19 Sp1. 仕様別部品一覧表 (KE-430C) 70 E. 下軸関係 21 Sp1. 仕様別部品一覧表 (KE-430C) 71 F. 給油潤滑関係 25 Sp2. 仕様別部品一覧表 72 G. 糸通シ関係 27 (KE-431C, KE-432C) H. 糸巻関係 29 Sp2. 仕様別部品一覧表 73 J. 糸切り関係 31 (KE-431C, KE-432C) K. 糸払イ関係 35 Ga1. ゲージ部品一覧表 (KE-430C) 74 L. 糸取り関係 35 Ga1. ゲージ部品一覧表 (KE-430C) 75 M. 糸締メ関係 37 Ga1. ゲージ部品一覧表 (KE-430C) 76 N. 針位置検出器関係 39 Ga2. ゲージ部品一覧表 (KE-431C) 77 P. プリント基板関係 39 Ga3. ゲージ部品一覧表 78 Q1. コントロールボックス関係 41 Wa. 警告ラベル 79 Q2. コントロールボックス関係 45 索引 80 R. 電装品関係 49 jintex.in

Page 4 — CONTENTS

Notes for using this parts book 1 This book was prepared based on information available in October 2002. 2 Parts are subject to changes in design without prior notice. 3 Parts supplied as complete assemblies are circled by a dotted line. 4 If the symbol * is found in the " Parts No." column, refer to the different parts lists, gauge parts list on page 70-78. CONTENTS A. Machine body. 1 S. Operation panel mechanism 53 B1. Upper shaft and needle bar mechanism 3 T. Power table 53 B2. Upper shaft and needle bar mechanism 5 U1. Foot switch pedal mechanism 55 C1. Feed mechanism. 7 U2. Foot switch pedal mechanism C2. Feed mechanism (KE-430C) 9 (Option parts) 57 C3. Feed mechanism (KE-431C) 11 U3. Foot switch pedal mechanism C4. Feed mechanism (KE-432C) 13 (Option parts) 59 D1. Work clamp lifter mechanism V. Attachment set (Option parts) 61 (KE-430C, KE-431C) 17 Z1. Accessories 63 D2. Work clamp lifter mechanism (KE-432C) 19 Z2. Accessories 67 E. Lower shaft mechanism 21 Sp1. Different Parts list (KE-430C) 70 F. Lubrication 25 Sp1. Different Parts list (KE-430C) 71 G. Threading mechanism 27 Sp2. Different Parts list H. Bobbin winder mechanism 29 (KE-431C & KE-432C) 72 J. Thread trimmer mechanism 31 Sp2. Different Parts list K. Thread wiper mechanism 35 (KE-431C & KE-432C) 73 L. Thread take-up mechanism 35 Ga1. Gauge parts list (KE-430C) 74 M. Thread nipper mechanism 37 Ga1. Gauge parts list (KE-430C) 75 N. Synchronizer 39 Ga1. Gauge parts list (KE-431C) 76 P. Printed circuit board mechanism 39 Ga2. Gauge parts list (KE-431C) 77 Q1. Control box mechanism 41 Ga3. Gauge parts list 78 Q2. Control box mechanism 45 Wa. Warning labels 79 R. Power supply equipment mechanism 49 Index 80 jintex.in

Page 5 — A . 主体関係 / Machine body

A . 主体関係 / Machine body 14 33 15 13-1 13-2 40 42 14 12 41 29 30 6 4 4 5 7 11 28 920 18 17-3 17-1 17-2 17 101 100 < KE-431C, KE-432C用 / For KE-431C & export of KE-432C 22-1 31 10 16 35 24 23 < KE-432C国内用 / For Japan only of KE-432C > 22-2 10 26 34 25 1 118-V30-050 jintex.in

Page 6 — A . 主体関係 / Machine body

A . 主体関係 / Machine body REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 4 104450101 6 ゴムセン8 RUBBER CAP, 8 5 140392009 1 オイルフタ OIL CAP 6 117934001 1 ゴムセン13.5 RUBBER CAP, 13.5 7 140392009 2 オイルフタ OIL CAP 10 104450101 3 ゴムセン8 RUBBER CAP, 8 11 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 12 S37915009 1 ヘッドカバー-R BED COVER, R 13-1 S53119001 1 ヘッドカバー-LF BED COVER, LF 13-2 S53120001 1 ヘッドカバー-LR BED COVER, LR 14 106629002 9 シメネジ4.37 SCREW, SM4.37 15 017680512 2 ボルト4.37X5 BOLT, SM4.37X5 16 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 17 S49960109 1 メンイタケ FACE PLATE ASSY 17-1 S49961109 1 メンイタ FACE PLATE 17-2 S49962000 1 メンイタパッキン FACE PLATE PACKING 17-3 117934001 1 ゴムセン13.5 RUBBER CAP, 13.5 18 060671212 3 バインド357-40X12 SCREW, BIND SM3.57-40X12 22-1 152842059 <KE-430C, 431C用> <KE-432C輸出用> <For KE-430C & 431C> <For Export of KE-432C> 1 オオカマカバークミ SHUTTLE RACE COVER ASSY 22-2 S49681009 <KE-432C国内用> <For Japan only of KE-432C> 1 オオカマカバークミC 23 S57925001 2 ダンネジ6.35 SHOULDER SCREW, SM6.35 24 109239002 2 ナミハネザガネ8 WAVE WASHER 25 S55208000 1 テンピンカバー THREAD TAKE-UP LEVER COVER 26 062681012 1 ナベコ437-40X10 SCREW, PAN SM4.37-40X10 28 S20164001 1 ゴムセン13 RUBBER CAP, 13 29 150592001 2 ゴムセン16 RUBBER CAP, 16 30 104821001 1 ゴムセン10.5 RUBBER CAP, 10.5 31 S44010001 1 ゴムセン11.5 RUBBER CAP, 11.5 33 S51460009 1 グロメットMG-9 RUBBER CAP, MG-9 34 100645003 1 ザガネ WASHER 35 025080132 2 ヒラサガネショウ8 WASHER, PLAIN S 8 40 S51098000 1 ソクメンカバー-IM FRAME SIDE COVER, IM 41 S59920001 2 ベルトカバーシュウ BELT COVER SUPPORT PILLAR 42 062711072 4 ナベコ476-32X10 SCREW, PAN SM4.76-32X10 100 S49999201 <KE-431C, 432C用> 1 ワインカーガード <For KE-431C & 432C> FINGER GUARD 101 011679312 2 トメネジ3.57ヒラ SET SCREW, (FT) SM3.57 920 S44629001 1 Eマーク E MARK 118-V30-050 2 jintex.in

Page 7 — B1. Upper shaft and needle bar mechanism

B1. 上軸・針棒関係 / Upper shaft and needle bar mechanism 3 118-V30-123 jintex.in

Page 8 — B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49688001 1 ウワジク UPPER SHAFT 2 S45147101 1 クランクロツドクミ CRANK ROD ASSY 2-1 144712001 2 シメジ4.76 SCREW, SM4.76 3 S49582001 1 ウワジクメタルF UPPER SHAFT BUSH, F 4 S49583001 1 スラストザガネ THRUST WASHER 5 014780622 1 アナトメネジ6.35クホミ SET SCREW, SOCKET (CP) SM6.35 6 140726000 1 ウワジクメタルM UPPER SHAFT BUSH, M 7 072630260 2 ベアリング6302VV BALL BEARING, 6302VV 8 116920001 1 オクリジクストリング RING, THRUST 9 014160142 1 トメワアウターC15 RETAINING RING, EXTERNAL C15 12 S49564000 1 ツリアイクランクD THREAD TAKE-UP CRANK, D 13 100250001 1 シメジ4.14 SCREW, SM4.14 14 014770632 2 アナトメネジ6.35-40X6 SET SCREW, SOCKET (CP) SM6.35X6 15 S55877001 1 トメネジ6.35クホミ SET SCREW, (CP) SM6.35 16 S49585001 1 ハリボウレンカンクミ THREAD TAKE-UP LEVER SET 16-1 S49567001 1 テンビンササエ THREAD TAKE-UP SUPPORT 16-2 S49588001 1 テンビントウ THREAD TAKE-UP LEVER 16-3 S47001001 1 テンビンササエジク THREAD TAKE-UP SUPPORT SHAFT 16-4 S49589001 1 ハリボウクランク NEEDLE BAR CRANK 16-5 145465001 1 シメネジ3.57L SCREW, SM3.57-40X6 L 16-6 S49689001 1 ハリボウレンカン NEEDLE BAR CONNECTING ROD 16-7 S37926101 1 ハリボウクランプ NEEDLE BAR CLAMP 16-8 062660812 1 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 16-9 14777000 2 ニードルベアリング NEEDLE BEARING 17 014780622 1 アナトメネジ6.35クホミ SET SCREW, SOCKET (CP) SM6.35 18 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 19 S49593000 1 ハリボウアンナイ NEEDLE BAR GUIDE 20 152242001 1 シメネジ3.57 SCREW, SM3.57-40X5 21 155578000 2 ゴムセン7.2 RUBBER CAP, 7.2 22 152240101 1 ハリボウA NEEDLE BAR, A 23 144458001 1 アナトメネジメ3.57 SET SCREW, SM3.57-40X4.5 24 152242001 1 ハリボウメタルU NEEDLE BAR BUSH, U 25 152243001 1 ハリボウメタルD NEEDLE BAR BUSH, D 26 * 1 ミシンバリ NEEDLE 118-V30-123 4 jintex.in

Page 9 — B2. 上軸・針関係 / Upper shaft and needle bar mechanism

B2. 上軸・針関係 / Upper shaft and needle bar mechanism 30 30-1 30-2 30-3 30-4 30-5 31 44 48 47 35 36 39 38 37 43 40 49 41 42 5 118-V30-123 jintex.in

Page 10 — B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 30 S52834201 1 Uタイミングプーリクミ TIMING PULLEY ASSY, U 30-1 S56017000 1 ウワジクプーリ UPPER SHAFT PULLEY 30-2 S56018000 1 プーリー スペーサ PULLEY SPACER 30-3 S56019001 1 プーリーザガネ PULLEY WASHER 30-4 018401236 3 アナボルト4X12 BOLT, SOCKET M4X12 30-5 028040246 3 バネザガネ2-4 WASHER, SPRING 2-4 31 S55572001 2 アナクボミ595-28X10 SET SCREW, SOCKET(CP)SM5.95X10 35 S52838000 1 ウワジクタイミングベルト UPPER SHAFT TIMING BELT 36 S52839200 1 IMモータブラケット MOTOR BRACKET, IM 37 018083022 3 アナボルト8X30 BOLT, SOCKET M8X30 38 028080242 3 バネザガネ2-8 WASHER, SPRING 2-8 39 025080232 3 ヒラザガネチュウ8 WASHER, PLAIN M8 40 S52840001 1 ベルトチョウセツタイタ BELT ADJUSTING PLATE 41 018061022 1 アナボルト6X10 BOLT, SOCKET M6X10 42 018062522 1 アナボルト6X25 BOLT, SOCKET M6X25 43 021060102 1 ナット1シュ6 NUT, 1 M6 44 S47270001 4 アナボルトザガネ6X30 BOLT, SOCKET (S/P WASHER) M6X30 47 S52836000 1 モータタイミングプーリクミ MOTOR TIMING PULLEY ASSY 48 S55572001 1 アナクボミ595-28X10 SET SCREW, SOCKET(CP)SM5.95X10 49 017680512 1 ボルト4.37X5 BOLT, SM4.37X5 118-V30-123 6 Jinttex.in

Page 11 — C1 . 送り関係 / Feed mechanism

C1 . 送り関係 / Feed mechanism 16 12 16 15 14 13 18 11 17 0 33 30 27 30 29 28 34 24 20 23 22 19 25 1-4 1-8 1-2 1-3 1-5 1-6 1-7 4-1 4-4 4-2 4-3 9 8 4 7 10 3 3-2 3-1 49 11B-V30-202 7 jintex.in

Page 12 — C1 . 送り関係 / Feed mechanism

C1 . 送り関係 / Feed mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S37930201 1 X X-FEED LEVER ASSY 1-1 S37931101 1 X X-FEED LEVER 1-2 S59912001 1 ヨコクリカクコマグミ T-LENGTH FEED SLIDE BLOCK ASSY 1-3 151602002 1 トメネジ 4.37 SET SCREW, SM4.37-40X5 1-4 153924001 1 フェルト FELT 1-5 108802001 1 クミヒモ4X4 WICK, 4X4 L=250 1-6 S37932101 1 オク リカムコロ FEED CAM ROLLER 1-7 S37933001 1 コロシク ROLLER SHAFT 1-8 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 2 S37934001 1 X X-FEED LEVER BUSH 3 183493001 1 オクリジツトカラクミ F-SHAFT SET SCREW COLLAR ASSY 3-1 S09212001 1 セットカラー SET SCREW COLLAR 3-2 101706001 2 トメネジ 6.35 SET SCREW, SM6.35-40X5.5 4 S59913001 1 Y Y-FEED LEVER ASSY 4-1 S59914001 1 Y Y-FEED LEVER 4-2 S37932101 1 オク リカムコロ FEED CAM ROLLER 4-3 S37933001 1 コロシク ROLLER SHAFT 4-4 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 6 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 7 152760051 1 タテオクリレバ-ジク TACK WIDTH FEED LEVER SHAFT 8 048180142 1 トメワジクヨウC18 RETAINING RING, EXTERNAL C18 9 152756001 2 スラストザガネ18 WASHER, THRUST 18 10 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 11 S37937001 1 オク リカムブラケット FEED CAM BRACKET 12 S37938001 1 オク リカムX FEED CAM, X 13 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 14 S37939001 1 カムジク CAM SHAFT 15 048060342 1 トメワE6 RETAINING RING, E6 16 070688850 2 タマシクウケ688ZZNR BALL BEARING, 688ZZNR 17 S37940001 2 イチギピン POSITIONING PIN 18 062681012 2 ナベコ437-40X10 SCREW, PAN SM4.37-40X10 19 S37937001 1 オク リカムブラケット FEED CAM BRACKET 20 S37941001 1 オク リカムY FEED CAM, Y 21 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 22 S37939001 1 カムジク CAM SHAFT 23 048060342 1 トメワE6 RETAINING RING, E6 24 070688850 2 タマシクウケ688ZZNR BALL BEARING, 688ZZNR 25 S37940001 2 イチギピン POSITIONING PIN 26 062681012 2 ナベコ437-40X10 SCREW, PAN SM4.37-40X10 27 S37942100 2 カップリングハブ 8 COUPLING HUB, 8 28 S37943100 2 カップリングハブ 6.3 COUPLING HUB, 6.35 29 S37944000 2 カップリングスペーサ COUPLING SPACER 30 014760622 8 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 33 S49590001 2 オク リゲンテントウゲ FEED HOME POSITION DOG 34 060300512 2 バインド M3X5 SCREW, BIND M3X5 35 S49683001 2 ケンテンセンサートリツケイタ HOME SENSOR SETTING PLATE 36 062680612 2 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 49 S23337001 1 ゴムセン 18.5 RUBBER CAP, 18.5 118-V30-202 8 jintex.in

Page 13 — C2. 送り関係 (KE-430C) / Feed mechanism (KE-430C)

C2. 送り関係 (KE-430C) / Feed mechanism (KE-430C) 46 37-3 37-6 37-5 48 47 37-25 37-3 37-1 37-12 37-10 37-22 37-11 37-10 37-9 37-21 37-8 37-4 37-23 37-7 37-24 37-18 37-19 37-13 37-2 42 41 43 44 45 100 " オプション部品 / OPTION PARTS " 500-5 500-7 500-2 500-6 500-4 500-3 500-1 500-2 500-7 500-6 500-5 37-16 37-20 37-17 37-14 37-15 31 32 5 50 53 52 40 39 38-1 38 51 11B-V30-202 3 jintex.in

Page 14

C2 . 送り関係 (KE-430C) / Feed mechanism (KE-430C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 5 S59915001 1 タテオクリシク TACK WIDTH FEED 31 S59916001 1 オクリダイアンナイタ FEED BRACKET GUIDE PLATE 32 145318001 8 シメネジ 4.37 SCREW, SM4.37 37 1 オサエウデクミ WORK CLAMP ARM ASSY, 37-1 S49592200 1 オサエウデ WORK CLAMP ARM 37-2 S37949101 1 オサエウデレバー-R WORK CLAMP ARM LEVER, R 37-3 S37950101 1 オサエウデレバー-L WORK CLAMP ARM LEVER, L 37-4 S34839001 1 オサエウデレバーシク WORK CLAMP ARM LEVER SHAFT 37-5 116629001 2 ザガネ WASHER 37-6 048050342 2 トメワE5 RETAINING RING, E5 37-7 014760622 1 アナトメシ 5.95 SET SCREW, SOCKET SM5.95 37-8 * 1 オサエウデ WORK CLAMP RIGHT 37-9 1 オサエウデ WORK CLAMP LEFT 37-10 152783001 2 オサエアシ オサエイタ WORK CLAMP GUIDE BRACKET, A 37-11 152784001 1 オサエアシ オサエイタB WORK CLAMP GUIDE BRACKET, B 37-12 107038003 4 サラネジ 3.57 SCREW, FLAT SM3.57 37-13 S37951101 2 オサエウデレバーイタ WORK CLAMP ARM LEVER PLATE 37-14 146354001 2 ザガネ WASHER, PLAIN 5 37-15 018500822 2 アナボルト5X8 BOLT, SOCKET M5X8 37-16 153570101 2 オサエハネ アンナイロッド PRESSER SPRING GUIDE ROD 37-17 145678101 2 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 37-18 S48646001 2 オサエハネ D PRESSER SPRING, D 37-19 152788000 2 オサエハネカンザ PRESSER SPRING SPACER 37-20 153567000 2 オサエハネカラー PRESSER SPRING COLLAR 37-21 156495201 1 フィンガーガード FINGER GUARD 37-22 062671012 2 ナベコ357-40X10 SCREW, PAN SM3.57-40X10 37-23 S49595001 1 オサエウデササエジク WORK CLAMP ARM SUPPORT SHAFT 37-24 014760622 1 アナトメシ 5.95 SET SCREW, SOCKET SM5.95 37-25 S59927001 1 オサエウデハネ SUPPORT SHAFT PUSH SPRING 38 S59918001 1 オクリダイクミ FEED BRACKET ASSY 38-1 152771000 2 オクリダイカンザ FEED BRACKET SPACER 39 S59921001 2 カンザ 4.8 SPACER, 4.8 40 07107650 2 コウキュウ3/16 BEARING BALL, 3/16 41 025060232 2 ヒラザガネチユウ6 WASHER, PLAIN M 6 42 017761412 2 ボルト5.95X14 BOLT, SM5.95X14 43 S49595001 1 オクリイタシメネジ SCREW, W/SOCKET SM4.37 44 153057101 1 オクリイタシメネジ SCREW, W/SOCKET SM4.37 45 153035000 1 オサエウデフェルト WORK CLAMP FELT 46 S59917001 1 オサエウデササエイタ WORK CLAMP ARM SUPPORT PLATE 47 018400822 2 アナボルト4X8 BOLT, SOCKET M4X8 48 071039750 3 コウキュウ5/32 BEARING BALL, 5/32 50 S59919000 1 ロッドエンド PB-8 ROD END, PB-8 51 S10209101 1 シメネジ 4.37 SCREW, SM4.37 52 S59923000 1 オクリダイカバー-R FEED BRACKET COVER, R 53 060680512 2 バインド437-40X5 SCREW, BIND SM4.37-40X5 100 * 1 オクリイタ FEED PLATE OPTION PARTS 500 S41328101 1 オサエウイックチェンジセット WORK CLAMP QUICK CHANGE SET 500-1 S41324001 1 QCオサエウデレバー QC-WORK CLAMP ARM LEVER SHAFT 500-2 S41325001 2 QCレバーササエ QC-WORK CLAMP LEVER SUPPORT 500-3 S41326101 1 QCオサエウデレバー-R QC-WORK CLAMP ARM LEVER, R 500-4 S41327101 1 QCオサエウデレバー-L QC-WORK CLAMP ARM LEVER, L 500-5 018501022 2 アナボルト5X10 BOLT, SOCKET M5X10 500-6 028050242 2 ハネガネ2-5 WASHER, SPRING 2-5 500-7 025050232 2 ヒラガネチユウ5 WASHER, PLAIN M 5 118-V30-202 10 jintex.in

Page 15 — C3. 送り関係 (KE-431C) / Feed mechanism (KE-431C)

C3. 送り関係 (KE-431C) / Feed mechanism (KE-431C) 46 37 48 47 37-4 37-9 37-8 37-7 37-19 37-16 37-14 37-21 37-2 37-5 37-17 37-18 37-1-2 37-1-1 37-1-3 37-1-3 37-1 37-10 37-20 37-11 37-3 37-13 37-12 42 41 43 44 5 31 32 100 50 53 52 40 39 38 38-1 51 11 jintex.in 118-V30-202

Page 16

C3. 送り関係 (KE-431C) / Feed mechanism (KE-431C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 5 S59915001 1 タテオリクシク TACK WIDTH FEED SHAFT 31 S59916001 1 オクリダイアンナイタ FEED BRACKET GUIDE PLATE 32 145318001 8 シメネジ 4.37 SCREW, SM4.37 37 1 オサエウデクミ431 WORK CLAMP ASSY, 431 37-1 S51849101 1 オサエウデクミコ WORK CLAMP ARM ASSY 37-1-1 159825200 1 オサエウデ 431 WORK CLAMP ARM, 431 37-1-2 159827001 2 オサエエアシオサイエタB WORK CLAMP GUIDE BRACKET, B 37-1-3 062671212 4 ナベコ357-40X12 SCREW, PAN SM3.57-40X12 37-2 154413001 1 オサエウデレバー-A WORK CLAMP LEVER, A 37-3 S41230001 1 オサエウデレバー-B WORK CLAMP LEVER, B 37-4 154415001 1 オサエウデレバー-C WORK CLAMP LEVER, C 37-5 153944001 1 レバーシクメタル LEVER SHAFT BUSH 37-6 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 37-7 140407002 1 ザガネ WASHER 37-8 018500822 1 アナボルト5X8 BOLT, SOCKET M5X8 37-9 014770622 2 アナトメネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 37-10 1 オサエウデ431 WORK CLAMP, 431 37-11 S37951101 1 オサエウデレバーイタ WORK CLAMP ARM LEVER PLATE 37-12 140407002 1 ザガネ WASHER 37-13 018500822 1 アナボルト5X8 BOLT, SOCKET M5X8 37-14 15988101 1 オサエエアンナイロツド B SPRING GUIDE ROD, B 37-15 14478101 1 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 37-16 153569001 1 オサエバネ B PRESSER SPRING, B 37-17 152788000 1 オサエバネケンザ PRESSER SPRING COLLAR 37-18 153567000 1 オサエバネカラー PRESSER SPRING COLLAR 37-19 S49595001 1 オサエウデサエジク WORK CLAMP ARM SUPPORT SHAFT 37-20 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 37-21 S59927001 1 ササエジククシバネ SUPPORT SHAFT PUSH SPRING 38 S59918001 1 オクリダイクミ FEED BRACKET ASSY 38-1 152771000 1 オクリダイカンザ FEED BRACKET SPACER 39 S59921001 2 カンザ 4.8 SPACER, 4.8 40 071047650 2 コウキュウ3/16 BEARING BALL, 3/16 41 025060232 2 ヒラザガネチユウ6 WASHER, PLAIN M 6 42 017761412 2 ボルト5.95X14 BOLT, SM5.95X14 43 S49595001 1 オクリダイタンメネジ SCREW, W/SOCKET SM4.37 44 15307101 1 オクリダイタンメネジ SCREW, W/SOCKET SM4.37 45 153035000 1 オサエウデフェルト WORK CLAMP FELT 46 S59917001 1 オサエウデサエタ WORK CLAMP ARM SUPPORT PLATE 47 018400822 2 アナボルト4X8 BOLT, SOCKET M4X8 48 071039750 3 コウキュウ5/32 BEARING BALL, 5/32 50 S59919000 1 ロツドエンド PB-8 ROD END, PB-8 51 S10209101 1 シメネジ 4.37 SCREW, SM4.37 52 S59923000 1 オクリダイカバー-R FEED BRACKET COVER, R 53 060680512 2 バインド437-40X5 SCREW, BIND SM4.37-40X5 100 1 オクリダイ431 FEED PLATE, 431 118-V31-202 12

Page 17 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C) 212 213 211 213 210 219 230231 209 232 206 207 214 208 200 201 37 202 37-5 37-6 37-7 37-4 37-33 37-32 37-31 37-26 37-2 37-15 37-8 37-16 37-1 37-21 37-23 37-28 37-22 37-27 37-24 37-25 37-36 37-35 37-13 37-12 37-11 37-14 37-17 37-34 37-10 37-9 215 225 223 222 224 226 227 229 228 221 220 100 43 44 5 31 32 50 53 39 205 38 204 51 42 41 203 45 118-V30-202 13 jintex.in

Page 18 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 5 S59915001 1 タテオリクシク TACK WIDTH FEED SHAFT 31 S59916001 1 オクリダイアンナイタ FEED BRACKET GUIDE PLATE 32 145318001 8 シメネジ 4.37 SCREW, SM4.37 37 S41024100 1 オサエウデクミZ32 WORK CLAMP ARM ASSY, Z32 37-1 S41025100 1 オサエフレームZ32 WORK CLAMP FRAME, Z32 37-2 150553001 1 ナット5.95 NUT, SM5.95 37-3 118258001 1 ストツプレバーパネ STOP LEVER SPRING 37-4 118256001 1 ストツプレバー STOP LEVER 37-5 118257001 1 ダンネジ 5.95 SHOULDER SCREW, SM5.95 37-6 118259001 1 ボルト4.37 BOLT, SM4.37 37-7 021680202 1 ナット2シュ4.37 NUT, 2 SM4.37 37-8 15562101 1 オサエヨウレンケツタイタ WORK CLAMP CARRIER PLATE 37-9 018401622 1 アナボルト4X16 BOLT, SOCKET M4X16 37-10 025710232 1 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 37-11 118247001 1 カラー COLLAR 37-12 118247001 1 カラー COLLAR 37-13 021400102 1 ナット1シユ4 NUT, 1 M4 37-14 155576001 1 オサエヨウコロ ROLLER 37-15 155577001 1 コロシツキネジ4.76 SCREW, SM4.76 37-16 025710232 1 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 37-17 048040342 1 トメワE4 RETAINING RING, E4 37-18 021710212 1 ナット2シユ4.76 NUT, 2 SM4.76 37-19 S41265001 1 ボタンホールアンナイZ32 BUTTON HOLE GUIDE, Z32 37-20 062761012 2 ナベコ595-28X10 SCREW, PAN SM5.95-28X10 37-21 118248101 1 ストツプイチヨウセツタイタ STOP POSITION ADJUSTING PLATE 37-22 S41288001 1 オサエアンナイダZ32 WORK CLAMP GUIDE PLATE, Z32 37-23 118252001 2 オサエアンナイネシ SCREW 37-24 025710132 2 ヒラザガネチユウ4.76 WASHER, PLAIN S 4.76 37-25 062681212 2 ナベコ437-40X12 SCREW, PAN SM4.37-40X12 37-26 118247001 2 カラー COLLAR 37-27 117143001 2 サラネジ4.37 SCREW, FLAT SM4.37 37-28 118244001 2 ダンネジ5.95 SHOULDER SCREW, SM5.95 37-29 118249001 1 オサエR WORK CLAMP, R 37-30 118250001 1 オサエL WORK CLAMP, L 37-31 S06533001 1 オサエチヨウセイタイタミ PRESSER ADJUSTING PLATE ASSY 37-32 025060232 1 ヒラザガネチユウ6 WASHER, PLAIN M 6 37-33 018061022 1 アナボルト6X10 BOLT, SOCKET M6X10 37-34 025710132 1 ヒラザガネチユウ4.76 WASHER, PLAIN S 4.76 37-35 S41011001 1 オサエヨレバー LEVER 37-36 123882001 1 ダンネジ4.37 SHOULDER SCREW, SM4.37 38 S59918001 1 オクリダイクミ FEED BRACKET ASSY 38-1 152771000 2 オクリダイカンザ FEED BRACKET SPACER 39 S59921001 1 カンザ4.8 SPACER, 4.8 40 071047650 2 コウキユウ3/16 BEARING BALL, 3/16 41 025060232 2 ヒラザガネチユウ6 WASHER, PLAIN M 6 42 017761212 2 ボルト5.95X12 BOLT, SM5.95X12 43 S49955001 1 オクリイタンメネジ SCREW, W/SOCKET SM4.37 44 153057101 1 オクリイタンメネジ SCREW, W/SOCKET SM4.37 45 153035000 1 オサエウデフエルト WORK CLAMP FELT 50 S59919000 1 ロツトエンド PB-6 ROD END, PB-6 51 S10209101 1 シメネジ4.37 SCREW, SM4.37 52 S59923000 1 オクリダイカバー-R FEED BRACKET COVER, R 53 060850051 2 バインド437-40X5 SCREW, BIND SM4.37-40X5 100 S51084001 1 オクリイタ432 FEED PLATE, 432 200 155567001 1 オサエバネチヨウセツネジ ADJUSTING SCREW 201 115147001 1 ボタンツカミオサエバネ COMPRESSION SPRING 202 146994001 2 オサエバネチヨウネジ NUT, ROUND SM6.35-40 203 153834101 1 ボタンツカミホルダーササエ BUTTON CLAMP HOLDER SUPPORT 204 153827001 1 ボタンツカミホルダーシーク BUTTON CLAMP HOLDER SHAFT 205 014680622 2 アナネジ4.37クボミ SET SCREW, SOCKET (CP) SM4.37 118-V32-202 14 jintex.in

Page 19

C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C) 212 213 211 213 210 219 230231 209 232 206 207 214 208 200 202 37 37-6 37-5 37-7 37-4 37-3 37-19 37-20 37-26 37-21 37-2 37-33 37-31 37-32 37-23 37-22 37-27 37-24 37-25 215 225 223 222 224 220 229 221 201 37-36 37-35 37-13 37-12 37-11 37-1 37-34 37-14 37-15 37-8 37-16 37-18 37-10 37-9 226 227 228 100 43 44 5 31 32 39 40 50 53 52 38-1 205 38 204 51 42 41 203 45 15 118-V30-202 jintex.in

Page 20 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 206 017781412 1 ポルト.6.35X14 BOLT, SM6.35X14 207 118735002 1 ザガネ WASHER, PLAIN 208 150556001 1 ナット.6.35 NUT, SM6.35 209 S41290301 1 OYSトリツケイタパツキン OYS SETTING PLATE PACKING 210 S41060109 1 タクシイタ BLIND PLATE 211 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 212 062711012 2 ナベコ476-32X10 SCREW, PAN SM4.76-32X10 213 025710232 4 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 214 152827001 1 オイルキリセン OIL CAP 215 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 216 228475000 1 ケツグンバンド1.9X80 FASTENING BAND, 1.9X80 217 525664000 1 コードホルダ #6 CORD HOLDER, 6N 218 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 219 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 220 S41264001 1 オサエヨセロツトクミ WORK CLAMP ROD ASSY 221 018062036 1 アナボルト6X20 BOLT, SOCKET M6X20 222 118735002 1 ザガネ WASHER, PLAIN 223 021060306 2 3シユナツト6 NUT, 3 M6 224 S41010001 1 センサイタ SENSOR PLATE 225 S41012001 1 OYソレノイドピン OY SOLENOID PIN 226 140407001 1 ザガネ WASHER 227 S19662001 1 スナツプピン5 SNAP PIN, 5 228 S18523001 1 オサエアゲハネ SPRING, EXTENSION 229 S41009001 1 OYソレノイドストツパー OY SOLENOID STOPPER 230 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 231 025710232 2 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 232 S52098201 1 OYソレノイドトリツケイタ OY SOLENOID SETTING PLATE 118-V32-202 16

Page 21 — D1. 押工上ケ関係 / Work clamp lifter mechanism

D1. 押工上ケ関係 / Work clamp lifter mechanism 118-V30-204 17 jintex.in

Page 22 — D1. 押上関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C)

D1. 押上関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49630001 1 リンクA LINK, A 2 S49631001 1 リンクB LINK, B 3 S49632001 1 リンクCクミ LINK ASSY, C 4 S49635001 1 リンクシクA LINK SHAFT, A 5 S49636001 1 リンクシクB LINK SHAFT, B 6 S49637001 1 リンクシクC LINK SHAFT, C 7 S49638001 1 リンクシクD LINK SHAFT, D 8 100281001 4 ザガネ WASHER, PLAIN 9 S37968001 6 スナップピン8 SNAP PIN, 8 10 S19662001 2 スナップピン5 SNAP PIN, 5 11 S58890001 1 オサエイタ WORK CLAMP PLATE 12 S55157000 1 オサエイタヨウメタル BUSH 13 014760622 2 アナトメジ5.95 SET SCREW, SOCKET SM5.95 14 S10105001 2 リンクドシバネ SPRING, EXTENSION 15 S49639001 1 センサトリツケダイ SENSOR SETTING BASE 16 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 17 S49640101 1 センサカンチイタ SENSOR PERCEIVE PLATE 18 S55479001 1 アナボルトザクミ4X8 BOLT, SOCKET (S/P WASHER) M4X8 19 S49641001 1 ソレノイドトリツケイタA SOLENOID SETTING PLATE, A 20 060661212 4 バインド437-40X12 SCREW, BIND SM4.37-40X12 21 S49642001 1 ソレノイドトリツケイタB SOLENOID SETTING PLATE, B 22 060501016 2 バインドM5X10 SCREW, BIND M5X10 23 S49643001 1 ガイド GUIDE 24 060680712 2 バインド437-40X7 SCREW, BIND SM4.37-40X7 25 S59763000 1 オサエアゲストツパーゴム W-CLAMP LIFTER STOPPER RUBBER 26 018501422 2 アナボルト5X14 BOLT, SOCKET M5X14 118-V30-204 18

Page 23 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C) 24 20 19 23 13 16 15 21 22 26 37 36 39 33 38 35 34 11 32 31 18 9 7 1 8 2 14 6 10 12 25 27 28 30 29 19 118-V32-204 jintex.in

Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49630001 1 リンクA LINK, A 2 S49631001 1 リンクB LINK, B 3 S49632001 1 リンククミ LINK ASSY, C 4 S49635001 1 リンククミA LINK SHAFT, A 5 S49636001 1 リンククミB LINK SHAFT, B 6 S49637001 1 リンククミC LINK SHAFT, C 7 S49638001 1 リンククミD LINK SHAFT, D 8 100281001 4 ザガネ WASHER, PLAIN 9 S37968001 6 スナップピン8 SNAP PIN, 8 10 S19662001 2 スナップピン5 SNAP PIN, 5 11 S41015101 1 オサエエダツロツド WORK CLAMP LIFTING ROD 12 S55157000 1 オサエエダツロツド BUSH 13 014760622 2 アナトメシ5.95 SET SCREW, SOCKET SM5.95 14 S10105001 2 リンクモトシハネ SPRING, EXTENSION 15 S49639001 1 センサセツテイングダイ SENSOR SETTING BASE 16 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 17 S49640101 1 センサカンテイタ SENSOR PERCEIVE PLATE 18 S55479001 1 アナボルトザクミ4X8 BOLT, SOCKET (S/P WASHER) M4X8 19 S49641001 1 ソレノイドトリツケイタA SOLENOID SETTING PLATE, A 20 060681212 4 バインド 437-40X12 SCREW, BIND SM4.37-40X12 21 S49642001 1 ソレノイドトリツケイタB SOLENOID SETTING PLATE, B 22 060501016 2 バインドM5X10 SCREW, BIND M5X10 23 S49643001 1 ガイド GUIDE 24 060680712 2 バインド 437-40X7 SCREW, BIND SM4.37-40X7 25 120448001 1 ゴムワ RUBBER BAND 26 018501422 2 アナボルト5X14 BOLT, SOCKET M5X14 27 150206002 1 ヒラガネ16 WASHER, PLAIN 16 28 048150142 1 トノウシクヨウC15 RETAINING RING, EXTERNAL C15 29 153828001 1 コジク ROLLER SHAFT 30 107744001 1 コジク ROLLER 31 153484001 1 ザガネ4.76 WASHER, PLAIN 4.76 32 105234003 2 ナット4.37 NUT SM4.37 33 S41014009 1 レバーホルダ LEVER HOLDER 34 018061622 2 アナボルト6X16 BOLT, SOCKET M6X16 35 025060232 2 ヒラガネチユウ6 WASHER, PLAIN M 6 36 S41016001 1 オサエヤレバー WORK CLAMP LIFTER LEVER 37 153838001 1 ボタンツカミレバーシク B-CLAMP LEVER SHAFT 38 014760622 1 アナトメシ5.95 SET SCREW, SOCKET SM5.95 39 017821813 1 ボルト7.94X18 BOLT, SM7.94X18 118-V32-204 20 jintex.in

Page 25 — E. Lower shaft mechanism

E.下軸関係 / Lower shaft mechanism <補給用部品 / For supply parts > 14-1 14-1-3 14-1-2 14-1-8 14-1-1 14-1-10 14-1-4 14-1-9 14-1-6 14-1-5 14-1-7 24 24-2 24-1 24-3 25 22 19 18 20 14-2 14-2-1 14-2-1-3 14-2-1-2 14-2-1-8 14-2-1-1 14-2-2 14-2-1-11 14-2-1-4 14-2-1-9 14-2-2 14-2-1-5 14-2-1-6 14-2-1-7 14-2-1-10 14-2-2 14-2-1-9 13-1 13 9 8 10 11 12 6 6-1 6-1 3 2 4 5 7 7 27 28 29 32 31 30 23 15 16 17 118-V30-305 21 jintex.in

Page 26 — E . 下軸関係 / Lower shaft mechanism

E . 下軸関係 / Lower shaft mechanism REF. NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 141786001 1 クランクロッドダンネジ SHOULDER SCREW 2 100090004 1 ナット.7.14 NUT, SM7.14 3 014680622 1 アナトメネジ 4.37クホミ SET SCREW, SOCKET (CP) SM4.37 4 152245101 1 ヨウドウギヤ ROCK GEAR 5 S37978251 1 ヨウドウギヤジヤンク ROCK GEAR SHAFT 6 181995001 1 セットカラクーミ SET SCREW COLLAR ASSY 6-1 101706001 2 アナトメネジ 6.35 SET SCREW, SM6.35-40X5.5 7 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 8 S49605001 1 シタシククミ LOWER SHAFT ASSY 9 S55213001 1 シタシクメタル LOWER SHAFT BUSH 10 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 11 152678201 1 アナトメジクミ ADJUSTING STUD 12 081003670 1 OリングPW3 O-RING, PW3 13 S4980001 1 セットカラクーミ SET SCREW COLLAR ASSY 13-1 017770622 2 アナトメネジ 5.95クホミ SET SCREW, SOCKET (CP) SM6.35 14-1 S55927101 1 オオカマタイクミ SHUTTLE RACE BASE ASSY 14-1-1 S55216101 1 オオカマタイ SHUTTLE RACE BASE 14-1-2 S02429101 1 カイトアンナイ SHUTTLE RACE THREAD GUIDE 14-1-3 062660412 2 ナベコ318-40X4 SCREW, PAN SM3.18-40X4 14-1-4 152683101 2 オオカマトツケツメ S-RACE BASE SETTING CLAW 14-1-5 152684101 2 オオカマトツケツハネ SPRING, COMPRESSION 14-1-6 402887001 2 ザガネ3.2 WASHER, 3.2 14-1-7 062660712 2 ナベコ318-40X7 SCREW, PAN SM3.18-40X7 14-1-8 S09043000 2 フエルト FELT 14-1-9 S49981000 2 クミヒモ3X3 WICK, 3X3 L=360 14-1-10 S49828000 1 クミヒモ3X3 WICK, 3X3 L=300 14-1-11 S49685000 1 クミヒモ3X3 WICK, 3X3 L=100 15 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 16 152678201 1 アナトメジクミ ADJUSTING STUD 17 081003670 1 OリングPW3 O-RING, PW3 18 048070342 1 トメワE7 RETAINING RING, E7 19 S55215001 1 ドライバーHR DRIVER, HR 20 018501232 1 アナボルト5X12 BOLT, SOCKET M5X12 21 * 1 オオカマ SHUTTLE RACE BASE 22 * 1 ナカカマハコグミ SHUTTLE HOOK ASSY, W/BOX 23 S16290001 1 ニードルローラー4X19.8 NEEDLE ROLLER, 4X19.8 24 * 1 ボビンケースクミ BOBBIN CASE ASSY 24-1 * 1 ボビンケーススヨウシハネ TENSION SPRING 24-2 * 1 ボビンケーススバネ SCREW 24-3 * 1 クウテンボウスバネ ANTI-SPIN SPRING 25 * 1 ボビン BOBBIN 27 S5658000 1 カマフエルト FELT 28 S55214000 1 カマフエルトリツケエ FELT HOLDER 29 S55140001 1 サポ-ト SUPPORT 30 123882001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 31 103810002 1 ナミガタハネガネ WAVE WASHER 32 025770232 1 ヒラサガネチユウ6.35 WASHER, PLAIN M 6.35 14-2 S59888001 “補給用部品” " For Supply parts " 14-2-1 S59885001 1 オオカマタイクミセット SHUTTLE RACE BASE SET 14-2-1-1 S55216001 1 オオカマタイクミ SHUTTLE RACE ASSY 14-2-1-2 S02429101 1 カイトアンナイ SHUTTLE RACE BASE 14-2-1-3 062660412 2 ナベコ318-40X4 SHUTTLE RACE THREAD GUIDE 14-2-1-4 152683101 2 オオカマトツケツメ SCREW, PAN SM3.18-40X4 14-2-1-5 152684101 2 オオカマトツケツハネ S-RACE BASE SETTING CLAW 14-2-1-6 402887001 2 ザガネ3.2 SPRING, COMPRESSION 14-2-1-7 062660712 2 ナベコ318-40X7 WASHER, 3.2 14-2-1-8 S09043000 2 フエルト SCREW, PAN SM3.18-40X7 14-2-1-9 S59886001 2 フエルト FELT FELT, L=360 118-V30-305 22 jintex.in

Page 27 — E. Lower shaft mechanism

E. 下軸関係 / Lower shaft mechanism 24 24-3 24-2 24-1 < 補給用部品 / For supply parts > 14-2-1 14-2-1-3 14-2-1-2 14-2-1-8 14-2-1-1 14-2-2 14-2-1-11 14-2-1-4 14-2-2 14-2-1-9 14-2-1-7 14-2-1-6 14-2-1-5 14-2-1-10 14-2-1-3 14-1-2 14-1-8 14-1-1 14-1-4 14-1-9 14-1-11 14-1-7 14-1-6 14-1-5 14-1-10 14-2 14-2-2 21 22 19 18 20 23 15 16 17 27 28 29 32 31 30 13-1 13 9 8 10 11 12 6 6-1 6-1 3 2 4 5 7 7 118-V30-305 23 jintex.in

Page 28 — E. 下軸関係 / Lower shaft mechanism

E. 下軸関係 / Lower shaft mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 14-2-1-10 S57965000 1 クミモモ3X3 WICK, 3X3 L=515 14-2-1-11 S59886001 1 フェルト FELT, L=360 14-2-2 S50529000 4 ビニルチューブ OIL TUBE, L=320 118-V30-305 24 jintex.in

Page 29 — F. Lubrication

F. 給油潤滑関係 / Lubrication 20 45 19 47 44 17 44 20 5 44 12 10 7 9 8 6 13 16 18 15 19 21 25 3 2 14 28 30 46 29 22 26 41 51 32 23 52 24 40 34 48 33 49 50 42 54 36 35 53 39 38 1 118-V30-350 25

Page 30 — F. 給油潤滑関係 / Lubrication

F. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49992000 1 オイルポットマ OIL GAUGE WINDOW 2 S07333001 1 オイルクチパイプ S PIPE, S 3 S07456000 1 ビニールチューブ OIL TUBE, L=160 4 148738000 1 クミヒモ WICK, L=335 5 107149001 1 フェルト FELT 6 S37983001 1 ウツシクキュウササエ WICK SUPPORT 7 062680612 1 ナベコ 4.37-40X6 SCREW, PAN SM4.37-40X6 8 025680232 1 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 9 028680242 1 バネザガネ2-4.37 WASHER, SPRING 2-4.37 10 S10478000 1 ロッド・キュウユフェルト FELT 11 S34986000 1 ビニールチューブ OIL TUBE, L=135 12 S49982000 1 クミヒモ4X4 WICK, 4X4 L=400 13 107149001 2 フェルト FELT 14 S49950001 1 テンビンキュウササエ WICK SUPPORT 15 S10162201 1 ハリホウヒモササエ WICK SUPPORT 16 060670512 1 バインド 357-40X5 SCREW, BIND SM3.57-40X5 17 S49620000 2 ビニールチューブ OIL TUBE, L=340 18 S49957000 1 クミヒモ4X4 WICK, 4X4 L=700 19 S49622000 1 クミヒモ4X4 WICK, 4X4 L=130 20 S49983000 1 クミヒモ4X4 WICK, 4X4 L=800 21 S49984000 1 ヒラクセミモ FLAT WICK, L=200 22 104567101 1 クミヒモササエ WICK SUPPORT 23 159565000 1 クミヒモ2.5X150 WICK, L=150 24 S37985000 1 スイアゲフェルト FELT 25 S37986000 1 ビニールチューブ OIL TUBE, L=440 26 S18093100 1 クミヒモ4X4 WICK, 4X4 L=1100 27 145547001 1 チューブホルダー TUBE HOLDER 28 062670512 1 ナベコ 357-40X5 SCREW, PAN SM3.57-40X5 29 S37987001 1 シタジクキュウササエ LOWER SHAFT WICK SUPPORT 30 S37988000 1 シタジクキュウユフェルト LOWER SHAFT WICK FELT 31 062680612 1 ナベコ 4.37-40X6 SCREW, PAN SM4.37-40X6 32 S09043000 1 フェルト FELT 33 152948001 1 オイルポットマ OIL GAUGE WINDOW 34 S49623000 1 ビニールチューブ OIL TUBE, L=280 35 S49624000 1 ビニールチューブ OIL TUBE, L=260 36 S49625000 1 ビニールチューブ OIL TUBE, L=160 38 152969001 2 コードササエ CORD HOLDER 39 062670512 2 ナベコ 357-40X5 SCREW, PAN SM3.57-40X5 40 148738000 1 クミヒモ WICK, L=335 41 148738000 1 クミヒモ WICK, L=335 42 152956001 1 クミヒモ4X4 WICK, 4X4 L=500 44 228475000 3 ケツソクバンド1.9X8 FASTENING BAND, 1.9X80 45 153924001 1 フェルト FELT 46 S49957000 1 クミヒモ4X4 WICK, 4X4 L=700 47 S49958000 1 クミヒモ4X4 WICK, 4X4 L=70 48 S49985000 1 ビニールチューブ OIL TUBE, L=170 49 S49986000 1 ビニールチューブ OIL TUBE, L=110 50 S49987000 1 ビニールチューブ OIL TUBE, L=150 51 S49995001 1 コードササエ CORD SUPPORT 52 062670512 1 ナベコ 357-40X5 SCREW, PAN SM3.57-40X5 53 S49618000 1 ビニールチューブ OIL TUBE, L=210 54 S55659000 1 クミヒモ WICK, L=300 118-V30-350 26

Page 31

G. 糸通シ関係 / Threading mechanism 23 24 ' オプション部品 / OPTION PARTS " 28 29 30 31 27 <糸切レ検知用 / For Thread breakage detector > 32 1 2 19 22 21 20 5 6 3 4 11 17 18 8 9 10 12 16 15 14-1 33 13 <デニム用 / For Denim > 14-1 <メリヤス、被服用 / For Knitted & Ordinary materials > 25-1 25-2 14-2 27 118-V30-401 jintex.in

Page 32 — G . 糸通シ関係 / Threading mechanism

G . 糸通シ関係 / Threading mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 152869001 1 アームイトミチ ARM THREAD GUIDE 2 062670612 1 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 3 S49627001 1 アームイトカケ ARM THREAD GUIDE 4 060670612 1 バインド357-40X6 SCREW, BIND SM3.57-40X6 5 S51859101 1 アームイトアンナイ ARM THREAD GUIDE 6 060670612 1 バインド357-40X6 SCREW, BIND SM3.57-40X6 8 152872001 1 イトチョウシダイ TENSION BRACKET 9 114294001 1 Oリング O-RING 10 イトトリハネ THREAD TAKE-UP SPRING 11 S12699000 1 イトユルメピン TENSION RELEASE PIN 12 116922001 1 イトチョウシボウ TENSION STUD 13 S31032001 1 イトチョウシナット TENSION NUT 14-1 104525001 1 <メリヤス、被服用> イトチョウシハネ <For Knitted & Ordinay materials> TENSION SPRING 14-2 107606001 1 <デニム用> イトチョウシハネ <For Denim> TENSION SPRING, H 15 159805001 1 イトチョウサラオサエ TENSION DISC PRESSER 16 145446001 2 イトチョウサラ TENSION DISC 17 100400004 1 トメネジ 3.57 SET SCREW, SM3.57 18 S10469001 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 19 115186001 1 シュイトチョウシボウ MAIN TENSION STUD 20 100136001 1 イトチョウシナット TENSION NUT 21 115186001 1 シュイトチョウシハネ MAIN TENSION SPRING 22 145446001 2 イトチョウサラ TENSION DISC 23 152889001 1 ミツメイトカケ THREAD RETAINER 24 062670612 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 25-1 152890001 1 <デニム用> ハリボウイトアンナイA <For Denim> NEEDLE BAR THREAD GUIDE, A 25-2 S41222101 1 <メリヤス、被服用> ハリボウイトアンナイB <For Knitted & Ordinay materials> NEEDLE BAR THREAD GUIDE, B 26 152891101 1 ハリボウメタルDアンナ N-BAR BUSH THREAD GUIDE, D 33 S12441001 1 チョウシハネウエサカネ WASHER " オプション部品" " OPTION PATS " 27 152881001 1 エキレイトクイミ NEEDLE COOLER ASSY 28 014760632 1 アナトメニ595-28X6 SET SCREW, SOCKET (CP)SM5.95X6 29 152883000 1 フエルト8X15.5 FELT, 8X15.5 30 152884001 1 エキレイトカケ NEEDLE COOLER THREAD GUIDE 31 062670412 1 ナベコ357-40X4 SCREW, PAN SM3.57-40X4 32 S45083001 1 <糸切れ検知用> メンイトアンナイ <For Thread breakage detector> FACE PLATE THREAD GUIDE 118-V30-401 28

Page 33 — H. 糸巻関係 / Bobbin winder mechanism

H. 糸巻関係 / Bobbin winder mechanism 2 4 3 4 1-20 1-25 1-23 1-21 1-22 1-26 1-19 1-24 1-1 1-6 1-7 1-10 1-5 1-27 1-15 1-9 1-8 1-11 1-16 1-2 1-4 1-3 1-12 1-14 1-13 5 118-V30-402 29 jintex.in

Page 34 — H . 糸巻関係 / Bobbin winder mechanism

H . 糸巻関係 / Bobbin winder mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1 S37991109 1 ウワタ TOP COVER 1-2 S37992100 1 イトマキウデ BOBBIN WINDER ARM 1-3 S37993000 1 イタバネ PLATE SPRING 1-4 048100142 1 トメワジヨウC10 RETAINING RING, EXTERNAL C10 1-5 S37994001 1 イトマキツメク BOBBIN WINDER CLAW STUD 1-6 S37995101 1 ボビンオサエ BOBBIN PRESSER 1-7 100402004 1 トメネジ3.57 SET SCREW, SM3.57 1-8 S37996001 1 イトマキツメ BOBBIN WINDER CLAW 1-9 014680622 1 アナトメネジ4.37クボ SET SCREW, SOCKET (CP) SM4.37 1-10 048050342 1 トメワE5 RETAINING RING, E5 1-11 S37997001 1 イトマキシンク BOBBIN WINDER SHAFT 1-12 154528001 1 イトマキクルマ BOBBIN WINDER WHEEL 1-13 120448001 1 ゴムワ RUBBER BAND 1-14 120990001 2 アナトメネジ4.37 SET SCREW, (CP) SM4.37-40X8 1-15 S10174000 1 ホコリヨケイタ DUST GUARD PLATE 1-16 S37998001 1 イトマキデバネ SPRING 1-17 157968001 1 メス KNIFE 1-18 062680512 1 ナベコ437-40X5 SCREW, PAN SM4.37-40X5 1-19 159574101 1 イトチョウシボウ TENSION STUD 1-20 100136001 1 イトチョウシナツト TENSION NUT 1-21 144110001 1 シンタルバイトチョウシハ TENSION ADJUSTING SPRING 1-22 145446001 2 イトチョウシサラ TENSION DISC 1-23 144105000 2 チヨウシハネユザガネ TENSION SPRING FLANGE WASHER 1-24 021680202 1 ナツト2.SM4.37 NUT, 2 SM4.37 1-25 141590001 1 イトトメオシボウ THREADING BAR, U 1-26 100022004 2 ナツト5.95 NUT, SM5.95 1-27 025680232 1 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 2 02681212 1 ナベコ437-40X12 SCREW, PAN SM4.37-40X12 3 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 4 025680232 3 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 5 S47335101 1 イトマキプーリクミ BOBBIN WINDER PULLEY ASSY 118-V30-402 30 jintex.in

Page 35 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism 31 118-V30-403 jintex.in 5 8 10 9 18 17 19 20 16 14 15 23 22-1 22-4 22-2 22-3 26-2 26-3 2 22-5 22-6 22-4 22 24 26 < KE-432C国内用/ For Japan only of KE-432C > 43-2 54 53 51 52 < KE-430C, KE-431C, 432C輸出用/ For KE-430C, KE-431C & export of KE-432C > 26-1 1 25 24 34 35 30 33 29 38 41 42 49 43-1 50 44 46 45 47 48

Page 36 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49629201 1 イトキリカム THREAD TRIMMER CAM 2 014770622 2 アナトメシ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 3 S38002201 1 ソルノイドトリツケタ SOLENOID SETTING PLATE 5 060681212 2 バインド437-40X12 SCREW, BIND SM4.37-40X12 6 154599000 1 ソルノイドクツシヨン SOLENOID CUSHION 7 S02652001 1 ザガネ WASHER 8 S23836001 1 ソルノイドレバークミ SOLENOID LEVER ASSY 8-1 S02654001 1 ソルノイドレバー SOLENOID LEVER 8-2 014680622 1 アナトメシ 4.37クホミ SET SCREW, SOCKET (CP) SM4.37 9 S38003101 1 クドウレバーオンレバー DRIVING LEVER PUSH LEVER 10 S49645001 1 ダンネシ 4.76 SHOULDER SCREW, SM4.76 11 S38004003 1 クドウレバー ストツパー <記号2> DRIVING LEVER STOPPER <Mraked in 2> 11 S38004004 1 クドウレバー ストツパー <記号3> DRIVING LEVER STOPPER <Mraked in 3> 12 S59893001 2 アナボルト437-40X10 BOLT, SOCKET SM4.37-40X10 13 148847001 2 ザガネ WASHER, PLAIN,4.76 14 159905001 1 トメネジチョウセツネシ ADJUSTING SCREW 15 105812003 1 ナット7.94 NUT, SM7.94 16 S49644001 1 クドウレバー アンナイシク DRIVING LEVER GUIDE SHAFT 17 231071001 1 メタル8X15 BUSH, 8X15 18 S3235001 1 ヌノサエバネ SPRING, COMPRESSION 19 048070342 1 トメワE7 RETAINING RING, E7 20 153596001 1 ザガネ WASHER 21 154596000 1 イトキリカムレバークツシヨン CUSHION 22 S49646101 1 イトキリドウレバークミ THREAD DRIVING LEVER ASSY 22-1 S59874001 1 イトキリドウレバー THREAD DRIVING LEVER 22-2 S59872001 1 イトキリドウレバー THREAD DRIVING ROLLER 22-3 S59871001 1 ダンネシ 4.37 SHOULDER SCREW, SM4.37 22-4 S59873001 2 ザガネ WASHER, PLAIN 22-5 SA0049001 2 ナット4.37 NUT, SM4.37 22-6 028680242 1 ハネザガネ2-4.37 WASHER, SPRING 2-4.37 23 014770622 1 アナトメシ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 24 S02354001 2 タマツギダンネシ B SHOULDER SCREW, B 25 100022005 2 ナット9.95 NUT, SM9.95 26 S49648001 1 イトキリロツドクミ THREAD TRIMMER ROD ASSY 26-1 S49649001 1 イトキリロツド THREAD TRIMMER ROD 26-2 141492001 2 タマツギテツミ JOINT ASSY 26-3 100022005 2 ナット9.95 NUT, SM9.95 29 S49650001 1 イトキリレバー THREAD TRIMMER LEVER 30 S10195101 1 イトキリレバーシク THREAD TRIMMER LEVER SHAFT 31 110367001 1 ザガネ WASHER, PLAIN, SPECIAL 8 32 048060342 1 トメワE6 RETAINING RING, E6 33 014776062 1 アナトメシ 5.95 SET SCREW, SOCKET SM5.95 34 S38011001 1 イトキリモトシハネ SPRING, EXTENSION 35 S49651001 1 ハネカケ SPRING HOOK 36 110233001 1 ダンネシ 4.76 SHOULDER SCREW, SM4.76 37 110161004 1 ナット4.76 NUT, SM4.76 38 S49994001 2 ザガネ 4.76 WASHER, PLAIN 4.76 40 S38012001 1 レンカンレバークミ CONNECTING ROD LEVER ASSY 41 S10202001 1 レンカンレバーシク LEVER SHAFT 42 121007001 1 アマツキトメシ 4.37 SET SCREW, SM4.37 <KE-430C, 431C用> <For KE-430C & 431C> 43-1 S38015001 1 <KE-4320輸出用> <For Export of KE-432C> 1 ザガネ NEEDLE PLATE 43-2 S40916001 1 <KE-4320国内用> <For Japan only of KE-432C> 1 ハリイタ 44 S38016001 1 イトキリレンカン THREAD CONNECTING ROD 45 S49988001 1 イドウハンクミ MOVABLE KNIFE ASSY, N 46 S10208001 1 イドウハンカンザ <t=0.4> MOVABLE KNIFE SPACER <t=0.4> 46 S10208002 1 イドウハンカンザ <t=0.5> MOVABLE KNIFE SPACER <t=0.5> 46 S10208003 1 イドウハンカンザ <t=0.6> MOVABLE KNIFE SPACER <t=0.6> 118-V30-403 32 jintex.in

Page 37 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism < KE-432C国内向用/ For Japan only of KE-432C > < KE-430C, KE-431C, 432C輸出用/ For KE-430C, KE-431C & export of KE-432C > 33 11B-V30-403 jintex.in

Page 38 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 47 S00705001 1 イトウホ MOVABLE KNIFE COLLAR 48 S10209101 1 シメネジ4.37 SCREW, SM4.37 49 S10210201 1 コテイハ FIXED KNIFE 50 111140002 2 シメネジ2.38 SCREW, SM2.38 51 100032004 2 サラネジ4.37 SCREW, FLAT SM4.37-40X8 52 S11244001 2 シメネジ4.37 SCREW, SM4.37 53 * 1 ハリナイタ NEEDLE HOLE PLATE 54 100360003 2 サラネジ2.38 SCREW, FLAT SM2.38 55 228475000 2 ケツクバンド1.9X80 FASTENING BAND, 1.9X80 118-V30-403 34

Page 39

K. 糸払イ関係 / Thread wiper mechanism 5 7 9 10 1 8 6 13 12 2 3 4 11 14 16 17 15 118-V30-405 L. 糸取り関係 / Thread take-up mechanism 21 2 1 13 9 10 14 15 16 11 7 9 12 8 19 18 17 3 5 4 118-V30-408 35 jintex.in

Page 40 — K. Thread wiper mechanism / L. Thread take-up mechanism

K. 糸払イ関係 / Thread wiper mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49652101 1 ワイパーダウレバー THREAD WIPER DRIVING LEVER 2 152822101 1 ワイパーシク THREAD WIPER SHAFT 3 025770232 1 ヒラザガネチユウ6.35 WASHER, PLAIN M 6.35 4 048040342 1 トメワE4 RETAINING RING, E4 5 014760622 1 アナトメシ5.95 SET SCREW, SOCKET SM5.95 6 S36024001 1 ワイパーロツドジク THREAD WIPER ROD SHAFT 7 S38025001 1 ワイパーロツドアツ THREAD WIPER ROD ASSY 8 145992001 1 アナトツメシ4.37 SET SCREW, SM4.37 9 048060342 1 トメワE6 RETAINING RING, E6 10 116629001 2 ザガネ WASHER 11 152823001 <KE-430C用> <For KE-430C> 1 ワイパーウテケミ THREAD WIPER ARM ASSY 11 S41284301 <KE-431C, 432C用> <For KE-431C & KE-432C> 1 ワイパーウテミ THREAD WIPER ARM ASSY 12 048030342 1 トメワE3 RETAINING RING, E3 13 152827001 1 オイルキリセン OIL CAP 14 014710522 1 アナトメシ4.76クボミ SEET SCREW, SOCKET (CP) SM4.76 15 156206601 1 ワイパーA THREAD WIPER, A 16 062670512 2 ナベコ3.57-40X5. SCREW, PAN SM3.57X4.5 17 025350132 2 ヒラザガネシヨウ WASHER, PLAIN S 3.5 118-V30-405 L. 系取り関係 / Thread take-up mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49659001 1 ソレノイドトリツケイタ SOLENOID SETTING PLATE 2 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 3 S49660101 1 イトトリレバー THREAD TAKE-UP LEVER 4 107321003 2 ダンネジ4.76 SHOULDER SCREW, SM4.76 5 S19748001 1 サトウクランククツシヨン CUSHION 6 047401442 1 スプリングピンAW4 PIN, SPRING ROLL AW4 7 S49661101 1 ソレノイドツキテ SOLENOID JOINT 8 S01998001 2 アナマキトメネジ3.57 SET SCREW, SM3.57-40X6 9 110251001 2 ヌノオサエウデバネカケ SPRING HOOK 10 021670102 2 ナツト1シ3.57 NUT, 1 SM3.57 11 S34883001 1 イトキリハネ SPRING, EXTENSION 12 S19748001 1 サトウクランククツシヨン CUSHION 13 S49663001 1 ナツト3.57 NUT, SM3.57 14 062671012 1 ナベコ357-40X10 SCREW, PAN SM3.57-40X10 15 028350242 1 ヒラザガネ2-3.5 WASHER, SPRING 3.5 16 025350332 1 ヒラザガネL3.5 WASHER, PLAIN L 3.5 17 S49662001 1 イトトリレバークランク TREAD TAKE-UP LEVER CRANK 18 15559001 1 ヒラザガネ WASHER, PLAIN 19 048040342 1 トメワE4 RETAINING RING, E4 20 S49664000 1 イトトリレノドカバー TREAD TAKE-UP SOLENOID COVER 21 062670612 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 118V30-408 36 jintex.in

Page 41 — M. 糸締メ関係 / Thread nipper mechanism

M. 糸締メ関係 / Thread nipper mechanism 118-V30-406 37

Page 42 — M . 糸締メ関係 / Thread nipper mechanism

M . 糸締メ関係 / Thread nipper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49665001 1 イトエルメロツドクミ TENSION RELEASE ROD ASSY 1-1 S49666001 1 イトエルメロツド TENSION RELEASE ROD 1-2 141492001 1 タマツキテクセミ JOINT ASSY 1-3 100022005 1 ナット5.95 NUT, SM5.95 2 145478101 1 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 3 S02354001 1 タマツキテタンネジ B SHOULDER SCREW, B 4 100022005 1 ナット5.95 NUT, SM5.95 5 S49653001 1 イトエルメクドウレバー TR-RELEASE DRIVING LEVER ASSY 5-1 S49654001 1 イトエルメクドウレバー TENSION RELEASE DRIVING LEVER 5-2 153597001 1 シタイトサハキカラー LOWER THREAD RETAINER COLLAR 5-3 S30033001 1 ダンネジ 3.57 SHOULDER SCREW, SM3.57 5-4 S49655001 1 カラー COLLAR 5-5 106129002 1 ナット3.57 NUT, SM3.57 5-6 028350242 1 バネガネカー3.5 WASHER, SPRING 2-3.5 6 S49656001 1 イトエルメレバーU TENSION RELEASE LEVER, U 7 S49657001 1 イトエルメレバーUストツパ RELEAEASE LEVER U STOPPER 8 S19748001 1 サトウクランククツシヨン CUSHION 9 062680812 2 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 11 S38032001 1 イトエルメレバー TENSION RELEASE LEVER 12 S46734001 1 オサエアゲレバーシヤフト W-CLAMP LEVER LIFTER SHAFT 13 S01998001 1 アタマツキトメネジ 3.57 SET SCREW, SM3.57-40X6 14 S38033001 1 カラー-13 COLLAR, 13 15 048040342 2 トメワE4 RETAINING RING, E4 17 SA0703001 1 イトエルメレバーバネ TENSION RELEASE LEVER SPRING 18 S31006001 1 オサエアゲテコ LIFTING LEVER 19 S39051001 1 ナベザクミ35X12 SCREW, PAN (S/P W) M3.5X12 21 S31952001 1 オサエアゲクランク LIFTING CRANK 22 S10239001 1 イトエルメボウ TENSION RELEASE STUD 118-V30-406 38 Jinttex.in

Page 43

N . 針位置検出器関係 / Synchronizer P . プリント基板関係 / Printed circuit board mechanism 118-V30-501 1 2 5 7 6 4 1-13 1-9 1-13 1-6 1-8 1-13 1-14 1-10 1-11 1-15 1-5 1-3 1-4 1-2 1-12 1-1 1-7 39 118-V30-518 jintex.in

Page 44 — N. 針位置検出器関係 / Synchronizer

N. 針位置検出器関係 / Synchronizer REF. NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S48866001 1 シンクロナイザクミ SYNCHRONIZER ASSY 2 062400806 2 ナベ4X8 SCREW, PAN M4X8 4 S38080001 1 ハリタンシヤクミ NEEDLE LOWER MAGNET ASSY, D 5 S38082001 2 ハリユエンシヤクミ NEEDLE UPPER MAGNET ASSY, U 6 062681412 3 ナベコ437-40X14 SCREW, PAN SM4.37-40X14 7 025680132 3 ヒラザガネシヨウ4.37 WASHER, PLAIN S 4.37 118-V30-501 P. プリント基板関係 / Printed circuit board mechanism REF. NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49479001 1 メインキバンクミ MAIN PCB ASSY 1-1 S29019000 4 ICM54640P IC:M54640P 1-2 S43178000 6 PHカプラPC9231 PHOTO COUPLER:PC9231 1-3 093650008 1 CMOSIC74HC08F IC:74HC08F 1-4 093650032 1 CMOSIC74HC32F IC:74HC32F 1-5 091170009 2 BIPIC74LS09F IC:74LS09F-T 1-6 S49484000 8 MOSFETFS10KMJ-2 TRANSISTOR, FET:FS10KMJ-2 1-7 S49485000 8 MOSFETFX6KMJ-2 TRANSISTOR, FET:FX6KMJ-2 1-8 S49471000 6 MOSFETFK18SM-1 TRANSISTOR, FET:FK18SM-12 1-9 S38155000 3 MOSFET2SK1306 TRANSISTOR, FET:2SK1306 1-10 S50645000 1 MOSFET2SK1307 TRANSISTOR, FET:2SK1307 1-11 S49486000 1 MOSFET2SJ222 TRANSISTOR, FET:2SJ222 1-12 U32744000 1 DIPSWDS5708 DIP SWITCH:DSS708 1-13 0A4301005 31 +ナベザクミ3X10DA SCREW, PAN (S/P WASHER) M3X10 1-14 S48578000 1 GFUSE5AFBリードワキ GLASS FUSE, 5A W/LEED WIRE 1-15 Y51030150 1 ポリC50B103 CAPACITOR, POLYESTER 50B103 118-V30-518 40

Page 45 — Q1. コントロールボックス関係 / Control box mechanism

Q1. コントロールボックス関係 / Control box mechanism 1-5 1-4 1-8 1-7 1-6 1-10 1-20 10 10-1 11 11-1 54 1-23 1-6 1-25 1-3 1-22 1-17 1-24 1-12 1-26-4 1-26-3 1-26-5 1-26-19 1-26-18 1-26-10 1-26-2 1-26-13 1-26-11 1-26-16 1-26-17 1-26-12 1-26-21 1-26-14 1-26-19 1-26-15 1-26-6 1-26-7 1-26-20 1-26-1 1-26-2 1-26-13 1-26-11 1-26-16 1-26-20 1-26-10 1-26-5 1-26-4 1-26-12 1-26-21 1-26-14 1-26-15 1-26-6 1-26-8 1-26-1 1-26-9 1-26 1-19 1-16 1-11 1-1 1-15 1-14 1-13 1-22 20 21 1-2 1-20 1-21 1-26-22 1-26-1 1-26-12 1-26-21 1-26-14 1-26-15 1-26-6 1-26-8 1-26-7 1-26-20 1-26-9 1-26 1-26-10 1-26-5 1-26-4 1-26-13 1-26-11 1-26-16 1-26-20 41 118-V30-502 jintex.in

Page 46 — Q1 . コントロールボックス関係 / Control box mechanism

Q1 . コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49467001 1 ボックスクミ BOX ASSY 1-1 S49468001 1 デンケンボックス POWER SUPPLY BOX 1-2 S49469001 1 メインキハンドツケケイタ MAIN PCB SETTING PLATE 1-3 S49470001 1 ボックスフタ BOX COVER 1-4 S38093000 1 コードオサエタ HOLDER PLATE 1-5 0A5401206 2 +ナベザクミ4X12DB SCREW, PAN (S/P WASHER) M4X12 1-6 021400206 2 ナット4 NUT, 2 M4 1-7 S47692000 1 DCファンモータクミ FAN MOTOR ASSY, DC 1-8 0A5403006 2 +ナベザクミ4X30DB SCREW, PAN (S/P WASHER) M4X30 1-9 0A5400806 1 +ナベザクミ4X8DB SCREW, PAN (S/P WASHER) M4X8 1-10 0A5401206 2 +ナベザクミ4X12DB SCREW, PAN (S/P WASHER) M4X12 1-11 S42260000 1 フットSWコード 434クミ FOOT SWITCH HARNESS ASSY, 434 1-12 S38107100 1 セイキヨウデンケンコード CONTROL POWER SUPPLY HARNESS 1-13 S38108000 1 モータデンケンコード MOTOR POWER SUPPLY HARNESS 1-14 S38109100 1 ゲートデンケンコード H-P POWER SUPPLY HARNESS 1-15 S38110000 1 PERコード POWER HARNESS 1-16 S11949000 1 ゴムブッシュ RUBBER BUSH 1-17 S00554000 17 サポート6NS SUPPORT, 6NS 1-18 S31760000 2 CKSクランプ26L CORD CLAMP, 26-L 1-19 S43275000 6 コードクランプWS2NS CORD CLAMP, WS2NS 1-20 S43276000 4 コードクランプWS3NS CORD CLAMP, WS3NS 1-21 S43277000 1 コードクランプWS4NS CORD CLAMP, WS4NS 1-22 008400604 12 +トラスコ4X6 SCREW, TRUSS M4X6 1-23 S38116000 1 フラグメントアミ FRAGMENT PROTECTOR NET 1-24 S37059001 1 PEマーク LABEL, PE 1-25 S37060001 1 アースマーク LABEL, GROUNDING 1-26 S49939101 1 デンケンキバンクミ POWER SUPPLY PCB ASSY 1-26-1 S43177000 1 ICMA3830 IC:MA3830 1-26-2 S43184000 2 PHカプラPC0923 PHOTO COUPLER :PC0923 1-26-3 S49586000 2 MOSFET2SK1941 TRANSISTOR, FET :2SK1941 1-26-4 S38203000 1 SBDYG802C04R DIODE :YGB02C04R 1-26-5 SA0037000 2 バリスタV14D511 VARISTOR:V14D511 1-26-6 232384001 1 SURGE ABSORBER :DSA362MA SURGE ABSORBER :DSA362MA 1-26-7 S49071000 1 DBRD25XB60 DIODE BRIDGE :25XB60 1-26-8 S38205000 1 デンC250B182 CAPACITOR, ALUM-ELEC 250B182 1-26-9 SA1034000 1 デンC63B562 CAPACITOR, ALUM-ELEC 63B562 1-26-10 S43175000 1 トランスETS54AA159 TRANSFORMER :54AA159 1-26-11 S43176000 1 トランスETS35AD199 TRANSFORMER :35AD199 1-26-12 S43181000 1 コイル:49AD289A COIL :49AD289A 1-26-13 S38208000 1 RYJW1AFSNDC5V RELAY :JW1 AFSN/DC 5V 1-26-14 153242000 2 ヒューズ*6A FUSE, 6A 1-26-15 S08030000 1 GLヒューズ5AFB FUSE, 5A :FB 1-26-16 S48560000 1 GFUSE7AFB FUSE, 7A :FB 1-26-17 0A4301005 8 +ナベザクミ3X10DA SCREW, PAN (S/P WASHER) M3X10 1-26-18 S43189000 1 PCBE1コード PCB E1 HARNESS 1-26-19 S43187000 1 PCBE2コード PCB E2 HARNESS 1-26-20 S49472000 1 サーミスタ6D-22 THERMISTOR :6D-22 1-26-21 S49938000 1 ゼツエンシート INSULATION SHEET 10 S49477000 1 PROMセイギョクミ PROM CONTROL ASSY 10-1 UA4817000 1 MOSLSI27C2001 EPROM:27C2001 11 S53032000 1 PROM-IMクミ PROM ASSY, IM 11-1 S38143000 1 CMOSLSI27C512 LSI:27C512 12 228475000 1 ケツツバンド1.9X8 FASTENING BAND, 1.9X80 <輸出用> <For Export> 20 S38352101 2 デンキラベル.4コ LABEL, ELEC. SHOCK 4 LANG. 116-V30-502 42 RM欄に*が付いている部品をご注文いただきますと、基板等必要な部品がー式入ったセットになっています。 When ordering parts which have an (*) in the RM column, these parts will be supplied as a set together with other necessary parts such as sucuit boards. jintex.in

Page 47 — Q1. コントロールボックス関係 / Control box mechanism

Q1. コントロールボックス関係 / Control box mechanism 1-5 1-4 1-8 1-7 1-6 1-10 1-20 1-22 10-1 1-23 1-6 1-21 12 1-19 1-2 11-1 54 1-9 1-16 1-25 1-11 1-3 1-17 1-1 1-22 1-15 1-14 1-24 1-13 1-26-4 1-26-3 1-26-22 1-12 1-26-1 1-26-5 1-26-18 1-26-10 1-26-2 1-26-12 1-26-21 1-26-14 1-26-15 1-26-6 1-26-13 1-26-8 1-26-11 1-26-16 1-26-17 1-26-20 1-26-19 1-26-9 1-26 1-26-15 1-26-6 1-26-7 1-26-20 1-26-10 1-26-5 1-26-4 1-26-3 1-26-2 1-26-1 1-26-9 1-26-17 1-26-13 1-26-11 1-26-16 1-26-20 43 jintex.in 118-V30-502

Page 48 — Q1 . コントロールボックス関係 / Control box mechanism

Q1 . コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 21 S38353101 2 <国内用> デンキラベル.7 <For Japsp only> 54 S55627001 1 IMラベル IM LABEL H-1 S5031001 1 "補給用部品" <三相200V、220V用> ボックスソウクミA1-IM " For supply parts " <For "3-Phse 200V & 220V AC> BOX UNIT, A1-IM :3-P. 200/220V H-2 S53033001 1 <単相200V、230V用> ボックスソウクミA2-IM <For "1-Phse 200V & 230V AC> BOX UNIT, A2-IM :1-P. 220/230V H-3 S53034001 1 <単相100V用> ボックスソウクミB1-IM <For Japan only> H-4 S53035001 1 <単相110V、120V用> ボックスソウクミB2-IM <For "1-Phse 110V & 120V AC> BOX UNIT, B2-IM :1-P. 110V AC H-5 S53036001 1 <三相415V用> ボックスソウクミC1-IM <For "3-Phse 415V AC> BOX UNIT, C1-IM :3-P. 415V AC H-6 S53037001 1 <三相380V用> ボックスソウクミC2-IM <For "3-Phse 380V AC> BOX UNIT, C2-IM :3-P. 380V AC H-7 S53038001 1 <単相240V用> ボックスソウクミC3-IM <For "1-Phse 240V AC> BOX UNIT, C3-IM :1-P. 240V AC H-8 S53039001 1 <三相400V用> ボックスソウクミE-IM <For "3-Phse 400V AC> BOX UNIT, E-IM :3-P. 400V AC H-9 S53040001 1 <単相240V用> ボックスソウクミF-IM <For "1-Phse 240V AC> BOX UNIT, F-IM :1-P. 230V AC 118-V30-502 44 RM欄に*が付いている部品をご注文いただきますと、基板等必要な部品が一式入ったセットになっています。 When ordering parts which have an (*) in the RM colum, these parts will be supplied as aset together with other neccessary parts such as sucuit boards. jintex.in

Page 49 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism < 三相 200V,220V用 / For "3-Phase 200V & 220V AC" > 2-1-3 2-1-1 2-1 2-1-4 2-1-5 2-1-2 3-1 < 単相 220V,230V用 / For "1-Phase 220V & 230V AC" > 2-4-1 2-4-3 2-4 3-1 2-4-4 2-4-5 2-4-2 < 単相 100V用 / For Japan only > 3-2-2 2-2 2-2-3 2-2-1 2-2-4 2-2-5 2-2-4 3-2-1 2-5 < 単相 110V,120V用 / For "1-Phase 110V & 120V AC" > 2-7 3-2-1 2-7-3 2-7-1 2-7-4 2-7-5 2-7-2 6 5 7 4 < 三相 415V,380V用 / For "3-Phase 415V & 380V AC" > 3-3-1 2-3 2-3-1 2-3-3 2-3-4 2-3-5 2-3-2 3-3-2 6 5 7 4 < 単相 240V用 / For "1-Phase 240V AC" > 3-3-1 2-7 2-7-1 2-7-3 2-7-4 2-7-5 2-7-2 3-3-2 6 5 7 4 " オプション部品 / OPTION PARTS " < 三相 400V用 / For "3-Phase 400V AC" > 3-3-2 3-3-1 2-5 46 45 43 42 48 48 44 47 41 40 50 51 49 52 < 単相 230V用 / For "1-Phase 230V AC" > 2-6 46 45 43 42 48 48 44 47 41 40-1 50 51 49 52 11B-V30-502 45 jintex.in

Page 50 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism REF. NO CODE QTY ヒンメイ NAME OF PARTS RM 2-1 S38112001 1 <三相200V、220V用> デンケンSWクミA <For "3-Phase 200V & 220V AC> POWER SUPPLY SWITCH ASSY, A 2-1-1 S38113000 1 デンケンINコード A POWER SUPPLY IN HARNESS, A 2-1-2 S38133000 1 デンケンコード POWER SUPPLY HARNESS 2-1-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-1-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-1-5 218859001 2 バインダ M150 BINDER, M150 <For Japan only> 2-2 S38114000 1 <単相100V用> デンケンSWクミB <For "1-Phase 100V> POWER SUPPLY SWITCH ASSY, B 2-2-1 S38115000 1 デンケンINコード B POWER SUPPLY IN HARNESS, B 2-2-2 S38118000 1 デンケンコード POWER SUPPLY HARNESS 2-2-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-2-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-2-5 218859001 2 バインダ M150 BINDER, M150 2-3 S38117000 1 <三相415V、380V用> デンケンSWクミC <For "3-Phase 415V & 380V AC> POWER SUPPLY SWITCH ASSY, C 2-3-1 S38115000 1 デンケンINコード B POWER SUPPLY IN HARNESS, B 2-3-2 S38133000 1 デンケンコード POWER SUPPLY HARNESS 2-3-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-3-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-3-5 218859001 2 バインダ M150 BINDER, M150 2-4 S47592000 1 <単相200V、230V用> デンケンSWクミD <For "1-Phase 200V & 230V AC> POWER SUPPLY SWITCH ASSY, D 2-4-1 S38113000 1 デンケンINコード A POWER SUPPLY IN HARNESS, A 2-4-2 S47595000 1 デンケンコードユシュツ POWER SUPPLY HARNESS, EXP. 2-4-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-4-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-4-5 218859001 2 バインダ M150 BINDER, M150 2-5 S38120000 1 "オプション部品" <三相400V用> デンケンINコード E " OPTION PARTS " <For "3-Phase 400V AC> POWER SUPPLY IN HARNESS, E 2-6 S43188000 1 <単相230V用> デンケンINコード F <For "1-Phase 230V AC> POWER SUPPLY IN HARNESS, F 2-7 S47594000 1 <単相110V、120V、240V用> デンケンSWクミG <For "1-Phase 110V, 120V & 240V AC> POWER SUPPLY SWITCH ASSY, G 2-7-1 S38115000 1 デンケンINコード B POWER SUPPLY IN HARNESS, B 2-7-2 S47595000 1 デンケンコードユシュツ POWER SUPPLY HARNESS, EXP. 2-7-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-7-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-7-5 218859001 2 バインダ M150 BINDER, M150 3-1 S38123000 1 <単相220V、230V 三相200V、220V用> ACINコネクタクミ <For "1-Phase 200V & 220V AC> AC-IN CONNECTOR ASSY 3-2 S49473000 1 <単相100V、110V、120V用> ヘンカントランスBクミ <For "1-Phase 100V, 110V & 120V AC> CONVERSION TRANSFORMER ASSY, B 3-2-1 S49474000 1 ヘンカントランスB CONVERSION TRANSFORMER, B 3-2-2 S38126000 1 ACINコード AC-IN HARNESS 118-V30-502 46 jintex.in

Page 51 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism < 三相200V,220V用 / For "3-Phase 200V & 220V AC" > 2-1-3 2-1-1 2-1 2-1-4 2-1-5 2-1-2 3-1 < 単相100V用 / For Japan only > 2-2 2-2-3 2-2-1 2-2-4 2-2-5 2-2-2 3-2-2 3-2-1 5 6 4 < 三相220V,230V用 / For "1-Phase 220V & 230V AC" > 2-4-1 2-4-3 2-4 2-4-4 2-4-5 2-4-2 3-1 < 単相110V,120V用 / For "1-Phase 110V & 120V AC" > 2-7 3-2-2 3-2-1 5 6 4 2-7-3 2-7-1 2-7-4 2-7-5 2-7-2 < 三相415V,380V用 / For "3-Phase 415V & 380V AC" > 2-3 2-3-1 2-3-3 2-3-4 2-3-5 2-3-2 3-3-1 3-3-2 6 5 7 4 < 単相240V用 / For "1-Phase 240V AC" > 2-7 2-7-1 2-7-3 3-3-1 3-3-2 6 5 7 4 2-7-4 2-7-5 2-7-2 " オプション部品 / OPTION PARTS " < 三相400V用 / For "3-Phase 400V AC" > 3-3-2 3-3-1 6 5 4 2-5 46 45 43 42 41 40 48 48 44 47 49 50 51 52 < 単相230V用 / For "1-Phase 230V AC" > 2-6 46 43 42 41 40-1 45 48 44 47 48 3-4 50 51 49 52 47 11B-V30-502 jintex.in

Page 52 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 3-3 S49475000 1 <単相240V <For "1-Phse 240V AC 3-3-1 S49476000 1 三相400V, 415V, 380V用> 3-Phse 400V, 415V & 380V AC> 3-3-2 S38126000 1 ヘンカントランスCワミ CONVERSION TRANSFORMER ASSY, C ヘンカントランスC CONVERSION TRANSFORMER, C 1 ACINコード AC-IN HARNESS 3-4 S43201000 1 " オプション部品 " " OPTION PARTS " <単相230V用> <For "1-Phse 230V AC> ACINコード F AC-IN HARNESS, F 4 018061436 <単相200V, 220V, 230V以外> <Except for "200V, 220V & 230V AC> 4 アナトボルト6X14 BOLT, SOCKET M6X14 5 025060236 8 ヒラザガネチュウ6 WASHER, PLAIN M 6 6 021060106 1 1シュナット6 NUT, 1 M6 7 028060246 4 バネザガネー6 WASHER, SPRING 2-6 40 S40635001 1 " オプション部品 " " OPTION PARTS " <三相400V用> <For "3-Phse 400V AC> ノイズフィルタ430Eワミ NOISE FILTER ASSY, 430E 40-1 S40616001 1 <単相230V用> <For "1-Phse 230V AC> ノイズフィルタEMCワミ NOISE FILTER ASSY, EMC 41 S40620000 1 <単相230V, 三相400V用> <For "1-Phse 230V AC & 3-Phse 400V AC> 42 0A4400605 6 キャントリツケイタ PCB SETTING PLATE 43 S40621000 1 +ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 44 S40622000 1 EMIコアESD-SR-15 EMI CORE, ESD-SR-15 45 149809000 2 EMIコアESD-SR-25 EMI CORE, ESD-SR-25 46 S40621000 2 タイラップL BEAD BAND, L=200 47 S40622000 3 EMIコアESD-SR-15 EMI CORE, ESD-SR-15 48 S40623000 2 EMIコアESD-SR-25 EMI CORE, ESD-SR-25 49 149809000 1 タイラップL BEAD BAND, L=200 50 0A5401606 1 EMIコアTR-40-27 EMI CORE, TR-40-27 51 025040236 1 +ナベザクミ4X16DB SCREW, PAN (S/P WASHER) M4X16 52 021400108 1 ヒラザガネチュウ4 WASHER, PLAIN M 4 1 ナット1シュ4 NUT, 1 M4 118-V30-502 48 Jinte x.in

Page 53 — R . 電装品関係 / Power supply equipment mechanism

R . 電装品関係 / Power supply equipment mechanism 15 14-1-114-1-2 14-1 14-4 36 37 35 34 18 20 19 < KE-432C用 / For KE-432C > 6-4 205 206 201 202 200 " オプション部品 / OPTION PARTS " 30-2-1 30-2 30-1 30 31 30-2-2 33 32 14-2 6-1 8 14-3 13 12 6-3 9 24 23 1 3 2 40-5 40-6 40-1 40-4 40-8 40-7 40-9 40-10 40-3 40-2 40 10 11 16 17 43 4 5 25 21 22 118-V30-515 19 jintex.in

Page 54

R . 電装部品関係 / Power supply equipment mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S38134100 1 パルスモータクミ <For KE-430C, 431C & 432C> PULSE MOTOR ASSY, X 2 S38136100 1 パルスモータクミ PULSE MOTOR ASSY, Y 3 0184012222 8 アナボルト4X12 BOLT, SOCKET M4X12 4 552907000 2 コードホルダ#10 CORD HOLDER, 10N 5 0A5401006 2 ナベコバネヒラ4X10 SCREW, PAN (S/P WASHER) M4X10 6 <KE-430C, 431C用> <For KE-430C & 431C> 6-1 S49463100 1 トウブセンサクミ HEAD SENSOR ASSY 6-1 S56167000 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-2 S56167001 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-3 S56167003 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-4 <KE-432C用> <For KE-432C> 6-1 S48581100 1 トウブセンサ432クミ HEAD SENSOR ASSY, 432 6-1 S56167000 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-2 S56167001 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-3 S56167003 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-4 S48582000 1 センサハーネス SENSOR HARNESS 8 062300806 2 ナベコ3X8 SCREW, PAN M3X8 9 062300806 1 ナベコ3X8 SCREW, PAN M3X8 10 552907000 2 コードホルダ#10 CORD HOLDER, 10N 11 0A5401006 2 ナベコバネヒラ4X10 SCREW, PAN (S/P WASHER) M4X10 12 152969001 1 コードサエカネ CORD HOLDER 13 062670512 1 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 14-1 S49979400 1 オサエルノイドクミ PRESSER SOLENOID ASSY 14-1-1 S5936000 1 ダンパ1 SHOCK ABSORBER, 1 14-1-2 S59367000 1 ダンパ2 SHOCK ABSORBER, 2 14-2 S38144100 1 イトキリツノイドクミ THREAD TRIMMER SOLENOID ASSY 14-3 S38146000 1 コネクタ3191-04R CONNECTOR :3191-04R 14-4 S38147000 1 マークチューブ5 MARK TUBE, 5 15 060501016 4 バインドM5X10 SCREW, BIND M5X10 16 S38148000 1 アースセン1 GROUND WIRE, 1 17 0A5400806 1 ナベザクミ4X8DB SCREW, PAN (S/P WASHER) M4X8 18 S49464000 1 イトトリツケノイドクミ THREAD TAKE-UP SOLENOID ASSY 19 S00460000 3 コードホルダ#5 CORD HOLDER, 5N 20 060670612 3 バインド357-40X6 SCREW, BIND SM3.57-40X6 21 <KE-430C用> <For KE-430C> 21 S49465009 1 ショウリカリエコネクタクミ CONNECTOR ASSY, 430C <KE-431C用> <For KE-431C> 21 S49465001 1 ショウリカリエコネクタクミ CONNECTOR ASSY, 431E <KE-432C用> <For KE-432C> 21 S49465002 1 ショウリカリエコネクタクミ CONNECTOR ASSY, 432E 22 228475000 1 ケツソクバンド1.9X8 FASTENING BAND, 1.9X80 23 117150001 1 コードサエカネ CORD HOLDER 24 062670612 1 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 25 218859001 1 バインドM150 BINDER, M150 34 S00480000 2 コードホルダ#5 CORD HOLDER, 5N 35 060670612 2 バインド357-40X6 SCREW, BIND SM3.57-40X6 36 060670612 1 バインド357-40X6 SCREW, BIND SM3.57-40X6 37 060400616 1 バインドM4X6 SCREW, BIND M4X6 30 " オプション部品 " " OPTION PARTS " 30-1 S49934009 1 EMロックSWクミ EM-LOCK SWITCH ASSY 30-2 S37057001 1 EMスイッチスペーサ3 EM-SWITCH SPACER, 3 30-2-1 S49482000 1 EMロックSWハーネスクミ EM-LOCK SWITCH & HARNESS ASSY 30-2-1 S32335100 1 SW-AVS311N SWITCH :AVS311N 118-V30-515 50 jintex.in

Page 55 — R. 電装品関係 / Power supply equipment mechanism

R. 電装品関係 / Power supply equipment mechanism 15 14-2 14-1-114-1-2 14-1 14-4 6-1 8 6-2 8 14-3 36 37 35 34 13 12 18 20 19 <KE-432C用/For KE-432C> 6-4 205 203 206 204 201 200 " オプション部品 / OPTION PARTS " 30-2-1 30-2 30-1 31 30-2-2 33 32 3 1 2 40-5 40-6 40-1 40-4 40-8 40-7 40-3 40-10 40-9 40-2 40 10 11 16 17 43 42 25 24 23 21 22 41 4 5 51 jintex.in 118-V30-515

Page 56

R . 電装部品関係 / Power supply equipment mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 30-2-2 S49466000 1 ” オプション部品” ” OPTION PARTS ” 31 062710812 2 EMS Wハーネス EM-SWITCH HARNESS 32 149287000 3 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 33 060670612 3 ナイロンクランプ CORD HOLDER, 7N バインド357-40X6 SCREW, BIND SM3.57-40X6 40 S55629101 1 トウブスイッチクミ HEAD SEITCH ASSY 40-1 S55630001 1 マイクロスイッチクミ MICRO SWITCH ASSY 40-2 S38744101 1 スイッチイタバネ SWITCH PLATE SPRING 40-3 S55632001 1 スイッチダイ SWITCH BRACKET 40-4 062020806 2 ナベコ2X8 SCREW, PAN M2X8 40-5 140647101 1 コードオサエ CORD HOLDER 40-6 062400616 1 ナベコM4X6 SCREW, PAN M4X6 40-7 062401216 1 ナベコM4X12 SCREW, PAN M4X12 40-8 026040236 1 ヒラガネミキ4 WASHER, PLAIN 4 40-9 154514001 1 スペーサー SPACER 40-10 021400106 1 ナット1シュ4 NUT, 1 M4 41 0A5401006 2 ナベコバネ2X4X10 SCREW, PAN (S/P WASHER) M4X10 42 552907000 1 コードホルダ #10 CORD HOLDER, 10N 43 0A5401006 1 ナベコバネ4X10 SCREW, PAN (S/P WASHER) M4X10 200 S48583001 1 <KE-432C用> オオエカイヘイソレノイドクミ <For KE-432C> SOLENOID ASSY 201 062501212 4 ナベコ5X12 SCREW, PAN M5X12 202 025050232 4 ヒラガネチユウ5 WASHER, PLAIN M 5 203 S36046000 1 キンセツセンサE2R PROXIMITY SENSOR, E2R 204 062300612 1 ナベコ3X6 SCREW, PAN M3X6 205 S10243000 1 ナイロンクランプNK-3N CORD HOLDER, NK-3N 206 062300612 1 ナベコ3X8 SCREW, PAN M3X8 118-V30-515 52 jintex.in

Page 57

S. 操作パネル関係 / Operation panel mechanism 1-1-1 1-1-3 1-1-7 1-1-5 1-1-8 1-1-7-2 1-1-7-5 1-1-7-3 1-1-7-6 1-1-7-4 1-1-7-3 1-1-7-1 1-1-7-3 1-1-7-3 1-1-2 1-2 1-1-6 1-1-4 1-1-9 1-1-10 T. 動力台関係 / Power table 118-V30-530 2 1 53 118-V30-652 jintex.in

Page 58 — S. 操作パネル関係 / Operation panel mechanism

S. 操作パネル関係 / Operation panel mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S5589001 1 ソウサパネルソウクミ OPERATION PANEL UNIT 1-1 S55890001 1 ソウサパネルIMクミ OPERATION PANEL ASSY, IM 1-1-1 S55891000 1 マエフレームIMクミ FRONT FRAME ASSY, IM 1-1-2 S52091000 1 ウシロフレームクミ REAR FRAME ASSY 1-1-3 S49495000 1 パネルヨコカバー PANEL SIDE COVER 1-1-4 S49496001 1 パネルヨコカバーガイド PANEL SIDE COVER GUIDE 1-1-5 087310815 2 カップBタイト3X8 TAPTITE, CUP B M3X8 1-1-6 0A4400805 1 +ヘザクミ4X8DA SCREW, PAN (S/P WASHER) M4X8 1-1-7-1 S49497001 1 パネルキバンクミ PANEL PCB ASSY 1-1-7-2 S29023000 4 LEDGL9P040 LED :GL9P040 1-1-7-3 S46703000 7 LEDPG5307S LED :PG5307S 1-1-7-4 S48579000 10 SWB3F-4050 SWITCH :B3F-4050 1-1-7-5 U34870001 1 DIP SW KSP08 DIP SWITCH:KSP08 1-1-7-6 S30280000 1 ブザー-PKB24SPC3 BUZZER :PKB24SPC36 1-1-7-7 UL0025000 1 コネクタ3429-6002S CONNECTOR:3429-6002SC 1-1-8 S49510000 1 パネルケーブルクミ PANEL HARNESS ASSY 1-1-9 087311015 2 カップBタイト3X10 TAPTITE, CUP B M3X10 1-1-10 XA2220050 2 キバンオサエ PCB HOLDER 1-2 D62300806 4 ナベコ3X8 SCREW, PAN M3X8 118-V30-530 T. 動力台関係 / Power table REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 J80868001 1 CIMモータ430クミ CIM MOTOR ASSY, 430 2 S53055100 1 IMハーネスクミ HARNESS ASSY, IM 118-V30-652 54 jintex.in

Page 59 — U1 . 踏板関係 / Foot switch pedal mechanism

U1 . 踏板関係 / Foot switch pedal mechanism 1-1-1-13 1-1-1-9 1-1-1-12 1-1-1-10 1-1-1-14 1-1-1-15 1-1-1-11 1-1-8 1-1-1-7 1-1-1-7-1 1-1-1-7-1-1 1-1-1-7-1-2 1-1-1-14 1-1-1-19 1-1-1-1 1-1-1-2 1-1-1-3 1-1-1-16 1-1-1-5 1-1-1-4 1-1-7 1-1-8 1-1-9 1-1-1 1-1-10 1-1-11 1-1-12 1-1-1-7-2 1-1-1-8 1-1-1-17 1-1-1-18 1-1-4 1-1-5 1-1-6 1-1-2 1-1-3 55 118-V30-651 jintex.in

Page 60 — U1 . 踏板関係 / Foot switch pedal mechanism

U1 . 踏板関係 / Foot switch pedal mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1-1 S49667101 1 2ダンフットSWセット 2-STEP FOOT SWITCH SET 1-1-1 S49668101 1 2ダンフットSWクミ 2-STEP FOOT SWITCH ASSY 1-1-1-1 S49669100 1 フットペダルダイクミ FOOT PEDAL BASE ASSY 1-1-1-2 S49672001 1 2ダンSWピン 2-STEP SWITCH PIN 1-1-1-3 S38168001 1 アツシユクハネ SPRING, COMPRESSION 10X30 1-1-1-4 S38169201 1 フットSWジシタB FOOT SWITCH SUPPORT PLATE, B 1-1-1-5 004400603 2 サラコネジ・メ4 SCREW, FLAT HEAD 1-1-1-6 S38170001 1 フットペダルハネ FOOT PEDAL SPRING 1-1-1-7 S54648000 1 フットSWハーネスクミ FOOT SWITCH HARNESS ASSY 1-1-1-7-1 S54646000 1 フットSWハーネス FOOT SWITCH HARNESS 1-1-1-7-1-1 S54644000 2 サシコミタンシヌス TERMINAL, FEMALE 1-1-1-7-1-2 S36260000 2 ゼツエンカバー INSULATION COVER 1-1-1-8 062302506 2 スイツチVXピンボタン MICRO SWITCH, VX PIN BUTTON 1-1-1-9 S51451000 1 フットペダル FOOT PEDAL 1-1-1-10 S49673000 1 ペダルホゴイタ PEDAL PROTECTION PLATE 1-1-1-11 S49674001 1 スイツチオサエハネ SWITCH PRESSER SPRING 1-1-1-12 S38177001 1 フットペダルジク FOOT PEDAL SHAFT 1-1-1-13 048050346 2 トメワE5 RETAINING RING, E5 1-1-1-14 052400606 2 ナベコバネヒラ4X6 SCREW, PAN (S/P WASHER) M4X6 1-1-1-15 025040236 1 ヒラザガネチユウ4 WASHER, PLAIN M 4 1-1-1-16 117936001 4 ゴムセン9.4 RUBBER CAP, 9.4 1-1-1-17 S38180000 1 コネクタ172169-1 CONNECTOR :172169-1 1-1-1-18 S36682000 1 コネクタキャップ CONNECTOR CAP 1-1-1-19 S46694000 1 コードブツシユKR61A CORD BUSH :KR61A 1-1-2 S38178101 1 フットSWジシタA FOOT SWITCH SUPPORT PLATE, A 1-1-3 S38179101 1 フットSWジシタC FOOT SWITCH SUPPORT PLATE, C 1-1-4 018082536 2 アナボルト8X25 BOLT, SOCKET M8X25 1-1-5 028080246 2 バネザガネ2-8 WASHER, SPRING 2-8 1-1-6 025080236 2 ヒラザガネチユウ8 WASHER, PLAIN M 8 1-1-7 018501036 2 アナボルト5X10 BOLT, SOCKET M5X10 1-1-8 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 1-1-9 025050236 2 ヒラザガネチユウ5 WASHER, PLAIN M 5 1-1-10 018401236 2 アナボルト4X12 BOLT, SOCKET M4X12 1-1-11 028040246 2 バネザガネ2-4 WASHER, SPRING 2-4 1-1-12 025040236 2 ヒラザガネチユウ4 WASHER, PLAIN M 4 118-V30-651 56 jintex.in

Page 61

U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) " オプション部品 / OPTION PARTS " 1-2-1-12 1-2-1-8 1-2-1-11 1-2-1-9 1-2-1-13 1-2-1-5 1-2-1-5-1 1-2-1-5-1-1 1-2-1-5-1-2 1-2-1-6 1-2-1-14 1-2-1-10 1-2-1-4 1-2-1-1 1-2-1-7 1-2-1-16 1-2-1-15 1-2-1-17 1-2-1-2 1-2-1-3 1-2-1 1-2-7 1-2-8 1-2-9 1-2-4 1-2-5 1-2-6 1-2-2 1-2-10 1-2-11 1-2-12 1-2-3 57 jintex.in 118-V38-651

Page 62 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1-2 S49675101 1 2レペダルセット 2-PEDAL FOOT SWITCH SET 1-2-1 S49676101 1 2レペダルクミ 2-PEDAL FOOT SWITCH ASSY 1-2-1-1 S49669100 2 フットペダルベース FOOT PEDAL BASE ASSY 1-2-1-2 S38169201 2 フットSWジシイタB FOOT SWITCH SUPPORT PLATE, B 1-2-1-3 004400603 4 +サラコネジ4X6 SCREW, FLAT M4X6 1-2-1-4 S38170001 2 フットペダルバネ FOOT PEDAL SPRING 1-2-1-5 S54649000 1 2レフットSWハーネスクミ 2-PEDAL FOOT SW HARNESS ASSY 1-2-1-5-1 S54647000 2 2レフットSWハーネス 2-PEDAL FOOT SWITCH HARNESS 1-2-1-5-1-1 S54644000 4 クミタンシメス TERMINAL, FEMALE 1-2-1-5-1-2 S54645000 4 ゼツエンカバー INSULATION COVER 1-2-1-5-2 S36260000 2 スイツチVXピンボタン MICRO SWITCH, VX-PIN BUTTON 1-2-1-6 062301205 4 ナベコ3X12 SCREW, PAN M3X12 1-2-1-7 228475000 8 ケツツクバンド1.9X8 FASTENING BAND, 1.9X80 1-2-1-8 S51451000 2 フットペダル FOOT PEDAL 1-2-1-9 S49673000 2 ペダルホコイタ PEDAL PROTECTION PLATE 1-2-1-10 S49674001 2 スイツチオサエハネ SWITCH PRESSER SPRING 1-2-1-11 S38177001 2 フットペダルジク FOOT PEDAL SHAFT 1-2-1-12 048050346 4 トメワE5 RETAINING RING, E5 1-2-1-13 052400606 4 ナベコハネヒラ4X6 SCREW, PAN (S/P WASHER) M4X6 1-2-1-14 025040236 2 ヒラザガネチュウ4 WASHER, PLAIN M 4 1-2-1-15 117936001 8 ゴムセン9.4 RUBBER CAP, 9.4 1-2-1-16 S38180000 1 コネクタ172169-1 CONNECTOR :172169-1 1-2-1-17 S38060000 1 コネクタキャップ18X19 CONNECTOR CAP, 18X19 1-2-1-18 S46694000 2 コードブツシュKR61A CORD BUSH :KR61A 1-2-2 S38178101 2 フットSWジシイタA FOOT SWITCH SUPPORT PLATE, A 1-2-3 S38179101 2 フットSWジシイタC FOOT SWITCH SUPPORT PLATE, C 1-2-4 018082536 4 アナボルト8X25 BOLT, SOCKET M8X25 1-2-5 028080246 4 バネザガネ2-8 WASHER, SPRING 2-8 1-2-6 025080236 4 ヒラザガネチュウ8 WASHER, PLAIN M 8 1-2-7 018501036 4 アナボルト5X10 BOLT, SOCKET M5X10 1-2-8 028050236 4 バネザガネ2-5 WASHER, SPRING 2-5 1-2-9 025050236 4 ヒラザガネチュウ5 WASHER, PLAIN M 5 1-2-10 018401236 4 アナボルト4X12 BOLT, SOCKET M4X12 1-2-11 028040236 4 バネザガネ2-4 WASHER, SPRING 2-4 1-2-12 025040236 4 ヒラザガネチュウ4 WASHER, PLAIN M 4 118-V30-651 58 jintex.in

Page 63 — U3 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

U3 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) " オプション部品 / OPTION PARTS " 2-1 2-1-9 2-1-10 2-1-8 2-1-7 2-1-11 2-1-11 2-1-12 2-1-5 2-1-1 2-1-6 2-1-4 2-2 2-1-3 2-1-2 2-3 2-5 2-4-1 2-4-2 2-4-4 2-4-5 2-4-7 2-4-8 2-4-6 < 補給部品 / For supply parts > 3 59 jintex.in 118-V30-651

Page 64 — U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 2 S46131001 1 2ダンフットSWセットOP 2-STEP FOOT SWITCH SET, OP 2-1 S46132001 1 2ダンフットSWクミOP 2-STEP FOOT SWITCH ASSY, OP 2-1-1 S46133001 1 SWサエダイ SWITCH BRACKET 2-1-2 S46134001 1 フットSWレバー FOOT SWITCH LEVER 2-1-3 148904001 1 ダンネジ 7.94 SHOULDER SCREW, SM7.94 2-1-4 025080236 1 ヒラザガネチュウ8 WASHER, PLAIN M 8 2-1-5 101268002 1 ナット 7.94 NUT, SM7.94 2-1-6 S46135001 1 フットSWハネ FOOT SWITCH SPRING 2-1-7 S46136000 1 フットSWハーネスアツシOP FOOT SWITCH HARNESS ASSY, OP 2-1-8 UD2390001 4 +ナベセムス3X20DA SCREW, PAN (S/P WASHER) M3X20 2-1-9 025030236 2 ヒラザガネチュウ3 WASHER, PLAIN M 3 2-1-10 021300206 2 シュナット3 NUT, 2 M3 2-1-11 052400806 2 ナベコバネヒラ4X8 SCREW, PAN (S/P WASHER) M4X8 2-1-12 S00480000 1 コードホルダ #5 CORD HOLDER, #5 2-2 100666002 2 マルモクネジ 5.5X20 WOOD SCREW, ROUND M5.5X20 2-3 200190001 3 ステツプル STAPLE 2-4 S01603009 1 オサエアゲフミイタミ TREADLE ASSY 2-4-1 S01199003 1 オサエアゲフミイタ TREADLE PEDAL 2-4-2 133188001 1 オサエアゲフミイタシク TREADLE SHAFT 2-4-3 119707003 2 フミイタクウケ TREADLE SHAFT BRACKET 2-4-4 119708001 2 フミイタクウケカラー TREASLE BUSHING COLLAR 2-4-5 017082206 2 ボルト 6X22 BOLT, M6X22 2-4-6 116694001 2 4カクナット8 NUT, SQUARE M8 2-4-7 028080240 2 バネザガネチュウ 2-8 WASHER, SPRING 2-8 2-4-8 025080236 2 ヒラザガネチュウ8 WASHER, PLAIN M 8 2-5 142656001 1 クリクリミ CHAIN ASSY 3 S49443000 1 <補給用部品> コンタク ト170364-1 <For supply parts> CONTACT: 170364-1 118-V30-651 60

Page 65

V. 付属装置関係(オプション部品) / Attachment set (Option parts) 20-5-7-1 20-5-7-2 20-5-8 20-15 20-16 20-14 20-5-7 20-5 20-5-10 20-5-9 20-5-12 20-5-11 20-10 20-11 20-8 20-5-6 20-9 20-1 20-12 20-5-1 20-5-5 20-5-2 20-3 20-5-1-1 20-2 20-7 20-5-13 20-17 20-5-4 20-5-3 20-6 20-4 20-13 118-V30-940 31 jintex.in

Page 66 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

V. 付属装置関係 (オプション部品) / Attachment set (Option parts) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 20 S49815009 1 デンジワイパーアツミ SOL. TYPE, THREAD WIPER ASSY 20-1 S41656001 1 イトハライレンカンクミ TR-WIPER CONNECTING ROD ASSY 20-2 S44600001 1 ワイパーアームアツミ THREAD WIPER ARM ASSY 20-3 153112001 1 ダンネジ3.57 SHOULDER SCREW, SM3.57 20-4 021670202 1 ナツト2シュ3.57 NUT, 2 SM3.57 20-5 S49616009 1 ソレノイドボックスクミ SOLENOID BOX ASSY 20-5-1 S49619001 1 イトハライソレノイドクミ THREAD WIPER SOLENOID ASSY 20-5-1-1 S41204050 1 プランジヤゴム PLUNGER RUBBER 20-5-2 062300612 4 ナベコ3X6 SCREW, PAN M3X6 20-5-3 S41205001 1 ヒラザガネ WASHER, PLAIN 20-5-4 S41206001 1 イトハライバネ THREAD WIPER SPRING 20-5-5 S25456001 2 プランジヤピン PLUNGER PIN 20-5-6 S42017109 1 Wソレノイドトリケイタ W-SOLENOID SETTING PLATE 20-5-7 S49482000 1 EMロツクSWハーネススミ EM-LOCK SWITCH & HARNESS ASSY 20-5-7-1 S32335000 1 SW-AVS311N SWITCH :AVS311N 20-5-7-2 S49466000 1 EMSWハーネス EM-SWITCH HARNESS 20-5-8 S37057001 1 EMスイッチスペーサ3 EM-SWITCH SPACER, 3 20-5-9 S42018109 1 Wソレノイドカバー WIPER SOLENOID COVER 20-5-10 008400604 2 トラスコ4X6 SCREW, TRUSS M4X6 20-5-11 S37806109 1 ソレノイドカバーEフタ SOLENOID COVER LID, E 20-5-12 008400604 2 トラスコ4X6 SCREW, TRUSS M4X6 20-5-13 115007001 1 ザガネ WASHER, PLAIN 13 20-6 S41207000 1 スペーサゴム SPACER RUBBER 20-7 S25456001 1 プランジヤピン PLUNGER PIN 20-8 018400632 2 アナボルト4X6 BOLT, SOCKET M4X6 20-9 100645003 2 ザガネ WASHER 20-10 S41657001 1 イトユルミロツドDW TENSION RELEASE ROD, DW 20-11 061350616 1 ザラコ35X6 SCREW, FLAT M3.5X6 20-12 062680812 2 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 20-13 156206001 1 ワイパーA THREAD WIPER, A 20-14 S49947000 1 コネクタVHR-5N CONNECTOR:VHR-5N 20-15 060670612 3 バインド357-40X6 SCREW, BIND SM3.57-40X6 20-16 149287000 3 ナイロンクランプ CORD HOLDER, 7N 20-17 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 118-V30-940 62

Page 67 — Z1. 付属品関係 / Accessories

Z1. 付属品関係 / Accessories 4 4-4 5 4-2 4-3 4-1 21 20 16 17 11 12 10 9 19 71 70 103 101 102 6 31 30 29 51 75 75-1 75-2 76 <補給部品 / For Supply parts > 903 911 912 902 901 オプション部品 / OPTION PARTS " 15 < KE-430C デニム用 / For Denim of KE-430C > 64 63 921 59 920 14 18 61 42 55 52 22 28 27 26 32 33 34 23 24 118-V30-910 jintex.in

Page 68 — Z1 . 付属 品 関係 / Accessories

Z1 . 付属 品 関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 4 S38039209 1 オイルパンクミ OIL PAN ASSY 4-1 S38040209 1 オイルパン OIL PAN 4-2 154467001 1 ハイクキャップ DUST OILER 4-3 037301215 2 Vナベタツピン3X12 TAPPING SCREW, PAN V M3X12 4-4 S18093100 1 クミモ4X4 WICK, 4X4 L=1100 5 109714000 5 クギ NAIL 6 114486002 1 ポリオリイラータイ OILER 9 143882001 2 トウブヒンジ HEAD HINGE 10 014760622 2 アナトメシ5.95 SET SCREW, SOCKET SM5.95 11 S49603000 2 トウブヒンジウケゴム RUBBER CUSHION 12 109714000 4 クギ NAIL 14 122991001 1 フククヒンホリクロ ACCESSORY BAG 16 3 ボビン BOBBIN 17 1 ハリ4コイリクミ NEEDLE 4 PIECE ASSY 18 S10208001 1 イトウカンザ <t=0.4> MOVABLE KNIFE SPACER <t=0.4> 18 S10208002 1 イトウカンザ <t=0.5> MOVABLE KNIFE SPACER <t=0.5> 18 S10208003 1 イトウカンザ <t=0.6> MOVABLE KNIFE SPACER <t=0.6> 19 S38045109 1 マクラクミ HEAD REST ASSY 20 S49604000 2 トウブウケゴム RUBBER CUSHION 21 109714000 2 クギ NAIL 22 114486002 1 ポリオリイラー OILER ASSY 23 S55663001 1 オイルタンククミ OIL TANK ASSY 24 S08170001 1 ZK ガタネシマワシ <KE-431C用> <For KE-431C> SCREW-DRIVER, Z-TYPE 26 142443001 1 ネジマワシ1.9X52 SCREW-DRIVER, 1.9X52 27 118837001 1 ネジマワシ3.4X70 SCREW-DRIVER, 3.4X70 28 101572101 1 ネジマワシ5.5X190 SCREW-DRIVER, 5.5X190 29 107779001 1 スパナ6X7 WRENCH, 6X7 30 100887001 1 スパナ8X9 WRENCH, 8X9 31 107780001 1 スパナ10X12 WRENCH, 10X12 33 142721001 1 6カクホススパナ3 HEXAGONAL WRENCH, 3 34 118064001 1 6カクホススパナ4 HEXAGONAL WRENCH, 4 42 200190001 5 ステップル STAPLE 51 144226001 1 トウブカバー HEAD COVER 52 S33006001 <コントロールBox取付用> 4 モータスペーサ <Setting the control box> MOTOR SPACER 55 133740006 4 カクネボルト6X70 BOLT, SQUARE M6X70 56 021060106 8 1 シュナット6 NUT, 1 M6 57 025060336 4 ヒラザガネダイ6 WASHER, PLAIN L 6 58 032461606 <電源SW取付用> 2+マルモクネジ4.5X16 <Setting the power switch> WOOD SCREW, ROUND M4.5X16 59 S38044001 1 ヒンジオサエ HINGE PRESSER 61 031412506 4 マルモクネジ4.1X25 WOOD SCREW, ROUND M4.1X25 62 200190001 3 ステップル STAPLE 64 S41222101 <KE-430Cデニム用> 1 ハリホウイトアンナイB <For Denim of KE-430C> NEEDLE BAR THREAD GUIDE, B 70 S55633001 1 スイツチオシイタ SWITCHING PLATE 71 032422003 2+マルモクネジ4.1X20 WOOD SCREW, ROUND M4.1X20 118-V30-910 64 付属品の説明は変更することがあります。 The details of included accessories are subject to change. jintex.in

Page 69 — Z1. 付属品関係 / Accessories

Z1. 付属品関係 / Accessories 4 4-4 5 4-2 4-3 4-1 21 16 20 17 103 101 102 6 31 30 29 75 75-1 75-2 76 < 補給部品 / For Supply parts > 903 911 912 902 901 12 10 11 9 19 71 70 22 28 27 26 32 33 34 23 " オプション部品 / OPTION PARTS " 15 < KE-430C デニム 用 / For Denim of KE-430C > 64 59 921 920 18 61 55 52 57 56 58 62 42 24 14 < KE-431C 用 / For KE-431C > 118-V30-910 35 jintex.in

Page 70 — Z1.付属品関係 / Accessories

Z1.付属品関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 75 S55311001 1 <国内用> <For Japan only> 75-1 S51097000 1 ベルトカバーIMミ BELT COVER IM 75-2 S38350001 1 ソウチュウイラベル.ワ <For Export> <輸出用> BELT COVER ASSY, IM 75 S55311002 1 ベルトカバーIMミ BELT COVER, IM 75-1 S51097000 1 ベルトカバーIM BELT COVER, IM 75-2 S38349001 1 ソウチュウイラベル.エイ LABEL, OPERATION ENG. 76 062401006 2 ナベコ4X10 SCREW, PAN M4X10 101 S08030000 1 ヒューズ5AFB FUSE, 5A :FB 102 153242000 1 ヒューズ6A FUSE, 6A 103 S48580000 1 GFUSE7AFB FUSE, 7A :FB 920 018405032 2 アナボルト4X50 BOLT, SOCKET M4X50 921 021400102 2 ナット1シュ4 NUT, 1 M4 15 S06706001 1 "オプション部品" " OPTION PARTS " シリコンオイル SILICONE OIL 901 UA4817000 1 "補給用部品" " For supply parts " MOSLSI27C2001 EPROM:27C2001 902 S60400000 2 ドウデンパツト30X50 CONDUCTIVE PAD, 30X50 903 S60711001 1 PROM イレハコ PROM CARTON BOX <エリア30X10mm用> <For Area "30X10mm"> 911 156006001 2 オサエアシ WORK CLAMP, U 912 017660512 2 ボルト4.37X5 BOLT, SM4.37X5 118-V30-910 66 付属品の説明は変更することがあります。 The details of included accessories are subject to change. jintex.in

Page 71

Z2 . 付属関係 / Accessories < KE-430C, KE-432C用 / For KE-430C & KE-432C > 35-1- 67-1-1-1 67-1-1-7 67-1-1-6 67-1-1-3 67-1-1-5 67-1-1-2 67-1-1-4 67-1-2 35-1-5-1 35-1-11-1 35-1-10-2 35-1-10-3 35-1-4-5 35-1-10-1 35-1-11-1 35-1-3 35-1-2 35-1-1 35-1-8-3 35-1-9 35-1-8-2 35-1-4-4 35-1-4-1 35-1-4-2 35-1-4-3 < KE-431C用 / For KE-431C > 35-2- 67-2-1 67-2-1-1 67-2-2 67-2-1-5 67-2-1-2 67-2-1-3 67-2-1-4 35-2-7-1 35-2-15-1 35-2-14-2 35-2-14-3 35-2-14-1 35-2-6 35-2-16-1 35-2-12 35-2-10-1 35-2-5 35-2-15-1 35-2-16-2 35-2-13 35-2-10-2 35-2-10-3 35-2-4-1 35-2-4-2 35-1-5 35-1-11-5 35-1-11-2 35-1-7 35-1-11-4 35-1-6 35-1-11-5 35-1-11-3 35-2-7 35-2-15-5 35-2-15-2 35-2-9 35-2-15-4 35-2-16-3 35-2-11 35-2-8 35-2-15-5 35-2-15-3 67 jintex.in 118-V30-910

Page 72 — Z2. 付属品関係 / Accessories

Z2. 付属品関係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 35-1 S02763402 <KE-430C, KE-432C用> <For KE-430C & KE-432C> 35-1-1 S51283001 1 イタダケダイクミ2DR 2 ウケザラ COTTON STAND ASSY, 2DR SPOOL STAND BASE 35-1-2 150182000 2 スプールマット SPOOL MAT 35-1-3 S51282001 2 スプールクッション SPOOL CUSHION 35-1-4 S02777001 1 パイプDネジセットB PIPE (D) SCREW SET, B 35-1-4-1 150206002 1 ヒラザガネ16 WASHER, PLAIN 16 35-1-4-2 S38648001 16カクナットU5/8 NUT, U5/8-28 35-1-4-3 150174000 1 コラムキャップ COLUMN CAP 35-1-4-4 S01005000 1 ゴムワッシャー RUBBER WASHER 35-1-4-5 S02747101 1 イトカケバネ SPRING 35-1-5 S40640001 1 コラムパイプキャップツキ COLUMN PIPE W/CAP 35-1-5-1 150174000 1 コラムキャップ COLUMN CAP 35-1-6 156112003 1 コラムパイプD COLUMN PIPE, D 35-1-7 150173003 1 コラムジョイント COLUMN JOINT 35-1-8 S21796001 2 スプールネジセット SPOOL & SCREW SET 35-1-8-1 150179002 2 スプールジクB SPOOL SHAFT, B 35-1-8-2 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 35-1-8-3 021500106 2 1シュナット5 NUT, 1 M5 35-1-9 S02778002 1 スプールホルダー-2 SPOOL HOLDER, 2 35-1-10 S02776002 1 スレッドハンガーグミ2 THREAD HANGER ASSY, 2 35-1-10-1 S02767000 1 スレッドハンガー-2 THREAD HANGER, 2 35-1-10-2 150163000 2 イトカケハンガーダイ THREAD HANGER BASE 35-1-10-3 142990001 2 スレッドブッシュ THREAD BUSH 35-1-11 S40641001 1 スプールジクネジセットA SPOOL SHAFT & SCREW SET, A 35-1-11-1 021500106 4 1シュナット5 NUT, 1 M5 35-1-11-2 062501406 1 ナベコM5X14 SCREW, PAN M5X14 35-1-11-3 S59931001 1 ナベコM5X32 SCREW, PAN M5X32 35-1-11-4 062501406 2 ナベコM5X14 SCREW, PAN M5X14 35-1-11-5 026050136 2 ヒラザガネS 5 WASHER, PLAIN S 5 67-1 S49602201 1 アイガードセットC EYE GUARD SET, C 67-1-1 S44493101 1 アイガードクミ EYE GUARD ASSY 67-1-1-1 S44483001 1 チョウハンクミ HINGE ASSY 67-1-1-2 S44485001 1 アイガード EYE GUARD 67-1-1-3 061660806 2 サラコ318-40X8 SCREW, FLAT SM3.18-40X8 67-1-1-4 021660102 2 ナット1シュ3.18 NUT, 1 SM3.18 67-1-1-5 026030232 2 ヒラザガネミガキ 3 WASHER, PLAIN M 3 67-1-1-6 S44486101 1 アイガードホルダーA EYE GUARD HOLDER, A 67-1-1-7 062670512 2 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 67-1-2 062671016 2 ナベコ357-40X10 SCREW, PAN SM3.57-40X10 35-2 S40574109 <KE-431C用> 1 イタダケダイクミ2DTHF <For KE-431C> COTTON STAND ASSY, 2DTHF 35-2-1 S51283001 2 ウケザラ SPOOL STAND BASE 35-2-2 150182000 2 スプールマット SPOOL MAT 35-2-3 S51282001 2 スプールクッション SPOOL CUSHION 35-2-4 S02775001 1 パイプネジセットA PIPE SCREW SET, A 35-2-4-1 150206002 1 ヒラザガネ16 WASHER, PLAIN 16 35-2-4-2 S38648001 16カクナットU5/8 NUT, U5/8-28 35-2-5 S04109001 1 イトアンナイサイエボウ THREAD GUIDE SUPPORT BAR 35-2-6 142997001 1 イトアンナイ3 THREAD GUIDE, 3 35-2-7 S40640001 1 コラムパイプキャップツキ COLUMN PIPE W/CAP 35-2-7-1 150174000 1 コラムキャップ COLUMN CAP 35-2-8 156112003 1 コラムパイプD COLUMN PIPE, D 35-2-9 150173003 1 コラムジョイント COLUMN JOINT 118-V30-910 68 付属品の説明は変更することがあります。 The details of included accessories are subject to change. jintex.in

Page 73 — Z2.付属品関係 / Accessories

Z2.付属品関係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 35-2-10 S21798001 2 <KE-431C用> < For KE-431C > 35-2-10-1 150179002 2 スプールネジセット SPOOL & SCREW SET 35-2-10-2 028050246 2 バネザガネ2-5 SPOOL SHAFT, B 35-2-10-3 021500106 2 シュナット5 WASHER, SPRING 2-5 35-2-11 150185009 1 イトアンナイホルダー NUT, 1 M5 35-2-12 138843001 1 サエボウツキテ THREAD GUIDE HOLDER 35-2-13 S02778002 1 スプールホルダー-2 JOINT 35-2-14 S02786002 1 スレッドハンガーアセン2 SPOOL HOLDER, 2 35-2-14-1 S02787002 1 スレッドハンガー-2 THREAD HANGER ASSY, 2 35-2-14-2 150183000 2 イトカケハンガーダイ THREAD HANGER, 2 35-2-14-3 142990001 2 スレッドブッシュ THREAD HANGER BASE 35-2-15 S40641001 1 スプールシャフト&セットA THREAD BUSH 35-2-15-1 021500106 4 シュナット5 SPOOL SHAFT & SCREW SET, A 35-2-15-2 062501406 1 ナベコ5X14 NUT, 1 M5 35-2-15-3 S59931001 1 ナベコM5X32 SCREW, PAN M5X14 35-2-15-4 062501406 2 ナベコ5X14 SCREW, PAN M5X32 35-2-15-5 026050136 2 サラガネコウタ5 SCREW, PAN M5X14 35-2-16 S40643001 1 ホルダーツキテネジセット WASHER, PLAIN S 5 35-2-16-1 014060632 2 ナベコ6X6 HOLDER JOINT & SCREW SET 35-2-16-2 021500106 1 シュナット5 SET SCREW, SOCKET (CP) M6X6 35-2-16-3 S59931001 1 ナベコM5X32 NUT, 1 M5 67-2 S50000201 1 アイガードセットD SCREW, PAN M5X32 67-2-1 S36665101 1 アイガードクミ EYE GUARD SET, D 67-2-1-1 S36666101 1 アイガードササエタイ EYE GUARD ASSY 67-2-1-2 S52097001 1 アイガード EYE GUARD SUPPORT PLATE 67-2-1-3 062660712 2 ナベコ318-40X7 EYE GUARD 67-2-1-4 025660132 2 サラガネコウシヨウ3.18 SCREW, PAN SM3.18-40X7 67-2-1-5 021660102 2 ナット1シュ3.18 WASHER, PLAIN S 3.18 67-2-2 062671016 2 ナベコ357-40X10 NUT, 1 SM3.18 SCREW, PAN SM3.57-40X10 69 118-V30-910 付属品の明細は変更することがあります。 The details of included accessories are subject to change. jintex.in

Page 74 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C) KE-430C, 431C, 432C には下記部品が用意されていますので幅広い用途にご活用ください。 The following are standard gauge parts according to each specification. ◎表中☆の部品は、BAS-311Fプログラム式電子ミシンと共通です。 ◎In the following table, parts marked with ☆ are common with the BAS-311F. 仕様 Spec. KE-430C -2 -1 -7 品名 Part name (J-53) 針穴板 Needle hole plate (φ2.6) S10212-101 <E> (φ2.2) S49980-001 <FM> (φ1.6) S10211-001 <A> (E-24) ポピンケース組 Bobbin case assy 152690-401 <B> 159610-301 <A> 159610-301 <A> S59221-001 <LC> (E-24-1) ポピンケース調子ばね Tension spring 154340-101 154339-101 S48664-001 <AN> (E-24-2) ポピンケースばねじ Screw 154341-001 154341-001 S16492-101 (E-24-3) 空転防止ばね Spring, anti-spin 154342-001 159612-001 159612-001 S15667-001 S15667-001 (E-25) ポピン Bobbin 159613-051 159613-051 S15665-001 <LA> (E-22) 中がま箱組 Shuttle hook assy, w/box SA1882-001 <B> SA1881-001 <A> SA1881-001 <A> SA1890-001 <LG> SA2173-001 <LF> (E-21) 大釜 Shuttle race body 152686-101 <B> 152682-101 <A> (G-14) 糸調子ばね Spring, tension 107606-001 104525-001 (G-10) 糸取りばね Thread take-up spring 144588-001 <B> 145519-001 118-V30-Sp1 jintex.in 70

Page 75 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C) ◎表中の部品は、BAS-311Fプログラム式電子ミシンと共通です。 OIn the following table, parts marked with ☆ are common with the BAS-311F. Spec. KE-430C -2 -1 -7 Spec. 品名 Part name (G-25) 針棒案内 Needle bar Thread guide 152890-001 <A> S41222-101 <B> (Z1-17) ミシン針4個入り組 Needle assy SA1579-019 SA1752-014 SA1752-009 (B1-26) 針 Needle DPx17 NY <#19> S37928-019 DPx5 <#14> 107415-014 DPx5 <#9> 107415-009 (C2-37) 押え腕組 Work clamp assy S49591-301 S49594-301 S51095-301 (C2-37-8, 37-9) 押え足 Work clamp, U 5.6×23 (3mm用) R. 153608-101 L. 154527-001 4×18 (2mm用) R. 152777-001 L. 152778-001 4×12 (2mm用) R. S49695-001 L. S49694-001 (C2-100) 送り板 Feed plate S49697-001 12×31 (沈下式 L Submerged-type, L) S49698-001 5.4×13.4 (2mm用) S49696-001 ◎標準の押え足、送り板のサイズは、次のとおりです。(実際の縫製エリアは、内枠寸法から約1.5mm内側になります。) OStandard sizes for work clamps and feed plates are as follows: (The actual sewing area has 1.5mm margin on every size; inside the lines which the dimensions indicate.) 機種/Model KE-430C 仕様/Spec. -2 -1 -7 R 153608-101 152777-001 S49695-001 L 154527-001 152778-001 S49694-001 (C2-37-8, 37-9) 押え足 Work clamp S49697-001 30.2 S49698-001 12 (C2-100) 送り板 Feed plate 1.4 0.6 31 12 5.4 13.4 118-V30-Sp1 71 jintex.in

Page 79 — Ga1. ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Ga1. ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C) 10 11 12 13 R 153203-001 <PS > S00906-001 (25.4mm) S33747-001 (30mm) (C2-37) 押え脚組 Work clamp arm assy S59903-001(AW / 30X26mm用) L 153204-001 <PS > S00907-001 (25.4mm) S33748-001 (30mm) S59909-001(W / 30X26mm用) (C2-37-8, 37-9) 押え足 Work clamp (C2-37-8, 37-9) 押え足 Work clamp (C2-212) 押えブランク Work clamp blank (C2-212) 穴ボルト 4.37x5 Bolt, socket SM 4.37x5 155994-000 20.4 155994-000 S49944-001 < PS > S49946-001 (25.4mm) S49948-001 (30mm) (C2-100) 送り板 Feed plate 13 0.2 32.9 21.2 (C2) 送り板ブランク / Feed plate blank S49976-100 S49977-100 1.4 0.6 33 1.5 0.6 S49978-100 14 15 16 17 R S46771-001 (線押止/ For straight bar tacking) S46770-001 (線押止/ For straight bar tacking) S46771-001 (線門・沈/ For straight tacking/submerged) S46770-001 (線門・沈/ For straight tacking/submerged) - - L (C2-37-8, 37-9) Work clamp 32.4 32.4 - - (線押止/ For straight bar tacking) S49970-001 (線押止/ For straight bar tacking) S49974-001 (線門・沈/ For straight tacking/submerged) S49941-001 < PM > S49945-001 <MS > (C2-100) 送り板 Feed plate 1 0.2 33 1 0.2 42 19 112.5 60 75 118-V30-Ga1 jintex.in

Page 80 — Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C) 18 19 20 21 R S46774-001 (糊門止/For vertical bar tacking) S46774-001 (糊門止/For vertical bar tacking/submerged) S46777-001 (糊穴/For circular stitching) S46780-001 (半月円/For crescent bar tacking) L S46773-001 (糊門止/For vertical bar tacking) S46775-001 (糊門止/For vertical bar tacking/submerged) S46776-001 (糊穴/For circular stitching) S46779-001 (半月円/For crescent bar tacking) (C2-37-8, 37-9) 押え足 Work clamp S49971-001 (糊門止/For vertical bar tacking) S49975-001 (糊門止/For vertical bar tacking/submerged) S49972-001 (糊穴/For circular stitching) S49973-001 (半月円/For crescent bar tacking) 1 0.2 15 13 14.6 (C2-100) 送り板 Feed plate 1 0.2 13 14.6 1 0.2 13 10 14.6 (C) 押え足 Work clamp ボルト Bolt 156006-001 017680-512 156006-001 017680-512 156006-001 017680-512 *20については、別にプログラム作成が必要です。 * Separate programs must be created if using 20. 118-V30-Ga1 76

Page 81 — Gauge parts List (KE-431C)

Ga2 . ゲージ部品一覧表 (KE-431C) / Gauge parts List (KE-431C) 1 2 (C3-37) 押元組 Work clamp arm assy S51848-101 < S > S51851-101 < L > 154416-201 < S > 154417-201 < L > (C3-37-10) 押元足 Work clamp 16 27 S51853-001 < S > S51852-001 < L > (C3-100) 送り板 Feed plate 1 0.2 17 0.2 28 < ゲージ部品 / Gauge parts > 3 S42902-001 < 438E > 原点基準板 送りねじ / Screw / Home position standard plate (C1-200) ゲージ組 Gauge assy (C1-200-1) S42903-001 (C1-200-2) S10352-101 50 170 77 118-V31-Ga1 jintex.in

Page 82 — Ga3. ゲージ部品一覧表 / Gauge parts List

Ga3. ゲージ部品一覧表 / Gauge parts List (J-53) 針穴板 / Needle hole plate A S10211-001 A-F S51449-001 BZ S41013-001 D S29997-001 E S10212-101 ED S30925-001 $1.6 3 $1.6 3 $2.2 3 $2.6 3 $4 $2.6 2.8 $10 $3.4 $2.6 3 (メリヤス用標準 / For knitted materials) F S10213-001 FD S30926-001 FM S49980-001 FZ S59620-001 H S30450-001 L S25127-001 $2.2 3 $10 $2.2 3 $2.6 3 $4.7 $3.3 2.8 (被服用標準 / For ordinary materials) M S34348-001 3777 S40217-001 $6.5 $4 2.8 $6 $3 2.8 ◎ 標準の針穴板は、次のとおりです。 Standard needle hole plates are as follows. 機種 / Model KE-430C -1 -2 -7 仕様 / Spec. E S10212-101 FM S49980-001 A S10211-001 針穴板 Needle hole plate $4 $2.6 2.8 $2.2 3 $1.6 3 機種 / Model KE-431C KE-432C 仕様 / Spec. -2 -3 FM S49980-001 FM S49980-001 FM S49980-001 針穴板 Needle hole plate $2.2 3 $2.2 3 118-V30-Ga3 jintex.in 78

Page 83 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲ 危険 本器は高電圧に触れるおそれがあるため、 取り付けが危険であること。 電源を切、5分 たってからカバーを はずすこと。 電撃ラベル・和 40×64 S38353-101 ▲ DANGER AGEFAHR ADANGER APELIGRO Label, elec. shock 4 lang. 45×118 S38352-101 ▲注意 動く部分でけがをする おそれがあるため、 安全保護具をつけて 機械を操作すること。 電源を切ってから、ホ 直し、ホピンをはず 後、確実に行うこと。 操作注意ラベル・和 40×64 S38350-001 ▲ CAUTION Moving parts may cause injury. Operate with safety devices attached. Turn off main switch before threading, changing bobbin and needle, cleaning etc. Label, operation Eng. 40×64 S38349-001 PE PE マーク Label, PE 7.5×12.5 S37059-001 アースマーク Label, grounding Φ 12 S37060-001 79 118-V30-Wa jintex.in

Page 84

INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page 004400603 U1-1-1-5 56 018401236 B2-30-4 6 025660132 N-7 40 060501016 D2-22 20 U2-1-2-1-3 58 025660232 F-8 26 R-15 50 008400604 Q1-1-22 42 U1-1-1-10 56 H-1-27 30 060670512 F-16 26 V-20-5-10 62 018401622 U2-1-2-10 58 A-18 2 V-20-5-12 62 018405032 Z1-920 66 025710132 C4-37-24 14 G-4 28 011679312 A-101 2 018500822 C2-37-15 10 C4-37-34 14 G-6 28 014060632 Z2-35-16-1 69 C3-37-8 12 025710232 C4-37-10 14 R-20 50 014680622 C4-205 14 C3-37-13 12 C4-37-16 14 R-35 50 E-3 22 018501022 C2-500-5 10 C4-213 16 R-36 50 H-1-9 30 018501036 U1-1-1-7 56 C4-231 16 R-33 52 J-8-2 32 U2-1-2-7 58 025770232 E-27 22 V-20-15 62 014710522 K-14 36 018501232 D1-28 18 K-3 36 060880512 C2-53 10 014780622 C1-4-4 8 018501422 D2-26 20 026040232 Z2-67-1-1-5 69 C3-53 14 C1-6 8 D2-36 20 026050136 R-40-8 52 060880712 D1-24 18 C1-10 8 018680252 Ga1 75 026060106 Z2-35-1-11-5 68 D2-24 20 C1-13 8 021060102 B2-43 6 Z2-35-1-15-5 69 D1-20 18 C1-21 8 021060106 Q2-6 48 026040246 B2-30-5 6 06081212 D2-20 20 C1-30 8 Z1-56 64 U1-1-1-11 56 J-5 32 C2-37-7 10 021060306 C4-223 16 U2-1-2-11 58 V-20-11 62 C2-37-24 10 021300206 U3-2-1-10 60 026050242 C2-500-6 10 061350616 Z2-67-1-1-3 68 C3-37-6 12 021400102 C4-37-13 14 U1-1-1-8 56 061660806 R-40-4 52 C3-37-20 12 Z1-921 66 026050246 U2-1-2-8 58 062020606 R-204 52 D1-13 18 021400106 Q2-52 48 Z2-35-1-8-2 68 062300512 V-20-5-2 62 D2-13 20 021400206 Q1-1-6 42 Z2-35-2-10-2 69 062300606 R-8 50 D2-36 20 021500106 Z2-35-1-8-3 68 026060240 U3-2-4-7 60 R-9 50 E-7 22 Z2-35-1-11-1 68 026060242 B2-38 6 S-1-2 54 E-10 22 Z2-35-2-10-3 69 026060246 U1-1-1-5 56 062300612 R-206 52 E-15 22 Z2-35-2-15-1 69 U2-1-2-5 58 062301205 U2-1-2-1-6 58 J-33 32 Z2-35-2-16-2 69 026350242 L-15 36 062302506 U1-1-1-6 56 K-5 36 021660102 Z2-67-1-4 68 M-5-6 36 062400616 R-40-6 52 Z1-10 64 Z2-67-2-1-5 69 026600242 F-9 26 062600606 N-2 40 014760632 G-28 28 021670102 L-10 36 J-22-6 32 062601006 Z1-76 66 014770622 C3-37-9 12 021670202 V-20-4 62 031412506 Z1-61 64 062601216 R-40-7 52 E-13-1 22 021680202 C4-37-7 14 032422003 Z1-71 64 062601212 R-201 52 J-2 32 H-1-24 30 032461606 Z1-58 64 062601406 Z2-35-1-11-2 68 J-23 32 021710212 C4-37-18 14 037301215 Z1-4-3 64 Z2-35-1-11-4 68 014770632 B1-4 4 025030236 U3-2-1-9 60 047401442 L-6 36 Z2-35-2-15-2 69 014780622 B1-5 4 025040236 Q2-51 48 048030342 K-12 36 Z2-35-2-15-4 69 B1-17 4 U1-1-1-15 56 C4-37-17 14 062660412 E-14-1-3 22 017082206 U3-2-45 60 U1-1-1-12 56 K-4 36 E-14-2-1-3 22 017680512 A-15 2 U2-1-2-14 58 L-19 36 062660712 E-14-1-7 22 B2-49 6 U2-1-2-12 58 M-15 36 E-14-2-1-7 22 Z1-912 66 025050232 C2-500-7 10 C2-37-6 10 Z2-67-2-1-3 69 Ga1-211 75 R-202 52 H-1-10 30 062670412 G-31 28 017761212 C4-42 14 025050236 U1-1-1-9 56 048050346 U1-1-1-13 56 062670512 F-28 26 017781412 C2-42 10 U2-1-2-9 58 U2-1-2-12 58 F-39 26 C3-42 12 025060232 C2-41 10 048060342 C1-15 8 F-52 26 017781412 C4-206 16 C3-41 12 C1-23 8 K-16 36 017813733 D2-39 20 C4-37-32 14 J-32 32 G-24 28 018051022 B2-41 6 C4-41 14 K-9 36 062670612 G-2 28 018061436 C4-37-33 14 D2-35 20 048070342 E-18 22 062670612 G-2 28 018061622 D2-34 20 025060236 Q2-5 48 J-19 32 L-21 36 018062036 C4-221 16 025060336 A-35 2 046100142 H-1-4 4 R-24 50 018062522 B2-42 6 025060232 B2-39 6 046150142 B1-9 4 062671012 C2-37-22 10 018082536 U1-1-1-4 56 025060236 U1-1-1-6 56 D2-28 20 L-14 36 U2-1-2-4 58 U2-1-2-6 58 046180142 C1-8 8 062671016 Z2-67-1-2 68 018083022 B2-37 6 U3-2-1-4 60 052400606 U1-1-1-14 56 Z2-67-2-2 69 018400632 V-20-8 62 U3-2-4-8 60 052400806 U2-1-2-13 58 062671212 C3-37-1-3 12 018400822 C2-47 10 025350132 K-17 36 063000512 C1-34 8 062680512 H-1-18 30 C3-47 12 025350332 L-16 36 060400616 R-37 50 062680512 C1-36 8 018401222 R-3 50 025350132 Z2-67-2-1-4 69 060501016 D1-22 18 C4-218 16

Page 85

150 jintex.in

Page 86

CODE REF.NO page CODE REF.NO page CODE REF.NO page 062680612 D1-16 18 100281001 D2-8 20 116629001 C2-37-5 10 D2-16 20 100360003 J-54 34 116694001 K-10 36 F-7 26 100402004 G-17 28 116924001 U3-2-4-6 60 116920001 B1-8 4 H-3 26 100645003 A-34 2 116920001 G-12 4 062680812 V-20-12 28 117143001 C4-37-27 14 144588001 G-22 28 M-9 38 100666002 V-20-9 62 117150001 R-23 28 144712001 B1-16-5 4 V-20-12 62 100667001 Z1-30 64 117934001 A-6 2 145318001 C2-37-17 10 062681012 A-26 2 101268002 U3-2-1-5 60 117936001 A-17-3 2 145446001 G-16 28 C1-18 8 101572101 Z1-28 64 117936001 U1-1-1-16 56 145465001 B1-16-5 4 C1-26 8 101706001 C1-3-2 8 117936001 U2-1-2-1-15 56 145478101 C2-37-15 10 062681212 C4-37-25 14 H-2 30 118064001 Z1-34 64 145519001 Sp1-G-10 70 H-2 30 102630001 E-6-1 22 118244001 C4-37-28 14 Sp1-G-10 70 062681412 N-6 40 103810002 E-26 22 118247001 C4-37-11 14 Sp2-G-10 72 062710612 C4-211 16 104449001 A-11 2 118248101 C4-37-21 14 Sp2-G-10 72 C4-219 16 104450101 A-4 2 118249001 C4-37-29 14 Sp2-G-10 72 C4-230 16 10450101 A-10 2 118249001 Sp2-C4-37-29 73 145547001 F-27 26 L-2 36 104525001 G-14-1 28 118250001 Sp2-C4-37-29 73 145992001 K-8 36 R-31 52 104567101 Sp1-G-14 70 118250001 C4-37-30 14 146354001 C2-37-14 10 062710712 A-42 2 Sp1-G-14 70 118250001 Sp2-C4-37-30 73 146994001 C4-202 14 C4-212 16 Sp1-G-14 70 118252001 C4-37-23 14 14777000 B1-16-9 4 062761012 C4-219 16 Sp2-G-14 72 118256001 C4-37-4 14 148738000 F-4 26 C4-224 16 Sp2-G-14 72 118257001 C4-37-5 14 F-40 26 071039750 C3-48 10 Sp2-G-14 72 118258001 C4-37-3 14 F-41 26 C3-48 10 104567101 F-22 26 118259001 C4-37-6 14 148904001 U3-2-1-3 32 071047650 C2-40 12 105234003 D2-32 32 118570001 C4-207 16 148904001 U3-2-1-3 32 C3-40 12 105612003 J-15 32 118735002 C4-207 16 149287000 R-32 52 C4-40 14 105912003 J-15 32 119707001 U3-2-4-3 60 149809000 Q2-45 48 072630260 B1-7 4 106129002 M-5-5 36 119708001 U3-2-4-4 60 149809000 Q2-48 48 081003670 E-12 22 106290002 A-14 2 120440001 C2-25 20 150173003 Z2-35-1-7 68 087310815 E-17 22 107038003 C2-37-12 10 120990001 H-1-13 30 Z2-35-2-9 68 087311015 S-1-1-5 54 107149001 F-13 26 120990001 H-1-14 30 150174000 Z2-35-1-4-3 68 091170009 P-1-5 40 107321003 L-4 38 121007001 J-42 32 Z2-35-1-5-1 68 093650006 P-1-3 40 107415009 Sp1-B1-26 71 122991001 Z1-14 64 Z2-35-2-7-1 68 093650032 P-1-4 40 107415014 Sp1-B1-26 71 123880001 C4-37-36 14 150179002 Z2-35-1-8-1 68 0A4301005 P-1-13 40 Sp1-B1-26 71 133188001 E-25 22 Z2-35-2-10-1 68 Q1-1-26-17 42 Sp1-B1-26 71 133740006 Z1-55 64 150182000 Z2-35-1-2 68 0A4400605 Q2-42 48 Sp2-B1-26 73 138843001 Z2-35-2-12 60 Z2-35-2-2 68 0A4400606 S-1-1-6 54 Sp2-B1-26 73 138843001 Z2-35-2-12 60 150183000 Z2-35-1-10-2 68 0A5400606 Q1-1-9 42 Sp2-B1-26 73 140392009 A-5 2 Z2-35-2-14-2 69 R-17 50 140407001 C4-226 16 150185009 Z2-35-2-11 69 0A5401006 R-5 50 107606001 D2-30 20 140407001 C4-226 16 150206002 D2-27 20 R-11 50 107744001 Z1-29 64 140407002 C3-37-7 12 Z2-35-1-4-1 68 R-41 52 107760001 Z1-31 64 140647101 R-40-5 52 Z2-35-2-4-1 68 R-43 52 108802001 C1-5 8 140847001 B1-6 4 150553001 C4-37-2 14 0A5401206 Q1-1-5 42 109239002 A-24 2 141492001 J-26-2 32 Z2-35-1-4-1 68 Q1-1-10 42 109714000 Z1-5 64 141590001 M-1-2 38 150559001 A-29 2 100020004 C2-25 20 141590001 H-1-25 30 150592001 A-29 2 100022004 H-1-26 30 110161004 J-37 32 141786001 E-1 22 152242001 B1-24 4 100022005 J-25 32 110233001 J-36 32 142443001 Z1-26 64 152243001 B1-25 4 M-1-3 38 110251001 L-9 36 142656001 U3-2-5 60 152245101 E-4 22 M-4 38 110357001 J-31 32 142721001 Z1-33 64 152678201 E-11 22 100032004 J-51 34 111400002 J-50 34 142990001 Z2-35-1-10-3 68 E-16 22 100090004 E-2 22 114430002 Z1-22 64 142997001 Z2-35-2-14-3 68 152682101 Sp1-E-21 70 100135001 G-20 28 114486002 Z1-6 64 142997001 Z2-35-2-6 68 Sp1-E-21 70 H-1-20 30 115007001 V-20-5-13 62 143852001 Z1-9 64 Sp2-E-21 72 100242003 B1-20 4 115147001 C4-201 14 144100001 H-1-21 30 Sp2-E-21 72 100250001 B1-13 4 115186001 G-19 28 144226001 B1-23 4 152693101 E-14-1-4 22 100261001 D1-8 18 115189001 G-21 28 144458001 B1-23 4 81 jintex.in

Page 87 — 索引 / INDEX

索引 / INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page 15268101 E-14-2-1-4 22 153570101 M-20 10 159610301 Sp1-E24 70 S00554000 Q1-1-17 42 152684101 E-14-2-1-5 22 153580001 J-20 32 Sp1-E24 70 S00705001 J-47 34 152686101 E-14-2-1-5 22 153597001 M-5-2 38 Sp1-E24 70 S00906001 Ga1-C2-37-8 75 152690401 Sp1-E24 70 153608101 Sp1-C2-37-8 71 Sp2-E24 72 S00907001 Ga1-C2-37-9 75 15275001 C1-9 8 Sp1-C2-37-8 71 Sp2-E24 72 S01005000 Z2-35-1-4-4 68 15276001 C1-7 8 153638001 Ga1-C2-37-8 74 Sp2-E24 72 S01199003 U3-2-4-1 60 152771000 C2-38-1 10 153628001 D2-29 20 159612001 Sp1-E-24-3 70 S01603009 U3-2-4 60 C3-38-1 12 153634101 C4-203 14 Sp1-E-24-3 70 S01996001 M-13 38 C4-38-1 14 153638001 D2-37 20 Sp1-E-24-3 70 S02354001 M-3 38 15277001 Sp1-C2-37-8 71 153624001 C1-1-4 8 Sp2-E-24-3 72 J-24 32 Ga1-C2-37-8 74 F-45 26 Sp2-E-24-3 72 S02429101 E-14-1-2 22 Ga1-C2-37-9 74 153644001 Sp1-E-24-1 70 159613051 Sp1-E-25 70 E-14-1-2-2 22 Ga1-C2-37-8 74 154339101 Sp1-E-24-1 70 Sp1-E-25 70 S02652001 J-7 32 152776001 Ga1-C2-37-9 74 Sp1-E-24-1 70 Sp1-E-25 70 S02654001 J-8-1 32 Ga1-C2-37-8 74 Sp2-E-24-1 72 Sp2-E-25 72 S02747101 Z2-35-1-4-5 68 152780001 Ga1-C2-37-8 74 Sp2-E-24-1 72 Sp2-E-25 72 S02763402 Z2-35-1 68 Ga1-C2-37-9 74 Sp2-E-24-1 72 Sp2-E-25 72 S02775001 Z2-35-2-4 68 152780001 Ga1-C2-37-8 74 Sp2-E-24-1 72 G-15 28 S02777001 Z2-35-1-4 68 Ga1-C2-37-9 74 154340101 Sp1-E-24-1 70 159805001 G-15 28 S02778002 Z2-35-2-13 69 152781001 Ga1-C2-37-8 74 154341001 Sp1-E-24-2 70 159825001 C3-37-1-1 12 Z2-35-2-14 69 152782001 C2-37-10 10 Sp1-E-24-2 70 159826101 C3-37-14 12 S02780002 Z2-35-2-10-1 68 152783001 C2-37-11 10 Sp2-E-24-2 72 159905001 J-14 32 Z2-35-2-14 69 152786000 C2-37-19 10 Sp2-E-24-2 72 181995001 E-6 26 S02787002 Z2-35-2-14-1 69 C3-37-17 12 Sp2-E-24-2 72 183493001 C1-3 8 Z2-35-2-14-1 69 152822101 K-2 36 154342001 Sp2-E-24-2 72 200190001 U3-2-3 60 S04109001 Z2-35-2-5 68 152823001 K-11 36 Sp2-E-24-3 72 Z1-42 64 S06533001 C4-37-31 14 152827001 C4-214 16 154343001 Sp1-E-24-3 70 Z1-62 64 S06706001 Z1-15 66 K-13 36 154352001 Sp2-C3-37-1 73 224514001 Q2-2-1-5 46 S07333001 F-2 26 152842059 G-1 28 154416201 Sp2-C3-37-10 73 Q2-2-2-5 46 S07456000 F-3 26 152869001 G-1 28 154416201 Sp2-C3-37-10 73 Q2-2-3-5 46 S08030000 Q1-1-26-15 42 152872001 G-8 28 154416201 Sp2-C3-37-10 73 Q2-2-4-5 46 S08170001 Z1-24 64 152881001 G-27 28 Sp2-C3-37-10 73 Q2-2-5-5 46 S09043000 E-14-1-8 22 152883000 G-29 28 154417201 Sp2-C3-37-10 73 R-25 50 E-14-2-1-8 22 152884001 G-30 28 Sp2-C3-37-10 73 224514001 Q2-2-1-4 46 S09212001 C1-3-1 8 152889001 G-23 28 Ga1-C2-37-10 77 Q2-2-2-4 46 S10105001 D1-14 18 152890001 G-25-1 28 154417201 Z1-42 64 Q2-2-3-4 46 S10105001 D1-14 18 Sp1-G-25 71 154467001 R-40-9 52 Q2-2-4-4 46 D2-14 20 152891101 G-26 28 154514001 Sp1-C2-37-9 71 228475000 Q2-2-7-4 46 S10162201 F-15 26 152948001 F-33 26 Sp1-C2-37-9 71 228475000 C4-216 16 S10174000 H-1-15 30 152956001 F-42 26 Ga1-C2-37-9 74 F-44 26 S10195101 J-30 32 152969001 R-12 50 154528001 J-21 32 J-55 32 S10202201 J-41 32 C2-45 10 154596000 J-21 32 Q1-12 42 S10208001 J-46 32 153035000 C2-45 10 155590001 J-6 32 228475000 R-22 50 Z1-18 64 C3-45 12 155590001 J-6 32 U2-1-2-1-7 58 J-46 32 C4-45 14 155590001 L-18 36 231071001 J-17 32 Z1-18 64 153057101 C2-44 10 15562101 C4-37-8 14 232364001 Q1-1-26-6 42 S10208003 J-46 32 C3-44 12 155670001 C4-37-14 14 402887001 E-14-1-8 22 Z1-18 64 C4-44 14 155770001 C4-37-15 14 402887001 E-14-2-1-6 22 S10209101 C2-51 10 153112001 V-20-3 62 155780000 B1-21 4 525664000 C4-217 16 C3-51 12 Ga1-C2-37-8 74 155940000 Ga1-C2-212 75 552907000 R-4 50 C4-51 14 Ga1-C2-37-8 74 156006001 Z1-911 66 R-10 50 J-48 34 153202001 Ga1-C2-37-9 74 Ga1-210 75 R-42 50 S10210201 J-49 34 Ga1-C2-37-9 74 156112003 Z2-35-1-6 68 J02657001 Q2-2-1-3 46 S10211001 Sp1-J-53 70 153203001 Ga1-C2-37-8 75 Z2-35-2-8 68 Q2-2-2-3 46 Ga3-J-53 76 153204001 Ga1-C2-37-9 75 156170001 C4-37-12 14 Q2-2-3-3 46 S10212101 Sp1-J-53 70 153242000 Q1-1-26-14 42 156206001 V-20-13 62 Q2-2-4-3 46 Ga3-J-53 76 Z1-102 66 K-15 36 Q2-2-7-3 46 S10213001 Ga3-J-53 76 153484001 D2-31 20 156495201 C2-37-21 10 J08086001 T-1 50 S10239001 M-22 38 153567000 C2-37-20 10 157968001 H-1-17 30 S00480000 R-19 50 S10243000 R-205 52 C3-37-18 12 159565000 F-23 26 R-34 50 S10352101 Ga2-C1-200-2 77 153569001 C3-37-16 12 159574101 H-1-19 30 U3-2-1-12 60 S10469001 G-18 28 jintex.in 82

Page 90

索引 / INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page S49977100 Ga1-C2-100 75 S53035001 Q1-H-4 44 S59873001 J-22-4 32 SA2173001 Sp1-E-22 70 S49978100 Ga1-C2-100 75 S53036001 Q1-H-5 44 S59874001 J-22-1 32 Sp1-E-22 70 S49979400 R-14-1 60 S53037001 Q1-H-6 44 S5988001 E-14-2-1 22 Sp1-E-22 70 S49980001 Sp1-J-53 72 S53038001 Q1-H-7 44 S59886001 E-14-2-1-9 22 Sp2-E-22 72 Sp2-J-53 72 S53039001 Q1-H-9 44 S59886001 E-14-2-1-11 22 Sp2-E-22 72 Sp2-J-53 72 S53055100 T-2 54 S59893001 J-12 32 Sp2-E-22 72 Ga3-J-53 78 S53119001 A-13-1 2 S59903001 Ga1-C2-37 74 U32744000 P-1-12 40 S49981000 E-14-1-9 22 S53120001 A-13-2 2 S59909001 Ga1-C2-37-8 74 UA4817000 Q1-10-1 42 S49982000 F-12 26 S54440000 U1-1-1-7-1-1 56 S59912001 C1-1-2 8 UA4817000 Z1-901 66 S49983000 F-20 26 S54645000 U1-1-1-7-1-2 56 S59914001 C1-4 8 UD2390000 U3-2-1-8 60 S49984000 F-21 26 U2-1-2-1-5-1-1 58 S59915001 C1-4-1 8 UL0025000 S-1-1-7-7 54 S49985000 F-49 26 S54646000 U1-1-1-7 56 C2-5 10 XA2220050 S-1-1-10 54 S49987000 F-50 26 S5470000 U1-1-1-7-1-5 56 C3-5 10 YS1030150 P-1-15 40 S49988001 F-55 26 S54840000 U2-1-2-1-5-1 58 S59916001 C2-31 14 S49992000 F-1 26 S54841000 U2-1-2-1-5 58 C3-31 14 S49994001 J-38 32 S55140000 E-24 22 C4-31 14 S49995001 F-51 26 S55157000 D1-12 20 S59917001 C2-46 10 S49999001 A-100 2 S55208000 D2-12 20 C3-46 10 S50000201 Z2-67-2 69 S55213001 A-26 2 C4-38 10 S50529000 E-14-2-2 24 S55214000 E-9 22 S59918001 C2-38 14 S50645000 P-1-10 40 S55214000 E-23 22 C3-38 14 S51064001 C4-100 14 S55215001 E-19 22 S59919000 C2-50 10 Sp2-C4-100 73 S55216001 E-14-2-1-1 22 C3-50 10 Sp2-C4-100 73 E-14-1-1 22 C4-50 14 S51085301 Ga1-C2-37 74 S55311001 Z1-75 66 S59920001 A-41 2 S51097000 Z1-75-1 66 S55311002 Z1-75 66 S59921001 C2-39 10 S51098000 A-40 2 S55479001 D1-18 18 C3-39 12 S51208001 Z2-35-1-3 68 S55572001 D2-18 20 C4-39 14 S51282001 Z2-35-1-3 68 B2-31 6 S59921001 Sp1-E24 70 S51283001 Z2-35-2 68 S55627001 Q1-54 44 Sp1-E24 70 S51283001 Z2-35-1 68 S55629101 R-40 52 Sp1-E24 70 S51283001 Z2-35-2-1 68 S55630001 R-40-1 52 S59923000 Sp2-E24 72 S51449001 Ga3-J-53 78 S55632001 R-40-3 52 Sp2-E24 72 S51451000 U1-1-1-1-9 56 S55633001 Z1-70 64 Sp2-E24 72 U2-1-2-1-8 56 S55656000 E-22 22 S59927001 C2-52 10 S51460009 A-33 2 S55659000 F-54 26 C3-52 12 S51848101 Sp2-C3-37 73 S55663001 Z1-23 64 C4-52 14 Ga2-C3-37 77 S5577001 B1-15 4 S59931001 Z2-35-1-11 68 S51849101 C3-37-1 12 S55877001 S-1 54 Z2-35-2-15-3 69 S51851101 Sp2-C3-37 73 S55889001 S-1-1 54 Z2-35-2-16-3 69 Ga2-C3-37 77 S55891001 S-1-1-1 54 S60400000 Z1-902 66 S51852001 Sp2-C3-100 73 S55891001 S-1-1-1-1 54 S60711001 Z1-903 66 Ga2-C3-100 77 S56017000 B2-30-1 6 SA0037000 Q1-1-26-5 42 Sp2-C3-100 73 S56018000 B2-30-2 6 SA0049001 J-22-5 32 S51853001 Sp2-C3-100 73 S56019001 B2-30-3 6 SA0703001 M-17 38 Ga2-C3-100 77 S56167000 R-6-1 50 SA1034000 Q1-1-26-9 42 Sp2-C3-100 73 R-6-2 50 SA1579019 Sp1-Z1-17 71 S51859101 G-5 28 S56167001 R-6-2 50 SA1752009 Sp1-Z1-17 71 S52091000 B-1-1-2 54 R-6-3 50 SA1752014 Sp1-Z1-17 71 S52097001 Z2-67-2-1-2 69 R-6-3 50 Sp1-Z1-17 71 S52098201 C4-232 16 S57925001 A-23 2 Sp2-Z1-17 73 S52834201 B2-30 6 S57965000 E-14-2-1-10 24 Sp2-Z1-17 73 S52836000 B2-47 6 S58690001 D1-11 18 Sp2-Z1-17 73 S52838000 B2-35 6 S59360000 R-14-1-1 50 SA1881001 Sp1-E-22 70 S52839200 B2-36 6 S59367000 R-14-1-2 50 Sp1-E-22 70 S52840001 B2-40 6 S59620001 Ga3-J-53 78 Sp1-E-22 70 S53030001 D1-11 42 S59763000 D1-25 18 Sp2-E-22 72 S53031001 Q1-H-1 44 S59871001 J-22-3 32 Sp2-E-22 72 S53034001 Q1-H-3 44 S59872001 J-22-2 32 SA1890001 Sp1-E-22 70 85 jintex.in

Page 91 — PARTS BOOK

brother. パーツブック PARTS BOOK ブラザー工業株式会社 BROTHER INDUSTRIES, LTD Printed in Japan 118-V30, 118-V31, 118-V32 S96V30-401 2002.10. H (1) jintex.in
