Brother KE-430C Parts Book (PDF)

Bartack · also listed as KE430C, 430CDownload PDF

Text index — Brother KE-430C

Page 2 — Electronic Lock Stitch Bar Tacker / Belt Loop Bar Tacker / Eyelet Buttonhole End Bar Tacker

Brother KE-430C parts on page 2
Ref	Part number	Part name	Qty
	KE-430C-0	BROTHER INDUSTRIES, LTD.
	KE-431C-0	BROTHER INDUSTRIES, LTD.
	KE-432C	BROTHER INDUSTRIES, LTD.

Page 6 — A . 主体関係 / Machine body

Brother KE-430C parts on page 6
Ref	Part number	Part name	Qty
4	104450101	RUBBER CAP, 8	6
5	140392009	OIL CAP	1
6	117934001	RUBBER CAP, 13.5	1
7	140392009	OIL CAP	2
10	104450101	RUBBER CAP, 8	3
11	104449001	RUBBER CAP, 15.5	1
12	S37915009	BED COVER, R	1
13-1	S53119001	BED COVER, LF	1
13-2	S53120001	BED COVER, LR	1
14	106629002	SCREW, SM4.37	9
15	017680512	BOLT, SM4.37X5	2
16	S23337001	RUBBER CAP, 18.5	1
17	S49960109	FACE PLATE ASSY	1
17-1	S49961109	FACE PLATE	1
17-2	S49962000	FACE PLATE PACKING	1
17-3	117934001	RUBBER CAP, 13.5	1
18	060671212	SCREW, BIND SM3.57-40X12	3
22-1	152842059	SHUTTLE RACE COVER ASSY	1
22-2	S49681009	オオカマカバークミC	1
23	S57925001	SHOULDER SCREW, SM6.35	2
24	109239002	WAVE WASHER	2
25	S55208000	THREAD TAKE-UP LEVER COVER	1
26	062681012	SCREW, PAN SM4.37-40X10	1
28	S20164001	RUBBER CAP, 13	1
29	150592001	RUBBER CAP, 16	2
30	104821001	RUBBER CAP, 10.5	1
31	S44010001	RUBBER CAP, 11.5	1
33	S51460009	RUBBER CAP, MG-9	1
34	100645003	WASHER	1
35	025080132	WASHER, PLAIN S 8	2
40	S51098000	FRAME SIDE COVER, IM	1
41	S59920001	BELT COVER SUPPORT PILLAR	2
42	062711012	SCREW, PAN SM4.76-32X10	4
100	S49999201	FINGER GUARD	1
101	011679312	SET SCREW, (FT) SM3.57	2
920	S44629001	E MARK	1
	062711072	ナベコ476-32X10	4

Page 8 — B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430C parts on page 8
Ref	Part number	Part name	Qty
1	S49688001	UPPER SHAFT	1
2	S45147101	CRANK ROD ASSY	1
2-1	144712001	SCREW, SM4.76	2
3	S49582001	UPPER SHAFT BUSH, F	1
4	S49583001	THRUST WASHER	1
5	014780622	SET SCREW, SOCKET (CP) SM6.35	1
6	140726000	UPPER SHAFT BUSH, M	1
7	072630260	BALL BEARING, 6302VV	2
8	116920001	RING, THRUST	1
9	048150142	RETAINING RING, EXTERNAL C15	1
12	S49584000	THREAD TAKE-UP CRANK, D	1
13	100250001	SCREW, SM7.14	1
14	014770632	SET SCREW, SOCKET (CP) SM6.35X6	2
15	S55877001	SET SCREW, (CP) SM6.35	1
16	S49585001	THREAD TAKE-UP LEVER SET	1
16-1	S49587001	THREAD TAKE-UP SUPPORT	1
16-2	S49588001	THREAD TAKE-UP LEVER	1
16-3	S47091001	THREAD TAKE-UP SUPPORT SHAFT	1
16-4	S49589001	NEEDLE BAR CRANK	1
16-5	145465001	SCREW, SM3.57-40X6 L	1
16-6	S49689001	NEEDLE BAR CONNECTING ROD	1
16-7	S37926101	NEEDLE BAR CLAMP	1
16-8	062680812	SCREW, PAN SM4.37-40X8	1
16-9	147777000	NEEDLE BEARING	2
17	014780622	SET SCREW, SOCKET (CP) SM6.35	1
18	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
19	S49593000	NEEDLE BAR GUIDE	1
20	100242003	SCREW, SM3.57-40X5	2
21	155578000	RUBBER CAP, 7.2	2
22	152240101	NEEDLE BAR, A	1
23	144458001	SET SCREW, SM3.57-40X4.5	1
24	152242001	NEEDLE BAR BUSH, U	1
25	152243001	NEEDLE BAR BUSH, D	1
26	*	NEEDLE	1
	014160142	トメワアウターC15	1
	S49564000	ツリアイクランクD	1
	S49567001		1
	S47001001		1
	062660812	ナベコ437-40X8	1
	14777000		2

Page 10 — B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430C parts on page 10
Ref	Part number	Part name	Qty
30	S52834201	TIMING PULLEY ASSY, U	1
30-1	S56017000	UPPER SHAFT PULLEY	1
30-2	S56018000	PULLEY SPACER	1
30-3	S56019001	PULLEY WASHER	1
30-4	018401236	BOLT, SOCKET M4X12	3
30-5	028040246	WASHER, SPRING 2-4	3
31	S55572001	SET SCREW, SOCKET(CP)SM5.95X10	2
35	S52838000	UPPER SHAFT TIMING BELT	1
36	S52839200	MOTOR BRACKET, IM	1
37	018083022	BOLT, SOCKET M8X30	3
38	028080242	WASHER, SPRING 2-8	3
39	025080232	WASHER, PLAIN M 8	3
40	S52840001	BELT ADJUSTING PLATE	1
41	018061022	BOLT, SOCKET M6X10	1
42	018062522	BOLT, SOCKET M6X25	1
43	021060102	NUT, 1 M6	1
44	S47270001	BOLT, SOCKET (S/P WASHER) M6X30	4
47	S52836000	MOTOR TIMING PULLEY ASSY	1
48	S55572001	SET SCREW, SOCKET(CP)SM5.95X10	1
49	017680512	BOLT, SM4.37X5	1

Page 12 — C1 . 送り関係 / Feed mechanism

Brother KE-430C parts on page 12
Ref	Part number	Part name	Qty
1	S37930201	X-FEED LEVER ASSY	1
1-1	S37931101	X-FEED LEVER	1
1-2	S59912001	T-LENGTH FEED SLIDE BLOCK ASSY	1
1-3	151602002	SET SCREW, SM4.37-40X6	1
1-4	153924001	FELT	1
1-5	108802001	WICK, 4X4 L=250	1
1-6	S37932101	FEED CAM ROLLER	1
1-7	S37933001	ROLLER SHAFT	1
1-8	014760622	SET SCREW, SOCKET SM5.95	1
2	S37934001	X-FEED LEVER BUSH	1
3	183493001	F-SHAFT SET SCREW COLLAR ASSY	1
3-1	S09212001	SET SCREW COLLAR	1
3-2	101706001	SET SCREW, SM6.35-40X5.5	2
4	S59913001	Y-FEED LEVER ASSY	1
4-1	S59914001	Y-FEED LEVER	1
4-2	S37932101	FEED CAM ROLLER	1
4-3	S37933001	ROLLER SHAFT	1
4-4	014760622	SET SCREW, SOCKET SM5.95	1
6	014760622	SET SCREW, SOCKET SM5.95	1
7	152760051	TACK WIDTH FEED LEVER SHAFT	1
8	048180142	RETAINING RING, EXTERNAL C18	1
9	152756001	WASHER, THRUST 18	2
10	014760622	SET SCREW, SOCKET SM5.95	1
11	S37937001	FEED CAM BRACKET	1
12	S37938001	FEED CAM, X	1
13	014760622	SET SCREW, SOCKET SM5.95	2
14	S37939001	CAM SHAFT	1
15	048060342	RETAINING RING, E6	1
16	070688850	BALL BEARING, 688ZZNR	2
17	S37940001	POSITIONING PIN	2
18	062681012	SCREW, PAN SM4.37-40X10	2
19	S37937001	FEED CAM BRACKET	1
20	S37941001	FEED CAM, Y	1
21	014760622	SET SCREW, SOCKET SM5.95	2
22	S37939001	CAM SHAFT	1
23	048060342	RETAINING RING, E6	1
24	070688850	BALL BEARING, 688ZZNR	2
25	S37940001	POSITIONING PIN	2
26	062681012	SCREW, PAN SM4.37-40X10	2
27	S37942100	COUPLING HUB, 8	2
28	S37943100	COUPLING HUB, 6.35	2
29	S37944000	COUPLING SPACER	2
30	014760622	SET SCREW, SOCKET SM5.95	8
33	S49590001	FEED HOME POSITION DOG	2
34	060300512	SCREW, BIND M3X5	2
35	S49683001	HOME SENSOR SETTING PLATE	2
36	062680612	SCREW, PAN SM4.37-40X6	2
49	S23337001	RUBBER CAP, 18.5	1

Page 14 — C2 . 送り関係 (KE-430C) / Feed mechanism (KE-430C)

Brother KE-430C parts on page 14
Ref	Part number	Part name	Qty
5	S59915001	TACK WIDTH FEED SHAFT	1
31	S59916001	FEED BRACKET GUIDE PLATE	1
32	145318001	SCREW, SM4.37	8
37	*	WORK CLAMP ARM ASSY,	1
37-1	S49592200	WORK CLAMP ARM	1
37-2	S37949101	WORK CLAMP ARM LEVER, R	1
37-3	S37950101	WORK CLAMP ARM LEVER, L	1
37-4	S34839001	WORK CLAMP ARM LEVER SHAFT	1
37-5	116629001	WASHER	2
37-6	048050342	RETAINING RING, E5	2
37-7	014760622	SET SCREW, SOCKET SM5.95	1
37-8	*	WORK CLAMP RIGHT	1
37-9	*	WORK CLAMP LEFT	1
37-10	152783001	WORK CLAMP GUIDE BRACKET, A	2
37-11	152784001	WORK CLAMP GUIDE BRACKET, B	1
37-12	107038003	SCREW, FLAT SM3.57	4
37-13	S37951101	WORK CLAMP ARM LEVER PLATE	2
37-14	146354001	WASHER, PLAIN 5	2
37-15	018500822	BOLT, SOCKET M5X8	2
37-16	153570101	PRESSER SPRING GUIDE ROD	2
37-17	145478101	SHOULDER SCREW, SOCKET SM4.76	2
37-18	S48646001	PRESSER SPRING, D	2
37-19	152788000	PRESSER SPRING SPACER	2
37-20	153567000	PRESSER SPRING COLLAR	2
37-21	156495201	FINGER GUARD	1
37-22	062671012	SCREW, PAN SM3.57-40X10	2
37-23	S49595001	WORK CLAMP ARM SUPPORT SHAFT	1
37-24	014760622	SET SCREW, SOCKET SM5.95	1
37-25	S59927001	SUPPORT SHAFT PUSH SPRING	1
38	S59918001	FEED BRACKET ASSY	1
38-1	152771000	FEED BRACKET SPACER	2
39	S59921001	SPACER, 4.8	2
40	071047650	BEARING BALL, 3/16	2
41	025060232	WASHER, PLAIN M 6	2
42	017761412	BOLT, SM5.95X14	2
43	S49955001	SCREW, W/SOCKET SM4.37	1
44	153057101	SCREW, W/SOCKET SM4.37	1
45	153035000	WORK CLAMP FELT	1
46	S59917001	WORK CLAMP ARM SUPPORT PLATE	1
47	018400822	BOLT, SOCKET M4X8	2
48	071039750	BEARING BALL, 5/32	3
50	S59919000	ROD END, PB-8	1
51	S10209101	SCREW, SM4.37	1
52	S59923000	FEED BRACKET COVER, R	1
53	060680512	SCREW, BIND SM4.37-40X5	2
100	*	FEED PLATE	1
500	S41328101	WORK CLAMP QUICK CHANGE SET	1
500-1	S41324001	QC-WORK CLAMP ARM LEVER SHAFT	1
500-2	S41325001	QC-WORK CLAMP LEVER SUPPORT	2
500-3	S41326101	QC-WORK CLAMP ARM LEVER, R	1
500-4	S41327101	QC-WORK CLAMP ARM LEVER, L	1
500-5	018501022	BOLT, SOCKET M5X10	2
500-6	028050242	WASHER, SPRING 2-5	2
500-7	025050232	WASHER, PLAIN M 5	2
	145678101		2
	07107650		2

Page 16 — C3 . 送り関係 (KE-431C) / Feed mechanism (KE-431C)

Brother KE-430C parts on page 16
Ref	Part number	Part name	Qty
5	S59915001	TACK WIDTH FEED SHAFT	1
31	S59916001	FEED BRACKET GUIDE PLATE	1
32	145318001	SCREW, SM4.37	8
37	*	WORK CLAMP ASSY, 431	1
37-1	S51849101	WORK CLAMP ARM ASSY	1
37-1-1	159825200	WORK CLAMP ARM, 431	1
37-1-2	159827001	WORK CLAMP GUIDE BRACKET, B	2
37-1-3	062671212	SCREW, PAN SM3.57-40X12	4
37-2	154413001	WORK CLAMP LEVER, A	1
37-3	S41230001	WORK CLAMP LEVER, B	1
37-4	154415001	WORK CLAMP LEVER, C	1
37-5	153944001	LEVER SHAFT BUSH	1
37-6	014760622	SET SCREW, SOCKET SM5.95	1
37-7	140407002	WASHER	1
37-8	018500822	BOLT, SOCKET M5X8	1
37-9	014770622	SET SCREW, SOCKET (CP) SM6.35	2
37-10	*	WORK CLAMP, 431	1
37-11	S37951101	WORK CLAMP ARM LEVER PLATE	1
37-12	140407002	WASHER	1
37-13	018500822	BOLT, SOCKET M5X8	1
37-14	159828101	SPRING GUIDE ROD, B	1
37-15	145478101	SHOULDER SCREW, SOCKET SM4.76	1
37-16	153569001	PRESSER SPRING, B	1
37-17	152788000	PRESSER SPRING SPACER	1
37-18	153567000	PRESSER SPRING COLLAR	1
37-19	S49595001	WORK CLAMP ARM SUPPORT SHAFT	1
37-20	014760622	SET SCREW, SOCKET SM5.95	1
37-21	S59927001	SUPPORT SHAFT PUSH SPRING	1
38	S59918001	FEED BRACKET ASSY	1
38-1	152771000	FEED BRACKET SPACER	2
39	S59921001	SPACER, 4.8	2
40	071047650	BEARING BALL, 3/16	2
41	025060232	WASHER, PLAIN M 6	2
42	017761412	BOLT, SM5.95X14	2
43	S49955001	SCREW, W/SOCKET SM4.37	1
44	153057101	SCREW, W/SOCKET SM4.37	1
45	153035000	WORK CLAMP FELT	1
46	S59917001	WORK CLAMP ARM SUPPORT PLATE	1
47	018400822	BOLT, SOCKET M4X8	2
48	071039750	BEARING BALL, 5/32	3
50	S59919000	ROD END, PB-6	1
51	S10209101	SCREW, SM4.37	1
52	S59923000	FEED BRACKET COVER, R	1
53	060680512	SCREW, BIND SM4.37-40X5	2
100	*	FEED PLATE, 431	1
	15988101	SPRING GUIDE ROD, B	1
	14478101	SHOULDER SCREW, SOCKET SM4.76	1
	15307101	SCREW, W/SOCKET SM4.37	1

Page 18 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C parts on page 18
Ref	Part number	Part name	Qty
5	S59915001	TACK WIDTH FEED SHAFT	1
31	S59916001	FEED BRACKET GUIDE PLATE	1
32	145318001	SCREW, SM4.37	8
37	S41024100	WORK CLAMP ARM ASSY, Z32	1
37-1	S41025100	WORK CLAMP FRAME, Z32	1
37-2	150553001	NUT, SM5.95	1
37-3	118258001	STOP LEVER SPRING	1
37-4	118256001	STOP LEVER	1
37-5	118257001	SHOULDEER SCREW, SM5.95	1
37-6	118259001	BOLT, SM4.37	1
37-7	021680202	NUT, 2 SM4.37	1
37-8	155562101	WORK CLAMP CARRIER PLATE	1
37-9	018401622	BOLT, SOCKET M4X16	1
37-10	025710232	WASHER, PLAIN M 4.76	1
37-11	118247001	COLLAR	1
37-12	156170001	COLLAR	1
37-13	021400102	NUT, 1 M4	1
37-14	155576001	ROLLER	1
37-15	155577001	SCREW, SM4.76	1
37-16	025710232	WASHER, PLAIN M 4.76	1
37-17	048040342	RETAINING RING, E4	1
37-18	021710212	NUT, 2 SM4.76	1
37-19	S41265001	BUTTON HOLE GUIDE, Z32	1
37-20	062761012	SCREW, PAN SM5.95-28X10	2
37-21	118248101	STOP POSITION ADJUSTING PLATE	1
37-22	S41288001	WORK CLAMP GUIDE PLATE, Z32	1
37-23	118252001	SCREW	2
37-24	025710132	WASHER, PLAIN S 4.76	2
37-25	062681212	SCREW, PAN SM4.37-40X12	2
37-26	118247001	COLLAR	2
37-27	117143001	SCREW, FLAT SM4.37	2
37-28	118244001	SHOULDER SCREW, SM5.95	2
37-29	118249001	WORK CLAMP, R	1
37-30	118250001	WORK CLAMP, L	1
37-31	S06533001	PRESSER ADJUSTING PLATE ASSY	1
37-32	025060232	WASHER, PLAIN M 6	1
37-33	018061022	BOLT, SOCKET M6X10	1
37-34	025710132	WASHER, PLAIN S 4.76	1
37-35	S41011001	LEVER	1
37-36	123882001	SHOULDER SCREW, SM4.37	1
38	S59918001	FEED BRACKET ASSY	1
38-1	152771000	FEED BRACKET SPACER	2
39	S59921001	SPACER, 4.8	2
40	071047650	BEARING BALL, 3/16	2
41	025060232	WASHER, PLAIN M 6	2
42	017761212	BOLT, SM5.95X12	2
43	S49955001	SCREW, W/SOCKET SM4.37	1
44	153057101	SCREW, W/SOCKET SM4.37	1
45	153035000	WORK CLAMP FELT	1
50	S59919000	ROD END, PB-6	1
51	S10209101	SCREW, SM4.37	1
52	S59923000	FEED BRACKET COVER, R	1
53	060680512	SCREW, BIND SM4.37-40X5	2
100	S51084001	FEED PLATE, 432	1
200	155567001	ADJUSTING SCREW	1
201	115147001	COMPRESSION SPRING	1
202	146994001	NUT, ROUND SM6.35-40	2
203	153834101	BUTTON CLAMP HOLDER SUPPORT	1
204	153827001	BUTTON CLAMP HOLDER SHAFT	1
205	014680622	SET SCREW, SOCKET (CP) SM4.37	2
	15562101	WORK CLAMP CARRIER PLATE	1
	060850051	SCREW, BIND SM4.37-40X5	2

Page 20 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C parts on page 20
Ref	Part number	Part name	Qty
206	017781412	BOLT, SM6.35X14	1
207	118735002	WASHER, PLAIN	1
208	150556001	NUT, SM6.35	1
209	S41290301	OYS SETTING PLATE PACKING	1
210	S41060109	BLIND PLATE	1
211	062710812	SCREW, PAN SM4.76-32X8	2
212	062711012	SCREW, PAN SM4.76-32X10	2
213	025710232	WASHER, PLAIN M 4.76	4
214	152827001	OIL CAP	1
215	S23337001	RUBBER CAP, 18.5	1
216	228475000	FASTENING BAND, 1.9X80	1
217	525664000	CORD HOLDER, 6N	1
218	062680612	SCREW, PAN SM4.37-40X6	1
219	062710812	SCREW, PAN SM4.76-32X8	2
220	S41264001	WORK CLAMP CARRIER ROD ASSY	1
221	018062036	BOLT, SOCKET M6X20	1
222	118735002	WASHER, PLAIN	1
223	021060306	NUT, 3 M6	2
224	S41010001	SENSOR PLATE	1
225	S41012001	OY SOLENOID PIN	1
226	140407001	WASHER	1
227	S19662001	SNAP PIN, 5	1
228	S18523001	SPRING, EXTENSION	1
229	S41009001	OY SOLENOID STOPPER	1
230	062710812	SCREW, PAN SM4.76-32X8	2
231	025710232	WASHER, PLAIN M 4.76	2
232	S52098201	OY SOLENOID SETTING PLATE	1

Page 22 — D1. 押上関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C)

Brother KE-430C parts on page 22
Ref	Part number	Part name	Qty
1	S49630001	LINK, A	1
2	S49631001	LINK, B	1
3	S49632001	LINK ASSY, C	1
4	S49635001	LINK SHAFT, A	1
5	S49636001	LINK SHAFT, B	1
6	S49637001	LINK SHAFT, C	1
7	S49638001	LINK SHAFT, D	1
8	100281001	WASHER, PLAIN	4
9	S37968001	SNAP PIN, 8	6
10	S19662001	SNAP PIN, 5	2
11	S58890001	WORK CLAMP PLATE	1
12	S55157000	BUSH	1
13	014760622	SET SCREW, SOCKET SM5.95	2
14	S10105001	SPRING, EXTENSION	2
15	S49639001	SENSOR SETTING BASE	1
16	062680612	SCREW, PAN SM4.37-40X6	1
17	S49640101	SENSOR PERCEIVE PLATE	1
18	S55479001	BOLT, SOCKET (S/P WASHER) M4X8	1
19	S49641001	SOLENOID SETTING PLATE, A	1
20	060681212	SCREW, BIND SM4.37-40X12	4
21	S49642001	SOLENOID SETTING PLATE, B	1
22	060501016	SCREW, BIND M5X10	2
23	S49643001	GUIDE	1
24	060680712	SCREW, BIND SM4.37-40X7	2
25	S59763000	W-CLAMP LIFTER STOPPER RUBBER	1
26	018501422	BOLT, SOCKET M5X14	2
	060661212	バインド437-40X12	4

Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

Brother KE-430C parts on page 24
Ref	Part number	Part name	Qty
1	S49630001	LINK, A	1
2	S49631001	LINK, B	1
3	S49632001	LINK ASSY, C	1
4	S49635001	LINK SHAFT, A	1
5	S49636001	LINK SHAFT, B	1
6	S49637001	LINK SHAFT, C	1
7	S49638001	LINK SHAFT, D	1
8	100281001	WASHER, PLAIN	4
9	S37968001	SNAP PIN, 8	6
10	S19662001	SNAP PIN, 5	2
11	S41015101	WORK CLAMP LIFTING ROD	1
12	S55157000	BUSH	1
13	014760622	SET SCREW, SOCKET SM5.95	2
14	S10105001	SPRING, EXTENSION	2
15	S49639001	SENSOR SETTING BASE	1
16	062680612	SCREW, PAN SM4.37-40X6	1
17	S49640101	SENSOR PERCEIVE PLATE	1
18	S55479001	BOLT, SOCKET (S/P WASHER) M4X8	1
19	S49641001	SOLENOID SETTING PLATE, A	1
20	060681212	SCREW, BIND SM4.37-40X12	4
21	S49642001	SOLENOID SETTING PLATE, B	1
22	060501016	SCREW, BIND M5X10	2
23	S49643001	GUIDE	1
24	060680712	SCREW, BIND SM4.37-40X7	2
25	120448001	RUBBER BAND	1
26	018501422	BOLT, SOCKET M5X14	2
27	150206002	WASHER, PLAIN 16	1
28	048150142	RETAINING RING, EXTERNAL C15	1
29	153828001	ROLLER SHAFT	1
30	107744001	ROLLER	1
31	153484001	WASHER, PLAIN 4.76	1
32	105234003	NUT SM4.37	2
33	S41014009	LEVER HOLDER	1
34	018061622	BOLT, SOCKET M6X16	2
35	025060232	WASHER, PLAIN M 6	2
36	S41016001	WORK CLAMP LIFTER LEVER	1
37	153838001	B-CLAMP LEVER SHAFT	1
38	014760622	SET SCREW, SOCKET SM5.95	1
39	017821813	BOLT, SM7.94X18	1

Page 26 — E . 下軸関係 / Lower shaft mechanism

Brother KE-430C parts on page 26
Ref	Part number	Part name	Qty
1	141786001	SHOULDER SCREW	1
2	100090004	NUT, SM7.14	1
3	014680622	SET SCREW, SOCKET (CP) SM4.37	1
4	152245101	ROCK GEAR	1
5	S37978251	ROCK GEAR SHAFT	1
6	181995001	SET SCREW COLLAR ASSY	1
6-1	101706001	SET SCREW, SM6.35-40X5.5	2
7	014760622	SET SCREW, SOCKET SM5.95	2
8	S49605001	LOWER SHAFT ASSY	1
9	S55213001	LOWER SHAFT BUSH	1
10	014760622	SET SCREW, SOCKET SM5.95	1
11	152678201	ADJUSTING STUD	1
12	081003670	O-RING, PW3	1
13	S49609001	SET SCREW COLLAR ASSY	1
13-1	014770622	SET SCREW, SOCKET (CP) SM6.35	2
13-1	017770622		2
14-1	S55927101	SHUTTLE RACE BASE ASSY	1
14-1-1	S55216101	SHUTTLE RACE BASE	1
14-1-2	S02429101	SHUTTLE RACE THREAD GUIDE	1
14-1-3	062660412	SCREW, PAN SM3.18-40X4	2
14-1-4	152683101	S-RACE BASE SETTING CLAW	2
14-1-5	152684101	SPRING, COMPRESSION	2
14-1-6	402887001	WASHER, 3.2	2
14-1-7	062660712	SCREW, PAN SM3.18-40X7	2
14-1-8	S09043000	FELT	2
14-1-9	S49981000	WICK, 3X3 L=360	2
14-1-10	S49626000	WICK, 3X3 L=300	1
14-1-11	S49685000	WICK, 3X3 L=100	1
15	014760622	SET SCREW, SOCKET SM5.95	1
16	152678201	ADJUSTING STUD	1
17	081003670	O-RING, PW3	1
18	048070342	RETAINING RING, E7	1
19	S55215001	DRIVER, HR	1
20	018501232	BOLT, SOCKET M5X12	1
23	S16290001	NEEDLE ROLLER, 4X19.8	1
27	S55658000	FELT	1
28	S55214000	FELT HOLDER	1
29	S55140001	SUPPORT	1
30	123882001	SHOULDER SCREW, SM4.37	1
31	103810002	WAVE WASHER	1
32	025770232	WASHER, PLAIN M 6.35	1
14-2	S59888001	SHUTTLE RACE BASE SET	1
14-2-1	S59885001	SHUTTLE RACE BASE ASSY	1
14-2-1-1	S55216001	SHUTTLE RACE BASE	1
14-2-1-2	S02429101	SHUTTLE RACE THREAD GUIDE	1
14-2-1-3	062660412	SCREW, PAN SM3.18-40X4	2
14-2-1-4	152683101	S-RACE BASE SETTING CLAW	2
14-2-1-5	152684101	SPRING, COMPRESSION	2
14-2-1-6	402887001	WASHER, 3.2	2
14-2-1-7	062660712	SCREW, PAN SM3.18-40X7	2
14-2-1-8	S09043000	FELT	2
14-2-1-9	S59886001	FELT, L=360	2

Page 28 — E. 下軸関係 / Lower shaft mechanism

Brother KE-430C parts on page 28
Ref	Part number	Part name	Qty
14-2-1-10	S57965000	WICK, 3X3 L=515	1
14-2-1-11	S59886001	FELT, L=360	1
14-2-2	S50529000	OIL TUBE, L=320	4

Page 30 — F. 給油潤滑関係 / Lubrication

Brother KE-430C parts on page 30
Ref	Part number	Part name	Qty
1	S49992000	OIL GAUGE WINDOW	1
2	S07333001	PIPE, S	1
3	S07456000	OIL TUBE, L=160	1
4	148738000	WICK, L=335	1
5	107149001	FELT	1
6	S37983001	WICK SUPPORT	1
7	062680612	SCREW, PAN SM4.37-40X6	1
8	025680232	WASHER, PLAIN M 4.37	1
9	028680242	WASHER, SPRING 2-4.37	1
10	S10478000	FELT	1
11	S34986000	OIL TUBE, L=135	1
12	S49982000	WICK, 4X4 L=400	1
13	107149001	FELT	2
14	S49959001	WICK SUPPORT	1
15	S10162201	WICK SUPPORT	1
16	060670512	SCREW, BIND SM3.57-40X5	1
17	S49620000	OIL TUBE, L=340	2
18	S49957000	WICK, 4X4 L=700	1
19	S49622000	WICK, 4X4 L=130	1
20	S49983000	WICK, 4X4 L=800	1
21	S49984000	FLAT WICK, L=200	1
22	104567101	WICK SUPPORT	1
23	159565000	WICK, L=150	1
24	S37985000	FELT	1
25	S37986000	OIL TUBE, L=440	1
26	S18093100	WICK, 4X4 L=1100	1
27	145547001	TUBE HOLDER	1
28	062670512	SCREW, PAN SM3.57-40X5	1
29	S37987001	LOWER SHAFT WICK SUPPORT	1
30	S37988000	LOWER SHAFT WICK FELT	1
31	062680612	SCREW, PAN SM4.37-40X6	1
32	S09043000	FELT	1
33	152948001	OIL GAUGE WINDOW	1
34	S49623000	OIL TUBE, L=280	1
35	S49624000	OIL TUBE, L=260	1
36	S49625000	OIL TUBE, L=160	1
38	152969001	CORD HOLDER	2
39	062670512	SCREW, PAN SM3.57-40X5	2
40	148738000	WICK, L=335	1
41	148738000	WICK, L=335	1
42	152956001	WICK, 4X4 L=500	1
44	228475000	FASTENING BAND, 1.9X80	3
45	153924001	FELT	1
46	S49957000	WICK, 4X4 L=700	1
47	S49958000	WICK, 4X4 L=70	1
48	S49985000	OIL TUBE, L=170	1
49	S49986000	OIL TUBE, L=110	1
50	S49987000	OIL TUBE, L=150	1
51	S49995001	CORD SUPPORT	1
52	062670512	SCREW, PAN SM3.57-40X5	1
53	S49618000	OIL TUBE, L=210	1
54	S55659000	WICK, L=300	1
	S49950001

Page 32 — G . 糸通シ関係 / Threading mechanism

Brother KE-430C parts on page 32
Ref	Part number	Part name	Qty
1	152869001	ARM THREAD GUIDE	1
2	062670612	SCREW, PAN SM3.57-40X6	1
3	S49627001	ARM THREAD GUIDE	1
4	060670612	SCREW, BIND SM3.57-40X6	1
5	S51859101	ARM THREAD GUIDE	1
6	060670612	SCREW, BIND SM3.57-40X6	1
8	152872001	TENSION BRACKET	1
9	114294001	O-RING	1
10	*	THREAD TAKE-UP SPRING	1
11	S12699000	TENSION RELEASE PIN	1
12	116922001	TENSION STUD	1
13	S31032001	TENSION NUT	1
14-1	104525001	TENSION SPRING	1
14-2	107606001	TENSION SPRING, H	1
15	159805001	TENSION DISC PRESSER	1
16	145446001	TENSION DISC	2
17	100402004	SET SCREW, SM3.57	1
18	S10469001	SET SCREW, SOCKET SM5.95	1
19	115186001	MAIN TENSION STUD	1
20	100136001	TENSION NUT	1
21	115188001	MAIN TENSION SPRING	1
22	145446001	TENSION DISC	2
23	152889001	THREAD RETAINER	1
24	062670612	SCREW, PAN SM3.57-40X6	2
25-1	152890001	NEEDLE BAR THREAD GUIDE, A	1
25-2	S41222101	NEEDLE BAR THREAD GUIDE, B	1
26	152891101	N-BAR BUSH THREAD GUIDE, D	1
33	S12441001	WASHER	1
27	152881001	NEEDLE COOLER ASSY	1
28	014760632	SET SCREW, SOCKET (CP)SM5.95X6	1
29	152883000	FELT, 8X15.5	1
30	152884001	NEEDLE COOLER THREAD GUIDE	1
31	062670412	SCREW, PAN SM3.57-40X4	1
32	S45083001	FACE PLATE THREAD GUIDE	1
	100400004		1

Page 34 — H . 糸巻関係 / Bobbin winder mechanism

Brother KE-430C parts on page 34
Ref	Part number	Part name	Qty
1-1	S37991109	TOP COVER	1
1-2	S37992100	BOBBIN WINDER ARM	1
1-3	S37993000	PLATE SPRING	1
1-4	048100142	RETAINING RING, EXTERNAL C10	1
1-5	S37994001	BOBBIN WINDER CLAW STUD	1
1-6	S37995101	BOBBIN PRESSER	1
1-7	100402004	SET SCREW, SM3.57	1
1-8	S37996001	BOBBIN WINDER CLAW	1
1-9	014680622	SET SCREW, SOCKET (CP) SM4.37	1
1-10	048050342	RETAINING RING, E5	1
1-11	S37997001	BOBBIN WINDER SHAFT	1
1-12	154528001	BOBBIN WINDER WHEEL	1
1-13	120448001	RUBBER BAND	1
1-14	120990001	SET SCREW, (CP) SM4.37-40X8	2
1-15	S10174000	DUST GUARD PLATE	1
1-16	S37998001	SPRING	1
1-17	157968001	KNIFE	1
1-18	062680512	SCREW, PAN SM4.37-40X5	1
1-19	159574101	TENSION STUD	1
1-20	100136001	TENSION NUT	1
1-21	144110001	TENSION ADJUSTING SPRING	1
1-22	145446001	TENSION DISC	2
1-23	144105000	TENSION SPRING FLANGE WASHER	1
1-24	021680202	NUT, 2 SM4.37	1
1-25	141590001	THREADING BAR, U	1
1-26	100022004	NUT, SM5.95	2
1-27	025680232	WASHER, PLAIN M 4.37	1
2	062681212	SCREW, PAN SM4.37-40X12	2
3	062680612	SCREW, PAN SM4.37-40X6	1
4	025680232	WASHER, PLAIN M 4.37	3
5	S47335101	BOBBIN WINDER PULLEY ASSY	1
	02681212	SCREW, PAN SM4.37-40X12	1

Page 36 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C parts on page 36
Ref	Part number	Part name	Qty
1	S49629201	THREAD TRIMMER CAM	1
2	014770622	SET SCREW, SOCKET (CP) SM6.35	2
3	S38002201	SOLENOID SETTING PLATE	1
5	060681212	SCREW, BIND SM4.37-40X12	2
6	154599000	SOLENOID CUSHION	1
7	S02652001	WASHER	1
8	S23836001	SOLENOID LEVER ASSY	1
8-1	S02654001	SOLENOID LEVER	1
8-2	014680622	SET SCREW, SOCKET (CP) SM4.37	1
9	S38003101	DRIVING LEVER PUSH LEVER	1
10	S49645001	SHOULDER SCREW, SM4.76	1
11	S38004002	DRIVING LEVER STOPPER	1
11	S38004003	DRIVING LEVER STOPPER	1
11	S38004004	DRIVING LEVER STOPPER	1
12	S59893001	BOLT, SOCKET SM4.37-40X10	2
13	148847001	WASHER, PLAIN 4.76	2
14	159905001	ADJUSTING SCREW	1
15	105812003	NUT, SM7.94	1
16	S49644001	DRIVING LEVER GUIDE SHAFT	1
17	231071001	BUSH, 8X15	1
18	S32235001	SPRING, COMPRESSION	1
19	048070342	RETAINING RING, E7	1
20	153596001	WASHER	1
21	154596000	CUSHION	1
22	S49646101	THREAD DRIVING LEVER ASSY	1
22-1	S59874001	THREAD DRIVING LEVER	1
22-2	S59872001	THREAD TRIMMER ROLLER	1
22-3	S59871001	SHOULDER SCREW, SM4.37	1
22-4	S59873001	WASHER, PLAIN	2
22-5	SA0049001	NUT, SM4.37	2
22-6	028680242	WASHER, SPRING 2-4.37	1
23	014770622	SET SCREW, SOCKET (CP) SM6.35	1
24	S02354001	SHOULDER SCREW, B	2
25	100022005	NUT, SM5.95	2
26	S49648001	THREAD TRIMMER ROD ASSY	1
26-1	S49649001	THREAD TRIMMER ROD	1
26-2	141492001	JOINT ASSY	2
26-3	100022005	NUT, SM5.95	2
29	S49650001	THREAD TRIMMER LEVER	1
30	S10195101	THREAD TRIMMER LEVER SHAFT	1
31	110367001	WASHER, PLAIN SPECIAL 8	1
32	048060342	RETAINING RING, E6	1
33	014760622	SET SCREW, SOCKET SM5.95	1
34	S38011001	SPRING, EXTENSION	1
35	S49651001	SPRING HOOK	1
36	110233001	SHOULDER SCREW, SM4.76	1
37	110161004	NUT, SM4.76	1
38	S49994001	WASHER, PLAIN 4.76	2
40	S38012001	CONNECTING ROD LEVER ASSY	1
41	S10202201	LEVER SHAFT	1
42	121007001	SET SCREW, SM4.37	1
43-1	S38015001	NEEDLE PLATE	1
43-2	S40916001	ハリイタC	1
44	S38016001	THREAD CONNECTING ROD	1
45	S49988001	MOVABLE KNIFE ASSY, N	1
46	S10208001	MOVABLE KNIFE SPACER	1
46	S10208002	MOVABLE KNIFE SPACER	1
46	S10208003	MOVABLE KNIFE SPACER	1
	S3235001
	014776062
	S10202001

Page 38 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C parts on page 38
Ref	Part number	Part name	Qty
47	S00705001	MOVABLE KNIFE COLLAR	1
48	S10209101	SCREW, SM4.37	1
49	S10210201	FIXED KNIFE	1
50	111140002	SCREW, SM2.38	2
51	100032004	SCREW, FLAT SM4.37-40X8	2
52	S11244001	SCREW, SM4.37	2
53	*	NEEDLE HOLE PLATE	1
54	100360003	SCREW, FLAT SM2.38	2
55	228475000	FASTENING BAND, 1.9X80	2

Page 40 — K. Thread wiper mechanism / L. Thread take-up mechanism

Brother KE-430C parts on page 40
Ref	Part number	Part name	Qty
1	S49652101	THREAD WIPER DRIVING LEVER	1
2	152822101	THREAD WIPER SHAFT	1
3	025770232	WASHER, PLAIN M 6.35	1
4	048040342	RETAINING RING, E4	1
5	014760622	SET SCREW, SOCKET SM5.95	1
6	S38024001	THREAD WIPER ROD SHAFT	1
7	S38025001	THREAD WIPER ROD ASSY	1
8	145992001	SET SCREW, SM4.37	1
9	048060342	RETAINING RING, E6	1
10	116629001	WASHER	2
11	152823001	THREAD WIPER ARM ASSY	1
11	S41284301	THREAD WIPER ARM ASSY	1
12	048030342	RETAINING RING, E3	1
13	152827001	OIL CAP	1
14	014710522	SEET SCREW, SOCKET (CP) SM4.76	1
15	156206601	THREAD WIPER, A	1
16	062670512	SCREW, pan SM3.57X4.5	2
17	025350132	WASHER, PLAIN S 3.5	2
	S36024001
	S49659001
	062710812	ナベコ476-32X8
	S49660101
	107321003
	S19748001
	047401442	スプリングピンAW4
	S49661101
	S01998001
	110251001
	021670102
	S34883001
	S49663001
	062671012	ナベコ357-40X10
	028350242
	025350332	ヒラザガネL3.5
	S49662001
	15559001
	S49664000
	062670612	ナベコ357-40X6

Page 42 — M . 糸締メ関係 / Thread nipper mechanism

Brother KE-430C parts on page 42
Ref	Part number	Part name	Qty
1	S49665001	TENSION RELEASE ROD ASSY	1
1-1	S49666001	TENSION RELEASE ROD	1
1-2	141492001	JOINT ASSY	1
1-3	100022005	NUT, SM5.95	1
2	145478101	SHOULDER SCREW, SOCKET SM4.76	1
3	S02354001	SHOULDER SCREW, B	1
4	100022005	NUT, SM5.95	1
5	S49653001	TR-RELEASE DRIVING LEVER ASSY	1
5-1	S49654001	TENSION RELEASE DRIVING LEVER	1
5-2	153597001	LOWER THREAD RETAINER COLLAR	1
5-3	S30033001	SHOULDER SCREW, SM3.57	1
5-4	S49655001	COLLAR	1
5-5	106129002	NUT, SM3.57	1
5-6	028350242	WASHER, SPRING 2-3.5	1
6	S49656001	TENSION RELEASE LEVER, U	1
7	S49657001	RELEAASE LEVER U STOPPER	1
8	S19748001	CUSHION	1
9	062680812	SCREW, PAN SM4.37-40X8	2
11	S38032001	TENSION RELEASE LEVER	1
12	S46734001	W-CLAMP LEVER LIFTER SHAFT	1
13	S01998001	SET SCREW, SM3.57-40X6	1
14	S38033001	COLLAR, 13	1
15	048040342	RETAINING RING, E4	2
17	SA0703001	TENSION RELEASE LEVER SPRING	1
18	S31006001	LIFTING LEVER	1
19	S39051001	SCREW, PAN (S/P W) M3.5X12	1
21	S31952001	LIFTING CRANK	1
22	S10239001	TENSION RELEASE STUD	1

Page 44 — N. 針位置検出器関係 / Synchronizer

Brother KE-430C parts on page 44
Ref	Part number	Part name	Qty
1	S48666001	SYNCHRONIZER ASSY	1
2	062400806	SCREW, PAN M4X8	2
4	S38080001	NEEDLE LOWER MAGNET ASSY, D	1
5	S38082001	NEEDLE UPPER MAGNET ASSY, U	2
6	062681412	SCREW, PAN SM4.37-40X14	3
7	025680132	WASHER, PLAIN S 4.37	3
1	S49479001	MAIN PCB ASSY	1
1-1	S29019000	IC:M54640P	4
1-2	S43178000	PHOTO COUPLER:PC9231	6
1-3	093650008	IC:74HC08F	1
1-4	093650032	IC:74HC32F	1
1-5	091170009	IC:74LS09F-T	2
1-6	S49484000	TRANSISTOR, FET:FS10KMJ-2	8
1-7	S49485000	TRANSISTOR, FET:FX6KMJ-2	8
1-8	S49471000	TRANSISTOR, FET:FK18SM-12	6
1-9	S38155000	TRANSISTOR, FET:2SK1306	3
1-10	S50645000	TRANSISTOR, FET:2SK1307	1
1-11	S49486000	TRANSISTOR, FET:2SJ222	1
1-12	U32744000	DIP SWITCH:DSS708	1
1-13	0A4301005	SCREW, PAN (S/P WASHER) M3X10	31
1-14	S48578000	GLASS FUSE, 5A W/LEED WIRE	1
1-15	Y51030150	CAPACITOR, POLYESTER 50B103	1

Page 46 — Q1 . コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 46
Ref	Part number	Part name	Qty
1	S49467001	BOX ASSY	1
1-1	S49468001	POWER SUPPLY BOX	1
1-2	S49469001	MAIN PCB SETTING PLATE	1
1-3	S49470001	BOX COVER	1
1-4	S38093000	HOLDER PLATE	1
1-5	0A5401206	SCREW, PAN (S/P WASHER) M4X12	2
1-6	021400206	NUT, 2 M4	2
1-7	S47692000	FAN MOTOR ASSY, DC	1
1-8	0A5403006	SCREW, PAN (S/P WASHER) M4X30	2
1-9	0A5400806	SCREW, PAN (S/P WASHER) M4X8	1
1-10	0A5401206	SCREW, PAN (S/P WASHER) M4X12	2
1-11	S42260000	FOOT SWITCH HARNESS ASSY, 434	1
1-12	S38107100	CONTROL POWER SUPPLY HARNESS	1
1-13	S38108000	MOTOR POWER SUPPLY HARNESS	1
1-14	S38109100	H-P POWER SUPPLY HARNESS	1
1-15	S38110000	POWER HARNESS	1
1-16	S11949000	RUBBER BUSH	1
1-17	S00554000	SUPPORT, 6NS	17
1-18	S31760000	CORD CLAMP, 26-L	2
1-19	S43275000	CORD CLAMP, WS2NS	6
1-20	S43276000	CORD CLAMP, WS3NS	4
1-21	S43277000	CORD CLAMP, WS4NS	1
1-22	008400604	SCREW, TRUSS M4X6	12
1-23	S38116000	FRAGMENT PROTECTOR NET	1
1-24	S37059001	LABEL, PE	1
1-25	S37060001	LABEL, GROUNDING	1
1-26	S49939101	POWER SUPPLY PCB ASSY	1
1-26-1	S43177000	IC :MA3830	1
1-26-2	S43184000	PHOTO COUPLER :PC923	2
1-26-3	S49586000	TRANSISTOR, FET :2SK1941	2
1-26-4	S38203000	DIODE :YG8022C04R	1
1-26-5	SA0037000	VARISTOR:V14D511	2
1-26-6	232384001	SURGE ABSORBER :DSA362MA	1
1-26-7	S49071000	DIODE BRIDGE :25XB60	1
1-26-8	S38205000	CAPACITOR, ALUM-ELEC 250B182	1
1-26-9	SA1034000	CAPACITOR, ALUM-ELEC 63B562	1
1-26-10	S43175000	TRANSFORMER :54AA159	1
1-26-11	S43176000	TRANSFORMER :35AD199	1
1-26-12	S43181000	COIL :49AD289AC	1
1-26-13	S38208000	RELAY :JW1AFSN/DC 5V	1
1-26-14	153242000	FUSE, 6A	2
1-26-15	S08030000	FUSE, 5A :FB	1
1-26-16	S48580000	FUSE, 7A :FB	1
1-26-17	0A4301005	SCREW, PAN (S/P WASHER) M3X10	8
1-26-18	S43189000	PCB E1 HARNESS	1
1-26-19	S43187000	PCB E2 HARNESS	1
1-26-20	S49472000	THERMISTOR :6D-22	1
1-26-21	S49938000	INSULATION SHEET	1
10	S49477000	PROM CONTROL ASSY	1
10-1	UA4817000	EPROM:27C2001	1
11	S53032000	PROM ASSY, IM	1
11-1	S38143000	LSI:27C512	1
12	228475000	FASTENING BAND, 1.9X80	1
20	S38352101	LABEL, ELEC. SHOCK 4 LANG.	2
	S48560000	GFUSE7AFB

Page 47 — Q1. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 47
Ref	Part number	Part name	Qty
	1-5
	1-4
	1-8
	1-7
	1-6
	1-10
	1-20
	1-22
	10
	10-1
	1-23
	1-21
	12
	1-19
	1-2
	11
	11-1
	54
	1-9
	1-16
	1-25
	1-11
	1-3
	1-17
	1-1
	1-22
	1-15
	1-14
	1-24
	1-13
	1-26-4
	1-26-3
	1-26-22
	1-12
	1-26-1
	1-26-5
	1-26-18
	1-26-10
	1-26-2
	1-26-12
	1-26-21
	1-26-14
	1-26-15
	1-26-6
	1-26-13
	1-26-8
	1-26-11
	1-26-16
	1-26-17
	1-26-20
	1-26-19
	1-26-9
	1-26
	1-26-15
	1-26-6
	1-26-7
	1-26-20
	1-26-10
	1-26-5
	1-26-4
	1-26-3
	1-26-2
	1-26-1
	1-26-9
	1-26-17
	1-26-13
	1-26-11
	1-26-16
	1-26-20

Page 48 — Q1 . コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 48
Ref	Part number	Part name	Qty
21	S38353101		2
54	S55627001	IM LABEL	1
H-1	S53031001	BOX UNIT, A1-IM :3-P. 200/220V	1
H-2	S53033001	BOX UNIT, A2-IM :1-P. 220/230V	1
H-3	S53034001		1
H-4	S53035001	BOX UNIT, B2-IM :1-P. 110V AC	1
H-5	S53036001	BOX UNIT, C1-IM :3-P. 415V AC	1
H-6	S53037001	BOX UNIT, C2-IM :3-P. 380V AC	1
H-7	S53038001	BOX UNIT, C3-IM :1-P. 240V AC	1
H-8	S53039001	BOX UNIT, E-IM :3-P. 400V AC	1
H-9	S53040001	BOX UNIT, F-IM :1-P. 230V AC	1
	S5031001	ボックスソウクミA1-IM	1

Page 50 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 50
Ref	Part number	Part name	Qty
2-1	S38112001	POWER SUPPLY SWITCH ASSY, A	1
2-1-1	S38113000	POWER SUPPLY IN HARNESS, A	1
2-1-2	S38133000	POWER SUPPLY HARNESS	1
2-1-3	J02657001	3P. PUSH SWITCH, #17	1
2-1-4	224514001	INSULATION PLATE	2
2-1-5	218859001	BINDER, M150	2
2-2	S38114000	デンゲンSWクミB	1
2-2-1	S38115000	デンゲンINコードB	1
2-2-2	S38118000		1
2-2-3	J02657001	3PオシSW#17	1
2-2-4	224514001		2
2-2-5	218859001	バインダM150	2
2-3	S38117000	POWER SUPPLY SWITCH ASSY, C	1
2-3-1	S38115000	POWER SUPPLY IN HARNESS, B	1
2-3-2	S38133000	POWER SUPPLY HARNESS	1
2-3-3	J02657001	3P. PUSH SWITCH, #17	1
2-3-4	224514001	INSULATION PLATE	2
2-3-5	218859001	BINDER, M150	2
2-4	S47592000	POWER SUPPLY SWITCH ASSY, D	1
2-4-1	S38113000	POWER SUPPLY IN HARNESS, A	1
2-4-2	S47595000	POWER SUPPLY HARNESS, EXP.	1
2-4-3	J02657001	3P. PUSH SWITCH, #17	1
2-4-4	224514001	INSULATION PLATE	2
2-4-5	218859001	BINDER, M150	2
2-5	S38120000	POWER SUPPLY IN HARNESS, E	1
2-6	S43188000	POWER SUPPLY IN HARNESS, F	1
2-7	S47594000	POWER SUPPLY SWITCH ASSY, G	1
2-7-1	S38115000	POWER SUPPLY IN HARNESS, B	1
2-7-2	S47595000	POWER SUPPLY HARNESS, EXP.	1
2-7-3	J02657001	3P. PUSH SWITCH, #17	1
2-7-4	224514001	INSULATION PLATE	2
2-7-5	218859001	BINDER, M150	2
3-1	S38123000	AC-IN CONNECTOR ASSY	1
3-2	S49473000	CONVERSION TRANSFORMER ASSY, B	1
3-2-1	S49474000	CONVERSION TRANSFORMER, B	1
3-2-2	S38126000	AC-IN HARNESS	1

Page 52 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C parts on page 52
Ref	Part number	Part name	Qty
3-3	S49475000	CONVERSION TRANSFORMER ASSY, C	1
3-3-1	S49476000	CONVERSION TRANSFORMER, C	1
3-3-2	S38126000	AC-IN HARNESS	1
3-4	S43201000	AC-IN HARNESS, F	1
4	018061436	BOLT, SOCKET M6X14	4
5	025060236	WASHER, PLAIN M 6	8
6	021060106	NUT, 1 M6	4
7	028060246	WASHER, SPRING 2-6	4
40	S40635001	NOISE FILTER ASSY, 430E	1
40-1	S40616001	NOISE FILTER ASSY, EMC	1
41	S40620000	PCB SETTING PLATE	1
42	0A4400605	SCREW, PAN (S/P WASHER) M4X6	6
43	S40621000	EMI CORE, ESD-SR-15	1
44	S40622000	EMI CORE, ESD-SR-25	1
45	149809000	BEAD BAND, L=200	2
46	S40621000	EMI CORE, ESD-SR-15	3
47	S40622000	EMI CORE, ESD-SR-25	2
48	149809000	BEAD BAND, L=200	5
49	S40623000	EMI CORE, TR-40-27	1
50	0A5401606	SCREW, PAN (S/P WASHER) M4X16	1
51	025040236	WASHER, PLAIN M 4	1
52	021400106	NUT, 1 M4	1
	021400108		1

Page 54 — R . 電装品関係 / Power supply equipment mechanism

Brother KE-430C parts on page 54
Ref	Part number	Part name	Qty
1	S38134100	PULSE MOTOR ASSY, X	1
2	S38136100	PULSE MOTOR ASSY, Y	1
3	018401222	BOLT, SOCKET M4X12	8
4	552907000	CORD HOLDER, 10N	2
5	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
6	S49463100	HEAD SENSOR ASSY	1
6-1	S56167000	PROXIMITY SENSOR, GL-12NF	1
6-2	S56167001	PROXIMITY SENSOR, GL-12NF	1
6-3	S56167003	PROXIMITY SENSOR, GL-12NF	1
6	S48581100	HEAD SENSOR ASSY, 432	1
6-1	S56167000	PROXIMITY SENSOR, GL-12NF	1
6-2	S56167001	PROXIMITY SENSOR, GL-12NF	1
6-3	S56167003	PROXIMITY SENSOR, GL-12NF	1
6-4	S48582000	SENSOR HARNESS	1
8	062300806	SCREW, PAN M3X8	2
9	062300806	SCREW, PAN M3X8	1
10	552907000	CORD HOLDER, 10N	2
11	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
12	152969001	CORD HOLDER	1
13	062670512	SCREW, PAN SM3.57-40X5	1
14-1	S49979400	PRESSER SOLENOID ASSY	1
14-1-1	S59366000	SHOCK ABSORBER, 1	1
14-1-2	S59367000	SHOCK ABSORBER, 2	1
14-2	S38144100	THREAD TRIMMER SOLENOID ASSY	1
14-3	S38146000	CONNECTOR :3191-04R	1
14-4	S38147000	MARK TUBE, 5	1
15	060501016	SCREW, BIND M5X10	4
16	S38148000	GROUND WIRE, 1	1
17	0A5400806	SCREW, PAN (S/P WASHER) M4X8	1
18	S49464000	THREAD TAKE-UP SOLENOID ASSY	1
19	S00480000	CORD HOLDER, 5N	3
20	060670612	SCREW, BIND SM3.57-40X6	3
21	S49465009	CONNECTOR ASSY, 430C	1
21	S49465001	CONNECTOR ASSY, 431E	1
21	S49465002	CONNECTOR ASSY, 432E	1
22	228475000	FASTENING BAND, 1.9X80	1
23	117150001	CORD HOLDER	1
24	062670612	SCREW, PAN SM3.57-40X6	1
25	218859001	BINDER, M150	1
34	S00480000	CORD HOLDER, 5N	2
35	060670612	SCREW, BIND SM3.57-40X6	2
36	060670612	SCREW, BIND SM3.57-40X6	1
37	060400616	SCREW, BIND M4X6	1
30	S49934009	EM-LOCK SWITCH ASSY	1
30-1	S37057001	EM-SWITCH SPACER, 3	1
30-2	S49482000	EM-LOCK SWITCH & HARNESS ASSY	1
30-2-1	S32335100	SWITCH :AVS311N	1
	0184012222	アナボルト4X12	8
	S5936000		1
	S00460000		3

Page 56 — R . 電装品関係 / Power supply equipment mechanism

Brother KE-430C parts on page 56
Ref	Part number	Part name	Qty
30-2-2	S49466000	EM-SWITCH HARNESS	1
31	062710812	SCREW, PAN SM4.76-32X8	2
32	149287000	CORD HOLDER, 7N	3
33	060670612	SCREW, BIND SM3.57-40X6	3
40	S55629101	HEAD SEITCH ASSY	1
40-1	S55630001	MICRO SWITCH ASSY	1
40-2	S38744101	SWITCH PLATE SPRING	1
40-3	S55632001	SWITCH BRACKET	1
40-4	062020806	SCREW, PAN M2X8	2
40-5	140647101	CORD HOLDER	1
40-6	062400616	SCREW, PAN M4X6	1
40-7	062401216	SCREW, PAN M4X12	1
40-8	026040236	WASHER, PLAIN 4	1
40-9	154514001	SPACER	1
40-10	021400106	NUT, 1 M4	1
41	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
42	552907000	CORD HOLDER, 10N	1
43	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
200	S48583001	SOLENOID ASSY	1
201	062501212	SCREW, PAN M5X12	4
202	025050232	WASHER, PLAIN M 5	4
203	S36048000	PROXIMITY SENSOR, E2R	1
204	062300612	SCREW, PAN M3X6	1
205	S10243000	CORD HOLDER, NK-3N	1
206	062300812	SCREW, PAN M3X8	1
	S36046000	PROXIMITY SENSOR, E2R	1

Page 58 — S. 操作パネル関係 / Operation panel mechanism

Brother KE-430C parts on page 58
Ref	Part number	Part name	Qty
1	S55889001	OPERATION PANEL UNIT	1
1-1	S55890001	OPERATION PANEL ASSY, IM	1
1-1-1	S55891000	FRONT FRAME ASSY, IM	1
1-1-2	S52091000	REAR FRAME ASSY	1
1-1-3	S49495000	PANEL SIDE COVER	1
1-1-4	S49496001	PANEL SIDE COVER GUIDE	1
1-1-5	087310815	TAPTITE, CUP B M3X8	2
1-1-6	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
1-1-7-1	S49497001	PANEL PCB ASSY	1
1-1-7-2	S29023000	LED :GL9P040	4
1-1-7-3	S46703000	LED :PG5307S	7
1-1-7-4	S48579000	SWITCH :B3F-4050	10
1-1-7-5	U34870001	DIP SWITCH:KSP08	1
1-1-7-6	S30280000	BUZZER :PKB24SPC36	1
1-1-7-7	UL0025000	CONNECTOR:3429-6002SC	1
1-1-8	S49510000	PANEL HARNESS ASSY	1
1-1-9	087311015	TAPTITE, CUP B M3X10	2
1-1-10	XA2220050	PCB HOLDER	2
1-2	062300806	SCREW, PAN M3X8	4
1	J80868001	CIM MOTOR ASSY, 430	1
2	S53055100	HARNESS ASSY, IM	1
	S5589001		1
	D62300806	ナベコ3X8	4

Page 60 — U1 . 踏板関係 / Foot switch pedal mechanism

Brother KE-430C parts on page 60
Ref	Part number	Part name	Qty
1-1	S49667101	2-STEP FOOT SWITCH SET	1
1-1-1	S49668101	2-STEP FOOT SWITCH ASSY	1
1-1-1-1	S49669100	FOOT PEDAL BASE ASSY	1
1-1-1-2	S49672001	2-STEP SWITCH PIN	1
1-1-1-3	S38168001	SPRING, COMPRESSION 10X30	1
1-1-1-4	S38169201	FOOT SWITCH SUPPORT PLATE, B	1
1-1-1-5	004400603	SCREW, FLAT M4X6	2
1-1-1-6	S38170001	FOOT PEDAL SPRING	1
1-1-1-7	S54648000	FOOT SWITCH HARNESS ASSY	1
1-1-1-7-1	S54646000	FOOOT SWITCH HARNESS	1
1-1-1-7-1-1	S54644000	TERMINAL, FEMAIL	2
1-1-1-7-1-2	S54645000	INSULATION COVER	2
1-1-1-7-2	S36260000	MICRO SWITCH, VX :PIN BUTTON	2
1-1-1-8	062302506	SCREW, PAN M3X25	2
1-1-1-9	S51451000	FOOT PEDAL	1
1-1-1-10	S49673000	PEDAL PROTECTION PLATE	1
1-1-1-11	S49674001	SWITCH PRESSER SPRING	1
1-1-1-12	S38177001	FOOT PEDAL SHAFT	1
1-1-1-13	048050346	RETAINING RING, E5	2
1-1-1-14	052400606	SCREW, PAN (S/P WASHER) M4X6	2
1-1-1-15	025040236	WASHER, PLAIN M 4	1
1-1-1-16	117936001	RUBBER CAP, 9.4	4
1-1-1-17	S38180000	CONNECTOR :172169-1	1
1-1-1-18	S36682000	CONNECTOR CAP	1
1-1-1-19	S46694000	CORD BUSH :KR61A	1
1-1-2	S38178101	FOOT SWITCH SUPPORT PLATE, A	1
1-1-3	S38179101	FOOT SWITCH SUPPORT PLATE, C	1
1-1-4	018082536	BOLT, SOCKET M8X25	2
1-1-5	028080246	WASHER, SPRING 2-8	2
1-1-6	025080236	WASHER, PLAIN M 8	2
1-1-7	018501036	BOLT, SOCKET M5X10	2
1-1-8	028050246	WASHER, SPRING 2-5	2
1-1-9	025050236	WASHER, PLAIN M 5	2
1-1-10	018401236	BOLT, SOCKET M4X12	2
1-1-11	028040246	WASHER, SPRING 2-4	2
1-1-12	025040236	WASHER, PLAIN M 4	2

Page 62 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C parts on page 62
Ref	Part number	Part name	Qty
1-2	S49675101	2-PEDAL FOOT SWITCH SET	1
1-2-1	S49676101	2-PEDAL FOOT SWITCH ASSY	1
1-2-1-1	S49669100	FOOT PEDAL BASE ASSY	2
1-2-1-2	S38169201	FOOT SWITCH SUPPORT PLATE, B	2
1-2-1-3	004400603	SCREW, FLAT M4X6	4
1-2-1-4	S38170001	FOOT PEDAL SPRING	2
1-2-1-5	S54649000	2-PEDAL FOOT SW HARNESS ASSY	1
1-2-1-5-1	S54647000	2-PEDAL FOOT SWITCH HARNESS	2
1-2-1-5-1-1	S54644000	TERMINAL, FEMAIL	4
1-2-1-5-1-2	S54645000	INSULATION COVER	4
1-2-1-5-2	S36260000	MICRO SWITCH, VX :PIN BUTTON	2
1-2-1-6	062301205	SCREW, PAN M3X12	4
1-2-1-7	228475000	FASTENING BAND, 1.9X80	8
1-2-1-8	S51451000	FOOT PEDAL	2
1-2-1-9	S49673000	PEDAL PROTECTION PLATE	2
1-2-1-10	S49674001	SWITCH PRESSER SPRING	2
1-2-1-11	S38177001	FOOT PEDAL SHAFT	2
1-2-1-12	048050346	RETAINING RING, E5	4
1-2-1-13	052400606	SCREW, PAN (S/P WASHER) M4X6	4
1-2-1-14	025040236	WASHER, PLAIN M 4	2
1-2-1-15	117936001	RUBBER CAP, 9.4	8
1-2-1-16	S38180000	CONNECTOR :172169-1	1
1-2-1-17	S38060000	CONNECTOR CAP, 18X19	1
1-2-1-18	S46694000	CORD BUSH :KR61A	2
1-2-2	S38178101	FOOT SWITCH SUPPORT PLATE, A	2
1-2-3	S38179101	FOOT SWITCH SUPPORT PLATE, C	2
1-2-4	018082536	BOLT, SOCKET M8X25	4
1-2-5	028080246	WASHER, SPRING 2-8	4
1-2-6	025080236	WASHER, PLAIN M 8	4
1-2-7	018501036	BOLT, SOCKET M5X10	4
1-2-8	028050246	WASHER, SPRING 2-5	4
1-2-9	025050236	WASHER, PLAIN M 5	4
1-2-10	018401236	BOLT, SOCKET M4X12	4
1-2-11	028040246	WASHER, SPRING 2-4	4
1-2-12	025040236	WASHER, PLAIN M 4	4
	028050236	WASHER, SPRING 2-5	4
	028040236	WASHER, SPRING 2-4	4

Page 64 — U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C parts on page 64
Ref	Part number	Part name	Qty
2	S46131001	2-STEP FOOT SWITCH SET, OP	1
2-1	S46132001	2-STEP FOOT SWITCH ASSY, OP	1
2-1-1	S46133001	SWITCH BRACKET	1
2-1-2	S46134001	FOOT SWITCH LEVER	1
2-1-3	148904001	SHOULDER SCREW, SM7.94	1
2-1-4	025080236	WASHER, PLAIN M 8	1
2-1-5	101268002	NUT, SM7.94	1
2-1-6	S46135001	FOOT SWITCH SPRING	1
2-1-7	S46136000	FOOT SWITCH HARNESS ASSY, OP	1
2-1-8	UD2390001	SCREW, PAN (S/P WASHER) M3X20	4
2-1-9	025030236	WASHER, PLAIN M 3	2
2-1-10	021300206	NUT, 2 M3	2
2-1-11	052400806	SCREW, PAN (S/P WASHER) M4X8	2
2-1-12	S00480000	CORD HOLDER, 5N	1
2-2	100666002	WOOD SCREW, ROUND M5.5X20	2
2-3	200190001	STAPLE	3
2-4	S01603009	TREADLE ASSY	1
2-4-1	S01199003	TREADLE PEDAL	1
2-4-2	133188001	TREADLE SHAFT	1
2-4-3	119707003	TREADLE SHAFT BRACKET	2
2-4-4	119708001	TREASLE BUSHING COLLAR	2
2-4-5	017082206	BOLT, M8X22	2
2-4-6	116694001	NUT, SQUARE M8	2
2-4-7	028080240	WASHER, SPRING 2-8	2
2-4-8	025080236	WASHER, PLAIN M 8	2
2-5	142656001	CHAIN ASSY	1
3	S49443000	CONTACT :170364-1	1

Page 65 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother KE-430C parts on page 65
Ref	Part number	Part name	Qty
	20-5-7-1
	20-5-7-2
	20-5-8
	20-15
	20-16
	20-14
	20-5-7
	20-5
	20-5-10
	20-5-9
	20-5-12
	20-5-11
	20-10
	20-11
	20-8
	20-5-6
	20-9
	20-1
	20-12
	20-5-1
	20-5-5
	20-5-2
	20-3
	20-5-1-1
	20-2
	20-7
	20-5-13
	20-17
	20-5-4
	20-5-3
	20-6
	20-4
	20-13

Page 66 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother KE-430C parts on page 66
Ref	Part number	Part name	Qty
20	S49615009	SOL. TYPE THREAD WIPER ASSY	1
20-1	S41656001	TR-WIPER CONNECTING ROD ASSY	1
20-2	S44600001	THREAD WIPER ARM ASSY	1
20-3	153112001	SHOULDER SCREW, SM3.57	1
20-4	021670202	NUT, 2 SM3.57	1
20-5	S49616009	SOLENOID BOX ASSY	1
20-5-1	S49619001	THREAD WIPER SOLENOID ASSY	1
20-5-1-1	S41204050	PLUNGER RUBBER	1
20-5-2	062300612	SCREW, PAN M3X6	4
20-5-3	S41205001	WASHER, PLAIN	1
20-5-4	S41206001	THREAD WIPER SPRING	1
20-5-5	S25456001	PLUNGER PIN	2
20-5-6	S42017109	W-SOLENOID SETTING PLATE	1
20-5-7	S49482000	EM-LOCK SWITCH & HARNESS ASSY	1
20-5-7-1	S32335000	SWITCH :AVS311N	1
20-5-7-2	S49466000	EM-SWITCH HARNESS	1
20-5-8	S37057001	EM-SWITCH SPACER, 3	1
20-5-9	S42018109	WIPER SOLENOID COVER	1
20-5-10	008400604	SCREW, TRUSS M4X6	2
20-5-11	S37806109	SOLENOID COVER LID, E	1
20-5-12	008400604	SCREW, TRUSS M4X6	2
20-5-13	115007001	WASHER, PLAIN 13	1
20-6	S41207000	SPACER RUBBER	1
20-7	S25456001	PLUNGER PIN	1
20-8	018400632	BOLT, SOCKET M4X6	2
20-9	100645003	WASHER	2
20-10	S41657001	TENSION RELEASE ROD, DW	1
20-11	061350616	SCREW, FLAT M3.5X6	1
20-12	062680812	SCREW, PAN SM4.37-40X8	2
20-13	156206001	THREAD WIPER, A	1
20-14	S49947000	CONNECTOR:VHR-5N	1
20-15	060670612	SCREW, BIND SM3.57-40X6	3
20-16	149287000	CORD HOLDER, 7N	3
20-17	104449001	RUBBER CAP, 15.5	1
	S49815009

Page 68 — Z1 . 付属品関係 / Accessories

Brother KE-430C parts on page 68
Ref	Part number	Part name	Qty
4	S38039209	OIL PAN ASSY	1
4-1	S38040209	OIL PAN	1
4-2	154467001	DUST OILER	1
4-3	037301215	TAPPING SCREW, PAN V M3X12	2
4-4	S18093100	WICK, 4X4 L=1100	1
5	109714000	NAIL	5
6	114486002	OILER	1
9	143882001	HEAD HINGE	2
10	014760622	SET SCREW, SOCKET SM5.95	2
11	S49603000	RUBBER CUSHION	2
12	109714000	NAIL	4
14	122991001	ACCESSORY BAG	1
18	S10208001	MOVABLE KNIFE SPACER	1
18	S10208002	MOVABLE KNIFE SPACER	1
18	S10208003	MOVABLE KNIFE SPACER	1
19	S38045109	HEAD REST ASSY	1
20	S49604000	RUBBER CUSHION	2
21	109714000	NAIL	2
22	114483002	OILER ASSY	1
23	S55663001	OIL TANK ASSY	1
24	S08170001	SCREW-DRIVER, Z-TYPE	1
26	142443001	SCREW-DRIVER, 1.9X52	1
27	118837001	SCREW-DRIVER, 3.4X70	1
28	101572101	SCREW-DRIVER, 5.5X190	1
29	107779001	WRENCH, 6X7	1
30	100887001	WRENCH, 8X9	1
31	107780001	WRENCH, 10X12	1
33	142721001	HEXAGONAL WRENCH, 3	1
34	118064001	HEXAGONAL WRENCH, 4	1
42	200190001	STAPLE	5
51	144226001	HEAD COVER	1
52	S33006001	MOTOR SPACER	4
55	133740006	BOLT, SQUARE M6X70	4
56	021060106	NUT, 1 M6	8
57	025060336	WASHER, PLAIN L 6	4
58	032461606	WOOD SCREW, ROUND M4.5X16	2
59	S38044001	HINGE PRESSER	1
61	031412506	WOOD SCREW, ROUND M4.1X25	4
62	200190001	STAPLE	3
64	S41222101	NEEDLE BAR THREAD GUIDE, B	1
70	S55633001	SWITCHING PLATE	1
71	032422003	WOOD SCREW, ROUND M4.1X20	2

Page 70 — Z1.付属品関係 / Accessories

Brother KE-430C parts on page 70
Ref	Part number	Part name	Qty
75	S55311001	ベルトカバーIMクミ	1
75-1	S51097000	ベルトカバーIM	1
75-2	S38350001		1
75	S55311002	BELT COVER ASSY, IM	1
75-1	S51097000	BELT COVER, IM	1
75-2	S38349001	LABEL, OPERATION ENG.	1
76	062401006	SCREW, PAN M4X10	2
101	S08030000	FUSE, 5A :FB	1
102	153242000	FUSE, 6A	1
103	S48580000	FUSE, 7A :FB	1
920	018405032	BOLT, SOCKET M4X50	2
921	021400102	NUT, 1 M4	2
15	S06706001	SILICONE OIL	1
901	UA4817000	EPROM:27C2001	1
902	S60400000	CONDUCTIVE PAD, 30X50	2
903	S60711001	PROM CARTON BOX	1
911	156006001	WORK CLAMP, U	2
912	017680512	BOLT, SM4.37X5	2
	017660512	ボルト4.37X5	2

Page 72 — Z2. 付属品関係 / Accessories

Brother KE-430C parts on page 72
Ref	Part number	Part name	Qty
35-1	S02763402	COTTON STAND ASSY, 2DR	1
35-1-1	S51283001	SPOOL STAND BASE	2
35-1-2	150182000	SPOOL MAT	2
35-1-3	S51282001	SPOOL CUSHION	2
35-1-4	S02777001	PIPE (D) SCREW SET, B	1
35-1-4-1	150206002	WASHER, PLAIN 16	1
35-1-4-2	S38648001	NUT, U5/8-28	1
35-1-4-3	150174000	COLUMN CAP	1
35-1-4-4	S01005000	RUBBER WASHER	2
35-1-4-5	S02747101	SPRING	1
35-1-5	S40640001	COLUMN PIPE W/CAP	1
35-1-5-1	150174000	COLUMN CAP	1
35-1-6	156112003	COLUMN PIPE, D	1
35-1-7	150173003	COLUMN JOINT	1
35-1-8	S21798001	SPOOL & SCREW SET	2
35-1-8-1	150179002	SPOOL SHAFT, B	2
35-1-8-2	028050246	WASHER, SPRING 2-5	2
35-1-8-3	021500106	NUT, 1 M5	2
35-1-9	S02778002	SPOOL HOLDER, 2	1
35-1-10	S02786002	THREAD HANGER ASSY, 2	1
35-1-10-1	S02787002	THREAD HANGER, 2	1
35-1-10-2	150183000	THREAD HANGER BASE	2
35-1-10-3	142990001	THREAD BUSH	2
35-1-11	S40641001	SPOOL SHAFT & SCREW SET, A	1
35-1-11-1	021500106	NUT, 1 M5	4
35-1-11-2	062501406	SCREW, PAN M5X14	1
35-1-11-3	S59931001	SCREW, PAN M5X32	1
35-1-11-4	062501406	SCREW, PAN M5X14	2
35-1-11-5	026050136	WASHER, PLAIN S 5	2
67-1	S49602201	EYE GUARD SET, C	1
67-1-1	S44493101	EYE GUARD ASSY	1
67-1-1-1	S44483001	HINGE ASSY	1
67-1-1-2	S44485001	EYE GUARD	1
67-1-1-3	061660806	SCREW, FLAT SM3.18-40X8	2
67-1-1-4	021660102	NUT, 1 SM3.18	2
67-1-1-5	026030232	WASHER, PLAIN M 3	2
67-1-1-6	S44486101	EYE GUARD HOLDER, A	1
67-1-1-7	062670512	SCREW, PAN SM3.57-40X5	2
67-1-2	062671016	SCREW, PAN SM3.57-40X10	2
35-2	S40574109	COTTON STAND ASSY, 2DTHF	1
35-2-1	S51283001	SPOOL STAND BASE	2
35-2-2	150182000	SPOOL MAT	2
35-2-3	S51282001	SPOOL CUSHION	2
35-2-4	S02775001	PIPE SCREW SET, A	1
35-2-4-1	150206002	WASHER, PLAIN 16	1
35-2-4-2	S38648001	NUT, U5/8-28	1
35-2-5	S04109001	THREAD GUIDE SUPPORT BAR	1
35-2-6	142997001	THREAD GUIDE, 3	1
35-2-7	S40640001	COLUMN PIPE W/CAP	1
35-2-7-1	150174000	COLUMN CAP	1
35-2-8	156112003	COLUMN PIPE, D	1
35-2-9	150173003	COLUMN JOINT	1
	S21796001	SPOOL & SCREW SET	2
	S02776002	THREAD HANGER ASSY, 2	1
	S02767000	THREAD HANGER, 2	1
	150163000	THREAD HANGER BASE	2

Page 73 — Z2.付属品関係 / Accessories

Brother KE-430C parts on page 73
Ref	Part number	Part name	Qty
35-2-10	S21798001	SPOOL & SCREW SET	2
35-2-10-1	150179002	SPOOL SHAFT, B	2
35-2-10-2	028050246	WASHER, SPRING 2-5	2
35-2-10-3	021500106	NUT, 1 M5	2
35-2-11	150185009	THREAD GUIDE HOLDER	1
35-2-12	138843001	JOINT	1
35-2-13	S02778002	SPOOL HOLDER, 2	1
35-2-14	S02786002	THREAD HANGER ASSY, 2	1
35-2-14-1	S02787002	THREAD HANGER, 2	1
35-2-14-2	150183000	THREAD HANGER BASE	2
35-2-14-3	142990001	THREAD BUSH	2
35-2-15	S40641001	SPOOL SHAFT & SCREW SET, A	1
35-2-15-1	021500106	NUT, 1 M5	4
35-2-15-2	062501406	SCREW, PAN M5X14	1
35-2-15-3	S59931001	SCREW, PAN M5X32	1
35-2-15-4	062501406	SCREW, PAN M5X14	2
35-2-15-5	026050136	WASHER, PLAIN S 5	2
35-2-16	S40643001	HOLDER JOINT & SCREW SET	1
35-2-16-1	014060632	SET SCREW, SOCKET (CP) M6X6	2
35-2-16-2	021500106	NUT, 1 M5	1
35-2-16-3	S59931001	SCREW, PAN M5X32	1
67-2	S50000201	EYE GUARD SET, D	1
67-2-1	S36685101	EYE GUARD ASSY	1
67-2-1-1	S36686101	EYE GUARD SUPPORT PLATE	1
67-2-1-2	S52097001	EYE GUARD	1
67-2-1-3	062660712	SCREW, PAN SM3.18-40X7	2
67-2-1-4	025660132	WASHER, PLAIN S 3.18	2
67-2-1-5	021660102	NUT, 1 SM3.18	2
67-2-2	062671016	SCREW, PAN SM3.57-40X10	2
	S36665101		1
	S36666101	HOLDER JOINT & SCREW SET	1

Page 74 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Brother KE-430C parts on page 74
Ref	Part number	Part name
(J-53)	S10212-101	Needle hole plate
(J-53)	S49980-001	Needle hole plate
(J-53)	S10211-001	Needle hole plate
(E-24)	152690-401	Bobbin case assy
(E-24)	159610-301	Bobbin case assy
(E-24)	S59221-001	Bobbin case assy
(E-24)	159610-301	Bobbin case assy
(E-24-1)	154340-101	Tension spring
(E-24-1)	154339-101	Tension spring
(E-24-1)	S48664-001	Tension spring
(E-24-1)	154339-101	Tension spring
(E-24-2)	154341-001	Screw
(E-24-2)	S16492-101	Screw
(E-24-2)	154341-001	Screw
(E-24-3)	154342-001	Spring, anti-spin
(E-24-3)	159612-001	Spring, anti-spin
(E-24-3)	S15667-001	Spring, anti-spin
(E-24-3)	S15667-001	Spring, anti-spin
(E-24-3)	159612-001	Spring, anti-spin
(E-25)	159613-051	Bobbin
(E-25)	S15665-001	Bobbin
(E-25)	159613-051	Bobbin
(E-22)	SA1882-001	Shuttle hook assy, w/box
(E-22)	SA1881-001	Shuttle hook assy, w/box
(E-22)	SA1890-001	Shuttle hook assy, w/box
(E-22)	SA2173-001	Shuttle hook assy, w/box
(E-22)	SA1881-001	Shuttle hook assy, w/box
(E-21)	152686-101	Shuttle race body
(E-21)	152682-101	Shuttle race body
(G-14)	107606-001	Spring, tension
(G-14)	104525-001	Spring, tension
(G-10)	144588-001	Thread take-up spring
(G-10)	145519-001	Thread take-up spring

Page 75 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Brother KE-430C parts on page 75
Ref	Part number	Part name
G-25	152890-001	Needle bar Thread guide
G-25	S41222-101	Needle bar Thread guide
G-25	S41222-101	Needle bar Thread guide
Z1-17	SA1579-019	Needle assy
Z1-17	SA1752-014	Needle assy
Z1-17	SA1752-009	Needle assy
B1-26	S37928-019	Needle
B1-26	107415-014	Needle
B1-26	107415-009	Needle
C2-37	S49591-301	Work clamp arm assy
C2-37	S49594-301	Work clamp arm assy
C2-37	S51095-301	Work clamp arm assy
C2-37-8, 37-9	153608-101	Work clamp, U
C2-37-8, 37-9	152777-001	Work clamp, U
C2-37-8, 37-9	S49695-001	Work clamp, U
C2-100	S49697-001	Feed plate
C2-100	S49698-001	Feed plate
C2-100	S49696-001	Feed plate
	154527-001	Work clamp
	152778-001	Work clamp
	S49694-001	Work clamp

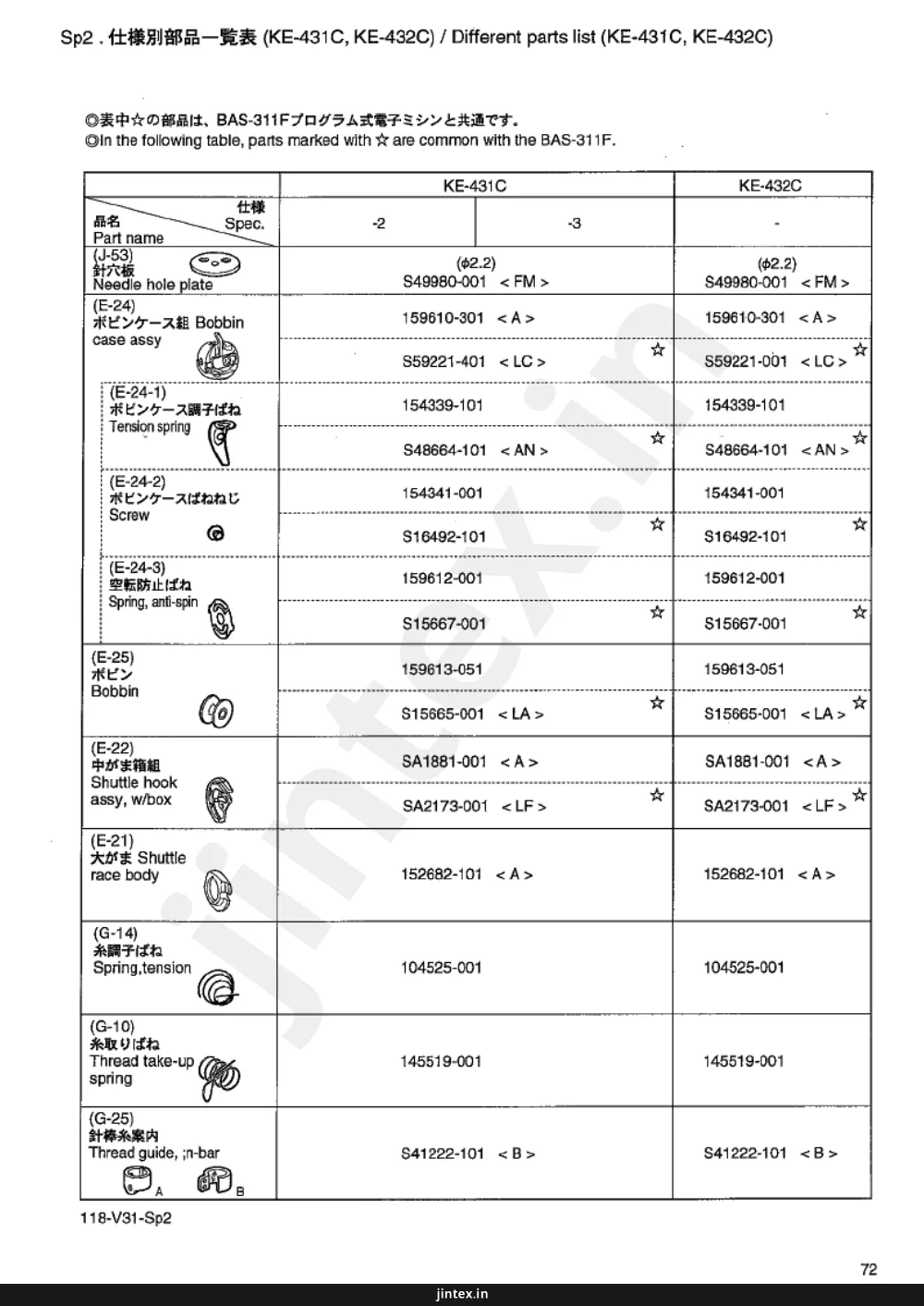

Page 76 — Sp2 . 仕様別部品一覧表 (KE-431C, KE-432C) / Different parts list (KE-431C, KE-432C)

Brother KE-430C parts on page 76
Ref	Part number	Part name
(J-53)	S49980-001	Needle hole plate
(E-24)	159610-301	Bobbin case assy
(E-24)	S59221-401	Bobbin case assy
(E-24-1)	154339-101	Tension spring
(E-24-1)	S48664-101	Tension spring
(E-24-2)	154341-001	Screw
(E-24-2)	S16492-101	Screw
(E-24-3)	159612-001	Spring, anti-spin
(E-24-3)	S15667-001	Spring, anti-spin
(E-25)	159613-051	Bobbin
(E-25)	S15665-001	Bobbin
(E-22)	SA1881-001	Shuttle hook assy, w/box
(E-22)	SA2173-001	Shuttle hook assy, w/box
(E-21)	152682-101	Shuttle race body
(G-14)	104525-001	Spring,tension
(G-10)	145519-001	Thread take-up spring
(G-25)	S41222-101	Thread guide, yarn-bar

Page 77 — Sp2 . 仕様別部品一覧表 (KE-431C, KE-432C) / Different parts list (KE-431C, KE-432C)

Brother KE-430C parts on page 77
Ref	Part number	Part name
Z1-17	SA1752-014	Needle assy
B1-26	107415-014	Needle
C3-37	S51848-101	Work clamp arm assy
C3-37	S51851-101	Work clamp arm assy
C4-37	S41024-100	Work clamp arm assy
C3-37-10	154416-201	Work clamp, U
C3-37-10	154417-201	Work clamp, U
C3-100	S51853-001	Feed plate
C3-100	S51852-001	Feed plate
C4-100	S51084-001	Feed plate

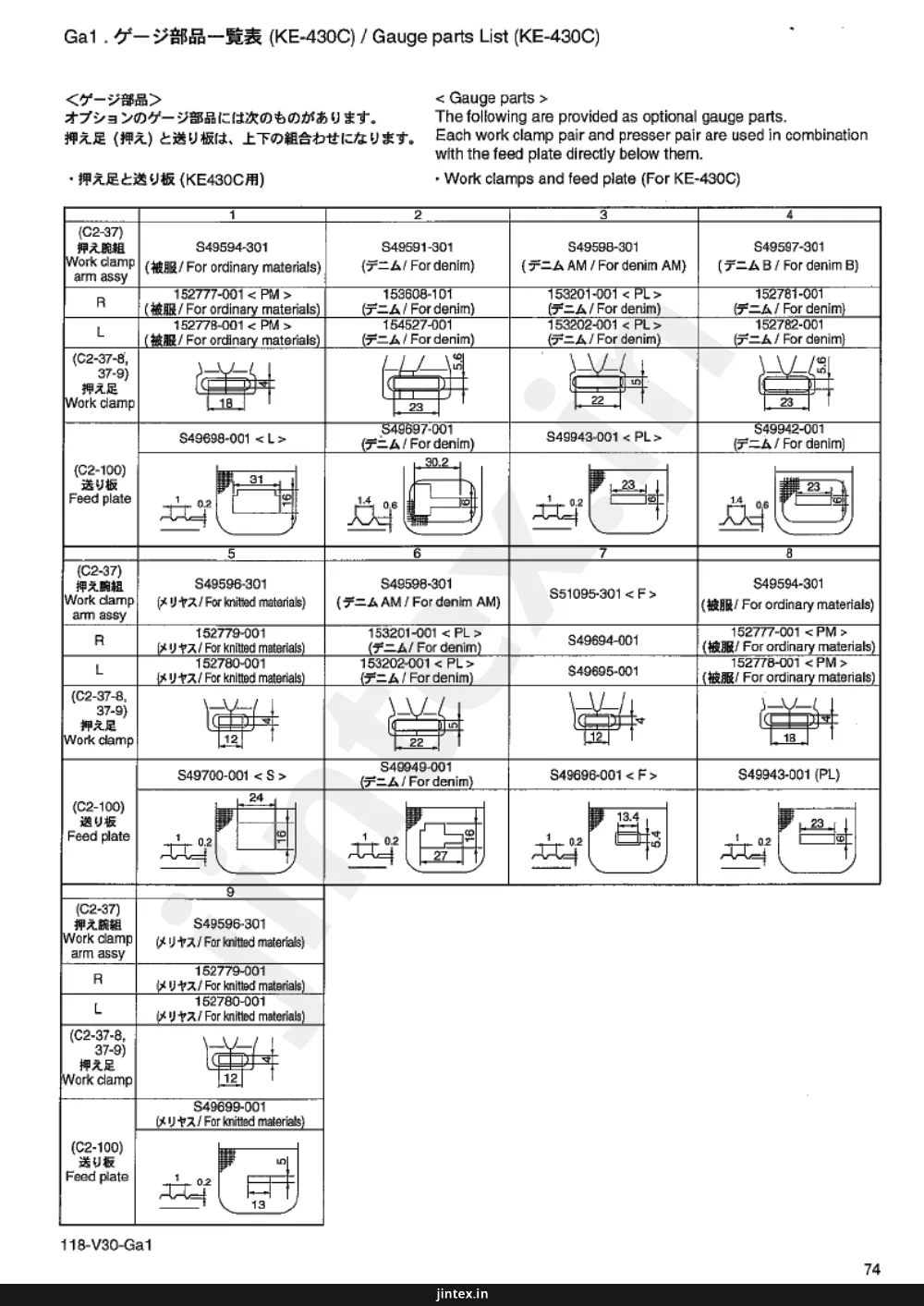

Page 78 — Ga1 . ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C parts on page 78
Ref	Part number	Part name	Qty
	S49594-301
	152777-001 < PM >
	152778-001 < PM >
	S49698-001 < L >
	S49591-301
	153608-101
	154527-001
	S49697-001
	S49598-301
	153201-001 < PL >
	153202-001 < PL >
	S49943-001 < PL >
	S49597-301
	152781-001
	152782-001
	S49942-001
	S49596-301
	152779-001
	152780-001
	S49700-001 < S >
	S49598-301
	153201-001 < PL >
	153202-001 < PL >
	S49949-001
	S51095-301 < F >
	S49694-001
	S49695-001
	S49696-001 < F >
	S49594-301
	152777-001 < PM >
	152778-001 < PM >
	S49943-001 (PL)
	S49596-301
	152779-001
	152780-001
	S49699-001

Page 79 — Ga1. ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C parts on page 79
Ref	Part number	Part name	Qty
	153203-001	PS
	153204-001	PS
	S49944-001	PS
	S00906-001	25.4mm
	S00907-001	25.4mm
	S49946-001	25.4mm
	S33747-001	30mm
	S33748-001	30mm
	S49948-001	30mm
	S59903-001	Work clamp arm assy, AW / 30X26mm用
	S59909-001	Work clamp arm assy, W / 30X26mm用
	155994-000	Work clamp blank
	155994-000	Bolt, socket SM 4.37x5
	S49976-100	Feed plate blank
	S49977-100	Feed plate blank
	S49978-100	Feed plate blank, Without lozenge
	S46771-001	For straight bar tacking
	S46771-001	For straight bar tacking/submerged
	S46770-001	For straight bar tacking
	S46770-001	For straight bar tacking/submerged
	S49970-001	For straight bar tacking
	S49974-001	For straight bar tacking/submerged
	S49941-001	PM
	S49945-001	MS

Page 80 — Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C parts on page 80
Ref	Part number	Part name	Qty
	S46774-001	For vertical bar tacking
	S46774-001	For vertical bar tacking/submerged
	S46777-001	For circular stitching
	S46780-001	For crescent bar tacking
	S46773-001	For vertical bar tacking
	S46773-001	For vertical bar tacking/submerged
	S46776-001	For circular stitching
	S46779-001	For crescent bar tacking
	S49971-001	For vertical bar tacking
	S49975-001	For vertical bar tacking/submerged
	S49972-001	For circular stitching
	S49973-001	For crescent bar tacking
	156006-001	Work clamp bolt set
	017680-512	Bolt
	156006-001	Work clamp bolt set
	017680-512	Bolt
	156006-001	Work clamp bolt set
	017680-512	Bolt
	156006-001	Work clamp bolt set
	017680-512	Bolt
	S46775-001	(糊門止/For vertical bar tacking/submerged)

Page 81 — Gauge parts List (KE-431C)

Brother KE-430C parts on page 81
Ref	Part number	Part name	Qty
	S51848-101 < S >	Work clamp arm assy
	S51851-101 < L >	Work clamp arm assy
	154416-201 < S >	Work clamp
	154416-201	Work clamp
	S51853-001 < S >	Feed plate
	S51852-001 < L >	Feed plate
	S42902-001 < 438E >	Gauge assy
	S51848-101	Work clamp arm assy
	S51851-101	Work clamp arm assy
	154417-201	Work clamp arm assy
	S51853-001	Work clamp
	S51852-001	Work clamp
	S42902-001	Home position standard plate / Screw
	S42903-001	Gauge assy
	S10352-101	Gauge assy

Page 82 — Ga3. ゲージ部品一覧表 / Gauge parts List

Brother KE-430C parts on page 82
Ref	Part number	Part name	Qty
	S10211-001
	S51449-001	A-F
	S41013-001	BZ
	S29997-001	D
	S10212-101	E
	S30925-001	ED
	S10213-001	F
	S30926-001	FD
	S49980-001	FM
	S59620-001	FZ
	S30450-001	H
	S25127-001	L
	S34348-001	M
	S40217-001
	S10212-101	E
	S49980-001	FM
	S10211-001	A
	S49980-001	FM
	S49980-001	FM
	S49980-001	FM

Page 83 — Wa. 警告ラベル / Warning labels

Brother KE-430C parts on page 83
Ref	Part number	Part name	Qty
	S38353-101
	S38352-101	Label, elec. shock 4 lang.
	S38350-001
	S38349-001	Label, operation Eng.
	S37059-001	Label, PE
	S37060-001	Label, grounding

Page 84

Brother KE-430C parts on page 84
Ref	Part number	Part name
56	004400603	U1-1-1-5
58	004400603	U2-1-2-1-3
42	008400604	Q1-1-22
62	008400604	V-20-5-10
62	008400604	V-20-5-12
2	011679312	A-101
69	014060632	Z2-35-16-1
14	014680622	C4-205
22	014680622	E-3
30	014680622	H-1-9
32	014680622	J-8-2
36	014710522	K-14
8	014780622	C1-4-4
8	014780622	C1-6
8	014780622	C1-10
8	014780622	C1-13
8	014780622	C1-21
8	014780622	C1-30
10	014780622	C2-37-7
10	014780622	C2-37-24
12	014780622	C3-37-6
12	014780622	C3-37-20
18	014780622	D1-13
20	014780622	D2-13
20	014780622	D2-36
22	014780622	E-7
22	014780622	E-10
22	014780622	E-15
32	014780622	J-33
36	014780622	K-5
64	014780622	Z1-10
28	014760632	G-28
12	014770622	C3-37-9
22	014770622	E-13-1
32	014770622	J-2
32	014770622	J-23
4	014770632	B1-4
4	014780622	B1-5
4	014780622	B1-17
60	017082206	U3-2-45
2	017680512	A-15
6	017680512	B2-49
66	017680512	Z1-912
75	017680512	Ga1-211
14	017761212	C4-42
10	017781412	C2-42
12	017781412	C3-42
16	017781412	C4-206
20	017813733	D2-39
6	018051022	B2-41
14	018061436	C4-37-33
20	018061622	D2-34
16	018062036	C4-221
6	018062522	B2-42
56	018082536	U1-1-1-4
58	018082536	U2-1-2-4
6	018083022	B2-37
62	018400632	V-20-8
10	018400822	C2-47
12	018400822	C3-47
50	018401222	R-3
6	018401236	B2-30-4
56	018401236	U1-1-1-10
58	018401236	U2-1-2-10
58	018401622	U2-1-2-10
66	018405032	Z1-920
10	018500822	C2-37-15
12	018500822	C3-37-8
12	018500822	C3-37-13
10	018501022	C2-500-5
56	018501036	U1-1-1-7
58	018501036	U2-1-2-7
18	018501232	D1-28
20	018501422	D2-26
20	018501422	D2-36
75	018680252	Ga1
6	021060102	B2-43
48	021060106	Q2-6
64	021060106	Z1-56
16	021060306	C4-223
60	021300206	U3-2-1-10
14	021400102	C4-37-13
66	021400102	Z1-921
48	021400106	Q2-52
42	021400206	Q1-1-6
68	021500106	Z2-35-1-8-3
68	021500106	Z2-35-1-11-1
69	021500106	Z2-35-2-10-3
69	021500106	Z2-35-2-15-1
69	021500106	Z2-35-2-16-2
68	021660102	Z2-67-1-4
69	021660102	Z2-67-2-1-5
36	021670102	L-10
62	021670202	V-20-4
14	021680202	C4-37-7
14	021710212	C4-37-18
60	025030236	U3-2-1-9
48	025040236	Q2-51
56	025040236	U1-1-1-15
56	025040236	U1-1-1-12
58	025040236	U2-1-2-14
58	025040236	U2-1-2-12
10	025050232	C2-500-7
52	025050232	R-202
56	025050236	U1-1-1-9
58	025050236	U2-1-2-9
10	025060232	C2-41
12	025060232	C3-41
14	025060232	C4-37-32
14	025060232	C4-41
20	025060232	D2-35
48	025060236	Q2-5
2	025060336	A-35
6	025060336	B2-39
56	025060336	U1-1-1-6
58	025060336	U2-1-2-6
60	025060336	U3-2-1-4
60	025060336	U3-2-4-8
36	025350132	K-17
36	025350132	L-16
69	025350132	Z2-67-2-1-4
40	025660132	N-7
26	025660232	F-8
30	025660232	H-1-27
14	025710132	C4-37-24
14	025710132	C4-37-34
14	025710232	C4-37-10
14	025710232	C4-37-16
16	025710232	C4-213
16	025710232	C4-231
22	025770232	E-27
36	025770232	K-3
69	026040232	Z2-67-1-1-5
68	026050136	Z2-35-1-11-5
69	026050136	Z2-35-1-15-5
6	026040246	B2-30-5
56	026040246	U1-1-1-11
58	026040246	U2-1-2-11
10	026050242	C2-500-6
56	026050242	U1-1-1-8
58	026050246	U2-1-2-8
68	026050246	Z2-35-1-8-2
69	026050246	Z2-35-2-10-2
60	026060240	U3-2-4-7
6	026060242	B2-38
56	026060242	U1-1-1-5
58	026060242	U2-1-2-5
36	026350242	L-15
36	026350242	M-5-6
26	026600242	F-9
32	026600242	J-22-6
64	031412506	Z1-61
64	032422003	Z1-71
64	032461606	Z1-58
64	037301215	Z1-4-3
36	047401442	L-6
36	048030342	K-12
14	048030342	C4-37-17
36	048030342	K-4
36	048030342	L-19
36	048030342	M-15
56	048050346	U1-1-1-13
58	048050346	U2-1-2-12
10	048050346	C2-37-6
30	048050346	H-1-10
8	048060342	C1-15
8	048060342	C1-23
32	048060342	J-32
22	048070342	E-18
32	048070342	J-19
4	046100142	H-1-4
4	046150142	B1-9
20	046150142	D2-28
8	046180142	C1-8
56	052400606	U1-1-1-14
58	052400606	U2-1-2-13
60	052400806	U3-2-1-11
50	060400616	R-37
18	060501016	D1-22
20	060501016	D2-22
50	060501016	R-15
26	060670512	F-16
2	060670512	A-18
28	060670512	G-4
28	060670512	G-6
50	060670512	R-20
50	060670512	R-35
50	060670512	R-36
52	060670512	R-33
62	060670512	V-20-15
10	060670512	C2-53
14	060670512	C3-53
18	060670512	D1-24
20	060670512	D2-24
18	060670512	D1-20
20	060670512	D2-20
32	060670512	J-5
62	060670512	V-20-11
68	060670512	Z2-67-1-1-3
52	060670512	R-40-4
52	060670512	R-204
62	060670512	V-20-5-2
50	060670512	R-8
50	060670512	R-9
54	060670512	S-1-2
52	060670512	R-206
58	060670512	U2-1-2-1-6
56	060670512	U1-1-1-6
52	060670512	R-40-6
40	062400606	N-2
66	062401006	Z1-76
52	062401216	R-40-7
52	062501212	R-201
68	062501406	Z2-35-1-11-2
68	062501406	Z2-35-1-11-4
69	062501406	Z2-35-2-15-2
69	062501406	Z2-35-2-15-4
22	062660412	E-14-1-3
22	062660412	E-14-2-1-3
22	062660712	E-14-1-7
22	062660712	E-14-2-1-7
69	062660712	Z2-67-2-1-3
28	062670412	G-31
26	062670512	F-28
26	062670512	F-39
26	062670512	F-52
36	062670512	K-16
28	062670612	G-2
28	062670612	G-24
36	062670612	L-21
50	062670612	R-24
10	062671012	C2-37-22
36	062671012	L-14
68	062671016	Z2-67-1-2
69	062671016	Z2-67-2-2
12	062671212	C3-37-1-3
30	062680512	H-1-18
8	062680512	C1-36
16	062680512	C4-218

Page 86

Brother KE-430C parts on page 86
Ref	Part number	Part name
18	062680612	D1-16
20	062680612	D2-16
26	062680612	F-7
26	062680612	H-3
62	062680812	V-20-12
38	062680812	M-9
2	062681012	A-26
8	062681012	C1-18
8	062681012	C1-26
14	062681212	C4-37-25
30	062681212	H-2
40	062681412	N-6
16	062710612	C4-211
16	062710612	C4-219
16	062710612	C4-230
36	062710612	L-2
52	062710712	R-31
2	062710712	A-42
16	062710712	C4-212
16	062761012	C4-219
16	062761012	C4-224
10	071039750	C3-48
10	071039750	C3-48
12	071047650	C2-40
12	071047650	C3-40
14	071047650	C4-40
4	072630260	B1-7
22	081003670	E-12
22	087310815	E-17
54	087311015	S-1-1-5
54	087311015	S-1-1-9
40	091170009	P-1-5
40	093650006	P-1-3
40	093650032	P-1-4
40	0A4301005	P-1-13
42	0A4301005	Q1-1-26-17
48	0A4400605	Q2-42
54	0A4400606	S-1-1-6
42	0A5400606	Q1-1-9
50	0A5400606	R-17
50	0A5401006	R-5
50	0A5401006	R-11
52	0A5401006	R-41
52	0A5401006	R-43
42	0A5401206	Q1-1-5
42	0A5401206	Q1-1-10
20	100020004	C2-25
30	100022004	H-1-26
32	100022005	J-25
38	100022005	M-1-3
38	100022005	M-4
34	100032004	J-51
22	100090004	E-2
28	100135001	G-20
30	100135001	H-1-20
4	100242003	B1-20
4	100250001	B1-13
18	100261001	D1-8
20	100281001	D2-8
34	100360003	J-54
28	100402004	G-17
2	100645003	A-34
62	100666002	V-20-9
64	100667001	Z1-30
60	101268002	U3-2-1-5
64	101572101	Z1-28
8	101706001	C1-3-2
30	101706001	H-2
22	102630001	E-6-1
22	103810002	E-26
2	104449001	A-11
2	104450101	A-4
2	10450101	A-10
28	104525001	G-14-1
70	104567101	Sp1-G-14
70	104567101	Sp1-G-14
70	104567101	Sp1-G-14
72	104567101	Sp2-G-14
72	104567101	Sp2-G-14
72	104567101	Sp2-G-14
26	104567101	F-22
32	105234003	D2-32
32	105612003	J-15
32	105912003	J-15
36	106129002	M-5-5
2	106290002	A-14
10	107038003	C2-37-12
26	107149001	F-13
38	107321003	L-4
71	107415009	Sp1-B1-26
71	107415014	Sp1-B1-26
71	107415014	Sp1-B1-26
73	107415014	Sp2-B1-26
73	107415014	Sp2-B1-26
73	107415014	Sp2-B1-26
20	107606001	D2-30
64	107744001	Z1-29
64	107760001	Z1-31
8	108802001	C1-5
2	109239002	A-24
64	109714000	Z1-5
32	110161004	J-37
32	110233001	J-36
36	110251001	L-9
32	110357001	J-31
34	111400002	J-50
64	114430002	Z1-22
64	114486002	Z1-6
62	115007001	V-20-5-13
14	115147001	C4-201
28	115186001	G-19
28	115189001	G-21
10	116629001	C2-37-5
36	116694001	K-10
60	116924001	U3-2-4-6
4	116920001	B1-8
4	116920001	G-12
14	117143001	C4-37-27
28	117150001	R-23
2	117934001	A-6
2	117936001	A-17-3
56	117936001	U1-1-1-16
56	117936001	U2-1-2-1-15
64	118064001	Z1-34
14	118244001	C4-37-28
14	118247001	C4-37-11
14	118248101	C4-37-21
14	118249001	C4-37-29
73	118249001	Sp2-C4-37-29
14	118250001	C4-37-30
73	118250001	Sp2-C4-37-30
14	118252001	C4-37-23
14	118256001	C4-37-4
14	118257001	C4-37-5
14	118258001	C4-37-3
14	118259001	C4-37-6
16	118735002	C4-207
64	118837001	Z1-22
60	119707003	U3-2-4-3
60	119708001	U3-2-4-4
20	120440001	C2-25
30	120990001	H-1-13
30	120990001	H-1-14
32	121007001	J-42
64	122991001	Z1-14
14	123880001	C4-37-36
22	133188001	E-25
64	133740006	Z1-55
60	138843001	Z2-35-2-12
60	138843001	Z2-35-2-12
2	140392009	A-5
16	140407001	C4-226
16	140407001	C4-226
12	140407002	C3-37-7
52	140647101	R-40-5
4	140726000	B1-6
32	141492001	J-26-2
38	141590001	M-1-2
30	141590001	H-1-25
22	141786001	E-1
64	142443001	Z1-26
60	142656001	U3-2-5
64	142721001	Z1-33
68	142990001	Z2-35-1-10-3
69	142997001	Z2-35-2-14-3
68	142997001	Z2-35-2-6
64	143852001	Z1-9
30	144105000	H-1-23
30	144110001	H-1-21
64	144226001	Z1-51
4	144458001	B1-23
28	144588001	G-22
4	144712001	B1-2-1
10	145318001	C2-32
28	145446001	G-16
4	145465001	B1-16-5
10	145478101	C2-37-17
12	145478101	C3-37-15
70	145519001	Sp1-G-10
70	145519001	Sp1-G-10
72	145519001	Sp2-G-10
72	145519001	Sp2-G-10
72	145519001	Sp2-G-10
26	145547001	F-27
36	145992001	K-8
10	146354001	C2-37-14
14	146994001	C4-202
4	14777000	B1-16-9
26	148738000	F-4
26	148738000	F-40
26	148738000	F-41
32	148904001	U3-2-1-3
32	148904001	U3-2-1-3
52	149287000	R-32
48	149809000	Q2-45
48	149809000	Q2-48
68	150173003	Z2-35-1-7
68	150173003	Z2-35-2-9
68	150174000	Z2-35-1-4-3
68	150174000	Z2-35-1-5-1
68	150174000	Z2-35-2-7-1
68	150179002	Z2-35-1-8-1
69	150179002	Z2-35-2-10-1
68	150182000	Z2-35-1-2
68	150182000	Z2-35-2-2
68	150183000	Z2-35-1-10-2
69	150183000	Z2-35-2-14-2
69	150185009	Z2-35-2-11
20	150206002	D2-27
68	150206002	Z2-35-1-4-1
68	150206002	Z2-35-2-4-1
14	150553001	C4-37-2
16	150559001	C4-208
2	150592001	A-29
8	151602002	C1-3-3
4	152240101	B1-22
4	152242001	B1-24
4	152243001	B1-25
22	152245101	E-4
22	152678201	E-11
22	152678201	E-16
70	152682101	Sp1-E-21
70	152682101	Sp1-E-21
70	152682101	Sp1-E-21
72	152682101	Sp2-E-21
72	152682101	Sp2-E-21
72	152682101	Sp2-E-21
22	152693101	E-14-1-4

Page 87 — 索引 / INDEX

Brother KE-430C parts on page 87
Ref	Part number	Part name	Qty
	15268101	E-14-2-1-4
	152684101	E-14-2-1-5
	152686101	E-14-2-1-5
	152690401	Sp1-E24
	15275001	C1-9
	15276001	C1-7
	152771000	C2-38-1
	152771000	C3-38-1
	152771000	C4-38-1
	15277001	Sp1-C2-37-8
	15277001	Ga1-C2-37-8
	15277001	Ga1-C2-37-9
	152776001	Ga1-C2-37-9
	152776001	Ga1-C2-37-8
	152780001	Ga1-C2-37-8
	152780001	Ga1-C2-37-9
	152781001	Ga1-C2-37-8
	152782001	C2-37-10
	152783001	C2-37-11
	152786000	C2-37-19
	152786000	C3-37-17
	152822101	K-2
	152823001	K-11
	152827001	C4-214
	152827001	K-13
	152842059	G-1
	152869001	G-1
	152872001	G-8
	152881001	G-27
	152883000	G-29
	152884001	G-30
	152889001	G-23
	152890001	G-25-1
	152890001	Sp1-G-25
	152891101	G-26
	152948001	F-33
	152956001	F-42
	152969001	R-12
	153035000	C2-45
	153035000	C3-45
	153035000	C4-45
	153057101	C2-44
	153057101	C3-44
	153057101	C4-44
	153112001	V-20-3
	153112001	Ga1-C2-37-8
	153112001	Ga1-C2-37-8
	153202001	Ga1-C2-37-9
	153202001	Ga1-C2-37-9
	153203001	Ga1-C2-37-8
	153204001	Ga1-C2-37-9
	153242000	Q1-1-26-14
	153242000	Z1-102
	153484001	D2-31
	153567000	C2-37-20
	153567000	C3-37-18
	153569001	C3-37-16
	153570101	M-20
	153580001	J-20
	153597001	M-5-2
	153608101	Sp1-C2-37-8
	153608101	Sp1-C2-37-8
	153638001	Ga1-C2-37-8
	153628001	D2-29
	153634101	C4-203
	153638001	D2-37
	153624001	C1-1-4
	153644001	Sp1-E-24-1
	154339101	Sp1-E-24-1
	154339101	Sp1-E-24-1
	154339101	Sp2-E-24-1
	154339101	Sp2-E-24-1
	154340101	Sp1-E-24-1
	154341001	Sp1-E-24-2
	154341001	Sp1-E-24-2
	154341001	Sp2-E-24-2
	154341001	Sp2-E-24-2
	154342001	Sp2-E-24-2
	154343001	Sp1-E-24-3
	154352001	Sp2-C3-37-1
	154416201	Sp2-C3-37-10
	154416201	Sp2-C3-37-10
	154416201	Sp2-C3-37-10
	154417201	Sp2-C3-37-10
	154417201	Sp2-C3-37-10
	154417201	Ga1-C2-37-10
	154417201	Z1-42
	154467001	R-40-9
	154514001	Sp1-C2-37-9
	154514001	Sp1-C2-37-9
	154514001	Ga1-C2-37-9
	154528001	J-21
	154596000	J-21
	155590001	J-6
	155590001	J-6
	155590001	L-18
	15562101	C4-37-8
	155670001	C4-37-14
	155770001	C4-37-15
	155780000	B1-21
	155940000	Ga1-C2-212
	156006001	Z1-911
	156006001	Ga1-210
	156112003	Z2-35-1-6
	156112003	Z2-35-2-8
	156170001	C4-37-12
	156206001	V-20-13
	156495201	C2-37-21
	157968001	H-1-17
	159565000	F-23
	159574101	H-1-19
	159610301	Sp1-E24
	159610301	Sp1-E24
	159610301	Sp1-E24
	159610301	Sp2-E24
	159610301	Sp2-E24
	159610301	Sp2-E24
	159612001	Sp1-E-24-3
	159612001	Sp1-E-24-3
	159612001	Sp1-E-24-3
	159612001	Sp2-E-24-3
	159612001	Sp2-E-24-3
	159613051	Sp1-E-25
	159613051	Sp1-E-25
	159613051	Sp1-E-25
	159613051	Sp2-E-25
	159613051	Sp2-E-25
	159613051	Sp2-E-25
	159613051	G-15
	159805001	G-15
	159825001	C3-37-1-1
	159826101	C3-37-14
	159905001	J-14
	181995001	E-6
	183493001	C1-3
	200190001	U3-2-3
	200190001	Z1-42
	200190001	Z1-62
	224514001	Q2-2-1-5
	224514001	Q2-2-2-5
	224514001	Q2-2-3-5
	224514001	Q2-2-4-5
	224514001	Q2-2-5-5
	224514001	R-25
	224514001	Q2-2-1-4
	224514001	Q2-2-2-4
	224514001	Q2-2-3-4
	224514001	Q2-2-4-4
	224514001	Q2-2-7-4
	228475000	C4-216
	228475000	F-44
	228475000	J-55
	228475000	Q1-12
	228475000	R-22
	228475000	U2-1-2-1-7
	231071001	J-17
	232364001	Q1-1-26-6
	402887001	E-14-1-6
	402887001	E-14-2-1-6
	500554000	Q1-1-17
	500705001	J-47
	500906001	Ga1-C2-37-8
	500907001	Ga1-C2-37-9
	501005000	Z2-35-1-4-4
	501199003	U3-2-4-1
	501603009	U3-2-4
	501996001	M-13
	502354001	M-3
	502354001	J-24
	502429101	E-14-1-2
	502429101	E-14-1-2-2
	502652001	J-7
	502654001	J-8-1
	502747101	Z2-35-1-4-5
	502763402	Z2-35-1
	502775001	Z2-35-2-4
	502777001	Z2-35-1-4
	502778002	Z2-35-2-13
	502778002	Z2-35-2-14
	502780002	Z2-35-2-10-1
	502787002	Z2-35-2-14
	502787002	Z2-35-2-14-1
	504109001	Z2-35-2-5
	506533001	C4-37-31
	506706001	Z1-15
	507333001	F-2
	507456000	F-3
	508030000	Q1-1-26-15
	508170001	Z1-24
	509043000	E-14-1-8
	509043000	E-14-2-1-8
	509212001	C1-3-1
	510105001	D1-14
	510105001	D1-14
	510162201	F-15
	510174000	H-1-15
	510195101	J-30
	510202201	J-41
	510208001	J-46
	510208001	Z1-18
	510208001	J-46
	510208001	Z1-18
	510208003	J-46
	510208003	Z1-18
	510209101	C2-51
	510209101	C3-51
	510209101	C4-51
	510209101	J-48
	510210201	J-49
	510211001	Sp1-J-53
	510211001	Ga3-J-53
	510212101	Sp1-J-53
	510212101	Ga3-J-53
	510213001	Ga3-J-53
	510239001	M-22
	510243000	R-205
	510352101	Ga2-C1-200-2
	510469001	G-18

Page 90

Brother KE-430C parts on page 90
Ref	Part number	Part name
75	S49977100	Ga1-C2-100
75	S49978100	Ga1-C2-100
60	S49979400	R-14-1
72	S49980001	Sp1-J-53
	Sp2-J-53
	Sp2-J-53
	Ga3-J-53
22	S49981000	E-14-1-9
26	S49982000	F-12
26	S49983000	F-20
26	S49984000	F-21
26	S49985000	F-49
26	S49987000	F-50
26	S49988001	F-55
26	S49992000	F-1
32	S49994001	J-38
26	S49995001	F-51
2	S49999001	A-100
69	S50000201	Z2-67-2
24	S50529000	E-14-2-2
40	S50645000	P-1-10
14	S51064001	C4-100
	Sp2-C4-100
	Sp2-C4-100
74	S51085301	Ga1-C2-37
66	S51097000	Z1-75-1
2	S51098000	A-40
68	S51208001	Z2-35-1-3
68	S51282001	Z2-35-1-3
68	S51283001	Z2-35-2
68	S51283001	Z2-35-1
68	S51283001	Z2-35-2-1
78	S51449001	Ga3-J-53
56	S51451000	U1-1-1-1-9
	U2-1-2-1-8
2	S51460009	A-33
73	S51848101	Sp2-C3-37
	Ga2-C3-37
12	S51849101	C3-37-1
73	S51851101	Sp2-C3-37
	Ga2-C3-37
73	S51852001	Sp2-C3-100
	Ga2-C3-100
	Sp2-C3-100
73	S51853001	Sp2-C3-100
	Ga2-C3-100
	Sp2-C3-100
28	S51859101	G-5
54	S52091000	B-1-1-2
69	S52097001	Z2-67-2-1-2
16	S52098201	C4-232
6	S52834201	B2-30
6	S52836000	B2-47
6	S52838000	B2-35
6	S52839200	B2-36
6	S52840001	B2-40
42	S53030001	D1-11
44	S53031001	Q1-H-1
44	S53034001	Q1-H-3
44	S53035001	Q1-H-4
44	S53036001	Q1-H-5
44	S53037001	Q1-H-6
44	S53038001	Q1-H-7
44	S53039001	Q1-H-9
54	S53055100	T-2
2	S53119001	A-13-1
2	S53120001	A-13-2
56	S54440000	U1-1-1-7-1-1
56	S54645000	U1-1-1-7-1-2
	U2-1-2-1-5-1-1
56	S54646000	U1-1-1-7
	U1-1-1-7-1-5
56	S5470000	U1-1-1-7-1-5
58	S54840000	U2-1-2-1-5-1
58	S54841000	U2-1-2-1-5
22	S55140000	E-24
20	S55157000	D1-12
20	S55208000	D2-12
2	S55213001	A-26
22	S55214000	E-9
	E-23
22	S55215001	E-19
22	S55216001	E-14-2-1-1
	E-14-1-1
66	S55311001	Z1-75
66	S55311002	Z1-75
18	S55479001	D1-18
20	S55572001	D2-18
	B2-31
44	S55627001	Q1-54
52	S55629101	R-40
52	S55630001	R-40-1
52	S55632001	R-40-3
64	S55633001	Z1-70
22	S55656000	E-22
26	S55659000	F-54
64	S55663001	Z1-23
4	S5577001	B1-15
54	S55877001	S-1
54	S55889001	S-1-1
54	S55891001	S-1-1-1
54	S55891001	S-1-1-1-1
6	S56017000	B2-30-1
6	S56018000	B2-30-2
6	S56019001	B2-30-3
50	S56167000	R-6-1
	R-6-2
50	S56167001	R-6-2
	R-6-3
50	S56167003	R-6-3
2	S57925001	A-23
24	S57965000	E-14-2-1-10
18	S58690001	D1-11
50	S59360000	R-14-1-1
50	S59367000	R-14-1-2
78	S59620001	Ga3-J-53
18	S59763000	D1-25
32	S59871001	J-22-3
32	S59872001	J-22-2
32	S59873001	J-22-4
32	S59874001	J-22-1
22	S5988001	E-14-2-1
22	S59886001	E-14-2-1-9
	E-14-2-1-11
32	S59893001	J-12
74	S59903001	Ga1-C2-37
74	S59909001	Ga1-C2-37-8
8	S59912001	C1-1-2
8	S59914001	C1-4
	C1-4-1
	C2-5
	C3-5
14	S59916001	C2-31
	C3-31
	C4-31
10	S59917001	C2-46
	C3-46
	C4-38
14	S59918001	C2-38
	C3-38
	C4-38
10	S59919000	C2-50
	C3-50
	C4-50
2	S59920001	A-41
10	S59921001	C2-39
	C3-39
	C4-39
	Sp1-E24
	Sp1-E24
	Sp1-E24
10	S59923000	C2-52
	Sp2-E24
	Sp2-E24
	Sp2-E24
10	S59927001	C2-52
	C3-52
	C4-52
68	S59931001	Z2-35-1-11
	Z2-35-2-15-3
	Z2-35-2-16-3
66	S60400000	Z1-902
66	S60711001	Z1-903
42	SA0037000	Q1-1-26-5
32	SA0049001	J-22-5
38	SA0703001	M-17
42	SA1034000	Q1-1-26-9
71	SA1579019	Sp1-Z1-17
71	SA1752009	Sp1-Z1-17
71	SA1752014	Sp1-Z1-17
	Sp1-Z1-17
	Sp2-Z1-17
	Sp2-Z1-17
	Sp2-Z1-17
70	SA1881001	Sp1-E-22
	Sp1-E-22
	Sp1-E-22
	Sp2-E-22
	Sp2-E-22
	Sp2-E-22
70	SA1890001	Sp1-E-22

Page 2 — Electronic Lock Stitch Bar Tacker / Belt Loop Bar Tacker / Eyelet Buttonhole End Bar Tacker

Page 6 — A . 主体関係 / Machine body

Page 8 — B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 10 — B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 12 — C1 . 送り関係 / Feed mechanism

Page 14 — C2 . 送り関係 (KE-430C) / Feed mechanism (KE-430C)

Page 16 — C3 . 送り関係 (KE-431C) / Feed mechanism (KE-431C)

Page 18 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Page 20 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Page 22 — D1. 押上関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C)

Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

Page 26 — E . 下軸関係 / Lower shaft mechanism

Page 28 — E. 下軸関係 / Lower shaft mechanism

Page 30 — F. 給油潤滑関係 / Lubrication

Page 32 — G . 糸通シ関係 / Threading mechanism

Page 34 — H . 糸巻関係 / Bobbin winder mechanism

Page 36 — J. 糸切り関係 / Thread trimmer mechanism

Page 38 — J. 糸切り関係 / Thread trimmer mechanism

Page 40 — K. Thread wiper mechanism / L. Thread take-up mechanism

Page 42 — M . 糸締メ関係 / Thread nipper mechanism

Page 44 — N. 針位置検出器関係 / Synchronizer

Page 46 — Q1 . コントロールボックス関係 / Control box mechanism

Page 47 — Q1. コントロールボックス関係 / Control box mechanism

Page 48 — Q1 . コントロールボックス関係 / Control box mechanism

Page 50 — Q2. コントロールボックス関係 / Control box mechanism

Page 52 — Q2. コントロールボックス関係 / Control box mechanism

Page 54 — R . 電装品関係 / Power supply equipment mechanism

Page 56 — R . 電装品関係 / Power supply equipment mechanism

Page 58 — S. 操作パネル関係 / Operation panel mechanism

Page 60 — U1 . 踏板関係 / Foot switch pedal mechanism

Page 62 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Page 64 — U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Page 65 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 66 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 68 — Z1 . 付属 品 関係 / Accessories

Page 70 — Z1.付属品関係 / Accessories

Page 72 — Z2. 付属品関係 / Accessories

Page 73 — Z2.付属品関係 / Accessories

Page 74 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Page 75 — Sp1 . 仕様別部品一覧表 (KE-430C) / Different parts list (KE-430C)

Page 76 — Sp2 . 仕様別部品一覧表 (KE-431C, KE-432C) / Different parts list (KE-431C, KE-432C)

Page 77 — Sp2 . 仕様別部品一覧表 (KE-431C, KE-432C) / Different parts list (KE-431C, KE-432C)

Page 78 — Ga1 . ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Page 79 — Ga1. ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Page 80 — Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Page 81 — Gauge parts List (KE-431C)

Page 82 — Ga3. ゲージ部品一覧表 / Gauge parts List

Page 83 — Wa. 警告ラベル / Warning labels

Page 84

Page 86

Page 87 — 索引 / INDEX

Page 90

Brother KE-430C — parts catalog

Page 68 — Z1 . 付属品関係 / Accessories
