Brother LK3-B430 / LK3-B438 Parts Book (PDF)

Bartack, Button AttachDownload PDF

Text index — Brother LK3-B430 / LK3-B438

Page 8 — A. 主体関係 / Machine body / Maschinenengehäuse / Corps de la machine / Cuerpo de la máquina

Brother LK3-B430 / LK3-B438 parts on page 8
Ref	Part number	Part name	Qty
4	104450109	RUBBER CAP, 8	6
5	140392009	OIL CAP	1
6	117934009	RUBBER CAP, 13.5	1
7	140392009	OIL CAP	1
10	104450109	RUBBER CAP, 8	3
11	104449009	RUBBER CAP, 15.5	1
12	S37915009	BED COVER, R	1
13-1	S53119001	BED COVER, LF	1
13-2	S53120001	BED COVER, LR	1
14	106629002	SCREW, SM4.37	9
15	017680512	BOLT, SM4.37X5	2
16	S23337009	RUBBER CAP, 18.5	1
17	S49960109	FACE PLATE ASSY	1
17-1	S49961109	FACE PLATE	1
17-2	S49962000	PACKING	1
17-3	117934009	RUBBER CAP, 13.5	1
18	060670812	SCREW, BIND SM3.57-40X8	3
22-1	152842059	SHUTTLE RACE COVER ASSY	1
22-2	S49681009	SHUTTLE RACE COVER ASSY, C	1
23	145480101	SHOULDER SCREW, SM6.35	2
24	109239002	WASHER, WAVE SPRING	2
25	S37920009	COVER, ;T/TAKE-UP LEVER	1
26	062680612	SCREW, PAN SM4.37-40X6	1
28	S20164009	RUBBER CAP, 13	1
29	150592009	RUBBER CAP, 16	2
30	104821009	RUBBER CAP, 10.5	1
31	S44010009	RUBBER CAP, 11.5	1
33	S51460009	RUBBER CAP, MG-9	1
40	S51098000	FRAME SIDE COVER, IM	1
41	S53182101	STUD, BELT COVER	2
42	062711012	SCREW, PAN SM4.76-32X10	4
920	S44629001	LABEL, E	1
	S48601009		1
	S37929009		1

Page 10 — B1. 上軸・針棒関係 / Upper shaft and needle bar mechanism / Obere Welle und Nadelstangenvorrichtung / Mécanisme de arbre supérieur et barra à aigui

Brother LK3-B430 / LK3-B438 parts on page 10
Ref	Part number	Part name	Qty
1	S49600001	UPPER SHAFT, B	1
2	S45147101	CRANK ROD ASSY	1
2-1	144712001	SCREW, SM4.76	2
3	S49582001	BUSH, F ;U-SHAFT	1
4	S49583001	WASHER, THRUST	1
5	014780622	SET SCREW, SOCKET (CP) SM6.35	1
6	140726000	BUSH, M ;U-SHAFT	1
7	072630260	BALL BEARING, 6302VV	2
8	116920001	RING, THRUST	1
9	048150142	RETAINING RING, EXTERNAL C15	1
12	S49968001	THREAD TAKE-UP CRANK, E	1
13	100250001	SCREW, SM7.14	1
14	014770622	SET SCREW, SOCKET (CP) SM6.35	2
15	123006001	SET SCREW, (CP) SM6.35	1
16	S49964001	THREAD TAKE-UP LEVER ASSY, B	1
16-1	S47089001	THREAD TAKE-UP SUPPORT	1
16-2	S47090001	THREAD TAKE-UP LEVER	1
16-3	S47091001	SUPPORT SHAFT, ;T/TAKE-UP	1
16-4	154624101	NEEDLE BAR CRANK, B	1
16-5	145465001	SCREW, SM3.57 L	1
16-6	S49689001	CONNECTING ROD, ;N-BAR	1
16-7	S37926101	NEEDLE BAR CLAMP	1
16-8	062680812	SCREW, PAN SM4.37-40X8	1
16-9	147777000	NEEDLE BEARING	2
17	014780622	SET SCREW, SOCKET (CP) SM6.35	1
18	102630001	SLIDE BLOCK, ;N-BAR GUIDE	1
19	S49593000	NEEDLE BAR GUIDE	1
20	100242003	SCREW, SM3.57-40X5	2
21	155578000	RUBBER CAP, 7.2	2
22	154701101	NEEDLE BAR, D	1
23	144458001	SET SCREW, SM3.57-40X4.5	1
24	152242001	BUSH, U ;N-BAR	1
25	154627001	BUSH, DS ;N-BAR	1
26	115053012	NEEDLE, TQX1 (#12)	1

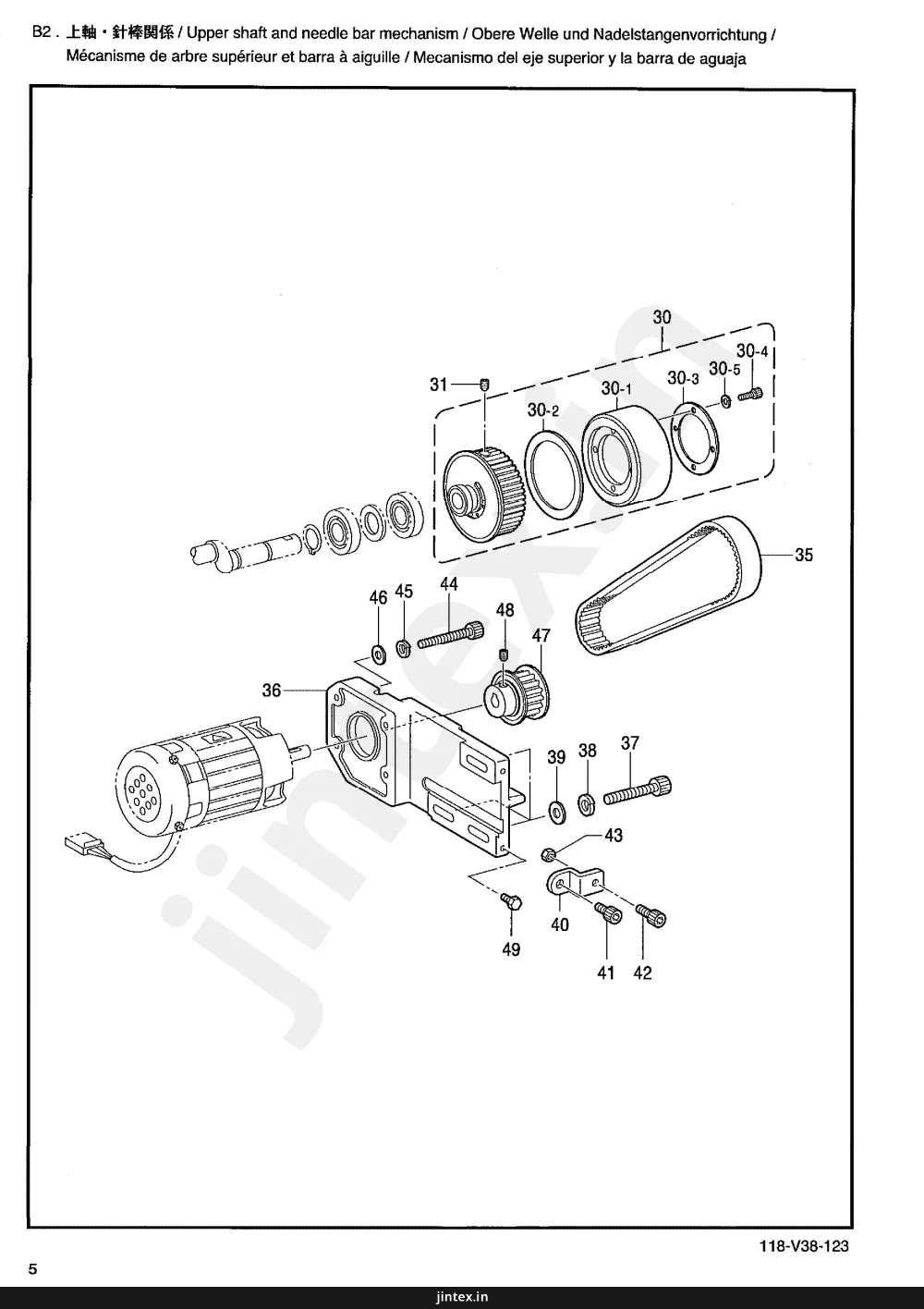

Page 12 — 上軸・針棒関係 / Upper shaft and needle bar mechanism / Obere Welle und Nadelstangenvorrichtung / Mécanisme de arbre supérieur et barra à aiguille

Brother LK3-B430 / LK3-B438 parts on page 12
Ref	Part number	Part name	Qty
30	S52834201	TIMING PULLEY ASSY, U	1
30-1	S56017000	PULLEY, U-SHAFT	1
30-2	S56018000	SPACER, PULLEY	1
30-3	S56019001	WASHER, PULLEY	1
30-4	018401236	BOLT, SOCKET M4X12	3
30-5	028040246	WASHER, SPRING 2-4	3
31	S55572001	SET SCREW, SOCKET(CP)SM5.95X10	2
35	S52838000	TIMING BELT, U-SHAFT	1
36	S52839100	MOTOR BRACKET, IM	1
37	018083022	BOLT, SOCKET M8X30	3
38	028080242	WASHER, SPRING 2-8	3
39	025080232	WASHER, PLAIN M 8	3
40	S52840001	ADJUSTING PLATE, BELT	1
41	018061022	BOLT, SOCKET M6X10	1
42	018062522	BOLT, SOCKET M6X25	1
43	021060102	NUT, 1 M6	1
44	018063022	BOLT, SOCKET M6X30	4
45	028060242	WASHER, SPRING 2-6	4
46	025060232	WASHER, PLAIN M 6	4
47	S52836000	TIMING PULLEY ASSY, MOTOR	1
48	S55572001	SET SCREW, SOCKET(CP)SM5.95X10	1
49	017680512	BOLT, SM4.37X5	1

Page 14 — C1 . 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

Brother LK3-B430 / LK3-B438 parts on page 14
Ref	Part number	Part name	Qty
1	S37930101	X-FEED LEVER ASSY	1
1-1	S37931001	X-FEED LEVER	1
1-2	153041001	SLIDE BLOCK ASSY, ;T-LENGTH	1
1-3	151602002	SET SCREW, SM4.37-40X6	1
1-4	153924001	FELT	1
1-5	108802001	WICK, 4X4 L=250	1
1-6	S37932101	FEED CAM ROLLER	1
1-7	S37933001	ROLLER SHAFT	1
1-8	014760622	SET SCREW, SOCKET SM5.95	1
2	S37934001	BUSH, ;X-FEED LEVER	1
3	183493001	SET SCREW COLLAR ASSY	1
3-1	S09212001	SET SCREW COLLAR	1
3-2	101706001	SET SCREW, SM6.35-40X5.5	2
4	S37935101	Y-FEED LEVER ASSY	1
4-1	S37936101	Y-FEED LEVER	1
4-2	S37932101	FEED CAM ROLLER	1
4-3	S37933001	ROLLER SHAFT	1
4-4	014760622	SET SCREW, SOCKET SM5.95	1
5	152759001	TACK WIDTH FEED SHAFT	1
6	014760622	SET SCREW, SOCKET SM5.95	1
7	152760051	LEVER SHAFT	1
8	048180142	RETAINING RING, EXTERNAL C18	1
9	152756001	WASHER, THRUST 18	2
10	014760622	SET SCREW, SOCKET SM5.95	1
11	S37937001	FEED CAM BRACKET	1
12	S37938001	FEED CAM, X	1
13	014760622	SET SCREW, SOCKET SM5.95	2
14	S37939001	CAM SHAFT	1
15	048060342	RETAINING RING, E6	1
16	070688850	BALL BEARING, 688ZZNR	2
17	S37940001	POSITIONING PIN	2
18	062681012	SCREW, PAN SM4.37-40X10	2
19	S37937001	FEED CAM BRACKET	1
20	S37941001	FEED CAM, Y	1
21	014760622	SET SCREW, SOCKET SM5.95	2
22	S37939001	CAM SHAFT	1
23	048060342	RETAINING RING, E6	1
24	070688850	BALL BEARING, 688ZZNR	2
25	S37940001	POSITIONING PIN	2
26	062681012	SCREW, PAN SM4.37-40X10	2
27	S37942000	COUPLING HUB, 8	2
28	S37943000	COUPLING HUB, 6.35	2
29	S37944000	SPACER, COUPLING	2
30	014760622	SET SCREW, SOCKET SM5.95	8
31	S37945051	FEED BAR GUIDE PLATE	1
32	145318001	SCREW, SM4.37	8
33	S49590001	HOME POSITION DOG	2
34	060300512	SCREW, BIND M3X5	2
35	S49683001	SETTING PLATE, ;H-SENSOR	2
36	062680612	SCREW, PAN SM4.37-40X6	2
38	152769101	FEED BRACKET ASSY	1
38-1	152771000	WASHER	2
38-2	152773000	BUSH	1
38-3	141331001	BUSH	1
39	152772001	SPACER	2
40	071047650	BEARING BALL, 3/16	2
41	025060232	WASHER, PLAIN M6	2
42	017761212	BOLT, SM5.95X12	2
44	153057101	SCREW, W/SOCKET SM4.37	2
45	153035000	FELT	1
49	S23337009	RUBBER CAP, 18.5	1
100	159971001	FEED PLATE, 11 ;FLAT	1
	152761001	FEED BRACKET ASSY	1

Page 15 — C2 . 送り関係 (オプション部品) / Feed mechanism (Option parts) / Transportvorrichtung (Sonderzubehör) / Mécanisme de l´entraînement (Pièces en option)

Brother LK3-B430 / LK3-B438 parts on page 15
Ref	Part number	Part name	Qty
	190-1
	100-2
	190-2
	100-3
	190-3
	100-4
	190-4
	100-5
	190-5

Page 16 — C2. 送り関係 (オプション部品) / Feed mechanism (Option parts) / Transportvorrichtung (Sonderzubehör) / Mécanisme de l'entraînement (Pièces en option) /

Brother LK3-B430 / LK3-B438 parts on page 16
Ref	Part number	Part name	Qty
43	S49955001	SCREW, W/SOCKET SM4.37	1
100-2	154665101	FEED PLATE	1
100-3	154166101	FEED PLATE, 4.8 ;FLAT	1
100-4	153833101	FEED PLATE, 7	1
100-5	153870101	FEED PLATE, 7 ;FLAT	1
110	153837001	PRESSER PLATE	1
111	153839001	SPRING, 0.8	1
112	153871001	SPRING, 1.2	1
113	144075001	BOLT, SM3.57	2
114	025350132	WASHER, PLAIN S 3.5	2
190-1	S49950001	FEED PLATE, 11 ;FLAT	1
190-2	S49951001	FEED PLATE	1
190-3	S49952001	FEED PLATE, 4.8 ;FLAT	1
190-4	S49953001	FEED PLATE, 7	1
190-5	S49954001	FEED PLATE, 7 ;FLAT	1

Page 18 — D. 押工上ゲ関係/Work clamp lifter mechanism / Stoffhalterheber / Releveur de pinceur / Mecanismo del levantador del prensor

Brother LK3-B430 / LK3-B438 parts on page 18
Ref	Part number	Part name	Qty
1	S49630001	LINK, A	1
2	S49631001	LINK, B	1
3	S49632001	LINK ASSY, C	1
4	S49635001	LINK SHAFT, A	1
5	S49636001	LINK SHAFT, B	1
6	S49637001	LINK SHAFT, C	1
7	S49638001	LINK SHAFT, D	1
8	100281001	WASHER, PLAIN	4
9	S37968001	SNAP PIN, 8	6
10	S19662001	SNAP PIN, 5	2
11	S40922101	WORK CLAMP LIFTER ROD	1
12	S37970050	BUSHING	1
13	014760622	SET SCREW, SOCKET SM5.95	2
14	S10105001	SPRING, EXTENSION	2
15	S49639001	SETTING BASE, ;SENSOR	1
16	062680612	SCREW, PAN SM4.37-40X6	1
17	S49640101	SENSOR PERCEIVE PLATE	1
18	018400836	BOLT, SOCKET M4X8	1
19	S49641001	SETTING PLATE, A ;SOLENOID	1
20	060681212	SCREW, BIND SM4.37-40X12	4
21	S49642001	SETTING PLATE, B ;SOLENOID	1
22	060501016	SCREW, BIND M5X10	2
23	S49643001	GUIDE	1
24	060680712	SCREW, BIND SM4.37-40X7	2
25	120448001	RUBBER RING	1
26	018501422	BOLT, SOCKET M5X14	2
27	150206002	WASHER, PLAIN 16	1
28	048150142	RETAINING RING, EXTERNAL C15	1
29	153828001	ROLLER SHAFT	1
30	107744001	ROLLER	1
31	153484001	WASHER, PLAIN 4.76	1
32	105234003	NUT, SM4.37	2
33	S40920009	LEVER HOLDER	1
34	018061622	BOLT, SOCKET M6X16	2
35	025060232	WASHER, PLAIN M 6	2
36	S40921001	LIFTER LEVER, ;B-CLAMP	1
37	153838001	SHAFT, ;B-CLAMP LEVER	1
38	014760622	SET SCREW, SOCKET SM5.95	1
40	025040236	WASHER, PLAIN M 4	1
41	028040246	WASHER, SPRING 2-4	1

Page 19 — E. ボタンツカミ・作動関係 / Button clamp mechanism / Knopfhaltevoriichtung / Mécanisme du pince-bowtons / Mecanismo de la ménsula de resorte

Brother LK3-B430 / LK3-B438 parts on page 19
Ref	Part number	Part name	Qty
	100-1
	100-2
	100-3
	100-4
	100-5
	100-6
	100-7
	100-8
	100-9
	100-10
	100-11
	100-12
	100-14
	100-15
	100-16
	100-17
	100-18
	100-19
	100-20
	100-21
	110-1-1
	110-1-2
	110-2-1
	110-2-2
	110-3-1
	110-3-2
	110-4-1
	110-4-2
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	100

Page 20 — E. ボタンツカミ・作動関係 / Button clamp mechanism / Knopfhaltevoriichtung / Mécanisme du pince-bowtons / Mecanismo de la ménsula de resorte

Brother LK3-B430 / LK3-B438 parts on page 20
Ref	Part number	Part name	Qty
1	153830000	BUTTON CLAMP HOLDER	1
2	153827001	SHAFT, ;B-CLAMP HOLDER	1
3	014680622	SET SCREW, SOCKET (CP) SM4.37	2
4	151968001	BUTTON CLAMP HOLDER HOOK ASSY	1
4-1	151969001	HOOK, ;B-CLAMP HOLDER	1
4-2	107744001	ROLLER	2
4-3	153484001	WASHER, PLAIN 4.76	1
4-4	105234003	NUT, SM4.37	2
5	014760622	SET SCREW, SOCKET SM5.95	1
6	153834001	HOLDER SUPPORT, ;B-CLAMP	1
7	017711412	BOLT, SM4.76X14	2
8	146354001	WASHER, PLAIN 5	2
9	146994001	NUT, ROUND SM6.35-40	2
10	115148101	ADJUSTING SCREW, SM6.35-40	1
11	115147001	SPRING, COMPRESSION	1
12	S49998001	FINGER GUARD	1
13	011679312	SET SCREW, (FT) SM3.57	2
100	S52089101	BUTTON CLAMP ASSY	1
100-1	S52093001	BUTTON CLAMP BRACKET	1
100-2	S52083001	BUTTON CLAMP, 2L	1
100-3	S52084001	BUTTON CLAMP, 2R	1
100-4	115156001	GUIDE PIN	2
100-5	047250642	PIN, SPRING ROLL AW2.5	2
100-6	S52087001	SPRING, PLATE ;L	1
100-7	S52088001	SPRING, PLATE ;R	1
100-8	062680512	SCREW, PAN SM4.37-40X5	2
100-9	115158001	SHOULDER SCREW, SM4.76	2
100-10	S29954001	BUTTON CLAMP ASSY, M	1
100-11	S03659001	PLATE CAM, ;B-CLAMP	1
100-12	062680812	SCREW, PAN SM4.37-40X8	2
100-13	S03468101	SCREW, SM4.37	1
100-14	S03657001	NUT, ROUND SM4.37	1
100-15	115163001	SPRING, PLATE	1
100-16	115164101	ADJUSTING PLATE, ;B-CLAMP	1
100-17	115165001	SHOULDER SCREW, SM4.37	1
100-18	115166001	SHOULDER SCREW, SM4.37	1
100-19	S52072001	SPACER, BL ;BUTTON CLAMP	1
100-20	S52076001	SPACER, BR ;BUTTON CLAMP	1
100-21	S01694001	SCREW, FLAT SM2.38X4	2
110-1-1	S52071001	SPACER, AL ;BUTTON CLAMP	1
110-1-2	S52075001	SPACER, AR ;BUTTON CLAMP	1
110-2-1	S52072001	SPACER, BL ;BUTTON CLAMP	1
110-2-2	S52076001	SPACER, BR ;BUTTON CLAMP	1
110-3-1	S52073001	SPACER, CL ;BUTTON CLAMP	1
110-3-2	S52077001	SPACER, CR ;BUTTON CLAMP	1
110-4-1	S52074001	SPACER, DL ;BUTTON CLAMP	1
110-4-2	S52078001	SPACER, DR ;BUTTON CLAMP	1
	549980001		1

Page 22 — F. 下軸関係 / Lower shaft mechanism / Untere Welle / Mécanisme de l'arbre inférieur / Mecanismo del eje inferior

Brother LK3-B430 / LK3-B438 parts on page 22
Ref	Part number	Part name	Qty
1	141786001	SHOULDER SCREW, ;CRANK ROD	1
2	100090004	NUT, SM7.14	1
3	014680622	SET SCREW, SOCKET (CP) SM4.37	1
4	152245101	ROCKER GEAR	1
5	S37978251	SHAFT, ;R-GEAR	1
6	181995001	SET SCREW COLLAR ASSY	1
6-1	101706001	SET SCREW, SM6.35-40X5.5	2
7	014760622	SET SCREW, SOCKET SM5.95	2
8	S49605001	LOWER SHAFT ASSY	1
9	S49608001	BUSH, ;L-SHAFT	1
10	014760622	SET SCREW, SOCKET SM5.95	1
11	152678101	ADJUSTING STUD	1
12	081003670	O RING, PW3	1
13	S49609001	SET SCREW COLLAR ASSY	1
13-1	014770622	SET SCREW, SOCKET (CP) SM6.35	2
14	S49611301	SHUTTLE RACE BASE ASSY	1
14-1	S49612101	SHUTTLE RACE BASE	1
14-2	S02429101	THREAD GUIDE, ;S-RACE	1
14-3	062660412	SCREW, PAN SM3.18-40X4	2
14-4	152683101	SETTING CLAW, S-RACE BODY	2
14-5	152684101	SPRING, COMPRESSION	2
14-6	402887001	WASHER, 3.2	2
14-7	062660712	SCREW, PAN SM3.18-40X7	2
14-8	S09043000	FELT	2
14-9	S49981000	WICK, 3X3 L=360	2
14-10	S49626000	WICK, 3X3 L=300	1
14-11	S49685000	WICK, 3X3 L=100	1
15	014760622	SET SCREW, SOCKET SM5.95	1
16	152678101	ADJUSTING STUD	1
17	081003670	O RING, PW3	1
18	048070342	RETAINING RING, E7	1
19	S49617001	DRIVER	1
20	018501422	BOLT, SOCKET M5X14	1
21	152682101	SHUTTLE RACE BODY, A	1
22	S51087901	SHUTTLE HOOK ASSY, D W/BOX	1
23	S16290001	NEEDLE ROLLER, 4X19.8	1
24	152690401	BOBBIN CASE ASSY, B	1
24-1	154340101	TENSION SPRING	1
24-2	154341001	SCREW	1
24-3	154342001	SPRING, ANTI-SPIN	1
25	159613051	BOBBIN	1
27	S55658000	FELT	1
28	S49614000	FELT SUPPORT	1
29	S52230001	SUPPORT	1
30	123882001	SHOULDER SCREW, SM4.37	1
31	103810002	WASHER, WAVE SPRING	1
32	025770232	WASHER, PLAIN M 6.35	1
	154340401		1
	123880001		1

Page 24 — G . 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Brother LK3-B430 / LK3-B438 parts on page 24
Ref	Part number	Part name	Qty
1	S49992000	OIL WINDOW	1
2	S07333001	PIPE, S	1
3	S07456000	OIL TUBE, L = 160	1
4	148738000	WICK, L = 335	1
5	107149001	FELT	1
6	S37983001	WICK SUPPORT	1
7	062680612	SCREW, PAN SM4.37-40X6	1
8	025680232	WASHER, PLAIN M 4.37	1
9	028680242	WASHER, SPRING 2-4.37	1
10	S10478000	FELT	1
11	S34986000	OIL TUBE, L = 135	1
12	S49982000	WICK, 4X4 L = 400	1
13	107149001	FELT	2
14	S49959001	WICK SUPPORT	1
15	S10162201	WICK SUPPORT	1
16	060670512	SCREW, BIND SM3.57-40X5	1
17	S49620000	OIL TUBE, L = 340	2
18	S49957000	WICK, 4X4 L = 700	1
19	S49622000	WICK, 4X4 L = 130	1
20	S49983000	WICK, 4X4 L = 800	1
21	S49984000	FLAT WICK, L = 200	1
22	104567001	WICK SUPPORT	1
23	159565000	WICK, L = 150	1
24	S37985000	FELT	1
25	S37986000	OIL TUBE, L = 440	1
26	S18093100	WICK, 4X4 L = 1100	1
27	145547001	TUBE HOLDER	1
28	062670512	SCREW, PAN SM3.57-40X5	1
29	S37987001	FELT SUPPORT	1
30	S37988000	FELT	1
31	062680612	SCREW, PAN SM4.37-40X6	1
32	S09043000	FELT	1
33	152948001	OIL WINDOW	1
34	S49623000	OIL TUBE, L = 280	1
35	S49624000	OIL TUBE, L = 260	1
36	S49625000	OIL TUBE, L = 160	1
38	152969001	CORD SUPPORT	2
39	062670512	SCREW, PAN SM3.57-40X5	2
40	148738000	WICK, L = 335	1
41	148738000	WICK, L = 335	1
42	152956001	WICK, 4X4 L = 500	1
44	228475000	FASTENING BAND, 1.9X80	3
45	153924001	FELT	1
46	S49957000	WICK, 4X4 L = 700	1
47	S49958000	WICK, 4X4 L = 70	1
48	S49985000	OIL TUBE, L = 170	1
49	S49986000	OIL TUBE, L = 110	1
50	S49987000	OIL TUBE, L = 150	1
51	S49995001	CORD SUPPORT	1
52	062670512	SCREW, PAN SM3.57-40X5	1
53	S49618000	OIL TUBE, L = 210	1
54	S55659000	WICK, L = 600	1

Page 26 — H. 糸通シ関係 / Threading mechanism / Fadenführungsvorrichtung / Mecanismo del enhebrado

Brother LK3-B430 / LK3-B438 parts on page 26
Ref	Part number	Part name	Qty
1	152869001	THREAD GUIDE, ;ARM	1
2	062710612	SCREW, PAN SM4.76-32X6	1
3	152870001	THREAD GUIDE, ;ARM	1
4	062670612	SCREW, PAN SM3.57-40X6	1
5	113316001	THREAD GUIDE	1
6	060670612	SCREW, BIND SM3.57-40X6	1
8	152872001	TENSION BRACKET	1
9	114294001	O RING	1
10	144588001	THREAD TAKE-UP SPRING, B	1
11	150551000	TENSION RELEASE PIN	1
12	116922001	TENSION STUD	1
13	S31032001	TENSION NUT	1
14	107606001	SPRING, TENSION ;H	1
15	159805001	DISC PRESSER, ;TENSION	1
16	145446001	DISC, ;TENSION	2
17	100402004	SET SCREW, SM3.57	1
18	S10469001	SET SCREW, SOCKET SM5.95	1
19	115186001	TENSION STUD, ;MAIN	1
20	100136001	NUT, TENSION	1
21	115188001	SPRING, TENSION	1
22	145446001	DISC, ;TENSION	2
23	152889001	THREAD RETAINER	1
24	062670612	SCREW, PAN SM3.57-40X6	2
25	S30003001	THREAD GUIDE, A ;N-BAR	1
26	154626001	THREAD GUIDE, ;N-BAR BUSH	1
32	S45083001	THREAD GUIDE, ;F-PLATE	1
33	S12441001	WASHER	1
27	152881001	NEEDLE COOLER ASSY	1
28	014760632	SET SCREW, SOCKET (CP)SM5.95X6	1
29	152883000	FELT, 8X15.5	1
30	152884001	THREAD GUIDE, ;N-COOLER	1
31	062670412	SCREW, PAN SM3.57-40X4	1

Page 28 — J. 糸巻関係 / Bobbin winder mechanism / Spuler / Mécanisme du bobineur / Mecanismo del devanador de la canilla

Brother LK3-B430 / LK3-B438 parts on page 28
Ref	Part number	Part name	Qty
1	S37990409	TOP COVER ASSY	1
1-1	S37991109	TOP COVER	1
1-2	S37992100	BOBBIN WINDER ARM	1
1-3	S37993000	SPRING, PLATE	1
1-4	048100142	RETAINING RING, EXTERNAL C10	1
1-5	S37994001	STUD, ;B-WINDER CLAW	1
1-6	S37995101	BOBBIN PRESSER	1
1-7	014679320	SET SCREW, SOCKET (CP) SM3.57	1
1-8	S37996001	CLAW, ;B-WINDER	1
1-9	014680622	SET SCREW, SOCKET (CP) SM4.37	1
1-10	048050342	RETAINING RING, E5	1
1-11	S37997001	SHAFT, ;B-WINDER	1
1-12	154528001	WHEEL, ;B-WINDER	1
1-13	120448001	RUBBER RING	1
1-14	120990001	SET SCREW, (CP) SM4.37-40X8	2
1-15	S10174000	DUST GUARD PLATE	1
1-16	S37998001	SPRING	1
1-17	157968001	KNIFE	1
1-18	062680512	SCREW, PAN SM4.37-40X5	1
1-19	159574101	TENSION STUD	1
1-20	100136001	NUT, TENSION	1
1-21	144110001	TENSION ADJUSTING SPRING	1
1-22	145446001	DISC, ;TENSION	2
1-23	144105000	FLANGE WASHER, ;T-SPRING	1
1-24	021680202	NUT, 2 SM4.37	1
1-25	141590001	THREADING BAR, U	1
1-26	100022004	NUT, SM5.95	2
1-27	025680232	WASHER, PLAIN M 4.37	1
2	062681212	SCREW, PAN SM4.37-40X12	2
3	062680612	SCREW, PAN SM4.37-40X6	1
4	025680232	WASHER, PLAIN M 4.37	3
5	S47335101	BOBBIN WINDER PULLEY ASSY	1
	S3798001		1

Page 30 — K. 糸切り関係 / Thread trimmer mechanism / Fadenabschneidevorrichtung / Mécanisme de coupe-fil / Mecanismo de la cortadura de hiros

Brother LK3-B430 / LK3-B438 parts on page 30
Ref	Part number	Part name	Qty
1	S49629101	THREAD TRIMMER CAM	1
2	014770622	SET SCREW, SOCKET (CP) SM6.35	2
3	S38002201	SETTING PLATE, ;SOLENOID	1
5	060681212	SCREW, BIND SM4.37-40X12	2
6	154599000	CUSHION, ;SOLENOID	1
7	S02652001	WASHER	1
8	S23836001	SOLENOID LEVER ASSY	1
8-1	S02654001	SOLENOID LEVER	1
8-2	014680622	SET SCREW, SOCKET (CP) SM4.37	1
9	S38003101	PUSHING LEVER, ;D-LEVER	1
10	S49645001	SHOULDER SCREW, SM4.76	1
11	S38004002	DRIVING LEVER STOPPER, H = 0.3	1
11	S38004003	DRIVING LEVER STOPPER, H = 0.6	1
11	S38004004	DRIVING LEVER STOPPER, H = 0.45	1
12	018681022	BOLT, SOCKET SM4.37X10	2
13	148847001	WASHER, PLAIN 4.76	2
14	159905001	ADJUSTING SCREW	1
15	105812003	NUT, SM7.94	1
16	S49644001	GUIDE SHAFT	1
17	231071001	BUSH, 8X15	1
18	S32235001	SPRING, COMPRESSION	1
19	048070342	RETAINING RING, E7	1
20	153596001	WASHER	1
21	154596000	CUSHION	1
22	S49646001	TR-DRIVING LEVER ASSY	1
22-1	S49647001	TR-DRIVING LEVER	1
22-2	153597001	RETAINER COLLAR, ;L-THREAD	1
22-3	S30033001	SHOULDER SCREW, SM3.57	1
22-4	148813001	WASHER	2
22-5	106129001	NUT, SM3.57	1
22-6	028350242	WASHER, SPRING 2-3.5	1
23	014770622	SET SCREW, SOCKET (CP) SM6.35	1
24	S02354001	SHOULDER SCREW, B	2
25	100022005	NUT, SM5.95	2
26	S49648001	THREAD TRIMMER ROD ASSY	1
26-1	S49649001	THREAD TRIMMER ROD	1
26-2	141492001	JOINT ASSY	2
26-3	100022005	NUT, SM5.95	2
29	S49650001	THREAD TRIMMER LEVER	1
30	S10195001	SHAFT, ;TR-TRIMMER LEVER	1
31	110367001	WASHER, PLAIN SPECIAL 8	1
32	048060342	RETAINING RING, E6	1
33	014760622	SET SCREW, SOCKET SM5.95	1
34	S38011001	SPRING, EXTENSION	1
35	S49651001	SPRING HOOK	1
36	110233001	SHOULDER SCREW, SM4.76	1
37	110161004	NUT, SM4.76	1
38	S49994001	WASHER, PLAIN 4.76	2
40	S38012001	CONNECTING ROD LEVER ASSY	1
41	S10202101	LEVER SHAFT	1
42	121007001	SET SCREW, SM4.37	1
43-1	S38015001	NEEDLE PLATE	1
43-2	S40916001	NEEDLE PLATE, C	1
	S23835001		1

Page 32 — K. 糸切り関係 / Thread trimmer mechanism / Fadenschnneidevorrichtung / Mécanisme de coupe-fil / Mecanismo de la cortadura de hiros

Brother LK3-B430 / LK3-B438 parts on page 32
Ref	Part number	Part name	Qty
44	S38016001	CONNECTING ROD, ;TR	1
45-1	S49988001	MOVABLE KNIFE ASSY, N	1
46	S10208001	SPACER, MOVABLE KNIFE T = 0.4	1
46	S10208002	SPACER, MOVABLE KNIFE T = 0.5	1
46	S10208003	SPACER, MOVABLE KNIFE T = 0.6	1
47	S00705001	COLLAR, ;M-KNIFE	1
48	S10209101	SCREW, SM4.37	1
49	S10210201	FIXED KNIFE	1
50	111140002	SCREW, SM2.38	2
51	100032004	SCREW, FLAT SM4.37-40X8	2
52	S11244001	SCREW, SM4.37	2
53-6	S52082001	NEEDLE HOLE PLATE, HX	1
54	100360003	SCREW, FLAT SM2.38	2
55	228475000	FASTENING BAND, 1.9X80	2
45-2	S50105001	MOVABLE KNIFE ASSY, SP	1
900	S49462001	SPRING, PLATE	1
53-1	S40917001	NEEDLE HOLE PLATE, HS	1
53-2	S40925001	NEEDLE HOLE PLATE, HT	1
53-3	S52079001	NEEDLE HOLE PLATE, HU	1
53-4	S52080001	NEEDLE HOLE PLATE, HV	1
53-5	S52081001	NEEDLE HOLE PLATE, HW	1

Page 34 — L . 糸払イ関係 / Thread wiper mechanism / Fadenwischvorrichtung / Mécanisme de tire-fil / Mecanismo del limpiador de hilo

Brother LK3-B430 / LK3-B438 parts on page 34
Ref	Part number	Part name	Qty
1	S49652101	DRIVING LEVER, ;T-WIPER	1
2	152822101	SHAFT, ;T-WIPER	1
3	025770232	WASHER, PLAIN M 6.35	1
4	048040342	RETAINING RING, E4	1
5	014760622	SET SCREW, SOCKET SM5.95	1
6	S38024001	SHAFT, ;W-ROD	1
7	S38025001	THREAD WIPER ROD ASSY	1
8	145992001	SET SCREW, SM4.37	1
9	048060342	RETAINING RING, E6	1
10	116629001	WASHER	2
11	152823001	THREAD WIPER ARM ASSY	1
12	048030342	RETAINING RING, E3	1
13	152827009	OIL CAP	1
14	014710522	SET SCREW, SOCKET (CP) SM4.76	1
15	156206001	THREAD WIPER, A	1
16	062670512	SCREW, PAN SM3.57-40X5	1
17	025350132	WASHER, PLAIN S 3.5	1
1	S49659001	SETTING PLATE, ;SOLENOID	1
2	062710612	SCREW, PAN SM4.76-32X6	2
3	S49660001	LEVER	1
4	107321003	SHOULDER SCREW, SM4.76	2
5	S19748001	CUSHION	1
6	047401442	PIN, SPRING ROLL AW4	1
7	S49661001	SOLENOID JOINT	1
8	S01998001	SET SCREW, SM3.57-40X6	2
9	110251001	SPRING HOOK	2
10	021670102	NUT, 1 SM3.57	2
11	S34883001	SPRING, EXTENSION	1
12	S19748001	CUSHION	1
13	S49663001	NUT, SM3.57	1
14	062671012	SCREW, PAN SM3.57-40X10	1
15	028350242	WASHER, SPRING 2-3.5	1
16	025350332	WASHER, PLAIN L 3.5	1
17	S49662001	CRANK, ;T/TAKE-UP LEVER	1
18	155559001	WASHER, PLAIN	1
19	048040342	RETAINING RING, E4	1
20	S49664000	COVER, ;T/TAKE-UP SOLENOID	1
21	062670812	SCREW, PAN SM3.57-40X8	2
22	S20878000	RUBBER CAP, 5.3	1
	025350342
	15559001

Page 36 — N. 糸締メ / Thread nipper mechanism / Fadenspannvorrichtung / Mécanisme de pince-fil / Mecanismo de la mordaza para hilo

Brother LK3-B430 / LK3-B438 parts on page 36
Ref	Part number	Part name	Qty
1	S49665001	TENSION RELEASE ROD ASSY	1
1-1	S49666001	TENSION RELEASE ROD	1
1-2	141492001	JOINT ASSY	1
1-3	100022005	NUT, SM5.95	1
2	145478101	SHOULDER SCREW, SOCKET SM4.76	1
3	S02354001	SHOULDER SCREW, B	1
4	100022005	NUT, SM5.95	1
5	S49653001	T-RELEASE DRIVING LEVER ASSY	1
5-1	S49654001	TENSION RELEASE DRIVING LEVER	1
5-2	153597001	RETAINER COLLAR, ;L-THREAD	1
5-3	S30033001	SHOULDER SCREW, SM3.57	1
5-4	S49655001	COLLAR	1
5-5	106129002	NUT, SM3.57	1
5-6	028350242	WASHER, SPRING 2-3.5	1
6	S49656001	TENSION RELEASE LEVER, U	1
7	S49657001	STOPPER, U	1
8	S19748001	CUSHION	1
9	062680812	SCREW, PAN SM4.37-40X8	2
11	S38032001	TENSION RELEASE LEVER	1
12	S46734001	SHAFT, ;LIFTER LEVER	1
13	S01998001	SET SCREW, SM3.57-40X6	1
14	S38033001	COLLAR, 13	1
15	048040342	RETAINING RING, E4	2
17	S55278001	SPRING, TWIST	1
18	S31006001	PRESSER BAR LIFTER	1
19	062351216	SCREW, PAN M3.5X12	1
20	102707001	WASHER	1
21	S31952001	LIFTER CRANK	1
22	S10239001	TENSION RELEASE STUD	1

Page 38 — P. 針位置検出器関係 / Synchronizer / Synchronisator / Synchronisator / Sincronizador Q. プリント基板関係 / Printed circuit board mechanism / Leiterplatten / Circuits imprimés / Tableros de circuitos impresos

Brother LK3-B430 / LK3-B438 parts on page 38
Ref	Part number	Part name	Qty
1	S48666001	SYNCHRONIZER ASSY	1
2	062400806	SCREW, PAN M4X8	2
4	S38080001	MAGNET ASSY, D	1
5	S38082001	MAGNET ASSY, U	2
6	062681412	SCREW, PAN SM4.37-40X14	3
7	025680132	WASHER, PLAIN S 4.37	3
1	S49479001	MAIN PCB ASSY	1
1-1	S29019000	IC:M54640P	4
1-2	S43178000	PHOTO COUPLER, :PC9231	6
1-3	093650008	IC :74HC08F	1
1-4	093650032	IC :74HC32F	1
1-5	091170009	IC:74LS09F-T	2
1-6	S49484000	TRANSISTOR, FET :FS10KMJ-2	8
1-7	S49485000	TRANSISTOR, FET :FX6KMJ-2	8
1-8	S49471000	TRANSISTOR, FET :FK18SM-12	6
1-9	S38155000	TRANSISTOR, FET :2SK1306	3
1-10	S50645000	TRANSISTOR, FET :2SK1307	1
1-11	S49486000	TRANSISTOR, FET :2SJ222	1
1-12	U32744000	DIP SWITCH:DSS708	1
1-13	0A4301005	SCREW, PAN (S/P WASHER) M3X10	31
1-14	S48578000	GLASS FUSE, 5A ;W/LEED WIRE	1

Page 40 — R1. コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Brother LK3-B430 / LK3-B438 parts on page 40
Ref	Part number	Part name	Qty
1	S49467001	BOX ASSY	1
1-1	S49468001	POWER SUPPLY BOX	1
1-2	S49469001	SETTING PLATE, ;MAIN PCB	1
1-3	S49470001	BOX COVER	1
1-4	S38093000	HOLDER PLATE	1
1-5	0A5401206	SCREW, PAN (S/P WASHER) M4X12	2
1-6	021400206	NUT, 2 M4	2
1-7	S47692000	FAN MOTOR ASSY, DC	1
1-8	0A5403006	SCREW, PAN (S/P WASHER) M4X30	2
1-9	0A5400806	SCREW, PAN (S/P WASHER) M4X8	1
1-10	0A5401206	SCREW, PAN (S/P WASHER) M4X12	2
1-11	S42260000	FOOT SWITCH HARNESS ASSY, 434	1
1-12	S38107100	POWER SUPPLY HARNESS, CONTROL	1
1-13	S38108000	POWER SUPPLY HARNESS, MOTOR	1
1-14	S38109100	POWER SUPPLY HARNESS, H-P	1
1-15	S38110000	POWER HARNESS	1
1-16	S11949000	RUBBER BUSH	1
1-17	S00554000	SUPPORT, 6NS	17
1-18	S31760000	CORD CLAMP, 26-L	2
1-19	S43275000	CORD CLAMP, WS2NS	6
1-20	S43276000	CORD CLAMP, WS3NS	4
1-21	S43277000	CORD CLAMP, WS4NS	1
1-22	008400604	SCREW, TRUSS M4X6	12
1-23	S38116000	FRAGMENT PROTECTOR NET	1
1-25	S49938000	INSULATION SHEET	1
1-26	S49939001	POWER SUPPLY PCB ASSY	1
1-26-1	S43177000	IC, :MA3830	1
1-26-2	S43184000	PHOTO COUPLER, ;PC923	2
1-26-3	S49586000	TRANSISTOR, FET ;2SK1941	2
1-26-4	S55473000	DIODE, AR :PA905C6-F	1
1-26-5	S38203000	DIODE, :YG8022C04R	1
1-26-6	S38201000	VARISTOR, :V14D471	2
1-26-7	232384001	SURGE ABSORBER, ;DSA362MA	1
1-26-8	S49071000	DIODE BRIDGE, :25XB60	1
1-26-9	S38205000	CAPACITOR, ALUM-ELEC :250B182	1
1-26-10	S38206000	CAPACITOR, ALUM-ELEC :63B272	1
1-26-11	S43175000	TRANSFORMER, :54AA159	1
1-26-12	S43176000	TRANSFORMER, :35AD199	1
1-26-13	S43181000	COIL, :49AD289AC	1
1-26-14	S38208000	RELAY, :JW1AFSN/DC 5V	1
1-26-15	153242000	FUSE, 6A/250V	2
1-26-16	S08030000	FUSE, 5A/250V	1
1-26-17	S48580000	FUSE, 7A ;FB	1
1-26-18	0A4301005	SCREW, PAN (S/P WASHER) M3X10	8
1-26-19	S43189000	HARNESS, PC-BE1	1
1-26-20	S43187000	HARNESS, PC-BC2	1
1-26-21	S49472000	THERMISTOR :6D-22	1
10	S49477000	PROM ASSY, CONTROL	1
10-1	UA4817000	EPROM:27C2001	1

Page 42 — R1. コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Brother LK3-B430 / LK3-B438 parts on page 42
Ref	Part number	Part name	Qty
11	S53032000	PROM ASSY, IM	1
11-1	S38143000	CMOS LSI, 27C512	1
12	228475000	FASTENING BAND, 1.9X80	1
20	S38352101	LABEL, ELEC. SHOCK 4 LANG.	2
21	S38353101		2
54	S55627001	LABEL, IM	1
54	S55527001	LABEL, IM	1
H-1	S53031001	BOX SET, A1-IM ;3-P. 200/220V	1
H-2	S53033001	BOX SET, A2-IM ;1-P. 220/230V	1
H-3	S53034001	ボツクスソウクミB1-IM	1
H-4	S53035001	BOX SET, B2-IM ;1-P. 110V AC	1
H-5	S53036001	BOX SET, C1-IM ;3-P. 415V AC	1
H-6	S53037001	BOX SET, C2-IM ;3-P. 380V AC	1
H-7	S53038001	BOX SET, C3-IM ;1-P. 240V AC	1
H-8	S53039001	BOX SET, E-IM ;3-P. 400V AC	1
H-9	S53040001	BOX SET, F-IM ;1-P. 230V AC	1

Page 44 — R2 . コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Brother LK3-B430 / LK3-B438 parts on page 44
Ref	Part number	Part name	Qty
2-1	S38112001	P-SUPPLY SWITCH ASSY, A	1
2-1-1	S38113000	POWER SUPPLY HARNESS, A ;IN	1
2-1-2	S38133000	POWER SUPPLY HARNESS	1
2-1-3	J02657001	PUSH SWITCH, 3P #17	1
2-1-4	224514001	INSULATION PLATE	2
2-1-5	218859001	BINDER, M150	2
2-2	S38114000	デンゲンSWクミB	1
2-2-1	S38115000	デンゲンINコードB	1
2-2-2	S38118000		1
2-2-3	J02657001	3Pオシ SW#17	1
2-2-4	224514001		2
2-2-5	218859001	バインダM150	2
2-3	S38117000	POWER SUPPLY SWITCH ASSY, C	1
2-3-1	S38115000	POWER SUPPLY HARNESS, B ;IN	1
2-3-2	S38133000	POWER SUPPLY HARNESS	1
2-3-3	J02657001	PUSH SWITCH, 3P #17	1
2-3-4	224514001	INSULATION PLATE	2
2-3-5	218859001	BINDER, M150	2
2-4	S47592000	P-SUPPLY SWITCH ASSY, D	1
2-4-1	S38113000	POWER SUPPLY HARNESS, A ;IN	1
2-4-2	S47595000	POWER SUPPLY HARNESS, EXP.	1
2-4-3	J02657001	PUSH SWITCH, 3P #17	1
2-4-4	224514001	INSULATION PLATE	2
2-4-5	218859001	BINDER, M150	2
2-7	S47594000	P-SUPPLY SWITCH ASSY, G	1
2-7-1	S38115000	POWER SUPPLY HARNESS, B ;IN	1
2-7-2	S47595000	POWER SUPPLY HARNESS, EXP.	1
2-7-3	J02657001	PUSH SWITCH, 3P #17	1
2-7-4	224514001	INSULATION PLATE	2
2-7-5	218859001	BINDER, M150	2
3-1	S38123000	AC CONNECTOR ASSY, IN	1
3-2	S49473000	CONVERSION TRANSFORMER ASSY, B	1
3-2-1	S49474000	CONVERSION TRANSFORMER, B	1
3-2-2	S38126000	AC HARNESS, IN	1
3-3	S49475000	CONVERSION TRANSFORMER ASSY, C	1
3-3-1	S49476000	CONVERSION TRANSFORMER, C	1
3-3-2	S38126000	AC HARNESS, IN	1

Page 46 — R2. コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Brother LK3-B430 / LK3-B438 parts on page 46
Ref	Part number	Part name	Qty
4	018061436	BOLT, SOCKET M6X14	4
5	025060236	WASHER, PLAIN M 6	8
6	021060106	NUT, 1 M6	4
7	028060246	WASHER, SPRING 2-6	4
2-5	S38120000	POWER SUPPLY HARNESS, E ;IN	1
40	S40635001	NOISE FILTER ASSY, 430E	1
2-6	S43188000	POWER SUPPLY HARNESS, F ;IN	1
3-4	S43201000	AC HARNESS, F ;IN	1
40-1	S40616001	NOISE FILTER ASSY, EMC	1
41	S40620000	SETTING PLATE, ;PCB	1
42	0A4400605	SCREW, PAN (S/P WASHER) M4X6	6
43	S40621000	EMI CORE, ESD-SR-15	1
44	S40622000	EMI CORE, ESD-SR-25	1
45	149809000	BEAD BAND, L = 200	2
46	S40621000	EMI CORE, ESD-SR-15	3
47	S40622000	EMI CORE, ESD-SR-25	2
48	149809000	BEAD BAND, L = 200	5
49	S40623000	EMI CORE, TR-40-27	1
50	0A5401606	SCREW, PAN (S/P WASHER) M4X16	1
51	025040236	WASHER, PLAIN M 4	1
52	021400106	NUT, 1 M4	1
	538120000	デンゲンINコードE	1
	540635001	ノイズフィルタ 430Eクミ	1
	540620000		1
	543188000	デンゲンINコードF	1
	543201000	ACINコードF	1
	540616001	ノイズフィルタ EMCクミ	1
	540621000	EMIコア ESD-SR-15	1
	540622000	EMIコア ESD-SR-25	1
	540623000	EMIコア TR-40-27	1

Page 48 — S. 電装品関係 / Power supply equipment mechanism / Stromversorgung / Mécanisme de l'equipement en alimentation électrique / Mecanismo del equipo

Brother LK3-B430 / LK3-B438 parts on page 48
Ref	Part number	Part name	Qty
1	S38134000	PULSE MOTOR ASSY, X	1
2	S38136100	PULSE MOTOR ASSY, Y	1
3	018401222	BOLT, SOCKET M4X12	8
4	552907000	CORD HOLDER, 10N	2
5	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
6	S49463000	SENSOR ASSY, ;HEAD	1
6-1	S44665000	PROXIMITY SENSOR, GL-12F ;X	1
6-2	S44665001	PROXIMITY SENSOR, GL-12F ;Y	1
6-3	S44665003	PROXIMITY SENSOR, GL-12F ;CLA.	1
7	S46476001	SENSOR BRACKET	3
8	062300806	SCREW, PAN M3X8	2
9	062300806	SCREW, PAN M3X8	1
10	552907000	CORD HOLDER, 10N	2
11	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
12	152969001	CORD SUPPORT	1
13	062670512	SCREW, PAN SM3.57-40X5	1
14-1	S49979100	SOLENOID ASSY, ;CLAMP	1
14-1-1	S49993100	DAMPER	1
14-1-2	S49963000	DAMPER, 2	1
14-2	S38144100	SOLENOID ASSY, TR	1
14-3	S38146000	CONNECTOR, 3191-04R	1
14-4	S38147000	MARK TUBE, 5	1
15	060501016	SCREW, BIND M5X10	4
16	S38148000	GROUND WIRE, 1	1
17	0A5400806	SCREW, PAN (S/P WASHER) M4X8	1
18	S49464000	SOLENOID ASSY, ;T/WIPER	1
19	S00480000	CORD HOLDER, 5N	3
20	060670612	SCREW, BIND SM3.57-40X6	3
21	S49465004	CONNECTOR ASSY, ;438E	1
22	228475000	FASTENING BAND, 1.9X80	1
23	117150001	CORD HOLDER	1
24	062670612	SCREW, PAN SM3.57-40X6	1
25	218859001	BINDER, M150	1
34	S00480000	CORD HOLDER, 5N	2
35	060670612	SCREW, BIND SM3.57-40X6	2
36	060670612	SCREW, BIND SM3.57-40X6	1
37	060400606	SCREW, BIND M4X6	1
40	S55629001	HEAD POSITION SWITCH ASSY	1
40-1	S55630000	MICRO SWITCH ASSY	1
40-2	S38744001	SPRING, SWITCH PLATE	1
40-3	S55632001	SWITCH BRACKET	1
40-4	062020806	SCREW, PAN M2X8	2
40-5	140647101	CORD HOLDER	1
40-6	062400616	SCREW, PAN M4X6	1
40-7	062401216	SCREW, PAN M4X12	1
40-8	026040236	WASHER, PLAIN 4	1
40-9	154514001	SPACER	1
40-10	021400106	NUT, 1 M4	1
41	0A5401006	SCREW, PAN (S/PWASHER) M4X10	2
42	552907000	CORD HOLDER, 10N	1
43	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
30	S49934009	EM-LOCK SWITCH ASSY	1
30-1	S37057001	SPACER, 3 ;EM-SWITCH	1
30-2	S49482000	EM-LOCK SWITCH & HARNESS ASSY	1
30-2-1	S32335100	SWITCH, ;AVS311N	1
30-2-2	S49466000	EM-SWITCH HARNESS	1
31	062710812	SCREW, PAN SM4.76-32X8	2
32	149287000	CORD HOLDER, 7N	3
33	060670612	SCREW, BIND SM3.57-40X6	3
	S49993000	DAMPER, 2	1

Page 50 — T. 操作パネル関係 / Operation panel mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo del caja de controles

Brother LK3-B430 / LK3-B438 parts on page 50
Ref	Part number	Part name	Qty
1	S55357001	OPERATION PANEL SET, IM	1
1-1	S55352001	OPERATION PANEL ASSY, IM	1
1-1-1	S55353001	FRONT FRAME ASSY, IM	1
1	S55889001	OPERATION PANEL SET	1
1-1	S55890001	OPERATION PANEL ASSY, IM	1
1-1-1	S55891000	FRONT FRAME ASSY, IM	1
1-1-2	S52091000	REAR FRAME ASSY	1
1-1-3	S49495000	PANEL SIDE COVER	1
1-1-4	S49496001	COVR GUIDE, ;SIDE	1
1-1-5	087310815	TAPTITE, CUP B M3X8	2
1-1-6	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
1-1-7	S49497001	PANEL PCB ASSY	1
1-1-7-1	S29023000	LED, ;GL9P040	4
1-1-7-2	S46703000	LED, PG5307S	7
1-1-7-3	S48579000	SWITCH, ;B3F-4050	10
1-1-7-4	U34870001	DIP SWITCH:KSP08	1
1-1-7-5	S30280000	BUZZER, PKB24SPC36	1
1-1-7-6	UL0025000	CONNECTOR:3429-6002SC	1
1-1-8	S49510000	PANEL HARNESS ASSY	1
1-1-9	087311015	TAPTITE, CUP B M3X10	2
1-1-10	XA2220050	SUPPORTER	2
1-2	062300806	SCREW, PAN M3X8	4
1	J03647001	MOTOR ASSY, 430CIM	1
2	S53055000	HARNESS ASSY, IM	1
3	S16568000	CONNECTOR, ;3191-03R1	1

Page 52 — V1. 踏板関係 (香港向以外) / Foot switch pedal mechanism (Except for Hong Kong) / Fußbetätigung / Mécanisme de la pédale / Mecanismo del pedal

Brother LK3-B430 / LK3-B438 parts on page 52
Ref	Part number	Part name	Qty
1-1	S49667101	2-STEP FOOT SW SET	1
1-1-1	S49668101	2-STEP FOOT SW ASSY	1
1-1-1-1	S49669100	FOOT PEDAL BASE ASSY	1
1-1-1-2	S49672001	PIN	1
1-1-1-3	S38168001	SPRING, COMPRESSION	1
1-1-1-4	S38169201	SUPPORT PLATE, B ;F-SWITCH	1
1-1-1-5	004400603	SCREW, FLAT M4X6	2
1-1-1-6	S38170001	SPRING, COMPRESSION	1
1-1-1-7	S54648000	HARNESS ASSY, FOOT SW	1
1-1-1-7-1	S54646000	HARNESS, FOOT SW	1
1-1-1-7-2	S36260000	MICRO SWITCH, VX ;PIN BUTTON	2
1-1-1-8	062302506	SCREW, PAN M3X25	2
1-1-1-9	S51451000	FOOT PEDAL	1
1-1-1-10	S49673000	PROTECTION PLATE, ;PEDAL	1
1-1-1-11	S49674001	SPRING, PLATE	1
1-1-1-12	S38177001	SHAFT, ;F-PEDAL	1
1-1-1-13	048050346	RETAINING RING, E5	2
1-1-1-14	052400606	SCREW, PAN (S/P WASHER) M4X6	2
1-1-1-15	025040236	WASHER, PLAIN M 4	1
1-1-1-16	117936001	RUBBER CAP, 9.4	4
1-1-1-17	S38180000	CONNECTOR, ;172169-1	1
1-1-1-18	S36682000	CONNECTOR CAP	1
1-1-1-19	S46694000	CORD BUSH, KR61A	1
1-1-2	S38178101	SUPPORT PLATE, A	1
1-1-3	S38179101	SUPPORT PLATE, C	1
1-1-4	018082536	BOLT, SOCKET M8X25	2
1-1-5	028080246	WASHER, SPRING 2-8	2
1-1-6	025080236	WASHER, PLAIN M 8	2
1-1-7	018501036	BOLT, SOCKET M5X10	2
1-1-8	028050246	WASHER, SPRING 2-5	2
1-1-9	025050236	WASHER, PLAIN M 5	2
1-1-10	018401236	BOLT, SOCKET M4X12	2
1-1-11	028040246	WASHER, SPRING 2-4	2
1-1-12	025040236	WASHER, PLAIN M 4	2
	025080246	WASHER, PLAIN M8	2

Page 54 — V2 . 踏板関係 (香港向) / Foot switch pedal mechanism (For Hong Kong) / Fußbetätigung / Mécanisme de la pédale / Mecanismo del pedal

Brother LK3-B430 / LK3-B438 parts on page 54
Ref	Part number	Part name	Qty
1-2	S49675101	2-PEDAL FOOT SW SET	1
1-2-1	S49676101	2-PEDAL FOOT SW ASSY	1
1-2-1-1	S49669100	FOOT PEDAL BASE ASSY	2
1-2-1-2	S38169201	SUPPORT PLATE, B ;F-SWITCH	2
1-2-1-3	004400603	SCREW, FLAT M4X6	4
1-2-1-4	S38170001	SPRING, COMPRESSION	2
1-2-1-5	S54649000	HARNESS ASSY, 2-PEDAL F-SW	1
1-2-1-5-1	S54647000	HARNESS, 2-PEDAL FOOT SW	2
1-2-1-5-2	S36260000	MICRO SWITCH, VX ;PIN BUTTON	2
1-2-1-6	062301205	SCREW, PAN M3X12	4
1-2-1-7	228475000	FASTENING BAND, 1.9X80	8
1-2-1-8	S51451000	FOOT PEDAL	2
1-2-1-9	S49673000	PROTECTION PLATE, ;PEDAL	2
1-2-1-10	S49674001	SPRING, PLATE	2
1-2-1-11	S38177001	SHAFT, ;F-PEDAL	2
1-2-1-12	048050346	RETAINING RING, E5	4
1-2-1-13	052400606	SCREW, PAN (S/P WASHER) M4X6	4
1-2-1-14	025040236	WASHER, PLAIN M 4	2
1-2-1-15	117936001	RUBBER CAP, 9.4	8
1-2-1-16	S38180000	CONNECTOR, ;172169-1	1
1-2-1-17	S38060000	CONNECTOR CAP, 18X19	1
1-2-1-18	S46694000	CORD BUSH, KR61A	2
1-2-2	S38178101	SUPPORT PLATE, A	2
1-2-3	S38179101	SUPPORT PLATE, C	2
1-2-4	018082536	BOLT, SOCKET M8X25	4
1-2-5	028080246	WASHER, SPRING 2-8	4
1-2-6	025080236	WASHER, PLAIN M 8	4
1-2-7	018501036	BOLT, SOCKET M5X10	4
1-2-8	028050246	WASHER, SPRING 2-5	4
1-2-9	025050236	WASHER, PLAIN M 5	4
1-2-10	018401236	BOLT, SOCKET M4X12	4
1-2-11	028040246	WASHER, SPRING 2-4	4
1-2-12	025040236	WASHER, PLAIN M 4	4
	0180501036	BOLT, SOCKET M5X10	4

Page 56 — V3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) / Fußbetätigung (Sonderzubehör) / Mécanisme de la pédale (Pièces en option)

Brother LK3-B430 / LK3-B438 parts on page 56
Ref	Part number	Part name	Qty
2	S46131001	2-STEP FOOT SWITCH SET, OP	1
2-1	S46132001	2-STEP FOOT SWITCH ASSY, OP	1
2-1-1	S46133001	SWITCH BRACKET	1
2-1-2	S46134001	FOOT SW LEVER	1
2-1-3	148904001	SHOULDER SCREW, SM7.94	1
2-1-4	025080236	WASHER, PLAIN M 8	1
2-1-5	101268002	NUT, SM7.94	1
2-1-6	S46135001	SPRING, EXTENSION	1
2-1-7	S46136000	FOOT SW HARNESS ASSY	1
2-1-8	UD2390001	SCREW, PAN (S/P WASHER) M3X20	4
2-1-9	025030236	WASHER, PLAIN M 3	2
2-1-10	021300206	NUT, 2 M3	2
2-1-11	052400806	SCREW, PAN (S/P WASHER) M4X8	2
2-1-12	S00480000	CORD HOLDER, 5N	1
2-2	100666002	WOOD SCREW, ROUND M5.5X20	2
2-3	200190001	STAPLE	3
2-4	S01603009	TREADLE ASSY	1
2-4-1	S01199003	TREADLE PEDAL	1
2-4-2	133188001	TREADLE SHAFT	1
2-4-3	119707003	BRACKET	2
2-4-4	119708001	COLLAR	2
2-4-5	017082206	BOLT, M8X22	2
2-4-6	116694001	NUT, M8	2
2-4-7	028080240	WASHER, SPRING 2-8	2
2-4-8	025080236	WASHER, PLAIN M 8	2
2-5	142656001	CHAIN ASSY	1
3	S49443000	CONTACT, ;170364-1	1
	500480006	CORD HOLDER, 5N	1

Page 58 — W . 付属装置関係 (オプション部品) / Attachment set (Option parts) / Anbausatz (Sonderzubehör) / Jeu d'accessoires (Pièces en option) / Juego de fijación

Brother LK3-B430 / LK3-B438 parts on page 58
Ref	Part number	Part name	Qty
20	S49615009	THREAD WIPER SOLENOID ASSY	1
20-1	S41656001	CONNECT. ROD ASSY, ;T-WIPER	1
20-2	S44600001	THREAD WIPER ARM ASSY	1
20-3	153112001	SHOULDER SCREW, SM3.57	1
20-4	021670202	NUT, 2 SM3.57	1
20-5	S49616009	SOLENOID BOX ASSY	1
20-5-1	S49619001	THREAD WIPER SOLENOID ASSY	1
20-5-1-1	S41204050	PLUNGER RUBBER	1
20-5-2	062300612	SCREW, PAN M3X6	4
20-5-3	S41205001	WASHER, PLAIN	1
20-5-4	S41206001	SPRING, ;T-WIPER	1
20-5-5	S25456001	PLUNGER PIN	2
20-5-6	S42017109	SETTING PLATE, W-SOL.	1
20-5-7	S49482000	EM-LOCK SWITCH & HARNESS ASSY	1
20-5-7-1	S32335000	SWITCH, ;AVS311N	1
20-5-7-2	S49466000	EM-SWITCH HARNESS	1
20-5-8	S37057001	SPACER, 3 ;EM-SWITCH	1
20-5-9	S42018109	SOLENOID COVER, W	1
20-5-10	008400604	SCREW, TRUSS M4X6	2
20-5-11	S37806109	SOLENOID COVER LID, E	1
20-5-12	008400604	SCREW, TRUSS M4X6	2
20-5-13	115007001	WASHER, PLAIN 13	1
20-6	S41207000	SPACER RUBBER	1
20-7	S25456001	PLUNGER PIN	1
20-8	018400632	BOLT, SOCKET M4X6	2
20-9	100645003	WASHER	2
20-10	S41657001	TENSION RELEASE ROD, DW	1
20-11	061350616	SCREW, FLAT M3.5X6	1
20-12	062680812	SCREW, PAN SM4.37-40X8	2
20-13	156206001	THREAD WIPER, A	1
20-14	S49947000	CONNECTOR, ;VHR-5N	1
20-15	060670612	SCREW, BIND SM3.57-40X6	3
20-16	149287000	CORD HOLDER, 7N	3
20-17	104449009	RUBBER CAP, 15.5	1
20-4	0217070202	ナット 2 SM3.57	1

Page 60 — X. 補助装置関係 (オプション部品) / Auxiliary device (Option parts) / Hilfsvorrichtung (Sonderzubehör) / Dispositif auxiliaire (Pièces en option) / Dispos

Brother LK3-B430 / LK3-B438 parts on page 60
Ref	Part number	Part name	Qty
1	156440001	BUTTON SPACER SET	1
1-1	156441001	SPACER ROD	1
1-2	122257001	WASHER	2
1-3	156443001	SPACER	1
1-4	129984003	SCREW, SM3.57	1
1-5	116662004	WASHER, PLAIN	2
1-6	154835001	BOLT, SM4.37	2
1-7	156342001	SPACER, B	1
1-8	014680422	SET SCREW, SOCKET (CP) SM4.37	1
2	S13183101	BUTTON SPACER SET, 438	1
2-1	S09662101	BUTTON SPACER ASSY	1
2-1-1	S09663101	BRACKET	1
2-1-2	S09658001	SCALE	1
2-1-3	S09686001	BOLT, SM4.37-40X7	1
2-1-4	S02745001	WASHER	1
2-1-5	S09659001	POSITIONING PLATE, A	1
2-1-6	S09660001	POSITIONING PLATE, B	1
2-1-7	115166001	SHOULDER SCREW, SM4.37	1
2-2	S01702001	SCREW, OVAL SM4.37X10	2
2-3	S13184001	FEED PLATE	1
3	S42902001	GAUGE ASSY, 438E	1
3-1	S42903001	H-POSITION STANDARD PLATE	1
3-2	S10352101	SCREW, W/SOCKET SM4.37	2
4	S41507009	MOTOR COVER	1
5	032361602	WOOD SCREW, ROUND M3.5X16	4
8	S42098009	SHANK DEVICE, ;438E	1
8-1	142689309	SHANK BUTTON CLAMP BRAC. ASSY	1
8-1-1	154684009	SHANK BUTTON CLAMP BRACKET	1
8-1-2	142677101	BUTTON CLAMP, A	1
8-1-3	142678101	BUTTON CLAMP, B	1
8-1-4	062670812	SCREW, PAN SM3.57-40X8	1
8-1-5	102707003	WASHER	1
8-1-6	142681001	BUTTON CLAMP STUD	1
8-1-7	154685001	SPRING	1
8-1-8	142706001	SET SCREW COLLAR	2
8-1-9	062670712	SCREW, PAN SM3.57-40X7	2
8-1-10	154686001	BUTTON CLAMP ARM	1
8-1-11	013719412	SET SCREW, (CP) SM4.76	1
8-1-12	142680001	BUTTON CLAMP	1
8-1-13	120990001	SET SCREW, (CP) SM4.37-40X8	1
8-2	154695001	CLAMP OPENER	1
8-3	154696001	STUD	1
8-4	014680422	SET SCREW, SOCKET (CP) SM4.37	1
8-5	154697001	FEED PLATE BASE	1
8-6	156336101	FEED PLATE, ;S-BUTTON	1
8-7	154713001	SCREW, SM4.76	2
8-8	021710212	NUT, 2 SM4.76	2
8-9	025710232	WASHER, PLAIN 4.76	2
8-10	142686101	CLOTH RECEIVER, S	1
8-11	060670512	SCREW, BIND SM3.57-40X5	1
8-12	S41508001	MOVABLE KNIFE ASSY, LL	1
8-13	115040116	NEEDLE ASSY, TQX7 (#16)	1
8-14	S41510001	THREAD GUIDE, 60 ;S-RACE	1
8-15	S10212101	NEEDLE HOLE PLATE, E	1
8-16	S41222101	THREAD GUIDE, B ;N-BAR	1
10	142687101	CLOTH RECEIVER, M	1
	122570001
	509662101
	509663101
	509658001
	509686001	ボルト 4.37-40X7
	502745001
	509659001	イチギメイタ A
	509660001	イチギメイタ B

Page 62 — Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LK3-B430 / LK3-B438 parts on page 62
Ref	Part number	Part name	Qty
4	S38039209	OIL PAN ASSY	1
4-1	S38040209	OIL PAN	1
4-2	154467001	DUST OILER	1
4-3	037301215	TAPPING SCREW, PAN V M3X12	2
4-4	S18093100	WICK, 4X4 L = 1100	1
5	109714000	NAIL	5
6	114486002	OILER	1
9	143882001	HEAD HINGE	2
10	014760622	SET SCREW, SOCKET SM5.95	2
11	S49603000	RUBBER CUSHION	2
12	109714000	NAIL	4
14	122991001	ACCESSORY BAG	1
16	159613051	BOBBIN	3
17	115053412	NEEDLE ASSY, TQX1 (#12)	1
18-1	S10208001	SPACER, MOVABLE KNIFE T = 0.4	1
18-2	S10208002	SPACER, MOVABLE KNIFE T = 0.5	1
18-3	S10208003	SPACER, MOVABLE KNIFE T = 0.6	1
19	S38045109	HEAD REST ASSY	1
20	S49604000	RUBBER	2
21	109714000	NAIL	2
22	114483002	OILER ASSY	1
23	154702101	OIL TANK	1
26	142443001	SCREW DRIVER, 1.9X52	1
27	118837001	SCREW DRIVER, 3.4X70	1
28	101572101	SCREW DRIVER, 5.5X190	1
29	107779001	WRENCH, 6X7	1
30	100887001	WRENCH, 8X9	1
31	107780001	WRENCH, 10X12	1
32	S07783001	HEXAGONAL WRENCH, 1.5	1
33	142721001	HEXAGONAL WRENCH, 3	1
34	118064001	HEXAGONAL WRENCH, 4	1
35	S02763402	COTTON STAND ASSY, 2DR	1
35-1	S51283001	SPOOL STAND BASE	2
35-2	150182000	SPOOL MAT	2
35-3	S51282001	SPOOL CUSHION	2
35-4	S02777001	PIPE (D) & SCREW SET, B	1
35-4-1	150206002	WASHER, PLAIN 16	1
35-4-2	S38648001	NUT, U5/8-28	1
35-4-3	150174000	COLUMN CAP	1
35-4-4	S01005000	RUBBER WASHER	2
35-4-5	S02747101	SPRING	1
35-5	S40640001	COLUMN PIPE W/CAP	1
35-5-1	150174000	COLUMN CAP	1
35-6	156112003	COLUMN PIPE, D	1
35-7	150173003	COLUMN JOINT	1
35-8	S21798001	SPOOL & SCREW SET	2
35-8-1	150179002	SPOOL SHAFT, B	2
35-8-2	028050246	WASHER, SPRING 2-5	2
35-8-3	021500106	NUT, 1 M5	2
35-9	S02778002	SPOOL HOLDER, 2	1
35-10	S02786002	THREAD HANGER ASSY, 2	1
35-10-1	S02787002	THREAD HANGER, 2	1
35-10-2	150183000	THREAD HANGER BASE	2
	S21798002		2

Page 63 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LK3-B430 / LK3-B438 parts on page 63
Ref	Part number	Part name	Qty
35-10-3	142990001	THREAD BUSH	2
35-11	S40641001	SPOOL SHAFT & SCREW SET, A	1
35-11-1	021500106	NUT, 1 M5	4
35-11-2	062501406	SCREW, PAN M5X14	1
35-11-3	062503506	SCREW, PAN M5X35	1
35-11-4	062501406	SCREW, PAN M5X14	2
35-11-5	026050136	WASHER, PLAIN S 5	2
42	200190001	STAPLE	5
51	144226001	HEAD COVER	1
52	146256001	CUSHION COLLAR	4
53	146255000	CUSHION	4
54	S00617000	RUBBER COLLAR	4
55	133740006	BOLT, SQUARE M6X70	4
56	021060106	NUT, 1 M6	8
57	025060336	WASHER, PLAIN L 6	4
58	032461606	WOOD SCREW, ROUND M4.5X16	2
59	S38044001	HINGE PRESSER	1
60	032422003	WOOD SCREW, ROUND M4.1X20	2
61	032422505	WOOD SCREW, ROUND M4.1X25	4
62	200190001	STAPLE	3
67	S49602001	EYE GUARD SET, C	1
67-1	S44493001	EYE GUARD ASSY	1
67-1-1	S44483001	HINGE ASSY	1
67-1-2	S44485001	EYE GUARD	1
67-1-3	061660806	SCREW, FLAT SM3.18-40X8	2
67-1-4	021660102	NUT, 1 SM3.18	2
67-1-5	025030232	WASHER, PLAIN M 3	2
67-1-6	S44486001	EYE GUARD HOLDER, A	1
67-1-7	062670512	SCREW, PAN SM3.57-40X5	2
67-2	062671016	SCREW, PAN SM3.57-40X10	2
70	S55633001	SWITCHING PLATE	1
71	032422003	WOOD SCREW, ROUND M4.1X20	2
75-1	S55311001	BELT COVER ASSY, IM	1
75-2	S55311002	BELT COVER ASSY, IM	1
76	062401006	SCREW, PAN M4X10	2
101	S08030000	FUSE, 5A ;FB	1
102	153242000	FUSE, 6A	1
103	S48580000	FUSE, 7A ;FB	1
801	S18641009	BUTTON TRAY WITH BAG	1
802	153843009	BUTTTON TRAY HOLDER	1
803	014760622	SET SCREW, SOCKET SM5.95	1
804	0B1351606	WOOD SCREW, FLAT M3.5X16	2
805	105343001	WRENCH, 8X9	1
806	154179001	HEXAGONAL WRENCH, 4	1
807	159939001	SPRING, A	1
808	110215002	SCREW, SM3.57	1
	081351606	サラモク35X16	2

Page 64 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LK3-B430 / LK3-B438 parts on page 64
Ref	Part number	Part name	Qty
809	025660132	WASHER, PLAIN S 3.18	1
811	159938001	SPRING SUPPORT	1
812	146360002	BOLT, SM4.76X7	1
15	S06706001	SILICONE OIL	1
901	UA4817000	EPROM:27C2001	1
902	S60400000	CONDUCTIVE PAD, 30X50	2
903	S60711001	CARTON, ;PROM	1
	146350002	ボルト4.76X7	1

Page 65 — Ga1. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d´ePiezas de calibradores

Brother LK3-B430 / LK3-B438 parts on page 65
Part number	Part name	Qty
159971-001	Standard
145665-101
154166-101
153833-101
153870-101
S49950-001
S49951-001
S49952-001
S49953-001
S49954-001
S49955-001		(1)
S52071-001	AL
S52072-001	BL
S52073-001	CL
S52074-001	DL
S52075-001	AR
S52076-001	BR
S52077-001	CR
S52078-001	DR

Page 66 — Ga2 . ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores 針穴板 / Needle hole plate

Brother LK3-B430 / LK3-B438 parts on page 66
Ref	Part number	Part name	Qty
	S40917-001
	S40925-001
	S52079-001
	S52080-001
	S52081-001
	S52082-001

Page 67 — Wa. 警告ラベル / Warning labels / Warnschilder / Etiquettes d'avertissement / Etiquetas de advertencia

Brother LK3-B430 / LK3-B438 parts on page 67
Ref	Part number	Part name	Qty
	S38353-101
	S38352-101	Label, elec. shock 4 lang.
	S38350-001
	S38349-001	Label, operation Eng.
	S37059-001	Label, PE
	S37060-001	Label, grounding

Page 68 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother LK3-B430 / LK3-B438 parts on page 68
Ref	Part number	Part name
38	J02657001	R2 - 2-1-3
38	J02657001	R2 - 2-2-3
38	J02657001	R2 - 2-3-3
38	J02657001	R2 - 2-4-3
38	J02657001	R2 - 2-7-3
44	J03647001	U - 1
42	S00480000	S - 19
42	S00480000	S - 34
50	S00480000	V3 - 2-1-12
34	S00554000	R1 - 1-17
57	S00617000	Z - 54
26	S00705001	K - 47
56	S01005000	Z - 35-4-4
50	S01199003	V3 - 2-4-1
50	S01603009	V3 - 2-4
14	S01694001	E - 100-21
54	S01702001	X - 2-2
28	S01998001	M - 8
30	S01998001	N - 13
24	S02354001	K - 24
30	S02354001	N - 3
16	S02429101	F - 14-2
24	S02654001	K - 7
24	S02654001	K - 8-1
54	S02745001	X - 2-1-4
56	S02747101	Z - 35-4-5
56	S02763402	Z - 35
56	S02777001	Z - 35-4
56	S02778002	Z - 35-9
56	S02786002	Z - 35-10
56	S02787002	Z - 35-10-1
14	S03468101	E - 100-13
14	S03657001	E - 100-14
14	S03659001	E - 100-11
58	S06706001	Z - 15
18	S07333001	G - 2
18	S07456000	G - 3
56	S07783001	Z - 32
57	S08030000	Z - 101
34	S08030000	R1 - 1-26-16
16	S09043000	F - 14-8
18	S09043000	G - 32
8	S09212001	C1 - 3-1
54	S09658001	X - 2-1-2
54	S09659001	X - 2-1-5
54	S09660001	X - 2-1-6
54	S09662101	X - 2-1
54	S09663101	X - 2-1-1
54	S09686001	X - 2-1-3
12	S10105001	D - 14
18	S10162201	G - 15
22	S10174000	J - 1-15
24	S10195001	K - 30
24	S10202101	K - 41
26	S10208001	K - 46
56	S10208001	Z - 18-1
26	S10208002	K - 46
56	S10208002	Z - 18-2
26	S10208003	K - 46
56	S10208003	Z - 18-3
26	S10209101	K - 48
26	S10210201	K - 49
54	S10212101	X - 8-15
30	S10239001	N - 22
54	S10352101	X - 3-2
20	S10469001	H - 18
18	S10478000	G - 10
26	S11244001	K - 52
34	S11949000	R1 - 1-16
20	S12441001	H - 33
54	S13183101	X - 2
54	S13184001	X - 2-3
16	S16290001	F - 23
44	S16568000	U - 3
18	S18093100	G - 26
56	S18093100	Z - 4-4
57	S18641009	Z - 801
12	S19662001	D - 10
28	S19748001	M - 5
28	S19748001	M - 12
30	S19748001	N - 8
2	S20164009	A - 28
28	S20878000	M - 22
56	S21798001	Z - 35-8
2	S23337009	A - 16
8	S23337009	C1 - 49
24	S23836001	K - 8
52	S25456001	W - 20-5-5
52	S25456001	W - 20-7
32	S29019000	Q - 1-1
44	S29023000	T - 1-1-7-1
14	S29954001	E - 100-10
20	S30003001	H - 25
24	S30033001	K - 22-3
30	S30033001	N - 5-3
44	S30280000	T - 1-1-7-5
30	S31006001	N - 18
20	S31032001	H - 13
34	S31760000	R1 - 1-18
30	S31952001	N - 21
24	S32235001	K - 18
52	S32335000	W - 20-5-7-1
42	S32335100	S - 30-2-1
28	S34883001	M - 11
18	S34986000	G - 11
48	S36260000	V1 - 1-1-1-7-2
48	S36260000	V2 - 1-2-1-5-2
46	S36682000	V1 - 1-1-1-18
42	S37057001	S - 30-1
52	S37057001	W - 20-5-8
61	S37059001	Wa
61	S37060001	Wa
52	S37806109	W - 20-5-11
2	S37915009	A - 12
2	S37916009	A - 25
4	S37920009	B1 - 16-7
8	S37930101	C1 - 1
8	S37931001	C1 - 1-1
8	S37932101	C1 - 1-6
8	S37932101	C1 - 4-2
8	S37933001	C1 - 1-7
8	S37933001	C1 - 4-3
8	S37934001	C1 - 2
8	S37935101	C1 - 4
8	S37936101	C1 - 4-1
8	S37937001	C1 - 11
8	S37937001	C1 - 19
8	S37938001	C1 - 12
8	S37939001	C1 - 14
8	S37940001	C1 - 17
8	S37940001	C1 - 22
8	S37941001	C1 - 20
8	S37941001	C1 - 25
8	S37942000	C1 - 27
8	S37943000	C1 - 28
8	S37944000	C1 - 29
8	S37945051	C1 - 31
12	S37970001	D - 9
12	S37970050	D - 12
16	S37978251	F - 5
18	S37983001	G - 6
18	S37985000	G - 24
18	S37986000	G - 25
18	S37987001	G - 29
18	S37988000	G - 30
22	S37990409	J - 1
22	S37991109	J - 1-1
22	S37992100	J - 1-2
22	S37993000	J - 1-3
22	S37994001	J - 1-5
22	S37995101	J - 1-6
22	S37996001	J - 1-8
22	S37997001	J - 1-11
22	S37998001	J - 1-16
24	S38002201	K - 3
24	S38003101	K - 9
24	S38004002	K - 11
24	S38004003	K - 11
24	S38004004	K - 11
24	S38011001	K - 34
24	S38012001	K - 40
24	S38015001	K - 43-1
26	S38016001	K - 44
28	S38024001	L - 6
28	S38025001	L - 7
30	S38032001	N - 11
30	S38033001	N - 14
56	S38039209	Z - 4
56	S38040209	Z - 4-1
57	S38044001	Z - 59
56	S38045109	Z - 19
48	S38060000	V2 - 1-2-1-17
32	S38080001	P - 4
32	S38082001	P - 5
34	S38093000	R1 - 1-4
34	S38107100	R1 - 1-12
34	S38108000	R1 - 1-13
34	S38109100	R1 - 1-14
34	S38110000	R1 - 1-15
38	S38112001	R2 - 2-1
38	S38113000	R2 - 2-1-1
38	S38113000	R2 - 2-4-1
38	S38114000	R2 - 2-2
38	S38115000	R2 - 2-2-1
38	S38115000	R2 - 2-3-1
38	S38115000	R2 - 2-7-1
34	S38116000	R1 - 1-23
38	S38117000	R2 - 2-3
38	S38118000	R2 - 2-2-2

Page 69

Brother LK3-B430 / LK3-B438 parts on page 69
Ref	Part number	Part name	Qty
	S38120000	R2 - 2-5
	S38123000	R2 - 3-1
	S38126000	R2 - 3-2-2
	S38126000	R2 - 3-3-2
	S38133000	R2 - 2-1-2
	S38133000	R2 - 2-3-2
	S38134000	S - 2
	S38136100	S - 2
	S38143000	R1 - 11-1
	S38144100	S - 14-2
	S38146000	S - 14-3
	S38147000	S - 14-4
	S38148000	S - 16
	S38155000	Q - 1-9
	S38168001	V1 - 1-1-1-3
	S38169201	V1 - 1-1-1-4
	S38169201	V2 - 1-2-1-2
	S38170001	V1 - 1-1-1-6
	S38170001	V2 - 1-2-1-4
	S38177001	V1 - 1-1-1-12
	S38177001	V2 - 1-2-1-11
	S38178101	V1 - 1-1-2
	S38178101	V2 - 1-2-2
	S38179101	V1 - 1-1-3
	S38179101	V2 - 1-2-3
	S38180000	V1 - 1-1-1-17
	S38180000	V2 - 1-2-1-16
	S38201000	R1 - 1-26-6
	S38203000	R1 - 1-26-5
	S38205000	R1 - 1-26-9
	S38206000	R1 - 1-26-10
	S38208000	R1 - 1-26-14
	S38349001	Wa
	S38350001	Wa
	S38352101	R1 - 20
	S38352101	Wa
	S38353101	R1 - 21
	S38353101	Wa
	S38648001	Z - 35-4-2
	S38744001	S - 40-2
	S40616001	R2 - 40-1
	S40620000	R2 - 41
	S40621000	R2 - 43
	S40621000	R2 - 46
	S40622000	R2 - 44
	S40622000	R2 - 47
	S40623000	R2 - 49
	S40635001	R2 - 40
	S40640001	Z - 35-5
	S40641001	Z - 35-11
	S40916001	K - 43-2
	S40917001	K - 53-1
	S40917001	Ga2- HS
	S40920009	D - 33
	S40921001	D - 36
	S40922101	D - 11
	S40925001	K - 53-2
	S40925001	Ga2- HT
	S41204050	W - 20-5-1-1
	S41205001	W - 20-5-3
	S41206001	W - 20-5-4
	S41207000	W - 20-6
	S41222101	X - 8-16
	S41507009	X - 4
	S41508001	X - 8-12
	S41510001	X - 8-14
	S41656001	W - 20-1
	S41657001	W - 20-10
	S42017109	W - 20-5-6
	S42018109	W - 20-5-9
	S42098009	X - 8
	S42260000	R1 - 1-11
	S42902001	X - 3
	S42903001	X - 3-1
	S43175000	R1 - 1-26-11
	S43176000	R1 - 1-26-12
	S43177000	R1 - 1-26-1
	S43178000	Q - 1-2
	S43181000	R1 - 1-26-13
	S43184000	R1 - 1-26-2
	S43187000	R1 - 1-26-20
	S43188000	R2 - 2-6
	S43189000	R1 - 1-26-19
	S43201000	R2 - 3-4
	S43275000	R1 - 1-19
	S43276000	R1 - 1-20
	S43277000	R1 - 1-21
	S44010009	A - 31
	S44483001	Z - 67-1-1
	S44485001	Z - 67-1-2
	S44486001	Z - 67-1-6
	S44493001	Z - 67-1
	S44600001	W - 20-2
	S44629001	A - 920
	S44665000	S - 6-1
	S44665001	S - 6-2
	S44665003	S - 6-3
	S45083001	H - 32
	S45147101	B1 - 2
	S46131001	V3 - 2
	S46132001	V3 - 2-1
	S46133001	V3 - 2-1-1
	S46134001	V3 - 2-1-2
	S46135001	V3 - 2-1-6
	S46136000	V3 - 2-1-7
	S46476001	S - 7
	S46694000	V1 - 1-1-1-19
	S46694000	V2 - 1-2-1-18
	S46703000	T - 1-1-7-2
	S46734001	N - 12
	S47089001	B1 - 16-1
	S47090001	B1 - 16-2
	S47091001	B1 - 16-3
	S47335101	J - 5
	S47592000	R2 - 2-4
	S47594000	R2 - 2-7
	S47595000	R2 - 2-4-2
	S47595000	R2 - 2-7-2
	S47692000	R1 - 1-7
	S48578000	Q - 1-14
	S48579000	T - 1-1-7-3
	S48580000	Z - 103
	S48580000	R1 - 1-26-17
	S48666001	P - 1
	S49071000	R1 - 1-26-8
	S49443000	V3 - 3
	S49462001	K - 900
	S49463000	S - 6
	S49464000	S - 18
	S49465004	S - 21
	S49466000	S - 21
	S49466000	W - 20-5-7-2
	S49467001	R1 - 1
	S49468001	R1 - 1-1
	S49469001	R1 - 1-2
	S49470001	R1 - 1-3
	S49471000	Q - 1-8
	S49472000	R1 - 1-26-21
	S49474000	R2 - 3-2
	S49475000	R2 - 3-2-1
	S49476000	R2 - 3-3
	S49477000	R2 - 3-3-1
	S49479001	R1 - 10
	S49482000	Q - 1
	S49482000	S - 30-2
	S49482000	W - 20-5-7
	S49484000	Q - 1-6
	S49485000	Q - 1-7
	S49486000	Q - 1-11
	S49495000	T - 1-1-3
	S49496001	T - 1-1-4
	S49497001	T - 1-1-7
	S49510000	T - 1-1-8
	S49582001	B1 - 3
	S49583001	B1 - 4
	S49586000	R1 - 1-26-3
	S49590000	B1 - 19
	S49593000	B1 - 19
	S49600001	B1 - 1
	S49602001	Z - 67
	S49603000	Z - 11
	S49604000	Z - 20
	S49605001	F - 8
	S49608001	F - 9
	S49609001	F - 13
	S49611301	F - 14
	S49612101	F - 14-1
	S49614000	F - 28
	S49615009	W - 20
	S49616009	W - 20-5
	S49617001	F - 19
	S49618000	G - 53
	S49619001	W - 20-5-1
	S49620000	G - 17
	S49622000	G - 19
	S49623000	G - 34
	S49624000	G - 35
	S49625000	G - 36
	S49626000	F - 14-10
	S49629101	K - 1
	S49630001	D - 1
	S49631001	D - 2
	S49632001	D - 3
	S49635001	D - 4
	S49636001	D - 5
	S49637001	D - 6
	S49638001	D - 7
	S49639001	D - 15
	S49640101	D - 17

Page 70

Brother LK3-B430 / LK3-B438 parts on page 70
Ref	Part number	Part name
12	S49641001	D - 19
12	S49642001	D - 21
12	S49643001	D - 23
24	S49644001	K - 16
24	S49645001	K - 10
24	S49646001	K - 22
24	S49647001	K - 22-1
24	S49648001	K - 26
24	S49649001	K - 26-1
24	S49650001	K - 29
24	S49651001	K - 35
28	S49652101	L - 1
30	S49653001	N - 5
30	S49654001	N - 5-1
30	S49655001	N - 5-4
30	S49656001	N - 6
30	S49657001	N - 7
28	S49659001	M - 1
28	S49660001	M - 3
28	S49661001	M - 7
28	S49662001	M - 17
28	S49663001	M - 13
28	S49664000	M - 20
30	S49665001	N - 1
30	S49666001	N - 1-1
46	S49667101	V1 - 1-1
46	S49668101	V1 - 1-1-1
46	S49669100	V1 - 1-1-1-1
48	V2 - 1-2-1-1
46	S49672001	V1 - 1-1-1-1-10
48	V2 - 1-2-1-9
46	S49674001	V1 - 1-1-1-11
48	V2 - 1-2-1-10
48	S49675101	V2 - 1-2
48	S49676101	V2 - 1-2-1
2	S49681009	A - 22-2
8	S49683001	C1 - 35
16	S49685000	F - 14-11
4	S49689001	B1 - 16-6
42	S49934009	S - 30
34	S49938000	R1 - 1-25
34	S49939001	R1 - 1-26
52	S49947000	W - 20-14
10	S49950001	C2 - 190-1
59	Ga1- 190-1
10	S49951001	C2 - 190-2
59	Ga1- 190-2
10	S49952001	C2 - 190-3
59	Ga1- 190-3
10	S49953001	C2 - 190-4
59	Ga1- 190-4
10	S49954001	C2 - 190-5
59	Ga1- 190-5
10	S49955001	C2 - 43
59	Ga1- 43
18	S49957000	G - 18
18	S49958000	G - 46
18	S49959001	G - 47
18	S49959001	G - 14
2	S49960109	A - 17
2	S49961109	A - 17-1
2	S49962000	A - 17-2
42	S49963000	S - 14-1-2
4	S49964001	B1 - 16
4	S49968001	B1 - 12
42	S49979100	S - 14-1
16	S49981000	F - 14-9
18	S49982000	G - 12
18	S49983000	G - 20
18	S49984000	G - 21
18	S49985000	G - 48
18	S49986000	G - 49
18	S49987000	G - 50
26	S49988001	K - 45-1
18	S49992000	G - 1
42	S49993100	S - 14-1-1
24	S49994001	K - 38
14	S49995001	E - 12
26	S50105001	K - 45-2
32	S50645000	Q - 1-10
16	S51087901	F - 22
2	S51098000	A - 40
56	S51282001	Z - 35-3
56	S51283001	Z - 35-1
46	S51451000	V1 - 1-1-1-9
48	V2 - 1-2-1-8
2	S51460009	A - 33
14	S52071001	E - 110-1-1
59	Ga1- AL
14	E - 100-19
59	Ga1- CL
14	S52073001	E - 110-3-1
59	Ga1- DL
14	S52074001	E - 110-4-1
59	Ga1- DR
14	S52075001	E - 110-1-2
59	Ga1- ER
14	S52076001	E - 100-20
14	E - 110-2-2
59	Ga1- BR
14	S52077001	E - 110-3-2
59	Ga1- CR
14	S52078001	E - 110-4-2
59	Ga1- DR
26	S52079001	K - 53-3
60	Ga2- HU
26	S52080001	K - 53-4
60	Ga2- HV
26	S52081001	K - 53-5
60	Ga2- HW
26	S52082001	K - 53-6
60	Ga2- HX
14	S52083001	E - 100-2
14	S52084001	E - 100-3
14	S52087001	E - 100-6
14	S52088001	E - 100-7
14	S52089101	E - 100
44	S52091000	T - 1-1-2
14	S52093001	E - 100-1
16	S52230001	F - 29
6	S52834201	B2 - 30
6	S52836000	B2 - 47
6	S52838000	B2 - 35
6	S52839100	B2 - 36
6	S52840001	B2 - 40
36	S53031001	R1 - H-1
36	S53032000	R1 - 11
36	S53033001	R1 - H-2
36	S53034001	R1 - H-3
36	S53035001	R1 - H-4
36	S53036001	R1 - H-5
36	S53037001	R1 - H-6
36	S53038001	R1 - H-7
36	S53039001	R1 - H-8
36	S53040001	R1 - H-9
44	S53055000	U - 2
2	S53119001	A - 13-1
2	S53120001	A - 13-2
2	S53182101	A - 41
46	S54646000	V1 - 1-1-1-7-1
48	S54647000	V2 - 1-2-1-5-1
46	S54648000	V1 - 1-1-1-7
48	S54649000	V2 - 1-2-1-5
30	S55278001	N - 17
57	S55311001	Z - 75-1
57	S55311002	Z - 75-2
44	S55352001	T - 1-1
44	S55353001	T - 1-1-1
44	S55357001	T - 1
34	S55473000	R1 - 1-26-4
6	S55572001	B2 - 31
6	B2 - 48
36	S55627001	R1 - 54
42	S55629001	S - 40
42	S55630000	S - 40-1
42	S55632001	S - 40-3
57	S55633001	Z - 70
16	S55658000	F - 27
18	S55659000	G - 54
44	S55889001	T - 1
44	S55890001	T - 1-1
44	S55891000	T - 1-1-1
6	S56017000	B2 - 30-1
6	S56018000	B2 - 30-2
6	S56019001	B2 - 30-3
58	S60400000	Z - 902
58	S60711001	Z - 903
58	UA4817000	Z - 901
34	R1 - 10-1
50	UD2390001	V3 - 2-1-8
44	UL0025000	T - 1-1-7-6
32	U32744000	Q - 1-12
44	U34870001	T - 1-1-7-4
44	XA400605	T - 1-1-10
40	OA4301005	R2 - 42
34	R1 - 1-26-18
40	OA4400605	R2 - 42
44	OA4400805	T - 1-1-6
42	OA5400806	S - 17
34	R1 - 1-9
42	S - 5
42	S - 11
42	S - 41
42	S - 43
34	OA5401006	R1 - 1-5
34	R1 - 1-10

Page 71

Brother LK3-B430 / LK3-B438 parts on page 71
Ref	Part number	Part name	Qty
	0A5401606	R2 - 50
	0A5403006	R1 - 1-8
	0B1351606	Z - 804
	004400603	V1 - 1-1-1-5
	008400604	W - 20-5-10
	008400604	W - 20-5-12
	008400604	R1 - 1-22
	011679312	E - 13
	013719412	X - 8-1-11
	014679320	J - 1-7
	014680422	X - 1-8
	014680422	X - 8-4
	014680622	E - 3
	014680622	F - 3
	014680622	J - 1-9
	014680622	K - 8-2
	014710522	L - 14
	014760622	D - 13
	014760622	E - 38
	014760622	E - 5
	014760622	F - 7
	014760622	F - 10
	014760622	F - 15
	014760622	K - 33
	014760622	L - 5
	014760622	Z - 10
	014760622	Z - 803
	014760622	C1 - 1-8
	014760622	C1 - 4-4
	014760622	C1 - 6
	014760622	C1 - 10
	014760622	C1 - 13
	014760622	C1 - 21
	014760622	C1 - 30
	014760632	H - 28
	014770622	F - 13-1
	014770622	K - 2
	014770622	K - 23
	014780622	B1 - 14
	014780622	B1 - 5
	014780622	B1 - 17
	017082206	V3 - 2-4-5
	017680512	A - 15
	017680512	B2 - 49
	017711412	E - 7
	017761212	C1 - 42
	018061022	B2 - 41
	018061436	R2 - 4
	018061622	B2 - 34
	018062522	B2 - 42
	018063022	B2 - 44
	018082536	V1 - 1-1-4
	018082536	V2 - 1-2-4
	018083022	B2 - 37
	018400632	W - 20-8
	018400836	D - 18
	018401222	S - 3
	018401236	B2 - 30-4
	018401236	V1 - 1-1-10
	018401236	V2 - 1-2-10
	018501036	V1 - 1-1-7
	018501036	V2 - 1-2-7
	018501422	D - 26
	018501422	F - 20
	018681022	K - 12
	021060102	B2 - 43
	021060106	Z - 56
	021060106	R2 - 6
	021300206	V3 - 2-1-10
	021400106	S - 40-10
	021400106	R2 - 52
	021400206	R1 - 1-6
	021500106	Z - 35-8-3
	021500106	Z - 35-11-1
	021660102	Z - 67-1-4
	021670102	M - 10
	021670202	W - 20-4
	021680202	J - 1-24
	021710212	X - 8-8
	025030232	Z - 67-1-5
	025030236	V3 - 2-1-9
	025030236	V3 - 2-1-9
	025040236	D - 40
	025040236	V1 - 1-1-1-15
	025040236	V1 - 1-1-12
	025040236	V2 - 1-2-1-14
	025040236	V2 - 1-2-14
	025050236	V1 - 1-1-9
	025050236	V2 - 1-2-9
	025060232	D - 35
	025060232	B2 - 46
	025060232	C1 - 41
	025060336	Z - 57
	025080232	B2 - 39
	025080236	V1 - 1-1-6
	025080236	V2 - 1-2-6
	025080236	V3 - 2-1-4
	025080236	V3 - 2-4-8
	025350132	L - 17
	025350132	C2 - 114
	025350332	M - 16
	025660132	Z - 809
	025680132	P - 7
	025680232	G - 8
	025680232	J - 1-27
	025680232	J - 4
	025710232	X - 8-9
	025770232	F - 32
	025770232	L - 3
	026040236	S - 40-8
	026050136	Z - 35-11-5
	028040246	D - 41
	028040246	B2 - 30-5
	028040246	V1 - 1-1-11
	028040246	V2 - 1-2-11
	028050246	Z - 35-8-2
	028050246	V1 - 1-1-8
	028050246	V2 - 1-2-8
	028060242	B2 - 45
	028060246	R2 - 7
	028080240	V3 - 2-4-7
	028080242	B2 - 38
	028080246	V1 - 1-1-5
	028080246	V2 - 1-2-5
	028350242	K - 22-6
	028350242	M - 5-6
	028350242	N - 5-6
	028680242	G - 9
	032361602	X - 5
	032422003	Z - 60
	032422505	Z - 61
	032461606	Z - 58
	037301215	Z - 4-3
	047250642	E - 100-5
	047401442	M - 6
	048030342	L - 12
	048040342	L - 4
	048040342	M - 19
	048040342	N - 15
	048050342	J - 1-10
	048050346	V1 - 1-1-1-13
	048050346	V2 - 1-2-1-12
	048060342	K - 32
	048060342	L - 9
	048060342	C1 - 15
	048060342	C1 - 23
	048070342	F - 18
	048070342	K - 19
	048100142	J - 1-4
	048150142	D - 28
	048150142	B1 - 9
	048180142	C1 - 8
	052400606	V1 - 1-1-1-14
	052400606	V2 - 1-2-1-13
	060050512	V3 - 2-1-11
	060300512	C1 - 34
	060400606	S - 37
	060501016	D - 22
	060501016	S - 15
	060670512	G - 16
	060670512	X - 8-11
	060670612	H - 6
	060670612	S - 20
	060670612	S - 33
	060670612	S - 35
	060670612	S - 36
	060670612	W - 20-15
	060670812	A - 18
	060680712	D - 24
	060681212	D - 20
	060681212	K - 5
	061350616	W - 20-11
	061660806	Z - 67-1-3
	062020806	S - 40-4
	062300612	W - 20-5-2
	062300806	S - 8
	062300806	S - 9
	062300806	T - 1-2
	062301205	V2 - 1-2-1-6
	062302506	V1 - 1-1-1-8
	062351216	N - 19
	062400616	S - 40-6
	062400806	P - 2
	062401006	Z - 76
	062401216	S - 40-7
	062501406	Z - 35-11-2

Page 72

Brother LK3-B430 / LK3-B438 parts on page 72
Ref	Part number	Part name	Qty
	062501406	Z - 35-11-4
	062503506	Z - 35-11-3
	062660412	F - 14-3
	062660712	F - 14-7
	062670412	H - 31
	062670512	G - 28
	062670512	G - 39
	062670512	G - 52
	062670512	L - 16
	062670512	Z - 67-1-7
	062670612	H - 20
	062670612	H - 24
	062670612	S - 24
	062670712	X - 8-1-9
	062670812	M - 21
	062670812	M - 14
	062671012	M - 14
	062671016	Z - 67-2
	062680512	E - 100-8
	062680512	J - 1-18
	062680612	A - 26
	062680612	D - 16
	062680612	G - 7
	062680612	G - 31
	062680612	J - 3
	062680612	C1 - 36
	062680812	E - 100-12
	062680812	W - 20-12
	062680812	B1 - 16-8
	062681012	C1 - 18
	062681012	C1 - 26
	062681212	J - 2
	062681412	P - 6
	062710612	H - 2
	062710612	M - 2
	062710012	S - 31
	062711012	A - 42
	070688850	C1 - 16
	070688850	C1 - 24
	071047650	C1 - 40
	072630260	B1 - 7
	081003670	F - 12
	081003670	F - 17
	087310815	T - 1-1-5
	087311015	T - 1-1-9
	091170009	Q - 1-5
	093650008	Q - 1-3
	093650032	Q - 1-4
	100022004	J - 1-26
	100022005	K - 25
	100022005	K - 26-3
	100022005	N - 1-3
	100032004	N - 4
	100032004	K - 51
	100090004	F - 2
	100136001	H - 20
	100136001	J - 1-20
	100242003	B1 - 20
	100250001	B1 - 13
	100281001	D - 8
	100360003	K - 54
	100402004	H - 17
	100645003	W - 20-9
	100666002	V3 - 2-2
	100887001	Z - 30
	101268002	V3 - 2-1-5
	101572101	Z - 28
	101706001	F - 6-1
	101706001	C1 - 3-2
	102630001	B1 - 18
	102707001	N - 20
	102707003	X - 8-1-5
	103810002	F - 31
	104449009	A - 11
	104449009	W - 20-17
	104450109	A - 4
	104450109	A - 10
	104567001	G - 22
	104821009	A - 30
	105234003	D - 32
	105234003	E - 4-4
	105343001	Z - 805
	105812003	K - 15
	106129001	K - 22-5
	106129002	N - 5-5
	106629002	A - 14
	107149001	G - 5
	107149001	G - 13
	107321003	M - 4
	107606001	H - 14
	107744001	D - 30
	107744001	E - 4-2
	107779001	Z - 29
	107780001	Z - 31
	108802001	C1 - 1-5
	109239002	A - 24
	109714000	Z - 5
	109714000	Z - 12
	109714000	Z - 21
	110161004	K - 37
	110233001	Z - 808
	110233001	K - 36
	110251001	M - 9
	110367001	K - 31
	111140002	K - 50
	113316001	H - 5
	114294001	H - 9
	114483002	Z - 22
	114486002	Z - 6
	115007001	W - 20-5-13
	115040116	X - 8-13
	115053012	B1 - 26
	115053412	Z - 17
	115147001	E - 11
	115148101	E - 10
	115156001	E - 100-4
	115158001	E - 100-9
	115163001	E - 100-15
	115164101	E - 100-16
	115165001	E - 100-17
	115166001	E - 100-18
	115166001	X - 2-1-7
	115186001	H - 19
	115188001	H - 21
	116629001	L - 10
	116662004	X - 1-5
	116694001	V3 - 2-4-6
	116920001	B1 - 8
	116922001	H - 12
	117150001	S - 23
	117934009	A - 6
	117934009	A - 17-3
	117936001	V1 - 1-1-1-16
	117936001	V2 - 1-2-1-15
	118064001	Z - 34
	118837001	Z - 27
	119707003	V3 - 2-4-3
	119708001	V3 - 2-4-4
	120448001	D - 25
	120448001	J - 1-13
	120990001	J - 1-14
	120990001	X - 8-1-13
	121007001	K - 42
	122257001	X - 1-2
	122991001	Z - 14
	123006001	B1 - 15
	123882001	F - 30
	129984003	X - 1-4
	133188001	V3 - 2-4-2
	133740006	Z - 55
	140392009	A - 5
	140392009	A - 7
	140647101	S - 40-5
	140726000	B1 - 6
	141331001	C1 - 38-3
	141492001	K - 26-2
	141492001	N - 1-2
	141590001	J - 1-25
	141786001	F - 1
	142443001	Z - 26
	142656001	V3 - 2-5
	142677101	X - 8-1-2
	142678101	X - 8-1-3
	142680001	X - 8-1-12
	142681001	X - 8-1-6
	142686101	X - 8-10
	142687101	X - 10
	142689309	X - 8-1
	142706001	X - 8-1-8
	142721001	Z - 33
	142990001	Z - 35-10-3
	143882001	Z - 9
	144075001	C2 - 113
	144110001	J - 1-23
	144226001	Z - 51
	144458001	B1 - 23
	144588001	H - 10
	144712001	B1 - 2-1
	145318001	C1 - 32
	145446001	H - 16
	145446001	H - 22
	145446001	J - 1-22
	145465001	B1 - 16-5
	145478101	N - 2
	145480101	A - 23
	145547001	G - 27

Page 73

Brother LK3-B430 / LK3-B438 parts on page 73
Ref	Part number	Part name
59	145665101	Ga1- 100-2
28	145992001	L - 8
57	146255000	Z - 53
57	146256001	Z - 52
14	146354001	E - 8
58	146360002	Z - 812
14	146994001	E - 9
4	147777000	B1 - 16-9
18	148738000	G - 4
18	148738000	G - 40
18	148738000	G - 41
24	148813001	K - 22-4
24	148847001	K - 13
50	148904001	V3 - 2-1-3
42	149287000	S - 32
52	149287000	W - 20-16
40	149809000	R2 - 45
40	149809000	R2 - 48
56	150173003	Z - 35-7
56	150174000	Z - 35-4-3
56	150174000	Z - 35-5-1
56	150179002	Z - 35-8-1
56	150182000	Z - 35-2
56	150183000	Z - 35-10-2
12	150206002	D - 27
56	150206002	Z - 35-4-1
20	150551000	H - 11
2	150592009	A - 29
8	151602002	C1 - 1-3
14	151968001	E - 4
14	151969001	E - 4-1
4	152242001	B1 - 24
16	152245101	F - 4
16	152678101	F - 11
16	152678101	F - 16
16	152682101	F - 21
16	152683101	F - 14-4
16	152684101	F - 14-5
16	152690401	F - 24
8	152756001	C1 - 9
8	152759001	C1 - 5
8	152760051	C1 - 7
8	152769101	C1 - 38
8	152771000	C1 - 38-1
8	152772001	C1 - 39
8	152773000	C1 - 38-2
28	152822101	L - 2
28	152823001	L - 11
28	152827009	L - 13
2	152842059	A - 22-1
20	152869001	H - 1
20	152870001	H - 3
20	152872001	H - 8
20	152881001	H - 27
20	152883000	H - 29
20	152884001	H - 30
20	152889001	H - 23
18	152948001	G - 33
18	152956001	G - 42
18	152969001	G - 38
42	152969001	S - 12
8	153035000	C1 - 45
8	153041001	C1 - 1-2
8	153057101	C1 - 44
52	153112001	W - 20-3
57	153242000	Z - 102
34	153484001	R1 - 1-26-15
12	153484001	D - 31
14	153484001	E - 4-3
24	153596001	K - 20
24	153597001	K - 22-2
30	153827001	N - 5-2
12	153828001	D - 29
14	153829001	E - 1
14	153830000	E - 1
10	153831001	C2 - 100-4
59	153831001	Ga1- 100-4
14	153834001	E - 6
10	153837001	C2 - 110
12	153838001	D - 37
10	153839001	C2 - 111
57	153843009	Z - 802
10	153870101	C2 - 100-5
59	153870101	Ga1- 100-5
10	153871001	C2 - 112
18	153924001	G - 45
8	153924001	C1 - 1-4
10	154166101	C2 - 100-3
59	154166101	Ga1- 100-3
57	154179001	Z - 806
16	154340101	F - 24-1
16	154341001	F - 24-2
16	154342001	F - 24-3
56	154467001	Z - 4-2
42	154514001	S - 40-9
22	154528001	J - 1-12
24	154596000	K - 21
24	154599000	K - 6
4	154624101	B1 - 16-4
20	154626001	H - 26
4	154627001	B1 - 25
10	154665101	C2 - 100-2
54	154684009	X - 8-1-1
54	154685001	X - 8-1-7
54	154686001	X - 8-1-10
54	154695001	X - 8-2
54	154696001	X - 8-3
54	154697001	X - 8-5
4	154701101	B1 - 22
56	154702101	Z - 23
54	154713001	X - 8-7
54	154835001	X - 1-6
4	155578000	B1 - 21
56	156112003	Z - 35-6
28	156206001	L - 15
52	156206001	W - 20-13
54	156336101	X - 8-6
54	156342001	X - 1-7
54	156440001	X - 1
54	156441001	X - 1-1
54	156443001	X - 1-3
22	157968001	J - 1-17
18	159565000	G - 23
22	159574101	J - 1-19
16	159613051	F - 25
56	159613051	Z - 16
20	159805001	H - 15
24	159905001	K - 14
58	159938001	Z - 811
57	159939001	Z - 807
8	159971001	C1 - 100
16	181995001	F - 6
8	183493001	C1 - 3
57	200190001	Z - 42
57	200190001	Z - 62
50	218859001	V3 - 2-3
42	218859001	S - 25
38	218859001	R2 - 2-1-5
38	218859001	R2 - 2-2-5
38	218859001	R2 - 2-3-5
38	218859001	R2 - 2-4-5
38	218859001	R2 - 2-7-5
38	224514001	R2 - 2-1-4
38	224514001	R2 - 2-2-4
38	224514001	R2 - 2-3-4
38	224514001	R2 - 2-4-4
38	224514001	R2 - 2-7-4
18	228475000	G - 44
26	228475000	K - 55
42	228475000	S - 22
36	228475000	R1 - 12
48	228475000	V2 - 1-2-1-7
24	231071001	K - 17
34	232384001	R1 - 1-26-7
16	402887001	F - 14-6
42	552907000	S - 4
42	552907000	S - 10
42	552907000	S - 42

Page 8 — A. 主体関係 / Machine body / Maschinenengehäuse / Corps de la machine / Cuerpo de la máquina

Page 10 — B1. 上軸・針棒関係 / Upper shaft and needle bar mechanism / Obere Welle und Nadelstangenvorrichtung / Mécanisme de arbre supérieur et barra à aigui

Page 12 — 上軸・針棒関係 / Upper shaft and needle bar mechanism / Obere Welle und Nadelstangenvorrichtung / Mécanisme de arbre supérieur et barra à aiguille

Page 14 — C1 . 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

Page 15 — C2 . 送り関係 (オプション部品) / Feed mechanism (Option parts) / Transportvorrichtung (Sonderzubehör) / Mécanisme de l´entraînement (Pièces en option)

Page 16 — C2. 送り関係 (オプション部品) / Feed mechanism (Option parts) / Transportvorrichtung (Sonderzubehör) / Mécanisme de l'entraînement (Pièces en option) /

Page 18 — D. 押工上ゲ関係/Work clamp lifter mechanism / Stoffhalterheber / Releveur de pinceur / Mecanismo del levantador del prensor

Page 19 — E. ボタンツカミ・作動関係 / Button clamp mechanism / Knopfhaltevoriichtung / Mécanisme du pince-bowtons / Mecanismo de la ménsula de resorte

Page 20 — E. ボタンツカミ・作動関係 / Button clamp mechanism / Knopfhaltevoriichtung / Mécanisme du pince-bowtons / Mecanismo de la ménsula de resorte

Page 22 — F. 下軸関係 / Lower shaft mechanism / Untere Welle / Mécanisme de l'arbre inférieur / Mecanismo del eje inferior

Page 24 — G . 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Page 26 — H. 糸通シ関係 / Threading mechanism / Fadenführungsvorrichtung / Mecanismo del enhebrado

Page 28 — J. 糸巻関係 / Bobbin winder mechanism / Spuler / Mécanisme du bobineur / Mecanismo del devanador de la canilla

Page 30 — K. 糸切り関係 / Thread trimmer mechanism / Fadenabschneidevorrichtung / Mécanisme de coupe-fil / Mecanismo de la cortadura de hiros

Page 32 — K. 糸切り関係 / Thread trimmer mechanism / Fadenschnneidevorrichtung / Mécanisme de coupe-fil / Mecanismo de la cortadura de hiros

Page 34 — L . 糸払イ関係 / Thread wiper mechanism / Fadenwischvorrichtung / Mécanisme de tire-fil / Mecanismo del limpiador de hilo

Page 36 — N. 糸締メ / Thread nipper mechanism / Fadenspannvorrichtung / Mécanisme de pince-fil / Mecanismo de la mordaza para hilo

Page 38 — P. 針位置検出器関係 / Synchronizer / Synchronisator / Synchronisator / Sincronizador Q. プリント基板関係 / Printed circuit board mechanism / Leiterplatten / Circuits imprimés / Tableros de circuitos impresos

Page 40 — R1. コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Page 42 — R1. コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Page 44 — R2 . コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Page 46 — R2. コントロールボックス関係 / Control box mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo de la caja de controles

Page 48 — S. 電装品関係 / Power supply equipment mechanism / Stromversorgung / Mécanisme de l'equipement en alimentation électrique / Mecanismo del equipo

Page 50 — T. 操作パネル関係 / Operation panel mechanism / Schaltkasten / Mécanisme du boîtier de contrôle / Mecanismo del caja de controles

Page 52 — V1. 踏板関係 (香港向以外) / Foot switch pedal mechanism (Except for Hong Kong) / Fußbetätigung / Mécanisme de la pédale / Mecanismo del pedal

Page 54 — V2 . 踏板関係 (香港向) / Foot switch pedal mechanism (For Hong Kong) / Fußbetätigung / Mécanisme de la pédale / Mecanismo del pedal

Page 56 — V3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) / Fußbetätigung (Sonderzubehör) / Mécanisme de la pédale (Pièces en option)

Page 58 — W . 付属装置関係 (オプション部品) / Attachment set (Option parts) / Anbausatz (Sonderzubehör) / Jeu d'accessoires (Pièces en option) / Juego de fijación

Page 60 — X. 補助装置関係 (オプション部品) / Auxiliary device (Option parts) / Hilfsvorrichtung (Sonderzubehör) / Dispositif auxiliaire (Pièces en option) / Dispos

Page 62 — Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 63 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 64 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 65 — Ga1. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d´ePiezas de calibradores

Page 66 — Ga2 . ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores 針穴板 / Needle hole plate

Page 67 — Wa. 警告ラベル / Warning labels / Warnschilder / Etiquettes d'avertissement / Etiquetas de advertencia

Page 68 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Page 69

Page 70

Page 71

Page 72

Page 73

Brother LK3-B430 / LK3-B438 — parts catalog
