Page 9 — A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina

Brother MA4-B551 parts on page 9
Ref	Part number	Part name	Qty
2	146419001	TOP COVER	1
3	146420000	PACKING	1
4	062681412	SCREW 437X14	6
5	146421000	CAP FOR OIL FEDDING HOLE	1
6	113589001	PACKING	1
7	146422001	COVER FOR NEEDLE DRIVING MECHANISM	1
8	062680712	SCREW 437X7	6
9	143992001	RUBBER CAP	1
13	146425001	FACE PLATE COVER	1
14	146426000	HINGE SHAFT	1
15	146427001	SCREW 3.18	1
16-1	146428001	FACE PLATE ASSEMBLY	1
16-2	146706001		1
16-3	146430001	FACE PLATE ASSEMBLY	1
17	146432001	STOPPER SPRING PLATE	1
18	146433000	FACE PLATE PACKING	1
19	102843004	SCREW 3.57	3
20	062670612	SCREW 357X6	2
21	146434000	COVER FOR FEED MECHANISM	1
22	146435000	PACKING	1
23	062680712	SCREW 437X7	5
24	111486001	CLOTH PLATE CUSHION	1
25	146436001	INSIDE COVER	1
26	062670612	SCREW 357X6	2
28-1	148997001	FRONT COVER ASSEMBLY	1
28-1-1	146440001	FRONT COVER HINGE	1
28-1-2	146441000	FRONT COVER HINGE SHAFT	1
28-1-3	146442001	FRONT COVER SPRING	1
28-1-4	047140842	SPRING PIN 1.4X8	1
28-1-5	148984001	HINGE COVER	1
28-1-6	152194001	HINGE COVER PRESSER PLATE	1
28-1-7	062670412	SCREW 357X4	2
28-2	148999001	FRONT COVER ASSEMBLY	1
28-2-1	146440001	FRONT COVER HINGE	1
28-2-2	146441000	FRONT COVER HINGE SHAFT	1
28-2-3	146442001	FRONT COVER SPRING	1
28-2-4	047140842	SPRING PIN 1.4X8	1
28-2-5	148984001	HINGE COVER	1
28-2-6	152194001	HINGE COVER PRESSER PLATE	1
28-2-7	062670412	SCREW 357X4	2
29	060680512	SCREW 4.37X5	2
30	146443001	FRONT COVER GUIDE PLATE	1
31	062670612	SCREW 357X6	2
32-1	146444001	SUPPORTOR FOR FRONT COVER ASSEMBLY	1
32-1-1	146924000	THREAD BUSHING	2
32-2	147367001	SUPPORTER FOR FRONT COVER ASSEMBLY	1
32-2-1	146924000	THREAD BUSHING	2
33	117160001	SCREW 4.37	2
34	154829001	STOPPER SPRING FOR FRONT COVER	1
35	123185001	SCREW 3.57X4.5	1
37	141183000	CLOTH PLATE SEAT	1
38	181969003	SET COLLAR ASSEMBLY	1
38-1	101706001	SCREW 6.35	2
39	146449001	CLOTH PLATE SUPPORTER	1
40	060670512	SCREW 3.57X5	2
41	146450001	SPRING	1
42	060670512	SCREW 3.57X5	1
43	146451001	CLOTH PLATE LEVER	1
44	146452001	SPRING	1
46	146453001	STUD SCREW 3.57	1
47	146454001	CLOTH PLATE LEVER STOPPER	1
48	062670612	SCREW 357X6	1

Page 11 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother MA4-B551 parts on page 11
Ref	Part number	Part name	Qty
49	062671412	SCREW 357X14	1
50	021670202	NUT 3.57	1
51-1	146455101	CLOTH PLATE (LOWER)	1
51-2	146717101		1
52	062680712	SCREW 437X7	4
53	100645003	WASHER	4
54	148084001	OIL GAUGE WINDOW	1
55	140066001	OIL CAP	2
56	140065001	OIL CAP	1
57	146315000	OIL CAP	2
58	140421001	OIL CAP	2
59	151059001	MACHINE BODY LEG	4
60	146457001	OIL STOPPER PLATE	1
61	062670612	SCREW 357X6	2
62	S03887201	OIL RESERVOIR	1
63	159476000	WASHER	4
64	151060000	PACKING	1
65	017771612	BOLT 6.35X16	4
66	110641002	STUD SCREW 9.52	1
67	109203001	O RING	1
68	159640000	FELT	1
69	118550001	DOWEL PIN	4
70	146460001	CLOTH GUIDE (LARGE)	1
71	062670612	SCREW 357X6	2
72	159639001	CLOTH GUIDE (SMALL)	1
73	108960002	SCREW 3.57	2
75	*	OIL HOLE BOLT FOR OIL GAUGE	2
76	*	THREADING DIAGRAM	1
79	*	LABEL	1
82	*	LABEL	1
83	*	LABEL	1
84	S09323001	CLOTH PLATE	1
85	143374001	CLOTH PLATE SUPPORTING SHAFT	1
86	100032003	SCREW 4.37	2
87	014680422	SCREW 4.37	1

Page 13 — B. 駆動軸関係/Crank shaft mechanism/Kurbelwelle/ Mécanisme du vilebrequin/Mecanismo del cigüeñal C. 針冷却装置/Needle cooler/Nadelkühlungsvorrichtung/ Mecanisme du refroidisseur d'aiguille/Mecanismo del enfriador de aguja

Brother MA4-B551 parts on page 13
Ref	Part number	Part name	Qty
1-1	146471001	CRANK SHAFT (C)	1
1-2	S01790001	クドウジクH	1
1-3	S07848001	CRANK SHAFT (J)	1
2-1	150806001	BEARING CAP	1
2-2	143311001		1
3	143312000	BEARING CAP PACKING	1
4	072600000	BEARING 6000	1
5-1	062670812	SCREW 357X8	2
5-2	062670812	ナベコ357-40X8	3
6	102538002	SCREW 3.57	1
7	146473001	CRANK SHAFT BUSHING (LEFT) ASSEMBLY	1
8	143179000	CRANK SHAFT BUSHING (MIDDLE) ASSEMBLY	1
9	110668001	SCREW 4.76	1
10	140084000	OIL REJECTOR	1
11	110673000	BEARING COVER	1
12	107244001	SCREW 3.18	4
13	110670000	BEARING CASE	1
14	062681012	SCREW 437X10	4
15	072600100	BEARING 6001	2
16	110672000	THRUST WASHER	1
17	147848101	PULLEY	1
18	013761410	SCREW 5.95	2
19	140180001	CAP SCREW	1
20	142274001	OIL CAP	1
21	013719412	SCREW 4.76	2
1	146511100	SILICONE OIL TANK ASSEMBLY	1
1-1	154928000	NEEDLE THREAD COOLER TANK COVER	1
2	062681012	SCREW 437X10	1
3	112348001	PACKING	2
4	112359001	SCREW	1
5	146512101	VINYL TUBE ASSEMBLY	1
6	112348001	PACKING	4
7	112359001	SCREW	2
8	146515000	OIL FEEDING PIPE CONNECTOR	1
9	112348001	PACKING	2
10	112359001	SCREW	1
11	146516000	PIPE JOINT	2
12-1	146517100	FELT HOLDER ASSEMBLY	1
12-1-1	146518100	FELT HOLDER	1
12-1-2	144116000	FELT	1
12-1-3	151475000	FELT (SMALL)	1
12-1-4	S02874001	PIN	1
12-2	156505000	FELT HOLDER ASSEMBLY	1
12-2-1	156506000	FELT HOLDER	1
12-2-2	144116000	FELT	1
12-2-3	151475000	FELT (SMALL)	1
12-2-4	146740000	FELT (SMALL)	1
12-2-5	S02874001	PIN	1
13	100257010	SCREW 3.57	2
15	100645003	WASHER	1
	146917-001	Crank Shaft (C) Assembly

Page 15 — D. 針棒関係/Needle bar mechanism/Mécanisme de la barre à aiguille/Nadelstangenvorrichtung/Mecanismo del barra de aguja

Brother MA4-B551 parts on page 15
Ref	Part number	Part name	Qty
1	146476101	NEEDLE ARM DRIVING CRANK ROD ASSEMBLY	1
1-1	148425001	BOLT 4.37X14	2
1-2	140088001	PIN	1
1-3	100366001	SCREW 4.37	1
1-4	146478001	NEEDLE ARM DRIVING LEVER	1
2	017771612	BOLT 6.35X16	1
3	146479001	NEEDLE BAR CRANK SHAFT	1
4	140327001	OIL CAP	1
5	140091000	NEEDLE SHAFT BUSHING (RIGHT)	1
6	140092001	SET COLLAR	2
7	100366001	SCREW 4.37	4
8	140093000	NEEDLE SHAFT BUSHING (LEFT)	1
9	146480001	NEEDLE BAR CLAMP ASSEMBLY	1
9-1	149170001	BOLT 6.35X16	1
9-2	140096001	NEEDLE BAR CONNECTOR	1
9-3	146482001	NEEDLE BAR CLAMP	1
10	062670812	SCREW 357X8	1
11	146427001	SCREW 3.18	1
12	146483001	NEEDLE BAR	1
14	S01652001	SCREW ASSEMBLY	1
14-1	S00049001	SCREW 8.73	1
14-2	S01654000	PACKING	1
16	159638001	NEEDLE BAR GUIDE SLIDE BLOCK	1
17	105079001	NEEDLE BAR GUIDE	1
18-1	062680712	SCREW 437X7	1
18-2	S10774001	SCREW 437X7	1
19	S01417001	NEEDLE BAR BUSHING (UPPER)	1
20	159636000	NEEDLE BAR BUSHING (LOWER)	1
21	*	NEEDLE CLAMP ASSEMBLY	1
21-1	146427001	SCREW 3.18	2
22	*	NEEDLE DCX1	*
23	*	NEEDLE DMX13	1
24-1	146493102	NEEDLE PLATE SUPPORT BRACKET	1
24-2	S01947101		1
25	018061622	BOLT 6X16	2
26	146494001	NEEDLE PLATE SUPPORTER (FRONT)	1
27	060680512	SCREW 4.37X5	2
28	146495001	NEEDLE PLATE SUPPORTER (REAR)	1
29	060680512	SCREW 4.37X5	2
30	111486001	CLOTH PLATE CUSHION	1
31	100032003	SCREW 4.37	2
32	144127001	MOVABLE NEEDLE GUARD (A)	1
33	062670812	SCREW 357X8	2
34	146496301	DOUBLE CHAIN STITCH NEEDLE GUARD (FRONT)	1
35	062670612	SCREW 357X6	1
36	146497201	DOUBLE CHAIN STITCH NEEDLE GUARD (REAR)	1
37	062680712	SCREW 437X7	1
38	*	NEEDLE PLATE	1
41	S01758001	タンカンハリウケF	1
42	S01948001		1
43	062670412	ナヘ゛コ357-40X4	1
44	S09456001	NEEDLE GUIDE BRACKET ASSEMBLY	1
45	062671412	SCREW 357X14	2
46-1	S09459001	NEEDLE GUARD (FRONT)	1
46-2	S09460001	NEEDLE GUARD (FRONT)	1
47	062670812	SCREW 357X8	1
	100366000	SCREW 4.37	4

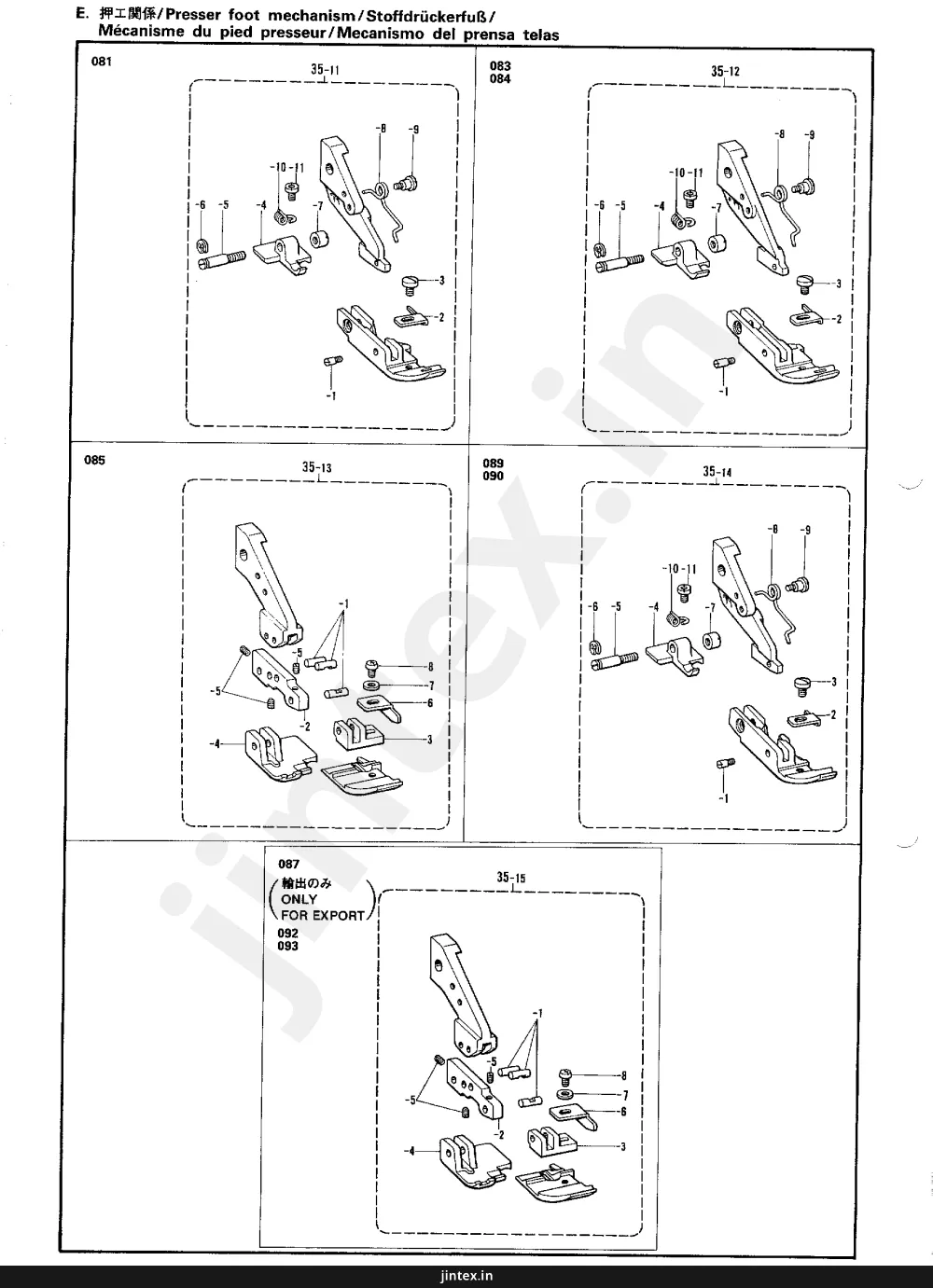

Page 17 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 17
Ref	Part number	Part name	Qty
1	144079001	PRESSER ADJUSTING SCREW	1
2	146521001	PRESSER BAR	1
3	144081001	PRESSER SPRING	1
4	S06561001	PRESSER BAR LIFTER	1
5	144083001	PRESSER BAR LIFTER BASE	1
6	047300842	SPRING PIN AW3	1
8	144085001	PRESSER BAR LIFTER SHAFT	1
9	144086001	PRESSER BAR LIFTER SPRING	1
10-1	143323103	PRESSER FOOT LIFTER LEVER	1
10-2	148369101	PRESSER FOOT LIFTER LEVER	1
11	148372001	STUD SCREW 7.94	1
12	143325001	SPRING	1
13-1	146522001	LEVER ADJUSTING PLATE	1
13-2	147454001	LEVER ADJUSTING PLATE	1
14	062680712	SCREW 437X7	2
15	153483001	SCREW 4.76	2
16	110161006	NUT 4.76	2
17	146523001	PRESSER FOOT LIFTER LINK	1
18	110793001	PIN	1
19	048080342	STOP RING E8	1
20	146524001	PRESSER FOOT LIFTER INSIDE LEVER	1
21	140261001	SET COLLAR	1
22	017771612	BOLT 6.35X16	1
23	140262000	PRESSER ARM SHAFT BUSHING (RIGHT)	1
24	140263000	PRESSER ARM SHAFT BUSHING (LEFT)	1
25	146525001	PRESSER ARM SHAFT	1
27	146526001	MAIN PRESSER ARM	1
28	146527001	PIN FOR PRESSER ARM SHAFT	1
29	014680422	SCREW 4.37	1
30	062680712	SCREW 437X7	1
33	S03321001	PRESSER ARM STOPPER	1
34	062711012	SCREW 476X10	1
37	146883001	TAPE GUIDE	1
38	062660412	SCREW 318X4	2
39	149267001	SPRING PLATE	1

Page 19 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 19
Ref	Part number	Part name	Qty
35-1	142250001	PRESSER FOOT ASSEMBLY (2C) <061,062>	1
35-1-1	142243000	PIN	1
35-1-2	142244001	STITCH TONGUE (3C)	1
35-1-3	142245001	CHIP GUARD (FRONT)(3C)	1
35-1-4	142246001	SPRING (3C)	1
35-1-5	142247001	STUD SCREW	1
35-1-6	S01295001	SCREW 2.38X3.5	2
35-2	146871101	PRESSER FOOT ASSEMBLY <063,064>	1
35-2-1	146865001	SCREW	1
35-2-2	145147001	PRESSER FOOT (FRONT)	1
35-2-3	105288001	SCREW 2.38	1
35-2-4	149260001	PRESSER FOOT (REAR)	1
35-2-5	149261001	SCREW	1
35-2-6	048025342	STOP RING E2.5	1
35-2-7	149262001	NUT 3.18	1
35-2-8	146869001	SPRING	1
35-2-9	146901001	STUD SCREW 3.18	1
35-2-10	146870001	SPRING	1
35-2-11	122771002	SCREW 2.38	1
35-3	146874101	PRESSER FOOT ASSEMBLY <065,066>	1
35-3-1	140270001	SCREW	1
35-3-2	145147001	PRESSER FOOT (FRONT)	1
35-3-3	105288001	SCREW 2.38	1
35-3-4	149265001	PRESSER FOOT (REAR)	1
35-3-5	149266001	SCREW	1
35-3-6	048025342	STOP RING E2.5	1
35-3-7	149262001	NUT 3.18	1
35-3-8	146869001	SPRING	1
35-3-9	146901001	STUD SCREW 3.18	1
35-3-10	146870001	SPRING	1
35-3-11	122771002	SCREW 2.38	1
35-4	146878001	PRESSER FOOT ASSEMBLY <067>	1
35-4-1	140270001	SCREW	1
35-4-2	144777001	PRESSER FOOT (UPPER)	1
35-4-3	062660712	SCREW 318X7	1
35-4-4	144778001	PRESSER FOOT (FRONT)	1
35-4-5	105288001	SCREW 2.38	1
35-4-6	146880001	PRESSER FOOT (REAR)	1
35-4-7	140272001	SCREW 3.18	1
35-4-8	140273001	NUT	1
35-4-9	140993001	SPRING	1
35-4-10	140275001	SPRING	1
35-4-11	140992001	SET SCREW	1
35-5	144775001	PRESSER FOOT ASSEMBLY (E) <069>	1
35-5-1	140270001	SCREW	1
35-5-2	144777001	PRESSER FOOT (UPPER)	1
35-5-3	062660712	SCREW 318X7	1
35-5-4	144778001	PRESSER FOOT (FRONT)	1
35-5-5	105288001	SCREW 2.38	1
35-5-6	140271001	PRESSER FOOT (REAR)	1
35-5-7	140272001	SCREW 3.18	1
35-5-8	140273001	NUT	1
35-5-9	140993001	SPRING	1
35-5-10	140275001	SPRING	1
35-5-11	140992001	SET SCREW	1

Page 21 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 21
Ref	Part number	Part name	Qty
35-6	146881001	PRESSER FOOT ASSEMBLY <071>	1
35-6-1	140270001	SCREW	1
35-6-2	144777001	PRESSER FOOT (UPPER)	1
35-6-3	062660712	SCREW 318X7	1
35-6-4	144778001	PRESSER FOOT (FRONT)	1
35-6-5	105288001	SCREW 2.38	1
35-6-6	140991001	PRESSER FOOT (REAR)	1
35-6-7	140272001	SCREW 3.18	1
35-6-8	140273001	NUT	1
35-6-9	140993001	SPRING	1
35-6-10	140275001	SPRING	1
35-6-11	140992001	SET SCREW	1
35-7	147785001	PRESSER FOOT ASSEMBLY <073,074>	1
35-7-1	140270001	SCREW	1
35-7-2	144777001	PRESSER FOOT (UPPER)	1
35-7-3	062660712	SCREW 318X7	1
35-7-4	144778001	PRESSER FOOT (FRONT)	1
35-7-5	105288001	SCREW 2.38	1
35-7-6	147787001	PRESSER FOOT (REAR)	1
35-7-7	140272001	SCREW 3.18	1
35-7-8	140273001	NUT	1
35-7-9	140993001	SPRING	1
35-7-10	140275001	SPRING	1
35-7-11	140992001	SET SCREW	1
35-8	147435001	PRESSER FOOT ASSEMBLY <075,076>	1
35-8-1	140270001	SCREW	1
35-8-2	144777001	PRESSER FOOT (UPPER)	1
35-8-3	062660712	SCREW 318X7	1
35-8-4	144778001	PRESSER FOOT (FRONT)	1
35-8-5	105288001	SCREW 2.38	1
35-8-6	147488001	PRESSER FOOT (REAR)	1
35-8-7	140272001	SCREW 3.18	1
35-8-8	140273001	NUT	1
35-8-9	140993001	SPRING	1
35-8-10	140275001	SPRING	1
35-8-11	140992001	SET SCREW	1
35-9	147437001	PRESSER FOOT ASSEMBLY <077>	1
35-9-1	140270001	SCREW	1
35-9-2	144777001	PRESSER FOOT (UPPER)	1
35-9-3	062660712	SCREW 318X7	1
35-9-4	144778001	PRESSER FOOT (FRONT)	1
35-9-5	105288001	SCREW 2.38	1
35-9-6	147489001	PRESSER FOOT (REAR)	1
35-9-7	140272001	SCREW 3.18	1
35-9-8	140273001	NUT	1
35-9-9	140993001	SPRING	1
35-9-10	140275001	SPRING	1
35-9-11	140992001	SET SCREW	1
35-10	148816001	PRESSER FOOT ASSEMBLY <079>	1
35-10-1	142243000	PIN	1
35-10-2	142244001	STITCH TONGUE (3C)	1
35-10-3	142245001	CHIP GUARD (FRONT)(3C)	1
35-10-4	142246001	SPRING (3C)	1
35-10-5	142247001	STUD SCREW	1
35-10-6	S01295001	SCREW 2.38X3.5	2

Page 23 — E. 押二関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 23
Ref	Part number	Part name	Qty
35-11	147950101	PRESSER FOOT ASSEMBLY <081>	1
35-11-1	146865001	SCREW	1
35-11-2	145147001	PRESSER FOOT (FRONT)	1
35-11-3	105288001	SCREW 2.38	1
35-11-4	149260001	PRESSER FOOT (REAR)	1
35-11-5	149261001	SCREW	1
35-11-6	048025342	STOP RING E2.5	1
35-11-7	149262001	NUT 3.18	1
35-11-8	146869001	SPRING	1
35-11-9	146901001	STUD SCREW 3.18	1
35-11-10	146870001	SPRING	1
35-11-11	122771002	SCREW 2.38	1
35-12	148405101	PRESSER FOOT ASSEMBLY <083,084>	1
35-12-1	140270001	SCREW	1
35-12-2	145147001	PRESSER FOOT (FRONT)	1
35-12-3	105288001	SCREW 2.38	1
35-12-4	149265001	PRESSER FOOT (REAR)	1
35-12-5	149266001	SCREW	1
35-12-6	048025342	STOP RING E2.5	1
35-12-7	149262001	NUT 3.18	1
35-12-8	146869001	SPRING	1
35-12-9	146901001	STUD SCREW 3.18	1
35-12-10	146870001	SPRING	1
35-12-11	122771002	SCREW 2.38	1
35-13	148979101	PRESSER FOOT ASSEMBLY <085>	1
35-13-1	S01375001	HINGE SHAFT	3
35-13-2	S01373001	PRESSER FOOT SUPPORTER (FRONT,REAR)	1
35-13-3	S01385001	PRESSER FOOT LOWER SUPPORTER (FRONT)	1
35-13-4	S01371001	PRESSER FOOT (REAR)	1
35-13-5	S01374001	SCREW 2.38	3
35-13-6	149143001	PRESSER FOOT (FRONT)	1
35-13-7	025030232	WASHER 3	1
35-13-8	062660612	SCREW 318X6	1
35-14	147370101	PRESSER FOOT ASSEMBLY <089,090>	1
35-14-1	146865001	SCREW	1
35-14-2	147371001	PRESSER FOOT (FRONT)	1
35-14-3	105288001	SCREW 2.38	1
35-14-4	149260001	PRESSER FOOT (REAR)	1
35-14-5	149261001	SCREW	1
35-14-6	048025342	STOP RING E2.5	1
35-14-7	149262001	NUT 3.18	1
35-14-8	146869001	SPRING	1
35-14-9	146901001	STUD SCREW 3.18	1
35-14-10	146870001	SPRING	1
35-14-11	122771002	SCREW 2.38	1
35-15	148013101	PRESSER FOOT ASSEMBLY <092,093,087>	1
35-15-1	S01375001	HINGE SHAFT	3
35-15-2	S01373001	PRESSER FOOT SUPPORTER (FRONT,REAR)	1
35-15-3	S01372001	PRESSER FOOT LOWER SUPPROTER (FRONT)	1
35-15-4	S01371001	PRESSER FOOT (REAR)	1
35-15-5	S01374001	SCREW 2.38	3
35-15-6	148020001	PRESSER FOOT (FRONT)	1
35-15-7	025030232	WASHER 3	1
35-15-8	062660612	SCREW 318X6	1
	147950001		1
	14737001	オサエF	1

Page 25 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 25
Ref	Part number	Part name	Qty
35-16	151461001	PRESSER FOOT ASSEMBLY (7C) <094>	1
35-16-1	142243000	PIN	1
35-16-2	142244001	STITCH TONGUE (3C)	1
35-16-3	142245001	CHIP GUARD (3C)	1
35-16-4	151466001	SPRING (7C)	1
35-16-5	142247001	STUD SCREW	1
35-16-6	S01295001	SCREW 2.38X3.5	2
35-17	151462001	オサエ7Cクミ <094>	1
35-17-1	142243000		1
35-17-2	151464001	ツメ7C	1
35-17-3	151465001	オサエF	1
35-17-4	151466001	オサエネジ"リバ"ネ7C	1
35-17-5	142247001		1
35-17-6	S01295001	シメネジ"2.38X3.5	2
35-18	156507001	PRESSER FOOT ASSEMBLY <095>	1
35-18-1	140270001	SCREW	1
35-18-2	145147001	PRESSER FOOT (FRONT)	1
35-18-3	105288001	SCREW 2.38	1
35-18-4	149265001	PRESSER FOOT (REAR)	1
35-18-5	149266001	SCREW	1
35-18-6	048025342	STOP RING E2.5	1
35-18-7	149262001	NUT 3.18	1
35-18-8	146869001	SPRING	1
35-18-9	146901001	STUD SCREW 3.18	1
35-18-10	146870001	SPRING	1
35-18-11	122771002	SCREW 2.38	1
35-19	S01762101		1
35-19-1	146865001	オサエFシタササエネジ"	2
35-19-2	S01950001	オサエF	1
35-19-3	060630412	ハ"イント"238-56X4	1
35-19-4	156065001	オサエB	1
35-19-5	149261001	オサエBササエネジ"	1
35-19-6	048025342	トメワE2.5	1
35-19-7	149262001		1
35-19-8	S09565001	オサエFシタネジ"リバ"ネ	1
35-19-9	155103001		1
35-19-10	146870001	オサエBオシバ"ネ	1
35-19-11	122771002		1
35-19-12	S01951001		1
35-20	S01759101		1
35-20-1	140270001	オサエFシタササエネジ"	2
35-20-2	S01950001	オサエF	1
35-20-3	060630412	ハ"イント"238-56X4	1
35-20-4	156069001	オサエB	1
35-20-5	149266001	オサエBササエネジ"	1
35-20-6	048025342	トメワE2.5	1
35-20-7	149262001		1
35-20-8	S09565001	オサエFシタネジ"リバ"ネ	1
35-20-9	155103001		1
35-20-10	146870001	オサエBオシバ"ネ	1
35-20-11	122771002		1
35-20-12	S01951001		1

Page 27 — F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement

Brother MA4-B551 parts on page 27
Ref	Part number	Part name	Qty
1	146528001	ECCENTRIC WHEEL ASSEMBLY	1
1-1	107093002	SCREW 4.37	1
1-2	145663001	SCREW 4.37	1
1-3	140165001	SLIDE BLOCK	1
1-4	146401001	GIB	1
1-5	146402001	GIB HOLDER PIN	2
1-6	146403001	GIB HOLDER SPRING PLATE (SMALL)	1
1-7	146404001	GIB HOLDER SPRING PLATE (LARGE)	1
1-8	062660512	SCREW 318X5	1
1-9	144053001	ECCENTRIC WHEEL ADJUSTING CAM	1
1-10	144055001	WAVE SPRING	1
1-11	146529001	WASHER	1
1-12	048150143	STOP RING C15	1
1-13	146530001	FEED ROD	1
1-14	146531001	NEEDLE ROLLER BEARING 20	1
1-15	140176001	FEED ROD PRESSER PLATE	1
1-16	117517003	SCREW 2.38	2
1-17	100025002	SCREW 4.76	2
1-18	S05721003	SPACER	1
2	146532001	FEED ARM PIN	1
3	140326001	OIL CAP	1
4	100251001	SCREW 6.35	1
5	146533001	FEED ARM	1
6	017771612	BOLT 6.35X16	1
7	146534001	FEED ADJUSTING SHAFT	1
8	S11072001	SPRING	1
9	048040342	STOP RING E4	1
10	146536001	SUPPORTER FOR FEED ADJUSTING PLATE	1
11	062670612	SCREW 357X6	1
12	146537000	CAP	1
13	146538001	FEED SHAFT	1
14	140327001	OIL CAP	2
15	146539000	FEED SHAFT BUSHING (LEFT)	1
16	146540000	FEED SHAFT BUSHING (RIGHT)	1
17	140188004	COVER FOR FEED SHAFT BUSHING (LEFT)	1
18	140187000	PACKING	1
19	062670812	SCREW 357X8	3
20	159475001	FEED BAR SLIDE BLOCK LINK ASSEMBLY	1
20-1	146541001	FEED BAR SLIDE BLOCK ASSEMBLY	1
20-1-1	147773001	FEED BAR ASSEMBLY	1
20-1-2	146544000	FEED LIFTING SLIDE BLOCK	1
20-2	140207001	MAIN FEED LINK BUSHING	1
20-3	140208001	WASHER	1
20-4	140209001	MAIN FEED LINK	1
20-5	140210001	MAIN FEED LINK SHAFT (SMALL)	1
20-6	146554001	DIFFERENTIAL FEED LINK	1
20-7	146555001	DIFFERENTIAL FEED LINK BUSHING	1
20-8	140208001	WASHER	1
20-9	140217001	FEED LINK SHAFT (LARGE)	1
23	148174000	FEED BAR GUIDE (RIGHT)	1
24	100645003	WASHER	2
25	062681012	SCREW 437X10	2
26	149888000	FEED BAR GUIDE (LEFT)	1
27	100645003	WASHER	2
28	062681012	SCREW 437X10	2
29	146547000	FEED BAR SLIDE BLOCK	1
30	146548101	FEED BAR SLIDE BLOCK SHAFT	1
31	014770622	SCREW 6.35	1
32	146549001	PLATE FOR SLIDE BLOCK	1
33	062680712	SCREW 437X7	1
34	181969003	SET COLLAR ASSEMBLY	1
34-1	101706001	SCREW 6.35	2

Page 29 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mecanisme de l'entrainement/Mecanismo de la alimentaci

Brother MA4-B551 parts on page 29
Ref	Part number	Part name	Qty
35	140205001	MAIN FEED ARM	1
36	017771412	BOLT 6.35X14	1
37-1	143564001	MAIN FEED SHAFT (LARGE)	1
37-2	144068001		1
40	113431002	WASHER	1
41	143565001	NUT 4.76	1
44	146550001	DIFFERENTIAL FEED ARM ASSEMBLY	1
44-1	062660712	SCREW 318X7	2
44-2	017771412	BOLT 6.35X14	1
49	146556001	DIFFERENTIAL FEED ADJUSTING LINK	1
50	148834001	SCREW 3.57	1
52	146914001	LINK LEVER ASSEMBLY WITH SCREW	1
52-1	017771412	BOLT 6.35X14	1
53	146558001	DIFFERENTIAL FEED ADJUSTING LEVER	1
54	146559001	STUD SCREW 5.56	1
55	146560101	LEVER SPRING	1
56	100294002	STUD SCREW 4.76	1
57	109203001	O RING	1
58	047502242	SPRING PIN AW5	1
59-1	146561001	DIFFERENTIAL STITCH CONTROL	1
59-2	146742001		1
59-3	146562001	DIFFERENTIAL STITCH CONTROL	1
60	146563001	STOPPER FOR DIFFERENTIAL STITCH CONTROL	2
61	017771612	BOLT 6.35X16	2
62	146564001	KNOB	1
63	146565001	SET SCREW	1
64	146566001	WASHER	1
65	117516001	BOLT 4.37	2
66	062630812	SCREW 238X8	1
67	*	MAIN FEED DOG	1
68	*	DIFFERENTIAL FEED DOG	1
69	*	CHAIN FEED DOG	1
70	025770232	WASHER 6.35	2
71	149886000	FRAGMENT PROTECTOR PLATE	1
72	149887001	FRAGMENT PROTECTOR PLATE SUPPORTER	1
73	S01297001	SCREW 3.57X3.5	2
75	118770001	PACKING	1
76	113431002	WASHER	1

Page 31 — G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla

Brother MA4-B551 parts on page 31
Ref	Part number	Part name	Qty
1	148427001	UPPER KNIFE DRIVING ROD ASSEMBLY	1
1-1	S01223001	UPPER KNIFE ROD WITH SCREW	1
1-1-1	148425001	BOLT 4.37X14	2
1-2	140232001	CRANK ROD PIN	1
1-3	100366001	SCREW 4.37	1
1-4	140233001	UPPER KNIFE DRIVING LEVER	1
1-5	017771612	BOLT 6.35X16	1
4	146581001	SET COLLAR	1
5	100260001	SCREW 5.95	2
6	140235000	UPPER KNIFE DRIVING ARM BUSHING (LEFT)	1
7	144117000	UPPER KNIFE DRIVING ARM BUSHING (RIGHT)	1
8-1	144074000	UPPER KNIFE	1
8-2	148815001	UPPER KNIFE	1
9-1	144075001	BOLT 3.57	1
9-2	062671012	SCREW 357X10	1
10	146582001	LOWER KNIFE HOLDER SUPPORTER	1
11	017771412	BOLT 6.35X14	1
12	107407003	SCREW 4.37	1
13	146583001	LOWER KNIFE HOLDER	1
14	102627001	SCREW 6.35	1
15	112436001	LOWER KNIFE	1
16	117515001	LOWER KNIFE PRESSER PLATE	1
17	117516001	BOLT 4.37	1
18	146584001	LOWER KNIFE HOLDER SPRING	1
19	146585001	LOWER KNIFE HOLDER GUIDE	1
20	062670612	SCREW 357X6	2
21	146586000	OIL CAP	1
24	146580001	UPPER KNIFE DRIVING ARM	1
25	148281101	NUT	1
26-1	144179001	UPPER KNIFE HOLDER	1
26-2	148345001	UPPER KNIFE HOLDER	1
27-1	107407003	SCREW 4.37	1
27-2	102424004	SCREW 4.37	1
28	148343101	UPPER KNIFE PRESSER	1
29	148344001	UPPER KNIFE PRESSER PLATE	1

Page 33 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorios de fruncido

Brother MA4-B551 parts on page 33
Ref	Part number	Part name	Qty
1-1	146587201		1
1-1-1	146588001		1
1-1-2	145803001		1
1-1-3	146589001		1
1-1-4	101706001		2
1-1-5	146590001		1
1-1-6	105163001		2
1-1-7	110820101		1
1-1-8	025770232		1
1-1-9	144788001		1
1-1-10	144105000		1
1-1-11	149566001		1
1-1-12	144783001		1
1-1-13	144784001		1
1-1-14	062660712	ナヘ"コ318-40X7	2
1-1-15	147933001		1
1-1-16	145807001		1
1-1-17	062680812	ナヘ"コ437-40X8	1
1-1-18	181995002		1
1-1-18-1	101706001		2
1-1-19	145810001		1
1-1-20	150553002		1
1-1-21	110230001		1
1-1-22	105234003		1
1-1-23	145811001		1
1-1-24	145808001		1
1-1-25	062680612	ナヘ"コ437-40X6	2
1-1-26	144764001		1
1-1-27	060670512	ハ"イント"357-40X5	1
1-1-28	146592001		1
1-1-29	013679412		2
1-1-30	154795001	キジ"オサエタイアンナイD	1
1-1-31	S01614001		1
1-2	S12677001	RUFFLER ATTACHMENT ASSEMBLY	1
1-2-1	146588001	BRACKET FOR RUFFLING BLADE	1
1-2-2	145803001	RUFFLING BLADE BASE SHAFT	1
1-2-3	146589001	LAPPER BASE	1
1-2-4	101706001	SCREW 6.35	2
1-2-5	146590001	SPRING BASE	1
1-2-6	105163001	SCREW 5.95	2
1-2-7	110820101	TENSION CONTROL STUD	1
1-2-8	025770232	WASHER 6.35	1
1-2-9	144788001	SPRING	1
1-2-10	144105000	TENSION SPRING WASHER	1
1-2-11	149566001	THREAD TENSION ADJUSTING NUT	1
1-2-12	144783001	RUFFLING BLADE	1
1-2-13	144784001	WASHER	1
1-2-14	062660712	SCREW 318X7	2
1-2-15	147933001	STUD SCREW 5.95	1
1-2-16	145807001	RUFFLING BLADE GUIDE	1
1-2-17	062680812	SCREW 437X8	1
1-2-18	148387001	RUFFLING PLATE LIFTER	1
1-2-19	145810001	HANDLE FIXING PLATE	1
1-2-20	150553002	NUT 5.95	1
1-2-21	110230001	SCREW 4.37	1
1-2-22	105234003	NUT 4.37	1
1-2-23	145811001	SPRING PLATE	1
1-2-24	145808001	SPRING PLATE	1
1-2-25	062680612	SCREW 437X6	2
1-2-26	144764001	FRONT COVER STOPPER SPRING	1
1-2-27	060670512	SCREW 357X5	1
1-2-28	146592001	THREAD GUIDE PIPE	1

Page 35 — H. Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorio de fruncido

Brother MA4-B551 parts on page 35
Ref	Part number	Part name	Qty
1-2-29	013679412	SCREW 3.57	2
1-2-30	154795001	RUFFLING BLADE GUIDE PLATE (LOWER)	1
1-2-31	S01614001	THREAD GUIDE PIPE	1
1-2-32	101706001	SCREW 6.35	2
2	S01304001	SCREW 6.35X18	2
3	144793000	RUFFLER GUIDE	1
4	112751002	SCREW 3.57	1
5	145809001	HANDLE	1
6	150556002	NUT 6.35	1
8	148395001	RUFFLING PLATE LIFTER LEVER ASSEMBLY	1
8-1	148388001	RUFFLING PLATE LIFTER LEVER	1
8-2	141514001	SCREW	1
8-3	148389001	PRESSER FOOT LIFTER LEVER SUPPORTER	1
8-4	148390001	ROLLER	1
8-5	112301001	STUD SCREW 3.18	1
10	148391001	FLEXIBLE WIRE ASSEMBLY	1
11	141514001	SCREW	2
12	147672001	WIRE PLATE	1
13	062670612	SCREW 357X6	2
14	155196201	DIFFERENTIAL ADJUSTMENT ASSEMBLY	1
14-1	155197001	KNEE LIFTER SHAFT BRACKET	1
14-2	155198101	KNEE LIFTER SHAFT	1
14-3	155199101	KNEE LIFTER BRACKET	1
14-4	017781012	BOLT	2
14-5	148797001	KNEE LIFTER BAR (SMALL)	1
14-6	014780622	SCREW 6.35	1
14-7	148798001	KNEE LIFTER PLATE (LARGE)	1
14-8	100463001	BOLT 7.94	1
14-9	155201101	KNEE LIFTER LEVER	1
14-10	017781012	BOLT 6.35X10	2
14-11	155202001	KNEE LIFTER LEVER SPRING	1
14-12	155203201	COLLAR	2
14-13	017781012	BOLT 6.35X10	4
15	155205001	CONNECTING BAR	1
16	146594001	STUD SCREW 4.76	1
17-1	062681012	SCREW 437X10	4
17-2	032422505	SCREW 4.1X25	4

Page 37 — J. Gimp guide mechanism/K. Tape winder mechanism

Brother MA4-B551 parts on page 37
Ref	Part number	Part name	Qty
1	181031001	COTTON STAND ASSEMBLY WITH SCREW	1
1-1	109854001	SPOOL STAND ASSEMBLY	1
1-1-1	100080004	SCREW 3.18	1
1-1-2	110161003	NUT 4.76	1
1-1-3	028050242	SPRING WASHER 2-5	1
1-1-4	100444002	SPOOL STUD	1
1-2	100447001	SCREW 4.5X3.2	2
1	143767002	TAPE WINDER ASSEMBLY	1
1-1	143980001	THUMB SCREW	1
1-2	108494001	WASHER	1
1-3	108495001	SPRING	1
1-4	100136001	TENSION CONTROL NUT	1
2	101118001	SCREW 4.5X20	2

Page 39 — L. ラッパー関係/Lapper mechanism/Falz-Mechanismus/M uevoanisme à rabat/Mecanismo de solapado M. 下ルーバー関係/Under looper mechanism/Unterer Greifer/M uevoanisme du boucleur inférieur/Mecanismo del presilladora inferior

Brother MA4-B551 parts on page 39
Ref	Part number	Part name	Qty
1	147373000	LAPPER ASSEMBLY	1
2	062670512	SCREW 357X5	2
3	147377001	TAPE GUIDE	1
4	062670512	SCREW 357X5	2
5	147440000	LAPPER ASSEMBLY	1
6	062680612	SCREW 437X6	2
7	105161004	WASHER	2
8	025350332	WASHER 3.5	2
10	110735002	WASHER	2
1	144044001	UNDER LOOPER CONNECTING ROD ASSEMBLY	1
1-1	148425001	BOLT 4.37X14	4
3	017771612	BOLT 6.35X16	1
4	110704001	LOOPER CONNECTING ROD STOPPER	1
5	062660412	SCREW 318X4	1
6	146614001	UNDER LOOPER SHAFT	1
7	140327001	OIL CAP	1
8	146615000	UNDER LOOPER SHAFT BUSHING (REAR)	1
9	146616000	UNDER LOOPER SHAFT BUSHING (FRONT)	1
10	180323001	LOWER SHAFT SET COLLAR ASSEMBLY	1
10-1	013760612	SCREW 5.95	2
11	146617001	UNDER LOOPER HOLDER	1
12	149171001	BOLT 5.56X14	1
13-1	S01248101	UNDER LOOPER	1
13-2	159884101		1
14	014680422	SCREW 4.37	1
15	148782001	SPACER	1

Page 41 — N. 上ルーバ関係/Over looper mechanism /Oberen Greifer/ Mécanisme du boucleur supérieur / Mecanismo del presilladora superior

Brother MA4-B551 parts on page 41
Ref	Part number	Part name	Qty
1	144025001	UPPER LOOPER CONNECTING ROD ASSEMBLY	1
1-1	148425001	BOLT 4.37X14	4
3	017771412	BOLT 6.35X14	1
4	110704001	LOOPER CONNECTING ROD STOPPER	1
5	062660412	SCREW 318X4	1
6	S06294001	OVER LOOPER SHAFT ASSEMBLY	1
6-1	148033001	OVER LOOPER SHAFT	1
6-2	140327001	OIL CAP	1
6-3	071023850	STEEL BALL 3/32"	1
6-4	148034001	OIL ADJUSTING SCREW	1
8	144029000	OVER LOOPER SHAFT BUSHING (REAR)	1
9-1	146602001	OVER LOOPER SHAFT COLLAR	1
9-2	S01597001	OVER LOOPER SHAFT COLLAR	1
10	144031000	OVER LOOPER SHAFT BUSHING (FRONT)	1
11	146581001	SET COLLAR	1
12	100260001	SCREW 5.95	2
13-1	146603301	OVER LOOPER ASSEMBLY	1
13-1-1	148379001	OVER LOOPER HOLDING SHAFT	1
13-1-2	148294001	SCREW 3.57	1
13-1-3	149170001	BOLT 6.35X16	1
13-1-4	140416000	WICK	1
13-1-5	062681012	SCREW 437X10	2
13-1-6	047301440	SPRING PIN AW3	2
13-1-7	014680422	SCREW 4.37	2
13-2	146611301	OVER LOOPER ASSEMBLY	1
13-2-1	148379001	OVER LOOPER HOLDING SHAFT	1
13-2-2	148294001	SCREW 3.57	1
13-2-3	149170001	BOLT 6.35X16	1
13-2-4	140416000	WICK	1
13-2-5	062681012	SCREW 437X10	2
13-2-6	047301440	SPRING PIN AW3	2
13-2-7	014680422	SCREW 4.37	2
14-1	062680712	SCREW 437X7	1
14-2	S10774001	SCREW 437X7	2
15-1	147934001	OVER LOOPER WITH SCREW	1
15-1-1	014680422	SCREW 4.37	1
15-2	159686001	OVER LOOPER WITH SCREW	1
15-2-1	014680422	SCREW 4.37	1
15-3	147935001	OVER SPREADER WITH SCREW	1
15-3-1	014680422	SCREW 4.37	1
18	159101000	OIL CAP	1
20	148294001	SCREW 3.57	1
	146917-001	※ Crank Shaft (C) Assembly

Page 43 — P. 二重環ルーパ関係/Double chain stitch looper mechanism/Doppelkettstichgreifer/Mécanisme du boucleur pour point de chaînette double/Mecanismo del presilladora de doble cadeneta

Brother MA4-B551 parts on page 43
Ref	Part number	Part name	Qty
1	146618001	LONGITUDINAL FEED ROD ASSEMBLY	1
1-1	S01225001	LONGITUDINAL FEED ROD WITH SCREW	1
1-1-1	148425001	BOLT 4.37X14	4
1-2	014770622	SCREW 6.35	2
1-3	147691000	FELT	1
2	017771612	BOLT 6.35X16	1
3	146622001	LOOPER CONNECTING ROD STOPPER	1
4	062660412	SCREW 318X4	1
5	147988001	ECCENTRIC CAM (RIGHT)	1
5-1	014770622	SCREW 6.35	2
7	146624101	LONGITUDINAL FEED ROD ASSEMBLY	1
7-1	148425001	BOLT 4.37X14	2
8	146626001	FEED LEVER (RIGHT)	1
9	017771612	BOLT 6.35X16	1
10	146627001	PIN	1
11	110161006	NUT 4.76	1
12	146628001	LONGITUDINAL FEED LEVER SHAFT	1
13	140150000	DRIVING LEVER SHAFT BUSHING (R)	1
14	146629000	LONGITUDINAL FEED LEVER SHAFT BUSHING(L)	1
15	146630001	FEED LEVER (LEFT)	1
16	110778002	NUT 5.56	1
17	140313001	LONGITUDINAL FEED LEVER SLIDE BLOCK	1
18	146631001	LONGITUDINAL FEED CAM	1
19	120990001	SCREW 4.37	2
20	146632001	LONGITUDINAL FEED SHAFT	1
21	146633000	LONGITUDINAL SHAFT BUSHING (REAR)	1
22	140159000	LOGITUDINAL FEED SHAFT BUSHING (FRONT)	1
23	155262001	CHAIN STITCH LOOPER HOLDER	1
24	149171001	BOLT 5.56X14	1
25	146635001	CHAIN STITCH LOOPER	1
26	014680422	SCREW 4.37	1
27	140327001	OIL CAP	2
28	148782001	SPACER	1
29	153484001	WASHER 4.76	1
30	S01756001		1
31-1	S01757001	イトサハ"キ(5MM,097)	1
31-2	S01761001	イトサハ"キ(3MM,096)	1
32	S01295001	シメネジ"2.38X3.5	1

Page 45 — Q. 給油・潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Brother MA4-B551 parts on page 45
Ref	Part number	Part name	Qty
1	146647001	WORM	1
2	014770622	SCREW 6.35	2
3	147521001	PUMP ASSEMBLY	1
3-1	144619000	WORM WHEEL	1
3-2	025350332	WASHER 3.5	1
3-3	062670812	SCREW 357X8	1
3-4	147523001	PUMP INNER ROTER ASSEMBLY	1
3-5	144622001	CASTLE PIN	1
3-6	181995001	SET COLLAR ASSEMBLY	1
3-6-1	101706001	SCREW 6.35	2
3-7	147527001	PUMP COVER	1
3-8	147528100	OIL FILTER	1
3-9	147529001	OIL FLANGE FILTER	1
3-10	062671012	SCREW 357X10	3
4	062711212	SCREW 476X12	2
6	140780101	VINYL TUBE ASSEMBLY	1
7	140779101	VINYL TUBE ASSEMBLY	1
8	112348001	PACKING	2
9	112364001	SCREW	1
11	112348001	PACKING	2
12	112364001	SCREW	1
13	146636201	MAIN OIL PIPE ASSEMBLY	1
15	140325001	OIL CAP	1
17	062670612	SCREW 357X6	1
18	140778101	VINYL TUBE ASSEMBLY	1
19	112348001	PACKING	2
20	112364001	SCREW	1
21	140778101	VINYL TUBE ASSEMBLY	1
22	112348001	PACKING	2
23	112364001	SCREW	1
24	112348001	PACKING	2
25	112359001	SCREW	1
31	147217000	OIL PIPE	1
32	145664000	OIL FILTER	1
37	114294001	O RING	1
41	140418000	WICK	1
42	150307000	WICK	1
46	140415000	WICK	2
47	140317000	WICK	1
48	140417000	WICK	1
51	112735000	WICK	1
52	147318000	PIN	1
53	147361000	WICK	1
55	147363000	FELT	1
56	147318000	PIN	1
57	147318000	PIN	1
58	112525000	MAGNET	1

Page 47 — R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo

Brother MA4-B551 parts on page 47
Ref	Part number	Part name	Qty
1	146648001	MAIN THREAD GUIDE	1
2	014770622	SCREW 6.35	1
3-1	146649001	THREAD GUIDE SUPPORTER	1
3-2	156509001	THREAD GUIDE SUPPORTER	1
4-1	110820101	TENSION CONTROL STUD	4
4-2	110820101	TENSION CONTROL STUD	5
4-3	159574101	TENSION CONTROL STUD	2
4-4	110820101	TENSION CONTROL STUD	2
5-1	110832001	TENSION DISC FELT	4
5-2	110832001	TENSION DISC FELT	5
6-1	145446001	TENSION DISC	8
6-2	145446001	TENSION DISC	10
7-1	144103002	TENSION DISC WASHER	4
7-2	144103002	TENSION DISC WASHER	5
8-1	144104001	NEEDLE TENSION SPRING	2
8-2	148851001	NEEDLE TENSION SPRING	2
8-3	144104001	NEEDLE TENSION SPRING	3
10	144110001	LOWER LOOPER TENSION SPRING	2
11	144105000	TENSION SPRING WASHER	4
12-1	149568001	THREAD TENSION CONTROL NUT	1
12-1-1	149566001	THREAD TENSION NUT	1
12-1-2	147049001	TENSION INDICATING PLATE	1
12-2	149568002	THREAD TENSION CONTROL NUT	1
12-2-1	149566001	THREAD TENSION NUT	1
12-2-2	147049002	TENSION INDICATING PLATE	1
12-3-1	149568003	THREAD TENSION CONTROL NUT	1
12-3-1-1	149566001	THREAD TENSION NUT	1
12-3-1-1-1	147049003	TENSION INDICATING PLATE	1
12-3-2	149568003	THREAD TENSION CONTROL NUT	2
12-3-2-1	149566001	THREAD TENSION NUT	2
12-3-2-1-1	147049003	TENSION INDICATING PLATE	2
12-4	149568004	THREAD TENSION CONTROL NUT	1
12-4-1	149566001	THREAD TENSION NUT	1
12-4-2	147049004	TENSION INDICATING PLATE	1
14-1	110813001	NEEDLE THREAD GUIDE	3
14-2	110813001	NEEDLE THREAD GUIDE	4
15-1	143757001	NEEDLE THREAD GUIDE (A)	1
15-2	146793001	TWIN NEEDLE NEEDLE THREAD GUIDE	1
16	062660412	SCREW 318X4	1
17	146650001	CHAIN STITCH NEEDLE THREAD GUIDE	1
18	060670812	SCREW 3.57X8	1
21-1	144108001	NEEDLE THREAD TAKE-UP	1
21-2	142201001	NEEDLE THREAD TAKE-UP	1
22	062660412	SCREW 318X4	1
23	105248003	WASHER	1
25	062670612	SCREW 357X6	1
26	144111001	LOOPER THREAD GUIDE HOLDER	1
27	146926002	UNDER LOOPER THREAD GUIDE ASSEMBLY	1
28	062670612	SCREW 357X6	1
29	146929001	LOOPER THREAD GUIDE ASSEMBLY	1
30	062670612	SCREW 357X6	1
31	146652001	OVER LOOPER THREAD TAKE-UP (RIGHT)	1
32	146653001	UNDER LOOPER THREAD TAKE-UP (RIGHT)	1
33	062670812	SCREW 357X8	1
34	146654001	LOOPER THREAD TAKE-UP (LEFT)	1
35	062670612	SCREW 357X6	1
36	142669002	OVER LOOPER THREAD GUIDE PIPE ASSEMBLY	1
37	060630312	SCREW 2.38X3	1
38	146925001	THREAD GUIDE ASSMBLY	1
39	062670612	SCREW 357X6	1
40	146656001	THREAD GUIDE PIPE	1
41	148294001	SCREW 3.57	1

Page 49 — R. 糸調子関係 / Thread tension / Faderspannung / Tension du fil / Tension del hilo

Brother MA4-B551 parts on page 49
Ref	Part number	Part name	Qty
42	151617001	CHAIN STITCH LOOPER THREAD GUIDE ASS.	1
43	062670612	SCREW 357X6	1
44	110813001	NEEDLE THREAD GUIDE	1
45	147148001	THREAD TENSION CONTROL STUD	1
46	110832001	TENSION DISC FELT	1
47	145446001	TENSION DISC	2
48	147149001	THREAD TENSION SPRING	1
49	144105000	TENSION SPRING WASHER	1
50	151012001	UPPER THREAD TENSION NUT	1
51	150807101	CHAIN STITCH LOOPER TAKE-UP	1
52	014680422	SCREW 4.37	2
53	150808001	CHAIN STITCH BASE PLATE ASSEMBLY	1
54	150810001	THREAD HANDLER	1
55	062670412	SCREW 357X4	1
56	146663001	THREAD GUIDE (RIGHT)	1
57	060630412	SCREW 2.38X4	2
58	150812001	STUD SCREW 4.37	1
59	146930001	THREAD GUIDE	1
60	062670612	SCREW 357X6	1
61	S07293001	THREAD GUIDE (L)	1
62	028050242	SPRING WASHER 2-5	1
63	150813001	SPRING	1
67-1	147344001	NEEDLE THREAD TAKE-UP SUPPORTER ASSEMBLY	1
67-2	156511001	NEEDLE THREAD TAKE-UP SUPPORTER ASSEMBLY	1
68	112300001	NEEDLE THREAD PRESSER	1
69	112301001	STUD SCREW 3.18	1
70	112299001	SPRING	1

Page 51 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-B551 parts on page 51
Ref	Part number	Part name	Qty
1-1	*	NEEDLE DCX1	4
1-2	*	NEEDLE DMX13	4
4	112436001	LOWER KNIFE	1
5	101572101	SCREW DRIVER 5.5X190	1
7	S01943001	SCREW DRIVER 1.6	1
8	146700001	SCREW DRIVER 2	1
9	149173001	SCREW DRIVER 3	1
10	107779001	SPANNER 6X7	1
11	143566001	SPANNER 8	1
12	105343001	WRENCH 8X9	1
13	117466000	TWEEZERS	1
17	140342001	SOCKET WRENCH ASSEMBLY	1
18	S06701000	OILER ASSEMBLY	1
19	145277105	OIL TANK	1
20	147893003	TREADLE PEDAL	1
21	021400106	NUT 4	2
22	062401406	SCREW 4X14	2
23	116016001	PEDAL STOPPER	2
24	142262001	CHAIN ASSEMBLY	1
25	122991001	ACCESSORY BAG	1
27	S03888000	HEAD PLATE	1
29	210973001	BOLT 8X85	4
31	025080236	WASHER 8	4
32	028080242	SPRING WASHER 2-8	4
33	021080106	NUT 8	4
36	148430101	DUSTER DROP	1
37	031311302	SCREW 3.1X13	4
39	S06704001	SILICONE OIL	1
40	140759000	FUNNEL	1
41	144225002	HEAD COVER	1
48-1	147919001	CUSHION	1
48-2	147919002	CUSHION	3
49	140888001	TRIMMING KNIFE	1
50	062660412	SCREW 318X4	2
51	144793000		1
52	112751002		1
55	148348001		1
55-1	148042001		2
55-2	062681012	ナベコ437-40X10	2
55-3	100645003		2
56	183161201	DUSTER SHOOT ASSEMBLY	1
56-1	148431201	DUSTER SHOOT (LARGE)	1
56-2	148432001	DUSTER SHOOT (SMALL)	1
58	101118001	SCREW 4.5X20	4
59	025050236	WASHER 5	4
61	151017001	EYE GUARD ASSEMBLY	1
61-1	150550000	EYE GUARD FOR OVERLOCK	1
61-2	062660512	SCREW 318X5	2
61-3	025030232	WASHER 3	2

Page 53 — Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-B551 parts on page 53
Ref	Part number	Part name	Qty
42-1	S02772101	COTTON STAND ASSEMBLY 6THF <095>	1
42-1-1	150189002	BRACKET	1
42-1-2	S02773001	COTTON STAND BASE SCREW SET	1
42-1-2-1	062060806	SCREW 6X8	2
42-1-2-2	031452206	SCREW 45X22	3
42-1-3	150172002	COLUMN PIPE	2
42-1-4	150106002	COLUMN JOINT ASSEMBLY	1
42-1-4-1	062501406	SCREW 5X14	2
42-1-4-2	021500106	NUT 5	2
42-1-5	150174000	COLUMN CAP	1
42-1-6	S02779001	SPOOL HOLDER 3	2
42-1-7	S02782001	SPOOL SCREW SET 3	2
42-1-7-1	150179002	SPOOL SHAFT (B)	6
42-1-7-2	028050246	SPRING WASHER 2-5	6
42-1-7-3	021500106	NUT 5	10
42-1-7-4	050503006	SCREW 5X30	2
42-1-7-5	050501406	SCREW 5X14	2
42-1-8	150180000	SPOOL STAND BASE	6
42-1-9	150182000	SPOOL MAT	6
42-1-10	126863001	SPOOL CUSHION	6
42-1-11	S02784001	SPOOL HOLDER SUPPORTER (A) SET	1
42-1-11-1	150188002	SPOOL HOLDER SUPPORTER (A)	1
42-1-11-2	062501006	SCREW 5X10	1
42-1-11-3	021500106	NUT 5	1
42-1-11-4	031452206	SCREW 45X22	1
42-1-12	S02785001	SPOOL HOLDER SUPPORTER (B) SET	1
42-1-12-1	150194002	SPOOL HOLDER SUPPORTER (B)	1
42-1-12-2	062501006	SCREW 5X10	1
42-1-12-3	021500106	NUT 5	1
42-1-12-4	031452206	SCREW 45X22	1
42-1-13	S02788001	THREAD HANGER ASSEMBLY 3	2
42-1-14	150145002	THREAD GUIDE HOLDER ASSEMBLY	1
42-1-14-1	150185002	THREAD GUIDE HOLDER	1
42-1-14-2	050503006	SCREW 5X30	1
42-1-14-3	021500106	NUT 5	1
42-1-15	S02783001	THREAD GUIDE 6	1
42-1-16	S04109001	THREAD GUIDE SUPPORTER BAR	1
42-1-17	138843001	JOINT	1
42-1-18	014060632	SCREW 6X6	2

Page 55 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-B551 parts on page 55
Ref	Part number	Part name	Qty
42-2	S02770101	COTTON STAND ASSEMBLY 5THF	1
42-2-1	150189002	COTTON STAND BASE	1
42-2-2	S02773001	COTTON STAND BASE SCREW SET	1
42-2-2-1	062060806	SCREW 6X8	2
42-2-2-2	031452206	SCREW 45X22	3
42-2-3	150172002	COLUMN PIPE	2
42-2-4	150106002	COLUMN JOINT ASSEMBLY	1
42-2-4-1	062501406	SCREW 5X14	2
42-2-4-2	021500106	NUT 5	2
42-2-5	150174000	COLUMN CAP	1
42-2-6	S02778001	SPOOL HOLDER 2	1
42-2-7	S02779001	SPOOL HOLDER 3	1
42-2-8	S02780001	SPOOL SCREW SET 2	1
42-2-8-1	150179002	SPOOL SHAFT (B)	2
42-2-8-2	028050246	SPRING WASHER 2-5	2
42-2-8-3	021500106	NUT 5	4
42-2-8-4	050503006	SCREW 5X30	1
42-2-8-5	050501406	SCREW 5X14	1
42-2-9	S02782001	SPOOL SHAFT SET	1
42-2-9-1	150179002	SPOOL SHAFT (B)	3
42-2-9-2	028050246	SPRING WASHER 2-5	3
42-2-9-3	021500106	NUT 5	5
42-2-9-4	050503006	SCREW 5X30	1
42-2-9-5	050501406	SCREW 5X14	1
42-2-10	150180000	SPOOL STAND BASE	5
42-2-11	150182000	SPOOL MAT	5
42-2-12	126863001	SPOOL CUSHION	5
42-2-13	S02784001	SPOOL HOLDER SUPPORTER (A) SET	1
42-2-13-1	150188002	SPOOL HOLDER SUPPORTER (A)	1
42-2-13-2	062501006	SCREW 5X10	1
42-2-13-3	021500106	NUT 5	1
42-2-13-4	031452206	SCREW 45X22	1
42-2-14	S02786001	THREAD HANGER ASSEMBLY 2	1
42-2-15	S02788001	THREAD HANGER ASSEMBLY 3	1
42-2-16	150145002	THREAD GUIDE HOLDER ASSEMBLY	1
42-2-16-1	150185002	THREAD GUIDE HOLDER	1
42-2-16-2	050503006	SCREW 5X30	1
42-2-16-3	021500106	NUT 5	1
42-2-17	142999001	THREAD GUIDE 5	1
42-2-18	S04109001	THREAD GUIDE SUPPORTER BAR	1
42-2-19	138843001	JOINT	1
42-2-20	014060632	SCREW 6X6	2
68	S03886001	FULL-SUBMERGED SET	1
68-1	153319001	HEAD PLATE SUPPORTER	1
68-2	153318101	BOLT	3
68-3	211964001	BOLT 8X55	1
68-4	017085502	BOLT 8X55	1
68-5	025080236	WASHER 8	15
68-6	028080242	SPRING WASHER 2-8	5
68-7	021080106	NUT 8	11
68-8	S03889001	DUSTER SHOOT SUPPORTER	1
68-9	S03890001	DUSTER DROP	1
68-10	062681212	SCREW 437X12	6
68-11	025680232	WASHER 4.37	6
68-12	021680202	NUT 4.37	2
	150186002	SPOOL HOLDER SUPPORTER (A)	1

Page 56 — 仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

Brother MA4-B551 parts on page 56
Ref	Part number	Part name	Qty
	143196001	OIL HOLE BOLT FOR OIL GAUGE
	146463001	THREADING DIAGRAM
	146976081	LABEL
	146976001	LABEL
	146976002	LABEL
	146976003	LABEL
	147943001	LABEL
	146487001	NEEDLE CLAMP ASSEMBLY
	112297011	NEEDLE DCX1
	146464001	THREADING DIAGRAM
	146976004	LABEL
	146463001	THREADING DIAGRAM
	146976007	LABEL
	146976008	LABEL
	146976009	LABEL
	147943001	LABEL
	146489001	NEEDLE CLAMP ASSEMBLY
	112297014	NEEDLE DCX1
	146464001	THREADING DIAGRAM
	146976010	LABEL
	146976011	LABEL
	146976012	LABEL
	146463001	THREADING DIAGRAM
	146976013	LABEL
	146976014	LABEL
	147943001	LABEL
	146491001	NEEDLE CLAMP ASSEMBLY
	112297016	NEEDLE DCX1
	146464001	THREADING DIAGRAM
	146976016	LABEL
	146463001	THREADING DIAGRAM
	146976019	LABEL
	146976097	LABEL
	147943001	LABEL
	146487001	NEEDLE CLAMP ASSEMBLY
	112297014	NEEDLE DCX1
	146976021	LABEL
	146489001	NEEDLE CLAMP ASSEMBLY
	148976088	LABEL
	146976023	LABEL
	146491001	NEEDLE CLAMP ASSEMBLY

Page 57

Brother MA4-B551 parts on page 57
Ref	Part number	Part name	Qty
A-76	146463001	RUFFLING W/PIPING
A-79	146976025	RUFFLING W/PIPING
A-83	147943001	RUFFLING W/PIPING
D-21	146487001	RUFFLING W/PIPING
D-22	112297014	RUFFLING W/PIPING	1
A-76	146464001	RUFFLING W/PIPING
A-79	146976026	RUFFLING W/PIPING
A-76	146463001	RUFFLING W/PIPING
A-79	146976027	RUFFLING W/PIPING
A-83	147943001	RUFFLING W/PIPING
D-21	146489001	RUFFLING W/PIPING
A-76	146464001	RUFFLING W/PIPING
A-79	146976028	RUFFLING W/PIPING
A-76	146463001	RUFFLING W/PIPING
A-79	146976029	RUFFLING W/PIPING
A-82	151488028	RUFFLING W/PIPING
A-83	147943001	RUFFLING W/PIPING
D-21	146491001	RUFFLING W/PIPING
A-75	143196001	TAPING
A-79	146976032	TAPING
D-21	146487001	TAPING
D-22	112297011	TAPING	1
A-79	146976037	TAPING
A-79	146976038	TAPING
A-79	146976039	TAPING
D-21	146489001	TAPING
D-22	112297014	TAPING	1
A-79	146976043	TAPING
A-79	146976044	TAPING
D-21	146491001	TAPING
D-22	112297016	TAPING	1
A-76	146464001	TAPING
A-79	146976047	TAPING

Page 58

Brother MA4-B551 parts on page 58
Part number	Part name	Qty
143196001	OIL HOLE BOLT FOR OIL GAUGE
146463001	THREADING DIAGRAM
151488012	LABEL
151488018	LABEL
147943001	LABEL
146489001	NEEDLE CLAMP ASSEMBLY
112297018	NEEDLE DCX1	1
146976080	LABEL
146976051	LABEL
146491001	NEEDLE CLAMP ASSEMBLY
146976069	BINDING LABEL
146489001	NEEDLE CLAMP ASSEMBLY
112297014	NEEDLE DCX1	1
146464001	THREADING DIAGRAM
146976098	LABEL
146976089	LABEL
146976090	LABEL
151488019	LABEL
147943001	LABEL
146491001	NEEDLE CLAMP ASSEMBLY
112297018	NEEDLE DCX1	1
146464001	THREADING DIAGRAM
146976092	LABEL

Page 59

Brother MA4-B551 parts on page 59
Ref	Part number	Part name	Qty
A-75	143196001	OIL HOLE BOLT FOR OIL GAUGE
A-76	146463001	THREADING DIAGRAM
A-82	151488002	LABEL
A-82	151488003	LABEL
A-83	147943001	LABEL
D-21	151467001	NEEDLE CLAMP ASSEMBLY
D-22	112297011	NEEDLE DCX1	1
A-75	↑	OIL HOLE BOLT FOR OIL GAUGE
A-76	156523001	THREADING DIAGRAM
A-82	151488015	LABEL
A-83	↑	LABEL
D-21	156500001	NEEDLE CLAMP ASSEMBLY
D-22	112297016	NEEDLE DCX1	2
A-75	↑	OIL HOLE BOLT FOR OIL GAUGE
A-76	S01796001	THREADING DIAGRAM
A-82	151488021	LABEL
A-83	↑	LABEL
D-21	S01957001	NEEDLE CLAMP ASSEMBLY
D-22	112297014	NEEDLE DCX1	2
A-75	↑	OIL HOLE BOLT FOR OIL GAUGE
A-76	↑	THREADING DIAGRAM
A-82	151488022	LABEL
A-83	↑	LABEL
D-21	S01945001	NEEDLE CLAMP ASSEMBLY
D-22	↑	NEEDLE DCX1
A-82	15147943001	LABEL

Page 60

Brother MA4-B551 parts on page 60
Ref	Part number	Part name	Qty
	140104011	NEEDLE DMX13
	148280001	NEEDLE PLATE
	146498001	NEEDLE PLATE
	146499001	NEEDLE PLATE
	146500001	NEEDLE PLATE
	146567001	MAIN FEED DOG
	146572001	DIFFERENTIAL FEED DOG
	146577001	CHAIN FEED DOG
	112297011	NEEDLE DCX1
	140104011	NEEDLE DMX13
	146498001	NEEDLE PLATE
	140104014	NEEDLE DMX13
	146501001	NEEDLE PLATE
	146502001	NEEDLE PLATE
	146503001	NEEDLE PLATE
	112297014	NEEDLE DCX1
	140104014	NEEDLE DMX13
	146501001	NEEDLE PLATE
	146502001	NEEDLE PLATE
	146503001	NEEDLE PLATE
	140104016	NEEDLE DMX13
	146504001	NEEDLE PLATE
	146505001	NEEDLE PLATE
	146568001	MAIN FEED DOG
	146573001	DIFFERENTIAL FEED DOG
	112297016	NEEDLE DCX1
	140104016	NEEDLE DMX13
	146504001	NEEDLE PLATE
	140104014	NEEDLE DMX13
	S01770001	NEEDLE PLATE
	S01771001	NEEDLE PLATE
	S01777001	MAIN FEED DOG
	146575001	DIFFERENTIAL FEED DOG
	146578001	CHAIN FEED DOG
	112297014	NEEDLE DCX1
	140104014	NEEDLE DMX13
	S01773001	NEEDLE PLATE
	S01774001	NEEDLE PLATE
	S01775001	NEEDLE PLATE
	S01778001	MAIN FEED DOG
	146576001	DIFFERENTIAL FEED DOG

Page 61

Brother MA4-B551 parts on page 61
Ref	Part number	Part name	Qty
	140104014	RUFFLING W/PIPING
	S01770001	RUFFLING W/PIPING
	S01779001	RUFFLING W/PIPING
	146575001	RUFFLING W/PIPING
	146578001	RUFFLING W/PIPING
	112297014	RUFFLING W/PIPING
	140104014	RUFFLING W/PIPING
	S01773001	RUFFLING W/PIPING
	S01780001	RUFFLING W/PIPING
	S01774001	RUFFLING W/PIPING
	S01775001	RUFFLING W/PIPING
	S01776001	RUFFLING W/PIPING
	146576001	RUFFLING W/PIPING
	140104011	TAPING
	146499001	TAPING
	146567001	TAPING
	146572001	TAPING
	146577001	TAPING
	112297011	TAPING
	140104011	TAPING
	140104014	TAPING
	146501001	TAPING
	146502001	TAPING
	146503001	TAPING
	112297014	TAPING
	140104014	TAPING
	140104016	TAPING
	146504001	TAPING
	146505001	TAPING
	146568001	TAPING
	146573001	TAPING
	112297016	TAPING
	140104016	TAPING
	146505001	TAPING

Page 62

Brother MA4-B551 parts on page 62
Ref	Part number	Part name
D-23	140104018	NEEDLE DMX13
D-38	148978001	NEEDLE PLATE
D-38	S09473001	NEEDLE PLATE
F-67	148980001	MAIN FEED DOG
F-68	148981001	DIFFERENTIAL FEED DOG
F-68	S00878001	DIFFERENTIAL FEED DOG
F-69	146577001	CHAIN FEED DOG
Z-1-1	112297018	NEEDLE DCX1
Z-1-2	140104018	NEEDLE DMX13
D-38	147783001	NEEDLE PLATE
D-38	146510001	NEEDLE PLATE
F-67	146569001	MAIN FEED DOG
F-68	146574001	DIFFERENTIAL FEED DOG
D-23	140104014	NEEDLE DMX13
D-38	147369001	NEEDLE PLATE
F-67	146567001	MAIN FEED DOG
F-68	146572001	DIFFERENTIAL FEED DOG
Z-1-1	112297014	NEEDLE DCX1
Z-1-2	140104014	NEEDLE DMX13
D-23	140104018	NEEDLE DMX13
D-38	147783001	NEEDLE PLATE
D-38	146510001	NEEDLE PLATE
D-38	158740001	NEEDLE PLATE
F-67	146569001	MAIN FEED DOG
F-68	146574001	DIFFERENTIAL FEED DOG
Z-1-1	112297018	NEEDLE DCX1
Z-1-2	140104018	NEEDLE DMX13
D-38	146510001	NEEDLE PLATE

Page 63

Brother MA4-B551 parts on page 63
Part number	Part name	Qty
140104011	NEEDLE DMX13
151472001	NEEDLE PLATE
151473001	NEEDLE PLATE
151469001	MAIN FEED DOG
151470001	DIFFERENTIAL FEED DOG
146577001	CHAIN FEED DOG
112297011	NEEDLE DCX1
140104011	NEEDLE DMX13
140104016	NEEDLE DMX13
156502001	NEEDLE PLATE
146568001	MAIN FEED DOG
146573001	DIFFERENTIAL FEED DOG
112297016	NEEDLE DCX1
140104016	NEEDLE DMX13
140104014	NEEDLE DMX13
S02863001	NEEDLE PLATE
S02867001	MAIN FEED DOG
S02865001	DIFFERENTIAL FEED DOG
112297014	NEEDLE DCX1
140104014	NEEDLE DMX13
S02864001	NEEDLE PLATE
S02868001	MAIN FEED DOG
S02866001	DIFFERENTIAL FEED DOG
151468001	MAIN FEED DOG	151473001

Page 64 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother MA4-B551 parts on page 64
Ref	Part number	Part name	Qty
	11229701	Z - 1-1
	S00049001	D - 14-1
	S00878001	G - 1-1
	S01223001	P - 1-1
	S01225001	M - 13-1
	S01248101	E - 35-1-6
	S01295001	E - 35-10-6
	S01295001	E - 35-15-6
	S01295001	E - 35-17-6
	S01295001	E - 35-13-6
	S01297001	P - 32
	S01304001	F - 73
	S01371001	H - 2
	S01371001	E - 35-13-4
	S01371001	E - 35-15-4
	S01371001	E - 35-15-3
	S01371001	E - 35-13-2
	S01371001	E - 35-15-2
	S01371001	E - 35-13-5
	S01371001	E - 35-15-5
	S01371001	E - 35-13-1
	S01371001	E - 35-15-1
	S01371001	E - 35-13-3
	S01374001	N - 19
	S01375001	H - 1-31
	S01375001	H - 1-1-31
	S01652001	D - 14
	S01654000	D - 14-2
	S01756001	P - 30
	S01757001	P - 31-1
	S01758001	D - 41
	S01761001	P - 35-20
	S01761001	P - 31-2
	S01762101	E - 35-19
	S01770001	D - 38
	S01771001	D - 38
	S01773001	D - 38
	S01774001	D - 38
	S01775001	D - 38
	S01776001	F - 67
	S01777001	F - 67
	S01778001	F - 67
	S01779001	F - 67
	S01780001	F - 67
	S01790001	B - 1-2
	S01796001	A - 76
	S01943001	Z - 7
	S01945001	D - 21
	S01947101	D - 24-2
	S01948001	D - 42
	S01950001	E - 35-19-2
	S01950001	E - 35-20-2
	S01951001	E - 35-19-12
	S01951001	E - 35-20-12
	S01957001	D - 21
	S02770101	Z - 42-2
	S02772101	Z - 42-1
	S02773001	Z - 42-1-2
	S02773001	Z - 42-2-1
	S02773001	Z - 42-2-7
	S02778001	Z - 42-1-6
	S02779001	Z - 42-2-8
	S02779001	Z - 42-1-7
	S02779001	Z - 42-1-15
	S02784001	Z - 42-1-11
	S02785001	Z - 42-1-13
	S02786001	Z - 42-1-12
	S02788001	Z - 42-1-14
	S02788001	Z - 42-1-13
	S02863001	Z - 42-2-15
	S02864001	D - 38
	S02865001	D - 38
	S02866001	F - 68
	S02867001	F - 68
	S02868001	F - 67
	S02874001	F - 67
	S03321001	C - 12-1-4
	S03886001	C - 12-2-5
	S03887201	E - 33
	S03888000	A - 62
	S03889001	Z - 27
	S03890001	Z - 68-8
	S04109001	Z - 68-9
	S04109001	Z - 42-1-16
	S04109001	Z - 42-2-18
	S05721003	F - 1-18
	S06294001	N - 6
	S06561001	E - 4
	S06701000	Z - 18
	S06704001	Z - 39
	S07293001	R - 61
	S07848001	B - 1-3
	S09323001	A - 84
	S09456001	D - 46-1
	S09459001	D - 46-2
	S09460001	E - 38
	S09473001	E - 35-19-8
	S09565001	E - 35-20-8
	S10774001	D - 18-2
	S11072001	N - 14-2
	S12677001	F - 8
	013679412	H - 1-2
	013679412	H - 1-1-29
	013719412	H - 1-2-29
	013760612	B - 21
	013761410	M - 10-1
	014060632	B - 18
	014060632	Z - 42-1-18
	014060632	Z - 42-2-20
	014680422	A - 87
	014680422	E - 29
	014680422	M - 14
	014680422	N - 13-1-7
	014680422	N - 15-1-1
	014680422	N - 15-2-1
	014680422	N - 15-3-1
	014770622	P - 26
	014770622	R - 52
	014770622	F - 31
	014770622	P - 1-2
	014770622	P - 5-1
	014770622	Q - 2
	014780622	H - 14-6
	017085502	Z - 68-4
	017771412	F - 36
	017771412	F - 44-2
	017771412	F - 52-1

Page 65

Brother MA4-B551 parts on page 65
Ref	Part number	Part name	Qty
	017771412	G - 11
	017771412	N - 3
	017771612	A - 65
	017771612	D - 2
	017771612	E - 22
	017771612	F - 6
	017771612	F - 61
	017771612	G - 1-5
	017771612	M - 3
	017771612	P - 2
	017771612	P - 9
	017781012	H - 14-10
	017781012	H - 14-13
	017781012	H - 14-4
	018061622	D - 25
	021080106	Z - 33
	021080106	Z - 68-7
	021400106	Z - 21
	021500106	Z - 42-1-11-3
	021500106	Z - 42-1-12-3
	021500106	Z - 42-1-14-3
	021500106	Z - 42-1-4-3
	021500106	Z - 42-1-7-3
	021500106	Z - 42-2-13-3
	021500106	Z - 42-2-16-3
	021500106	Z - 42-2-8-3
	021500106	Z - 42-2-9-3
	021670202	A - 50
	021680202	Z - 68-12
	025030232	E - 35-15-7
	025030232	E - 35-15-7
	025050236	Z - 61-3
	025080236	Z - 59
	025350332	Z - 31
	025350332	Z - 68-5
	025350332	L - 8
	025350332	Q - 3-2
	025680232	Z - 68-11
	025770232	F - 70
	025770232	H - 1-1-8
	025770232	H - 1-2-8
	028050242	J - 1-1-3
	028050242	R - 62
	028050246	Z - 42-1-7-2
	028050246	Z - 42-2-8-2
	028050246	Z - 42-2-9-2
	028080242	Z - 32
	028080242	Z - 68-6
	031311302	Z - 37
	031452206	Z - 42-1-11-4
	031452206	Z - 42-1-12-4
	031452206	Z - 42-1-2-2
	031452206	Z - 42-2-13-4
	031452206	Z - 42-2-2-2
	032422505	H - 17-2
	047140842	A - 28-1-4
	047300842	E - 6
	047301440	N - 13-1-8
	047301440	N - 13-2-6
	047502242	F - 58
	048025342	E - 35-11-6
	048025342	E - 35-12-6
	048025342	E - 35-13-6
	048025342	E - 35-18-6
	048025342	E - 35-19-6
	048025342	E - 35-19-6
	048025342	E - 35-2-6
	048025342	E - 35-20-6
	048025342	E - 35-3-6
	048040342	F - 9
	048040342	E - 19
	048080342	F - 1-12
	048150143	Z - 42-1-7-5
	048150143	Z - 42-2-8-5
	048150143	Z - 42-2-9-5
	048150143	Z - 42-1-14-2
	048150143	Z - 42-1-7-4
	048150143	Z - 42-2-16-2
	048150143	Z - 42-2-8-4
	048150143	Z - 42-2-9-4
	050501406	E - 35-19-3
	050501406	E - 35-20-3
	050503006	R - 57
	050503006	A - 40
	050503006	A - 42
	050503006	H - 1-1-27
	050503006	H - 1-2-27
	060630312	R - 18
	060630312	A - 29
	060630412	D - 27
	060630412	D - 29
	060670512	Z - 42-1-2-1
	060670512	Z - 42-2-2-1
	060670812	Z - 22
	060680512	Z - 42-1-11-2
	060680512	Z - 42-1-12-2
	062060806	Z - 42-2-13-2
	062060806	Z - 42-1-4-1
	062401406	F - 66
	062501006	E - 38
	062501006	M - 5
	062501006	N - 5
	062501006	P - 4
	062501006	R - 16
	062501006	R - 22
	062501006	Z - 50
	062630812	F - 1-8
	062630812	Z - 61-2
	062660412	E - 35-13-8
	062660412	E - 35-15-8
	062660512	E - 35-4-3
	062660512	E - 35-5-3
	062660512	E - 35-6-3
	062660512	E - 35-7-3
	062660512	E - 35-8-3
	062660512	E - 35-9-3
	062660512	F - 44-1-4
	062660512	H - 1-1-14
	062660512	H - 1-2-14
	062660712	A - 28-1-7
	062660712	A - 28-2-7
	062660712	D - 43
	062660712	R - 55
	062660712	L - 2
	062660712	L - 4
	062670412	A - 20
	062670412	A - 26
	062670512	A - 31
	062670512	A - 48
	062670612	A - 61
	062670612	A - 71

Page 66

Brother MA4-B551 parts on page 66
Ref	Part number	Part name
D	062670612	D - 35
F	062670612	F - 11
G	062670612	G - 20
H	062670612	H - 13
Q	062670612	Q - 17
R	062670612	R - 25
R	062670612	R - 28
R	062670612	R - 30
R	062670612	R - 35
R	062670612	R - 39
R	062670612	R - 43
R	062670612	R - 60
B	062670812	B - 5-1
B	062670812	B - 10
D	062670812	D - 6
D	062670812	D - 33
D	062670812	D - 47
F	062670812	F - 19
Q	062670812	Q - 33
G	062671012	G - 9-2
Q	062671012	Q - 3-10
A	062671412	A - 49
D	062671412	D - 45
H	062680612	H - 1-1-25
H	062680612	H - 1-2-25
L	062680612	L - 6
A	062680712	A - 23
A	062680712	A - 52
A	062680712	A - 8
D	062680712	D - 18-1
D	062680712	D - 37
E	062680712	E - 14
F	062680712	F - 30
N	062680712	N - 33
H	062680812	H - 1-1-17
H	062680812	H - 1-2-17
B	062681012	B - 14
C	062681012	C - 2
F	062681012	F - 25
F	062681012	F - 28
H	062681012	H - 17-1
N	062681012	N - 13-1-5
N	062681012	N - 13-2-5
Z	062681212	Z - 55-2
Z	062681212	Z - 68-10
A	062681412	A - 4
E	062711012	E - 34
Q	062711212	Q - 4
N	071023850	N - 6-3
B	072600000	B - 15
F	100025002	F - 1-17
D	100032003	D - 31
J	100080004	J - 1-1-1
K	100136001	K - 1-4
F	100251001	F - 4
C	100257010	C - 13
G	100260001	G - 5
N	100294002	N - 12
F	100366001	F - 56
D	100444002	D - 1-3
D	100444002	D - 7
G	100444002	G - 1-3
J	100447001	J - 1-2
H	100463001	H - 14-8
A	100645003	A - 53
C	100645003	C - 15
F	100645003	F - 24
F	100645003	F - 27
Z	100645003	Z - 55-3
K	101118001	K - 2
Z	101118001	Z - 58
Z	101572101	Z - 5
A	101706001	A - 38-1
F	101706001	F - 34-1
H	101706001	H - 1-1-18-1
H	102424004	H - 1-1-4
H	102538002	H - 1-2-4
Q	102627001	Q - 3-6-1
G	102843004	G - 27-2
B	105079001	B - 6
G	105161004	G - 14
A	105163001	A - 19
D	105234003	D - 17
L	105234003	L - 7
H	105248003	H - 1-1-6
H	105288001	H - 1-2-6
H	105288001	H - 1-1-22
H	105288001	H - 1-2-22
R	105288001	R - 23
E	105343001	E - 35-11-3
E	105343001	E - 35-12-3
E	105343001	E - 35-14-3
E	105343001	E - 35-18-3
E	107093002	E - 35-2-3
E	107093002	E - 35-3-3
E	107093002	E - 35-4-5
E	107093002	E - 35-5-5
E	107244001	E - 35-6-5
E	107244001	E - 35-7-5
E	107244001	E - 35-8-5
E	107407003	E - 35-9-5
Z	107407003	Z - 12
F	107779001	F - 1-1
B	108494001	B - 12
G	108495001	G - 12
G	108960002	G - 27-1
Z	109203001	Z - 10
K	109854001	K - 1-2
K	109854001	K - 1-3
A	110161003	A - 73
A	110161006	A - 67
F	110230001	F - 57
J	110641002	J - 1-1
E	110668001	E - 16
P	110670000	P - 11
H	110672000	H - 1-1-21
H	110673000	H - 1-2-21
A	110704001	A - 66
B	110735002	B - 9
B	110778002	B - 13
B	110793001	B - 16
M	110793001	M - 4
N	110793001	N - 4
L	110793001	L - 10
P	110793001	P - 16
E	110793001	E - 18

Page 67

Brother MA4-B551 parts on page 67
Ref	Part number	Part name	Qty
	110813001	R - 14-1
	110813001	R - 14-2
	110820101	H - 1-1-7
	110820101	H - 1-2-7
	110820101	R - 4-1
	110820101	R - 4-2
	110832001	R - 4-4
	110832001	R - 46
	110832001	R - 5-1
	111486001	R - 5-2
	111486001	D - 24
	112297011	D - 30
	112297014	D - 22
	112297014	Z - 1-1
	112297016	D - 22
	112297016	Z - 1-1
	112297018	D - 22
	112297018	Z - 1-1
	112300001	R - 68
	112301001	R - 70
	112301001	H - 8-5
	112348001	C - 3
	112348001	C - 6
	112348001	C - 9
	112348001	Q - 11
	112348001	Q - 19
	112348001	Q - 22
	112348001	Q - 24
	112359001	C - 4
	112359001	C - 7
	112359001	Q - 8
	112359001	Q - 10
	112364001	C - 4
	112364001	C - 7
	112364001	Q - 25
	112436001	Q - 20
	112436001	Q - 23
	112436001	Q - 9
	112436001	G - 15
	112525000	Z - 4
	112735000	Q - 58
	112751002	Q - 51
	112751002	H - 4
	113431002	Z - 52
	113431002	F - 40
	113431002	F - 76
	113589001	A - 6
	114294001	Q - 37
	116016001	A - 33
	117160001	Z - 13
	117466000	G - 16
	117515001	F - 65
	117516001	G - 17
	117517003	F - 1-16
	118550001	A - 69
	118770001	F - 75
	120990001	P - 19
	122771002	E - 35-11-11
	122771002	E - 35-12-11
	122771002	E - 35-14-11
	122771002	E - 35-18-11
	122771002	E - 35-19-11
	122771002	E - 35-2-11
	122771002	E - 35-20-11
	122991001	E - 35-3-11
	123185001	Z - 25
	126863001	A - 35
	138843001	Z - 42-1-10
	138843001	Z - 42-1-12
	138843001	Z - 42-1-17
	138843001	Z - 42-2-19
	140065001	A - 56
	140066001	A - 55
	140084000	B - 10
	140088001	D - 1-2
	140091000	D - 5
	140092001	D - 6
	140093000	D - 9-2
	140096001	D - 23
	140104011	Z - 1-2
	140104014	D - 23
	140104014	Z - 1-2
	140104016	D - 23
	140104016	Z - 1-2
	140104018	D - 23
	140104018	Z - 1-2
	140150000	P - 13
	140159000	P - 22
	140165001	F - 1-3
	140176001	F - 1-15
	140180001	B - 19
	140187000	F - 18
	140188004	F - 17
	140205001	F - 35
	140207001	F - 20-2
	140208001	F - 20-3
	140209001	F - 20-8
	140210001	F - 20-4
	140217001	F - 20-5
	140232001	G - 1-2
	140233001	G - 1-4
	140235000	G - 6
	140261001	E - 21
	140262000	E - 23
	140263000	E - 24
	140270001	E - 35-12-1
	140270001	E - 35-18-1
	140270001	E - 35-20-1
	140270001	E - 35-3-1
	140270001	E - 35-4-1
	140270001	E - 35-5-1
	140270001	E - 35-6-1
	140270001	E - 35-7-1
	140270001	E - 35-8-1
	140270001	E - 35-9-1
	140271001	E - 35-5-6
	140272001	E - 35-4-7
	140272001	E - 35-5-7
	140272001	E - 35-6-7
	140272001	E - 35-7-7
	140272001	E - 35-8-7
	140272001	E - 35-9-7
	140273001	E - 35-5-8
	140273001	E - 35-6-8
	140273001	E - 35-7-8
	140273001	E - 35-8-8
	140273001	E - 35-9-8

Page 68

Brother MA4-B551 parts on page 68
Ref	Part number	Part name	Qty
	140275001	E - 35-4-10
	140275001	E - 35-5-10
	140275001	E - 35-6-10
	140275001	E - 35-7-10
	140275001	E - 35-8-10
	140275001	E - 35-9-10
	140313001	P - 17
	140317000	Q - 47
	140325001	Q - 15
	140326001	F - 3
	140327001	D - 4
	140327001	F - 14
	140327001	M - 7
	140327001	N - 6-2
	140342001	P - 27
	140415000	Q - 46
	140416000	N - 13-1-4
	140417000	Q - 48
	140418000	Q - 41
	140421001	A - 58
	140759000	Z - 40
	140778101	Q - 18
	140778101	Q - 21
	140779101	Q - 7
	140780101	Q - 6
	140888001	Z - 49
	140991001	E - 35-6-6
	140992001	E - 35-4-11
	140992001	E - 35-5-11
	140992001	E - 35-6-11
	140992001	E - 35-7-11
	140992001	E - 35-8-11
	140992001	E - 35-9-11
	140993001	E - 35-4-9
	140993001	E - 35-5-9
	140993001	E - 35-6-9
	140993001	E - 35-7-9
	140993001	E - 35-8-9
	140993001	E - 35-9-9
	141183000	A - 37
	141514001	H - 11
	141514001	H - 8-2
	142201001	R - 21-2
	142243000	E - 35-1-1
	142243000	E - 35-10-1
	142243000	E - 35-16-1
	142243000	E - 35-17-1
	142244001	E - 35-1-2
	142244001	E - 35-10-2
	142244001	E - 35-16-2
	142245001	E - 35-1-3
	142245001	E - 35-10-3
	142245001	E - 35-16-3
	142246001	E - 35-1-4
	142246001	E - 35-10-4
	142247001	E - 35-1-5
	142247001	E - 35-10-5
	142247001	E - 35-16-5
	142250001	E - 35-17-5
	142262001	Z - 24
	142274001	B - 20
	142669002	R - 36
	142999001	Z - 42-2-17
	143179000	B - 8
	143196001	A - 75
	143311001	B - 2-2
	143312000	B - 3
	143323103	E - 10-1
	143325001	E - 12
	143374001	A - 85
	143564001	F - 37-1
	143565001	F - 41
	143566001	R - 11
	143757001	R - 15-1
	143767002	K - 1
	143980001	K - 1-1
	143992001	A - 9
	144025001	N - 1
	144029000	N - 10
	144031000	N - 10
	144044001	M - 1
	144053001	F - 1-9
	144055001	F - 1-10
	144068001	F - 37-2
	144074000	G - 8-1
	144075001	G - 9-1
	144079001	E - 1
	144081001	E - 3
	144083001	E - 5
	144085001	E - 8
	144086001	E - 9
	144103002	R - 7-1
	144104001	R - 7-2
	144104001	R - 8-1
	144104001	R - 8-3
	144105000	H - 1-1-10
	144105000	H - 1-2-10
	144108001	R - 11
	144110001	R - 49
	144111001	R - 21-1
	144116000	R - 10
	144116000	R - 26
	144117000	C - 12-1-2
	144127001	C - 12-2-2
	144179001	G - 7
	144225002	G - 26-1
	144619000	Z - 41
	144622001	Q - 3-1
	144764001	Q - 3-5
	144775001	H - 1-1-26
	144777001	H - 1-2-26
	144777001	E - 35-5
	144777001	E - 35-4-2
	144777001	E - 35-5-2
	144777001	E - 35-7-2
	144777001	E - 35-8-2
	144777001	E - 35-9-2
	144777001	E - 35-4-4
	144777001	E - 35-5-4
	144777001	E - 35-6-4
	144777001	E - 35-7-4
	144777001	E - 35-8-4
	144777001	E - 35-9-4
	144783001	H - 1-1-12
	144783001	H - 1-2-12
	144784001	H - 1-1-13
	144784001	H - 1-2-13
	144788001	H - 1-1-9
	144788001	H - 1-2-9

Page 69

Brother MA4-B551 parts on page 69
Ref	Part number	Part name	Qty
	144793000	H - 3
	144793000	Z - 51
	145147001	E - 35-11-2
	145147001	E - 35-12-2
	145147001	E - 35-18-2
	145147001	E - 35-2-2
	145147001	E - 35-3-2
	145277105	Z - 19
	145446001	R - 47
	145446001	R - 6-1
	145446001	R - 6-2
	145663001	F - 1-2
	145664000	Q - 32
	145803001	H - 1-1
	145803001	H - 1-2
	145807001	H - 1-1-16
	145807001	H - 1-2-16
	145808001	H - 1-2-24
	145808001	H - 1-2-24
	145809001	H - 5
	145810001	H - 1-1-19
	145810001	H - 1-2-19
	145811001	H - 1-1-23
	145811001	H - 1-2-23
	146315000	A - 57
	146401001	F - 1-4
	146402001	F - 1-5
	146403001	F - 1-6
	146404001	F - 1-7
	146419001	A - 2
	146420000	A - 5
	146421000	A - 7
	146422001	A - 13
	146425001	A - 13
	146426000	A - 14
	146427001	A - 15
	146428001	D - 11
	146428001	D - 21
	146430001	A - 16-1
	146430001	A - 16-3
	146432001	A - 17
	146433000	A - 18
	146434000	A - 21
	146435000	A - 22
	146436001	A - 25
	146440001	A - 28-1
	146440001	A - 28-1-1
	146441000	A - 28-1-2
	146441000	A - 28-2-1
	146442001	A - 28-2-2
	146442001	A - 28-3
	146443001	A - 30
	146444001	A - 32-1
	146449001	A - 39
	146450001	A - 41
	146451001	A - 43
	146452001	A - 44
	146453001	A - 46
	146454001	A - 47
	146455101	A - 51-1
	146457001	A - 60
	146460001	A - 70
	146463001	A - 76
	146464001	A - 76
	146471001	B - 1-1
	146473001	B - 7
	146476101	D - 1
	146478001	D - 1-4
	146479001	D - 3
	146480001	D - 9
	146482001	D - 9-3
	146483001	D - 12
	146487001	D - 21
	146489001	D - 21
	146491001	D - 21
	146493102	D - 24-1
	146494001	D - 26
	146495001	D - 28
	146496301	D - 34
	146497201	D - 36
	146498001	D - 38
	146499001	D - 38
	146500001	D - 38
	146501001	D - 38
	146502001	D - 38
	146503001	D - 38
	146504001	D - 38
	146505001	D - 38
	146510001	D - 38
	14651100	C - 1
	146512101	C - 5
	146515000	C - 8
	146516000	C - 11
	146517100	C - 12-1
	146518100	C - 12-1-1
	146521001	E - 2
	146522001	E - 13-1
	146523001	E - 17
	146524001	E - 20
	146525001	E - 25
	146526001	E - 27
	146527001	E - 28
	146528001	F - 1
	146529001	F - 1-11
	146530001	F - 1-13
	146531001	F - 1-14
	146532001	F - 2
	146533001	F - 5
	146534001	F - 7
	146536001	F - 10
	146537000	F - 12
	146538001	F - 13
	146539000	F - 15
	146540000	F - 16
	146541001	F - 20-1
	146544000	F - 20-1-2
	146547000	F - 29
	146548101	F - 30
	146549001	F - 32
	146550001	F - 44
	146554001	F - 20-6
	146555001	F - 20-7
	146556001	F - 49
	146558001	F - 53
	146559001	F - 54
	146560101	F - 55
	146561001	F - 59-1
	146562001	F - 59-3
	146563001	F - 60
	146564001	F - 62
	146565001	F - 63
	146566001	F - 64
	146567001	F - 67
	146568001	F - 67

Page 70

Brother MA4-B551 parts on page 70
Ref	Part number	Part name	Qty
	146569001	F - 67
	146572001	F - 68
	146573001	F - 68
	146574001	F - 68
	146575001	F - 68
	146576001	F - 68
	146577001	F - 69
	146578001	F - 69
	146580001	G - 4
	146581001	G - 11
	146582001	G - 13
	146583001	G - 18
	146584001	G - 19
	146585001	G - 21
	146586000	G - 22
	146587201	H - 1-1
	146588001	H - 1-1-1
	146589001	H - 1-1-3
	146590001	H - 1-2-5
	146592001	H - 1-1-28
	146594001	H - 1-2-28
	146602001	N - 9-1
	146603301	N - 13-1
	146611301	N - 13-2
	146614001	M - 6
	146615000	M - 8
	146616000	M - 9
	146617001	M - 11
	146618001	P - 1
	146622001	P - 3
	146624101	P - 7
	146626001	P - 8
	146627001	P - 10
	146628001	P - 12
	146629000	P - 14
	146630001	P - 15
	146631001	P - 18
	146632001	P - 20
	146633000	P - 21
	146635001	P - 25
	146636201	Q - 13
	146647001	Q - 1
	146648001	R - 1
	146649001	R - 3-1
	146650001	R - 17
	146652001	R - 31
	146653001	R - 32
	146654001	R - 34
	146656001	R - 40
	146663001	R - 56
	146700001	Z - 8
	146706001	A - 16-2
	146717101	A - 51-2
	146740000	C - 12-2.4
	146742001	F - 59.2
	146793001	R - 15-2
	146865001	E - 35-11-1
	146869001	E - 35-14-1
	146869001	E - 35-19-1
	146869001	E - 35-2-1
	146869001	E - 35-11-8
	146869001	E - 35-12-8
	146869001	E - 35-14-8
	146869001	E - 35-18-8
	146869001	E - 35-2-8
	146869001	E - 35-3-8
	146870001	E - 35-11-10
	146870001	E - 35-12-10
	146870001	E - 35-14-10
	146870001	E - 35-18-10
	146870001	E - 35-19-10
	146870001	E - 35-2-10
	146870001	E - 35-20-10
	146870001	E - 35-3-10
	146871101	E - 35-2
	146878001	E - 35-3
	146880001	E - 35-3.9
	146881001	E - 35-4
	146883001	E - 38-4-6
	146901001	E - 35-6
	146901001	E - 37
	146914001	E - 35-11-9
	146924000	E - 35-12-9
	146925001	E - 35-14-9
	146926002	E - 35-18-9
	146929001	E - 35-2-9
	146930001	E - 35-3-9
	146976001	F - 52
	146976002	A - 32-1-1
	146976003	A - 32-2-1
	146976004	R - 38
	146976007	R - 27
	146976008	R - 29
	146976009	R - 59
	146976010	A - 79
	146976011	A - 79
	146976012	A - 79
	146976013	A - 79
	146976014	A - 79
	146976016	A - 79
	146976019	A - 79
	146976021	A - 79
	146976023	A - 79
	146976025	A - 79
	146976026	A - 79
	146976027	A - 79
	146976028	A - 79
	146976029	A - 79
	146976032	A - 79
	146976037	A - 79
	146976038	A - 79
	146976039	A - 79
	146976043	A - 79
	146976044	A - 79
	146976047	A - 79
	146976051	A - 79
	146976069	A - 79
	146976080	A - 79
	146976081	A - 79
	146976089	A - 79
	146976090	A - 79
	146976092	A - 79
	146976097	A - 79

Page 71

Brother MA4-B551 parts on page 71
Ref	Part number	Part name	Qty
	146976098	A - 79
	147049001	R - 12-1-2
	147049002	R - 12-2-2
	147049003	R - 12-3-1-1
	147049004	R - 12-4-2
	147148001	R - 45
	147149001	R - 48
	147217000	Q - 31
	147318000	Q - 52
	147344001	R - 67-1
	147361000	Q - 53
	147363000	Q - 55
	147367001	A - 32-2
	147369001	D - 38
	147370101	E - 35-14
	147371001	E - 35-14-2
	147373000	L - 1
	147377001	L - 3
	147435001	E - 35-8
	147437001	E - 35-9
	147440000	L - 5
	147454001	E - 13-2
	147488001	E - 35-8-6
	147489001	E - 35-9-6
	147521001	Q - 3
	147523001	Q - 3-4
	147527001	Q - 3-7
	147528100	Q - 3-8
	147529001	Q - 3-9
	147672001	H - 12
	147691000	H - 1-3
	147773001	F - 20-1-1
	147783001	D - 38
	147785001	E - 35-7
	147870001	E - 35-7-6
	147848101	B - 17
	147893003	Z - 20
	147919001	Z - 48-1
	147919002	Z - 48-2
	147933001	H - 1-1-15
	147934001	N - 15-1
	147935001	N - 15-3
	147943001	A - 83
	147950101	E - 35-11
	147988001	P - 5
	148013101	E - 35-15
	148020001	E - 35-15-6
	148033001	N - 6-1
	148034001	N - 6-4
	148042001	Z - 55-1
	148084001	A - 54
	148174000	F - 23
	148280001	D - 38
	148281101	G - 25
	148294001	N - 13-1-2
	148343101	G - 28
	148344001	G - 29
	148345001	G - 26-2
	148348001	Z - 55
	148369101	E - 10-2
	148372001	E - 11
	148379001	N - 13-1-1
	148387001	N - 13-2-1
	148388001	H - 1-2-18
	148389001	H - 8-1
	148390001	H - 8-3
	148391001	H - 8-4
	148395001	H - 10
	148405101	H - 8
	148425001	E - 35-12
	148427001	D - 1-1
	148430101	G - 1-1-1
	148431201	M - 1-1
	148432001	N - 1-1
	148782001	P - 7-1
	148797001	P - 1-1-1
	148798001	G - 1
	148815001	Z - 56-1
	148816001	Z - 56-2
	148834001	M - 15
	148851001	P - 28
	148976088	H - 14-5
	148978001	H - 14-7
	148979101	G - 8-2
	148980001	E - 35-10
	148984001	F - 50
	148997001	R - 8-2
	148999001	A - 79
	149143001	D - 38
	149170001	E - 35-13
	149171001	F - 67
	149173001	F - 68
	149260001	A - 28-1-5
	149261001	A - 28-2-5
	149262001	A - 28-1
	149265001	A - 28-2
	149266001	E - 35-13-6
	149267001	D - 9-1
	149262001	N - 13-1-3
	149265001	N - 13-2-3
	149266001	M - 12
	149267001	P - 24
	149262001	Z - 9
	149265001	E - 35-11-4
	149266001	E - 35-14-4
	149267001	E - 35-2-4
	149262001	E - 35-11-5
	149265001	E - 35-14-5
	149266001	E - 35-19-5
	149267001	E - 35-2-5
	149262001	E - 35-20-7
	149265001	E - 35-3-7
	149266001	E - 35-12-4
	149267001	E - 35-18-4
	149262001	E - 35-3-4
	149265001	E - 35-12-5
	149266001	E - 35-18-5
	149267001	E - 35-20-5
	149262001	E - 35-3-5
	149265001	E - 39

Page 72

Brother MA4-B551 parts on page 72
Ref	Part number	Part name	Qty
	149566001	H - 1-1-11
	149566001	H - 1-2-11
	149566001	R - 12-1-1
	149566001	R - 12-2-1
	149566001	R - 12-3-1-1
	149566001	R - 12-3-2-1
	149566001	R - 12-4-1
	149568001	R - 12-1
	149568002	R - 12-2
	149568003	R - 12-3
	149568004	R - 12-3-2
	149886004	F - 71
	14987001	F - 26
	149886000	F - 26
	150106002	Z - 42-1-4
	150145002	Z - 42-2-4
	150172002	Z - 42-1-14
	150174000	Z - 42-2-16
	150179002	Z - 42-1-3
	150180000	Z - 42-2-3
	150182000	Z - 42-2-5
	150185002	Z - 42-1-7-1
	150188002	Z - 42-2-8-1
	150189002	Z - 42-2-9-1
	150194002	Z - 42-1-8
	150307000	Q - 42
	150550000	Z - 61-1-20
	150553002	H - 1-1-2-20
	150556002	H - 6
	150606001	B - 2-1
	150806001	R - 51
	150807101	R - 53
	150810001	R - 54
	150812001	R - 58
	150813001	R - 63
	151012001	R - 50
	151017001	Z - 61
	151059001	A - 59
	151060000	A - 64
	151461001	E - 35-16
	151462001	E - 35-17
	151464001	E - 35-17-2
	151465001	E - 35-17-3
	151466001	E - 35-17-4
	151467001	D - 21
	151469001	F - 67
	151470001	F - 68
	151472001	D - 38
	151473001	D - 38
	151475000	C - 12-1-3
	151488002	A - 82
	151488003	A - 82
	151488012	A - 82
	151488015	A - 82
	151488018	A - 82
	151488019	A - 82
	151488021	A - 82
	151488022	A - 82
	151488028	A - 82
	151617001	A - 82
	152194001	R - 42
	153318101	A - 28-1-6
	153319001	A - 28-2-6
	153483001	Z - 68-2
	154795001	Z - 68-1
	154829001	E - 15
	154928000	F - 72
	155103001	H - 1-1-30
	155196201	H - 1-2-30
	155197001	A - 34
	155198101	C - 1-1
	155199101	E - 35-19-9
	155201101	E - 35-20-9
	155202001	H - 14
	155203201	H - 14-1
	155205001	H - 14-2
	155262001	H - 14-3
	156065001	H - 14-9
	156069001	H - 14-11
	156500001	H - 14-12
	156502001	H - 15
	156505001	P - 23
	156507001	E - 35-19-4
	156509001	E - 35-20-4
	156511001	D - 21
	156523001	C - 12-2
	158740001	C - 12-2-1
	159101000	E - 35-18
	159475001	R - 3-2
	159476000	R - 67-2
	159574101	A - 76
	159636000	D - 38
	159638001	N - 18
	159639001	F - 20
	159640000	A - 63
	159686001	R - 4-3
	159884101	D - 20
	180323001	D - 16
	181969003	A - 72
	181995001	A - 68
	181995002	N - 15-2
	183161201	M - 13-2
	210973001	M - 10
	211964001	J - 1

Page 73 — ゲージ部品 / GAUGE PARTS / TEILE DER LEHRE / PIECES DE JAUGE / PIEZAS DE CALIBRE

Brother MA4-B551 parts on page 73
Ref	Part number	Part name	Qty
	142250001
	146871101
	146874101
	146878001
	144775001
	146881001
	146487001
	146489101
	146491101
	146487001
	146489001
	146491001
	148280001
	146498001
	146499001
	146500001
	146498001
	146501001
	146502001
	146503001
	146504001
	146505001
	S 01770001
	S 01771001
	S 01773001
	S 01774001
	S 01775001
	146567001
	146568001
	S 01777001
	S 01778001
	146572001
	146573001
	146575001
	146576001
	146577001
	146578001
	146497001	Needle Clamp Assembly

Page 74 — Ruffling W/Piping, Taping, Heavy presser feet and related parts

Brother MA4-B551 parts on page 74
Ref	Part number	Part name	Qty
	147785001
	147435001
	147437001
	148816001
	147950001
	148705101
	148979101
	148013101
	146874101
	146487001
	146489001
	146491001
	146487001
	146489001
	146491001
	146489001
	146491001
	S 01770001
	S 01773001
	S 01774001
	S01775001
	146499001
	146501001
	146502001
	146503001
	146504001
	146505001
	148978001
	S09473001
	147783001
	146510001
	S 01779001
	S 01780001
	S 01776001
	146567001
	146568001
	148980001
	146569001
	146575001
	146576001
	146572001
	146573001
	148981001
	S 00878001
	146574001
	146578001
	146577001
	073-4	バイビングラフラー用 Ruffling W/Piping
	075-5	バイビングラフラー用 Ruffling W/Piping
	077-5	バイビングラフラー用 Ruffling W/Piping
	079-4	テープ用 Taping
	081-3	テープ用 Taping
	083-5	テープ用 Taping
	084-6	テープ用 Taping
	085-3	デニム用 Heavy
	087-5	デニム用 Heavy

Page 75

Brother MA4-B551 parts on page 75
Ref	Part number	Part name	Qty
	147370101	Presser Foot Assembly
	148013101	Presser Foot Assembly
	151461001	Presser Foot Assembly
	151462001	Presser Foot Assembly
	156507001	Presser Foot Assembly
	S 01762101	Presser Foot Assembly
	S 01759101	Presser Foot Assembly
	146489001	Needle Clamp Assembly
	146491001	Needle Clamp Assembly
	151467001	Needle Clamp Assembly
	156500001	Needle Clamp Assembly
	S 01957001	Needle Clamp Assembly
	S 01945001	Needle Clamp Assembly
	147369001	Needle Plate
	147783001	Needle Plate
	146510001	Needle Plate
	158740001	Needle Plate
	146510001	Needle Plate
	151472001	Needle Plate
	151473001	Needle Plate
	156502001	Needle Plate
	S 02863001	Needle Plate
	S 02864001	Needle Plate
	146567001	Main Feed Dog
	146569001	Main Feed Dog
	151469001	Main Feed Dog
	146568001	Main Feed Dog
	S 02867001	Main Feed Dog
	S 02868001	Main Feed Dog
	146572001	Differential Feed Dog
	146574001	Differential Feed Dog
	151470001	Differential Feed Dog
	146573001	Differential Feed Dog
	S 02865001	Differential Feed Dog
	S 02866001	Differential Feed Dog
	146577001	Chain Feed Dog
	145489001	Needle Clamp Assembly
	145491001	Needle Clamp Assembly

Page 9 — A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina

Page 11 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Page 13 — B. 駆動軸関係/Crank shaft mechanism/Kurbelwelle/ Mécanisme du vilebrequin/Mecanismo del cigüeñal C. 針冷却装置/Needle cooler/Nadelkühlungsvorrichtung/ Mecanisme du refroidisseur d'aiguille/Mecanismo del enfriador de aguja

Page 15 — D. 針棒関係/Needle bar mechanism/Mécanisme de la barre à aiguille/Nadelstangenvorrichtung/Mecanismo del barra de aguja

Page 17 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Page 19 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Page 21 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Page 23 — E. 押二関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Page 25 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Page 27 — F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement

Page 29 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mecanisme de l'entrainement/Mecanismo de la alimentaci

Page 31 — G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla

Page 33 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorios de fruncido

Page 35 — H. Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorio de fruncido

Page 37 — J. Gimp guide mechanism/K. Tape winder mechanism

Page 39 — L. ラッパー関係/Lapper mechanism/Falz-Mechanismus/M uevoanisme à rabat/Mecanismo de solapado M. 下ルーバー関係/Under looper mechanism/Unterer Greifer/M uevoanisme du boucleur inférieur/Mecanismo del presilladora inferior

Page 41 — N. 上ルーバ関係/Over looper mechanism /Oberen Greifer/ Mécanisme du boucleur supérieur / Mecanismo del presilladora superior

Page 43 — P. 二重環ルーパ関係/Double chain stitch looper mechanism/Doppelkettstichgreifer/Mécanisme du boucleur pour point de chaînette double/Mecanismo del presilladora de doble cadeneta

Page 45 — Q. 給油・潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Page 47 — R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo

Page 49 — R. 糸調子関係 / Thread tension / Faderspannung / Tension du fil / Tension del hilo

Page 51 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 53 — Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 55 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 56 — 仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

Page 57

Page 58

Page 59

Page 60

Page 61

Page 62

Page 63

Page 64 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Page 65

Page 66

Page 67

Page 68

Page 69

Page 70

Page 71

Page 72

Page 73 — ゲージ部品 / GAUGE PARTS / TEILE DER LEHRE / PIECES DE JAUGE / PIEZAS DE CALIBRE

Page 74 — Ruffling W/Piping, Taping, Heavy presser feet and related parts

Page 75

Brother MA4-B551 — parts catalog
