Brother MA4-B551 Parts Book PDF — View & Download

Parts index — Brother MA4-B551tap a row to open its page

Page 3 — パーツブックご利用に際して

Brother MA4-B551 parts on page 3
Ref	Part number	Part name	Qty
	A	フレーム関係
	B	駆動軸関係
	C	針冷却装置
	D	針棒関係
	E	押工関係
	F	送り関係
	G	上メス・下メス関係
	H	ラフラー装置関係
	J	ヒモ案内関係
	K	テープワインダー関係
	L	ラッパー関係
	M	下ルーパ関係
	N	上ルーパ関係
	P	二重ルーパ関係
	Q	給油・潤滑関係
	R	糸調子関係
	Z	付属部品関係
	仕様別部品一覧表
	索引
	ゲージ部品

Page 4 — Notes for using this parts book

Brother MA4-B551 parts on page 4
Ref	Part number	Part name	Qty
	A	Machine body
	B	Crank shaft mechanism
	C	Needle cooler
	D	Needle bar mechanism
	E	Presser foot mechanism
	F	Feed mechanism
	G	Knife mechanism
	H	Ruffing attachment
	J	Gimp guide mechanism
	K	Tape winder mechanism
	L	Lapper mechanism
	M	Under looper mechanism
	N	Over looper mechanism
	P	Double chain stitch looper mechanism
	Q	Lubrication
	R	Thread tension
	Z	Accessories
	DIFFERENT PARTS LIST
	INDEX
	GAUGE PARTS

Page 5 — INHALTSVERZEICHNIS

Brother MA4-B551 parts on page 5
Ref	Part number	Part name	Qty
	A.	Maschinengehäuse
	B.	Kurbelwelle
	C.	Nadelkühlungsvorrichtung
	D.	Nadelstangenvorrichtung
	E.	Stoffdrückerfuß
	F.	Transportvorrichtung
	G.	Messer
	H.	Kräuselvorrichtung
	J.	Schnurführung
	K.	Bandaufwickelvorrichtung
	L.	Falz-Mechanismus
	M.	Unterer Greifer
	N.	Oberen Greifer
	P.	Doppelkettstichgreifer
	Q.	Schmierung
	R.	Faderspannung
	Z.	Zubehör
	ZUBEHÖRLISTE	ZUBEHÖRLISTE
	VERZEICHNIS	VERZEICHNIS
	TEILE DER LEHRE	TEILE DER LEHRE

Page 6 — TABLE DES MATIERES

Brother MA4-B551 parts on page 6
Ref	Part number	Part name	Qty
	A.	Corps de la machine
	B.	Mécanisme du vilebrequin
	C.	Mécanisme du refroidisseur d'aiguille
	D.	Mécanisme de la barre à aiguille
	E.	Mécanisme du pied presseur
	F.	Mécanisme de l'entraînement
	G.	Mécanisme du couteau
	H.	Accessoire pour fronces
	J.	Mécanisme du guide-fil
	K.	Mécanisme de lénrouleur de ruban
	L.	Mécanisme à rabat
	M.	Mécanisme du boucleur inférieur
	N.	Mécanisme du boucleur supérieur
	P.	Mécanisme du boucleur pour point de chaînette double
	Q.	Lubrification
	R.	Tension du fil
	Z.	Accessoires
	LISTE DES PIECES ACCESSOIRES	LISTE DES PIECES ACCESSOIRES
	INDEX	INDEX
	PIECES DE JAUG	PIECES DE JAUG

Page 7 — Notas para usar este Libro de Piezas

Brother MA4-B551 parts on page 7
Ref	Part number	Part name	Qty
	A.	Cuerpo de la máquina
	B.	Mecanismo del cigüeñal
	C.	Mecanismo del enfriador de aguja
	D.	Mecanismo del barra de aguja
	E.	Mecanismo del prensa telas
	F.	Mecanismo de la alimentación
	G.	Mecanismo del cuchilla
	H.	Accesorio de fruncido
	J.	Mecanismo guía del hilo
	K.	Mecanismo bobinador de cinta
	L.	Mecanismo de solapado
	M.	Mecanismo del presilladora inferior
	N.	Mecanismo del presilladora superior
	P.	Mecanismo del presilladora de doble cadeneta
	Q.	Lubricación
	R.	Tensión del hilo
	Z.	Accesorios
	LISTA DE PIEZAS ACCESORIAS
	INDICE
	PIEZAS DE CALIBRE

Page 8 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother MA4-B551 parts on page 8
Ref	Part number	Part name
8	8	SCREW
7	7	BRACKET
9	9	BRACKET
18	18	BRACKET
16-1	16-1	COVER
17	17	SCREW
20	20	WASHER
73	73	PRESSER BAR GUIDE
72	72	PRESSER BAR
68	68	PRESSER FOOT
55	55	KNOB
19	19	BRACKET
85	85	BRACKET
37	37	WASHER
38-1	38-1	SHAFT
86	86	SCREW
41	41	BRACKET
42	42	BRACKET
39	39	BRACKET
40	40	SCREW
23	23	BRACKET
21	21	BRACKET
22	22	BRACKET
51-1	51-1	COVER
53	53	BRACKET
52	52	BRACKET
30	30	BRACKET
31	31	SCREW
096	096	COVER
097	097	COVER
51-2	51-2	COVER
16-2	16-2	COVER
16-3	16-3	COVER
067	067	BRACKET
069	069	BRACKET
071	071	BRACKET
073	073	BRACKET
074	074	BRACKET
075	075	BRACKET
076	076	BRACKET
077	077	BRACKET
49	49	BRACKET
50	50	BRACKET
43	43	BRACKET
44	44	BRACKET
46	46	SHAFT
47	47	BRACKET
48	48	BRACKET
69	69	BRACKET
60	60	BRACKET
71	71	BRACKET
70	70	BRACKET
28-1	28-1	BASE PLATE
28-1-2	28-1-2	BASE PLATE
28-1-4	28-1-4	BASE PLATE
28-1-3	28-1-3	BASE PLATE
28-1-7	28-1-7	BASE PLATE
28-1-6	28-1-6	BASE PLATE
28-1-5	28-1-5	BASE PLATE
28-1-1	28-1-1	BASE PLATE
28-2	28-2	BASE PLATE
32-2-11	32-2-11	BRACKET
28-2-2	28-2-2	BASE PLATE
32-2	32-2	BRACKET
28-2-4	28-2-4	BASE PLATE
28-2-1	28-2-1	BASE PLATE
28-2-3	28-2-3	BASE PLATE
28-2-7	28-2-7	BASE PLATE
28-2-6	28-2-6	BASE PLATE
28-2-5	28-2-5	BASE PLATE
089	089	COVER
090	090	COVER
14	14	COVER
13	13	COVER
15	15	COVER
2	2	COVER
3	3	COVER
5	5	KNOB
6	6	WASHER
4	4	SCREW
57	57	BRACKET
58	58	BRACKET
54	54	BRACKET
79-82	79-82	BRACKET
59	59	BRACKET
64	64	BRACKET
67	67	WASHER
66	66	SCREW
65	65	SCREW
63	63	WASHER
62	62	BRACKET
75	75	BRACKET
25	25	BRACKET
26	26	BRACKET
32-1-1	32-1-1	BRACKET
35	35	BRACKET
34	34	BRACKET
33	33	BRACKET
76	76	BRACKET
83	83	BRACKET
29	29	BRACKET
56	56	BRACKET
38	38	SHAFT

Page 9 — A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina

Brother MA4-B551 parts on page 9
Part number	Part name	Qty
146419001	TOP COVER	1
146420000	PACKING	1
062681412	SCREW 437X14	6
146421000	CAP FOR OIL FEDDING HOLE	1
113589001	PACKING	1
146422001	COVER FOR NEEDLE DRIVING MECHANISM	1
062680712	SCREW 437X7	6
143992001	RUBBER CAP	1
146425001	FACE PLATE COVER	1
146426000	HINGE SHAFT	1
146427001	SCREW 3.18	1
146428001	FACE PLATE ASSEMBLY	1
146706001	FACE PLATE ASSEMBLY	1
146430001	FACE PLATE ASSEMBLY	1
146432001	STOPPER SPRING PLATE	1
146433000	FACE PLATE PACKING	1
102843004	SCREW 3.57	3
062670612	SCREW 357X6	2
146434000	COVER FOR FEED MECHANISM	1
146435000	PACKING	1
062680712	SCREW 437X7	5
111486001	CLOTH PLATE CUSHION	1
146436001	INSIDE COVER	1
062670612	SCREW 357X6	2
148997001	FRONT COVER ASSEMBLY	1
146440001	FRONT COVER HINGE	1
146441000	FRONT COVER HINGE SHAFT	1
146442001	FRONT COVER SPRING	1
047140842	SPRING PIN 1.4X8	1
148984001	HINGE COVER	1
152194001	HINGE COVER PRESSER PLATE	1
062670412	SCREW 357X4	2
148999001	FRONT COVER ASSEMBLY	1
146440001	FRONT COVER HINGE	1
146441000	FRONT COVER HINGE SHAFT	1
146442001	FRONT COVER SPRING	1
047140842	SPRING PIN 1.4X8	1
148984001	HINGE COVER	1
152194001	HINGE COVER PRESSER PLATE	1
062670412	SCREW 357X4	2
060680512	SCREW 4.37X5	2
146443001	FRONT COVER GUIDE PLATE	1
062670612	SCREW 357X6	2
146444001	SUPPORTER FOR FRONT COVER ASSEMBLY	1
146924000	THREAD BUSHING	2
147367001	SUPPORTER FOR FRONT COVER ASSEMBLY	1
146924000	THREAD BUSHING	2
117160001	SCREW 4.37	2
154829001	STOPPER SPRING FOR FRONT COVER	1
123185001	SCREW 3.57X4.5	1
141183000	CLOTH PLATE SEAT	1
181969003	SET COLLAR ASSEMBLY	1
101706001	SCREW 6.35	2
146449001	CLOTH PLATE SUPPORTER	1
060670512	SCREW 3.57X5	2
146450001	SPRING	1
060670512	SCREW 3.57X5	2
146451001	CLOTH PLATE LEVER	1
146452001	SPRING	1
146453001	STUD SCREW 3.57	1
146454001	CLOTH PLATE LEVER STOPPER	1
062670612	SCREW 357X6	1

Page 10 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother MA4-B551 parts on page 10
Ref	Part number	Part name	Qty
	8	Screw
	7	Cover
	9	Cover
	18	Cover
	16-1	Cover
	17	Screw
	20	Screw
	73	Lever
	72	Lever
	68	Lever
	55	Knob
	19	Screw
	57	Screw
	85	Bracket
	37	Washer
	56	Screw
	38	Shaft
	38-1	Shaft
	86	Screw
	41	Bracket
	42	Screw
	84	Cover
	39	Bracket
	40	Screw
	23	Screw
	21	Plate
	22	Plate
	51-1	Cover
	53	Screw
	52	Screw
	30	Bracket
	31	Screw
	096	Cover
	097	Cover
	16-2	Cover
	14	Cover
	13	Cover
	15	Cover
	58	Screw
	24	Cover
	69	Screw
	60	Cover
	71	Lever
	70	Lever
	49	Screw
	50	Screw
	43	Lever
	44	Lever
	46	Screw
	47	Lever
	48	Lever
	28-1	Base
	28-1-2	Shaft
	28-1-3	Cover
	28-1-7	Cover
	28-1-6	Cover
	28-1-5	Cover
	28-1-11	Cover
	28-1-4	Base
	28-2	Base
	32-2-1	Shaft
	32-2	Base
	28-2-2	Shaft
	28-2-3	Cover
	28-2-6	Cover
	28-2-5	Cover
	28-2-1	Cover
	28-2-4	Base
	2	Cover
	3	Gasket
	5	Cap
	6	Gasket
	4	Screw
	54	Cover
	87	Screw
	79-82	Cover
	59	Shaft
	67	Washer
	66	Screw
	64	Gasket
	62	Cover
	63	Washer
	65	Screw
	75	Screw
	25	Cover
	26	Screw
	32-1	Base
	32-1-1	Shaft
	33	Screw
	35	Screw
	34	Cover
	83	Bracket
	76	Lever
	29	Screw
	067	Cover
	069	Cover
	071	Cover
	073	Cover
	074	Cover
	075	Cover
	076	Cover
	077	Cover
	16-3	Cover
	089	Cover
	090	Cover
	51-2	Cover

Page 11 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother MA4-B551 parts on page 11
Part number	Part name	Qty
062671412	SCREW 357X14	1
021670202	NUT 3.57	1
146455101	CLOTH PLATE (LOWER)	1
146717101	CLOTH PLATE	1
062680712	SCREW 437X7	4
100645003	WASHER	4
148084001	OIL GAUGE WINDOW	1
140066001	OIL CAP	2
140065001	OIL CAP	1
146315000	OIL CAP	2
140421001	OIL CAP	2
151059001	MACHINE BODY LEG	4
146457001	OIL STOPPER PLATE	1
062670612	SCREW 357X6	2
S03887201	OIL RESERVOIR	1
159476000	WASHER	4
151060000	PACKING	1
017771612	BOLT 6.35X16	4
110641002	STUD SCREW 9.52	1
109203001	O RING	1
159640000	FELT	1
118550001	DOWEL PIN	4
146460001	CLOTH GUIDE (LARGE)	1
062670612	SCREW 357X6	2
159639001	CLOTH GUIDE (SMALL)	1
108960002	SCREW 3.57	2
*	OIL HOLE BOLT FOR OIL GAUGE	2
*	THREADING DIAGRAM	1
*	LABEL	1
*	LABEL	1
*	LABEL	1
S09323001	CLOTH PLATE	1
143374001	CLOTH PLATE SUPPORTING SHAFT	1
100032003	SCREW 4.37	2
014680422	SCREW 4.37	1

Page 12

Brother MA4-B551 parts on page 12
Ref	Part number	Part name
6	5-1	SCREW
9	5-1	SCREW
21	5-1	SCREW
10	5-1	SCREW
13	5-1	SCREW
14	5-1	SCREW
20	5-2	SCREW
1	1-1	OIL TANK
15	1-1	OIL TANK
2	1-1	OIL TANK
4	1-1	OIL TANK
3	1-1	OIL TANK
5	1-1	OIL TANK
6	1-1	OIL TANK
7	1-1	OIL TANK
1-2	1-2	CRANK SHAFT
1-3	1-3	CRANK SHAFT
12-1-1	12-1-1	NEEDLE COOLER LEVER
12-1-2	12-1-2	NEEDLE COOLER ROD
12-1-3	12-1-3	NEEDLE COOLER HOLDER
12-1-4	12-1-4	PIN
12-2-1	12-2-1	NEEDLE COOLER LEVER
12-2-2	12-2-2	NEEDLE COOLER ROD
12-2-3	12-2-3	NEEDLE COOLER HOLDER
12-2-4	12-2-4	PIN
12-2-5	12-2-5	PIN
096	096	SCREW
097	097	SCREW
085	085	SCREW
087	087	SCREW
092	092	SCREW
093	093	SCREW
095	095	SCREW

Page 13 — B. 駆動軸関係/Crank shaft mechanism/Kurbelwelle/ Mécanisme du vilebrequin/Mecanismo del cigüeñal C. 針冷却装置/Needle cooler/Nadelkühlungsvorrichtung/ Mecanisme du refroidisseur d'aiguille/Mecanismo del enfriador de aguja

Brother MA4-B551 parts on page 13
Ref	Part number	Part name	Qty
1-1	146471001	CRANK SHAFT (C)	1
1-2	S01790001	CRANK SHAFT (J)	1
1-3	S07848001	CRANK SHAFT (J)	1
2-1	150806001	BEARING CAP	1
2-2	143311001	BEARING CAP PACKING	1
3	143312000	BEARING 6000	1
4	072600000	SCREW 357X8	1
5-1	062670812	SCREW 357X8	2
5-2	062670812	SCREW 357X8	3
6	102538002	SCREW 3.57	1
7	146473001	CRANK SHAFT BUSHING (LEFT) ASSEMBLY	1
8	143179000	CRANK SHAFT BUSHING (MIDDLE) ASSEMBLY	1
9	110668001	SCREW 4.76	1
10	140084000	OIL REJECTOR	1
11	110673000	BEARING COVER	1
12	107244001	SCREW 3.18	4
13	110670000	BEARING CASE	1
14	062681012	SCREW 437X10	4
15	072600100	BEARING 6001	2
16	110672000	THRUST WASHER	1
17	147848101	PULLEY	1
18	013761410	SCREW 5.95	2
19	140180001	CAP SCREW	1
20	142274001	OIL CAP	1
21	013719412	SCREW 4.76	2
	146917-001	Crank Shaft (C) Assembly
	S01789-001	Crank Shaft (H) Assembly
	S07847-001	Crank Shaft (J) Assembly
1	146511100	SILICONE OIL TANK ASSEMBLY	1
1-1	154928000	NEEDLE THREAD COOLER TANK COVER	1
2	062681012	SCREW 437X10	1
3	112348001	PACKING	2
4	112359001	SCREW	1
5	146512101	VINYL TUBE ASSEMBLY	1
6	112348001	PACKING	4
7	112359001	SCREW	2
8	146515000	OIL FEEDING PIPE CONNECTOR	1
9	112348001	PACKING	2
10	112359001	SCREW	1
11	146516000	PIPE JOINT	2
12-1	146517100	FELT HOLDER ASSEMBLY	1
12-1-1	146518100	FELT HOLDER	1
12-1-2	144116000	FELT	1
12-1-3	151475000	FELT (SMALL)	1
12-1-4	S02874001	PIN	1
12-2	156505000	FELT HOLDER ASSEMBLY	1
12-2-1	156506000	FELT HOLDER	1
12-2-2	144116000	FELT	1
12-2-3	151475000	FELT (SMALL)	1
12-2-4	146740000	FELT (SMALL)	1
12-2-5	S02874001	PIN	1
13	100257010	SCREW 3.57	2
15	100645003	WASHER	1

Page 14 — D. 針棒関係/Needle bar mechanism/Nadelstangenvorrichtung/Mécanisme de la barre à aiguille/Mecanismo del barra de aguja

Brother MA4-B551 parts on page 14
Ref	Part number	Part name	Qty
	9-1	9-1
	9-3	9-3
	14-2	14-2
	14-1	14-1
	19	19
	8	8
	6	6
	7	7
	1-2	1-2
	1-3	1-3
	1-4	1-4
	2	2
	3	3
	6	6
	7	7
	5	5
	4	4
	1	1
	1-1	1-1
	12	12
	18-2	18-2
	16	16
	17	17
	18-1	18-1
	21	21
	21-1	21-1
	22	22
	23	23
	29	29
	28	28
	24-1	24-1
	26	26
	30	30
	27	27
	31	31
	38	38
	095	095
	096	096
	097	097
	24-2	24-2
	25	25
	41	41
	35	35
	34	34
	42	42
	43	43
	36	36
	37	37
	095	095
	096	096
	097	097
	32	32
	33	33
	44	44
	45	45
	46-1	46-1
	47	47
	46-2	46-2

Page 15 — D. 針棒関係/Needle bar mechanism/Mécanisme de la barre à aiguille/Nadelstangenvorrichtung/Mecanismo del barra de aguja

Brother MA4-B551 parts on page 15
Part number	Part name	Qty
146476101	NEEDLE ARM DRIVING CRANK ROD ASSEMBLY	1
148425001	BOLT 4.37X14	2
140088001	PIN	1
100366001	SCREW 4.37	1
146478001	NEEDLE ARM DRIVING LEVER	1
017771612	BOLT 6.35X16	1
146479001	NEEDLE BAR CRANK SHAFT	1
140091000	OIL CAP	1
140092001	NEEDLE SHAFT BUSHING (RIGHT)	1
140092001	SET COLLAR	2
100366000	SCREW 4.37	4
140093000	NEEDLE SHAFT BUSHING (LEFT)	1
146480001	NEEDLE BAR CLAMP ASSEMBLY	1
149170001	BOLT 6.35X16	1
140096001	NEEDLE BAR CONNECTOR	1
146482001	NEEDLE BAR CLAMP	1
062670812	SCREW 357X8	1
146427001	SCREW 3.18	1
146483001	NEEDLE BAR	1
S01652001	SCREW ASSEMBLY	1
S00049001	SCREW 8.73	1
S01654000	PACKING	1
159638001	NEEDLE BAR GUIDE SLIDE BLOCK	1
105079001	NEEDLE BAR GUIDE	1
062680712	SCREW 437X7	1
S10774001	SCREW 437X7	1
S01417001	NEEDLE BAR BUSHING (UPPER)	1
159636000	NEEDLE BAR BUSHING (LOWER)	1
*	NEEDLE CLAMP ASSEMBLY	1
146427001	SCREW 3.18	2
*	NEEDLE DMX1	1
*	NEEDLE DMX13	1
146493102	NEEDLE PLATE SUPPORT BRACKET	1
S01947101	NEEDLE PLATE SUPPORT BRACKET	1
018061622	BOLT 6X16	2
146494001	NEEDLE PLATE SUPPORTER (FRONT)	1
060680512	SCREW 4.37X5	2
146495001	NEEDLE PLATE SUPPORTER (REAR)	1
060680512	SCREW 4.37X5	2
111486001	CLOTH PLATE CUSHION	1
100032003	SCREW 4.37	2
144127001	MOVABLE NEEDLE GUARD (A)	1
062670812	SCREW 357X8	2
146496301	DOUBLF CHAIN STITCH NEEDLE GUARD (FRONT)	1
062670612	SCREW 357X6	1
146497201	DOUBLE CHAIN STITCH NEEDLE GUARD (REAR)	1
062680712	SCREW 437X7	1
*	NEEDLE PLATE	1
S01758001	タンカンハツケ	1
S01948001	ハリウクトツケケタ	1
062670412	SCREW 357X4	1
S09456001	NEEDLE GUIDE BRACKET ASSEMBLY	1
062671412	SCREW 357X14	2
S09459001	NEEDLE GUARD (FRONT)	1
S09460001	NEEDLE GUARD (FRONT)	1
062670812	SCREW 357X8	1

Page 16 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 16
Ref	Part number	Part name	Qty
	1	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	2	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	3	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	4	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	5	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	6	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	8	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	9	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	10-1	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	10-2	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	11	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	12	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	13-1	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	13-2	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	14	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	15	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	16	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	17	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	18	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	19	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	20	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	21	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	22	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	23	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	24	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	25	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	27	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	28	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	29	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	30	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	33	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	34	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	37	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	38	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	39	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	067	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	069	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	071	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	073	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	074	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	075	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	076	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	077	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	079	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	081	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	083	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	084	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	085	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	087	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	092	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	093	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	096	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas
	097	Presser foot mechanism/Stoffdrückerfuß/Mecanismo del prensa telas

Page 17 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 17
Part number	Part name	Qty
144079001	オサエヨウセツネシ	1
140673001	オサエボウ	1
144081001	オサエハネ	1
S06561001	オサエアゲアゲ	1
144083001	オサエアゲアゲザ	1
047300842	スプリングピンAW3	1
144085001	オサエボウアゲ	1
144086001	オサエボウアゲハネ	1
143323103	オサエアシグレバー	1
148369101	---	1
148372001	ダンネジ7.94	1
143325001	オサエアシグレバーハネ	1
146522001	レバーアジャスティングプレ	1
147454001	---	1
062680712	ナベコ437-40X7	2
153483001	トメネジ4.76	2
110161006	ナット4.76	2
146523001	オサエアゲリンク	1
110793001	フリピン	1
048080342	トメワE8	1
146524001	オサエアシアゲ"M"レバー	1
140001001	セットカラー	1
017771612	ボルト6.35X16	1
140262000	オサエウデジクメタルR	1
140263000	オサエウデジクメタルL	1
146525001	オサエウデジク	1
146526001	シュオサエウデ	1
146527001	オサエウデヒン	1
014680422	アナトメネジ4.37クボミ	1
062680712	ナベコ437-40X7	1
S03321001	オサエウデストツパ	1
062711012	ナベコ476-32X10	1
146883001	テープアンナイ	1
062660412	ナベコ318-40X4	2
149267001	デニウムオサエイタハネ	1

Page 18 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 18
Ref	Part number	Part name
35-1	061	062
35-2	063	064
35-3	065	066, 087 国内のみ ONLY FOR EXPORT
35-4	067
35-5	069

Page 19 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 19
Ref	Part number	Part name	Qty
	142250001	PRESSER FOOT ASSEMBLY (2C)
	142243000	PIN
	142244001	STITCH TONGUE (3C)
	142245001	CHIP GUARD (FRONT) (3C)
	142246001	SPRING (3C)
	142247001	STUD SCREW
	S01295001	SCREW 2.38X3.5
	146871101	PRESSER FOOT ASSEMBLY <063,064>
	146865001	SCREW
	145147001	PRESSER FOOT (FRONT)
	105288001	SCREW 2.38
	149260001	PRESSER FOOT (REAR)
	149261001	SCREW
	048025342	STOP RING E2.5
	149262001	NUT 3.18
	146869001	SPRING
	146901001	STUD SCREW 3.18
	146870001	SPRING
	122771002	SCREW 2.38
	146874101	PRESSER FOOT ASSEMBLY
	140270001	SCREW
	145147001	PRESSER FOOT (FRONT)
	105288001	SCREW 2.38
	149265001	PRESSER FOOT (REAR)
	149266001	SCREW
	048025342	STOP RING E2.5
	149262001	NUT 3.18
	146869001	SPRING
	146901001	STUD SCREW 3.18
	146870001	SPRING
	122771002	SCREW 2.38
	146878001	PRESSER FOOT ASSEMBLY <067>
	140270001	SCREW
	144777001	PRESSER FOOT (UPPER)
	062660712	SCREW 318X7
	144778001	PRESSER FOOT (FRONT)
	105288001	SCREW 2.38
	146880001	PRESSER FOOT (REAR)
	140270001	SCREW 3.18
	140273001	NUT
	140993001	SPRING
	140275001	SPRING
	140992001	SET SCREW
	144775001	PRESSER FOOT ASSEMBLY (E) <069>
	140270001	SCREW
	144777001	PRESSER FOOT (UPPER)
	062660712	SCREW 318X7
	144778001	PRESSER FOOT (FRONT)
	105288001	SCREW 2.38
	140271001	PRESSER FOOT (REAR)
	140273001	SCREW 3.18
	140993001	NUT
	140993001	SPRING
	140275001	SPRING
	140992001	SET SCREW

Page 20 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 20
Ref	Part number	Part name
1	35-6	071
2	35-6	071
3	35-6	071
4	35-6	071
5	35-6	071
6	35-6	071
7	35-6	071
8	35-6	071
9	35-6	071
10	35-6	071
11	35-6	071
1	35-7	073
2	35-7	073
3	35-7	073
4	35-7	073
5	35-7	073
6	35-7	073
7	35-7	073
8	35-7	073
9	35-7	073
10	35-7	073
11	35-7	073
1	35-8	075
2	35-8	075
3	35-8	075
4	35-8	075
5	35-8	075
6	35-8	075
7	35-8	075
8	35-8	075
9	35-8	075
10	35-8	075
11	35-8	075
1	35-9	077
2	35-9	077
3	35-9	077
4	35-9	077
5	35-9	077
6	35-9	077
7	35-9	077
8	35-9	077
9	35-9	077
10	35-9	077
11	35-9	077
1	35-10	079
2	35-10	079
3	35-10	079
4	35-10	079
5	35-10	079
6	35-10	079

Page 21 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 21
Ref	Part number	Part name	Qty
35-6	146881001	PRESSER FOOT ASSEMBLY <071>	1
35-6-1	140270001	SCREW	1
35-6-2	144777001	PRESSER FOOT (UPPER)	1
35-6-3	062660712	SCREW 318X7	1
35-6-4	144778001	PRESSER FOOT (FRONT)	1
35-6-5	105288001	SCREW 2.38	1
35-6-6	140991001	PRESSER FOOT (REAR)	1
35-6-7	140272001	SCREW 3.18	1
35-6-8	140273001	NUT	1
35-6-9	140993001	SPRING	1
35-6-10	140275001	SPRING	1
35-6-11	140992001	SET SCREW	1
35-7	147785001	PRESSER FOOT ASSEMBLY <073,074>	1
35-7-1	140270001	SCREW	1
35-7-2	144777001	PRESSER FOOT (UPPER)	1
35-7-3	062660712	SCREW 318X7	1
35-7-4	144778001	PRESSER FOOT (FRONT)	1
35-7-5	105288001	SCREW 2.38	1
35-7-6	147787001	PRESSER FOOT (REAR)	1
35-7-7	140272001	SCREW 3.18	1
35-7-8	140273001	NUT	1
35-7-9	140993001	SPRING	1
35-7-10	140275001	SPRING	1
35-7-11	140992001	SET SCREW	1
35-8	147435001	PRESSER FOOT ASSEMBLY <075,076>	1
35-8-1	140270001	SCREW	1
35-8-2	144777001	PRESSER FOOT (UPPER)	1
35-8-3	062660712	SCREW 318X7	1
35-8-4	144778001	PRESSER FOOT (FRONT)	1
35-8-5	105288001	SCREW 2.38	1
35-8-6	147488001	PRESSER FOOT (REAR)	1
35-8-7	140272001	SCREW 3.18	1
35-8-8	140273001	NUT	1
35-8-9	140993001	SPRING	1
35-8-10	140275001	SPRING	1
35-8-11	140992001	SET SCREW	1
35-9	147437001	PRESSER FOOT ASSEMBLY <077>	1
35-9-1	140270001	SCREW	1
35-9-2	144777001	PRESSER FOOT (UPPER)	1
35-9-3	062660712	SCREW 318X7	1
35-9-4	144778001	PRESSER FOOT (FRONT)	1
35-9-5	105288001	SCREW 2.38	1
35-9-6	147489001	PRESSER FOOT (REAR)	1
35-9-7	140272001	SCREW 3.18	1
35-9-8	140273001	NUT	1
35-9-9	140993001	SPRING	1
35-9-10	140275001	SPRING	1
35-9-11	140992001	SET SCREW	1
35-10	148816001	PRESSER FOOT ASSEMBLY <079>	1
35-10-1	142243000	PIN	1
35-10-2	142244001	STITCH TONGUE (3C)	1
35-10-3	142245001	CHIP GUARD (FRONT) (3C)	1
35-10-4	142246001	SPRING (3C)	1
35-10-5	142247001	STUD SCREW	1
35-10-6	S01295001	SCREW 2.38X3.5	2

Page 22 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 22
Ref	Part number	Part name
1	35-11	081
2	35-11	081
3	35-11	081
4	35-11	081
5	35-11	081
6	35-11	081
7	35-11	081
8	35-11	081
9	35-11	081
10-11	35-11	081
1	35-12	083
2	35-12	083
3	35-12	083
4	35-12	083
5	35-12	083
6	35-12	083
7	35-12	083
8	35-12	083
9	35-12	083
10-11	35-12	083
1	35-13	085
2	35-13	085
3	35-13	085
4	35-13	085
5	35-13	085
6	35-13	085
7	35-13	085
8	35-13	085
9	35-13	085
10-11	35-13	085
1	35-14	089
2	35-14	089
3	35-14	089
4	35-14	089
5	35-14	089
6	35-14	089
7	35-14	089
8	35-14	089
9	35-14	089
10-11	35-14	089
	35-15	087
1	35-15	087
2	35-15	087
3	35-15	087
4	35-15	087
5	35-15	087
6	35-15	087
7	35-15	087
8	35-15	087
9	35-15	087
10-11	35-15	087

Page 23 — E. 押二関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 23
Part number	Part name	Qty
147950001	オサエクレ <081>	1
146865001	オサエFシタササエネジ	1
145147001	オサエF	1
105288001	シメネジ 2.38	1
149260001	オサエB	1
149261001	オサエBササエネジ	1
048025342	トメワE2.5	1
149262001	マルナット3.18	1
146869001	オサエFシタササエネジリバネ	1
146901001	ダシネジ 3.18	1
146870001	オサエBオシバネ	1
122771002	シメネジ2.38	1
148405101	オサエクレ <083,084>	1
140270001	オサエFシタササエネジ	1
145147001	オサエF	1
105288001	シメネジ 2.38	1
149260001	オサエB	1
149261001	オサエBササエネジ	1
048025342	トメワE2.5	1
149262001	マルナット3.18	1
146869001	オサエFシタササエネジリバネ	1
146901001	ダシネジ 3.18	1
146870001	オサエBオシバネ	1
122771002	シメネジ2.38	1
148979101	オサエクレ <085>	1
S01375001	オサエヒンジジク	3
S01373001	オサエIFBササエ	1
S01385001	オサエFシタササエ	1
S01371001	オサエB	1
S01374001	トメネジ 2.38 クボミ	3
149143001	オサエF	1
025030232	ヒラザガネチユウ3	1
062660612	ナベコ318-40X6	1
147370101	オサエクレ <089,090>	1
146865001	オサエFシタササエネジ	1
14737001	オサエF	1
105288001	シメネジ 2.38	1
149260001	オサエB	1
149261001	オサエBササエネジ	1
048025342	トメワE2.5	1
149262001	マルナット3.18	1
146869001	オサエFシタササエネジリバネ	1
146901001	ダシネジ 3.18	1
146870001	オサエBオシバネ	1
122771002	シメネジ2.38	1
148013101	オサエクレ <092,093>	1
S01375001	オサエヒンジジク	3
S01373001	オサエIFBササエ	1
S01372001	オサエFシタササエ	1
S01371001	オサエB	1
S01374001	トメネジ 2.38 クボミ	3
148020001	オサエF	1
025030232	ヒラザガネチユウ3	1
062660612	ナベコ318-40X6	1

Page 24 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 24
Ref	Part number	Part name	Qty
	35-16	094
	35-17	094
	35-18	095
	35-19	096
	35-20	097

Page 25 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

Brother MA4-B551 parts on page 25
Part number	Part name	Qty
151461001	PRESSER FOOT ASSEMBLY (7C) <094>	1
142243000	PIN	1
142244001	STITCH TONGUE (3C)	1
142245001	CHIP GUARD (3C)	1
151466001	SPRING (7C)	1
142247001	STUD SCREW	1
S01295001	SCREW 2.38X3.5	2
151462001	オサエ7Cクミ <094>	1
142243000	オサエヒン	1
151464001	ツツメ7C	1
151465001	オサエF	1
151466001	オサエヨリバネ7C	1
142247001	ダンネジ	1
S01295001	シメネジ2.38X3.5	2
156507001	オサエクミ <095>	1
140270001	オサエFシタササエネジ	1
145147001	オサエF	1
105288001	シメネジ"2.38	1
149265001	オサエB	1
149266001	オサエBササエネジ	1
048025342	トメワE2.5	1
149262001	マルナット3.18	1
146869001	オサエFシタネジリバネ	1
155103001	ダンネジ"3.18	1
146870001	オサエBオシバネ	1
122771002	シメネジ"2.38	1
S01762101	オサエクミ <096>	1
146865001	オサエFシタササエネジ	2
S01950001	オサエF	1
060630412	ハバインド"238-56X4	1
156065001	オサエB	1
149261001	オサエBササエネジ	1
048025342	トメワE2.5	1
149262001	マルナット3.18	1
S09565001	オサエFシタネジリバネ	1
155103001	ダンネジ"3.18	1
146870001	オサエBオシバネ	1
122771002	シメネジ"2.38	1
S01951001	テーフアンナイ	1
S01759101	オサエクミ <097>	1
140270001	オサエFシタササエネジ	2
S01950001	オサエF	1
060630412	ハバインド"238-56X4	1
156069001	オサエB	1
149266001	オサエBササエネジ	1
048025342	トメワE2.5	1
149262001	マルナット3.18	1
S09565001	オサエFシタネジリバネ	1
155103001	ダンネジ"3.18	1
146870001	オサエBオシバネ	1
122771002	シメネジ"2.38	1
S01951001	テーフアンナイ	1

Page 26 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación

Brother MA4-B551 parts on page 26
Ref	Part number	Part name
19	19	SCREW
17	17	WASHER
18	18	RING
14	14	PIN
13	13	COLLAR
15	15	SHAFT
5	5	BRACKET
3	3	PIN
2	2	PIN
44-1	44-1	BRACKET
44-2	44-2	BOLT
44	44	BRACKET
41	41	NUT
40	40	WASHER
35	35	BRACKET
37-1	37-1	BOLT
16	16	COLLAR
36	36	BOLT
20-920-8	20-920-8	BRACKET
20-6	20-6	BRACKET
20-7	20-7	BRACKET
58	58	SHAFT
53	53	LEVER
57	57	SPRING
33	33	SCREW
32	32	WASHER
29	29	BLOCK
34	34	BRACKET
54	54	KNOB
56	56	SPRING
55	55	SHAFT
52	52	BRACKET
52-1	52-1	BOLT
20-1-1	20-1-1	BRACKET
30	30	SHAFT
31	31	SPRING
20-2	20-2	BRACKET
20-3	20-3	BRACKET
20-4	20-4	BRACKET
20-5	20-5	BRACKET
1-13	1-13	COLLAR
1-14	1-14	BEARING
1-1	1-1	BRACKET
1-11	1-11	COLLAR
1-17	1-17	BRACKET
20-1-2	20-1-2	BRACKET
69	69	CLIP
1-16	1-16	BRACKET
1-15	1-15	BRACKET
1-4	1-4	BRACKET
1-3	1-3	BRACKET
1-2	1-2	BRACKET
1-9	1-9	BRACKET
1-10	1-10	BRACKET
1-12	1-12	BRACKET
1-5	1-5	BRACKET
1-18	1-18	BRACKET
1-6	1-6	BRACKET
1-7	1-7	BRACKET
1-8	1-8	BRACKET
26	26	BRACKET
75	75	WASHER
76	76	SPRING
8	8	SPRING
9	9	SPRING
7	7	ROD
27	27	WASHER
28	28	BOLT
10	10	BRACKET
12	12	BRACKET
11	11	BOLT
71	71	BRACKET
72	72	BRACKET
73	73	BOLT
23	23	BRACKET
24	24	WASHER
25	25	BOLT
63	63	BOLT
62	62	KNOB
64	64	WASHER
61	61	BOLT
70	70	WASHER
59-1	59-1	PLATE
60	60	PLATE
096	096	PLATE
097	097	PLATE
37-2	37-2	BOLT
59-2	59-2	PLATE
59-3	59-3	PLATE
067	067	PLATE
069	069	PLATE
071	071	PLATE
073	073	PLATE
074	074	PLATE
075	075	PLATE
076	076	PLATE
077	077	PLATE
65	65	BOLT
66	66	BRACKET
67	67	BRACKET
68	68	BRACKET

Page 27 — F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement

Brother MA4-B551 parts on page 27
Part number	Part name	Qty
146528001	ECCENTRIC WHEEL ASSEMBLY	1
107093002	SCREW 4.37	1
145663001	SCREW 4.37	1
140165001	SLIDE BLOCK	1
146401001	GIB	1
146402001	GIB HOLDER PIN	1
146403001	GIB HOLDER SPRING PLATE (SMALL)	1
146404001	GIB HOLDER SPRING PLATE (LARGE)	1
062660512	SCREW 318X5	1
144053001	ECCENTRIC WHEEL ADJUSTING CAM	1
144055001	WAVE SPRING	1
146529001	WASHER	1
048150143	STOP RING C15	1
146530001	NEEDLE ROLLER BEARING 20	1
146531001	FEED ROD PRESSER PLATE	1
140176001	SCREW 2.38	1
117517003	SCREW 4.76	2
100025002	SPACER	2
S05721003	FEED ARM PIN	1
146532001	OIL CAP	1
140326001	SCREW 6.35	1
100251001	FEED ARM	1
146533001	BOLT 6.35X16	1
017771612	FEED ADJUSTING SHAFT	1
146534001	SPRING	1
S11072001	STOP RING E4	1
048040342	SUPPORTER FOR FEED ADJUSTING PLATE	1
146536001	SCREW 357X6	1
062670612	CAP	1
146537000	FEED SHAFT	1
146538001	OIL CAP	1
140327001	FEED SHAFT BUSHING (LEFT)	2
146539000	FEED SHAFT BUSHING (RIGHT)	1
146540000	COVER FOR FEED SHAFT BUSHING (LEFT)	1
140188004	PACKING	1
140187000	SCREW 357X8	1
062670612	FEED BAR SLIDE BLOCK LINK ASSEMBLY	3
159475001	FEED BAR SLIDE BLOCK ASSEMBLY	1
146541001	FEED BAR ASSEMBLY	1
147773001	FEED LIFTING SLIDE BLOCK	1
146544000	MAIN FEED LINK BUSHING	1
140207001	WASHER	1
140208001	MAIN FEED LINK	1
140209001	MAIN FEED LINK SHAFT (SMALL)	1
140210001	DIFFERENTIAL FEED LINK	1
146554001	DIFFERENTIAL FEED LINK BUSHING	1
146555001	WASHER	1
140208001	FEED LINK SHAFT (LARGE)	1
140217001	FEED BAR GUIDE (RIGHT)	1
148174000	WASHER	2
100645003	SCREW 437X10	2
062681012	FEED BAR GUIDE (LEFT)	1
149880000	WASHER	2
100645003	SCREW 437X10	2
062681012	FEED BAR SLIDE BLOCK	2
146547000	FEED BAR SLIDE BLOCK SHAFT	1
146548101	SCREW 6.35	1
014770622	PLATE FOR SLIDE BLOCK	1
146549001	SCREW 437X7	1
062680712	SET COLLAR ASSEMBLY	1
181969003	SCREW 6.35	1
101706001	SCREW 6.35	2

Page 28

Brother MA4-B551 parts on page 28
Ref	Part number	Part name
19	19	SCREW
17	17	PLATE
18	18	WASHER
14	14	SCREW
13	13	COLLAR
15	15	SHAFT
5	5	BRACKET
3	3	PIN
2	2	PIN
44-1	44-1	SCREW
44	44	ARM
44-2	44-2	SCREW
41	41	COLLAR
40	40	WASHER
35	35	BRACKET
37-1	37-1	SCREW
16	16	COLLAR
36	36	SCREW
6	6	BOLT
50	50	BRACKET
49	49	ARM
20-9	20-9	COLLAR
20-8	20-8	COLLAR
20-6	20-6	COLLAR
20-7	20-7	COLLAR
58	58	BRACKET
53	53	SHAFT
57	57	BRACKET
33	33	SCREW
32	32	WASHER
29	29	BLOCK
34	34	SHAFT
54	54	SCREW
56	56	SPRING
55	55	BRACKET
52-1	52-1	SCREW
52	52	BRACKET
20-1-1	20-1-1	GUIDE
34-1	34-1	COLLAR
30	30	SHAFT
31	31	SCREW
20-2	20-2	BRACKET
20-3	20-3	COLLAR
20-4	20-4	COLLAR
20-5	20-5	NUT
1-13	1-13	COLLAR
1-14	1-14	BEARING
1-1	1-1	ARM
1-17	1-17	BRACKET
1-11	1-11	COLLAR
1-16	1-16	WASHER
1-15	1-15	PLATE
1-4	1-4	BRACKET
1-3	1-3	SHAFT
1-2	1-2	COLLAR
1-9	1-9	COLLAR
1-10	1-10	COLLAR
1-12	1-12	COLLAR
1-5	1-5	BRACKET
1-7	1-7	BRACKET
1-6	1-6	BRACKET
1-8	1-8	BRACKET
26	26	BRACKET
65	65	SCREW
68	68	BRACKET
67	67	BRACKET
66	66	BRACKET
65	65	SCREW
75	75	WASHER
76	76	SPRING
27	27	SCREW
28	28	SPRING
7	7	SHAFT
71	71	BRACKET
23	23	BRACKET
72	72	BRACKET
24	24	COLLAR
25	25	NUT
73	73	SCREW
10	10	COLLAR
12	12	WASHER
11	11	SCREW
63	63	SCREW
62	62	KNOB
64	64	WASHER
61	61	SCREW
70	70	WASHER
59-1	59-1	PLATE
60	60	BRACKET
096	096	PLATE
097	097	PLATE
37-2	37-2	SCREW
59-2	59-2	PLATE
59-3	59-3	PLATE
067	067	BRACKET
069	069	BRACKET
071	071	BRACKET
073	073	BRACKET
074	074	BRACKET
075	075	BRACKET
076	076	BRACKET
077	077	BRACKET

Page 29 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mecanisme de l'entrainement/Mecanismo de la alimentaci

Brother MA4-B551 parts on page 29
Part number	Part name	Qty
140205001	MAIN FEED ARM	1
017771412	BOLT 6.35X14	1
143564001	MAIN FEED SHAFT (LARGE)	1
144068001	MAIN FEED SHAFT (LARGE)	1
113431002	WASHER	1
143565001	NUT 4.76	1
146550001	DIFFERENTIAL FEED ARM ASSEMBLY	1
062660712	SCREW 318X7	2
017771412	BOLT 6.35X14	1
146556001	DIFFERENTIAL FEED ADJUSTING LINK	1
148834001	SCREW 3.57	1
146914001	LINK LEVER ASSEMBLY WITH SCREW	1
017771412	BOLT 6.35X14	1
146558001	DIFFERENTIAL FEED ADJUSTING LEVER	1
146559001	STUD SCREW 5.56	1
146560101	LEVER SPRING	1
100294002	STUD SCREW 4.76	1
109203001	O RING	1
047502242	SPRING PIN AW5	1
146561001	DIFFERENTIAL STITCH CONTROL	1
146742001	DIFFERENTIAL STITCH CONTROL	1
146562001	DIFFERENTIAL STITCH CONTROL	1
146563001	STOPPER FOR DIFFERENTIAL STITCH CONTROL	1
017771612	BOLT 6.35X16	2
146564001	KNOB	1
146565001	SET SCREW	1
146566001	WASHER	1
117516001	BOLT 4.37	2
062630812	SCREW 238X8	1
*	MAIN FEED DOG	1
*	CHAIN FEED DOG	1
025770232	WASHER 6.35	2
149886000	FRAGMENT PROTECTOR PLATE	1
149887001	FRAGMENT PROTECTOR PLATE SUPPORTER	1
S01297001	SCREW 3.57X3.5	2
118770001	PACKING	1
113431002	WASHER	1

Page 30 — G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla

Brother MA4-B551 parts on page 30
Ref	Part number	Part name	Qty
	24	24
	25	25
	6	6
	5	5
	4	4
	1-4	1-4
	1-2	1-2
	7	7
	9-1	9-1
	26-1	26-1
	1-3	1-3
	8-1	8-1
	27-1	27-1
	1-1	1-1
	1-1-1	1-1-1
	13	13
	15	15
	16	16
	17	17
	12	12
	10	10
	21	21
	18	18
	11	11
	14	14
	19	19
	20	20
	092	092
	093	093
	096	096
	097	097
	26-2	26-2
	8-2	8-2
	28	28
	29	29
	27-2	27-2
	9-2	9-2

Page 31 — G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla

Brother MA4-B551 parts on page 31
Part number	Part name	Qty
148427001	ウワメスクランクツミ	1
501223001	ウワメスロット"ネツヅキ	1
148425001	アナボルト4.37X14	2
140232001	ウワメスクランクツロツト"ピン	1
100366001	マルヒラトメネジ4.37	1
140233001	ウワメスクランクジクウデ	1
017771612	ポルト6.35X16	1
146581001	セットカラー	1
100260001	トメネジ5.95	2
140235000	ウワメスサド"ウデ"メタルL	1
144117000	ウワメスサド"ウデ"メタルR	1
144074000	ウワメス	1
148815001	ウワメス	1
144075001	ポルト3.57	1
062671012	ナベコ357-40X10	1
146580001	シタメストリツクダイササエ	1
017771412	ポルト6.35X14	1
107407003	シメネジ4.37	1
146583001	シタメストリツクダイ	1
102627001	アタツキトメネジ6.35	1
112436001	シタメス	1
117515001	シタメスオサエ	1
117516001	ポルト4.37	1
146584001	シタメストリツクダイハネ	1
146585001	シタメストリツクダイアンナイ	1
062670612	ナベコ357-40X6	2
146586000	メクラセン	1
146580001	ウワメスサクワデ	1
148281101	ウワメスダキナツト	1
144179001	ウワメスダキ	1
148345001	ウワメスオサエ	1
107070003	シメネジ4.37	1
102424004	シメネジ4.37	1
148343101	ウワメスオサエ	1
148344001	ウワメスオサエイタ	1

Page 32 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung / Accessoire pour fronces/Accesorio de fruncido

Brother MA4-B551 parts on page 32
Ref	Part number	Part name	Qty
	067	FOR EXPORT
	069	FOR EXPORT
	071	FOR EXPORT
	073	FOR EXPORT
	074	FOR EXPORT
	075	FOR EXPORT
	076	FOR EXPORT
	077	FOR EXPORT
	10	FOR EXPORT
	13	FOR EXPORT
	11	FOR EXPORT
	12	FOR EXPORT
	8-2	FOR EXPORT
	11	FOR EXPORT
	8-1	FOR EXPORT
	8-4	FOR EXPORT
	8-5	FOR EXPORT
	8-3	FOR EXPORT
	1-2-26	FOR EXPORT
	1-2-25	FOR EXPORT
	1-2-23	FOR EXPORT
	1-2-27	FOR EXPORT
	1-2-12	FOR EXPORT
	1-2-13	FOR EXPORT
	1-2-14	FOR EXPORT
	1-2-2	FOR EXPORT
	1-2-3	FOR EXPORT
	1-2-18	FOR EXPORT
	1-2-1	FOR EXPORT
	1-2-15	FOR EXPORT
	1-2-22	FOR EXPORT
	6	FOR EXPORT
	5	FOR EXPORT
	1-2-21	FOR EXPORT
	1-2-32	FOR EXPORT
	1-2-5	FOR EXPORT
	1-2-4	FOR EXPORT
	1-2-6	FOR EXPORT
	1-2-7	FOR EXPORT
	1-2-8	FOR EXPORT
	1-2-9	FOR EXPORT
	1-2-10	FOR EXPORT
	1-2-11	FOR EXPORT
	1-2	FOR EXPORT
	1-2-25	FOR EXPORT
	1-2-24	FOR EXPORT
	1-2-19	FOR EXPORT
	1-2-20	FOR EXPORT
	1-2-29	FOR EXPORT
	1-2-31	FOR EXPORT
	1-2-29	FOR EXPORT
	1-2-28	FOR EXPORT
	1-2-30	FOR EXPORT
	1-2-16	FOR EXPORT
	1-2-17	FOR EXPORT
	2	FOR EXPORT
	3	FOR EXPORT
	4	FOR EXPORT
	067	FOR OLD TYPE
	069	FOR OLD TYPE
	071	FOR OLD TYPE
	073	FOR OLD TYPE
	074	FOR OLD TYPE
	075	FOR OLD TYPE
	076	FOR OLD TYPE
	077	FOR OLD TYPE
	14-1	FOR OLD TYPE
	16	FOR OLD TYPE
	15	FOR OLD TYPE
	14-12	FOR OLD TYPE
	14-11	FOR OLD TYPE
	17-1	FOR OLD TYPE
	14-13	FOR OLD TYPE
	14-2	FOR OLD TYPE
	14-3	FOR OLD TYPE
	14-10	FOR OLD TYPE
	14-4	FOR OLD TYPE
	14-5	FOR OLD TYPE
	14-6	FOR OLD TYPE
	14-12	FOR OLD TYPE
	14-13	FOR OLD TYPE
	17-2	FOR OLD TYPE
	14-8	FOR OLD TYPE
	14-7	FOR OLD TYPE
	069	FOR DOMESTIC
	071	FOR DOMESTIC
	075	FOR DOMESTIC
	077	FOR DOMESTIC
	1-1-13	FOR DOMESTIC
	1-1-12	FOR DOMESTIC
	1-1-14	FOR DOMESTIC
	1-1-2	FOR DOMESTIC
	1-1-3	FOR DOMESTIC
	1-1-4	FOR DOMESTIC
	1-1-27	FOR DOMESTIC
	1-1-25	FOR DOMESTIC
	1-1-23	FOR DOMESTIC
	1-1-1	FOR DOMESTIC
	1-1-15	FOR DOMESTIC
	1-1-22	FOR DOMESTIC
	1-1-21	FOR DOMESTIC
	1-1-19	FOR DOMESTIC
	1-1-26	FOR DOMESTIC
	1-1-5	FOR DOMESTIC
	1-1-18	FOR DOMESTIC
	1-1-25	FOR DOMESTIC
	1-1-24	FOR DOMESTIC
	1-1-6	FOR DOMESTIC
	1-1-7	FOR DOMESTIC
	1-1-8	FOR DOMESTIC
	1-1-9	FOR DOMESTIC
	1-1-10	FOR DOMESTIC
	1-1-11	FOR DOMESTIC
	1-1-20	FOR DOMESTIC
	1-1-29	FOR DOMESTIC
	1-1-29	FOR DOMESTIC
	1-1-28	FOR DOMESTIC
	1-1-17	FOR DOMESTIC
	1-1-30	FOR DOMESTIC
	1-1-16	FOR DOMESTIC

Page 33 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorios de fruncido

Brother MA4-B551 parts on page 33
Part number	Part name	Qty
146587201	ラフラーソウチクミ	1
146588001	キンジオサエタイ	1
145803001	キンジオサエトリツクジク	1
146589001	ラツパハト"ダイ	1
101706001	トメネジ"6.35	2
146590001	ハネケウケ	1
105163001	アマツケツメネジ"5.95	2
110820101	イトウシヨウシボウ	1
025770232	ヒラサカネツメネジ"6.35	1
144788001	キンジオサエバネ	1
144105000	チヨウシハネエサカネ	1
149566001	イトウシヨウシナツト	1
144783001	キンジオサエ	1
144784001	キンジオサエザガネ	1
062660712	ナベコ"318-40X7	2
147933001	ダンネジ"5.95	1
145807001	キンジオサエタイアンナイ	1
062680812	ナベコ"437-40X8	1
181995002	セツトカラ-"クミ	1
101705001	トメネジ"6.35	2
145810001	ハント"ルトリツケイタ	1
150553002	ナツト"5.95	1
110230001	トメネジ"4.37	1
105234003	ナツト"4.37	1
145811001	ハント"ルモト"シタバネ	1
145808001	キンジオサエタイトバネ	1
062680612	ナベコ"3437-40X6	2
144764001	マエフタメイタバネ	1
060670512	ハインド"357-40X5	1
146592001	イトアンナイパイプ	1
013679412	トメネジ"3.57クボミ	2
154795001	キンジオサエタイアンナイD	1
S01614001	イトアンナイパイプ	1
S12677001	RUFFLER ATTACHMENT ASSEMBLY	1
146588001	BRACKET FOR RUFFLING BLADE	1
145803001	RUFFLING BLADE BASE SHAFT	1
146589001	LAPPER BASE	1
101706001	SCREW 6.35	1
146590001	SPRING BASE	2
105163001	SCREW 5.95	2
110820101	TENSION CONTROL STUD	1
025770232	WASHER 6.35	1
144788001	SPRING	1
144105000	TENSION SPRING WASHER	1
149566001	THREAD TENSION ADJUSTING NUT	1
144783001	RUFFLING BLADE	1
144784001	WASHER	1
062660712	SCREW 318X7	2
147933001	STUD SCREW 5.95	1
145807001	RUFFLING BLADE GUIDE	1
062680812	SCREW 437X8	1
148387001	RUFFLING PLATE LIFTER	1
145810001	HANDLE FIXING PLATE	1
150553002	NUT 5.95	1
110230001	SCREW 4.37	1
105234003	NUT 4.37	1
145811001	SPRING PLATE	1
145808001	SPRING PLATE	1
062680612	SCREW 437X6	2
144764001	FRONT COVER STOPPER SPRING	1
060670512	SCREW 357X5	1
146592001	THREAD GUIDE PIPE	1

Page 34 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/Accessorio de frun cido

Brother MA4-B551 parts on page 34
Ref	Part number	Part name	Qty
	067	FOR EXPORT
	10	FOR EXPORT
	13	FOR EXPORT
	11	FOR EXPORT
	12	FOR EXPORT
	8-2	FOR EXPORT
	8-1	FOR EXPORT
	8-4	FOR EXPORT
	8-5	FOR EXPORT
	8-3	FOR EXPORT
	1-2-26	FOR EXPORT
	1-2-25	FOR EXPORT
	1-2-23	FOR EXPORT
	1-2-27	FOR EXPORT
	1-2-12	FOR EXPORT
	1-2-13	FOR EXPORT
	1-2-14	FOR EXPORT
	1-2-2	FOR EXPORT
	1-2-3	FOR EXPORT
	1-2-18	FOR EXPORT
	1-2-1	FOR EXPORT
	1-2-15	FOR EXPORT
	1-2-22	FOR EXPORT
	1-2-21	FOR EXPORT
	6	FOR EXPORT
	5	FOR EXPORT
	1-2-32	FOR EXPORT
	1-2-5	FOR EXPORT
	1-2-7	FOR EXPORT
	1-2-6	FOR EXPORT
	1-2-8	FOR EXPORT
	1-2-9	FOR EXPORT
	1-2-10	FOR EXPORT
	1-2-11	FOR EXPORT
	1-2	FOR EXPORT
	1-2-20	FOR EXPORT
	14-1	FOR OLD TYPE
	16	FOR OLD TYPE
	15	FOR OLD TYPE
	1-2-24	FOR OLD TYPE
	14-12	FOR OLD TYPE
	14-11	FOR OLD TYPE
	17-1	FOR OLD TYPE
	14-9	FOR OLD TYPE
	14-13	FOR OLD TYPE
	14-2	FOR OLD TYPE
	14-10	FOR OLD TYPE
	14-4	FOR OLD TYPE
	14-3	FOR OLD TYPE
	1-2-29	FOR OLD TYPE
	1-2-31	FOR OLD TYPE
	1-2-28	FOR OLD TYPE
	1-2-30	FOR OLD TYPE
	1-2-17	FOR OLD TYPE
	1-2-16	FOR OLD TYPE
	2	FOR OLD TYPE
	17-2	FOR OLD TYPE
	14-5	FOR OLD TYPE
	14-6	FOR OLD TYPE
	14-12	FOR OLD TYPE
	14-13	FOR OLD TYPE
	14-7	FOR OLD TYPE
	14-8	FOR OLD TYPE
	3	FOR OLD TYPE
	4	FOR OLD TYPE
	069	FOR DOMESTIC
	071	FOR DOMESTIC
	075	FOR DOMESTIC
	077	FOR DOMESTIC
	1-1-27	FOR DOMESTIC
	1-1-13	FOR DOMESTIC
	1-1-14	FOR DOMESTIC
	1-1-2	FOR DOMESTIC
	1-1-3	FOR DOMESTIC
	1-1-4	FOR DOMESTIC
	1-1-12	FOR DOMESTIC
	1-1-25	FOR DOMESTIC
	1-1-23	FOR DOMESTIC
	1-1-1	FOR DOMESTIC
	1-1-15	FOR DOMESTIC
	1-1-22	FOR DOMESTIC
	1-1-21	FOR DOMESTIC
	1-1-19	FOR DOMESTIC
	1-1-26	FOR DOMESTIC
	1-1-5	FOR DOMESTIC
	1-1-18-1	FOR DOMESTIC
	1-1-6	FOR DOMESTIC
	1-1-7	FOR DOMESTIC
	1-1-8	FOR DOMESTIC
	1-1-9	FOR DOMESTIC
	1-1-10	FOR DOMESTIC
	1-1-11	FOR DOMESTIC
	1-1	FOR DOMESTIC
	1-1-18	FOR DOMESTIC
	1-1-25	FOR DOMESTIC
	1-1-24	FOR DOMESTIC
	1-1-20	FOR DOMESTIC
	1-1-29	FOR DOMESTIC
	1-1-28	FOR DOMESTIC
	1-1-17	FOR DOMESTIC
	1-1-30	FOR DOMESTIC
	1-1-16	FOR DOMESTIC

Page 35 — H. Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorio de fruncido

Brother MA4-B551 parts on page 35
Part number	Part name	Qty
013679412	SCREW 3.57	2
154795001	RUFFLING BLADE GUIDE PLATE (LOWER)	1
S01614001	THREAD GUIDE PIPE	1
101706001	SCREW 6.35	2
S01304001	SCREW 6.35X18	2
144793000	RUFFLER GUIDE	1
112751002	SCREW 3.57	1
145809001	HANDLE	1
150556002	NUT 6.35	1
148395001	RUFFLING PLATE LIFTER LEVER ASSEMBLY	1
148388001	RUFFLING PLATE LIFTER LEVER	1
141514001	SCREW	1
148389001	PRESSER FOOT LIFTER LEVER SUPPORTER	1
148390001	ROLLER	1
112301001	STUD SCREW 3.18	1
148391001	FLEXIBLE WIRE ASSEMBLY	1
141514001	SCREW	2
147672001	WIRE PLATE	1
062670612	SCREW 357X6	2
155196201	DIFFERENTIAL ADJUSTMENT ASSEMBLY	1
155197001	KNEE LIFTER SHAFT BRACKET	1
155198101	KNEE LIFTER SHAFT	1
155199101	KNEE LIFTER BRACKET	1
017781012	BOLT	2
148797001	KNEE LIFTER BAR (SMALL)	1
014780622	SCREW 6.35	1
148798001	KNEE LIFTER PLATE (LARGE)	1
100463001	BOLT 7.94	1
155201101	KNEE LIFTER LEVER	1
017781012	BOLT 6.35X10	2
155202001	KNEE LIFTER LEVER SPRING	1
155203201	COLLAR	2
017781012	BOLT 6.35X10	4
155205001	CONNECTING BAR	1
146594001	STUD SCREW 4.76	1
062681012	SCREW 437X10	4
032422505	SCREW 4.1 X25	4

Page 36

Brother MA4-B551 parts on page 36
Ref	Part number	Part name	Qty
	073	Gimp guide mechanism
	074	Gimp guide mechanism
	075	Gimp guide mechanism
	076	Gimp guide mechanism
	077	Gimp guide mechanism
	1-1-1	Gimp guide mechanism
	1-1-3	Gimp guide mechanism
	1-1-2	Gimp guide mechanism
	1-1-4	Gimp guide mechanism
	1-2	Gimp guide mechanism
	1	Gimp guide mechanism
	073	Tape winder mechanism
	074	Tape winder mechanism
	075	Tape winder mechanism
	076	Tape winder mechanism
	077	Tape winder mechanism
	089	Tape winder mechanism
	090	Tape winder mechanism
	1-1	Tape winder mechanism
	2	Tape winder mechanism
	1-2	Tape winder mechanism
	1-3	Tape winder mechanism
	1-4	Tape winder mechanism

Page 37 — J. Gimp guide mechanism/K. Tape winder mechanism

Brother MA4-B551 parts on page 37
Ref	Part number	Part name	Qty
1	181031001	COTTON STAND ASSEMBLY WITH SCREW	1
1-1	109854001	SPOOL STAND ASSEMBLY	1
1-1-1	100080004	SCREW 3.18	1
1-1-1	110161003	NUT 4.76	1
1-1-3	028050242	SPRING WASHER 2-5	1
1-1-4	100444002	SPOOL STUD	1
1-2	100447001	SCREW 4.5X3.2	2
1	143767002	TAPE WINDER ASSEMBLY	1
1-1	143980001	THUMB SCREW	1
1-2	108494001	WASHER	1
1-3	108495001	SPRING	1
1-4	100136001	TENSION CONTROL NUT	1
2	101118001	SCREW 4.5X20	2

Page 38

Brother MA4-B551 parts on page 38
Ref	Part number	Part name
1	089	FOR EXPORT
1	090	FOR EXPORT
7	7	FOR EXPORT
2	2	FOR EXPORT
073	073	Lapper mechanism
074	074	Lapper mechanism
075	075	Lapper mechanism
076	076	Lapper mechanism
077	077	Lapper mechanism
6	6	Lapper mechanism
10	10	Lapper mechanism
5	5	Lapper mechanism
3	3	Under looper mechanism
8	8	Under looper mechanism
4	4	Under looper mechanism
096	096	FOR DOMESTIC
097	097	FOR DOMESTIC
13-2	13-2	FOR DOMESTIC
1	1	Under looper mechanism
1-1	1-1	Under looper mechanism
7	7	Under looper mechanism
6	6	Under looper mechanism
10-1	10-1	Under looper mechanism
10	10	Under looper mechanism
9	9	Under looper mechanism
13-1	13-1	Under looper mechanism
14	14	Under looper mechanism
11	11	Under looper mechanism
12	12	Under looper mechanism
15	15	Under looper mechanism

Page 39 — L. ラッパー関係/Lapper mechanism/Falz-Mechanismus/M uevoanisme à rabat/Mecanismo de solapado M. 下ルーバー関係/Under looper mechanism/Unterer Greifer/M uevoanisme du boucleur inférieur/Mecanismo del presilladora inferior

Brother MA4-B551 parts on page 39
Part number	Part name	Qty
147373000	LAPPER ASSEMBLY	1
062670512	SCREW 357X6	2
147377001	TAPE GUIDE	1
062670512	SCREW 357X6	2
147440000	LAPPER ASSEMBLY	1
062680612	SCREW 437X6	2
105161004	WASHER	2
025350332	WASHER 3.5	2
110735002	WASHER	2
144044001	UNDER LOOPER CONNECTING ROD ASSEMBLY	1
148425001	BOLT 4.37X14	4
017771612	BOLT 6.35X16	1
110704001	LOOPER CONNECTING ROD STOPPER	1
062660412	SCREW 318X4	1
146614001	UNDER LOOPER SHAFT	1
140327001	OIL CAP	1
146615000	UNDER LOOPER SHAFT BUSHING (REAR)	1
146616000	UNDER LOOPER SHAFT BUSHING (FRONT)	1
160323001	LOWER SHAFT SET COLLAR ASSEMBLY	1
013760612	SCREW 5.95	2
146617001	UNDER LOOPER HOLDER	1
149171001	BOLT 5.56X14	1
501748101	UNDER LOOPER	1
159884101	UNDER LOOPER	1
014680422	SCREW 4.37	1
148782001	SPACER	1

Page 40 — N. 上ルーパ関係/Over looper mechanism/Oberen Greifer/Mécanisme du boucleur supérieur/Mecanismo del presilladora superior

Brother MA4-B551 parts on page 40
Ref	Part number	Part name
1-1	1-1	SCREW
8	8	SHAFT
11	11	HOLDER
12	12	SCREW
3	3	SCREW
6-1	6-1	SHAFT
6-3	6-3	SPRING
6-4	6-4	WASHER
20	20	RING
9-1	9-1	SLEEVE
10	10	SHAFT
15-1	15-1	ARM
15-1-1	15-1-1	SCREW
13-1-7	13-1-7	SCREW
14-1	14-1	SCREW
14-2	14-2	SCREW
13-1-5	13-1-5	PIN
13-1-6	13-1-6	SPRING
13-1-1	13-1-1	SHAFT
13-1-2	13-1-2	SCREW
13-1-4	13-1-4	SPRING
13-1	13-1	ARM
085	085	SCREW
087	087	SCREW
092	092	SCREW
094	094	SCREW
096	096	SCREW
097	097	SCREW
15-2	15-2	ARM
15-2-1	15-2-1	SCREW
062	062	SCREW
064	064	SCREW
066	066	SCREW
074	074	SCREW
076	076	SCREW
084	084	SCREW
090	090	SCREW
093	093	SCREW
15-3	15-3	ARM
15-3-1	15-3-1	SCREW
085	085	SCREW
087	087	SCREW
092	092	SCREW
093	093	SCREW
9-2	9-2	RING
13-2-7	13-2-7	SHAFT
13-2-5	13-2-5	SCREW
13-2-6	13-2-6	PIN
13-2-3	13-2-3	SCREW
13-2-2	13-2-2	SHAFT
13-2-1	13-2-1	SPRING
13-2-4	13-2-4	SPRING
13-2	13-2	ARM

Page 41 — N. 上ルーバ関係/Over looper mechanism /Oberen Greifer/ Mécanisme du boucleur supérieur / Mecanismo del presilladora superior

Brother MA4-B551 parts on page 41
Part number	Part name	Qty
144025001	ウワーハツロツドクミ
148425001	アナトメシ"4.37X14	4
017771412	ボルト6.35X14	1
110704001	ウワーハツロツド"フレド"メ	1
062660412	ナベコ318-40X4	1
S06294001	ウワーハシククミ	1
148033001	ウワーハシク	1
140327001	ゴムセン	1
071023850	コウキュウ3/32	1
148034001	オイルチョウセツネシ	1
144029000	ウワーハシククメタルB	1
146602001	ウワーハシクカラー	1
S01597001	ウワーハシクカラー	1
144031000	ウワーハシクメタルF	1
146581001	セツトカラー	1
100260001	トメネジ5.95	2
146603301	ウワーハキクミ	1
148379001	ウワーハツデジク	1
148294001	アナトメネジ"3.57クボミ	1
149170001	ボルト6.35X16	1
140416000	クミヒモ	1
062681012	ナベコ437-40X10	2
047301440	スプリングピンAW3	2
014680422	アナトメネジ"4.37クボミ	2
146611301	ウワーハキクミ	1
148379001	ウワーハツデジク	1
148294001	アナトメネジ"3.57クボミ	1
149170001	ボルト6.35X16	1
140416000	クミヒモ	1
062681012	ナベコ437-40X10	2
047301440	スプリングピンAW3	2
014680422	アナトメネジ"4.37クボミ	2
062680712	ナベコ437-40X7	1
S10774001	ナベコ437-40X7	2
147934001	ウワーハシツキ	1
014680422	アナトメネジ"4.37クボミ	1
159686001	ウワーハシツキ	1
014680422	アナトメネジ"4.37クボミ	1
147935001	OVER SPREADER WITH SCREW
014680422	SCREW 4.37	1
159101000	メクラセン	1
148294001	アナトメネジ"3.57クボミ	1
146917-001	※ Crank Shaft (C) Assembly
S01789-001	※ Crank Shaft (H) Assembly
S07847-001	※ Crank Shaft (J) Assembly

Page 42

Brother MA4-B551 parts on page 42
Ref	Part number	Part name	Qty
	1	LOOPER MECHANISM
	1-1	LOOPER MECHANISM
	1-1-1	SCREW
	1-2	SCREW
	1-3	PIN
	2	SCREW
	3	BRACKET
	4	SCREW
	5	SHAFT
	5-1	SCREW
	7	SHAFT
	7-1	SCREW
	8	BRACKET
	9	SCREW
	10	PIN
	11	NUT
	12	SHAFT
	13	SLEEVE
	14	CYLINDER
	15	ARM
	16	NUT
	17	NUT
	18	SLEEVE
	19	BRACKET
	20	SHAFT
	21	SLEEVE
	22	SHAFT
	23	BRACKET
	24	SCREW
	25	SHAFT
	26	SCREW
	27	SPRING
	28	WASHER
	29	WASHER
	30	BRACKET
	31-1	BRACKET
	31-2	BRACKET
	32	SCREW
	096	FOR DOMESTIC
	097	FOR DOMESTIC

Page 43 — P. 二重環ルーパ関係/Double chain stitch looper mechanism/Doppelkettstichgreifer/Mécanisme du boucleur pour point de chaînette double/Mecanismo del presilladora de doble cadeneta

Brother MA4-B551 parts on page 43
Ref	Part number	Part name	Qty
1	146618001	ヨウロッド"クミ	1
1-1	S01225001	ヨウロッド"ネツツキ	1
1-1-1	148425001	アナボルト4.37X14	4
1-2	014770622	アナトメネジ"6.35クボミ	2
1-3	147691000	フェルト	1
2	017771612	ボルト6.35X16	1
3	146622001	ヨウロッド"フレト"メ	1
4	062660412	ナベ"318-40X4	1
5	147988001	DLヘンシンリンクミ	1
5-1	014770622	アナトメネジ"6.35クボミ	2
7	146624101	ゼンゴツロツド"クミ	1
7-1	148425001	アナボルト4.37X14	2
8	146626001	フィードレバ"(ライト)	1
9	017771612	ボルト6.35X16	1
10	146627001	ゼンゴ"ロツド"ピン	1
11	110161006	ナット4.76	1
12	146628001	ゼンゴレバ"シ゛ーク	1
13	140150000	レバ"シ゛ークメタルR	1
14	146629000	レバ"シ゛ークメタルL	1
15	146630001	フィードレバ"-L	1
16	110778002	ザツ"ナット5.56	1
17	140313001	ゼンゴレバ"カクゴマ	1
18	146631001	ゼンゴ"コマ	1
19	120990001	アタマツキメスジ"4.37	2
20	146632001	ゼンゴ"シ゛ーク	1
21	146633000	ゼンゴ"シ゛ークメタルB	1
22	140159000	ゼンゴ"シ゛ークメタルF	1
23	155262001	ニジ"ユウカンルーパ"ホルダ"	1
24	149171001	ボルト5.56X14	1
25	146635001	ニジ"ユウカンルーパ"	1
26	014680422	アナトメネジ"4.37クボミ	1
27	140327001	ゴムセン	2
28	148782001	スペーサ	1
29	153484001	ワッシャー4.76	1
30	S01756001	タンカンルーパ"	1
31-1	S01757001	イトサバキ(5MM,097)	1
31-2	S01761001	イトサバキ(3MM,096)	1
32	S01295001	シメネジ"2.38X3.5	1

Page 44

Brother MA4-B551 parts on page 44
Ref	Part number	Part name	Qty
	1	Oil cup
	2	Screw
	3	Oil tube assembly
	3-1	Oil tube
	3-2	Washer
	3-3	Screw
	3-4	Shaft
	3-5	Pin
	3-6	Oil cup holder
	3-6-1	Pin
	3-7	Base plate
	3-8	Filter
	3-9	Base plate
	3-10	Screw
	4	Screw
	6	Oil tube
	7	Oil tube
	8	Oil tube
	9	Oil tube
	11	Oil tube
	12	Screw
	13	Oil tube
	15	Oil tube
	17	Oil tube
	18	Oil tube
	19	Oil tube
	20	Screw
	21	Oil tube
	22	Oil tube
	23	Screw
	24	Washer
	25	Screw
	31	Lever
	32	Filter
	37	Oil tube
	41	Lever
	42	Lever
	46	Lever
	47	Lever
	48	Oil cup
	51	Lever
	52	Lever
	53	Oil tube
	55	Lever
	56	Screw
	57	Lever
	58	Oil cup

Page 45 — Q. 給油・潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Brother MA4-B551 parts on page 45
Part number	Part name	Qty
146647001	ウオーム	1
014770622	アナトメネジ"6.35クボミ	2
147521001	トロコイド"ポンプクミ	1
144619000	ウオームホイール	1
025350332	ヒラザガネ"3.5	1
062670812	ナベコ"357-40X8	1
147523001	ポンプロータークミ	1
144622001	ミゾツキピンEガタ	1
181995001	セットカラークミ	1
101706001	トメネジ"6.35	2
147527001	ポンプフタ	1
147528100	ロカモウ	1
147529001	ロカモウオサエ	1
062671012	ナベコ"357-40X10	3
062711212	ナベコ"476-32X12	2
140780101	ビニルチューブクミ	1
140779101	ビニルチューブクミ	1
112348001	パッキン	2
112364001	ハイパパイプツキテネジ"	1
112348001	パッキン	2
112364001	ハイパパイプツキテネジ"	1
146636201	ロッド"オイルパイプクミ	1
140325001	ゴムセン	1
062670612	ナベコ"357-40X6	1
140778101	ビニルチューブクミ	1
112348001	パッキン	2
112364001	ハイパパイプツキテネジ"	1
140778101	ビニルチューブクミ	1
112348001	パッキン	2
112364001	ハイパパイプツキテネジ"	1
112348001	パッキン	2
112359001	ハイパパイプツキテネジ"	1
147217000	オイルパイプ	1
145664000	オイルフィルター	1
114294001	Oリング	1
140418000	クミヒモ	1
150307000	クミヒモ	1
140415000	クミヒモ	2
140317000	クミヒモ	1
140417000	クミヒモ	1
112735000	クミヒモ	1
147318000	ピン	1
147361000	クミヒモ	1
147363000	フェルト	1
147318000	ピン	1
147318000	ピン	1
112525000	シュウジンマグネット	1

Page 46

Brother MA4-B551 parts on page 46
Ref	Part number	Part name	Qty
	21-1	21-1
	23	23
	22	22
	67-1	67-1
	25	25
	15-1	15-1
	16	16
	17	17
	18	18
	68	68
	70	70
	69	69
	061	061
	062	062
	43 42	43 42
	063	063
	064	064
	065	065
	40 41	40 41
	066	066
	067	067
	069	069
	071	071
	50 49	50 49
	48	48
	47 46 45	47 46 45
	073	073
	074	074
	075	075
	076	076
	077	077
	079	079
	081	081
	083	083
	084	084
	085	085
	087	087
	089	089
	090	090
	092	092
	093	093
	51	51
	57	57
	56	56
	53	53
	62	62
	63	63
	52	52
	59	59
	60	60
	37 36	37 36
	29 30	29 30
	31 32 33	31 32 33
	095	095
	096	096
	097	097
	34	34
	35	35
	062	062
	21-2	21-2
	064	064
	066	066
	074	074
	076	076
	084	084
	090	090
	093	093
	085	085
	8-2	8-2
	087	087
	092	092
	093	093
	4-3	4-3
	4-4	4-4
	1	1
	2	2
	12-3-1-1	12-3-1-1
	12-3-1	12-3-1
	12-1	12-1
	12-1-1	12-1-1
	12-1-2	12-1-2
	5-1	5-1
	6-1	6-1
	7-1	7-1
	8-1	8-1
	11	11
	12-2	12-2
	12-2-1	12-2-1
	12-2-2	12-2-2
	12-4	12-4
	12-4-1	12-4-1
	12-4-2	12-4-2
	3-1	3-1
	4-1	4-1
	26	26
	27	27
	28	28
	14-1	14-1
	5-2	5-2
	6-2	6-2
	7-2	7-2
	8-3	8-3
	14-2	14-2
	67-2	67-2
	15-2	15-2
	3-2	3-2
	12-3-2-1	12-3-2-1
	12-3-2-1-1	12-3-2-1-1
	12-3-2	12-3-2

Page 47 — R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo

Brother MA4-B551 parts on page 47
Part number	Part name	Qty
146648001	MAIN THREAD GUIDE	1
014770622	SCREW 6.35	1
146649001	THREAD GUIDE SUPPORTER	1
156509001	THREAD GUIDE SUPPORTER	1
110820101	THREAD TENSION STUD	4
110820101	THREAD TENSION STUD	5
159574101	THREAD TENSION STUD	2
110820101	THREAD TENSION STUD	2
110832001	TENSION DISC FELT	4
110832001	TENSION DISC FELT	5
145446001	TENSION DISC	8
145446001	TENSION DISC	10
144103002	TENSION DISC WASHER	1
144103002	TENSION DISC WASHER	5
144104001	NEEDLE TENSION SPRING	2
148851001	NEEDLE TENSION SPRING	2
144104001	NEEDLE TENSION SPRING	3
144110001	LOWER LOOPER TENSION SPRING	2
144105000	TENSION SPRING WASHER	4
149568001	THREAD TENSION CONTROL NUT	1
149566001	THREAD TENSION NUT	1
147049001	TENSION INDICATING PLATE	1
149568002	THREAD TENSION CONTROL NUT	1
149566001	THREAD TENSION NUT	1
147049002	TENSION INDICATING PLATE	1
149568003	THREAD TENSION CONTROL NUT	1
149566001	THREAD TENSION NUT	1
147049003	TENSION INDICATING PLATE	1
149568003	THREAD TENSION CONTROL NUT	1
149566001	THREAD TENSION NUT	1
147049003	TENSION INDICATING PLATE	2
149568004	THREAD TENSION CONTROL NUT	1
149566001	THREAD TENSION NUT	1
147049004	TENSION INDICATING PLATE	1
110813001	NEEDLE THREAD GUIDE	3
110813001	NEEDLE THREAD GUIDE	4
143757001	NEEDLE THREAD GUIDE (A)	1
146793001	TWIN NEEDLE NEEDLE THREAD GUIDE	1
062660412	SCREW 318X4	1
146650001	CHAIN STITCH NEEDLE THREAD GUIDE	1
060670812	SCREW 3.57X8	1
144108001	NEEDLE THREAD TAKE-UP	1
142201001	NEEDLE THREAD TAKE-UP	1
062660412	SCREW 318X4	1
105248003	WASHER	1
062670612	SCREW 357X6	1
14411001	LOOPER THREAD GUIDE HOLDER	1
146926002	UNDER LOOPER THREAD GUIDE ASSEMBLY	1
062670612	SCREW 357X6	1
146929001	LOOPER THREAD GUIDE ASSEMBLY	1
062670612	SCREW 357X6	1
146652001	UNDER LOOPER THREAD TAKE-UP (RIGHT)	1
146653001	UNDER LOOPER THREAD TAKE-UP (RIGHT)	1
062670612	SCREW 357X8	1
146654001	LOOPER THREAD TAKE-UP (LEFT)	1
062670612	SCREW 357X6	1
142669002	OVER LOOPER THREAD GUIDE PIPE ASSEMBLY	1
060630312	SCREW 2.38X3	1
146925001	THREAD GUIDE ASSMBLY	1
062670612	SCREW 357X6	1
146656001	THREAD GUIDE PIPE	1
148294001	SCREW 3.57	1

Page 48

Brother MA4-B551 parts on page 48
Ref	Part number	Part name	Qty
	21-1	21-1
	23	23
	22	22
	67-1	67-1
	25	25
	15-1	15-1
	16	16
	17	17
	18	18
	68	68
	70	70
	69	69
	061	061
	062	062
	063	063
	064	064
	065	065
	066	066
	067	067
	069	069
	071	071
	073	073
	074	074
	075	075
	076	076
	077	077
	079	079
	081	081
	083	083
	084	084
	085	085
	087	087
	088	088
	089	089
	090	090
	092	092
	093	093
	43	43
	42	42
	40	40
	41	41
	50	50
	49	49
	48	48
	47	47
	46	46
	45	45
	44	44
	55	55
	57	57
	54	54
	51	51
	58	58
	56	56
	53	53
	62	62
	52	52
	63	63
	59	59
	60	60
	37	37
	36	36
	29	29
	30	30
	31	31
	32	32
	33	33
	095	095
	096	096
	097	097
	067	067
	074	074
	071	071
	076	076
	073	073
	077	077
	4-3	4-3
	4-4	4-4
	34	34
	35	35
	21-2	21-2
	062	062
	064	064
	066	066
	074	074
	076	076
	084	084
	090	090
	093	093
	085	085
	087	087
	092	092
	093	093
	8-2	8-2
	1	1
	2	2
	3-1	3-1
	4-1	4-1
	5-1	5-1
	6-1	6-1
	7-1	7-1
	8-1	8-1
	11	11
	12-3-1	12-3-1
	12-3-1-1	12-3-1-1
	12-3-1-1-1	12-3-1-1-1
	14-1	14-1
	5-1	5-1
	12-1	12-1
	12-1-1	12-1-1
	12-1-2	12-1-2
	7-1	7-1
	10	10
	26	26
	27	27
	28	28
	11	11
	12-2	12-2
	12-2-1	12-2-1
	12-2-2	12-2-2
	12-4	12-4
	12-4-1	12-4-1
	12-4-2	12-4-2
	3-2	3-2
	14-2	14-2
	4-2	4-2
	5-2	5-2
	6-2	6-2
	7-2	7-2
	8-3	8-3
	67-2	67-2
	15-2	15-2
	12-3-2-1	12-3-2-1
	12-3-2-1-1	12-3-2-1-1
	12-3-2	12-3-2

Page 49

Brother MA4-B551 parts on page 49
Part number	Part name	Qty
151617001	CHAIN STITCH LOOPER THREAD GUIDE ASS.	1
062670612	SCREW 357X6	1
110813001	NEEDLE THREAD GUIDE	1
147148001	THREAD TENSION CONTROL STUD	1
110832001	TENSION DISC FELT	1
145446001	TENSION DISC	2
147149001	THREAD TENSION SPRING	1
144105000	TENSION SPRING WASHER	1
151012001	UPPER THREAD TENSION NUT	1
150807101	CHAIN STITCH LOOPER TAKE-UP	1
014680422	SCREW 4.37	2
150800001	CHAIN STITCH BASE PLATE ASSEMBLY	1
150810001	THREAD HANDLER	1
062670412	SCREW 357X4	1
146663001	THREAD GUIDE (RIGHT)	1
060630412	SCREW 2.38X4	2

Page 50

Brother MA4-B551 parts on page 50
Ref	Part number	Part name	Qty
	1-1	1-2
	4
	5
	7
	8
	9
	10
	11
	12
	13
	17
	18	OIL 3 LITRE
	19
	20
	21
	22
	23
	24
	25
	27
	29
	31
	32
	33
	36
	37
	39	Silicone Oil 500cs
	40
	41	broti
	48-1
	48-2
	49
	50
	51
	52
	55-1
	55-2
	55-3
	56-1
	56-2
	58
	59
	61-1
	61-2
	61-3
	069
	071
	075
	077

Page 51 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-B551 parts on page 51
Part number	Part name	Qty
*	ミシンハリDCX1	4
*	ミシンハリDMХ13	4
112436001	シタヌス	1
101572101	ネジマワシ5.5X190	1
S01943001	6カクボウネジマワシ1.6	1
146700001	6カクボウネジマワシ2	1
149173001	6カクボウネジマワシ3	1
107779001	スパナ6X7	1
143566001	スパナ8	1
105343001	メカニカルレンチ8X9	1
117466000	ピンセット	1
140342001	ソケットレンチクミ	1
S06701000	オイルタンク	1
145277105	オイルタンク	1
147893003	オサエエアブミイタ	1
021400106	ネジナット4	2
062401406	ナベコ4X14	2
116016001	ペダルストツパ	2
142262001	クサリFクミ	1
122991001	アクセサリポリプロ	1
S03888000	ヘッドプレート	1
210973001	カクネボルト8X85	4
025080236	ヒラサガネチユウ8	4
028080242	バネサガネ2-8	4
021080106	ナット1シュ8	4
148430101	ダスタースートアツプ	1
031311302	マルモクネジ3.1X13	4
S06704001	シリコンオイル	1
140759000	フンネル	1
144225002	ヘッドカバー	1
147919001	ボウシンゴム	1
147919002	ボウシンゴム	3
140888001	カラヌイメス	1
062660412	ナベコ318-40X4	2
144793000	キジアンナイ	1
112751002	シメネジ3.57	1
148348001	ヘルトカバクーミ	1
148042001	ヘルトカバースタツト	2
062681012	ナベコ437-40X10	2
100645003	サガネ	2
183161201	ダスタシュートクミ	1
148431201	ダスタシュートL	1
148432001	ダスタシュートS	1
101118001	マルモクネジ4.5X20	4
025050236	ヒラサガネチユウ5	4
151017001	アイガードアセンブリ	1
150550000	EYE GUARD FOR OVERLOCK	1
062660512	SCREW 318X5	2
025030232	WASHER 3	2

Page 52

Brother MA4-B551 parts on page 52
Ref	Part number	Part name	Qty
	42-1-5
	42-1-7-3
	42-1-13
	42-1-16
	42-1-18
	42-1-3
	42-1-7-5
	42-1-15
	42-1-17
	42-1-4-2
	42-1-14-2
	42-1-4
	42-1-14-1
	42-1-14-3
	42-1-7-1
	42-1-7-3
	42-1-10
	42-1-9
	42-1-8
	42-1-6
	42-1-2-1
	42-1-7-4
	42-1-12-3
	42-1-11-3
	42-1-11-2
	42-1-2-2
	42-1-12-1
	42-1-1
	42-1-11-4
	42-1-7-2
	42-1-12-4
	42-1-11-1
	42-1-7-3
	42-1-12-2

Page 53 — Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-B551 parts on page 53
Ref	Part number	Part name	Qty
42-1	S02772101	COTTON STAND ASSEMBLY 6THF	1
42-1-1	150189002	BRACKET	1
42-1-2	S02773001	COTTON STAND BASE SCREW SET	1
42-1-2-1	062060806	SCREW 6X8	2
42-1-2-2	031452206	SCREW 45X22	3
42-1-3	150172002	COLUMN PIPE	2
42-1-4	150106002	COLUMN JOINT ASSEMBLY	1
42-1-4-1	062060806	SCREW 5X14	2
42-1-4-2	021500106	NUT 5	2
42-1-5	150174000	COLUMN CAP	1
42-1-6	S02779001	SPOOL HOLDER 3	2
42-1-7	S02782001	SPOOL SCREW SET 3	2
42-1-7-1	150179002	SPOOL SHAFT (B)	6
42-1-7-2	028050246	SPRING WASHER 2-5	6
42-1-7-3	021500106	NUT 5	10
42-1-7-4	050503006	SCREW 5X30	2
42-1-7-5	050501406	SCREW 5X14	2
42-1-8	150180000	SPOOL STAND BASE	6
42-1-9	150182000	SPOOL MAT	6
42-1-10	126863001	SPOOL CUSHION	6
42-1-11	S02784001	SPOOL HOLDER SUPPORTER (A) SET	1
42-1-11-1	150188002	SPOOL HOLDER SUPPORTER (A)	1
42-1-11-2	062501006	SCREW 5X10	1
42-1-11-3	021500106	NUT 5	1
42-1-11-4	031452206	SCREW 45X22	1
42-1-12	S02785001	SPOOL HOLDER SUPPORTER (B) SET	1
42-1-12-1	150194002	SPOOL HOLDER SUPPORTER (B)	1
42-1-12-2	062501006	SCREW 5X10	1
42-1-12-3	021500106	NUT 5	1
42-1-12-4	031452206	SCREW 45X22	1
42-1-13	S02788001	THREAD HANGER ASSEMBLY 3	2
42-1-14	150145002	THREAD GUIDE HOLDER ASSEMBLY	1
42-1-14-1	150185002	THREAD GUIDE HOLDER	1
42-1-14-2	050503006	SCREW 5X30	1
42-1-14-3	021500106	NUT 5	1
42-1-15	S02783001	THREAD GUIDE 6	1
42-1-16	S04109001	THREAD GUIDE SUPPORTER BAR	1
42-1-17	138843001	JOINT	1
42-1-18	014060632	SCREW 6X6	2

Page 55

Brother MA4-B551 parts on page 55
Part number	Part name	Qty
S02770101	COTTON STAND ASSEMBLY 5THF	1
150189002	COTTON STAND BASE	1
S02773001	COTTON STAND BASE SCREW SET	1
062060806	SCREW 6X8	2
031452206	SCREW 45X22	3
150172002	COLUMN PIPE	2
150106002	COLUMN JOINT ASSEMBLY	1
062501406	SCREW 5X14	2
021500106	NUT 5	2
150174000	COLUMN CAP	1
S02778001	SPOOL HOLDER 2	1
S02779001	SPOOL HOLDER 3	1
S02780001	SPOOL SCREW SET 2	1
150179002	SPOOL SHAFT (B)	2
028050246	SPRING WASHER 2-5	2
021500106	NUT 5	4
050503006	SCREW 5X30	1
050501406	SCREW 5X14	1
S02782001	SPOOL SHAFT SET	1
150179002	SPOOL SHAFT (B)	3
028050246	SPRING WASHER 2-5	3
021500106	NUT 5	5
050503006	SCREW 5X30	1
050501406	SCREW 5X14	1
150180000	SPOOL STAND BASE	5
150182000	SPOOL MAT	5
126863001	SPOOL CUSHION	5
S02784001	SPOOL HOLDER SUPPORTER (A) SET	1
150186002	SPOOL HOLDER SUPPORTER (A)	1
062501006	SCREW 5X10	1
021500106	NUT 5	1
031452206	SCREW 45X22	1
S02786001	THREAD HANGER ASSEMBLY 2	1
S02788001	THREAD HANGER ASSEMBLY 3	1
150145002	THREAD GUIDE HOLDER ASSEMBLY	1
150185002	THREAD GUIDE HOLDER	1
050503006	SCREW 5X30	1
021500106	NUT 5	1
142999001	THREAD GUIDE 5	1
S04109001	THREAD GUIDE SUPPORTER BAR	1
138843001	JOINT	1
014060632	SCREW 6X6	2
S03886001	FULL-SUBMERGED SET	1
153319001	HEAD PLATE SUPPORTER	1
153318101	BOLT 6X55	3
211964001	BOLT 8X55	1
017085502	BOLT 8X55	1
025080236	WASHER 8	15
028080242	SPRING WASHER 2-8	5
021080106	NUT 8	11
S03889001	DUSTER SHOOT SUPPORTER	1
S03890001	DUSTER DROP	1
062681212	SCREW 437X12	6
025680232	WASHER 4.37	6
021680202	NUT 4.37	2

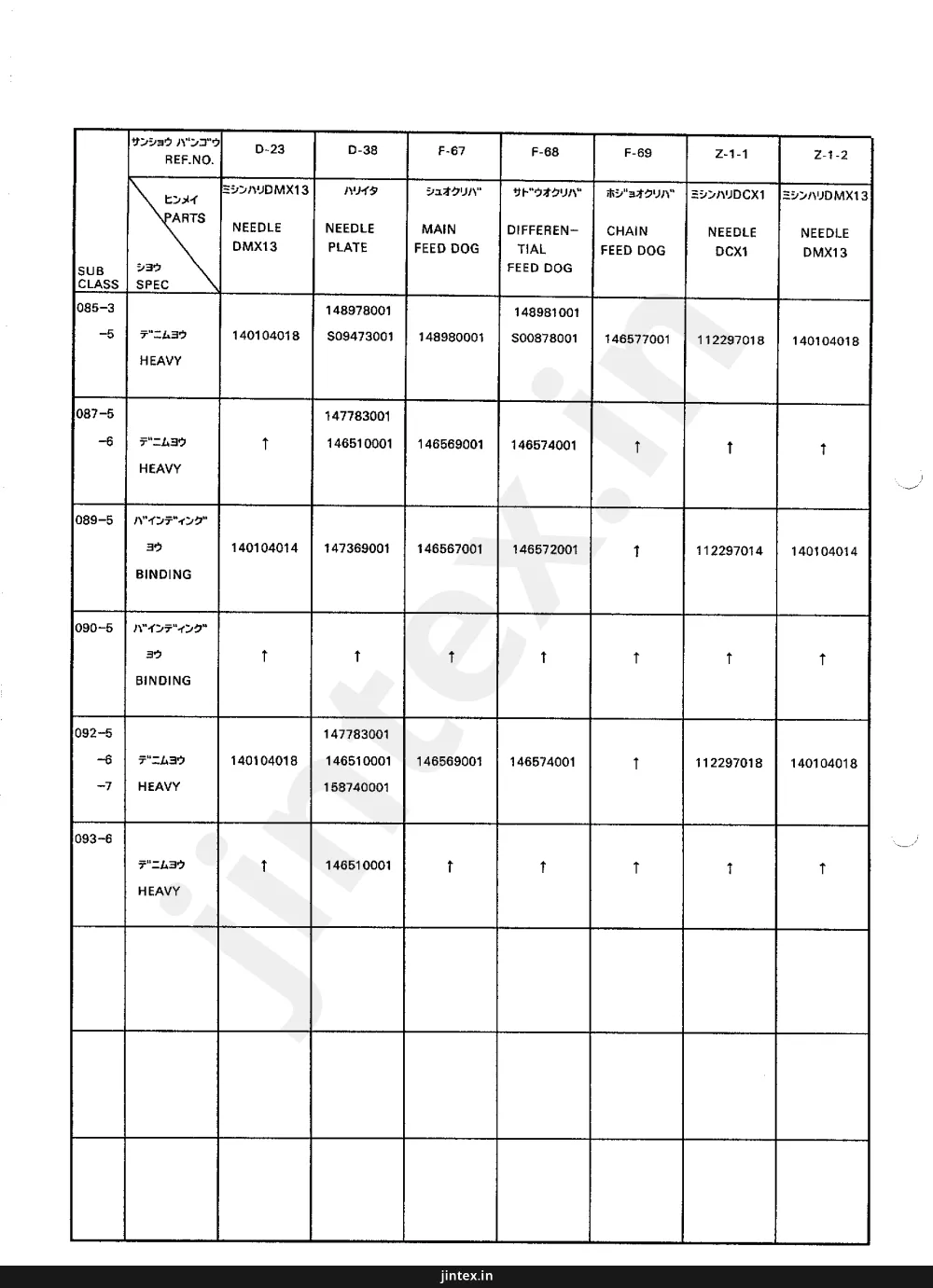

Page 56 — 仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

Brother MA4-B551 parts on page 56
Ref	Part number	Part name
061-3	143196001	イッパンジイヨウ THIN
061-4	146463001	イッパンジイヨウ THIN
A-75	146976081	オイルニカクシグチ OIL HOLE BOLT FOR OIL GAUGE
A-75	146976002	オイルニカクシグチ OIL HOLE BOLT FOR OIL GAUGE
A-75	146976003	オイルニカクシグチ OIL HOLE BOLT FOR OIL GAUGE
A-83	147943001	ルーバパイプチョウセツ LABEL
D-21	146487001	ハりトメメ NEEDLE CLAMP ASSEMBLY
D-22	112297011	ミシンハリDCX1 NEEDLE DCX1
062-3	146464001	イッパンジイヨウ THIN
A-76	146976004	イトトオシセツメイタ THREADING DIAGRAM
063-4	146976007	イッパンジイヨウ THIN MEDIUM
063-3	146463001	イッパンジイヨウ THIN MEDIUM
063-4	146976008	イッパンジイヨウ THIN MEDIUM
063-4	146976009	イッパンジイヨウ THIN MEDIUM
063-4	147943001	イッパンジイヨウ THIN MEDIUM
063-4	146489001	イッパンジイヨウ THIN MEDIUM
063-4	112297014	イッパンジイヨウ THIN MEDIUM
064-4	146464001	イッパンジイヨウ THIN MEDIUM
064-3	146976010	イッパンジイヨウ THIN MEDIUM
064-4	146976011	イッパンジイヨウ THIN MEDIUM
064-4	146976012	イッパンジイヨウ THIN MEDIUM
065-5	146463001	イッパンジイヨウ THICK
065-5	146976013	イッパンジイヨウ THICK
065-6	146976014	イッパンジイヨウ THICK
065-6	147943001	イッパンジイヨウ THICK
065-6	146491001	イッパンジイヨウ THICK
065-6	112297016	イッパンジイヨウ THICK
066-5	146464001	イッパンジイヨウ THICK
066-5	146976016	イッパンジイヨウ THICK
067-5	146463001	ラフラーヨウ RUFFLING
067-4	146976019	ラフラーヨウ RUFFLING
067-5	146976097	ラフラーヨウ RUFFLING
067-5	147943001	ラフラーヨウ RUFFLING
067-5	146487001	ラフラーヨウ RUFFLING
067-5	112297014	ラフラーヨウ RUFFLING
069-5	146976021	ラフラーヨウ RUFFLING
069-5	146489001	ラフラーヨウ RUFFLING
071-6	146976088	ラフラーヨウ RUFFLING
071-6	146976023	ラフラーヨウ RUFFLING
071-6	146491001	ラフラーヨウ RUFFLING

Page 57

Brother MA4-B551 parts on page 57
Ref	Part number	Part name	Qty
	146463001	OIL HOLE BOLT FOR OIL GAUGE
	146976025	LABEL
	147943001	LABEL
	146487001	NEEDLE CLAMP ASSEMBLY
	112297014	NEEDLE DCX1
	146464001	RUFFLING W/PIPING
	146976026	LABEL
	146463001	RUFFLING W/PIPING
	146976027	LABEL
	147943001	LABEL
	146489001	NEEDLE CLAMP ASSEMBLY
	↑	NEEDLE DCX1
	146464001	RUFFLING W/PIPING
	146976028	LABEL
	146463001	RUFFLING W/PIPING
	146976029	LABEL
	151488028	LABEL
	147943001	LABEL
	146491001	NEEDLE CLAMP ASSEMBLY
	↑	NEEDLE DCX1
	143196001	TAPING
	146976032	LABEL
	146487001	NEEDLE CLAMP ASSEMBLY
	112297011	NEEDLE DCX1
	146976037	TAPING
	146976038	TAPING
	↑	NEEDLE CLAMP ASSEMBLY
	146489001	NEEDLE CLAMP ASSEMBLY
	112297014	NEEDLE DCX1
	146976043	TAPING
	146976044	TAPING
	↑	NEEDLE CLAMP ASSEMBLY
	146491001	NEEDLE CLAMP ASSEMBLY
	112297016	NEEDLE DCX1
	146464001	TAPING
	146976047	TAPING
	↑	NEEDLE DCX1

Page 58

Brother MA4-B551 parts on page 58
Ref	Part number	Part name	Qty
	143198001	HEAVY
	146463001	THREADING DIAGRAM
	151488012	LABEL
	147943001	LABEL
	146489001	NEEDLE CLAMP ASSEMBLY
	112297018	NEEDLE DCX1
	146976051	HEAVY
	146491001	↑
	146976069	BINDING
	146489001	↑
	112297014	↑
	146464001	BINDING
	146976098	↑
	↑	↑
	146463001	HEAVY
	146976089	151488019
	147943001	146976090
	146491001	↑
	112297018	↑
	146464001	HEAVY
	146976092	↑
	↑	↑

Page 59

Brother MA4-B551 parts on page 59
Ref	Part number	Part name
-7	143196001	イッパンジメヨウ THIN MEDIUM
A-75	146463001	OIL HOLE BOLT FOR OIL GAUGE
A-76	151488003	THREADING DIAGRAM
A-79	151488002	LABEL
A-82	15147943001	LABEL
A-83	151467001	ルーハイトチョウセツラヘル
D-21	112297011	NEEDLE CLAMP ASSEMBLY
D-22	112297011	NEEDLE DCX1
095-5	156523001	イッパンジメヨウ THIN MEDIUM
A-79	151488015	LABEL
D-21	156500001	NEEDLE CLAMP ASSEMBLY
D-22	112297016	NEEDLE DCX1
096-5	S01796001	バルキーニツトヨウ BULKY NIT
A-79	151488021	LABEL
D-21	S01957001	NEEDLE CLAMP ASSEMBLY
D-22	112297014	NEEDLE DCX1
A-79	151488022	LABEL
D-21	S01945001	NEEDLE CLAMP ASSEMBLY

Page 60

Brother MA4-B551 parts on page 60
Ref	Part number	Part name
D-23	148280001	NEEDLE DMX13
D-38	140104011	イッパンジヌイヨウ THIN
D-38	146498001	NEEDLE PLATE
D-38	146499001	NEEDLE PLATE
D-38	146500001	NEEDLE PLATE
F-67	146567001	MAIN FEED DOG
F-68	146572001	DIFFEREN- TIAL FEED DOG
F-69	146577001	CHAIN FEED DOG
Z-1-1	112297011	NEEDLE DCX1
Z-1-2	140104011	NEEDLE DMX13
D-38	146498001	イッパンジヌイヨウ THIN
D-38	146501001	NEEDLE PLATE
D-38	140104014	イッパンジヌイヨウ THIN MEDIUM
D-38	146502001	NEEDLE PLATE
D-38	146503001	NEEDLE PLATE
D-38	146501001	NEEDLE PLATE
D-38	146502001	NEEDLE PLATE
D-38	146503001	NEEDLE PLATE
D-38	146504001	NEEDLE PLATE
D-38	140104016	イッパンジヌイヨウ THICK
D-38	146505001	NEEDLE PLATE
F-67	146568001	MAIN FEED DOG
F-68	146573001	DIFFEREN- TIAL FEED DOG
Z-1-1	112297016	NEEDLE DCX1
Z-1-2	140104016	NEEDLE DMX13
D-38	146504001	イッパンジヌイヨウ THICK
D-38	S01770001	ラフラーヨウ RUFFLING
D-38	140104014	ラフラーヨウ RUFFLING
F-67	S01771001	MAIN FEED DOG
F-68	S01777001	DIFFEREN- TIAL FEED DOG
F-69	146575001	CHAIN FEED DOG
Z-1-1	146578001	NEEDLE DCX1
Z-1-2	140104014	NEEDLE DMX13
D-38	S01773001	ラフラーヨウ RUFFLING
D-38	S01774001	ラフラーヨウ RUFFLING
F-67	S01775001	MAIN FEED DOG
F-68	S01778001	DIFFEREN- TIAL FEED DOG
F-69	146576001	CHAIN FEED DOG

Page 61

Brother MA4-B551 parts on page 61
Ref	Part number	Part name
073-4	140104014	RUFFLING W/PIPING
D-38	S01770001	NEEDLE PLATE
F-67	S01779001	MAIN FEED DOG
F-68	146575001	DIFFERENTIAL FEED DOG
F-69	146578001	CHAIN FEED DOG
Z-1-1	112297014	NEEDLE DCX1
Z-1-2	140104014	NEEDLE DMX13
D-23	D-23	NEEDLE DMX13
075-5	S01773001	RUFFLING W/PIPING
076-5	S01780001	RUFFLING W/PIPING
077-5	S01774001	RUFFLING W/PIPING
077-5	S01775001	RUFFLING W/PIPING
077-5	S01776001	RUFFLING W/PIPING
077-5	146576001	RUFFLING W/PIPING
079-4	140104011	TAPING
079-4	146499001	TAPING
079-4	146567001	TAPING
079-4	146572001	TAPING
079-4	146577001	TAPING
079-4	112297011	TAPING
079-4	140104011	TAPING
081-3	140104014	TAPING
081-3	146501001	TAPING
081-3	146502001	TAPING
081-3	146503001	TAPING
081-3	112297014	TAPING
081-3	140104014	TAPING
083-5	140104016	TAPING
083-5	146505001	TAPING
083-5	146568001	TAPING
083-5	146573001	TAPING
083-5	112297016	TAPING
083-5	140104016	TAPING
084-6	146505001	TAPING

Page 62

Brother MA4-B551 parts on page 62
Ref	Part number	Part name
-5	140104018	デニムヨウ HEAVY
D-23	148978001	ミシンハリDMX13 NEEDLE DMX13
D-38	S09473001	ハリイタ NEEDLE PLATE
F-67	148980001	シュオクリバ MAIN FEED DOG
F-68	S00878001	サドウオクリバ DIFFEREN- TIAL FEED DOG
F-69	146577001	ホジヨオクリバ CHAIN FEED DOG
Z-1-1	112297018	ミシンハリDCX1 NEEDLE DCX1
Z-1-2	140104018	ミシンハリDMX13 NEEDLE DMX13
-6	147783001	デニムヨウ HEAVY
-6	146510001	デニムヨウ HEAVY
-6	146569001	デニムヨウ HEAVY
-6	146574001	デニムヨウ HEAVY
-6	112297018	デニムヨウ HEAVY
-6	140104018	デニムヨウ HEAVY
089-5	140104014	バインディングヨウ BINDING
089-5	147369001	バインディングヨウ BINDING
089-5	146567001	バインディングヨウ BINDING
089-5	146572001	バインディングヨウ BINDING
089-5	112297014	バインディングヨウ BINDING
089-5	140104014	バインディングヨウ BINDING
-6	140104018	デニムヨウ HEAVY
-6	147783001	デニムヨウ HEAVY
-6	146510001	デニムヨウ HEAVY
-7	158740001	デニムヨウ HEAVY
-7	146569001	デニムヨウ HEAVY
-7	146574001	デニムヨウ HEAVY
-7	112297018	デニムヨウ HEAVY
-7	140104018	デニムヨウ HEAVY
-6	146510001	デニムヨウ HEAVY
-6	146510001	デニムヨウ HEAVY

Page 63

Brother MA4-B551 parts on page 63
Part number	Part name	Qty
151472001	NEEDLE DMX13	140104011
151473001	NEEDLE PLATE	151472001
151468001	MAIN FEED DOG	151473001
151470001	DIFFEREN- TIAL FEED DOG	151468001
146577001	CHAIN FEED DOG	151470001
112297011	NEEDLE DCM1	146577001
140104011	NEEDLE DMX13	112297011
140104011	イッパンジスイヨウ THIN MEDIUM	151472001
156502001	イッパンジスイヨウ THIN MEDIUM	140104016
146568001	イッパンジスイヨウ THIN MEDIUM	156502001
146573001	イッパンジスイヨウ THIN MEDIUM	146568001
112297016	イッパンジスイヨウ THIN MEDIUM	146573001
140104016	イッパンジスイヨウ THIN MEDIUM	112297016
140104014	バルキーニットヨウ BULKY NIT	112297014
S02863001	バルキーニットヨウ BULKY NIT	140104014
S02867001	バルキーニットヨウ BULKY NIT	S02863001
S02865001	バルキーニットヨウ BULKY NIT	S02867001
112297014	バルキーニットヨウ BULKY NIT	S02865001
140104014	バルキーニットヨウ BULKY NIT	112297014
S02864001	バルキーニットヨウ BULKY NIT	↑
S02868001	バルキーニットヨウ BULKY NIT	S02864001
S02866001	バルキーニットヨウ BULKY NIT	S02868001
112297014	バルキーニットヨウ BULKY NIT	S02866001
140104014	バルキーニットヨウ BULKY NIT	↑

Page 64 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother MA4-B551 parts on page 64
Ref	Part number	Part name	Qty
	11229701	Z - 1-1
	S00049001	D - 14-1
	S00878001	G - 1-1
	S01223001	P - 1-1
	S01225001	M - 13-1
	S01248101	E - 35-1-6
	S01295001	E - 35-10-6
	S01295001	E - 35-15-6
	S01295001	E - 35-17-6
	S01295001	E - 35-13-6
	S01297001	P - 32
	S01304001	F - 73
	S01371001	H - 2
	S01371001	E - 35-13-4
	S01371001	E - 35-15-4
	S01371001	E - 35-15-3
	S01371001	E - 35-13-2
	S01371001	E - 35-15-2
	S01371001	E - 35-13-5
	S01371001	E - 35-15-5
	S01371001	E - 35-13-1
	S01371001	E - 35-15-1
	S01371001	E - 35-13-3
	S01374001	N - 19
	S01375001	H - 1-31
	S01375001	H - 1-1-31
	S01652001	D - 14
	S01654000	D - 14-2
	S01756001	P - 30
	S01757001	P - 31-1
	S01758001	D - 41
	S01761001	P - 35-20
	S01761001	P - 31-2
	S01762101	E - 35-19
	S01770001	D - 38
	S01771001	D - 38
	S01773001	D - 38
	S01774001	D - 38
	S01775001	D - 38
	S01776001	F - 67
	S01777001	F - 67
	S01778001	F - 67
	S01779001	F - 67
	S01780001	F - 67
	S01790001	B - 1-2
	S01796001	A - 76
	S01943001	Z - 7
	S01945001	D - 21
	S01947101	D - 24-2
	S01948001	D - 42
	S01950001	E - 35-19-2
	S01950001	E - 35-20-2
	S01951001	E - 35-19-12
	S01951001	E - 35-20-12
	S01957001	D - 21
	S02770101	Z - 42-2
	S02772101	Z - 42-1
	S02773001	Z - 42-1-2
	S02773001	Z - 42-2-1
	S02773001	Z - 42-2-7
	S02778001	Z - 42-1-6
	S02779001	Z - 42-2-8
	S02779001	Z - 42-1-7
	S02779001	Z - 42-1-15
	S02784001	Z - 42-1-11
	S02785001	Z - 42-1-13
	S02786001	Z - 42-1-12
	S02788001	Z - 42-1-14
	S02788001	Z - 42-1-13
	S02863001	Z - 42-2-15
	S02864001	D - 38
	S02865001	D - 38
	S02866001	F - 68
	S02867001	F - 68
	S02868001	F - 67
	S02874001	F - 67
	S03321001	C - 12-1-4
	S03886001	C - 12-2-5
	S03887201	E - 33
	S03888000	A - 62
	S03889001	Z - 27
	S03890001	Z - 68-8
	S04109001	Z - 68-9
	S04109001	Z - 42-1-16
	S04109001	Z - 42-2-18
	S05721003	F - 1-18
	S06294001	N - 6
	S06561001	E - 4
	S06701000	Z - 18
	S06704001	Z - 39
	S07293001	R - 61
	S07848001	B - 1-3
	S09323001	A - 84
	S09456001	D - 46-1
	S09459001	D - 46-2
	S09460001	E - 38
	S09473001	E - 35-19-8
	S09565001	E - 35-20-8
	S10774001	D - 18-2
	S11072001	N - 14-2
	S12677001	F - 8
	013679412	H - 1-2
	013679412	H - 1-1-29
	013719412	H - 1-2-29
	013760612	B - 21
	013761410	M - 10-1
	014060632	B - 18
	014060632	Z - 42-1-18
	014060632	Z - 42-2-20
	014680422	A - 87
	014680422	E - 29
	014680422	M - 14
	014680422	N - 13-1-7
	014680422	N - 15-1-1
	014680422	N - 15-2-1
	014680422	N - 15-3-1
	014770622	P - 26
	014770622	R - 52
	014770622	F - 31
	014770622	P - 1-2
	014770622	P - 5-1
	014770622	Q - 2
	014780622	H - 14-6
	017085502	Z - 68-4
	017771412	F - 36
	017771412	F - 44-2
	017771412	F - 52-1

Page 65

Brother MA4-B551 parts on page 65
Ref	Part number	Part name	Qty
	017771412	G - 11
	017771412	N - 3
	017771612	A - 65
	017771612	D - 2
	017771612	E - 22
	017771612	F - 6
	017771612	F - 61
	017771612	G - 1-5
	017771612	M - 3
	017771612	P - 2
	017771612	P - 9
	017781012	H - 14-10
	017781012	H - 14-13
	017781012	H - 14-4
	018061622	D - 25
	021080106	Z - 33
	021080106	Z - 68-7
	021400106	Z - 21
	021500106	Z - 42-1-11-3
	021500106	Z - 42-1-12-3
	021500106	Z - 42-1-14-3
	021500106	Z - 42-1-4-3
	021500106	Z - 42-1-7-3
	021500106	Z - 42-2-13-3
	021500106	Z - 42-2-16-3
	021500106	Z - 42-2-8-3
	021500106	Z - 42-2-9-3
	021670202	A - 50
	021680202	Z - 68-12
	025030232	E - 35-15-7
	025030232	E - 35-15-7
	025050236	Z - 61-3
	025080236	Z - 59
	025350332	Z - 31
	025350332	Z - 68-5
	025350332	L - 8
	025350332	Q - 3-2
	025680232	Z - 68-11
	025770232	F - 70
	025770232	H - 1-1-8
	025770232	H - 1-2-8
	028050242	J - 1-1-3
	028050242	R - 62
	028050246	Z - 42-1-7-2
	028050246	Z - 42-2-8-2
	028050246	Z - 42-2-9-2
	028080242	Z - 32
	028080242	Z - 68-6
	031311302	Z - 37
	031452206	Z - 42-1-11-4
	031452206	Z - 42-1-12-4
	031452206	Z - 42-1-2-2
	031452206	Z - 42-2-13-4
	031452206	Z - 42-2-2-2
	032422505	H - 17-2
	047140842	A - 28-1-4
	047300842	E - 6
	047301440	N - 13-1-8
	047301440	N - 13-2-6
	047502242	F - 58
	048025342	E - 35-11-6
	048025342	E - 35-12-6
	048025342	E - 35-13-6
	048025342	E - 35-18-6
	048025342	E - 35-19-6
	048025342	E - 35-19-6
	048025342	E - 35-2-6
	048025342	E - 35-20-6
	048025342	E - 35-3-6
	048040342	F - 9
	048040342	E - 19
	048080342	F - 1-12
	048150143	Z - 42-1-7-5
	048150143	Z - 42-2-8-5
	048150143	Z - 42-2-9-5
	048150143	Z - 42-1-14-2
	048150143	Z - 42-1-7-4
	048150143	Z - 42-2-16-2
	048150143	Z - 42-2-8-4
	048150143	Z - 42-2-9-4
	050501406	E - 35-19-3
	050501406	E - 35-20-3
	050503006	R - 57
	050503006	A - 40
	050503006	A - 42
	050503006	H - 1-1-27
	050503006	H - 1-2-27
	060630312	R - 18
	060630312	A - 29
	060630412	D - 27
	060630412	D - 29
	060670512	Z - 42-1-2-1
	060670512	Z - 42-2-2-1
	060670812	Z - 22
	060680512	Z - 42-1-11-2
	060680512	Z - 42-1-12-2
	062060806	Z - 42-2-13-2
	062060806	Z - 42-1-4-1
	062401406	F - 66
	062501006	E - 38
	062501006	M - 5
	062501006	N - 5
	062501006	P - 4
	062501006	R - 16
	062501006	R - 22
	062501006	Z - 50
	062630812	F - 1-8
	062630812	Z - 61-2
	062660412	E - 35-13-8
	062660412	E - 35-15-8
	062660512	E - 35-4-3
	062660512	E - 35-5-3
	062660512	E - 35-6-3
	062660512	E - 35-7-3
	062660512	E - 35-8-3
	062660512	E - 35-9-3
	062660512	F - 44-1-4
	062660512	H - 1-1-14
	062660512	H - 1-2-14
	062660712	A - 28-1-7
	062660712	A - 28-2-7
	062660712	D - 43
	062660712	R - 55
	062660712	L - 2
	062660712	L - 4
	062670412	A - 20
	062670412	A - 26
	062670512	A - 31
	062670512	A - 48
	062670612	A - 61
	062670612	A - 71

Page 66

Brother MA4-B551 parts on page 66
Ref	Part number	Part name
D	062670612	D - 35
F	062670612	F - 11
G	062670612	G - 20
H	062670612	H - 13
Q	062670612	Q - 17
R	062670612	R - 25
R	062670612	R - 28
R	062670612	R - 30
R	062670612	R - 35
R	062670612	R - 39
R	062670612	R - 43
R	062670612	R - 60
B	062670812	B - 5-1
B	062670812	B - 10
D	062670812	D - 6
D	062670812	D - 33
D	062670812	D - 47
F	062670812	F - 19
Q	062670812	Q - 33
G	062671012	G - 9-2
Q	062671012	Q - 3-10
A	062671412	A - 49
D	062671412	D - 45
H	062680612	H - 1-1-25
H	062680612	H - 1-2-25
L	062680612	L - 6
A	062680712	A - 23
A	062680712	A - 52
A	062680712	A - 8
D	062680712	D - 18-1
D	062680712	D - 37
E	062680712	E - 14
F	062680712	F - 30
N	062680712	N - 33
H	062680812	H - 1-1-17
H	062680812	H - 1-2-17
B	062681012	B - 14
C	062681012	C - 2
F	062681012	F - 25
F	062681012	F - 28
H	062681012	H - 17-1
N	062681012	N - 13-1-5
N	062681012	N - 13-2-5
Z	062681212	Z - 55-2
Z	062681212	Z - 68-10
A	062681412	A - 4
E	062711012	E - 34
Q	062711212	Q - 4
N	071023850	N - 6-3
B	072600000	B - 15
F	100025002	F - 1-17
D	100032003	D - 31
J	100080004	J - 1-1-1
K	100136001	K - 1-4
F	100251001	F - 4
C	100257010	C - 13
G	100260001	G - 5
N	100294002	N - 12
F	100366001	F - 56
D	100444002	D - 1-3
D	100444002	D - 7
G	100444002	G - 1-3
J	100447001	J - 1-2
H	100463001	H - 14-8
A	100645003	A - 53
C	100645003	C - 15
F	100645003	F - 24
F	100645003	F - 27
Z	100645003	Z - 55-3
K	101118001	K - 2
Z	101118001	Z - 58
Z	101572101	Z - 5
A	101706001	A - 38-1
F	101706001	F - 34-1
H	101706001	H - 1-1-18-1
H	102424004	H - 1-1-4
H	102538002	H - 1-2-4
Q	102627001	Q - 3-6-1
G	102843004	G - 27-2
B	105079001	B - 6
G	105161004	G - 14
A	105163001	A - 19
D	105234003	D - 17
L	105234003	L - 7
H	105248003	H - 1-1-6
H	105288001	H - 1-2-6
H	105288001	H - 1-1-22
H	105288001	H - 1-2-22
R	105288001	R - 23
E	105343001	E - 35-11-3
E	105343001	E - 35-12-3
E	105343001	E - 35-14-3
E	105343001	E - 35-18-3
E	107093002	E - 35-2-3
E	107093002	E - 35-3-3
E	107093002	E - 35-4-5
E	107093002	E - 35-5-5
E	107244001	E - 35-6-5
E	107244001	E - 35-7-5
E	107244001	E - 35-8-5
E	107407003	E - 35-9-5
Z	107407003	Z - 12
F	107779001	F - 1-1
B	108494001	B - 12
G	108495001	G - 12
G	108960002	G - 27-1
Z	109203001	Z - 10
K	109854001	K - 1-2
K	109854001	K - 1-3
A	110161003	A - 73
A	110161006	A - 67
F	110230001	F - 57
J	110641002	J - 1-1
E	110668001	E - 16
P	110670000	P - 11
H	110672000	H - 1-1-21
H	110673000	H - 1-2-21
A	110704001	A - 66
B	110735002	B - 9
B	110778002	B - 13
B	110793001	B - 16
M	110793001	M - 4
N	110793001	N - 4
L	110793001	L - 10
P	110793001	P - 16
E	110793001	E - 18

Page 67

Brother MA4-B551 parts on page 67
Ref	Part number	Part name	Qty
	110813001	R - 14-1
	110813001	R - 14-2
	110820101	H - 1-1-7
	110820101	H - 1-2-7
	110820101	R - 4-1
	110820101	R - 4-2
	110832001	R - 4-4
	110832001	R - 46
	110832001	R - 5-1
	111486001	R - 5-2
	111486001	D - 24
	112297011	D - 30
	112297014	D - 22
	112297014	Z - 1-1
	112297016	D - 22
	112297016	Z - 1-1
	112297018	D - 22
	112297018	Z - 1-1
	112300001	R - 68
	112301001	R - 70
	112301001	H - 8-5
	112348001	C - 3
	112348001	C - 6
	112348001	C - 9
	112348001	Q - 11
	112348001	Q - 19
	112348001	Q - 22
	112348001	Q - 24
	112359001	C - 4
	112359001	C - 7
	112359001	Q - 8
	112359001	Q - 10
	112364001	C - 4
	112364001	C - 7
	112364001	Q - 25
	112436001	Q - 20
	112436001	Q - 23
	112436001	Q - 9
	112436001	G - 15
	112525000	Z - 4
	112735000	Q - 58
	112751002	Q - 51
	112751002	H - 4
	113431002	Z - 52
	113431002	F - 40
	113431002	F - 76
	113589001	A - 6
	114294001	Q - 37
	116016001	A - 33
	117160001	Z - 13
	117466000	G - 16
	117515001	F - 65
	117516001	G - 17
	117517003	F - 1-16
	118550001	A - 69
	118770001	F - 75
	120990001	P - 19
	122771002	E - 35-11-11
	122771002	E - 35-12-11
	122771002	E - 35-14-11
	122771002	E - 35-18-11
	122771002	E - 35-19-11
	122771002	E - 35-2-11
	122771002	E - 35-20-11
	122991001	E - 35-3-11
	123185001	Z - 25
	126863001	A - 35
	138843001	Z - 42-1-10
	138843001	Z - 42-1-12
	138843001	Z - 42-1-17
	138843001	Z - 42-2-19
	140065001	A - 56
	140066001	A - 55
	140084000	B - 10
	140088001	D - 1-2
	140091000	D - 5
	140092001	D - 6
	140093000	D - 9-2
	140096001	D - 23
	140104011	Z - 1-2
	140104014	D - 23
	140104014	Z - 1-2
	140104016	D - 23
	140104016	Z - 1-2
	140104018	D - 23
	140104018	Z - 1-2
	140150000	P - 13
	140159000	P - 22
	140165001	F - 1-3
	140176001	F - 1-15
	140180001	B - 19
	140187000	F - 18
	140188004	F - 17
	140205001	F - 35
	140207001	F - 20-2
	140208001	F - 20-3
	140209001	F - 20-8
	140210001	F - 20-4
	140217001	F - 20-5
	140232001	G - 1-2
	140233001	G - 1-4
	140235000	G - 6
	140261001	E - 21
	140262000	E - 23
	140263000	E - 24
	140270001	E - 35-12-1
	140270001	E - 35-18-1
	140270001	E - 35-20-1
	140270001	E - 35-3-1
	140270001	E - 35-4-1
	140270001	E - 35-5-1
	140270001	E - 35-6-1
	140270001	E - 35-7-1
	140270001	E - 35-8-1
	140270001	E - 35-9-1
	140271001	E - 35-5-6
	140272001	E - 35-4-7
	140272001	E - 35-5-7
	140272001	E - 35-6-7
	140272001	E - 35-7-7
	140272001	E - 35-8-7
	140272001	E - 35-9-7
	140273001	E - 35-5-8
	140273001	E - 35-6-8
	140273001	E - 35-7-8
	140273001	E - 35-8-8
	140273001	E - 35-9-8

Page 68

Brother MA4-B551 parts on page 68
Ref	Part number	Part name	Qty
	140275001	E - 35-4-10
	140275001	E - 35-5-10
	140275001	E - 35-6-10
	140275001	E - 35-7-10
	140275001	E - 35-8-10
	140275001	E - 35-9-10
	140313001	P - 17
	140317000	Q - 47
	140325001	Q - 15
	140326001	F - 3
	140327001	D - 4
	140327001	F - 14
	140327001	M - 7
	140327001	N - 6-2
	140342001	P - 27
	140415000	Q - 46
	140416000	N - 13-1-4
	140417000	Q - 48
	140418000	Q - 41
	140421001	A - 58
	140759000	Z - 40
	140778101	Q - 18
	140778101	Q - 21
	140779101	Q - 7
	140780101	Q - 6
	140888001	Z - 49
	140991001	E - 35-6-6
	140992001	E - 35-4-11
	140992001	E - 35-5-11
	140992001	E - 35-6-11
	140992001	E - 35-7-11
	140992001	E - 35-8-11
	140992001	E - 35-9-11
	140993001	E - 35-4-9
	140993001	E - 35-5-9
	140993001	E - 35-6-9
	140993001	E - 35-7-9
	140993001	E - 35-8-9
	140993001	E - 35-9-9
	141183000	A - 37
	141514001	H - 11
	141514001	H - 8-2
	142201001	R - 21-2
	142243000	E - 35-1-1
	142243000	E - 35-10-1
	142243000	E - 35-16-1
	142243000	E - 35-17-1
	142244001	E - 35-1-2
	142244001	E - 35-10-2
	142244001	E - 35-16-2
	142245001	E - 35-1-3
	142245001	E - 35-10-3
	142245001	E - 35-16-3
	142246001	E - 35-1-4
	142246001	E - 35-10-4
	142247001	E - 35-1-5
	142247001	E - 35-10-5
	142247001	E - 35-16-5
	142250001	E - 35-17-5
	142262001	Z - 24
	142274001	B - 20
	142669002	R - 36
	142999001	Z - 42-2-17
	143179000	B - 8
	143196001	A - 75
	143311001	B - 2-2
	143312000	B - 3
	143323103	E - 10-1
	143325001	E - 12
	143374001	A - 85
	143564001	F - 37-1
	143565001	F - 41
	143566001	R - 11
	143757001	R - 15-1
	143767002	K - 1
	143980001	K - 1-1
	143992001	A - 9
	144025001	N - 1
	144029000	N - 10
	144031000	N - 10
	144044001	M - 1
	144053001	F - 1-9
	144055001	F - 1-10
	144068001	F - 37-2
	144074000	G - 8-1
	144075001	G - 9-1
	144079001	E - 1
	144081001	E - 3
	144083001	E - 5
	144085001	E - 8
	144086001	E - 9
	144103002	R - 7-1
	144104001	R - 7-2
	144104001	R - 8-1
	144104001	R - 8-3
	144105000	H - 1-1-10
	144105000	H - 1-2-10
	144108001	R - 11
	144110001	R - 49
	144111001	R - 21-1
	144116000	R - 10
	144116000	R - 26
	144117000	C - 12-1-2
	144127001	C - 12-2-2
	144179001	G - 7
	144225002	G - 26-1
	144619000	Z - 41
	144622001	Q - 3-1
	144764001	Q - 3-5
	144775001	H - 1-1-26
	144777001	H - 1-2-26
	144777001	E - 35-5
	144777001	E - 35-4-2
	144777001	E - 35-5-2
	144777001	E - 35-7-2
	144777001	E - 35-8-2
	144777001	E - 35-9-2
	144777001	E - 35-4-4
	144777001	E - 35-5-4
	144777001	E - 35-6-4
	144777001	E - 35-7-4
	144777001	E - 35-8-4
	144777001	E - 35-9-4
	144783001	H - 1-1-12
	144783001	H - 1-2-12
	144784001	H - 1-1-13
	144784001	H - 1-2-13
	144788001	H - 1-1-9
	144788001	H - 1-2-9

Page 69

Brother MA4-B551 parts on page 69
Ref	Part number	Part name	Qty
	144793000	H - 3
	144793000	Z - 51
	145147001	E - 35-11-2
	145147001	E - 35-12-2
	145147001	E - 35-18-2
	145147001	E - 35-2-2
	145147001	E - 35-3-2
	145277105	Z - 19
	145446001	R - 47
	145446001	R - 6-1
	145446001	R - 6-2
	145663001	F - 1-2
	145664000	Q - 32
	145803001	H - 1-1
	145803001	H - 1-2
	145807001	H - 1-1-16
	145807001	H - 1-2-16
	145808001	H - 1-2-24
	145808001	H - 1-2-24
	145809001	H - 5
	145810001	H - 1-1-19
	145810001	H - 1-2-19
	145811001	H - 1-1-23
	145811001	H - 1-2-23
	146315000	A - 57
	146401001	F - 1-4
	146402001	F - 1-5
	146403001	F - 1-6
	146404001	F - 1-7
	146419001	A - 2
	146420000	A - 5
	146421000	A - 7
	146422001	A - 13
	146425001	A - 13
	146426000	A - 14
	146427001	A - 15
	146428001	D - 11
	146428001	D - 21
	146430001	A - 16-1
	146430001	A - 16-3
	146432001	A - 17
	146433000	A - 18
	146434000	A - 21
	146435000	A - 22
	146436001	A - 25
	146440001	A - 28-1
	146440001	A - 28-1-1
	146441000	A - 28-1-2
	146441000	A - 28-2-1
	146442001	A - 28-2-2
	146442001	A - 28-3
	146443001	A - 30
	146444001	A - 32-1
	146449001	A - 39
	146450001	A - 41
	146451001	A - 43
	146452001	A - 44
	146453001	A - 46
	146454001	A - 47
	146455101	A - 51-1
	146457001	A - 60
	146460001	A - 70
	146463001	A - 76
	146464001	A - 76
	146471001	B - 1-1
	146473001	B - 7
	146476101	D - 1
	146478001	D - 1-4
	146479001	D - 3
	146480001	D - 9
	146482001	D - 9-3
	146483001	D - 12
	146487001	D - 21
	146489001	D - 21
	146491001	D - 21
	146493102	D - 24-1
	146494001	D - 26
	146495001	D - 28
	146496301	D - 34
	146497201	D - 36
	146498001	D - 38
	146499001	D - 38
	146500001	D - 38
	146501001	D - 38
	146502001	D - 38
	146503001	D - 38
	146504001	D - 38
	146505001	D - 38
	146510001	D - 38
	14651100	C - 1
	146512101	C - 5
	146515000	C - 8
	146516000	C - 11
	146517100	C - 12-1
	146518100	C - 12-1-1
	146521001	E - 2
	146522001	E - 13-1
	146523001	E - 17
	146524001	E - 20
	146525001	E - 25
	146526001	E - 27
	146527001	E - 28
	146528001	F - 1
	146529001	F - 1-11
	146530001	F - 1-13
	146531001	F - 1-14
	146532001	F - 2
	146533001	F - 5
	146534001	F - 7
	146536001	F - 10
	146537000	F - 12
	146538001	F - 13
	146539000	F - 15
	146540000	F - 16
	146541001	F - 20-1
	146544000	F - 20-1-2
	146547000	F - 29
	146548101	F - 30
	146549001	F - 32
	146550001	F - 44
	146554001	F - 20-6
	146555001	F - 20-7
	146556001	F - 49
	146558001	F - 53
	146559001	F - 54
	146560101	F - 55
	146561001	F - 59-1
	146562001	F - 59-3
	146563001	F - 60
	146564001	F - 62
	146565001	F - 63
	146566001	F - 64
	146567001	F - 67
	146568001	F - 67

Page 70

Brother MA4-B551 parts on page 70
Ref	Part number	Part name	Qty
	146569001	F - 67
	146572001	F - 68
	146573001	F - 68
	146574001	F - 68
	146575001	F - 68
	146576001	F - 68
	146577001	F - 69
	146578001	F - 69
	146580001	G - 4
	146581001	G - 11
	146582001	G - 13
	146583001	G - 18
	146584001	G - 19
	146585001	G - 21
	146586000	G - 22
	146587201	H - 1-1
	146588001	H - 1-1-1
	146589001	H - 1-1-3
	146590001	H - 1-2-5
	146592001	H - 1-1-28
	146594001	H - 1-2-28
	146602001	N - 9-1
	146603301	N - 13-1
	146611301	N - 13-2
	146614001	M - 6
	146615000	M - 8
	146616000	M - 9
	146617001	M - 11
	146618001	P - 1
	146622001	P - 3
	146624101	P - 7
	146626001	P - 8
	146627001	P - 10
	146628001	P - 12
	146629000	P - 14
	146630001	P - 15
	146631001	P - 18
	146632001	P - 20
	146633000	P - 21
	146635001	P - 25
	146636201	Q - 13
	146647001	Q - 1
	146648001	R - 1
	146649001	R - 3-1
	146650001	R - 17
	146652001	R - 31
	146653001	R - 32
	146654001	R - 34
	146656001	R - 40
	146663001	R - 56
	146700001	Z - 8
	146706001	A - 16-2
	146717101	A - 51-2
	146740000	C - 12-2.4
	146742001	F - 59.2
	146793001	R - 15-2
	146865001	E - 35-11-1
	146869001	E - 35-14-1
	146869001	E - 35-19-1
	146869001	E - 35-2-1
	146869001	E - 35-11-8
	146869001	E - 35-12-8
	146869001	E - 35-14-8
	146869001	E - 35-18-8
	146869001	E - 35-2-8
	146869001	E - 35-3-8
	146870001	E - 35-11-10
	146870001	E - 35-12-10
	146870001	E - 35-14-10
	146870001	E - 35-18-10
	146870001	E - 35-19-10
	146870001	E - 35-2-10
	146870001	E - 35-20-10
	146870001	E - 35-3-10
	146871101	E - 35-2
	146878001	E - 35-3
	146880001	E - 35-3.9
	146881001	E - 35-4
	146883001	E - 38-4-6
	146901001	E - 35-6
	146901001	E - 37
	146914001	E - 35-11-9
	146924000	E - 35-12-9
	146925001	E - 35-14-9
	146926002	E - 35-18-9
	146929001	E - 35-2-9
	146930001	E - 35-3-9
	146976001	F - 52
	146976002	A - 32-1-1
	146976003	A - 32-2-1
	146976004	R - 38
	146976007	R - 27
	146976008	R - 29
	146976009	R - 59
	146976010	A - 79
	146976011	A - 79
	146976012	A - 79
	146976013	A - 79
	146976014	A - 79
	146976016	A - 79
	146976019	A - 79
	146976021	A - 79
	146976023	A - 79
	146976025	A - 79
	146976026	A - 79
	146976027	A - 79
	146976028	A - 79
	146976029	A - 79
	146976032	A - 79
	146976037	A - 79
	146976038	A - 79
	146976039	A - 79
	146976043	A - 79
	146976044	A - 79
	146976047	A - 79
	146976051	A - 79
	146976069	A - 79
	146976080	A - 79
	146976081	A - 79
	146976089	A - 79
	146976090	A - 79
	146976092	A - 79
	146976097	A - 79

Page 71

Brother MA4-B551 parts on page 71
Ref	Part number	Part name	Qty
	146976098	A - 79
	147049001	R - 12-1-2
	147049002	R - 12-2-2
	147049003	R - 12-3-1-1
	147049004	R - 12-4-2
	147148001	R - 45
	147149001	R - 48
	147217000	Q - 31
	147318000	Q - 52
	147344001	R - 67-1
	147361000	Q - 53
	147363000	Q - 55
	147367001	A - 32-2
	147369001	D - 38
	147370101	E - 35-14
	147371001	E - 35-14-2
	147373000	L - 1
	147377001	L - 3
	147435001	E - 35-8
	147437001	E - 35-9
	147440000	L - 5
	147454001	E - 13-2
	147488001	E - 35-8-6
	147489001	E - 35-9-6
	147521001	Q - 3
	147523001	Q - 3-4
	147527001	Q - 3-7
	147528100	Q - 3-8
	147529001	Q - 3-9
	147672001	H - 12
	147691000	H - 1-3
	147773001	F - 20-1-1
	147783001	D - 38
	147785001	E - 35-7
	147870001	E - 35-7-6
	147848101	B - 17
	147893003	Z - 20
	147919001	Z - 48-1
	147919002	Z - 48-2
	147933001	H - 1-1-15
	147934001	N - 15-1
	147935001	N - 15-3
	147943001	A - 83
	147950101	E - 35-11
	147988001	P - 5
	148013101	E - 35-15
	148020001	E - 35-15-6
	148033001	N - 6-1
	148034001	N - 6-4
	148042001	Z - 55-1
	148084001	A - 54
	148174000	F - 23
	148280001	D - 38
	148281101	G - 25
	148294001	N - 13-1-2
	148343101	G - 28
	148344001	G - 29
	148345001	G - 26-2
	148348001	Z - 55
	148369101	E - 10-2
	148372001	E - 11
	148379001	N - 13-1-1
	148387001	N - 13-2-1
	148388001	H - 1-2-18
	148389001	H - 8-1
	148390001	H - 8-3
	148391001	H - 8-4
	148395001	H - 10
	148405101	H - 8
	148425001	E - 35-12
	148427001	D - 1-1
	148430101	G - 1-1-1
	148431201	M - 1-1
	148432001	N - 1-1
	148782001	P - 7-1
	148797001	P - 1-1-1
	148798001	G - 1
	148815001	Z - 56-1
	148816001	Z - 56-2
	148834001	M - 15
	148851001	P - 28
	148976088	H - 14-5
	148978001	H - 14-7
	148979101	G - 8-2
	148980001	E - 35-10
	148984001	F - 50
	148997001	R - 8-2
	148999001	A - 79
	149143001	D - 38
	149170001	E - 35-13
	149171001	F - 67
	149173001	F - 68
	149260001	A - 28-1-5
	149261001	A - 28-2-5
	149262001	A - 28-1
	149265001	A - 28-2
	149266001	E - 35-13-6
	149267001	D - 9-1
	149262001	N - 13-1-3
	149265001	N - 13-2-3
	149266001	M - 12
	149267001	P - 24
	149262001	Z - 9
	149265001	E - 35-11-4
	149266001	E - 35-14-4
	149267001	E - 35-2-4
	149262001	E - 35-11-5
	149265001	E - 35-14-5
	149266001	E - 35-19-5
	149267001	E - 35-2-5
	149262001	E - 35-20-7
	149265001	E - 35-3-7
	149266001	E - 35-12-4
	149267001	E - 35-18-4
	149262001	E - 35-3-4
	149265001	E - 35-12-5
	149266001	E - 35-18-5
	149267001	E - 35-20-5
	149262001	E - 35-3-5
	149265001	E - 39

Page 72

Brother MA4-B551 parts on page 72
Ref	Part number	Part name	Qty
	149566001	H - 1-1-11
	149566001	H - 1-2-11
	149566001	R - 12-1-1
	149566001	R - 12-2-1
	149566001	R - 12-3-1-1
	149566001	R - 12-3-2-1
	149566001	R - 12-4-1
	149568001	R - 12-1
	149568002	R - 12-2
	149568003	R - 12-3
	149568004	R - 12-3-2
	149886004	F - 71
	14987001	F - 26
	149886000	F - 26
	150106002	Z - 42-1-4
	150145002	Z - 42-2-4
	150172002	Z - 42-1-14
	150174000	Z - 42-2-16
	150179002	Z - 42-1-3
	150180000	Z - 42-2-3
	150182000	Z - 42-2-5
	150185002	Z - 42-1-7-1
	150188002	Z - 42-2-8-1
	150189002	Z - 42-2-9-1
	150194002	Z - 42-1-8
	150307000	Q - 42
	150550000	Z - 61-1-20
	150553002	H - 1-1-2-20
	150556002	H - 6
	150606001	B - 2-1
	150806001	R - 51
	150807101	R - 53
	150810001	R - 54
	150812001	R - 58
	150813001	R - 63
	151012001	R - 50
	151017001	Z - 61
	151059001	A - 59
	151060000	A - 64
	151461001	E - 35-16
	151462001	E - 35-17
	151464001	E - 35-17-2
	151465001	E - 35-17-3
	151466001	E - 35-17-4
	151467001	D - 21
	151469001	F - 67
	151470001	F - 68
	151472001	D - 38
	151473001	D - 38
	151475000	C - 12-1-3
	151488002	A - 82
	151488003	A - 82
	151488012	A - 82
	151488015	A - 82
	151488018	A - 82
	151488019	A - 82
	151488021	A - 82
	151488022	A - 82
	151488028	A - 82
	151617001	A - 82
	152194001	R - 42
	153318101	A - 28-1-6
	153319001	A - 28-2-6
	153483001	Z - 68-2
	154795001	Z - 68-1
	154829001	E - 15
	154928000	F - 72
	155103001	H - 1-1-30
	155196201	H - 1-2-30
	155197001	A - 34
	155198101	C - 1-1
	155199101	E - 35-19-9
	155201101	E - 35-20-9
	155202001	H - 14
	155203201	H - 14-1
	155205001	H - 14-2
	155262001	H - 14-3
	156065001	H - 14-9
	156069001	H - 14-11
	156500001	H - 14-12
	156502001	H - 15
	156505001	P - 23
	156507001	E - 35-19-4
	156509001	E - 35-20-4
	156511001	D - 21
	156523001	C - 12-2
	158740001	C - 12-2-1
	159101000	E - 35-18
	159475001	R - 3-2
	159476000	R - 67-2
	159574101	A - 76
	159636000	D - 38
	159638001	N - 18
	159639001	F - 20
	159640000	A - 63
	159686001	R - 4-3
	159884101	D - 20
	180323001	D - 16
	181969003	A - 72
	181995001	A - 68
	181995002	N - 15-2
	183161201	M - 13-2
	210973001	M - 10
	211964001	J - 1

Page 73

Brother MA4-B551 parts on page 73
Ref	Part number	Part name	Qty
	142250001	Presser Foot Assembly
	146871101	Presser Foot Assembly
	146874101	Presser Foot Assembly
	146878001	Presser Foot Assembly
	144775001	Presser Foot Assembly
	146881001	Presser Foot Assembly
	146497001	Needle Clamp Assembly
	146489101	Needle Clamp Assembly
	146491101	Needle Clamp Assembly
	146487001	Needle Clamp Assembly
	146489001	Needle Clamp Assembly
	146491001	Needle Clamp Assembly
	148280001	Needle Plate
	146498001	Needle Plate
	146499001	Needle Plate
	146500001	Needle Plate
	146498001	Needle Plate
	146501001	Needle Plate
	146502001	Needle Plate
	146503001	Needle Plate
	146504001	Needle Plate
	146505001	Needle Plate
	S 01770001	Needle Plate
	S 01771001	Needle Plate
	S 01773001	Needle Plate
	S 01774001	Needle Plate
	S 01775001	Needle Plate
	146567001	Main Feed Dog
	146568001	Main Feed Dog
	S 01777001	Main Feed Dog
	S 01778001	Main Feed Dog
	146572001	Differential Feed Dog
	146573001	Differential Feed Dog
	146575001	Differential Feed Dog
	146576001	Differential Feed Dog
	146577001	Chain Feed Dog
	146578001	Chain Feed Dog

Page 74

Brother MA4-B551 parts on page 74
Ref	Part number	Part name	Qty
	073-4	バイビングラフラー用 Ruffling W/Piping
	075-5	バイビングラフラー用 Ruffling W/Piping
	077-5	バイビングラフラー用 Ruffling W/Piping
	079-4	テープ用 Taping
	081-3	テープ用 Taping
	083-5	テープ用 Taping
	084-6	テープ用 Taping
	085-3	デニム用 Heavy
	087-5	デニム用 Heavy
	147785001
	147435001
	147437001
	148816001
	147950001
	148705101
	148013101
	148979101
	146487001
	146489001
	146491001
	146487001
	146489001
	146491001
	146501001
	146499001
	146504001
	146505001
	148978001
	147783001
	S 01770001
	S 01773001
	S 01774001
	S 01779001
	S 01780001
	S 01776001
	146567001
	146568001
	148980001
	146569001
	146575001
	146576001
	146572001
	146573001
	S 00878001
	146574001
	146578001
	146577001

Page 75

Brother MA4-B551 parts on page 75
Ref	Part number	Part name	Qty
	147370101	Presser Foot Assembly
	148013101	Presser Foot Assembly
	151461001	Presser Foot Assembly
	151462001	Presser Foot Assembly
	156507001	Presser Foot Assembly
	S 01762101	Presser Foot Assembly
	S 01759101	Presser Foot Assembly
	145489001	Needle Clamp Assembly
	145491001	Needle Clamp Assembly
	151467001	Needle Clamp Assembly
	156500001	Needle Clamp Assembly
	S 01957001	Needle Clamp Assembly
	S 01945001	Needle Clamp Assembly
	147369001	Needle Plate
	147783001	Needle Plate
	146510001	Needle Plate
	158740001	Needle Plate
	151472001	Needle Plate
	151473001	Needle Plate
	156502001	Needle Plate
	S 02863001	Needle Plate
	S 02864001	Needle Plate
	146567001	Main Feed Dog
	146569001	Main Feed Dog
	151469001	Main Feed Dog
	146568001	Main Feed Dog
	S 02867001	Main Feed Dog
	S 02868001	Main Feed Dog
	146572001	Differential Feed Dog
	146574001	Differential Feed Dog
	151470001	Differential Feed Dog
	146573001	Differential Feed Dog
	S 02865001	Differential Feed Dog
	S 02866001	Differential Feed Dog
	146577001	Chain Feed Dog

Brother MA4-B551 — parts catalog

Page 1

brother MA4-B551 超高速安全縫ミシン HIGH SPEED SAFETY STITCH SEWING MACHINE SICHERHEITS-SCHNELLNÄHMASCHINE MACHINE A POINT DE SURETE A HAUTE VITESS MAQUINA PARA COSTURA DE SEGURIDAD RAPIDA パーツブック PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS P551701 jintex.in

Page 2

jinttex.in jintex.in

Page 3 — パーツブックご利用に際して

パーツブックご利用に際して 1. この本は、この本の表紙(正誤表の挿入されている場合は正誤表)に記載されているものと同じプレートが取り付けられているミシンのためのものです。 2. 標準以外で使用する部品は 067 000 で示します。尚実線内の数字はサブクラスを表わしています。 3. RMKS 欄に※印のついている部品は、相手部品との共合せ加工がなされていますので、相手部品と一緒に、ご注文下さい。 4. 組単位で補給する部品は、(二二)破線で示しております。 5. この本は1988年9月のデータに基づいて作成されたものです。 6. 部品は予告なしに設計変更される場合があります。 7. 部品コード欄が*となっている場合は、仕様別部品一覧表(49ページ)でお調べ下さい。目次 A. フレーム関係 6 B. 駆動軸関係 6 C. 針冷却装置 8 D. 針棒関係 10 E. 押工関係 20 F. 送り関係 24 G. 上メス・下メス関係 26 H. ラフラー装置関係 30 J. ヒモ案内関係 30 K. テープワインダー関係 32 L. ラッパー関係 32 M. 下ルーパ関係 34 N. 上ルーパ関係 36 P. 二重ルーパ関係 38 Q. 給油・潤滑関係 40 R. 糸調子関係 44 Z. 付属部品関係 49 仕様別部品一覧表 57 索引 66 ゲージ部品 jintex.in

Page 4 — Notes for using this parts book

Notes for using this parts book 1. This book is applicable to sewing machines which have the same plate number as shown on the cover of this book (or correction sheet). 2. Non-standard parts are indicated with 067 Numbers inside the line indicate the subclass. 3. An asterisk * in the RMKS indicates a part that is manufactured to fit with a paired part. Be sure to order the pair. 4. Parts supplied as complete assemblies are circled by a dotted line (---). 5. This book was prepared based on information available in September 1988. 6. Parts are subject to changes in design without prior notice. 7. If the symbol * is found in the "Parts No." column, refer to the different parts list on page 49. CONTENTS A. Machine body 2 B. Crank shaft mechanism 6 C. Needle cooler 6 D. Needle bar mechanism 8 E. Presser foot mechanism 10 F. Feed mechanism 20 G. Knife mechanism 24 H. Ruffing attachment 26 J. Gimp guide mechanism 30 K. Tape winder mechanism 30 L. Lapper mechanism 32 M. Under looper mechanism 32 N. Over looper mechanism 34 P. Double chain stitch looper mechanism 36 Q. Lubrication 38 R. Thread tension 40 Z. Accessories 44 DIFFERENT PARTS LIST 49 INDEX 57 GAUGE PARTS 66 jintex.in

Page 5 — INHALTSVERZEICHNIS

Anmerkungen zum Gebrauch dieses Stückliste buches 1. Dieses Buch bezieht sich auf die Nähmaschinen mit derselben Kennungs- nummer wie auf diesem Buchumschlag (oder auf dem Korrekturblatt). 2. Die Sonderteile sind mit 067/000 bezeichnet. 3. Die Nummern im gestrichelten Feld geben die Unterbezeichnung an. 4. Mit einem Asterisk * sind Teile bezeichnet, die nur mit anderen Teilen zusammen verwendet werden können. Sie müssen daher alle zusammengehör- ige Teile miteinander bestellen. 5. Die Teile, die als kompletter Satz geliefert werden, sind mit einer (----) gestrichelten Linie umrandet. 6. Dieses Buch basiert auf den Informationen vom September 1988. 7. Modelländerungen sind vorbehalten. 8. Dieses Zeichen * in der Spalte "Parts No. (Teil-nummer)" verweist auf die Gesonderte Stückliste auf Seite 49. INHALTSVERZEICHNIS A. Maschinengehäuse 2 B. Kurbelwelle 6 C. Nadelkühlungsvorrichtung 6 D. Nadelstangenvorrichtung 8 E. Stoffdrückerfuß 10 F. Transportvorrichtung 20 G. Messer 24 H. Kräuselvorrichtung 26 J. Schnurführung 30 K. Bandaufwickelvorrichtung 30 L. Falz-Mechanismus 32 M. Unterer Greifer 32 N. Oberen Greifer 34 P. Doppelkettstichgreifer 36 Q. Schmierung 38 R. Faderspannung 40 Z. Zubehör 44 ZUBEHÖRLISTE 49 VERZEICHNIS 57 TEILE DER LEHRE 66 jintex.in

Page 6 — TABLE DES MATIERES

Notes sur l'utilisation de ce manuel de pièces détachées 1. Ce manuel est destiné aux machines à coudre ayant le même numéro de plaque montré sur la couverture de ce manuel (ou sur la feuille de corrections). 2. Les pièces non standard sont signalées par l'indication 067 000 Les numéros à l'intérieur du cadre en pointillés indique la sous-classe. 3. Un astérisque * dans le RMKS indique une pièce qui est fabriquée pour correspondre avec une pièce jumelée. S'assurer de commander la pairs. 4. Les pièces fournies en tant qu'assemblages complets sont encadrées avec un trait pointillé (----). 5. Ce manuel a été fait d'après les renseignements valables au mois de Septembre 1988. 6. Les pièces peuvent être sujettes à des modifications sans préavis. 7. Si le symbole * se trouve dans la colonne "Parts No. (N° de pièce)" veuillez la vous référer à la liste de pièces annexe page 49. TABLE DES MATIERES A. Corps de la machine 2 B. Mécanisme du vilebrequin 6 C. Mécanisme du refroidisseur d'aiguille 6 D. Mécanisme de la barre à aiguille 8 E. Mécanisme du pied presseur 10 F. Mécanisme de l'entraînement 20 G. Mécanisme du couteau 24 H. Accessoire pour fronces 26 J. Mécanisme du guide-fil 30 K. Mécanisme de lénrouleur de ruban 30 L. Mécanisme à rabat 32 M. Mécanisme du boucleur inférieur 32 N. Mécanisme du boucleur supérieur 34 P. Mécanisme du boucleur pour point de chaînette double 36 Q. Lubrification 38 R. Tension du fil 40 Z. Accessoires 44 LISTE DES PIECES ACCESSOIRES 49 INDEX 57 PIECES DE JAUG 66 jintex.in

Page 7 — Notas para usar este Libro de Piezas

Notas para usar este Libro de Piezas 1. Este libro sirve para todas les máquinas de coser que llevan la misma placa de identificación que la que se puede ver en la tapa de este libro (o en la hoja de erratas). 2. Las piezas no normales aparecen como Los números dentro del rectángulo punteado indican la subclase. 3. Un asterisco * en el RMKS indica que la pieza forma parte de un par. Se debe hacer el pedido en pares. 4. Las piezas suministradas como conjuntos completos se enmarcan con una línea punteada (---). 5. Este libro ha sido compilado basándose en los datos de que se disponía en Septiembre 1988. 6. Las piezas quedan sujetas a cambios de diseño sin aviso previo. 7. De haber un símbolo * junto al "Parts No. (Número de Pieza)", habrá que mirar la lista de piezas separada de la página 49. INDICE A. Cuerpo de la máquina 2 B. Mecanismo del cigüeñal 6 C. Mecanismo del enfriador de aguja 6 D. Mecanismo del barra de aguja 8 E. Mecanismo del prensa telas 10 F. Mecanismo de la alimentación 20 G. Mecanismo del cuchilla 24 H. Accesorio de fruncido 26 J. Mecanismo guía del hilo 30 K. Mecanismo bobinador de cinta 30 L. Mecanismo de solapado 32 M. Mecanismo del presilladora inferior 32 N. Mecanismo del presilladora superior 34 P. Mecanismo del presilladora de doble cadeneta 36 Q. Lubricación 38 R. Tensión del hilo 40 Z. Accesorios 44 LISTA DE PIEZAS ACCESORIAS 49 INDICE 57 PIEZAS DE CALIBRE 66 jintex.in

Page 8 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina 8 7 9 18 16-1 17 20 73 72 68 55 19 85- 37 38-1 86 41 42 39 40 23 21 22 51-1 53 52 30 31 国内用/FOR DOMESTIC 096 097 51-2 16-2 14 13 15 56 49 50 43 44 46 69 60 71 70 47 48 輸出用/FOR EXPORT 089 090 28-1 28-1-2 28-1-4 28-1-3 28-1-7 28-1-6 28-1-5 28-1-1 28-2 32-2-11 28-2-2 32-2 28-2-4 28-2-1 28-2-3 28-2-7 28-2-6 28-2-5 28-2-1 2 3 5 6 4 Brother 57 58 54 79-82 59 64 67 66 65 63 62 75 25 26 32-1-1 35 34 33 76 83 29 16-3 067 069 071 073 074 075 076 077 jintex.in

Page 9 — A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina

A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 2 146419001 1 クワカバー TOP COVER 3 146420000 1 パッキン PACKING 4 062681412 6 ナベコ437-40X14 SCREW 437X14 5 146421000 1 オイルクチヤツプ CAP FOR OIL FEDDING HOLE 6 113589001 1 オイルマットパツキン PACKING 7 146422001 1 ソクメンカバー COVER FOR NEEDLE DRIVING MECHANISM 8 062680712 6 ナベコ437-40X7 SCREW 437X7 9 143992001 1 ゴムブタ RUBBER CAP 13 146425001 1 メンイタカバ FACE PLATE COVER 14 146426000 1 ヒンジジツク HINGE SHAFT 15 146427001 1 アナトメネジ"3.18クボミ SCREW 3.18 16-1 146428001 1 メンイタクミ FACE PLATE ASSEMBLY 16-2 146706001 1 メンイタクミ 16-3 146430001 1 メンイタクミ FACE PLATE ASSEMBLY 17 146432001 1 トメイタバネ STOPPER SPRING PLATE 18 146433000 1 ハツキン FACE PLATE PACKING 19 102843004 3 サラネジ"3.57 SCREW 3.57 20 062670612 2 ナベコ357-40X6 SCREW 357X6 21 146434000 1 オクリタイカバ COVER FOR FEED MECHANISM 22 146435000 1 ハツキン PACKING 23 062680712 5 ナベコ437-40X7 SCREW 437X7 24 111486001 1 クロスプレートクツシヨン CLOTH PLATE CUSHION 25 146436001 1 ウチカバー INSIDE COVER 26 062670612 2 ナベコ357-40X6 SCREW 357X6 28-1 148997001 1 マエカバークミ FRONT COVER ASSEMBLY 28-1-1 146440001 1 マエカバーヒンジ FRONT COVER HINGE 28-1-2 146441000 1 マエカバーヒンジジツク FRONT COVER HINGE SHAFT 28-1-3 146442001 1 マエカバーバネ FRONT COVER SPRING 28-1-4 047140842 1 スプリングピン1.4X8 SPRING PIN 1.4X8 28-1-5 148984001 1 ヒンジカバー HINGE COVER 28-1-6 152194001 1 ヒンジカバーオサエイタ HINGE COVER PRESSER PLATE 28-1-7 062670412 2 ナベコ357-40X4 SCREW 357X4 28-2 148999001 1 FRONT COVER ASSEMBLY 28-2-1 146440001 1 FRONT COVER HINGE 28-2-2 146441000 1 FRONT COVER HINGE SHAFT 28-2-3 146442001 1 FRONT COVER SPRING 28-2-4 047140842 1 SPRING PIN 1.4X8 28-2-5 148984001 1 HINGE COVER 28-2-6 152194001 1 HINGE COVER PRESSER PLATE 28-2-7 062670412 2 SCREW 357X4 29 060680512 2 ハインド"437-40X5 SCREW 4.37X5 30 146443001 1 マエカバーアンナイイタ FRONT COVER GUIDE PLATE 31 062670612 2 ナベコ357-40X6 SCREW 357X6 32-1 146444001 1 マエカバーサエクミ SUPPORTER FOR FRONT COVER ASSEMBLY 32-1-1 146924000 2 スレッド"ブツシユ THREAD BUSHING 32-2 147367001 1 SUPPORTER FOR FRONT COVER ASSEMBLY 32-2-1 146924000 2 スレッド"ブツシユ THREAD BUSHING 33 117160001 2 サラネジ"4.37 SCREW 4.37 34 154829001 1 マエカバーメイトイタバネ STOPPER SPRING FOR FRONT COVER 35 123185001 1 マルヒラネジ"3.57X4.5 SCREW 3.57X4.5 37 141183000 1 クロスプレートシート CLOTH PLATE SEAT 38 181969003 1 セットカラークミ SET COLLAR ASSEMBLY 38-1 101706001 2 トメネジ"6.35 SCREW 6.35 39 146449001 1 クロスプレートメイタ CLOTH PLATE SUPPORTER 40 060670512 2 ハインド"357-40X5 SCREW 3.57X5 41 146450001 1 クロスプレートメイタ SPRING 42 060670512 2 ハインド"357-40X5 SCREW 3.57X5 43 146451001 1 クロスプレートメテコ CLOTH PLATE LEVER 44 146452001 1 トメテコトツバ SPRING 46 146453001 1 ダインネジ"3.57 STUD SCREW 3.57 47 146454001 1 トメテコストツパ CLOTH PLATE LEVER STOPPER 48 062670612 1 ナベコ357-40X6 SCREW 357X6 jintex.in

Page 10 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina 8 7 9 18 16-1 17 20 73 72 68 19 57 85 37 56 38 38-1 86 41 42 84 39 40 23 21 22 51-1 53 52 30 31 国内用/FOR DOMESTIC 096 097 16-2 14 13 15 55 58 brother 24 69 60 71 70 49 50 43 44 46 47 48 28-1 28-1-2 28-1-3 28-1-7 28-1-6 28-1-5 28-1-11 28-1-4 28-2 32-2-1 32-2 28-2-2 28-2-3 28-2-6 28-2-5 28-2-1 28-2-4 2 3 5 6 4 54 87 79-82 59 67 66 64 62 63 65 75 25 26 32-1 32-1-1 33 34 83 76 29 输出用/FOR EXPORT 089 090 067 069 071 073 074 075 076 077 16-3 jintex.in

Page 11 — A. フレーム関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. フレーム関係/Machine body/Maschinengehäuse/ Corps de la machine/Cuerpo de la máquina REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 49 062671412 1 ナベコ357-40X14 SCREW 357X14 50 021670202 1 ナット 3.57 NUT 3.57 51-1 146455101 1 クロスプレートシタ CLOTH PLATE (LOWER) 51-2 146717101 1 クロスプレートシタ CLOTH PLATE 52 062680712 4 ナベコ437-40X7 SCREW 437X7 53 100645003 4 ザガネ WASHER 54 148084001 1 オイルゲージマド OIL GAUGE WINDOW 55 140066001 2 メクラセン OIL CAP 56 140065001 1 メクラセン OIL CAP 57 146315000 2 メクラセン OIL CAP 58 140421001 2 メクラセン OIL CAP 59 151059001 4 ホンタイシチュウ MACHINE BODY LEG 60 146457001 1 シキリイタ OIL STOPPER PLATE 61 062670612 2 ナベコ357-40X6 SCREW 357X6 62 S03887201 1 アブワク OIL RESERVOIR 63 159476000 4 ザガネ WASHER 64 151060000 1 パッキン PACKING 65 017771612 4 ボルト6.35X16 BOLT 6.35X16 66 110641002 1 ダウンスクリ9.52 STUD SCREW 9.52 67 109203001 1 Oリング O RING 68 159640000 1 フエルト FELT 69 118550001 4 ミゾツキピン DOWEL PIN 70 146460001 1 クロスコレートヌンアンナイL CLOTH GUIDE (LARGE) 71 062670612 2 ナベコ357-40X6 SCREW 357X6 72 159639001 1 クロスコレートヌンアンナイS CLOTH GUIDE (SMALL) 73 108960002 2 サラネジ4.37 SCREW 3.57 75 * 2 オイルニガシグチ OIL HOLE BOLT FOR OIL GAUGE 76 * 1 イトトオシセイメイタ THREADING DIAGRAM 79 * 1 ショウラベ LABEL 82 * 1 ショウラベ LABEL 83 * 1 ルーバイトチョウセツラベ LABEL 84 S09323001 1 クロスコレート CLOTH PLATE 85 143374001 1 クロスコレートササエジク CLOTH PLATE SUPPORTING SHAFT 86 100032003 2 サラネジ4.37 SCREW 4.37 87 014680422 1 アナトメネジ4.37クボミ SCREW 4.37 jintex.in

Page 12

B. 駆動軸関係/Crank shaft mechanism/Kurbelwelle/ Mécanisme du vilebrequin/Mecanismo del cigüeñal 国内用/FOR DOMESTIC 096 097 2-2 1-2 5-2 085 087 092 093 1-3 C. 針冷却装置/Needle cooler/Nadelkühlungsvorrichtung/ Mécanisme du refroidisseur d'aiguille/Mecanismo del enfriador de aguja 2 15 1-1 4 3 5 6 7 12-1-3 12-1-1 12-1-4 13 11 8 9 10 095 096 097 12-2-3 12-2-1 12-2-4 12-2-5 12-1-2 12 2-2 jintex.in

Page 13 — B. 駆動軸関係/Crank shaft mechanism/Kurbelwelle/ Mécanisme du vilebrequin/Mecanismo del cigüeñal C. 針冷却装置/Needle cooler/Nadelkühlungsvorrichtung/ Mecanisme du refroidisseur d'aiguille/Mecanismo del enfriador de aguja

B. 駆動軸関係/Crank shaft mechanism/Kurbelwelle/ M ecanisme du vilebrequin/Mecanismo del cigüeñal REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1-1 146471001 1 クドウジクC CRANK SHAFT (C) ※ 1-2 S01790001 1 クドウジクH ※ 1-3 S07848001 1 クドウジクJ CRANK SHAFT (J) ※ 2-1 150806001 1 ベアリングフタ BEARING CAP 2-2 143311001 1 ベアリングフタ BEARING CAP PACKING 3 143312000 1 ベアリングフタパッキン BEARING 6000 4 072600000 1 タマシジクク6000 SCREW 357X8 5-1 062670812 2 ナベコ357-40X8 SCREW 357X8 5-2 062670812 3 ナベコ357-40X8 SCREW 3.57 6 102538002 1 サラネジ"3.57 CRANK SHAFT BUSHING (LEFT) ASSEMBLY 7 146473001 1 クドウジクメタルLクミ CRANK SHAFT BUSHING (MIDDLE) ASSEMBLY 8 143179000 1 クドウジクメタルMクミ SCREW 4.76 9 110668001 1 シメネジ"4.76 OIL REJECTOR 10 140084000 1 オイルギリ BEARING COVER 11 110673000 1 ベアリングカバー SCREW 3.18 12 107244001 4 サラネジ"3.18 BEARING CASE 13 110670000 1 ベアリングケース SCREW 437X10 14 062681012 4 ナベコ437-40X10 BEARING 6001 15 072600100 2 タマシジクク6001 THRUST WASHER 16 110672000 1 ベアリングカラー PULLEY 17 147848101 1 プーリー SCREW 5.95 18 013761410 2 トメネジ"5.95クボミ CAP SCREW 19 140180001 1 プーリオサネジ" OIL CAP 20 142274001 1 メクラセン SCREW 4.76 21 013719412 2 トメネジ"4.76クボミ ※クドウジクCクミ B-1-1 146917-001 ※ Crank Shaft (C) Assembly B-1-1 146917-001 ※クドウジクHクミ B-1-2, D-1, M-1, N-1 1501789-001 ※ Crank Shaft (H) Assembly B-1-2, D-1, M-1, N-1 S01789-001 ※クドウジクJクミ B-1-3 S07847-001 ※ Crank Shaft (J) Assembly B-1-3 S07847-001 C. 針冷却装置/Needle cooler/Nadelkühlungsvorrichtung/ M ecanisme du refroidisseur d'aiguille/Mecanismo del enfriador de aguja REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 146511100 1 エキレイタンククミ SILICONE OIL TANK ASSEMBLY 1-1 154928000 1 ハリイトレイヤクタンクフタ NEEDLE THREAD COOLER TANK COVER 2 062681012 1 ナベコ437-40X10 SCREW 437X10 3 112348001 2 パッキン PACKING 4 112359001 1 ハイユパイプツキ"テネシ" SCREW 5 146512101 1 ビニルチユーブクミ VINYL TUBE ASSEMBLY 6 112348001 4 パッキン PACKING 7 112359001 2 ハイユパイプツキ"テネシ" SCREW 8 146515000 1 ハイユパイプツキ"テ OIL FEEDING PIPE CONNECTOR 9 112348001 2 パッキン PACKING 10 112359001 1 ハイユパイプツキ"テネシ" SCREW 11 146516000 2 パイプシ"ジョイント PIPE JOINT 12-1 146517100 1 フエルトササエミ FELT HOLDER ASSEMBLY 12-1-1 146518100 1 フエルトササエミ FELT HOLDER 12-1-2 144116000 1 フエルト FELT 12-1-3 151475000 1 フエルトS FELT (SMALL) 12-1-4 S02874001 1 ムシピン PIN 12-2 156505000 1 フエルトササエミ FELT HOLDER ASSEMBLY 12-2-1 156506000 1 フエルトササエミ FELT HOLDER 12-2-2 144116000 1 フエルト FELT 12-2-3 151475000 1 フエルトS FELT (SMALL) 12-2-4 146740000 1 フエルトS FELT (SMALL) 12-2-5 S02874001 1 ムシピン PIN 13 100257010 2 シメネジ"3.57 SCREW 3.57 15 100645003 1 ザガネ WASHER jintex.in

Page 14 — D. 針棒関係/Needle bar mechanism/Nadelstangenvorrichtung/Mécanisme de la barre à aiguille/Mecanismo del barra de aguja

D. 針棒関係/Needle bar mechanism/Nadelstangenvorrichtung/ Mécanisme de la barre à aiguille/Mecanismo del barra de aguja 14-2 14-1 19 9-1 9-3 8 6 7 1-2 1-3 1-4 2 3 6 7 5 4 1-1 12 18-2 16 17 18-1 21 21-1 22 23 29 28 24-1 26 30 27 31 38 国内用/FOR DOMESTIC 095 096 097 24-2 25 41 35 34 42 43 36 37 095 096 097 32 33 44 45 46-1 47 46-2 jintex.in

Page 15 — D. 針棒関係/Needle bar mechanism/Mécanisme de la barre à aiguille/Nadelstangenvorrichtung/Mecanismo del barra de aguja

D. 針棒関係/Needle bar mechanism/Mécanisme de la barre à aiguille/Nadelstangenvorrichtung/Mecanismo del barra de aguja REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 146476101 1 ハリボウクランクツトクミ NEEDLE ARM DRIVING CRANK ROD ASSEMBLY ※ 1-1 148425001 2 アナボルト4.37X14 BOLT 4.37X14 1-2 140088001 1 クランクツト"ピン PIN 1-3 100366001 1 マルヒラトメネジ4.37 SCREW 4.37 1-4 146478001 1 ハリボウクランクジクウデ NEEDLE ARM DRIVING LEVER 2 017771612 1 ボルト6.35X16 BOLT 6.35X16 3 146479001 1 ハリボウクランクジク NEEDLE BAR CRANK SHAFT 4 140091000 1 ゴムセン OIL CAP 5 140092001 1 クランクジクメタルR NEEDLE SHAFT BUSHING (RIGHT) 6 140092001 2 セットカラー SET COLLAR 7 100366000 4 マルヒラトメネジ4.37 SCREW 4.37 8 140093000 1 クランクジクメタルL NEEDLE SHAFT BUSHING (LEFT) 9 146480001 1 ハリボウウデキクミ NEEDLE BAR CLAMP ASSEMBLY 9-1 149170001 1 ボルト6.35X16 BOLT 6.35X16 9-2 140096001 1 ハリボウウツキテ NEEDLE BAR CONNECTOR 9-3 146482001 1 ハリボウウタキ NEEDLE BAR CLAMP 10 062670812 1 ナベコ357-40X8 SCREW 357X8 11 146427001 1 アナトメネジ3.18クボミ SCREW 3.18 12 146483001 1 ハリボウ NEEDLE BAR 14 S01652001 1 シメネジクミ SCREW ASSEMBLY 14-1 S00049001 1 シメネジ8.73 SCREW 8.73 14-2 S01654000 1 パツキン PACKING 16 159638001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 17 105079001 1 ハリボウアンナイ NEEDLE BAR GUIDE 18-1 062680712 1 ナベコ437-40X7 SCREW 437X7 18-2 S10774001 1 ナベコ437-40X7 SCREW 437X7 19 S01417001 1 ハリボウメタルU NEEDLE BAR BUSHING (UPPER) 20 159636000 1 ハリボウメタルD NEEDLE BAR BUSHING (LOWER) 21 * 1 ハリトメネジ NEEDLE CLAMP ASSEMBLY 21-1 146427001 2 アナトメネジ3.18クボミ SCREW 3.18 22 * 1 ミシンハツドCX1 NEEDLE DMX1 23 * 1 ミシンハツドDMX13 NEEDLE DMX13 24-1 146493102 1 ハリイタササエダイ NEEDLE PLATE SUPPORT BRACKET 24-2 S01947101 1 ハリイタササエダイ 25 018061622 2 アナボルト6X16 BOLT 6X16 26 146494001 1 ハリイタササエタF NEEDLE PLATE SUPPORTER (FRONT) 27 060680512 2 ハバトメネジ437-40X5 SCREW 4.37X5 28 146495001 1 ハリイタササエタB NEEDLE PLATE SUPPORTER (REAR) 29 060680512 2 ハバトメネジ437-40X5 SCREW 4.37X5 30 111486001 1 クロスプレートクツシヨン CLOTH PLATE CUSHION 31 100032003 2 サラネジ4.37 SCREW 4.37 32 144127001 1 イトウハリウクA MOVABLE NEEDLE GUARD (A) 33 062670812 2 ナベコ357-40X8 SCREW 357X8 34 146496301 1 ニジユウカンハツケF DOUBLF CHAIN STITCH NEEDLE GUARD (FRONT) 35 062670612 1 ナベコ357-40X6 SCREW 357X6 36 146497201 1 ニジユウカンハツケB DOUBLE CHAIN STITCH NEEDLE GUARD (REAR) 37 062680712 1 ナベコ437-40X7 SCREW 437X7 38 * 1 ハリイタ NEEDLE PLATE 41 S01758001 1 タンカンハツケ 42 S01948001 1 ハリウクトツケケタ 43 062670412 1 ナベコ357-40X4 44 S09456001 1 ハリウクトダイクミ NEEDLE GUIDE BRACKET ASSEMBLY 45 062671412 2 ナベコ357-40X14 SCREW 357X14 46-1 S09459001 1 オーパーハリウケF NEEDLE GUARD (FRONT) 46-2 S09460001 1 オーパーハリウケF NEEDLE GUARD (FRONT) 47 062670812 1 ナベコ357-40X8 SCREW 357X8 ※クドウジクCクミ B-1-1 146917-001 ※ Crank Shaft (C) Assembly ※クドウジクHクミ B-1-2, D-1, M-1, N-1 S01789-001 ※ Crank Shaft (H) Assembly ※クドウジクJクミ B-1-3 S07847-001 ※ Crank Shaft (J) Assembly jintex.in

Page 16 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas 1 6 4 5 8 9 2 27 28 29 25 30 33 34 11 10-1 12 17 18 19 23 20 21 22 13-1 15 16 14 13-2 079 081 083 084 096 097 37 38 085 087 092 093 39 輸出用/FOR EXPORT 067 069 071 073 10-2 074 075 076 077 jintex.in

Page 17 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 144079001 1 オサエヨウセツネシ PRESSER ADJUSTING SCREW 2 140673001 1 オサエボウ PRESSER BAR 3 144081001 1 オサエハネ PRESSER SPRING 4 S06561001 1 オサエアゲアゲ PRESSER BAR LIFTER 5 144083001 1 オサエアゲアゲザ PRESSER BAR LIFTER BASE 6 047300842 1 スプリングピンAW3 SPRING PIN AW3 8 144085001 1 オサエボウアゲ PRESSER BAR LIFTER SHAFT 9 144086001 1 オサエボウアゲハネ PRESSER BAR LIFTER SPRING 10-1 143323103 1 オサエアシグレバー PRESSER FOOT LIFTER LEVER 10-2 148369101 1 PRESSER FOOT LIFTER LEVER 11 148372001 1 ダンネジ7.94 STUD SCREW 7.94 12 143325001 1 オサエアシグレバーハネ SPRING 13-1 146522001 1 レバーアジャスティングプレ LEVER ADJUSTING PLATE 13-2 147454001 1 LEVER ADJUSTING PLATE 14 062680712 2 ナベコ437-40X7 SCREW 437X7 15 153483001 2 トメネジ4.76 SCREW 4.76 16 110161006 2 ナット4.76 NUT 4.76 17 146523001 1 オサエアゲリンク PRESSER FOOT LIFTER LINK 18 110793001 1 フリピン PIN 19 048080342 1 トメワE8 STOP RING E8 20 146524001 1 オサエアシアゲ"M"レバー PRESSER FOOT LIFTER INSIDE LEVER 21 140001001 1 セットカラー SET COLLAR 22 017771612 1 ボルト6.35X16 BOLT 6.35X16 23 140262000 1 オサエウデジクメタルR PRESSER ARM SHAFT BUSHING (RIGHT) 24 140263000 1 オサエウデジクメタルL PRESSER ARM SHAFT BUSHING (LEFT) 25 146525001 1 オサエウデジク PRESSER ARM SHAFT 27 146526001 1 シュオサエウデ MAIN PRESSER ARM 28 146527001 1 オサエウデヒン PIN FOR PRESSER ARM SHAFT 29 014680422 1 アナトメネジ4.37クボミ SCREW 4.37 30 062680712 1 ナベコ437-40X7 SCREW 437X7 33 S03321001 1 オサエウデストツパ PRESSER ARM STOPPER 34 062711012 1 ナベコ476-32X10 SCREW 476X10 37 146883001 1 テープアンナイ TAPE GUIDE 38 062660412 2 ナベコ318-40X4 SCREW 318X4 39 149267001 1 デニウムオサエイタハネ SPRING PLATE

Page 18 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas 061 062 35-1 063 064 35-2 -6 -2 -3 -5 -1 -8 -9 -10-11 -7 -2 -3 -1 065 066, 087 国内のみ ONLY FOR EXPORT 35-3 35-4 067 -6 -5 -10-11 -8 -9 -7 -1 -6 -5 -10 -8 -9 -11 -7 -5 -4 -3 -2 -1 069 35-5 -9 -11 -10 -6 -7 -5 -4 -3 -2 -1 jintex.in

Page 19 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ M ecanisme du pied presseur/Mecanismo del prensa telas REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 35-1 142250001 1 オサエニクミ <061,062> PRESSER FOOT ASSEMBLY (2C) <061,062> 35-1-1 142243000 1 オサエニクミ PIN 35-1-2 1422440001 1 ツツ3C STITCH TONGUE (3C) 35-1-3 142245001 1 オサエF3C CHIP GUARD (FRONT) (3C) 35-1-4 142246001 1 オサエネシﾘﾊﾞﾈ3C SPRING (3C) 35-1-5 142247001 1 タンネジ STUD SCREW 35-1-6 S01295001 2 シメネジ2.38X3.5 SCREW 2.38X3.5 35-2 146871101 1 オサエニクミ <063,064> PRESSER FOOT ASSEMBLY <063,064> 35-2-1 146865001 1 オサエシタサネジ SCREW 35-2-2 145147001 1 オサエF PRESSER FOOT (FRONT) 35-2-3 105288001 1 シメネジ2.38 SCREW 2.38 35-2-4 149260001 1 オサエB PRESSER FOOT (REAR) 35-2-5 149261001 1 オサエFシタサネジ SCREW 35-2-6 048025342 1 トメワE2.5 STOP RING E2.5 35-2-7 149262001 1 マルナット3.18 NUT 3.18 35-2-8 146869001 1 オサエFシタサネジリハネ SPRING 35-2-9 146901001 1 ダンネジ3.18 STUD SCREW 3.18 35-2-10 146870001 1 オサエBオシバネ SPRING 35-2-11 122771002 1 シメネジ2.38 SCREW 2.38 35-3 146874101 1 オサエニクミ PRESSER FOOT ASSEMBLY <065,066,087> <065,066> 35-3-1 140270001 1 オサエFシタサネジ SCREW 35-3-2 145147001 1 オサエF PRESSER FOOT (FRONT) 35-3-3 105288001 1 シメネジ2.38 SCREW 2.38 35-3-4 149265001 1 オサエB PRESSER FOOT (REAR) 35-3-5 149266001 1 オサエBサネジ SCREW 35-3-6 048025342 1 トメワE2.5 STOP RING E2.5 35-3-7 149262001 1 マルナット3.18 NUT 3.18 35-3-8 146869001 1 オサエFシタサネジリハネ SPRING 35-3-9 146901001 1 ダンネジ3.18 STUD SCREW 3.18 35-3-10 146870001 1 オサエBオシバネ SPRING 35-3-11 122771002 1 シメネジ2.38 SCREW 2.38 35-4 146878001 1 オサエニクミ <067> PRESSER FOOT ASSEMBLY <067> 35-4-1 140270001 1 オサエFシタサネジ SCREW 35-4-2 144777001 1 オサエU PRESSER FOOT (UPPER) 35-4-3 062660712 1 ナベコ318-40X7 SCREW 318X7 35-4-4 144778001 1 オサエF PRESSER FOOT (FRONT) 35-4-5 105288001 1 シメネジ2.38 SCREW 2.38 35-4-6 146880001 1 オサエB PRESSER FOOT (REAR) 35-4-7 140270001 1 オサエFシタサネジ SCREW 3.18 35-4-8 140273001 1 オサエBマルナット NUT 35-4-9 140993001 1 オサエFネシﾘﾊﾞﾈ SPRING 35-4-10 140275001 1 オサエBネシﾘﾊﾞﾈ SPRING 35-4-11 140992001 1 オサエFハネカケネジ SET SCREW 35-5 144775001 1 オサエニクミ <069> PRESSER FOOT ASSEMBLY (E) <069> 35-5-1 140270001 1 オサエFシタサネジ SCREW 35-5-2 144777001 1 オサエU PRESSER FOOT (UPPER) 35-5-3 062660712 1 ナベコ318-40X7 SCREW 318X7 35-5-4 144778001 1 オサエF PRESSER FOOT (FRONT) 35-5-5 105288001 1 シメネジ2.38 SCREW 2.38 35-5-6 140271001 1 オサエB PRESSER FOOT (REAR) 35-5-7 140273001 1 オサエBマルナット SCREW 3.18 35-5-8 140993001 1 オサエFネシﾘﾊﾞﾈ NUT 35-5-9 140993001 1 オサエBネシﾘﾊﾞﾈ SPRING 35-5-10 140275001 1 オサエFハネカケネジ SPRING 35-5-11 140992001 1 オサエFハネカケネジ SET SCREW jintex.in

Page 20 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ M ecanisme du pied presseur/Mecanismo del prensa telas 071 35-6 073 074 35-7 -8-10 -9 -11 -6 -7 -5 -4 -3 -2 -1 075 076 35-8 -8-10 -9 -11 -6 -7 -5 -4 -3 -2 -1 077 35-9 -8-10 -9 -11 -6 -7 -5 -4 -3 -2 -1 079 35-10 -6 -2 -3 -5 -1 jintex.in

Page 21 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 35-6 146881001 1 オサエクレ <071> PRESSER FOOT ASSEMBLY <071> 35-6-1 140270001 1 オサエFシタササエネシ SCREW 35-6-2 144777001 1 オサエU PRESSER FOOT (UPPER) 35-6-3 062660712 1 ナベコ318-40X7 SCREW 318X7 35-6-4 144778001 1 オサエF PRESSER FOOT (FRONT) 35-6-5 105288001 1 シメネジ"2.38 SCREW 2.38 35-6-6 140991001 1 オサエB PRESSER FOOT (REAR) 35-6-7 140272001 1 シメネジ"3.18 SCREW 3.18 35-6-8 140273001 1 オサエBマルナット NUT 35-6-9 140993001 1 オサエFネジナリバネ SPRING 35-6-10 140275001 1 オサエBネジナリバネ SPRING 35-6-11 140992001 1 オサエFハネカケネジ SET SCREW 35-7 147785001 1 オサエクレ <073,074> PRESSER FOOT ASSEMBLY <073,074> 35-7-1 140270001 1 オサエFシタササエネシ SCREW 35-7-2 144777001 1 オサエU PRESSER FOOT (UPPER) 35-7-3 062660712 1 ナベコ318-40X7 SCREW 318X7 35-7-4 144778001 1 オサエF PRESSER FOOT (FRONT) 35-7-5 105288001 1 シメネジ"2.38 SCREW 2.38 35-7-6 147787001 1 オサエB PRESSER FOOT (REAR) 35-7-7 140272001 1 シメネジ"3.18 SCREW 3.18 35-7-8 140273001 1 オサエBマルナット NUT 35-7-9 140993001 1 オサエFネジナリバネ SPRING 35-7-10 140275001 1 オサエBネジナリバネ SPRING 35-7-11 140992001 1 オサエFハネカケネジ SET SCREW 35-8 147435001 1 オサエクレ <075,076> PRESSER FOOT ASSEMBLY <075,076> 35-8-1 140270001 1 オサエFシタササエネシ SCREW 35-8-2 144777001 1 オサエU PRESSER FOOT (UPPER) 35-8-3 062660712 1 ナベコ318-40X7 SCREW 318X7 35-8-4 144778001 1 オサエF PRESSER FOOT (FRONT) 35-8-5 105288001 1 シメネジ"2.38 SCREW 2.38 35-8-6 147488001 1 オサエB PRESSER FOOT (REAR) 35-8-7 140272001 1 シメネジ"3.18 SCREW 3.18 35-8-8 140273001 1 オサエBマルナット NUT 35-8-9 140993001 1 オサエFネジナリバネ SPRING 35-8-10 140275001 1 オサエBネジナリバネ SPRING 35-8-11 140992001 1 オサエFハネカケネジ SET SCREW 35-9 147437001 1 オサエクレ <077> PRESSER FOOT ASSEMBLY <077> 35-9-1 140270001 1 オサエFシタササエネシ SCREW 35-9-2 144777001 1 オサエU PRESSER FOOT (UPPER) 35-9-3 062660712 1 ナベコ318-40X7 SCREW 318X7 35-9-4 144778001 1 オサエF PRESSER FOOT (FRONT) 35-9-5 105288001 1 シメネジ"2.38 SCREW 2.38 35-9-6 147489001 1 オサエB PRESSER FOOT (REAR) 35-9-7 140272001 1 シメネジ"3.18 SCREW 3.18 35-9-8 140273001 1 オサエBマルナット NUT 35-9-9 140993001 1 オサエFネジナリバネ SPRING 35-9-10 140275001 1 オサエBネジナリバネ SPRING 35-9-11 140992001 1 オサエFハネカケネジ SET SCREW 35-10 148816001 1 オサエクレ <079> PRESSER FOOT ASSEMBLY <079> 35-10-1 142243000 1 オサエヒン PIN 35-10-2 142244001 1 ツメ3C STITCH TONGUE (3C) 35-10-3 142245001 1 オサエIF3C CHIP GUARD (FRONT) (3C) 35-10-4 142246001 1 オサエネジナリバネ3C SPRING (3C) 35-10-5 142247001 1 ダンネジ STUD SCREW 35-10-6 S01295001 2 シメネジ"2.38X3.5 SCREW 2.38X3.5 jintex.in

Page 22 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas 081 35-11 083 084 35-12 -10-11 -8 -9 -6 -5 -4 -7 -3 -2 -1 085 35-13 -1 -5 -5 -2 -4 -3 -6 -7 -8 -9 -10-11 089 090 35-14 -1 -5 -4 -2 -3 -6 -7 -8 -9 087 輸出のみ ONLY FOR EXPORT 092 093 35-15 jintex.in

Page 23 — E. 押二関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押二関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 35-11 147950001 1 オサエクレ <081> PRESSER FOOT ASSEMBLY <081> 35-11-1 146865001 1 オサエFシタササエネジ SCREW 35-11-2 145147001 1 オサエF PRESSER FOOT (FRONT) 35-11-3 105288001 1 シメネジ 2.38 SCREW 2.38 35-11-4 149260001 1 オサエB PRESSER FOOT (REAR) 35-11-5 149261001 1 オサエBササエネジ SCREW 35-11-6 048025342 1 トメワE2.5 STOP RING E2.5 35-11-7 149262001 1 マルナット3.18 NUT 3.18 35-11-8 146869001 1 オサエFシタササエネジリバネ SPRING 35-11-9 146901001 1 ダシネジ 3.18 STUD SCREW 3.18 35-11-10 146870001 1 オサエBオシバネ SPRING 35-11-11 122771002 1 シメネジ2.38 SCREW 2.38 35-12 148405101 1 オサエクレ <083,084> PRESSER FOOT ASSEMBLY <083,084> 35-12-1 140270001 1 オサエFシタササエネジ SCREW 35-12-2 145147001 1 オサエF PRESSER FOOT (FRONT) 35-12-3 105288001 1 シメネジ 2.38 SCREW 2.38 35-12-4 149260001 1 オサエB PRESSER FOOT (REAR) 35-12-5 149261001 1 オサエBササエネジ SCREW 35-12-6 048025342 1 トメワE2.5 STOP RING E2.5 35-12-7 149262001 1 マルナット3.18 NUT 3.18 35-12-8 146869001 1 オサエFシタササエネジリバネ SPRING 35-12-9 146901001 1 ダシネジ 3.18 STUD SCREW 3.18 35-12-10 146870001 1 オサエBオシバネ SPRING 35-12-11 122771002 1 シメネジ2.38 SCREW 2.38 35-13 148979101 1 オサエクレ <085> PRESSER FOOT ASSEMBLY <085> 35-13-1 S01375001 3 オサエヒンジジク HINGE SHAFT 35-13-2 S01373001 1 オサエIFBササエ PRESSER FOOT SUPPORTER (FRONT,REAR) 35-13-3 S01385001 1 オサエFシタササエ PRESSER FOOT LOWER SUPPORTER (FRONT) 35-13-4 S01371001 1 オサエB PRESSER FOOT (REAR) 35-13-5 S01374001 3 トメネジ 2.38 クボミ SCREW 2.38 35-13-6 149143001 1 オサエF PRESSER FOOT (FRONT) 35-13-7 025030232 1 ヒラザガネチユウ3 WASHER 3 35-13-8 062660612 1 ナベコ318-40X6 SCREW 318X6 35-14 147370101 1 オサエクレ <089,090> PRESSER FOOT ASSEMBLY <089,090> 35-14-1 146865001 1 オサエFシタササエネジ SCREW 35-14-2 14737001 1 オサエF PRESSER FOOT (FRONT) 35-14-3 105288001 1 シメネジ 2.38 SCREW 2.38 35-14-4 149260001 1 オサエB PRESSER FOOT (REAR) 35-14-5 149261001 1 オサエBササエネジ SCREW 35-14-6 048025342 1 トメワE2.5 STOP RING E2.5 35-14-7 149262001 1 マルナット3.18 NUT 3.18 35-14-8 146869001 1 オサエFシタササエネジリバネ SPRING 35-14-9 146901001 1 ダシネジ 3.18 STUD SCREW 3.18 35-14-10 146870001 1 オサエBオシバネ SPRING 35-14-11 122771002 1 シメネジ2.38 SCREW 2.38 35-15 148013101 1 オサエクレ <092,093> PRESSER FOOT ASSEMBLY <092,093,087> 35-15-1 S01375001 3 オサエヒンジジク HINGE SHAFT 35-15-2 S01373001 1 オサエIFBササエ PRESSER FOOT SUPPORTER (FRONT,REAR) 35-15-3 S01372001 1 オサエFシタササエ PRESSER FOOT LOWER SUPPORTER (FRONT) 35-15-4 S01371001 1 オサエB PRESSER FOOT (REAR) 35-15-5 S01374001 3 トメネジ 2.38 クボミ SCREW 2.38 35-15-6 148020001 1 オサエF PRESSER FOOT (FRONT) 35-15-7 025030232 1 ヒラザガネチユウ3 WASHER 3 35-15-8 062660612 1 ナベコ318-40X6 SCREW 318X6 jintex.in

Page 24 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas 094 輸出のみ ONLY FOR EXPORT 35-16 094 国内のみ ONLY FOR DOMESTIC 35-17 -6 -2 -3 -5 -4 -1 095 35-18 -6 -5 -4 -10-11 -7 -8 -9 -2 -3 -12 096 国内用 ONLY FOR DOMESTIC 35-19 -8 -9 -10-11 -7 -4 -6 -5 -2 -3 -12 097 国内用 ONLY FOR DOMESTIC 35-20 -8 -9 -10-11 -7 -4 -6 -5 -2 -3 -12 -1 jintex.in

Page 25 — E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensa telas

E. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensa telas REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 35-16 151461001 1 PRESSER FOOT ASSEMBLY (7C) <094> 35-16-1 142243000 1 PIN 35-16-2 142244001 1 STITCH TONGUE (3C) 35-16-3 142245001 1 CHIP GUARD (3C) 35-16-4 151466001 1 SPRING (7C) 35-16-5 142247001 1 STUD SCREW 35-16-6 S01295001 2 SCREW 2.38X3.5 35-17 151462001 1 オサエ7Cクミ <094> 35-17-1 142243000 1 オサエヒン 35-17-2 151464001 1 ツツメ7C 35-17-3 151465001 1 オサエF 35-17-4 151466001 1 オサエヨリバネ7C 35-17-5 142247001 1 ダンネジ 35-17-6 S01295001 2 シメネジ2.38X3.5 35-18 156507001 1 オサエクミ <095> PRESSER FOOT ASSEMBLY <095> 35-18-1 140270001 1 オサエFシタササエネジ SCREW 35-18-2 145147001 1 オサエF PRESSER FOOT (FRONT) 35-18-3 105288001 1 シメネジ"2.38 SCREW 2.38 35-18-4 149265001 1 オサエB PRESSER FOOT (REAR) 35-18-5 149266001 1 オサエBササエネジ SCREW 35-18-6 048025342 1 トメワE2.5 STOP RING E2.5 35-18-7 149262001 1 マルナット3.18 NUT 3.18 35-18-8 146869001 1 オサエFシタネジリバネ SPRING 35-18-9 155103001 1 ダンネジ"3.18 STUD SCREW 3.18 35-18-10 146870001 1 オサエBオシバネ SPRING 35-18-11 122771002 1 シメネジ"2.38 SCREW 2.38 35-19 S01762101 1 オサエクミ <096> 35-19-1 146865001 2 オサエFシタササエネジ 35-19-2 S01950001 1 オサエF 35-19-3 060630412 1 ハバインド"238-56X4 35-19-4 156065001 1 オサエB 35-19-5 149261001 1 オサエBササエネジ 35-19-6 048025342 1 トメワE2.5 35-19-7 149262001 1 マルナット3.18 35-19-8 S09565001 1 オサエFシタネジリバネ 35-19-9 155103001 1 ダンネジ"3.18 35-19-10 146870001 1 オサエBオシバネ 35-19-11 122771002 1 シメネジ"2.38 35-19-12 S01951001 1 テーフアンナイ 35-20 S01759101 1 オサエクミ <097> 35-20-1 140270001 2 オサエFシタササエネジ 35-20-2 S01950001 1 オサエF 35-20-3 060630412 1 ハバインド"238-56X4 35-20-4 156069001 1 オサエB 35-20-5 149266001 1 オサエBササエネジ 35-20-6 048025342 1 トメワE2.5 35-20-7 149262001 1 マルナット3.18 35-20-8 S09565001 1 オサエFシタネジリバネ 35-20-9 155103001 1 ダンネジ"3.18 35-20-10 146870001 1 オサエBオシバネ 35-20-11 122771002 1 シメネジ"2.38 35-20-12 S01951001 1 テーフアンナイ jintex.in

Page 26 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación

F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación 19 17 18 14 13 15 5 3 2 14 44-1 6 50 49 44 41 40 35 37-1 16 36 20-920-8 20-6 20-7 58 53 57 33 32 29 34 54 56 55 52 20-1-1 30 31 20-2 20-3 20-4 20-5 1-13 1-14 1-1 1-11 1-17 20-1-2 69 1-16 1-15 1-4 1-3 1-2 1-9 1-10 1-12 1-5 1-18 1-6 26 1-7 1-8 65 68 27 75 28 71 23 76 72 24 7 25 73 10 12 11 63 62 64 61 70 59-1 60 国内用/FOR DOMESTIC 067 096 069 097 071 37-2 073 074 075 076 59-2 077 59-3 jintex.in

Page 27 — F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement

F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/ヒンメイ NAME OF PARTS RMKS REF.NO. CODE Q'TY 1 146528001 1 ヘンシンリンケミ ECCENTRIC WHEEL ASSEMBLY 1-1 107093002 1 シメネジ4.37 SCREW 4.37 1-2 145663001 1 メネジ4.37 SCREW 4.37 1-3 140165001 1 チョウセツピンカクコマ SLIDE BLOCK 1-4 146401001 1 "ブ" GIB 1-5 146402001 1 ジブオサエピン GIB HOLDER PIN 1-6 146403001 1 ジブオサエイタハネS GIB HOLDER SPRING PLATE (SMALL) 1-7 146404001 1 ジブオサエイタハネL GIB HOLDER SPRING PLATE (LARGE) 1-8 062660512 1 ナベコ318-40X5 SCREW 318X5 1-9 144053001 1 ヘンシンシンチョウセツカムクミ ECCENTRIC WHEEL ADJUSTING CAM 1-10 144055001 1 ナミハネ WAVE SPRING 1-11 146529001 1 ザガネ WASHER 1-12 048150143 1 トメネジクヨウC15 STOP RING C15 1-13 146530001 1 オクリロッド NEEDLE ROLLER BEARING 20 1-14 146531001 1 ニードルベアリング20 FEED ROD PRESSER PLATE 1-15 140176001 1 オクリロッドオサエイタ SCREW 2.38 1-16 117517003 2 サラネジ"2.38 SCREW 4.76 1-17 100025002 2 シメネジ"4.76 SPACER 1-18 S05721003 1 スペーサ FEED ARM PIN 2 146532001 1 オクリロッドピン OIL CAP 3 140326001 1 ゴムセン SCREW 6.35 4 100251001 1 トメネジ"6.35 FEED ARM 5 146533001 1 オクリデ" BOLT 6.35X16 6 017771612 1 ボルト6.35X16 FEED ADJUSTING SHAFT 7 146534001 1 オクリチョウセツボタンジク SPRING 8 S11072001 1 ボウタンジクハネ STOP RING E4 9 048040342 1 トメワE4 SUPPORTER FOR FEED ADJUSTING PLATE 10 146536001 1 オクリジクタンジクササエ SCREW 357X6 11 062670612 1 ナベコ357-40X6 CAP 12 146537000 1 キャツプ 13 146538001 1 オクリジク FEED SHAFT 14 140327001 2 ゴムセン OIL CAP 15 146539000 1 オクリジクウエメタル FEED SHAFT BUSHING (LEFT) 16 146540000 1 オクリジクウエメタルR FEED SHAFT BUSHING (RIGHT) 17 140188004 1 オクリジクウエメタルLFTA COVER FOR FEED SHAFT BUSHING (LEFT) 18 140187000 1 パツキン PACKING 19 062670612 1 ナベコ357-40X8 SCREW 357X8 20 159475001 1 オクリダイカクコマリンクミ FEED BAR SLIDE BLOCK LINK ASSEMBLY 20-1 146541001 1 オクリダイカクコマジクミ FEED BAR SLIDE BLOCK ASSEMBLY 20-1-1 147773001 1 ジヨウケオクリコマ FEED BAR ASSEMBLY 20-1-2 146544000 1 ジヨウケオクリコマ FEED LIFTING SLIDE BLOCK 20-2 140207001 1 シユオクリリンクブシユ MAIN FEED LINK BUSHING 20-3 140208001 1 ザガネ WASHER 20-4 140209001 1 シユオクリリンク MAIN FEED LINK 20-5 140210001 1 シユオクリリンクジクS MAIN FEED LINK SHAFT (SMALL) 20-6 146554001 1 サトウオクリリンク DIFFERENTIAL FEED LINK 20-7 146555001 1 サトウオクリリンクブシユ DIFFERENTIAL FEED LINK BUSHING 20-8 140208001 1 ザガネ WASHER 20-9 140217001 1 シユオクリリンク FEED LINK SHAFT (LARGE) 23 148174000 1 オクリダイアンナイR FEED BAR GUIDE (RIGHT) 24 100645003 2 ザガネ WASHER 25 062681012 2 ナベコ437-40X10 SCREW 437X10 26 149880000 1 オクリダイアンナイ FEED BAR GUIDE (LEFT) 27 100645003 2 ザガネ WASHER 28 062681012 2 ナベコ437-40X10 SCREW 437X10 29 146547000 1 オクリダイカクコマ FEED BAR SLIDE BLOCK 30 146548101 1 オクリダイカクコマジク FEED BAR SLIDE BLOCK SHAFT 31 014770622 1 アナトメネジ"6.35X7ボミ SCREW 6.35 32 146549001 1 オクリダイカクコマアテイタ PLATE FOR SLIDE BLOCK 33 062680712 1 ナベコ437-40X7 SCREW 437X7 34 181969003 1 セツトカラークミ SET COLLAR ASSEMBLY 34-1 101706001 2 トメネジ"6.35 SCREW 6.35 jintex.in

Page 28

F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación 19 17 18 14 13 15 5 3 2 14 44-1 6 50 49 44 41 40 35 37-1 16 36 20-9 20-8 20-6 20-7 58 53 57 33 32 29 34 54 56 55 30 31 52 20-1-1 20-2 20-3 4 1-13 1-14 1-1 20-4 20-5 1-17 1-11 1-16 1-15 1-4 1-3 1-2 1-9 1-10 1-12 69 1-5 1-7 1-6 1-8 26 65 68 67 66 65 75 76 27 28 71 23 72 24 7 25 73 10 12 11 63 62 64 61 70 59-1 60 国内用/FOR DOMESTIC 067 096 069 097 37-2 071 073 074 59-2 075 076 077 59-3 jintex.in

Page 29 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mecanisme de l'entrainement/Mecanismo de la alimentaci

F. 送り関係/Feed mechanism/Transportvorrichtung/ M ecanisme de l'entrainement/Mecanismo de la alimentaci REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 35 140205001 1 シエオクリウデ MAIN FEED ARM 36 017771412 1 ボルト6.35X14 BOLT 6.35X14 37-1 143564001 1 シエオクリジク MAIN FEED SHAFT (LARGE) 37-2 144068001 1 シエオクリジク 40 113431002 1 サガネ WASHER 41 143565001 1 ナット4.76 NUT 4.76 44 146550001 1 サト"ウオクリウデクミ DIFFERENTIAL FEED ARM ASSEMBLY 44-1 062660712 2 ナベコ318-40X7 SCREW 318X7 44-2 017771412 1 ボルト6.35X14 BOLT 6.35X14 49 146556001 1 サト"ウリンク DIFFERENTIAL FEED ADJUSTING LINK 50 148834001 1 シメネジ3.57 SCREW 3.57 52 146914001 1 リンクレバ-ネジツキ LINK LEVER ASSEMBLY WITH SCREW 52-1 017771412 1 ボルト6.35X14 BOLT 6.35X14 53 146558001 1 サト"ウチヨウセツレバ- DIFFERENTIAL FEED ADJUSTING LEVER 54 146559001 1 ダンネジ5.56 STUD SCREW 5.56 55 146560101 1 レバ-ハネ LEVER SPRING 56 100294002 1 ダンネジ4.76 STUD SCREW 4.76 57 109203001 1 Oリング O RING 58 047502242 1 スプリングピンAW5 SPRING PIN AW5 59-1 146561001 1 サト"ウリヨウメヨリイタ DIFFERENTIAL STITCH CONTROL 59-2 146742001 1 サト"ウリヨウメヨリイタ 59-3 146562001 1 サト"ウリヨウメヨリイタ DIFFERENTIAL STITCH CONTROL 60 146563001 1 チヨウセツレバ-ストツパ STOPPER FOR DIFFERENTIAL STITCH CONTROL 61 017771612 2 ボルト6.35X16 BOLT 6.35X16 62 146564001 1 セツトネジツマミ KNOB 63 146565001 1 セツトネジ SET SCREW 64 146566001 1 サガネ WASHER 65 117516001 2 ボルト4.37 BOLT 4.37 66 062630812 1 ナベコ238-56X8 SCREW 238X8 67 * 1 シユオクリバ MAIN FEED DOG 68 * 1 ホジ

Page 30 — G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla

G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla 24 25 6 5 4 1-4 1-2 7 9-1 26-1 1-3 8-1 27-1 1-1 1-1-1 13 15 16 17 12 10 21 18 11 14 19 20 092 093 096 097 26-2 8-2 28 29 27-2 9-2 jintex.in

Page 31 — G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla

G. 上メス・下メス関係/Knife mechanism/Messer/Mécanisme du couteau/Mecanismo del cuchilla REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 148427001 1 ウワメスクランクツミ UPPER KNIFE DRIVING ROD ASSEMBLY 1-1 501223001 1 ウワメスロット"ネツヅキ UPPER KNIFE ROD WITH SCREW 1-1-1 148425001 2 アナボルト4.37X14 BOLT 4.37X14 1-2 140232001 1 ウワメスクランクツロツト"ピン CRANK ROD PIN 1-3 100366001 1 マルヒラトメネジ4.37 SCREW 4.37 1-4 140233001 1 ウワメスクランクジクウデ UPPER KNIFE DRIVING LEVER 1-5 017771612 1 ポルト6.35X16 BOLT 6.35X16 4 146581001 1 セットカラー SET COLLAR 5 100260001 2 トメネジ5.95 SCREW 5.95 6 140235000 1 ウワメスサド"ウデ"メタルL UPPER KNIFE DRIVING ARM BUSHING (LEFT) 7 144117000 1 ウワメスサド"ウデ"メタルR UPPER KNIFE DRIVING ARM BUSHING (RIGHT) 8-1 144074000 1 ウワメス UPPER KNIFE 8-2 148815001 1 ウワメス UPPER KNIFE 9-1 144075001 1 ポルト3.57 BOLT 3.57 9-2 062671012 1 ナベコ357-40X10 SCREW 357X10 10 146580001 1 シタメストリツクダイササエ LOWER KNIFE HOLDER SUPPORTER 11 017771412 1 ポルト6.35X14 BOLT 6.35X14 12 107407003 1 シメネジ4.37 SCREW 4.37 13 146583001 1 シタメストリツクダイ LOWER KNIFE HOLDER 14 102627001 1 アタツキトメネジ6.35 SCREW 6.35 15 112436001 1 シタメス LOWER KNIFE 16 117515001 1 シタメスオサエ LOWER KNIFE PRESSER PLATE 17 117516001 1 ポルト4.37 BOLT 4.37 18 146584001 1 シタメストリツクダイハネ LOWER KNIFE HOLDER SPRING 19 146585001 1 シタメストリツクダイアンナイ LOWER KNIFE HOLDER GUIDE 20 062670612 2 ナベコ357-40X6 SCREW 357X6 21 146586000 1 メクラセン OIL CAP 24 146580001 1 ウワメスサクワデ UPPER KNIFE DRIVING ARM 25 148281101 1 ウワメスダキナツト NUT 26-1 144179001 1 ウワメスダキ UPPER KNIFE HOLDER 26-2 148345001 1 ウワメスオサエ UPPER KNIFE PRESSER 27-1 107070003 1 シメネジ4.37 SCREW 4.37 27-2 102424004 1 シメネジ4.37 SCREW 4.37 28 148343101 1 ウワメスオサエ UPPER KNIFE PRESSER 29 148344001 1 ウワメスオサエイタ UPPER KNIFE PRESSER PLATE jintex.in

Page 32 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung / Accessoire pour fronces/Accesorio de fruncido

H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung / Accessoire pour fronces/Accesorio de fruncido 輸出用/FOR EXPORT 067 069 071 073 074 075 076 077 10 13 11 12 8-2 11 8-1 8-4 8-5 8-3 1-2-26 1-2-25 1-2-23 1-2-27 1-2-12 1-2-131-2-14 1-2-2 1-2-3 1-2-18 1-2-1 1-2-15 1-2-22 6 5 1-2-21 1-2-32 1-2-5 1-2-4 1-2-6 1-2-7 1-2-8 1-2-91-2-101-2-11 1-2 1-2-25 1-2-24 1-2-19 1-2-20 1-2-29 1-2-31 1-2-29 1-2-28 1-2-30 1-2-16 1-2-17 2 3 4 067 069 071 073 074 075 076 077 14-1 16 15 14-12 14-11 14-13 14-2 14-9 17-1 14-3 旧タイプ用 FOR OLD TYPE 14-10 14-4 14-5 14-6 17-2 14-12 14-13 14-8 14-7 国内用/FOR DOMESTIC 069 071 075 077 1-1-13 1-1-12 1-1-14 1-1-2 1-1-3 1-1-4 1-1-27 1-1-25 1-1-23 1-1-1 1-1-15 1-1-22 1-1-21 1-1-19 1-1-26 1-1-5 1-1-18 1-1-25 1-1-24 1-1-6 1-1-7 1-1-8 1-1-9 1-1-10 1-1-11 1-1-20 1-1-29 1-1-29 1-1-28 1-1-17 1-1-30 1-1-16 jintex.in

Page 33 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorios de fruncido

H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/ Accessoire pour fronces/Accesorios de fruncido REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1-1 146587201 1 ラフラーソウチクミ 1-1-1 146588001 1 キンジオサエタイ 1-1-2 145803001 1 キンジオサエトリツクジク 1-1-3 146589001 1 ラツパハト"ダイ 1-1-4 101706001 2 トメネジ"6.35 1-1-5 146590001 1 ハネケウケ 1-1-6 105163001 2 アマツケツメネジ"5.95 1-1-7 110820101 1 イトウシヨウシボウ 1-1-8 025770232 1 ヒラサカネツメネジ"6.35 1-1-9 144788001 1 キンジオサエバネ 1-1-10 144105000 1 チヨウシハネエサカネ 1-1-11 149566001 1 イトウシヨウシナツト 1-1-12 144783001 1 キンジオサエ 1-1-13 144784001 1 キンジオサエザガネ 1-1-14 062660712 2 ナベコ"318-40X7 1-1-15 147933001 1 ダンネジ"5.95 1-1-16 145807001 1 キンジオサエタイアンナイ 1-1-17 062680812 1 ナベコ"437-40X8 1-1-18 181995002 1 セツトカラ-"クミ 1-1-18-1 101705001 2 トメネジ"6.35 1-1-19 145810001 1 ハント"ルトリツケイタ 1-1-20 150553002 1 ナツト"5.95 1-1-21 110230001 1 トメネジ"4.37 1-1-22 105234003 1 ナツト"4.37 1-1-23 145811001 1 ハント"ルモト"シタバネ 1-1-24 145808001 1 キンジオサエタイトバネ 1-1-25 062680612 2 ナベコ"3437-40X6 1-1-26 144764001 1 マエフタメイタバネ 1-1-27 060670512 1 ハインド"357-40X5 1-1-28 146592001 1 イトアンナイパイプ 1-1-29 013679412 2 トメネジ"3.57クボミ 1-1-30 154795001 1 キンジオサエタイアンナイD 1-1-31 S01614001 1 イトアンナイパイプ 1-2 S12677001 1 RUFFLER ATTACHMENT ASSEMBLY 1-2-1 146588001 1 BRACKET FOR RUFFLING BLADE 1-2-2 145803001 1 RUFFLING BLADE BASE SHAFT 1-2-3 146589001 1 LAPPER BASE 1-2-4 101706001 1 SCREW 6.35 1-2-5 146590001 2 SPRING BASE 1-2-6 105163001 2 SCREW 5.95 1-2-7 110820101 1 TENSION CONTROL STUD 1-2-8 025770232 1 WASHER 6.35 1-2-9 144788001 1 SPRING 1-2-10 144105000 1 TENSION SPRING WASHER 1-2-11 149566001 1 THREAD TENSION ADJUSTING NUT 1-2-12 144783001 1 RUFFLING BLADE 1-2-13 144784001 1 WASHER 1-2-14 062660712 2 SCREW 318X7 1-2-15 147933001 1 STUD SCREW 5.95 1-2-16 145807001 1 RUFFLING BLADE GUIDE 1-2-17 062680812 1 SCREW 437X8 1-2-18 148387001 1 RUFFLING PLATE LIFTER 1-2-19 145810001 1 HANDLE FIXING PLATE 1-2-20 150553002 1 NUT 5.95 1-2-21 110230001 1 SCREW 4.37 1-2-22 105234003 1 NUT 4.37 1-2-23 145811001 1 SPRING PLATE 1-2-24 145808001 1 SPRING PLATE 1-2-25 062680612 2 SCREW 437X6 1-2-26 144764001 1 FRONT COVER STOPPER SPRING 1-2-27 060670512 1 SCREW 357X5 1-2-28 146592001 1 THREAD GUIDE PIPE jintex.in

Page 34 — H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/Accessorio de frun cido

H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/ Accessorio de frun cido 輸出用/FOR EXPORT 067 069 071 073 074 075 076 077 10 13 11 12 8-2 11 8-1 8-4 8-5 8-3 1-2-26 1-2-25 1-2-23 1-2-27 1-2-12 1-2-131-2-14 1-2-2 1-2-3 1-2-18 1-2-1 1-2-15 1-2-22 1-2-21 6 5 1-2-32 1-2-5 1-2-7 1-2-6 1-2-8 1-2-9 1-2-101-2-11 1-2 14-1 16 15 1-2-24 14-12 14-11 14-9 17-1 14-13 14-2 14-10 14-4 14-3 1-2-29 1-2-31 1-2-29 1-2-28 1-2-30 1-2-17 2 17-2 14-5 14-6 14-12 14-13 14-7 14-8 1-2-16 3 4 国内用/FOR DOMESTIC 069 071 075 077 1-1-27 1-1-13 1-1-14 1-1-2 1-1-3 1-1-4 1-1-12 1-1-25 1-1-23 1-1-1 1-1-15 1-1-22 1-1-21 1-1-19 1-1-26 1-1-5 1-1-18-1 1-1-6 1-1-7 1-1-8 1-1-9 1-1-10 1-1-11 1-1-18 1-1-25 1-1-24 1-1-20 1-1-29 1-1-28 1-1-17 1-1-30 1-1-16 jintex.in

Page 35 — H. Ruffling attachment/Kräuselvorrichtung/Accessoire pour fronces/Accesorio de fruncido

H. ラフラー装置関係/Ruffling attachment/Kräuselvorrichtung/ Accessoire pour fronces/Accesorio de fruncido REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1-2-29 013679412 2 SCREW 3.57 1-2-30 154795001 1 RUFFLING BLADE GUIDE PLATE (LOWER) 1-2-31 S01614001 1 THREAD GUIDE PIPE 1-2-32 101706001 2 SCREW 6.35 2 S01304001 2 SCREW 6.35X18 3 144793000 1 RUFFLER GUIDE 4 112751002 1 SCREW 3.57 5 145809001 1 HANDLE 6 150556002 1 NUT 6.35 8 148395001 1 RUFFLING PLATE LIFTER LEVER ASSEMBLY 8-1 148388001 1 RUFFLING PLATE LIFTER LEVER 8-2 141514001 1 SCREW 8-3 148389001 1 PRESSER FOOT LIFTER LEVER SUPPORTER 8-4 148390001 1 ROLLER 8-5 112301001 1 STUD SCREW 3.18 10 148391001 1 FLEXIBLE WIRE ASSEMBLY 11 141514001 2 SCREW 12 147672001 1 WIRE PLATE 13 062670612 2 SCREW 357X6 14 155196201 1 サドゥウチヨウセツツクミ DIFFERENTIAL ADJUSTMENT ASSEMBLY 14-1 155197001 1 ヒザアテヨウコシクケ KNEE LIFTER SHAFT BRACKET 14-2 155198101 1 ヨコジク KNEE LIFTER SHAFT 14-3 155199101 1 ヒザアテツキデ KNEE LIFTER BRACKET 14-4 017781012 2 ボルト6.35X10 BOLT 14-5 148797001 1 ヒザアケケタジクS KNEE LIFTER BAR (SMALL) 14-6 014780622 1 アナトメネジ6.35クボミ SCREW 6.35 14-7 148798001 1 ヒザアテL KNEE LIFTER PLATE (LARGE) 14-8 100463001 1 4カクボルト7.94 BOLT 7.94 14-9 155201101 1 ヒザアテレバー KNEE LIFTER LEVER 14-10 017781012 2 ボルト6.35X10 BOLT 6.35X10 14-11 155202001 1 ヒザアテレバーハネ KNEE LIFTER LEVER SPRING 14-12 155203201 2 ヨコジクメク COLLAR 14-13 017781012 4 ボルト6.35X10 BOLT 6.35X10 15 155205001 1 ヒザアテリンク CONNECTING BAR 16 146594001 1 タツネジ4.76 STUD SCREW 4.76 17-1 062681012 4 ナベコ437-40X10 SCREW 437X10 17-2 032422505 4 +マルモクネジ4.1X25 SCREW 4.1 X25 (キユウタイプ (FOR OLD TYPE HEAD BRACKET) トウブウクヨウ) jintex.in

Page 36

J. ヒモ案内関係/Gimp guide mechanism/Schnurführung/ Mécanisme du guide-fil/Mecanismo guía del hilo 073 074 075 076 077 1-1-1- 1-1-3- 1-1-2- 1-1-4 1-2 1 K. テープワインダー関係/Tape winder mechanism/Bandaufwickelvorrichtung/ Mécanisme de lénrouleur de ruban/Mecanismo bobinador de cinta 073 074 075 076 077 089 090 1-1 2 1-2 1-3 1-4 jintex.in

Page 37 — J. Gimp guide mechanism/K. Tape winder mechanism

J. ヒモ案内関係/Gimp guide mechanism/Schnurführung/ Mécanisme du guide-fil/Mecanismo guía del hilo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 181031001 1 イトタテガイミツツキ COTTON STAND ASSEMBLY WITH SCREW 1-1 109854001 1 イトタテガイミ SPOOL STAND ASSEMBLY 1-1-1 100080004 1 シメネジ"3.18 SCREW 3.18 1-1-1 110161003 1 ナット4.76 NUT 4.76 1-1-3 028050242 1 ハネザガネ2-5 SPRING WASHER 2-5 1-1-4 100444002 1 イトタテボウ SPOOL STUD 1-2 100447001 2 サラモクネジ"4.5X3.2 SCREW 4.5X3.2 K. テープワインダー関係/Tape winder mechanism/Bandaufwickelvorrichtung/ Mécanisme de lenrouleur de ruban/Mecanismo bobinador de cinta REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 143767002 1 テープワインダークミ TAPE WINDER ASSEMBLY 1-1 143980001 1 ツマミネジ THUMB SCREW 1-2 108494001 1 ザガネ WASHER 1-3 108495001 1 テープワインダーオシバネ SPRING 1-4 100136001 1 イトチョウシナット TENSION CONTROL NUT 2 101118001 2 マルモクネジ"4.5X20 SCREW 4.5X20 jintex.in

Page 38

L. ラッパー関係/Lapper mechanism/Falz-Mechanismus/ Mécanisme à rabat/Mecanismo de solapado 輸出用/FOR EXPORT 089 090 1 7 2 3 8 4 073 074 075 076 077 6 10 5 M. 下ルーパー関係/Under looper mechanism/Unterer Greifer/ Mécanisme du boucleur inférieur/Mecanismo del presilladora inferior 国内用/FOR DOMESTIC 096 097 13-2 8 3 7 6 1-1 10-1 10 9 13-1 14 11 12 15 jintex.in

Page 39 — L. ラッパー関係/Lapper mechanism/Falz-Mechanismus/M uevoanisme à rabat/Mecanismo de solapado M. 下ルーバー関係/Under looper mechanism/Unterer Greifer/M uevoanisme du boucleur inférieur/Mecanismo del presilladora inferior

L. ラッパー関係/Lapper mechanism/Falz-Mechanismus/ Mécanisme à rabat/Mecanismo de solapado REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 147373000 1 LAPPER ASSEMBLY 2 062670512 2 SCREW 357X6 3 147377001 1 TAPE GUIDE 4 062670512 2 SCREW 357X6 5 147440000 1 LAPPER ASSEMBLY 6 062680612 2 ナベコ437-40X6 SCREW 437X6 7 105161004 2 WASHER 8 025350332 2 WASHER 3.5 10 110735002 2 ザガネ WASHER M. 下ルーバー関係/Under looper mechanism/Unterer Greifer/ Mécanisme du boucleur inférieur/Mecanismo del presilladora inferior REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 144044001 1 シタルーパコネクテイングロツドクミ UNDER LOOPER CONNECTING ROD ASSEMBLY ※ 1-1 148425001 4 アナボルト4.37X14 BOLT 4.37X14 3 017771612 1 ボルト6.35X16 BOLT 6.35X16 4 110704001 1 ウワールーパコネクテイングロツドストツパー LOOPER CONNECTING ROD STOPPER 5 062660412 1 ナベコ318-40X4 SCREW 318X4 6 146614001 1 シタルーパシャフト UNDER LOOPER SHAFT 7 140327001 1 ゴムセン OIL CAP 8 146615000 1 シタルーパシャフトメタルB UNDER LOOPER SHAFT BUSHING (REAR) 9 146616000 1 シタルーパシャフトメタルF UNDER LOOPER SHAFT BUSHING (FRONT) 10 160323001 1 シタルーパシャフトカラークミ LOWER SHAFT SET COLLAR ASSEMBLY 10-1 013760612 2 トメネジ5.95 クボミ SCREW 5.95 11 146617001 1 シタルーパトツドツゲダイ UNDER LOOPER HOLDER 12 149171001 1 ボルト5.56X14 BOLT 5.56X14 13-1 501748101 1 シタルーパ UNDER LOOPER 13-2 159884101 1 シタルーパ 14 014680422 1 ナベネジ4.37クロメミ SCREW 4.37 15 148782001 1 スペーサ SPACER ※クドウジクCクミ B-1-1 146917-001 ※ Crank Shaft (C) Assembly B-1-1 146917-001 ※クドウジクHクミ B-1-2, D-1, M-1, N-1 S01789-001 ※ Crank Shaft (H) Assembly S01789-001 ※クドウジクJクミ B-1-3 S07847-001 ※ Crank Shaft (J) Assembly B-1-3 S07847-001 jintex.in

Page 40 — N. 上ルーパ関係/Over looper mechanism/Oberen Greifer/Mécanisme du boucleur supérieur/Mecanismo del presilladora superior

N. 上ルーパ関係/Over looper mechanism/Oberen Greifer/ Mécanisme du boucleur supérieur/Mecanismo del presilladora superior 1-1 8 12 11 3 6-2 6-1 6-3 6-4 20 9-1 10 15-1 15-1-1 13-1-7 14-1 14-2 13-1-5 13-1-6 18 13-1-1 13-1-2 13-1-4 13-1 085 087 092 094 096 097 15-2 15-2-1 輸出用/FOR EXPORT 062 064 066 074 076 084 090 093 15-3 15-3-1 085 087 092 093 9-2 13-2-7 13-2-5 13-2-6 13-2-3 13-2-2 13-2-1 13-2-4 13-2 jintex.in

Page 41 — N. 上ルーバ関係/Over looper mechanism /Oberen Greifer/ Mécanisme du boucleur supérieur / Mecanismo del presilladora superior

N. 上ルーバ関係/Over looper mechanism /Oberen Greifer/ M ecanisme du boucleur sup érieur / Mecanismo del presilladora superior REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 144025001 1 ウワーハツロツドクミ UPPER LOOPER CONNECTING ROD ASSEMBLY ※ 1-1 148425001 4 アナトメシ"4.37X14 BOLT 4.37X14 3 017771412 1 ボルト6.35X14 BOLT 6.35X14 4 110704001 1 ウワーハツロツド"フレド"メ LOOPER CONNECTING ROD STOPPER 5 062660412 1 ナベコ318-40X4 SCREW 318X4 6 S06294001 1 ウワーハシククミ OVER LOOPER SHAFT ASSEMBLY 6-1 148033001 1 ウワーハシク OVER LOOPER SHAFT 6-2 140327001 1 ゴムセン OIL CAP 6-3 071023850 1 コウキュウ3/32 STEEL BALL 3/32" 6-4 148034001 1 オイルチョウセツネシ OIL ADJUSTING SCREW 8 144029000 1 ウワーハシククメタルB OVER LOOPER SHAFT BUSHING (REAR) 9-1 146602001 1 ウワーハシクカラー OVER LOOPER SHAFT COLLAR 9-2 S01597001 1 ウワーハシクカラー OVER LOOPER SHAFT COLLAR 10 144031000 1 ウワーハシクメタルF OVER LOOPER SHAFT BUSHING (FRONT) 11 146581001 1 セツトカラー SET COLLAR 12 100260001 2 トメネジ5.95 SCREW 5.95 13-1 146603301 1 ウワーハキクミ OVER LOOPER ASSEMBLY 13-1-1 148379001 1 ウワーハツデジク OVER LOOPER HOLDING SHAFT 13-1-2 148294001 1 アナトメネジ"3.57クボミ SCREW 3.57 13-1-3 149170001 1 ボルト6.35X16 BOLT 6.35X16 13-1-4 140416000 1 クミヒモ WICK 13-1-5 062681012 2 ナベコ437-40X10 SCREW 437X10 13-1-6 047301440 2 スプリングピンAW3 SPRING PIN AW3 13-1-7 014680422 2 アナトメネジ"4.37クボミ SCREW 4.37 13-2 146611301 1 ウワーハキクミ OVER LOOPER ASSEMBLY 13-2-1 148379001 1 ウワーハツデジク OVER LOOPER HOLDING SHAFT 13-2-2 148294001 1 アナトメネジ"3.57クボミ SCREW 3.57 13-2-3 149170001 1 ボルト6.35X16 BOLT 6.35X16 13-2-4 140416000 1 クミヒモ WICK 13-2-5 062681012 2 ナベコ437-40X10 SCREW 437X10 13-2-6 047301440 2 スプリングピンAW3 SPRING PIN AW3 13-2-7 014680422 2 アナトメネジ"4.37クボミ SCREW 4.37 14-1 062680712 1 ナベコ437-40X7 SCREW 437X7 14-2 S10774001 2 ナベコ437-40X7 SCREW 437X7 15-1 147934001 1 ウワーハシツキ OVER LOOPER WITH SCREW 15-1-1 014680422 1 アナトメネジ"4.37クボミ SCREW 4.37 15-2 159686001 1 ウワーハシツキ OVER LOOPER WITH SCREW 15-2-1 014680422 1 アナトメネジ"4.37クボミ SCREW 4.37 15-3 147935001 1 OVER SPREADER WITH SCREW 15-3-1 014680422 1 SCREW 4.37 18 159101000 1 メクラセン OIL CAP 20 148294001 1 アナトメネジ"3.57クボミ SCREW 3.57 ※クドウジクCクミ B-1-1 146917-001 ※ Crank Shaft (C) Assembly ※クドウジクHクミ B-1-2, D-1, M-1, N-1 S01789-001 ※ Crank Shaft (H) Assembly ※クドウジクJクミ B-1-3 S07847-001 ※ Crank Shaft (J) Assembly jintex.in

Page 42

P. 二重環ルーパ関係/Double chain stitch looper mechanism/Doppelkettenstichgreifer/ Mécanisme du boucleur pour point de chaînette double/Mecanismo del presilladora de doble cadeneta 17 16 15 14 12 10 8 29 11 9 5-1 7-1 7 27 4 3 19 18 21 20 1-1-1 1-2 2 1-3 1-1 25 26 23 28 24 22 国内用/FOR DOMESTIC 096 097 32 31-1 30 31-2 jintex.in

Page 43 — P. 二重環ルーパ関係/Double chain stitch looper mechanism/Doppelkettstichgreifer/Mécanisme du boucleur pour point de chaînette double/Mecanismo del presilladora de doble cadeneta

P. 二重環ルーパ関係/Double chain stitch looper mechanism/Doppelkettstichgreifer/ M e c a n i s m e d u b o u c l e u r p o u r d e c h a i n e t t e d o u b l e / M e c a n i s m o d e l p r e s i l l a d o r a d e d o b l e c a d e n e t a REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 146618001 1 ヨウロッド"クミ LONGITUDINAL FEED ROD ASSEMBLY 1-1 S01225001 1 ヨウロッド"ネツツキ LONGITUDINAL FEED ROD WITH SCREW 1-1-1 148425001 4 アナボルト4.37X14 BOLT 4.37X14 1-2 014770622 2 アナトメネジ"6.35クボミ SCREW 6.35 1-3 147691000 1 フェルト FELT 2 017771612 1 ボルト6.35X16 BOLT 6.35X16 3 146622001 1 ヨウロッド"フレト"メ LOOPER CONNECTING ROD STOPPER 4 062660412 1 ナベ"318-40X4 SCREW 318X4 5 147988001 1 DLヘンシンリンクミ ECCENTRIC CAM (RIGHT) 5-1 014770622 2 アナトメネジ"6.35クボミ SCREW 6.35 7 146624101 1 ゼンゴツロツド"クミ LONGITUDINAL FEED ROD ASSEMBLY 7-1 148425001 2 アナボルト4.37X14 BOLT 4.37X14 8 146626001 1 フィードレバ"(ライト) FEED LEVER (RIGHT) 9 017771612 1 ボルト6.35X16 BOLT 6.35X16 10 146627001 1 ゼンゴ"ロツド"ピン PIN 11 110161006 1 ナット4.76 NUT 4.76 12 146628001 1 ゼンゴレバ"シ゛ーク LONGITUDINAL FEED LEVER SHAFT 13 140150000 1 レバ"シ゛ークメタルR DRV/NG LEVER SHAFT BUSHING (R) 14 146629000 1 レバ"シ゛ークメタルL LONGITUDINAL FEED LEVER SHAFT BUSHING(L) 15 146630001 1 フィードレバ"-L FEED LEVER (LEFT) 16 110778002 1 ザツ"ナット5.56 NUT 5.56 17 140313001 1 ゼンゴレバ"カクゴマ LONGITUDINAL FEED LEVER SLIDE BLOCK 18 146631001 1 ゼンゴ"コマ LONGITUDINAL FEED CAM 19 120990001 2 アタマツキメスジ"4.37 SCREW 4.37 20 146632001 1 ゼンゴ"シ゛ーク LONGITUDINAL FEED SHAFT 21 146633000 1 ゼンゴ"シ゛ークメタルB LONGITUDINAL SHAFT BUSHING (REAR) 22 140159000 1 ゼンゴ"シ゛ークメタルF LONGITUDINAL FEED SHAFT BUSHING (FRONT) 23 155262001 1 ニジ"ユウカンルーパ"ホルダ" CHAIN STITCH LOOPER HOLDER 24 149171001 1 ボルト5.56X14 BOLT 5.56X14 25 146635001 1 ニジ"ユウカンルーパ" CHAIN STITCH LOOPER 26 014680422 1 アナトメネジ"4.37クボミ SCREW 4.37 27 140327001 2 ゴムセン OIL CAP 28 148782001 1 スペーサ SPACER 29 153484001 1 ワッシャー4.76 WASHER 4.76 30 S01756001 1 タンカンルーパ" 31-1 S01757001 1 イトサバキ(5MM,097) 31-2 S01761001 1 イトサバキ(3MM,096) 32 S01295001 1 シメネジ"2.38X3.5 jintex.in

Page 44

Q. 給油・潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación 41 46 31 52 42 51 47 57 55 37 53 32 48 58 1 2 8 9 17 15 13 6 18 19 21 22 56 23 24 25 7 11 12 20 3-3 3-2 3-1 3-6 3-6-1 3-5 3-4 3-7 3-8 3-9 3-10 4 3 jintex.in

Page 45 — Q. 給油・潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Q. 給油・潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 146647001 1 ウオーム WORM 2 014770622 2 アナトメネジ"6.35クボミ SCREW 6.35 3 147521001 1 トロコイド"ポンプクミ PUMP ASSEMBLY 3-1 144619000 1 ウオームホイール WORM WHEEL 3-2 025350332 1 ヒラザガネ"3.5 WASHER 3.5 3-3 062670812 1 ナベコ"357-40X8 SCREW 357X8 3-4 147523001 1 ポンプロータークミ PUMP INNER ROTER ASSEMBLY 3-5 144622001 1 ミゾツキピンEガタ CASTLE PIN 3-6 181995001 1 セットカラークミ SET COLLAR ASSEMBLY 3-6-1 101706001 2 トメネジ"6.35 SCREW 6.35 3-7 147527001 1 ポンプフタ PUMP COVER 3-8 147528100 1 ロカモウ OIL FILTER 3-9 147529001 1 ロカモウオサエ OIL FLANGE FILTER 3-10 062671012 3 ナベコ"357-40X10 SCREW 357X10 4 062711212 2 ナベコ"476-32X12 SCREW 476X12 6 140780101 1 ビニルチューブクミ VINYL TUBE ASSEMBLY 7 140779101 1 ビニルチューブクミ VINYL TUBE ASSEMBLY 8 112348001 2 パッキン PACKING 9 112364001 1 ハイパパイプツキテネジ" SCREW 11 112348001 2 パッキン PACKING 12 112364001 1 ハイパパイプツキテネジ" SCREW 13 146636201 1 ロッド"オイルパイプクミ MAIN OIL PIPE ASSEMBLY 15 140325001 1 ゴムセン OIL CAP 17 062670612 1 ナベコ"357-40X6 SCREW 357X6 18 140778101 1 ビニルチューブクミ VINYL TUBE ASSEMBLY 19 112348001 2 パッキン PACKING 20 112364001 1 ハイパパイプツキテネジ" SCREW 21 140778101 1 ビニルチューブクミ VINYL TUBE ASSEMBLY 22 112348001 2 パッキン PACKING 23 112364001 1 ハイパパイプツキテネジ" SCREW 24 112348001 2 パッキン PACKING 25 112359001 1 ハイパパイプツキテネジ" SCREW 31 147217000 1 オイルパイプ OIL PIPE 32 145664000 1 オイルフィルター OIL FILTER 37 114294001 1 Oリング O RING 41 140418000 1 クミヒモ WICK 42 150307000 1 クミヒモ WICK 46 140415000 2 クミヒモ WICK 47 140317000 1 クミヒモ WICK 48 140417000 1 クミヒモ WICK 51 112735000 1 クミヒモ WICK 52 147318000 1 ピン PIN 53 147361000 1 クミヒモ WICK 55 147363000 1 フェルト FELT 56 147318000 1 ピン PIN 57 147318000 1 ピン PIN 58 112525000 1 シュウジンマグネット MAGNET jintex.in

Page 46

R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo 21-1 23 22 67-1 25 15-1 16 17 18 68 70 69 061 062 43 42 063 064 065 40 41 066 067 069 071 50 49 48 47 46 45 073 074 075 076 077 079 081 083 084 085 087 089 090 092 093 51 57 56 53 62 63 52 59 60 37 36 29 30 31 32 33 34 35 輸出用/FOR EXPORT 062 21-2 064 066 074 076 084 090 093 095 096 097 4-3 4-4 輸出用/FOR EXPORT 085 8-2 087 092 093 67-2 15-2 1-2 12-3-1-1 12-3-1 12-1 12-1-1 12-1-2 5-1 6-1 7-1 8-1 11 12-3-1 12-2 12-2-1 12-2-2 12-4 12-4-1 12-4-2 3-1 4-1 26 27 28 10 14-1 5-2 6-2 7-2 8-3 14-2 3-2 12-3-2-1 12-3-2-1-1 12-3-2 jintex.in

Page 47 — R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo

R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 146648001 1 シュウトアンナイ MAIN THREAD GUIDE 2 014770622 1 アナトメネジ"6.35クボミ SCREW 6.35 3-1 146649001 1 イトアンナイササエ THREAD GUIDE SUPPORTER 3-2 156509001 1 イトアンナイササエ THREAD GUIDE SUPPORTER 4-1 110820101 4 イトチョウシボウ THREAD TENSION STUD 4-2 110820101 5 イトチョウシボウ THREAD TENSION STUD 4-3 159574101 2 --- THREAD TENSION STUD 4-4 110820101 2 --- THREAD TENSION STUD 5-1 110832001 4 イトチョウシサラフエルト TENSION DISC FELT 5-2 110832001 5 イトチョウシサラフエルト TENSION DISC FELT 6-1 145446001 8 イトチョウシサラ TENSION DISC 6-2 145446001 10 イトチョウシサラ TENSION DISC 7-1 144103002 1 イトチョウシサラオサエ TENSION DISC WASHER 7-2 144103002 5 イトチョウシサラオサエ TENSION DISC WASHER 8-1 144104001 2 ハリイトチョウシハネ NEEDLE TENSION SPRING 8-2 148851001 2 ハリイトチョウシハネ NEEDLE TENSION SPRING 8-3 144104001 3 ハリイトチョウシハネ NEEDLE TENSION SPRING 10 144110001 2 シタルーハイトチョウシハネ LOWER LOOPER TENSION SPRING 11 144105000 4 チョウシハネウエザガネ TENSION SPRING WASHER 12-1 149568001 1 イトチョウシナットクミ THREAD TENSION CONTROL NUT 12-1-1 149566001 1 イトチョウシナツト THREAD TENSION NUT 12-1-2 147049001 1 キヨウシヤクバン TENSION INDICATING PLATE 12-2 149568002 1 イトチョウシナットクミ THREAD TENSION CONTROL NUT 12-2-1 149566001 1 イトチョウシナツト THREAD TENSION NUT 12-2-2 147049002 1 キヨウシヤクバン TENSION INDICATING PLATE 12-3 149568003 1 イトチョウシナットクミ THREAD TENSION CONTROL NUT 12-3-1 149566001 1 イトチョウシナツト THREAD TENSION NUT 12-3-1-1 147049003 1 キヨウシヤクバン TENSION INDICATING PLATE 12-3-2 149568003 1 イトチョウシナットクミ THREAD TENSION CONTROL NUT 12-3-2-1 149566001 1 イトチョウシナツト THREAD TENSION NUT 12-3-2-1-1 147049003 2 キヨウシヤクバン TENSION INDICATING PLATE 12-4 149568004 1 イトチョウシナットクミ THREAD TENSION CONTROL NUT 12-4-1 149566001 1 イトチョウシナツト THREAD TENSION NUT 12-4-2 147049004 1 キヨウシヤクバン TENSION INDICATING PLATE 14-1 110813001 3 ハリトアンナイ NEEDLE THREAD GUIDE 14-2 110813001 4 ハリトアンナイ NEEDLE THREAD GUIDE 15-1 143757001 1 ハリトアンナイA NEEDLE THREAD GUIDE (A) 15-2 146793001 1 ニホンハリハハリトアンナイ TWIN NEEDLE NEEDLE THREAD GUIDE 16 062660412 1 ナベコ318-40X4 SCREW 318X4 17 146650001 1 ニジユウカンハハリトアンナイ CHAIN STITCH NEEDLE THREAD GUIDE 18 060670812 1 ハインド"357-40X8 SCREW 3.57X8 21-1 144108001 1 ハリトテンビン NEEDLE THREAD TAKE-UP 21-2 142201001 1 --- NEEDLE THREAD TAKE-UP 22 062660412 1 ナベコ318-40X4 SCREW 318X4 23 105248003 1 ザガネ WASHER 25 062670612 1 ナベコ357-40X6 SCREW 357X6 26 14411001 1 シタルーハイトアンナイササエ LOOPER THREAD GUIDE HOLDER 27 146926002 1 イトアンナイクミ UNDER LOOPER THREAD GUIDE ASSEMBLY 28 062670612 1 ナベコ357-40X6 SCREW 357X6 29 146929001 1 ウワルーハイトアンナイクミ LOOPER THREAD GUIDE ASSEMBLY 30 062670612 1 ナベコ357-40X6 SCREW 357X6 31 146652001 1 シタルーハイトテンビンR UNDER LOOPER THREAD TAKE-UP (RIGHT) 32 146653001 1 シタルーハイトテンビンR UNDER LOOPER THREAD TAKE-UP (RIGHT) 33 062670612 1 ナベコ357-40X8 SCREW 357X8 34 146654001 1 ルーハイトテンビンL LOOPER THREAD TAKE-UP (LEFT) 35 062670612 1 ナベコ357-40X6 SCREW 357X6 36 142669002 1 イトアンナイパイプクミ OVER LOOPER THREAD GUIDE PIPE ASSEMBLY 37 060630312 1 ハインド"238-56X3 SCREW 2.38X3 38 146925001 1 イトアンナイクミ THREAD GUIDE ASSMBLY 39 062670612 1 ナベコ357-40X6 SCREW 357X6 40 146656001 1 イトアンナイパイプ THREAD GUIDE PIPE 41 148294001 1 アナトメネジ"3.57クボミ SCREW 3.57 jintex.in

Page 48

R. 糸調子関係/Thread tension/Faderspannung/Tension du fil/Tension del hilo 21-1 23 22 67-1 25 15-1 16 17 18 68 70 69 061 062 063 064 065 066 067 069 071 073 074 075 076 077 079 081 083 084 085 087 088 089 090 092 093 43 42 50 49 48 47 46 45 44 55 57 54 51 58 56 53 62 52 63 59 60 37 36 29 30 31 32 33 輸出用/FOR EXPORT 067 074 071 076 073 077 095 096 097 4-3 4-4 34 35 輸出用/FOR EXPORT 21-2 062 064 066 074 076 084 090 093 085 087 092 093 8-2 1 2 3-1 4-1 5-1 6-1 7-1 8-1 11 12-3-1 12-3-1-1 12-3-1-1-1 14-1 5-1 12-1 12-1-1 12-1-2 7-1 10 26 27 28 11 12-2 12-2-1 12-2-2 12-4 12-4-1 12-4-2 3-2 14-2 4-2 5-2 6-2 7-2 8-3 67-2 15-2 12-3-2-1 12-3-2-1-1 12-3-2 jintex.in

Page 49

R. 糸関係ノThread tension/Fadenspannung/Tension du fil/Tension del hilo REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 42 151617001 1 ニジユウカンイトアンナイクセ CHAIN STITCH LOOPER THREAD GUIDE ASS. 43 062670612 1 ナベコ357-40X6 SCREW 357X6 44 110813001 1 ハリイトアンナイ NEEDLE THREAD GUIDE 45 147148001 1 イトチョウシボウ THREAD TENSION CONTROL STUD 46 110832001 1 イトチョウシサラフエルト TENSION DISC FELT 47 145446001 2 イトチョウシサラ TENSION DISC 48 147149001 1 イトチョウシバネ THREAD TENSION SPRING 49 144105000 1 チョウシバネワッシャザガネ TENSION SPRING WASHER 50 151012001 1 ウエツト UPPER THREAD TENSION NUT 51 150807101 1 ニジユウカンイトテンシンクミ CHAIN STITCH LOOPER TAKE-UP 52 014680422 2 アナトメネジ4.37クボミ SCREW 4.37 53 150800001 1 イトイトヤマトノダイクミ CHAIN STITCH BASE PLATE ASSEMBLY 54 150810001 1 テンシンハンドラー THREAD HANDLER 55 062670412 1 ナベコ357-40X4 SCREW 357X4 56 146663001 1 テンシンイトアンナイR THREAD GUIDE (RIGHT) 57 060630412 2 ハインド

Page 50

Z. 付属関係/Accessories/Zubehör/Accessoires/Accesorios 25 1-1 1-2 4 7 8 10 17 12 11 5 13 9 41 brot 40 18 OIL 3 LITRE 55 24 23 21 20 22 55-1 55-3 55-2 輸出用/FOR EXPORT 61-1 61-3 61-2 37 36 19 国内用/FOR DOMESTIC 069 071 075 077 51 52 39 27 48-1 29 58 59 56-1 48-2 31 32 33 56-2 jintex.in

Page 51 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1-1 * 4 ミシンハリDCX1 NEEDLE DCX1 1-2 * 4 ミシンハリDMХ13 NEEDLE DMX13 4 112436001 1 シタヌス LOWER KNIFE 5 101572101 1 ネジマワシ5.5X190 SCREW DRIVER 5.5X190 7 S01943001 1 6カクボウネジマワシ1.6 SCREW DRIVER 1.6 8 146700001 1 6カクボウネジマワシ2 SCREW DRIVER 2 9 149173001 1 6カクボウネジマワシ3 SCREW DRIVER 3 10 107779001 1 スパナ6X7 SPANNER 6X7 11 143566001 1 スパナ8 SPANNER 8 12 105343001 1 メカニカルレンチ8X9 WRENCH 8X9 13 117466000 1 ピンセット TWEIZERS 17 140342001 1 ソケットレンチクミ SOCKET WRENCH ASSEMBLY 18 S06701000 1 オイルタンク OIL TANK 19 145277105 1 オイルタンク OIL TANK 20 147893003 1 オサエエアブミイタ TREADLE PEDAL 21 021400106 2 ネジナット4 NUT 4 22 062401406 2 ナベコ4X14 SCREW 4X14 23 116016001 2 ペダルストツパ PEDAL STOPPER 24 142262001 1 クサリFクミ CHAIN ASSEMBLY 25 122991001 1 アクセサリポリプロ ACCESSORY BAG 27 S03888000 1 ヘッドプレート HEAD PLATE 29 210973001 4 カクネボルト8X85 BOLT 8X85 31 025080236 4 ヒラサガネチユウ8 WASHER 8 32 028080242 4 バネサガネ2-8 SPRING WASHER 2-8 33 021080106 4 ナット1シュ8 NUT 8 36 148430101 1 ダスタースートアツプ DUSTER DROP 37 031311302 4 マルモクネジ3.1X13 SCREW 3.1X13 39 S06704001 1 シリコンオイル SILICONE OIL 40 140759000 1 フンネル FUNNEL 41 144225002 1 ヘッドカバー HEAD COVER 48-1 147919001 1 ボウシンゴム CUSHION 48-2 147919002 3 ボウシンゴム CUSHION 49 140888001 1 カラヌイメス TRIMMING KNIFE 50 062660412 2 ナベコ318-40X4 SCREW 318X4 51 144793000 1 キジアンナイ 52 112751002 1 シメネジ3.57 55 148348001 1 ヘルトカバクーミ 55-1 148042001 2 ヘルトカバースタツト 55-2 062681012 2 ナベコ437-40X10 55-3 100645003 2 サガネ 56 183161201 1 ダスタシュートクミ DUSTER SHOOT ASSEMBLY 56-1 148431201 1 ダスタシュートL DUSTER SHOOT (LARGE) 56-2 148432001 1 ダスタシュートS DUSTER SHOOT (SMALL) 58 101118001 4 マルモクネジ4.5X20 SCREW 4.5X20 59 025050236 4 ヒラサガネチユウ5 WASHER 5 61 151017001 1 アイガードアセンブリ EYE GUARD ASSEMBLY 61-1 150550000 1 EYE GUARD FOR OVERLOCK 61-2 062660512 2 SCREW 318X5 61-3 025030232 2 WASHER 3 ※ 付属品の説明は変更することがあります。 ※ The details of included accessories are subject to change. ※ Änderungen in der Aufstellung der mitgelieferten Zubehör sind vorbehalten. ※ Les détails des accessoires inclus sont sujets à des changements. ※ Los detalles de los accesorios incluidos pueden variar. jintex.in

Page 52

Z. 付属関係 /Accessories/Zubehör/Accessoires/Accesorios 095 42-1-7-3 42-1-5 42-1-13 42-1-16 42-1-18 42-1-3 42-1-7-5 42-1-15 42-1-17 42-1-4-2 42-1-4 42-1-14-2 42-1-14-1 42-1-14-3 42-1-7-1 42-1-7-3 42-1-10 42-1-9 42-1-8 42-1-6 42-1-2-1 42-1-7-4 42-1-12-3 42-1-11-3 42-1-11-2 42-1-2-2 42-1-12-1 42-1-1 42-1-11-4 42-1-7-2 42-1-12-4 42-1-11-1 42-1-7-3 42-1-12-2 jintex.in

Page 53 — Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 42-1 S02772101 1 イトタテダイクニ6THF COTTON STAND ASSEMBLY 6THF <095> <095> BRACKET 42-1-1 150189002 1 ブラケット 42-1-2 S02773001 1 ブラケットネジセット COTTON STAND BASE SCREW SET 42-1-2-1 062060806 2 ネジコ6X8 SCREW 6X8 42-1-2-2 031452206 3 マルモク45X22 SCREW 45X22 42-1-3 150172002 2 コラムパイプ COLUMN PIPE 42-1-4 150106002 1 コラムジョイントクミ COLUMN JOINT ASSEMBLY 42-1-4-1 062060806 2 ナベコ5X14 SCREW 5X14 42-1-4-2 021500106 2 シュナット5 NUT 5 42-1-5 150174000 1 コラムキャップ COLUMN CAP 42-1-6 S02779001 2 スプールホルダー3 SPOOL HOLDER 3 42-1-7 S02782001 2 スプールネジセット3 SPOOL SCREW SET 3 42-1-7-1 150179002 6 スプールシジクB SPOOL SHAFT (B) 42-1-7-2 028050246 6 ハネザガネ2-5 SPRING WASHER 2-5 42-1-7-3 021500106 10 シュナット5 NUT 5 42-1-7-4 050503006 2 ナベコヒラサ5X30 SCREW 5X30 42-1-7-5 050501406 2 ナベコヒラサ5X14 SCREW 5X14 42-1-8 150180000 6 ウケザラ SPOOL STAND BASE 42-1-9 150182000 6 スプールマット SPOOL MAT 42-1-10 126863001 6 スプールクッション SPOOL CUSHION 42-1-11 S02784001 1 ホルダージサエAセット SPOOL HOLDER SUPPORTER (A) SET 42-1-11-1 150188002 1 スプールホルダージサエA SPOOL HOLDER SUPPORTER (A) 42-1-11-2 062501006 1 ナベコ5X10 SCREW 5X10 42-1-11-3 021500106 1 シュナット5 NUT 5 42-1-11-4 031452206 1 マルモク45X22 SCREW 45X22 42-1-12 S02785001 1 ホルダージサエBセット SPOOL HOLDER SUPPORTER (B) SET 42-1-12-1 150194002 1 スプールホルダージサエB SPOOL HOLDER SUPPORTER (B) 42-1-12-2 062501006 1 ナベコ5X10 SCREW 5X10 42-1-12-3 021500106 1 シュナット5 NUT 5 42-1-12-4 031452206 1 マルモク45X22 SCREW 45X22 42-1-13 S02788001 2 スレッドハンガー3 THREAD HANGER ASSEMBLY 3 42-1-14 150145002 1 イトアンナイホルダージミ THREAD GUIDE HOLDER ASSEMBLY 42-1-14-1 150185002 1 イトアンナイホルダージ THREAD GUIDE HOLDER 42-1-14-2 050503006 1 ナベコヒラサ5X30 SCREW 5X30 42-1-14-3 021500106 1 シュナット5 NUT 5 42-1-15 S02783001 1 イトアンナイ6 THREAD GUIDE 6 42-1-16 S04109001 1 イトアンナイササエボウ THREAD GUIDE SUPPORTER BAR 42-1-17 138843001 1 ササエボウツギテ JOINT 42-1-18 014060632 2 アナトメ6X6クロメ SCREW 6X6 ※付属品の明細は変更することがあります。 ※ The details of included accessories are subject to change. ※ Änderungen in der Aufstellung der mitgelieferten Zubehöre sind vorbehalten. Les détails des accessoires inclus sont sujets à des changements. Los detalles de los accesorios incluidos pueden variar. jintex.in

Page 55

Z. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 42-2 S02770101 1 イトタテイクミ5THF COTTON STAND ASSEMBLY 5THF 42-2-1 150189002 1 ブラケット COTTON STAND BASE 42-2-2 S02773001 1 ブラケットネジセット COTTON STAND BASE SCREW SET 42-2-2-1 062060806 2 ナベコ6X8 SCREW 6X8 42-2-2-2 031452206 3 マルモク45X22 SCREW 45X22 42-2-3 150172002 2 コラムパイプ COLUMN PIPE 42-2-4 150106002 1 コラムジョイントクミ COLUMN JOINT ASSEMBLY 42-2-4-1 062501406 2 ナベコ5X14 SCREW 5X14 42-2-4-2 021500106 2 シュナット5 NUT 5 42-2-5 150174000 1 コラムキャップ COLUMN CAP 42-2-6 S02778001 1 スプールホルダー-2 SPOOL HOLDER 2 42-2-7 S02779001 1 スプールホルダー-3 SPOOL HOLDER 3 42-2-8 S02780001 1 スプールネジセット2 SPOOL SCREW SET 2 42-2-8-1 150179002 2 スプールジクB SPOOL SHAFT (B) 42-2-8-2 028050246 2 バネザガネ2-5 SPRING WASHER 2-5 42-2-8-3 021500106 4 シュナット5 NUT 5 42-2-8-4 050503006 1 ナベコヒラサ5X30 SCREW 5X30 42-2-8-5 050501406 1 ナベコヒラサ5X14 SCREW 5X14 42-2-9 S02782001 1 スプールネジセット3 SPOOL SHAFT SET 42-2-9-1 150179002 3 スプールジクB SPOOL SHAFT (B) 42-2-9-2 028050246 3 バネザガネ2-5 SPRING WASHER 2-5 42-2-9-3 021500106 5 シュナット5 NUT 5 42-2-9-4 050503006 1 ナベコヒラサ5X30 SCREW 5X30 42-2-9-5 050501406 1 ナベコヒラサ5X14 SCREW 5X14 42-2-10 150180000 5 ウケザラ SPOOL STAND BASE 42-2-11 150182000 5 スプールマット SPOOL MAT 42-2-12 126863001 5 スプールクッション SPOOL CUSHION 42-2-13 S02784001 1 ホルダーササエAセット SPOOL HOLDER SUPPORTER (A) SET 42-2-13-1 150186002 1 スプールホルダーササエA SPOOL HOLDER SUPPORTER (A) 42-2-13-2 062501006 1 ナベコ5X10 SCREW 5X10 42-2-13-3 021500106 1 シュナット5 NUT 5 42-2-13-4 031452206 1 マルモク45X22 SCREW 45X22 42-2-14 S02786001 1 スレッドハンガークミ2 THREAD HANGER ASSEMBLY 2 42-2-15 S02788001 1 スレッドハンガークミ3 THREAD HANGER ASSEMBLY 3 42-2-16 150145002 1 イトアンナイホルダークミ THREAD GUIDE HOLDER ASSEMBLY 42-2-16-1 150185002 1 イトアンナイホルダー THREAD GUIDE HOLDER 42-2-16-2 050503006 1 ナベコヒラサ5X30 SCREW 5X30 42-2-16-3 021500106 1 シュナット5 NUT 5 42-2-17 142999001 1 イトアンナイ5 THREAD GUIDE 5 42-2-18 S04109001 1 イトアンナイササエボウ THREAD GUIDE SUPPORTER BAR 42-2-19 138843001 1 ササエボウツキテ JOINT 42-2-20 014060632 2 アナトメ6X6クロメ SCREW 6X6 <オプション/OPTION PARTS> 68 S03886001 1 フルサブマージンセット FULL-SUBMERGED SET 68-1 153319001 1 トウブウケササエ HEAD PLATE SUPPORTER 68-2 153318101 3 カクネマルタマボルト BOLT 6X55 68-3 211964001 1 カクネボルト8X55 BOLT 8X55 68-4 017085502 1 ボルトM8X55 BOLT 8X55 68-5 025080236 15 ヒラサガネ8 WASHER 8 68-6 028080242 5 バネザガネ2-8 SPRING WASHER 2-8 68-7 021080106 11 ナット8シュ8 NUT 8 68-8 S03889001 1 ダスタースートササエ DUSTER SHOOT SUPPORTER 68-9 S03890001 1 ダスタードロップ DUSTER DROP 68-10 062681212 6 ナベコ437-40X12 SCREW 437X12 68-11 025680232 6 ヒラサガネ4.37 WASHER 4.37 68-12 021680202 2 ナット2シュ4.37 NUT 4.37 ※ 付属品の明細は変更することがあります。 ※ The details of included accessories are subject to change. ※ Les détails des accessoires inclus sont sujets à des changements. ※ Änderungen in der Aufstellung der Mitgelieferten Zubehöre sind vorbehalten. ※ Los detalles de los accesorios incluidos pueden variar. jintex.in

Page 56 — 仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/ LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS サンショウバンゴウ A-75 A-76 A-79 A-82 A-83 D-21 D-22 REF.NO. ヒンメイオイルニカクシグチイトトオシセツメイタショウラベショウラベルーバパイプチョウセツハりトメメミシンハリDCX1 PARTS OIL HOLE THREADING LABEL LABEL NEEDLE NEEDLE BOLT FOR DIAGRAM CLAMP OIL GAUGE ASSEMBLY DCX1 SUB ショウ CLASS SPEC 061-2 イッパンジイヨウ 143196001 146463001 146976081 147943001 146487001 112297011 -3 THIN 146976002 (コスウ:1) -4 146976003 (Q'TY:1) -5 062-3 イッパンジイヨウ 146464001 146976004 THIN 063-3 イッパンジイヨウ 146463001 146976007 147943001 146489001 112297014 -4 THIN MEDIUM 146976008 (コスウ:1) -5 146976009 (Q'TY:1) 064-3 146976010 -4 イッパンジイヨウ 146464001 146976011 -5 THIN MEDIUM 146976012 065-5 イッパンジイヨウ 146463001 146976013 147943001 146491001 112297016 -6 THICK 146976014 (コスウ:1) (Q'TY:1) 066-5 イッパンジイヨウ 146464001 146976016 -5 THICK 067-4 ラフラーヨウ 146463001 146976019 147943001 146487001 112297014 -5 RUFFLING 146976097 (コスウ:1) (Q'TY:1) 069-5 ラフラーヨウ 146976021 146489001 -5 RUFFLING 071-6 ラフラーヨウ 146976088 146491001 -6 RUFFLING 146976023 jintex.in

Page 57

サンショウハンゴウ REF.NO. A-75 A-76 A-79 A-82 A-83 D-21 D-22 ヒンメイ PARTS オイルニガシクチ OIL HOLE BOLT FOR OIL GAUGE イトオシセツメイタ THREADING DIAGRAM ショウラヘル LABEL ショウラヘル LABEL ルーバ・ハイトチョウセツラヘル LABEL ハリド・メクミ NEEDLE CLAMP ASSEMBLY ニシンハリDCX1 NEEDLE DCX1 SUB CLASS ショウ SPEC 073-4 パイピングラフラーヨウ RUFFLING W/PIPING 146463001 146976025 147943001 146487001 112297014 (コスウ:1) (Q'TY:1) 074-4 パイピングラフラーヨウ RUFFLING W/PIPING 146464001 146976026 ↑ ↑ 075-5 パイピングラフラーヨウ RUFFLING W/PIPING 146463001 146976027 147943001 146489001 ↑ 076-5 パイピングラフラーヨウ RUFFLING W/PIPING 146464001 146976028 ↑ ↑ 077-5 パイピングラフラーヨウ RUFFLING W/PIPING 146463001 146976029 151488028 147943001 146491001 ↑ 079-4 テープヨウ TAPING 143196001 146976032 ↑ 146487001 112297011 (コスウ:1) (Q'TY:1) 081-3 -4 テープヨウ TAPING 146976037 146976038 ↑ 146489001 112297014 (コスウ:1) (Q'TY:1) -5 083-5 -6 テープヨウ TAPING 146976043 146976044 ↑ 146491001 112297016 (コスウ:1) (Q'TY:1) 084-6 テープヨウ TAPING 146464001 146976047 ↑ ↑ jintex.in

Page 58

サンショウバンゴウ REF. NO. A-75 A-76 A-79 A-82 A-83 D-21 D-22 ヒンメイ PARTS オイルニガシグチ OIL HOLE BOLT FOR OIL GAUGE イトオシセツメイタ THREADING DIAGRAM ショウラヘル LABEL ショウラヘル LABEL ルーハイトチョウセツラベル LABEL ニードル NEEDLE CLAMP ASSEMBLY ミシンハリDCX1 NEEDLE DCX1 SUB CLASS ショウ SPEC 085-3 -5 デニムヨウ HEAVY 143198001 146463001 151488012 147943001 146489001 112297018 (コスウ:1) (Q'TY:1) -6 デニムヨウ HEAVY ↑ 146976051 ↑ 146491001 ↑ 089-5 バインディングヨウ BINDING ↑ 146976069 ↑ 146489001 112297014 (コスウ:1) (Q'TY:1) 090-5 バインディングヨウ BINDING ↑ 146464001 146976098 ↑ ↑ 092-5 -6 デニムヨウ HEAVY ↑ 146463001 146976089 146976090 147943001 146491001 112297018 151488019 (コスウ:1) (Q'TY:1) 093-6 デニムヨウ HEAVY ↑ 146464001 146976092 ↑ ↑ jintex.in

Page 59

サンショウハンゴウ REF.NO. A-75 A-76 A-79 A-82 A-83 D-21 D-22 ヒンメイ PARTS オイルニガシグチイトトオシセツメイタショウラヘルショウラヘルルーハイトチョウセツハノドメクミミシンハツドCX1 OIL HOLE THREADING LABEL LABEL ラヘル NEEDLE NEEDLE BOLT FOR DIAGRAM CLAMP DCX1 OIL GAUGE ASSEMBLY SUB ショウ CLASS SPEC 094-5 151488002 112297011 -7 イッパンジメヨウ 143196001 146463001 151488003 147943001 151467001 (コスウ:1) THIN MEDIUM (Q'TY:1) 095-5 156523001 151488015 156500001 112297016 イッパンジメヨウ (コスウ:2) THIN MEDIUM (Q'TY:2) 096-5 バルキーニツトヨウ S01796001 151488021 S01957001 112297014 BULKY NIT (コスウ:2) (Q'TY:2) 097-5 バルキーニツトヨウ 151488022 S01945001 BULKY NIT jintex.in

Page 60

サンショウハンゴウ REF.NO. D-23 D-38 F-67 F-68 F-69 Z-1-1 Z-1-2 ヒンメイ PARTS ミシンハリDMX13 ハリイタシュオクリバサトウオクリバホシジヨオクリバミシンハリDCX1 ミシンハリDMX13 NEEDLE PLATE MAIN FEED DOG DIFFEREN- CHAIN NEEDLE NEEDLE DMX13 TIAL FEED DOG DCX1 DMX13 SUB ショウ CLASS SPEC 061-2 148280001 -3 イッパンジヌイヨウ 140104011 146498001 146567001 146572001 146577001 112297011 140104011 -4 THIN 146499001 -5 146500001 062-3 イッパンジヌイヨウ 146498001 ↑ ↑ ↑ ↑ THIN 063-3 146501001 -4 イッパンジヌイヨウ 140104014 146502001 ↑ ↑ 112297014 140104014 -5 THIN MEDIUM 146503001 064-3 146501001 -4 イッパンジヌイヨウ 140104014 146502001 ↑ ↑ ↑ ↑ -5 THIN MEDIUM 146503001 065-5 146504001 -6 イッパンジヌイヨウ 140104016 146505001 146568001 146573001 112297016 140104016 THICK 066-5 イッパンジヌイヨウ ↑ 146504001 ↑ ↑ ↑ THICK 067-4 S01770001 -5 ラフラーヨウ 140104014 S01771001 S01777001 146575001 146578001 112297014 140104014 RUFFLING 069-5 ラフラーヨウ ↑ S01773001 ↑ ↑ ↑ RUFFLING 071-6 S01774001 -6 ラフラーヨウ ↑ S01775001 S01778001 146576001 ↑ ↑ RUFFLING jintex.in

Page 61

サンショウバンゴウ REF.NO. D-23 ヒンメイ PARTS ミシンハリDMX13 NEEDLE DMX13 D-38 ハリイタ NEEDLE PLATE F-67 シュオクリバ MAIN FEED DOG F-68 サト"ウオクリバ DIFFEREN- TIAL FEED DOG F-69 ホシ"ョオクリバ CHAIN FEED DOG Z-1-1 ミシンハリDCX1 NEEDLE DCX1 Z-1-2 ミシンハリDMX13 NEEDLE DMX13 SUB CLASS ショウ SPEC 073-4 ラフラーヨウ RUFFLING W/PIPING 140104014 S01770001 S01779001 146575001 146578001 112297014 140104014 074-4 パイピングラフラーヨウ RUFFLING W/PIPING ↑ ↑ ↑ ↑ ↑ ↑ 075-5 パイピングラフラーヨウ RUFFLING W/PIPING ↑ S01773001 S01780001 ↑ ↑ ↑ ↑ 076-5 パイピングラフラーヨウ RUFFLING W/PIPING ↑ ↑ ↑ ↑ ↑ ↑ 077-5 パイピング -6 ラフラーヨウ RUFFLING W/PIPING S01774001 S01775001 S01776001 146576001 ↑ ↑ ↑ 079-4 テープヨウ TAPING 140104011 146499001 146567001 146572001 146577001 112297011 140104011 081-3 -4 テープヨウ TAPING 140104014 146501001 146502001 146503001 ↑ ↑ 112297014 140104014 -5 083-5 -6 テープヨウ TAPING 140104016 146505001 146568001 146573001 ↑ 112297016 140104016 084-6 テープヨウ TAPING ↑ 146505001 ↑ ↑ ↑ ↑ jintex.in

Page 62

サンショウハンゴウ REF.NO. D-23 ヒンメイ PARTS ミシンハリDMX13 NEEDLE DMX13 D-38 ハリイタ NEEDLE PLATE F-67 シュオクリバ MAIN FEED DOG F-68 サドウオクリバ DIFFEREN- TIAL FEED DOG F-69 ホジヨオクリバ CHAIN FEED DOG Z-1-1 ミシンハリDCX1 NEEDLE DCX1 Z-1-2 ミシンハリDMX13 NEEDLE DMX13 SUB CLASS ショウ SPEC 086-3 -5 デニムヨウ HEAVY 140104018 148978001 S09473001 148980001 S00878001 146577001 112297018 140104018 087-5 -6 デニムヨウ HEAVY 147783001 146510001 146569001 146574001 112297018 140104018 089-5 バインディングヨウ BINDING 140104014 147369001 146567001 146572001 112297014 140104014 090-5 バインディングヨウ BINDING 092-5 -6 デニムヨウ HEAVY 140104018 147783001 146510001 158740001 146569001 146574001 112297018 140104018 -7 093-6 デニムヨウ HEAVY 146510001 jintex.in

Page 63

サンショウバンゴツ REF.NO. D-23 D-38 F-67 F-68 F-69 Z-1-1 Z-1-2 ヒンメイ PARTS ミシンハリDMX13 ハリイタシュオクリバサトウオクリバホジヨオクリバミシンハリDMX1 ミシンハリDMX13 NEEDLE DMX13 NEEDLE PLATE MAIN FEED DOG DIFFEREN- TIAL FEED DOG CHAIN FEED DOG NEEDLE DCM1 NEEDLE DMX13 SUB CLASS ショウ SPEC 094-6 -7 イッパンジスイヨウ THIN MEDIUM 151472001 140104011 151473001 151468001 151470001 146577001 112297011 140104011 095-5 イッパンジスイヨウ THIN MEDIUM 140104016 156502001 146568001 146573001 ↑ 112297016 140104016 096-5 バルキーニットヨウ BULKY NIT 140104014 S02863001 S02867001 S02865001 ↑ 112297014 140104014 097-5 バルキーニットヨウ BULKY NIT ↑ S02864001 S02868001 S02866001 ↑ ↑ ↑ jintex.in

Page 64 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

索引/INDEX/VERZEICHNIS/ INDEX/INDICE CODE REF.NO. PAGE CODE REF.NO. PAGE 11229701 Z - 1-1 44 S02784001 Z - 42-1-11 46 S00049001 D - 14-1 8 S02785001 Z - 42-1-13 48 S00878001 G - 1-1 22 S02786001 Z - 42-1-12 46 S01223001 P - 1-1 24 S02788001 Z - 42-1-14 48 S01225001 M - 13-1 36 S02788001 Z - 42-1-13 46 S01248101 E - 35-1-6 32 S02863001 Z - 42-2-15 48 S01295001 E - 35-10-6 12 S02864001 D - 38 8 E - 35-15-6 14 S02865001 D - 38 8 E - 35-17-6 18 S02866001 F - 68 22 E - 35-13-6 18 S02867001 F - 68 22 S01297001 P - 32 36 S02868001 F - 67 22 S01304001 F - 73 22 S02874001 F - 67 22 S01371001 H - 2 28 C - 12-1-4 6 E - 35-13-4 16 S03321001 C - 12-2-5 6 E - 35-15-4 16 S03886001 E - 33 10 E - 35-15-3 16 S03887201 A - 62 48 E - 35-13-2 16 S03888000 Z - 27 44 E - 35-15-2 16 S03889001 Z - 68-8 48 E - 35-13-5 16 S03890001 Z - 68-9 48 E - 35-15-5 16 S04109001 Z - 42-1-16 46 E - 35-13-1 16 Z - 42-2-18 48 E - 35-15-1 16 S05721003 F - 1-18 20 E - 35-13-3 16 S06294001 N - 6 34 S01374001 N - 19 8 S06561001 E - 4 10 S01375001 H - 1-31 34 S06701000 Z - 18 44 H - 1-1-31 26 S06704001 Z - 39 44 S01652001 D - 14 28 S07293001 R - 61 42 S01654000 D - 14-2 8 S07848001 B - 1-3 6 S01756001 P - 30 8 S09323001 A - 84 4 S01757001 P - 31-1 36 S09456001 D - 46-1 8 S01758001 D - 41 36 S09459001 D - 46-2 8 S01761001 P - 35-20 8 S09460001 E - 38 8 S01761001 P - 31-2 36 S09473001 E - 35-19-8 18 S01762101 E - 35-19 36 S09565001 E - 35-20-8 18 S01770001 D - 38 18 S10774001 D - 18-2 8 S01771001 D - 38 8 S11072001 N - 14-2 34 S01773001 D - 38 8 S12677001 F - 8 20 S01774001 D - 38 8 013679412 H - 1-2 26 S01775001 D - 38 8 H - 1-1-29 26 S01776001 F - 67 22 013719412 H - 1-2-29 28 S01777001 F - 67 22 013760612 B - 21 6 S01778001 F - 67 22 013761410 M - 10-1 32 S01779001 F - 67 22 014060632 B - 18 6 S01780001 F - 67 22 Z - 42-1-18 46 S01790001 B - 1-2 6 Z - 42-2-20 48 S01943001 A - 76 4 A - 87 4 S01945001 Z - 7 44 014680422 E - 29 10 S01947101 D - 21 8 M - 14 32 S01948001 D - 24-2 8 N - 13-1-7 34 S01950001 E - 35-19-2 18 N - 15-1-1 34 E - 35-20-2 18 N - 15-2-1 34 S01951001 E - 35-19-12 18 N - 15-3-1 34 E - 35-20-12 18 P - 26 36 S01957001 D - 21 8 R - 52 42 S02770101 Z - 42-2 48 014770622 F - 31 20 S02772101 Z - 42-1 46 P - 1-2 36 S02773001 Z - 42-1-2 46 P - 5-1 36 Z - 42-2-1 48 Q - 2 38 Z - 42-2-7 48 014780622 H - 14-6 28 S02778001 Z - 42-1-6 46 017085502 Z - 68-4 48 S02779001 Z - 42-2-8 48 017771412 F - 36 22 Z - 42-1-7 46 F - 44-2 22 Z - 42-1-15 46 F - 52-1 22 jintex.in

Page 65

CODE REF.NO. PAGE CODE REF.NO. PAGE 017771412 G - 11 24 048025342 E - 35-2-6 12 N - 3 34 E - 35-20-6 18 017771612 A - 65 4 E - 35-3-6 12 D - 2 8 F - 9 20 E - 22 10 E - 19 10 F - 6 20 F - 1-12 20 F - 61 22 Z - 42-1-7-5 46 G - 1-5 24 Z - 42-2-8-5 48 M - 3 32 Z - 42-2-9-5 48 P - 2 36 Z - 42-1-14-2 46 P - 9 36 Z - 42-1-7-4 46 H - 14-10 28 Z - 42-2-16-2 48 H - 14-13 28 Z - 42-2-8-4 48 H - 14-4 28 Z - 42-2-9-4 48 018061622 D - 25 8 021080106 Z - 33 44 060630312 E - 35-19-3 18 Z - 68-7 44 060630412 E - 35-20-3 18 021400106 Z - 21 44 06070512 R - 57 42 021500106 Z - 42-1-11-3 46 A - 40 2 Z - 42-1-12-3 46 A - 42 2 Z - 42-1-14-3 46 H - 1-1-27 26 Z - 42-1-4-3 46 H - 1-2-27 26 Z - 42-1-7-3 46 060670812 R - 18 40 Z - 42-2-13-3 48 060680512 A - 29 2 Z - 42-2-16-3 48 D - 27 8 Z - 42-2-8-3 48 D - 29 8 Z - 42-2-9-3 48 062060806 Z - 42-1-2-1 46 021670202 A - 50 4 Z - 42-2-2-1 48 021680202 Z - 68-12 48 062401406 Z - 22 44 025030232 E - 35-15-7 16 Z - 42-1-11-2 46 E - 35-15-7 16 062501006 Z - 42-1-12-2 46 Z - 61-3 44 Z - 42-2-13-2 48 025050236 Z - 59 44 Z - 42-1-4-1 46 025080236 Z - 31 44 062630812 F - 66 22 025350332 Z - 68-5 48 062660412 E - 38 10 L - 8 32 M - 5 32 Q - 3-2 38 N - 5 34 025680232 Z - 68-11 48 P - 4 36 025770232 F - 70 22 R - 16 40 H - 1-1-8 26 R - 22 40 H - 1-2-8 26 Z - 50 44 028050242 J - 1-1-3 30 F - 1-8 20 R - 62 42 Z - 61-2 44 028050246 Z - 42-1-7-2 46 062660512 E - 35-13-8 16 Z - 42-2-8-2 48 E - 35-15-8 16 Z - 42-2-9-2 48 062660712 E - 35-4-3 12 028080242 Z - 32 44 E - 35-5-3 12 Z - 68-6 48 E - 35-6-3 14 031311302 Z - 37 44 E - 35-7-3 14 031452206 Z - 42-1-11-4 46 E - 35-8-3 14 Z - 42-1-12-4 46 E - 35-9-3 14 Z - 42-1-2-2 48 F - 44-1-4 22 Z - 42-2-13-4 48 H - 1-1-14 26 Z - 42-2-2-2 48 H - 1-2-14 26 032422505 H - 17-2 28 A - 28-1-7 2 047140842 A - 28-1-4 2 A - 28-2-7 2 047300842 E - 6 10 D - 43 8 047301440 N - 13-1-8 34 R - 55 42 N - 13-2-6 34 L - 2 32 047502242 F - 58 22 L - 4 32 048025342 E - 35-11-6 16 A - 20 2 E - 35-12-6 16 A - 26 2 E - 35-13-6 16 A - 31 2 E - 35-18-6 18 A - 48 4 E - 35-19-6 18 A - 61 4 E - 35-19-6 18 A - 71 4 jintex.in

Page 66

CODE REF.NO. PAGE CODE REF.NO. PAGE 062670612 D - 35 8 100447001 J - 1-2 30 F - 11 20 100463001 H - 14-8 28 G - 20 24 100645003 A - 53 4 H - 13 28 C - 15 6 Q - 17 38 F - 24 20 R - 25 40 F - 27 20 R - 28 40 Z - 55-3 44 R - 30 40 K - 2 30 R - 35 40 Z - 58 44 R - 39 40 Z - 5 44 R - 43 42 A - 38-1 2 R - 60 42 F - 34-1 20 062670812 B - 5-1 6 H - 1-1-18-1 26 B - 10 8 101118001 H - 1-1-4 26 D - 6 8 H - 1-2-4 26 D - 33 8 Q - 3-6-1 38 D - 47 8 G - 27-2 24 F - 19 20 B - 6 6 Q - 33 38 G - 14 24 062671012 G - 9-2 24 A - 19 2 Q - 3-10 38 D - 17 8 062671412 A - 49 4 L - 7 32 D - 45 8 H - 1-1-6 26 H - 1-1-25 26 H - 1-2-6 26 H - 1-2-25 26 H - 1-1-22 26 L - 6 32 H - 1-2-22 26 A - 23 2 R - 23 40 A - 52 4 E - 35-11-3 16 A - 8 2 E - 35-12-3 16 D - 18-1 8 E - 35-14-3 16 D - 37 8 E - 35-18-3 18 E - 14 10 E - 35-2-3 12 F - 30 10 E - 35-3-3 12 N - 33 34 E - 35-4-5 12 H - 1-1-17 26 E - 35-5-5 12 H - 1-2-17 26 E - 35-6-5 14 062680612 062680712 062681012 101572101 101706001 105343001 107093002 107244001 107407003 107779001 108494001 108495001 108960002 109203001 109854001 110161003 110161006 110230001 110641002 110668001 110670000 110672000 110673000 110704001 110735002 110778002 110793001 B - 14 6 C - 2 6 F - 25 20 F - 28 20 H - 17-1 28 N - 13-1-5 34 N - 13-2-5 34 Z - 55-2 44 Z - 68-10 48 A - 4 2 E - 34 10 Q - 4 38 N - 6-3 34 B - 15 6 100025002 F - 1-17 20 100032003 A - 86 4 D - 31 8 100080004 J - 1-1-1 30 100136001 K - 1-4 30 100251001 F - 4 20 100257010 C - 13 6 100260001 G - 5 24 100294002 N - 12 34 100366001 F - 56 22 D - 1-3 8 D - 7 8 G - 1-3 24 100444002 J - 1-1-4 30 E - 16 10 P - 11 36 H - 1-1-21 26 H - 1-2-21 26 A - 66 4 B - 9 6 B - 13 6 B - 16 6 M - 4 32 N - 4 34 L - 10 32 P - 16 36 E - 18 10

Page 67

CODE REF. NO. PAGE CODE REF. NO. PAGE 110813001 R - 14-1 40 122771002 E - 35-20-11 18 110820101 R - 14-2 40 122991001 E - 35-3-11 12 H - 1-1-7 26 123185001 Z - 25 44 H - 1-2-7 26 126863001 A - 35 2 R - 4-1 40 138843001 Z - 42-1-10 46 110832001 R - 4-2 40 Z - 42-1-12 48 R - 4-4 40 140065001 Z - 42-1-17 46 R - 46 40 140066001 Z - 42-2-19 48 R - 5-1 40 140084000 A - 56 4 111486001 R - 5-2 40 140088001 A - 55 4 D - 24 2 140091000 B - 10 6 112297011 D - 30 8 140092001 D - 1-2 8 112297014 D - 22 44 140093000 D - 5 8 Z - 1-1 8 140096001 D - 9-2 8 112297016 D - 22 44 140104011 D - 23 8 Z - 1-1 8 Z - 1-2 44 112297018 D - 22 44 140104014 D - 23 8 Z - 1-1 8 Z - 1-2 44 112300001 R - 68 42 140104016 D - 23 8 112301001 R - 70 42 Z - 1-2 44 H - 8-5 28 140104018 D - 23 8 112348001 C - 3 42 Z - 1-2 44 C - 6 6 140150000 P - 13 36 C - 9 6 140159000 P - 22 36 Q - 11 38 140165001 F - 1-3 20 Q - 19 38 140176001 F - 1-15 20 Q - 22 38 140180001 B - 19 6 Q - 24 38 140187000 F - 18 20 112359001 C - 4 38 140188004 F - 17 20 C - 7 38 140205001 F - 35 22 Q - 8 6 140207001 F - 20-2 20 Q - 10 6 140208001 F - 20-3 20 112364001 C - 4 38 F - 20-8 20 C - 7 38 140209001 F - 20-4 20 Q - 25 38 140210001 F - 20-5 20 112436001 Q - 20 38 140217001 F - 20-9 20 Q - 23 38 140232001 G - 1-2 24 Q - 9 38 140233001 G - 1-4 24 112436001 G - 15 24 140235000 G - 6 24 112525000 Z - 4 44 140261001 E - 21 10 112735000 Q - 58 38 140262000 E - 23 10 112751002 Q - 51 38 140263000 E - 24 10 H - 4 28 140270001 E - 35-12-1 16 113431002 Z - 52 44 E - 35-18-1 18 F - 40 22 E - 35-20-1 18 F - 76 22 E - 35-3-1 12 113589001 A - 6 2 E - 35-4-1 12 114294001 Q - 37 38 E - 35-5-1 12 116016001 A - 33 44 E - 35-6-1 14 117160001 Z - 13 24 E - 35-7-1 14 117466000 G - 16 22 E - 35-8-1 14 117515001 F - 65 20 E - 35-9-1 14 117516001 G - 17 4 140271001 E - 35-5-6 12 117517003 F - 1-16 22 140272001 E - 35-4-7 12 118550001 A - 69 36 E - 35-5-7 12 118770001 F - 75 16 E - 35-6-7 14 120990001 P - 19 16 E - 35-7-7 14 122771002 E - 35-11-11 18 E - 35-8-7 14 E - 35-12-11 16 E - 35-9-7 14 E - 35-14-11 16 E - 35-5-8 12 E - 35-18-11 18 E - 35-6-8 14 E - 35-19-11 18 E - 35-7-8 14 E - 35-2-11 12 E - 35-8-8 14 140273001 E - 35-9-8 14 jintex.in

Page 68

CODE REF. NO. PAGE CODE REF. NO. PAGE 140275001 E - 35-4-10 12 143196001 A - 75 4 E - 35-5-10 12 143311001 B - 2-2 6 E - 35-6-10 14 143312000 B - 3 6 E - 35-7-10 14 143323103 E - 10-1 10 E - 35-8-10 14 143325001 E - 12 10 E - 35-9-10 14 143374001 A - 85 4 140313001 P - 17 36 143564001 F - 37-1 22 140317000 Q - 47 38 143565001 F - 41 22 140325001 Q - 15 38 143566001 R - 11 44 140326001 F - 3 20 143757001 R - 15-1 40 140327001 D - 4 8 143767002 K - 1 30 F - 14 20 143980001 K - 1-1 30 M - 7 32 143992001 A - 9 2 N - 6-2 34 144025001 N - 1 34 140342001 P - 27 36 144029000 N - 10 34 140415000 Q - 46 38 144031000 N - 10 34 140416000 N - 13-1-4 34 144044001 M - 1 32 140417000 Q - 48 38 144053001 F - 1-9 20 140418000 Q - 41 38 144055001 F - 1-10 20 140421001 A - 58 4 144068001 F - 37-2 22 140759000 Z - 40 44 144074000 G - 8-1 24 140778101 Q - 18 38 144075001 G - 9-1 24 Q - 21 38 144079001 E - 1 10 140779101 Q - 7 38 144081001 E - 3 10 140780101 Q - 6 38 144083001 E - 5 10 140888001 Z - 49 44 144085001 E - 8 10 140991001 E - 35-6-6 14 144086001 E - 9 10 140992001 E - 35-4-11 12 144103002 R - 7-1 40 E - 35-5-11 12 R - 7-2 40 E - 35-6-11 14 144104001 R - 8-1 40 E - 35-7-11 14 R - 8-3 40 E - 35-8-11 14 H - 1-1-10 26 E - 35-9-11 14 H - 1-2-10 26 140993001 E - 35-4-9 12 144105000 R - 11 40 E - 35-5-9 12 R - 49 42 E - 35-6-9 14 144108001 R - 21-1 40 E - 35-7-9 14 144110001 R - 10 40 E - 35-8-9 14 144111001 R - 26 40 E - 35-9-9 14 144116000 C - 12-1-2 6 141183000 A - 37 2 144117000 C - 12-2-2 6 141814001 H - 11 28 144127001 G - 7 24 H - 8-2 28 144179001 G - 26-1 24 142201001 R - 21-2 40 144225002 Z - 41 44 142243000 E - 35-1-1 12 144619000 Q - 3-1 38 E - 35-10-1 14 144622001 Q - 3-5 38 E - 35-16-1 18 144764001 H - 1-1-26 26 E - 35-17-1 18 144775001 H - 1-2-26 26 142244001 E - 35-1-2 12 E - 35-5 12 E - 35-10-2 14 E - 35-4-2 12 E - 35-16-2 18 E - 35-5-2 14 142245001 E - 35-1-3 12 E - 35-7-2 14 E - 35-10-3 14 E - 35-8-2 14 E - 35-16-3 18 E - 35-9-2 14 142246001 E - 35-1-4 12 E - 35-4-4 12 E - 35-10-4 14 E - 35-5-4 12 142247001 E - 35-1-5 12 E - 35-6-4 14 E - 35-10-5 14 E - 35-7-4 14 E - 35-16-5 18 E - 35-8-4 14 142250001 E - 35-17-5 18 E - 35-9-4 14 142262001 Z - 24 44 144777001 H - 1-1-12 26 142274001 B - 20 6 H - 1-2-12 26 142669002 R - 36 40 144783001 H - 1-1-13 26 142999001 Z - 42-2-17 48 H - 1-2-13 26 143179000 B - 8 6 144784001 H - 1-1-9 26 H - 1-2-9 26 144788001 jintex.in

Page 69

CODE REF.NO. PAGE CODE REF.NO. PAGE 144793000 H - 3 28 146478001 D - 1-4 8 Z - 51 44 146479001 D - 3 8 145147001 E - 35-11-2 16 146480001 D - 9 8 E - 35-12-2 16 146482001 D - 9-3 8 E - 35-18-2 18 146483001 D - 12 8 E - 35-2-2 12 146487001 D - 21 8 E - 35-3-2 12 146489001 D - 21 8 145277105 Z - 19 44 146491001 D - 21 8 145446001 R - 47 42 146493102 D - 24-1 8 R - 6-1 40 146494001 D - 26 8 R - 6-2 40 146495001 D - 28 8 145663001 F - 1-2 20 146496301 D - 34 8 145664000 Q - 32 38 146497201 D - 36 8 145803001 H - 1-1 26 146498001 D - 38 8 H - 1-2 26 146499001 D - 38 8 145807001 H - 1-1-16 26 146500001 D - 38 8 H - 1-2-16 26 146501001 D - 38 8 145808001 H - 1-2-24 26 146502001 D - 38 8 H - 1-2-24 26 146503001 D - 38 8 145809001 H - 5 26 146504001 D - 38 8 145810001 H - 1-1-19 26 146505001 D - 38 8 H - 1-2-19 26 146510001 D - 38 8 145811001 H - 1-1-23 26 14651100 C - 1 6 H - 1-2-23 26 146512101 C - 5 6 146315000 A - 57 4 146515000 C - 8 6 146401001 F - 1-4 20 146516000 C - 11 6 146402001 F - 1-5 20 146517100 C - 12-1 6 146403001 F - 1-6 20 146518100 C - 12-1-1 6 146404001 F - 1-7 20 146521001 E - 2 10 146419001 A - 2 2 146522001 E - 13-1 10 146420000 A - 5 2 146523001 E - 17 10 146421000 A - 7 2 146524001 E - 20 10 146422001 A - 13 2 146525001 E - 25 10 146425001 A - 13 2 146526001 E - 27 10 146426000 A - 14 2 146527001 E - 28 10 146427001 A - 15 2 146528001 F - 1 20 146428001 D - 11 8 146529001 F - 1-11 20 D - 21 8 146530001 F - 1-13 20 146430001 A - 16-1 2 146531001 F - 1-14 20 146430001 A - 16-3 2 146532001 F - 2 20 146432001 A - 17 2 146533001 F - 5 20 146433000 A - 18 2 146534001 F - 7 20 146434000 A - 21 2 146536001 F - 10 20 146435000 A - 22 2 146537000 F - 12 20 146436001 A - 25 2 146538001 F - 13 20 146440001 A - 28-1 2 146539000 F - 15 20 A - 28-1-1 2 146540000 F - 16 20 146441000 A - 28-1-2 2 146541001 F - 20-1 20 A - 28-2-1 2 146544000 F - 20-1-2 20 146442001 A - 28-2-2 2 146547000 F - 29 20 A - 28-3 2 146548101 F - 30 20 146443001 A - 30 2 146549001 F - 32 20 146444001 A - 32-1 2 146550001 F - 44 20 146449001 A - 39 2 146554001 F - 20-6 20 146450001 A - 41 2 146555001 F - 20-7 20 146451001 A - 43 2 146556001 F - 49 22 146452001 A - 44 2 146558001 F - 53 22 146453001 A - 46 2 146559001 F - 54 22 146454001 A - 47 2 146560101 F - 55 22 146455101 A - 51-1 4 146561001 F - 59-1 22 146457001 A - 60 4 146562001 F - 59-3 22 146460001 A - 70 4 146563001 F - 60 22 146463001 A - 76 4 146564001 F - 62 22 146464001 A - 76 4 146565001 F - 63 22 146471001 B - 1-1 6 146566001 F - 64 22 146473001 B - 7 6 146567001 F - 67 22 146476101 D - 1 8 146568001 F - 67 22 jintex.in

Page 70

CODE REF. NO. PAGE CODE REF. NO. PAGE 146569001 F - 67 22 146869001 E - 35-14-8 16 146572001 F - 68 22 E - 35-18-8 18 146573001 F - 68 22 E - 35-2-8 12 146574001 F - 68 22 E - 35-3-8 12 146575001 F - 68 22 146870001 E - 35-11-10 16 146576001 F - 68 22 E - 35-12-10 16 146577001 F - 69 22 E - 35-14-10 16 146578001 F - 69 22 E - 35-18-10 18 146580001 G - 4 24 E - 35-19-10 18 146581001 G - 11 24 E - 35-2-10 12 146582001 G - 13 24 E - 35-3-10 12 146583001 G - 18 24 146871101 E - 35-2 12 146584001 G - 19 24 E - 35-3 12 146585001 G - 21 24 E - 35-3.9 12 146586000 G - 22 24 146878001 E - 35-4 12 146587201 H - 1-1 26 146880001 E - 38-4-6 12 146588001 H - 1-1-1 26 146881001 E - 35-6 14 146589001 H - 1-1-3 26 146883001 E - 37 10 146590001 H - 1-2-5 26 146901001 E - 35-11-9 16 H - 1-1-28 26 E - 35-12-9 16 H - 1-2-28 26 E - 35-14-9 16 146592001 H - 1-1-5 26 E - 35-18-9 18 H - 1-2-5 26 E - 35-2-9 12 146594001 H - 16 28 E - 35-3-9 12 146602001 N - 9-1 34 F - 52 22 146603301 N - 13-1 34 146914001 A - 32-1-1 2 146611301 N - 13-2 34 146924000 A - 32-2-1 2 146614001 M - 6 32 146925001 R - 38 40 146615000 M - 8 32 146926002 R - 27 40 146616000 M - 9 32 146929001 R - 29 40 146617001 M - 11 32 146930001 R - 59 42 146618001 P - 1 36 146976001 A - 79 4 146622001 P - 3 36 146976002 A - 79 4 146624101 P - 7 36 146976003 A - 79 4 146626001 P - 8 36 146976004 A - 79 4 146627001 P - 10 36 146976007 A - 79 4 146628001 P - 12 36 146976008 A - 79 4 146629000 P - 14 36 146976009 A - 79 4 146630001 P - 15 36 146976010 A - 79 4 146631001 P - 18 36 146976011 A - 79 4 146632001 P - 20 36 146976012 A - 79 4 146633000 P - 21 36 146976013 A - 79 4 146635001 P - 25 36 146976014 A - 79 4 146636201 Q - 13 38 146976016 A - 79 4 146647001 Q - 1 38 146976019 A - 79 4 146648001 R - 1 40 146976021 A - 79 4 146649001 R - 3-1 40 146976023 A - 79 4 146650001 R - 17 40 146976025 A - 79 4 146652001 R - 31 40 146976026 A - 79 4 146653001 R - 32 40 146976027 A - 79 4 146654001 R - 34 40 146976028 A - 79 4 146656001 R - 40 40 146976029 A - 79 4 146663001 R - 56 42 146976032 A - 79 4 146700001 Z - 8 44 146976037 A - 79 4 146706001 A - 16-2 2 146976038 A - 79 4 146717101 A - 51-2 2 146976039 A - 79 4 146740000 C - 12-2.4 6 146976043 A - 79 4 146742001 F - 59.2 22 146976044 A - 79 4 146793001 R - 15-2 40 146976047 A - 79 4 146865001 E - 35-11-1 16 146976051 A - 79 4 E - 35-14-1 16 146976069 A - 79 4 E - 35-19-1 18 146976080 A - 79 4 E - 35-2-1 12 146976081 A - 79 4 146869001 E - 35-11-8 16 146976089 A - 79 4 E - 35-12-8 16 146976090 A - 79 4 146976092 A - 79 4 146976097 A - 79 4 jintex.in

Page 71

CODE REF.NO. PAGE CODE REF.NO. PAGE 146976098 A - 79 4 148372001 E - 11 10 147049001 R - 12-1-2 40 148379001 N - 13-1-1 34 147049002 R - 12-2-2 40 148387001 N - 13-2-1 34 147049003 R - 12-3-1-1 40 148388001 H - 1-2-18 26 147049004 R - 12-4-2 40 148389001 H - 8-1 28 147148001 R - 45 42 148390001 H - 8-3 28 147149001 R - 48 42 148391001 H - 8-4 28 147217000 Q - 31 38 148395001 H - 10 28 147318000 Q - 52 38 148405101 H - 8 28 Q - 56 38 148425001 E - 35-12 16 Q - 57 38 D - 1-1 8 147344001 R - 67-1 42 G - 1-1-1 24 147361000 Q - 53 38 M - 1-1 32 147363000 Q - 55 38 N - 1-1 34 147367001 A - 32-2 2 148427001 P - 7-1 36 147369001 D - 38 8 148430101 P - 1-1-1 36 147370101 E - 35-14 16 148431201 G - 1 24 147371001 E - 35-14-2 16 148432001 Z - 56-1 44 147373000 L - 1 32 148782001 Z - 56-2 44 147377001 L - 3 32 M - 15 32 147435001 E - 35-8 14 148797001 P - 28 36 147437001 E - 35-9 14 H - 14-5 28 147440000 L - 5 32 H - 14-7 28 147454001 E - 13-2 10 G - 8-2 24 147488001 E - 35-8-6 14 E - 35-10 14 147489001 E - 35-9-6 14 F - 50 22 147521001 Q - 3 38 R - 8-2 40 147523001 Q - 3-4 38 A - 79 4 147527001 Q - 3-7 38 D - 38 8 147528100 Q - 3-8 38 E - 35-13 16 147529001 Q - 3-9 38 F - 67 22 147672001 H - 12 28 F - 68 22 147691000 H - 1-3 36 148984001 A - 28-1-5 2 147773001 F - 20-1-1 20 A - 28-2-5 2 147783001 D - 38 8 148997001 A - 28-1 2 147785001 E - 35-7 14 148999001 A - 28-2 2 147870001 E - 35-7-6 14 149143001 E - 35-13-6 16 147848101 B - 17 6 149170001 D - 9-1 8 147893003 Z - 20 44 N - 13-1-3 34 147919001 Z - 48-1 44 N - 13-2-3 34 147919002 Z - 48-2 44 M - 12 32 147933001 H - 1-1-15 26 P - 24 36 H - 1-2-15 26 Z - 9 44 147934001 N - 15-1 34 E - 35-11-4 16 147935001 N - 15-3 34 E - 35-14-4 16 147943001 A - 83 4 E - 35-2-4 12 147950101 E - 35-11 16 E - 35-11-5 16 147988001 P - 5 36 E - 35-14-5 16 148013101 E - 35-15 16 E - 35-19-5 18 148020001 E - 35-15-6 16 E - 35-2-5 12 148033001 N - 6-1 34 E - 35-20-7 18 148034001 N - 6-4 34 E - 35-3-7 12 148042001 Z - 55-1 44 E - 35-12-4 16 148084001 A - 54 4 E - 35-18-4 18 148174000 F - 23 20 E - 35-3-4 12 148280001 D - 38 8 E - 35-12-5 16 148281101 G - 25 24 E - 35-18-5 18 148294001 N - 13-1-2 34 E - 35-20-5 18 N - 13-2-2 34 E - 35-3-5 12 N - 20 34 E - 39 10 R - 41 40 148343101 G - 28 24 148344001 G - 29 24 148345001 G - 26-2 24 148348001 Z - 55 44 148369101 E - 10-2 10 jintex.in

Page 72

CODE REF.NO. PAGE CODE REF.NO. PAGE 149566001 H - 1-1-11 26 151488012 A - 82 4 H - 1-2-11 26 151488015 A - 82 4 R - 12-1-1 40 151488018 A - 82 4 R - 12-2-1 40 151488019 A - 82 4 R - 12-3-1-1 40 151488021 A - 82 4 R - 12-3-2-1 40 151488022 A - 82 4 R - 12-4-1 40 151488028 A - 82 4 R - 12-1 40 151617001 A - 82 4 149568001 R - 12-2 40 152194001 R - 42 42 149568002 R - 12-3 40 A - 28-1-6 2 149568003 R - 12-3-2 40 A - 28-2-6 2 149568004 R - 12-4 40 Z - 68-2 48 149886004 F - 71 22 153318101 Z - 68-1 48 14987001 F - 26 20 153319001 E - 15 10 150106002 Z - 42-1-4 46 153483001 F - 72 22 150145002 Z - 42-2-4 46 154795001 H - 1-1-30 26 150172002 Z - 42-1-14 46 H - 1-2-30 28 150174000 Z - 42-2-16 48 A - 34 2 150179002 Z - 42-1-3 46 C - 1-1 6 150180000 Z - 42-2-3 48 154829001 E - 35-19-9 18 150182000 Z - 42-2-5 48 154928000 E - 35-20-9 18 150185002 Z - 42-1-7-1 46 155103001 H - 14 28 150188002 Z - 42-2-8-1 48 155196201 H - 14-1 28 150189002 Z - 42-2-9-1 48 155197001 H - 14-2 28 150194002 Z - 42-1-8 46 155198101 H - 14-3 28 150307000 Q - 42 38 155199101 H - 14-9 28 150550000 Z - 61-1-20 44 155201101 H - 14-11 28 150553002 H - 1-1-2-20 26 155202001 H - 14-12 28 150556002 H - 6 26 155203201 H - 15 28 150606001 B - 2-1 28 155205001 P - 23 36 150806001 R - 51 42 155262001 E - 35-19-4 18 150807101 R - 53 42 156065001 E - 35-20-4 18 150810001 R - 54 42 156069001 D - 21 8 150812001 R - 58 42 156500001 C - 12-2 6 150813001 R - 63 42 156502001 C - 12-2-1 6 151012001 R - 50 44 156505001 E - 35-18 18 151017001 Z - 61 4 156507001 R - 3-2 40 151059001 A - 59 4 156509001 R - 67-2 42 151060000 A - 64 4 156511001 A - 76 4 151461001 E - 35-16 18 156523001 D - 38 8 151462001 E - 35-17 18 158740001 N - 18 34 151464001 E - 35-17-2 18 159101000 F - 20 20 151465001 E - 35-17-3 18 159475001 A - 63 4 151466001 E - 35-17-4 18 159476000 R - 4-3 40 151467001 D - 21 8 159574101 D - 20 8 151469001 F - 67 22 159636000 D - 16 8 151470001 F - 68 22 159638001 A - 72 4 151472001 D - 38 8 159639001 A - 68 4 151473001 D - 38 8 159640000 N - 15-2 34 151475000 C - 12-1-3 6 159686001 M - 13-2 32 151488002 A - 82 4 159884101 M - 10 32 151488003 A - 82 4 180323001 J - 1 30 181969003 F - 34 2 181995001 Q - 3-6 38 181995002 H - 1-1-18 26 183161201 Z - 56 44 210973001 Z - 29 44 211964001 Z - 68-3 48 jintex.in

Page 73

ゲージ部品 / GAUGE PARTS/TEILE DER LEHRE / PIECES DE GAUGE/PIEZAS DE CALIBRE サブクラス一般地縫用一般地縫用一般地縫用一般地縫用一般地縫用ラフラー用ラフラー用 Sub-Class Thin Thin Thin Thick Thick Ruffling Ruffling medium medium 061-2 062-3 063-3 064-3 065-5 066-5 067-4 071-5 -3 -4 -4 -5 -5 -5 -6 -5 069-5 品名 Name of Parts オサエニミ Presser Foot Assembly 142250001 146871101 146874101 146878001 144775001 146881001 ハリドメクミ Needle Clamp Assembly 146497001 146489101 146491101 146487001 146489001 146491001 ハリイタ Needle Plate 148280001 146498001 146499001 146500001 146498001 146501001 146502001 146503001 146504001 146505001 S 01770001 S 01771001 S 01773001 S 01774001 S 01775001 シェオクリバ Main Feed Dog 146567001 146568001 S 01777001 S 01778001 サドウオクリバ Differential Feed Dog 146572001 146573001 146575001 146576001 ホジヨオクリバ Chain Feed Dog 146577001 146578001 ★ 印は、国内向専用部品です。 ★ Parts for Japan only. ★ Teile nur fur Japan. ★ Pieces pour le Japan. ★ Piezas solo para el mercado japonés. jintex.in

Page 74

バイビングラフラー用 Ruffling W/Piping 073-4 074-4 バイビングラフラー用 Ruffling W/Piping 075-5 076-5 バイビングラフラー用 Ruffling W/Piping 077-5 -6 テープ用 Taping 079-4 テープ用 Taping 081-3 -4 -5 テープ用 Taping 083-5 テープ用 Taping 084-6 デニム用 Heavy 085-3 -5 デニム用 Heavy 087-5 -6 147785001 147435001 147437001 148816001 147950001 148705101 148013101 148979101 146874101 146487001 146489001 146491001 146487001 146489001 146491001 146501001 146502001 146503001 146499001 146504001 146505001 148978001 S 09473001 147783001 146510001 S 01770001 S 01773001 S 01774001 S 01775001 S 01779001 S 01780001 S 01776001 146567001 146568001 148980001 146569001 146575001 146576001 146572001 146573001 S 00878001 146574001 146578001 146577001 jintex.in

Page 75

サブクラスバインディング用 Binding 089-5 バインディング用 Binding 090-5 デニム用 Heavy 092-5 -6 -7 デニム用 Heavy 093-6 一般地縫用 Thin medium 094-5 -7 一般地縫用 Thin medium 095-5 バルキーニット用 Bulky nit 096-5 バルキーニット用 Bulky nit 097-5 品名 Name of Parts オサエコミ Presser Foot Assembly 147370101 148013101 151461001 151462001 156507001 S 01762101 S 01759101 ハリドメクミ Needle Clamp Assembly 145489001 145491001 151467001 156500001 S 01957001 S 01945001 ハリイタ Needle Plate 147783001 146510001 158740001 147369001 146510001 151472001 151473001 156502001 S 02863001 S 02864001 シュオククリバ Main Feed Dog 146567001 146569001 146568001 S 02867001 S 02868001 146567001 146569001 151469001 サドウオククリバ Differential Feed Dog 146572001 146574001 151470001 146573001 S 02865001 S 02866001 ホジオククリバ Chain Feed Dog 146577001 jintex.in

Page 76

brother ブラザー工業株式会社 jintex.in 185510 195551-701 1988 10
