Brother S-6280A Parts Book (PDF)

Single Needle Lockstitch · also listed as S6280A, 6280ADownload PDF

Text index — Brother S-6280A

Page 5 — A. 机壳分组件 / Machine frame&miscellaneous cover components

Brother S-6280A parts on page 5
Ref	Part number	Part name	Qty
1	DD0008972	Screw	9
2	DE0025554	Side plate	1
3	DD0066775	Side plate gasket	1
4	DD0004380	Screw	3
5	DD0008934	Screw	1
6	E00003021	Thread take-up lever cover	1
7	D00003429	Rubber plug	2
8	D00003428	Rubber plug	1
9	D00003517	Bobbin wider ASM	1
10	D00003456	Rubber ring	1
11	DD0050423	Screw	2
12	DD0011149	Thread cutter	1
13	D00003431	Oil window	1
14	D00003430	O-ring	1
15	D00003435	Rubber plug	1
16	DD0051431	Bobbin thread tension ASM	1
17	D00003862	Rubber plug	1
18	D00003427	Rubber plug	1
19	DD0008972	Screw	3
20	E00003519	Face plate	1
21	D00002740	Face plate gasket	1
22	D00003432	Rubber plug	2
23	D00003235	Arm thread guide left	1
24	DD0008973	Screw	2
25+	DD0060708	Needle plate	1
25+	DD0014459	Needle plate	1
26	DD0012463	Screw	1
27	DD0009005	Screw	1
28	DD0004373	Ruler plate	1
29	DD0004374	Screw	2
30	DD0008940	Arm thread guide right	1
31	D00003434	Rubber plug	1
32	DD0013706	Side plate ASM	1
33	DD0003960	Side plate	1
34	DD0010080	Screw	2
35	DD0003963	Spring of side	1
36	DD0002577	Bed screw stud	4

Page 7 — B. 上轴、挑线分组件 / Needle bar and thread take-up mechanism

Brother S-6280A parts on page 7
Ref	Part number	Part name	Qty
1	DD0050672	Thread take-up crank shaft	1
2	DD0010083	Screw	1
3	DD0010535	Thread take-up bar	1
4+	DD0004158	Thread take-up lever Asm	1
4+	DD0038474	Thread take-up lever Asm	1
5	D00003440	Oil resistant cover	1
6	DD0010545	Screw	1
7	D00003438	O-ring	1
8	DD0010082	Screw	1
9	DD0010065	Screw	2
10	DD0010538	O-ring	1
11	D00003439	Sleeve of adjusting pin	1
12	DD0010504	Pin	1
13+	DD0012203	Counter weight	1
13+	DD0012858	Counter weight	1
14	DD0014106	Bearing	2
15+	DD0006844	Needle bar crank	1
16+	DD0053104	Needle bar crank rod	1
15+	DD0005940	Needle bar crank	1
16+	DD0010592	Needle bar crank rod	1
17	DD0010537	Screw	1
18+	D00003513	Take-up Bar Assembly	1
18+	D00003703	Take-up Bar Assembly	1
19	DD0055615	Bearing support	1
20	DD0004472	Wheel	1
21	DD0010678	Screw	2
22	DD0010678	Screw	1
23	DD0005020	Screw	2
24	DD0010542	Thrust collar	1
25	D00003698	Bearing support	1
26	DD0007239	Bearing support	1
27	D00003825	Main shaft	1
28	D00002521	Oil seal	1
29	DNR003534	Motor	1
30	DD0059025	Screw	4
31	E00003671	Head wheel	1
32	DD0011232	Screw	2

Page 9 — C. 针杆、夹线组件 / Needle bar & thread tension components

Brother S-6280A parts on page 9
Ref	Part number	Part name	Qty
1	D00003441	Rubber plug	1
2	DD0011063	Bearing support	1
3+	D00003789	Needle bar	1
3+	D00003792	Needle bar	1
4	DD0043360	Screw	1
5+	DD0014117	Bearing support	1
6+	DD0010591	Needle bar thread guide	1
7+	DD0038939	Needle DB×1	1
5+	DD0005916	Bearing support	1
6+	DD0005945	Needle bar thread guide	1
7+	D00003606	Needle DB×1	1
8	DD0005943	Needle bar thread guide	1
9	DD0010588	Screw	1
10+	DD0052735	Needle bar holder	1
10+	DD0010590	Needle bar holder	1
11	DD0054140	Slide block	1
12	DD0043360	Screw	2
13	DD0004184	Thread release pin	1
14	DD0004183	O-ring	1
15	DD0004200	Screw	1
16	DD0039524	Tension post socket	1
17	DD0004201	Spring	1
18	DD0004177	Screw	1
19	DD0051457	Nut	1
20	DD0004199	Tension disc stopper	1
21+	DD0004176	Spring	1
21+	DD0005941	Spring	1
22	DD0004179	Thread release disc	1
23	DD0004180	Tension disc holder	2
24+	DD0062637	Thread take-up device	1
24+	D00003773	Thread take-up device	1
25	DD0006264	Screw	1
26	DD0051458	Nut	1
27	DD0005838	Spring	1
28	DD0005839	Tension disc holder	2
29	DD0012589	Threading Plate	1
30	DD0051703	Thread take-up device	1
31	DD0009074	Screw	1
32	DD0008934	Screw	1
33	DD0052992	Needle tension guide	1
34	DD0058041	Tension release supporting pin	1

Page 11 — C. 针杆、夹线分组件 / Needlebar & thread tension components

Brother S-6280A parts on page 11
Ref	Part number	Part name	Qty
35	DD0050348	Spring	1
36	DNR003645	Electromagnet	1
37	DD0009074	Screw	1
38	DD0009074	Screw	1
39	DD0038945	Presser bar thread guide	1

Page 13 — D. 压料、松线分组件 / Presser bar & tension release components

Brother S-6280A parts on page 13
Ref	Part number	Part name	Qty
1	DD0051433	Screw ASM	1
2	DD0051428	Screw	1
3	DD0051429	Nut	1
4	DD0004439	Presser guide bar	1
5	DD0004473	Spring	1
6	DD0039365	Presser guide bar bracket	1
7	DD0000325	Screw	1
8	D00003533	Oil protector cover	1
9+	DD0014118	Bearing support	1
10+	DD0052532	Presser foot ASM	1
9+	DD0005915	Bearing support	1
10+	DD0005982	Presser foot ASM	1
11	DD0010650	Screw	1
12	DD0010646	Presser bar	1
13	DD0039380	Foot lifter pull thread components	1
14	DD0005834	Nut	2
15	DD0012467	Screw	1
16	DD0008860	Loosing plate	1
17	DD0008834	Spring	1
18	DD0006624	Screw	2
19	DD0013615	Fixing shutter	1
20	DD0008811	Loosing plate	1
21	DD0008972	Screw	2
22	DD0009037	Screw	2
23	DD0039378	Wire rope pressing plate	1
24	DD0039372	Tension release plate	1
25	DD0039373	Pin	1
26	DD0009074	Screw	3
27	DD0010027	O-ring	1
28	DD0050590	Washer	1
29	DD0050188	Lifting lever	1
30	DD0013038	Snap ring	2
31	DD0052046	Spring	1
32	DD0010016	Screw	1
33	DD0051430	Hand liter	1
34	DD0010027	O-ring	1
35	DD0050190	Hand lifter CAM ASM	1
36	DD0039374	Pin	1
37	DD0010651	Screw	2
38	D00002079	Lifting lever connecting rod	1
39	DD0010652	Screw	2
40	D00003258	Presser foot lifter connector plate	1
41	D00002081	Lifinglever link	1
42	DD0009205	Spring	1
43	D00003507	Connecting rod verrical	1
44	DNR003459	Electromagnes	1
45	DD0000134	Screw	4

Page 15 — E. 钩线分组件 / Hook of driving shaft components

Brother S-6280A parts on page 15
Ref	Part number	Part name	Qty
1	DD0031261	Positioning finger	1
2	DD0011101	Screw	1
3	DD0006924	Bobbin case	1
4	DD0025484	Bobbin	1
5+	DD0051397	Hook	1
5+	DD0053595	Hook	1
6	D00003639	Screw	1
7	DD0010063	Oil wick	1
8	DD0058812	Bearing support	1
9	DD0041529	Screw	2
10	DD0008857	Bearing support	1
11	DD0010058	Thrust collar	1
12	DD0007268	Bearing support	1
13	DD0008821	Hook driving shaft	1
14	DD0010030	Screw	1
15	DD0010059	Screw	2
16	DD0002560	Gear Assy	1
17	DD0010065	Screw	8
18	DD0002509	Gear Assy	1
19	DD0007235	Bearing support	1
20	DD0007236	Bearing support	1
21	DD0010057	Upright shaft	1
22	DD0002561	Gear Assy	1
23	DD0002445	Gear Assy	1

Page 17 — F. 送料分组件 / Feed mechanism components

Brother S-6280A parts on page 17
Ref	Part number	Part name	Qty
1	DD0010089	Snap ring	1
2	DD0010084	Connecting rod	1
3	DD0010115	Feed drive eccentric cam	1
4	DD0010092	Screw	2
5	DD0010072	Connecting rod	1
6	DD0010098	Thrust cover	1
7	DD0010643	Screw	2
8	DD0008848	Feed regulator	1
9	DD0051742	Screw	2
10	DD0026886	Pin	1
11	DD0008956	Bearing support	1
12	DD0010238	Screw	1
13	DD0051621	spring	1
14	D00003650	O-ring	1
15	DD0062042	Screw	1
16	DD0013869	Spring	1
17	DD0013870	Pin	1
18	D00003255	Knob stop	1
19	D00003414	Spring	1
20	D00003216	Feed dial	1
21	DD0051845	Screw	1
22	DD0010076	Feed rocker	1
23	DD0010096	Pin	1
24	DD0010071	Screw	1
25	DD0010095	Screw	1
26	DD0010075	Short link	2
27	DD0010068	Long link	2
28	DD0010071	Screw	1
29	DD0010069	Pin	1
30	DD0008852	Feed adjust rod	1
31	DD0010649	Snap ring	2
32	DD0010091	Screw	1
33	DD0010095	Screw	1
34	DD0010086	Lifing rocker	1
35	DD0004475	Nut	1
36	DD0010087	Pin	2
37	DD0012775	Feed adjusting ASM	1
38	DD0010102	Pin	1
39	DD0058783	Pin	1
40	DD0010678	Screw	2
41	DD0010071	Screw	2
42	DD0010282	Plate	1
43	DD0010285	Screw	2
44+	DD0012796	Spring	1
45+	DD0004430	Spring	1
46+	DD0010235	Plate	1
44+	DD0012990	Spring	1
45+	DD0012991	Spring	1
46+	DD0012987	Plate	1
47	DD0010287	Pin	1
48	DD0039853	Reverse feed control lever	1
49	DD0009008	Screw	1
50	DD0014119	Bearing support	1
51	D00003649	O-ring	1
52	DD0008827	Reverse feed shaft	1
53	DD0040504	Screw	2
54	D00003453	Tube	1

Page 19 — F. 送料分组件 / Feed mechanism components

Brother S-6280A parts on page 19
Ref	Part number	Part name	Qty
55	DD0050707	Screw	1
56	DE0021689	Reverse feed control lever	1
57	DD0063520	Tooth base	1
58	DD0010099	Screw	2
59+	DD0052531	Feed dog	1
59+	DD0007322	Feed dog	1
60	DD0042079	Lifing fork	1
61	DD0004628	Screw	1
62	DD0004440	Pin	1
63	DD0004474	Feed bar driving crank	1
64	DD0010074	Screw	1
65	DD0004993	Screw	1
66	DD0010090	Snap ring	2
67	DD0014116	Bearing support	2
68	DD0010542	Thrust collar	2
69	DD0038073	Screw	4
70	DD0010073	Feed rocker shaft	1
71	DD0010097	Feed lifting rocker shaft	1

Page 21 — G. 送料调节分组件 / Feed regulating components

Brother S-6280A parts on page 21
Ref	Part number	Part name	Qty
1	DD0008934	Screw	1
2	DD0011168	Washer	1
3	DNR003720	Led lamp ASM	1
4	DD0012505	Screw	1
5	DD0003281	Snap ring	1
6	DD0024748	Snap ring	1
7	DD0012985	Nut	2
8	DD0012983	Screw	1
9	DD0053339	Reverse feed connecting plate	1
10	DD0012989	Connecting arm ASM	1
11	DNR003644	Reverse feed magnet ASM	1
12	DD0012983	Screw	1
13	DD0051742	Screw	2
14+	DD0004061	Connecting sleeve	1
14+	DD0013002	Connecting sleeve	1
15	DD0013001	Screw	1
16	DD0003281	Snap ring	1
17	DD0051742	Screw	2
18	DNR003704	Reverse feed magnet ASM	1
19	DD0012983	Screw	1

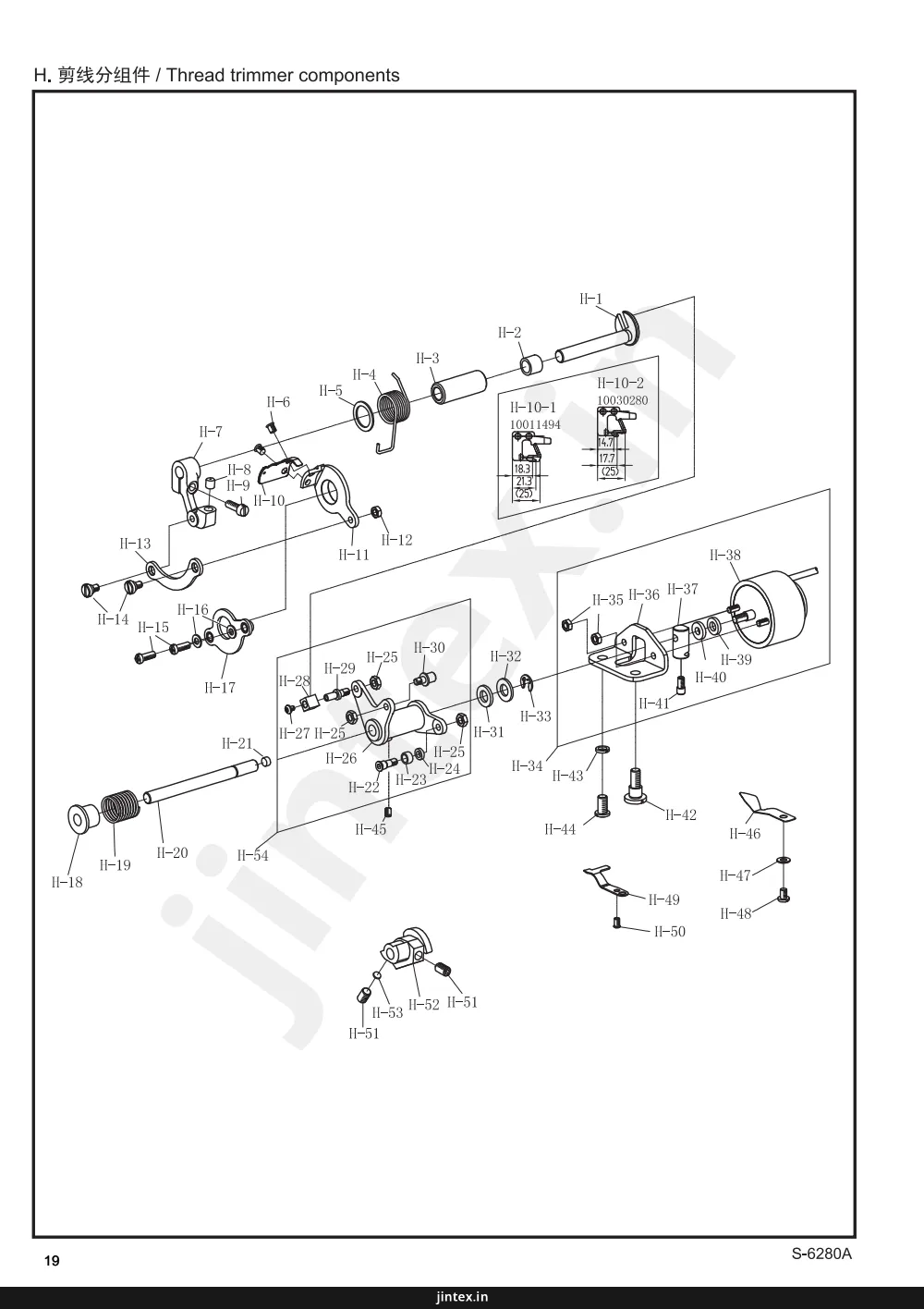

Page 23 — H. 剪线组件 / Thread trimmer components

Brother S-6280A parts on page 23
Ref	Part number	Part name	Qty
1	DD0008866	Trimming crank shaft	1
2	DD0012454	Short bushing	1
3	DD0011630	Short bushing	1
4	DD0011649	Spring	1
5	DD0008865	Washer	1
6	DD0011588	Screw	2
7	DD0058043	Trimming crank	1
8	DD0011580	Block	1
9	DD0008863	Scrwew	1
10+	DD0011494	Round knife	1
10+	DD0030280	Round knife	1
11	DD0004640	Round knife bracket	1
12	DD0011578	Nut	1
13	DD0031612	Knife shaft crack rod	1
14	DD0011514	Screw	2
15	DD0010900	Screw	2
16	DD0013154	Washer	2
17	DD0008856	Knife holder ASM	1
18	DD0014196	Spring cover	1
19	DD0008812	Spring	1
20	DD0011697	Trimming shaft	1
21	DD0050266	Silencer plug	1
22	DD0004707	Roller Shaft	1
23	DD0004651	Roller	1
24	DD0025576	Washer	1
25	DD0011578	Nut	3
26	DD0004648	Trimming cam crank	1
27	DD0025577	Screw	1
28	DD0004703	Slide block	1
29	DD0004704	Pin	1
30	DD0004705	Roller	1
31	DD0011650	Washer	1
32	DD0003031	Washer	1
33	DD0009654	Snap ring	1
34	D00003460	Thread trimmer solenoid ASM	1
35	DD0009471	Nut	2
36	DD0008854	Solenoid base	1
37	DD0011607	Solenoid connecting shaft	1
38	DNR001201	Thread trimmer solenoid	1
39	DD0011606	Washer	1
40	DD0011845	Washer	1
41	DD0028999	Screw	1
42	DD0012467	Screw	1
43	DD0003077	Washer	1
44	DD0011605	Screw	1
45	DD0008862	Screw	1
46	DD0058067	Dispart	1
47	DD0013154	Washer	1
48	DD0014474	Screw	1
49	DD0011421	Fixed knife	1
50	DD0011422	Screw	1
51	DD0013465	Screw	2
52	DD0010736	Thread trimmer cam	1
53	DD0023739	Cam collar	1
54	DD0011686	Trimming cam crank ASM	1

Page 25 — I. 润滑分组件 / Lubrication components

Brother S-6280A parts on page 25
Ref	Part number	Part name	Qty
1	DD0014197	Foam rubber	1
2	DD0005558	Screw	1
3	D00002229	Oil stoper	1
4	DD0010294	Felt clip	1
5	E00003573	Oil return pipe assembly	1
6	DD0008934	Screw	1
7	DD0041628	Oil felt preser	1
8	DD0048653	Main shaft oil tube	1
9	D00003443	Oil tube holder	1
10	DD0003077	Washer	1
11	DD0050422	Screw	1
12	DD0008817	Oil pump	1
13	DD0005537	Spring washer	1
14	DD0010066	Screw	1
15	DD0008806	Spring	1
16	DD0008831	Screw	1
17	DD0008807	Oil tube	1
18	DD0050424	Tube holder	1
19	DD0013269	Screw	1

Page 27 — J. 油盘、膝抬压脚分组件 / Presser foot components of oil plate knee lift

Brother S-6280A parts on page 27
Ref	Part number	Part name	Qty
1	D00003841	Oil reservoir	1
2	DD0014194	Oil reservoir gasket	1
3	DD0009984	Knee Lifter Complying Bar	1
4	DD0009991	Screw	1
5	DD0009988	O-ring	1
6	DD0002562	Bracket ASM	1
7	DD0003896	Bracket	1
8	DD0002610	Screw	1
9	DD0002613	Screw	1
10	DD0003899	Knee pressing shaft	1
11	DD0003893	Spring	1
12	DD0002559	Snap ring	1
13	DD0002563	Crank ASM	1
14	DD0009987	Crank	1
15	D00004047	Screw	1
16	DD0003895	Screw	1
17	DD0003898	Screw	1
18	DD0003890	Nut	3
19	E00003503	Knee pressing plate ASM	1
20	DD0003894	Screw	1
21	DD0003897	Knee pressing plate holder	1
22	DD0003901	Knee pressing plate rod	1
23	D00003445	Knee pressing plate rubber	1
24	DD0003891	Knee pressing plate	1
25	D00003446	Knee pressing cover	1
26	D00003753	Lever as-control	1

Page 29 — K. 过线架分组件 / Components of thread-running stand

Brother S-6280A parts on page 29
Ref	Part number	Part name	Qty
1	D00003447	Column cap	1
2	DD0004293	Column pipe(upper)	1
3	DD0002953	Nut	6
4	DD0003022	Washer	4
5	DD0003301	Screw	3
6	DD0004285	Thread guide bushing	4
7	DD0004289	Thread guide pipe	4
8	DD0004298	Thread hanger(upper)	2
9	DD0004286	Column pipe connector	1
10	DD0004291	Column pipe(lower)	1
11	DD0004284	Thread hanger(lower)	1
12	DD0003312	Screw	2
13	DD0004288	Spool pin	2
14	DD0004287	Spool cushion	2
15	DD0004281	Spool mat	2
16	DD0004299	Spool seat disc	2
17	DD0004295	Washer	2
18	DD0004290	Washer	2
19	DD0002985	Nut	1
20	D00003447	Column pipe(upper)	1
21	D00003519	Wire frame components	1

Page 31 — L. 附件 / Accessories

Brother S-6280A parts on page 31
Ref	Part number	Part name	Qty
1	DD0060866	Oil pot	1
2	DD0026033	Frame support bar	1
3	D00003449	Oil reservoir seat	2
4	D00003450	Oil reservoir cushion	2
5	DD0004466	Head connecting hook	2
6	D00003451	Head connecting hook socket	2
7	D00003536	Head cover	1
8	DD0003892	Oil reservoir magnet	1
9	DD0025484	Bobbin	1
10	DD0031426	Screw	1

Page 33 — M. 电控分组件 / Drive-by-wire Components

Brother S-6280A parts on page 33
Ref	Part number	Part name	Qty
1	DD0010899	Screw	3
2	DD0035172	Cord holder	1
3	DD0000480	Washer	2
4	D00002463	Cord holder	1
5	D00002462	Cord holder	1
6	DNR003468	Control box	1
7	DD0012080	Screw	1
8	DD0006115	Snap ring	1
9	DD0049837	Screw	3
10	DD0010899	Screw	1
11	DNR003469	Key screen	1
12	DD0010678	Screw	2
13	DD0031424	Pedal unit ASM	1
14	DD0008934	Screw	2

Page 35 — Index / 索引

Brother S-6280A parts on page 35
Ref	Part number	Part name
- 38	DD0002079	D
- 41	DD0002081	D
- 3	DD0002229	I
- 5	DD0002462	M
- 4	DD0002463	M
- 28	DD0002521	B
- 21	DD0002740	A
- 20	DD0003216	F
- 23	DD0003235	A
- 18	DD0003255	F
- 19	DD0003414	F
- 8	DD0003427	A
- 7	DD0003429	A
- 14	DD0003430	A
- 13	DD0003431	A
- 22	DD0003432	A
- 31	DD0003434	A
- 15	DD0003435	A
- 7	DD0003438	B
- 11	DD0003439	B
- 5	DD0003440	B
- 1	DD0003441	C
- 9	DD0003443	I
- 23	DD0003445	J
- 25	DD0003446	J
- 1	DD0003447	K
- 20	DD0003449	K
- 3	DD0003450	L
- 6	DD0003451	L
- 54	DD0003453	F
- 10	DD0003456	A
- 34	DD0003460	H
- 43	DD0003507	D
- 18+	DD0003513	B
- 9	DD0003517	A
- 21	DD0003519	K
- 8	DD0003533	D
- 7	DD0003536	L
- 7+	DD0003606	C
- 6	DD0003639	E
- 51	DD0003649	F
- 14	DD0003650	F
- 25	DD0003698	B
- 18+	DD0003703	B
- 26	DD0003753	J
- 24+	DD0003773	C
- 3+	DD0003789	C
- 3+	DD0003792	C
- 27	DD0003825	B
- 1	DD0003841	J
- 17	DD0003862	A
- 15	DD0004047	J
- 45	DD0000134	D
- 7	DD0000325	D
- 3	DD0000480	M
- 23	DD0002445	E
- 18	DD0002509	E
- 12	DD0002559	J
- 16	DD0002560	E
- 22	DD0002561	E
- 6	DD0002562	J
- 13	DD0002563	J
- 36	DD0002577	A
- 8	DD0002610	J
- 9	DD0002613	J
- 3	DD0002953	K
- 19	DD0002985	K
- 4	DD0003022	K
- 32	DD0003031	H
- 43	DD0003077	H
- 5	DD0003281	G
- 5	DD0003301	K
- 12	DD0003312	K
- 18	DD0003890	J
- 24	DD0003891	J
- 8	DD0003892	L
- 11	DD0003893	J
- 20	DD0003894	J
- 16	DD0003895	J
- 7	DD0003896	J
- 21	DD0003897	J
- 17	DD0003898	J
- 10	DD0003899	J
- 22	DD0003901	J
- 33	DD0003960	A
- 35	DD0003963	A
- 14+	DD0004061	G
- 4+	DD0004158	B
- 21+	DD0004176	C
- 18	DD0004177	C
- 22	DD0004179	C
- 23	DD0004180	C
- 14	DD0004183	C
- 13	DD0004184	C
- 20	DD0004199	C
- 15	DD0004200	C
- 17	DD0004201	C
- 15	DD0004281	K
- 11	DD0004284	K
- 6	DD0004285	K
- 9	DD0004286	K
- 14	DD0004287	K
- 13	DD0004288	K
- 7	DD0004289	K
- 18	DD0004290	K
- 10	DD0004291	K
- 2	DD0004293	K
- 17	DD0004295	K
- 8	DD0004296	K
- 28	DD0004373	A
- 29	DD0004374	A
- 45+	DD0004430	F
- 4	DD0004439	D
- 62	DD0004440	F
- 5	DD0004466	L
- 20	DD0004472	B
- 5	DD0004473	D
- 63	DD0004474	F
- 35	DD0004475	F
- 61	DD0004628	F
- 11	DD0004640	H
- 26	DD0004648	H
- 23	DD0004651	H
- 28	DD0004703	H
- 29	DD0004704	H
- 30	DD0004705	H
- 22	DD0004707	H
- 65	DD0004993	F
- 23	DD0005020	B
- 13	DD0005537	I
- 2	DD0005558	I
- 27	DD0005834	C
- 28	DD0005838	C
- 9+	DD0005915	D
- 5+	DD0005916	C
- 15+	DD0005940	B
- 21+	DD0005941	C
- 8	DD0005943	C
- 6+	DD0005945	C
- 10+	DD0005982	D
- 8	DD0006115	M
- 25	DD0006264	C
- 18	DD0006624	D
- 15+	DD0006844	B
- 3	DD0006924	E
- 19	DD0007235	E
- 20	DD0007236	E
- 12	DD0007268	E
- 59+	DD0007322	F
- 15	DD0008806	I
- 17	DD0008807	I
- 20	DD0008811	D
- 19	DD0008812	H
- 12	DD0008817	I
- 13	DD0008821	E
- 52	DD0008827	F
- 16	DD0008831	I
- 17	DD0008834	D
- 8	DD0008848	F
- 30	DD0008852	F
- 36	DD0008854	H
- 17	DD0008856	H
- 10	DD0008857	E
- 16	DD0008860	D
- 45	DD0008862	H
- 9	DD0008863	H
- 5	DD0008865	H
- 1	DD0008866	H
- 5	DD0008934	A
- 27	DD0009005	A
- 49	DD0009008	F
- 22	DD0009037	D
- 31	DD0009074	C
- 42	DD0009205	D
- 35	DD0009471	H
- 33	DD0009654	H
- 3	DD0009841	J
- 14	DD0009987	J
- 5	DD0009988	J
- 4	DD0010010	D
- 32	DD0010016	D
- 27	DD0010027	D
- 14	DD0010030	E
- 21	DD0010057	E
- 11	DD0010058	E
- 15	DD0010059	E
- 7	DD0010063	E
- 9	DD0010065	B
- 17	DD0010066	E
- 14	DD0010068	F
- 29	DD0010069	F
- 24	DD0010071	F
- 28	DD0010072	F
- 41	DD0010073	F
- 5	DD0010074	F
- 26	DD0010075	F
- 22	DD0010076	F
- 34	DD0010080	A
- 8	DD0010082	B
- 2	DD0010083	B
- 2	DD0010084	F
- 34	DD0010086	F
- 36	DD0010087	F
- 1	DD0010089	F
- 66	DD0010090	F
- 32	DD0010091	F
- 4	DD0010092	F
- 25	DD0010095	F
- 33	DD0010096	F
- 71	DD0010097	F
- 6	DD0010098	F
- 58	DD0010099	F

Page 36 — Index / 索引

Brother S-6280A parts on page 36
Ref	Part number	Part name
- 68	DD0010542	F
- 6	DD0010545	B
- 9	DD0010588	C
- 10+	DD0010590	C
- 6+	DD0010591	C
- 16+	DD0010592	B
- 7	DD0010643	F
- 31	DD0010646	D
- 31	DD0010649	F
- 11	DD0010650	D
- 37	DD0010651	D
- 39	DD0010652	D
- 21	DD0010678	B
- 22	DD0010678	B
- 40	DD0010678	F
- 12	DD0010678	M
- 52	DD0010736	H
- 1	DD0010899	M
- 10	DD0010899	M
- 15	DD0010900	H
- 2	DD0011063	C
- 2	DD0011101	E
- 12	DD0011149	A
- 2	DD0011168	G
- 32	DD0011232	B
- 49	DD0011421	H
- 50	DD0011422	H
- 10+	DD0011494	H
- 14	DD0011514	H
- 12	DD0011578	H
- 8	DD0011580	H
- 6	DD0011588	H
- 44	DD0011605	H
- 39	DD0011606	H
- 37	DD0011607	H
- 3	DD0011630	H
- 4	DD0011649	H
- 31	DD0011650	H
- 54	DD0011686	H
- 20	DD0011697	H
- 40	DD0011845	H
- 7	DD0012080	M
- 13+	DD0012203	B
- 2	DD0012454	A
- 26	DD0012463	A
- 15	DD0012467	D
- 42	DD0012467	H
- 4	DD0012505	G
- 29	DD0012589	C
- 37	DD0012775	F
- 44+	DD0012796	F
- 13+	DD0012858	B
- 8	DD0012983	G
- 12	DD0012983	G
- 19	DD0012983	G
- 7	DD0012985	G
- 46+	DD0012987	F
- 10	DD0012989	G
- 44+	DD0012990	F
- 45+	DD0012991	F
- 15	DD0013001	G
- 14+	DD0013002	G
- 30	DD0013038	D
- 16	DD0013154	H
- 47	DD0013154	H
- 19	DD0013269	I
- 51	DD0013465	H
- 19	DD0013615	D
- 32	DD0013706	A
- 17	DD0013870	F
- 14	DD0014106	B
- 67	DD0014116	F
- 5+	DD0014117	C
- 9+	DD0014118	D
- 50	DD0014119	F
- 2	DD0014194	J
- 18	DD0014196	H
- 1	DD0014197	I
- 25+	DD0014459	A
- 48	DD0014474	H
- 53	DD0023739	H
- 6	DD0024748	G
- 4	DD0025484	E
- 9	DD0025484	L
- 24	DD0025576	H
- 27	DD0025577	H
- 2	DD0026033	L
- 10	DD0026886	F
- 41	DD0028999	H
- 10+	DD0030280	H
- 1	DD0031261	E
- 13	DD0031424	M
- 10	DD0031426	L
- 13	DD0031612	H
- 2	DD0035172	M
- 69	DD0038073	F
- 4+	DD0038474	B
- 7+	DD0038939	C
- 39	DD0038945	C
- 6	DD0039365	D
- 24	DD0039372	D
- 25	DD0039373	D
- 36	DD0039374	D
- 23	DD0039378	D
- 13	DD0039380	D
- 16	DD0039524	C
- 48	DD0039853	F
- 53	DD0040504	F
- 9	DD0041529	E
- 7	DD0041628	I
- 60	DD0042079	F
- 4	DD0043360	C
- 12	DD0043360	C
- 8	DD0048653	I
- 9	DD0049837	M
- 29	DD0050188	D
- 35	DD0050190	D
- 21	DD0050266	H
- 35	DD0050348	C
- 11	DD0050422	I
- 11	DD0050423	A
- 18	DD0050424	I
- 28	DD0050590	D
- 1	DD0050672	B
- 55	DD0050707	F
- 5+	DD0051397	E
- 2	DD0051428	D
- 3	DD0051429	D
- 33	DD0051430	D
- 16	DD0051431	A
- 1	DD0051433	D
- 26	DD0051458	C
- 13	DD0051621	F
- 30	DD0051703	C
- 9	DD0051742	F
- 21	DD0051845	F
- 31	DD0052046	D
- 59+	DD0052531	F
- 10+	DD0052532	D
- 10+	DD0052735	C
- 33	DD0052992	C
- 16+	DD0053104	B
- 9	DD0053339	G
- 5+	DD0053595	E
- 11	DD0054140	C
- 19	DD0055615	B
- 34	DD0058041	C
- 7	DD0058043	H
- 46	DD0058067	H
- 39	DD0058783	F
- 8	DD0058812	E
- 30	DD0059025	B
- 25+	DD0060708	A
- 1	DD0060866	L
- 15	DD0062042	F
- 24+	DD0062637	C
- 57	DD0063520	F
- 3	DD0066775	A
- 56	DE0021689	F
- 2	DE0025554	A
- 38	DNR001201	H
- 44	DNR003459	D
- 6	DNR003468	M
- 11	DNR003469	M
- 29	DNR003534	B
- 11	DNR003644	G
- 36	DNR003645	C
- 18	DNR003704	G
- 3	DNR003720	G
- 6	E00003021	A
- 19	E00003503	J
- 20	E00003519	A
- 5	E00003573	I
- 31	E00003671	B

Brother S-6280A Parts Book (PDF)

Page 5 — A. 机壳分组件 / Machine frame&miscellaneous cover components

Page 7 — B. 上轴、挑线分组件 / Needle bar and thread take-up mechanism

Page 9 — C. 针杆、夹线组件 / Needle bar & thread tension components

Page 11 — C. 针杆、夹线分组件 / Needlebar & thread tension components

Page 13 — D. 压料、松线分组件 / Presser bar & tension release components

Page 15 — E. 钩线分组件 / Hook of driving shaft components

Page 17 — F. 送料分组件 / Feed mechanism components

Page 19 — F. 送料分组件 / Feed mechanism components

Page 21 — G. 送料调节分组件 / Feed regulating components

Page 23 — H. 剪线组件 / Thread trimmer components

Page 25 — I. 润滑分组件 / Lubrication components

Page 27 — J. 油盘、膝抬压脚分组件 / Presser foot components of oil plate knee lift

Page 29 — K. 过线架分组件 / Components of thread-running stand

Page 31 — L. 附件 / Accessories

Page 33 — M. 电控分组件 / Drive-by-wire Components

Page 35 — Index / 索引

Page 36 — Index / 索引

Part Books

Search

Parts on page 1

Parts on page 1

Page 5 — A. 机壳分组件 / Machine frame&miscellaneous cover components

Page 7 — B. 上轴、挑线分组件 / Needle bar and thread take-up mechanism

Page 9 — C. 针杆、夹线组件 / Needle bar & thread tension components

Page 11 — C. 针杆、夹线分组件 / Needlebar & thread tension components

Page 13 — D. 压料、松线分组件 / Presser bar & tension release components

Page 15 — E. 钩线分组件 / Hook of driving shaft components

Page 17 — F. 送料分组件 / Feed mechanism components

Page 19 — F. 送料分组件 / Feed mechanism components

Page 21 — G. 送料调节分组件 / Feed regulating components

Page 23 — H. 剪线组件 / Thread trimmer components

Page 25 — I. 润滑分组件 / Lubrication components

Page 27 — J. 油盘、膝抬压脚分组件 / Presser foot components of oil plate knee lift

Page 29 — K. 过线架分组件 / Components of thread-running stand

Page 31 — L. 附件 / Accessories

Page 33 — M. 电控分组件 / Drive-by-wire Components

Page 35 — Index / 索引

Page 36 — Index / 索引

Brother S-6280A — parts catalog
