S-6280A PARTS BOOK 零件手册 brother jintex.in
Parts index — Brother S-6280Atap a row to open its page
Page 2 — Description of model plate
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | Medium materials | ||
| 5 | Heavy materials | ||
| 3 | 中厚布料 | ||
| 5 | 厚 布 料 |
Page 3 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | Machine frame & miscellaneous cover components | ||
| B | Main shaft & thread take-up components | ||
| C | Needlebar & thread tension components | ||
| D | Presser bar & tension release components | ||
| E | Hook of driving shaft components | ||
| F | Feed mechanism components | ||
| G | Feed regulating components | ||
| H | Thread trimmer components | ||
| I | Lubrication components | ||
| J | Presser foot components of oil plate knee lift | ||
| K | Components of thread-running stand | ||
| L | Accessories | ||
| M | Drive-by-wire Components | ||
| Wa. | Warning labels | ||
| Index | Index | ||
| A | 机壳分组件 | ||
| B | 上轴、挑线分组件 | ||
| C | 针杆、夹线分组件 | ||
| D | 压料、松线分组件 | ||
| E | 钩线分组件 | ||
| F | 送料分组件 | ||
| G | 送料调节分组件 | ||
| H | 剪线分组件 | ||
| I | 润滑分组件 | ||
| J | 油盘、膝抬压脚分组件 | ||
| K | 过线架分组件 | ||
| L | 附件 | ||
| M | 电控分组件 | ||
| Wa. | 警告标签 | ||
| 索引 | 索引 |
Page 4 — A. 机壳分组件 / Machine frame & miscellaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | |||
| A-2 | |||
| A-3 | |||
| A-4 | |||
| A-5 | |||
| A-6 | |||
| A-7 | |||
| A-8 | |||
| A-9 | |||
| A-10 | |||
| A-11 | |||
| A-12 | |||
| A-13 | |||
| A-14 | |||
| A-15 | |||
| A-16 | |||
| A-17 | |||
| A-18 | |||
| A-19 | |||
| A-20 | |||
| A-21 | |||
| A-22 | |||
| A-23 | |||
| A-24 | |||
| A-25 | |||
| A-26 | |||
| A-27 | |||
| A-28 | |||
| A-29 | |||
| A-30 | |||
| A-31 | |||
| A-32 | |||
| A-33 | |||
| A-34 | |||
| A-35 | |||
| A-36 |
Page 5 — A. 机壳分组件 / Machine frame&miscellaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0008972 | Screw | 9 | |
| DE0025554 | Side plate | 1 | |
| DD0066775 | Side plate gasket | 1 | |
| DD0004380 | Screw | 3 | |
| DD0008934 | Screw | 1 | |
| E00003021 | Thread take-up lever cover | 1 | |
| DD0003429 | Rubber plug | 2 | |
| D00003428 | Rubber plug | 1 | |
| D00003517 | Bobbin wider ASM | 1 | |
| D00003456 | Rubber ring | 1 | |
| DD0050423 | Screw | 2 | |
| DD0011149 | Thread cutter | 1 | |
| D00003431 | Oil window | 1 | |
| D00003430 | O-ring | 1 | |
| D00003435 | Rubber plug | 1 | |
| DD0051431 | Bobbin thread tension ASM | 1 | |
| D00003862 | Rubber plug | 1 | |
| D00003427 | Rubber plug | 1 | |
| DD0008972 | Screw | 3 | |
| E00003519 | Face plate | 1 | |
| D00002740 | Face plate gasket | 1 | |
| D00003432 | Rubber plug | 2 | |
| D00003235 | Arm thread guide left | 1 | |
| DD0008973 | Screw | 2 | |
| DD0060708 | Needle plate | 1 | |
| DD0014459 | Needle plate | 1 | |
| DD0012463 | Screw | 1 | |
| DD0009005 | Screw | 1 | |
| DD0004373 | Ruler plate | 1 | |
| DD0004374 | Screw | 2 | |
| DD0008940 | Arm thread guide right | 1 | |
| D00003434 | Rubber plug | 1 | |
| DD0013706 | Side plate ASM | 1 | |
| DD0003960 | Side plate | 1 | |
| DD0010080 | Screw | 2 | |
| DD0003963 | Spring of side | 1 | |
| DD0002577 | Bed screw stud | 4 |
Page 6 — B. 上轴、挑线分组件 / Needle bar & thread take-up mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | |||
| B-2 | |||
| B-3 | |||
| B-4 | |||
| B-5 | |||
| B-6 | |||
| B-7 | |||
| B-8 | |||
| B-9 | |||
| B-10 | |||
| B-11 | |||
| B-12 | |||
| B-13 | |||
| B-14 | |||
| B-15 | |||
| B-16 | |||
| B-17 | |||
| B-18 | |||
| B-19 | |||
| B-20 | |||
| B-21 | |||
| B-22 | |||
| B-23 | |||
| B-24 | |||
| B-25 | |||
| B-26 | |||
| B-27 | |||
| B-20 | |||
| B-28 | |||
| B-29 | |||
| B-30 | |||
| B-31 | |||
| B-32 |
Page 7 — B. 上轴、挑线分组件 / Needle bar and thread take-up mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0050672 | Thread take-up crank shaft | 1 | |
| DD0010083 | Screw | 1 | |
| DD0010535 | Thread take-up bar | 1 | |
| DD0004158 | Thread take-up lever Asm | 1 | |
| DD0038474 | Thread take-up lever Asm | 1 | |
| DD0003440 | Oil resistant cover | 1 | |
| DD0010545 | Screw | 1 | |
| DD0003438 | O-ring | 1 | |
| DD0010082 | Screw | 2 | |
| DD0010065 | Screw | 2 | |
| DD0010538 | O-ring | 1 | |
| DD003439 | Sleeve of adjusting pin | 1 | |
| DD0010504 | Pin | 1 | |
| DD0012203 | Counter weight | 1 | |
| DD0012858 | Counter weight | 1 | |
| DD0014106 | Bearing | 2 | |
| DD0006844 | Needle bar crank | 1 | |
| DD0053104 | Needle bar crank rod | 1 | |
| DD0005940 | Needle bar crank | 1 | |
| DD0010592 | Needle bar crank rod | 1 | |
| DD0010537 | Screw | 1 | |
| DD0003513 | Take-up Bar Assembly | 1 | |
| DD003703 | Take-up Bar Assembly | 1 | |
| DD0055615 | Bearing support | 1 | |
| DD0004472 | Wheel | 1 | |
| DD0010678 | Screw | 2 | |
| DD0010678 | Screw | 1 | |
| DD005020 | Screw | 2 | |
| DD0010542 | Thrust collar | 1 | |
| DD0003698 | Bearing support | 1 | |
| DD0007239 | Bearing support | 1 | |
| DD0003825 | Main shaft | 1 | |
| DD0002521 | Oil seal | 1 | |
| DNR003534 | Motor | 1 | |
| DD0059025 | Screw | 4 | |
| E00003671 | Head wheel | 1 | |
| DD0011232 | Screw | 2 |

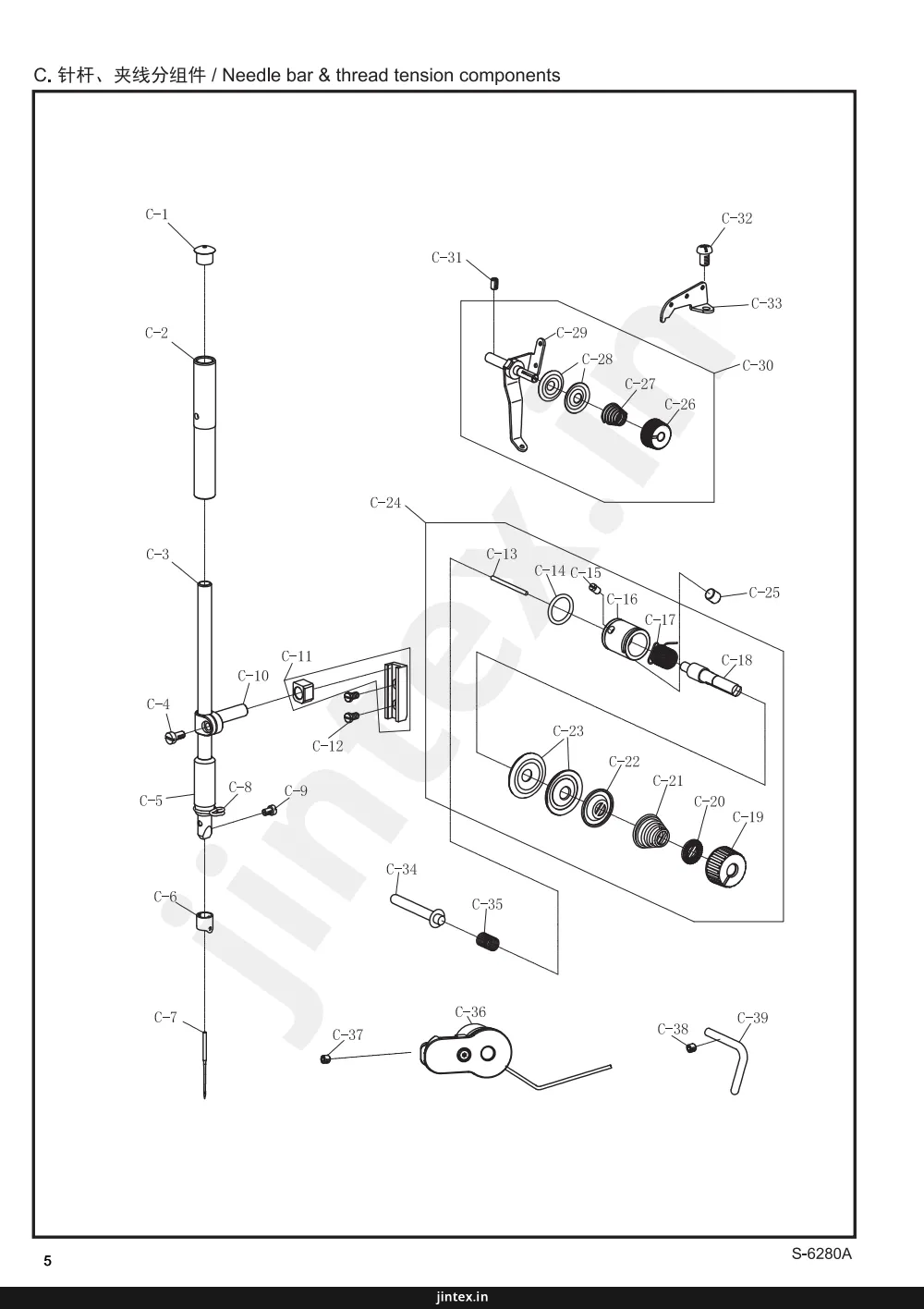

Page 8 — C. 针杆、夹线分组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | C-1 | ||
| C-2 | C-2 | ||
| C-3 | C-3 | ||
| C-4 | C-4 | ||
| C-5 | C-5 | ||
| C-6 | C-6 | ||
| C-7 | C-7 | ||
| C-8 | C-8 | ||
| C-9 | C-9 | ||
| C-10 | C-10 | ||
| C-11 | C-11 | ||
| C-12 | C-12 | ||
| C-13 | C-13 | ||
| C-14 | C-14 | ||
| C-15 | C-15 | ||
| C-16 | C-16 | ||
| C-17 | C-17 | ||
| C-18 | C-18 | ||
| C-19 | C-19 | ||
| C-20 | C-20 | ||
| C-21 | C-21 | ||
| C-22 | C-22 | ||
| C-23 | C-23 | ||
| C-24 | C-24 | ||
| C-25 | C-25 | ||
| C-26 | C-26 | ||
| C-27 | C-27 | ||
| C-28 | C-28 | ||
| C-29 | C-29 | ||
| C-30 | C-30 | ||
| C-31 | C-31 | ||
| C-32 | C-32 | ||
| C-33 | C-33 | ||
| C-34 | C-34 | ||
| C-35 | C-35 | ||
| C-36 | C-36 | ||
| C-37 | C-37 | ||
| C-38 | C-38 | ||
| C-39 | C-39 |
Page 9 — C. 针杆、夹线组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0003441 | Rubber plug | 1 | |
| DD0011063 | Bearing support | 1 | |
| DD0003789 | Needle bar | 1 | |
| DD0003792 | Needle bar | 1 | |
| DD0043360 | Screw | 1 | |
| DD0014117 | Bearing support | 1 | |
| DD0010591 | Needle bar thread guide | 1 | |
| DD0038939 | Needle DB×1 | 1 | |
| DD0005916 | Bearing support | 1 | |
| DD0005945 | Needle bar thread guide | 1 | |
| DD0003606 | Needle DB×1 | 1 | |
| DD0005943 | Needle bar thread guide | 1 | |
| DD0010588 | Screw | 1 | |
| DD0052735 | Needle bar holder | 1 | |
| DD0010590 | Needle bar holder | 1 | |
| DD0054140 | Slide block | 1 | |
| DD0043360 | Screw | 2 | |
| DD0004184 | Thread release pin | 1 | |
| DD0004183 | O-ring | 1 | |
| DD0004200 | Screw | 1 | |
| DD0039524 | Tension post socket | 1 | |
| DD0004201 | Spring | 1 | |
| DD0004177 | Screw | 1 | |
| DD0051457 | Nut | 1 | |
| DD0004199 | Tension disc stopper | 1 | |
| DD0004176 | Spring | 1 | |
| DD0005941 | Spring | 1 | |
| DD0004179 | Thread release disc | 1 | |
| DD0004180 | Tension disc holder | 2 | |
| DD0062637 | Thread take-up device | 1 | |
| DD0003773 | Thread take-up device | 1 | |
| DD0006264 | Screw | 1 | |
| DD0051458 | Nut | 1 | |
| DD0005838 | Spring | 1 | |
| DD0005839 | Tension disc holder | 2 | |
| DD0012589 | Threading Plate | 1 | |
| DD0051703 | Thread take-up device | 1 | |
| DD0009074 | Screw | 1 | |
| DD0008934 | Screw | 1 | |
| DD0052992 | Needle tension guide | 1 | |
| DD0058041 | Tension release supporting pin | 1 |
Page 10 — C. 针杆、夹线分组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | Needle bar & thread tension components | ||
| C-2 | |||
| C-3 | |||
| C-4 | |||
| C-5 | |||
| C-6 | |||
| C-7 | |||
| C-8 | |||
| C-9 | |||
| C-10 | |||
| C-11 | |||
| C-12 | |||
| C-13 | |||
| C-14 | |||
| C-15 | |||
| C-16 | |||
| C-17 | |||
| C-18 | |||
| C-19 | |||
| C-20 | |||
| C-21 | |||
| C-22 | |||
| C-23 | |||
| C-24 | |||
| C-25 | |||
| C-26 | |||
| C-27 | |||
| C-28 | |||
| C-29 | |||
| C-30 | |||
| C-31 | |||
| C-32 | |||
| C-33 | |||
| C-34 | |||
| C-35 | |||
| C-36 | |||
| C-37 | |||
| C-38 | |||
| C-39 |
Page 11 — C. 针杆、夹线分组件 / Needlebar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | DD0050348 | Spring | |
| 36 | DNR003645 | Electromagnet | |
| 37 | DD0009074 | Screw | |
| 38 | DD0009074 | Screw | |
| 39 | DD0038945 | Presser bar thread guide |
Page 12 — D. 压料、松线组件 / Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | D-1 | ||
| D-2 | D-2 | ||
| D-3 | D-3 | ||
| D-4 | D-4 | ||
| D-5 | D-5 | ||
| D-6 | D-6 | ||
| D-7 | D-7 | ||
| D-8 | D-8 | ||
| D-9 | D-9 | ||
| D-10 | D-10 | ||
| D-11 | D-11 | ||
| D-12 | D-12 | ||
| D-13 | D-13 | ||
| D-14 | D-14 | ||
| D-15 | D-15 | ||
| D-16 | D-16 | ||
| D-17 | D-17 | ||
| D-18 | D-18 | ||
| D-19 | D-19 | ||
| D-20 | D-20 | ||
| D-21 | D-21 | ||
| D-22 | D-22 | ||
| D-23 | D-23 | ||
| D-24 | D-24 | ||
| D-25 | D-25 | ||
| D-26 | D-26 | ||
| D-27 | D-27 | ||
| D-28 | D-28 | ||
| D-29 | D-29 | ||
| D-30 | D-30 | ||
| D-31 | D-31 | ||
| D-32 | D-32 | ||
| D-33 | D-33 | ||
| D-34 | D-34 | ||
| D-35 | D-35 | ||
| D-36 | D-36 | ||
| D-37 | D-37 | ||
| D-38 | D-38 | ||
| D-39 | D-39 | ||
| D-40 | D-40 | ||
| D-41 | D-41 | ||
| D-42 | D-42 | ||
| D-43 | D-43 | ||
| D-44 | D-44 | ||
| D-45 | D-45 |
Page 13 — D. 压料、松线分组件 / Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0051433 | Screw ASM | ||
| DD0051428 | Screw | ||
| DD0051429 | Nut | ||
| DD0004439 | Presser guide bar | ||
| DD0004473 | Spring | ||
| DD0039365 | Presser guide bar bracket | ||
| DD0000325 | Screw | ||
| DD0003533 | Oil protector cover | ||
| DD0014118 | Bearing support | ||
| DD0052532 | Presser foot ASM | ||
| DD0005915 | Bearing support | ||
| DD0005982 | Presser foot ASM | ||
| DD0010650 | Screw | ||
| DD0010646 | Presser bar | ||
| DD0039380 | Foot lifter pull thread components | ||
| DD0005834 | Nut | 2 | |
| DD0012467 | Screw | ||
| DD0008860 | Loosing plate | ||
| DD0008834 | Spring | ||
| DD0006624 | Screw | 2 | |
| DD0013615 | Fixing shutter | ||
| DD0008811 | Loosing plate | ||
| DD0008972 | Screw | 2 | |
| DD0009037 | Screw | 2 | |
| DD0039378 | Wire rope pressing plate | ||
| DD0039372 | Tension release plate | ||
| DD0039373 | Pin | ||
| DD0009074 | Screw | 3 | |
| DD0010027 | O-ring | ||
| DD0050590 | Washer | ||
| DD0050188 | Lifting lever | ||
| DD0013038 | Snap ring | 2 | |
| DD0052046 | Spring | ||
| DD0010016 | Screw | ||
| DD0051430 | Hand lifter | ||
| DD0010027 | O-ring | ||
| DD0050190 | Hand lifter CAM ASM | ||
| DD0039374 | Pin | ||
| DD0010651 | Screw | 2 | |
| DD0002079 | Lifting lever connecting rod | ||
| DD0010652 | Screw | 2 | |
| DD0003258 | Presser foot lifter connector plate | ||
| D00002081 | Lifinglever link | ||
| DD0009205 | Spring | ||
| DD0003507 | Connecting rod verical | ||
| DNR003459 | Electromagn | ||
| DD0000134 | Screw | 4 |
Page 14 — E. 钩线分组组件 / Hook of driving shaft components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | Hook of driving shaft components | ||
| E-2 | Hook of driving shaft components | ||
| E-3 | Hook of driving shaft components | ||
| E-4 | Hook of driving shaft components | ||
| E-5 | Hook of driving shaft components | ||
| E-6 | Hook of driving shaft components | ||
| E-7 | Hook of driving shaft components | ||
| E-8 | Hook of driving shaft components | ||
| E-9 | Hook of driving shaft components | ||
| E-10 | Hook of driving shaft components | ||
| E-11 | Hook of driving shaft components | ||
| E-12 | Hook of driving shaft components | ||
| E-13 | Hook of driving shaft components | ||
| E-14 | Hook of driving shaft components | ||
| E-15 | Hook of driving shaft components | ||
| E-16 | Hook of driving shaft components | ||
| E-17 | Hook of driving shaft components | ||
| E-18 | Hook of driving shaft components | ||
| E-19 | Hook of driving shaft components | ||
| E-20 | Hook of driving shaft components | ||
| E-21 | Hook of driving shaft components | ||
| E-22 | Hook of driving shaft components | ||
| E-23 | Hook of driving shaft components |
Page 15 — E. 钩线分组件 / Hook of driving shaft components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0031261 | Positioning finger | 1 |
| 2 | DD0011101 | Screw | 1 |
| 3 | DD0006924 | Bobbin case | 1 |
| 4 | DD0025484 | Bobbin | 1 |
| 5+ | DD0051397 | Hook | 1 |
| 5+ | DD0053595 | Hook | 1 |
| 6 | DD0003639 | Screw | 1 |
| 7 | DD0010063 | Oil wick | 1 |
| 8 | DD0058812 | Bearing support | 2 |
| 9 | DD0041529 | Screw | 1 |
| 10 | DD0008857 | Bearing support | 1 |
| 11 | DD0010058 | Thrust collar | 1 |
| 12 | DD0007268 | Bearing support | 1 |
| 13 | DD0008821 | Hook driving shaft | 1 |
| 14 | DD0010030 | Screw | 1 |
| 15 | DD0010059 | Screw | 2 |
| 16 | DD0002560 | Gear Assy | 1 |
| 17 | DD0010065 | Screw | 8 |
| 18 | DD0002559 | Gear Assy | 1 |
| 19 | DD0007235 | Bearing support | 1 |
| 20 | DD0007236 | Bearing support | 1 |
| 21 | DD0010057 | Upright shaft | 1 |
| 22 | DD0002561 | Gear Assy | 1 |
| 23 | DD0002445 | Gear Assy | 1 |
Page 16 — F. 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | F-1 | ||
| F-2 | F-2 | ||
| F-3 | F-3 | ||
| F-4 | F-4 | ||
| F-5 | F-5 | ||
| F-6 | F-6 | ||
| F-7 | F-7 | ||
| F-8 | F-8 | ||
| F-9 | F-9 | ||
| F-10 | F-10 | ||
| F-11 | F-11 | ||
| F-12 | F-12 | ||
| F-13 | F-13 | ||
| F-14 | F-14 | ||
| F-15 | F-15 | ||
| F-16 | F-16 | ||
| F-17 | F-17 | ||
| F-18 | F-18 | ||
| F-19 | F-19 | ||
| F-20 | F-20 | ||
| F-21 | F-21 | ||
| F-22 | F-22 | ||
| F-23 | F-23 | ||
| F-24 | F-24 | ||
| F-25 | F-25 | ||
| F-26 | F-26 | ||
| F-27 | F-27 | ||
| F-28 | F-28 | ||
| F-29 | F-29 | ||
| F-30 | F-30 | ||
| F-31 | F-31 | ||
| F-32 | F-32 | ||
| F-33 | F-33 | ||
| F-34 | F-34 | ||
| F-35 | F-35 | ||
| F-36 | F-36 | ||
| F-37 | F-37 | ||
| F-38 | F-38 | ||
| F-39 | F-39 | ||
| F-40 | F-40 | ||
| F-41 | F-41 | ||
| F-42 | F-42 | ||
| F-43 | F-43 | ||
| F-44 | F-44 | ||
| F-45 | F-45 | ||
| F-46 | F-46 | ||
| F-47 | F-47 | ||
| F-48 | F-48 | ||
| F-49 | F-49 | ||
| F-50 | F-50 | ||
| F-51 | F-51 | ||
| F-52 | F-52 | ||
| F-53 | F-53 | ||
| F-54 | F-54 | ||
| F-55 | F-55 | ||
| F-56 | F-56 | ||
| F-57 | F-57 | ||
| F-58 | F-58 | ||
| F-59 | F-59 | ||
| F-60 | F-60 | ||
| F-61 | F-61 | ||
| F-62 | F-62 | ||
| F-63 | F-63 | ||
| F-64 | F-64 | ||
| F-65 | F-65 | ||
| F-66 | F-66 | ||
| F-67 | F-67 | ||
| F-68 | F-68 | ||
| F-69 | F-69 | ||
| F-70 | F-70 | ||
| F-71 | F-71 |
Page 17 — F. 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0010089 | Snap ring | 1 | |
| DD0010084 | Connecting rod | 1 | |
| DD0010115 | Feed drive eccentric cam | 1 | |
| DD0010092 | Screw | 2 | |
| DD0010072 | Connecting rod | 1 | |
| DD0010098 | Thrust cover | 1 | |
| DD0010643 | Screw | 2 | |
| DD0008848 | Feed regulator | 1 | |
| DD0051742 | Screw | 2 | |
| DD0026886 | Pin | 1 | |
| DD0008956 | Bearing support | 1 | |
| DD0010238 | Screw | 1 | |
| DD0051621 | Spring | 1 | |
| DD0003650 | O-ring | 1 | |
| DD0062042 | Screw | 1 | |
| DD0013869 | Spring | 1 | |
| DD0013870 | Pin | 1 | |
| D00003255 | Knob stop | 1 | |
| D00003414 | Spring | 1 | |
| D00003216 | Feed dial | 1 | |
| D00003846 | Screw | 1 | |
| DD0010076 | Feed rocker | 1 | |
| DD0010096 | Pin | 1 | |
| DD0010071 | Screw | 1 | |
| DD0010095 | Screw | 1 | |
| DD0010075 | Short link | 2 | |
| DD0008856 | Long link | 2 | |
| DD0010071 | Pin | 1 | |
| DD0010069 | Pin | 1 | |
| DD0008852 | Feed adjust rod | 1 | |
| DD0010649 | Snap ring | 2 | |
| DD0010091 | Screw | 1 | |
| DD0010095 | Screw | 1 | |
| DD0010086 | Lifing rocker | 1 | |
| D00004475 | Nut | 1 | |
| DD0010087 | Pin | 2 | |
| DD0012775 | Feed adjusting ASM | 1 | |
| DD0010102 | Pin | 1 | |
| DD0058783 | Pin | 1 | |
| DD0010678 | Screw | 2 | |
| DD0010071 | Screw | 2 | |
| DD0010282 | Plate | 1 | |
| DD0010285 | Screw | 2 | |
| DD0012796 | Spring | 1 | |
| DD0004430 | Spring | 1 | |
| DD0010235 | Plate | 1 | |
| DD0012990 | Spring | 1 | |
| DD0012991 | Spring | 1 | |
| DD0012987 | Plate | 1 | |
| DD0010287 | Pin | 1 | |
| DD0039853 | Reverse feed control lever | 1 | |
| DD0009008 | Screw | 1 | |
| DD0014119 | Bearing support | 1 | |
| D00003649 | O-ring | 1 | |
| DD0008827 | Reverse feed shaft | 1 | |
| DD0040504 | Screw | 2 | |
| D00003453 | Tube | 1 |
Page 18 — F. 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | F-1 | ||
| F-2 | F-2 | ||
| F-3 | F-3 | ||
| F-4 | F-4 | ||
| F-5 | F-5 | ||
| F-6 | F-6 | ||
| F-7 | F-7 | ||
| F-8 | F-8 | ||
| F-9 | F-9 | ||
| F-10 | F-10 | ||
| F-11 | F-11 | ||
| F-12 | F-12 | ||
| F-13 | F-13 | ||
| F-14 | F-14 | ||
| F-15 | F-15 | ||
| F-16 | F-16 | ||
| F-17 | F-17 | ||
| F-18 | F-18 | ||
| F-19 | F-19 | ||
| F-20 | F-20 | ||
| F-21 | F-21 | ||
| F-22 | F-22 | ||
| F-23 | F-23 | ||
| F-24 | F-24 | ||
| F-25 | F-25 | ||
| F-26 | F-26 | ||
| F-27 | F-27 | ||
| F-28 | F-28 | ||
| F-29 | F-29 | ||
| F-30 | F-30 | ||
| F-31 | F-31 | ||
| F-32 | F-32 | ||
| F-33 | F-33 | ||
| F-34 | F-34 | ||
| F-35 | F-35 | ||
| F-36 | F-36 | ||
| F-37 | F-37 | ||
| F-38 | F-38 | ||
| F-39 | F-39 | ||
| F-40 | F-40 | ||
| F-41 | F-41 | ||
| F-42 | F-42 | ||
| F-43 | F-43 | ||
| F-44 | F-44 | ||
| F-45 | F-45 | ||
| F-46 | F-46 | ||
| F-47 | F-47 | ||
| F-48 | F-48 | ||
| F-49 | F-49 | ||
| F-50 | F-50 | ||
| F-51 | F-51 | ||
| F-52 | F-52 | ||
| F-53 | F-53 | ||
| F-54 | F-54 | ||
| F-55 | F-55 | ||
| F-56 | F-56 | ||
| F-57 | F-57 | ||
| F-58 | F-58 | ||
| F-59 | F-59 | ||
| F-60 | F-60 | ||
| F-61 | F-61 | ||
| F-62 | F-62 | ||
| F-63 | F-63 | ||
| F-64 | F-64 | ||
| F-65 | F-65 | ||
| F-66 | F-66 | ||
| F-67 | F-67 | ||
| F-68 | F-68 | ||
| F-69 | F-69 | ||
| F-70 | F-70 | ||
| F-71 | F-71 |
Page 19 — F. 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0050707 | Screw | 1 | |
| DE0021689 | Reverse feed control lever | 1 | |
| DD0063520 | Tooth base | 1 | |
| DD0010099 | Screw | 2 | |
| DD0052531 | Feed dog | 1 | |
| DD0007322 | Feed dog | 1 | |
| DD0042079 | Lifting fork | 1 | |
| DD004628 | Screw | 1 | |
| DD0004440 | Pin | 1 | |
| DD0004474 | Feed bar driving crank | 1 | |
| DD0010074 | Screw | 1 | |
| DD0004993 | Screw | 1 | |
| DD0010090 | Snap ring | 2 | |
| DD0014116 | Bearing support | 2 | |
| DD0010542 | Thrust collar | 2 | |
| DD0038073 | Screw | 4 | |
| DD0010073 | Feed rocker shaft | 1 | |
| DD0010097 | Feed lifting rocker shaft | 1 |
Page 20 — G. 送料调节组件 / Feed regulating components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | G-1 | ||
| G-2 | G-2 | ||
| G-3 | G-3 | ||
| G-4 | G-4 | ||
| G-5 | G-5 | ||
| G-6 | G-6 | ||
| G-7 | G-7 | ||
| G-8 | G-8 | ||
| G-9 | G-9 | ||
| G-10 | G-10 | ||
| G-11 | G-11 | ||
| G-12 | G-12 | ||
| G-13 | G-13 | ||
| G-14 | G-14 | ||
| G-15 | G-15 | ||
| G-16 | G-16 | ||
| G-17 | G-17 | ||
| G-18 | G-18 | ||
| G-19 | G-19 |
Page 21 — G. 送料调节分组件 / Feed regulating components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0008934 | Screw | 1 | |
| DD0011168 | Washer | 1 | |
| DNR003720 | Led lamp ASM | 1 | |
| DD0012505 | Screw | 1 | |
| DD0003281 | Snap ring | 1 | |
| DD0024748 | Snap ring | 1 | |
| DD0012985 | Nut | 2 | |
| DD0012983 | Screw | 1 | |
| DD0053339 | Reverse feed connecting plate | 1 | |
| DD0012989 | Connecting arm ASM | 1 | |
| DNR003644 | Reverse feed magnet ASM | 1 | |
| DD0012983 | Screw | 1 | |
| DD0051742 | Screw | 2 | |
| DD0004061 | Connecting sleeve | 1 | |
| DD0013002 | Connecting sleeve | 1 | |
| DD0013001 | Screw | 1 | |
| DD0003281 | Snap ring | 1 | |
| DD0051742 | Screw | 2 | |
| DNR003704 | Reverse feed magnet ASM | 1 | |
| DD0012983 | Screw | 1 |
Page 22 — H. 剪线分组件 / Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-10-1 | 10011494 | H-10-1 | |
| H-10-2 | 10030280 | H-10-2 |
Page 23 — H. 剪线组件 / Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0008866 | Trimming crank shaft | 1 | |
| DD0012454 | Short bushing | 1 | |
| DD0011630 | Short bushing | 1 | |
| DD0011649 | Spring | 1 | |
| DD0008865 | Washer | 1 | |
| DD0011588 | Screw | 2 | |
| DD0058043 | Trimming crank | 1 | |
| DD0011580 | Block | 1 | |
| DD0008863 | Scrrew | 1 | |
| DD0011494 | Round knife | 1 | |
| DD0030280 | Round knife | 1 | |
| DD0004640 | Round knife bracket | 1 | |
| DD0011578 | Nut | 1 | |
| DD0031612 | Knife shaft crack rod | 1 | |
| DD0011514 | Screw | 2 | |
| DD0010900 | Screw | 2 | |
| DD0013154 | Washer | 2 | |
| DD0008856 | Knife holder ASM | 1 | |
| DD0014196 | Spring cover | 1 | |
| DD0008812 | Spring | 1 | |
| DD0011697 | Trimming shaft | 1 | |
| DD0050266 | Silencer plug | 1 | |
| DD0004707 | Roller Shaft | 1 | |
| DD0004651 | Roller | 1 | |
| DD0025576 | Washer | 1 | |
| DD0011578 | Nut | 3 | |
| DD0004648 | Trimming cam crank | 1 | |
| DD0025577 | Screw | 1 | |
| DD0004703 | Slide block | 1 | |
| DD0004704 | Pin | 1 | |
| DD0004705 | Roller | 1 | |
| DD0011650 | Washer | 1 | |
| DD0003031 | Washer | 1 | |
| DD0009654 | Snap ring | 1 | |
| DD0003460 | Thread trimmer solenoid ASM | 1 | |
| DD0009471 | Nut | 2 | |
| DD0008854 | Solenoid base | 1 | |
| DD0011607 | Solenoid connecting shaft | 1 | |
| DNR001201 | Thread trimmer solenoid | 1 | |
| DD0011606 | Washer | 1 | |
| DD0011845 | Washer | 1 | |
| DD0028999 | Screw | 1 | |
| DD0012467 | Screw | 1 | |
| DD0003077 | Washer | 1 | |
| DD0011605 | Screw | 1 | |
| DD0008862 | Screw | 1 | |
| DD0058067 | Dispart | 1 | |
| DD0013154 | Washer | 1 | |
| DD0014474 | Screw | 1 | |
| DD0011421 | Fixed knife | 1 | |
| DD0011422 | Screw | 1 | |
| DD0013465 | Screw | 2 | |
| DD0010736 | Thread trimmer cam | 1 | |
| DD0023739 | Cam collar | 1 | |
| DD0011686 | Trimming cam crank ASM | 1 |
Page 24 — I. 润滑分组件/ Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | I-1 | ||
| I-2 | I-2 | ||
| I-3 | I-3 | ||
| I-4 | I-4 | ||
| I-5 | I-5 | ||
| I-6 | I-6 | ||
| I-7 | I-7 | ||
| I-8 | I-8 | ||
| I-9 | I-9 | ||
| I-10 | I-10 | ||
| I-11 | I-11 | ||
| I-12 | I-12 | ||
| I-13 | I-13 | ||
| I-14 | I-14 | ||
| I-15 | I-15 | ||
| I-16 | I-16 | ||
| I-17 | I-17 | ||
| I-18 | I-18 | ||
| I-19 | I-19 | ||
| I-20 | I-20 |
Page 25 — I. 润滑分组件 / Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0014197 | Foam rubber | 1 | |
| DD0005558 | Screw | 1 | |
| D00002229 | Oil stoper | 1 | |
| DD0010294 | Felt clip | 1 | |
| E00003573 | Oil return pipe assembly | 1 | |
| DD0008934 | Screw | 1 | |
| DD0041628 | Oil felt preser | 1 | |
| DD0048653 | Main shaft oil tube | 1 | |
| D00003443 | Oil tube holder | 1 | |
| DD0003077 | Washer | 1 | |
| DD0050422 | Screw | 1 | |
| DD0008817 | Oil pump | 1 | |
| DD0005537 | Spring washer | 1 | |
| DD0010066 | Screw | 1 | |
| DD0008806 | Spring | 1 | |
| DD0008831 | Screw | 1 | |
| DD0008807 | Oil tube | 1 | |
| DD0050424 | Tube holder | 1 | |
| DD0013269 | Screw | 1 |
Page 26 — J. 油盘、膝抬压脚组件 / Presser foot components of oil plate knee lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | J-1 | ||
| J-2 | J-2 | ||
| J-3 | J-3 | ||
| J-4 | J-4 | ||
| J-5 | J-5 | ||
| J-6 | J-6 | ||
| J-7 | J-7 | ||
| J-8 | J-8 | ||
| J-9 | J-9 | ||
| J-10 | J-10 | ||
| J-11 | J-11 | ||
| J-12 | J-12 | ||
| J-13 | J-13 | ||
| J-14 | J-14 | ||
| J-15 | J-15 | ||
| J-16 | J-16 | ||
| J-17 | J-17 | ||
| J-18 | J-18 | ||
| J-19 | J-19 | ||
| J-20 | J-20 | ||
| J-21 | J-21 | ||
| J-22 | J-22 | ||
| J-23 | J-23 | ||
| J-24 | J-24 | ||
| J-25 | J-25 |
Page 27 — J. 油盘、膝抬压脚分组件 / Presser foot components of oil plate knee lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0003841 | Oil reservoir | 1 | |
| DD0014194 | Oil reservoir gasket | 1 | |
| DD0009984 | Knee Lifter Complying Bar | 1 | |
| DD0009991 | Screw | 1 | |
| DD0009988 | O-ring | 1 | |
| DD0002562 | Bracket-ASM | 1 | |
| DD0003896 | Bracket | 1 | |
| DD0002610 | Screw | 1 | |
| DD0002613 | Screw | 1 | |
| DD0003899 | Knee pressing shaft | 1 | |
| DD0003893 | Spring | 1 | |
| DD0002559 | Snap ring | 1 | |
| DD0002563 | Crank ASM | 1 | |
| DD0009987 | Crank | 1 | |
| DD0004047 | Screw | 1 | |
| DD0003895 | Screw | 1 | |
| DD0003898 | Screw | 1 | |
| DD0003890 | Nut | 3 | |
| E00003503 | Knee pressing plate ASM | 1 | |
| DD0003894 | Screw | 1 | |
| DD0003897 | Knee pressing plate holder | 1 | |
| DD0003901 | Knee pressing plate rod | 1 | |
| D00003445 | Knee pressing plate rubber | 1 | |
| DD0003891 | Knee pressing plate | 1 | |
| D00003446 | Knee pressing cover | 1 | |
| D00003753 | Lever as-control | 1 |
Page 28 — K. 过线架分组件 / Components of thread-running stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | K-1 | ||
| K-2 | K-2 | ||
| K-3 | K-3 | ||
| K-4 | K-4 | ||
| K-5 | K-5 | ||
| K-6 | K-6 | ||
| K-7 | K-7 | ||
| K-8 | K-8 | ||
| K-9 | K-9 | ||
| K-10 | K-10 | ||
| K-11 | K-11 | ||
| K-12 | K-12 | ||
| K-13 | K-13 | ||
| K-14 | K-14 | ||
| K-15 | K-15 | ||
| K-16 | K-16 | ||
| K-17 | K-17 | ||
| K-18 | K-18 | ||
| K-19 | K-19 | ||
| K-20 | K-20 | ||
| K-21 | K-21 |
Page 29 — K. 过线架分组件 / Components of thread-running stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0003447 | Column cap | 1 | |
| DD0004293 | Column pipe(upper) | 1 | |
| DD0000953 | Nut | 6 | |
| DD0003022 | Washer | 4 | |
| DD0003301 | Screw | 3 | |
| DD0004285 | Thread guide bushing | 4 | |
| DD0004289 | Thread guide pipe | 4 | |
| DD0004298 | Thread hanger(upper) | 2 | |
| DD0004286 | Column pipe connector | 1 | |
| DD0004291 | Column pipe(lower) | 1 | |
| DD0004284 | Thread hanger(lower) | 1 | |
| DD0003312 | Screw | 2 | |
| DD0004288 | Spool pin | 2 | |
| DD0004287 | Spool cushion | 2 | |
| DD0004281 | Spool mat | 2 | |
| DD0004299 | Spool seat disc | 2 | |
| DD0004295 | Washer | 2 | |
| DD0004290 | Washer | 2 | |
| DD0002985 | Nut | 1 | |
| DD0003447 | Column pipe(upper) | 1 | |
| DD0003519 | Wire frame components | 1 |
Page 30 — L. 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | Bottle | ||
| L-2 | Nozzle | ||
| L-3 | Clip | ||
| L-4 | Clip | ||
| L-5 | Clip | ||
| L-6 | Clip | ||
| L-7 | Clip | ||
| L-8 | Washer | ||
| L-9 | Washer | ||
| L-10 | Screw |
Page 31 — L. 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0060866 | Oil pot | 1 |
| 2 | DD0026033 | Frame support bar | 1 |
| 3 | DD0003449 | Oil reservoir seat | 2 |
| 4 | DD0003450 | Oil reservoir cushion | 2 |
| 5 | DD0004466 | Head connecting hook | 2 |
| 6 | DD0004451 | Head connecting hook socket | 2 |
| 7 | DD0003536 | Head cover | 1 |
| 8 | DD0003892 | Oil reservoir magnet | 1 |
| 9 | DD0025484 | Bobbin | 1 |
| 10 | DD0031426 | Screw | 1 |
Page 32 — M. 电控分组件 / Drive-by-wire Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | M-1 | M-1 | |
| M-2 | M-2 | M-2 | |
| M-3 | M-3 | M-3 | |
| M-4 | M-4 | M-4 | |
| M-5 | M-5 | M-5 | |
| M-6 | M-6 | M-6 | |
| M-7 | M-7 | M-7 | |
| M-8 | M-8 | M-8 | |
| M-9 | M-9 | M-9 | |
| M-10 | M-10 | M-10 | |
| M-11 | M-11 | M-11 | |
| M-12 | M-12 | M-12 | |
| M-13 | M-13 | M-13 | |
| M-14 | M-14 | M-14 |
Page 33 — M. 电控分组件 / Drive-by-wire Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0010899 | Screw | 3 | |
| DD0035172 | Cord holder | 1 | |
| DD0000480 | Washer | 2 | |
| DD0000463 | Cord holder | 1 | |
| DD0002462 | Cord holder | 1 | |
| DNR003468 | Control box | 1 | |
| DD0012080 | Screw | 1 | |
| DD0006115 | Snap ring | 1 | |
| DD0006115 | Screw | 3 | |
| DD0010899 | Screw | 1 | |
| DNR003469 | Key screen | 1 | |
| DD0010678 | Screw | 2 | |
| DD0031424 | Pedal unit ASM | 1 | |
| DD0008934 | Screw | 2 |
Page 35 — Index / 索引
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| - 38 | DD0002079 | D | |
| - 41 | DD0002081 | D | |
| - 3 | DD0002229 | I | |
| - 5 | DD0002462 | M | |
| - 4 | DD0002463 | M | |
| - 28 | DD0002521 | B | |
| - 21 | DD0002740 | A | |
| - 20 | DD0003216 | F | |
| - 23 | DD0003235 | A | |
| - 18 | DD0003255 | F | |
| - 19 | DD0003414 | F | |
| - 8 | DD0003427 | A | |
| - 7 | DD0003429 | A | |
| - 14 | DD0003430 | A | |
| - 13 | DD0003431 | A | |
| - 22 | DD0003432 | A | |
| - 31 | DD0003434 | A | |
| - 15 | DD0003435 | A | |
| - 7 | DD0003438 | B | |
| - 11 | DD0003439 | B | |
| - 5 | DD0003440 | B | |
| - 1 | DD0003441 | C | |
| - 9 | DD0003443 | I | |
| - 23 | DD0003445 | J | |
| - 25 | DD0003446 | J | |
| - 1 | DD0003447 | K | |
| - 20 | DD0003449 | K | |
| - 3 | DD0003450 | L | |
| - 6 | DD0003451 | L | |
| - 54 | DD0003453 | F | |
| - 10 | DD0003456 | A | |
| - 34 | DD0003460 | H | |
| - 43 | DD0003507 | D | |
| - 18+ | DD0003513 | B | |
| - 9 | DD0003517 | A | |
| - 21 | DD0003519 | K | |
| - 8 | DD0003533 | D | |
| - 7 | DD0003536 | L | |
| - 7+ | DD0003606 | C | |
| - 6 | DD0003639 | E | |
| - 51 | DD0003649 | F | |
| - 14 | DD0003650 | F | |
| - 25 | DD0003698 | B | |
| - 18+ | DD0003703 | B | |
| - 26 | DD0003753 | J | |
| - 24+ | DD0003773 | C | |
| - 3+ | DD0003789 | C | |
| - 3+ | DD0003792 | C | |
| - 27 | DD0003825 | B | |
| - 1 | DD0003841 | J | |
| - 17 | DD0003862 | A | |
| - 15 | DD0004047 | J | |
| - 45 | DD0000134 | D | |
| - 7 | DD0000325 | D | |
| - 3 | DD0000480 | M | |
| - 23 | DD0002445 | E | |
| - 18 | DD0002509 | E | |
| - 12 | DD0002559 | J | |
| - 16 | DD0002560 | E | |
| - 22 | DD0002561 | E | |
| - 6 | DD0002562 | J | |
| - 13 | DD0002563 | J | |
| - 36 | DD0002577 | A | |
| - 8 | DD0002610 | J | |
| - 9 | DD0002613 | J | |
| - 3 | DD0002953 | K | |
| - 19 | DD0002985 | K | |
| - 4 | DD0003022 | K | |
| - 32 | DD0003031 | H | |
| - 43 | DD0003077 | H | |
| - 5 | DD0003281 | G | |
| - 5 | DD0003301 | K | |
| - 12 | DD0003312 | K | |
| - 18 | DD0003890 | J | |
| - 24 | DD0003891 | J | |
| - 8 | DD0003892 | L | |
| - 11 | DD0003893 | J | |
| - 20 | DD0003894 | J | |
| - 16 | DD0003895 | J | |
| - 7 | DD0003896 | J | |
| - 21 | DD0003897 | J | |
| - 17 | DD0003898 | J | |
| - 10 | DD0003899 | J | |
| - 22 | DD0003901 | J | |
| - 33 | DD0003960 | A | |
| - 35 | DD0003963 | A | |
| - 14+ | DD0004061 | G | |
| - 4+ | DD0004158 | B | |
| - 21+ | DD0004176 | C | |
| - 18 | DD0004177 | C | |
| - 22 | DD0004179 | C | |
| - 23 | DD0004180 | C | |
| - 14 | DD0004183 | C | |
| - 13 | DD0004184 | C | |
| - 20 | DD0004199 | C | |
| - 15 | DD0004200 | C | |
| - 17 | DD0004201 | C | |
| - 15 | DD0004281 | K | |
| - 11 | DD0004284 | K | |
| - 6 | DD0004285 | K | |
| - 9 | DD0004286 | K | |
| - 14 | DD0004287 | K | |
| - 13 | DD0004288 | K | |
| - 7 | DD0004289 | K | |
| - 18 | DD0004290 | K | |
| - 10 | DD0004291 | K | |
| - 2 | DD0004293 | K | |
| - 17 | DD0004295 | K | |
| - 8 | DD0004296 | K | |
| - 28 | DD0004373 | A | |
| - 29 | DD0004374 | A | |
| - 45+ | DD0004430 | F | |
| - 4 | DD0004439 | D | |
| - 62 | DD0004440 | F | |
| - 5 | DD0004466 | L | |
| - 20 | DD0004472 | B | |
| - 5 | DD0004473 | D | |
| - 63 | DD0004474 | F | |
| - 35 | DD0004475 | F | |
| - 61 | DD0004628 | F | |
| - 11 | DD0004640 | H | |
| - 26 | DD0004648 | H | |
| - 23 | DD0004651 | H | |
| - 28 | DD0004703 | H | |
| - 29 | DD0004704 | H | |
| - 30 | DD0004705 | H | |
| - 22 | DD0004707 | H | |
| - 65 | DD0004993 | F | |
| - 23 | DD0005020 | B | |
| - 13 | DD0005537 | I | |
| - 2 | DD0005558 | I | |
| - 27 | DD0005834 | C | |
| - 28 | DD0005838 | C | |
| - 9+ | DD0005915 | D | |
| - 5+ | DD0005916 | C | |
| - 15+ | DD0005940 | B | |
| - 21+ | DD0005941 | C | |
| - 8 | DD0005943 | C | |
| - 6+ | DD0005945 | C | |
| - 10+ | DD0005982 | D | |
| - 8 | DD0006115 | M | |
| - 25 | DD0006264 | C | |
| - 18 | DD0006624 | D | |
| - 15+ | DD0006844 | B | |
| - 3 | DD0006924 | E | |
| - 19 | DD0007235 | E | |
| - 20 | DD0007236 | E | |
| - 12 | DD0007268 | E | |
| - 59+ | DD0007322 | F | |
| - 15 | DD0008806 | I | |
| - 17 | DD0008807 | I | |
| - 20 | DD0008811 | D | |
| - 19 | DD0008812 | H | |
| - 12 | DD0008817 | I | |
| - 13 | DD0008821 | E | |
| - 52 | DD0008827 | F | |
| - 16 | DD0008831 | I | |
| - 17 | DD0008834 | D | |
| - 8 | DD0008848 | F | |
| - 30 | DD0008852 | F | |
| - 36 | DD0008854 | H | |
| - 17 | DD0008856 | H | |
| - 10 | DD0008857 | E | |
| - 16 | DD0008860 | D | |
| - 45 | DD0008862 | H | |
| - 9 | DD0008863 | H | |
| - 5 | DD0008865 | H | |
| - 1 | DD0008866 | H | |
| - 5 | DD0008934 | A | |
| - 27 | DD0009005 | A | |
| - 49 | DD0009008 | F | |
| - 22 | DD0009037 | D | |
| - 31 | DD0009074 | C | |
| - 42 | DD0009205 | D | |
| - 35 | DD0009471 | H | |
| - 33 | DD0009654 | H | |
| - 3 | DD0009841 | J | |
| - 14 | DD0009987 | J | |
| - 5 | DD0009988 | J | |
| - 4 | DD0010010 | D | |
| - 32 | DD0010016 | D | |
| - 27 | DD0010027 | D | |
| - 14 | DD0010030 | E | |
| - 21 | DD0010057 | E | |
| - 11 | DD0010058 | E | |
| - 15 | DD0010059 | E | |
| - 7 | DD0010063 | E | |
| - 9 | DD0010065 | B | |
| - 17 | DD0010066 | E | |
| - 14 | DD0010068 | F | |
| - 29 | DD0010069 | F | |
| - 24 | DD0010071 | F | |
| - 28 | DD0010072 | F | |
| - 41 | DD0010073 | F | |
| - 5 | DD0010074 | F | |
| - 26 | DD0010075 | F | |
| - 22 | DD0010076 | F | |
| - 34 | DD0010080 | A | |
| - 8 | DD0010082 | B | |
| - 2 | DD0010083 | B | |
| - 2 | DD0010084 | F | |
| - 34 | DD0010086 | F | |
| - 36 | DD0010087 | F | |
| - 1 | DD0010089 | F | |
| - 66 | DD0010090 | F | |
| - 32 | DD0010091 | F | |
| - 4 | DD0010092 | F | |
| - 25 | DD0010095 | F | |
| - 33 | DD0010096 | F | |
| - 71 | DD0010097 | F | |
| - 6 | DD0010098 | F | |
| - 58 | DD0010099 | F |
Page 36 — Index / 索引
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| - 68 | DD0010542 | F | |
| - 6 | DD0010545 | B | |
| - 9 | DD0010588 | C | |
| - 10+ | DD0010590 | C | |
| - 6+ | DD0010591 | C | |
| - 16+ | DD0010592 | B | |
| - 7 | DD0010643 | F | |
| - 31 | DD0010646 | D | |
| - 31 | DD0010649 | F | |
| - 11 | DD0010650 | D | |
| - 37 | DD0010651 | D | |
| - 39 | DD0010652 | D | |
| - 21 | DD0010678 | B | |
| - 22 | DD0010678 | B | |
| - 40 | DD0010678 | F | |
| - 12 | DD0010678 | M | |
| - 52 | DD0010736 | H | |
| - 1 | DD0010899 | M | |
| - 10 | DD0010899 | M | |
| - 15 | DD0010900 | H | |
| - 2 | DD0011063 | C | |
| - 2 | DD0011101 | E | |
| - 12 | DD0011149 | A | |
| - 2 | DD0011168 | G | |
| - 32 | DD0011232 | B | |
| - 49 | DD0011421 | H | |
| - 50 | DD0011422 | H | |
| - 10+ | DD0011494 | H | |
| - 14 | DD0011514 | H | |
| - 12 | DD0011578 | H | |
| - 8 | DD0011580 | H | |
| - 6 | DD0011588 | H | |
| - 44 | DD0011605 | H | |
| - 39 | DD0011606 | H | |
| - 37 | DD0011607 | H | |
| - 3 | DD0011630 | H | |
| - 4 | DD0011649 | H | |
| - 31 | DD0011650 | H | |
| - 54 | DD0011686 | H | |
| - 20 | DD0011697 | H | |
| - 40 | DD0011845 | H | |
| - 7 | DD0012080 | M | |
| - 13+ | DD0012203 | B | |
| - 2 | DD0012454 | A | |
| - 26 | DD0012463 | A | |
| - 15 | DD0012467 | D | |
| - 42 | DD0012467 | H | |
| - 4 | DD0012505 | G | |
| - 29 | DD0012589 | C | |
| - 37 | DD0012775 | F | |
| - 44+ | DD0012796 | F | |
| - 13+ | DD0012858 | B | |
| - 8 | DD0012983 | G | |
| - 12 | DD0012983 | G | |
| - 19 | DD0012983 | G | |
| - 7 | DD0012985 | G | |
| - 46+ | DD0012987 | F | |
| - 10 | DD0012989 | G | |
| - 44+ | DD0012990 | F | |
| - 45+ | DD0012991 | F | |
| - 15 | DD0013001 | G | |
| - 14+ | DD0013002 | G | |
| - 30 | DD0013038 | D | |
| - 16 | DD0013154 | H | |
| - 47 | DD0013154 | H | |
| - 19 | DD0013269 | I | |
| - 51 | DD0013465 | H | |
| - 19 | DD0013615 | D | |
| - 32 | DD0013706 | A | |
| - 17 | DD0013870 | F | |
| - 14 | DD0014106 | B | |
| - 67 | DD0014116 | F | |
| - 5+ | DD0014117 | C | |
| - 9+ | DD0014118 | D | |
| - 50 | DD0014119 | F | |
| - 2 | DD0014194 | J | |
| - 18 | DD0014196 | H | |
| - 1 | DD0014197 | I | |
| - 25+ | DD0014459 | A | |
| - 48 | DD0014474 | H | |
| - 53 | DD0023739 | H | |
| - 6 | DD0024748 | G | |
| - 4 | DD0025484 | E | |
| - 9 | DD0025484 | L | |
| - 24 | DD0025576 | H | |
| - 27 | DD0025577 | H | |
| - 2 | DD0026033 | L | |
| - 10 | DD0026886 | F | |
| - 41 | DD0028999 | H | |
| - 10+ | DD0030280 | H | |
| - 1 | DD0031261 | E | |
| - 13 | DD0031424 | M | |
| - 10 | DD0031426 | L | |
| - 13 | DD0031612 | H | |
| - 2 | DD0035172 | M | |
| - 69 | DD0038073 | F | |
| - 4+ | DD0038474 | B | |
| - 7+ | DD0038939 | C | |
| - 39 | DD0038945 | C | |
| - 6 | DD0039365 | D | |
| - 24 | DD0039372 | D | |
| - 25 | DD0039373 | D | |
| - 36 | DD0039374 | D | |
| - 23 | DD0039378 | D | |
| - 13 | DD0039380 | D | |
| - 16 | DD0039524 | C | |
| - 48 | DD0039853 | F | |
| - 53 | DD0040504 | F | |
| - 9 | DD0041529 | E | |
| - 7 | DD0041628 | I | |
| - 60 | DD0042079 | F | |
| - 4 | DD0043360 | C | |
| - 12 | DD0043360 | C | |
| - 8 | DD0048653 | I | |
| - 9 | DD0049837 | M | |
| - 29 | DD0050188 | D | |
| - 35 | DD0050190 | D | |
| - 21 | DD0050266 | H | |
| - 35 | DD0050348 | C | |
| - 11 | DD0050422 | I | |
| - 11 | DD0050423 | A | |
| - 18 | DD0050424 | I | |
| - 28 | DD0050590 | D | |
| - 1 | DD0050672 | B | |
| - 55 | DD0050707 | F | |
| - 5+ | DD0051397 | E | |
| - 2 | DD0051428 | D | |
| - 3 | DD0051429 | D | |
| - 33 | DD0051430 | D | |
| - 16 | DD0051431 | A | |
| - 1 | DD0051433 | D | |
| - 26 | DD0051458 | C | |
| - 13 | DD0051621 | F | |
| - 30 | DD0051703 | C | |
| - 9 | DD0051742 | F | |
| - 21 | DD0051845 | F | |
| - 31 | DD0052046 | D | |
| - 59+ | DD0052531 | F | |
| - 10+ | DD0052532 | D | |
| - 10+ | DD0052735 | C | |
| - 33 | DD0052992 | C | |
| - 16+ | DD0053104 | B | |
| - 9 | DD0053339 | G | |
| - 5+ | DD0053595 | E | |
| - 11 | DD0054140 | C | |
| - 19 | DD0055615 | B | |
| - 34 | DD0058041 | C | |
| - 7 | DD0058043 | H | |
| - 46 | DD0058067 | H | |
| - 39 | DD0058783 | F | |
| - 8 | DD0058812 | E | |
| - 30 | DD0059025 | B | |
| - 25+ | DD0060708 | A | |
| - 1 | DD0060866 | L | |
| - 15 | DD0062042 | F | |
| - 24+ | DD0062637 | C | |
| - 57 | DD0063520 | F | |
| - 3 | DD0066775 | A | |
| - 56 | DE0021689 | F | |
| - 2 | DE0025554 | A | |
| - 38 | DNR001201 | H | |
| - 44 | DNR003459 | D | |
| - 6 | DNR003468 | M | |
| - 11 | DNR003469 | M | |
| - 29 | DNR003534 | B | |
| - 11 | DNR003644 | G | |
| - 36 | DNR003645 | C | |
| - 18 | DNR003704 | G | |
| - 3 | DNR003720 | G | |
| - 6 | E00003021 | A | |
| - 19 | E00003503 | J | |
| - 20 | E00003519 | A | |
| - 5 | E00003573 | I | |
| - 31 | E00003671 | B |
Brother S-6280A — parts catalog
- Page 1 (cover): This is the cover page for the Brother S-6280A Parts Book, featuring the Brother logo and a diagram of a screw.
- Page 2 (text): This page describes the model plate for the S-6280A-81 machine, detailing the application of different material types based on a numerical code.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing components in both English and Chinese with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components, with various parts labeled with reference numbers and part numbers.
- Page 5 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, quantities, and remarks.
- Page 6 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with various parts labeled with reference numbers such as B-1 through B-32.
- Page 7 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including screws, bearings, and assemblies, with corresponding part numbers and descriptions in both English and Chinese.
- Page 8 (diagram): This page displays a diagram of needle bar and thread tension components, with various parts labeled with reference numbers such as C-1 through C-39.
- Page 9 (parts_list): This page lists needle bar and thread tension components, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of needle bar and thread tension components for an industrial sewing machine, with parts labeled C-1 through C-39.
- Page 11 (parts_list): This page lists needle bar and thread tension components, including springs, electromagnets, screws, and presser bar thread guides, with their corresponding part numbers and descriptions.
- Page 12 (diagram): This page displays a diagram of presser bar and tension release components, with various parts labeled with reference numbers and part numbers.
- Page 13 (parts_list): This page lists presser bar and tension release components for industrial sewing machines, including part numbers, names, quantities, and remarks.
- Page 14 (diagram): This page displays a diagram of the hook of driving shaft components, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): This page lists parts for Hook of driving shaft components, including part numbers, names, quantities, and remarks.
- Page 16 (diagram): This page displays a diagram of the feed mechanism components, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page lists components for the Feed mechanism, including part numbers, names, quantities, and remarks in both English and Chinese.
- Page 18 (diagram): This page displays a diagram of the feed mechanism components, with various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists components for the Feed mechanism, including screws, levers, tooth bases, feed dogs, lifting forks, pins, snap rings, bearing supports, thrust collars, and rocker shafts, with their corresponding part numbers and quantities.
- Page 20 (diagram): This page displays a diagram of feed regulating components for an industrial sewing machine, with various parts labeled with reference numbers like G-1 through G-19.
- Page 21 (parts_list): This page lists feed regulating components with part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of thread trimmer components, with various parts labeled with reference numbers and some part numbers provided.
- Page 23 (parts_list): This page lists components for the H. 剪线组件 / Thread trimmer components section, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts labeled with reference numbers like I-1 through I-20.
- Page 25 (parts_list): This page lists lubrication components with their reference number, code, quantity, name of parts in English and Chinese, and RM value.
- Page 26 (diagram): This page displays a diagram of presser foot components of an oil plate knee lift, with parts labeled J-1 through J-25.
- Page 27 (parts_list): This page lists parts for the "Presser foot components of oil plate knee lift" with reference numbers, codes, quantities, names of parts in English and Chinese, and RM values.
- Page 28 (diagram): This page displays a diagram of components for a thread-running stand, with various parts labeled with reference numbers and part numbers.
- Page 29 (parts_list): This page lists components for a thread-running stand, including part numbers, quantities, and names in both English and Chinese.
- Page 30 (diagram): This page displays a diagram of accessories for an industrial sewing machine, labeled L-1 through L-10, including a bottle, nozzle, clips, and screws.
- Page 31 (parts_list): This page lists accessories for the sewing machine, including part numbers, descriptions in English and Chinese, and quantities.
- Page 32 (diagram): This page displays a diagram of drive-by-wire components, with various parts labeled with reference numbers such as M-1 through M-14.
- Page 33 (parts_list): This page lists drive-by-wire components for the machine, including screws, cord holders, washers, control boxes, snap rings, and key screens, with their corresponding part numbers and quantities.
- Page 34 (cover): This is the cover page for a Brother industrial sewing machine parts catalog, featuring warning labels and information about the S-6280A model, including its electrical specifications and safety precautions.
- Page 35 (index): This page contains an index of parts with their corresponding reference numbers and page numbers. The index is organized into multiple columns, each listing part codes, reference numbers, and page numbers.
- Page 36 (index): This page contains an index of part numbers, their reference numbers, and the page numbers where they can be found in the catalog. The index is organized into multiple columns for efficient searching.
- Page 37 (cover): This is the cover page for a Brother Industries, Ltd. parts book. It features the Brother logo, an illustration of a screw, and the title "PARTS BOOK 零件手册". The page also includes company contact information and a document identifier.
Page 2 — Description of model plate
Description of model plate S-6280A-81 Application Medium materials Heavy materials 型号牌的读解法 用 途 S-6280A-81 中厚布料 厚 布 料 3 5 jintex.in
Page 3 — CONTENTS
CONTENTS A Machine frame & miscellaneous cover components 1 B Main shaft & thread take-up components 3 C Needlebar & thread tension components 5 D Presser bar & tension release components 9 E Hook of driving shaft components 11 F Feed mechanism components 13 G Feed regulating components 17 H Thread trimmer components 19 I Lubrication components 21 J Presser foot components of oil plate knee lift 23 K Components of thread-running stand 25 L Accessories 27 M Drive-by-wire Components 29 Wa. Warning labels 31 Index 32 目 录 A 机壳分组件 1 B 上轴、挑线分组件 3 C 针杆、夹线分组件 5 D 压料、松线分组件 9 E 钩线分组件 11 F 送料分组件 13 G 送料调节分组件 17 H 剪线分组件 19 I 润滑分组件 21 J 油盘、膝抬压脚分组件 23 K 过线架分组件 25 L 附件 27 M 电控分组件 29 Wa. 警告标签 31 索引 32 jintex.in
Page 4 — A. 机壳分组件 / Machine frame & miscellaneous cover components
A. 机壳分组件 / Machine frame & miscellaneous cover components A-1 A-2 A-3 A-4 A-5 A-6 A-7 A-8 A-9 A-10 A-11 A-12 A-13 A-14 A-15 A-16 A-17 A-18 A-19 A-20 A-21 A-22 A-23 A-24 A-25 A-26 A-27 A-28 A-29 A-30 A-31 A-32 A-33 A-34 A-35 A-36 A-36 A-36 1 S-6280A Jinttex.in
Page 5 — A. 机壳分组件 / Machine frame&miscellaneous cover components
A. 机壳分组件 / Machine frame&miscellaneous cover components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0008972 9 Screw 螺钉 2 DE0025554 1 Side plate 后窗板 3 DD0066775 1 Side plate gasket 后窗板垫 4 DD0004380 3 Screw 螺钉 5 DD0008934 1 Screw 螺钉 6 E00003021 1 Thread take-up lever cover 挑线杆护罩 7 DD0003429 2 Rubber plug 橡胶塞 8 D00003428 1 Rubber plug 橡胶塞 9 D00003517 1 Bobbin wider ASM 绕线器 10 D00003456 1 Rubber ring 橡胶轮 11 DD0050423 2 Screw 螺钉 12 DD0011149 1 Thread cutter 绕线切刀 13 D00003431 1 Oil window 油窗 14 D00003430 1 O-ring O形圈 15 D00003435 1 Rubber plug 橡胶塞 16 DD0051431 1 Bobbin thread tension ASM 绕线夹线器组件 17 D00003862 1 Rubber plug 橡胶塞 18 D00003427 1 Rubber plug 橡胶塞 19 DD0008972 3 Screw 螺钉 20 E00003519 1 Face plate 面板 21 D00002740 1 Face plate gasket 面板垫 22 D00003432 2 Rubber plug 橡胶塞 23 D00003235 1 Arm thread guide left 左线钩 24 DD0008973 2 Screw 螺钉 25+ DD0060708 1 Needle plate <用于-[]03> 针板 25+ DD0014459 1 Needle plate <用于-[]05> 针板 26 DD0012463 1 Screw 螺钉 27 DD0009005 1 Screw 螺钉 28 DD0004373 1 Ruler plate 限位挡片 29 DD0004374 2 Screw 螺钉 30 DD0008940 1 Arm thread guide right 右线钩 31 D00003434 1 Rubber plug 电线过线套 32 DD0013706 1 Side plate ASM 推板部件 33 DD0003960 1 Side plate 推板 34 DD0010080 2 Screw 螺钉 35 DD0003963 1 Spring of side 推板簧 36 DD0002577 4 Bed screw stud 底板支柱 S-6280A 2
Page 6 — B. 上轴、挑线分组件 / Needle bar & thread take-up mechanism
B. 上轴、挑线分组件 / Needle bar & thread take-up mechanism B-1 B-2 B-3 B-4 B-5 B-6 B-7 B-8 B-9 B-10 B-11 B-12 B-13 B-14 B-15 B-16 B-17 B-18 B-19 B-20 B-21 B-22 B-23 B-24 B-25 B-26 B-27 B-20 B-28 B-29 B-30 B-31 B-32 3 jintex.in S-6280A
Page 7 — B. 上轴、挑线分组件 / Needle bar and thread take-up mechanism
B. 上轴、挑线分组件 / Needle bar and thread take-up mechanism REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0050672 1 Thread take-up crank shaft 挑线连杆销 2 DD0010083 1 Screw 螺钉 3 DD0010535 1 Thread take-up bar 挑线连杆 4+ DD0004158 1 <For -[]03> Thread take-up lever Asm <用于-[]03> 挑线杆分部件 4+ DD0038474 1 <For -[]05> Thread take-up lever Asm <用于-[]05> 挑线杆分部件 5 DD0003440 1 Oil resistant cover 挑线杆防油圈 6 DD0010545 1 Screw 螺钉 7 DD0003438 1 O-ring O形圈 8 DD0010082 2 Screw 螺钉 9 DD0010065 2 Screw 螺钉 10 DD0010538 1 O-ring O形圈 11 DD003439 1 Sleeve of adjusting pin 曲柄油量调节销套 12 DD0010504 1 Pin 销 13+ DD0012203 1 <For -[]03> Counter weight <用于-[]03> 针杆曲柄 13+ DD0012858 1 <For -[]05> Counter weight <用于-[]05> 针杆曲柄 14 DD0014106 2 Bearing 轴承 15+ DD0006844 1 <For -[]03> Needle bar crank <用于-[]03> 挑线曲柄 15+ DD0053104 1 Needle bar crank rod 针杆连杆 16+ <For -[]05> <用于-[]05> 15+ DD0005940 1 Needle bar crank 挑线曲柄 16+ DD0010592 1 Needle bar crank rod 针杆连杆 17 DD0010537 1 Screw 螺钉 18+ DD0003513 1 <For -[]03> Take-up Bar Assembly <用于-[]03> 挑线杆组件 18+ DD003703 1 <For -[]05> Take-up Bar Assembly <用于-[]05> 挑线杆组件 19 DD0055615 1 Bearing support 轴套 20 DD0004472 1 Wheel 绕线主动轮 21 DD0010678 2 Screw 螺钉 22 DD0010678 1 Screw 螺钉 23 DD005020 2 Screw 螺钉 24 DD0010542 1 Thrust collar 挡圈 25 DD0003698 1 Bearing support 上轴套后套 26 DD0007239 1 Bearing support 轴套 27 DD0003825 1 Main shaft 上轴 28 DD0002521 1 Oil seal 上轴后套油封 29 DNR003534 1 Motor 主轴电机 30 DD0059025 4 Screw 螺钉组件 31 E00003671 1 Head wheel 上轮 32 DD0011232 2 Screw 螺钉 S-6280A 4 jintex.in
Page 8 — C. 针杆、夹线分组件 / Needle bar & thread tension components
C. 针杆、夹线分组件 / Needle bar & thread tension components C-1 C-2 C-3 C-4 C-5 C-6 C-7 C-11 C-10 C-12 C-8 C-9 C-24 C-13 C-14 C-15 C-16 C-17 C-18 C-25 C-23 C-22 C-21 C-20 C-19 C-34 C-35 C-36 C-37 C-38 C-39 C-32 C-33 C-31 C-29 C-28 C-27 C-26 C-30 5 jintex.in S-6280A
Page 9 — C. 针杆、夹线组件 / Needle bar & thread tension components
C. 针杆、夹线组件 / Needle bar & thread tension components REF.NO CODE Q'TY NAME OF PARTS 零件部件名称 RM 1 DD0003441 1 Rubber plug 橡胶塞 2 DD0011063 1 Bearing support 轴套 3+ DD0003789 1 Needle bar <For -[]03> 针杆 3+ DD0003792 1 Needle bar <For -[]05> 针杆 4 DD0043360 1 Screw 滑块导轨螺钉 5+ DD0014117 1 Bearing support <For -[]03> 轴套 6+ DD0010591 1 Needle bar thread guide 针杆线钩 7+ DD0038939 1 Needle DB×1 DB×1机针 5+ DD0005916 1 Bearing support <For -[]05> 轴套 6+ DD0005945 1 Needle bar thread guide 针杆线钩 7+ DD0003606 1 Needle DB×1 DB×1机针 8 DD0005943 1 Needle bar thread guide 线钩 9 DD0010588 1 Screw 螺钉 10+ DD0052735 1 Needle bar holder <For -[]03> 针杆连接柱 10+ DD0010590 1 Needle bar holder <For -[]05> 针杆连接柱 11 DD0054140 1 Slide block 滑块导轨组件 12 DD0043360 2 Screw 螺钉 13 DD0004184 1 Thread release pin O形圈 14 DD0004183 1 O-ring 螺钉 15 DD0004200 1 Screw 挑线簧调节座 16 DD0039524 1 Tension post socket 弹簧 17 DD0004201 1 Spring 螺钉 18 DD0004177 1 Screw 19 DD0051457 1 Nut 松线器螺母 20 DD0004199 1 Tension disc stopper 夹线制动板 21+ DD0004176 1 Spring <For -[]03> 弹簧 21+ DD0005941 1 Spring <For -[]05> 弹簧 22 DD0004179 1 Thread release disc 松线板 23 DD0004180 2 Tension disc holder 夹线板 24+ DD0062637 1 Thread take-up device <For -[]03> 夹线器组件 24+ DD0003773 1 Thread take-up device <For -[]05> 夹线器组件 25 DD0006264 1 Screw 螺钉 26 DD0051458 1 Nut 上夹线器螺母 27 DD0005838 1 Spring 弹簧 28 DD0005839 2 Tension disc holder 上夹线板 29 DD0012589 1 Threading Plate 上过线板 30 DD0051703 1 Thread take-up device 上夹线器部件 31 DD0009074 1 Screw 螺钉 32 DD0008934 1 Screw 螺钉 33 DD0052992 1 Needle tension guide 过线板 34 DD0058041 1 Tension release supporting pin 松线辅销 S-6280A 6 jintex.in
Page 10 — C. 针杆、夹线分组件 / Needle bar & thread tension components
C. 针杆、夹线分组件 / Needle bar & thread tension components C-1 C-2 C-3 C-4 C-5 C-6 C-7 C-11 C-10 C-12 C-9 C-8 C-24 C-13 C-14 C-15 C-16 C-17 C-25 C-23 C-22 C-21 C-20 C-19 C-31 C-32 C-33 C-29 C-28 C-27 C-26 C-30 C-34 C-35 C-36 C-37 C-38 C-39 7 jintex.in S-6280A
Page 11 — C. 针杆、夹线分组件 / Needlebar & thread tension components
C. 针杆、夹线分组件 / Needlebar & thread tension components REF.NO CODE Q'TY NAME OF PARTS 零件部件名称 RM 35 DD0050348 1 Spring 弹簧 36 DNR003645 1 Electromagnet 电子夹线器 37 DD0009074 1 Screw 螺钉 38 DD0009074 1 Screw 螺钉 39 DD0038945 1 Presser bar thread guide 缓线钩 S-6280A 8 jintex.in
Page 12 — D. 压料、松线组件 / Presser bar & tension release components
D. 压料、松线组件 / Presser bar & tension release components D-1 D-2 D-37 D-38 D-3 D-4 D-5 D-37 D-27 D-26 D-25 D-6 D-7 D-8 D-32 D-33 D-34 D-35 D-36 D-17 D-14 D-16 D-15 D-9 D-11 D-12 D-10 D-24 D-28 D-29 D-30 D-31 D-30 D-22 D-23 D-19 D-18 D-21 D-20 D-13 D-43 D-40 D-39 D-41 D-42 D-45 D-44 9 S-6280A jintex.in
Page 13 — D. 压料、松线分组件 / Presser bar & tension release components
D. 压料、松线分组件 / Presser bar & tension release components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0051433 1 Screw ASM 调压螺钉组件 2 DD0051428 1 Screw 螺钉 3 DD0051429 1 Nut 螺母 4 DD0004439 1 Presser guide bar 调压导杆 5 DD0004473 1 Spring 弹簧 6 DD0039365 1 Presser guide bar bracket 压杆导架 7 DD0000325 1 Screw 螺钉 8 DD0003533 1 Oil protector cover 压紧杆防油罩 <For -[]03> 9+ DD0014118 1 Bearing support <用于-[]03> 轴套 10+ DD0052532 1 Presser foot ASM 活压脚部件 9+ DD0005915 1 Bearing support <用于-[]05> 轴套 10+ DD0005982 1 Presser foot ASM 活压脚部件 11 DD0010650 1 Screw 螺钉 12 DD0010646 1 Presser bar 压杆 13 DD0039380 1 Foot lifter pull thread components 拾压脚拉线组件 14 DD0005834 2 Nut 螺母 15 DD0012467 1 Screw 螺钉 16 DD0008860 1 Loosing plate 松线座 17 DD0008834 1 Spring 弹簧 18 DD0006624 2 Screw 螺钉 19 DD0013615 1 Fixing shutter 挡线板 20 DD0008811 1 Loosing plate 松线钢绳座 21 DD0008972 2 Screw 螺钉 22 DD0009037 2 Screw 螺钉 23 DD0039378 1 Wire rope pressing plate 钢丝绳压板 24 DD0039372 1 Tension release plate 松线顶板 25 DD0039373 1 Pin 销 26 DD0009074 3 Screw 螺钉 27 DD0010027 1 O-ring O形圈 28 DD0050590 1 Washer 垫圈 29 DD0050188 1 Lifting lever 升降板 30 DD0013038 2 Snap ring 挡圈 31 DD0052046 1 Spring 弹簧 32 DD0010016 1 Screw 螺钉 33 DD0051430 1 Hand lifter 压脚扳手 34 DD0010027 1 O-ring O形圈 35 DD0050190 1 Hand lifter CAM ASM 压脚扳手凸轮部件 36 DD0039374 1 Pin 销 37 DD0010651 2 Screw 螺钉 38 DD0002079 1 Lifting lever connecting rod 抬压脚拉杆 39 DD0010652 2 Screw 螺钉 40 DD0003258 1 Presser foot lifter connector plate 拾压脚连接板 41 D00002081 1 Lifinglever link 拾压脚后杠杆 42 DD0009205 1 Spring 弹簧 43 DD0003507 1 Connecting rod verical 拾压脚顶杆 44 DNR003459 1 Electromagn 拾压电磁铁 45 DD0000134 4 Screw 螺钉 S-6280A 10 jintex.in
Page 14 — E. 钩线分组组件 / Hook of driving shaft components
E. 钩线分组组件 / Hook of driving shaft components E-3 E-4 E-1 E-2 E-5 E-7 E-6 E-8 E-10 E-11 E-12 E-13 E-14 E-15 E-17 E-17 E-19 E-20 E-21 E-22 E-23 E-16 E-17 E-18 11 S-6280A jintex.in
Page 15 — E. 钩线分组件 / Hook of driving shaft components
E. 钩线分组件 / Hook of driving shaft components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0031261 1 Positioning finger 旋检定位钩 2 DD0011101 1 Screw 螺钉 3 DD0006924 1 Bobbin case 梭壳 4 DD0025484 1 Bobbin 梭芯 5+ DD0051397 1 <For-[]03> Hook <用于-[]03> 旋梭 5+ DD0053595 1 <For-[]05> Hook <用于-[]05> 旋梭 6 DD0003639 1 Screw 螺钉 7 DD0010063 1 Oil wick 油芯 8 DD0058812 2 Bearing support 下轴前轴套 9 DD0041529 1 Screw 螺钉 10 DD0008857 1 Bearing support 轴套 11 DD0010058 1 Thrust collar 挡圈 12 DD0007268 1 Bearing support 轴套 13 DD0008821 1 Hook driving shaft 下轴 14 DD0010030 1 Screw 螺钉 15 DD0010059 2 Screw 螺钉 16 DD0002560 1 Gear Assy 齿轮组件 17 DD0010065 8 Screw 螺钉 18 DD0002559 1 Gear Assy 齿轮组件 19 DD0007235 1 Bearing support 轴套 20 DD0007236 1 Bearing support 轴套 21 DD0010057 1 Upright shaft 竖轴 22 DD0002561 1 Gear Assy 齿轮组件 23 DD0002445 1 Gear Assy 齿轮组件 S-6280A 12 jintex.in
Page 16 — F. 送料分组件 / Feed mechanism components
F. 送料分组件 / Feed mechanism components F-1 F-2 F-3 F-4 F-5 F-6 F-7 F-8 F-9 F-10 F-11 F-12 F-13 F-14 F-15 F-16 F-17 F-18 F-19 F-20 F-21 F-22 F-23 F-24 F-25 F-26 F-27 F-28 F-29 F-30 F-31 F-31 F-32 F-33 F-34 F-35 F-36 F-37 F-38 F-39 F-40 F-41 F-42 F-43 F-44 F-45 F-46 F-47 F-48 F-49 F-50 F-51 F-52 F-53 F-54 F-55 F-56 F-57 F-58 F-59 F-60 F-61 F-62 F-63 F-64 F-65 F-66 F-67 F-68 F-69 F-70 F-71 13 S-6280A jintex.in
Page 17 — F. 送料分组件 / Feed mechanism components
F. 送料分组件 / Feed mechanism components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0010089 1 Snap ring 挡圈 2 DD0010084 1 Connecting rod 拾牙连杆 3 DD0010115 1 Feed drive eccentric cam 送料偏心轮 4 DD0010092 2 Screw 螺钉 5 DD0010072 1 Connecting rod 送料连杆 6 DD0010098 1 Thrust cover 送料偏心轮盖板 7 DD0010643 2 Screw 螺钉 8 DD0008848 1 Feed regulator 送料调节器 9 DD0051742 2 Screw 螺钉 10 DD0026886 1 Pin 偏心销 11 DD0008956 1 Bearing support 轴套 12 DD0010238 1 Screw 螺钉 13 DD0051621 1 Spring 弹簧 14 DD0003650 1 O-ring O形圈 15 DD0062042 1 Screw 送料调节螺柱 16 DD0013869 1 Spring 弹簧 17 DD0013870 1 Pin 销 18 D00003255 1 Knob stop 旋钮止动片 19 D00003414 1 Spring 弹簧 20 D00003216 1 Feed dial 送料距离旋钮 21 D00003846 1 Screw 针距旋钮螺钉 22 DD0010076 1 Feed rocker 送布柄 23 DD0010096 1 Pin 销 24 DD0010071 1 Screw 螺钉 25 DD0010095 1 Screw 螺钉 26 DD0010075 2 Short link 送料短摆动板 27 DD0008856 2 Long link 送料长摆动板 28 DD0010071 1 Pin 销 29 DD0010069 1 Pin 销 30 DD0008852 1 Feed adjust rod 倒送料连杆 31 DD0010649 2 Snap ring 挡圈 32 DD0010091 1 Screw 螺钉 33 DD0010095 1 Screw 螺钉 34 DD0010086 1 Lifing rocker 拾牙后曲柄 35 D00004475 1 Nut 螺母 36 DD0010087 2 Pin 销 37 DD0012775 1 Feed adjusting ASM 送料摆动板座部件 38 DD0010102 1 Pin 销 39 DD0058783 1 Pin 销 40 DD0010678 2 Screw 螺钉 41 DD0010071 2 Screw 螺钉 42 DD0010282 1 Plate 摆动板复位板 43 DD0010285 2 Screw 复位板螺钉 <For -[]03> <用于-[]03> 44+ DD0012796 1 Spring 弹簧 45+ DD0004430 1 Spring 弹簧 46+ DD0010235 1 Plate 拉簧固定板 <For -[]05> <用于-[]05> 44+ DD0012990 1 Spring 弹簧 45+ DD0012991 1 Spring 弹簧 46+ DD0012987 1 Plate 拉簧固定板 47 DD0010287 1 Pin 销 48 DD0039853 1 Reverse feed control lever 倒送料曲柄 49 DD0009008 1 Screw 螺钉 50 DD0014119 1 Bearing support 轴套 51 D00003649 1 O-ring O形圈 52 DD0008827 1 Reverse feed shaft 倒送料轴 53 DD0040504 2 Screw 螺钉 54 D00003453 1 Tube 倒送料扳手挡圈 S-6280A 14 jintex.in
Page 18 — F. 送料分组件 / Feed mechanism components
F. 送料分组件 / Feed mechanism components F-1 F-2 F-3 F-4 F-5 F-6 F-7 F-8 F-9 F-10 F-11 F-12 F-13 F-14 F-15 F-16 F-17 F-18 F-19 F-20 F-21 F-22 F-23 F-24 F-25 F-26 F-27 F-28 F-29 F-30 F-31 F-31 F-32 F-33 F-34 F-35 F-36 F-37 F-38 F-39 F-40 F-41 F-42 F-43 F-44 F-45 F-46 F-47 F-48 F-49 F-50 F-51 F-52 F-53 F-54 F-55 F-56 F-57 F-58 F-59 F-60 F-61 F-62 F-63 F-64 F-65 F-66 F-67 F-68 F-69 F-70 F-71 15 S-6280A Jинtex.in
Page 19 — F. 送料分组件 / Feed mechanism components
F. 送料分组件 / Feed mechanism components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 55 DD0050707 1 Screw 螺钉 56 DE0021689 1 Reverse feed control lever 倒送料扳手 57 DD0063520 1 Tooth base 牙架 58 DD0010099 2 Screw 螺钉 59+ DD0052531 1 <For-[]03> Feed dog <For-[]05> 送料牙 59+ DD0007322 1 Feed dog 送料牙 60 DD0042079 1 Lifting fork 拾牙叉形曲柄组件 61 DD004628 1 Screw 螺钉 62 DD0004440 1 Pin 销 63 DD0004474 1 Feed bar driving crank 牙架座 64 DD0010074 1 Screw 螺钉 65 DD0004993 1 Screw 螺钉 66 DD0010090 2 Snap ring 挡圈 67 DD0014116 2 Bearing support 轴套 68 DD0010542 2 Thrust collar 挡圈 69 DD0038073 4 Screw 螺钉 70 DD0010073 1 Feed rocker shaft 送料轴 71 DD0010097 1 Feed lifting rocker shaft 拾牙轴 S-6280A 16 jintex.in
Page 20 — G. 送料调节组件 / Feed regulating components
G. 送料调节组件 / Feed regulating components G-1 G-2 G-3 G-4 G-5 G-6 G-7 G-8 G-9 G-10 G-11 G-12 G-13 G-14 G-15 G-16 G-17 G-18 G-19 17 S-6280A jintex.in
Page 21 — G. 送料调节分组件 / Feed regulating components
G. 送料调节分组件 / Feed regulating components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0008934 1 Screw 螺钉 2 DD0011168 1 Washer 垫圈 3 DNR003720 1 Led lamp ASM 机头灯组件 4 DD0012505 1 <For -[]03> Screw <用于-[]03> 油泵连接螺柱 5 DD0003281 1 Snap ring 挡圈 6 DD0024748 1 Snap ring 挡圈 7 DD0012985 2 Nut 螺母 8 DD0012983 1 Screw 螺钉 9 DD0053339 1 Reverse feed connecting plate 自动送料拉杆 10 DD0012989 1 Connecting arm ASM 自动倒送料曲柄 11 DNR003644 1 <For -[]03> Reverse feed magnet ASM <用于-[]03> 倒送料驱动部件 12 DD0012983 1 Screw 螺钉 13 DD0051742 2 Screw 螺钉 14+ DD0004061 1 <For -[]03> Connecting sleeve <用于-[]03> 油泵连接衬套 14+ DD0013002 1 Connecting sleeve <用于-[]05> 油泵连接衬套 15 DD0013001 1 Screw 油泵连接螺柱 16 DD0003281 1 Snap ring 挡圈 17 DD0051742 2 Screw 螺钉 18 DNR003704 1 <For -[]05> Reverse feed magnet ASM <用于-[]05> 倒送料驱动部件 19 DD0012983 1 Screw 螺钉 S-6280A 18 jintex.in
Page 22 — H. 剪线分组件 / Thread trimmer components
H. 剪线分组件 / Thread trimmer components H-1 H-2 H-3 H-4 H-5 H-6 H-7 H-8 H-9 H-10 H-10-1 10011494 14.7 18.3 17.7 (25) (25) H-10-2 10030280 H-11 H-12 H-13 H-14 H-15 H-16 H-17 H-18 H-19 H-20 H-21 H-22 H-23 H-24 H-25 H-26 H-27 H-28 H-29 H-30 H-31 H-32 H-33 H-34 H-35 H-36 H-37 H-38 H-39 H-40 H-41 H-42 H-43 H-44 H-45 H-46 H-47 H-48 H-49 H-50 H-51 H-52 H-53 H-54 19 S-6280A jintex.in
Page 23 — H. 剪线组件 / Thread trimmer components
H. 剪线组件 / Thread trimmer components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0008866 1 Trimming crank shaft 切刀驱动曲柄轴 2 DD0012454 1 Short bushing 轴套 3 DD0011630 1 Short bushing 轴套 4 DD0011649 1 Spring 弹簧 5 DD0008865 1 Washer 垫圈 6 DD0011588 2 Screw 螺钉 7 DD0058043 1 Trimming crank 切刀驱动曲柄 8 DD0011580 1 Block 切刀驱动曲柄止动块 9 DD0008863 1 Scrrew 螺钉 <For-[]03> <用于-[]03> 10+ DD0011494 1 Round knife 动刀 10+ DD0030280 1 Round knife <用于-[]05> 动刀 11 DD0004640 1 Round knife bracket 动刀架 12 DD0011578 1 Nut 螺母 13 DD0031612 1 Knife shaft crack rod 刀轴连杆 14 DD0011514 2 Screw 螺钉 15 DD0010900 2 Screw 螺钉 16 DD0013154 2 Washer 垫圈 17 DD0008856 1 Knife holder ASM 刀架压板组件 18 DD0014196 1 Spring cover 扭簧端盖 19 DD0008812 1 Spring 弹簧 20 DD0011697 1 Trimming shaft 切刀驱动轴 21 DD0050266 1 Silencer plug 消音塞 22 DD0004707 1 Roller Shaft 切线凸轮曲柄滚柱 23 DD0004651 1 Roller 滚柱 24 DD0025576 1 Washer 垫圈 25 DD0011578 3 Nut 螺母 26 DD0004648 1 Trimming cam crank 切线凸轮曲柄分组件 27 DD0025577 1 Screw 螺钉 28 DD0004703 1 Slide block 切线凸轮曲柄滑块 29 DD0004704 1 Pin 销 30 DD0004705 1 Roller 切线凸轮左曲柄滚柱 31 DD0011650 1 Washer 垫圈 32 DD0003031 1 Washer 垫圈 33 DD0009654 1 Snap ring 挡圈 34 DD0003460 1 Thread trimmer solenoid ASM 剪线电磁铁组件 35 DD0009471 2 Nut 螺母 36 DD0008854 1 Solenoid base 剪线电磁铁安装座 37 DD0011607 1 Solenoid connecting shaft 剪线电磁铁连接体 38 DNR001201 1 Thread trimmer solenoid 剪线电磁铁 39 DD0011606 1 Washer 垫圈 40 DD0011845 1 Washer 垫圈 41 DD0028999 1 Screw 螺钉 42 DD0012467 1 Screw 螺钉 43 DD0003077 1 Washer 垫圈 44 DD0011605 1 Screw 螺钉 45 DD0008862 1 Screw 螺钉 46 DD0058067 1 Dispart 分线器 47 DD0013154 1 Washer 垫圈 48 DD0014474 1 Screw 螺钉 49 DD0011421 1 Fixed knife 定刀 50 DD0011422 1 Screw 螺钉 51 DD0013465 2 Screw 螺钉 52 DD0010736 1 Thread trimmer cam 剪线凸轮 53 DD0023739 1 Cam collar 剪线凸轮垫 54 DD0011686 1 Trimming cam crank ASM 切线凸轮曲柄组件 S-6280A 20 jintex.in
Page 24 — I. 润滑分组件/ Lubrication components
I. 润滑分组件/ Lubrication components I-1 I-3 I-2 I-6 I-5 I-4 I-7 I-8 I-15 I-16 I-10 I-11 I-9 I-12 I-13 I-14 I-17 I-18 I-19 I-20 21 S-6280A
Page 25 — I. 润滑分组件 / Lubrication components
I. 润滑分组件 / Lubrication components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0014197 1 Foam rubber 挡油海绵 2 DD0005558 1 Screw 螺钉 3 D00002229 1 Oil stoper 面部防油板部件 4 DD0010294 1 Felt clip 毛毡夹 5 E00003573 1 Oil return pipe assembly 回油管组件 6 DD0008934 1 Screw 螺钉 7 DD0041628 1 Oil felt preser 油管夹 8 DD0048653 1 Main shaft oil tube 油管 9 D00003443 1 Oil tube holder 供油管接头 10 DD0003077 1 Washer 垫圈 11 DD0050422 1 Screw 螺钉 12 DD0008817 1 Oil pump 油泵部件 13 DD0005537 1 Spring washer 弹簧垫圈 14 DD0010066 1 Screw 螺钉 15 DD0008806 1 Spring 弹簧 16 DD0008831 1 Screw 螺钉 17 DD0008807 1 Oil tube 油管 18 DD0050424 1 Tube holder 旋栓供油管压板 19 DD0013269 1 Screw 螺钉 S-6280A 22
Page 26 — J. 油盘、膝抬压脚组件 / Presser foot components of oil plate knee lift
J. 油盘、膝抬压脚组件 / Presser foot components of oil plate knee lift J-1 J-2 J-3 J-4 J-5 J-13 J-12 J-11 J-10 J-6 J-7 J-14 J-9 J-8 J-16 J-15 J-17 J-18 J-19 J-22 J-23 J-21 J-20 J-24 J-25 23 S-6280A jintex.in
Page 27 — J. 油盘、膝抬压脚分组件 / Presser foot components of oil plate knee lift
J. 油盘、膝抬压脚分组件 / Presser foot components of oil plate knee lift REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0003841 1 Oil reservoir 油盘 2 DD0014194 1 Oil reservoir gasket 油盘垫 3 DD0009984 1 Knee Lifter Complying Bar 销 4 DD0009991 1 Screw 螺钉 5 DD0009988 1 O-ring O形圈 6 DD0002562 1 Bracket-ASM 抬压脚操纵杆接头组件 7 DD0003896 1 Bracket 抬压脚操纵接头 8 DD0002610 1 Screw 螺钉 9 DD0002613 1 Screw 螺钉 10 DD0003899 1 Knee pressing shaft 抬压脚轴 11 DD0003893 1 Spring 弹簧 12 DD0002559 1 Snap ring 挡圈 13 DD0002563 1 Crank ASM 抬压脚双向曲柄组件 14 DD0009987 1 Crank 抬压脚双向曲柄 15 DD0004047 1 Screw 螺钉 16 DD0003895 1 Screw 螺钉 17 DD0003898 1 Screw 螺钉 18 DD0003890 3 Nut 螺母 19 E00003503 1 Knee pressing plate ASM 操纵杆部件 20 DD0003894 1 Screw 螺钉 21 DD0003897 1 Knee pressing plate holder 操纵杆接头 22 DD0003901 1 Knee pressing plate rod 操纵杆 23 D00003445 1 Knee pressing plate rubber 操纵杆垫 24 DD0003891 1 Knee pressing plate 操纵板 25 D00003446 1 Knee pressing cover 操纵板软垫 26 D00003753 1 Lever as-control 操纵杆组件 S-6280A 24 jintex.in
Page 28 — K. 过线架分组件 / Components of thread-running stand
K. 过线架分组件 / Components of thread-running stand K-1 K-2 K-4 K-5 K-7 K-6 K-3 K-8 K-9 K-5 K-6 K-7 K-10 K-3 K-11 K-12 K-4 K-3 K-4 K-3 K-13 K-14 K-15 K-16 K-4 K-3 K-18 K-17 K-17 K-18 K-19 K-20 K-21 25 S-6280A jintex.in
Page 29 — K. 过线架分组件 / Components of thread-running stand
K. 过线架分组件 / Components of thread-running stand REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0003447 1 Column cap 线架上撑管套 2 DD0004293 1 Column pipe(upper) 线架上撑管 3 DD0000953 6 Nut 螺母 4 DD0003022 4 Washer 垫圈 5 DD0003301 3 Screw 螺钉 6 DD0004285 4 Thread guide bushing 过线管套 7 DD0004289 4 Thread guide pipe 过线管 8 DD0004298 2 Thread hanger(upper) 上过线架 9 DD0004286 1 Column pipe connector 撑管夹 10 DD0004291 1 Column pipe(lower) 线架下撑管 11 DD0004284 1 Thread hanger(lower) 下过线架 12 DD0003312 2 Screw 螺钉 13 DD0004288 2 Spool pin 线轴 14 DD0004287 2 Spool cushion 线盘塑料压块 15 DD0004281 2 Spool mat 线盘软垫 16 DD0004299 2 Spool seat disc 线盘 17 DD0004295 2 Washer 垫圈 18 DD0004290 2 Washer 垫圈 19 DD0002985 1 Nut 螺母 20 DD0003447 1 Column pipe(upper) 线架上撑管套 21 DD0003519 1 Wire frame components 二线线架部件 S-6280A 26
Page 30 — L. 附件 / Accessories
L. 附件 / Accessories L-1 L-2 L-3 L-4 L-5 L-6 L-7 L-8 L-9 L-10 27 S-6280A jintex.in
Page 31 — L. 附件 / Accessories
L. 附件 / Accessories REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0060866 1 Oil pot 油壶 2 DD0026033 1 Frame support bar 机头支柱 3 DD0003449 2 Oil reservoir seat 油盘支座 4 DD0003450 2 Oil reservoir cushion 机头油盘座垫 5 DD0004466 2 Head connecting hook 机头连接钩部件 6 DD0004451 2 Head connecting hook socket 机头连接钩座 7 DD0003536 1 Head cover 机头罩 8 DD0003892 1 Oil reservoir magnet 油盘磁铁 9 DD0025484 1 Bobbin 梭芯 10 DD0031426 1 Screw 螺钉组件 S-6280A jintex.in 28
Page 32 — M. 电控分组件 / Drive-by-wire Components
M. 电控分组件 / Drive-by-wire Components M-14 M-2 M-14 M-3 M-4 M-5 M-1 M-3 M-6 M-8 M-7 M-9 M-10 M-11 M-12 M-13 29 S-6280A jintex.in
Page 33 — M. 电控分组件 / Drive-by-wire Components
M. 电控分组件 / Drive-by-wire Components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0010899 3 Screw 螺钉 2 DD0035172 1 Cord holder 电线夹 3 DD0000480 2 Washer 垫圈 4 DD0000463 1 Cord holder 电线夹 5 DD0002462 1 Cord holder 电线夹 6 DNR003468 1 Control box 电控 7 DD0012080 1 Screw 螺钉 8 DD0006115 1 Snap ring 垫圈 9 DD0006115 3 Screw 螺钉 10 DD0010899 1 Screw 螺钉 11 DNR003469 1 Key screen 按键屏 12 DD0010678 2 Screw 螺钉 13 DD0031424 1 Pedal unit ASM 踏板组件 14 DD0008934 2 Screw 螺钉 S-6280A jintex.in 30
Page 34 — Wa. Warning labels / 警告标签
Wa. Warning labels / 警告标签 Warning labels / 警告标签 brother S-6280A PHASE 1 VOLTS AC200-240V HERTZ 50/60 Hz AMPS 2.0 A BROTHER INDUSTRIES, LTD. MADE IN CHINA ▲ 危险 触摸高电压部分, 会导致受伤。 在切断电源5分钟后, 再开启盖罩。 ▲ DANGER Hazardous voltage will cause injury. Turn off main switch and wait 5minutes before opening this cover. brother 机械润滑油 Lubricating Oil for Machining ▲ 注意 润滑油可能会引起眼睛发炎。 吞食润滑油会引起腹泻和呕吐。 请勿吞食。 接触眼睛: - 请用冷水冲洗。 - 寻求医疗救助。 如果 not 吞食: - 请立即寻求医疗救助。 ▲ CAUTION Oil may cause inflammation to eye. Swallowing oil can cause diarrhoea and vomiting. Do not swallow. Eye contact: - Rinse with plenty of cold water. - Seek medical help. IF swallowed: -Seek medical help immediately. jintex.in
Page 35 — Index / 索引
Index / 索引 CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page DD0002079 D - 38 10 DD0002562 J - 6 24 DD0004628 F - 61 16 DD0009008 F - 49 14 DD0002081 D - 41 10 DD0002563 J - 13 24 DD0004640 H - 11 20 DD0009037 D - 22 10 DD0002229 I - 3 22 DD0002577 A - 36 2 DD0004648 H - 26 20 DD0009074 C - 31 6 DD0002462 M - 5 30 DD0002610 J - 8 24 DD0004651 H - 23 20 C - 37 8 DD0002463 M - 4 30 DD0002613 J - 9 24 DD0004703 H - 28 20 C - 38 8 DD0002521 B - 28 2 DD0002953 K - 3 26 DD0004704 H - 29 20 D - 26 10 DD0002740 A - 21 2 DD0002985 K - 19 26 DD0004705 H - 30 20 DD0009205 D - 42 10 DD0003216 F - 20 14 DD0003022 K - 4 26 DD0004707 H - 22 20 DD0009471 H - 35 20 DD0003235 A - 23 2 DD0003031 H - 32 20 DD0004993 F - 65 16 DD0009654 H - 33 20 DD0003255 F - 18 14 DD0003077 H - 43 20 DD0005020 B - 23 4 DD0009841 J - 3 24 DD0003414 F - 19 14 DD0005537 I - 13 22 DD0009987 J - 14 24 DD0003414 F - 19 14 DD0003281 G - 5 18 DD0005558 I - 2 22 DD0009988 J - 5 24 DD0003427 A - 8 2 DD0003301 K - 5 26 DD0005834 C - 27 6 DD0010010 D - 4 24 DD0003429 A - 7 2 DD0003312 K - 12 26 DD0005839 C - 28 6 DD0010016 D - 32 10 DD0003430 A - 14 2 DD0003890 J - 18 24 DD0005915 D - 9+ 4 DD0010027 D - 27 10 DD0003431 A - 13 2 DD0003891 J - 24 24 DD0005916 C - 5+ 4 DD0010030 E - 14 12 DD0003432 A - 22 2 DD0003892 L - 8 28 DD0005940 B - 15+ 4 DD0010057 E - 21 12 DD0003434 A - 31 2 DD0003893 J - 11 24 DD0005941 C - 21+ 6 DD0010058 E - 11 12 DD0003435 A - 15 2 DD0003894 J - 20 24 DD0005943 C - 8 6 DD0010059 E - 15 12 DD0003438 B - 7 4 DD0003895 J - 16 24 DD0005945 C - 6+ 4 DD0010063 E - 7 12 DD0003439 B - 11 4 DD0003897 J - 21 24 DD0005982 D - 10+ 4 DD0010065 B - 9 4 DD0003440 B - 5 4 DD0003897 J - 21 24 DD0006115 M - 8 30 DD0010066 E - 17 12 DD0003441 C - 1 6 DD0003898 J - 17 24 DD0006264 C - 25 14 DD0010068 F - 14 22 DD0003443 I - 9 22 DD0003901 J - 22 24 DD0006624 D - 18 12 DD0010069 F - 29 14 DD0003445 J - 23 24 DD0003960 A - 33 2 DD0006844 B - 15+ 4 DD0010071 F - 24 14 DD0003446 J - 25 24 DD0003963 A - 35 2 DD0006924 E - 3 12 DD0010072 F - 28 14 DD0003447 K - 1 26 DD0004061 G - 14+ 18 DD0007235 E - 19 12 DD0010073 F - 41 14 DD0003449 K - 20 26 DD0004158 B - 4+ 4 DD0007236 E - 20 12 DD0010074 F - 5 16 DD0003450 L - 3 28 DD0004176 C - 21+ 6 DD0007268 E - 12 12 DD0010075 F - 26 14 DD0003451 L - 6 28 DD0004177 C - 18 6 DD0007322 F - 59+ 16 DD0010076 F - 22 14 DD0003453 F - 54 14 DD0004179 C - 22 6 DD0008806 I - 15 22 DD0010077 F - 2 14 DD0003456 A - 10 2 DD0004180 C - 23 6 DD0008807 I - 17 22 DD0010078 F - 26 14 DD0003460 H - 34 20 DD0004183 C - 14 6 DD0008811 D - 20 12 DD0010080 A - 34 2 DD0003507 D - 43 10 DD0004184 C - 13 6 DD0008812 H - 19 12 DD0010082 B - 8 4 DD0003513 B - 18+ 4 DD0004199 C - 20 6 DD0008817 I - 12 4 DD0010083 B - 2 4 DD0003517 A - 9 2 DD0004200 C - 15 6 DD0008821 E - 13 12 DD0010084 F - 2 4 DD0003519 K - 21 26 DD0004201 C - 17 6 DD0008827 F - 52 14 DD0010086 F - 34 14 DD0003533 D - 8 10 DD0004281 K - 15 26 DD0008831 I - 16 22 DD0010087 F - 36 14 DD0003536 L - 7 28 DD0004284 K - 11 26 DD0008834 D - 17 10 DD0010089 F - 1 14 DD0003606 C - 7+ 6 DD0004285 K - 6 26 DD0008848 F - 8 14 DD0010090 F - 66 16 DD0003639 E - 6 12 DD0004286 K - 9 26 DD0008852 F - 30 14 DD0010091 F - 32 14 DD0003649 F - 51 14 DD0004287 K - 14 26 DD0008854 H - 36 20 DD0010092 F - 4 14 DD0003650 F - 14 14 DD0004288 K - 13 26 DD0008856 H - 17 14 DD0010095 F - 25 14 DD0003698 B - 25 4 DD0004289 K - 7 26 DD0008857 E - 10 12 DD0010096 F - 33 14 DD0003703 B - 18+ 4 DD0004290 K - 18 26 DD0008860 D - 16 14 DD0010097 F - 71 16 DD0003753 J - 26 24 DD0004291 K - 10 26 DD0008862 H - 45 20 DD0010098 F - 6 14 DD0003773 C - 24+ 6 DD0004293 K - 2 26 DD0008863 H - 9 24 DD0010099 F - 58 16 DD0003789 C - 3+ 6 DD0004295 K - 17 26 DD0008865 H - 5 24 DD0003792 C - 3+ 6 DD0004296 K - 8 26 DD0008934 A - 5 2 DD0003825 B - 27 4 DD0004373 A - 28 2 DD0008940 A - 30 10 DD0003841 J - 1 24 DD0004374 A - 29 2 DD0008956 F - 11 14 DD0003862 A - 17 2 DD0004374 A - 29 2 DD0008972 A - 1 2 DD0004047 J - 15 24 DD0004430 F - 45+ 14 DD0009005 A - 27 14 DD0000134 D - 45 10 DD0004439 D - 4 10 DD0000325 D - 7 10 DD0004440 F - 62 16 DD0000480 M - 3 30 DD0004466 L - 5 28 DD0002445 E - 23 12 DD0004472 B - 20 4 DD0002509 E - 18 12 DD0004473 D - 5 10 DD0002559 J - 12 24 DD0004474 F - 63 16 DD0002560 E - 16 12 DD0004475 F - 35 14 DD0002561 E - 22 12 32
Page 36 — Index / 索引
Index / 索引 CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page DD0010542 F - 68 16 DD0013038 D - 30 10 DD0050707 F - 55 16 DD0010545 B - 6 4 DD0013154 H - 16 20 DD0051397 E - 5+ 12 DD0010588 C - 9 6 DD0013154 H - 47 20 DD0051428 D - 2 10 DD0010590 C - 10+ 6 DD0013269 I - 19 22 DD0051429 D - 3 10 DD0010591 C - 6+ 6 DD0013465 H - 51 20 DD0051430 D - 33 10 DD0010592 B - 16+ 4 DD0013615 D - 19 10 DD0051431 A - 16 10 DD0010643 F - 7 14 DD0013706 A - 32 2 DD0051433 D - 1 10 DD0010646 D - 31 10 DD0013870 F - 17 14 DD0051458 C - 26 6 DD0010649 F - 31 14 DD0014106 B - 14 4 DD0051621 F - 13 6 DD0010650 D - 11 10 DD0014116 F - 67 16 DD0051703 C - 30 14 DD0010651 D - 37 10 DD0014117 C - 5+ 6 DD0051742 F - 9 14 DD0010652 D - 39 10 DD0014118 D - 9+ 10 G - 17 18 DD0010678 B - 21 4 DD0014119 F - 50 14 G - 17 18 B - 22 4 DD0014194 J - 2 24 DD0051845 F - 21 10 F - 40 14 DD0014196 H - 18 20 DD0052046 D - 31 10 M - 12 30 DD0014197 1 - 1 22 DD0052531 F - 59+ 16 DD0010736 H - 52 20 DD0014459 A - 25+ 2 DD0052532 D - 10+ 10 DD0010899 M - 1 30 DD0014474 H - 48 20 DD0052735 C - 10+ 6 M - 10 30 DD0023739 H - 53 20 DD0052992 C - 33 6 DD0010900 H - 15 20 DD0024748 G - 6 18 DD0053104 B - 16+ 4 DD0011063 C - 2 6 DD0025484 E - 4 12 DD0053339 G - 9 18 DD0011101 E - 2 12 L - 9 28 DD0053595 E - 5+ 6 DD0011149 A - 12 2 DD0025576 H - 24 20 DD0054140 C - 11 16 DD0011168 G - 2 18 DD0025577 H - 27 20 DD0055615 B - 19 2 DD0011232 B - 32 4 DD0026033 L - 2 28 DD0058041 C - 34 20 DD0011421 H - 49 20 DD0026886 F - 10 14 DD0058043 H - 7 20 DD0011422 H - 50 20 DD0028999 H - 41 20 DD0058067 H - 46 20 DD0011494 H - 10+ 20 DD0030280 H - 10+ 20 DD0058783 F - 39 14 DD0011514 H - 14 20 DD0031261 E - 1 12 DD0058812 E - 8 12 DD0011578 H - 12 20 DD0031424 M - 13 30 DD0059025 B - 30 4 DD0011580 H - 8 20 DD0031426 L - 10 28 DD0060708 A - 25+ 4 DD0011588 H - 6 20 DD0031612 H - 13 20 DD0060866 L - 1 28 DD0011605 H - 44 20 DD0035172 M - 2 30 DD0062042 F - 15 14 DD0011606 H - 39 20 DD0038073 F - 69 16 DD0062637 C - 24+ 6 DD0011607 H - 37 20 DD0038474 B - 4+ 4 DD0063520 F - 57 16 DD0011630 H - 3 20 DD0038939 C - 7+ 6 DD0066775 A - 3 2 DD0011649 H - 4 20 DD0038945 C - 39 8 DE0021689 F - 56 16 DD0011650 H - 31 20 DD0039365 D - 6 10 DE0025554 A - 2 16 DD0011686 H - 54 20 DD0039372 D - 24 10 DNR001201 H - 38 20 DD0011697 H - 20 20 DD0039373 D - 25 10 DNR003459 D - 44 10 DD0011845 H - 40 20 DD0039374 D - 36 10 DNR003468 M - 6 30 DD0012080 M - 7 30 DD0039378 D - 23 10 DNR003469 M - 11 30 DD0012203 B - 13+ 4 DD0039380 D - 13 10 DNR003534 B - 29 4 DD0012454 A - 2 20 DD0039524 C - 16 6 DNR003644 G - 11 18 DD0012463 A - 26 2 DD0039853 F - 48 14 DNR003645 C - 36 18 DD0012467 D - 15 10 DD0040504 F - 53 14 DNR003704 G - 18 18 H - 42 20 DD0041529 E - 9 12 DNR003720 G - 3 18 DD0012505 G - 4 18 DD0041628 1 - 7 22 E00003021 A - 6 2 DD0012589 C - 29 6 DD0042079 F - 60 16 E00003503 J - 19 24 DD0012775 F - 37 14 DD0043360 C - 4 6 E00003519 A - 20 2 DD0012796 F - 44+ 14 C - 12 6 E00003573 1 - 5 22 DD0012858 B - 13+ 4 DD0048653 1 - 8 22 E00003671 B - 31 4 DD0012983 G - 8 18 DD0049837 M - 9 30 G - 12 18 DD0050188 D - 29 10 G - 19 18 DD0050190 D - 35 10 DD0012985 G - 7 18 DD0050266 H - 21 20 DD0012987 F - 46+ 14 DD0050348 C - 35 8 DD0012989 G - 10 18 DD0050422 1 - 11 22 DD0012990 F - 44+ 14 DD0050423 A - 11 2 DD0012991 F - 45+ 14 DD0050424 1 - 18 22 DD0013001 G - 15 18 DD0050590 D - 28 10 DD0013002 G - 14+ 18 DD0050672 B - 1 4 jintex.in
Page 37 — PARTS BOOK
brother PARTS BOOK 零件手册 BROTHER INDUSTRIES, LTD. : http://www.brother.com/ 1-5, Kitajiozoyama, Noda-cho, Kariya 448-0803, Japan. Phone : 81-566-95-0088 © 2022 Brother Industries, Ltd. All Rights Reserved. jintex.in S-6280A 12031679Z C/E 2022.03.Z (1)
