Parts index — Brother S-7000DDtap a row to open its page

Page 2 — 型号牌的读解法

Brother S-7000DD parts on page 2

Ref	Part number	Part name	Qty
	S-7000DD-10	用于轻薄布料到中厚布料
	3A	用于中厚布料
	5	用于厚布料
	3	倒缝
	4	倒缝+扫线

Page 3 — Description of model plate

Brother S-7000DD parts on page 3

Ref	Part number	Part name	Qty
3	S-7000DD-101	Light-weight and Medium-weight materials
	3A	Medium-weight materials
	5	Heavy-weight materials
	3	Quick Reverse
	4	Quick Reverse + Thread Wiper

Page 4 — 零件手册的使用说明

Brother S-7000DD parts on page 4

Ref	Part number	Part name	Qty
	A	机体部分
	B	针杆和挑线杆装置
	C	压脚装置
	D	送料装置
	E	膝控提升装置
	F	倒缝装置
	G	旋梭装置
	H	供油润滑装置
	J	穿线装置
	K	绕线装置
	L	切线装置
	M	松线装置
	N	扫线装置(-40[零部件或选购件])
	P1	控制箱
	P2	控制箱
	Q	倒缝开关装置
	R	电气部品
	S	马达装置和操作盘
	Z	附件
	Wa	警告标签
	Ga	工模具一览表
	索引

Page 5 — CONTENTS

Brother S-7000DD parts on page 5

Ref	Part number	Part name	Qty
	A	Machine body
	B	Needle bar and thread take-up mechanism
	C	Presser foot mechanism
	D	Feed mechanism
	E	Knee lifter mechanism
	F	Quick reverse mechanism
	G	Rotary hook mechanism
	H	Lubrication
	J	Threading mechanism
	K	Bobbin winder mechanism
	L	Thread trimmer mechanism
	M	Tension release mechanism
	N	Thread wiper mechanism (-40[] or option parts)
	P1	Control box
	P2	Control box
	Q	Quick reverse switch mechanism
	R	Power supply equipment
	S	Motor mechanism and operation panel
	Z	Accessories
	Wa	Warning labels
	Ga	Gauge parts list
	Index	Index

Page 6 — A. 机体部分 / Machine body

Brother S-7000DD parts on page 6

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Page 7 — A. 机体部分 / Machine body

Brother S-7000DD parts on page 7

Ref	Part number	Part name	Qty
	SB3440001	脚柱L	2
	SB3441001	脚柱R	1
	062061016	螺钉 M6×10	2
	SB3433001	后侧盖	1
	SB3434001	后侧板衬垫	1
	062501216	螺钉 M5×12	7
	104449001	橡胶塞 15.5	2
	104450101	橡胶塞 8	3
	108520001	橡胶塞 19.8	1
	SB3986001	橡胶塞 17.9	1
	SB3442001	橡胶塞 37.8	1
	SB3850001	定位板	1
	062400616	螺钉 M4×6	1
	104450101	橡胶塞 8	2
	SB3435001	面板组件	1
	SB3436001	面板	1
	SB3437001	面板垫片	1
	104449001	橡胶塞 15.5	2
	062671212	螺钉 SM3.57-40×12	3
	SA9826001	操作注意标签	1
	S37060021	接地标记	1
	SA9957001	警告标记	2
	SA9957002	警告标记	1

Page 8 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

Brother S-7000DD parts on page 8

Ref	Part number	Part name	Qty
1+	1	+
9	9	9
11	11	11
10	10	10
13	13	13
7	7	7
2+	2	+
12	12	12
15	15	15
29	29	29
27	27	27
28	28	28
29	29	29
14	14	14
26	26	26
25	25	25
25	25	25
23	23	23
18	18	18
4+	4	+
22	22	22
21	21	21
19	19	19
20	20	20
20	20	20
17	17	17
16	16	16
24	24	24
32	32	32
3+	3	+
30	30	30
6+	6	+
5+	5	+
33	33	33
41+	41	+
34+	34	+
35	35	35
37	37	37
36	36	36
38	38	38

Page 9 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

Brother S-7000DD parts on page 9

Ref	Part number	Part name	Qty
	SB3445001	<用于-Π03.-Π03A>	1
	SB3447001	上轴组件	1
	SB3770001	挑线杆曲柄组件	1
	SB3771001	针杆连杆组件	1
	SB3783001	针杆连杆组件	1
	SB3912001	针杆轴套 D	1
	SB4084001	针杆 DB <用于 DB 针>	1
	SB4084001	针杆 DP <用于 DP 针>	1
	SB4074001	<用于-Π05>	1
	SB4039001	上轴组件	1
	SB3777001	挑线杆曲柄组件	1
	SB3778001	针杆连杆组件	1
	SB3784001	针杆连杆组件	1
	SB3913001	针杆轴套 D	1
	SB3913001	针杆	1
	SB3446201	上轴	1
	SB2407001	橡皮塞 6.4	1
	014770632	螺钉 SM6.35-40X6	3
	SB3769001	螺钉 SM7.14-28	1
	014771032	固定螺钉 SM6.35-40X10	1
	SB3449001	绕线驱动轮	1
	014771032	固定螺钉 SM6.35-40X10	4
	SA145001	垫圈	1
	SB449001	上轴轮	1
	140004001	螺钉 SM3.57-40X7	1
	SA2422001	螺钉 SM3.57-40X6L	1
	SB3775001	挑线杆支撑轴	1
	SB3776001	紧圈	1
	012400536	螺钉 M6X6	2
	SA2161001	垫圈	1
	048060342	挡圈 E6	1
	S32958000	油毡	1
	SA8436001	油毡	1
	01060636	螺钉 M6X6	2
	SB3851201	上轴轴套 M组件	1
	SB3455201	上轴轴套 M	1
	142274101	橡皮塞 4.2	1
	101487000	油封	2
	SB3782001	针杆轴套 U	1
	140553102	固定螺钉 SM3.18	1
	SB3458001	针杆导向滑块	1
	151594001	针杆过线环	1
	111859301	<用于-Π03>	1
	111859301	针板 E18	1
	145971101	<用于-Π03欧洲.-Π03A>	1
	145971101	针板 B18	1
	150792101	<用于-Π05>	1
	150792101	针板 H26	1
	SB4190001	螺钉 SM4.37-40X8	2
	180018151	推板组件	1
	114561001	推板簧	1
	SA9523001	螺钉 SM2.38	2
	SB3977001	接头组件	1
	S23651001	固定螺钉 M6X6	4
	S23651001	<用于-Π03.-Π03A>	1
	S23651001	机针DBX1...(11)	1
	S23651001	机针DBX1...(14)	1
	S23651001	机针DPX5...(11)	1
	S23651001	<用于-Π05>	1
	S23651001	机针DBX1...(22)	1
	S23651001	机针DPX5...(22)	1

Page 10 — C. 压脚装置 / Presser foot mechanism

Brother S-7000DD parts on page 10

Ref	Part number	Part name	Qty
24	24	Screw
25	25	Nut
20	20	Screw
22	22	Washer
21	21	Bracket
23	23	Screw
16	16	Lever
15	15	Spring
14	14	Shaft
19	19	Rod
27	27	Screw
13	13	Washer
12	12	Bracket
26	26	Handle
3	3	Threaded sleeve
4	4	Screw
18	18	Spring
17	17	Spring
5	5	Spring
1	1	Presser bar
6	6	Washer
29	29	Lever
30	30	Screw
2	2	Presser foot
7+	7+	Presser foot
8+	8+	Presser foot
10	10	Screw
11	11	Washer
9	9	Spring

Page 11 — C. 压脚装置 / Presser foot mechanism

Brother S-7000DD parts on page 11

Ref	Part number	Part name	Qty
1	111466121	压紧杆	1
2	SB3785001	压紧杆轴套	1
3	SB2267002	调压螺栓组件	1
4	SB3786001	弹簧导杆	1
5	141728001	压杆弹簧	1
6	140407021	垫圈	1
7+	15037221	压脚组件	1
7+	150789121	压脚组件	1
9	150384101	护指器	1
11	025350132	平垫圈 S3.5	1
8+	S36902001	压脚组件	1
8+	S36903001	压脚组件	1
10	S13385001	螺钉 SM3.57-40X10	1
12	145580001	膝控提升左杠杆	1
13	109763022	垫圈	1
14	SA8152001	膝控提升短轴	1
15	012500536	螺钉 M5X5	1
16	S02546402	松线架	1
17	S46736001	弹簧	1
18	048040342	挡圈 E4	2
19	SB3463001	膝控连杆	1
20	SB3878001	轴位螺钉 SM4.76	3
21	SB3461001	膝控提升手杆	1
22	145480121	轴位螺钉 SM6.35	1
23	SB3460001	膝控提升杆	1
24	SB4016001	调整螺钉 6	1
25	021060306	六角螺母 M6	1
26	S31006002	抬压脚扳手	1
27	S39051001	螺钉(带垫圈)M3.5X12	1
28	S31952021	压紧杆扳手曲柄	1
29	SB4285001	压紧杆导架	1
30	142403001	螺钉 SM5.95-28X10	1

Page 12 — D. 送料装置 / Feed mechanism

Brother S-7000DD parts on page 12

Ref	Part number	Part name	Qty
1+	1+	FEED MECHANISM
2+	2+	FEED DOG
3+	3+	SPRING
4	4	SCREW
5	5	SHAFT
6	6	SPRING
7	7	FEED DOG
8	8	SHAFT
9	9	WASHER
10	10	SPRING
11	11	WASHER
12	12	WASHER
13	13	FEED MECHANISM
14	14	BRACKET
15	15	SHAFT
16	16	SCREW
17	17	SHAFT
18	18	SPRING
19	19	SHAFT
20	20	SPRING
21	21	SHAFT
22	22	SPRING
23	23	PIN
24	24	SCREW
25	25	SHAFT
26	26	SPRING
27	27	SPRING
28	28	SPRING
29	29	SCREW
30	30	SHAFT
31	31	WASHER
32	32	SCREW
33	33	SHAFT
34	34	SHAFT
35	35	SHAFT
36	36	SHAFT
37	37	SHAFT
38	38	SHAFT
39	39	SHAFT
40	40	SHAFT
41	41	SPRING
42	42	SHAFT
43	43	SPRING
44	44	FEED MECHANISM
45	45	BRACKET
46	46	SHAFT
47	47	SPRING
48	48	SPRING
49	49	SPRING
50	50	SPRING
51	51	BRACKET
52	52	SPRING
53	53	SPRING
54	54	SCREW
55	55	SPRING
56	56	SPRING
57	57	SHAFT
58	58	SHAFT
59	59	WASHER
60	60	FEED MECHANISM
61	61	SCREW
62	62	SHAFT
63	63	BRACKET
64	64	SHAFT
65	65	WASHER
66	66	SHAFT
67	67	BRACKET
68	68	SHAFT
69+	69+	FEED DOG
70	70	SPRING
71	71	SHAFT
72	72	SHAFT
73	73	WASHER
74	74	SCREW
75	75	SPRING
76	76	SPRING
77	77	SPRING
78	78	SCREW
79	79	SPRING
80	80	SHAFT
81	81	BRACKET
82	82	SPRING
83	83	SPRING
84	84	SPRING
85	85	WASHER
86	86	WASHER

Page 13 — D. 送料装置 / Feed mechanism

Brother S-7000DD parts on page 13

Ref	Part number	Part name	Qty
	SB3465001	偏心轮带螺钉 3	1
	SB3472001	针距标盘组件 3	1
	S02558201	拉簧	1
	SB3467001	偏心轮带螺钉 5	1
	SB3475001	针距标盘组件 5	1
	S03818101	拉簧 H	1
	180322021	拾压叉组件	1
	014771032	固定螺钉 SM6.35-40X10	2
	SA4494001	螺钉 SM4.76	1
	108549001	O形圈	1
	S02554021	送布连杆	1
	156948021	送布连杆挡圈	1
	108960002	螺钉 SM3.57	2
	SB3469001	轴用挡圈 C21	1
	SB2314001	垫圈 21.5X31.5	1
	SB3787001	切换器组件	1
	SB3788001	切换器	1
	156951021	曲柄连杆短销	2
	014680632	螺钉 SM4.37-40X6	2
	156952021	曲柄连杆短销组件	1
	156955021	曲柄长连杆	2
	156956021	曲柄长连杆销	1
	144458001	螺钉 SM3.57-40X4.5	1
	156957120	送布曲柄	1
	062711412	螺钉 SM4.76-32X14	1
	156958021	送布曲柄销	1
	014680632	螺钉 SM4.37-40X6	1
	158021122	针距调节器连杆组件	1
	156966121	偏心销	1
	048060342	挡圈E6	1
	120990001	螺钉 SM4.37-40X8	1
	SB3789001	切换器轴 L	1
	SB3790001	切换器轴	1
	118735002	垫圈	1
	012060636	螺钉 M6X6	2
	156969121	针距座	1
	SB3791001	送布调节器轴	1
	S02556021	垫圈	1
	048070342	挡圈 E7	1
	012060636	螺钉 M6X6	1
	SB3792001	连杆轴 12.5	1
	SA4726001	固定螺钉 SM4.37-40X4	1
	S02557120	倒缝操纵杆曲柄	1
	S07959001	螺钉 SM4.76-32X14	1
	SB3792001	连杆轴 12.5	1
	SA4726001	固定螺钉 SM4.37-40X4	1
	SA8186002	倒缝拨手组件	1
	S02561021	拉簧销	1
	SB3793001	倒缝拨手轴	1
	147504221	挡圈	1
	025100132	平垫圈 S10	1
	048080342	挡圈 E8	1
	S33680001	O型密封圈	1
	062670712	螺钉 SM3.57-40X7	3
	S02562021	拉簧钉	1
	S02563001	复位簧	1
	153132020	尼龙管 L=13.5	1
	145502021	定位销	1
	100328001	止动销弹簧	1

Page 14 — D. 送料装置 / Feed mechanism

Brother S-7000DD parts on page 14

Ref	Part number	Part name	Qty
1	1	1+
5	5	5
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46
47	47	47
48	48	48
49	49	49
50	50	50
51	51	51
52	52	52
53	53	53
54	54	54
55	55	55
56	56	56
57	57	57
58	58	58
59	59	59
60	60	60
61	61	61
62	62	62
63	63	63
64	64	64
65	65	65
66	66	66
67	67	67
68	68	68
69+	69+	69+
70	70	70
71	71	71
72	72	72
73	73	73
74	74	74
75	75	75
76	76	76
77	77	77
78	78	78
79	79	79
80	80	80
81	81	81
82	82	82
83	83	83
84	84	84
85	85	85
86	86	86
2+	2+	2+
3+	3+	3+
4	4	4
6	6	6
7	7	7

Page 15 — D. 送料装置 / Feed mechanism

Brother S-7000DD parts on page 15

Ref	Part number	Part name	Qty
	SB3477101	水平送布轴	1
	S31014020	轴套 19.3	1
	048150142	轴用挡圈 C15	1
	SB3870001	紧圈组件	1
	014770632	螺钉 SM6.35-40X6	2
	156244020	牙架曲柄	1
	062681212	螺钉 SM4.37-40X12	2
	SB3794001	送布台组件	1
	S02573020	垫圈	1
	SB3464001	牙架销	1
	158722021	垫圈 4.2	1
	120990001	螺钉 SM4.37-40X8	2
	111860121	送布牙	1
	S02742001	送布牙	1
	150793021	送布牙	1
	100080004	螺钉 SM3.18-44X6.5	2
	SB3478101	抬牙轴	1
	S31014020	轴套 19.3	1
	048150142	轴用挡圈 C15	1
	SB3870001	紧圈组件	1
	014770632	螺钉 SM6.35-40X6	2
	S02575020	抬牙曲柄	1
	062711212	螺钉 SM4.76-32X12	1
	147509021	轴位螺钉 SM7.14	1
	104689002	螺母 SM7.14	1
	118758021	抬牙连杆	1
	S057878121	倒缝操纵纵杆限位板	1
	100511123	螺钉 SM4.76	1
	S04228001	针距座拉簧环	1
	062681412	螺钉 SM4.37-40X14	1
	156243021	送布轴轴套垫圈	1
	156243021	送布轴轴套垫圈	1

Page 16 — E. 膝控提升装置 / Knee lifter mechanism

Brother S-7000DD parts on page 16

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9

Page 17 — E. 膝控提升装置 / Knee lifter mechanism

Brother S-7000DD parts on page 17

Ref	Part number	Part name	Qty
	SB3854001	膝控组件	1
	SB1603001	膝块弯杆接头	1
	SB1604001	螺栓 M6X15	1
	SB1605001	螺栓 M6X24	1
	SB3480001	膝控弯管	1
	SB1607001	膝控滑块	1
	SB1609001	膝块架	1
	SB1610001	螺栓 M6X12	1
	SB1611001	膝控滑块垫	1

Page 18 — F. 倒缝装置 / Quick reverse mechanism

Brother S-7000DD parts on page 18

Ref	Part number	Part name	Qty
1	1	Motor
2	2	Lever
3	3	Spring
4	4	Screw
5	5	Pin
6	6	Washer

Page 19 — F. 倒缝装置 / Quick reverse mechanism

Brother S-7000DD parts on page 19

Ref	Part number	Part name	Qty
	SB4022001	倒缝电磁铁	1
	S02600100	电磁铁拨叉	1
	S07959001	螺钉 SM4.76-32X14	1
	062401216	螺钉 M4X12	3
	SB3993001	电线导向	1
	062400616	螺钉 M4X6	1

Page 20 — G. 旋梭装置 / Rotary hook mechanism

Brother S-7000DD parts on page 20

Ref	Part number	Part name	Qty
	1	Rotary hook mechanism
	2	Screw
	3	Gear
	4	Gear
	5	Gear
	6	Screw
	7	Gear
	8	Screw
	9	Shaft
	10	Shaft
	11	Screw
	12	Shaft
	13	Shaft
	14	Screw and Washer
	15	Cylinder
	16	Bearing
	17	Cylinder
	18	Screw
	19	Shaft
	20	Bearing
	21	Screw
	23+	Rotary hook
	24	Bobbin winder
	25	Bobbin
	26	Screw
	27	Bobbin case assembly
	28	Bobbin case
	29	Screw
	30	Spring
	31	Bobbin case spring
	32	Cylinder

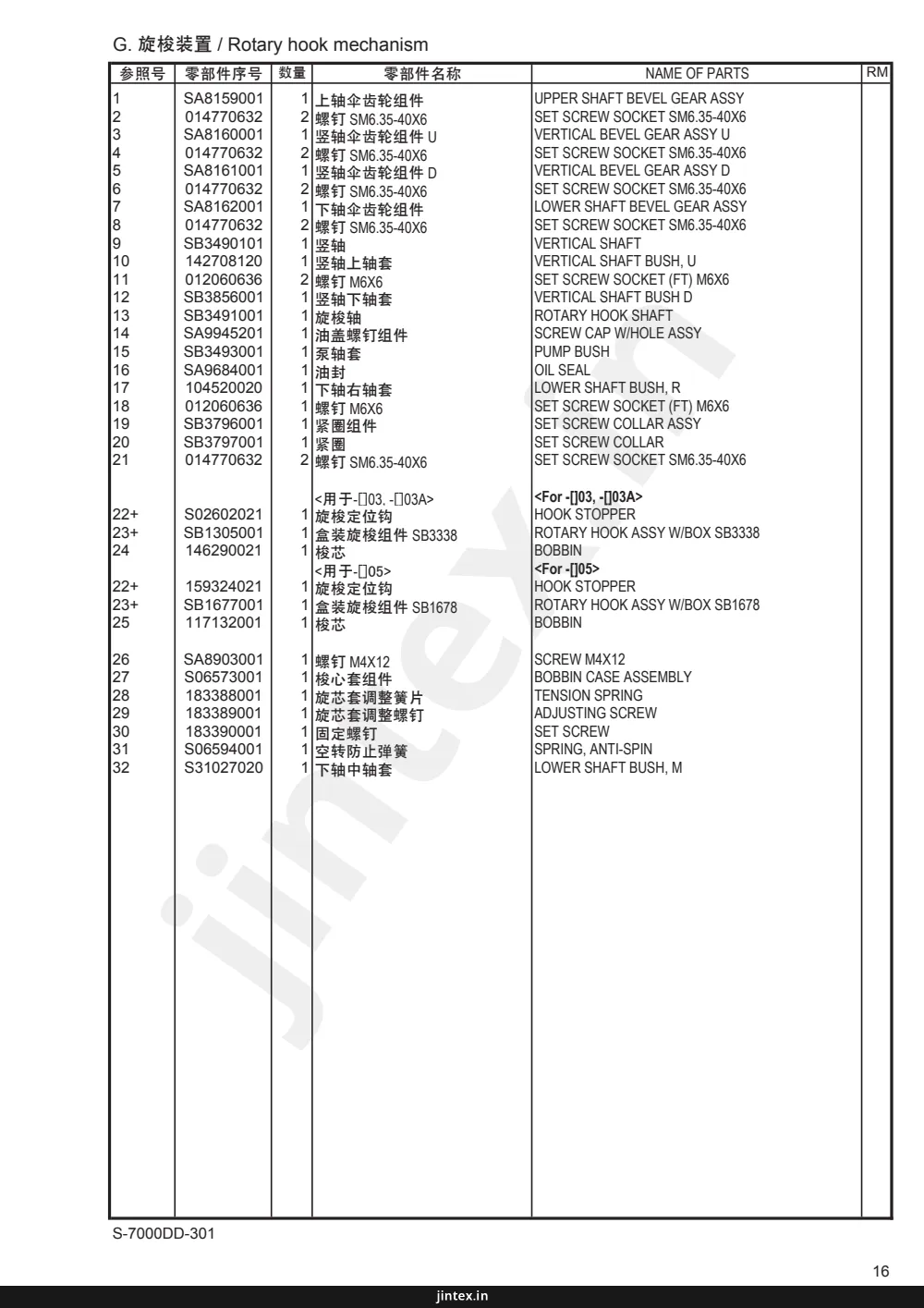

Page 21 — G. 旋梭装置 / Rotary hook mechanism

Brother S-7000DD parts on page 21

Ref	Part number	Part name	Qty
	SA8159001	上轴伞齿轮组件	1
	014770632	螺钉 SM6.35-40X6	2
	SA8160001	竖轴伞齿轮组件 U	1
	014770632	螺钉 SM6.35-40X6	2
	SA8161001	竖轴伞齿轮组件 D	1
	014770632	螺钉 SM6.35-40X6	2
	SA8162001	下轴伞齿轮组件	1
	014770632	螺钉 SM6.35-40X6	2
	SB3490101	竖轴	1
	142708120	竖轴上轴套	1
	012060636	螺钉 M6X6	2
	SB3856001	竖轴下轴套	1
	SB3491001	旋梭轴	1
	SA9945201	油盖螺钉组件	1
	SB3493001	泵轴套	1
	SA9684001	油封	1
	104520020	下轴右轴套	1
	012060636	螺钉 M6X6	1
	SB3796001	紧固组件	1
	SB3797001	紧固	1
	014770632	螺钉 SM6.35-40X6	2
	S02602021	旋梭定位钩	1
	SB1305001	盒旋梭组件 SB3338	1
	146290021	梭芯	1
	159324021	旋梭定位钩	1
	SB1677001	盒旋梭组件 SB1678	1
	117132001	梭芯	1
	SA8903001	螺钉 M4X12	1
	S06573001	梭心套组件	1
	18338001	旋芯套调整簧片	1
	18338901	旋芯套调整螺钉	1
	18339001	固定螺钉	1
	S06594001	空转防止弹簧	1
	S31027020	下轴中轴套	1

Page 22 — H.供油润滑装置 / Lubrication

Brother S-7000DD parts on page 22

Ref	Part number	Part name	Qty
	1	Cap
	2	O-ring
	3	Oil pump assembly
	5	Screw
	6	Oil tube holder
	7	Screw
	8	Oil tube
	9	Oil tube
	10	Oil tube
	11	Oil tube
	12	Lever
	13	Spring
	14	Bearing
	15	Screw
	16	Screw
	17	Oil tube
	18	Oil tube
	19	Screw
	20	Oil tube
	21	Oil tube
	22	Screw
	23	Oil filter
	24	Oil tube
	25	Oil tube
	26	Clip
	27	Oil pump assembly
	28	Oil filter
	29	Oil tube
	30	Screw
	31	Oil filter assembly
	32	Filter element
	33	Spring
	34	Lever
	35	Screw
	36	Screw
	37	Cap
	38	Screw
	39	Screw
	40	Base
	41	Base
	42	Screw
	43	Oil tube
	44	Oil tank assembly
	45	Screw
	46	Screw
	47	Washer
	48	Screw
	49	Screw
	50	Screw
	51	Washer
	52	Oil level gauge
	53	Oil tube
	54	Screw
	55	Screw
	56	Oil level indicator
	57	Screw
	58	Oil tube

Page 23 — H. 供油润滑装置 / Lubrication

Brother S-7000DD parts on page 23

Ref	Part number	Part name	Qty
	S02606020	油窗	1
	081014670	O形圈 PW14	1
	SB3524001	油线夹组件 U	1
	SB3500001	油线 2X2	1
	062670616	螺钉 SM3.57-40X6	2
	SA8167101	油线夹组件 D	1
	SA8169001	油线	1
	SB3501001	油管组件	1
	SB3502001	油线 2X2	1
	SB3857001	维尼龙管 L=95	1
	SB3503001	油线挡板	1
	SB3504001	油线挡板支架	1
	062401616	螺钉 M4X16	2
	SB4015001	油封	1
	SB4527101	调节螺钉	1
	081004870	O形圈 S4	1
	107155001	油毡	1
	SB3505001	油线	1
	S40016001	油管 2X25	1
	SB3507001	维尼龙管	1
	SB3992001	油管导向	1
	S25382001	供油口	1
	S38769000	油毡	1
	SB3512001	油线	1
	SB3511001	维尼龙管	1
	145737021	滤油毡压簧	1
	081004070	O形圈 P4	1
	S43669000	油线 8L=320	1
	SB3514001	油线 4X4	1
	144875001	柱塞	2
	SB3496001	泵盖螺钉组件	1
	SB3985001	泵盖螺钉	1
	S52764001	弹簧	1
	SB3522001	泵盖螺钉组件	1
	SB3523001	泵盖螺钉	1
	S52764001	弹簧	1
	104821001	橡皮塞 10.5	1
	SB2407001	橡皮塞 6.4	1
	S25382001	供油口	1
	SB3554201	油盖组件	1
	SB3515001	油盖	1
	SB4447101	供油口 12.2	1
	SB3517001	膝控提升杆橡皮塞	1
	SB3526101	油箱总组件	1
	S25382001	供油口	1
	SA8989001	供油口	2
	081006670	O形圈 PW6	1
	SA8987001	过滤毡	1
	SB4447101	供油口 12.2	1
	SA1303101	螺钉 M8	1
	081008070	O形圈 P8	1
	SA8991001	橡皮塞35-12	1
	SB3508001	维尼龙管	1
	SB3509001	维尼龙管	1
	SB4037001	维尼龙管	1
	104450101	橡皮塞 8	1
	0A4501206	螺钉(带垫圈) M5X12DA	5
	SB4448101	油盖垫片	1

Page 24 — J. 穿线装置 / Threading mechanism

Brother S-7000DD parts on page 24

Ref	Part number	Part name	Qty
	1	Thread guide assembly
	2	Spring
	3	Needle bar thread guide
	4	Thread take-up lever
	5	Thread guide
	6	Screw
	7	Thread guide
	8	Screw
	9	Screw
	10	Spring
	11	Thread guide
	12	Spring
	13	Screw
	14	Thread guide
	15+	Thread tension assembly
	16+	Spring
	17	Thread tension disc
	18	Thread tension disc
	19	Thread tension disc
	20	Spring
	21	Thread tension knob
	22	Thread guide
	23	Screw
	24	Spring
	25	Thread guide
	26	Screw

Page 25 — J. 穿线装置 / Threading mechanism

Brother S-7000DD parts on page 25

Ref	Part number	Part name	Qty
	SB3483001	小夹线组件	1
	012500536	螺钉 M5X5	1
	SB3595001	穿线杆	1
	SA8178001	松线杆	1
	SB3530001	线导向	1
	012500536	螺钉 M5X5	1
	SA1345001	机壳导向R	1
	060500616	螺钉 M5X6	1
	SA9854001	机线杆防护罩	1
	SB0544001	止动圈	1
	062500816	螺钉 M5X8	1
	S02617001	面板线钩	1
	060350616	螺钉 M3.5X6	1
	SB3798001	线导向	1
	SB3572001	夹线器组件	1
	104525102	夹线弹簧	1
	SB3574001	夹线器组件	1
	S04632102	夹线弹簧	1
	116922101	夹线螺杆	1
	145446021	夹线盘	2
	SB3618001	压线圈	1
	SB4216001	止动圈	1
	SB4038001	夹线螺母	1
	SB1600001	夹线器基座	1
	100402004	固定螺钉 SM3.57	1
	S02620401	挑线弹簧	1
	SA1229101	螺钉 M6X6	1
	150551020	松线销	1

Page 26 — K. 绕线装置 / Bobbin winder mechanism

Brother S-7000DD parts on page 26

Ref	Part number	Part name	Qty
1	1	Bobbin winder mechanism
2	2	Bobbin
3	3	Tension lever
4	4	Screw
5	5	Spring

Page 27 — K. 绕线装置 / Bobbin winder mechanism

Brother S-7000DD parts on page 27

Ref	Part number	Part name	Qty
1	SB3529101	绕线器组件 BOBBIN WINDER UNIT	1
2	SB3571101	绕线器夹线组件 BOBBIN WINDER TENSION ASSY	1
3	SA1360101	切刀 KNIFE	1
4	062500616	螺钉 M5x6 SCREW PAN M5x6	1
5	SB3619001	固定螺钉 BOBBIN WINDER FIXED SCREW	1

Page 28 — L. 切线装置 / Thread trimmer mechanism

Brother S-7000DD parts on page 28

Ref	Part number	Part name	Qty
	49	49
	50	50
	51	51
	8	8
	12	12
	13	13
	48	48
	9	9
	11	11
	10	10
	20	20
	23	23
	22	22
	16	16
	3	3
	17	17
	21	21
	4	4
	19	19
	2	2
	5	5
	18	18
	1	1
	6	6
	7	7
	15	15
	14	14
	27	27
	33	33
	32	32
	31	31
	43	43
	44	44
	34	34
	37	37
	36	36
	25	25
	39	39
	40	40
	35	35
	24	24
	53	53
	54	54
	42	42
	47	47
	26	26
	30	30
	29	29
	28	28
	55	55
	52	52
	46	46
	38	38
	41	41
	45	45

Page 29 — L. 切线装置 / Thread trimmer mechanism

Brother S-7000DD parts on page 29

Ref	Part number	Part name	Qty
	S00337021	切线凸轮	1
	014771032	固定螺钉 SM6.35-40X10	2
	S02637101	固定刀	1
	102843004	平头螺钉 SM3.57	1
	S02643001	分线器	1
	100645003	垫圈	1
	062400616	螺钉 M4X6	1
	SB3556001	刀架	1
	SB3799001	刀架压板组件	1
	100645003	垫圈	2
	060401216	螺钉 M4X12	2
	S02645001	动刀	1
	148537101	螺钉 SM4.37	1
	SB3557001	切线连接杆	1
	151987022	轴位螺钉 SM4.37	2
	105234003	螺母 SM4.37	1
	SB3558001	切线手柄	1
	SA7285101	手柄定位	1
	062501416	螺钉 M5X14	1
	SB3559001	弹簧	1
	SB3802001	切刀驱动曲柄轴	1
	S02648021	曲柄轴套	1
	SB3803001	叉轴轴套	1
	SB3853001	切线凸轮杆组件	1
	SB3853001	切线凸轮杆组件	1
	012060636	螺钉 M6X6	1
	154593321	切线驱动轴	1
	154594020	挡圈	1
	S25434000	橡胶垫圈	1
	154595001	切线凸轮复位弹簧	1
	154596000	减震垫圈	1
	110367001	垫圈	1
	048060342	挡圈 E6	1
	SB3563001	切线电磁铁组件	1
	SB3568001	切线电磁铁	1
	SB3569001	电磁铁安装板	1
	062400816	螺钉 M4X8	4
	026050136	平垫圈 S5	1
	SB3564001	电磁铁杆	1
	SA9716001	销	1
	048050142	轴用挡圈 C5	1
	062501016	螺钉 M5X10	2
	SB3565001	电磁铁杆定位板	1
	062400616	螺钉 M4X6	2
	SB3566001	轴位螺钉 M6	1
	15559021	平垫圈	1
	SB3567001	橡胶塞 25.5	1
	SA1388101	线夹	1
	A10369001	插头 5557-12R	1
	SB4490001	插头套	1
	060400616	螺钉 M4X6	3
	S04159000	线夹 1M	3
	SB3804001	滚轮轴 C	1
	SB3805001	滚轮	1
	105234003	螺母 SM4.37	1

Page 30 — M. 松线装置 / Tension release mechanism

Brother S-7000DD parts on page 30

Ref	Part number	Part name	Qty
1	1	Cable
2	2	Nut
3	3	Bracket
4	4	Screw
5	5	Plate
6	6	Screw

Page 31 — M. 松线装置 / Tension release mechanism

Brother S-7000DD parts on page 31

Ref	Part number	Part name	Qty
	SB3576001	松线钢绳	1
	SB3877001	螺母 SM4.76	2
	SB3999101	钢绳固定板	1
	062400616	螺钉 M4X6	1
	SB3575001	钢绳导向板	1
	062400616	螺钉 M4X6	4

Page 32 — Thread wiper mechanism (-40[]or option parts)

Brother S-7000DD parts on page 32

Ref	Part number	Part name	Qty
2	2	Thread wiper mechanism
9	9	Screw
10	10	Washer
11	11	Screw
3	3	Spring
4	4	Washer
31	31	Washer
23	23	Lever
25	25	Spring
24	24	Washer
1	1	Bracket
15	15	Screw
16	16	Washer
12	12	Screw
8	8	Screw
7	7	Washer
5	5	Housing
14	14	Screw
13	13	Cover
6	6	Screw
17	17	Shaft
19	19	Clip
18	18	Screw
27	27	Spring
26	26	Screw
32	32	Washer
22	22	Washer
20	20	Nut
21	21	Screw
30	30	Washer
29	29	Washer
28	28	Screw

Page 33 — N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[] or option parts)

Brother S-7000DD parts on page 33

Ref	Part number	Part name	Qty
	SB4310001	扫线装置组件	1
	SB4201001	挡线电磁铁	1
	SA9771001	挡线弹簧	1
	S41205001	平垫圈	1
	SB0609001	电磁铁安装板	1
	062301016	螺钉 M3X10	2
	140647121	电线固定夹	1
	062300616	螺钉 M3X6	1
	S33610122	电磁铁罩	1
	060400616	螺钉 M4X6	1
	S25456021	柱塞销	2
	SB0611001	垫圈	2
	SB0610001	电磁铁安装架	1
	062681012	螺钉 SM4.37-40X10	2
	062400616	螺钉 M4X6	2
	026040236	平垫圈 M4	2
	S02672022	挡线轴架	1
	S25452021	挡线曲柄轴组件	1
	048040342	挡圈 E4	1
	S25454021	螺纹紧圈	1
	S25279101	螺钉 M3.5-5	1
	S02678001	挡线弹簧	1
	SA8189001	挡线连杆	1
	110735022	垫圈	1
	048030342	挡圈 E3	1
	S59890001	螺栓 SM4.37-40X8	2
	S02681101	挡线钩	1
	060400516	螺钉 M4X5	1
	14628021	挡线轴挡圈	1
	025750132	平垫圈 S 5.56	1
	S41207000	橡皮垫圈	1
	149097000	消音垫	1

Page 34 — P1. 控制箱 / Control box

Brother S-7000DD parts on page 34

Ref	Part number	Part name	Qty
	1	1, 2, 3, 4
	5+	5+
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17+	17+
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35

Page 35 — P1. 控制箱 / Control box

Brother S-7000DD parts on page 35

Ref	Part number	Part name	Qty
	SB4580001	备用7000DD控制箱组件 CN	1
	SB4581001	备用7000DD控制箱组件 EX	1
	SB4582001	备用7000DD控制箱组件 US	1
	SB4583001	备用7000DD控制箱组件 CE	1
	SB4584001	备用主基板组件 CN	1
	SB4585001	备用主基板组件 EX	1
	149578020	轴套	2
	SB3584001	膝控	1
	SB3585001	膝控横轴	1
	SB3586001	螺钉 SM5.95	1
	SB3587001	固定螺钉 SM5.95	1
	100022004	螺母 SM5.95	1
	SB3588001	复位弹簧	1
	146293001	挡圈 E10	1
	0A4400806	螺钉(带垫圈) M4X8DA	2
	0A4400806	螺钉(带垫圈) M4X8DA	2
	0A4400806	螺钉(带垫圈) M4X8DA	1
	SB3816101	踏板控制器组件 CN	1
	SB3817201	踏板控制器组件 EX	1
	SB4587101	踏板控制器组件 US	1
	0A5501206	螺钉(带垫圈) M5X12	4
	0A5501206	螺钉(带垫圈) M5X12	4
	SB3589001	箱盖	1
	0A4400806	螺钉(带垫圈) M4X8DA	1
	S37060001	接地标记	1
	SA9725001	感电标签 36 X 150	1
	SB3872001	箱盖销	1
	SB4155001	线夹	1
	SB0827001	高温标志	1
	SA9564001	CE 滤波器座	1
	SA9565001	CE滤波器基板组件	1
	032461606	木螺钉 M4.5X16	4
	200190001	U形卡钉	5
	S52164000	衰减器 NFC-28	2
	0A5401605	螺钉(带垫圈) M4X16	2
	025040236	平垫圈 M4	2
	021400106	六角螺母 M4	2
	SA9559001	CE滤波器组件	1

Page 36 — P2. 控制箱 / Control box

Brother S-7000DD parts on page 36

Ref	Part number	Part name	Qty
7	7	Control box
8	8	Screw
9	9	Wire
3	3	Transformer
5	5	Control box
6	6	Warning label
4	4	Transformer

Page 37 — P2. 控制箱 / Control box

Brother S-7000DD parts on page 37

Ref	Part number	Part name	Qty
1+	BMP3010-000000-AST1	<For 100V> TRANSFORMER BOX	1
1+	BMP3010-000000-2ST1	<For 110V> TRANSFORMER BOX	1
2+	BMP3010-000000-3ST4	<For 380V> TRANSFORMER BOX	1
2+	BMP3010-000000-4ST4	<For 400V> TRANSFORMER BOX	1
3	SA9923001	<For Single phase 100V/110V> TRANSFORMER 100/110/220V	1
4	SA9901001	<For Three phase 380V/400V> TRANSFORMER 400/230V	1
5	SA9896001	TR BOX COVER	1
6	SA9914001	LABEL ELECTRICAL SHOCK 25X28	1
7	SA9831001	<For the Americas> POWER SWITCH ASSY SJT#2	1
8	032461606	WOOD SCREW ROUND 2 M4.5X16	2
9	200190001	STAPLE 10X20	5

Page 38 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Brother S-7000DD parts on page 38

Ref	Part number	Part name	Qty
1	1	Wire harness
2	2	Switch
3	3	Bracket
4	4	Screw
5	5	Clip

Page 39 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Brother S-7000DD parts on page 39

Ref	Part number	Part name	Qty
1	SB4086001	LED倒缝开关组件	1
2	062670612	螺钉 SM3.57-40X6	2
3	SA8193001	电线夹 U2	2
4	062670612	螺钉 SM3.57-40X6	2
5	SB2408101	电线夹	2

Page 40 — R. 电气部品 / Power supply equipment

Brother S-7000DD parts on page 40

Ref	Part number	Part name	Qty
1	1	Power supply equipment
2	2	Power supply equipment
3	3	Cable
4	4	Screw
5	5	Screw

Page 41 — R. 电气部品 / Power supply equipment

Brother S-7000DD parts on page 41

Ref	Part number	Part name	Qty
	SB3834001	<用于欧洲和美洲以外> 马达罩盖组件	1
	SB3620001	<用于欧洲和美洲> 马达罩盖 EX	1
	SB3621001	接地线	1
	0A4400806	螺钉(带垫圈) M4X8DA	1
	0A4501606	螺钉(带垫圈) M5X16DA	4

Page 42 — S. 马达装置和操作盘 / Motor mechanism and operation panel

Brother S-7000DD parts on page 42

Ref	Part number	Part name	Qty
	1	MOTOR MECHANISM AND OPERATION PANEL
	2	BRACKET
	3	BRACKET
	4	MOTOR
	5	SCREW
	6	BRACKET
	7	BRACKET
	8	BRACKET
	9	BRACKET
	10	SCREW
	11	BRACKET
	12	SCREW
	13	OPERATION PANEL
	14	BRACKET
	15	BRACKET
	16	SCREW

Page 43 — S. 马达装置和操作盘 / Motor mechanism and operation panel

Brother S-7000DD parts on page 43

Ref	Part number	Part name	Qty
	SB4311001	备用马达(7000DD)组件	1
	SB3609001	传感器组件	1
	0A4301206	螺钉(带垫圈) M3X12DA	3
	SB2315001	上带轮保持架组件	1
	012501032	螺钉 M5X10	2
	SB2317001	线夹	2
	0A4400806	螺钉(带垫圈) M4X8DA	1
	SB0827001	高温标志	1
	SB3247001	传感器罩	1
	0A4501606	螺钉(带垫圈) M5X16DA	3
	SB4154001	上轮	1
	060501016	螺钉 M5X10	3
	SB3652201	操作盘组件	1
	SB3655001	操作盘支座	2
	012500536	螺钉 M5X5	2
	0A4300806	螺钉(带垫圈) M3X8DA	4

Page 44

Brother S-7000DD parts on page 44

Ref	Part number	Part name	Qty
3	4	5
3	7	5
3	6	8
	1	2
	9	10
	11	12
	13	brobi
	28	27
	29	30
	31	30
32	37	36
32	33	35
32	34	36
32	37	36
32	33	35
14	25	26
14	23	22
14	21	24
18	15	16
18	17	21
18	19	20
18	24	25

Page 45 — Z. 附件 / Accessories

Brother S-7000DD parts on page 45

Ref	Part number	Part name	Qty
	146290021	梭芯	1
	117132001	梭芯	1
	SB3622001	橡胶铰链组件	1
	SB3627001	机头铰链	2
	SB3628001	机头铰链套	2
	SB3623101	头部防震垫	2
	109714020	钉	4
	SB4018101	头部防震垫	2
	SB3629001	机头撑杆 S	1
	SA8239201	油壶组件	1
	SB1270001	油壶警示标贴 英文	1
	SB1271001	油壶警示标贴 日文	1
	SB3876001	机头罩	1
	SB3928001	线架组件 2DR	1
	S51283001	垫圈	2
	SB4114001	线盘软垫	2
	S51282101	线轴缓冲架	2
	150179023	线轴B	2
	SB4117001	弹簧垫圈 2-5	2
	SB4119001	螺母 M5	2
	SA6607001	过线架 2	2
	150183000	过线管套	2
	142990001	过线架上过线管	2
	SA6609001	过线架定位	2
	062061603	螺钉 M6X16	2
	S02747101	弹簧	1
	SB3625001	螺栓组件	1
	SB3626001	螺栓 M8X46	4
	SB4243001	平垫圈 L8	4
	028080242	弹簧垫圈 2-8	4
	021080202	螺母 M8	4
	S40765001	连接杆组件	1
	021060106	螺母 M6	2
	017081606	六角螺栓 M8X16	2
	021080106	六角螺母 M8	2
	S36119021	螺母 M6	2
	S36121021	弹簧垫圈 2-6	2

Page 46 — Wa. 警告标签 / Warning labels

Brother S-7000DD parts on page 46

Ref	Part number	Part name	Qty
	SA9725-001	感电标签 36 X 150 Label electrical shock 36 X 150
	SA9914-001	感电标签 25 X 28 Label electrical shock 25 X 28
	SA9826-001	操作注意事项标签 Label caution	56 X 43
	SA9957-001	警告标记 Injury mark	L=16
	SA9957-002	警告标记 Injury mark	L=25
	SB0827-001	高温标签 High temp label	L=16
	S37060-001	接地标记 Label, grounding	Φ 12

Page 47 — 警告标签 / Warning labels

Brother S-7000DD parts on page 47

Ref	Part number	Part name	Qty
	SB1271-001	油壺警示标贴 日文 Oil warning label JP
	SB1270-001	油壺警示标贴 英文 Oil warning label EN

Page 48 — Ga. 工模具一览表 / Gauge parts list

Brother S-7000DD parts on page 48

Ref	Part number	Part name	Qty
	111859301	E18
	111860121	E18
	153037221	E18
	145971101	B18 无倒角
	S02742001	B18 无倒角
	S36902001	B18 无倒角
	145971101	B18
	S02742001	B18
	S36902001	B18
	150792101	H26
	150793021	H26
	150789121	H26
	150792101	H26
	150793021	H26
	S36903001	H26

Page 50 — 索 引 / Index

Brother S-7000DD parts on page 50

Ref	Part number	Part name	Qty
	S02747101	Z
	S03818101	D
	S04159000	L
	S04228001	D
	S04632102	J
	S06573001	G
	S06594001	G
	S07959001	D
	S13385001	C
	S23651001	B
	S25279101	N
	S25382001	H
	S25434000	L
	H	- 45
	S25452021	N
	S25454021	N
	S25456021	N
	S31006002	C
	S31014020	D
	D	- 72
	S31027020	G
	S31952021	C
	S32958000	B
	S33610122	N
	S33680001	D
	S36119021	Z
	S36121021	Z
	S36902001	C
	Ga
	S37060001	P1
	Ga
	S37060021	A
	Wa
	S38769000	H
	S39051001	C
	S40016001	H
	S40765001	Z
	S41205001	N
	S41207000	N
	S43669000	H
	S46736001	C
	S47264001	D
	D	- 43
	S51282101	Z
	S51283001	Z
	S52164000	P1
	S52764001	H
	H	- 36
	S59890001	N
	SA1229101	J
	SA1303101	H
	SA1345001	J
	SA1360101	K
	SA1388101	L
	SA2161001	B
	SA2422001	D
	SA4494001	D
	SA6607001	Z
	SA6609001	Z
	SA7285101	L
	SA8145001	B
	SA8152001	C
	SA8159001	G
	SA8160001	G
	SA8161001	G
	SA8162001	G
	SA8167101	H
	SA8169001	H
	SA8178001	J
	SA8186002	D
	SA8189001	N
	SA8193001	Q
	SA8239201	Z
	SA8436001	B
	SA8900001	G
	SA8987001	H
	SA8989001	H
	SA9523001	B
	SA9559001	P1
	SA9564001	P1
	SA9565001	P1
	SA9684001	G
	SA9716001	L
	SA9725001	P1
	Wa
	SA9771001	N
	SA9826001	A
	Wa
	SA9831001	P2
	SA9854001	J
	SA9896001	P2
	SA9901001	P2
	SA9914001	P2
	SA9923001	Wa
	SA9945201	G
	SA9957001	A
	Wa
	SA9957002	A
	Wa
	SB0544001	J
	SB0609001	N
	SB0610001	N
	SB0611001	N
	SB0827001	P1
	S	- 8
	Wa
	SB1270001	Z
	Wa
	SB1271001	Wa
	SB1305001	G
	Wa
	SB1355001	E
	SB1600001	E
	SB1601001	E
	SB1603001	E
	SB1604001	E
	SB1605001	E
	SB1607001	E
	SB1609001	E
	SB1610001	E
	SB1611001	E
	SB1677001	G
	SB2267002	C
	SB2314001	D
	SB2315001	S
	SB2317001	S
	SB2407001	B
	SB2408101	H
	SB3247001	S
	SB3433001	A
	SB3434001	A
	SB3435001	A
	SB3436001	A
	SB3437001	A
	SB3440001	A
	SB3441001	A
	SB3442001	A
	SB3445001	B
	SB3446201	B
	SB3447001	B
	SB3449001	B
	SB345201	B
	SB3458001	B
	SB3460001	C
	SB3461001	C
	SB3463001	C
	SB3464001	D
	SB3465001	D
	SB3469001	D
	SB3472001	D
	SB3475001	D
	SB3477101	D
	SB3478101	D
	SB3480001	E
	SB3483001	J
	SB3490101	G
	SB3491001	G
	SB3493001	G
	SB3496001	H
	SB3500001	H
	SB3501001	H
	SB3502001	H
	SB3504001	H
	SB3505001	H
	SB3507001	H
	SB3508001	H
	SB3509001	H
	SB3511001	H
	SB3512001	H
	SB3514001	H
	SB3515001	H
	SB3517001	H
	SB3522001	H
	SB3523001	H
	SB3524001	H
	SB3526101	H
	SB3529101	K
	SB3530001	J
	SB3554201	H
	SB3556001	L
	SB3557001	L
	SB3558001	L
	SB3559001	L
	SB3563001	L
	SB3564001	L
	SB3565001	L
	SB3566001	L
	SB3567001	L
	SB3568001	L
	SB3569001	L
	SB3571101	K
	SB3572001	J
	SB3574001	J
	SB3575001	M
	SB3576001	M
	SB3584001	P1
	SB3585001	P1
	SB3586001	P1
	SB3587001	P1
	SB3588001	P1
	SB3589001	P1
	SB3595001	J
	SB3609001	S
	SB3618001	J
	SB3619001	K
	SB3620001	R
	SB3621001	R
	SB3622001	Z
	SB3623101	Z
	SB3625001	Z
	SB3626001	Z
	SB3627001	Z
	SB3628001	Z
	SB3629001	Z
	SB3652201	S
	SB3655001	S
	SB3769001	B
	SB3770001	B
	SB3771001	B
	SB3775001	B
	SB3776001	B
	SB3777001	B
	SB3778001	B
	SB3782001	B
	SB3783001	B
	SB3784001	B
	SB3785001	C
	SB3786001	C
	SB3787001	D
	SB3788001	D
	SB3789001	D
	SB3790001	D
	SB3791001	D
	SB3792001	D
	SB3793001	D
	SB3794001	D
	SB3796001	G
	SB3797001	G
	SB3798001	J
	SB3799001	L
	SB3802001	L
	SB3803001	L
	SB3804001	L
	SB3805001	L
	SB3816101	P1

Page 51 — 索引 / Index

Brother S-7000DD parts on page 51

Ref	Part number	Part name	Qty
- 17+	SB3817201	P1
- 1	SB3834001	R
- 12	SB3850001	A
- 26	SB3851201	B
- 24	SB3852001	L
- 25	SB3853001	L
- 1	SB3854001	E
- 12	SB3856001	G
- 10	SB3857001	H
- 60	SB3870001	D
- 74	SB3870001	D
- 24	SB3872001	P1
- 13	SB3876001	Z
- 2	SB3877001	M
- 20	SB3878001	C
- 6+	SB3912001	B
- 6+	SB3913001	B
- 14	SB3928001	Z
- 39	SB3977001	B
- 32	SB3985001	H
- 10	SB3986001	A
- 21	SB3992001	H
- 5	SB3993001	F
- 3	SB3999101	M
- 14	SB4015001	H
- 24	SB4016001	C
- 8	SB4018101	Z
- 1	SB4022001	F
- 55	SB4037001	H
- 21	SB4038001	J
- 2+	SB4039001	B
- 1+	SB4074001	B
- 6+	SB4084001	B
- 1	SB4086001	Q
- 16	SB4114001	Z
- 19	SB4117001	Z
- 20	SB4119001	Z
- 11	SB4154001	S
- 25	SB4155001	P1
- 35	SB4190001	B
- 2	SB4201001	N
- 20	SB4216001	J
- 29	SB4243001	Z
- 29	SB4285001	C
- 1	SB4310001	N
- 1	SB4311001	S
- 42	SB4447101	H
- 49	SB4447101	H
- 58	SB4448101	H
- 50	SB4490001	L
- 15	SB4492001	B
- 15	SB4527101	H
- 1	SB4580001	P1
- 2	SB4581001	P1
- 3	SB4582001	P1
- 4	SB4583001	P1
- 5+	SB4584001	P1
- 5+	SB4585001	P1
- 17+	SB4587101	P1

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother S-7000DD — parts catalog

• Page 1 (cover): This is the cover page for the S-7000DD Parts Book, featuring a diagram of a screw and contact information for Brother.
• Page 2 (text): This page explains the meaning of the model number S-7000DD-10, detailing different configurations for fabric types and stitch types.
• Page 3 (diagram): This page contains a diagram illustrating the description of a model plate with various options for material handling and features, including light-weight, medium-weight, and heavy-weight materials, as well as quick reverse and thread wiper functions.
• Page 4 (toc): This page contains the table of contents for the parts manual, listing various machine components and their corresponding page numbers.
• Page 5 (toc): This page is a table of contents for the parts book, listing sections such as Machine body, Needle bar and thread take-up mechanism, and Index, along with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the machine body and its components, with numbered parts indicated for reference.
• Page 7 (parts_list): This page lists machine body parts with their corresponding part numbers, quantities, and names in both Chinese and English. It includes items like stands, screws, plates, and labels.
• Page 8 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with numbered parts and their corresponding references.
• Page 9 (parts_list): This page lists parts for the Needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 10 (diagram): This page displays a diagram of the presser foot mechanism, with various parts numbered for identification and reference.
• Page 11 (parts_list): This page lists parts for the Presser foot mechanism, including part numbers, names, and quantities.
• Page 12 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 13 (parts_list): This page lists parts for the Feed mechanism section, including part numbers, descriptions, and quantities.
• Page 14 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 15 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities. It covers items from reference number 57 to 86.
• Page 16 (diagram): This page displays a diagram of the knee lifter mechanism, with numbered parts including a disc, bracket, screw, and tube.
• Page 17 (parts_list): This page lists parts for the Knee lifter mechanism, including part numbers, descriptions, and quantities.
• Page 18 (diagram): This page displays a diagram of the quick reverse mechanism for an industrial sewing machine, with numbered parts indicated.
• Page 19 (parts_list): This page lists parts for the Quick reverse mechanism, including part numbers, descriptions, and quantities.
• Page 20 (diagram): This page displays a diagram of the rotary hook mechanism, illustrating various components with reference numbers.
• Page 21 (parts_list): This page lists parts for the Rotary Hook Mechanism, including part numbers, descriptions, and quantities.
• Page 22 (diagram): This page displays a diagram of the lubrication system for the sewing machine, detailing various components with reference numbers and part information.
• Page 23 (parts_list): This page lists parts for lubrication and oiling devices, including part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, with numbered parts and their corresponding details.
• Page 25 (parts_list): This page lists parts for the J. Threading mechanism section, including part numbers, descriptions, and quantities.
• Page 26 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts including a bobbin winder assembly, a bobbin, a tension lever, and a screw.
• Page 27 (parts_list): This page lists parts for the Bobbin winder mechanism, including part numbers, descriptions, and quantities.
• Page 28 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding details.
• Page 29 (parts_list): This page lists parts for the Thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 30 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts including a cable, nuts, a bracket, and screws.
• Page 31 (parts_list): This page lists parts for the Tension release mechanism, including part numbers, names, quantities, and descriptions.
• Page 32 (diagram): This page displays a diagram of the thread wiper mechanism, showing various components labeled with reference numbers for identification.
• Page 33 (parts_list): This page lists parts for the Thread Wiper Mechanism (-40[] or option parts), including part numbers, descriptions, quantities, and remarks.
• Page 34 (diagram): This page displays a diagram of the control box for European models, detailing various components with reference numbers.
• Page 35 (parts_list): This page lists parts for the Control Box, including part numbers, descriptions, and quantities for various models.
• Page 36 (diagram): This page displays diagrams of control boxes for single-phase 100V/110V and three-phase 380V/400V systems, along with associated components like transformers and screws.
• Page 37 (parts_list): This page lists parts for the Control box, including transformer boxes, labels, power switch assemblies, wood screws, and staples, with their corresponding part numbers and descriptions.
• Page 38 (diagram): This page displays a diagram of the quick reverse switch mechanism, with numbered parts including brackets, a switch, and a wire harness.
• Page 39 (parts_list): This page lists parts for the Quick reverse switch mechanism, including part numbers, quantities, and names.
• Page 40 (diagram): This page displays a diagram of power supply equipment, with parts labeled 1 through 5, and includes sections for Europe and the Americas, as well as other regions.
• Page 41 (parts_list): This page lists parts for power supply equipment, including part numbers, descriptions, quantities, and applicable regions.
• Page 42 (diagram): This page displays a diagram of the motor mechanism and operation panel, with numbered parts indicating various components.
• Page 43 (parts_list): This page lists parts for the Motor mechanism and operation panel, including part numbers, descriptions, and quantities.
• Page 44 (diagram): This page displays a diagram of accessories and option parts for the sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 45 (parts_list): This page lists accessories for the S-7000DD-910, including part numbers, descriptions, and quantities.
• Page 46 (parts_list): This page lists various warning labels for industrial sewing machines, including their descriptions, sizes, and part numbers.
• Page 47 (parts_list): This page lists two types of oil warning labels from Brother, including their Japanese and English descriptions, dimensions, and part codes.
• Page 48 (parts_list): This page lists gauge parts with specifications, destinations, needle plate information, feed dog details, and presser foot assembly part numbers.
• Page 50 (index): This page is an index of parts for an industrial sewing machine, listing part codes, reference numbers, and page numbers where they can be found in the catalog. It is organized into four columns for efficient lookup.
• Page 51 (index): This page is an index of parts for an industrial sewing machine, listing part codes, reference numbers, and page numbers.
• Page 52 (cover): This is the cover page of the Brother Parts Book, featuring the Brother logo, a graphic of a screw, and copyright information.

Page 1 — S-7000DD

S-7000DD 零件手册 PARTS BOOK 电脑直接驱动自动切线平缝机 SINGLE NEEDLE DIRECT DRIVE STRAIGHT LOCK STITCHER WITH THREAD TRIMMER brother. 最新的零部件情报请参考(Parts Navigation)。 The latest parts information, refer to the Parts Navigation. jintex.in http://partsbook.brother.co.jp/partnavi/chn/ http://partsbook.brother.co.jp/partnavi/eng/

Page 2 — 型号牌的读解法

型号牌的读解法 •S-7000DD-10• 3. 用于轻薄布料到中厚布料 3A. 用于中厚布料 5. 用于厚布料 3. 倒缝 4. 倒缝+扫线

Page 3 — Description of model plate

Description of model plate •S-7000DD-101 3. Light-weight and Medium-weight materials 3A. Medium-weight materials 5. Heavy-weight materials 3. Quick Reverse 4. Quick Reverse + Thread Wiper jintex.in

Page 4 — 零件手册的使用说明

零件手册的使用说明 1. 本手册是根据截止至2013年5月的资料为基准而编制的。 2. 零件设计若有变动,恕不另行通知。 3. 以组件为单位供应的零件是用虚线框出。 4. 零件图册中数字(REF.NO)右上角带有“+”号的零件属多规格零件,详细请见零件清单。 目 录 A. 机体部分 1 B. 针杆和挑线杆装置 3 C. 压脚装置 5 D. 送料装置 7 E. 膝控提升装置 11 F. 倒缝装置 13 G. 旋梭装置 15 H. 供油润滑装置 17 J. 穿线装置 19 K. 绕线装置 21 L. 切线装置 23 M. 松线装置 25 N. 扫线装置(-40[零部件或选购件]) 27 P1. 控制箱 29 P2. 控制箱 31 Q. 倒缝开关装置 33 R. 电气部品 35 S. 马达装置和操作盘 37 Z. 附件 39 Wa. 警告标签 41 Ga. 工模具一览表 43 索引 44 jintex.in

Page 5 — CONTENTS

Notes for using this parts book 1. This book was prepared based on information available in May 2013. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line. 4. The part which has the symbol "+" on its number (REF.NO) in the figure differs depending on the specification. For details, refer to the parts list. CONTENTS A. Machine body 1 B. Needle bar and thread take-up mechanism 3 C. Presser foot mechanism 5 D. Feed mechanism 7 E. Knee lifter mechanism 11 F. Quick reverse mechanism 13 G. Rotary hook mechanism 15 H. Lubrication 17 J. Threading mechanism 19 K. Bobbin winder mechanism 21 L. Thread trimmer mechanism 23 M. Tension release mechanism 25 N. Thread wiper mechanism (-40[] or option parts) 27 P1. Control box 29 P2. Control box 31 Q. Quick reverse switch mechanism 33 R. Power supply equipment 35 S. Motor mechanism and operation panel 37 Z. Accessories 39 Wa. Warning labels 41 Ga. Gauge parts list 43 Index 44 jintex.in

Page 6 — A. 机体部分 / Machine body

A. 机体部分 / Machine body S-7000DD-050 jintex.in 1 6 4 5 7 8 15 16 17 19 13 12 18 1 2 22 23 3 9 10 11 14 20

Page 7 — A. 机体部分 / Machine body

A. 机体部分 / Machine body 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SB3440001 2 脚柱L STAND L 2 SB3441001 1 脚柱R STAND R 3 062061016 2 螺钉 M6×10 SCREW PAN M6×10 4 SB3433001 1 后侧盖 SIDE PLATE 5 SB3434001 1 后侧板衬垫 REAR COVER PACKING 6 062501216 7 螺钉 M5×12 SCREW PAN M5×12 7 104449001 2 橡胶塞 15.5 RUBBER CAP, 15.5 8 104450101 3 橡胶塞 8 RUBBER CAP, 8 9 108520001 1 橡胶塞 19.8 RUBBER CAP, 19.8 10 SB3986001 1 橡胶塞 17.9 RUBBER CAP 17.9 11 SB3442001 1 橡胶塞 37.8 RUBBER CAP 37.8 12 SB3850001 1 定位板 RULER PLATE 13 062400616 1 螺钉 M4×6 SCREW PAN M4×6 14 104450101 2 橡胶塞 8 RUBBER CAP, 8 15 SB3435001 1 面板组件 FACE PLATE ASSY 16 SB3436001 1 面板 FACE PLATE 17 SB3437001 1 面板垫片 FACE PLATE PACKING 18 104449001 2 橡胶塞 15.5 RUBBER CAP, 15.5 19 062671212 3 螺钉 SM3.57-40×12 SCREW PAN SM3.57-40×12 20 SA9826001 1 操作注意标签 LABEL CAUTION 21 S37060021 1 接地标记 LABEL, GROUNDING 22 SA9957001 2 警告标记 INJURY MARK 23 SA9957002 1 警告标记 INJURY MARK S-7000DD-050 2

Page 8 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism 1+ 9 9 11 10 13 13 7 2+ 12 15 29 27 28 29 14 26 25 23 18 4+ 22 21 17 16 19 20 24 32 3+ 30 6+ 5+ 33 41+ 34+ 35 37 36 38 S-7000DD-101 3 jintex.in

Page 9 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1+ SB3445001 1 <用于-Π03.-Π03A> <For-Π03, -Π03A> 2+ SB3447001 1 上轴组件 UPPER SHAFT 3+ SB3770001 1 挑线杆曲柄组件 THREAD TAKE-UP CRANK ASSY 4+ SB3771001 1 针杆连杆组件 NEEDLE BAR CONNECTING ROD UNIT 5+ SB3783001 1 针杆连杆组件 NEEDLE BAR CONNECTING ROD ASSY 6+ SB3912001 1 针杆轴套 D NEEDLE BAR BUSH D 6+ SB4084001 1 针杆 DB <用于 DB 针> NEEDLE BAR DB <FOR DB NEEDLE> 1 针杆 DP <用于 DP 针> NEEDLE BAR DP <FOR DP NEEDLE> 1+ SB4074001 <用于-Π05> <For-Π05> 2+ SB4039001 1 上轴组件 UPPER SHAFT ASSY 3+ SB3777001 1 挑线杆曲柄组件 THREAD TAKE-UP CRANK ASSY 4+ SB3778001 1 针杆连杆组件 NEEDLE BAR CONNECTING ROD UNIT 5+ SB3784001 1 针杆连杆组件 NEEDLE BAR CONNECTING ROD ASSY 6+ SB3913001 1 针杆轴套 D NEEDLE BAR BUSH D 1 针杆 NEEDLE BAR 7 SB3446201 1 上轴 UPPER SHAFT 8 SB2407001 1 橡皮塞 6.4 RUBBER CAP 6.4 9 014770632 3 螺钉 SM6.35-40X6 SET SCREW SM6.35-40X6 10 SB3769001 1 螺钉 SM7.14-28 SCREW SM7.14-28 11 014771032 1 固定螺钉 SM6.35-40X10 SET SCREW SOCKET SM6.35-40X10 12 SB3449001 1 绕线驱动轮 BOBBIN WINDER DRIVING WHEEL 13 014771032 4 固定螺钉 SM6.35-40X10 SET SCREW SOCKET SM6.35-40X10 14 SA145001 1 垫圈 WASHER 15 SB449001 1 上轴轮 UPPER SHAFT WHEEL 16 140004001 1 螺钉 SM3.57-40X7 SCREW, SM3.57-40X7 17 SA2422001 1 螺钉 SM3.57-40X6L SCREW, SM3.57L 18 SB3775001 1 挑线杆支撑轴 THREAD TAKE-UP SUPPORT SHAFT 19 SB3776001 1 紧圈 SET SCREW COLLAR 20 012400536 2 螺钉 M6X6 SET SCREW SOCKET (FT) M4X5 21 SA2161001 1 垫圈 WASHER 22 048060342 1 挡圈 E6 RETAINING RING E6 23 S32958000 1 油毡 WICK 24 SA8436001 1 油毡 FELT 25 01060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 26 SB3851201 1 上轴轴套 M组件 UPPER SHAFT BUSH M ASSY 27 SB3455201 1 上轴轴套 M UPPER SHAFT BUSH M 28 142274101 1 橡皮塞 4.2 RUBBER CAP, 4.2 29 101487000 2 油封 OIL SEAL 30 SB3782001 1 针杆轴套 U NEEDLE BAR BUSH U 31 140553102 1 固定螺钉 SM3.18 SET SCREW, SM3.18 32 SB3458001 1 针杆导向滑块 NEEDLE BAR GUIDE SLIDE BLOCK 33 151594001 1 针杆过线环 NEEDL BAR THREAD GUIDE 34+ 111859301 1 <用于-Π03> <For-Π03> 针板 E18 NEEDLE PLATE E18 34+ 145971101 1 <用于-Π03欧洲.-Π03A> <For-Π03 Europe, -Π03A> 针板 B18 NEEDLE PLATE B18 34+ 150792101 1 <用于-Π05> <For-Π05> 针板 H26 NEEDLE PLATE H26 35 SB4190001 2 螺钉 SM4.37-40X8 SCREW FLAT SM4.37-40X8 36 180018151 1 推板组件 SLIDE PLATE ASSY 37 114561001 1 推板簧 SPRING PLATE 38 SA9523001 2 螺钉 SM2.38 SCREW SM2.38 39 SB3977001 1 接头组件 JOINT ASSY 40 S23651001 4 固定螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 41+ 1 <用于-Π03.-Π03A> <For-Π03, -Π03A> 机针DBX1...(11) NEEDLE DBX1...(11) 41+ 1 机针DBX1...(14) NEEDLE DBX1...(14) 41+ 1 机针DPX5...(11) NEEDLE DPX5...(11) 41+ <用于-Π05> <For-Π05> 41+ 1 机针DBX1...(22) NEEDLE DBX1...(22) 41+ 1 机针DPX5...(22) NEEDLE DPX5...(22) S-7000DD-101 4 jintex.in

Page 10 — C. 压脚装置 / Presser foot mechanism

C. 压脚装置 / Presser foot mechanism 24 25 20 22 20 21 23 16 15 14 19 27 13 12 26 3 4 18 17 18 5 1 6 29 30 2 7+ 8+ 10 11 9 10 5 S-7000DD-201 jintex.in

Page 11 — C. 压脚装置 / Presser foot mechanism

C. 压脚装置 / Presser foot mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 111466121 1 压紧杆 PRESSER BAR 2 SB3785001 1 压紧杆轴套 PRESSER BAR BUSH 3 SB2267002 1 调压螺栓组件 PESSER ADJUSTING SCREW ASSY 4 SB3786001 1 弹簧导杆 SPRING GUIDE 5 141728001 1 压杆弹簧 PRESSER BAR SPRING 6 140407021 1 垫圈 WASHER <使用螺钉固定护指器> <Finger guard screwed type> 7+ 15037221 1 <用于-□03> 压脚组件 <For-□03> PRESSER FOOT ASSY 7+ 150789121 1 <用于-□05> 压脚组件 <For-□05> PRESSER FOOT ASSY 9 150384101 1 护指器 FINGER GUARD 11 025350132 1 平垫圈 S3.5 WASHER PLAIN S 3.5 <护指器一体式> <Finger guard integral type> <用于-□03、□03A> <For-□03, -□03A> PRESSER FOOT ASSY W/F-G 8+ S36902001 1 压脚组件 PRESSER FOOT ASSY W/F-G <用于-□05> <For-□05> 8+ S36903001 1 压脚组件 PRESSER FOOT ASSY W/F-G 10 S13385001 1 螺钉 SM3.57-40X10 SCREW, SM3.57-40X10 12 145580001 1 膝控提升左杠杆 LIFTER LEVER P-BAR 13 109763022 1 垫圈 WASHER 14 SA8152001 1 膝控提升短轴 PRESSER BAR LIFTER SHAFT 15 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 16 S02546402 1 松线架 TENSION RELEASE PLATE 17 S46736001 1 弹簧 W-CLAMP LIFTER LEVER SPRING 18 048040342 2 挡圈 E4 RETAINING RING E4 19 SB3463001 1 膝控连杆 KNEE LIFTER CONNECTING ROD 20 SB3878001 3 轴位螺钉 SM4.76 SHOULDER SCREW SOCKET SM4.76 21 SB3461001 1 膝控提升手杆 KNEE LIFTER LEVER 22 145480121 1 轴位螺钉 SM6.35 SHOULDER SCREW, SM6.35 23 SB3460001 1 膝控提升杆 KNEE LIFTER BAR 24 SB4016001 1 调整螺钉 6 ADJUSTING SCREW 6 25 021060306 1 六角螺母 M6 NUT 3 M6 26 S31006002 1 抬压脚扳手 LIFTING LEVER 27 S39051001 1 螺钉(带垫圈)M3.5X12 SCREW, PAN (S/P W) M3.5X12 28 S31952021 1 压紧杆扳手曲柄 PRESSER BAR LIFTER CRANK 29 SB4285001 1 压紧杆导架 PRESSER BAR GUIDE BRACKET 30 142403001 1 螺钉 SM5.95-28X10 BOLT, (CP) SM5.95-28X10 S-7000DD-201 6 jintex.in

Page 12 — D. 送料装置 / Feed mechanism

D. 送料装置 / Feed mechanism 7 S-7000DD-202 jintex.in

Page 13 — D. 送料装置 / Feed mechanism

D. 送料装置 / Feed mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1+ SB3465001 1 <用于-□03> <For -□03> 2+ SB3472001 1 偏心轮带螺钉 3 ECCENTRIC WHEEL W/S 3 3+ S02558201 1 针距标盘组件 3 STITCH LENGTH DIAL ASSY 3 1 拉簧 EXTENSION SPRING 1+ SB3467001 <用于-□03A, -□05> <For -□03A, -□05> 2+ SB3475001 1 偏心轮带螺钉 5 ECCENTRIC WHEEL W/S 5 3+ S03818101 1 针距标盘组件 5 STITCH LENGTH DIAL ASSY 5 1 拉簧 H EXTENSION SPRING, H 4 180322021 1 拾压叉组件 FEED LIFTING ARM ASSY 5 014771032 2 固定螺钉 SM6.35-40X10 SET SCREW SOCKET SM6.35-40X10 6 SA4494001 1 螺钉 SM4.76 SCREW SM4.76 7 108549001 1 O形圈 O RING 8 S02554021 1 送布连杆 LEVEL FEED CONNECTING ROD 9 156948021 1 送布连杆挡圈 HOLDER 10 108960002 2 螺钉 SM3.57 SCREW, FLAT SM3.57 11 SB3469001 1 轴用挡圈 C21 RETAINING RING EXTERNAL C21 12 SB2314001 1 垫圈 21.5X31.5 WASHER 21.5X31.5 13 SB3787001 1 切换器组件 LEVEL FEED REGULATOR ASSY 14 SB3788001 1 切换器 LEVEL FEED REGULATOR 15 156951021 2 曲柄连杆短销 FEED LINK STUD 16 014680632 2 螺钉 SM4.37-40X6 SET SCREW SOCKET SM4.37-40X6 17 156952021 1 曲柄连杆短销组件 FEED ROCKER LINK ASSY 18 156955021 2 曲柄长连杆 FEED ROCKER ARM LINK 19 156956021 1 曲柄长连杆销 LINK SHAFT 20 144458001 1 螺钉 SM3.57-40X4.5 SET SCREW SM3.57-40X4.5 21 156957120 1 送布曲柄 FEED ROCKER ARM 22 062711412 1 螺钉 SM4.76-32X14 SCREW PAN SM4.76-32X14 23 156958021 1 送布曲柄销 FEED ROCK ARM SHAFT 24 014680632 1 螺钉 SM4.37-40X6 SET SCREW SOCKET SM4.37-40X6 25 158021122 1 针距调节器连杆组件 F-REGULATOR CONNECT. ROD ASSY 26 156966121 1 偏心销 PIN 27 048060342 1 挡圈E6 RETAINING RING E6 28 120990001 1 螺钉 SM4.37-40X8 SET SCREW, (CP) SM4.37-40X8 29 SB3789001 1 切换器轴 L FEED REGULATOR SHAFT L 30 SB3790001 1 切换器轴 FEED REGULATOR SHAFT 31 118735002 1 垫圈 WASHER 32 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 33 156969121 1 针距座 FEED REGULATOR 34 SB3791001 1 送布调节器轴 FEED REGULATOR SHAFT 35 S02556021 1 垫圈 WASHER 36 048070342 1 挡圈 E7 RETAINING RING E7 37 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 38 SB3792001 1 连杆轴 12.5 STUD 12.5 39 SA4726001 1 固定螺钉 SM4.37-40X4 SET SCREW, SOCKET (CP) SM4.37 40 S02557120 1 倒缝操纵杆曲柄 LEVER 41 S07959001 1 螺钉 SM4.76-32X14 BOLT, SOCKET SM4.76-32X14 42 SB3792001 1 连杆轴 12.5 STUD 12.5 43 SA4726001 1 固定螺钉 SM4.37-40X4 SET SCREW, SOCKET (CP) SM4.37 44 SA8186002 1 倒缝拨手组件 REVERSE STITCHING LEVER ASSY 45 S02561021 1 拉簧销 SPRING HOOK PIN 46 SB3793001 1 倒缝拨手轴 SHAFT R-LEVER 47 147504221 1 挡圈 SPACER 48 025100132 1 平垫圈 S10 WASHER PLAIN S 10 49 048080342 1 挡圈 E8 RETAINING RING E8 50 S33680001 1 O型密封圈 O RING 51 062670712 3 螺钉 SM3.57-40X7 SCREW PAN SM3.57-40X7 52 S02562021 1 拉簧钉 SPRING HOOK 53 S02563001 1 复位簧 SPRING, EXTENSION 54 153132020 1 尼龙管 L=13.5 NYLON TUBE L=13.5 55 145502021 1 定位销 POSITIONING PIN 56 100328001 1 止动销弹簧 NOTCH SPRING S-7000DD-202 8

Page 14 — D. 送料装置 / Feed mechanism

D. 送料装置 / Feed mechanism 9 S-7000DD-202 jintex.in

Page 15 — D. 送料装置 / Feed mechanism

D. 送料装置 / Feed mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 57 SB3477101 1 水平送布轴 FEED ROCKER SHAFT 58 S31014020 1 轴套 19.3 BUSH 19.3 59 048150142 1 轴用挡圈 C15 RETAINING RING EXTERNAL C15 60 SB3870001 1 紧圈组件 SET SCREW COLLAR ASSY 61 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 62 156244020 1 牙架曲柄 FEED ROCKER BRACKET ARM 63 062681212 2 螺钉 SM4.37-40X12 SCREW PAN SM4.37-40X12 64 SB3794001 1 送布台组件 FEED BAR ASSY 65 S02573020 1 垫圈 WASHER 66 SB3464001 1 牙架销 FEED BAR STUD 67 158722021 1 垫圈 4.2 WASHER PLAIN 4.2 68 120990001 2 螺钉 SM4.37-40X8 SET SCREW, (CP) SM4.37-40X8 69+ 111860121 1 送布牙 <用于-□03> FEED DOG 69+ S02742001 1 送布牙 <用于-□03欧洲,-□03A> <For-□03 Europe, -□03A> FEED DOG 69+ 150793021 1 送布牙 <用于-□05> <For-□05> FEED DOG 70 100080004 2 螺钉 SM3.18-44X6.5 SCREW, SM3.18-44X6.5 71 SB3478101 1 抬牙轴 FEED LIFTING ROCKER SHAFT 72 S31014020 1 轴套 19.3 BUSH 19.3 73 048150142 1 轴用挡圈 C15 RETAINING RING EXTERNAL C15 74 SB3870001 1 紧圈组件 SET SCREW COLLAR ASSY 75 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 76 S02575020 1 抬牙曲柄 F-LIFTING ROCKER SHAFT CRANK 77 062711212 1 螺钉 SM4.76-32X12 SCREW PAN SM4.76-32X12 78 147509021 1 轴位螺钉 SM7.14 SHOULDER SCREW SM7.14 79 104689002 1 螺母 SM7.14 NUT 7.14 80 118758021 1 抬牙连杆 CONNECTING ROD, V-FEEDING 81 S057878121 1 倒缝操纵纵杆限位板 REVERSE STITCHING LEVER PLATE 82 100511123 1 螺钉 SM4.76 SCREW SM4.76 83 S04228001 1 针距座拉簧环 SPRING HOOK 84 062681412 1 螺钉 SM4.37-40X14 SCREW PAN SM4.37-40X14 85 156243021 1 送布轴轴套垫圈 THRUST RING 86 156243021 1 送布轴轴套垫圈 THRUST RING S-7000DD-202 10

Page 16 — E. 膝控提升装置 / Knee lifter mechanism

E. 膝控提升装置 / Knee lifter mechanism 1 2 3 4 5 6 7 8 9 11 S-7000DD-203

Page 17 — E. 膝控提升装置 / Knee lifter mechanism

E. 膝控提升装置 / Knee lifter mechanism 参照号 零部件序号 数量 NAME OF PARTS RM 1 SB3854001 1 膝控组件 KNEE LIFTER ASSY 2 SB1603001 1 膝块弯杆接头 KNEE LIFTER BRACKET 3 SB1604001 1 螺栓 M6X15 BOLT 6X15 4 SB1605001 1 螺栓 M6X24 BOLT 6X24 5 SB3480001 1 膝控弯管 KNEE LIFTER BAR 6 SB1607001 1 膝控滑块 KNEE LIFTER PLATE 7 SB1609001 1 膝块架 KNEE LIFTER PLATE STOPPER 8 SB1610001 1 螺栓 M6X12 BOLT 6X12 9 SB1611001 1 膝控滑块垫 KNEE LIFTER PLATE COVER S-7000DD-203 jintex.in 12

Page 18 — F. 倒缝装置 / Quick reverse mechanism

F. 倒缝装置 / Quick reverse mechanism 1 2 3 4 5 6 13 S-7000DD-205

Page 19 — F. 倒缝装置 / Quick reverse mechanism

F. 倒缝装置 / Quick reverse mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 SB4022001 1 倒缝电磁铁 QUICK REVERSE SOLENOID 2 S02600100 1 电磁铁拨叉 SOLENOID LEVER 3 S07959001 1 螺钉 SM4.76-32X14 BOLT, SOCKET SM4.76-32X14 4 062401216 3 螺钉 M4X12 SCREW PAN M4X12 5 SB3993001 1 电线导向 HARNESS HOLDER 6 062400616 1 螺钉 M4X6 SCREW PAN M4X6 S-7000DD-205 14 jintex.in

Page 20 — G. 旋梭装置 / Rotary hook mechanism

G. 旋梭装置 / Rotary hook mechanism 1 2 3 4 10 11 12 11 5 6 7 8 9 13 14 15 16 32 17 18 19 20 21 27 24 22+ 28 31 29 25 26 23+ 15 S-7000DD-301 jintex.in

Page 21 — G. 旋梭装置 / Rotary hook mechanism

G. 旋梭装置 / Rotary hook mechanism 参照号 零件序号 数量 零部件名称 NAME OF PARTS RM 1 SA8159001 1 上轴伞齿轮组件 UPPER SHAFT BEVEL GEAR ASSY 2 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 3 SA8160001 1 竖轴伞齿轮组件 U VERTICAL SHAFT BEVEL GEAR ASSY U 4 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 5 SA8161001 1 竖轴伞齿轮组件 D VERTICAL BEVEL GEAR ASSY D 6 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 7 SA8162001 1 下轴伞齿轮组件 LOWER SHAFT BEVEL GEAR ASSY 8 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 9 SB3490101 1 竖轴 VERTICAL SHAFT 10 142708120 1 竖轴上轴套 VERTICAL SHAFT BUSH, U 11 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 12 SB3856001 1 竖轴下轴套 VERTICAL SHAFT BUSH, D 13 SB3491001 1 旋梭轴 ROTARY HOOK SHAFT 14 SA9945201 1 油盖螺钉组件 SCREW CAP WHOLE ASSY 15 SB3493001 1 泵轴套 PUMP BUSH 16 SA9684001 1 油封 OIL SEAL 17 104520020 1 下轴右轴套 LOWER SHAFT BUSH, R 18 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 19 SB3796001 1 紧固组件 SET SCREW COLLAR ASSY 20 SB3797001 1 紧固 SET SCREW COLLAR 21 014770632 2 螺钉 SM6.35-40X6 SET SCREW SOCKET SM6.35-40X6 <For D03, D03A> 22+ S02602021 1 用于 D03, D03A 旋梭定位钩 HOOK STOPPER 23+ SB1305001 1 盒旋梭组件 SB3338 ROTARY HOOK ASSY W/BOX SB3338 24 146290021 1 梭芯 BOBBIN <For D05> 22+ 159324021 1 用于 D05 旋梭定位钩 HOOK STOPPER 23+ SB1677001 1 盒旋梭组件 SB1678 ROTARY HOOK ASSY W/BOX SB1678 24 117132001 1 梭芯 BOBBIN 26 SA8903001 1 螺钉 M4X12 SCREW M4X12 27 S06573001 1 梭心套组件 BOBBIN CASE ASSEMBLY 28 18338001 1 旋芯套调整簧片 TENSION SPRING 29 18338901 1 旋芯套调整螺钉 ADJUSTING SCREW 30 18339001 1 固定螺钉 SET SCREW 31 S06594001 1 空转防止弹簧 SPRING, ANTI-SPIN 32 S31027020 1 下轴中轴套 LOWER SHAFT BUSH, M S-7000DD-301 16 jintex.in

Page 22 — H.供油润滑装置 / Lubrication

H.供油润滑装置 / Lubrication 13 34 35 36 30 1 2 38 12 11 14 22 25 24 27 26 23 18 17 29 28 19 15 16 39 55 54 31 30 33 32 37 44 52 49 53 56 46 45 47 51 50 48 57 58 42 43 41 40 57 57 17 S-7000DD-350 jintex.in

Page 23 — H. 供油润滑装置 / Lubrication

H. 供油润滑装置 / Lubrication 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 S02606020 1 油窗 OIL GAUGE WINDOW 2 081014670 1 O形圈 PW14 O RING PW14 3 SB3524001 1 油线夹组件 U WICK HOLDER U ASSY 4 SB3500001 1 油线 2X2 WICK 2X2 5 062670616 2 螺钉 SM3.57-40X6 SCREW PAN SM3.57-40X6 6 SA8167101 1 油线夹组件 D WICK HOLDER D ASSY 7 SA8169001 1 油线 WICK 8 SB3501001 1 油管组件 TUBE ASSY 9 SB3502001 1 油线 2X2 WICK 2X2 10 SB3857001 1 维尼龙管 L=95 VINYL TUBE L=95 11 SB3503001 1 油线挡板 OIL STOPPER PLATE 12 SB3504001 1 油线挡板支架 OIL STOPPER PLATE SUPPORT 13 062401616 2 螺钉 M4X16 SCREW PAN M4X16 14 SB4015001 1 油封 OIL SEAL 15 SB4527101 1 调节螺钉 ADJUSTING SCREW 16 081004870 1 O形圈 S4 O RING S4 17 107155001 1 油毡 FELT 18 SB3505001 1 油线 WICK 19 S40016001 1 油管 2X25 OIL TUBE 2X25 20 SB3507001 1 维尼龙管 VINYL TUBE 21 SB3992001 1 油管导向 TUBE GUIDE 22 S25382001 1 供油口 OIL FEEDING PIPE 23 S38769000 1 油毡 FELT 24 SB3512001 1 油线 WICK 25 SB3511001 1 维尼龙管 VINYL TUBE 26 145737021 1 滤油毡压簧 FELT SUPPORT 27 081004070 1 O形圈 P4 O RING P4 28 S43669000 1 油线 8L=320 WICK, 8 L=320 29 SB3514001 1 油线 4X4 WICK 4X4 30 144875001 2 柱塞 PLUNGER 31 SB3496001 1 泵盖螺钉组件 CAP SCREW PUMP ASSY 32 SB3985001 1 泵盖螺钉 CAP SCREW PUMP 33 S52764001 1 弹簧 SPRING COMPRESSION 34 SB3522001 1 泵盖螺钉组件 PUMP CAP SCREW ASSY 35 SB3523001 1 泵盖螺钉 CAP SCREW PUMP 36 S52764001 1 弹簧 SPRING COMPRESSION 37 104821001 1 橡皮塞 10.5 RUBBER CAP, 10.5 38 SB2407001 1 橡皮塞 6.4 RUBBER CAP 6.4 39 S25382001 1 供油口 OIL FEEDING PIPE 40 SB3554201 1 油盖组件 OIL COVER ASSY 41 SB3515001 1 油盖 OIL COVER 42 SB4447101 1 供油口 12.2 OIL FEEDING PIPE 12.2 43 SB3517001 1 膝控提升杆橡皮塞 KNEE LIFTER BAR RUBBER CAP 44 SB3526101 1 油箱总组件 OIL TANK UNIT 45 S25382001 1 供油口 OIL FEEDING PIPE 46 SA8989001 2 供油口 OIL FEEDING PIPE 47 081006670 1 O形圈 PW6 O RING PW6 48 SA8987001 1 过滤毡 FILTER 49 SB4447101 1 供油口 12.2 OIL FEEDING PIPE 12.2 50 SA1303101 1 螺钉 M8 SCREW M8 51 081008070 1 O形圈 P8 O RING P8 52 SA8991001 1 橡皮塞35-12 RUBBER CAP 35-12 53 SB3508001 1 维尼龙管 VINYL TUBE 54 SB3509001 1 维尼龙管 VINYL TUBE 55 SB4037001 1 维尼龙管 VINYL TUBE 56 104450101 1 橡皮塞 8 RUBBER CAP, 8 57 0A4501206 5 螺钉(带垫圈) M5X12DA SCREW PAN (S/P WASHER) M5X12 58 SB4448101 1 油盖垫片 OIL COVER PACKING S-7000DD-350 18 jintex.in

Page 24 — J. 穿线装置 / Threading mechanism

J. 穿线装置 / Threading mechanism 19 S-7000DD-401 jintex.in

Page 25 — J. 穿线装置 / Threading mechanism

J. 穿线装置 / Threading mechanism 参照号 零件序号 数量 零部件名称 NAME OF PARTS RM 1 SB3483001 1 小夹线组件 PRE-TENSION ASSY 2 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 3 SB3595001 1 穿线杆 SPOOL PIN 4 SA8178001 1 松线杆 TENSION RELEASE STUD 5 SB3530001 1 线导向 ARM THREAD GUIDE 6 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 7 SA1345001 1 机壳导向R ARM THREAD GUIDE, R 8 060500616 1 螺钉 M5X6 SCREW BIND M5X6 9 SA9854001 1 机线杆防护罩 THREAD TAKE-UP LEVER COVER 10 SB0544001 1 止动圈 WASHER 11 062500816 1 螺钉 M5X8 SCREW PAN M5X8 12 S02617001 1 面板线钩 FACE PLATE THREAD GUIDE 13 060350616 1 螺钉 M3.5X6 SCREW BIND M3.5X6 14 SB3798001 1 线导向 THREAD GUIDE D 15+ SB3572001 1 夹线器组件 <用于-[]03, -[]03A> THREAD TENSION BRACKET ASSY 15+ 104525102 1 夹线弹簧 TENSION SPRING 15+ SB3574001 1 夹线器组件 <用于-[]05> THREAD TENSION BRACKET ASSY 16+ S04632102 1 夹线弹簧 TENSION SPRING 17 116922101 1 夹线螺杆 TENSION STUD 18 145446021 2 夹线盘 DISC TENSION 19 SB3618001 1 压线圈 TENSION DISC PRESSER 20 SB4216001 1 止动圈 WASHER 21 SB4038001 1 夹线螺母 TENSION NUT 22 SB1600001 1 夹线器基座 THREAD TENSION BRACKET 23 100402004 1 固定螺钉 SM3.57 SET SCREW SM3.57 24 S02620401 1 挑线弹簧 THREAD TAKE-UP SPRING 25 SA1229101 1 螺钉 M6X6 SET SCREW (FT) M6X6 26 150551020 1 松线销 TENSION RELEASE PIN S-7000DD-401 20

Page 26 — K. 绕线装置 / Bobbin winder mechanism

K. 绕线装置 / Bobbin winder mechanism 1 2 3 4 5 21 S-7000DD-402 jintex.in

Page 27 — K. 绕线装置 / Bobbin winder mechanism

K. 绕线装置 / Bobbin winder mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SB3529101 1 绕线器组件 BOBBIN WINDER UNIT 2 SB3571101 1 绕线器夹线组件 BOBBIN WINDER TENSION ASSY 3 SA1360101 1 切刀 KNIFE 4 062500616 1 螺钉 M5x6 SCREW PAN M5x6 5 SB3619001 1 固定螺钉 BOBBIN WINDER FIXED SCREW S-7000DD-402 22 jintex.in

Page 28 — L. 切线装置 / Thread trimmer mechanism

L. 切线装置 / Thread trimmer mechanism 49 50 51 8 12 13 48 9 11 10 20 23 22 16 3 17 21 4 19 2 5 18 1 6 7 15 14 27 33 32 31 43 44 34 37 36 25 39 40 35 24 53 54 42 47 46 26 30 29 28 55 52 45 41 38 23 S-7000DD-403 jintex.in

Page 29 — L. 切线装置 / Thread trimmer mechanism

L. 切线装置 / Thread trimmer mechanism 参照号 零件部件号 数量 零件部件名称 NAME OF PARTS RM 1 S00337021 1 切线凸轮 THREAD TRIMMER CAM 2 014771032 2 固定螺钉 SM6.35-40X10 SET SCREW SOCKET SM6.35-40X10 3 S02637101 1 固定刀 FIXED KNIFE 4 102843004 1 平头螺钉 SM3.57 SCREW, FLAT SM3.57 5 S02643001 1 分线器 LOWER THREAD FINGER 6 100645003 1 垫圈 WASHER 7 062400616 1 螺钉 M4X6 SCREW PAN M4X6 8 SB3556001 1 刀架 MOVABLE KNIFE HOLDER 9 SB3799001 1 刀架压板组件 KNIFE HOLDER PRESSER ASSY 10 100645003 2 垫圈 WASHER 11 060401216 2 螺钉 M4X12 SCREW BIND M4X12 12 S02645001 1 动刀 MOVABLE KNIFE 13 148537101 1 螺钉 SM4.37 SCREW, FLAT (W/SOCKET) SM4.37 14 SB3557001 1 切线连接杆 THREAD TRIMMER CONNECTING ROD 15 151987022 2 轴位螺钉 SM4.37 SHOULDER SCREW, SM4.37 16 105234003 1 螺母 SM4.37 NUT SM4.37 17 SB3558001 1 切线手柄 THREAD TRIMMER LEVER 18 SA7285101 1 手柄定位 LEVER STOPPER 19 062501416 1 螺钉 M5X14 SCREW PAN M5X14 20 SB3559001 1 弹簧 SPRING EXTENSION 21 SB3802001 1 切刀驱动曲柄轴 FORKED SHAFT 22 S02648021 1 曲柄轴套 COLLAR 23 SB3803001 1 叉轴轴套 FORKED SHAFT BUSH 24 SB3853001 1 切线凸轮杆组件 THREAD TRIMMER CAM LEVER UNIT 25 SB3853001 1 切线凸轮杆组件 THREAD TRIMMER CAM LEVER ASSY 26 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 27 154593321 1 切线驱动轴 THREAD TRIMMER CAM LEVER SHAFT 28 154594020 1 挡圈 COLLAR 29 S25434000 1 橡胶垫圈 RUBBER CUSHION 30 154595001 1 切线凸轮复位弹簧 SPRING, EXTENSION 31 154596000 1 减震垫圈 CUSHION 32 110367001 1 垫圈 WASHER, PLAIN SPECIAL 8 33 048060342 1 挡圈 E6 RETAINING RING E6 34 SB3563001 1 切线电磁铁组件 THREAD TRIMMER SOLENOID ASSY 35 SB3568001 1 切线电磁铁 THREAD TRIMMER SOLENOID 36 SB3569001 1 电磁铁安装板 SOLENOID BASE 37 062400816 4 螺钉 M4X8 SCREW PAN M4X8 38 026050136 1 平垫圈 S5 WASHER PLAIN S5 39 SB3564001 1 电磁铁杆 SOLENOID LEVER 40 SA9716001 1 销 PIN 41 048050142 1 轴用挡圈 C5 RETAINING RING EXTERNAL C5 42 062501016 2 螺钉 M5X10 SCREW PAN M5X10 43 SB3565001 1 电磁铁杆定位板 SOLENOID STOPPER 44 062400816 2 螺钉 M4X6 SCREW PAN M4X6 45 SB3566001 1 轴位螺钉 M6 SHOULDER SCREW M6 46 15559021 1 平垫圈 WASHER PLAIN 47 SB3567001 1 橡胶塞 25.5 RUBBER CAP 25.5 48 SA1388101 1 线夹 CORD HOLDER 49 A10369001 1 插头 5557-12R CONNECTOR 5557-12R 50 SB4490001 1 插头套 SOLENOID CONNECTOR CAP 51 060400616 3 螺钉 M4X6 SCREW BIND M4X6 52 S04159000 3 线夹 1M BAND 1M 53 SB3804001 1 滚轮轴 C ROLLER SHAFT C 54 SB3805001 1 滚轮 ROLLER 55 105234003 1 螺母 SM4.37 NUT SM4.37 S-7000DD-403 24 jintex.in

Page 30 — M. 松线装置 / Tension release mechanism

M. 松线装置 / Tension release mechanism 1 2 6 5 3 4 25 jintex.in S-7000DD-404

Page 31 — M. 松线装置 / Tension release mechanism

M. 松线装置 / Tension release mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SB3576001 1 松线钢绳 TENSION RELEASE WIRE 2 SB3877001 2 螺母 SM4.76 NUT SM4.76 3 SB3999101 1 钢绳固定板 WIRE HOLDER 4 062400616 1 螺钉 M4X6 SCREW PAN M4X6 5 SB3575001 1 钢绳导向板 WIRE HOLDER 6 062400616 4 螺钉 M4X6 SCREW PAN M4X6 S-7000DD-404 26 jintex.in

Page 32 — Thread wiper mechanism (-40[]or option parts)

N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[]or option parts) 2 9 10 11 3 4 31 23 25 24 1 15 16 12 8 7 15 16 5 14 13 6 14 17 19 18 27 26 32 22 20 21 30 29 28 27 S-7000DD-405 jintex.in

Page 33 — N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[] or option parts)

N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[] or option parts) 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SB4310001 1 扫线装置组件 THREAD WIPER DEVICE ASSY 2 SB4201001 1 挡线电磁铁 THREAD WIPER SOLENOID 3 SA9771001 1 挡线弹簧 THREAD WIPER SPRING 4 S41205001 1 平垫圈 WASHER, PLAIN 5 SB0609001 1 电磁铁安装板 SOLENOID SETTING PLATE 6 062301016 2 螺钉 M3X10 SCREW PAN M3X10 7 140647121 1 电线固定夹 CORD HOLDER 8 062300616 1 螺钉 M3X6 SCREW PAN M3X6 9 S33610122 1 电磁铁罩 SOLENOID COVER 10 060400616 1 螺钉 M4X6 SCREW BIND M4X6 11 S25456021 2 柱塞销 PLUNGER PIN 12 SB0611001 2 垫圈 SPACER 13 SB0610001 1 电磁铁安装架 SOLENOID SETTING BASE 14 062681012 2 螺钉 SM4.37-40X10 SCREW PAN SM4.37-40X10 15 062400616 2 螺钉 M4X6 SCREW PAN M4X6 16 026040236 2 平垫圈 M4 WASHER PLAIN M4 17 S02672022 1 挡线轴架 THREAD WIPER SUPPORT 18 S25452021 1 挡线曲柄轴组件 THREAD WIPER CRANK ASSY 19 048040342 1 挡圈 E4 RETAINING RING E4 20 S25454021 1 螺纹紧圈 SET SCREW COLLAR 21 S25279101 1 螺钉 M3.5-5 SET SCREW (CP) M3.5-5 22 S02678001 1 挡线弹簧 WIPER SPRING 23 SA8189001 1 挡线连杆 THREAD WIPER LINK 24 110735022 1 垫圈 WASHER 25 048030342 1 挡圈 E3 RETAINING RING E3 26 S59890001 2 螺栓 SM4.37-40X8 BOLT, SOCKET SM4.37-40X8 27 S02681101 1 挡线钩 THREAD WIPER 28 060400516 1 螺钉 M4X5 SCREW BIND M4X5 29 14628021 1 挡线轴挡圈 THREAD WIPER STUD COLLAR 30 025750132 1 平垫圈 S 5.56 WASHER PLAIN S 5.56 31 S41207000 1 橡皮垫圈 SPACER RUBBER 32 149097000 1 消音垫 SILENT SHEET S-7000DD-405 28 jintex.in

Page 34 — P1. 控制箱 / Control box

P1. 控制箱 / Control box < 用于欧洲 / For Europe > 29 35 28 27 32 31 33 34 30 1, 2, 3, 4 6 7 10 11 9 12 6 13 22 21 5+ 15 16 18 14 14 26 8 17+ 23 20 19 24 25 S-7000DD-502 jintex.in

Page 35 — P1. 控制箱 / Control box

P1. 控制箱 / Control box 参照号 零件部件号 数量 零件部件名称 NAME OF PARTS RM 1 SB4580001 <用于中国> 1 备用7000DD控制箱组件 CN <For China> 7000DD BOX ASSY CN SUPPLY 2 SB4581001 <用于一般出口> 1 备用7000DD控制箱组件 EX <For General> 7000DD BOX ASSY EX SUPPLY 3 SB4582001 <用于美洲> 1 备用7000DD控制箱组件 US <For the Americas> 7000DD BOX ASSY US SUPPLY 4 SB4583001 <用于欧洲> 1 备用7000DD控制箱组件 CE <For Europe> 7000DD BOX ASSY CE SUPPLY 5+ SB4584001 <用于中国> 1 备用主基板组件 CN <For China> MAIN PCB ASSY CN SUPPLY 5+ SB4585001 <用于中国以外> 1 备用主基板组件 EX <Except for China> MAIN PCB ASSY EX SUPPLY 6 149578020 2 轴套 BUSH 7 SB3584001 1 膝控 KNEE LIFTER 8 SB3585001 1 膝控横轴 KNEE LIFTER SHAFT 9 SB3586001 1 螺钉 SM5.95 BOLT SM5.95 10 SB3587001 1 固定螺钉 SM5.95 SET SCREW SM5.95 11 100022004 1 螺母 SM5.95 NUT SM5.95 12 SB3588001 1 复位弹簧 TWIST SPRING 13 146293001 1 挡圈 E10 RETAINING RING E10 14 0A4400806 2 螺钉(带垫圈) M4X8DA SCREW PAN (S/P WASHER) M4X8 15 0A4400806 2 螺钉(带垫圈) M4X8DA SCREW PAN (S/P WASHER) M4X8 16 0A4400806 1 螺钉(带垫圈) M4X8DA SCREW PAN (S/P WASHER) M4X8 17+ SB3816101 <用于中国> 1 踏板控制器组件 CN <For China> TREADLE UNIT CN 17+ SB3817201 <用于一般出口> 1 踏板控制器组件 EX <For General> TREADLE UNIT EX 17+ SB4587101 <用于美洲和欧洲> 1 踏板控制器组件 US <For the Americas and Europe> TREADLE UNIT US 18 0A5501206 4 螺钉(带垫圈) M5X12 SCREW PAN (S/P WASHER) M5X12 19 0A5501206 4 螺钉(带垫圈) M5X12 SCREW PAN (S/P WASHER) M5X12 20 SB3589001 1 箱盖 BOX COVER 21 0A4400806 1 螺钉(带垫圈) M4X8DA SCREW PAN (S/P WASHER) M4X8 22 S37060001 1 接地标记 LABEL, GROUNDING 23 SA9725001 1 感电标签 36 X 150 LABEL ELECTRICAL SHOCK 36X150 24 SB3872001 1 箱盖销 BOX COVER PIN 25 SB4155001 1 线夹 BAND 26 SB0827001 1 高温标志 HIGH TEMP LABEL 27 SA9564001 <用于欧洲> 1 CE 滤波器座 <For Europe> CE FILTER CASE 28 SA9565001 1 CE滤波器基板组件 CE FILTER PCB ASSY 29 032461606 4 木螺钉 M4.5X16 WOOD SCREW ROUND 2 M4.5X16 30 200190001 5 U形卡钉 STAPLE 10X20 31 S52164000 2 衰减器 NFC-28 CORE: NFC-28 32 0A5401605 2 螺钉(带垫圈) M4X16 SCREW PAN (S/P WASHER) M4X16 33 025040236 2 平垫圈 M4 WASHER PLAIN M4 34 021400106 2 六角螺母 M4 NUT 1 M4 35 SA9559001 1 CE滤波器组件 CE FILTER BOX ASSY S-7000DD-502 30 Jinttex.in

Page 36 — P2. 控制箱 / Control box

P2. 控制箱 / Control box < 用于美洲 / For the Americas > 9 8 7 1+ < 用于单相100V / 110V For Single phase 100V / 110V > 3 brother 5 6 2+ < 用于三相380V / 400V For Three phase 380V / 400V > 9 8 4 brother 5 6 31 S-7000DD-502 jintex.in

Page 37 — P2. 控制箱 / Control box

P2. 控制箱 / Control box 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1+ BMP3010-000000-AST1 1 <用于100V> 变压器箱 <For 100V> TRANSFORMER BOX 1+ BMP3010-000000-2ST1 1 <用于110V> 变压器箱 <For 110V> TRANSFORMER BOX 2+ BMP3010-000000-3ST4 1 <用于380V> 变压器箱 <For 380V> TRANSFORMER BOX 2+ BMP3010-000000-4ST4 1 <用于400V> 变压器箱 <For 400V> TRANSFORMER BOX 3 SA9923001 1 <用于单相 100V/110V> 变压器 100/110/220V <For Single phase 100V/110V> TRANSFORMER 100/110/220V 4 SA9901001 1 <用于三相 380V/400V> 变压器 400/230V <For Three phase 380V/400V> TRANSFORMER 400/230V 5 SA9896001 1 变压器罩盖 TR BOX COVER 6 SA9914001 1 感电标签 25 X 28 LABEL ELECTRICAL SHOCK 25X28 7 SA9831001 1 <电源开关组件 SJT#2 <For the Americas> POWER SWITCH ASSY SJT#2 8 032461606 2 木螺钉 M4.5X16 WOOD SCREW ROUND 2 M4.5X16 9 200190001 5 U形卡钉 STAPLE 10X20 S-7000DD-502 jintex.in 32

Page 38 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Q. 倒缝开关装置 / Quick reverse switch mechanism 33 S-7000DD-508 jintex.in

Page 39 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Q. 倒缝开关装置 / Quick reverse switch mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 SB4086001 1 LED倒缝开关组件 LED REVERSE SW ASSY 2 062670612 2 螺钉 SM3.57-40X6 SCREW PAN SM3.57-40X6 3 SA8193001 2 电线夹 U2 CORD HOLDER U2 4 062670612 2 螺钉 SM3.57-40X6 SCREW PAN SM3.57-40X6 5 SB2408101 2 电线夹 CORD HOLDER S-7000DD-508 34 jintex.in

Page 40 — R. 电气部品 / Power supply equipment

R. 电气部品 / Power supply equipment < 用于欧洲和美洲以外 / Except for Europe and the Americas > 1 < 用于欧洲和美洲 / For Europe and the Americas > 2 5 4 3 35 jintex.in S-7000DD-515

Page 41 — R. 电气部品 / Power supply equipment

R. 电气部品 / Power supply equipment 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 SB3834001 1 <用于欧洲和美洲以外> 马达罩盖组件 <Except for Europe and the Americas> MOTOR COVER ASSY 2 SB3620001 1 <用于欧洲和美洲> 马达罩盖 EX <For Europe and the Americas> MOTOR COVER EX 3 SB3621001 1 接地线 GROUND WIRE 4 0A4400806 1 螺钉(带垫圈) M4X8DA SCREW PAN (S/P WASHER) M4X8 5 0A4501606 4 螺钉(带垫圈) M5X16DA SCREW PAN (S/P WASHER) M5X16 S-7000DD-515 jintex.in 36

Page 42 — S. 马达装置和操作盘 / Motor mechanism and operation panel

S. 马达装置和操作盘 / Motor mechanism and operation panel 10 8 6 16 7 15 1 2 3 5 6 16 4 9 11 14 13 POWER FUNC ENTER SEL 37 jintex.in S-7000DD-650

Page 43 — S. 马达装置和操作盘 / Motor mechanism and operation panel

S. 马达装置和操作盘 / Motor mechanism and operation panel 参照号 零件序号 数量 零部件名称 NAME OF PARTS RM 1 SB4311001 1 备用马达(7000DD)组件 MOTOR 7000DD SUPPLY 2 SB3609001 1 传感器组件 RESOLVER STATOR ASSY 3 0A4301206 3 螺钉(带垫圈) M3X12DA SCREW PAN (S/P WASHER) M3X12 4 SB2315001 1 上带轮保持架组件 PULLEY HOLDER ASSY 5 012501032 2 螺钉 M5X10 SET SCREW SOCKET (FT) M5X10 6 SB2317001 2 线夹 CORD HOLDER 7 0A4400806 1 螺钉(带垫圈) M4X8DA SCREW PAN (S/P WASHER) M4X8 8 SB0827001 1 高温标志 HIGH TEMP LABEL 9 SB3247001 1 传感器罩 RESOLVER COVER 10 0A4501606 3 螺钉(带垫圈) M5X16DA SCREW PAN (S/P WASHER) M5X16 11 SB4154001 1 上轮 PULLEY 12 060501016 3 螺钉 M5X10 SCREW BIND M5X10 13 SB3652201 1 操作盘组件 PANEL ASSY 14 SB3655001 2 操作盘支座 PANEL SUPPORT 15 012500536 2 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 16 0A4300806 4 螺钉(带垫圈) M3X8DA SCREW PAN (S/P WASHER) M3X8 S-7000DD-650 38

Page 44

Z. 附件 / Accessories <选项件 / Option parts > 39 S-7000DD-910 jintex.in

Page 45 — Z. 附件 / Accessories

Z. 附件 / Accessories 参照号 零件号 数量 零件名称 NAME OF PARTS RM 1 146290021 1 <用于-[]03,-[]03A> 1 梭芯 BOBBIN 2 117132001 1 <用于-[]05> 1 梭芯 BOBBIN 3 SB3622001 1 橡胶铰链组件 RUBBER HINGE ASSY 4 SB3627001 2 机头铰链 HEAD HINGE 5 SB3628001 2 机头铰链套 RUBBER CUSHION 6 SB3623101 2 头部防震垫 HEAD CUSHION 7 109714020 4 钉 NAIL 8 SB4018101 2 头部防震垫 HEAD CUSHION 9 SB3629001 1 机头撑杆 S HEAD REST S 10 SA8239201 1 油壶组件 OIL TANK ASSY 11 SB1270001 1 油壶警示标贴 英文 OIL WARNING LABEL EN 12 SB1271001 1 油壶警示标贴 日文 OIL WARNING LABEL JP 13 SB3876001 1 机头罩 HEAD COVER 14 SB3928001 1 线架组件 2DR COTTON STAND ASSY 2DR 15 S51283001 2 垫圈 SPOOL STAND BASE 16 SB4114001 2 线盘软垫 SPOOL MAT 17 S51282101 2 线轴缓冲架 SPOOL CUSHION 18 150179023 2 线轴B SPOOL SHAFT B 19 SB4117001 2 弹簧垫圈 2-5 WASHER SPRING 2-5 20 SB4119001 2 螺母 M5 NUT M5 21 SA6607001 2 过线架 2 SPOOL HOLDER 2 22 150183000 2 过线管套 THREAD HANGER BASE 23 142990001 2 过线架上过线管 THREAD BUSH 24 SA6609001 2 过线架定位 SPOOL HOLDER SUPPORTER 25 062061603 2 螺钉 M6X16 SCREW PAN M6X16 26 S02747101 1 弹簧 SPRING 27 SB3625001 1 螺栓组件 BOLT SQUARE ASSY 28 SB3626001 4 螺栓 M8X46 BOLT M8X46 29 SB4243001 4 平垫圈 L8 WASHER PLAIN L 8 30 028080242 4 弹簧垫圈 2-8 WASHER SPRING 2-8 31 021080202 4 螺母 M8 NUT 2 M8 32 S40765001 1 <选购件> <Option parts> 连接杆组件 CONNECTING ROD ASSY 33 021060106 2 螺母 M6 NUT 1 M6 34 017081606 2 六角螺栓 M8X16 BOLT M8X16 35 021080106 2 六角螺母 M8 NUT 1 M8 36 S36119021 2 螺母 M6 NUT 1 M6 37 S36121021 2 弹簧垫圈 2-6 WASHER SPRING 2-6 S-7000DD-910 40

Page 46 — Wa. 警告标签 / Warning labels

Wa. 警告标签 / Warning labels 警告标签 / Warning labels 零部件名称 / Name of parts 尺寸/ Size(mm) 零部件序号/ Code 危险 危险 ▲ DANGER ▲ GEFAHR ▲ DANGER ▲ PELIGRO Hazardous voltage will Hochspannung verletzungsgefahr! Un voltage non adapte provoque Un voltaje inadecuado puede cause injury.Turn off main Bitte schalten sie den hauptschalter des blessures.Eteindre provocar las heridas.Apagar el switch and wait 5minutes aus und warten sie 5 minuten, l'interrupteur et attendre 5 interruptor principal y esperar 5 before opening this cover. bevor sie diese abdeckung öffnen. minutes avant d'ouvrir le capot. minutos antes de abrir esta cubierta. 感电标签 36 X 150 Label electrical shock 36 X 150 SA9725-001 36 X 150 感电标签 25 X 28 Label electrical shock L=28.4 SA9914-001 25 X 28 操作注意事项标签 Label caution 56 X 43 SA9826-001 警告标记 Injury mark L=16 SA9957-001 警告标记 Injury mark L=25 SA9957-002 高温标签 High temp label L=16 SB0827-001 接地标记 Label, grounding Φ 12 S37060-001 41 S-7000DD-Wa jintex.in

Page 47 — 警告标签 / Warning labels

Wa. 警告标签 / Warning labels 警告标签 / Warning labels brother ミシン用潤滑油 ▲注意 目に入ったり皮膚につくと、 炎症を起こすことがある。 保護めがね、手袋を使 うこと。 飲み込むと、下痢、嘔吐する。 飲み込まないこと。 ●子供の手の届かない所に 置いてください。 ●目に入った場合は、清浄な 水で15分間洗浄し、医師の 診断を受けてください。 ●皮膚に触れた場合は、水と 石けんで十分に洗ってください。 ●飲み込んだ場合は、無理に 吐かせずに、直ちに医師の 診断を受けてください。 第4類 危険等級III 第3石油類 火気厳禁 brother Lubricating Oil for Machining ▲CAUTION Lubricating oil may cause inflammation to eye and skin. Wear protective glasses and gloves. Swallowing oil can cause diarrhoea and vomiting. Do not swallow. Keep away from children. FIRST AID Eye contact: -Rinse with plenty of cold water. -Seek medical help. Skin contact: -Wash with soap and water. If swallowed: -Seek medical help immediately. 尺寸/ Size(mm) 68 X 30 油壺警示标贴 日文 Oil warning label JP 零件序号/ Code SB1271-001 尺寸/ Size(mm) 68 X 30 油壺警示标贴 英文 Oil warning label EN 零件序号/ Code SB1270-001 S-7000DD-Wa jintex.in 42

Page 48 — Ga. 工模具一览表 / Gauge parts list

Ga. 工模具一览表 / Gauge parts list 规格 / Specification 出口国 / Destination 针板 / Needle plate 送布牙 / Feed dog 压脚组件 / Presser foot assy 记号 / Mark -03 一般出口国,美洲,中国 / For General export, the Americas & China 欧洲 / For Europe E18 111859301 111860121 153037221 B18 无倒角 145971101 S02742001 S36902001 -03A 中国 / For China B18 145971101 S02742001 S36902001 -05 一般出口国,美洲,中国 / For General export, the Americas & China 欧洲 / For Europe H26 150792101 150793021 150789121 H26 150792101 150793021 S36903001 S-7000DD-Ga 43 jintex.in

Page 50 — 索 引 / Index

索 引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S02747101 Z - 26 40 SA8145001 B - 14 4 SB2314001 D - 12 8 SB3563001 L - 34 24 S03818101 D - 3+ 8 SA8152001 C - 14 6 SB2315001 S - 4 38 SB3564001 L - 39 24 S04159000 L - 52 24 SA8159001 G - 1 16 SB2317001 S - 6 38 SB3565001 L - 43 24 S04228001 D - 83 10 SA8160001 G - 3 16 SB2407001 B - 8 4 SB3566001 L - 45 24 S04632102 J - 16+ 20 SA8161001 G - 5 16 SB2408101 H - 38 18 SB3567001 L - 47 24 S06573001 G - 27 16 SA8162001 G - 7 16 SB3247001 S - 9 38 SB3568001 L - 35 24 S06594001 G - 31 16 SA8167101 H - 6 18 SB3247001 S - 9 38 SB3569001 L - 36 24 S07959001 D - 41 8 SA8169001 H - 7 18 SB3433001 A - 4 2 SB3571101 K - 2 22 S13385001 C - 10 6 SA8178001 J - 4 20 SB3434001 A - 5 2 SB3572001 J - 15+ 20 S23651001 B - 40 4 SA8186002 D - 44 8 SB3435001 A - 15 2 SB3574001 J - 15+ 20 S25279101 N - 21 28 SA8189001 N - 23 28 SB3436001 A - 16 2 SB3575001 M - 5 26 S25382001 H - 22 18 SA8193001 Q - 3 34 SB3437001 A - 17 2 SB3576001 M - 1 26 S25434000 L - 29 24 SA8239201 Z - 10 40 SB3440001 A - 1 2 SB3584001 P1 - 7 30 H - 45 18 SA8436001 B - 24 4 SB3441001 A - 2 2 SB3585001 P1 - 8 30 S25452021 N - 18 28 SA8900001 G - 26 16 SB3442001 A - 11 2 SB3586001 P1 - 9 30 S25454021 N - 20 28 SA8987001 H - 48 18 SB3445001 B - 1+ 4 SB3587001 P1 - 10 30 S25456021 N - 11 28 SA8989001 H - 46 18 SB3446201 B - 7 4 SB3588001 P1 - 12 30 S31006002 C - 26 6 SA9523001 B - 38 4 SB3447001 B - 2+ 4 SB3589001 P1 - 20 30 S31014020 D - 58 10 SA9559001 P1 - 35 30 SB3449001 B - 12 4 SB3595001 J - 3 20 D - 72 10 SA9564001 P1 - 27 30 SB345201 B - 27 4 SB3609001 S - 2 38 S31027020 G - 32 16 SA9565001 P1 - 28 30 SB3458001 B - 32 4 SB3618001 J - 19 20 S31952021 C - 28 6 SA9684001 G - 16 16 SB3460001 C - 23 6 SB3619001 K - 5 22 S32958000 B - 23 4 SA9716001 L - 40 24 SB3461001 C - 21 6 SB3620001 R - 2 36 S33610122 N - 9 28 SA9725001 P1 - 23 30 SB3463001 C - 19 6 SB3621001 R - 3 36 S33680001 D - 50 8 Wa 41 SB3464001 D - 66 10 SB3622001 Z - 3 40 S36119021 Z - 36 40 SA9771001 N - 3 28 SB3465001 D - 1+ 8 SB3623101 Z - 6 40 S36121021 Z - 37 40 SA9826001 A - 20 2 SB3469001 D - 11 8 SB3625001 Z - 27 40 S36902001 C - 8+ 6 Wa 41 SB3472001 D - 2+ 8 SB3626001 Z - 28 40 S36902001 C - 8+ 6 SA9831001 P2 - 7 32 SB3475001 D - 2+ 8 SB3627001 Z - 4 40 S37060001 P1 - 22 30 SB3477101 D - 57 10 SB3629001 Z - 9 40 Ga 43 SA9896001 P2 - 5 32 SB3478101 D - 71 10 SB3652201 S - 13 38 S37060021 A - 21 2 SA9901001 P2 - 4 32 SB3480001 E - 5 12 SB3655001 S - 14 38 Wa 41 SA9914001 P2 - 6 32 SB3483001 J - 1 20 SB3769001 B - 10 4 S38769000 H - 23 18 SA9923001 Wa 41 SB3490101 G - 9 16 SB3770001 B - 3+ 4 S39051001 C - 27 6 SA9945201 G - 14 16 SB3491001 G - 13 16 SB3771001 B - 4+ 4 S40016001 H - 19 18 SA9957001 A - 22 2 SB3493001 G - 15 16 SB3775001 B - 18 4 S40765001 Z - 32 40 Wa 41 SB3496001 H - 31 18 SB3776001 B - 19 4 S41205001 N - 4 28 SA9957002 A - 23 2 SB3500001 H - 4 18 SB3777001 B - 3+ 4 S41207000 N - 31 28 SB3501001 H - 8 18 SB3778001 B - 4+ 4 S43669000 H - 28 18 SB0544001 J - 10 20 SB3502001 H - 9 18 SB3782001 B - 30 4 S46736001 C - 17 6 SB0609001 N - 5 28 SB3504001 H - 11 18 SB3783001 B - 5+ 4 S47264001 D - 39 8 SB0610001 N - 13 28 SB3505001 H - 12 18 SB3784001 B - 5+ 4 D - 43 8 SB0611001 N - 12 28 SB3507001 H - 20 18 SB3785001 C - 2 6 S51282101 Z - 17 40 P1 - 26 30 SB3508001 H - 53 18 SB3786001 C - 4 6 S51283001 Z - 15 40 S - 8 38 SB3509001 H - 54 18 SB3787001 D - 13 8 S52164000 P1 - 31 30 SB1270001 Wa 41 SB3511001 H - 25 18 SB3788001 D - 14 8 Z - 11 40 SB3512001 H - 24 18 SB3789001 D - 29 8 S52764001 H - 33 18 SB1271001 Wa 41 SB3522001 H - 34 18 SB3790001 D - 30 8 H - 36 18 SB1305001 G - 23+ 16 SB3523001 H - 35 18 SB3791001 D - 34 8 S59890001 N - 26 28 Wa 41 SB3524001 H - 3 18 SB3792001 D - 38 8 SA129101 J - 25 20 SB1355001 E - 2 12 SB3526101 H - 44 18 SB3793001 D - 42 8 SA1303101 H - 50 18 SB1600001 E - 3 12 SB3529101 K - 1 22 SB3794001 D - 64 10 SA1345001 J - 7 20 SB1601001 E - 3 12 SB3530001 J - 5 20 SB3796001 G - 19 16 SA1360101 K - 3 22 SB1603001 E - 3 12 SB3554201 H - 40 18 SB3797001 G - 20 16 SA1388101 L - 48 24 SB1604001 E - 4 12 SB3556001 L - 8 20 SB3798001 J - 14 20 SA2161001 B - 21 4 SB1607001 E - 6 12 SB3557001 L - 14 20 SB3799001 L - 9 24 SA2422001 D - 17 8 SB1609001 E - 7 12 SB3558001 L - 17 20 SB3802001 L - 21 24 SA4494001 D - 6 8 SB1610001 E - 8 12 SB3559001 L - 20 24 SB3803001 L - 23 24 SA6607001 Z - 21 40 SB1611001 E - 9 12 SB3570001 L - 24 24 SB3804001 L - 53 24 SA6609001 Z - 24 40 SB1677001 G - 23+ 16 SB3580001 L - 17 24 SB3805001 L - 54 24 SA7285101 L - 18 24 SB2267002 C - 3 6 SB3581001 L - 20 24 SB3816101 P1 - 17+ 30 45 jintex.in

Page 51 — 索引 / Index

索引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SB3817201 P1 - 17+ 30 SB3834001 R - 1 36 SB3850001 A - 12 2 SB3851201 B - 26 4 SB3852001 L - 24 24 SB3853001 L - 25 24 SB3854001 E - 1 12 SB3856001 G - 12 16 SB3857001 H - 10 18 SB3870001 D - 60 10 D - 74 10 SB3872001 P1 - 24 30 SB3876001 Z - 13 40 SB3877001 M - 2 26 SB3878001 C - 20 6 SB3912001 B - 6+ 4 SB3913001 B - 6+ 4 SB3928001 Z - 14 40 SB3977001 B - 39 4 SB3985001 H - 32 18 SB3986001 A - 10 2 SB3992001 H - 21 18 SB3993001 F - 5 14 SB3999101 M - 3 26 SB4015001 H - 14 18 SB4016001 C - 24 6 SB4018101 Z - 8 40 SB4022001 F - 1 14 SB4037001 H - 55 18 SB4038001 J - 21 20 SB4039001 B - 2+ 4 SB4074001 B - 1+ 4 SB4084001 B - 6+ 4 SB4086001 Q - 1 34 SB4114001 Z - 16 40 SB4117001 Z - 19 40 SB4119001 Z - 20 40 SB4154001 S - 11 38 SB4155001 P1 - 25 30 SB4190001 B - 35 4 SB4201001 N - 2 28 SB4216001 J - 20 20 SB4243001 Z - 29 40 SB4285001 C - 29 6 SB4310001 N - 1 28 SB4311001 S - 1 38 SB4447101 H - 42 18 H - 49 18 SB4448101 H - 58 18 SB4490001 L - 50 24 SB4492001 B - 15 4 SB4527101 H - 15 18 SB4580001 P1 - 1 30 SB4581001 P1 - 2 30 SB4582001 P1 - 3 30 SB4583001 P1 - 4 30 SB4584001 P1 - 5+ 30 SB4585001 P1 - 5+ 30 SB4587101 P1 - 17+ 30 jintex.in 46

Page 52

brother. 零件手册 PARTS BOOK BROTHER INDUSTRIES, LTD. http://www.brother.com/ 1-5, Kitajoyzoma, Noda-cho, Kariya 448-0803, Japan. Phone : 81-566-95-0088 © 2013 Brother Industries, Ltd. All Rights Reserved. S-7000DD SB4302-001.C/E 2013.05.B (1) jintex.in
