Brother S-7000DD Parts Book (PDF)

Single Needle Lockstitch · also listed as S7000DD, 7000DDDownload PDF

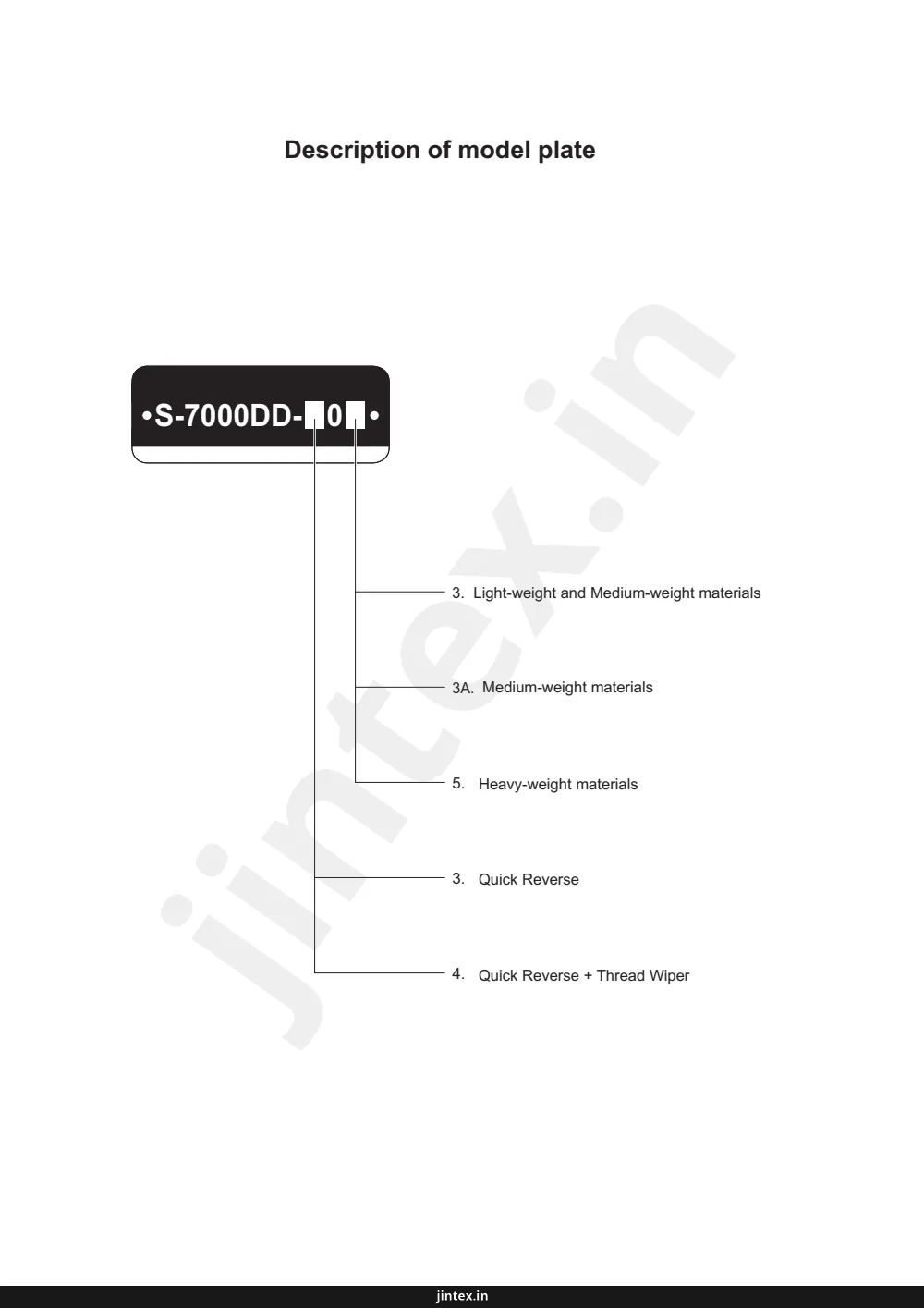

Text index — Brother S-7000DD

Page 7 — A. 机体部分 / Machine body

Brother S-7000DD parts on page 7
Ref	Part number	Part name	Qty
1	SB3440001	STAND L	2
2	SB3441001	STAND R	1
3	062061016	SCREW PAN M6X10	2
4	SB3433001	SIDE PLATE	1
5	SB3434001	REAR COVER PACKING	1
6	062501216	SCREW PAN M5X12	7
7	104449001	RUBBER CAP, 15.5	2
8	104450101	RUBBER CAP, 8	3
9	108520001	RUBBER CAP, 19.8	1
10	SB3986001	RUBBER CAP 17.9	1
11	SB3442001	RUBBER CAP 37.8	1
12	SB3850001	RULER PLATE	1
13	062400616	SCREW PAN M4X6	1
14	104450101	RUBBER CAP, 8	2
15	SB3435001	FACE PLATE ASSY	1
16	SB3436001	FACE PLATE	1
17	SB3437001	FACE PLATE PACKING	1
18	104449001	RUBBER CAP, 15.5	2
19	062671212	SCREW PAN SM3.57-40X12	3
20	SA9826001	LABEL CAUTION	1
21	S37060021	LABEL, GROUNDING	1
22	SA9957001	INJURY MARK	2
23	SA9957002	INJURY MARK	1

Page 9 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

Brother S-7000DD parts on page 9
Ref	Part number	Part name	Qty
1+	SB3445001	UPPER SHAFT ASSY	1
2+	SB3447001	THREAD TAKE-UP CRANK ASSY	1
3+	SB3770001	NEEDLE BAR CONNECTING ROD UNIT	1
4+	SB3771001	NEEDLE BAR CONNECTING ROD ASSY	1
5+	SB3783001	NEEDLE BAR BUSH D	1
6+	SB3912001	NEEDLE BAR DB	1
6+	SB4084001	NEEDLE BAR DP	1
1+	SB4074001	UPPER SHAFT ASSY	1
2+	SB4039001	THREAD TAKE-UP CRANK ASSY	1
3+	SB3777001	NEEDLE BAR CONNECTING ROD UNIT	1
4+	SB3778001	NEEDLE BAR CONNECTING ROD ASSY	1
5+	SB3784001	NEEDLE BAR BUSH D	1
6+	SB3913001	NEEDLE BAR	1
7	SB3446201	UPPER SHAFT	1
8	SB2407001	RUBBER CAP 6.4	1
9	014770632	SET SCREW SOCKET SM6.35-40X6	3
10	SB3769001	SCREW SM7.14-28	1
11	014771032	SET SCREW SOCKET SM6.35-40X10	1
12	SB3449001	BOBBIN WINDER DRIVING WHEEL	1
13	014771032	SET SCREW SOCKET SM6.35-40X10	4
14	SA8145001	WASHER	1
15	SB4492001	UPPER SHAFT WHEEL	1
16	140004001	SCREW, SM3.57-40X7	1
17	SA2422001	SCREW, SM3.57L	1
18	SB3775001	THREAD TAKE-UP SUPPORT SHAFT	1
19	SB3776001	SET SCREW COLLAR	1
20	012400536	SET SCREW SOCKET (FT) M4X5	2
21	SA2161001	WASHER	1
22	048060342	RETAINING RING E6	1
23	S32958000	WICK	1
24	SA8436001	FELT	1
25	012060636	SET SCREW SOCKET (FT) M6X6	2
26	SB3851201	UPPER SHAFT BUSH M ASSY	1
27	SB3455201	UPPER SHAFT BUSH M	1
28	142274101	RUBBER CAP, 4.2	1
29	101487000	OIL SEAL	2
30	SB3782001	NEEDLE BAR BUSH U	1
31	140553102	SET SCREW, SM3.18	1
32	SB3458001	NEEDLE BAR GUIDE SLIDE BLOCK	1
33	151594001	NEEDL BAR THREAD GUIDE	1
34+	111859301	NEEDLE PLATE E18	1
34+	145971101	NEEDLE PLATE B18	1
34+	150792101	NEEDLE PLATE H26	1
35	SB4190001	SCREW FLAT SM4.37-40X8	2
36	180018151	SLIDE PLATE ASSY	1
37	114561001	SPRING, PLATE	1
38	SA9523001	SCREW SM2.38	2
39	SB3977001	JOINT ASSY	1
40	S23651001	SET SCREW SOCKET (FT) M6X6	4

Page 11 — C. 压脚装置 / Presser foot mechanism

Brother S-7000DD parts on page 11
Ref	Part number	Part name	Qty
1	111466121	PRESSER BAR	1
2	SB3785001	PRESSER BAR BUSH	1
3	SB2267002	PESSER ADJUSTING SCREW ASSY	1
4	SB3786001	SPRING GUIDE	1
5	141728001	PRESSER BAR SPRING	1
6	140407021	WASHER	1
7+	153037221	PRESSER FOOT ASSY	1
7+	150789121	PRESSER FOOT ASSY	1
9	150384101	FINGER GUARD	1
11	025350132	WASHER PLAIN S 3.5	1
8+	S36902001	PRESSER FOOT ASSY W/F-G	1
8+	S36903001	PRESSER FOOT ASSY W/F-G	1
10	S13385001	SCREW, SM3.57-40X10	1
12	145580001	LIFTER LEVER P-BAR	1
13	109763022	WASHER	1
14	SA8152001	PRESSER BAR LIFTER SHAFT	1
15	012500536	SET SCREW SOCKET (FT) M5X5	1
16	S02546402	TENSION RELEASE PLATE	1
17	S46736001	W-CLAMP LIFTER LEVER SPRING	1
18	048040342	RETAINING RING E4	2
19	SB3463001	KNEE LIFTER CONNECTING ROD	1
20	SB3878001	SHOULDER SCREW SOCKET SM4.76	3
21	SB3461001	KNEE LIFTER LEVER	1
22	145480121	SHOULDER SCREW, SM6.35	1
23	SB3460001	KNEE LIFTER BAR	1
24	SB4016001	ADJUSTING SCREW 6	1
25	021060306	NUT 3 M6	1
26	S31006002	LIFTING LEVER	1
27	S39051001	SCREW, PAN (S/P W) M3.5X12	1
28	S31952021	PRESSER BAR LIFTER CRANK	1
29	SB4285001	PRESSER BAR GUIDE BRACKET	1
30	142403001	BOLT, (CP) SM5.95-28X10	1

Page 13 — D. 送料装置 / Feed mechanism

Brother S-7000DD parts on page 13
Ref	Part number	Part name	Qty
1+	SB3465001	ECCENTRIC WHEEL W/S 3	1
2+	SB3472001	STITCH LENGTH DIAL ASSY 3	1
3+	S02558201	EXTENSION SPRING	1
1+	SB3467001	ECCENTRIC WHEEL W/S 5	1
2+	SB3475001	STITCH LENGTH DIAL ASSY 5	1
3+	S03818101	EXTENSION SPRING, H	1
4	180322021	FEED LIFTING ARM ASSY	1
5	014771032	SET SCREW SOCKET SM6.35-40X10	2
6	SA4494001	SCREW SM4.76	1
7	108549001	O RING	1
8	S02554021	LEVEL FEED CONNECTING ROD	1
9	156948021	HOLDER	1
10	108960002	SCREW, FLAT SM3.57	2
11	SB3469001	RETAINING RING EXTERNAL C21	1
12	SB2314001	WASHER 21.5X31.5	1
13	SB3787001	LEVEL FEED REGULATOR ASSY	1
14	SB3788001	LEVEL FEED REGULATOR	1
15	156951021	FEED LINK STUD	2
16	014680632	SET SCREW SOCKET SM4.37-40X6	2
17	156952021	FEED ROCKER LINK ASSY	1
18	156955021	FEED ROCKER ARM LINK	2
19	156956021	LINK SHAFT	1
20	144458001	SET SCREW SM3.57-40X4.5	1
21	156957120	FEED ROCKER ARM	1
22	062711412	SCREW PAN SM4.76-32X14	1
23	156958021	FEED ROCK ARM SHAFT	1
24	014680632	SET SCREW SOCKET SM4.37-40X6	1
25	158021122	F-REGULATOR CONNECT. ROD ASSY	1
26	156966121	PIN	1
27	048060342	RETAINING RING E6	1
28	120990001	SET SCREW, (CP) SM4.37-40X8	1
29	SB3789001	FEED REGULATOR SHAFT L	1
30	SB3790001	FEED REGULATOR SHAFT	1
31	118735002	WASHER	1
32	012060636	SET SCREW SOCKET (FT) M6X6	2
33	156969121	FEED REGULATOR	1
34	SB3791001	FEED REGULATOR SHAFT	1
35	S02556021	WASHER	1
36	048070342	RETAINING RING E7	1
37	012060636	SET SCREW SOCKET (FT) M6X6	1
38	SB3792001	STUD 12.5	1
39	S47264001	SET SCREW, SOCKET (CP) SM4.37	1
40	S02557120	LEVER	1
41	S07959001	BOLT, SOCKET SM4.76-32X14	1
42	SB3792001	STUD 12.5	1
43	S47264001	SET SCREW, SOCKET (CP) SM4.37	1
44	SA8186002	REVERSE STITCHING LEVER ASSY	1
45	S02561021	SPRING HOOK PIN	1
46	SB3793001	SHAFT R-LEVER	1
47	147504221	SPACER	1
48	025100132	WASHER PLAIN S 10	1
49	048080342	RETAINING RING E8	1
50	S33680001	O RING	1
51	062670712	SCREW PAN SM3.57-40X7	3
52	S02562021	SPRING HOOK	1
53	S02563001	SPRING, EXTENSION	1
54	153132020	NYLON TUBE L=13.5	1
55	145502021	POSITIONING PIN	1
56	100328001	NOTCH SPRING	1

Page 15 — D. 送料装置 / Feed mechanism

Brother S-7000DD parts on page 15
Ref	Part number	Part name	Qty
57	SB3477101	FEED ROCKER SHAFT	1
58	S31014020	BUSH 19.3	1
59	048150142	RETAINING RING EXTERNAL C15	1
60	SB3870001	SET SCREW COLLAR ASSY	1
61	014770632	SET SCREW SOCKET SM6.35-40X6	2
62	156244020	FEED ROCKER BRACKET ARM	1
63	062681212	SCREW PAN SM4.37-40X12	2
64	SB3794001	FEED BAR ASSY	1
65	S02573020	WASHER	1
66	SB3464001	FEED BAR STUD	1
67	158722021	WASHER PLAIN 4.2	1
68	120990001	SET SCREW, (CP) SM4.37-40X8	2
69+	111860121	FEED DOG	1
69+	S02742001	FEED DOG	1
69+	150793021	FEED DOG	1
70	100080004	SCREW, SM3.18-44X6.5	2
71	SB3478101	FEED LIFTING ROCKER SHAFT	1
72	S31014020	BUSH 19.3	1
73	048150142	RETAINING RING EXTERNAL C15	1
74	SB3870001	SET SCREW COLLAR ASSY	1
75	014770632	SET SCREW SOCKET SM6.35-40X6	2
76	S02575020	F-LIFTING ROCK SHAFT CRANK	1
77	062711212	SCREW PAN SM4.76-32X12	1
78	147509021	SHOULDER SCREW SM7.14	1
79	104689002	NUT 7.14	1
80	118758021	CONNECTING ROD, V-FEEDING	1
81	S02578121	REVERSE STITCHING LEVER PLATE	1
82	100511123	SCREW SM4.76	1
83	S04228001	SPRING HOOK	1
84	062681412	SCREW PAN SM4.37-40X14	1
85	156243021	THRUST RING	1
86	156243021	THRUST RING	1

Page 17 — E. 膝控提升装置 / Knee lifter mechanism

Brother S-7000DD parts on page 17
Ref	Part number	Part name	Qty
1	SB3854001	KNEE LIFTER ASSY	1
2	SB1603001	KNEE LIFTER BRACKET	1
3	SB1604001	BOLT 6X15	1
4	SB1605001	BOLT 6X24	1
5	SB3480001	KNEE LIFTER BAR	1
6	SB1607001	KNEE LIFTER PLATE	1
7	SB1609001	KNEE LIFTER PLATE STOPPER	1
8	SB1610001	BOLT 6X12	1
9	SB1611001	KNEE LIFTER PLATE COVER	1

Page 19 — F. 倒缝装置 / Quick reverse mechanism

Brother S-7000DD parts on page 19
Ref	Part number	Part name	Qty
1	SB4022001	QUICK REVERSE SOLENOID	1
2	S02600100	SOLENOID LEVER	1
3	S07959001	BOLT, SOCKET SM4.76-32X14	1
4	062401216	SCREW PAN M4X12	3
5	SB3993001	HARNESS HOLDER	1
6	062400616	SCREW PAN M4X6	1

Page 21 — G. 旋梭装置 / Rotary hook mechanism

Brother S-7000DD parts on page 21
Ref	Part number	Part name	Qty
1	SA8159001	UPPER SHAFT BEVEL GEAR ASSY	1
2	014770632	SET SCREW SOCKET SM6.35-40X6	2
3	SA8160001	VERTICAL BEVEL GEAR ASSY U	1
4	014770632	SET SCREW SOCKET SM6.35-40X6	2
5	SA8161001	VERTICAL BEVEL GEAR ASSY D	1
6	014770632	SET SCREW SOCKET SM6.35-40X6	2
7	SA8162001	LOWER SHAFT BEVEL GEAR ASSY	1
8	014770632	SET SCREW SOCKET SM6.35-40X6	2
9	SB3490101	VERTICAL SHAFT	1
10	142708120	VERTICAL SHAFT BUSH, U	1
11	012060636	SET SCREW SOCKET (FT) M6X6	2
12	SB3856001	VERTICAL SHAFT BUSH D	1
13	SB3491001	ROTARY HOOK SHAFT	1
14	SA9945201	SCREW CAP W/HOLE ASSY	1
15	SB3493001	PUMP BUSH	1
16	SA9684001	OIL SEAL	1
17	104520020	LOWER SHAFT BUSH, R	1
18	012060636	SET SCREW SOCKET (FT) M6X6	1
19	SB3796001	SET SCREW COLLAR ASSY	1
20	SB3797001	SET SCREW COLLAR	1
21	014770632	SET SCREW SOCKET SM6.35-40X6	2
22+	S02602021	HOOK STOPPER	1
23+	SB1305001	ROTARY HOOK ASSY W/BOX SB3338	1
24	146290021	BOBBIN	1
22+	159324021	HOOK STOPPER	1
23+	SB1677001	ROTARY HOOK ASSY W/BOX SB1678	1
25	117132001	BOBBIN	1
26	SA8903001	SCREW M4X12	1
27	S06573001	BOBBIN CASE ASSEMBLY	1
28	183388001	TENSION SPRING	1
29	183389001	ADJUSTING SCREW	1
30	183390001	SET SCREW	1
31	S06594001	SPRING, ANTI-SPIN	1
32	S31027020	LOWER SHAFT BUSH, M	1

Page 23 — H. 供油润滑装置 / Lubrication

Brother S-7000DD parts on page 23
Ref	Part number	Part name	Qty
1	S02606020	OIL GAUGE WINDOW	1
2	081014670	O RING PW14	1
3	SB3524001	WICK HOLDER U ASSY	1
4	SB3500001	WICK 2X2	1
5	062670616	SCREW PAN SM3.57-40X6	2
6	SA8167101	WICK HOLDER D ASSY	1
7	SA8169001	WICK	1
8	SB3501001	TUBE ASSY	1
9	SB3502001	WICK 2X2	1
10	SB3857001	VINYL TUBE L=95	1
11	SB3503001	OIL STOPPER PLATE	1
12	SB3504001	OIL STOPPER PLATE SUPPORT	1
13	062401616	SCREW PAN M4X16	2
14	SB4015001	OIL SEAL	1
15	SB4527101	ADJUSTING SCREW	1
16	081004870	O RING S4	1
17	107155001	FELT	1
18	SB3505001	WICK	1
19	S40016001	OIL TUBE 2X25	1
20	SB3507001	VINYL TUBE	1
21	SB3992001	TUBE GUIDE	1
22	S25382001	OIL FEEDING PIPE	1
23	S38769000	FELT	1
24	SB3512001	WICK	1
25	SB3511001	VINYL TUBE	1
26	145737021	FELT SUPPORT	1
27	081004070	O RING P4	1
28	S43669000	WICK, 8 L=320	1
29	SB3514001	WICK 4X4	1
30	144875001	PLUNGER	2
31	SB3496001	CAP SCREW PUMP ASSY	1
32	SB3985001	CAP SCREW PUMP	1
33	S52764001	SPRING COMPRESSION	1
34	SB3522001	PUMP CAP SCREW ASSY	1
35	SB3523001	CAP SCREW PUMP	1
36	S52764001	SPRING COMPRESSION	1
37	104821001	RUBBER CAP, 10.5	1
38	SB2407001	RUBBER CAP 6.4	1
39	S25382001	OIL FEEDING PIPE	2
40	SB3554201	OIL COVER ASSY	1
41	SB3515001	OIL COVER	1
42	SB4447101	OIL FEEDING PIPE 12.2	1
43	SB3517001	KNEE LIFTER BAR RUBBER CAP	1
44	SB3526101	OIL TANK UNIT	1
45	S25382001	OIL FEEDING PIPE	1
46	SA8989001	OIL FEEDING PIPE	2
47	081006670	O RING PW6	1
48	SA8987001	FILTER	1
49	SB4447101	OIL FEEDING PIPE 12.2	1
50	SA1303101	SCREW M8	1
51	081008070	O RING P8	1
52	SA8991001	RUBBER CAP 35-12	1
53	SB3508001	VINYL TUBE	1
54	SB3509001	VINYL TUBE	1
55	SB4037001	VINYL TUBE	1
56	104450101	RUBBER CAP, 8	1
57	0A4501206	SCREW PAN (S/P WASHER) M5X12	5
58	SB4448101	OIL COVER PACKING	1

Page 25 — J. 穿线装置 / Threading mechanism

Brother S-7000DD parts on page 25
Ref	Part number	Part name	Qty
1	SB3483001	PRE-TENSION ASSY	1
2	012500536	SET SCREW SOCKET (FT) M5X5	1
3	SB3595001	SPOOL PIN	1
4	SA8178001	TENSION RELEASE STUD	1
5	SB3530001	ARM THREAD GUIDE	1
6	012500536	SET SCREW SOCKET (FT) M5X5	1
7	SA1345001	ARM THREAD GUIDE, R	1
8	060500616	SCREW BIND M5X6	1
9	SA9854001	THREAD TAKE-UP LEVER COVER	1
10	SB0544001	WASHER	1
11	062500816	SCREW PAN M5X8	1
12	S02617001	FACE PLATE THREAD GUIDE	1
13	060350616	SCREW BIND M3.5X6	1
14	SB3798001	THREAD GUIDE D	1
15+	SB3572001	THREAD TENSION BRACKET ASSY	1
16+	104525102	TENSION SPRING	1
15+	SB3574001	THREAD TENSION BRACKET ASSY	1
16+	S04632102	TENSION SPRING	1
17	116922101	TENSION STUD	1
18	145446021	DISC TENSION	2
19	SB3618001	TENSION DISC PRESSER	1
20	SB4216001	WASHER	1
21	SB4038001	TENSION NUT	1
22	SB1600001	THREAD TENSION BRACKET	1
23	100402004	SET SCREW SM3.57	1
24	S02620401	THREAD TAKE-UP SPRING	1
25	SA1229101	SET SCREW (FT) M6X6	1
26	150551020	TENSION RELEASE PIN	1

Page 27 — K. 绕线装置 / Bobbin winder mechanism

Brother S-7000DD parts on page 27
Ref	Part number	Part name	Qty
1	SB3529101	BOBBIN WINDER UNIT	1
2	SB3571101	BOBBIN WINDER TENSION ASSY	1
3	SA1360101	KNIFE	1
4	062500616	SCREW PAN M5X6	1
5	SB3619001	BOBBIN WINDER FIXED SCREW	1

Page 29 — L. 切线装置 / Thread trimmer mechanism

Brother S-7000DD parts on page 29
Ref	Part number	Part name	Qty
1	S00337021	THREAD TRIMMER CAM	1
2	014771032	SET SCREW SOCKET SM6.35-40X10	2
3	S02637101	FIXED KNIFE	1
4	102843004	SCREW, FLAT SM3.57	1
5	S02643001	LOWER THREAD FINGER	1
6	100645003	WASHER	1
7	062400616	SCREW PAN M4X6	1
8	SB3556001	MOVABLE KNIFE HOLDER	1
9	SB3799001	KNIFE HOLDER PRESSER ASSY	1
10	100645003	WASHER	2
11	060401216	SCREW BIND M4X12	2
12	S02645001	MOVABLE KNIFE	1
13	148537101	SCREW, FLAT (W/SOCKET) SM4.37	2
14	SB3557001	THREAD TRIMMER CONNECTING ROD	1
15	151987022	SHOULDER SCREW, SM4.37	2
16	105234003	NUT SM4.37	1
17	SB3558001	THREAD TRIMMER LEVER	1
18	SA7285101	LEVER STOPPER	1
19	062501416	SCREW PAN M5X14	1
20	SB3559001	SPRING EXTENSION	1
21	SB3802001	FORKED SHAFT	1
22	S02648021	COLLAR	1
23	SB3803001	FORKED SHAFT BUSH	1
24	SB3852001	THREAD TRIMMER CAM LEVER UNIT	1
25	SB3853001	THREAD TRIMMER CAM LEVER ASSY	1
26	012060636	SET SCREW SOCKET (FT) M6X6	1
27	154593321	THREAD TRIMMER CAM LEVER SHAFT	1
28	154594020	COLLAR	1
29	S25434000	RUBBER CUSHION	1
30	154595001	SPRING, EXTENSION	1
31	154596000	CUSHION	1
32	110367001	WASHER, PLAIN SPECIAL 8	1
33	048060342	RETAINING RING E6	1
34	SB3563001	THREAD TRIMMER SOLENOID ASSY	1
35	SB3568001	THREAD TRIMMER SOLENOID	1
36	SB3569001	SOLENOID BASE	1
37	062400816	SCREW PAN M4X8	4
38	026050136	WASHER PLAIN S 5	1
39	SB3564001	SOLENOID LEVER	1
40	SA9716001	PIN	1
41	048050142	RETAINING RING EXTERNAL C5	1
42	062501016	SCREW PAN M5X10	2
43	SB3565001	SOLENOID STOPPER	1
44	062400616	SCREW PAN M4X6	2
45	SB3566001	SHOULDER SCREW M6	1
46	155559021	WASHER PLAIN	1
47	SB3567001	RUBBER CAP 25.5	1
48	SA1388101	CORD HOLDER	1
49	A10369001	CONNECTOR 5557-12R	1
50	SB4490001	SOLENOID CONNECTOR CAP	1
51	060400616	SCREW BIND M4X6	1
52	S04159000	BAND 1M	3
53	SB3804001	ROLLER SHAFT C	1
54	SB3805001	ROLLER	1
55	105234003	NUT SM4.37	1

Page 31 — M. 松线装置 / Tension release mechanism

Brother S-7000DD parts on page 31
Ref	Part number	Part name	Qty
1	SB3576001	TENSION RELEASE WIRE	1
2	SB3877001	NUT SM4.76	2
3	SB3999101	WIRE HOLDER	1
4	062400616	SCREW PAN M4X6	1
5	SB3575001	WIRE HOLDER	1
6	062400616	SCREW PAN M4X6	4

Page 33 — N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[] or option parts)

Brother S-7000DD parts on page 33
Ref	Part number	Part name	Qty
1	SB4310001	THREAD WIPER DEVICE ASSY	1
2	SB4201001	THREAD WIPER SOLENOID	1
3	SA9771001	THREAD WIPER SPRING	1
4	S41205001	WASHER, PLAIN	1
5	SB0609001	SOLENOID SETTING PLATE	1
6	062301016	SCREW PAN M3X10	2
7	140647121	CORD HOLDER	1
8	062300616	SCREW PAN M3X6	1
9	S33610122	SOLENOID COVER	1
10	060400616	SCREW BIND M4X6	1
11	S25456021	PLUNGER PIN	2
12	SB0611001	SPACER	2
13	SB0610001	SOLENOID SETTING BASE	1
14	062681012	SCREW PAN SM4.37-40X10	2
15	062400616	SCREW PAN M4X6	2
16	026040236	WASHER PLAIN M 4	2
17	S02672022	THREAD WIPER SUPPORT	1
18	S25452021	THREAD WIPER CRANK ASSY	1
19	048040342	RETAINING RING E4	1
20	S25454021	SET SCREW COLLAR	1
21	S25279101	SET SCREW (CP) M3.5-5	1
22	S02678001	WIPER SPRING	1
23	SA8189001	THREAD WIPER LINK	1
24	110735022	WASHER	1
25	048030342	RETAINING RING E3	1
26	S59890001	BOLT, SOCKET SM4.37-40X8	2
27	S02681101	THREAD WIPER	1
28	060400516	SCREW BIND M4X5	1
29	146288021	THREAD WIPER STUD COLLAR	1
30	025750132	WASHER PLAIN S SM5.56	1
31	S41207000	SPACER RUBBER	1
32	149097000	SILENT SHEET	1

Page 35 — P1. 控制箱 / Control box

Brother S-7000DD parts on page 35
Ref	Part number	Part name	Qty
1	SB4580001	7000DD BOX ASSY CN SUPPLY	1
2	SB4581001	7000DD BOX ASSY EX SUPPLY	1
3	SB4582001	7000DD BOX ASSY US SUPPLY	1
4	SB4583001	7000DD BOX ASSY CE SUPPLY	1
5+	SB4584001	MAIN PCB ASSY CN SUPPLY	1
5+	SB4585001	MAIN PCB ASSY EX SUPPLY	1
6	149578020	BUSH	2
7	SB3584001	KNEE LIFTER	1
8	SB3585001	KNEE LIFTER SHAFT	1
9	SB3586001	BOLT SM5.95	1
10	SB3587001	SET SCREW SM5.95	1
11	100022004	NUT SM5.95	1
12	SB3588001	TWIST SPRING	1
13	146293001	RETAINING RING E10	1
14	0A4400806	SCREW PAN (S/P WASHER) M4X8	2
15	0A4400806	SCREW PAN (S/P WASHER) M4X8	2
16	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
17+	SB3816101	TREADLE UNIT CN	1
17+	SB3817201	TREADLE UNIT EX	1
17+	SB4587101	TREADLE UNIT US	1
18	0A5501206	SCREW PAN (S/P WASHER) M5X12	4
19	0A5501206	SCREW PAN (S/P WASHER) M5X12	4
20	SB3589001	BOX COVER	1
21	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
22	S37060001	LABEL, GROUNDING	1
23	SA9725001	LABEL ELECTRICAL SHOCK 36X150	1
24	SB3872001	BOX COVER PIN	1
25	SB4155001	BAND	1
26	SB0827001	HIGH TEMP LABEL	1
27	SA9564001	CE FILTER CASE	1
28	SA9565001	CE FILTER PCB ASSY	1
29	032461606	WOOD SCREW ROUND 2 M4.5X16	4
30	200190001	STAPLE 10X20	5
31	S52164000	CORE: NFC-28	2
32	0A5401605	SCREW PAN (S/P WASHER) M4X16	2
33	025040236	WASHER PLAIN M 4	2
34	021400106	NUT 1 M4	2
35	SA9559001	CE FILTER BOX ASSY	1

Page 37 — P2. 控制箱 / Control box

Brother S-7000DD parts on page 37
Ref	Part number	Part name	Qty
1+	BMP3010-0000000-AST1	TRANSFORMER BOX	1
1+	BMP3010-0000000-2ST1	TRANSFORMER BOX	1
2+	BMP3010-0000000-3ST4	TRANSFORMER BOX	1
2+	BMP3010-0000000-4ST4	TRANSFORMER BOX	1
3	SA9923001	TRANSFORMER 100/110/220V	1
4	SA9901001	TRANSFORMER 400/230V	1
5	SA9896001	TR BOX COVER	1
6	SA9914001	LABEL ELECTRICAL SHOCK 25X28	1
7	SA9831001	POWER SWITCH ASSY SJT#2	1
8	032461606	WOOD SCREW ROUND 2 M4.5X16	2
9	200190001	STAPLE 10X20	5

Page 39 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Brother S-7000DD parts on page 39
Ref	Part number	Part name	Qty
1	SB4086001	LED REVERSE SW ASSY	1
2	062670612	SCREW PAN SM3.57-40X6	2
3	SA8193001	CORD HOLDER U2	2
4	062670612	SCREW PAN SM3.57-40X6	2
5	SB2408101	CORD HOLDER	2

Page 41 — R. 电气部品 / Power supply equipment

Brother S-7000DD parts on page 41
Ref	Part number	Part name	Qty
1	SB3834001	MOTOR COVER ASSY	1
2	SB3620001	MOTOR COVER EX	1
3	SB3621001	GROUND WIRE	1
4	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
5	0A4501606	SCREW PAN (S/P WASHER) M5X16	4

Page 43 — S. 马达装置和操作盘 / Motor mechanism and operation panel

Brother S-7000DD parts on page 43
Ref	Part number	Part name	Qty
1	SB4311001	MOTOR 7000DD SUPPLY	1
2	SB3609001	RESOLVER STATOR ASSY	1
3	0A4301206	SCREW PAN (S/P WASHER) M3X12	3
4	SB2315001	PULLEY HOLDER ASSY	1
5	012501032	SET SCREW SOCKET (FT) M5X10	2
6	SB2317001	CORD HOLDER	2
7	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
8	SB0827001	HIGH TEMP LABEL	1
9	SB3247001	RESOLVER COVER	1
10	0A4501606	SCREW PAN (S/P WASHER) M5X16	3
11	SB4154001	PULLEY	1
12	060501016	SCREW BIND M5X10	3
13	SB3652201	PANEL ASSY	1
14	SB3655001	PANEL SUPPORT	2
15	012500536	SET SCREW SOCKET (FT) M5X5	2
16	0A4300806	SCREW PAN (S/P WASHER) M3X8	4

Page 45 — Z. 附件 / Accessories

Brother S-7000DD parts on page 45
Ref	Part number	Part name	Qty
1	146290021	BOBBIN	1
2	117132001	BOBBIN	1
3	SB3622001	RUBBER HINGE ASSY	1
4	SB3627001	HEAD HINGE	2
5	SB3628001	RUBBER CUSHION	2
6	SB3623101	HEAD CUSHION	2
7	109714020	NAIL	4
8	SB4018101	HEAD CUSHION	2
9	SB3629001	HEAD REST S	1
10	SA8239201	OIL TANK ASSY	1
11	SB1270001	OIL WARNING LABEL EN	1
12	SB1271001	OIL WARNING LABEL JP	1
13	SB3876001	HEAD COVER	1
14	SB3928001	COTTON STAND ASSY 2DR	1
15	S51283001	SPOOL STAND BASE	2
16	SB4114001	SPOOL MAT	2
17	S51282101	SPOOL CUSHION	2
18	150179023	SPOOL SHAFT B	2
19	SB4117001	WASHER SPRING 2-5	2
20	SB4119001	NUT 2 M5	2
21	SA6607001	SPOOL HOLDER 2	2
22	150183000	THREAD HANGER BASE	2
23	142990001	THREAD BUSH	2
24	SA6609001	SPOOL HOLDER SUPPORTER	2
25	062061603	SCREW PAN M6X16	2
26	S02747101	SPRING	1
27	SB3625001	BOLT SQUARE ASSY	1
28	SB3626001	BOLT M8X46	4
29	SB4243001	WASHER PLAIN L 8	4
30	028080242	WASHER SPRING 2-8	4
31	021080202	NUT 2 M8	4
32	S40765001	CONNECTING ROD ASSY	1
33	021060106	NUT 1 M6	2
34	017081606	BOLT M8X16	2
35	021080106	NUT 1 M8	2
36	S36119021	NUT 1 M6	2
37	S36121021	WASHER SPRING 2-6	2

Page 46 — Wa. 警告标签 / Warning labels

Brother S-7000DD parts on page 46
Ref	Part number	Part name	Qty
	SA9725-001	Label electrical shock 36 X 150
	SA9914-001	Label electrical shock 25 X 28
	SA9826-001	Label caution
	SA9957-001	Injury mark
	SA9957-002	Injury mark
	SB0827-001	High temp label
	S37060-001	Label, grounding

Page 47 — 警告标签 / Warning labels

Brother S-7000DD parts on page 47
Ref	Part number	Part name	Qty
	SB1271-001	Oil warning label JP
	SB1270-001	Oil warning label EN

Page 48 — Ga. 工模具一览表 / Gauge parts list

Brother S-7000DD parts on page 48
Ref	Part number	Part name	Qty
	111859301
	111860121
	153037221
	145971101
	S02742001
	S36902001
	145971101
	S02742001
	S36902001
	150792101
	150793021
	150789121
	150792101
	150793021
	S36903001

Page 50 — 索引 / Index

Brother S-7000DD parts on page 50
Ref	Part number	Part name	Qty
	S02747101	Z
	S03818101	D
	S04159000	L
	S04228001	D
	S04632102	J
	S06573001	G
	S06594001	G
	S07959001	D
	S13385001	C
	S23651001	B
	S25279101	N
	S25382001	H
	S25434000	L
	H
	S25452021	N
	S25454021	N
	S25456021	N
	S31006002	C
	S31014020	D
	D
	S31027020	G
	S31952021	C
	S32958000	B
	S33610122	N
	S33680001	D
	S36119021	Z
	S36121021	Z
	S36902001	C
	Ga
	S37060001	P1
	Ga
	S37060021	A
	Wa
	S38769000	H
	S39051001	C
	S40016001	H
	S40765001	Z
	S41205001	N
	S41207000	N
	S43669000	H
	S46736001	C
	S47264001	D
	D
	S51282101	Z
	S51283001	Z
	S52164000	P1
	S52764001	H
	H
	S59890001	N
	SA1229101	J
	SA1303101	H
	SA1345001	J
	SA1360101	K
	SA1388101	L
	SA2161001	B
	SA2422001	D
	SA4494001	D
	SA6607001	Z
	SA6609001	Z
	SA7285101	L
	SA8145001	B
	SA8152001	C
	SA8159001	G
	SA8160001	G
	SA8161001	G
	SA8162001	G
	SA8167101	H
	SA8169001	H
	SA8178001	J
	SA8186002	D
	SA8189001	N
	SA8193001	Q
	SA8239201	Z
	SA8436001	B
	SA8900001	G
	SA8987001	H
	SA8989001	H
	SA9523001	B
	SA9559001	P1
	SA9564001	P1
	SA9565001	P1
	SA9684001	G
	SA9716001	L
	SA9725001	P1
	Wa
	SA9771001	N
	SA9826001	A
	Wa
	SA9831001	P2
	SA9854001	J
	SA9896001	P2
	SA9901001	P2
	SA9914001	P2
	SA9923001	Wa
	SA9945201	G
	SA9957001	A
	Wa
	SA9957002	A
	Wa
	SB0544001	J
	SB0609001	N
	SB0610001	N
	SB0611001	N
	SB0827001	P1
	S
	Wa
	SB1270001	Z
	Wa
	SB1271001	Wa
	SB1305001	G
	Wa
	SB1355001	E
	SB1600001	E
	SB1601001	E
	SB1603001	E
	SB1604001	E
	SB1605001	E
	SB1607001	E
	SB1609001	E
	SB1610001	E
	SB1611001	E
	SB1677001	G
	SB2267002	C
	SB2314001	D
	SB2315001	S
	SB2317001	S
	SB2407001	B
	SB2408101	H
	SB3247001	S
	SB3433001	A
	SB3434001	A
	SB3435001	A
	SB3436001	A
	SB3437001	A
	SB3440001	A
	SB3441001	A
	SB3442001	A
	SB3445001	B
	SB3446201	B
	SB3447001	B
	SB3449001	B
	SB345201	B
	SB3458001	B
	SB3460001	C
	SB3461001	C
	SB3463001	C
	SB3464001	D
	SB3465001	D
	SB3469001	D
	SB3472001	D
	SB3475001	D
	SB3477101	D
	SB3478101	D
	SB3480001	E
	SB3483001	J
	SB3490101	G
	SB3491001	G
	SB3493001	G
	SB3496001	H
	SB3500001	H
	SB3501001	H
	SB3502001	H
	SB3504001	H
	SB3505001	H
	SB3507001	H
	SB3508001	H
	SB3509001	H
	SB3511001	H
	SB3512001	H
	SB3514001	H
	SB3515001	H
	SB3517001	H
	SB3522001	H
	SB3523001	H
	SB3524001	H
	SB3526101	H
	SB3529101	K
	SB3530001	J
	SB3554201	H
	SB3556001	L
	SB3557001	L
	SB3558001	L
	SB3559001	L
	SB3563001	L
	SB3564001	L
	SB3565001	L
	SB3566001	L
	SB3567001	L
	SB3568001	L
	SB3569001	L
	SB3571101	K
	SB3572001	J
	SB3574001	J
	SB3575001	M
	SB3576001	M
	SB3584001	P1
	SB3585001	P1
	SB3586001	P1
	SB3587001	P1
	SB3588001	P1
	SB3589001	P1
	SB3595001	J
	SB3609001	S
	SB3618001	J
	SB3619001	K
	SB3620001	R
	SB3621001	R
	SB3622001	Z
	SB3623101	Z
	SB3625001	Z
	SB3626001	Z
	SB3627001	Z
	SB3628001	Z
	SB3629001	Z
	SB3652201	S
	SB3655001	S
	SB3769001	B
	SB3770001	B
	SB3771001	B
	SB3775001	B
	SB3776001	B
	SB3777001	B
	SB3778001	B
	SB3782001	B
	SB3783001	B
	SB3784001	B
	SB3785001	C
	SB3786001	C
	SB3787001	D
	SB3788001	D
	SB3789001	D
	SB3790001	D
	SB3791001	D
	SB3792001	D
	SB3793001	D
	SB3794001	D
	SB3796001	G
	SB3797001	G
	SB3798001	J
	SB3799001	L
	SB3802001	L
	SB3803001	L
	SB3804001	L
	SB3805001	L
	SB3816101	P1

Page 51 — 索引 / Index

Brother S-7000DD parts on page 51
Ref	Part number	Part name
- 17+	SB3817201	P1
- 1	SB3834001	R
- 12	SB3850001	A
- 26	SB3851201	B
- 24	SB3852001	L
- 25	SB3853001	L
- 1	SB3854001	E
- 12	SB3856001	G
- 10	SB3857001	H
- 60	SB3870001	D
- 74	SB3870001	D
- 24	SB3872001	P1
- 13	SB3876001	Z
- 2	SB3877001	M
- 20	SB3878001	C
- 6+	SB3912001	B
- 6+	SB3913001	B
- 14	SB3928001	Z
- 39	SB3977001	B
- 32	SB3985001	H
- 10	SB3986001	A
- 21	SB3992001	H
- 5	SB3993001	F
- 3	SB3999101	M
- 14	SB4015001	H
- 24	SB4016001	C
- 8	SB4018101	Z
- 1	SB4022001	F
- 55	SB4037001	H
- 21	SB4038001	J
- 2+	SB4039001	B
- 1+	SB4074001	B
- 6+	SB4084001	B
- 1	SB4086001	Q
- 16	SB4114001	Z
- 19	SB4117001	Z
- 20	SB4119001	Z
- 11	SB4154001	S
- 25	SB4155001	P1
- 35	SB4190001	B
- 2	SB4201001	N
- 20	SB4216001	J
- 29	SB4243001	Z
- 29	SB4285001	C
- 1	SB4310001	N
- 1	SB4311001	S
- 42	SB4447101	H
- 49	SB4447101	H
- 58	SB4448101	H
- 50	SB4490001	L
- 15	SB4492001	B
- 15	SB4527101	H
- 1	SB4580001	P1
- 2	SB4581001	P1
- 3	SB4582001	P1
- 4	SB4583001	P1
- 5+	SB4584001	P1
- 5+	SB4585001	P1
- 17+	SB4587101	P1

Brother S-7000DD Parts Book (PDF)

Page 7 — A. 机体部分 / Machine body

Page 9 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

Page 11 — C. 压脚装置 / Presser foot mechanism

Page 13 — D. 送料装置 / Feed mechanism

Page 15 — D. 送料装置 / Feed mechanism

Page 17 — E. 膝控提升装置 / Knee lifter mechanism

Page 19 — F. 倒缝装置 / Quick reverse mechanism

Page 21 — G. 旋梭装置 / Rotary hook mechanism

Page 23 — H. 供油润滑装置 / Lubrication

Page 25 — J. 穿线装置 / Threading mechanism

Page 27 — K. 绕线装置 / Bobbin winder mechanism

Page 29 — L. 切线装置 / Thread trimmer mechanism

Page 31 — M. 松线装置 / Tension release mechanism

Page 33 — N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[] or option parts)

Page 35 — P1. 控制箱 / Control box

Page 37 — P2. 控制箱 / Control box

Page 39 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Page 41 — R. 电气部品 / Power supply equipment

Page 43 — S. 马达装置和操作盘 / Motor mechanism and operation panel

Page 45 — Z. 附件 / Accessories

Page 46 — Wa. 警告标签 / Warning labels

Page 47 — 警告标签 / Warning labels

Page 48 — Ga. 工模具一览表 / Gauge parts list

Page 50 — 索引 / Index

Page 51 — 索引 / Index

Part Books

Search

Parts on page 1

Parts on page 1

Page 7 — A. 机体部分 / Machine body

Page 9 — B. 针杆和挑线杆装置 / Needle bar and thread take-up mechanism

Page 11 — C. 压脚装置 / Presser foot mechanism

Page 13 — D. 送料装置 / Feed mechanism

Page 15 — D. 送料装置 / Feed mechanism

Page 17 — E. 膝控提升装置 / Knee lifter mechanism

Page 19 — F. 倒缝装置 / Quick reverse mechanism

Page 21 — G. 旋梭装置 / Rotary hook mechanism

Page 23 — H. 供油润滑装置 / Lubrication

Page 25 — J. 穿线装置 / Threading mechanism

Page 27 — K. 绕线装置 / Bobbin winder mechanism

Page 29 — L. 切线装置 / Thread trimmer mechanism

Page 31 — M. 松线装置 / Tension release mechanism

Page 33 — N. 扫线装置 (-40[] 零部件或选购件) / Thread wiper mechanism (-40[] or option parts)

Page 35 — P1. 控制箱 / Control box

Page 37 — P2. 控制箱 / Control box

Page 39 — Q. 倒缝开关装置 / Quick reverse switch mechanism

Page 41 — R. 电气部品 / Power supply equipment

Page 43 — S. 马达装置和操作盘 / Motor mechanism and operation panel

Page 45 — Z. 附件 / Accessories

Page 46 — Wa. 警告标签 / Warning labels

Page 47 — 警告标签 / Warning labels

Page 48 — Ga. 工模具一览表 / Gauge parts list

Page 50 — 索 引 / Index

Page 51 — 索引 / Index

Brother S-7000DD — parts catalog

Page 50 — 索引 / Index
