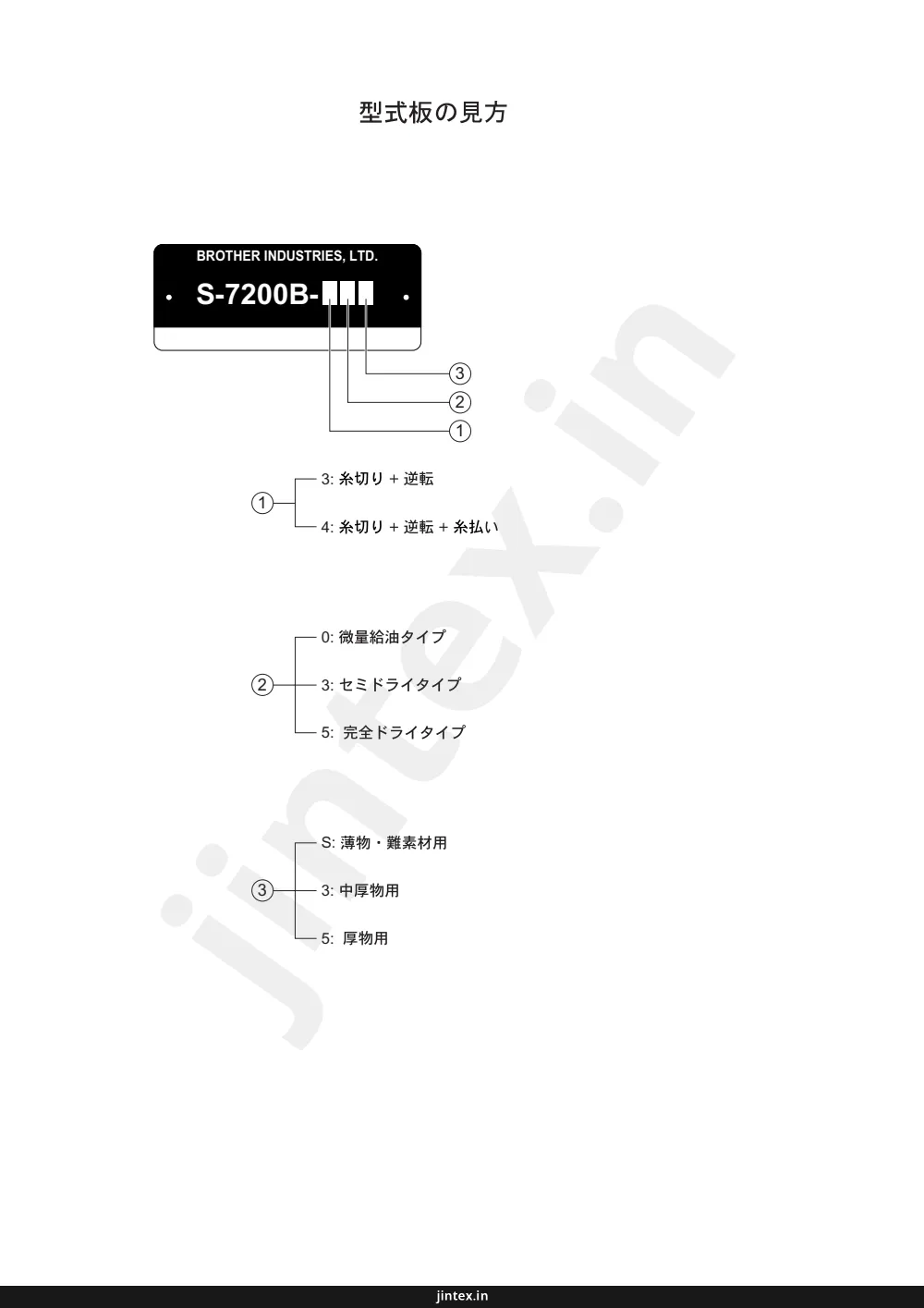

Page 7 — A. 主体関係 / Machine body

Brother S-7200B parts on page 7
Ref	Part number	Part name	Qty
1	SA1106001	STAND R	1
2	SA1107001	STAND L	2
3	SA4259001	MOTOR COVER	1
4	062501216	SCREW PAN M5X12	3
5	SA1105001	SIDE PLATE	1
6	062501216	SCREW PAN M5X12	7
7	104450101	RUBBER CAP, 8	2
8	104450101	RUBBER CAP, 8	1
9	S32263001	RUBBER CAP, 8.5	1
10	104450101	RUBBER CAP, 8	1
11	104449001	RUBBER CAP, 15.5	2
12	117936001	RUBBER CAP, 9.4	1
13	S09621151	RULER PLATE	1
14	062400616	SCREW PAN M4X6	1
15	SA2170001	STAND RF	1
16	S45050001	MARK, RP	1
17	SA2040001	LABEL, CAUTION JPN/ENG	1
17	SA2041001	LABEL, CAUTION CHN/ENG	1

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200B parts on page 9
Ref	Part number	Part name	Qty
1	SA7209101	UPPER SHAFT ASSY	1
2	S23651001	SET SCREW SOCKET (FT) M6X6	3
3	S25235001	SCREW M8	1
4	S25236001	SET SCREW SOCKET (FT) M6X10	1
5	SA1120001	BOBBIN WINDER DRIVING WHEEL	1
6	S23651001	SET SCREW SOCKET (FT) M6X6	2
7	SA7212101	NEEDLE BAR CONNECTING ROD UNIT	1
8	SA7625001	NEEDLE BAR CRANK	1
9	140004001	SCREW, SM3.57-40X7	1
10	SA2422001	SCREW, SM3.57L	1
11	012400436	SET SCREW SOCKET (FT) M4X4	2
12	SA2161001	WASHER	1
13	048060342	RETAINING RING E6	1
14	SA7222101	NEEDLE BAR CONNECTING ROD UNIT	1
15	SA7626001	NEEDLE BAR CRANK	1
16	140004001	SCREW, SM3.57-40X7	1
17	SA2422001	SCREW, SM3.57L	1
18	012400436	SET SCREW SOCKET (FT) M4X4	2
19	SA2161001	WASHER	1
20	048060342	RETAINING RING E6	1
21	SA7227101	NEEDLE BAR CONNECTING ROD UNIT	1
22	SA7625001	NEEDLE BAR CRANK	1
23	140004001	SCREW, SM3.57-40X7	1
24	SA2422001	SCREW, SM3.57L	1
25	012400436	SET SCREW SOCKET (FT) M4X4	2
26	SA2161001	WASHER	1
27	048060342	RETAINING RING E6	1
28	SA7654001	SCREW M3X5	1
29	SA7234101	NEEDLE BAR CONNECTING ROD UNIT	1
30	SA7627001	NEEDLE BAR CRANK	1
31	140004001	SCREW, SM3.57-40X7	1
32	SA2422001	SCREW, SM3.57L	1
33	012400436	SET SCREW SOCKET (FT) M4X4	2
34	SA2161001	WASHER	1
35	048060342	RETAINING RING E6	1
36	SA7654001	SCREW M3X5	1
37	SA7238101	NEEDLE BAR CONNECTING ROD UNIT	1
38	SA7625001	NEEDLE BAR CRANK	1
39	140004001	SCREW, SM3.57-40X7	1
40	SA2422001	SCREW, SM3.57L	1
41	012400436	SET SCREW SOCKET (FT) M4X4	2
42	SA2161001	WASHER	1
43	048060342	RETAINING RING E6	1
44	SA7654001	SCREW M3X5	1
45	SA7239101	STOPPER PIN	1
46	012500536	SET SCREW SOCKET (FT) M5X5	1
47	012061036	SET SCREW SOCKET (FT) M6X10	2
48	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
50	SA2194201	NEEDLE BAR BUSH U	1

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200B parts on page 11
Ref	Part number	Part name	Qty
51	SA1138101	NEEDLE BAR BUSH D	1
52	SA1139101	NEEDLE BAR BUSH D	1
53	012500536	SET SCREW SOCKET (FT) M5X5	1
54	062500616	SCREW PAN M5X6	1
55	140553102	SET SCREW, SM3.18	1
56	SA1140001	JOINT UNIT	1
57	S23651001	SET SCREW SOCKET (FT) M6X6	2
58	SA2250001	TIMING PULLEY, U	1
59	S38712001	FLANGE	1
60	S38713100	FAN	1
61	SA2404001	SCREW, PAN (S WASHER) M4X35	3
62	151594001	NEEDL BAR THREAD GUIDE	1
63	151267001	SCREW, FLAT SM4.37-40X8	2
64	180018151	SLIDE PLATE ASSY	1
65	114561001	SPRING, PLATE	1
66	122771051	SCREW, SM2.38	2
67	SA1143001	LOWER SHAFT ASSY	1
68	SA1144001	LOWER SHAFT	1
69	SA1145001	BALL BEARING, 6301ZZNR	1
70	048120142	RETAINING RING EXTERNAL C12	1
71	S25401100	OIL SEAL	1
72	SA1317001	OIL SEAL	1
73	SA1166001	LOWER SHAFT GEAR ASSY	1
74	S23651001	SET SCREW SOCKET (FT) M6X6	2
75	SA2251001	TIMING PULLEY, D	1
76	S23651001	SET SCREW SOCKET (FT) M6X6	2
77	SA2378001	SPACER,4.8	2
78	SA1150001	BEARING BUSH ASSY	1
79	S23651001	SET SCREW SOCKET (FT) M6X6	2
80	SA2252001	TIMING BELT	1
81	S23651001	SET SCREW SOCKET (FT) M6X6	2
82	SA2254101	LOWER SHAFT BUSH	1

Page 13 — C. 押え関係 / Presser foot mechanism

Brother S-7200B parts on page 13
Ref	Part number	Part name	Qty
1	SA1171001	PRESSER BAR	1
1	SA1173001	PRESSER BAR	1
2	SA7242001	PRESSER BAR BUSH	1
3	062500616	SCREW PAN M5X6	1
4	026050136	WASHER PLAIN S 5	1
5	SA1174001	PESSER ADJUSTING SCREW, M14	1
6	SA7607001	SPRING GUIDE	1
7	S13561101	PRESSER BAR SPRING	1
7	141728001	PRESSER BAR SPRING	1
7	147514001	PRESSER BAR SPRING	1
7	S42893001	PRESSER BAR SPRING
7	SA2348001	PRESSER BAR SPRING
8	140407001	WASHER	1
9	153037201	PRESSER FOOT ASSY	1
10	SA2836101	PRESSER FOOT ASSY W/F-GUARD	1
9	145157101	PRESSER FOOT ASSY	1
9	150789101	PRESSER FOOT ASSY	1
10	SA2837101	PRESSER FOOT ASSY W/F-GUARD	1
9	S35777101	PRESSER FOOT ASSY	1
10	SA2433101	PRESSER FOOT ASSY W/F-GUARD	1
11	S13385001	SCREW, SM3.57-40X10	1
12	SA1176001	PRESSER BAR LIFTER LEVER ASSY	1
13	SA1177001	PRESSER BAR LIFTER LEVER	1
14	SA1178001	KNEE LIFTER CONNECTING ROD	1
15	SA1179001	SHOULDER SCREW, M5	1
16	SA3980001	KNEE LIFTER LEVER	1
17	SA1181001	PRESSER BAR LIFTER LEVER SHAFT	1
18	012500536	SET SCREW SOCKET (FT) M5X5	1
19	SA1182001	TENSION RELEASE PLATE ASSY	1
20	SA1183001	TENSION RELEASE PLATE	1
21	SA1184001	T-RELEASE SELECTION PLATE	1
22	018400532	BOLT SOCKET M4X5	1
23	025040232	WASHER PLAIN M 4	1
24	SA1186001	P-BAR LIFTER LEVER SPRING	1
25	S07350001	WASHER PLAIN	1
26	048050342	RETAINING RING E5	2
27	SA1179001	SHOULDER SCREW, M5	1
28	SA2165001	SHOULDER SCREW, M6	1
29	SA1190001	KNEE LIFTER BAR	1
30	SA1179001	SHOULDER SCREW, M5	1
31	S31006001	LIFTING LEVER	1
32	S39051001	SCREW, PAN (S/P W) M3.5X12	1
33	S45837001	PRESSER BAR LIFTER CRANK	1
34	SA2778201	FINGER GUARD	1
35	025350132	WASHER PLAIN S 3.5	1
36	SA1175001	ADJUST SCREW NUT	1
37	SA8005001	PRESSER BAR GUIDE BRACKET ASSY	1
38	062401216	SCREW PAN M4X12	1

Page 15 — C. 押え関係 / Presser foot mechanism

Brother S-7200B parts on page 15
Ref	Part number	Part name	Qty
39	SA8004001	PRESSER BAR GUIDE BRACKET	1
40	SA1193001	BOLT M3X7.5	1
41	SA1189101	ADJUSTING SCREW M6	1
42	021060306	NUT 3 M6	1

Page 17 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 17
Ref	Part number	Part name	Qty
1	SA7243001	STITCH LENGTH DIAL ASSY	1
2	SA4494001	SCREW SM4.76	1
3	108549001	O RING	1
4	SA7246001	STITCH LENGTH DIAL ASSY	1
2	SA4494001	SCREW SM4.76	1
3	108549001	O RING	1
5	S50098101	POSITIONING PIN	1
6	100328001	NOTCH SPRING	1
7	SA7249101	FEED REGULATOR ASSY	1
8	SA7250101	FEED REGULATOR	1
9	142374100	BUSH DRY :L=20	1
10	SA2849001	F-REGULATOR CONNECTING ROD	1
11	151308102	STUD, 12.5	1
12	012500536	SET SCREW SOCKET (FT) M5X5	1
13	SA7635001	FEED REGULATOR SHAFT	1
14	012060536	SET SCREW, SOCKET (FT) M6X5	2
15	SA1206001	REVERSE SEWING SHAFT	1
16	S25469100	BUSH DRY :L=12	2
17	025100132	WASHER PLAIN S 10	1
18	048080342	RETAINING RING E8	1
19	SA1207001	SPACER	1
20	062500816	SCREW PAN M5X8	2
21	SA7321001	REVERSE LEVER	1
22	062501416	SCREW PAN M5X14	1
23	SA1209001	REVERSE LEVER SPRING	1
24	153132000	NYLON TUBE, L=13.5	1
25	SA1210001	HANDLE SHAFT ARM ASSY	1
26	SA1211001	HANDLE SHAFT ARM	1
27	156958021	FEED ROCK ARM SHAFT	1
28	012500536	SET SCREW SOCKET (FT) M5X5	1
29	018501636	BOLT SOCKET M5X16	1
30	SA2854001	FEED REGULATOR SHAFT ASSY	1
31	SA2850101	FEED REGULATOR SHAFT ARM	1
32	SA1214101	FEED REGULATOR SHAFT	1
33	018501436	BOLT SOCKET M5X14	1
34	SA2851001	ECCENTRIC PIN	1
35	012500536	SET SCREW SOCKET (FT) M5X5	1
36	SA7252001	FEED REGULATOR SHAFT BUSH(R)	1
37	SA7253001	FEED REGULATOR SHAFT BUSH(L)	1
38	012060536	SET SCREW, SOCKET (FT) M6X5	1
39	SA1269001	OIL SEAL	1
40	SA1217101	CONNECTING ROD S ASSY	1
41	S31899251	F-REGULATOR CONNECTING ROD S	1
42	SA1218001	FEED REGULATOR SHAFT JOINT	1
43	151308102	STUD, 12.5	1
44	012500536	SET SCREW SOCKET (FT) M5X5	1
45	SA7323201	FEED REGULATOR UNIT	1
46	SA7324201	FEED REGULATOR ASSY	1
47	012500536	SET SCREW SOCKET (FT) M5X5	2
48	SA1223001	LEVEL FEED CONNECTING ROD	1
49	SA7254001	LINK SHAFT	1
50	012500536	SET SCREW SOCKET (FT) M5X5	2
51	S16335001	LEVEL FEED LINK ASSY	1
52	S16337001	FEED ROCKER ARM LINK ASSY	1
53	156958021	FEED ROCK ARM SHAFT	1
54	SA1225001	FEED ROCK ARM	1
55	048040342	RETAINING RING E4	1

Page 19 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 19
Ref	Part number	Part name	Qty
56	SA1263001	ECCENTRIC WHEEL, W/SCREW	1
57	S25236001	SET SCREW SOCKET (FT) M6X10	2
56	SA1261001	ECCENTRIC WHEEL, W/SCREW	1
57	S25236001	SET SCREW SOCKET (FT) M6X10	2
58	S12915001	ROLLER BEARING, RADIAL 25 :RED	1
59	S25321001	HOLDER	1
60	062350616	SCREW PAN M3.5X6	2
61	062501416	SCREW PAN M5X14	1
62	SA1226101	FEED REGULATOR SHAFT, L	1
63	104449001	RUBBER CAP, 15.5	1
64	SA1227101	FEED REGULATOR SUPPORT SHAFT	1
65	SA1228001	RUBBER CAP, 14.5	1
66	012060536	SET SCREW, SOCKET (FT) M6X5	2
67	SA1229101	SET SCREW (FT) M6X6	1
68	S23651001	SET SCREW SOCKET (FT) M6X6	2
69	SA2377001	RUBBER CAP LABEL	1
70	S34352101	RUBBER CAP, 13.5	1
71	SA1230001	FEED ROCK SHAFT ASSY	1
72	SA1231001	FEED ROCK SHAFT	1
73	SA2162001	FELT	1
74	SA7255001	FEED SHAFT BUSH(R)	1
75	SA1237001	OIL SEAL	1
76	SA1233101	FEED SHAFT BUSH L	1
77	012060536	SET SCREW, SOCKET (FT) M6X5	1
78	156243021	THRUST RING	1
79	048150142	RETAINING RING EXTERNAL C15	1
80	SA1234001	SET SCREW COLLAR	1
81	S23651001	SET SCREW SOCKET (FT) M6X6	2
82	014300432	SET SCREW SOCKET (CP) M3X4	1
83	SA1238401	FEED BAR ASSY	1
84	SA1239201	FEED BAR	1
85	SA7330001	FEED ROCK BRACKET ARM	1
86	158722001	WASHER PLAIN 4.2	1
87	SA1242001	SET SCREW 5X7	1
88	SA7257001	SCREW 5X12	2
89	S02742001	FEED DOG	1
90	SA2345001	FEED DOG	1
89	S02743001	FEED DOG	1
90	150793001	FEED DOG	1
91	S02748001	FEED DOG, AB	1
92	SA2346001	FEED DOG	1

Page 21 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 21
Ref	Part number	Part name	Qty
93	SA1245101	F-LIFTING ECCENTRIC WHEEL ASSY	1
94	SA1247001	ECCENTRIC WHEEL, W/SCREW	1
95	S25236001	SET SCREW SOCKET (FT) M6X10	2
96	S25339201	FEED BAR ARM PRESSER	1
97	062300616	SCREW PAN M3X6	2
98	SA1253101	F-LIFTING ECCENTRIC WHEEL ASSY	1
99	SA1254001	ECCENTRIC WHEEL W/SCREW	1
95	S25236001	SET SCREW SOCKET (FT) M6X10	2
96	S25339201	FEED BAR ARM PRESSER	1
97	062300616	SCREW PAN M3X6	2
100	SA1250101	F-LIFTING ECCENTRIC WHEEL ASSY	1
101	SA1251001	ECCENTRIC WHEEL W/SCREW	1
95	S25236001	SET SCREW SOCKET (FT) M6X10	2
96	S25339201	FEED BAR ARM PRESSER	1
97	062300616	SCREW PAN M3X6	2
102	100080004	SCREW, SM3.18-44X6.5	2
103	SA2401001	LIFTING FEED SHAFT UNINT	1
104	SA1242001	SET SCREW 5X7	1
105	014300432	SET SCREW SOCKET (CP) M3X4	1
106	S47508101	DIAL LOCK LEVER	1
107	S39830101	SPRING	1
108	SA7422001	ROCK LEVER PIN	1
109	SA2347001	BOLT M5X16	1
110	021500316	NUT 3 M5	1
111	SA2295201	SPRING HOOK ARM ASSY	1
112	S23651001	SET SCREW SOCKET (FT) M6X6	2
113	S25427101	SHOULDER SCREW, M4	1
114	SA3152001	SPRING ASSY	1
115	SA2294101	SPRING	1
116	SA3114001	VINYL TUBE	1
117	SA2293101	SPRING SET PLATE	1
118	062500816	SCREW PAN M5X8	2
119	048100142	RETAINING RING EXTERNAL C10	1

Page 23 — E. 膝上げ関係 / Knee lifter mechanism

Brother S-7200B parts on page 23
Ref	Part number	Part name	Qty
1	S35821021	KNEE LIFTER ASSY	1
2	146039021	KNEE LIFTER BRACKET	1
3	100463021	BOLT, SQUARE SM7.94	1
4	S35820021	BOLT, SM5.95X20	1
5	104619022	KNEE LIFTER BAR	1
6	S34756021	KNEE LIFTER PLATE	1
7	114967021	KNEE LIFTER PLATE STOPPER	1
8	110087021	BOLT, SM5.95-28X8	1
9	S31885001	KNEE LIFTER PLATE COVER	1

Page 25 — F. 逆転関係 / Quick reverse mechanism

Brother S-7200B parts on page 25
Ref	Part number	Part name	Qty
1	SA1399201	QUICK REVERSE SOLENOID ASSY	1
2	154729001	PLUNGER	1
3	154730001	RETAINING RING E15	1
4	154731000	RUBBER STOPPER	1
5	SA1258001	SOLENOID BASE	1
6	062500816	SCREW PAN M5X8	3
7	062061016	SCREW PAN M6X10	2
8	SA2852001	SOLENOID LEVER	1
9	SA2844101	SOLENOID LEVER SHAFT	1
10	SA2848001	SET COLLAR ASSY	1
11	012500536	SET SCREW SOCKET (FT) M5X5	2
12	SA2992001	PIN	1
13	153138001	WASHER, PLAIN 6.5	1
14	048060142	RETAINING RING EXTERNAL C6	1
15	SA2286001	RUBBER CUSHION	1
16	012060536	SET SCREW, SOCKET (FT) M6X5	1
17	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 27 — G. かま関係 / Rotary hook mechanism

Brother S-7200B parts on page 27
Ref	Part number	Part name	Qty
1	SA7261101	ROTARY HOOK SHAFT ASSY	1
2	SA7262001	ROTARY HOOK SHAFT	1
3	SA7148001	SCREW CAP W/HOLE M5-0.8	1
4	SA7525001	FELT	1
5	SA7263301	PUMP BUSH UNIT	1
6	SA7879001	PUMP BUSH ASSY	1
7	SA7693001	OIL SEAL	1
8	081025870	O RING S25	1
9	SA7320001	OIL SEAL	1
10	SA1273001	ROTARY HOOK SHAFT	1
11	SA7266001	ROTARY HOOK UNIT	1
12	S23651001	SET SCREW SOCKET (FT) M6X6	2
13	SA7554001	BEARING BUSH ASSY	1
14	S23651001	SET SCREW SOCKET (FT) M6X6	2
15	SA1284001	OIL SEAL	1
16	SA1285001	ROTARY HOOK SHAFT GEAR BUSH	1
17	012060536	SET SCREW, SOCKET (FT) M6X5	1
18	SA1286001	ROTARY HOOK SHAFT GEAR ASSY	1
19	S23651001	SET SCREW SOCKET (FT) M6X6	2
20	S02602001	HOOK STOPPER	1
20	159324001	HOOK STOPPER	1
21	062401216	SCREW PAN M4X12	1
22	S03245001	BOBBIN CASE ASSY	1
23	183388001	TENSION SPRING	1
24	183389001	ADJUSTING SCREW	1
25	183390001	SET SCREW	1
26	S03246001	ANTI-SPIN SPRING	1
27	146290001	BOBBIN	1
28	117132001	BOBBIN	1
29	SA2875001	I-ROTARY HOOK , W/BOX SA2876

Page 29 — H. 給油潤滑関係 / Lubrication

Brother S-7200B parts on page 29
Ref	Part number	Part name	Qty
1	SA1292001	WICK HOLDER ASSY	1
2	SA2343001	OIL TUBU ASSY	1
3	SA1304001	VINYL TUBE	1
4	SA1305001	WICK	1
5	S25382001	OIL FEEDING PIPE	1
6	062500616	SCREW PAN M5X6	1
7	081004070	O RING P4	1
8	S38769000	FELT	1
9	145737001	FELT SUPPORT	1
10	081004070	O RING P4	1
11	S04630000	NEEDLE BAR CORK	1
12	111863001	NEEDLE BAR CORK	1
13	SA1295001	CORD HOLDER, T2	1
14	062500816	SCREW PAN M5X8	1
15	144875001	PLUNGER	1
16	SA7636001	PUMP CAP SCREW ASSY	1
17	S25380401	CAP SCREW, PUMP	1
18	S52764001	SPRING, COMPRESSION	1
19	104821001	RUBBER CAP, 10.5	1
20	SA7265101	ADJUSTING SCREW	1
21	081004870	O RING S4	1
22	S25382001	OIL FEEDING PIPE	2
23	SA7345101	OIL TANK UNIT	1
24	SA3158101	OIL TANK ASSY	1
25	S25382001	OIL FEEDING PIPE	2
26	S51815001	OIL FEEDING PIPE, 8.6	1
27	SA1300001	VINYL TUBE	1
28	SA7269001	VINYL TUBE	2
29	SA1303001	SCREW M8	1
30	081008070	O RING P8	1
31	104450101	RUBBER CAP, 8	1
32	0A4501206	SCREW PAN (S/P WASHER) M5X12	2
33	SA1306001	SUB TANK ASSY	1
34	SA1307001	SUB TANK	1
35	S51815001	OIL FEEDING PIPE, 8.6	1
36	081022870	O RING S22	1
37	S47487001	FLOAT	1
38	SA1309001	OIL GAGE	1
39	S47509001	OIL GAUGE WINDOW	1
40	SA2779001	OIL GAUGE WINDOW	1
41	SA4552001	BED BOTTOM COVER UNIT	1
42	S51272100	OIL WINDOW, B-COVER	1
43	081015870	O RING S15	1
44	SA1313101	WINDOW COVER	1
45	062500616	SCREW PAN M5X6	4
46	SA1303001	SCREW M8	1
47	081008070	O RING P8	1
48	062400616	SCREW PAN M4X6	3
49	025040332	WASHER PLAIN L 4	3
50	SA1314001	BOTTOM COVER PACKING	1
51	062501216	SCREW PAN M5X12	9
52	SA1316001	CORD HOLDER PLATE	1
53	062500616	SCREW PAN M5X6	1

Page 31 — H. 給油潤滑関係 / Lubrication

Brother S-7200B parts on page 31
Ref	Part number	Part name	Qty
54	081029870	O RING S29	1
55	SA1321401	OIL PAN	1
56	SA1322301	OIL PAN	1
57	149578000	BUSH	4
58	SA1323001	KNEE LIFTER SHAFT L	1
59	SA1324001	KNEE LIFTER SHAFT R	1
60	SA1325001	KNEE LIFTER	1
61	SA1326101	KNEE LIFTER, R	1
62	S25344001	BOLT M6	2
63	S25475101	SET SCREW, M6X19	2
64	021060306	NUT 3 M6	2
65	SA3508001	TWIST SPRING	1
66	146293001	RETAINING RING, E10	2
67	SA1327101	KNEE LIFTER CONNECTING ROD	1
68	SA1179001	SHOULDER SCREW, M5	2

Page 33 — J. 糸通し関係 / Threading mechanism

Brother S-7200B parts on page 33
Ref	Part number	Part name	Qty
1	SA2351101	PRE-TENSION ASSY A	1
2	SA2362001	THREAD GUIDE	1
3	S45563001	THREAD GUIDE TENSION STUD	1
4	SA2363001	PRE-TENSION BASE	1
5	144504001	THREAD GUIDE DISC	2
6	SA2356101	PRE-TENSION SPRING A	1
7	SA6167001	THREAD TENSION NUT	1
1	SA2352101	PRE-TENSION ASSY B	1
2	SA2362001	THREAD GUIDE	1
3	S45563001	THREAD GUIDE TENSION STUD	1
4	SA2363001	PRE-TENSION BASE	1
5	144504001	THREAD GUIDE DISC	2
8	SA2358101	PRE-TENSION SPRING B	1
7	SA6167001	THREAD TENSION NUT	1
9	012500536	SET SCREW SOCKET (FT) M5X5	1
10	SA1359001	SPOOL PIN	1
11	S01419000	TENSION RELEASE PIN	1
12	SA1229101	SET SCREW (FT) M6X6	1
13	SA1343001	TENSION RELEASE STUD	1
14	SA2417001	THREAD GUIDE, P-BAR BRACKET	1
15	062400816	SCREW PAN M4X8	1
16	SA1345001	ARM THREAD GUIDE, R	1
17	060500616	SCREW BIND M5X6	1
18	SA1342001	THREAD TAKE-UP LEVER COVER	1
19	062500616	SCREW PAN M5X6	1
20	SA1961101	FACE PLATE ASSY	1
21	SA1291001	FACE PLATE PACKING	1
22	104449001	RUBBER CAP, 15.5	2
23	SA7271001	FACE PLATE THREAD GUIDE	1
24	060350616	SCREW BIND M3.5X6	1
25	062501816	SCREW, PAN M5X18	3
26	SA7272101	THREAD GUIDE, D	1
27	SA7273001	THREAD TENSION BRACKET ASSY	1
28	S02620201	THREAD TAKE-UP SPRING	1
29	SA7275001	TENSION SPRING	1
27	S55656301	THREAD TENSION BRACKET ASSY	1
28	100399201	THREAD TAKE-UP SPRING	1
29	115188101	TENSION SPRING	1
27	S55655201	THREAD TENSION BRACKET ASSY	1
28	S02620201	THREAD TAKE-UP SPRING	1
29	S04632101	TENSION SPRING	1
30	S40938001	THREAD TENSION BRACKET	1
31	116922001	TENSION STUD	1
32	100402004	SET SCREW, SM3.57	1
33	145446001	DISC, TENSION	2
34	159805001	TENSION DISC PRESSER	1
35	S12441001	WASHER	1
36	S31032001	TENSION NUT	1
37	114294001	O-RING	1

Page 35 — K. 糸巻関係 / Bobbin winder mechanism

Brother S-7200B parts on page 35
Ref	Part number	Part name	Qty
1	SA1971101	BOBBIN WINDER UNIT	1
2	048040342	RETAINING RING E4	1
3	SA1975001	B-WINDER SHAFT SUPPORT ASSY	1
4	SA1978001	BOBBIN WINDER SHAFT	1
5	081009070	O RING P9	1
6	025060136	WASHER PLAIN S 6	1
7	SA1980001	BOBBIN WINDER WHEEL	1
8	012500536	SET SCREW SOCKET (FT) M5X5	2
9	S25789000	RUBBER RING, 29	1
10	SA1981101	BOBBIN PRESSER CAM ASSY	1
11	SA1982101	BOBBIN PRESSER CAM	1
12	SA1983001	BOBBIN WINDER ARM SHAFT	1
13	012500536	SET SCREW SOCKET (FT) M5X5	1
14	048040342	RETAINING RING E4	1
15	025060136	WASHER PLAIN S 6	2
16	SA1984001	BOBBIN PRESSER ARM	1
17	062401216	SCREW PAN M4X12	1
18	SA1985001	BOBBIN PRESSER	1
19	S23418002	SCREW M4X5	1
20	SA1988001	BOBBIN SUPPORT	1
21	SA1989001	BOBBIN WINDER LEVER	1
22	SA1990101	SPRING	1
23	SA1991001	BOBBIN WINDER BASE SPRING	1
24	SA2190001	O RING, SS5	1
25	SA1992101	BOBBIN WINDER FIXED SCREW	3
26	SA1359001	SPOOL PIN	1
27	SA1360101	KNIFE	1
28	062500616	SCREW PAN M5X6	1
29	SA1994101	BOBBIN WINDER TENSION ASSY	1
30	145446002	DISC, TENSION	2
31	100401022	TENSION SPRING	1
32	S31032001	TENSION NUT	1
33	S12441001	WASHER	1
34	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 37 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200B parts on page 37
Ref	Part number	Part name	Qty
1	SA7552001	THREAD TRIMMER CAM	1
2	154567000	SPACER, 5.3	2
3	014771032	SET SCREW SOCKET SM6.35-40X10	2
4	S02637001	FIXED KNIFE	1
5	102843004	SCREW, FLAT SM3.57	1
6	S02643001	LOWER THREAD FINGER	1
7	026040236	WASHER PLAIN M 4	1
8	062400616	SCREW PAN M4X6	1
9	SA7282101	THREAD TRIMMER HOLDER ASSY	1
10	SA7283001	HOLDER, M-KNIFE	1
11	S25426101	THREAD TRIMMER CONNECTING ROD	1
12	SA7577001	SCREW BIND M4X10 SEAL	2
13	SA5329001	COLLAR	2
14	100645003	WASHER	2
15	021400306	NUT 3 M4	1
16	SA7284101	THREAD TRIMMER LEVER	1
17	SA7285001	LEVER STOPPER	1
18	SA7341101	THREAD TRIMMER STOPPER BASE	1
19	062400616	SCREW PAN M4X6	1
20	S02645001	MOVABLE KNIFE	1
21	148537101	SCREW, FLAT (W/SOCKET) SM4.37	2
22	062501416	SCREW PAN M5X14	1
23	SA7287001	KNIFE HOLDER PRESSER PLATE	1
24	004301016	SCREW FLAT M3X10	3
25	S02647021	FORKED SHAFT	1
26	S02648001	COLLAR	1
27	154581001	FORKED SHAFT BUSH	1
28	012060536	SET SCREW, SOCKET (FT) M6X5	1
29	SA1362101	THREAD TRIMMER LEVER UNIT	1
30	SA1363001	THREAD TRIMMER LEVER ASSY	1
31	SA2258001	ROLLER SHAFT, C ASSY	1
32	105234003	NUT SM4.37	1
33	S23651001	SET SCREW SOCKET (FT) M6X6	1
34	SA2383001	CAM LEVER SPRING	1
35	154593201	THREAD TRIMMER CAM LEVER SHAFT	1
36	154594000	COLLAR	1
37	S25434000	RUBBER CUSHION	1
38	154595001	SPRING, EXTENSION	1
39	154596000	CUSHION	1
40	110367001	WASHER, PLAIN SPECIAL 8	1
41	048060342	RETAINING RING E6	1
42	SA1366001	CAM LEVER SHAFT BUSH	1
43	012060536	SET SCREW, SOCKET (FT) M6X5	1
44	SA1391601	THREAD TRIMMER SOLENOID ASSY	1
45	SA1392001	THREAD TRIMMER SOLENOID	1
46	SA1393001	SOLENOID PLUNGER	1
47	S36893050	RUBBER CUSHION	1
48	SA1367201	THREAD TRIMMER SOLENOID BASE	1
49	SA7898201	SOLENOID LEVER	1
50	SA7899001	SHOULDER SCREW M6	1
51	SA2097101	SILENT SHEET	2
52	SA7900001	WASHER PLAIN	1
53	021060306	NUT 3 M6	1
54	SA7288001	PIN	1
55	025040232	WASHER PLAIN M 4	1
56	048040142	RETAINING RING EXTERNAL C4	1
57	062400816	SCREW PAN M4X8	4
58	062501216	SCREW PAN M5X12	3
59	S38687000	CONNECTOR, 5557-14R	1
60	SA1998001	GROUND WIRE ASSY	1
61	062500816	SCREW PAN M5X8	1
62	SA2868001	BAND	3

Page 39 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200B parts on page 39
Ref	Part number	Part name	Qty
63	SA1394101	CORD HOLDER U3	1
64	062500816	SCREW PAN M5X8	1
65	S02646001	MOVABLE KNIFE, S	1

Page 41 — M. 糸緩め関係 / Tension release mechanism

Brother S-7200B parts on page 41
Ref	Part number	Part name	Qty
1	SA1371201	TENSION RELEASE WIRE	1
2	SA1372001	WIRE HOLDER, U	1
3	062500816	SCREW PAN M5X8	2
4	SA1373001	WIRE HOLDER, U	1
5	060400516	SCREW BIND M4X5	1
6	154607101	WIRE HOLDER, D	1
7	060400816	SCREW BIND M4X8	2
8	110161004	NUT, SM4.76	2
9	SA2171001	WIRE CORD HOLDER	1
10	062500816	SCREW PAN M5X8	1

Page 43 — N. 糸払い関係 / Thread wiper mechanism

Brother S-7200B parts on page 43
Ref	Part number	Part name	Qty
1	SA1374301	THREAD WIPER DEVICE ASSY	1
2	SA1396001	THREAD WIPER SOLENOID ASSY	1
3	S41206001	THREAD WIPER SPRING	1
4	S41205001	WASHER, PLAIN	1
5	S25449201	SOLENOID SETTING PLATE	1
6	062300616	SCREW PAN M3X6	3
7	140647101	CORD HOLDER	1
8	062300616	SCREW PAN M3X6	1
9	062300616	SCREW PAN M3X6	2
10	SA1376001	THREAD WIPER BASE	1
11	062400616	SCREW PAN M4X6	2
12	026040236	WASHER PLAIN M 4	2
13	SA8002001	SOLENOID COVER	1
14	060400516	SCREW BIND M4X5	1
15	SA1967001	THREAD WIPER CRANK ASSY	1
16	048040342	RETAINING RING E4	1
17	S25454001	SET SCREW COLLAR	1
18	S25279101	SET SCREW (CP) M3.5-5	1
19	SA2287001	SPRING	1
20	SA1377001	THREAD WIPER ROD	1
21	110735002	WASHER	1
22	048030342	RETAINING RING E3	1
23	S25456001	PLUNGER PIN	1
24	SA1378201	THREAD WIPER	1
25	060400516	SCREW BIND M4X5	1
26	146288001	THREAD WIPER STUD COLLAR	1
27	S03677001	WASHER	1
28	S41207000	SPACER RUBBER	1
29	149097000	SILENT SHEET	1
30	S25456001	PLUNGER PIN	2
31	062500816	SCREW PAN M5X8	2

Page 45 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

Brother S-7200B parts on page 45
Ref	Part number	Part name	Qty
1	SA7291101	SAFETY SWITCH ASSY	1
2	SA7325001	MICRO SWITCH ASSY	1
3	SA7292101	SAFETY SWITCH BASE	1
4	SA5730101	SAFETY SWITCH BASE	1
5	SA5732001	SAFETY SWITCH LEVER	1
6	SA5731001	SAFETY SWITCH SPRING	1
7	SA7293001	SCREW, PAN (S/P W) M3X12	2
8	SA2868001	BAND	1
9	062060816	SCREW PAN M6X8	1
10	025060136	WASHER PLAIN S 6	1
11	J03940001	MOTOR ASSY CDD-HS	1
12	J03955001	DRUM CDD	1
13	014400632	SET SCREW SOCKET (CP) M4X6	2
14	J03956001	MAGNET 180P36	1
15	J03957001	MR SENSOR ASSY 180P	1
16	0A4300806	SCREW PAN (S/P WASHER) M3X8	2
17	J03958001	SHIELD PLATE CDD	1
18	0A4261006	SCREW PAN (S/P WASHER) M2.6X10	3
19	J04487001	PCB ASSY CDD-ENC#2	1
20	J03983001	HALL ELEMENT: ICEW-400	3
21	J03984001	HALL ELEMENT: ICEW-450	2
22	0A5300606	SCREW PAN (S/P WASHER) M3X6	3
23	J03961001	CORD HOLDER (HOLE)	1
24	J03962001	CORD HOLDER (TAPPING)	1
25	0A4401606	SCREW PAN (S/P WASHER) M4X16	2
26	0A4401006	SCREW PAN (S/P WASHER) M4X10	1
27	J04296001	ENCODER COVER CDD#2	1
28	0A4300806	SCREW PAN (S/P WASHER) M3X8	3
29	J03964001	PULLEY HOLDER ASSY CDD	1
30	014500632	SET SCREW SOCKET (CP) M5X6	2
31	SA2354001	SCREW PAN M5X18	3
32	J04442001	HEAD DETECTOR UNIT #2	1
33	J04392001	LED COVER	1
34	062501216	SCREW PAN M5X12	2
35	028050246	WASHER SPRING 2-5	2
36	026050136	WASHER PLAIN S 5	2
37	SA4211001	PULLEY,CDD	1
38	SA3025001	SCREW PAN(S/P WASHER)M4X10	3

Page 47 — P2 . コントロールボックス関係 / Control box mechanism

Brother S-7200B parts on page 47
Ref	Part number	Part name	Qty
1	BMP2060-0000000-CG40	G-40-PANEL-CHINA
1	BMP2060-0000000-0G40	G-40-PANEL
1	BMP2060-0000000-EG40	G-40-PANEL-EU
2	J80973001	G40 PANEL PCB ASSY	1
3	J80974001	G40 SUB PCB ASSY	1
4	J03975001	G40 PANEL SHEET 1	1
5	J03976001	G40 PANEL SHEET 2	1
6	J04195001	PANEL SETTING PLATE#2	1
7	J04273001	SCREW, PAN (S/P WASHER) M4X10	3

Page 49 — P3 . コントロールボックス関係 / Control box mechanism

Brother S-7200B parts on page 49
Ref	Part number	Part name	Qty
1	J04393001	FRONT BOX COVER CDD GO	1
2	J04438001	KEY TOP	1
3	J04440001	PANEL SHEET CDD GO	1
4	J03733001	SPEED ADJUST KNOB	1
5	062400863	SCREW, PAN M4X8	1
6	028040245	WASHER, SPRING 2-4	1
7	025040173	WASHER, PLAIN S 4	1
8	J04097001	TRANSFORMER, CDD-100V-SP	1
8	J04098001	TRANSFORMER, CDD-200V-SP	1
9	J04593001	TRANSFORMER, 400V-SP	1
10	J04167001	DC FAN ASSY, CDD #2	1
11	J01411001	SCREW, PAN (S/P WASHER) M4X50	2
12	J00494001	SCREW, PAN (S/P WASHER) M4X14	2
13	J03739001	SPRING PLATE, CR	1
14	J04099101	FOOT PLUG ASSY, CDD	1
15	J04100001	CEMENT RESISTOR ASSY, 40/220#6	1
16	J04468001	CORE:SD-SR-120	2
17	J80967001	TREADLE UNIT ASSY, CDD G	1
17	J80968001	TREADLE UNIT ASSY, CDD H	1
18	J80970001	CE FILTER PCB ASSY	1
19	J80964201	CONTROL PCB ASSY CDD#GO	1
20	J80965001	POWER PCB ASSY, CDD 1-110V	1
20	J80966101	POWER PCB ASSY CDD 1-230V	1
21	J04169001	THERMISTOR, CDD #2	1
22	J04168001	SHORT CONNECTOR	1
23	J04210001	BOLT ASSY, SQUARE M8X65	1
24	J04243001	EARTH CORD SCREW TIE ASSY	1
25	J04115001	LABEL, ELEC. SHOCK 6 LANG	1
26	S37060001	LABEL, GROUNDING	1

Page 51 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

Brother S-7200B parts on page 51
Ref	Part number	Part name	Qty
1	SA2407001	OPTION ACTUATOR SET	1
2	SA2388101	OPTION ACTUATOR ASSY	1
3	SA2270001	REVERSE SWITCH BRACKET	1
4	S34281000	REVERSE SWITCH BRACKET	1
5	SA4098001	ACTUATOR	1
6	SA4099001	REVERSE SWITCH SPRING	1
7	SA2389001	OPTION SWITCH SETTING PLATE	1
8	SA2386001	OPTION SWITCH ASSY	1
9	S32907050	MICRO SWITCH	1
10	SA2387001	CODE	1
11	SA2405001	SOCKET CONNECTOR	2
12	060300606	SCREW BIND M3X6	1
13	062400816	SCREW PAN M4X8	2
14	021400206	NUT 2 M4	2
15	S04159000	BAND, 1M	1
16	SA2406001	CONNECTOR,XAP-06V-1	1
17	062500616	SCREW, PAN M5X6	2
18	SA1388101	CORD HOLDER	1
19	SA2390101	CORD HOLDER,U4	1
20	J80975001	S2 SENSOR,#S7200	1
21	J04179001	S2 SENSOR ASSY,CDD	1
22	233268002	EMBLEM PLATE	1
23	J04186001	SENSOR HARNESS ASSY NOR	1
24	J04215001	SENSOR FIXNG PLATE	1
25	J04189001	SENSOR SETTING PLATE	1
26	J04249001	SENSOR SETTING COLLAR	2
27	J04314001	S2 SENSOR SETTING PLATE,ASSY	1
28	J800810E0	PEDAL STAND OPE VARIABLE 40#6	1
29	J803800E0	PEDAL STAND OPE DD 3P VARI 40	1
30	J806300E1	STANDING OPERATION 3-PEDAL 2S	1
31	J04099101	FOOT PLUG ASSY CDD	1
28	J80081040	PEDAL STAND OPE VARIABLE 40#6	1
29	J80380040	PEDAL STAND OPE DD 3P VARI 40	1
30	J80630001	STANDING OPERATION 3-PEDAL 2S	1
31	J04099101	FOOT PLUG ASSY CDD	1

Page 53 — Q. 膝スイッチ関係 / Knee switch mechanism

Brother S-7200B parts on page 53
Ref	Part number	Part name	Qty
1	S25457101	KNEE SWITCH ASSY	1
2	142026003	KNEE SWITCH SHAFT	1
3	142027001	BRACKET	1
4	100463001	BOLT, SQUARE SM7.94	1
5	114967001	KNEE LIFTER PLATE STOPPER	1
6	110087001	BOLT, SM5.95-28X8	1
7	S07027001	K-LIFTER SWITCH SETTING PLATE	1
8	062401006	SCREW PAN M4X10	4
9	025040233	WASHER, PLAIN M 4	4
10	028040243	WASHER, SPRING 2-4	4
11	021400164	NUT, 1 M4	4
12	S31938001	SWITCH CORD ASSY	1
13	S31939001	FOOT SWITCH ASSY	1
14	143549000	TERMINAL PIN, MALE	2
15	143548000	TERMINAL PIN, FEMALE	1
16	146046000	NYLON CONNECTOR	2
17	146194000	NYLON CONNECTOR	1
18	149799000	BEAD BAND, S	1
19	034422503	WOOD SCREW, FLAT 2 M4.1X25	4

Page 55 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7200B parts on page 55
Ref	Part number	Part name	Qty
1	SA7294001	R-ACTUATOR ASSY	1
2	SA2270001	REVERSE SWITCH BRACKET	1
3	SA7295001	REVERSE SWITCH BRACKET	1
4	SA4098001	ACTUATOR	1
5	SA4099001	REVERSE SWITCH SPRING	1
6	SA1390001	R-SWITCH ASSY	1
7	S32907050	MICRO SWITCH	1
8	060300606	SCREW BIND M3X6	1
9	062400816	SCREW PAN M4X8	2
10	021400206	NUT 2 M4	2
11	062500616	SCREW PAN M5X6	2
12	062500816	SCREW PAN M5X8	3
13	SA8008001	CORD HOLDER	1
14	062500616	SCREW PAN M5X6	1
15	SA1388101	CORD HOLDER	1
16	SA1394101	CORD HOLDER U3	2
17	SA1388101	CORD HOLDER	2
18	SA2689101	CORD HOLDER	1

Page 57 — S . 電装品関係 / Power supply equipment mechanism

Brother S-7200B parts on page 57
Ref	Part number	Part name	Qty
1	J04086001	POWER SWITCH ASSY, 1-100V #6	1
2	J04469001	POWER SWITCH ASSY, 1-110V #8	1
3	J04093001	< For General of Asia & North africa > POWER SWITCH ASSY, 1-240V #6	1
4	J04134001	POWER PLUG ASSY, 1-240V #6	1
5	J04096001	POWER SWITCH ASSY, 3-400V #6	1
6	J04149001	POWER SWITCH ASSY, 3-200V #6	1
7	J04470001	POWER SWITCH ASSY, 3-240V #8	1
8	J04251001	< For China > POWER SWITCH ASSY, 1-240V #CCC	1
9	J04255001	< For China > POWER SWITCH ASSY, 3-400V #CCC	1

Page 59 — T. 電磁押上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts)

Brother S-7200B parts on page 59
Ref	Part number	Part name	Qty
1	SA1397001	SOLENOID P-FOOT LIFTER SET, B	1
2	SA1941001	SOLENOID P-FOOT LIFTER ASSY	1
3	SA1942001	P-FOOT LIFTER SOLENOID ASSY	1
4	S38803051	B-CORD ASSY 100	1
5	S38804050	W-CORD ASSY, 100	1
6	SA2177001	CONNECTOR:5557-6R	1
7	S16625050	RUBBER STOPPER	1
8	SA1335001	SOLENOID BASE R	1
9	S16629151	SOLENOID STOPPER	1
10	018761832	BOLT, SOCKET SM5.95-28X18	3
11	SA1336001	SOLENOID BASE L	1
12	SA1950001	REAR PLATE	1
13	SA2296001	NUT M20	1
14	017061216	BOLT M6X12	4
15	021060216	NUT 2 M6	4
16	S16630051	PIN	1
17	048050142	RETAINING RING EXTERNAL C5	2
18	SA1332001	KNEE LIFTER SHAFT	1
19	S20356001	WASHER, PLAIN 10	2
20	048080342	RETAINING RING E8	2
21	SA1338001	PRESSER FOOT LIFTER ARM	1
22	062501216	SCREW PAN M5X12	1
23	S16643009	COVER	1
24	062670612	SCREW PAN SM3.57-40X6	2
25	SA2165001	SHOULDER SCREW, M6	1

Page 61 — Z. 付属部品関係 / Accessories

Brother S-7200B parts on page 61
Ref	Part number	Part name	Qty
1	S17774001	SCREW-DRIVER, 4.7X250	1
2	SA1656011	NEEDLE 4PIECE ASSY, 100265...... <#11>	1
3	100265031	NEEDLE DBX1	4
2	SA1656014	NEEDLE 4PIECE ASSY, 100265...... <#14>	1
3	100265034	NEEDLE DBX1	4
2	SA1752014	NEEDLE 4PIECE ASSY, 107415...... <#14>	1
3	107415014	NEEDLE, DPX5	4
2	SA1656022	NEEDLE 4PIECE ASSY, 100265...... <#22>	1
3	100265042	NEEDLE DBX1	4
2	SA1752022	NEEDLE 4PIECE ASSY, 107415...... <#22>	1
3	107415022	NEEDLE, DPX5	4
2	SA1658010	NEEDLE 3PIECE ASSY, S35775...... <#10>	1
2	SA1660010	NEEDLE 3PIECE ASSY, S37061...... <#10>	1
3	S37061010	NEEDLE, DPX5 NS	3
4	146290001	BOBBIN	3
5	117132001	BOBBIN	3
6	S06055009	HEAD REST, S	1
7	S09634000	KNEE LIFTER COMPLYING BAR	1
8	SA1969001	RUBBER HINGE ASSY	1
9	143882001	HEAD HINGE	2
10	143910009	RUBBER CUSHION	2
11	SA1962001	HEAD CUSHION····	2
12	SA1963001	HEAD CUSHION····	2
13	109714000	NAIL	4
14	SA7297101	OIL TANK ASSY	1
15	144226001	HEAD COVER	1
16	S02763602	COTTON STAND ASSY 2DR	1
17	S51283001	SPOOL STAND BASE	2
18	150182000	SPOOL MAT	2
19	S51282101	SPOOL CUSHION	2
20	150206002	WASHER PLAIN 16	1
21	SA6629001	NUT M16	1
22	150174000	COLUMN CAP	1
23	S01005000	RUBBER WASHER	2
24	S02747101	SPRING	1
25	150172003	COLUMN PIPE	1
26	150174000	COLUMN CAP	1
27	150207001	COLUMN PIPE W/SCREW	1
28	150206000	WASHER PLAIN 16	1
29	SA6606001	COLUMN JOINT	1
30	150179002	SPOOL SHAFT B	2
31	028050244	WASHER SPRING 2-5	2
32	021500104	NUT 1 M5	2
33	SA6607001	SPOOL HOLDER 2	1
34	SA6607001	SPOOL HOLDER 2	1
35	150183000	THREAD HANGER BASE	2
36	142990001	THREAD BUSH	2
37	SA6609001	SPOOL HOLDER SUPPORTER	2
38	021500104	NUT 1 M5	2
39	062061604	SCREW PAN M6X16	2
40	062501404	SCREW PAN M5X14	2
41	142443001	SCREW-DRIVER, 1.9X52	1
42	118837001	SCREW-DRIVER, 3.4X70	1
43	100887001	WRENCH, 8X9	1

Page 63 — Z. 付属部品関係 / Accessories

Brother S-7200B parts on page 63
Ref	Part number	Part name	Qty
44	142002001	HEXAGONAL WRENCH, 2	1
45	142721001	HEXAGONAL WRENCH, 3	1
46	107780001	WRENCH, 10X12	1
47	154125001	HEXAGONAL WRENCH, 2.5	1
48	S07783001	HEXAGONAL WRENCH, 1.5	1
49	S40765001	CONNECTING ROD ASSY	1
50	021060106	NUT 1 M6	2
51	119101001	CONNECTING ROD CLAMP	2
52	017841606	BOLT SM7.94-18X16	2
53	133643006	NUT SM7.94-18	2
54	021060106	NUT 1 M6	2
55	028060243	WASHER, SPRING 2-6	2
56	114859001	COLLAR	2

Page 64 — Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan)

Brother S-7200B parts on page 64
Ref	Part number	Part name
B-49	SA1133001	Needle bar
B-49	SA1137001	Needle bar
B-84	100265031	Needle
B-84	100265042	Needle
B-83	145971101	Needle plate
B-83	147245101	Needle plate
C-7	S13561101	Presser bar spring
C-7	141728001	Presser bar spring
C-9	153037201	Presser foot assy
C-9	145157101	Presser foot assy
D-89	S02742001	Feed dog
D-89	S02743001	Feed dog
G-20	S02602001	Hook stopper
G-20	159324001	Hook stopper
G-30	SA7686002	Rotary hook assy, w/box
G-30	SA7688001	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
B-49	SA1135001	Needle bar
B-49	SA7241001	Needle bar
B-84	S35775010	Needle
B-84	100265031	Needle
B-83	S35776201	Needle plate
B-83	145971101	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-91, D-89	S02748001	Feed dog
D-91, D-89	S02742001	Feed dog
G-20	S02602001	Hook stopper
G-30	SA7687001	Rotary hook assy, w/box
G-30	SA7686002	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-49	SA1135001	Needle bar
B-84	S35775010	Needle
B-84	100265031	Needle
B-83	S35776201	Needle plate
B-83	145971101	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-91, D-89	S02748001	Feed dog
D-91, D-89	S02742001	Feed dog
G-20	S02602001	Hook stopper
G-30	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin

Page 65 — Sp2 . 仕様別部品一覧表 (アメリカ向) / Different parts list (For USA)

Brother S-7200B parts on page 65
Ref	Part number	Part name
B-49	SA1133001	Needle bar
B-49	SA1137001	Needle bar
B-84	100265034	Needle
B-84	100265042	Needle
B-83	111859301	Needle plate
B-83	150792001	Needle plate
C-7	S13561101	Presser bar spring
C-7	141728001	Presser bar spring
C-9	153037201	Presser foot assy
C-9	150789101	Presser foot assy
D-90	SA2345001	Feed dog
D-90	150793001	Feed dog
G-20	S02602001	Hook stopper
G-20	159324001	Hook stopper
G-30	SA7686002	Rotary hook assy, w/box
G-30	SA7688001	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
B-49	SA1135001	Needle bar
B-49	SA7241001	Needle bar
B-84	S35775010	Needle
B-84	100265034	Needle
B-83	S03883201	Needle plate
B-83	111859301	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-90	SA2346001	Feed dog
D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	SA7687001	Rotary hook assy, w/box
G-30	SA7686002	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-49	SA1135001	Needle bar
B-84	S35775010	Needle
B-84	100265034	Needle
B-83	S03883201	Needle plate
B-83	111859301	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-92, D-90	SA2346001	Feed dog
D-92, D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin

Page 66 — Sp3 . 仕様別部品一覧表 (中国向) / Different parts list (For China)

Brother S-7200B parts on page 66
Ref	Part number	Part name
B-49	SA1133001	Needle bar
B-49	SA1137001	Needle bar
B-84	100265034	Needle
B-84	100265042	Needle
B-83	111859301	Needle plate
B-83	150792101	Needle plate
C-7	S13561101	Presser bar spring
C-7	141728001	Presser bar spring
C-9	153037201	Presser foot assy
C-9	150789101	Presser foot assy
D-90	SA2345001	Feed dog
D-90	150793001	Feed dog
G-20	S02602001	Hook stopper
G-20	159324001	Hook stopper
G-30	SA7686002	Rotary hook assy, w/box
G-30	SA7688001	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
B-49	SA1135001	Needle bar
B-49	SA7241001	Needle bar
B-84	S35775010	Needle
B-84	100265034	Needle
B-83	S03883201	Needle plate
B-83	111859301	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-92, D-90	SA2346001	Feed dog
D-92, D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	SA7687001	Rotary hook assy, w/box
G-30	SA7686002	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-49	SA1135001	Needle bar
B-84	S35775010	Needle
B-84	100265034	Needle
B-83	S03883201	Needle plate
B-83	111859301	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-92, D-90	SA2346001	Feed dog
D-92, D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin

Page 67 — Sp4 . 仕様別部品一覧表 (輸出一般向) / Different parts list (For General export)

Brother S-7200B parts on page 67
Ref	Part number	Part name
B-49	SA1133001	Needle bar
B-49	SA1137001	Needle bar
B-84	100265034	Needle
B-84	100265042	Needle
B-83	111859301	Needle plate
B-83	150792101	Needle plate
C-7	S13561101	Presser bar spring
C-7	141728001	Presser bar spring
C-9	153037201	Presser foot assy
C-9	150789101	Presser foot assy
D-90	SA2345001	Feed dog
D-90	150793001	Feed dog
G-20	S02602001	Hook stopper
G-20	159324001	Hook stopper
G-30	SA7686002	Rotary hook assy, w/box
G-30	SA7688001	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
B-49	SA1135001	Needle bar
B-49	SA7241001	Needle bar
B-84	S35775010	Needle
B-84	100265034	Needle
B-83	S03883201	Needle plate
B-83	111859301	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-92, D-90	SA2346001	Feed dog
D-92, D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	SA7687001	Rotary hook assy, w/box
G-30	SA7686002	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-49	SA1135001	Needle bar
B-84	S35775010	Needle
B-84	100265034	Needle
B-83	S03883201	Needle plate
B-83	111859301	Needle plate
C-7	147514001	Presser bar spring
C-7	S13561101	Presser bar spring
C-9	S35777101	Presser foot assy
C-9	153037201	Presser foot assy
D-92, D-90	SA2346001	Feed dog
D-92, D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin

Page 68 — Sp5 . 仕様別部品一覧表 (欧州・カナダ向) / Different parts list (For Europe & Canada)

Brother S-7200B parts on page 68
Ref	Part number	Part name
B-49	SA1134001	Needle bar
B-84	107415014	Needle
B-83	111859301	Needle plate
C-7	S13561101	Presser bar spring
C-10	SA2836101	Presser foot assy
D-90	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-30	SA7686002	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-49	SA1137001	Needle bar
B-84	107415022	Needle
B-83	150792001	Needle plate
C-7	141728001	Presser bar spring
C-10	SA2837101	Presser foot assy
D-90	150793001	Feed dog
G-20	159324001	Hook stopper
G-30	SA7688001	Rotary hook assy, w/box
G-28	117132001	Bobbin
B-49	SA1136001	Needle bar
B-84	S37061010	Needle
B-83	S03883201	Needle plate
C-7	147514001	Presser bar spring
C-10	SA2433101	Presser foot assy
D-92, D-90	SA2346001	Feed dog
G-20	S02602001	Hook stopper
G-30	SA7687001	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-49	SA7240001	Needle bar
B-84	107415014	Needle
B-83	111859301	Needle plate
C-7	S13561101	Presser bar spring
C-10	SA2836101	Presser foot assy
D-92, D-90	SA2345001	Feed dog
G-30	SA7686002	Rotary hook assy, w/box
B-49	SA1136001	Needle bar
B-84	S37061010	Needle
B-83	S03883201	Needle plate
C-7	147514001	Presser bar spring
C-10	SA2433101	Presser foot assy
D-92, D-90	SA2346001	Feed dog
G-20	S02602001	Hook stopper
G-30	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-84	107415014	Needle
B-83	111859301	Needle plate
C-7	S13561101	Presser bar spring
C-10	SA2836101	Presser foot assy
D-92, D-90	SA2345001	Feed dog

Page 69 — Ga1 . ゲージ部品一覧表 (薄・中物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW)

Brother S-7200B parts on page 69
Ref	Part number	Part name
B12	153147-001	Needle plate
B14	146233-001	Needle plate
NB14M	S29649-001	Needle plate
NB16M	S29646-001	Needle plate
B14	146050-001	Needle plate
B14	147238-001	Needle plate
B16	153190-001	Needle plate
B16	147239-001	Needle plate
B12	146231-001	Feed dog
B12	SA2836-101	Presser foot assy
B12	153037-201	Presser foot assy
B14	SA2839-101	Presser foot assy
B14	113280-101	Presser foot assy
NB14M	SA2842-101	Presser foot assy
NB14M	147531-101	Presser foot assy
NB16M	SA2856-101	Presser foot assy
NB16M	111856-101	Presser foot assy
B14	S07649-001	Feed dog
B14	SA2840-101	Presser foot assy
B14	140957-101	Presser foot assy
B14	SA2841-101	Presser foot assy
B14	143711-101	Presser foot assy
B16	S02742-001	Feed dog
B16	S01904-001	Presser foot assy

Page 70 — Ga2 . ゲージ部品一覧表 (薄・中厚物用：3枚歯) / Gauge parts list (Light & medium-weight materials : 3ROW)

Brother S-7200B parts on page 70
Ref	Part number	Part name	Qty
	S29645-001
	S07649-001
	SA2836-101	Slot
	145971-101
	S02742-001
	SA2839-101	Chamfering(L)
	S29645-001
	SA2842-101	Chamfering(S)
	100266-101
	SA2856-101	Slot
	146232-001
	146231-001
	SA2840-101	Chamfering(S)
	141096-001
	117442-001
	SA2841-101	Chamfering(S)
	S11222-001
	S07649-001
	S01904-001	Teflon
	S02742-001

Page 71 — Gauge parts list (Heavy-weight materials : 3ROW)

Brother S-7200B parts on page 71
Ref	Part number	Part name	Qty
	100267-001
	111241-001
	147245-101
	111508-001
	147322-201
	S29644-001
	S02743-001
	154742-001
	S02743-001
	SA2838-101
	145157-101
	SA2839-101
	113280-101

Page 72 — Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Brother S-7200B parts on page 72
Ref	Part number	Part name	Qty
	AB12N1	Needle plate
	AB14M1	Needle plate
	S02748-001	Feed dog
	SA2433-101	Presser foot assy
	S35777-101	Presser foot assy

Page 73 — Ga5 . ゲージ部品一覧表 (薄・中厚物用：4枚歯) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200B parts on page 73
Ref	Part number	Part name
E12N1	S03882-201
E14N1	S03883-201
E14N1	159859-201
E12	S01107-101
AB14N1	S02999-201
AB16N1	S03000-201
	SA2346-001	Feed dog
	SA2836-101	Presser foot assy
	SA2839-101	Presser foot assy
	113280-101	Presser foot assy
	SA2842-101	Presser foot assy
	147531-101	Presser foot assy
	SA2856-101	Presser foot assy
	111856-101	Presser foot assy
	S02748-001	Feed dog
	SA2840-101	Presser foot assy
	140957-101	Presser foot assy
	S02744-001	Feed dog
	SA2841-101	Presser foot assy
	143711-101	Presser foot assy
	S01904-001	Presser foot assy

Page 74 — Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200B parts on page 74
Ref	Part number	Part name	Qty
	156115-001
	156116-001
	S31910-001
	S03884-301
	S29648-101
	111859-301
	S29647-101
	S13684-001
	SA2346-001
	SA2345-001
	SA2836-101	Slot
	SA2839-101	Chamfering(L)
	SA2842-101	Chamfering(S)
	SA2856-101	Slot
	SA2840-101	Chamfering(S)
	SA2841-101	Chamfering(S)
	S01904-001	Teflon

Page 75 — Ga7 . ゲージ部品一覧表 (薄・中物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200B parts on page 75
Ref	Part number	Part name
A14	155676-001
AB14	156114-001
	S13684-001
	SA2836-101	Slot
	153037-201
	SA2839-101	Chamfering(L)
	113280-101
	SA2842-101	Chamfering(S)
	147531-101
	SA2856-101	Slot
	111856-101
	SA2840-101	Chamfering(S)
	140957-101
	SA2841-101	Chamfering(S)
	143711-101
	S01904-001	Teflon

Page 76 — Ga8 . ゲージ部品一覧表 (薄・中厚物用：4枚歯) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200B parts on page 76
Ref	Part number	Part name	Qty
	111859-301
	S29647-101
	S30103-001
	S13684-001
	SA2346-001
	SA2345-001
	S25822-001
	SA2836-101
	153037-201
	SA2839-101
	113280-101
	SA2842-101
	147531-101
	SA2856-101
	111856-101
	SA2840-101
	140957-101
	SA2841-101
	143711-101
	S01904-001

Page 77 — Ga9 . ゲージ部品一覧表 (厚物用：4枚歯) / Gauge parts list (Heavy-weight materials : 4ROW)

Brother S-7200B parts on page 77
Ref	Part number	Part name	Qty
	150792-101
	S25821-001
	150793-001
	S25822-001
	SA2837-101
	150789-101

Page 78 — Wa. 警告ラベル / Warning labels

Brother S-7200B parts on page 78
Ref	Part number	Part name	Qty
	J04115-001	Label, elec. shock 6 lang
	SA2040-001	Label, caution Jpa / Eng
	SA2041-001	Label, caution Chn / Eng
	S37060-001	Label, grounding

Page 79 — 索引 / INDEX

Brother S-7200B parts on page 79
Ref	Part number	Part name
- 24	004301016	L
- 14	012060536	D
- 38	012060536	D
- 66	012060536	D
- 77	012060536	D
- 16	012060536	F
- 17	012060536	G
- 28	012060536	L
- 43	012060536	L
- 47	012061036	B
- 11	012400436	B
- 18	012400436	B
- 25	012400436	B
- 31	012500536	B
- 41	012500536	B
- 46	012500536	B
- 18	012500536	C
- 12	012500536	D
- 28	012500536	D
- 35	012500536	D
- 44	012500536	D
- 47	012500536	D
- 50	012500536	D
- 11	012500536	F
- 17	012500536	F
- 9	012500536	J
- 8	012500536	K
- 13	012500536	K
- 34	012500536	K
- 82	014300432	D
- 105	014400632	P1
- 10	014500632	P1
- 3	014771032	L
- 14	017061216	T
- 52	017841606	Z
- 22	018400532	C
- 33	018501436	D
- 29	018501636	D
- 10	018761832	T
- 50	021060106	Z
- 54	021060106	Z
- 15	021060216	T
- 42	021060306	C
- 64	021060306	H
- 53	021060306	L
- 11	021400164	Q
- 14	021400206	P4
- 10	021400206	R
- 15	021400306	L
- 32	021500104	Z
- 38	021500104	Z
- 110	021500316	D
- 7	025040173	P3
- 23	025040232	C
- 55	025040232	L
- 9	025040233	Q
- 49	025040332	H
- 6	025060136	K
- 15	025060136	K
- 17	025100132	D
- 35	025350132	C
- 7	026040236	L
- 4	026050136	C
- 36	028040245	P1
- 10	028040243	Q
- 31	028050244	Z
- 35	028050246	P1
- 55	028060243	Z
- 19	034422503	Q
- 22	048030342	N
- 56	048040142	L
- 56	048040142	L
- 56	048040142	L
- 56	048040142	L
- 4	048050142	B
- 14	048050142	K
- 14	048050142	K
- 26	048050142	C
- 4	048050142	B
- 13	048060142	B
- 20	048060142	B
- 27	048060142	B
- 35	048060142	B
- 41	048080342	D
- 55	048080342	D
- 20	048100142	T
- 119	048120142	D
- 79	048150142	D
- 70	048150142	D
- 12	060300606	P4
- 24	060350616	J
- 5	060400516	M
- 14	060400516	N
- 25	060400516	N
- 7	060400816	M
- 17	060500616	J
- 9	062060816	P1
- 7	062061016	F
- 39	062061604	Z
- 97	062300616	D
- 6	062300616	N
- 8	062300616	D
- 9	062300616	N
- 60	062350616	D
- 14	062400616	A
- 48	062400616	H
- 6	062500616	H
- 45	062500616	H
- 53	062500616	H
- 19	062500616	J
- 28	062500616	K
- 17	062500616	P4
- 11	062500616	R
- 20	062500816	D
- 11	062500816	D
- 6	062500816	F
- 14	062500816	H
- 61	062500816	L
- 4	062501216	A
- 6	062501216	A
- 51	062501216	H
- 58	062501216	L
- 34	062501216	P1
- 22	062501216	T
- 40	062501404	Z
- 22	062501416	D
- 22	062501416	L
- 25	062501816	J
- 24	062670612	T
- 7	081004070	H
- 10	081004870	H
- 21	081008070	H
- 47	081009070	H
- 43	081015870	H
- 36	081022870	H
- 8	081025870	G
- 54	081029870	H
- 16	0A4261006	P1
- 16	0A4300806	P1
- 28	0A4401006	P1
- 25	0A4401606	P1
- 32	0A4501206	H
- 22	0A5300606	P1
- 10	100080004	D
- 3	100265031	Z
- 3	100265034	Z
	100265034	Sp1
	100265034	Sp2
	100265034	Sp3
	100265034	Sp4
- 3	100265042	Z
	100265042	Sp1
	100265042	Sp2
	100265042	Sp3
	100265042	Sp4
	100266101	Ga2
	100267001	Ga3
- 6	100328001	D
- 28	100399201	J
- 31	100401022	K
- 32	100402004	J
- 4	100463001	Q
- 3	100463021	E
- 14	100645003	L
- 43	100887001	Z
- 48	102630001	B
- 5	102843004	L
- 11	104449001	A
- 14	104450101	A
- 8	104450101	A
- 5	104619022	E
- 19	104821001	H
- 32	105234003	L
- 3	107415014	Z
	107415014	Sp5
- 3	107415022	Z
	107415022	Sp5
- 46	107780001	Z
- 3	108549001	D
- 13	109714000	Z
- 6	110087001	Q
- 8	110087021	E
- 8	110161004	M
- 40	110367001	L
- 21	110735002	N
	111241001	Ga3
	111508001	Ga3
	111856101	Ga1
	111856101	Ga2
	111856101	Ga5
	111856101	Ga6
	111856101	Ga7
	111856101	Ga8
	111859301	Sp2
	111859301	Sp3
	111859301	Sp4
	111859301	Sp5
	111859301	Ga6
	111859301	Ga8
- 12	111863001	H
	113280101	Ga1
	113280101	Ga2
	113280101	Ga3
	113280101	Ga5
	113280101	Ga6
	113280101	Ga7
	113280101	Ga8
- 37	114294001	J
- 65	114561001	B
- 56	114859001	Z
- 5	114967001	Q
- 7	114967021	E
- 29	115188101	J
- 31	116922001	J
- 28	117132001	G
- 5	117132001	Z
	117132001	Sp1
	117132001	Sp2

Page 80 — INDEX

Brother S-7200B parts on page 80
Ref	Part number	Part name
61	117132001	Sp3
65	146231001	Ga2
59	153037201	Sp1
40	J03962001	P1 -24
65	117442001	Ga2
65	146232001	Ga2
60	153037201	Sp2
40	J03964001	P1 -29
62	117936001	Sp4
64	146233001	Ga1
61	153037201	Sp3
42	J03975001	P2 -4
63	118837001	Sp5
38	146288001	N -26
62	153037201	Sp4
42	J03976001	P2 -5
2	117936001	A -12
22	146290001	G -27
64	153037201	Ga1
40	J03983001	P1 -20
56	119101001	Z -42
65	146290001	Ga2
65	153037201	Ga2
40	J03984001	P1 -21
6	122771051	B -66
68	146290001	Ga5
68	153037201	Ga5
52	J04086001	S -1
58	133643006	Z -53
69	146290001	Ga6
69	153037201	Ga6
52	J04093001	S -3
4	140004001	B -9
70	146290001	Ga7
70	153037201	Ga7
52	J04096001	S -5
4	140004001	B -16
71	146290001	Ga8
71	153037201	Ga8
44	J04097001	P3 -8
4	140004001	B -23
12	146290001	D -24
P3 -8	153132000	J04098001
4	140004001	B -31
26	146293001	H -66
20	153138001	F -13
44	J04099101	P3 -14
4	140004001	B -39
64	147239001	Ga1
64	153147001	Ga1
46	J04100001	P4 -31
8	140407001	C -8
64	147239001	Ga1
58	154125001	Z -47
44	J04100001	P3 -15
6	140553102	B -55
59	147245101	Sp1
32	154567000	L -2
44	J04115001	P3 -25
38	140647101	N -7
66	147322201	Ga3
32	15457000	L -2
	Wa
64	140957101	Ga1
8	147514001	C -7
32	154581001	L -27
52	J04134001	S -4
65	140957101	Ga2
59	147514001	Sp1
32	154593201	L -35
52	J04149001	S -6
68	140957101	Ga5
60	147514001	Sp2
32	154594000	L -36
44	J04167001	P3 -10
69	140957101	Ga6
61	147514001	Sp3
32	154595001	L -38
44	J04168001	P3 -22
70	140957101	Ga7
62	147514001	Sp4
32	154596000	L -39
44	J04169001	P3 -21
71	140957101	Ga8
64	147531101	Ga1
36	154607101	M -6
46	J04179001	P4 -21
65	141096001	Ga2
65	147531101	Ga2
20	154729001	F -2
46	J04186001	P4 -23
59	141728001	Sp1
66	147531101	Ga3
20	154730001	F -3
46	J04189001	P4 -25
60	141728001	Sp2
66	147531101	Ga3
20	154731000	F -4
42	J04195001	P2 -6
61	141728001	Sp3
32	148537101	L -21
66	154742001	Ga3
44	J04210001	P3 -23
62	141728001	Sp4
38	149097000	N -29
70	155676001	Ga7
44	J04243001	P3 -24
63	141728001	Sp5
58	14978000	Z -57
70	156114001	Ga7
46	J04249001	P4 -26
58	142002001	Z -44
56	150172003	Z -25
69	156115001	Ga6
52	J04251001	S -8
58	142002001	Z -44
56	150174000	Z -22
69	156116001	Ga6
52	J04255001	S -9
48	142026003	Q -2
56	150178900	Z -26
14	156243021	D -78
42	J04273001	P2 -7
48	142027001	Q -3
56	150179002	Z -30
12	156958021	D -27
40	J04296001	P1 -27
12	142374100	D -9
56	150182000	Z -18
12	156958021	D -53
46	J04314001	P4 -27
56	142443001	Z -41
56	150183000	Z -35
14	158722001	D -86
40	J04392001	P1 -33
58	142721001	Z -45
56	150190000	Z -18
22	159324001	G -20
44	J04393001	P3 -1
56	142990001	Z -36
56	150190000	Z -18
59	159324001	Sp1
44	J04438001	P3 -2
48	143548000	Q -15
56	150179002	Z -30
60	159324001	Sp2
44	J04440001	P3 -3
48	143549000	Q -14
56	150182000	Z -18
61	159324001	Sp3
40	J04442001	P1 -32
64	143711101	Ga1
56	150183000	Z -35
62	159324001	Sp4
44	J04468001	P3 -16
65	143711101	Ga2
56	150206000	Z -28
63	159324001	Sp5
52	J04469001	S -2
68	143711101	Ga5
56	150206002	Z -28
28	159805001	J -34
52	J04470001	S -7
69	143711101	Ga6
8	150789101	C -9
68	159859201	Ga5
40	J04487001	P1 -19
70	143711101	Ga7
59	150792001	Sp1
6	180018151	B -64
44	J04593001	P3 -9
71	143711101	Ga8
60	150792001	Sp2
22	183388001	G -23
46	J80081040	P4 -28
56	143882001	Z -9
61	150792001	Sp3
22	183389001	G -24
46	J800810E0	P4 -28
56	143910009	Z -10
62	150792001	Sp4
22	183390001	G -25
46	J80380040	P4 -29
56	144226001	Z -15
64	150792001	Ga1
42	233268002	P2 -1
46	J803800E0	P4 -29
28	144504001	H -5
72	150792001	Ga9
42	BMP2060-000000-0G40	P2 -1
46	J80630001	P4 -30
24	144875001	H -15
14	150793001	D -90
42	BMP2060-000000-0G40	P2 -1
46	J806300E1	P4 -30
8	145157101	C -9
59	150793001	Sp1
44	J00494001	P3 -12
44	J80964201	P3 -19
66	145157101	Ga3
60	150793001	Sp2
44	J01411001	P3 -11
44	J80965001	P3 -20
28	145446001	J -33
61	150793001	Sp3
44	J03733001	P3 -4
44	J80966101	P3 -20
30	145446002	K -30
62	150793001	Sp4
44	J03739001	P3 -13
44	J80967001	P3 -17
24	145737001	H -9
63	150793001	Sp5
40	J03940001	P1 -11
44	J80968001	P3 -17
59	145971101	Sp1
72	150793001	Ga9
40	J03955001	P1 -12
44	J80970001	P3 -18
65	145971101	Ga2
6	151267001	B -63
40	J03956001	P1 -14
42	J80973001	P2 -2
18	146039021	E -2
12	151308102	D -11
40	J03957001	P1 -15
42	J80974001	P2 -3
48	146046000	Q -16
6	151594001	B -62
40	J03958001	P1 -17
56	S01005000	Z -23
64	146050001	Ga1
8	153037201	C -9
40	J03961001	P1 -23
68	S01107101	Ga5
48	146194000	Q -17
8	153037201	C -9
28	S01419000	J -11
64	146231001	Ga1
64	S01904001	Ga1

Page 81 — INDEX

Brother S-7200B parts on page 81
Ref	Part number	Part name
65	S01904001	Ga2
68	S01904001	Ga5
69	S01904001	Ga6
70	S01904001	Ga7
71	S01904001	Ga8
22	S02602001	G - 20
59	S02602001	Sp1
60	S02602001	Sp2
61	S02602001	Sp3
62	S02602001	Sp4
63	S02602001	Sp5
28	S02620201	J - 28
32	S02637001	L - 4
32	S02645001	L - 6
32	S02646001	L - 20
32	S02647021	L - 25
32	S02648001	L - 26
14	S02742001	D - 89
59	S02742001	Sp1
64	S02742001	Ga1
65	S02742001	Ga2
14	S02743001	D - 89
59	S02743001	Sp1
66	S02743001	Ga3
68	S02744001	Ga5
56	S02747101	Z - 24
14	S02748001	D - 91
59	S02748001	Sp1
67	S02748001	Ga4
68	S02748001	Ga5
56	S02763602	Z - 16
68	S02999201	Ga5
68	S03000201	Ga5
22	S03245001	G - 22
22	S03246001	G - 26
38	S03677001	N - 27
68	S03882201	Ga5
60	S03882201	Sp2
61	S03882201	Sp3
62	S03882201	Sp4
63	S03882201	Sp5
68	S03882201	Ga5
69	S03884301	Ga6
46	S04159000	P4 - 15
24	S04630000	H - 11
28	S04632101	J - 29
56	S06055009	Z - 6
48	S07027001	Q - 7
64	S07350001	C - 25
64	S07649001	Ga1
58	S07783001	Z - 48
2	S09621151	A - 13
56	S09634000	Z - 7
65	S11222001	Ga2
28	S12441001	J - 35
30	S12441001	K - 33
14	S12915001	D - 58
8	S13385001	C - 11
59	S13561101	C - 7
59	S13561101	Sp1
60	S13561101	Sp2
61	S13561101	Sp3
62	S13561101	Sp4
63	S13561101	Sp5
68	S13684001	Ga5
69	S13684001	Ga6
70	S13684001	Ga7
71	S13684001	Ga8
12	S16335001	D - 51
12	S1637001	D - 52
54	S16625050	T - 7
54	S16629151	T - 9
54	S16630051	T - 16
54	S16643009	T - 23
56	S17774001	Z - 1
54	S20356001	T - 19
30	S23418002	K - 19
4	S23651001	B - 2
6	S23651001	B - 6
6	S23651001	B - 57
6	S23651001	B - 74
6	S23651001	B - 76
6	S23651001	B - 79
6	S23651001	B - 81
14	S23651001	D - 68
14	S23651001	D - 81
22	S23651001	G - 12
22	S23651001	G - 14
22	S23651001	G - 19
32	S23651001	L - 33
4	S25235001	B - 3
14	S25235001	D - 57
16	S25235001	D - 95
38	S25279101	N - 18
14	S25321001	D - 59
16	S25339201	D - 96
26	S25344001	H - 62
24	S25380401	H - 17
24	S25382001	H - 5
6	S25401100	B - 71
32	S25426101	L - 11
16	S25427101	D - 113
32	S25434000	L - 37
38	S25449201	N - 5
38	S25454001	N - 17
38	S25456001	N - 23
38	S25457101	Q - 1
12	S25469100	D - 16
26	S25475101	H - 63
30	S25789000	K - 9
72	S25821001	Ga9
71	S25822001	Ga8
72	S25822001	Ga9
66	S29644001	Ga3
65	S29645001	Ga2
64	S29646001	Ga1
69	S29647101	Ga6
69	S29648101	Ga6
71	S29648101	Ga8
64	S29649001	Ga1
71	S30103001	Ga8
8	S31006001	C - 31
28	S31032001	J - 36
18	S31885001	E - 9
2	S31899251	D - 41
12	S31910001	Q - 41
48	S31938001	Q - 12
48	S32263001	A - 9
46	S32907050	P4 - 9
50	S34281000	P4 - 4
14	S34352101	D - 70
18	S34756021	E - 6
59	S35775010	Sp1
67	S35776101	Ga4
59	S35776101	Sp1
8	S35777101	C - 9
59	S35777101	Sp1
60	S35777101	Sp2
61	S35777101	Sp3
62	S35777101	Sp4
67	S35777101	Ga4
18	S35820021	E - 4
18	S35821021	E - 1
32	S36893050	L - 47
8	S37020000	B - 90
44	S37060001	P3 - 26
56	S37061010	Z - 3
73	S37061010	Wa
63	S37061010	Sp5
32	S38687000	L - 59
6	S38712001	B - 59
6	S38713100	B - 60
67	S38760001	Ga4
24	S38769000	H - 8
54	S38803051	T - 4
54	S38804050	T - 5
8	S39051001	C - 32
16	S39830101	D - 107
58	S40765001	Z - 49
28	S40938001	J - 30
38	S41205001	N - 4
38	S41206001	N - 3
38	S41207000	N - 28
8	S41207000	C - 7
2	SA1105001	A - 5
2	SA1106001	A - 1
2	SA1107001	A - 2
4	SA1120001	B - 5
59	SA1133001	Sp1
60	SA1133001	Sp2
61	SA1133001	Sp3
62	SA1133001	Sp4
63	SA1133001	Sp5
59	SA1134001	Sp1
60	SA1135001	Sp2
59	SA1136001	Sp1
60	SA1137001	Sp2
6	SA1138101	B - 51
6	SA1139101	B - 52
6	SA1140001	B - 56
6	SA1143001	B - 67
6	SA1144001	B - 68
6	SA1145001	B - 69
6	SA1150001	B - 78
6	SA1166001	B - 73
8	SA1171001	C - 1
8	SA1173001	C - 3
8	SA1174001	C - 5
8	SA1175001	C - 36
8	SA1176001	C - 12
8	SA1177001	C - 13
8	SA1178001	C - 14
8	SA1179001	C - 15
8	SA1179001	C - 27
8	SA1179001	C - 30
8	SA1181001	C - 17
8	SA1182001	C - 19
8	SA1183001	C - 20
8	SA1184001	C - 21
8	SA1186001	C - 24
10	SA1190001	C - 41
10	SA1193001	C - 40
12	SA1206001	D - 15
12	SA1207001	D - 19
12	SA1209001	D - 23
12	SA1210001	D - 25
12	SA1211001	D - 26
12	SA1214101	D - 32
12	SA1217101	D - 40
12	SA1218001	D - 42
12	SA1223001	D - 48
12	SA1225001	D - 54
14	SA1226101	D - 62

Page 82 — INDEX

Brother S-7200B parts on page 82
Ref	Part number	Part name
- 64	SA1227101	D
- 65	SA1228001	D
- 12	SA1229101	J
- 71	SA1230001	D
- 72	SA1231001	D
- 76	SA1233101	D
- 80	SA1234001	D
- 75	SA1237001	D
- 83	SA1238401	D
- 84	SA1239201	D
- 87	SA1242001	D
- 93	SA1245101	D
- 94	SA1247001	D
- 100	SA1250101	D
- 101	SA1251001	D
- 98	SA1253101	D
- 99	SA1254001	D
- 5	SA1258001	F
- 56	SA1261001	D
- 56	SA1263001	D
- 39	SA1269001	D
- 10	SA1273001	G
- 15	SA1284001	G
- 16	SA1285001	G
- 18	SA1286001	G
- 21	SA1291001	J
- 1	SA1292001	H
- 13	SA1295001	H
- 27	SA1300001	H
- 46	SA1301001	H
- 3	SA1304001	H
- 4	SA1305001	H
- 33	SA1306001	H
- 34	SA1307001	H
- 38	SA1309001	H
- 44	SA1310001	H
- 50	SA1314001	H
- 52	SA1316001	H
- 72	SA1317001	B
- 55	SA1321401	H
- 56	SA1322301	H
- 58	SA1323001	H
- 59	SA1324001	H
- 60	SA1325001	H
- 61	SA1326101	H
- 67	SA1327101	H
- 18	SA1332001	T
- 8	SA1335001	T
- 11	SA1336001	T
- 21	SA1338001	T
- 18	SA1342001	J
- 13	SA1343001	J
- 16	SA1345001	J
- 10	SA1359001	J
- 26	SA1360101	K
- 27	SA1361001	K
- 29	SA1362101	L
- 30	SA1363001	L
- 42	SA1366001	L
- 48	SA1367201	L
- 1	SA1371201	M
- 2	SA1372001	M
- 4	SA1373001	M
- 1	SA1374301	N
- 10	SA1376001	N
- 20	SA1377001	N
- 24	SA1378201	N
- 18	SA1388101	P4
- 15	SA1390001	R
- 17	SA1391601	R
- 6	SA1392001	R
- 44	SA1393001	L
- 45	SA1394101	L
- 1	SA1396001	N
- 1	SA1397001	N
- 1	SA1399201	F
- 2	SA1656011	Z
- 2	SA1656014	Z
- 2	SA1656022	Z
- 2	SA1658010	Z
- 2	SA1660010	Z
- 2	SA1752014	Z
- 2	SA1752022	Z
- 3	SA1941001	T
- 12	SA1942001	T
- 20	SA1950001	T
- 11	SA1961101	J
- 12	SA1962001	Z
- 12	SA1963001	Z
- 15	SA1967001	N
- 8	SA1969001	Z
- 1	SA1971101	K
- 3	SA1975001	K
- 4	SA1978001	K
- 7	SA1980001	K
- 10	SA1981101	K
- 11	SA1982101	K
- 12	SA1983001	K
- 16	SA1984001	K
- 18	SA1985001	K
- 20	SA1988001	K
- 21	SA1989001	K
- 22	SA1990101	K
- 23	SA1991001	K
- 25	SA1992101	K
- 29	SA1994101	K
- 17	SA2040001	A
- 17	SA2041001	A
- 51	SA2097101	L
- 12	SA2161001	B
- 15	SA2170001	A
- 9	SA2171001	M
- 6	SA2177001	T
- 24	SA2190001	K
- 50	SA2194201	B
- 58	SA2250001	B
- 75	SA2251001	B
- 80	SA2252001	B
- 82	SA2254101	B
- 31	SA2258001	L
- 3	SA2270001	P4
- 15	SA2286001	F
- 19	SA2287001	N
- 117	SA2293101	D
- 115	SA2294101	D
- 111	SA2295201	D
- 2	SA2343001	H
- 90	SA2345001	D
- 92	SA2346001	D
- 109	SA2347001	D
- 7	SA2348001	C
- 1	SA2351101	J
- 1	SA2352101	J
- 31	SA2354001	P1
- 6	SA2356101	J
- 8	SA2358101	J
- 2	SA2362001	J
- 4	SA2363001	J
- 69	SA2377001	D
- 77	SA2378001	B
- 34	SA2383001	L
- 8	SA2386001	P4
- 10	SA2387001	P4
- 2	SA2388101	P4
- 7	SA2389001	P4
- 19	SA2390101	P4
- 103	SA2401001	D
- 61	SA2404001	B
- 11	SA2405001	P4
- 16	SA2406001	P4
- 1	SA2407001	P4
- 14	SA2417001	J
- 10	SA2422001	B
- 10	SA2433101	C

Page 83 — 索引 / INDEX

Brother S-7200B parts on page 83
Ref	Part number	Part name
- 65	SA3508001	H
- 16	SA3980001	C
- 4	SA4098001	P4
- 4	SA4098001	R
- 6	SA4099001	P4
- 5	SA4099001	R
- 37	SA4211001	P1
- 3	SA4494001	A
- 41	SA4552001	H
- 13	SA5329001	L
- 4	SA5730101	P1
- 6	SA5731001	P1
- 5	SA5732001	P1
- 7	SA6167001	J
- 29	SA6606001	Z
- 33	SA6607001	Z
- 34	SA6607001	Z
- 37	SA6609001	Z
- 21	SA6629001	Z
- 3	SA7148001	G
- 1	SA7209101	B
- 7	SA7212101	B
- 14	SA7222101	B
- 21	SA7227101	B
- 29	SA7234101	B
- 37	SA7238101	B
- 45	SA7239101	B
	SA7240001	Sp5
	SA7241001	Sp1
	SA7241001	Sp2
	SA7241001	Sp3
	SA7241001	Sp4
- 2	SA7242001	C
- 1	SA7243001	D
- 4	SA7246001	D
- 7	SA7249101	D
- 8	SA7250101	D
- 36	SA7252001	D
- 37	SA7253001	D
- 49	SA7254001	D
- 74	SA7255001	D
- 88	SA7257001	D
- 1	SA7261101	G
- 2	SA7262001	G
- 5	SA7263301	G
- 20	SA7265101	H
- 11	SA7266001	G
- 28	SA7269001	H
- 23	SA7271001	J
- 26	SA7272001	J
- 27	SA7273001	J
- 29	SA7275001	J
- 9	SA7282101	L
- 10	SA7283001	L
- 16	SA7284101	L
- 17	SA7285001	L
- 23	SA7287001	L
- 54	SA7288001	L
- 1	SA7291101	P1
- 3	SA7292101	P1
- 7	SA7293001	P1
- 1	SA7294001	R
- 3	SA7295001	R
- 14	SA7297101	Z
- 9	SA7320001	G
- 21	SA7321001	D
- 45	SA7323201	D
- 46	SA7324201	D
- 2	SA7325001	D
- 85	SA7330001	D
- 18	SA7341101	L
- 23	SA7345101	H
- 108	SA7422001	D
- 4	SA7525001	G
- 1	SA7552001	L
- 13	SA7554001	G
- 12	SA7577001	L
- 6	SA7607001	C
- 8	SA7625001	B
- 22	SA7625001	B
- 15	SA7626001	B
- 30	SA7627001	B
- 13	SA7635001	D
- 16	SA7636001	H
- 28	SA7654001	B
- 36	SA7654001	B
- 44	SA7654001	B
	SA7686002	Sp1
	SA7686002	Sp2
	SA7686002	Sp3
	SA7686002	Sp4
	SA7686002	Sp5
	SA7688001	Sp1
	SA7688001	Sp2
	SA7688001	Sp3
	SA7688001	Sp4
	SA7688001	Sp5
- 7	SA7693001	G
- 6	SA7879001	G
- 49	SA7898201	L
- 50	SA7899001	L
- 52	SA7900001	L
- 13	SA8002001	N
- 39	SA8004001	C
- 37	SA8005001	C
- 13	SA8008001	R

Page 7 — A. 主体関係 / Machine body

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 13 — C. 押え関係 / Presser foot mechanism

Page 15 — C. 押え関係 / Presser foot mechanism

Page 17 — D. 送り関係 / Feed mechanism

Page 19 — D. 送り関係 / Feed mechanism

Page 21 — D. 送り関係 / Feed mechanism

Page 23 — E. 膝上げ関係 / Knee lifter mechanism

Page 25 — F. 逆転関係 / Quick reverse mechanism

Page 27 — G. かま関係 / Rotary hook mechanism

Page 29 — H. 給油潤滑関係 / Lubrication

Page 31 — H. 給油潤滑関係 / Lubrication

Page 33 — J. 糸通し関係 / Threading mechanism

Page 35 — K. 糸巻関係 / Bobbin winder mechanism

Page 37 — L. 糸切り関係 / Thread trimmer mechanism

Page 39 — L. 糸切り関係 / Thread trimmer mechanism

Page 41 — M. 糸緩め関係 / Tension release mechanism

Page 43 — N. 糸払い関係 / Thread wiper mechanism

Page 45 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

Page 47 — P2 . コントロールボックス関係 / Control box mechanism

Page 49 — P3 . コントロールボックス関係 / Control box mechanism

Page 51 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

Page 53 — Q. 膝スイッチ関係 / Knee switch mechanism

Page 55 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

Page 57 — S . 電装品関係 / Power supply equipment mechanism

Page 59 — T. 電磁押上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts)

Page 61 — Z. 付属部品関係 / Accessories

Page 63 — Z. 付属部品関係 / Accessories

Page 64 — Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan)

Page 65 — Sp2 . 仕様別部品一覧表 (アメリカ向) / Different parts list (For USA)

Page 66 — Sp3 . 仕様別部品一覧表 (中国向) / Different parts list (For China)

Page 67 — Sp4 . 仕様別部品一覧表 (輸出一般向) / Different parts list (For General export)

Page 68 — Sp5 . 仕様別部品一覧表 (欧州・カナダ向) / Different parts list (For Europe & Canada)

Page 69 — Ga1 . ゲージ部品一覧表 (薄・中物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW)

Page 70 — Ga2 . ゲージ部品一覧表 (薄・中厚物用：3枚歯) / Gauge parts list (Light & medium-weight materials : 3ROW)

Page 71 — Gauge parts list (Heavy-weight materials : 3ROW)

Page 72 — Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Page 73 — Ga5 . ゲージ部品一覧表 (薄・中厚物用：4枚歯) / Gauge parts list (Light & medium-weight materials : 4ROW)

Page 74 — Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Page 75 — Ga7 . ゲージ部品一覧表 (薄・中物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Page 76 — Ga8 . ゲージ部品一覧表 (薄・中厚物用：4枚歯) / Gauge parts list (Light & medium-weight materials : 4ROW)

Page 77 — Ga9 . ゲージ部品一覧表 (厚物用：4枚歯) / Gauge parts list (Heavy-weight materials : 4ROW)

Page 78 — Wa. 警告ラベル / Warning labels

Page 79 — 索 引 / INDEX

Page 80 — INDEX

Page 81 — INDEX

Page 82 — INDEX

Page 83 — 索引 / INDEX

Brother S-7200B — parts catalog

Page 79 — 索引 / INDEX
