Parts index — Brother S-7200Btap a row to open its page

Page 2 — 型式板の見方

Brother S-7200B parts on page 2

Ref	Part number	Part name	Qty
	1	糸切り + 逆転
	4	糸切り + 逆転 + 糸払い
		微量給油タイプ
	3	セミドライタイプ
	5	完全ドライタイプ
	S	薄物・難素材用
	3	中厚物用
	5	厚物用

Page 3 — Description of model plate

Brother S-7200B parts on page 3

Ref	Part number	Part name	Qty
	S-7200B-	BROTHER INDUSTRIES, LTD.
	1	Thread Trimmer + Quick Reverse
	4	Thread Trimmer + Quick Reverse + Thread Wiper
		Minimum lubrication type
	3	Semi dry type
	5	Complete dry type
	S	Light-weight Materials & Difficult-to-sew Materials
	3	Medium-weight materials
	5	Heavy-weight materials

Page 4 — 目 次

Brother S-7200B parts on page 4

Ref	Part number	Part name	Qty
	Sp3	仕様別部品一覧表 (中国向)
	Sp4	仕様別部品一覧表 (輸出一般向)
	Sp5	仕様別部品一覧表 (欧州・カナダ向)
	Ga1	ゲージ部品一覧表 (薄・中厚物用:3枚菌)
	Ga2	ゲージ部品一覧表 (薄・中厚物用:3枚菌)
	Ga3	ゲージ部品一覧表 (厚物用:3枚菌)
	Ga4	ゲージ部品一覧表 (難素材・新素材用:4枚菌)

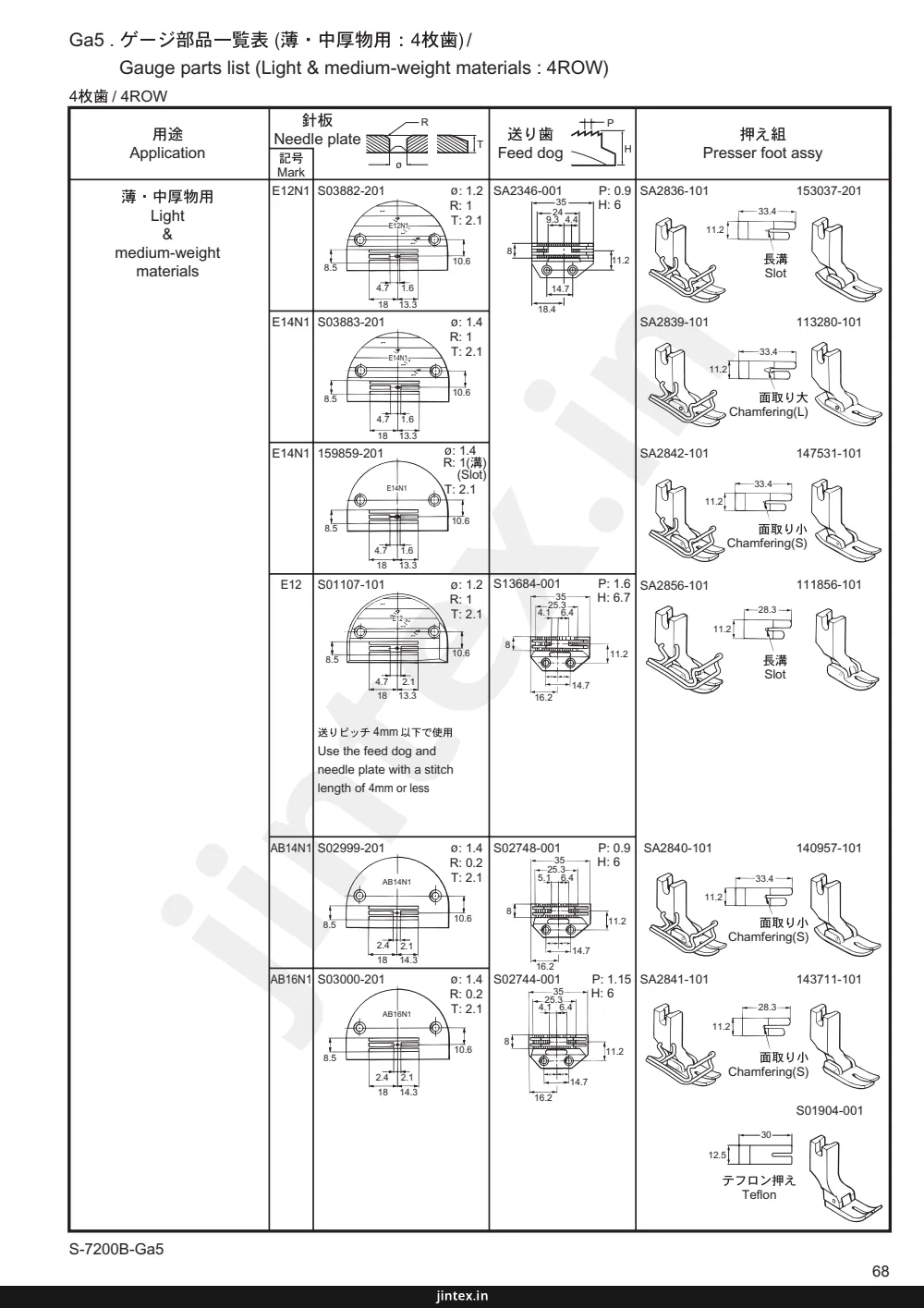

	Ga5	ゲージ部品一覧表 (薄・中厚物用:4枚菌)
	Ga6	ゲージ部品一覧表 (薄・中厚物用:4枚菌)
	Ga7	ゲージ部品一覧表 (薄・中厚物用:4枚菌)
	Ga8	ゲージ部品一覧表 (薄・中厚物用:4枚菌)
	Ga9	ゲージ部品一覧表 (厚物用:4枚菌)
	Wa	警告ラベル

Page 6 — A. 主体関係 / Machine body

Brother S-7200B parts on page 6

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Screw
3	3	Housing
4	4	Screw
5	5	Cover
6	6	Screw
7	7	Screw
8	8	Screw
9	9	Screw
10	10	Screw
11	11	Screw
12	12	Screw
13	13	Screw
14	14	Screw
15	15	Screw
16	16	R.P.
17	17	Warning symbol

Page 7 — A. 主体関係 / Machine body

Brother S-7200B parts on page 7

Ref	Part number	Part name	Qty
	SA1106001	キャクチュウR	1
	SA1107001	キャクチュウL	2
	SA4259001	モーターカバー	1
	062501216	ナベコ5X12	3
	SA1105001	ガワイタ	1
	062501216	ナベコ5X12	7
	104450101	ゴムセン8	2
	104450101	ゴムセン8	1
	S32263001	ゴムセン8.5	1
	104450101	ゴムセン8	1
	104449001	ゴムセン15.5	2
	117936001	ゴムセン9.4	1
	S09621151	ジョウギイタ	1
	062400616	ナベコ4X6	1
	SA2170001	キャクチュウRF	1
	S45050001	<ローロ5S、ローロ53用> RPマーク	1
	SA2040001	<日本向> ラベルチュウイ.ワイエイ	1
	SA2041001	<日本向以外> ラベルチュウイ.チュウエイ	1

Page 8 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200B parts on page 8

Ref	Part number	Part name	Qty
	1	Needle bar and thread take-up mechanism
	2	Screw
	3	Screw
	4	Screw
	5	Needle bar
	6	Screw
	7	Connecting rod
	8	Connecting rod
	9	Screw
	10	Screw
	11	Screw
	12	Connecting rod
	13	Washer
	14	Connecting rod
	15	Connecting rod
	16	Screw
	17	Screw
	18	Screw
	19	Connecting rod
	20	Washer
	21	Connecting rod
	22	Connecting rod
	23	Screw
	24	Screw
	25	Screw
	26	Washer
	27	Connecting rod
	28	Screw
	29	Connecting rod
	30	Connecting rod
	31	Screw
	32	Screw
	33	Screw
	34	Washer
	35	Connecting rod
	36	Screw
	37	Connecting rod
	38	Connecting rod
	39	Screw
	40	Screw
	41	Screw
	42	Washer
	43	Connecting rod
	44	Screw
	45	Needle bar
	46	Screw
	47	Screw
	48	Clip
	49	Thread take-up lever shaft
	50	Thread take-up lever shaft
	51	Thread take-up lever shaft
	52	Thread take-up lever shaft
	53	Screw
	54	Screw
	55	Screw
	56	Thread take-up lever
	57	Screw
	58	Thread take-up lever
	59	Thread take-up lever
	60	Thread take-up lever
	61	Screw
	62	Screw
	63	Screw
	64	Base plate
	65	Base plate
	66	Screw
	67	Shaft
	68	Shaft
	69	Shaft
	70	Washer
	71	Gear
	72	Gear
	73	Gear
	74	Screw
	75	Gear
	76	Screw
	77	Washer
	78	Gear
	79	Screw
	80	Thread take-up lever
	81	Screw
	82	Gear
	83	Needle bar
	84	Base plate

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200B parts on page 9

Ref	Part number	Part name	Qty
1	SA7209101	ウワジククミ	1
2	S23651001	アナヒラ6X6ホソメ	3
3	S25235001	シメネジ8	1
4	S25236001	アナヒラ6X10ホソメ	1
5	SA1120001	イトマキクドウリン	1
6	S23651001	アナヒラ6X6ホソメ	2
7	SA7212101	ハリボウレンカンソウクミ	1
8	SA7625001	ハリボウクランク	1
9	140004001	シメネジ3.57	1
10	SA2422001	シメネジ3.57L	1
11	012400436	アナヒラ4X4	2
12	SA2161001	ザガネ	1
13	048060342	トメワE6	1
14	SA7222101	ハリボウレンカンソウクミ	1
15	SA7626001	ハリボウクランク	1
16	140004001	シメネジ3.57	1
17	SA2422001	シメネジ3.57L	1
18	012400436	アナヒラ4X4	2
19	SA2161001	ザガネ	1
20	048060342	トメワE6	1
21	SA7227101	ハリボウレンカンソウクミ	1
22	SA7625001	ハリボウクランク	1
23	140004001	シメネジ3.57	1
24	SA2422001	シメネジ3.57L	1
25	012400436	アナヒラ4X4	2
26	SA2161001	ザガネ	1
27	048060342	トメワE6	1
28	SA7654001	シメネジM3X5	1
29	SA7234101	ハリボウレンカンソウクミ	1
30	SA7627001	ハリボウクランク	1
31	140004001	シメネジ3.57	1
32	SA2422001	シメネジ3.57L	1
33	012400436	アナヒラ4X4	2
34	SA2161001	ザガネ	1
35	048060342	トメワE6	1
36	SA7654001	シメネジM3X5	1
37	SA7238101	ハリボウレンカンソウクミ	1
38	SA7625001	ハリボウクランク	1
39	140004001	シメネジ3.57	1
40	SA2422001	シメネジ3.57L	1
41	012400436	アナヒラ4X4	2
42	SA2161001	ザガネ	1
43	048060342	トメワE6	1
44	SA7654001	シメネジM3X5	1
45	SA7239101	ストッパーピン	1
46	012500536	アナヒラ5X5	1
47	012061036	アナヒラ6X10	2
48	102630001	ハリボウアンナイカクコマ	1
49	* P. 49	ハリボウ	1
50	SA2194201	ハリボウメタルU	1

Page 10 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200B parts on page 10

Ref	Part number	Part name	Qty
	1	Needle bar
	2	Screw
	3	Screw
	4	Screw
	5	Needle bar bush
	6	Screw
	7	Needle bar connecting rod
	8	Connecting rod
	9	Screw
	10	Screw
	11	Screw
	12	Connecting rod
	13	Washer
	14	Needle bar connecting rod
	15	Connecting rod
	16	Screw
	17	Screw
	18	Screw
	19	Connecting rod
	20	Washer
	21	Needle bar connecting rod
	22	Connecting rod
	23	Screw
	24	Screw
	25	Screw
	26	Washer
	27	Connecting rod
	28	Screw
	29	Needle bar connecting rod
	30	Connecting rod
	31	Screw
	32	Screw
	33	Screw
	34	Washer
	35	Connecting rod
	36	Screw
	37	Needle bar connecting rod
	38	Connecting rod
	39	Screw
	40	Screw
	41	Screw
	42	Washer
	43	Connecting rod
	44	Screw
	45	Needle bar
	46	Screw
	47	Screw
	48	Clip
	49	Thread take-up lever shaft
	50	Thread take-up lever shaft
	51	Thread take-up lever shaft
	52	Thread take-up lever shaft
	53	Screw
	54	Screw
	55	Screw
	56	Thread take-up cam
	57	Thread take-up cam
	58	Thread take-up cam
	59	Thread take-up cam
	60	Thread take-up cam
	61	Screw
	62	Screw
	63	Screw
	64	Base plate
	65	Base plate
	66	Screw
	67	Shaft
	68	Shaft
	69	Shaft
	70	Washer
	71	Bearing
	72	Gear
	73	Gear
	74	Screw
	75	Gear
	76	Screw
	77	Washer
	78	Bearing
	79	Screw
	80	Thread take-up lever
	81	Screw
	82	Washer
	83	Needle bar
	84	Base plate

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200B parts on page 11

Ref	Part number	Part name	Qty
	SA1138101	ハリボウメタルD	1
	SA1139101	ハリボウメタルD	1
	012500536	アナヒラ5X5	1
	062500616	ナベコ5X6	1
	140553102	アタマツキトメネジ3.18	1
	SA1140001	ツギテソーミ	1
	S23651001	アナヒラ6X6ホソメ	2
	SA2250001	タイミングプーリ U	1
	S38712001	フランジ	1
	S38713100	ファン	1
	SA2404001	ナベザクミ4X35DB	3
	151594001	ハリボウイトアンナイ	1
	151267001	サラネジ4.37	2
	180018151	スベリイタクミ	1
	114561001	スベリイタウラバネ	1
	122771051	シメネジ2.38	2
	SA1141001	シタジククミ	1
	SA1144001	シタジク	1
	SA1150001	タマヅクウケ6301ZZNR	1
	048120142	トメワジクヨウC12	1
	S25401100	オイルシール	1
	SA1317001	オイルシール	1
	SA1166001	シタジクギアクミ	1
	S23651001	アナヒラ6X6ホソメ	2
	SA2251001	タイミングプーリー D	1
	S23651001	アナヒラ6X6ホソメ	2
	SA2378001	カンザ4.8	2
	SA1150001	ベアリングブツシユクミ	1
	SA2251001	アナヒラ6X6ホソメ	1
	SA2252001	タイミングベルト	1
	S23651001	アナヒラ6X6ホソメ	2
	SA2254101	シタジクメタル	1
	* P.59	ハリイタ	1
	* P.59	ミシンハリ	1

Page 12 — C. 押え関係 / Presser foot mechanism

Brother S-7200B parts on page 12

Ref	Part number	Part name	Qty
41	41	Screw
42	42	Washer
30	30	Screw
27	27	Screw
28	28	Screw
16	16	Lever
29	29	Rod
15	15	Screw
20	20	Screw
21	21	Lever
22	22	Screw
23	23	Washer
14	14	Arm
12	12	Shaft
19	19	Shaft
25	25	Screw
26	26	Spring
24	24	Screw
13	13	Lever
17	17	Screw
18	18	Screw
31	31	Lever
32	32	Screw
33	33	Pin
5	5	Screw
36	36	Washer
6	6	Washer
7	7	Spring
8	8	Washer
1	1	Presser Bar
39	39	Presser Bar Holder
40	40	Screw
37	37	Screw
38	38	Screw
2	2	Presser Foot
9	9	Presser Foot
10	10	Presser Foot
11	11	Screw
34	34	Spring
35	35	Washer
3	3	Washer
4	4	Screw

Page 13 — C. 押え関係 / Presser foot mechanism

Brother S-7200B parts on page 13

Ref	Part number	Part name	Qty
	SA1171001	オサエボウ	1
	SA1173001	オサエボウ	1
	SA7242001	オサエボウメタル	1
	062500616	ナベコ5X6	1
	026050136	ヒラザガネコガタ5	1
	SA1174001	オサエチヨウセツネツジM14	1
	SA7607001	オサエバネアンナイ	1
	S13561101	オサエバネ	1
	141728001	オサエバネ	1
	147514001	オサエバネ	1
	S42893001	オサエバネ	1
	SA2348001	オサエバネ	1
	140407001	ザガネ	1
	153037201	オサエクミ	1
	SA2836101	オサエクミ	1
	145157101	オサエクミ	1
	150789101	オサエクミ	1
	SA2837101	オサエクミ	1
	S35777101	オサエクミ	1
	SA2433101	オサエクミ	1
	S13385001	シメネジ3.57X10	1
	SA1176001	オサエアゲレバークミ	1
	SA1177001	オサエアゲレバー	1
	SA1178001	ヒザゲレンカン	1
	SA117001	ダンネジ5	1
	SA3980001	ヒザゲレバー	1
	SA1181001	オサエアゲレバージク	1
	012500536	アナヒラ5X5	1
	SA1182001	イトユルメイタクミ	1
	SA1183001	イトユルメイタ	1
	SA1184001	イトユルメリカリエイタ	1
	018400532	アナボルト4X5	1
	025040232	ヒラザガネチユウ4	1
	SA1186001	オサエアゲレバーバネ	1
	S07350001	サガネ	1
	048050342	トメワE5	2
	SA1179001	ダンネジ5	1
	SA2165001	ダンネジ6	1
	SA1190001	ヒザアゲボウ	1
	SA1179001	ダンネジ5	1
	S31006001	オサエアゲテコ	1
	S39051001	ナベザクミ35X12	1
	SA45837001	オサエアゲクランク	1
	SA2778201	フィンガーガード	1
	025350132	ヒラザガネシヨウ3.5	1
	SA1175001	チョウセツネジナツトM14	1
	SA8005001	オサエボウダキクミ	1
	062401216	ナベ4X12	1

Page 14 — C. 押え関係 / Presser foot mechanism

Brother S-7200B parts on page 14

Ref	Part number	Part name	Qty
	1	Presser bar
	2	Presser bar holder
	3	Washer
	4	Screw
	5	Presser foot spring
	6	Spring guide
	7	Spring collar
	8	Presser bar collar
	9	Presser foot
	10	Presser foot
	11	Screw
	12	Presser bar connecting link
	13	Presser bar lifter lever
	14	Presser bar lifter lever shaft
	15	Screw
	16	Presser bar lifter arm
	17	Screw
	18	Screw
	19	Presser bar lifter rod
	20	Screw
	21	Lever
	22	Screw
	23	Washer
	24	Spring
	25	Screw
	26	Spring
	27	Screw
	28	Screw
	29	Presser bar lifter rod
	30	Screw
	31	Presser bar holder
	32	Screw
	33	Screw
	34	Spring
	35	Washer
	36	Presser foot spring collar
	37	Presser bar holder
	38	Screw
	39	Presser bar holder
	40	Screw
	41	Presser bar lifter rod
	42	Screw

Page 15 — C. 押え関係 / Presser foot mechanism

Brother S-7200B parts on page 15

Ref	Part number	Part name	Qty
39	SA8004001	オサエボウダキ	1
40	SA1193001	ボルト3X7.5	1
41	SA1189101	チョウセツネジナ6	1
42	021060306	3シュナット6	1

Page 16 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 16

Ref	Part number	Part name	Qty
110	110	Nut
109	109	Lever
30	30	Shaft
7	7	Shaft
11	11	Screw
12	12	Pin
8	8	Shaft
9	9	Shaft
106	106	Lever
107	107	Spring
14	14	Pin
13	13	Shaft
10	10	Shaft
31	31	Shaft
32	32	Shaft
33	33	Screw
35	35	Washer
108	108	Shaft
34	34	Shaft
119	119	Washer
25	25	Shaft
28	28	Pin
29	29	Screw
26	26	Shaft
27	27	Pin
16	16	Bush
15	15	Shaft
17	17	Washer
18	18	Ring
19	19	Disc
20	20	Screw
23	23	Spring
22	22	Screw
24	24	Pin
21	21	Lever
56	56	Shaft
57	57	Screw
58	58	Gear
59	59	Shaft
48	48	Shaft
46	46	Shaft
95	95	Shaft
93	93	Screw
98	98	Screw
100	100	Screw
97	97	Shaft
96	96	Shaft
103	103	Shaft
105	105	Pin
60	60	Screw
50	50	Shaft
45	45	Shaft
64	64	Shaft
66	66	Washer
49	49	Shaft
54	54	Shaft
53	53	Shaft
52	52	Shaft
51	51	Shaft
61	61	Screw
104	104	Screw
63	63	Pin
62	62	Shaft
67	67	Washer
102	102	Screw
89	89	Base
90	90	Screw
91	91	Screw
92	92	Base
84	84	Shaft
86	86	Washer
85	85	Shaft
87	87	Screw
88	88	Screw
83	83	Shaft
71	71	Shaft
72	72	Shaft
73	73	Pin
75	75	Shaft
74	74	Shaft
76	76	Shaft
78	78	Washer
79	79	Washer
77	77	Screw
81	81	Screw
80	80	Shaft
68	68	Screw
69	69	Shaft
70	70	Shaft
40	40	Shaft
41	41	Shaft
43	43	Shaft
42	42	Shaft
44	44	Screw
37	37	Shaft
39	39	Bearing
38	38	Screw
113	113	Screw
111	111	Shaft
36	36	Shaft
112	112	Screw
115	115	Spring
116	116	Screw
114	114	Shaft
117	117	Plate
118	118	Screw
1	1	Screw
2	2	Screw
3	3	Shaft
4	4	Shaft
5	5	Pin
6	6	Spring

Page 17 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 17

Ref	Part number	Part name	Qty
	SA7243001	<-ロ3,-ロ5用>
	SA4494001	オクリメモリダイヤルクミ
	108549001	シメネジ4.76
	108549001	Oリング
	SA7246001	<-ロS用>
	SA4494001	オクリメモリダイヤルクミ
	108549001	シメネジ4.76
	108549001	Oリング
	S50098101	メモリイチギメピン
	100328001	メモリイチギメピンバネ
	SA7249101	オクリチョウセツクミ
	SA7250101	オクリチョウセツキ
	142374100	ドライブツシュ
	SA2849001	キリカエキレンカン
	151308102	レンカンジク12.5
	012500536	アナヒラ5X5
	SA7635001	オクリチョウセツクミ
	012060536	アナヒラ6X5
	SA1206001	カエシイレーバジク
	S25469100	ドライブツシュ
	025100132	ヒラザガネショウ10
	040808032	トメワE8
	SA1207001	カンザ
	062500816	ナベコ5X8
	SA7321001	カエシイレーバー
	062501416	ナベコ5X14
	SA1209001	カエシイレーババネ
	153132000	ナイロンチューブ
	SA1210001	ハンドルジククミ
	SA1211001	ハンドルジクウデ
	156958021	スイヘイオクリウデジク
	012500536	アナヒラ5X5
	018501636	アナボルト5X16
	SA2854001	キリカエキジククミ
	SA2854101	キリカエキジクウデ
	SA1214101	キリカエキジク
	018501436	アナボルト5X14
	SA2851001	ヘンシンピン
	012500536	アナヒラ5X5
	SA7253001	キリカエキジクメタルR
	SA7253001	キリカエキジクメタルL
	012060536	アナヒラ6X5
	SA1269001	オイルシール
	SA1271101	キリカエキレンカンクミ
	S31899251	キリカエキレンカン S
	SA1218001	キリカエキジクツギテ
	151308102	レンカンジク12.5
	012500536	アナヒラ5X5
	SA7323201	キリカエキジククミ
	SA7242001	キリカエキジク
	012500536	アナヒラ5X5
	SA1223001	スイヘイオクリレンカン
	SA7254001	リンクジク
	012500536	アナヒラ5X5
	S16335001	スイヘイオクリリンククミ
	S16337001	スイヘイオクリウデリンククミ
	156958021	スイヘイオクリウデジク
	SA1225001	スイヘイオクリウデ
	048040342	トメワE4

Page 18 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 18

Ref	Part number	Part name	Qty
110	110	NUT
109	109	BOLT
30	30	BRACKET
7	7	BRACKET
11	11	SCREW
12	12	WASHER
8	8	SHAFT
9	9	COLLAR
10	10	BRACKET
14	14	PIN
13	13	SHAFT
106	106	LEVER
107	107	SPRING
3	3	SCREW
2	2	SCREW
4	4	BRACKET
1	1	BRACKET
6	6	SPRING
5	5	PIN
108	108	SHAFT
34	34	SHAFT
119	119	WASHER
32	32	SHAFT
33	33	SCREW
35	35	WASHER
15	15	SHAFT
16	16	COLLAR
17	17	WASHER
18	18	CLIP
27	27	COLLAR
26	26	BRACKET
25	25	SHAFT
28	28	WASHER
29	29	SCREW
19	19	PLATE
20	20	WASHER
23	23	SPRING
22	22	SCREW
21	21	BRACKET
16	16	COLLAR
17	17	WASHER
18	18	CLIP
56	56	SHAFT
57	57	SCREW
58	58	GEAR
59	59	COLLAR
48	48	BRACKET
60	60	SCREW
95	95	COLLAR
93	93	SHAFT
98	98	COLLAR
100	100	COLLAR
97	97	WASHER
96	96	PLATE
94,99,101	94,99,101	COLLAR
103	103	SHAFT
105	105	PIN
104	104	SCREW
66	66	WASHER
67	67	PIN
63	63	COLLAR
62	62	SHAFT
46	46	BRACKET
50	50	SHAFT
45	45	COLLAR
64	64	COLLAR
65	65	COLLAR
49	49	SHAFT
53	53	COLLAR
52	52	BRACKET
51	51	BRACKET
54	54	COLLAR
61	61	SCREW
55	55	WASHER
111	111	BRACKET
36	36	COLLAR
112	112	SPRING
71	71	SHAFT
72	72	SHAFT
73	73	PIN
74	74	COLLAR
75	75	COLLAR
41	41	BRACKET
37	37	COLLAR
39	39	BEARING
38	38	SCREW
43	43	COLLAR
42	42	BRACKET
44	44	COLLAR
76	76	COLLAR
78	78	COLLAR
79	79	WASHER
77	77	SCREW
81	81	COLLAR
80	80	COLLAR
68	68	SPRING
69	69	COLLAR
70	70	COLLAR
82	82	SCREW
83	83	BRACKET
85	85	BRACKET
87	87	SCREW
88	88	SCREW
84	84	SHAFT
86	86	COLLAR
89	89	BRACKET
90	90	COLLAR
91	91	COLLAR
92	92	COLLAR
102	102	SCREW
113	113	BRACKET
114	114	BRACKET
115	115	SPRING
116	116	SPRING
117	117	BRACKET
118	118	SCREW

Page 19 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 19

Ref	Part number	Part name	Qty
	SA1263001	スイヘイヘンシンリンネジツキ	1
	S25236001	アナヒラ6X10ホソメ	2
	SA1261001	スイヘイヘンシンリンネジツキ	1
	S25236001	アナヒラ6X10ホソメ	2
	S12915001	ニードルジクウケ25	1
	S2521001	レンカンオサエ	1
	062350616	ナベコ35X6	2
	062501416	ナベコ5X14	1
	SA1226101	キリカエジクL	1
	104449001	ゴムセン15.5	1
	SA1227101	キリカエササエジク	1
	SA1228001	ゴムセン14.5	1
	012060536	アナヒラ6X5	2
	SA1229101	アナトメネジ6トガリ	1
	S23651001	アナヒラ6X6ホソメ	2
	SA2377001	ゴムセンラベル	1
	S34352101	ゴムセン13.5	1
	SA1230001	スイヘイオクリジククミ	1
	SA1231001	スイヘイオクリジク	1
	SA2162001	フエルト	1
	SA7255001	オクリジクメタル R	1
	SA1237001	オイルシール	1
	SA1233101	オクリジクメタル L	1
	012060536	アナヒラ6X5	1
	156243021	オクリジクスラストリング	1
	048150142	トメワジクヨウC15	1
	SA1234001	セットカラークミ	1
	S23651001	アナヒラ6X6ホソメ	2
	014300432	アナトメボミ3X4	1
	SA1238401	オクリダイクミ	1
	SA1239201	オクリダイ	1
	SA7330001	スイヘイオクリダイウデ	1
	158722001	ザガネ4.2	1
	SA1242001	アタマトメボミ5X7	1
	SA7257001	シメネジ5X12	2
	S02742001	オクリバ	1
	SA2345001	オクリバ	1
	S02743001	オクリバ	1
	150793001	オクリバ	1
	S02748001	オクリバAB	1
	SA2346001	オクリバ	1

Page 20 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 20

Ref	Part number	Part name	Qty
110	110	NUT
109	109	BOLT
30	30	BRACKET
7	7	SHAFT
11	11	SCREW
12	12	WASHER
8	8	COLLAR
9	9	COLLAR
10	10	BRACKET
14	14	PIN
13	13	PIN
106	106	LEVER
107	107	SPRING
3	3	SCREW
2	2	SCREW
4	4	COLLAR
1	1	COLLAR
5	5	PIN
6	6	SPRING
31	31	SHAFT
32	32	SHAFT
108	108	SHAFT
34	34	COLLAR
119	119	WASHER
33	33	SCREW
35	35	COLLAR
15	15	SHAFT
19	19	PLATE
20	20	WASHER
23	23	SPRING
22	22	SPRING
21	21	LEVER
24	24	PIN
2	2	SCREW
16	16	COLLAR
17	17	WASHER
18	18	RING
25	25	BRACKET
28	28	WASHER
27	27	COLLAR
26	26	BRACKET
29	29	SCREW
56	56	SHAFT
57	57	COLLAR
93	93	BRACKET
98	98	BRACKET
100	100	BRACKET
97	97	COLLAR
96	96	COLLAR
95	95	COLLAR
58	58	COLLAR
59	59	COLLAR
48	48	SHAFT
60	60	SCREW
46	46	BRACKET
50	50	SHAFT
45	45	COLLAR
64	64	COLLAR
65	65	COLLAR
66	66	WASHER
103	103	COLLAR
105	105	COLLAR
94,99,101	94,99,101	BRACKET
53	53	COLLAR
54	54	COLLAR
47	47	BRACKET
52	52	BRACKET
51	51	BRACKET
61	61	SCREW
63	63	COLLAR
62	62	COLLAR
67	67	WASHER
89	89	BRACKET
90	90	SPRING
91	91	SPRING
92	92	SPRING
102	102	SCREW
104	104	SPRING
71	71	SHAFT
72	72	SHAFT
73	73	PIN
74	74	COLLAR
75	75	COLLAR
41	41	BRACKET
37	37	COLLAR
39	39	BEARING
36	36	COLLAR
111	111	COLLAR
112	112	SPRING
40	40	COLLAR
76	76	COLLAR
78	78	WASHER
79	79	WASHER
81	81	COLLAR
80	80	COLLAR
43	43	COLLAR
38	38	SCREW
44	44	COLLAR
42	42	BRACKET
82	82	SCREW
83	83	BRACKET
88	88	SCREW
87	87	COLLAR
85	85	BRACKET
84	84	SHAFT
86	86	COLLAR
77	77	SCREW
68	68	SPRING
70	70	COLLAR
69	69	PLATE
68	68	SPRING
117	117	PLATE
118	118	SCREW
115	115	SPRING
116	116	SPRING
114	114	COLLAR

Page 21 — D. 送り関係 / Feed mechanism

Brother S-7200B parts on page 21

Ref	Part number	Part name	Qty
	SA1245101	ジョウゲヘンシンリンクミ	1
	SA1247001	ヘンシンリンネジツキ	1
	S25236001	アナヒラ6X10ホルメ	2
	S25339201	オク リダイウデオサエ	1
	062300616	ナベコ3X6	2
	SA1253101	ジョウゲヘンシンリンクミ	1
	SA1254001	ヘンシンリンネジツキ	1
	S25236001	アナヒラ6X10ホルメ	2
	S25339201	オク リダイウデオサエ	1
	062300616	ナベコ3X6	2
	SA1250101	ジョウゲヘンシンリンクミ	1
	SA1251001	ヘンシンリンネジツキ	1
	S25236001	アナヒラ6X10ホルメ	2
	S25339201	オク リダイウデオサエ	1
	062300616	ナベコ3X6	2
	100080004	シメネジ3.18	2
	SA241001	ジョウゲクリジクオオクミ	1
	SA1242001	アタマトメヌボミ5X7	1
	01309432	アナクボミ3X4	1
	S47508101	ダイヤル ロツクレバー	1
	S39830101	ダイヤル ロツクレバーバネ	1
	SA7422001	ロツクレバーピン	1
	SA2347001	ボルト5X16	1
	021500316	3シュナット5	1
	SA2295201	バネカケウデクミ	1
	S23651001	アナヒラ6X6ホツメ	2
	S25427101	ダンネジ4	1
	SA3152001	ヒキバネクミ	1
	SA2294101	ヒキバネ	1
	SA3114001	ビニルチューブ	1
	SA2293101	バネトリツケイタ	1
	062500816	ナベコ5X8	2
	048100142	トメワジクヨウC10	1

Page 22 — E . 膝上げ関係 / Knee lifter mechanism

Brother S-7200B parts on page 22

Ref	Part number	Part name	Qty
1	1	Knee lifter mechanism
2	2	BRACKET
3	3	SCREW
4	4	BOLT
5	5	ROD
6	6	COVER
7	7	SCREW
8	8	SCREW
9	9	DISC

Page 23 — E. 膝上げ関係 / Knee lifter mechanism

Brother S-7200B parts on page 23

Ref	Part number	Part name	Qty
	S35821021	ヒザアテ
	146039021	ヒザアテ
	100463021	4カクボルト7.94
	S35820021	ボルト5.95×20
	104619022	ヒザアテ
	S34756021	ヒザアテ
	114967021	ヒザアテストッパ
	110087021	ボルト5.95
	S31885001	ヒザアテカバー

Page 24 — F. 逆転関係 / Quick reverse mechanism

Brother S-7200B parts on page 24

Ref	Part number	Part name	Qty
6	6	BOLT
7	7	BOLT
5	5	BRACKET
1	1	BRACKET
2	2	SHAFT
4	4	WASHER
3	3	CIR-CLIP
11	11	BOLT
8	8	LEVER
10	10	BRACKET
9	9	SHAFT
17	17	SPRING
16	16	SPRING
15	15	COLLAR
14	14	SPRING
13	13	WASHER
12	12	COLLAR

Page 25 — F. 逆転関係 / Quick reverse mechanism

Brother S-7200B parts on page 25

Ref	Part number	Part name	Qty
	SA1399201	QUICK REVERSE SOLENOID ASSY	1
	154729001	PLUNGER	1
	154730001	RETAINING RING E15	1
	154731000	RUBBER STOPPER	1
	SA1258001	SOLENOID BASE	1
	062500816	SCREW PAN M5X8	3
	062061016	SCREW PAN M6X10	2
	SA2852001	SOLENOID LEVER	1
	SA2844101	SOLENOID LEVER SHAFT	1
	SA2848001	SET COLLAR ASSY	1
	012500536	SET SCREW SOCKET (FT) M5X5	2
	SA2992001	PIN	1
	153138001	WASHER, PLAIN 6.5	1
	048060142	RETAINING RING EXTERNAL C6	1
	SA2286001	RUBBER CUSHION	1
	012060536	SET SCREW, SOCKET (FT) M6X5	1
	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 26 — G. かま関係 / Rotary hook mechanism

Brother S-7200B parts on page 26

Ref	Part number	Part name	Qty
10	10	Shaft
11	11	Rotary hook shaft
12	12	Rotary hook
28	28	Bobbin case
29	29	Bobbin case
2	2	Shaft
1	1	Shaft
3	3	Pin
4	4	Screw
5	5	Bearing
6	6	Shaft
7	7	Bearing
8	8	O-ring
9	9	Washer
13	13	Shaft
14	14	Screw
15	15	Collar
16	16	Collar
17	17	Screw
18	18	Gear
19	19	Screw
20	20	Lever
21	21	Screw
22	22	Shaft
23	23	Hook driver
24	24	Screw
25	25	Screw
26	26	Hook driver
27	27	Bobbin winder
30	30	Rotary hook

Page 27 — G. かま関係 / Rotary hook mechanism

Brother S-7200B parts on page 27

Ref	Part number	Part name	Qty
	SA7261101	カマジククミ
	SA7262001	カマジク
	SA7148001	オイルアナフタネシ
	SA7525001	フエルト
	SA7263301	ポンプメタルオオクミ
	SA7879001	ポンプメタルクミ
	SA7693001	オイルシール
	081025870	OリングS25
	SA7320001	オイルシール
	SA1273001	カマジク
	SA1266001	カマジク
	S23651001	アナヒラ6X6ホソメ
	SA7554001	ベアリングブツシュクミ
	S23651001	アナヒラ6X6ホソメ
	SA1284001	オイルシール
	SA1285001	カマジクギヤメタル
	010606036	アナヒラ6X5
	SA1286001	カマジクギヤクミ
	S23651001	アナヒラ6X6ホソメ
	S02602001	ウチカマトメ
	159324001	ウチカマトメ
	062401216	ナベコ4X12
	S03245001	ボビンケースクミ
	183388001	ボビンケースチョウシバネ
	183389001	チョウシバネチョウセツネジ
	183390001	チョウシバネトメネジ
	S03246001	クウテンボウシバネ
	146290001	ボビン
	117132001	ボビン
	SA2875001	SA2876ウチカマハコウミ
	* P. 59	カマハコウミ

Page 28 — H. Lubrication

Brother S-7200B parts on page 28

Ref	Part number	Part name	Qty
12	12	O-RING
6	6	SPRING PIN
14	14	SCREW
31	31	TUBE
1	1	BRACKET
9	9	BRACKET
8	8	BRACKET
7	7	BRACKET
20	20	SPRING
21	21	PIN
16	16	SPRING
15	15	SPRING
18	18	SPRING
17	17	SPRING
19	19	SPRING
22	22	SPRING
23	23	TUBE
25	25	BRACKET
30	30	BRACKET
29	29	SPRING
32	32	SPRING
11	11	BRACKET
38	38	TUBE
37	37	O-RING
36	36	O-RING
35	35	SPRING
34	34	SPRING
33	33	BRACKET
4	4	SPRING
5	5	SPRING
3	3	TUBE
2	2	BRACKET
24	24	TUBE
27	27	BRACKET
26	26	SPRING
28	28	SPRING
47	47	SPRING
46	46	SPRING
43	43	SPRING
42	42	SPRING
41	41	GASKET
48	48	SCREW
49	49	SPRING
50	50	GASKET
51	51	BRACKET
52	52	SPRING
53	53	SPRING
56	56	BRACKET
68	68	SPRING
67	67	SPRING
61	61	BRACKET
57	57	SPRING
62	62	SCREW
66	66	SPRING
59	59	SPRING
65	65	SPRING
64	64	SPRING
63	63	SPRING
58	58	SPRING
60	60	SPRING
55	55	BRACKET

Page 29 — H. 給油潤滑関係 / Lubrication

Brother S-7200B parts on page 29

Ref	Part number	Part name	Qty
	SA1292001	トウシンホルダーグミ
	SA2343001	ビニルチューブグミ
	SA1304001	ビニルチューブ
	SA1305001	クミヒモ
	S25382001	オイルクチ
	062500616	ナベコ5X6
	081004070	OリングP4
	S38769000	フエルト
	145737001	フエルトオサエ
	081004070	OリングP4
	S04630000	ハリボウセン
	111863001	ハリボウセン
	SA1295001	コードオサエT2
	062500816	ナベコ5X8
	144875001	プランジャー
	SA7636001	ポンプフタネジクミ
	S25380401	ポンプフタネジ
	S52764001	プランジャーバネ
	104821001	ゴムセン10.5
	SA7265101	オイルチヨウセツネジ
	081004870	OリングS4
	S25382001	オイルクチ	2
	SA7345101	オイルタンククミ
	SA3158101	オイルタンククミ
	S25382001	オイルクチ	2
	S51815001	オイルクチ8.6
	SA1300001	ビニルチューブ
	SA7269001	ビニルチューブ	2
	SA1303001	シメネジ8
	081008070	OリングP8
	104450101	ゴムセン8
	0A4501206	+ナベザクミ5X12DA	2
	SA1306001	サブタンククミ
	SA1307001	サブタンク
	S51815001	オイルクチ8.6
	081022870	OリングS22
	S47487001	オイルゲジウキ
	SA1309001	オイルゲージ
	S47509001	ユリヨウケイマド
	SA2779001	ユリヨウケイマド
	SA4552001	ベッドソフタソウクミ
	S51272100	ソフタマド
	081015870	OリングS15
	SA1313101	マドフタ
	062500616	ナベコ5X6	4
	SA1303001	シメネジ8
	081008070	OリングP8
	062400616	ナベコ4X6	3
	025040332	ヒラザガネダイ4	3
	SA1314001	ソフタパツキン
	062501216	ナベコ5X12	9
	SA1316001	コードオサエイタ
	062500616	ナベコ5X6

Page 30 — H. Lubrication

Brother S-7200B parts on page 30

Ref	Part number	Part name	Qty
12	12	OILER
14	14	SCREW
31	31	TUBE
6	6	WASHER
10	10	BRACKET
7	7	SCREW
20	20	SCREW
21	21	WASHER
16	16	SPRING
15	15	VALVE
18	18	SPRING
17	17	SPRING
19	19	SPRING
22	22	SPRING
23	23	TUBE
25	25	BRACKET
30	30	BRACKET
29	29	SCREW
32	32	SCREW
1	1	BRACKET
9	9	SPRING
8	8	SPRING
54	54	SPRING
11	11	OILER
38	38	TUBE
37	37	CAP
36	36	SPRING
34	34	SPRING
33	33	BRACKET
35	35	SPRING
2	2	BRACKET
5	5	SPRING
4	4	SPRING
3	3	TUBE
41	41	GASKET
50	50	GASKET
47	47	SPRING
46	46	SPRING
48	48	SCREW
49	49	WASHER
43	43	SPRING
42	42	SPRING
44	44	SPRING
45	45	SPRING
51	51	BRACKET
52	52	SPRING
53	53	SPRING
56	56	BRACKET
68	68	SPRING
67	67	SPRING
61	61	BRACKET
57	57	SPRING
62	62	SCREW
66	66	CIR-CLIP
59	59	PIN
65	65	SPRING
60	60	SPRING
64	64	SPRING
63	63	SCREW
58	58	PIN

Page 31 — H. 給油潤滑関係 / Lubrication

Brother S-7200B parts on page 31

Ref	Part number	Part name	Qty
	081029870	OリングS29	1
	SA1321401	オイルパンクミ	1
	SA1322301	オイルパン	1
	149578000	ヨコジクブッシュ	4
	SA1323001	ヒザアゲヨコジクL	1
	SA1324001	ヒザアゲヨコジクR	1
	SA1325001	ヒザアゲ	1
	SA1326101	ヒザアゲR	1
	S25344001	ボルト6	2
	S25475101	トメネジ6	2
	021060306	3シュナット6	2
	SA3508001	ヒザアゲネジリバネ	1
	146293001	トメワE10	2
	SA1327101	ヒザアゲレンケツカン	1
	SA1179001	ダンネジ5	2

Page 32 — J. 糸通し関係 / Threading mechanism

Brother S-7200B parts on page 32

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37

Page 33 — J. 糸通し関係 / Threading mechanism

Brother S-7200B parts on page 33

Ref	Part number	Part name	Qty
	SA2351101	プレテンションクミA
	SA2362001	イトアンナイ
	S45563001	イトアンナイチョウシボウ
	SA2363001	プレテンションダイ
	144504001	イトアンナイサラ
	SA2356101	プレテンションバネA
	SA6167001	イトチョウシナット
	SA2352101	プレテンションクミB
	SA2362001	イトアンナイ
	S45563001	イトアンナイチョウシボウ
	SA2363001	プレテンションダイ
	14504001	イトアンナイサラ
	SA2358101	プレテンションバネB
	SA6167001	イトチョウシナット
	012500536	アナヒラ5X5
	SA1359001	イトタテボウ
	S01419000	イトユルメピン
	SA1229101	アナトメネジ6トガリ
	SA1343001	イトユルメボウ
	SA2417001	オサエボウダケイトアンナイ
	062400816	ナベコ4X8
	SA1345001	アームイトアンナイR
	060500616	バインド5X6
	SA1342001	テンビンカバー
	062500616	ナベコ5X6
	SA1961101	メンイタクミ
	SA1291001	メンイタパッキン
	104449001	ゴムセン15.5
	SA7271001	メンイタイトアンナイ
	060350616	バインド35X6
	062501816	ナベコ5X18
	SA7272101	ハリボウメタルDイトアンナイ
	SA7273001	イトチョウシボウダイクミ
	S02620201	イトトリバネ
	SA7275001	イトチョウシバネ
	S55656301	イトチョウシボウダイクミ
	100399201	イトトリバネ
	115188101	シュイトチョウシバネ
	S55655201	イトチョウシボウダイクミ
	S02620201	イトトリバネ
	S04632101	イトチョウシバネ
	S40938001	イトチョウシボウタイ
	116922001	イトチョウシボウ
	100402004	トメネジ3.57
	145446001	イトチョウシサラ
	159805001	イトチョウシサラオサエ
	S12441001	チョウシバネウエザガネ
	S31032001	イトチョウシナット
	114294001	Oリング

Page 34 — K. 糸巻関係 / Bobbin winder mechanism

Brother S-7200B parts on page 34

Ref	Part number	Part name	Qty
	1	Bobbin winder mechanism
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	30
	31
	32
	33
	34

Page 35 — K. 糸巻関係 / Bobbin winder mechanism

Brother S-7200B parts on page 35

Ref	Part number	Part name	Qty
1	SA1971101	イトマキュニット	1
2	048040342	トメワE4	1
3	SA1975001	イトマキジクウケケミ	1
4	SA1978001	イトマキジク	1
5	081009070	OリングP9	1
6	025060136	ヒラザガネショウ6	1
7	SA1980001	イトマキクルマ	1
8	012500536	アナヒラ5X5	2
9	S25789000	ゴムワ29	1
10	SA1981101	ボビンオサエカムクミ	1
11	SA1982101	ボビンオサエカム	1
12	SA1983001	イトマキウデジク	1
13	012500536	アナヒラ5X5	1
14	048040342	トメワE4	1
15	025060136	ヒラザガネショウ6	2
16	SA1984001	ボビンオサエウデ	2
17	062401216	ナベコ4X12	1
18	SA1985001	ボビンオサエ	1
19	S23418002	シメネジ4X5	1
20	SA1988001	ボビンウケ	1
21	SA1989001	イトマキレバー	1
22	SA1990101	モドシバネ	1
23	SA1991001	イトマキダイバネ	1
24	SA2190001	OリングSS5	1
25	SA1992101	イトマキコテイネジ	3
26	SA1359001	イトタテボウ	1
27	SA1360101	メス	1
28	062500616	ナベコ5X6	1
29	SA1994101	イトマキチョウシンクミ	1
30	145446002	イトチョウコウサラ	1
31	100401022	イトチョウシバネ	1
32	S31032001	イトチョウシナット	1
33	S12441001	チョウシバネウエザガネ	1
34	012500536	アナヒラ5X5	1

Page 36 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200B parts on page 36

Ref	Part number	Part name	Qty
	1	THREAD TRIMMER MECHANISM
	2	WASHER
	3	SCREW
	4	BRACKET
	5	SCREW
	6	BRACKET
	7	WASHER
	8	SCREW
	9	BRACKET
	10	BRACKET
	11	BRACKET
	12	SCREW
	13	BRACKET
	14	WASHER
	15	SCREW
	16	BRACKET
	17	WASHER
	18	LEVER
	19	PIN
	20	BRACKET
	21	SCREW
	22	SPRING
	23	BRACKET
	24	SCREW
	25	SHAFT
	26	COLLAR
	27	COLLAR
	28	COLLAR
	29	SPRING
	30	BRACKET
	31	VALVE
	32	SCREW
	33	SPRING
	34	SPRING
	35	SHAFT
	36	WASHER
	37	WASHER
	38	SPRING
	39	WASHER
	40	WASHER
	41	COLLAR
	42	COLLAR
	43	COLLAR
	44	CONNECTOR
	45	BRACKET
	46	SHAFT
	47	COLLAR
	48	BRACKET
	49	BRACKET
	50	SCREW
	51	SCREW
	52	WASHER
	53	NUT
	54	SCREW
	55	WASHER
	56	WASHER
	57	SCREW
	58	SCREW
	59	CONNECTOR
	60	WIRE HARNESS
	61	SCREW
	62	CABLE TIE
	63	BRACKET
	64	SCREW
	65	OPTION PARTS

Page 37 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200B parts on page 37

Ref	Part number	Part name	Qty
1	SA7552001	イトキリカム	1
2	154567000	カンザ5.3	2
3	014771032	アナクボミ635-40X10	2
4	S02637001	コテイハ	1
5	102643004	サラネジ3.57	1
6	S02643001	イトサバキ	1
7	026040236	ヒラサガネミガキ4	1
8	062400616	ナベコ4X6	1
9	SA7282101	イトキリホルダクミ	1
10	SA7283001	イトキリホルダ	1
11	S25426101	イトキリレンカン	1
12	SA7577001	バインドM4X10シール	2
13	SA5329001	カラー	2
14	100645003	ザガネ	2
15	021400306	3シュナット4	1
16	SA7284101	イトキリレバー	1
17	SA7285001	レバーストツパ	1
18	SA7281101	イトキリストツパーイタ	1
19	062004616	ナベコ4X6	1
20	S02645001	イドウハ	1
21	148537101	サラネジ2.4.37	2
22	062501416	ナベコ5X14	1
23	SA7287001	イトキリホルダオサエイタ	1
24	004301016	+サラコ3X10	3
25	S02647021	フタマタジク	1
26	S02648001	カラー	1
27	154581001	フタマタジクメタル	1
28	012060536	アナヒラ6X5	1
29	SA1362101	イトキリカムレバーソウクミ	1
30	SA1363001	イトキリカムレバークミ	1
31	SA2258001	コロジクCクミ	1
32	105234003	ナット4.37	1
33	S23651001	アナヒラ6X6ホソメ	1
34	SA2383001	カムレバーバネ	1
35	154593201	イトキリカムレバージク	1
36	154594000	カラー	1
37	S25434000	クツションゴム	1
38	154595001	カムレバーモドシバネ	1
39	154596000	イトキリカムレバークツション	1
40	110367001	ザガネ	1
41	048060342	トメワE6	1
42	SA1366001	カムレバーシメメタル	1
43	012060536	アナヒラ6X5	1
44	SA1391001	イトキリソレノイドクミ	1
45	SA1392001	イトキリソレノイド	1
46	SA1393001	ソレノイドプランジャー	1
47	S36893050	ゴムクツション	1
48	SA1367201	イトキリソレノイドダイ	1
49	SA7898201	ソレノイドレバー	1
50	SA7899001	ダンネジ6	1
51	SA2097101	ショウオンシート	2
52	SA7900001	ヒラサガネ	1
53	021060306	3シュナット6	1
54	SA7288001	レンケツピン	1
55	025040232	ヒラサガネチュウ4	1
56	048040142	トメワジクヨウC4	1
57	062400816	ナベコ4X8	4
58	062501216	ナベコ5X12	3
59	S38687000	コネクタ5557-14R	1
60	SA1998001	アースセンクミ	1
61	062500816	ナベコ5X8	1
62	SA2868001	バインド	3

Page 38 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200B parts on page 38

Ref	Part number	Part name	Qty
	65	OPTION PARTS
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64

Page 39 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200B parts on page 39

Ref	Part number	Part name	Qty
63	SA1394101	コードオサエU3	1
64	062500816	ナベコ5X8	1
65	S02646001	イドウハS	1

Page 40 — M. 糸緩め関係 / Tension release mechanism

Brother S-7200B parts on page 40

Ref	Part number	Part name	Qty
	1	Lever
	2	Bracket
	3	Screw
	4	Lever
	5	Screw
	6	Spring
	7	Screw
	8	Screw
	9	Cable
	10	Screw

Page 41 — M. 糸緩め関係 / Tension release mechanism

Brother S-7200B parts on page 41

Ref	Part number	Part name	Qty
	SA1371201	イトユルメワイヤー	1
	SA1372001	ワイヤーホルダU	1
	062500816	ナベコ5X8	2
	SA1373001	ワイヤーオサエU	1
	060400516	バインド4X5	1
	154607101	イトユルメワイヤー-オサエD	1
	060400816	バインド4X8	1
	110161004	ナット4.76	2
	SA2171001	ワイヤーコードホルダ	1
	062500816	ナベコ5X8	1

Page 42

Brother S-7200B parts on page 42

Ref	Part number	Part name	Qty
	1	BRACKET
	2	COVER
	3	SPRING
	4	WASHER
	5	BRACKET
	6	SCREW
	7	SCREW
	8	WASHER
	9	SCREW
	10	BRACKET
	11	SCREW
	12	WASHER
	13	COVER
	14	SCREW
	15	SHAFT
	16	COLLAR
	17	WASHER
	18	SCREW
	19	SCREW
	20	LEVER
	21	COLLAR
	22	CIRCLIP
	23	SCREW
	24	SPRING
	25	SCREW
	26	WASHER
	27	WASHER
	28	WASHER
	29	SCREW
	30	SCREW
	31	SCREW

Page 43 — N. 糸払い関係 / Thread wiper mechanism

Brother S-7200B parts on page 43

Ref	Part number	Part name	Qty
1	SA1374301	イトハラソウチクミ	1
2	SA1396001	イトハラソレノイドクミ	1
3	S41206001	イトハライバネ	1
4	S41205001	ヒラザガネ	1
5	S25449201	ソレノイドトリツケイタ	1
6	062300616	ナベコ3X6	3
7	140647101	コードオサエ	1
8	062300616	ナベコ3X6	1
9	062300616	ナベコ3X6	2
10	SA1376001	イトハライドイ	1
11	062400616	ナベコ4X6	2
12	026040236	ヒラザガネミガキ4	2
13	SA8002001	ソレノイドカバー	1
14	060400516	バインド4X5	1
15	SA1967001	イトハライクランククミ	1
16	048040342	トメワE4	1
17	S25454001	セットカラー	1
18	S25279101	アタマナメメボミM35-5	1
19	SA2287001	ワイパーバネ	1
20	SA1377001	イトハライロッド	1
21	110735002	ザガネ	1
22	048030342	トメワE3	1
23	S25456001	プランジャピン	1
24	SA1378201	イトハライ	1
25	060400516	バインド4X5	1
26	146288001	イトハライジクカラー	1
27	S03677001	ザガネ	1
28	S41207000	スペーサゴム	1
29	14097000	ショウオンシート	1
30	S25456001	プランジャピン	2
31	062500816	ナベコ5X8	2

Page 44 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

Brother S-7200B parts on page 44

Ref	Part number	Part name	Qty
	34	34
	36	36
	33	33
	35	35
	32	32
	31	31
	15	15
	21	21
	20	20
	19	19
	11	11
	20	20
	21	21
	19	19
	18	18
	28	28
	30	30
	29	29
	27	27
	25	25
	23	23
	24	24
	14	14
	12	12
	13	13
	17	17
	26	26
	1	1
	3	3
	4	4
	5	5
	6	6
	2	2
	8	8
	10	10
	9	9
	37	37
	38	38

Page 45 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

Brother S-7200B parts on page 45

Ref	Part number	Part name	Qty
	SA7291101	セーフティ-スイッチクミ	1
	SA7325001	マイクロ スイッチクミ	1
	SA7292101	セーフティ スイッチイタ	1
	SA5730101	セーフティ スイッチベース	1
	SA5732001	セーフティ スイッチレバー	1
	SA5731001	セーフティ スイッチバネ	1
	SA7293001	ナベザクミM3X12	2
	SA2868001	バインド	1
	062060816	ナベコ 6X8	1
	025060136	ヒラザガネショウ 6	1
	J03940001	モータクミCDD-HS	1
	J03955001	ドラムコテイCDD	1
	014400632	アナボミ4X6	2
	J03956001	ジシャク180P36	1
	J03957001	MRセンサー 180P	1
	0A4300806	+ナベザクミ3X8DA	2
	J03958001	シヤヘイイタCDD	1
	0A2610006	+ナベザクミM2.6X10DA	3
	0A4487001	CDD-ENCキバンクセミ#2	1
	J03933001	ホールICEW-400	3
	J03940001	ホールICEW-450	3
	0A5300606	+ナベザクミ3X6DB	3
	J03931001	コードオサエ(アナ)	1
	J03932001	コードオサエ(ネジ)	1
	0A4401006	+ナベザクミ4X16DA	2
	0A4401006	+ナベザクミ4X10DA	1
	0A4408001	エンコーダーカバーCDD#2	1
	0A4300806	+ナベザクミ3X8DA	3
	J03940001	プーリー トツケダイクミCDD	1
	014500632	アナボミ5X6	2
	SA2354001	+ナベセットネジ5X18	3
	J04442001	トウフケンシュウユニット#2	1
	J04392001	LEDカバー	1
	062501216	ナベコ5X12	2
	028050246	バネザガネ2-5	2
	026050136	ヒラザガネコガタ5	2
	SA4211001	プーリーCDD	1
	SA3025001	+ナベザクミ4X10DA	3

Page 46 — P2. コントロールボックス関係 / Control box mechanism

Brother S-7200B parts on page 46

Ref	Part number	Part name	Qty
1	1	Control box mechanism
2	2	Control box
3	3	Control box
4	4	Control box
5	5	Control box
6	6	Control box
7	7	Control box

Page 47 — P2 . コントロールボックス関係 / Control box mechanism

Brother S-7200B parts on page 47

Ref	Part number	Part name	Qty
	BMP2060-0000000-CG40	G40パネル
	BMP2060-0000000-0G40	G40パネル
	BMP2060-0000000-EG40	G40パネル
2	J80973001	G40パネルキバンクミ	1
3	J80974001	G40サブキバンクミ	1
4	J03975001	G40パネルカザリイタ1	1
5	J03976001	G40パネルカザリイタ2	1
6	J04195001	パネルトリツケケイタ#2	1
7	J04273001	ナベザクミ4X10DB	3

Page 48 — P3. コントロールボックス関係 / Control box mechanism

Brother S-7200B parts on page 48

Ref	Part number	Part name	Qty
9	9	AC380-415V用 / For "380-415V AC"
11	11	Screw
8	8	Control box
16	16	Screw
12	12	Screw
13	13	Bracket
15	15	Bracket
18	18	Base
20	20	Main board
5	5	Screw
6	6	Screw
7	7	Screw
26	26	Screw
10	10	Fan
17	17	Switch
22	22	Lever
21	21	Lever
14	14	Connector
19	19	Main board
2	2	Switch
1	1	Chassis
23	23	Screw
24	24	Screw
4	4	Knob
3	3	Control panel
25	25	Label

Page 49 — P3 . コントロールボックス関係 / Control box mechanism

Brother S-7200B parts on page 49

Ref	Part number	Part name	Qty
	J04393001	CDDマエフタGO	1
	J04438001	キートツプ CDD-GO	1
	J04440001	PカザリイタGO	1
	J03733001	VツマミLCA	1
	06200863	ナベコ4X8	1
	028040245	バネザガネ2-4	1
	025040173	ヒラザガネショウ4	1
	J04097001	トランスCDD-100V-SP	1
	J04098001	トランスCDD-200V-SP	1
	J04593001	トランス400V-SP	1
	J04167001	DCファンCDDクミ#2	1
	J01411001	+ナベザクミ4X50DA	2
	J00494001	+ナベセット4X14DA	2
	J03739001	CRコテイイタ	1
	J04099101	フットプラグクミCDD	1
	J04100001	セメントR40/220クミ#6	1
	J04468001	コアESD-SR-120	2
	J80967001	フユコミユニットCDD-コクホ	1
	J80968001	フユコミユニットCDD-コクホ	1
	J80970001	CEフィルタークミ	1
	J80964201	SキバンCDDクミ#GO	1
	J80965001	DキバンCDD1-110Vクミ	1
	J80966101	DキバンCDD1-230Vクミ	1
	J04169001	CDDサーミスタ#2	1
	J04168001	ショートコネクタ	1
	J04210001	カクネ8X65クミ	1
	J04243001	アースコードネジタイクミ	1
	J04115001	ラベル感電6ケ国	1
	S37060001	アースマーク	1

Page 50 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

Brother S-7200B parts on page 50

Ref	Part number	Part name	Qty
	1	CONTROL BOX MECHANISM (OPTION PARTS)
	2	BRACKET
	3	BRACKET
	4	CIRCUIT BOARD
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	COVER
	9	CONNECTOR
	10	WIRE HARNESS
	11	SCREW
	12	SCREW
	13	BRACKET
	14	NUT
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	BRACKET
	22	SENSOR UNIT
	23	WIRE HARNESS
	24	BRACKET
	25	BRACKET
	26	BRACKET
	27	BRACKET
	28	OPTIONAL UNIT
	29	OPTIONAL UNIT
	30	OPTIONAL UNIT
	31	WIRE HARNESS

Page 51 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

Brother S-7200B parts on page 51

Ref	Part number	Part name	Qty
	SA2407001	オプションアクチュエータセット	1
	SA2388101	オプションアクチュエータタクミ	1
	SA2270001	Rスイッチササエ	1
	S34281000	Rスイッチダイ	1
	SA4098001	アクチュエータ	1
	SA4099001	Rスイッチバネ	1
	SA2389001	オプションスイッチトリツケイタ	1
	SA2386001	オプションスイッチクミ	1
	S32907050	マイクロスイッチ	1
	SA2387001	コード	1
	SA2405001	ソケットコンタクト	2
	060300606	バインドM3X6	1
	062400816	ナベコ4X8	2
	021400206	シュナット4	2
	S04159000	バンド1M	1
	SA2406001	コネクタXAP-06V-1	1
	062500616	ナベコ5X6	2
	SA1388101	コードオサエ	1
	SA2390101	コードオサエU4	1
	J80975001	S2センサー#S7200	1
	J04179001	S2センサークミCDD	1
	233268002	S2センサーカザリイタ	1
	J04180001	センサーコードクミNOR	1
	J04215001	センサーコテイイタ	1
	J04189001	センサー トリツケイタ	1
	J04249001	センサー トリツケカラー	2
	J04314001	S2センサー トリツケタクミ	1
	J80810E0	DDタチペダル40カヘン#6	1
	J803800E0	DDタチペダル3Pカヘン40	1
	J80630001	DDタチペダル 2ツク ホ	1
	J04099101	フットプラグクミCDD	1
	J8081040	DDタチペダル40カヘン#6	1
	J80380040	DDタチペダル3Pカヘン40	1
	J80630001	DDタチペダル 2ツク ホ	1
	J04099101	フットプラグクミCDD	1

Page 52 — Q . 膝 ス イ ッ チ 関 係 / Knee switch mechanism

Brother S-7200B parts on page 52

Ref	Part number	Part name	Qty
	1	KNEE SWITCH UNIT
	2	BRACKET
	3	BRACKET
	4	BOLT
	5	BRACKET
	6	BOLT
	7	BRACKET
	8	BOLT
	9	WASHER
	10	NUT
	11	NUT
	12	BRACKET
	13	BRACKET
	14	CONNECTOR
	15	CONNECTOR
	16	CONNECTOR
	17	CONNECTOR
	18	BRACKET
	19	SCREW

Page 53 — Q. 膝スイッチ関係 / Knee switch mechanism

Brother S-7200B parts on page 53

Ref	Part number	Part name	Qty
1	S25457101	ヒザスイツチクミ	1
2	142026003	ヒザスイツチタテジククケ	1
3	142027001	ヒザスイツチタテジククケ	1
4	100463001	4 カクボルト7.94	1
5	114967001	ヒザアアテストツパ	1
6	110087001	ボルト5.95	1
7	S07027001	ヒザスイツチトリツケイタ	1
8	062401006	4 ヒラザガネチユウ4	4
9	025040233	4 ヒラザガネチユウ4	4
10	028040243	4 バネザガネ2-4	4
11	021400164	1 シユナツト4	4
12	S31938001	スイツチコードクミ	1
13	S31938001	フツトスイツチクミ	1
14	143549000	ピンターミナルオス	2
15	143548000	ピンターミナルメス	1
16	146046000	ナイロンコネクター	2
17	146194000	ナイロンコネクター	1
18	149799000	タイラツプS	1
19	034422503	+2サラモク41X25	4

Page 54 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7200B parts on page 54

Ref	Part number	Part name	Qty
12	12	12
12	12	12
18	18	18
15	15	15
17	17	17
16	16	16
14	14	14
13	13	13
11	11	11
1	1	1
6	6	6
7	7	7
9	9	9
2	2	2
3	3	3
5	5	5
4	4	4

Page 55 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7200B parts on page 55

Ref	Part number	Part name	Qty
1	SA7294001	Rアクチュエータタクミ	1
2	SA2270001	Rスイッチサユエ	1
3	SA7295001	Rスイッチダイ	1
4	SA4098001	アクチュエーター	1
5	SA4098001	Rスイッチバネ	1
6	SA1390001	Rスイッチクミ	1
7	S32907050	マイクロスイッチ	1
8	060300606	バインド3X6	1
9	062400816	ナベコ4X8	2
10	021400206	2シュナット4	2
11	062500616	ナベコ5X6	2
12	062500816	ナベコ5X8	3
13	SA8008001	コードオサエ	1
14	062500616	ナベコ5X6	1
15	SA1388101	コードオサエ	1
16	SA1394101	コードオサエU3	2
17	SA1388101	コードオサエ	2
18	SA2689101	コードオサエ	1

Page 56 — S . 電装品関係 / Power supply equipment mechanism

Brother S-7200B parts on page 56

Ref	Part number	Part name	Qty
1	1	Power supply equipment mechanism
4	4	Power supply equipment mechanism
2	2	Power supply equipment mechanism
5	5	Power supply equipment mechanism
6	6	Power supply equipment mechanism
9	9	Power supply equipment mechanism
3	3	Power supply equipment mechanism
8	8	Power supply equipment mechanism
7	7	Power supply equipment mechanism

Page 57 — S . 電装品関係 / Power supply equipment mechanism

Brother S-7200B parts on page 57

Ref	Part number	Part name	Qty
	J04086001	デンSWクミ1-100V#6
	J04469001	デンSWクミ1-110V#8
	J04093001	デンSWクミ1-240V#6
	J04134001	デンPGクミ1-240V#6
	J04096001	デンSWクミ3-400V#6
	J04149001	デンSWクミ3-200V#6
	J04470001	デンSWクミ3-240V#8
	J04251001	デンSWクミ1-240V#CCC
	J04255001	デンSWクミ3-400V#CCC

Page 58 — T. 電磁押上げセット関係(オプション部品) / Presser foot lifting set mechanism (Option parts)

Brother S-7200B parts on page 58

Ref	Part number	Part name	Qty
23	23	23
10	10	10
9	9	9
7	7	7
11	11	11
16	16	16
17	17	17
5	5	5
4	4	4
6	6	6
24	24	24
21	21	21
22	22	22
20	20	20
19	19	19
13	13	13
12	12	12
2	2	2
25	25	25
1	1	1
14	14	14
19	19	19
20	20	20
18	18	18
3	3	3
8	8	8
15	15	15

Page 59 — T. 電磁押上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts)

Brother S-7200B parts on page 59

Ref	Part number	Part name	Qty
	SA1397001	デンジオサエアゲセットB
	SA1941001	デンジオサエアゲクミ
	SA1942001	オサエアゲソレノイドクミ
	S38803051	Bコード100クミ
	S38804050	Wコード100クミ
	SA2177001	コネクタ5557-6R
	S16625050	ゴムストッパー
	SA1335001	ソレノイドダイR
	S16629151	ソレノイドストッパー
	018761832	アナボルト595-28X18
	SA1336001	ソレノイドダイL
	SA1950001	ガワイタクミ
	SA2296001	ナット20
	017061216	ボルトM6X12
	021060216	2シュナット6
	S16630051	ピン
	048050142	トメワジクヨウC5
	SA1332001	オサエアゲジク
	S20356001	ヒラザガネ10
	048080342	トメワE8
	SA1338001	オサエアゲウデ
	062501216	ナベコ5X12
	S16643009	カバー
	062670612	ナベコ357-40X6
	SA2165001	ダンネジ6

Page 60 — Z. 付属関係 / Accessories

Brother S-7200B parts on page 60

Ref	Part number	Part name	Qty
	1	SCREW DRIVER
	2	NEEDLE PLATE
	3	NEEDLE
	4	BOBBIN WINDER
	5	BOBBIN WINDER COIL
	6	NEEDLE BAR
	7	NEEDLE BAR CONNECTING ROD
	8	BASE
	9	BASE COVER
	10	BASE COVER SUPPORT
	11	SCREW
	12	SCREW
	13	SCREW
	14	OIL POT
	15	CLOTH
	16	CLOTH HOLDER
	17	UPPER KNIFE
	18	LOWER KNIFE
	19	KNIFE DRIVING ROD
	20	SPRING WASHER
	21	SPRING WASHER
	22	SPRING WASHER
	23	SPRING WASHER
	24	POST
	25	POST CAP
	26	POST CAP SCREW
	27	POST SUPPORT
	28	POST SUPPORT SCREW
	29	POST SUPPORT BRACKET
	30	POST SUPPORT BRACKET SCREW
	31	SCREW
	32	SCREW
	33	SCREW
	34	SCREW
	35	SCREW
	36	BRACKET
	37	BRACKET
	38	SCREW
	39	SCREW
	40	SCREW
	41	SCREW DRIVER
	42	SCREW DRIVER
	43	WRENCH
	44	WRENCH
	45	WRENCH
	46	WRENCH
	47	WRENCH
	48	WRENCH
	49	THREAD CUTTER
	50	THREAD CUTTER HOLDER
	51	THREAD CUTTER HOLDER
	52	SCREW
	53	SCREW
	54	SCREW
	55	NUT
	56	WASHER

Page 61 — Z. 付属部品関係 / Accessories

Brother S-7200B parts on page 61

Ref	Part number	Part name	Qty
	S17774001	ネジマワシ4.7X250	1
	SA1656011	100265/4 ミシンハリDBX1	1
	100265031	NEEDLE DBX1	4
	SA1656014	100265/4 ミシンハリDBX1	1
	100265034	NEEDLE DBX1	4
	SA1752014	107415/4 ミシンハリDBX1	1
	107415014	NEEDLE, DPX5	4
	SA1656022	100265/4 ミシンハリDBX1	1
	100265042	NEEDLE DBX1	4
	SA1752022	107415/4 ミシンハリDBX1	1
	107415022	NEEDLE, DPX5 NS	4
	SA1658010	S35775/3 ミシンハリ3コイリクミ...... <#10>	1
	SA1660010	S37061/3 ミシンハリ3コイリクミ...... <#10>	1
	S37061010	3 ミシンハリDBPX5NS	3
	146290001	ボビン	3
	117132001	ボビン	3
	S06055009	マクスS	1
	S09634000	ヒザアゲオンボウ	1
	SA1969001	ラバーヒンジクミ	1
	143882001	トウブヒンジ	2
	143910009	トウブヒンジウケゴム	2
	SA1963001	トウブシキゴム･･････<左側用>	2
	SA1963001	トウブシキゴム･･････<右側用>	2
	109714000	クギ	4
	SA7297101	オイルタンククミ	1
	144226001	トウブカバー	1
	S02763602	イトタダイクミ2DR	1
	S51283001	ウケザラ	2
	150182000	スプールマット	2
	S5128101	スプールクッション	2
	150206002	ヒラザガネ16	1
	SA6629001	6クナットM16	1
	150174000	カラムキャップ	1
	S01005000	イトタテゴム	2
	S02747101	イトカケバネ	1
	150172003	カラムパイプ	1
	150174000	カラムキャップ	1
	150207001	カラムパイプネジツキ	1
	150206000	ヒラザガネ16	1
	SA6606001	カラムジョイント	1
	150179002	スプールシクB	2
	028050244	バネザガネ2-5	2
	021500104	1シュナット5	1
	SA6607001	スプールホルダー-2	1
	SA6607001	スプールホルダー-2	1
	150183000	イトカケハンガーダイ	2
	142990001	スレッドブツシユ	2
	SA6609001	スプールホルダーササエ	2
	021500104	1シュナット5	2
	062061604	ナベコ6X16	2
	062501404	ナベコ5X14	2
	142443001	ネジマワシ1.9X52	1
	118837001	ネジマワシ3.4X70	1
	100887001	スパナ8X9	1

Page 62

Brother S-7200B parts on page 62

Ref	Part number	Part name	Qty
	1	SCREWDRIVER
	2	NEEDLE PLATE
	3	NEEDLE
	4	BOBBIN WINDER BASE
	5	BOBBIN WINDER
	6	NEEDLE BAR
	7	PRESSER FOOT BAR
	8	MACHINE BED
	9	FACE PLATE
	10	FACE PLATE COVER
	11	SCREW
	12	SCREW
	13	SCREW
	14	OIL
	15	CLOTH
	16	MACHINE BASE
	17	HANDWHEEL
	18	HANDWHEEL COVER
	19	SCREW
	20	WASHER
	21	WASHER
	22	WASHER
	23	WASHER
	24	POST
	25	POST HOLDER
	26	SCREW
	27	POST
	28	POST
	29	SCREW
	30	SCREW
	31	SCREW
	32	NUT
	33	SCREW
	34	SCREW
	35	SCREW
	36	BRACKET
	37	BRACKET
	38	SCREW
	39	SCREW
	40	SCREW
	41	SCREWDRIVER
	42	SCREWDRIVER
	43	WRENCH
	44	WRENCH
	45	WRENCH
	46	WRENCH
	47	WRENCH
	48	WRENCH
	49	BASE
	50	POST
	51	CLAMP
	52	SCREW
	53	SCREW
	54	NUT
	55	WASHER
	56	WASHER

Page 63 — Z. 付属部品関係 / Accessories

Brother S-7200B parts on page 63

Ref	Part number	Part name	Qty
	142002001	6カクボウスパナ2	1
	142721001	6カクボウスパナ3	1
	107780001	スパナ10X12	1
	154125001	6カクボウスパナ2.5	1
	S07783001	6カクボウスパナ1.5	1
	S40765001	レンケツカンクミ	1
	021060106	シュナット6	2
	119101001	レンカンダキ	2
	017841606	ボルト794-18X16	2
	133643006	6カクナット7.94-18	2
	021060106	シュナット6	2
	028060243	バネザガネ2-6	2
	114859001	レンカンカラー	2

Page 64 — Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan)

Brother S-7200B parts on page 64

Ref	Part number	Part name	Qty
	SA1133001	針棒 / Needle bar
	SA1137001	針棒 / Needle bar
	SA1135001	針棒 / Needle bar
	SA7241001	針棒 / Needle bar
	100265031	ミシン針 / Needle
	100265042	ミシン針 / Needle
	S35775010	ミシン針 / Needle
	100265031	ミシン針 / Needle
	145971101	針板 / Needle plate
	147245101	針板 / Needle plate
	S35776201	針板 / Needle plate
	145971101	針板 / Needle plate
	S13561101	押えバネ / Presser bar spring
	141728001	押えバネ / Presser bar spring
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	153037201	押え組 / Presser foot assy
	145157101	押え組 / Presser foot assy
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	S02742001	送り歯 / Feed dog
	S02743001	送り歯 / Feed dog
	S02748001	送り歯 / Feed dog
	S02742001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	159324001	内かま止め / Hook stopper
	S02602001	内かま止め / Hook stopper
	SA7686002	かま箱組 / Rotary hook assy, w/box
	SA7688001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	146290001	ボビン / Bobbin
	117132001	ボビン / Bobbin

Page 65 — Sp2 . 仕様別部品一覧表 (アメリカ向) / Different parts list (For USA)

Brother S-7200B parts on page 65

Ref	Part number	Part name	Qty
	SA1135001	針棒 / Needle bar
	SA1137001	針棒 / Needle bar
	100265034	ミシン針 / Needle
	100265042	ミシン針 / Needle
	111859301	針板 / Needle plate
	150792001	針板 / Needle plate
	S13561101	押えバネ / Presser bar spring
	141728001	押えバネ / Presser bar spring
	153037201	押え組 / Presser foot assy
	150789101	押え組 / Presser foot assy
	SA2345001	送り歯 / Feed dog
	150793001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	159324001	内かま止め / Hook stopper
	SA7686002	かま箱組 / Rotary hook assy, w/box
	SA7686001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	117132001	ボビン / Bobbin
	SA1135001	針棒 / Needle bar
	SA7241001	針棒 / Needle bar
	S35775010	ミシン針 / Needle
	100265034	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	SA7687001	かま箱組 / Rotary hook assy, w/box
	SA7686002	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	SA1135001	針棒 / Needle bar
	S35775010	ミシン針 / Needle
	100265034	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	S52936001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin

Page 66 — Sp3 . 仕様別部品一覧表 (中国向) / Different parts list (For China)

Brother S-7200B parts on page 66

Ref	Part number	Part name	Qty
	SA1133001	針棒 / Needle bar
	SA1137001	針棒 / Needle bar
	100265034	ミシン針 / Needle
	100265042	ミシン針 / Needle
	111859301	針板 / Needle plate
	150792101	針板 / Needle plate
	S13561101	押えバネ / Presser bar spring
	141728001	押えバネ / Presser bar spring
	153037201	押え組 / Presser foot assy
	150789101	押え組 / Presser foot assy
	SA2345001	送り歯 / Feed dog
	150793001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	159324001	内かま止め / Hook stopper
	SA7686002	かま箱組 / Rotary hook assy, w/box
	SA7688001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	117132001	ボビン / Bobbin
	SA1135001	針棒 / Needle bar
	SA7241001	針棒 / Needle bar
	S35775010	ミシン針 / Needle
	100265034	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	SA7687001	かま箱組 / Rotary hook assy, w/box
	SA7686002	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	SA1135001	針棒 / Needle bar
	SA7241001	針棒 / Needle bar
	S35775010	ミシン針 / Needle
	100265034	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	S52936001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin

Page 67 — Sp4 . 仕様別部品一覧表 (輸出一般向) / Different parts list (For General export)

Brother S-7200B parts on page 67

Ref	Part number	Part name	Qty
	SA1133001	針棒 / Needle bar
	SA1137001	針棒 / Needle bar
	100265034	ミシン針 / Needle
	100265042	ミシン針 / Needle
	111859301	針板 / Needle plate
	150792101	針板 / Needle plate
	S13561101	押えバネ / Presser bar spring
	141728001	押えバネ / Presser bar spring
	153037201	押え組 / Presser foot assy
	150789101	押え組 / Presser foot assy
	SA2345001	送り歯 / Feed dog
	150793001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	159324001	内かま止め / Hook stopper
	SA7686002	かま箱組 / Rotary hook assy, w/box
	SA7688001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	117132001	ボビン / Bobbin
	SA1135001	針棒 / Needle bar
	SA7241001	針棒 / Needle bar
	S35775010	ミシン針 / Needle
	100265034	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	SA7687001	かま箱組 / Rotary hook assy, w/box
	SA7686002	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	S35775010	針棒 / Needle bar
	100265034	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	153037201	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	S52936001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin

Page 68 — Sp5 . 仕様別部品一覧表 (欧州・カナダ向) / Different parts list (For Europe & Canada)

Brother S-7200B parts on page 68

Ref	Part number	Part name	Qty
	SA1134001	針棒 / Needle bar
	SA1137001	針棒 / Needle bar
	107415014	ミシン針 / Needle
	107415022	ミシン針 / Needle
	111859301	針板 / Needle plate
	150792001	針板 / Needle plate
	S13561101	押えバネ / Presser bar spring
	141728001	押えバネ / Presser bar spring
	SA2836101	押え組 / Presser foot assy
	SA2837101	押え組 / Presser foot assy
	SA2345001	送り歯 / Feed dog
	150793001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	159324001	内かま止め / Hook stopper
	SA7686002	かま箱組 / Rotary hook assy, w/box
	SA7688001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	117132001	ボビン / Bobbin
	SA1136001	針棒 / Needle bar
	SA7240001	針棒 / Needle bar
	S37061010	ミシン針 / Needle
	107415014	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	SA2433101	押え組 / Presser foot assy
	SA2836101	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	SA7687001	かま箱組 / Rotary hook assy, w/box
	SA7686002	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin
	SA1136001	針棒 / Needle bar
	SA7240001	針棒 / Needle bar
	S37061010	ミシン針 / Needle
	107415014	ミシン針 / Needle
	S03883201	針板 / Needle plate
	111859301	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S13561101	押えバネ / Presser bar spring
	SA2433101	押え組 / Presser foot assy
	SA2836101	押え組 / Presser foot assy
	SA2346001	送り歯 / Feed dog
	SA2345001	送り歯 / Feed dog
	S02602001	内かま止め / Hook stopper
	S52936001	かま箱組 / Rotary hook assy, w/box
	146290001	ボビン / Bobbin

Page 69 — Ga1 . ゲージ部品一覧表 (薄・中物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW)

Brother S-7200B parts on page 69

Ref	Part number	Part name	Qty
B12	153147-001	Needle plate
B12	146231-001	Feed dog
B12	SA2836-101	Presser foot assy
B12	153037-201	Presser foot assy
B14	146233-001	Needle plate
B14	SA2839-101	Presser foot assy
B14	113280-101	Presser foot assy
NB14M	S29649-001	Needle plate
NB14M	SA2842-101	Presser foot assy
NB14M	147531-101	Presser foot assy
NB16M	S29646-001	Needle plate
NB16M	SA2856-101	Presser foot assy
NB16M	111856-101	Presser foot assy
B14	146050-001	Needle plate
B14	S07649-001	Feed dog
B14	SA2840-101	Presser foot assy
B14	140957-101	Presser foot assy
B14	147238-001	Needle plate
B14	SA2841-101	Presser foot assy
B14	143711-101	Presser foot assy
B16	153190-001	Needle plate
B16	S02742-001	Feed dog
B16	S01904-001	Presser foot assy
B16	147239-001	Needle plate

Page 70

Brother S-7200B parts on page 70

Ref	Part number	Part name	Qty
	S29645-001	Needle plate
	S07649-001	Feed dog
	SA2836-101	Presser foot assy
	153037-201	Presser foot assy
	S29645-001	Needle plate
	S02742-001	Feed dog
	SA2839-101	Presser foot assy
	113280-101	Presser foot assy
	100266-101	Needle plate
	SA2856-101	Presser foot assy
	111856-101	Presser foot assy
	146232-001	Needle plate
	146231-001	Feed dog
	SA2840-101	Presser foot assy
	140957-101	Presser foot assy
	141096-001	Needle plate
	117442-001	Feed dog
	SA2841-101	Presser foot assy
	143711-101	Presser foot assy
	S11222-001	Needle plate
	S07649-001	Feed dog
	S01904-001	Presser foot assy

Page 71 — Gauge parts list (Heavy-weight materials : 3ROW)

Brother S-7200B parts on page 71

Ref	Part number	Part name	Qty
B22	100267-001	Needle plate
B26	111241-001	Needle plate
B26	147245-101	Needle plate
C26	111508-001	Needle plate
C26	147322-201	Needle plate
C26M	S29644-001	Needle plate
e: 2.2	S02743-001	Feed dog
e: 2.6	S02743-001	Feed dog
e: 2.6	S02743-001	Feed dog
e: 2.6	S02743-001	Feed dog
e: 2.2	SA2838-101	Presser foot assy
e: 2.2	145157-101	Presser foot assy
e: 2.6	SA2839-101	Presser foot assy
e: 2.6	113280-101	Presser foot assy

Page 72 — Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Brother S-7200B parts on page 72

Ref	Part number	Part name	Qty
	AB12N1	Needle plate
	AB14M1	Needle plate
	S02748-001	Feed dog
	SA2433-101	Presser foot assy
	S35777-101	Presser foot assy

Page 73

Brother S-7200B parts on page 73

Ref	Part number	Part name	Qty
E12N1	S03882-201	Needle plate
E14N1	S03883-201	Needle plate
E12	S01107-101	Needle plate
	SA2346-001	Feed dog
	SA2836-101	Presser foot assy
	163037-201	Presser foot assy
	SA2839-101	Presser foot assy
	113280-101	Presser foot assy
	SA2842-101	Presser foot assy
	147531-101	Presser foot assy
	SA2856-101	Presser foot assy
	111856-101	Presser foot assy
AB14N1	S02999-201	Needle plate
	S02748-001	Feed dog
	SA2840-101	Presser foot assy
	140957-101	Presser foot assy
AB16N1	S03000-201	Needle plate
	S02744-001	Feed dog
	SA2841-101	Presser foot assy
	143711-101	Presser foot assy
	S01904-001	Presser foot assy

Page 74 — Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200B parts on page 74

Ref	Part number	Part name	Qty
AB16	156115-001	Needle plate
AB18	156116-001	Needle plate
AB18M	S31910-001	Needle plate
E16N1	S03884-301	Needle plate
E16M1	S29648-101	Needle plate
E18N1	111859-301	Needle plate
E18M1	S29647-101	Needle plate
	S13684-001	Feed dog
	SA2836-101	Presser foot assy
	153037-201	Presser foot assy
	SA2839-101	Presser foot assy
	113280-101	Presser foot assy
	SA2842-101	Presser foot assy
	147531-101	Presser foot assy
	SA2856-101	Presser foot assy
	111856-101	Presser foot assy
	SA2840-101	Presser foot assy
	140957-101	Presser foot assy
	SA2841-101	Presser foot assy
	143711-101	Presser foot assy
	S01904-001	Presser foot assy

Page 75 — Ga7 . ゲージ部品一覧表 (薄・中物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200B parts on page 75

Ref	Part number	Part name	Qty
A14	155676-001	Needle plate
	S13684-001	Feed dog
	SA2836-101	Presser foot assy
	153037-201	Presser foot assy
AB14	156114-001	Needle plate
	SA2839-101	Presser foot assy
	113280-101	Presser foot assy
	SA2842-101	Chamfering(L)
	147531-101	Presser foot assy
	SA2856-101	Chamfering(S)
	111856-101	Presser foot assy
	SA2840-101	Presser foot assy
	140957-101	Presser foot assy
	SA2841-101	Chamfering(S)
	143711-101	Presser foot assy
	S01904-001	Teflon

Page 77

Brother S-7200B parts on page 77

Ref	Part number	Part name	Qty
	150792-101	Needle plate
	S25821-001	Needle plate
	150793-001	Feed dog
	S25822-001	Feed dog
	150789-101	Presser foot assy

Page 78 — Wa. 警告ラベル / Warning labels

Brother S-7200B parts on page 78

Ref	Part number	Part name	Qty
	J04115-001	ラベル感電6ヶ国 Label, elec. shock 6 lang	50 X 118
	SA2040-001	ラベル注意・和英 Label, caution Jpa / Eng	64 X 40
	SA2041-001	ラベル注意・中英 Label, caution Chn / Eng	64 X 40
	S37060-001	アースマーク Label, grounding	Φ 12

Page 79 — 索 引 / INDEX

Brother S-7200B parts on page 79

Ref	Part number	Part name	Qty
- 24	004301016	L
- 14	012060536	D
- 38	012060536	D
- 66	012060536	D
- 77	012060536	D
- 16	012060536	F
- 17	012060536	G
- 28	012060536	L
- 43	012060536	L
- 47	012061036	B
- 11	012400436	B
- 18	012400436	B
- 25	012400436	B
- 31	012500536	B
- 41	012500536	B
- 46	012500536	B
- 18	012500536	C
- 12	012500536	D
- 28	012500536	D
- 35	012500536	D
- 44	012500536	D
- 47	012500536	D
- 50	012500536	D
- 11	012500536	F
- 17	012500536	F
- 9	012500536	J
- 8	012500536	K
- 13	012500536	K
- 34	012500536	K
- 82	014300432	D
- 105	014400632	P1
- 10	014500632	P1
- 3	014771032	L
- 14	017061216	T
- 52	017841606	Z
- 22	018400532	C
- 33	018501436	D
- 29	018501636	D
- 10	018761832	T
- 50	021060106	Z
- 54	021060106	Z
- 15	021060216	T
- 42	021060306	C
- 64	021060306	H
- 53	021060306	L
- 11	021400164	Q
- 14	021400206	P4
- 10	021400206	R
- 15	021400306	L
- 32	021500104	Z
- 38	021500104	Z
- 110	021500316	D
- 7	025040173	P3
- 23	025040232	C
- 55	025040232	L
- 9	025040233	Q
- 49	025040332	H
- 6	025060136	K
- 15	025060136	K
- 17	025100132	D
- 35	025350132	C
- 7	026040236	L
- 4	026050136	C
- 36	028040245	P1
- 10	028040243	Q
- 31	028050244	Z
- 35	028050246	P1
- 55	028060243	Z
- 19	034422503	Q
- 22	048030342	N
- 56	048040142	L
- 56	048040142	L
- 56	048040142	L
- 56	048040142	L
- 4	048050142	B
- 14	048050142	K
- 14	048050142	K
- 26	048050142	C
- 4	048050142	B
- 13	048060142	B
- 20	048060142	B
- 27	048060142	B
- 35	048060142	B
- 41	048080342	D
- 55	048080342	D
- 20	048100142	T
- 119	048120142	D
- 79	048150142	D
- 70	048150142	D
- 12	060300606	P4
- 24	060350616	J
- 5	060400516	M
- 14	060400516	N
- 25	060400516	N
- 7	060400816	M
- 17	060500616	J
- 9	062060816	P1
- 7	062061016	F
- 39	062061604	Z
- 97	062300616	D
- 6	062300616	N
- 8	062300616	D
- 9	062300616	N
- 60	062350616	D
- 14	062400616	A
- 48	062400616	H
- 6	062500616	H
- 45	062500616	H
- 53	062500616	H
- 19	062500616	J
- 28	062500616	K
- 17	062500616	P4
- 11	062500616	R
- 20	062500816	D
- 11	062500816	D
- 6	062500816	F
- 14	062500816	H
- 61	062500816	L
- 4	062501216	A
- 6	062501216	A
- 51	062501216	H
- 58	062501216	L
- 34	062501216	P1
- 22	062501216	T
- 40	062501404	Z
- 22	062501416	D
- 22	062501416	L
- 25	062501816	J
- 24	062670612	T
- 7	081004070	H
- 10	081004870	H
- 21	081008070	H
- 47	081009070	H
- 43	081015870	H
- 36	081022870	H
- 8	081025870	G
- 54	081029870	H
- 16	0A4261006	P1
- 16	0A4300806	P1
- 28	0A4401006	P1
- 25	0A4401606	P1
- 32	0A4501206	H
- 22	0A5300606	P1
- 10	100080004	D
- 3	100265031	Z
- 3	100265034	Z
	100265034	Sp1
	100265034	Sp2
	100265034	Sp3
	100265034	Sp4
- 3	100265042	Z
	100265042	Sp1
	100265042	Sp2
	100265042	Sp3
	100265042	Sp4
	100266101	Ga2
	100267001	Ga3
- 6	100328001	D
- 28	100399201	J
- 31	100401022	K
- 32	100402004	J
- 4	100463001	Q
- 3	100463021	E
- 14	100645003	L
- 43	100887001	Z
- 48	102630001	B
- 5	102843004	L
- 11	104449001	A
- 14	104450101	A
- 8	104450101	A
- 5	104619022	E
- 19	104821001	H
- 32	105234003	L
- 3	107415014	Z
	107415014	Sp5
- 3	107415022	Z
	107415022	Sp5
- 46	107780001	Z
- 3	108549001	D
- 13	109714000	Z
- 6	110087001	Q
- 8	110087021	E
- 8	110161004	M
- 40	110367001	L
- 21	110735002	N
	111241001	Ga3
	111508001	Ga3
	111856101	Ga1
	111856101	Ga2
	111856101	Ga5
	111856101	Ga6
	111856101	Ga7
	111856101	Ga8
	111859301	Sp2
	111859301	Sp3
	111859301	Sp4
	111859301	Sp5
	111859301	Ga6
	111859301	Ga8
- 12	111863001	H
	113280101	Ga1
	113280101	Ga2
	113280101	Ga3
	113280101	Ga5
	113280101	Ga6
	113280101	Ga7
	113280101	Ga8
- 37	114294001	J
- 65	114561001	B
- 56	114859001	Z
- 5	114967001	Q
- 7	114967021	E
- 29	115188101	J
- 31	116922001	J
- 28	117132001	G
- 5	117132001	Z
	117132001	Sp1
	117132001	Sp2

Page 80 — INDEX

Brother S-7200B parts on page 80

Ref	Part number	Part name	Qty
61	117132001	Sp3
65	146231001	Ga2
59	153037201	Sp1
40	J03962001	P1 -24
65	117442001	Ga2
65	146232001	Ga2
60	153037201	Sp2
40	J03964001	P1 -29
62	117936001	Sp4
64	146233001	Ga1
61	153037201	Sp3
42	J03975001	P2 -4
63	118837001	Sp5
38	146288001	N -26
62	153037201	Sp4
42	J03976001	P2 -5
2	117936001	A -12
22	146290001	G -27
64	153037201	Ga1
40	J03983001	P1 -20
56	119101001	Z -42
65	146290001	Ga2
65	153037201	Ga2
40	J03984001	P1 -21
6	122771051	B -66
68	146290001	Ga5
68	153037201	Ga5
52	J04086001	S -1
58	133643006	Z -53
69	146290001	Ga6
69	153037201	Ga6
52	J04093001	S -3
4	140004001	B -9
70	146290001	Ga7
70	153037201	Ga7
52	J04096001	S -5
4	140004001	B -16
71	146290001	Ga8
71	153037201	Ga8
44	J04097001	P3 -8
4	140004001	B -23
12	146290001	D -24
P3 -8	153132000	J04098001
4	140004001	B -31
26	146293001	H -66
20	153138001	F -13
44	J04099101	P3 -14
4	140004001	B -39
64	147239001	Ga1
64	153147001	Ga1
46	J04100001	P4 -31
8	140407001	C -8
64	147239001	Ga1
58	154125001	Z -47
44	J04100001	P3 -15
6	140553102	B -55
59	147245101	Sp1
32	154567000	L -2
44	J04115001	P3 -25
38	140647101	N -7
66	147322201	Ga3
32	15457000	L -2
	Wa	73
64	140957101	Ga1
8	147514001	C -7
32	154581001	L -27
52	J04134001	S -4
65	140957101	Ga2
59	147514001	Sp1
32	154593201	L -35
52	J04149001	S -6
68	140957101	Ga5
60	147514001	Sp2
32	154594000	L -36
44	J04167001	P3 -10
69	140957101	Ga6
61	147514001	Sp3
32	154595001	L -38
44	J04168001	P3 -22
70	140957101	Ga7
62	147514001	Sp4
32	154596000	L -39
44	J04169001	P3 -21
71	140957101	Ga8
64	147531101	Ga1
36	154607101	M -6
46	J04179001	P4 -21
65	141096001	Ga2
65	147531101	Ga2
20	154729001	F -2
46	J04186001	P4 -23
59	141728001	Sp1
66	147531101	Ga3
20	154730001	F -3
46	J04189001	P4 -25
60	141728001	Sp2
66	147531101	Ga3
20	154731000	F -4
42	J04195001	P2 -6
61	141728001	Sp3
32	148537101	L -21
66	154742001	Ga3
44	J04210001	P3 -23
62	141728001	Sp4
38	149097000	N -29
70	155676001	Ga7
44	J04243001	P3 -24
63	141728001	Sp5
58	14978000	Z -57
70	156114001	Ga7
46	J04249001	P4 -26
58	142002001	Z -44
56	150172003	Z -25
69	156115001	Ga6
52	J04251001	S -8
58	142002001	Z -44
56	150174000	Z -22
69	156116001	Ga6
52	J04255001	S -9
48	142026003	Q -2
56	150178900	Z -26
14	156243021	D -78
42	J04273001	P2 -7
48	142027001	Q -3
56	150179002	Z -30
12	156958021	D -27
40	J04296001	P1 -27
12	142374100	D -9
56	150182000	Z -18
12	156958021	D -53
46	J04314001	P4 -27
56	142443001	Z -41
56	150183000	Z -35
14	158722001	D -86
40	J04392001	P1 -33
58	142721001	Z -45
56	150190000	Z -18
22	159324001	G -20
44	J04393001	P3 -1
56	142990001	Z -36
56	150190000	Z -18
59	159324001	Sp1
44	J04438001	P3 -2
48	143548000	Q -15
56	150179002	Z -30
60	159324001	Sp2
44	J04440001	P3 -3
48	143549000	Q -14
56	150182000	Z -18
61	159324001	Sp3
40	J04442001	P1 -32
64	143711101	Ga1
56	150183000	Z -35
62	159324001	Sp4
44	J04468001	P3 -16
65	143711101	Ga2
56	150206000	Z -28
63	159324001	Sp5
52	J04469001	S -2
68	143711101	Ga5
56	150206002	Z -28
28	159805001	J -34
52	J04470001	S -7
69	143711101	Ga6
8	150789101	C -9
68	159859201	Ga5
40	J04487001	P1 -19
70	143711101	Ga7
59	150792001	Sp1
6	180018151	B -64
44	J04593001	P3 -9
71	143711101	Ga8
60	150792001	Sp2
22	183388001	G -23
46	J80081040	P4 -28
56	143882001	Z -9
61	150792001	Sp3
22	183389001	G -24
46	J800810E0	P4 -28
56	143910009	Z -10
62	150792001	Sp4
22	183390001	G -25
46	J80380040	P4 -29
56	144226001	Z -15
64	150792001	Ga1
42	233268002	P2 -1
46	J803800E0	P4 -29
28	144504001	H -5
72	150792001	Ga9
42	BMP2060-000000-0G40	P2 -1
46	J80630001	P4 -30
24	144875001	H -15
14	150793001	D -90
42	BMP2060-000000-0G40	P2 -1
46	J806300E1	P4 -30
8	145157101	C -9
59	150793001	Sp1
44	J00494001	P3 -12
44	J80964201	P3 -19
66	145157101	Ga3
60	150793001	Sp2
44	J01411001	P3 -11
44	J80965001	P3 -20
28	145446001	J -33
61	150793001	Sp3
44	J03733001	P3 -4
44	J80966101	P3 -20
30	145446002	K -30
62	150793001	Sp4
44	J03739001	P3 -13
44	J80967001	P3 -17
24	145737001	H -9
63	150793001	Sp5
40	J03940001	P1 -11
44	J80968001	P3 -17
59	145971101	Sp1
72	150793001	Ga9
40	J03955001	P1 -12
44	J80970001	P3 -18
65	145971101	Ga2
6	151267001	B -63
40	J03956001	P1 -14
42	J80973001	P2 -2
18	146039021	E -2
12	151308102	D -11
40	J03957001	P1 -15
42	J80974001	P2 -3
48	146046000	Q -16
6	151594001	B -62
40	J03958001	P1 -17
56	S01005000	Z -23
64	146050001	Ga1
8	153037201	C -9
40	J03961001	P1 -23
68	S01107101	Ga5
48	146194000	Q -17
8	153037201	C -9
28	S01419000	J -11
64	146231001	Ga1
64	S01904001	Ga1

Page 81 — INDEX

Brother S-7200B parts on page 81

Ref	Part number	Part name	Qty
65	S01904001	Ga2
68	S01904001	Ga5
69	S01904001	Ga6
70	S01904001	Ga7
71	S01904001	Ga8
22	S02602001	G - 20
59	S02602001	Sp1
60	S02602001	Sp2
61	S02602001	Sp3
62	S02602001	Sp4
63	S02602001	Sp5
28	S02620201	J - 28
32	S02637001	L - 4
32	S02645001	L - 6
32	S02646001	L - 20
32	S02647021	L - 25
32	S02648001	L - 26
14	S02742001	D - 89
59	S02742001	Sp1
64	S02742001	Ga1
65	S02742001	Ga2
14	S02743001	D - 89
59	S02743001	Sp1
66	S02743001	Ga3
68	S02744001	Ga5
56	S02747101	Z - 24
14	S02748001	D - 91
59	S02748001	Sp1
67	S02748001	Ga4
68	S02748001	Ga5
56	S02763602	Z - 16
68	S02999201	Ga5
68	S03000201	Ga5
22	S03245001	G - 22
22	S03246001	G - 26
38	S03677001	N - 27
68	S03882201	Ga5
60	S03882201	Sp2
61	S03882201	Sp3
62	S03882201	Sp4
63	S03882201	Sp5
68	S03882201	Ga5
69	S03884301	Ga6
46	S04159000	P4 - 15
24	S04630000	H - 11
28	S04632101	J - 29
56	S06055009	Z - 6
48	S07027001	Q - 7
64	S07350001	C - 25
64	S07649001	Ga1
58	S07783001	Z - 48
2	S09621151	A - 13
56	S09634000	Z - 7
65	S11222001	Ga2
28	S12441001	J - 35
30	S12441001	K - 33
14	S12915001	D - 58
8	S13385001	C - 11
59	S13561101	C - 7
59	S13561101	Sp1
60	S13561101	Sp2
61	S13561101	Sp3
62	S13561101	Sp4
63	S13561101	Sp5
68	S13684001	Ga5
69	S13684001	Ga6
70	S13684001	Ga7
71	S13684001	Ga8
12	S16335001	D - 51
12	S1637001	D - 52
54	S16625050	T - 7
54	S16629151	T - 9
54	S16630051	T - 16
54	S16643009	T - 23
56	S17774001	Z - 1
54	S20356001	T - 19
30	S23418002	K - 19
4	S23651001	B - 2
6	S23651001	B - 6
6	S23651001	B - 57
6	S23651001	B - 74
6	S23651001	B - 76
6	S23651001	B - 79
6	S23651001	B - 81
14	S23651001	D - 68
14	S23651001	D - 81
22	S23651001	G - 12
22	S23651001	G - 14
22	S23651001	G - 19
32	S23651001	L - 33
4	S25235001	B - 3
14	S25235001	D - 57
16	S25235001	D - 95
38	S25279101	N - 18
14	S25321001	D - 59
16	S25339201	D - 96
26	S25344001	H - 62
24	S25380401	H - 17
24	S25382001	H - 5
6	S25401100	B - 71
32	S25426101	L - 11
16	S25427101	D - 113
32	S25434000	L - 37
38	S25449201	N - 5
38	S25454001	N - 17
38	S25456001	N - 23
38	S25457101	Q - 1
12	S25469100	D - 16
26	S25475101	H - 63
30	S25789000	K - 9
72	S25821001	Ga9
71	S25822001	Ga8
72	S25822001	Ga9
66	S29644001	Ga3
65	S29645001	Ga2
64	S29646001	Ga1
69	S29647101	Ga6
69	S29648101	Ga6
71	S29648101	Ga8
64	S29649001	Ga1
71	S30103001	Ga8
8	S31006001	C - 31
28	S31032001	J - 36
18	S31885001	E - 9
2	S31899251	D - 41
12	S31910001	Q - 41
48	S31938001	Q - 12
48	S32263001	A - 9
46	S32907050	P4 - 9
50	S34281000	P4 - 4
14	S34352101	D - 70
18	S34756021	E - 6
59	S35775010	Sp1
67	S35776101	Ga4
59	S35776101	Sp1
8	S35777101	C - 9
59	S35777101	Sp1
60	S35777101	Sp2
61	S35777101	Sp3
62	S35777101	Sp4
67	S35777101	Ga4
18	S35820021	E - 4
18	S35821021	E - 1
32	S36893050	L - 47
8	S37020000	B - 90
44	S37060001	P3 - 26
56	S37061010	Z - 3
73	S37061010	Wa
63	S37061010	Sp5
32	S38687000	L - 59
6	S38712001	B - 59
6	S38713100	B - 60
67	S38760001	Ga4
24	S38769000	H - 8
54	S38803051	T - 4
54	S38804050	T - 5
8	S39051001	C - 32
16	S39830101	D - 107
58	S40765001	Z - 49
28	S40938001	J - 30
38	S41205001	N - 4
38	S41206001	N - 3
38	S41207000	N - 28
8	S41207000	C - 7
2	SA1105001	A - 5
2	SA1106001	A - 1
2	SA1107001	A - 2
4	SA1120001	B - 5
59	SA1133001	Sp1
60	SA1133001	Sp2
61	SA1133001	Sp3
62	SA1133001	Sp4
63	SA1133001	Sp5
59	SA1134001	Sp1
60	SA1135001	Sp2
59	SA1136001	Sp1
60	SA1137001	Sp2
6	SA1138101	B - 51
6	SA1139101	B - 52
6	SA1140001	B - 56
6	SA1143001	B - 67
6	SA1144001	B - 68
6	SA1145001	B - 69
6	SA1150001	B - 78
6	SA1166001	B - 73
8	SA1171001	C - 1
8	SA1173001	C - 3
8	SA1174001	C - 5
8	SA1175001	C - 36
8	SA1176001	C - 12
8	SA1177001	C - 13
8	SA1178001	C - 14
8	SA1179001	C - 15
8	SA1179001	C - 27
8	SA1179001	C - 30
8	SA1181001	C - 17
8	SA1182001	C - 19
8	SA1183001	C - 20
8	SA1184001	C - 21
8	SA1186001	C - 24
10	SA1190001	C - 41
10	SA1193001	C - 40
12	SA1206001	D - 15
12	SA1207001	D - 19
12	SA1209001	D - 23
12	SA1210001	D - 25
12	SA1211001	D - 26
12	SA1214101	D - 32
12	SA1217101	D - 40
12	SA1218001	D - 42
12	SA1223001	D - 48
12	SA1225001	D - 54
14	SA1226101	D - 62

Page 82 — INDEX

Brother S-7200B parts on page 82

Ref	Part number	Part name	Qty
- 64	SA1227101	D
- 65	SA1228001	D
- 12	SA1229101	J
- 71	SA1230001	D
- 72	SA1231001	D
- 76	SA1233101	D
- 80	SA1234001	D
- 75	SA1237001	D
- 83	SA1238401	D
- 84	SA1239201	D
- 87	SA1242001	D
- 93	SA1245101	D
- 94	SA1247001	D
- 100	SA1250101	D
- 101	SA1251001	D
- 98	SA1253101	D
- 99	SA1254001	D
- 5	SA1258001	F
- 56	SA1261001	D
- 56	SA1263001	D
- 39	SA1269001	D
- 10	SA1273001	G
- 15	SA1284001	G
- 16	SA1285001	G
- 18	SA1286001	G
- 21	SA1291001	J
- 1	SA1292001	H
- 13	SA1295001	H
- 27	SA1300001	H
- 46	SA1301001	H
- 3	SA1304001	H
- 4	SA1305001	H
- 33	SA1306001	H
- 34	SA1307001	H
- 38	SA1309001	H
- 44	SA1310001	H
- 50	SA1314001	H
- 52	SA1316001	H
- 72	SA1317001	B
- 55	SA1321401	H
- 56	SA1322301	H
- 58	SA1323001	H
- 59	SA1324001	H
- 60	SA1325001	H
- 61	SA1326101	H
- 67	SA1327101	H
- 18	SA1332001	T
- 8	SA1335001	T
- 11	SA1336001	T
- 21	SA1338001	T
- 18	SA1342001	J
- 13	SA1343001	J
- 16	SA1345001	J
- 10	SA1359001	J
- 26	SA1360101	K
- 27	SA1361001	K
- 29	SA1362101	L
- 30	SA1363001	L
- 42	SA1366001	L
- 48	SA1367201	L
- 1	SA1371201	M
- 2	SA1372001	M
- 4	SA1373001	M
- 1	SA1374301	N
- 10	SA1376001	N
- 20	SA1377001	N
- 24	SA1378201	N
- 18	SA1388101	P4
- 15	SA1390001	R
- 17	SA1391601	R
- 6	SA1392001	R
- 44	SA1393001	L
- 45	SA1394101	L
- 1	SA1396001	N
- 1	SA1397001	N
- 1	SA1399201	F
- 2	SA1656011	Z
- 2	SA1656014	Z
- 2	SA1656022	Z
- 2	SA1658010	Z
- 2	SA1660010	Z
- 2	SA1752014	Z
- 2	SA1752022	Z
- 3	SA1941001	T
- 12	SA1942001	T
- 20	SA1950001	T
- 11	SA1961101	J
- 12	SA1962001	Z
- 12	SA1963001	Z
- 15	SA1967001	N
- 8	SA1969001	Z
- 1	SA1971101	K
- 3	SA1975001	K
- 4	SA1978001	K
- 7	SA1980001	K
- 10	SA1981101	K
- 11	SA1982101	K
- 12	SA1983001	K
- 16	SA1984001	K
- 18	SA1985001	K
- 20	SA1988001	K
- 21	SA1989001	K
- 22	SA1990101	K
- 23	SA1991001	K
- 25	SA1992101	K
- 29	SA1994101	K
- 17	SA2040001	A
- 17	SA2041001	A
- 51	SA2097101	L
- 12	SA2161001	B
- 15	SA2170001	A
- 9	SA2171001	M
- 6	SA2177001	T
- 24	SA2190001	K
- 50	SA2194201	B
- 58	SA2250001	B
- 75	SA2251001	B
- 80	SA2252001	B
- 82	SA2254101	B
- 31	SA2258001	L
- 3	SA2270001	P4
- 15	SA2286001	F
- 19	SA2287001	N
- 117	SA2293101	D
- 115	SA2294101	D
- 111	SA2295201	D
- 2	SA2343001	H
- 90	SA2345001	D
- 92	SA2346001	D
- 109	SA2347001	D
- 7	SA2348001	C
- 1	SA2351101	J
- 1	SA2352101	J
- 31	SA2354001	P1
- 6	SA2356101	J
- 8	SA2358101	J
- 2	SA2362001	J
- 4	SA2363001	J
- 69	SA2377001	D
- 77	SA2378001	B
- 34	SA2383001	L
- 8	SA2386001	P4
- 10	SA2387001	P4
- 2	SA2388101	P4
- 7	SA2389001	P4
- 19	SA2390101	P4
- 103	SA2401001	D
- 61	SA2404001	B
- 11	SA2405001	P4
- 16	SA2406001	P4
- 1	SA2407001	P4
- 14	SA2417001	J
- 10	SA2422001	B
- 10	SA2433101	C

Page 83 — 索引 / INDEX

Brother S-7200B parts on page 83

Ref	Part number	Part name	Qty
- 65	SA3508001	H
- 16	SA3980001	C
- 4	SA4098001	P4
- 4	SA4098001	R
- 6	SA4099001	P4
- 5	SA4099001	R
- 37	SA4211001	P1
- 3	SA4494001	A
- 41	SA4552001	H
- 13	SA5329001	L
- 4	SA5730101	P1
- 6	SA5731001	P1
- 5	SA5732001	P1
- 7	SA6167001	J
- 29	SA6606001	Z
- 33	SA6607001	Z
- 34	SA6607001	Z
- 37	SA6609001	Z
- 21	SA6629001	Z
- 3	SA7148001	G
- 1	SA7209101	B
- 7	SA7212101	B
- 14	SA7222101	B
- 21	SA7227101	B
- 29	SA7234101	B
- 37	SA7238101	B
- 45	SA7239101	B
	SA7240001	Sp5
	SA7241001	Sp1
	SA7241001	Sp2
	SA7241001	Sp3
	SA7241001	Sp4
- 2	SA7242001	C
- 1	SA7243001	D
- 4	SA7246001	D
- 7	SA7249101	D
- 8	SA7250101	D
- 36	SA7252001	D
- 37	SA7253001	D
- 49	SA7254001	D
- 74	SA7255001	D
- 88	SA7257001	D
- 1	SA7261101	G
- 2	SA7262001	G
- 5	SA7263301	G
- 20	SA7265101	H
- 11	SA7266001	G
- 28	SA7269001	H
- 23	SA7271001	J
- 26	SA7272001	J
- 27	SA7273001	J
- 29	SA7275001	J
- 9	SA7282101	L
- 10	SA7283001	L
- 16	SA7284101	L
- 17	SA7285001	L
- 23	SA7287001	L
- 54	SA7288001	L
- 1	SA7291101	P1
- 3	SA7292101	P1
- 7	SA7293001	P1
- 1	SA7294001	R
- 3	SA7295001	R
- 14	SA7297101	Z
- 9	SA7320001	G
- 21	SA7321001	D
- 45	SA7323201	D
- 46	SA7324201	D
- 2	SA7325001	D
- 85	SA7330001	D
- 18	SA7341101	L
- 23	SA7345101	H
- 108	SA7422001	D
- 4	SA7525001	G
- 1	SA7552001	L
- 13	SA7554001	G
- 12	SA7577001	L
- 6	SA7607001	C
- 8	SA7625001	B
- 22	SA7625001	B
- 15	SA7626001	B
- 30	SA7627001	B
- 13	SA7635001	D
- 16	SA7636001	H
- 28	SA7654001	B
- 36	SA7654001	B
- 44	SA7654001	B
	SA7686002	Sp1
	SA7686002	Sp2
	SA7686002	Sp3
	SA7686002	Sp4
	SA7686002	Sp5
	SA7688001	Sp1
	SA7688001	Sp2
	SA7688001	Sp3
	SA7688001	Sp4
	SA7688001	Sp5
- 7	SA7693001	G
- 6	SA7879001	G
- 49	SA7898201	L
- 50	SA7899001	L
- 52	SA7900001	L
- 13	SA8002001	N
- 39	SA8004001	C
- 37	SA8005001	C
- 13	SA8008001	R

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother S-7200B — parts catalog

• Page 1 (cover): This is the cover page for the S-7200B Parts Book for the SINGLE NEEDLE DIRECT DRIVE STRAIGHT LOCK STITCHER WITH THREAD TRIMMER.
• Page 2 (diagram): This page shows a diagram illustrating different configurations or types of the Brother S-7200B sewing machine, indicated by numbered labels and corresponding descriptions.
• Page 3 (text): This page describes the model plate for the Brother S-7200B sewing machine, detailing options for thread trimmers, lubrication types, and material handling capabilities.
• Page 4 (toc): This page contains the table of contents for the parts book, listing sections from A to Z and Sp1 to Sp2, along with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the machine body and its associated components, with numbered parts indicated for reference.
• Page 7 (parts_list): This page lists parts for the Machine body, including part numbers, descriptions, quantities, and remarks.
• Page 8 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with various components numbered for identification.
• Page 9 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 10 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with various components numbered for identification.
• Page 11 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 12 (diagram): This page displays a diagram of the presser foot mechanism, illustrating various components with reference numbers for identification.
• Page 13 (parts_list): This page lists parts for the "Presser foot mechanism" section, including part numbers, descriptions, and quantities.
• Page 14 (diagram): This page displays a diagram of the presser foot mechanism, illustrating various components with reference numbers for identification.
• Page 15 (parts_list): This page lists parts for the Presser foot mechanism, including part codes, quantities, and names.
• Page 16 (diagram): This page displays a diagram of the feed mechanism for a sewing machine, with numbered parts and their corresponding references.
• Page 17 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
• Page 18 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding details.
• Page 19 (parts_list): This page lists parts for the feed mechanism, including part numbers, descriptions, and quantities, with reference numbers ranging from 56 to 92.
• Page 20 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 21 (parts_list): This page lists parts for the feed mechanism, including various screws, washers, and assemblies, with their corresponding part numbers and descriptions.
• Page 22 (diagram): This page displays a diagram of the knee lifter mechanism, with numbered parts including a disc, a bracket, a screw, a bolt, a rod, and a cover.
• Page 23 (parts_list): This page lists parts for the Knee lifter mechanism, including part numbers, quantities, and names.
• Page 24 (diagram): This page displays a diagram of the quick reverse mechanism, illustrating various components with reference numbers.
• Page 25 (parts_list): This page lists parts for the Quick reverse mechanism, including part numbers, descriptions, and quantities.
• Page 26 (diagram): This page displays a diagram of the rotary hook mechanism, with numbered parts and their corresponding references.
• Page 27 (parts_list): This page lists parts for the Rotary Hook mechanism, including part numbers, descriptions, and quantities.
• Page 28 (diagram): This page displays a diagram of lubrication components for a sewing machine, with numbered parts and their corresponding details.
• Page 29 (parts_list): This page lists lubrication-related parts for industrial sewing machines, including part numbers, descriptions, and quantities.
• Page 30 (diagram): This page displays a diagram of lubrication components for sewing machine models, with numbered parts and their corresponding details.
• Page 31 (parts_list): This page lists lubrication and related parts for the sewing machine, including O-rings, oil pans, bushes, knee lifters, bolts, set screws, nuts, twist springs, and retaining rings, with their corresponding part numbers and descriptions.
• Page 32 (diagram): This page displays a diagram of the threading mechanism for a sewing machine, with numbered parts indicated.
• Page 33 (parts_list): This page lists parts for threading mechanism, including part numbers, descriptions, and quantities.
• Page 34 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts and their corresponding details.
• Page 35 (parts_list): This page lists parts for the Bobbin Winder Mechanism, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of the thread trimmer mechanism, detailing various components with reference numbers and part numbers.
• Page 37 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of the thread trimmer mechanism, illustrating various components with reference numbers for identification.
• Page 39 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts and their corresponding details.
• Page 41 (parts_list): This page lists parts for the Tension release mechanism, including part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays a diagram of the thread wiper mechanism, illustrating various components with reference numbers for identification.
• Page 43 (parts_list): This page lists parts for the thread wiper mechanism, including part numbers, descriptions, and quantities.
• Page 44 (diagram): This page displays a diagram of the control box and motor mechanism, with numbered parts indicated for identification.
• Page 45 (parts_list): This page lists parts for the Control box and motor mechanism, including part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays a diagram of the control box mechanism for an industrial sewing machine, with numbered parts and a sewing machine illustration.
• Page 47 (parts_list): This page lists parts for the Control Box Mechanism, including part numbers, descriptions, quantities, and applicable regions like China, Europe, and other regions.
• Page 48 (diagram): This page displays a diagram of the control box mechanism for a Brother sewing machine, showing various components with reference numbers.
• Page 49 (parts_list): This page lists parts for the control box mechanism, including various screws, washers, transformers, fan assemblies, and PCBs, with their corresponding part numbers and descriptions.
• Page 50 (diagram): This page displays a diagram of the control box mechanism and its option parts, with numbered components and associated part numbers.
• Page 51 (parts_list): This page lists parts for the Control box mechanism (Option parts), including part numbers, names, quantities, and remarks.
• Page 52 (diagram): This page displays a diagram of the knee switch mechanism and its associated parts, labeled with reference numbers for identification.
• Page 53 (parts_list): This page lists parts for the Knee Switch Mechanism, including part numbers, descriptions, and quantities.
• Page 54 (diagram): This page displays a diagram of the R. Quick reverse switch mechanism, with numbered parts and their corresponding references.
• Page 55 (parts_list): This page lists parts for the R. Reverse switch mechanism, including part numbers, quantities, and names of parts.
• Page 56 (diagram): This page displays a diagram of power supply equipment mechanisms, illustrating various components with reference numbers.
• Page 57 (parts_list): This page lists power supply equipment mechanism parts, including part numbers, descriptions, and applicable regions.
• Page 58 (diagram): This page displays a diagram of the presser foot lifting set mechanism, including various numbered parts with their corresponding labels.
• Page 59 (parts_list): This page lists parts for the T. 電磁押上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts). It includes reference numbers, codes, quantities, part names in Japanese and English, and RM values.
• Page 60 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 61 (parts_list): This page lists parts for Z. Accessories, including part numbers, quantities, and names of parts such as screws, needles, and bobbins.
• Page 62 (diagram): This page displays a diagram of accessories and related parts for a sewing machine, with numbered components and their corresponding references.
• Page 63 (parts_list): This page lists parts for Z. Accessories, including hexagonal wrenches, connecting rods, nuts, bolts, washers, and collars, with their corresponding part numbers and quantities.
• Page 64 (parts_list): This page lists different parts for sewing machines, categorized by lubrication type and material weight, with part numbers and descriptions provided for each.
• Page 65 (parts_list): This page lists parts for different lubrication types and destinations, including "Minimum lubrication type" and "Semi dry type" for USA.
• Page 66 (parts_list): This page lists parts for different specifications of sewing machines, including minimum lubrication type, semi dry type, and complete dry type, with part numbers and descriptions for each.
• Page 67 (parts_list): This page lists parts for different lubrication types and destinations, including needle bar, needle plate, presser bar spring, presser foot assy, feed dog, hook stopper, rotary hook assy w/box, and bobbin.
• Page 68 (parts_list): This page lists parts for different specifications of sewing machines, including minimum lubrication type, semi dry type, and complete dry type, with part numbers and descriptions for each.
• Page 69 (parts_list): This page lists gauge parts for light and medium-weight materials for 3-needle, 3-row sewing machines, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 70 (parts_list): This page lists gauge parts for light and medium-weight materials for 3-needle/3-row machines, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 71 (parts_list): This page lists gauge parts for heavy-weight materials in a 3-row configuration, detailing needle plates, feed dogs, and presser foot assemblies with their respective part numbers and dimensions.
• Page 72 (parts_list): This page lists gauge parts for difficult-to-sew materials and Shin-gosen with 4ROW, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 73 (parts_list): This page lists gauge parts for light and medium-weight materials for 4-row machines, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 74 (parts_list): This page lists gauge parts for light and medium-weight materials for 4-row applications, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and descriptions.
• Page 75 (parts_list): This page lists gauge parts for light and medium-weight materials for 4-row applications, including needle plates, feed dogs, and presser foot assemblies with their corresponding part numbers and diagrams.
• Page 77 (parts_list): This page lists gauge parts for heavy-weight materials in 4-row configuration, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and dimensions.
• Page 78 (parts_list): This page lists various warning labels for industrial sewing machines, including their descriptions, sizes, and codes.
• Page 79 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 80 (index): This page is an index of part numbers and their corresponding reference numbers and page numbers. It lists parts from 117132001 to J03961001.
• Page 81 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 82 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 83 (index): This page contains an index of parts for industrial sewing machines, listing part codes, reference numbers, and corresponding page numbers.
• Page 84 (cover): This is the cover page for the Brother Parts Book, featuring the Brother logo, a graphic of a screw, and contact information for Brother Industries, Ltd. in Japan.

Page 1

S-7200B パーツブック PARTS BOOK 本縫ダイレクトドライブ自動糸切りミシン SINGLE NEEDLE DIRECT DRIVE STRAIGHT LOCK STITCHER WITH THREAD TRIMMER brother. 最新の部品情報は Parts Navigation でご覧いただけます。http://partsbook.brother.co.jp/partsnnavi/jpn/ The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnnavi/eng/ jintex.in

Page 2 — 型式板の見方

型式板の見方 BROTHER INDUSTRIES, LTD. S-7200B- 1 3: 糸切り + 逆転 4: 糸切り + 逆転 + 糸払い 2 0: 微量給油タイプ 3: セミドライタイプ 5: 完全ドライタイプ 3 S: 薄物・難素材用 3: 中厚物用 5: 厚物用

Page 3 — Description of model plate

Description of model plate BROTHER INDUSTRIES, LTD. S-7200B- 3: Thread Trimmer + Quick Reverse 4: Thread Trimmer + Quick Reverse + Thread Wiper 0: Minimum lubrication type 2 3: Semi dry type 5: Complete dry type S: Light-weight Materials & Difficult-to-sew Materials 3: Medium-weight materials 5: Heavy-weight materials jintex.in

Page 4 — 目 次

パーツブックご利用に際して 1. この本は、2006年04月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、破線で示してあります。 目 次 A. 主体関係 1 Sp3. 仕様別部品一覧表 (中国向) 61 B. 針棒・天秤関係 3 Sp4. 仕様別部品一覧表 (輸出一般向) 62 C. 押え関係 7 Sp5. 仕様別部品一覧表 D. 送り関係 11 (欧州・カナダ向) 63 E. 膝上げ関係 17 Ga1. ゲージ部品一覧表 F. 逆転関係 19 (薄・中厚物用:3枚菌) 64 G. かま関係 21 Ga2. ゲージ部品一覧表 H. 給油潤滑関係 23 (薄・中厚物用:3枚菌) 65 J. 糸通し関係 27 Ga3. ゲージ部品一覧表 K. 糸巻関係 29 (厚物用:3枚菌) 66 L. 糸切り関係 31 Ga4. ゲージ部品一覧表 M. 糸緩め関係 35 (難素材・新素材用:4枚菌) 67 N. 糸払い関係 37 Ga5. ゲージ部品一覧表 P1. コントロールボックス、モータ関係 39 (薄・中厚物用:4枚菌) 68 P2. コントロールボックス関係 41 Ga6. ゲージ部品一覧表 P3. コントロールボックス関係 43 (薄・中厚物用:4枚菌) 69 P4. コントロールボックス関係 Ga7. ゲージ部品一覧表 (オプション部品) 45 (薄・中厚物用:4枚菌) 70 Q. 膝スイッチ関係 47 Ga8. ゲージ部品一覧表 R. 逆転スイッチ関係 49 (薄・中厚物用:4枚菌) 71 S. 電装品関係 51 Ga9. ゲージ部品一覧表 T. 電磁押上げセット関係 (厚物用:4枚菌) 72 (オプション部品) 53 Wa. 警告ラベル 73 Z. 付属部品関係 55 索引 74 Sp1. 仕様別部品一覧表 (日本向) 59 Sp2. 仕様別部品一覧表 (アメリカ向) 60 jintex.in

Page 6 — A. 主体関係 / Machine body

A. 主体関係 / Machine body S-7200B-050 1 jintex.in < - 5S, - 53用 / For "- 5S & - 53" > 4 3 16 R.P. 17 15 12 8 7 9 10 11 6 5 2 2 1 1

Page 7 — A. 主体関係 / Machine body

A. 主体関係 / Machine body REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1106001 1 キャクチュウR STAND R 2 SA1107001 2 キャクチュウL STAND L 3 SA4259001 1 モーターカバー MOTOR COVER 4 062501216 3 ナベコ5X12 SCREW PAN M5X12 5 SA1105001 1 ガワイタ SIDE PLATE 6 062501216 7 ナベコ5X12 SCREW PAN M5X12 7 104450101 2 ゴムセン8 RUBBER CAP, 8 8 104450101 1 ゴムセン8 RUBBER CAP, 8 9 S32263001 1 ゴムセン8.5 RUBBER CAP, 8.5 10 104450101 1 ゴムセン8 RUBBER CAP, 8 11 104449001 2 ゴムセン15.5 RUBBER CAP, 15.5 12 117936001 1 ゴムセン9.4 RUBBER CAP, 9.4 13 S09621151 1 ジョウギイタ RULER PLATE 14 062400616 1 ナベコ4X6 SCREW PAN M4X6 15 SA2170001 1 キャクチュウRF STAND RF 16 S45050001 1 <ローロ5S、ローロ53用> RPマーク <For "-ロ5S & -ロ53"> MARK, RP 17 SA2040001 1 <日本向> ラベルチュウイ.ワイエイ <日本向以外> <For Japan only> LABEL, CAUTION JPN/ENG <Except for Japan> 17 SA2041001 1 ラベルチュウイ.チュウエイ LABEL, CAUTION CHN/ENG S-7200B-050 2 jintex.in

Page 8 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism 1 2 6 4 2 2 3 5 46 45 < - 03用 / For "- 03"> 47 13 12 11 11 7 10 9 8 48 < - 05用 / For "- 05"> 47 20 19 18 18 14 17 15 16 48 < - 33用 / For "- 33"> 47 27 26 25 28 25 21 24 22 48 23 < - S用 / For "- S"> 47 53 35 33 50 36 34 33 49 32 29 30 31 48 < - 53用 / For "- 53"> 47 43 42 41 44 41 37 40 39 38 48 80 54 51 52 63 78 73 71 74 62 55 79 72 82 65 64 66 67 68 69 70 75 77 76 77 76 3 S-7200B-101 jintex.in

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA7209101 1 ウワジククミ UPPER SHAFT ASSY 2 S23651001 3 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 3 S25235001 1 シメネジ8 SCREW M8 4 S25236001 1 アナヒラ6X10ホソメ SET SCREW SOCKET (FT) M6X10 5 SA1120001 1 イトマキクドウリン BOBBIN WINDER DRIVING WHEEL 6 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 <--ロ30用--> <For-"ロ30"> 7 SA7212101 1 ハリボウレンカンソウクミ NEEDLE BAR CONNECTING ROD UNIT 8 SA7625001 1 ハリボウクランク NEEDLE BAR CRANK 9 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 10 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 11 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 12 SA2161001 1 ザガネ WASHER 13 048060342 1 トメワE6 RETAINING RING E6 <--ロ09用--> <For-"ロ09"> 14 SA7222101 1 ハリボウレンカンソウクミ NEEDLE BAR CONNECTING ROD UNIT 15 SA7626001 1 ハリボウクランク NEEDLE BAR CRANK 16 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 17 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 18 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 19 SA2161001 1 ザガネ WASHER 20 048060342 1 トメワE6 RETAINING RING E6 <--ロ33用--> <For-"ロ33"> 21 SA7227101 1 ハリボウレンカンソウクミ NEEDLE BAR CONNECTING ROD UNIT 22 SA7625001 1 ハリボウクランク NEEDLE BAR CRANK 23 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 24 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 25 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 26 SA2161001 1 ザガネ WASHER 27 048060342 1 トメワE6 RETAINING RING E6 28 SA7654001 1 シメネジM3X5 SCREW M3X5 <--ロS用--> <For-"ロS"> 29 SA7234101 1 ハリボウレンカンソウクミ NEEDLE BAR CONNECTING ROD UNIT 30 SA7627001 1 ハリボウクランク NEEDLE BAR CRANK 31 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 32 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 33 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 34 SA2161001 1 ザガネ WASHER 35 048060342 1 トメワE6 RETAINING RING E6 36 SA7654001 1 シメネジM3X5 SCREW M3X5 <--453用--> <For-"453"> 37 SA7238101 1 ハリボウレンカンソウクミ NEEDLE BAR CONNECTING ROD UNIT 38 SA7625001 1 ハリボウクランク NEEDLE BAR CRANK 39 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 40 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 41 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 42 SA2161001 1 ザガネ WASHER 43 048060342 1 トメワE6 RETAINING RING E6 44 SA7654001 1 シメネジM3X5 SCREW M3X5 45 SA7239101 1 ストッパーピン STOPPER PIN 46 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 47 012061036 2 アナヒラ6X10 SET SCREW SOCKET (FT) M6X10 48 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 49 * P. 49 1 ハリボウ NEEDLE BAR 50 SA2194201 1 ハリボウメタルU NEEDLE BAR BUSH U S-7200B-101 4 jintex.in

Page 10 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism <-"03用 / For "-03"> 46 45 1 2 2 4 3 6 5 56 81 57 58 59 61 60 <-"05用 / For "-05"> 47 13 12 11 7 10 9 8 48 20 19 18 14 17 15 16 48 <-"33用 / For "-33"> 47 27 26 25 28 21 24 22 23 48 <-"S用 / For "-S"> 47 53 35 33 36 34 29 50 32 30 48 31 <-"53用 / For "-53"> 47 43 42 41 44 37 40 39 38 48 80 54 51 52 63 78 73 71 79 72 82 74 62 55 64 65 66 67 68 69 70 75 77 76 76 77 5 S-7200B-101 jintex.in

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 51 SA1138101 1 <--ロロS、ロロ3用> ハリボウメタルD <For "-ロロS & -ロロ3"> NEEDLE BAR BUSH D 52 SA1139101 1 <--ロロ5用> ハリボウメタルD <For "-ロロ5"> NEEDLE BAR BUSH D 53 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 54 062500616 1 ナベコ5X6 SCREW PAN M5X6 55 140553102 1 アタマツキトメネジ3.18 SET SCREW, SM3.18 56 SA1140001 1 ツギテソーミ JOINT UNIT 57 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 58 SA2250001 1 タイミングプーリ U TIMING PULLEY, U 59 S38712001 1 フランジ FLANGE 60 S38713100 1 ファン FAN 61 SA2404001 3 ナベザクミ4X35DB SCREW, PAN (S WASHER) M4X35 62 151594001 1 ハリボウイトアンナイ NEEDL BAR THREAD GUIDE 63 151267001 2 サラネジ4.37 SCREW, FLAT SM4.37-40X8 64 180018151 1 スベリイタクミ SLIDE PLATE ASSY 65 114561001 1 スベリイタウラバネ SPRING, PLATE 66 122771051 2 シメネジ2.38 SCREW, SM2.38 67 SA1141001 1 シタジククミ LOWER SHAFT ASSY 68 SA1144001 1 シタジク LOWER SHAFT 69 SA1150001 1 タマヅクウケ6301ZZNR BALL BEARING, 6301ZZNR 70 048120142 1 トメワジクヨウC12 RETAINING RING EXTERNAL C12 71 S25401100 1 オイルシール OIL SEAL 72 SA1317001 1 オイルシール OIL SEAL 73 SA1166001 1 シタジクギアクミ LOWER SHAFT GEAR ASSY 74 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 75 SA2251001 1 タイミングプーリー D TIMING PULLEY, D 76 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 77 SA2378001 2 カンザ4.8 SPACER,4.8 78 SA1150001 1 ベアリングブツシユクミ BEARING BUSH ASSY 79 SA2251001 1 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 80 SA2252001 1 タイミングベルト TIMING BELT 81 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 82 SA2254101 1 シタジクメタル LOWER SHAFT BUSH 83 * P.59 1 ハリイタ NEEDLE PLATE 84 * P.59 1 ミシンハリ NEEDLE S-7200B-101 6 jintex.in

Page 12 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism 19 22 23 41 28 42 30 27 21 20 15 14 16 32 18 13 25 26 24 31 17 12 29 33 5 36 6 7 8 1 37 40 39 38 4 3 2 11 10 11 35 34 9 S-7200B-201 7 jintex.in

Page 13 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1171001 <--ロS、--ロ3用> 1 オサエボウ <--ロ5用> 1 オサエボウ PRESSER BAR PRESSER BAR 2 SA7242001 1 オサエボウメタル PRESSER BAR BUSH 3 062500616 1 ナベコ5X6 SCREW PAN M5X6 4 026050136 1 ヒラザガネコガタ5 WASHER PLAIN S 5 5 SA1174001 1 オサエチヨウセツネツジM14 PESSER ADJUSTING SCREW, M14 6 SA7607001 1 オサエバネアンナイ SPRING GUIDE 7 S13561101 <--ロ3用> 1 オサエバネ <--ロS用> PRESSER BAR SPRING <For "--ロ3"> PRESSER BAR SPRING 7 141728001 1 オサエバネ <For "--ロS"> PRESSER BAR SPRING 7 147514001 <--ロS用> 1 オサエバネ <For "--ロS"> PRESSER BAR SPRING 7 S42893001 <難素材用 SS> オサエバネ <難素材用 S> PRESSER BAR SPRING <For "difficult to sew materials" SS> 7 SA2348001 オサエバネ PRESSER BAR SPRING <For "difficult to sew materials" S> 8 140407001 1 ザガネ WASHER 9 153037201 <--ロ3用> 1 オサエクミ <For "--ロ3"> PRESSER FOOT ASSY 9 SA2836101 1 オサエクミ PRESSER FOOT ASSY W/F-GUARD 10 <--ロ5用> <For "--ロ5"> 9 145157101 1 オサエクミ PRESSER FOOT ASSY 9 150789101 1 オサエクミ PRESSER FOOT ASSY 10 SA2837101 1 オサエクミ PRESSER FOOT ASSY W/F-GUARD 9 S35777101 <--ロ5用> <For "--ロ5"> PRESSER FOOT ASSY 10 SA2433101 1 オサエクミ PRESSER FOOT ASSY W/F-GUARD 11 S13385001 1 シメネジ3.57X10 SCREW, SM3.57-40X10 12 SA1176001 1 オサエアゲレバークミ PRESSER BAR LIFTER LEVER ASSY 13 SA1177001 1 オサエアゲレバー PRESSER BAR LIFTER LEVER 14 SA1179001 1 ヒザゲレンカン KNEE LIFTER CONNECTING ROD 15 SA117001 1 ダンネジ5 SHOULDER SCREW, M5 16 SA3980001 1 ヒザゲレバー KNEE LIFTER LEVER 17 SA1181001 1 オサエアゲレバージク PRESSER BAR LIFTER LEVER SHAFT 18 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 19 SA1182001 1 イトユルメイタクミ TENSION RELEASE PLATE ASSY 20 SA1183001 1 イトユルメイタ TENSION RELEASE PLATE 21 SA1184001 1 イトユルメリカリエイタ T-RELEASE SELECTION PLATE 22 018400532 1 アナボルト4X5 BOLT SOCKET M4X5 23 025040232 1 ヒラザガネチユウ4 WASHER PLAIN M 4 24 SA1186001 1 オサエアゲレバーバネ P-BAR LIFTER LEVER SPRING 25 S07350001 1 サガネ WASHER PLAIN 26 048050342 2 トメワE5 RETAINING RING E5 27 SA1179001 1 ダンネジ5 SHOULDER SCREW, M5 28 SA2165001 1 ダンネジ6 SHOULDER SCREW, M6 29 SA1190001 1 ヒザアゲボウ KNEE LIFTER BAR 30 SA1179001 1 ダンネジ5 SHOULDER SCREW, M5 31 S31006001 1 オサエアゲテコ LIFTING LEVER 32 S39051001 1 ナベザクミ35X12 SCREW, PAN (S/P W) M3.5X12 33 SA45837001 1 オサエアゲクランク PRESSER BAR LIFTER CRANK 34 SA2778201 1 フィンガーガード FINGER GUARD 35 025350132 1 ヒラザガネシヨウ3.5 WASHER PLAIN S 3.5 36 SA1175001 1 チョウセツネジナツトM14 ADJUST SCREW NUT 37 SA8005001 1 オサエボウダキクミ PRESSER BAR GUIDE BRACKET ASSY 38 062401216 1 ナベ4X12 SCREW PAN M4X12 S-7200B-201 8

Page 14 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism 19 22 23 21 20 32 18 17 31 13 33 5 36 6 7 8 1 37 40 39 38 4 3 11 35 34 9 10 2 27 15 14 12 26 24 28 16 29 41 42 S-7200B-201 9 jintex.in

Page 15 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 39 SA8004001 1 オサエボウダキ PRESSER BAR GUIDE BRACKET 40 SA1193001 1 ボルト3X7.5 BOLT M3X7.5 41 SA1189101 1 チョウセツネジナ6 ADJUSTING SCREW M6 42 021060306 1 3シュナット6 NUT 3 M6 S-7200B-201 10 jintex.in

Page 16 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism 7 11 12 8 9 30 31 32 33 35 25 28 16 27 26 10 108 34 119 15 19 20 22 21 16 17 18 56 57 58 59 48 46 95 93 98 100 97 96 103 105 102 89 84 85 83 86 90 91 92 66 67 62 63 71 72 73 75 74 76 78 77 79 88 81 80 68 69 70 47 52 53 54 49 50 45 64 66 51 55 36 111 112 37 39 38 40 41 43 42 44 113 117 118 115 116 114 11 S-7200B-202 jintex.in

Page 17 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA7243001 1 <-ロ3,-ロ5用> <For "-ロ3,-ロ5"> 2 SA4494001 1 オクリメモリダイヤルクミ STITCH LENGTH DIAL ASSY 3 108549001 1 シメネジ4.76 SCREW SM4.76 Oリング O RING 4 <--ロS用> <For "-ロS"> SA7246001 1 オクリメモリダイヤルクミ STITCH LENGTH DIAL ASSY SA4494001 1 シメネジ4.76 SCREW SM4.76 108549001 1 Oリング O RING 5 S50098101 1 メモリイチギメピン POSITIONING PIN 6 100328001 1 メモリイチギメピンバネ NOTCH SPRING 7 SA7249101 1 オクリチョウセツクミ FEED REGULATOR ASSY 8 SA7250101 1 オクリチョウセツキ FEED REGULATOR 9 142374100 1 ドライブツシュ BUSH DRY :L=20 10 SA2849001 1 キリカエキレンカン F-REGULATOR CONNECTING ROD 11 151308102 1 レンカンジク12.5 STUD, 12.5 12 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 13 SA7635001 1 オクリチョウセツクミ FEED REGULATOR SHAFT 14 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M5X5 15 SA1206001 1 カエシイレーバジク REVERSE SEWING SHAFT 16 S25469100 2 ドライブツシュ BUSH DRY :L=12 17 025100132 1 ヒラザガネショウ10 WASHER PLAIN S 10 18 040808032 1 トメワE8 RETAINING RING E8 19 SA1207001 1 カンザ SPACER 20 062500816 2 ナベコ5X8 SCREW PAN M5X8 21 SA7321001 1 カエシイレーバー REVERSE LEVER 22 062501416 1 ナベコ5X14 SCREW PAN M5X14 23 SA1209001 1 カエシイレーババネ REVERSE LEVER SPRING 24 153132000 1 ナイロンチューブ NYLON TUBE, L=13.5 25 SA1210001 1 ハンドルジククミ HANDLE SHAFT ARM ASSY 26 SA1211001 1 ハンドルジクウデ HANDLE SHAFT ARM 27 156958021 1 スイヘイオクリウデジク FEED ROCK ARM SHAFT 28 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 29 018501636 1 アナボルト5X16 BOLT SOCKET M5X16 30 SA2854001 1 キリカエキジククミ FEED REGULATOR SHAFT ASSY 31 SA2854101 1 キリカエキジクウデ FEED REGULATOR SHAFT ARM 32 SA1214101 1 キリカエキジク FEED REGULATOR SHAFT 33 018501436 1 アナボルト5X14 BOLT SOCKET M5X14 34 SA2851001 1 ヘンシンピン ECCENTRIC PIN 35 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 36 SA7253001 1 キリカエキジクメタルR FEED REGULATOR SHAFT BUSH(R) 37 SA7253001 1 キリカエキジクメタルL FEED REGULATOR SHAFT BUSH(L) 38 012060536 1 アナヒラ6X5 SET SCREW, SOCKET (FT) M5X5 39 SA1269001 1 オイルシール OIL SEAL 40 SA1271101 1 キリカエキレンカンクミ CONNECTING ROD S ASSY 41 S31899251 1 キリカエキレンカン S F-REGULATOR CONNECTING ROD S 42 SA1218001 1 キリカエキジクツギテ FEED REGULATOR SHAFT JOINT 43 151308102 1 レンカンジク12.5 STUD, 12.5 44 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 45 SA7323201 1 キリカエキジククミ FEED REGULATOR UNIT 46 SA7242001 1 キリカエキジク FEED REGULATOR ASSY 47 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 48 SA1223001 1 スイヘイオクリレンカン LEVEL FEED CONNECTING ROD 49 SA7254001 1 リンクジク LINK SHAFT 50 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 51 S16335001 1 スイヘイオクリリンククミ LEVEL FEED LINK ASSY 52 S16337001 1 スイヘイオクリウデリンククミ FEED ROCKER ARM LINK ASSY 53 156958021 1 スイヘイオクリウデジク FEED ROCK ARM SHAFT 54 SA1225001 1 スイヘイオクリウデ FEED ROCK ARM 55 048040342 1 トメワE4 RETAINING RING E4 S-7200B-202 12

Page 18 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism <--□3,-□5用 / For "-□3 & -□5"> 7 11 12 8 14 13 9 106 107 30 31 32 33 108 34 119 15 16 27 26 25 28 29 19 20 23 22 21 16 17 18 56 57 58 59 48 60 95 93 98 100 97 96 94,99,101 103 105 102 89 84 86 90 91 92 66 67 63 62 46 50 45 49 53 52 51 54 61 55 111 36 112 71 72 73 74 75 41 37 39 38 43 42 44 76 78 77 81 80 68 69 70 113 116 115 117 118 114 S-7200B-202 13 jintex.in

Page 19 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 56 SA1263001 1 <- ロ3, -ロ5用> <For "-ロ3 & -ロ5"> 57 S25236001 2 スイヘイヘンシンリンネジツキ アナヒラ6X10ホソメ ECCENTRIC WHEEL, W/SCREW SET SCREW SOCKET (FT) M5X10 56 SA1261001 1 <- ロ3用> <For "-ロ3"> 57 S25236001 2 スイヘイヘンシンリンネジツキ アナヒラ6X10ホソメ ECCENTRIC WHEEL, W/SCREW SET SCREW SOCKET (FT) M5X10 58 S12915001 1 ニードルジクウケ25 ROLLER BEARING, RADIAL 25 :RED 59 S2521001 1 レンカンオサエ HOLDER 60 062350616 2 ナベコ35X6 SCREW PAN M3.5X6 61 062501416 1 ナベコ5X14 SCREW PAN M5X14 62 SA1226101 1 キリカエジクL FEED REGULATOR SHAFT, L 63 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 64 SA1227101 1 キリカエササエジク FEED REGULATOR SUPPORT SHAFT 65 SA1228001 1 ゴムセン14.5 RUBBER CAP, 14.5 66 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 67 SA1229101 1 アナトメネジ6トガリ SET SCREW (FT) M6X6 68 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 69 SA2377001 1 ゴムセンラベル RUBBER CAP LABEL 70 S34352101 1 ゴムセン13.5 RUBBER CAP, 13.5 71 SA1230001 1 スイヘイオクリジククミ FEED ROCK SHAFT ASSY 72 SA1231001 1 スイヘイオクリジク FEED ROCK SHAFT 73 SA2162001 1 フエルト FELT 74 SA7255001 1 オクリジクメタル R FEED SHAFT BUSH(R) 75 SA1237001 1 オイルシール OIL SEAL 76 SA1233101 1 オクリジクメタル L FEED SHAFT BUSH L 77 012060536 1 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 78 156243021 1 オクリジクスラストリング THRUST RING 79 048150142 1 トメワジクヨウC15 RETAINING RING EXTERNAL C15 80 SA1234001 1 セットカラークミ SET SCREW COLLAR 81 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 82 014300432 1 アナトメボミ3X4 SET SCREW SOCKET (CP) M3X4 83 SA1238401 1 オクリダイクミ FEED BAR ASSY 84 SA1239201 1 オクリダイ FEED BAR 85 SA7330001 1 スイヘイオクリダイウデ FEED ROCK BRACKET ARM 86 158722001 1 ザガネ4.2 WASHER PLAIN 4.2 87 SA1242001 1 アタマトメボミ5X7 SET SCREW 5X7 88 SA7257001 2 シメネジ5X12 SCREW 5X12 89 S02742001 1 <- ロ3用> オクリバ <For "-ロ3"> FEED DOG 90 SA2345001 1 オクリバ FEED DOG 89 S02743001 1 <- ロ5用> オクリバ <For "-ロ5"> FEED DOG 90 150793001 1 オクリバ FEED DOG 91 S02748001 1 <- ロS用> オクリバAB <For "-ロS"> FEED DOG, AB 92 SA2346001 1 オクリバ FEED DOG S-7200B-202 14

Page 20 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism 110 7 11 12 8 109 9 14 13 106 107 30 31 32 108 34 33 119 15 25 28 29 16 27 26 19 20 22 16 17 18 56 57 93 98 100 97 96 95 58 59 48 60 103 46 94,99,101 105 49 50 53 54 52 51 61 66 67 63 62 65 64 66 89 90 91 92 102 104 71 72 73 74 75 41 37 39 36 111 112 40 76 78 79 81 80 43 38 44 42 85 87 88 77 70 69 68 115 117 118 116 114 15 S-7200B-202 jintex.in

Page 21 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 93 SA1245101 1 <--ロ3用> ジョウゲヘンシンリンクミ <For "--ロ3"> F-LIFTING ECCENTRIC WHEEL ASSY 94 SA1247001 1 ヘンシンリンネジツキ ECCENTRIC WHEEL, W/SCREW 95 S25236001 2 アナヒラ6X10ホルメ SET SCREW SOCKET (FT) M6X10 96 S25339201 1 オク リダイウデオサエ FEED BAR ARM PRESSER 97 062300616 2 ナベコ3X6 SCREW PAN M3X6 98 SA1253101 1 <--ロS用> ジョウゲヘンシンリンクミ <For "--ロS"> F-LIFTING ECCENTRIC WHEEL ASSY 99 SA1254001 1 ヘンシンリンネジツキ ECCENTRIC WHEEL W/SCREW 95 S25236001 2 アナヒラ6X10ホルメ SET SCREW SOCKET (FT) M6X10 96 S25339201 1 オク リダイウデオサエ FEED BAR ARM PRESSER 97 062300616 2 ナベコ3X6 SCREW PAN M3X6 100 SA1250101 1 <--ロ5用> ジョウゲヘンシンリンクミ <For "--ロ5"> F-LIFTING ECCENTRIC WHEEL ASSY 101 SA1251001 1 ヘンシンリンネジツキ ECCENTRIC WHEEL, W/SCREW 95 S25236001 2 アナヒラ6X10ホルメ SET SCREW SOCKET (FT) M6X10 96 S25339201 1 オク リダイウデオサエ FEED BAR ARM PRESSER 97 062300616 2 ナベコ3X6 SCREW PAN M3X6 102 100080004 2 シメネジ3.18 SCREW, SM3.18-44X6.5 103 SA241001 1 ジョウゲクリジクオオクミ LIFTING FEED SHAFT UNINT 104 SA1242001 1 アタマトメヌボミ5X7 SET SCREW 5X7 105 01309432 1 アナクボミ3X4 SET SCREW SOCKET (CP) M3X4 106 S47508101 1 ダイヤル ロツクレバー DIAL LOCK LEVER 107 S39830101 1 ダイヤル ロツクレバーバネ SPRING 108 SA7422001 1 ロツクレバーピン ROCK LEVER PIN 109 SA2347001 1 ボルト5X16 BOLT M5X16 110 021500316 1 3シュナット5 NUT 3 M5 111 SA2295201 1 バネカケウデクミ SPRING HOOK ARM ASSY 112 S23651001 2 アナヒラ6X6ホツメ SET SCREW SOCKET (FT) M6X6 113 S25427101 1 ダンネジ4 SHOULDER SCREW, M4 114 SA3152001 1 ヒキバネクミ SPRING ASSY 115 SA2294101 1 ヒキバネ SPRING 116 SA3114001 1 ビニルチューブ VINYL TUBE 117 SA2293101 1 バネトリツケイタ SPRING SET PLATE 118 062500816 2 ナベコ5X8 SCREW PAN M5X8 119 048100142 1 トメワジクヨウC10 RETAINING RING EXTERNAL C10 S-7200B-202 16

Page 22 — E . 膝上げ関係 / Knee lifter mechanism

E . 膝上げ関係 / Knee lifter mechanism 1 2 3 4 5 6 7 8 9 17 S-7200B-203 jintex.in

Page 23 — E. 膝上げ関係 / Knee lifter mechanism

E. 膝上げ関係 / Knee lifter mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 S35821021 1 ヒザアテ KNEE LIFTER ASSY 2 146039021 1 ヒザアテ KNEE LIFTER BRACKET 3 100463021 1 4カクボルト7.94 BOLT, SQUARE SM7.94 4 S35820021 1 ボルト5.95×20 BOLT, SM5.95×20 5 104619022 1 ヒザアテ KNEE LIFTER BAR 6 S34756021 1 ヒザアテ KNEE LIFTER PLATE 7 114967021 1 ヒザアテストッパ KNEE LIFTER PLATE STOPPER 8 110087021 1 ボルト5.95 BOLT, SM5.95-28X8 9 S31885001 1 ヒザアテカバー KNEE LIFTER PLATE COVER S-7200B-203 18 jintex.in

Page 24 — F. 逆転関係 / Quick reverse mechanism

F. 逆転関係 / Quick reverse mechanism 19 S-7200B-205

Page 25 — F. 逆転関係 / Quick reverse mechanism

F. 逆転関係 / Quick reverse mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1399201 1 ギャクテンソルレノイドクミ QUICK REVERSE SOLENOID ASSY 2 154729001 1 プランジャ PLUNGER 3 154730001 1 トメワE15 RETAINING RING E15 4 154731000 1 ゴムストッパー RUBBER STOPPER 5 SA1258001 1 ソレノイドダイ SOLENOID BASE 6 062500816 3 ナベコ5X8 SCREW PAN M5X8 7 062061016 2 ナベコ6X10 SCREW PAN M6X10 8 SA2852001 1 ソレノイドレバー SOLENOID LEVER 9 SA2844101 1 ソレノイドレバーシヤフト SOLENOID LEVER SHAFT 10 SA2848001 1 セットカラークミ SET COLLAR ASSY 11 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 12 SA2992001 1 レンケツピン PIN 13 153138001 1 ザガネ WASHER, PLAIN 6.5 14 048060142 1 トメワジクヨウC6 RETAINING RING EXTERNAL C6 15 SA2286001 1 ゴムクツシヨン RUBBER CUSHION 16 012060536 1 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 17 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 S-7200B-205 20

Page 26 — G. かま関係 / Rotary hook mechanism

G. かま関係 / Rotary hook mechanism < - □5用 / For "- □5" > 10 11 12 " 補助部品 / For Supply parts " 28 29 22 23 26 27 30 24 25 21 20 1 2 3 4 13 14 15 16 17 18 19 S-7200B-301 21 jintex.in

Page 27 — G. かま関係 / Rotary hook mechanism

G. かま関係 / Rotary hook mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA7261101 1 <- 3, -005用> <For "-00S, -003 & -005"> ROTARY HOOK SHAFT ASSY 2 SA7262001 1 カマジククミ ROTARY HOOK SHAFT 3 SA7148001 1 オイルアナフタネシ SCREW CAP W/HOLE M5-0.8 4 SA7525001 1 フエルト FELT 5 SA7263301 1 ポンプメタルオオクミ PUMP BUSH UNIT 6 SA7879001 1 ポンプメタルクミ PUMP BUSH ASSY 7 SA7693001 1 オイルシール OIL SEAL 8 081025870 1 OリングS25 O RING S25 9 SA7320001 1 オイルシール OIL SEAL 10 SA1273001 1 <- 5用> カマジク <For "-005"> ROTARY HOOK SHAFT 11 SA1266001 1 カマジク ROTARY HOOK UNIT 12 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 13 SA7554001 1 ベアリングブツシュクミ BEARING BUSH ASSY 14 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 15 SA1284001 1 オイルシール OIL SEAL 16 SA1285001 1 カマジクギヤメタル ROTARY HOOK SHAFT GEAR BUSH 17 010606036 1 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 18 SA1286001 1 カマジクギヤクミ ROTARY HOOK SHAFT GEAR ASSY 19 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 20 S02602001 1 <- 3用> ウチカマトメ <For "-00S, -003"> HHOOK STOPPER 20 159324001 1 ウチカマトメ HHOOK STOPPER 21 062401216 1 ナベコ4X12 SCREW PAN M4X12 22 S03245001 1 ボビンケースクミ BOBBIN CASE ASSY 23 183388001 1 ボビンケースチョウシバネ TENSION SPRING 24 183389001 1 チョウシバネチョウセツネジ ADJUSTING SCREW 25 183390001 1 チョウシバネトメネジ SET SCREW 26 S03246001 1 クウテンボウシバネ ANTI-SPIN SPRING 27 146290001 1 <- 3用> ボビン <For "-00S & -003"> BOBBIN 28 117132001 1 <- 5用> ボビン <For "-005"> BOBBIN 29 SA2875001 "補給用部品" <- 5S, -0053用> SA2876ウチカマハコウミ "For supply parts" I-ROTARY HOOK, W/BOX SA2876 30 P. 59 1 カマハコウミ ROTARY HOOK ASSY W/BOX S-7200B-301 22 jintex.in

Page 28 — H. Lubrication

H. 給油潤滑関係 / Lubrication < - □□5用 / For "□□5"> 12-6 14 31 1 9 8 7-0 20 21 16 22 15 18 17 19 23 25 30 29 32 13 11 -0 30 38 37 36 35 34 33 4 5 3 2 24 27 26 28 31 47 46 43 42 41 48 49 50 51 52 53 56 68 67 61 57 57 62 66 59 65 64 63 58 66 60 68 62 55 S-7200B-350 jintex.in 23

Page 29 — H. 給油潤滑関係 / Lubrication

H. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1292001 1 <- ロロ用> 1 トウシンホルダーグミ <For "-ロロ"> WICK HOLDER ASSY 2 SA2343001 1 ビニルチューブグミ OIL TUBU ASSY 3 SA1304001 1 ビニルチューブ VINYL TUBE 4 SA1305001 1 クミヒモ WICK 5 S25382001 1 オイルクチ OIL FEEDING PIPE 6 062500616 1 ナベコ5X6 SCREW PAN M5X6 7 081004070 1 OリングP4 O RING P4 8 S38769000 1 フエルト FELT 9 145737001 1 フエルトオサエ FELT SUPPORT 10 081004070 1 OリングP4 O RING P4 11 S04630000 1 <- ロロS, -ロロ3用> ハリボウセン <For "-ロロS, & -ロロ3"> NEEDLE BAR CORK 12 111863001 1 <- ロ05用> <For "-ロ05"> ハリボウセン NEEDLE BAR CORK 13 SA1295001 1 <- ロロ用> コードオサエT2 <For "-ロロ"> CORD HOLDER, T2 14 062500816 1 ナベコ5X8 SCREW PAN M5X8 15 144875001 1 <- ロロ, -ロロ3用> プランジャー <For "-ロロ & -ロロ3"> PLUNGER 16 SA7636001 1 ポンプフタネジクミ PUMP CAP SCREW ASSY 17 S25380401 1 ポンプフタネジ CAP SCREW, PUMP 18 S52764001 1 プランジャーバネ SPRING, COMPRESSION 19 104821001 1 ゴムセン10.5 RUBBER CAP, 10.5 20 SA7265101 1 オイルチヨウセツネジ ADJUSTING SCREW 21 081004870 1 OリングS4 O RING S4 22 S25382001 2 オイルクチ OIL FEEDING PIPE 23 SA7345101 1 オイルタンククミ OIL TANK UNIT 24 SA3158101 1 オイルタンククミ OIL TANK ASSY 25 S25382001 2 オイルクチ OIL FEEDING PIPE 26 S51815001 1 オイルクチ8.6 OIL FEEDING PIPE, 8.6 27 SA1300001 1 ビニルチューブ VINYL TUBE 28 SA7269001 2 ビニルチューブ VINYL TUBE 29 SA1303001 1 シメネジ8 SCREW M8 30 081008070 1 OリングP8 O RING P8 31 104450101 1 ゴムセン8 RUBBER CAP, 8 32 0A4501206 2 +ナベザクミ5X12DA SCREW PAN (S/P WASHER) M5X12 33 SA1306001 1 サブタンククミ SUB TANK ASSY 34 SA1307001 1 サブタンク SUB TANK 35 S51815001 1 オイルクチ8.6 OIL FEEDING PIPE, 8.6 36 081022870 1 OリングS22 O RING S22 37 S47487001 1 オイルゲジウキ FLOAT 38 SA1309001 1 オイルゲージ OIL GAGE 39 S47509001 1 ユリヨウケイマド OIL GAUGE WINDOW 40 SA2779001 1 <- ロ5用> ユリヨウケイマド <For "-ロ5"> OIL GAUGE WINDOW 41 SA4552001 1 ベッドソフタソウクミ BED BOTTOM COVER UNIT 42 S51272100 1 ソフタマド OIL WINDOW, B-COVER 43 081015870 1 OリングS15 O RING S15 44 SA1313101 1 マドフタ WINDOW COVER 45 062500616 4 ナベコ5X6 SCREW PAN M5X6 46 SA1303001 1 シメネジ8 SCREW M8 47 081008070 1 OリングP8 O RING P8 48 062400616 3 ナベコ4X6 SCREW PAN M4X6 49 025040332 3 ヒラザガネダイ4 WASHER PLAIN L 4 50 SA1314001 1 ソフタパツキン BOTTOM COVER PACKING 51 062501216 9 ナベコ5X12 SCREW PAN M5X12 52 SA1316001 1 コードオサエイタ CORD HOLDER PLATE 53 062500616 1 ナベコ5X6 SCREW PAN M5X6 S-7200B-350 24 jintex.in

Page 30 — H. Lubrication

H.給油潤滑関係 / Lubrication < - □□5用 / For "□□5"> 12 14 31 6 10 70 20 21 16 22 23 25 30 29 32 1 9 8 54 15 18 17 19 26 24 27 31 13 11 - □□, / For "- □□ & - □3"> 38 37 36 34 33 35 2 5 4 3 47 46 48 49 43 42 44 45 51 52 53 56 68 67 61 57 57 62 66 59 65 60 64 63 62 58 66 25 S-7200B-350 jintex.in

Page 31 — H. 給油潤滑関係 / Lubrication

H. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 54 081029870 <- 0 OリングS29 <For "-□□& -□3□"> O RING S29 55 SA1321401 1 オイルパンクミ OIL PAN 56 SA1322301 1 オイルパン OIL PAN 57 149578000 4 ヨコジクブッシュ BUSH 58 SA1323001 1 ヒザアゲヨコジクL KNEE LIFTER SHAFT L 59 SA1324001 1 ヒザアゲヨコジクR KNEE LIFTER SHAFT R 60 SA1325001 1 ヒザアゲ KNEE LIFTER 61 SA1326101 1 ヒザアゲR KNEE LIFTER, R 62 S25344001 2 ボルト6 BOLT M6 63 S25475101 2 トメネジ6 SET SCREW, M6X19 64 021060306 2 3シュナット6 NUT 3 M6 65 SA3508001 1 ヒザアゲネジリバネ TWIST SPRING 66 146293001 2 トメワE10 RETAINING RING, E10 67 SA1327101 1 ヒザアゲレンケツカン KNEE LIFTER CONNECTING ROD 68 SA1179001 2 ダンネジ5 SHOULDER SCREW, M5 S-7200B-350 26 jintex.in

Page 32 — J. 糸通し関係 / Threading mechanism

J. 糸通し関係 / Threading mechanism 19 18 10 20 21 25 brother 22 23 24 15 14 26 1 3 5 6 4 2 7 8 16 17 13 12 11 32 30 37 27 28 31 33 34 29 35 36 S-7200B-401 27 jintex.in

Page 33 — J. 糸通し関係 / Threading mechanism

J. 糸通し関係 / Threading mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA2351101 1 <--ロs用> PRENTENSION ASSY A 2 SA2362001 1 イトアンナイ THREAD GUIDE 3 S45563001 1 イトアンナイチョウシボウ THREAD GUIDE TENSION STUD 4 SA2363001 1 プレテンションダイ PRE-TENSION BASE 5 144504001 2 イトアンナイサラ THREAD GUIDE DISC 6 SA2356101 1 プレテンションバネA PRE-TENSION SPRING A 7 SA6167001 1 イトチョウシナット THREAD TENSION NUT 1 SA2352101 1 <--ロ3, --ロ5用> プレテンションクミB <For "--ロ3&--ロ5"> PRENTENSION ASSY B 2 SA2362001 1 イトアンナイ THREAD GUIDE 3 S45563001 1 イトアンナイチョウシボウ THREAD GUIDE TENSION STUD 4 SA2363001 1 プレテンションダイ PRE-TENSION BASE 5 14504001 1 イトアンナイサラ THREAD GUIDE DISC 8 SA2358101 1 プレテンションバネB PRE-TENSION SPRING B 7 SA6167001 1 イトチョウシナット THREAD TENSION NUT 9 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 10 SA1359001 1 イトタテボウ SPOOL PIN 11 S01419000 1 イトユルメピン TENSION RELEASE PIN 12 SA1229101 1 アナトメネジ6トガリ SET SCREW (FT) M6X6 13 SA1343001 1 イトユルメボウ TENSION RELEASE STUD 14 SA2417001 1 オサエボウダケイトアンナイ THREAD GUIDE, P-BAR BRACKET 15 062400816 1 ナベコ4X8 SCREW PAN M4X8 16 SA1345001 1 アームイトアンナイR ARM THREAD GUIDE, R 17 060500616 1 バインド5X6 SCREW BIND M5X6 18 SA1342001 1 テンビンカバー THREAD TAKE-UP LEVER COVER 19 062500616 1 ナベコ5X6 SCREW PAN M5X6 20 SA1961101 1 メンイタクミ FACE PLATE ASSY 21 SA1291001 1 メンイタパッキン FACE PLATE PACKING 22 104449001 2 ゴムセン15.5 RUBBER CAP, 15.5 23 SA7271001 1 メンイタイトアンナイ FACE PLATE THREAD GUIDE 24 060350616 1 バインド35X6 SCREW BIND M3.5X6 25 062501816 3 ナベコ5X18 SCREW, PAN M5X18 26 SA7272101 1 ハリボウメタルDイトアンナイ THREAD GUIDE, D 27 SA7273001 1 <--ロ3用> イトチョウシボウダイクミ <For "--ロ3"> TENSION BRACKET ASSY 28 S02620201 1 イトトリバネ THREAD TAKE-UP SPRING 29 SA7275001 1 イトチョウシバネ TENSION SPRING 27 S55656301 1 <--ロS用> イトチョウシボウダイクミ <For "--ロS"> TENSION BRACKET ASSY 28 100399201 1 イトトリバネ THREAD TAKE-UP SPRING 29 115188101 1 シュイトチョウシバネ TENSION SPRING 27 S55655201 1 <--ロ5用> イトチョウシボウダイクミ <For "--ロ5"> TENSION BRACKET ASSY 28 S02620201 1 イトトリバネ THREAD TAKE-UP SPRING 29 S04632101 1 イトチョウシバネ TENSION SPRING 30 S40938001 1 イトチョウシボウタイ THREAD TENSION STUD 31 116922001 1 イトチョウシボウ TENSION STUD 32 100402004 1 トメネジ3.57 SET SCREW, SM3.57 33 145446001 2 イトチョウシサラ DISC, TENSION 34 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 35 S12441001 1 チョウシバネウエザガネ WASHER 36 S31032001 1 イトチョウシナット TENSION NUT 37 114294001 1 Oリング O-RING S-7200B-401 28 jintex.in

Page 34 — K. 糸巻関係 / Bobbin winder mechanism

K. 糸巻関係 / Bobbin winder mechanism 1 19 20 5 16 4 14 15 17 29 32 33 31 30 30 22 21 28 24 15 6 8 26 7 9 27 13 2 3 12 11 10 34 23 29 S-7200B-402 jintex.in

Page 35 — K. 糸巻関係 / Bobbin winder mechanism

K. 糸巻関係 / Bobbin winder mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1971101 1 イトマキュニット BOBBIN WINDER UNIT 2 048040342 1 トメワE4 RETAINING RING E4 3 SA1975001 1 イトマキジクウケケミ B-WINDER SHAFT SUPPORT ASSY 4 SA1978001 1 イトマキジク BOBBIN WINDER SHAFT 5 081009070 1 OリングP9 O RING P9 6 025060136 1 ヒラザガネショウ6 WASHER PLAIN S 6 7 SA1980001 1 イトマキクルマ BOBBIN WINDER WHEEL 8 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 9 S25789000 1 ゴムワ29 RUBBER RING, 29 10 SA1981101 1 ボビンオサエカムクミ BOBBIN PRESSER CAM ASSY 11 SA1982101 1 ボビンオサエカム BOBBIN PRESSER CAM 12 SA1983001 1 イトマキウデジク BOBBIN WINDER ARM SHAFT 13 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 14 048040342 1 トメワE4 RETAINING RING E4 15 025060136 2 ヒラザガネショウ6 WASHER PLAIN S 6 16 SA1984001 2 ボビンオサエウデ BOBBIN PRESSER ARM 17 062401216 1 ナベコ4X12 SCREW PAN M4X12 18 SA1985001 1 ボビンオサエ BOBBIN PRESSER 19 S23418002 1 シメネジ4X5 SCREW M4X5 20 SA1988001 1 ボビンウケ BOBBIN SUPPORT 21 SA1989001 1 イトマキレバー BOBBIN WINDER LEVER 22 SA1990101 1 モドシバネ SPRING 23 SA1991001 1 イトマキダイバネ BOBBIN WINDER BASE SPRING 24 SA2190001 1 OリングSS5 O RING, SS5 25 SA1992101 3 イトマキコテイネジ BOBBIN WINDER FIXED SCREW 26 SA1359001 1 イトタテボウ SPOOL PIN 27 SA1360101 1 メス KNIFE 28 062500616 1 ナベコ5X6 SCREW PAN M5X6 29 SA1994101 1 イトマキチョウシンクミ BOBBIN WINDER TENSION ASSY 30 145446002 1 イトチョウコウサラ DISC, TENSION 31 100401022 1 イトチョウシバネ TENSION SPRING 32 S31032001 1 イトチョウシナット TENSION NUT 33 S12441001 1 チョウシバネウエザガネ WASHER 34 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 S-7200B-402 30

Page 36 — L. 糸切り関係 / Thread trimmer mechanism

L. 糸切り関係 / Thread trimmer mechanism " オプション部品 / OPTION PARTS " 65 20 21 1 2 3 23 10 15 24 12 13 14 11 16 17 18 19 27 26 25 22 28 41 40 39 35 4 5 6 7 8 29 31 30 32 33 34 54 42 37 36 38 43 47 46 55 56 49 51 45 52 50 51 48 57 58 64 59 63 61 60 62 31 S-7200B-403 jintex.in

Page 37 — L. 糸切り関係 / Thread trimmer mechanism

L. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY NAME OF PARTS RM 1 SA7552001 1 イトキリカム THREAD TRIMMER CAM 2 154567000 2 カンザ5.3 SPACER, 5.3 3 014771032 2 アナクボミ635-40X10 SET SCREW SOCKET SM6.35-40X10 4 S02637001 1 コテイハ FIXED KNIFE 5 102643004 1 サラネジ3.57 SCREW, FLAT SM3.57 6 S02643001 1 イトサバキ LOWER THREAD FINGER 7 026040236 1 ヒラサガネミガキ4 WASHER PLAIN M4 8 062400616 1 ナベコ4X6 SCREW PAN M4X6 9 SA7282101 1 イトキリホルダクミ THREAD TRIMMER HOLDER ASSY 10 SA7283001 1 イトキリホルダ HOLDER, M-KNIFE 11 S25426101 1 イトキリレンカン THREAD TRIMMER CONNECTING ROD 12 SA7577001 2 バインドM4X10シール SCREW BIND M4X10 SEAL 13 SA5329001 2 カラー COLLAR 14 100645003 2 ザガネ WASHER 15 021400306 1 3シュナット4 NUT M4 16 SA7284101 1 イトキリレバー THREAD TRIMMER LEVER 17 SA7285001 1 レバーストツパ LEVER STOPPER 18 SA7281101 1 イトキリストツパーイタ THREAD TRIMMER STOPPER BASE 19 062004616 1 ナベコ4X6 SCREW PAN M4X6 20 S02645001 1 イドウハ MOVABLE KNIFE 21 148537101 2 サラネジ2.4.37 SCREW, FLAT (W/SOCKET) SM4.37 22 062501416 1 ナベコ5X14 SCREW PAN M5X14 23 SA7287001 1 イトキリホルダオサエイタ KNIFE HOLDER PRESSER PLATE 24 004301016 3 +サラコ3X10 SCREW, FLAT M3X10 25 S02647021 1 フタマタジク FORKED SHAFT 26 S02648001 1 カラー COLLAR 27 154581001 1 フタマタジクメタル FORKED SHAFT BUSH 28 012060536 1 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 29 SA1362101 1 イトキリカムレバーソウクミ THREAD TRIMMER LEVER UNIT 30 SA1363001 1 イトキリカムレバークミ THREAD TRIMMER LEVER ASSY 31 SA2258001 1 コロジクCクミ ROLLER SHAFT, C ASSY 32 105234003 1 ナット4.37 NUT SM4.37 33 S23651001 1 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 34 SA2383001 1 カムレバーバネ CAM LEVER SPRING 35 154593201 1 イトキリカムレバージク THREAD TRIMMER CAM LEVER SHAFT 36 154594000 1 カラー COLLAR 37 S25434000 1 クツションゴム RUBBER CUSHION 38 154595001 1 カムレバーモドシバネ SPRING, EXTENSION 39 154596000 1 イトキリカムレバークツション CUSHION 40 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 41 048060342 1 トメワE6 RETAINING RING E6 42 SA1366001 1 カムレバーシメメタル CAM LEVER SHAFT BUSH 43 012060536 1 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 44 SA1391001 1 イトキリソレノイドクミ THREAD TRIMMER SOLENOID ASSY 45 SA1392001 1 イトキリソレノイド THREAD TRIMMER SOLENOID 46 SA1393001 1 ソレノイドプランジャー SOLENOID PLUNGER 47 S36893050 1 ゴムクツション RUBBER CUSHION 48 SA1367201 1 イトキリソレノイドダイ THREAD TRIMMER SOLENOID BASE 49 SA7898201 1 ソレノイドレバー SOLENOID LEVER 50 SA7899001 1 ダンネジ6 SHOULDER SCREW M6 51 SA2097101 2 ショウオンシート SILENT SHEET 52 SA7900001 1 ヒラサガネ WASHER PLAIN 53 021060306 1 3シュナット6 NUT M6 54 SA7288001 1 レンケツピン PIN 55 025040232 1 ヒラサガネチュウ4 WASHER PLAIN M4 56 048040142 1 トメワジクヨウC4 RETAINING RING EXTERNAL C4 57 062400816 4 ナベコ4X8 SCREW PAN M4X8 58 062501216 3 ナベコ5X12 SCREW PAN M5X12 59 S38687000 1 コネクタ5557-14R CONNECTOR, 5557-14R 60 SA1998001 1 アースセンクミ GROUND WIRE ASSY 61 062500816 1 ナベコ5X8 SCREW PAN M5X8 62 SA2868001 3 バインド BAND S-7200B-403 32 jintex.in

Page 38 — L. 糸切り関係 / Thread trimmer mechanism

L. 糸切り関係 / Thread trimmer mechanism " オプション部品 / OPTION PARTS " 65 20 21 10 23 13 14 12 11 16 24 9 15 17 18 19 27 26 28 22 25 31 30 32 33 34 35 41 40 39 42 37 36 38 43 54 46 47 45 48 55 56 53 50 49 52 51 51 58 64 63 59 60 61 62 33 S-7200B-403 jintex.in

Page 39 — L. 糸切り関係 / Thread trimmer mechanism

L. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 63 SA1394101 1 コードオサエU3 CORD HOLDER U3 64 062500816 1 ナベコ5X8 SCREW PAN M5X8 <オプション用> <OPTION PARTS> 65 S02646001 1 イドウハS MOVABLE KNIFE, S S-7200B-403 jintex.in 34

Page 40 — M. 糸緩め関係 / Tension release mechanism

M. 糸緩め関係 / Tension release mechanism 35 S-7200B-404 jintex.in

Page 41 — M. 糸緩め関係 / Tension release mechanism

M. 糸緩め関係 / Tension release mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1371201 1 イトユルメワイヤー TENSION RELEASE WIRE 2 SA1372001 1 ワイヤーホルダU WIRE HOLDER, U 3 062500816 2 ナベコ5X8 SCREW PAN M5X8 4 SA1373001 1 ワイヤーオサエU WIRE HOLDER, U 5 060400516 1 バインド4X5 SCREW BIND M4X5 6 154607101 1 イトユルメワイヤー-オサエD WIRE HOLDER, D 7 060400816 1 バインド4X8 SCREW BIND M4X8 8 110161004 2 ナット4.76 NUT, SM4.76 9 SA2171001 1 ワイヤーコードホルダ WIRE CORD HOLDER 10 062500816 1 ナベコ5X8 SCREW PAN M5X8 S-7200B-404 36 jintex.in

Page 42

N. 糸払い関係 / Thread wiper mechanism S-7200B-405 37 jintex.in

Page 43 — N. 糸払い関係 / Thread wiper mechanism

N. 糸払い関係 / Thread wiper mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA1374301 1 イトハラソウチクミ THREAD WIPER DEVICE ASSY 2 SA1396001 1 イトハラソレノイドクミ THREAD WIPER SOLENOID ASSY 3 S41206001 1 イトハライバネ THREAD WIPER SPRING 4 S41205001 1 ヒラザガネ WASHER, PLAIN 5 S25449201 1 ソレノイドトリツケイタ SOLENOID SETTING PLATE 6 062300616 3 ナベコ3X6 SCREW PAN M3X6 7 140647101 1 コードオサエ CORD HOLDER 8 062300616 1 ナベコ3X6 SCREW PAN M3X6 9 062300616 2 ナベコ3X6 SCREW PAN M3X6 10 SA1376001 1 イトハライドイ THREAD WIPER BASE 11 062400616 2 ナベコ4X6 SCREW PAN M4X6 12 026040236 2 ヒラザガネミガキ4 WASHER PLAIN M4 13 SA8002001 1 ソレノイドカバー SOLENOID COVER 14 060400516 1 バインド4X5 SCREW BIND M4X5 15 SA1967001 1 イトハライクランククミ THREAD WIPER CRANK ASSY 16 048040342 1 トメワE4 RETAINING RING E4 17 S25454001 1 セットカラー SET SCREW COLLAR 18 S25279101 1 アタマナメメボミM35-5 SET SCREW (CP) M3.5-5 19 SA2287001 1 ワイパーバネ SPRING 20 SA1377001 1 イトハライロッド THREAD WIPER ROD 21 110735002 1 ザガネ WASHER 22 048030342 1 トメワE3 RETAINING RING E3 23 S25456001 1 プランジャピン PLUNGER PIN 24 SA1378201 1 イトハライ THREAD WIPER 25 060400516 1 バインド4X5 SCREW BIND M4X5 26 146288001 1 イトハライジクカラー THREAD WIPER STUD COLLAR 27 S03677001 1 ザガネ WASHER 28 S41207000 1 スペーサゴム SPACER RUBBER 29 14097000 1 ショウオンシート SILENT SHEET 30 S25456001 2 プランジャピン PLUNGER PIN 31 062500816 2 ナベコ5X8 SCREW PAN M5X8 S-7200B-405 38 jintex.in

Page 44 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

P1. コントロールボックス、モータ関係 / Control box and motor mechanism 34 36 33 35 32 31 15 21 20 19 11 20 21 19 18 28 30 29 27 25 23 24 14 12 13 17 26 1 3 4 5 6 2 8 10 9 37 38 39 S-7200B-502 jintex.in

Page 45 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

P1. コントロールボックス、モータ関係 / Control box and motor mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA7291101 1 セーフティ-スイッチクミ SAFETY SWITCH ASSY 2 SA7325001 1 マイクロ スイッチクミ MICRO SWITCH ASSY 3 SA7292101 1 セーフティ スイッチイタ SAFETY SWITCH BASE 4 SA5730101 1 セーフティ スイッチベース SAFETY SWITCH BASE 5 SA5732001 1 セーフティ スイッチレバー SAFETY SWITCH LEVER 6 SA5731001 1 セーフティ スイッチバネ SAFETY SWITCH SPRING 7 SA7293001 2 ナベザクミM3X12 SCREW, PAN (S/P W) M3X12 8 SA2868001 1 バインド BAND 9 062060816 1 ナベコ 6X8 SCREW PAN M6X8 10 025060136 1 ヒラザガネショウ 6 WASHER PLAIN S 6 11 J03940001 1 モータクミCDD-HS MOTOR ASSY CDD-HS 12 J03955001 1 ドラムコテイCDD DRUM CDD 13 014400632 2 アナボミ4X6 GET SCREW SOCKET (CP) M4X6 14 J03956001 1 ジシャク180P36 MAGNET 180P36 15 J03957001 1 MRセンサー 180P MR SENSOR ASSY 180P 16 0A4300806 2 +ナベザクミ3X8DA SCREW PAN (S/P WASHER) M3X8 17 J03958001 1 シヤヘイイタCDD SHIELD PLATE CDD 18 0A2610006 3 +ナベザクミM2.6X10DA SCREW PAN (S/P WASHER) M2.6X10 19 0A4487001 1 CDD-ENCキバンクセミ#2 PCB ASSY CDD-ENC#2 20 J03933001 3 ホールICEW-400 HALL ELEMENT ICEW-400 21 J03940001 3 ホールICEW-450 HALL ELEMENT ICEW-450 22 0A5300606 3 +ナベザクミ3X6DB SCREW PAN (S/P WASHER) M3X6 23 J03931001 1 コードオサエ(アナ) CORD HOLDER (HOLE) 24 J03932001 1 コードオサエ(ネジ) CORD HOLDER (TAPPING) 25 0A4401006 2 +ナベザクミ4X16DA SCREW PAN (S/P WASHER) M4X16 26 0A4401006 1 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 27 0A4408001 1 エンコーダーカバーCDD#2 ENCODER COVER CDD#2 28 0A4300806 3 +ナベザクミ3X8DA SCREW PAN (S/P WASHER) M3X8 29 J03940001 1 プーリー トツケダイクミCDD PULLEY HOLDER ASSY CDD 30 014500632 2 アナボミ5X6 GET SCREW SOCKET (CP) M5X6 31 SA2354001 3 +ナベセットネジ5X18 SCREW PAN M5X18 32 J04442001 1 トウフケンシュウユニット#2 HEAD DETECTOR UNIT #2 33 J04392001 1 LEDカバー LED COVER 34 062501216 2 ナベコ5X12 SCREW PAN M5X12 35 028050246 2 バネザガネ2-5 WASHER SPRING 2-5 36 026050136 2 ヒラザガネコガタ5 WASHER PLAIN S 5 37 SA4211001 1 プーリーCDD PULLEY,CDD 38 SA3025001 3 +ナベザクミ4X10DA SCREW PAN(S/P WASHER)M4X10 S-7200B-502 40

Page 46 — P2. コントロールボックス関係 / Control box mechanism

P2. コントロールボックス関係 / Control box mechanism 1 2 3 4 5 6 7 41 jintex.in S-7200B-502

Page 47 — P2 . コントロールボックス関係 / Control box mechanism

P2 . コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 BMP2060-0000000-CG40 < 中国向 > G40パネル < For China Only > G-40-PANEL-CHINA 1 BMP2060-0000000-0G40 < 中国・欧州以外向 > G40パネル < Exept for China and Europe > G-40-PANEL 1 BMP2060-0000000-EG40 < 欧州向 > G40パネル < For Europe Only > G-40-PANEL-EU 2 J80973001 1 G40パネルキバンクミ G40 PANEL PCB ASSY 3 J80974001 1 G40サブキバンクミ G40 SUB PCB ASSY 4 J03975001 1 G40パネルカザリイタ1 G40 PANEL SHEET 1 5 J03976001 1 G40パネルカザリイタ2 G40 PANEL SHEET 2 6 J04195001 1 パネルトリツケケイタ#2 PANEL SETTING PLATE#2 7 J04273001 3 ナベザクミ4X10DB SCREW, PAN (S/P WASHER) M4X10 S-7200B-502 jintex.in 42

Page 48 — P3. コントロールボックス関係 / Control box mechanism

P3. コントロールボックス関係 / Control box mechanism < AC380-415V用 / For "380-415V AC" > 11 8 16 12 13 15 18 20 5 6 7 26 10 17 22 21 14 2 brother 23 24 4 3 25 S-7200B-502 43 jintex.in

Page 49 — P3 . コントロールボックス関係 / Control box mechanism

P3 . コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 J04393001 1 CDDマエフタGO FRONT BOX COVER CDD GO 2 J04438001 1 キートツプ CDD-GO KEY TOP 3 J04440001 1 PカザリイタGO PANEL SHEET CDD GO 4 J03733001 1 VツマミLCA SPEED ADJUST KNOB 5 06200863 1 ナベコ4X8 SCREW, PAN M4X8 6 028040245 1 バネザガネ2-4 WASHER, SPRING 2-4 7 025040173 1 ヒラザガネショウ4 WASHER, PLAIN S 4 8 J04097001 1 <AC100 - 110V用> トランスCDD-100V-SP <For " 100 - 110V AC" > TRANSFORMER, CDD-100V-SP 8 J04098001 1 <AC200 - 230V用> トランスCDD-200V-SP <For " 200 - 230V AC" > TRANSFORMER, CDD-200V-SP 9 J04593001 1 <AC380 - 415V用> トランス400V-SP <For " 380 - 415V AC" > TRANSFORMER, 400V-SP 10 J04167001 1 DCファンCDDクミ#2 DC FAN ASSY, CDD #2 11 J01411001 2 <AC100-200Vトランス用> +ナベザクミ4X50DA <For Transformer of " 100 - 200V AC" > SCREW, PAN (S/P WASHER) M4X50 12 J00494001 2 +ナベセット4X14DA SCREW, PAN (S/P WASHER) M4X14 13 J03739001 1 CRコテイイタ SPRING PLATE, CR 14 J04099101 1 フットプラグクミCDD FOOT PLUG ASSY, CDD 15 J04100001 1 セメントR40/220クミ#6 CEMENT RESISTOR ASSY, 40/220#6 16 <欧州用> 2 コアESD-SR-120 <For Europe> CORE:SD-SR-120 16 J04468001 1 <欧州用> 2 コアESD-SR-120 <For Europe> CORE:SD-SR-120 17 J80967001 1 <前一段、後一段タイプ> フユコミユニットCDD-コクホ <Type forward 1 step, backward 1 step> TREADLE UNIT ASSY, CDD G 17 J80968001 1 <前一段、後一段タイプ> フユコミユニットCDD-コクホ <Type forward 1 step, backward 1 step> TREADLE UNIT ASSY, CDD G 18 J80970001 1 <欧州用> CEフィルタークミ <For Europe> CE FILTER PCB ASSY 19 J80964201 1 SキバンCDDクミ#GO CONTROL PCB ASSY CDD#GO 20 J80965001 1 <110V AC用> DキバンCDD1-110Vクミ <For " 110V AC" > POWER PCB ASSY, CDD 1-110V 20 J80966101 1 <220 - 240V AC用> DキバンCDD1-230Vクミ <For " 220 - 240V AC" > POWER PCB ASSY CDD 1-230V 21 J04169001 1 <400V AC用> CDDサーミスタ#2 <For " 400V AC" > THERMISTOR, CDD #2 21 J04168001 1 <400V AC以外用> ショートコネクタ <Except for " 400V AC" > SHORT CONNECTOR 22 J04210001 1 カクネ8X65クミ BOLT ASSY, SQUARE M8X65 23 J04243001 1 アースコードネジタイクミ EARTH CORD SCREW TIE ASSY 24 J04115001 1 ラベル感電6ケ国 LABEL, ELEC. SHOCK 6 LANG 25 S37060001 1 アースマーク LABEL, GROUNDING S-7200B-502 44

Page 50 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts) 1 2 8 10 9 11 13 3 12 4 16 19 18 27 22 23 17 15 14 7 6 5 25 26 21 24 21 20 28 29 30 31 45 S-7200B-502 jintex.in

Page 51 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA2407001 1 オプションアクチュエータセット OPTION ACTUATOR SET 2 SA2388101 1 オプションアクチュエータタクミ OPTION ACTUATOR ASSY 3 SA2270001 1 Rスイッチササエ REVERSE SWITCH BRACKET 4 S34281000 1 Rスイッチダイ REVERSE SWITCH BRACKET 5 SA4098001 1 アクチュエータ ACTUATOR 6 SA4099001 1 Rスイッチバネ REVERSE SWITCH SPRING 7 SA2389001 1 オプションスイッチトリツケイタ OPTION SWITCH SETTING PLATE 8 SA2386001 1 オプションスイッチクミ OPTION SWITCH ASSY 9 S32907050 1 マイクロスイッチ MICRO SWITCH 10 SA2387001 1 コード CODE 11 SA2405001 2 ソケットコンタクト SOCKET CONNECTOR 12 060300606 1 バインドM3X6 SCREW BIND M3X6 13 062400816 2 ナベコ4X8 SCREW PAN M4X8 14 021400206 2 シュナット4 NUT 2 M4 15 S04159000 1 バンド1M BAND, 1M 16 SA2406001 1 コネクタXAP-06V-1 CONNECTOR,XAP-06V-1 17 062500616 2 ナベコ5X6 SCREW, PAN M5X6 18 SA1388101 1 コードオサエ CORD HOLDER 19 SA2390101 1 コードオサエU4 CORD HOLDER,U4 20 J80975001 1 S2センサー#S7200 S2 SENSOR #S7200 21 J04179001 1 S2センサークミCDD S2 SENSOR ASSY,CDD 22 233268002 1 S2センサーカザリイタ EMBLEM PLATE 23 J04180001 1 センサーコードクミNOR SENSOR HARNESS ASSY NOR 24 J04215001 1 センサーコテイイタ SENSOR FIXING PLATE 25 J04189001 1 センサー トリツケイタ SENSOR SETTING PLATE 26 J04249001 2 センサー トリツケカラー SENSOR SETTING COLLAR 27 J04314001 1 S2センサー トリツケタクミ S2 SENSOR SETTING PLATE,ASSY <欧州向> <For Europe only> 28 J80810E0 1 DDタチペダル40カヘン#6 PEDAL STAND OPE VARIABLE 40#6 29 J803800E0 1 DDタチペダル3Pカヘン40 PEDAL STAND OPE DD 3P VARI 40 30 J80630001 1 DDタチペダル 2ツク ホ STANDING OPERATION 3-PEDAL 2S 31 J04099101 1 フットプラグクミCDD FOOT PLUG ASSY CDD <欧州向以外> <Except for Europe> 28 J8081040 1 DDタチペダル40カヘン#6 PEDAL STAND OPE VARIABLE 40#6 29 J80380040 1 DDタチペダル3Pカヘン40 PEDAL STAND OPE DD 3P VARI 40 30 J80630001 1 DDタチペダル 2ツク ホ STANDING OPERATION 3-PEDAL 2S 31 J04099101 1 フットプラグクミCDD FOOT PLUG ASSY CDD S-7200B-502 46 jintex.in

Page 52 — Q . 膝 ス イ ッ チ 関 係 / Knee switch mechanism

Q . 膝 ス イ ッ チ 関 係 / Knee switch mechanism " オ プ シ ョ ン 部 品 / OPTION PARTS " 14 16 15 17 13 18 7 5 6 9 10 8 12 2 3 4 19 1 47 S-7200B-507 jintex.in

Page 53 — Q. 膝スイッチ関係 / Knee switch mechanism

Q. 膝スイッチ関係 / Knee switch mechanism REF. NO CODE QTY 品名 <オプション用> 1 S25457101 1 ヒザスイツチクミ 2 142026003 1 ヒザスイツチタテジククケ 3 142027001 1 ヒザスイツチタテジククケ 4 100463001 1 4 カクボルト7.94 5 114967001 1 ヒザアアテストツパ 6 110087001 1 ボルト5.95 7 S07027001 1 ヒザスイツチトリツケイタ 8 062401006 4 ヒラザガネチユウ4 9 025040233 4 ヒラザガネチユウ4 10 028040243 4 バネザガネ2-4 11 021400164 4 1 シユナツト4 12 S31938001 1 スイツチコードクミ 13 S31938001 1 フツトスイツチクミ 14 143549000 2 ピンターミナルオス 15 143548000 1 ピンターミナルメス 16 146046000 2 ナイロンコネクター 17 146194000 1 ナイロンコネクター 18 149799000 1 タイラツプS 19 034422503 4 +2サラモク41X25 NAME OF PARTS <OPTION PARTS> KNEE SWITCH ASSY. KNEE SWITCH SHAFT BRACKET BOLT, SQUARE SM7.94 KNEE LIFTER PLATE STOPPER BOLT, SM5.95-28X8 K-LIFTER SWITCH SETTING PLATE SCREW PAN M4X10 WASHER, PLAIN M 4 WASHER, SPRING 2-4 NUT, 1 M4 SWITCH CORD ASSY FOOT SWITCH ASSY TERMINAL PIN, MALE TERMINAL PIN, FEMALE NYLON CONNECTOR NYLON CONNECTOR BEAD BAND, S WOOD SCREW, FLAT 2 M4.1X25 RM S-7200B-507 48 jintex.in

Page 54 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

R. 逆転スイッチ関係 / Quick reverse switch mechanism 12 12 18 15 17 16 14 13 11 1 6 7 9 2 3 5 4 49 S-7200B-508 jintex.in

Page 55 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

R. 逆転スイッチ関係 / Quick reverse switch mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA7294001 1 Rアクチュエータタクミ R-ACTUATOR ASSY 2 SA2270001 1 Rスイッチサユエ REVERSE SWITCH BRACKET 3 SA7295001 1 Rスイッチダイ REVERSE SWITCH BRACKET 4 SA4098001 1 アクチュエーター ACTUATOR 5 SA4098001 1 Rスイッチバネ REVERSE SWITCH SPRING 6 SA1390001 1 Rスイッチクミ R-SWITCH ASSY 7 S32907050 1 マイクロスイッチ MICRO SWITCH 8 060300606 1 バインド3X6 SCREW BIND M3X6 9 062400816 2 ナベコ4X8 SCREW PAN M4X8 10 021400206 2 2シュナット4 NUT 2 M4 11 062500616 2 ナベコ5X6 SCREW PAN M5X6 12 062500816 3 ナベコ5X8 SCREW PAN M5X8 13 SA8008001 1 コードオサエ CORD HOLDER 14 062500616 1 ナベコ5X6 SCREW PAN M5X6 <--4口用--> <For "-4口" > 15 SA1388101 1 コードオサエ CORD HOLDER 16 SA1394101 2 コードオサエU3 CORD HOLDER U3 <--3口用--> <For "-3口" > 17 SA1388101 2 コードオサエ CORD HOLDER 18 SA2689101 1 コードオサエ CORD HOLDER S-7200B-508 50 jintex.in

Page 56 — S . 電装品関係 / Power supply equipment mechanism

S . 電装品関係 / Power supply equipment mechanism 1 4 2 5 6 9 3 8 7 51 S-7200B-515 jintex.in

Page 57 — S . 電装品関係 / Power supply equipment mechanism

S . 電装品関係 / Power supply equipment mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 J04086001 <単相 100V AC用> <日本向用> 1 デンSWクミ1-100V#6 <For Single phase"100V AC"> <For Japan > POWER SWITCH ASSY, 1-100V #6 2 J04469001 <単相 110V AC用> <北米・メキシコ向用> 1 デンSWクミ1-110V#8 <For Single phase"110V AC"> < For USA, Canada & Mexico > POWER SWITCH ASSY, 1-110V #8 3 J04093001 <単相 220V AC用> <一般アジア・北アフリカ向用> 1 デンSWクミ1-240V#6 <For Single phase"220V AC"> < For General of Asia & North africa > POWER SWITCH ASSY, 1-240V #6 4 J04134001 <単相 230V AC CE 用> <電源スイッチ無> <欧州向用> 1 デンPGクミ1-240V#6 <For Single phase"230V AC CE"> Power SW-less < For Europe > POWER PLUG ASSY, 1-240V #6 5 J04096001 <三相 380V AC 用> <一般アジア・北アフリカ向用> 1 デンSWクミ3-400V#6 <For Three phase"380V AC"> < For General of Asia & North africa > POWER SWITCH ASSY, 3-400V #6 6 J04149001 <三相 200V AC 用> <日本向用> 1 デンSWクミ3-200V#6 <For Three phase"200V AC"> < For Japan > POWER SWITCH ASSY, 3-200V #6 7 J04470001 <三相 220V AC 用> <北米・メキシコ向用> 1 デンSWクミ3-240V#8 <For Three phase"220V AC"> < For USA, Canada & Mexico > POWER SWITCH ASSY, 3-240V #8 8 J04251001 <単相 220V AC用> <中国向用> 1 デンSWクミ1-240V#CCC <For Single phase"220V AC"> < For China > POWER SWITCH ASSY, 1-240V #CCC 9 J04255001 <三相 380V AC 用> <中国向用> 1 デンSWクミ3-400V#CCC <For Three phase"380V AC"> < For China > POWER SWITCH ASSY, 3-400V #CCC S-7200B-515 52 jintex.in

Page 58 — T. 電磁押上げセット関係(オプション部品) / Presser foot lifting set mechanism (Option parts)

T. 電磁押上げセット関係(オプション部品) / Presser foot lifting set mechanism (Option parts) 53 S-7200B-943 jintex.in

Page 59 — T. 電磁押上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts)

T. 電磁押上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts) REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SA1397001 1 デンジオサエアゲセットB SOLENOID P-FOOT LIFTER SET, B 2 SA1941001 1 デンジオサエアゲクミ SOLENOID P-FOOT LIFTER ASSY 3 SA1942001 1 オサエアゲソレノイドクミ P-FOOT LIFTER SOLENOID ASSY 4 S38803051 1 Bコード100クミ B-CORD ASSY 100 5 S38804050 1 Wコード100クミ W-CORD ASSY, 100 6 SA2177001 1 コネクタ5557-6R CONNECTOR:5557-6R 7 S16625050 1 ゴムストッパー RUBBER STOPPER 8 SA1335001 1 ソレノイドダイR SOLENOID BASE R 9 S16629151 1 ソレノイドストッパー SOLENOID STOPPER 10 018761832 3 アナボルト595-28X18 BOLT, SOCKET SM5.95-28X18 11 SA1336001 1 ソレノイドダイL SOLENOID BASE L 12 SA1950001 1 ガワイタクミ REAR PLATE 13 SA2296001 1 ナット20 NUT M20 14 017061216 4 ボルトM6X12 BOLT M6X12 15 021060216 4 2シュナット6 NUT 2 M6 16 S16630051 1 ピン PIN 17 048050142 2 トメワジクヨウC5 RETAINING RING EXTERNAL C5 18 SA1332001 1 オサエアゲジク KNEE LIFTER SHAFT 19 S20356001 2 ヒラザガネ10 WASHER, PLAIN 10 20 048080342 2 トメワE8 RETAINING RING E8 21 SA1338001 1 オサエアゲウデ PRESSER FOOT LIFTER ARM 22 062501216 1 ナベコ5X12 SCREW PAN M5X12 23 S16643009 1 カバー COVER 24 062670612 2 ナベコ357-40X6 SCREW PAN SM3.57-40X6 25 SA2165001 1 ダンネジ6 SHOULDER SCREW, M6 S-7200B-943 54 jintex.in

Page 60 — Z. 付属関係 / Accessories

Z. 付属関係 / Accessories 1 2 3 3 3 3 4 5 6 7 8 9 10 11 11 12 12 13 14 15 16 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 24 25 26 27 28 29 30 31 32 33 34 35 36 37 37 38 39 39 40 20 21 22 23 S-7200B-910 jintex.in 55

Page 61 — Z. 付属部品関係 / Accessories

Z. 付属部品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 S17774001 1 ネジマワシ4.7X250 SCREW-DRIVER, 4.7X250 2 SA1656011 1 100265/ 4 ミシンハリDBX1 <--ロ3用> <#11> NEEDLE 4PIECE ASSY, 100265... <#11> 3 100265031 NEEDLE DBX1 2 SA1656014 1 100265/ 4 ミシンハリDBX1 <#14> NEEDLE 4PIECE ASSY, 100265... <#14> 3 100265034 NEEDLE DBX1 2 SA1752014 1 107415/ 4 ミシンハリDBX1 <#14> NEEDLE 4PIECE ASSY, 107415... <#14> 3 107415014 NEEDLE, DPX5 2 <--ロ5用> <For "-ロロ3"> SA1656022 1 100265/ 4 ミシンハリDBX1 <#22> NEEDLE 4PIECE ASSY, 100265... <#22> 3 100265042 NEEDLE DBX1 2 SA1752022 1 107415/ 4 ミシンハリDBX1 <#22> NEEDLE 4PIECE ASSY, 107415... <#22> 3 107415022 NEEDLE, DPX5 NS 2 <--ロ5用> 3 <For "-ロロ5"> SA1658010 1 S35775/ 3 ミシンハリ3コイリクミ... <#10> NEEDLE 3PIECE ASSY, S35775... <#10> 2 SA1660010 1 S37061/ 3 ミシンハリ3コイリクミ... <#10> NEEDLE 3PIECE ASSY, S37061... <#10> 3 S37061010 3 ミシンハリDBPX5NS NEEDLE, DPX5 NS 4 146290001 3 <--ロ5用> ボビン <For "-ロロ5"> BOBBIN 5 117132001 3 ボビン BOBBIN 6 S06055009 1 マクスS HEAD REST, S 7 S09634000 1 ヒザアゲオンボウ KNEE LIFTER COMPLYING BAR 8 SA1969001 1 ラバーヒンジクミ RUBBER HINGE ASSY 9 143882001 2 トウブヒンジ HEAD HINGE 10 143910009 2 トウブヒンジウケゴム RUBBER CUSHION 11 SA1963001 2 トウブシキゴム･･････<左側用> HEAD CUSHION･･････<For left side> 12 SA1963001 2 トウブシキゴム･･････<右側用> HEAD CUSHION･･････<For right side> 13 109714000 4 クギ NAIL 14 SA7297101 1 オイルタンククミ OIL TANK ASSY 15 144226001 1 トウブカバー HEAD COVER 16 S02763602 1 イトタダイクミ2DR COTTON STAND ASSY 2DR 17 S51283001 2 ウケザラ SPOOL STAND BASE 18 150182000 2 スプールマット SPOOL MAT 19 S5128101 2 スプールクッション SPOOL CUSHION 20 150206002 1 ヒラザガネ16 WASHER PLAIN 16 21 SA6629001 1 6クナットM16 NUT M16 22 150174000 1 カラムキャップ COLUMN CAP 23 S01005000 2 イトタテゴム RUBBER WASHER 24 S02747101 1 イトカケバネ SPRING 25 150172003 1 カラムパイプ COLUMN PIPE 26 150174000 1 カラムキャップ COLUMN CAP 27 150207001 1 カラムパイプネジツキ COLUMN PIPE W/SCREW 28 150206000 1 ヒラザガネ16 WASHER PLAIN 16 29 SA6606001 1 カラムジョイント COLUMN JOINT 30 150179002 2 スプールシクB SPOOL SHAFT B 31 028050244 2 バネザガネ2-5 WASHER SPRING 2-5 32 021500104 1 1シュナット5 NUT 1 M5 33 SA6607001 1 スプールホルダー-2 SPOOL HOLDER 2 34 SA6607001 1 スプールホルダー-2 SPOOL HOLDER 2 35 150183000 2 イトカケハンガーダイ THREAD HANGER BASE 36 142990001 2 スレッドブツシユ THREAD BUSH 37 SA6609001 2 スプールホルダーササエ SPOOL HOLDER SUPPORTER 38 021500104 2 1シュナット5 NUT 1 M5 39 062061604 2 ナベコ6X16 SCREW PAN M6X16 40 062501404 2 ナベコ5X14 SCREW PAN M5X14 41 142443001 1 ネジマワシ1.9X52 SCREW-DRIVER, 1.9X52 42 118837001 1 ネジマワシ3.4X70 SCREW-DRIVER, 3.4X70 43 100887001 1 スパナ8X9 WRENCH, 8X9 S-7200B-910 jintex.in 56

Page 62

Z. 付属品関係 / Accessories 1 2 3 3 3 3 4 5 10 13 9 12 11 11 14 7 16 15 41 42 43 44 46 45 47 48 49 54 55 50 51 53 52 51 50 56 37 25 26 36 34 35 24 19 30 18 17 33 31 32 37 39 29 38 40 27 28 23 20 21 22 S-7200B-910 57 jintex.in

Page 63 — Z. 付属部品関係 / Accessories

Z. 付属部品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 44 142002001 1 6カクボウスパナ2 HEXAGONAL WRENCH, 2 45 142721001 1 6カクボウスパナ3 HEXAGONAL WRENCH, 3 46 107780001 1 スパナ10X12 WRENCH, 10X12 47 154125001 1 6カクボウスパナ2.5 HEXAGONAL WRENCH, 2.5 48 S07783001 1 6カクボウスパナ1.5 HEXAGONAL WRENCH, 1.5 <オプション用> <OPTION PARTS> 49 S40765001 1 レンケツカンクミ CONNECTING ROD ASSY 50 021060106 2 シュナット6 NUT 1 M6 51 119101001 2 レンカンダキ CONNECTING ROD CLAMP 52 017841606 2 ボルト794-18X16 BOLT SM7.94-18X16 53 133643006 2 6カクナット7.94-18 NUT SM7.94-18 54 021060106 2 シュナット6 NUT 1 M6 55 028060243 2 バネザガネ2-6 WASHER, SPRING 2-6 56 114859001 2 レンカンカラー COLLAR S-7200B-910 58 jintex.in

Page 64 — Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan)

Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan) REF.NO 品名 / Name of parts 仕様 / Specification 仕様 / Specification 仕様 / Specification 微量給油タイプ / Minimum lubrication type セミドライタイプ / Semi dry type 完全ドライタイプ / Complete dry type -口03 -口05 -口5S -口53 中厚物用 / Medium-weight materials 厚物用 / Heavy-weight materials 仕向 / Destination 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕向 / Destination 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕向 / Destination B-49 針棒 / Needle bar SA1133001 SA1137001 SA1135001 SA7241001 B-84 ミシン針 / Needle 100265031 100265042 S35775010 100265031 B-83 針板 / Needle plate 145971101 147245101 S35776201 145971101 C-7 押えバネ / Presser bar spring S13561101 141728001 147514001 S13561101 日本向 / For Japan C-9 押え組 / Presser foot assy 153037201 145157101 S35777101 153037201 日本向 / For Japan D-89 送り歯 / Feed dog S02742001 S02743001 S02748001 S02742001 G-20 内かま止め / Hook stopper S02602001 159324001 S02602001 ← G-30 かま箱組 / Rotary hook assy, w/box SA7686002 SA7688001 G-27 ボビン / Bobbin 146290001 --- 146290001 ← G-28 ボビン / Bobbin 117132001 59 S-7200B-Sp1

Page 65 — Sp2 . 仕様別部品一覧表 (アメリカ向) / Different parts list (For USA)

Sp2 . 仕様別部品一覧表 (アメリカ向) / Different parts list (For USA) REF.NO 品名 / Name of parts 仕様 / Specification 微量給油タイプ / Minimum lubrication type -口03 -口05 中厚物用 / Medium-weight materials 厚物用 / Heavy-weight materials 仕様 / Destination B-49 針棒 / Needle bar SA1135001 SA1137001 B-84 ミシン針 / Needle 100265034 100265042 B-83 針板 / Needle plate 111859301 150792001 C-7 押えバネ / Presser bar spring S13561101 141728001 C-9 押え組 / Presser foot assy 153037201 150789101 USA向 / For USA D-90 送り歯 / Feed dog SA2345001 150793001 G-20 内かま止め / Hook stopper S02602001 159324001 G-30 かま箱組 / Rotary hook assy, w/box SA7686002 SA7686001 G-27 ボビン / Bobbin 146290001 --- G-28 ボビン / Bobbin --- 117132001 REF.NO 品名 / Name of parts 仕様 / Specification セミドライタイプ / Semi dry type -口3S -口33 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕様 / Destination B-49 針棒 / Needle bar SA1135001 SA7241001 B-84 ミシン針 / Needle S35775010 100265034 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 C-9 押え組 / Presser foot assy S35777101 153037201 USA向 / For USA D-90 送り歯 / Feed dog SA2346001 SA2345001 G-20 内かま止め / Hook stopper S02602001 --- G-30 かま箱組 / Rotary hook assy, w/box SA7687001 SA7686002 G-27 ボビン / Bobbin 146290001 --- 仕様 / Specification 完全ドライタイプ / Complete dry type -口5S -口53 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕様 / Destination REF.NO 品名 / Name of parts B-49 針棒 / Needle bar SA1135001 B-84 ミシン針 / Needle S35775010 100265034 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 C-9 押え組 / Presser foot assy S35777101 153037201 USA向 / For USA D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 G-20 内かま止め / Hook stopper S02602001 --- G-30 かま箱組 / Rotary hook assy, w/box S52936001 --- G-27 ボビン / Bobbin 146290001 --- S-7200B-Sp2 jintex.in 60

Page 66 — Sp3 . 仕様別部品一覧表 (中国向) / Different parts list (For China)

Sp3 . 仕様別部品一覧表 (中国向) / Different parts list (For China) REF.NO 品名 / Name of parts 仕様 / Specification 微量給油タイプ / Minimum lubrication type -口03 -口05 中厚物用 / Medium-weight materials 厚物用 / Heavy-weight materials 仕向 / Destination B-49 針棒 / Needle bar SA1133001 SA1137001 B-84 ミシン針 / Needle 100265034 100265042 B-83 針板 / Needle plate 111859301 150792101 C-7 押えバネ / Presser bar spring S13561101 141728001 C-9 押え組 / Presser foot assy 153037201 150789101 中国向 / For China D-90 送り歯 / Feed dog SA2345001 150793001 G-20 内かま止め / Hook stopper S02602001 159324001 G-30 かま箱組 / Rotary hook assy, w/box SA7686002 SA7688001 G-27 ボビン / Bobbin 146290001 --- G-28 ボビン / Bobbin --- 117132001 仕様 / Specification セミドライタイプ / Semi dry type -口3S -口33 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕向 / Destination REF.NO 品名 / Name of parts B-49 針棒 / Needle bar SA1135001 SA7241001 B-84 ミシン針 / Needle S35775010 100265034 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 C-9 押え組 / Presser foot assy S35777101 153037201 中国向 / For China D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 G-20 内かま止め / Hook stopper S02602001 ← G-30 かま箱組 / Rotary hook assy, w/box SA7687001 SA7686002 G-27 ボビン / Bobbin 146290001 ← 仕様 / Specification 完全ドライタイプ / Complete dry type -口5S -口53 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕向 / Destination REF.NO 品名 / Name of parts B-49 針棒 / Needle bar SA1135001 SA7241001 B-84 ミシン針 / Needle S35775010 100265034 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 C-9 押え組 / Presser foot assy S35777101 153037201 中国向 / For China D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 G-20 内かま止め / Hook stopper S02602001 ← G-30 かま箱組 / Rotary hook assy, w/box S52936001 ← G-27 ボビン / Bobbin 146290001 ← 61 S-7200B-Sp3 jintex.in

Page 67 — Sp4 . 仕様別部品一覧表 (輸出一般向) / Different parts list (For General export)

Sp4 . 仕様別部品一覧表 (輸出一般向) / Different parts list (For General export) REF.NO 品名 / Name of parts 仕様 / Specification 微量給油タイプ / Minimum lubrication type -口03 -口05 中厚物用 / Medium-weight materials 厚物用 / Heavy-weight materials 仕向 / Destination B-49 針棒 / Needle bar SA1133001 SA1137001 B-84 ミシン針 / Needle 100265034 100265042 B-83 針板 / Needle plate 111859301 150792101 C-7 押えバネ / Presser bar spring S13561101 141728001 輸出一般向 / For General export C-9 押え組 / Presser foot assy 153037201 150789101 D-90 送り歯 / Feed dog SA2345001 150793001 G-20 内かま止め / Hook stopper S02602001 159324001 G-30 かま箱組 / Rotary hook assy, w/box SA7686002 SA7688001 G-27 ボビン / Bobbin 146290001 --- G-28 ボビン / Bobbin --- 117132001 仕様 / Specification セミドライタイプ / Semi dry type REF.NO 品名 / Name of parts -口3S -口33 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕向 / Destination B-49 針棒 / Needle bar SA1135001 SA7241001 B-84 ミシン針 / Needle S35775010 100265034 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 輸出一般向 / For General export C-9 押え組 / Presser foot assy S35777101 153037201 D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 G-20 内かま止め / Hook stopper S02602001 ← G-30 かま箱組 / Rotary hook assy, w/box SA7687001 SA7686002 G-27 ボビン / Bobbin 146290001 ← 仕様 / Specification 完全ドライタイプ / Complete dry type REF.NO 品名 / Name of parts -口5S -口53 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕向 / Destination B-49 針棒 / Needle bar S35775010 B-84 ミシン針 / Needle 100265034 111859301 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 輸出一般向 / For General export C-9 押え組 / Presser foot assy S35777101 153037201 D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 G-20 内かま止め / Hook stopper S02602001 ← G-30 かま箱組 / Rotary hook assy, w/box S52936001 ← G-27 ボビン / Bobbin 146290001 ← S-7200B-Sp4 jintex.in 62

Page 68 — Sp5 . 仕様別部品一覧表 (欧州・カナダ向) / Different parts list (For Europe & Canada)

Sp5 . 仕様別部品一覧表 (欧州・カナダ向) / Different parts list (For Europe & Canada) 仕様 / Specification Minimum lubrication type REF.NO 品名 / Name of parts □03 □05 中厚物用 / Medium-weight materials 厚物用 / Heavy-weight materials 仕様 / Destination B-49 針棒 / Needle bar SA1134001 SA1137001 B-84 ミシン針 / Needle 107415014 107415022 B-83 針板 / Needle plate 111859301 150792001 C-7 押えバネ / Presser bar spring S13561101 141728001 C-10 押え組 / Presser foot assy SA2836101 SA2837101 欧州・カナダ向 / D-90 送り歯 / Feed dog SA2345001 150793001 For Europe & G-20 内かま止め / Hook stopper S02602001 159324001 Canada G-30 かま箱組 / Rotary hook assy, w/box SA7686002 SA7688001 G-27 ボビン / Bobbin 146290001 G-28 ボビン / Bobbin 117132001 仕様 / Specification セミドライタイプ / Semi dry type REF.NO 品名 / Name of parts □3S □33 薄物・難素材用 / Light- weight materials & for Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕様 / Destination B-49 針棒 / Needle bar SA1136001 SA7240001 B-84 ミシン針 / Needle S37061010 107415014 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 C-10 押え組 / Presser foot assy SA2433101 SA2836101 欧州・カナダ向 / D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 For Europe & G-20 内かま止め / Hook stopper S02602001 Canada G-30 かま箱組 / Rotary hook assy, w/box SA7687001 SA7686002 G-27 ボビン / Bobbin 146290001 仕様 / Specification 完全ドライタイプ / Complete dry type REF.NO 品名 / Name of parts □5S □53 薄物・難素材用 / Light- weight materials & Difficult-to-sew materials 中厚物用 / Medium-weight materials 仕様 / Destination B-49 針棒 / Needle bar SA1136001 SA7240001 B-84 ミシン針 / Needle S37061010 107415014 B-83 針板 / Needle plate S03883201 111859301 C-7 押えバネ / Presser bar spring 147514001 S13561101 欧州・カナダ向 / C-10 押え組 / Presser foot assy SA2433101 SA2836101 For Europe & D-92, D-90 送り歯 / Feed dog SA2346001 SA2345001 Canada G-20 内かま止め / Hook stopper S02602001 G-30 かま箱組 / Rotary hook assy, w/box S52936001 G-27 ボビン / Bobbin 146290001 63 S-7200B-Sp5

Page 69 — Ga1 . ゲージ部品一覧表 (薄・中物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW)

Ga1 . ゲージ部品一覧表 (薄・中物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW) 3枚菌 / 3ROW 用途 Application 針板 Needle plate 送り歯 Feed dog 押え組 Presser foot assy Mark 薄・中物用 Light & medium-weight materials B12 153147-001 Ø: 1.2 R: 0.2 T: 2.1 146231-001 P: 1.15 H: 6 SA2836-101 153037-201 9.5 2.5 8.7 20.7 15.7 10.6 長溝 Slot 11.2 33.4 B14 146233-001 Ø: 1.4 R: 0.2 T: 2.1 113280-101 9.5 2.5 8.7 20.7 15.7 10.6 NB14M S29649-001 Ø: 1.4 R: 0.2 T: 2.1 SA2839-101 面取り大 Chamfering(L) 11.2 33.4 9.5 2.5 8.7 20.7 15.7 10.6 147531-101 NB16M S29646-001 Ø: 1.6 R: 0.2 T: 2.1 SA2842-101 面取り小 Chamfering(S) 11.2 33.4 9.5 2.5 6 21 14 10.6 111856-101 B14 146050-001 Ø: 1.4 R: 0.2 T: 2.8 SA2856-101 長溝 Slot 11.2 28.3 15 27 19 11 9.5 2.5 6 21 14 10.6 140957-101 S07649-001 P: 1.15 H: 6.7 11.2 面取り小 Chamfering(S) B14 147238-001 Ø: 1.4 R: 1 T: 2.8 SA2840-101 9.5 2.5 6 21 14 10.6 11.9 3.5 14.7 4 143711-101 B16 153190-001 Ø: 1.6 R: 0.2 T: 2.8 SA2841-101 面取り小 Chamfering(S) 11.2 28.3 9.5 2.5 6 21 14 10.6 S02742-001 P: 1.6 H: 6.7 27 11 11.2 3.5 14.7 4 S01904-001 B16 147239-001 Ø: 1.6 R: 1 T: 2.8 テフロン押え Teflon 30 12.5 9.5 2.5 6 21 14 10.6 S-7200B-Ga1 64 jintex.in

Page 70

Ga2 . ゲージ部品一覧表 (薄・中厚物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW) 3枚菌 / 3ROW 用途 Application 針板 Needle plate 記号 Mark 送り歯 Feed dog 押え組 Presser foot assy 薄・中厚物用 Light & medium-weight materials B18M S29645-001 Ø: 1.8 R: 0.2 T: 2.8 S07649-001 P: 1.15 H: 6.7 SA2836-101 153037-201 10.6 11.2 長溝 Slot 9.5 2.5 21 14 11.2 33.4 中厚物用 medium-weight materials B18M S29645-001 Ø: 1.8 R: 0.2 T: 2.8 S02742-001 P: 1.15 H: 6.7 SA2839-101 113280-101 10.6 9.5 2.5 21 14 11.2 3.5 14.7 面取り大 Chamfering(L) B18 100266-101 Ø: 1.8 R: 1 T: 2.8 SA2856-101 111856-101 10.6 9.5 2.5 21 14 11.2 28.3 長溝 Slot B18 146232-001 Ø: 1.8 146231-001 P: 1.15 H: 6 SA2840-101 140957-101 R: 0.2 T: 2.1 9.5 11.2 2.5 20.7 8.7 15.7 11.9 3.5 14.7 面取り小 Chamfering(S) H18 141096-001 Ø: 1.8 117442-001 P: 1.15 H: 6.7 SA2841-101 143711-101 R: 1 T: 2.8 9.5 10.6 11.2 28.3 5 6 21 14 11.9 3.5 14.7 面取り小 Chamfering(S) B20 S11222-001 Ø: 2 S07649-001 P: 1.15 H: 6.7 S01904-001 R: 0.2 T: 2.8 27 19 11 9.5 10.6 11.2 テフロン押え Teflon 2.5 21 14 3.5 14.7 65 S-7200B-Ga2 jintex.in

Page 71 — Gauge parts list (Heavy-weight materials : 3ROW)

Ga3. ゲージ部品一覧表 (厚物用 : 3枚菌) / Gauge parts list (Heavy-weight materials : 3ROW) 3枚菌 / 3ROW 用途 Application 針板 Needle plate 記号 Mark 厚物用 Heavy-weight materials B22 100267-001 Ø: 2.2 R: 1 T: 2.8 9.5 2.5 21 6 14 10.6 B26 111241-001 Ø: 2.6 R: 1 T: 2.8 9.5 2.5 21 6 14 10.6 C26 111508-001 Ø: 2.6 R: 1 T: 2.8 9.5 2.5 21 6 14 10.6 C26M 147322-201 Ø: 2.6 R: 1(溝) (Slot) T: 2.8 9.5 2.5 21 6 14 10.6 S29644-001 Ø: 2.6 R: 1 T: 2.8 9.5 2.5 21 6 14 10.6 S-7200B-Ga3 送リ菌 Feed dog Ø: 2.2 R: 1 T: 2.8 10 18.5 27 9 3.5 11.2 14.7 Ø: 2.6 R: 1(溝) (Slot) T: 2.8 10 18.5 27 9 3.5 11.2 14.7 Ø: 2.6 R: 1 T: 2.8 10 18.5 27 9 3.5 11.2 14.7 Ø: 2.6 R: 1 T: 2.8 10 18.5 27 9 3.5 11.2 14.7 押え組 Presser foot assy SA2838-101 145157-101 12.5 30 針落ち部のみ 面取りあり These presser foot have chamfering corner on the needle location SA2839-101 113280-101 11.2 面取り大 Chamfering(L) P: 2.1 H: 6.7 P: 1.6 H: 6.8 P: 2.1 H: 6.7 ◎ ネジ穴中心から歯部中心まで11.9mmの送り歯を使用する場合、水平送り台腕と上下送り台腕を0.7mm左側へ 移動させて下さい。 ◎ If a feed dog measuring 11.9mm from the screw hole center to tooth center is be use, shift the feed bar crank and feed lifting crank 0.7mm to the left . jintex.in 66

Page 72 — Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark AB12N1 S38760-001 Ø: 1.2 R: 0.2 T: 2.1 8.5 2.4 2.1 18 14.3 送り歯 Feed dog Ø: 1.4 R: 0.2 T: 2.1 AB14M1 S35776-101 S02748-001 25.3 35 5.1 6.4 8 11.2 14.7 16.2 押え組 Presser foot assy P: 0.9 H: 6 SA2433-101 S35777-101 33.4 11.2 長溝 Slot 難素材用 Difficult-to- sew materials 新素材用 Shin-gosen S-7200B-Ga4 67 jintex.in

Page 73

Ga5 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW) 4枚菌/4ROW 用途 Application 針板 Needle plate 記号 Mark 薄・中厚物用 Light & medium-weight materials E12N1 S03882-201 8.5 4.7 1.6 18 13.3 10.6 E14N1 S03883-201 8.5 4.7 1.6 18 13.3 10.6 E12 S01107-101 8.5 4.7 1.6 18 13.3 10.6 送り歯 Feed dog Ø: 1.2 R: 1 T: 2.1 Ø: 1.4 R: 1(溝) (Slot) T: 2.1 Ø: 1.2 R: 1 T: 2.1 送りピッチ 4mm以下で使用 Use the feed dog and needle plate with a stitch length of 4mm or less AB14N1 S02999-201 8.5 2.4 2.1 18 14.3 10.6 AB16N1 S03000-201 8.5 2.4 2.1 18 14.3 10.6 Ø: 1.4 R: 0.2 T: 2.1 Ø: 1.4 R: 0.2 T: 2.1 SA2346-001 SA2836-101 押え組 Presser foot assy 163037-201 11.2 33.4 長溝 Slot 11.2 SA2839-101 113280-101 33.4 面取り大 Chamfering(L) SA2842-101 147531-101 11.2 面取り小 Chamfering(S) 111856-101 11.2 長溝 Slot S02748-001 P: 0.9 H: 6 35 25.3 5.1 6.4 11.2 SA2840-101 140957-101 11.2 面取り小 Chamfering(S) 16.2 14.7 S02744-001 P: 1.15 H: 6 30 12.5 テフロン押え Teflon 143711-101 S01904-001 S-7200B-Ga5 jintex.in 68

Page 74 — Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark AB16 156115-001 Ø: 1.6 R: 0.2 T: 2.8 10.6 8.5 2.4 2.1 18 13.3 AB18 156116-001 Ø: 1.8 R: 0.2 T: 2.8 10.6 8.5 2.4 2.1 18 13.3 AB18M S31910-001 Ø: 1.6 R: 0.2 T: 2.8 10.6 8.5 2.4 2.1 18 13.3 E16N1 S03884-301 Ø: 1.6 R: 1 T: 2.1 10.6 8.5 4.7 1.6 18 13.3 E16M1 S29648-101 Ø: 1.6 R: 1 T: 2.1 10.6 8.5 4.7 1.6 18 13.3 E18N1 111859-301 Ø: 1.8 R: 1 T: 2.1 10.6 8.5 4.7 1.6 18 13.3 E18M1 S29647-101 Ø: 1.8 R: 1 T: 2.1 10.6 8.5 4.7 1.6 18 13.3 送り歯 Feed dog 押え組 Presser foot assy S13684-001 P: 1.6 H: 6.7 SA2836-101 153037-201 35 25.3 4.1 6.4 8 11.2 16.2 14.7 長溝 Slot SA2839-101 113280-101 33.4 33.4 面取り大 Chamfering(L) 11.2 SA2842-101 147531-101 33.4 面取り小 Chamfering(S) 11.2 SA2856-101 111856-101 28.3 長溝 Slot 11.2 SA2840-101 140957-101 33.4 面取り小 Chamfering(S) 11.2 SA2841-101 143711-101 28.3 面取り小 Chamfering(S) 11.2 S01904-001 テフロン押え Teflon 30 12.5 S-7200B-Ga6 69 jintex.in

Page 75 — Ga7 . ゲージ部品一覧表 (薄・中物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Ga7 . ゲージ部品一覧表 (薄・中物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW) 4枚菌 / 4ROW 針板 Needle plate 送 り 歯 Feed dog 押 え組 Presser foot assy 用途 Application 記号 Mark 薄・中物用 Light & medium-weight materials A14 155676-001 Ø: 1.4 R: 0.2 T: 2.8 S13684-001 P: 1.6 H: 6.7 SA2836-101 153037-201 長溝 Slot 8.5 10.6 11.2 2.5 1.8 14.5 13.3 AB14 156114-001 Ø: 1.4 R: 0.2 T: 2.8 SA2839-101 113280-101 8.5 10.6 11.2 面取り大 Chamfering(L) SA2842-101 147531-101 SA2856-101 111856-101 長溝 Slot SA2840-101 140957-101 11.2 面取り小 Chamfering(S) SA2841-101 143711-101 11.2 面取り小 Chamfering(S) S01904-001 12.5 テフロン押え Teflon S-7200B-Ga7 70

Page 77

Ga9 . ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts list (Heavy-weight materials : 4ROW) 4枚菌 / 4ROW 針板 Needle plate 送り歯 Feed dog 押え組 Presser foot assy 用途 Application 記号 Mark H26 150792-101 厚物用 Heavy-weight Materials Ø: 2.6 R: 1 T: 3.2 12.8 19 10.6 4 3 17.2 16.1 H26 S25821-001 Ø: 2.6 R: 1 T: 3.2 150793-001 37.8 25.3 20.2 7.95 10.35 12.5 16.65 Ø: 2.6 S25822-001 37.8 25.3 20.2 5.2 10 11.8 9.3 14.7 16.7 P: 1.8 H: 6.8 150789-101 面取り大 Chamfering (L) P: 1.8 H: 6.8 S-7200B-Ga9 jintex.in 72

Page 78 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲ 危険 ▲ 危険 高電圧部分にふれて、けがをする ことがある。電源を切り、5分たって からカバーをはずすこと。 接触高圧電部分、会導致受傷。 再啓盖。 ▲ DANGER ▲ GEFAHR ▲ DANGER ▲ PELIGRO Hazardous voltage will cause injury. Turn off main switch and wait 5minutes before opening this cover. Hochspannung verletzungsgefahr! Bitte schalten sie den hauptschalter aus und warten sie 5 minuten, bevor sie diese abdeckung offnen. Un voltage non adapte provoque des blessures. Eteindre l'interrupteur et attendre 5 minutes avant d'ouvrir le capot. Un voltaje inadecuado puede provocar las heridas. Apagar el interruptor principal y esperar 5 minutos antes de abrir esta cubierta. ラベル感電6ヶ国 Label, elec. shock 6 lang 50 X 118 J04115-001 ▲ 注意 ▲ 注意 動く部分だけでがををする。 安全保護装置をつけ、縫製作業 をすること。電源を切ってから、 糸通し、ボビンや針の交換、 掃除や調整をすること。 触動運動部分、易造成受傷。 所以表上安全保護装置后, 再进行缝纫操作,在切断电源后, 进行穿线、更换梳芯、 机针和做清扫、调整工作。 ▲ CAUTION ▲ CAUTION Moving parts may cause injury. Operate with safety devices. Turn off main switch before threading, changing bobbin and needle, cleaning etc. Moving parts may cause injury. Operate with safety devices. Turn off main switch before threading, changing bobbin and needle, cleaning etc. ラベル注意・和英 Label, caution Jpa / Eng 64 X 40 SA2040-001 ラベル注意・中英 Label, caution Chn / Eng 64 X 40 SA2041-001 アースマーク Label, grounding Φ 12 S37060-001 S-7200B-Wa 73 jintex.in

Page 79 — 索 引 / INDEX

索 引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 004301016 L - 24 32 025350132 C - 35 8 062500616 H - 6 24 100401022 K - 31 30 012060536 D - 14 12 026040236 L - 7 32 062500816 H - 45 24 100402004 J - 32 28 D - 38 12 026050136 C - 4 8 H - 53 24 100463001 Q - 4 48 D - 66 14 028040245 P1 - 36 40 J - 19 28 100463021 E - 3 18 D - 77 14 028040243 Q - 10 48 P4 - 17 46 100645003 L - 14 32 F - 16 20 028050244 Z - 31 56 R - 11 50 100887001 Z - 43 56 G - 17 22 028050246 P1 - 35 40 062500816 D - 20 12 102630001 B - 4 4 L - 28 32 028060243 Z - 55 58 D - 11 16 102843004 L - 5 32 L - 43 32 034422503 Q - 19 48 F - 6 24 104449001 A - 11 2 012061036 B - 47 4 048030342 N - 22 38 H - 14 24 104450101 A - 14 2 012400436 B - 11 4 048040142 L - 56 32 L - 61 32 A - 8 2 B - 18 4 048040142 L - 56 32 B - 25 4 048040142 L - 56 32 012500536 B - 31 4 048040142 L - 56 32 B - 41 4 048050142 B - 4 4 B - 46 6 048050142 K - 14 30 C - 18 12 048050142 K - 14 30 D - 12 12 048050142 C - 26 8 D - 28 12 048050142 B - 4 4 D - 35 12 048060142 B - 13 4 D - 44 12 048060142 B - 20 4 D - 47 12 048060142 B - 27 4 D - 50 12 048060142 B - 35 4 F - 11 20 048080342 D - 41 4 F - 17 20 048080342 D - 55 12 J - 9 28 048100142 T - 20 54 K - 8 30 048120142 D - 119 16 K - 13 30 048150142 D - 79 14 K - 34 30 048150142 D - 79 14 014300432 D - 82 14 048150142 D - 70 6 014400632 P1 - 105 16 060300606 P4 - 12 46 014500632 P1 - 10 40 060350616 J - 24 28 014771032 L - 3 32 060400516 M - 5 36 017061216 T - 14 54 N - 14 38 017841606 Z - 52 58 N - 25 38 018400532 C - 22 8 M - 7 36 018501436 D - 33 12 060500616 J - 17 28 018501636 D - 29 12 062060816 P1 - 9 40 018761832 T - 10 54 062061016 F - 7 20 021060106 Z - 50 58 062061604 Z - 39 56 Z - 54 58 062300616 D - 97 16 021060216 T - 15 54 N - 6 38 021060306 C - 42 10 N - 8 38 H - 64 26 N - 9 38 L - 53 32 062350616 D - 60 14 021400164 Q - 11 48 062400616 A - 14 2 021400206 P4 - 14 46 H - 48 24 R - 10 50 021400306 L - 15 32 062400816 J - 15 28 021500104 Z - 32 56 L - 57 32 Z - 38 56 P4 - 13 46 021500316 D - 110 16 R - 9 50 025040173 P3 - 7 44 062400863 P3 - 5 44 025040232 C - 23 8 062401006 Q - 8 48 L - 55 32 062401216 C - 38 8 025040233 Q - 9 48 G - 21 22 025040332 H - 49 24 062500616 K - 17 30 025060136 K - 6 30 C - 3 8 025100132 D - 17 12 062501216 A - 4 2 A - 6 2 H - 51 24 L - 58 32 P1 - 34 40 T - 22 54 062501404 Z - 40 56 062501416 D - 22 12 L - 22 32 062501816 J - 25 28 062670612 T - 24 54 081004070 H - 7 24 081004870 H - 10 24 081008070 H - 21 24 081009070 H - 47 24 081015870 H - 43 24 081022870 H - 36 24 081025870 G - 8 22 081029870 H - 54 26 0A4261006 P1 - 16 40 0A4300806 P1 - 16 40 0A4401006 P1 - 28 40 0A4401606 P1 - 25 40 0A4501206 H - 32 24 0A5300606 P1 - 22 40 100080004 D - 10 12 100265031 Z - 3 56 100265034 Z - 3 56 Sp1 59 Sp2 60 Sp3 61 Sp4 62 100265042 Z - 3 56 Sp1 59 Sp2 60 Sp3 61 Sp4 62 100266101 Ga2 65 100267001 Ga3 66 100328001 D - 6 12 100399201 J - 28 28 104619022 E - 5 18 104821001 H - 19 24 105234003 L - 32 32 107415014 Z - 3 56 Sp5 63 107415022 Z - 3 56 Sp5 63 107780001 Z - 46 58 108549001 D - 3 12 109714000 Z - 13 56 110087001 Q - 6 48 110087021 E - 8 18 110161004 M - 8 36 110367001 L - 40 32 110735002 N - 21 38 111241001 Ga3 66 111508001 Ga3 66 111856101 Ga1 64 Ga2 65 Ga5 68 Ga6 69 Ga7 70 Ga8 71 111859301 Sp2 60 Sp3 61 Sp4 62 Sp5 63 Ga6 69 Ga8 71 111863001 H - 12 24 113280101 Ga1 64 Ga2 65 Ga3 66 Ga5 68 Ga6 69 Ga7 70 Ga8 71 114294001 J - 37 28 114561001 B - 65 6 114859001 Z - 56 58 114967001 Q - 5 48 114967021 E - 7 18 115188101 J - 29 28 116922001 J - 31 28 117132001 G - 28 22 Z - 5 56 Sp1 59 Sp2 60 74

Page 80 — INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 117132001 Sp3 61 146231001 Ga2 65 153037201 Sp1 59 J03962001 P1 -24 40 117442001 Ga2 65 146232001 Ga2 65 Sp2 60 J03964001 P1 -29 40 117936001 Sp4 62 146233001 Ga1 64 Sp3 61 J03975001 P2 -4 42 118837001 Sp5 63 146288001 N -26 38 Sp4 62 J03976001 P2 -5 42 117936001 A -12 2 146290001 G -27 22 Ga1 64 J03983001 P1 -20 40 119101001 Z -42 56 Ga2 65 J03984001 P1 -21 40 118837001 Z -42 56 Ga5 68 J04086001 S -1 52 119101001 Z -51 58 Sp1 59 Ga6 69 J04093001 S -3 52 122771051 B -66 6 Sp2 60 Ga7 70 J04096001 S -5 52 133643006 Z -53 58 Sp3 61 Ga8 71 J04097001 P3 -8 44 140004001 B -9 4 Sp4 62 D -24 12 J04098001 P3 -8 44 B -16 4 Sp5 63 153132000 J04099101 P3 -14 44 B -23 4 146293001 H -66 26 153138001 F -13 20 J04100001 P4 -31 46 B -31 4 147239001 Ga1 64 153147001 Ga1 64 J04100001 P3 -15 44 B -39 4 147239001 Ga1 64 154125001 Z -47 58 J04115001 P3 -25 44 140407001 C -8 8 147245101 Sp1 59 154567000 L -2 32 Wa 73 140553102 B -55 6 Sp2 60 15457000 L -2 32 140553102 B -55 6 Sp3 61 154581001 L -27 32 J04134001 S -4 52 140647101 N -7 38 147322201 Ga3 66 154593201 L -35 32 J04149001 S -6 52 140957101 Ga1 64 147514001 C -7 8 154594000 L -36 32 J04167001 P3 -10 44 Ga2 65 Sp1 59 154595001 L -38 32 J04168001 P3 -22 44 Ga5 68 Sp2 60 154596000 L -39 32 J04169001 P3 -21 44 Ga6 69 Sp3 61 154607101 M -6 36 J04179001 P4 -21 46 Ga7 70 Sp4 62 154729001 F -2 20 J04186001 P4 -23 46 Ga8 71 147531101 Ga1 64 154730001 F -3 20 J04189001 P4 -25 46 141096001 Ga2 65 Ga2 65 154731000 F -4 20 J04195001 P2 -6 42 141728001 Sp1 59 Ga3 66 154742001 Ga3 66 J04210001 P3 -23 44 Sp2 60 148537101 L -21 32 155676001 Ga7 70 J04243001 P3 -24 44 Sp3 61 149097000 N -29 38 156114001 Ga7 70 J04249001 P4 -26 46 Sp4 62 14978000 Z -57 58 156115001 Ga6 69 J04251001 S -8 52 Sp5 63 150172003 Z -25 56 156116001 Ga6 69 J04255001 S -9 52 142002001 Z -44 58 150174000 Z -22 56 156243021 D -78 14 142002001 Z -44 58 150178900 Z -26 56 156958021 D -27 12 J04273001 P2 -7 42 142026003 Q -2 48 150179002 Z -30 56 D -53 12 J04296001 P1 -27 40 142027001 Q -3 48 150182000 Z -18 56 158722001 D -86 14 J04314001 P4 -27 46 142374100 D -9 12 150183000 Z -35 56 159324001 G -20 22 J04392001 P1 -33 40 142443001 Z -41 56 150190000 Z -18 56 J04393001 P3 -1 44 142721001 Z -45 58 150190000 Z -18 56 Sp1 59 J04438001 P3 -2 44 142990001 Z -36 56 150179002 Z -30 56 Sp2 60 J04440001 P3 -3 44 143548000 Q -15 48 150182000 Z -18 56 Sp3 61 J04442001 P1 -32 40 143549000 Q -14 48 150183000 Z -35 56 Sp4 62 J04468001 P3 -16 44 143711101 Ga1 64 150206000 Z -28 56 Sp5 63 J04469001 S -2 52 Ga2 65 150206002 Z -28 56 159805001 J -34 28 J04470001 S -7 52 Ga5 68 150789101 C -9 8 159859201 Ga5 68 J04487001 P1 -19 40 Ga6 69 150792001 Sp1 59 180018151 B -64 6 J04593001 P3 -9 44 Ga7 70 Sp2 60 183388001 G -23 22 J80081040 P4 -28 46 Ga8 71 Sp3 61 183389001 G -24 22 J800810E0 P4 -28 46 143882001 Z -9 56 Sp4 62 183390001 G -25 22 J80380040 P4 -29 46 143910009 Z -10 56 Sp5 63 233268002 P2 -1 42 J803800E0 P4 -29 46 144226001 Z -15 56 150792001 Ga1 64 BMP2060-000000-0G40 P2 -1 42 J80630001 P4 -30 46 144504001 H -5 28 Ga9 72 P2 -1 42 J806300E1 P4 -30 46 144875001 H -15 24 150793001 D -90 14 J00494001 P3 -12 44 J80964201 P3 -19 44 145157101 C -9 8 Sp1 59 J01411001 P3 -11 44 J80965001 P3 -20 44 Ga3 66 Sp2 60 J03733001 P3 -4 44 J80966101 P3 -20 44 145446001 J -33 28 Sp3 61 J03739001 P3 -13 44 J80967001 P3 -17 44 145446002 K -30 30 Sp4 62 J03940001 P1 -11 40 J80968001 P3 -17 44 145737001 H -9 24 Sp5 63 J03955001 P1 -12 40 J80970001 P3 -18 44 145971101 Sp1 59 Ga9 72 J03956001 P1 -14 40 J80973001 P2 -2 42 Ga2 65 151267001 B -63 6 J03957001 P1 -15 40 J80974001 P2 -3 42 146039021 E -2 18 151308102 D -11 12 J03958001 P1 -17 40 S01005000 Z -23 56 146046000 Q -16 48 151594001 B -62 6 J03961001 P1 -23 40 S01107101 Ga5 68 146050001 Ga1 64 153037201 C -9 8 S01419000 J -11 28 146194000 Q -17 48 153037201 C -9 8 S01904001 Ga1 64 146231001 Ga1 64 75 jintex.in

Page 81 — INDEX

INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S01904001 Ga2 65 S13561101 Sp3 61 S29649001 Ga1 64 S52936001 Sp1 59 Ga5 68 Sp4 62 S30103001 Ga8 71 Sp2 60 Ga6 69 Sp5 63 S31006001 C - 31 8 Sp3 61 Ga7 70 S13684001 Ga5 68 S31032001 J - 36 28 Sp4 62 Ga8 71 S31885001 E - 9 18 Sp5 63 S02602001 G - 20 22 S16335001 D - 51 12 S31899251 D - 41 2 SA1105001 A - 5 2 Sp1 59 S1637001 D - 52 12 S31910001 Q - 41 12 SA1106001 A - 1 2 Sp2 60 S16625050 T - 7 54 S31938001 Q - 12 48 SA1107001 A - 2 2 Sp3 61 S16629151 T - 9 54 S32263001 A - 9 48 SA1120001 B - 5 4 Sp4 62 S16630051 T - 16 54 S32907050 P4 - 9 46 SA1133001 Sp1 59 Sp5 63 S16643009 T - 23 54 S34281000 P4 - 4 50 Sp2 60 S02620201 J - 28 28 S17774001 Z - 1 56 S34352101 D - 70 14 Sp3 61 S02637001 L - 4 32 S20356001 T - 19 54 S34756021 E - 6 18 SA1134001 Sp4 62 S02645001 L - 6 32 S23418002 K - 19 54 S35775010 Sp1 59 Sp5 63 S02646001 L - 20 32 S23651001 B - 2 4 S35776101 Ga4 67 SA1135001 Sp1 59 S02647021 L - 25 32 B - 6 6 Sp1 59 Sp2 60 S02648001 L - 26 32 B - 57 6 Sp2 60 Sp3 61 S02742001 D - 89 14 B - 74 6 Sp3 61 Sp4 62 Sp1 59 B - 76 6 Sp4 62 Sp5 63 Ga1 64 B - 79 6 Sp5 63 SA1136001 Sp1 59 Ga2 65 B - 81 6 SA1137001 Sp2 60 S02743001 D - 89 14 D - 68 14 SA1138101 B - 51 6 Sp1 59 G - 12 22 SA1139101 B - 52 6 Ga3 66 G - 14 22 SA1140001 B - 56 6 S02744001 Ga5 68 G - 19 22 SA1143001 B - 67 6 S02747101 Z - 24 56 L - 33 32 SA1144001 B - 68 6 S02748001 D - 91 14 B - 3 4 SA1145001 B - 69 6 Sp1 59 D - 57 4 SA1150001 B - 78 6 Ga4 67 D - 95 16 SA1166001 B - 73 6 Ga5 68 S25235001 B - 4 4 SA1171001 C - 1 8 S02763602 Z - 16 56 S25279101 N - 18 38 SA1173001 C - 3 8 S02999201 Ga5 68 S25321001 D - 59 14 SA1174001 C - 5 8 S03000201 Ga5 68 S25339201 D - 96 16 SA1175001 C - 36 8 S03245001 G - 22 22 S25344001 H - 62 26 SA1176001 C - 12 8 S03246001 G - 26 22 S25380401 H - 17 24 SA1177001 C - 13 8 S03677001 N - 27 38 S25382001 H - 5 24 SA1178001 C - 14 8 S03882201 Ga5 68 S25401100 B - 71 6 SA1179001 C - 15 8 Sp2 60 S25426101 L - 11 32 SA1181001 C - 27 8 Sp3 61 S25427101 D - 113 16 S38687000 L - 59 32 SA1182001 C - 19 8 Sp4 62 S25434000 L - 37 32 S38712001 B - 59 6 SA1183001 C - 20 8 Sp5 63 S25449201 N - 5 38 S38713100 B - 60 6 SA1184001 C - 21 8 S03884301 Ga5 68 S25454001 N - 17 38 S38760001 Ga4 67 SA1186001 C - 24 8 S04159000 P4 - 15 46 S25456001 N - 23 38 S38769000 H - 8 24 SA1190001 C - 41 10 S04630000 H - 11 24 S25457101 Q - 1 38 S38803051 T - 4 54 SA1193001 C - 40 10 S04632101 J - 29 28 S25469100 D - 16 12 S38804050 T - 5 54 SA1206001 D - 15 12 S06055009 Z - 6 56 S25475101 H - 63 26 S39051001 C - 32 8 SA1207001 D - 19 12 S07027001 Q - 7 48 S25789000 K - 9 30 S39830101 D - 107 16 SA1209001 D - 23 12 S07350001 C - 25 64 S25821001 Ga9 72 S40765001 Z - 49 58 SA1210001 D - 25 12 S07649001 Ga1 64 S25822001 Ga8 71 S40938001 J - 30 28 SA1211001 D - 26 12 S07783001 Z - 48 58 Ga9 72 S41205001 N - 4 38 SA1212101 D - 32 12 S09621151 A - 13 2 S29644001 Ga3 66 S41206001 N - 3 38 SA1217101 D - 40 12 S09634000 Z - 7 56 S29645001 Ga2 65 S41207001 N - 28 38 SA1218001 D - 42 12 S11222001 Ga2 65 S29646001 Ga1 64 S42893001 C - 7 8 SA1223001 D - 48 12 S12441001 J - 35 28 S29647101 Ga6 69 S45050001 A - 16 12 SA1225001 D - 54 12 K - 33 30 S29648101 Ga6 69 S45563001 J - 3 12 SA1226101 D - 62 14 S12915001 D - 58 14 S37060001 P3 - 26 44 S13385001 C - 11 8 S37061010 Z - 3 56 S13561101 C - 7 59 Wa 73 Sp1 59 S35820021 E - 4 18 Sp2 60 S35821021 E - 1 18 S36893050 L - 47 32 S37020000 B - 90 8 76

Page 82 — INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SA1227101 D - 64 14 SA1371201 M - 1 36 SA2170001 A - 15 2 SA2433101 Sp5 63 SA1228001 D - 65 14 SA1372001 M - 2 36 SA2171001 M - 9 36 Ga4 67 SA1229101 J - 12 28 SA1373001 M - 4 36 SA2177001 T - 6 54 SA2689101 R - 18 50 SA1230001 D - 71 14 SA1374301 N - 1 38 SA2190001 K - 24 30 SA2778201 C - 34 8 SA1231001 D - 72 14 SA1376001 N - 10 38 SA2194201 B - 50 4 SA2779001 H - 40 24 SA1233101 D - 76 14 SA1377001 N - 20 38 SA2250001 B - 58 6 SA2836101 C - 10 8 SA1234001 D - 80 14 SA1378201 N - 24 38 SA2251001 B - 75 6 Sp5 63 SA1237001 D - 75 14 SA1388101 P4 - 18 46 SA2252001 B - 80 6 Ga1 64 SA1238401 D - 83 14 SA1390001 R - 15 50 SA2254101 B - 82 32 Ga2 65 SA1239201 D - 84 14 SA1391601 R - 17 50 SA2258001 L - 31 32 Ga3 66 SA1242001 D - 87 14 SA1392001 R - 6 50 SA2270001 P4 - 3 46 Ga5 68 SA1245101 D - 93 16 SA1393001 L - 44 32 R - 2 50 Ga6 69 SA1247001 D - 94 16 SA1394101 L - 45 32 SA2286001 F - 15 20 Ga7 70 SA1250101 D - 100 16 SA2287001 N - 19 38 Ga8 71 SA1251001 D - 101 16 SA2293101 D - 117 16 SA2837101 C - 10 8 SA1253101 D - 98 16 SA2294101 D - 115 16 Sp5 63 SA1254001 D - 99 16 SA2295201 D - 111 16 SA2838101 Ga3 66 SA1258001 F - 5 20 SA2343001 H - 2 24 SA2839101 Ga1 64 SA1261001 D - 56 14 SA2345001 D - 90 14 Ga2 65 SA1263001 D - 56 14 SA2346001 D - 92 14 Ga3 66 SA1269001 D - 39 12 Sp2 63 Ga5 68 SA1273001 G - 10 22 Sp3 64 Ga6 69 SA1284001 G - 15 22 Sp4 65 Ga7 70 SA1285001 G - 16 22 SA2346001 D - 92 14 Ga8 71 SA1286001 G - 18 22 Sp5 66 SA2840101 Ga1 64 SA1291001 J - 21 28 Ga6 69 Ga2 65 SA1292001 H - 1 24 Ga7 70 Ga3 66 SA1295001 H - 13 24 Ga8 71 Ga5 68 SA1300001 H - 27 24 SA2841101 Ga1 64 Ga6 69 SA1301001 H - 46 24 SA2842101 Ga1 64 Ga7 70 SA1304001 H - 3 24 SA2844101 F - 9 20 Ga8 71 SA1305001 H - 4 24 SA2848001 F - 10 20 SA1306001 H - 33 24 SA2849001 D - 10 12 SA1307001 H - 34 24 SA2850101 D - 31 12 SA1309001 H - 38 24 SA2851001 D - 34 12 SA1310001 H - 44 24 SA2852001 F - 8 20 SA1314001 H - 50 24 SA2854001 D - 30 12 SA1316001 H - 52 6 SA2856101 Ga1 64 SA1317001 B - 72 26 Ga2 65 SA1321401 H - 55 26 Ga3 66 SA1322301 H - 56 26 Ga5 68 SA1323001 H - 58 26 Ga6 69 SA1324001 H - 59 26 Ga7 70 SA1325001 H - 60 26 Ga8 71 SA1326101 H - 61 26 SA2868001 L - 62 32 SA1327101 H - 67 26 P1 - 8 40 SA1332001 T - 18 54 SA2875001 G - 29 22 SA1335001 T - 8 54 SA2992001 F - 12 20 SA1336001 T - 11 54 SA3025001 P1 - 38 40 SA1338001 T - 21 54 SA3114001 D - 116 16 SA1342001 J - 18 28 SA3152001 D - 114 16 SA1343001 J - 13 28 SA3158101 H - 24 24 SA1345001 J - 16 28 SA1359001 J - 10 28 SA1360101 K - 26 30 SA1361001 K - 27 30 SA1362101 L - 29 32 SA1363001 L - 30 32 SA1366001 L - 42 32 SA1367201 L - 48 32 SA1963001 Z - 12 56 SA1967001 N - 15 38 SA1969001 Z - 8 56 SA1971101 K - 1 30 SA1975001 K - 3 30 SA1978001 K - 4 30 SA1980001 K - 7 30 SA1981101 K - 10 30 SA1982101 K - 11 30 SA1983001 K - 12 30 SA1984001 K - 16 30 SA1985001 K - 18 30 SA1988001 K - 20 30 SA1989001 K - 21 30 SA1990101 K - 22 30 SA1991001 K - 23 30 SA1992101 K - 25 30 SA1994101 K - 29 30 SA2040001 A - 17 73 SA2041001 A - 17 73 Wa SA2097101 L - 51 32 SA2161001 B - 12 4 B - 19 4 B - 26 4 B - 42 4 B - 73 14 C - 28 8 T - 25 54 SA2347001 D - 109 16 SA2348001 C - 7 8 SA2351101 J - 1 28 SA2352101 J - 1 28 SA2354001 P1 - 31 40 SA2356101 J - 6 28 SA2358101 J - 8 28 SA2362001 J - 2 28 SA2363001 J - 4 28 SA2377001 D - 69 14 SA2378001 B - 77 32 SA2383001 L - 34 46 SA2386001 P4 - 8 46 SA2387001 P4 - 10 46 SA2388101 P4 - 2 46 SA2389001 P4 - 7 46 SA2390101 P4 - 19 46 SA2401001 D - 103 16 SA2404001 B - 61 6 SA2405001 P4 - 11 46 SA2406001 P4 - 16 46 SA2407001 P4 - 1 46 SA2417001 J - 14 28 SA2422001 B - 10 4 B - 17 4 B - 24 4 B - 32 4 B - 40 4 SA2433101 C - 10 8 jintex.in

Page 83 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SA3508001 H - 65 26 SA7295001 R - 3 50 SA3980001 C - 16 8 SA7297101 Z - 14 56 SA4098001 P4 - 4 26 SA7320001 G - 9 22 R - 4 50 SA7321001 D - 21 12 SA4099001 P4 - 6 46 SA7323201 D - 45 12 R - 5 50 SA7324201 D - 46 12 SA4211001 P1 - 37 40 SA7325001 D - 2 40 SA4494001 A - 3 2 SA7330001 D - 85 14 SA4552001 H - 41 24 SA7341101 L - 18 32 SA5329001 L - 13 32 SA7345101 H - 23 24 SA5730101 P1 - 4 40 SA7422001 D - 108 16 SA5731001 P1 - 6 40 SA7525001 G - 4 22 SA5732001 P1 - 5 40 SA7552001 L - 1 32 SA6167001 J - 7 28 SA7554001 G - 13 22 SA6606001 Z - 29 56 SA7577001 L - 12 32 SA6607001 Z - 33 56 SA7607001 C - 6 8 Z - 34 56 SA7625001 B - 8 4 SA6609001 Z - 37 56 B - 22 4 SA6629001 Z - 21 56 SA7626001 B - 15 4 SA7148001 G - 3 22 SA7627001 B - 30 4 SA7209101 B - 1 4 SA7635001 D - 13 12 SA7212101 B - 7 4 SA7636001 H - 16 24 SA7222101 B - 14 4 SA7654001 B - 28 4 SA7227101 B - 21 4 B - 36 4 SA7234101 B - 29 4 B - 44 4 SA7238101 B - 37 4 SA7686002 Sp1 59 SA7239101 B - 45 4 Sp2 60 SA7240001 Sp5 63 Sp3 61 SA7241001 Sp1 59 Sp4 62 Sp2 60 Sp5 63 Sp3 61 SA7687001 Sp1 59 Sp4 62 Sp2 60 SA7242001 C - 2 8 Sp3 61 SA7243001 D - 1 12 Sp4 62 SA7246001 D - 4 12 Sp5 63 SA7249101 D - 7 12 SA7688001 Sp1 59 SA7250101 D - 8 12 Sp2 60 SA7252001 D - 36 12 Sp3 61 SA7253001 D - 37 12 Sp4 62 SA7254001 D - 49 12 Sp5 63 SA7255001 D - 74 14 SA7693001 G - 7 22 SA7257001 D - 88 14 SA7879001 G - 6 22 SA7261101 G - 1 22 SA7898201 L - 49 32 SA7262001 G - 2 22 SA7899001 L - 50 32 SA7263301 G - 5 22 SA7900001 L - 52 32 SA7265101 H - 20 24 SA8002001 N - 13 38 SA7266001 G - 11 22 SA8004001 C - 39 10 SA7269001 H - 28 24 SA8005001 C - 37 8 SA7271001 J - 23 28 SA8008001 R - 13 50 SA7272001 J - 26 28 SA7273001 J - 27 28 SA7275001 J - 29 28 SA7282101 L - 9 32 SA7283001 L - 10 32 SA7284101 L - 16 32 SA7285001 L - 17 32 SA7287001 L - 23 32 SA7288001 L - 54 32 SA7291101 P1 - 1 40 SA7292101 P1 - 3 40 SA7293001 P1 - 7 40 SA7294001 R - 1 50 jintex.in 78

Page 84

brother. パーツブック PARTS BOOK ブラザー工業株式会社 http://www.brother.co.jp/ 〒467-8561 名古屋市瑞穂区苗代町 15 番 1 号 TEL: 0120-33-2392 BROTHER INDUSTRIES, LTD. http://www.brother.com/ 15-1, Naeshiro-cho, Mizuho-ku, Nagoya 467-8561, Japan. Phone : 81-52-824-2177 ©2006 Brother Industries, Ltd. All Rights Reserved. S-7200B SA7309-001.J/E 2006.04.B (1) jintex.in
