Parts index — Brother S-7300Atap a row to open its page

Page 2 — 型式板の見方

Brother S-7300A parts on page 2

Ref	Part number	Part name	Qty
	P	プレミア仕様
	3	中厚物用
	5	厚物用
		微量給油タイプ
	3	セミドライタイプ
	3	糸払い無し
	4	標準糸払い有り
	5	R糸払い有り

Page 3 — Description of model plate

Brother S-7300A parts on page 3

Ref	Part number	Part name	Qty
	S-7300A-	BROTHER INDUSTRIES, LTD.
	P	Premier specifications
	3	Medium-weight materials
	5	Heavy-weight materials
		Minimum lubrication type
	3	Semi dry type
	3	Without thread wiper
	4	With standard thread wiper
	5	With R thread wiper

Page 5 — CONTENTS

Brother S-7300A parts on page 5

Ref	Part number	Part name	Qty
	Sp2	Different parts list
	Sp3	Different parts list
	Ga1	Gauge parts list
	Ga2	Gauge parts list
	Ga3	Gauge parts list
	Ga4	Gauge parts list
	Ga5	Gauge parts list
	Ga6	Gauge parts list
	Ga7	Gauge parts list
	Ga8	Gauge parts list
	Wa	Warning labels
	Sp1	Different parts list (For Japan)

Page 6 — A. 主体関係 / Machine body

Brother S-7300A parts on page 6

Ref	Part number	Part name	Qty
1	1	MACHINE BODY
2	2	SHAFT
3	3	SCREW
4	4	CAP
5	5	CAP
6	6	CAP
7	7	SHAFT
8	8	SHAFT
9	9	SHAFT
10	10	SHAFT
11	11	SCREW
12	12	SHAFT
13	13	SCREW
14	14	CAP
15	15	MACHINE BODY
16	16	SHAFT
17	17	SHAFT

Page 7 — A. 主体関係 / Machine body

Brother S-7300A parts on page 7

Ref	Part number	Part name	Qty
	SB3440001	キャクチュウL	1
	SB4845001	キャクチュウR	3
	104450101	ゴムセン8	3
	SA5810001	ゴムセン23.5	1
	159150000	ゴムセン20.5	3
	150607000	ゴムセン32.8	1
	SB5043001	ゴムセン15.5	1
	SB5638001	トウブシキムR	1
	SB5044001	トウブシキムL	1
	SB5312001	カラー-4-5.3	3
	060401216	バインドM4X12	3
	SB3850001	ジョウギイタ	1
	062400616	ナベコ4X6	1
	S37060001	アースマーク	1
	SA9826001	ソウサチュウイラベル	1
	SA9957001	ワーニングマーク	2
	SA9957002	ワーニングマーク	1

Page 8 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7300A parts on page 8

Ref	Part number	Part name	Qty
	1	Needle bar and thread take-up mechanism
	2	Screw
	3	Screw
	4	Screw
	5	Shaft
	6	Screw
	7	Ring
	8	Screw
	9+	Thread take-up lever assembly
	10+	Thread take-up lever assembly
	11	Thread take-up lever
	12	Thread take-up lever
	13	Screw
	14	Screw
	15	Screw
	16	Washer
	17	Screw
	18	Screw
	19	Screw
	20	Shaft
	21	Screw
	22	Screw
	23+	Needle bar
	24+	Needle clamp screw
	25	Needle bar
	26+	Needle bar
	27	Needle bar
	28+	Needle
	29	Screw
	30	Screw
	31	Pulley
	32	Screw
	33	Screw
	34	Screw
	35	Gear
	36	Screw
	37+	Needle plate
	38	Screw
	39	Needle plate
	40	Screw
	41	Screw
	42	Shaft
	43	Washer
	44	Fan
	45	Screw
	46	Gear
	47	Screw
	48	Screw
	49	Shaft
	50	Housing
	51	Gear
	52	Screw
	53	Shaft
	54	Screw
	55	Shaft
	56	Screw
	57	Housing
	58	Screw
	59	Screw

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7300A parts on page 9

Ref	Part number	Part name	Qty
	SB5290101	ウワジククミ	1
	S23651001	アナヒラ6X6ホソメ	3
	S25235001	シメネジ8	1
	S25236001	アナヒラ6X10ホソメ	1
	SA1120001	イトマキクドウリン	1
	S23651001	アナヒラ6X6ホソメ	2
	048150142	トメワジクヨウC15	2
	110367001	ザガネ	1
	SB5248001	ハリボウレンカンソウクミ3	1
	SA7625001	ハリボウクランク	1
	S32958000	クミヒモ	1
	SB5252001	ハリボウレンカンソウクミ5	1
	SA7625001	ハリボウクランク	1
	S32958000	クミヒモ	1
	SB5252001	ハリボウレンカンソウクミ3D	1
	SA7625001	ハリボウクランク	1
	SA8061001	アナクボミ3X4シール	1
	SA2422001	シメネジ3.57L	1
	SB3776001	セットカラー	1
	012400436	アナヒラ4X4	2
	SA2161001	ザガネ	1
	048060342	トメワE6	1
	140004001	シメネジ3.57	1
	012060636	アナヒラ6X6	2
	SA7239101	ストッパーピン	1
	012500536	アナヒラ5X5	1
	102630001	ハリボウアンナイカクコマ	1
	*P.51-53	ハリボウ	1
	S04630000	ハリボウセン	1
	111863001	ハリボウセン	1
	SB5032001	ハリボウメタルU	1
	SA1138101	ハリボウメタルD	1
	SA1139101	ハリボウメタルD	1
	104833001	ゴムセン4.3	1
	*P.51-53	ミシンハリ	1
	140553102	アタマツキトメネジ3.18	1
	151594001	ハリボウイトアンナイ	1
	SB5318001	プーリークミ	1
	S23651001	アナヒラ6X6ホソメ	2
	SB5227001	ベアリングオサエ	1
	062500816	ナベコ5X8	1
	SB4849001	タイミングプーリーU	1
	S23651001	アナヒラ6X6ホソメ	2

Page 10 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7300A parts on page 10

Ref	Part number	Part name	Qty
1	1	NEEDLE BAR
2	2	SCREW
3	3	SCREW
4	4	WASHER
5	5	NEEDLE BAR BUSH
6	6	SCREW
7	7	THREAD TAKE-UP LEVER
8	8	SCREW
9+	9+	THREAD TAKE-UP LEVER SHAFT
10+	10+	THREAD TAKE-UP LEVER SHAFT
11	11	THREAD TAKE-UP LEVER SHAFT
12	12	SCREW
13	13	SCREW
14	14	SCREW
15	15	SCREW
16	16	WASHER
17	17	SCREW
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	SCREW
22	22	SCREW
23+	23+	NEEDLE BAR
24+	24+	NEEDLE BAR
25	25	NEEDLE BAR
26+	26+	NEEDLE BAR
27	27	NEEDLE BAR
28+	28+	NEEDLE BAR
29	29	SCREW
30	30	SCREW
31	31	HANDWHEEL
32	32	SCREW
33	33	SCREW
34	34	SCREW
35	35	GEAR
36	36	SCREW
37+	37+	NEEDLE PLATE
38	38	SCREW
39	39	NEEDLE PLATE
40	40	SCREW
41	41	SCREW
42	42	SHAFT
43	43	BEARING
44	44	FAN
45	45	SCREW
46	46	GEAR
47	47	SCREW
48	48	SCREW
49	49	GEAR
50	50	BELT COVER
51	51	GEAR
52	52	SCREW
53	53	BEARING
54	54	SCREW
55	55	SCREW
56	56	SCREW
57	57	SHAFT
58	58	SCREW
59	59	SCREW

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7300A parts on page 11

Ref	Part number	Part name	Qty
	*P.51-53	ハリイタ
	*P.51-53	NEEDLE PLATE
	*P.51-53	ハリイタ
	*P.51-53	NEEDLE PLATE
38	151267001	サラネジ4.37	2
39	180018151	スペリイタクミ	1
40	114561001	スペリイタウラバネ	1
41	SA9523001	シメネジ2.38	2
42	SB5316101	シタクジクミ	1
43	048120142	トメワジクヨウC12	1
44	SB4848001	シタクジクフアン	1
45	S23651001	アナヒラ6X6ホソメ	2
46	SB5291101	タイミングプーリDオオクミ	1
47	S23651001	アナヒラ6X6ホソメ	4
48	SA2378001	カンザ4.8	2
49	SB5037001	シタクジメタル	1
50	SA2252101	タイミングベルト	1
51	SA1166001	シタクジギアクミ	1
52	S23651001	アナヒラ6X6ホソメ	2
53	SB5628001	オイルシール12-30	1
54	SB5629001	オイルシール12-35	1
55	SB5317101	テンションプーリリクミ	1
56	SB4857001	テンションプーリカラー	1
57	SB4858001	ベルトチョウセツジク	1
58	SB5039001	アナボルト8X25	1
59	012500536	アナヒラ5X5	2

Page 12 — C. 押え関係 / Presser foot mechanism

Brother S-7300A parts on page 12

Ref	Part number	Part name	Qty
17	17	SCREW
29	29	WASHER
28	28	SPRING
32	32	SCREW
31	31	BRACKET
34	34	WASHER
35	35	SCREW
33	33	SPRING
21	21	PIN
20	20	SHAFT
19	19	SPRING
18	18	SCREW
36	36	PLATE
37	37	SCREW
30	30	BRACKET
24	24	WASHER
22	22	BRACKET
25	25	SPRING
23	23	SPRING
6	6	SCREW
10	10	GEAR
7	7	SPRING
8+	8+	SPRING
2	2	PRESSER FOOT
9	9	WASHER
3	3	PRESSER BAR
5	5	PRESSER BAR
4	4	SCREW
1+	1+	PRESSER FOOT
11+	11+	PRESSER FOOT
13	13	SCREW
14	14	WASHER
12	12	SPRING
15+	15+	PRESSER FOOT
46	46	SCREW
47	47	NUT
45	45	BRACKET
41	41	ROD
40	40	SCREW
39	39	WASHER
42	42	BRACKET
43	43	SCREW
44	44	WASHER
38	38	BRACKET
16	16	BRACKET
27	27	NUT
26	26	COLLAR

Page 13 — C. 押え関係 / Presser foot mechanism

Brother S-7300A parts on page 13

Ref	Part number	Part name	Qty
	SA9359001	オサエボウ	1
	SA1173101	オサエボウ	1
	SB5049001	オサエボウダキクミP	1
	SB5305001	オサエボウダキクミS	1
	SA8903001	シメネジ4X12	1
	SA7242001	オサエボウメタル	1
	104833001	ゴムセン 4.3	1
	SA7607101	オサエバネアンナイ	1
	S13561101	オサエバネ	1
	141728001	オサエバネ	1
	140407001	ザガネ	1
	SB5262001	オサエチョウセツネジクミ	1
	*P.51-52	オサエグミ	1
	SA8100101	フィンガーガード	1
	S13385001	シメネジ3.57X10	1
	025350132	ヒラザガネショウ3.5	1
	*P.53	オサエグミ	1
	S31006002	リフティングテコ	1
	S39051001	ナベザクミ35X12	1
	SB4864001	オサエアゲクランク	1
	081004070	OリングP4	1
	SB4865001	オサエアゲレバーシﾞック	1
	012500536	アナヒラ5X5	1
	SB4867101	イトウルメキリタ	1
	SB4873101	オサエアゲレバーバネA	1
	SB5229001	ザガネ7.3	2
	048050342	トメワE5	2
	SB4870001	イトウルメホジヨピン	1
	021060306	3シュナット6	1
	SB4870001	イトウルメホジヨピン	1
	021060306	3シュナット6	1
	SB4866001	オサエアゲレバー	1
	SB4872001	ヒザアゲレンカン	1
	SB5030001	ダンネジ M5	1
	018400532	アナルトメ4X5	1
	026040236	ヒラザガネミガキ4	1
	SB4869001	ヒラアゲタ	1
	SA1179001	ダンネジ5	1
	SB4871001	ヒザアゲレバー	1
	SB5030001	ダンネジ M5	1
	SB0705101	オサエアゲリンクダンネジ	1
	SB4874101	ヒザアゲボウ	1
	SB5030001	ダンネジ5	1
	SB5031001	チョウセツネジ6	1
	021060306	3シュナット6	1

Page 14 — C. 押え関係 / Presser foot mechanism

Brother S-7300A parts on page 14

Ref	Part number	Part name	Qty
17	17	Screw
29	29	Screw
28	28	Spring
32	32	Screw
31	31	Lever
39	39	Screw
40	40	Screw
42	42	Lever
43	43	Screw
44	44	Washer
38	38	Shaft
41	41	Rod
34	34	Screw
35	35	Washer
33	33	Spring
21	21	Screw
20	20	Pin
30	30	Lever
19	19	Spring
18	18	Screw
36	36	Plate
37	37	Screw
22	22	Lever
24	24	Screw
25	25	Spring
23	23	Shaft
6	6	Screw
10	10	Shaft
7	7	Spring
8+	8+	Presser bar
2	2	Presser foot
9	9	Washer
3	3	Presser bar holder
5	5	Presser bar
1+	1	Presser foot
11+	11+	Presser foot
4	4	Screw
13	13	Screw
14	14	Washer
12	12	Spring
15+	15+	Presser foot
46	46	Screw
47	47	Washer
45	45	Bracket
26	26	Screw
27	27	Nut
16	16	Lever

Page 15 — C. 押え関係 / Presser foot mechanism

Brother S-7300A parts on page 15

Ref	Part number	Part name	Qty
45	SB6564001	チョウセツネジセット	1
46	SB5674001	チョウセツネジ 6	1
47	021060306	3シュナット 6	1

Page 16 — D. 送り関係 / Feed mechanism

Brother S-7300A parts on page 16

Ref	Part number	Part name	Qty
1+	1+	BASE
2	2	SCREW
3	3	ARM
4	4	SHAFT
5	5	SPRING
6	6	PIN
7	7	WASHER
8+	8+	BRACKET
9	9	SHAFT
10	10	HOUSING
11	11	SCREW
12	12	COLLAR
13	13	COLLAR
14	14	PIN
15	15	SHAFT
16	16	SPRING
17	17	SCREW
18	18	WASHER
19	19	BRACKET
20	20	SCREW
21	21	SHAFT
22	22	RING
23	23	WASHER
24	24	ROLLER
25	25	ROLLER
26	26	ROLLER
27	27	SCREW
28	28	SHAFT
29	29	COLLAR
30	30	COLLAR
31	31	NUT
32	32	WASHER
33	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	COVER
37	37	SCREW
38	38	BRACKET
39	39	CLAMP
40	40	SCREW
41	41	MOTOR

Page 17 — D. 送り関係 / Feed mechanism

Brother S-7300A parts on page 17

Ref	Part number	Part name	Qty
	*P.51-53	FEED DOG	1
	*P.51-53	FEED DOG	1
	SB4900001	SCREW M3	2
	SB4879101	FEED BAR ASSY	1
	SB5315101	FEED LIFTING R-BAR SHAFT ASSY	1
	014300432	SET SCREW SOCKET (CP) M3X4	1
	SA1242001	SET SCREW 5X7	1
	SB4894001	WASHER PLAIN 4.2 T0.8	1
	SB5294201	LIFTING FEED ASSY 3	1
	SB5297201	LIFTING FEED ASSY 5	1
	SB4885101	LIFTING FEED CRANK	1
	SB4888101	LIFTING FEED ARM	1
	062501016	SCREW PAN M5X10	1
	060401016	SCREW BIND M4X10	1
	SB4901001	WASHER PLAIN 4.2 T1.5	1
	S23651001	SET SCREW SOCKET (FT) M6X6	2
	SB5314101	FEED BAR SHAFT ASSY	1
	014300432	SET SCREW SOCKET (CP) M3X4	1
	SA1242001	SET SCREW 5X7	1
	SB4894001	WASHER PLAIN 4.2 T0.8	1
	SB4887001	FEED ROCK BRACKET ARM	1
	SA7257001	SCREW 5X12	1
	SB4889001	FEED ROCK SHAFT	1
	048080142	RETAINING RING EXTERNAL C8	1
	SB4893101	WASHER PLAIN 8	1
	SB4882001	FEED SHAFT BUSH L	1
	SB4883001	FEED SHAFT BUSH M	1
	SB4884001	FEED SHAFT BUSH R	1
	012500536	SET SCREW SOCKET (FT) M5X5	3
	SB5300201	FEED ROCK LINK UNIT	1
	012500536	SET SCREW SOCKET (FT) M5X5	2
	S23651001	SET SCREW SOCKET (FT) M6X6	2
	021350106	NUT 1 M3.5	2
	SB4893101	WASHER PLAIN 8	1
	SB6430101	P MOTOR ASSY	1
	018401436	BOLT SOCKET M4X14	4
	018501436	BOLT SOCKET M5X14	4
	SB4892201	PM COVER	1
	0A5401006	SCREW PAN (S/P WASHER) M4X10	3
	228475000	FASTENING BAND 1.9X80	1
	149287000	CORD HOLDER 7N	2
	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
	SA4224001	MARK ATTENTION 30X40	1

Page 18 — E. 膝上げ関係 / Knee lifter mechanism

Brother S-7300A parts on page 18

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	SCREW
4	4	SCREW
5	5	LEVER
6	6	WASHER
7	7	BRACKET
8	8	BRACKET
9	9	SCREW
10	10	COVER

Page 19 — E. 膝上げ関係 / Knee lifter mechanism

Brother S-7300A parts on page 19

Ref	Part number	Part name	Qty
1	SB3854001	ヒザアテクミ KNEE LIFTER ASSY	1
2	SB1603001	ヒザアテツギテ KNEE LIFTER BRACKET	1
3	SB1604001	ボルト6X15 BOLT 6X15	1
4	SB1605001	ボルト6X24 BOLT 6X24	1
5	SB3400001	ヒザアゲテジク KNEE LIFTER BAR	1
6	SB1607001	ヒザアテ KNEE LIFTER PLATE	1
7	SB1608001	ヒザアテササエ KNEE LIFTER SUPPORT	1
8	SB1609001	ヒザアテストツパ KNEE LIFTER PLATE STOPPER	1
9	SB1610001	ボルト6X12 BOLT 6X12	1
10	SB1611001	ヒザアテカバー KNEE LIFTER PLATE COVER	1

Page 20 — F. かま関係 / Rotary hook mechanism

Brother S-7300A parts on page 20

Ref	Part number	Part name	Qty
	1	SHAFT
	2	WASHER
	3	SCREW
	4	SHAFT
	5	O-RING
	6	O-RING
	7	SHAFT
	8	SCREW
	9	BEARING
	10	BEARING
	11	BEARING
	12	SHAFT
	13	SCREW
	14	BEARING
	15+	SHAFT
	16	SCREW
	17+	ROTARY HOOK
	18	ROTARY HOOK
	19	HOOK DRIVING MECHANISM
	20	SCREW
	21	SPRING
	22	SPRING
	23	BOBBIN CASE HOLDER
	24	BOBBIN CASE

Page 21 — F. かま関係 / Rotary hook mechanism

Brother S-7300A parts on page 21

Ref	Part number	Part name	Qty
	SB4903001	カマジク
	SB5269001	オイルアナフタネシクミ
	081004870	OリングS4
	SB5270001	ポンプメタルクミ
	081025870	OリングS25
	081029870	OリングS29
	SB5272001	ベアリングブツシュクミ
	S23651001	アナヒラ6X6ホソメ
	SA9684001	オイルシール
	SB4904101	カマジクギヤメタル
	012060636	アナヒラ6X6
	SA1286001	カマジクギヤアクミ
	S23651001	アナヒラ6X6ホソメ
	SB5275101	ゴムセン23.5クミ
	SB5041001	ウチカマトメ3
	SB5042001	ウチカマトメ5
	SA8903001	シメネジ4X12
	SB1305001	SB3338 カマハコウミ
	SB568001	SB5274 カマハコウミ
	SB1677001	SB1678 カマハコウミ
	S03245001	ボビンケースクミ
	183388001	チヨウシバネチヨウセツネジ
	183389001	チヨウシバネチヨウセツネジ
	183390001	チヨウシバネトメネジ
	S03246001	クウテンボウシバネ
	146290001	ボビン
	117132001	ボビン

Page 22 — G. Lubrication

Brother S-7300A parts on page 22

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	CLAMP
4	4	WASHER
5	5	BRACKET
6	6	SCREW
7	7	BRACKET
8	8	SCREW
9	9	PLATE
10	10	CLIP
11	11	TUBE
12	12	SCREW
13	13	JOINT
14	14	JOINT
15	15	JOINT
16	16	BRACKET
17	17	JOINT
18	18	WASHER
19	19	TUBE
20	20	SCREW
21	21	BRACKET
22	22	SCREW
23	23	WASHER
24	24	SCREW
25	25	BRACKET
26	26	WASHER
27	27	SCREW
28	28	BRACKET
29	29	WASHER
30	30	BRACKET
31	31	JOINT
32	32	WASHER
33	33	SCREW
34	34	WASHER
35	35	JOINT
36	36	GASKET
37	37	SCREW
38	38	BRACKET
39	39	SCREW
40	40	JOINT

Page 23 — G. 給油潤滑関係 / Lubrication

Brother S-7300A parts on page 23

Ref	Part number	Part name	Qty
1	SB5276101	オイルタンククソウクミ	1
2	SB5281001	ビニールチューブクミ	1
3	SB4911001	チューブホルダU	1
4	062501216	ナベコ5X12	1
5	SB5002001	チューブフックU	1
6	062400816	ナベコ4X8	1
7	SB5287001	トウシンホルダークミ	1
8	062500816	ナベコ5X8	1
9	SB5036001	ハリボウフェルト	1
10	145737021	フェルトオサエ	1
11	SB5639101	オイルタンククソウクミD	1
12	S25382001	オイルクチ	1
13	SA8989001	オイルクチ	1
14	SA8987001	フィルタ	1
15	081006670	OリングPW6	1
16	104821001	ゴムセン10.5	1
17	SA1303101	シメネジ8	1
18	081008070	OリングP8	1
19	SB5280001	ビニールチューブ (350)	2
20	0A4501206	+ナベザクミ5X12DA	2
21	SB5284201	キュウクチクミ	1
22	S25382001	オイルクチ	2
23	081004870	OリングS4	1
24	140327001	ゴムセン6.3	2
25	SA7636201	ポンプフタネジクミ	1
26	S25380601	ポンプフタネジ	1
27	S52764001	スプリングジヤネ	1
28	144875001	プランジャー	1
29	SB4915001	ゴムセン	1
30	SB5353201	ベッドソフタクミ	1
31	SA1303101	シメネジ8	2
32	081008070	OリングP8	2
33	062400816	ナベコ4X8	1
34	025040332	ヒラガナダイ4	1
35	SB5675001	ゴムセン8	1
36	SB5280001	ソフタクツキン	1
37	062501216	ナベコ5X12	6
38	SB5004001	オイルタンクガード	1
39	062501216	ナベコ5X12	1
40	SB4916001	オイルチョウセツネジ	1

Page 24 — H. 糸通し関係 / Threading mechanism

Brother S-7300A parts on page 24

Ref	Part number	Part name	Qty
1	1	PREMIER SPECIFICATION
2	2	SPRING
3	3	SPACER
4	4	WASHER
5	5	SPRING
6	6	WASHER
7	7	PREMIER SPECIFICATION
8	8	SPRING
9	9	WASHER
10	10	SPRING
11	11	SPRING
12	12	PIN
13	13	PIN
14+	14+	PREMIER SPECIFICATION
15+	15+	PREMIER SPECIFICATION
16	16	SPRING
17	17	SCREW
18	18	SPACER
19	19	WASHER
20	20	SPRING
21	21	DIAL
22	22	SPRING
23	23	PIN
24	24	SPRING
25	25	SCREW
26	26	SPRING
27	27	PREMIER SPECIFICATION
28	28	SHAFT
29	29	SHAFT
30	30	WASHER
31	31	SCREW
32	32	TUBE
33	33	BRACKET
34	34	SPRING
35	35	COVER
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
39+	39+	PREMIER SPECIFICATION
40	40	SPRING
41	41	SCREW
42	42	SCREW

Page 25 — H. 糸通し関係 / Threading mechanism

Brother S-7300A parts on page 25

Ref	Part number	Part name	Qty
	SB5265201	プレテンションクミP	1
	SB4933001	イトアンナイバネA	1
	145446001	イトチョウシサラ	2
	159805001	イトチョウシサラオサエ	1
	100136001	イトチョウシナット	1
	SA4146101	フクチョウシバネ	1
	SB5313201	プレテンションクミS	1
	145446001	イトチョウシサラ	2
	100136001	イトチョウシナット	1
	SA4146101	フクチョウシバネ	1
	012500536	アナヒラ5X5	1
	SB4928001	イトユルメピンA	1
	SB4929001	イトユルメボウA	1
	SB6683001	イトチョウシボウダイクミ3	1
	SB6681001	イトチョウシバネ3	1
	SB6684001	イトチョウシボウダイクミ5	1
	SB6686001	イトチョウシバネ5	1
	100402004	トメネジ3.57	2
	SB6680001	イトチョウシボウL	1
	145446001	イトチョウシサラ	2
	159805001	イトチョウシサラオサエ	1
	S12441001	チョウシバネウエザガネ	1
	S31032002	イトチョウシナット	1
	S02620401	イトトリバネ	1
	SB4922101	イトトリバネストッパ	1
	SB4923001	ストッパヨウバネ	1
	SA1229101	アナトメネジ6トガリ	1
	S01419000	イトユルメピン	1
	SB5627001	イトユルメボウクミ	1
	SB4925001	イトユルメボウ	1
	SB3595101	イトタテボウ	1
	SA1345001	アームイトアンナイR	1
	060500616	バインド5X6	1
	SB4934001	アームイトカケ	1
	012500536	アナヒラ5X5	1
	SA7272201	ハリホウメタルDイトアンナイ	1
	SA9854001	テンビンカバー	1
	062500816	ナベコ5X8	1
	SB5630101	メンイタグミ	1
	SA7849001	ゴムセン	2
	SB4932001	メンイタグムセンP	1
	SB5236001	メンイタグムセンS	1

Page 26 — H. 糸通し関係 / Threading mechanism

Brother S-7300A parts on page 26

Ref	Part number	Part name	Qty
1	1	PREMIER SPEC.
2	2	SPRING
3	3	WASHER
4	4	WASHER
5	5	SPRING
6	6	SPRING
7	7	SHAFT
8	8	SHAFT
9	9	SPRING
10	10	SPRING
11	11	SPRING
12	12	PIN
13	13	PIN
14+	14+	PREMIER SPEC.
15+	15+	PREMIER SPEC.
16	16	SPRING
17	17	SCREW
18	18	PULLEY
19	19	WASHER
20	20	SPRING
21	21	DIAL
22	22	SPRING
23	23	SPRING
24	24	SPRING
25	25	SPRING
26	26	SPRING
27	27	SPRING
28	28	SHAFT
29	29	SHAFT
30	30	SPRING
31	31	SPRING
32	32	PIPE
33	33	SPRING
34	34	SPRING
35	35	SPRING
36	36	SPRING
37	37	SPRING
38	38	SPRING
39+	39+	PREMIER SPEC.
40	40	SPRING
41	41	SPRING
42	42	SPRING

Page 27 — H. 糸通し関係 / Threading mechanism

Brother S-7300A parts on page 27

Ref	Part number	Part name	Qty
40	SA7271001	メンイタイトアンナイ FACE PLATE THREAD GUIDE	1
41	060300606	バインド3X6 SCREW BIND M3X6	1
42	0A4401606	ナベザクラミ4X16DA SCREW PAN (S/P WASHER) M4X16	4

Page 28 — J. 糸巻関係 / Bobbin winder mechanism

Brother S-7300A parts on page 28

Ref	Part number	Part name	Qty
	1	Bobbin winder mechanism
	2	Clip
	3	Bobbin winder shaft support
	4	Bobbin winder spindle
	5	Base plate
	6	Bobbin winder pulley
	7	Bobbin winder pulley cover
	8	Screw
	9	Washer
	10	Screw
	11	Shaft
	12	Washer
	13	Screw
	14	Lever
	15	Lever
	16	Washer
	17	Spring
	18	Spring
	19	Pin
	20	Screw
	21	Lever
	22	Screw
	23	Bobbin winder assembly
	24	Washer
	25	Nut
	26	Screw
	27	Screw
	28	Spring
	29	Cap

Page 29 — J. 糸巻関係 / Bobbin winder mechanism

Brother S-7300A parts on page 29

Ref	Part number	Part name	Qty
	SB5652101	ウワフタオオクミ	1
	048050342	トメワE5	1
	SB5009001	イトマキジクウケケミ	1
	SB5010001	イトマキジクジクミ	1
	SB5400001	ストツパゴム	1
	SB4936001	イトマキクルマ	1
	SB4940001	ゴムリング	1
	012400432	アナヒラ4X4	2
	SB5440001	ボビンオサエカム	1
	012500536	アナヒラ5X5	1
	SB3545101	イトマキウデジク	1
	SB3548001	ザガネ	1
	062400816	ナベコ4X8	1
	SB5014001	ボビンサエ	1
	SB3551001	イトマキレバー	1
	025060232	ヒラサガネチユウ6	1
	SB3552001	モドシバネ	1
	SB3553001	イトマキレバーバネ	1
	037300616	Vナベタツピン3X6	1
	081004070	OリングP4	1
	SA1360101	メス	1
	060501016	バインド5X10	1
	SB5008001	イトマキチヨウシクミ	1
	145446002	イトチヨウシサラ	2
	SB5013001	ナツト4.37	1
	060501016	バインド5X10	5
	062061616	ナベコ6X16	1
	SB5011001	イトチヨウシバネ	1
	SB5012001	イトチヨウシナツト	1

Page 30 — K. 糸切り関係 / Thread trimmer mechanism

Brother S-7300A parts on page 30

Ref	Part number	Part name	Qty
50	50	BOLT
51	51	WASHER
52	52	SPRING WASHER
53	53	THREAD TRIMMER LEVER
54	54	PLATE
55	55	SCREW
56	56	BRACKET
57	57	SPRING
58	58	COLLAR
59	59	WASHER
60	60	NUT
61	61	SCREW
62	62	SHAFT
63	63	SCREW
64	64	BLOCK
65	65	COLLAR
66	66	BOLT
67	67	WASHER
46	46	THREAD TRIMMER UNIT
47	47	SCREW
48	48	SPRING WASHER
49	49	SPRING WASHER
44	44	SHAFT
45	45	BRACKET
43	43	SPRING
42	42	PIN
41	41	SPRING
40	40	COLLAR
39	39	WASHER
38	38	SHAFT
37	37	SPRING
36	36	NUT
35	35	BRACKET
34	34	SPRING WASHER
33	33	COLLAR
32	32	SHAFT
20+	20+	SPRING
19+	19+	NUT
17+	17+	WASHER
15+	15+	WASHER
18+	18+	WASHER
16+	16+	SCREW
26	26	HOUSING
25	25	BRACKET
24	24	BRACKET
23	23	SCREW
22	22	PIN
33	33	COLLAR
34	34	SPRING WASHER
32	32	SHAFT
35	35	BRACKET
36	36	NUT
37	37	SPRING
38	38	SHAFT
39	39	WASHER
40	40	COLLAR
41	41	SPRING
42	42	PIN
43	43	SPRING
44	44	SHAFT
45	45	BRACKET
46	46	THREAD TRIMMER UNIT
47	47	SCREW
48	48	SPRING WASHER
49	49	SPRING WASHER
50	50	BOLT
51	51	WASHER
52	52	SPRING WASHER
53	53	THREAD TRIMMER LEVER
54	54	PLATE
55	55	SCREW
56	56	BRACKET
57	57	SPRING
58	58	COLLAR
59	59	WASHER
60	60	NUT
61	61	SCREW
62	62	SHAFT
63	63	SCREW
64	64	BLOCK
65	65	COLLAR
66	66	BOLT
67	67	WASHER
1	1	BRACKET
2	2	WASHER
3	3	SCREW
4	4	LEVER
5	5	SPRING
6	6	PIN
7	7	SPRING
8	8	SPRING
9	9	BRACKET
10	10	NUT
11	11	BRACKET
12	12	PIN
13	13	COLLAR
14	14	COLLAR
16+	16+	SCREW
17+	17+	WASHER
18+	18+	WASHER
19+	19+	NUT
20+	20+	SPRING
27	27	BRACKET
28	28	COLLAR
29	29	SCREW
30	30	PLATE
31	31	SCREW

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

Brother S-7300A parts on page 31

Ref	Part number	Part name	Qty
	SB4954101	イトサバキ	1
	026040236	ヒラザガネミガキ4	1
	062400616	ナベコ4X6	1
	SB4941001	ウワメス	1
	SB4943001	シメネジ4.37	1
	148537101	サラネジ4.37	1
	SB4950201	ウワメスホルダ	1
	SB4949101	ウワメスレンカン	1
	SB4948101	ウワメスレバー	1
	018501036	アナボルト5X10	1
	SB4942101	シタメス	1
	148537101	サラネジ4.37	2
	SB4952101	シタメスホルダ	1
	SB4969001	スペーサ	1
	SB4951201	シタメスレンカン	1
	060401016	バインド4X10	4
	SA5329001	カラー	4
	100645003	ザガネ	4
	021400306	3シュナット4	3
	SB4957001	フタマタジクモドシバネP	1
	SB4944001	イトリカリムB	1
	148537101	サラネジ4.37	2
	102843004	サラネジ3.57	1
	SB4946201	イドウハレンカン	1
	060401016	バインド4X10	2
	SA5329001	カラー	2
	100645003	ザガネ	2
	021400306	3シュナット4	2
	SB5026001	フタマタジクモドシバネS	1
	SA7552201	イトリカリム	1
	SB2433001	コテイハ	1
	SB2434001	イドウハ	1
	SB4947101	イドウハホルダ	1
	SB5631101	イトキリレバークミ	1
	SA7285101	レバー ストッパ	1
	018501436	アナボルトM5X14	1
	SA7287001	イトキリホルダオサエイヤ	1
	004301016	サラコ3X10	3
	SB4955001	フタマタジク	1
	SB4956101	フタマタジクメタル	1
	SB4968001	トメワE12	1
	SB5301001	イトキリレバーソンウクミ	1
	105234003	ナット4.37	1
	S23651001	アナヒラ6X6ホソメ	1
	SB4960001	カムレバージク	1
	S25434000	クツションゴム	2
	SB4962001	カラー	1
	SB4961001	カムレバーモドシバネ	1
	154567000	カンザ5.3	2
	014771032	アナボミ635-40X10	2
	SB5310101	イトキリソレノイドクミ	1
	SB4964001	イトキリソレノイドダイ	1
	SB5257001	イトキリソレノイド	1
	062400816	ナベコ4X8	4
	140647121	コードオサエ	1
	062400816	ナベコ4X8	1
	SA9716001	レンケツピン	1

Page 32 — K. 糸切り関係 / Thread trimmer mechanism

Brother S-7300A parts on page 32

Ref	Part number	Part name	Qty
50	50	SCREW
53	53	BRACKET
60	60	SCREW
56	56	BRACKET
59	59	WASHER
58	58	COLLAR
55	55	SCREW
54	54	SPRING
51	51	WASHER
52	52	WASHER
57	57	SPRING
46	46	HOUSING
45	45	BRACKET
47	47	SCREW
48	48	SPRING
49	49	SPRING
44	44	SHAFT
61	61	SPRING
62	62	SPRING
64	64	BRACKET
65	65	COLLAR
67	67	WASHER
66	66	SCREW
63	63	SCREW
43	43	SPRING
42	42	SPRING
21+	21+	SPRING
41	41	SPRING
40	40	COLLAR
39	39	WASHER
32	32	SHAFT
35	35	BRACKET
36	36	SCREW
37	37	SPRING
38	38	SHAFT
33	33	COLLAR
34	34	SPRING
20+	20+	SPRING
19+	19+	NUT
17+	17+	WASHER
15+	15+	WASHER
26	26	HOUSING
23	23	SCREW
24	24	BRACKET
22	22	SPRING
25	25	BRACKET
16+	16+	SCREW
18+	18+	WASHER
17+	17+	WASHER
18+	18+	WASHER
17+	17+	WASHER
16+	16+	SCREW
18+	18+	WASHER
17+	17+	WASHER
13	13	BRACKET
14	14	SPRING
16+	16+	SCREW
18+	18+	WASHER
17+	17+	WASHER
19+	19+	NUT
10	10	SCREW
9	9	BRACKET
16+	16+	SCREW
18+	18+	WASHER
17+	17+	WASHER
19+	19+	NUT
7	7	SPRING
19+	19+	NUT
17+	17+	WASHER
16+	16+	SCREW
18+	18+	WASHER
17+	17+	WASHER
19+	19+	NUT
5	5	SPRING
6	6	SPRING
16+	16+	SCREW
18+	18+	WASHER
17+	17+	WASHER
19+	19+	NUT
27	27	BRACKET
19+	19+	NUT
28	28	COLLAR
29	29	SCREW
1	1	BRACKET
2	2	WASHER
3	3	SCREW
31	31	SCREW
30	30	PLATE
11	11	BRACKET
12	12	SPRING

Page 33 — K. 糸切り関係 / Thread trimmer mechanism

Brother S-7300A parts on page 33

Ref	Part number	Part name	Qty
	026050136	ヒラザガネコガタ5	1
	048050142	トメワジクヨウC5	1
	SB4963001	ソレノイドレバー	1
	SB4965001	ソレノイドストツパイタ	1
	018400636	アナボルト4X6	1
	SB4967101	ソレノイドレバーダイ	1
	018062536	アナボルト6X25	1
	SB5650001	カラー	1
	SA9827001	ザガネ	2
	021060306	3シュナツト6	1
	062501216	ナベコ5X12	1
	SB5673001	チューブホルダワイヤD	1
	062501016	ナベコ5X10	4
	SB4966001	ソレノイドストツパゴム	1
	SB4953001	カラー	1
	018062036	アナボルト6X20	1
	025060332	ヒラザガネダイ6	1

Page 34 — L. 糸緩め関係 / Tension release mechanism

Brother S-7300A parts on page 34

Ref	Part number	Part name	Qty
7	7	7
6	6	6
4	4	4
5	5	5
1	1	1
2	2	2
3	3	3
8	8	8

Page 35 — L. 糸緩め関係 / Tension release mechanism

Brother S-7300A parts on page 35

Ref	Part number	Part name	Qty
1	SB4970001	イトユルメワイヤー	1
2	SB4971001	ワイヤホルダD	1
3	062400816	ナナベコ4X8	1
4	SB4972001	ワイヤホルダU	1
5	062401216	ナナベコ4X12	1
6	SA1388101	コードオサエ	1
7	018500836	アナボルト5X8	1
8	110161004	ナット4.76	2

Page 36 — M1. 糸払い関係 (-4[[]]用) / Thread wiper mechanism (For -4[[]])

Brother S-7300A parts on page 36

Ref	Part number	Part name	Qty
	27	27
	23	23
	22	22
	28	28
	25	25
	26	26
	3	3
	9	9
	7	7
	12	12
	8	8
	11	11
	2	2
	24	24
	4	4
	5	5
	6	6
	10	10
	16	16
	15	15
	13	13
	17	17
	19	19
	14	14
	18	18
	20	20
	21	21

Page 37 — M1. 糸払い関係 (-4□□用) / Thread wiper mechanism (For -4□□)

Brother S-7300A parts on page 37

Ref	Part number	Part name	Qty
	SB4846101	イトハラウチクミ	1
	SB5237101	イトハライドイ	1
	SB5258001	イトハラソレノイド	1
	062300616	ナベコ3X6	2
	026030136	ヒラザガネコガタ3	2
	SB4155001	バンド	1
	SA9771001	イトハライバネ	1
	SA1205001	ヒラザガネ	1
	S25456001	プランジャピン	2
	SB5238001	イトハライロッド	1
	S41207000	スペーサゴム	1
	S25456001	プランジャピン	1
	SB5239001	イトハライクランククミ	1
	SA9352001	ワイパーバネ	1
	110735022	ザガネ	1
	048030342	トメワE3	1
	048040342	トメワE4	1
	SA8085001	ザガネ	1
	SA9779001	イトハライ	1
	146288021	イトハライジクカラー	1
	060400516	バインド4X5	1
	SB5242001	ソレノイドカバー	1
	060400516	バインド4X5	1
	062500816	ナベコ5X8	3
	SA2689101	コードオサエ	1
	SB5306001	コードオサエU	1
	062500816	ナベコ5X8	3
	SB5028001	コードオサエ	1

Page 38 — M2. 糸払い関係 (-5[]用) / Thread wiper mechanism (For -5[])

Brother S-7300A parts on page 38

Ref	Part number	Part name	Qty
44	44	44
43	43	43
1	1	1
4	4	4
10	10	10
11	11	11
8	8	8
9	9	9
41	41	41
39	39	39
38	38	38
40	40	40
37	37	37
12	12	12
15	15	15
14	14	14
3	3	3
2	2	2
13	13	13
6	6	6
5	5	5
7	7	7
19	19	19
18	18	18
16	16	16
17	17	17
35	35	35
42	42	42
32	32	32
31	31	31
21	21	21
23	23	23
26	26	26
27	27	27
28	28	28
30	30	30
29	29	29
24	24	24
36	36	36
22	22	22
25	25	25
33	33	33

Page 39 — M2. 糸払い関係 (-5D用) / Thread wiper mechanism (For -5D)

Brother S-7300A parts on page 39

Ref	Part number	Part name	Qty
	SB6618101	Rイトハライセット	1
	025060132	ヒラザガネショウ6	1
	048040342	トメワE4	1
	SB6513101	イトハライソレノイド	1
	062300616	ナベコ3X6	2
	026030136	ヒラザガネコガタ3	2
	SB4155001	バンド	1
	SB6504001	イトハライバネ	1
	S41205001	ヒラザガネ	1
	S25456001	プランジャピン	2
	S25456001	プランジャピン	1
	SB3858001	イトハライリンク	1
	SB6318001	イトハライレバーAクミ	1
	110735022	ザガネ	2
	048030342	トメワE3	2
	SB6510001	イトハライリンクL	1
	SB6325001	イトハライレバーBクミ	1
	110735022	ザガネ	1
	048030342	トメワE3	1
	SB6516001	イトハライクランククミ	1
	SB6329001	イトハライジクウケ	1
	014680632	アナクボミ437-40X6	2
	SB6330201	イトハライジク	1
	SB6512001	イトハライマネジ	1
	014300432	アナクボミ3X4	1
	SA085001	ザガネ	1
	146288021	イトハライジクカラー	1
	060400516	バインド4X5	1
	SB6511001	イトハライバネ	1
	SB6514101	イトハライ	1
	SB6884001	レバー ストツパ	1
	SB6886001	レバー ストツパゴム	1
	SB6324001	セツトカラー	1
	014680632	アナクボミ437-40X6	2
	SB6323001	ザガネ	1
	SB6328001	イトハライレバーシジク	1
	060501016	バインド5X10	2
	SA2689101	コードオサエ	1
	SB5028001	コードオサエ	1
	SB5306001	コードオサエU	1
	062500816	ナベコ5X8	3
	060400816	バインド4X8	2
	060400516	バインド4X5	1
	SB5242001	ソレノイドカバー	1

Page 40 — N1.コントロールボックス関係 / Control box

Brother S-7300A parts on page 40

Ref	Part number	Part name	Qty
	40	Control box
	41	Control box
	42	Control box
	43	Control box
	44	Control box
	45	Control box
	46	Control box
	47	Control box
	48	Control box
	49	Control box
	50	Control box
	51	Control box
	52	Control box
	6	Control box
	5	Control box
	10	Control box
	11	Control box
	8	Control box
	12	Control box
	7	Control box
	36	Control box
	37	Control box
	39	Control box
	4	Control box
	14	Control box
	13	Control box
	2+	Control box
	35	Control box
	21	Control box
	20	Control box
	19	Control box
	18	Control box
	17	Control box
	15	Control box
	16	Control box
	34	Control box
	24	Control box
	25	Control box
	18	Control box
	28	Control box
	29	Control box
	3+	Control box
	26	Control box
	23	Control box
	22	Control box
	30	Control box
	33	Control box
	31	Control box
	32	Control box
	38	Control box

Page 41 — N1. コントロールボックス関係 / Control box

Brother S-7300A parts on page 41

Ref	Part number	Part name	Qty
	SB6454001	BOXクミ J/A ホキュウ
	SB3817401	フミコミユニット-EX
	SB6457001	メインキバンクセミホキュウ
	SB6453001	BOXクミ CN ホキュウ
	SB3816101	フミコミユニット-CN
	SB6457001	メインキバンクセミホキュウ
	SB6455001	BOXクミ US ホキュウ
	SB4587301	フミコミユニット-US
	SB6457001	メインキバンクセミホキュウ
	SB6456001	BOXクミ CE ホキュウ
	SB4587301	フミコミユニット-US
	SB6458001	メインキバンクセミ CE ホキュウ
4	SB4973101	ボトムカバー
5	SB4976001	ヒザアゲヨコジクR
6	149578020	ヨコジクブッシュ	2
7	146293001	トメワE10
8	SB4978001	ヒザアゲR
9	SB5034001	ボルト5.95X13
10	SB3587001	トメネジ5.95
11	100022004	ナット5.95
12	SB4979001	ヒザアゲバネ
13	SB4980001	ヒザアゲF
14	SB3586001	ボルト5.95
15	SB4981101	ヒザアゲレンケツカン
16	SA1179001	ダンネジ5	2
17	SB4982101	ヒザアゲレバー-D
18	012060636	アナヒラ6X6	2
19	SB4977101	ヒザアゲヨコジクL
20	149578020	ヨコジクブッシュ	2
21	146293001	トメワE10
22	0A4401006	+ナベザクミ4X10DA	7
23	0A4402006	+ナベザクミ4X20DA	3
24	SB4975001	コネクタトリツケイタ
25	0A4401006	+ナベザクミ4X10DA	2
26	SB3665001	セメントR40/220
27	0A4401006	+ナベザクミ4X10DA	2
28	SB3837001	ワイヤーグリップ
29	0A4401006	+ナベザクミ4X10DA	4
30	J04164001	オメガロックOLS-80
31	SB6594001	BOXカバー
32	SB3872001	BOXカバーピン	2
33	SB4155001	バンド	4
34	SB5035201	コネクタキャップ
35	0A4401006	+ナベザクミ4X10DA	2
36	S37060001	アースマーク
37	0A4401006	+ナベザクミ4X10DA	2
38	SA9725001	ラベルカンデン6カコク
39	SA9957002	ワーニングマーク
	SB6402001	CEフィルター フクロクミ
	SA9564001	CEフィルターケース
	SB6391001	CEフィルターキバンクセミ
43	200190001	ステップル 10X20	5
44	032461606	+2マルモク45X16	4
45	S52164000	コアNFC-28	2
46	0A5401006	+ナベザクミ4X10DB	2

Page 42 — N1.コントロールボックス関係 / Control box

Brother S-7300A parts on page 42

Ref	Part number	Part name	Qty
	40	CONTROL BOX
	41	CONTROL BOX
	42	CONNECTOR
	43	TERMINAL
	44	SCREW
	45	BRACKET
	46	SCREW
	47	WASHER
	48	NUT
	49	COVER
	50	COVER
	51	COVER
	52	COVER
	4	BRACKET
	5	SHAFT
	6	COLLAR
	7	SPRING
	8	SPRING
	9	LEVER
	10	SWITCH
	11	SWITCH
	12	SPRING
	13	BRACKET
	14	BRACKET
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	SCREW
	19	SHAFT
	20	COLLAR
	21	COLLAR
	22	BASE
	23	SCREW
	24	COVER
	25	SCREW
	26	BRACKET
	27	SCREW
	28	BRACKET
	29	BRACKET
	30	SPRING
	31	COVER
	32	SCREW
	33	BRACKET
	34	BRACKET
	35	SCREW
	36	SCREW
	37	NUT
	38	COVER
	39	BRACKET

Page 43 — N1. コントロールボックス関係 / Control box

Brother S-7300A parts on page 43

Ref	Part number	Part name	Qty
47	SB3848001	WASHER_PLAIN_M_4	2
48	021400106	NUT 1 M4	2
49	S52162000	CORE, NF-65	1
50	S52163000	CORE, NF-130	4
51	SB4803001	CORE:K3NFR-10BK2	2
52	J02729001	EMC CORE E2130MRC	1

Page 44 — N2. コントロールボックス関係 / Control box

Brother S-7300A parts on page 44

Ref	Part number	Part name	Qty
7	7	Control box
9	9	Screw
8	8	Washer
3	3	Transformer
5	5	Control box
6	6	Warning label
4	4	Transformer

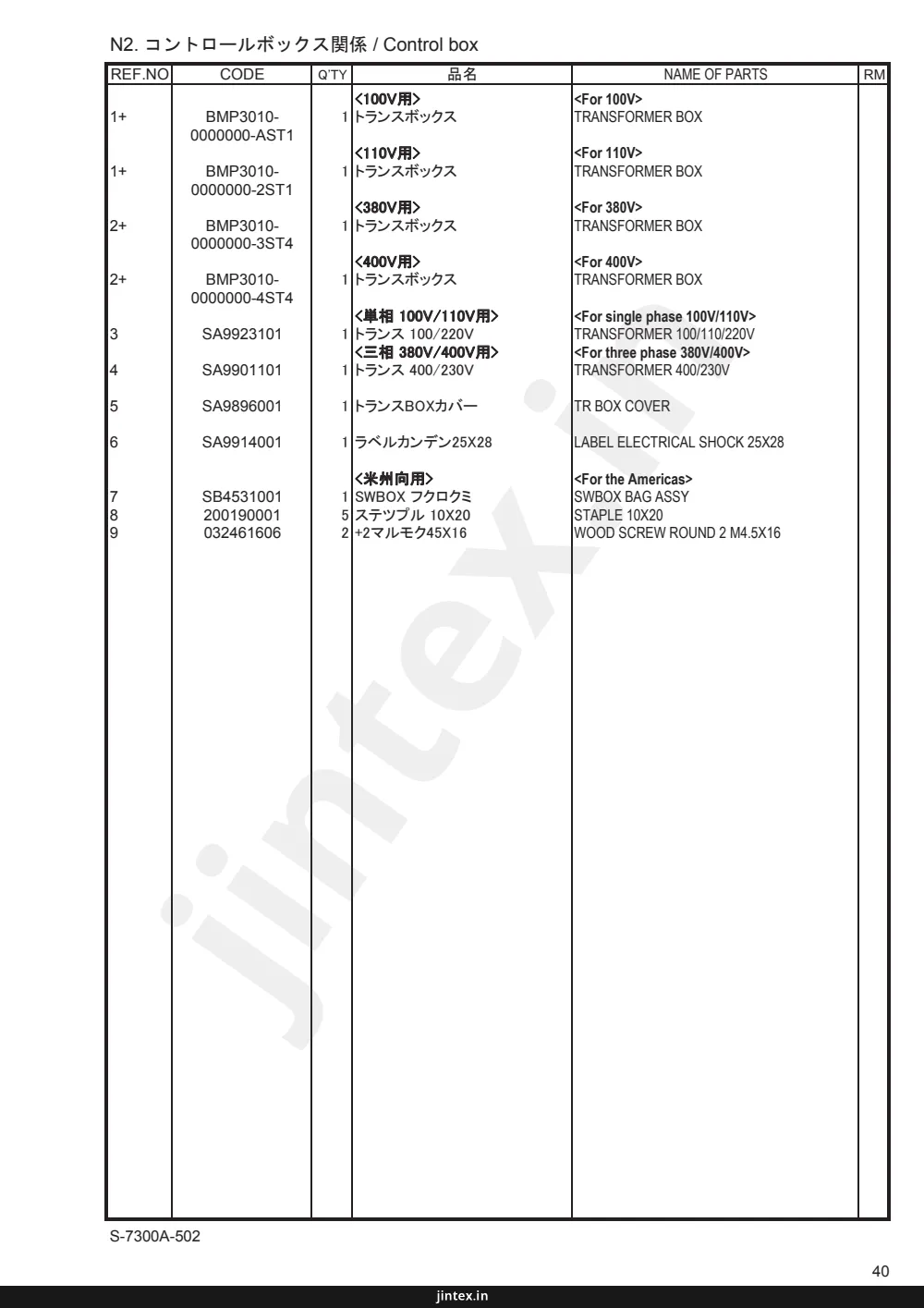

Page 45 — N2. コントロールボックス関係 / Control box

Brother S-7300A parts on page 45

Ref	Part number	Part name	Qty
	BMP3010-0000000-AST1	<100V用> トランスボックス <For 100V> TRANSFORMER BOX	1
	BMP3010-0000000-2ST1	<110V用> トランスボックス <For 110V> TRANSFORMER BOX	1
	BMP3010-0000000-3ST4	<380V用> トランスボックス <For 380V> TRANSFORMER BOX	1
	BMP3010-0000000-4ST4	<400V用> トランスボックス <For 400V> TRANSFORMER BOX	1
	SA9923101	<単相 100V/110V用> トランス 100/220V <For single phase 100V/110V> TRANSFORMER 100V/220V	1
	SA9901101	<三相 380V/400V用> トランス 400/230V <For three phase 380V/400V> TRANSFORMER 400/230V	1
	SA9896001	トランス BOXカバー TR BOX COVER	1
	SA9914001	ラベルカンデン25X28 LABEL ELECTRICAL SHOCK 25X28	1
	SB4531001	<米州向用> SWBOX フクロクミ <For the Americas> SWBOX BAG ASSY	1
	200190001	ステップル 10X20 STAPLE 10X20	5
	032461606	+2マルモク45X16 WOOD SCREW ROUND 2 M4.5X16	2

Page 46 — P. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7300A parts on page 46

Ref	Part number	Part name	Qty
10	10	9
9	9	9
8+	8+	7
7	7	7
8+	8+	6
8+	8+	3
4	4	4
2	2	2
5	5	5
1+	1+	1+

Page 47 — P. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7300A parts on page 47

Ref	Part number	Part name	Qty
	SB6237101	スイッチP EX
	SB6238001	スイッチS EX
	SB5663401	スイッチP
	SB5664301	スイッチS
	060501016	バインド5X10	2
	SA2689101	コードオサエ	1
	SB5025001	コードホルダD	1
	0A4401606	ナベザクミ4X16DA	3+
	SB5024001	コードオサエU	1
	SB5028001	コードオサエ	2
	062500816	ナベコ5X8	5+
	062500816	ナベコ5X8	2
	SB5025001	コードホルダD	1
	062500816	ナベコ5X8	1

Page 48 — Q. モーターカバー関係 / Motor cover

Brother S-7300A parts on page 48

Ref	Part number	Part name	Qty
1+	1+	MOTOR COVER
2-	2-	MOTOR COVER
3	3	SCREW
4	4	BRACKET
5	5	SCREW
6	6	SCREW

Page 49 — Q. モーターカバー関係 / Motor cover

Brother S-7300A parts on page 49

Ref	Part number	Part name	Qty
	SB5645101	プーリーカバークミJ/A	1
	SB567101	プーリーカバークミC	1
	SB5646101	プーリーカバーU/E	1
3	0A4501606	+ナベザクミ5X16DA	3
4	SB3621001	グランドワイヤ	1
5	0A4401006	+ナベザクミ4X10DA	1
6	0A5501206	+ナベザクミ5X12DB	1

Page 50 — T. 操作パネル関係 / Operation panel

Brother S-7300A parts on page 50

Ref	Part number	Part name	Qty
1	1+	Operation panel
2	2	Operation panel
3	3	Operation panel
4	4	Operation panel
5	5	Operation panel
6	6	Operation panel
7	7	Operation panel

Page 51 — T. 操作パネル関係 / Operation panel

Brother S-7300A parts on page 51

Ref	Part number	Part name	Qty
	SB5987101	パネルクミホキュウ
	SB6353101	パネルクミホキュウ
2	SB5045001	パネルフチゴム	1
3	0A5401206	+ナベザクミ4X12DB	1
4	SB3655001	パネルサポート	2
5	012500536	アナヒラ5X5	2
6	140647121	コードオサエ	2
7	062400816	ナベコ4X8	2

Page 52 — U. モーター関係 / Motor mechanism

Brother S-7300A parts on page 52

Ref	Part number	Part name	Qty
1	1	MOTOR
2	2	SCREW
3	3	BRACKET
4	4	SCREW
5	5	CLIP
6	6	BRACKET

Page 53 — U. モーター関係 / Motor mechanism

Brother S-7300A parts on page 53

Ref	Part number	Part name	Qty
1	SB5005201	モーターDR-7138B-501	1
2	018402036	アナボルト4X20	4
3	SB4096001	コードホルダ#12	1
4	062501216	ナベコ5X12	1
5	218859001	バインダM150	2
6	SA4224001	マークチュウイ30X40	1

Page 54 — V. 付属部品関係 / Accessories

Brother S-7300A parts on page 54

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43

Page 55 — V. 附属品関係 / Accessories

Brother S-7300A parts on page 55

Ref	Part number	Part name	Qty
	146290001	ボビン	1
	117132001	ボビン	1
	SB5633001	ラバーヒンジクミ	1
	SB3627001	トウブヒンジ	2
	SB3628001	トウブヒンジウケゴム	2
	SB5046001	マクラ	1
	SA8239201	オイルタンククミ	1
	SB1270001	オイルケイコララベル エイブン	1
	SB1271001	オイルケイコララベル ワブン	1
	144226001	トウブカバー	1
	SB3928001	イトタテダイクミ2DR	1
	S51283001	ウケザラ	2
	SB4114001	スプールマット	2
	S51282101	スプールクツシヨン	2
	150179023	スプールジクB	2
	SB4117001	バネザガネ2-5	2
	SB4119001	シュナット5	2
	S02778022	スプールホルダー-2	1
	S37037002	ナベヒラサ5X32	1
	SB4118001	シュナット5	1
	S02786002	スレッドハンガー クミ2	1
	S02787002	スレッドハンガー-2	1
	150183000	イトカケハンガーダイ	2
	142990001	スレッドブツシユ	1
	SB4120001	ナベヒラサM5X14	1
	SB4118001	シュナット5	1
	SB5634001	カクネクミ	1
	SB5047001	カクネボルト6X45	2
	SB5048001	シキイタ	2
	025060332	ヒラザガネダイ6	2
	028060242	バネザガネ2-6	2
	021060106	シュナット6	2
	SA9893001	カクネボルト8X65	2
	SB4243001	ヒラザガネダイ8	2
	028060242	バネザガネ2-8	2
	021080202	シュナット8	2
	SB6659001	グリス クミ	1
	S40765001	レンケツツカンクミ	1
	021060103	シュナット6	2
	017081603	ボルト8X16	2
	021080103	シュナット8	2
	S36119021	シュナット6	2
	S36121021	バネザガネ2-6	2

Page 56 — Sp1. 仕様別部品一覧表(日本向)/Different parts list (For Japan)

Brother S-7300A parts on page 56

Ref	Part number	Part name	Qty
B-23	SA9353001	針棒/Needle bar
B-23	SA9641001	針棒/Needle bar
B-28	100265031	ミシン針/Needle
B-28	100265042	ミシン針/Needle
B-37	S29645001	針板/Needle plate
B-37	SB5648001	針板/Needle plate
C-11	153037201	押え組/Presser foot assy
C-11	145157101	押え組/Presser foot assy
D-1	S02742001	送り歯/Feed dog
D-1	S02743001	送り歯/Feed dog
B-23	SA9642101	針棒/Needle bar
B-28	100265031	ミシン針/Needle
B-37	S29645001	針板/Needle plate
C-11	153037201	押え組/Presser foot assy
D-1	S02742001	送り歯/Feed dog

Page 57 — Sp2. 仕様別部品一覧表(米州向、中国向、輸出一般向) / Different parts list (For the Americas, China and General export)

Brother S-7300A parts on page 57

Ref	Part number	Part name	Qty
B-23	SA9353001	針棒 / Needle bar
B-23	SA9641001	針棒 / Needle bar
B-28	100265034	ミシン針 / Needle
B-28	100265042	ミシン針 / Needle
B-37	111859301	針板 / Needle plate
B-37	150792101	針板 / Needle plate
C-11	153037201	押え組 / Presser foot assy
C-11	150789101	押え組 / Presser foot assy
D-1	SA2345101	送り歯 / Feed dog
D-1	SB5225001	送り歯 / Feed dog
B-23	SA9353001	針棒 / Needle bar
B-28	100265034	ミシン針 / Needle
B-37	111859301	針板 / Needle plate
C-11	153037201	押え組 / Presser foot assy
D-1	SA2345101	送り歯 / Feed dog

Page 59 — Ga1. ゲージ部品一覧表 (中厚物用 : 3枚菌) / Gauge parts list (Medium-weight materials : 3ROW)

Brother S-7300A parts on page 59

Ref	Part number	Part name	Qty
B12	153147-001	Needle plate
B12	146231-001	Feed dog
B12	SA8102-001	Presser foot assy
B12	153037-201	Slot
NB14M	S29649-001	Needle plate
NB14M	SA8105-001	Chamfering(L)
NB14M	113280-121	Presser foot assy
NB16M	S29646-001	Needle plate
NB16M	SA8108-001	Chamfering(S)
NB16M	147531-101	Presser foot assy
B14	146050-001	Needle plate
B14	S07649-001	Feed dog
B14	SA8106-001	Presser foot assy
B14	140957-101	Slot
B14	147238-001	Needle plate
B14	SA8107-001	Chamfering(S)
B14	143711-101	Presser foot assy
B16	153190-001	Needle plate
B16	S02742-001	Feed dog
B16	S01904-101	Teflon
B16	147239-001	Needle plate

Page 60 — Ga2. ゲージ部品一覧表 (中厚物用 : 3枚菌) / Gauge parts list (Medium-weight materials : 3ROW)

Brother S-7300A parts on page 60

Ref	Part number	Part name	Qty
B18M	S29645-001	Needle plate
B18M	S07649-001	Feed dog
B18M	SA8102-001	Presser foot assy
B18M	153037-201	Slot
B18	100266-101	Needle plate
B18	S02742-001	Feed dog
B18	SA8105-001	Presser foot assy
B18	113280-121	Chamfering(L)
B18	146232-001	Needle plate
B18	146231-001	Feed dog
B18	SA8108-001	Presser foot assy
B18	147531-101	Chamfering(S)
H18	141096-001	Needle plate
H18	117442-001	Feed dog
H18	SA8109-001	Presser foot assy
H18	111856-101	Slot
B20	S11222-001	Needle plate
B20	S07649-001	Feed dog
B20	SA8106-001	Presser foot assy
B20	140957-101	Chamfering(S)
B20	S02742-001	Feed dog
B20	SA8107-001	Presser foot assy
B20	143711-101	Chamfering(S)
B20	S01904-101	Teflon

Page 61 — Ga3. ゲージ部品一覧表 (厚物用 : 3枚歯) / Gauge parts list (Heavy-weight materials : 3ROW)

Brother S-7300A parts on page 61

Ref	Part number	Part name	Qty
B22	100267-001	Needle plate
B22	S02743-001	Feed dog
B22	SA8104-001	Presser foot assy
B22	145157-101	Presser foot assy
B26	111241-001	Needle plate
B26	SA8105-001	Presser foot assy
B26	113280-121	Presser foot assy
B26	SB5648-001	Needle plate
C26	111508-001	Needle plate
C26	154742-001	Feed dog
C26	147322-201	Needle plate
C26	S02743-001	Feed dog
C26M	S29644-001	Needle plate

Page 62 — Ga4. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW)

Brother S-7300A parts on page 62

Ref	Part number	Part name	Qty
E12N1	S03882-201	Needle plate
	SA2345-101	Feed dog
	SA8102-001	Presser foot assy
	153037-201	Presser foot assy
E14N1	159859-201	Needle plate
	SA8105-001	Presser foot assy
	113280-121	Presser foot assy
E12	S01107-101	Needle plate
	S13684-001	Feed dog
	SA8108-001	Presser foot assy
	147531-101	Presser foot assy
AB14N1	S02999-201	Needle plate
	S02748-001	Feed dog
	SA8106-001	Presser foot assy
	140957-101	Presser foot assy
AB16N1	S03000-201	Needle plate
	S02744-001	Feed dog
	SA8107-001	Presser foot assy
	143711-101	Presser foot assy
	S01904-101	Presser foot assy

Page 63 — Ga5. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW)

Brother S-7300A parts on page 63

Ref	Part number	Part name	Qty
	156115-001	AB16
	S13684-001	Feed dog
	153037-201	Presser foot assy
	156116-001	AB18
	SA8105-001	Presser foot assy
	113280-121	Presser foot assy
	S31910-001	AB18M
	SA8108-001	Presser foot assy
	147531-101	Presser foot assy
	S29648-101	E16M1
	S13684-001	Feed dog
	SA8109-001	Presser foot assy
	111856-101	Presser foot assy
	111859-301	E18N1
	S13684-001	Feed dog
	SA8106-001	Presser foot assy
	140957-101	Presser foot assy
	S29647-101	E18M1
	SA2345-101	Feed dog
	SA8107-001	Presser foot assy
	143711-101	Presser foot assy
	S30103-001	H18
	S25822-001	Feed dog
	S01904-101	Presser foot assy

Page 64 — Ga6. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW)

Brother S-7300A parts on page 64

Ref	Part number	Part name	Qty
A14	155676-001	Needle plate
AB14	156114-001	Needle plate
	S13684-001	Feed dog
	SA8102-001	Presser foot assy
	153037-201	Slot
	SA8105-001	Presser foot assy
	113280-121	Presser foot assy
	SA8108-001	Chamfering(L)
	147531-101	Presser foot assy
	SA8109-001	Chamfering(S)
	111856-101	Presser foot assy
	SA8106-001	Slot
	140957-101	Presser foot assy
	SA8107-001	Chamfering(S)
	143711-101	Presser foot assy
	S01904-101	Teflon

Page 65 — Ga7. ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts list (Heavy-weight materials : 4ROW)

Brother S-7300A parts on page 65

Ref	Part number	Part name	Qty
	150792-101	Needle plate
	SB5225-001	Feed dog
	SA8103-001	Presser foot assy
	150789-101	Presser foot assy
	SB5244-001	Needle plate
	SB5226-001	Feed dog

Page 66 — Ga8. ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Brother S-7300A parts on page 66

Ref	Part number	Part name	Qty
AB12N1	S38760-001	Needle plate
AB12N1	S02748-001	Feed dog
Slot	S35777-101	Presser foot assy
AB14M1	S35776-101	Needle plate

Page 67 — Wa. 警告ラベル / Warning labels

Brother S-7300A parts on page 67

Ref	Part number	Part name	Qty
	SA9725-001	ラベル感電6ケ国 Label electrical shock 36 X 150
	SA9914-001	ラベル感電 25 X 28 Label electrical shock 25 X 28
	SA9826-001	操作注意ラベル Label caution
	SA9957-001	ワーニングマーク Injury mark
	SA9957-002	ワーニングマーク Injury mark
	S37060-001	アースマーク Label, grounding
	SA4224-001	マークチュウイ 30 X 40 Mark attention 30 X 40

Page 68 — Wa. 警告ラベル / Warning labels

Brother S-7300A parts on page 68

Ref	Part number	Part name	Qty
	SB1271-001	オイル警告ラベル和文 Oil warning label JP
	SB1270-001	オイル警告ラベル英文 Oil warning label EN

Page 69 — Index

Brother S-7300A parts on page 69

Ref	Part number	Part name	Qty
- 31	004301016	K
- 19	012060636	B
- 11	012060636	F
- 18	012060636	N1
- 8	012400432	J
- 15	012400436	B
- 59	012500536	B
- 21	012500536	C
- 27	012500536	D
- 29	012500536	D
- 11	012500536	H
- 33	012500536	H
- 10	012500536	J
- 5	012500536	T
- 5	014300432	D
- 16	014300432	D
- 22	014680632	M2
- 34	014680632	M2
- 43	014771032	K
- 40	017081603	V
- 66	018062036	K
- 57	018062536	K
- 34	018400532	C
- 55	018400636	K
- 34	018401436	D
- 2	018402036	U
- 7	018500836	L
- 10	018501036	K
- 35	018501436	D
- 39	021060103	V
- 32	021060106	V
- 27	021060306	C
- 29	021060306	C
- 44	021060306	C
- 47	021060306	C
- 60	021060306	K
- 41	021080103	V
- 36	021080202	V
- 31	021350106	D
- 48	021400106	N1
- 19+	021400306	K
- 34	025040332	G
- 2	025060132	M2
- 16	025060232	J
- 67	025060332	K
- 30	025060132	V
- 14	025350132	C
- 5	026030136	M1
- 35	026040236	C
- 51	026050136	K
- 31	028060242	V
- 35	028080242	V
- 44	032461606	N1
- 19	037300616	J
- 16	048030342	M1
- 15	048030342	M2
- 19	048030342	M2
- 17	048040342	M1
- 52	048050142	K
- 25	048050342	C
- 17	048060342	B
- 22	048080142	D
- 43	048120142	B
- 41	060300606	H
- 21	060400516	M1
- 23	060400516	M1
- 28	060400516	M2
- 42	060401016	M2
- 16+	060401216	J
- 31	060500616	H
- 22	060501016	J
- 26	060501016	J
- 37	060501016	M2
- 2	060501016	P
- 27	06161616	J
- 4	062300616	M1
- 3	062400616	K
- 8	062500816	B
- 29	0A4401006	N1
- 35	0A4401006	N1
- 37	0A4401006	N1
- 5	0A4401006	Q
- 42	0A4401606	H
- 5	0A4401606	P
- 23	0A4402006	N1
- 20	0A4501206	G
- 37	0A5401006	D
- 40	0A5401006	D
- 46	0A5401006	N1
- 3	0A5401206	T
- 11	100022004	N1
- 5	100136001	H
- 5	100265031	Sp1
- 52	100265034	Sp2
- 52	100265042	Sp1
- 53	100266101	Sp3
- 16+	100402004	K
- 18+	100645003	H
- 22	102630001	B
- 23	102843004	K
- 3	104450101	A
- 16	104821001	G
- 36	105234003	K
- 36	107415011	Sp3
- 36	107415014	Sp3
- 36	107415022	Sp3
- 8	110161004	L
- 8	110367001	B
- 15	110735022	M1
- 14	110735022	M2
- 18	110735022	M2
- 56	111241001	Ga3
- 56	111508001	Ga3
- 54	111856101	Ga1
- 52	111859301	Sp2
- 54	113280121	Ga1
- 40	114561001	B
- 24	117132001	F
- 18	117442001	Ga2
- 18	140004001	B
- 24	140327001	G
- 9	140407001	C
- 29	140553102	B
- 48	140647121	K
- 54	140957101	Ga1
- 55	140957101	Ga2
- 57	140957101	Ga4
- 58	140957101	Ga5
- 59	140957101	Ga6
- 55	141096001	Ga2
- 8+	141728001	C
- 24	142990001	V
- 3	145446001	H
- 8	145446001	H
- 18	145446001	H
- 24	145446002	J
- 10	145737021	G
- 54	146050001	Ga1
- 54	146231001	Ga1
- 55	146231001	Ga2
- 55	146232001	Ga2
- 20	146288021	M1
- 27	146288021	M2
- 23	146290001	F
- 1	146293001	V
- 7	146293001	N1
- 21	146293001	N1
- 54	147238001	Ga1
- 54	147239001	Ga1
- 56	147322201	Ga3
- 54	147531101	Ga1
- 55	147531101	Ga2
- 57	147531101	Ga4
- 58	147531101	Ga5
- 59	147531101	Ga6
- 6	148537101	K
- 12	148537101	K
- 22	148537101	K
- 39	149287000	D
- 6	149578020	N1
- 20	149578020	N1
- 15	150179023	V
- 23	150183000	V
- 6	150607000	A
- 52	150789101	Sp2
- 52	15079101	Sp2
- 53	150792101	Sp2
- 38	151267001	B
- 30	151594001	B
- 51	153037201	Sp1

Page 70 — 索引 / Index

Brother S-7300A parts on page 70

Ref	Part number	Part name	Qty
52	153037201	Sp2
54	153037201	Ga1
55	153037201	Ga2
57	153037201	Ga4
58	153037201	Ga5
59	153037201	Ga6
54	153147001	Ga1
54	153190001	Ga1
- 42	154567000	K
56	154742001	Ga3
59	155676001	Ga6
59	156114001	Ga6
58	156115001	Ga5
58	156116001	Ga5
- 5	159150000	A
- 4	159805001	H
- 19	159805001	H
57	159859201	Ga4
- 39	180018151	B
- 19	183388001	F
- 20	183389001	F
- 21	183390001	F
- 43	200190001	N1
- 8	200190001	N2
- 5	218859001	U
- 38	228475000	D
- 1+	BMP3010-000000-2ST1	N2
- 2+	BMP3010-000000-3ST4	N2
- 2+	BMP3010-000000-4ST4	N2
- 1+	BMP3010-000000-AST1	N2
- 52	J02729001	N1
- 30	J04164001	N1
57	S01107101	Ga4
- 26	S01419000	H
54	S01904101	Ga1
55	S01904101	Ga2
56	S01904101	Ga3
57	S01904101	Ga4
58	S01904101	Ga5
59	S01904101	Ga6
- 22	S02620401	H
51	S02742001	Sp1
53	S02742001	Sp3
54	S02742001	Ga1
55	S02742001	Ga2
51	S02743001	Sp1
56	S02743001	Ga3
57	S02744001	Ga4
57	S02748001	Ga4
61	S02748001	Ga8
- 18	S02778022	V
- 21	S02786002	V
- 22	S02787002	V
57	S02999201	Ga4
57	S03000201	Ga4
- 18	S03245001	F
- 22	S03246001	F
57	S03882201	Ga4
- 24+	S04630000	B
54	S07649001	Ga1
55	S07649001	Ga2
55	S11222001	Ga2
- 20	S12441001	H
- 13	S13385001	C
- 8+	S13561101	C
57	S13684001	Ga4
- 2	S23651001	B
- 6	S23651001	B
- 32	S23651001	B
- 36	S23651001	B
- 45	S23651001	B
- 47	S23651001	B
- 52	S23651001	B
- 3	S25235001	B
- 4	S25236001	B
- 26	S25380601	G
- 12	S25380601	G
- 22	S25380601	G
- 39	S25382001	K
- 9	S25434000	N1
- 12	S25456001	M1
- 10	S25456001	M2
- 11	S25456001	M2
60	S25821001	Ga7
58	S25822001	Ga5
61	S25822001	Ga8
56	S25964001	Ga3
58	S25964501	Ga5
60	S25964501	Ga7
54	S25964601	Ga1
55	S25964701	Ga2
57	S25964801	Ga4
58	S25964901	Ga5
59	S30103001	Ga6
- 16	S31006002	C
- 21	S31032002	H
58	S31910001	Ga5
- 11	S32958000	B
61	S35776101	Ga8
61	S35777101	Ga8
- 42	S36119021	V
- 43	S36121021	V
- 19	S37037002	N1
- 14	S37060001	A
62	S37060001	Wa1
- 36	S38760001	N1
- 17	S39051001	C
- 38	S40765001	V
- 8	S41205001	M1
- 11	S41207000	M1
- 14	S51282101	V
- 12	S51283001	V
- 49	S52162000	N1
- 50	S52163000	N1
- 45	S52164000	N1
- 27	S52764001	G
54	S52764001	Ga1
55	S52764001	Ga2
57	S52764001	Ga4
58	S52764001	Ga5
59	S52764001	Ga6
- 5	SA1120001	B
- 26+	SA1138101	B
- 26+	SA1139101	B
- 51	SA1166001	B
- 1+	SA1173101	C
- 37	SA1179001	C
- 42	SA1179001	C
- 16	SA1179001	N1
- 25	SA1229101	H
- 6	SA1242001	D
- 17	SA1242001	D
- 12	SA1286001	F
- 17	SA1303101	G
- 31	SA1303101	G
- 30	SA1345001	H
- 21	SA1360101	J
- 6	SA1388101	L
- 16	SA2161001	B
- 50	SA2252101	B
52	SA2345101	Sp2
53	SA2345101	Sp3
- 48	SA2378001	B
- 13	SA2422001	B
- 25	SA2469101	M1
- 38	SA2469101	M2
- 6	SA2586101	H
- 41	SA4224001	D
- 6	SA4224001	U
62	SA4224001	Wa1
- 4	SA529001	A
- 4	SA5810001	A
- 20	SA7239101	B
- 5	SA7242001	C
- 20	SA7257001	D
- 40	SA7271001	H
- 34	SA7272201	H
- 28	SA7285101	K
- 30	SA7287001	K
- 21+	SA7552201	K
- 7	SA7607101	C
- 10+	SA7625001	B
- 10+	SA7626001	B
- 25	SA7636201	G
- 12	SA8061001	B
- 18	SA8085001	M1
- 26	SA8085001	M2
- 12	SA8100101	C
53	SA8101001	Sp3
54	SA8101001	Ga1
55	SA8101001	Ga2
57	SA8101001	Ga4
58	SA8101001	Ga5
59	SA8101001	Ga6
53	SA8103001	Sp3
60	SA8103001	Ga7
56	SA8104001	Ga3
- 14	SA9352001	M1
51	SA9353001	Sp1
- 1+	SA9359001	C
- 41	SA9523001	B
- 41	SA9564001	N1
53	SA9640101	Sp3
51	SA9641001	Sp1
52	SA9641001	Sp2
53	SA9641001	Sp3
51	SA9642101	Sp1
52	SA9642101	Sp2
- 9	SA9684001	F
- 50	SA9716001	K
- 38	SA9725001	N1
62	SA9725001	Wa1
53	SA9731001	Sp3
- 7	SA9771001	M1
- 19	SA979001	M1
- 15	SA9826001	A
62	SA9827001	Wa1
- 59	SA9854001	K
- 33	SA9893001	V
- 5	SA9896001	N2
- 4	SA9901101	N2
- 6	SA9914001	N2
62	SA9914001	Wa1
- 3	SA9923101	N2
- 16	SA9957001	A
62	SA9957001	Wa1
- 17	SA9957002	A

Page 71 — 索 引 / Index

Brother S-7300A parts on page 71

Ref	Part number	Part name	Qty
	SA9957002	N1
	SB0705101	C
	SB1270001	V
	SB1271001	V
	SB1305001	F
	SB1600001	E
	SB1604001	E
	SB1605001	E
	SB1607001	E
	SB1608001	E
	SB1609001	E
	SB1610001	E
	SB1611001	E
	SB1677001	F
	SB2433001	K
	SB2434001	K
	SB3440001	A
	SB3480001	E
	SB3540001	J
	SB3540001	J
	SB3545101	J
	SB3548001	J
	SB3551001	J
	SB3552001	J
	SB3553001	J
	SB3586001	N1
	SB3587001	N1
	SB3595101	H
	SB3621001	Q
	SB3627001	V
	SB3628001	V
	SB3655001	T
	SB3665001	N1
	SB3776001	B
	SB3816101	N1
	SB3817401	N1
	SB3837001	N1
	SB3848001	N1
	SB3850001	A
	SB3854001	E
	SB3858001	M2
	SB3872001	N1
	SB3928001	V
	SB4096001	U
	SB4114001	V
	SB4117001	V
	SB4118001	V
	SB4119001	V
	SB4120001	V
	SB4155001	M1
	SB4243001	V
	SB4531001	N2
	SB4587301	N1
	SB4803001	N1
	SB4845001	A
	SB4846101	M1
	SB4848001	B
	SB4849001	B
	SB4857001	B
	SB4858001	B
	SB4864001	C
	SB4865001	C
	SB4866001	C
	SB4867101	C
	SB4868001	C
	SB4870001	C
	SB4871001	C
	SB4872001	C
	SB4873101	C
	SB4874101	C
	SB4879101	D
	SB4882001	D
	SB4883001	D
	SB4884001	D
	SB4885101	D
	SB4887001	D
	SB4888101	D
	SB4889001	D
	SB4892201	D
	SB4893101	D
	SB4894001	D
	SB4900001	D
	SB4901001	D
	SB4901001	D
	SB4903001	F
	SB4904101	F
	SB4910001	G
	SB4915001	G
	SB4916001	G
	SB4918001	G
	SB4922101	H
	SB4923001	H
	SB4925001	H
	SB4926001	H
	SB4929001	H
	SB4932001	H
	SB4933001	H
	SB4934001	H
	SB4936001	J
	SB4940001	J
	SB4941001	K
	SB4942101	K
	SB4943001	K
	SB4944001	K
	SB4946201	K
	SB4947101	K
	SB4948101	K
	SB4949101	K
	SB4950201	K
	SB4951201	K
	SB4952101	K
	SB4953001	K
	SB4954101	K
	SB4955001	K
	SB4956101	K
	SB4957001	K
	SB4960001	K
	SB4961001	K
	SB4962001	K
	SB4963001	K
	SB4964001	K
	SB4965001	K
	SB4966001	K
	SB4967101	K
	SB4968001	K
	SB4969001	K
	SB4970001	L
	SB4971001	L
	SB4972001	L
	SB4973101	N1
	SB4975001	N1
	SB4976001	N1
	SB4977101	N1
	SB4978001	N1
	SB4979001	N1
	SB4980001	N1
	SB4981101	N1
	SB4982101	N1
	SB5002001	G
	SB5004001	G
	SB5005201	U
	SB5008001	U
	SB5009001	J
	SB5010001	J
	SB5011001	J
	SB5012001	J
	SB5013001	J
	SB5014001	J
	SB5024001	P
	SB5025001	P
	SB5026001	K
	SB5028001	M1
	SB5030001	C
	SB5031001	C
	SB5032001	B
	SB5034001	N1
	SB5035201	N1
	SB5036001	G
	SB5037001	B
	SB5039001	B
	SB5041001	F
	SB5042001	A
	SB5237101	M1
	SB5238001	M1
	SB5239001	M1
	SB5242001	M1
	SB5242001	M2
	SB5244001	Ga7
	SB5248001	B
	SB5250001	B
	SB5252001	B
	SB5257001	K
	SB5258001	M1
	SB5262001	C
	SB5265201	H
	SB5267101	Q
	SB5269001	F
	SB5270001	F
	SB5272001	F
	SB5275101	F
	SB5276101	G
	SB5280001	G
	SB5281001	G
	SB5284201	G
	SB5286201	G
	SB5287001	G
	SB5290101	B
	SB5291101	B
	SB5294201	D
	SB5297201	D
	SB5300201	D
	SB5301001	K
	SB5305001	C
	SB5306001	M1
	SB5306001	M2
	SB5310101	K
	SB5312001	A
	SB5313201	H
	SB5314101	D
	SB5315101	D
	SB5316101	B
	SB5317101	B
	SB5318001	B
	SB5627001	H
	SB5628001	B
	SB5629001	B
	SB5630101	H
	SB5631101	K
	SB5633001	V
	SB5634001	V
	SB5638001	A
	SB5639101	G
	SB5645101	Q
	SB5646101	Q
	SB5648001	Sp1
	SB5650001	K
	SB565101	J
	SB5663401	P
	SB5664301	P
	SB5673001	K
	SB5674001	C
	SB5675001	G
	SB5987101	T
	SB6237101	P

Page 72 — 索引 / Index

Brother S-7300A parts on page 72

Ref	Part number	Part name	Qty
	SB6238001	P - 1+
	SB6318001	M2 - 13
	SB6323001	M2 - 35
	SB6324001	M2 - 33
	SB6325001	M2 - 17
	SB6328001	M2 - 36
	SB6329001	M2 - 21
	SB6330201	M2 - 23
	SB6353101	T - 1+
	SB6391001	N1 - 42
	SB6402001	N1 - 40
	SB6430101	D - 33
	SB6453001	N1 - 1+
	SB6454001	N1 - 1+
	SB6455001	N1 - 1+
	SB6456001	N1 - 1+
	SB6457001	N1 - 3+
	SB6458001	N1 - 3+
	SB6504001	M2 - 8
	SB6510001	M2 - 16
	SB6511001	M2 - 29
	SB6512001	M2 - 24
	SB6513101	M2 - 4
	SB6514101	M2 - 30
	SB6516001	M2 - 20
	SB6564001	C - 45
	SB6568001	F - 17+
	SB6594001	N1 - 31
	SB6618101	M2 - 1
	SB6659001	V - 37
	SB6680001	H - 17
	SB6681001	H - 15+
	SB6683001	H - 14+
	SB6684001	H - 14+
	SB6686001	H - 15+
	SB6884001	M2 - 31
	SB6886001	M2 - 32

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother S-7300A — parts catalog

• Page 1 (cover): This is the cover page for the S-7300A Parts Book for the SINGLE NEEDLE DIRECT DRIVE LOCK STITCHER WITH ELECTRONIC FEEDING SYSTEM AND THREAD TRIMMER.
• Page 2 (diagram): This page shows a diagram illustrating the meaning of codes on the model plate of the BROTHER INDUSTRIES, LTD. S-7300A machine.
• Page 3 (text): This page describes the model plate for the BROTHER INDUSTRIES, LTD. S-7300A- series sewing machines, detailing various specifications indicated by different codes.
• Page 5 (toc): This page contains the table of contents for the parts book, listing sections like Machine body, Needle bar, Presser foot mechanism, and various gauge parts, along with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the machine body and its associated components, with numbered parts indicated for reference.
• Page 7 (parts_list): This page lists parts for Machine body, including part numbers, descriptions, and quantities.
• Page 8 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with various components numbered for identification.
• Page 9 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 10 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, with numbered parts and their corresponding references.
• Page 11 (parts_list): This page lists parts for the Needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 12 (diagram): This page displays a diagram of the presser foot mechanism, including various components labeled with reference numbers and some parts designated for premier models or as optional parts.
• Page 13 (parts_list): This page lists parts for the Presser foot mechanism, including part numbers, descriptions, and quantities.
• Page 14 (diagram): This page displays a diagram of the presser foot mechanism, detailing various parts with reference numbers and some specific components for the 'premier' model and 'option parts'.
• Page 15 (parts_list): This page lists parts for the Presser foot mechanism, including adjusting screw sets and nuts, with their corresponding codes and quantities.
• Page 16 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 17 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
• Page 18 (diagram): This page displays a diagram of the knee lifter mechanism, with numbered parts including a lever, bracket, and fasteners.
• Page 19 (parts_list): This page lists parts for the Knee lifter mechanism, including part numbers, quantities, and names in both Japanese and English.
• Page 20 (diagram): This page displays a diagram of the rotary hook mechanism, illustrating various components with reference numbers.
• Page 21 (parts_list): This page lists parts for the Rotary Hook mechanism, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 24.
• Page 22 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, including various tubes, fittings, and mounting hardware, with reference numbers for each part.
• Page 23 (parts_list): This page lists lubrication and oil-related parts for a sewing machine, including oil tank units, tubes, holders, screws, filters, and rubber caps, with part numbers, quantities, and descriptions.
• Page 24 (diagram): This page displays a diagram of the threading mechanism for a sewing machine, detailing various parts with their reference numbers and some specific models.
• Page 25 (parts_list): This page lists parts for the threading mechanism, including part numbers, descriptions, and quantities, with some parts specified for 'Premier' or other versions.
• Page 26 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, with numbered parts and their corresponding details.
• Page 27 (parts_list): This page lists parts for the H. 糸通し関係 / Threading mechanism section, including part numbers like SA7271001, 060300606, and 0A4401606, with corresponding names and quantities.
• Page 28 (diagram): This page displays a diagram of the bobbin winder mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 29 (parts_list): This page lists parts for the J. Bobbin winder mechanism, including part numbers, descriptions, and quantities.
• Page 30 (diagram): This page displays a diagram of the thread trimmer mechanism, illustrating various components with reference numbers and part numbers.
• Page 31 (parts_list): This page lists parts for the K. Thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 32 (diagram): This page displays a diagram of the thread trimmer mechanism, detailing various components with reference numbers and part numbers.
• Page 33 (parts_list): This page lists parts for the K. 糸切り関係 / Thread trimmer mechanism section, including part numbers, descriptions, and quantities.
• Page 34 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts indicated by reference numbers.
• Page 35 (parts_list): This page lists parts for the Tension release mechanism, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of the thread wiper mechanism for model -4[[]] with numbered parts.
• Page 37 (parts_list): This page lists parts for the thread wiper mechanism, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of the thread wiper mechanism (For -5[]). It includes numbered parts with their corresponding references.
• Page 39 (parts_list): This page lists parts for the M2. Thread wiper mechanism (For -5D). It includes part numbers, descriptions, quantities, and references.
• Page 40 (diagram): This page displays a diagram of control box components for European models, with numbered parts and their corresponding references.
• Page 41 (parts_list): This page lists parts for the N1 Control Box, including part numbers, descriptions, and quantities for various models and regions.
• Page 42 (diagram): This page displays a diagram of control box components, including various parts labeled with reference numbers and some with part numbers and descriptions.
• Page 43 (parts_list): This page lists parts for the Control box, including reference numbers, codes, quantities, and names of parts.
• Page 44 (diagram): This page displays diagrams of control boxes for single-phase 100V/110V and three-phase 380V/400V power supplies, along with associated components like transformers and mounting hardware.
• Page 45 (parts_list): This page lists parts for the control box, including transformer boxes for various voltages, a box cover, a label, a SWBOX bag assembly, staples, and wood screws.
• Page 46 (diagram): This page displays a diagram of the quick reverse switch mechanism, with numbered parts and their corresponding details.
• Page 47 (parts_list): This page lists parts for the Quick reverse switch mechanism, including part numbers, descriptions, and quantities.
• Page 48 (diagram): This page displays diagrams of motor covers for different regions, including Japan, China, Europe, and the Americas, with associated part numbers and reference indicators.
• Page 49 (parts_list): This page lists parts related to motor covers, including part numbers, descriptions, and applicable regions.
• Page 50 (diagram): This page displays a diagram of the operation panel and related components, with reference numbers for parts 1 through 7.
• Page 51 (parts_list): This page lists parts for the operation panel, including part numbers, descriptions, and quantities.
• Page 52 (diagram): This page displays a diagram of the motor mechanism, with numbered parts including a motor, screws, and clips.
• Page 53 (parts_list): This page lists parts for a motor mechanism, including part codes, quantities, and names.
• Page 54 (diagram): This page displays a diagram of accessories and optional parts for a sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 55 (parts_list): This page lists parts for V. Accessories, including part numbers, descriptions, and quantities.
• Page 56 (parts_list): This page contains a parts list for different specifications, including minimum lubrication type and semi-dry type, for medium-weight materials. It lists parts such as needle bar, needle, needle plate, presser foot assy, and feed dog with their corresponding part numbers.
• Page 57 (parts_list): This page lists parts for different specifications including minimum lubrication type and medium-weight materials, with reference numbers, part names, and specifications.
• Page 59 (parts_list): This page lists gauge parts for medium-weight materials for 3-row machines, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 60 (parts_list): This page lists gauge parts for medium-weight materials in a 3-row configuration, detailing needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 61 (parts_list): This page lists gauge parts for heavy-weight materials in a 3-row configuration, detailing needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 62 (parts_list): This page lists parts for medium-weight materials for 4-row gauge parts, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 63 (parts_list): This page lists gauge parts for medium-weight materials in 4ROW, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
• Page 64 (parts_list): This page lists gauge parts for medium-weight materials for 4-row applications, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and descriptions.
• Page 65 (parts_list): This page lists gauge parts for heavy-weight materials for 4-row configurations, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and dimensions.
• Page 66 (parts_list): This page lists gauge parts for difficult-to-sew materials and Shin-gosen, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and dimensions.
• Page 67 (parts_list): This page lists various warning labels for industrial sewing machines, including their descriptions, sizes, and codes.
• Page 68 (parts_list): This page lists warning labels for Brother lubricating oil, including Japanese and English versions, with their respective sizes and codes.
• Page 69 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 70 (index): This page is an index of machine parts, listing part numbers, reference numbers, and corresponding page numbers for various components.
• Page 71 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 72 (index): This page contains an index of parts for an industrial sewing machine, listing part codes, reference numbers, and corresponding page numbers.
• Page 73 (text): This page contains the title "MEMO" and a watermark "jinttex.in". It also includes the page number "68" at the bottom right.
• Page 74 (cover): This is the cover page of a Brother Industries, Ltd. parts book, featuring the Brother logo and a graphic of a screw, along with the title "PARTS BOOK". It also includes company contact information and copyright details.

Page 1

S-7300A パーツブック PARTS BOOK 電子本縫いダイレクトドライブ自動糸切りミシン SINGLE NEEDLE DIRECT DRIVE LOCK STITCHER WITH ELECTRONIC FEEDING SYSTEM AND THREAD TRIMMER brother 最新の部品情報は Parts Navigation でご覧いただけます。http://partsbook.brother.co.jp/partsnvj/pn/ The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnv/eng/ jintex.in

Page 2 — 型式板の見方

型式板の見方 BROTHER INDUSTRIES, LTD. S-7300A- P: プレミア仕様 3: 中厚物用 5: 厚物用 0: 微量給油タイプ 3: セミドライタイプ 3: 糸払い無し 4: 標準糸払い有り 5: R糸払い有り jintex.in

Page 3 — Description of model plate

Description of model plate BROTHER INDUSTRIES, LTD. S-7300A- P: Premier specifications 3: Medium-weight materials 5: Heavy-weight materials 0: Minimum lubrication type 3: Semi dry type 3: Without thread wiper 4: With standard thread wiper 5: With R thread wiper jintex.in

Page 5 — CONTENTS

Notes for using this parts book 1. This book was prepared based on information available in June 2015. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line. 4. The part which has the symbol "+" on its number (REF.NO) in the figure differs depending on the specification. For details, refer to the parts list. CONTENTS A. Machine body ...* **A. Machine body**: 1, Sp2. Different parts list, (For the Americas, China and General export) ..., 52 * **B. Needle bar and thread take-up mechanism ...**: 3, Sp3. Different parts list, 52 * **C. Presser foot mechanism**: 7, Sp3. Different parts list, (For Europe) ..., 53 * **D. Feed mechanism**: 11, Ga1. Gauge parts list, 53 * **E. Knee lifter mechanism**: 13, (Medium-weight materials : 3ROW) ..., 54 * **F. Rotary hook mechanism**: 15, Ga2. Gauge parts list, 54 * **G. Lubrication**: 17, (Medium-weight materials : 3ROW), 55 * **H. Threading mechanism**: 19, Ga3. Gauge parts list, 55 * **J. Bobbin winder mechanism**: 23, (Heavy-weight materials : 3ROW), 56 * **K. Thread trimmer mechanism**: 25, Ga4. Gauge parts list, 56 * **L. Tension release mechanism**: 29, (Medium-weight materials : 4ROW) ..., 57 * **M1. Thread wiper mechanism (For -4(□□))**: 31, Ga5. Gauge parts list, 57 * **M2. Thread wiper mechanism (For -5(□□))**: 33, (Medium-weight materials : 4ROW), 58 * **N1. Control box**: 35, Ga6. Gauge parts list, 58 * **N2. Control box**: 39, (Medium-weight materials : 4ROW), 59 * **P. Quick reverse switch mechanism**: 41, Ga7. Gauge parts list, 59 * **Q. Motor cover**: 43, (Heavy-weight materials : 4ROW), 60 * **T. Operation panel**: 45, Ga8. Gauge parts list, 60 * **U. Motor mechanism**: 47, (Difficult-to-sew materials & Shin-gosen : 4ROW) ..., 61 * **V. Accessories**: 49, Wa. Warning labels, 61 * **Sp1. Different parts list (For Japan)**: 51, Index, 62

Page 6 — A. 主体関係 / Machine body

A. 主体関係 / Machine body 1 S-7300A-050

Page 7 — A. 主体関係 / Machine body

A. 主体関係 / Machine body REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB3440001 1 キャクチュウL STAND L 2 SB4845001 3 キャクチュウR STAND R 3 104450101 3 ゴムセン8 RUBBER CAP 8 4 SA5810001 1 ゴムセン23.5 RUBBER CAP 23.5 5 159150000 3 ゴムセン20.5 RUBBER CAP 20.5 6 150607000 1 ゴムセン32.8 RUBBER CAP 32.8 7 SB5043001 1 ゴムセン15.5 RUBBER CAP 15.5 8 SB5638001 1 トウブシキムR HEAD CUSHION R 9 SB5044001 1 トウブシキムL HEAD CUSHION L 10 SB5312001 3 カラー-4-5.3 COLLAR 4-5.3 11 060401216 3 バインドM4X12 SCREW BIND M4X12 12 SB3850001 1 ジョウギイタ RULER PLATE 13 062400616 1 ナベコ4X6 SCREW PAN M4X6 14 S37060001 1 アースマーク LABEL, GROUNDING 15 SA9826001 1 ソウサチュウイラベル LABEL CAUTION 16 SA9957001 2 ワーニングマーク INJURY MARK 17 SA9957002 1 ワーニングマーク INJURY MARK S-7300A-050 2

Page 8 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism < - [ ]03用,-[ ]05用 / For -[ ]03,-[ ]05> < - [ ]33用 / For -[ ]33> 1 2 6 7 00 7 36 31 32 35 33 34 8 2 5 6 21 20 19 19 14 15 17 16 10+ 9+ 13 18 22 14 15 17 16 12 10+ 9+ 13 18 22 25 24+ 23+ 42 43 45 44 58 55 59 57 56 45 54 46 47 48 47 50 27 26+ 29 30 28+ 51 53 49 52 52 38 37+ 37+ 39 40 41 3 S-7300A-101 jintex.in

Page 9 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB5290101 1 ウワジククミ UPPER SHAFT ASSY 2 S23651001 3 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 3 S25235001 1 シメネジ8 SCREW M8 4 S25236001 1 アナヒラ6X10ホソメ SET SCREW SOCKET (FT) M6X10 5 SA1120001 1 イトマキクドウリン BOBBIN WINDER DRIVING WHEEL 6 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 7 048150142 2 トメワジクヨウC15 RETAINING RING EXTERNAL C15 8 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 <--[03用]--> <For --[03]> 9+ SB5248001 1 ハリボウレンカンソウクミ3 NEEDLE BAR CONNECTING ROD UNIT 10+ SA7625001 1 ハリボウクランク NEEDLE BAR CRANK 11 S32958000 1 クミヒモ WICK <--[35用]--> <For --[35]> 9+ SB5252001 1 ハリボウレンカンソウクミ5 NEEDLE BAR CONNECTING ROD UNIT 10+ SA7625001 1 ハリボウクランク NEEDLE BAR CRANK 11 S32958000 1 クミヒモ WICK <--[33用]--> <For --[33]> 9+ SB5252001 1 ハリボウレンカンソウクミ3D NEEDLE BAR CONNECTING ROD UNIT 10+ SA7625001 1 ハリボウクランク NEEDLE BAR CRANK 12 SA8061001 1 アナクボミ3X4シール SET SCREW SOCKET(CP)M3X4 SEAL 13 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 14 SB3776001 1 セットカラー SET SCREW COLLAR 15 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 16 SA2161001 1 ザガネ WASHER 17 048060342 1 トメワE6 RETAINING RING E6 18 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 19 012060636 2 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 20 SA7239101 1 ストッパーピン STOPPER PIN 21 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 22 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 23+ *P.51-53 1 ハリボウ NEEDLE BAR <--[3用]--> <For --[03]> 24+ S04630000 1 ハリボウセン NEEDLE BAR CORK <--[05用]--> <For --[05]> 24+ 111863001 1 ハリボウセン NEEDLE BAR CORK 25 SB5032001 1 ハリボウメタルU NEEDLE BAR BUSH U <--[3用]--> <For --[03]> 26+ SA1138101 1 ハリボウメタルD NEEDLE BAR BUSH D <--[05用]--> <For --[05]> 26+ SA1139101 1 ハリボウメタルD NEEDLE BAR BUSH D 27 104833001 1 ゴムセン4.3 RUBBER CAP 4.3 28+ *P.51-53 1 ミシンハリ NEEDLE 29 140553102 1 アタマツキトメネジ3.18 SET SCREW, SM3.18 30 151594001 1 ハリボウイトアンナイ NEEDLE BAR THREAD GUIDE 31 SB5318001 1 プーリークミ PULLEY ASSY 32 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 33 SB5227001 1 ベアリングオサエ BEARING HOLDER 34 062500816 1 ナベコ5X8 SCREW PAN M5X8 35 SB4849001 1 タイミングプーリーU TIMING PULLEY U 36 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 S-7300A-101 4 jintex.in

Page 10 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism < - [ ]03用,-[ ]05用 / For -[ ]03,-[ ]05> < - [ ]33用 / For -[ ]33> S-7300A-101 5 jintex.in

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 37+ *P.51-53 <3枚歯用> 1 ハリイタ <4枚歯用> 1 ハリイタ <For 3ROW> NEEDLE PLATE <For 4ROW> NEEDLE PLATE 37+ *P.51-53 38 151267001 2 サラネジ4.37 SCREW, FLAT SM4.37-40X8 39 180018151 1 スペリイタクミ SLIDE PLATE ASSY 40 114561001 1 スペリイタウラバネ SPRING, PLATE 41 SA9523001 2 シメネジ2.38 SCREW SM2.38 42 SB5316101 1 シタクジクミ LOWER SHAFT ASSY 43 048120142 1 トメワジクヨウC12 RETAINING RING EXTERNAL C12 44 SB4848001 1 シタクジクフアン LOWER SHAFT FAN 45 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 46 SB5291101 1 タイミングプーリDオオクミ TIMING PULLEY D UNIT 47 S23651001 4 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 48 SA2378001 2 カンザ4.8 SPACER 4.8 49 SB5037001 1 シタクジメタル LOWER SHAFT BUSH 50 SA2252101 1 タイミングベルト TIMING BELT 51 SA1166001 1 シタクジギアクミ LOWER SHAFT GEAR ASSY 52 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 53 SB5628001 1 オイルシール12-30 OIL SEAL 12-30 54 SB5629001 1 オイルシール12-35 OIL SEAL 12-35 55 SB5317101 1 テンションプーリリクミ TENSION PULLEY ASSY 56 SB4857001 1 テンションプーリカラー COLLAR 57 SB4858001 1 ベルトチョウセツジク REGULATION SHAFT 58 SB5039001 1 アナボルト8X25 BOLT SOCKET M8X25 59 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 S-7300A-101 6 jintex.in

Page 12 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism < プレミア仕様 / For premier > 17 29 28 32 31 34 35 33 21 20 19 18 36 37 30 24 22 25 23 24 6 10 7 8+ < オプション部品 / Option parts > 46 45 47 41 < プレミア仕様 / For premier > 2 9 3 5 4 1+ 11+ 13 14 12 15+ 7 jintex.in S-7300A-201

Page 13 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism REF.NO CODE Q'TY NAME OF PARTS RM 1+ SA9359001 <--[3用]> 1 オサエボウ <--[05用]> 1 オサエボウ <プレミア仕様> 1 オサエボウダキクミP <For -[03]> PRESSER BAR <For -[05]> PRESSER BAR <For premier> P-BAR GUIDE BRACKET ASSY P 1+ SA1173101 2 SB5049001 3 SB5305001 1 オサエボウダキクミS P-BAR GUIDE BRACKET ASSY S 4 SA8903001 1 シメネジ4X12 SCREW M4X12 5 SA7242001 1 オサエボウメタル PRESSER BAR BUSH 6 104833001 1 ゴムセン 4.3 RUBBER CAP 4.3 7 SA7607101 1 オサエバネアンナイ SPRING GUIDE 8+ S13561101 <--[3用]> 1 オサエバネ <--[05用]> 1 オサエバネ <For -[03]> PRESSER BAR SPRING <For -[05]> PRESSER BAR SPRING 8+ 141728001 9 140407001 1 ザガネ WASHER 10 SB5262001 1 オサエチョウセツネジクミ PRESSER ADJUSTING SCREW ASSY 11+ *P.51-52 <フィンガーガードねじ止め式> 1 オサエグミ <For finger guard screwed type> PRESSER FOOT ASSY 12 SA8100101 1 フィンガーガード FINGER GUARD 13 S13385001 1 シメネジ3.57X10 SCREW, SM3.57-40X10 14 025350132 1 ヒラザガネショウ3.5 WASHER PLAIN S 3.5 15+ *P.53 <フィンガーガード一体式> 1 オサエグミ <For finger guard integral type> PRESSER FOOT ASSY W/F-GUARD 16 S31006002 1 リフティングテコ LIFTING LEVER 17 S39051001 1 ナベザクミ35X12 SCREW, PAN (S/P W) M3.5X12 18 SB4864001 1 オサエアゲクランク PRESSER BAR LIFTER CRANK 19 081004070 1 OリングP4 O RING P4 20 SB4865001 1 オサエアゲレバーシﾞック PRESSER BAR LIFTER LEVER SHAFT 21 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 22 SB4867101 1 イトウルメキリタ TENSION RELEASE PLATE 23 SB4873101 1 オサエアゲレバーバネA SPRING A 24 SB5229001 2 ザガネ7.3 WASHER 7.3 25 048050342 2 トメワE5 RETAINING RING E5 26 SB4870001 1 イトウルメホジヨピン TENSION RELEASE SUPPORT PIN 27 021060306 1 3シュナット6 NUT 3 M6 28 SB4870001 <プレミア仕様> 1 イトウルメホジヨピン <For premier> TENSION RELEASE SUPPORT PIN 29 021060306 1 3シュナット6 NUT 3 M6 30 SB4866001 1 オサエアゲレバー PRESSER BAR LIFTER LEVER 31 SB4872001 1 ヒザアゲレンカン KNEE LIFTER CONNECTING ROD 32 SB5030001 1 ダンネジ M5 SHOULDER SCREW M5 33 018400532 1 アナルトメ4X5 BOLT SOCKET M4X5 34 026040236 1 ヒラザガネミガキ4 WASHER PLAIN M 4 35 SB4869001 1 ヒラアゲタ LIFTING PLATE 36 SA1179001 1 ダンネジ5 SHOULDER SCREW, M5 37 SB4871001 1 ヒザアゲレバー KNEE LIFTER LEVER 38 SB5030001 1 ダンネジ M5 SHOULDER SCREW M5 39 SB0705101 1 オサエアゲリンクダンネジ LINK SHOULDER SCREW 40 SB4874101 1 ヒザアゲボウ KNEE LIFTER BAR 41 SB5030001 1 ダンネジ5 SHOULDER SCREW, M5 42 SB5031001 1 チョウセツネジ6 ADJUSTING SCREW 6 43 021060306 1 3シュナット6 NUT 3 M6 S-7300A-201 8 jintex.in

Page 14 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism <プレミア仕様 / For premier > 29 28 17 32 31 34 35 33 21 20 19 18 36 30 37 22 24 25 23 6 10 7 8+ <プレミア仕様 / For premier > 2 9 3 5 4 13 14 12 1+ 11+ <オプション部品 / Option parts > 46 45 47 15+ 9 jintex.in S-7300A-201

Page 15 — C. 押え関係 / Presser foot mechanism

C. 押え関係 / Presser foot mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 45 SB6564001 1 <オプション部品> チョウセツネジセット <OPTION PARTS> ADJUSTING SCREW SET 46 SB5674001 1 チョウセツネジ 6 ADJUSTING SCREW 6 47 021060306 1 3シュナット 6 NUT 3 M6 S-7300A-201 10 jintex.in

Page 16 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism 1+ 2 1+ 3 4 5 6 7 8+ 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 27 27 28 29 30 31 31 32 33 34 35 36 37 38 39 39 40 40 41 11 S-7300A-202 jintex.in

Page 17 — D. 送り関係 / Feed mechanism

D. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1+ *P.51-53 <3枚歯用> 1 オクリバ <For 3ROW> FEED DOG 1+ *P.51-53 <4枚歯用> 1 オクリバ <For 4ROW> FEED DOG 2 SB4900001 2 シメネジ3 SCREW M3 3 SB4879101 1 オクリダイクミ FEED BAR ASSY 4 SB5315101 1 ジョウゲオクリダイジククミ FEED LIFTING R-BAR SHAFT ASSY 5 014300432 1 アナトメクボミ3X4 SET SCREW SOCKET (CP) M3X4 6 SA1242001 1 アタマトメクボミ5X7 SET SCREW 5X7 7 SB4894001 1 ザガネ4.2 T0.8 WASHER PLAIN 4.2 T0.8 8+ SB5294201 <--003用> 1 ジョウゲオクリクミ3 <For -003> LIFTING FEED ASSY 3 8+ SB5297201 <--005用> 1 ジョウゲオクリクミ5 <For -005> LIFTING FEED ASSY 5 9 SB4885101 1 ジョウゲオクリクランク LIFTING FEED CRANK 10 SB4888101 1 ジョウゲオクリウデ LIFTING FEED ARM 11 062501016 1 ナベコ5X10 SCREW PAN M5X10 12 060401016 1 バインド4X10 SCREW BIND M4X10 13 SB4901001 1 ザガネ4.2 T1.5 WASHER PLAIN 4.2 T1.5 14 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 15 SB5314101 1 オクリダイクミ FEED BAR SHAFT ASSY 16 014300432 1 アナトメクボミ3X4 SET SCREW SOCKET (CP) M3X4 17 SA1242001 1 アタマトメクボミ5X7 SET SCREW 5X7 18 SB4894001 1 ザガネ4.2 T0.8 WASHER PLAIN 4.2 T0.8 19 SB4887001 1 スイヘイオクリダイウデ FEED ROCK BRACKET ARM 20 SA7257001 1 シメネジ5X12 SCREW 5X12 21 SB4889001 1 スイヘイオクリジク FEED ROCK SHAFT 22 048080142 1 トメワジヨウC8 RETAINING RING EXTERNAL C8 23 SB4893101 1 ザガネ・8 WASHER PLAIN 8 24 SB4882001 1 オクリジクメタルL FEED SHAFT BUSH L 25 SB4883001 1 オクリジクメタルM FEED SHAFT BUSH M 26 SB4884001 1 オクリジクメタルR FEED SHAFT BUSH R 27 012500536 3 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 28 SB5300201 1 スイヘイオクリリンクウツミ FEED ROCK LINK UNIT 29 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 30 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 31 021350106 2 シユナット35 NUT 1 M3.5 32 SB4893101 1 ザガネ・8 WASHER PLAIN 8 33 SB6430101 1 Pモータクミ P MOTOR ASSY 34 018401436 4 アナボルト4X14 BOLT SOCKET M4X14 35 018501436 4 アナボルト5X14 BOLT SOCKET M5X14 36 SB4892201 1 PMカバー PM COVER 37 0A5401006 3 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 38 228475000 1 ケツソクバンド1.9X80 FASTENING BAND 1.9X80 39 149287000 2 ナイロンクランプ CORD HOLDER 7N 40 0A5401006 2 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 41 SA4224001 1 マークチュウイ30X40 MARK ATTENTION 30X40 S-7300A-202 12

Page 18 — E. 膝上げ関係 / Knee lifter mechanism

E. 膝上げ関係 / Knee lifter mechanism 1 2 3 4 5 6 7 8 9 10 S-7300A-203 13

Page 19 — E. 膝上げ関係 / Knee lifter mechanism

E. 膝上げ関係 / Knee lifter mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB3854001 1 ヒザアテクミ KNEE LIFTER ASSY 2 SB1603001 1 ヒザアテツギテ KNEE LIFTER BRACKET 3 SB1604001 1 ボルト6X15 BOLT 6X15 4 SB1605001 1 ボルト6X24 BOLT 6X24 5 SB3400001 1 ヒザアゲテジク KNEE LIFTER BAR 6 SB1607001 1 ヒザアテ KNEE LIFTER PLATE 7 SB1608001 1 ヒザアテササエ KNEE LIFTER SUPPORT 8 SB1609001 1 ヒザアテストツパ KNEE LIFTER PLATE STOPPER 9 SB1610001 1 ボルト6X12 BOLT 6X12 10 SB1611001 1 ヒザアテカバー KNEE LIFTER PLATE COVER S-7300A-203 14

Page 20 — F. かま関係 / Rotary hook mechanism

F. かま関係 / Rotary hook mechanism 15 S-7300A-301 jintex.in

Page 21 — F. かま関係 / Rotary hook mechanism

F. かま関係 / Rotary hook mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB4903001 1 カマジク ROTARY HOOK SHAFT 2 SB5269001 1 オイルアナフタネシクミ SCREW CAP WHOLE ASSY 3 081004870 1 OリングS4 O RING S4 4 SB5270001 1 ポンプメタルクミ PUMP BUSH ASSY 5 081025870 1 OリングS25 O RING S25 6 081029870 1 OリングS29 O RING S29 7 SB5272001 1 ベアリングブツシュクミ BEARING BUSH ASSY 8 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 9 SA9684001 1 オイルシール OIL SEAL 10 SB4904101 1 カマジクギヤメタル ROTARY HOOK SHAFT GEAR BUSH 11 012060636 1 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 12 SA1286001 1 カマジクギヤアクミ ROTARY HOOK SHAFT GEAR ASSY 13 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 14 SB5275101 1 ゴムセン23.5クミ RUBBER CAP 23.5 ASSY 15+ SB5041001 1 <□3用> ウチカマトメ3 <□05用> <For -□03> HOOK STOPPER 3 15+ SB5042001 1 ウチカマトメ5 <For -□05> HOOK STOPPER 5 16 SA8903001 1 シメネジ4X12 SCREW M4X12 17+ SB1305001 1 <□3用> SB3338 カマハコウミ <□3プレミア仕様> <For -□03> ROTARY HOOK ASSY W/BOX SB3338 <For -□3 premier> 17+ SB568001 1 SB5274 カマハコウミ <□05用> <For -□05> ROTARY HOOK ASSY W/BOX SB5274 17+ SB1677001 1 SB1678 カマハコウミ ROTARY HOOK ASSY W/BOX SB1678 18 S03245001 1 ボビンケースクミ BOBBIN CASE ASSY 19 183388001 1 チヨウシバネチヨウセツネジ TENSION SPRING 20 183389001 1 チヨウシバネチヨウセツネジ ADJUSTING SCREW 21 183390001 1 チヨウシバネトメネジ SET SCREW 22 S03246001 1 クウテンボウシバネ ANTI-SPIN SPRING 23 146290001 1 <□3用> ボビン <For -□03> BOBBIN 24 117132001 1 <□05用> ボビン <For -□05> BOBBIN S-7300A-301 16

Page 22 — G. Lubrication

G. 給油潤滑関係 / Lubrication 17 S-7300A-350 jintex.in

Page 23 — G. 給油潤滑関係 / Lubrication

G. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB5276101 1 <ロー[口]用> <For-[口]> 2 SB5281001 1 オイルタンククソウクミ OIL TANK UNIT 3 SB4911001 1 ビニールチューブクミ OIL TUBE ASSY 4 062501216 1 チューブホルダU TUBE HOLDER U 5 SB5002001 1 ナベコ5X12 SCREW PAN M5X12 6 062400816 1 チューブフックU TUBE HOOK U 7 SB5287001 1 ナベコ4X8 SCREW PAN M4X8 8 062500816 1 トウシンホルダークミ WICK HOLDER ASSY 9 SB5036001 1 ナベコ5X8 SCREW PAN M5X8 10 145737021 1 ハリボウフェルト NEEDLE BAR FELT 1 フェルトオサエ FELT SUPPORT <ロー[口33]用> <For-[口33]> 11 SB5639101 1 オイルタンククソウクミD OIL TANK UNIT D 12 S25382001 1 オイルクチ OIL FEEDING PIPE 13 SA8989001 1 オイルクチ OIL FEEDING PIPE 14 SA8987001 1 フィルタ FILTER 15 081006670 1 OリングPW6 O RING PW6 16 104821001 1 ゴムセン10.5 RUBBER CAP 10.5 17 SA1303101 1 シメネジ8 SCREW M8 18 081008070 1 OリングP8 O RING P8 19 SB5280001 2 ビニールチューブ (350) VINYL TUBE (350) 20 0A4501206 2 +ナベザクミ5X12DA SCREW PAN (S/P WASHER) M5X12 21 SB5284201 1 キュウクチクミ OIL FEEDING POCKET ASSY 22 S25382001 2 オイルクチ OIL FEEDING PIPE 23 081004870 1 OリングS4 O RING S4 24 140327001 2 ゴムセン6.3 RUBBER CAP 6.3 25 SA7636201 1 ポンプフタネジクミ PUMP CAP SCREW ASSY 26 S25380601 1 ポンプフタネジ CAP SCREW PUMP 27 S52764001 1 スプリングジヤネ SPRING COMPRESSION 28 144875001 1 プランジャー PLUNGER 29 SB4915001 1 ゴムセン RUBBER CAP 30 SB5353201 1 ベッドソフタクミ BED BOTTOM COVER ASSY 31 SA1303101 2 シメネジ8 SCREW M8 32 081008070 2 OリングP8 O RING P8 33 062400816 1 ナベコ4X8 SCREW PAN M4X8 34 025040332 1 ヒラガナダイ4 WASHER PLAIN L4 35 SB5675001 1 ゴムセン8 RUBBER CAP 8 36 SB5280001 1 ソフタクツキン BOTTOM COVER PACKING 37 062501216 6 ナベコ5X12 SCREW PAN M5X12 38 SB5004001 1 オイルタンクガード OIL TANK GUARD 39 062501216 1 ナベコ5X12 SCREW PAN M5X12 40 SB4916001 1 オイルチョウセツネジ ADJUSTING SCREW S-7300A-350 18

Page 24 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism <プレミア仕様 / For premier > 13 12 2 3 4 6 5 36 35 29 11 <プレミア仕様 / For premier > 39+ 39+ 42 37 38 33 32 34 40 41 28 27 23 24 <プレミア仕様 / For premier > 26 16 17 18 19 15+ 20 21 14+ 22 25 S-7300A-401 19 jintex.in

Page 25 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB5265201 1 <プレミア仕様> プレテンションクミP <For premier> PRE-TENSION ASSY P 2 SB4933001 1 イトアンナイバネA THREAD GUIDE SPRING 3 145446001 2 イトチョウシサラ DISC TENSION 4 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 5 100136001 1 イトチョウシナット TENSION NUT 6 SA4146101 1 フクチョウシバネ SUB TENSION SPRING 7 SB5313201 1 プレテンションクミS PRE-TENSION ASSY S 8 145446001 2 イトチョウシサラ DISC TENSION 9 100136001 1 イトチョウシナット TENSION NUT 10 SA4146101 1 フクチョウシバネ SUB TENSION SPRING 11 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 12 SB4928001 1 <プレミア仕様> イトユルメピンA <For premier> TENSION RELEASE PIN A 13 SB4929001 1 イトユルメボウA TENSION RELEASE STUD A 14+ SB6683001 1 <□□3用> イトチョウシボウダイクミ3 <For-□□3> THREAD TENSION BRACKET ASSY 3 15+ SB6681001 1 イトチョウシバネ3 TENSION SPRING 3 14+ SB6684001 1 <□□5用> イトチョウシボウダイクミ5 <For-□□5> THREAD TENSION BRACKET ASSY 5 15+ SB6686001 1 イトチョウシバネ5 TENSION SPRING 5 16 100402004 2 トメネジ3.57 SET SCREW SM3.57 17 SB6680001 1 イトチョウシボウL TENSION BAR L 18 145446001 2 イトチョウシサラ DISC TENSION 19 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 20 S12441001 1 チョウシバネウエザガネ WASHER 21 S31032002 1 イトチョウシナット TENSION NUT 22 S02620401 1 イトトリバネ THREAD TAKE-UP SPRING 23 SB4922101 1 <プレミア仕様> イトトリバネストッパ <For premier> THREAD TAKE-UP SPRING STOPPER 24 SB4923001 1 ストッパヨウバネ STOPPER SPRING 25 SA1229101 1 アナトメネジ6トガリ SET SCREW (FT) M6X6 26 S01419000 1 イトユルメピン TENSION RELEASE PIN 27 SB5627001 1 <プレミア仕様> イトユルメボウクミ <For premier> TENSION RELEASE STUD ASSY 28 SB4925001 1 イトユルメボウ TENSION RELEASE STUD 29 SB3595101 1 イトタテボウ SPOOL PIN 30 SA1345001 1 アームイトアンナイR ARM THREAD GUIDE, R 31 060500616 1 バインド5X6 SCREW BIND M5X6 32 SB4934001 1 アームイトカケ ARM THREAD GUIDE 33 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 34 SA7272201 1 ハリホウメタルDイトアンナイ THREAD GUIDE D 35 SA9854001 1 テンビンカバー THREAD TAKE-UP LEVER COVER 36 062500816 1 ナベコ5X8 SCREW PAN M5X8 37 SB5630101 1 メンイタグミ FACE PLATE ASSY 38 SA7849001 2 ゴムセン RUBBER CAP 39+ SB4932001 1 <プレミア仕様> メンイタグムセンP <For premier> FACE PLATE RUBBER CAP P 39+ SB5236001 1 メンイタグムセンS FACE PLATE RUBBER CAP S S-7300A-401 20

Page 26 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism <プレミア仕様 / For premier > 13 12 2 3 4 5 6 1 36 35 29 11 <プレミア仕様 / For premier > 39+ 39+ 42 37 33 38 40 41 32 34 28 27 23 24 <プレミア仕様 / For premier > 16 26 22 17 18 19 15+ 20 21 14+ 30 31 S-7300A-401 21 jintex.in

Page 27 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 40 SA7271001 1 メンイタイトアンナイ FACE PLATE THREAD GUIDE 41 060300606 1 バインド3X6 SCREW BIND M3X6 42 0A4401606 4 ナベザクラミ4X16DA SCREW PAN (S/P WASHER) M4X16 S-7300A-401 jintex.in 22

Page 28 — J. 糸巻関係 / Bobbin winder mechanism

J. 糸巻関係 / Bobbin winder mechanism 23 29 28 24 24 4 1 22 27 25 13 12 14 11 5 20 9 10 16 17 15 18 19 3 2 6 8 7 26 S-7300A-402 23 jintex.in

Page 29 — J. 糸巻関係 / Bobbin winder mechanism

J. 糸巻関係 / Bobbin winder mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB5652101 1 ウワフタオオクミ TOP COVER UNIT ASSY 2 048050342 1 トメワE5 RETAINING RING E5 3 SB5009001 1 イトマキジクウケケミ B-WINDER SUPPORT ASSY 4 SB5010001 1 イトマキジクジクミ BOBBIN WINDER SHAFT ASSY 5 SB5400001 1 ストツパゴム STOPPER RUBBER 6 SB4936001 1 イトマキクルマ BOBBIN WINDER WHEEL 7 SB4940001 1 ゴムリング RUBBER RING 8 012400432 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 9 SB5440001 1 ボビンオサエカム BOBBIN PRESSER CAM 10 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 11 SB3545101 1 イトマキウデジク BOBBIN WINDER ARM SHAFT 12 SB3548001 1 ザガネ WASHER 13 062400816 1 ナベコ4X8 SCREW PAN M4X8 14 SB5014001 1 ボビンサエ BOBBIN PRESSER 15 SB3551001 1 イトマキレバー BOBBIN WINDER LEVER 16 025060232 1 ヒラサガネチユウ6 WASHER PLAIN M6 17 SB3552001 1 モドシバネ SPRING 18 SB3553001 1 イトマキレバーバネ BOBBIN WINDER LEVER SPRING 19 037300616 1 Vナベタツピン3X6 TAPPING SCREW PAN V M3X6 20 081004070 1 OリングP4 O RING P4 21 SA1360101 1 メス KNIFE 22 060501016 1 バインド5X10 SCREW BIND M5X10 23 SB5008001 1 イトマキチヨウシクミ BOBBIN WINDER TENSION ASSY 24 145446002 2 イトチヨウシサラ DISC TENSION 25 SB5013001 1 ナツト4.37 NUT 3 SM4.37 26 060501016 5 バインド5X10 SCREW BIND M5X10 27 062061616 1 ナベコ6X16 SCREW PAN M6X16 28 SB5011001 1 イトチヨウシバネ TENSION SPRING 29 SB5012001 1 イトチヨウシナツト THREAD TENSION NUT S-7300A-402 24 jintex.in

Page 30 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism 25 jintex.in S-7300A-403

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB4954101 1 イトサバキ LOWER THREAD FINGER 2 026040236 1 ヒラザガネミガキ4 WASHER PLAIN M 4 3 062400616 1 ナベコ4X6 SCREW PAN M4X6 <プレミア仕様> <For premier> 4 SB4941001 1 ウワメス UPPER KNIFE 5 SB4943001 1 シメネジ4.37 FLAT SCREW 4.37 6 148537101 1 サラネジ4.37 SCREW, FLAT (W/SOCKET) SM4.37 7 SB4950201 1 ウワメスホルダ UPPER KNIFE HOLDER 8 SB4949101 1 ウワメスレンカン UPPER KNIFE CONNECTING ROD 9 SB4948101 1 ウワメスレバー UPPER KNIFE LEVER 10 018501036 1 アナボルト5X10 BOLT SOCKET M5X10 11 SB4942101 1 シタメス LOWER KNIFE 12 148537101 2 サラネジ4.37 SCREW, FLAT (W/SOCKET) SM4.37 13 SB4952101 1 シタメスホルダ LOWER KNIFE HOLDER 14 SB4969001 1 スペーサ SPACER 15+ SB4951201 1 シタメスレンカン LOWER KNIFE CONNECTING ROD 16+ 060401016 4 バインド4X10 SCREW BIND M4X10 17+ SA5329001 4 カラー COLLAR 18+ 100645003 4 ザガネ WASHER 19+ 021400306 3 シュナット4 NUT 3 M4 20+ SB4957001 1 フタマタジクモドシバネP THREAD TRIMMER LEVER SPRING P 21+ SB4944001 1 イトリカリムB THREAD TRIMMER CAM B 22 148537101 2 サラネジ4.37 SCREW, FLAT (W/SOCKET) SM4.37 23 102843004 1 サラネジ3.57 SCREW, FLAT SM3.57 15+ SB4946201 1 イドウハレンカン MOVABLE KNIFE CONNECTING ROD 16+ 060401016 2 バインド4X10 SCREW BIND M4X10 17+ SA5329001 2 カラー COLLAR 18+ 100645003 2 ザガネ WASHER 19+ 021400306 2 シュナット4 NUT 3 M4 20+ SB5026001 1 フタマタジクモドシバネS THREAD TRIMMER LEVER SPRING S 21+ SA7552201 1 イトリカリム THREAD TRIMMER CAM 24 SB2433001 1 コテイハ FIXED KNIFE 25 SB2434001 1 イドウハ MOVABLE KNIFE 26 SB4947101 1 イドウハホルダ MOVABLE KNIFE HOLDER 27 SB5631101 1 イトキリレバークミ THREAD TRIMMER LEVER ASSY 28 SA7285101 1 レバー ストッパ LEVER STOPPER 29 018501436 1 アナボルトM5X14 BOLT SOCKET M5X14 30 SA7287001 1 イトキリホルダオサエイヤ KNIFE HOLDER PRESSER PLATE 31 004301016 3 サラコ3X10 SCREW FLAT M3X10 32 SB4955001 1 フタマタジク FORKED SHAFT 33 SB4956101 1 フタマタジクメタル FORKED SHAFT BUSH 34 SB4968001 1 トメワE12 RETAINING RING E12 35 SB5301001 1 イトキリレバーソンウクミ THREAD TRIMMER LEVER UNIT 36 105234003 1 ナット4.37 NUT SM4.37 37 S23651001 1 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 38 SB4960001 1 カムレバージク THREAD TRIMMER CAM LEVER SHAFT 39 S25434000 2 クツションゴム RUBBER CUSHION 40 SB4962001 1 カラー COLLAR 41 SB4961001 1 カムレバーモドシバネ SPRING EXTENSION 42 154567000 2 カンザ5.3 SPACER 5.3 43 014771032 2 アナボミ635-40X10 SET SCREW SOCKET SM6.35-40X10 44 SB5310101 1 イトキリソレノイドクミ THREAD TRIMMER SOLENOID ASSY 45 SB4964001 1 イトキリソレノイドダイ THREAD TRIMMER SOLENOID BASE 46 SB5257001 1 イトキリソレノイド THREAD TRIMMER SOLENOID 47 062400816 4 ナベコ4X8 SCREW PAN M4X8 48 140647121 1 コードオサエ CORD HOLDER 49 062400816 1 ナベコ4X8 SCREW PAN M4X8 50 SA9716001 1 レンケツピン PIN S-7300A-403 26 jintex.in

Page 32 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism 27 S-7300A-403 jintex.in

Page 33 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 51 026050136 1 ヒラザガネコガタ5 WASHER PLAIN S 5 52 048050142 1 トメワジクヨウC5 RETAINING RING EXTERNAL C5 53 SB4963001 1 ソレノイドレバー SOLENOID LEVER 54 SB4965001 1 ソレノイドストツパイタ SOLENOID STOPPER PLATE 55 018400636 1 アナボルト4X6 BOLT SOCKET M4X6 56 SB4967101 1 ソレノイドレバーダイ SOLENOID LEVER BASE 57 018062536 1 アナボルト6X25 BOLT SOCKET M6X25 58 SB5650001 1 カラー COLLAR 59 SA9827001 2 ザガネ WASHER PLAIN 60 021060306 1 3シュナツト6 NUT 3 M6 61 062501216 1 ナベコ5X12 SCREW PAN M5X12 62 SB5673001 1 チューブホルダワイヤD TUBE HOLDER WIRE D 63 062501016 4 ナベコ5X10 SCREW PAN M5X10 64 SB4966001 1 ソレノイドストツパゴム SOLENOID STOPPER RUBBER 65 SB4953001 1 カラー COLLAR 66 018062036 1 アナボルト6X20 BOLT SOCKET M6X20 67 025060332 1 ヒラザガネダイ6 WASHER PLAIN L 6 S-7300A-403 jintex.in 28

Page 34 — L. 糸緩め関係 / Tension release mechanism

L. 糸緩め関係 / Tension release mechanism 7 6 4 5 1 2 3 8 29 S-7300A-404 jintex.in

Page 35 — L. 糸緩め関係 / Tension release mechanism

L. 糸緩め関係 / Tension release mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB4970001 1 イトユルメワイヤー TENSION RELEASE WIRE 2 SB4971001 1 ワイヤホルダD WIRE HOLDER D 3 062400816 1 ナナベコ4X8 SCREW PAN M4X8 4 SB4972001 1 ワイヤホルダU WIRE HOLDER U 5 062401216 1 ナナベコ4X12 SCREW PAN M4X12 6 SA1388101 1 コードオサエ CORD HOLDER 7 018500836 1 アナボルト5X8 BOLT SOCKET M5X8 8 110161004 2 ナット4.76 NUT SM4.76 S-7300A-404 30 jintex.in

Page 36 — M1. 糸払い関係 (-4[[]]用) / Thread wiper mechanism (For -4[[]])

M1. 糸払い関係 (-4[[]]用) / Thread wiper mechanism (For -4[[]]) 27 23 22 28 25 26 3 9 7 12 8 11 2 24 4 5 6 10 16 15 13 17 19 14 18 20 21 31 S-7300A-405 jintex.in

Page 37 — M1. 糸払い関係 (-4□□用) / Thread wiper mechanism (For -4□□)

M1. 糸払い関係 (-4□□用) / Thread wiper mechanism (For -4□□) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB4846101 1 イトハラウチクミ THREAD WIPER DEVICE ASSY 2 SB5237101 1 イトハライドイ THREAD WIPER BASE 3 SB5258001 1 イトハラソレノイド THREAD WIPER SOLENOID 4 062300616 2 ナベコ3X6 SCREW PAN M3X6 5 026030136 2 ヒラザガネコガタ3 WASHER PLAIN S 3 6 SB4155001 1 バンド BAND 7 SA9771001 1 イトハライバネ THREAD WIPER SPRING 8 SA1205001 1 ヒラザガネ WASHER, PLAIN 9 S25456001 2 プランジャピン PLUNGER PIN 10 SB5238001 1 イトハライロッド THREAD WIPER ROD 11 S41207000 1 スペーサゴム SPACER RUBBER 12 S25456001 1 プランジャピン PLUNGER PIN 13 SB5239001 1 イトハライクランククミ THREAD WIPER CRANK ASSY 14 SA9352001 1 ワイパーバネ WIPER SPRING 15 110735022 1 ザガネ WASHER 16 048030342 1 トメワE3 RETAINING RING E3 17 048040342 1 トメワE4 RETAINING RING E4 18 SA8085001 1 ザガネ WASHER 19 SA9779001 1 イトハライ THREAD WIPER 20 146288021 1 イトハライジクカラー THREAD WIPER STUD COLLAR 21 060400516 1 バインド4X5 SCREW BIND M4X5 22 SB5242001 1 ソレノイドカバー SOLENOID COVER 23 060400516 1 バインド4X5 SCREW BIND M4X5 24 062500816 3 ナベコ5X8 SCREW PAN M5X8 25 SA2689101 1 コードオサエ CORD HOLDER 26 SB5306001 1 コードオサエU CORD HOLDER U 27 062500816 3 ナベコ5X8 SCREW PAN M5X8 28 SB5028001 1 コードオサエ CORD HOLDER S-7300A-405 32 jintex.in

Page 38 — M2. 糸払い関係 (-5[]用) / Thread wiper mechanism (For -5[])

M2. 糸払い関係 (-5[]用) / Thread wiper mechanism (For -5[]) 1 41 43 44 4 40 39 38 10 8 11 9 37 12 15 14 13 6 5 15 14 3 2 7 19 18 16 17 35 42 32 31 21 23 26 27 28 30 29 24 36 22 25 33 33 S-7300A-405 jintex.in

Page 39 — M2. 糸払い関係 (-5D用) / Thread wiper mechanism (For -5D)

M2. 糸払い関係 (-5D用) / Thread wiper mechanism (For -5D) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB6618101 1 Rイトハライセット R THREAD WIPER SET 2 025060132 1 ヒラザガネショウ6 WASHER PLAIN S 6 3 048040342 1 トメワE4 RETAINING RING E4 4 SB6513101 1 イトハライソレノイド THREAD WIPER SOLENOID 5 062300616 2 ナベコ3X6 SCREW PAN M3X6 6 026030136 2 ヒラザガネコガタ3 WASHER PLAIN S 3 7 SB4155001 1 バンド BAND 8 SB6504001 1 イトハライバネ THREAD WIPER SPRING 9 S41205001 1 ヒラザガネ WASHER, PLAIN 10 S25456001 2 プランジャピン PLUNGER PIN 11 S25456001 1 プランジャピン PLUNGER PIN 12 SB3858001 1 イトハライリンク THREAD WIPER LINK 13 SB6318001 1 イトハライレバーAクミ THREAD WIPER LEVER A ASSY 14 110735022 2 ザガネ WASHER 15 048030342 2 トメワE3 RETAINING RING E3 16 SB6510001 1 イトハライリンクL THREAD WIPER LINK L 17 SB6325001 1 イトハライレバーBクミ THREAD WIPER LEVER B ASSY 18 110735022 1 ザガネ WASHER 19 048030342 1 トメワE3 RETAINING RING E3 20 SB6516001 1 イトハライクランククミ THREAD WIPER CRANK ASSY 21 SB6329001 1 イトハライジクウケ THREAD WIPER SUPPORT 22 014680632 2 アナクボミ437-40X6 SET SCREW SOCKET SM4.37-40X6 23 SB6330201 1 イトハライジク THREAD WIPER SHAFT 24 SB6512001 1 イトハライマネジ THREAD WIPER SET SCREW 25 014300432 1 アナクボミ3X4 SET SCREW SOCKET (CP) M3X4 26 SA085001 1 ザガネ WASHER 27 146288021 1 イトハライジクカラー THREAD WIPER STUD COLLAR 28 060400516 1 バインド4X5 SCREW BIND M4X5 29 SB6511001 1 イトハライバネ WIPER SPRING 30 SB6514101 1 イトハライ THREAD WIPER 31 SB6884001 1 レバー ストツパ LEVER STOPPER 32 SB6886001 1 レバー ストツパゴム LEVER STOPPER RUBBER 33 SB6324001 1 セツトカラー SET SCREW COLLAR 34 014680632 2 アナクボミ437-40X6 SET SCREW SOCKET SM4.37-40X6 35 SB6323001 1 ザガネ WASHER 36 SB6328001 1 イトハライレバーシジク THREAD WIPER LEVER SHAFT 37 060501016 2 バインド5X10 SCREW BIND M5X10 38 SA2689101 1 コードオサエ CORD HOLDER 39 SB5028001 1 コードオサエ CORD HOLDER 40 SB5306001 1 コードオサエU CORD HOLDER U 41 062500816 3 ナベコ5X8 SCREW PAN M5X8 42 060400816 2 バインド4X8 SCREW BIND M4X8 43 060400516 1 バインド4X5 SCREW BIND M4X5 44 SB5242001 1 ソレノイドカバー SOLENOID COVER S-7300A-405 34 Jinte.in

Page 40 — N1.コントロールボックス関係 / Control box

N1.コントロールボックス関係 / Control box <欧州向用 / For Europe > 40 41 42 44 46 45 49 51 47 48 50 52 43 1+ 6 5 10 8 12 7 36 37 39 4 14 13 2+ 35 21 20 19 18 17 15 16 34 24 25 18 28 29 3+ 26 23 22 30 33 31 32 38 S-7300A-502 9 35 jintex.in

Page 41 — N1. コントロールボックス関係 / Control box

N1. コントロールボックス関係 / Control box REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1+ SB6454001 1 <日本、輸出一般向用> 1 BOXクミ J/A ホキュウ <For Japan and General export> 7300A BOX ASSY J/A SUPPLY 2+ SB3817401 1 フミコミユニット-EX TREADLE UNIT-EX 3+ SB6457001 1 メインキバンクセミホキュウ MAIN PCB ASSY SUPPLY 1+ SB6453001 <中国向用> 1 BOXクミ CN ホキュウ <For China> 7300A BOX ASSY CN SUPPLY 2+ SB3816101 1 フミコミユニット-CN TREADLE UNIT-CN 3+ SB6457001 1 メインキバンクセミホキュウ MAIN PCB ASSY SUPPLY 1+ SB6455001 <米州向用> 1 BOXクミ US ホキュウ <For Americas> 7300A BOX ASSY US SUPPLY 2+ SB4587301 1 フミコミユニット-US TREADLE UNIT-US 3+ SB6457001 1 メインキバンクセミホキュウ MAIN PCB ASSY SUPPLY 1+ SB6456001 <欧州向用> 1 BOXクミ CE ホキュウ <For Europe> 7300A BOX ASSY CE SUPPLY 2+ SB4587301 1 フミコミユニット-US TREADLE UNIT-US 3+ SB6458001 1 メインキバンクセミ CE ホキュウ MAIN PCB ASSY CE SUPPLY 4 SB4973101 1 ボトムカバー BOTTOM COVER 5 SB4976001 1 ヒザアゲヨコジクR KNEE LIFTER SHAFT R 6 149578020 2 ヨコジクブッシュ BUSH 7 146293001 1 トメワE10 RETAINING RING E10 8 SB4978001 1 ヒザアゲR KNEE LIFTER R 9 SB5034001 1 ボルト5.95X13 BOLT SM5.95X13 10 SB3587001 1 トメネジ5.95 SET SCREW SM5.95 11 100022004 1 ナット5.95 NUT SM5.95 12 SB4979001 1 ヒザアゲバネ TWIST SPRING 13 SB4980001 1 ヒザアゲF KNEE LIFTER F 14 SB3586001 1 ボルト5.95 BOLT SM5.95 15 SB4981101 1 ヒザアゲレンケツカン KNEE LIFTER CONNECTING ROD 16 SA1179001 2 ダンネジ5 SHOULDER SCREW M5 17 SB4982101 1 ヒザアゲレバー-D KNEE LIFTER LEVER D 18 012060636 2 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 19 SB4977101 1 ヒザアゲヨコジクL KNEE LIFTER SHAFT L 20 149578020 2 ヨコジクブッシュ BUSH 21 146293001 1 トメワE10 RETAINING RING E10 22 0A4401006 7 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 23 0A4402006 3 +ナベザクミ4X20DA SCREW PAN (S/P WASHER) M4X20 24 SB4975001 1 コネクタトリツケイタ CONNECTOR SETTING PLATE 25 0A4401006 2 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 26 SB3665001 1 セメントR40/220 CEMENT RESISTOR ASSY 40/220 27 0A4401006 2 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 28 SB3837001 1 ワイヤーグリップ WIRE CLIP 29 0A4401006 4 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 30 J04164001 1 オメガロックOLS-80 CLAMP OLS-80 31 SB6594001 1 BOXカバー BOX COVER 32 SB3872001 2 BOXカバーピン BOX COVER PIN 33 SB4155001 4 バンド BAND 34 SB5035201 1 コネクタキャップ CONNECTOR CAP 35 0A4401006 2 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 36 S37060001 1 アースマーク LABEL, GROUNDING 37 0A4401006 2 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 38 SA9725001 1 ラベルカンデン6カコク LABEL ELECTRICAL SHOCK 36X150 39 SA9957002 1 ワーニングマーク INJURY MARK <欧州向用> <For Europe> 40 SB6402001 1 CEフィルター フクロクミ CE FILTER BAG ASSY 41 SA9564001 1 CEフィルターケース CE FILTER CASE 42 SB6391001 1 CEフィルターキバンクセミ CE FILTER PCB ASSY 43 200190001 5 ステップル 10X20 STAPLE 10X20 44 032461606 4 +2マルモク45X16 WOOD SCREW ROUND 2 M4.5X16 45 S52164000 2 コアNFC-28 CORE:NFC-28 46 0A5401006 2 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 S-7300A-502 36 jintex.in

Page 42 — N1.コントロールボックス関係 / Control box

N1.コントロールボックス関係 / Control box <欧州向用 / For Europe > 40 41 42 46 45 49 51 47 50 52 48 43 44 6 5 10 11 8 12 7 6 36 37 39 4 14 21 20 19 18 15 16 35 24 17 20 18 2+ 30 25 29 22 28 26 23 3+ 31 33 32 38 S-7300A-502 37 jintex.in

Page 43 — N1. コントロールボックス関係 / Control box

N1. コントロールボックス関係 / Control box REF.NO CODE QTY 品名 NAME OF PARTS RM 47 SB3848001 2 ヒラザガネチュウ4 WASHER_PLAIN_M_4 48 021400106 2 1シュナット4 NUT 1 M4 49 S52162000 1 コア NF-65 CORE, NF-65 50 S52163000 4 コア NF-130 CORE, NF-130 51 SB4803001 2 コア K3NFR-10BK2 CORE:K3NFR-10BK2 52 J02729001 1 EMCコア E2130MRC EMC CORE E2130MRC S-7300A-502 38 jintex.in

Page 44 — N2. コントロールボックス関係 / Control box

N2. コントロールボックス関係 / Control box < 米州向用 / For the Americas > 7 1+ < 単相 100V / 110V 用 For Single phase 100V / 110V > 9 8 3 brother 5 6 2+ < 三相 380V / 400V 用 For Three phase 380V / 400V > 4 brother 5 6 39 S-7300A-502 jintex.in

Page 45 — N2. コントロールボックス関係 / Control box

N2. コントロールボックス関係 / Control box REF.NO CODE QTY 品名 NAME OF PARTS RM 1+ BMP3010- 0000000-AST1 <100V用> 1 トランスボックス <For 100V> TRANSFORMER BOX 1+ BMP3010- 0000000-2ST1 <110V用> 1 トランスボックス <For 110V> TRANSFORMER BOX 2+ BMP3010- 0000000-3ST4 <380V用> 1 トランスボックス <For 380V> TRANSFORMER BOX 2+ BMP3010- 0000000-4ST4 <400V用> 1 トランスボックス <For 400V> TRANSFORMER BOX 3 SA9923101 <単相 100V/110V用> 1 トランス 100/220V <For single phase 100V/110V> TRANSFORMER 100V/220V 4 SA9901101 <三相 380V/400V用> 1 トランス 400/230V <For three phase 380V/400V> TRANSFORMER 400/230V 5 SA9896001 1 トランス BOXカバー TR BOX COVER 6 SA9914001 1 ラベルカンデン25X28 LABEL ELECTRICAL SHOCK 25X28 7 SB4531001 <米州向用> 1 SWBOX フクロクミ <For the Americas> SWBOX BAG ASSY 8 200190001 5 ステップル 10X20 STAPLE 10X20 9 032461606 2 +2マルモク45X16 WOOD SCREW ROUND 2 M4.5X16 S-7300A-502 40 jintex.in

Page 46 — P. 逆転スイッチ関係 / Quick reverse switch mechanism

P. 逆転スイッチ関係 / Quick reverse switch mechanism < -300 プレミア仕様 / For -300 premier > 10 9 < -300用 / For -300 > 8+ 7 8+ 7 8+ 3 6 8+ 4 2 5 1+ 41 S-7300A-508 jintex.in

Page 47 — P. 逆転スイッチ関係 / Quick reverse switch mechanism

P. 逆転スイッチ関係 / Quick reverse switch mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1+ SB6237101 <プレミア仕様中国向以外> 1 スイッチP EX <For premier except China> SWITCH ASSY P EX 1+ SB6238001 <中国向以外> 1 スイッチS EX <Except China> SWITCH ASSY S EX 1+ SB5663401 <プレミア仕様中国向用> 1 スイッチP <For premier China> SWITCH ASSY P 1+ SB5664301 <中国向用> 1 スイッチS <For China> SWITCH ASSY S 2 060501016 2 バインド5X10 SCREW BIND M5X10 3 SA2689101 1 コードオサエ CORD HOLDER 4 SB5025001 1 コードホルダD CORD HOLDER D 5 0A4401606 <プレミア仕様> 3+ナベザクミ4X16DA <For premier> SCREW PAN (S/P WASHER) M4X16 6 SB5024001 <3口用> 1 コードオサエU <For -300> CORD HOLDER U 7 SB5028001 2 コードオサエ CORD HOLDER 8+ 062500816 5 ナベコ5X8 SCREW PAN M5X8 8+ 062500816 < -3口用以外> 2 ナベコ5X8 <Except -300> SCREW PAN M5X8 9 SB5025001 < -3口プレミア仕様> 1 コードホルダD <For -300 premier> CORD HOLDER D 10 062500816 1 ナベコ5X8 SCREW PAN M5X8 S-7300A-508 42 jintex.in

Page 48 — Q. モーターカバー関係 / Motor cover

Q. モーターカバー関係 / Motor cover < 日本、輸出一般用 / For Japan and General export > < 中国向用 / For China > 1+ 6 < 欧州、米州向用 / For Europe and the Americas > 2- 6 3 4 5 43 S-7300A-515 jintex.in

Page 49 — Q. モーターカバー関係 / Motor cover

Q. モーターカバー関係 / Motor cover REF.NO CODE QTY 品名 NAME OF PARTS RM 1+ SB5645101 1 <日本、輸出一般向> プーリーカバークミJ/A <For Japan and General export> PULLEY COVER ASSY J/A 1+ SB567101 1 <中国向> プーリーカバークミC <For China> PULLEY COVER ASSY C 2 SB5646101 1 <欧州、米州向> プーリーカバーU/E <For Europe and the Americas> PULLEY COVER U/E 3 0A4501606 3 +ナベザクミ5X16DA SCREW PAN (S/P WASHER) M5X16 4 SB3621001 1 グランドワイヤ GROUND WIRE 5 0A4401006 1 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 6 0A5501206 1 +ナベザクミ5X12DB SCREW PAN (S/P WASHER) M5X12 S-7300A-515 44

Page 50 — T. 操作パネル関係 / Operation panel

T. 操作パネル関係 / Operation panel 1+ 2 7 6 5 3 4 45 jintex.in S-7300A-530

Page 51 — T. 操作パネル関係 / Operation panel

T. 操作パネル関係 / Operation panel REF.NO CODE QTY 品名 NAME OF PARTS RM 1+ SB5987101 1 <輸出一般用以外> <Except General export> 1+ SB6353101 1 パネルクミホキュウ <輸出一般用> パネルクミホキュウ PANEL ASSY SUPPLY <For General export> PANEL ASSY SUPPLY 2 SB5045001 1 パネルフチゴム EDGE COVER 3 0A5401206 1 +ナベザクミ4X12DB SCREW PAN (S/P WASHER) M4X12 4 SB3655001 2 パネルサポート PANEL SUPPORT 5 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 6 140647121 2 コードオサエ CORD HOLDER 7 062400816 2 ナベコ4X8 SCREW PAN M4X8 S-7300A-530 46 jintex.in

Page 52 — U. モーター関係 / Motor mechanism

U. モーター関係 / Motor mechanism 47 S-7300A-650 jintex.in

Page 53 — U. モーター関係 / Motor mechanism

U. モーター関係 / Motor mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB5005201 1 モーターDR-7138B-501 MOTOR DR-7138B-501 2 018402036 4 アナボルト4X20 BOLT SOCKET M4X20 3 SB4096001 1 コードホルダ#12 CORD HOLDER #12 4 062501216 1 ナベコ5X12 SCREW PAN M5X12 5 218859001 2 バインダM150 BINDER M150 6 SA4224001 1 マークチュウイ30X40 MARK ATTENTION 30X40 S-7300A-650 48 jintex.in

Page 54 — V. 付属部品関係 / Accessories

V. 付属部品関係 / Accessories < オプション部品 / Option parts > 1 2 3 4 5 6 7 8 9 10 brot 27 33 28 29 34 35 36 30 31 32 11 26 25 21 22 23 24 15 20 14 13 12 16 17 19 37 38 40 42 43 39 41 49 S-7300A-910 jintex.in

Page 55 — V. 附属品関係 / Accessories

V. 附属品関係 / Accessories REF.NO CODE QTY 品名 NAME OF PARTS RM 1 146290001 1 <--[□3用]> ボビン <--[□5用]> 1 ボビン <For--[□3]> BOBBIN <For--[□5]> BOBBIN 2 117132001 1 3 SB5633001 1 ラバーヒンジクミ RUBBER HINGE ASSY 4 SB3627001 2 トウブヒンジ HEAD HINGE 5 SB3628001 2 トウブヒンジウケゴム RUBBER CUSHION 6 SB5046001 1 マクラ HEAD REST 7 SA8239201 1 オイルタンククミ OIL TANK ASSY 8 SB1270001 1 オイルケイコララベル エイブン OIL WARNING LABEL EN 9 SB1271001 1 オイルケイコララベル ワブン OIL WARNING LABEL JP 10 144226001 1 トウブカバー HEAD COVER 11 SB3928001 1 イトタテダイクミ2DR COTTON STAND ASSY 2DR 12 S51283001 2 ウケザラ SPOOL STAND BASE 13 SB4114001 2 スプールマット SPOOL MAT 14 S51282101 2 スプールクツシヨン SPOOL CUSHION 15 150179023 2 スプールジクB SPOOL SHAFT B 16 SB4117001 2 バネザガネ2-5 WASHER SPRING 2-5 17 SB4119001 2 シュナット5 NUT 2 M5 18 S02778022 1 スプールホルダー-2 SPOOL HOLDER 2 19 S37037002 1 ナベヒラサ5X32 SCREW PAN (S/P WASHER) M5X32 20 SB4118001 1 シュナット5 NUT 1 M5 21 S02786002 1 スレッドハンガー クミ2 THREAD HANGER ASSY 2 22 S02787002 1 スレッドハンガー-2 THREAD HANGER 2 23 150183000 2 イトカケハンガーダイ THREAD HANGER BASE 24 142990001 1 スレッドブツシユ THREAD BUSH 25 SB4120001 1 ナベヒラサM5X14 SCREW PAN(S/P WASHER) M5X14 26 SB4118001 1 シュナット5 NUT 1 M5 27 SB5634001 1 カクネクミ BOLT SQUARE ASSY 28 SB5047001 2 カクネボルト6X45 BOLT SQUARE M6X45 29 SB5048001 2 シキイタ SETTING PLATE 30 025060332 2 ヒラザガネダイ6 WASHER PLAIN 6 31 028060242 2 バネザガネ2-6 WASHER SPRING 2-6 32 021060106 2 シュナット6 NUT 1 M6 33 SA9893001 2 カクネボルト8X65 BOLT M8X65 34 SB4243001 2 ヒラザガネダイ8 WASHER PLAIN 8 35 028060242 2 バネザガネ2-8 WASHER SPRING 2-8 36 021080202 2 シュナット8 NUT 2 M8 <オプション部品> <OPTION PARTS> 37 SB6659001 1 グリス クミ GREASE UNIT 38 S40765001 1 レンケツツカンクミ CONNECTING ROD ASSY 39 021060103 2 シュナット6 NUT 1 M6 40 017081603 2 ボルト8X16 BOLT 8X16 41 021080103 2 シュナット8 NUT 1 M8 42 S36119021 2 シュナット6 NUT 1 M6 43 S36121021 2 バネザガネ2-6 WASHER SPRING 2-6 S-7300A-910 50 jintex.in

Page 56 — Sp1. 仕様別部品一覧表(日本向)/Different parts list (For Japan)

Sp1. 仕様別部品一覧表(日本向)/Different parts list (For Japan) 仕様/Specification 仕様/Specification 微量給油タイプ/Minimum lubrication type セミドライタイプ/Semi dry type REF. NO. 品名/Name of parts -[]03 -[]05 中厚物用/Medium-weight materials 厚物用/Heavy-weight materials B-23 針棒/Needle bar SA9353001 SA9641001 B-28 ミシン針/Needle 100265031 100265042 B-37 針板/Needle plate S29645001 SB5648001 C-11 押え組/Presser foot assy 153037201 145157101 D-1 送り歯/Feed dog S02742001 S02743001 REF. NO. 品名/Name of parts -[]33 中厚物用/Medium-weight materials SA9642101 100265031 S29645001 153037201 S02742001 B-23 針棒/Needle bar B-28 ミシン針/Needle B-37 針板/Needle plate C-11 押え組/Presser foot assy D-1 送り歯/Feed dog 51 jintex.in S-7300A-Sp-1

Page 57 — Sp2. 仕様別部品一覧表(米州向、中国向、輸出一般向) / Different parts list (For the Americas, China and General export)

Sp2. 仕様別部品一覧表(米州向、中国向、輸出一般向) / Different parts list (For the Americas, China and General export) 仕様 / Specification REF. NO. 品名 / Name of parts 中厚物用 / Medium-weight materials 厚物用 / Heavy-weight materials -03 -05 B-23 針棒 / Needle bar SA9353001 SA9641001 B-28 ミシン針 / Needle 100265034 100265042 B-37 針板 / Needle plate 111859301 150792101 C-11 押え組 / Presser foot assy 153037201 150789101 D-1 送り歯 / Feed dog SA2345101 SB5225001 仕様 / Specification REF. NO. 品名 / Name of parts セミドライタイプ / Semi dry type -033 中厚物用 / Medium-weight materials B-23 針棒 / Needle bar SA9353001 B-28 ミシン針 / Needle 100265034 B-37 針板 / Needle plate 111859301 C-11 押え組 / Presser foot assy 153037201 D-1 送り歯 / Feed dog SA2345101 S-7300A-Sp-2 jintex.in 52

Page 59 — Ga1. ゲージ部品一覧表 (中厚物用 : 3枚菌) / Gauge parts list (Medium-weight materials : 3ROW)

Ga1. ゲージ部品一覧表 (中厚物用 : 3枚菌) / Gauge parts list (Medium-weight materials : 3ROW) 3枚菌 / 3ROW 用途 Application 針板 Needle plate 送り歯 Feed dog 押え組 Presser foot assy 中厚物用 Medium-weight materials 記号 Mark B12 153147-001 Ø: 1.2 R: 0.2 T: 2.1 146231-001 P: 1.15 H: 6 SA8102-001 153037-201 長溝 Slot 9.5 2.5 8.7 20.7 15.7 10.6 11.2 33.4 9 11.9 3.5 14.7 NB14M S29649-001 Ø: 1.4 R: 0.2 T: 2.1 SA8105-001 113280-121 面取り大 Chamfering(L) 9.5 2.5 8.7 20.7 15.7 10.6 11.2 33.4 NB16M S29646-001 Ø: 1.6 R: 0.2 T: 2.1 SA8108-001 147531-101 面取り小 Chamfering(S) 9.5 2.5 8.7 20.7 15.7 10.6 11.2 28.3 B14 146050-001 Ø: 1.4 R: 2.8 T: 2.8 S07649-001 P: 1.15 H: 6.7 SA8106-001 140957-101 長溝 Slot 9.5 2.5 6 21 14 11.2 11 27 19 3.5 14.7 4 B14 147238-001 Ø: 1.4 R: 1 T: 2.8 SA8107-001 143711-101 9.5 2.5 6 21 14 10.6 11.2 28.3 面取り小 Chamfering(S) B16 153190-001 Ø: 1.6 R: 0.2 T: 2.8 S02742-001 P: 1.6 H: 6.7 S01904-101 9.5 2.5 6 14 10.6 11 27 19 3.5 14.7 4 テフロン押え Teflon B16 147239-001 Ø: 1.6 R: 1 T: 2.8 12.5 30 9.5 2.5 6 21 14 10.6 S-7300A-Ga1 54 jintex.in

Page 60 — Ga2. ゲージ部品一覧表 (中厚物用 : 3枚菌) / Gauge parts list (Medium-weight materials : 3ROW)

Ga2. ゲージ部品一覧表 (中厚物用 : 3枚菌) / Gauge parts list (Medium-weight materials : 3ROW) 3枚菌 / 3ROW 用途 Application 針板 Needle plate 送リ菌 Feed dog 押え組 Presser foot assy 中厚物用 Medium-weight materials Mark B18M S29645-001 Ø: 1.8 R: 0.2 T: 2.8 S07649-001 P: 1.15 H: 6.7 SA8102-001 153037-201 長溝 Slot 9.5 2.5 6 10.6 21 14 B18 100266-101 Ø: 1.8 R: 1 T: 2.8 S02742-001 P: 1.6 H: 6.7 SA8105-001 113280-121 9.5 2.5 5 10.6 21 14 面取り大 Chamfering(L) B18 146232-001 Ø: 1.8 R: 0.2 T: 2.1 146231-001 P: 1.15 H: 6 SA8108-001 147531-101 9.5 2.5 8.7 10.6 20.7 15.7 面取り小 Chamfering(S) H18 141096-001 Ø: 1.8 R: 1 T: 2.8 117442-001 P: 1.15 H: 6.7 SA8109-001 111856-101 9.5 5 21 14 10.6 長溝 Slot B20 S11222-001 Ø: 2 R: 0.2 T: 2.8 S07649-001 P: 1.15 H: 6.7 SA8106-001 140957-101 9.5 2.5 21 14 10.6 面取り小 Chamfering(S) S02742-001 P: 1.6 H: 6.7 SA8107-001 143711-101 9 3.5 14.7 4 面取り小 Chamfering(S) S01904-101 30 12.5 テフロン押え Teflon 55 S-7300A-Ga2 jintex.in

Page 61 — Ga3. ゲージ部品一覧表 (厚物用 : 3枚歯) / Gauge parts list (Heavy-weight materials : 3ROW)

Ga3. ゲージ部品一覧表 (厚物用 : 3枚歯) / Gauge parts list (Heavy-weight materials : 3ROW) 3枚歯 / 3ROW 用途 Application 針板 Needle plate 記号 Mark 送 り 歯 Feed dog 押 え 組 Presser foot assy 厚物用 Heavy-weight materials B22 100267-001 Ø: 2.2 R: 1 T: 2.8 S02743-001 P: 2.1 H: 6.7 SA8104-001 145157-101 針落ち部のみ 面取りあり These presser foot have chamfering comer on the needle location B26 111241-001 Ø: 2.6 R: 1 T: 2.8 SA8105-001 113280-121 面取り大 Chamfering(L) B26 SB5648-001 Ø: 2.6 R: 1 T: 2.8 C26 111508-001 Ø: 2.6 R: 1(溝) (Slot) T: 2.8 154742-001 P: 1.6 H: 6.8 C26 147322-201 Ø: 2.6 R: 1(溝) (Slot) T: 2.8 S02743-001 P: 2.1 H: 6.7 C26M S29644-001 Ø: 2.6 R: 1 T: 2.8 ◎ ネジ穴中心から歯部中心まで11.9mmの送り歯を使用する場合、水平送り台腕と上下送り台腕を0.7mm左側へ 移動させて下さい。 ◎ If a feed dog measuring 11.9mm from the screw hole center to tooth center is be use, shift the feed bar crank and feed lifting crank 0.7mm to the left. S-7300A-Ga3 jintex.in 56

Page 62 — Ga4. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW)

Ga4. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark 送り菌 Feed dog 押え組 Presser foot assy 中厚物用 Medium-weight materials E12N1 S03882-201 Ø: 1.2 R: 1 T: 2.1 SA2345-101 P: 1.15 H: 6 SA8102-001 153037-201 8.5 11.2 長溝 Slot 4.7 1.6 18 13.3 16.4 113280-121 E14N1 159859-201 Ø: 1.4 R: 1(溝) (Slot) T: 2.1 SA8105-001 8.5 11.2 面取り大 Chamfering(L) 4.7 1.6 10.6 18 13.3 16.4 E12 S01107-101 Ø: 1.2 R: 1 T: 2.8 S13684-001 P: 1.6 H: 6.7 SA8108-001 147531-101 8.5 11.2 面取り小 Chamfering(S) 4.7 2.1 10.6 18 13.3 16.2 送りピッチ 4mm以下で使用 Use the feed dog and needle plate with a stitch length of 4mm or less SA8109-001 111856-101 長溝 Slot AB14N1 S02999-201 Ø: 1.4 R: 0.2 T: 2.1 S02748-001 P: 0.9 H: 6 SA8106-001 140957-101 8.5 11.2 面取り小 Chamfering(S) 2.4 2.1 18 14.3 16.2 AB16N1 S03000-201 Ø: 1.6 R: 0.2 T: 2.1 S02744-001 P: 1.15 H: 6 SA8107-001 143711-101 8.5 11.2 面取り小 Chamfering(S) 2.4 2.1 10.6 18 14.3 16.2 S01904-101 30 テフロン押え Teflon 57 S-7300A-Ga4 jintex.in

Page 63 — Ga5. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW)

Ga5. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark 送り歯 Feed dog 押え組 Presser foot assy 中厚物用 Medium-weight materials AB16 156115-001 Ø: 1.6 R: 0.2 T: 2.8 S13684-001 P: 1.6 H: 6.7 153037-201 AB16 8.5 2.4 2.1 18 13.3 10.6 8 14.7 16.2 11.2 長溝 Slot 113280-121 AB18 156116-001 Ø: 1.8 R: 0.2 T: 2.8 SA8105-001 AB18 8.5 2.4 2.1 18 13.3 10.6 11.2 面取り大 Chamfering(L) AB18M S31910-001 Ø: 1.8 R: 0.2 T: 2.8 SA8108-001 147531-101 8.5 2.4 2.1 18 13.3 10.6 11.2 面取り小 Chamfering(S) E16M1 S29648-101 Ø: 1.6 R: 1 T: 2.1 S13684-001 P: 1.15 H: 6 SA8109-001 111856-101 8.5 4.7 1.6 18 13.3 10.6 11.2 長溝 Slot E18N1 111859-301 Ø: 1.8 R: 1 T: 2.1 S13684-001 P: 1.6 H: 6.7 SA8106-001 140957-101 8.5 4.7 1.6 18 13.3 10.6 11.2 面取り小 Chamfering(S) E18M1 S29647-101 Ø: 1.8 R: 1 T: 2.1 SA2345-101 P: 1.15 H: 6 SA8107-001 143711-101 8.5 4.7 1.6 18 13.3 10.6 11.2 面取り小 Chamfering(S) H18 S30103-001 Ø: 1.8 R: 0.5 T: 3.2 S25822-001 P: 1.8 H: 6.8 S01904-101 10.5 4 3 17.2 10.6 11.8 テフロン押え Teflon 16.1 10 12.5 30 S-7300A-Ga5 jintex.in 58

Page 64 — Ga6. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW)

Ga6. ゲージ部品一覧表 (中厚物用 : 4枚菌) / Gauge parts list (Medium-weight materials : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark 中厚物用 Medium-weight materials A14 155676-001 8.5 2.5 1.8 14.5 13.3 AB14 156114-001 Ø: 1.4 R: 0.2 T: 2.8 Ø: 1.4 送リ歯 Feed dog Ø: 1.4 R: 0.2 T: 2.8 S13684-001 8 押え組 Presser foot assy 153037-201 33.4 長溝 Slot 11.2 SA8105-001 113280-121 25.3 4.1 6.4 16.2 11.2 面取り大 Chamfering(L) SA8108-001 147531-101 11.2 面取り小 Chamfering(S) SA8109-001 111856-101 28.3 長溝 Slot SA8106-001 140957-101 11.2 面取り小 Chamfering(S) SA8107-001 143711-101 28.3 11.2 面取り小 Chamfering(S) S01904-101 30 テフロン押え Teflon 12.5 59 S-7300A-Ga6 jintex.in

Page 65 — Ga7. ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts list (Heavy-weight materials : 4ROW)

Ga7. ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts list (Heavy-weight materials : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark 厚物用 Heavy-weight Materials H26 150792-101 12.8 4 25 3 19 17.2 16.1 H26N SB5244-001 12.8 4 25 3 19 17.2 16.1 Ø: 2.6 R: 1 T: 3.2 Ø: 2.6 R: 1 T: 2.8 送リ歯 Feed dog SB5225-001 12.5 9.3 37.8 32.4 18.3 14.7 SB5226-001 12.5 9.3 37.8 32.4 18.3 14.7 P: 1.8 H: 6.8 P: 1.8 H: 7.1 押え組 Presser foot assy SA8103-001 150789-101 36 14.6 面取り大 Chamfering(L) 11.8 10.6 10.5 10.6 11.3 10 11.8 10.8 S-7300A-Ga7 60

Page 66 — Ga8. ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Ga8. ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW) 4枚菌 / 4ROW 用途 Application 針板 Needle plate 記号 Mark 難素材用 Difficult-to- sew materials AB12N1 S38760-001 送り菌 Feed dog ø: 1.2 R: 0.2 T: 2.1 AB12N1 8.5 2.4 2.1 18 14.3 10.6 新素材用 Shin-gosen AB14M1 S35776-101 ø: 1.4 R: 0.2 T: 2.1 AB14M1 8.5 2.4 2.1 18 14.3 10.6 S02748-001 35 25.3 5.1 6.4 8 11.2 押え組 Presser foot assy S35777-101 長溝 Slot 33.4 11.2 ø: 0.9 H: 6 14.7 16.2 61 S-7300A-Ga8 jintex.in

Page 67 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲ 危険 ▲ 危険 ▲ 危険 ▲ DANGER ▲ GEFAHR ▲ DANGER ▲ PELIGRO Hazardous voltage will cause injury. Turn off main switch and wait 5minutes before opening this cover. Hochspannung verletzungsgefahr! Bitte schalten sie den hauptschalter aus und warten sie 5 minuten, bevor diese abdeckung öffnen. Un voltage non adapte provoque des blessures. Eteindre l'interrupteur et attendre 5 minutes avant d'ouvrir le capot. Un voltaje inadecuado puede provocar las heridas. Apagar el interruptor principal y esperar 5 minutos antes de abrir esta cubierta. ラベル感電6ケ国 Label electrical shock 36 X 150 36 X 150 SA9725-001 L L ▲ ▲ ラベル感電 25 X 28 Label electrical shock 25 X 28 L=28.4 SA9914-001 操作注意ラベル Label caution 56 X 43 SA9826-001 ワーニングマーク Injury mark L=16 SA9957-001 L ワーニングマーク Injury mark L=25 SA9957-002 L アースマーク Label, grounding Φ 12 S37060-001 マークチュウイ 30 X 40 Mark attention 30 X 40 30 X 40 SA4224-001 S-7300A-Wa jintex.in 62

Page 68 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels brother ミシン用潤滑油 ▲注意 目に入ったり皮膚に つくと、 炎症を起こすことがある。 保護めがね、手袋を使 うこと。 飲み込むと、下痢、嘔吐する。 飲み込まないこと。 ●子供の手の届かない所に 置いてください。 ●目に入った場合は、清浄な 水で15分間洗浄し、医師の 診断を受けてください。 ●皮膚に触れた場合は、水と 石けんで十分に洗ってください。 ●飲み込んだ場合は、無理に 吐かせずに、直ちに医師の 診断を受けてください。 第4類 危険等級III 第3石油類 火気厳禁 brother Lubricating Oil for Machining ▲CAUTION Lubricating oil may cause inflammation to eye and skin. Wear protective glasses and gloves. Swallowing oil can cause diarrhoea and vomiting. Do not swallow. Keep away from children. FIRST AID Eye contact: -Rinse with plenty of cold water. -Seek medical help. Skin contact: -Wash with soap and water. If swallowed: -Seek medical help immediately. 品名 / Name of parts Size(mm) Code オイル警告ラベル和文 Oil warning label JP 68 X 30 SB1271-001 オイル警告ラベル英文 Oil warning label EN 68 X 30 SB1270-001 63 jintex.in S-7300A-Wa

Page 69 — Index

CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 004301016 K - 31 26 048040342 M1 - 17 32 0A4401006 N1 - 29 36 012060636 B - 19 4 048050142 K - 52 28 140327001 G - 24 18 F - 11 16 048050342 C - 25 8 140407001 C - 9 8 012400432 J - 8 24 048060342 B - 17 4 140553102 B - 29 4 012400436 B - 15 4 048080142 D - 22 12 140647121 K - 48 26 012500536 B - 59 6 048120142 B - 43 6 140957101 Ga1 54 C - 21 12 060300606 H - 41 22 Ga2 55 D - 27 12 060400516 M1 - 21 32 Ga4 57 D - 29 12 M1 - 23 32 Ga5 58 H - 11 20 M2 - 28 34 Ga6 59 H - 33 20 0A4501206 G - 3 44 141096001 Ga2 55 J - 10 24 0A5401006 D - 37 12 141728001 C - 8+ 8 T - 5 46 D - 40 12 142990001 V - 24 50 014300432 D - 5 12 060401016 M2 - 42 34 0A5401206 T - 3 46 060401216 J - 16+ 26 141096001 Ga2 55 014680632 M2 - 22 34 060500616 H - 31 20 100265031 Sp1 51 141728001 C - 8+ 8 M2 - 34 34 060501016 J - 22 24 100265034 Sp2 52 142990001 V - 24 50 014771032 K - 43 26 060600616 P - 2 42 100267001 H - 5 20 017081603 V - 40 50 100265042 Sp1 52 018062036 K - 66 28 06161616 J - 27 24 100402004 K - 16+ 26 018062536 K - 57 28 062300616 M1 - 4 32 100645003 H - 18+ 26 018400532 C - 34 8 1002630001 B - 22 4 018400636 K - 55 28 102843004 K - 23 26 018401436 D - 34 12 062400616 K - 3 26 104450101 A - 3 2 018402036 U - 2 48 104821001 G - 16 18 018500836 L - 7 30 062500816 B - 8 105234003 K - 36 53 018501036 K - 10 26 107415011 Sp3 53 018501436 D - 35 12 107415014 Sp3 53 021060103 V - 39 50 107415022 Sp3 53 021060106 V - 32 50 110161004 L - 8 8 021060306 C - 27 8 062401016 K - 47 26 110367001 B - 8 8 C - 29 8 107415011 Sp3 53 C - 44 8 062500816 B - 8 110735022 M1 - 15 32 C - 47 10 110670022 M1 - 15 32 021080103 V - 41 50 062500816 B - 8 111241001 Ga3 56 021080202 V - 36 50 111508001 Ga3 56 021350106 D - 31 12 111856101 Ga1 54 021400106 N1 - 48 38 111859301 Sp2 52 021400306 K - 19+ 26 113280121 Ga1 54 025040332 G - 34 18 114561001 B - 40 4 025060132 M2 - 2 34 117132001 F - 24 16 025060232 J - 16 24 117442001 Ga2 55 025060332 K - 67 28 140004001 B - 18 4 025060132 V - 30 50 149287000 D - 39 12 025350132 C - 14 8 149578020 N1 - 6 36 026030136 M1 - 5 32 149578020 N1 - 6 36 026040236 C - 35 8 150179023 V - 15 50 026050136 K - 51 28 150183000 V - 23 50 028060242 V - 31 50 150607000 A - 6 2 028080242 V - 35 50 150789101 Sp2 52 032461606 N1 - 44 36 15079101 Sp2 52 037300616 J - 19 24 151267001 B - 38 6 048030342 M1 - 16 32 151594001 B - 30 4 M2 - 15 34 153037201 Sp1 51 M2 - 19 34 64 jintex.in

Page 70 — 索引 / Index

索引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 153037201 Sp2 52 S07649001 Ga2 55 S52164000 N1 - 45 36 SA8105001 Ga1 54 Ga1 54 S11222001 Ga2 55 S52764001 G - 27 18 Ga4 55 Ga2 55 S12441001 H - 20 20 Ga1 54 Ga4 57 S13385001 C - 13 8 SA1138101 B - 26+ 4 Ga4 57 Ga5 58 S13561101 C - 8+ 8 SA1139101 B - 26+ 4 Ga5 58 Ga6 59 S13684001 Ga4 57 SA1166001 B - 51 8 Ga6 59 153147001 Ga1 54 Ga5 58 SA1173101 C - 1+ 8 SA8106001 Ga1 54 153190001 Ga1 54 Ga6 59 SA1179001 C - 37 8 Ga2 55 154567000 K - 42 26 S23651001 B - 2 4 C - 42 36 Ga3 56 154742001 Ga3 56 B - 6 4 N1 - 16 36 Ga4 57 155676001 Ga6 59 B - 32 4 SA1229101 H - 25 20 Ga5 58 156114001 Ga6 59 B - 36 4 SA1242001 D - 6 12 SA8107001 Ga1 54 156115001 Ga5 58 B - 45 4 D - 17 12 Ga2 55 156116001 Ga5 58 B - 47 6 SA1286001 F - 12 16 Ga3 56 159150000 A - 5 2 B - 52 6 SA1303101 G - 17 18 Ga4 57 159805001 H - 4 20 D - 14 12 G - 31 18 Ga5 58 H - 19 20 D - 30 12 SA1345001 H - 30 20 SA8108001 Ga1 54 159859201 Ga4 57 F - 8 16 SA1360101 J - 21 24 Ga2 55 180018151 B - 39 6 F - 13 16 SA1388101 L - 6 30 Ga4 57 183388001 F - 19 16 F - 37 26 SA161001 B - 16 4 Ga5 58 183389001 F - 20 16 S25235001 B - 3 4 SA2252101 B - 50 6 Ga6 59 183390001 F - 21 16 S2536001 B - 4 4 SA2345101 Sp2 52 SA8109001 Ga1 54 200190001 N1 - 43 36 S25380601 G - 26 18 Sp3 53 Ga2 55 N2 - 8 40 S25382001 G - 12 18 Ga4 57 Ga3 56 218859001 U - 5 48 G - 22 18 Ga5 58 Ga4 57 228475000 D - 38 12 S25434000 K - 39 26 SA2378001 B - 48 6 Ga5 58 BMP3010-000000-2ST1 S25456001 N1 - 9 32 SA2422001 B - 13 4 SA8239201 V - 7 50 N2 - 1+ 40 M1 - 12 32 SA2469101 M1 - 25 32 SA8903001 C - 4 8 BMP3010-000000-3ST4 M2 - 10 34 M2 - 38 34 F - 16 16 N2 - 2+ 40 M2 - 11 34 SA8987001 G - 14 18 BMP3010-000000-4ST4 S25821001 Ga7 60 SA2586101 H - 6 20 SA8989001 G - 13 18 N2 - 2+ 40 S25822001 Ga5 58 H - 10 20 SA952001 M1 - 14 32 BMP3010-000000-AST1 Ga8 61 SA4224001 D - 41 12 SA953001 Sp1 51 N2 - 1+ 40 S25964001 Ga3 56 U - 6 48 Sp2 52 J02729001 N1 - 52 38 S25964501 Ga5 58 Wa1 62 SA956001 C - 1+ 8 J04164001 N1 - 30 36 Ga7 60 SA529001 A - 4 2 SA9564001 Sp1 51 S01107101 Ga4 57 S25964601 Ga1 54 SA5810001 A - 4 2 SA95641001 N1 - 41 36 S01419000 H - 26 20 S25964701 Ga2 55 SA7239101 B - 20 8 SA9640101 Sp3 53 S01904101 Ga1 54 S25964801 Ga4 57 SA7242001 C - 5 52 SA9641001 Sp1 51 Ga2 55 S25964901 Ga5 58 SA7257001 D - 20 12 Sp2 52 Ga3 56 S30103001 Ga6 59 SA7271001 H - 40 20 Sp3 53 Ga4 57 S31006002 C - 16 8 SA7272201 H - 34 26 SA9642101 Sp1 51 Ga5 58 S31032002 H - 21 20 SA7285101 K - 28 26 Sp2 52 Ga6 59 S31910001 Ga5 58 SA7287001 K - 30 26 SA9684001 F - 9 16 S02620401 H - 22 20 S32958000 B - 11 4 SA7552201 K - 21+ 26 SA9716001 K - 50 26 S02742001 Sp1 51 S35776101 Ga8 61 SA7607101 C - 7 8 SA9725001 N1 - 38 36 Sp3 53 S35777101 Ga8 61 SA7625001 B - 10+ 4 Wa1 62 Ga1 54 S36119021 V - 42 50 SA7626001 B - 10+ 4 SA9731001 Sp3 53 Ga2 55 S36121021 V - 43 50 SA7636201 G - 25 18 SA9771001 M1 - 7 32 S02743001 Sp1 51 S37037002 N1 - 19 32 SA8061001 H - 38 20 SA979001 M1 - 19 32 Ga3 56 S37060001 A - 14 2 SA8085001 M1 - 18 32 SA9826001 A - 15 2 S02744001 Ga4 57 Wa1 62 SA8100101 C - 12 8 SA9827001 Wa1 62 S02748001 Ga4 57 S38760001 N1 - 36 36 SA8101001 Sp3 53 SA9854001 K - 59 28 Ga8 61 S39051001 C - 17 8 Ga1 54 SA9893001 V - 33 50 S02778022 V - 18 50 S40765001 V - 38 50 Ga2 55 SA9896001 N2 - 5 40 S02786002 V - 21 50 S41205001 M1 - 8 32 Ga4 57 SA9901101 N2 - 4 40 S02787002 V - 22 50 S41207000 M1 - 11 32 Ga5 58 SA9914001 N2 - 6 40 S02999201 Ga4 57 S51282101 V - 14 50 Ga6 59 Wa1 62 S03000201 Ga4 57 S51283001 V - 12 50 SA9923101 N2 - 3 40 S03245001 F - 18 16 S52162000 N1 - 49 38 SA9957001 A - 16 2 S03246001 F - 22 16 S52163000 N1 - 50 38 Wa1 62 S03882201 Ga4 57 S52183001 Ga7 60 SA9957002 A - 17 2 S04630000 B - 24+ 4 S52210001 Ga8 61 S52764001 Ga1 54 65 Jinte .in

Page 71 — 索 引 / Index

索 引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SA9957002 N1 - 39 36 SB4849001 B - 35 4 SB4961001 K - 41 26 SB5237101 M1 - 2 32 Wa1 62 SB4857001 B - 56 6 SB4962001 K - 40 26 SB5238001 M1 - 10 32 SB0705101 C - 40 8 SB4858001 B - 57 6 SB4963001 K - 53 28 SB5239001 M1 - 13 32 Wa2 63 SB4864001 C - 18 8 SB4964001 K - 45 26 SB5242001 M1 - 22 32 SB1270001 V - 8 50 SB4865001 C - 20 8 SB4965001 K - 54 28 SB5242001 M2 - 44 34 Wa2 63 SB4867101 C - 22 8 SB4966001 K - 64 28 SB5244001 Ga7 60 SB1271001 V - 9 50 SB4867101 C - 22 8 SB4967101 K - 56 28 SB5248001 B - 9+ 4 SB1305001 F - 17+ 16 SB4868001 C - 33 8 SB4968001 K - 34 26 SB5250001 B - 9+ 4 SB1600001 E - 1 14 SB4870001 C - 26 8 SB4969001 K - 14 26 SB5252001 B - 9+ 4 SB1604001 E - 3 14 SB4870001 C - 26 8 SB4970001 L - 1 30 SB5257001 K - 46 26 SB1605001 E - 4 14 SB4871001 C - 28 8 SB4971001 L - 2 30 SB5258001 M1 - 3 32 SB1607001 E - 6 14 SB4872001 C - 31 8 SB4972001 L - 4 30 SB5262001 C - 10 8 SB1608001 E - 7 14 SB4873101 C - 23 8 SB4973101 N1 - 4 36 SB5265201 H - 1 20 SB1609001 E - 8 14 SB4874101 C - 41 8 SB4975001 N1 - 24 36 SB5267101 Q - 1+ 44 SB1610001 E - 9 14 SB4879101 D - 3 12 SB4976001 N1 - 5 36 SB5269001 F - 2 16 SB1611001 E - 10 14 SB4879101 D - 3 12 SB4977101 N1 - 19 36 SB5270001 F - 4 16 SB1677001 F - 17+ 16 SB4882001 D - 24 12 SB4978001 N1 - 8 36 SB5272001 F - 7 16 SB2433001 K - 24 26 SB4883001 D - 25 12 SB4979001 N1 - 12 36 SB5275101 F - 14 16 SB2434001 K - 25 26 SB4884001 D - 26 12 SB4980001 N1 - 13 36 SB5276101 G - 1 18 SB3440001 A - 1 2 SB4885101 D - 9 12 SB4981101 N1 - 15 36 SB5280001 G - 19 18 SB3480001 E - 5 14 SB4887001 D - 19 12 SB4982101 N1 - 17 36 SB5281001 G - 2 18 SB3540001 J - 5 14 SB4888101 D - 10 12 SB5002001 G - 5 18 SB5284201 G - 21 18 SB3540001 J - 9 24 SB4889001 D - 21 12 SB5004001 G - 38 18 SB5286201 G - 30 18 SB3545101 J - 11 24 SB4892201 D - 36 12 SB5005201 U - 1 18 SB5287001 G - 7 18 SB3548001 J - 12 24 SB4893101 D - 23 12 SB5008001 U - 23 24 SB5290101 B - 1 4 SB3551001 J - 15 24 SB4894001 D - 32 12 SB5009001 J - 3 24 SB5291101 B - 46 6 SB3552001 J - 17 24 SB4900001 D - 7 12 SB5010001 J - 4 24 SB5294201 D - 8+ 12 SB3553001 J - 18 24 SB4901001 D - 18 12 SB5011001 J - 28 24 SB5297201 D - 8+ 12 SB3586001 N1 - 14 36 SB4901001 D - 2 12 SB5012001 J - 29 24 SB5300201 D - 12 12 SB3587001 N1 - 10 36 SB4901001 F - 13 16 SB5013001 J - 25 24 SB5301001 K - 35 26 SB3595101 H - 29 20 SB4903001 F - 1 16 SB5014001 J - 14 24 SB5305001 C - 3 8 SB3621001 Q - 4 44 SB4904101 F - 10 16 SB5024001 P - 6 42 SB5306001 M1 - 26 32 SB3627001 V - 4 50 SB4910001 G - 3 18 SB5025001 P - 4 42 SB5306001 M2 - 40 34 SB3628001 V - 5 50 SB4915001 G - 29 18 SB5026001 K - 20+ 26 SB5310101 K - 44 26 SB3655001 T - 4 46 SB4916001 G - 40 18 SB5028001 M1 - 28 32 SB5312001 H - 10 20 SB3665001 N1 - 26 36 SB4918001 G - 36 18 SB5030001 C - 32 8 SB5314101 D - 15 12 SB3776001 B - 14 4 SB4922101 H - 23 20 SB5031001 C - 39 8 SB5315101 D - 4 12 SB3816101 N1 - 2+ 36 SB4923001 H - 24 20 SB5032001 B - 25 4 SB5316101 B - 42 6 SB3817401 N1 - 2+ 36 SB4925001 H - 28 20 SB5033001 C - 32 8 SB5317101 B - 55 6 SB3837001 N1 - 28 36 SB4926001 H - 12 20 SB5034001 N1 - 9 36 SB5318001 B - 31 4 SB3848001 N1 - 47 38 SB4929001 H - 13 20 SB5035201 N1 - 34 36 SB5627001 H - 27 20 SB3850001 A - 12 2 SB4932001 H - 39+ 20 SB5036001 G - 9 36 SB5628001 B - 53 6 SB3854001 E - 1 14 SB4933001 H - 2 20 SB5037001 B - 49 6 SB5629001 B - 54 6 SB3858001 M2 - 12 34 SB4934001 H - 32 20 SB5039001 B - 58 6 SB5630101 H - 37 20 SB3872001 N1 - 32 36 SB4936001 J - 6 24 SB5041001 F - 15+ 16 SB5631101 K - 27 26 SB3928001 V - 11 50 SB4940001 J - 7 24 SB5043001 A - 7 2 SB5633001 V - 3 50 SB4096001 U - 3 50 SB4941001 K - 4 26 SB5044001 A - 9 2 SB5634001 V - 27 50 SB4114001 V - 13 50 SB4942101 K - 11 26 SB5045001 T - 2 52 SB5638001 A - 8 2 SB4117001 V - 16 50 SB4943001 K - 5 26 SB5046001 V - 6 56 SB5639101 G - 11 18 SB4118001 V - 20 50 SB4944001 K - 21+ 26 SB5047001 V - 28 50 SB5645101 Q - 1+ 44 SB4119001 V - 17 50 SB4946201 K - 15+ 26 SB5048001 V - 29 50 SB5646101 Q - 2 44 SB4120001 V - 25 50 SB4947101 K - 26 26 SB5049001 C - 2 8 SB5648001 Sp1 51 SB4155001 M1 - 6 32 SB4948101 K - 9 26 SB5225001 Sp2 52 SB5650001 K - 58 28 M2 - 7 34 SB4949101 K - 8 26 SB5226001 Ga7 60 SB565101 J - 1 24 SB4243001 N1 - 33 36 SB4950201 K - 7 26 SB5227001 B - 33 4 SB5663401 P - 1+ 42 SB4531001 N2 - 7 40 SB4951201 K - 15+ 26 SB5229001 C - 24 8 SB5664301 P - 1+ 42 SB4587301 N1 - 2+ 36 SB4952101 K - 13 26 SB5236001 H - 39+ 20 SB5673001 K - 62 28 SB4803001 N1 - 51 38 SB4953001 K - 65 28 SB5674001 C - 46 10 SB4845001 A - 2 2 SB4954101 K - 1 26 SB5675001 G - 35 18 SB4846101 M1 - 1 32 SB4955001 K - 32 26 SB56987101 T - 1+ 46 SB4848001 B - 44 6 SB4956101 K - 33 26 SB6237101 P - 1+ 42 66

Page 72 — 索引 / Index

索引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SB6238001 P - 1+ 42 SB6318001 M2 - 13 34 SB6323001 M2 - 35 34 SB6324001 M2 - 33 34 SB6325001 M2 - 17 34 SB6328001 M2 - 36 34 SB6329001 M2 - 21 34 SB6330201 M2 - 23 34 SB6353101 T - 1+ 46 SB6391001 N1 - 42 36 SB6402001 N1 - 40 36 SB6430101 D - 33 12 SB6453001 N1 - 1+ 36 SB6454001 N1 - 1+ 36 SB6455001 N1 - 1+ 36 SB6456001 N1 - 1+ 36 SB6457001 N1 - 3+ 36 SB6458001 N1 - 3+ 36 SB6504001 M2 - 8 34 SB6510001 M2 - 16 34 SB6511001 M2 - 29 34 SB6512001 M2 - 24 34 SB6513101 M2 - 4 34 SB6514101 M2 - 30 34 SB6516001 M2 - 20 34 SB6564001 C - 45 10 SB6568001 F - 17+ 16 SB6594001 N1 - 31 36 SB6618101 M2 - 1 34 SB6659001 V - 37 50 SB6680001 H - 17 20 SB6681001 H - 15+ 20 SB6683001 H - 14+ 20 SB6684001 H - 14+ 20 SB6686001 H - 15+ 20 SB6884001 M2 - 31 34 SB6886001 M2 - 32 34 67 jintex.in

Page 73 — MEMO

MEMO jintex.in 68

Page 74 — PARTS BOOK

brother パーツブック PARTS BOOK ブラザー工業株式会社 http://www.brother.co.jp/ 〒448-0003 刈谷市野田町北地蔵山1番地5 TEL: 0566-95-0085 BROTHER INDUSTRIES, LTD. http://www.brother.com/ 1-5, Kitajoyoyama, Noda-cho, Kariya 448-0803, Japan. Phone: 81-566-95-0088 © 2015 Brother Industries, Ltd. All Rights Reserved. S-7300A 15061053 J/E 2015.06. B (1) jintex.in
