Jack E4 (4 pages) Parts Book (PDF)
Text index — Jack E4 (4 pages)
Page 1 — 一、机壳部分/Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | P03017 | Pin | 1/1/1 |
| 2 | 20703064 | Sleeve | 1/1/1 |
| 3 | 20703063 | Sleeve | 4/4/6 |
| 4 | 20628023 | Plug | 1/1/0 |
| 5 | 20701002 | Bracket Assembly | 1/1/1 |
| 6 | 20S13003 | Screw | 2/2/2 |
| 7 | P03018 | Pin | 1/1/1 |
| 8 | 20703004 | Sleeve | 1/1/1 |
| 9 | 20683001 | Bed pin | 1/1/1 |
| 10 | 20126001 | Pin | 1/1/1 |
| 11 | 20703061 | Sleeve | 1/1/1 |
| 12 | 20703007 | Sleeve | 1/1/1 |
| 13 | 20703062 | Sleeve | 1/1/1 |
| 14 | 20703067 | Sleeve | 1/1/1 |
| 15 | 20703065 | Sleeve | 1/1/1 |
| 16 | P03010 | Pin | 1/1/1 |
| 17 | R03001 | Screw | 2/2/2 |
| 18 | 13837003 | Machine Model Plate | 1/1/1 |
| 19 | 302204 | Machine Bed Complete | 1/1/1 |
| 20 | 20113013 | Pipe | 2/2/2 |
| 21 | P03019 | Pin | 1/1/1 |
| 22 | 20726018 | Pin | 1/1/1 |
| 23 | 20703009 | Sleeve | 1/1/1 |
| PG3017 | |||
| 207S13003 | 螺钉M6×25 | ||
| PG3018 | |||
| 206S30001 | |||
| PG3010 | |||
| 302704 | |||
| PG3019 |
Page 2 — 十一、针杆部件(3) Needle Drive Mechanism(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207S12003 | Screw | 2 / 2 / 2 |
| 2 | xxxxxxxx | Needle Plate | 1 / 1 / 1 |
| 3 | 207S11007 | Screw | 5 / 5 / 5 |
| 4 | 20209003 | Bracket | 1 / 1 / 1 |
| 5 | 20709002 | Bracket | 1 / 1 / 1 |
| 6 | 20622003 | Cushion Rubber | 2 / 2 / 2 |
| 7 | 20201033 | Bracket | 0 / 0 / 1 |
| 8 | 207S11004 | Screw | 0 / 0 / 2 |
| 9 | xxxxxxxx | Needle Guard | 0 / 0 / 1 |
| 10 | S01027 | Screw | 0 / 0 / 1 |
| 11 | xxxxxxxx | Needle Guard | 0 / 0 / 1 |
| 12 | 20128019 | Spring | 1 / 1 / 1 |
| 13 | xxxxxxxx | Needle Guard | 1 / 1 / 1 |
| 14 | 202S12003 | Screw | 1 / 1 / 1 |
| 15 | 207S11002 | Screw | 1 / 1 / 1 |
| 16 | W03004 | Spring | 1 / 1 / 1 |
| 17 | xxxxxxxx | Needle Guard | 1 / 1 / 1 |
| 400039 | |||
| 207S11016 | 螺钉M4×16 | ||
| 207S14007 | 螺钉M4×6 | ||
| H05008 | |||
| 20628014 | |||
| 207S14001 | 螺钉M4×4 | ||
| 20708004 | |||
| 20626003 | |||
| S05018 | 螺钉M6×0.75×12 | ||
| 207S17003 | 螺钉M4×7.5 | ||
| XXXXXXXXXX | |||
| 20709003 | |||
| 20701033 | |||
| 207S12005 | |||
| 207S1002 | 螺钉M3 | ||
| W02001 | |||
| 20628006 | |||
| 20702004 | |||
| 20708007 | |||
| 20708006 | |||
| 400036 | |||
| 400037 | |||
| 207S1016 | 螺钉M4×16 | ||
| 207S1005 | 螺钉M1×17.5 | ||
| 201S12007 | |||
| 20704007 | |||
| 207S15001 | |||
| 207S11028 | 螺钉M3.5×6.5 | ||
| 400388 | |||
| 207S11042 | 螺钉M5×5 | ||
| 20128021 | |||
| 20713039 | |||
| 20629003 | |||
| 2061205700 | |||
| 30127016 | |||
| 20612055 | |||
| 206530015 | 螺钉M3 | ||
| 20612057 | |||
| 20613017 | |||
| 207S11020 | 螺钉M3×4 | ||
| 20629004 | |||
| S01031 | |||
| 20612056 | |||
| 207S20002 | |||
| 20128015 | |||
| 20612058 | |||
| 207S14009 | 螺钉M3×3 | ||
| 20713026 | |||
| 20629005 | |||
| 20729004 | |||
| S01060 | 螺钉M6×10 | ||
| 2070500400 | |||
| 20710003 | |||
| 207S14003 | 螺钉M5×4 | ||
| 207S14000 | 螺钉M5×4 | ||
| 20712018 | |||
| 20629006 | |||
| 20705004 | |||
| 207S05004 | 螺钉M4×6 | ||
| H08001 | |||
| 20710004 | |||
| 20727003 | |||
| 207S20005 | 螺钉M2 | ||
| 20709006 | |||
| 20722005 | |||
| 001027 | O型圈4×1.3 | ||
| 20728001 | |||
| 20727004 | |||
| 207S30001 | |||
| 20702005 | |||
| 207S20006 | 螺钉M5×5 | ||
| 20705005 | |||
| 20704008 | |||
| 20622010 |

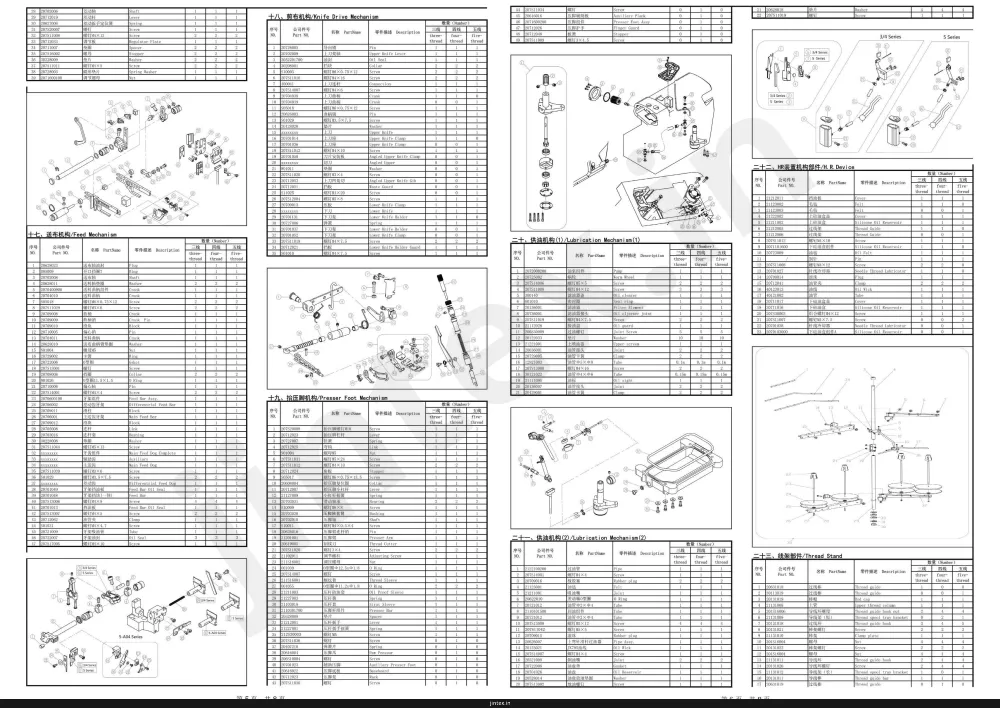

Page 3 — 二十二、HR装置机构部件/H. R. Device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20726005 | Pin | 1/1/1 |
| 2 | 20202009 | Upper Knife Lever | 1/1/1 |
| 3 | 3052201700 | Oil Seal | 1/1/1 |
| 4 | 30208001 | Collar | 2/2/2 |
| 5 | S10003 | Screw | 2/2/2 |
| 212112011 | |||
| 21123002 | |||
| 21123003 | |||
| 21222002 | |||
| 21211002 | |||
| 21211205 | |||
| 21212006 | |||
| 207S11012 | 螺钉M4×10 | ||
| 2071101600 | |||
| 20723009 | |||
| 20712025 | |||
| 207S11008 | 螺钉M4×12 | ||
| 20701027 | |||
| 20709014 | |||
| 20712041 | |||
| 401213013 | |||
| 20711017 | |||
| 20711016 | |||
| 207S30003 | 组合螺钉M4×12 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20701038 | |||
| 2070103000 | 下硅油盒组件A |
Page 4 — 二十七、机架部件/machine stand table assy
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131044 | Hexagonal wrench/1.5mm | 1 1 1 |
| 2 | 10131004 | Screwdriver(S) | 1 1 1 |
| 3 | 21131020 | Machine head cover | 1 1 1 |
| 4 | 10131002 | screw driver(L) | 1 1 1 |
| 5 | 20131037 | Oil container | 1 1 1 |
| 6 | 20131038 | Oil container | 1 1 1 |
| 7 | 20131039 | Tundish | 1 1 1 |
| 8 | 20131051 | Tweezers | 1 1 1 |
| 9 | 20131013 | #wrench/8mm | 1 1 1 |
| 10 | 20131012 | #wrench/7mm | 1 1 1 |
| 11 | 20131016 | Hexagonal wrench/2mm | 1 1 1 |
| 12 | 30131012 | Hexagonal wrench/3mm | 1 1 1 |
| 13 | 20131047 | Hexagonal wrench/5mm | 1 1 1 |
| 14 | 21131056 | Hexagonal wrench/6mm | 1 1 1 |
| 15 | 30131026 | Hexagonal wrench/8mm | 1 1 1 |
| 16 | 21230001 | Controller | 1 1 1 |
| 17 | 20131055 | Attachment box | 1 1 1 |
| 18 | 20131054 | Chain | 1 1 1 |
| 19 | 20131052 | Needle threader | 0 0 1 |
| 20 | 20131062 | Plastic machine head bag | 1 1 1 |
| 21 | S10005 | Screw | 1 1 1 |
| 20131028 | |||
| 20722018 | |||
| 20711058 | |||
| 20712064 | |||
| 30122031 | |||
| 20131030 | |||
| 20131029 | |||
| 20131027 | |||
| 2123100400 | |||
| 21231034 | |||
| 21231005 | |||
| 21231006 | 排料槽I | ||
| 21231007 | 排料槽II | ||
| 207S11046 | |||
| 207S11019 | 螺钉M4×7.5 |
Jack E4 (4 pages) — parts catalog
- Page 1 (parts_list): This page lists parts for the Machine Bed Frame, including part numbers, descriptions, and quantities for different thread types.
- Page 2 (parts_list): This page lists parts for the Needle Drive Mechanism (1), Needle Drive Mechanism (2), Upper Looper Drive Mechanism, Lower Looper Drive Mechanism, Chainstitch Looper Drive Mechanism (1), Chainstitch Looper Drive Mechanism (2), Feed Mechanism, and Upper Needle Bar Drive Mechanism.
- Page 3 (parts_list): This page lists parts for the HR Device/H.R. Device, including part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 4 (parts_list): This page contains a parts list for machine stand assembly, with part numbers, descriptions, and quantities for three, four, and five-thread configurations.
