Page 2 — 1.机壳、外装分组件/Machine frame & cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 304713 | Panel | 1 / 1 / |
| 930000235 | Panel (12mm) | / / 1 | |
| 2 | 201S11025 | Panel Screw SM11/64×40 | 1 / 1 / 1 |
| 3 | 14713003 | Panel thread guide | 1 / 1 / 1 |
| 4 | 10113004 | Panel thread guide (right) | 1 / 1 / 1 |
| 5 | 101S11007 | Screw SM11/64×40×6 | 2 / 2 / 2 |
| 6 | 1411300400 | Small thread tension assay | 1 / 1 / 1 |
| 6-1 | 13812066 | Thread tension guide plate | 1 / 1 / 1 |
| 6-2 | 13810008 | Thread tension bolt | 1 / 1 / 1 |
| 6-3 | 11212004 | Thread tension disk | 2 / 2 / 2 |
| 6-4 | 11227001 | Thread tension spring | 1 / 1 / 1 |
| 6-5 | 138S16019 | Thread tension nut | 1 / 1 / 1 |
| 7 | 113S14002 | Set Screw | 1 / 1 / 1 |
| 8 | 13512004 | 3-hole thread guide | 1 / 1 / 1 |
| 9 | 11471300100 | Thread tension assay | 1 / 1 / 1 |
| 9-1 | 1147NS30001 | Thread tension Screw | 1 / 1 / 1 |
| 9-2 | 141S16013 | Thread tension nut | 1 / 1 / 1 |
| 9-3 | 14227024 | Thread tension spring | 1 / 1 / 1 |
| 9-4 | 10112006 | Tension releasing board | 1 / 1 / 1 |
| 9-5 | 14112015 | Thread tension disk | 2 / 2 / 2 |
| 9-6 | 114727001 | Take-up spring | 1 / 1 / 1 |
| 9-7 | 13513006 | Thread tension retainer | 1 / 1 / 1 |
| 9-8 | 135S15002 | Screw | 1 / 1 / 1 |
| 9-9 | 001050 | O Ring 14.5x1.5 | 1 / 1 / 1 |
| 9-10 | 10112007 | Thread tension nut locking plate | 1 / 1 / 1 |
| 10 | 136S14002 | Screw SM15/64 X 28 | 1 / 1 / 1 |
| 11 | 14712018 | Thread take-up lever cover | 1 / 1 / 1 |
| 12 | 101S11004 | Screw SM3/16X28 X7 | 2 / 2 / 2 |
| 13 | 10122005 | Take-up link pin screw plug | 1 / 1 / 1 |
| 14 | 135S11047 | Panel Screw SM11/64×40 | 2 / 2 / 2 |
| 15 | 14726001 | Thread release pin | 1 / 1 / 1 |
| 16 | 13502018 | Thread release bar | 1 / 1 / 1 |
| 17 | 13837002 | A4-0182 trademark | 1 / 1 / 1 |
| 18 | 1411300600 | Bobbin winder thread tension | 1 / 1 / 1 |
| 18-1 | 114S16001 | Nut SM11/64×40 | 1 / 1 / 1 |
| 18-2 | 11413022 | Thread tension guide plate | 1 / 1 / 1 |
| 18-3 | 13601006 | Screw | 1 / 1 / 1 |
| 18-4 | 10112005 | Thread tension disk | 2 / 2 / 2 |
| 18-5 | 11427006 | Spring | 1 / 1 / 1 |
| 18-6 | 138S16019 | Thread tension nut | 1 / 1 / 1 |
| 19 | 101S12001 | Base plate pillar | 4 / 4 / 4 |
| 20 | 100968 | H5 frame | 1 / 1 / 1 |
| 21 | 100767 | Base plate | 1 / 1 / 1 |
| 22-1 | 13515002 | Slide plate | 1 / 1 / 1 |
| 22-2 | 13512007 | Slide plate spring | 1 / 1 / 1 |
| 22-3 | 101S11019 | Screw SM3/32×56 L=2 | 2 / 2 / 2 |
| 23 | 1473100100 | Bobbin winder thread tension | 1 / 1 / 1 |
| 24 | 114S11003 | Screw | 3 / 3 / 3 |
| 25 | 11419001 | Thread cutter | 1 / 1 / 1 |
| 26 | 114S11015 | SCREW SM9/64×40 L=6 | 2 / 2 / 2 |
| 27 | 13522001 | Rubber plug(ϕ19) | 1 / 1 / 1 |
| 20151025 | |||
| 10115007 | 螺钉 SM11/64×40×6 | ||
| 138516019 | |||
| 113514002 | |||
| 1147130100 | |||
| 141516013 | |||
| 135515002 | |||
| 136514002 | 螺钉 SM15/64 X 28 | ||
| 101511004 | 螺钉 SM3/16X28 X7 | ||
| 135511047 | 面板螺钉 SM11/64×40 | ||
| 114516001 | 螺母 SM11/64×40 | ||
| 101512001 | |||
| 101511019 | 螺钉 SM3/32×56 L=2 | ||
| 114511003 | |||
| 114511015 | 螺钉 SM9/64×40 L=6 |
Page 4 — 1.机壳、外装分组件/Machine frame & cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28 | 13522002 | Rubber plug (φ11.8) | 1 / 1 / 1 |
| 29 | 13513010 | Nest less e-device | 1 / 1 / 1 |
| 30 | 101S17002 | Screw SM11/64×40 L=5 | 2 / 2 / 2 |
| 31 | 13515001 | Needle plate | 1 / (blank) / 1 |
| 13615003 | Needle plate (12mm) | (blank) / 1 / (blank) | |
| 32 | 101S11005 | Screw | 1 / 1 / 1 |
| 33 | 11422062 | Gland | 1 / 1 / 1 |
| 34 | 101S11025 | Screw SM11/64×40×7 | 2 / 2 / 2 |
| 35 | 13512001 | Beadier pedestal | 1 / 1 / 1 |
| 36 | 13811060 | Motor insulation shield | 1 / 1 / 1 |
| 37 | 1363303000 | Motor | 1 / 1 / 1 |
| 38 | W02004 | Spring washer | 4 / 4 / 4 |
| 40 | 1473304200 | Machine electric control | 1 / 1 / 1 |
| 41 | 114S13001 | Screw M5×20 | 1 / 1 / 1 |
| 42 | 136S13001 | Screw M5×35 | 3 / 3 / 3 |
Page 6 — 2.上轴排线分组件/Main shaft & thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14702011 | Main shaft | 1 / 1 / 1 |
| 2 | 10122012 | Rubber plug | 1 / 1 / 1 |
| 3 | 10108003 | Shaft washer | 1 / 1 / 1 |
| 4 | 101S15002 | Screw SM1/4×40×6 | 2 / 2 / 2 |
| 5 | 13603023 | Main shaft bushing front | 1 / 1 / 1 |
| 6 | 13503017 | Main shaft bushing, middle | 1 / 1 / 1 |
| 7 | 135S15006 | Screw SM15/64×28 | 1 / 1 / 1 |
| 8 | 13603027 | Main shaft bushing back | 1 / 1 / 1 |
| 9 | 13522010 | Bushing back oil seal assay | 1 / 1 / 1 |
| 10 | 304714 | Capstan | 1 / 1 / 1 |
| 11 | S10009 | Capstan Screw M6x8 | 2 / 2 / 2 |
| 12 | 1353800200 | Thread take-up assay | 1 / 1 / 1 |
| 12-1 | 101S11005 | Screw SM11/64×40×8 | 1 / 1 / 1 |
| 12-2 | 13505002 | Needle bar connection | 1 / 1 / 1 |
| 12-3 | 101S17001 | Screw | 1 / 1 / 1 |
| 12-4 | 13505003 | Needle bar connecting rod | 1 / 1 / 1 |
| 12-5 | 10124001 | Needle bearing | 1 / 1 / 1 |
| 12-6 | 13504002 | Thread take-up crank | 1 / 1 / 1 |
| 12-7 | 13538004 | Thread take-up rod | 1 / 1 / 1 |
| 12-8 | 13538003 | Thread take-up bushing | 1 / 1 / 1 |
| 12-9 | 13538002 | Thread take-up connecting rod | 1 / 1 / 1 |
| 12- | 13502003 | Pin | 1 / 1 / 1 |
| 13 | 135S15009 | Screw SM15/64×28 | 1 / 1 / 1 |
| 14 | 114704013 | Needle bar crank | 1 / 1 / 1 |
| 15 | 101S15007 | Screw SM1/4×40×8 | 1 / 1 / 1 |
| 16 | 101S15007 | Screw SM1/4×40×8 | 1 / 1 / 1 |
| 17 | 101S15004 | Screw SM9/32×28×16 | 1 / 1 / 1 |
| 18 | 135S11002 | Screw SM9/32×28 | 1 / 1 / 1 |
| 19 | 14703006 | Needle bar upper bushing | 1 / 1 / 1 |
| 20 | 10122013 | Upper bushing rubber plug | 1 / 1 / 1 |
| 21 | 13503007 | Needle bar lower bushing | 1 / 1 / 1 |
| 22 | 14735001 | BTW-DRIVING-WHEEL | 1 / 1 / 1 |
| 23 | 13602002 | Needle bar | 1 / 1 / 1 |
| 24 | 13513011 | Needle bar thread ring | 1 / 1 / 1 |
| 25 | 13517001 | Needle(DP×17 23#) | 1 / 1 / 1 |
| 26 | 101S11006 | Screw SM1/8×44 L=4.5 | 1 / 1 / 1 |
| 27 | 13609001 | Slider trough | 1 / 1 / 1 |
| 28 | 11409001 | Connection Slider | 1 / 1 / 1 |
| 29 | 101S11008 | Slider guide rail Screw | 2 / 2 / 2 |
| 30 | 101S11005 | Screw SM11/64×40×8 | 2 / 2 / 2 |
| 31 | 10112003 | Washer | 1 / 1 / 1 |
| 32 | 13523001 | Oil felt for needle bar | 1 / 1 / 1 |
| 33 | S10035 | Screw M5×8 | 2 / 2 / 2 |
| 34 | 114723001 | Oil felt for needle bar | 1 / 1 / 1 |
| 35 | H03001 | Washer | 1 / 1 / 1 |
| 36 | 40511001 | Wire clip | 2 / 2 / 2 |
Page 8 — 3.压料分组件/Presser bar components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14711005 | Presser foot wrench | 1 / 1 / 1 |
| 2 | 101S11008 | Screw SM11/64×40×8 | 1 / 1 / 1 |
| 3 | 001009 | O-ring 4.5X1.8 | 1 / 1 / 1 |
| 4 | 13510004 | Presser bar lifting cam | 1 / 1 / 1 |
| 5 | 1351201200 | Knee lifter lever (left)assay | 1 / 1 / 1 |
| 5-1 | 13512014 | Knee lifter rod | 1 / 1 / 1 |
| 5-2 | 135S11027 | Screw SM3/16×28 | 1 / 1 / 1 |
| 5-3 | 135S11026 | Screw SM11/64×40 | 1 / 1 / 1 |
| 5-4 | 13512013 | Knee lifter lever (left) | 1 / 1 / 1 |
| 5-5 | 13510005 | Tension releasing cam | 1 / 1 / 1 |
| 6 | 114726007 | Ension releasing cam melt | 1 / 1 / 1 |
| 7 | 13526005 | Pin for spring | 1 / 1 / 1 |
| 8 | 13527010 | Presser spring | 1 / 1 / 1 |
| 9 | 1147NS30003 | Screw M15×1 | 1 / 1 / 1 |
| 10 | 114709002 | Guide bushing | 1 / 1 / 1 |
| 11 | 135S16003 | Nut M15×1 | 1 / 1 / 1 |
| 12 | 13512016 | Knee lifter lever | 1 / 1 / 1 |
| 13 | 13527011 | Presser spring | 1 / 1 / 1 |
| 14 | 114709001 | Presser bar lifting bracket | 1 / 1 / 1 |
| 15 | 30122022 | Gasket | 1 / 1 / 1 |
| 16 | 13502019 | Presser bar | 1 / 1 / 1 |
| 17 | 13503013 | Presser bar bushing | 1 / 1 / 1 |
| 18 | 101S15006 | Screw SM15/64×28 | 1 / 1 / 1 |
| 19 | 101S11008 | Screw SM11/64×40×8 | 1 / 1 / 1 |
| 20 | 114713002 | thread guide | 1 / 1 / 1 |
| 21 | 101S11009 | Screw SM9/64×40×10.5 | 1 / 1 / 1 |
| 22 | 13528007 | Washer | 1 / 1 / 1 |
| 23 | 13512017 | Defend hook | 1 / 1 / 1 |
| 24 | 13516001 | Presser foot complete | 1 / - / 1 |
| 13516005 | Presser foot complete | - / 1 / - | |
| 25 | 135S12002 | Screw SM15/64×28 | 1 / 1 / 1 |
| 26 | 13512015 | Knee lifter lever (right) | 1 / 1 / 1 |
| 27 | 135S11027 | Screw SM3/16×28 | 1 / 1 / 1 |
| 28 | 113S14020 | Screw SM11/64×40 | 1 / 1 / 1 |
| 135120200 | |||
| 101S15008 | 螺钉 SM11/64×40×8 |
Page 10 — 4.送料分组件/Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1350501500 | Rocker shaft connecting rod assy | 1 / 1 / 1 |
| 1-1 | 135S15007 | Screw | 3 / 3 / 3 |
| 1-2 | 13510003 | Feed drive eccentric cam. | 1 / 1 / 1 |
| 1-3 | 13505005 | Rocker shaft connecting rod | 1 / 1 / 1 |
| 1-4 | 13505006 | Feed regulator connecting rod | 1 / 1 / 1 |
| 1-5 | 13526001 | Walking foot crank short pin | 1 / 1 / 1 |
| 1-6 | 13504004 | Feed rocker shaft crank assembly | 1 / 1 / 1 |
| 1-7 | 101S11025 | Screw SM11/64×40×7 | 1 / 1 / 1 |
| 1-8 | 409S11021 | Screw SM11/64×40×14 | 1 / 1 / 1 |
| 1-9 | 13505024 | Connecting short link | 2 / 2 / 2 |
| 1-10 | 13505023 | Crank long link | 2 / 2 / 2 |
| 1-11 | 13502015 | Hinge pin | 1 / 1 / 1 |
| 1-12 | 201S11007 | Screw SM9/64X40 | 1 / 1 / 1 |
| 1-13 | 201S11012 | Screw SM9/64X40 | 1 / 1 / 1 |
| 1-14 | 13504007 | Needle pitch adjusting link | 1 / 1 / 1 |
| 1-15 | 209S14008 | Screw SM11/64×40×4.5 | 1 / 1 / 1 |
| 1-16 | 13502014 | Crank connecting pin | 1 / 1 / 1 |
| 1-17 | 13526003 | Crank connecting pin | 1 / 1 / 1 |
| 2 | 13510002 | Hinge pin | 1 / 1 / 1 |
| 3 | 13528002 | Thrust collar | 1 / 1 / 1 |
| 4 | 11350500200 | Connecting rod assembly | 1 / 1 / 1 |
| 4-1 | 135S15007 | Screw SM11/64×40 | 3 / 3 / 3 |
| 4-2 | 13510001 | Feed drive eccentric cam. | 1 / 1 / 1 |
| 4-3 | 13505001 | Connecting rod | 1 / 1 / 1 |
| 5 | 13502009 | Hinge pin | 1 / 1 / 1 |
| 6 | 135S11048 | Screw SM3/16×32 | 2 / 2 / 2 |
| 409S11015 | Screw SM3/16×28×15.5 | 1 / 1 / 1 | |
| 7 | 13504019 | Feed lifting rock shaft crank(right) | 1 / 1 / 1 |
| 8 | 105S11019 | Screw SM11/64×40 L=13 | 1 / 1 / 1 |
| 9 | 13502016 | Adjusting link fulcrum shaft | 1 / 1 / 1 |
| 10 | 13502017 | Adjusting link fulcrum shaft pin | 1 / 1 / 1 |
| 11 | 114S11004 | Screw SM 11/64×40×18 | 1 / 1 / 1 |
| 12 | 13602003 | Feed rocker shaft | 1 / 1 / 1 |
| 13 | 10108003 | Thrust collar assay | 2 / 2 / 2 |
| 14 | 101S15002 | Screw SM1/4×40×6 | 4 / 4 / 4 |
| 15 | 13603024 | Bushing for feed rock shaft(right) | 1 / 1 / 1 |
| 16 | 135S15009 | Screw SM15/64×28 | 1 / 1 / 1 |
| 17 | H03001 | Retaining ring | 2 / 2 / 2 |
| 18 | 101S11018 | Screw SM1/8×40 L=6 | 2 / 2 / 2 |
| 19 | 13514001 | Feed dog | 1 / 1 / |
| 13614003 | Feed dog(12MM) | / / 1 | |
| 20 | 13504003 | Feed crank assembly | 1 / 1 / 1 |
| 21 | 13502005 | Feed bar shaft | 1 / 1 / 1 |
| 22 | 13528004 | Washer | 1 / 1 / 1 |
| 23 | 101S11008 | Screw SM11/64×40×8 | 1 / 1 / 1 |
| 24 | 101S11016 | Screw SM3/16×28 L=14 | 2 / 2 / 2 |
| 25-1 | 1350700300 | Feed bar assembly | 1 / 1 / 1 |
| 25- | 13502029 | Feed pin | 1 / 1 / 1 |
| 13505007 |
Page 12 — 4.送料分组件/Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-1-2 | 13509007 | Slider | 1 / 1 / 1 |
| 25-1-3 | 13528009 | washer | 1 / 1 / 1 |
| 25-1-4 | 13507001 | Feed bar assembly | 1 / 1 / 1 |
| 25-2 | 13505004 | Feed forked connection | 1 / 1 / |
| 13505018 | Feed forked connection(12mm) | / / 1 | |
| 26 | 409S11021 | Screw | 1 / 1 / 1 |
| 27 | 13602004 | Feed lifting rock shaft | 1 / 1 / 1 |
| 28 | 135S15008 | Screw | 1 / 1 / 1 |
| 29 | 13528006 | Washer | 1 / 1 / 1 |
| 30 | 13603005 | Bushing for feed rock shaft(right) | 1 / 1 / 1 |
| 31 | 13522014 | Rubber plug(φ19.5) | 1 / 1 / 1 |
| 32 | 13502011 | Hinge pin for feed regulator | 1 / 1 / 1 |
| 33 | 13503026 | Feed regulator bushing | 1 / 1 / 1 |
| 34 | 13509003 | Feed regulator | 1 / 1 / |
| 13509003 | Feed regulator(12mm) | / / 1 | |
| 35 | 101S11020 | Screw SM11/64×40 L=10.5 | 1 / 1 / 1 |
| 36 | 135S11009 | Screw SM15/64×28 | 1 / 1 / 1 |
| 37 | 1350401400 | Slide block pin | 1 / 1 / 1 |
| 37-1 | 13504006 | Inverted seam lever crank | 1 / 1 / 1 |
| 37-2 | 13502012 | Operating rod crank roller pin | 1 / 1 / 1 |
| 37-3 | 13509006 | Roller column | 1 / 1 / 1 |
| 37-4 | 13509010 | Washer | 1 / 1 / 1 |
| 38 | 13502013 | Reverse feed lever shaft | 1 / 1 / 1 |
| 39 | 13527007 | Spring for feed crank | 1 / 1 / |
| 13527016 | Spring for feed crank(12mm) | / / 1 | |
| 40 | 135S15014 | Screw SM15/64×28 | 1 / 1 / 1 |
| 41 | 001137 | O-ring Φ6.3×1.8 | 1 / 1 / 1 |
| 42 | 13531001 | Reverse feed lever | 1 / 1 / 1 |
| 43 | 135S11022 | Screw SM3/16×32 | 1 / 1 / 1 |
| 44 | 101S11022 | Dial screw SM3/16×28×18 | 1 / 1 / 1 |
| 45 | 1471100200 | Needle pitch dial | 1 / 1 / |
| 11471100200 | Needle pitch dial (12mm) | / / 1 | |
| 46 | 14212068 | Feed regulator key-press | 1 / 1 / 1 |
| 47 | 112326008 | Stopper pin | 1 / 1 / 1 |
| 48 | 11427034 | Spring for stopper pin | 1 / 1 / 1 |
| 49 | 13527009 | Dial spring for key-press | 1 / 1 / 1 |
| 50 | 001046 | O-ringΦ9.5×2.5 | 2 / 2 / 2 |
| 51 | 136S30004 | Feed regulator screw bar | 1 / 1 / 1 |
| 52 | 135S15006 | Pin bushing | 1 / 1 / 1 |
| 53 | 1135050010 | Rocker shaft connecting rod assy | 1 / 1 / 1 |
| 409511021 | |||
| 135S50006 |
Page 14 — 5.上送料部件/Upper feed Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11470500200 | Connecting rod assembly | CZ 1; CZ-12 1 |
| 11470500700 | Connecting rod(4.5mm) | CZZD 1 | |
| 1-1 | 101S15007 | Screw SM1/4×40×8 | 2, 2, 2 |
| 1-2 | 114710001 | Eccentric wheel | CZ 1; CZ-12 1 |
| 114710003 | Eccentric wheel(4.5mm) | CZZD 1 | |
| 1-3 | H03061 | Retaining ring 24 | CZ 1; CZ-12 1 |
| 1-4 | 11470500300 | Connecting rod widget | CZ 1; CZ-12 1 |
| 11470500800 | Connecting rod widget(4.5mm) | CZZD 1 | |
| 1-4-1 | 114703001 | Bushing | 1, 1, 1 |
| 1-4-2 | 114705001 | Lifting link | 1, 1, 1 |
| 1-5 | 135S20006 | Screw M6×0.75 | 1, 1, 1 |
| 1-6 | 13528008 | Washer | 1, 1, 1 |
| 1-7 | 13504013 | Presser lifting shaft | 1, 1, 1 |
| 1-8 | N02001 | Hex nut M6X0.75 | 1, 1, 1 |
| 1-9 | 135S11035 | Screw SM1/4×24 | 1, 1, 1 |
| 2 | 13603014 | Presser lifting shaft back bushing | 1, 1, 1 |
| 3 | 135S15008 | Screw SM15/64×28×6 | 3, 3, 3 |
| 4 | 13603028 | Presser lifting shaft bushing | 1, 1, 1 |
| 5 | 13603013 | Presser lifting shaft bushing | 1, 1, 1 |
| 6 | 135S30007 | Screw SM9/32×28 | 1, 1, 1 |
| 7 | 135S16006 | Nut SM9/32×28 | 2, 2, 2 |
| 8 | 13512018 | Lifting presser bracket for spring | 1, 1, 1 |
| 9 | 101S11008 | Screw SM11/64×40×8 | 4, 4, 4 |
| 10 | 14727013 | Lifting presser spring | 1, 1, 1 |
| 11 | 1350202100 | Presser spring guide | 1, 1, 1 |
| 11-1 | 13502026 | Presser spring guide rod | 1, 1, 1 |
| 11-2 | 13502027 | Presser spring guide bushing | 1, 1, 1 |
| 12 | 201S11012 | Screw SM9/64X40 | 4, 4, 4 |
| 13 | 114712011 | Lifting presser guide plate assembly | 1, 1, 1 |
| 14 | 402S13011 | Screw SM15/64×28×18 | 1, 1, 1 |
| 15 | 1420900400 | Crank shaft complete assembly | 1, 1, 1 |
| 15-1 | 142S30011 | Crank shaft complete | 1, 1, 1 |
| 15-2 | 14209004 | Slide block | 1, 1, 1 |
| 15-3 | H05029 | Split ring | 1, 1, 1 |
| 16 | 13504020 | Presser swing shaft | 1, 1, 1 |
| 17 | 11628005 | Washer | 1, 1, 1 |
| 135S16005 | 螺母 SM1/4×24 | ||
| 1350401500 | |||
| 113602001 | |||
| 13526007 | |||
| 13504009 | |||
| 135S16004 | 螺母 SM1/4×40 | ||
| 13505027 | |||
| 135S20012 | 螺钉 SM1/4×40 | ||
| 10124001 | |||
| 13509004 | |||
| 1147NS30002 | |||
| 13508004 |
Page 16 — 5.上送料部件/Upper feed Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27 | P03035 | Spring round pin3X8 | CZ 2 / CZZD 2 / CZ-12 2 |
| 28 | 1147NS20001 | Screw SM1/4×40×7 | CZ 1 / CZZD 1 / CZ-12 1 |
| 29 | 101S11001 | Screw SM3/16X28 L=9 | CZ 1 / CZZD 1 / CZ-12 1 |
| 30 | 13526006 | Pin | CZ 1 / CZZD 1 / CZ-12 1 |
| 31 | 13505030 | Fork lever | CZ 1 / CZZD 1 / CZ-12 1 |
| 32 | 135S20013 | Screw SM1/4×40 | CZ 1 / CZZD 1 / CZ-12 1 |
| 33 | 135S20014 | Screw SM1/4×40 | CZ 1 / CZZD 1 / CZ-12 1 |
| 34 | 13505028 | Link of walking foot | CZ 1 / CZZD 1 / CZ-12 1 |
| 35 | W02002 | Washer | CZ 2 / CZZD 2 / CZ-12 2 |
| 36 | 13601015 | Holder for walking foot bar | CZ 1 / CZZD 1 / CZ-12 1 |
| 37 | 116S11005 | Screw SM11/64×40×13 | CZ 2 / CZZD 2 / CZ-12 2 |
| 38 | 114712020 | Lifting presser sway crank guide pin | CZ 1 / CZZD 1 / CZ-12 1 |
| 39 | 114708001 | Shim | CZ 2 / CZZD 2 / CZ-12 2 |
| 40 | 13501006 | Presser rod guide | CZ 1 / CZZD 1 / CZ-12 1 |
| 41 | 135S11030 | Screw SM9/64×40 | CZ 1 / CZZD 1 / CZ-12 1 |
| 42 | 13516002 | Walking foot | CZ 1 / CZ-12 1 |
| 13516006 | Walking foot | CZZD 1 | |
| 43 | 1147NS20002 | Screw SM1/4×40 | CZ 1 / CZZD 1 / CZ-12 1 |
| 44 | 114704001 | Presser feed crank | CZ 1 / CZZD 1 / CZ-12 1 |
| 45 | 13508008 | Presser swing shaft front bushing (left) | CZ 1 / CZZD 1 / CZ-12 1 |
| 46 | 135S15004 | Screw SM1/4×40×4 | CZ 2 / CZZD 2 / CZ-12 2 |
| 47 | 13508009 | Shaft washer | CZ 1 / CZZD 1 / CZ-12 1 |
| 48 | 13502023 | Presser swing shaft | CZ 1 / CZZD 1 / CZ-12 1 |
| 49 | 11472200200 | Oil seal | CZ 1 / CZZD 1 / CZ-12 1 |
| 50 | 13503014 | Presser swing middle shaft bushing | CZ 1 / CZZD 1 / CZ-12 1 |
| 51 | 13504023 | Presser swing crank(right) | CZ 1 / CZZD 1 / CZ-12 1 |
| 52 | 402S13011 | Screw SM15/64×28×18 | CZ 1 / CZZD 1 / CZ-12 1 |
| 53 | 135S20005 | Screw SM9/32×28 | CZ 1 / CZZD 1 / CZ-12 1 |
| 54 | 13505014 | Presser swing crank(right)rod | CZ 1 / CZZD 1 / CZ-12 1 |
| 55 | 135S20004 | Pin | CZ 1 / CZZD 1 / CZ-12 1 |
| 56 | 13504022 | Feed rocker shaft crank middle | CZ 1 / CZZD 1 / CZ-12 1 |
| 57 | 101S11025 | Screw SM11/64×40×7 | CZ 1 / CZZD 1 / CZ-12 1 |
| 58 | 116S11005 | Screw SM11/64×40×13 | CZ 1 / CZZD 1 / CZ-12 1 |
| 59 | W01002 | Washer | CZ 1 / CZZD 1 / CZ-12 1 |
Page 18 — 6.旋梭部件/Hook components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13502002 | Upright shaft | 1 / 1 / 1 |
| 2 | 13525001 | Gear assembly | 1 / 1 / 1 |
| 3 | 101s15007 | Screw SM1/4×40×8 | 8 / 8 / 8 |
| 4 | 13525002 | Gear | 1 / 1 / 1 |
| 5 | 13525003 | Pinion | 1 / 1 / 1 |
| 6 | 13525004 | Gear | 1 / 1 / 1 |
| 7 | 13503018 | Bushing upper | 1 / 1 / 1 |
| 8 | 13503019 | Up ring shaft bushing lower | 1 / 1 / 1 |
| 9 | 135S15008 | Screw SM15/64×28 | 2 / 2 / 2 |
| 10 | 10818502 | Hook assembly | 1 / 1 / 1 |
| 11 | 10818501 | Bobbin | 1 / 1 / 1 |
| 12 | 10818001 | Hook assembly (with tail) | 1 / 1 / 1 |
| 13 | 13502007 | Hook driving shaft | 1 / 1 / 1 |
| 14 | 10123003 | Oil wick | 1 / 1 / 1 |
| 15 | 135S20007 | Screw SM3/16×32 | 1 / 1 / 1 |
| 16 | 13503009 | Bushing front | 1 / 1 / 1 |
| 17 | 135S20008 | Screw SM15/64×28 | 1 / 1 / 1 |
| 18 | 13527005 | Spring | 1 / 1 / 1 |
| 19 | 10108002 | Thrust shrink collar | 1 / 1 / 1 |
| 20 | 101S11012 | Screw SM11/64×40×4.8 | 2 / 2 / 2 |
| 21 | 13603025 | Bushing rear | 1 / 1 / 1 |
| 22 | 135S15009 | Screw SM15/64×28 | 1 / 1 / 1 |
| 23 | 13502008 | Plunger | 1 / 1 / 1 |
| 24 | 13527006 | Plunger spring | 1 / 1 / 1 |
| 25 | 13512009 | Guide plate | 1 / 1 / 1 |
| 26 | 135S11019 | Screw SM15/64×28 | 1 / 1 / 1 |
| 27 | 13612005 | Rotating hook positioner | 1 / 1 / 1 |
| 28 | 101S11011 | Screw | 1 / 1 / 1 |
| 29 | W02004 | Washer | 1 / 1 / 1 |
| 30 | 13521001 | Oil pipe for hook shaft bushin | 1 / 1 / 1 |
| 31 | 10122015 | Plunger | 1 / 1 / 1 |
Page 20 — 7.润滑、供油部件/Oil lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1352000200 | Oil pump assembly | 1 / 1 / 1 |
| 1-1 | 13502024 | Shaft for oil pump | 1 / 1 / 1 |
| 1-2 | 13520001 | Oil pump | 1 / 1 / 1 |
| 1-3 | 13525006 | Small gear for oil pump | 1 / 1 / 1 |
| 1-4 | 13525005 | Big gear for oil pump | 1 / 1 / 1 |
| 1-5 | 13512021 | Cover for oil pump | 1 / 1 / 1 |
| 1-6 | 13512024 | Oil pump Filter | 1 / 1 / 1 |
| 1-7 | 13512022 | Adjusting plate for oil pump | 1 / 1 / 1 |
| 1-8 | 13512023 | Oil pump Filter cover | 1 / 1 / 1 |
| 1-9 | S02032 | Screw M3×6 | 2 / 2 / 2 |
| 1-10 | 135S11037 | Screw M3×10 | 3 / 3 / 3 |
| 2 | 105S11019 | Screw SM11/64×40×13 | 2 / 2 / 2 |
| 3 | 1352100700 | Oil pipe complete for upper shaft | 1 / 1 / 1 |
| 4 | 1362100100 | Oil pipe for arm lower shaft | 1 / 1 / 1 |
| 4-1 | 13621001 | Oil pipe for lower shaft | 1 / 1 / 1 |
| 4-2 | 13636001 | Lower shaft Hose connector | 1 / 1 / 1 |
| 5 | 1351202400 | Oil wick set plate complete | 1 / 1 / 1 |
| 5-1 | 13512031 | Oil line fixing plate | 1 / 1 / 1 |
| 5-2 | 13521006 | Oil line fixing plate oil pipe(short) | 1 / 1 / 1 |
| 5-3 | 13521005 | Oil line fixing plate oil pipe(long) | 1 / 1 / 1 |
| 5-4 | 13523007 | Oil line fixing plate oil line | 1 / 1 / 1 |
| 5-5 | 101S01010 | Screw SM9/64x40 | 1 / 1 / 1 |
| 5-6 | 13534001 | Oil line fixing hook | 1 / 1 / 1 |
| 6 | 101S11010 | Screw SM9/64×40×11 | 2 / 2 / 2 |
| 7 | 101S11004 | Screw SM3/16X28 X7 | 1 / 1 / 1 |
| 8 | 305102 | Keep off plate | 1 / 1 / 1 |
| 9 | 14722011 | Keep off plate wool felt | 1 / 1 / 1 |
| 10 | 101S11001 | Screw SM3/16X28×9 | 8 / 8 / 8 |
| 11 | 304715 | Side plate | 1 / 1 / 1 |
| 12 | 14722006 | Gasket | 1 / 1 / 1 |
| 13 | 10111004 | Oil sight window | 1 / 1 / 1 |
| 14 | 10122019 | O-ring | 1 / 1 / 1 |
| 15 | 13522008 | Rubber plug (Φ25.5) | 1 / 1 / 1 |
| 16 | 13522003 | Rubber plug (φ8.8) | 1 / 1 / 1 |
| 17 | 10122005 | Take-up link pin screw plug | 1 / 1 / 1 |
| 18 | 13522001 | Rubber plug (Φ19) | 1 / 1 / 1 |
| 19 | 13522005 | Rubber plug (Φ5.7) | 2 / 2 / 2 |
| 20 | 14022013 | Rubber plug (φ8.5) | 1 / 1 / 1 |
| 21 | 12922001 | Rubber plug (Φ12.5) | 1 / 1 / 1 |
| 22 | 13522002 | Rubber plug(Φ11.8) | 1 / 1 / 1 |
| 23 | 201S11014 | Screw SM11/64X40 | 1 / 1 / 1 |
| 24 | 13512025 | Pipe return pipe clamp | 1 / 1 / 1 |
| 25 | 12921002 | Oil return pipe Φ3XΦ4 | 1 / 1 / 1 |
| 26 | 13523003 | Oil felt | 1 / 1 / 1 |
| 27 | 10423005 | Oil wick | 1 / 1 / 1 |
| 28 | 13522004 | Rubber plug (Φ27) | 1 / 1 / 1 |
| 29 | 112S11014 | Screw SM11/64×40×5.3 | 2 / 2 / 2 |
| 30 | 13612023 | Keep off plate | 1 / 1 / 1 |
| 1352006 | |||
| 13512006 | |||
| 13512005 |

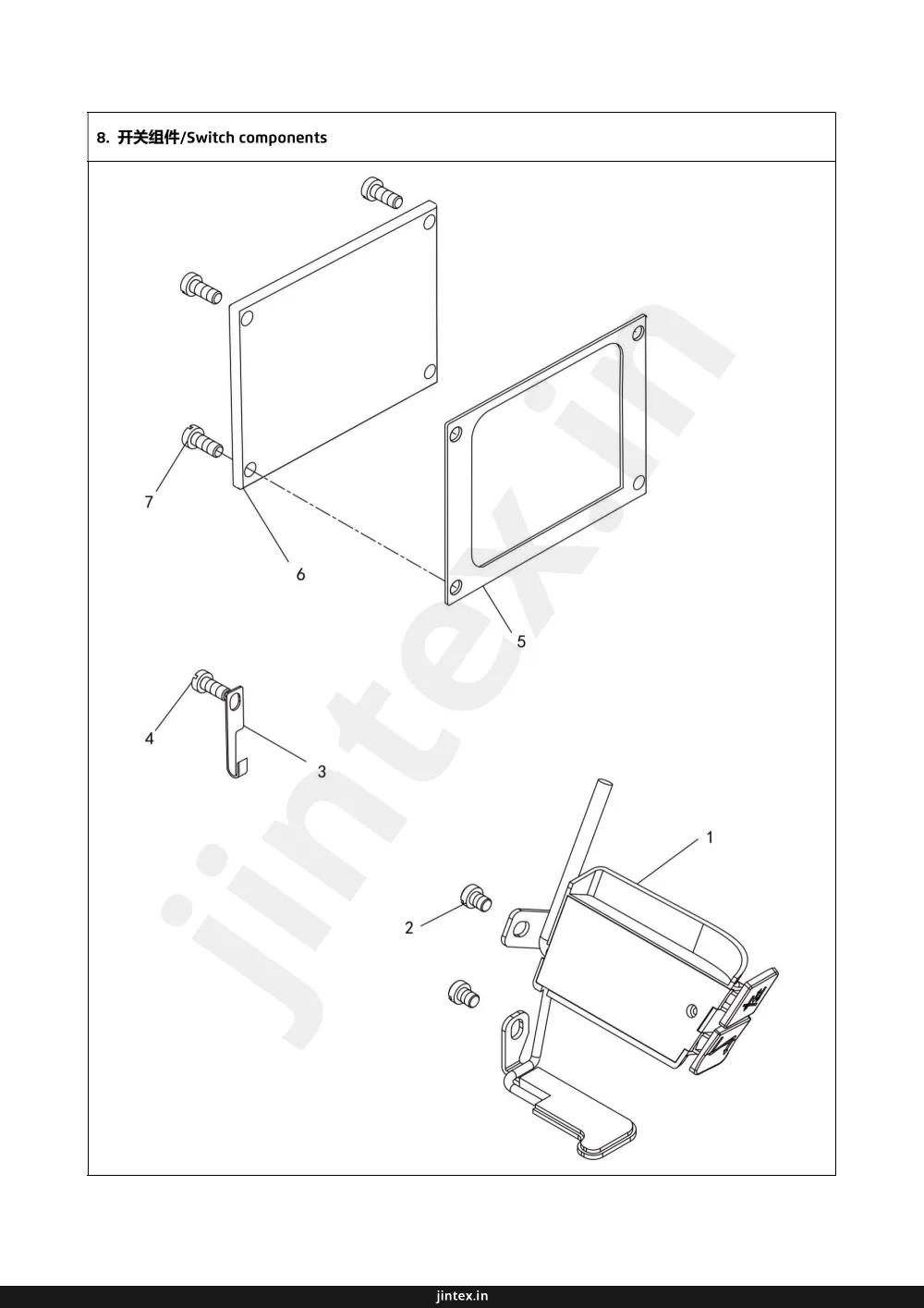

Page 22 — 8.开关组件/Switch components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1473000900 | Switch assembly | 1 / 1 / 1 (CZ / CZZD / CZ-12) |
| 2 | 101S11004 | Screw SM3/16X28 X7 | 2 / 2 / 2 (CZ / CZZD / CZ-12) |
| 3 | 40112091 | Oil tube holder | 1 / 1 / 1 (CZ / CZZD / CZ-12) |
| 4 | 101S11005 | Screw | 1 / 1 / 1 (CZ / CZZD / CZ-12) |
| 5 | 13628009 | Seals washer | 1 / 1 / 1 (CZ / CZZD / CZ-12) |
| 6 | 302662 | Backstitch solenoid cover | 1 / 1 / 1 (CZ / CZZD / CZ-12) |
| 7 | 101S11001 | Screw | 4 / 4 / 4 (CZ / CZZD / CZ-12) |
Page 24 — 9.机头附件/Machine head accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 115031022 | Machine head cover | 1 / 1 / 1 |
| 2 | 10131004 | Screw driver(small) | 1 / 1 / 1 |
| 3 | 10131003 | Screw driver(middle) | 1 / 1 / 1 |
| 4 | 20731047 | Screw driver(large) | 1 / 1 / 1 |
| 5 | 13517002 | Needle(DP×17 23#) | 10 / 10 / 10 |
| 6 | 10818501 | Bobbin | 5 / 5 / 5 |
| 7 | 1351203700 | Knee control limit frame | 1 / 1 / 1 |
| 7-1 | 13512026 | Knee lifter stop bracket | 1 / 1 / 1 |
| 7-2 | 135S15019 | Screw M6 | 2 / 2 / 2 |
| 7-3 | N01029 | Nut M6 | 2 / 2 / 2 |
| 7-4 | 135S12003 | Screw M6 | 1 / 1 / 1 |
| 1350100900 | Oil pan assembly | 1 / 1 / 1 | |
| 8 | 13501007 | Oil reservoir | 1 / 1 / 1 |
| 9 | 101S11028 | Screw SM5/16×24×7 | 1 / 1 / 1 |
| 10 | 001047 | Washer | 1 / 1 / 1 |
| 11 | 13523006 | Gasket | 1 / 1 / 1 |
| 12 | 13511006 | Knee press lifter rod | 1 / 1 / 1 |
| 13 | 10131001 | Magnet | 1 / 1 / 1 |
| 14 | 20131038 | Oil pot | 1 / 1 / 1 |
| 15 | 10122060 | Rubber coat | 2 / 2 / 2 |
| 16 | 1011203100 | Hinge | 2 / 2 / 2 |
| 17 | 113522001 | Cushion(big) | 2 / 2 / 2 |
| 18 | 10122022 | Cushion(small) | 2 / 2 / 2 |
| 19 | 113511001 | Oil bag (600ml)(10#) | 1 / 1 / 1 |
| 20 | 1383100300 | Spool stand complete | 1 / 1 / 1 |
| 21 | 10111011 | Frame support bar | 1 / 1 / 1 |
| 22 | 1351203800 | Joystick assembly | 1 / 1 / 1 |
| 22-1 | 13512038 | Bent rod | 1 / 1 / 1 |
| 22-2 | 10112029 | Bell | 1 / 1 / 1 |
| 22-3 | 10112030 | Bell bracket | 1 / 1 / 1 |
| 22-4 | 101S12004 | Screw M6×11 | 1 / 1 / 1 |
| 23 | 13502025 | Hinge pin | 1 / 1 / 1 |
| 24 | 13527014 | Spring | 1 / 1 / 1 |
| 25 | 10101008 | Connector | 1 / 1 / 1 |
| 26 | 101S12003 | Screw M8 | 2 / 2 / 2 |
| 27 | 10122024 | Mat | 1 / 1 / 1 |
| 28 | H05010 | Split stop ring | 1 / 1 / 1 |
| 29 | 11023001700 | Electric control pedal | 1 / 1 / 1 |
| 703725 | Packaging materials | 1 / 1 / 1 | |
| 30 | 11543100300 | Pedal connecting rod | 1 / 1 / 1 |
| 31 | 114712003 | Open wrench | 1 / 1 / 1 |
| 13522001 |
Jack H2 — parts catalog
- Page 1 (diagram): This page displays a diagram of machine frame and cover components for the H2 Series Parts Manual, with various parts numbered for identification.
- Page 2 (parts_list): This page lists machine frame and cover components, including part numbers, descriptions, and quantities for different models.
- Page 3 (diagram): This page displays a diagram of machine frame and cover components, with numbered parts and their corresponding references.
- Page 4 (parts_list): This page lists machine frame and cover components, including part numbers, descriptions, and quantities for different models.
- Page 5 (diagram): This page displays a diagram of main shaft and thread take-up components, with numbered parts for identification.
- Page 6 (parts_list): This page lists the main shaft and thread take-up components for an industrial sewing machine, including part numbers, descriptions, and quantities for various screws, bushings, shafts, and other related parts.
- Page 7 (diagram): This page displays a diagram of presser bar components, with numbered parts and their corresponding references.
- Page 8 (parts_list): This page lists presser bar components for industrial sewing machines, including part numbers, descriptions, and quantities for different models.
- Page 10 (parts_list): This page lists feed mechanism components for an industrial sewing machine, including part numbers, descriptions, and quantities for different models.
- Page 11 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding labels.
- Page 12 (parts_list): This page lists feed mechanism components with part numbers, descriptions, and quantities for models CZ, CZD, and CZ-12.
- Page 13 (diagram): This page displays a diagram of upper feed parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 14 (parts_list): This page lists upper feed parts for an industrial sewing machine, including part numbers, descriptions, and quantities for various models.
- Page 15 (diagram): This page displays a diagram of upper feed parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 16 (parts_list): This page lists upper feed parts for an industrial sewing machine, including part numbers, descriptions, and quantities for different models.
- Page 17 (diagram): This page displays a diagram of hook components, with numbered parts indicated for reference.
- Page 18 (parts_list): This page lists hook components with their part numbers, descriptions, and quantities for different models.
- Page 19 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page lists oil lubrication components, including part numbers, descriptions, and quantities for different models.
- Page 21 (diagram): This page displays a diagram of switch components, with numbered parts including screws, a bracket, and a housing.
- Page 22 (parts_list): This page lists switch components with their part numbers, descriptions, and quantities for different models (CZ, CZZD, CZ-12).
- Page 23 (diagram): This page displays a diagram of machine head accessories, with numbered parts including a spool holder, various screws, a presser foot, and tools.
- Page 24 (parts_list): This page lists machine head accessories with part numbers, descriptions, and quantities for CZ, CZZD, and CZ-12 models.
- Page 25 (cover): This is the cover page for a catalog from JACK TECHNOLOGY CO., LTD. It features the company slogan "成套智联 让服装智造无限可能" (Integrated intelligence, making garment manufacturing infinitely possible) and contact information including a phone number, website, and QR codes for social media and company information. The bottom of the page includes the company's address in both Chinese and English.
