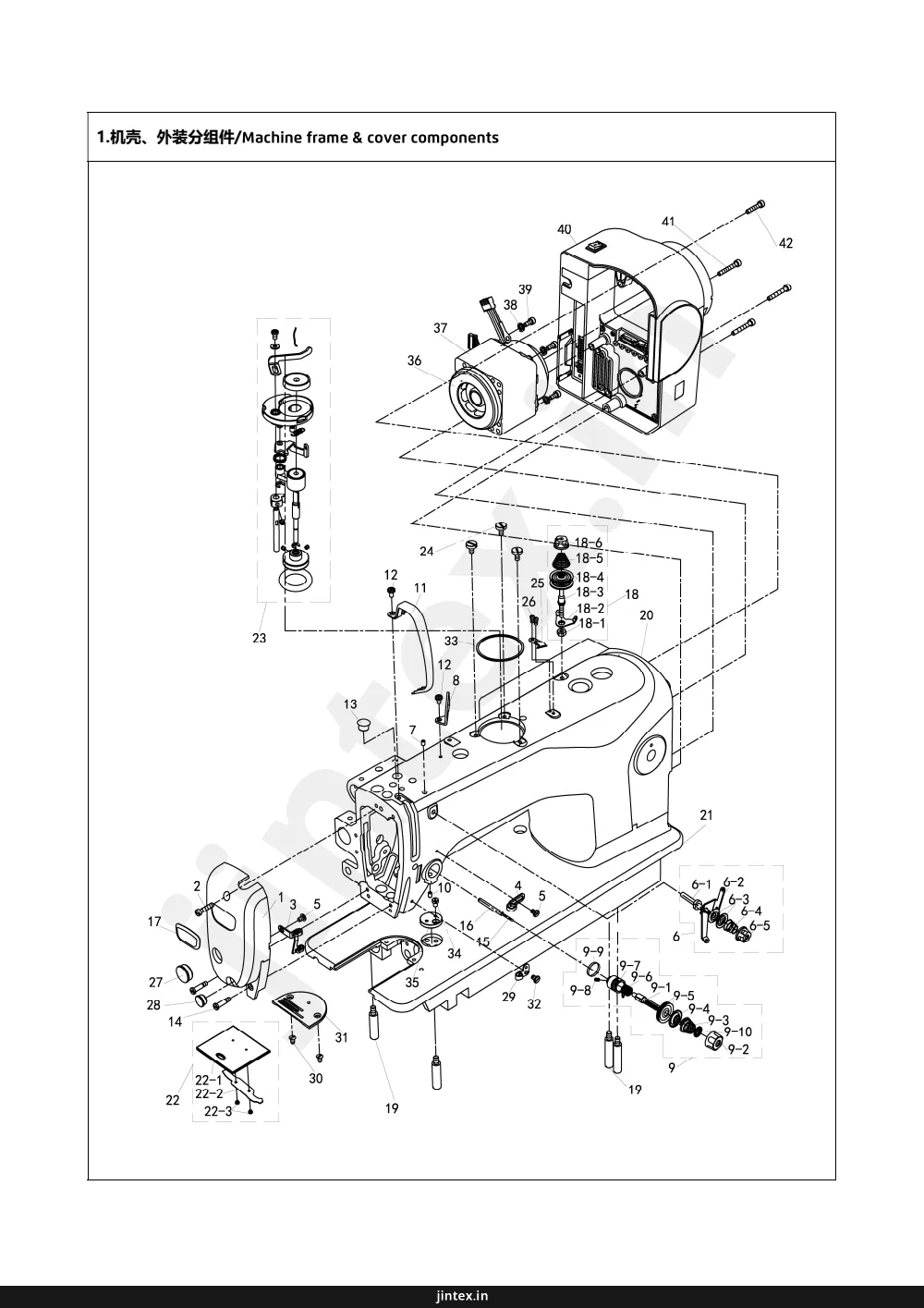

Page 1 — 1.机壳、外装分件/Machine frame & cover components

Jack H2 parts on page 1
Ref	Part number	Part name	Qty
	40	40
	41	41
	42	42
	39	39
	38	38
	37	37
	36	36
	24	24
	18-6	18-6
	18-5	18-5
	18-4	18-4
	18-3	18-3
	18-2	18-2
	18-1	18-1
	25	25
	20	20
	12	12
	11	11
	23	23
	12	12
	13	13
	7	7
	21	21
	17	17
	2	2
	1	1
	3	3
	5	5
	10	10
	4	4
	5	5
	6-1	6-1
	6-2	6-2
	6-3	6-3
	6-4	6-4
	6-5	6-5
	6	6
	34	34
	16	16
	15	15
	35	35
	29	29
	32	32
	9-9	9-9
	9-8	9-8
	9-7	9-7
	9-6	9-6
	9-1	9-1
	9-5	9-5
	9-4	9-4
	9-3	9-3
	9-2	9-2
	9-10	9-10
	9	9
	27	27
	28	28
	14	14
	31	31
	30	30
	19	19
	22	22
	22-1	22-1
	22-2	22-2
	22-3	22-3
	19	19

Page 2 — 1.机壳、外装分组件/Machine frame & cover components

Jack H2 parts on page 2
Ref	Part number	Part name	Qty
	304713	面板
	930000235	面板(12mm)
	20151025	面板螺钉
	14713003	面板线勾
	10113004	右线勾
	10115007	螺钉 SM11/64×40×6
	1411300400	小夹线器组件
	13812066	过线板
	13810008	小夹线螺柱
	11212004	小夹线板
	11227001	小夹线弹簧
	138516019	小夹线器螺母
	113514002	小夹线固定螺钉
	13512004	三孔线勾
	1147130100	夹线组件
	1147NS30001	夹线螺钉
	141516013	夹线螺母
	14227024	夹线弹簧
	10112006	松线板
	14112015	夹线板
	114727001	挑线簧
	13513006	夹线调节座
	135515002	夹线调节座螺钉
	001050	O型圈
	10112007	夹线螺母止动板
	136514002	螺钉 SM15/64 X 28
	14712018	挑线杆防护罩
	101511004	螺钉 SM3/16X28 X7
	10122005	挑线连杆销孔塞
	135511047	面板螺钉 SM11/64×40
	14726001	松线杆
	13502018	松线棒
	13837002	A4-0182 商标牌
	1411300600	绕线夹线器
	114516001	螺母 SM11/64×40
	11413022	夹线过线板
	13601006	夹线螺钉
	10112005	夹线板
	11427006	小夹线弹簧
	138516019	小夹线器螺母
	101512001	底板支柱
	100968	H5 机壳
	100767	底板
	13515002	推板
	13512007	推板簧
	101511019	螺钉 SM3/32×56 L=2
	1473100100	绕线器组件
	114511003	开槽圆柱头螺钉
	11419001	切线刀
	114511015	螺钉 SM9/64×40 L=6
	13522001	面板橡胶塞(Φ19)

Page 3 — 1.机壳、外装件组件/Machine frame & cover components

Jack H2 parts on page 3
Ref	Part number	Part name	Qty
	40	Cover
	41	Cover
	42	Screw
	39	Motor
	38	Motor
	37	Motor
	36	Motor
	23	Shaft
	24	Screw
	12	Screw
	11	Screw
	33	Cover
	13	Ring
	7	Screw
	8	Screw
	18-6	Spring
	18-5	Washer
	18-4	Washer
	18-3	Washer
	18-2	Washer
	18-1	Screw
	18	Screw
	25	Screw
	26	Screw
	20	Screw
	21	Frame
	1	Cover
	2	Screw
	3	Screw
	5	Screw
	17	Cover
	27	Screw
	28	Screw
	14	Screw
	31	Screw
	30	Screw
	22-1	Screw
	22-2	Screw
	22-3	Screw
	22	Screw
	19	Screw
	35	Frame
	16	Screw
	15	Screw
	34	Screw
	4	Screw
	29	Screw
	32	Screw
	9-9	Screw
	9-8	Screw
	9-7	Screw
	9-6	Screw
	9-5	Washer
	9-4	Washer
	9-3	Washer
	9-2	Nut
	9-10	Screw
	9	Screw
	6-1	Screw
	6-2	Washer
	6-3	Washer
	6-4	Washer
	6-5	Nut
	6	Screw

Page 4 — 1.机壳、外装分组件/Machine frame & cover components

Jack H2 parts on page 4
Ref	Part number	Part name	Qty
	13522002	面板橡胶塞(Φ11.8)
	13513010	下勾线
	101S17002	螺钉 SM11/64×40 L=5
	13515001	针板
	13615003	针板(12mm)
	101S11005	螺钉
	11422062	密封垫
	101S11025	螺钉 SM11/64×40×7
	13512001	卷边踏座
	13811060	电机绝缘防护罩
	1363303000	光电伺服电机
	W02004	弹簧垫圈
	1473304200	功能型电控
	114S13001	螺钉 M5×20
	136S13001	螺钉 M5×35

Page 5 — 2. Main shaft & thread take-up components

Jack H2 parts on page 5
Ref	Part number	Part name	Qty
	1	Main shaft
	2	Shaft sleeve
	3	Bearing sleeve
	4	Screw
	5	Bearing housing
	6	Bearing
	7	Screw
	8	Bearing
	9	Bearing housing
	10	Wheel
	11	Screw
	12	Thread take-up lever assembly
	12-1	Thread take-up lever
	12-2	Lever pin
	12-3	Lever pin
	12-4	Lever pin
	12-5	Lever pin
	12-6	Lever pin
	12-7	Lever pin
	12-8	Lever pin
	12-9	Lever pin
	12-10	Lever pin
	13	Spring
	14	Lever pin
	15	Screw
	16	Screw
	17	Spring
	18	Screw
	19	Lever pin
	20	Lever pin
	21	Lever pin
	22	Gear
	23	Lever pin
	24	Lever pin
	25	Lever pin
	26	Lever pin
	27	Lever pin
	28	Lever pin
	29	Screw
	30	Screw
	31	Washer
	32	Lever pin
	33	Screw
	34	Lever pin
	35	Screw
	36	Bracket

Page 6 — 2.上轴排线分组件/Main shaft & thread take-up components

Jack H2 parts on page 6
Part number	Part name	Qty
14702011	上轴
10122012	上轴橡皮塞
10108003	上轴紧圈
101S15002	螺钉 SM1/4×40×6	2
13603023	上轴前挡套
13503017	上轴中挡套
135S15006	螺钉 SM15/64×28
13603027	上轴后挡套
13522010	上轴后挡套油封组件
304714	主动轮
S10009	主动轮螺钉 M6×8	2
1353800200	挑线杆组件
101S11005	开槽球面圆柱头螺钉
13505002	针杆接头
101S17001	挑线杆柄螺钉(左旋)
13505003	挑线杆连杆
10124001	挑线杆滚针轴承
13504002	挑线杆曲柄
13538004	挑线杆
13538003	挑线杆衬套
13538002	挑线连杆
13502003	挑线连杆铰链销
135S15009	螺钉 SM15/64×28
114704013	针杆曲柄
101S15007	螺钉 SM1/4×40×8
101S15007	螺钉 SM1/4×40×8
101S15004	螺钉 SM9/32×28×16
135S11002	螺钉 SM9/32×28
14703006	针杆上衬套
10122013	针杆上衬套橡皮塞
13503007	针杆下衬套
14735001	驱动轮
13602002	针杆
13513011	针杆过线环
13517001	机针(DP×17 23#)
101S11006	螺钉 SM1/8×44 L=4.5
13609001	滑块滑槽
11409001	针杆接头滑块
101S11008	滑块导轨螺钉	2
101S11005	螺钉 SM11/64×40×8	2
10112003	垫片
13523001	毛毡
S10035	螺钉 M5×8	2
114723001	针杆上毡套
H03001	轴用弹性挡圈 15
40511001	线夹	2

Page 7 — 3. 压料分组件/Presser bar components

Jack H2 parts on page 7
Ref	Part number	Part name
5-1	5-1	Presser bar components
5-2	5-2	Presser bar components
5-3	5-3	Presser bar components
5-4	5-4	Presser bar components
5-5	5-5	Presser bar components
1	1	Presser bar components
2	2	Presser bar components
3	3	Presser bar components
4	4	Presser bar components
5	5	Presser bar components
6	6	Presser bar components
7	7	Presser bar components
8	8	Presser bar components
9	9	Presser bar components
10	10	Presser bar components
11	11	Presser bar components
12	12	Presser bar components
13	13	Presser bar components
14	14	Presser bar components
15	15	Presser bar components
16	16	Presser bar components
17	17	Presser bar components
18	18	Presser bar components
19	19	Presser bar components
20	20	Presser bar components
21	21	Presser bar components
22	22	Presser bar components
23	23	Presser bar components
24	24	Presser bar components
25	25	Presser bar components
26	26	Presser bar components
27	27	Presser bar components
28	28	Presser bar components

Page 8 — 3.压料分组件/Presser bar components

Jack H2 parts on page 8
Ref	Part number	Part name	Qty
	14711005	压脚扳手
	101S11008	螺钉 SM11/64×40×8
	001009	O型圈 4.5X1.8
	13510004	压紧杆提升凸轮
	135120200	膝控提升杠(左)组件
	13512014	膝控提升杠
	135S11027	螺钉 SM3/16×28
	135S11026	螺钉 SM11/64×40
	13512013	膝控提升杠(左)
	13510005	松线凸轮
	114726007	松线凸轮销
	13526005	弹簧销
	13527010	压紧杆提升杠(右)弹簧
	1147NS30003	螺钉 M15×1
	114709002	调压螺钉套
	135S16003	螺母 M15×1
	13512016	膝控提升杠
	13527011	压紧弹簧
	114709001	压紧杆导架(加轴承)
	30122022	加轴颈形密封圈
	13502019	压紧杆
	13503013	压紧杆轴套
	101S15006	螺钉 SM15/64×28
	101S15008	螺钉 SM11/64×40×8
	114713002	大线勾
	101S11009	螺钉 SM9/64×40×10.5
	13528007	小压脚螺钉垫片
	13512017	防护勾
	13516001	小压脚
	13516005	小压脚
	135S12002	螺钉 SM15/64×28
	13512015	膝控提升杠(右)
	135S11027	螺钉 SM3/16×28
	113S14020	螺钉 SM11/64×40

Page 10

Jack H2 parts on page 10
Ref	Part number	Part name	Qty
	1350501500	送布连杆组件
	13505007	送布凸轮
	13510003	送布凸轮
	13505005	送布连杆
	13505006	针距调节连杆
	13526001	曲柄短连杆
	13504004	送布曲柄(左)
	101S11025	螺钉 SM11/64×40×7
	409S11021	螺钉 SM11/64×40×14
	13505024	曲柄长连杆
	13505023	曲柄长连杆
	13502015	连杆偏心轴
	201S11007	螺钉 SM9/64X40
	201S11012	螺钉 SM9/64X40
	13504007	针距调节曲柄
	209S14008	螺钉 SM11/64×40×4.5
	13502014	曲柄长连杆销
	13526003	曲柄连杆销
	13510002	针距调节连接销
	13528002	凸轮隔离片
	11350500200	拾牙连杆组件
	135S15007	螺钉 SM11/64×40
	13510001	拾牙连杆
	13505001	拾牙连杆
	13502009	拾牙曲柄铰链轴
	135S11048	螺钉 SM3/16×32
	409S11015	螺钉 SM3/16×28×15.5
	13504019	拾牙右曲柄
	105S11019	螺钉 SM11/64×40 L=13
	13502016	针距调节曲柄定位销
	13502017	针距调节曲柄定位销
	114S11004	螺钉 SM 11/64×40×18
	13602003	送布轴
	10108003	拾牙、送布锁紧圈
	101S15002	螺钉 SM1/4×40×6
	13603024	送布轴前挡套
	135S15009	螺钉 SM15/64×28
	H03001	挡圈
	101S11018	螺钉 SM1/8×40 L=6
	13514001	送布牙
	13614003	送布牙(12MM)
	13504003	牙架曲柄
	13502005	牙架曲柄偏心轴
	13528004	牙架垫圈
	101S11008	螺钉 SM11/64×40×8
	101S11016	螺钉 SM3/16×28 L=14
	1350700300	牙架组件
	13502029	牙架连接销

Page 11 — 4. 送料分组件/Feed mechanism components

Jack H2 parts on page 11
Ref	Part number	Part name	Qty
	1-1	1-1
	1-2	1-2
	1-3	1-3
	1-4	1-4
	1-5	1-5
	1-6	1-6
	1-7	1-7
	1-8	1-8
	1-9	1-9
	1-10	1-10
	1-11	1-11
	1-12	1-12
	1-13	1-13
	1-14	1-14
	1-15	1-15
	1-16	1-16
	2	2
	3	3
	4-1	4-1
	4-2	4-2
	4-3	4-3
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25-1	25-1
	25-1-1	25-1-1
	25-1-2	25-1-2
	25-1-3	25-1-3
	25-1-4	25-1-4
	25-2	25-2
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	37-1	37-1
	37-2	37-2
	37-3	37-3
	37-4	37-4
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53

Page 12 — 4.送料分组件/Feed mechanism components

Jack H2 parts on page 12
Ref	Part number	Part name	Qty
	13509007	滑块
	13528009	垫片
	13507001	牙架
	13505004	拾牙叉
	13505018	拾牙叉(12mm)
	409511021	拾牙叉螺钉
	13602004	拾牙轴
	135S15008	拾牙轴前轴套螺钉
	13528006	垫圈
	13603005	拾牙轴前轴套
	13522014	橡皮塞(φ19.5)
	13502011	针距座轴
	13503026	针距座衬套
	13509003	针距座
	13509003	针距座(12mm)
	101S11020	螺钉 SM11/64×40
	135S11009	螺钉 SM15/64×28
	1350401400	倒缝操作杆曲柄组件
	13504006	倒缝操作杆曲柄
	13502012	操作杆曲柄滚柱销
	13509006	滚柱
	13509010	垫片
	13502013	倒缝扳手轴
	13527007	曲柄弹簧
	13527016	曲柄弹簧(12mm)
	135S15014	螺钉 SM15/64×28
	001137	O型圈Φ6.3×1.8
	13531001	倒缝扳手
	135S11022	螺钉 SM3/16×32
	101S11022	螺钉 SM3/16×28×18
	1471100200	针距盘
	11471100200	针距盘(12mm)
	14212068	针距按键
	112326008	止动销
	11427034	止动销弹簧
	13527009	针距按键弹簧
	001046	O型圈Φ9.5×2.5
	136S30004	针距调节螺杆
	135S50006	上轴中套螺钉
	1135050010	送布拾牙连杆组件

Page 13 — 5. Upper feed Parts

Jack H2 parts on page 13
Ref	Part number	Part name
1-9	1-9	SCREW
1-5	1-5	LINK
1-2	1-2	COLLAR
1-1	1-1	SCREW
1-3	1-3	RING
1-4-1	1-4-1	SHAFT
1-4-2	1-4-2	SHAFT
1-8	1-8	BRACKET
1-6	1-6	COLLAR
1-7	1-7	BRACKET
2	2	COLLAR
3	3	NUT
4	4	COLLAR
5	5	COLLAR
6	6	SCREW
7	7	BRACKET
8	8	BRACKET
11-1	11-1	BRACKET
11-2	11-2	BRACKET
9	9	SCREW
10	10	SCREW
12	12	NUT
13	13	BRACKET
14	14	SCREW
15-1	15-1	SHAFT
15-2	15-2	SHAFT
15-3	15-3	SHAFT
15	15	SHAFT
16	16	BRACKET
17	17	WASHER
18	18	NUT
19-1	19-1	SHAFT
19-3	19-3	COLLAR
19	19	SHAFT
19-2	19-2	COLLAR
20	20	NUT
21	21	COLLAR
22	22	SCREW
23	23	NUT
24	24	BRACKET
25	25	COLLAR
26	26	COLLAR
27	27	SCREW
28	28	BRACKET
29	29	BRACKET
30	30	SCREW
31	31	BRACKET
43	43	COLLAR
38	38	BRACKET
37	37	COLLAR
34	34	COLLAR
35	35	COLLAR
36	36	BRACKET
32	32	SCREW
33	33	COLLAR
12	12	NUT
46	46	SCREW
45	45	COLLAR
47	47	BRACKET
44	44	BRACKET
40	40	BRACKET
39	39	BRACKET
41	41	BRACKET
42	42	BRACKET
48	48	SHAFT
49	49	COLLAR
50	50	COLLAR
51	51	BRACKET
52	52	SCREW
53	53	COLLAR
54	54	LINK
55	55	COLLAR
56	56	BRACKET
57	57	COLLAR
58	58	COLLAR
59	59	BRACKET

Page 14 — 5.上送料部件/Upper feed Parts

Jack H2 parts on page 14
Ref	Part number	Part name	Qty
	11470500200	连杆组件
	11470500700	连杆组件(4.5mm)
	101S15007	螺钉 SM1/4×40×8
	114710001	压脚升降偏心轮
	114710003	压脚升降偏心轮(4.5mm)
	H03061	弹性挡圈 26
	11470500300	连杆小组件
	11470500800	连杆小组件(4.5mm)
	114703001	提升连杆衬套
	114705001	提升连杆
	135S20006	螺钉 M6×0.75
	13528008	垫圈
	13504013	偏心连杆调节曲柄
	N02001	六角螺母 M6×0.75
	135S11035	螺钉 SM1/4×24
	13603014	摆压脚提升轴后套
	135S15008	螺钉 SM15/64×28×6
	13603028	摆压脚提升中轴套
	13603013	摆压脚提升前轴套
	135S30007	螺钉 SM9/32×28
	135S16006	螺母 SM9/32×28
	13512018	压脚曲柄支架
	101S11008	螺钉 SM11/64×40×8
	14727013	摆压脚提升弹簧
	1350202100	调压杆弹簧导柱
	13502026	调压杆弹簧导柱杆
	13502027	调压杆弹簧导柱套
	201S11012	螺钉 SM9/64×40
	114712011	提升压脚导柱架
	402S13011	螺钉 SM15/64×28×18
	1420900400	摆动轴左曲柄调节柱组件
	142S30011	摆动轴左曲柄调节柱
	14209004	曲柄调节滑块
	H05029	开口挡圈
	13504020	压脚摆动前曲柄
	11628005	抬牙叉固定螺钉垫圈
	135S16005	螺母 SM1/4×24
	1350401500	压脚升降前曲柄组件
	113602001	压脚升降曲柄
	13526007	圆锥销
	13504009	压脚升降前曲柄
	135S16004	螺母 SM1/4×40
	13505027	压脚送料曲柄连杆(加轴承)
	135S20012	螺钉 SM1/4×40
	10124001	滚针轴承
	13509004	提升压脚导位板
	1147NS30002	导柄导柱轴
	13508004	提升压脚柱轴

Page 15 — 5. Upper feed Parts

Jack H2 parts on page 15
Ref	Part number	Part name
1-9	1-9	SCREW
1-5	1-5	CONNECTING ROD
1-2	1-2	COLLAR
1-1	1-1	COLLAR
1-6	1-6	WASHER
1-4-1	1-4-1	COLLAR
1-4-2	1-4-2	COLLAR
1-3	1-3	COLLAR
1-8	1-8	SCREW
15-1	15-1	SPRING
15-2	15-2	SPRING
15-3	15-3	SPRING
15	15	SPRING
19-1	19-1	SHAFT
19-3	19-3	COLLAR
19-2	19-2	COLLAR
19	19	SHAFT
20	20	NUT
21	21	COLLAR
22	22	SCREW
23	23	COLLAR
24	24	BRACKET
25	25	COLLAR
26	26	COLLAR
27	27	COLLAR
28	28	BRACKET
29	29	COLLAR
30	30	SCREW
31	31	COLLAR
32	32	SCREW
33	33	COLLAR
34	34	COLLAR
35	35	COLLAR
36	36	BRACKET
37	37	COLLAR
38	38	COLLAR
39	39	COLLAR
40	40	BRACKET
41	41	COLLAR
42	42	NEEDLE BAR
43	43	COLLAR
44	44	BRACKET
45	45	COLLAR
46	46	COLLAR
47	47	COLLAR
48	48	SHAFT
49	49	COLLAR
50	50	COLLAR
51	51	COLLAR
52	52	SCREW
53	53	COLLAR
54	54	CONNECTING ROD
55	55	COLLAR
56	56	BRACKET
57	57	COLLAR
58	58	COLLAR
59	59	COLLAR
1	1	BRACKET
2	2	COLLAR
3	3	NUT
4	4	COLLAR
5	5	COLLAR
6	6	SCREW
7	7	COLLAR
8	8	BRACKET
9	9	COLLAR
10	10	SCREW
11-1	11-1	COLLAR
11-2	11-2	COLLAR
12	12	COLLAR
13	13	COLLAR

Page 16 — 5.上送料部件/Upper feed Parts

Jack H2 parts on page 16
Ref	Part number	Part name	Qty
	P03035	弹性圆柱销3×8
	1147NS20001	螺钉 SM1/4×40×7
	101S11001	螺钉 SM3/16×28 L=9
	13526006	摆压脚叉形杆销
	13505030	摆压脚叉形杆(加轴承)
	135S20013	螺钉 SM1/4×40
	135S20014	螺钉 SM1/4×40
	13505028	摆压脚连杆(加轴承)
	W02002	垫圈4
	13601015	摆压脚杆座
	116S11005	螺钉 SM11/64×40×13
	114712020	提升压脚连接板
	114708001	压杆压板垫块
	13501006	压脚杆
	135S11030	螺钉 SM9/64×40
	13516006	摆压脚
	13516006	摆压脚
	1147NS20002	螺钉 SM1/4×40
	114704001	压脚送料曲柄(加轴承)
	13508008	压脚摆动轴前轴套
	135S15004	螺钉 SM1/4×40×4
	13508009	底盖
	13502023	压脚摆动轴
	11472200200	摆动轴后套油封
	13503014	压脚摆动中轴套
	13504023	压脚摆动后曲柄
	402S13011	螺钉 SM15/64×28×18
	135S20005	螺钉 SM9/32×28
	13505014	摆压脚大连杆
	135S20004	大连杆曲柄连接销
	13504022	送布曲柄(中)
	101S11025	螺钉 SM11/64×40×7
	116S11005	螺钉 SM11/64×40×13
	W01002	M3垫片

Page 17 — 6.旋接部件/Hook components

Jack H2 parts on page 17
Ref	Part number	Part name	Qty
	1	SHAFT
	2	BRACKET
	3	SCREW
	4	BRACKET
	5	SHAFT
	6	BRACKET
	7	SHAFT
	8	SHAFT
	9	SCREW
	10	HOUSING
	11	WASHER
	12	HOUSING
	13	BRACKET
	14	SHAFT
	15	SHAFT
	16	SHAFT
	17	SPRING SEAT
	18	SPRING
	19	SHAFT
	20	SCREW
	21	SHAFT
	22	BRACKET
	23	SHAFT
	24	PIN
	25	WASHER
	26	SPRING SEAT
	27	HOUSING
	28	HOUSING
	29	SPRING
	30	SCREW
	31	SHAFT

Page 18 — 6.旋梭部件/Hook components

Jack H2 parts on page 18
Ref	Part number	Part name	Qty
	13502002	竖轴
	13525001	上轴伞齿轮
	101s15007	螺钉 SM1/4×40×8
	13525002	竖轴伞齿轮(上)
	13525003	下轴伞齿轮
	13525004	竖轴伞齿轮(下)
	13503018	竖轴轴套(上)
	13503019	竖轴轴套(下)
	135S15008	螺钉 SM15/64×28
	10818502	梭心套组件
	10818501	梭芯
	10818001	旋梭(有尾)
	13502007	下轴
	10123003	下轴油封
	135S20007	螺钉 SM3/16×32
	13503009	下轴前轴套
	135S20008	螺钉 SM15/64×28
	13527005	油量调节弹簧
	10108002	下轴紧固圈
	101S11012	螺钉 SM11/64×40×4.8
	13603025	下轴后轴套
	135S15009	螺钉 SM15/64×28
	13502008	柱塞
	13527006	柱塞弹簧
	13512009	档板
	135S11019	螺钉 SM15/64×28
	13612005	旋梭定位勾
	101S11011	螺钉
	W02004	档板螺钉弹簧垫圈
	13521001	下轴油管13612001
	10122015	下轴油封

Page 19 — 7.润滑、供油部件/Oil lubrication components

Jack H2 parts on page 19
Ref	Part number	Part name
5	5-5	5-5
5	5-6	5-6
5	5-1	5-1
5	5-2	5-2
5	5-3	5-3
5	5-4	5-4
1	1-1	1-1
1	1-2	1-2
1	1-3	1-3
1	1-4	1-4
1	1-5	1-5
1	1-6	1-6
1	1-7	1-7
1	1-8	1-8
1	1-9	1-9
1	1-10	1-10
4	4-1	4-1
4	4-2	4-2
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
1	1	1
2	2	2
3	3	3
4	4	4

Page 20 — 7.润滑、供油部件/Oil lubrication components

Jack H2 parts on page 20
Ref	Part number	Part name	Qty
	1352000200	油泵组件
	13520001	油泵体短轴
	13520001	油泵体
	1352006	油泵小齿轮
	13525005	油泵大齿轮
	13512021	油泵体盖板
	13512024	油泵滤网
	13512022	油泵调节板
	13512023	油泵滤网盖板
	S02032	油泵体盖板螺钉 M3×6
	135S11037	螺钉 M3×10
	105S11019	螺钉 SM11/64×40×13
	1352100700	上轴油管组件
	1362100100	下轴油管组件
	13621001	下轴油管
	13636001	下轴油管接头
	1351202400	油线固定板大组件
	13512031	油线固定板
	13512006	油线固定板油管(短)
	13512005	油线固定板油管(长)
	13523007	油线固定板油线
	101S01010	复合槽螺钉 SM9/64×40
	101S11010	油线固定钩
	101S11010	螺钉 SM9/64×40×11
	101S11004	螺钉 SM3/16X28 X7
	305102	小挡油板
	14722011	油挡板羊毛毡
	101S11001	螺钉 SM3/16X28×9
	304715	后盖板
	14722006	后盖板密封垫片
	10111004	油窗
	10122019	油窗O型圈
	13522008	橡胶塞(Φ25.5)
	13522003	橡胶塞(Φ8.8)
	10122005	挑线杆销螺丝塞
	13522001	面板橡胶塞(Φ19)
	13522005	橡胶塞(Φ5.7)
	14022013	A4S-0754孔塞(Φ8.5)
	12922001	橡胶塞(Φ12.5)
	13522002	面板橡胶塞(Φ11.8)
	201S11014	螺钉 SM11/64×40
	13512025	回油管夹
	13523003	回油管 Φ3×Φ4
	13523003	油毡
	10423005	油线 2.5×260/2.5×290
	13522004	橡胶塞(Φ27)
	112S11014	螺钉 SM11/64×40×5.3
	13612023	挡油板

Page 21 — 8. 开关组件/Switch components

Jack H2 parts on page 21
Ref	Part number	Part name
7	7	Screw
6	6	Screw
5	5	Housing
4	4	Bracket
3	3	Screw
2	2	Screw
1	1	Housing

Page 22 — 8.开关组件/Switch components

Jack H2 parts on page 22
Ref	Part number	Part name	Qty
	1473000900	LED 灯开关组件
	101S11004	螺钉 SM3/16X28 X7
	40112091	油管固定架
	101S11005	螺钉
	13628009	倒缝电磁铁垫片
	302662	倒缝电磁铁罩
	101S11001	螺钉

Page 23 — 9.机头附件/Machine head accessories

Jack H2 parts on page 23
Ref	Part number	Part name	Qty
	1	COVER
	2	SCREW
	3	SCREW
	4	SCREW DRIVER
	5	NEEDLE
	6	WASHER
	7	PRESSER FOOT BAR
	7-1	PRESSER FOOT BAR HOLDER
	7-2	PRESSER FOOT BAR
	7-3	NUT
	7-4	NUT
	8	BASE
	9	SCREW
	10	WASHER
	11	COVER
	12	SCREW
	13	WASHER
	14	OIL POT
	15	BRACKET
	16	BRACKET
	17	PRESSER FOOT
	18	PRESSER FOOT
	19	COVER
	20	SPOOL HOLDER
	21	SPOOL PIN
	22	THREAD GUIDE
	22-1	THREAD GUIDE
	22-2	THREAD GUIDE
	22-3	THREAD GUIDE
	22-4	SCREW
	23	Connecting Rod
	24	PIN
	25	BRACKET
	26	SCREW
	27	WASHER
	28	CIRCLIP
	29	MOTOR
	30	BRACKET
	31	SCREW DRIVER

Page 24 — 9.机头附件/Machine head accessories

Jack H2 parts on page 24
Ref	Part number	Part name	Qty
	115031022	A5-1311 防尘罩
	10131004	螺钉起子(小)
	10131003	螺钉起子(中)
	20731047	螺丝刀
	1351203700	膝控限位组件
	13512026	膝控限位夹臂
	135S15019	膝控限位调节螺钉 M6
	N01029	螺母 M6
	135S12003	膝控限位螺钉 M6
	1350100900	油盘组件
	13501007	油盘
	101S11028	放油螺钉 SM5/16×24×7
	001047	放油螺钉垫圈
	13523006	油盘垫
	13511006	膝控提升顶杆
	10131001	磁块
	20131038	小油壶
	10122060	机壳链
	1011203100	机壳链套
	13522001	机头防震垫块(大)
	10122022	机头防震垫块(小)
	113511001	油袋(600ml)(10#)
	1383100300	线架组件
	10111011	机头支柱
	1351203800	膝控操纵杆组件
	13512038	膝控操纵杆
	10112029	膝控磁块
	10112030	磁块架
	101S12004	磁块架螺钉 M6×11
	13502025	膝控铰链轴
	13527014	膝控复位弹簧
	10101008	膝控弯杆接头
	101S12003	螺钉 M8
	10122024	磁块垫
	H05010	开口挡圈
	11023001700	电控脚踏
	703725	包材
	11543100300	脚踏连杆
	114712003	开口扳手(14-10)

Jack H2 — parts catalog

Page 1 — 1.机壳、外装分件/Machine frame & cover components

JACK 杰克快速服务100% H2 系列零件手册 H2 Series Parts Manual 1.机壳、外装分件/Machine frame & cover components 40 41 42 39 38 37 36 24 18-6 18-5 18-4 18-3 18-2 18-1 25 20 12 11 23 12 13 7 21 17 2 1 3 5 10 4 5 6-1 6-2 6-3 6-4 6-5 6 34 16 15 35 29 32 9-9 9-8 9-7 9-6 9-1 9-5 9-4 9-3 9-2 9-10 9 27 28 14 31 30 19 22 22-1 22-2 22-3 19 jintex.in

Page 2 — 1.机壳、外装分组件/Machine frame & cover components

1.机壳、外装分组件/Machine frame & cover components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 304713 面板 Panel 1 1 930000235 面板(12mm) Panel (12mm) 1 2 20151025 面板螺钉 Panel Screw SM11/64×40 1 1 1 3 14713003 面板线勾 Panel thread guide 1 1 1 4 10113004 右线勾 Panel thread guide (right) 1 1 1 5 10115007 螺钉 SM11/64×40×6 Screw SM11/64×40×6 2 2 2 6 1411300400 小夹线器组件 Small thread tension assay 1 1 1 6-1 13812066 过线板 Thread tension guide plate 1 1 1 6-2 13810008 小夹线螺柱 Thread tension bolt 1 1 1 6-3 11212004 小夹线板 Thread tension disk 2 2 2 6-4 11227001 小夹线弹簧 Thread tension spring 1 1 1 6-5 138516019 小夹线器螺母 Thread tension nut 1 1 1 7 113514002 小夹线固定螺钉 Set Screw 1 1 1 8 13512004 三孔线勾 3-hole thread guide 1 1 1 9 1147130100 夹线组件 Thread tension assay 1 1 1 9-1 1147NS30001 夹线螺钉 Thread tension Screw 1 1 1 9-2 141516013 夹线螺母 Thread tension nut 1 1 1 9-3 14227024 夹线弹簧 Thread tension spring 1 1 1 9-4 10112006 松线板 Tension releasing board 1 1 1 9-5 14112015 夹线板 Thread tension disk 2 2 2 9-6 114727001 挑线簧 Take-up spring 1 1 1 9-7 13513006 夹线调节座 Thread tension retainer 1 1 1 9-8 135515002 夹线调节座螺钉 Screw 1 1 1 9-9 001050 O型圈 O Ring 14.5x1.5 1 1 1 9-10 10112007 夹线螺母止动板 Thread tension nut locking plate 1 1 1 10 136514002 螺钉 SM15/64 X 28 Screw SM15/64 X 28 1 1 1 11 14712018 挑线杆防护罩 Thread take-up lever cover 1 1 1 12 101511004 螺钉 SM3/16X28 X7 Screw SM3/16X28 X7 2 2 2 13 10122005 挑线连杆销孔塞 Take-up link pin screw plug 1 1 1 14 135511047 面板螺钉 SM11/64×40 Panel Screw SM11/64×40 2 2 2 15 14726001 松线杆 Thread release pin 1 1 1 16 13502018 松线棒 Thread release bar 1 1 1 17 13837002 A4-0182 商标牌 A4-0182 Trademark 1 1 1 18 1411300600 绕线夹线器 Bobbin winder thread tension 1 1 1 18-1 114516001 螺母 SM11/64×40 Nut SM11/64×40 1 1 1 18-2 11413022 夹线过线板 Thread tension guide plate 1 1 1 18-3 13601006 夹线螺钉 Screw 1 1 1 18-4 10112005 夹线板 Thread tension disk 2 2 2 18-5 11427006 小夹线弹簧 Spring 1 1 1 18-6 138516019 小夹线器螺母 Thread tension nut 1 1 1 19 101512001 底板支柱 Base plate pillar 4 4 4 20 100968 H5 机壳 H5 frame 1 1 1 21 100767 底板 Base plate 1 1 1 22-1 13515002 推板 Slide plate 1 1 1 22-2 13512007 推板簧 Slide plate spring 1 1 1 22-3 101511019 螺钉 SM3/32×56 L=2 Screw SM3/32×56 L=2 2 2 2 23 1473100100 绕线器组件 Bobbin winder thread tension 1 1 1 24 114511003 开槽圆柱头螺钉 Screw 3 3 3 25 11419001 切线刀 Thread cutter 1 1 1 26 114511015 螺钉 SM9/64×40 L=6 SCREW SM9/64×40 L=6 2 2 2 27 13522001 面板橡胶塞(Φ19) Rubber plug(Φ19) 1 1 1 jintex.in

Page 3 — 1.机壳、外装件组件/Machine frame & cover components

1.机壳、外装件组件/Machine frame & cover components jintex.in

Page 4 — 1.机壳、外装分组件/Machine frame & cover components

1.机壳、外装分组件/Machine frame & cover components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 28 13522002 面板橡胶塞(Φ11.8) Rubber plug (Φ 11.8) 1 1 1 29 13513010 下勾线 Nest less e-device 1 1 1 30 101S17002 螺钉 SM11/64×40 L=5 Screw SM11/64×40 L=5 2 2 2 31 13515001 针板 Needle plate 1 1 13615003 针板(12mm) Needle plate (12mm) 1 32 101S11005 螺钉 Screw 1 1 1 33 11422062 密封垫 Gland 1 1 1 34 101S11025 螺钉 SM11/64×40×7 Screw SM11/64×40×7 2 2 2 35 13512001 卷边踏座 Beadler pedestal 1 1 1 36 13811060 电机绝缘防护罩 Motor insulation shield 1 1 1 37 1363303000 光电伺服电机 Motor 1 1 1 38 W02004 弹簧垫圈 Spring washer 4 4 4 39 螺钉 M5×70 Screw M5×70 4 4 4 40 1473304200 功能型电控 Machine electric control 1 1 1 41 114S13001 螺钉 M5×20 Screw M5×20 1 1 1 42 136S13001 螺钉 M5×35 Screw M5×35 3 3 3

Page 5 — 2. Main shaft & thread take-up components

2. 上轴挑线分组件/Main shaft & thread take-up components 10 35 9 8 30 36 11 33 22 7 6 5 4 3 1 20 19 32 12-10 12-9 12-6 12-5 12-3 12-7 12-8 12-4 28 12 18 14 15 16 17 31 34 2 21 24 25 26 27 29 jintex.in

Page 6 — 2.上轴排线分组件/Main shaft & thread take-up components

2.上轴排线分组件/Main shaft & thread take-up components 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 Number CZDD 1 CZ-12 1 14702011 上轴 Main shaft 1 1 1 2 10122012 上轴橡皮塞 Rubber plug 1 1 1 3 10108003 上轴紧圈 Shaft washer 1 1 1 4 101S15002 螺钉 SM1/4×40×6 Screw SM1/4×40×6 2 2 2 5 13603023 上轴前挡套 Main shaft bushing front 1 1 1 6 13503017 上轴中挡套 Main shaft bushing, middle 1 1 1 7 135S15006 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 8 13603027 上轴后挡套 Main shaft bushing back 1 1 1 9 13522010 上轴后挡套油封组件 Bushing back oil seal assay 1 1 1 10 304714 主动轮 Capstan 1 1 1 11 S10009 主动轮螺钉 M6×8 Capstan Screw M6×8 2 2 2 12 1353800200 挑线杆组件 Thread take-up assay 1 1 1 12-1 101S11005 开槽球面圆柱头螺钉 Screw SM11/64×40×8 1 1 1 12-2 13505002 针杆接头 Needle bar connection 1 1 1 12-3 101S17001 挑线杆柄螺钉(左旋) Screw 1 1 1 12-4 13505003 挑线杆连杆 Needle bar connecting rod 1 1 1 12-5 10124001 挑线杆滚针轴承 Needle bearing 1 1 1 12-6 13504002 挑线杆曲柄 Thread take-up crank 1 1 1 12-7 13538004 挑线杆 Thread take-up rod 1 1 1 12-8 13538003 挑线杆衬套 Thread take-up bushing 1 1 1 12-9 13538002 挑线连杆 Thread take-up connecting rod 1 1 1 12- 13502003 挑线连杆铰链销 Pin 1 1 1 13 135S15009 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 14 114704013 针杆曲柄 Needle bar crank 1 1 1 15 101S15007 螺钉 SM1/4×40×8 Screw SM1/4×40×8 1 1 1 16 101S15007 螺钉 SM1/4×40×8 Screw SM1/4×40×8 1 1 1 17 101S15004 螺钉 SM9/32×28×16 Screw SM9/32×28×16 1 1 1 18 135S11002 螺钉 SM9/32×28 Screw SM9/32×28 1 1 1 19 14703006 针杆上衬套 Needle bar upper bushing 1 1 1 20 10122013 针杆上衬套橡皮塞 Upper bushing rubber plug 1 1 1 21 13503007 针杆下衬套 Needle bar lower bushing 1 1 1 22 14735001 驱动轮 BTW-DRIVING-WHEEL 1 1 1 23 13602002 针杆 Needle bar 1 1 1 24 13513011 针杆过线环 Needle bar thread ring 1 1 1 25 13517001 机针(DP×17 23#) Needle(DP×17 23#) 1 1 1 26 101S11006 螺钉 SM1/8×44 L=4.5 Screw SM1/8×44 L=4.5 1 1 1 27 13609001 滑块滑槽 Slider trough 1 1 1 28 11409001 针杆接头滑块 Connection Slider 1 1 1 29 101S11008 滑块导轨螺钉 Slider guide rail Screw 2 2 2 30 101S11005 螺钉 SM11/64×40×8 Screw SM11/64×40×8 2 2 2 31 10112003 垫片 Washer 1 1 1 32 13523001 毛毡 Oil felt for needle bar 1 1 1 33 S10035 螺钉 M5×8 Screw M5×8 2 2 2 34 114723001 针杆上毡套 Oil felt for needle bar 1 1 1 35 H03001 轴用弹性挡圈 15 Washer 1 1 1 36 40511001 线夹 Wire clip 2 2 2 Jinte x.in

Page 7 — 3. 压料分组件/Presser bar components

3. 压料分组件/Presser bar components 5-1 5-2 5-3 5-4 5-5 1 2 3 4 13 6 28 14 15 16 18 19 20 17 24 23 22 21 9 10 11 12 7 8 25 26 27 jintex.in

Page 8 — 3.压料分组件/Presser bar components

3.压料分组件/Presser bar components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 14711005 压脚扳手 Presser foot wrench 1 1 1 2 101S11008 螺钉 SM11/64×40×8 Screw SM11/64×40×8 1 1 1 3 001009 O型圈 4.5X1.8 O-ring 4.5X1.8 1 1 1 4 13510004 压紧杆提升凸轮 Presser bar lifting cam 1 1 1 5 135120200 膝控提升杠(左)组件 Knee lifter lever (left)assay 1 1 1 5-1 13512014 膝控提升杠 Knee lifter rod 1 1 1 5-2 135S11027 螺钉 SM3/16×28 Screw SM3/16×28 1 1 1 5-3 135S11026 螺钉 SM11/64×40 Screw SM11/64×40 1 1 1 5-4 13512013 膝控提升杠(左) Knee lifter lever (left) 1 1 1 5-5 13510005 松线凸轮 Tension releasing cam 1 1 1 6 114726007 松线凸轮销 Ension releasing cam melt 1 1 1 7 13526005 弹簧销 Pin for spring 1 1 1 8 13527010 压紧杆提升杠(右)弹簧 Presser spring 1 1 1 9 1147NS30003 螺钉 M15×1 Screw M15×1 1 1 1 10 114709002 调压螺钉套 Guide bushing 1 1 1 11 135S16003 螺母 M15×1 Nut M15×1 1 1 1 12 13512016 膝控提升杠 Knee lifter lever 1 1 1 13 13527011 压紧弹簧 Presser spring 1 1 1 14 114709001 压紧杆导架(加轴承) Presser bar lifting bracket 1 1 1 15 30122022 加轴颈形密封圈 Gasket 1 1 1 16 13502019 压紧杆 Presser bar 1 1 1 17 13503013 压紧杆轴套 Presser bar bushing 1 1 1 18 101S15006 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 19 101S15008 螺钉 SM11/64×40×8 Screw SM11/64×40×8 1 1 1 20 114713002 大线勾 thread guide 1 1 1 21 101S11009 螺钉 SM9/64×40×10.5 Screw SM9/64×40×10.5 1 1 1 22 13528007 小压脚螺钉垫片 Washer 1 1 1 23 13512017 防护勾 Defend hook 1 1 1 24 13516001 小压脚 Presser foot complete 1 1 1 13516005 小压脚 Presser foot complete 1 1 1 25 135S12002 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 26 13512015 膝控提升杠(右) Knee lifter lever (right) 1 1 1 27 135S11027 螺钉 SM3/16×28 Screw SM3/16×28 1 1 1 28 113S14020 螺钉 SM11/64×40 Screw SM11/64×40 1 1 1 jintex.in

Page 10

4.送料分组件/Feed mechanism components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 1350501500 送布连杆组件 Rocker shaft connecting rod assy 1 1 1 1-1 13505007 送布凸轮 Feed drive eccentric cam. 3 3 3 1-2 13510003 送布凸轮 Feed drive eccentric cam. 1 1 1 1-3 13505005 送布连杆 Rocker shaft connecting rod 1 1 1 1-4 13505006 针距调节连杆 Feed regulator connecting rod 1 1 1 1-5 13526001 曲柄短连杆 Walking foot crank short pin 1 1 1 1-6 13504004 送布曲柄(左) Feed rocker shaft crank, assembly 1 1 1 1-7 101S11025 螺钉 SM11/64×40×7 Screw SM11/64×40×7 1 1 1 1-8 409S11021 螺钉 SM11/64×40×14 Screw SM11/64×40×14 1 1 1 1-9 13505024 曲柄长连杆 Connecting short link 2 2 2 1-10 13505023 曲柄长连杆 Crank long link 2 2 2 1-11 13502015 连杆偏心轴 Hinge pin 1 1 1 1-12 201S11007 螺钉 SM9/64X40 Screw SM9/64X40 1 1 1 1-13 201S11012 螺钉 SM9/64X40 Screw SM9/64X40 1 1 1 1-14 13504007 针距调节曲柄 Needle pitch adjusting link 1 1 1 1-15 209S14008 螺钉 SM11/64×40×4.5 Screw SM11/64×40×4.5 1 1 1 1-16 13502014 曲柄长连杆销 Crank connecting pin 1 1 1 1-17 13526003 曲柄连杆销 Crank connecting pin 1 1 1 2 13510002 针距调节连接销 Hinge pin 1 1 1 3 13528002 凸轮隔离片 Thrust collar 1 1 1 4 11350500200 拾牙连杆组件 Connecting rod assembly 1 1 1 4-1 135S15007 螺钉 SM11/64×40 Screw SM11/64×40 3 3 3 4-2 13510001 拾牙连杆 Feed drive eccentric cam 1 1 1 4-3 13505001 拾牙连杆 Connecting rod 1 1 1 5 13502009 拾牙曲柄铰链轴 Hinge pin 1 1 1 6 135S11048 螺钉 SM3/16×32 Screw SM3/16×32 2 2 2 6 409S11015 螺钉 SM3/16×28×15.5 Screw SM3/16×28×15.5 1 1 1 7 13504019 拾牙右曲柄 Feed lifting rock shaft crank(right) 1 1 1 8 105S11019 螺钉 SM11/64×40 L=13 Screw SM11/64×40 L=13 1 1 1 9 13502016 针距调节曲柄定位销 Adjusting link fulcrum shaft 1 1 1 10 13502017 针距调节曲柄定位销 Adjusting link fulcrum shaft pin 1 1 1 11 114S11004 螺钉 SM 11/64×40×18 Screw SM 11/64×40×18 1 1 1 12 13602003 送布轴 Feed rocker shaft 1 1 1 13 10108003 拾牙、送布锁紧圈 Thrust collar assay 2 2 2 14 101S15002 螺钉 SM1/4×40×6 Screw SM1/4×40×6 4 4 4 15 13603024 送布轴前挡套 Bushing for feed rock shaft(right) 1 1 1 16 135S15009 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 17 H03001 挡圈 Retaining ring 2 2 2 18 101S11018 螺钉 SM1/8×40 L=6 Screw SM1/8×40 L=6 1 1 1 19 13514001 送布牙 Feed dog 1 1 1 19 13614003 送布牙(12MM) Feed dog(12MM) 1 1 1 20 13504003 牙架曲柄 Feed crank assembly 1 1 1 21 13502005 牙架曲柄偏心轴 Feed bar shaft 1 1 1 22 13528004 牙架垫圈 Washer 1 1 1 23 101S11008 螺钉 SM11/64×40×8 Screw SM11/64×40×8 1 1 1 24 101S11016 螺钉 SM3/16×28 L=14 Screw SM3/16×28 L=14 2 2 2 25 1350700300 牙架组件 Feed bar assembly 1 1 1 25- 13502029 牙架连接销 Feed pin 1 1 1 jintex.in

Page 11 — 4. 送料分组件/Feed mechanism components

4. 送料分组件/Feed mechanism components 1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8 1-9 1-10 1-11 1-12 1-13 1-14 1-15 1-16 2 3 4-1 4-2 4-3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25-1 25-1-1 25-1-2 25-1-3 25-1-4 25-2 26 27 28 29 30 31 32 33 34 35 36 37 37-1 37-2 37-3 37-4 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 jintex.in

Page 12 — 4.送料分组件/Feed mechanism components

4.送料分组件/Feed mechanism components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZD CZ-12 25-1-2 13509007 滑块 Slider 1 1 1 25-1-3 13528009 垫片 washer 1 1 1 25-1-4 13507001 牙架 Feed bar assembly 1 1 1 25-2 13505004 拾牙叉 Feed forked connection 1 1 1 13505018 拾牙叉(12mm) Feed forked connection(12mm) 1 1 26 409511021 拾牙叉螺钉 Screw 1 1 1 27 13602004 拾牙轴 Feed lifting rock shaft 1 1 1 28 135S15008 拾牙轴前轴套螺钉 Screw 1 1 1 29 13528006 垫圈 Washer 1 1 1 30 13603005 拾牙轴前轴套 Bushing for feed rock shaft(right) 1 1 1 31 13522014 橡皮塞(φ19.5) Rubber plug(φ 19.5) 1 1 1 32 13502011 针距座轴 Hinge pin for feed regulator 1 1 1 33 13503026 针距座衬套 Feed regulator bushing 1 1 1 34 13509003 针距座 Feed regulator 1 1 1 13509003 针距座(12mm) Feed regulator(12mm) 1 1 1 35 101S11020 螺钉 SM11/64×40 Screw SM11/64×40 L=10.5 1 1 1 36 135S11009 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 37 1350401400 倒缝操作杆曲柄组件 Slide block pin 1 1 1 37-1 13504006 倒缝操作杆曲柄 Inverted seam lever crank 1 1 1 37-2 13502012 操作杆曲柄滚柱销 Operating rod crank roller pin 1 1 1 37-3 13509006 滚柱 Roller column 1 1 1 37-4 13509010 垫片 Washer 1 1 1 38 13502013 倒缝扳手轴 Reverse feed lever shaft 1 1 1 39 13527007 曲柄弹簧 Spring for feed crank 1 1 1 13527016 曲柄弹簧(12mm) Spring for feed crank(12mm) 1 1 40 135S15014 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 41 001137 O型圈Φ6.3×1.8 O-ring Φ6.3×1.8 1 1 1 42 13531001 倒缝扳手 Reverse feed lever 1 1 1 43 135S11022 螺钉 SM3/16×32 Screw SM3/16×32 1 1 1 44 101S11022 螺钉 SM3/16×28×18 Dial screw SM3/16×28×18 1 1 1 45 1471100200 针距盘 Needle pitch dial 1 1 1 11471100200 针距盘(12mm) Needle pitch dial (12mm) 1 1 46 14212068 针距按键 Feed regulator key-press 1 1 1 47 112326008 止动销 Stopper pin 1 1 1 48 11427034 止动销弹簧 Spring for stopper pin 1 1 1 49 13527009 针距按键弹簧 Dial spring for key-press 1 1 1 50 001046 O型圈Φ9.5×2.5 O-ring Φ9.5×2.5 2 2 2 51 136S30004 针距调节螺杆 Feed regulator screw bar 1 1 1 52 135S50006 上轴中套螺钉 Pin bushing 1 1 1 53 1135050010 送布拾牙连杆组件 Rocker shaft connecting rod assy 1 1 1 jintex.in

Page 13 — 5. Upper feed Parts

5.上送料部件/Upper feed Parts 1-9 1-5 1-2 1-1 1-3 1-4-1 1-4-2 1-8 1-6 1-7 2 3 4 5 6 7 8 11-1 11-2 9 10 12 13 14 15-1 15-2 15-3 15 16 17 18 19-1 19-3 19 19-2 20 21 22 23 24 25 26 27 28 29 30 31 43 38 37 34 35 36 32 33 12 46 45 47 44 40 39 41 42 48 49 50 51 52 53 54 55 56 57 58 jintex.in

Page 14 — 5.上送料部件/Upper feed Parts

5.上送料部件/Upper feed Parts 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 11470500200 连杆组件 Connecting rod assembly 1 1 11470500700 连杆组件(4.5mm) Connecting rod(4.5mm) 1 1 1-1 101S15007 螺钉 SM1/4×40×8 Screw SM1/4×40×8 2 2 2 1-2 114710001 压脚升降偏心轮 Eccentric wheel 1 1 114710003 压脚升降偏心轮(4.5mm) Eccentric wheel(4.5mm) 1 1-3 H03061 弹性挡圈 26 Retaining ring 26 1 1 弹性挡圈 26 Retaining ring 26 1 1-4 11470500300 连杆小组件 Connecting rod widget 1 1 11470500800 连杆小组件(4.5mm) Connecting rod widget(4.5mm) 1 1-4-1 114703001 提升连杆衬套 Bushing 1 1 1 1-4-2 114705001 提升连杆 Lifting link 1 1 1 1-5 135S20006 螺钉 M6×0.75 Screw M6×0.75 1 1 1 1-6 13528008 垫圈 Washer 1 1 1 1-7 13504013 偏心连杆调节曲柄 Presser lifting shaft 1 1 1 1-8 N02001 六角螺母 M6×0.75 Hex nut M6×0.75 1 1 1 1-9 135S11035 螺钉 SM1/4×24 Screw SM1/4×24 1 1 1 2 13603014 摆压脚提升轴后套 Presser lifting shaft back bushing 3 3 3 3 135S15008 螺钉 SM15/64×28×6 Screw SM15/64×28×6 1 1 1 4 13603028 摆压脚提升中轴套 Presser lifting shaft bushing 1 1 1 5 13603013 摆压脚提升前轴套 Presser lifting shaft bushing 1 1 1 6 135S30007 螺钉 SM9/32×28 Screw SM9/32×28 1 1 1 7 135S16006 螺母 SM9/32×28 Nut SM9/32×28 2 2 2 8 13512018 压脚曲柄支架 Lifting presser bracket for spring 1 1 1 9 101S11008 螺钉 SM11/64×40×8 Screw SM11/64×40×8 4 4 4 10 14727013 摆压脚提升弹簧 Lifting presser spring 1 1 1 11 1350202100 调压杆弹簧导柱 Presser spring guide 1 1 1 11-1 13502026 调压杆弹簧导柱杆 Presser spring guide rod 1 1 1 11-2 13502027 调压杆弹簧导柱套 Presser spring guide bushing 1 1 1 12 201S11012 螺钉 SM9/64×40 Screw SM9/64×40 4 4 4 13 114712011 提升压脚导柱架 Lifting presser guide plate assembly 1 1 1 14 402S13011 螺钉 SM15/64×28×18 Screw SM15/64×28×18 1 1 1 15 1420900400 摆动轴左曲柄调节柱组件 Crank shaft complete assembly 1 1 1 15-1 142S30011 摆动轴左曲柄调节柱 Crank shaft complete 1 1 1 15-2 14209004 曲柄调节滑块 Slide block 1 1 1 15-3 H05029 开口挡圈 Split ring 1 1 1 16 13504020 压脚摆动前曲柄 Presser swing shaft 1 1 1 17 11628005 抬牙叉固定螺钉垫圈 Washer 1 1 1 18 135S16005 螺母 SM1/4×24 Nut SM1/4×24 1 1 1 19 1350401500 压脚升降前曲柄组件 Presser lifting crank 1 1 1 19-1 113602001 压脚升降曲柄 Presser lifting crank 1 1 1 19-2 13526007 圆锥销 Taper pin 1 1 1 19-3 13504009 压脚升降前曲柄 Pressure foot lifting shaft 1 1 1 20 135S16004 螺母 SM1/4×40 Nut SM1/4×40 2 2 2 21 13505027 压脚送料曲柄连杆(加轴承) Presser feed crank link 1 1 1 22 135S20012 螺钉 SM1/4×40 Screw SM1/4×40 1 1 1 23 10124001 滚针轴承 Needle bearing 4 4 4 24 13509004 提升压脚导位板 Lifting presser plate 1 1 1 25 1147NS30002 导柄导柱轴 Guide shaft 1 1 1 26 13508004 提升压脚柱轴 Needle of bearing 1 1 1 jintex.in

Page 15 — 5. Upper feed Parts

5.上送料部件/Upper feed Parts 1-9 1-5 1-2 1-1 1-6 1-4-1 1-4-2 1-3 1-8 1-2 1-1 11-1 1-1 1-4-1 1-4-2 1-3 15-1 15-2 15-3 15 19-1 19-3 19-2 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 13 12 10 9 8 7 6 1 3 2 4 5 jintex.in

Page 16 — 5.上送料部件/Upper feed Parts

5.上送料部件/Upper feed Parts 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 Number CZ CZZD CZ-12 27 P03035 弹性圆柱销3×8 Spring round pin3×8 2 2 2 28 1147NS20001 螺钉 SM1/4×40×7 Screw SM1/4×40×7 1 1 1 29 101S11001 螺钉 SM3/16×28 L=9 Screw SM3/16×28 L=9 1 1 1 30 13526006 摆压脚叉形杆销 Pin 1 1 1 31 13505030 摆压脚叉形杆(加轴承) Fork lever 1 1 1 32 135S20013 螺钉 SM1/4×40 Screw SM1/4×40 1 1 1 33 135S20014 螺钉 SM1/4×40 Screw SM1/4×40 1 1 1 34 13505028 摆压脚连杆(加轴承) Link of walking foot 1 1 1 35 W02002 垫圈4 Washer 2 2 2 36 13601015 摆压脚杆座 Holder for walking foot bar 1 1 1 37 116S11005 螺钉 SM11/64×40×13 Screw SM11/64×40×13 2 2 2 38 114712020 提升压脚连接板 Lifting presser sway crank guide pin 1 1 1 39 114708001 压杆压板垫块 Shim 2 2 2 40 13501006 压脚杆 Presser rod guide 1 1 1 41 135S11030 螺钉 SM9/64×40 Screw SM9/64×40 1 1 1 42 13516006 摆压脚 Walking foot 1 1 1 13516006 摆压脚 Walking foot 1 1 1 43 1147NS20002 螺钉 SM1/4×40 Screw SM1/4×40 1 1 1 44 114704001 压脚送料曲柄(加轴承) Presser feed crank 1 1 1 45 13508008 压脚摆动轴前轴套 Presser swing shaft front bushing (left) 1 1 1 46 135S15004 螺钉 SM1/4×40×4 Screw SM1/4×40×4 2 2 2 47 13508009 底盖 Shaft washer 1 1 1 48 13502023 压脚摆动轴 Presser swing shaft 1 1 1 49 11472200200 摆动轴后套油封 Oil seal 1 1 1 50 13503014 压脚摆动中轴套 Presser swing middle shaft bushing 1 1 1 51 13504023 压脚摆动后曲柄 Presser swing crank(right) 1 1 1 52 402S13011 螺钉 SM15/64×28×18 Screw SM15/64×28×18 1 1 1 53 135S20005 螺钉 SM9/32×28 Screw SM9/32×28 1 1 1 54 13505014 摆压脚大连杆 Presser swing crank(right)rod 1 1 1 55 135S20004 大连杆曲柄连接销 Pin 1 1 1 56 13504022 送布曲柄(中) Feed rocker shaft crank middle 1 1 1 57 101S11025 螺钉 SM11/64×40×7 Screw SM11/64×40×7 1 1 1 58 116S11005 螺钉 SM11/64×40×13 Screw SM11/64×40×13 1 1 1 59 W01002 M3垫片 Washer 1 1 1 jintex.in

Page 17 — 6.旋接部件/Hook components

6.旋接部件/Hook components 3 2 4 9 7 1 9 8 6 22 13 3 21 19 20 5 23 30 24 25 29 26 16 31 14 15 12 11 10 18 17 27 28 jintex.in

Page 18 — 6.旋梭部件/Hook components

6.旋梭部件/Hook components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 13502002 竖轴 Upright shaft 1 1 1 2 13525001 上轴伞齿轮 Gear assembly 1 1 1 3 101s15007 螺钉 SM1/4×40×8 Screw SM1/4×40×8 8 8 8 4 13525002 竖轴伞齿轮(上) Gear 1 1 1 5 13525003 下轴伞齿轮 Pinion 1 1 1 6 13525004 竖轴伞齿轮(下) Gear 1 1 1 7 13503018 竖轴轴套(上) Bushing upper 1 1 1 8 13503019 竖轴轴套(下) Up ring shaft bushing lower 1 1 1 9 135S15008 螺钉 SM15/64×28 Screw SM15/64×28 2 2 2 10 10818502 梭心套组件 Hook assembly 1 1 1 11 10818501 梭芯 Bobbin 1 1 1 12 10818001 旋梭(有尾) Hook assembly (with tail) 1 1 1 13 13502007 下轴 Hook driving shaft 1 1 1 14 10123003 下轴油封 Oil wick 1 1 1 15 135S20007 螺钉 SM3/16×32 Screw SM3/16×32 1 1 1 16 13503009 下轴前轴套 Bushing front 1 1 1 17 135S20008 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 18 13527005 油量调节弹簧 Spring 1 1 1 19 10108002 下轴紧固圈 Thrust shrink collar 1 1 1 20 101S11012 螺钉 SM11/64×40×4.8 Screw SM11/64×40×4.8 2 2 2 21 13603025 下轴后轴套 Bushing rear 1 1 1 22 135S15009 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 23 13502008 柱塞 Plunger 1 1 1 24 13527006 柱塞弹簧 Plunger spring 1 1 1 25 13512009 档板 Guide plate 1 1 1 26 135S11019 螺钉 SM15/64×28 Screw SM15/64×28 1 1 1 27 13612005 旋梭定位勾 Rotating hook positioner 1 1 1 28 101S11011 螺钉 Screw 1 1 1 29 W02004 档板螺钉弹簧垫圈 Washer 1 1 1 30 13521001 下轴油管13612001 Oil pipe for hook shaft bushin 1 1 1 31 10122015 下轴油封 Plunger 1 1 1

Page 19 — 7.润滑、供油部件/Oil lubrication components

7.润滑、供油部件/Oil lubrication components 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 6 5-5 5-6 5-1 5-2 5-3 5-4 5 8 9 4 4-1 4-2 1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8 1-9 1-10 2 3 1 jintex.in

Page 20 — 7.润滑、供油部件/Oil lubrication components

7.润滑、供油部件/Oil lubrication components 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description CZ 数量 Number CZDD CZ-12 1 1352000200 油泵组件 Oil pump assembly 1 1 1 1-1 13520001 油泵体短轴 Shaft for oil pump 1 1 1 1-2 13520001 油泵体 Oil pump 1 1 1 1-3 1352006 油泵小齿轮 Small gear for oil pump 1 1 1 1-4 13525005 油泵大齿轮 Big gear for oil pump 1 1 1 1-5 13512021 油泵体盖板 Cover for oil pump 1 1 1 1-6 13512024 油泵滤网 Oil pump Filter 1 1 1 1-7 13512022 油泵调节板 Adjusting plate for oil pump 1 1 1 1-8 13512023 油泵滤网盖板 Oil pump Filter cover 1 1 1 1-9 S02032 油泵体盖板螺钉 M3×6 Screw M3×6 2 2 2 1-10 135S11037 螺钉 M3×10 Screw M3×10 3 3 3 2 105S11019 螺钉 SM11/64×40×13 Screw SM11/64×40×13 1 1 1 3 1352100700 上轴油管组件 Oil pipe complete for upper shaft 1 1 1 4 1362100100 下轴油管组件 Oil pipe for arm lower shaft 1 1 1 4-1 13621001 下轴油管 Oil pipe for lower shaft 1 1 1 4-2 13636001 下轴油管接头 Lower shaft Hose connector 1 1 1 5 1351202400 油线固定板大组件 Oil wick set plate complete 1 1 1 5-1 13512031 油线固定板 Oil line fixing plate 1 1 1 5-2 13512006 油线固定板油管(短) Oil line fixing plate oil pipe(short) 1 1 1 5-3 13512005 油线固定板油管(长) Oil line fixing plate oil pipe(long) 1 1 1 5-4 13523007 油线固定板油线 Oil line fixing plate oil line 1 1 1 5-5 101S01010 复合槽螺钉 SM9/64×40 Screw SM9/64×40 1 1 1 5-6 101S11010 油线固定钩 Oil line fixing hook 1 1 1 6 101S11010 螺钉 SM9/64×40×11 Screw SM9/64×40×11 2 2 2 7 101S11004 螺钉 SM3/16X28 X7 Screw SM3/16X28 X7 1 1 1 8 305102 小挡油板 Keep off plate 1 1 1 9 14722011 油挡板羊毛毡 Keep off plate wool felt 1 1 1 10 101S11001 螺钉 SM3/16X28×9 Screw SM3/16X28×9 8 8 8 11 304715 后盖板 Side plate 1 1 1 12 14722006 后盖板密封垫片 Gasket 1 1 1 13 10111004 油窗 Oil sight window 1 1 1 14 10122019 油窗O型圈 O-ring 1 1 1 15 13522008 橡胶塞(Φ25.5) Rubber plug (Φ25.5) 1 1 1 16 13522003 橡胶塞(Φ8.8) Rubber plug (Φ8.8) 1 1 1 17 10122005 挑线杆销螺丝塞 Take-up link pin screw plug 1 1 1 18 13522001 面板橡胶塞(Φ19) Rubber plug (Φ19) 1 1 1 19 13522005 橡胶塞(Φ5.7) Rubber plug (Φ5.7) 2 2 2 20 14022013 A4S-0754孔塞(Φ8.5) Rubber plug (Φ8.5) 1 1 1 21 12922001 橡胶塞(Φ12.5) Rubber plug (Φ12.5) 1 1 1 22 13522002 面板橡胶塞(Φ11.8) Rubber plug (Φ11.8) 1 1 1 23 201S11014 螺钉 SM11/64×40 Screw SM11/64×40 1 1 1 24 13512025 回油管夹 Oil return pipe clamp 1 1 1 25 13523003 回油管 Φ3×Φ4 Oil return pipe Φ3×Φ4 1 1 1 26 13523003 油毡 Oil felt 1 1 1 27 10423005 油线 2.5×260/2.5×290 Oil wick 1 1 1 28 13522004 橡胶塞(Φ27) Rubber plug (Φ27) 1 1 1 29 112S11014 螺钉 SM11/64×40×5.3 Screw SM11/64×40×5.3 2 2 2 30 13612023 挡油板 Keep off plate 1 1 1 jintex.in

Page 21 — 8. 开关组件/Switch components

8. 开关组件/Switch components 7 6 5 4 3 2 1 jintex.in

Page 22 — 8.开关组件/Switch components

8.开关组件/Switch components 序号公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 1473000900 LED 灯开关组件 Switch assembly 1 1 1 2 101S11004 螺钉 SM3/16X28 X7 Screw SM3/16X28 X7 2 2 2 3 40112091 油管固定架 Oil tube holder 1 1 1 4 101S11005 螺钉 Screw 1 1 1 5 13628009 倒缝电磁铁垫片 Seals washer 1 1 1 6 302662 倒缝电磁铁罩 Backstitch solenoid cover 1 1 1 7 101S11001 螺钉 Screw 4 4 4 jintex.in

Page 23 — 9.机头附件/Machine head accessories

9.机头附件/Machine head accessories 1 2 3 4 5 6 7 7-1 7-2 7-3 7-4 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 22-1 22-2 22-3 22-4 23 24 25 26 27 28 29 30 31 jintex.in

Page 24 — 9.机头附件/Machine head accessories

9.机头附件/Machine head accessories 序号 NO. 公司件号 Part NO. 名称 Part Name 零件描述 Description 数量 Number CZ CZZD CZ-12 1 115031022 A5-1311 防尘罩 Machine head cover 1 1 1 2 10131004 螺钉起子(小) Screw driver(small) 1 1 1 3 10131003 螺钉起子(中) Screw driver(middle) 1 1 1 4 20731047 螺丝刀 Screw driver(large) 1 1 1 7 1351203700 膝控限位组件 Knee control limit frame 1 1 1 7-1 13512026 膝控限位夹臂 Knee lifter stop bracket 1 1 1 7-2 135S15019 膝控限位调节螺钉 M6 Screw M6 2 2 2 7-3 N01029 螺母 M6 Nut M6 2 2 2 7-4 135S12003 膝控限位螺钉 M6 Screw M6 1 1 1 1350100900 油盘组件 Oil pan assembly 1 1 1 8 13501007 油盘 Oil reservoir 1 1 1 9 101S11028 放油螺钉 SM5/16×24×7 Screw SM5/16×24×7 1 1 1 10 001047 放油螺钉垫圈 Washer 1 1 1 11 13523006 油盘垫 Gasket 1 1 1 12 13511006 膝控提升顶杆 Knee press lifter rod 1 1 1 13 10131001 磁块 Magnet 1 1 1 14 20131038 小油壶 Oil pot 1 1 1 15 10122060 机壳链 Rubber coat 2 2 2 16 1011203100 机壳链套 Hinge 2 2 2 17 13522001 机头防震垫块(大) Cushion(big) 2 2 2 18 10122022 机头防震垫块(小) Cushion(small) 2 2 2 19 113511001 油袋(600ml)(10#) Oil bag (600ml)(10#) 1 1 1 20 1383100300 线架组件 Spool stand complete 1 1 1 21 10111011 机头支柱 Frame support bar 1 1 1 22 1351203800 膝控操纵杆组件 Joystick assembly 1 1 1 22-1 13512038 膝控操纵杆 Bent rod 1 1 1 22-2 10112029 膝控磁块 Bell 1 1 1 22-3 10112030 磁块架 Bell bracket 1 1 1 22-4 101S12004 磁块架螺钉 M6×11 Screw M6×11 1 1 1 23 13502025 膝控铰链轴 Hinge pin 1 1 1 24 13527014 膝控复位弹簧 Spring 1 1 1 25 10101008 膝控弯杆接头 Connector 1 1 1 26 101S12003 螺钉 M8 Screw M8 2 2 2 27 10122024 磁块垫 Mat 1 1 1 28 H05010 开口挡圈 Split stop ring 1 1 1 29 11023001700 电控脚踏 Electric control pedal 1 1 1 703725 包材 Packaging materials 1 1 1 30 11543100300 脚踏连杆 Pedal connecting rod 1 1 1 31 114712003 开口扳手(14-10) Open wrench 1 1 1

Page 25

成套智联让服装智造无限可能杰克股份官方微信杰克股份官方抖音杰克资料库参观杰克 400-8876-858 www.chinajack.com 杰克科技股份有限公司浙江省台州市椒江区东海大道东段1008号电话:0086-576-88177788 88177789 传真:0086-576-88177758 JACK TECHNOLOGY CO.,LTD No.1008, Donghai Road East, Jiaojiang District, Taizhou city, Zhejiang, China TEL:0086-576-88177788 88177789 FAX:0086-576-88177758 jintex.in

Page 1 — 1.机壳、外装分件/Machine frame & cover components

Page 2 — 1.机壳、外装分组件/Machine frame & cover components

Page 3 — 1.机壳、外装件组件/Machine frame & cover components

Page 4 — 1.机壳、外装分组件/Machine frame & cover components

Page 5 — 2. Main shaft & thread take-up components

Page 6 — 2.上轴排线分组件/Main shaft & thread take-up components

Page 7 — 3. 压料分组件/Presser bar components

Page 8 — 3.压料分组件/Presser bar components

Page 10

Page 11 — 4. 送料分组件/Feed mechanism components

Page 12 — 4.送料分组件/Feed mechanism components

Page 13 — 5. Upper feed Parts

Page 14 — 5.上送料部件/Upper feed Parts

Page 15 — 5. Upper feed Parts

Page 16 — 5.上送料部件/Upper feed Parts

Page 17 — 6.旋接部件/Hook components

Page 18 — 6.旋梭部件/Hook components

Page 19 — 7.润滑、供油部件/Oil lubrication components

Page 20 — 7.润滑、供油部件/Oil lubrication components

Page 21 — 8. 开关组件/Switch components

Page 22 — 8.开关组件/Switch components

Page 23 — 9.机头附件/Machine head accessories

Page 24 — 9.机头附件/Machine head accessories

Part Books

Search
