Page 16
(1) Manually so to raise the needle (In case of double curvilinear stitches, the needle is referred to the one on the right side, The same below) by 2.2mm from fht lower limit, when the point of rotating shuttle would be at the central line of the needle. (See Figure 20)
(2) If necessary, loosen the set screw on the rotating shuttle, the point of which should be aligned with the central line of the needle. At the moment, the space between the notch of needle and the rotating shuttle is about 0.05-0.1mm (see Figure 21).
3. Height of the needle staff
(1) Set the width of swaying needle to the maximum and turn the belt pulley toward the operator manually to make the needle stand at the left position and the shuttle point at the centre of the needle. At the moment the length from the needle hole till the shuttle point should be 0-0.5mm (see Figure 22)
(2) If the height of needle staff is not in the correct position, it is necessary to remove the panel, release the connecting screw on the needle staff, and then raise or lower the staff to the standard height. After that, re-tighten the screw.
4. Mounting and Dismounting of Rotating shuttle (see Figure 23)
To start with, raise the needle staff to the maximum before removing the rotating shuttle, then remove needle plate, needle and the case of shuttle core, meanwhile take down the screw 1 on the locating hook for the rotating shuttle and the locating hook 3 itself; release the three screws 2 on the shuttle, which is capable of rotating freely along the driving spindle, Turn the upper wheel manually to make the feeding rack go upward. Af this point, turn the rotating shuttle manually to allow the feeding rack passing by the position to be touched and then remove it.
The mounting or shuttle is done in an inverted order with the process of dismounting.
15
jintex.in
Page 17 — 七、一般故障及其处理方法
Jack JK-20U (53Z / 63Z / 93Z) parts on page 17| Ref | Part number | Part name | Qty |
|---|
| VII | FAULTS LOCATING AND HOW TO TREAT | |
| Figure 7 | replace the needle | |
| Figure 7 | replace the needle | |
| Figure 9 | tension of needle thread should be reduced | |
| Figure 18 | replace the thread | |
| Figure 18 | replace the needle | |
| Figure 18 | replace needle plate or to smooth the hole with emery cloth | |
| Figure 18 | to adjust the tension of stitch-spring | |
| Thread-holding nut | Thread take-up spring and screw should be regulated | |
七、一般故障及其处理方法
VII. FAULTS LOCATING AND HOW TO TREAT
故障类型
Type
产品原因
Cause of Fault
处理方法
How to treat
断针
Needle is
broken
1、机针太细或机针弯曲
2、机针装法错误
3、缝纫时用手推拉缝料
4、缝料过于紧固
1、needle is too fine or bent
2、installation of needle not correct
3、to pull-push manually during sewing
4、material too solid or too thick
调换机针
参看图七
稍许加以扶持,不可推位
请按技术规格规定使用
replace the needle
see Figure 7.
Sightly adjust, don't pull-push manually
material selected in line with specification
跳针
Skipping
1、机针弯曲或者机针粗细和缝料厚薄不相称
2、机针装法错误
1、needle is bent or it's thickness is not
matched with the material
2、installation of needle not correct
调换机针
参看图七
replace the needle
see Figure 7.
断面线
Needle
thread
broken
1、穿线错误
2、面线太紧
3、线的质量差
4、机针太细,面线太粗
1、threading is incorrect
2、needle thread too tight
3、poor quality of thread
4、needle too fine or needle thread too
rough
参看图九
参看图十八减少面线张力
调换缝线
调换机针
see Figure 9
tension of needle thread should be reduced
(see Figure 18)
replace the thread
replace the needle
断底线
Bobbin
thread
broken
1、底线太紧
2、梭心绕线乱、不匀
3、针板孔毛糙或磨损
1、the needle thread too tight
2、the thread-winding looses or uneven
3、hole of needle plate,rough or worn out
减少底线张力
更换针板或用“O”砂布砂光
更换缝线
replace needle plate or to smooth the hole
with emery cloth
针迹松浮
Stitches
are
loosened
1、底面线没有调好
2、挑线簧过松
1、Thension of bobbin thread and needle
thread not well-adjusted
2、Thread take-up spring too loosened
调整底、面线参考图十八调节挑线簧张力
bobbin thread and needle thread should be
well adjusted (see Figure 18)
to adjust the tension of stitch-spring
缝料起皱
Material gets
Creased
1、缝料过薄而针距太长
2、底、面线张力过紧
3、压脚压力过强
1、material too thin and needle distance too
big
2、Tension of bobbin thread and needle
thread too high
3、pressure of presser foot too high
适当调整
调节夹线簧母,挑线簧和梭皮螺钉
放松调压螺钉,减轻压脚的压力
Thread-holding nut, Thread take-up spring
and screw should be regulated
release pressure-adjusting screw and reduce
the pressure of presser foot
.16.
jintex.in
Page 18
八、几种缝纫方法和附件的使用
1、直缝：
采用专用的直缝压脚、针板与送料牙(图二十四)比采用多功能压脚、针板与送料牙进行直
缝，效果会更佳，适用范围会更广。
进行直缝时，横针距必须调至0，采用直缝锁紧装置锁紧针杆摆动架，并换上专用压脚、针
板、送料牙。更换送料牙时(图二十五)，先卸下针板和针板内盖板，把推板往外拉，松开二只螺
钉，卸下多功能送料牙，换上专用送料牙。
图二十四 Figure 24
图二十五 Figure 25
2、刺绣：
刺绣前的准备工作：
① 必需使横针距在0~12mm之间任意调
节，把直针距调至0位,并调整膝控部件(见图
三),使件2控制3运动,则膝部可以控制机针
的摆动。
② 卸下压脚、针板、针板内盖板、推板和
送料牙,换上绣花板;
③ 用左手捏紧面线线头,用手朝自己方向
转动带轮,使底线从针孔中拉出;
④ 确保内外棚格将缝料绷紧,否则引起跳
针,断线及缝料萎缩(如图二十六)。
3、拉链缝:
这种缝法采用拉链压脚(图二十七),便于
针迹接近突出的边,并旋松螺钉B,调节压
脚,使机针位于压脚的左、右边槽A,可适用
于图二十八中几种情况等。
4、卷边缝
卷边缝采用卷边压脚(图二十九)
拆掉多功能压脚,换上卷边压脚,采用直
缝法,针位选择中间,就可以进行如图三十的
卷边缝。
5、包梗缝:
进行包梗缝时,更换上专用的包梗压脚、
针板、送米牙(图三十一),针位选择中间,横
针距调节至3mm之内,把一条较粗的线穿过包
梗压脚的小槽A,就可以进行包梗缝。(图三十
二)
6、装饰缝:
只要变换左、中、右的针位,及熟练控制
横针距,就可以缝出如图三十三的图案。
7、其它一些实用缝法(见图三十四)。
.17.
jintex.in

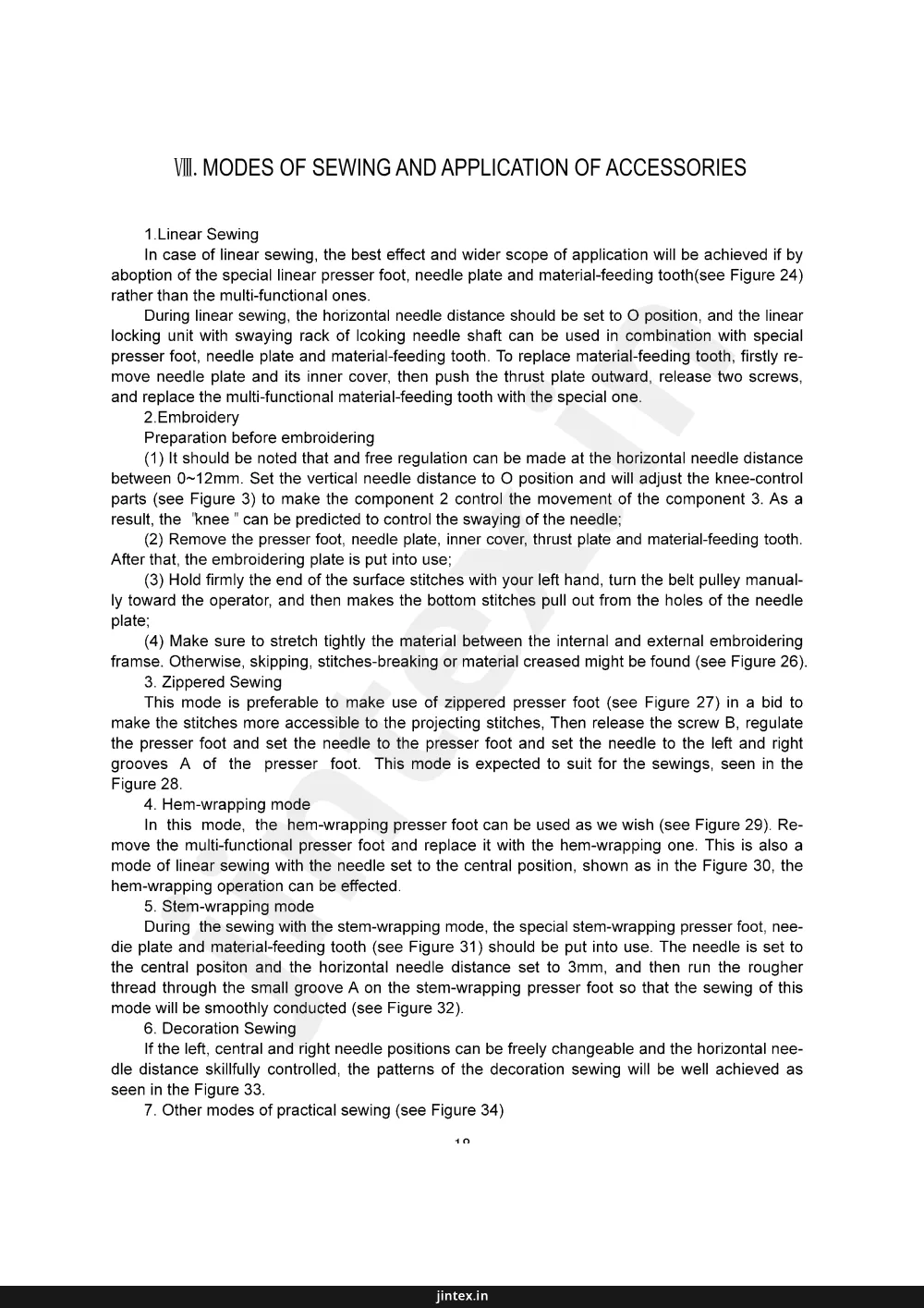

Page 19
VIII. MODES OF SEWING AND APPLICATION OF ACCESSORIES
1.Linear Sewing
In case of linear sewing, the best effect and wider scope of application will be achieved if by
aboption of the special linear presser foot, needle plate and material-feeding tooth(see Figure 24)
rather than the multi-functional ones.
During linear sewing, the horizontal needle distance should be set to O position, and the linear
locking unit with swaying rack of looking needle shaft can be used in combination with special
presser foot, needle plate and material-feeding tooth. To replace material-feeding tooth, firstly re-
move needle plate and its inner cover, then push the thrust plate outward, release two screws,
and replace the multi-functional material-feeding tooth with the special one.
2.Embroidery
Preparation before embroidering
(1) It should be noted that and free regulation can be made at the horizontal needle distance
between 0~12mm. Set the vertical needle distance to O position and will adjust the knee-control
parts (see Figure 3) to make the component 2 control the movement of the component 3. As a
result, the "knee" can be predicted to control the swaying of the needle;
(2) Remove the presser foot, needle plate, inner cover, thrust plate and material-feeding tooth.
After that, the embroidering plate is put into use;
(3) Hold firmly the end of the surface stitches with your left hand, turn the belt pulley manual-
ly toward the operator, and then makes the bottom stitches pull out from the holes of the needle
plate;
(4) Make sure to stretch tightly the material between the internal and external embroidering
frame. Otherwise, skipping, stitches-breaking or material creased might be found (see Figure 26).
3. Zippered Sewing
This mode is preferable to make use of zippered presser foot (see Figure 27) in a bid to
make the stitches more accessible to the projecting stitches. Then release the screw B, regulate
the presser foot and set the needle to the presser foot and set the needle to the left and right
grooves A of the presser foot. This mode is expected to suit for the sewings, seen in the
Figure 28.
4. Hem-wrapping mode
In this mode, the hem-wrapping presser foot can be used as we wish (see Figure 29). Re-
move the multi-functional presser foot and replace it with the hem-wrapping one. This is also a
mode of linear sewing with the needle set to the central position, shown as in the Figure 30, the
hem-wrapping operation can be effected.
5. Stem-wrapping mode
During the sewing with the stem-wrapping mode, the special stem-wrapping presser foot, nee-
dle plate and material-feeding tooth (see Figure 31) should be put into use. The needle is set to
the central position and the horizontal needle distance set to 3mm, and then run the rougher
thread through the small groove A on the stem-wrapping presser foot so that the sewing of this
mode will be smoothly conducted (see Figure 32).
6. Decoration Sewing
If the left, central and right needle positions can be freely changeable and the horizontal nee-
dle distance skillfully controlled, the patterns of the decoration sewing will be well achieved as
seen in the Figure 33.
7. Other modes of practical sewing (see Figure 34)
10
jintex.in
Page 20
Jack JK-20U (53Z / 63Z / 93Z) parts on page 20| Ref | Part number | Part name | Qty |
|---|
| A | A | Presser Foot | |
| B | B | Presser Bar | |
B
A
图二十七 Figure 27
图二十八 Figure 28
图二十九 Figure 29
图三十 Figure 30
图三十一 Figure 31
图三十二 Figure 32
图三十三 Figure 33
10
jintex.in
Page 21
锁钮眼
Button hole
荷叶绣
Lolus-leaves Embroidery
Word-Embroidery
拼缝
Piecing-together Sewing
套结缝
Looping Sewing
. 20 .
jintex.in
Page 22 — IX. COMPONENT EXAMPLE
Jack JK-20U (53Z / 63Z / 93Z) parts on page 22| Ref | Part number | Part name | Qty |
|---|
| U43T1-0 | 机壳 Housing | 1 |
| U43T1-1-3 | 铭牌 Model-plate | 1 |
| U43T1-1-7 | 铭牌铆钉 Model-plate river | 2 |
| U43T1-1-8 | 铭牌 Model-plate | 1 |
| U43T1-2-1 | 面板 Face plate | 1 |
| U43T1-2-3 | 面板线勾 Face plate thread guide | 1 |
| U43T1-2-2 | 面板线勾螺母 thread guide screw | 1 |
| U43T1-2-3 | 面板线勾螺母 thread guide nut | 2 |
| U43T1-3 | 面板螺钉 Face plate screw | 2 |
| U43T1-4 | 直缝锁紧偏心钉 Linear lock eccentric screw | 1 |
| U43T1-5 | 直缝锁紧偏心 Linear lock eccentric | 1 |
| U43T1-6-1 | 推板 Thrust plate | 1 |
| U43T1-6-2 | 推板弹簧 Thrust plate spring | 1 |
| U43T1-6-3 | 推板翼螺钉 Thrust plate spring screw | 2 |
| U43T1-7 | 针板 Needle plate | 1 |
| U43T1-8 | 针板螺钉 Needle plate screw | 2 |
| U43T1-9-1 | 针板内盖板 Inner cover plate | 1 |
| U43T1-9-2 | 针板内盖板簧 Cover plate spring | 2 |
| U43T1-9-3 | 针板内盖板翼 Cover plate spring Screw | 1 |
| U43T1-10 | 挑线杆防护罩 Thread take up lever shield | 1 |
| U43T1-11 | 挑线杆防护罩螺钉 Shield screw | 1 |
| U43T1-12 | 垫圈 Washer | 1 |
| U43T1-13 | 旋梭防护罩 Rotating hook shield | 1 |
| U43T1-14 | 旋梭防护罩螺钉 Rotating hook shield screw | 1 |
| U43T1-15 | 松线杠杆 Thread-releasing lever | 1 |
| U43T1-16 | 松线杠杆弹簧 Thread-releasing lever spring | 1 |
| U43T1-17 | 松线杠杆螺钉 Thread-releasing lever screw | 1 |
| U43T1-18 | 下过线钉 Lower thread-running pin | 1 |
| U43T1-19 | 双过线架 Double thread-running rack | 1 |
| U43T1-20 | 双过线架螺钉 Thread-running rack screw | 1 |
| U43T1-21 | 松线钉 Thread-releasing pin | 1 |
| U43T1-22 | 夹线器固定螺钉 Thread-hold fixing screw | 1 |
| U43T1-19a | 双过线架 Thread-running rack | 1 |
| U43T1-23-1 | 夹线器调节座 Thread Tension regulator bushing | 1 |
| U43T1-23-2 | 夹线器固定螺钉 Fixing screw | 1 |
| U43T1-23-3 | 挑线簧 Thread take-up sping | 1 |
| U43T1-23-4 | 夹线簧 Thread tension stud | 1 |
| U43T1-23-5 | 夹线板 Thread tension disc | 2 |
| U43T1-23-6 | 松线板 Thread tension-releasing disc | 1 |
| U43T1-23-7 | 夹线簧 Thread tension spring | 1 |
| U43T1-23-8 | 夹线制动板 Thumb nut revolution stopper | 1 |
| U43T1-23-9 | 夹线螺母 Thumb nut | 1 |
IX. COMPONENT EXAMPLE
1、机壳部件 Components of housing
序号
Seri
No.
图号
Code No.
名 称
Description
适用产品
Products applicable
曲折缝
Curved-
stitching
数量
Qty
双针曲折缝
Double
Curved-
stitching
数量
Qty
1
U43T1-0
机壳 Housing
✓
1
✓
1
2
U43T1-1-3
铭牌 Model-plate
✓
1
✓
1
3
U43T1-1-7
铭牌铆钉 Model-plate river
✓
2
✓
2
4
U43T1-1-8
铭牌 Model-plate
✓
1
5
U43T1-2-1
面板 Face plate
✓
1
✓
1
6
U43T1-2-3
面板线勾 Face plate thread guide
✓
1
✓
1
7
U43T1-2-2
面板线勾螺母 thread guide screw
✓
1
✓
1
8
U43T1-2-3
面板线勾螺母 thread guide nut
✓
2
✓
2
9
U43T1-3
面板螺钉 Face plate screw
✓
2
✓
2
10
U43T1-4
直缝锁紧偏心钉 Linear lock eccentric screw
✓
1
✓
1
11
U43T1-5
直缝锁紧偏心
Linear lock eccentric
✓
1
✓
1
12
U43T1-6-1
推板 Thrust plate
✓
1
✓
1
13
U43T1-6-2
推板弹簧 Thrust plate spring
✓
1
✓
1
14
U43T1-6-3
推板翼螺钉 Thrust plate spring screw
✓
2
✓
2
15
U43T1-7
针板 Needle plate
✓
1
✓
1
16
U43T1-8
针板螺钉 Needle plate screw
✓
2
✓
2
17
U43T1-9-1
针板内盖板 Inner cover plate
✓
1
✓
1
18
U43T1-9-2
针板内盖板簧 Cover plate spring
✓
2
✓
2
19
U43T1-9-3
针板内盖板翼 Cover plate spring Screw
✓
1
✓
1
20
U43T1-10
挑线杆防护罩 Thread take up lever shield
✓
1
✓
1
21
U43T1-11
挑线杆防护罩螺钉 Shield screw
✓
1
✓
1
22
U43T1-12
垫圈 Washer
✓
1
✓
1
23
U43T1-13
旋梭防护罩 Rotating hook shield
✓
1
✓
1
24
U43T1-14
旋梭防护罩螺钉 Rotating hook shield screw
✓
1
25
U43T1-15
松线杠杆 Thread-releasing lever
✓
1
26
U43T1-16
松线杠杆弹簧 Thread-releasing lever spring
✓
1
✓
1
27
U43T1-17
松线杠杆螺钉 Thread-releasing lever screw
✓
1
✓
1
28
U43T1-18
下过线钉 Lower thread-running pin
✓
1
✓
1
29
U43T1-19
双过线架 Double thread-running rack
✓
1
30
U43T1-20
双过线架螺钉 Thread-running rack screw
✓
1
✓
1
31
U43T1-21
松线钉 Thread-releasing pin
✓
1
✓
1
32
U43T1-22
夹线器固定螺钉 Thread-hold fixing screw
✓
1
✓
1
33
U43T1-19a
双过线架 Thread-running rack
✓
1
34
U43T1-23-1
夹线器调节座 Thread Tension regulator bushing
✓
1
✓
1
35
U43T1-23-2
夹线器固定螺钉 Fixing screw
✓
1
✓
1
36
U43T1-23-3
挑线簧 Thread take-up sping
✓
1
37
U43T1-23-4
夹线簧 Thread tension stud
✓
1
38
U43T1-23-5
夹线板 Thread tension disc
✓
2
39
U43T1-23-6
松线板 Thread tension-releasing disc
✓
1
40
U43T1-23-7
夹线簧 Thread tension spring
✓
1
41
U43T1-23-8
夹线制动板 Thumb nut revolution stopper
✓
1
✓
1
42
U43T1-23-9
夹线螺母 Thumb nut
✓
1
✓
1
. 21 .
jintex.in
Page 23
Jack JK-20U (53Z / 63Z / 93Z) parts on page 23| Ref | Part number | Part name | Qty |
|---|
| U43T1-24 | 上盖 Upper cover | 1 |
| U43T1-25 | 上盖后螺钉 Upper cover back screw | 1 |
| U43T1-26 | 三眼线勾 3-eyelet hole thread guide | 1 |
| U43T1-27 | 三眼线勾螺钉 3-eyelet hole thread guide screw | 1 |
| U43T1-28 | 橡皮塞(大) Rubber plug(big) | 1 |
| U43T1-29 | 橡皮塞(中) Rubber plug(medinm) | 1 |
| U43T1-30 | 橡皮塞(小) Rubber plug(small) | 1 |
| U43T1-31 | 上盖定位螺钉 Upper cover set screw | 2 |
| U43T1-32 | 上盖夹线螺钉紧定螺钉 Fastening screw | 1 |
| U43T1-33-0 | 上盖夹线板组件 Upper thread-guide component | 1 |
| U43T1-33-1 | 双眼过线板 Thread-guide | 1 |
| U43T1-33-2 | 上夹线螺钉 Thread-tension stud | 1 |
| U43T1-33-3 | 上夹线板 Upper thread-tension disc | 2 |
| U43T1-33-4 | 上夹线簧 Upper thread-tension spring | 1 |
| U43T1-33-5 | 上夹级螺母 Nut | 1 |
| U43T1-34 | 后盖板 Back cover | 4 |
| U43T1-35 | 后盖板螺钉 Back cover screw | 1 |
| U43T1-37 | 绕线定位块紧定螺钉 locating block set screw | 1 |
| U43T1-37-1 | 绕线定位块 Locating block | 1 |
| U43T1-38 | 绕线量调节轴 Volume-adjusting spindle | 1 |
| U43T1-39 | 绕线量调节轴圈 Washer | 1 |
| U43T1-40 | 调节压板螺钉 Pressing plate screw | 1 |
| U43T1-41 | 绕线量调节压板 Volume-adjusting plate | 1 |
| U43T1-42 | 绕线摆杆拉簧 Extension spring pin | 1 |
| U43T1-43 | 拉簧销 Extension spring | 1 |
| U43T1-44 | 绕线曲柄螺钉 Crank screw | 1 |
| U43T1-45 | 绕线摆杆 Thread-winding swaying handle | 1 |
| U43T1-46 | 绕线摆杆压簧 Swaying handle presser spring | 1 |
| U43T1-47 | 绕线芯轴 Axis | 1 |
| U43T1-48 | 绕线小轮 Thread-winding small wheel | 1 |
| U43T1-49 | 绕线橡皮轮 Thread-winding rull wheel | 1 |
| U43T1-50 | 绕线轴簧 Thread-winding axis spring | 1 |
| U43T1-51 | 绕线曲柄 Thread-winding crank | 1 |
序号
Seri
No.
图 号
Code No.
名 称
Description
适用产品
Products applicable
曲折缝
Curved-
stitching
数量
Qty
双针曲折缝
Double
Curved-
stitching
数量
Qty
43
U43T1-24
上盖 Upper cover
√
1
√
1
44
U43T1-25
上盖后螺钉 Upper cover back screw
√
1
√
1
45
U43T1-26
三眼线勾 3-eyelet hole thread guide
√
1
√
1
46
U43T1-27
三眼线勾螺钉 3-eyelet hole thread guide screw
√
1
√
1
47
U43T1-28
橡皮塞(大) Rubber plug(big)
√
1
√
1
48
U43T1-29
橡皮塞(中) Rubber plug(medinm)
√
1
√
1
49
U43T1-30
橡皮塞(小) Rubber plug(small)
√
1
√
1
50
U43T1-31
上盖定位螺钉 Upper cover set screw
√
2
√
2
51
U43T1-32
上盖夹线螺钉紧定螺钉 Fastening screw
√
1
√
1
52
U43T1-33-0
上盖夹线板组件 Upper thread-guide component
√
1
√
1
53
U43T1-33-1
双眼过线板 Thread-guide
√
1
54
U43T1-33-2
上夹线螺钉 Thread-tension stud
√
√
1
55
U43T1-33-3
上夹线板 Upper thread-tension disc
√
2
√
2
56
U43T1-33-4
上夹线簧 Upper thread-tension spring
√
1
√
1
57
U43T1-33-5
上夹级螺母 Nut
√
1
√
1
58
U43T1-34
后盖板 Back cover
√
4
√
4
59
U43T1-35
后盖板螺钉 Back cover screw
√
1
√
1
60
U43T1-37
绕线定位块紧定螺钉 locating block set screw
√
1
√
1
61
U43T1-37-1
绕线定位块 Locating block
√
1
√
1
62
U43T1-38
绕线量调节轴 Volume-adjusting spindle
√
1
√
1
63
U43T1-39
绕线量调节轴圈 Washer
√
1
√
1
64
U43T1-40
调节压板螺钉 Pressing plate screw
√
1
√
1
65
U43T1-41
绕线量调节压板 Volume-adjusting plate
√
1
√
1
66
U43T1-42
绕线摆杆拉簧 Extension spring pin
√
1
√
1
67
U43T1-43
拉簧销 Extension spring
√
1
√
1
68
U43T1-44
绕线曲柄螺钉 Crank screw
√
1
√
1
69
U43T1-45
绕线摆杆 Thread-winding swaying handle
√
1
√
1
70
U43T1-46
绕线摆杆压簧 Swaying handle presser spring
√
1
√
1
71
U43T1-47
绕线芯轴 Axis
√
1
√
1
72
U43T1-48
绕线小轮 Thread-winding small wheel
√
1
√
1
73
U43T1-49
绕线橡皮轮 Thread-winding rull wheel
√
1
√
1
74
U43T1-50
绕线轴簧 Thread-winding axis spring
√
1
√
1
75
U43T1-51
绕线曲柄 Thread-winding crank
√
1
√
1
- 22 -
jintex.in
Page 24 — 机壳部件 Components of housing
Jack JK-20U (53Z / 63Z / 93Z) parts on page 24| Ref | Part number | Part name | Qty |
|---|
| 1 | MACHINE BED | |
| 2 | COVER PLATE | |
| 3 | SCREW | |
| 4 | COVER PLATE | |
| 5 | UPPER ARM | |
| 6 | SCREW | |
| 7 | WASHER | |
| 8 | SCREW | |
| 9 | SCREW | |
| 11 | NEEDLE BAR BUSHING | |
| 12 | NEEDLE BAR | |
| 13 | NEEDLE BAR CONNECTING ROD | |
| 14 | SCREW | |
| 15 | SCREW | |
| 16 | SCREW | |
| 17 | COVER PLATE | |
| 18 | PRESSER BAR SPRING | |
| 19 | SCREW | |
| 20 | THREAD GUIDE | |
| 21 | THREAD GUIDE | |
| 22 | PRESSER BAR | |
| 23 | PRESSER BAR HOLDER | |
| 24 | SCREW | |
| 25 | FEED DOG | |
| 26 | FEED DOG HOLDER | |
| 27 | SCREW | |
| 28 | NEEDLE PLATE | |
| 29 | SCREW | |
| 30 | NEEDLE BAR CONNECTING ROD | |
| 31 | NEEDLE BAR CONNECTING ROD PIN | |
| 32 | SCREW | |
| 33 | SCREW | |
| 34 | SCREW | |
| 35 | SCREW | |
| 36 | SCREW | |
| 37 | SCREW | |
| 38 | THREAD GUIDE | |
| 39 | THREAD GUIDE | |
| 40 | THREAD GUIDE | |
| 41 | THREAD GUIDE | |
| 42 | SCREW | |
| 43 | SCREW | |
| 44 | SCREW | |
| 45 | ARM SHAFT | |
| 46 | ARM SHAFT BUSHING | |
| 47 | SCREW | |
| 48 | SCREW | |
| 49 | SCREW | |
| 50 | SCREW | |
| 51 | SCREW | |
| 52 | COVER PLATE | |
| 53 | SCREW | |
| 54 | SCREW | |
| 55 | SCREW | |
| 56 | SCREW | |
| 57 | SCREW | |
| 58 | COVER PLATE | |
| 59 | SCREW | |
| 60 | SCREW | |
| 61 | SCREW | |
| 62 | PIN | |
| 63 | PIN | |
| 64 | SCREW | |
| 65 | SCREW | |
| 66 | SCREW | |
| 67 | SCREW | |
| 68 | SCREW | |
| 69 | SCREW | |
| 70 | SCREW | |
| 71 | SCREW | |
| 72 | SCREW | |
| 73 | SCREW | |
| 74 | SCREW | |
| 75 | SCREW | |
| 76 | SCREW | |
| 77 | SCREW | |
| 78 | SCREW | |
| 79 | SCREW | |
| 80 | SCREW | |
| 81 | SCREW | |
机壳部件 Components of housing
22
jintex.in
Page 25 — 2、挑线刺料部件 Thread take-up and needle bar components
Jack JK-20U (53Z / 63Z / 93Z) parts on page 25| Ref | Part number | Part name | Qty |
|---|
| U43T2-2 | 针杆摆动销螺钉 Pin screw(swaying rack of needle staff) | 1 |
| U43T2-3 | 针杆摆动架 Swaying rack of needle bar | 1 |
| U43T2-4 | 针杆偏心销螺钉 Eccentric pin screw of needle bar | 1 |
| U43T2-5 | 针定位片 Locating plate of needle bar | 1 |
| U43T2-6 | 针杆定位片螺钉 Screw of locating plate | 1 |
| U43T2-7 | 针杆摆动销 Ping of swaying rack(needle bar) | 1 |
| U43T2-8 | 针杆 Needle bar | 1 |
| U43T2-9 | 针杆线勾 Thread-guide of needle bar | 1 |
| U43T2-10 | 机针 Needle | 1 |
| U43T2-11 | 针杆锁定螺钉 Locking screw of needle | 1 |
| U43T2-12 | 针杆连接轴销钉 Pin-screw of connecting shaft | 1 |
| U43T2-13 | 针杆连接轴销垫圈 Pin-washer of connecting shaft | 1 |
| U43T2-14 | 针杆连接轴体 Connecting shaft | 1 |
| U43T2-15 | 针杆连接轴销 Pin of connecting shaft | 1 |
| U43T2-16 | 针杆连接轴销锁定螺钉 Pin-locking screw of connecting shaft | 1 |
| U43T2-17 | 小连杆导板 Guide of small connecting staff | 1 |
| U43T2-18 | 小连杆导板螺钉 Screw of guide | 1 |
| U43T2-19 | 小连杆导板垫圈 Guide washer | 2 |
| U43T2-20-0 | 挑线杆组件 Thread take-up lever component | 1 |
| U43T2-20-1 | 倒牙螺钉 Left-spiral screw | 1 |
| U43T2-20-2 | 小连杆 Small connecting staff | 1 |
| U43T2-20-3 | 针杆曲柄 Crank of needle bar | 1 |
| U43T2-20-5 | 挑线摇杆 Stitch-swaying staff | 1 |
| U43T2-20-6 | 挑线摇杆销 Pin of swaying staff | 1 |
| U43T2-20-7 | 挑线摇杆销螺钉 Pin screw of swaying staff | 1 |
| U43T2-20-8 | 挑线曲柄螺钉 Screw of crank | 1 |
| U43T2-20-9 | 挑线曲柄 Crank | 1 |
| U43T2-20-10 | 针杆曲柄紧固螺钉 Crank fastening screw | 1 |
| U43T2-20-11 | 挑线杆 Thread take-up lever | 1 |
| U43T2-21 | 上轴前轴套紧定螺钉 Fastening screw(of front sleeve) | 1 |
| U43T2-22 | 上轴前轴套 Front sleeve of upper shaft | 1 |
| U43T2-23 | 上轴螺旋齿轮螺钉 Screw of spiral gear | 1 |
| U43T2-24 | 上轴螺旋齿轮 Spiral gear of upper shaft | 1 |
| U43T2-25 | 上轴弧齿锥齿轮螺钉 Screw of arc-cone gear | 2 |
| U43T2-26 | 上轴弧齿锥齿轮 Arc-cone gear (upper shaft) | 1 |
| U43T2-27 | 送布凸轮螺钉 Screw of feed cam | 2 |
| U43T2-28 | 送布凸轮 Feed cam | 1 |
| U43T2-29 | 上轴 Upper shaft | 1 |
2、挑线刺料部件 Thread take-up and needle bar components
序号
Seri
No.
图 号
Code No.
名 称
Description
适用产品
Products applicable
曲折缝
Curved-
stitching
数量
Qty
双针曲折缝
Double
Curved-
stitching
数量
Qty
1
U43T2-2
针杆摆动销螺钉 Pin screw(swaying rack of needle staff)
✓
1
✓
1
2
U43T2-3
针杆摆动架 Swaying rack of needle bar
✓
1
3
U43T2-4
针杆偏心销螺钉 Eccentric pin screw of needle bar
✓
1
✓
1
4
U43T2-5
针定位片 Locating plate of needle bar
✓
1
✓
1
5
U43T2-6
针杆定位片螺钉 Screw of locating plate
✓
1
✓
1
6
U43T2-7
针杆摆动销 Ping of swaying rack(needle bar)
✓
1
✓
1
7
U43T2-8
针杆 Needle bar
✓
1
8
U43T2-9
针杆线勾 Thread-guide of needle bar
✓
1
✓
1
9
U43T2-10
机针 Needle
✓
1
✓
2
10
U43T2-11
针杆锁定螺钉 Locking screw of needle
✓
1
11
U43T2-12
针杆连接轴销钉 Pin-screw of connecting shaft
✓
1
✓
1
12
U43T2-13
针杆连接轴销垫圈 Pin-washer of connecting shaft
✓
1
✓
1
13
U43T2-14
针杆连接轴体 Connecting shaft
✓
1
✓
1
14
U43T2-15
针杆连接轴销 Pin of connecting shaft
✓
1
✓
1
15
U43T2-16
针杆连接轴销锁定螺钉 Pin-locking screw of connecting shaft
✓
1
✓
1
16
U43T2-17
小连杆导板 Guide of small connecting staff
✓
1
✓
2
17
U43T2-18
小连杆导板螺钉 Screw of guide
✓
1
✓
2
18
U43T2-19
小连杆导板垫圈 Guide washer
✓
2
✓
2
19
U43T2-20-0
挑线杆组件 Thread take-up lever component
✓
1
✓
1
20
U43T2-20-1
倒牙螺钉 Left-spiral screw
✓
1
✓
1
21
U43T2-20-2
小连杆 Small connecting staff
✓
1
✓
1
22
U43T2-20-3
针杆曲柄 Crank of needle bar
✓
1
✓
1
23
U43T2-20-5
挑线摇杆 Stitch-swaying staff
✓
1
✓
1
24
U43T2-20-6
挑线摇杆销 Pin of swaying staff
✓
1
✓
1
25
U43T2-20-7
挑线摇杆销螺钉 Pin screw of swaying staff
✓
1
✓
1
26
U43T2-20-8
挑线曲柄螺钉 Screw of crank
✓
1
✓
1
27
U43T2-20-9
挑线曲柄 Crank
✓
1
✓
1
28
U43T2-20-10
针杆曲柄紧固螺钉 Crank fastening screw
✓
1
✓
1
29
U43T2-20-11
挑线杆 Thread take-up lever
✓
1
✓
1
30
U43T2-21
上轴前轴套紧定螺钉 Fastening screw(of front sleeve)
✓
1
✓
1
31
U43T2-22
上轴前轴套 Front sleeve of upper shaft
✓
1
✓
1
32
U43T2-23
上轴螺旋齿轮螺钉 Screw of spiral gear
✓
1
✓
2
33
U43T2-24
上轴螺旋齿轮 Spiral gear of upper shaft
✓
1
✓
1
34
U43T2-25
上轴弧齿锥齿轮螺钉 Screw of arc-cone gear
✓
2
✓
2
35
U43T2-26
上轴弧齿锥齿轮 Arc-cone gear (upper shaft)
✓
1
✓
1
36
U43T2-27
送布凸轮螺钉 Screw of feed cam
✓
2
✓
2
37
U43T2-28
送布凸轮 Feed cam
✓
1
✓
1
38
U43T2-29
上轴 Upper shaft
✓
1
✓
1
. 24 .
jintex.in
Page 26
Jack JK-20U (53Z / 63Z / 93Z) parts on page 26| Ref | Part number | Part name | Qty |
|---|
| U43T2-30 | 上轴后轴套 Back sleeve of upper shaft | 1 |
| U43T2-31 | 上轴后轴套螺钉 Fastening screw of back sleeve | 1 |
| U43T2-32 | 上轮套 Sleeve of balance wheel | 1 |
| U43T2-33 | 上轮套螺钉 Sleeve screw | 1 |
| U43T2-34 | 上轮 Balance wheel | 1 |
| U43T2-35 | 离合垫圈 Clutch waher | 1 |
| U43T2-36 | 离合螺钉 Clutch screw | 1 |
| U43T2-37 | 离合小螺钉 Small clutch screw | 1 |
| U43T2-39 | 针杆摆动架 Swaying rack of needle bar | 1 |
| U43T2-40 | 双针针杆 Needle har for double needle | 1 |
| U43T2-41 | 双针扎头紧固螺钉 Fastening screw of double needle clamper | 1 |
| U43T2-42 | 双针扎头 Double needle clamper (2.5mm) | 1 |
| U43T2-43 | 双针扎头 Double needle clamper (3.5mm) | 1 |
| U43T2-44 | 双针扎头 Double needle clamper (4.5mm) | 1 |
| U43T2-45 | 机针紧定螺钉 Fastening screw | 2 |
序号 图 号 名 称 适用产品
Seri Code No. Description Curved- stitching Qty Double- Curved- stitching Qty
40 U43T2-30 上轴后轴套 Back sleeve of upper shaft ✓ 1 ✓ 1
41 U43T2-31 上轴后轴套螺钉 Fastening screw of back sleeve ✓ 1 ✓ 1
42 U43T2-32 上轮套 Sleeve of balance wheel ✓ 1 ✓ 1
43 U43T2-33 上轮套螺钉 Sleeve screw ✓ 1 ✓ 1
44 U43T2-34 上轮 Balance wheel ✓ 1 ✓ 1
45 U43T2-35 离合垫圈 Clutch waher ✓ 1 ✓ 1
46 U43T2-36 离合螺钉 Clutch screw ✓ 1 ✓ 1
47 U43T2-37 离合小螺钉 Small clutch screw ✓ 1 ✓ 1
48 U43T2-39 针杆摆动架 Swaying rack of needle bar ✓ 1
49 U43T2-40 双针针杆 Needle har for double needle ✓ 1
50 U43T2-41 双针扎头紧固螺钉 Fastening screw of double needle clamper ✓ 1
51 U43T2-42 双针扎头 Double needle clamper (2.5mm) ✓ 1
52 U43T2-43 双针扎头 Double needle clamper (3.5mm) ✓ 1
53 U43T2-44 双针扎头 Double needle clamper (4.5mm) ✓ 1
54 U43T2-45 机针紧定螺钉 Fastening screw ✓ 2
. 25 .
jintex.in
Page 27 — 2、挑线刺料部件 Thread take-up and needle bar components
Jack JK-20U (53Z / 63Z / 93Z) parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | Thread take-up lever shaft | |
| 2 | 2 | Needle bar connecting rod | |
| 3 | 3 | Needle bar connecting rod pin | |
| 4 | 4 | Needle bar connecting rod support | |
| 5 | 5 | Screw | |
| 6 | 6 | Screw | |
| 7 | 7 | Thread take-up lever shaft | |
| 8 | 8 | Thread take-up lever shaft collar | |
| 9 | 9 | Needle bar connecting rod pin | |
| 10 | 10 | Screw | |
| 11 | 11 | Screw | |
| 12 | 12 | Washer | |
| 13 | 13 | Thread take-up lever shaft collar | |
| 14 | 14 | Thread take-up lever shaft | |
| 15 | 15 | Screw | |
| 16 | 16 | Thread take-up lever | |
| 17 | 17 | Screw | |
| 18 | 18 | Screw | |
| 19 | 19 | Thread take-up lever shaft | |
| 20 | 20 | Screw | |
| 21 | 21 | Thread take-up lever | |
| 22 | 22 | Thread take-up lever shaft | |
| 23 | 23 | Thread take-up lever shaft | |
| 24 | 24 | Thread take-up lever shaft | |
| 25 | 25 | Thread take-up lever shaft | |
| 26 | 26 | Thread take-up lever shaft | |
| 27 | 27 | Screw | |
| 28 | 28 | Thread take-up lever | |
| 29 | 29 | Screw | |
| 30 | 30 | Thread take-up lever shaft | |
| 31 | 31 | Screw | |
| 32 | 32 | Thread take-up lever shaft collar | |
| 33 | 33 | Screw | |
| 34 | 34 | Thread take-up lever shaft collar | |
| 35 | 35 | Screw | |
| 36 | 36 | Thread take-up lever shaft collar | |
| 37 | 37 | Screw | |
| 38 | 38 | Thread take-up lever shaft | |
| 39 | 39 | Thread take-up lever shaft | |
| 40 | 40 | Screw | |
| 41 | 41 | Needle bar connecting rod | |
| 42 | 42 | Needle bar connecting rod pin | |
| 43 | 43 | Needle bar connecting rod support | |
| 44 | 44 | Thread take-up lever shaft | |
| 45 | 45 | Thread take-up lever shaft | |
| 46 | 46 | Thread take-up lever shaft | |
| 47 | 47 | Screw | |
| 48 | 48 | Needle bar connecting rod | |
| 49 | 49 | Needle bar connecting rod | |
| 50 | 50 | Needle bar connecting rod pin | |
| 51 | 51 | Needle bar connecting rod support | |
| 52 | 52 | Screw | |
| 53 | 53 | Screw | |
| 54 | 54 | Screw | |
2、挑线刺料部件 Thread take-up and needle bar components
19
26 25 24 30 23
48
7
6
11
12 13
20 21
22
49
1
5
14
18
50
4
8
2
51
3
9
10
15
16 17
53 52
54
54
39
37
31 33
36
38
27
34
28
32
35
37
31
33
35
29
40
41 42 43
44
45 46 47
. 26 .
jintex.in
Page 28 — 3、送料部件 Materi-feeding components
Jack JK-20U (53Z / 63Z / 93Z) parts on page 28| Ref | Part number | Part name | Qty |
|---|
| U43T3-1 | 油毡 Oil felt | 1 |
| U43T3-2 | 抬齿连杆组件 Lift feed connecting bar | 1 |
| U43T3-4 | 小圆锥螺钉 Small come nut | 4 |
| U43T3-5 | 针距连杆 Connecting bar of needle distance base | 1 |
| U43T3-6 | 小圆锥螺钉 Small cone screw | 4 |
| U43T3-7 | 大顶尖螺钉 Pointed screw | 4 |
| U43T3-8 | 大顶尖螺母 Pointed nut | 4 |
| U43T3-9 | 送布曲柄 Feed crank | 1 |
| U43T3-10 | 送布曲柄螺钉 Feed crank screw | 1 |
| U43T3-11 | 送布牙螺钉 Feed crank screw | 2 |
| U43T3-12 | 送布牙 Feed dog | 1 |
| U43T3-13 | 小顶尖螺钉 Pointed screw of tooth rack | 2 |
| U43T3-14 | 小顶尖螺母 Point nut | 2 |
| U43T3-15 | 送布轴 Feed rock | 1 |
| U43T3-16 | 牙架 Tooth rack | 1 |
| U43T3-17 | 抬牙轴组件 Feed lifting rock shatt component | 1 |
| U43T3-18 | 抬牙曲柄螺钉 Feed lifting rock crank screw | 1 |
| U43T3-19 | 抬牙曲柄 Feed lifting rock crank | 1 |
| U43T3-20 | 牙叉 Feed fork connecting rod | 1 |
3、送料部件 Materi-feeding components
序号
图号
名 称
适用产品
Seri
Code No.
Description
曲折缝
数量
双针曲折缝
数量
No.
Curved-
stitching
Qty
Double
Curved-
stitching
Qty
1
U43T3-1
油毡 Oil felt
✓
1
✓
1
2
U43T3-2
抬齿连杆组件 Lift feed connecting bar
✓
1
✓
1
3
U43T3-4
小圆锥螺钉 Small come nut
✓
4
✓
4
4
U43T3-5
针距连杆 Connecting bar of needle distance base
✓
1
✓
1
5
U43T3-6
小圆锥螺钉 Small cone screw
✓
4
✓
4
6
U43T3-7
大顶尖螺钉 Pointed screw
✓
4
✓
4
7
U43T3-8
大顶尖螺母 Pointed nut
✓
4
✓
4
8
U43T3-9
送布曲柄 Feed crank
✓
1
✓
1
9
U43T3-10
送布曲柄螺钉 Feed crank screw
✓
1
✓
1
10
U43T3-11
送布牙螺钉 Feed crank screw
✓
2
✓
2
11
U43T3-12
送布牙 Feed dog
✓
1
✓
1
12
U43T3-13
小顶尖螺钉 Pointed screw of tooth rack
✓
2
✓
2
13
U43T3-14
小顶尖螺母 Point nut
✓
2
✓
2
14
U43T3-15
送布轴 Feed rock
✓
1
✓
1
15
U43T3-16
牙架 Tooth rack
✓
1
✓
1
16
U43T3-17
抬牙轴组件 Feed lifting rock shatt component
✓
1
✓
1
17
U43T3-18
抬牙曲柄螺钉 Feed lifting rock crank screw
✓
1
✓
1
18
U43T3-19
抬牙曲柄 Feed lifting rock crank
✓
1
✓
1
19
U43T3-20
牙叉 Feed fork connecting rod
✓
1
✓
1
. 27 .
jintex.in
Page 29 — 送料部件 Materimi-feeding components
Jack JK-20U (53Z / 63Z / 93Z) parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 10 | 10 | |
| 12 | 12 | |
| 13 | 13 | |
| 6 | 6 | |
| 7 | 7 | |
| 15 | 15 | |
| 16 | 16 | |
| 14 | 14 | |
| 3 | 3 | |
| 11 | 11 | |
| 9 | 9 | |
| 8 | 8 | |
| 5 | 5 | |
| 4 | 4 | |
| 19 | 19 | |
| 18 | 18 | |
| 17 | 17 | |
| 2 | 2 | |
| 20 | 20 | |
送料部件 Materimi-feeding components
10
12 13
6
7
15
16
14
3
11
12
13
9
8
5
4
19
6
7
5
3
6
7
18
17
5
2
3
6
7
20
20
Page 30 — 4、勾线部件 Thread-hooking Components
Jack JK-20U (53Z / 63Z / 93Z) parts on page 30| Ref | Part number | Part name | Qty |
|---|
| U43T4-1 | 旋锭定位板 Locating plate of rotating hook | 1 |
| U43T4-2 | 旋锭定位板螺钉 Screw of locating plate | 1 |
| U43T4-3 | 梭心 Bobbin case | 1 |
| U43T4-4 | 梭心 Bobbin | 1 |
| U43T4-5 | 旋棱 Rotating hook | 1 |
| U43T4-6 | 旋棱轴前轴套 Front sleeve of rotating hook shaft | 1 |
| U43T4-7 | 旋棱轴前轴套螺钉 Front sleeve screw | 1 |
| U43T4-8 | 旋棱轴挡圈 Retainer of rotating hook shaft | 1 |
| U43T4-9 | 旋棱轴挡圈螺钉 Retainer screw | 2 |
| U43T4-10 | 旋棱轴后轴套 Back sleeve of rotating hook shaft | 1 |
| U43T4-11 | 旋棱轴后轴套螺钉 Screw of back sleeve | 1 |
| U43T4-12 | 旋棱轴 Rotating hook shaft | 1 |
| U43T4-13 | 旋棱弧齿锥齿轮螺钉 Screw of arc-cone gear | 2 |
| U43T4-14 | 旋棱弧齿锥齿轮 Arc-cone gear of rotating hool shaft | 1 |
| U43T4-15 | 下轴弧齿锥齿轮 Arc-cone gear of lower shaft | 1 |
| U43T4-16 | 下轴弧齿锥齿轮螺钉 Screw of Arc-cone gear | 2 |
| U43T4-17 | 下轴后轴套 Screw | 2 |
| U43T4-18 | 下轴前轴套 Front sleeve of lower shaft | 1 |
| U43T4-19 | 下轴(立轴)挡圈 Lower shaft retainer | 3 |
| U43T4-20 | 下轴(立轴)挡圈螺钉 Retainer screw of lower shaft | 6 |
| U43T4-21 | 下轴后轴套 Back sleeve of lower shaft | 1 |
| U43T4-22 | 下轴 Lower shaft | 1 |
| U43T4-23 | 下轴差动齿轮螺钉 Screw of differential gear(lower shaft) | 2 |
| U43T4-24 | 下轴差动齿轮 Differential gear | 1 |
| U43T4-25 | 立轴差动齿轮螺钉 Screw of differential gear | 2 |
| U43T4-26 | 立轴差动齿轮 Differential gear(vertical shaft) | 1 |
| U43T4-27 | 立轴下轴套 Lower sleeve of vertical shaft | 1 |
| U43T4-28 | 差动滑套 Differential shaft sliding-sleeve | 1 |
| U43T4-29 | 下离合套筒 Lower clutch sleeve | 1 |
| U43T4-30 | 下离合套筒螺钉 Screw | 2 |
| U43T4-31 | 上离合套筒 Upper sleeve of vertical shaft | 1 |
| U43T4-32 | 上离合套筒螺钉 Screw | 2 |
| U43T4-33 | 立轴上轴套 Upper sleeve of vertical shaft | 1 |
| U43T4-34 | 立轴上轴套螺钉 Screw of upper sleeve | 1 |
| U43T4-35 | 立轴弧齿锥齿轮 Arc-cone gear | 1 |
| U43T4-36 | 大差动连杆 Differential connecting bar | 1 |
| U43T4-37 | 立轴 Vertical shaft | 1 |
4、勾线部件 Thread-hooking Components
序号
Seri
No.
图 号
Code No.
名 称
Description
适用 产品
Products applicable
曲折缝
Curved-
stitching
数量
Qty
双针曲折缝
Double
Curved-
stitching
数量
Qty
1
U43T4-1
旋锭定位板 Locating plate of rotating hook
✓
1
✓
1
2
U43T4-2
旋锭定位板螺钉 Screw of locating plate
✓
1
✓
1
3
U43T4-3
梭心 Bobbin case
✓
1
✓
1
4
U43T4-4
梭心 Bobbin
✓
1
✓
1
5
U43T4-5
旋棱 Rotating hook
✓
1
✓
1
6
U43T4-6
旋棱轴前轴套 Front sleeve of rotating hook shaft
✓
1
✓
1
7
U43T4-7
旋棱轴前轴套螺钉 Front sleeve screw
✓
1
✓
1
8
U43T4-8
旋棱轴挡圈 Retainer of rotating hook shaft
✓
1
✓
1
9
U43T4-9
旋棱轴挡圈螺钉 Retainer screw
✓
2
✓
2
10
U43T4-10
旋棱轴后轴套 Back sleeve of rotating hook shaft
✓
1
✓
1
11
U43T4-11
旋棱轴后轴套螺钉 Screw of back sleeve
✓
1
✓
1
12
U43T4-12
旋棱轴 Rotating hook shaft
✓
1
✓
1
13
U43T4-13
旋棱弧齿锥齿轮螺钉 Screw of arc-cone gear
✓
2
✓
2
14
U43T4-14
旋棱弧齿锥齿轮 Arc-cone gear of rotating hool shaft
✓
1
✓
1
15
U43T4-15
下轴弧齿锥齿轮 Arc-cone gear of lower shaft
✓
1
✓
1
16
U43T4-16
下轴弧齿锥齿轮螺钉 Screw of Arc-cone gear
✓
2
✓
2
17
U43T4-17
下轴后轴套 Screw
✓
2
✓
2
18
U43T4-18
下轴前轴套 Front sleeve of lower shaft
✓
1
✓
1
19
U43T4-19
下轴(立轴)挡圈 Lower shaft retainer
✓
3
✓
3
20
U43T4-20
下轴(立轴)挡圈螺钉 Retainer screw of lower shaft
✓
6
✓
6
21
U43T4-21
下轴后轴套 Back sleeve of lower shaft
✓
1
✓
1
22
U43T4-22
下轴 Lower shaft
✓
1
✓
1
23
U43T4-23
下轴差动齿轮螺钉 Screw of differential gear(lower shaft)
✓
2
✓
2
24
U43T4-24
下轴差动齿轮 Differential gear
✓
1
✓
1
25
U43T4-25
立轴差动齿轮螺钉 Screw of differential gear
✓
2
✓
2
26
U43T4-26
立轴差动齿轮 Differential gear(vertical shaft)
✓
1
✓
1
27
U43T4-27
立轴下轴套 Lower sleeve of vertical shaft
✓
1
✓
1
28
U43T4-28
差动滑套 Differential shaft sliding-sleeve
✓
1
✓
1
29
U43T4-29
下离合套筒 Lower clutch sleeve
✓
1
✓
1
30
U43T4-30
下离合套筒螺钉 Screw
✓
2
✓
2
31
U43T4-31
上离合套筒 Upper sleeve of vertical shaft
✓
1
✓
1
32
U43T4-32
上离合套筒螺钉 Screw
✓
2
✓
2
33
U43T4-33
立轴上轴套 Upper sleeve of vertical shaft
✓
1
✓
1
34
U43T4-34
立轴上轴套螺钉 Screw of upper sleeve
✓
1
✓
1
35
U43T4-35
立轴弧齿锥齿轮 Arc-cone gear
✓
1
✓
1
36
U43T4-36
大差动连杆 Differential connecting bar
✓
1
✓
1
37
U43T4-37
立轴 Vertical shaft
✓
1
✓
1
. 29 .
jintex.in
