Parts index — Jack JK-788tap a row to open its page

Page 10 — The machine speed and turning direction

Jack JK-788 parts on page 10

Ref	Part number	Part name	Qty
	JK796/788-5-36	6,500
	JK796/788-5-38	6,500
	JK796/788-5-48	5,500
	JK796/788-5-48P2	5,000
	JK796/788-5-70	6,500
	JK796/788-86	5,500
	JK796/788-5-355	6,000
	JK796/788-3-01	7,000
	JK796/788-4-13	6,500
	JK796/788-3-16S2	6,500
	JK796/788-3-17	7,000
	JK796/788-4-23B	6,000
	JK796/788-3-54A	5,000
	JK796/788-3-55A	5,000
	JK796/788-3-180	7,000
	JK796/788-3-181	6,500

Page 16 — 线状态的调节 Adjusting the thread tension

Jack JK-788 parts on page 16

Ref	Part number	Part name	Qty
	①	针线调节螺帽
	②	上弯针线调节螺帽
	③	弯针线调节螺帽

Page 21 — Replacing the lower knife

Jack JK-788 parts on page 21

Ref	Part number	Part name	Qty
	JK788/796-5	Lower knife
	JK788/796-3	Lower knife
	JK788/796-4	Lower knife

Page 22 — JK788/796-5 调整标准参数表 Adjustment dimentions

Jack JK-788 parts on page 22

Ref	Part number	Part name	Qty
	JK788/796-5-36	10.6
	JK788/796-5-38	10.6
	JK788/796-5-48	10.1
	JK788/796-5-48P2	10.1
	JK788/796-5-70	10.6
	JK788/796-5-86	12.0
	JK788/796-6-355	12.0
	JK788/796-3-01	10.1
	JK788/796-4-13	10.4
	JK788/796-3-1652	10.1
	JK788/796-3-17	10.1
	JK788/796-4-23B	11.6
	JK788/796-3-54A	10.1
	JK788/796-3-55A	10.4
	JK788/796-3-180	10.1
	JK788/796-3-181	10.4

Page 23 — JK788/796 针号对照表 Comparison table for needle sizes

Jack JK-788 parts on page 23

Ref	Part number	Part name	Qty
	JK788/796-5-36	11
	JK788/796-5-38	14
	JK788/796-5-48	14
	JK788/796-5-48P2	14
	JK788/796-5-70	14
	JK788/796-5-86	21
	JK788/796-5-355	11
	JK788/796-3-01	9
	JK788/796-4-13	9
	JK788/796-3-16S2	11
	JK788/796-3-17	9
	JK788/796-4-23B	14
	JK788/796-3-54A	14
	JK788/796-3-55A	9
	JK788/796-3-180	9
	JK788/796-3-181	9

Page 24

Jack JK-788 parts on page 24

Ref	Part number	Part name	Qty
8	788	Screw
13	788A	件
9	788	Screw
16	796	机壳
14	788	Screw
15	788/796-2	Screw
1	788/796-2	Screw
17	788/796-2	Screw
5	788/796-5	Screw
7	788/796-3,-4	Screw
6	788/796-3,-4	Screw
11	788/796-3,-4	Screw
12	788/796-3,-4	Screw
2	788/796-3,-4	Screw
4	788/796-3,-4	Screw
3	788/796-3,-4	Screw
10	788/796-3,-4	Screw

Page 25 — 第一部 件 机壳部件(Frame Assembly)

Jack JK-788 parts on page 25

Ref	Part number	Part name	Qty
1	206S30001	支柱
2	20611001	油标
3	R03001	铆钉2.5×4
4	20531024	机型牌
5	20609002	五线 下刀座
6	P03010	销5.5×6
7	20609001	三四线 下刀座
8	S05019	螺钉M6×16.3
9	P03010	销5.5×6
10	20513008	过线管
11	P03010	销5.5×6
12	S05016	螺钉M6×25
13	300029	A件
14	300028	机壳
15	20622012	油封
16	300032	796机壳
17	10122006	送料调节器 孔塞

Page 26

Jack JK-788 parts on page 26

Ref	Part number	Part name	Qty
43	796	43
44	796	44
42	796-181,-6	42
16	788/796-3-4	16
15	788/796-3	15
33	788/796-3	180 除外 Except, 788/796-3-180
32	788/796-3	180

Page 27 — 第二部件 机壳机罩部件 (Cover Assemblies)

Jack JK-788 parts on page 27

Ref	Part number	Part name	Qty
1	300030	B件
2	S01010	螺钉M4×8
3	S01032	螺钉M4×17.5
4	300160	788机头上盖
5	S01032	螺钉M4×17.5
6	20622002	上盖密封垫
7	20522001	上盖密封垫
8	20622001	油窗
9	20622001	油窗垫
10	20623001	机头油塞
11	20612005	机壳右盖板
12	S01010	螺钉M4×8
13	20601005	上骑针前盖板
14	S01010	螺钉M4×8
15	S01035	螺钉M4×7.5
16	20612002	三四线缝合挡料板
17	20612003	五线缝合挡料板
18	20612010	缝合连接板
19	20612012	螺钉M4×5.5
20	S01002	螺钉M4×6.5
21	300163	752前盖板
22	300472	752-02×250前盖板
23	20612009	前盖板固定块
24	S01006	螺钉M3×4.5
25	20612006	前罩板卡簧
26	S01031	螺钉M4×4.7
27	20612004	前罩板卡簧1
28	S01031	螺钉M4×4.7
29	20626001	铰链销
30	S10007	螺钉M4×4
31	20627001	铰链销弹簧
32	20601007	铰链
33	S01003	螺钉M4×12
34	20612007	四线前左挡板
35	20612008	五线前挡板
36	20501018	挡板(包兜机)
37	S01002	螺钉M4×6.5
38	20612001	固定板
39	S01002	螺钉M4×6.5
40	20611003	皮带轮护罩
41	S01013	螺钉M6×14
42	20131063	警告牌
43	S01003	螺钉M4×12
44	20612062	垫片
45	20501002	796大过线架
46	S01035	螺钉M4×7.5
47	300473	796上盖

Page 28

Jack JK-788 parts on page 28

Ref	Part number	Part name	Qty
21	788/796-6-36	38, 70, 86, 356
22	788/796-5-48
47	788/796-4-13
47	788/796-4-1682, -17.01
48	788/796-3-180	-4-181
49	788/796-3-01, 180
12	788/796-5
34	788/796-5
34	788/796-4-13
34	788/796-3 1682, -17
11	788/796-3, 4

Page 29 — 第三部件 机罩部件(Cover Assenblies)

Jack JK-788 parts on page 29

Ref	Part number	Part name	Qty
	20612011	后窗板
	S01010	螺钉M4×8
	S01003	螺钉M4×12
	20601008	左盖板
	L02001	螺钉M4×8
	20601009	针杆前罩
	20626002	针杆前销
	S10007	螺钉M4×4
	20612012	针杆前罩销
	S01031	螺钉M4×4.7
	206S30002	针板座卡簧螺钉
	20611004	三四线观察镜
	20611005	五线观察镜
	S01034	螺钉M3×5.7
	W01011	垫片
	20601010	支架
	20622003	减震垫
	206S20004	螺钉M4×3.7
	20628022	垫片
	20612015	下刀座前盖板
	S02005	螺钉M4×4.5
	20512016	五线台缝台
	2. 061E+09	缝台组件
	20603016	缝台衬套
	S10008	螺钉M4×6.5
	20628022	垫片
	206S20004	螺钉M4×3.7
	20627002	缝台簧
	20627003	缝台扭簧
	206S20006	螺钉M4×5.5
	20612019	缝台固定板
	20622003	减震垫
	S04005	螺钉M4×15.5
	N01001	螺母 M4
	20511009	缝台裙子
	S01002	螺钉M4×6.5
	20528017	垫片
	S01033	螺钉M4×20.5
	20531023	商标
	20622003	减震垫
	20612014	限位板
	S01022	螺钉M3×4
	20612016	下刀座前垫护板
	206S11008	螺钉SM9/64×40
	20622003	减震垫
	20612013	前盖板
	S01035	螺钉M4×7.5
	20612017	三四线缝台
	20512001	缝台盖
	20511006	缝台裙子
	30137005	警告牌

Page 30

Jack JK-788 parts on page 30

Ref	Part number	Part name	Qty
9	788/796-5	COVER
10	788/796-5	COVER
6	788/796-3,-4	COVER
7	788/796-3,-4	COVER
8	788/796-5	COVER
5	788/796-5	COVER
4	788/796-2,-4	COVER
1	788/796-5	COVER
2	788/796-5	COVER
3	788/796-5	COVER
11	788/796-5	COVER
12	788/796-5	COVER
13	788/796-5	COVER
14	788/796-5	COVER
15	788/796-5	COVER
16	788/796-5	COVER
17	788/796-5	COVER
18	788/796-5	COVER
19	788/796-5	COVER
20	788/796-5	COVER
21	788/796-5	COVER
22	788/796-5	COVER
23	788/796-5	COVER
24	788/796-5	COVER
25	788/796-5	COVER
26	788/796-5	COVER
27	788/796-5	COVER
28	788/796-5	COVER
29	788/796-5	COVER
30	788/796-5	COVER
31	788/796-5	COVER
32	788/796-5	COVER
33	788/796-5	COVER
34	788/796-5	COVER
35	788/796-5	COVER
36	788/796-5	COVER
37	788/796-5	COVER

Page 31 — 第四部件 主轴部件(Main Shaft Assemblies)

Jack JK-788 parts on page 31

Ref	Part number	Part name	Qty
	20602003	主轴
	206S14001	螺钉SM9/64×40×3.2
	20625002	蜗杆
	S10009	螺钉M6×8
	20602002	主轴接轴
	20612020	三四线左盖板
	S01010	螺钉M4×8
	20612021	五线左盖板
	S02004	螺钉M4×8
	S01010	螺钉M4×8
	20622004	左盖承油封
	20603006	主轴中轴套
	S01029	螺钉M3.5×7.5
	206S30003	主轴中套螺钉
	B01006	轴承6201RZ
	20628002	主轴后垫圈
	20628021	碟簧
	B01007	轴承
	20601011	主轴后挡板
	20622005	主轴后板油封
	20628001	主轴橡胶垫片
	S01010	螺钉M4×8
	20608001	螺旋型挡圈
	20622006	螺旋型挡圈油封
	20601012	风扇
	20501027	皮带轮
	S12004	螺钉M6×10
	S10009	螺钉M6×8
	207S13004	螺钉M6×16.3
	W02004	垫圈6
	S10002	螺钉M5×5
	S10002	螺钉M5×5
	20625001	外齿圈轴承组件
	S10010	螺钉M5×10
	20603005	主轴前套
	B03002	轴承6202RZ
	20501005	皮带轮罩

Page 32 — Refer to the gauge parts list.

Jack JK-788 parts on page 32

Ref	Part number	Part name	Qty
3	788/796-5-86, 6-355	Except788/796-5-86, 6-355
3	788/796-5-86, -6-355	788/796-5-86, -6-355
25	788/796-3	1本針(1-needle)
26	788/796-4	2本針(2-needle)
26	788/796-5	2本針(2-needle)
27	788/796-6	3本針(3-needle)

Page 33 — 第五部件 针杆部件(Needle Bar Assemblies)

Jack JK-788 parts on page 33

Ref	Part number	Part name	Qty
1	20605001	针杆连杆
2	S04005	螺钉M4×15.5
3	20604001	上铀曲柄
3	20604002	上铀曲柄
4	S05018	螺钉M6×0.75×12
5	20626003	送料大连杆销
6	S10008	螺钉M3×6
7	20602004	轴
8	20628006	垫片
9	206S30018	螺钉
10	20608002	上铀挡圈
11	S10007	螺钉M4×4
12	20622007	上铀左套油封
13	2060400400	针杆曲柄
14	206S30014	螺钉M6×0.75×12
15	20604003	针杆连杆曲柄
16	20626005	针杆曲柄销
17	206S30011	螺钉M3×4
18	20602006	针杆
19	20609003	针杆轧头
20	S01029	螺钉M3.5×7.5
21	20603017	针杆套
22	20622008	针杆O型圈
23	S10007	螺钉M4×4
24	20528012	垫片
25	206S14002	螺钉SM1/8×41×3
26	206S14002	螺钉SM1/8×41×3
27	206S14002	螺钉SM1/8×41×3
28	20612024	针杆底油板
29	20612023	针杆压油板
30	20623003	针杆油垫
31	206S20007	螺钉M4×5.2
32	20612022	针杆下板
33	S01002	螺钉M4×6.5
34	20603001	上铀左套筒
35	20603002	上铀右套筒
36	20603014	针杆上铀套
37	20603015	针杆下铀套
38	20626004	油线销
39	20523004	油线
40	20123021	油线
41	20621001	回油管

Page 34

Jack JK-788 parts on page 34

Ref	Part number	Part name	Qty
27	788/796-5	G
26	788/796-5	G
22	788/796-5	G
24	788/796-5	G
16	788/796-5	G
17	788/796-5	G
18	788/796-5	G
19	788/796-5	G
20	788/796-5	G
28	788/796-5	G
25	788/796-5	G
23	788/796-5	G
6	788/796-4, -4	G
5	788/796-4, -4	G
4	788/796-4, -4	G
3	788/796-4-43	G
	788/796-4-43	G
	788/796-4-43	G
13	788/796-3-180	G
10	788/796-3-180	G
11	788/796-3-180	G
16	788/796-3-180	G
1	788/796-3-180	G
7	788/796-3-180	G
8	788/796-3-180	G
2	788/796-3-180	G
14	788/796-3-180	G
15	788/796-3-180	G
12	788/796-3-180	G
9	788/796-3-180	G
21	788/796-3-180	G

Page 35 — 第六部件 护针部件(Support Needle Assemblies)

Jack JK-788 parts on page 35

Ref	Part number	Part name	Qty
1	20609006	针板垫块
2	S01010	螺钉M4×8
3	206S30021	螺钉
4	206S11005	螺钉SM11/64×40
5	20609004	针板固定座
6	S01010	螺钉M4×8
7	20609005	针板固定板
8	S01028	螺钉M3.5×5.7
9	205S30005	挡板螺钉
10	206S12002	螺钉SM9/64×40
11	20128032	护针垫圈
12	20609005	针板固定板
13	S01028	螺钉M3.5×5.7
14	20601015	护针架
15	S01030	螺钉M3.5×9.7
16	20622003	减震垫
17	20609007	五线针板固定块
18	S01010	螺钉M4×8
19	20609008	五线针板垫块
20	S01010	螺钉M4×8
21	20501006	针板垫块
22	206S17001	螺钉SM11/64×40
23	S01027	螺钉M3×6
24	206S30022	螺钉
25	S01027	螺钉SM3/32×56
26	206S12002	螺钉SM9/64×40
27	20128032	护针垫圈
28	S01027	螺钉M3×6

Page 36

Jack JK-788 parts on page 36

Ref	Part number	Part name	Qty
4	788/796-3, -5-36, -38, -70	Part 4
4	788/796-4, -5-48, -86, -6-355 -2	Part 4
5	N/A	Part 5
6	N/A	Part 6
7	N/A	Part 7
8	N/A	Part 8
9	N/A	Part 9
10	N/A	Part 10
11	N/A	Part 11
12	N/A	Part 12
13	N/A	Part 13
14	N/A	Part 14
15	N/A	Part 15
16	N/A	Part 16
17	N/A	Part 17
18	N/A	Part 18
19	N/A	Part 19
20	N/A	Part 20
21	N/A	Part 21
22	N/A	Part 22
23	N/A	Part 23
24	N/A	Part 24
25	N/A	Part 25
26	N/A	Part 26
27	N/A	Part 27
28	N/A	Part 28
29	N/A	Part 29
30	N/A	Part 30
31	N/A	Part 31
1	N/A	Part 1
2	N/A	Part 2
3	N/A	Part 3

Page 37 — 第七部件 上弯针部件(Upper Looper Assemblies)

Jack JK-788 parts on page 37

Ref	Part number	Part name	Qty
	20605002	弯针连杆
	S04005	螺钉M4×15.5
	20628007	连杆垫片
	20604005	0号球齿柄
	20604008	2号球齿柄
	L02005	螺钉M6×0.75×9
	20602018	轴
	20628006	垫圈
	206S30018	螺钉M5×10
	20528012	上弯针垫圈
	20622019	油封
	S01002	螺钉M4×6.5
	20602007	上弯针摆杆
	206S30014	螺钉M6×0.75×12
	2060200800	上弯针滑杆组件
	20623005	上弯针滑杆套油毡
	20626006	上弯针滑杆销
	206S30011	螺钉
	20609009	上弯针滑杆固定块
	S05019	螺钉M6×16.3
	20623009	海棉塞
	20612025	上弯针过线挡板
	206S17002	螺钉SM3/32×56
	206S11004	螺钉SM9/64×40
	20626007	上弯针滑杆加油器
	20626020	过油塞滚珠
	S10007	螺钉M4×4
	20603011	上弯针后套
	20603010	上弯针前套
	20623001	机头油塞
	20523004	BRC-752油线
	206S11007	螺钉

Page 38

Jack JK-788 parts on page 38

Ref	Part number	Part name	Qty
4	788/796-5	4
5	788/796-4	5
6	788/796-3	6
1	1	1
2	2	2
3	3	3
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19

Page 39 — 第八部件 下弯针部件(Lower Looper Assemblies)

Jack JK-788 parts on page 39

Ref	Part number	Part name	Qty
	20605002	弯针连杆
	S04005	螺钉M4×15.5
	20628007	连杆垫片
	20604007	五号球曲柄
	20604008	2号球曲柄
	20604006	1号球曲柄
	L02005	螺钉M6×0.75×9
	20602018	轴
	20628006	垫圈
	206S30018	螺钉M5×10
	20530112	垫圈
	20622019	油封
	20604009	下弯针架
	20626008	下弯针架销
	20626009	下弯针架上销
	205S30036	螺钉
	206S11002	螺钉SM9/64×40
	20603010	下弯针轴前套
	20603011	下弯针轴后套

Page 40

Jack JK-788 parts on page 40

Ref	Part number	Part name	Qty
	1	ASSEMBLY
	2	BRACKET
	3	SCREW
	4	LEVER
	5	SCREW
	6	ASSEMBLY
	7	SCREW
	8	SHAFT
	9	WASHER
	10	LEVER
	11	SPRING
	12	KNOB
	13	PLATE
	14	BRACKET
	15	SCREW
	16	WASHER
	17	SCREW
	18	WASHER
	19	CONNECTING ROD
	20	BRACKET
	21	SCREW
	22	SHAFT
	23	SCREW
	24	GEAR
	25	BRACKET
	26	WASHER
	27	SCREW
	28	HOUSING
	29	SCREW
	30	SHAFT
	31	SCREW
	32	HOUSING
	33	SCREW
	34	COVER
	35	SPRING
	36	LEVER
	37	SPRING
	38	SPRING
	39	WASHER
	40	WASHER
	41	SLEEVE

Page 41 — 第九部件 差动送布部件(Differential Feed Assemblies)

Jack JK-788 parts on page 41

Ref	Part number	Part name	Qty
	2060401100	香蕉曲柄组件
	206S11013	螺钉M3×8
	S05018	螺钉M6×0.75×12
	20605005	差动连杆
	206S20003	螺钉M5×3.2
	20604013	差动曲柄
	S05018	螺钉M6×0.75×12
	20602010	差动轴
	20622010	差动轴O型圈
	20612027	差动扳手
	20627006	差动扳手定位簧
	206S20005	螺钉M5×8.5
	20612028	差动固定板
	20609010	固定板定位块
	501003	螺钉M4×12
	206S16001	差动扳手螺母
	206S30010	螺钉SM11/64×40
	20628009	碟簧
	20605003	送料大连杆
	20605004	送料摇杆
	S05018	螺钉M6×0.75×12
	20626003	送料大连杆销
	S10008	螺钉M3×6
	B07008	轴承K20×24×10
	2061000100	送布固定组件
	20622009	开针轴O型圈
	S10002	螺钉M5×5
	20610003	送布凸轮
	20610002	小偏心
	20629001	弹簧片
	S10001	螺钉M3×4
	20610005	送料偏心
	20626011	送料偏心开口销
	20610004	U型槽
	20627004	送料偏心弹簧
	205S30031	螺钉M2×3
	20602009	开针轴
	20627005	开针轴弹簧
	20629006	卡簧
	20628008	开针轴垫片
	20603009	差动插套筒

Page 42

Jack JK-788 parts on page 42

Ref	Part number	Part name	Qty
4	788/796-5-48	除外
3	788/796-5-48
	788/796-3,-4

Page 43 — 第十部件 送料部件(Feed Dog Assemblies)

Jack JK-788 parts on page 43

Ref	Part number	Part name	Qty
	2060600100	牙架组件
	20621005	时规带
1189	206S11003	螺钉SM9/64×40×6
1175-3	206S11002	螺钉SM9/64×40×10
204122	20605006	牙叉连杆销
204114	20626013	牙叉连杆销
5231	206S12001	螺钉SM11/64×40×18
204115	20628012	牙叉连杆垫片
205857	20609011	牙架偏心轴滑块
204439A	20628013	小偏心垫片
7041	S02007	螺钉M3×5
240310	20622012	油封
204810	20603019	抬牙滑块
209595	20606003	牙架挡块
7019	S01010	螺钉M4×8
208109	20622013	防油隔板
209519	20601017	防油柄
7009	S01006	螺钉M3×4.5
209584	20602011	送料轴
7082	S01035	螺钉M4×7.5
240311	20628011	送料轴垫圈
204107	20528018	垫片
4543	S10007	螺钉M4×4
208101	20608003	挡圈
5084	205S30037	螺钉
209673	20609012	调压套筒
5492	206S11009	螺钉SM3/32×56×6
1175-2	206S11001	螺钉SM9/64×40×8
204111A	20605007	右牙叉连杆
204114	20626013	牙叉连杆销
5231	206S12001	螺钉SM11/64×40×18
204115	20628012	牙叉连杆垫片
209564-92	20604014	送料曲柄
4533	S05018	螺钉M6×0.75×12
209677	20626012	送布曲柄销
4805	N01004	螺母
202045	20528015	送布曲柄垫圈
209672	20602012	调牙轴
209530	20603007	送布轴后套
209531	20603008	送布轴前套
208173	20628023	送布轴油封

Page 44

Jack JK-788 parts on page 44

Ref	Part number	Part name	Qty
11	788/796-5	788/796-5
12	788/796-3, -4	788/796-3, -4
10	788/796-5	788/796-5
9	788/796-3, -4	788/796-3, -4
13	788/796-3, -4	788/796-3, -4
17	788/796-5	788/796-5
19	788/796-5	788/796-5
23	788/796-3, -4	788/796-3, -4
24	788/796-3, -4	788/796-3, -4
14	788/796-5	788/796-5
16	788/796-3, -4	788/796-3, -4
8	8	8
25	25	25
26	26	26
7	7	7
6	6	6
3	3	3
4	4	4
5	5	5
1	1	1
2	2	2
15	15	15
18	18	18
20	20	20
21	21	21
22	22	22

Page 45 — 第十一部件 切刀部件(Trimming Assemblies)

Jack JK-788 parts on page 45

Ref	Part number	Part name	Qty
	20605008	上刀连杆
	S04005	螺钉M4×15.5
	20602013	上刀曲柄
	S05018	螺钉M6×0.75×12
	20626003	曲柄销
	S10008	螺钉M3×6
	20628014	上刀架垫片
	20619001	上刀架
	20609013	上刀座
	20609014	上刀座
	20626014	三四线上刀曲柄轴销
	20626015	上刀曲柄销
	S01029	螺钉M3.5×7.5
	20601019	五线角板
	201S12001	螺钉SM9/64×40×8
	20604015	下刀架
	20604016	下刀架
	S01010	螺钉M4×8
	S01003	螺钉M4×12
	20101026	下刀架压板
	201S12005	螺钉SM11/64×40×8.5
	20627007	下刀架弹簧
	20601018	三四线角板
	S01003	螺钉M4×12
	20603003	上刀轴前轴套
	20603004	上刀轴后轴套

Page 46

Jack JK-788 parts on page 46

Ref	Part number	Part name	Qty
34	788/796-5-86	02*250除外
34	788/796-5-86	02*250
35	788/796-5,-6,	除86,02*250
35	788/796-86,	02*250
36	788/796-2,-3-4	788/796-2,-3-4
5	788/796-5	788/796-5
4	788/796-3,-4	788/796-3,-4

Page 47 — 第十二部件 压脚部件(Presser Fot Assemblies)

Jack JK-788 parts on page 47

Ref	Part number	Part name	Qty
	20616002	压脚臂
	20626016	压脚臂连杆销
	S10011	螺钉M4×0.5×4
	20612032	三四线护手
	20612033	五线护手
	S01022	螺钉M3×4
	20619005	割线刀
	S01006	螺钉M3×4.5
	20602014	压脚轴
	20603020	压脚轴套筒
	S10007	螺钉M4×4
	20627009	小杠杆弹簧
	20612030	抬压脚小杠杆
	20608004	抬压脚复位圈
	S05017	螺钉M6×0.75×13.5
	20616001	压脚吊勾
	20612029	抬牙脚杠杆
	20627008	杠杆复位弹簧
	206S20001	螺钉M10×1.5×8.5
	20612031	压脚角板
	S01010	螺钉M4×8
	S01023	螺钉M5×24
	N01004	螺母M5
	20602015	压杆
	P03006	销4.5×18
	20611006	压杆减震块
	20627011	压杆弹簧
	206S30004	压杆调节柱
	20612034	压杆板手
	20627010	压杆扳手弹簧
	206S30017	螺钉M4×4.2
	20612035	压杆扳手限位板
	S01002	螺钉M4×6.5
	S01006	螺钉
	206S20008	螺钉
	20612036	压脚弹簧
	20612012	压脚弹簧
	20612036	压脚限位板

Page 48 — JK788 包兜机专用件

Jack JK-788 parts on page 48

Ref	Part number	Part name	Qty
1	1	Presser Foot Bar
2	2	Presser Foot Bar
3	3	Presser Foot Bar
4	4	Needle Bar Connecting Link
5	5	Needle Bar Connecting Link
6	6	Needle Bar Connecting Link
7	7	Needle Bar Connecting Link
8	8	Needle Bar Connecting Link
9	9	Needle Bar Connecting Link
10	10	Needle Bar Connecting Link
11	11	Needle Plate
12	12	Needle Plate
13	13	Needle Plate
14	14	Needle Plate
15	15	Needle
16	16	Needle
17	17	Needle
18	18	Needle
19	19	Needle
20	20	Needle
21	21	Needle
22	22	Needle
23	23	Needle
24	24	Needle
25	25	Needle
26	26	Needle
27	27	Needle
28	28	Needle
29	29	Needle
30	30	Needle
31	31	Needle
32	32	Needle
33	33	Needle
34	34	Needle
35	35	Needle
36	36	Needle
37	37	Needle
38	38	Needle
39	39	Needle
40	40	Needle
41	41	Needle
42	42	Needle
43	43	Needle
44	44	Needle
45	45	Needle
46	46	Needle
47	47	Needle
48	48	Needle
49	49	Needle
50	50	Needle
51	51	Needle

Page 49 — 第十三部 件 包 兜 机 (02*250)专用 部件 (Appropriative Assemblies for 02*250)

Jack JK-788 parts on page 49

Ref	Part number	Part name	Qty
	20517007	右后护针档
	20517008	左后护针档
	20517009	右后护针档
	20501015	护针档座
7010	S01027	螺钉
7019	S01010	螺钉M4×8
7010	S01027	螺钉
	20501016	卷具组件
	20528009	垫片
7012	S01028	螺钉M3.5×6
	20515006	针板
	S01009	螺钉
	20528010	垫片
	20512012	缝料挡板
	20534002	针夹头
	20519003	下刀
	20526001	上刀架销
	20502002	上刀架销
	20519004	上刀
	20501017	上刀座
7019	S01010	螺钉M4×8
	20506006	牙齿
7019	S01010	螺钉M4×8
	20516007	压脚组件
	20504001	右弯针
	20504001	弯针架
	205S30029	螺钉
209685-C	20517021	前弯针
1189	206S11003	螺钉SM9/64×40×6
	20528011	垫片
	205S30030	螺钉
	20512013	过线管组件
	20512014	过线件
	10122006	油封
	20503002	上弯针轴
	20501018	挡板
	20501019	卷具架
	20501020	上弯针密封板
	20501021	前盖板
	20513006	过线管组件
000406	20531001	固定棒帽
000405	20531002	过线架
000404	20531003	托盘
0004012	20531004	螺母
000407	20531005	螺钉
000408	20531006	螺钉
000409	20531007	螺钉
0004908	20531008	固定棒
000410-SA	20531009	带子架座
004818	20531010	螺钉
7019	S01010	螺钉

Page 50

Jack JK-788 parts on page 50

Ref	Part number	Part name	Qty
1	1	GEARBOX HOUSING
2	2	GEARBOX COVER
3	3	SHAFT
4	4	BEARING
5	5	BEARING
6	6	WASHER
7	7	RING
8	8	RING
9	9	BEARING
10	10	RING
11	11	RING
12	12	SCREW
13	13	SHAFT
14	14	SEAL
15	15	RING
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BOLT
20	20	WASHER
21	21	BOLT
22	22	BRACKET
23	23	BOLT
24	24	BOLT
25	25	WASHER
26	26	NUT
27	27	GASKET
28	28	BOLT
29	29	BOLT
30	30	O-RING
31	31	BRACKET
32	32	BOLT
33	33	BRACKET
34	34	BOLT
35	35	HOUSING
36	36	RING
37	37	FILTER
38	38	BRACKET
39	39	VALVE
40	40	VALVE
41	41	FILTER
42	42	BOLT
43	43	BRACKET
44	44	SHAFT

Page 51 — 第十四部件 油泵部件(Lubrication Assemblies)

Jack JK-788 parts on page 51

Ref	Part number	Part name	Qty
	2062000200	油泵组件
	20620001	油泵蜗轮
	S10002	螺钉M5×5
	20620005	油泵盖
	20601022	油缸
	S01028	螺钉M5×5.7
	20620007	油泵滤油网
	20620008	油泵滤油网
	20620006	油泵卡箍
	206S11013	螺钉M3×8
	206S16003	螺母
	S04005	螺钉
	2032100400	油管
	20636001	油管接头
	20629002	油管卡簧
	20601020	油管架
	S01002	螺钉
	20122034	垫片
	206S30009	过油螺钉
	206S30008	油管支柱
	S04005	螺钉M4×15.5(788)
	20521013	油管
	301S30012	过油螺钉
	20601021	油盘
	201S11031	螺钉SM3/8×28×12
	20528014	垫圈
	20622015	油盘油封
	S05019	螺钉M5×11.5
	20628018	垫片
	20122033	垫片
	20528015	垫片
	206S30007	过油螺钉
	20521007	铜油嘴
	S01003	螺钉M4×12
	20501028	滤油器盖
	001010	O型圈 38.7X3.55
	20136001	滤油器
	20129002	卡簧
	2032100400	油管
	20521012	油管
	300140	滤油器盖
	20121013	滤油器接头
	20501003	供油管
	20621006	针杆回油管

Page 52

Jack JK-788 parts on page 52

Ref	Part number	Part name	Qty
5	788/796-5	788/796-6-355 缝外 Except 788/796-6-355
31	788/796-6-355	788/796-6-355
3	788/796-3, -4, -2, -6	788/796-3, -4, -2, -6
6	788/796-3, -4, -2, -6	788/796-3, -4, -2, -6
19	788/796-3, -4, -2	788/796-3, -4, -2
19	788/796 5, -6	788/796 5, -6
17	788/796-4	788/796-4
11	788/796-4, -2	788/796-4, -2
12	788/796-5, -6	788/796-5, -6
18	788/796-5	788/796-5
25	788/796-4	788/796-4
26	788/796-4	788/796-4
27	788/796-4	788/796-4
28	788/796-4	788/796-4
29	788/796-4	788/796-4
30	788/796-4	788/796-4
20	788/796-4	788/796-4
21	788/796-4	788/796-4
22	788/796-4	788/796-4
23	788/796-4	788/796-4
24	788/796-4	788/796-4

Page 53 — 第十五部件 过线部件(Thread Guide Assemblies)

Jack JK-788 parts on page 53

Ref	Part number	Part name	Qty
	20613010	弯针过线
	S01010	螺钉M4×8
	20613002	机针过线
	20613005	过线
	S01035	螺钉M4×7.5
	20613003	二四线过线
	20613004	五线上过线
	S01035	螺钉M4×7.5
	20601023	压线板架
	205S30038	螺钉
	20612046	三四线压线板
	20612047	五线压线板
	20612048	压线过线板
	20627013	压线弹簧
	206S20008	螺钉M3×2.5
	20612049	护线板
	206S30019	螺钉M3×2.5
	20613007	五线过线
	2061204600	三四线压线板组件
	2061204700	五线压线板组件
	20613013	弯针过线
	S01010	螺钉M4×8
	20613014	上弯针过线
	S01022	螺钉M3×4
	W01011	垫圈
	20613009	弯针过线
	S01010	螺钉M4×8
	20613008	弯针架过线
	20613012	机针过线
	S01002	螺钉M4×6.5
	20613011	上弯针过线
	20613006	六线过线

Page 54

Jack JK-788 parts on page 54

Ref	Part number	Part name	Qty
10	796	Diagram 796
11	796	Diagram 796
12	796	Diagram 796
13	796	Diagram 796
14	796	Diagram 796
10	1784-2	Bracket and rollers
14	36.785 J.3	Bracket and rollers
15	1784-3	Bracket and rollers
15	7784-5-18	Bracket and rollers
15	1784-4-181	Bracket and rollers
15	1796-4-181	Bracket and rollers
15	3.785-0-156	Bracket and rollers
15	7796-0-356	Bracket and rollers
16	1784-12-250	Bracket and rollers
19	1796-0-356	Bracket and rollers

Page 55 — 第十六部件 夹线器部件(Tension Spring Assemblies)

Jack JK-788 parts on page 55

Ref	Part number	Part name	Qty
	2061600500	夹线器组件
	2061600600	夹线器组件
	2061600700	夹线器组件
7170	206S30016	螺钉M4×4.5
	2061600900	夹线器组件
	3011600600	夹线器组件
	2061600800	夹线器组件
	2061601000	夹线器组件
	206S30016	螺钉M4×4.5
	20513002	过线板
	2071100400	夹线器
	2071100500	夹线器
	20513002	过线板
	2071100400	夹线器
	2071100700	夹线器
	2071100500	夹线器
	20513002	过线板
	2071100400	夹线器
	2071100300	夹线器
	2071100700	夹线器
	2071100500	夹线器
	20513002	过线板
	2071100400	夹线器
	2071100300	夹线器
	2071100700	夹线器
	2071100500	夹线器

Page 56

Jack JK-788 parts on page 56

Ref	Part number	Part name	Qty
1	1	RING
2	2	YOKE
3	3	SHAFT
4	4	SCREW
5	5	PLUG
6	6	SHAFT
7	7	SCREW
8	8	PIN
9	9	BRACKET
10	10	SCREW
11	11	SHAFT
12	12	PIN
13	13	SCREW
14	14	BRACKET
15	15	BRACKET
16	16	SHAFT
17	17	BEARING
18	18	SCREW
19	19	SCREW
20	20	BRACKET
21	21	COLLAR

Page 57 — 十七部件 五线推移轴部件 (Five-thread Process Shaft Assemblies)

Jack JK-788 parts on page 57

Ref	Part number	Part name	Qty
1	20609016	五线滑块
2	20604018	五线叉形曲柄
3	20602016	五线推移轴
4	S10002	螺钉M5×5
5	20622012	油封
6	20601024	五线推移连接柱
7	S10002	螺钉M5×5
8	20626017	五线销
9	20604019	链线弯左曲柄
10	S10002	螺钉M5×5
11	20602019	轴
12	20626018	五线弯针球齿柄销
13	206S30011	螺钉M3×4
14	20609017	连板
15	20604020	链线弯针曲柄
16	S05018	螺钉M6×0.75×12
17	20622019	油封
18	205S30036	螺钉M6×0.75×12
19	206S11001	螺钉
20	20602017	五线弯针架
21	20603013	链线弯针套筒

Page 58

Jack JK-788 parts on page 58

Ref	Part number	Part name	Qty
25	788/796-5	788/796-5, -6
26	788-796-02*250	788-796-02*250

Page 59 — 第十八部件 打线凸轮部件(Cam Assemblies)

Jack JK-788 parts on page 59

Ref	Part number	Part name	Qty
	20613015	过线管
	20629003	过线管夹
	S01010	螺钉M4×8
	20613016	过线管
	20629003	过线管夹
	20612057	打线凸轮架
	206S20004	螺钉M4×3.7
	20128015	波形垫圈
	20629005	卡簧
	206S30015	螺钉M3×2
	20612055	小夹线片
	3012016	夹线簧
	206S16004	夹线螺母
	20612056	分线板
	S01031	螺钉M4×4.7
	20629004	打线架卡簧
	S01022	螺钉M3×4
	20613017	凸轮架螺钉
	S01022	螺钉M3×4
	20612058	打线凸轮
	S10005	螺钉M3×3
	20613018	过线
	S01010	螺钉M4×8
	20611010	导线管套
	2061205700	打线凸轮架组件
	2061205900	打线凸轮架组件

Page 60

Jack JK-788 parts on page 60

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33

Page 61 — 第十九件 硅油盒部件(Oil Reservoir Assemblies)

Jack JK-788 parts on page 61

Ref	Part number	Part name	Qty
	20622017	上硅油盒壳
	20623009	油毡
	20622018	上硅油盒盖
	20612061	上硅油固定壳
	S01010	螺钉M4×8
	20611011	下回油盒
	20522002	下硅油盒盖
	S01003	螺钉M4×8
	20612062	油管螺钉垫片
	20626019	油毡固定销
	20621001	硅油管
	2050102200	三四下硅油盒组件
	2060402100	五线下硅油盒组件
	20612060	上硅油盒底板
	20617003	下硅油固定滚珠
	S01010	螺钉M4×8
	20623010	油毡
	20623009	油毡
	201S11009	螺钉
	20128020	垫圈
	20112054	挡料板
	20112055	挡料板
	20112056	挡料板座
	20126020	铰链销
	201S11011	铰链簧螺钉
	20112053	铰链弹簧
	20128020	垫圈
	201S12001	铰链螺钉
	201S16003	螺母
	20112051	送料支架
	201S11016	送料支架螺钉
	20128027	垫圈
	201S20002	螺钉
	20112052	铰链

Page 62

Jack JK-788 parts on page 62

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	BRACKET
3	3	BRACKET
4	4	SCREW
5	5	WASHER
6	6	BRACKET
7	7	BRACKET
8	8	SCREW
9	9	SCREW
10	10	WASHER
11	11	NUT
12	12	SCREW
13	13	WASHER
14	14	BASE
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	BASE
19	19	BRACKET
20	20	SCREW
21	21	SCREW
22	22	SPRING
23	23	BRACKET
24	24	SCREW
25	25	BRACKET
26	26	SCREW
27	27	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	SCREW
37	37	SCREW
38	38	SCREW
39	39	SCREW

Page 63 — 第二十部件专用部件 (Appropriative Assemblies )

Jack JK-788 parts on page 63

Ref	Part number	Part name	Qty
	206S11014	螺钉
	20612045	角板
	20612046	角板
	206S11015	螺钉
	20628018	垫片
	206S11019	螺母
	20628019	垫片
	206S11016	螺钉
	206S11017	螺钉
	20612047	连接板
	206S11018	螺钉
	S01010	螺钉4×8
	W02002	垫圈4
	20612053	压脚挡板
	20612043	支架
	201S12001	螺钉
	20628017	垫片
	20612041	固定块
	206S11018	螺钉
	20612042	挡板
	206S11011	螺钉
	206S11012	螺钉
	206S11010	螺钉
	20628016	垫片
	20612044	角板
	206S11013	螺钉
	20612040	导向片
	20612048	挡板
	20628020	螺钉
	20612049	弹簧片
	20612050	垫块
	20531026	带条上导板
	20531027	带条调整板
	20515003	一线针板
	20516004	一线压脚
	20517002	一线弯针
	20117014	机针
	20634001	针夹头
	20517020	前护针板

Page 64

Jack JK-788 parts on page 64

Ref	Part number	Part name	Qty
	1	Lever
	2	Bracket
	3	Bracket
	4	Screw
	5	Screw
	6	Washer
	7	Screw
	8	Screw
	9	Shaft
	10	Screw
	11	Washer
	12	Screw
	13	Screw
	14	Screw
	15	Screw
	16	Screw
	17	Screw
	18	Screw
	19	Washer
	20	Screw
	21	Screw
	22	Washer
	23	Washer
	24	Nut
	25	Handle
	26	Screw
	27	Spring
	28	Spring
	29	Shaft
	30	Screw
	31	Washer
	32	Spring
	33	Screw
	34	Screw
	35	Screw
	36	Screw
	37	Screw
	38	Screw
	39	Lever
	40	Screw
	41	Washer
	42	Screw
	43	Screw
	44	Screw
	45	Screw
	46	Bracket
	47	Bracket
	48	Cover
	49	Screw

Page 65 — 第二十一部件 BRC-732-48专用部件(Appropriative Assemblies For 48)

Jack JK-788 parts on page 65

Ref	Part number	Part name	Qty
1	20521006	打褶器
2	20521002	打褶器连接板
3	S01007	螺钉M4×13.5
4	20528004	连接板垫片
5	205S30018	连接板右侧螺钉
6	20528005	连接板右侧垫片
7	20501012	支架
8	206S11004	支架螺钉
9	20521004	打褶器支座
10	205S30017	连接板固定螺钉
11	20528003	连接板垫片
12	205S16002	连接固定螺母
13	20521003	小连接板
14	205S30020	小连接板螺钉
15	20527005	支架弹簧板
16	206S11004	支架螺钉
17	20501013	打褶器座
18	205S30024	螺钉
19	20529003	调压簧
20	201S30016	螺钉SM11/64×40×21.5
21	20503001	调压螺钉套
22	20528008	夹线器垫片
23	30111006	调压止动套
24	301S16006	调压螺母
25	20511008	手柄
26	205S30021	连接固定螺母
27	20511007	手柄座
28	20527006	弹簧
29	20502001	打褶器轴
30	20629006	卡簧
31	20528006	垫片
32	20527007	弹簧
33	20529002	挡圈
34	S10009	螺钉M6×8
35	20521005	方板
36	205S30023	螺钉
37	2051200900	松线组件
38	205S30013	支座接头螺钉
39	205S30011	带孔螺钉
40	20528008	垫片
41	205S16002	螺母
42	20512008	吊板
43	205S16003	螺母
44	205S30012	吊板螺钉
45	S01028	螺钉M3.5×6
46	20512007	支座接头板
47	205S30010	支板紧固螺钉
48	20512011	卷边器
49	20528007	垫片

Page 66

Jack JK-788 parts on page 66

Ref	Part number	Part name	Qty
3	3	SCREW
2	2	BRACKET
7	7	SCREW
12	12	WASHER
13	13	BRACKET
1	1	BRACKET
5	5	SCREW
4	4	BRACKET
6	6	BRACKET
11	11	SCREW
10	10	WASHER
9	9	WASHER
8	8	SCREW

Page 67 — 第二十二部 件 托盘部件 (Machine Rest Board Assemblies)

Jack JK-788 parts on page 67

Ref	Part number	Part name	Qty
1	20631005	托盘
2	20631002	接料盒
3	206S30012	木螺钉ST4×19
4	20631008	挑料桶
5	206S30013	木螺钉ST4×19
6	20631009	挑料桶
7	20631001	螺钉固定头
8	S05017	螺钉M8×55
9	20631007	卡簧
10	20631003	垫片
11	20631006	花垫片
12	20631003	垫片
13	20631004	托盘减震垫

Page 68

Jack JK-788 parts on page 68

Ref	Part number	Part name	Qty
1	1	BRACKET ARM
2	2	BRACKET ARM
3	3	BRACKET ARM
4	4	BRACKET ARM
5	5	SPRING
6	6	SPRING
7	7	BASE PLATE
8	8	BASE PLATE
9	9	BOLT
10	10	BOLT
11	11	POST
12	12	POST
13	13	WASHER
14	14	NUT
15	15	DISC
16	16	DISC
17	17	CAP
18	18	BRACKET
19	19	PIN
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BOLT
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	COLLAR
28	28	BOLT
29	29	SPRING
30	30	SPRING
31	31	PIN
32	32	BRACKET ARM
33	33	BRACKET ARM
34	34	BRACKET ARM
35	35	BRACKET ARM
36	36	BOLT
37	37	COLLAR
38	38	WASHER
39	39	NUT

Page 69 — 第二十三部分 线架部件 (Thread Spool Assemblies)

Jack JK-788 parts on page 69

Ref	Part number	Part name	Qty
1	20631020	过线棒
2	30113019	过线棒
3	20631019	过线棒
4	20631018	过线棒
5	206S16008	螺钉
6	N01004	螺母M5
7	20631029	长线架
8	20631026	短线架
9	206S30025	螺钉
10	20631032	垫片
11	206S30024	螺钉
12	20631023	线棒
13	20631031	垫片
14	206S16006	螺母
15	20631025	托盘垫
16	20631024	线托盘
17	20631021	线固定套
18	20631015	棒架
19	206S30027	螺钉
20	206S16006	螺母
21	20631022	导线棒
22	206S30023	螺钉
23	206S16006	螺母
24	20631017	固定器
25	206S30023	螺钉
26	206S16006	螺母
27	20631012	线架上棒
28	20631027	线架下棒
29	20631016	锁紧卡固
30	206S30023	螺钉
31	206S16006	螺母
32	20631013	长过线架
33	20631014	短过线架
34	206S16008	螺钉
35	N01004	螺母M5
36	20631030	过线套
37	20631011	棒帽
38	20631028	垫片
39	206S16007	螺母

Page 70

Jack JK-788 parts on page 70

Ref	Part number	Part name	Qty
6	6	Oil can
7	7	Oil can nozzle
8	8	Funnel
9	9	Lever
10	10	Wrench
11	11	Wrench
12	12	Wrench
13	13	Wrench
14	14	Wrench
15	15	Allen wrench
16	16	Allen wrench
1	1	Screwdriver
2	2	Screwdriver
3	3	Screwdriver
4	4	Screwdriver
5	5	Screwdriver
18	18	Scraper
23	23	Scraper
17	17	Chain
22	22	Belt
20	20	Spool
19	19	Needles
21	21	Needles

Page 71 — 二十四、附件部件/Accessories Assemblies

Jack JK-788 parts on page 71

Ref	Part number	Part name	Qty
	10131002	螺丝刀(大) Screwdriver (large)	1
	10131003	螺丝刀(中) Screwdriver (medium)	1
	10131004	螺丝刀(小) Screwdriver (small)	1
	20131044	直柄内六角螺丝刀(1.5mm) Allen key/1.5mm	1
	20131045	直柄内六角扳手(1.6mm) Allen key/1.6mm	1
	20131037	油壶 Oil container	1
	20131038	油壶(尖嘴) Oil container	2
	20131039	the Tundish	1
	20131080	the Tweezers	1
	20131043	JK795-1908扳手(8mm) Wrench/8mm	1
	20131042	JK795-1907扳手(7mm) Wrench/7mm	1
	20131041	JK795-1906扳手(6mm) Wrench/6mm	1
	20131046	内六角扳手(2mm) Allen key/2mm	1
	30131012	内六角扳手(4mm) Allen key/4mm	1
	20131056	内六角扳手(6mm) Allen key/6mm	1
	30131026	内六角扳手(8mm) Allen key/8mm	1
	20131054	JK795-1919脚踏板鏈 Chain	1
202295	20619003	JK788-202295下刀 Uppwer knife
	20136001	滤油器 Uppwer knife	1
	201514001	S009螺釘 Screw	4
	30135004	皮带 Leather belt	1
204161	20619004	JK788-204161五線下刀片 Uppwer knife

Page 72

Jack JK-788 parts on page 72

Ref	Part number	Part name	Qty
	20615001	20514008
	20514008	20516012
	20517014	20617005
	20615001	20506001
	20506001	20516012
	20517014	20617005
	20615002	20506001
	20506001	20516014
	20517014	20617005
	20615003	20514010
	20514010	20516014
	20517014	20617005
	20515009	20514008
	20514008	20516017
	20517019	20617005
	20615004	20514008
	20514008	20516017
	20517019	20617005
	20619002	20619004
	20619004	20517012
	20515012	20517015
	20516016	20634003
	20619002	20619004
	20619004	20517012
	20515012	20517015
	20516016	20634003
	20619002	20514004
	20514004	20517012
	20515012	20517015
	20517016	20634003
	20615006	20514004
	20514004	20517012
	20515012	20517015
	20517016	20634003
	20619002	20514004
	20514004	20517012
	20515012	20517015
	20517016	20634003
	20619002	20514004
	20514004	20517020
	20515012	20517013
	20517016	20634001
	20619002	20514004
	20514004	20517020
	20515012	20517013
	20517016	20634002
	20619002	20514004
	20514004	20517020
	20515012	20517013
	20517016	20634001
	20619002	20501022
	20501022	20517020
	20515012	20517013
	20517016	20634002

Part BooksPartsSearchNotes

Part Books

×

Search

×

Jack JK-788 — parts catalog

• Page 1 (text): This page contains a prologue in both Chinese and English, thanking the customer for their purchase and providing instructions on how to use the manual.
• Page 2 (text): This page contains safety precautions for operating and maintaining the sewing machine, including warnings about removing parts, handling electrical power, and general safety rules.
• Page 3 (text): This page contains important safety precautions for operating and maintaining the sewing machine, including warnings about usage in certain countries, proper training, safety devices, and handling of lubricants and electrical components.
• Page 4 (text): This page contains important safety instructions for operating and maintaining the sewing machine, including general precautions, specific warnings, and information about warning symbols.
• Page 5 (text): This page contains safety precautions for operating an industrial sewing machine, including warnings about electrical hazards, mechanical dangers, and proper usage procedures.
• Page 6 (text): This page contains safety instructions for operating the sewing machine, divided into general precautions and specific warnings for before operation.
• Page 7 (toc): This page contains the table of contents for the manual, listing sections such as "Schematic diagram of the machine table", "Installing machine head", "Lubrication", "Presser foot pressure", "Cleaning the machine", "Replacing the needle", "Checking the oil circulation", "Checking the oil", "Replacing the lower knife", "Adjustment dimensions", "Standard needle Comparison table of epuivalent sizes", and "Gauge Parts List", along with their corresponding page numbers.
• Page 8 (diagram): This page contains a schematic diagram of the machine table, including dimensions and notes regarding motor specifications.
• Page 9 (text): This page contains instructions for installing the machine head, including mounting the head, adjusting belt tension, and installing the belt cover.
• Page 10 (text): This page provides information on the machine's rotation direction and speed, including a table listing various machine models and their corresponding maximum RPMs.
• Page 11 (text): This page provides instructions on lubricating the sewing machine, specifying the correct oil level and type of oil to use.
• Page 12 (text): This page provides instructions on manual lubrication for the sewing machine, specifying the type of oil to use and when to apply it, along with a diagram illustrating the lubrication points.
• Page 13 (text): This page describes how to adjust the presser foot pressure on an industrial sewing machine, indicating that the screw should be turned to adjust the pressure to be as light as possible while still obtaining proper stitch formation. It includes Chinese and English text and a diagram illustrating the adjustment.
• Page 14 (diagram): This page shows a diagram illustrating how to adjust the differential feed ratio on a sewing machine, with instructions in both Chinese and English. It also indicates directions for stretching and shrinking.
• Page 15 (text): This page describes how to adjust the stitch length on a sewing machine, including instructions in both Chinese and English, and a diagram illustrating the process.
• Page 16 (diagram): This page shows how to adjust the thread tension on the sewing machine, indicating the use of needle thread tension knob (1), upper looper knob (2), and lower looper knob (3). It also illustrates how to loosen and tighten a knob.
• Page 17 (diagram): This page shows a diagram illustrating the cleaning of the machine, specifically focusing on the slots of the needle plate and feed rows.
• Page 18 (diagram): This page shows how to replace the needle on an industrial sewing machine, including diagrams illustrating the correct and incorrect needle insertion, and instructions on using the correct needle and not removing a specific screw.
• Page 19 (diagram): This page shows a diagram of the sewing machine with a highlighted area indicating the oil circulation during operation.
• Page 20 (text): This page describes the maintenance schedule for replacing the oil in the sewing machine, indicating it should be done one month after the first use and every six months thereafter, with a reference to page 4 for more details.
• Page 21 (diagram): This page shows diagrams and instructions for replacing the lower knife on a sewing machine, including correct angles for resharpening and steps for removal and installation.
• Page 22 (text): This page contains adjustment dimensions for JK788/796-5 and JK788/796-3,4 series sewing machines, listing part numbers and corresponding measurements in millimeters.
• Page 23 (parts_list): This page contains two parts lists for JK788/796-5 and JK788/796-3,4 machine needles, along with a comparison table for needle sizes.
• Page 24 (diagram): This page displays a diagram of sewing machine components, detailing parts such as screws, casings, and other mechanical elements with their corresponding reference numbers and part numbers.
• Page 25 (parts_list): This page lists parts for the Frame Assembly, including part numbers, descriptions, and quantities for different machine thread types.
• Page 26 (diagram): This page displays a diagram of various components of an industrial sewing machine, including parts of the main body, covers, and handles, with reference numbers and some part numbers indicated.
• Page 27 (parts_list): This page lists parts for Cover Assemblies, including part numbers, descriptions, and quantities for different machine types.
• Page 28 (diagram): This page displays a diagram of various components and parts of an industrial sewing machine, including covers, brackets, and fasteners, with corresponding part numbers and reference indicators.
• Page 29 (parts_list): This page lists parts for "Cover Assemblies" of an industrial sewing machine, including part numbers, descriptions, and quantities for different machine types (three-thread, four-thread, five-thread).
• Page 30 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a shaft, bearings, pulleys, and a motor assembly, with corresponding reference numbers for identification.
• Page 31 (parts_list): This page lists parts for the Main Shaft Assemblies, including part numbers, descriptions, and quantities for different thread types.
• Page 32 (diagram): This page displays a diagram of gauge parts for an industrial sewing machine, with detailed illustrations and part numbers for various components, including specific needle gauges.
• Page 33 (parts_list): This page lists parts for Needle Bar Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 34 (diagram): This page contains diagrams of various sewing machine parts, including part numbers, reference numbers, and descriptions for components like needle plates and fingers, with some parts listed under specific model numbers.
• Page 35 (parts_list): This page lists parts for the Support Needle Assemblies, including part numbers, descriptions, and quantities for different thread types.
• Page 36 (diagram): This page displays a diagram of gauge parts for industrial sewing machines, with numbered components and their corresponding part numbers and descriptions.
• Page 37 (parts_list): This page lists parts for the Upper Looper Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 38 (diagram): This page displays a diagram of various machine parts, including screws, washers, and specialized components, with reference numbers and some part numbers indicated.
• Page 39 (parts_list): This page lists parts for Lower Looper Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 40 (diagram): This page contains a diagram illustrating various parts of an industrial sewing machine, with numbered references for each component. It includes parts such as levers, shafts, springs, and fasteners.
• Page 41 (parts_list): This page lists differential feed assemblies for sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 42 (diagram): This page displays a diagram of various machine parts, including a gauge parts list reference, with numbered components and associated part numbers.
• Page 43 (parts_list): This page lists parts for the Feed Dog Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 44 (diagram): This page displays a diagram of various machine parts, including part numbers, reference numbers, and descriptions. It also includes a note to refer to the gauge parts list.
• Page 45 (parts_list): This page lists parts for Trimming Assemblies, including part numbers, descriptions, and quantities for different thread types.
• Page 46 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and a cylinder, with corresponding reference numbers and part details listed below.
• Page 47 (parts_list): This page lists parts for the Presser Foot Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 48 (diagram): This page displays a diagram of JK788 overlock machine parts, with numbered components and their corresponding part numbers and descriptions.
• Page 49 (parts_list): This page contains a parts list for appropriative assemblies for the 02*250 model, listing part numbers, descriptions, and quantities.
• Page 50 (diagram): This page contains a diagram of various components of an industrial sewing machine, including detailed views of the gearbox, filter assembly, and other miscellaneous parts, with reference numbers for each component.
• Page 51 (parts_list): This page contains a parts list for lubrication assemblies, detailing part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 52 (diagram): This page contains diagrams of various sewing machine parts, including part numbers and reference numbers for identification.
• Page 53 (parts_list): This page lists parts for Thread Guide Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 54 (diagram): This page displays diagrams of various machine parts, including a main diagram labeled '796' and several smaller diagrams illustrating components like brackets and rollers, each with associated part numbers and reference indicators.
• Page 55 (parts_list): This page lists tension spring assemblies and related parts, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 56 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 21. It also includes a reference to a gauge parts list and the document identifier 788/796-5.
• Page 57 (parts_list): This page lists parts for Five-thread Process Shaft Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 58 (diagram): This page displays a diagram of various sewing machine parts, including part numbers, descriptions, and reference numbers for identification.
• Page 59 (parts_list): This page lists parts for Cam Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 60 (diagram): This page displays diagrams of various sewing machine parts, including a section labeled "796 专用挡料架" and two sections labeled "788/796-8,-4" and "788/796-5".
• Page 61 (parts_list): This page lists parts for the Oil Reservoir Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 62 (diagram): This page contains diagrams of various sewing machine parts, including part numbers and reference numbers for identification. It shows diagrams for 788/796-1, 788/796-4-13, and 788/796-2.
• Page 63 (parts_list): This page lists parts for the "Appropriative Assemblies" section, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 64 (diagram): This page displays a diagram of various machine parts, including components like levers, brackets, screws, and handles, with reference numbers for identification.
• Page 65 (parts_list): This page lists parts for BRC-732-48 appropriate assemblies for 48, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 66 (diagram): This page displays a diagram of various machine components, including screws, brackets, and mounting hardware, with reference numbers and a note about table thickness affecting the number of parts needed.
• Page 67 (parts_list): This page lists parts for the Machine Rest Board Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 68 (diagram): This page displays a diagram of various parts for an industrial sewing machine, including frame components, spools, and mounting hardware, with reference numbers for each part.
• Page 69 (parts_list): This page lists parts for Thread Spool Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
• Page 70 (diagram): This page displays a diagram of various machine parts, including a oil can, funnel, screwdrivers, wrenches, a chain, a belt, and other small components, each labeled with a reference number.
• Page 71 (parts_list): This page lists accessories and assemblies for industrial sewing machines, including screwdrivers, Allen keys, oil containers, tweezers, wrenches, chains, upper knives, screws, and leather belts, with their corresponding part numbers and quantities.
• Page 72 (parts_list): This page contains parts lists for JK788/796-5 and JK788/796-3,-4 machine types, detailing various components like needle plates, presser foot assemblies, loopers, and needles with their respective part numbers.

Page 1

开 头 语 衷心感谢您购买本公司产品！使用缝纫机之前，请认真阅读此说明书。本说明书介绍了缝纫 机日常使用、维护与安全的有关注意事项。请您 仔细加以保管，以便日后查阅。如产品规格或外 观经过改良可能会与说明书略有不同，恕不另行 通知。 PROLOGUE Thanking you for your purchase our products sincerely, please reading the manual book before operation, the book introduce some points how to operate, maintenance, and safe. Please keep it carefully for reading in the further; you will be not informed if the file has been revised. Please set sample as standard. - I - jintex.in

Page 2

为了安全 对于缝纫机本身及各种装置,我们充分考虑到它的安全性。请遵照基本的操作方法,安全地进行工作。 ●拆除为保证安全所设置的装置,零件的情况下,是非常危险的,请绝对不要拆除后使用。 ●缝纫机在使用时,请不要在缝纫机台上放置工具及缝纫时不必要的物品。 ●在母缝纫机进行检修、调节、清扫、穿线、换针等时,为防止发生事故,务必切断电源。 在确定即要缝纫机踏板时,缝纫机会后,再进行操作。 注意 使用离合式马达的情况下,在关掉电源 ①后因惯性作用马达仍会继续旋转。这时 如不注意踩缝纫机踏板②时,缝纫机会 突然动作,这是很危险的。 请在关掉电源后,仍继续踩缝纫机踏板② 直至缝纫机完全停下来为止。 CAUTION OBSERVE THESE SAFETY PRECAUTIONS Though JACK takes the utmost care to produce safe sewing machines and devices, operators should follow these basic safety rules. ● To prevent accidents, do not remove safety devices or parts while operating the machine. ● Do not leave tools or other unnecessary objects on the machine table while operating the machine. ● Before maintenance, adjusting, cleaning, threading or replacing the needle, and to prevent accidents, be sure the power is turned off. Check that the machine will not operate when the pedal is pressed. Note Incase a clutch type motor is used, it will keep on rotating by inertia after turning off power supply. If the machine pedal is stepped on inadvertently, it is dangerous because the machine will move unexpectedly.keep on stepping on the pedal until the machine comes to a stop after turning off power supply. ● 在离开缝纫机台时,务必关掉电源。 ● 停电时也请务必关掉电源。 ● 为了总是安全地,运转良好的缝纫机,日常的检查是不可缺少的。请予以注意。 ● Turn the power off before leaving the machine table. ● In the event of a power failure, be sure to turn the machine off. ● Check that the machine is securely grounded. -11- jintex.in

Page 3

重要安全事项 此缝纫机在有的国家（设 同时，技术服务也同样被禁 1. 使用此缝纫机时，必须遵守包括如下项目的基本安全措施。 2. 使用此缝纫机之前，请阅读本使用说明书在内的所有指示文件。 同时应将此使用说明书妥善保管，以便能够随时查阅。 3. 此缝纫机应与贵国的有关安全规定一起使用。 4. 使用此缝纫机和缝纫机动作中，所有的安全装置应安装到规定的位置。 没有安装规定的安全装置的缝纫机禁止使用。 5. 此缝纫机应由接受过培训的操作人员来操作。 6. 使用缝纫机时，建议佩戴安全防护眼镜。 7. 发生下列情况时，应立即关掉电源开关，或拔下电源线插头。 7-1 机针、弯针、分离器等穿线和调整挑线机构时。 7-2 更换机针、压脚、针板、弯针、分离器、送布牙、护针器、支架、布导向器等时。 7-3 修理时。 7-4 工作场所无人了或离开工作场所时。 7-5 使用离合马达时，请等待马达完全停止之后再进行。 8. 缝纫机以及附属装置使用的机油、润滑脂等液体流入眼睛或沾到皮肤上时，或被误饮时， 应立即清洗有关部份并去医院治疗。 9. 禁止用手触摸打开了缝纫机开关通电的零件或装置。 10. 有关缝纫机的修理、改造、调整应由受过专门训练的技术人员或专家进行。 11. 一般的维修保养应由受过训练的人员来进行。 12. 有关缝纫机的电气方面的修理、维修应由有资格的电气技术人员或专家的监督和指导 下进行。 13. 修理、保养有关空气、气缸等压缩空气的零件时，应切断空气压缩机供气源后再进行。 如有残压压缩空气时，应放掉残压空气。 但，受过相当训练的技术人员或专家进行有关调整或确认动作时除外。 14. 缝纫机在使用期间应定期进行清扫。 15. 为了正常安全运转，应安装接地。同时应在不受高频焊接机等强烈音源影响的环境下使用。 16. 电源插头应用具有电气专门知识的人来安装。电线插头必须连接到接地插座上。 17. 缝纫机指定用途以外不能使用。 18. 对缝纫机的改造、变更应符合安全规格，并采取有效的安全措施。 另外，对于有关改造和变更，JACK公司概不负责。 19. 本使用说明书上采用以下2个警告符号。 有损伤操作人员、维修人员的危险。 安全上需要特别加以注意的事项。 - III - jintex.in

Page 4

IMPORTANT SAFETY INSTRUCTIONS Putting sewing systems into operation is prohibited until it has been ascertained that the sewing systems in which these sewing machines will be built into, have conformed with the safety regulations in your country. Technical service for those sewing systems is also prohibited. 1. Observe the basic safety measures, including, but not limited to the following ones, whenever you use the machine. 2. Read all the instructions, including, but not limited to this instruction Manual before you use the machine. In addition, keep this Instruction Manual so that you may read it at anytime when necessary. 3. Use the machine after it has been ascertained that it conforms with safety rules/standards valid in your country. 4. All safety devices must be in position when the machine is ready for work or in operation. The operation without the specified safety devices is not allowed. 5. This machine shall be operated by appropriately-trained operators. 6. For your personal protection, we recommend that you wear safety glasses. 7. For the following, turn off the power switch or disconnect the power plug of the machine from the receptacle. 7-1 For threading needle(s), looper, spreader etc. and replacing bobbin. 7-2 For replacing part(s) of needle, presser foot, throat plate, leeper, spreader, feed dog, needle guard, folder, cloth guide etc. 7-3 For repair work. 7-4 When leaving the working place of when the working place is unattended. 7-5 When using clutch motors without applying brake, it has to be walled until the motor stopped totally. 8. If you should allow oil, grease, etc. used with the machine and devices to come in contact with your eyes or skin or swallow any of such liquid by mistake, immediately wash the contacted areas and consult a medical doctor. 9. Tampering with the live parts and devices, regardless of whether the machine is powered, is prohibited. 10. Repair, remodeling and adjustment works must only be done by appropriately trained technicians or specially skilled personnel. Only spare parts designated by JACK can be used for repairs. 11. General maintenance and inspection works have to be done by appropriately trained personnel. 12. Repair and maintenance works of electrical components shall be conducted by qualified electric technicians or under the audit and guidance of specially skilled personnel. Whenever you find a failure of any of electrical components, immediately stop the machine. 13. Before making repair and maintenance works on the machine equipped with pneumatic parts such as an air cylinder, the air compressor has to be detached from the machine and the compressed air supply has to be cut off. Existing residual air pressure after disconnecting the air compressor from the machine has to be expelled. Exceptions to this are only adjustments and performance checks done by appropriately trained technicians or specially skilled personnel. 14. Periodically clean the machine throughout the period of use. 15. Grounding the machine is always necessary for the normal operation of the machine. The machine has to be operated in an environment that is free from strong noise sources such as high-frequency welder. 16. An appropriate power plug has to be attached to the machine by electric technicians. Power plug has to be connected to a grounded receptacle. 17. The machine is only allowed to be used for the purpose intended. Other used are not allowed. 18. Remodel or modify the machine in accordance with the safety rules/standards while taking all the effective safety measures. JACK assumes no responsibility for damage caused by remodeling or modification of the machine. 19. Warning hints are marked with the two shown symbols. A Danger of injury to operator or service stall Items requiring special attention - IV - jintex.in

Page 5

运转缝纫机前的注意事项 危险 注意 1. 为了防止发生触电事故,请不要在打开电源的状态下,打开电气箱盖以及触摸电气箱内的零件。 2. 为了防止发生人身事故的发生,请不要在卸下皮带防护罩、手指防护器等安全装置的状态下运转缝纫机。 3. 为了防止被卷入机器的人身事故,缝纫机运转中请不要将手指、头发、衣服靠近皮带轮、V形皮带、马达,也不要东西放到机器上面。 4. 为了防止人身事故的发生,打开电源时以及缝纫机运转中,请不要把手指放到机针附近和切刀附近。 5. 缝纫机操作中,弯针高速地摆动。为了防止手受到伤害,运转中请绝对不要把手靠近弯针。 6. 为了防止人身事故的发生,放倒缝纫机或返回原来位置时,要注意不要夹住手。 7. 为了防止突然的启动造成人身事故,放倒缝纫机时,或卸皮带罩和V形皮带时,请一定关掉电源。 8. 使用伺服马达时,缝纫机停止马达无声音。为了防止意外的启动造成人身事故,请注意不要忘记关电源 9. 为了防止触电事故,卸下电源地线的状态,请不要运转缝纫机。 10. 为了防止触电和损坏电气零件,拔电源的插头时,请先关掉机器电源开关。 运转缝纫机前的注意事项 注意 为了防止机械的错误动作或损伤,请确认如下项目。 ● 最初使用缝纫机之前,请把机器打扫干净。 ● 清除运送中积存的灰尘,并加油。 ● 请确认电压设定是否正确。 ● 请确认电源插头是否正确连接。 ● 电压规格不同时,请绝对不要使用。 ● 确认缝纫机的转动方向,请注意不要让缝纫机反向转动。 - V - jintex.in

Page 6

FOR SAFE OPERATION 1. To avoid electrical shock hazards, neither open the cover of the electrical box for the motor nor touch the components mounted inside the electrical box. 1. To avoid personal injury, never operate the machine with any of the belt cover, finger guard or safety devices removed. 2. To prevent possible personal injuries caused by being caught in the machine, keep your fingers, head and clothes away from the handwheel, V belt and the motor while the machine is operation. In adition, place nothing around them. 3. To avoid personal injury, never put your hand under the needle when you turn "ON" the power switch or operate the machine. 4. To avoid personal injury, never put your fingers into the thread take-up cover while the machine is in operation. 5. The hook rotates at a high speed while the machine is in operation. To prevent possible injury to hands, be sure to keep your hands away from the vicinity of the hook during operation. In addition, be sure to turn OFF the power to the machine when replacing the bobbin. 6. To avoid possible personal injuries, be careful not to allow your fingers in he machine when tiling/raising the machine head. 7. To avoid possible accidents because of abrupt start of the machine, turn off the power to the machine when tilting the machine head or removing the belt cover and the V belt. 8. If your machine is equipped with a servo-motor, the motor does not produce noise while the machine is at rest. To avoid possible accidents due to abrupt start of the machine, be sure to turn OFF the power to the machine. 9. To avoid electrical shock hazards, never operate the sewing machine with the ground wire for the power supply removed. 10. To prevent possible accidents because of electric shock or damaged electrical component(s), turn OFF the power switch in prior to the connection/disconnection of the power plug BEFORE OPERATION CAUTION: To avoid malfunction and damage of the machine, confirm the following. • Belor you put the machine into operation for the first time the set-up, clean it thoroughly. • Remove all dust gathering during transportation and oil it well. • Confirm that the power plug has been properly connected to the power supply. • Never use the machine in the state where the voltage type is different from the designated one. • The direction of rotation of the sewing machine is counterclockwise as observed from the handwheel side. Be careful not rotatc it in reverse direction. - VI - jintex.in

Page 7 — 目录 COTENTS

目录 COTENTS ○ 台板加工图 Schematic diagram of the machine table 1 ○ 缝纫机的安装方法 Installing machine head 2 ○ 缝纫机的旋转方向及转数 The machine speed and the turning direction 3 ○ 供油 Lubrication 4 ○ 手动供油 Manual lubrication 5 ○ 压脚压力的调节 Presser foot pressure 6 ○ 差动比的调节 Diff. feed ratio 7 ○ 针脚长度的调节 Stitch length 8 ○ 线状态的调节 Thread tention 9 ○ 缝纫机的清扫 Cleaning the machine 10 ○ 换针 Replacing the needle 11 ○ 检查机油的循环 Checking the oil circulation 12 ○ 换机油 Checking the oil 13 ○ 下刀片的更换 Replacing the lower knife 14 ○ 调整标准参数表 Adjustment dimensions 15 ○ 机针标准 针号对照表 Standard needle Comparison table of epuivalent sizes 16 ○ 标准度量零件表 Gauge Parts List 17-67 jintex.in

Page 8 — Schematic diagram of the machine table

在使用之前 BEFORE OPERATING 台板加工图 Schematic diagram of the machine table 请参照下图进行台板的加工。 Cut the table referring to the diagram. 台板的右侧面 Right side 台板的后侧面 Rear side 台板的左侧面 Left side (525) - See Notes 294 262 236 48 16 $20 to hole $20通孔 75 595 (120) 309 288 159 33 66 130 12-R10 215 286 20 I-A I-A 标准尺寸 Standard dimention $26 115 $13 9 剖面 A-A(x4) Section A-A(x4) 剖面 B-B(x3) Section B-B(x3) 30 28 183 210 234 注 ●使用适用于日本产的马达时 ●使用本公司EFKAQUICK公司马达时 Notes Dimension for motors in Japan Dimension for EFX motor 306mm 334mm 306mm 334mm -1- jintex.in

Page 9 — Installing the machine head

在使用之前 BEFORE OPERATING 缝纫机的安装方法 Installing the machine head 1. 将缝纫机装于台板之上,给缝纫机侧皮带 轮和马达侧皮带轮装上V形皮带。 2. 将马达高低调整到用手按压皮带中间,约 有2cm左右的按压量为好。 3. 请装好皮带的护盖。 1. Mount the machine head on the machine rest board. 2. Adjust the tension of the belt so that it can be about 2cm bent inward when you press the middle of it. Adjust the height of the motor to do this. 3. Install the belt cover referring to the Figure. 2cm -2- jintex.in

Page 10 — The machine speed and turning direction

在使用之前 BEFORE OPERATING 缝纫机的旋转方向及转数 The machine speed and turning direction 缝纫机的旋转方向,从皮带轮侧看是向右 The machine pulley rotates clockwise as seen from the machine pulley side. 参照下表选用与所使用的缝纫机对应的转数 Check your machine type and run it at appropriate speed as listed in the table below. 缝纫机机型 最高旋转数 (r.p.m) Modelo de máquina Velocidad máxima (r.p.m) JK796/788-5-36 6,500 JK796/788-5-38 6,500 JK796/788-5-48 5,500 JK796/788-5-48P2 5,000 JK796/788-5-70 6,500 JK796/788-86 5,500 JK796/788-5-355 6,000 JK796/788-3-01 7,000 JK796/788-4-13 6,500 JK796/788-3-16S2 6,500 JK796/788-3-17 7,000 JK796/788-4-23B 6,000 JK796/788-3-54A 5,000 JK796/788-3-55A 5,000 JK796/788-3-180 7,000 JK796/788-3-181 6,500 -3- jintex.in

Page 11 — 供油 Lubrication

在使用之前 BEFORE OPERATING 供油 Lubrication 加油量是使油面处于H线与L线之间为好。 当油面低于L线时,就要及时补充机油。 机油需使用杰克公司指定的[HIGH SPEED SEWING MACHINE OIL] (ISO 粘度 VG22 相同)。 After filling the oil pan, the oil surface should lie between (H)and (L)lines. Add oil, when the oil surface reaches or goes below (L). Note: Use JACK recommended [HIGH SPEED SEWING MACHINE OIL] (ISO VG22) - 4 - jintex.in

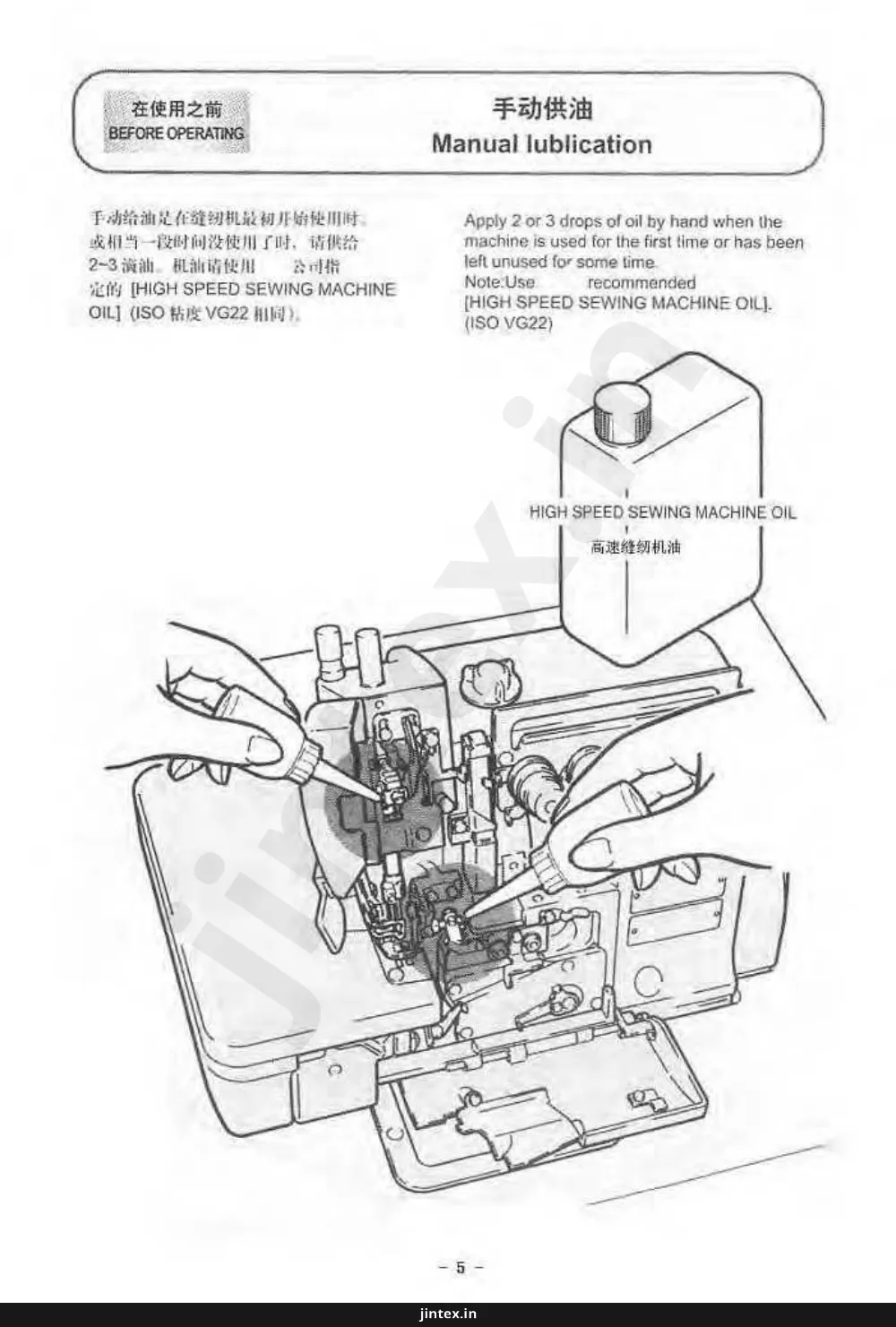

Page 12 — 手动供油 Manual lubrication

在使用之前 BEFORE OPERATING 手动供油 Manual lubrication 手动供油是在缝纫机最初开始使用时、 或相当一段时间没使用时,请供给 2-3滴油。机油请使用公司指 定的[HIGH SPEED SEWING MACHINE OIL] (ISO 粘度VG22 相同)。 Apply 2 or 3 drops of oil by hand when the machine is used for the first time or has been left unused for some time. Note: Use recommended [HIGH SPEED SEWING MACHINE OIL] (ISO VG22) -5- jintex.in

Page 13 — Adjusting the presser foot pressure

试缝 TEST SEWING 压脚压力的调节 Adjusting the presser foot pressure 压脚压力的调节可旋转阻 布状态良好,并能取得均匀针脚 能使用较弱的压力为好。 Turn adjusting screw to adjust the presser foot pressure.It should be as light as possible, yet be sufficient to obtain the proper stitch formation. 强 Heavy 弱 Light - 6 - jintex.in

Page 14 — Adjusting the diff. feed ratio

TEST SEWING 差动比的调节 Adjusting the diff. feed ratio 差动比的调节是松开螺母后,上下移动来 进行调节。调节完后,将螺母拧紧。 Loosen the nut and move the lever up and down to obtain the correct differential feed ratio. Tighten the nut after positioning the lever as desired. 伸展 To stretch 收缩 To shrink -7- jintex.in

Page 15

试缝 TEST SEWING 针脚长度的调节 Adjusting the stitch rength 1. 握住按钮, 旋转手轮, 按钮会陷进更深处。 2. 这时边握住按钮, 边转动手轮, 使校准标记 号对准所希望的数值。 ① While pressing the push button, turn the hangwheel to seek the position at which the push button goes further into the depth. ② Then, keeping the push button pressed, turn the handwheel and set the desired scale to the aligning mark. 注: 针脚长度的调节务必在调节差动比之后 进行。 Note: Stitch length adjustment must only be made after the differential feed ratio has been changed. 校准标记 Aligning Mark 变大 Coarse 变小 Fine 手轮 Handwheel 按钮 Push Button - 8 - jintex.in

Page 16 — 线状态的调节 Adjusting the thread tension

试缝 TEST SEWING 线状态的调节 Adjusting the thread tension 线张力状态的调节,请用针线调节螺帽 ①,上弯针线调节螺帽②,弯针线调节螺帽③ 来进行调节。 Make tension adjustments with the needle thread knob ①, the upper looper knob ②, and the lower looper knob ③. 松开 To loosen 拧紧 To tighten -9- jintex.in

Page 17 — Cleaning the machine

MAINTENANCE DURING USE 缝纫机的清扫 Cleaning the machine 缝纫机的清扫, 以针板槽及送布牙周围为主。 Mainly the slots of the needle plate and the feed rows should be cleaned. - 10 - jintex.in

Page 18 — Replacing the needle

使用中的保养 MAINTENANCE DURING USE 换针 Replacing the needle 准确辨认针的前后,请将针凹向着后方, 即背向操作者进行安装。 针要牢固的插到孔的最深处。 Check the needle carefully to see that the scarf is turded to the rear of the machine. Insert the needle to the proper depth, and fasten securely. OK! NO! 针凹部分 Scarf 标准使用的缝纫针,请参 照卷末附有的“机针标准”。 Be sure to use standard needle. Refer to ADJUSTMENT DIMENSIONS on the end of instructions. 请使用黄色的螺丝批(附属品) Be sure to use the yellow-handled hex drive packaged in the accessory box. 【注意】请不要把螺丝卸下来。 [Note] Do not remove the screw. - 11 - jintex.in

Page 19 — 检查机油的循环 Checking the oil circulation

使用中的保养 MAINTENANCE DURING USE 检查机油的循环 Checking the oil circulation OK! 运转中 Operating - 12 - jintex.in

Page 20 — MAINTENANCE DURING USE Replacing the oil

使用中的保养 MAINTENANCE DURING USE 换机油 Replacing the oil 机油的更换,请在使用开始1个月后更换一次, 然后,每6个月更换一次。 供油请参见第4页。 Replacing the oil one month after the first use and every six months thereafter.(See p4.) - 13 - jintex.in

Page 21 — Replacing the lower knife

使用中的保养 MAINTENANCE DURING USE 下刀片的更换 Replacing the lower knife 卸下下刀片 To remove the lower knife 把下刀架推向左边, 用螺丝①暂时固定。 Temporarily screw ① after sliding the lower knife holder to the left. 松开螺丝。 Loosen the screw. 取下下刀片。 Remove the lower knife. 安装下刀片 To replace the lower knife 松开螺丝⑥,下刀架则 向右移动。 Loosening the screw ⑥ makes the lower knife holder slide to the right. 转动手轮将上刀移动对准如 右图所示位置。 Turn the handwheel as the drawing on the right figure. 下刀片正确的研磨角度 Correct angles to resharpen the lower knife JK788/796-5 75° JK788/796-3 JK788/796-4 62° 75° 上刀片 Upper knife. 针板表面A Top surface of the needle plate 下刀片 Lower knife 拧紧螺丝。 Tighten the screw. 装入下刀片。 Insert the lower knife (See the right figure.) - 14 - jintex.in 针板表面A与下刀刃B处于相同水平位置。 Level of [A] = Level of [B] 装好下刀片后进行剪线,确认剪切状况。 Chek cutting action of knife

Page 22 — JK788/796-5 调整标准参数表 Adjustment dimentions

JK788/796-5 调整标准参数表 Adjustment dimentions (mm) JK788/796-5-36 10.6 3.9 5.1 0.9~1.1 5.5 1.5 JK788/796-5-38 10.6 3.9 5.1 0.9~1.1 5.5 1.5 JK788/796-5-48 10.1 3.9 5.1 0.9~1.1 5.5 1.5 JK788/796-5-48P2 10.1 3.9 5.1 0.9~1.1 5.0 1.5 JK788/796-5-70 10.6 3.9 5.1 0.9~1.1 5.5 1.5 JK788/796-5-86 12.0 3.6 5.1 0.9~1.1 5.5 1.5 JK788/796-6-355 12.0 3.6 5.8 0.9~1.1 5.5 1.5 -15- JK788/796-3,4 调整标准参数表 Adjustment dimentions JK788/796-3-01 10.1 4.2 5.1 0.9~1.1 5.5 JK788/796-4-13 10.4 4.2 5.8 0.9~1.1 5.5 JK788/796-3-1652 10.1 4.2 5.1 0.9~1.1 5.5 JK788/796-3-17 10.1 4.2 5.1 0.9~1.1 5.5 JK788/796-4-23B 11.6 4.2 5.8 0.9~1.1 7.0 JK788/796-3-54A 10.1 4.2 5.1 0.9~1.1 6.0 JK788/796-3-55A 10.4 4.2 5.8 0.9~1.1 5.5 JK788/796-3-180 10.1 4.2 5.1 0.9~1.1 5.5 JK788/796-3-181 10.4 4.2 5.8 0.9~1.1 5.5 jintex.in

Page 23 — JK788/796 针号对照表 Comparison table for needle sizes

JK788/796-5 机针标准 Standard needle Organ DCx27 JK788/796-5-36 11 JK788/796-5-38 14 JK788/796-5-48 14 JK788/796-5-48P2 14 JK788/796-5-70 14 JK788/796-5-86 21 JK788/796-5-355 11 -16- JK788/796-3,4 机针标准 Standard needle Organ DCx27 JK788/796-3-01 9 JK788/796-4-13 9 JK788/796-3-16S2 11 JK788/796-3-17 9 JK788/796-4-23B 14 JK788/796-3-54A 14 JK788/796-3-55A 9 JK788/796-3-180 9 JK788/796-3-181 9 JK788/796 针号对照表 Comparison table for needle sizes 日本针号(Organ) Japanese size (Organ) # 9 11 14 16 18 21 德国针号(Schmetz) Metric size(Schmetz) Nm 65 75 90 100 110 130 jintex.in

Page 24

8 788 13 788A 件 9 788 16 796 机壳 788 14 788/796-2 -3, -4 15 1 788/796-2 -3, -4 17 12 6 5 788/796-5 788/796-3,-4 11 2 3 4 10 *该系列产品有任何技术更改恕不另行通知 17 jintex.in

Page 25 — 第一部 件 机壳部件(Frame Assembly)

第一部 件 机壳部件(Frame Assembly) 序号 Ref.N 0 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 206S30001 270047 支柱 Bed pin 4 4 4 2 20611001 204003 油标 Oil sight gauge 1 1 1 3 R03001 铆钉2.5×4 Rivet 2 2 2 4 20531024 机型牌 brand 1 1 1 5 20609002 209538 五线 下刀座 Bracket 0 0 1 6 P03010 销5.5×6 Pin 1 1 1 7 20609001 209537 三四线 下刀座 Bracket 1 1 0 8 S05019 4510 螺钉M6×16.3 Screw 4 4 4 9 P03010 销5.5×6 Pin 1 1 1 10 20513008 240325A 过线管 Pipe 2 2 2 11 P03010 销5.5×6 Pin 1 1 1 12 S05016 4511 螺钉M6×25 Screw 2 2 2 13 300029 A件 later shell upper knot 1 1 1 14 300028 机壳 Machine frame 1 1 1 15 20622012 240310 油封 Plug 1 1 0 16 300032 796机壳 796 machine frame 1 1 1 17 10122006 送料调节器 孔塞 Plug 1 1 0 - 18 - jintex.in

Page 26

796 43 796 44 42/796-181,-6除外 7 8 5 4 6 36 35 3 2 40 18 17 19 788/796-3-4 (16) 788/796-3 (15) 788/796-3 180 除外 Except, 788/796-3-180 788/796-3 180 (32) 33 34 34 21 24 23 39 22 20 28 27 29 30 31 19 jintex.in

Page 27 — 第二部件 机壳机罩部件 (Cover Assemblies)

第二部件 机壳机罩部件 (Cover Assemblies) 数量 (Number) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 300030 B件 Side cover 1 1 1 2 S01010 7020 螺钉M4×8 Screw 1 1 1 3 S01032 7024 螺钉M4×17.5 Screw 1 1 1 4 300160 209512-PD 788机头上盖 Top cover 1 1 1 5 S01032 7024 螺钉M4×17.5 Screw 4 4 4 6 20622002 209579 上盖密封垫 Gasket 6 6 6 7 20522001 209579 上盖密封垫 Gasket 1 1 1 8 20622001 206457 油窗 Oil singt window 1 1 1 9 20622001 206682 油窗垫 Gasket 1 1 1 10 20623001 209702 机头油塞 Sponge 1 1 1 11 20612005 209551 机壳右盖板 Fan cover 1 1 1 12 S01010 7019 螺钉M4×8 Screw 2 2 2 13 20601005 209518 上骑针前盖板 Cover 1 1 1 14 S01010 7019 螺钉M4×8 Screw 1 1 1 15 S01035 7082 螺钉M4×7.5 Screw 1 1 1 16 20612002 209633A 三四线缝合挡料板 Fabric guard 0 0 0 17 20612003 209634 五线缝合挡料板 Fabric guard 1 1 0 18 20612010 209736 缝合连接板 Bracket 1 1 0 19 20612012 7232 螺钉M4×5.5 Screw 1 1 1 20 S01002 7018 螺钉M4×6.5 Screw 3 3 3 21 300163 752前盖板 Front cover 1 1 1 22 300472 752-02×250前盖板 788-02*250Front cover 1 1 1 23 20612009 270018A 前盖板固定块 Latch 1 1 1 24 S01006 7009 螺钉M3×4.5 Screw 1 1 1 25 20612006 209680 前罩板卡簧 Latch 1 1 1 26 S01031 7017 螺钉M4×4.7 Screw 1 1 1 27 20612004 210044 前罩板卡簧1 Flat spring 1 1 1 28 S01031 7017 螺钉M4×4.7 Screw 1 1 1 29 20626001 240043 铰链销 Pin 1 1 1 30 S10007 4543 螺钉M4×4 Screw 2 2 2 31 20627001 240301 铰链销弹簧 Sping 1 1 1 32 20601007 209516 铰链 Hinge 1 1 1 33 S01003 7021 螺钉M4×12 Screw 1 1 1 34 20612007 209664A 四线前左挡板 Front cover(center) 0 1 0 35 20612008 209665 五线前挡板 Front cover(center) 0 0 1 36 20501018 挡板(包兜机) Front cover(center) 1 1 1 37 S01002 7018 螺钉M4×6.5 Screw 1 1 1 38 20612001 209657 固定板 Oil guard 1 1 1 39 S01002 7018 螺钉M4×6.5 Screw 1 1 1 40 20611003 209550-PB 皮带轮护罩 Belt cover 1 1 1 41 S01013 7176 螺钉M6×14 Screw 3 3 3 42 20131063 警告牌 brand 1 1 1 43 S01003 7021 螺钉M4×12 Screw 1 1 0 44 20612062 303448 垫片 Washer 1 1 0 45 20501002 796大过线架 Thread guide supporter 1 1 1 46 S01035 7082 螺钉M4×7.5 Screw 1 1 1 47 300473 796上盖 Top cover 1 1 1 - 20 - jintex.in

Page 28

3 4 7 9 8 6 5 38 17 18 15 12 788/796-5 14 13 11 788/796-3, 4 46 45 50 34 788/796-5 788/796-4-13 788/796-3 1682, -17 19 36 35 39 41 40 37 49 788/796-3-01, 180 21 788/796-6-36, 38, 70, 86, 356 43 30 31 44 22 788/796-5-48 47 788/796-4-13 788/796-4-1682, -17.01 48 788/796-3-180 -4-181 -21 jintex.in

Page 29 — 第三部件 机罩部件(Cover Assenblies)

第三部件 机罩部件(Cover Assenblies) 序号 公司件号 参考件号 名称 Description 数量 (Number) Ref.No Part No Ref. Part. no 三线 四线 五线 Three-thread Four-thread Five-thread 1 20612011 209687 后窗板 Cover plate 1 1 1 2 S01010 7019 螺钉M4×8 Screw 1 1 2 S01003 7021 螺钉M4×12 Screw 0 0 2 3 20601008 209517 左盖板 Bed cover plate 1 1 1 4 L02001 螺钉M4×8 Screw 4 4 4 5 20601009 209513-PD 针杆前罩 Needle bar cover 1 1 1 6 20626002 209641 针杆前销 Pin 1 1 1 7 S10007 4543 螺钉M4×4 Screw 1 1 1 8 20612012 209645 针杆前罩销 Spring 1 1 1 9 S01031 7017 螺钉M4×4.7 Screw 1 1 1 10 206S30002 209636 针板座卡簧螺钉 Screw 1 1 1 11 20611004 209618 三四线观察镜 Eye guard 1 1 0 12 20611005 209619 五线观察镜 Eye guard 0 0 1 13 S01034 7062 螺钉M3×5.7 Screw 2 2 2 14 W01011 202875 垫片 Washer 2 2 2 15 20601010 209651 支架 Bracket 1 1 1 16 20622003 240305 减震垫 Cushion rubber 1 1 1 17 206S20004 7066 螺钉M4×3.7 Screw 1 1 1 18 20628022 210307 垫片 Washer 1 1 1 19 20612015 209543 下刀座前盖板 Front cover 1 1 1 20 S02005 7077 螺钉M4×4.5 Screw 2 2 2 21 20512016 209576-91 五线台缝台 Cloth plate 0 0 1 22 2. 061E+09 209576-91 缝台组件 Cloth plate 0 0 1 23 20603016 270042 缝台衬套 Bushing 1 1 1 24 S10008 4538 螺钉M4×6.5 Screw 1 1 1 25 20628022 210307 垫片 Washer 1 1 1 26 206S20004 7066 螺钉M4×3.7 Screw 1 1 1 27 20627002 270043 缝台簧 Spring 1 1 1 28 20627003 270044 缝台扭簧 Lever 1 1 1 29 206S20006 7172 螺钉M4×5.5 Screw 1 1 1 30 20612019 270045 缝台固定板 Bracket 1 1 1 31 20622003 240305 减震垫 Cushion rubber 1 1 1 32 S04005 7023A 螺钉M4×15.5 Screw 1 1 1 33 N01001 螺母 M4 Nut 1 1 1 34 20511009 209547-PB 缝台裙子 Side cover 1 1 1 35 S01002 7018 螺钉M4×6.5 Screw 1 1 1 36 20528017 240343 垫片 Washer 2 2 2 37 S01033 7025 螺钉M4×20.5 Screw 2 2 2 38 20531023 商标 brand 1 1 1 39 20622003 240305 减震垫 Cushion rubber 1 1 1 40 20612014 270048 限位板 Latch 1 1 1 41 S01022 7008 螺钉M3×4 Screw 1 1 1 42 20612016 270049 下刀座前垫护板 Latch 1 1 1 43 206S11008 7180 螺钉SM9/64×40 Screw 1 1 1 44 20622003 240305 减震垫 Cushion rubber 1 1 1 45 20612013 209644 前盖板 Face plate 1 1 1 46 S01035 7082 螺钉M4×7.5 Screw 1 1 1 47 20612017 209571-91 三四线缝台 Cloth plate 1 1 0 assembly 48 20512001 缝台盖 Cloth plate 1 1 0 49 20511006 缝台裙子 Side cover 1 1 0 50 30137005 警告牌 brand 1 1 1 - 22 - jintex.in

Page 30

788/796-5 788/796-3,-4 788/796-5 -23- jintex.in

Page 31 — 第四部件 主轴部件(Main Shaft Assemblies)

第四部件 主轴部件(Main Shaft Assemblies) 序号 Ref.No. 公司件号 Part No. 参考件号 Ref. Part. No 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20602003 209686-91 主轴 Crankshaft 1 1 1 2 206S14001 1459 螺钉SM9/64×40×3.2 Screw 2 2 2 3 20625002 209613-D 蜗杆 Worm 1 1 1 4 S10009 4541 螺钉M6×8 Screw 1 1 0 5 20602002 270510 主轴接轴 Pin 0 0 1 6 20612020 209608 三四线左盖板 Left cover 1 1 0 7 S01010 7020 螺钉M4×8 Screw 3 3 0 8 20612021 209609 五线左盖板 Left cover 0 0 1 9 S02004 7044 螺钉M4×8 Screw 0 0 2 10 S01010 7020 螺钉M4×8 Screw 0 0 1 11 20622004 209581 左盖承油封 Gasket 1 1 1 12 20603006 209671-92 主轴中轴套 Bushing 1 1 1 13 S01029 7013 螺钉M3.5×7.5 Screw 2 2 2 14 206S30003 209637 主轴中套螺钉 Screw 1 1 1 15 B01006 240551 轴承6201RZ Bearing 1 1 1 16 20628002 204019A 主轴后垫圈 Spacer 1 1 1 17 20628021 204018 碟簧 Sping wsasher 4 4 4 18 B01007 240552 轴承 Bearing 1 1 1 19 20601011 209606 主轴后挡板 Right cover 1 1 1 20 20622005 240340 主轴后板油封 O Ring 1 1 1 21 20628001 209607 主轴橡胶垫片 Plate 1 1 1 22 S01010 7020 螺钉M4×8 Screw 3 3 3 23 20608001 208476 螺旋型挡圈 Oil seal 1 1 1 24 20622006 208272 螺旋型挡圈油封 O Ring 1 1 1 25 20601012 209481 风扇 Fan 1 1 1 26 20501027 270504-PD 皮带轮 Strap ring 1 1 1 27 S12004 4556 螺钉M6×10 Screw 1 1 1 28 S10009 4541 螺钉M6×8 Screw 1 1 1 29 207S13004 004523 螺钉M6×16.3 Screw 1 1 1 30 W02004 240293 垫圈6 Washer 1 1 1 31 S10002 4514 螺钉M5×5 Screw 1 1 1 32 S10002 4514 螺钉M5×5 Screw 1 1 1 33 20625001 209591-91-1 外齿圈轴承组件 Ball bearing assembly 1 1 1 34 S10010 4572 螺钉M5×10 Screw 1 1 1 35 20603005 209523 主轴前套 Sleeve 1 1 1 36 B03002 209591-91-02 轴承6202RZ Bearing 1 1 1 37 20501005 270526 皮带轮罩 Cover 1 1 1 - 24 - jintex.in

Page 32 — Refer to the gauge parts list.

G 参照标准度量表 Refer to the gauge parts list. 788/796-5-86, 6-355 除外 Except788/796-5-86, 6-355 788/796-5-86, -6-355 788/796-3 1本針(1-needle) 788/796-4 2本針(2-needle) 788/796-5 2本針(2-needle) 788/796-6 3本針(3-needle) - 25 - jintex.in

Page 33 — 第五部件 针杆部件(Needle Bar Assemblies)

第五部件 针杆部件(Needle Bar Assemblies) 序号 Ref.No 公司件号 Part No. 参考件号 Ref. Part. No 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20605001 209544-92 针杆连杆 Rod 1 1 1 2 S04005 7023A 螺钉M4×15.5 Screw 2 2 2 3 20604001 209552-92 上铀曲柄 Crank 1 1 1 20604002 209553-92 上铀曲柄 Crank 1 1 1 4 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 5 20626003 271001 送料大连杆销 Pin 1 1 1 6 S10008 4538 螺钉M3×6 Screw 1 1 1 7 20602004 209582 轴 Shaft 1 1 1 8 20628006 240338 垫片 Washer 1 1 1 9 206S30018 7174 螺钉 Screw 1 1 1 10 20608002 240537 上铀挡圈 Collar 1 1 1 11 S10007 4543 螺钉M4×4 Screw 2 2 2 12 20622007 208250 上铀左套油封 Oil seal 1 1 1 13 2060400400 209567-92 针杆曲柄 Lever 1 1 1 14 206S30014 7150 螺钉M6×0.75×12 Screw 1 1 1 15 20604003 208425 针杆连杆曲柄 Link needle bar drive 1 1 1 16 20626005 209690-91 针杆曲柄销 Pin 2 2 2 17 206S30011 4545 螺钉M3×4 Screw 1 1 1 18 20602006 208903-C 针杆 Needle bar 1 1 1 19 20609003 209566-92 针杆轧头 Needle bar clamp 1 1 1 20 S01029 7013 螺钉M3.5×7.5 Screw 1 1 1 21 20603017 209640 针杆套 Cap 1 1 1 22 20622008 240129 针杆O型圈 O Ring 1 1 1 23 S10007 4543 螺钉M4×4 Screw 1 1 1 24 20528012 202286 垫片 Washer 1 1 1 25 206S14002 5292-HV 螺钉SM1/8×41×3 Screw 1 0 0 26 206S14002 5293-HV 螺钉SM1/8×41×3 Screw 0 2 2 27 206S14002 5294-HV 螺钉SM1/8×41×3 Screw 0 0 (732-355) 3 28 20612024 209647 针杆底油板 Cover 1 1 1 29 20612023 209648 针杆压油板 Cover 1 1 1 30 20623003 209642 针杆油垫 Felt 1 1 1 31 206S20007 7192 螺钉M4×5.2 Screw 2 2 2 32 20612022 209646 针杆下板 Cover 1 1 1 33 S01002 7018 螺钉M4×6.5 Screw 1 1 1 34 20603001 209524 上铀左套筒 Sleeve 1 1 1 35 20603002 209525 上铀右套筒 Sleeve 1 1 1 36 20603014 204625A 针杆上铀套 Sleeve 1 1 1 37 20603015 204628A 针杆下铀套 Sleeve 1 1 1 38 20626004 240190 油线销 Pin 1 1 1 39 20523004 209690-91 油线 Oil wick 0.25M 0.25M 0.25M 40 20123021 油线 Oil wick 0.08M 0.08M 0.08M 41 20621001 204195 回油管 Oil tube 1 1 1 - 26 - jintex.in

Page 34

788/796-5 G 参照标准度量表 Refer to the gauge parts list. 26 27 G 28 G 17 18 16 19 20 22 G 24 G 23 G 788/796-4, -4 788/796-4-43 3 G 針板中爪 Needle plate chaining-off finger 6 5 4 G 針板 Needle plate 13 G 16 788/796-3-180 除外 Except 788/796-3-180 2 8 1 7 10 11 14 15 788/796-3-180 12 9 21 - 27 - jintex.in

Page 35 — 第六部件 护针部件(Support Needle Assemblies)

第六部件 护针部件(Support Needle Assemblies) 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 Ref.No Part No Ref. Part. Three-thread Four-thread Five-thread 1 20609006 209539 针板垫块 Bracket 1 1 0 2 S01010 7020 螺钉M4×8 Screw 2 2 0 3 206S30021 5330 螺钉 Screw 0 1 0 4 206S11005 4009 螺钉SM11/64×40 Screw 2 2 0 5 20609004 208935 针板固定座 Support needle plate 1 1 0 6 S01010 7020 螺钉M4×8 Screw 2 2 0 7 20609005 204631A 针板固定板 Bracket 1 1 0 8 S01028 7012 螺钉M3.5×5.7 Screw 2 2 0 9 205S30005 007267 挡板螺钉 Screw 2 0 0 10 206S12002 5501 螺钉SM9/64×40 Screw 1 1 0 11 20128032 210930 护针垫圈 Spring washer 1 1 0 12 20609005 204631A 针板固定板 Bracket 1 0 0 13 S01028 7012 螺钉M3.5×5.7 Screw 1 1 0 14 20601015 204636B 护针架 Bracket 1 1 0 15 S01030 7014 螺钉M3.5×9.7 Screw 2 2 0 16 20622003 240305 减震垫 Cushion rubber 1 1 1 17 20609007 209541 五线针板固定块 Bracket 0 0 1 18 S01010 7019 螺钉M4×8 Screw 0 0 1 19 20609008 209540 五线针板垫块 Bracket 0 0 1 20 S01010 7019 螺钉M4×8 Screw 0 0 1 21 20501006 209539 针板垫块 Bracket 0 0 2 22 206S17001 5484-HC 螺钉SM11/64×40 Screw 1 0 0 23 S01027 7010 螺钉M3×6 Screw 0 0 2 24 206S30022 5315 螺钉 Screw 0 0 1 25 S01027 7010 螺钉SM3/32×56 Screw 0 0 1 26 206S12002 5501 螺钉SM9/64×40 Screw 0 0 2 27 20128032 210930 护针垫圈 Spring washer 0 0 1 28 S01027 7010 螺钉M3×6 Screw 0 0 1 - 28 - jntex.in

Page 36

G 参照标准度量表 Refer to the gauge parts list. 4 788/796-3, -5-36, -38, -70 4 788/796-4, -5-48, -86, -6-355 -2 20 18 19 21 31 22 15 14 G 29 25 24 26 11 - 29 - jintex.in 3 2 1 2 27 5 28 10 6 15 14 23 12 13 17 16 30

Page 37 — 第七部件 上弯针部件(Upper Looper Assemblies)

第七部件 上弯针部件(Upper Looper Assemblies) 序号 Ref.N 0 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 四线 五线 Three-thread Four-thread Five-thread 1 20605002 209546-92 弯针连杆 Rod 1 1 1 2 S04005 7023A 螺钉M4×15.5 Screw 4 4 4 3 20628007 209660 连杆垫片 Washer 2 2 2 4 20604005 209560-92 0号球齿柄 Crank 1 0 1 20604008 209562-92 2号球齿柄 Crank 0 1 1 5 L02005 7369 螺钉M6×0.75×9 Screw 2 2 2 6 20602018 209583 轴 Shaft 1 1 1 7 20628006 240338 垫圈 Washer 1 1 1 8 206S30018 7174 螺钉M5×10 Screw 1 1 1 9 20528012 202286 上弯针垫圈 Spring washer 1 1 1 10 20622019 210586A 油封 Oil seal 1 1 1 11 S01002 7018 螺钉M4×6.5 Screw 1 1 1 12 20602007 209568-92 上弯针摆杆 Lever 1 1 1 13 206S30014 7150 螺钉M6×0.75×12 Screw 1 1 1 14 2060200800 209587-91 上弯针滑杆组件 Upper looper holder 1 1 1 15 20623005 179130-05 上弯针滑杆套油毡 Felt 1 1 1 16 20626006 179136A 上弯针滑杆销 Pin 1 1 1 17 206S30011 4545 螺钉 Screw 1 1 1 18 20609009 209589 上弯针滑杆固定块 Base/upper looper 1 1 1 19 S05019 4510 螺钉M6×16.3 Screw 2 2 2 20 20623009 209643 海棉塞 Filter 0.006M 0.006M 0.006M 21 20612025 209590 上弯针过线挡板 Cover 1 1 1 22 206S17002 7039 螺钉SM3/32×56 Screw 1 1 1 23 206S11004 001998-2 螺钉SM9/64×40 Screw 1 1 1 24 20626007 209703-91 上弯针滑杆加油器 Pin 1 1 1 25 20626020 210214 过油塞滚珠 Plug 1 1 1 26 S10007 4543 螺钉M4×4 Screw 1 1 1 27 20603011 209528 上弯针后套 Sleeve 1 1 1 28 20603010 270004 上弯针前套 Sleeve 1 1 1 29 20623001 209702 机头油塞 Felt 0.025M 0.025M 0.025M 30 20523004 209690-91 BRC-752油线 Oil week 0.03M 0.03M 0.03M 31 206S11007 7033 螺钉 Screw 1 1 1 - 30 - jintex.in

Page 38

G 参照标准度量表 Refer to the gauge parts list. 788/796-5 4 788/796-4 5 788/796-3 6 3 10 11 9 19 8 18 12 13 15 16 14 17 G - 31 - jintex.in

Page 39 — 第八部件 下弯针部件(Lower Looper Assemblies)

第八部件 下弯针部件(Lower Looper Assemblies) 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 Ref.No Part No Ref. Part. no 1 20605002 209546-92 弯针连杆 Rod 1 1 1 2 S04005 7023A 螺钉M4×15.5 Screw 4 4 4 3 20628007 240484 连杆垫片 Washer 2 2 2 4 20604007 209563-92 五号球曲柄 Crank 0 1 0 5 20604008 209562-92 2号球曲柄 Crank 0 1 0 6 20604006 204787-1 1号球曲柄 Crank 1 0 0 7 L02005 7369 螺钉M6×0.75×9 Screw 2 2 2 8 20602018 209583 轴 Shaft 1 1 1 9 20628006 240338 垫圈 Washer 1 1 1 10 206S30018 7174 螺钉M5×10 Screw 1 1 1 11 20530112 202286 垫圈 Spring washer 1 1 1 12 20622019 210586A 油封 Oil seal 1 1 1 13 20604009 209007-91 下弯针架 Lower looper holder 1 1 1 14 20626008 208259 下弯针架销 Pin 1 1 1 15 20626009 209083 下弯针架上销 Pin 1 1 1 16 205S30036 5284 螺钉 Screw 1 1 1 17 206S11002 1175-3 螺钉SM9/64×40 Screw 1 1 1 18 20603010 270004 下弯针轴前套 Sleeve 1 1 1 19 20603011 209528 下弯针轴后套 Sleeve 1 1 1 - 32 - jintex.in

Page 40

33 - jintex.in

Page 41 — 第九部件 差动送布部件(Differential Feed Assemblies)

第九部件 差动送布部件(Differential Feed Assemblies) 序号 Ref.N o 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 2060401100 209556-91-01 香蕉曲柄组件 Crank 1 1 1 2 206S11013 7011 螺钉M3×8 Screw 2 2 2 3 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 4 20605005 204140A 差动连杆 Link/Dlef feed 1 1 1 5 206S20003 7058 螺钉M5×3.2 Screw 2 2 2 6 20604013 209570-92 差动曲柄 Lever 1 1 1 7 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 8 20602010 272533A 差动轴 Shaft 1 1 1 9 20622010 204185 差动轴O型圈 O ring 1 1 1 10 20612027 209649 差动扳手 Lever 1 1 1 11 20627006 272534 差动扳手定位簧 Spring 1 1 1 12 206S20005 7161 螺钉M5×8.5 Screw 1 1 1 13 20612028 209650 差动固定板 Regulator plate 1 1 1 14 20609010 204143A 固定板定位块 Stopper 2 2 2 15 501003 7021 螺钉M4×12 Screw 2 2 2 16 206S16001 252069A 差动扳手螺母 Nut 1 1 1 17 206S30010 7059 螺钉SM11/64×40 Screw 1 1 1 18 20628009 211301 碟簧 Spring washer 1 1 1 19 20605003 209594 送料大连杆 Rod 1 1 1 20 20605004 209555-92 送料摇杆 Crank 1 1 1 21 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 22 20626003 271001 送料大连杆销 Pin 1 1 1 23 S10008 4538 螺钉M3×6 Screw 1 1 1 24 B07008 240012 轴承K20×24×10 Needle bearing 1 1 1 25 2061000100 20592-91 送布固定组件 Regulator 1 1 1 26 20622009 200020 开针轴O型圈 O ring 2 2 2 27 S10002 4514 螺钉M5×5 Screw 1 1 1 28 20610003 272501 送布凸轮 Eccentric 1 1 1 29 20610002 210129 小偏心 Guide/Feed eccentric 1 1 1 30 20629001 210130 弹簧片 Flat spring 1 1 1 31 S10001 4535 螺钉M3×4 Screw 2 2 2 32 20610005 272504-91 送料偏心 Eccentric Assenbly 1 1 1 33 20626011 240436 送料偏心开口销 Sping pin 2 2 2 34 20610004 272502 U型槽 Ratchet 1 1 1 35 20627004 272503 送料偏心弹簧 Sping 1 1 1 36 205S30031 7038 螺钉M2×3 Screw 1 1 1 37 20602009 209639 开针轴 Push button 1 1 1 38 20627005 240517 开针轴弹簧 Sping 1 1 1 39 20629006 202522 卡簧 Ring 1 1 1 40 20628008 240484 开针轴垫片 Washer 2 2 2 41 20603009 270006 差动插套筒 Sleeve 1 1 1 - 34 - jintex.in

Page 42

G 参照标准 度量表 Refer to the gauge parts list. 788/796-5-48 4 除外 788/796-5-48 3 788/796-3,-4 - 35 - jintex.in

Page 43 — 第十部件 送料部件(Feed Dog Assemblies)

第十部件 送料部件(Feed Dog Assemblies) 序号 Ref.No 公司件号 Part No 参考件号 Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 2060600100 牙架组件 Differential feed bar 1 1 1 2 20621005 时规带 Vitta 1 1 1 3 206S11003 1189 螺钉SM9/64×40×6 Screw 1 1 1 4 206S11002 1175-3 螺钉SM9/64×40×10 Screw 1 1 1 5 20605006 204122 牙叉连杆销 Link/differential feed 1 1 1 6 20626013 204114 牙叉连杆销 Bushing 1 1 1 7 206S12001 5231 螺钉SM11/64×40×18 Screw 1 1 1 8 20628012 204115 牙叉连杆垫片 Washer 1 1 1 9 20609011 205857 牙架偏心轴滑块 Block/feed bar guide 1 1 1 10 20628013 204439A 小偏心垫片 Washer 1 1 1 11 S02007 7041 螺钉M3×5 Screw 1 1 1 12 20622012 240310 油封 Plug 1 1 1 13 20603019 204810 抬牙滑块 Block/feed bar lift 1 1 1 14 20606003 209595 牙架挡块 Guide/feed bar 1 1 1 15 S01010 7019 螺钉M4×8 Screw 4 4 4 16 20622013 208109 防油隔板 Oil shield/feed bar guide 3 3 3 17 20601017 209519 防油柄 Guide/feed bar oil seal 1 1 1 18 S01006 7009 螺钉M3×4.5 Screw 1 1 1 19 20602011 209584 送料轴 Shaft 1 1 1 20 S01035 7082 螺钉M4×7.5 Screw 1 1 1 21 20628011 240311 送料轴垫圈 Washer 1 1 1 22 20528018 204107 垫片 Washer 1 1 1 23 S10007 4543 螺钉M4×4 Screw 2 2 2 24 20608003 208101 挡圈 Collar 1 1 1 25 205S30037 5084 螺钉 Screw 2 2 2 26 20609012 209673 调压套筒 Bushing 1 1 1 27 206S11009 5492 螺钉SM3/32×56×6 Screw 1 1 1 28 206S11001 1175-2 螺钉SM9/64×40×8 Screw 1 1 1 29 20605007 204111A 右牙叉连杆 Link/main feed 1 1 1 30 20626013 204114 牙叉连杆销 Bushing 1 1 1 31 206S12001 5231 螺钉SM11/64×40×18 Screw 1 1 1 32 20628012 204115 牙叉连杆垫片 Washer 1 1 1 33 20604014 209564-92 送料曲柄 Crank 1 1 1 34 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 35 20626012 209677 送布曲柄销 Pin 1 1 1 36 N01004 4805 螺母 Nut 1 1 1 37 20528015 202045 送布曲柄垫圈 Washer 1 1 1 38 20602012 209672 调牙轴 Feed bar pin 1 1 1 39 20603007 209530 送布轴后套 Sleeve 1 1 1 40 20603008 209531 送布轴前套 Sleeve 1 1 1 41 20628023 208173 送布轴油封 Plug 1 1 1 - 36 - jintex.in

Page 44

G 参照标准度量表 Refer to the gauge parts list. 788/796-5 (11) 12 788/796-3, -4 8 788/796-5 788/796-3, -4 13 9 788/796-3, -4 22 788/796-5 (14) 17/788/796-5 19/788/796-5 24/788/796-3, -4 23 - 37 - jintex.in 3 4 5 6 7 10 18 20 21 16/788/796-3, -4 25 26

Page 45 — 第十一部件 切刀部件(Trimming Assemblies)

第十一部件 切刀部件(Trimming Assemblies) 序号 Ref.No. 公司件号 Part No. 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20605008 209545-92 上刀连杆 Rod 1 1 1 2 S04005 7023A 螺钉M4×15.5 Screw 2 2 2 3 20602013 209554-92 上刀曲柄 Crank 1 1 1 4 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 5 20626003 271001 曲柄销 Pin 1 1 1 6 S10008 4538 螺钉M3×6 Screw 1 1 1 7 20628014 208235 上刀架垫片 Washer 1 1 1 8 20619001 209598 上刀架 Upper knife lever 1 1 1 9 20609013 204638 上刀座 Uppwer knife clamp 1 1 0 10 20609014 208402 上刀座 Uppwer knife clamp 0 0 1 11 20626014 209674 三四线上刀曲柄轴销 Pin 1 1 0 12 20626015 209675 上刀曲柄销 Pin 0 0 1 13 S01029 7013 螺钉M3.5×7.5 Screw 2 2 2 14 20601019 209667 五线角板 Guide 0 0 1 15 201S12001 5088 螺钉SM9/64×40×8 Screw 1 1 1 16 20604015 208851 下刀架 Lower knife holder 1 1 0 17 20604016 209542 下刀架 Lower knife holder 0 0 1 18 S01010 7019 螺钉M4×8 Screw 1 1 1 19 S01003 7021 螺钉M4×12 Screw 1 0 2 20 20101026 210184 下刀架压板 Clamp/Lower knife 1 1 1 21 201S12005 2193 螺钉SM11/64×40×8.5 Screw 1 1 1 22 20627007 204158 下刀架弹簧 Spring 1 1 0 23 20601018 209666 三四线角板 Guide 1 1 1 24 S01003 7021 螺钉M4×12 Screw 2 2 0 25 20603003 209532 上刀轴前轴套 Sleeve 1 1 1 26 20603004 209533 上刀轴后轴套 Sleeve 1 1 1 - 38 - jintex.in

Page 46

G 参照標準度量表 Refer to the gauge parts list. 19 17 18 16 21 20 22 23 11 10 12 13 14 15 9 34 788/796-5-86, 02*250除外 788/796-5-86, 02*250 35 788/796-5,-6, 除86,02*250 788/796-86, 02*250 36 788/796-2,-3-4 28 27 29 30 31 32 33 25 24 26 4788/796-3,-4 5 788/796-5 -45- jintex.in

Page 47 — 第十二部件 压脚部件(Presser Fot Assemblies)

第十二部件 压脚部件(Presser Fot Assemblies) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20616002 209678 压脚臂 Presser arm 1 1 1 2 20626016 208549 压脚臂连杆销 Pin 1 1 1 3 S10011 4594 螺钉M4×0.5×4 Screw 1 1 1 4 20612032 209471 三四线护手 Finger guard 1 1 0 5 20612033 209472 五线护手 Finger guard 0 0 1 6 S01022 7008 螺钉M3×4 Screw 1 1 1 7 20619005 202451 割线刀 Chain cutter 1 1 1 8 S01006 7009 螺钉M3×4.5 Screw 1 1 1 9 20602014 209596 压脚轴 Shaft 1 1 1 10 20603020 209597 压脚轴套筒 Bushing 1 1 1 11 S10007 4543 螺钉M4×4 Screw 1 1 1 12 20627009 274005 小杠杆弹簧 Sping 1 1 1 13 20612030 274004 抬压脚小杠杆 Lever 1 1 1 14 20608004 274003-92 抬压脚复位圈 Collar 1 1 1 15 S05017 4534 螺钉M6×0.75×13.5 Screw 1 1 1 16 20616001 274006 压脚吊勾 Link 1 1 1 17 20612029 209452 抬牙脚杠杆 Lever/Foot lift 1 1 1 18 20627008 209458 杠杆复位弹簧 Sping 1 1 1 19 206S20001 7060 螺钉M10×1.5×8.5 Screw 1 1 1 20 20612031 209576 压脚角板 Stopper 2 2 2 21 S01010 7020 螺钉M4×8 Screw 1 1 1 22 S01023 7175 螺钉M5×24 Screw 1 1 1 23 N01004 4805 螺母M5 Nut 1 1 1 24 20602015 209603-91 压杆 Presser bar 1 1 1 25 P03006 205584 销4.5×18 Spring pin 1 1 1 26 20611006 274013 压杆减震块 Pin 1 1 1 27 20627011 208773 压杆弹簧 Spring 1 1 1 28 206S30004 209638 压杆调节柱 Screw 1 1 1 29 20612034 274016A 压杆板手 Lever 1 1 1 30 20627010 274017 压杆扳手弹簧 Spring 1 1 1 31 206S30017 7171 螺钉M4×4.2 Screw 1 1 1 32 20612035 209652 压杆扳手限位板 Stopper 1 1 1 33 S01002 7130 螺钉M4×6.5 Screw 1 1 1 34 S01006 7009 螺钉 Screw 1 1 1 35 206S20008 7365 螺钉 Screw 0 0 1 36 20612036 208913 压脚弹簧 Spring 1 1 1 37 20612012 208913 压脚弹簧 Spring 1 1 1 38 20612036 208547 压脚限位板 Stopper 1 1 1 - 40 - jintex.in

Page 48 — JK788 包兜机专用件

JK788 包兜机专用件 jintex.in

Page 49 — 第十三部 件 包 兜 机 (02*250)专用 部件 (Appropriative Assemblies for 02*250)

第十三部 件 包 兜 机 (02*250)专用 部件 (Appropriative Assemblies for 02*250) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量(Number) 1 20517007 右后护针档 Ringht needle guard 1 2 20517008 左后护针档 Left needle guard 1 3 20517009 右后护针档 Ringht needle guard 1 4 20501015 护针档座 Needle guard bracket 1 5 S01027 7010 螺钉 Screw 2 6 S01010 7019 螺钉M4×8 Screw 2 7 S01027 7010 螺钉 Screw 2 8 20501016 卷具组件 Binder assemblies 1 9 20528009 垫片 Washer 2 10 S01028 7012 螺钉M3.5×6 Screw 2 11 20515006 针板 Throat plate 1 12 S01009 螺钉 Screw 1 13 20528010 垫片 Washer 1 14 20512012 缝料挡板 Cloth guide plate 1 15 20534002 针夹头 Needle clamp 1 16 20519003 下刀 Lower knife 1 17 20526001 上刀架销 Pin 1 18 20502002 上刀架销 Upper knife frame rock shaft 1 19 20519004 上刀 Upper knife 1 20 20501017 上刀座 Upper knife holder 1 21 S01010 7019 螺钉M4×8 Screw 1 22 20506006 牙齿 Feed dog 1 23 S01010 7019 螺钉M4×8 Screw 2 24 20516007 压脚组件 Presser foot assemblies 1 25 20504001 右弯针 Needle guard 1 26 20504001 弯针架 Looper holder 1 27 205S30029 螺钉 Screw 1 28 20517021 209685-C 前弯针 Front looper holder 1 29 206S11003 1189 螺钉SM9/64×40×6 Screw 1 30 20528011 垫片 Washer 1 31 205S30030 螺钉 Screw 1 32 20512013 过线管组件 Thread pipe assemblies 1 33 20512014 过线件 Thread guide 1 34 10122006 油封 Oil seal 2 35 20503002 上弯针轴 Upper looper shaft 1 36 20501018 挡板 Front cover(center) 1 37 20501019 卷具架 Binder bracket 1 38 20501020 上弯针密封板 Cover 1 39 20501021 前盖板 Front cover 1 40 20513006 过线管组件 Thread pipe assemblies 1 41 20531001 000406 固定棒帽 Rubber seal 1 42 20531002 000405 过线架 Spool pin 1 43 20531003 000404 托盘 Spool tray 1 44 20531004 0004012 螺母 Nut 1 45 20531005 000407 螺钉 Screw 1 46 20531006 000408 螺钉 Screw 1 47 20531007 000409 螺钉 Screw 3 48 20531008 0004908 固定棒 Bar 1 49 20531009 000410-SA 带子架座 Bracket 1 50 20531010 004818 螺钉 Screw 1 51 S01010 7019 螺钉 Screw 2 jintex.in

Page 50

30 19 14 15 13 14 15 30 19 30 34 35 36 37 23 32 20 30 14 18 17 22 21 16 12 1 2 3 4 6 9 10 11 7 8 44 12 27 30 14 33 31 38 27 29 28 25 26 24 13 796 43 41 36 37 42 40 39 jintex.in

Page 51 — 第十四部件 油泵部件(Lubrication Assemblies)

第十四部件 油泵部件(Lubrication Assemblies) 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 Ref.No. Part No. Ref. Part. no Three-thread Four-thread Five-thread 1 2062000200 209610-91 油泵组件 Pump 1 1 1 2 20620001 209612D 油泵蜗轮 Worm wheel 1 1 1 3 S10002 4514 螺钉M5×5 Screw 1 1 1 4 20620005 212982A 油泵盖 Pump cover 1 1 1 5 20601022 205341 油缸 Tank 1 1 1 6 S01028 7012 螺钉M5×5.7 Screw 3 3 3 7 20620007 209408 油泵滤油网 Filter (inside) 1 1 1 8 20620008 209409 油泵滤油网 Filter (inside) 1 1 1 9 20620006 209410 油泵卡箍 Clamp 1 1 1 10 206S11013 7011 螺钉M3×8 Screw 1 1 1 11 206S16003 48000 螺母 Nut 1 1 1 12 S04005 7023A 螺钉 Screw 3 3 3 13 2032100400 油管 Oil tube 2 2 2 14 20636001 200136 油管接头 Joint 5 5 5 15 20629002 202199 油管卡簧 Clamp 5 5 5 16 20601020 209654 油管架 Oil distributor 1 1 1 17 S01002 4514 螺钉 Screw 1 1 1 18 20122034 垫片 Washer 2 2 2 19 206S30009 240328 过油螺钉 Joint screw 3 3 3 20 206S30008 209656 油管支柱 Screw 1 1 1 21 S04005 7023A 螺钉M4×15.5(788) Screw 2 2 2 22 20521013 油管 Oil tube 1 1 1 23 301S30012 过油螺钉 Joint screw 1 1 1 24 20601021 209688-9 油盘 Oil reservoir 1 1 1 25 201S11031 5318B 螺钉SM3/8×28×12 Screw 1 1 1 26 20528014 202287A 垫圈 Washer 1 1 1 27 20622015 209578 油盘油封 Gasket 1 1 1 28 S05019 4531 螺钉M5×11.5 Screw 4 4 4 29 20628018 240339 垫片 Washer 4 4 4 30 20122033 垫片 Washer 10 10 10 31 20528015 202045 垫片 Washer 1 1 1 32 206S30007 274586 过油螺钉 Joint screw 1 1 1 33 20521007 274592 铜油嘴 Joint screw 1 1 1 34 S01003 7021 螺钉M4×12 Screw 3 3 3 35 20501028 滤油器盖 Filter element cover 1 1 1 36 001010 206431 O型圈 38.7X3.55 O ring 1 1 1 37 20136001 206233 滤油器 Filter element 1 1 1 38 20129002 卡簧 Sape ring 1 1 1 39 2032100400 油管 Oil tube 1 1 1 40 20521012 油管 Oil tube 1 1 1 41 300140 滤油器盖 Filter element cover 1 1 1 42 20121013 滤油器接头 Oil cljerner joint 1 1 1 43 20501003 供油管 Oil distributor 1 1 1 44 20621006 针杆回油管 Oil tube 1 1 1 - 44 - jintex.in

Page 52

788/796-5 788/796-6-355 缝外 Except 788/796-6-355 788/796-3, -4, -2, -6 31 788/796-6-355 19 788/796-3, -4, -2 788/796 5, -6 788/796-4, -17 788/796-5 18 788/796-4, -2 788/796-5, -6 45 jintex.in

Page 53 — 第十五部件 过线部件(Thread Guide Assemblies)

第十五部件 过线部件(Thread Guide Assemblies) 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 Ref.No Part No Ref. Part. no Three-thread Four-thread Five-thread 1 20613010 209621 弯针过线 Thread guide 1 1 1 2 S01010 7019 螺钉M4×8 Screw 1 1 1 3 20613002 209628 机针过线 Needle thead guide 1 1 0 4 20613005 209629 过线 Thread guide 0 0 1 5 S01035 7367 螺钉M4×7.5 Screw 1 1 1 6 20613003 209713 二四线过线 Needle head guide 1 1 0 7 20613004 208778 五线上过线 Thread guide 0 0 1 8 S01035 7367 螺钉M4×7.5 Screw 2 2 2 9 20601023 209679 压线板架 Thread retainer 1 1 1 10 205S30038 5359 螺钉 Screw 1 1 0 11 20612046 200041A 三四线压线板 Thread retainer 1 1 1 12 20612047 200041 五线压线板 Thread retainer 0 0 1 13 20612048 202495 压线过线板 Guide 1 1 1 14 20627013 209728 压线弹簧 Spring 1 1 1 15 206S20008 7365 螺钉M3×2.5 Screw 1 1 1 16 20612049 209681 护线板 Needle thead take-up 1 1 1 17 206S30019 7366 螺钉M3×2.5 Screw 2 2 0 18 20613007 209684 五线过线 Thread guide 0 0 1 19 2061204600 200041ZJ 三四线压线板组件 Thread retainer 1 1 1 2061204700 200041AZJ 五线压线板组件 Thread retainer 0 0 1 20 20613013 209624 弯针过线 Thead take-up 1 1 1 21 S01010 7019 螺钉M4×8 Screw 1 1 1 22 20613014 209625 上弯针过线 Thead take-up 1 1 1 23 S01022 7008 螺钉M3×4 Screw 1 1 1 24 W01011 202875 垫圈 Washer 1 1 1 25 20613009 209626 弯针过线 Thead take-up 1 1 1 26 S01010 7019 螺钉M4×8 Screw 1 1 1 27 20613008 210353 弯针架过线 Thread guide 1 1 1 28 20613012 209623 机针过线 Thread guide 1 1 1 29 S01002 7018 螺钉M4×6.5 Screw 1 1 1 30 20613011 209683 上弯针过线 Thread guide 1 1 1 31 20613006 209712 六线过线 Thread guide 0 0 六线1个 - 46 - jintex.in

Page 54

796 10 11 12 13 14 1784-2 10 1784-3 15 1784-4-181 1796-4-181 15 1784-12-250 16 36.785 J.3 14 7784-5-18 15 3.785-0-156 7796-0-356 19 -47- jintex.in

Page 55 — 第十六部件 夹线器部件(Tension Spring Assemblies)

第十六部件 夹线器部件(Tension Spring Assemblies) 序号 公司件号 参考件号 名称 Description 数量 (Number) Ref. No Part No Ref. Part. no 三线 四线 五线 Three-thread Four-thread Five-thread 1 2061600500 夹线器组件 Tension spring assembly (788-2)1 0 0 2 2061600600 夹线器组件 Tension spring assembly 1 0 0 3 2061600700 夹线器组件 Tension spring assembly 0 1 0 4 206S30016 7170 螺钉M4×4.5 Screw 2 2 2 5 2061600900 夹线器组件 Tension spring assembly (02*250)1 0 0 6 3011600600 夹线器组件 Tension spring assembly 0 1 1 7 2061600800 夹线器组件 Tension spring assembly 0 0 (6-355)1 8 2061601000 夹线器组件 Tension spring assembly 0 0 2 15 206S30016 螺钉M4×4.5 Screw 2 2 2 796-2 二线 10 20513002 过线板 Thread guide 2 0 0 11 2071100400 夹线器 Tension spring 1 0 0 14 2071100500 夹线器 Tension spring 1 0 0 796-3 10 20513002 过线板 Thread guide 3 0 0 11 2071100400 夹线器 Tension spring 1 0 0 13 2071100700 夹线器 Tension spring 1 0 0 14 2071100500 夹线器 Tension spring 1 0 0 796-02*250 10 20513002 过线板 Thread guide 02*250 2 0 0 11 2071100400 夹线器 Tension spring 1 0 0 12 2071100300 夹线器 Tension spring 1 0 0 13 2071100700 夹线器 Tension spring 1 0 0 14 2071100500 夹线器 Tension spring 1 0 0 796-4,-5 10 20513002 过线板 Thread guide 4 0 0 11 2071100400 夹线器 Tension spring 1 0 0 12 2071100300 夹线器 Tension spring 1 0 0 13 2071100700 夹线器 Tension spring 1 0 0 14 2071100500 夹线器 Tension spring 1 0 0 - 48 - jintex.in

Page 56

788/796-5 G 参照標準度量表 Refer to the gauge parts list. - 49 - jintex.in

Page 57 — 十七部件 五线推移轴部件 (Five-thread Process Shaft Assemblies)

十七部件 五线推移轴部件 (Five-thread Process Shaft Assemblies) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20609016 209600 五线滑块 Block 0 0 1 2 20604018 209599 五线叉形曲柄 Lever 0 0 1 3 20602016 209586 五线推移轴 Shaft 0 0 1 4 S10002 4514 螺钉M5×5 Screw 0 0 1 5 20622012 240310 油封 Plug 0 0 1 6 20601024 209601 五线推移连接柱 Pin 0 0 1 7 S10002 4514 螺钉M5×5 Screw 0 0 1 8 20626017 273504 五线销 Pin 0 0 1 9 20604019 209602 链线弯左曲柄 Holder 0 0 1 10 S10002 4514 螺钉M5×5 Screw 0 0 1 11 20602019 209585 轴 Shaft 0 0 1 12 20626018 208195 五线弯针球齿柄销 Pin 0 0 1 13 206S30011 4545 螺钉M3×4 Screw 0 0 2 14 20609017 208194 连板 Link/Looper drive 0 0 1 15 20604020 209569-92 链线弯针曲柄 Crank 0 0 1 16 S05018 4533 螺钉M6×0.75×12 Screw 0 0 1 17 20622019 210586A 油封 Oil seal 0 0 1 18 205S30036 5284 螺钉M6×0.75×12 Screw 0 0 1 19 206S11001 1175-2 螺钉 Screw 0 0 1 20 20602017 209689-92 五线弯针架 Looper holder 0 0 1 21 20603013 209534 链线弯针套筒 Sleeve 0 0 2 - 50 - jintex.in

Page 58

788/796-5 25 788/796-5, -6 26 788-796-02*250 51 jintex.in

Page 59 — 第十八部件 打线凸轮部件(Cam Assemblies)

第十八部件 打线凸轮部件(Cam Assemblies) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20613015 209699 过线管 Thread guide pipe 0 0 1 2 20629003 206115 过线管夹 Bracket 0 0 1 3 S01010 7019 螺钉M4×8 Screw 0 0 1 4 20613016 209631 过线管 Thread guide pipe 0 0 1 5 20629003 206115 过线管夹 Bracket 0 0 2 6 20612057 275033A 打线凸轮架 Bracket 0 0 1 7 206S20004 7066 螺钉M4×3.7 Screw 0 0 1 8 20128015 210307 波形垫圈 washer 0 0 2 9 20629005 275037 卡簧 Flat spring 0 0 1 10 206S30015 7167 螺钉M3×2 Screw 0 0 1 11 20612055 137108 小夹线片 Tension disc 0 0 2 12 3012016 211388 夹线簧 Spring 0 0 1 13 206S16004 275034 夹线螺母 Nut 0 0 1 14 20612056 275035 分线板 Thread guide 0 0 1 15 S01031 7017 螺钉M4×4.7 Screw 0 0 1 16 20629004 275036 打线架卡簧 Thread guide 0 0 1 17 S01022 7008 螺钉M3×4 Screw 0 0 1 18 20613017 275039 凸轮架螺钉 Thread guide 0 0 1 19 S01022 7008 螺钉M3×4 Screw 0 0 1 20 20612058 179498-92 打线凸轮 Looper thread take-up 0 0 1 21 S10005 4554 螺钉M3×3 Screw 0 0 2 22 20613018 209630 过线 Thread guide 0 0 1 23 S01010 7019 螺钉M4×8 Screw 0 0 1 24 20611010 219600 导线管套 Thread guide pipe bushing 0 0 4 25 2061205700 打线凸轮架组件 Bracket assemblies 0 0 1 26 2061205900 打线凸轮架组件 Bracket assemblies 0 0 1 - 52 - jintex.in

Page 60

796 专用 挡料架 19 33 32 31 20 30 29 21 28 27 26 23 24 25 22 788/796-8,-4 17 10 12 16 15 788/796-5 18 10 13 16 15 7 11 6 9 8 58 jintex.in

Page 61 — 第十九件 硅油盒部件(Oil Reservoir Assemblies)

第十九件 硅油盒部件(Oil Reservoir Assemblies) 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 Ref.No Part No Ref. Part. no Three-thread Four-thread Five-thread 1 20622017 209614 上硅油盒壳 Oil reservoir(Upper) 1 1 1 2 20623009 209643 油毡 Felt 1 1 1 3 20622018 209615 上硅油盒盖 Cover 1 1 1 4 20612061 209627 上硅油固定壳 Thread guide 1 1 1 5 S01010 7020 螺钉M4×8 Screw 1 1 1 6 20611011 209616 下回油盒 Oil reservoir(Lower) 1 1 1 7 20522002 209617 下硅油盒盖 Cover 1 1 1 8 S01003 7021 螺钉M4×8 Screw 1 1 1 9 20612062 303448 油管螺钉垫片 Washer 1 1 1 10 20626019 210766 油毡固定销 Pin 1 1 1 11 20621001 200155 硅油管 Clamp 1 1 1 12 2050102200 209662ZJ 三四下硅油盒组件 Needle thread lubricator 1 1 0 13 2060402100 209614ZJ 五线下硅油盒组件 Needle thread lubricator 0 1 1 14 20612060 209697 上硅油盒底板 Needle thread lubricator 1 1 1 15 20617003 210214 下硅油固定滚珠 Plug 1 1 1 16 S01010 7020 螺钉M4×8 Screw 2 2 2 17 20623010 240178 油毡 Oil felt 1 1 0 18 20623009 209643 油毡 Oil felt 0 0 1 19 201S11009 螺钉 Screw 1 1 1 20 20128020 垫圈 Washer 1 1 1 21 20112054 挡料板 Snap plate 1 1 0 20112055 挡料板 Snap plate 0 0 1 22 20112056 挡料板座 Snap plate bracket 1 1 1 23 20126020 铰链销 Hinge pin 1 1 1 24 201S11011 铰链簧螺钉 Hinge spring screw 1 1 1 25 20112053 铰链弹簧 Hinge spring 1 1 1 26 20128020 垫圈 Washer 2 2 2 27 201S12001 5088 铰链螺钉 Hinge screw 2 2 2 28 201S16003 螺母 Nut 1 1 1 29 20112051 送料支架 Cloth guide holder 1 1 1 30 201S11016 送料支架螺钉 screw 1 1 1 31 20128027 垫圈 Washer 1 1 1 32 201S20002 螺钉 screw 1 1 1 33 20112052 铰链 Hinge plate 1 1 1 - 54 - jintex.in

Page 62

788/796-1-01 788/796-4-13 788/796-2 27 40mm jintex.in

Page 63 — 第二十部件专用部件 (Appropriative Assemblies )

第二十部件专用部件 (Appropriative Assemblies ) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thre 四线 Four-thread 五线 Five-thread 1 206S11014 1333 螺钉 Screw 0 1 0 2 20612045 201265B 角板 Corner plate 1 0 0 3 20612046 210681 角板 Corner plate 1 0 0 4 206S11015 1231 螺钉 Screw 1 0 0 5 20628018 240339 垫片 Washer 1 0 0 6 206S11019 003044 螺母 Nut 1 0 0 7 20628019 202875 垫片 Washer 1 0 0 8 206S11016 5089 螺钉 Screw 1 0 0 9 206S11017 5030 螺钉 Screw 1 0 0 10 20612047 210684 连接板 plate 1 0 0 11 206S11018 5157 螺钉 Screw 1 0 0 12 S01010 7020 螺钉4×8 Screw 1 0 0 13 W02002 201252 垫圈4 Washer 1 0 0 14 20612053 209622 压脚挡板 Fabric guide 0 1 0 15 20612043 210584 支架 Bracket 1 0 0 16 201S12001 5088 螺钉 Screw 2 0 0 17 20628017 210585 垫片 Washer 2 0 0 18 20612041 204683 固定块 Bracket 1 0 0 19 206S11018 5157 螺钉 Screw 2 0 0 20 20612042 204460 挡板 Plate 1 0 0 21 206S11011 7105 螺钉 Screw 1 0 0 22 206S11012 7232 螺钉 Screw 1 0 0 23 206S11010 5077 螺钉 Screw 1 0 0 24 20628016 201156 垫片 Washer 1 0 0 25 20612044 211600 角板 Corner plate 1 0 0 26 206S11013 7011 螺钉 Screw 1 0 0 27 20612040 208532 导向片 plate 1 0 0 28 20612048 202495 挡板 plate 1 0 0 29 20628020 5299 螺钉 Screw 1 0 0 30 20612049 209681 弹簧片 Spring 1 0 0 31 20612050 303312A 垫块 Bracket 1 0 0 32 20531026 209635 带条上导板 Bracket 0 1 0 33 20531027 205319 带条调整板 Guide 0 1 0 BRC-752 二线 34 20515003 一线针板 Thioat plate 1 0 0 35 20516004 一线压脚 Presser foot form 1 0 0 36 20517002 一线弯针 Looper 1 0 0 37 20117014 机针 Needle 1 0 0 38 20634001 209670-92 针夹头 Needle clamp 1 0 0 39 20517020 204634 前护针板 Needle guard 1 0 0 - 56 - jintex.in

Page 64

788/796-5-18 jintex.in 57

Page 65 — 第二十一部件 BRC-732-48专用部件(Appropriative Assemblies For 48)

第二十一部件 BRC-732-48专用部件(Appropriative Assemblies For 48) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20521006 275525 打褶器 Blade 0 0 1 2 20521002 275515 打褶器连接板 Bracket 0 0 1 3 S01007 007022A 螺钉M4×13.5 Screw 0 0 1 4 20528004 240332 连接板垫片 Spacer 0 0 1 5 205S30018 007191 连接板右侧螺钉 Screw 0 0 1 6 20528005 200098 连接板右侧垫片 Washer 0 0 1 7 20501012 210947 支架 Flat spring 0 0 1 8 206S11004 5328 支架螺钉 Screw 0 0 2 9 20521004 275516 打褶器支座 Bracket 0 0 1 10 205S30017 007160 连接板固定螺钉 Screw 0 0 1 11 20528003 204888 连接板垫片 Spring washer 0 0 1 12 205S16002 004806 连接固定螺母 Nut 0 0 1 13 20521003 210945 小连接板 Bracket 0 0 1 14 205S30020 005328 小连接板螺钉 Screw 0 0 2 15 20527005 210946 支架弹簧板 Flat spring 0 0 1 16 206S11004 5328 支架螺钉 Screw 0 0 1 17 20501013 275517-92 打褶器座 Spring guide 0 0 1 18 205S30024 007021 螺钉 Screw 0 0 1 19 20529003 210940 调压簧 Spring 0 0 1 20 201S30016 005082A 螺钉SM11/64×40×21.5 Screw 0 0 1 21 20503001 210944 调压螺钉套 Washer 0 0 1 22 20528008 204091 夹线器垫片 Washer 0 0 1 23 30111006 208448 调压止动套 Ratchet 0 0 1 24 301S16006 208447-UA 调压螺母 Nut 0 0 1 25 20511008 275518 手柄 Lever 0 0 1 26 205S30021 004806 连接固定螺母 Nut 0 0 1 27 20511007 275520 手柄座 Bracket 0 0 1 28 20527006 240320 弹簧 Spring 0 0 1 29 20502001 275521 打褶器轴 Shaft 0 0 1 30 20629006 202522 卡簧 Ring 0 0 1 31 20528006 207045 垫片 Washer 0 0 1 32 20527007 240323 弹簧 Spring 0 0 1 33 20529002 206225 挡圈 Collar 0 0 1 34 S10009 001457-1 螺钉M6×8 Screw 0 0 2 35 20521005 210955 方板 Washer 0 0 1 36 205S30023 005029 螺钉 Screw 0 0 2 37 2051200900 212435 松线组件 Cable 0 0 1 38 205S30013 212436 支座接头螺钉 Cable support 0 0 2 39 205S30011 007099 带孔螺钉 Screw 0 0 1 40 20528008 202433 垫片 Washer 0 0 1 41 205S16002 004806 螺母 Nut 0 0 1 42 20512008 275522 吊板 Latch 0 0 1 43 205S16003 179765-15 螺母 Nut 0 0 1 44 205S30012 007164 吊板螺钉 Screw 0 0 1 45 S01028 007012 螺钉M3.5×6 Screw 0 0 2 46 20512007 209693 支座接头板 Bracket 0 0 1 47 205S30010 007052 支板紧固螺钉 Screw 0 0 2 48 20512011 210961 卷边器 Gloth guide 0 0 1 49 20528007 137906 垫片 Washer 0 0 2 - 58 - jintex.in

Page 66

根据台板厚度 需要垫片数量 The number depends on the table thickness(35~50mm) - 59 -

Page 67 — 第二十二部 件 托盘部件 (Machine Rest Board Assemblies)

第二十二部 件 托盘部件 (Machine Rest Board Assemblies) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20631005 205466 托盘 Machine rest board 1 1 1 2 20631002 205470-PA 接料盒 Waste funnel 1 1 1 3 206S30012 4904 木螺钉ST4×19 Screw 3 3 3 4 20631008 205468-PA 挑料桶 Waste chute top 1 1 1 5 206S30013 4905 木螺钉ST4×19 Screw 4 4 4 6 20631009 205469-PA 挑料桶 Waste chute extension 1 1 1 7 20631001 206336 螺钉固定头 Nut 4 4 4 8 S05017 4575 螺钉M8×55 Screw 4 4 4 9 20631007 201477 卡簧 Spring washer 4 4 4 10 20631003 240565 垫片 Washer 4 4 4 11 20631006 240304 花垫片 Washer 4 4 4 12 20631003 240565 垫片 Washer 16 16 16 13 20631004 205473 托盘减震垫 Cushion rubber 4 4 4 60 jintex.in

Page 68

4 3 1 32 36 35 37 27 20 34 35 22 33 19 21 6 29 5 25 24 26 31 11 11 17 12 16 15 7 13 14 10 9 38 39 10 9 13 14 2 17 12 16 15 8 28 61 jintex.in

Page 69 — 第二十三部分 线架部件 (Thread Spool Assemblies)

第二十三部分 线架部件 (Thread Spool Assemblies) 序号 Ref.No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20631020 000293 过线棒 Thread guide(6-spool) 0 0 1个(六线用) 2 30113019 000293A 过线棒 Thread guide(5-spool) 0 0 1 3 20631019 000293B 过线棒 Thread guide(4-spool) 0 1 0 4 20631018 000293C 过线棒 Thread guide(3-spool) 1 0 0 5 206S16008 4021 螺钉 Screw 2 2 2 6 N01004 4805 螺母M5 Nut 2 2 2 7 20631029 000505-PA 长线架 Thread hanger 1 0 1 8 20631026 000505APA 短线架 Thread hanger 1 2 1 9 206S30025 7102 螺钉 Screw 0 2 2 10 20631032 000512 垫片 Washer 1 2 2 11 206S30024 4022 螺钉 Screw 1 2 2 12 20631023 000380A 线棒 Spool pin 3 4 5 13 20631031 201252 垫片 Spring washer 3 4 5 14 206S16006 4803 螺母 Nut 3 4 5 15 20631025 000381-PA 托盘垫 Spool seat disc 3 4 5 16 20631024 000507 线托盘 Spool mat 3 4 5 17 20631021 000382-PA 线固定套 Spool cushion 3 4 5 18 20631015 000383-PA 棒架 Holder 1 1 1 19 206S30027 4014 螺钉 Screw 1 1 1 20 206S16006 4803 螺母 Nut 1 1 1 21 20631022 000384 导线棒 Thread guide arm 1 1 1 22 206S30023 4012 螺钉 Screw 1 1 1 23 206S16006 4803 螺母 Nut 1 1 1 24 20631017 000233-PA 固定器 Holder 1 1 1 25 206S30023 4012 螺钉 Screw 1 1 1 26 206S16006 4803 螺母 Nut 1 1 1 27 20631012 000502-PA 线架上棒 Column pipe (upper) 1 1 1 28 20631027 000503-PA 线架下棒 Column pipe (lower) 1 1 1 29 20631016 000504-PA 锁紧卡固 Joint 1 1 1 30 206S30023 4012 螺钉 Screw 1 1 1 31 206S16006 4803 螺母 Nut 1 1 1 32 20631013 000527-PA 长过线架 Thread hanger 1 0 1 33 20631014 000527APA 短过线架 Thread hanger 1 2 1 34 206S16008 4021 螺钉 Screw 1 2 2 35 N01004 4805 螺母M5 Nut 1 2 2 36 20631030 000506 过线套 Thread eyelet 3 4 5 37 20631011 000386 棒帽 Rod cap 1 1 1 38 20631028 000509 垫片 Washer 1 1 1 39 206S16007 4835 螺母 Nut 1 1 1 - 62 - jintex.in

Page 70

6 7 8 9 10 11 12 13 14 15 16 18 23 22 17 20 21 19 - 63 - jintex.in

Page 71 — 二十四、附件部件/Accessories Assemblies

二十四、附件部件/Accessories Assemblies 序号 NO 公司件号 Parts No. 参考件号 Ref.Part No. 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 10131002 螺丝刀(大) Screwdriver (large) 1 1 1 2 10131003 螺丝刀(中) Screwdriver (medium) 1 1 1 3 10131004 螺丝刀(小) Screwdriver (small) 1 1 1 4 20131044 直柄内六角螺丝刀(1.5mm) Allen key/1.5mm 1 1 1 5 20131045 直柄内六角扳手(1.6mm) Allen key/1.6mm 1 1 1 6 20131037 油壶 Oil container 1 1 1 7 20131038 油壶(尖嘴) Oil container 2 2 2 8 20131039 the Tundish 1 1 1 9 20131080 the Tweezers 1 1 1 10 20131043 JK795-1908扳手(8mm) Wrench/8mm 1 1 1 11 20131042 JK795-1907扳手(7mm) Wrench/7mm 1 1 1 12 20131041 JK795-1906扳手(6mm) Wrench/6mm 1 1 1 13 20131046 内六角扳手(2mm) Allen key/2mm 1 1 1 14 30131012 内六角扳手(4mm) Allen key/4mm 1 1 1 15 20131056 内六角扳手(6mm) Allen key/6mm 1 1 1 16 30131026 内六角扳手(8mm) Allen key/8mm 1 1 1 17 20131054 JK795-1919脚踏板鏈 Chain 1 1 1 18 20619003 202295 JK788-202295下刀 Uppwer knife 1 1 0 19 見標准零件表 機針 Needle 4 4 4 20 20136001 滤油器 Uppwer knife 1 1 1 21 201514001 S009螺釘 Screw 4 4 4 22 30135004 皮带 Leather belt 1 1 1 23 20619004 204161 JK788-204161五線下刀片 Uppwer knife 0 0 1 - 64 - jintex.in

Page 72

JK788/796-5 标准度零件表788-5 GAUGE PARTS LIST 型号 间距 针板 牙齿组合件 压脚组件 上弯针 下弯针 连线弯针 MACHINE TYPE GAUGE NEEDLE PLATE FEED DOG AS PRESSER FOOT ASS. UPPER LOOPER LOWER LOOPER CHAINSTITCH LOOPER /SPEC NG SW JK-788/796-5-36 3 4 20615001 20514008 20516012 20517014 20617005 20517012 JK-788/796-5-38 3 4 20615001 20506001 20516012 20517014 20617005 20517012 JK-788/796-5-48 3 4 20615002 20506001 20516014 20517014 20617005 20517012 JK-788/796-5-70 5 5 20615003 20514010 20516014 20517014 20617005 20517012 JK-788/796-5-86 5 6 20515009 20514008 20516017 20517019 20617005 20517012 JK-788/796-5-355 3X2 4 20615004 20514008 20516017 20517019 20617005 20517012 JK788/796-3,-4 标准度零件表788-3,-4 GAUGE PARTS LIST 型号 间距 上刀 下刀 可移动护针架 全连线护针架 针夹 机针 MACHINE TYPE GAUGE UPPER KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD CHAINSTITCH NEEDLE NEEDLE HOLDER NEEDLE /SPEC NG SW FRONT REAR FRONT REAR JK-788/796-3-01 - 4 20619002 20619004 20517012 20515012 20517015 20516016 20634003 20117013 JK-788/796-3-38 3 4 20619002 20619004 20517012 20515012 20517015 20516016 20634003 20117013 JK-788/796-4-13 2 4 20619002 20514004 20517012 20515012 20517015 20517016 20634003 20117013 JK-788/796-16S2 1.5 4 20615006 20514004 20517012 20515012 20517015 20517016 20634003 20117013 JK-788/796-3-17 4 20619002 20514004 20517012 20515012 20517015 20517016 20634003 20117013 JK-788/796-3-54A 4 20619002 20514004 20517020 20515012 20517013 20517016 20634001 20117012 JK-788/796-4-55A 2 4 20619002 20514004 20517020 20515012 20517013 20517016 20634002 20117011 JK-788/796-3-180 4 20619002 20514004 20517020 20515012 20517013 20517016 20634001 20117012 JK-788/796-4-181 2 4 20619002 20501022 20517020 20515012 20517013 20517016 20634002 20117011 -65- jintex.in
