Jack JK-788 Parts Book (PDF)
Text index — Jack JK-788

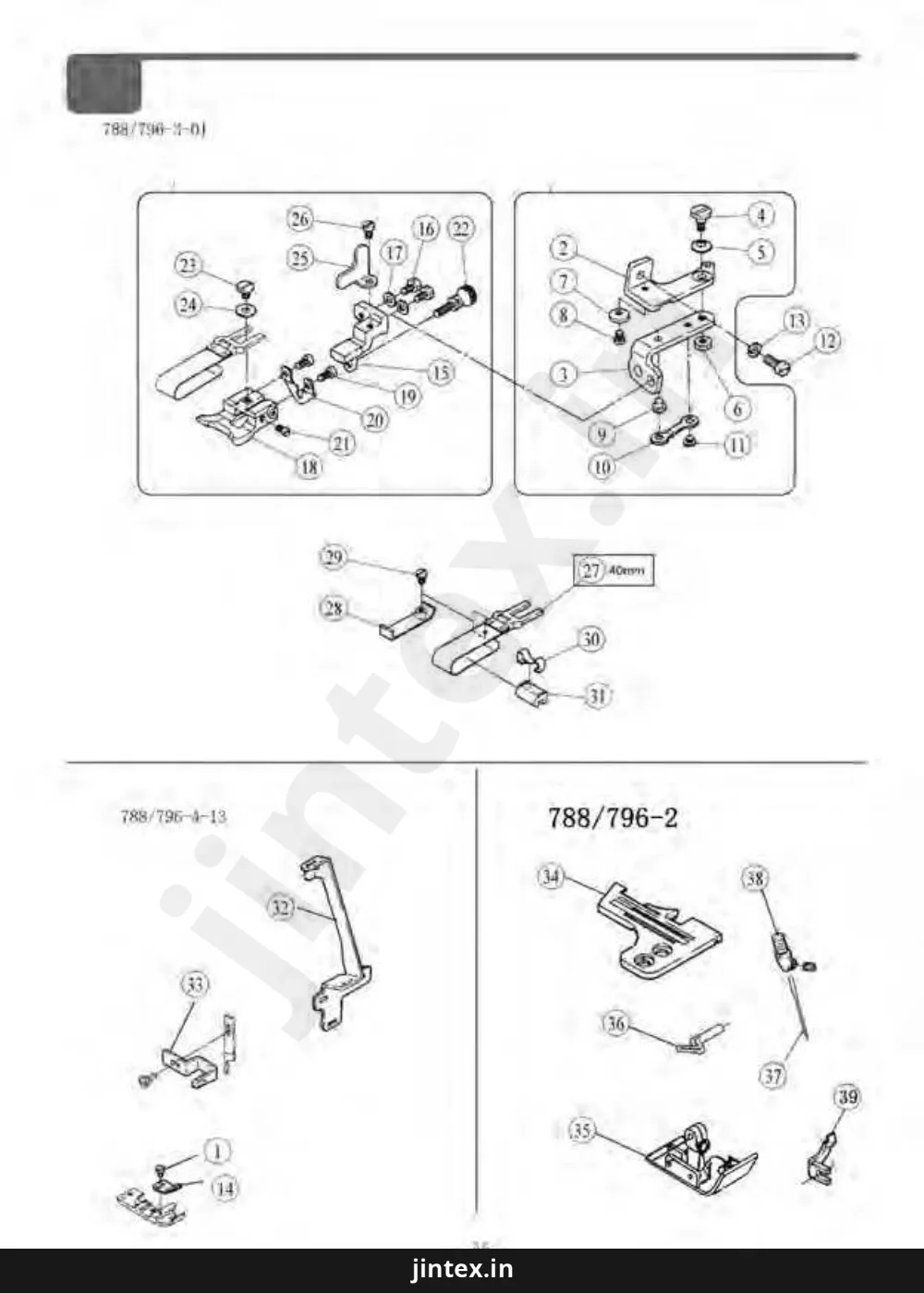

Page 23 — JK788/796 针号对照表 Comparison table for needle sizes
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK788/796-5-36 | |||
| JK788/796-5-38 | |||
| JK788/796-5-48 | |||
| JK788/796-5-48P2 | |||
| JK788/796-5-70 | |||
| JK788/796-5-86 | |||
| JK788/796-5-355 | |||
| JK788/796-3-01 | |||
| JK788/796-4-13 | |||
| JK788/796-3-16S2 | |||
| JK788/796-3-17 | |||
| JK788/796-4-23B | |||
| JK788/796-3-54A | |||
| JK788/796-3-55A | |||
| JK788/796-3-180 | |||
| JK788/796-3-181 |
Page 25 — 第一部 件 机壳部件(Frame Assembly)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 206S30001 | Bed pin | 4 / 4 / 4 |
| 2 | 20611001 | Oil sight gauge | 1 / 1 / 1 |
| 3 | R03001 | Rivet | 2 / 2 / 2 |
| 4 | 20531024 | brand | 1 / 1 / 1 |
| 5 | 20609002 | Bracket | 0 / 0 / 1 |
| 6 | P03010 | Pin | 1 / 1 / 1 |
| 7 | 20609001 | Bracket | 1 / 1 / 0 |
| 8 | S05019 | Screw | 4 / 4 / 4 |
| 9 | P03010 | Pin | 1 / 1 / 1 |
| 10 | 20513008 | Pipe | 2 / 2 / 2 |
| 11 | P03010 | Pin | 1 / 1 / 1 |
| 12 | S05016 | Screw | 2 / 2 / 2 |
| 13 | 300029 | later shell upper knot | 1 / 1 / 1 |
| 14 | 300028 | Machine frame | 1 / 1 / 1 |
| 15 | 20622012 | Plug | 1 / 1 / 0 |
| 16 | 300032 | 796 machine frame | 1 / 1 / 1 |
| 17 | 10122006 | Plug | 1 / 1 / 0 |
Page 27 — 第二部件 机壳机罩部件 (Cover Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 300030 | Side cover | 1 / 1 / 1 |
| 2 | S01010 | Screw | 1 / 1 / 1 |
| 3 | S01032 | Screw | 1 / 1 / 1 |
| 4 | 300160 | Top cover | 1 / 1 / 1 |
| 5 | S01032 | Screw | 4 / 4 / 4 |
| S01003 | Screw | 6 / 6 / 6 | |
| 6 | 20622002 | Gasket | 1 / 1 / 1 |
| 20522001 | Gasket | 1 / 1 / 1 | |
| 7 | 20611002 | Oil singt window | 1 / 1 / 1 |
| 8 | 20622001 | Gasket | 1 / 1 / 1 |
| 9 | 20623001 | Sponge | 1 / 1 / 1 |
| 10 | 20612005 | Fan cover | 1 / 1 / 1 |
| 11 | S01010 | Screw | 2 / 2 / 2 |
| 12 | 20601005 | Cover | 1 / 1 / 1 |
| 13 | S01010 | Screw | 3 / 3 / 3 |
| 14 | S01035 | Screw | 1 / 1 / 1 |
| 15 | 20612002 | Fabric guard | 1 / 1 / 0 |
| 16 | 20612003 | Fabric guard | 0 / 0 / 1 |
| 17 | 20612010 | Bracket | 1 / 1 / 0 |
| 18 | 206S11012 | Screw | 1 / 1 / 0 |
| 19 | S01002 | Screw | 3 / 3 / 3 |
| 20 | 300163 | Front cover | 1 / 1 / 1 |
| 300472 | 788-02*250Front cover | 1 / 1 / 1 | |
| 21 | 20612009 | Latch | 1 / 1 / 1 |
| 22 | S01006 | Screw | 1 / 1 / 1 |
| 23 | 20612006 | Latch | 1 / 1 / 1 |
| 24 | S01031 | Screw | 1 / 1 / 1 |
| 25 | 20612004 | Flat spring | 1 / 1 / 1 |
| 26 | S01031 | Screw | 1 / 1 / 1 |
| 27 | 20626001 | Pin | 1 / 1 / 1 |
| 28 | S10007 | Screw | 2 / 2 / 2 |
| 29 | 20627001 | Sping | 1 / 1 / 1 |
| 30 | 20601007 | Hinge | 1 / 1 / 1 |
| 31 | S01003 | Screw | 3 / 3 / 3 |
| 32 | 20612007 | Front cover(center) | 1 / 1 / 0 |
| 33 | 20612008 | Front cover(center) | 0 / 0 / 1 |
| 20501018 | Front cover(center) | 0 / 0 / 1 | |
| 34 | S01002 | Screw | 1 / 1 / 1 |
| 35 | 20612001 | Oil guard | 1 / 1 / 1 |
| 36 | S01002 | Screw | 1 / 1 / 1 |
| 37 | 20611003 | Belt cover | 1 / 1 / 1 |
| 38 | S01013 | Screw | 3 / 3 / 3 |
| 39 | 20131063 | brand | 1 / 1 / 1 |
| 40 | S01003 | Screw | 1 / 1 / 1 |
| 41 | 20612062 | Washer | 1 / 1 / 0 |
| 42 | 20501002 | Thread guide supporter | 1 / 1 / 1 |
| 43 | S01035 | Screw | 1 / 1 / 1 |
| 44 | 300473 | Top cover | 1 / 1 / 1 |
Page 29 — 第三部件 机罩部件(Cover Assenblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209687 | Cover plate | 1 | 1 | 1 |
| 2 | 7019 | Screw | 4 | 4 | 2 |
| 7021 | Screw | 0 | 0 | 2 | |
| 3 | 209517 | Bed cover plate | 1 | 1 | 1 |
| 4 | L02001 | Screw | 4 | 4 | 4 |
| 5 | 209513-PD | Needle bar cover | 1 | 1 | 1 |
| 6 | 209641 | Pin | 1 | 1 | 1 |
| 7 | 4543 | Screw | 1 | 1 | 1 |
| 8 | 209645 | Spring | 1 | 1 | 1 |
| 9 | 7017 | Screw | 1 | 1 | 1 |
| 10 | 209636 | Screw | 1 | 1 | 1 |
| 11 | 209618 | Eye guard | 1 | 1 | 0 |
| 12 | 209619 | Eye guard | 0 | 0 | 1 |
| 13 | 7062 | Screw | 2 | 2 | 2 |
| 14 | 202875 | Washer | 2 | 2 | 2 |
| 15 | 209651 | Bracket | 1 | 1 | 1 |
| 16 | 240305 | Cushion rubber | 1 | 1 | 1 |
| 17 | 7066 | Screw | 1 | 1 | 1 |
| 18 | 210307 | Washer | 2 | 2 | 2 |
| 19 | 209543 | Front cover | 1 | 1 | 1 |
| 20 | 7077 | Screw | 2 | 2 | 2 |
| 21 | 20512016 | Cloth plate | 0 | 0 | 1 |
| 22 | 209576-91 | Cloth plate | 0 | 0 | 1 |
| 23 | 270042 | Bushing | 1 | 1 | 1 |
| 24 | 4538 | Screw | 1 | 1 | 1 |
| 25 | 210307 | Washer | 1 | 1 | 1 |
| 26 | 7066 | Screw | 1 | 1 | 1 |
| 27 | 270043 | Lever | 1 | 1 | 1 |
| 28 | 270044 | Spring | 1 | 1 | 1 |
| 29 | 7172 | Screw | 1 | 1 | 1 |
| 30 | 270045 | Bracket | 1 | 1 | 1 |
| 31 | 240305 | Cushion rubber | 1 | 1 | 1 |
| 32 | 7023A | Screw | 1 | 1 | 1 |
| 33 | N01001 | Nut | 1 | 1 | 1 |
| 34 | 209547-PB | Side cover | 1 | 1 | 1 |
| 35 | 7018 | Screw | 2 | 2 | 2 |
| 36 | 240343 | Washer | 2 | 2 | 2 |
| 37 | 7025 | Screw | 1 | 1 | 1 |
| 38 | 20531023 | brand | 1 | 1 | 1 |
| 39 | 240305 | Cushion rubber | 1 | 1 | 1 |
| 40 | 270048 | Latch | 1 | 1 | 1 |
| 41 | 7008 | Screw | 1 | 1 | 1 |
| 42 | 270049 | Latch | 1 | 1 | 1 |
| 43 | 7180 | Screw | 1 | 1 | 1 |
| 44 | 240305 | Cushion rubber | 1 | 1 | 1 |
| 45 | 209644 | Face plate | 1 | 1 | 1 |
| 46 | 7082 | Screw | 1 | 1 | 1 |
| 47 | 209571-91 | Cloth plate assembly | 1 | 1 | 0 |
| 48 | 20512001 | Cloth plate | 1 | 1 | 0 |
| 49 | 20511006 | Side cover | 1 | 1 | 0 |
| 50 | 30137005 | brand | 1 | 1 | 1 |
Page 31 — 第四部件 主轴部件(Main Shaft Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20602003 | Crankshaft | 1 / 1 / 1 |
| 2 | 206S14001 | Screw | 2 / 2 / 2 |
| 3 | 20625002 | Worm | 1 / 1 / 1 |
| 4 | S10009 | Screw | 1 / 1 / 0 |
| 5 | 20602002 | Pin | 0 / 0 / 1 |
| 6 | 20612020 | Left cover | 1 / 1 / 0 |
| 7 | S01010 | Screw | 3 / 3 / 0 |
| 8 | 20612021 | Left cover | 0 / 0 / 1 |
| 9 | S02004 | Screw | 0 / 0 / 2 |
| 10 | S01010 | Screw | 0 / 0 / 1 |
| 11 | 20622004 | Gasket | 1 / 1 / 1 |
| 12 | 20603006 | Bushing | 1 / 1 / 1 |
| 13 | S01029 | Screw | 2 / 2 / 2 |
| 14 | 206S30003 | Screw | 1 / 1 / 1 |
| 15 | B01006 | Bearing | 1 / 1 / 1 |
| 16 | 20628002 | Spacer | 1 / 1 / 1 |
| 17 | 20628021 | Sping wsasher | 4 / 4 / 4 |
| 18 | B01007 | Bearing | 1 / 1 / 1 |
| 19 | 20601011 | Right cover | 1 / 1 / 1 |
| 20 | 20622005 | O Ring | 1 / 1 / 1 |
| 21 | 20628001 | Plate | 1 / 1 / 1 |
| 22 | S01010 | Screw | 3 / 3 / 3 |
| 23 | 20608001 | Oil seal | 1 / 1 / 1 |
| 24 | 20622006 | O Ring | 1 / 1 / 1 |
| 25 | 20601012 | Fan | 1 / 1 / 1 |
| 26 | 20501027 | Strap ring | 1 / 1 / 1 |
| 27 | S12004 | Screw | 1 / 1 / 1 |
| 28 | S10009 | Screw | 1 / 1 / 1 |
| 29 | 207S13004 | Screw | 1 / 1 / 1 |
| 30 | W02004 | Washer | 1 / 1 / 1 |
| 31 | S10002 | Screw | 1 / 1 / 1 |
| 32 | S10002 | Screw | 1 / 1 / 1 |
| 33 | 20625001 | Ball bearing assembly | 1 / 1 / 1 |
| 34 | S10010 | Screw | 1 / 1 / 1 |
| 35 | 20603005 | Sleeve | 1 / 1 / 1 |
| 36 | B03002 | Bearing | 1 / 1 / 1 |
| 37 | 20501005 | Cover | 1 / 1 / 1 |
Page 33 — 第五部件 针杆部件(Needle Bar Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209544-92 | Rod | 1/1/1 |
| 2 | 7023A | Screw | 2/2/2 |
| 3 | 209552-92 | Crank | 1/1/1 |
| 209553-92 | Crank | 1/1/1 | |
| 4 | 4533 | Screw | 1/1/1 |
| 5 | 271001 | Pin | 1/1/1 |
| 6 | 4538 | Screw | 1/1/1 |
| 7 | 209582 | Shaft | 1/1/1 |
| 8 | 240338 | Washer | 1/1/1 |
| 9 | 7174 | Screw | 1/1/1 |
| 10 | 240537 | Collar | 1/1/1 |
| 11 | 4543 | Screw | 2/2/2 |
| 12 | 208250 | Oil seal | 1/1/1 |
| 13 | 209567-92 | Lever | 1/1/1 |
| 14 | 7150 | Screw | 1/1/1 |
| 15 | 208425 | Link needle bar drive | 1/1/1 |
| 16 | 209690-91 | Pin | 2/2/2 |
| 17 | 4545 | Screw | 2/2/2 |
| 18 | 208903-C | Needle bar | 1/1/1 |
| 19 | 209566-92 | Needle bar clamp | 1/1/1 |
| 20 | 7013 | Screw | 1/1/1 |
| 21 | 209640 | Cap | 1/1/1 |
| 22 | 240129 | O Ring | 1/1/1 |
| 23 | 4543 | Screw | 1/1/1 |
| 24 | 202286 | Washer | 1/1/1 |
| 25 | 5292-HV | Screw | 1/0/0 |
| 26 | 5293-HV | Screw | 0/2/2 |
| 27 | 5294-HV | Screw | 0/0/(732-355) 3 |
| 28 | 209647 | Cover | 1/1/1 |
| 29 | 209648 | Cover | 1/1/1 |
| 30 | 209642 | Felt | 1/1/1 |
| 31 | 7192 | Screw | 2/2/2 |
| 32 | 209646 | Cover | 1/1/1 |
| 33 | 7018 | Screw | 1/1/1 |
| 34 | 209524 | Sleeve | 1/1/1 |
| 35 | 209525 | Sleeve | 1/1/1 |
| 36 | 204625A | Sleeve | 1/1/1 |
| 37 | 204628A | Sleeve | 1/1/1 |
| 38 | 240190 | Pin | 1/1/1 |
| 39 | 209690-91 | Oil wick | 0.25M/0.25M/0.25M |
| 40 | 20123021 | Oil wick | 0.08M/0.08M/0.08M |
| 41 | 204195 | Oil tube | 1/1/1 |
Page 35 — 第六部件 护针部件(Support Needle Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209539 | Bracket | 1 |
| 2 | 7020 | Screw | 2 |
| 3 | 5330 | Screw | 0 |
| 4 | 4009 | Screw | 2 |
| 5 | 208935 | Support needle plate | 1 |
| 6 | 7020 | Screw | 2 |
| 7 | 204631A | Bracket | 1 |
| 8 | 7012 | Screw | 2 |
| 9 | 007267 | Screw | 2 |
| 10 | 5501 | Screw | 1 |
| 11 | 210930 | Spring washer | 1 |
| 12 | 204631A | Bracket | 1 |
| 13 | 7012 | Screw | 1 |
| 14 | 204636B | Bracket | 1 |
| 15 | 7014 | Screw | 2 |
| 16 | 240305 | Cushion rubber | 1 |
| 17 | 209541 | Bracket | 0 |
| 18 | 7019 | Screw | 0 |
| 19 | 209540 | Bracket | 0 |
| 20 | 7019 | Screw | 0 |
| 21 | 209539 | Bracket | 1 |
| 22 | 5484-HC | Screw | 0 |
| 23 | 7010 | Screw | 0 |
| 24 | 5315 | Screw | 0 |
| 25 | 7010 | Screw | 0 |
| 26 | 5501 | Screw | 0 |
| 27 | 210930 | Spring washer | 0 |
| 28 | 7010 | Screw | 0 |
Page 37 — 第七部件 上弯针部件(Upper Looper Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209546-92 | Rod | 1 / 1 / 1 |
| 2 | 7023A | Screw | 4 / 4 / 4 |
| 3 | 209660 | Washer | 2 / 2 / 2 |
| 4 | 209560-92 | Crank | 1 / 0 / 1 |
| 209562-92 | Crank | 0 / 1 / 1 | |
| 5 | 7369 | Screw | 2 / 2 / 2 |
| 6 | 209583 | Shaft | 1 / 1 / 1 |
| 7 | 240338 | Washer | 1 / 1 / 1 |
| 8 | 7174 | Screw | 1 / 1 / 1 |
| 9 | 202286 | Spring washer | 1 / 1 / 1 |
| 10 | 210586A | Oil seal | 1 / 1 / 1 |
| 11 | 7018 | Screw | 1 / 1 / 1 |
| 12 | 209568-92 | Lever | 1 / 1 / 1 |
| 13 | 7150 | Screw | 1 / 1 / 1 |
| 14 | 209587-91 | Upper looper holder | 1 / 1 / 1 |
| 15 | 179130-05 | Felt | 1 / 1 / 1 |
| 16 | 179136A | Pin | 1 / 1 / 1 |
| 17 | 4545 | Screw | 1 / 1 / 1 |
| 18 | 209589 | Base/upper lopper | 1 / 1 / 1 |
| 19 | 4510 | Screw | 2 / 2 / 2 |
| 20 | 209643 | Filter | 0.006M / 0.006M / 0.006M |
| 21 | 209590 | Cover | 1 / 1 / 1 |
| 22 | 7039 | Screw | 1 / 1 / 1 |
| 23 | 001998-2 | Screw | 1 / 1 / 1 |
| 24 | 209703-91 | Pin | 1 / 1 / 1 |
| 25 | 210214 | Plug | 1 / 1 / 1 |
| 26 | 4543 | Screw | 1 / 1 / 1 |
| 27 | 209528 | Sleeve | 1 / 1 / 1 |
| 28 | 270004 | Sleeve | 1 / 1 / 1 |
| 29 | 209702 | Felt | 0.025M / 0.025M / 0.025M |
| 30 | 209690-91 | Oil week | 0.03M / 0.03M / 0.03M |
| 31 | 7033 | Screw | 1 / 1 / 1 |
Page 39 — 第八部件 下弯针部件(Lower Looper Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209546-92 | Rod | 1 / 1 / 1 |
| 2 | 7023A | Screw | 4 / 4 / 4 |
| 3 | 240484 | Washer | 2 / 2 / 2 |
| 4 | 209563-92 | Crank | 0 / 0 / 1 |
| 5 | 209562-92 | Crank | 0 / 1 / 0 |
| 6 | 204787-1 | Crank | 1 / 0 / 0 |
| 7 | 7369 | Screw | 2 / 2 / 2 |
| 8 | 209583 | Shaft | 1 / 1 / 1 |
| 9 | 240338 | Washer | 1 / 1 / 1 |
| 10 | 7174 | Screw | 1 / 1 / 1 |
| 11 | 202286 | Spring washer | 1 / 1 / 1 |
| 12 | 210586A | Oil seal | 1 / 1 / 1 |
| 13 | 209007-91 | Lower looper holder | 1 / 1 / 1 |
| 14 | 208259 | Pin | 1 / 1 / 1 |
| 15 | 209083 | Pin | 1 / 1 / 1 |
| 16 | 5284 | Screw | 1 / 1 / 1 |
| 17 | 1175-3 | Screw | 1 / 1 / 1 |
| 18 | 270004 | Sleeve | 1 / 1 / 1 |
| 19 | 209528 | Sleeve | 1 / 1 / 1 |
Page 41 — 第九部件 差动送布部件(Differential Feed Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2060401100 | Crank | 1/1/1 |
| 2 | 206S11013 | Screw | 2/2/2 |
| 3 | S05018 | Screw | 1/1/1 |
| 4 | 20605005 | Link/Dlef feed | 1/1/1 |
| 5 | 206S20003 | Screw | 2/2/2 |
| 6 | 20604013 | Lever | 1/1/1 |
| 7 | S05018 | Screw | 1/1/1 |
| 8 | 20602010 | Shaft | 1/1/1 |
| 9 | 20622010 | O ring | 1/1/1 |
| 10 | 20612027 | Lever | 1/1/1 |
| 11 | 20627006 | Spring | 1/1/1 |
| 12 | 206S20005 | Screw | 1/1/1 |
| 13 | 20612028 | Regulator plate | 1/1/1 |
| 14 | 20609010 | Stopper | 2/2/2 |
| 15 | S01003 | Screw | 2/2/2 |
| 16 | 206S16001 | Nut | 1/1/1 |
| 17 | 206S30010 | Screw | 1/1/1 |
| 18 | 20628009 | Spring washer | 1/1/1 |
| 19 | 20605003 | Rod | 1/1/1 |
| 20 | 20605004 | Crank | 1/1/1 |
| 21 | S05018 | Screw | 1/1/1 |
| 22 | 20626003 | Pin | 1/1/1 |
| 23 | S10008 | Screw | 1/1/1 |
| 24 | B07008 | Needle bearing | 1/1/1 |
| 25 | 2061000100 | Regulator | 1/1/1 |
| 26 | 20622009 | O ring | 2/2/2 |
| 27 | S10002 | Screw | 2/2/2 |
| 28 | 20610003 | Eccentric | 1/1/1 |
| 29 | 20610002 | Guide/Feed eccentric | 1/1/1 |
| 30 | 20629001 | Flat spring | 1/1/1 |
| 31 | S10001 | Screw | 2/2/2 |
| 32 | 20610005 | Eccentric Assenbly | 1/1/1 |
| 33 | 20626011 | Sping pin | 2/2/2 |
| 34 | 20610004 | Ratchet | 1/1/1 |
| 35 | 20627004 | Sping | 1/1/1 |
| 36 | 205S30031 | Screw | 1/1/1 |
| 37 | 20602009 | Push button | 1/1/1 |
| 38 | 20627005 | Sping | 1/1/1 |
| 39 | 20629006 | Ring | 1/1/1 |
| 40 | 20628008 | Washer | 2/2/2 |
| 41 | 20603009 | Sleeve | 1/1/1 |
Page 43 — 第十部件 送料部件(Feed Dog Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2060600100 | Differential feed bar | 1/1/1 |
| 2 | 20621005 | Vitta | 1/1/1 |
| 3 | 206S11003 | Screw | 1/1/1 |
| 4 | 206S11002 | Screw | 1/1/1 |
| 5 | 20605006 | Link/differential feed | 1/1/1 |
| 6 | 20626013 | Bushing | 1/1/1 |
| 7 | 206S12001 | Screw | 1/1/1 |
| 8 | 20628012 | Washer | 1/1/1 |
| 9 | 20609011 | Block/feed bar guide | 1/1/1 |
| 10 | 20628013 | Washer | 1/1/1 |
| 11 | S02007 | Screw | 1/1/1 |
| 12 | 20622012 | Plug | 1/1/1 |
| 13 | 20603019 | Block/feed bar lift | 1/1/1 |
| 14 | 20606003 | Guide/feed bar | 1/1/1 |
| 15 | S01010 | Screw | 4/4/4 |
| 16 | 20622013 | Oil shield/feed bar guide | 3/3/3 |
| 17 | 20601017 | Guide/feed bar oil seal | 1/1/1 |
| 18 | S01006 | Screw | 4/4/4 |
| 19 | 20602011 | Shaft | 1/1/1 |
| 20 | S01035 | Screw | 1/1/1 |
| 21 | 20628011 | Washer | 1/1/1 |
| 22 | 20528018 | Washer | 1/1/1 |
| 23 | S10007 | Screw | 2/2/2 |
| 24 | 20608003 | Collar | 1/1/1 |
| 25 | 205S30037 | Screw | 2/2/2 |
| 26 | 20609012 | Bushing | 1/1/1 |
| 27 | 206S11009 | Screw | 1/1/1 |
| 28 | 206S11001 | Screw | 1/1/1 |
| 29 | 20605007 | Link/main feed | 1/1/1 |
| 30 | 20626013 | Bushing | 1/1/1 |
| 31 | 206S12001 | Screw | 1/1/1 |
| 32 | 20628012 | Washer | 1/1/1 |
| 33 | 20604014 | Crank | 1/1/1 |
| 34 | S05018 | Screw | 1/1/1 |
| 35 | 20626012 | Pin | 1/1/1 |
| 36 | N01004 | Nut | 1/1/1 |
| 37 | 20528015 | Washer | 1/1/1 |
| 38 | 20602012 | Feed bar pin | 1/1/1 |
| 39 | 20603007 | Sleeve | 1/1/1 |
| 40 | 20603008 | Sleeve | 1/1/1 |
| 41 | 20628023 | Plug | 1/1/1 |
Page 45 — 第十一部件 切刀部件(Trimming Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20605008 | Rod | 1 / 1 / 1 |
| 2 | S04005 | Screw | 2 / 2 / 2 |
| 3 | 20602013 | Crank | 1 / 1 / 1 |
| 4 | S05018 | Screw | 1 / 1 / 1 |
| 5 | 20626003 | Pin | 1 / 1 / 1 |
| 6 | S10008 | Screw | 1 / 1 / 1 |
| 7 | 20628014 | Washer | 1 / 1 / 1 |
| 8 | 20619001 | Uppwer knife lever | 1 / 1 / 1 |
| 9 | 20609013 | Uppwer knife clamp | 1 / 1 / 0 |
| 10 | 20609014 | Uppwer knife clamp | 0 / 0 / 1 |
| 11 | 20626014 | Pin | 1 / 1 / 0 |
| 12 | 20626015 | Pin | 0 / 0 / 1 |
| 13 | S01029 | Screw | 2 / 2 / 2 |
| 14 | 20601019 | Guide | 0 / 0 / 1 |
| 15 | 201S12001 | Screw | 1 / 1 / 1 |
| 16 | 20604015 | Lower knife holder | 1 / 1 / 0 |
| 17 | 20604016 | Lower knife holder | 0 / 0 / 1 |
| 18 | S01010 | Screw | 1 / 1 / 1 |
| 19 | S01003 | Screw | 0 / 0 / 2 |
| 20 | 20101026 | Clamp/Lower knife | 1 / 1 / 1 |
| 21 | 201S12005 | Screw | 1 / 1 / 1 |
| 22 | 20627007 | Spring | 1 / 1 / 1 |
| 23 | 20601018 | Guide | 1 / 1 / 0 |
| 24 | S01003 | Screw | 2 / 2 / 0 |
| 25 | 20603003 | Sleeve | 1 / 1 / 1 |
| 26 | 20603004 | Sleeve | 1 / 1 / 1 |
Page 47 — 第十二部件 压脚部件(Presser Fot Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209678 | Presser arm | 1/1/1 |
| 2 | 208549 | Pin | 1/1/1 |
| 3 | 4594 | Screw | 1/1/1 |
| 4 | 209471 | Finger guard | 1/1/0 |
| 5 | 209472 | Finger guard | 0/0/1 |
| 6 | 7008 | Screw | 1/1/1 |
| 7 | 202451 | Chain cutter | 1/1/1 |
| 8 | 7009 | Screw | 1/1/1 |
| 9 | 209596 | Shaft | 1/1/1 |
| 10 | 209597 | Bushing | 1/1/1 |
| 11 | 4543 | Screw | 1/1/1 |
| 12 | 274005 | Sping | 1/1/1 |
| 13 | 274004 | Lever | 1/1/1 |
| 14 | 274003-92 | Collar | 1/1/1 |
| 15 | 4534 | Screw | 1/1/1 |
| 16 | 274006 | Link | 1/1/1 |
| 17 | 209452 | Lever/Foot lift | 1/1/1 |
| 18 | 209458 | Sping | 1/1/1 |
| 19 | 7060 | Screw | 1/1/1 |
| 20 | 209676 | Stopper | 1/1/1 |
| 21 | 7020 | Screw | 2/2/2 |
| 22 | 7175 | Screw | 1/1/1 |
| 23 | 4805 | Nut | 1/1/1 |
| 24 | 209603-91 | Presser bar | 1/1/1 |
| 25 | 205584 | Spring pin | 1/1/1 |
| 26 | 274013 | Pin | 1/1/1 |
| 27 | 208773 | Spring | 1/1/1 |
| 28 | 209638 | Screw | 1/1/1 |
| 29 | 274016A | Lever | 1/1/1 |
| 30 | 274017 | Spring | 1/1/1 |
| 31 | 7171 | Screw | 1/1/1 |
| 32 | 209652 | Stopper | 1/1/1 |
| 33 | 7130 | Screw | 1/1/1 |
| 34 | 7009 | Screw | 1/1/1 |
| 7365 | Screw | 0/0/1 | |
| 35 | 20127016 | Spring | 1/1/1 |
| 208913 | Spring | 0/0/1 | |
| 36 | 208547 | Stopper | 1/1/1 |
Page 49 — 第十三部 件 包 兜 机 (02*250)专用 部件 (Appropriative Assemblies for 02*250)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20517007 | Ringt needle guard | 1 |
| 2 | 20517008 | Left needle guard | 1 |
| 3 | 20517009 | Ringt needle guard | 1 |
| 4 | 20501015 | Needle guard bracket | 1 |
| 5 | S01027 | Screw | 2 |
| 6 | S01010 | Screw | 2 |
| 7 | S01027 | Screw | 2 |
| 8 | 20501016 | Binder assemblies | 1 |
| 9 | 20528009 | Washer | 2 |
| 10 | S01028 | Screw | 2 |
| 11 | 20515006 | Throat plate | 1 |
| 12 | S01009 | Screw | 1 |
| 13 | 20528010 | Washer | 1 |
| 14 | 20512012 | Cloth guide plate | 1 |
| 15 | 20534002 | Needle clamp | 1 |
| 16 | 20519003 | Lower knife | 1 |
| 17 | 20526001 | Pin | 1 |
| 18 | 20502002 | Upper knife frame rock shaft | 1 |
| 19 | 20519004 | Upper knife | 1 |
| 20 | 20501017 | Upper knife holder | 1 |
| 21 | S01010 | Screw | 1 |
| 22 | 20506006 | Feed dog | 1 |
| 23 | S01010 | Screw | 2 |
| 24 | 20516007 | Presser foot assemblies | 1 |
| 25 | 20517010 | Needle guard | 1 |
| 26 | 20504001 | Looper holder | 1 |
| 27 | 205S30029 | Screw | 1 |
| 28 | 20517021 | Front looper holder | 1 |
| 29 | 206S11003 | Screw | 1 |
| 30 | 20528011 | Washer | 1 |
| 31 | 205S30030 | Screw | 1 |
| 32 | 20512013 | Thread pipe assemblies | 1 |
| 33 | 20512014 | Thread guide | 1 |
| 34 | 10122006 | Oil seal | 2 |
| 35 | 20503002 | Upper looper shaft | 1 |
| 36 | 20501018 | Front cover(center) | 1 |
| 37 | 20501019 | Binder bracket | 1 |
| 38 | 20501020 | Cover | 1 |
| 39 | 20501021 | Front cover | 1 |
| 40 | 20513006 | Thread pipe assemblies | 1 |
| 41 | 20531001 | Rubber seal | 1 |
| 42 | 20531002 | Spool pin | 1 |
| 43 | 20531003 | Spool tray | 1 |
| 44 | 20531004 | Nut | 1 |
| 45 | 20531005 | Screw | 1 |
| 46 | 20531006 | Screw | 1 |
| 47 | 20531007 | Bar | 1 |
| 48 | 20531008 | Screw | 3 |
| 49 | 20531009 | Bracket | 1 |
| 50 | 20531010 | Screw | 1 |
| 51 | S01010 | Screw | 2 |
Page 51 — 第十四部件 油泵部件(Lubrication Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209610-91 | Pump | 1 / 1 / 1 |
| 2 | 209612D | Worm wheel | 1 / 1 / 1 |
| 3 | 4514 | Screw | 1 / 1 / 1 |
| 4 | 212982A | Pump cover | 1 / 1 / 1 |
| 5 | 205341 | Tank | 1 / 1 / 1 |
| 6 | 7012 | Screw | 3 / 3 / 3 |
| 7 | 209408 | Filter (inside) | 1 / 1 / 1 |
| 8 | 209409 | Filter (inside) | 1 / 1 / 1 |
| 9 | 209410 | Clamp | 1 / 1 / 1 |
| 10 | 7011 | Screw | 1 / 1 / 1 |
| 11 | 48000 | Nut | 1 / 1 / 1 |
| 12 | 7023A | Screw | 3 / 3 / 3 |
| 13 | 2032100400 | Oil tube | 2 / 2 / 2 |
| 14 | 200136 | Joint | 5 / 5 / 5 |
| 15 | 202199 | Clamp | 5 / 5 / 5 |
| 16 | 209654 | Oil distributor | 1 / 1 / 1 |
| 17 | 4514 | Screw | 1 / 1 / 1 |
| 18 | 20122034 | Washer | 2 / 2 / 2 |
| 19 | 240328 | Joint screw | 3 / 3 / 3 |
| 20 | 209656 | Screw | 1 / 1 / 1 |
| 21 | 7023A | Screw | 2 / 2 / 2 |
| 22 | 20521013 | Oil tube | 1 / 1 / 1 |
| 23 | 301S30012 | Joint screw | 1 / 1 / 1 |
| 24 | 209688-9 | Oil reservoir | 1 / 1 / 1 |
| 25 | 5318B | Screw | 1 / 1 / 1 |
| 26 | 202287A | Washer | 1 / 1 / 1 |
| 27 | 209578 | Gasket | 1 / 1 / 1 |
| 28 | 4531 | Screw | 4 / 4 / 4 |
| 29 | 240339 | Washer | 4 / 4 / 4 |
| 30 | 20122033 | Washer | 10 / 10 / 10 |
| 31 | 202045 | Washer | 1 / 1 / 1 |
| 32 | 274586 | Joint screw | 1 / 1 / 1 |
| 33 | 274592 | Joint screw | 1 / 1 / 1 |
| 34 | 7021 | Screw | 3 / 3 / 3 |
| 35 | 20501028 | Filter element cover | 1 / 1 / 1 |
| 36 | 206431 | O ring | 1 / 1 / 1 |
| 37 | 206233 | Filter element | 1 / 1 / 1 |
| 38 | 20129002 | Sape ring | 1 / 1 / 1 |
| 39 | 2032100400 | Oil tube | 1 / 1 / 1 |
| 40 | 20521012 | Oil tube | 1 / 1 / 1 |
| 41 | 300140 | Filter element cover | 1 / 1 / 1 |
| 42 | 20121013 | Oil cljerner joint | 1 / 1 / 1 |
| 43 | 20501003 | Oil distributor | 1 / 1 / 1 |
| 44 | 20621006 | Oil tube | 1 / 1 / 1 |
Page 53 — 第十五部件 过线部件(Thread Guide Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20613010 | Thread guide | 1 / 1 / 1 |
| 2 | S01010 | Screw | 1 / 1 / 1 |
| 3 | 20613002 | Needle thead guide | 1 / 1 / 0 |
| 4 | 20613005 | Thread guide | 0 / 0 / 1 |
| 5 | S01035 | Screw | 1 / 1 / 1 |
| 6 | 20613003 | Needle thead guide | 1 / 1 / 0 |
| 7 | 20613004 | Thread guide | 0 / 0 / 1 |
| 8 | S01035 | Screw | 2 / 2 / 2 |
| 9 | 20601023 | Thread retainer | 1 / 1 / 1 |
| 10 | 205S30038 | Screw | 1 / 1 / 1 |
| 11 | 20612046 | Thread retainer | 1 / 1 / 0 |
| 12 | 20612047 | Thread retainer | 0 / 0 / 1 |
| 13 | 20612048 | Guide | 1 / 1 / 1 |
| 14 | 20627013 | Spring | 1 / 1 / 1 |
| 15 | 206S20008 | Screw | 1 / 1 / 1 |
| 16 | 20612049 | Needle thead take-up | 1 / 1 / 1 |
| 17 | 206S30019 | Screw | 2 / 2 / 0 |
| 18 | 20613007 | Thread guide | 0 / 0 / 1 |
| 19 | 2061204600 | Thread retainer | 1 / 1 / 0 |
| 2061204700 | Thread retainer | 0 / 0 / 1 | |
| 20 | 20613013 | Thead take-up | 1 / 1 / 1 |
| 21 | S01010 | Screw | 1 / 1 / 1 |
| 22 | 20613014 | Thead take-up | 1 / 1 / 1 |
| 23 | S01022 | Screw | 1 / 1 / 1 |
| 24 | W01011 | Washer | 1 / 1 / 1 |
| 25 | 20613009 | Thead take-up | 1 / 1 / 1 |
| 26 | S01010 | Screw | 1 / 1 / 1 |
| 27 | 20613008 | Thread guide | 1 / 1 / 1 |
| 28 | 20613012 | Thread guide | 1 / 1 / 1 |
| 29 | S01002 | Screw | 1 / 1 / 1 |
| 30 | 20613011 | Thread guide | 1 / 1 / 1 |
| 31 | 20613006 | Thread guide | 0 / 0 / 六线1个 |
Page 54 — 第十六部件 夹线器部件(Tension Spring Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 796 | Diagram 796 | |
| 11 | 796 | Diagram 796 | |
| 12 | 796 | Diagram 796 | |
| 13 | 796 | Diagram 796 | |
| 14 | 796 | Diagram 796 | |
| 10 | 1784-2 | Bracket and rollers | |
| 14 | 36.785 J.3 | Bracket and rollers | |
| 15 | 1784-3 | Bracket and rollers | |
| 15 | 7784-5-18 | Bracket and rollers | |
| 15 | 1784-4-181 | Bracket and rollers | |
| 15 | 1796-4-181 | Bracket and rollers | |
| 15 | 3.785-0-156 | Bracket and rollers | |
| 15 | 7796-0-356 | Bracket and rollers | |
| 16 | 1784-12-250 | Bracket and rollers | |
| 19 | 1796-0-356 | Bracket and rollers |
Page 55 — 第十六部件 夹线器部件(Tension Spring Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2061600500 | Tension spring assembly | (788-2)1 / 0 / 0 |
| 2 | 2061600600 | Tension spring assembly | 1 / 0 / 0 |
| 3 | 2061600700 | Tension spring assembly | 0 / 1 / 0 |
| 4 | 206S30016 | Screw | 2 / 2 / 2 |
| 5 | 2061600900 | Tension spring assembly | (02*250)1 / 0 / 0 |
| 6 | 3011600600 | Tension spring assembly | 0 / 1 / 1 |
| 7 | 2061600800 | Tension spring assembly | 0 / 0 / 1 |
| 8 | 2061601000 | Tension spring assembly | 0 / 0 / (6-355)1 |
| 15 | 206S30016 | Screw | 2 / 2 / 2 |
| 10 | 20513002 | Thread guide | 2 / 0 / 0 |
| 11 | 2071100400 | Tension spring | 1 |
| 14 | 2071100500 | Tension spring | 1 / 0 / 0 |
| 10 | 20513002 | Thread guide | 3 / 0 / 0 |
| 11 | 2071100400 | Tension spring | 1 / 0 / 0 |
| 13 | 2071100700 | Tension spring | 1 / 0 / 0 |
| 14 | 2071100500 | Tension spring | 1 / 0 / 0 |
| 10 | 20513002 | Thread guide | 2 / 0 / 0 |
| 11 | 2071100400 | Tension spring | 1 / 0 / 0 |
| 12 | 2071100300 | Tension spring | 1 / 0 / 0 |
| 10 | 20513002 | Thread guide | 4 / 0 / 0 |
| 11 | 2071100400 | Tension spring | 1 / 0 / 0 |
| 12 | 2071100300 | Tension spring | 1 / 0 / 0 |
| 13 | 2071100700 | Tension spring | 1 / 0 / 0 |
| 14 | 2071100500 | Tension spring | 1 / 0 / 0 |
Page 57 — 十七部件 五线推移轴部件 (Five-thread Process Shaft Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20609016 | Block | 1 |
| 2 | 20604018 | Lever | 1 |
| 3 | 20602016 | Shaft | 1 |
| 4 | S10002 | Screw | 1 |
| 5 | 20622012 | Plug | 1 |
| 6 | 20601024 | Pin | 1 |
| 7 | S10002 | Screw | 1 |
| 8 | 20626017 | Pin | 1 |
| 9 | 20604019 | Holder | 1 |
| 10 | S10002 | Screw | 1 |
| 11 | 20602019 | Shaft | 1 |
| 12 | 20626018 | Pin | 1 |
| 13 | 206S30011 | Screw | 2 |
| 14 | 20609017 | Link/Looper drive | 1 |
| 15 | 20604020 | Crank | 1 |
| 16 | S05018 | Screw | 1 |
| 17 | 20622019 | Oil seal | 1 |
| 18 | 205S30036 | Screw | 1 |
| 19 | 206S11001 | Screw | 1 |
| 20 | 20602017 | Looper holder | 1 |
| 21 | 20603013 | Sleeve | 2 |
Page 59 — 第十八部件 打线凸轮部件(Cam Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20613015 | Thread guide pipe | 0/0/1 |
| 2 | 20629003 | Bracket | 0/0/1 |
| 3 | S01010 | Screw | 0/0/1 |
| 4 | 20613016 | Thread guide pipe | 0/0/1 |
| 5 | 20629003 | Bracket | 0/0/2 |
| 6 | 20612057 | Bracket | 0/0/1 |
| 7 | 206S20004 | Screw | 0/0/1 |
| 8 | 20128015 | washer | 0/0/2 |
| 9 | 20629005 | Flat spring | 0/0/1 |
| 10 | 206S30015 | Screw | 0/0/1 |
| 11 | 20612055 | Tension disc | 0/0/2 |
| 12 | 3012016 | Spring | 0/0/1 |
| 13 | 206S16004 | Nut | 0/0/1 |
| 14 | 20612056 | Thread guide | 0/0/1 |
| 15 | S01031 | Screw | 0/0/1 |
| 16 | 20629004 | Thread guide | 0/0/1 |
| 17 | S01022 | Screw | 0/0/1 |
| 18 | 20613017 | Thread guide | 0/0/1 |
| 19 | S01022 | Screw | 0/0/1 |
| 20 | 20612058 | Looper thread take-up | 0/0/1 |
| 21 | S10005 | Screw | 0/0/2 |
| 22 | 20613018 | Thread guide | 0/0/1 |
| 23 | S01010 | Screw | 0/0/1 |
| 24 | 20611010 | Thread guide pipe bushing | 0/0/4 |
| 25 | 2061205700 | Bracket assemblies | 0/0/1 |
| 26 | 2061205900 | Bracket assemblies | 0/0/1 |
Page 61 — 第十九件 硅油盒部件(Oil Reservoir Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20622017 | Oil reservoir(Upper) | 1/1/1 |
| 2 | 20623009 | Felt | 1/1/1 |
| 3 | 20622018 | Cover | 1/1/1 |
| 4 | 20612061 | Thread guide | 1/1/1 |
| 5 | S01010 | Screw | 1/1/1 |
| 6 | 20611011 | Oil reservoir(Lower) | 1/1/1 |
| 7 | 20522002 | Cover | 1/1/1 |
| 8 | S01003 | Screw | 1/1/1 |
| 9 | 20612062 | Washer | 1/1/1 |
| 10 | 20626019 | Pin | 1/1/1 |
| 11 | 20621004 | Clamp | 1/1/1 |
| 12 | 2050102200 | Needle thread lubricator | 1/1/0 |
| 13 | 2060402100 | Needle thread lubricator | 0/0/1 |
| 14 | 20612060 | Needle thread lubricator | 1/1/1 |
| 15 | 20617003 | Plug | 1/1/1 |
| 16 | S01010 | Screw | 2/2/2 |
| 17 | 20623010 | Oil felt | 1/1/0 |
| 18 | 20623009 | Oil felt | 0/0/1 |
| 19 | 201S11009 | Screw | 1/1/1 |
| 20 | 20128020 | Washer | 1/1/1 |
| 21 | 20112054 | Snap plate | 1/1/0 |
| 20112055 | Snap plate | 0/0/1 | |
| 22 | 20112056 | Snap plate bracket | 1/1/1 |
| 23 | 20126020 | Hinge pin | 1/1/1 |
| 24 | 201S11011 | Hinge spring screw | 1/1/1 |
| 25 | 20112053 | Hinge spring | 1/1/1 |
| 26 | 20128020 | Washer | 2/2/2 |
| 27 | 201S12001 | Hinge screw | 2/2/2 |
| 28 | 201S16003 | Nut | 1/1/1 |
| 29 | 20112051 | Cloth guide holder | 1/1/1 |
| 30 | 201S11016 | screw | 1/1/1 |
| 31 | 20128027 | Washer | 1/1/1 |
| 32 | 201S20002 | screw | 1/1/1 |
| 33 | 20112052 | Hinge plate | 1/1/1 |
Page 63 — 第二十部件专用部件 (Appropriative Assemblies )
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 206S11014 | Screw | 0 / 1 / 0 |
| 2 | 20612045 | Corner plate | 1 / 0 / 0 |
| 3 | 20612046 | Corner plate | 1 / 0 / 0 |
| 4 | 206S11015 | Screw | 1 / 0 / 0 |
| 5 | 20628018 | Washer | 1 / 0 / 0 |
| 6 | 206S11019 | Nut | 1 / 0 / 0 |
| 7 | 20628019 | Washer | 1 / 0 / 0 |
| 8 | 206S11016 | Screw | 1 / 0 / 0 |
| 9 | 206S11017 | Screw | 1 / 0 / 0 |
| 10 | 20612047 | plate | 1 / 0 / 0 |
| 11 | 206S11018 | Screw | 1 / 0 / 0 |
| 12 | S01010 | Screw | 1 / 0 / 0 |
| 13 | W02002 | Washer | 1 / 0 / 0 |
| 14 | 20612053 | Fabric guide | 0 / 1 / 0 |
| 15 | 20612043 | Bracket | 1 / 0 / 0 |
| 16 | 201S12001 | Screw | 2 / 0 / 0 |
| 17 | 20628017 | Washer | 2 / 0 / 0 |
| 18 | 20612041 | Bracket | 1 / 0 / 0 |
| 19 | 206S11018 | Screw | 2 / 0 / 0 |
| 20 | 20612042 | Plate | 1 / 0 / 0 |
| 21 | 206S11011 | Screw | 1 / 0 / 0 |
| 22 | 206S11012 | Screw | 1 / 0 / 0 |
| 23 | 206S11010 | Screw | 1 / 0 / 0 |
| 24 | 20628016 | Washer | 1 / 0 / 0 |
| 25 | 20612044 | Corner plate | 1 / 0 / 0 |
| 26 | 206S11013 | Screw | 1 / 0 / 0 |
| 27 | 20612040 | plate | 1 / 0 / 0 |
| 28 | 20612048 | plate | 1 / 0 / 0 |
| 29 | 20628020 | Screw | 1 / 0 / 0 |
| 30 | 20612049 | Spring | 1 / 0 / 0 |
| 31 | 20612050 | Bracket | 1 / 0 / 0 |
| 32 | 20531026 | Bracket | 0 / 1 / 0 |
| 33 | 20531027 | Guide | 0 / 1 / 0 |
| 34 | 20515003 | Thtoat plate | 1 / 0 / 0 |
| 35 | 20516004 | Presser foot form | 1 / 0 / 0 |
| 36 | 20517002 | Looper | 1 / 0 / 0 |
| 37 | 20117014 | Needle | 1 / 0 / 0 |
| 38 | 20634001 | Needle clamp | 1 / 0 / 0 |
| 39 | 20517020 | Needle guard | 1 / 0 / 0 |
Page 65 — 第二十一部件 BRC-732-48专用部件(Appropriative Assemblies For 48)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20521006 | Blade | 0/0/1 |
| 2 | 20521002 | Bracket | 0/0/1 |
| 3 | S01007 | Screw | 0/0/1 |
| 4 | 20528004 | Spacer | 0/0/1 |
| 5 | 205S30018 | Screw | 0/0/1 |
| 6 | 20528005 | Washer | 0/0/1 |
| 7 | 20501012 | Flat spring | 0/0/1 |
| 8 | 206S11004 | Screw | 0/0/2 |
| 9 | 20521004 | Bracket | 0/0/1 |
| 10 | 205S30017 | Screw | 0/0/1 |
| 11 | 20528003 | Spring washer | 0/0/2 |
| 12 | 205S16002 | Nut | 0/0/1 |
| 13 | 20521003 | Bracket | 0/0/1 |
| 14 | 205S30020 | Screw | 0/0/2 |
| 15 | 20527005 | Flat spring | 0/0/1 |
| 16 | 206S11004 | Screw | 0/0/1 |
| 17 | 20501013 | Spring guide | 0/0/1 |
| 18 | 205S30024 | Screw | 0/0/1 |
| 19 | 20529003 | Spring | 0/0/1 |
| 20 | 201S30016 | Screw | 0/0/1 |
| 21 | 20503001 | Washer | 0/0/1 |
| 22 | 20528008 | Washer | 0/0/1 |
| 23 | 30111006 | Ratchet | 0/0/1 |
| 24 | 301S16006 | Nut | 0/0/1 |
| 25 | 20511008 | Lever | 0/0/1 |
| 26 | 205S30021 | Nut | 0/0/1 |
| 27 | 20511007 | Bracket | 0/0/1 |
| 28 | 20527006 | Spring | 0/0/1 |
| 29 | 20502001 | Shaft | 0/0/1 |
| 30 | 20629006 | Ring | 0/0/1 |
| 31 | 20528006 | Washer | 0/0/1 |
| 32 | 20527007 | Spring | 0/0/1 |
| 33 | 20529002 | Collar | 0/0/1 |
| 34 | S10009 | Screw | 0/0/2 |
| 35 | 20521005 | Washer | 0/0/1 |
| 36 | 205S30023 | Screw | 0/0/2 |
| 37 | 2051200900 | Cable | 0/0/1 |
| 38 | 205S30013 | Cable support | 0/0/2 |
| 39 | 205S30011 | Screw | 0/0/1 |
| 40 | 20528008 | Washer | 0/0/1 |
| 41 | 205S16002 | Nut | 0/0/1 |
| 42 | 20512008 | Latch | 0/0/1 |
| 43 | 205S16003 | Nut | 0/0/1 |
| 44 | 205S30012 | Screw | 0/0/1 |
| 45 | S01028 | Screw | 0/0/2 |
| 46 | 20512007 | Bracket | 0/0/1 |
| 47 | 205S30010 | Screw | 0/0/2 |
| 48 | 20512011 | Gloth guide | 0/0/1 |
| 49 | 20528007 | Washer | 0/0/2 |
Page 67 — 第二十二部 件 托盘部件 (Machine Rest Board Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205466 | Machine rest board | 1 / 1 / 1 |
| 2 | 205470-PA | Waste funnel | 1 / 1 / 1 |
| 3 | 4904 | Screw | 3 / 3 / 3 |
| 4 | 205468-PA | Waste chute top | 1 / 1 / 1 |
| 5 | 4905 | Screw | 4 / 4 / 4 |
| 6 | 205469-PA | Waste chute extension | 1 / 1 / 1 |
| 7 | 206336 | Nut | 4 / 4 / 4 |
| 8 | 4575 | Screw | 4 / 4 / 4 |
| 9 | 201477 | Spring washer | 4 / 4 / 4 |
| 10 | 240565 | Washer | 4 / 4 / 4 |
| 11 | 240304 | Washer | 4 / 4 / 4 |
| 12 | 240565 | Washer | 16 / 16 / 16 |
| 13 | 205473 | Cushion rubber | 4 / 4 / 4 |
Page 69 — 第二十三部分 线架部件 (Thread Spool Assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000293 | Thread guide(6-spool) | 0 / 0 / 1个(六线用) |
| 2 | 000293A | Thread guide(5-spool) | 0 / 0 / 1 |
| 3 | 000293B | Thread guide(4-spool) | 0 / 1 / 0 |
| 4 | 000293C | Thread guide(3-spool) | 1 / 0 / 0 |
| 5 | 4021 | Screw | 2 / 2 / 2 |
| 6 | 4805 | Nut | 2 / 2 / 2 |
| 7 | 000505-PA | Thread hanger | 1 / 0 / 1 |
| 8 | 000505APA | Thread hanger | 1 / 2 / 1 |
| 9 | 7102 | Screw | 0 / 2 / 2 |
| 10 | 000512 | Washer | 1 / 2 / 2 |
| 11 | 4022 | Screw | 1 / 2 / 2 |
| 12 | 000380A | Spool pin | 3 / 4 / 5 |
| 13 | 201252 | Spring washer | 3 / 4 / 5 |
| 14 | 4803 | Nut | 3 / 4 / 5 |
| 15 | 000381-PA | Spool seat disc | 3 / 4 / 5 |
| 16 | 000507 | Spool mat | 3 / 4 / 5 |
| 17 | 000382-PA | Spool cushion | 3 / 4 / 5 |
| 18 | 000383-PA | Holder | 1 / 1 / 1 |
| 19 | 4014 | Screw | 1 / 1 / 1 |
| 20 | 4803 | Nut | 1 / 1 / 1 |
| 21 | 000384 | Thread guide arm | 1 / 1 / 1 |
| 22 | 4012 | Screw | 1 / 1 / 1 |
| 23 | 4803 | Nut | 1 / 1 / 1 |
| 24 | 000233-PA | Holder | 1 / 1 / 1 |
| 25 | 4012 | Screw | 1 / 1 / 1 |
| 26 | 4803 | Screw | 1 / 1 / 1 |
| 27 | 000502-PA | Column pipe (upper) | 1 / 1 / 1 |
| 28 | 000503-PA | Column pipe (lower) | 1 / 1 / 1 |
| 29 | 000504-PA | Joint | 1 / 1 / 1 |
| 30 | 4012 | Screw | 1 / 1 / 1 |
| 31 | 4803 | Nut | 1 / 1 / 1 |
| 32 | 000527-PA | Thread hanger | 1 / 0 / 1 |
| 33 | 000527APA | Thread hanger | 1 / 2 / 1 |
| 34 | 4021 | Screw | 1 / 2 / 2 |
| 35 | 4805 | Nut | 1 / 2 / 2 |
| 36 | 000506 | Thread eyelet | 3 / 4 / 5 |
| 37 | 000386 | Rod cap | 1 / 1 / 1 |
| 38 | 000509 | Washer | 2 / 2 / 2 |
| 39 | 4835 | Nut | 1 / 1 / 1 |
Page 71 — 二十四、附件部件/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10131002 | Screwdriver (large) | 1 / 1 / 1 |
| 2 | 10131003 | screwdriver (medium) | 1 / 1 / 1 |
| 3 | 10131004 | Screwdriver (small) | 1 / 1 / 1 |
| 4 | 20131044 | Allen key/1.5mm | 1 / 1 / 1 |
| 5 | 20131045 | Allen key/1.6mm | 1 / 1 / 1 |
| 6 | 20131037 | Oil container | 1 / 1 / 1 |
| 7 | 20131038 | Oil container | 2 / 2 / 2 |
| 8 | 20131039 | Tundish | 1 / 1 / 1 |
| 9 | 20131080 | Tweezers | 1 / 1 / 1 |
| 10 | 20131043 | Wrench/8mm | 1 / 1 / 1 |
| 11 | 20131042 | Wrench/7mm | 1 / 1 / 1 |
| 12 | 20131041 | Wrench/6mm | 1 / 1 / 1 |
| 13 | 20131046 | Allen key/2mm | 1 / 1 / 1 |
| 14 | 30131012 | Allen key/4mm | 1 / 1 / 1 |
| 15 | 20131056 | Allen key/6mm | 1 / 1 / 1 |
| 16 | 30131026 | Allen key/8mm | 1 / 1 / 1 |
| 17 | 20131054 | Chain | 1 / 1 / 1 |
| 18 | 20619003 | Uppwer knife | 1 / 1 / 0 |
| 19 | 見標准零件表 | Needle | 4 / 4 / 4 |
| 20 | 20136001 | Uppwer knife | 1 / 1 / 1 |
| 21 | 201S14001 | Screw | 4 / 4 / 4 |
| 22 | 30135004 | Leather belt | 1 / 1 / 1 |
| 23 | 20619004 | Uppwer knife | 0 / 0 / 1 |
Page 72 — JK788/796-5 标准度量零件表 / 788-5 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20615001 | NEEDLE PLATE | ||
| 20615001 | NEEDLE PLATE | ||
| 20615002 | NEEDLE PLATE | ||
| 20615003 | NEEDLE PLATE | ||
| 20515009 | NEEDLE PLATE | ||
| 20615004 | NEEDLE PLATE | ||
| 20514008 | |||
| 20517014 | |||
| 20514010 | |||
| 20517019 | |||
| 20619002 | |||
| 20619004 | |||
| 20516016 | |||
| 20514004 | |||
| 20517016 | |||
| 20615006 | |||
| 20501022 |
Jack JK-788 — parts catalog
- Page 1 (text): This page contains a prologue in both Chinese and English, thanking the customer for their purchase and providing instructions on how to use the manual.
- Page 2 (text): This page contains safety precautions for operating and maintaining the sewing machine, including warnings about removing parts, handling electrical power, and general safety rules.

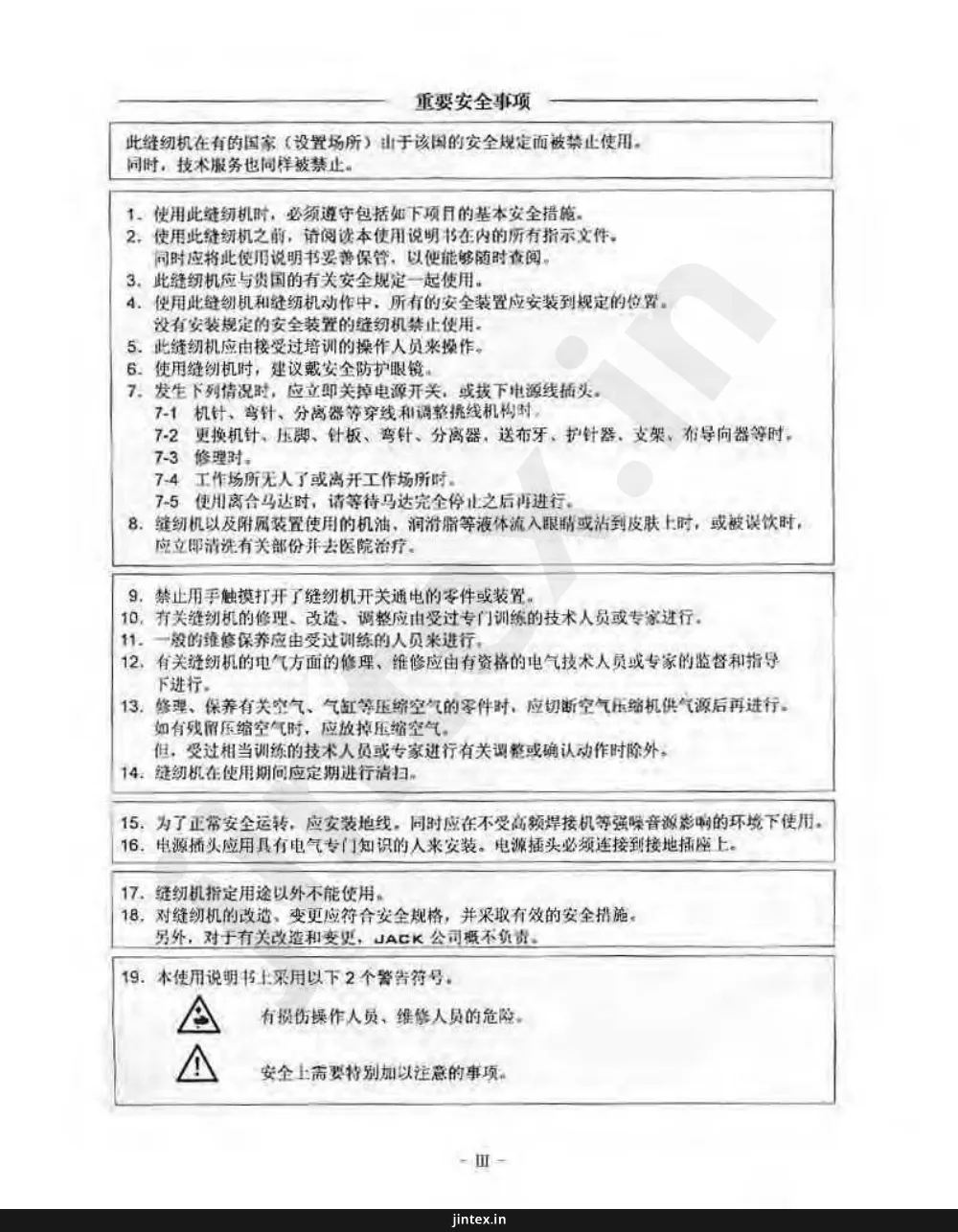

- Page 3 (text): This page contains important safety precautions for operating and maintaining the sewing machine, including warnings about usage in certain countries, proper training, safety devices, and handling of lubricants and electrical components.
- Page 4 (text): This page contains important safety instructions for operating and maintaining the sewing machine, including general precautions, specific warnings, and information about warning symbols.
- Page 5 (text): This page contains safety precautions for operating an industrial sewing machine, including warnings about electrical hazards, mechanical dangers, and proper usage procedures.
- Page 6 (text): This page contains safety instructions for operating the sewing machine, divided into general precautions and specific warnings for before operation.
- Page 7 (toc): This page contains the table of contents for the manual, listing sections such as "Schematic diagram of the machine table", "Installing machine head", "Lubrication", "Presser foot pressure", "Cleaning the machine", "Replacing the needle", "Checking the oil circulation", "Checking the oil", "Replacing the lower knife", "Adjustment dimensions", "Standard needle Comparison table of epuivalent sizes", and "Gauge Parts List", along with their corresponding page numbers.
- Page 8 (diagram): This page contains a schematic diagram of the machine table, including dimensions and notes regarding motor specifications.
- Page 9 (text): This page contains instructions for installing the machine head, including mounting the head, adjusting belt tension, and installing the belt cover.
- Page 10 (text): This page provides information on the machine's rotation direction and speed, including a table listing various machine models and their corresponding maximum RPMs.
- Page 11 (text): This page provides instructions on lubricating the sewing machine, specifying the correct oil level and type of oil to use.
- Page 12 (text): This page provides instructions on manual lubrication for the sewing machine, specifying the type of oil to use and when to apply it, along with a diagram illustrating the lubrication points.
- Page 13 (text): This page describes how to adjust the presser foot pressure on an industrial sewing machine, indicating that the screw should be turned to adjust the pressure to be as light as possible while still obtaining proper stitch formation. It includes Chinese and English text and a diagram illustrating the adjustment.
- Page 14 (diagram): This page shows a diagram illustrating how to adjust the differential feed ratio on a sewing machine, with instructions in both Chinese and English. It also indicates directions for stretching and shrinking.
- Page 15 (text): This page describes how to adjust the stitch length on a sewing machine, including instructions in both Chinese and English, and a diagram illustrating the process.
- Page 16 (diagram): This page shows how to adjust the thread tension on the sewing machine, indicating the use of needle thread tension knob (1), upper looper knob (2), and lower looper knob (3). It also illustrates how to loosen and tighten a knob.
- Page 17 (diagram): This page shows a diagram illustrating the cleaning of the machine, specifically focusing on the slots of the needle plate and feed rows.
- Page 18 (diagram): This page shows how to replace the needle on an industrial sewing machine, including diagrams illustrating the correct and incorrect needle insertion, and instructions on using the correct needle and not removing a specific screw.
- Page 19 (diagram): This page shows a diagram of the sewing machine with a highlighted area indicating the oil circulation during operation.
- Page 20 (text): This page describes the maintenance schedule for replacing the oil in the sewing machine, indicating it should be done one month after the first use and every six months thereafter, with a reference to page 4 for more details.
- Page 21 (diagram): This page shows diagrams and instructions for replacing the lower knife on a sewing machine, including correct angles for resharpening and steps for removal and installation.
- Page 22 (text): This page contains adjustment dimensions for JK788/796-5 and JK788/796-3,4 series sewing machines, listing part numbers and corresponding measurements in millimeters.
- Page 23 (parts_list): This page contains two parts lists for JK788/796-5 and JK788/796-3,4 machine needles, along with a comparison table for needle sizes.
- Page 24 (diagram): This page displays a diagram of sewing machine components, detailing parts such as screws, casings, and other mechanical elements with their corresponding reference numbers and part numbers.
- Page 25 (parts_list): This page lists parts for the Frame Assembly, including part numbers, descriptions, and quantities for different machine thread types.
- Page 26 (diagram): This page displays a diagram of various components of an industrial sewing machine, including parts of the main body, covers, and handles, with reference numbers and some part numbers indicated.
- Page 27 (parts_list): This page lists parts for Cover Assemblies, including part numbers, descriptions, and quantities for different machine types.
- Page 28 (diagram): This page displays a diagram of various components and parts of an industrial sewing machine, including covers, brackets, and fasteners, with corresponding part numbers and reference indicators.
- Page 29 (parts_list): This page lists parts for "Cover Assemblies" of an industrial sewing machine, including part numbers, descriptions, and quantities for different machine types (three-thread, four-thread, five-thread).
- Page 30 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a shaft, bearings, pulleys, and a motor assembly, with corresponding reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Main Shaft Assemblies, including part numbers, descriptions, and quantities for different thread types.
- Page 32 (diagram): This page displays a diagram of gauge parts for an industrial sewing machine, with detailed illustrations and part numbers for various components, including specific needle gauges.
- Page 33 (parts_list): This page lists parts for Needle Bar Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 34 (diagram): This page contains diagrams of various sewing machine parts, including part numbers, reference numbers, and descriptions for components like needle plates and fingers, with some parts listed under specific model numbers.
- Page 35 (parts_list): This page lists parts for the Support Needle Assemblies, including part numbers, descriptions, and quantities for different thread types.
- Page 36 (diagram): This page displays a diagram of gauge parts for industrial sewing machines, with numbered components and their corresponding part numbers and descriptions.
- Page 37 (parts_list): This page lists parts for the Upper Looper Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 38 (diagram): This page displays a diagram of various machine parts, including screws, washers, and specialized components, with reference numbers and some part numbers indicated.
- Page 39 (parts_list): This page lists parts for Lower Looper Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 40 (diagram): This page contains a diagram illustrating various parts of an industrial sewing machine, with numbered references for each component. It includes parts such as levers, shafts, springs, and fasteners.
- Page 41 (parts_list): This page lists differential feed assemblies for sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 42 (diagram): This page displays a diagram of various machine parts, including a gauge parts list reference, with numbered components and associated part numbers.
- Page 43 (parts_list): This page lists parts for the Feed Dog Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 44 (diagram): This page displays a diagram of various machine parts, including part numbers, reference numbers, and descriptions. It also includes a note to refer to the gauge parts list.
- Page 45 (parts_list): This page lists parts for Trimming Assemblies, including part numbers, descriptions, and quantities for different thread types.
- Page 46 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and a cylinder, with corresponding reference numbers and part details listed below.
- Page 47 (parts_list): This page lists parts for the Presser Foot Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 48 (diagram): This page displays a diagram of JK788 overlock machine parts, with numbered components and their corresponding part numbers and descriptions.
- Page 49 (parts_list): This page contains a parts list for appropriative assemblies for the 02*250 model, listing part numbers, descriptions, and quantities.
- Page 50 (diagram): This page contains a diagram of various components of an industrial sewing machine, including detailed views of the gearbox, filter assembly, and other miscellaneous parts, with reference numbers for each component.
- Page 51 (parts_list): This page contains a parts list for lubrication assemblies, detailing part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 52 (diagram): This page contains diagrams of various sewing machine parts, including part numbers and reference numbers for identification.
- Page 53 (parts_list): This page lists parts for Thread Guide Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 54 (diagram): This page displays diagrams of various machine parts, including a main diagram labeled '796' and several smaller diagrams illustrating components like brackets and rollers, each with associated part numbers and reference indicators.
- Page 55 (parts_list): This page lists tension spring assemblies and related parts, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 56 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 21. It also includes a reference to a gauge parts list and the document identifier 788/796-5.
- Page 57 (parts_list): This page lists parts for Five-thread Process Shaft Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 58 (diagram): This page displays a diagram of various sewing machine parts, including part numbers, descriptions, and reference numbers for identification.
- Page 59 (parts_list): This page lists parts for Cam Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 60 (diagram): This page displays diagrams of various sewing machine parts, including a section labeled "796 专用挡料架" and two sections labeled "788/796-8,-4" and "788/796-5".
- Page 61 (parts_list): This page lists parts for the Oil Reservoir Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 62 (diagram): This page contains diagrams of various sewing machine parts, including part numbers and reference numbers for identification. It shows diagrams for 788/796-1, 788/796-4-13, and 788/796-2.
- Page 63 (parts_list): This page lists parts for the "Appropriative Assemblies" section, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 64 (diagram): This page displays a diagram of various machine parts, including components like levers, brackets, screws, and handles, with reference numbers for identification.
- Page 65 (parts_list): This page lists parts for BRC-732-48 appropriate assemblies for 48, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 66 (diagram): This page displays a diagram of various machine components, including screws, brackets, and mounting hardware, with reference numbers and a note about table thickness affecting the number of parts needed.
- Page 67 (parts_list): This page lists parts for the Machine Rest Board Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 68 (diagram): This page displays a diagram of various parts for an industrial sewing machine, including frame components, spools, and mounting hardware, with reference numbers for each part.
- Page 69 (parts_list): This page lists parts for Thread Spool Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 70 (diagram): This page displays a diagram of various machine parts, including a oil can, funnel, screwdrivers, wrenches, a chain, a belt, and other small components, each labeled with a reference number.
- Page 71 (parts_list): This page lists accessories and assemblies for industrial sewing machines, including screwdrivers, Allen keys, oil containers, tweezers, wrenches, chains, upper knives, screws, and leather belts, with their corresponding part numbers and quantities.
- Page 72 (parts_list): This page contains parts lists for JK788/796-5 and JK788/796-3,-4 machine types, detailing various components like needle plates, presser foot assemblies, loopers, and needles with their respective part numbers.
