Jack JK-8009HF — Part Book

Jack JK-8009HF — parts catalog

Page 16 (diagram): This page displays a diagram of various machine parts, including bolts, linkages, bearings, and shafts, with reference numbers for each component.
Page 17 (parts_list): This page lists parts for needle bar assemblies, including part numbers, descriptions, quantities, and remarks.
Page 18 (diagram): This page displays a diagram of sewing machine parts, with numbered components and associated part numbers and descriptions. It includes a list of part numbers JK8009HF-04XXX and JK8009HF-04XX-XXX.
Page 19 (parts_list): This page lists parts for presser foot assemblies, including part numbers, descriptions, and quantities.
Page 20 (diagram): This page contains a diagram of various machine components and hardware, with numbered references for each part.
Page 21 (parts_list): This page lists parts for tension spring assemblies, including part numbers, descriptions, and quantities.
Page 22 (diagram): This page displays a diagram of various machine components, including screws, filters, seals, and structural parts, with reference numbers for identification.
Page 23 (parts_list): This page lists lubrication assemblies with part numbers, descriptions, and quantities. It includes items like screws, covers, tubes, and seals.
Page 24 (diagram): This page displays a diagram of various machine parts, including rollers, shafts, and mounting brackets, along with a table detailing roller part numbers and types.
Page 26 (diagram): This page displays a diagram of various machine parts, including levers, springs, bolts, and housings, with reference numbers for each component.
Page 27 (parts_list): This page lists parts for the After Cam Fight assemblies, including part numbers, descriptions, and quantities.
Page 28 (diagram): This page displays a diagram of various machine parts, including a ribbed roller, a lever mechanism, and a shaft, with corresponding reference numbers and a table detailing part codes for different roller types.
Page 29 (parts_list): This page lists parts for After Cam assemblies, including part numbers, descriptions, and quantities.
Page 30 (diagram): This page displays a diagram of various tools and accessories for an industrial sewing machine, numbered from 1 to 22 and 29.

Page 16

Jack JK-8009HF parts on page 16
Ref	Part number	Part name	Qty
	1	Bolt
	2	Link
	3	Shaft
	4	Collar
	5	Bolt
	6	Bush
	7	Bracket
	8	Bolt
	9	Lever
	10	Screw
	11	Block
	12	Rod
	13	Screw
	14	Bracket
	15	Shaft
	16	Bolt
	17	Pin
	18	Bracket
	19	Screw
	20	Arm
	21	Bolt
	22	Screw
	23	Spring
	24	Bolt
	25	Shaft
	26	Bracket
	27	Bolt
	28	Shaft
	29	Spring
	30	Bearing
	31	Washer
	32	Bearing
	33	Shaft
	34	Nut
	35	Nut
	36	Shaft
	37	Screw
	38	Shaft
	39	Screw
	40	Screw
	41	Pin
	42	Screw
	43	Screw
	44	Bracket
	45	Bracket

15 jintex.in

Page 17 — 八、针杆部件/Needle bar assemblies

Jack JK-8009HF parts on page 17
Ref	Part number	Part name	Qty
	501005	螺钉M4×10
	30513003	过线
	30502011	针杆
	3052201200	油封
	305S12004	螺钉
	30503021	铜套
	30512027	垫片
	305S11016	螺钉M4×6
	30509006	针杆滑块
	S01011	螺钉M5×10
	30503022	铜套
	30509007	固定条
	305S14002	螺钉
	30634001	针夹头
	30605004	曲柄组件
	305S20008	螺钉
	30617004	机针
	30613003	针夹头过线
	305S11005	螺钉
	30503023	铜套
	305S14006	螺钉M6×9
	30505009	大杠杆
	S09007	螺钉M6×8
	305S20007	螺钉
	30526011	曲柄球
	30512028	止震板
	305S11006	螺钉
	3050402400	曲柄组件
	S09008	螺钉M5×5
	30508006	挡圈
	30524002	平面滚针轴承
	30528003	垫片
	30503024	铜套
	305S16002	螺母
	305S16003	螺母
	3050203000	传送杆组件
	S05004	螺钉M5×14
	30502013	上横轴
	30505012	四眼
	30526008	销子
	30123015	油线
	S01003	螺钉M4×13.5
	20622019	油封
	30509010	过线固定座
	30513005	过线

八、针杆部件/Needle bar assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量/Number 1 501005 SM132 螺钉M4×10 Screw 4针64 2 30513003 VF19 过线 Thread guide 1 3 30502011 VF19D 针杆 Needle bar 1 4 3052201200 VF07 油封 Oil Seal 1 5 305S12004 SM184 螺钉 Screw 2 6 30503021 VF13 铜套 Bushing 1 7 30512027 WM130 垫片 Washer 1 8 305S11016 SM431 螺钉M4×6 Screw 2 9 30509006 VF09 针杆滑块 Needle slider 1 10 S01011 SM532 螺钉M5×10 Screw 1 11 30503022 VF14 铜套 Bushing 1 12 30509007 VF11D 固定条 Rivet 1 13 305S14002 SK216 螺钉 Screw 4 14 30634001 M8XXX 针夹头 Needle Holer Assy. 1 15 30605004 VD07 曲柄组件 Crank Assembly 1 16 305S20008 SK490 螺钉 Screw 2 17 30617004 UY128GAS 机针 Needle 4 18 30613003 M9XX4-1 针夹头过线 Thread guide 1 19 305S11005 SK239 螺钉 Screw 2 20 30503023 VF06 铜套 Bushing 1 21 305S14006 SM601 螺钉M6×9 Screw 2 22 30505009 VF01 大杠杆 Lever 1 23 S09007 SM600 螺钉M6×8 Screw 2 24 305S20007 SK491 螺钉 Screw 2 25 30526011 VF16 曲柄球 Crank 1 26 30512028 VF22 止震板 Cover 1 27 305S11006 SK277 螺钉 Screw 1 28 3050402400 曲柄组件 Crank Assembly 2 29 S09008 SM502 螺钉M5×5 Screw 1 30 30508006 VF05 挡圈 Ring 1 31 30524002 VD03-1 平面滚针轴承 Bearing 1 32 30528003 VF04 垫片 Washer 2 33 30503024 VF03 铜套 Bushing 1 34 305S16002 NK54 螺母 Nut 1 35 305S16003 NK53 螺母 Nut 1 36 3050203000 传送杆组件 Connection assembly 1 37 S05004 SM511 螺钉M5×14 Screw 1 38 30502013 VF02 上横轴 Shaft 1 39 30505012 VF08 四眼 Crank 1 40 30526008 VF10 销子 Pin 2 41 30123015 VC11 油线 Oil Seal 2 42 S01003 SM438 螺钉M4×13.5 Screw 2 43 20622019 油封 Oil wick 1 44 30509010 VF17 过线固定座 Thread Guide Rivet Seat 1 45 30513005 HK18 过线 Thread guide 1 16 jintex.in

Page 18

Jack JK-8009HF parts on page 18
Ref	Part number	Part name	Qty
16	JK8009HF-04XXX	JK8009HF-04XX-XXX

1 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 JK8009HF-04XXX JK8009HF-04XX-XXX 17 jintex.in

Page 19 — 九、压脚部件/Presser foot assemblies

Jack JK-8009HF parts on page 19
Ref	Part number	Part name	Qty
	3013002500	压脚调节杆组件
	30512035	连接杆
	305S20009	螺钉
	30512029	压板
	305S16004	螺母
	30527007	弹簧
	S01005	螺钉M4×10
	30509011	滑槽
	305S11007	螺钉
	30509012	滑块
	305S11001	螺钉
	30527008	弹簧
	30522014	油封
	30503025	铜套
	3052201500	油封
	30502015	压脚轴
	30616001	压脚
	S09008	螺钉M5×5
	S01027	螺钉M3×6
	30512031	压板
	305S11016	螺钉M4×6
	30512030	压板
	30526013	杠杆轴
	3051203200	杠杆组件
	30504011	紧固座
	30527010	弹簧
	30526014	销子
	3052201700	油封
	30527009	开口销
	30503026	铜套
	30502016	松线管
	3050201700	松线轴
	30510006	偏心套
	30512036	曲柄
	S05002	螺钉M6×0.75×15.2
	30504012	曲柄
	S05004	螺钉M5×14
	30526001	定位销

九、压脚部件/Presser foot assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量/Number 1 3013002500 压脚调节杆组件 Adjusting Bar Assy 4针64 2 30512035 VJ09 连接杆 Link 1 3 305S20009 SK518 螺钉 Screw 1 4 30512029 VJ13 压板 Bracket 1 3 305S16004 MJ02 螺母 Nut 1 5 30527007 MJ03 弹簧 Spring 1 6 S01005 SM438 螺钉M4×10 Screw 2 7 30509011 VJ20 滑槽 Slider 1 8 305S11007 SK502 螺钉 Screw 1 9 30509012 VJ07 滑块 Slider 1 10 305S11001 SK265 螺钉 Screw 1 11 30527008 MJ12 弹簧 Spring 1 12 30522014 MJ23 油封 Oil Seal 1 13 30503025 VJ21 铜套 Bushing 1 14 3052201500 MJ17 油封 Oil Seal 1 15 30502015 VJ18 压脚轴 Shaft 1 16 30616001 F8XXXX 压脚 presser foot assy 1 17 S09008 SM502 螺钉M5×5 Screw 1 18 S01027 SM332 螺钉M3×6 Screw 1 19 30512031 VJ23 压板 Bracket 1 20 305S11016 SM431 螺钉M4×6 Screw 2 21 30512030 VJ03 压板 Bracket 1 22 30526013 VJ05-1 杠杆轴 Shaft 1 23 3051203200 VJ05-2 杠杆组件 Lever Assembly 1 24 30504011 VJ04 紧固座 Tighten 1 25 30527010 VJ14 弹簧 Spring 1 26 30526014 VJ12D 销子 Pin 1 27 3052201700 KL20 油封 Oil Seal 1 28 30527009 VJ10 开口销 Pin 1 29 30503026 VJ06D 铜套 Bushing 1 30 30502016 VJ02 松线管 Thread Guide 1 31 3050201700 VJ01 松线轴 Shaft 1 32 30510006 VJ01-3 偏心套 Eccent Bushing 1 33 30512036 VJ11D 曲柄 Crank 1 34 S05002 SM612 螺钉M6×0.75×15.2 Screw 1 35 30504012 VJ08 曲柄 Crank 1 36 S05004 SM534 螺钉M5×14 Screw 1 37 30526001 PM404 定位销 Pin 1 18 jintex.in

Page 20

Jack JK-8009HF parts on page 20
Ref	Part number	Part name
1	1	BRACKET
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	BRACKET
7	7	BRACKET
8	8	SCREW
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	BRACKET
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 19 jintex.in

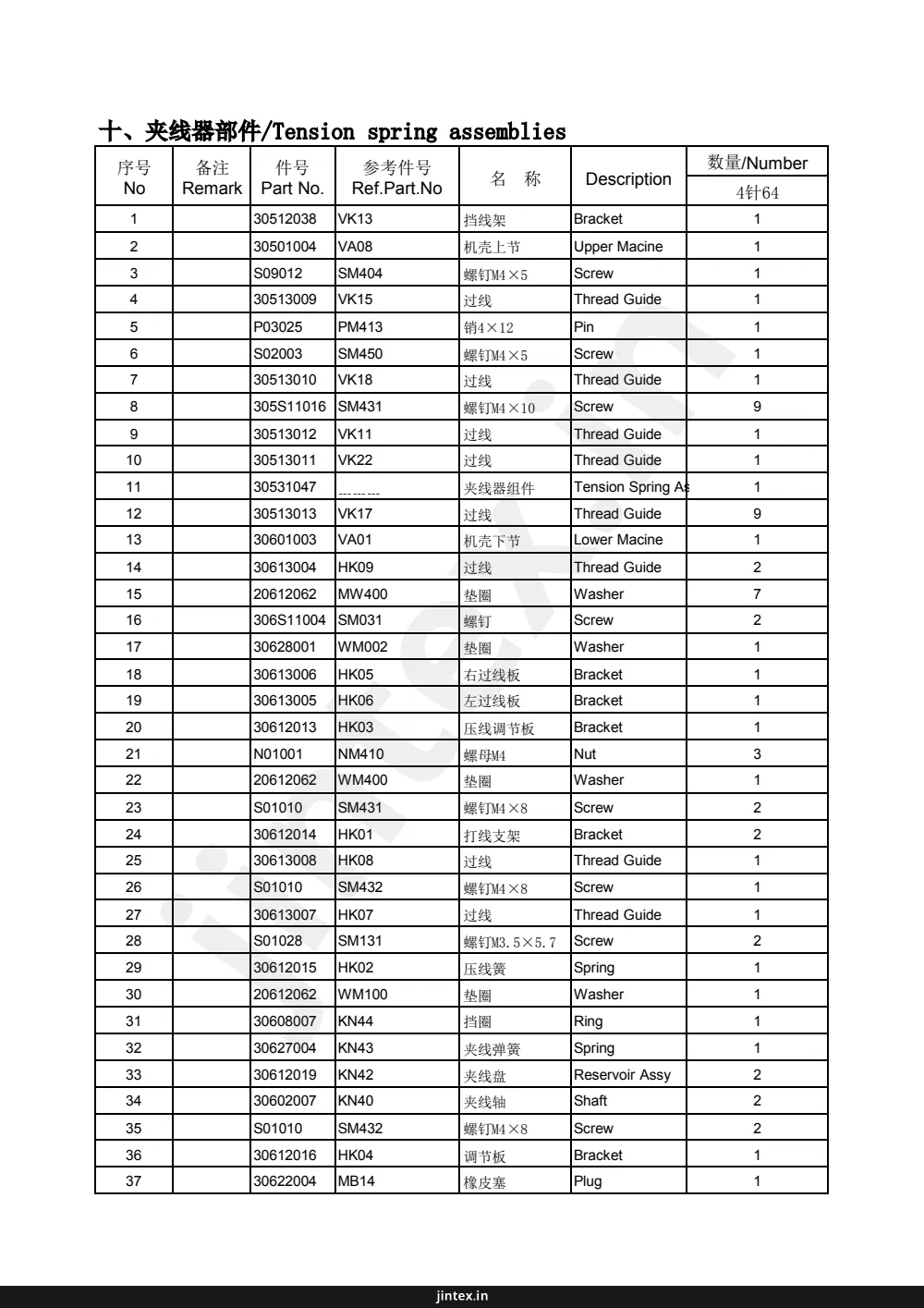

Page 21 — 十、夹线器部件/Tension spring assemblies

Jack JK-8009HF parts on page 21
Ref	Part number	Part name	Qty
	30512038	挡线架
	30501004	机壳上节
	S09012	螺钉M4×5
	30513009	过线
	P03025	销4×12
	S02003	螺钉M4×5
	30513010	过线
	305S11016	螺钉M4×10
	30513012	过线
	30513011	过线
	30531047	夹线器组件
	30513013	过线
	30601003	机壳下节
	30613004	过线
	20612062	垫圈
	306S11004	螺钉
	30628001	垫圈
	30613006	右过线板
	30613005	左过线板
	30612013	压线调节板
	N01001	螺母M4
	20612062	垫圈
	S01010	螺钉M4×8
	30612014	打线支架
	30613008	过线
	S01010	螺钉M4×8
	30613007	过线
	S01028	螺钉M3.5×5.7
	30612015	压线簧
	20612062	垫圈
	30608007	挡圈
	30627004	夹线弹簧
	30612019	夹线盘
	30602007	夹线轴
	S01010	螺钉M4×8
	30612016	调节板
	30622004	橡皮塞

十、夹线器部件/Tension spring assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量/Number 1 30512038 VK13 挡线架 Bracket 4针64 1 2 30501004 VA08 机壳上节 Upper Macine 1 3 S09012 SM404 螺钉M4×5 Screw 1 4 30513009 VK15 过线 Thread Guide 1 5 P03025 PM413 销4×12 Pin 1 6 S02003 SM450 螺钉M4×5 Screw 1 7 30513010 VK18 过线 Thread Guide 1 8 305S11016 SM431 螺钉M4×10 Screw 9 9 30513012 VK11 过线 Thread Guide 1 10 30513011 VK22 过线 Thread Guide 1 11 30531047 夹线器组件 Tension Spring As 1 12 30513013 VK17 过线 Thread Guide 9 13 30601003 VA01 机壳下节 Lower Macine 1 14 30613004 HK09 过线 Thread Guide 2 15 20612062 WM400 垫圈 Washer 7 16 306S11004 SM031 螺钉 Screw 2 17 30628001 WM002 垫圈 Washer 1 18 30613006 HK05 右过线板 Bracket 1 19 30613005 HK06 左过线板 Bracket 1 20 30612013 HK03 压线调节板 Bracket 1 21 N01001 NM410 螺母M4 Nut 3 22 20612062 WM400 垫圈 Washer 1 23 S01010 SM431 螺钉M4×8 Screw 2 24 30612014 HK01 打线支架 Bracket 2 25 30613008 HK08 过线 Thread Guide 1 26 S01010 SM432 螺钉M4×8 Screw 1 27 30613007 HK07 过线 Thread Guide 1 28 S01028 SM131 螺钉M3.5×5.7 Screw 2 29 30612015 HK02 压线簧 Spring 1 30 20612062 WM100 垫圈 Washer 1 31 30608007 KN44 挡圈 Ring 1 32 30627004 KN43 夹线弹簧 Spring 1 33 30612019 KN42 夹线盘 Reservoir Assy 2 34 30602007 KN40 夹线轴 Shaft 2 35 S01010 SM432 螺钉M4×8 Screw 2 36 30612016 HK04 调节板 Bracket 1 37 30622004 MB14 橡皮塞 Plug 1 jintex.in

Page 22

Jack JK-8009HF parts on page 22
Ref	Part number	Part name
1	1	SCREW
2	2	BRACKET
3	3	COVER
4	4	O-RING
5	5	FILTER
6	6	BRACKET
7	7	BRACKET
8	8	LINK
9	9	SCREW
10	10	TUBE
11	11	SCREW
12	12	BRACKET
13	13	SHAFT
14	14	WASHER
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	PLATE
20	20	SCREW
21	21	CIRCLIP
22	22	BRACKET
23	23	SCREW
24	24	SCREW
25	25	BASE
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	SCREW
33	33	SCREW
34	34	SCREW

21 jintex.in

Page 23 — 十一、油泵部件/Lubrication assemblies

Jack JK-8009HF parts on page 23
Ref	Part number	Part name	Qty
	S01057	螺钉 M4×15
	20337005	商标
	300077	滤清器盖
	20322004	密封圈
	20136001	滤清器
	30503027	铜接头
	30521012	油管
	30121021	油管
	305S11016	螺钉 M4×0.7×6
	30521013	油管
	305S11016	螺钉 M4×0.7×10
	30121022	油管
	3052000100	油泵
	30536001	油管接头
	30121022	油管
	30121022	油管
	305S13003	螺钉 M8×25
	3052101300	油管组件
	30523010	油棉
	30511004	油窗
	H01003	卡簧
	30512040	滤网
	305S11010	放油螺钉 SM3/8×28
	305S13004	螺钉 M6×14.8
	30501006	油盘
	30136005	油管接头
	30121022	油管
	20636001	接头
	20528014	放油螺钉密封圈
	20129002	卡口
	305S11016	螺钉 M4×0.7
	301S30013	螺钉 SM1/4×40
	30522018	油封
	S05007	螺钉 M8×20

十一、油泵部件/Lubrication assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 S01057 SM447 螺钉 M4×15 Screw 3 2 20337005 KT18 商标 Brand 1 3 300077 KT16 滤清器盖 Cover 1 4 20322004 KT17 密封圈 Sticker 1 5 20136001 KT14 滤清器 Filter Element 1 6 30503027 ML50 铜接头 pipe 1 7 30521012 VL14 油管 Tube 1 8 30121021 VL19 油管 Tube 1 9 305S11016 SM431 螺钉 M4×0.7×6 Screw 1 10 30521013 VL11 油管 Tube 1 11 305S11016 SM435 螺钉 M4×0.7×10 Screw 2 12 30121022 VL16 油管 Tube 1 13 3052000100 ML01 油泵 Pump 1 14 30536001 VL12 油管接头 Joint 1 15 30121022 VL15 油管 Tube 1 16 30121022 VL17 油管 Tube 1 17 305S13003 SM812 螺钉 M8×25 Screw 4 18 3052101300 VL07 油管组件 Tube Assemly 1 19 30523010 VL13 油棉 Felt 1 20 30511004 VL06D 油窗 Oil Window 1 21 H01003 EM164 卡簧 Spring 1 22 30512040 MB15 滤网 filter 1 23 305S11010 SK310 放油螺钉 SM3/8×28 Screw 1 24 305S13004 SM611 螺钉 M6×14.8 Screw 2 25 30501006 VL01 油盘 Oil Reservoir Assy 1 26 30136005 MW05 油管接头 Joint 1 27 30121022 VL20 油管 Tube 1 28 20636001 KT24 接头 Joint 2 29 20528014 KT56 放油螺钉密封圈 Sticker 1 30 20129002 KT26*11 卡口 Ring 9 31 305S11016 --- 螺钉 M4×0.7 Screw 2 32 301S30013 SK304 螺钉 SM1/4×40 Screw 3 33 30522018 VL02 油封 Oil Seal 1 34 S05007 --- 螺钉 M8×20 Screw 1 22 jintex.in

Page 24

Jack JK-8009HF parts on page 24
Ref	Part number	Part name	Qty
	30625003	上滚轮代码
	30625003	上滚轮代码
	3062500800	下滚轮代码
	3062500700	下滚轮代码

1 2 3 4 5 6 7 8 9 11 13 14 15 16 19 20 21 22 23 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 10 12 18 滚轮使用方式代码齿形铁轮橡胶轮上滚轮代码 30625003 30625003 下滚轮代码 3062500800 3062500700 23 jintex.in

Page 26

Jack JK-8009HF parts on page 26
Ref	Part number	Part name
1	1	SCREW
2	2	WASHER
3	3	NUT
4	4	BOLT
5	5	LEVER
6	6	BRACKET
7	7	BOLT
8	8	WASHER
9	9	SLEEVE
10	10	PIN
11	11	SCREW
12	12	PLATE
13	13	BOLT
14	14	BRACKET
15	15	LEVER
16	16	BOLT
17	17	BOLT
18	18	NUT
19	19	BRACKET
20	20	SCREW
21	21	PIN
22	22	LEVER
23	23	SLEEVE
24	24	SCREW
25	25	WASHER
26	26	BRACKET
27	27	PIN
28	28	PIN
29	29	WASHER
30	30	BRACKET
31	31	SPRING
32	32	SLEEVE
33	33	HOUSING
34	34	25

25 34 jintex.in

Page 27 — 十三、后凸轮架部件/After Cam Fight assemblies

Jack JK-8009HF parts on page 27
Ref	Part number	Part name
	305S20010	Screw
CL31	30528011	Washer
NM410	N01001	Nut
SM531	S01065	Screw
VCL25	30512047	Sheet Iron Link
VCL35	30512048	Bracket
SM614	S05031	Screw
CL31	30528011	Washer
CL26	30503031	bushing
SM681	305S20011	Screw
SM492	305S20012	Screw
CL33	3051205100	Regulator Plate
SM520	L02012	Screw
VCL23	30512049	Bracket
VCL24	30504014	Crank
SM440	S01018	Screw
SM617	S05031	Screw
VCL22	30509013	Spring Plate
VCL34	30512050	Bracket
SM448	S01055	Screw
SM472	305S11011	Screw
CL33	3051205100	Regulator Plate
SM603	S09007	Screw
SM682	305S20013	Screw
CL34	30528012	Bracket
VCL18	3050100800	Press Wheel Fight
VCL19	30526020	Pin
VCL30	30502022	Shaft
EM123	H04001	Spring
PM302	30526017	Pin
CL28	30527017	Spring
CL25	305S30006	Adjusting Screw
VCL21	30501007	Finger Guide
	3061000200	After Cam Assembly

十三、后凸轮架部件/After Cam Fight assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量/Number 1 305S20010 SM491 螺钉 Screw 4针64 2 30528011 CL31 垫片 Washer 1 3 N01001 NM410 螺冒 Nut 1 4 S01065 SM531 螺钉 M5×6 Screw 2 5 30512047 VCL25 铁皮连杆 Sheet Iron Link 1 6 30512048 VCL35 压板 Bracket 1 7 S05031 SM614 螺钉 M6×20 Screw 2 8 30528011 CL31 垫片 Washer 1 9 30503031 CL26 铜套 bushing 1 10 305S20011 SM681 螺钉 Screw 1 11 305S20012 SM492 螺钉 Screw 1 12 3051205100 CL33 调节板 Regulator Plate 1 13 L02012 SM520 螺钉 Screw 2 14 30512049 VCL23 压板 Bracket 1 15 30504014 VCL24 曲柄 Crank 1 16 S01018 SM440 螺钉 M4×20 Screw 1 17 S05031 SM617 螺钉 M6×20 Screw 1 18 30509013 VCL22 弹簧挡板 Spring Plate 1 19 30512050 VCL34 压板 Bracket 1 20 S01055 SM448 螺钉 M4×6 Screw 1 21 305S11011 SM472 螺钉 Screw 1 22 3051205100 CL33 调节板 Regulator Plate 1 23 S09007 SM603 螺钉 M6×8 Screw 1 24 305S20013 SM682 螺钉 Screw 1 25 30528012 CL34 压板 Bracket 1 26 3050100800 VCL18 压轮架 Press Wheel Fight 1 27 30526020 VCL19 销子 Pin 1 28 30502022 VCL30 轴 Shaft 1 29 H04001 EM123 卡簧 Spring 1 30 30526017 PM302 销子 Pin 1 31 30527017 CL28 弹簧 Spring 1 32 305S30006 CL25 调节螺钉 Adjusting Screw 1 33 30501007 VCL21 压脚架 Finger Guide 1 34 3061000200 --- 后凸轮组件 After Cam Assembly 1 26 jintex.in

Page 28 — A 滚轮使用方式

Jack JK-8009HF parts on page 28
Ref	Part number	Part name	Qty
	30625003	上滚轮代码
	30625003	上滚轮代码
	3062500800	下滚轮代码
	3062500700	下滚轮代码

A 滚轮使用方式代码齿形铁轮橡胶轮上滚轮代码 30625003 30625003 下滚轮代码 3062500800 3062500700 27 jintex.in

Page 29 — 十四、后凸轮部件/ After Cam assemblies

Jack JK-8009HF parts on page 29
Ref	Part number	Part name	Qty
	305S30007	螺钉 M5×8.5
	30522021	垫圈5
	30526011	曲柄球
	30503034	连杆
	3050501700	连杆组件
	N01004	螺冒
	W01004	垫圈5
	30505020	连杆
	B07011	滚针轴承
	30503034	铁套
	30504015	曲柄
	305S30009	螺钉
	S05037	螺钉 M6×15
	30512055	冲压件铁臂
	N01004	螺母 M5
	S03003	螺钉 M4×6
	S03003	螺钉 M4×6
	30625003	压轮组件
	30512056	蝶形卡簧
	S02014	螺钉 M3.5×8.5
	30503063	轴承套
	NSK FC-20	单向滚针轴承
	30503035	齿轮套
	30512057	压板
	30502023	轴
	H04004	挡圈
	W01046	垫片
	305S11012	螺钉
	S09008	螺钉 M5×5
	S01065	螺钉 M5×6
	3050100800	压轮架
	30503036	轴套
	W01010	垫圈8
	N01008	螺母 M8
	30512054	挡板
	3061000200	后凸轮组件

十四、后凸轮部件/ After Cam assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 305S30007 SM524 螺钉 M5×8.5 Screw 1 2 30522021 CL48 垫圈5 Washer 2 3 30526011 CL49 曲柄球 Iron Cover 1 4 30503034 CL50 连杆 Bearing 1 5 3050501700 CL51 连杆组件 connection Assy 1 6 N01004 NM511 螺冒 Nut 1 7 W01004 CL48 垫圈5 Washer 1 8 30505020 CL50 连杆 Bearing 1 9 B07011 CL49 滚针轴承 Iron Cover 1 10 30503034 ------- 铁套 Bushing 1 11 30504015 VCL14 曲柄 Crank 1 12 305S30009 CL47 螺钉 Screw 1 13 S05037 SM612 螺钉 M6×15 Screw 1 14 30512055 CL37 冲压件铁臂 Jib 1 15 N01004 NM511 螺母 M5 Nut 1 16 S03003 SM451 螺钉 M4×6 Screw 3 17 S03003 SM451 螺钉 M4×6 Screw 3 18 30625003 VCL08 压轮组件 Press Wheel 1 19 30512056 CL38 蝶形卡簧 Spring 1 20 S02014 SK373 螺钉 M3.5×8.5 Screw 5 21 30503063 ------- 轴承套 Bushing 2 22 NSK FC-20 ------- 单向滚针轴承 Bearing 2 23 30503035 VCL15 齿轮套 Gear Wheel Cover 1 24 30512057 CL45 压板 Bracket 1 25 30502023 VCL17 轴 Shaft 1 26 H04004 CL41 挡圈 Washer 5 27 W01046 CL41 垫片 Washer 1 28 305S11012 SM470 螺钉 Screw 1 29 S09008 SM502 螺钉 M5×5 Screw 2 30 S01065 ------- 螺钉 M5×6 Screw 4 31 3050100800 VCL18 压轮架 Press Wheel Fight 1 32 30503036 VCL31 轴套 Bushing 1 33 W01010 WM800 垫圈8 Washer 1 34 N01008 NM810 螺母 M8 Nut 2 35 30512054 ------- 挡板 Plate 1 36 3061000200 ------- 后凸轮组件 After Cam Assembly 1 28 jintex.in

Page 30

Jack JK-8009HF parts on page 30
Ref	Part number	Part name	Qty
	1	Pad
	2	Oil can
	3	Squeeze bottle
	4	Funnel
	5	Tool
	6	Tool
	7	Tool
	8	Screwdriver
	9	Allen wrench
	10	Allen wrench
	11	Allen wrench
	12	Allen wrench
	13	Allen wrench
	14	Screwdriver
	15	Screwdriver
	16	Screwdriver
	17	Tool
	18	Filter
	19	Needles
	20	Screwdriver
	21	Pad
	22	Chain
	29	Chain

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 29 jintex.in
