Jack JK-8009HF Parts Book (PDF)
Text index — Jack JK-8009HF

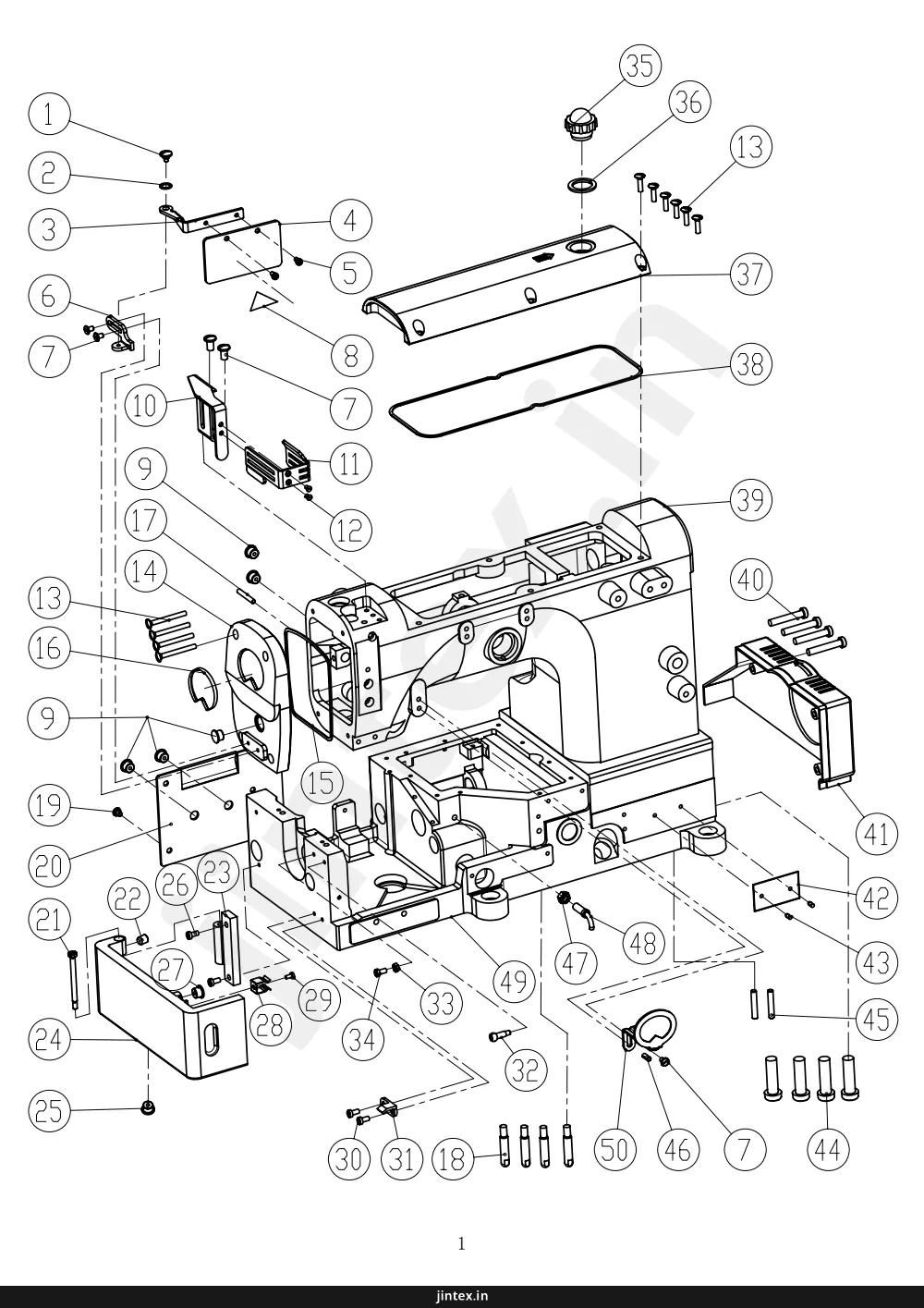

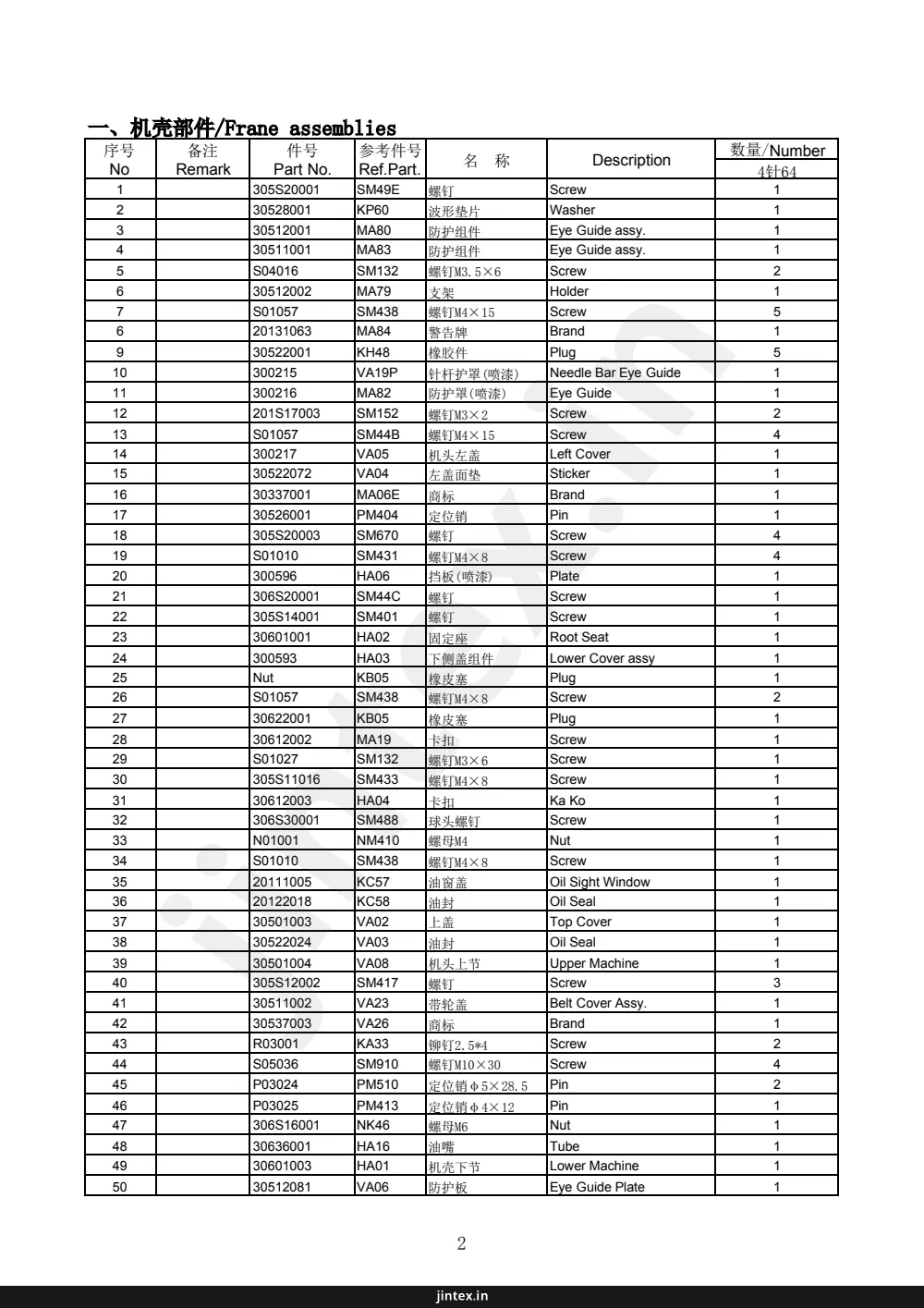

Page 3 — 一、机壳部件/Frane assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S20001 | Screw | 1 |
| 2 | 30528001 | Washer | 1 |
| 3 | 30512001 | Eye Guide assy. | 1 |
| 4 | 30511001 | Eye Guide assy. | 1 |
| 5 | S04016 | Screw | 2 |
| 6 | 30512002 | Holder | 1 |
| 7 | S01057 | Screw | 5 |
| 6 | 20131063 | Brand | 1 |
| 9 | 30522001 | Plug | 5 |
| 10 | 300215 | Needle Bar Eye Guide | 1 |
| 11 | 300216 | Eye Guide | 1 |
| 12 | 201S17003 | Screw | 2 |
| 13 | S01057 | Screw | 4 |
| 14 | 300217 | Left Cover | 1 |
| 15 | 30522072 | Sticker | 1 |
| 16 | 30337001 | Brand | 1 |
| 17 | 30526001 | Pin | 1 |
| 18 | 305S20003 | Screw | 4 |
| 19 | S01010 | Screw | 4 |
| 20 | 300596 | Plate | 1 |
| 21 | 306S20001 | Screw | 1 |
| 22 | 305S14001 | Screw | 1 |
| 23 | 30601001 | Root Seat | 1 |
| 24 | 300593 | Lower Cover assy | 1 |
| 25 | Nut | Plug | 1 |
| 26 | S01057 | Screw | 2 |
| 27 | 30622001 | Plug | 1 |
| 28 | 30612002 | Screw | 1 |
| 29 | S01027 | Screw | 1 |
| 30 | 305S11016 | Screw | 1 |
| 31 | 30612003 | Ka Ko | 1 |
| 32 | 306S30001 | Screw | 1 |
| 33 | N01001 | Nut | 1 |
| 34 | S01010 | Screw | 1 |
| 35 | 20111005 | Oil Sight Window | 1 |
| 36 | 20122018 | Oil Seal | 1 |
| 37 | 30501003 | Top Cover | 1 |
| 38 | 30522024 | Oil Seal | 1 |
| 39 | 30501004 | Upper Machine | 1 |
| 40 | 305S12002 | Screw | 3 |
| 41 | 30511002 | Belt Cover Assy. | 1 |
| 42 | 30537003 | Brand | 1 |
| 43 | R03001 | Screw | 2 |
| 44 | S05036 | Screw | 4 |
| 45 | P03024 | Pin | 2 |
| 46 | P03025 | Pin | 1 |
| 47 | 306S16001 | Nut | 1 |
| 48 | 30636001 | Tube | 1 |
| 49 | 30601003 | Lower Machine | 1 |
| 50 | 30512081 | Eye Guide Plate | 1 |
Page 5 — 二、盖板部件/Frane assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30502001 | Button | 1 |
| 2 | 30527001 | Spring | 1 |
| 3 | 305S11016 | Screw | 5 |
| 4 | 3061200400 | Cover Assembly | 1 |
| 5 | 30622002 | Washer | 1 |
| 6 | H05003 | Coller | 1 |
| 7 | 300592 | Cover | 1 |
| 8 | S01003 | Screw | 4 |
| 9 | 30612007 | Cover | 1 |
| 10 | S03002 | Screw | 3 |
| 11 | 305S30004 | Screw | 1 |
| 12 | 305S17001 | Screw | 1 |
| 13 | 30615001 | Needle Plate | 1 |
| 14 | 30622003 | Washer | 4 |
| 15 | S01038 | Cover | 1 |
| 16 | 30612008 | Bracket | 1 |
| 17 | P01006 | Pin | 2 |
| 18 | 30612009 | Screw | 1 |
| 19 | 306S11004 | Screw | 1 |
| 20 | N01001 | Nut | 1 |
| 21 | S01010 | Screw | 3 |
| 22 | 30612002 | Ka Ko | 1 |
| 23 | S01027 | Screw | 1 |
| 24 | 306S30002 | Screw | 1 |
| 25 | 306S20004 | Screw | 3 |
| 26 | 30612010 | Side Cover | 1 |
| 27 | 306S30003 | Screw | 1 |
| 28 | 30622001 | Plug | 1 |
| 29 | 30601004 | Cover | 1 |
| 30 | 306S20005 | Screw | 1 |
| 31 | 30528001 | Washer | 1 |
| 32 | 305S14001 | Screw | 2 |
| 33 | 306S30004 | Screw | 1 |
| 34 | 30601005 | slider | 1 |
| 35 | S01057 | Screw | 2 |
| 36 | 300595 | Cover | 1 |
| 37 | S01060 | Screw | 2 |
| 38 | 40128013 | Washer | 2 |
| 39 | 300594 | 1 |
Page 7 — 三、送料部件/Feed assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30503005 | Bushing | 4 |
| 2 | 20128031 | Washer | 1 |
| 3 | 30508001 | Ring | 1 |
| 4 | S10014 | Screw | 4 |
| 5 | 305S14003 | Screw | 1 |
| 6 | 30604001 | Crank | 1 |
| 7 | S05002 | Screw | 1 |
| 8 | 30626001 | Pin | 1 |
| 9 | 30503002 | Bushing | 1 |
| 10 | 30605003 | Link | 1 |
| 11 | 30604002 | Crank | 1 |
| 12 | S10029 | Screw | 2 |
| 13 | 30626002 | pin | 1 |
| 14 | 20123021 | Oil Wick | 1 |
| 15 | 30602001 | Shaft | 4 |
| 16 | 30503005 | Bushing | 1 |
| 17 | 20128031 | Washer | 1 |
| 18 | H04001 | Ring | 1 |
| 19 | 30622007 | Oil Seal | 1 |
| 20 | 201S14002 | Screw | 1 |
| 21 | 201S14002 | Screw | 1 |
| 22 | 30510001 | Eccent | 1 |
| 23 | 30524001 | Bearing | 1 |
| 24 | 30605001 | Eccent | 1 |
| 25 | 30508004 | Spring | 1 |
| 26 | S01062 | Screw | 1 |
| 27 | 306S11001 | Screw | 2 |
| 28 | 30617001 | Needle Guard | 1 |
| 29 | 306S10001 | Screw | 1 |
| 30 | 30526008 | Pin | 4 |
| 31 | 20123021 | Oil Wick | 1 |
| 32 | 30609003 | Slider | 2 |
| 33 | 400417 | Feed | 1 |
| 34 | 306S30005 | Screw | 2 |
| 35 | 306S16004 | Nut | 1 |
| 36 | 306S30006 | Screw | 1 |
| 37 | 41228024 | Washer | 1 |
| 38 | 30614001 | Feed Dog | 1 |
| 39 | 3051000100 | Felt | 1 |
Page 9 — 四、主轴部件/Crankshaft Drive assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 300222 | Machine Pulley | 1 |
| 2 | S09007 | Screw | 1 |
| 3 | S09007 | Screw | 1 |
| 4 | 30522020 | Oil Seal | 1 |
| 5 | 30528003 | Washer | 3 |
| 6 | 400085 | Bearing Cover | 1 |
| 7 | 30523006 | Felt | 1 |
| 8 | S01011 | Screw | 3 |
| 9 | 30522008 | Washer | 1 |
| 10 | 30524002 | Bearing | 1 |
| 11 | S10029 | Screw | 2 |
| 12 | 30525001 | Needle bar | 1 |
| 13 | 30508008 | Spring | 1 |
| 14 | 30505016 | Rod Assembly | 1 |
| 15 | S09002 | Screw | 5 |
| 16 | 3051001100 | Eccent Assembly | 1 |
| 17 | 30526004 | Pin | 1 |
| 18 | 400048 | Shaft | 1 |
Page 11 — 五、前主轴部件/Shaft assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400048 | Shaft | 1 |
| 2 | 30526004 | Pin | 2 |
| 3 | 30603004 | Bushing | 1 |
| 4 | 201S14002 | Screw | 2 |
| 5 | 30510001 | Eccent | 1 |
| 6 | 30524001 | Bushing | 1 |
| 7 | 30605002 | Link | 1 |
| 8 | 30508004 | Spring | 1 |
| 9 | 305S14009 | Screw | 1 |
| 10 | 305S14010 | Screw | 1 |
| 11 | 30525015 | Gear Wheel | 1 |
| 12 | 30509020 | Ratchet | 1 |
| 13 | S01024 | Screw | 1 |
| 14 | 30527011 | Spring | 1 |
| 15 | 30510018 | Cam | 1 |
| 16 | S07001 | Screw | 2 |
| 17 | 30522011 | Oil Seal | 1 |
| 18 | 30605003 | Link | 1 |
| 19 | 30524005 | Bearing | 1 |
| 20 | 30510017 | Cam | 1 |
| 21 | 305S15 | Screw | 2 |
| 22 | 30508010 | Spring | 1 |
| 23 | 30526030 | Pin | 1 |
| 24 | 305S14001 | Screw | 2 |
| 25 | 305S11020 | Screw | 1 |
| 26 | 30510016 | Deliver Wheel | 1 |
| 27 | 3060900500 | Cam | 1 |
| 28 | 30609002 | Washer | 1 |
| 29 | S01011 | Screw | 2 |
| 30 | 3060500800 | Crank Assembly | 1 |
| 31 | 305S11006 | Screw | 2 |
| 32 | S09010 | Screw | 4 |
| 33 | 30603005 | Crank | 1 |
| 34 | 30503010 | Bushing | 1 |
| 35 | S10014 | Screw | 2 |
| 36 | 30508007 | Ring | 1 |
| 37 | 3061300100 | Cam Assembly | 1 |
| 38 | 30604006 | Crank | 1 |
| 39 | 30602003 | Shaft | 1 |
| 40 | 30603006 | Bushing | 1 |
| 41 | 30503005 | Bushing | 1 |
| 42 | 20123021 | Oil Wick | 1 |
| 43 | 30503005 | Bushing | 1 |
| 44 | 20128031 | Washer | 1 |
| 45 | 30508001 | Ring | 1 |
| 46 | S10014 | Screw | 2 |
| 47 | 30604003 | Crank | 1 |
| 48 | 305S14006 | Screw | 2 |
| 49 | 30602004 | Shaft | 1 |
| 50 | 20128031 | washer | 1 |
| 51 | 306S11005 | Screw | 1 |
| 52 | 3051000100 | Felt | 1 |
Page 13 — 六. 弯针轴部件/Looper shaft assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30603007 | Bushing | 1 |
| 2 | 20128010 | Washer | 1 |
| 3 | 20123021 | Oil wick | 1 |
| 4 | 30602005 | Shaft | 1 |
| 5 | 201S14002 | Screw | 2 |
| 6 | 30510001 | Eccent | 1 |
| 7 | 30524001 | Bushing | 2 |
| 8 | 30605002 | Link | 1 |
| 9 | 30508004 | Spring | 1 |
| 10 | 30608004 | Ring | 1 |
| 11 | S05004 | Screw | 1 |
| 12 | 30503013 | Bushing | 1 |
| 13 | S01063 | Screw | 1 |
| 14 | 306S30008 | Screw | 1 |
| 15 | 30612012 | Link | 1 |
| 16 | 306S30007 | Pin | 2 |
| 17 | W01004 | Washer | 1 |
| 18 | N01004 | Nut | 1 |
| 19 | 30604004 | Link | 1 |
| 20 | S01030 | Screw | 2 |
| 21 | H05003 | Washer | 1 |
| 22 | 001016 | Washer | 1 |
| 23 | 30603008 | Bushing | 1 |
| 24 | 30627001 | Washer | 1 |
| 25 | 30626004 | Link | 1 |
| 26 | 30604005 | Crank | 1 |
| 27 | S05004 | Screw | 1 |
| 28 | 30627002 | Spring | 1 |
| 29 | 30626005 | Pin | 2 |
| 30 | S010005 | Screw | 1 |
| 31 | 30608003 | Ring | 1 |
| 32 | 3051000100 | Felt | 1 |
Page 15 — 七、下弯针部件/Lower looper assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3060501500 | Link Assy. | 1 |
| 2 | 306S20007 | Screw | 4 |
| 3 | 30605009 | Link | 1 |
| 4 | N01007 | Nut | 1 |
| 5 | 306S30010 | Screw | 1 |
| 6 | 306S16002 | Nut | 1 |
| 7 | 30605012 | Link Assy. | 1 |
| 8 | 30603010 | Bushing | 2 |
| 9 | 306S20008 | Washer | 1 |
| 10 | 306S30011 | Screw | 1 |
| 11 | 30604006 | Crank | 1 |
| 12 | S05002 | Screw | 1 |
| 13 | 305S16007 | Nut | 1 |
| 14 | 306S16003 | Nut | 4 |
| 15 | 41228024 | Washer | 2 |
| 16 | S10029 | Screw | 2 |
| 17 | 30605013 | Rivit Seat | 1 |
| 18 | 20128010 | Washer | 1 |
| 19 | 30603009 | Bushing | 1 |
| 20 | 306S30012 | Screw | 2 |
| 21 | 30624001 | Bearing | 4 |
| 22 | 30604007 | Looper Holder | 2 |
| 23 | 30617003 | looper | 2 |
| 24 | 30617002 | looper | 2 |
| 25 | 306S11006 | Screw | 4 |
| 26 | 306S11003 | Screw | 1 |
| 27 | 201S14002 | Screw | 4 |
| 28 | 30608005 | Ring | 2 |
| 29 | 201S16003 | Nut | 2 |
| 30 | S01028 | Screw | 2 |
| 31 | W01004 | Washer | 2 |
| 32 | 30605014 | Looper Link | 1 |
| 33 | 306S30009 | Screw | 1 |
Page 17 — 八、针杆部件/Needle bar assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01005 | Screw | 1 |
| 2 | 30513003 | Thread guide | 1 |
| 3 | 30502011 | Needle bar | 1 |
| 4 | 3052201200 | Oil Seal | 1 |
| 5 | 305S12004 | Screw | 2 |
| 6 | 30503021 | Bushing | 1 |
| 7 | 30512027 | Washer | 1 |
| 8 | 305S11016 | Screw | 2 |
| 9 | 30509006 | Needle slider | 1 |
| 10 | S01011 | Screw | 1 |
| 11 | 30503022 | Bushing | 1 |
| 12 | 30509007 | Rivet | 1 |
| 13 | 305S14002 | Screw | 4 |
| 14 | 30634001 | Needle Holer Assy. | 1 |
| 15 | 30605004 | Crank Assembly | 1 |
| 16 | 305S20008 | Screw | 2 |
| 17 | 30617004 | Needle | 4 |
| 18 | 30613003 | Thread guide | 1 |
| 19 | 305S11005 | Screw | 2 |
| 20 | 30503023 | Bushing | 1 |
| 21 | 305S14006 | Screw | 2 |
| 22 | 30505009 | Lever | 1 |
| 23 | S09007 | Screw | 2 |
| 24 | 305S20007 | Screw | 2 |
| 25 | 30526011 | Crank | 1 |
| 26 | 30512028 | Cover | 1 |
| 27 | 305S11006 | Screw | 1 |
| 3050402400 | Crank Assembly | 1 | |
| 29 | S09008 | Screw | 2 |
| 30 | 30508006 | Ring | 1 |
| 31 | 30524002 | Bearing | 1 |
| 32 | 30528003 | Washer | 2 |
| 33 | 30503024 | Bushing | 1 |
| 34 | 305S16002 | Nut | 1 |
| 35 | 305S16003 | Nut | 1 |
| 3050203000 | Connection assembly | 1 | |
| 37 | S05004 | Screw | 1 |
| 38 | 30502013 | Shaft | 1 |
| 39 | 30505012 | Crank | 1 |
| 40 | 30526008 | Pin | 2 |
| 41 | 30123015 | Oil Seal | 2 |
| 42 | S01003 | Screw | 2 |
| 20622019 | Oil wick | 1 | |
| 44 | 30509010 | Thread Guide Rivet Seat | 1 |
| 45 | 30513005 | Thread guide | 1 |
Page 19 — 九、压脚部件/Presser foot assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3013002500 | Adjusting Bar Assy | 1 |
| 2 | 30512035 | Link | 1 |
| 3 | 305S20009 | Screw | 1 |
| 4 | 30512029 | Bracket | 1 |
| 3 | 305S16004 | Nut | 1 |
| 5 | 30527007 | Spring | 1 |
| 6 | S01005 | Screw | 2 |
| 7 | 30509011 | Slider | 1 |
| 8 | 305S11007 | Screw | 1 |
| 9 | 30509012 | Slider | 1 |
| 10 | 305S11001 | Screw | 1 |
| 11 | 30527008 | Spring | 1 |
| 12 | 30522014 | Oil Seal | 1 |
| 13 | 30503025 | Bushing | 1 |
| 14 | 3052201500 | Oil Seal | 1 |
| 15 | 30502015 | Shaft | 1 |
| 16 | 30616001 | presser foot assy | 1 |
| 17 | S09008 | Screw | 1 |
| 18 | S01027 | Screw | 1 |
| 19 | 30512031 | Bracket | 1 |
| 20 | 305S11016 | Screw | 2 |
| 21 | 30512030 | Bracket | 1 |
| 22 | 30526013 | Shaft | 1 |
| 23 | 3051203200 | Lever Assembly | 1 |
| 24 | 30504011 | Tighten | 1 |
| 25 | 30527010 | Spring | 1 |
| 26 | 30526014 | Pin | 1 |
| 27 | 3052201700 | Oil Seal | 1 |
| 28 | 30527009 | Pin | 1 |
| 29 | 30503026 | Bushing | 1 |
| 30 | 30502016 | Thread Guide | 1 |
| 31 | 3050201700 | Shaft | 1 |
| 32 | 30510006 | Eccent Bushing | 1 |
| 33 | 30512036 | Crank | 1 |
| 34 | S05002 | Screw | 1 |
| 35 | 30504012 | Crank | 1 |
| 36 | S05004 | Screw | 1 |
| 37 | 30526001 | Pin | 1 |
Page 21 — 十、夹线器部件/Tension spring assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| VK13 | 30512038 | Bracket | 1 |
| VA08 | 30501004 | Upper Macine | 1 |
| SM404 | S09012 | Screw | 1 |
| VK15 | 30513009 | Thread Guide | 1 |
| PM413 | P03025 | Pin | 1 |
| SM450 | S02003 | Screw | 1 |
| VK18 | 30513010 | Thread Guide | 1 |
| SM431 | 305S11016 | Screw | 9 |
| VK11 | 30513012 | Thread Guide | 1 |
| VK22 | 30513011 | Thread Guide | 1 |
| 30531047 | Tension Spring As | 1 | |
| VK17 | 30513013 | Thread Guide | 9 |
| VA01 | 30601003 | Lower Macine | 1 |
| HK09 | 30613004 | Thread Guide | 2 |
| MW400 | 20612062 | Washer | 7 |
| SM031 | 306S11004 | Screw | 2 |
| WM002 | 30628001 | Washer | 1 |
| HK05 | 30613006 | Bracket | 1 |
| HK06 | 30613005 | Bracket | 1 |
| HK03 | 30612013 | Bracket | 1 |
| NM410 | N01001 | Nut | 3 |
| WM400 | 20612062 | Washer | 1 |
| SM431 | S01010 | Screw | 2 |
| HK01 | 30612014 | Bracket | 2 |
| HK08 | 30613008 | Thread Guide | 1 |
| SM432 | S01010 | Screw | 1 |
| HK07 | 30613007 | Thread Guide | 1 |
| SM131 | S01028 | Screw | 2 |
| HK02 | 30612015 | Spring | 1 |
| WM100 | 20612062 | Washer | 1 |
| KN44 | 30608007 | Ring | 1 |
| KN43 | 30627004 | Spring | 1 |
| KN42 | 30612019 | Reservoir Assy | 2 |
| KN40 | 30602007 | Shaft | 2 |
| SM432 | S01010 | Screw | 2 |
| HK04 | 30612016 | Bracket | 1 |
| MB14 | 30622004 | Plug | 1 |
Page 23 — 十一、油泵部件/Lubrication assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01057 | Screw | 3 |
| 2 | 20337005 | Brand | 1 |
| 3 | 300077 | Cover | 1 |
| 4 | 20322004 | Sticker | 1 |
| 5 | 20136001 | Filter Element | 1 |
| 6 | 30503027 | pipe | 1 |
| 7 | 30521012 | Tube | 1 |
| 8 | 30121021 | Tube | 1 |
| 9 | 305S11016 | Screw | 1 |
| 10 | 30521013 | Tube | 1 |
| 11 | 305S11016 | Screw | 2 |
| 12 | 30121022 | Tube | 1 |
| 13 | 3052000100 | Pump | 1 |
| 14 | 30536001 | Joint | 1 |
| 15 | 30121022 | Tube | 1 |
| 16 | 30121022 | Tube | 1 |
| 17 | 305S13003 | Screw | 4 |
| 18 | 3052101300 | Tube Assemlby | 1 |
| 19 | 30523010 | Felt | 1 |
| 20 | 30511004 | Oil Window | 1 |
| 21 | H01003 | Spring | 1 |
| 22 | 30512040 | filter | 1 |
| 23 | 305S11010 | Screw | 1 |
| 24 | 305S13004 | Screw | 2 |
| 25 | 30501006 | Oil Reservoir Assy | 1 |
| 26 | 30136005 | Joint | 1 |
| 27 | 30121022 | Tube | 1 |
| 28 | 20636001 | Joint | 2 |
| 29 | 20528014 | Sticker | 1 |
| 30 | 20129002 | Ring | 9 |
| 31 | 305S11016 | Screw | 2 |
| 32 | 301S30013 | Screw | 3 |
| 33 | 30522018 | Oil Seal | 1 |
| 34 | S05007 | Screw | 1 |
Page 24 — 十二、传送部件/Transmission assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30625003 | |||
| 30625003 | |||
| 3062500800 | |||
| 3062500700 |
Page 25 — 十二、传送部件/Transmission assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30503028 | Bushing | 1 |
| 2 | 30522019 | Oil Seal | 1 |
| 3 | S05002 | Screw | 1 |
| 4 | 3050203100 | Crank Assembly | 1 |
| 5 | 30512045 | Washer | 1 |
| 6 | 30328007 | Washer | 1 |
| 7 | 30504013 | Crank | 1 |
| 8 | 30503029 | Bushing | 1 |
| 9 | 30522020 | Oil Seal | 1 |
| 10 | 305100100 | Link assy | 1 |
| 11 | 305S16007 | Nut | 1 |
| 12 | 305S20007 | Screw | 2 |
| 13 | 30504015 | Crank | 1 |
| 14 | S10014 | Screw | 4 |
| 15 | 30508007 | Ring | 2 |
| 16 | 30502020 | Shaft | 1 |
| 17 | S09002 | Screw | 2 |
| 18 | 30508009 | Spring | 1 |
| 19 | 30503030 | Bushing | 1 |
| 20 | 305S16002 | Nut | 1 |
| 21 | 3050203100 | Link assy | 1 |
| 22 | 305S16003 | Nut | 1 |
| 23 | 30502012 | Connection | 1 |
| 24 | 30510010 | Eccent | 1 |
| 25 | 305S30005 | Crank | 1 |
| 26 | 30603012 | Bushing | 1 |
| 27 | 30603015 | spring | 2 |
| 28 | 30603016 | Screw | 2 |
| 29 | 30602006 | shaft | 1 |
| 30 | 30608006 | Ring | 1 |
| 31 | S09013 | Screw | 5 |
| 32 | 30609004 | stop dog | 1 |
| 33 | S09019 | Screw | 1 |
| 34 | 30625002 | roller | 1 |
| 35 | 3062500600 | Roller components | 1 |
| 36 | 30609001 | stop dog | 1 |
| 37 | 30609005 | stop dog | 1 |
| 38 | 30602010 | shaft | 1 |
| 39 | 30609006 | stop dog | 1 |
| 40 | 30635001 | Rubber roller | 1 |
| 41 | 3062500800 | Height roller assembly | 1 |
| 42 | 3062500700 | Flat wheel roller assembly | 1 |
Page 27 — 十三、后凸轮架部件/After Cam Fight assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S20010 | Screw | 1 |
| 2 | 30528011 | Washer | 1 |
| 3 | N01001 | Nut | 1 |
| 4 | S01065 | Screw | 2 |
| 5 | 30512047 | Sheet Iron Link | 1 |
| 6 | 30512048 | Bracket | 1 |
| 7 | S05031 | Screw | 2 |
| 8 | 30528011 | Washer | 1 |
| 9 | 30503031 | bushing | 1 |
| 10 | 305S20011 | Screw | 1 |
| 11 | 305S20012 | Screw | 1 |
| 12 | 3051205100 | Regulator Plate | 1 |
| 13 | L02012 | Screw | 2 |
| 14 | 30512049 | Bracket | 1 |
| 15 | 30504014 | Crank | 1 |
| 16 | S01018 | Screw | 1 |
| 17 | S05031 | Screw | 1 |
| 18 | 30509013 | Spring Plate | 1 |
| 19 | 30512050 | Bracket | 1 |
| 20 | S01055 | Screw | 1 |
| 21 | 305S11011 | Screw | 1 |
| 22 | 3051205100 | Regulator Plate | 1 |
| 23 | S09007 | Screw | 1 |
| 24 | 305S20013 | Screw | 1 |
| 25 | 30528012 | Bracket | 1 |
| 26 | 3050100800 | Press Wheel Fight | 1 |
| 27 | 30526020 | Pin | 1 |
| 28 | 30502022 | Shaft | 1 |
| 29 | H04001 | Spring | 1 |
| 30 | 30526017 | Pin | 1 |
| 31 | 30527017 | Spring | 1 |
| 32 | 305S30006 | Adjusting Screw | 1 |
| 33 | 30501007 | Finger Guide | 1 |
| 34 | 3061000200 | After Cam Assembly | 1 |
Page 28 — A 滚轮使用方式
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30625003 | |||
| 30625003 | |||
| 3062500800 | |||
| 3062500700 |
Page 29 — 十四、后凸轮部件/ After Cam assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S30007 | Screw | 1 |
| 2 | 30522021 | Washer | 2 |
| 3 | 30526011 | Iron Cover | 1 |
| 4 | 30503034 | Bearing | 1 |
| 5 | 3050501700 | connection Assy | 1 |
| 6 | N01004 | Nut | 1 |
| 7 | W01004 | Washer | 1 |
| 8 | 30505020 | Bearing | 1 |
| 9 | B07011 | Iron Cover | 1 |
| 10 | 30503034 | Bushing | 1 |
| 11 | 30504015 | Crank | 1 |
| 12 | 305S30009 | Screw | 1 |
| 13 | S05037 | Screw | 1 |
| 14 | 30512055 | Jib | 1 |
| 15 | N01004 | Nut | 1 |
| 16 | S03003 | Screw | 3 |
| 17 | S03003 | Screw | 3 |
| 18 | 30625003 | Press Wheel | 1 |
| 19 | 30512056 | Spring | 1 |
| 20 | S02014 | Screw | 5 |
| 21 | 30503063 | Bushing | 2 |
| 22 | NSK FC-20 | Bearing | 2 |
| 23 | 30503035 | Gear Wheel Cover | 1 |
| 24 | 30512057 | Bracket | 1 |
| 25 | 30502023 | Shaft | 1 |
| 26 | H04004 | Washer | 5 |
| 27 | W01046 | Washer | 1 |
| 28 | 305S11012 | Screw | 1 |
| 29 | S09008 | Screw | 2 |
| 30 | S01065 | Screw | 4 |
| 31 | 3050100800 | Press Wheel Fight | 1 |
| 32 | 30503036 | Bushing | 1 |
| 33 | W01010 | Washer | 1 |
| 34 | N01008 | Nut | 2 |
| 35 | 30512054 | Plate | 1 |
| 36 | 3061000200 | After Cam Assembly | 1 |
Page 31 — 十五、附件(1)/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40131017 | dust guard | 1 |
| 2 | 20131037 | Oil Can | 1 |
| 3 | 20131038 | Oil Can | 1 |
| 4 | 20131039 | Oil Funnel | 1 |
| 5 | 20131041 | Spanner(6mm) | 1把 |
| 6 | 20131042 | Spanner(7mm) | 1把 |
| 7 | 20131043 | Spanner(8mm) | 1把 |
| 8 | 20131044 | Inner-hexagon Driver(1.5mm) | 1把 |
| 9 | 20131046 | Inner-hexagon Driver(2mm) | 1把 |
| 10 | 30131010 | Inner-hexagon Driver(3mm) | 1把 |
| 11 | 30131012 | Inner-hexagon Driver(4mm) | 1把 |
| 12 | 20131047 | Inner-hexagon Driver(5mm) | 1把 |
| 13 | 20131056 | Inner-hexagon Driver(6mm) | 1把 |
| 14 | 10131002 | Screw Driver | 1把 |
| 15 | 10131003 | Screw Driver | 1把 |
| 16 | 10131004 | Screw Driver | 1把 |
| 17 | 20131051 | Tweezer | 1 |
| 18 | 20136001 | Oil Filter | 1 |
| 19 | 30617004 | Needle | 1包 |
| 20 | 20131045 | Inner-hexagon Driver(1.6mm) | 1 |
| 21 | 30531029 | Parts list Instruction book | 1 |
| 22 | 30131018 | Chain | 1 |
Page 33 — 十六、附件(2)/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30532002 | Fight | 1 |
Page 35 — 十七、附件(3)/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30122029 | Rubber cushion | 4 |
| 2 | 301S16008 | Nut | 4 |
| 3 | 301S30017 | Bolt | 4 |
| 4 | 20131029 | Washer | 8 |
| 5 | 30122029 | Rubber cushion | 4 |
| 6 | 30103078 | Spacer | 4 |
| 7 | 30122031 | Rubber cushion | 4 |
| 8 | 30531027 | Accessory Box | 1 |
| 9 | 30532001 | Rest board | 2 |
| 10 | 301S30018 | Screw | 4 |
| 11 | 30531025 | Box | 1 |
| 12 | 30531026 | Box | 1 |
| 13 | 30531028 | Paper Box | 1 |
Jack JK-8009HF — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-8009HF Parts Manual, featuring an image of the sewing machine and the JACK logo.
- Page 2 (diagram): This page displays a diagram of sewing machine components, with numbered parts and their corresponding references.
- Page 3 (parts_list): This page lists parts for the "Frame assemblies" section, including part numbers, descriptions, and quantities.
- Page 4 (diagram): This page displays a diagram of various machine components, including covers, springs, screws, and mounting plates, with reference numbers for each part.
- Page 5 (parts_list): This page lists frame assemblies and their components, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 39, with some parts labeled with reference numbers like 'R'.
- Page 7 (parts_list): This page lists feed assemblies for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as housings, shafts, bearings, and fasteners, numbered from 1 to 18.
- Page 9 (parts_list): This page lists parts for Crankshaft Drive assemblies, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various machine parts, including crankshafts, bearings, connecting rods, and other components, with reference numbers for identification.
- Page 11 (parts_list): This page lists parts for the front main shaft assemblies, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various machine parts, including shafts, bearings, springs, and fasteners, with reference numbers for each component.
- Page 13 (parts_list): This page lists parts for Looper shaft assemblies, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various machine parts, including screws, nuts, levers, and other components, with reference numbers for identification.
- Page 15 (parts_list): This page lists lower looper assemblies with part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including bolts, linkages, bearings, and shafts, with reference numbers for each component.
- Page 17 (parts_list): This page lists parts for needle bar assemblies, including part numbers, descriptions, quantities, and remarks.
- Page 18 (diagram): This page displays a diagram of sewing machine parts, with numbered components and associated part numbers and descriptions. It includes a list of part numbers JK8009HF-04XXX and JK8009HF-04XX-XXX.
- Page 19 (parts_list): This page lists parts for presser foot assemblies, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page contains a diagram of various machine components and hardware, with numbered references for each part.
- Page 21 (parts_list): This page lists parts for tension spring assemblies, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various machine components, including screws, filters, seals, and structural parts, with reference numbers for identification.
- Page 23 (parts_list): This page lists lubrication assemblies with part numbers, descriptions, and quantities. It includes items like screws, covers, tubes, and seals.
- Page 24 (diagram): This page displays a diagram of various machine parts, including rollers, shafts, and mounting brackets, along with a table detailing roller part numbers and types.
- Page 25 (parts_list): This page lists transmission assemblies with part numbers, descriptions, and quantities. It includes items like bushings, oil seals, screws, washers, and various assemblies.
- Page 26 (diagram): This page displays a diagram of various machine parts, including levers, springs, bolts, and housings, with reference numbers for each component.
- Page 27 (parts_list): This page lists parts for the After Cam Fight assemblies, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various machine parts, including a ribbed roller, a lever mechanism, and a shaft, with corresponding reference numbers and a table detailing part codes for different roller types.
- Page 29 (parts_list): This page lists parts for After Cam assemblies, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various tools and accessories for an industrial sewing machine, numbered from 1 to 22 and 29.
- Page 31 (parts_list): Accessories assemblies parts list with 22 items including dust guard, oil cans, oil funnel, spanners, hex drivers, screw drivers, tweezer, oil filter, needle, and chain.
- Page 32 (diagram): This page displays a diagram of various components and sub-assemblies, including brackets, shafts, and circular bases with upright elements, along with associated hardware like screws and nuts. A circled number '1' is present, indicating a reference point.
- Page 33 (parts_list): This page lists accessories and assemblies with part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of various sewing machine components, including screws, plates, and a sewing machine base, with corresponding reference numbers.
- Page 35 (parts_list): This page lists accessories and assemblies, including part numbers, descriptions, and quantities for items like rubber cushions, nuts, bolts, washers, and boxes.
- Page 36 (cover): This is the cover page for the JACK SEWING MACHINE CO., LTD. catalog, featuring the product standard code QB/JK11-2003 and company contact information.
