Jack JK-8009VC — Part Book

Jack JK-8009VC — parts catalog

Page 1 (cover): This is the cover page for the JACK JK-8009VC Parts Manual, featuring an image of the sewing machine and company branding.
Page 2 (diagram): This page displays a diagram of sewing machine components, including various screws, brackets, covers, and internal parts, with reference numbers for identification.
Page 3 (parts_list): This page lists parts for crane assemblies, including screws, washers, eye guides, pins, oil seals, and covers, with their corresponding part numbers, descriptions, and quantities.
Page 4 (diagram): This page displays a diagram of various machine components, including screws, plates, brackets, and a main housing unit, with reference numbers for each part.
Page 6 (diagram): This page displays a diagram of various machine parts, with reference numbers and some Chinese descriptions for specific items.
Page 7 (parts_list): This page lists feed assembly parts, including part numbers, descriptions, and quantities.
Page 8 (diagram): This page displays a diagram of various machine parts, including components like housings, shafts, bearings, and fasteners, each identified by a reference number.
Page 9 (parts_list): This page lists parts for Crankshaft Drive assemblies, including part numbers, descriptions, and quantities.
Page 10 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 48, along with their corresponding descriptions and quantities.
Page 11 (parts_list): This page lists parts for Thread Takeup assemblies, including part numbers, descriptions, and quantities.
Page 12 (diagram): This page displays a diagram of various sewing machine parts, numbered 1 through 19, illustrating their assembly and relationships within the machine.
Page 13 (parts_list): This page lists parts for needle feeding assemblies, including part numbers, descriptions, quantities, and remarks.
Page 14 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions.
Page 15 (parts_list): This page lists needle bar assemblies with part numbers, descriptions, and quantities. It includes parts like screws, thread guides, bushings, and oil seals.
Page 16 (diagram): This page displays a diagram of various sewing machine parts, including a spring, levers, and other components, with reference numbers and some Chinese text indicating specific uses for certain parts.
Page 17 (parts_list): This page lists parts for presser foot assemblies, including part numbers, descriptions, and quantities.
Page 18 (diagram): This page displays a diagram of machine parts, including a main assembly and various components like screws, springs, and rollers, with reference numbers and some Chinese descriptions.
Page 19 (parts_list): This page lists tension spring assemblies for various sewing machine models, including part numbers, descriptions, and quantities.
Page 20 (diagram): This page displays a diagram of various machine components, including filters, linkages, and mounting hardware, with reference numbers for each part.
Page 21 (parts_list): This page lists lubrication assemblies with part numbers, descriptions, and quantities.
Page 22 (diagram): This page displays a diagram of various machine components, including rollers, shafts, and mounting hardware, with a table detailing part codes and numbers for upper and lower rollers.
Page 23 (parts_list): This page lists transmission assemblies with part numbers, descriptions, and quantities.
Page 24 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their location and identification. It includes components such as levers, springs, bolts, nuts, and structural elements, numbered from 1 to 34.
Page 25 (parts_list): This page lists parts for After Cam Fight assemblies, including part numbers, descriptions, quantities, and remarks.
Page 26 (diagram): This page displays a diagram of various machine parts, including a table detailing part numbers for upper and lower rollers in different configurations (gear, flat, gear).
Page 27 (parts_list): This page lists parts for After Cam assemblies, including part numbers, descriptions, and quantities.
Page 28 (diagram): This page displays a diagram of various tools and components, numbered from 1 to 22, along with a page number 27 at the bottom.
Page 29 (parts_list): This page lists accessories and assemblies with part numbers, descriptions, quantities, and remarks. It includes items like dust guards, oil cans, oil funnels, spanners, screw drivers, tweezers, oil filters, needles, and chains.
Page 30 (diagram): This page displays diagrams of machine components, with callouts for parts used in 4-needle and 6, 8, 12, 13-needle configurations.
Page 31 (parts_list): This page lists accessories and assemblies, including part numbers, descriptions, quantities, and remarks.
Page 32 (diagram): This page displays a diagram of various machine components, including mounting brackets, screws, nuts, washers, and a sewing machine head with its base and packaging.
Page 33 (parts_list): This page lists accessories and assemblies with part numbers, descriptions, quantities, and remarks.
Page 34 (diagram): This page displays a diagram of various machine components, including a main housing, a shaft assembly, a cover, and screws, with reference numbers indicating their placement and relationships.
Page 35 (parts_list): This page lists parts for DI Special direct drive assemblies, including part numbers, descriptions, quantities, and remarks.
Page 36 (parts_list): This page contains a parts list for JK-8009VC models, detailing needle clamps, needle plates, feed dogs, presser feet, and needle specifications.
Page 37 (cover): This is the cover page for the JACK SEWING MACHINE CO.,LTD. catalog, featuring the product standard code QB/JK11-2003 and company contact information.

Page 1 — JK-8009VC Parts Manual

JK-8009VC Parts Manual 零件手册 ISO9001认证国家高新技术企业清洁生产 JACK SEWING MACHINE HTTP://WWW.CHINAAJACK.COM jintex.in

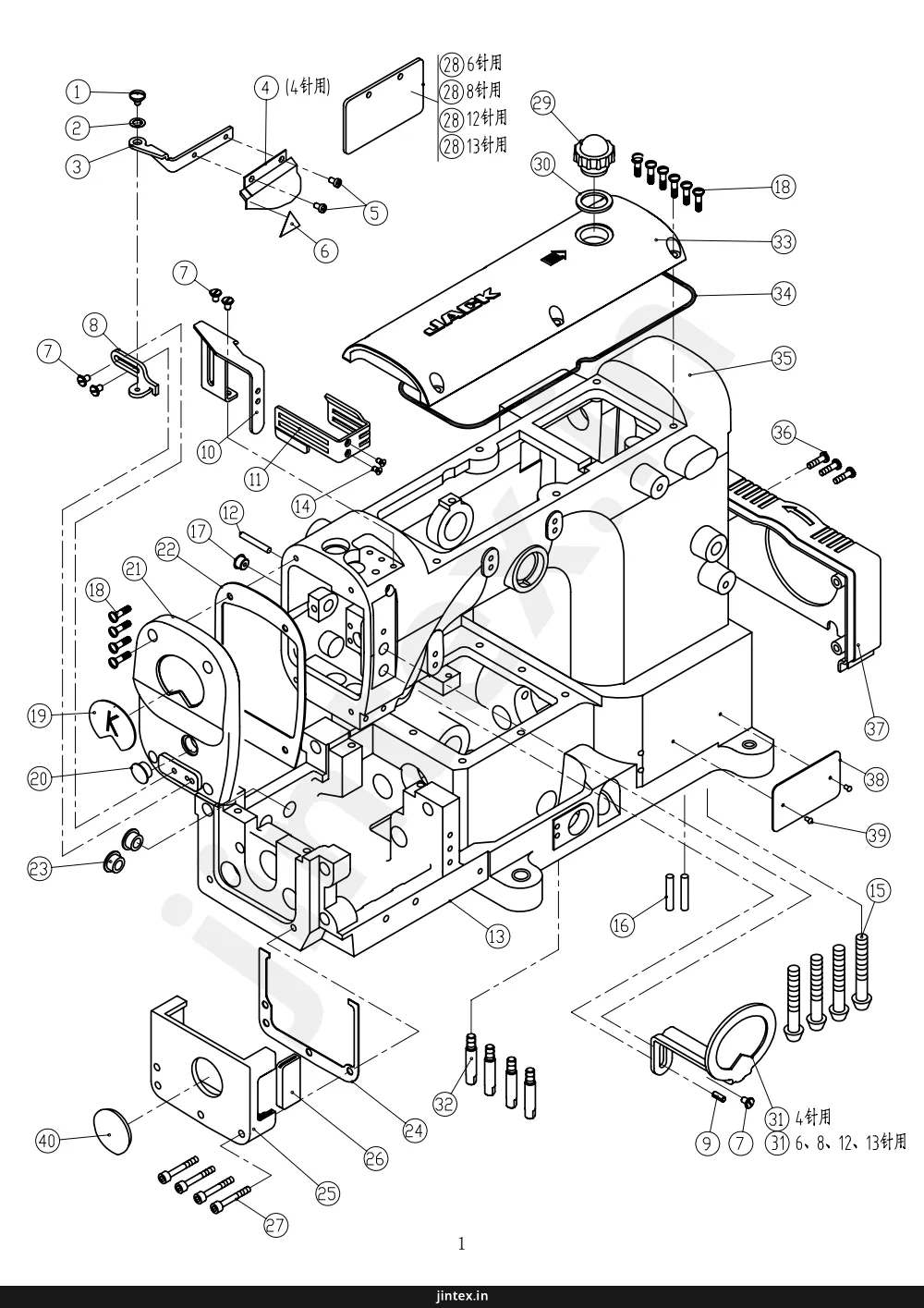

Page 2

Jack JK-8009VC parts on page 2
Ref	Part number	Part name
1	1	Screw
2	2	Washer
3	3	Bracket
4	4	Cover
5	5	Screw
6	6	Bracket
7	7	Screw
8	8	Bracket
9	9	Pin
10	10	Bracket
11	11	Bracket
12	12	Pin
13	13	Base
14	14	Cover
15	15	Screw
16	16	Pin
17	17	Washer
18	18	Screw
19	19	Cover
20	20	Screw
21	21	Screw
22	22	Screw
23	23	Screw
24	24	Screw
25	25	Screw
26	26	Screw
27	27	Screw
28	28	Screw
29	29	Knob
30	30	Washer
31	31	Screw
32	32	Screw
33	33	Screw
34	34	Cover
35	35	Screw
36	36	Screw
37	37	Screw
38	38	Cover
39	39	Screw
40	40	Cover

1 jintex.in 4 (4针用 28 6针用 28 8针用 28 12针用 28 13针用 JACK 31 4针用 31 6、8、12、13针用

Page 3 — 一、机壳部件/Frane assemblies

Jack JK-8009VC parts on page 3
Ref	Part number	Part name	Qty
	305S20001	螺钉 M4×3.6
	30528001	垫片
	30512001	防护组件
	30511001	防护组件
	S04016	螺钉 M3.5×6
	20131063	警告牌
	305S11016	螺钉 M4×0.7
	30512002	支架
	P03025	定位销
	300215	护罩
	300216	防护罩
	30526001	定位销
	30501005	机壳下节
	201S17003	螺钉 SM1/8×44
	S05001	拼装螺钉
	P02001	销
	30522001	油封
	S01057	螺钉 M4×15
	30337001	商标
	30522001	油封
	300217	机头左盖
	301811	机头左盖
	30501049	左盖面垫
	30522072	左盖面垫
	30522001	油封
	30522003	纸垫
	300218	左盖
	30522005	油封
	305S12002	螺钉 M4×30
	30511003	挡板
	20111005	油窗盖
	20122018	油封
	30512081	防护板
	30512082	防护板
	305S20003	螺钉
	300219	上盖
	301812	上盖
	30522024	油封
	300224	机壳上节
	301810	机壳上节
	305S12002	螺钉 SM1/8×44
	30511002	带轮盖
	30537003	机型牌
	R03001	铆钉 2.5*4
	30522004	油封

一、机壳部件/Frane assemblies 序号 No 备注 Remark 名称 Name 件号 Part No. 参考件号 Ref.Part.No Description 数量 Number 1 螺钉 M4×3.6 305S20001 SM49E Screw 1 2 垫片 30528001 KP60 Washer 1 3 防护组件 30512001 DA80 Eye Guide Assy. 1 4 4针用防护组件 30511001 KC69 Eye Guide Assy. 1 5 螺钉 M3.5×6 S04016 SM132 Screw 2 6 警告牌 20131063 MA84 Brand 1 7 螺钉 M4×0.7 305S11016 SM433 Screw 5 8 支架 30512002 MA79 Guide 1 9 定位销 P03025 PM413 Pin 1 10 护罩 300215 VA19P Guide 1 11 防护罩 300216 MA82 Eye Guide 1 12 定位销 30526001 PM404 Pin 1 13 机壳下节 30501005 VA01 Lower Macine 1 14 螺钉 SM1/8×44 201S17003 SM152 Screw 2 15 拼装螺钉 S05001 ------- Screw 4 16 销 P02001 ------- Pin 2 17 油封 30522001 KH48 Oil Seal 1 18 螺钉 M4×15 S01057 SM44B Screw 10 19 商标 30337001 VA06 Brand 1 20 油封 30522001 KH48 Oil Seal 1 21 JK8008VC用机头左盖 300217 VA05 Left Cover 1 22 JK8009VC用机头左盖 301811 VA05 Left Cover 1 22 JK8008VC用左盖面垫 30501049 VA04 sticker 1 23 JK8009VC用左盖面垫 30522072 VA04 sticker 1 24 油封 30522001 KH48 Oil Seal 3 25 纸垫 30522003 VA24 Washer 1 26 左盖 300218 VA25 Left Cover 1 27 油封 30522005 VA25-2 Oil Seal 1 28 螺钉 M4×30 305S12002 SM416 Screw 4 29 6、8、12、13针机用挡板 30511003 VA07P Plate 1 30 油窗盖 20111005 KC57 Oil Sight Window 1 31 油封 20122018 KC58 Oil Seal 1 31 4针机专用防护板 30512081 VA06 Eye Guide Plate 1 31 6、8、12、13针机用防护板 30512082 VA06 Eye Guide Plate 1 32 螺钉 305S20003 SM670 Screw 4 33 JK8008VC用上盖 300219 VA02 Top Cover 1 34 JK8009VC用上盖 301812 VA02 Top Cover 1 35 油封 30522024 A03 Oil Seal 1 35 JK8008VC用机壳上节 300224 VA08 Upper Macine 1 36 JK8009VC用机壳上节 301810 VA08 Upper Macine 1 37 螺钉 SM1/8×44 305S12002 SM417 Screw 3 38 带轮盖 30511002 VA23 Belt Cover Assy. 1 39 机型牌 30537003 VA26 Brand 1 40 铆钉 2.5*4 R03001 KA33 Screw 2 油封 30522004 ------- Oil Seal 1 2 jintex.in

Page 4

Jack JK-8009VC parts on page 4
Ref	Part number	Part name
1	1	Screw
2	2	Screw
3	3	Cover
4	4	Bracket
5	5	Screw
6	6	Base Plate
7	7	Needle Plate
	8	Needle Plate
	8	Needle Plate
	8	Needle Plate
	8	Needle Plate
	8	Needle Plate
9	9	Screw
10	10	Screw
11	11	Bracket
12	12	Bracket
13	13	Screw
14	14	Screw
15	15	Bracket
16	16	Cover
17	17	Cover
18	18	Nut
19	19	Cover
20	20	Screw
21	21	Spring
22	22	Lever
23	23	Screw
24	24	Bracket
25	25	Screw
26	26	Bracket
27	27	Screw
28	28	Screw
29	29	Screw
30	30	Washer
31	31	Bracket
32	32	Screw

3 jintex.in 8 4针用 8 6针用 8 8针用 8 12针用 8 13针用 A B

Page 6

Jack JK-8009VC parts on page 6
Ref	Part number	Part name
1	1	Spring
2	2	Screw
3	3	Pin
4	4	Shaft
5	5	Connecting Rod
6	6	Spring
7	7	Screw
8	8	Bearing
9	9	Shaft
10	10	Bearing
11	11	Shaft
12	12	Spring
13	13	Wire
14	14	Spring
15	15	Bearing
16	16	Bearing
17	17	Shaft
18	18	Spring
19	19	Spring
20	20	Pin
21	21	Bearing
22	22	Shaft
23	23	Pin
24	24	Washer
25	25	Shaft
26	26	Screw
27	27	Shaft
28	28	Spring
29	29	Lever
30	30	Spring
31	31	Screw
32	32	Spring
33	33	Shaft
34	34	Bearing
35	35	4针用
35	35	6针用
35	35	8针用
35	35	12针用
35	35	13针用
36	36	Screw
37	37	Lever
38	38	Screw
39	39	Bearing
40	40	Bearing

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 4针用 35 6针用 35 8针用 35 12针用 35 13针用 36 37 38 39 40 5 jintex.in

Page 7 — 三、送料部件/Feed assemblies

Jack JK-8009VC parts on page 7
Ref	Part number	Part name
SM103	305S14003	Screw
SM612	S05002	Screw
VC11	20123021	Oil Wick
VC08	30526002	Pin
VC07	30504001	Crank
SM502	S09008	Screw
MH73	30508001	Ring
CL13	20128031	Washer
VC09S	30503002	Sleeve
---	3051000100	Felt
VC06	30502002	Shaft
VC23	30508004	Spring
VD30D-2	20123021	Oil Wick
---	S09002	Pin
VC24	30524001	Bearing
VC03S	30503004	Bushing
VC02	30504002	Crank
SM600	305S14007	Screw
SK270	305S14001	Screw
VC13	20123021	Oil Wick
VC01S	30503005	Bushing
VC12	30502003	Pin
SK496	305S12003	Screw
WK01	W01006	Washer
VC14D	30504003	Feed Bar
SM131	S01061	Screw
VC21	30526003	Pin
KM15	20123021	Oil Wick
VC16D	30506001	Feed
SK216	305S14002	Screw
PM301	30526005	Pin
SK213	S01062	Screw
VC18D	30526006	Pin
NK55	305S16001	Nut
D9xxx	30514009	Feed Dog
D9xxx	30514003	Feed Dog
D9xxx	30514004	Feed Dog
D9xxx	30514002	Feed Dog
D9xxx	30514005	Feed Dog
SK265	305S11001	Screw
VC19	30527002	Spring
SK497	305S20004	Screw
VC25	30510001	Eccent
VC22D	30505001	Eccent

三、送料部件/Feed assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 305S14003 SM103 螺钉 M3.5×5 Screw 2 2 S05002 SM612 螺钉 M6×0.75×15.2 Screw 1 3 20123021 VC11 油线 Oil Wick 1 4 30526002 VC08 销子 Pin 1 5 30504001 VC07 曲柄 Crank 1 6 S09008 SM502 螺钉 M5×5 Screw 4 7 30508001 MH73 挡圈 Ring 1 8 20128031 CL13 垫片 Washer 1 9 30503002 VC09S 铜套 Sleeve 1 10 3051000100 --- 牙架偏心凸轮组件 Felt 1 11 30502002 VC06 送料轴 Shaft 1 12 30508004 VC23 卡簧 Spring 1 13 20123021 VD30D-2 油线 Oil Wick 1 14 S09002 --- 螺钉 Pin 1 15 30524001 VC24 滚针轴承 Bearing 1 16 30503004 VC03S 套筒 Bushing 1 17 30504002 VC02 曲柄 Crank 1 18 305S14007 SM600 螺钉 M6×0.75×8 Screw 2 19 305S14001 SK270 螺钉 SM11/64×40 Screw 3 20 20123021 VC13 油线 Oil Wick 1 21 30503005 VC01S 铜套 Bushing 1 22 30502003 VC12 销子 Pin 1 23 305S12003 SK496 螺钉 SM11/64×40 Screw 1 24 W01006 WK01 垫片 Washer 1 25 30504003 VC14D 牙架座 Feed Bar 1 26 S01061 SM131 螺钉 M3.5×5 Screw 1 27 30526005 VC21 销子 Pin 1 28 20123021 KM15 油线 Oil Wick 1 29 30506001 VC16D 牙架 Feed 1 30 305S14002 SK216 螺钉 SM11/64×40 Screw 2 31 30526005 PM301 销子 Pin 1 32 S01062 SK213 螺钉 SM1/8×44 Screw 1 33 30526006 VC18D 销子 Pin 1 34 305S16001 NK55 螺钉 Nut 1 35 4针机专用 30514009 D9xxx 牙齿 Feed Dog 1 35 4针机专用 30514003 D9xxx 牙齿 Feed Dog 1 35 8针机专用 30514004 D9xxx 牙齿 Feed Dog 1 35 12针机专用 30514002 D9xxx 牙齿 Feed Dog 1 35 13针机专用 30514005 D9xxx 牙齿 Feed Dog 1 36 305S11001 SK265 螺钉 SM11/64×40 Screw 1 37 30527002 VC19 弹簧 Spring 1 38 305S20004 SK497 螺钉 M3.5×2.5 Screw 1 39 30510001 VC25 偏心凸轮 Eccent 1 40 30505001 VC22D 连杆 Eccent 1 6 jintex.in

Page 8

Jack JK-8009VC parts on page 8
Ref	Part number	Part name	Qty
	1	SCREW
	2	KEY
	3	HOUSING
	4	GASKET
	5	SCREW
	6	BEARING
	7	WASHER
	8	SHAFT
	9	HOUSING
	10	SEAL
	11	SCREW
	12	SHAFT
	13	HOUSING
	14	HOUSING
	15	SHAFT
	16	SHAFT ASSEMBLY
	17	SCREW
	18	HOUSING
	19	BEARING
	20	HOUSING
	21	COVER
	22	SCREW
	23	SPRING
	24	PLATE
	25	SHAFT
	26	SHAFT
	27	SCREW
	28	SCREW
	29	WIRE
	30	CONNECTOR
	31	SHAFT
	32	BEARING
	33	HOUSING
	34	BEARING
	35	HOUSING
	36	SCREW
	37	KEY
	38	SCREW
	39	SCREW
	40	HOUSING
	41	BEARING
	42	SCREW
	43	BEARING
	44	BEARING
	45	HOUSING
	46	SCREW
	47	CIRCLIP
	48	BEARING
	49	BLADE
	50	HOUSING
	51	SHAFT
	52	HOUSING
	53	SHAFT
	54	FRAME
	55	SCREW
	56	HOUSING
	57	HOUSING

7 jintex.in

Page 9 — 四、主轴部件/Crankshaft Drive assemblies

Jack JK-8009VC parts on page 9
Ref	Part number	Part name	Qty
	S01011	螺钉 M5×10
	30523006	油棉
	400085	轴承盖
	30522008	油垫
	S09007	螺钉 M6×8
	30522020	油封
	30528003	垫片
	20123021	油线
	30222003	皮带轮
	30524002	平面滚针轴承
	S10029	螺钉 M6×5
	30508004	卡簧
	30508009	卡簧
	3051001100	连杆组件
	30222003	堵头
	400056	曲柄组件
	P01007	销子
	30510002	偏心凸轮
	30503009	铜套
	3050402300	曲柄组件
	30525015	齿轮
	305S14009	螺钉 SM9/64×40
	305S14010	螺钉 SM9/64×40
	30509020	针距调节滑块
	305S14008	螺钉
	3050502100	送布组件
	S09002	螺钉
	305S20008	螺钉
	S01024	送布组件弹簧螺钉
	30527011	送布组件上弹簧
	30510018	针距凸轮
	S07001	螺钉 M3×8.2
	30505024	连杆
	30524005	滚针轴承
	S02013	螺钉
	30510017	送布凸轮
	30508010	送布凸轮簧
	305S14001	螺钉 SM11/64×40
	30526030	销子
	305S11020	螺钉
	30510016	送布固定轮
	S02013	螺钉
	30510005	偏心凸轮
	30524004	滚针轴承
	30505006	连杆
	305S14003	螺钉 M3.5×5
	30508003	卡簧
	30523012	油线
	30510005	偏心凸轮
	30524001	滚针轴承
	30503010	铜套
	30502005	主轴
	3051000500	偏心轮组件
	30525001	蜗杆
	30510010	偏心凸轮
	3051000100	牙架偏心凸轮组件

四、主轴部件/Crankshaft Drive assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Name Description 数量 Number 1 S01011 SM532 螺钉 M5×10 Screw 3 2 30523006 VD02-2 油棉 Felt 1 3 400085 VD02 轴承盖 Bearing Cover 1 4 30522008 VD05 油垫 Washer 1 5 S09007 SM604 螺钉 M6×8 Screw 2 6 30522020 MD25 油封 Oil Seal 1 7 30528003 VD03-2 垫片 Washer 3 8 20123021 VD30D-2 油线 Felt 2 9 30222003 VD01 皮带轮 Machine Pulley 1 10 30524002 VD03-1 平面滚针轴承 Bearing 1 11 S10029 SM602 螺钉 M6×5 Screw 2 12 30508004 VC23 卡簧 Spring 1 13 30508009 VCL03 卡簧 Spring 1 14 3051001100 VCL02D 连杆组件 Rod Assembly 1 15 30222003 VD07-1 堵头 Pin 2 16 400056 VD07 曲柄组件 Crank Assembly 1 17 P01007 PM401 销子 Pin 1 18 30510002 VD09 偏心凸轮 Eccent 1 19 30503009 VD08 铜套 Bushing 1 20 六、喂针部件8同属组件 3050402300 ------ 曲柄组件 Crank Assembly 1 21 30525015 VD46 齿轮 Gear Wheel 1 22 305S14009 ------ 螺钉 SM9/64×40 Screw 1 23 305S14010 ------ 螺钉 SM9/64×40 Screw 1 24 30509020 KP74 针距调节滑块 Ratchet 1 25 305S14008 SM139 螺钉 Screw 2 26 3050502100 ------ 送布组件 Deliver Fabric Assy. 1 27 S09002 SM606 螺钉 Screw 5 28 305S20008 SK490 螺钉 Screw 2 29 S01024 ------ 送布组件弹簧螺钉 Screw 1 30 30527011 ------ 送布组件上弹簧 Spring 1 31 30510018 VD43 针距凸轮 Cam 1 32 S07001 ------ 螺钉 M3×8.2 Screw 2 33 30505024 VD45 连杆 Link 1 34 30524005 ------ 滚针轴承 Bearing 1 35 S02013 ------ 螺钉 Screw 2 36 30510017 VD44 送布凸轮 Cam 1 37 30508010 ------ 送布凸轮簧 Spring 1 38 305S14001 ------ 螺钉 SM11/64×40 Screw 2 39 30526030 KP18-1 销子 Pin 1 40 305S11020 SM107 螺钉 Screw 1 41 30510016 VD47 送布固定轮 Deliver Wheel 1 42 S02013 SM602 螺钉 Screw 5 43 30510005 VD31 偏心凸轮 Eccent 1 44 30524004 VD24 滚针轴承 Bearing 2 45 30505006 VD25 连杆 Rod 2 46 305S14003 SM103 螺钉 M3.5×5 Screw 4 47 30508003 VD26 卡簧 Spring 2 48 30523012 VD30D 油线 Oil Wick 1 49 30510005 VD31 偏心凸轮 Eccent 1 50 30524001 VC24 滚针轴承 Bearing 1 51 30503010 VD28 铜套 Bushing 1 52 30502005 VD29 主轴 Shaft 1 53 3051000500 ------ 偏心轮组件 Eccent Assembly 1 54 30525001 VD04 蜗杆 Worm 1 55 30510010 VCL01 偏心凸轮 Eccent 1 56 ------ ------ 牙架偏心凸轮组件 Felt 1 57 三、送料部件10相同 3051000100 8 jintex.in

Page 10

Jack JK-8009VC parts on page 10
Ref	Part number	Part name
1	1	扣
2	2	轴
3	3	轴套
4	4	销
5	5	垫圈
6	6	轴套
7	7	螺钉
8	8	套筒
9	9	针
10	10	压板
11	11	压板
12	12	螺钉
13	13	支架
14	14	垫圈
15	15	4 针用 6、8、12、13针用
16	16	螺钉
17	17	轴
18	18	轴套
19	19	弹簧
20	20	螺钉
21	21	压板
22	22	压板
23	23	弹簧
24	24	轴套
25	25	轴套
26	26	螺钉
27	27	卡簧
28	28	轴套
29	29	轴
30	30	垫圈
31	31	针
32	32	轴套
33	33	螺钉
34	34	弹簧
35	35	针
36	36	压板
37	37	卡簧
38	38	轴套
39	39	针
40	40	螺钉
41	41	螺钉
42	42	4 针用 6 针用 8 针用 12 针用 13 针用
43	43	螺钉
44	44	螺钉
45	45	轴套
46	46	针
47	47	轴套
48	48	压板

4 3 11 10 48 21 22 23 24 25 27 5 29 30 31 9 36 32 34 33 12 7 17 28 37 35 46 45 47 4 8 2 1 5 6 14 16 18 19 20 38 39 39 40 41 41 42 4 针用 42 6 针用 42 8 针用 42 12 针用 42 13 针用 15 4 针用 15 6、8、12、13针用 43 44 26 9 jintex.in

Page 11 — 五、勾线部件/Threead Takeup assemblies

Jack JK-8009VC parts on page 11
Ref	Part number	Part name	Qty
	305S13006	螺钉 M6×10
	30504004	曲柄
	30526008	销子
	20123021	油线
	20128010	垫片
	30503012	铜套
	206511003	螺钉 M3.5×4
	30517003	弯针轴
	30517003	喂针
	30512024	挡油板
	W01005	曲柄
	W01005	垫片
	30505006	偏心凸轮
	30503013	铜套
	30513001	过线
	30513002	过线
	S05004	螺钉 M5×14
	30502007	调节杆
	30504006	曲柄
	30527004	弹簧
	305S30002	打线杆
	30509004	螺冒
	3050403100	弯针架固定座
	201S14002	螺钉 11/64×40
	3050800400	挡圈
	30503014	铜套
	305S11016	螺钉 M4×0.7×6
	H05011	卡簧
	30503018	铜套
	30526022	拉杆
	30528006	垫片
	30527006	弹簧
	30503016	套筒
	305S12005	螺钉 1/8×44
	30527005	弹簧
	30512025	防油板
	30512026	比叉
	30508009	卡簧
	30503015	铜套
	30517002	弯针
	30517006	弯针
	S01062	螺钉 M3.5×6.5
	30517001	护针
	30517008	护针
	30504028	弯针架
	30504016	弯针架
	30504017	弯针架
	30504009	弯针架
	30504018	弯针架
	305S11003	螺钉 9/64×40
	30503017	铜套
	305S14002	螺钉 1/8×44
	30502034	喂针轴
	30502024	喂针轴
	30502025	喂针轴
	30502009	喂针轴
	30502026	喂针轴
	30504007	弯针架固定座

五、勾线部件/Threead Takeup assemblies 序号 No Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 305S13006 SM610 螺钉 M6×10 Screw 1 2 30504004 VE01 曲柄 Crank 1 3 30526008 VF10 销子 Pin 2 4 20123021 VC11 油线 Oil Wick 1 5 20128010 KL11 垫片 Washer 4 6 30503012 VE09S 铜套 Bushing 1 7 206511003 SM130 螺钉 M3.5×4 Screw 1 8 30517003 VE04 弯针轴 Shaft 1 9 30517003 VE30 喂针 Spreader 4 10 30512024 VE10D 挡油板 Feed Bar Oil Seal 1 11 W01005 WM100 曲柄 Crank 1 12 W01005 WM100 垫片 Washer 2 13 30505006 VD25 偏心凸轮 Eccent 2 14 30503013 VE03S 铜套 Bushing 1 15 4针机专用 30513001 VE32 过线 Thread guide 1 15 6、8、12、13针机用 30513002 VE32 过线 Thread guide 1 16 S05004 SM511 螺钉 M5×14 Screw 1 17 30502007 VE23 调节杆 Adjusting Bar 1 18 30504006 VE07 曲柄 Crank 1 19 30527004 VE08 弹簧 Spring 1 20 305S30002 VE06 打线杆 Thread Takeup 1 21 30509004 VE45 螺冒 Nut 2 22 3050403100 VE11 弯针架固定座 Rivit Seat 1 23 201S14002 SK270 螺钉 11/64×40 Screw 2 24 3050800400 VE13D 挡圈 Coller 1 25 30503014 VE14S 铜套 Bushing 1 26 305S11016 SM431 螺钉 M4×0.7×6 Screw 2 27 H05011 EM090 卡簧 Spring 1 28 30503018 VE27S 铜套 Bushing 1 29 30526022 VE15 拉杆 Link 1 30 30528006 VE16 垫片 Washer 2 31 30527006 VE17 弹簧 Spring 1 32 30503016 VE18S 套筒 Bushing 1 33 305S12005 SM331 螺钉 1/8×44 Screw 1 34 30527005 VE21 弹簧 Spring 1 35 30512025 VE25 防油板 Bland 1 36 30512026 VE24 比叉 Washer 1 37 30508009 EM060 卡簧 Spring 1 38 30503015 VE22S 铜套 Bushing 1 39 每台数量需乘相应机型针数 30517002 VE51 弯针 looper 1 39 每台数量需乘相应机型针数 30517006 VE51 弯针 looper 1 40 每台数量需乘相应机型针数 S01062 SK213 螺钉 M3.5×6.5 Screw 1 41 每台数量需乘相应机型针数 30517001 VE49 护针 Needle Guard 1 41 30517008 VE50 护针 Needle Guard 1 42 4针机专用 30504028 L9xxx 弯针架 Looper Holder 1 42 6针机专用 30504016 L9xxx 弯针架 Looper Holder 1 42 8针机专用 30504017 L9xxx 弯针架 Looper Holder 1 42 12针机专用 30504009 L9xxx 弯针架 Looper Holder 1 42 13针机专用 30504018 L9xxx 弯针架 Looper Holder 1 43 每台数量需乘相应机型针数 305S11003 SK237 螺钉 9/64×40 Screw 1 44 30503017 VE28S 铜套 Bushing 2 45 305S14002 SK329 螺钉 1/8×44 Screw 1 46 每台数量需乘相应机型针数 30502034 R9xx4 喂针轴 Shaft 1 47 4针机专用 30502024 R9xx4 喂针轴 Shaft 1 47 6针机专用 30502025 R9xx4 喂针轴 Shaft 1 47 8针机专用 30502009 R9xx4 喂针轴 Shaft 1 47 12针机专用 30502026 R9xx4 喂针轴 Shaft 1 47 13针机专用 30504007 VE11 弯针架固定座 Rivit Seat 1 10 jintex.in

Page 12

Jack JK-8009VC parts on page 12
Ref	Part number	Part name
1	1	Washer
2	2	Bobbin Case
3	3	Washer
4	4	Bearing
5	5	Shaft
6	6	Shaft
7	7	Screw
8	8	Bracket
9	9	Ring
10	10	Shaft
11	11	Shaft
12	12	Lever
13	13	Screw
14	14	Connecting Rod
15	15	Pin
16	16	Shaft
17	17	Spring
18	18	Screw
19	19	Screw

11 jintex.in

Page 13 — 六、喂针部件/Needle Feeding assemblies

Jack JK-8009VC parts on page 13
Ref	Part number	Part name	Qty
1	30522011	MQ21	2
2	30503019	VE44	1
3	20128008	MT29D	1
4	30508001	MH73	1
5	S09008	SM502	2
6	30504010	VE42	1
7	305S13006	SM610	2
8	3050402300	------	1
9	30503009	VD08	1
10	30502010	VE41	1
11	30503020	VE38	1
12	30505007	VE36D	1
13	S05002	SM612	1
14	30505008	VE34D	1
15	305S14003	SM103	3
16	30526008	VF10	2
17	20123021	VC11	1
18	30509005	VE33D	1
19	305S14001	SK270	2

六、喂针部件/Needle Feeding assemblies 序号 No 件号 Part No. 参考件号 Ref.Part.No 名称 Descriptio n 数量 Number 备注 Remark 1 30522011 MQ21 油封 Oil Seal 2 2 30503019 VE44 筒套 Bushing 1 3 20128008 MT29D 垫片 Washing 1 4 30508001 MH73 挡圈 Ring 1 5 S09008 SM502 螺钉 M5 × 5 Screw 2 6 30504010 VE42 球齿柄 Crank 1 7 305S13006 SM610 螺钉 M6 × 0.75 × 10 Screw 2 8 3050402300 球齿柄组件 Crank 1 9 30503009 VD08 筒套 Bushing 1 10 30502010 VE41 下横轴 Shaft 1 11 30503020 VE38 铜套 Bushing 1 12 30505007 VE36D 连杆 Link 1 13 S05002 SM612 螺钉 M6 × 0.75 × 15.2 Screw 1 14 30505008 VE34D 连杆 Link 1 15 305S14003 SM103 螺钉 M3.5×5 Screw 3 16 30526008 VF10 销子 Pin 2 17 20123021 VC11 油线 Oil Wick 1 18 30509005 VE33D 连接滑块 Slider 1 19 305S14001 SK270 螺钉 SM11/64 × 40 Screw 2 12 jintex.in

Page 14

Jack JK-8009VC parts on page 14
Ref	Part number	Part name
1	1	Screw
2	2	For 4 needles
2	2	For 6, 8, 12, 13 needles
3	3	Shaft
4	4	Ring
5	5	Screw
6	6	Shaft
7	7	Bracket
8	8	Screw
9	9	Pin
10	10	Screw
11	11	Shaft
12	12	Shaft
13	13	Shaft
14	14	For 4 needles
14	14	For 6 needles
14	14	For 8 needles
14	14	For 12 needles
14	14	For 13 needles
15	15	Screw
16	16	Screw
17	17	Needle for 14# machine
17	17	Needle for 16# machine
18	18	For 4 needles
18	18	For 6, 8, 12 needles
18	18	For 13 needles
19	19	Screw
20	20	Ring
21	21	Screw
22	22	Shaft
23	23	Shaft
24	24	Screw
25	25	Bracket
26	26	Screw
27	27	Screw
28	28	Screw
29	29	Screw
30	30	Shaft
31	31	Ring
32	32	Ring
33	33	Shaft
34	34	Nut
35	35	Nut
36	36	Shaft
37	37	Screw
38	38	Shaft
39	39	Shaft
40	40	Shaft
41	41	Pin
42	42	Screw
43	43	Screw
44	44	Lever
45	45	For 4 needles
45	45	For 6, 8, 12, 13 needles
46	46	Shaft
47	47	Shaft

1 2 4针用 2 6、8、12、13针用 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 4针用 45 6、8、12、13针用 46 47 13 jintex.in 4针用 6针用 8针用 12针用 13针用 14#机针 16#机针 18 4针专用 18 6、8、12针专用 18 13针专用

Page 15 — 七、针杆部件/Needle Bar assemblies

Jack JK-8009VC parts on page 15
Ref	Part number	Part name	Qty
	S01038	螺钉 M4×10
	30513003	过线
	30513006	过线
	30502011	针杆
	3052201200	油封
	305S12004	螺钉 M3.5×8.5
	30503021	筒套
	30512027	垫片
	30503016	螺钉 M4×0.7×6
	30509006	针杆滑块
	S01011	螺钉
	30503022	筒套
	30509007	固定条
	305S14002	螺钉 1/8×44
	30534009	针夹头
	30534003	针夹头
	30534004	针夹头
	30534002	针夹头
	30534005	针夹头
	305S11004	螺钉
	305S20008	螺钉
	30517004	机针(14#)
	30517005	机针(16#)
	30513004	过线
	30513007	过线
	30513021	过线
	305S11005	螺钉 M4×0.7×8
	30503023	筒套
	305S14006	螺钉 M6×0.75×9
	3050500900	大肚杆组件
	305S14007	螺钉 M6×0.75×8
	305S20007	螺钉
	30526011	曲柄球
	30512028	上震板
	305S11006	螺钉
	3050402400	曲柄组件
	S09008	螺钉 M5×5
	30508006	挡圈
	30524002	平面滚针轴承
	30528003	垫片
	30503024	铜套
	305S16002	螺冒
	305S16003	螺冒
	3050203000	传送杆组件
	S05004	螺钉
	30502013	上横轴
	30505012	四眼
	30526008	销子
	20123021	油线
	S01003	螺钉 M4×12
	20622019	油封
	30509010	过线固定座
	30513005	过线
	30513008	过线
	3060500400	曲柄组件

七、针杆部件/Needle Bar assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.N 名称 Name Description 数量 Number 1 S01038 SM132 螺钉 M4×10 Screw 1 2 4针机专用 30513003 VF19 过线 Thread guide 1 2 6、8、12、13针机用 30513006 VF19 过线 Thread guide 1 3 30502011 VF12D 针杆 Needle bar 1 4 3052201200 VF07 油封 Oil Seal 1 5 305S12004 SM184 螺钉 M3.5×8.5 Screw 2 6 30503021 VF13 筒套 Bushing 1 7 30512027 WM130 垫片 Washer 1 8 30503016 SM431 螺钉 M4×0.7×6 Screw 2 9 30509006 VF09 针杆滑块 Needle slider 1 10 S01011 SM532 螺钉 Screw 1 11 30503022 VF14 筒套 Bushing 1 12 30509007 VF11D 固定条 Rivet 1 13 305S14002 SK216 螺钉 1/8×44 Screw 4 14 4针机专用 30534009 M9*4 针夹头 Needle Holer Assy. 1 14 4针机专用 30534003 M9*4 针夹头 Needle Holer Assy. 1 14 8针机专用 30534004 M9*4 针夹头 Needle Holer Assy. 1 14 12针机专用 30534002 M9*4 针夹头 Needle Holer Assy. 1 14 13针机专用 30534005 M9*4 针夹头 Needle Holer Assy. 1 15 305S11004 螺钉 Screm 2 16 305S20008 SK490 螺钉 Screw 2 17 64及以下针位用 30517004 Uo113 机针(14#) Needle 1 17 64以上针位用 30517005 Uo113 机针(16#) Needle 1 18 4针机专用 30513004 M9*4-1 过线 Thread guide 1 18 6针机专用 30513007 M9*4-1 过线 Thread guide 1 18 13针机专用 30513021 M9*4-1 过线 Thread guide 1 19 305S11005 SK239 螺钉 M4×0.7×8 Screw 2 20 30503023 VF06 筒套 Bushing 1 21 305S14006 SM601 螺钉 M6×0.75×9 Screw 2 22 3050500900 VF01 大肚杆组件 Lever 1 23 305S14007 SM600 螺钉 M6×0.75×8 Screw 2 24 305S20007 SK491 螺钉 Screw 2 25 30526011 VF16 曲柄球 Crank 1 26 30512028 VF22 上震板 Cover 1 27 305S11006 SK277 螺钉 Screw 1 28 3050402400 曲柄组件 Crank Assembly 1 29 S09008 SM502 螺钉 M5×5 Screw 2 30 30508006 VF05 挡圈 Ring 1 31 30524002 平面滚针轴承 Bearing 1 32 30528003 VF04 垫片 Washer 2 33 30503024 VF03 铜套 Bushing 1 34 305S16002 NK54 螺冒 Nut 1 35 305S16003 NK53 螺冒 Nut 1 36 3050203000 VF23D 传送杆组件 Connection assy. 1 37 S05004 SM511 螺钉 Screw 1 38 30502013 VF02 上横轴 Shaft 1 39 30505012 VF08 四眼 Crank 1 40 30526008 VF10 销子 Pin 2 41 20123021 VC11 油线 Oil Seal 1 42 S01003 SM438 螺钉 M4×12 Screw 2 43 20622019 油封 Oil wick 1 44 30509010 VF17 过线固定座 Thread Guide Rivet 1 45 4针机专用 30513005 VF18 过线 Thread guide 1 45 6、8、12、13针机用 30513008 VF18P 过线 Thread guide 1 46 3060500400 曲柄组件 Crank Assembly 1 14 jintex.in

Page 16

Jack JK-8009VC parts on page 16
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16 4针用
	16	16 6针用
	16	16 8针用
	16	16 12针用
	16	16 13针用
	17	17
	18	18
	19	19 4针专用
	19	19 6、8、12、13针用
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36

1 4 3 5 8 9 6 7 10 11 12 13 14 15 18 19 4针专用 19 6、8、12、13针用 20 21 22 23 24 27 29 28 33 2 35 34 32 6 31 30 17 25 26 16 4针用 16 6针用 16 8针用 16 12针用 16 13针用 15 jintex.in

Page 17 — 八、压脚部件/Presser Foot assemblies

Jack JK-8009VC parts on page 17
Ref	Part number	Part name
1	3013002500	调压螺杆组件
2	30512035	连接杆
3	305S20009	螺钉 M5×4
4	30512029	压板
5	30527007	弹簧
6	S01038	螺钉 M4×10
7	30509011	滑槽
8	305S11007	螺钉 SM9/64×40
9	30509012	滑块
10	305S11001	螺钉 SM11/64×44
11	30527008	弹簧
12	30522014	油封
13	30503025	筒套
14	3052201500	油封
15	30502015	压脚轴
16	30516009	压脚
16	30516003	压脚
16	30516004	压脚
16	30516002	压脚
16	30516005	压脚
17	S09008	螺钉 M5×5
18	S01027	螺钉 M3×6
19	30512030	防护罩
19	30512037	防护罩
20	305S11016	螺钉 M4×0.7×6
21	30512031	压板
22	3051203200	杠杆组件
23	S05004	螺钉 M5×14
24	30504011	紧固座
25	30527010	弹簧
26	30526014	销子
27	3052201700	油封
28	30527009	开口销
29	30503026	铜套
30	30502016	松线管
31	3050201700	松线轴
32	30510006	偏心套
33	30512036	曲柄
34	S05002	螺钉 M6×0.75×15.2
35	30504012	曲柄
36	305S13013	压脚螺钉

八、压脚部件/Presser Foot assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.N 名称 Description 数量 Number 1 3013002500 VJ16 调压螺杆组件 Adjusting Bar Assy 1 2 30512035 VJ09 连接杆 Link 1 3 305S20009 SK518 螺钉 M5×4 Screw 1 4 30512029 VJ13 压板 Bracket 1 5 30527007 MJ03 弹簧 Spring 1 6 S01038 SM438 螺钉 M4×10 Screw 2 7 30509011 VJ20 滑槽 Slider 1 8 305S11007 SK502 螺钉 SM9/64×40 Screw 1 9 30509012 VJ07 滑块 Slider 1 10 305S11001 SK265 螺钉 SM11/64×44 Screw 1 11 30527008 MJ12 弹簧 Spring 1 12 30522014 MJ13 油封 Oil Seal 1 13 30503025 VJ21 筒套 Bushing 1 14 3052201500 MJ17 油封 Oil Seal 1 15 30502015 VJ18 压脚轴 Shaft 1 16 4针机专用 30516009 Pg**** 压脚 presser foot assy 1 16 8针机专用 30516003 Pg**** 压脚 presser foot assy 1 16 8针机专用 30516004 Pg**** 压脚 presser foot assy 1 16 12针机专用 30516002 Pg**** 压脚 presser foot assy 1 16 13针机专用 30516005 Pg**** 压脚 presser foot assy 1 17 S09008 SM502 螺钉 M5×5 Screw 1 18 S01027 SM332 螺钉 M3×6 Screw 1 19 4针机专用 30512030 VJ23 防护罩 Eye Guide 1 19 6、8、12、13针机用 30512037 VJ23 防护罩 Eye Guide 1 20 305S11016 SM431 螺钉 M4×0.7×6 Screw 3 21 30512031 VJ03 压板 Bracket 1 22 3051203200 VJ05-2 杠杆组件 Lever Assembly 1 23 S05004 SM534 螺钉 M5×14 Screw 1 24 30504011 VJ04 紧固座 Tighten 1 25 30527010 VJ14 弹簧 Spring 1 26 30526014 VJ12D 销子 Pin 1 27 3052201700 KL20 油封 Oil Seal 1 28 30527009 VJ10 开口销 Pin 2 29 30503026 VJ06D 铜套 Bushing 1 30 30502016 VJ02 松线管 Thread Guide 1 31 3050201700 VJ03 松线轴 Shaft 1 32 30510006 VJ01-3 偏心套 Eccent Bushing 1 33 30512036 VJ11D 曲柄 Crank 1 34 S05002 SM612 螺钉 M6×0.75×15.2 Screw 1 35 30504012 VJ08 曲柄 Crank 1 36 305S13013 -------- 压脚螺钉 Screw 1 16 jintex.in

Page 18

Jack JK-8009VC parts on page 18
Ref	Part number	Part name
1	1	4针专用
1	1	6、8、12、13针专
2	2	2
3	3	3
4	4	4针专用
4	4	6、8、12、13针用
5	5	5
6	6	6
7	7	4针用
7	7	6、8、12、13针用
8	8	8
9	9	4针用
9	9	6、8、12、13针用
10	10	10
11	11	4针用
11	11	6、8、针用
11	11	12、13针用
12	12	12
13	13	13
14	14	4针用
14	14	6、8、12、13针用
15	15	15
15	15	15
15	15	15
15	15	15
15	15	15
15	15	15
15	15	15
15	15	15
16	16	16
17	17	17

4针专用 6、8、12、13针专 4针专用 6、8、12、13针用 4针专用 6、8、12、13针用 4针专用 6、8、12、13针用 1 1 2 3 4 4 5 6 7 7 8 9 9 10 11 11 11 12 13 14 14 15 15 15 15 15 15 15 15 16 8 8 8 8 8 8 8 8 17 jintex.in

Page 19 — 九、夹线器部件/Tension Spring assemblies

Jack JK-8009VC parts on page 19
Ref	Part number	Part name	Qty
	30512038	挡线架
	30512039	挡线架
	30501004	机壳上节
	S09012	螺钉 M4×5
	30513009	过线
	30513015	过线
	P03025	定位销
	S02003	螺钉 M4×5
	30513010	过线
	30513016	过线
	305S11016	螺钉 M4×0.7×6
	30513012	过线
	30513017	过线
	30513011	过线
	30513019	夹线器组件
	3053100100	夹线器组件
	30531033	夹线器组件
	30513013	过线
	30513018	过线
	30501005	机壳下节
	30513014	过线
	30513019	过线
	20612062	垫片
	S01059	螺钉

九、夹线器部件/Tension Spring assemblies 序号 No 备注 Remark 件 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 4针专用 30512038 VK13 挡线架 Bracket 1 1 6、8、12、13针机用 30512039 VK13 挡线架 Bracket 1 2 30501004 VA08 机壳上节 Upper Macine 1 3 S09012 SM404 螺钉 M4×5 Screw 1 4 4针机专用 30513009 VK15 过线 Thread Guide 1 4 6、8、12、13针机用 30513015 VK15 过线 Thread Guide 1 5 P03025 PM413 定位销 Pin 2 6 S02003 SM450 螺钉 M4×5 Screw 1 7 4针机专用 30513010 VK18 过线 Thread Guide 2 7 6、8、12、13针机用 30513016 VK18 过线 Thread Guide 2 8 305S11016 SM431 螺钉 M4×0.7×6 Screw 7 9 4针机专用 30513012 VK11 过线 Thread Guide 2 9 6、8、12、13针机用 30513017 VK11 过线 Thread Guide 2 10 4针机专用 30513011 VK22 过线 Thread Guide 1 11 4针专用 30513019 VK06 夹线器组件 Tension Spring Assy 1 11 6针、8针机专用 3053100100 VK07 夹线器组件 Tension Spring Assy 1 11 12针、13针机专用 30531033 VK06 夹线器组件 Tension Spring Assy 1 12 4针专用 30513013 VK17 过线 Thread Guide 1 12 6、8、12、13针机用 30513018 VK17 过线 Thread Guide 1 13 30501005 VA01 机壳下节 Lower Macine 1 14 4针机专用 30513014 VK07 过线 Thread Guide 1 14 6、8、12、13针机用 30513019 VK07 过线 Thread Guide 1 15 20612062 MW400 垫片 Washer 7 16 S01059 螺钉 Screw 2 18 jintex.in

Page 20

Jack JK-8009VC parts on page 20
Ref	Part number	Part name
1	1	SCREW
2	2	BRACKET
3	3	COVER
4	4	O-RING
5	5	FILTER ELEMENT
6	6	SCREW
7	7	LINKAGE
8	8	LINKAGE
9	9	SCREW
10	10	TUBE
11	11	SCREW
12	12	TUBE
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	SPRING
19	19	PLATE
20	20	BRACKET
21	21	SHAFT
22	22	BRACKET
23	23	SCREW
24	24	SCREW
25	25	COVER
26	26	LINKAGE
27	27	BRACKET
28	28	LINKAGE
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	SCREW
33	33	GASKET

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 19 jintex.in

Page 21 — 十、油泵部件/Lubrication assemblies

Jack JK-8009VC parts on page 21
Ref	Part number	Part name	Qty
	S01057	螺钉 M4×15
	20337005	商标
	300077	滤清器盖
	20322004	密封圈
	20136001	滤清器
	30503027	铜接头
	30521012	油管
	30121021	油管
	305S11016	螺钉 M4×0.7×6
	30521013	油管
	305S11016	螺钉 M4×0.7×10
	30121022	油管
	3052000100	油泵
	30536001	油管接头
	30121022	油管
	30121022	油管
	305S13003	螺钉 M8×25
	3052101300	油管组件
	30523010	油棉
	30511004	油窗
	H01003	卡簧
	30512040	滤网
	305S11010	放油螺钉 SM3/8×28
	305S13004	螺钉 M6×14.8
	30501006	油盘
	30136005	油管接头
	30121022	油管
	20636001	接头
	20528014	放油螺钉密封圈
	20129002	卡口
	305S11016	螺钉 M4×0.7
	301S30013	螺钉 SM1/4×40
	30522018	油封

十、油泵部件/Lubrication assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part. No 名称 Description 数量 Number 1 S01057 SM447 螺钉 M4×15 Screw 3 2 20337005 KT18 商标 Brand 1 3 300077 KT16 滤清器盖 Cover 1 4 20322004 KT17 密封圈 Sticker 1 5 20136001 KT14 滤清器 Filter Element 1 6 30503027 ML50 铜接头 pipe 1 7 30521012 VL14 油管 Tube 1 8 30121021 VL19 油管 Tube 1 9 305S11016 SM431 螺钉 M4×0.7×6 Screw 1 10 30521013 VL11 油管 Tube 1 11 305S11016 SM435 螺钉 M4×0.7×10 Screw 3 12 30121022 VL16 油管 Tube 1 13 3052000100 ML01 油泵 Pump 1 14 30536001 VL12 油管接头 Joint 1 15 30121022 VL15 油管 Tube 1 16 30121022 VL17 油管 Tube 1 17 305S13003 SM812 螺钉 M8×25 Screw 4 18 3052101300 VL07 油管组件 Tube Assemibly 1 19 30523010 VL13 油棉 Felt 1 20 30511004 VL06D 油窗 Oil Window 1 21 H01003 EM164 卡簧 Spring 1 22 30512040 MB15 滤网 filter 1 23 305S11010 SK310 放油螺钉 SM3/8×28 Screw 1 24 305S13004 SM611 螺钉 M6×14.8 Screw 2 25 30501006 VL01 油盘 Oil Reservoir Assy 1 26 30136005 MW05 油管接头 Joint 1 27 30121022 VL20 油管 Tube 1 28 20636001 KT24 接头 Joint 2 29 20528014 KT56 放油螺钉密封圈 Sticker 1 30 20129002 KT26*11 卡口 Ring 9 31 305S11016 螺钉 M4×0.7 Screw 2 32 301S30013 SK304 螺钉 SM1/4×40 Screw 3 33 30522018 VL02 油封 Oil Seal 1 20 jintex.in

Page 22

Jack JK-8009VC parts on page 22
Ref	Part number	Part name
21	30525013	上滚轮代码
21	30525008	齿形
21	30525014	下滚轮代码
21	30525006	齿形

1 2 3 30 4 12 5 6 7 8 9 11 13 16 19 15 14 10 31 17 24 25 18 A 滚轮使用方式代码齿形平轮上滚轮代码 30525013 30525008 下滚轮代码 30525014 30525006 21 20 21 28 22 26 29 27 23 jintex.in

Page 23 — 十一、传送部件/Transmission assemblies

Jack JK-8009VC parts on page 23
Ref	Part number	Part name	Qty
	30503028	铜套
	30522019	油封
	S05002	螺钉 M6×0.75×15.2
	3050402600	曲柄球组件
	30512045	垫片
	30328007	垫片
	30504013	曲柄
	30503029	铜套
	30522020	油封
	30525014	滚轮组件
	305S16007	螺钉
	305S20007	螺钉 11/64×40
	30504015	曲柄
	S10014	螺钉 M5×4
	30508007	挡圈
	30502020	后拖轮传送轴
	30502019	压轮轴
	S09012	螺钉 M4×5
	30503030	铜套
	305S16002	螺钉
	3050203100	连杆组件
	305S16003	螺钉
	30508009	卡簧
	305S11016	螺钉
	30512046	防护板
	S09002	螺钉
	3051001100	偏心轮组件
	30502012	传送杆
	30510010	偏心凸轮
	305S30005	曲柄球
	30525006	滚轮组件

十一、传送部件/Transmission assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 30503028 VCL07 铜套 Bushing 1 2 30522019 CL14 油封 Oil Seal 1 3 S05002 SM617 螺钉 M6×0.75×15.2 Screw 1 4 3050402600 VCL05 曲柄球组件 Crank Assembly 1 5 30512045 VCL05-1 垫片 Washer 1 6 30328007 ------ 垫片 Washer 1 7 30504013 VCL06 曲柄 Crank 1 8 30503029 VCL09 铜套 Bushing 1 9 30522020 VCL10 油封 Oil Seal 1 10 下平轮 30525014 VCL28 滚轮组件 Press Wheel Assy. 1 11 305S16007 NM611 螺钉 Nut 1 12 305S20007 SK491 螺钉 11/64×40 Screw 2 13 30504015 VCL14 曲柄 Crank 1 14 S10014 SM501 螺钉 M5×4 Screw 4 15 30508007 VCL11 挡圈 Ring 2 16 30502020 VCL12 后拖轮传送轴 Crank 1 17 30502019 VCL27 压轮轴 Shaft 1 18 S09012 ------ 螺钉 M4×5 Screw 1 19 30503030 VCL13 铜套 Bushing 1 20 305S16002 NK54 螺钉 Nut 1 21 3050203100 ------ 连杆组件 connection Assy 1 22 305S16003 NK53 螺钉 Screw 1 23 30508009 VCL03 卡簧 Spring 1 24 305S11016 SM431 螺钉 Screw 2 25 30512046 VCL32 防护板 Eye Guide 1 26 S09002 SM603 螺钉 Screw 2 27 3051001100 VCL01 偏心轮组件 Eccent Assy 1 28 30502012 VF23D 传送杆 Connection 1 29 30510010 VCL01 偏心凸轮 Eccent 1 30 305S30005 VCL05 曲柄球 Crank 1 31 下齿轮 30525006 ------ 滚轮组件 Press Wheel Assy. 1 22 jintex.in

Page 24

Jack JK-8009VC parts on page 24
Ref	Part number	Part name
1	1	Screw
2	2	Washer
3	3	Nut
4	4	Screw
5	5	Lever
6	6	Lever
7	7	Screw
8	8	Washer
9	9	Bush
10	10	Pin
11	11	Screw
12	12	Bracket
13	13	Screw
14	14	Bracket
15	15	Lever
16	16	Screw
17	17	Screw
18	18	Nut
19	19	Block
20	20	Screw
21	21	Pin
22	22	Lever
23	23	Pin
24	24	Screw
25	25	Washer
26	26	Bracket
27	27	Shaft
28	28	Shaft
29	29	Washer
30	30	Screw
31	31	Spring
32	32	Cylinder
33	33	Block
34	34	Page Number

32 1 2 3 4 5 6 7 8 10 11 14 15 16 19 18 31 33 9 12 13 29 28 27 26 23 20 21 17 30 22 24 25 34 jintex.in 23

Page 25

Jack JK-8009VC parts on page 25
Ref	Part number	Part name
SM491	305S20010	螺钉
CL31	30528011	垫片
NM410	N01001	螺冒
SM531	S01065	螺钉 M5×6
VCL25	30512047	铁皮连杆
VCL35	30512048	压板
SM614	S05031	螺钉 M6×20
CL31	30528011	垫片
CL26	30503031	铜套
SM681	305S20011	螺钉
SM492	305S20012	螺钉
CL33	3051205100	调节板
SM520	L02012	螺钉
VCL23	30512049	压板
VCL24	30504014	曲柄
SM440	S01018	螺钉 M4×20
SM617	S05031	螺钉 M6×20
VCL22	30509013	弹簧挡板
VCL34	30512050	压板
SM448	S01055	螺钉 M4×6
SM472	305S11011	螺钉
CL33	3051205100	调节板
SM603	S09007	螺钉 M6×8
SM682	305S20013	螺钉
CL34	30528012	压板
VCL18	3050100800	压轮架
VCL19	30526020	销子
VCL30	30502022	轴
EM123	H04001	卡簧
PM302	30526017	销子
CL28	30527011	弹簧
CL25	305S30006	调节螺钉
VCL21	30501007	压脚架
	305091500	后凸轮组件(齿轮式)
	3050901700	后凸轮组件(润滑式)

十二、后凸轮架部件/After Cam Fight assemblies 序号 No 件号 Part No. 参考件号 Ref.Part.No 名称名称 Description 数量 Number 备注 Remark 1 305S20010 SM491 螺钉 Screw 1 2 30528011 CL31 垫片 Washer 1 3 N01001 NM410 螺冒 Nut 1 4 S01065 SM531 螺钉 M5×6 Screw 2 5 30512047 VCL25 铁皮连杆 Sheet Iron Link 1 6 30512048 VCL35 压板 Bracket 1 7 S05031 SM614 螺钉 M6×20 Screw 2 8 30528011 CL31 垫片 Washer 1 9 30503031 CL26 铜套 Bushing 1 10 305S20011 SM681 螺钉 Screw 1 11 305S20012 SM492 螺钉 Screw 1 12 3051205100 CL33 调节板 Regulator Plate 1 13 L02012 SM520 螺钉 Screw 2 14 30512049 VCL23 压板 Bracket 1 15 30504014 VCL24 曲柄 Crank 1 16 S01018 SM440 螺钉 M4×20 Screw 1 17 S05031 SM617 螺钉 M6×20 Screw 1 18 30509013 VCL22 弹簧挡板 Spring Plate 1 19 30512050 VCL34 压板 Bracket 1 20 S01055 SM448 螺钉 M4×6 Screw 1 21 305S11011 SM472 螺钉 Screw 1 22 3051205100 CL33 调节板 Regulator Plate 1 23 S09007 SM603 螺钉 M6×8 Screw 1 24 305S20013 SM682 螺钉 Screw 1 25 30528012 CL34 压板 Bracket 1 26 3050100800 VCL18 压轮架 Press Wheel Fight 1 27 30526020 VCL19 销子 Pin 1 28 30502022 VCL30 轴 Shaft 1 29 H04001 EM123 卡簧 Spring 1 30 30526017 PM302 销子 Pin 1 31 30527011 CL28 弹簧 Spring 1 32 305S30006 CL25 调节螺钉 Adjusting Screw 1 33 30501007 VCL21 压脚架 Finger Guide 1 34 305091500 --- 后凸轮组件(齿轮式) After Cam Assembly 1 34 3050901700 --- 后凸轮组件(润滑式) After Cam Assembly 1 24 jintex.in

Page 26

Jack JK-8009VC parts on page 26
Ref	Part number	Part name	Qty
	30525013	上滚轮代码
	30525008	上滚轮代码
	30525014	下滚轮代码
	30525006	下滚轮代码

A 滚轮使用方式代码齿形平轮齿轮上滚轮代码 30525013 30525008 下滚轮代码 30525014 30525006 25 jintex.in (36) 齿轮式(36) 光滑式)

Page 27 — 后凸轮部件/ After Cam assemblies

Jack JK-8009VC parts on page 27
Ref	Part number	Part name	Qty
	305S30007	螺钉 M5×8.5
	30522021	垫圈5
	30526011	曲柄球
	30503034	连杆
	3050501700	连杆组件
	N01004	螺冒
	W01004	垫圈5
	30505020	连杆
	B07011	滚针轴承
	30503034	铁套
	30504015	曲柄
	305S30009	螺钉
	S05037	螺钉 M6×15
	30512055	冲压件铁臂
	N01004	螺母 M5
	S03003	螺钉 M4×6
	30525013	压轮组件
	30625003	压轮组件
	30512056	蝶形卡簧
	S02014	螺钉 M3.5×8.5
	30503063	轴承套
	NSK FC-20	单向滚针轴承
	30503035	齿轮套
	30512057	压板
	30502023	轴
	H04004	挡圈
	W01046	垫片
	305S11012	螺钉
	S09008	螺钉 M5×5
	S01065	螺钉 M5×6
	3050100800	压轮架
	30503036	轴套
	W01010	垫圈8
	N01008	螺母 M8
	30512054	挡板
	3050901500	后凸轮组件(齿轮式)
	3050901700	后凸轮组件(光滑式)

十三、后凸轮部件/ After Cam assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 1 305S30007 SM524 螺钉 M5×8.5 Screw 1 2 30522021 CL48 垫圈5 Washer 2 3 30526011 CL49 曲柄球 Iron Cover 1 4 30503034 CL50 连杆 Bearing 1 5 3050501700 CL51 连杆组件 connection Assy 1 6 N01004 NM511 螺冒 Nut 1 7 W01004 CL48 垫圈5 Washer 1 8 30505020 CL50 连杆 Bearing 1 9 B07011 CL49 滚针轴承 Iron Cover 1 10 30503034 铁套 Bushing 1 11 30504015 VCL14 曲柄 Crank 1 12 305S30009 CL47 螺钉 Screw 1 13 S05037 SM612 螺钉 M6×15 Screw 1 14 30512055 CL37 冲压件铁臂 Jib 1 15 N01004 NM511 螺母 M5 Nut 1 16 S03003 SM451 螺钉 M4×6 Screw 3 17 30525013 VCL16 压轮组件 After Cam Assy 1 18 30625003 VCL08 压轮组件 Press Wheel 1 19 30512056 CL38 蝶形卡簧 Spring 1 20 S02014 SK373 螺钉 M3.5×8.5 Screw 5 21 30503063 轴承套 Bushing 2 22 NSK FC-20 单向滚针轴承 Bearing 2 23 30503035 VCL15 齿轮套 Gear Wheel Cover 1 24 30512057 CL45 压板 Bracket 1 25 30502023 VCL17 轴 Shaft 1 26 H04004 CL41 挡圈 Washer 5 27 W01046 CL41 垫片 Washer 1 28 305S11012 SM470 螺钉 Screw 1 29 S09008 SM502 螺钉 M5×5 Screw 2 30 S01065 螺钉 M5×6 Screw 4 31 3050100800 VCL18 压轮架 Press Wheel Fight 1 32 30503036 VCL31 轴套 Bushing 1 33 W01010 WM800 垫圈8 Washer 1 34 N01008 NM810 螺母 M8 Nut 2 35 30512054 挡板 Plate 1 36 3050901500 后凸轮组件(齿轮式) After Cam Assembly 1 36 3050901700 后凸轮组件(光滑式) After Cam Assembly 1 26 jintex.in

Page 28

Jack JK-8009VC parts on page 28
Ref	Part number	Part name	Qty
	1	Part 1
	2	Part 2
	3	Part 3
	4	Part 4
	5	Part 5
	6	Part 6
	7	Part 7
	8	Part 8
	9	Part 9
	10	Part 10
	11	Part 11
	12	Part 12
	13	Part 13
	14	Part 14
	15	Part 15
	16	Part 16
	17	Part 17
	18	Part 18
	19	Part 19
	20	Part 20
	21	Part 21
	22	Part 22

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 27 jintex.in

Page 29 — 十四、附件部件(1)/Accessories Assemblies

Jack JK-8009VC parts on page 29
Ref	Part number	Part name
	40131017	仿尘罩
MY02	20131037	油壶
MY03	20131038	小油壶
KY04	20131039	漏斗
KY07	20131041	6mm六角扳手
KY08	20131042	7mm六角扳手
KY09	20131043	8mm六角扳手
MY09	20131044	内六角螺丝1.5mm)
MY08	20131046	2mm内六角扳手
MY10	30131010	3mm内六角扳手
MY11	30131012	4mm内六角扳手
MY12	20131047	5mm内六角扳手
KY11	20131056	6mm内六角扳手
KY14	10131002	大号一字螺钉刀
KY17	10131003	中号一字螺钉刀
KY16	10131004	小号一字螺钉刀
KY18	20131051	the
KT14	20136001	滤油器
Uo113	30517004	机针
MY09	20131045	内六角螺丝1.6mm)
	30531029	说明书零件样本
KY21	30131018	链条

十四、附件部件(1)/Accessories Assemblies 序号 No 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 备注 Remark 1 40131017 仿尘罩 dust guard 1 2 20131037 MY02 油壶 Oil Can 1 3 20131038 MY03 小油壶 Oil Can 1 4 20131039 KY04 漏斗 Oil Funnel 1 5 20131041 KY07 6mm六角扳手 Spanner(6mm) 1 6 20131042 KY08 7mm六角扳手 Spanner(7mm) 1 7 20131043 KY09 8mm六角扳手 Spanner(8mm) 1 8 20131044 MY09 内六角螺丝1.5mm) Inner-hexagon Driver(1.5mm 1 9 20131046 MY08 2mm内六角扳手 Inner-hexagon Driver(2mm) 1 10 30131010 MY10 3mm内六角扳手 Inner-hexagon Driver(3mm) 1 11 30131012 MY11 4mm内六角扳手 Inner-hexagon Driver(4mm) 1 12 20131047 MY12 5mm内六角扳手 Inner-hexagon Driver(5mm) 1 13 20131056 KY11 6mm内六角扳手 Inner-hexagon Driver(6mm) 1 14 10131002 KY14 大号一字螺钉刀 Screw Driver 1 15 10131003 KY17 中号一字螺钉刀 Screw Driver 1 16 10131004 KY16 小号一字螺钉刀 Screw Driver 1 17 20131051 KY18 the Tweezers 1 18 20136001 KT14 滤油器 Oil Filter 1 19 30517004 Uo113 机针 Needle 1 20 20131045 MY09 内六角螺丝1.6mm) Inner-hexagon Driver(1.6mm 1 21 30531029 说明书零件样本 Parts list Instruction book 1 22 30131018 KY21 链条 Chain 1 28 jintex.in

Page 30

① 4针用 ② 6. 8. 12. 13针用 29 jintex.in

Page 31 — 十五、附件部件(2)/Accessories Assemblies

Jack JK-8009VC parts on page 31
Ref	Part number	Part name	Qty
---	30532002	线架
---	30532005	线架

十五、附件部件(2)/Accessories Assemblies 序号 No 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 备注 Remark 1 30532002 线架 Fight 1 4针机专用 2 30532005 线架 Fight 1 6、8、12、13针机用 30 jintex.in

Page 32

Jack JK-8009VC parts on page 32
Ref	Part number	Part name
2	2	BRACKET
1	1	BRACKET
7	7	WASHER
6	6	NUT
5	5	WASHER
4	4	SCREW
3	3	SCREW
10	10	BRACKET
9	9	BRACKET
8	8	BASE
11	11	PACKING
12	12	PACKING
13	13	PACKING

31 jintex.in

Page 33 — 十六、附件部件(3)/Accessories Assemblies

Jack JK-8009VC parts on page 33
Ref	Part number	Part name	Qty
	30122029	油盘减振垫
	301S16008	托盘固定螺母
	301S30017	托板内六角螺钉
	20131029	金属垫圈
	30122029	托板减振垫
	30103078	减振垫支撑套
	30122031	减震垫圈
	30531027	附件盒
	30532001	JK8008安装板
	301S30018	螺钉
	30531025	泡沫箱(上)
	30531026	泡沫箱(下)
	30531028	纸箱

十六、附件部件(3)/Accessories Assemblies 序号 No 件号 Part No. 参考件号 Ref.Part.NO 名称 Description 数量 Number 备注 Remark 1 30122029 206338 油盘减振垫 Rubber cushion 4 2 301S16008 206336 托盘固定螺母 Nut 4 3 301S30017 4512 托板内六角螺钉 Bolt 4 4 20131029 KX08 金属垫圈 Washer 8 5 30122029 KX09 托板减振垫 Rubber cushion 4 6 30103078 --- 减振垫支撑套 Spacer 4 7 30122031 --- 减震垫圈 Rubber cushion 4 8 30531027 --- 附件盒 Accessory Box 1 9 30532001 VN01 JK8008安装板 Rest board 2 10 301S30018 --- 螺钉 Screw 4 11 30531025 --- 泡沫箱(上) Box 1 12 30531026 --- 泡沫箱(下) Box 1 13 30531028 --- 纸箱 Paper Box 1 32 jintex.in

Page 34

Jack JK-8009VC parts on page 34
Ref	Part number	Part name
1	1	Main Housing
2	2	Shaft Assembly
3	3	Shaft
4	4	Assembly
5	5	Cover
6	6	Screws

1 2 3 4 5 6 33 jintex.in

Page 35 — 十七、DI直驱专用部件/D I Special for direct drive assemblies

Jack JK-8009VC parts on page 35
Ref	Part number	Part name	Qty
	30501004	机壳下节
	400085	轴承盖
	400056	曲柄组件
	30533001	直驱电机
	30511011	电机护罩
	S01059	螺钉M5

十七、DI直驱专用部件/D I Special for direct drive assemblies 序号 No 备注 Remark 件号 Part No. 参考件号 Ref.Part.No 名称 Description 数量 Number 备注 Remark 1 30501004 VA08 机壳下节 Upper Macine 1 2 400085 VD02 轴承盖 Bearing Cover 1 3 400056 VD07 曲柄组件 Crank Assembly 1 4 30533001 直驱电机 1 5 30511011 电机护罩 1 6 S01059 螺钉M5 Screw 4 34 jintex.in

Page 36 — Standard Mearsurement Part List

Jack JK-8009VC parts on page 36
Ref	Part number	Part name	Qty
	30534009	30515009
	30516009	30502034
	14#	JK-8009VC-040
	30534018	30515019
	30516021	30502050
	16#	JK-8009VC-040
	30534001	30515001
	30516001	30502008
	16#	JK-8009VC-040
	30534013	30515013
	30516013	30502032
	16#	JK-8009VC-040
	30534012	30515012
	30516012	30502031
	14#	JK-8009VC-060
	30534003	30515003
	30516003	30502024
	14#	JK-8009VC-060
	30534011	30515011
	30516011	30502030
	16#	JK-8009VC-060
	30534016	30515017
	30516018	30502037
	16#	JK-8009VC-060
	30534022	30515051
	30516025	30502054
	16#	JK-8009VC-080
	30534014	30515015
	30516016	30502036
	14#	JK-8009VC-080
	30534020	30515021
	30516023	30502052
	14#	JK-8009VC-080
	30534004	30515004
	30516004	30502025
	14#	JK-8009VC-080
	30534016	30515017
	30516018	30502037
	16#	JK-8009VC-080
	30534017	30515018
	30516020	30502049
	14#	JK-8009VC-012
	30534010	30515010
	30516010	30502035
	14#	JK-8009VC-012
	30534002	30515002
	30516002	30502009
	14#	JK-8009VC-012
	30534005	30515005
	30516005	30502026
	14#	JK-8009VC-013
	30534006	30515006
	30516006	30502027
	14#	JK-8009VC-017
	30534015	30515016
	30516017	30502038
	14#	JK-8009VC-23
	30534008	30515008
	30516008	30502029
	14#	JK-8009VC-25

标准度量零件表 Standard Mearsurement Part List 模型 MODEL SYB CLASS 种类 NEEDLE CLAMP 针架头 NEEDLE PLATE 针板牙齿 FEED DOG 压脚 PRESSER FOOT 喂针轴 PETAINER HOLDER 弯针架 LOOPER HOLDER 针规格 NEEDLE JK-8009VC-040 64P 1/4 30534009 30515009 30514009 30516009 30502034 30504028 14# 80P 5/16 30534018 30515019 30514020 30516021 30502050 30504040 16# 85P 1/3 30534001 30515001 30514001 30516001 30502008 30504008 16# 95P 3/8 30534013 30515013 30514013 30516013 30502032 30504024 16# JK-8009VC-060 48P 3/16 30534012 30515012 30514012 30516012 30502031 30504023 14# 64P 1/4 30534003 30515003 30514003 30516003 30502024 30504016 14# 80P 5/16 30534011 30515011 30514011 30516011 30502030 30504030 16# 85P 1/3 30534016 30515017 30514018 30516018 30502037 30504038 16# JK-8009VC-080 95P 3/8 30534022 30515051 30514024 30516025 30502054 30504044 16# 32P 1/8 30534014 30515015 30514015 30516016 30502036 30504031 14# 48P 3/16 30534020 30515021 30514022 30516023 30502052 30504042 14# 64P 1/4 30534004 30515004 30514004 30516004 30502025 30504017 14# 85P 1/3 30534016 30515017 30514018 30516018 30502037 30504038 16# JK-8009VC-012 32P 1/8 30534017 30515018 30514019 30516020 30502049 30504039 14# 48P 3/16 30534010 30515010 30514010 30516010 30502035 30504029 14# 64P 1/4 30534002 30515002 30514002 30516002 30502009 30504009 14# JK-8009VC-013 64-32P 1/4 30534005 30515005 30514005 30516005 30502026 30504018 14# JK-8009VC-017 32P 1/4 30534006 30515006 30514006 30516006 30502027 30504019 14# JK-8009VC-23 32P 1/4 30534015 30515016 30514017 30516017 30502038 30504037 14# JK-8009VC-25 32P 1/4 30534008 30515008 30514008 30516008 30502029 30504021 14# 35 jintex.in

Page 37

产品标准代号: QB/JK11-2003 Standard code of the products: QB/JK11-2003 K 杰克缝纫机 JACK SEWING MACHINE | HTTP://WWW.CHINAAJACK.COM 浙江新杰克缝纫机股份有限公司 ZHEJIANG NEW JACK SEWING MACHINE CO.,LTD. ● 公司地址(Address of Company): 台州市椒江区机场路15号 No. 15 Rd Airport South, Jiaojiang District Taizhou City, Zhejiang, P.R.C 国内销售部(Domestic Trade Department): 电话(TEL): 0086-576-88177788 88177789 传真(FAX): 0086-576-88177758 国贸部(International Trade Department): 电话(TEL): 0086-576-88177782 88177774 传真(FAX): 0086-576-88177787 ● 零部件部(Spare Part Department): 电话(TEL): 0086-576-88177798 88177785 传真(FAX): 0086-576-88177775 ● 免费售后服务电话(Aftersale Service TEL): 4008876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实样为准。 You will be not informed if the file has been revised. Please set sample as standard. 2013.9 jintex.in

Part Books

Search
