Jack JK-8009VC Parts Book (PDF)
Text index — Jack JK-8009VC
Page 3 — 一、机壳部件/Frane assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S20001 | Screw | 1 |
| 2 | 30528001 | Washer | 1 |
| 3 | 30512001 | Eye Guide Assy. | 1 |
| 4 | 30511001 | Eye Guide Assy. | 1 |
| 5 | S04016 | Screw | 2 |
| 6 | 20131063 | Brand | 1 |
| 7 | 305S11016 | Screw | 5 |
| 8 | 30512002 | Guide | 1 |
| 9 | P03025 | Pin | 1 |
| 10 | 300215 | Guide | 1 |
| 11 | 300216 | Eye Guide | 1 |
| 12 | 30526001 | Pin | 1 |
| 13 | 30501005 | Lower Macine | 1 |
| 14 | 201S17003 | Screw | 2 |
| 15 | S05001 | Screw | 4 |
| 16 | P02001 | Pin | 2 |
| 17 | 30522001 | Oil Seal | 1 |
| 18 | S01057 | Screw | 10 |
| 19 | 30337001 | Brand | 1 |
| 20 | 30522001 | Oil Seal | 1 |
| 21 | 300217 | Left Cover | 1 |
| 21 | 301811 | Left Cover | 1 |
| 22 | 30501049 | sticker | |
| 22 | 30522072 | sticker | 1 |
| 23 | 30522001 | Oil Seal | 3 |
| 24 | 30522003 | Washer | 1 |
| 25 | 300218 | Left Cover | 1 |
| 26 | 30522005 | Oil Seal | 1 |
| 27 | 305S12002 | Screw | 4 |
| 28 | 30511003 | Plate | 1 |
| 29 | 20111005 | Oil Sight Window | 1 |
| 30 | 20122018 | Oil Seal | 1 |
| 31 | 30512081 | Eye Guide Plate | 1 |
| 31 | 30512082 | Eye Guide Plate | 1 |
| 32 | 305S20003 | Screw | 4 |
| 33 | 300219 | Top Cover | 1 |
| 33 | 301812 | Top Cover | 1 |
| 34 | 30522024 | Oil Seal | 1 |
| 35 | 300224 | Upper Macine | 1 |
| 35 | 301810 | Upper Macine | 1 |
| 36 | 305S12002 | Screw | 3 |
| 37 | 30511002 | Belt Cover Assy. | 1 |
| 38 | 30537003 | Brand | 1 |
| 39 | R03001 | Screw | 2 |
| 40 | 30522004 | Oil Seal | 1 |
Page 5 — 二、缝台盖部件/Cloth Plate assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S03002 | Screw | 3 |
| 2 | S02007 | Screw | 2 |
| 3 | 30512067 | Cloth Plate Cover | 1 |
| 4 | 30512008 | Carko | 1 |
| 5 | 305S11016 | Screw | 9 |
| 6 | 30512009 | Cover | 1 |
| 7 | 301S17001 | Screw | 4 |
| 8 | 30515009 | Needle Plate | 1 |
| 8 | 30515003 | Needle Plate | 1 |
| 8 | 30515004 | Needle Plate | 1 |
| 8 | 30515002 | Needle Plate | 1 |
| 8 | 30515005 | Needle Plate | 1 |
| 9 | S01073 | Screw | 4 |
| 10 | S01010 | Screw | 4 |
| 11 | 30512021 | Bracket | 1 |
| 12 | 3052200600 | Feed Bar Oil Seal | 1 |
| 13 | 305S11005 | Screw | 2 |
| 14 | S01038 | Screw | 3 |
| 15 | 30512011 | Sheet Iron | 1 |
| 16 | 301S17001 | Screw | 2 |
| 17 | 30512012 | Bland | 1 |
| 18 | N01004 | Nut | 1 |
| 19 | 30512066 | Side Cover | 1 |
| 20 | 30502001 | Button | 1 |
| 21 | 30527001 | Spring | 1 |
| 22 | 30512014 | KaKo | 1 |
| 23 | 30512017 | KaKo | 2 |
| 24 | 30522012 | Washer | 1 |
| 25 | H05003 | Ring | 1 |
| 26 | 30512015 | Bland | 1 |
| 27 | S01059 | Screw | 2 |
| 28 | S01060 | Screw | 1 |
| 29 | 30503001 | Washer | 2 |
| 30 | 30528002 | Washer | 1 |
| 31 | 30512016 | Washer | 1 |
| 32 | P01006 | Pin | 2 |
Page 7 — 三、送料部件/Feed assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S14003 | Screw | 2 |
| 2 | S05002 | Screw | 1 |
| 3 | 20123021 | Oil Wick | 1 |
| 4 | 30526002 | Pin | 1 |
| 5 | 30504001 | Crank | 1 |
| 6 | S09008 | Screw | 4 |
| 7 | 30508001 | Ring | 1 |
| 8 | 20128031 | Washer | 1 |
| 9 | 30503002 | Sleeve | 1 |
| 10 | 3051000100 | Felt | 1 |
| 11 | 30502002 | Shaft | 1 |
| 12 | 30508004 | Spring | 1 |
| 13 | 20123021 | Oil Wick | 1 |
| 14 | S09002 | Pin | 1 |
| 15 | 30524001 | Bearing | 1 |
| 16 | 30503004 | Bushing | 1 |
| 17 | 30504002 | Crank | 1 |
| 18 | 305S14007 | Screw | 2 |
| 19 | 305S14001 | Screw | 3 |
| 20 | 20123021 | Oil Wick | 1 |
| 21 | 30503005 | Bushing | 1 |
| 22 | 30502003 | Pin | 1 |
| 23 | 305S12003 | Screw | 1 |
| 24 | W01006 | Washer | 1 |
| 25 | 30504003 | Feed Bar | 1 |
| 26 | S01061 | Screw | 1 |
| 27 | 30526003 | Pin | 1 |
| 28 | 20123021 | Oil Wick | 1 |
| 29 | 30506001 | Feed | 1 |
| 30 | 305S14002 | Screw | 2 |
| 31 | 30526005 | Pin | 1 |
| 32 | S01062 | Screw | 1 |
| 33 | 30526006 | Pin | 1 |
| 34 | 305S16001 | Nut | 1 |
| 35 | 30514009 | Feed Dog | 1 |
| 35 | 30514003 | Feed Dog | 1 |
| 35 | 30514004 | Feed Dog | 1 |
| 35 | 30514002 | Feed Dog | 1 |
| 35 | 30514005 | Feed Dog | 1 |
| 36 | 305S11001 | Screw | 1 |
| 37 | 30527002 | Spring | 1 |
| 38 | 305S20004 | Screw | 1 |
| 39 | 30510001 | Eccent | 1 |
| 40 | 30505001 | Eccent | 1 |
Page 9 — 四、主轴部件/Crankshaft Drive assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01011 | Screw | 3 |
| 2 | 30523006 | Felt | 1 |
| 3 | 400085 | Bearing Cover | 1 |
| 4 | 30522008 | Washer | 1 |
| 5 | S09007 | Screw | 2 |
| 6 | 30522020 | Oil Seal | 1 |
| 7 | 30528003 | Washer | 3 |
| 8 | 20123021 | Felt | 2 |
| 9 | 300222 | Machine Pulley | 1 |
| 10 | 30524002 | Bearing | 1 |
| 11 | S10029 | Screw | 2 |
| 12 | 30508004 | Spring | 1 |
| 13 | 30508009 | Spring | 1 |
| 14 | 3051001100 | Rod Assembly | 1 |
| 15 | 30222003 | Pin | 2 |
| 16 | 400056 | Crank Assembly | 1 |
| 17 | P01007 | Pin | 1 |
| 18 | 30510002 | Eccent | 1 |
| 19 | 30503009 | Bushing | 1 |
| 20 | 3050402300 | Crank Assembly | 1 |
| 21 | 30525015 | Gear Wheel | 1 |
| 22 | 305S14009 | Screw | 1 |
| 23 | 305S14010 | Screw | 1 |
| 24 | 30509020 | Ratchet | 1 |
| 25 | 305S14008 | Screw | 2 |
| 26 | 3050502100 | Deliver Fabric Assy. | 1 |
| 27 | S09002 | Screw | 5 |
| 28 | 305S20008 | Screw | 2 |
| 29 | S01024 | Screw | 1 |
| 30 | 30527011 | Spring | 1 |
| 31 | 30510018 | Cam | 1 |
| 32 | S07001 | Screw | 2 |
| 33 | 30505024 | Link | 1 |
| 34 | 30524005 | Bearing | 1 |
| 35 | S02013 | Screw | 2 |
| 36 | 30510017 | Cam | 1 |
| 37 | 30508010 | Spring | 1 |
| 38 | 305S14001 | Screw | 2 |
| 39 | 30526030 | Pin | 1 |
| 40 | 305S11020 | Screw | 1 |
| 41 | 30510016 | Deliver Wheel | 1 |
| 42 | S02013 | Screw | 5 |
| 43 | 30510005 | Eccent | 1 |
| 44 | 30524004 | Bearing | 2 |
| 45 | 30505006 | Rod | 2 |
| 46 | 305S14003 | Screw | 4 |
| 47 | 30508003 | Spring | 2 |
| 48 | 30503011 | Bushing | 1 |
| 49 | 30523012 | Oil Wick | 1 |
| 50 | 30510005 | Eccent | 1 |
| 51 | 30524001 | Bearing | 1 |
| 52 | 30503010 | Bushing | 1 |
| 53 | 30502005 | Shaft | 1 |
| 54 | 3051000500 | Eccent Assembly | 1 |
| 55 | 30525001 | Worm | 1 |
| 56 | 30510010 | Eccent | 1 |
| 57 | 3051000100 | Felt | 1 |

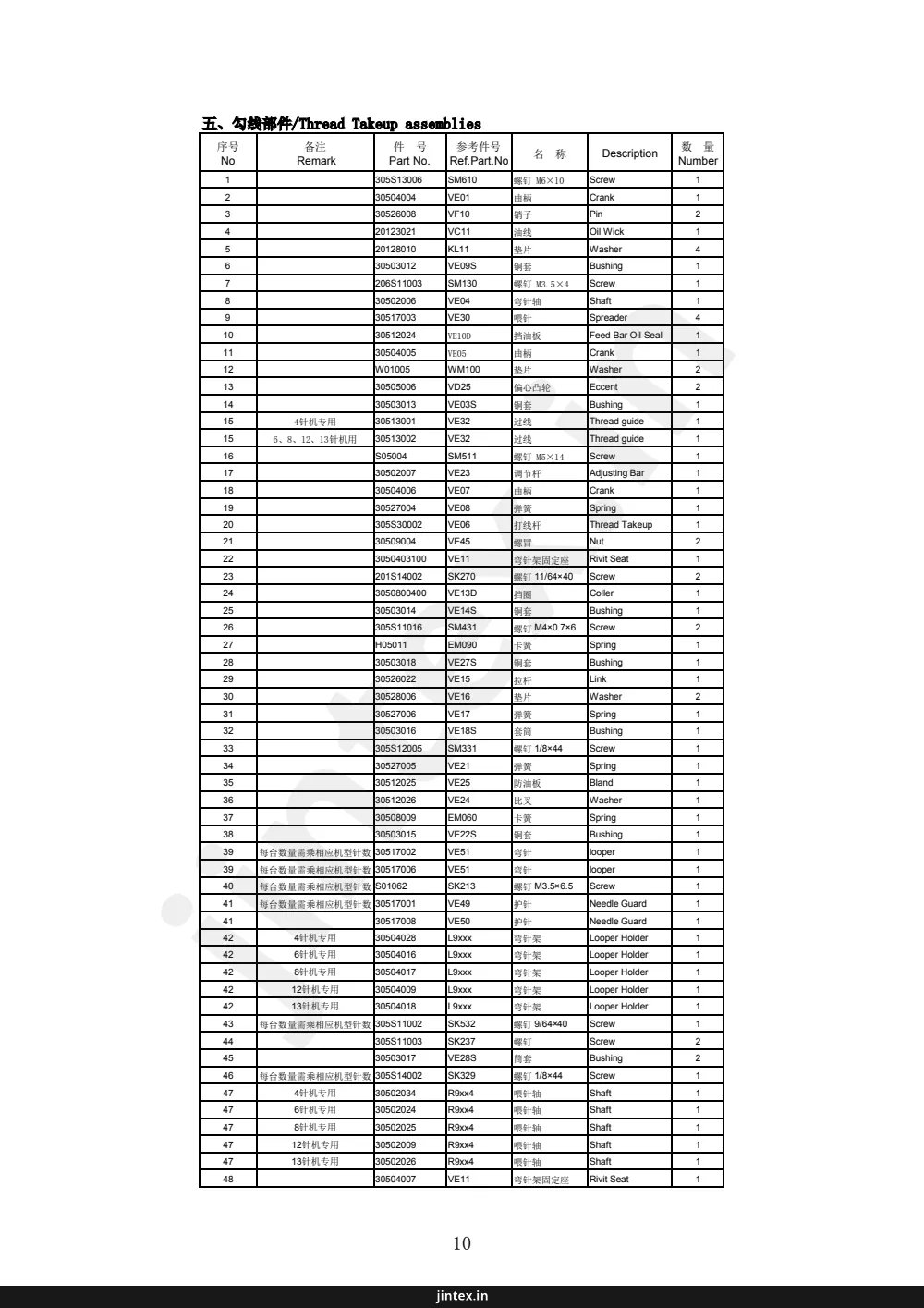

Page 11 — 五、勾线部件/Threead Takeup assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S13006 | Screw M6×10 | 1 |
| 2 | 30504004 | Crank | 1 |
| 3 | 30526008 | Pin | 2 |
| 4 | 20123021 | Oil Wick | 1 |
| 5 | 20128010 | Washer | 4 |
| 6 | 30503012 | Bushing | 1 |
| 7 | 206S11003 | Screw M3.5×4 | 1 |
| 8 | 30502006 | Shaft | 1 |
| 9 | 30517003 | Spreader | 4 |
| 10 | 30512024 | Feed Bar Oil Seal | 1 |
| 11 | 30504005 | Crank | 1 |
| 12 | W01005 | Washer | 2 |
| 13 | 30505006 | Eccent | 2 |
| 14 | 30503013 | Bushing | 1 |
| 15 | 30513001 | Thread guide | 1 |
| 15 | 30513002 | Thread guide | 1 |
| 16 | S05004 | Screw M5×14 | 1 |
| 17 | 30502007 | Adjusting Bar | 1 |
| 18 | 30504006 | Crank | 1 |
| 19 | 30527004 | Spring | 1 |
| 20 | 305S30002 | Thread Takeup | 1 |
| 21 | 30509004 | Nut | 2 |
| 22 | 3050403100 | Rivit Seat | 1 |
| 23 | 201S14002 | Screw 11/64×40 | 2 |
| 24 | 3050800400 | Coller | 1 |
| 25 | 30503014 | Bushing | 1 |
| 26 | 305S11016 | Screw M4×0.7×6 | 2 |
| 27 | H05011 | Spring | 1 |
| 28 | 30503018 | Bushing | 1 |
| 29 | 30526022 | Link | 1 |
| 30 | 30528006 | Washer | 2 |
| 31 | 30527006 | Spring | 1 |
| 32 | 30503016 | Bushing | 1 |
| 33 | 305S12005 | Screw 1/8×44 | 1 |
| 34 | 30527005 | Spring | 1 |
| 35 | 30512025 | Bland | 1 |
| 36 | 30512026 | Washer | 1 |
| 37 | 30508009 | Spring | 1 |
| 38 | 30503015 | Bushing | 1 |
| 39 | 30517002 | looper | 1 |
| 39 | 30517006 | looper | 1 |
| 40 | S01062 | Screw M3.5×6.5 | 1 |
| 41 | 30517001 | Needle Guard | 1 |
| 41 | 30517008 | Needle Guard | 1 |
| 42 | 30504028 | Looper Holder | 1 |
| 42 | 30504016 | Looper Holder | 1 |
| 42 | 30504017 | Looper Holder | 1 |
| 42 | 30504009 | Looper Holder | 1 |
| 42 | 30504018 | Looper Holder | 1 |
| 43 | 305S11002 | Screw 9/64×40 | 1 |
| 44 | 305S11003 | Screw | 2 |
| 45 | 30503017 | Bushing | 2 |
| 46 | 305S14002 | Screw 1/8×44 | 1 |
| 47 | 30502034 | Shaft | 1 |
| 47 | 30502024 | Shaft | 1 |
| 47 | 30502025 | Shaft | 1 |
| 47 | 30502009 | Shaft | 1 |
| 47 | 30502026 | Shaft | 1 |
| 48 | 30504007 | Rivit Seat | 1 |
Page 13 — 六、喂针部件/Needle Feeding assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30522011 | Oil Seal | 2 |
| 2 | 30503019 | Bushing | 1 |
| 3 | 20128008 | Washing | 1 |
| 4 | 30508001 | Ring | 1 |
| 5 | S09008 | Screw | 2 |
| 6 | 30504010 | Crank | 1 |
| 7 | 305S13006 | Screw | 2 |
| 8 | 3050402300 | 1 | |
| 9 | 30503009 | Bushing | 1 |
| 10 | 30502010 | Shaft | 1 |
| 11 | 30503020 | Bushing | 1 |
| 12 | 30505007 | Link | 1 |
| 13 | S05002 | Screw | 1 |
| 14 | 30505008 | Link | 1 |
| 15 | 305S14003 | Screw | 3 |
| 16 | 30526008 | Pin | 2 |
| 17 | 20123021 | Oil Wick | 1 |
| 18 | 30509005 | Slider | 1 |
| 19 | 305S14001 | Screw | 2 |
Page 15 — 七、针杆部件/Needle Bar assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01038 | Screw | 1 |
| 2 | 30513003 | Thread guide | 1 |
| 2 | 30513006 | Thread guide | 1 |
| 3 | 30502011 | Needle bar | 1 |
| 4 | 3052201200 | Oil Seal | 1 |
| 5 | 305S12004 | Screw | 2 |
| 6 | 30503021 | Bushing | 1 |
| 7 | 30512027 | Washer | 1 |
| 8 | 305S11016 | Screw | 2 |
| 9 | 30509006 | Needle slider | 1 |
| 10 | S01011 | Screw | 1 |
| 11 | 30503022 | Bushing | 1 |
| 12 | 30509007 | Rivet | 1 |
| 13 | 305S14002 | Screw | 4 |
| 14 | 30534009 | Needle Holer Assy. | 1 |
| 14 | 30534003 | Needle Holer Assy. | 1 |
| 14 | 30534004 | Needle Holer Assy. | 1 |
| 14 | 30534002 | Needle Holer Assy. | 1 |
| 14 | 30534005 | Needle Holer Assy. | 1 |
| 15 | 305S11004 | Screm | 2 |
| 16 | 305S20008 | Screw | 2 |
| 17 | 30517004 | Needle | 1 |
| 17 | 30517005 | Needle | 1 |
| 18 | 30513004 | Thread guide | 1 |
| 18 | 30513007 | Thread guide | 1 |
| 18 | 30513021 | Thread guide | 1 |
| 19 | 305S11005 | Screw | 2 |
| 20 | 30503023 | Bushing | 1 |
| 21 | 305S14006 | Screw | 2 |
| 22 | 3050500900 | Lever | 1 |
| 23 | 305S14007 | Screw | 2 |
| 24 | 305S20007 | Screw | 2 |
| 25 | 30526011 | Crank | 1 |
| 26 | 30512028 | Cover | 1 |
| 27 | 305S11006 | Screw | 1 |
| 28 | 3050402400 | Crank Assembly | 1 |
| 29 | S09008 | Screw | 2 |
| 30 | 30508006 | Ring | 1 |
| 31 | 30524002 | Bearing | 1 |
| 32 | 30528003 | Washer | 2 |
| 33 | 30503024 | Bushing | 1 |
| 34 | 305S16002 | Nut | 1 |
| 35 | 305S16003 | Nut | 1 |
| 36 | 3050203000 | Connection assy. | 1 |
| 37 | S05004 | Screw | 1 |
| 38 | 30502013 | Shaft | 1 |
| 39 | 30505012 | Crank | 1 |
| 40 | 30526008 | Pin | 2 |
| 41 | 20123021 | Oil Seal | 1 |
| 42 | S01003 | Screw | 2 |
| 43 | 20622019 | Oil wick | 1 |
| 44 | 30509010 | Thread Guide Rivet S | 1 |
| 45 | 30513005 | Thread guide | 1 |
| 45 | 30513008 | Thread guide | 1 |
| 46 | 3060500400 | Crank Assembly | 1 |
Page 17 — 八、压脚部件/Presser Foot assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3013002500 | Adjusting Bar Assy | 1 |
| 2 | 30512035 | Link | 1 |
| 3 | 305S20009 | Screw | 1 |
| 4 | 30512029 | Bracket | 1 |
| 5 | 30527007 | Spring | 1 |
| 6 | S01038 | Screw | 2 |
| 7 | 30509011 | Slider | 1 |
| 8 | 305S11007 | Screw | 1 |
| 9 | 30509012 | Slider | 1 |
| 10 | 305S11001 | Screw | 1 |
| 11 | 30527008 | Spring | 1 |
| 12 | 30522014 | Oil Seal | 1 |
| 13 | 30503025 | Bushing | 1 |
| 14 | 3052201500 | Oil Seal | 1 |
| 15 | 30502015 | Shaft | 1 |
| 16 | 30516009 | presser foot assy | 1 |
| 16 | 30516003 | presser foot assy | 1 |
| 16 | 30516004 | presser foot assy | 1 |
| 16 | 30516002 | presser foot assy | 1 |
| 16 | 30516005 | presser foot assy | 1 |
| 17 | S09008 | Screw | 1 |
| 18 | S01027 | Screw | 1 |
| 19 | 30512030 | Eye Guide | 1 |
| 19 | 30512037 | Eye Guide | 1 |
| 20 | 305S11016 | Screw | 3 |
| 21 | 30512031 | Bracket | 1 |
| 22 | 3051203200 | Lever Assembly | 1 |
| 23 | S05004 | Screw | 1 |
| 24 | 30504011 | Tighten | 1 |
| 25 | 30527010 | Spring | 1 |
| 26 | 30526014 | Pin | 1 |
| 27 | 3052201700 | Oil Seal | 1 |
| 28 | 30527009 | Pin | 2 |
| 29 | 30503026 | Bushing | 1 |
| 30 | 30502016 | Thread Guide | 1 |
| 31 | 3050201700 | Shaft | 1 |
| 32 | 30510006 | Eccent Bushing | 1 |
| 33 | 30512036 | Crank | 1 |
| 34 | S05002 | Screw | 1 |
| 35 | 30504012 | Crank | 1 |
| 36 | 305S13013 | Screw | 1 |
Page 19 — 九、夹线器部件/Tension Spring assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30512038 | Bracket | 1 |
| 1 | 30512039 | Bracket | 1 |
| 2 | 30501004 | Upper Macine | 1 |
| 3 | S09012 | Screw | 1 |
| 4 | 30513009 | Thread Guide | 1 |
| 4 | 30513015 | Thread Guide | 1 |
| 5 | P03025 | Pin | 2 |
| 6 | S02003 | Screw | 1 |
| 7 | 30513010 | Thread Guide | 2 |
| 7 | 30513016 | Thread Guide | 2 |
| 8 | 305S11016 | Screw | 7 |
| 9 | 30513012 | Thread Guide | 2 |
| 9 | 30513017 | Thread Guide | 2 |
| 10 | 30513011 | Thread Guide | 1 |
| 11 | 30531019 | Tension Spring Assy | 1 |
| 11 | 3053100100 | Tension Spring Assy | 1 |
| 11 | 30531033 | Tension Spring Assy | 1 |
| 12 | 30513013 | Thread Guide | 1 |
| 12 | 30513018 | Thread Guide | 1 |
| 13 | 30501005 | Lower Macine | 1 |
| 14 | 30513014 | Thread Guide | 1 |
| 14 | 30513019 | Thread Guide | 1 |
| 15 | 20612062 | Washer | 7 |
| 16 | S01059 | Screw | 2 |
Page 21 — 十、油泵部件/Lubrication assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01057 | Screw | 3 |
| 2 | 20337005 | Brand | 1 |
| 3 | 300077 | Cover | 1 |
| 4 | 20322004 | Sticker | 1 |
| 5 | 20136001 | Filter Element | 1 |
| 6 | 30503027 | pipe | 1 |
| 7 | 30521012 | Tube | 1 |
| 8 | 30121021 | Tube | 1 |
| 9 | 305S11016 | Screw | 1 |
| 10 | 30521013 | Tube | 1 |
| 11 | 305S11016 | Screw | 3 |
| 12 | 30121022 | Tube | 1 |
| 13 | 3052000100 | Pump | 1 |
| 14 | 30536001 | Joint | 1 |
| 15 | 30121022 | Tube | 1 |
| 16 | 30121022 | Tube | 1 |
| 17 | 305S13003 | Screw | 4 |
| 18 | 3052101300 | Tube Assemlby | 1 |
| 19 | 30523010 | Felt | 1 |
| 20 | 30511004 | Oil Window | 1 |
| 21 | H01003 | Spring | 1 |
| 22 | 30512040 | filter | 1 |
| 23 | 305S11010 | Screw | 1 |
| 24 | 305S13004 | Screw | 2 |
| 25 | 30501006 | Oil Reservoir Assy | 1 |
| 26 | 30136005 | Joint | 1 |
| 27 | 30121022 | Tube | 1 |
| 28 | 20636001 | Joint | 2 |
| 29 | 20528014 | Sticker | 1 |
| 30 | 20129002 | Ring | 9 |
| 31 | 305S11016 | Screw | 2 |
| 32 | 301S30013 | Screw | 3 |
| 33 | 30522018 | Oil Seal | 1 |
Page 22 — 十一、传送部件/Transmission assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21 | 30525013 | ||
| 21 | 30525008 | ||
| 21 | 30525014 | ||
| 21 | 30525006 |
Page 23 — 十一、传送部件/Transmission assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30503028 | Bushing | 1 |
| 2 | 30522019 | Oil Seal | 1 |
| 3 | S05002 | Screw | 1 |
| 4 | 3050402600 | Crank Assembly | 1 |
| 5 | 30512045 | Washer | 1 |
| 6 | 30328007 | Washer | 1 |
| 7 | 30504013 | Crank | 1 |
| 8 | 30503029 | Bushing | 1 |
| 9 | 30522020 | Oil Seal | 1 |
| 10 | 30525014 | Press Wheel Assy. | 1 |
| 11 | 305S16007 | Nut | 1 |
| 12 | 305S20007 | Screw | 2 |
| 13 | 30504015 | Crank | 1 |
| 14 | S10014 | Screw | 4 |
| 15 | 30508007 | Ring | 2 |
| 16 | 30502020 | Crank | 1 |
| 17 | 30502019 | Shaft | 1 |
| 18 | S09012 | Screw | 1 |
| 19 | 30503030 | Bushing | 1 |
| 20 | 305S16002 | Nut | 1 |
| 21 | 3050203100 | connection Assy | 1 |
| 22 | 305S16003 | Screw | 1 |
| 23 | 30508009 | Spring | 1 |
| 24 | 305S11016 | Screw | 2 |
| 25 | 30512046 | Eye Guide | 1 |
| 26 | S09002 | Screw | 2 |
| 27 | 3051001100 | Eccent Assy | 1 |
| 28 | 30502012 | Connection | 1 |
| 29 | 30510010 | Eccent | 1 |
| 30 | 305S30005 | Crank | 1 |
| 31 | 30525006 | Press Wheel Assy. | 1 |
Page 25 — 十二、后凸轮架部件/After Cam Fight assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S20010 | Screw | 1 |
| 2 | 30528011 | Washer | 1 |
| 3 | N01001 | Nut | 1 |
| 4 | S01065 | Screw | 2 |
| 5 | 30512047 | Sheet Iron Link | 1 |
| 6 | 30512048 | Bracket | 1 |
| 7 | S05031 | Screw | 2 |
| 8 | 30528011 | Washer | 1 |
| 9 | 30503031 | Bushing | 1 |
| 10 | 305S20011 | Screw | 1 |
| 11 | 305S20012 | Screw | 1 |
| 12 | 3051205100 | Regulator Plate | 1 |
| 13 | L02012 | Screw | 2 |
| 14 | 30512049 | Bracket | 1 |
| 15 | 30504014 | Crank | 1 |
| 16 | S01018 | Screw | 1 |
| 17 | S05031 | Screw | 1 |
| 18 | 30509013 | Spring Plate | 1 |
| 19 | 30512050 | Bracket | 1 |
| 20 | S01055 | Screw | 1 |
| 21 | 305S11011 | Screw | 1 |
| 22 | 3051205100 | Regulator Plate | 1 |
| 23 | S09007 | Screw | 1 |
| 24 | 305S20013 | Screw | 1 |
| 25 | 30528012 | Bracket | 1 |
| 26 | 3050100800 | Press Wheel Fight | 1 |
| 27 | 30526020 | Pin | 1 |
| 28 | 30502022 | Shaft | 1 |
| 29 | H04001 | Spring | 1 |
| 30 | 30526017 | Pin | 1 |
| 31 | 30527011 | Spring | 1 |
| 32 | 305S30006 | Adjusting Screw | 1 |
| 33 | 30501007 | Finger Guide | 1 |
| 34 | 305091500 | After Cam Assembly | 1 |
| 34 | 3050901700 | After Cam Assembly | 1 |
Page 26 — 后凸轮部件/ After Cam assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30525013 | |||
| 30525008 | |||
| 30525014 | |||
| 30525006 |
Page 27 — 后凸轮部件/ After Cam assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305S30007 | Screw | 1 |
| 2 | 30522021 | Washer | 2 |
| 3 | 30526011 | Iron Cover | 1 |
| 4 | 30503034 | Bearing | 1 |
| 5 | 3050501700 | connection Assy | 1 |
| 6 | N01004 | Nut | 1 |
| 7 | W01004 | Washer | 1 |
| 8 | 30505020 | Bearing | 1 |
| 9 | B07011 | Iron Cover | 1 |
| 10 | 30503034 | Bushing | 1 |
| 11 | 30504015 | Crank | 1 |
| 12 | 305S30009 | Screw | 1 |
| 13 | S05037 | Screw | 1 |
| 14 | 30512055 | Jib | 1 |
| 15 | N01004 | Nut | 1 |
| 16 | S03003 | Screw | 3 |
| 17 | 30525013 | After Cam Assy | 1 |
| 18 | 30625003 | Press Wheel | 1 |
| 19 | 30512056 | Spring | 1 |
| 20 | S02014 | Screw | 5 |
| 21 | 30503063 | Bushing | 2 |
| 22 | NSK FC-20 | Bearing | 2 |
| 23 | 30503035 | Gear Wheel Cover | 1 |
| 24 | 30512057 | Bracket | 1 |
| 25 | 30502023 | Shaft | 1 |
| 26 | H04004 | Washer | 5 |
| 27 | W01046 | Washer | 1 |
| 28 | 305S11012 | Screw | 1 |
| 29 | S09008 | Screw | 2 |
| 30 | S01065 | Screw | 4 |
| 31 | 3050100800 | Press Wheel Fight | 1 |
| 32 | 30503036 | Bushing | 1 |
| 33 | W01010 | Washer | 1 |
| 34 | N01008 | Nut | 2 |
| 35 | 30512054 | Plate | 1 |
| 36 | 3050901500 | After Cam Assembly | 1 |
| 36 | 3050901700 | After Cam Assembly | 1 |
Page 29 — 十四、附件部件(1)/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40131017 | dust guard | 1 |
| 2 | 20131037 | Oil Can | 1 |
| 3 | 20131038 | Oil Can | 1 |
| 4 | 20131039 | Oil Funnel | 1 |
| 5 | 20131041 | Spanner(6mm) | 1 |
| 6 | 20131042 | Spanner(7mm) | 1 |
| 7 | 20131043 | Spanner(8mm) | 1 |
| 8 | 20131044 | Inner-hexagon Driver(1.5mm) | 1 |
| 9 | 20131046 | Inner-hexagon Driver(2mm) | 1 |
| 10 | 30131010 | Inner-hexagon Driver(3mm) | 1 |
| 11 | 30131012 | Inner-hexagon Driver(4mm) | 1 |
| 12 | 20131047 | Inner-hexagon Driver(5mm) | 1 |
| 13 | 20131056 | Inner-hexagon Driver(6mm) | 1 |
| 14 | 10131002 | Screw Driver | 1 |
| 15 | 10131003 | Screw Driver | 1 |
| 16 | 10131004 | Screw Driver | 1 |
| 17 | 20131051 | Tweezer | 1 |
| 18 | 20136001 | Oil Filter | 1 |
| 19 | 30517004 | Needle | 1 |
| 20 | 20131045 | Inner-hexagon Driver(1.6mm) | 1 |
| 21 | 30531029 | Parts list Instruction book | 1 |
| 22 | 30131018 | Chain | 1 |
Page 31 — 十五、附件部件(2)/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30532002 | Fight | 1 |
| 2 | 30532005 | Fight | 1 |
Page 33 — 十六、附件部件(3)/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30122029 | Rubber cushion | 4 |
| 2 | 301S16008 | Nut | 4 |
| 3 | 301S30017 | Bolt | 4 |
| 4 | 20131029 | Washer | 8 |
| 5 | 30122029 | Rubber cushion | 4 |
| 6 | 30103078 | Spacer | 4 |
| 7 | 30122031 | Rubber cushion | 4 |
| 8 | 30531027 | Accessory Box | 1 |
| 9 | 30532001 | Rest board | 2 |
| 10 | 301S30018 | Screw | 4 |
| 11 | 30531025 | Box | 1 |
| 12 | 30531026 | Box | 1 |
| 13 | 30531028 | Paper Box | 1 |

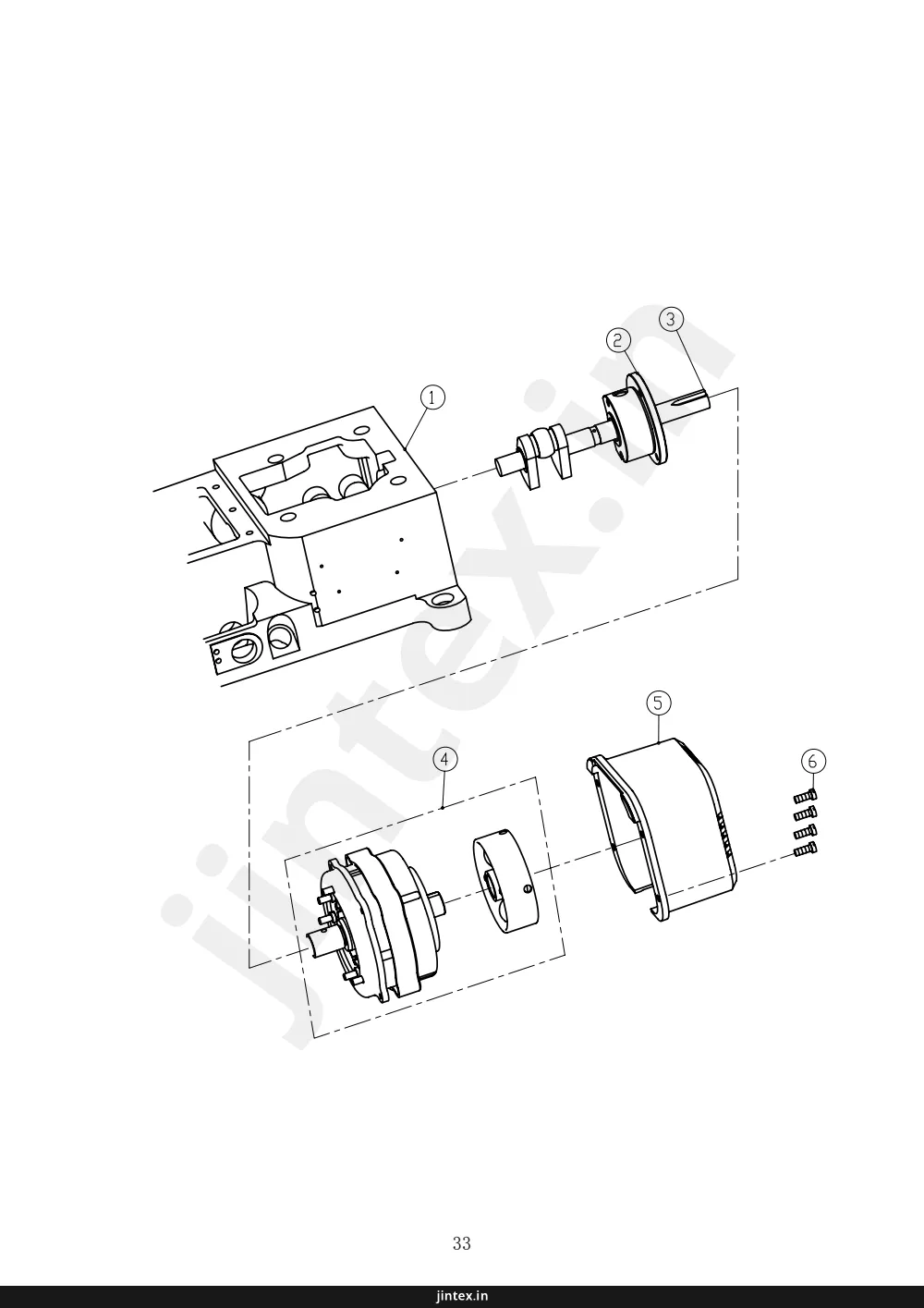

Page 35 — 十七、DI直驱专用部件/D I Special for direct drive assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30501004 | Upper Macine | 1 |
| 2 | 400085 | Bearing Cover | 1 |
| 3 | 400056 | Crank Assembly | 1 |
| 4 | 30533001 | 1 | |
| 5 | 30511011 | 1 | |
| 6 | S01059 | Screw | 4 |
Page 36 — Standard Mearsurement Part List
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30534009 | |||
| 30534018 | |||
| 30534001 | |||
| 30534013 | |||
| 30534012 | |||
| 30534003 | |||
| 30534011 | |||
| 30534016 | |||
| 30534022 | |||
| 30534014 | |||
| 30534020 | |||
| 30534004 | |||
| 30534016 | |||
| 30534017 | |||
| 30534010 | |||
| 30534002 | |||
| 30534005 | |||
| 30534006 | |||
| 30534015 | |||
| 30534008 | |||
| 30516009 | |||
| 30516021 | |||
| 30516001 | |||
| 30516013 | |||
| 30516012 | |||
| 30516003 | |||
| 30516011 | |||
| 30516018 | |||
| 30516025 | |||
| 30516016 | |||
| 30516023 | |||
| 30516004 | |||
| 30516020 | |||
| 30516010 | |||
| 30516002 | |||
| 30516005 | |||
| 30516006 | |||
| 30516017 | |||
| 30516008 |
Jack JK-8009VC — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-8009VC Parts Manual, featuring an image of the sewing machine and company branding.
- Page 2 (diagram): This page displays a diagram of sewing machine components, including various screws, brackets, covers, and internal parts, with reference numbers for identification.
- Page 3 (parts_list): This page lists parts for crane assemblies, including screws, washers, eye guides, pins, oil seals, and covers, with their corresponding part numbers, descriptions, and quantities.
- Page 4 (diagram): This page displays a diagram of various machine components, including screws, plates, brackets, and a main housing unit, with reference numbers for each part.
- Page 5 (parts_list): This page lists parts for "Cloth Plate assemblies" with columns for remark, part number, reference part number, description, and quantity. It includes items like screws, covers, needle plates, and washers.
- Page 6 (diagram): This page displays a diagram of various machine parts, with reference numbers and some Chinese descriptions for specific items.
- Page 7 (parts_list): This page lists feed assembly parts, including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine parts, including components like housings, shafts, bearings, and fasteners, each identified by a reference number.
- Page 9 (parts_list): This page lists parts for Crankshaft Drive assemblies, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 48, along with their corresponding descriptions and quantities.
- Page 11 (parts_list): This page lists parts for Thread Takeup assemblies, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various sewing machine parts, numbered 1 through 19, illustrating their assembly and relationships within the machine.
- Page 13 (parts_list): This page lists parts for needle feeding assemblies, including part numbers, descriptions, quantities, and remarks.
- Page 14 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions.
- Page 15 (parts_list): This page lists needle bar assemblies with part numbers, descriptions, and quantities. It includes parts like screws, thread guides, bushings, and oil seals.
- Page 16 (diagram): This page displays a diagram of various sewing machine parts, including a spring, levers, and other components, with reference numbers and some Chinese text indicating specific uses for certain parts.
- Page 17 (parts_list): This page lists parts for presser foot assemblies, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of machine parts, including a main assembly and various components like screws, springs, and rollers, with reference numbers and some Chinese descriptions.
- Page 19 (parts_list): This page lists tension spring assemblies for various sewing machine models, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine components, including filters, linkages, and mounting hardware, with reference numbers for each part.
- Page 21 (parts_list): This page lists lubrication assemblies with part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various machine components, including rollers, shafts, and mounting hardware, with a table detailing part codes and numbers for upper and lower rollers.
- Page 23 (parts_list): This page lists transmission assemblies with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their location and identification. It includes components such as levers, springs, bolts, nuts, and structural elements, numbered from 1 to 34.
- Page 25 (parts_list): This page lists parts for After Cam Fight assemblies, including part numbers, descriptions, quantities, and remarks.
- Page 26 (diagram): This page displays a diagram of various machine parts, including a table detailing part numbers for upper and lower rollers in different configurations (gear, flat, gear).
- Page 27 (parts_list): This page lists parts for After Cam assemblies, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various tools and components, numbered from 1 to 22, along with a page number 27 at the bottom.
- Page 29 (parts_list): This page lists accessories and assemblies with part numbers, descriptions, quantities, and remarks. It includes items like dust guards, oil cans, oil funnels, spanners, screw drivers, tweezers, oil filters, needles, and chains.
- Page 30 (diagram): This page displays diagrams of machine components, with callouts for parts used in 4-needle and 6, 8, 12, 13-needle configurations.
- Page 31 (parts_list): This page lists accessories and assemblies, including part numbers, descriptions, quantities, and remarks.
- Page 32 (diagram): This page displays a diagram of various machine components, including mounting brackets, screws, nuts, washers, and a sewing machine head with its base and packaging.
- Page 33 (parts_list): This page lists accessories and assemblies with part numbers, descriptions, quantities, and remarks.
- Page 34 (diagram): This page displays a diagram of various machine components, including a main housing, a shaft assembly, a cover, and screws, with reference numbers indicating their placement and relationships.
- Page 35 (parts_list): This page lists parts for DI Special direct drive assemblies, including part numbers, descriptions, quantities, and remarks.
- Page 36 (parts_list): This page contains a parts list for JK-8009VC models, detailing needle clamps, needle plates, feed dogs, presser feet, and needle specifications.
- Page 37 (cover): This is the cover page for the JACK SEWING MACHINE CO.,LTD. catalog, featuring the product standard code QB/JK11-2003 and company contact information.
