Page 1 — JK-800系列 Parts Manual 零件手册
JK-800系列 Parts Manual 零件手册 JACK SEWING MACHINE http://WWW.CHINAAACK.COM jintex.in
Parts index — Jack JK-804 / JK-805tap a row to open its page
Page 2 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 使用说明/Use Manual | ||
| 4 | 一、机壳部件/Machine Bed Frame | ||
| 6 | 二、罩壳部件 (1) /Cover Assemblies (1) | ||
| 8 | 三、罩壳部件 (2) /Cover Assemblies (2) | ||
| 10 | 四、主轴部件/Main Shaft Assemblies | ||
| 12 | 五、过线部件 (1) /Thread Guide and Thread Takeup (1) | ||
| 14 | 六、过线部件 (2) /Thread Guide and Thread Takeup (2) | ||
| 16 | 七、过线部件 (3) /Thread Guide and Thread Takeup (3) | ||
| 18 | 八、针杆部件 (1) /Needle Drive Mechanism (1) | ||
| 20 | 九、针杆部件 (2) /Needle Drive Mechanism (2) | ||

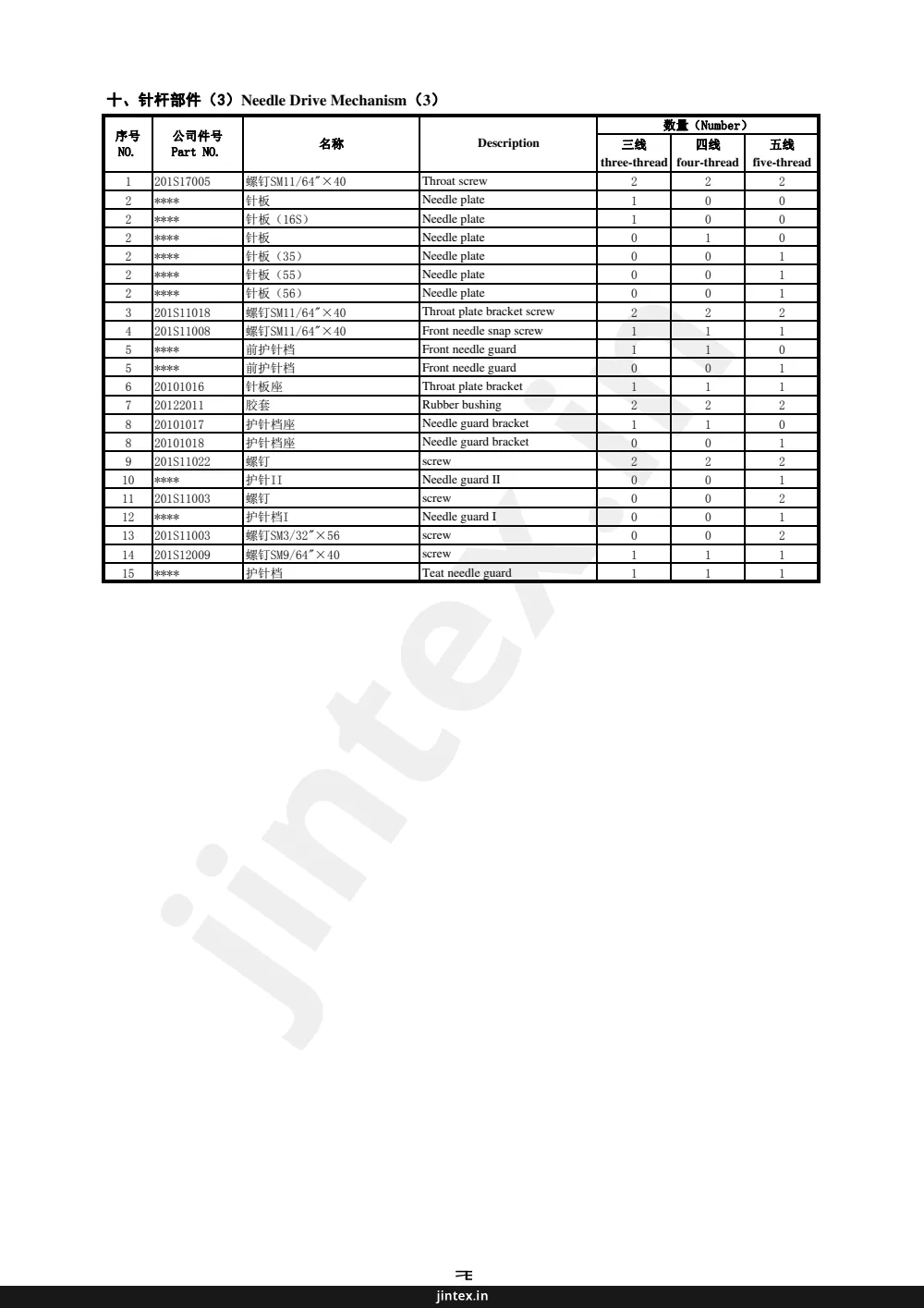

| 22 | 十、针杆部件 (3) /Needle Drive Mechanism (3) | ||
| 24 | 十一、上弯针部件/Upper Looper Assemblies | ||
| 26 | 十二、下弯针部件/Lower Looper Assemblies | ||
| 28 | 十三、前弯针部件/Front Looper Assemblies | ||
| 30 | 十四、打线凸轮部件/Cam Assemblies | ||
| 32 | 十五、差动送布部件 (1) /Different Feed Assemblies (1) | ||
| 34 | 十六、差动送布部件 (2) /Different Feed Assemblies (2) | ||
| 36 | 十七、剪切部件/Knife Drive Mechanism | ||
| 38 | 十八、抬压脚部件/Presser Foot Mechanism | ||
| 40 | 十九、供油部件 (1) /Lubrication Assemblies(1) | ||
| 42 | 二十、供油部件 (2) /Lubrication Assemblies(2) | ||
| 44 | 二十一、HR部件/H.R.Assemblies | ||
| 46 | 二十二、直驱部件/Direct Drive Assemblies | ||
| 48 | 二十三、倒回缝部件/Back Latch Components | ||
| 50 | 二十四、800E专用部件/800E Specific Parts | ||
| 52 | 二十五、托盘、排料部件/Plate Row Material Assemblies | ||
| 54 | 二十六、线架部件/Thread Spool Assemblies | ||
| 56 | 二十七、随机附件/Accessories Assemblies | ||
| 58 | 标准度量零件表/Standard measurement part list |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 |
Page 8 — 一、机壳部件 Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 302531 | 机壳 | ||
| 20122005 | 油封 | ||
| 20111010 | 油标 | ||
| 20137001 | 型号牌 | ||
| R03001 | 铆钉 | ||
| 20103009 | 上弯针轴后套筒 | ||
| 20703001 | 上弯针轴前套筒 | ||
| 20122025 | 上弯针轴油封 | ||
| 20103015 | 下弯针轴后套筒 | ||
| 20103011 | 下弯针轴前套筒 | ||
| 20622019 | 下弯针轴油封 | ||
| 20622019 | 链线弯针轴油封 | ||
| 20122040 | 链线弯针轴油封 | ||
| 20103013 | 前弯针轴前套筒 | ||
| 20103014 | 前弯针轴后套筒 | ||
| 2012603100 | 滤油销组件 | ||
| 201S30006 | 螺钉SM5/16"×24 | ||
| 20129001 | 卡簧 | ||
| 20103003 | 主轴左套筒 | ||
| 20103017 | 差动轴套筒 | ||
| 20122008 | 油封 | ||
| 20103016 | 横轴左套筒 | ||
| 20103015 | 横轴右套筒 | ||
| 20122009 | 送布轴油封 | ||
| 20103019 | 送布轴左套筒 | ||
| 20103020 | 送布轴右套筒 | ||
| 20122008 | 油封 | ||
| 20703002 | 上轴左套筒 | ||
| 20703001 | 上轴右套筒 | ||
| P03042 | 弹性圆柱销Φ5×22 | ||
| 20103023 | 上刀轴左套筒 | ||
| 20103024 | 上刀轴右套筒 | ||
| 20122003 | 油封 | ||
| 20113013 | 过线管 | ||
| 201S11039 | 螺钉SM15/64"×28 | ||
| 20722004 | 油塞 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 3 | SCREW | |
| 4 | 4 | CAP | |
| 5 | 5 | GASKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | SCREW | |
| 8 | 8 | COVER | |
| 9 | 9 | BRACKET | |
| 10 | 10 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | SCREW | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | SCREW | |
| 19 | 19 | BRACKET | |
| 20 | 20 | COVER | |
| 21 | 21 | BRACKET | |
| 22 | 22 | SCREW | |
| 23 | 23 | SCREW | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SCREW | |
| 26 | 26 | SPRING | |
| 27 | 27 | SCREW | |
| 28 | 28 | SPRING | |
| 29 | 29 | ROD | |
| 30 | 30 | SCREW | |
| 31 | 31 | BRACKET | |
| 32 | 32 | BRACKET | |
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW |
Page 10 — Cover Assemblies (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 302036 | 侧盖 | ||
| 207S17005 | 螺钉M4×10 | ||
| 201S11025 | 螺钉 | ||
| 20111005 | 油标盖 | ||
| 20122018 | 油标盖垫 | ||
| 20113030 | 过线架 | ||
| 206S11005 | 螺钉 | ||
| 302529 | 上盖 | ||
| 302529 | 上盖 | ||
| 20112103 | 接油斗 | ||
| S01035 | 螺钉M4×7.5 | ||
| 20122202 | 上盖密封垫 | ||
| 20112020 | 前罩挡板簧 | ||
| 201S11014 | 螺钉SM11/64"×40 | ||
| 20112091 | 机壳右盖板 | ||
| 20111054 | 皮带轮罩 | ||
| 20111060 | 皮带轮罩(无字) | ||
| 20112012 | 上弯针密封板 | ||
| 201S11016 | 螺钉SM11/64"×40 | ||
| 201S11009 | 螺钉SM9/64"×40 | ||
| 20112017 | 前罩簧片 | ||
| 301642 | 前罩 | ||
| 20112100 | 前罩挡板 | ||
| 20121001 | 前罩挡板 | ||
| 20126003 | 前罩短销 | ||
| 201S15001 | 螺钉SM9/64"×40 | ||
| 20101007 | 前罩架 | ||
| 201S11038 | 螺钉SM9/64"×40 | ||
| 20122017 | 前罩架垫 | ||
| H05002 | 卡簧 | ||
| 20127005 | 前罩弹簧销 | ||
| 20126004 | 前罩销 | ||
| 201S11018 | 螺钉SM11/64"×40 | ||
| 20122015 | 上弯针密封板垫 | ||
| S01010 | 螺钉M4×8 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | BRACKET | |
| 3 | 3 | BRACKET | |
| 4 | 4 | BRACKET | |
| 5 | 5 | SCREW | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 13 | 13 | BRACKET | |
| 14 | 14 | SCREW | |
| 15 | 15 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | SCREW | |
| 18 | 18 | SCREW | |
| 19 | 19 | SCREW | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BRACKET | |
| 25 | 25 | BRACKET | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | SCREW | |
| 30 | 30 | SCREW | |
| 31 | 31 | SCREW | |
| 32 | 32 | SCREW | |
| 33 | 33 | SCREW | |
| 34 | 34 | SCREW | |
| 35 | 35 | SCREW | |
| 36 | 36 | PLATE | |
| 37 | 37 | BASE | |
| 38 | 38 | BRACKET | |
| 39 | 39 | SCREW | |
| 40 | 40 | PLATE | |
| 41 | 41 | SCREW | |
| 42 | 42 | PLATE |
Page 12 — 三、罩壳部件 (2) Cover Assemblies (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201S11016 | 螺钉 | ||
| 20101054 | 盖板 | ||
| 20101004 | 盖板(无字) | ||
| 20122024 | 挡板垫 | ||
| 20101019 | 挡板 | ||
| 201S12009 | 螺钉SM9/64"×40 | ||
| 206S20004 | 螺钉M4×3.7 | ||
| 20128015 | 波形垫圈 | ||
| 20112098 | 托架 | ||
| 20711005 | 防护罩 | ||
| 20711019 | 防护罩 | ||
| S01034 | 螺钉M3×5.7 | ||
| W01011 | 垫片 | ||
| 201S17004 | 螺钉SM1/8"×44 | ||
| 20111003 | 挡油罩 | ||
| 20128030 | 缝合盖扳手垫圈 | ||
| 20127004 | 扳手弹簧 | ||
| 20112011 | 缝合扳手 | ||
| 201S20003 | 扳手螺钉 | ||
| 20122011 | 胶套 | ||
| 201S30011 | 缝合盖防震螺钉 | ||
| 201S16003 | 螺母 | ||
| 20122012 | 防震垫 | ||
| 201S30007 | 螺钉SM9/64"×40 | ||
| 201S16001 | 螺母 | ||
| 20122002 | 垫板 | ||
| 20127003 | 缝合盖开启弹簧 | ||
| 20112009 | 大盖夹赞座 | ||
| 20122013 | 胶套 | ||
| 201S11037 | 螺钉SM9/64"×40 | ||
| 20128019 | 缝合罩壳螺钉垫片 | ||
| 20111206 | 缝合下罩壳 | ||
| 20112008 | 罩壳连接板 | ||
| 201S20010 | 螺钉M4×5 | ||
| W02004 | 弹簧垫圈 | ||
| 201S14002 | 缝合偏心轴螺钉 | ||
| 20103001 | 缝合偏心套筒 | ||
| 20112006 | 缝合盖板 | ||
| 2011208100 | 缝合盖板组件 | ||
| 20112202 | 缝料挡板 | ||
| S01002 | 螺钉M4×6.5 | ||
| 20112002 | 后窗板 | ||
| 201S11016 | 螺钉SM11/64"×40 | ||
| 20122007 | 盖板垫 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | BEARING | |
| 3 | 3 | BEARING | |
| 4 | 4 | COLLAR | |
| 5 | 5 | SPRING | |
| 6 | 6 | FLANGE | |
| 7 | 7 | WASHER | |
| 8 | 8 | FLANGE | |
| 9 | 9 | GEAR | |
| 10 | 10 | KEY | |
| 11 | 11 | HOUSING | |
| 12 | 12 | BOLT | |
| 13 | 13 | SHAFT | |
| 14 | 14 | SCREW | |
| 15 | 15 | SCREW | |
| 16 | 16 | PIN | |
| 17 | 17 | BEARING | |
| 18 | 18 | BEARING | |
| 19 | 19 | SEAL | |
| 20 | 20 | COVER | |
| 21 | 21 | SCREW | |
| 22 | 22 | PIN | |
| 23 | 23 | COVER | |
| 24 | 24 | SCREW | |
| 25 | 25 | SCREW |
Page 14 — 四、主轴部分 Main Shaft Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20102205 | 主轴 | 1 | |
| 20102204 | 主轴(厚料) | ||
| B03001 | 轴承 | 2 | |
| 20125001 | 油泵蜗杆 | 1 | |
| 20128002 | 主轴弹簧垫圈 | 1 | |
| 20103002 | 主轴内挡套 | 1 | |
| 001003 | 0型圈16X1.8 | 1 | |
| 20122019 | 滚针轴承制动垫 | 1 | |
| 20101008 | 滚针轴承制动垫 | 1 | |
| 20101074 | 滚针轴承制动盖(D) | 1 | |
| 20111008 | 冷却风扇 | 1 | |
| 20101012 | 皮带轮方键 | 1 | |
| 300076 | 皮带轮 | 1 | |
| 20128024 | 垫圈 | 1 | |
| 201S11034 | 螺钉 | 1 | |
| 201S15004 | 螺钉 | 3 | |
| 201S11016 | 螺钉 | 3 | |
| 201S14002 | 螺钉 | 1 | |
| 20124003 | 轴承 | 1 | |
| 20122046 | 轴承盖油封 | 1 | |
| 201S11069 | 螺钉SM7/32"×32 | 1 | |
| 20112106 | 三四线盖板 | 1 | |
| S01010 | 螺钉M4×8 | 3 | |
| 20126024 | 凸轮轴 | ||
| 20112107 | 五线盖板 | ||
| S02004 | 螺钉M4×8 | ||
| S01010 | 螺钉M4×8 | ||
| 20102205 | 主轴 | ||
| 20102204 | 主轴(厚料) | ||
| B03001 | 轴承 | 2 | |
| 20125001 | 油泵蜗杆 | 1 | |
| 20128002 | 主轴弹簧垫圈 | 1 | |
| 20103002 | 主轴内挡套 | 1 | |
| 001003 | 0型圈16X1.8 | 1 | |
| 20122019 | 滚针轴承制动垫 | 1 | |
| 20101008 | 滚针轴承制动垫 | 1 | |
| 20101074 | 滚针轴承制动盖(D) | 1 | |
| 20111008 | 冷却风扇 | 1 | |
| 20101012 | 皮带轮方键 | 1 | |
| 300076 | 皮带轮 | 1 | |
| 20128024 | 垫圈 | 1 | |
| 201S11034 | 螺钉 | 1 | |
| 201S15004 | 螺钉 | 3 | |
| 201S11016 | 螺钉 | 3 | |
| 201S14002 | 螺钉 | 1 | |
| 20124003 | 轴承 | 1 | |
| 20122046 | 轴承盖油封 | 1 | |
| 201S11069 | 螺钉SM7/32"×32 | 1 | |
| 20112106 | 三四线盖板 | 1 | |
| S01010 | 螺钉M4×8 | 1 | |
| 20126024 | 凸轮轴 | 1 | |
| 20112107 | 五线盖板 | 1 | |
| S02004 | 螺钉M4×8 | 1 | |
| S01010 | 螺钉M4×8 | 1 | |
| 20102205 | 主轴 | 1 | |
| 20102204 | 主轴(厚料) | 1 | |
| B03001 | 轴承 | 2 | |
| 20125001 | 油泵蜗杆 | 1 | |
| 20128002 | 主轴弹簧垫圈 | 1 | |
| 20103002 | 主轴内挡套 | 1 | |
| 001003 | 0型圈16X1.8 | 1 | |
| 20122019 | 滚针轴承制动垫 | 1 | |
| 20101008 | 滚针轴承制动垫 | 1 | |
| 20101074 | 滚针轴承制动盖(D) | 1 | |
| 20111008 | 冷却风扇 | 1 | |
| 20101012 | 皮带轮方键 | 1 | |
| 300076 | 皮带轮 | 1 | |
| 20128024 | 垫圈 | 1 | |
| 201S11034 | 螺钉 | 1 | |
| 201S15004 | 螺钉 | 3 | |
| 201S11016 | 螺钉 | 3 | |
| 201S14002 | 螺钉 | 1 | |
| 20124003 | 轴承 | 1 | |
| 20122046 | 轴承盖油封 | 1 | |
| 201S11069 | 螺钉SM7/32"×32 | 1 | |
| 20112106 | 三四线盖板 | 1 | |
| S01010 | 螺钉M4×8 | 1 | |
| 20126024 | 凸轮轴 | 1 | |
| 20112107 | 五线盖板 | 1 | |
| S02004 | 螺钉M4×8 | 1 | |
| S01010 | 螺钉M4×8 | 1 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 5 | Housing | |
| 6 | 6 | Washer | |
| 7 | 7 | Washer | |
| 8 | 8 | Washer | |
| 9 | 9 | Washer | |
| 10 | 10 | Washer | |
| 11 | 11 | Pin | |
| 12 | 12 | Cover | |
| 13 | 13 | Washer | |
| 14 | 14 | Washer | |
| 15 | 15 | Lever | |
| 16 | 16 | Screw | |
| 17 | 17 | Lever | |
| 18 | 18 | Screw | |
| 19 | 19 | Bracket | |
| 20 | 20 | Screw | |
| 21 | 21 | Bracket | |
| 22 | 22 | Screw | |
| 23 | 23 | Screw | |
| 24 | 24 | Screw | |
| 25 | 25 | Screw | |
| 26 | 26 | Bracket | |
| 27 | 27 | Screw |
Page 16 — 五、过线部件 (1) Thread Guide and Thread Takeup (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400662 | 夹线器组件(红) | ||
| 400661 | 夹线器组件(黄) | ||
| 400663 | 夹线器组件(蓝) | ||
| 400668 | 夹线器组件(绿) | ||
| 20711034 | 调压螺母 | ||
| 30111006 | 调压止动套 | ||
| 20127018 | 调压簧(强) | ||
| 30111005 | 调压止动盖 | ||
| 20112057 | 夹线片 | ||
| 20623008 | 夹线片垫 | ||
| 201530016 | 夹线螺钉 | ||
| 20113002 | 过线板 | ||
| 20127020 | 调压簧(弱) | ||
| 20127019 | 调压簧(中) | ||
| 20113016 | 下弯针过线 | ||
| 206S11002 | 螺钉SM9/64"×40 | ||
| 20113032 | 上弯针过线板 | ||
| 20113033 | 上弯针三孔过线 | ||
| 20113034 | 两眼过线板 | ||
| 201S11016 | 螺钉SM11/64"×40 | ||
| 20113035 | 上弯针过线 | ||
| 20128020 | 弯针过线垫圈 | ||
| 201S11006 | 螺钉SM1/8"×44 | ||
| 20112027 | 调线刻度板 | ||
| 201S11014 | 螺钉SM11/64"×40 | ||
| 20113015 | 下弯针过线 | ||
| 201S11016 | 螺钉SM11/64"×40 |
Page 17 — Three-thread/Four-thread Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | three-thread four-thread | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | three-thread four-thread | ||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 |
Page 18 — 六、过线部件 (2) Thread Guide and Thread Takeup (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20113208 | 过线 | |
| 1 | 20113207 | 过线 | |
| 2 | 207S11019 | 螺钉M4×7.5 | |
| 3 | 20701010 | 托架 | |
| 4 | 207S11019 | 螺钉M4×7.5 | |
| 5 | S10007 | 螺钉M4×4 | |
| 6 | 20713002 | 过线 | |
| 6 | 20713003 | 过线 | |
| 7 | 207S20003 | 螺钉 | |
| 8 | 20727002 | 压簧 | |
| 9 | 20713007 | 压线板 | |
| 10 | 20713006 | 托架 | |
| 11 | 201S11009 | 螺钉SM9/64"×40 | |
| 12 | 20113204 | 挑线杆 | |
| 12 | 20113203 | 挑线杆 |
Page 19 — Five-thread Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Components Group | |
| 2 | 2 | Components Group | |
| 3 | Components Group | ||
| 4 | 4 | Screw | |
| 5 | Components Group | ||
| 6 | 6 | Components Group | |
| 7 | 7 | Screw | |
| 8 | 8 | Components Group | |
| 9 | 9 | Components Group | |
| 10 | 10 | Components Group |
Page 20 — 七、过线部件 (3) Thread Guide and Thread Takeup (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20701029 | 托架 | ||
| 20713021 | 过线 | ||
| 20713022 | 过线 | ||
| 20713050 | 过线 (56) | ||
| S01031 | 螺钉M4×4.7 | ||
| 20713023 | 过线 | ||
| 20713051 | 过线 (56) | ||
| 20113205 | 挑线杆 | ||
| 20113206 | 挑线杆 (56) | ||
| S10007 | 螺钉M4×4 | ||
| 20713020 | 过线 (56) | ||
| 20701030 | 托架 (56) | ||
| 207S11019 | 螺钉M4×7.5 |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PIN | |
| 2 | 2 | SPRING | |
| 3 | 3 | COLLAR | |
| 4 | 4 | NUT | |
| 5 | 5 | RING | |
| 6 | 6 | PIN | |
| 7 | 7 | SPRING | |
| 8 | 8 | SHAFT | |
| 9 | 9 | COLLAR | |
| 10 | 10 | COLLAR | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BOLT | |
| 13 | 13 | TUBE | |
| 14 | 14 | BRACKET | |
| 15 | 15 | SHAFT | |
| 16 | 16 | BRACKET | |
| 17 | 17 | BOLT | |
| 18 | 18 | COLLAR | |
| 19 | 19 | RING | |
| 20 | 20 | PIN | |
| 21 | 21 | PIN | |
| 22 | 22 | CONNECTING ROD | |
| 23 | 23 | PIN |
Page 22 — 八、针杆部件 (1) Needle Drive Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S11023 | 螺钉M3×6 | ||
| 20708005 | 挡圈 | ||
| 20723003 | 毛毡 | ||
| 207S14008 | 螺钉M4×5 | ||
| 001026 | O型圈11.5×1.5 | ||
| 20726003 | 曲柄销 | ||
| 20523005 | 油线 | ||
| 206030100 | 针杆曲柄组件 | ||
| 20702003 | 针杆 | ||
| 20603030 | 针杆套 | ||
| 20704002 | 针杆曲柄 | ||
| 207S12002 | 螺钉M6×0.75×12 | ||
| 20702002 | 上轴 | ||
| 20104201 | 上轴曲柄 | ||
| 20104204 | 上轴曲柄(厚料) | ||
| S05017 | 螺钉M6×0.75×13.5 | ||
| 20708004 | 上轴挡圈 | ||
| S10007 | 螺钉M4×4 | ||
| 20628014 | 垫片 | ||
| H05008 | 挡圈 | ||
| 20126025 | 曲柄销 | ||
| S10008 | 螺钉M4×6 | ||
| 20105203 | 针杆连杆 | ||
| 201S20015 | 螺钉M4×16 |
Page 23 — Three-thread/Four-thread Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | needle | |
| 2 | 2 | needle | |
| 3 | 3 | needle | |
| 4 | 4 | screw | |
| 5 | 5 | screw | |
| 1 | 1 | needle | |
| 2 | 2 | needle | |
| 3 | 3 | needle | |
| 4 | 4 | screw | |
| 5 | 5 | screw | |
| 1 | 1 | needle | |
| 2 | 2 | needle | |
| 3 | 3 | needle | |
| 4 | 4 | screw | |
| 5 | 5 | screw |
Page 24 — 九、针杆部件 (2) Needle Drive Mechanism (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| **** | 针夹头 | ||
| **** | 针夹头 | ||
| **** | 针夹头 (35) | ||
| **** | 针夹头 (55) | ||
| **** | 针夹头 (56) | ||
| S10026 | 螺钉M3×3 | ||
| **** | 机针 (#11) | ||
| **** | 机针 (#9) | ||
| **** | 机针 (35) (#14) | ||
| **** | 机针 (35/56) (#19) | ||
| 20713018 | 过线 | ||
| 20713038 | 过线 | ||
| 20713017 | 过线 | ||
| 207S11024 | 螺钉M2×3 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | BRACKET | |
| 3 | 3 | SCREW | |
| 4 | 4 | SCREW | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BASE | |
| 7 | 7 | SCREW | |
| 8 | 8 | BRACKET | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | SCREW | |
| 12 | 12 | LEVER | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 15 | 15 | LEVER |
Page 26 — 十、针杆部件 (3) Needle Drive Mechanism (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201S17005 | 螺钉SM11/64"×40 | ||
| **** | 针板 | ||
| **** | 针板(16S) | ||
| **** | 针板 | ||
| **** | 针板(35) | ||
| **** | 针板(55) | ||
| **** | 针板(56) | ||
| 201S11018 | 螺钉SM11/64"×40 | ||
| 201S11008 | 螺钉SM11/64"×40 | ||
| **** | 前护针档 | ||
| **** | 前护针档 | ||
| 20101016 | 针板座 | ||
| 20122011 | 胶套 | ||
| 20101017 | 护针档座 | ||
| 20101018 | 护针档座 | ||
| 201S11022 | 螺钉 | ||
| **** | 护针II | ||
| 201S11003 | 螺钉 | ||
| **** | 护针I | ||
| 201S11003 | 螺钉SM3/32"×56 | ||
| 201S12009 | 螺钉SM9/64"×40 | ||
| **** | 护针档 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Washer | |
| 3 | 3 | Shaft | |
| 4 | 4 | Bearing | |
| 5 | 5 | Screw | |
| 6 | 6 | Link | |
| 7 | 7 | Pin | |
| 8 | 8 | Screw | |
| 9 | 9 | Lever | |
| 10 | 10 | Bracket | |
| 11 | 11 | Linkage | |
| 12 | 12 | Screw | |
| 13 | 13 | Washer | |
| 14 | 14 | Shaft | |
| 15 | 15 | Screw | |
| 16 | 16 | Shaft | |
| 17 | 17 | Pin | |
| 18 | 18 | Clip | |
| 19 | 19 | Screw | |
| 20 | 20 | Washer | |
| 21 | 21 | Lever | |
| 22 | 22 | Screw | |
| 23 | 23 | Washer | |
| 24 | 24 | Screw | |
| 25 | 25 | Pin | |
| 26 | 26 | Bracket | |
| 27 | 27 | Shaft | |
| 28 | 28 | Shaft |
Page 28 — 十一、上弯针部分 Upper Looper Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201S12005 | 螺钉SM11/64"×40 | ||
| 20128007 | 大垫圈 | ||
| 20102006 | 上弯针轴 | ||
| 20128005 | 厚垫圈 | ||
| 201S13003 | 螺钉SM15/64"×28 | ||
| 400337 | 上弯针摆动曲柄 | ||
| 400457 | 上弯针摆动曲柄 | ||
| 400017 | 弯针连杆 | ||
| 201S20015 | 连杆螺钉 | ||
| 20126010 | 弯针连杆摆架 | ||
| 201S11035 | 螺钉SM1/8"×44 | ||
| 20104004 | 上弯针曲柄轴 | ||
| 201S12007 | 螺钉SM1/64"×28 | ||
| 20128021 | 垫圈 | ||
| 20126011 | 摇杆销 | ||
| 20123021 | 油线 | ||
| 2010121000 | 上弯针滑曲柄组件 | ||
| 201S11007 | 螺钉SM9/64"×40 | ||
| 20112023 | 摇杆垫片 | ||
| S10005 | 上弯针曲柄顶丝M3×3 | ||
| 20123009 | 油毡 | ||
| **** | 上弯针 | ||
| **** | 上弯针 | ||
| 201S17006 | 螺钉SM1/8"×44 | ||
| 20112026 | 导架座挡板 | ||
| 201S11005 | 螺钉SM1/8"×44 | ||
| 20122026 | 油封垫 | ||
| 20101206 | 上弯针轴导架座 | ||
| 20109001 | 上弯针轴导块 | ||
| 20104005 | 上弯针摇杆 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Washer | |
| 3 | 3 | Shaft | |
| 4 | 4 | Bearing | |
| 5 | 5 | Thread guide | |
| 6 | 6 | Pin | |
| 7 | 7 | Lever | |
| 8 | 8 | Pin | |
| 9 | 9 | Screw | |
| 10 | 10 | Nut | |
| 11 | 11 | Screw | |
| 12 | 12 | Screw | |
| 13 | 13 | Lever | |
| 14 | 14 | Thread cutter | |
| 15 | 15 | Screw | |
| 16 | 16 | Screw | |
| 17 | 17 | Screw |
Page 30 — 十二、下弯针部分 Lower Looper Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201S12005 | 下弯针轴螺钉 | ||
| 20128007 | 下弯针轴垫圈 | ||
| 20102007 | 下弯针轴 | ||
| 20102008 | 下弯针轴 | ||
| 20128009 | 厚垫圈 | ||
| 400223 | 下弯针摆动曲柄 | ||
| 201S13003 | 螺钉SM15/64"×28 | ||
| 400017 | 弯针连杆 | ||
| 201S20015 | 连杆螺钉 | ||
| 20126010 | 弯针连杆架架 | ||
| 201S11035 | 螺钉SM1/8"×44 | ||
| 201S12007 | 螺钉SM15/64"×28 | ||
| 20128021 | 下弯针架垫圈 | ||
| 20104008 | 下弯针架 | ||
| 20104025 | 下弯针架 | ||
| **** | 下弯针 | ||
| **** | 下弯针 | ||
| 20104010 | 下弯针摆动曲柄 | ||
| 201S11007 | 螺钉SM9/64"×40 | ||
| 301S20013 | 螺钉SM1/4"×40 |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | COLLAR | |
| 3 | 3 | LINKAGE | |
| 4 | 4 | LINKAGE | |
| 5 | 5 | BRACKET | |
| 6 | 6 | SCREW | |
| 7 | 7 | SPRING | |
| 8 | 8 | SCREW | |
| 9 | 9 | SHAFT | |
| 10 | 10 | NUT | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 13 | 13 | SHAFT | |
| 14 | 14 | BEARING | |
| 15 | 15 | BEARING | |
| 16 | 16 | COLLAR | |
| 17 | 17 | SCREW | |
| 18 | 18 | SHAFT | |
| 19 | 19 | LINKAGE | |
| 20 | 20 | PIN | |
| 21 | 21 | LEVER | |
| 22 | 22 | SCREW | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | SPRING | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 28 | 28 | SHAFT | |
| 29 | 29 | SHAFT | |
| 30 | 30 | SCREW | |
| 31 | 31 | BRACKET | |
| 32 | 32 | BRACKET |
Page 32 — 十三、前弯针部分 Front Looper Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201S12002 | 前弯针曲柄螺钉 | ||
| 20108001 | 挡圈 | ||
| 20109002 | 前弯针滑块 | ||
| 20104013 | 驱动曲柄 | ||
| 20101021 | 驱动座 | ||
| 201S14002 | 螺钉 | ||
| 20129003 | 卡簧 | ||
| 201S30009 | 驱动曲柄螺钉 | ||
| 20102010 | 横轴 | ||
| 201S16002 | 曲柄调节螺母 | ||
| 20104014 | 横轴曲柄 | ||
| 20126014 | 曲柄销 | ||
| 2010402300 | 曲柄连杆凸轮组件 | ||
| 20105003 | 横轴连杆 | ||
| 20124002 | 连杆滚针轴承 | ||
| 20112028 | 轴承挡圈 | ||
| 201S17001 | 螺钉SM13/32"×56 | ||
| 20102009 | 前弯针轴 | ||
| 20609017 | 连接板 | ||
| 20126013 | 调节板销 | ||
| **** | 前弯针 | ||
| 20128014 | 前弯针调节垫片 | ||
| 201S11008 | 螺钉SM9/64"×40 | ||
| 201S11003 | 螺钉SM13/32"×56 | ||
| 201S12007 | 螺钉SM15/64"×28 | ||
| 20128021 | 下弯针垫圈 | ||
| 20104011 | 前弯针架 | ||
| 20126022 | 前弯针曲柄销 | ||
| 20123021 | 油线 | ||
| 201S12005 | 螺钉 | ||
| 201S13003 | 螺钉SM15/64"×28 | ||
| 20104012 | 前弯针曲柄 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | CYLINDER | |
| 2 | 2 | BRACKET | |
| 3 | 3 | BRACKET | |
| 4 | 4 | PIN | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BASE | |
| 7 | 7 | SPRING | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BRACKET | |
| 10 | 10 | SHAFT | |
| 11 | 11 | WASHER | |
| 12 | 12 | SPRING | |
| 13 | 13 | GEAR | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | PIN | |
| 18 | 18 | WASHER | |
| 19 | 19 | WASHER | |
| 20 | 20 | BRAKE ASSEMBLY | |
| 21 | 21 | BRAKE DISC | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | SCREW | |
| 25 | 25 | SPRING | |
| 26 | 26 | SPRING |
Page 34 — 十四、打线凸轮部分 Cam Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20613015 | 过线管 | ||
| S01010 | 螺钉M4×8 | ||
| 20113026 | 过线管 | ||
| 20113025 | 导线管套 | ||
| 20112031 | 过线板压板 | ||
| 2061205700 | 打线凸轮架组件 | ||
| S01022 | 螺钉M3×4 | ||
| 20613017 | 凸轮架过线 | ||
| 20612058 | 打线凸轮架 | ||
| 206S30015 | 螺钉M3×2 | ||
| 20612055 | 小夹线片 | ||
| 30127016 | 夹线簧 | ||
| 206S10004 | 夹线螺母 | ||
| S01031 | 螺钉M4×4.7 | ||
| 20113023 | 二眼过线板 | ||
| 20612056 | 分线板 | ||
| 201S11014 | 螺钉SM1/4"×40 | ||
| 206S20004 | 螺钉M4×3.7 | ||
| 20128015 | 波形垫圈 | ||
| 201S14001 | 打线凸轮顶丝SM1/8"×44 | ||
| 2011301800 | 打线凸轮组件 | ||
| 20629005 | 卡簧 | ||
| 20629004 | 打线架卡簧 | ||
| S01022 | 螺钉M3×4 | ||
| 20629003 | 过线管夹 | ||
| 20611010 | 导线管套 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BOLT | |
| 2 | 2 | WASHER | |
| 3 | 3 | CRANKSHAFT | |
| 4 | 4 | CONNECTING ROD | |
| 5 | 5 | CRANKSHAFT HOUSING | |
| 6 | 6 | KEY | |
| 7 | 7 | BEARING | |
| 8 | 8 | CRANKSHAFT HOUSING | |
| 9 | 9 | SPRING | |
| 10 | 10 | CRANKSHAFT HOUSING | |
| 11 | 11 | BOLT | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BOLT | |
| 15 | 15 | WASHER | |
| 16 | 16 | BRACKET | |
| 17 | 17 | BRACKET | |
| 18 | 18 | SPRING | |
| 19 | 19 | WASHER | |
| 20 | 20 | PIN | |
| 21 | 21 | BOLT | |
| 22 | 22 | NEEDLE BAR LINKAGE | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BOLT | |
| 25 | 25 | BOLT | |
| 26 | 26 | BOLT | |
| 27 | 27 | SPRING | |
| 28 | 28 | SLEEVE | |
| 29 | 29 | WASHER | |
| 30 | 30 | PIN | |
| 31 | 31 | NEEDLE BAR | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BOLT | |
| 34 | 34 | WASHER | |
| 35 | 35 | PRESSER FOOT BAR | |
| 36 | 36 | BOLT | |
| 37 | 37 | BOLT | |
| 38 | 38 | SPRING | |
| 39 | 39 | WASHER | |
| 40 | 40 | BOLT | |
| 41 | 41 | BOLT | |
| 42 | 42 | BRACKET | |
| 43 | 43 | BRACKET | |
| 44 | 44 | BOLT | |
| 45 | 45 | WASHER | |
| 46 | 46 | WASHER |
Page 36 — 十五、差动送布部件 (1) Different Feed Assemblies (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2010500900 | 送布组件 | ||
| 201S14002 | 送布凸轮调节螺钉 | ||
| 20109005 | 针距调节滑块 | ||
| 20105004 | 送布连杆 | ||
| 20110003 | 送布凸轮 | ||
| 20112035 | 送布凸轮弹簧 | ||
| B07007 | 滚轴轴承 | ||
| 20110002 | 针距凸轮 | ||
| 20127009 | 针距调节滑块压簧 | ||
| 20125002 | 内齿圈 | ||
| 20101022 | 内齿圈座 | ||
| 400439 | 送布凸轮组组件 | ||
| 20110004 | 送布凸轮座 | ||
| 201S14002 | 送布凸轮调节螺钉 | ||
| P01004 | 送布凸轮座销 | ||
| 201S12005 | 针距调节压板螺钉 | ||
| 20112034 | 针距调节压板 | ||
| 20127008 | 针距调节器簧 | ||
| 001016 | O型圈 | ||
| 20102011 | 送布调节器杆 | ||
| 201S20008 | 差动连杆螺钉 | ||
| 20105005 | 差动连杆 | ||
| 20104016 | 差动曲柄 | ||
| 201S13003 | 差动曲柄螺钉SM15/64" × 28 | ||
| 20108005 | 挡圈 | ||
| 201S12002 | 挡圈螺钉 | ||
| 20127010 | 弹簧 | ||
| 20103017 | 差动轴套筒 | ||
| 20122029 | 油封 | ||
| 20102012 | 差动轴 | ||
| 20122038 | 差动轴密封圈 | ||
| 20112037 | 差动调节杆 | ||
| W01006 | 垫圈 | ||
| 20128034 | 垫圈 | ||
| 20127011 | 卡簧 | ||
| 201S11018 | 差动调节架螺钉 | ||
| 201S11016 | 差动调节杆螺钉 | ||
| 20628009 | 垫圈 | ||
| 201S16008 | 调节螺母 | ||
| 201S30005 | 差动调节螺钉 | ||
| 20128027 | 垫圈 | ||
| 20109005 | 调节滑块 | ||
| 20112036 | 差动调节架 | ||
| 201S11005 | 卡簧螺钉SM17/8" × 44 | ||
| 201S30013 | 调节螺钉SM15/64" × 28 | ||
| 201S30022 | 调节螺钉SM15/64" × 28 | ||
| 20137004 | 旋向标牌 |
Page 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Washer | |
| 3 | 3 | Shaft | |
| 4 | 4 | Bracket | |
| 5 | 5 | Screw | |
| 6 | 6 | Pin | |
| 7 | 7 | Washer | |
| 8 | 8 | Nut | |
| 9 | 9 | Lever | |
| 10 | 10 | Bracket | |
| 11 | 11 | Screw | |
| 12 | 12 | Screw | |
| 13 | 13 | Shaft | |
| 14 | 14 | Shaft | |
| 15 | 15 | Shaft | |
| 16 | 16 | Screw | |
| 17 | 17 | Shaft | |
| 18 | 18 | Shaft | |
| 19 | 19 | Lever | |
| 20 | 20 | Screw | |
| 21 | 21 | Screw | |
| 22 | 22 | Screw | |
| 23 | 23 | Screw | |
| 24 | 24 | Bracket | |
| 25 | 25 | Washer | |
| 26 | 26 | Screw | |
| 27 | 27 | Screw | |
| 28 | 28 | Washer | |
| 29 | 29 | Shaft | |
| 30 | 30 | Screw | |
| 31 | 31 | Screw | |
| 32 | 32 | Block | |
| 33 | 33 | Bracket | |
| 34 | 34 | Screw | |
| 35 | 35 | Base | |
| 36 | 36 | Screw | |
| 37 | 37 | Bracket | |
| 38 | 38 | Screw | |
| 39 | 39 | Screw | |
| 40 | 40 | Screw | |
| 41 | 41 | Bracket | |
| 42 | 42 | Screw | |
| 43 | 43 | Screw | |
| 44 | 44 | Bracket | |
| 45 | 45 | Screw | |
| 46 | 46 | Plate | |
| 47 | 47 | Plate | |
| 48 | 48 | Plate | |
| 49 | 49 | Bracket | |
| 50 | 50 | Screw | |
| 51 | 51 | Bracket | |
| 52 | 52 | Screw | |
| 53 | 53 | Washer | |
| 54 | 54 | Screw |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | WASHER | |
| 4 | 4 | SHAFT | |
| 5 | 5 | COLLAR | |
| 6 | 6 | COLLAR | |
| 7 | 7 | SCREW | |
| 8 | 8 | BRACKET | |
| 9 | 9 | SCREW | |
| 10 | 10 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | SCREW | |
| 14 | 14 | WASHER | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SHAFT | |
| 17 | 17 | SCREW | |
| 18 | 18 | SCREW | |
| 19 | 19 | SHAFT | |
| 20 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | 21 | SPRING | |
| 22 | 22 | BRACKET | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | SCREW | |
| 26 | 26 | SCREW | |
| 27 | 27 | SCREW |
Page 40 — 十七、剪切部件 Knife Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20105202 | 上刀连杆 | ||
| 201S20015 | 螺钉M4×16 | ||
| 20122021 | 油封 | ||
| 20126026 | 上刀曲柄销 | ||
| 20104202 | 上刀曲柄 | ||
| 20104203 | 上刀曲柄 | ||
| 201S12006 | 螺钉 | ||
| S10003 | 螺钉M6×0.75×5 | ||
| 20108007 | 挡圈 | ||
| S05017 | 螺钉M6×0.75×13.5 | ||
| 201S11022 | 螺钉M3.5×7.5 | ||
| 20101024 | 上刀座 | ||
| 20101025 | 上刀座 | ||
| 20101053 | 上刀座 | ||
| **** | 上刀 | ||
| **** | 上刀(厚料) | ||
| 201S12001 | 螺钉SM9/64"×40 | ||
| 20128020 | 垫片 | ||
| 20126016 | 销 | ||
| 20102017 | 上刀架轴 | ||
| 201S12005 | 螺钉 | ||
| 20101026 | 下刀压板 | ||
| **** | 下刀 | ||
| **** | 下刀(厚料) | ||
| 20102018 | 下刀架 | ||
| 20102019 | 下刀架(5线) | ||
| 20127012 | 弹簧 | ||
| 20112040 | 下刀架挡板 | ||
| 201S11018 | 螺钉SM11/64"×40 | ||
| 201S16001 | 螺母 | ||
| W01006 | 垫片 | ||
| 20103025 | 套筒 | ||
| 201S11015 | 螺钉SM11/64"×40 |
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Lever | ||
| 2 | Lever | ||
| 3 | Screw | ||
| 4 | Bracket | ||
| 5 | Pin | ||
| 6 | Nut | ||
| 7 | Pin | ||
| 8 | Screw | ||
| 9 | Spring | ||
| 10 | Spring | ||
| 11 | Screw | ||
| 12 | Shaft | ||
| 13 | Lever | ||
| 14 | Shaft | ||
| 15 | Lever | ||
| 16 | Bracket | ||
| 17 | Shaft | ||
| 18 | Link | ||
| 19 | Bracket | ||
| 20 | Screw | ||
| 21 | Assembly | ||
| 22 | Screw | ||
| 23 | Bracket | ||
| 24 | Screw | ||
| 25 | Bracket | ||
| 26 | Screw | ||
| 27 | Lever | ||
| 28 | Screw | ||
| 29 | Spring | ||
| 30 | Screw | ||
| 31 | Bracket | ||
| 32 | Pin | ||
| 33 | Bracket | ||
| 34 | Bracket | ||
| 35 | Washer | ||
| 36 | Shaft |
Page 42 — 十八、抬压脚部件 Presser Foot Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20126018 | 压脚柄勾 | ||
| 20112041 | 抬压脚柄 | ||
| S01010 | 螺钉M4×8 | ||
| 20112104 | 角板 | ||
| 201S11016 | 螺钉 | ||
| N01004 | 螺母 | ||
| 20626016 | 压脚臂连杆销 | ||
| S10011 | 连杆销紧定螺钉M4×4 | ||
| 20102035 | 压脚轴 | ||
| 20127031 | 抬压脚柄簧 | ||
| S10002 | 螺钉M5×5 | ||
| 20103036 | 压脚轴套筒 | ||
| 20627009 | 小杠杆弹簧 | ||
| 201S20004 | 螺钉SM15/64″×28 | ||
| 20612030 | 小杠杆 | ||
| S05017 | 螺钉M6×0.75×13.5 | ||
| 20608004 | 抬压复位圈 | ||
| 20101202 | 压脚臂 | ||
| 20119003 | 割刀 | ||
| 207S11020 | 螺钉M3×4 | ||
| **** | 压脚组件 | ||
| **** | 压脚组件 | ||
| **** | 压脚组件(35) | ||
| **** | 压脚组件(55) | ||
| **** | 压脚组件(56) | ||
| **** | 压脚组件(16S) | ||
| 207S11020 | 螺钉M3×4 | ||
| 20612083 | 压脚限位板 | ||
| 207S11009 | 螺钉M3×4.5 | ||
| 20712026 | 压脚护手 | ||
| 20127032 | 压杆弹簧 | ||
| 20612034 | 压杆扳手 | ||
| 206S30017 | 扳手螺钉M4×5.2 | ||
| 20627010 | 压杆扳手扭簧 | ||
| S01002 | 螺钉 | ||
| 20612090 | 扳手限位板 | ||
| P03006 | 销4.5×18 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20103202 | 压杆 | ||
| 207S16003 | 压杆螺母 | ||
| 20702014 | 压杆螺柱 |
Page 44 — 十九、供油部件 (1) Lubrication Assemblies (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20320001 | 油泵 | ||
| 203s20002 | 螺钉SM3/16" × 32 | ||
| 20320011 | 油泵涡轮 | ||
| 20320017 | 油泵体 | ||
| 20320012 | 油泵主轴 | ||
| 20320021 | 油泵叶轮套 | ||
| 20320014 | 油泵垫板 | ||
| 20320018 | 滤油网 | ||
| 20320016 | 油泵盖板 | ||
| 207S11017 | 螺钉M3×8 | ||
| 20121001 | 针杆回油管 | ||
| 20121004 | 上喷油管 | ||
| 20321003 | 下配油器 | ||
| 203S30004 | 过油螺钉SM11/64" × 40 | ||
| 20301006 | 润滑套 | ||
| 20101207 | 滤油器盖 | ||
| 201S11019 | 螺钉SM11/64" × 40 | ||
| 20322004 | 密封圈 | ||
| 20136001 | 滤油器 | ||
| 201S30030 | 滤油器接头 | ||
| 20122038 | O型圈 | ||
| 20136007 | 油管接头 | ||
| 20122033 | 垫片(红) | ||
| 203S30003 | 螺钉SM1/4" × 40 | ||
| 30129003 | 油管卡簧 | ||
| 201S11025 | 螺钉SM11/64" × 40 | ||
| 30121022 | 接油管 | ||
| 301S30013 | 螺钉SM1/4" × 40 |
Page 45
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Screw | |
| 3 | 3 | Switch | |
| 4 | 4 | Bracket | |
| 5 | 5 | Lever | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 8 | 8 | Screw | |
| 9 | 9 | Gasket | |
| 10 | 10 | Gasket | |
| 11 | 11 | Switch | |
| 12 | 12 | Screw | |
| 13 | 13 | Shaft | |
| 14 | 14 | Nut | |
| 15 | 15 | Washer | |
| 16 | 16 | Screw | |
| 17 | 17 | O-ring | |
| 18 | 18 | O-ring | |
| 19 | 19 | Cover |
Page 46 — 二十、供油部件 (2) Lubrication Assemblies (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S10007 | 螺钉M4×4 | ||
| 20621010 | 过油管 | ||
| ##### | 别针 | ||
| 20723011 | 油毡 | ||
| 2071203800 | 吸油嘴组件 | ||
| 20622010 | 0型圈 | ||
| 20112050 | 油盘磁铁盖 | ||
| 105S11019 | 螺钉SM11/64”×40 | ||
| 20131083 | 油盘磁铁 | ||
| 20122048 | 油盘垫 | ||
| 207S11011 | 吸油嘴螺钉M4×5 | ||
| 20123021 | 油线 | ||
| 20626007 | 上弯针滑过油器 | ||
| S10007 | 螺钉M4×4 | ||
| 20128023 | 油盘螺钉垫片 | ||
| 201S13002 | 油盘螺钉SM15/64”×28 | ||
| 201S11031 | 放油螺钉SM3/8”×28 | ||
| 20122036 | 堵油橡胶垫 | ||
| 20101035 | 油盘 |
Page 47
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Clip | |
| 3 | 3 | Cover | |
| 4 | 4 | Bracket | |
| 5 | 5 | Lever | |
| 6 | 6 | Spring | |
| 7 | 7 | Shaft | |
| 8 | 8 | Shaft | |
| 9 | 9 | Lever | |
| 10 | 10 | Pin | |
| 11 | 11 | Clip | |
| 12 | 12 | Spring | |
| 13 | 13 | Block | |
| 14 | 14 | Cover | |
| 15 | 15 | Housing | |
| 16 | 16 | Screw | |
| 17 | 17 | Shaft | |
| 18 | 18 | Screw | |
| 19 | 19 | Lever | |
| 20 | 20 | Bracket |
Page 48 — 二十一、HR部件 H.R.Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S01010 | 螺钉M4×8 | ||
| 20712040 | 过线架 | ||
| 20713019 | 过线架 | ||
| 20711015 | 上硅油盒盖 | ||
| 20111205 | 硅油盒 | ||
| 20723008 | 油毡 | ||
| 20112105 | 挡油板 | ||
| 201S11018 | 螺钉SM11/64”×40 | ||
| 20101037 | 机针冷却器 | ||
| 20123014 | 油棉 | ||
| #### | 别针 | ||
| 20129002 | 卡簧 | ||
| 30121021 | 油管 | ||
| 20123017 | 硅油棉块 | ||
| 20111011 | 下硅油盒盖 | ||
| 20111012 | 硅油盒 | ||
| 201S11018 | 螺钉SM11/64”×40 | ||
| 20123021 | 油线 | ||
| 20123012 | 滚珠 | ||
| 20101038 | 机针冷却器 | ||
| 20123015 | 油棉 |
Page 49
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Washer | |
| 3 | 3 | Cable Clip | |
| 4 | 4 | Cable Clip | |
| 5 | 5 | Housing | |
| 6 | 6 | Shaft | |
| 7 | 7 | Bearing | |
| 8 | 8 | Cable Clip | |
| 9 | 9 | Screw | |
| 10 | 10 | Screw |
Page 50 — 二十二、直驱部件 Direct Drive Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S01010 | 螺钉M4×8 | ||
| 20612062 | 油管螺钉垫片 | ||
| 2013001000 | 包塑线LED灯组件(配双显电控) | ||
| 20711210 | R型线夹3.3 | ||
| 20111059 | 皮带轮罩 | ||
| 20111060 | 皮带轮罩(无字) | ||
| 2033300200 | 直驱电机 | ||
| 201511034 | 螺钉SM15/64″×28 | ||
| 20711207 | 绕管 | ||
| S01083 | 螺钉M6×20 | ||
| 301S11009 | 螺钉 |
Page 51
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | BUSHING | |
| 3 | 3 | LEVER | |
| 4 | 4 | SCREW | |
| 5 | 5 | SPRING | |
| 6 | 6 | PLATE | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 11 | 11 | SPRING | |
| 12 | 12 | SCREW | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 15 | 15 | SPRING | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | PLATE | |
| 19 | 19 | SCREW | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | SCREW | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SPRING | |
| 26 | 26 | SCREW | |
| 27 | 27 | BRACKET | |
| 28 | 28 | PLATE | |
| 29 | 29 | BRACKET | |
| 30 | 30 | BRACKET | |
| 31 | 31 | SHAFT | |
| 32 | 32 | PLATE | |
| 33 | 33 | BASE |
Page 52 — 二十三、倒回缝部件 Back Latch Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201S14002 | 螺钉 | ||
| 20103029 | 钢丝接套 | ||
| 20112058 | 支架 | ||
| 201S30018 | 接头螺钉 | ||
| 20112059 | 天线 | ||
| 20112207 | 过线板 | ||
| 20112208 | 松线推板 | ||
| 201S16003 | 螺母 | ||
| 20112209 | 前支架 | ||
| 20112063 | 松线杠杆 | ||
| 201S20012 | 螺钉 | ||
| 20127021 | 松线扭簧 | ||
| 201S20013 | 螺钉 | ||
| 201S4003 | 螺钉 | ||
| 201S20014 | 螺钉 | ||
| 20101039 | 钢丝接头 | ||
| 205S30007 | 压线板螺钉 | ||
| 20113209 | 压线板 | ||
| S02007 | 螺钉 | ||
| 20112210 | 刀片定位板 | ||
| 205S30008 | 压力板螺钉 | ||
| 20519002 | 刀子 | ||
| 20512003 | 压力板 | ||
| 20109102 | 刀架 | ||
| 20527003 | 弹簧 | ||
| 301S16007 | 夹线螺母 | ||
| 20116004 | 压脚 | ||
| 20116005 | 压脚 | ||
| **** | 针板 | ||
| **** | 针板 | ||
| 20109025 | 针板垫块 | ||
| **** | 牙齿 | ||
| 20102040 | 下刀架 | ||
| 20109103 | 护针挡座 | ||
| 2011209000 | 缝台盖组件 |
Page 53
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21 | 219001 | BRACKET | |
| 22 | 219002 | BRACKET | |
| 23 | 219003 | BRACKET | |
| 24 | 219004 | BRACKET | |
| 25 | 219005 | BRACKET | |
| 26 | 219006 | BRACKET | |
| 27 | 219007 | BRACKET | |
| 28 | 219008 | BRACKET | |
| 29 | 219009 | BRACKET | |
| 30 | 219010 | BRACKET | |
| 31 | 219011 | BRACKET | |
| 32 | 219012 | BRACKET | |
| 33 | 219013 | BRACKET | |
| 34 | 219014 | BRACKET | |
| 35 | 219015 | BRACKET | |
| 36 | 219016 | BRACKET | |
| 37 | 219017 | BRACKET | |
| 38 | 219018 | BRACKET | |
| 39 | 219019 | BRACKET | |
| 40 | 219020 | BRACKET | |
| 41 | 219021 | BRACKET | |
| 42 | 219022 | BRACKET | |
| 43 | 219023 | BRACKET | |
| 44 | 219024 | BRACKET | |
| 45 | 219025 | BRACKET | |
| 1 | 219026 | BRACKET | |
| 2 | 219027 | BRACKET | |
| 3 | 219028 | BRACKET | |
| 4 | 219029 | BRACKET | |
| 5 | 219030 | BRACKET | |
| 6 | 219031 | BRACKET | |
| 7 | 219032 | BRACKET | |
| 8 | 219033 | BRACKET | |
| 9 | 219034 | BRACKET | |
| 10 | 219035 | BRACKET | |
| 11 | 219036 | BRACKET | |
| 12 | 219037 | BRACKET | |
| 13 | 219038 | BRACKET | |
| 14 | 219039 | BRACKET | |
| 15 | 219040 | BRACKET | |
| 16 | 219041 | BRACKET | |
| 17 | 219042 | BRACKET | |
| 18 | 219043 | BRACKET | |
| 19 | 219044 | BRACKET | |
| 20 | 219045 | BRACKET |
Page 54 — 二十四、800E专用部件 800E Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20130020 | 操作面板组件 | ||
| 20112099 | 操作面板支架 | ||
| 206S11021 | 螺钉M4×10 | ||
| S05232 | 螺钉M6×12 | ||
| 20630027 | 转接盒 | ||
| 206S11022 | 螺钉M3×8 | ||
| S01031 | 螺钉M4×4.7 | ||
| 2063002000 | 剪线电磁铁组件 | ||
| S05010 | 螺钉M4×12 | ||
| S05019 | 螺钉M6×16.3 | ||
| 20726001 | 销子 | ||
| 2011900800 | 自动剪线组件 | ||
| 201S11019 | 螺钉M4 | ||
| 20104100 | 切刀曲柄 | ||
| 20101302 | 切刀支撑座 | ||
| S05232 | 螺钉M6×12 | ||
| 20630023 | 后发射器 | ||
| S01027 | 螺钉M3 | ||
| 20630024 | 后接收器 | ||
| S02007 | 螺钉M3×5 | ||
| S01003 | 螺钉M4×12 | ||
| 2011106600 | 剪线开关感应器组件 | ||
| 20711202 | 防护罩 | ||
| W01011 | 垫片 | ||
| S01034 | 螺钉M3×5.7 | ||
| 20612107 | 压脚开关支架 | ||
| S01031 | 螺钉M4×4.7 | ||
| S01002 | 螺钉M4×6.5 | ||
| 20630025 | 压脚安全开关 | ||
| 30130017 | 磁铁 | ||
| 20701203 | 磁铁固定块 | ||
| 30228009 | 垫片 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| S01006 | 螺钉M3×4.5 | ||
| 20612108 | 切刀挡板 | ||
| 20101055 | 盖板 | ||
| 20130026 | 缝台安全开关 | ||
| 20130021 | 前接收器 | ||
| 20130022 | 中接收器 | ||
| 2011208700 | 缝台盖板组件 | ||
| 201S11043 | 螺钉M4×4.5 | ||
| S02007 | 螺钉M3×5 | ||
| 20109024 | 针板垫块(后) | ||
| 20109023 | 针板垫块 | ||
| 20112204 | 扳手 |
Page 55
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Screw | |
| 3 | 3 | Screw | |
| 4 | 4 | Bracket | |
| 5 | 5 | Screw | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 8 | 8 | Screws | |
| 9 | 9 | Bracket | |
| 10 | 10 | Bracket | |
| 11 | 11 | Bracket | |
| 12 | 12 | Bracket | |
| 13 | 13 | Bracket |
Page 56 — 二十五、托盘、排料部件 Plate Row Material Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20131025 | 机架托盘 | ||
| 20131026 | 减震垫组件 | ||
| 20131028 | 托盘螺钉固定头 | ||
| 20131057 | 托盘防震垫 | ||
| 20131030 | 防震套 | ||
| 20131029 | 大垫圈 | ||
| 20131027 | 螺钉M8x55 | ||
| 20131034 | 螺钉 | ||
| 20131031 | 排料槽座 | ||
| 20128022 | 垫圈 | ||
| 20131032 | 排料槽I | ||
| 20131033 | 排料槽II | ||
| 20131094 | 落料斗组件 |
Page 57
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Part 1 | ||
| 2 | Part 2 | ||
| 3 | Part 3 | ||
| 4 | Part 4 | ||
| 5 | Part 5 | ||
| 6 | Part 6 | ||
| 7 | Part 7 | ||
| 8 | Part 8 | ||
| 9 | Part 9 | ||
| 10 | Part 10 | ||
| 11 | Part 11 | ||
| 12 | Part 12 | ||
| 13 | Part 13 | ||
| 14 | Part 14 | ||
| 15 | Part 15 | ||
| 16 | Part 16 | ||
| 17 | Part 17 | ||
| 18 | Part 18 | ||
| 19 | Part 19 | ||
| 20 | Part 20 | ||
| 21 | Part 21 | ||
| 22 | Part 22 | ||
| 23 | Part 23 | ||
| 24 | Part 24 | ||
| 25 | Part 25 | ||
| 26 | Part 26 | ||
| 27 | Part 27 | ||
| 28 | Part 28 | ||
| 29 | Part 29 | ||
| 30 | Part 30 | ||
| 31 | Part 31 | ||
| 32 | Part 32 | ||
| 33 | Part 33 | ||
| 34 | Part 34 |
Page 58 — Thread Spool Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20631018 | 过线棒 | ||
| 30113019 | 过线棒 | ||
| 20131019 | 棒冒 | ||
| 20131001 | 上管 | ||
| 201S16006 | 导线环螺母 | ||
| 20131016 | 导线架 | ||
| 20131018 | 导线环 | ||
| 20131021 | 棒架螺钉 | ||
| 20131009 | 棒架 | ||
| 201S16004 | 螺母 | ||
| 20131022 | 棒架螺钉 | ||
| 201S16004 | 螺母 | ||
| 20131005 | 导线环 | ||
| 20131020 | 导线环螺钉 | ||
| 20131015 | 导线架 | ||
| 20131011 | 导线棒 | ||
| 20631019 | 过线棒 | ||
| 20131012 | 固定器 | ||
| S04050 | 螺钉M5×15 | ||
| 20131003 | 套 | ||
| N01030 | 套螺母 | ||
| 20131008 | 线圈定位套 | ||
| 20131006 | 线托盘 | ||
| 20131010 | 线盘垫 | ||
| 20131007 | 线盘 | ||
| 20131004 | 托线架 | ||
| 201S16004 | 螺母 | ||
| 20128018 | 垫圈 | ||
| 20131002 | 下管 | ||
| 201S16005 | 螺母 | ||
| 20128025 | 下管垫圈 | ||
| 20131017 | 托线架 | ||
| 20122049 | 防震垫 | ||
| 20131090 | 线架组件 | ||
| 20131091 | 线架组件 | ||
| 20131074 | 线架组件 |
Page 59
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | Fuel can | ||
| 7 | Oil can | ||
| 8 | Funnel | ||
| 25 | Oil can | ||
| 10 | Wrench | ||
| 11 | Wrench | ||
| 12 | Wrench | ||
| 13 | Allen wrench | ||
| 14 | Allen wrench | ||
| 15 | Allen wrench | ||
| 2 | Screwdriver | ||
| 3 | Screwdriver | ||
| 4 | Screwdriver bit | ||
| 5 | Screwdriver bit | ||
| 20 | Part D | ||
| 21 | Tool | ||
| 16 | Chain | ||
| 17 | Roller | ||
| 18 | Spark plug | ||
| 19 | Air filter | ||
| 22 | Cover | ||
| 24 | Hose | ||
| 23 | Box |
Page 60 — 二十七、随机附件 Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10131002 | 螺丝刀(大) | ||
| 10131003 | 螺丝刀(中) | ||
| 10131004 | 螺丝刀(小) | ||
| 20131044 | 直柄内六角螺丝刀(1.5mm) | ||
| 20131045 | 直柄内六角螺丝刀(1.6mm) | ||
| 20131037 | 油壶 | ||
| 20131038 | 小油壶(尖嘴) | ||
| 20131039 | 漏斗 | ||
| 20131051 | 镊子 | ||
| 20131043 | 扳手(8mm) | ||
| 20131042 | 扳手(7mm) | ||
| 20131041 | 扳手(6mm) | ||
| 20131046 | 内六角扳手(2mm) | ||
| 20131056 | 内六角扳手(6mm) | ||
| 30131026 | 内六角扳手(8mm) | ||
| 20131054 | 脚踏板链 | ||
| S10005 | 螺钉 | ||
| **** | 机针 | ||
| 20136001 | 滤油器 | ||
| 2033000200 | 直驱专用部件 | ||
| 20130033 | 直驱专用部件(无字) | ||
| 20130039 | 直驱专用部件(E) | ||
| 20131052 | 线勾 | ||
| 10131005 | 机头罩 | ||
| 20131055 | 附件盒 | ||
| 20131062 | 塑料机头袋 | ||
| 20131040 | 油壶/50cc |
Page 61 — 800 SERIES GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20115006 | NEEDLE PLATE | ||
| 2011401800 | MAIN FEED DOG ASS | ||
| 2071601000 | PRESSER FOOT ASS | ||
| 20117025 | UPPER LOOPER | ||
| 20117008 | LOWER LOOPER | ||
| 20115001 | NEEDLE PLATE | ||
| 2011401700 | MAIN FEED DOG ASS | ||
| 2071600500 | PRESSER FOOT ASS | ||
| 20117025 | UPPER LOOPER | ||
| 20117008 | LOWER LOOPER | ||
| 20115004 | NEEDLE PLATE | ||
| 2011402100 | MAIN FEED DOG ASS | ||
| 20116004 | PRESSER FOOT ASS | ||
| 20117025 | UPPER LOOPER | ||
| 20117008 | LOWER LOOPER | ||
| 20115005 | NEEDLE PLATE | 2 | |
| 2011402100 | MAIN FEED DOG ASS | 2 | |
| 20116005 | PRESSER FOOT ASS | 2 | |
| 20117007 | UPPER LOOPER | 2 | |
| 20117008 | LOWER LOOPER | 2 | |
| 20115002 | NEEDLE PLATE | 2 | |
| 2011401700 | MAIN FEED DOG ASS | 2 | |
| 2101600300 | PRESSER FOOT ASS | 2 | |
| 20117007 | UPPER LOOPER | 2 | |
| 20117008 | LOWER LOOPER | 2 | |
| 20115003 | NEEDLE PLATE | 3 | |
| 2011401900 | MAIN FEED DOG ASS | 3 | |
| 2071600600 | PRESSER FOOT ASS | 3 | |
| 20117025 | UPPER LOOPER | 3 | |
| 20117009 | LOWER LOOPER | 3 | |
| 20117010 | CHAINSTITCH LOOPER | 3 | |
| 20115008 | NEEDLE PLATE | 5 | |
| 2011401900 | MAIN FEED DOG ASS | 5 | |
| 2071601500 | PRESSER FOOT ASS | 5 | |
| 20117025 | UPPER LOOPER | 5 | |
| 20117009 | LOWER LOOPER | 5 | |
| 20117010 | CHAINSTITCH LOOPER | 5 | |
| 20115007 | NEEDLE PLATE | 5 | |
| 2011402000 | MAIN FEED DOG ASS | 5 | |
| 2061604000 | PRESSER FOOT ASS | 5 | |
| 20117025 | UPPER LOOPER | 5 | |
| 20117009 | LOWER LOOPER | 5 | |
| 20117010 | CHAINSTITCH LOOPER | 5 | |
| 20115026 | NEEDLE PLATE | ||
| 2011402300 | MAIN FEED DOG ASS | ||
| 2071608600 | PRESSER FOOT ASS | ||
| 20117007 | UPPER LOOPER | ||
| 20117008 | LOWER LOOPER | ||
| 20115025 | NEEDLE PLATE | 2 | |
| 2011402300 | MAIN FEED DOG ASS | 2 | |
| 2071609400 | PRESSER FOOT ASS | 2 | |
| 20117007 | UPPER LOOPER | 2 | |
| 20117008 | LOWER LOOPER | 2 | |
| 20115027 | NEEDLE PLATE | 3 | |
| 2011403600 | MAIN FEED DOG ASS | 3 | |
| 2071600600 | PRESSER FOOT ASS | 3 | |
| 20117025 | UPPER LOOPER | 3 | |
| 20117009 | LOWER LOOPER | 3 | |
| 20117010 | CHAINSTITCH LOOPER | 3 | |
| 20115028 | NEEDLE PLATE | 5 | |
| 2011403600 | MAIN FEED DOG ASS | 5 | |
| 2071601500 | PRESSER FOOT ASS | 5 | |
| 20117025 | UPPER LOOPER | 5 | |
| 20117009 | LOWER LOOPER | 5 | |
| 20117010 | CHAINSTITCH LOOPER | 5 | |
| 20115029 | NEEDLE PLATE | 5 | |
| 2011403900 | MAIN FEED DOG ASS | 5 | |
| 2061604000 | PRESSER FOOT ASS | 5 | |
| 20117025 | UPPER LOOPER | 5 | |
| 20117009 | LOWER LOOPER | 5 | |
| 20117010 | CHAINSTITCH LOOPER | 5 |
Page 62
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117003 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117002 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117003 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20634022 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117003 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117002 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117003 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20634022 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117003 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117002 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117003 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20634022 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117003 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117002 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117003 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20734002 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117005 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117006 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117004 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20734002 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117005 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117006 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117004 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20734003 | NEEDLE HOLDER | ||
| 20119005 | UPPER KINIFE | ||
| 20119006 | LOWER KINIFE | ||
| 20117005 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117006 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117004 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20719056 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117022 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117002 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117022 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20634022 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117022 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117002 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117022 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20734002 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117005 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117006 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117023 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20734003 | NEEDLE HOLDER | ||
| 20119001 | UPPER KINIFE | ||
| 20119002 | LOWER KINIFE | ||
| 20117005 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117006 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117023 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20734004 | NEEDLE HOLDER | ||
| 20119005 | UPPER KINIFE | ||
| 20119006 | LOWER KINIFE | ||
| 20117005 | OVERLOCK NEEDLE GUARO FRONT | ||
| 20117006 | OVERLOCK NEEDLE GUARO REAR | ||
| 20117023 | CHAINSTITCH NEEDLE FRONT | ||
| 20117002 | CHAINSTITCH NEEDLE REAR | ||
| 20719056 | NEEDLE HOLDER |
Jack JK-804 / JK-805 — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-800 Series Parts Manual, featuring an image of the sewing machine and the JACK logo.
- Page 2 (toc): This page is a table of contents for a parts manual, listing 27 sections with their corresponding page numbers, covering various machine components and accessories.
- Page 3 (unknown): This page contains a watermark with the text "jintex.in" and a black bar at the bottom with the same text. There is no other discernible content on the page.
- Page 4 (text): This page contains safety precautions for operating and maintaining the sewing machine, including instructions for turning off the power, removing the foot presser, and checking the ground connection. It also includes diagrams and text related to the machine's lubrication system.
- Page 5 (text): This page contains instructions and diagrams for filling the HR device with silicon oil, adjusting the differential feed ratio, adjusting the presser foot pressure, and adjusting the stitch length.
- Page 6 (text): This page provides instructions for adjusting thread tension, cleaning the machine, checking and replacing the oil filter, replacing the lower knife, replacing the needle, and replacing the oil, along with a diagram of the E Series electrical wiring.
- Page 7 (diagram): This page displays a diagram of various components of an industrial sewing machine, with numbered parts indicated for reference.
- Page 8 (parts_list): This page lists machine bed frame parts, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 9 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, a fuel tank assembly, a cover, and other mechanical parts, each identified by a reference number.
- Page 10 (parts_list): This page lists parts for Cover Assemblies (1), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 11 (diagram): This page displays a diagram of various machine components, including brackets, plates, screws, and other hardware, with reference numbers indicating their positions.
- Page 12 (parts_list): This page lists cover assemblies (2) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 13 (diagram): This page displays a diagram of various components of an industrial sewing machine, including shafts, bearings, gears, and fasteners, with reference numbers for each part.
- Page 14 (parts_list): This page lists parts for the Main Shaft Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 15 (diagram): This page contains diagrams of various sewing machine components, including assemblies with parts numbered 1 through 14, and another assembly with parts numbered 15 through 27. The diagrams illustrate mechanical parts and their arrangement.
- Page 16 (parts_list): This page lists parts for thread guide and thread takeup components, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 17 (diagram): This page displays diagrams of parts for the Three-thread/Four-thread Series sewing machines, with numbered parts and their corresponding labels.
- Page 18 (parts_list): This page lists thread guide and thread takeup components for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 19 (diagram): This page displays a diagram of components for the Five-thread Series of industrial sewing machines, with specific illustrations for the Five-thread (35/55) Series and Five-thread (56) Series.
- Page 20 (parts_list): This page lists parts for Thread Guide and Thread Takeup (3), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 21 (diagram): This page displays a diagram of various machine components, including a connecting rod assembly, a shaft, and several smaller parts like bolts, pins, and rings, each labeled with a reference number.
- Page 22 (parts_list): This page lists parts for Needle Drive Mechanism (1), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 23 (diagram): This page displays diagrams of needle and thread components for three-thread/four-thread series and five-thread series sewing machines.
- Page 24 (parts_list): This page lists parts for the Needle Drive Mechanism (2), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 25 (diagram): This page displays a diagram of various machine components, including levers, brackets, and fasteners, with reference numbers for each part.
- Page 26 (parts_list): This page lists parts for the Needle Drive Mechanism (3) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 27 (diagram): This page displays a diagram of various machine parts, including screws, washers, rods, and linkages, with reference numbers for each component.
- Page 28 (parts_list): This page lists parts for Upper Looper Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 29 (diagram): This page displays a diagram of various sewing machine components, including screws, bearings, shafts, and levers, with reference numbers for identification.
- Page 30 (parts_list): This page lists lower looper assemblies with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 31 (diagram): This page displays a diagram of various machine components, including screws, linkages, shafts, and bearings, with reference numbers for each part.
- Page 32 (parts_list): This page lists parts for Front Looper Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 33 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes components like a cylinder, bracket, springs, gears, and a brake assembly, numbered from 1 to 26.
- Page 34 (parts_list): This page lists parts for Cam Assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 35 (diagram): This page displays a diagram of various sewing machine components, including a crankshaft assembly, needle bar linkage, and presser foot assembly, with numbered references for each part.
- Page 36 (parts_list): This page lists parts for different feed assemblies, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 37 (diagram): This page displays a diagram of various machine parts, including components like screws, brackets, shafts, and linkages, with reference numbers for identification.
- Page 39 (diagram): This page displays a diagram of various machine parts, including screws, shafts, and brackets, with reference numbers and some descriptive text like "three/four-thread" and "five-thread".
- Page 40 (parts_list): This page lists parts for the Knife Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 41 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and other hardware, with reference numbers for each part.
- Page 42 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 44 (parts_list): This page lists lubrication assemblies for industrial sewing machines, including part numbers, descriptions, and quantities for different thread types.
- Page 45 (diagram): This page displays a diagram of various components of an industrial sewing machine, including levers, switches, a gasket, and fasteners, with reference numbers for each part.
- Page 46 (parts_list): This page lists lubrication assemblies for industrial sewing machines, including part numbers, descriptions, and quantities for different thread types.
- Page 47 (diagram): This page displays a diagram of various sewing machine components, with numbered references for each part.
- Page 48 (parts_list): This page lists HR. Assemblies parts with their part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 49 (diagram): This page displays a diagram of various components, including a main machine housing, a bearing assembly, and smaller parts like screws and clips, labeled with reference numbers from 1 to 10.
- Page 50 (parts_list): This page lists parts for Direct Drive Assemblies, including screws, washers, LED lamps, clamps, covers, motors, and ties, with quantities specified for three-thread, four-thread, and five-thread configurations.
- Page 51 (diagram): This page displays a diagram of various machine parts, including levers, plates, screws, and other components, with reference numbers from 1 to 33.
- Page 52 (parts_list): This page lists back latch components for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 53 (diagram): This page displays a diagram of various machine components, including covers, brackets, and fasteners, with reference numbers for each part.
- Page 54 (parts_list): This page lists parts for the 800E Specific Parts, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 55 (diagram): This page displays a diagram of various components, including screws, brackets, and other hardware, with reference numbers from 1 to 13.
- Page 56 (parts_list): This page lists plate row material assemblies with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 57 (diagram): This page displays a diagram of various components of an industrial sewing machine, including frame parts, spools, and mounting hardware, with reference numbers for each part.
- Page 58 (parts_list): This page lists thread spool assemblies with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 59 (diagram): This page displays a diagram of various parts and accessories for a machine, including a fuel can, funnels, screwdrivers, wrenches, a chain, a filter, and other components, each identified by a reference number.
- Page 60 (parts_list): This page lists accessories and parts for industrial sewing machines, including various wrenches, screwdrivers, oil containers, needles, and other components with their part numbers and descriptions.
- Page 61 (parts_list): This page lists parts for the 800 Series Gauge Parts, including machine types, gauge specifications, and various part numbers for needle plates, feed dog assemblies, upper loopers, lower loopers, and chainstitch loopers.
- Page 62 (parts_list): This page lists parts for various machine types including Upper Knife, Lower Knife, Overlock Needle Guard (Front and Rear), Chainstitch Needle (Front and Rear), Needle Holder, and Needle. It provides part numbers for each component across different machine specifications.
- Page 63 (cover): This is the cover page for JACK SEWING MACHINE CO., LTD. It includes the company's standard product code, website, address, and contact information.
Page 2 — CONTENTS
目 录 CONTENTS 使用说明/Use Manual 一、机壳部件/Machine Bed Frame 二、罩壳部件 (1) /Cover Assemblies (1) 三、罩壳部件 (2) /Cover Assemblies (2) 四、主轴部件/Main Shaft Assemblies 五、过线部件 (1) /Thread Guide and Thread Takeup (1) 六、过线部件 (2) /Thread Guide and Thread Takeup (2) 七、过线部件 (3) /Thread Guide and Thread Takeup (3) 八、针杆部件 (1) /Needle Drive Mechanism (1) 九、针杆部件 (2) /Needle Drive Mechanism (2) 十、针杆部件 (3) /Needle Drive Mechanism (3) 十一、上弯针部件/Upper Looper Assemblies 十二、下弯针部件/Lower Looper Assemblies 十三、前弯针部件/Front Looper Assemblies 十四、打线凸轮部件/Cam Assemblies 十五、差动送布部件 (1) /Different Feed Assemblies (1) 十六、差动送布部件 (2) /Different Feed Assemblies (2) 十七、剪切部件/Knife Drive Mechanism 十八、抬压脚部件/Presser Foot Mechanism 十九、供油部件 (1) /Lubrication Assemblies(1) 二十、供油部件 (2) /Lubrication Assemblies(2) 二十一、HR部件/H.R.Assemblies 二十二、直驱部件/Direct Drive Assemblies 二十三、倒回缝部件/Back Latch Components 二十四、800E专用部件/800E Specific Parts 二十五、托盘、排料部件/Plate Row Material Assemblies 二十六、线架部件/Thread Spool Assemblies 二十七、随机附件/Accessories Assemblies 标准度量零件表/Standard measurement part list 1 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 jintex.in
Page 3
jintex.in jintex.in
Page 4
A 为了安全 对于缝纫机本身各种装置,我们充分考虑到它的安全性。请 遵照基本的操作方法,安全的进行工作。 ●拆除为保证安全所设置的装置,零件的情 危险的,请绝对不要拆除后使用。 ●缝纫机在使用时,请不要在缝纫机台板上放置工具及缝纫时 不必要的物品。 ●在对缝纫机进行检修、调节、清扫、穿线、换针等工作时, 为防止发生事故,务必请切断电源,在确认即即使下缝纫机 踏板,缝纫机也不转动之后,再进行操作。 1、关闭电源停止缝纫。 2、打开缝台装置。 3、打开压脚装置。 在对缝纫机进行检修、调节、清扫、穿线、换针等工作 完成结束后,请按以下步骤操作。 1、压脚装置复位。 2、关上缝台装置。 3、开启电源进行缝纫。 4、关闭针护 A OBSERVE THESE SAFETY PRECAUTIONS Though Our takes the utmost care to produce safe sewing machines and devices, operators should follow these basic safety rules. ●To prevent accidents, do not remove safety devices or parts while operating the machine. ●Do not leave tools or other unnecessary objects on the machine table while operating the machine. ●Before maintenance, adjusting, cleaning, threading or replacing the needle, and to prevent accidents, be sure the power is turned off.Check that the machine will not operate when the pedal is pressed. 1.turn off power and stop sewing. 4.open the eye guide. 2.open the sewing plate. 3.remove the foot presser. After maintenance, adjusting, cleaning, threading or replacing the needle, and to prevent accidents, please click the following steps operation. 1.move back the foot presser. 4.close the eye guide. 2.close the sewing plate. 3.turn on the power and start sewing. ●在离开缝纫机台时,务必请关掉电源。 ●停电时也请务必关掉电源。 ●为了总是安全的,运转良好的使用缝纫机,日常的点检是 可缺少的,请予以注意。 ●Turn the power off before leaving the machine table. ●In the event of a power failure, be sure to turn the machine off. ●Check that the machine is securely grounded. 台板加工图 Schematic diagram of the machine 请参照下图进行台板加工 Cut the table referring to the diagram 台板安装示意图 Installation diagram of the machine table 请参照下图安装零件 Refer to the drawing installation parts 供油 加油量是使油面处于H线与L线之间为好。当油面低于L线时, 就要及时补充机油。 Lubrication After filing the oil pan, the oil surface should lie between (H) and (L)lines. Add oil, when the oil surface reaches or goes bleow(L). 手动供油 手动供油是在缝纫机最初开始使用时或相当一段时间没使用 时,请供给2-3滴油。 Manual Lubrication Apply 2 or 3 drops of oil by hand when the machine is used for the first time or has been left unused for some time. ラ jintex.in
Page 5
给HR装置供油 为了防止布纤维或线被切断，请尽早给HR装置供油。 注:关于购买硅脂油，请询问缝纫机代销店或与本公司营业 所联系。 Filling the HR device with silicon oil Fill the device with oil before it is too low in order to prevent needle thread breakage and fabric damage. Note:Use recommended sillicon oil [UNION CARBIDE CORPORATION]UCC L-45(10) 穿线的 方法 三线穿线图 四线穿线图 五线穿线图 差动比调整(主送料具与分送料具运动程比) 图11、表3 若主送料具的运动大于分送料具的运动时,则布料车缝时伸张, 反之则收缩。调整方法为放松螺母①转动②顺时针方向时使布料伸张, 反之则收缩,调整后在固定螺母①。 注:当调整杆③的表面固定在刻 划线2以上时,可使布料伸张至1:0.7。 Differential feed ratio adjustment(Fig.11, Tab.3) The differential feed ratio of movements between Main Feed Dog and Differential Feed Dog,when the movement of Main Feed Dog is bigger then Differential Feed Dog, the fabric be stretched in sewing.Otherwise the fabric be shrinked. .Loosen Nut ① then Screw ② in clockwise for stretching the fabric and in reverse direction for shrinking the fabric then tighten Nut ①. NOTE: When the surface of adjusting Lever ③ be set at the scale ② the differential feed ratio is 1:1, and if it be set over the scale its ratio can be adjustable up to 1:0.7. Tab.3 刻度 Scale 1 2 3 4 5 差动进料比率 Differential Feed ratio 1:0.7 1:0.9 1:1.1 1:13 1:1 1:1.4 1:1.7 1:2 1:1 1:1.5 1:2 1:2.5 1:3 1:1.1 1:1.6 1:2.3 1:2.8 1:3.3 针距调节 1.握住按钮,旋转手轮,按住会陷进更深处。 2.这时边捏住按钮,边转动手轮,使校准标记对准所希望的数值。 注:针距调节务必在差动比调节之后进行。 Adjusting the stitch renth 1.While pressing the push button,turn the hangwheel to seek the position at which the push button goes further into the depth. 2.Then keeping the push button pressed,turn the handwheel and set the desired scale to the aligning mark. Note:Stitch length adjustment must only be made after the differential feed ratio has been changed. 压脚压力调节 压脚压力的调节,松动螺母①,调节螺母②,在送布得到稳定状态下尽可 能使用较弱的 Adjusting the presser foot pressure Loosen adjusting nut ① and turn adjusting nut ② to adjust the presser foot pressure.It should be as light as possible, yet be sufficient to obtain the jintex.in
Page 6
线状态的调节 线张力状态的调节,请用针线调节螺帽①,上弯 线调节螺帽②,下弯针线调节螺帽③, 来进行调节。 Adjusting the thread tension Make tension adjustments with the needle thread knob①,the upper looper knob②,and the lower looper knob③. 缝纫机的清扫 缝纫机的清扫,以针板槽及送布牙周围为主。 Cleaning the machine Mainly the slots of the needle plate and the feed rows should be cleaned. 检查油质量,更换油 机油每6个月检查并更换。 Checking and replacing the oil filter Check and replace the oil filter every six months. 换针 1.准确辨认针的前后,请将针凹向后方,即背向操作者 进行安装。 2.针要牢固的插到孔的最深处。 标准使用针:风琴DC×27 安全、包缝系列:风琴DC×5 Replacing the needle 1.Check the needle carefully to see that the scarf is turded to the rear of the machine. 2.Insert the needle to the proper depth, and fasten securely. Standard needle:Organ DC×27 5200H(3200H)series:Organ DC×5 换机油 机油的更换,请在使用开始1个月后更换 一次,然后,每6个月更换一次。供油请 参见第2页。 Replacing the oil Replacing the oil one month after the first use and every six months there after.(See p2.) E jintex.in 下刀片的更换 卸下下刀片 把下刀架推向左边,用螺丝①暂时固定。 松开螺丝 Loosen the screw 把下刀架推向左边 ④ 取下下刀片 Remove the lower knife 松开螺丝 Loosen the screw 安装下刀片 To replace the lower knife 转动手轮将上刀移动对准如右图所示位置 Turn the handwheel as the drawing on the right figure. ⑤ 拧紧螺丝 Tigthen the screw 松开螺丝⑤,下刀架则向右移动。 Loosening the screw ⑤makes the lower knife holder slide to the right. 下刀片B Cutting edge of the lower knife B 上刀片 Upper knife 针板表面A Top surface of the needle A Plate 下刀片 Lower knife 使针板表面A与下刀刃B处 于相同水平位置 Level of[A]=Level of[B] 装好下刀片后进行剪线,确 认剪切状况 OK! NO! OK! NO! E系列电器元件接线示意图 E Series Electrical wiring diagram
Page 7
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 I jintex.in
Page 8 — 一、机壳部件 Machine Bed Frame
一、机壳部件 Machine Bed Frame 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 302531 机壳 Machine Bed Complete 1 1 1 2 20122005 油封 Oil seal 1 1 1 3 20111010 油标 Oil sight 1 1 1 4 20137001 型号牌 Machine model plate 1 1 1 5 R03001 铆钉 Rivet 2 2 2 6 20103009 上弯针轴后套筒 Sleeve 1 1 1 7 20703001 上弯针轴前套筒 Sleeve 1 1 1 8 20122025 上弯针轴油封 Oil seal 1 1 1 9 20103015 下弯针轴后套筒 Sleeve 1 1 1 10 20103011 下弯针轴前套筒 Sleeve 1 1 1 11 20622019 下弯针轴油封 Oil seal 1 1 1 12 20622019 链线弯针轴油封 Oil seal 0 0 1 13 20122040 链线弯针轴油封 Oil seal 0 0 1 14 20103013 前弯针轴前套筒 Sleeve 0 0 1 15 20103014 前弯针轴后套筒 Sleeve 0 0 1 16 2012603100 滤油销组件 Oil filter pin component 1 1 1 17 201S30006 螺钉SM5/16"×24 Screw 4 4 4 18 20129001 卡簧 Ring 1 1 1 19 20103003 主轴左套筒 Sleeve 1 1 1 20 20103017 差动轴套筒 Sleeve 1 1 1 21 20122008 油封 Oil seal 1 1 0 22 20103016 横轴左套筒 Sleeve 1 1 0 23 20103015 横轴右套筒 Sleeve 0 0 1 24 20122009 送布轴油封 Oil seal 1 1 1 25 20103019 送布轴左套筒 Sleeve 1 1 1 26 20103020 送布轴右套筒 Sleeve 1 1 1 27 20122008 油封 Oil seal 1 1 1 28 20703002 上轴左套筒 Sleeve 1 1 1 29 20703001 上轴右套筒 Sleeve 1 1 1 30 P03042 弹性圆柱销Φ5×22 Pin 1 1 1 31 20103023 上刀轴左套筒 Sleeve 1 1 1 32 20103024 上刀轴右套筒 Sleeve 1 1 1 33 20122003 油封 Oil seal 1 1 1 34 20113013 过线管 Pipe 2 2 2 35 201S11039 螺钉SM15/64"×28 Pipe 1 1 1 36 20722004 油塞 Oil seal 1 1 1 jintex.in
Page 9
L jintex.in
Page 10 — Cover Assemblies (1)
二、罩壳部件 (1) Cover Assemblies (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 302036 侧盖 Side Cover 4 4 4 2 207S17005 螺钉M4×10 Screw 4 4 4 3 201S11025 螺钉 Screw 4 4 4 4 20111005 油标盖 Oil sight window 1 1 1 5 20122018 油标盖垫 Oil level gauge washer 1 1 1 6 20113030 过线架 Thread guide supporter 1 1 1 7 206S11005 螺钉 Screw 2 2 2 8 302529 上盖 Upper cover 1 1 1 8 302529 上盖 Upper cover 1 1 1 9 20112103 接油斗 Oil guard 1 1 1 10 S01035 螺钉M4×7.5 Screw 3 3 3 11 20122202 上盖密封垫 Upper cover washer 1 1 1 12 20112020 前罩挡板簧 Front cover snap guard 1 1 1 13 201S11014 螺钉SM11/64"×40 Screw 1 1 1 14 20112091 机壳右盖板 Right Cover 1 1 1 15 20111054 皮带轮罩 Belt Cover Assembly 1 1 1 15 20111060 皮带轮罩(无字) Belt Cover Assembly 1 1 1 16 20112012 上弯针密封板 Upper looper sealing plate 1 1 1 17 201S11016 螺钉SM11/64"×40 Screw 1 1 1 18 201S11009 螺钉SM9/64"×40 Screw 4 4 4 19 20112017 前罩簧片 Front spring 1 1 1 20 301642 前罩 Front cover 1 1 1 21 20112100 前罩挡板 Front cover guard 1 0 0 21 20121001 前罩挡板 Front cover guard 0 1 1 22 20126003 前罩短销 Pin 1 1 1 23 201S15001 螺钉SM9/64"×40 Screw 3 3 3 24 20101007 前罩架 Front cover hinge 1 1 1 25 201S11038 螺钉SM9/64"×40 Screw 3 3 3 26 20122017 前罩架垫 Front cover hinge washer 1 1 1 27 H05002 卡簧 Snap spring 1 1 1 28 20127005 前罩弹簧销 Front cover hinge spring 1 1 1 29 20126004 前罩销 Hinge Pin 1 1 1 30 201S11018 螺钉SM11/64"×40 Screw 3 3 3 31 20122015 上弯针密封板垫 Upper looper sealing plate washer 1 1 1 32 S01010 螺钉M4×8 Screw 2 2 2 L jintex.in
Page 11
jintex.in
Page 12 — 三、罩壳部件 (2) Cover Assemblies (2)
三、罩壳部件 (2) Cover Assemblies (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 201S11016 螺钉 Screw 1 1 1 2 20101054 盖板 Cover 1 1 1 2 20101004 盖板(无字) Cover 1 1 1 3 20122024 挡板垫 Plate washer 1 1 1 4 20101019 挡板 Plate 1 1 1 5 201S12009 螺钉SM9/64"×40 Screw 2 2 2 6 206S20004 螺钉M4×3.7 Screw 1 1 1 7 20128015 波形垫圈 Washer 1 1 1 8 20112098 托架 Bracket 1 1 1 9 20711005 防护罩 Eye guide 1 1 1 9 20711019 防护罩 Eye guide 0 0 1 10 S01034 螺钉M3×5.7 Screw 2 2 2 11 W01011 垫片 Washer 2 2 2 12 201S17004 螺钉SM1/8"×44 Screw 2 2 2 13 20111003 挡油罩 Oil baffle cover 1 1 1 14 20128030 缝合盖扳手垫圈 Washer 1 1 1 15 20127004 扳手弹簧 Cloth Plate cover spring 1 1 1 16 20112011 缝合扳手 Cloth Plate slider cover 1 1 1 17 201S20003 扳手螺钉 Screw 1 1 1 18 20122011 胶套 Rubber bushing 1 1 1 19 201S30011 缝合盖防震螺钉 Screw 1 1 1 20 201S16003 螺母 Nut 1 1 1 21 20122012 防震垫 Rubber bushing 1 1 1 22 201S30007 螺钉SM9/64"×40 Screw 1 1 1 23 201S16001 螺母 Nut 1 1 1 24 20122002 垫板 Screw 1 1 1 25 20127003 缝合盖开启弹簧 Spring 1 1 1 26 20112009 大盖夹赞座 Pedestal 1 1 1 27 20122013 胶套 Rubber bushing 1 1 1 28 201S11037 螺钉SM9/64"×40 Screw 3 3 3 29 20128019 缝合罩壳螺钉垫片 Washer 3 3 3 30 20111206 缝合下罩壳 Cloth palte lower Plate 1 1 1 31 20112008 罩壳连接板 Casing connection plate 3 3 3 32 201S20010 螺钉M4×5 Screw 1 1 1 33 W02004 弹簧垫圈 Washer 1 1 1 34 201S14002 缝合偏心轴螺钉 Screw 1 1 1 35 20103001 缝合偏心套筒 Sleeve 1 1 1 36 20112006 缝合盖板 Bed cover plate 1 1 1 37 2011208100 缝合盖板组件 Cloth Plate 1 1 1 38 20112202 缝料挡板 Fabric Guide 1 1 1 39 S01002 螺钉M4×6.5 Screw 3 3 3 40 20112002 后窗板 Cover Plate 1 1 1 41 201S11016 螺钉SM11/64"×40 Screw 6 6 6 42 20122007 盖板垫 Cover Washer 1 1 1 5 jintex.in
Page 13
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in
Page 14 — 四、主轴部分 Main Shaft Assemblies
四、主轴部分 Main Shaft Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20102205 主轴 Main shaft 1 0 1 1 20102204 主轴(厚料) Main shaft 0 0 1 2 B03001 轴承 Bearing 2 2 2 3 20125001 油泵蜗杆 Oil Pump worm 1 1 1 4 20128002 主轴弹簧垫圈 Main shaft spring washer 1 1 1 5 20103002 主轴内挡套 Main shaft bysgubg asm 1 1 1 6 001003 0型圈16X1.8 Seal ring 1 1 1 7 20122019 滚针轴承制动垫 Washer 1 1 1 8 20101008 滚针轴承制动垫 Rear shaft spring cover 1 1 1 8 20101074 滚针轴承制动盖(D) Rear shaft spring cover 1 1 1 9 20111008 冷却风扇 Wheel 1 1 1 10 20101012 皮带轮方键 Key 1 1 1 11 300076 皮带轮 Pulley 1 1 1 12 20128024 垫圈 Washer 1 1 1 13 201S11034 螺钉 Screw 1 1 1 14 201S15004 螺钉 Screw 3 3 3 15 201S11016 螺钉 Screw 3 3 3 16 201S14002 螺钉 Screw 1 1 1 17 20124003 轴承 Bearing 1 1 1 18 20122046 轴承盖油封 Washer 1 1 1 19 201S11069 螺钉SM7/32"×32 Screw 1 1 0 20 20112106 三四线盖板 Cover 1 1 0 21 S01010 螺钉M4×8 Screw 3 3 0 22 20126024 凸轮轴 Bulgy pulley shaft 0 0 1 23 20112107 五线盖板 Cover 0 0 1 24 S02004 螺钉M4×8 Screw 0 0 1 25 S01010 螺钉M4×8 Screw 0 0 1 jintex.in
Page 15
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 jintex.in
Page 16 — 五、过线部件 (1) Thread Guide and Thread Takeup (1)
五、过线部件 (1) Thread Guide and Thread Takeup (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400662 夹线器组件(红) Tension Spring Assembly (Yellow) 1 1 1 2 400661 夹线器组件(黄) Tension Spring Assembly (Red) 1 1 1 3 400663 夹线器组件(蓝) Tension Spring Assembly (Blue) 1 1 1 4 400668 夹线器组件(绿) Tension Spring Assembly (Green) 1 1 1 5 20711034 调压螺母 Knob 3 4 4 6 30111006 调压止动套 Rachet 3 4 4 7 20127018 调压簧(强) Thread tension spring 2 2 2 8 30111005 调压止动盖 Cup 3 4 4 9 20112057 夹线片 Tension Disc 6 8 8 10 20623008 夹线片垫 Felt 3 4 4 11 201530016 夹线螺钉 Screw Stud 3 4 4 12 20113002 过线板 Thread guide 3 4 4 13 20127020 调压簧(弱) Thread tension spring 1 1 1 14 20127019 调压簧(中) Thread tension spring 1 1 1 15 20113016 下弯针过线 Lower looper thread guide 1 1 1 16 206S11002 螺钉SM9/64"×40 Screw 1 1 1 17 20113032 上弯针过线板 Thread guide 1 1 1 18 20113033 上弯针三孔过线 Lower looper3-thread guide 1 1 1 19 20113034 两眼过线板 Thread guide 1 1 1 20 201S11016 螺钉SM11/64"×40 Screw 1 1 1 21 20113035 上弯针过线 Upper looper thread guard 1 1 1 22 20128020 弯针过线垫圈 Thread guide washer 2 2 2 23 201S11006 螺钉SM1/8"×44 Thread guide screw 2 2 2 24 20112027 调线刻度板 Thread amount regulating plate 1 1 1 25 201S11014 螺钉SM11/64"×40 Screw 1 1 1 26 20113015 下弯针过线 Lower looper thread guide 1 1 1 27 201S11016 螺钉SM11/64"×40 Screw 1 1 1
Page 17 — Three-thread/Four-thread Series
Three-thread/Four-thread Series three-thread four-thread 1 2 3 4 three-thread four-thread 5 6 7 8 9 10 Three-thread Series 11 12 Four-thread Series 11 12 jintex.in
Page 18 — 六、过线部件 (2) Thread Guide and Thread Takeup (2)
六、过线部件 (2) Thread Guide and Thread Takeup (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20113208 过线 Thread Guide 1 0 0 1 20113207 过线 Thread Guide 0 1 0 2 207S11019 螺钉M4×7.5 Screw 1 1 0 3 20701010 托架 Bracket 1 1 0 4 207S11019 螺钉M4×7.5 Screw 1 1 0 5 S10007 螺钉M4×4 Screw 1 1 0 6 20713002 过线 Thread Guide 1 0 0 6 20713003 过线 Thread Guide 0 1 0 7 207S20003 螺钉 Screw 1 1 0 8 20727002 压簧 Spring 1 1 0 9 20713007 压线板 Thread Retainer 1 1 0 10 20713006 托架 Bracket 1 1 0 11 201S11009 螺钉SM9/64"×40 Screw 2 2 0 12 20113204 挑线杆 Thread Takeup 1 0 0 12 20113203 挑线杆 Thread Takeup 0 1 0 jintex.in
Page 19 — Five-thread Series
Five-thread Series 1 2 3 (35/55) (56) 4 5 (35/55) (56) 6 7 10 4 8 9 Five-thread (35/55) Series Five-thread (56) Series 6 元 jintex.in
Page 20 — 七、过线部件 (3) Thread Guide and Thread Takeup (3)
七、过线部件 (3) Thread Guide and Thread Takeup (3) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20701029 托架 Bracket 0 0 1 2 20713021 过线 Thread Guide 0 0 1 3 20713022 过线 Thread Guide 0 0 1 3 20713050 过线 (56) Thread Guide 0 0 1 4 S01031 螺钉M4×4.7 Screw 0 0 3 5 20713023 过线 Thread Guide 0 0 1 5 20713051 过线 (56) Thread Guide 0 0 1 6 20113205 挑线杆 Thread Takeup 0 0 1 6 20113206 挑线杆 (56) Thread Takeup 0 0 1 7 S10007 螺钉M4×4 Screw 0 0 2 8 20713020 过线 (56) Thread Guide 0 0 1 9 20701030 托架 (56) Bracket 0 0 1 10 207S11019 螺钉M4×7.5 Screw 0 0 2 元 jintex.in
Page 21
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 70 jintex.in
Page 22 — 八、针杆部件 (1) Needle Drive Mechanism (1)
八、针杆部件 (1) Needle Drive Mechanism (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S11023 螺钉M3×6 Screw 1 1 1 2 20708005 挡圈 Ring 1 1 1 3 20723003 毛毡 Oil Felt 1 1 1 4 207S14008 螺钉M4×5 Screw 1 1 1 5 001026 O型圈11.5×1.5 O Ring 1 1 1 6 20726003 曲柄销 Pin 1 1 1 7 20523005 油线 Oil wick 0.25 0.25 0.25 8 206030100 针杆曲柄组件 Lever 1 1 1 9 20702003 针杆 Needle Bar 1 1 1 10 20603030 针杆套 Bushing 1 1 1 11 20704002 针杆曲柄 Lever 1 1 1 12 207S12002 螺钉M6×0.75×12 Screw 1 1 1 13 20702002 上轴 Shaft 1 1 1 14 20104201 上轴曲柄 Crank 1 0 0 14 20104204 上轴曲柄(厚料) Crank 1 1 1 15 S05017 螺钉M6×0.75×13.5 Screw 0 1 1 16 20708004 上轴挡圈 Collar 1 1 1 17 S10007 螺钉M4×4 Screw 2 2 2 18 20628014 垫片 Washer 1 1 1 19 H05008 挡圈 Ring 1 1 1 20 20126025 曲柄销 Pin 1 1 1 21 S10008 螺钉M4×6 Screw 1 1 1 22 20105203 针杆连杆 Connection 1 1 1 23 201S20015 螺钉M4×16 Screw 2 2 2 jintex.in
Page 23 — Three-thread/Four-thread Series
Three-thread/Four-thread Series 1针(1-needle) 2 3 4 5 2针(2-needle) 4 5 Five-thread Series 2针(2-needle) 1 2 3 4 5 7 jintex.in
Page 24 — 九、针杆部件 (2) Needle Drive Mechanism (2)
九、针杆部件 (2) Needle Drive Mechanism (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 **** 针夹头 Needle Holder Assembly 0 1 0 1 **** 针夹头 Needle Holder Assembly 1 0 0 1 **** 针夹头 (35) Needle Holder Assembly 0 0 1 1 **** 针夹头 (55) Needle Holder Assembly 0 0 1 1 **** 针夹头 (56) Needle Holder Assembly 0 0 1 2 S10026 螺钉M3×3 Screw 2 2 2 3 **** 机针 (#11) Needle 0 2 0 3 **** 机针 (#9) Needle 1 0 0 3 **** 机针 (35) (#14) Needle 0 0 2 3 **** 机针 (35/56) (#19) Needle 0 0 2 4 20713018 过线 Thread Guide 0 1 0 4 20713038 过线 Thread Guide 1 0 0 4 20713017 过线 Thread Guide 0 0 1 5 207S11024 螺钉M2×3 Screw 1 1 1 jintex.in
Page 25
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Page 26 — 十、针杆部件 (3) Needle Drive Mechanism (3)
十、针杆部件 (3) Needle Drive Mechanism (3) 序号 NO. 公司件号 Part NO. 名称 Name 数量 (Number) three-thread three-thread 四线 four-thread five-thread five-thread 1 201S17005 螺钉SM11/64"×40 Throat screw 2 2 2 2 **** 针板 Needle plate 1 0 0 2 **** 针板(16S) Needle plate 1 0 0 2 **** 针板 Needle plate 0 1 0 2 **** 针板(35) Needle plate 0 0 1 2 **** 针板(55) Needle plate 0 0 1 2 **** 针板(56) Needle plate 0 0 1 3 201S11018 螺钉SM11/64"×40 Throat plate bracket screw 2 2 2 4 201S11008 螺钉SM11/64"×40 Front needle snap screw 1 1 1 5 **** 前护针档 Front needle guard 1 1 0 5 **** 前护针档 Front needle guard 0 0 1 6 20101016 针板座 Throat plate bracket 1 1 1 7 20122011 胶套 Rubber bushing 1 1 1 8 20101017 护针档座 Needle guard bracket 1 1 0 8 20101018 护针档座 Needle guard bracket 0 0 1 9 201S11022 螺钉 screw 2 2 2 10 **** 护针II Needle guard II 0 0 1 11 201S11003 螺钉 screw 0 0 2 12 **** 护针I Needle guard I 0 0 1 13 201S11003 螺钉SM3/32"×56 screw 0 0 1 14 201S12009 螺钉SM9/64"×40 screw 1 1 1 15 **** 护针档 Teat needle guard 1 1 1
Page 27
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 jintex.in
Page 28 — 十一、上弯针部分 Upper Looper Assemblies
十一、上弯针部分 Upper Looper Assemblies 序号 NO. 公司件号 Part NO. 名称 数量 (Number) Description 三线 three-thread 四线 four-thread 五线 five-thread 1 201S12005 螺钉SM11/64"×40 Upper looper shaft screw 1 1 1 2 20128007 大垫圈 Big washer 1 1 1 3 20102006 上弯针轴 Upper looper shaft 1 1 1 4 20128005 厚垫圈 Thickness washer 1 1 1 5 201S13003 螺钉SM15/64"×28 Screw 3 3 3 6 400337 上弯针摆动曲柄 Upper looper crank bearing 1 1 1 6 400457 上弯针摆动曲柄 Upper looper crank bearing 0 1 1 7 400017 弯针连杆 Looper link 1 1 1 8 201S20015 连杆螺钉 Shaft screw 4 4 4 9 20126010 弯针连杆摆架 Looper link holder 1 1 1 10 201S11035 螺钉SM1/8"×44 Screw 1 1 1 11 20104004 上弯针曲柄轴 Upper looper shaft crank 1 1 1 12 201S12007 螺钉SM1/64"×28 Screw 1 1 1 13 20128021 垫圈 Washer 1 1 1 14 20126011 摇杆销 Connecting rod shaft pin 1 1 1 15 20123021 油线 Oil wick 1 1 1 16 2010121000 上弯针滑曲柄组件 Upper looper slide crank component 1 1 1 17 201S11007 螺钉SM9/64"×40 Screw 1 1 1 18 20112023 摇杆垫片 Washer 1 1 1 19 S10005 上弯针曲柄顶丝M3×3 Link pin set screw 1 1 1 20 20123009 油毡 Oil felt 1 1 1 21 **** 上弯针 Looper 1 1 1 21 **** 上弯针 Looper 1 1 1 22 201S17006 螺钉SM1/8"×44 Screw 1 1 1 23 20112026 导架座挡板 Thread holder snap plate 1 1 1 24 201S11005 螺钉SM1/8"×44 Screw 1 1 1 25 20122026 油封垫 Oil wick 1 1 1 26 20101206 上弯针轴导架座 Upper looper shaft slide bar bracket 1 1 1 27 20109001 上弯针轴导块 Upper looper slide block 1 1 1 28 20104005 上弯针摇杆 Upper looper shaft bar 1 1 1 jintex.in
Page 29
three/four-thread 5 6 1 2 3 10 7 8 11 12 13 15 five-thread 16 17 14 fl jintex.in
Page 30 — 十二、下弯针部分 Lower Looper Assemblies
十二、下弯针部分 Lower Looper Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 201S12005 下弯针轴螺钉 Lower looper shaft screw 1 1 1 2 20128007 下弯针轴垫圈 Lower looper shaft washer 1 1 1 3 20102007 下弯针轴 Lower looper shaft 1 1 0 3 20102008 下弯针轴 Lower looper shaft 0 0 1 4 20128009 厚垫圈 Washer 1 1 1 5 400223 下弯针摆动曲柄 Lower looper crank 1 1 0 6 201S13003 螺钉SM15/64"×28 Screw 1 1 1 7 400017 弯针连杆 Looper link 1 1 1 8 201S20015 连杆螺钉 Shaft screw 3 4 4 9 20126010 弯针连杆架架 Looper link holder 1 1 1 10 201S11035 螺钉SM1/8"×44 Screw 1 1 1 11 201S12007 螺钉SM15/64"×28 Screw 1 1 1 12 20128021 下弯针架垫圈 Lower looper holder washer 2 2 2 13 20104008 下弯针架 Lower looper holder 1 1 0 13 20104025 下弯针架 Lower looper holder 0 0 1 14 **** 下弯针 Lower looper 0 0 1 14 **** 下弯针 Lower looper 0 0 1 15 20104010 下弯针摆动曲柄 Lower looper crank 0 0 1 16 201S11007 螺钉SM9/64"×40 Screw 0 0 2 17 301S20013 螺钉SM1/4"×40 Screw 2 2 2
Page 31
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 70 jintex.in
Page 32 — 十三、前弯针部分 Front Looper Assemblies
十三、前弯针部分 Front Looper Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 201S12002 前弯针曲柄螺钉 Front looper crank screw 0 0 1 2 20108001 挡圈 Snap ring 0 0 1 3 20109002 前弯针滑块 Front looper slide block 0 0 1 4 20104013 驱动曲柄 Driving crank 0 0 1 5 20101021 驱动座 Driving lever 0 0 1 6 201S14002 螺钉 Driving lever set screw 0 0 1 7 20129003 卡簧 Snap ring 0 0 3 8 201S30009 驱动曲柄螺钉 Driving lever set screw 0 0 1 9 20102010 横轴 Horizontal shaft 0 0 1 10 201S16002 曲柄调节螺母 Nut 0 0 1 11 20104014 横轴曲柄 Horizontal shaft crank 0 0 1 12 20126014 曲柄销 Pin 0 0 1 13 2010402300 曲柄连杆凸轮组件 Shaft link crank 0 0 1 14 20105003 横轴连杆 Horizontal shaft link 0 0 1 15 20124002 连杆滚针轴承 Needle bearing 0 0 1 16 20112028 轴承挡圈 Snap ring 0 0 1 17 201S17001 螺钉SM13/32"×56 Screw 0 0 2 18 20102009 前弯针轴 Front looper shaft 0 0 1 19 20609017 连接板 Regulating plate 0 0 1 20 20126013 调节板销 Regulating plate pin 0 0 2 21 *** 前弯针 Front looper 0 0 1 22 20128014 前弯针调节垫片 Washer 0 0 1 23 201S11008 螺钉SM9/64"×40 Screw 0 0 1 24 201S11003 螺钉SM13/32"×56 Screw 0 0 1 25 201S12007 螺钉SM15/64"×28 Screw 0 0 1 26 20128021 下弯针垫圈 Washer 0 0 1 27 20104011 前弯针架 Front looper shaft holder 0 0 1 28 20126022 前弯针曲柄销 Pin 0 0 1 29 20123021 油线 Oil felt 0 0 1 30 201S12005 螺钉 Screw 0 0 1 31 201S13003 螺钉SM15/64"×28 Screw 0 0 1 32 20104012 前弯针曲柄 Front looper crank 0 0 1 jintex.in
Page 33
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 jintex.in
Page 34 — 十四、打线凸轮部分 Cam Assemblies
十四、打线凸轮部分 Cam Assemblies 序号 NO. 公司件号 Part NO. 名称 Name 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20613015 过线管 Thread guide pipe 0 0 1 2 S01010 螺钉M4×8 Screw 0 0 1 3 20113026 过线管 Thread pipe 0 0 1 4 20113025 导线管套 Thread pipe cover 0 0 2 5 20112031 过线板压板 Bracket 0 0 2 6 2061205700 打线凸轮架组件 Bracket assemblies 0 0 1 7 S01022 螺钉M3×4 Screw 0 0 1 8 20613017 凸轮架过线 Thread guide 0 0 1 9 20612058 打线凸轮架 Bracket 0 0 1 10 206S30015 螺钉M3×2 Screw 0 0 1 11 20612055 小夹线片 Tension disc 0 0 2 12 30127016 夹线簧 Spring 0 0 1 13 206S10004 夹线螺母 Nut 0 0 1 14 S01031 螺钉M4×4.7 Screw 0 0 1 15 20113023 二眼过线板 Thread guide 0 0 1 16 20612056 分线板 Thread guide 0 0 1 17 201S11014 螺钉SM1/4"×40 Screw 0 0 1 18 206S20004 螺钉M4×3.7 Screw 0 0 1 19 20128015 波形垫圈 Flat spring 0 0 1 20 201S14001 打线凸轮顶丝SM1/8"×44 Cam set Screw 0 0 2 21 2011301800 打线凸轮组件 Looper thread take-up cam 0 0 1 22 20629005 卡簧 Flat spring 0 0 1 23 20629004 打线架卡簧 Thread guide 0 0 1 24 S01022 螺钉M3×4 Screw 0 0 1 25 20629003 过线管夹 Bracket 0 0 1 26 20611010 导线管套 Thread guide pipe bushing 0 0 2 jintex.in
Page 35
jinttex.in
Page 36 — 十五、差动送布部件 (1) Different Feed Assemblies (1)
十五、差动送布部件 (1) Different Feed Assemblies (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2010500900 送布组件 Stitch length regulation cam asm 4 4 4 2 201S14002 送布凸轮调节螺钉 Screw 1 1 1 3 20109005 针距调节滑块 Stitch length regulating block 1 1 1 4 20105004 送布连杆 Feed link 1 1 1 5 20110003 送布凸轮 Feed length cam 1 1 1 6 20112035 送布凸轮弹簧 Feed cam spring 1 1 1 7 B07007 滚轴轴承 Feed rod rolling pin bearing 1 1 1 8 20110002 针距凸轮 Stitch length cam 1 1 1 9 20127009 针距调节滑块压簧 Stitch length regulating block spring 2 2 2 10 20125002 内齿圈 Annular gear coil 1 1 1 11 20101022 内齿圈座 Annular gear coil chassis 1 1 1 12 400439 送布凸轮组组件 Feed bam pack 1 1 0 13 20110004 送布凸轮座 Feed bam 1 1 0 14 201S14002 送布凸轮调节螺钉 Screw 2 2 0 15 P01004 送布凸轮座销 Feed cam pin 1 1 0 16 201S12005 针距调节压板螺钉 Screw 1 1 1 17 20112034 针距调节压板 Stitch length regulating plate 1 1 1 18 20127008 针距调节器簧 Spring 1 1 1 19 001016 O型圈 O Ring 1 1 1 20 20102011 送布调节器杆 Stitch length regulating shaft 1 1 1 21 201S20008 差动连杆螺钉 Screw 1 1 1 22 20105005 差动连杆 Differential link 1 1 1 23 20104016 差动曲柄 Differential crank 1 1 1 24 201S13003 差动曲柄螺钉SM15/64" × 28 Screw 1 1 1 25 20108005 挡圈 Snap ring 1 1 1 26 201S12002 挡圈螺钉 Screw 1 1 1 27 20127010 弹簧 Spring 1 1 1 28 20103017 差动轴套筒 Differential shaft bearing 1 1 1 29 20122029 油封 Oil seal 1 1 1 30 20102012 差动轴 Differential shaft 1 1 1 31 20122038 差动轴密封圈 Differential shaft seal 1 1 1 32 20112037 差动调节杆 Differential regulating link 1 1 1 33 W01006 垫圈 Washer 2 2 2 34 20128034 垫圈 Washer 1 1 1 35 20127011 卡簧 Regulating screw spring 1 1 1 36 201S11018 差动调节架螺钉 Screw 1 1 1 37 201S11016 差动调节杆螺钉 Screw 2 2 2 38 20628009 垫圈 Washer 1 1 1 39 201S16008 调节螺母 Washer 1 1 1 40 201S30005 差动调节螺钉 Screw 1 1 1 41 20128027 垫圈 Washer 1 1 1 42 20109005 调节滑块 Regulating block 1 1 1 43 20112036 差动调节架 Differential regulation holder 1 1 1 44 201S11005 卡簧螺钉SM17/8" × 44 Screw 1 1 1 45 201S30013 调节螺钉SM15/64" × 28 Screw 1 0 1 46 201S30022 调节螺钉SM15/64" × 28 Screw 0 1 1 47 20137004 旋向标牌 Mard plate 1 1 1 jintex.in
Page 37
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 E jintex.in
Page 39
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 three/four-thread 20 five-thread 21 22 23 24 25 26 27 EL jintex.in
Page 40 — 十七、剪切部件 Knife Drive Mechanism
十七、剪切部件 Knife Drive Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20105202 上刀连杆 Connection 1 1 1 2 201S20015 螺钉M4×16 Screw 2 2 2 3 20122021 油封 Oil seal 1 1 1 4 20126026 上刀曲柄销 Pin 1 1 1 5 20104202 上刀曲柄 Upper knife crank 1 1 0 5 20104203 上刀曲柄 Upper knife crank 0 0 1 6 201S12006 螺钉 Screw 1 1 1 7 S10003 螺钉M6×0.75×5 Screw 2 2 2 8 20108007 挡圈 Collar 2 2 2 9 S05017 螺钉M6×0.75×13.5 Screw 1 1 1 10 201S11022 螺钉M3.5×7.5 Screw 2 2 2 11 20101024 上刀座 Upper Knife Clamp 1 1 0 11 20101025 上刀座 Upper Knife Clamp 0 0 1 11 20101053 上刀座 Upper Knife Clamp 0 0 1 12 *** 上刀 Upper Knife 1 1 1 12 *** 上刀(厚料) Upper Knife 1 1 1 13 201S12001 螺钉SM9/64"×40 Screw 1 1 1 14 20128020 垫片 Washer 1 1 1 15 20126016 销 Pin 1 1 1 16 20102017 上刀架轴 Upper knife feame rock shaft 1 1 1 17 201S12005 螺钉 Screw 1 1 1 18 20101026 下刀压板 Lower knife holder lock plate 0 0 1 19 *** 下刀 Lower knife 1 1 1 19 *** 下刀(厚料) Lower knife 0 0 1 20 20102018 下刀架 Lower Knife Holder 1 1 1 20 20102019 下刀架(5线) Lower Knife Holder 0 0 1 21 20127012 弹簧 Spring 1 1 1 22 20112040 下刀架挡板 Screw 1 1 1 23 201S11018 螺钉SM11/64"×40 Screw 1 1 1 24 201S16001 螺母 Nut 1 1 1 25 W01006 垫片 Washer 1 1 1 26 20103025 套筒 Bushing 1 1 1 27 201S11015 螺钉SM11/64"×40 Screw 1 1 1 jintex.in
Page 41
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 88 jintex.in
Page 42 — 十八、抬压脚部件 Presser Foot Mechanism
十八、抬压脚部件 Presser Foot Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20126018 压脚柄勾 Hook 1 1 1 2 20112041 抬压脚柄 Presser foot lifting lever 1 1 1 3 S01010 螺钉M4×8 Screw 2 2 2 4 20112104 角板 Stopper 1 1 1 5 201S11016 螺钉 Screw 2 2 2 6 N01004 螺母 Nut 1 1 1 7 20626016 压脚臂连杆销 Pin 1 1 1 8 S10011 连杆销紧定螺钉M4×4 Screw 1 1 1 9 20102035 压脚轴 Shaft 1 1 1 10 20127031 抬压脚柄簧 Spring 1 1 1 11 S10002 螺钉M5×5 Screw 1 1 1 12 20103036 压脚轴套筒 Bushing 1 1 1 13 20627009 小杠杆弹簧 Spring 1 1 1 14 201S20004 螺钉SM15/64″×28 Screw 1 1 1 15 20612030 小杠杆 Shaft 1 1 1 16 S05017 螺钉M6×0.75×13.5 Screw 1 1 1 17 20608004 抬压复位圈 Collar 1 1 1 18 20101202 压脚臂 Presser arm 1 1 1 19 20119003 割刀 Chain cutter 1 1 1 20 207S11020 螺钉M3×4 Screw 1 1 1 21 *** 压脚组件 Presser foot assy 1 0 0 21 *** 压脚组件 Presser foot assy 0 1 0 21 *** 压脚组件(35) Presser foot assy 0 0 1 21 *** 压脚组件(55) Presser foot assy 0 0 1 21 *** 压脚组件(56) Presser foot assy 0 0 1 21 *** 压脚组件(16S) Presser foot assy 1 0 0 22 207S11020 螺钉M3×4 Screw 1 1 1 23 20612083 压脚限位板 Stopper 1 1 1 24 207S11009 螺钉M3×4.5 Screw 1 1 1 25 20712026 压脚护手 Lever 1 1 1 26 20127032 压杆弹簧 Spring 1 1 1 27 20612034 压杆扳手 Lever 1 1 1 28 206S30017 扳手螺钉M4×5.2 Screw 1 1 1 29 20627010 压杆扳手扭簧 Spring 1 1 1 30 S01002 螺钉 Screw 1 1 1 31 20612090 扳手限位板 Stopper 1 1 1 32 P03006 销4.5×18 Screw 1 1 1 33 207S11007 螺钉M4×7.5 Screw 1 1 1 34 20103202 压杆 Lever 1 1 1 35 207S16003 压杆螺母 Nut 1 1 1 36 20702014 压杆螺柱 Screw 1 1 1 jintex.in
Page 44 — 十九、供油部件 (1) Lubrication Assemblies (1)
十九、供油部件 (1) Lubrication Assemblies (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20320001 油泵 Oil pump 1 1 1 2 203s20002 螺钉SM3/16" × 32 Screw SM3/16×32 2 2 2 3 20320011 油泵涡轮 Pump turbine 1 1 1 4 20320017 油泵体 Pump body 1 1 1 5 20320012 油泵主轴 Pump spindle 1 1 1 6 20320021 油泵叶轮套 Pump impeller sleeve 1 1 1 7 20320014 油泵垫板 Pump plate 1 1 1 8 20320018 滤油网 Oil strainer 1 1 1 9 20320016 油泵盖板 Oil pump cover 1 1 1 10 207S11017 螺钉M3×8 Screw M3×8 3 3 3 11 20121001 针杆回油管 Needle bar return pipe 1 1 1 12 20121004 上喷油管 Upper screem 1 1 1 13 20321003 下配油器 Lower screem 1 1 1 14 203S30004 过油螺钉SM11/64" × 40 Screw SM11/64×40 1 1 1 15 20301006 润滑套 Lubrcate bushing 1 1 1 16 20101207 滤油器盖 Oil screen cover 1 1 1 17 201S11019 螺钉SM11/64" × 40 Screw SM11/64×40 3 3 3 18 20322004 密封圈 Seal ring 1 1 1 19 20136001 滤油器 Oil clearer 1 1 1 20 201S30030 滤油器接头 Oil cljerner joint 1 1 1 21 20122038 O型圈 O ring 1 1 1 22 20136007 油管接头 Oil tube joint 3 3 3 23 20122033 垫片(红) Washer (red) 6 6 6 24 203S30003 螺钉SM1/4" × 40 Screw SM1/4×40 1 1 1 25 30129003 油管卡簧 Oil tube shape ring 1 1 1 26 201S11025 螺钉SM11/64" × 40 Screw SM11/64×40 3 3 3 27 30121022 接油管 Tubing 1 1 1 28 301S30013 螺钉SM1/4" × 40 Screw SM1/4×40 2 2 2 jintex.in
Page 45
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 TF jintex.in
Page 46 — 二十、供油部件 (2) Lubrication Assemblies (2)
二十、供油部件 (2) Lubrication Assemblies (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 S10007 螺钉M4×4 Screw M4x4 1 1 1 2 20621010 过油管 Through tubing 1 1 1 3 ### 别针 Pin 1 1 1 4 20723011 油毡 Oil Felt 1 1 1 5 2071203800 吸油嘴组件 Joint 1 1 1 6 20622010 0型圈 O ring 1 1 1 7 20112050 油盘磁铁盖 Oil pan magnet cover 1 1 1 8 105S11019 螺钉SM11/64”×40 Screw SM11/64x40 1 1 1 9 20131083 油盘磁铁 Oil pan magnet 2 2 2 10 20122048 油盘垫 Oil pan washer 1 1 1 11 207S11011 吸油嘴螺钉M4×5 Screw M4x5 1 1 1 12 20123021 油线 Oil wick 0.02 0.02 0.02 13 20626007 上弯针滑过油器 Pin 1 1 1 14 S10007 螺钉M4×4 Screw M4x4 1 1 1 15 20128023 油盘螺钉垫片 Washer 4 4 4 16 201S13002 油盘螺钉SM15/64”×28 Screw SM15/64x28 4 4 4 17 201S11031 放油螺钉SM3/8”×28 Screw SM3/8x28 1 1 1 18 20122036 堵油橡胶垫 Washer 1 1 1 19 20101035 油盘 Oil reservoir 1 1 1 正 jintex.in
Page 47
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 VII jintex.in
Page 48 — 二十一、HR部件 H.R.Assemblies
二十一、HR部件 H.R.Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 四线 五线 three-thread four-thread five-thread 1 S01010 螺钉M4×8 Screw M4×8 1 1 1 2 20712040 过线架 Thread guide 1 1 0 2 20713019 过线架 Thread guide 0 0 1 3 20711015 上硅油盒盖 Cover 1 1 1 4 20111205 硅油盒 Oil reservoir 1 1 1 5 20723008 油毡 Felt 1 1 1 6 20112105 挡油板 Coner 1 1 1 7 201S11018 螺钉SM11/64”×40 Screw SM11/64×40 2 2 2 8 20101037 机针冷却器 Needle cooler 1 1 0 9 20123014 油棉 Oil felt 1 1 0 10 ### 别针 Pin 1 1 1 11 20129002 卡簧 Shape ring 2 2 2 12 30121021 油管 Clamp 1 1 1 13 20123017 硅油棉块 Oil felt block 1 1 1 14 20111011 下硅油盒盖 Lower oil box cover 1 1 1 15 20111012 硅油盒 Oil box 1 1 1 16 201S11018 螺钉SM11/64”×40 Screw SM11/64×40 1 1 1 17 20123021 油线 Oil wick 1 1 1 18 20123012 滚珠 Plug 1 1 1 19 20101038 机针冷却器 Needle cooler 0 0 1 20 20123015 油棉 Oil felt 0 0 1
Page 49
3 10 8 2 1 4 6 5 9 표 jintex.in
Page 50 — 二十二、直驱部件 Direct Drive Assemblies
二十二、直驱部件 Direct Drive Assemblies 序号 NO. 公司件号 Part NO. 名称 Name 数量 (Number) Description 三线 three-thread 四线 four-thread 五线 five-thread 1 S01010 螺钉M4×8 Screw M4×8 1 1 1 2 20612062 油管螺钉垫片 Washer 1 1 1 3 2013001000 包塑线LED灯组件(配双显电控) LED lamp 1 1 1 4 20711210 R型线夹3.3 Clamp 3 3 3 5 20111059 皮带轮罩 Cover 1 1 1 5 20111060 皮带轮罩(无字) Cover 1 1 1 6 2033300200 直驱电机 Direct drive moter 1 1 1 7 201511034 螺钉SM15/64″×28 Screw SM15/64″×28 1 1 1 8 20711207 绕管 Tie 0.85 0.85 0.85 9 S01083 螺钉M6×20 Screw M4×8 3 3 3 10 301S11009 螺钉 Screw 3 3 3 Π jintex.in
Page 51
VII jintex.in
Page 52 — 二十三、倒回缝部件 Back Latch Components
二十三、倒回缝部件 Back Latch Components 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 201S14002 螺钉 Screw 1 1 0 2 20103029 钢丝接套 Collar 1 1 0 3 20112058 支架 Bracket 1 1 0 4 201S30018 接头螺钉 Screw 2 2 0 5 20112059 天线 Sleeve 1 1 0 6 20112207 过线板 Thread guide plate 1 1 0 7 20112208 松线推板 Thread tension plate 1 1 0 8 201S16003 螺母 Nut 1 1 0 9 20112209 前支架 Frong frame 1 1 0 10 20112063 松线杠杆 Thread tension releasing lever 1 1 0 11 201S20012 螺钉 Screw 1 1 0 12 20127021 松线扭簧 Spring 1 1 0 13 201S20013 螺钉 Screw 1 1 0 14 201S4003 螺钉 Screw 2 2 0 15 201S20014 螺钉 Screw 1 1 0 16 20101039 钢丝接头 Connector 1 1 0 17 205S30007 压线板螺钉 Pressure line plate screw 1 1 0 18 20113209 压线板 Pressure line plate 1 1 0 19 S02007 螺钉 Screw 1 1 0 20 20112210 刀片定位板 Cutter location positioning plate 1 1 0 21 205S30008 压力板螺钉 Pressure plate screw 1 1 0 22 20519002 刀子 Knife 1 1 0 23 20512003 压力板 Pressure plate 1 1 0 24 20109102 刀架 Knife rack 1 1 0 25 20527003 弹簧 Spring 1 1 0 26 301S16007 夹线螺母 Clamp nut 1 1 0 27 20116004 压脚 Presser foot form 1 0 0 28 20116005 压脚 Presser foot form 0 1 0 28 *** 针板 Needle plate 0 1 0 28 *** 针板 Needle plate 0 1 0 29 20109025 针板垫块 Bracket 1 1 0 30 *** 牙齿 Feed form 1 1 0 31 20102040 下刀架 Lower knife holder 1 1 0 32 20109103 护针挡座 Needle guard bracket 1 1 0 33 2011209000 缝台盖组件 Cloth plate 1 1 0 jintex.in
Page 53
jinttex.in
Page 54 — 二十四、800E专用部件 800E Specific Parts
二十四、800E专用部件 800E Specific Parts 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20130020 操作面板组件 Panel assembly 1 1 1 2 20112099 操作面板支架 Panel holder 1 1 1 3 206S11021 螺钉M4×10 Screw M4×10 4 4 4 4 S05232 螺钉M6×12 Screw M6×12 2 2 2 5 20630027 转接盒 Interconnecting device 1 1 1 6 206S11022 螺钉M3×8 Screw M3×8 4 4 4 7 S01031 螺钉M4×4.7 Screw M4×4.7 4 4 4 8 2063002000 剪线电磁铁组件 Solenoid 1 1 1 9 S05010 螺钉M4×12 Screw M4×9 1 1 1 10 S05019 螺钉M6×16.3 Screw M6×16.3 1 1 1 11 20726001 销子 Pin 1 1 1 12 2011900800 自动剪线组件 Cutter assembly 1 1 1 13 201S11019 螺钉M4 Screw M4 2 2 2 14 20104100 切刀曲柄 Crank 1 1 1 15 20101302 切刀支撑座 Bracket 1 1 1 16 S05232 螺钉M6×12 Screw M6×12 2 2 2 17 20630023 后发射器 Back emission 1 1 1 18 S01027 螺钉M3 Screw M3 2 2 2 19 20630024 后接收器 Back sensor 1 1 1 20 S02007 螺钉M3×5 Screw M3×5 2 2 2 21 S01003 螺钉M4×12 Screw M4×12 2 2 2 22 2011106600 剪线开关感应器组件 Trimmer switch sensor 1 1 1 23 20711202 防护罩 Eye guide 1 1 1 24 W01011 垫片 Washer 2 2 2 25 S01034 螺钉M3×5.7 Screw M3×5.7 2 2 2 26 20612107 压脚开关支架 Bracket 1 1 1 27 S01031 螺钉M4×4.7 Screw M4×4.7 1 1 1 28 S01002 螺钉M4×6.5 Screw M4×6.5 4 4 4 29 20630025 压脚安全开关 Presser foot safety switch 1 1 1 30 30130017 磁铁 Magnetic iron 2 2 2 31 20701203 磁铁固定块 Bracket 1 1 1 32 30228009 垫片 Washer 1 1 1 33 207S11007 螺钉M4×7.5 Screw M4×7.5 1 1 1 34 S01006 螺钉M3×4.5 Screw M3×4.5 1 1 1 35 20612108 切刀挡板 Bracket 1 1 1 36 20101055 盖板 Cover plate 1 1 1 37 20130026 缝台安全开关 Cloth plate safety switch 1 1 1 38 20130021 前接收器 Front sensor 1 1 1 39 20130022 中接收器 Middle sensor 1 1 1 40 2011208700 缝台盖板组件 Cloth plate assembly 1 1 1 41 201S11043 螺钉M4×4.5 Screw M4×4.5 1 1 1 42 S02007 螺钉M3×5 Screw M3×5 2 2 2 43 20109024 针板垫块(后) Bracket 1 1 1 44 20109023 针板垫块 Bracket 1 1 1 45 20112204 扳手 Cloth Plate slider cover 1 1 1 jintex.in
Page 55
1 2 3 4 5 6 7 8 9 10 11 12 13 jintex.in
Page 56 — 二十五、托盘、排料部件 Plate Row Material Assemblies
二十五、托盘、排料部件 Plate Row Material Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) three-thread three-thread four-thread four-thread five-thread five-thread 1 20131025 机架托盘 Machine head plate 1 1 1 2 20131026 减震垫组件 Head shockproof cushion 3 3 3 3 20131028 托盘螺钉固定头 Screw 4 4 4 4 20131057 托盘防震垫 Washer 1 1 1 5 20131030 防震套 Plate dog link bushing 4 4 4 6 20131029 大垫圈 Big washer 12 12 12 7 20131027 螺钉M8x55 Screw 4 4 4 8 20131034 螺钉 Screw 7 7 7 9 20131031 排料槽座 Row material troligh bracket 1 1 1 10 20128022 垫圈 Washer 1 1 1 11 20131032 排料槽I Row material trough I 1 1 1 12 20131033 排料槽II Row material trough II 1 1 1 13 20131094 落料斗组件 Row material component 1 1 1 jintex.in
Page 57
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 jintex.in
Page 58 — Thread Spool Assemblies
二十六、线架部件 Thread Spool Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20631018 过线棒 Thread guide 1 1 1 2 30113019 过线棒 Thread guide 0 0 1 3 20131019 棒冒 Rod Cap 1 1 1 4 20131001 上管 Upper thread column 1 1 1 5 201S16006 导线环螺母 Thread guide hook nut 4 4 4 6 20131016 导线架 Thread spool tray bracket 1 1 1 7 20131018 导线环 Thread guide hook 3 4 5 8 20131021 棒架螺钉 Screw 2 2 2 9 20131009 棒架 Clamp plate 1 1 1 10 201S16004 螺母 Nut 4 4 4 11 20131022 棒架螺钉 Screw 2 2 2 12 201S16004 螺母 Nut 4 4 4 13 20131005 导线环 Thread guide hook 4 4 4 14 20131020 导线环螺钉 Screw 4 4 4 15 20131015 导线架 Thread spool tray bracket 1 1 1 16 20131011 导线棒 Thread guide bar 1 1 1 17 20631019 过线棒 Thread guide 0 1 0 18 20131012 固定器 Thread guide joint 1 1 1 19 S04050 螺钉M5×15 Screw 1 1 1 20 20131003 套 Bushing 1 1 1 21 N01030 套螺母 Nut 2 2 2 22 20131008 线圈定位套 Spool Cushion 1 1 1 23 20131006 线托盘 Spool pin 3 4 5 24 20131010 线盘垫 Spool tray cushing 3 4 5 25 20131007 线盘 Spool tray 3 4 5 26 20131004 托线架 Thread spool tray bracket 1 1 1 27 201S16004 螺母 Nut 3 4 5 28 20128018 垫圈 Washer 3 4 5 29 20131002 下管 Lower thread column 1 1 1 30 201S16005 螺母 Nut 1 1 1 31 20128025 下管垫圈 Lower washer 2 2 2 32 20131017 托线架 Thread spool tray bracket 1 1 1 33 20122049 防震垫 Plate dog link washer 2 2 2 34 20131090 线架组件 Thread stand component 1 0 0 34 20131091 线架组件 Thread stand component 0 1 0 34 20131074 线架组件 Thread stand component 0 0 1
Page 59
6 7 8 25 10 11 12 13 14 15 2 3 4 5 20 D 21 16 17 18 19 22 24 23 jintex.in
Page 60 — 二十七、随机附件 Accessories Assemblies
二十七、随机附件 Accessories Assemblies 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 10131002 螺丝刀(大) screw driver (L) 1 1 1 2 10131003 螺丝刀(中) screwdriver (M) 1 1 1 3 10131004 螺丝刀(小) Screwdriver (S) 1 1 1 4 20131044 直柄内六角螺丝刀(1.5mm) Hexagonal wrench/1.5mm 1 1 1 5 20131045 直柄内六角螺丝刀(1.6mm) Hexagonal wrench/1.6mm 1 1 1 6 20131037 油壶 Oil container 1 1 1 7 20131038 小油壶(尖嘴) Oil container 1 1 1 8 20131039 漏斗 Tundish 1 1 1 9 20131051 镊子 Tweezers 1 1 1 10 20131043 扳手(8mm) Wrench/8mm 1 1 1 11 20131042 扳手(7mm) Wrench/7mm 1 1 1 12 20131041 扳手(6mm) Wrench/6mm 1 1 1 13 20131046 内六角扳手(2mm) Hexagonal wrench/2mm 1 1 1 14 20131056 内六角扳手(6mm) Hexagonal wrench/6mm 1 1 1 15 30131026 内六角扳手(8mm) Hexagonal wrench/8mm 1 1 1 16 20131054 脚踏板链 Chain 1 1 1 17 S10005 螺钉 Screw 4 4 4 18 *** 机针 Needle 4 4 4 19 20136001 滤油器 Filter element 1 1 1 20 2033000200 直驱专用部件 DI Special Parts 1 1 1 20 20130033 直驱专用部件(无字) DI Special Parts 1 1 1 20 20130039 直驱专用部件(E) DI Special Parts 1 1 1 21 20131052 线勾 Needle threader 1 1 1 22 10131005 机头罩 Machine head cover 1 1 1 23 20131055 附件盒 Attachment box 1 1 1 24 20131062 塑料机头袋 Plastic machine head bag 1 1 1 25 20131040 油壶/50cc Oil can/50cc 1 1 1 jintex.in
Page 61 — 800 SERIES GAUGE PARTS LIST
800系列标准零件度量表 800 SERIES GAUGE PARTS LIST 间距 针板 牙齿组件 压脚组件 上弯针 下弯针 链线弯针 MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASS PRESSER FOOT ASS UPPER LOOPER LOWER LOOPER CHAINSTITCH LOOPER NG SW 803-M1-15 0 1.5 20115006 2011401800 2071601000 20117025 20117008 803-M2-04 0 4 20115001 2011401700 2071600500 20117025 20117008 803-M5-04BK 0 4 20115004 2011402100 20116004 20117025 20117008 804-M5-23BK 2 3 20115005 2011402100 20116005 20117007 20117008 804-M2-24 2 4 20115002 2011401700 2101600300 20117007 20117008 805-M2-35 3 5 20115003 2011401900 2071600600 20117025 20117009 20117010 805-M2-55 5 5 20115008 2011401900 2071601500 20117025 20117009 20117010 805x2-56 5 6 20115007 2011402000 2061604000 20117025 20117009 20117010 803E-M2-04 0 4 20115026 2011402300 2071608600 20117007 20117008 804E-M2-24 2 4 20115025 2011402300 2071609400 20117007 20117008 805E-M2-35 3 5 20115027 2011403600 2071600600 20117025 20117009 20117010 805E-M2-55 5 5 20115028 2011403600 2071601500 20117025 20117009 20117010 805Ex2-56 5 6 20115029 2011403900 2061604000 20117025 20117009 20117010 jintex.in
Page 62
型号 MACHINE TYPE /SPEC 上刀 UPPER KINIFE 下刀 LOWER KINIFE 护针 FRONT 护针 REAR CHAINSTITCH NEEDLE FRONT REAR NEEDLE HOLDER NEEDLE 803-M1-15 20119001 20119002 20117003 20117002 20634022 DC×27#9 803-M2-04 20119001 20119002 20117003 20117002 20634022 DC×27#9 803-M5-04BK 20119001 20119002 20117003 20117002 20634022 DC×27#9 804-M5-23BK 20119001 20119002 20117003 20117002 20734002 DC×27#11 804-M2-24 20119001 20119002 20117003 20117002 20734002 DC×27#11 805-M2-35 20119001 20119002 20117005 20117006 20117004 20117002 20734003 DC×27#14 805-M2-55 20119001 20119002 20117005 20117006 20117004 20117002 20734004 DC×27#14 805×2-56 20119005 20119006 20117005 20117006 20117004 20117002 20719056 DC×27#19 803E-M2-04 20119001 20119002 20117022 20117002 20634022 DC×27#9 804E-M2-24 20119001 20119002 20117022 20117002 20734002 DC×27#11 805E-M2-35 20119001 20119002 20117005 20117006 20117023 20117002 20734003 DC×27#14 805E-M2-55 20119001 20119002 20117005 20117006 20117023 20117002 20734004 DC×27#14 805Ex2-56 20119005 20119006 20117005 20117006 20117023 20117002 20719056 DC×27#19 jintex.in
Page 63
产品标准代号: QB/T1515-2005 Standard code of the products: QB/T1515-2005 K 杰克缝纫机 JACK SEWING MACHINE | HTTP://WWW.CHINAAJACK.COM 杰克缝纫机股份有限公司 JACK SEWING MACHINE CO.,LTD. 公司地址(Address of Company): 台州市椒江区机场路15号 No. 15 Rd Airport South, Jiaojiang District Taizhou City, Zhejiang, P.R.C 国内销售部(Domestic Trade Department): 电话(TEL): 0086-576-88177788 88177789 传真(FAX): 0086-576-8817777 国贸部(International Trade Department): 电话(TEL): 0086-576-8817777 88177774 传真(FAX): 0086-576-88177787 零件部 (Spare Part Department): 电话(TEL): 0086-576-8817798 88177785 传真(FAX): 0086-576-8817775 免费售后服务电话(Aftersale Service TEL): 4008876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实样为准。 You will be not informed if the file has been revised. Please set sample as standard. 2014.8 jintex.in
