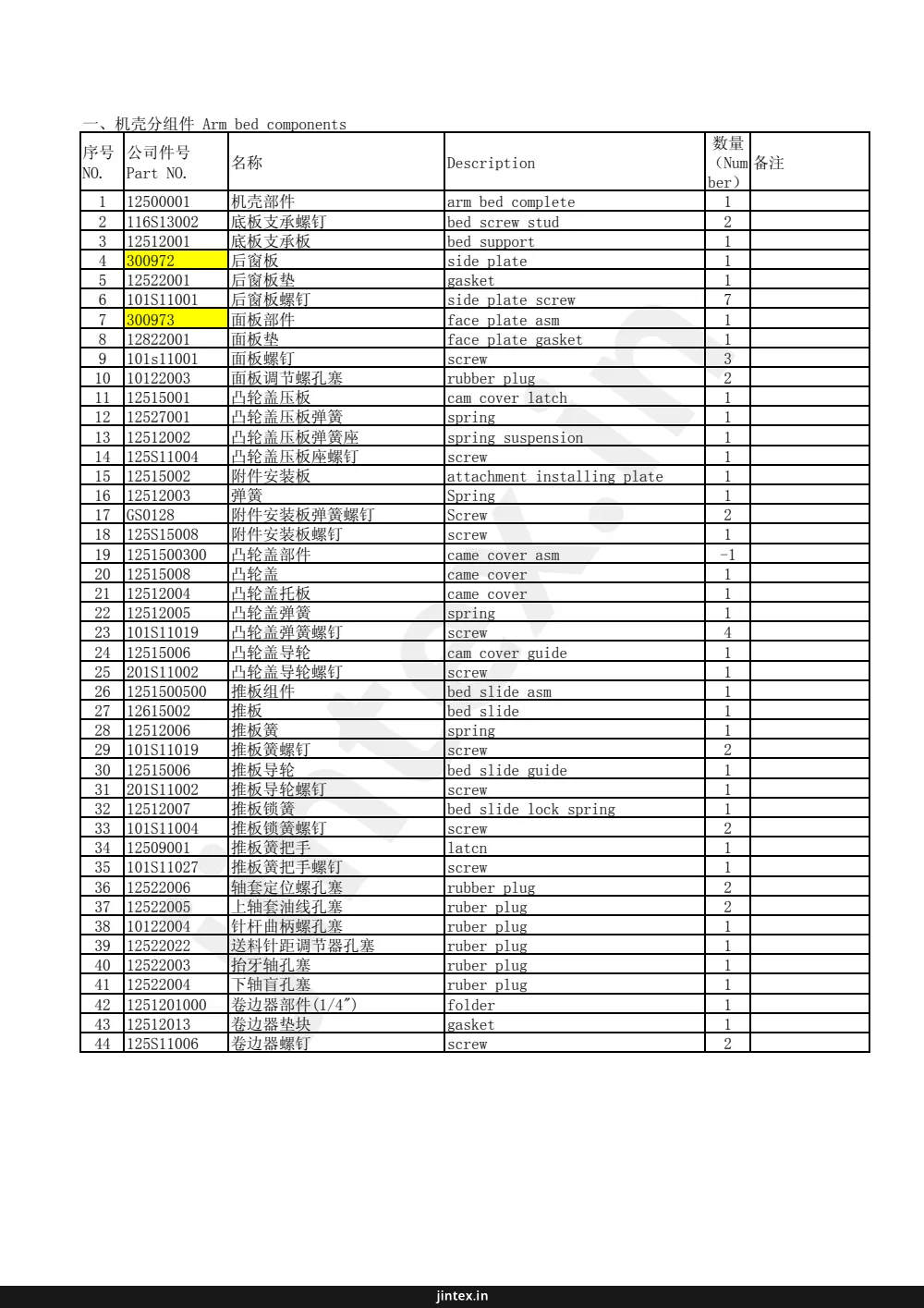

Page 2 — 一、机壳分组件 Arm bed components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12500001 | arm bed complete | 1 |
| 2 | 116S13002 | bed screw stud | 2 |
| 3 | 12512001 | bed support | 1 |
| 4 | 300972 | side plate | 1 |
| 5 | 12522001 | gasket | 1 |
| 6 | 101S11001 | side plate screw | 7 |
| 7 | 300973 | face plate asm | 1 |
| 8 | 12822001 | face plate gasket | 1 |
| 9 | 101S11001 | screw | 3 |
| 10 | 10122003 | rubber plug | 2 |
| 11 | 12515001 | cam cover latch | 1 |
| 12 | 12527001 | spring | 1 |
| 13 | 12512002 | spring suspension | 1 |
| 14 | 125S11004 | screw | 1 |
| 15 | 12515002 | attachment installing plate | 1 |
| 16 | 12512003 | Spring | 1 |
| 17 | GS0128 | Screw | 2 |
| 18 | 125S15008 | screw | 1 |
| 19 | 1251500300 | came cover asm | -1 |
| 20 | 12515008 | came cover | 1 |
| 21 | 12512004 | came cover | 1 |
| 22 | 12512005 | spring | 1 |
| 23 | 101S11019 | screw | 4 |
| 24 | 12515006 | cam cover guide | 1 |
| 25 | 201S11002 | screw | 1 |
| 26 | 1251500500 | bed slide asm | 1 |
| 27 | 12615002 | bed slide | 1 |
| 28 | 12512006 | spring | 1 |
| 29 | 101S11019 | screw | 2 |
| 30 | 12515006 | bed slide guide | 1 |
| 31 | 201S11002 | screw | 1 |
| 32 | 12512007 | bed slide lock spring | 1 |
| 33 | 101S11004 | screw | 2 |
| 34 | 12509001 | latcn | 1 |
| 35 | 101S11027 | screw | 1 |
| 36 | 12522006 | rubber plug | 2 |
| 37 | 12522005 | ruber plug | 2 |
| 38 | 10122004 | ruber plug | 1 |
| 39 | 12522022 | ruber plug | 1 |
| 40 | 12522003 | ruber plug | 1 |
| 41 | 12522004 | ruber plug | 1 |
| 42 | 1251201000 | folder | 1 |
| 43 | 12512013 | gasket | 1 |
| 44 | 125S11006 | screw | 2 |
Page 4 — 二、上轴针杆分组件 Main shaft & needle bar components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 125S11008 | end screw | 1 |
| 2 | 300092 | hand wheel | 1 |
| 3 | 101S15001 | screw | 2 |
| 4 | 1252200900 | main shaft oil seal asm | 1 |
| 5 | 12502001 | main shaft | 1 |
| 6 | 1250300100 | main shaft bushing,rear | 1 |
| 7 | 10108001 | main shaft thrust collar | 1 |
| 8 | 101S15007 | screw | 2 |
| 9 | 12503004 | main shaft bushing,intermediate | 1 |
| 10 | 101S15006 | screw | 1 |
| 11 | B10003 | bearing 6004zzn | 1 |
| 12 | 101s15010 | screw | 1 |
| 13 | 10122012 | Roller felt | 1 |
| 14 | 12526026 | Crank oil adjusting pin | 1 |
| 15 | 12522024 | Rubber bushing | 1 |
| 16 | 12522025 | O-Rubber ring | 1 |
| 17 | 12504001 | counterweight asm | 1 |
| 18 | 101S11003 | screw | 1 |
| 19 | GR1472 | O-Rubber ring | 1 |
| 20 | 101S15004 | screw | 1 |
| 21 | 12626003 | needle crank | 1 |
| 22 | 101S15002 | screw | 1 |
| 23 | 101S15002 | screw | 1 |
| 24 | 1250501000 | needle bar crank rod asm | 1 |
| 25 | B04008 | needle roller bearing | 1 |
| 26 | 101S17001 | left twist screw | 1 |
| 27 | 12503009 | needle barbushing upper | 1 |
| 28 | 409S15004 | screw | 1 |
| 29 | 10122013 | rubber plug | 1 |
| 30 | 10103023 | needle bar bushing,lower | 1 |
| 31 | 10138002 | needle bar connection asm | 1 |
| 32 | 101S11005 | screw | 1 |
| 33 | 10109001 | crank slide block | 1 |
| 34 | 12602002 | needle bar | 1 |
| 35 | 12534001 | needle clamp(1/4) | 1 |
| 36 | 125S15007 | screw | 2 |
| 37 | 12617005 | needle | 2 |
| 38 | 101S11008 | screw SM11/64*40 L=8 | 2 |
| 39 | 10109002 | needle bag guide | 1 |
| 40 | 1220300100 | main shaft bearing bushing | 1 |
Page 6 — 三、压料分组件 Presser bar components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10111034 | presser spring regulator | 1 |
| 2 | 10111036 | nut | 1 |
| 3 | 10102003 | presser bar guide bar | 1 |
| 4 | 10127005 | presser spring | 1 |
| 5 | 12502002 | presser bar | 1 |
| 6 | 12509002 | presser guide bracket asm | 1 |
| 7 | 116S11005 | screw | 1 |
| 8 | 10103012 | presser bar bushing,low | 1 |
| 9 | 10423004 | Oil wick | 1 |
| 10 | 1251600100 | presser foot asm | 1 |
| 11 | 101S11009 | screw | 1 |
| 12 | 12519001 | thread knife | 1 |
| 13 | 12527003 | thread knife guide | 1 |
| 14 | 201S11002 | screw | 1 |
| 15 | 1251100100 | hand lifter asm | 1 |
| 16 | 101S11001 | screw | 1 |
| 17 | 12528002 | Washer | 1 |
| 18 | 1251000100 | hand lifter cam asm | 1 |
| 19 | 001004 | rubber ring | 1 |
| 20 | 12512057 | lifting lever | 1 |
| 21 | 125S20003 | hinge screw | 1 |
| 22 | 12512014 | lifting link forlifting level | 1 |
| 23 | 125S20001 | hinge screw | 1 |
| 24 | 125S11001 | hinge pin | 1 |
| 25 | 12528003 | Lifting lever gasket | 1 |
| 26 | H05006 | snap ring | 1 |
| 27 | H05009 | snap ring | 1 |
| 28 | 12512015 | lifting lever connecting rod | 1 |
| 29 | 125S11002 | screw | 2 |
| 30 | H05003 | snap ring | 2 |
| 31 | 12512016 | lifting lever link rear | 1 |
| 32 | 125S20004 | hinge screw | 1 |
| 33 | 12526003 | swivel | 1 |
| 34 | 12512017 | lifting lever connecting rod,vertical | 1 |
| 35 | 116S16006 | nut | 1 |
Page 8 — 四、送料分组件 Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1251000300 | feed eccentric cam sam | 1 |
| 2 | 12510004 | feed eccentric cam sam | 1 |
| 3 | 101S11013 | screw | 2 |
| 4 | 12512018 | feed eccentric cam thrust washer | 1 |
| 5 | 125S17001 | screw | 3 |
| 6 | 12505001 | feed rocker shaft connecting rod | 1 |
| 7 | 12505002 | connecting rod | 1 |
| 8 | 12526004 | connecting pin | 1 |
| 9 | 125S11009 | screw | 1 |
| 10 | 12504002 | feed driving rocker asm | 1 |
| 11 | 12501003 | reed driving rocker | 1 |
| 12 | 12526005 | hinge stud | 1 |
| 13 | 101S11020 | screw | 1 |
| 14 | 12526006 | hinge pin | 1 |
| 15 | 125S11010 | screw | 1 |
| 16 | 12526007 | hinge pin | 1 |
| 17 | 125S15005 | screw | 2 |
| 18 | 125S20002 | hinge screw | 1 |
| 19 | 409S16015 | nut | 1 |
| 20 | 12504003 | feed rocker shaft cranck | 1 |
| 21 | 409S11015 | screw | 1 |
| 22 | 12502004 | feed rocket shaft | 1 |
| 23 | 12508002 | thrust collar | 1 |
| 24 | 401S15006 | screw | 2 |
| 25 | H03001 | retaining ring | 1 |
| 26 | 12503012 | bushing rear | 1 |
| 27 | 409S15004 | screw | 1 |
| 28 | 12508002 | thrust collar | 1 |
| 29 | 401S15006 | screw | 2 |
| 30 | 12503013 | feed rocker shaft bushing ,front | 1 |
| 31 | 12507001 | feed rocker | 1 |
| 32 | 409S11015 | screw | 1 |
| 33 | GR1528 | Washer | 1 |
| 34 | GL20 | Nut | 1 |
| 35 | 12507002 | washer | 1 |
| 36 | 12526008 | feed bar shaft | 1 |
| 37 | 209S11009 | screw | 2 |
| 38 | 10123008 | oil wick | 1 |
| 39 | 12514001 | reed dog (1/4) | 1 |
| 40 | W01006 | washer | 1 |
| 41 | 116S11005 | screw | 1 |
| 42 | 12515007 | throat plate(1/4) | 1 |
| 43 | 125S17002 | screw | 2 |
| 44 | 12505003 | feed driving shaft connecting ro | 1 |
| 45 | 12512019 | feed driving eccentric thrust washer | 1 |
| 46 | 201S11007 | screw | 2 |
| 47 | 12504004 | feed driving shaft crank rear | 1 |
| 48 | 125S20002 | hinge screw | 1 |
| 49 | 409S16015 | nut | 1 |
| 50 | 409S11015 | screw | 1 |
| 51 | 12502005 | feed driving shaft | 1 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52 | 10423004 | oil wick | 2 |
| 53 | 12503012 | bushing ,rear | 1 |
| 54 | 101S15010 | screw | 1 |
| 55 | 10108003 | thrust collar | 1 |
| 56 | 101S15002 | screw | 2 |
| 57 | 12503017 | bushing,intermediate | 1 |
| 58 | 101S15010 | screw | 1 |
| 59 | 12503020 | feed rocker shaft bushing,front | 1 |
| 60 | 12504005 | feed rocker shaftcranck | 1 |
| 61 | 201S11026 | screw | 2 |
| 62 | 12505004 | feed bar link | 1 |
| 63 | 12508003 | thrust collar | 1 |
| 64 | 125S15003 | screw | 2 |
| 65 | 10423004 | oil wick | 1 |
| 66 | 12528001 | counter-sunk washer | 1 |
| 67 | 125S17006 | screw | 1 |
Page 11 — 五、送料调节分组件 Feed regulating components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1251100300 | stitch dial asm | 1 |
| 2 | 101S11022 | screw | 1 |
| 3 | 12526009 | feed regulating screw | 1 |
| 4 | 001040 | o-rubber ring | 1 |
| 5 | 10126015 | stitch dial lock pin | 1 |
| 6 | 10127010 | stitch dial lock spring | 1 |
| 7 | 12504006 | feed regulation | 1 |
| 8 | 12526011 | hinge pin | 1 |
| 9 | 101S15006 | screw | 1 |
| 10 | 12505005 | feed regulator connecting rod | 1 |
| 11 | 12526020 | regulator connecting shaft | 1 |
| 12 | 116S11017 | nut | 2 |
| 13 | 12526012 | tension spring suspension stud | 1 |
| 14 | 116S11017 | screw | 1 |
| 15 | 12504007 | tension spring suspension cranck | 1 |
| 16 | 101S11021 | clamp screw | 1 |
| 17 | 101S15006 | screw | 1 |
| 18 | 12527004 | tension spring | 1 |
| 19 | 12512020 | suspension bracket | 1 |
| 20 | 101S11008 | screw | 1 |
| 21 | 12502006 | reverse feed control lever shaft | 1 |
| 22 | 001014 | rubber ring ,large | 1 |
| 23 | W03010 | waved washer | 1 |
| 24 | 300974 | reverse feed control lever | 1 |
| 25 | 101S15011 | screw | 1 |
| 26 | 101S15007 | screw | 1 |
| 27 | 125S11015 | end screw | 1 |
| 28 | 12508006 | thrust collar | 1 |
| 29 | 125S30007 | screw | 1 |
| 30 | W01015 | washer | 1 |
| 31 | 209S16006 | nut | 1 |
| 32 | 300975 | lever stopper | 1 |
| 33 | 125S15004 | screw | 1 |
| 34 | 12522009 | rubber cushion | 1 |
| 35 | 12504008 | control lever crank,rear | 1 |
| 36 | 101S15006 | screw | 1 |
| 37 | 101S11021 | screw | 1 |
| 38 | 12512021 | feed driving rocker arm connecti | 1 |
| 39 | 125S20006 | screw | 1 |
| 40 | W04002 | washer | 1 |
| 41 | 401S16004 | nut | 1 |

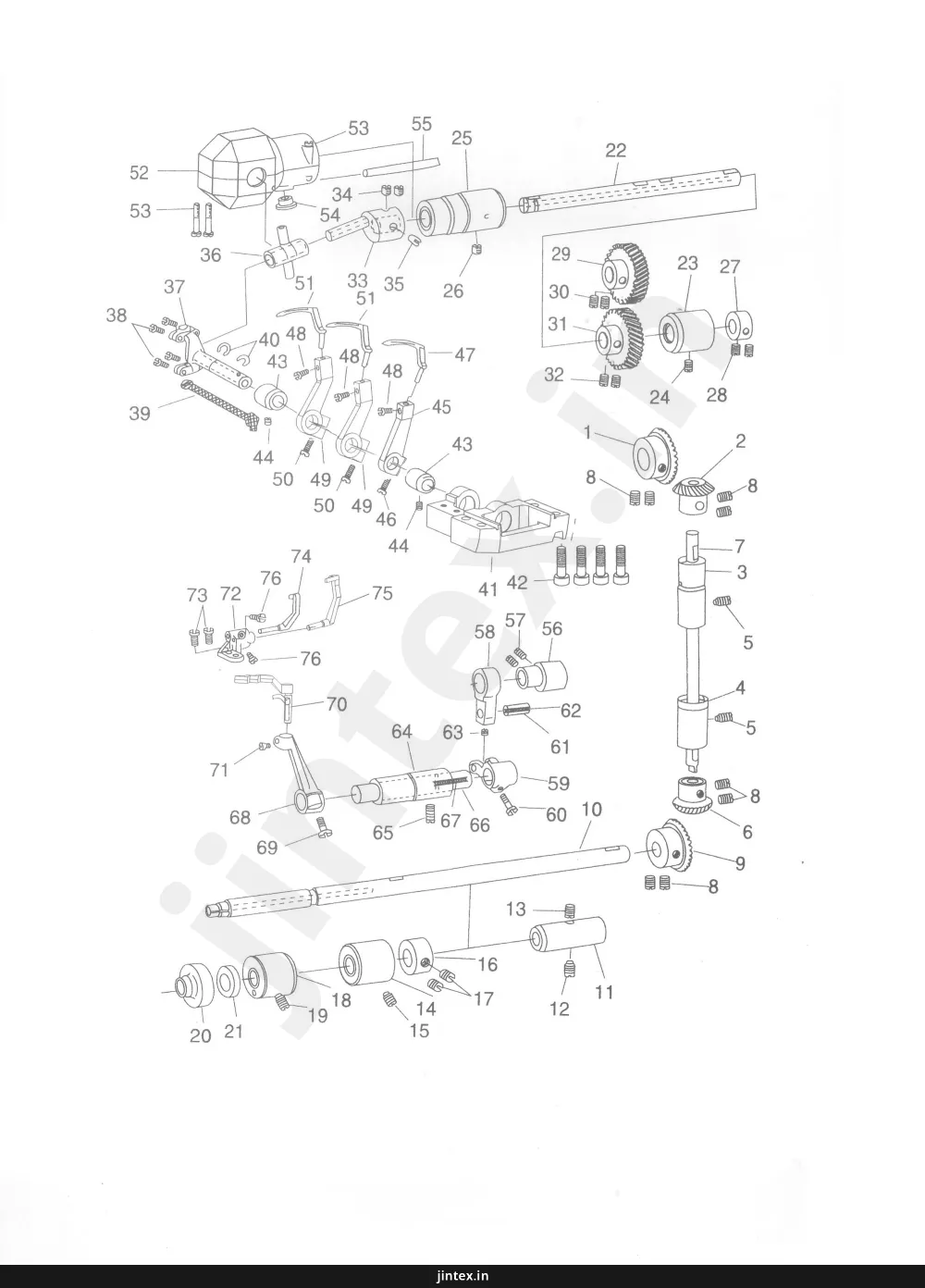

Page 13 — 六、弯针勾线分组件 Looper thread retainer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10125004 | gear asm | 1 |
| 2 | 10125003 | pinion asm | 1 |
| 3 | 12503021 | bushing,upper | 1 |
| 4 | 1250302200 | bushing,lower | 1 |
| 5 | 101S15010 | screw | 2 |
| 6 | 10125003 | gear asm | 1 |
| 7 | 12502007 | upright,shaft | 1 |
| 8 | 101S15007 | bushing,front asm,screw | 8 |
| 9 | 12525001 | gear asm | 1 |
| 10 | 12502008 | lower shaft asm | 1 |
| 11 | 12503025 | bushing ,rear | 1 |
| 12 | 101S15010 | screw | 1 |
| 13 | GR1847 | Felt | 1 |
| 14 | 1250302600 | bushing,intermediate | 1 |
| 15 | 101S15001 | screw | 1 |
| 16 | 12508005 | thrust collar asm | 1 |
| 17 | 101S15007 | screw | 2 |
| 18 | 1250303200 | bushing ,front | 1 |
| 19 | 101S15001 | screw | 1 |
| 20 | 12503046 | looper thread guard bushing | 1 |
| 21 | 1252200700 | looper thread guard bushing asm | 1 |
| 22 | 12502009 | looper rocket shaftr | 1 |
| 23 | 1250302600 | bushing,intermidate | 1 |
| 24 | 101S15001 | screw | 1 |
| 25 | 1250303800 | bushing,front | 1 |
| 26 | 101S15001 | screw | 1 |
| 27 | 12508005 | thrust collar asm | 1 |
| 28 | 101S15007 | screw | 2 |
| 29 | 12525002 | gear asm,upper | 1 |
| 30 | 101S15007 | screw | 2 |
| 31 | 12525003 | gear asm ,lower | 1 |
| 32 | 101S15007 | screw | 2 |
| 33 | 12504009 | looper crank asm | 1 |
| 34 | 101S15007 | screw | 2 |
| 35 | 125S30008 | screw | 1 |
| 36 | 1250402100 | Trunbion asm | 1 |
| 37 | 1250201000 | looper rocker shaft asm | 1 |
| 38 | 209S11009 | screw | 4 |
| 39 | 10423004 | oile wick | 1 |
| 40 | GR1854 | Snap ring | 2 |
| 41 | 12501005 | looper mounting base | 1 |
| 42 | 125S13001 | screw | 4 |
| 43 | 12503042 | bushing,rear | 2 |
| 44 | 401S15006 | screw | 2 |
| 45 | 12504012 | looper holder asm.(right) | 1 |
| 46 | 409S11015 | screw | 1 |
| 47 | 12517001 | looper(left) | 1 |
| 48 | 209S11012 | screw | 2 |
| 49 | 12504013 | looper holder asm(right) | 1 |
| 50 | 409S11015 | screw | 1 |
| 51 | 12517002 | looper(right) | 1 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52 | 1251202200 | crank cover asm | 1 |
| 53 | 125S11007 | screw | 3 |
| 54 | GR1462 | Rubber plug | 1 |
| 55 | 12921002 | vinyl tube | 1 |
| 56 | 12510005 | needle guard cam asm | 1 |
| 57 | 101S15007 | screw | 2 |
| 58 | 12505007 | needle guard crank rod | 1 |
| 59 | 12504014 | rear needle guard rocker fork | 1 |
| 60 | 101S11020 | screw | 1 |
| 61 | 12526014 | pin | 1 |
| 62 | 10423004 | oil wick | 1 |
| 63 | 401S15006 | screw | 1 |
| 64 | 12503043 | bushing | 1 |
| 65 | 101S15010 | screw | 1 |
| 66 | 12502012 | needle guard driving shaft asm | 1 |
| 67 | 10128008 | oil wick | 1 |
| 68 | 12504015 | rear needle guard rocker arm asm | 1 |
| 69 | 409S11015 | screw | 1 |
| 70 | 12517003 | driving needle guard(1/4) | 1 |
| 71 | 209S11009 | screw | 1 |
| 72 | 12501006 | needle guard base | 1 |
| 73 | 101S11011 | screw | 2 |
| 74 | 12517004 | counter needle guard,left | 1 |
| 75 | 12517005 | counter needle guard,right | 1 |
| 76 | 101S11005 | screw | 2 |
Page 17 — 七、挑线、松线、夹线分组件 Thread take-up, tension, and tension releasing assembly complete
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12505008 | thread take-up lever | 1 |
| 2 | 409S11024 | screw | 1 |
| 3 | 12512025 | thread take-up | 1 |
| 4 | 101S11005 | screw | 2 |
| 5 | 12512026 | tension plate | 1 |
| 6 | 12527014 | tension spring | 1 |
| 7 | 125S11018 | screw | 1 |
| 8 | 12512027 | thread take up lever guard | 1 |
| 9 | 112S11014 | screw | 2 |
| 10 | 12512028 | take-up thread tension lever | 1 |
| 11 | 112S11014 | screw | 1 |
| 12 | W01006 | washer | 1 |
| 13 | 12612002 | Frame thread eyelet | 1 |
| 14 | 112S11014 | screw | 1 |
| 15 | 12502013 | tension release shaft | 1 |
| 16 | 1250401600 | tension release arm asm | 1 |
| 17 | 101S11012 | screw | 1 |
| 18 | 12527015 | spring | 1 |
| 19 | 12512031 | suspension bracket | 1 |
| 20 | 112S11014 | screw | 2 |
| 21 | H05013 | snap ring | 1 |
| 22 | 001027 | Oil seal ring | 1 |
| 23 | 12509004 | tension release shaft spacer | 1 |
| 24 | 12509011 | spacer(A)for installing plate | 1 |
| 25 | 12509006 | spacer(B) for installing plate | 1 |
| 26 | 125S30010 | screw | 2 |
| 27 | 125S30009 | screw | 1 |
| 28 | 1251300100 | needle thread tension asm | 1 |
| 29 | 12512032 | needle thread tension guide plate | 2 |
| 30 | 12512033 | tension thread tension guide | 2 |
| 31 | 125S30003 | looper thread tension post | 2 |
| 32 | 10112005 | tension disc | 4 |
| 33 | 12511004 | tension disc presser rube | 2 |
| 34 | 10127002 | tension spring | 2 |
| 35 | 10112007 | tension disc stopper | 2 |
| 36 | 12511009 | tension nut | 2 |
| 37 | 12512035 | frame thread guide | 2 |
| 38 | 112S11014 | screw | 1 |
| 39 | 12504017 | tension release latch | 1 |
| 40 | 101S11012 | screw | 1 |
| 41 | GR1907 | Tension controller installing plate | 1 |
| 42 | GR1908 | Take-up thread guide | 1 |
| 43 | GR1943 | Attachment installing plate | 1 |
| 44 | GW299 | Take-up thread tension spring | 1 |
| 45 | GS0149 | Take-up thread tension post | 1 |
| 46 | GR1986 | Thread tension release guide latch | 1 |
| 47 | GS043 | Screw | 1 |
| 48 | GS010 | Screw | 2 |
Page 18 — 七、挑线、松线、夹线分组件(续)Thread take-up,tension,and tension releasing assembly complete
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 49 | 1251000600 | looper thread take-up cam | 1 |
| 50 | 125S17004 | screw | 1 |
| 51 | 1251300200 | looper thread guide plate | 1 |
| 52 | 12512040 | thread guide plate | 1 |
| 53 | 112S11014 | screw | 2 |
| 54 | 12512041 | Looper thread guide asm | 1 |
| 55 | 125S11004 | screw | 1 |
| 56 | 12512042 | thread guide stopper spring | 1 |
| 57 | 125S11004 | screw | 2 |
| 58 | 12527007 | cast-off wire | 1 |
| 59 | 101S11027 | screw | 2 |
| 60 | W01005 | washer | 2 |
| 61 | 12527008 | thread guide spring | 1 |
| 62 | 114S16004 | nut | 1 |
| 63 | 125S30002 | thread guide stud | 1 |
| 64 | 12512043 | looper thread guide,right | 1 |
| 65 | 12512044 | cast-off plate | 1 |
| 66 | 12512045 | looper thread guide,left | 1 |
| 67 | 12509007 | collar | 2 |
| 68 | 125S11005 | screw | 1 |
| 69 | 12512046 | looper thread guide | 1 |
| 70 | 409S17001 | screw | 1 |
| 71 | 12512047 | looper thread guide tube | 1 |
| 72 | 12504018 | tension release shaft bushing | 1 |
| 73 | 125S11020 | screw | 2 |
| 74 | 12502014 | looper thread release shaft | 1 |
| 75 | 001004 | rubber ring | 1 |
| 76 | 1250401900 | tension release arm asm | 1 |
| 77 | 114S16004 | nut | 1 |
| 78 | 1251300300 | lower thread tension asm | 1 |
| 79 | 12512055 | tension installing plate | 2 |
| 80 | 12512049 | looper thread tension control plate | 2 |
| 81 | 12512050 | thread guide | 2 |
| 82 | P01009 | spring pin | 2 |
| 83 | 125S30003 | looper thread tension post | 2 |
| 84 | 12512051 | tension disc | 4 |
| 85 | 12527009 | looper thread tension spring | 2 |
| 86 | 12509008 | tension spring bushing | 2 |
| 87 | 125S16001 | tension post nut | 2 |
| 88 | 112S11014 | screw | 2 |
| 89 | 12504020 | looper thread release latch | 1 |
| 90 | 101S11012 | screw | 1 |
| 91 | 12612004 | Thread release Slide plate | 1 |
Page 20 — 八、润滑分组件 Lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1252000100 | lubrication oil pump asm | 1 |
| 2 | 12512052 | oil pump installing base | 1 |
| 3 | 125S30011 | screw | 4 |
| 4 | GR1550 | washer | 3 |
| 5 | GL138 | Nnt | 3 |
| 6 | 1252000200 | washer | 1 |
| 7 | 12520003 | oil pump impeller | 1 |
| 8 | 12512053 | oil pump impeller cover | 1 |
| 9 | 1252000400 | lubricating oil pump cover | 1 |
| 10 | 125S30012 | screw | 3 |
| 11 | 12536002 | rubber joint | 1 |
| 12 | 12536003 | rubber joint | 1 |
| 13 | 12509011 | Collar | 3 |
| 14 | 12530009 | screw | 3 |
| 15 | 12521002 | Main shaft oil tube | 1 |
| 16 | GR1563 | Oil return pump plunger | 1 |
| 17 | GW260 | plunger spring | 1 |
| 18 | 12536004 | Oil sight window base | 1 |
| 19 | 12521003 | gear oil pipe | 1 |
| 20 | 12512054 | holder | 2 |
| 21 | 101S11025 | screw | 2 |
| 22 | GS055 | Connecting screw | 1 |
| 23 | 12521006 | Oil return tube asm | 1 |
| 24 | 12512054 | oil return tube hokder | 1 |
| 25 | 101S11025 | screw | 1 |
| 26 | GR1567 | Oil felt presser | 1 |
| 27 | 10423002 | oil felt | 1 |
| 28 | 12527011 | oil felt presser | 1 |
| 29 | 12512070 | Arm oil shield | 1 |
| 30 | 10423004 | oil wick | 1 |
| 31 | GS069 | screw | 1 |
| 32 | 112S11014 | screw | 1 |
| 33 | 12521004 | oil tube | 1 |
| 34 | 10122019 | o-rubber ring | 1 |
| 35 | 10111004 | oil sight window | 1 |
Page 22 — 九、油盘、膝抬压脚分组件 Oil reservoir & knee lifter components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1250100700 | oil reservoir asm | 1 |
| 2 | 12501009 | oil reservoir | 1 |
| 3 | 10131001 | oil reservoir magnet | 1 |
| 4 | 12522018 | gasket | 2 |
| 5 | 12522019 | gasket | 1 |
| 6 | 10122023 | Cushion(big) | 2 |
| 7 | 10122022 | Cushion(small) | 2 |
| 8 | 10122024 | knee press plate cover | 1 |
| 9 | 101S30010 | nail | 4 |
| 10 | 10122001 | oil drain cap gasket | 2 |
| 11 | 101S11028 | oil drain screw | 2 |
| 12 | 12531004 | knee press lifter rod | 1 |
| 13 | 12512059 | lifting | 1 |
| 14 | 101S12002 | positioning screw | 1 |
| 15 | 101S15012 | positioning screw | 2 |
| 16 | 101S16004 | nut | 2 |
| 17 | 101S15012 | positioning screw | 2 |
| 18 | 101S16004 | nut | 2 |
| 19 | 10127016 | spring | 1 |
| 20 | H05010 | thrust ring | 1 |
| 21 | 12502015 | knee press rod | 1 |
| 22 | 10101008 | bearing bracket | 1 |
| 23 | 101S12003 | clamp screw | 2 |
| 24 | 10112028 | knee lifter plate rod | 1 |
| 25 | 10112030 | knee press plate cover joint | 1 |
| 26 | 101S12004 | screw | 1 |
| 27 | 10112029 | knee press plate | 1 |
| 28 | 10122025 | Rubber | 1 |
Page 24 — 十、机头附件 Machine head accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1011203100 | nachine hinge plate asm | 2 |
| 2 | 10122060 | machine hinge plate | 2 |
| 3 | 101S30010 | nail | 4 |
| 4 | 12617005 | needle | 1包 |
| 5 | 12811003 | Belt guard complete | 1 |
| 6 | 10131003 | screw driver(L) | 1 |
| 7 | 10131004 | screw driver(L) | 1 |
| 8 | 10111011 | machine rest pin | 1 |
| 9 | 1011101200 | lubricating unit case asm | 1 |
| 10 | 20131051 | tweezer | 1 |
Page 26 — 十一、四线团架分组件 Quadruple-thread spool stand sam
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131073 | Spool stand complete | 1 |
Page 28 — 十二、机架、台板、电器分组件 Machine Stand、Table、Electric Appliance Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1011204200 | Stand side asm left | 1 |
| 2 | 1011204300 | Stand side asm right | 1 |
| 3 | 10111015 | Rubber cushion | 4 |
| 4 | N01010 | Nut | 4 |
| 5 | 101s30015 | Screw | 4 |
| 6 | 10122029 | Space ring | 4 |
| 7 | 10112044 | Stand side support | 1 |
| 8 | L02014 | Screw | 4 |
| 9 | 10128011 | Spring washer | 4 |
| 10 | W01010 | Washer | 8 |
| 11 | N01011 | Nut | 4 |
| 12 | 10112045 | Treadle brace | 1 |
| 13 | L02014 | Screw | 2 |
| 14 | 10128011 | Spring washer | 2 |
| 15 | W01010 | Washer | 2 |
| 16 | 10112046 | Treadle brace locknut plate | 2 |
| 17 | 10102013 | Treale shaft | 1 |
| 18 | 10112047 | Treale bravket | 2 |
| 19 | L02014 | Screw | 2 |
| 20 | W01010 | Washer | 4 |
| 21 | 10128011 | Spring washer | 2 |
| 22 | N01011 | Nut | 2 |
| 23 | 10112048 | Trcable | 1 |
| 24 | 10122030 | Gas Ket | 1 |
| 25 | 10103023 | Coller | 2 |
| 26 | 10112049 | Tteadle pitman | 1 |
| 27 | L02015 | Screw | 2 |
| 28 | W01003 | Washer | 4 |
| 29 | N01012 | Nut | 2 |
| 30 | 10112050 | Pitman rod,lower | 1 |
| 31 | 10127019 | Spring | 1 |
| 32 | 10112051 | Pitman rod,lower | 1 |
| 33 | 10112052 | Joint | 1 |
| 34 | L02015 | Joint screw | 1 |
| 35 | N01012 | Nut | 1 |
| 36 | 10129001 | Pitman rod split pin (upper) | 1 |
| 37 | 101s30016 | Table Wood screw | 4 |
| 38 | 10128012 | Table Wood screw washer | 4 |
| 39 | 10128013 | Table washer | 4 |
| 40 | 10132002 | Table | 1 |
| 41 | 10111016 | Drawer | 1 |
| 42 | 10111017 | Drawer rail | 2 |
| 43 | 101s30017 | Drawer rail wood screw | 6 |
| 44 | 10133001 | Motor GFC4024 motor | 1 |
| 45 | 10130002 | Motor connecting wire plug | 1 |
| 46 | 10130003 | Motor wire | 1 |
| 47 | 10135004 | Motor pulley | 1 |
| 48 | 10135002 | Machine driving beit | 1 |
| 49 | 101s30018 | Screw | 3 |
| 50 | 10128014 | Washer | 3 |
| 51 | 10128011 | Spring washer | 3 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52 | N01011 | Nut | 3 |
| 53 | 10130004 | Power cource swith | 1 |
| 54 | 101s30019 | Power cource swith wood screw | 2 |
Page 31 — 13、JK-8558W-1专用零件 Model one-needle high speed chainstitcher
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12515002 | attachment installing plate | 1 |
| 2 | 1251600100 | presser foot asm. | 1 |
| 3 | 12514001 | feed dog | 1 |
| 4 | 12515007 | thread plate | 1 |
| 5 | 12517003 | driving needle guard | 1 |
| 6 | 12517005 | counter needle guard | 1 |
| 7 | 1251300100 | needle thread tension asm | 1 |
| 8 | 12504017 | tension release latch | 1 |
| 9 | 1251300300 | lower thread tension asm | 1 |
| 10 | 12504020 | looper thread release latch | 1 |
| 11 | 12602002 | needle bar | 1 |
| 12 | 125S15007 | screw | 2 |
| 14 | 10113009 | thread guide | 1 |
Page 33 — 13、JK-8558W-2专用零件 Model one-needle high speed chainstitcher
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12515002 | attachment installing plate | 1 |
| 2 | 1251601000 | presser foot asm. | 1 |
| 3 | 12514006 | feed dog | 1 |
| 4 | 12515016 | thread plate | 1 |
| 5 | 12517009 | driving needle guard | 1 |
| 7 | 1251300400 | needle thread tension asm | 1 |
| 8 | 12504022 | tension release latch | 1 |
| 9 | 1251300500 | lower thread tension asm | 1 |
| 10 | 12504023 | looper thread release latch | 1 |
| 11 | 11402035 | needle bar | 1 |
| 12 | 101S11006 | screw | 1 |
| 13 | 10113002 | needle bar thread guide | 1 |
| 14 | 10113009 | thread guide | 1 |
Page 35 — 14. 后拖轮装置/Puller device mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 30522019 | Plug | 1 |
| 3 | H05011 | E-Ring | 1 |
| 4 | 30128015 | Washer | 1 |
| 5 | 30502045 | Shaft | 1 |
| 6 | 301175 | Bracket | 1 |
| 7 | 207S13004 | Screw M6X35 | 4 |
| 8 | 30522069 | Plug | 1 |
| 9 | 20122021 | Plug | 1 |
| 10 | 30522070 | O Ring | 1 |
| 11 | S10029 | Screw M6X0.75X5 | 3 |
| 12 | 30504035 | Crank | 1 |
| 13 | S09008 | Screw M5X5 | 2 |
| 14 | 30508001 | Collar | 1 |
| 15 | 30126006 | Pin Screw | 1 |
| 16 | 30128009 | Washer | 2 |
| 17 | N01004 | Nut | 1 |
| 19 | 101S11006 | Screw SM1/8"X44 L=4.5 | 2 |
| 20 | 40612050 | Thrust collar | 1 |
| 21 | B07036 | Needle Bearing | 1 |
| 22 | 12605003 | Connection | 1 |
| 23 | 12610001 | Eccentric | 1 |
| 24 | 116S14004 | Screw SM1/4"X40 L=6 | 2 |
| 26 | 40603019 | Presser Adjust Screw1/2X28 | 1 |
| 27 | 12627004 | Spring | 1 |
| 28 | 40609009 | Presser Bar Clamp | 1 |
| 29 | 40603021 | Presser Bar Bush,D | 1 |
| 30 | 40602016 | Puller Presser Bar | 1 |
| 31 | AS05038 | Screw M5X8 | 1 |
| 32 | 12612007 | Link | 1 |
| 33 | 12602003 | Presser Bar | 1 |
| 34 | 409S11013 | screw SM5/64X28 | 1 |
| 35 | S05019 | Screw M6X16 | 1 |
| 36 | 4061400800 | Puller | 1 |
| 37 | 10122003 | Rubber Plug | 2 |
| 38 | 40602013 | Pin | 1 |
| 39 | 101S11001 | Screw SM3/16"X28 L=9 | 3 |
| 40 | 10137002 | Plare With Trademark | 1 |
| 41 | 40601031 | Presser Foot Lifter | 1 |
| 42 | 12601004 | Face Plate Arm | 1 |
| 43 | 4060402400 | Pitman Rod Assy | 1 |
| 44 | 12604007 | Clutch Lifter | 1 |
| 45 | 40612048 | Degreer Plate | 1 |
| 46 | 402S16003 | Nut | 3 |
| 47 | 20103020 | Bush | 2 |
Jack JK-8558 — parts catalog
- Page 1 (diagram): This page displays a diagram of various sewing machine components, including covers, frame parts, and smaller hardware items, with reference numbers for identification.
- Page 2 (parts_list): This page lists arm bed components with part numbers, descriptions, quantities, and remarks.
- Page 3 (diagram): This page displays a diagram of various machine parts, including a shaft, wheels, a connecting rod, and fasteners, with corresponding reference numbers.
- Page 4 (parts_list): This page lists main shaft and needle bar components, including part numbers, descriptions, quantities, and remarks.
- Page 5 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, levers, and rods, with corresponding reference numbers.
- Page 6 (parts_list): This page lists presser bar components for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of various machine components, including levers, shafts, screws, and other hardware, with corresponding reference numbers for identification.
- Page 8 (parts_list): This page lists feed mechanism components with part numbers, descriptions, quantities, and remarks.
- Page 9 (parts_list): This page lists parts for an industrial sewing machine, including oil wicks, bushings, thrust collars, screws, and feed bar links, with their corresponding part numbers and quantities.
- Page 10 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, springs, levers, and a dial indicator, with reference numbers for each part.
- Page 11 (parts_list): This page lists feed regulating components with part numbers, descriptions, quantities, and remarks.
- Page 12 (diagram): This page displays a diagram of various machine parts, including gears, shafts, levers, and fasteners, with reference numbers for each component.
- Page 13 (parts_list): This page lists components for Looper thread retainer, including part numbers, descriptions, quantities, and remarks.
- Page 14 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It covers components from item 52 to 76.
- Page 15 (diagram): This page displays a diagram of various machine parts, including brackets, levers, screws, and springs, with corresponding reference numbers for identification.
- Page 16 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 37 to 91.
- Page 17 (parts_list): This page lists parts for thread take-up, tension, and tension releasing assembly, including part numbers, descriptions, and quantities.
- Page 18 (parts_list): This page lists parts for thread take-up, tension, and tension releasing assembly, including part numbers, descriptions, quantities, and remarks.
- Page 19 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated by reference numbers.
- Page 20 (parts_list): This page lists lubrication components for a machine, including part numbers, descriptions, quantities, and remarks.
- Page 21 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a cover, levers, screws, and other small parts, with reference numbers for each item.
- Page 22 (parts_list): This page lists components for oil reservoir and knee lifter, including part numbers, descriptions, quantities, and remarks.
- Page 23 (diagram): This page displays a diagram of various components and accessories for an industrial sewing machine, including screws, a bottle, and tools, with reference numbers for each part.
- Page 24 (parts_list): This page lists machine head accessories with their part numbers, descriptions, and quantities.
- Page 25 (diagram): This page contains a diagram of various machine components, including arms, discs, screws, and nuts, with a single page number indicated.
- Page 26 (parts_list): This page lists parts for the Quadruple-thread spool stand sam, including part number 20131073 and description "Spool stand complete".
- Page 27 (diagram): This page displays a diagram of various sewing machine components, including the main body, motor, and frame, with numbered references for each part.
- Page 28 (parts_list): This page lists machine stand, table, and electric appliance components, including part numbers, descriptions, quantities, and remarks.
- Page 29 (parts_list): This page lists parts for a sewing machine, including nuts, power switches, and screws, with their corresponding part numbers and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 14, with illustrations of each component.
- Page 31 (parts_list): This page lists parts for the JK-8558W-1 model one-needle high speed chainstitcher, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 14, with illustrations of each component.
- Page 33 (parts_list): This page lists parts for the JK-8558W-2 model one-needle high speed chainstitcher, including part numbers, descriptions, quantities, and remarks.
- Page 34 (diagram): This page displays a diagram of the puller device mechanism, illustrating various components with reference numbers for identification.
- Page 35 (parts_list): This page lists parts for the Puller device mechanism, including part numbers, names, and quantities.
