Parts index — Jack JK-8558tap a row to open its page
Page 1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FRAME | ||
| 2 | BRACKET | ||
| 3 | BRACKET | ||
| 4 | COVER | ||
| 5 | COVER | ||
| 6 | SCREW | ||
| 7 | COVER | ||
| 8 | COVER | ||
| 9 | SCREW | ||
| 10 | SCREW | ||
| 11 | BRACKET | ||
| 12 | SPRING | ||
| 13 | BRACKET | ||
| 14 | SCREW | ||
| 15 | PLATE | ||
| 16 | BRACKET | ||
| 17 | SCREW | ||
| 18 | SCREW | ||
| 19 | SCREW | ||
| 20 | PLATE | ||
| 21 | BRACKET | ||
| 22 | SCREW | ||
| 23 | SCREW | ||
| 24 | SCREW | ||
| 25 | SCREW | ||
| 26 | BRACKET | ||
| 27 | BRACKET | ||
| 28 | BRACKET | ||
| 29 | BRACKET | ||
| 30 | BRACKET | ||
| 31 | BRACKET | ||
| 32 | BRACKET | ||
| 33 | SCREW | ||
| 34 | BRACKET | ||
| 35 | SCREW | ||
| 36 | PLUG | ||
| 37 | PLUG | ||
| 38 | PLUG | ||
| 39 | PLUG | ||
| 40 | PLUG | ||
| 41 | PLUG | ||
| 42 | BRACKET | ||
| 43 | BRACKET | ||
| 44 | SCREW |
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12500001 | 机壳部件 | ||
| 116S13002 | 底板支架螺钉 | ||
| 12512001 | 底板支承板 | ||
| 300972 | 后窗板 | ||
| 12522001 | 后窗垫 | ||
| 101S11001 | 后窗板螺钉 | ||
| 300973 | 面板部件 | ||
| 12822001 | 面板垫 | ||
| 101S11001 | 面板螺钉 | ||
| 10122003 | 面板调节螺孔塞 | ||
| 12515001 | 凸轮盖压板 | ||
| 12527001 | 凸轮盖压板弹簧 | ||
| 12512002 | 凸轮盖压板弹簧座 | ||
| 125S11004 | 凸轮盖压板弹簧螺钉 | ||
| 12515002 | 附件安装板 | ||
| 12512003 | 弹簧 | ||
| GS0128 | 附件安装板弹簧螺钉 | ||
| 125S15008 | 附件安装板螺钉 | ||
| 1251500300 | 凸轮盖部件 | ||
| 12515008 | 凸轮盖 | ||
| 12512004 | 凸轮盖托板 | ||
| 12512005 | 凸轮盖弹簧 | ||
| 101S11019 | 凸轮盖弹簧螺钉 | ||
| 12515006 | 凸轮盖导轮 | ||
| 201S11002 | 凸轮盖导轮螺钉 | ||
| 1251500500 | 推板组件 | ||
| 12615002 | 推板 | ||
| 12512006 | 推板簧 | ||
| 101S11019 | 推板簧螺钉 | ||
| 12515006 | 推板导轮 | ||
| 201S11002 | 推板导轮螺钉 | ||
| 12512007 | 推板锁簧 | ||
| 101S11004 | 推板锁簧螺钉 | ||
| 12509001 | 推板簧把手 | ||
| 101S11027 | 推板簧把手螺钉 | ||
| 12522006 | 轴套定位螺孔塞 | ||
| 12522005 | 上轴套油线孔 | ||
| 10122004 | 针杆曲柄孔塞 | ||
| 12522022 | 送料针距调节孔塞 | ||
| 12522003 | 拾牙轴孔塞 | ||
| 12522004 | 下轴盲孔塞 | ||
| 1251201000 | 卷边器部件(1/4") | ||
| 12512013 | 卷边器垫块 | ||
| 125S11006 | 卷边器螺钉 |
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 | |
| 24 | 24 | 24 | |
| 25 | 25 | 25 | |
| 26 | 26 | 26 | |
| 27 | 27 | 27 | |
| 28 | 28 | 28 | |
| 29 | 29 | 29 | |
| 30 | 30 | 30 | |
| 31 | 31 | 31 | |
| 32 | 32 | 32 | |
| 33 | 33 | 33 | |
| 34 | 34 | 34 | |
| 35 | 35 | 35 | |
| 36 | 36 | 36 | |
| 37 | 37 | 37 | |
| 38 | 38 | 38 | |
| 39 | 39 | 39 | |
| 40 | 40 | 40 |
Page 4 — 二、上轴针杆分组件 Main shaft & needle bar components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 125S11008 | 上轴安全螺钉 | ||
| 300092 | 皮带轮 | ||
| 101S15001 | 上轮螺钉 | 2 | |
| 1252200900 | 上轴油封组件 | ||
| 12502001 | 上轴 | ||
| 1250300100 | 上轴后轴套部件 | ||
| 10108001 | 上轴挡圈 | ||
| 101S15007 | 上轴挡圈1螺钉 | 2 | |
| 12503004 | 上轴中轴套 | ||
| 101S15006 | 送料摆杆座右螺钉 | ||
| B10003 | 轴承6004ZZN | ||
| 101s15010 | 螺钉 | ||
| 10122012 | 上轴孔塞 | ||
| 12526026 | 曲柄油量调节销(有油) | ||
| 12522024 | 曲柄油量调节销套(有油) | ||
| 12522025 | 曲柄油量调节销O型圈(有油) | ||
| 12504001 | 针杆曲柄 | ||
| 101S11003 | 针杆曲柄定位螺钉 | ||
| GR1472 | 定位螺钉O型圈 | ||
| 101S15004 | 针杆曲柄紧固螺钉 | ||
| 12626003 | 针杆连杆销 | ||
| 101S15002 | 挑线曲柄紧固螺钉 | ||
| 101S15002 | 挑线曲柄螺钉 | ||
| 1250501000 | 针杆连杆组件 | ||
| B04008 | 针杆连杆轴承 | ||
| 101S17001 | 针杆连杆左旋螺钉 | ||
| 12503009 | 针杆上衬套 | ||
| 409S15004 | 针杆上衬套螺钉 | ||
| 10122013 | 针杆上衬套孔塞 | ||
| 10103023 | 针杆下衬套 | ||
| 10138002 | 针杆连接柱 | ||
| 101S11005 | 针杆连接柱螺钉 | ||
| 10109001 | 针杆连接柱滑块 | ||
| 12602002 | 针杆 | ||
| 12534001 | 针夹(1/4") | ||
| 125S15007 | 支针螺钉 | 2 | |
| 12617005 | 机针 | 2 | |
| 101S11008 | 滑块导轨螺钉 | 2 | |
| 10109002 | 针杆连接柱滑块导轨 | ||
| 1220300100 | 上轴轴承套 |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 24 | 24 | 24 | |
| 25 | 25 | 25 | |
| 22 | 22 | 22 | |
| 27 | 27 | 27 | |
| 26 | 26 | 26 | |
| 29 | 29 | 29 | |
| 30 | 30 | 30 | |
| 28 | 28 | 28 | |
| 29 | 29 | 29 | |
| 30 | 30 | 30 | |
| 23 | 23 | 23 | |
| 21 | 21 | 21 | |
| 20 | 20 | 20 | |
| 16 | 16 | 16 | |
| 15 | 15 | 15 | |
| 19 | 19 | 19 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 31 | 31 | 31 | |
| 32 | 32 | 32 | |
| 33 | 33 | 33 | |
| 35 | 35 | 35 | |
| 34 | 34 | 34 | |
| 4 | 4 | 4 | |
| 3 | 3 | 3 | |
| 7 | 7 | 7 | |
| 9 | 9 | 9 | |
| 8 | 8 | 8 | |
| 5 | 5 | 5 | |
| 11 | 11 | 11 | |
| 14 | 14 | 14 | |
| 13 | 13 | 13 | |
| 12 | 12 | 12 | |
| 10 | 10 | 10 |
Page 6 — 三、压料分组件 Presser bar components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10111034 | 调压螺钉 | ||
| 10111036 | 调压螺钉螺母 | ||
| 10102003 | 调压导杆 | ||
| 10127005 | 调压簧 | ||
| 12502002 | 压杆 | ||
| 12509002 | 压杆导架 | ||
| 116S1005 | 压杆导架螺钉 | ||
| 10103012 | 压杆衬套 | ||
| 10423004 | 油线 | ||
| 1251600100 | 压脚部件1/4" | ||
| 101S11009 | 压脚螺钉 | ||
| 12519001 | 切线刀 | ||
| 12527003 | 切线刀导钩 | ||
| 201S11002 | 切线刀导钩螺钉 | ||
| 1251100100 | 压脚扳手组件 | ||
| 101S11001 | 压脚扳手螺钉 | ||
| 12528002 | 垫圈 | ||
| 1251000100 | 压脚扳手凸轮部件 | ||
| 001004 | 压脚扳手轴形圈 | ||
| 12512057 | 压脚升降板 | ||
| 125S20003 | 升降板轴位螺钉 | ||
| 12512014 | 抬压脚前杠杆 | ||
| 125S20001 | 前杠杆轴位螺钉 | ||
| 125S11001 | 前杠杆螺纹销 | ||
| 12528003 | 垫圈 | ||
| H05006 | 前杠杆特制开口挡圈 | ||
| H05009 | 挡圈 | ||
| 12512015 | 抬压脚拉杆 | ||
| 125S11002 | 抬压脚拉杆螺钉 | ||
| H05003 | 抬压脚拉杆开口挡圈 | ||
| 12512016 | 抬压脚后杠杆 | ||
| 125S20004 | 后杠杆轴位螺钉 | ||
| 12526003 | 抬压脚顶杆接头 | ||
| 12512017 | 抬压脚顶杆 | ||
| 116S16006 | 抬压脚顶杆螺母 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Lever assembly | ||
| 2 | Shaft | ||
| 3 | Spring | ||
| 4 | Lever | ||
| 5 | Screw | ||
| 6 | Shaft | ||
| 7 | Roller | ||
| 8 | Screw | ||
| 9 | Lever | ||
| 10 | Bracket | ||
| 11 | Shaft | ||
| 12 | Screw | ||
| 13 | Spring | ||
| 14 | Lever assembly | ||
| 15 | Shaft | ||
| 16 | Shaft | ||
| 17 | Screw | ||
| 18 | Screw | ||
| 19 | Screw | ||
| 20 | Lever | ||
| 21 | Screw | ||
| 22 | Shaft | ||
| 23 | Nut | ||
| 24 | Screw | ||
| 25 | Clip | ||
| 26 | Shaft | ||
| 27 | Screw | ||
| 28 | Shaft | ||
| 29 | Screw | ||
| 30 | Roller | ||
| 31 | Lever assembly | ||
| 32 | Spring | ||
| 33 | Shaft | ||
| 34 | Screw | ||
| 35 | Shaft | ||
| 36 | Lever | ||
| 37 | Lever | ||
| 38 | Lever | ||
| 39 | Bracket | ||
| 40 | Shaft | ||
| 41 | Screw | ||
| 42 | Plate | ||
| 43 | Screw | ||
| 45 | Lever | ||
| 46 | Screw | ||
| 47 | Screw | ||
| 48 | Screw | ||
| 49 | Nut | ||
| 50 | Screw | ||
| 51 | Shaft | ||
| 52 | Shaft | ||
| 53 | Shaft | ||
| 54 | Screw | ||
| 55 | Screw | ||
| 56 | Screw | ||
| 57 | Shaft | ||
| 58 | Screw | ||
| 59 | Shaft | ||
| 60 | Screw | ||
| 61 | Screw | ||
| 62 | Shaft | ||
| 63 | Screw | ||
| 64 | Screw | ||
| 65 | Shaft | ||
| 66 | Screw | ||
| 67 | Screw |
Page 8 — 四、送料分组件 Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1251000300 | 送料偏心轮部件 | ||
| 12510004 | 送料偏心轮 | ||
| 101S11013 | 送料偏心轮螺钉 | ||
| 12512018 | 送料偏心轮盖板 | ||
| 125S17001 | 偏心轮盖板螺钉 | ||
| 12505001 | 送料大连杆 | ||
| 12505002 | 送料小连杆 | ||
| 12526004 | 送料连杆销 | ||
| 125S11009 | 送料连杆销螺钉 | ||
| 12504002 | 送料摆杆 | ||
| 12501003 | 送料摆杆座 | ||
| 12526005 | 送料摆杆座左销 | ||
| 101S11020 | 送料摆杆座左销螺钉 | ||
| 12526006 | 送料摆杆座右销 | ||
| 125S11010 | 送料摆杆座右销螺钉 | ||
| 12526007 | 送料摆杆销 | ||
| 125S15005 | 送料摆杆销螺钉 | ||
| 125S20002 | 送料曲轴轴位螺钉 | ||
| 409S16015 | 送料曲轴轴位螺母 | ||
| 12504003 | 送料曲柄 | ||
| 409S11015 | 送料曲柄螺钉 | ||
| 12502004 | 送料轴 | ||
| 12508002 | 送料轴挡圈 | ||
| 401S15006 | 送料轴挡圈螺钉 | ||
| H03001 | 送料轴用挡圈 | ||
| 12503012 | 送料轴后轴套 | ||
| 409S15004 | 送料轴后轴套螺钉 | ||
| 12508002 | 送料轴挡圈 | ||
| 401S15006 | 送料轴挡圈螺钉 | ||
| 12503013 | 送料轴前轴套 | ||
| 12507001 | 牙架座 | ||
| 409S11015 | 牙架座螺钉 | ||
| GR1528 | 牙架座螺钉垫圈 | ||
| GL20 | 牙架座螺钉螺母 | ||
| 12507002 | 牙架 | ||
| 12526008 | 牙架销 | ||
| 209S11009 | 牙架销螺钉 | ||
| 10123008 | 油线 | ||
| 12514001 | 送料牙1/4" | ||
| W01006 | 送料牙垫圈 | ||
| 116S11005 | 送料牙螺钉 | ||
| 12515007 | 针板1/4" | ||
| 125S17002 | 针板螺钉 | ||
| 12505003 | 拾牙连杆 | ||
| 12512019 | 拾牙连杆凸轮盖 | ||
| 201S11007 | 拾牙连杆凸轮盖螺钉 | ||
| 12504004 | 拾牙后曲柄 | ||
| 125S20002 | 拾牙连杆轴位螺钉 | ||
| 409S16015 | 拾牙连杆轴位螺母 | ||
| 409S11015 | 拾牙后曲柄紧固螺钉 | ||
| 12502005 | 拾牙轴 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10423004 | 油线 | ||
| 12503012 | 拾牙轴后轴套部件 | ||
| 101S15010 | 拾牙轴后轴套螺钉 | ||
| 10108003 | 拾牙轴后轴套挡圈 | ||
| 101S15002 | 后轴套挡圈螺钉 | ||
| 12503017 | 拾牙轴中轴套 | ||
| 101S15010 | 拾牙轴中轴套螺钉 | ||
| 12503020 | 拾牙轴前轴套 | ||
| 12504005 | 拾牙轴前曲柄 | ||
| 201S11026 | 拾牙轴前曲柄螺钉 | ||
| 12505004 | 牙架连杆 | ||
| 12508003 | 牙架连杆挡圈 | ||
| 125S15003 | 牙架连杆挡圈螺钉 | ||
| 10423004 | 油线 | ||
| 12528001 | 牙架连杆锥孔垫圈 | ||
| 125S17006 | 牙架连杆垫圈螺钉 |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | DIAL INDICATOR | |
| 2 | 2 | SCREW | |
| 3 | 3 | SPRING | |
| 4 | 4 | BRACKET | |
| 5 | 5 | SPRING | |
| 6 | 6 | PIN | |
| 7 | 7 | WASHER | |
| 8 | 8 | PIN | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | SCREW | |
| 12 | 12 | NUT | |
| 13 | 13 | BOLT | |
| 14 | 14 | SPRING | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SPRING | |
| 18 | 18 | SPRING | |
| 19 | 19 | LEVER | |
| 20 | 20 | SPRING | |
| 21 | 21 | BRACKET | |
| 22 | 22 | WASHER | |
| 23 | 23 | SCREW | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SPRING | |
| 26 | 26 | SCREW | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | SHAFT | |
| 30 | 30 | WASHER | |
| 31 | 31 | NUT | |
| 32 | 32 | SLEEVE | |
| 33 | 33 | SPRING | |
| 34 | 34 | CAP | |
| 35 | 35 | BRACKET | |
| 36 | 36 | SPRING | |
| 37 | 37 | SCREW | |
| 38 | 38 | ROD | |
| 39 | 39 | SCREW | |
| 40 | 40 | NUT | |
| 41 | 41 | BRACKET |
Page 11 — 五、送料调节分组件 Feed regulating components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1251100300 | 送料距旋钮部件 | ||
| 101S11022 | 送料距旋钮螺钉 | ||
| 12526009 | 送料调节螺柱 | ||
| 001040 | 送料调节螺柱O形圈 | ||
| 10126015 | 送料距锁合销 | ||
| 10127010 | 送料距锁合销簧 | ||
| 12504006 | 送料调节器 | ||
| 12526011 | 送料调节器销 | ||
| 101S15006 | 送料调节器销螺钉 | ||
| 12505005 | 送料调节器连接杆 | ||
| 12526020 | 调节器连杆轴 | ||
| 116S11017 | 调节器连杆轴螺钉 | ||
| 12526012 | 拉簧调节曲柄销 | ||
| 116S11017 | 拉簧调节曲柄销螺钉 | ||
| 12504007 | 拉簧调节曲柄 | ||
| 101S11021 | 调节曲柄紧固螺钉 | ||
| 101S15006 | 调节曲柄定位螺钉 | ||
| 12527004 | 倒送料拉簧 | ||
| 12512020 | 拉簧固定板 | ||
| 101S11008 | 拉簧固定板螺钉 | ||
| 12502006 | 倒送料曲柄 | ||
| 001014 | 倒送料曲柄O形圈 | ||
| W03010 | 倒送料曲柄弹性垫圈10 | ||
| 300974 | 倒送料曲柄 | ||
| 101S15011 | 倒送料扳手定位螺钉 | ||
| 101S15007 | 倒送料扳手螺钉 | ||
| 125S11015 | 倒送料轴端螺钉 | ||
| 12508006 | 倒送料挡圈 | ||
| 125S30007 | 倒送料挡块螺钉 | ||
| W01015 | 挡块螺柱垫圈 | ||
| 209S16006 | 挡块螺母 | ||
| 300975 | 倒送料挡块 | ||
| 125S15004 | 倒送料挡块螺钉 | ||
| 12522009 | 倒送料挡块橡胶垫 | ||
| 12504008 | 倒送料曲柄 | ||
| 101S15006 | 倒送料曲柄定位螺钉 | ||
| 101S11021 | 倒送料曲柄螺钉 | ||
| 12512021 | 倒送料连杆 | ||
| 125S20006 | 倒送料连杆轴位螺钉 | ||
| W04002 | 倒送料连杆轴位螺圈 | ||
| 401S16004 | 倒送料连杆轴位螺母 |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52 | Housing | ||
| 53 | Bolt | ||
| 36 | Shaft | ||
| 51 | Pin | ||
| 37 | Lever | ||
| 33 | Shaft | ||
| 34 | Spring | ||
| 54 | Pin | ||
| 35 | Spring | ||
| 55 | Shaft | ||
| 25 | Housing | ||
| 26 | Spring | ||
| 22 | Shaft | ||
| 38 | Lever | ||
| 39 | Spring | ||
| 40 | Spring | ||
| 43 | Roller | ||
| 48 | Lever | ||
| 47 | Spring | ||
| 45 | Lever | ||
| 44 | Spring | ||
| 49 | Spring | ||
| 50 | Screw | ||
| 46 | Lever | ||
| 41 | Base | ||
| 42 | Bolt | ||
| 57 | Pin | ||
| 56 | Lever | ||
| 58 | Spring | ||
| 62 | Pin | ||
| 61 | Lever | ||
| 59 | Housing | ||
| 60 | Screw | ||
| 63 | Pin | ||
| 64 | Shaft | ||
| 65 | Spring | ||
| 66 | Pin | ||
| 67 | Spring | ||
| 76 | Lever | ||
| 74 | Lever | ||
| 75 | Lever | ||
| 73 | Bolt | ||
| 72 | Bolt | ||
| 70 | Lever | ||
| 71 | Pin | ||
| 68 | Shaft | ||
| 69 | Spring | ||
| 10 | Shaft | ||
| 13 | Shaft | ||
| 16 | Spring | ||
| 11 | Lever | ||
| 12 | Lever | ||
| 14 | Spring | ||
| 15 | Spring | ||
| 17 | Spring | ||
| 18 | Shaft | ||
| 19 | Spring | ||
| 20 | Shaft | ||
| 21 | Shaft | ||
| 1 | Shaft | ||
| 2 | Gear | ||
| 8 | Spring | ||
| 7 | Shaft | ||
| 3 | Shaft | ||
| 5 | Shaft | ||
| 6 | Shaft | ||
| 9 | Gear | ||
| 29 | Gear | ||
| 30 | Spring | ||
| 31 | Gear | ||
| 32 | Spring | ||
| 23 | Shaft | ||
| 27 | Shaft | ||
| 24 | Shaft | ||
| 28 | Shaft |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10125004 | 上轴伞齿轮 | 1 | |
| 10125003 | 竖轴上伞齿轮 | 1 | |
| 12503021 | 竖轴上伞套 | 1 | |
| 1250302200 | 竖轴下伞套部件 | 1 | |
| 101S15010 | 竖轴轴套螺钉 | 2 | |
| 10125003 | 竖轴下伞齿轮 | 1 | |
| 12502007 | 竖轴 | 1 | |
| 101S15007 | 伞齿轮螺钉 | 8 | |
| 12525001 | 下轴伞齿轮 | 1 | |
| 12502008 | 下轴 | 1 | |
| 12503025 | 下轴后轴套 | 1 | |
| 101S15010 | 下轴后轴套螺钉 | 1 | |
| GR1847 | 下轴后轴套油毡 | 1 | |
| 1250302600 | 下轴中轴套部件 | 1 | |
| 101S15001 | 下轴中轴套螺钉 | 1 | |
| 12508005 | 下轴挡圈 | 1 | |
| 101S15007 | 下轴挡圈螺钉 | 2 | |
| 1250303200 | 下轴轴套部件 | 1 | |
| 101S15001 | 下轴轴套螺钉 | 1 | |
| 12503046 | 下轴前轴套油毡 | 1 | |
| 1250200700 | 下轴前轴套油封组件 | 1 | |
| 12502009 | 弯针轴 | 1 | |
| 1250302600 | 弯针轴后轴套部件 | 1 | |
| 101S15001 | 弯针轴套螺钉 | 1 | |
| 1250303800 | 弯针轴前轴套 | 1 | |
| 101S15001 | 弯针轴前轴套螺钉 | 1 | |
| 12508005 | 弯针轴挡圈 | 1 | |
| 101S15007 | 弯针轴挡圈螺钉 | 2 | |
| 12525002 | 主动弯针齿轮 | 1 | |
| 101S15007 | 主动弯针齿轮螺钉 | 2 | |
| 12525003 | 被动弯针齿轮 | 1 | |
| 101S15007 | 被动弯针齿轮螺钉 | 2 | |
| 12504009 | 弯针曲柄 | 1 | |
| 101S15007 | 弯针曲柄螺钉 | 2 | |
| 125S30008 | 弯针曲柄调节螺钉 | 1 | |
| 1250402100 | 弯针摆十字接头组件 | 1 | |
| 1250201000 | 弯针摆部件 | 1 | |
| 209S11009 | 弯针摆盖螺钉 | 4 | |
| 10423004 | 油线 | 2 | |
| GR1854 | 弯针摆挡圈 | 2 | |
| 12501005 | 弯针架座 | 1 | |
| 125S13001 | 弯针架座螺钉 | 1 | |
| 12503042 | 弯针摆轴套 | 2 | |
| 401S15006 | 弯针摆轴套螺钉 | 1 | |
| 12504012 | 左弯针曲柄 | 1 | |
| 409S11015 | 左弯针曲柄螺钉 | 1 | |
| 12517001 | 左弯针 | 1 | |
| 209S11012 | 弯针螺钉 | 2 | |
| 12504013 | 右弯针曲柄 | 1 | |
| 409S11015 | 右弯针曲柄螺钉 | 1 | |
| 12517002 | 右弯针 | 1 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1251202200 | 弯针曲柄罩壳部件 | ||
| 125S11007 | 曲柄罩壳螺钉 | ||
| 1081357 | 曲柄罩壳孔塞 | ||
| 12921002 | 油管3X5 | ||
| 12510005 | 护针凸轮 | ||
| 101S15007 | 护针凸轮螺钉 | ||
| 12505007 | 护针连杆 | ||
| 12504014 | 护针叉形曲柄 | ||
| 101S11020 | 护针叉形曲柄螺钉 | ||
| 12526014 | 护针曲柄销 | ||
| 10423004 | 油线 | ||
| 401S15006 | 护针曲柄销螺钉 | ||
| 12503043 | 护针轴套 | ||
| 101S15010 | 护针轴套螺钉 | ||
| 12502012 | 护针轴 | ||
| 10128008 | 护针油线 | ||
| 12504015 | 护针曲柄 | ||
| 409S11015 | 护针曲柄螺钉 | ||
| 12517003 | 摆动护针(1/4") | ||
| 209S11009 | 摆动护针杆螺钉 | ||
| 12501006 | 护针杆座 | ||
| 101S11011 | 护针杆座螺钉 | ||
| 12517004 | 左固定护针杆 | ||
| 12517005 | 右固定护针杆 | ||
| 101S11005 | 左右固定护针杆螺钉 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | BRACKET | |
| 4 | 4 | SCREW | |
| 5 | 5 | BRACKET | |
| 6 | 6 | SPRING | |
| 7 | 7 | SCREW | |
| 8 | 8 | BRACKET | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | SCREW | |
| 15 | 15 | SHAFT | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | SPRING | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | BRACKET | |
| 22 | 22 | COLLAR | |
| 23 | 23 | COLLAR | |
| 24 | 24 | COLLAR | |
| 25 | 25 | CAM | |
| 26 | 26 | CAM | |
| 27 | 27 | BRACKET | |
| 28 | 28 | CAM | |
| 29 | 29 | BRACKET | |
| 30 | 30 | BRACKET | |
| 31 | 31 | BRACKET | |
| 32 | 32 | SPRING | |
| 33 | 33 | SPRING | |
| 34 | 34 | SPRING | |
| 35 | 35 | SPRING | |
| 36 | 36 | SPRING | |
| 37 | 37 | BRACKET | |
| 40 | 40 | BRACKET | |
| 41 | 41 | BRACKET | |
| 42 | 42 | BRACKET | |
| 43 | 43 | BRACKET | |
| 44 | 44 | BRACKET | |
| 45 | 45 | BRACKET | |
| 46 | 46 | BRACKET | |
| 47 | 47 | SCREW | |
| 48 | 48 | SCREW | |
| 79 | 79 | BRACKET | |
| 89 | 89 | BRACKET | |
| 91 | 91 | BRACKET |
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 85 | 85 | ||
| 84 | 84 | ||
| 83 | 83 | ||
| 82 | 82 | ||
| 81 | 81 | ||
| 80 | 80 | ||
| 79 | 79 | ||
| 86 | 86 | ||
| 87 | 87 | ||
| 88 | 88 | ||
| 90 | 90 | ||
| 89 | 89 | ||
| 78 | 78 | ||
| 75 | 75 | ||
| 74 | 74 | ||
| 73 | 73 | ||
| 72 | 72 | ||
| 71 | 71 | ||
| 70 | 70 | ||
| 69 | 69 | ||
| 68 | 68 | ||
| 67 | 67 | ||
| 66 | 66 | ||
| 65 | 65 | ||
| 64 | 64 | ||
| 63 | 63 | ||
| 62 | 62 | ||
| 61 | 61 | ||
| 55 | 55 | ||
| 54 | 54 | ||
| 52 | 52 | ||
| 58 | 58 | ||
| 57 | 57 | ||
| 56 | 56 | ||
| 59 | 59 | ||
| 60 | 60 | ||
| 53 | 53 | ||
| 51 | 51 | ||
| 49 | 49 | ||
| 50 | 50 | ||
| 38 | 38 | ||
| 37 | 37 |
Page 17 — 七、挑线、松线、夹线分组件 Thread take-up, tension, and tension releasing assembly complete
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12505008 | 挑线连杆 | ||
| 409S11024 | 挑线连杆螺钉 | ||
| 12512025 | 挑线杆 | ||
| 101S11005 | 挑线杆紧固螺钉 | ||
| 12512026 | 挑线杆夹线板 | ||
| 12527014 | 挑线杆夹线簧 | ||
| 125S11018 | 挑线杆夹线板螺钉 | ||
| 12512027 | 挡线杆护罩 | ||
| 112S11014 | 挑线杆护罩螺钉 | ||
| 12512028 | 线量调节板 | ||
| 112S11014 | 线量调节板螺钉 | ||
| W01006 | 调节板螺钉垫圈 | ||
| 12612002 | 中间导线钩 | ||
| 112S11014 | 中间导线钩螺钉 | ||
| 12502013 | 松线轴 | ||
| 1250401600 | 面线松线曲柄部件 | ||
| 101S11012 | 面线松线曲柄螺钉 | ||
| 12527015 | 抬压脚后杠弹簧 | ||
| 12512031 | 后杠杆弹簧固定板 | ||
| 112S11014 | 后杠杆弹簧固定板螺钉 | ||
| H05013 | 松线轴挡圈 | ||
| 001027 | 松线轴O型圈 | ||
| 12509004 | 松线轴环 | ||
| 12509011 | 夹线器下安装垫 | ||
| 12509006 | 夹线器上安装垫 | ||
| 125S30010 | 夹线器上安装垫螺钉 | ||
| 125S30009 | 夹线器下安装垫螺钉 | ||
| 1251300100 | 面线夹线器部件 | ||
| 12512032 | 面线单面导线板 | ||
| 12512033 | 面线双面导线板 | ||
| 125S30003 | 夹线螺钉 | ||
| 10112005 | 面线夹线板 | ||
| 12511004 | 面线松线座 | ||
| 10127002 | 面线夹线簧 | ||
| 10112007 | 面线止动板 | ||
| 12511009 | 面线夹线螺母 | ||
| 12512035 | 导线钩 | ||
| 112S11014 | 导线钩螺钉 | ||
| 12504017 | 面线松线爪 | ||
| 101S11012 | 面线松线爪螺钉 | ||
| GR1907 | 过线板架 | ||
| GR1908 | 过线板 | ||
| GR1943 | 过线夹线板 | ||
| GW299 | 过线夹线簧 | ||
| GS0149 | 过线夹线螺钉 | ||
| GR1986 | 松线板 | ||
| GS043 | 送线板螺钉 | ||
| GS010 | 过线板螺钉 |
Page 18
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1251000600 | 底线打线凸轮 | ||
| 125S17004 | 底线打线凸轮定位螺钉 | ||
| 1251300200 | 凸轮导线部件 | ||
| 12512040 | 凸轮导线架 | ||
| 112S11014 | 凸轮导线架螺钉 | ||
| 12512041 | 底线双导线钩 | ||
| 125S11004 | 底线双导线钩螺钉 | ||
| 12512042 | 底线导线止动簧 | ||
| 125S11004 | 底线导线止动簧螺钉 | ||
| 12527007 | 底线脱线钢丝 | ||
| 101S11027 | 底线脱线钢丝螺钉 | ||
| W01005 | 底线脱线钢丝螺钉垫圈 | ||
| 12527008 | 底线导线簧 | ||
| 114S16004 | 凸轮过线螺钉螺母 | ||
| 125S30002 | 凸轮导线螺钉 | ||
| 12512043 | 凸轮导线钩(右) | ||
| 12512044 | 凸轮脱线爪 | ||
| 12512045 | 凸轮导线钩(左) | ||
| 12509007 | 凸轮导线环 | ||
| 125S11005 | 凸轮导线钩螺钉 | ||
| 12512046 | 底线导线钩 | ||
| 409S17001 | 底线导线钩螺钉 | ||
| 12512047 | 底线导线管 | ||
| 12504018 | 松线轴套 | ||
| 125S11020 | 底线松套螺钉 | ||
| 12502014 | 底线松线轴 | ||
| 001004 | 底线松线轴O型圈 | ||
| 1250401900 | 底线松线轴弯曲构件 | ||
| 114S16004 | 底线松线轴螺母 | ||
| 1251300300 | 底线夹线器部件 | ||
| 12512055 | 底线夹线器安装板 | ||
| 12512049 | 底线单面导线板 | ||
| 12512050 | 底线双面导线板 | ||
| P01009 | 底线夹线板止转销 | ||
| 125S30003 | 夹线螺钉 | ||
| 12512051 | 底线夹线板 | ||
| 12527009 | 底线夹线簧 | ||
| 12509008 | 底线夹线止转圈 | ||
| 125S16001 | 底线夹线螺母 | ||
| 112S11014 | 夹线器安装板螺钉 | ||
| 12504020 | 底线松线爪 | ||
| 101S11012 | 底线松线爪螺钉 | ||
| 12612004 | 松线器推板 |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 |
Page 20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1252000100 | 油泵部件 | 1 | |
| 12512052 | 油泵安装板 | 1 | |
| 125S30011 | 油泵安装螺钉 | 4 | |
| GR1550 | 油泵安装垫圈 | 3 | |
| GL138 | 油泵安装螺母 | 3 | |
| 1252000200 | 油泵体部件 | 1 | |
| 12520003 | 油泵叶轮 | 1 | |
| 12512053 | 油泵叶轮安装板 | 1 | |
| 1252000400 | 油泵盖部件 | 1 | |
| 125S30012 | 油泵盖螺钉 | 3 | |
| 12536002 | 上轴供油管接头 | 1 | |
| 12536003 | 下轴供油管接头 | 1 | |
| 12509011 | 油泵垫圈 | 3 | |
| 12530009 | 油泵螺钉 | 3 | |
| 12521002 | 上轴供油管 | 1 | |
| GR1563 | 回油泵柱塞 | 1 | |
| GW260 | 柱塞簧 | 1 | |
| 12536004 | 齿轮供油管接头 | 1 | |
| 12521003 | 齿轮供油管 | 1 | |
| 12512054 | 齿轮供油管夹 | 2 | |
| 101S11025 | 齿轮供油管夹螺钉 | 2 | |
| GS055 | 螺钉 | 1 | |
| 12521006 | 回油管 | 1 | |
| 12512054 | 回油管夹 | 1 | |
| 101S11025 | 回油管夹螺钉 | 1 | |
| GR1567 | 回油除尘毡 | 1 | |
| 10423002 | 回油毡 | 1 | |
| 12527011 | 回油毡夹 | 1 | |
| 12512070 | JK-8558-0829面部挡油板(有 | 1 | |
| 10423004 | 面部挡油板油线 | 1 | |
| GS069 | 螺钉 | 1 | |
| 112S11014 | 面部挡油板下螺钉 | 1 | |
| 12521004 | 下轴供油管 | 1 | |
| 10122019 | 油窗0形圈 | 1 | |
| 10111004 | 油窗 | 1 |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | COVER | ||
| 2 | COVER | ||
| 3 | COVER | ||
| 4 | COVER | ||
| 5 | COVER | ||
| 6 | FILTER | ||
| 7 | FILTER | ||
| 8 | COVER | ||
| 9 | PIN | ||
| 10 | SCREW | ||
| 11 | WASHER | ||
| 12 | KNOB | ||
| 13 | SPRING | ||
| 14 | SPRING | ||
| 15 | LEVER | ||
| 16 | LEVER | ||
| 17 | LEVER | ||
| 18 | LEVER | ||
| 19 | SPRING | ||
| 20 | SPRING | ||
| 21 | SHAFT | ||
| 22 | BRACKET | ||
| 23 | SCREW | ||
| 24 | SHAFT | ||
| 25 | SCREW | ||
| 26 | BRACKET | ||
| 27 | COVER | ||
| 28 | COVER |
Page 22 — 九、油盘、膝抬压脚分组件 Oil reservoir & knee lifter components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1250100700 | 油盘部件 | ||
| 12501009 | 油盘 | ||
| 10131001 | 油盘磁铁 | ||
| 12522018 | 油盘侧面垫 | ||
| 12522019 | 油盘端面垫 | ||
| 10122023 | 机头防震垫块(大) | ||
| 10122022 | 机头防震垫块(小) | ||
| 10122024 | 操纵板软垫 | ||
| 101S30010 | 油盘座钉 | ||
| 10122001 | 排油螺钉O形圈 | ||
| 101S11028 | 排油螺钉 | ||
| 12531004 | 抬压脚顶销 | ||
| 12512059 | 抬压脚双曲柄 | ||
| 101S12002 | 双向曲柄螺钉 | ||
| 101S15012 | 双向曲柄限位螺钉 | ||
| 101S16004 | 双向曲柄限位螺母 | ||
| 101S15012 | 双向曲柄限位螺钉 | ||
| 101S16004 | 双向曲柄限位螺母 | ||
| 10127016 | 双向曲柄扭簧 | ||
| H05010 | 抬压脚轴开口挡圈 | ||
| 12502015 | 抬压脚轴 | ||
| 10101008 | 抬压脚操纵杆节头 | ||
| 101S12003 | 操纵杆节头螺钉 | ||
| 1012028 | 操纵杆 | ||
| 10112030 | 操纵板节头 | ||
| 101S12004 | 操纵板节头螺钉 | ||
| 10112029 | 操纵板 | ||
| 10122025 | 操纵杆垫 |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 3 | 3 | Screw | |
| 2 | 2 | Screw | |
| 5 | 5 | Screw | |
| 7 | 7 | Screwdriver | |
| 6 | 6 | Screwdriver | |
| 4 | 4 | Screw | |
| 8 | 8 | Oil applicator | |
| 9 | 9 | Oil bottle | |
| 10 | 10 | Tweezers |
Page 24 — 十、机头附件 Machine head accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1011203100 | 机头连接钩部件 | ||
| 10122060 | 机头连接钩座 | ||
| 101S30010 | 机头连接钩座钉 | ||
| 12617005 | 机针 | ||
| 12811003 | 皮带轮罩组件 | ||
| 10131003 | 螺丝刀(中) | ||
| 10131004 | 螺丝刀(小) | ||
| 10111011 | 机头支柱 | ||
| 1011101200 | 油箱部件 | ||
| 20131051 | 镊子 |

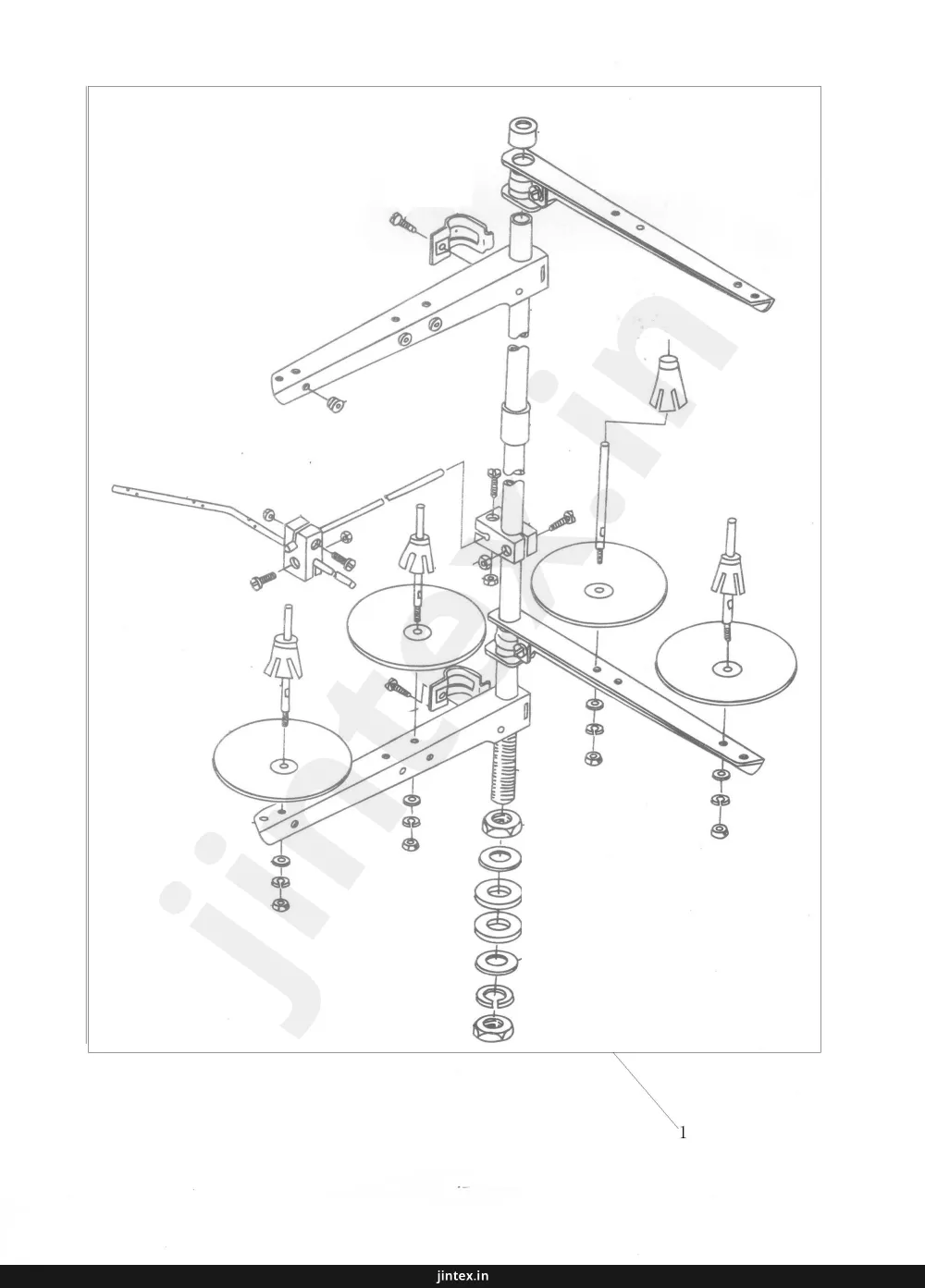

Page 26 — 十一、四线团架分组件 Quadruple-thread spool stand sam
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20131073 | 线架组件 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 49 | Screw | ||
| 50 | Washer | ||
| 51 | Nut | ||
| 52 | Spring Washer | ||
| 41 | Cover | ||
| 43 | Screw | ||
| 42 | Cover | ||
| 40 | Table | ||
| 46 | Belt | ||
| 45 | Motor | ||
| 44 | Motor Pulley | ||
| 32 | Screw | ||
| 36 | Spring | ||
| 35 | Bracket | ||
| 39 | Screw | ||
| 38 | Washer | ||
| 37 | Screw | ||
| 2 | Frame | ||
| 1 | Frame | ||
| 7 | Bracket | ||
| 8 | Screw | ||
| 9 | Washer | ||
| 10 | Nut | ||
| 27 | Screw | ||
| 26 | Washer | ||
| 28 | Washer | ||
| 31 | Screw | ||
| 33 | Bracket | ||
| 34 | Screw | ||
| 23 | Screw | ||
| 24 | Washer | ||
| 19 | Screw | ||
| 21 | Washer | ||
| 18 | Bracket | ||
| 29 | Screw | ||
| 17 | Bracket | ||
| 25 | Screw | ||
| 16 | Bracket | ||
| 3 | Cover | ||
| 4 | Screw | ||
| 5 | Washer | ||
| 6 | Nut | ||
| 15 | Screw | ||
| 14 | Washer | ||
| 13 | Nut | ||
| 12 | Bracket | ||
| 20 | Screw | ||
| 22 | Washer | ||
| 48 | Handwheel | ||
| 47 | Screw | ||
| 53 | Screw | ||
| 54 | Washer |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1011204200 | 边架部件(左) | ||
| 1011204300 | 边架部件(右) | ||
| 10111015 | 边架套 | ||
| N01010 | 螺母 | ||
| 101s30015 | 调节座 | ||
| 10122029 | 调节座橡胶 | ||
| 10112044 | 横档 | ||
| L02014 | 横档连接螺栓 | ||
| 10128011 | 垫圈 | ||
| W01010 | 垫圈 | ||
| N01011 | 螺母 | ||
| 10112045 | 踏板轴档 | ||
| L02014 | 踏板轴档螺栓 | ||
| 10128011 | 垫圈 | ||
| W01010 | 垫圈 | ||
| 10112046 | 踏板轴档定位螺母板 | ||
| 10102013 | 踏板轴 | ||
| 10112047 | 踏板轴座 | ||
| L02014 | 踏板轴座螺栓 | ||
| W01010 | 垫圈 | ||
| 10128011 | 弹簧垫圈 | ||
| N01011 | 螺母 | ||
| 10112048 | 踏板 | ||
| 10122030 | 踏板垫 | ||
| 10103023 | 踏板衬套 | ||
| 10112049 | 踏板杠杆 | ||
| L02015 | 踏板杠杆螺栓 | ||
| W01003 | 垫圈 | ||
| N01012 | 螺母 | ||
| 10112050 | 下拉杆 | ||
| 10127019 | 拉杆弹簧 | ||
| 10112051 | 上拉杆 | ||
| 10112052 | 拉杆接头 | ||
| L02015 | 拉杆接头螺栓 | ||
| N01012 | 螺母 | ||
| 10129001 | 上拉杆开口销 | ||
| 101s30016 | 台板木螺钉 | ||
| 10128012 | 垫圈 | ||
| 10128013 | 台板垫圈 | ||
| 10132002 | 台板 | ||
| 10111016 | 抽斗 | ||
| 10111017 | 抽斗导轨 | ||
| 101s30017 | 抽斗导轨木螺钉 | ||
| 10133001 | GFC4024型电机 | ||
| 10130002 | 电机接线插头 | ||
| 10130003 | 电机接线 | ||
| 10135004 | 电动带轮 | ||
| 10135002 | 机头传动带 | ||
| 101s30018 | 螺钉 | ||
| 10128014 | 垫圈 | ||
| 10128011 | 弹簧垫圈 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N01011 | 螺母 | ||
| 10130004 | 电源开关 | ||
| 101s30019 | 电源开关木螺钉 |
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Plate | ||
| 2 | Presser Foot | ||
| 3 | Presser Foot Holder | ||
| 4 | Presser Foot Bar Guide | ||
| 5 | Oil Tube | ||
| 6 | Oil Tube Holder | ||
| 7 | Needle Bar | ||
| 8 | Needle Bar Bushing | ||
| 9 | Needle Bar Connecting Link | ||
| 10 | Needle Bar Connecting Link Screw | ||
| 11 | Presser Bar | ||
| 12 | Presser Bar Spring | ||
| 13 | Presser Bar Bushing | ||
| 14 | Presser Bar Spring Pin |
Page 31 — 13、JK-8558W-1专用零件 Model one-needle high speed chainstitcher
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12515002 | 附件安装板 | ||
| 1251600100 | 压脚组件 | ||
| 12514001 | 送料牙 | ||
| 12515007 | 针板 | ||
| 12517003 | 摆动护针杆 | ||
| 12517005 | 固定护针杆 | ||
| 1251300100 | 面线夹线器组件 | ||
| 12504017 | 面线松线爪 | ||
| 1251300300 | 底线夹线器组件 | ||
| 12504020 | 底线松线爪 | ||
| 12602002 | 针杆 | ||
| 125S15007 | 支针螺钉 | ||
| 10113009 | 针杆下轴套线钩 |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Base plate | ||
| 2 | Presser foot assembly | ||
| 3 | Feed dog | ||
| 4 | Needle clamp screw | ||
| 5 | Oil tube | ||
| 6 | Oil wick | ||
| 7 | Bobbin case assembly | ||
| 8 | Bobbin case spring | ||
| 9 | Bobbin winder assembly | ||
| 10 | Bobbin winder spindle | ||
| 11 | Presser bar | ||
| 12 | Presser bar spring | ||
| 13 | Presser bar guide | ||
| 14 | Presser bar spring collar |
Page 33 — 13、JK-8558W-2专用零件 Model one-needle high speed chainstitcher
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12515002 | 附件安装板 | ||
| 1251601000 | 压脚组件 | ||
| 12514006 | 送料牙 | ||
| 12515016 | 针板 | ||
| 12517009 | 摆动护针杆 | ||
| 1251300400 | 面线夹线器组件 | ||
| 12504022 | 面线松线爪 | ||
| 1251300500 | 底线夹线器组件 | ||
| 12504023 | 底线松线爪 | ||
| 11402035 | 针杆 | ||
| 101S11006 | 支针螺钉 | ||
| 10113002 | 针杆线钩 | ||
| 10113009 | 针杆下轴套线钩 |
Page 34 — 14. 后拖轮装置/Puller device mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Puller device mechanism | ||
| 2 | Bearing | ||
| 3 | Washer | ||
| 4 | Shaft | ||
| 5 | Screw | ||
| 6 | Housing | ||
| 7 | Screw | ||
| 8 | Bearing | ||
| 9 | Screw | ||
| 10 | Gasket | ||
| 11 | Screw | ||
| 12 | Washer | ||
| 13 | Screw | ||
| 14 | Bearing | ||
| 15 | Screw | ||
| 16 | Washer | ||
| 17 | Screw | ||
| 18 | Screw | ||
| 19 | Screw | ||
| 20 | Plate | ||
| 21 | Bearing | ||
| 22 | Shaft | ||
| 23 | Screw | ||
| 24 | Screw | ||
| 25 | Screw | ||
| 26 | Screw | ||
| 27 | Spring | ||
| 28 | Lever | ||
| 29 | Screw | ||
| 30 | Screw | ||
| 31 | Screw | ||
| 32 | Washer | ||
| 33 | Rod | ||
| 34 | Screw | ||
| 35 | Screw | ||
| 36 | Lever | ||
| 37 | Washer | ||
| 38 | Screw | ||
| 39 | Screw | ||
| 40 | Lever | ||
| 41 | Lever | ||
| 42 | Housing | ||
| 43 | Rod | ||
| 44 | Bracket | ||
| 45 | Plate | ||
| 46 | Nut | ||
| 47 | Screw |
Page 35 — 14. 后拖轮装置/Puller device mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 30522019 | 油封 | 1 |
| 3 | H05011 | GB/T896-1986 卡簧 | 1 |
| 4 | 30128015 | 摆动连杆轴套圈 | 1 |
| 5 | 30502045 | 拖轮轴 | 1 |
| 6 | 301175 | 后盖 | 1 |
| 7 | 207S13004 | 螺钉(M6X35) | 4 |
| 8 | 30522069 | 油封 | 1 |
| 9 | 20122021 | 油封 | 1 |
| 10 | 30522070 | 后盖密封圈 | 1 |
| 11 | S10029 | 螺钉M6X0.75X5 | 3 |
| 12 | 30504035 | 曲柄 | 1 |
| 13 | S09008 | 螺钉M5X5 | 2 |
| 14 | 30508001 | 挡圈 | 1 |
| 15 | 30126006 | 连杆销 | 1 |
| 16 | 30128009 | 连杆销垫圈 | 2 |
| 17 | N01004 | 螺母M5X5 | 1 |
| 19 | 101S11006 | 螺钉SM1/8"X44 L=4.5 | 2 |
| 20 | B07036 | 固定板 | 1 |
| 22 | 12605003 | 主轴连杆 | 1 |
| 23 | 12610001 | 主轴偏心轮 | 1 |
| 24 | 116S14004 | 螺钉SM1/4"X40 L=6 | 2 |
| 26 | 40603019 | 压紧螺钉1/2X28 | 1 |
| 27 | 12627004 | 弹簧 | 1 |
| 28 | 40609009 | 压脚轴连接块 | 1 |
| 29 | 40603021 | 拉杆轴下套 | 1 |
| 30 | 40602016 | 拖轮轴 | 1 |
| 31 | AS05038 | 压脚连接块螺钉M5X8 | 1 |
| 32 | 12612007 | 连接片 | 1 |
| 33 | 12602003 | 拉杆轴 | 1 |
| 34 | 409S11013 | 拉片螺钉SM5/64X28 | 1 |
| 35 | S05019 | 螺钉M6X16 | 1 |
| 36 | 4061400800 | 拖轮组件 | 1 |
| 37 | 10122003 | 面板调节螺孔塞 | 2 |
| 38 | 40602013 | 固定销子 | 1 |
| 39 | 101S11001 | 螺钉SM3/16"X28 L=9 | 3 |
| 40 | 10137002 | 商标牌 | 1 |
| 41 | 40601031 | 拖轮扳手 | 1 |
| 42 | 12601004 | 面板 | 1 |
| 43 | 4060402400 | 拉杆组件 | 1 |
| 44 | 12604007 | 调节曲柄 | 1 |
| 45 | 40612048 | 刻度指示板 | 1 |
| 46 | 402S16003 | 螺母 | 3 |
| 47 | 20103020 | 摆动连杆轴套 | 2 |
Jack JK-8558 — parts catalog
- Page 1 (diagram): This page displays a diagram of various sewing machine components, including covers, frame parts, and smaller hardware items, with reference numbers for identification.
- Page 2 (parts_list): This page lists arm bed components with part numbers, descriptions, quantities, and remarks.
- Page 3 (diagram): This page displays a diagram of various machine parts, including a shaft, wheels, a connecting rod, and fasteners, with corresponding reference numbers.
- Page 4 (parts_list): This page lists main shaft and needle bar components, including part numbers, descriptions, quantities, and remarks.
- Page 5 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, levers, and rods, with corresponding reference numbers.
- Page 6 (parts_list): This page lists presser bar components for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of various machine components, including levers, shafts, screws, and other hardware, with corresponding reference numbers for identification.
- Page 8 (parts_list): This page lists feed mechanism components with part numbers, descriptions, quantities, and remarks.
- Page 9 (parts_list): This page lists parts for an industrial sewing machine, including oil wicks, bushings, thrust collars, screws, and feed bar links, with their corresponding part numbers and quantities.
- Page 10 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, springs, levers, and a dial indicator, with reference numbers for each part.
- Page 11 (parts_list): This page lists feed regulating components with part numbers, descriptions, quantities, and remarks.
- Page 12 (diagram): This page displays a diagram of various machine parts, including gears, shafts, levers, and fasteners, with reference numbers for each component.
- Page 13 (parts_list): This page lists components for Looper thread retainer, including part numbers, descriptions, quantities, and remarks.
- Page 14 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It covers components from item 52 to 76.
- Page 15 (diagram): This page displays a diagram of various machine parts, including brackets, levers, screws, and springs, with corresponding reference numbers for identification.
- Page 16 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 37 to 91.
- Page 17 (parts_list): This page lists parts for thread take-up, tension, and tension releasing assembly, including part numbers, descriptions, and quantities.
- Page 18 (parts_list): This page lists parts for thread take-up, tension, and tension releasing assembly, including part numbers, descriptions, quantities, and remarks.
- Page 19 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated by reference numbers.
- Page 20 (parts_list): This page lists lubrication components for a machine, including part numbers, descriptions, quantities, and remarks.
- Page 21 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a cover, levers, screws, and other small parts, with reference numbers for each item.
- Page 22 (parts_list): This page lists components for oil reservoir and knee lifter, including part numbers, descriptions, quantities, and remarks.
- Page 23 (diagram): This page displays a diagram of various components and accessories for an industrial sewing machine, including screws, a bottle, and tools, with reference numbers for each part.
- Page 24 (parts_list): This page lists machine head accessories with their part numbers, descriptions, and quantities.
- Page 25 (diagram): This page contains a diagram of various machine components, including arms, discs, screws, and nuts, with a single page number indicated.
- Page 26 (parts_list): This page lists parts for the Quadruple-thread spool stand sam, including part number 20131073 and description "Spool stand complete".
- Page 27 (diagram): This page displays a diagram of various sewing machine components, including the main body, motor, and frame, with numbered references for each part.
- Page 28 (parts_list): This page lists machine stand, table, and electric appliance components, including part numbers, descriptions, quantities, and remarks.
- Page 29 (parts_list): This page lists parts for a sewing machine, including nuts, power switches, and screws, with their corresponding part numbers and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 14, with illustrations of each component.
- Page 31 (parts_list): This page lists parts for the JK-8558W-1 model one-needle high speed chainstitcher, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 14, with illustrations of each component.
- Page 33 (parts_list): This page lists parts for the JK-8558W-2 model one-needle high speed chainstitcher, including part numbers, descriptions, quantities, and remarks.
- Page 34 (diagram): This page displays a diagram of the puller device mechanism, illustrating various components with reference numbers for identification.
- Page 35 (parts_list): This page lists parts for the Puller device mechanism, including part numbers, names, and quantities.
Page 2
一、机壳分组件 Arm bed components 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 1 12500001 机壳部件 arm bed complete 1 2 116S13002 底板支架螺钉 bed screw stud 2 3 12512001 底板支承板 bed support 1 4 300972 后窗板 side plate 1 5 12522001 后窗垫 gasket 1 6 101S11001 后窗板螺钉 side plate screw 7 7 300973 面板部件 face plate asm 1 8 12822001 面板垫 face plate gasket 1 9 101S11001 面板螺钉 screw 3 10 10122003 面板调节螺孔塞 rubber plug 1 11 12515001 凸轮盖压板 cam cover latch 1 12 12527001 凸轮盖压板弹簧 spring 1 13 12512002 凸轮盖压板弹簧座 spring suspension 1 14 125S11004 凸轮盖压板弹簧螺钉 screw 1 15 12515002 附件安装板 attachment installing plate 1 16 12512003 弹簧 Spring 1 17 GS0128 附件安装板弹簧螺钉 Screw 2 18 125S15008 附件安装板螺钉 screw 1 19 1251500300 凸轮盖部件 came cover asm -1 20 12515008 凸轮盖 came cover 1 21 12512004 凸轮盖托板 came cover 1 22 12512005 凸轮盖弹簧 spring 1 23 101S11019 凸轮盖弹簧螺钉 screw 4 24 12515006 凸轮盖导轮 cam cover guide 1 25 201S11002 凸轮盖导轮螺钉 screw 1 26 1251500500 推板组件 bed slide asm 1 27 12615002 推板 bed slide 1 28 12512006 推板簧 spring 1 29 101S11019 推板簧螺钉 screw 2 30 12515006 推板导轮 bed slide guide 1 31 201S11002 推板导轮螺钉 screw 1 32 12512007 推板锁簧 bed slide lock spring 1 33 101S11004 推板锁簧螺钉 screw 2 34 12509001 推板簧把手 latcn 1 35 101S11027 推板簧把手螺钉 screw 1 36 12522006 轴套定位螺孔塞 rubber plug 2 37 12522005 上轴套油线孔 ruber plug 2 38 10122004 针杆曲柄孔塞 ruber plug 1 39 12522022 送料针距调节孔塞 ruber plug 1 40 12522003 拾牙轴孔塞 ruber plug 1 41 12522004 下轴盲孔塞 ruber plug 1 42 1251201000 卷边器部件(1/4") folder 1 43 12512013 卷边器垫块 gasket 1 44 125S11006 卷边器螺钉 screw 2 jintex.in
Page 3
13 14 16 15 5 11 10 9 8 40 8 22 21 23 26 25 24 18 19 20 17 27 29 28 31 32 33 30 34 35 36 37 38 39 1 2 3 4 jintex.in
Page 4 — 二、上轴针杆分组件 Main shaft & needle bar components
二、上轴针杆分组件 Main shaft & needle bar components 序号 NO. 公司件号 Part NO. 名称 Name 数量 (Num- ber) 备注 Remarks 1 125S11008 上轴安全螺钉 end screw 1 2 300092 皮带轮 hand wheel 1 3 101S15001 上轮螺钉 screw 2 4 1252200900 上轴油封组件 main shaft oil seal asm 1 5 12502001 上轴 main shaft 1 6 1250300100 上轴后轴套部件 main shaft bushing, rear 1 7 10108001 上轴挡圈 main shaft thrust collar 1 8 101S15007 上轴挡圈1螺钉 screw 2 9 12503004 上轴中轴套 main shaft bushing, intermediate 1 10 101S15006 送料摆杆座右螺钉 screw 1 11 B10003 轴承6004ZZN bearing 6004zzn 1 12 101s15010 螺钉 screw 1 13 10122012 上轴孔塞 roller felt 1 14 12526026 曲柄油量调节销(有油) Crank oil adjusting pin 1 15 12522024 曲柄油量调节销套(有油) Rubber bushing 1 16 12522025 曲柄油量调节销O型圈(有油) O-Rubber ring 1 17 12504001 针杆曲柄 counterweight asm 1 18 101S11003 针杆曲柄定位螺钉 screw 1 19 GR1472 定位螺钉O型圈 O-Rubber ring 1 20 101S15004 针杆曲柄紧固螺钉 screw 1 21 12626003 针杆连杆销 needle crank 1 22 101S15002 挑线曲柄紧固螺钉 screw 1 23 101S15002 挑线曲柄螺钉 screw 1 24 1250501000 针杆连杆组件 needle bar crank rod asm 1 25 B04008 针杆连杆轴承 needle roller bearing 1 26 101S17001 针杆连杆左旋螺钉 left twist screw 1 27 12503009 针杆上衬套 needle barbushing upper 1 28 409S15004 针杆上衬套螺钉 screw 1 29 10122013 针杆上衬套孔塞 rubber plug 1 30 10103023 针杆下衬套 needle bar bushing, lower 1 31 10138002 针杆连接柱 needle bar connection asm 1 32 101S11005 针杆连接柱螺钉 screw 1 33 10109001 针杆连接柱滑块 crank slide block 1 34 12602002 针杆 needle bar 1 35 12534001 针夹(1/4") needle clamp(1/4) 1 36 125S15007 支针螺钉 screw 2 37 12617005 机针 needle 2 38 101S11008 滑块导轨螺钉 screw SM11/64*40 L=8 2 39 10109002 针杆连接柱滑块导轨 needle bag guide 1 40 1220300100 上轴轴承套 main shaft bearing bushing 1 jintex.in
Page 5
1 1 2 24 25 22 27 26 29 30 28 29 30 23 21 20 16 15 19 17 18 31 32 33 35 34 4 3 7 9 8 5 11 14 13 12 10 jintex.in
Page 6 — 三、压料分组件 Presser bar components
三、压料分组件 Presser bar components 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 1 10111034 调压螺钉 presser spring regulator 1 2 10111036 调压螺钉螺母 nut 1 3 10102003 调压导杆 presser bar guide bar 1 4 10127005 调压簧 presser spring 1 5 12502002 压杆 presser bar 1 6 12509002 压杆导架 presser guide bracket asm 1 7 116S1005 压杆导架螺钉 screw 1 8 10103012 压杆衬套 presser bar bushing, low 1 9 10423004 油线 Oil wick 1 10 1251600100 压脚部件1/4" presser foot asm 1 11 101S11009 压脚螺钉 screw 1 12 12519001 切线刀 thread knife 1 13 12527003 切线刀导钩 thread knife guide 1 14 201S11002 切线刀导钩螺钉 screw 1 15 1251100100 压脚扳手组件 hand lifter asm 1 16 101S11001 压脚扳手螺钉 screw 1 17 12528002 垫圈 Washer 1 18 1251000100 压脚扳手凸轮部件 hand lifter cam asm 1 19 001004 压脚扳手轴形圈 rubber ring 1 20 12512057 压脚升降板 lifting lever 1 21 125S20003 升降板轴位螺钉 hinge screw 1 22 12512014 抬压脚前杠杆 lifting link forlifting level 1 23 125S20001 前杠杆轴位螺钉 hinge screw 1 24 125S11001 前杠杆螺纹销 hinge pin 1 25 12528003 垫圈 Lifting lever gasket 1 26 H05006 前杠杆特制开口挡圈 snap ring 1 27 H05009 挡圈 snap ring 1 28 12512015 抬压脚拉杆 lifting lever connecting rod 1 29 125S11002 抬压脚拉杆螺钉 screw 2 30 H05003 抬压脚拉杆开口挡圈 snap ring 2 31 12512016 抬压脚后杠杆 lifting lever link rear 1 32 125S20004 后杠杆轴位螺钉 hinge screw 1 33 12526003 抬压脚顶杆接头 swivel 1 34 12512017 抬压脚顶杆 lifting lever connecting rod, vertical 1 35 116S16006 抬压脚顶杆螺母 nut 1 jintex.in
Page 7
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 jintex.in
Page 8 — 四、送料分组件 Feed mechanism components
四、送料分组件 Feed mechanism components NO. 序号 Part NO. 公司件号 名称 Description 数量 (Num ber) 备注 1 1251000300 送料偏心轮部件 feed eccentric cam sam 1 2 12510004 送料偏心轮 feed eccentric cam sam 1 3 101S11013 送料偏心轮螺钉 screw 2 4 12512018 送料偏心轮盖板 feed eccentric cam thrust washer 1 5 125S17001 偏心轮盖板螺钉 screw 3 6 12505001 送料大连杆 feed rocker shaft connecting rod 1 属于1251000300 7 12505002 送料小连杆 connecting rod 1 8 12526004 送料连杆销 connecting pin 1 9 125S11009 送料连杆销螺钉 screw 1 10 12504002 送料摆杆 feed driving rocker asm 1 11 12501003 送料摆杆座 reed driving rocker 1 12 12526005 送料摆杆座左销 hinge stud 1 13 101S11020 送料摆杆座左销螺钉 screw 1 14 12526006 送料摆杆座右销 hinge pin 1 15 125S11010 送料摆杆座右销螺钉 screw 1 16 12526007 送料摆杆销 hinge pin 1 17 125S15005 送料摆杆销螺钉 screw 2 18 125S20002 送料曲轴轴位螺钉 hinge screw 1 19 409S16015 送料曲轴轴位螺母 nut 1 20 12504003 送料曲柄 feed rocket shaft cranck 1 21 409S11015 送料曲柄螺钉 screw 1 22 12502004 送料轴 feed rocket shaft 1 23 12508002 送料轴挡圈 thrust collar 2 24 401S15006 送料轴挡圈螺钉 screw 1 25 H03001 送料轴用挡圈 retaining ring 1 26 12503012 送料轴后轴套 bushing rear 1 27 409S15004 送料轴后轴套螺钉 screw 1 28 12508002 送料轴挡圈 thrust collar 1 29 401S15006 送料轴挡圈螺钉 screw 2 30 12503013 送料轴前轴套 feed rocket shaft bushing, front 1 31 12507001 牙架座 feed rocker 1 属于1250700300 32 409S11015 牙架座螺钉 screw 1 33 GR1528 牙架座螺钉垫圈 Washer 1 34 GL20 牙架座螺钉螺母 Nut 1 35 12507002 牙架 washer 1 属于1250700300 36 12526008 牙架销 feed bar shaft 1 属于1250700300 37 209S11009 牙架销螺钉 screw 2 38 10123008 油线 oil wick 1 39 12514001 送料牙1/4" reed dog (1/4) 1 40 W01006 送料牙垫圈 washer 1 41 116S11005 送料牙螺钉 screw 1 42 12515007 针板1/4" throat plate(1/4) 1 43 125S17002 针板螺钉 screw 2 44 12505003 拾牙连杆 feed driving shaft connecting ro 1 属于1251000300 45 12512019 拾牙连杆凸轮盖 feed driving eccentric thrust wa 1 46 201S11007 拾牙连杆凸轮盖螺钉 screw 2 47 12504004 拾牙后曲柄 feed driving shaft crank rear 1 48 125S20002 拾牙连杆轴位螺钉 hinge screw 1 49 409S16015 拾牙连杆轴位螺母 nut 1 50 409S11015 拾牙后曲柄紧固螺钉 screw 1 51 12502005 拾牙轴 feed driving shaft 1 jintex.in
Page 9
52 10423004 油线 oil wick 2 53 12503012 拾牙轴后轴套部件 bushing, rear 1 54 101S15010 拾牙轴后轴套螺钉 screw 1 55 10108003 拾牙轴后轴套挡圈 thrust collar 1 56 101S15002 后轴套挡圈螺钉 screw 1 57 12503017 拾牙轴中轴套 bushing, intermediate 2 58 101S15010 拾牙轴中轴套螺钉 screw 1 59 12503020 拾牙轴前轴套 feed rocker shaft bushing, front 1 60 12504005 拾牙轴前曲柄 feed rocker shaftcrank 1 61 201S11026 拾牙轴前曲柄螺钉 screw 2 62 12505004 牙架连杆 feed bar link 1 属于1250700300 63 12508003 牙架连杆挡圈 thrust collar 1 64 125S15003 牙架连杆挡圈螺钉 screw 2 65 10423004 油线 oil wick 1 66 12528001 牙架连杆锥孔垫圈 counter-sunk washer 1 属于1250700300 67 125S17006 牙架连杆垫圈螺钉 screw 1 属于1250700300 jintex.in
Page 10
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 jintex.in
Page 11 — 五、送料调节分组件 Feed regulating components
五、送料调节分组件 Feed regulating components 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 1 1251100300 送料距旋钮部件 stitch dial asm 1 2 101S11022 送料距旋钮螺钉 screw 1 3 12526009 送料调节螺柱 feed regulating screw 1 4 001040 送料调节螺柱O形圈 o rubber ring 1 5 10126015 送料距锁合销 stitch dial lock pin 1 6 10127010 送料距锁合销簧 stitch dial lock spring 1 7 12504006 送料调节器 feed regulation 1 8 12526011 送料调节器销 hinge pin 1 9 101S15006 送料调节器销螺钉 screw 1 10 12505005 送料调节器连接杆 feed regulator connecting rod 1 11 12526020 调节器连杆轴 regulator connecting shaft 1 12 116S11017 调节器连杆轴螺钉 nut 2 13 12526012 拉簧调节曲柄销 tension spring suspension stud 1 14 116S11017 拉簧调节曲柄销螺钉 screw 1 15 12504007 拉簧调节曲柄 tension spring suspension cranck 1 16 101S11021 调节曲柄紧固螺钉 clamp screw 1 17 101S15006 调节曲柄定位螺钉 screw 1 18 12527004 倒送料拉簧 tension spring 1 19 12512020 拉簧固定板 suspension bracket 1 20 101S11008 拉簧固定板螺钉 screw 1 21 12502006 倒送料曲柄 reverse feed control lever shaft 1 22 001014 倒送料曲柄O形圈 rubber ring, large 1 23 W03010 倒送料曲柄弹性垫圈10 waved washer 1 24 300974 倒送料曲柄 reverse feed control lever 1 25 101S15011 倒送料扳手定位螺钉 screw 1 26 101S15007 倒送料扳手螺钉 screw 1 27 125S11015 倒送料轴端螺钉 end screw 1 28 12508006 倒送料挡圈 thrust collar 1 29 125S30007 倒送料挡块螺钉 screw 1 30 W01015 挡块螺柱垫圈 washer 1 31 209S16006 挡块螺母 nut 1 32 300975 倒送料挡块 lever stopper 1 33 125S15004 倒送料挡块螺钉 screw 1 34 12522009 倒送料挡块橡胶垫 rubber cushion 1 35 12504008 倒送料曲柄 control lever crank, rear 1 36 101S15006 倒送料曲柄定位螺钉 screw 1 37 101S11021 倒送料曲柄螺钉 screw 1 38 12512021 倒送料连杆 feed driving rocker arm 1 39 125S20006 倒送料连杆轴位螺钉 screw 1 40 W04002 倒送料连杆轴位螺圈 washer 1 41 401S16004 倒送料连杆轴位螺母 nut 1 jintex.in
Page 12
22 23 27 29 30 31 32 24 28 1 8 2 7 3 5 8 6 9 8 10 13 16 11 12 14 15 17 18 19 20 21 52 53 36 37 38 39 55 25 26 33 34 54 35 51 51 40 43 48 43 49 50 44 45 48 47 46 49 50 44 41 42 57 56 58 62 61 59 60 63 64 65 66 67 76 74 75 73 72 70 71 68 69 jintex.in
Page 13
六、弯针勾线分组件 Looper thread retainer components 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 1 10125004 上轴伞齿轮 gear asm 1 2 10125003 竖轴上伞齿轮 pinion asm 1 3 12503021 竖轴上伞套 bushing, upper 1 4 1250302200 竖轴下伞套部件 bushing, lower 1 5 101S15010 竖轴轴套螺钉 screw 2 6 10125003 竖轴下伞齿轮 gear asm 1 7 12502007 竖轴 upright, shaft 1 8 101S15007 伞齿轮螺钉 bushing, front asm, screw 8 9 12525001 下轴伞齿轮 gear asm 1 10 12502008 下轴 lower shaft asm 1 11 12503025 下轴后轴套 bushing, rear 1 12 101S15010 下轴后轴套螺钉 screw 1 13 GR1847 下轴后轴套油毡 Felt 1 14 1250302600 下轴中轴套部件 bushing, intermediate 1 15 101S15001 下轴中轴套螺钉 screw 1 16 12508005 下轴挡圈 thrust collar asm 1 17 101S15007 下轴挡圈螺钉 screw 2 18 1250303200 下轴轴套部件 bushing, front 1 19 101S15001 下轴轴套螺钉 screw 1 20 12503046 下轴前轴套油毡 looper thread guard bushing 1 21 1250200700 下轴前轴套油封组件 looper thread guard bushing asm 1 22 12502009 弯针轴 looper rocket shaftr 1 23 1250302600 弯针轴后轴套部件 bushing, intermidate 1 24 101S15001 弯针轴套螺钉 screw 1 25 1250303800 弯针轴前轴套 bushing, front 1 26 101S15001 弯针轴前轴套螺钉 screw 1 27 12508005 弯针轴挡圈 thrust collar asm 1 28 101S15007 弯针轴挡圈螺钉 screw 2 29 12525002 主动弯针齿轮 gear asm, upper 1 30 101S15007 主动弯针齿轮螺钉 screw 2 31 12525003 被动弯针齿轮 gear asm, lower 1 32 101S15007 被动弯针齿轮螺钉 screw 2 33 12504009 弯针曲柄 looper crank asm 1 34 101S15007 弯针曲柄螺钉 screw 2 35 125S30008 弯针曲柄调节螺钉 screw 1 36 1250402100 弯针摆十字接头组件 Trunbion asm 1 属于1250100500 37 1250201000 弯针摆部件 looper rocker shaft asm 1 属于1250100500 38 209S11009 弯针摆盖螺钉 screw 4 属于1250100500 39 10423004 油线 oile wick 2 40 GR1854 弯针摆挡圈 Snap ring 2 41 12501005 弯针架座 looper mounting base 1 属于1250100500 42 125S13001 弯针架座螺钉 screw 1 43 12503042 弯针摆轴套 bushing, rear 2 属于1250100500 44 401S15006 弯针摆轴套螺钉 screw 1 45 12504012 左弯针曲柄 looper holder asm. (right) 1 46 409S11015 左弯针曲柄螺钉 screw 1 47 12517001 左弯针 looper (left) 1 48 209S11012 弯针螺钉 screw 2 49 12504013 右弯针曲柄 looper holder asm(right) 1 50 409S11015 右弯针曲柄螺钉 screw 1 51 12517002 右弯针 looper (right) 1 jintex.in
Page 14
52 1251202200 弯针曲柄罩壳部件 crank cover asm 1 属于1251202200 53 125S11007 曲柄罩壳螺钉 screw 3 属于1251202200 54 1081357 曲柄罩壳孔塞 rubber plug 1 属于1251202200 55 12921002 JK58420 油管3X5 vinyl tube 1 56 12510005 护针凸轮 needle guard cam asm 1 57 101S15007 护针凸轮螺钉 screw 2 58 12505007 护针连杆 needle guard crank rod 1 59 12504014 护针叉形曲柄 rear needle guard rocker fork 1 60 101S11020 护针叉形曲柄螺钉 screw 1 61 12526014 护针曲柄销 pin 1 62 10423004 油线 oil wick 1 63 401S15006 护针曲柄销螺钉 screw 1 64 12503043 护针轴套 bushing 1 65 101S15010 护针轴套螺钉 screw 1 66 12502012 护针轴 needle guard driving shaft asm 1 67 10128008 护针油线 oil wick 1 68 12504015 护针曲柄 rear needle guard rocker arm asm 1 69 409S11015 护针曲柄螺钉 screw 1 70 12517003 摆动护针(1/4") driving needle guard(1/4) 1 71 209S11009 摆动护针杆螺钉 screw 1 72 12501006 护针杆座 needle guard base 1 73 101S11011 护针杆座螺钉 screw 2 74 12517004 左固定护针杆 counter needle guard, left 1 75 12517005 右固定护针杆 counter needle guard, right 1 76 101S11005 左右固定护针杆螺钉 screw 2
Page 15
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 40 41 42 43 44 45 46 47 48 89 91 jintex.in
Page 16
85 84 83 82 81 80 79 86 87 88 90 89 78 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 55 54 52 58 57 56 59 60 53 51 49 50 jintex.in
Page 17 — 七、挑线、松线、夹线分组件 Thread take-up, tension, and tension releasing assembly complete
七、挑线、松线、夹线分组件 Thread take-up, tension, and tension releasing assembly complete 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 1 12505008 挑线连杆 thread take-up lever 1 2 409S11024 挑线连杆螺钉 screw 1 3 12512025 挑线杆 thread take-up 1 4 101S11005 挑线杆紧固螺钉 screw 2 5 12512026 挑线杆夹线板 tension plate 1 6 12527014 挑线杆夹线簧 tension spring 1 7 125S11018 挑线杆夹线板螺钉 screw 1 8 12512027 挡线杆护罩 thread take up lever guard 1 9 112S11014 挑线杆护罩螺钉 screw 2 10 12512028 线量调节板 take-up thread tension lever 1 11 112S11014 线量调节板螺钉 screw 1 12 W01006 调节板螺钉垫圈 washer 1 13 12612002 中间导线钩 Frame thread eyelet 1 14 112S11014 中间导线钩螺钉 screw 1 15 12502013 松线轴 tension release shaft 1 16 1250401600 面线松线曲柄部件 tension release arm asm 1 17 101S11012 面线松线曲柄螺钉 screw 1 18 12527015 抬压脚后杠弹簧 spring 1 19 12512031 后杠杆弹簧固定板 suspension bracket 1 20 112S11014 后杠杆弹簧固定板螺钉 screw 2 21 H05013 松线轴挡圈 snap ring 1 22 001027 松线轴O型圈 Oil seal ring 1 23 12509004 松线轴环 tension release shaft spacer 1 24 12509011 夹线器下安装垫 spacer (A) for installing plate 1 25 12509006 夹线器上安装垫 spacer (B) for installing plate 1 26 125S30010 夹线器上安装垫螺钉 screw 2 27 125S30009 夹线器下安装垫螺钉 screw 1 28 1251300100 面线夹线器部件 needle thread tension asm 1 29 12512032 面线单面导线板 needle thread tension guide plate 2 30 12512033 面线双面导线板 tension thread tension guide 2 31 125S30003 夹线螺钉 looper thread tension post 2 32 10112005 面线夹线板 tension disc 4 33 12511004 面线松线座 tension disc presser rube 2 34 10127002 面线夹线簧 tension spring 2 35 10112007 面线止动板 tension disc stopper 2 36 12511009 面线夹线螺母 tension nut 1 37 12512035 导线钩 frame thread guide 2 38 112S11014 导线钩螺钉 screw 1 39 12504017 面线松线爪 Thread tension release latch 1 40 101S11012 面线松线爪螺钉 screw 1 41 GR1907 过线板架 Tension controller installing plate 1 42 GR1908 过线板 Take-up thread guide 1 43 GR1943 过线夹线板 Attachment installing plate 1 44 GW299 过线夹线簧 Take-up thread tension spring 1 45 GS0149 过线夹线螺钉 Take-up thread tension post 1 46 GR1986 松线板 Thread tension release guide latch 1 47 GS043 送线板螺钉 Screw 1 48 GS010 过线板螺钉 Screw 2 jintex.in
Page 18
七、挑线、松线、夹线分组件(续)Thread take-up, tension, and tension releasing assembly complete 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 49 1251000600 底线打线凸轮 looper thread take-up cam 1 50 125S17004 底线打线凸轮定位螺钉 screw 1 51 1251300200 凸轮导线部件 looper thread guide plate 1 52 12512040 凸轮导线架 thread guide plate 1 53 112S11014 凸轮导线架螺钉 screw 2 54 12512041 底线双导线钩 Looper thread guide asm 1 55 125S11004 底线双导线钩螺钉 screw 1 56 12512042 底线导线止动簧 thread guide stopper spring 1 57 125S11004 底线导线止动簧螺钉 screw 2 58 12527007 底线脱线钢丝 cast-off wire 1 59 101S11027 底线脱线钢丝螺钉 screw 2 60 W01005 底线脱线钢丝螺钉垫圈 washer 2 61 12527008 底线导线簧 thread guide spring 1 62 114S16004 凸轮过线螺钉螺母 nut 1 63 125S30002 凸轮导线螺钉 thread guide stud 1 64 12512043 凸轮导线钩(右) looper thread guide, right 1 65 12512044 凸轮脱线爪 cast-off plate 1 66 12512045 凸轮导线钩(左) looper thread guide, left 1 67 12509007 凸轮导线环 collar 2 68 125S11005 凸轮导线钩螺钉 screw 1 69 12512046 底线导线钩 looper thread guide 1 70 409S17001 底线导线钩螺钉 screw 1 71 12512047 底线导线管 looper thread guide tube 1 72 12504018 松线轴套 tension release shaft bushing 1 73 125S11020 底线松套螺钉 screw 2 74 12502014 底线松线轴 looper thread release shaft 1 75 001004 底线松线轴O型圈 rubber ring 1 76 1250401900 底线松线轴弯曲构件 tension release arm asm 1 77 114S16004 底线松线轴螺母 nut 1 78 1251300300 底线夹线器部件 lower thread tension asm 1 79 12512055 底线夹线器安装板 tension installing plate 2 80 12512049 底线单面导线板 looper thread tension control pl 2 81 12512050 底线双面导线板 thread guide 2 82 P01009 底线夹线板止转销 spring pin 2 83 125S30003 夹线螺钉 looper thread tension post 4 84 12512051 底线夹线板 tension disc 2 85 12527009 底线夹线簧 looper thread tension spring 2 86 12509008 底线夹线止转圈 tension spring bushing 2 87 125S16001 底线夹线螺母 tension post nut 2 88 112S11014 夹线器安装板螺钉 screw 2 89 12504020 底线松线爪 looper thread release latch 1 90 101S11012 底线松线爪螺钉 screw 1 91 12612004 松线器推板 Thread release Slide plate 1 jintex.in
Page 19
17 16 22 35 34 29 31 25 23 15 32 18 24 26 20 19 21 20 21 13 11 33 1 13 12 7 4 5 14 6 10 8 9
Page 20
八、润滑分组件 Lubrication 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 1 1252000100 油泵部件 lubrication oil pump asm 1 2 12512052 油泵安装板 oil pump installing base 1 3 125S30011 油泵安装螺钉 screw 4 4 GR1550 油泵安装垫圈 washer 3 5 GL138 油泵安装螺母 Nnt 3 6 1252000200 油泵体部件 washer 1 7 12520003 油泵叶轮 oil pump impeller 1 8 12512053 油泵叶轮安装板 oil pump impeller cover 1 9 1252000400 油泵盖部件 lubricating oil pump cover 1 10 125S30012 油泵盖螺钉 screw 3 11 12536002 上轴供油管接头 rubber joint 1 12 12536003 下轴供油管接头 rubber joint 1 13 12509011 油泵垫圈 Collar 3 14 12530009 油泵螺钉 screw 3 15 12521002 上轴供油管 Main shaft oil tube 1 16 GR1563 回油泵柱塞 Oil return pump plunger 1 17 GW260 柱塞簧 plunger spring 1 18 12536004 齿轮供油管接头 Oil sight window base 1 19 12521003 齿轮供油管 gear oil pipe 1 20 12512054 齿轮供油管夹 holder 2 21 101S11025 齿轮供油管夹螺钉 screw 2 22 GS055 螺钉 Connecting screw 1 23 12521006 回油管 Oil return tube asm 1 24 12512054 回油管夹 oil return tube hokder 1 25 101S11025 回油管夹螺钉 screw 1 26 GR1567 回油除尘毡 oil felt presser 1 27 10423002 回油毡 oil felt 1 28 12527011 回油毡夹 oil felt presser 1 29 12512070 JK-8558-0829面部挡油板(有 Arm oil shield 1 30 10423004 面部挡油板油线 oil wick 1 31 GS069 螺钉 screw 1 32 112S11014 面部挡油板下螺钉 screw 1 33 12521004 下轴供油管 oil tube 1 34 10122019 油窗0形圈 o-rubber ring 1 35 10111004 油窗 oil sight window 1
Page 21
1 2 4 5 HIGH LOW 12 3 4 11 10 11 10 15 17 16 14 13 19 20 21 22 23 7 6 9 28 25 24 26 8 27 jintex.in
Page 22 — 九、油盘、膝抬压脚分组件 Oil reservoir & knee lifter components
九、油盘、膝抬压脚分组件 Oil reservoir & knee lifter components 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num- ber) 备注 1 1250100700 油盘部件 oil reservoir asm 1 2 12501009 油盘 oil reservoir 1 3 10131001 油盘磁铁 oil reservoir magnet 1 4 12522018 油盘侧面垫 gasket 2 5 12522019 油盘端面垫 gasket 1 6 10122023 机头防震垫块(大) Cushion(big) 2 7 10122022 机头防震垫块(小) Cushion(small) 2 8 10122024 操纵板软垫 knee press plate cover 1 9 101S30010 油盘座钉 nail 4 10 10122001 排油螺钉O形圈 oil drain cap gasket 2 11 101S11028 排油螺钉 oil drain screw 2 12 12531004 抬压脚顶销 knee press lifter rod 1 13 12512059 抬压脚双曲柄 lifting 1 14 101S12002 双向曲柄螺钉 positioning screw 1 15 101S15012 双向曲柄限位螺钉 positioning screw 2 16 101S16004 双向曲柄限位螺母 nut 2 17 101S15012 双向曲柄限位螺钉 positioning screw 2 18 101S16004 双向曲柄限位螺母 nut 2 19 10127016 双向曲柄扭簧 spring 1 20 H05010 抬压脚轴开口挡圈 thrust ring 1 21 12502015 抬压脚轴 knee press rod 1 22 10101008 抬压脚操纵杆节头 bearing bracket 1 23 101S12003 操纵杆节头螺钉 clamp screw 2 24 1012028 操纵杆 knee lifter plate rod 1 25 10112030 操纵板节头 knee press plate cover joint 1 26 101S12004 操纵板节头螺钉 screw 1 27 10112029 操纵板 knee press plate 1 28 10122025 操纵杆垫 Rubber 1
Page 23
1 3 2 5 7 6 4 8 9 10
Page 24 — 十、机头附件 Machine head accessories
十、机头附件 Machine head accessories 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 1 1011203100 机头连接钩部件 machine hinge plate asm 2 2 10122060 机头连接钩座 machine hinge plate 2 3 101S30010 机头连接钩座钉 nail 4 4 12617005 机针 needle 1包 5 12811003 皮带轮罩组件 Belt guard complete 1 6 10131003 螺丝刀(中) screw driver(L) 1 7 10131004 螺丝刀(小) screw driver(L) 1 8 10111011 机头支柱 machine rest pin 1 9 1011101200 油箱部件 lubricating unit case asm 1 10 20131051 镊子 tweezers 1 jintex.in
Page 25
1
Page 26 — 十一、四线团架分组件 Quadruple-thread spool stand sam
十一、四线团架分组件 Quadruple-thread spool stand sam 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 1 20131073 线架组件 Spool stand complete 1
Page 27
49 50 51 52 41 43 42 40 46 45 44 32 36 35 39 38 37 2 1 7 8 9 10 27 26 28 31 33 34 23 24 19 21 18 29 17 25 16 3 4 5 6 15 14 13 12 20 22 jintex.in
Page 28
十二、机架、台板、电器分组件 Machine Stand、Table、Electric Appliance Components 序号 NO. 公司件号 Part NO. 名称 Name Description 数量 (Num- ber) 备注 Remarks 1 1011204200 边架部件(左) Stand side asm left 1 2 1011204300 边架部件(右) Stand side asm right 1 3 10111015 边架套 Rubber cushion 4 4 N01010 螺母 Nut 4 5 101s30015 调节座 Screw 4 6 10122029 调节座橡胶 Space ring 4 7 10112044 横档 Stand side support 1 8 L02014 横档连接螺栓 Screw 4 9 10128011 垫圈 Spring washer 4 10 W01010 垫圈 Washer 8 11 N01011 螺母 Nut 4 12 10112045 踏板轴档 Treadle brace 1 13 L02014 踏板轴档螺栓 Screw 2 14 10128011 垫圈 Spring washer 2 15 W01010 垫圈 Washer 2 16 10112046 踏板轴档定位螺母板 Treadle brace locknut plate 2 17 10102013 踏板轴 Treale shaft 1 18 10112047 踏板轴座 Treale bravket 2 19 L02014 踏板轴座螺栓 Screw 2 20 W01010 垫圈 Washer 4 21 10128011 弹簧垫圈 Spring washer 2 22 N01011 螺母 Nut 2 23 10112048 踏板 Trcable 1 24 10122030 踏板垫 Gas Ket 1 25 10103023 踏板衬套 Coller 2 26 10112049 踏板杠杆 Tteadle pitman 1 27 L02015 踏板杠杆螺栓 Screw 2 28 W01003 垫圈 Washer 4 29 N01012 螺母 Nut 2 30 10112050 下拉杆 Pitman rod, lower 1 31 10127019 拉杆弹簧 Spring 1 32 10112051 上拉杆 Pitman rod, lower 1 33 10112052 拉杆接头 Joint 1 34 L02015 拉杆接头螺栓 Joint screw 1 35 N01012 螺母 Nut 1 36 10129001 上拉杆开口销 Pitman rod split pin (upper) 1 37 101s30016 台板木螺钉 Table Wood screw 4 38 10128012 垫圈 Table Wood screw washer 4 39 10128013 台板垫圈 Table washer 4 40 10132002 台板 Table 1 41 10111016 抽斗 Drawer 1 42 10111017 抽斗导轨 Drawer rail 1 43 101s30017 抽斗导轨木螺钉 Drawer rail wood screw 6 44 10133001 GFC4024型电机 Motor GFC4024 motor 1 45 10130002 电机接线插头 Motor connecting wire plug 1 46 10130003 电机接线 Motor wire 1 47 10135004 电动带轮 Motor pulley 1 48 10135002 机头传动带 Machine driving beit 1 49 101s30018 螺钉 Screw 3 50 10128014 垫圈 Washer 3 51 10128011 弹簧垫圈 Spring washer 3 jintex.in
Page 29
52 N01011 螺母 Nut 3 53 10130004 电源开关 Power cource swith 1 54 101s30019 电源开关木螺钉 Power cource swith wood screw 2 jintex.in
Page 30
1 2 3 4 5 6 7 8 9 10 11 12 13 14 jintex.in
Page 31 — 13、JK-8558W-1专用零件 Model one-needle high speed chainstitcher
13、JK-8558W-1专用零件 Model one-needle high speed chainstitcher 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num ber) 备注 1 12515002 附件安装板 attachment installing plate 1 2 1251600100 压脚组件 presser foot asm. 1 3 12514001 送料牙 feed dog 1 4 12515007 针板 thread plate 1 5 12517003 摆动护针杆 driving needle guard 1 6 12517005 固定护针杆 counter needle guard 1 7 1251300100 面线夹线器组件 needle thread tension asm 1 8 12504017 面线松线爪 tension release latch 1 9 1251300300 底线夹线器组件 lower thread tension asm 1 10 12504020 底线松线爪 looper thread release latch 1 11 12602002 针杆 needle bar 1 12 125S15007 支针螺钉 screw 2 13 针杆线钩 needle bar thread guide / 14 10113009 针杆下轴套线钩 thread guide 1 jintex.in
Page 32
1 2 3 4 5 6 7 8 9 10 11 12 13 14 jintex.in
Page 33 — 13、JK-8558W-2专用零件 Model one-needle high speed chainstitcher
13、JK-8558W-2专用零件 Model one-needle high speed chainstitcher 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Num- ber) 备注 1 12515002 附件安装板 attachment installing plate 1 2 1251601000 压脚组件 presser foot asm. 1 3 12514006 送料牙 feed dog 1 4 12515016 针板 thread plate 1 5 12517009 摆动护针杆 driving needle guard 1 6 固定护针杆 counter needle guard 1 7 1251300400 面线夹线器组件 needle thread tension asm 1 8 12504022 面线松线爪 tension release latch 1 9 1251300500 底线夹线器组件 lower thread tension asm 1 10 12504023 底线松线爪 looper thread release latch 1 11 11402035 针杆 needle bar 1 12 101S11006 支针螺钉 screw 1 13 10113002 针杆线钩 needle bar thread guide 1 14 10113009 针杆下轴套线钩 thread guide 1
Page 34 — 14. 后拖轮装置/Puller device mechanism
14. 后拖轮装置/Puller device mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 25 jintex.in
Page 35 — 14. 后拖轮装置/Puller device mechanism
14. 后拖轮装置/Puller device mechanism 序号 REF. NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 编号 CODE 30522019 H05011 30128015 30502045 301175 207S13004 30522069 20122021 30522070 S10029 30504035 S09008 30508001 30126006 30128009 N01004 101S11006 B07036 12605003 12610001 116S14004 40603019 12627004 40609009 40603021 40602016 AS05038 12612007 12602003 409S11013 S05019 4061400800 10122003 40602013 101S11001 10137002 40601031 12601004 4060402400 12604007 40612048 402S16003 20103020 名称 后盖箱组件 油封 GB/T896-1986 卡簧 摆动连杆轴套圈 拖轮轴 后盖 螺钉(M6X35) 油封 油封 后盖密封圈 螺钉M6X0.75X5 曲柄 螺钉M5X5 挡圈 连杆销 连杆销垫圈 螺母M5X5 拖轮偏心轮组件 螺钉SM1/8"X44 L=4.5 固定板 主轴连杆 主轴偏心轮 螺钉SM1/4"X40 L=6 面板组件 压紧螺钉1/2X28 弹簧 压脚轴连接块 拉杆轴下套 拖轮轴 压脚连接块螺钉M5X8 连接片 拉杆轴 拉片螺钉SM5/64X28 螺钉M6X16 拖轮组件 面板调节螺孔塞 固定销子 螺钉SM3/16"X28 L=9 商标牌 拖轮扳手 面板 拉杆组件 调节曲柄 刻度指示板 螺母 摆动连杆轴套 Name of parts Bracket Assembly Plug E-Ring Washer Shaft Bracket Screw M6X35 Plug Plug O Ring Screw M6X0.75X5 Crank Screw M5X5 Collar Pin Screw Washer Nut Puller Eccentric Assembly Screw SM1/8"X44 L=4.5 Thrust collar Needle Bearing Connection Eccentric Screw SM1/4"X40 L=6 Face Plate Arm Assembly Presser Adjust Screw1/2X28 Spring Presser Bar Clamp Presser Bar Bush, D Puller Presser Bar Screw M5X8 Link Presser Bar screw SM5/64X28 Screw M6X16 Puller Rubber Plug Pin Screw SM3/16"X28 L=9 Plare With Trademark Presser Foot Lifter Face Plate Arm Pitman Rod Assy Clutch Lifter Degreer Plate Nut Bush 用量 Q'TY 1 1 1 1 1 1 4 1 1 1 3 1 2 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 2 1 3 1 1 1 1 1 2 jintex.in
