JACK JK-8569 Parts Manual 零件手册 CNAB WIT CE ISO9001认证 国家高新技术企业 清洁生产 JACK SEWING MACHINE | HTTP://WWW.CHINAAJACK.COM | jintex.in
Parts index — Jack JK-8569tap a row to open its page
Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 8569-1 | 8569FA-19 |
Page 5 — 套筒部件 (Bushing assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301371 | 上节 | |
| 2 | 30103036 | 压脚扳手轴套筒 | |
| 3 | 30103037 | 抬压轴套筒 | |
| 4 | 30103042 | 过线座轴套筒 | |
| 5 | 30103062 | 针杆下套筒 | |
| 6 | 20103020 | 摆动连杆轴套筒 | |
| 7 | 30103017 | 针杆套筒 | |
| 8 | 001039 | 0型圈 | |
| 9 | 30103038 | 喂针摆动轴套筒 | |
| 10 | 30103035 | 压脚轴套筒 | |
| 11 | 30122039 | 油封 | |
| 12 | 30103021 | 弯钩轴套筒 | |
| 13 | 30103010 | 主轴套筒 | |
| 14 | 30103019 | 护针轴套筒 | |
| 15 | 20103014 | 前弯钩轴套筒 | |
| 16 | 30121001 | 铜油管 | |
| 17 | P03005 | 销4×8 | |
| 18 | 20622019 | 油封 | |
| 19 | 301780 | 上节 |
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | COVER | |
| 3 | 3 | WASHER | |
| 4 | 4 | SCREW | |
| 5 | 5 | RING | |
| 6 | 6 | CAP | |
| 7 | 7 | RING | |
| 8 | 8 | RING | |
| 9 | 9 | COVER | |
| 10 | 10 | SCREW | |
| 11 | 11 | SCREW | |
| 12 | 12 | SCREW | |
| 13 | 13 | LABEL | |
| 14 | 14 | SCREW | |
| 15 | 15 | SCREW | |
| 16 | 16 | WASHER | |
| 17 | 17 | SPRING | |
| 18 | 18 | BRACKET | |
| 19 | 19 | PLATE | |
| 20 | 20 | RING | |
| 21 | 21 | PLATE | |
| 22 | 22 | COVER | |
| 23 | 23 | SCREW | |
| 24 | 24 | COVER | |
| 25 | 25 | COVER | |
| 26 | 26 | BRACKET | |
| 27 | 27 | COVER | |
| 28 | 28 | COVER | |
| 29 | 29 | SCREW | |
| 30 | 30 | SCREW | |
| 31 | 31 | PIN | |
| 32 | 32 | PIN |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301S30001 | 机壳螺钉 | |
| 2 | 30111001 | 油标 | |
| 3 | 30122004 | 油封 | |
| 4 | 30122006 | 油堵 | |
| 5 | 30122008 | 油封 | |
| 6 | 30122005 | 油封 | |
| 7 | H01001 | 挡圈 18 | |
| 8 | 30112001 | 滤油网 | |
| 9 | 30112002 | 盖板 | |
| 10 | S01002 | 螺钉 M4×6.5 | |
| 11 | 30122010 | 油堵 | |
| 12 | R03001 | 铆钉 2.5×4 | |
| 13 | 30137001 | 机型牌 | |
| 14 | 30122007 | 油封 | |
| 15 | S01004 | 螺钉 M4×7.8 | |
| 16 | W01001 | 垫圈 4 | |
| 17 | S12004 | 螺钉 M6×10 | |
| 18 | 20131063 | 警示牌 | |
| 19 | 30137003 | 标牌 | |
| 20 | 30122036 | 密封圈 | |
| 21 | 30137004 | 警示牌 | |
| 22 | 30101005 | 下节右盖 | |
| 23 | L02001 | 螺栓 M4×8 | |
| 24 | 30122003 | 下节右盖垫 | |
| 25 | 30101004 | 下节左盖 | |
| 26 | 30122002 | 下节左盖垫 | |
| 27 | 30131003 | 商标牌 | |
| 28 | 001001 | O型圈 15×2.65 | |
| 29 | S05001 | 螺钉 M10×27.5 | |
| 30 | W02003 | 垫圈 10 | |
| 31 | P01001 | 销 | |
| 32 | P02001 | 销 |
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | COVER | ||
| 2 | SCREW | ||
| 3 | COVER | ||
| 4 | SCREW | ||
| 5 | WASHER | ||
| 6 | COVER | ||
| 7 | CAP | ||
| 8 | CAP | ||
| 9 | COVER | ||
| 10 | SCREW | ||
| 12 | SCREW | ||
| 14 | BRACKET | ||
| 15 | BRACKET | ||
| 16 | BRACKET | ||
| 17 | SCREW | ||
| 18 | BRACKET | ||
| 19 | SCREW | ||
| 20 | BRACKET | ||
| 21 | SCREW | ||
| 22 | BRACKET | ||
| 23 | WASHER | ||
| 24 | COVER | ||
| 25 | SCREW | ||
| 26 | SCREW | ||
| 27 | BRACKET | ||
| 28 | SCREW | ||
| 29 | SCREW | ||
| 30 | SCREW | ||
| 31 | BRACKET | ||
| 32 | SCREW | ||
| 33 | BRACKET | ||
| 34 | BRACKET | ||
| 35 | SCREW | ||
| 36 | BRACKET | ||
| 37 | SCREW | ||
| 38 | BRACKET | ||
| 39 | BRACKET | ||
| 40 | SCREW | ||
| 41 | SCREW | ||
| 42 | BRACKET | ||
| 43 | SCREW | ||
| 44 | BASE | ||
| 45 | BRACKET | ||
| 46 | SCREW |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301435 | 机头左盖(喷漆) | |
| 2 | 301S11001 | 机头左盖螺钉 | |
| 3 | 30122026 | 机头左盖垫 | |
| 4 | S04019 | 螺钉 M4×12 | |
| 5 | 30128001 | 垫圈 | |
| 6 | 301433 | 上盖(喷漆) | |
| 7 | 30122012 | 密封盖 | |
| 8 | 30111022 | 油标盖 | |
| 9 | 30122013 | 上盖垫 | |
| 10 | 30112102 | 针杆护罩 | |
| 12 | S01004 | 螺钉 M4×7.8 | |
| 14 | 30112083 | 过线防护罩 | |
| 15 | 30112084 | 手指防护罩 | |
| 16 | S01001 | 螺钉 M4×7 | |
| 17 | W01001 | 垫圈 4 | |
| 18 | 30112085 | 托架 | |
| 19 | 301S11002 | 护罩螺钉 | |
| 20 | 30112006 | 过线护罩 | |
| 21 | 301S11002 | 护罩螺钉 | |
| 22 | 300135 | 弯针护线板(喷漆) | |
| 23 | W01003 | 垫圈 6 | |
| 24 | 30111004 | 皮轮护罩 | |
| 25 | 301S11003 | 带轮护罩螺钉 | |
| 26 | 301S30002 | 左侧盖黄螺钉 | |
| 27 | 30127001 | 前罩簧 | |
| 28 | S01002 | 螺钉 M4×6.5 | |
| 29 | S01007 | 螺钉 M4×13.5 | |
| 30 | 30122015 | 前罩防振垫 | |
| 31 | W01004 | 垫圈 5 | |
| 32 | S01011 | 螺钉 M5×10 | |
| 33 | 30111003 | 有机玻璃罩 | |
| 34 | S01006 | 螺钉 M3×4.5 | |
| 35 | W01002 | 垫圈 3 | |
| 36 | 30112005 | 护罩架 | |
| 37 | W03001 | 垫圈 6 | |
| 38 | 301S20001 | 护罩座固定螺钉 | |
| 39 | 30112004 | 护罩座 | |
| 40 | S01004 | 螺钉 M4×7.8 | |
| 41 | W01001 | 垫圈 4 | |
| 42 | 30137005 | 护罩警示牌 | |
| 43 | 30337001 | 商标牌 | |
| 44 | 300136 | 前罩缝台(喷漆) | |
| 45 | 300657 | 上盖垫块(喷漆) | |
| 46 | S04019 | 螺钉M4×12 |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 8568-(4) | SCREW | |
| 5 | 8568FA-(24) | PLATE | |
| 10 | 8568-(22) | SCREW | |
| 10 | 8568FA-(23) | BRACKET | |
| 5 | 8568FA-(20) | BRACKET |
Page 11 — 三、缝台部件(Cloth plate assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7020 | S01005 | 螺钉 M4×10 | |
| 7043 | S02001 | 螺钉 M4×6 | |
| 250052-BSD | 300139 | 左缝台盖(喷漆) | |
| 250074-ASD | 300137 | 右缝台盖(喷漆) | |
| 7021 | S01003 | 螺钉 M4×12 | |
| 250071-91 | 30115001 | 推板 | |
| 250039-SD | 300138 | 侧盖组件(喷漆) | |
| 250037 | 301S20004 | 侧盖合扇销钉 | |
| 201191 | 30128002 | 弹簧垫圈 | |
| 250038 | 301S30006 | 销钉 | |
| 4535 | S10001 | 螺钉 M3×4 | |
| 7017 | S01002 | 螺钉 M4×6.5 | |
| 210025 | 30122015 | 前罩防振垫 | |
| 7089 | 301S30002 | 左侧盖锁螺钉 | |
| 4821 | N01001 | 螺母 M4 | |
| 250047 | 30112008 | 挡块 | |
| 7019 | S01004 | 螺钉 M4×7.8 | |
| 206023 | 30127002 | 侧盖簧 | |
| 30112079 | 不锈钢缝台 | ||
| 20528017 | 垫片 | ||
| 300793 | 侧盖合扇 | ||
| 3011101900 | 缝台裙组件 | ||
| 3011101900 | 缝台裙组件 | ||
| 300654 | 缝台盖(喷漆) |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | BRACKET | |
| 3 | 3 | SCREW | |
| 4 | 4 | BRACKET | |
| 5 | 5 | SCREW | |
| 6 | 6 | WASHER | |
| 7 | 7 | SHAFT | |
| 8 | 8 | BEARING | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | PULLEY | |
| 12 | 12 | BRACKET | |
| 13 | 13 | PULLEY | |
| 14 | 14 | BRACKET | |
| 15 | 15 | PULLEY | |
| 16 | 16 | BRACKET | |
| 17 | 17 | WASHER | |
| 18 | 18 | BRACKET | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | SHAFT | |
| 22 | 22 | SCREW | |
| 23 | 23 | PULLEY | |
| 24 | 24 | WASHER | |
| 25 | 25 | SCREW | |
| 26 | 26 | SHAFT | |
| 27 | 27 | WASHER | |
| 28 | 28 | BELT | |
| 29 | 29 | PIN | |
| 30 | 30 | BRACKET |
Page 13 — 四、下轴部件(Hook shaft assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400068 | 下轴 | |
| 2 | 400060 | 连杆组件 | |
| 3 | 201S20015 | 螺钉 M3.5×13 | |
| 4 | 30104002 | 下轴曲柄 | |
| 5 | S05002 | 螺钉 M6×0.75×15.2 | |
| 6 | S12002 | 螺钉 M3×4 | |
| 7 | 30103004 | 接轴套 | |
| 8 | S12003 | 螺钉 M6×7 | |
| 9 | S10029 | 螺钉 M6×0.75×5 | |
| 10 | 3012400300 | 油封轴承 | |
| 11 | 30103006 | 中轴套 | |
| 12 | 30103008 | 后轴套 | |
| 13 | 3012400400 | 油封轴承 | |
| 14 | 30125001 | 下轴同步带轮 | |
| 15 | 30103009 | 轴承套 | |
| 16 | B01003 | 轴承 6304Z | |
| 17 | 301S11004 | 比叉螺钉 | |
| 18 | W02001 | 垫圈 5 | |
| 19 | 30108001 | 轴承挡圈 | |
| 20 | S01004 | 螺钉 M4×7.8 | |
| 21 | 30101015 | 皮带轮 | |
| 22 | S10009 | 螺钉 M6×8 | |
| 23 | S12001 | 螺钉 M6×8 | |
| 24 | 30128005 | 垫圈 | |
| 25 | S05003 | 螺钉 M5×10 | |
| 26 | 30102003 | 下后轴 | |
| 27 | 001001 | 0型圈 15×2.65 | |
| 28 | 30135002 | 同步带 | |
| 29 | 30126001 | 调节销 | |
| 30 | 30109001 | 比叉 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | COLLAR | |
| 3 | 3 | SCREW | |
| 4 | 4 | WASHER | |
| 5 | 5 | NUT | |
| 6 | 6 | SHAFT | |
| 7 | 7 | BEARING HOUSING | |
| 8 | 8 | COUPLING | |
| 9 | 9 | SCREW | |
| 10 | 10 | COUPLING | |
| 11 | 11 | BALL JOINT | |
| 12 | 12 | SCREW | |
| 13 | 13 | SHAFT | |
| 14 | 14 | KEY | |
| 15 | 15 | SCREW | |
| 16 | 16 | SHAFT | |
| 17 | 17 | COUPLING | |
| 18 | 18 | SHAFT | |
| 19 | 19 | SCREW | |
| 20 | 20 | PULLEY | |
| 21 | 21 | MOTOR HOUSING | |
| 22 | 22 | SHAFT | |
| 23 | 23 | COLLAR | |
| 24 | 24 | SHAFT | |
| 25 | 25 | HOUSING | |
| 26 | 26 | HOUSING | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | WASHER | |
| 30 | 30 | SCREW |
Page 15 — 五、上轴部件(Main shaft assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400307 | 针杆曲柄 | |
| 2 | S10004 | 螺钉 M8×1×12 | |
| 3 | S01011 | 螺钉 M5×10 | |
| 4 | S08001 | 螺钉 M6×0.75×3.5 | |
| 5 | S11001 | 螺钉 M6×0.75×6 | |
| 6 | 30103015 | 轴承套 | |
| 7 | 400065 | 上轴 | |
| 8 | 400061 | 连杆组件 | |
| 9 | S01003 | 螺钉 M4×12 | |
| 10 | S01008 | 螺钉 M3.5×13 | |
| 11 | 30104006 | 弯针曲柄 | |
| 12 | S05002 | 螺钉 M6×0.75×15.2 | |
| 13 | 30103004 | 接轴套 | |
| 14 | S12003 | 螺钉 M6×0.75×7 | |
| 15 | S10029 | 螺钉 M6×0.75×5 | |
| 16 | 30109003 | 上轴平衡块 | |
| 17 | S10002 | 螺钉 M5×5 | |
| 18 | 30102006 | 中轴 | |
| 19 | 3012400400 | 油封轴承 | |
| 20 | 30103012 | 轴承套 | |
| 21 | 30125002 | 上轴同步带轮 | |
| 22 | 3012400400 | 油封轴承 | |
| 23 | 30103014 | 轴承套 | |
| 24 | B01005 | 轴承 6203 | |
| 25 | 30102007 | 后轴 | |
| 26 | 301434 | 手轮(刻好字) | |
| 27 | S12001 | 螺钉 M6×8 | |
| 28 | S10009 | 螺钉 M6×8 | |
| 29 | W01004 | 垫圈 5 | |
| 30 | S05004 | 螺钉 M5×14 |
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Main shaft assembly | ||
| 2 | Screw | ||
| 3 | Connecting rod assembly | ||
| 4 | Screw | ||
| 5 | Shaft sleeve | ||
| 6 | Gear | ||
| 7 | Washer | ||
| 8 | Screw | ||
| 9 | Support | ||
| 10 | Screw | ||
| 11 | Screw | ||
| 12 | Washer | ||
| 13 | Cap | ||
| 14 | Needle bar assembly | ||
| 15 | 2-needle holder | ||
| 16 | 3-needle holder | ||
| 17 | Base plate | ||
| 18 | Screw | ||
| 19 | Screw | ||
| 20 | Screw | ||
| 21 | Needle (2-needle) | ||
| 22 | Screw | ||
| 23 | Thread guide | ||
| 24 | Base | ||
| 25 | Screw |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30102008 | 针杆 | |
| 2 | 30102009 | 针杆轧头 | |
| 3 | 301S11005 | 针杆轧头螺钉 | |
| 4 | 30105005 | 针杆连杆 | |
| 5 | 30102010 | 针杆连杆轴 | |
| 6 | B07001 | 轴承 8×12×12 | |
| 7 | 30128006 | 针杆连杆轴垫圈 | |
| 8 | 30109004 | 针杆滑块 | |
| 9 | 30109005 | 滑块导座 | |
| 10 | 301S11024 | 滑块导座螺钉 | |
| 11 | S01003 | 螺钉 M4×12 | |
| 12 | 30127003 | 毛毡弹簧 | |
| 13 | 30123002 | 毛毡 | |
| 14 | 30134001 | 356针古 | |
| 15 | S10026 | 螺钉 M3×3 | |
| 16 | S10026 | 螺钉 M3×3 | |
| 17 | 30115002 | 356针板 | |
| 18 | 301S17001 | 针板螺钉 | |
| 19 | 30109006 | 针板座 | |
| 20 | S01004 | 螺钉 M4×7.8 | |
| 21 | 30134006 | 240针古 | |
| 30134004 | 248针古 | ||
| 22 | 30122018 | 防振垫 | |
| 23 | 20523005 | 油线 | |
| 24 | 30112009 | 油线托 |
Page 18
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PISTON | |
| 2 | 2 | PISTON RING | |
| 3 | 3 | CONNECTING ROD | |
| 4 | 4 | BOLT | |
| 5 | 5 | BOLT | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BOLT | |
| 8 | 8 | CRANKSHAFT | |
| 9 | 9 | BEARING | |
| 10 | 10 | BEARING | |
| 11 | 11 | SPRING | |
| 12 | 12 | WASHER | |
| 13 | 13 | NUT | |
| 14 | 14 | BEARING | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BOLT | |
| 17 | 17 | WASHER | |
| 18 | 18 | BOLT | |
| 19 | 19 | LEVER | |
| 20 | 20 | SPRING | |
| 21 | 21 | BRACKET | |
| 22 | 22 | GASKET | |
| 23 | 23 | PIN | |
| 24 | 24 | BOLT |
Page 19 — 七、护针部件(Needle guard assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B01001 | 轴承 6004Z | ||
| 4539 | S10028 | 螺钉 M5×6 | |
| 255501-92 | 400062 | 连杆组件 | |
| 7015 | S01008 | 螺钉 M3.5×13 | |
| 7082 | 301S11024 | 滑块导座螺钉 | |
| 306093 | 30104007 | 弯针曲柄 | |
| 5084 | 301S12001 | 曲柄螺钉 | |
| 205495 | 30126003 | 曲柄销 | |
| 251518 | 30102011 | 护针轴 | |
| 206748 | 30123001 | 毛毡 | |
| 202176 | 20523005 | 油线 | |
| 240102 | 30128008 | 护针轴垫圈 | |
| 205061 | H05001 | 挡圈 10 | |
| 204052A | 30122019 | 油封 | |
| 251519 | 30104009 | 护针挡架 | |
| 4500 | S05003 | 螺钉 M5×10 | |
| 303067 | W02001 | 垫圈 5 | |
| 7017 | S01002 | 螺钉 M4×6.5 | |
| 257551B | 30117002 | 后护针挡 | |
| 257553 | 30117003 | 前护针挡 | |
| 7031 | S01012 | 螺钉 M2.5×4 | |
| 001001 | O型圈 15×2.65 | ||
| 251517 | 30110002 | 偏心凸轮 | |
| 30122017 | 轴承槽油封 |
Page 20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Shaft | |
| 3 | 3 | Screw | |
| 4 | 4 | Screw | |
| 5 | 5 | Washer | |
| 6 | 6 | Screw | |
| 7 | 7 | Bearing | |
| 8 | 8 | Shaft | |
| 9 | 9 | Shaft | |
| 10 | 10 | Screw | |
| 11 | 11 | Shaft | |
| 12 | 12 | Screw | |
| 13 | 13 | Bracket | |
| 14 | 14 | Screw | |
| 15 | 15 | Shaft | |
| 16 | 16 | Washer | |
| 17 | 17 | Screw | |
| 18 | 18 | Washer | |
| 19 | 19 | Nut | |
| 20 | 20 | Shaft | |
| 21 | 21 | Washer | |
| 22 | 22 | Shaft | |
| 23 | 23 | Screw | |
| 24 | 24 | Nut | |
| 25 | 25 | Shaft | |
| 26 | 26 | Washer |
Page 21 — 八、弯针部件(Looper assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3011700900 | 弯针 | |
| 2 | 30104012 | 弯针架 | |
| 3 | S01004 | 螺钉 M4×7.8 | |
| 4 | S05004 | 螺钉 M5×14 | |
| 5 | W02001 | 垫圈 5 | |
| 6 | S01014 | 螺钉 M6×0.75×9.6 | |
| 7 | 20622019 | 油封 | |
| 8 | 30102014 | 弯针架轴 | |
| 9 | 30110005 | 摆架偏心轮 | |
| 10 | S10006 | 螺钉 M5×6 | |
| 11 | 400063 | 连杆组件 | |
| 12 | 201S20015 | 螺钉 M3.5×13 | |
| 13 | 30109007 | 平衡块 | |
| 14 | S01009 | 螺钉 M3×7.5 | |
| 15 | 30104010 | 弯针摆动架 | |
| 16 | 30128008 | 摆架轴垫圈 | |
| 17 | 30102013 | 连杆轴 | |
| 18 | 30128032 | 垫圈 | |
| 19 | N01004 | 螺母 M5 | |
| 20 | 30102015 | 摆轴轧头 | |
| 21 | 30128010 | 垫圈 | |
| 22 | 30108002 | 偏心挡圈 | |
| 23 | 301S12001 | 曲柄螺钉 | |
| 24 | N01001 | 螺母 M4 | |
| 25 | 30102012 | 摆架轴 | |
| 26 | H05001 | 挡圈 10 |
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 54 | 8568-46 | 8568W-59 | |
| 51 | 8568-47 | 8568W-60 | |
| 58 | 8568-38 | 8568-39 | |
| 55 | 8568-57 | 8568-56 | |
| 57 | 8568-53 | 8568-52 | |
| 41 | 8568-43 | 8568-42 | |
| 50 | 8568-48 | 8568-49 | |
| 29 | 8568-30 | 8568-31 | |
| 28 | 8568-28 | 8568-27 | |
| 24 | 8568-26 | 8568-25 | |
| 33 | 8568-23 | 8568-22 | |
| 32 | 8568-32 | 8568-34 | |
| 10 | 8568-10 | 8568-9 | |
| 8 | 8568-8 | 8568-7 | |
| 15 | 8568-15 | 8568-14 | |
| 11 | 8568-11 | 8568-16 | |
| 17 | 8568-17 | 8568-12 | |
| 13 | 8568-13 | 8568-37 | |
| 36 | 8568-36 | 8568-39 | |
| 38 | 8568-38 | 8568-40 | |
| 4 | 8568-4 | 8568-5 | |
| 3 | 8568-3 | 8568-2 | |
| 1 | 8568-1 | 8568-35 | |
| 19 | 8568-19 | 8568-18 | |
| 20 | 8568-20 | 8568-21 | |
| 44 | 8568-44 | 8568-45 |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3011400700 | 差动送布牙组件 | ||
| 30115000 | 差动送布牙螺钉 | 2 | |
| 30120000-91 | 差动送布牙 | ||
| 30114002 | 差动送布牙架组件 | ||
| 30114002 | 油线 | ||
| 30103021 | 套筒 | ||
| S10006 | 螺钉 M5×6 | 4 | |
| 30102029 | 偏心轴 | ||
| 30101008 | 曲柄螺钉 | ||
| 30109008 | 滑块 | ||
| 30128011 | 偏心垫 | ||
| 301S17002 | 偏心轴螺钉 | ||
| 30109009 | 牙架挡板 | ||
| 30103031 | 差动轴后套筒 | ||
| 30109010 | 左挡板 | ||
| L02003 | 螺栓 M4×7 | 2 | |
| 30122020 | 牙架油封 | 2 | |
| 30109011 | 油封挡板 | ||
| 30109012 | 挡板 | ||
| S01005 | 螺钉 M4×10 | 2 | |
| B07002 | 轴承 12×15×10 | ||
| 30109013 | 牙滑块 | ||
| 30108003 | 轴承挡圈 | ||
| 30104013 | 差动送布架 | ||
| B07003 | 轴承 17×21×10 | ||
| 30103023 | 偏心轴承套 | ||
| 30103024 | 送布调节器 | ||
| 3010306500 | 调节器套 | ||
| 301S30004 | 调节器螺钉 | ||
| 30128012 | 楔形垫圈 | 5 | |
| 30103026 | 垫圈套 | ||
| 301S16001 | 调节螺母 | ||
| S10002 | 螺钉 M5×5 | ||
| 301S30005 | 牙架螺钉 | ||
| 30103027 | 差动牙架套 | ||
| 30109014 | 送布滑块 | ||
| 30128013 | 垫片 | 2 | |
| 301S16002 | 六角螺母 | 2 | |
| 301030006 | 差动牙架螺钉 | ||
| 30103028 | 差动连杆 | ||
| 30129001 | 开口挡圈 | ||
| 30105010 | 差动送布连杆 | ||
| 30109015 | 牙架挡板 | ||
| S01004 | 螺钉 M4×7.8 | 3 | |
| 30102017 | 针距调节钮 | ||
| 30127004 | 针距调节簧 | ||
| 001004 | 0型圈 4×1.8 | ||
| 30128032 | 垫圈 | ||
| H05002 | 挡圈 5 | ||
| 30103029 | 差动送布架套 | ||
| S12005 | 螺钉 M4×4 | ||
| 3010401500 | 差动调整架组件 | ||
| S01012 | 螺钉 M2.5×4 | ||
| 30102018 | 差动轴 | ||
| S10002 | 螺钉 M5×5 | ||
| 30123002 | 毛毡 | 2 | |
| 30103030 | 差动轴前套筒 | ||
| 30126016 | 针距调节钮 | ||
| 30127026 | 针距调节簧 |
Page 24
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PIN | |
| 2 | 2 | LEVER | |
| 3 | 3 | SCREW | |
| 4 | 4 | WASHER | |
| 5 | 5 | SCREW | |
| 6 | 6 | SPRING | |
| 7 | 7 | SPRING | |
| 8 | 8 | SPRING | |
| 9 | 9 | SPRING | |
| 10 | 10 | SPRING | |
| 11 | 11 | PLATE | |
| 12 | 12 | SCREW | |
| 13 | 13 | KNOB | |
| 14 | 14 | LEVER | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SCREW | |
| 17 | 17 | BUSH | |
| 18 | 18 | NUT | |
| 19 | 19 | SCREW | |
| 20 | 20 | WASHER | |
| 21 | 21 | BUSH | |
| 22 | 22 | SCREW | |
| 23 | 23 | WASHER | |
| 24 | 24 | SCREW |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30103032 | 方套 | |
| 2 | 30109016 | 比叉 | |
| 3 | 30105012 | 连杆 | |
| 4 | S05005 | 螺钉 M5×12 | |
| 5 | 301S20006 | 连杆连接螺钉 | |
| 6 | 30108004 | 挡圈 | |
| 7 | 301S11007 | 挡圈螺钉 | |
| 8 | 301S20001 | 护罩座固定螺钉 | |
| 9 | 30127005 | 弹簧 | |
| 10 | 001005 | 0型圈 7.5×1.8 | |
| 11 | 3011201100 | 左板组件 | |
| 12 | S01004 | 螺钉 M4×7.8 | |
| 13 | 30122021 | 油封堵 | |
| 14 | 3011201300 | 调节扳手组件 | |
| 15 | 30112015 | 调节板 | |
| 16 | S01003 | 螺钉 M4×12 | |
| 17 | 30203019 | 调节套 | |
| 18 | 20109005 | 调节滑块 | |
| 19 | 301S11008 | 螺钉 | |
| 20 | W01006 | 垫圈4 | |
| 21 | 301S16004 | 螺母 | |
| 22 | 301S30007 | 调节扳手螺钉 | |
| 23 | 30128014 | 垫圈 | |
| 24 | 301S11023 | 挡圈螺钉(短) |
Page 26
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Screw | ||
| 2 | Nut | ||
| 3 | Spring | ||
| 4 | Washer | ||
| 5 | Washer | ||
| 6 | Screw | ||
| 7 | Screw | ||
| 8 | Rod | ||
| 9 | Bracket | ||
| 10 | Screw | ||
| 11 | Washer | ||
| 12 | Washer | ||
| 13 | Washer | ||
| 14 | Washer | ||
| 15 | Shaft | ||
| 16 | Screw | ||
| 17 | Washer | ||
| 18 | Presser Foot Assembly | ||
| 19 | Screw | ||
| 20 | Shaft | ||
| 21 | Spring | ||
| 22 | Screw | ||
| 23 | Screw | ||
| 24 | Bush | ||
| 25 | Washer | ||
| 26 | Lever | ||
| 27 | Screw | ||
| 28 | Lever | ||
| 29 | Screw | ||
| 30 | Bracket | ||
| 31 | Screw | ||
| 32 | Shaft | ||
| 33 | Lever | ||
| 34 | Screw | ||
| 35 | Lever | ||
| 36 | Screw | ||
| 37 | Screw | ||
| 38 | Nut |
Page 27 — 十一、压脚部件(Presser form assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3013002502 | 调压螺丝 | |
| 2 | 301516005 | 调压母 | |
| 3 | 30127006 | 调压弹簧 | |
| 4 | 30104017 | 压脚头 | |
| 5 | S01003 | 螺钉 M4×12 | |
| 6 | 30112016 | 压脚头连接板 | |
| 7 | 30152007 | 螺钉 | |
| 8 | 30722004 | 调压螺杆组件 | |
| 9 | 3010901700 | 导块销组件 | |
| 10 | S11025 | 螺钉 M4×12 | |
| 11 | 30127008 | 调压弹簧 | |
| 12 | 30122022 | 螺型密封圈 | |
| 13 | 001006 | O型圈8.5×1.8 | |
| 14 | 30102020 | 压脚轴 | |
| 15 | 30112017 | 压脚护罩 | |
| 16 | S01006 | 螺钉 M3×4.5 | |
| 17 | W01002 | 垫圈3 | |
| 18 | 30116020 | 240压脚 | |
| 18 | 3011601300 | 356压脚 | |
| 18 | 3011601400 | 364压脚 | |
| 18 | 30116005 | 356压脚(02型) | |
| 18 | 30116006 | 364压脚(02型) | |
| 18 | 30116003 | 356压脚(052型) | |
| 18 | 30116004 | 364压脚(05型) | |
| 19 | 301S11010 | 螺钉 | |
| 20 | 30102021 | 抬压轴 | |
| 21 | 30127009 | 抬压轴簧 | |
| 22 | 30108005 | 挡圈 | |
| 23 | 301S12001 | 螺钉 | |
| 24 | 30108006 | 挡圈 | |
| 25 | 30722004 | 油封 | |
| 26 | 30104019 | 抬压曲柄I | |
| 27 | 301S11011 | 螺钉 | |
| 28 | 30112018 | 抬压曲柄连接板 | |
| 29 | 301S20008 | 螺钉 | |
| 30 | 30104020 | 抬压曲柄II | |
| 31 | 301S20013 | 螺钉 | |
| 32 | 30102022 | 抬压轴 | |
| 33 | 30112019 | 抬压轴扳手 | |
| 34 | S01011 | 螺钉 M5×10 | |
| 35 | 30112020 | 抬压曲柄座 | |
| 36 | S01004 | 螺钉 M4×7.8 | |
| 37 | S01016 | 螺钉 M5×17 | |
| 38 | N01004 | 螺母M5 |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Screw | |
| 3 | 3 | Washer | |
| 4 | 4 | Screw | |
| 5 | 5 | Shaft | |
| 6 | 6 | Bearing | |
| 7 | 7 | Screw | |
| 8 | 8 | Pin | |
| 9 | 9 | Screw | |
| 10 | 10 | Washer | |
| 11 | 11 | Lever | |
| 12 | 12 | Screw | |
| 13 | 13 | Collar | |
| 14 | 14 | Shaft | |
| 15 | 15 | Washer | |
| 16 | 16 | Clip | |
| 17 | 17 | Screw | |
| 18 | 18 | Lever | |
| 19 | 19 | Bearing | |
| 20 | 20 | Screw | |
| 21 | 21 | Screw | |
| 22 | 22 | Shaft | |
| 23 | 23 | Screw | |
| 24 | 24 | Washer | |
| 25 | 25 | Washer |
Page 29 — 十二、 喂针部件(Needle feeding assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30117005 | 喂针 | |
| 2 | 30104022 | 喂针架 | |
| 3 | S01005 | 螺钉 M4×10 | |
| 4 | S01017 | 螺钉 M4×14 | |
| 5 | 30102023 | 摆动轴 | |
| 6 | 20108006 | 挡圈 | |
| 7 | 201S11033 | 挡圈螺钉 | |
| 8 | 20123021 | 油线 | |
| 9 | 30123008 | 摆动轴油孔毛毡 | |
| 10 | 001008 | O型圈 9×1.8 | |
| 11 | 30105013 | 喂针摆动连杆 | |
| 12 | S10029 | 螺钉 M6×0.75×5 | |
| 13 | 30126005 | 喂针摆动销 | |
| 14 | 30102024 | 摆动连杆轴 | |
| 15 | 30128015 | 摆动连杆轴垫圈 | |
| 16 | H05004 | 挡圈12 | |
| 17 | 30110007 | 喂针凸轮 | |
| 18 | S10002 | 螺钉 M5×5 | |
| 19 | 400059 | 喂针连杆 | |
| 20 | 30104024 | 喂针摆动曲柄 | |
| 21 | S05002 | 螺钉 M6×0.75×15.2 | |
| 22 | 30126006 | 连杆销 | |
| 23 | 30128032 | 垫圈 | |
| 24 | N01004 | 螺母 M5 | |
| 25 | 30128018 | 垫圈 |
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Rod | |
| 2 | 2 | Screw | |
| 3 | 3 | Screw | |
| 4 | 4 | Needle bar connecting rod | |
| 5 | 5 | Needle bar connecting rod screw | |
| 6 | 6 | Washer | |
| 7 | 7 | Bracket | |
| 8 | 8 | Screw | |
| 9 | 9 | Shaft | |
| 10 | 10 | Shaft | |
| 11 | 11 | Shaft | |
| 12 | 12 | Screw | |
| 13 | 13 | 2-Needle | |
| 14 | 14 | 3-Needle. | |
| 15 | 15 | Needle plate | |
| 16 | 16 | Presser foot | |
| 17 | 17 | 2-Needle | |
| 18 | 18 | Presser foot | |
| 19 | 19 | Presser foot | |
| 20 | 20 | Needle plate | |
| 21 | 21 | Needle plate | |
| 22 | 22 | Presser foot | |
| 23 | 23 | Spring | |
| 24 | 24 | Screw | |
| 25 | 25 | 3-Needle | |
| 26 | 26 | Needle plate | |
| 27 | 27 | Needle plate | |
| 28 | 28 | Presser foot | |
| 29 | 29 | Presser foot | |
| 30 | 30 | Screw | |
| 31 | 31 | Washer | |
| 32 | 32 | Presser foot | |
| 33 | 33 | Presser foot | |
| 34 | 34 | Presser foot | |
| 35 | 35 | Presser foot | |
| 36 | 36 | Spring |
Page 31 — 十三、松线部件 (Thread loosing assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3010403200 | 松线曲柄II | ||
| 30103040 | 轴套 | ||
| 301S11013 | 轴套紧固定螺钉 | ||
| 3010403100 | 松线曲柄I | ||
| S05005 | 螺钉 M5×12 | ||
| W01010 | 垫圈 8 | ||
| 30113001 | 过线架 | ||
| S01004 | 螺钉 M4×7.8 | ||
| 30102026 | 夹线柱 | ||
| 30112021 | 压板 | ||
| S01002 | 螺钉 M4×6.5 | ||
| W01001 | 垫圈 4 | ||
| 3011300300 | 二针过线组件 | ||
| 3011304200 | 三针过线组件 | ||
| 30113003 | 过线板 | ||
| 30112022 | 过线调节板 | ||
| 3011300600 | 调线组件(强) | ||
| 3011300500 | 调线组件(中) | ||
| 3011300400 | 调线组件(弱) | ||
| 30113007 | 二孔过线板I | ||
| 30113008 | 二孔过线板II | ||
| 30103041 | 调节套 | ||
| 30127010 | 调节板簧 | ||
| 301S30009 | 调节板螺钉 | ||
| 3011300400 | 调线组件(弱) | ||
| 30113007 | 二孔过线板I | ||
| 30113008 | 二孔过线板II | ||
| 30103041 | 调节套 | ||
| 20711034 | 调压螺母 | ||
| 301S30010 | 夹线枉 | ||
| 30128016 | 夹线片 | ||
| 30111005 | 调压止动盖 | ||
| 30127011 | 调压簧(强) | ||
| 30127012 | 调压簧(中) | ||
| 30127013 | 调压簧(弱) | ||
| 30111006 | 调压止动套 |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12 | 8568-01D | Except 8568-01D | |
| 15, 22, 26, 27 | 8568-01D,01M | Except 8568-01D,01M | |
| 17, 19, 28 | 8568-01M | Except 8568-01M | |
| 32, 33, 34 | 8568-01M | Put in accessory 8568-01M |
Page 33 — 十四、过线部件(Thread loosing assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20608003 | 挡圈 | |
| 2 | 301512001 | 曲柄螺钉 | |
| 3 | 30102028 | 过线座轴(中轴) | |
| 4 | 30128019 | 垫片 | |
| 5 | W02002 | 垫圈4 | |
| 6 | S05048 | 螺钉M4×10 | |
| 7 | 20622019 | 油封 | |
| 8 | H05001 | 挡圈10 | |
| 9 | 30101018 | 过线座 | |
| 10 | S05004 | 螺钉M5×14 | |
| 11 | W02001 | 垫圈5 | |
| 12 | 30113009 | 长过线板 | |
| 13 | S01004 | 螺钉M4×7.8 | |
| 14 | W01001 | 垫圈4 | |
| 15 | 30113010 | 三孔过线 | |
| 16 | S01006 | 螺钉M3×4.5 | |
| 17 | 30113011 | 过线板 | |
| 18 | 206S30016 | 螺钉M4×4.5 | |
| 19 | 30112023 | 护线罩 | |
| 20 | 30128034 | 垫圈 | |
| 21 | S01006 | 螺钉M3×4.5 | |
| 22 | 30112027 | 硅油盒固定架 | |
| 23 | 30112104 | 过线挡板 | |
| 24 | W01001 | 垫圈4 | |
| 25 | 30113012 | 针杆过线座 | |
| 26 | 30113013 | 过线杆 | |
| 27 | S10001 | 螺钉M3×4 | |
| 28 | S01006 | 螺钉M3×4.5 | |
| 29 | 30112024 | U形夹线座 | |
| 30 | S01001 | 螺钉M4×7 | |
| 31 | 30112025 | 夹线板 | |
| 32 | 30112026 | 压线板 | |
| 33 | 30127014 | 调压簧 | |
| 34 | 301S20009 | 调线螺钉 | |
| 35 | 30112028 | 长过线压板 | |
| 36 | 30112030 | 过线板 | |
| 37 | 30112033 | 喂针小过线 | |
| 38 | 30112029 | 喂针过线 | |
| 39 | S10005 | 螺钉M3×3 | |
| 40 | 30112031 | 喂针过线板 | |
| 41 | 301S16007 | 夹线螺母 | |
| 42 | 30127016 | 夹线簧 | |
| 43 | 30112032 | 喂针二眼过线 | |
| 44 | 301S30011 | 调压螺钉 | |
| 45 | 20112033 | 夹线片 | |
| 46 | 3011203200 | 喂针二眼过线组件 |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 | |
| 24 | 24 | 24 | |
| 25 | 25 | 25 | |
| 26 | 26 | 26 | |
| 27 | 27 | 27 | |
| 28 | 28 | 28 | |
| 29 | 29 | 29 | |
| 30 | 30 | 30 | |
| 31 | 31 | 31 | |
| 32 | 32 | 32 | |
| 33 | 33 | 33 | |
| 34 | 34 | 34 |
Page 35 — 十五、打线凸轮部件(Cam assemblies assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3011000800 | 打线凸轮组件 | |
| 2 | S10002 | 螺钉 M5×5 | |
| 3 | 30101020 | 滑杆座 | |
| 4 | 30102029 | 滑杆轴I | |
| 5 | 30127017 | 弹簧 | |
| 6 | 001009 | O型圈 4.5×1.8 | |
| 7 | H05002 | 挡圈 5 | |
| 8 | S10005 | 螺钉 M3×3 | |
| 9 | 30102030 | 滑杆轴II | |
| 10 | 30113017 | 弯针过线架 | |
| 11 | S01001 | 螺钉 M4×7 | |
| 12 | 30112038 | 扳手 | |
| 13 | 30127018 | 弹簧 | |
| 14 | 301S20010 | 扳手螺钉 | |
| 15 | 207S11016 | 螺钉 M4×16 | |
| 16 | 30128023 | 垫片 | |
| 17 | 30101019 | 打线架座 | |
| 18 | 30112037 | 打线片 | |
| 19 | W02002 | 垫圈 4 | |
| 20 | L02002 | 螺钉 M4×10 | |
| 21 | 30112036 | 挡线片 | |
| 22 | 30128019 | 垫片 | |
| 23 | 30112035 | 打线架 | |
| 24 | 20613008 | 弯针架过线 | |
| 25 | 301S11014 | 过线螺钉 | |
| 26 | 30113014 | 打线架过线 | |
| 27 | W01002 | 垫圈 2.5 | |
| 28 | S01012 | 螺钉 M2.5×4 | |
| 29 | 301S30011 | 调压螺钉 | |
| 30 | 20112033 | 小夹线片 | |
| 31 | 30127018 | 夹线簧 | |
| 32 | 301S16007 | 夹线螺母 | |
| 33 | S02001 | 螺钉 M4×6 | |
| 34 | 30113016 | 过线 |
Page 36
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BRACKET | ||
| 2 | BRACKET | ||
| 3 | BRACKET | ||
| 4 | SCREW | ||
| 5 | BRACKET | ||
| 6 | BRACKET | ||
| 7 | WASHER | ||
| 8 | SCREW | ||
| 9 | BRACKET | ||
| 10 | BRACKET | ||
| 11 | BRACKET | ||
| 12 | BRACKET | ||
| 13 | PIPE | ||
| 14 | BRACKET | ||
| 15 | SCREW | ||
| 16 | BRACKET | ||
| 17 | SCREW | ||
| 18 | BRACKET | ||
| 19 | SCREW | ||
| 20 | BRACKET | ||
| 21 | BRACKET | ||
| 22 | BRACKET | ||
| 23 | PIPE | ||
| 24 | BRACKET | ||
| 25 | SCREW | ||
| 26 | BRACKET | ||
| 27 | BRACKET | ||
| 28 | BRACKET | ||
| 29 | BRACKET | ||
| 30 | BRACKET |

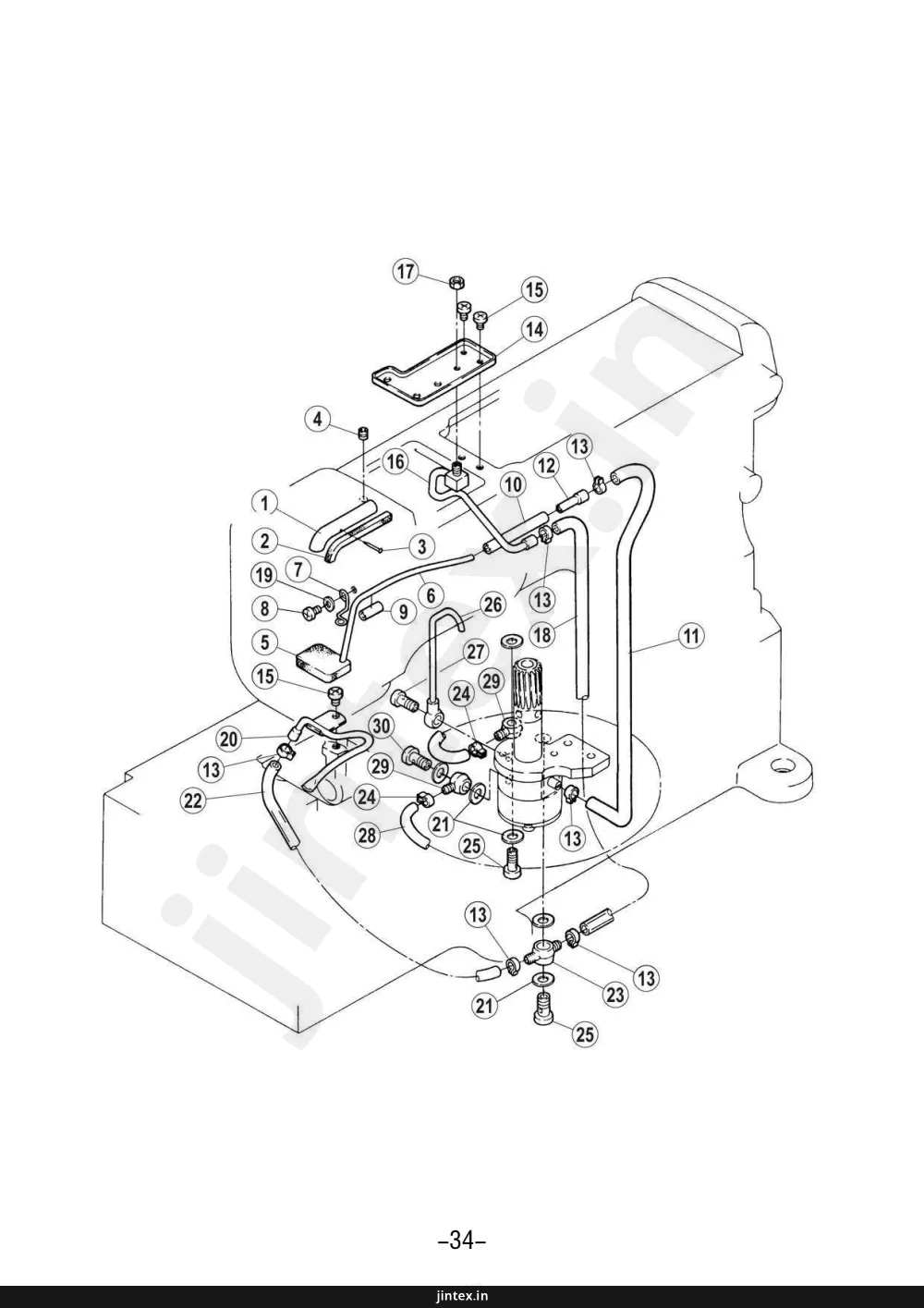

Page 37 — 十六、润滑部件(Lubrication assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30121012 | 铜油管 | |
| 2 | 30123010 | 油毡 | |
| 3 | 30126008 | 销钉 | |
| 4 | S10002 | 螺钉 M5×5 | |
| 5 | 30123009 | 油毡 | |
| 6 | 3012101400 | 细油管 | |
| 7 | 30127019 | 压簧 | |
| 8 | S01004 | 螺钉 M4×7.8 | |
| 9 | 30121007 | 油管 | |
| 10 | 30121005 | 油管 | |
| 11 | 30121022 | Φ4×Φ6油管 | |
| 12 | 30136002 | 油管接头 | |
| 13 | 20129002 | 油管卡簧 | |
| 14 | 30112039 | 接油盘 | |
| 15 | S01002 | 螺钉 M4×6.5 | |
| 16 | 3012101500 | 喷油管组 | |
| 17 | N01001 | 螺母 M4 | |
| 18 | 30121022 | Φ4×Φ6油管 | |
| 19 | W01001 | 垫圈 4 | |
| 20 | 30121009 | 喷油管 | |
| 21 | 20122033 | 垫片 | |
| 22 | 30121021 | Φ5×Φ7油管 | |
| 23 | 30136004 | 双头油管接头 | |
| 24 | 30129006 | 油管卡簧(大) | |
| 25 | 301S30013 | 过油螺钉 | |
| 26 | 30136003 | 铜油管接头 | |
| 27 | 301S30012 | 油管螺钉 | |
| 28 | 30121021 | Φ5×Φ7油管 | |
| 29 | 30136001 | 油管接头 | |
| 30 | 201S30004 | 过油螺钉 |
Page 38
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | SHAFT | |
| 3 | 3 | GEAR | |
| 4 | 4 | GEAR | |
| 5 | 5 | GEAR | |
| 6 | 6 | PLATE | |
| 7 | 7 | SCREW | |
| 8 | 8 | SCREW | |
| 9 | 9 | SHAFT | |
| 10 | 10 | SCREW | |
| 11 | 11 | SCREW | |
| 12 | 12 | SCREW | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 15 | 15 | WASHER | |
| 16 | 16 | SCREW | |
| 17 | 17 | GASKET | |
| 18 | 18 | CYLINDER | |
| 19 | 19 | SCREW | |
| 20 | 20 | RING | |
| 21 | 21 | FLANGE | |
| 22 | 22 | SCREW | |
| 23 | 23 | RING |
Page 39 — 十七、油泵部件(Oil pump assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3012000100 | 油泵组件 | |
| 2 | 30102031 | 油泵轴 | |
| 3 | 30120004 | 五星轮 | |
| 4 | 30120007 | 五星轮 | |
| 5 | 30120005 | 五星套 | |
| 6 | 30120008 | 油泵盖 | |
| 7 | 301S20011 | 油泵螺钉 | |
| 8 | S05006 | 螺钉 M4×25 | |
| 9 | 30125003 | 油泵蜗轮 | |
| 10 | S10002 | 螺钉 M5×5 | |
| 11 | S05004 | 螺钉 M5×14 | |
| 12 | 301S30014 | 过油螺钉 | |
| 13 | 30101023 | 油盘 | |
| 14 | 301S11015 | 堵油螺钉 | |
| 15 | 20528014 | 垫圈 | |
| 16 | S05007 | 螺钉 M8×20 | |
| 17 | 30122025 | 油盘密封圈 | |
| 18 | 20136001 | 滤油器 | |
| 19 | 301S0016 | 螺钉 | |
| 20 | 001010 | O型圈 38.7×3.55 | |
| 21 | 300140 | 滤油器盖 | |
| 22 | S01003 | 螺钉 M4×12 | |
| 23 | 30131004 | 提示说明 |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | SWITCH | |
| 4 | 4 | WIRE | |
| 5 | 5 | TUBE | |
| 6 | 6 | BRACKET | |
| 7 | 7 | SCREW | |
| 8 | 8 | TUBE | |
| 9 | 9 | CLAMP | |
| 10 | 10 | RESERVOIR | |
| 11 | 11 | COVER | |
| 12 | 12 | SCREW | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | WASHER |
Page 41 — 十八、硅油盒装置部件(Silicon oil delice assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30101027 | 机针冷却器 | |
| 2 | S01015 | 螺钉 M3×5 | |
| 3 | 30123012 | 油棉 | |
| 4 | 30126009 | 销 | |
| 5 | 30121021 | Φ5×Φ7油管 | |
| 6 | 30127020 | 油管压簧片 | |
| 7 | S01004 | 螺钉 M4×7.8 | |
| 8 | 20123021 | 油线 | |
| 9 | 30129006 | 油管卡簧(大) | |
| 10 | 30101026 | 下硅油盒 | |
| 11 | 30122026 | 下硅油盒盖 | |
| 12 | S01005 | 螺钉 M4×10 | |
| 13 | 300141 | 上硅油盒(喷漆) | |
| 14 | 30112040 | 硅油盒盖 | |
| 15 | P03008 | 销 2×6 | |
| 16 | 30123011 | 硅油棉 | |
| 17 | S01006 | 螺钉 M3×4.5 | |
| 18 | W01001 | 垫圈 4 |
Page 42
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | FRAME | |
| 2 | 2 | BOLT | |
| 3 | 3 | WASHER | |
| 4 | 4 | NUT | |
| 5 | 5 | NUT | |
| 6 | 6 | ROD | |
| 7 | 7 | NUT | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BASE | |
| 10 | 10 | BASE | |
| 11 | 11 | COVER | |
| 12 | 12 | BOLT | |
| 13 | 13 | WASHER | |
| 14 | 14 | BOLT | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | BOLT | |
| 18 | 18 | SCREW | |
| 19 | 19 | BRACKET | |
| 20 | 20 | ROD | |
| 21 | 21 | BOLT | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | SCREW | |
| 25 | 25 | NUT | |
| 26 | 26 | BRACKET | |
| 27 | 27 | ROD | |
| 28 | 28 | SCREW | |
| 29 | 29 | COVER | |
| 30 | 30 | NUT |
Page 43 — 十九、线架部件(Thread apool assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3013102700 | 线架组件 | ||
| 503-SA | 30102032 | 线架下捧 | |
| 509 | 30128024 | 垫圈 | |
| 505SA | 30101028 | 长线架 | |
| 505SA | 30101029 | 短线架 | |
| 380A | 20131006 | 线捧 | |
| 201252 | W02002 | 垫圈 4 | |
| 527-SA | 30101030 | 长过线架 | |
| 381-SA | 20631025 | 线托盘 | |
| 507 | 20631024 | 托盘垫 | |
| 382-SA | 20131008 | 线固定套 | |
| 7102 | L02004 | 螺钉 M6×34 | |
| 512 | W01003 | 垫圈 6 | |
| 4022 | S04001 | 螺钉 M6×10 | |
| 502-SA | 30102034 | 线架上捧 | |
| 504-SA | 30129005 | 锁紧卡固 | |
| 4021 | S04002 | 螺钉 M5×16 | |
| 4805 | N01004 | 螺母 M5 | |
| 383-SA | 30111008 | 棒架 | |
| 384 | 30113018 | 导线捧 | |
| 4014 | S04003 | 螺钉 M4×25 | |
| 527ASA | 30101031 | 短过线架 | |
| 233-SA | 20631017 | 固定器 | |
| 4012 | S04004 | 螺钉 M4×15 | |
| 4803 | N01005 | 螺母 M4 | |
| 293A | 20131036 | 过线捧 | |
| 293B | 20631019 | 过线捧 | |
| 506 | 30103045 | 过线套 | |
| 386 | 30122027 | 棒帽 | |
| 5476 | N01026 | 螺母 M18×1.5 |
Page 44 — 台板部件 (放在附件内) machine table mechanism (put in accessory)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | SCREW | |
| 3 | 3 | SCREW | |
| 4 | 4 | WASHER | |
| 5 | 5 | WASHER | |
| 6 | 6 | WASHER | |
| 7 | 7 | Allen wrench | |
| 8 | 8 | SCREW | |
| 9 | 9 | WASHER | |
| 10 | 10 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | WASHER | |
| 13 | 13 | WASHER |
Page 45 — 二十、油盘托板部件(Oil plate assemblies)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9048 | 3010103200 | 安装螺钉(一套) | |
| 206336 | 20131027 | 托盘固定螺母 | |
| 4512 | 20131028 | 托板内六角螺钉 | |
| 206337 | 20131029 | 大垫圈 | |
| 205764 | 20131030 | 防振套 | |
| 205467 | 30122031 | 减震垫圈 | |
| 272 | 20131056 | 内六角扳手(6mm) | |
| 259000 | 400247 | 油盘托板 | |
| 7093 | 301S30018 | 螺钉 | |
| 206338 | 30122029 | 油盘减振垫 | |
| 206329 | 30112041 | 链条挡板 | |
| 7027 | S01011 | 螺钉 M5×10 | |
| 206337 | 20131029 | 大垫圈 |
Page 46
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27 | 27 | Screw | |
| 31 | 31 | Bracket | |
| 27 | 27 | Screw | |
| 32 | 32 | Bracket | |
| 24 | 24 | Screw | |
| 21 | 21 | Bracket | |
| 22 | 22 | Screw | |
| 33 | 33 | Bracket | |
| 30 | 30 | Screw | |
| 23 | 23 | Screw | |
| 26 | 26 | Washer | |
| 27 | 27 | Screw | |
| 28 | 28 | Screw | |
| 29 | 29 | Screw | |
| 11 | 11 | Shaft | |
| 9 | 9 | Gear | |
| 10 | 10 | Screw | |
| 6 | 6 | Shaft | |
| 34 | 34 | Washer | |
| 14 | 14 | Screw | |
| 3 | 3 | Washer | |
| 4 | 4 | Washer | |
| 8 | 8 | Gear | |
| 5 | 5 | Shaft | |
| 7 | 7 | Bearing | |
| 20 | 20 | Bearing | |
| 2 | 2 | Bearing | |
| 3 | 3 | Washer | |
| 1 | 1 | Shaft | |
| 13 | 13 | Shaft | |
| 12 | 12 | Gear | |
| 4 | 4 | Washer | |
| 16 | 16 | Bearing | |
| 15 | 15 | Shaft | |
| 18 | 18 | Pulley | |
| 17 | 17 | Screw | |
| 19 | 19 | Screw |
Page 47 — 二十一、打线凸轮外移部件Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30102065 | 打线凸轮外移部件 | |
| 2 | H03004 | 挡圈 12 | |
| 3 | B04017 | 轴承 6001Z | |
| 4 | H01011 | 挡圈 28 | |
| 5 | 30125004 | 小同步带轮1 | |
| 6 | 30125005 | 小同步带轮2 | |
| 7 | S10003 | 螺钉 M6×0.75×5 | |
| 8 | 30135005 | 小同步带 | |
| 9 | 30125006 | 下轴同步带轮 | |
| 10 | S12005 | 螺钉 | |
| 11 | 30102066 | 下轴 | |
| 12 | 30103075 | 凸轮轴右回油套 | |
| 13 | 30103076 | 凸轮轴左回油套 | |
| 14 | S10014 | 螺钉 M5×4 | |
| 15 | B06004 | 轴承 6801RS | |
| 16 | 20108002 | 挡圈 | |
| 17 | 201S15003 | 挡圈螺钉 | |
| 18 | 30103071 | 打线凸轮组件 | |
| 19 | S10002 | 螺钉 M5×5 | |
| 20 | 30122100 | 油封 | |
| 21 | 30112070 | 打线架支座 | |
| 22 | L02001 | 螺钉 M4×8 | |
| 23 | S01004 | 螺钉 M4×7.8 | |
| 24 | 301S20020 | 螺钉 | |
| 25 | W03007 | 垫圈 | |
| 26 | W01002 | 垫圈 | |
| 27 | 207S11020 | 螺钉 M3×4 | |
| 28 | 30727006 | 过线簧 | |
| 29 | 30112087 | 定位板 | |
| 30 | 30112069 | 打线架 | |
| 31 | 30112085 | 打线片 | |
| 32 | 30313019 | 过线片(左) | |
| 33 | 30313020 | 过线片(右) | |
| 34 | 001026 | 0形圈 |
Page 48
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | N/A | put in accessory | |
| 1 | N/A | N/A | |
| 3 | N/A | N/A | |
| 4 | N/A | N/A | |
| 5 | N/A | N/A | |
| 6 | N/A | N/A | |
| 7 | N/A | N/A | |
| 8 | N/A | N/A | |
| 9 | N/A | N/A | |
| 10 | N/A | N/A |
Page 49 — 二十二、03、08专用部件(03、08 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 301S11024 | 滑块导座螺钉 | ||
| W01001 | 垫圈4 | ||
| 30112065 | 缝料挡板1 | ||
| 30112066 | 缝料挡板2 | ||
| 30109020 | 盖缝附件1 | ||
| S01036 | 螺钉 M3×3 | ||
| 30109021 | 盖缝附件3 | ||
| W01009 | 垫圈5 | ||
| 30112064 | 盖缝附件2 | ||
| S01011 | 螺钉 M5×10 |
Page 50
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | BRACKET | |
| 3 | 3 | BRACKET | |
| 4 | 4 | SCREW | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BRACKET | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | BRACKET | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SPRING | |
| 20 | 20 | SCREW |
Page 51 — 二十三、01D专用部件(01D specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30112151 | 硅油盒固定架 | ||
| 30113052 | 针杆过线座 | ||
| 30113056 | 过线杆 | ||
| S10001 | 螺钉 M3×4 | ||
| 30113053 | 长过线 | ||
| 30113054 | 四眼过线 | ||
| 30113057 | 调子台 | ||
| 30134020 | 针轧 | ||
| 301S17050 | 螺钉 M3×3 | ||
| 3011304200 | 过线组件 | ||
| 30113051 | 过线板 | ||
| 30112150 | 过线调节板 | ||
| 3011300600 | 调线组件(强) | ||
| 3011300500 | 调线组件(中) | ||
| 3011300400 | 调线组件(弱) | ||
| 30113007 | 二孔过线板I | ||
| 30113008 | 二孔过线板II | ||
| 30113041 | 调节套 | ||
| 30127010 | 调节板簧 | ||
| 301S30009 | 调节板螺钉 |
Page 52
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 8568-02C | 8568-02C, 02G, 02H | |
| 8 | 8568-02G, 02H | 8568-02G, 02H | |
| 9 | 8568-02C | 8568-02C | |
| 20 | 8568-02C | 8568-02C | |
| 523 | 8568-02 (TR10) | 8568-02 (TR10) |
Page 53 — 二十四、02专用部件(02 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 300202 | 前罩台组件 | ||
| 301S20002 | 前罩台座螺钉 | ||
| 301S20003 | 前罩台座螺钉 | ||
| 30128002 | 弹簧垫圈 | ||
| S10002 | 螺钉 M5×5 | ||
| 300130 | 前罩台挡板座 | ||
| S01011 | 螺钉 M5×10 | ||
| 30112061 | 缝料挡板 | ||
| 30112088 | 缝料挡板 | ||
| S01065 | 螺钉 M5×6 | ||
| 30112060 | 前台挡板 | ||
| W01004 | 垫圈5 | ||
| 3011206800 | 龙头组件 | ||
| 30109019 | 龙头固定板 | ||
| 301S11021 | 螺钉 | ||
| L02009 | 螺栓 M6×10 | ||
| 30112062 | 龙头架 | ||
| 30112063 | 龙头垫架 | ||
| S01011 | 螺钉 M5×10 | ||
| 3010401100 | 弯针架组件 | ||
| S01002 | 螺钉 M4×6.5 | ||
| S05004 | 螺钉 M5×14 | ||
| W02001 | 垫圈5 | ||
| 30111019 | 带子托盘 | ||
| 30128029 | 托盘垫圈 | ||
| 30103060 | 托盘上棒 | ||
| 30103061 | 托盘下棒 | ||
| S09002 | 螺栓 M6×6 | ||
| 30101049 | 托盘座 | ||
| 301S30020 | 木螺钉 | ||
| N01001 | 螺母 M4 | ||
| 30102048 | 上夹带棒 | ||
| 30101050 | 夹带座 | ||
| S04004 | 螺母 M4×15 | ||
| 30113023 | 带子导座 | ||
| 30111020 | 托盘导架 | ||
| 30101063 | 前罩台座 | ||
| 3011101800 | 托盘组件 |
Page 54 — 8568-05 CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 8568-05S,05T | COVER | |
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 |
Page 55 — 二十五、05 专用部件 (05 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 300471 | 左缝台盖 | |
| 2 | 300203 | 侧盖 | |
| 3 | 301S20004 | 侧盖合扇销钉 | |
| 4 | 301S20005 | 销钉螺钉 | |
| 5 | 30128002 | 弹簧垫圈 | |
| 6 | S10001 | 螺钉M3×4 | |
| 7 | 300142 | 前罩缝台 | |
| 8 | 301S20002 | 前罩缝台座螺钉 | |
| 9 | 301S20003 | 前罩缝台座螺钉 | |
| 10 | 30128002 | 弹簧垫圈 | |
| 11 | S10006 | 螺钉M5×6 | |
| 12 | 30122015 | 前罩防振垫 | |
| 13 | 30112045 | 前挡板 | |
| 14 | S01001 | 螺钉 M4×7 | |
| 15 | 30112046 | 定位板 | |
| 16 | S01011 | 螺钉 M5×10 | |
| 17 | 30102036 | 前挡板轴 | |
| 18 | 30126010 | 平行销 | |
| 19 | S10002 | 螺钉 M5×5 | |
| 20 | 30112047 | 挡板 | |
| 21 | 301240300 | 油封轴承 | |
| 22 | 30127024 | 弹簧 | |
| 23 | 30122030 | 油堵 | |
| 24 | 30112044 | 左挡板 | |
| 25 | 301S11020 | 螺钉 | |
| 26 | W01004 | 垫圈5 | |
| 27 | 400068 | 下轴 | |
| 28 | 30103003 | 前轴套 | |
| 29 | S10006 | 螺钉 M5×6 | |
| 30 | 30109002 | 下轴平衡块 | |
| 31 | S01009 | 螺钉 M3×7.5 | |
| 32 | 001001 | 0型圈15×2.65 |
Page 56 — NEEDLE GUARD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 8568-05 | NEEDLE GUARD MECHANISM | |
| 8568-02D/FT141 | 8568-05/FT140 | ||
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 |
Page 57 — 二十六、02D、05专用部件(02D、05 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30117002 | 后护针挡 | |
| 2 | 30104709 | 护针挡架组件 | |
| 3 | S05003 | 螺钉 M5×10 | |
| 4 | W02001 | 垫圈5 | |
| 5 | S01002 | 螺钉 M4×6.5 | |
| 6 | 30102037 | 护针轴 | |
| 7 | W01021 | 垫片 | |
| 8 | H05013 | 挡圈6 | |
| 9 | 30106003 | 叉架 | |
| 10 | S10002 | 螺钉 M5×5 | |
| 11 | 30101036 | 护针轴座 | |
| 12 | 301S11016 | 螺钉 | |
| 13 | S01004 | 螺钉 M4×7.8 | |
| 14 | 30117003 | 前护针挡 | |
| 15 | S01012 | 螺钉 M2.5×4 | |
| 16 | 30111013 | 挡料斗 | |
| 17 | 301S30020 | 木螺钉 | |
| 18 | 30112048 | 托板 | |
| 19 | 30103046 | 套筒 | |
| 20 | 3011101400 | 排料筒座组件 | |
| 21 | 30111014 | 排料筒座 | |
| 22 | 30111015 | 排料筒 | |
| 23 | 30128036 | 垫片 | |
| 24 | S01005 | 螺钉 M4×10 |
Page 58
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8568-02D/FT141 | 8568-05/FT140 |
Page 59 — 二十七、02D、05专用部件(02D、05 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30110009 | 凸轮 | |
| 2 | S10006 | 螺钉 M5×6 | |
| 3 | 400062 | 连杆组件 | |
| 4 | S01008 | 螺钉 M3.5×13 | |
| 5 | S01010 | 螺钉 M4×8 | |
| 6 | 30104007 | 弯针曲柄 | |
| 7 | 301S12001 | 螺钉 | |
| 8 | 30126003 | 曲柄销 | |
| 9 | 400063 | 弯针驱动连杆 | |
| 10 | S01008 | 螺钉 M3.5×13 | |
| 11 | 30102038 | 曲柄轴 | |
| 12 | 30128008 | 护针轴垫圈 | |
| 13 | H05001 | 垫圈 10 | |
| 14 | 30209009 | 差动轴滚珠 | |
| 15 | 20523005 | 油线 | |
| 16 | 30123001 | 毛毡 | |
| 17 | 30122019 | 油封 | |
| 18 | 30104028 | 摆曲柄柄 | |
| 19 | S05004 | 螺钉 M5×14 | |
| 20 | 30112049 | 挡板 | |
| 21 | S01006 | 螺钉 M3×4.5 | |
| 22 | 30123015 | 油线 | |
| 23 | 30102039 | 油封 | |
| 24 | 30123008 | 毛毡 | |
| 25 | 30101040 | 刀座 | |
| 26 | S12002 | 螺钉 M3×4 | |
| 27 | 3010104000 | 刀座组件 | |
| 28 | 30103085 | 刀座套筒 | |
| 29 | 30102040 | 下刀座轴 | |
| 30 | S05019 | 螺钉 M6×16.3 | |
| 31 | 30127022 | 弹簧 | |
| 32 | 30108006 | 挡圈 | |
| 33 | 209S14008 | 螺钉 | |
| 34 | H05013 | 挡圈 | |
| 35 | 30128026 | 垫片 | |
| 36 | 30101037 | 上刀架 | |
| 37 | S12003 | 螺钉 M6×0.75×5 | |
| 38 | 30119001 | 上刀 | |
| 39 | 301S11017 | 上刀固定螺钉 | |
| 40 | 30101039 | 下刀架 | |
| 41 | 301S11025 | 护针曲柄螺钉 | |
| 42 | 20619004 | 下刀 | |
| 43 | 30101038 | 下刀挡板 | |
| 44 | S01011 | 螺钉 M5×10 | |
| 45 | 301S30021 | 调节螺钉 | |
| 46 | 30112051 | 挡片 | |
| 47 | 30101040 | 刀座 | |
| 48 | 30112050 | 切削板 | |
| 49 | 30101037 | 上刀架 | |
| 50 | 3010105700 | 刀座组件 |
Page 60
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 8568-05,07 (LR10) | Main shaft assembly | |
| 2 | 8568-05,07 (LR10) | Base plate | |
| 3 | 8568-05,07 (LR10) | Shaft | |
| 4 | 8568-05,07 (LR10) | Nut | |
| 5 | 8568-05,07 (LR10) | Bracket | |
| 6 | 8568-05,07 (LR10) | Screw | |
| 7 | 8568-05,07 (LR10) | Screw | |
| 8 | 8568-05,07 (LR10) | Screw | |
| 9 | 8568-05,07 (LR10) | Cap | |
| 10 | 8568-05,07 (LR10) | Rod | |
| 11 | 8568-05,07 (LR10) | Washer | |
| 12 | 8568-05,07 (LR10) | Screw | |
| 13 | 8568-05,07 (LR10) | Washer | |
| 14 | 8568-05,07 (LR10) | Bracket | |
| 15 | 8568-05,07 (LR10) | Wire | |
| 16 | 8568-05,07 (LR10) | Screw |
Page 61 — 二十八、05、07专用部件(05、07 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3010204100 | 带子组件 | |
| 2 | 30103047 | 支柱盘 | |
| 3 | 30102042 | 支柱 | |
| 4 | N01026 | 螺母 M18×1.5 | |
| 5 | 30111008 | 棒架 | |
| 6 | S04003 | 螺钉 M4×25 | |
| 7 | N01005 | 螺母 M4 | |
| 8 | S04004 | 螺钉 M4×15 | |
| 9 | 30122027 | 棒帽 | |
| 10 | 30102043 | 带架直棒 | |
| 11 | 30103048 | 轴舌 | |
| 12 | S01068 | 螺钉 M4×8 | |
| 13 | 30103064 | 轴锥架 | |
| 14 | 30111009 | 固定器 | |
| 15 | 30113020 | 带架棒 | |
| 16 | 301S30022 | 木螺钉 |
Page 62
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | CRANK ASSEMBLY | |
| 3 | 3 | HANDLE | |
| 4 | 4 | ROLLER | |
| 5 | 5 | BRACKET | |
| 6 | 6 | SCREW | |
| 7 | 7 | SCREW | |
| 8 | 8 | WASHER | |
| 9 | 9 | COLLAR | |
| 10 | 10 | KNOB | |
| 12 | 12 | BRACKET | |
| 13 | 13 | WASHER | |
| 14 | 14 | SCREW | |
| 15 | 15 | LEVER | |
| 16 | 16 | RACK | |
| 17 | 17 | THREADED ROD | |
| 18 | 18 | NUT | |
| 19 | 19 | SPRING | |
| 20 | 20 | SCREW | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | PIN | |
| 24 | 24 | SPRING | |
| 25 | 25 | SPRING | |
| 26 | 26 | CYLINDER | |
| 27 | 27 | SCREW | |
| 28 | 28 | BEARING | |
| 29 | 29 | PLATE | |
| 30 | 30 | CRANK ASSEMBLY | |
| 31 | 31 | CYLINDER | |
| 32 | 32 | SCREW | |
| 33 | 33 | WASHER | |
| 34 | 34 | SCREW | |
| 35 | 35 | HOUSING | |
| 36 | 36 | COVER | |
| 37 | 37 | COVER | |
| 38 | 38 | SCREW | |
| 39 | 39 | SPRING |
Page 63 — 二十九、05、07专用部件(05、07 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | P03008 | 销 2×6 | |
| 3 | 30103049 | 短轴 | |
| 4 | 30103050 | 偏心套 | |
| 5 | 3010501900 | 铝连杆组件 | |
| 6 | S04005 | 螺钉 M4×15.5 | |
| 7 | S10002 | 螺钉 M5×5 | |
| 8 | 30103051 | 球套 | |
| 9 | 30103052 | 轴承套 | |
| 10 | B07014 | 轴承 10×13×13 | |
| 12 | 30112052 | 调节指针 | |
| 13 | 30128027 | 垫圈 | |
| 14 | 301S20012 | 调节螺钉 | |
| 15 | 301S16009 | 碟形螺母 | |
| 16 | 30101041 | 调节座 | |
| 17 | 301S30023 | 长螺钉 | |
| 18 | 30112053 | 支座 | |
| 19 | S01006 | 螺钉 M3×4.5 | |
| 20 | 301S11019 | 调节座定位螺钉 | |
| 21 | 3010305300 | 轴套组件 | |
| 22 | 3010104200 | 轴架 | |
| 23 | 30126011 | 销轴 | |
| 24 | 30112054 | 内挡板 | |
| 25 | 30127023 | 弹簧 | |
| 26 | 30103053 | 轴套 | |
| 27 | S10029 | 螺钉 M6×0.75×5 | |
| 28 | 30103054 | 轴承套 | |
| 29 | 30101043 | 止动板 | |
| 30 | B04006 | 轴承(60/28Z) | |
| 31 | 30126012 | 平行销 | |
| 32 | W01001 | 垫圈4 | |
| 33 | W01001 | 垫圈4 | |
| 34 | 201S11016 | 螺钉 | |
| 35 | 3011101600 | 护罩组 | |
| 36 | 30111016 | 护罩体 | |
| 37 | 30111017 | 护罩板 | |
| 38 | S01005 | 螺钉 M4×10 | |
| 39 | 30137006 | 警示牌 |
Page 64
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24 | 24 | BRACKET | |
| 26 | 26 | BRACKET | |
| 29 | 29 | SCREW | |
| 35 | 35 | WASHER | |
| 37 | 37 | SHAFT | |
| 49 | 49 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 25 | 25 | BRACKET | |
| 17 | 17 | SHAFT | |
| 18 | 18 | WASHER | |
| 19 | 19 | SPRING | |
| 5 | 5 | BRACKET | |
| 6 | 6 | SCREW | |
| 48 | 48 | SHAFT | |
| 45 | 45 | SHAFT | |
| 46 | 46 | WASHER | |
| 47 | 47 | WASHER | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 32 | 32 | SCREW | |
| 31 | 31 | WASHER | |
| 30 | 30 | BRACKET | |
| 36 | 36 | BRACKET | |
| 50 | 50 | BRACKET | |
| 33 | 33 | NUT | |
| 2 | 2 | BRACKET | |
| 1 | 1 | SHAFT | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 13 | 13 | SHAFT | |
| 34 | 34 | BRACKET | |
| 40 | 40 | BRACKET | |
| 41 | 41 | BRACKET | |
| 42 | 42 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 10 | 10 | BRACKET | |
| 9 | 9 | SHAFT | |
| 39 | 39 | BRACKET | |
| 43 | 43 | NUT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SCREW | |
| 20 | 20 | BRACKET | |
| 21 | 21 | SCREW |
Page 65 — 三十、05、07专用部件(05、07 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 300144 | 压带架座 | |
| 2 | 30103055 | 套筒 | |
| 5 | 300143 | 压带架支座 | |
| 6 | S05019 | 螺钉 M6×16.3 | |
| 7 | 3010305700 | 压带轮组件 | |
| 8 | S10005 | 螺钉 M3×3 | |
| 9 | 30103059 | 皮带轮 II | |
| 10 | 30102045 | 夹带长轴 | |
| 11 | 30109018 | 夹带轴架 | |
| 12 | S10002 | 螺钉 M5×5 | |
| 13 | 30102046 | 夹带长轴 | |
| 14 | W01003 | 垫圈6 | |
| 15 | 30112059 | 手柄 | |
| 16 | S01015 | 螺钉 M3×5 | |
| 17 | 301S30027 | 调节螺钉 | |
| 18 | 301S16011 | 调节螺母 | |
| 19 | 30127024 | 弹簧 | |
| 20 | 30126013 | 销轴 | |
| 21 | H05002 | 挡圈 | |
| 22 | 30112055 | 压带板 | |
| 23 | 30113022 | 压带架 | |
| 24 | S01002 | 螺钉 M4×6.5 | |
| 25 | 301S16010 | 位置挡块 | |
| 26 | 301S11018 | 螺钉 | |
| 27 | S01004 | 螺钉 M4×7.8 | |
| 28 | 30128028 | 偏心垫 | |
| 29 | 301004 | 螺钉 M4×7.8 | |
| 30 | 3011205600 | 夹带架组件 | |
| 31 | 30128020 | 垫片 | |
| 32 | S05048 | 螺钉 M4×10 | |
| 33 | N01001 | 螺母 M4 | |
| 34 | 30105017 | 夹带连杆 I | |
| 35 | W01004 | 垫圈5 | |
| 36 | 30105018 | 夹带连杆 II | |
| 37 | 301S30025 | 台螺钉 | |
| 39 | 30112083 | 过线防护罩 | |
| 40 | 30112084 | 手指防护罩 | |
| 41 | S01001 | 螺钉 M4×7 | |
| 42 | W01001 | 垫圈4 | |
| 43 | 30112058 | 夹带连接板 | |
| 45 | 30103044 | 压带轴 | |
| 46 | 30128008 | 摆架轴垫圈 | |
| 47 | H05001 | 挡圈10 | |
| 48 | 301S11020 | 压带轴螺钉 | |
| 49 | 30113021 | 带子架 | |
| 50 | 30112058 | 夹带连接板 |
Page 66 — 8568-21,22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 8568-21 | LOOPER MECHANISM | |
| 2 | 8568-21 | LOOPER MECHANISM | |
| 3 | 8568-21 | LOOPER MECHANISM | |
| 4 | 8568-21 | LOOPER MECHANISM | |
| 5 | 8568-21 | LOOPER MECHANISM | |
| 6 | 8568-21 | LOOPER MECHANISM | |
| 7 | 8568-21 | FEED MECHANISM | |
| 8 | 8568-21 | FEED MECHANISM | |
| 9 | 8568-21 | FEED MECHANISM | |
| 10 | 8568-22 | LUBRICATION MECHANISM |
Page 67 — 三十一、21、22专用部件(21、22 specific parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30102051 | 摆轴 | |
| 2 | 30122008 | 油封 | |
| 3 | 30104012 | 弯针架 | |
| 4 | S01004 | 螺钉 M4×7.8 | |
| 5 | S05004 | 螺钉 M5×14 | |
| 6 | W02001 | 垫圈5 | |
| 7 | 3010401500 | 差动调整架组 | |
| 8 | S01012 | 螺钉 M2.5×4 | |
| 9 | 301S30004 | 调节器螺钉 | |
| 10 | 30121012 | 铜油管 |
Page 68 — 8568 Series 斜饰
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11 | W8568-21 | NEEDLE BAR, NEEDLE MECHANISM | |
| 11 | W8568-22 | NEEDLE BAR, NEEDLE MECHANISM | |
| 1 | Part 1 | ||
| 2 | Part 2 | ||
| 3 | Part 3 | ||
| 4 | Part 4 | ||
| 5 | Part 5 | ||
| 6 | Part 6 | ||
| 8 | Part 8 | ||
| 9 | Part 9 | ||
| 10 | Part 10 | ||
| 12 | Part 12 | ||
| 13 | Part 13 | ||
| 14 | Part 14 | ||
| 15 | Part 15 | ||
| 16 | Part 16 | ||
| 17 | Part 17 | ||
| 18 | Part 18 | ||
| 19 | Part 19 | ||
| 20 | Part 20 | ||
| 21 | Part 21 | ||
| 23 | Part 23 | ||
| 24 | Part 24 | ||
| 25 | Part 25 |
Page 70
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Oil can | ||
| 2 | Funnel | ||
| 3 | Funnel | ||
| 4 | Bottle | ||
| 5 | Flat bar | ||
| 6 | Wrench | ||
| 7 | Wrench | ||
| 8 | Wrench | ||
| 9 | Wrench | ||
| 10 | Wrench | ||
| 11 | Wrench | ||
| 12 | Wrench | ||
| 14 | Rod | ||
| 15 | Screwdriver | ||
| 16 | Screwdriver | ||
| 17 | Chain | ||
| 18 | Cloth | ||
| 19 | Needles | ||
| 20 | Spool | ||
| 21 | Wrench | ||
| 22 | Wrench | ||
| 24 | Belt | ||
| 25 | Washers |
Page 71
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20131037 | 油壶 (大) | ||
| 20131038 | 硅油壶 | ||
| 20131039 | 漏斗 | ||
| 20131038 | 硅油壶 | ||
| 20131051 | 镊子 | ||
| 20131007 | 内六角扳手(1.5mm) | ||
| 20131046 | 内六角扳手(2mm) | ||
| 20131010 | 内六角扳手(3mm) | ||
| 20131012 | 内六角扳手(4mm) | ||
| 20131047 | 内六角扳手(5mm) | ||
| 20131056 | 内六角扳手(6mm) | ||
| 30131009 | 内六角扳手(8mm) | ||
| 10131003 | 螺丝刀(中) | ||
| 10131004 | 螺丝刀(小) | ||
| 20131044 | 内六角扳手(1.5mm直柄) | ||
| 30131018 | 链条 | ||
| 10131005 | 机头罩 | ||
| 30117001 | 机针 | ||
| 20136001 | 滤油器 | ||
| 30131005 | 扳手(6mm-7mm) | ||
| 30131006 | 扳手(8mm-10mm) | ||
| 30135004 | 皮带 | ||
| S10005 | 螺钉 M3×3 |
Page 73 — GAUGE PARTS LIST (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30134006 | NEEDLE HOLDER | 240 | |
| 30115016 | NEEDLE PLATE | 240 | |
| 30114012 | MAIN FEED DOG | 240 | |
| 30116020 | DIFF. FEED DOG | 240 | |
| 3011700900 | PRESSER FOOT | 240 | |
| 30117001 | LOOPER | 240 | |
| 30134008 | NEEDLE HOLDER | 248 | |
| 30115009 | NEEDLE PLATE | 248 | |
| 30114011 | MAIN FEED DOG | 248 | |
| 30116026 | DIFF. FEED DOG | 248 | |
| 30117002 | PRESSER FOOT | 248 | |
| 30117005 | LOOPER | 248 | |
| 30117011 | NEEDLE | 248 | |
| 30134001 | NEEDLE HOLDER | 256 | |
| 30115002 | NEEDLE PLATE | 256 | |
| 30114004 | MAIN FEED DOG | 256 | |
| 30116009 | DIFF. FEED DOG | 256 | |
| 3011700900 | PRESSER FOOT | 256 | |
| 30117005 | LOOPER | 256 | |
| 30117001 | NEEDLE | 256 | |
| 30134002 | NEEDLE HOLDER | 264 | |
| 30115003 | NEEDLE PLATE | 264 | |
| 30114003 | MAIN FEED DOG | 264 | |
| 30116004 | DIFF. FEED DOG | 264 | |
| 30117002 | PRESSER FOOT | 264 | |
| 30117005 | LOOPER | 264 | |
| 30117011 | NEEDLE | 264 | |
| 30134001 | NEEDLE HOLDER | 30134001 | |
| 30115005 | NEEDLE PLATE | 30134001 | |
| 30114005 | MAIN FEED DOG | 30134001 | |
| 30116003 | DIFF. FEED DOG | 30134001 | |
| 3011700900 | PRESSER FOOT | 30134001 | |
| 30117005 | LOOPER | 30134001 | |
| 30117001 | NEEDLE | 30134001 | |
| 30134002 | NEEDLE HOLDER | 30134002 | |
| 30115008 | NEEDLE PLATE | 30134002 | |
| 30114012 | MAIN FEED DOG | 30134002 | |
| 30116004 | DIFF. FEED DOG | 30134002 | |
| 30117002 | PRESSER FOOT | 30134002 | |
| 30117005 | LOOPER | 30134002 | |
| 30117011 | NEEDLE | 30134002 | |
| 30134001 | NEEDLE HOLDER | 30134001 | |
| 30115002 | NEEDLE PLATE | 30134001 | |
| 3011400700 | MAIN FEED DOG | 30134001 | |
| 30116019 | DIFF. FEED DOG | 30134001 | |
| 3011700900 | PRESSER FOOT | 30134001 | |
| 30117005 | LOOPER | 30134001 | |
| 30117001 | NEEDLE | 30134001 | |
| 30134007 | NEEDLE HOLDER | 30134007 | |
| 30115015 | NEEDLE PLATE | 30134007 | |
| 30114012 | MAIN FEED DOG | 30134007 | |
| 3011601300 | DIFF. FEED DOG | 30134007 | |
| 30117002 | PRESSER FOOT | 30134007 | |
| 30117005 | LOOPER | 30134007 | |
| 30117011 | NEEDLE | 30134007 | |
| 30134001 | NEEDLE HOLDER | 8568-03DB | |
| 30115002 | NEEDLE PLATE | 8568-03DB | |
| 30114008 | MAIN FEED DOG | 8568-03DB | |
| 3011601400 | DIFF. FEED DOG | 8568-03DB | |
| 3011700900 | PRESSER FOOT | 8568-03DB | |
| 30117005 | LOOPER | 8568-03DB | |
| 30117001 | NEEDLE | 8568-03DB | |
| 30134007 | NEEDLE HOLDER | 8568W-03DB | |
| 30115015 | NEEDLE PLATE | 8568W-03DB | |
| 30114012 | MAIN FEED DOG | 8568W-03DB | |
| 3011601400 | DIFF. FEED DOG | 8568W-03DB | |
| 30117002 | PRESSER FOOT | 8568W-03DB | |
| 30117005 | LOOPER | 8568W-03DB | |
| 30117011 | NEEDLE | 8568W-03DB | |
| 30134002 | NEEDLE HOLDER | 8568-05CB | |
| 30115002 | NEEDLE PLATE | 8568-05CB | |
| 30114003 | MAIN FEED DOG | 8568-05CB | |
| 30116007 | DIFF. FEED DOG | 8568-05CB | |
| 3011700900 | PRESSER FOOT | 8568-05CB | |
| 30117005 | LOOPER | 8568-05CB | |
| 30117001 | NEEDLE | 8568-05CB | |
| 30134003 | NEEDLE HOLDER | 8568W-05CB | |
| 30115003 | NEEDLE PLATE | 8568W-05CB | |
| 30114004 | MAIN FEED DOG | 8568W-05CB | |
| 30116017 | DIFF. FEED DOG | 8568W-05CB | |
| 30117002 | PRESSER FOOT | 8568W-05CB | |
| 30117005 | LOOPER | 8568W-05CB | |
| 30117011 | NEEDLE | 8568W-05CB | |
| 30134004 | NEEDLE HOLDER | 8568-07CB | |
| 30115004 | NEEDLE PLATE | 8568-07CB | |
| 30114005 | MAIN FEED DOG | 8568-07CB | |
| 30116019 | DIFF. FEED DOG | 8568-07CB | |
| 3011700900 | PRESSER FOOT | 8568-07CB | |
| 30117005 | LOOPER | 8568-07CB | |
| 30117001 | NEEDLE | 8568-07CB | |
| 30134005 | NEEDLE HOLDER | 8568W-07CB | |
| 30115005 | NEEDLE PLATE | 8568W-07CB | |
| 30114005 | MAIN FEED DOG | 8568W-07CB | |
| 30116017 | DIFF. FEED DOG | 8568W-07CB | |
| 30117002 | PRESSER FOOT | 8568W-07CB | |
| 30117005 | LOOPER | 8568W-07CB | |
| 30117011 | NEEDLE | 8568W-07CB | |
| 30134001 | NEEDLE HOLDER | 8568-08AC | |
| 30115002 | NEEDLE PLATE | 8568-08AC | |
| 3011400700 | MAIN FEED DOG | 8568-08AC | |
| 3011601300 | DIFF. FEED DOG | 8568-08AC | |
| 3011700900 | PRESSER FOOT | 8568-08AC | |
| 30117005 | LOOPER | 8568-08AC | |
| 30117001 | NEEDLE | 8568-08AC | |
| 30134007 | NEEDLE HOLDER | 8568W-08AC | |
| 30115015 | NEEDLE PLATE | 8568W-08AC | |
| 30114012 | MAIN FEED DOG | 8568W-08AC | |
| 3011601400 | DIFF. FEED DOG | 8568W-08AC | |
| 30117002 | PRESSER FOOT | 8568W-08AC | |
| 30117005 | LOOPER | 8568W-08AC | |
| 30117011 | NEEDLE | 8568W-08AC | |
| 30134002 | NEEDLE HOLDER | 8568-21BB | |
| 30115003 | NEEDLE PLATE | 8568-21BB | |
| 30114008 | MAIN FEED DOG | 8568-21BB | |
| 30116007 | DIFF. FEED DOG | 8568-21BB | |
| 3011700900 | PRESSER FOOT | 8568-21BB | |
| 30117005 | LOOPER | 8568-21BB | |
| 30117001 | NEEDLE | 8568-21BB | |
| 30134003 | NEEDLE HOLDER | 8568W-21BB | |
| 30115004 | NEEDLE PLATE | 8568W-21BB | |
| 30114009 | MAIN FEED DOG | 8568W-21BB | |
| 30116017 | DIFF. FEED DOG | 8568W-21BB | |
| 30117002 | PRESSER FOOT | 8568W-21BB | |
| 30117005 | LOOPER | 8568W-21BB | |
| 30117011 | NEEDLE | 8568W-21BB | |
| 30134011 | NEEDLE HOLDER | 348 | |
| 30115026 | NEEDLE PLATE | 348 | |
| 30114016 | MAIN FEED DOG | 348 | |
| 30116023 | DIFF. FEED DOG | 348 | |
| 30117014 | PRESSER FOOT | 348 | |
| 30117015 | LOOPER | 348 |
Jack JK-8569 — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-8569 Parts Manual, featuring an image of the sewing machine and company branding.
- Page 2 (cover): This is the cover page for the JK8569 Platform High-Speed Quilting Machine Parts Book.
- Page 4 (diagram): This page displays a diagram of sewing machine components with numbered references, including part numbers 8569-1 and 8569FA-19.
- Page 5 (parts_list): This page lists bushing assemblies with part numbers, descriptions, and quantities. It includes a note indicating that dashed lines represent parts that are temporarily not used or have been modified.
- Page 6 (diagram): This page displays a diagram of sewing machine components, including various screws, plates, and covers, with reference numbers for each part.
- Page 7 (parts_list): This page lists frame assemblies with part numbers, descriptions, and quantities, including items like screws, oil seals, and stickers.
- Page 8 (diagram): This page displays a diagram of sewing machine components, including various screws, covers, and brackets, with reference numbers for identification.
- Page 9 (parts_list): This page lists cover assemblies for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various machine components, including screws, plates, and brackets, with corresponding reference numbers.
- Page 11 (parts_list): This page lists cloth plate assemblies with part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various machine components, including shafts, pulleys, belts, and fasteners, with corresponding reference numbers for identification.
- Page 13 (parts_list): This page lists parts for Hook shaft assemblies, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various machine parts, including shafts, couplings, pulleys, and housings, with reference numbers for each component.
- Page 15 (parts_list): This page lists parts for main shaft assemblies, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various sewing machine components, including needles, screws, and mounting plates, with corresponding reference numbers.
- Page 17 (parts_list): This page lists needle bar assemblies with part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine components, including a piston, connecting rod, crankshaft, and related hardware, with numbered references for each part.
- Page 19 (parts_list): This page lists parts for needle guard assemblies, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine parts, including levers, shafts, screws, and bearings, with reference numbers from 1 to 26.
- Page 21 (parts_list): This page lists parts for Looper assemblies, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various machine parts, including screws, brackets, shafts, and other components, with reference numbers for identification.
- Page 23 (parts_list): This page lists parts for "Feed dog holder assemblies" with columns for reference number, part number, description, and quantity. It includes items like screws, bushings, and various assemblies.
- Page 24 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and plates, with reference numbers for each component.
- Page 25 (parts_list): This page lists differential assemblies with part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various sewing machine parts, with numbered references for each component. It includes parts such as screws, springs, levers, and a presser foot assembly.
- Page 27 (parts_list): This page lists parts for presser form assemblies, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various machine components, including levers, shafts, bearings, and fasteners, with reference numbers for each part.
- Page 29 (parts_list): This page lists needle feeding assemblies with part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of sewing machine parts, including needle plates, presser feet, and related components, with reference numbers and descriptions for 2-needle and 3-needle configurations.
- Page 31 (parts_list): This page lists thread loosing assemblies with their reference numbers, part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of sewing machine parts for the 8568 Series, with numbered components and associated part numbers and descriptions.
- Page 33 (parts_list): This page lists thread loosing assemblies with part numbers, descriptions, and quantities.
- Page 34 (diagram): This page contains a diagram of various machine parts, including screws, washers, levers, and other components, with reference numbers for identification.
- Page 35 (parts_list): This page lists parts for Cam assemblies, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various components of an industrial sewing machine, including part numbers and reference indicators for assembly.
- Page 37 (parts_list): This page lists lubrication assemblies with part numbers, descriptions, and quantities, including items like oil pipes, felt washers, screws, and joints.
- Page 38 (diagram): This page displays a diagram of various machine components, including a shaft, gears, screws, and a gasket, with reference numbers for each part.
- Page 39 (parts_list): This page contains a parts list for oil pump assemblies, detailing part numbers, descriptions, and quantities for various components.
- Page 40 (diagram): This page contains a diagram of various machine components, including a reservoir, tubes, brackets, and fasteners, with corresponding reference numbers.
- Page 41 (parts_list): This page lists parts for silicon oil delice assemblies, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of various machine parts, including frames, supports, and fasteners, with reference numbers for each component.
- Page 43 (parts_list): This page lists thread spool assemblies with part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of machine table mechanism components, including screws, washers, and a tool, with reference numbers for each part.
- Page 45 (parts_list): This page lists parts for oil plate assemblies, including part numbers, descriptions, quantities, and reference numbers.
- Page 46 (diagram): This page displays a diagram of various sewing machine components, including gears, shafts, brackets, and fasteners, identified by reference numbers.
- Page 47 (parts_list): This page lists parts for the "打线凸轮外移部件" (Wire Cam Shifting Parts) section, including part numbers, descriptions, and quantities.
- Page 48 (diagram): This page displays a diagram of machine parts, with numbered components and their corresponding descriptions. It includes a list of parts with reference numbers, part numbers, and names, along with some additional text and page numbering.
- Page 49 (parts_list): This page lists specific parts for models 03 and 08, including part numbers, descriptions, and quantities.
- Page 50 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 20, with a document number 8568-01D and page number -48-.
- Page 51 (parts_list): This page lists 20 parts for the 01D specific parts, including part numbers, descriptions, and quantities.
- Page 52 (diagram): This page contains diagrams of sewing machine parts, with reference numbers and part numbers for various components. It includes diagrams for models 8568-02C, 02G, 02H and 8568-02 (TR10).
- Page 53 (parts_list): This page lists parts for the 02 specific parts section of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 54 (diagram): This page displays a diagram of the crankshaft drive mechanism and cover components, with numbered parts for identification.
- Page 55 (parts_list): This page lists parts for the "Twenty-five, 05 specific parts" section, including part numbers, descriptions, quantities, and reference numbers.
- Page 56 (diagram): This page displays a diagram of the needle guard mechanism, with numbered parts and associated part numbers and descriptions.
- Page 57 (parts_list): This page lists parts for the "Twenty-six, 02D, 05 specific parts" section, including part numbers, descriptions, and quantities.
- Page 58 (diagram): This page displays a diagram of sewing machine parts, with numbered components and associated part numbers for models 8568-02D/FT141 and 8568-05/FT140.
- Page 59 (parts_list): This page lists parts for specific components of an industrial sewing machine, including screws, shafts, and assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 60 (diagram): This page displays a diagram of machine components with reference numbers, part numbers, and descriptions for item 1 through 16.
- Page 61 (parts_list): This page lists parts for specific models of industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 62 (diagram): This page displays a diagram of various machine parts, including a crank assembly, a handle, a roller, and a housing, with reference numbers for each component.
- Page 63 (parts_list): This page lists parts for specific models of industrial sewing machines, including part numbers, descriptions, quantities, and reference numbers.
- Page 64 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, shafts, and other hardware, identified by reference numbers.
- Page 65 (parts_list): This page lists parts for the "05, 07 specific parts" section of the industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 66 (diagram): This page displays diagrams for the Looper Mechanism, Feed Mechanism, and Lubrication Mechanism, with associated part numbers and reference indicators.
- Page 67 (parts_list): This page lists parts for specific models of industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 68 (diagram): This page displays a diagram of the needle bar and needle mechanism for the 8568 Series sewing machine, with various parts numbered for identification.
- Page 70 (diagram): This page displays a diagram of various sewing machine parts, including a oil can, funnels, bottles, wrenches, a chain, a belt, and other small components, each identified by a reference number.
- Page 71 (parts_list): This page lists accessories and assemblies with part numbers, descriptions, and quantities. It includes items like oil containers, oilers, funnels, tweezers, allen key drivers, screwdrivers, chains, dust covers, needles, filter elements, wrenches, leather belts, and screws.
- Page 73 (parts_list): This page contains a parts list for various sewing machine components, including needle holders, needle plates, presser feet, loopers, spreaders, and needles, with corresponding part numbers and machine types.
- Page 74 (cover): This is the cover page for the JACK SEWING MACHINE CO.,LTD. product catalog, featuring the standard product code QB/T2044-2010 and company contact information.
Page 2 — JK8569 Platform High-Speed Quilting Machine Parts Book
JK8569 平台式高速绗缝机 零件样本 PARTS BOOK jintex.in
Page 4
8569-1 8569FA-19 -2- jintex.in
Page 5 — 套筒部件 (Bushing assemblies)
套筒部件 (Bushing assemblies) 序号 Ref. No 公司件号 Part No 参考件 号Ref. Part. no 名称 Description 数量Number 1 301371 250215-2 上节 machine frame 1 2 30103036 压脚扳手轴套筒 bushing 1 3 30103037 抬压轴套筒 bushing 2 4 30103042 210297 过线座轴套筒 bushing 3 5 30103062 针杆下套筒 bushing 1 6 20103020 250141 摆动连杆轴套筒 bushing 2 7 30103017 针杆套筒 bushing 1 8 001039 0型圈 0 ring 1 9 30103038 喂针摆动轴套筒 bushing 1 10 30103035 压脚轴套筒 bushing 1 11 30122039 油封 plug 1 12 30103021 250135 弯钩轴套筒 bushing 1 13 30103010 主轴套筒 bushing 1 14 30103019 护针轴套筒 bushing 1 15 20103014 前弯钩轴套筒 bushing 3 16 30121001 255020 铜油管 pipe 1 17 P03005 销4×8 pin 1 18 20622019 210586 油封 plug 1 19 301780 上节 machine frame 1 注: 点划线框表示暂时不用或已改进的零部件 -3- jintex.in
Page 6
jinteх.in -4-
Page 7
一、车壳部件 (Frame assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 301S30001 250117 机壳螺钉 shoulder pin 4 2 30111001 206590 油标 oil level gauge 1 3 30122004 240228 油封 plug 1 4 30122006 240052 油堵 plug 4 5 30122008 208173 油封 plug 3 6 30122005 240110 油封 plug 1 7 H01001 240001 挡圈 18 ring 3 8 30112001 255002 滤油网 filter 3 9 30112002 250049 盖板 cover 1 10 S01002 7017 螺钉 M4×6.5 screw 2 11 30122010 240127 油堵 mark 1 12 R03001 210679 铆钉 2.5×4 pin 2 13 30137001 250233 机型牌 sticker 1 14 30122007 205088 油封 plug 1 15 S01004 7019 螺钉 M4×7.8 screw 1 16 W01001 303448 垫圈 4 washer 1 17 S12004 4556 螺钉 M6×10 screw 2 18 20131063 警示牌 sticker 1 19 30137003 标牌 sticker 1 20 30122036 密封圈 sticker 1 21 30137004 警示牌 sticker 1 22 30101005 250003 下节右盖 top cover (right) 1 23 L02001 7084 螺栓 M4×8 screw 8 24 30122003 250004 下节右盖垫 gasket 1 25 30101004 250069 下节左盖 top cover plate (left) 1 26 30122002 250020 下节左盖垫 gasket 1 27 30131003 250215-2 商标牌 name plate 1 28 001001 O型圈 15×2.65 o ring 1 29 S05001 螺钉 M10×27.5 screw 4 30 W02003 垫圈 10 washer 4 31 P01001 销 pin 2 32 P02001 销 pin 1 -5- jintex.in
Page 8
05、07型不用 -6- jintex.in
Page 9
二、罩壳部件(Cover assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 301435 250016-AUD 机头左盖(喷漆) arm cover (left) 1 2 301S11001 5242 机头左盖螺钉 screw 1 3 30122026 250017 机头左盖垫 o ring 1 4 S04019 7021 螺钉 M4×12 screw 11 5 30128001 240263 垫圈 washer 1 6 301433 250149 上盖(喷漆) arm cover (top) 1 7 30122012 240226 密封盖 plug 1 8 30111022 179107-05 油标盖 oil sight window 1 9 30122013 250019 上盖垫 o ring 1 10 30112102 250021-UD 针杆护罩 needle bar cover 1 12 S01004 7019 螺钉 M4×7.8 screw 3 14 30112083 过线防护罩 thread takeup guard 1 15 30112084 手指防护罩 finger guard 1 16 S01001 螺钉 M4×7 screw 1 17 W01001 垫圈 4 washer 3 18 30112085 托架 bracket 1 19 301S11002 护罩螺钉 screw 1 20 30112006 250023 过线护罩 threan takeup cover 1 21 301S11002 7052 护罩螺钉 screw 2 22 300135 250005 弯针护线板(喷漆) looper thread guide cover 1 23 W01003 207924 垫圈 6 washer 1 24 30111004 250022 皮轮护罩 puller cover 1 25 301S11003 7075 带轮护罩螺钉 screw 2 26 301S30002 7089 左侧盖黄螺钉 screw 1 27 30127001 250051 前罩簧 flat spring 2 28 S01002 7017 螺钉 M4×6.5 screw 1 29 S01007 7023 螺钉 M4×13.5 screw 2 30 30122015 210025 前罩防振垫 cushon 2 31 W01004 204585 垫圈 5 washer 2 32 S01011 7024 螺钉 M5×10 screw 2 33 30111003 250257 有机玻璃罩 eye guard 1 34 S01006 螺钉 M3×4.5 screw 2 35 W01002 202875 垫圈 3 washer 2 36 30112005 250256 护罩架 bracket 1 37 W03001 垫圈 6 washer 2 38 301S20001 7066 护罩座固定螺钉 screw 1 39 30112004 250255 护罩座 bracket 1 40 S01004 7020 螺钉 M4×7.8 screw 2 41 W01001 303448 垫圈 4 washer 2 42 30137005 护罩警示牌 sticker 1 43 30337001 商标牌 sticker 1 44 300136 250011 前罩缝台(喷漆) arm cover (top) 1 45 300657 上盖垫块(喷漆) bracket 1 46 S04019 7021 螺钉M4×12 screw 4 -7- jintex.in
Page 10
8568-(4) 8568FA-(24) 5 3 2 6 7 8 9 13 15 16 17 12 18 14 10 8568-(22) 8568FA-(23) 5 8568FA-(20) 13 19 -8- jintex.in
Page 11 — 三、缝台部件(Cloth plate assemblies)
三、缝台部件(Cloth plate assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Name Description 数量 Number 1 S01005 7020 螺钉 M4×10 screw 3 2 S02001 7043 螺钉 M4×6 screw 1 3 300139 250052-BSD 左缝台盖(喷漆) bed cover(left) 1 4 300137 250074-ASD 右缝台盖(喷漆) bed cover(right) 1 5 S01003 7021 螺钉 M4×12 screw 9 6 30115001 250071-91 推板 cover 1 7 300138 250039-SD 侧盖组件(喷漆) side coverassy 1 8 301S20004 250037 侧盖合扇销钉 screw 1 9 30128002 201191 弹簧垫圈 spring 2 10 301S30006 250038 销钉 pin 1 11 S10001 4535 螺钉 M3×4 screw 2 12 S01002 7017 螺钉 M4×6.5 screw 2 13 30122015 210025 前罩防振垫 cushion 2 14 301S30002 7089 左侧盖锁螺钉 screw 1 15 N01001 4821 螺母 M4 nut 1 16 30112008 250047 挡块 bracket 1 17 S01004 7019 螺钉 M4×7.8 screw 2 18 30127002 206023 侧盖簧 flat spring 1 19 30112079 不锈钢缝台 bed cover 1 20 20528017 垫片 washer 3 21 300793 侧盖合扇 cover 1 22 3011101900 缝台裙组件 bed cover 1 23 3011101900 缝台裙组件 bed cover 1 24 300654 缝台盖(喷漆) bed cover 1 -9- jintex.in
Page 12
29 1 3 2 3 30 4 12 9 18 17 10 9 7 8 9 27 16 8 9 15 19 20 26 23 21 24 25 22 -10- jintex.in
Page 13 — 四、下轴部件(Hook shaft assemblies)
四、下轴部件(Hook shaft assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 400068 250501B-91 下轴 crankshaft assy 1 2 400060 2505009-92 连杆组件 connection assy 1 3 201S20015 7015 螺钉 M3.5×13 screw 4 4 30104002 252008 下轴曲柄 crank 1 5 S05002 4534 螺钉 M6×0.75×15.2 screw 1 6 S12002 4545 螺钉 M3×4 screw 1 7 30103004 250506 接轴套 joint 1 8 S12003 4555 螺钉 M6×7 screw 2 9 S10029 4547 螺钉 M6×0.75×5 screw 12 10 3012400300 250508-91 油封轴承 bearing 1 11 30103006 250508 中轴套 bushing 1 12 30103008 250543 后轴套 bushing 1 13 3012400400 油封轴承 bearing 1 14 30125001 250511-1 下轴同步带轮 gear (lower) 1 15 30103009 250530 轴承套 bushing 1 16 B01003 250504-91 轴承 6304Z bearing 1 17 301S11004 4019 比叉螺钉 screw 1 18 W02001 202286 垫圈 5 washer 1 19 30108001 250514 轴承挡圈 cover 1 20 S01004 7019 螺钉 M4×7.8 screw 2 21 30101015 250515 皮带轮 machine puller 1 22 S10009 4541 螺钉 M6×8 screw 1 23 S12001 4556 螺钉 M6×8 screw 1 24 30128005 240126 垫圈 washer 1 25 S05003 4501 螺钉 M5×10 screw 1 26 30102003 250507 下后轴 shaft 1 27 001001 206837 0型圈 15×2.65 o ring 1 28 30135002 206050C 同步带 timing belt 1 29 30126001 250525 调节销 adjusting bar 1 30 30109001 201074 比叉 guide 1 -11- jintex.in
Page 14
1 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 -12- jintex.in
Page 15 — 五、上轴部件(Main shaft assemblies)
五、上轴部件(Main shaft assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Name Description 数量 Number 1 400307 250526B92 针杆曲柄 motion assy 1 2 S10004 4592 螺钉 M8×1×12 screw 2 3 S01011 7028 螺钉 M5×10 screw 2 4 S08001 7153 螺钉 M6×0.75×3.5 screw 1 5 S11001 7152 螺钉 M6×0.75×6 screw 1 6 30103015 250526 轴承套 bushing 1 7 400065 250517A 上轴 crankshaft 1 8 400061 253500-92 连杆组件 connection assy 1 9 S01003 7021 螺钉 M4×12 screw 2 10 S01008 7015 螺钉 M3.5×13 screw 2 11 30104006 253501A 弯针曲柄 crank assy 1 12 S05002 4534 螺钉 M6×0.75×15.2 screw 1 13 30103004 250506 接轴套 joint 1 14 S12003 4555 螺钉 M6×0.75×7 screw 3 15 S10029 4547 螺钉 M6×0.75×5 screw 11 16 30109003 250524 上轴平衡块 balance weight 1 17 S10002 4514 螺钉 M5×5 screw 2 18 30102006 250518-91 中轴 shaft 1 19 3012400400 250529-91 油封轴承 bushing 1 20 30103012 250529 轴承套 bushing 1 21 30125002 250521 上轴同步带轮 gear (upper) 1 22 3012400400 油封轴承 bearing 1 23 30103014 250528 轴承套 bushing 1 24 B01005 轴承 6203 bearing 2 25 30102007 250519 后轴 shaft 1 26 301434 250523AUD 手轮(刻好字) handwheel 1 27 S12001 4556 螺钉 M6×8 screw 1 28 S10009 4541 螺钉 M6×8 screw 1 29 W01004 204585 垫圈 5 washer 1 30 S05004 4501 螺钉 M5×14 screw 1 -13- jintex.in
Page 16
2 3 1 23 24 4 5 6 7 8 11 10 12 13 9 11 14 15 21 16 20 17 10 22 19 2 针(2-needle) 3 枚针(3-needle) -14- jintex.in
Page 17
六、针杆部件(Needle bar assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30102008 251000-91 针杆 needle bar 1 2 30102009 206061 针杆轧头 1 3 301S11005 5325 针杆轧头螺钉 screw 1 4 30105005 206052 针杆连杆 link/needle bar drive 1 5 30102010 206053 针杆连杆轴 pin 1 6 B07001 240098 轴承 8×12×12 needle bearing 1 7 30128006 240101 针杆连杆轴垫圈 washer 1 8 30109004 206063 针杆滑块 block 1 9 30109005 206062 滑块导座 guide bloce/needle bar 1 10 301S11024 7082 滑块导座螺钉 screw 2 11 S01003 7021 螺钉 M4×12 screw 2 12 30127003 251009 毛毡弹簧 latch 1 13 30123002 179040-05 毛毡 psponge 1 14 30134001 257518-56 356针古 needle holder 1 15 S10026 4554 螺钉 M3×3 screw 2 16 S10026 4554 螺钉 M3×3 screw 3 17 30115002 356针板 needle plate 1 18 301S17001 5373-HC 针板螺钉 screw 2 19 30109006 251007 针板座 bracket 1 20 S01004 7019 螺钉 M4×7.8 screw 2 21 30134006 240针古 needle holder 1 30134004 248针古 needle holder 1 22 30122018 240123 防振垫 cushon rubber 1 23 20523005 202176 油线 oil wick 1 24 30112009 206524 油线托 oil wick retainer 1 -15- jintex.in
Page 18
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 -16- jintex.in
Page 19 — 七、护针部件(Needle guard assemblies)
七、护针部件(Needle guard assemblies) 序号 Ref. No 公司件号 Part No 参考 件号 名称 Description 数量 Number 1 B01001 轴承 6004Z eccentric assy 1 2 S10028 4539 螺钉 M5×6 screw 2 3 400062 255501-92 连杆组件 connection assy 1 4 S01008 7015 螺钉 M3.5×13 screw 2 5 301S11024 7082 滑块导座螺钉 screw 1 6 30104007 306093 弯针曲柄 crank 1 7 301S12001 5084 曲柄螺钉 screw 2 8 30126003 205495 曲柄销 pin 1 9 30102011 251518 护针轴 shaft 1 10 30123001 206748 毛毡 felt 3 11 20523005 202176 油线 oil wick 1 12 30128008 240102 护针轴垫圈 washer 1 13 H05001 205061 挡圈 10 ring 1 14 30122019 204052A 油封 oil seal 1 15 30104009 251519 护针挡架 lever assy 1 16 S05003 4500 螺钉 M5×10 screw 1 17 W02001 303067 垫圈 5 washer 1 18 S01002 7017 螺钉 M4×6.5 screw 1 19 30117002 257551B 后护针挡 needle guard (rear) 1 20 30117003 257553 前护针挡 needle guard (front) 1 21 S01012 7031 螺钉 M2.5×4 screw 1 22 001001 O型圈 15×2.65 o ring 1 23 30110002 251517 偏心凸轮 eccentric 1 24 30122017 轴承槽油封 oil seal 2 -17- jintex.in
Page 20
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 -18- jintex.in
Page 21 — 八、弯针部件(Looper assemblies)
八、弯针部件(Looper assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3011700900 257550-91 弯针 looper 1 2 30104012 252007 弯针架 looper holder assy 1 3 S01004 7019 螺钉 M4×7.8 screw 1 4 S05004 4501 螺钉 M5×14 screw 1 5 W02001 303067 垫圈 5 sring washer 1 6 S01014 7085 螺钉 M6×0.75×9.6 screw 1 7 20622019 油封 oil seal 1 8 30102014 252006 弯针架轴 shaft 1 9 30110005 252000 摆架偏心轮 eccentric assy 1 10 S10006 4539 螺钉 M5×6 screw 3 11 400063 252001-92 连杆组件 connection assy 1 12 201S20015 7015 螺钉 M3.5×13 screw 2 13 30109007 252010 平衡块 balance weight 1 14 S01009 7011 螺钉 M3×7.5 screw 2 15 30104010 252002 弯针摆动架 crank 1 16 30128008 240102 摆架轴垫圈 washer 1 17 30102013 179399-05 连杆轴 pin 1 18 30128032 240062 垫圈 washer 1 19 N01004 4805 螺母 M5 nut 1 20 30102015 252003 摆轴轧头 block pin 1 21 30128010 208028 垫圈 washer 1 22 30108002 208029 偏心挡圈 collar 1 23 301S12001 5084 曲柄螺钉 screw 1 24 N01001 4802 螺母 M4 nut 2 25 30102012 252004 摆架轴 shaft 1 26 H05001 205061 挡圈 10 ring 1 -19- jintex.in
Page 22
8568-46 8568W-59 8568-47 8568W-60 -20- jintex.in
Page 23
九、牙架部件(Feed dog holder assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3011400700 257259-16F 差动送布牙组件 main feed dog assembly 1 2 30115000 8590 差动送布牙螺钉 screw 2 3 30120000-91 差动送布牙 differential feed dog 1 4 30114002 252500-91 差动送布牙架组件 main feed bar assembly 1 5 30114002 202175 油线 oil wick 1 6 30103021 204129A 套筒 bushing 1 7 S10006 4539 螺钉 M5×6 screw 4 8 30102029 204128A 偏心轴 eccentric pin 1 9 30101008 5084 曲柄螺钉 screw 1 10 30109008 205857 滑块 block/feed bar guide 1 11 30128011 204439A 偏心垫 washer 1 12 301S17002 5317 偏心轴螺钉 screw 1 13 30109009 252504 牙架挡板 guide (right) 1 14 30103031 206571 差动轴后套筒 bushing 1 15 30109010 252507 左挡板 guide (left) 1 16 L02003 7019 螺栓 M4×7 screw 2 17 30122020 206133 牙架油封 oilshield 2 18 30109011 252509 油封挡板 cover 1 19 30109012 252508 挡板 guide (lower) 1 20 S01005 7020 螺钉 M4×10 screw 2 21 B07002 206128 轴承 12×15×10 needle bearing 1 22 30109013 252519 牙滑块 block 1 23 30108003 252520 轴承挡圈 washer 1 24 30104013 206562 差动送布架 link/main feed 1 25 B07003 206125 轴承 17×21×10 needle bearing 1 26 30103023 252521 偏心轴承套 eccentric 1 27 30103024 252522 送布调节器 regulator 1 28 3010306500 252523-91 调节器套 eccentric retainer 1 29 301S30004 252516 调节器螺钉 screw 1 30 30128012 240125 楔形垫圈 spring 5 31 30103026 252525 垫圈套 spacer 1 32 301S16001 252543 调节螺母 nut 1 33 S10002 4514 螺钉 M5×5 screw 1 34 301S30005 206120 牙架螺钉 screw 1 35 30103027 206119 差动牙架套 bushing 1 36 30109014 206563 送布滑块 guide block 1 37 30128013 200098 垫片 washer 2 38 301S16002 3044 六角螺母 nut 2 39 301030006 206123 差动牙架螺钉 screw 1 40 30103028 206566 差动连杆 bushing 1 41 30129001 206565 开口挡圈 ring 1 42 30105010 206564 差动送布连杆 link/differential feed 1 43 30109015 251520 牙架挡板 bracket 1 44 S01004 7019 螺钉 M4×7.8 screw 3 45 30102017 252526 针距调节钮 pin 1 46 30127004 240122 针距调节簧 spring 1 47 001004 206366 0型圈 4×1.8 o ring 1 48 30128032 204585 垫圈 washer 1 49 H05002 200555 挡圈 5 ring 1 50 30103029 206569 差动送布架套 pin 1 51 S12005 4546 螺钉 M4×4 screw 1 52 3010401500 252527-91 差动调整架组件 crank 1 53 S01012 7031 螺钉 M2.5×4 screw 1 54 30102018 252510 差动轴 shaft 1 55 S10002 4514 螺钉 M5×5 screw 1 56 30123002 207358 毛毡 felt 2 57 30103030 240119 差动轴前套筒 spacer 1 58 30126016 针距调节钮 pin 1 59 30127026 针距调节簧 spring 1 -21- jintex.in
Page 24
2 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 -22- jintex.in
Page 25
十、差动部件(Differential assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30103032 252531 方套 block 1 2 30109016 252532 比叉 guide/block 1 3 30105012 252533 连杆 lever 1 4 S05005 4531 螺钉 M5×12 screw 1 5 301S20006 5316 连杆连接螺钉 screw 1 6 30108004 240271 挡圈 ring 1 7 301S11007 35827 挡圈螺钉 screw 1 8 301S20001 7066 护罩座固定螺钉 screw 1 9 30127005 252536 弹簧 spring 1 10 001005 240129 0型圈 7.5×1.8 o ring 1 11 3011201100 252539A91 左板组件 bracket 1 12 S01004 7019 螺钉 M4×7.8 screw 5 13 30122021 240162 油封堵 plug 1 14 3011201300 252664-91 调节扳手组件 lever assy 1 15 30112015 252538 调节板 scale plate 1 16 S01003 7021 螺钉 M4×12 screw 2 17 30203019 240124 调节套 spacer 2 18 20109005 210171 调节滑块 stopper 2 19 301S11008 2905 螺钉 screw 2 20 W01006 201185 垫圈4 washer 2 21 301S16004 210167 螺母 nut 1 22 301S30007 5486 调节扳手螺钉 screw 1 23 30128014 211301 垫圈 washer 1 24 301S11023 挡圈螺钉(短) screw 1 -23- jintex.in
Page 26
-24- jintex.in
Page 27 — 十一、压脚部件(Presser form assemblies)
十一、压脚部件(Presser form assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. no 名称 Description 数量 Number 1 3013002502 253000-91 调压螺丝 adjusting bar 1 2 301516005 253003 调压母 nut 1 3 30127006 240112 调压弹簧 spring 1 4 30104017 206139 压脚头 presser bar clamp 1 5 S01003 螺钉 M4×12 screw 1 6 30112016 206157 压脚头连接板 link 1 7 30152007 5386 螺钉 screw 2 8 30722004 调压螺杆组件 adjusting bar assy 1 9 3010901700 253005-91 导块销组件 guide assy 1 10 S11025 7025 螺钉 M4×12 screw 2 11 30127008 240113 调压弹簧 spring 1 12 30122022 253018 螺型密封圈 oil guard 1 13 001006 240095 O型圈8.5×1.8 o ring 1 14 30102020 253004 压脚轴 presser shaft 1 15 30112017 253028 压脚护罩 finger guard 1 16 S01006 7010 螺钉 M3×4.5 screw 1 17 W01002 202875 垫圈3 washer 1 18 30116020 257460-40 240压脚 presser foot assy 1 3011601300 356压脚 presser foot assy 1 3011601400 364压脚 presser foot assy 1 30116005 356压脚(02型) presser foot assy 1 30116006 364压脚(02型) presser foot assy 1 30116003 356压脚(052型) presser foot assy 1 30116004 364压脚(05型) presser foot assy 1 19 301S11010 1170-3 螺钉 screw 1 20 30102021 253008-1 抬压轴 shaft 1 21 30127009 253010 抬压轴簧 spring 1 22 30108005 206156 挡圈 ring 1 23 301S12001 5084 螺钉 screw 1 24 30108006 192024 挡圈 ring 3 25 30722004 253008-4 油封 oil seal 1 26 30104019 206149 抬压曲柄I bell crank(upper) 1 27 301S11011 5187 螺钉 screw 1 28 30112018 253011 抬压曲柄连接板 link 1 29 301S20008 5184 螺钉 screw 2 30 30104020 206148 抬压曲柄II bell crank(lower) 1 31 301S20013 41386 螺钉 screw 1 32 30102022 253013 抬压轴 shaft 1 33 30112019 253014 抬压轴扳手 lever 1 34 S01011 7028 螺钉 M5×10 screw 1 35 30112020 253015 抬压曲柄座 bracket 1 36 S01004 7019 螺钉 M4×7.8 screw 2 37 S01016 4549 螺钉 M5×17 screw 1 38 N01004 4805 螺母M5 nut 1 -25- jintex.in
Page 28
14 12 11 13 9 8 5 10 6 7 25 24 23 22 21 20 19 18 17 3 2 4 1 -26- jintex.in
Page 29 — 十二、 喂针部件(Needle feeding assemblies)
十二、 喂针部件(Needle feeding assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30117005 257565 喂针 spreader 1 2 30104022 254516 喂针架 lever/assy 1 3 S01005 7020 螺钉 M4×10 screw 1 4 S01017 7022 螺钉 M4×14 screw 1 5 30102023 254508 摆动轴 crankshaft 1 6 20108006 212039 挡圈 collar 1 7 201S11033 S071 挡圈螺钉 screw 2 8 20123021 202176 油线 oil wick 1 9 30123008 207925 摆动轴油孔毛毡 felt 2 10 001008 233020 O型圈 9×1.8 o ring 1 11 30105013 254506 喂针摆动连杆 crank 1 12 S10029 4547 螺钉 M6×0.75×5 screw 2 13 30126005 254507 喂针摆动销 block 1 14 30102024 254519 摆动连杆轴 shaft 1 15 30128015 206180 摆动连杆轴垫圈 washer 1 16 H05004 306671 挡圈12 ring 1 17 30110007 254501A 喂针凸轮 eccentric assy 1 18 S10002 4514 螺钉 M5×5 screw 2 19 400059 254511 喂针连杆 connection 1 20 30104024 254503 喂针摆动曲柄 crank 1 21 S05002 4534 螺钉 M6×0.75×15.2 screw 1 22 30126006 254504 连杆销 screw 1 23 30128032 240062 垫圈 washer 1 24 N01004 4805 螺母 M5 nut 1 25 30128018 垫圈 washer 1 -27- jintex.in
Page 30
13 2枚針 2-Needle 15 23 24 8 21 20 5 4 6 1 12 11 2 3 16 22 17 18 19 30 31 32 33 36 29 14 3枚針 3-Needle. 23 15 24 27 26 16 28 8 30 31 32 18 34 36 29 19 35 25 3枚針 3-Needle 17 2枚針 2-Needle -28- jintex.in
Page 31 — 十三、松线部件 (Thread loosing assemblies)
十三、松线部件 (Thread loosing assemblies) 序号 Ref. No 公司件号 Part No 参考件号Ref. Part. no 名称 Description 数量 Number 1 3010403200 254000-91 松线曲柄II lever 1 2 30103040 254022 轴套 spacer 1 3 301S11013 12055 轴套紧固定螺钉 screw 1 4 3010403100 254003B91 松线曲柄I crank 1 5 S05005 4531 螺钉 M5×12 screw 1 6 W01010 202868 垫圈 8 washer 1 7 30113001 254008 过线架 thread guide 1 8 S01004 7019 螺钉 M4×7.8 screw 4 9 30102026 192120 夹线柱 pipe 2 10 30112021 254009 压板 bracket 1 11 S01002 7017 螺钉 M4×6.5 screw 1 12 W01001 垫圈 4 washer 1 13 3011300300 254023C9U 二针过线组件 tension conrol mechanism 1 14 3011304200 254023E9U 三针过线组件 tension conrol mechanism 1 15 30113003 254019 过线板 bracket 1 16 30112022 244021 过线调节板 thread releaser 1 17 3011300600 254010C9U 调线组件(强) tension spring assy 2 18 3011300500 254010B9U 调线组件(中) tension spring assy 1 19 3011300400 254212A9U 调线组件(弱) tension spring assy 1 20 30113007 254020 二孔过线板I thread guide 4 21 30113008 206203 二孔过线板II thread guide 4 22 30103041 206202 调节套 spacer 4 23 30127010 306301 调节板簧 spring 1 24 301S30009 5447 调节板螺钉 screw 1 25 3011300400 调线组件(弱) tension spring assy 3 26 30113007 254020 二孔过线板I thread guide 5 27 30113008 206203 二孔过线板II thread guide 5 28 30103041 206202 调节套 spacer 5 29 20711034 208447-UA 调压螺母 knob 1 30 301S30010 1817-2A 夹线枉 screw stud 1 31 30128016 210319 夹线片 tension disc 2 32 30111005 208450-UA 调压止动盖 spring shield 1 33 30127011 201037 调压簧(强) spring (heavy) 3 34 30127012 201086 调压簧(中) spring (mediu m) 1 35 30127013 201068 调压簧(弱) spring (lifht) 1 36 30111006 208448 调压止动套 ratchet 1 -29- jintex.in
Page 32
2枚針 3枚針 2-Needle 3-Needle 26 2 -2 3 27 -2 3 22 26 25 27 28 24 13 7 8 9 11 10 12 8568-01D 除外 Except 8568-01D 13 14 15 22 26 27 8568-01D,01M 除外 Except 8568-01D,01M 17 19 28 8568-01M 除外 Except 8568-01M 32 33 34 8568-01M 放在附件内 Put in accessory 8568-01M 8568 Series 38 23 30 40 24 13 43 21 42 44 41 39 37 46 36 30 35 -30- jintex.in
Page 33 — 十四、过线部件(Thread loosing assemblies)
十四、过线部件(Thread loosing assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 20608003 240201 挡圈 ring 1 2 301512001 5084 曲柄螺钉 screw 2 3 30102028 253503 过线座轴(中轴) shaft 1 4 30128019 204107 垫片 washer 1 5 W02002 201252 垫圈4 washer 1 6 S05048 4527 螺钉M4×10 screw 1 7 20622019 油封 plug 1 8 H05001 205061 挡圈10 ring 1 9 30101018 253504 过线座 lever 1 10 S05004 4501 螺钉M5×14 screw 1 11 W02001 303067 垫圈5 washer 1 12 30113009 253505A 长过线板 thread take-up 1 13 S01004 7019 螺钉M4×7.8 screw 5 14 W01001 303448 垫圈4 washer 2 15 30113010 253507 三孔过线 thread guide 1 16 S01006 7009 螺钉M3×4.5 screw 1 17 30113011 253508A 过线板 thread guide 1 18 206S30016 7170 螺钉M4×4.5 screw 1 19 30112023 253509A 护线罩 thread support 1 20 30128034 202588 垫圈 washer 1 21 S01006 137108 螺钉M3×4.5 screw 1 22 30112027 253544 硅油盒固定架 thread guide 1 23 30112104 过线挡板 guard(thread take-up lever) 1 24 W01001 303448 垫圈4 washer 1 25 30113012 253545 针杆过线座 holder 1 26 30113013 234521 过线杆 thread guide 1 27 S10001 4535 螺钉M3×4 screw 3 28 S01006 7009 螺钉M3×4.5 screw 2 29 30112024 253516 U形夹线座 thread tension bracket 1 30 S01001 7018 螺钉M4×7 screw 4 31 30112025 234561 夹线板 thread guide 1 32 30112026 253593 压线板 thread retainer 1 33 30127014 253517 调压簧 spring 1 34 301S20009 W09070-2 调线螺钉 screw 1 35 30112028 353506 长过线压板 thread take-up 1 36 30112030 253515 过线板 thread guide 1 37 30112033 253511 喂针小过线 thread guide 1 38 30112029 253514 喂针过线 thread guide 1 39 S10005 4554 螺钉M3×3 screw 1 40 30112031 253548 喂针过线板 thread guide 1 41 301S16007 5526 夹线螺母 knob 1 42 30127016 211388 夹线簧 spring 1 43 30112032 253547 喂针二眼过线 thread guide 1 44 301S30011 5387 调压螺钉 screw 1 45 20112033 137108 夹线片 thread retainer 2 46 3011203200 喂针二眼过线组件 thread guide 1 -31- jintex.in
Page 34
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 -32- jintex.in
Page 35 — 十五、打线凸轮部件(Cam assemblies assemblies)
十五、打线凸轮部件(Cam assemblies assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Name Description 数量 Number 1 3011000800 253608-91 打线凸轮组件 thread take-up 1 2 S10002 4514 螺钉 M5×5 screw 2 3 30101020 210353 滑杆座 bracket 1 4 30102029 253525 滑杆轴I shaft 1 5 30127017 240115 弹簧 spring 1 6 001009 303865 O型圈 4.5×1.8 o ring 2 7 H05002 200555 挡圈 5 collar 2 8 S10005 4554 螺钉 M3×3 screw 3 9 30102030 253526 滑杆轴II shaft 1 10 30113017 253615 弯针过线架 thread guide 1 11 S01001 7018 螺钉 M4×7 screw 1 12 30112038 253527 扳手 stopper 1 13 30127018 253528 弹簧 spring 1 14 301S20010 7087 扳手螺钉 screw 1 15 207S11016 7023 螺钉 M4×16 screw 2 16 30128023 210955A 垫片 washer 1 17 30101019 253612 打线架座 bracket 1 18 30112037 253614 打线片 thread guide 1 19 W02002 201252 垫圈 4 washer 1 20 L02002 4325 螺钉 M4×10 screw 1 21 30112036 253613 挡线片 thread support 1 22 30128019 204107 垫片 washer 1 23 30112035 253611 打线架 bracket 1 24 20613008 210353 弯针架过线 thread guide 1 25 301S11014 2921 过线螺钉 screw 1 26 30113014 253533A 打线架过线 thread guide 2 27 W01002 210585 垫圈 2.5 washer 2 28 S01012 7031 螺钉 M2.5×4 screw 2 29 301S30011 5387 调压螺钉 screw 1 30 20112033 137108 小夹线片 thread retainer 2 31 30127018 211388 夹线簧 spring 1 32 301S16007 5526 夹线螺母 knob 1 33 S02001 7043 螺钉 M4×6 screw 2 34 30113016 253536 过线 thread guide 1 -33- jintex.in
Page 36
-34- jintex.in
Page 37 — 十六、润滑部件(Lubrication assemblies)
十六、润滑部件(Lubrication assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30121012 255003 铜油管 oil pipe 1 2 30123010 240136 油毡 felt 1 3 30126008 210766 销钉 pin 1 4 S10002 4514 螺钉 M5×5 screw 1 5 30123009 255021 油毡 felt 1 6 3012101400 255039 细油管 pipe 1 7 30127019 200136 压簧 latch 1 8 S01004 255005 螺钉 M4×7.8 screw 1 9 30121007 240143 油管 tube 1 10 30121005 240144 油管 tube 11 30121022 240135 Φ4×Φ6油管 tube 1 12 30136002 255038 油管接头 joint 1 13 20129002 202199 油管卡簧 clamp 6 14 30112039 255006 接油盘 oil guard 1 15 S01002 7017 螺钉 M4×6.5 screw 3 16 3012101500 255007-91 喷油管组 oil distributor 1 17 N01001 4821 螺母 M4 nut 1 18 30121022 240134 Φ4×Φ6油管 tube 1 19 W01001 303448 垫圈 4 ring 1 20 30121009 255010-91 喷油管 oil distributor 1 21 20122033 垫片 washer 6 22 30121021 240270 Φ5×Φ7油管 tube 1 23 30136004 200136 双头油管接头 joint 1 24 30129006 202199 油管卡簧(大) clamp 2 25 301S30013 200152 过油螺钉 joint screw 2 26 30136003 255035-91 铜油管接头 pipe 1 27 301S30012 255037 油管螺钉 screw 1 28 30121021 205113A Φ5×Φ7油管 tube 1 29 30136001 200136 油管接头 joint 2 30 201S30004 200152 过油螺钉 joint screw 1 -35- jintex.in
Page 38
-36- jintex.in
Page 39 — 十七、油泵部件(Oil pump assemblies)
十七、油泵部件(Oil pump assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3012000100 255040-91 油泵组件 oil pump assy 1 2 30102031 255024 油泵轴 shaft 1 3 30120004 255025 五星轮 rotor 1 4 30120007 255026 五星轮 rotor 1 5 30120005 255027 五星套 rotor 2 6 30120008 255028 油泵盖 cover 1 7 301S20011 7105 油泵螺钉 screw 2 8 S05006 7026 螺钉 M4×25 screw 2 9 30125003 255019 油泵蜗轮 worm wheel 1 10 S10002 4514 螺钉 M5×5 screw 2 11 S05004 4501 螺钉 M5×14 screw 2 12 301S30014 过油螺钉 joint screw 1 13 30101023 255000 油盘 oil reservoir 1 14 301S11015 5138B 堵油螺钉 screw 1 15 20528014 202287A 垫圈 washer 1 16 S05007 4504 螺钉 M8×20 screw 5 17 30122025 255001 油盘密封圈 o ring 1 18 20136001 206233 滤油器 filter element 1 19 301S0016 210200 螺钉 bracket/filter element 1 20 001010 206431 O型圈 38.7×3.55 o ring 1 21 300140 210201-SD 滤油器盖 cover 1 22 S01003 7021 螺钉 M4×12 screw 3 23 30131004 9A3002 提示说明 filter seal 1 -37- jintex.in
Page 40
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 -38- jintex.in
Page 41 — 十八、硅油盒装置部件(Silicon oil delice assemblies)
十八、硅油盒装置部件(Silicon oil delice assemblies) 序号 公司件号 参考件号 名称 Description 数量 Ref. No Part No Ref. Part. no Number 1 30101027 255013 机针冷却器 needle cooler (lower) 1 2 S01015 7010 螺钉 M3×5 screw 2 3 30123012 255014 油棉 felt 1 4 30126009 210766 销 pin 1 5 30121021 240117 Φ5×Φ7油管 tube 1 6 30127020 206115 油管压簧片 bracket 1 7 S01004 7019 螺钉 M4×7.8 screw 1 8 20123021 202175 油线 oil wick 1 9 30129006 202199 油管卡簧(大) clamp 2 10 30101026 255015 下硅油盒 silicone oil reservoir (lower) 1 11 30122026 255016 下硅油盒盖 cap 1 12 S01005 7020 螺钉 M4×10 screw 1 13 300141 207066-UD 上硅油盒(喷漆) silicone oil reservoir (upper) 1 14 30112040 207067-UD 硅油盒盖 cap 1 15 P03008 206781 销 2×6 pin 2 16 30123011 207068 硅油棉 felt 1 17 S01006 7009 螺钉 M3×4.5 screw 2 18 W01001 303448 垫圈 4 washer 1 -39- jintex.in
Page 42
1 27 29 15 17 18 8 28 24 21 20 18 16 24 17 25 23 24 25 1 11 6 10 9 7 25 11 6 10 9 14 14 13 12 4 2 3 13 12 5 30 -40- jintex.in
Page 43 — 十九、线架部件(Thread apool assemblies)
十九、线架部件(Thread apool assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3013102700 线架组件 thread assy 1 2 30102032 503-SA 线架下捧 thread bar (loer) 1 3 30128024 509 垫圈 washer 2 4 30101028 505SA 长线架 bracket (3-spool) 1 5 30101029 505SA 短线架 bracket (3-spool) 1 6 20131006 380A 线捧 spool pin 5 7 W02002 201252 垫圈 4 washer 5 8 30101030 527-SA 长过线架 bracket (3-spool) 1 9 20631025 381-SA 线托盘 spool tray 5 10 20631024 507 托盘垫 cushon 5 11 20131008 382-SA 线固定套 spool retaining fin 5 12 L02004 7102 螺钉 M6×34 screw 2 13 W01003 512 垫圈 6 washer 2 14 S04001 4022 螺钉 M6×10 screw 2 15 30102034 502-SA 线架上捧 thread bar (upper) 1 16 30129005 504-SA 锁紧卡固 joint 1 17 S04002 4021 螺钉 M5×16 screw 4 18 N01004 4805 螺母 M5 nut 4 19 30111008 383-SA 棒架 bracket 1 20 30113018 384 导线捧 thread guide bar 1 21 S04003 4014 螺钉 M4×25 screw 1 22 30101031 527ASA 短过线架 bracket 1 23 20631017 233-SA 固定器 holder 1 24 S04004 4012 螺钉 M4×15 screw 3 25 N01005 4803 螺母 M4 nut 9 26 20131036 293A 过线捧 thread guide bar (5-spool) 1 27 20631019 293B 过线捧 thread guide bar (6-spool) 1 28 30103045 506 过线套 thread guide 5 29 30122027 386 棒帽 rid cap 1 30 N01026 5476 螺母 M18×1.5 screw 1 -41- jintex.in
Page 44 — 台板部件 (放在附件内) machine table mechanism (put in accessory)
台板部件 (放在附件内) machine table mechanism (put in accessory) 2 1 6 13 5 4 9 3 7 -42- jintex.in
Page 45 — 二十、油盘托板部件(Oil plate assemblies)
二十、油盘托板部件(Oil plate assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3010103200 9048 安装螺钉(一套) screw (set) 4 2 20131027 206336 托盘固定螺母 nut 4 3 20131028 4512 托板内六角螺钉 bolt 4 4 20131029 206337 大垫圈 washer 8 5 20131030 205764 防振套 rubber cushion 4 6 30122031 205467 减震垫圈 spacer 4 7 20131056 272 内六角扳手(6mm) allen key driver/6mm 1 8 400247 259000 油盘托板 rest board 2 9 301S30018 7093 螺钉 screw 4 10 30122029 206338 油盘减振垫 rubber cushion 4 11 30112041 206329 链条挡板 treadle chain guide 2 12 S01011 7027 螺钉 M5×10 screw 4 13 20131029 206337 大垫圈 washer 8 -43- jintex.in
Page 46
-44- jintex.in
Page 47 — 二十一、打线凸轮外移部件Parts
二十一、打线凸轮外移部件Parts 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30102065 打线凸轮外移部件 shaft 1 2 H03004 挡圈 12 ring 1 3 B04017 轴承 6001Z bracket 2 4 H01011 挡圈 28 ring 2 5 30125004 小同步带轮1 small gear1 1 6 30125005 小同步带轮2 small gear2 1 7 S10003 螺钉 M6×0.75×5 screw 4 8 30135005 小同步带 small timing belt 1 9 30125006 下轴同步带轮 lower gear 1 10 S12005 螺钉 screw 2 11 30102066 下轴 crankshaft 1 12 30103075 凸轮轴右回油套 recycle sleeve (right) 1 13 30103076 凸轮轴左回油套 recycle sleeve (left) 1 14 S10014 螺钉 M5×4 screw 4 15 B06004 轴承 6801RS bracket 1 16 20108002 挡圈 washer 1 17 201S15003 挡圈螺钉 screw 2 18 30103071 打线凸轮组件 thread takeup 1 19 S10002 螺钉 M5×5 screw 2 20 30122100 油封 plug 1 21 30112070 打线架支座 bracket 1 22 L02001 螺钉 M4×8 screw 1 23 S01004 螺钉 M4×7.8 screw 1 24 301S20020 螺钉 screw 1 25 W03007 垫圈 washer 1 26 W01002 垫圈 washer 1 27 207S11020 螺钉 M3×4 screw 4 28 30727006 过线簧 flat spring 1 29 30112087 定位板 bracket 1 30 30112069 打线架 bracket 1 31 30112085 打线片 thread guide 1 32 30313019 过线片(左) thread guide (left) 1 33 30313020 过线片(右) thread guide (right) 1 34 001026 0形圈 o ring 2 -45- jintex.in
Page 48
1 2 放在附件内 put in accessory 3 4 6 6 7 5 8 10 9 -46- -61- jintex.in
Page 49 — 二十二、03、08专用部件(03、08 specific parts)
二十二、03、08专用部件(03、08 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 301S11024 滑块导座螺钉 screw 2 2 W01001 垫圈4 washer 2 3 30112065 缝料挡板1 fabric guide 1 4 30112066 缝料挡板2 fabric guide 1 5 30109020 盖缝附件1 fabric guide 1 6 S01036 螺钉 M3×3 screw 2 7 30109021 盖缝附件3 fabric guide 1 8 W01009 垫圈5 washer 2 9 30112064 盖缝附件2 bracket 1 10 S01011 螺钉 M5×10 screw 2 -47- jintex.in
Page 50
8568-01D -48- jintex.in
Page 51 — 二十三、01D专用部件(01D specific parts)
二十三、01D专用部件(01D specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 名称 Description 数量 Number 1 30112151 硅油盒固定架 thread guide 1 2 30113052 针杆过线座 holder 1 3 30113056 过线杆 thread guide 4 4 S10001 螺钉 M3×4 screw 4 5 30113053 长过线 thread take-up 1 6 30113054 四眼过线 thread guide 1 7 30113057 调子台 thread guide 1 8 30134020 针轧 needle holder 1 9 301S17050 螺钉 M3×3 screw 4 10 3011304200 过线组件 tension control mechanism 1 11 30113051 过线板 bracket 1 12 30112150 过线调节板 thread releaser 1 13 3011300600 调线组件(强) tension spring assy 3 14 3011300500 调线组件(中) tension spring assy 1 15 3011300400 调线组件(弱) tension spring assy 1 16 30113007 二孔过线板I thread guide 6 17 30113008 二孔过线板II thread guide 6 18 30113041 调节套 spacer 1 19 30127010 调节板簧 spring 1 20 301S30009 调节板螺钉 screw 1 -49- jintex.in
Page 52
8568-02C, 02G, 02H 8568-02G, 02H 8568-02C 8568-02 (TR10) -50- jintex.in
Page 53 — 二十四、02专用部件(02 specific parts)
二十四、02专用部件(02 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 300202 250033-SD 前罩台组件 front cover 1 2 301S20002 250013 前罩台座螺钉 screw 1 3 301S20003 250014 前罩台座螺钉 screw 1 4 30128002 201191 弹簧垫圈 spring 2 5 S10002 螺钉 M5×5 screw 2 6 300130 250050-SD 前罩台挡板座 front cover(small) 1 7 S01011 7028 螺钉 M5×10 screw 2 8 30112061 206601A 缝料挡板 fabric guard 1 9 30112088 缝料挡板 fabric guard 1 10 S01065 7079 螺钉 M5×6 screw 4 11 30112060 206439 前台挡板 auxiliary plate/front cover 1 12 W01004 204585 垫圈5 washer 1 13 3011206800 龙头组件 bracket assy 1 14 30109019 201913 龙头固定板 bracket 1 15 301S11021 5113 螺钉 screw 2 16 L02009 螺栓 M6×10 bolt 1 17 30112062 201914 龙头架 bracket 1 18 30112063 206460 龙头垫架 washer 1 19 S01011 7028 螺钉 M5×10 screw 2 20 3010401100 252007-92 弯针架组件 looper holder assy 1 21 S01002 螺钉 M4×6.5 screw 1 22 S05004 螺钉 M5×14 screw 1 23 W02001 303067 垫圈5 washer 1 24 30111019 247-SA 带子托盘 tape disc 1 25 30128029 270 托盘垫圈 washer 1 26 30103060 253 托盘上棒 tape disc bar 1 27 30103061 250 托盘下棒 tape disc bar 1 28 S09002 1448 螺栓 M6×6 bolt 1 29 30101049 251-SA 托盘座 bracket 1 30 301S30020 4913 木螺钉 screw 3 31 N01001 螺母 M4 nut 4 32 30102048 253 上夹带棒 tape disc bar 4 33 30101050 254 夹带座 holder 2 34 S04004 螺母 M4×15 nut 4 35 30113023 255 带子导座 guider post bar 1 36 30111020 256-SA 托盘导架 bracket 1 37 30101063 250012 前罩台座 bracket 1 38 3011101800 托盘组件 tape assy 1 -51- jintex.in
Page 54 — 8568-05 CRANKSHAFT DRIVE MECHANISM
8568-05 下軸部件 CRANKSHAFT DRIVE MECHANISM 8568-05S,05T除外 Except 8568-05S,05T 1 2 3 5 6 4 14 13 24 26 25 15 19 18 20 12 9 27 31 28 29 30 21 32 7 23 8 10 11 -52- -67- jintex.in
Page 55 — 二十五、05 专用部件 (05 specific parts)
二十五、05 专用部件 (05 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 300471 250052 左缝台盖 bed cover 1 2 300203 250035A 侧盖 side cover assy 1 3 301S20004 侧盖合扇销钉 screw 1 4 301S20005 销钉螺钉 pin 1 5 30128002 201191 弹簧垫圈 spring 2 6 S10001 螺钉M3×4 screw 2 7 300142 250024 前罩缝台 front cover assy 1 8 301S20002 250013 前罩缝台座螺钉 screw 1 9 301S20003 250014 前罩缝台座螺钉 pin 1 10 30128002 201191 弹簧垫圈 spring 2 11 S10006 4539 螺钉M5×6 screw 2 12 30122015 前罩防振垫 cushon 1 13 30112045 250025-ME 前挡板 font cover(small) 1 14 S01001 7018 螺钉 M4×7 screw 4 15 30112046 250026 定位板 bracket 1 16 S01011 7028 螺钉 M5×10 screw 1 17 30102036 250027 前挡板轴 shaft 1 18 30126010 306920 平行销 pin 1 19 S10002 4514 螺钉 M5×5 screw 1 20 30112047 250028 挡板 stopper 1 21 301240300 油封轴承 bushing 1 22 30127024 202304 弹簧 spring 1 23 30122030 250066 油堵 plug 1 24 30112044 255517 左挡板 fabric guide 1 25 301S11020 7074 螺钉 screw 2 26 W01004 204585 垫圈5 washer 2 27 400068 250501-91 下轴 crankshaft assy 1 28 30103003 250504 前轴套 bushing 1 29 S10006 4539 螺钉 M5×6 screw 2 30 30109002 250534 下轴平衡块 balance weig 1 31 S01009 螺钉 M3×7.5 screw 2 32 001001 0型圈15×2.65 0 ring 1 -53- jintex.in
Page 56 — NEEDLE GUARD MECHANISM
护针部件 NEEDLE GUARD MECHANISM 8568-05 8568-02D/FT141 8568-05/FT140 放在附件内 Put in accessory -54- -69- jintex.in
Page 57 — 二十六、02D、05专用部件(02D、05 specific parts)
二十六、02D、05专用部件(02D、05 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Name Description 数量 Number 1 30117002 357551B 后护针挡 needle guard(rear) 1 2 30104709 251505-92 护针挡架组件 lever assy 1 3 S05003 4500 螺钉 M5×10 bolt 1 4 W02001 303067 垫圈5 washer 1 5 S01002 7017 螺钉 M4×6.5 screw 1 6 30102037 251503 护针轴 shaft 1 7 W01021 垫片 washer 1 8 H05013 202522 挡圈6 ring 1 9 30106003 251504 叉架 lever 1 10 S10002 4514 螺钉 M5×5 screw 1 11 30101036 251500-91 护针轴座 bracket 1 12 301S11016 7081 螺钉 screw 1 13 S01004 7019 螺钉 M4×7.8 screw 3 14 30117003 前护针挡 needle guard(front) 1 15 S01012 螺钉 M2.5×4 screw 1 16 30111013 306473-UA 挡料斗 waste chute top (C) 1 17 301S30020 4905 木螺钉 screw 7 18 30112048 306474A 托板 bracket 1 19 30103046 套筒 bushing 1 20 3011101400 排料筒座组件 waste chute assy 1 21 30111014 205468-UA 排料筒座 waste chute top (A) 1 22 30111015 205469-UA 排料筒 waste chute top (B) 1 23 30128036 垫片 washer 1 24 S01005 7020 螺钉 M4×10 screw 4 -55- jintex.in
Page 58
8568-02D/FT141 8568-05/FT140 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 23 24 26 27 FT140 28 29 30 FT140 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 FT141 50 FT141 FT140 FT141 -56- -71- jintex.in
Page 59 — 二十七、02D、05专用部件(02D、05 specific parts)
二十七、02D、05专用部件(02D、05 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30110009 255500 凸轮 eccentric assy 1 2 S10006 4539 螺钉 M5×6 screw 2 3 400062 连杆组件 eccentric assy 1 4 S01008 螺钉 M3.5×13 screw 4 5 S01010 螺钉 M4×8 screw 1 6 30104007 弯针曲柄 crauk 1 7 301S12001 螺钉 screw 1 8 30126003 曲柄销 pin 2 9 400063 弯针驱动连杆 connection assy 1 10 S01008 螺钉 M3.5×13 screw 2 11 30102038 255502 曲柄轴 shaft 1 12 30128008 240102 护针轴垫圈 washer 1 13 H05001 垫圈 10 ring 1 14 30209009 差动轴滚珠 ball 1 15 20523005 油线 oil wick 1 16 30123001 毛毡 felt 3 17 30122019 油封 oil seal 1 18 30104028 255503 摆曲柄柄 lever assy 1 19 S05004 螺钉 M5×14 screw 1 20 30112049 255504 挡板 latch 1 21 S01006 7009 螺钉 M3×4.5 screw 4 22 30123015 油线 oil wick 2 23 30102039 255505 油封 oil seal 1 24 30123008 毛毡 felt 3 25 30101040 刀座 bracket assy 1 26 S12002 螺钉 M3×4 screw 1 27 3010104000 刀座组件 bracket assy 1 28 30103085 刀座套筒 needle bearing 2 29 30102040 255508-2 下刀座轴 shaft 1 30 S05019 螺钉 M6×16.3 screw 1 31 30127022 306105 弹簧 spring 2 32 30108006 192024 挡圈 ring 1 33 209S14008 W00024-1 螺钉 screw 1 34 H05013 202522 挡圈 ring 1 35 30128026 207045 垫片 washer 1 36 30101037 255507-91 上刀架 upper knife holder 1 37 S12003 4547 螺钉 M6×0.75×5 screw 1 38 30119001 306394 上刀 upper knife 1 39 301S11017 5109 上刀固定螺钉 screw 1 40 30101039 255509 下刀架 lower knife holder 1 41 301S11025 7036 护针曲柄螺钉 screw 1 42 20619004 204161 下刀 lower knife 1 43 30101038 255510 下刀挡板 lower knife clamp 1 44 S01011 7028 螺钉 M5×10 screw 1 45 301S30021 255513 调节螺钉 screw 1 46 30112051 255511 挡片 guide 1 47 30101040 255506 刀座 bracket assy 1 48 30112050 255515 切削板 chip guard 1 49 30101037 上刀架 upper knife holder 1 50 3010105700 刀座组件 bracket assy 1 -57- jintex.in
Page 60
8568-05,07 (LR10) 1 10 12 13 11 14 8 7 12 11 13 3 2 4 9 6 8 7 5 7 15 16 -58- -73- jintex.in
Page 61 — 二十八、05、07专用部件(05、07 specific parts)
二十八、05、07专用部件(05、07 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3010204100 306469A9S 带子组件 reel stand assy 1 2 30103047 306468-SA 支柱盘 bracket 1 3 30102042 306466-SA 支柱 rod 1 4 N01026 螺母 M18×1.5 nut 1 5 30111008 383-SA 棒架 bracket 1 6 S04003 螺钉 M4×25 screw 1 7 N01005 螺母 M4 nut 4 8 S04004 螺钉 M4×15 screw 3 9 30122027 386 棒帽 rod cap 1 10 30102043 306464 带架直棒 shaft 1 11 30103048 306463 轴舌 collar 2 12 S01068 螺钉 M4×8 screw 2 13 30103064 306462 轴锥架 reel guide 2 14 30111009 233-SA 固定器 bracket 1 15 30113020 306467 带架棒 rod 1 16 301S30022 4913 木螺钉 screw 3 -59- jintex.in
Page 62
8568-05,07/MD230 -60- -75- jintex.in
Page 63 — 二十九、05、07专用部件(05、07 specific parts)
二十九、05、07专用部件(05、07 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 P03008 206781 销 2×6 pin 2 3 30103049 256000 短轴 shaft 1 4 30103050 256043-91 偏心套 eccentric assy 1 5 3010501900 256007 铝连杆组件 connection assy 1 6 S04005 螺钉 M4×15.5 screw 2 7 S10002 4514 螺钉 M5×5 screw 3 8 30103051 球套 ball stud 1 9 30103052 306238 轴承套 bushing 1 10 B07014 轴承 10×13×13 needle bearing 1 12 30112052 256009 调节指针 indicator 1 13 30128027 204023 垫圈 washer 1 14 301S20012 256008 调节螺钉 pin 1 15 301S16009 256048 碟形螺母 nut 1 16 30101041 256010 调节座 crank 1 17 301S30023 256041 长螺钉 screw 1 18 30112053 256042 支座 set plate 1 19 S01006 7009 螺钉 M3×4.5 screw 2 20 301S11019 7083 调节座定位螺钉 screw 6 21 3010305300 轴套组件 clutch assy 1 22 3010104200 256012 轴架 clutch 2 23 30126011 306500 销轴 pin 6 24 30112054 306243 内挡板 guide assy 6 25 30127023 240114A 弹簧 spring 12 26 30103053 256046 轴套 sleeve 1 27 S10029 4547 螺钉 M6×0.75×5 screw 3 28 30103054 轴承套 bushing 1 29 30101043 256011 止动板 stopper plate 1 30 B04006 轴承(60/28Z) bearing 1 31 30126012 306568 平行销 pin 1 32 W01001 垫圈4 washer 2 33 W01001 垫圈4 washer 1 34 201S11016 螺钉 screw 1 35 3011101600 250067-UB 护罩组 md cover assy 1 36 30111016 护罩体 md cover 1 37 30111017 护罩板 cover 1 38 S01005 7020 螺钉 M4×10 screw 2 39 30137006 警示牌 sticker 1 -61- jintex.in
Page 64
8568-05,07/MD230 -62- -77- jintex.in
Page 65 — 三十、05、07专用部件(05、07 specific parts)
三十、05、07专用部件(05、07 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 300144 压带架座 bracket assy 1 2 30103055 套筒 bushing 2 5 300143 压带架支座 bracket 1 6 S05019 螺钉 M6×16.3 screw 4 7 3010305700 压带轮组件 roller assy 1 8 S10005 螺钉 M3×3 screw 6 9 30103059 皮带轮 II rooler 1 10 30102045 夹带长轴 shaft 1 11 30109018 255502 夹带轴架 bracket 2 12 S10002 240102 螺钉 M5×5 screw 4 13 30102046 夹带长轴 shaft 1 14 W01003 垫圈6 washer 2 15 30112059 手柄 lever 1 16 S01015 螺钉 M3×5 screw 2 17 301S30027 调节螺钉 screw 1 18 301S16011 255503 调节螺母 nut 1 19 30127024 弹簧 spring 1 20 30126013 255504 销轴 shaft 1 21 H05002 7009 挡圈 ring 1 22 30112055 压带板 guide 1 23 30113022 255505 压带架 lace guide 1 24 S01002 螺钉 M4×6.5 screw 2 25 301S16010 位置挡块 guide 2 26 301S11018 螺钉 screw 2 27 S01004 螺钉 M4×7.8 screw 2 28 30128028 偏心垫 stopper 1 29 301004 255508-2 螺钉 M4×7.8 screw 2 30 3011205600 夹带架组件 bracket assy 1 31 30128020 306105 垫片 spring 1 32 S05048 192024 螺钉 M4×10 screw 1 33 N01001 W00024-1 螺母 M4 nut 1 34 30105017 202522 夹带连杆 I lace guide 1 35 W01004 207045 垫圈5 washer 2 36 30105018 255507-91 夹带连杆 II lace guide 1 37 301S30025 4547 台螺钉 screw 2 39 30112083 5109 过线防护罩 thread take-up guard 1 40 30112084 255509 手指防护罩 finger guard 1 41 S01001 7036 螺钉 M4×7 screw 3 42 W01001 204161 垫圈4 washer 3 43 30112058 255510 夹带连接板 bracket 1 45 30103044 255513 压带轴 shaft 1 46 30128008 255511 摆架轴垫圈 washer 1 47 H05001 255506 挡圈10 ring 1 48 301S11020 255515 压带轴螺钉 screw 2 49 30113021 带子架 lace guide 1 50 30112058 夹带连接板 bracket 1 -63- jintex.in
Page 66 — 8568-21,22
8568-21,22 弯针部件 LOOPER MECHANISM 2 1 W562-21 送布部件 FEED MECHANISM 润滑部件 LUBRICATION MECHANISM 8568-21 7 8 8568-21 9 8568-22 10 -64- jintex.in
Page 67 — 三十一、21、22专用部件(21、22 specific parts)
三十一、21、22专用部件(21、22 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30102051 252004A 摆轴 shaft 1 2 30122008 油封 oil seal 1 3 30104012 弯针架 looper holder assy 1 4 S01004 螺钉 M4×7.8 screw 1 5 S05004 螺钉 M5×14 screw 1 6 W02001 垫圈5 washer 1 7 3010401500 差动调整架组 crank 1 8 S01012 螺钉 M2.5×4 screw 1 9 301S30004 7080 调节器螺钉 screw 1 10 30121012 铜油管 oil pipe 1 -65- jintex.in
Page 68 — 8568 Series 斜饰
8568 Series 斜饰 针杆部件 NEEDLE BAR, NEEDLE MECHANISM -66- - 81 - jintex.in
Page 70
24 1 2 3 4 5 21 22 6 7 8 9 10 11 12 14 15 16 17 18 19 20 25 -68- - 83 - jintex.in
Page 71
三十三、附件部件 (Accessories assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 20131037 油壶 (大) oil container 1 2 20131038 硅油壶 oiler 1 3 20131039 漏斗 oil funnel 1 4 20131038 硅油壶 container silicone 1 5 20131051 镊子 tweezers 1 6 20131007 内六角扳手(1.5mm) allen key driver/1.5mm 1 7 20131046 内六角扳手(2mm) allen key driver/2mm 1 8 20131010 内六角扳手(3mm) allen key driver/3mm 1 9 20131012 内六角扳手(4mm) allen key driver/4mm 1 10 20131047 内六角扳手(5mm) allen key driver/5mm 1 11 20131056 内六角扳手(6mm) allen key driver/6mm 1 12 30131009 内六角扳手(8mm) allen key driver/8mm 1 14 10131003 螺丝刀(中) screwdriver(medium) 1 15 10131004 螺丝刀(小) screwdriver (small) 1 16 20131044 内六角扳手(1.5mm直柄) allen key driver driver/1.5mm 1 17 30131018 链条 chain 1 18 10131005 机头罩 dust cover 1 19 30117001 机针 needle 4 20 20136001 滤油器 filter element 1 21 30131005 扳手(6mm-7mm) wrench/(6mm-7mm) 1 22 30131006 扳手(8mm-10mm) wrench/(8mm-10mm) 1 24 30135004 皮带 leather belt 1 25 S10005 螺钉 M3×3 screw 3 -69- jintex.in
Page 73 — GAUGE PARTS LIST (2)
缝纫组合件 表 (2) GAUGE PARTS LIST (2) 机型 MACHINE TYPE /SPEC. 针 占 NEEDLE HOLDER 针板 NEEDLE PLATE 主送布牙 MAIN FEED DOG 差动送布牙 DIFF. FEED DOG 压脚 PRESSER FOOT 弯针 LOOPER 护针(后) NEEDLE GUARD REAR 护针(前) NEEDLE GUARD FRONT 机针 NEEDLE 240 30134006 30115016 30114012 30116020 3011700900 30117001 (11#) 248 30134008 30115009 30114011 30116026 30117002 30117005 30117011 (14#) 256 30134001 30115002 30114004 30116009 3011700900 30117005 30117001 (11#) 264 30134002 30115003 30114003 30116004 30117002 30117005 30117011 (14#) 30134001 30115005 30114005 30116003 3011700900 30117005 30117001 (11#) 30134002 30115008 30114012 30116004 30117002 30117005 30117011 (14#) 30134001 30115002 3011400700 30116019 3011700900 30117005 30117001 (11#) 30134007 30115015 30114012 3011601300 30117002 30117005 30117011 (14#) 30134001 30115002 30114008 3011601400 3011700900 30117005 30117001 (11#) 30134002 30115003 30114009 30116017 30117002 30117005 30117011 (14#) 8568-03DB 8568W-03DB 30134001 30115004 30114010 30116019 3011700900 30117005 30117001 (11#) 30134007 30115015 30114011 3011601300 30117002 30117005 30117011 (14#) 8568-05CB 8568W-05CB 30134002 30115002 30114012 3011601400 3011700900 30117005 30117001 (11#) 30134003 30115003 30114003 30116007 30117002 30117005 30117011 (14#) 8568-07CB 8568W-07CB 30134004 30115004 30114004 30116017 3011700900 30117005 30117001 (11#) 30134005 30115005 30114005 30116019 30117002 30117005 30117011 (14#) 8568-08AC 8568W-08AC 30134001 30115002 3011400700 3011601300 3011700900 30117005 30117001 (11#) 30134007 30115015 30114012 3011601400 30117002 30117005 30117011 (14#) 8568-21BB 8568W-21BB 30134002 30115003 30114008 30116007 3011700900 30117005 30117001 (11#) 30134003 30115004 30114009 30116017 30117002 30117005 30117011 (14#) 30134011 30115026 30114016 30116023 30117014 30117015 -71- -86- jintex.in
Page 74
产品标准代号: QB/T2044-2010 Standard code of the products: QB/T2044-2010 ® 杰克缝纫机 JACK SEWING MACHINE | HTTP://WWW.CHINAAJACK.COM | 浙江新杰克缝纫机股份有限公司 ZHEJIANG NEW JACK SEWING MACHINE CO.,LTD. ● 公司地址(Address of Company): 台州市椒江区机场路15号 No. 15 Rd Airport South, Jiaojiang District Taizhou City, Zhejiang, P.R.C ● 国内销售部(Domestic Trade Department): 电话(TEL): 0086-576-88177788 88177789 传真(FAX): 0086-576-88177758 ● 国贸部(International Trade Department): 电话(TEL): 0086-576-88177782 88177774 传真(FAX): 0086-576-88177787 ● 零件部 (Spare Part Department): 电话(TEL): 0086-576-88177798 88177785 传真(FAX): 0086-576-88177775 ● 免费售后服务电话(Aftersale Service TEL): 4008876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实样为准。 You will be not informed if the file has been revised. Please set sample as standard. 2013.9 jintex.in
