Jack JK-T1790G Parts Book (PDF)
Text index — Jack JK-T1790G
Page 3 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 930000142(漆后) | UPPER COVER | 1 |
| 2 | 413S11002 | SCREW | 10 |
| 3 | 930000141(漆后) | LEFT COVER | 1 |
| 4 | 413S11002 | SCREW | 2 |
| 5 | 930000140(漆后) | LEFT COVER B | 1 |
| 6 | 413S11002 | SCREW | 4 |
| 7 | 301285(漆后) | THREAD TAKE UP LEVER COVER | 1 |
| 8 | 413S11002 | SCREW | 1 |
| 9 | 930000139(漆后) | FRONT COVER | 1 |
| 10 | 413S11003 | SCREW | 3 |
| 11 | 141311001 | ELECTRICALLY CONTROLLED SHELL | 1 |
| 12 | 413S11003 | SCREW M5 L=16 | 4 |
| 13 | 41312003 | LUBRICATING OIL WICK | 1 |
| 14 | 413S13003 | STOPPER SCREW M4 L=6 | 5 |
| 15 | 141312005 | ELECTRIC CONTROL PLUG MOUNTING SEAT | 1 |
| 16 | 41330086 | FAN MOTOR | 1 |
| 17 | 304118(漆后) | HOOK OIL SHIELD COVER COMPL | 1 |
| 18 | 413S13001 | HEXAGON SOCKET HEAD SCREW M5×6 | 2 |
| 19 | S05063 | SCREW M4×25 | 2 |
| 20 | 41330027 | GUIDE THE SLIDER | 1 |
| 21 | 41326044 | IBOGIE PIN | 1 |
| 22 | 41312151 | IBOGIE | 1 |
| 23 | 41312006 | PRESSURE PLATE SPRING | 1 |
| 24 | 413S11017 | SCREW | 1 |
| 25 | -------- | 0 | |
| 26 | -------- | 0 | |
| 27 | 41330042 | SWITCH BUTTON | 1 |
| 28 | 41322008 | RUBBER PLUG | 1 |
| 29 | 41322009 | PLUG D=7.5 L=3.5 | 2 |
| 30 | 413S13003 | SCREW M=4 L=6 | 6 |
| 31 | 41312008 | THE FIXED FRAME | 1 |
| 32 | 41322012 | RUBBER PLUG | 3 |
| 33 | 141301001 | ELELECTRIC CONTROL MOUNTING SEAT | 1 |
| 34 | 41322014 | RUBBER PLUG D=12.5 L=4 | 2 |
| 35 | 41322015 | PLUG | 1 |
| 36 | 413S13005 | SCREW M=6 L=10 | 4 |
| 37 | 413S13006 | HEXAGON BOLT | 4 |
| 38 | 413S14001 | SCREW M=6 L=6 | 2 |
| 39 | 41330041 | SWITCH | 1 |
| 40 | 417S30034 | SCREW | 2 |
| 41 | 4131301500 | PRE-TENSION CONTROLLER ASM | 1 |
| 42 | 41313013 | THREAD GUIDE BAR | 1 |
| 43 | 141301002 | BED BASE | 1 |
| 44 | 930000138(漆后) | BED REAR COVER | 1 |
| 45 | 41311001 | CABLE CLAMP | 1 |
| 46 | 41330004 | HEAD FAN MOTOR B ASS'Y | 1 |
| 47 | 41311002 | FILTER | 1 |
| 48 | 41312011 | FINGER GUARD | 2 |
| 49 | 41303001 | HINGE BUSH | 1 |
| 50 | 41326002 | HINGE PIN | 2 |
| 51 | 41312012 | HINGE PLATE, A | 1 |
| 52 | 41312013 | HINGE PLATE, B | 1 |
| 53 | 413S16005 | NUT M=6 | 8 |
| 54 | 413S16010 | NUT M3×0.5 | 1 |
| 55 | 41328001 | WASHER 6.1×18.5×2 | 4 |
| 56 | 41311003 | OIL SHIELD | 1 |
| 57 | 41322001 | RUBBER C | 3 |
| 58 | 41322002 | RUBBER D | 1 |
| 59 | 413S14012 | SCREW | 1 |
| 60 | 41322017 | Z STOPPER RUBBER | 1 |
| 61 | 41322003 | RUBBER CUSHION (B) | 4 |
| 62 | 41322004 | RUBBER HINGE | 1 |
| 63 | 413S13008 | SCREW | 1 |
| 64 | 413S13009 | SCREW M4×0.7 L=30 | 2 |
| 65 | 41328002 | CLOTH PLATE WASHER | 2 |
| 66 | 413S30025 | VCS STUD A | 1 |
| 67 | 41322011 | RUBBER PLUG | 1 |
| 68 | 41322018 | RUBBER PLUG | 1 |
| 69 | 41313001 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | 41313002 | TAKE-UP THREAD GUIDE B | 1 |
| 71 | 413S13010 | SCREW M5×0.8 L=8 | 2 |
| 72 | 41313003 | TAKE-UP THREAD GUIDE A | 1 |
| 73 | 413S13003 | SCREW M=4 L=6 | 1 |
| 74 | 4133000400 | SAFETY SWITCH ASS'Y | 1 |
| 75 | 41312084 | SAFETY SW BASE | 1 |
| 76 | 41330021 | SAFETY SWITCH SENSORS | 1 |
| 77 | 41312085 | SAFETY SWITCH COVER | 1 |
| 78 | 40312132 | SAFETY SWITCH ARM SAFETY | 1 |
| 79 | 413S20011 | SWITCH ARM SHAFT SAFETY | 1 |
| 80 | 40327024 | SWITCH SPRING | 1 |
| 81 | 40312133 | SAFETY SWITCH NUT | 1 |
| 82 | 403S11050 | SCREW M=2 L=12 | 2 |
| 83 | 413S15004 | SCREW 9/64-40 L=4.5 | 2 |
| 84 | 40111005 | CABLE BAND | 1 |
| 85 | 41312009 | PROTECTIVE FRAME | 1 |
| 86 | 41322026 | FRONT COVER PAD | 1 |
| 87 | 41312160 | LED FITTING PLATE | 1 |
| 88 | 14133005 | LED | 1 |
| 89 | 14133000600 | LED ASS'Y | 1 |
Page 5 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41330072 | ASSY AT SOLENOID | 1 |
| 2 | 41312014 | AT SHAFT | 1 |
| 3 | 41312015 | AT SHAFT HOLDER | 1 |
| 4 | 40329004 | RETAINING RING | 1 |
| 5 | 40312123 | DISK STOPPER | 1 |
| 6 | 40303024 | DISK STOPPER HOLDER CAP | 1 |
| 7 | -------- | 0 | |
| 8 | 413S16001 | NUT | 2 |
| 9 | 403S11048 | SCREW | 3 |
| 10 | 413S30006 | SCREW M=4 L=8 | 1 |
| 11 | 413S13010 | SCREW M5X0.8 L=8 | 3 |
| 12 | 413S14004 | SCREW | 2 |
| 13 | 403S14015 | SCREW M3 L=4 | 1 |
| 14 | 413S14001 | SCREW M6 L=6 | 1 |
| 15 | 413S11023 | SCREW | 1 |
| 16 | W02002 | SPRING WASHER | 1 |
| 17 | -------- | 0 | |
| 18 | 40327019 | TAKE-UP SPRING | 1 |
| 19 | 40303025 | THREAD TENSION POST BASE | 1 |
| 20 | 41329002 | THREAD TENSION SHAFT COLLAR | 2 |
| 21 | 41303002 | THRUST COLLAR | 1 |
| 22 | 413S30009 | UTT SUSPENSION SCREW 9 | 1 |
| 23 | 4131300400 | ASSY THREAD TENSION POST | 1 |
| 24 | 41311004 | GUIDE PLATE | 1 |
| 25 | 41328005 | BUSHING | 1 |
| 26 | 41312018 | THREAD BREAK DETECTOR A | 1 |
| 27 | 14133101800 | ASSY BTW | 1 |
| 28 | 141301008 | BTW BASE | 1 |
| 29 | 40312125 | BTW CAM PLATE | 1 |
| 30 | 40302014 | BTW BASE SHAFT | 1 |
| 31 | 40304013 | BTW SHAFT BASE | 1 |
| 32 | 14133100400 | BTW CAM LEVER | 1 |
| 33 | 141310003 | BTW WHEEL | 1 |
| 34 | 40327023 | BTW TORSION SPRING | 1 |
| 35 | 40308012 | BTW BEARING SPACER | 1 |
| 36 | 41302012 | BTW SHAFT | 1 |
| 37 | 14119003 | THREAD CUTTER | 1 |
| 38 | 41312087 | BTW LEVER | 1 |
| 39 | 14111002 | BTW SPACER | 1 |
| 40 | 40324015 | BTW BEARING | 2 |
| 41 | 40322030 | BTW WHEEL RUBBER | 1 |
| 42 | 40327021 | BOBBIN SPRING | 1 |
| 43 | 40327022 | BTW SPRING | 1 |
| 44 | 40329005 | RETAINING RING | 1 |
| 45 | 40329006 | E-RING 4 | 1 |
| 46 | 40328038 | WASHER 4.5X10X0.8 | 1 |
| 47 | 403S11052 | SCREW | 1 |
| 48 | S04090 | SCREW M2X4 | 1 |
| 49 | 403S14023 | SCREW M4X8 | 2 |
| 50 | 14112020 | WASHER | 1 |
| 51 | -------- | 0 | |
| 52 | -------- | 0 | |
| 53 | -------- | 0 | |
| 54 | 41313020 | THREAD GUIDE | 1 |
| 55 | 413S11008 | SCREW 11/64-40 L=7.8 | 1 |
| 56 | 40111005 | CABLE BAND | 10 |
| 57 | 40311023 | CABLE BAND | 2 |
| 58 | 41312003 | LUBRICATING OIL WICK STOPPER | 3 |
| 59 | 413S13003 | SCREW M4 L=6 | 3 |
| 60 | 413S11004 | SCREW M4 L=10 | 3 |
| 61 | 4131302200 | BOBBIN THREAD TENSION ASM | 1 |
| 62 | 101S16019 | THREAD TESION NUT | 1 |
| 63 | 41327017 | THREAD TESION SPRING | 1 |
| 64 | 41313015 | BOBBIN WINDER TENSION DISC | 2 |
| 65 | 4131302300 | BOBBIN THREAD TENSION ROD ASM | 1 |
| 66 | 413S16012 | NUT 11/64-40 | 1 |
| 67 | 41312021 | THREAD GUIDE | 1 |
| 68 | 41312089 | CLAMP | 1 |
| 69 | 413S13010 | SCREW M5 L=8 | 1 |
| 70 | 4131301900 | THREAD TENSION ASM | 1 |
Page 7 — 3. MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133800100 | THREAD_TAKE_UP_ASM | 1 |
| 2 | 41324001 | BEARING | 1 |
| 3 | 41324002 | BEARING | 1 |
| 4 | 41338001 | THREAD_TAKE_UP_CRANNK | 1 |
| 7 | 41313009 | THREAD PASS BUSH | 1 |
| 8 | 4133800200 | LINK_TAKE_UP | 1 |
| 9 | 41338003 | NEEDLE_BAR_CRANK | 1 |
| 10 | 4130500100 | NEEDLE_BAR_CRANK_ROD | 1 |
| 11 | 403S30011 | LEFT SCREW | 1 |
| 12 | 413S14006 | SET SCREW M4 L=4 | 1 |
| 13 | 41324004 | BEARING | 1 |
| 14 | 41324005 | BEARING | 1 |
| 15 | 41324006 | BEARING | 2 |
| 16 | 40322025 | BEARING SUPPORT | 2 |
| 17 | 41303005 | BEARING HOLDER | 1 |
| 18 | 40335002 | BOBBIN WINDER DRIVING WHEEL | 1 |
| 19 | 403S13007 | COUNTER_WEIGHT_SCREW | 1 |
| 20 | 41304001 | COUNTER_WEIGHT | 1 |
| 21 | 4030102200 | COUPLING | 1 |
| 23 | 41302001 | MAIN_SHAFT | 1 |
| 24 | 41326003 | NEEDLE_CRANK_SHAFT | 1 |
| 25 | 413S30012 | SCREW M8 L=16 | 1 |
| 26 | 413S13011 | SCREW M4×0.7 L=12 | 2 |
| 27 | 413S13012 | SCREW M5 L=20 | 4 |
| 28 | 413S13013 | SCREW M6 L=25 | 3 |
| 30 | 114S14001 | SCREW | 2 |
| 31 | 40308006 | THRUST_COLLAR | 1 |
| 32 | 403S14005 | SCREW M6 L=8 | 6 |
| 33 | 4133500100 | SPROCKET_A | 1 |
| 34 | 41309001 | SQUARE_BLOCK | 1 |
| 35 | 41309002 | SQUARE_BLOCK | 1 |
| 36 | 41309003 | SQUARE_BLOCK_GUIDE | 1 |
| 37 | 41309004 | SQUARE_BLOCK_GUIDE_B | 1 |
| 38 | 41326004 | THREAD_TAKE_UP_CRANNK_SHAFT | 1 |
| 39 | 403S14008 | SCREW M5 L=8 | 2 |
| 40 | 41335002 | TIMING_BELT | 1 |
| 41 | 4133500300 | IDLER_ASM | 1 |
| 42 | 41329003 | RETAINING RING | 2 |
| 43 | 413S12001 | HINGE_SCREW | 1 |
| 44 | 41312140 | IDLER_FIXED_PLATE | 1 |
| 45 | 41303008 | IDLER_PULLEY | 1 |
| 46 | 413S13018 | NUT | 0 |
| 47 | 422S16501 | NUT M8 | 1 |
| 49 | 41305009 | IDLER_FIXED_ROD | 1 |
| 50 | 41324007 | BALL BEARING | 2 |
| 51 | 41328008 | WASHER | 1 |
| 52 | 413S12002 | SCREW M6 L=14 | 1 |
| 55 | 41323001 | NEEDLE_BAR_CRANK_FELT | 1 |
| 56 | 41328022 | WASHER | 1 |
| 57 | 413S14001 | SCREW M6 L=6 | 6 |
| 58 | 40311302 | FAN | 1 |
| 59 | 413S13016 | SCREW | 3 |
| 60 | 40228011 | WASHER | 1 |
| 61 | 413S13010 | SCREW M5 L=8 | 1 |
| 62 | 40301023 | COUPLING 1 | 1 |
| 63 | 40322028 | DAMPING RUBBER | 1 |
| 64 | 40301024 | COUPLING2 | 1 |
| 413S13001 | 螺钉M6×6 |
Page 9 — 4. HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11424001 | BEARING | 2 |
| 2 | 41324009 | BALL BEARING | 2 |
| 3 | 41324010 | BEARING | 1 |
| 4 | 41324011 | BEARING | 1 |
| 5 | 41303010 | BEARING_SUPPORT | 1 |
| 6 | 41303011 | BUSH | 2 |
| 7 | 41329004 | RETAINING RING | 2 |
| 8 | 41302002 | HOOK_DRIVING_SHAFT | 1 |
| 9 | 41303012 | HOOK_DRIVING_SHAFT_METAL | 1 |
| 10 | 4130301300 | HOOK SLEEVE ASM | 1 |
| 11 | 41335003 | INTERMEDIATE SPROCKET SHAFT | 1 |
| 12 | 41303009 | INTERMEDIATE SPROCKET WASHER | 1 |
| 13 | 41318001 | HOOK COMPL | 1 |
| 14 | 4131101100 | CROWN KNOB | 1 |
| 15 | 413S14001 | SCREW M6 L=6 | 10 |
| 16 | 41318002 | HOOK COMPL (K) | 1 |
| 17 | 41303014 | BEARING SUPPORT | 1 |
| 18 | 41335004 | SPROCKET_B | 1 |
| 19 | 4133500600 | SPROCKET_C | 1 |
| 20 | 41303015 | INTERMEDIATE SPROCKET RING | 1 |
| 21 | 41328009 | WASHER | 1 |
| 25 | 41323002 | FELT | 1 |
| 26 | 12921005 | TUBE | 1 |
| 27 | 40323013 | OIL WICK | 1 |
| 28 | 4021800200 | BOBBIN | 1 |
| 29 | 41318003 | BOBBIN CASE ASM | 1 |
| 30 | 41303016 | PIPE | 1 |
| 31 | 41323003 | OIL_FILTER | 2 |
| 32 | 207S14006 | SCREW M5 L=5 | 2 |
| 33 | 41328035 | OIL CONTROL SPRING | 1 |
| 34 | 41326039 | ADJUSTING_SHAFT | 1 |
| 35 | 413S15002 | ADJUSTING OIL OF HOOK | 1 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141333002 | FEED MOTOR ASS'Y(DAHAO) | 1 |
| 2 | -------- | FEED SENSOR ASS'Y | 1 |
| 3 | 40322025 | BEARING SUPPORT | 2 |
| 4 | 41312023 | THROAT PLATE BASE COVER | 2 |
| 5 | 41312024 | MOTOR BRACKET | 1 |
| 6 | 4133500700 | PULLEY B | 1 |
| 7 | 4133500900 | PULLEY C | 1 |
| 8 | 41326008 | SUPPORT SHAFT | 1 |
| 9 | 41312025 | TIMING BELT HOLDER | 1 |
| 10 | 41302003 | FEED SHAFT | 1 |
| 11 | 41302004 | FEED GUIDE SHAFT | 1 |
| 12 | 4130400100 | FEED BASE ASM | 1 |
| 13 | 41304002 | FEED BASE | 1 |
| 14 | 41324014 | SLIDE BEARING | 3 |
| 15 | -------- | THRUST COLLAR ASM | 1 |
| 16 | 40308006 | THRUST COLLAR | 1 |
| 17 | 114S14001 | SCREW | 2 |
| 18 | 41312026 | WORK CLAMP CARRIER | 1 |
| 19 | 413S13026 | SCREW M3×10 | 1 |
| 20 | 413S13016 | SCREW M4 L=6 | 4 |
| 21 | 413S13016 | SCREW M4×0.7 L=8 | 2 |
| 22 | 413S13017 | SCREW M4 L=10 | 6 |
| 23 | 413S13005 | SCREW M6 L=10 | 3 |
| 24 | 413S13018 | SCREW M6 L=18 | 1 |
| 25 | 207S14006 | SCREW M5 L=5 | 3 |
| 26 | 413S14001 | SCREW M6 L=6 | 2 |
| 27 | 41335007 | TIMING BELT | 1 |
| 28 | 413S11009 | SCREW M4 L=5 | 4 |
| 29 | 4133001200 | ASSY PBL GEAR MODULE | 1 |
| 30 | 141333001 | CLAMP MOTOR ASS'Y(DAHAO) | 1 |
| 31 | 41312028 | PBL FRONT LINK | 1 |
| 32 | 41325001 | PBL GEAR S | 1 |
| 33 | 41326009 | PBL GEAR SHAFT | 1 |
| 34 | 41312029 | PBL L LINK | 1 |
| 35 | 41305002 | PBL LONG ROD | 1 |
| 36 | -------- | 0 | |
| 37 | -------- | 0 | |
| 38 | 413S13017 | SCREW M4 L=10 | 4 |
| 39 | 413S14003 | SCREW M6 L=5 | 5 |
| 40 | 413S200014 | SHUOULDER SCREW D8 H3.2 | 4 |
| 41 | 4132500200 | ASSY PBL GEAR L | 1 |
| 42 | 14131200400 | ASSY PBL MOTOR BASE | 1 |
| 43 | 41326010 | PIN,SHORT | 1 |
| 44 | -------- | 0 | |
| 45 | 41309005 | SLIDE ROLLER | 1 |
| 46 | 41303018 | COLLAR | 1 |
| 47 | 41327004 | PBL COLL SPRING | 1 |
| 48 | 41327005 | PBL FINGER GUARD | 1 |
| 49 | 41312032 | PBL GUIDE | 1 |
| 50 | 41312033 | PBL LIFTING PLATE | 1 |
| 51 | 41303019 | PBL METAL | 1 |
| 52 | 41304003 | PBL POSITION BRACKET | 1 |
| 53 | 41302005 | PBLPRESSER BASE | 1 |
| 54 | 41304004 | PBL ROLLER BASE | 1 |
| 55 | 41326011 | PBL ROLLER SHAFT | 1 |
| 56 | -------- | 0 | |
| 57 | 413S30003 | PBL SPRING REGULATOR | 1 |
| 58 | 141301005 | PBL WORK CLAMP ARM | 1 |
| 59 | 141302009 | PBL WORK CLAMP ARM SHAFT | 1 |
| 60 | -------- | 0 | |
| 61 | 413S13016 | SCREW M4×0.7 L=8 | 1 |
| 62 | 413S13020 | SCREW M4×0.7 L=16 | 1 |
| 63 | -------- | 0 | |
| 64 | 413S11019 | SCREW M5×0.8 L=10 | 4 |
| 65 | 413S13019 | SCREW M5×0.8 L=12 | 4 |
| 66 | 413S14013 | SCREW M5 L=6 | 2 |
| 67 | 41312035 | UTT CLOSE CAM B | 1 |
| 68 | 413S20001 | SHUOULDER SCREW D8 H3.2 | 1 |
| 69 | 413S14003 | SCREW M5 L=6 | 1 |
| 70 | 4131602000 | WORK CLAMP CHECK HOLDER | 1 |
| 71 | 41316018 | WORK CLAMP CHECK HOLDER | 1 |
| 72 | 41312109 | WORK CLAMP CHECK SPRING | 2 |
| 73 | 41326035 | WORK CLAMP CHECK SPRING SET PI | 2 |
| 74 | 41327020 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 75 | 413S11029 | SCREW 3/32-56 L=1.9 | 2 |
| 76 | 4131602200 | WORK CLAMP CHECK HOLDER ASM | 1 |
| 77 | 41316023 | PRESSER FOOT | 1 |
| 78 | 41312109 | WORK CLAMP CHECK SPRING | 2 |
| 79 | 41326035 | WORK CLAMP CHECK SPRING SET PI | 2 |
| 80 | 41327020 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 81 | 413S11029 | SCREW 3/32-56 L=1.9 | 2 |
| 82 | 41316025 | PRESSER | 1 |
| 83 | 402S20002 | HINGE SCREW D=7.94 H=2 | 1 |
| 84 | 41316017 | WORK CLAMP CHECK (2K) | 1 |
| 85 | 207S14006 | SCREW M5 L=5 | 1 |
| 86 | 41312027 | SENSOR PLATE | 1 |
| 87 | 41324006 | BEARING | 2 |
| 88 | 41324013 | BEARING | 1 |
| 89 | 41328026 | WASHER | 2 |
| 90 | 4131602100 | WORK CLAMP CHECK HOLDER ASM | 1 |
| 91 | 4131602600 | WORK CLAMP CHECK HOLDER ASM | 1 |
Page 13 — 6. NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133001500 | ZIGZAG DRIVE FULL ASSY | 1 |
| 3 | 41305003 | ZIGZAG ROD | 1 |
| 5 | 41326013 | JUNCTION SHAFT | 2 |
| 6 | 207S14006 | SCREW M5 L=5 | 2 |
| 7 | 141323002 | NEEDLE BAR CRANK FELT | 4 |
| 11 | S05124 | SCREW M5 L=16 | 1 |
| 12 | 413S13018 | SCREW M6 L=18 | 1 |
| 13 | 207S14006 | SCREW M5 L=5 | 4 |
| 16 | 41304005 | ZIGZAG LEVER REAR | 1 |
| 17 | 41301007 | MOTOR_BASE | 1 |
| 18 | 41304006 | MOTOR LEVER | 1 |
| 19 | 141333003 | NEEDLE SWING MOTOR(DAHAO) | 1 |
| 20 | 413S13023 | SCREW M6 L=12 | 3 |
| 21 | 14130102000 | NEEDLE BAR FRAME | 1 |
| 22 | S01002 | SCREW M4 L=6 | 1 |
| 23 | 141309002 | GUIDE STRIP | 1 |
| 24 | 141312014 | PRESSING PLATE | 1 |
| 25 | S02039 | COUNTERSUNK SCREW M4 L=7 | 1 |
| 26 | 141309003 | SLIDING BLOCK | 1 |
| 27 | 141304008 | NEEDLE BAR CONNECTION | 1 |
| 28 | 413S11010 | SCREW | 1 |
| 29 | 413S11017 | NEEDLE BAR FRAME ASSY | 1 |
| 30 | 141312015 | NEEDLE BAR FRAME | 1 |
| 31 | 141323001 | NEEDLE BAR METAL | 1 |
| 32 | 41312042 | SUPPORT_SHAFT | 1 |
| 34 | 41303022 | PLATE ASM BUSHING | 1 |
| 35 | 41303023 | BUSHING REAR | 1 |
| 36 | 41302007 | NEEDLE BAR | 1 |
| 37 | 40217002 | NEEDLE DP×5 #12 | 1 |
| 38 | 41313010 | NEEDLE BAR BOBBIN THREAD GUIDE | 1 |
| 39 | 413S11011 | SCREW M3 L=5 | 1 |
| 40 | 41308003 | THRUST COLLAR D=15 W=11 | 1 |
Page 15 — 7. NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4131900100 | ASSY_UTT_MODULE_B | 1 |
| 2 | H05002 | E-RING 3 | 1 |
| 3 | 40111005 | CABLE BAND | 1 |
| 4 | 413S16003 | NUT M4 | 2 |
| 5 | 413S16004 | NUT M5 | 4 |
| 6 | 41328010 | WASHER 4.3X9X0.8 | 1 |
| 7 | 413S13026 | SCREW M3X10 | 1 |
| 8 | 413S20003 | SHUOULDER SCREW D6 H2.6 | 1 |
| 9 | 413S11017 | SCREW M4 L=6 | 2 |
| 10 | 413S13003 | SCREW M4 L=6 | 2 |
| 11 | 413S30006 | SCREW M4 L=8 | 1 |
| 12 | 413S13016 | SCREW M4×0.7 L=8 | 4 |
| 13 | 413S12003 | SCREW M4 L=12 | 2 |
| 14 | 413S13001 | HEXAGON SOCKET HEAD SCREW M5X6 | 2 |
| 15 | 413S11018 | SCREW M5 L=8 | 2 |
| 16 | 413S13010 | SCREW M5X0.8 L=8 | 2 |
| 17 | 4131204400 | ASSY UTT RELEASE ARM B | 1 |
| 18 | 413S13003 | SCREW M4 L=6 | 2 |
| 19 | 207S14006 | SCREW M5 L=4 | 2 |
| 20 | 207S14006 | SCREW M5 L=5 | 4 |
| 21 | 413S30014 | SHOULDER SCREW D6 H3.2 | 4 |
| 22 | 413S20004 | SHOULDER SCREW D8 H4 | 1 |
| 23 | 413S20005 | SHOULDER SCREW D8 15 | 3 |
| 24 | 41327006 | SPRING | 1 |
| 25 | 41308004 | THRUST COLLAR D=8 W=9 | 1 |
| 26 | 41312039 | UTT ARM A | 1 |
| 27 | 41312040 | UTT_ARM_B | 1 |
| 28 | 41312041 | UTT BASE PLATE | 1 |
| 29 | 41303024 | UTT CAM ROLLER | 2 |
| 30 | 413S30015 | UTT CAM ROLLER SHAFT | 2 |
| 31 | 41312091 | UTT_RATCH_PLATE_B | 1 |
| 32 | 41312043 | UTT RELEASE ARM A | 1 |
| 33 | 41304008 | UTT RELEASE LEVER BASE | 1 |
| 34 | 41303025 | UTT RELEASE LEVER SHAFT | 1 |
| 35 | 41312044 | UTT SENSOR BASE | 1 |
| 36 | 41327007 | UTT_SUPPORT_ARM_SPRING | 1 |
| 37 | 41326021 | UTTSUPPORT SHAFT | 1 |
| 38 | 413S30016 | UTT SUSPENSION SCREW 4 | 2 |
| 39 | 413S30009 | UTT SUSPENSION SCREW 9 | 1 |
| 40 | 413S30018 | UTT SUSPENSION SHOULDER SCREW | 1 |
| 41 | 41312045 | UTT THREAD PULLING LINK A | 1 |
| 42 | 41312046 | UTT THREAD PULLING LINK B | 1 |
| 43 | 41312047 | UTT X-CAM | 1 |
| 44 | 41303026 | UTT Y-DRIVE ROLLER | 1 |
| 45 | 41326032 | UTT Y-DRIVE SHAFT | 1 |
| 46 | 141333004 | UT TRIM MOTOR ASS'Y(DAHAO) | 1 |
| 47 | -------- | UT TRIM SENSOR ASS'Y | 1 |
| 48 | 4131205500 | ASSY_UTT_RELEASE_LEVER_B | 1 |
| 49 | 4131205700 | ASSY UTT CAM | 1 |
| 50 | 4130401100 | ASSY UTT THREAD PULLING ARM | 1 |
| 51 | 4130401200 | ASSY UTT CAM ARM | 2 |
| 52 | 4130401300 | ASSY UTT SUPPORT ARM | 1 |
| 53 | 41328012 | PLAIN WASHER 4.3X12X1 | 2 |
| 54 | 41312088 | UTT_RATCH_STOPPER | 1 |
| 55 | 413S13003 | SCREW M4 L=6 | 2 |
| 56 | H05002 | E-RING 3 | 1 |
| 57 | 413S16004 | NUT M5 | 1 |
| 58 | 413S13003 | SCREW M4 L=6 | 1 |
| 59 | 413S13003 | SCREW M4 L=6 | 1 |
| 60 | 413S13010 | SCREW M5X0.8 L=8 | 1 |
| 61 | 41326034 | UTT_GUIDE_SHAFT_B | 1 |
| 62 | 41312053 | UTT SUSPENSION PLATE | 1 |
| 63 | 41313011 | UTT THREAD PULLING LEVER | 1 |
| 64 | 41302008 | UTT THREAD PULLING SHAFT | 1 |
| 65 | 41327009 | UTT TRIMMER CLOSE SPRING | 1 |
| 66 | 41303026 | UTT Y-DRIVE ROLLER | 1 |
| 67 | 41326032 | UTT Y-DRIVE SHAFT | 1 |
| 68 | 413S13019 | SCREW M5X0.8 L=12 | 3 |
| 69 | 41327008 | BUTTON SUPPORT LEVER SPRING | 1 |
| 70 | 4131900200 | ASSY UTT TRIMMER | 1 |

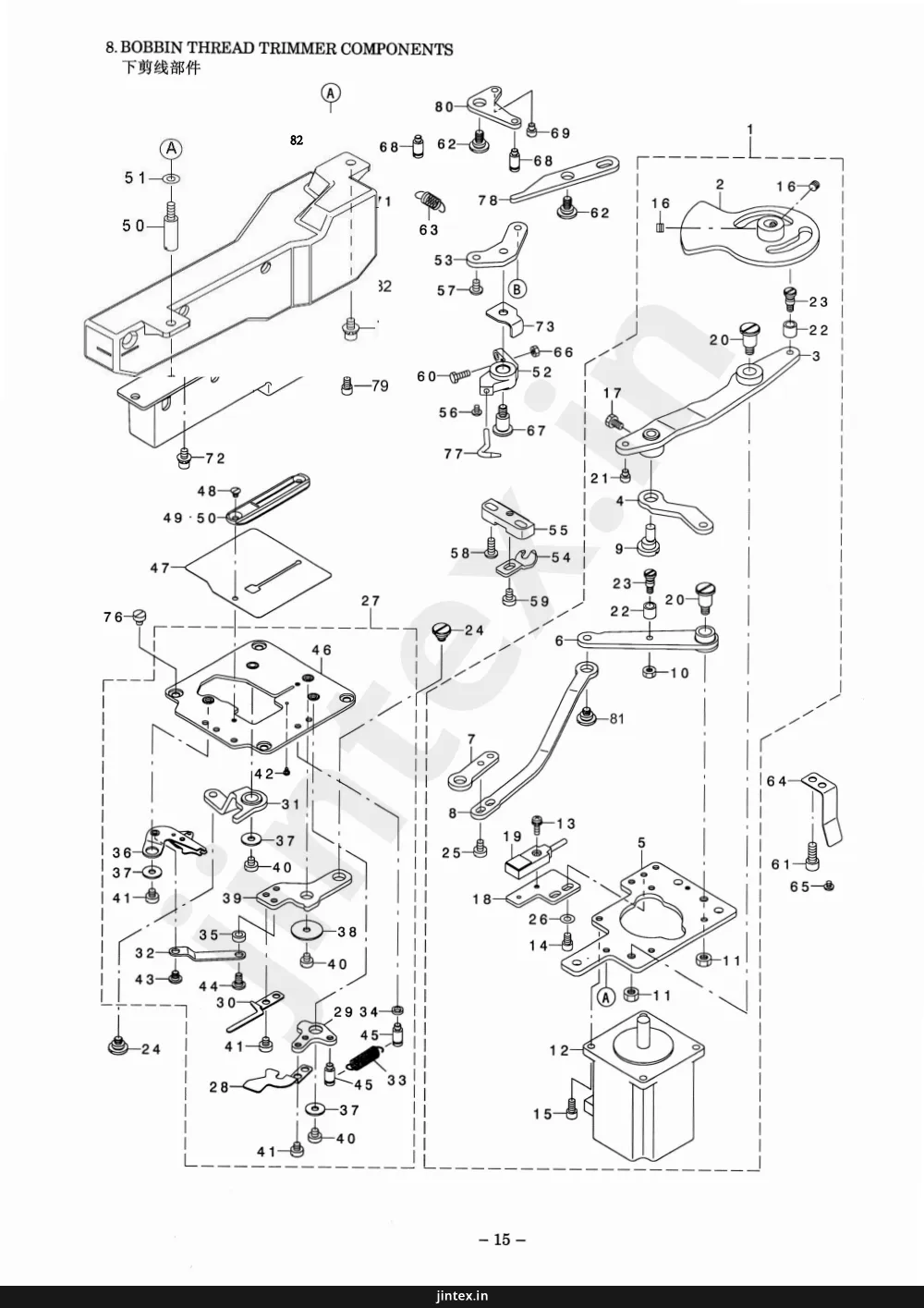

Page 17 — 8. BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133002000 | BTT DRIVE UNIT | 1 |
| 2 | 4131206300 | ASSY BTT DRIVE CAM | 1 |
| 3 | 4130500600 | ASSY BTT DRIVE LEVER | 1 |
| 4 | 41312056 | BTT DRIVE LINK | 1 |
| 5 | 41312057 | BTT DRIVE UNIT BASE | 1 |
| 6 | 4130401400 | ASSY BTT RELEASE LEVER | 1 |
| 7 | 41312059 | BTT RELEASE LINK F | 1 |
| 8 | 41312060 | BTT RELEASE LINK R | 1 |
| 9 | 41326023 | LINK ROD | 1 |
| 10 | 413S16003 | NUT M4 | 1 |
| 11 | 413S16004 | NUT M5 | 2 |
| 12 | 141333005 | LT TRIM MOTOR ASS'Y | 1 |
| 13 | 413S13026 | SCREW M3X10 | 1 |
| 14 | 413S13003 | SCREW M4 L=6 | 2 |
| 15 | 413S13016 | SCREW M4X0.7 L=8 | 4 |
| 16 | 207S14006 | SCREW M5 L=4 | 2 |
| 17 | 413S12004 | HEXAGONAL BOLT | 1 |
| 18 | 41312061 | SENSOR FITTING PLATE BT | 1 |
| 20 | 413S20006 | SHOULDER SCREW D8 H10 | 2 |
| 21 | 413S30019 | STOPPER PIN | 1 |
| 22 | 41303024 | UTT CAM ROLLER | 2 |
| 23 | 413S30015 | UTT CAM ROLLER SHAFT | 2 |
| 24 | 413S20007 | SHOULDER SCREW D8 H2.9 | 2 |
| 25 | 413S11017 | SCREW M4 L=6 | 2 |
| 26 | 41328010 | WASHER 4.3X9X0.8 | 2 |
| 27 | 4131500800 | THROAT PLATE BASE UNIT | 1 |
| 28 | 41312062 | BT CLAMP B | 1 |
| 29 | 41312063 | BT CLAMP LEVER | 1 |
| 30 | 41312064 | BT PULLER B | 1 |
| 31 | 4131207500 | ASSY BT RELEASE ARM | 1 |
| 32 | 41312066 | BT TRIMER LINK | 1 |
| 33 | 41327010 | CLAMP SPRING | 1 |
| 34 | 41328011 | WASHER | 1 |
| 35 | 41308005 | WASHER | 1 |
| 36 | 4131900300 | BT TRIMER | 1 |
| 37 | 41328013 | PLAIN WASHER 4.3X12X1 | 3 |
| 38 | 41328014 | WASHER 4.5X20X1 | 1 |
| 39 | 41312070 | BTT LEVER | 1 |
| 40 | 413S11013 | SCREW M4 L=4 | 3 |
| 41 | 413S11013 | SCREW M4 L=4 | 5 |
| 42 | 413S11014 | HINGE SCREW | 1 |
| 43 | 413S20008 | SHOULDER SCREW D5 H1.6 | 1 |
| 44 | 413S20009 | SHOULDER SCREW D5 H1.6 | 1 |
| 45 | 413S30020 | SUSPENSION SCREW | 2 |
| 46 | 4131206800 | ASSY THROAT PLATE BASE | 1 |
| 47 | 41312067 | OIL SHIELD | 1 |
| 48 | 413S17002 | SCREW M3 L=4 | 2 |
| 49 | 41315007 | THROAT PLATE(1790S5) | 1 |
| 50 | 41315002 | THROAT PLATE(1790K5) | 1 |
| 51 | 41328023 | WASHER M4 | 2 |
| 52 | 41304009 | PICKER BASE | 1 |
| 53 | 41312072 | PICKER BASE FITTNG PLATE | 1 |
| 54 | 41312073 | STOPPER A | 1 |
| 55 | 41304010 | BOBBIN CASE POSITIONING PLATE | 1 |
| 56 | 413S11022 | SCREW M3 L=4 | 1 |
| 57 | 413S13003 | SCREW M4 L=6 | 1 |
| 58 | 413S11024 | SCREW M4 L=10 | 2 |
| 59 | 413S11017 | SCREW M4 L=6 | 1 |
| 60 | 413S12003 | SCREW M4 L=12 | 1 |
| 61 | 413S13010 | SCREW M5X0.8 L=8 | 3 |
| 62 | 413S20013 | SHOULDER SCREW D8 H2.9 | 2 |
| 63 | 41327011 | PICKER SPRING | 1 |
| 64 | 41330017 | SAFETY SWITCH PRESSING PLATE | 1 |
| 65 | 413S11015 | SCREW | 1 |
| 66 | 413S16003 | NUT M4 | 1 |
| 67 | 413S20006 | SHOULDER SCREW D8 H10 | 1 |
| 68 | 413S30020 | SUSPENSION SCREW | 2 |
| 69 | 413S30019 | STOPPER PIN | 1 |
| 72 | 413S13008 | SECREW | 2 |
| 73 | 41312075 | PICKER BASE STOPPER | 1 |
| 74 | 413S30021 | SCREW | 1 |
| 75 | 413S30007 | 1 | |
| 76 | 413S11013 | SCREW M4 L=4 | 4 |
| 77 | 41313012 | PICKER | 1 |
| 78 | 41312076 | PICKER ACTUATING LEVER | 1 |
| 79 | 413S13003 | SCREW M4 L=4 | 3 |
| 80 | 41312071 | PICKER ACTUATING L LINK | 1 |
| 81 | 413S20016 | SHOULDER SCREW D8 H2.9 | 1 |
| 82 | 141311007 | OIL TANK ASM | 1 |
Page 19 — 9. CLOTH CUTTING KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | -------- | KNIFE MOTOR ASSY | 1 |
| 2 | 141333006 | KNIFE MOTOR | 1 |
| 3 | 417S30034 | SCREW M4 L=14 | 4 |
| 4 | 41301040 | KNIFE MOTOR HIGHER BASE | 1 |
| 5 | 41301041 | KNIFE MOTOR BASE | 1 |
| 6 | 421S13029 | SCREW M6 L=12 | 2 |
| 7 | 41324016 | BEARING | 1 |
| 8 | 41303045 | KNIFE DRIVING BLOCK | 1 |
| 9 | 413S14013 | SCREW M5 L=6 | 3 |
| 10 | 413S13019 | SCREW M5 L=12 | 4 |
| 11 | 41728004 | WASHER 6×16×1.5 | 2 |
| 12 | 4130501000 | KNIFE DRIVING LINK ASSY | 1 |
| 13 | 413S14013 | SCREW M5 L=6 | 1 |
| 14 | 41326013 | JUNCTION SHAFT A | 2 |
| 15 | 413S14001 | SCREW M6 L=6 | 1 |
| 16 | 207S14006 | SCREW | 2 |
| 17 | 41304019 | KNIFE GUIDE | 1 |
| 18 | 413S13023 | SCREW M6 L=12 | 1 |
| 19 | 41304022 | KNIFE BAR BRACKET | 1 |
| 20 | 41303039 | KNIFE BAR BUSHING | 1 |
| 21 | 41303040 | KNIFE BAR LOWER BUSHING | 1 |
| 22 | 40219009 | KNIFE 1/2" | 1 |
| 23 | 41328010 | WASHER 4.5×9×0.8 | 1 |
| 24 | 413S12004 | SCREW M4 L=6 | 1 |
| 25 | 41302009 | KNIFE BAR | 1 |
| 26 | 41304011 | KNIFE BAR BASE | 1 |
| 27 | 413S13023 | SCREW M6 L=12 | 1 |
| 28 | 41304014 | KNIFE FITTING BASE | 1 |
| 29 | 413S13019 | SCREW M5 L=12 | 1 |
| 30 | 41312080 | SUPPORT GUIDE | 1 |
| 31 | 41328012 | WASHER 4.5×12×1 | 2 |
| 32 | 413S13016 | SCREW M4 L=8 | 2 |
| 33 | 413S13013 | SCREW M6 L=25 | 3 |
| 34 | 141304009 | CUTTER GUIDE SEAT | 1 |
Page 21 — 10. TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41332001 | TABLE | 1 |
| 2 | -------- | TAPPING SCREW M5×35 | 4 |
| 3 | -------- | DRAWER | 1 |
| 4 | -------- | DRAWER SUPPORT | 2 |
| 5 | -------- | WOOD SCREW D=3.1 L=16 | 6 |
| 6 | -------- | DRAWER STOPPER | 1 |
| 7 | 702052 | T-STAND COMPL | 1 |
| 8 | -------- | T-STAND ASM. | 1 |
| 9 | -------- | UPPER STAND ASM.,RIGHT | 1 |
| 10 | -------- | UPPER STAND ASM.,LEFT | 1 |
| 11 | -------- | LOWER LEG, RIGHT | 1 |
| 12 | -------- | LOWER LEG, LEFT | 1 |
| 13 | -------- | STAND SIDE SUPPORT | 1 |
| 14 | -------- | STAND SIDE SUPPORT | 1 |
| 15 | -------- | RUBBER CAP | 4 |
| 16 | -------- | NUT | 2 |
| 17 | -------- | WASHER M12 | 4 |
| 18 | -------- | SPRING WASHER 12.5×21.5×3 | 4 |
| 19 | -------- | ADJUSTING SCREW ASM. WITH CAP | 4 |
| 20 | -------- | NUT M12 | 1 |
| 21 | -------- | UPPER STAND PLATE | 2 |
| 22 | -------- | WASHER HEXAGONAL BOLT | 12 |
| 23 | -------- | Z-STAND PEDAL ASM | 1 |
| 24 | -------- | Z-STAND PEDAL ASM | 1 |
| 25 | -------- | PEDAL SHAFT BRACKET | 2 |
| 26 | -------- | PEDAL CONNECTING ROD | 1 |
| 27 | -------- | PEDAL BUSHING | 2 |
| 28 | -------- | PEDAL ASM. | 1 |
| 29 | -------- | PEDAL ADJUSTING PLATE | 1 |
| 30 | -------- | NUT M8 | 2 |
| 31 | -------- | SCREW M6 L=12 | 2 |
| 32 | -------- | SCREW M8 L=20 | 2 |
| 33 | -------- | WASHER 6.7×13×1 | 2 |
| 34 | -------- | WASHER 8.7×18×1.6 | 4 |
| 35 | -------- | SPRING WASHER 6.2×11.4×1.2 | 2 |
| 36 | -------- | SPRING WASHER 8.6×15×1.4 | 2 |
Page 23 — 11. CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14133000300 | CONTROL OF DAHAO | 1 |
| 2 | -------- | COVER PLATE | 1 |
| 3 | -------- | SCREW | 12 |
| 4 | -------- | FRONT COOLING PLATE | 1 |
| 5 | -------- | PCB 1 | 1 |
| 6 | -------- | PCB 2 | 1 |
| 7 | -------- | K16Q SMALL RADITOR | 1 |
| 8 | -------- | HEAT DISSIPATION BAFFLE | 1 |
| 9 | -------- | REAR COOLING PLATE | 1 |
| 10 | -------- | BASE PLATE | 1 |
| 11 | -------- | FAN MOTOR | 1 |
Page 25 — 12. OPERATION BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 14133000400 | OPERATION PANEL OF DAHAO | 1 |
| 3 | 141312001 | OPERATION PANEL HOLDER 1 | 1 |
| 4 | 403S11013 | SCREW M4 L=8 | 6 |
| 5 | 141312002 | OPERATION PANEL HOLDER 2 | 1 |
Page 27 — 13. ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40131017 | ACCESSORIE BAG | 1 |
| 2 | 10131004 | SCREW DRIVER,SMALL | 1 |
| 3 | 10131003 | SCREW DRIVER,MIDDLE | 1 |
| 4 | 4021800200 | BOBBIN | 1 |
| 5 | 40217002 | NEEDLE DP×5 #12 J-2 | 1 |
| 6 | 20131056 | HEXAGONAL WRENCH KEY | 1 |
| 7 | 41312097 | HOOK TIMING GAUGE, K | 1 |
| 8 | -------- | 0 | |
| 9 | -------- | 0 | |
| 10 | -------- | 0 | |
| 11 | 41322003 | RUBBER CUSHION(B) | 4 |
| 12 | 4133100600 | CONNECTING ROD COMPL. | 1 |
| 13 | 4130101200 | AUXILIARY TABLE ASM. | 1 |
| 14 | 301651 | AUXILIARY TABLE | 1 |
| 15 | 41312090 | INSTALLING PLATE | 2 |
| 16 | 413S11025 | SCREW 11/64-40 L=4.8 | 4 |
| 17 | 413S13005 | SCREW M6 L=10 | 2 |
| 18 | 40219012 | KNIFE 1 | 1 |
| 19 | 20131038 | OILER | 1 |
| 20 | 20031037 | DEFRIX OIL NO.1 | 1 |
| 21 | 40219010 | KNIFE 5/8 | 1 |
| 22 | 40219009 | KNIFE 1/2 | 1 |
| 23 | -------- | 0 | |
| 24 | 4133100700 | ASSY SAFETY PLATE B | 1 |
| 25 | 41312099 | SAFETY PLATE BESE | 1 |
| 26 | 41311021 | SAFETY PLATE | 1 |
| 27 | 413S11028 | SCREW M4 L=8 | 2 |
| 28 | 413S13003 | SCREW M4 L=6 | 1 |
| 29 | 41328001 | WASHER 6.1×18.5×2 | 4 |
| 30 | 413S16005 | NUT M6 | 4 |
| 31 | -------- | 0 | |
| 32 | 141331001 | TIMING GAUGE,DMESTIC USE. | 1 |
| 33 | 40219011 | KNIFE 3/8 | 1 |
| 34 | 413S13008 | BOLT | 1 |
| 35 | -------- | 0 | |
| 36 | 11411029 | GREASE A TUBE | 1 |
| 37 | -------- | 0 | |
| 38 | 30131012 | HEXAGONAL SPANNER | 1 |
| 39 | 10131002 | SCREW DRIVER,LARGE | 1 |
| 40 | 41331030 | EC PRODUCTION DECLARATION | 1 |
| 41 | 40311002 | HEAD SUPPORT BAR | 1 |
| 42 | 413S13006 | HEXAGON BOLT | 4 |
| 413120090 | |||
| 4013012 | |||
| 40120900 | |||
| 413100700 |
Page 28 — 14. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1383100300 | THREAD STAND ASM. | 1 |
Page 30 — 15. SPECIAL SPECIFICATIONS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 41312103 | WORK CLAMP HOLDER SPACE | 1 |
| 6 | 413S11013 | SCREW M4 L=4 | 3 |
| 7 | 41312104 | UTT CLOSE CAM 120B | 1 |
| 8 | 41312105 | LIFTING PLATE 120 | 1 |
| 9 | 413S11018 | SCREW M5 L=8 | 2 |
| 10 | 41316007 | WORK CLAMP ARM 120 | 1 |
| 11 | 41312106 | WORK CLAMP CARRIER 120 | 1 |
| 12 | 4131600200 | PRESSER FOOT 70 ASM. | 1 |
| 13 | 40212018 | PRESSER FITTING PLATE SPING | 2 |
| 14 | 40227003 | PRESSER FOOT HOLDER SPRING | 1 |
| 15 | 41316003 | PRESSER FOOT 70 | 1 |
| 16 | 40226008 | BRESSER FOOT PIN B | 2 |
| 17 | 41316004 | URETHANE PRESSER 70 | 1 |
| 18 | 41316005 | PRESSER 70 (FLAT) | 1 |
| 19 | 41316006 | PRESSER70 | 1 |
| 20 | 413S11029 | SCREW 3/32-56 L=1.9 | 6 |
| 21 | 402S20002 | HINGE SCREW D=7.94 H=2 | 3 |
| 25 | 4131600900 | ASSY WORK CLAMP CHECH HOLDER I | 1 |
| 26 | 41327018 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 27 | 41326035 | WORK CLAMP CHECK SPRING SET PI | 2 |
| 28 | 41312109 | WORK CLAMP CHECK SPRING | 2 |
| 29 | 41316010 | WORK CLAMP CHECK HOLDER 120 | 1 |
| 30 | 41316011 | WORK CLAMP 120 | 1 |
| 31 | 4131602700 | ASSY WORK CLAMP CHECH HOLDER | 1 |
| 32 | 41312037 | WORK CLAMP CARRIER | 1 |
| 33 | 4131501000 | THROAT PLATE BASE UNIT | 1 |
| 34 | 41315011 | THROAT PLATE BASE | 1 |
| 35 | 413S17002 | SCREW | 1 |
| 36 | 14131500200 | THROAT PLATE BASE UNIT | 1 |
| 37 | 41315001 | THROAT PLATE BASE | 1 |
| 38 | 14131600100 | ASSY WORK CLAMP CHECH HOLDER | 1 |
| 39 | 14131600500 | ASSY WORK CLAMP CHECH HOLDER | 1 |
| 40 | 14131600800 | ASSY WORK CLAMP CHECH HOLDER | 1 |
| 43 | 4131601000 | WORK CLAMP CHECK HOLDER ASM | 1 |
| 44 | 4131602800 | WORK CLAMP CHECK HOLDER ASM | 1 |
Page 32 — 16. BOTTOM LINE DETECTION MECHANISM (OPTION PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 413S13003 | SCREW M4 L=6 | 4 |
| 2 | 41328023 | WASHER M4 | 2 |
| 3 | 41312003 | LUBRICATING OIL WICK | 1 |
| 4 | 141312002 | BOBBIN OF BOTTOM LINE DETECTION | 2 |
| 5 | 41845224 | AIR TUBE(BLACK) | 3 |
| 6 | 40736036 | GAS-TYPE FITTING APY4 | 1 |
| 7 | 413S14012 | HEXAGON SOCKET HEAD CAP SCREW | 4 |
| 8 | 41311001 | CABLE CLAMP | 1 |
| 9 | 14183000400 | SENSOR OF BOTTOM LINE DETECTION | 1 |
| 10 | 141312011 | SUPPORT OF NIPPLE | 1 |
| 11 | 42136010 | GAS-TYPE FITTING | 2 |
| 12 | 413S11022 | SCREW M3 L=4 | 2 |
| 13 | 141312007 | SUPPORT OF SENSOR | 1 |
| 14 | 41712106 | SETTING PLATE VALVE | 1 |
| 15 | N01024 | NUT M4 | 2 |
| 16 | S16001 | SELF-TAPPING SCREW ST4.8 L=20 | 2 |
| 17 | 42130096 | VALVE VHK3 | 1 |
| 18 | 141845004 | AIR SOURCE PROCESSOR | 1 |
| 19 | 417S30026 | FITTING | 1 |
| 20 | 407S12002 | SCREW | 3 |
| 21 | 41730014 | MANIFLOD 7V0500M3F | 1 |
| 22 | 41730015 | BLANKING PLATE ASSY P-7V0500M-R2 | 2 |
| 23 | 41730012 | SOLENOID VALVE | 1 |
| 24 | 41730013 | FITTING | 2 |
| 25 | 42122001 | PLUG | 1 |
| 26 | 40728003 | SILENCER | 2 |
| 27 | 417S30024 | SCREW | 2 |

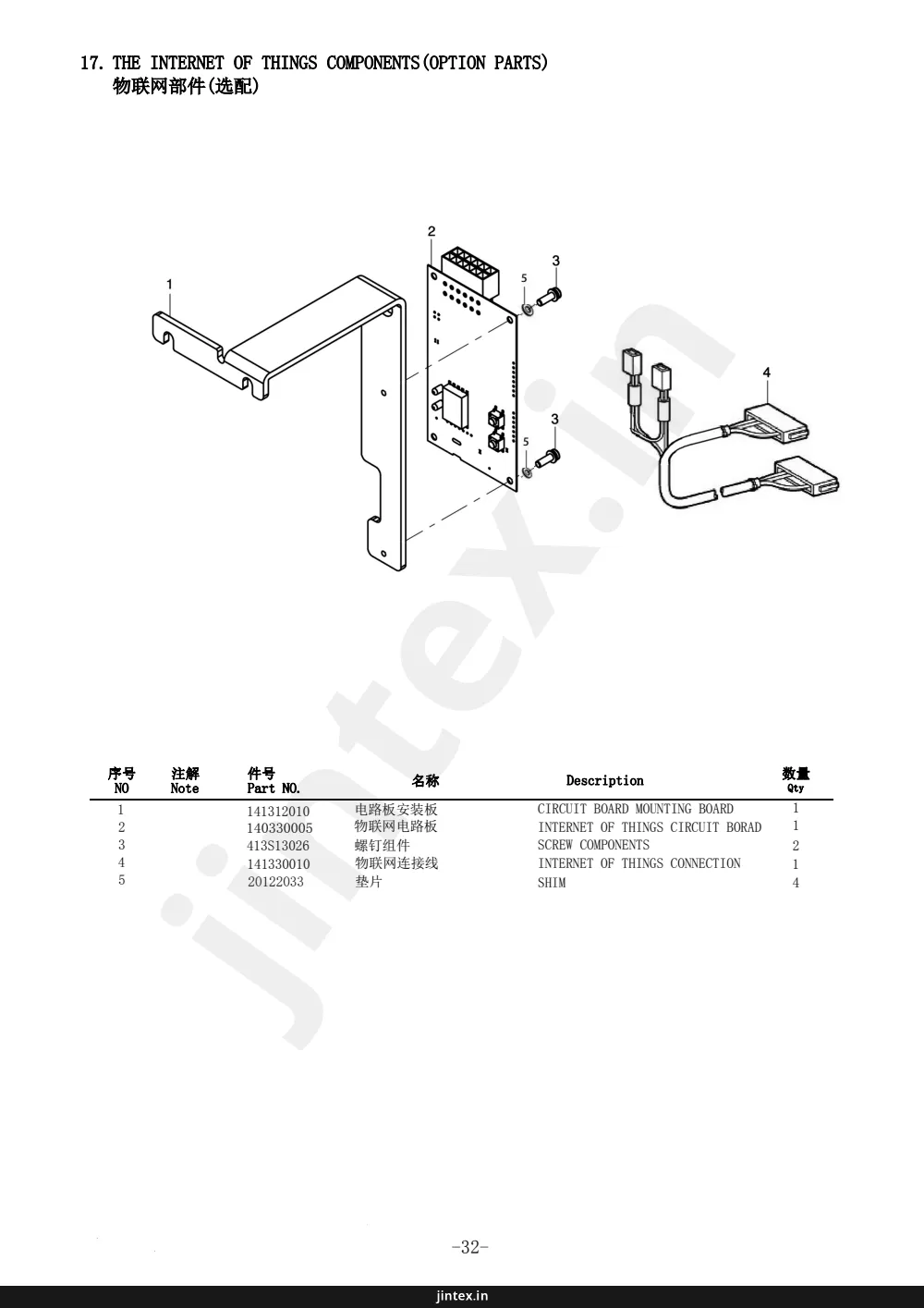

Page 33 — 17. THE INTERNET OF THINGS COMPONENTS (OPTION PARTS) 物联网部件(选配)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141312010 | CIRCUIT BOARD MOUNTING BOARD | 1 |
| 2 | 140330005 | INTERNET OF THINGS CIRCUIT BORAD | 1 |
| 3 | 413S13026 | SCREW COMPONENTS | 2 |
| 4 | 141330010 | INTERNET OF THINGS CONNECTION | 1 |
| 5 | 20122033 | SHIM | 4 |
Jack JK-T1790G — parts catalog
- Page 2 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 3 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 89.
- Page 4 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 5 (parts_list): Parts list page 4 of a sewing machine part book, listing reference numbers 1 to 70 with part numbers, Chinese and English names, and quantities for thread tension, bobbin winder and thread guide assemblies.
- Page 6 (diagram): This page displays a diagram of main shaft components, including various shafts, bearings, gears, and fasteners, with reference numbers for each part.
- Page 7 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, bearings, shafts, and assemblies, with corresponding part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts and their corresponding references.
- Page 9 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including bearings, shafts, hooks, and fasteners, with corresponding part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of presser and feed components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 11 (parts_list): This page contains a parts list for a sewing machine, detailing part numbers, descriptions, quantities, and other relevant information for various components.
- Page 12 (diagram): This page displays a diagram of needle bar rocking components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like zigzag drive assemblies, rods, shafts, screws, and needle bars.
- Page 14 (diagram): This page displays a diagram of needle thread trimmer components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as screws, nuts, washers, and various assemblies like the cutting wire module and sensor.
- Page 16 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding part numbers and descriptions.
- Page 17 (parts_list): This page lists parts for the JINREX sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 83.
- Page 18 (diagram): This page displays a diagram of cloth cutting knife components, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists parts for a knife motor assembly, including part numbers, descriptions, and quantities. It details components like knife motors, screws, bearings, and guides.
- Page 20 (diagram): This page displays a diagram of table components, including various brackets, screws, and other hardware, with reference numbers for each part.
- Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like tables, screws, drawers, stands, pedals, and washers.
- Page 22 (diagram): This page displays a diagram of control box components, with numbered parts including a control box, screws, a circuit board, a heatsink, a fan, and other electronic components.
- Page 23 (parts_list): This page lists parts for a DAHAB machine, including control components, cooling plates, PCBs, and a fan motor, with their respective part numbers and quantities.
- Page 24 (diagram): This page displays a diagram of operation box components, including a main unit labeled with reference number 2, a bracket labeled 3, screws labeled 4, and a frame labeled 5.
- Page 25 (parts_list): This page lists parts for the operation panel, including part numbers, descriptions, and quantities. It details items like the operation panel of DAHIAO, panel holders, and screws.
- Page 26 (diagram): This page displays a diagram of accessory part components, including various tools like screwdrivers, a bottle, a bolt, and a bracket, along with their corresponding reference numbers.
- Page 27 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from accessory bags to bolts and grease.
- Page 28 (parts_list): This page lists the components for the thread stand, including part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a diagram of special specification components for large size type sewing machines (70mm, 120mm), including parts for short thread type and knitting type.
- Page 30 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It details various components like work clamp holders, screws, and presser feet.
- Page 31 (diagram): This page displays a diagram of the bottom line detection mechanism, including various numbered parts and their corresponding references.
- Page 32 (parts_list): This page lists parts for a sewing machine, including screws, washers, tubes, sensors, and fittings, with their corresponding part numbers, descriptions, and quantities.
- Page 33 (diagram): This page displays a diagram of Internet of Things components, including a circuit board mounting board, IoT circuit board, screw components, IoT connection cable, and shims, along with their corresponding part numbers and quantities.
