Jack JK-T1900A Parts Book (PDF)
Text index — Jack JK-T1900A
Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06478 | MOTOR COVER | 1 |
| 2 | SM-5040855-SN | SCREW | 4 |
| 3 | 400-06479 | UPSIDE CVER | 1 |
| 4 | SM-4061255-SP | SCREW M6 L=12 | 6 |
| 5 | 400-10404 | PROTECTION -PLATE | 1 |
| 6 | SM-4050855-SP | SCREW | 3 |
| 7 | 400-06478 | BED COVER LEFT | 1 |
| 8 | 400-06488 | BED COVER RIGHT | 1 |
| 9 | SM-6040650-TP | SCREW M4 L=6 | 5 |
| 10 | 400-06481 | FACE COVER | 1 |
| 11 | 229-02506 | FACE PLATE | 1 |
| 12 | SM-4041055-SP | SCREW | 2 |
| 13 | 400-10405 | CRANK-ROD-COVER | 1 |
| 14 | SM-5040855-SN | SCREW | 4 |
| 15 | 138-16855 | CYLINDER ARM CAP | 1 |
| 16 | 135-08700 | HOOK COVER PRESSER SPRING PIN | 1 |
| 17 | 135-08809 | HOOK COVER PRESSER SPRING A | 1 |
| 18 | 135-08908 | HOOK COVER PRESSER SPRING B | 1 |
| 19 | SM-5040855-SN | SCREW | 1 |
| 20 | SM-6041150-TP | SCREW M4 L=11 | 3 |
| 21 | B2707-761-000 | HINGE STUD | 2 |
| 22 | SM-8060612-TP | SCREW M6 L=6 | 4 |
| 23 | 141-13468 | BOBBIN THREAD TENSION ASM | 1 |
| 24 | 141-13450 | BOBBIN THREAD TENSION ROD ASM | (1) |
| 25 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 26 | D7133-555-B00 | CONNECTING ROD SPRING | (1) |
| 27 | 110-72402 | THREAD TENSION NUT | (1) |
| 28 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 29 | 138-16608 | BALANCE COVER | 1 |
| 30 | SM-4030855-SN | SCREW M3 L=8 | 2 |
| 31 | 400-10414 | THREAD GUIDE NO.1 | 1 |
| 32 | SM-4061255-SP | SCREW M6 L=12 | 1 |
| 33 | B1111-232-000 | THREAD GUIDE PLATE | 1 |
| 34 | SM-4061255-SP | SCREW M6 L=12 | 1 |
| 35 | 400-10571 | L-SHAPED-THREAD-GUIDE-A | 1 |
| 36 | NM-6040000-SN | NUT M4 | 1 |
| 37 | 299-20508 | ARM THERAD GUIDE A | 1 |
| 38 | SM-6040650-TP | SCREW M4 L=6 | 1 |
| 39 | 137-05108 | TAKE-UP THERAD GUIDE B | 1 |
| 40 | SM-6040860-TP | SCREW M4 L=8 | 1 |
| 41 | B1129-210-000 | FRAME THERAD GUIDE (B) | 1 |
| 42 | SM-6040860-TP | SCREW M4 L=8 | 1 |
| 44 | SM-4030601-SN | SCREW M3X6 | 1 |
| 46 | 105-02300 | THREAD CUTTER | 1 |
| 48 | TA-0750704-R0 | RUBBER PLUG | 2 |
| 49 | TA-0850604-R0 | RUBBER PLUG | 2 |
| 50 | TA-1050504-R0 | RUBBER PLUG | 8 |
| 51 | TA-1250406-R0 | RUBBER PLUG D=12.4 L=4 | 1 |
| 52 | TA-1270502-R0 | RUBBER PLUG | 1 |
| 53 | TA-1470704-R0 | RUBBER PLUG | 1 |
| 54 | TA-1550902-R0 | PLUG | 2 |
| 55 | TA-2100904-R0 | RUBBER PLUG | 3 |
| 56 | 262-60000 | BOBBIN WINDER UNIT | 1 |
| 57 | RC-0560711-KP | RETAINING RING | (1) |
| 58 | RE-0400000-K0 | E-RING 4 | (1) |
| 59 | 262-60802 | BTW BEARING SPACER | (1) |
| 60 | 262-61602 | BOBBIN SPRING | (1) |
| 61 | 262-61701 | BTW SPRING | (1) |
| 62 | 262-60109 | BTW BASE | (1) |
| 63 | 262-60208 | BTW CAM PLATE | (1) |
| 64 | 262-60901 | BTW SHAFT | (1) |
| 65 | 262-61008 | BTW LEVER SHAFT | (1) |
| 66 | 262-61107 | BTW LEVER | (1) |
| 67 | SM-5040655-SN | SCREW | (1) |
| 68 | WP-0450826-SC | WASHER 4.5X10X0.8 | (1) |
| 69 | 262-60307 | BTW BASE SHAFT | (1) |
| 70 | 262-61305 | BTW BEARING | (2) |
| 71 | 262-60406 | BTW SHAFT BASE | (1) |
| 72 | 262-61206 | BTW SPACER | (1) |
| 73 | 262-60505 | BTW CAM LEVER | (1) |
| 74 | SM-8050502-TP | SCREW M5 L=5 | (1) |
| 75 | 262-60604 | BTW WHEEL | (1) |
| 76 | SM-8040802-TP | SCREW M4X8 | (2) |
| 77 | 262-60701 | BTW TORSION SPRING | (1) |
| 78 | 262-61506 | BTW WHEEL RUBBER | (1) |
| 79 | 400-11929 | CRANK ROD UNDER COVER | 1 |
| 80 | SM-5040855-SN | SCREW | 3 |
| 81 | 029-01409 | NEEDLE BAR UPPRER BUSH CAP | 1 |
| 82 | 40323010 | LOWER_SHAFT_GEAR_FELT | 1 |
| 83 | 40330025 | LED | 1 |
| 40112007 | BALANCE COVER |
Page 6 — 2. MAIM SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-10572 | MAIN SHAFT | 1 |
| 3 | 400-10416 | BEARING BUSH -A | (2) |
| 4 | SM-8060812-TP | SCREW M6 L=8 | (4) |
| 5 | SB-1200015-00 | BEARING | 1 |
| 6 | SB-1200015-00 | BEARING | 1 |
| 7 | SB-1200017-00 | BEARING | 1 |
| 9 | 400-10419 | BEARING BUSH -B | (1) |
| 10 | SM-8060812-TP | SCREW M6 L=8 | (2) |
| 12 | 400-10421 | CRANK-ROD-SUPPORT-PLATE | (1) |
| 13 | SM-1030601-SP | SCREW M3 L=6 | (3) |
| 14 | TA-0670604-R0 | PLUG D=6.7 L=6 | (2) |
| 15 | 101-08009 | OIL SEAL | (2) |
| 16 | 400-06561 | OSCILLATOR | (1) |
| 17 | 400-26818 | WASHER | (1) |
| 18 | SM-8480652-TP | SCREW | (2) |
| 19 | RE-0800000-K0 | E-SHAPEDSNAP RING (8mm) | (1) |
| 20 | SM-6060550-TP | SCREW M6 L=4.5 | (1) |
| 21 | 400-06529 | THREAD TAKE UP COMPL | 1 |
| 23 | SB-1080022-00 | BEARING | (2) |
| 24 | SB-1040016-00 | BEARING | (1) |
| 25 | 400-06531 | THREAD TAKE UP LEVER | (1) |
| 26 | B1908-505-000 | THREAD PASS BUSH | (1) |
| 28 | 228-91006 | NEEDLE BAR CRANK ROD METAL | (1) |
| 29 | 400-06535 | NEEDLE BAR CRANK ROD | (1) |
| 30 | SB-1080023-00 | BEARING | (1) |
| 31 | B1903-552-000 | LEFT SCREW | (1) |
| 32 | 400-06532 | THREAD TAKE UP CRANK | (1) |
| 33 | 400-06537 | NEEDLE ROD CRANK | (1) |
| 34 | 228-91204 | BEARING SUPPORT | 2 |
| 35 | SB-3070002-0A | BEARING | 2 |
| 40 | 400-10435 | THRUST-COLLAR | (1) |
| 41 | 400-10436 | THRUST-COLLAR-SCREW | (2) |
| 43 | 400-10534 | BTW-DRIVING-WHEEL | (1) |
| 44 | 400-10533 | BTW-DRIVING-WHEEL SCREW | (2) |
| 45 | 400-10423 | COUNTER WEIGHT | 1 |
| 46 | 400-06517 | COUNTER WEIGHT SCREW A | 1 |
| 47 | SM-6081252-TP | BOLT M8 L=12 | 1 |
| 48 | SM-8480652-TP | SCREW M6X0.75 L=6 | 1 |
| 49 | SM-6061200-SP | SCREW | 1 |
| 50 | WP-0820516-SP | WASHER 11.6X8.2X0.6 | 1 |
| 51 | 400-11902 | THREAD-TAKE-UP-CRANK-SHAFT | 1 |
| 53 | 400-10439 | CRANK-BALANCER-FIX-PLATE | (1) |
| 54 | 400-10440 | CRANK-BALANCER-FIX-PLATE-SCREW | (2) |
| 55 | 400-10438 | AC SERVO MOTOR | (1) |
| 56 | SL-6052592-TN | BOLT | 4 |
| 57-01 | 40301023 | COUPLING 1 | 1 |
| 57-02 | 40301024 | COUPLING 2 | |
| 57-03 | 40322028 | DAMPING RUBBER | |
| 58 | SM-8060812-TP | SCREW M6 L=8 | 4 |
| 59 | B1212-210-D00 | PULLEY | 1 |
| 60 | B1144-210-000 | REVOLVING DIRECTION LABEL | 1 |
| 61 | 265-00306 | HAND PULLEY SHAFT | 1 |
| 62 | PS-0400142-KH | SPRING PIN 4X14 | 1 |
| 63 | A1230-500-00A | SET-SCREW | 1 |
| 64 | GAF-01007000 | SPRING | 1 |
| 65 | 400-06515 | GEAR A | 1 |
| 66 | SM-8040310-SS | SCREW M4 L=3 | 2 |
| 67 | 400-06516 | GEAR B | 1 |
| 68 | SM-8040310-SS | SCREW M4 L=3 | 2 |
| 69 | 400-10573 | NEEDLE BAR | 1 |
| 70 | B1411-552-000 | NEEDLE BAR CLAMP | 1 |
| 71 | SS-6090670-TP | SCREW 9/64-40 L=6 | 1 |
| 72 | B1414-555-000 | SLIDE BLOCK | 1 |
| 73 | 400-10441 | NEEDLE ROD METAL | 1 |
| 74 | 400-10442 | NEEDLE ROD LOWER METAL | 1 |
| 75 | 400-10574 | THREAD GUIDE | 1 |
| 77 | MDF-500B1400 | NEEDLE DPX5 #11 | 1 |
| 80 | 301S11014 | SCREW M3 L=4.5 | 1 |
| 81 | SM-8480652-TP | SCREW M6X0.75 L=6 | 3 |
| 82 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 83 | 400-28015 | AC SERVO MOTOR | 1 |
| 84 | SM-6061250-TP | SCREW M6 L=12 | 2 |
| 40330011 | LEFT SCREW | ||
| 403S0005 | BTW-DRIVING-WHEEL |
Page 8 — 3. PRESSER LIFTER & WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | SM-4041455-SP | SCREW M4 L=14 | 4 |
| 3 | WP-0450800-SP | BEARING | 4 |
| 5 | 40303017 | NEEDLE CAM ROLLER A | 1 |
| 6 | 403s20009 | CAM ROLLER SHAFT | 1 |
| 7 | 403s16005 | NUT M4X0.7 | 2 |
| 8 | 40312140 | LIFTER LINK A ASM. | 1 |
| 10 | SM-8069012-TP | SCREW M6 L=8 | 1 |
| 11 | SM-4041455-SP | SCREW M5 L=14 | 6 |
| 12 | WP-0450801-SP | WASHER | 6 |
| 15 | SM-6040802-TP | SCREW M4x0.7 L=8 | 2 |
| 17 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 18 | HD-0003700-0A | PHTO SENSOR | 1 |
| 19 | SL-4031291-SC | SCREW M3 L=12 | 1 |
| 20 | 400-06665 | LIFTER LINK B | 1 |
| 21 | SD-0800327-TP | HINGE SCREW D=8 H=3.2 | 1 |
| 22 | NM-6050001-SP | NUT M5 | 1 |
| 23 | SD-0700406-TP | HINGE SCREW D=7 H=4 | 1 |
| 24 | 400-06671 | CONNECTING ARM | 1 |
| 25 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 26 | 265-00405 | CONNECTING SHAFT | 1 |
| 27 | 400-08693 | LOWERING ARM | 1 |
| 28 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 29 | SD-0790606-TP | HINGE SCREW D=7.94 H=6 | 1 |
| 30 | NM-6060001-CP | NUT M6 | 1 |
| 31 | 400-06672 | LOWERING FOOT | 1 |
| 32 | 141-04400 | CONNECTING LINK | 1 |
| 33 | SD-1000406-TP | HINGE SCREW D=10 H=4 | 2 |
| 34 | 400-06674 | WIPER CONNECTING LINK | 1 |
| 35 | SD-0600206-TP | HINGE SCREW D=6 H=2 | 1 |
| 36 | 135-09708 | SPRING | 1 |
| 37 | 4031213700 | WIPER CONNECTING-ARM-ASM | 1 |
| 38 | RC-0470611-KP | RETAINING RING 4.7 | 2 |
| 39 | 400-10455 | WIPER CONNECTING-LINK-SHAFT | 1 |
| 40 | 400-10457 | WIPER -STOPPER | 1 |
| 41 | 400-10458 | WIPER CONNECTING-PLATE | 1 |
| 42 | 400-17202 | WIPER C ASM | 1 |
| 43 | NM-6060003-SC | NUT M6 | 1 |
| 44 | RC-0470611-KP | RETAINING RING 4.7 | 1 |
| 45 | SD-0640216-TP | HINGE SCREW D=6.35 H=2.1 | 1 |
| 46 | 400-06678 | WIPER BASE PLATE | 1 |
| 47 | SM-4040855-SP | SCREW | 1 |
| 48 | WP-0450801-SP | WASHER | 1 |
| 50 | 400-29903 | PRESSER LIFTING MOTOR | 1 |
| 51 | 40312141 | ASSY PBL MOTOR BASE | 1 |
| 52 | 40310010 | THREAD TPIMMER CAM | 1 |
| 53 | 40312143 | SENSOR SLIT ASM | 1 |
| 54 | 40312144 | SENSOR_INSTALLING_BASE | 1 |
| 55 | 40312142 | MOTOR BRACKET | 1 |
| 56 | 40326037 | THREAD TRIMMER SHAFT | 1 |
| 57 | 400-10533 | SCREW | (2) |
| 05049 | SCREW M4 L=14 | 4 | |
| 405004 | SCREW M5 L=14 | 6 | |
| 40330005 | PHTO SENSOR | 1 | |
| 505030 | SCREW M6 L=18 | 1 |
Page 10 — 4. SHUTTLE DRIVER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | HX-0015000-0D | CABLE CLIP | 1 |
| 2 | 400-12127 | OIL-PIPE-HOLDER | 1 |
| 3 | SM-6040602-TP | SCREW M4 L=6 | 1 |
| 4 | 400-13721 | TUBE-CLAMP | 1 |
| 5 | SL-4040891-SC | SCREW M4 L=8 | 1 |
| 6 | 400-10464 | THRUST-COLLAR-ASM. | 1 |
| 7 | 400-10467 | THRUST-COLLAR | (1) |
| 8 | 400-10468 | THRUST-COLLAR-SCREW | (2) |
| 9 | SB-1100024-00 | BEARING | 3 |
| 10 | 400-16077 | LOWER-SHAFT-GEAR-ASM. | 1 |
| 10-01 | 40303021 | LOWER-SHAFT-GEAR | 1 |
| 10-02 | 403S16011 | NUT M12X1 | 1 |
| 10-03 | 40328024 | WASHER | 2 |
| 10-04 | 11424001 | BEARING | 2 |
| 10-05 | 40325015 | GEAR | 1 |
| 11 | 400-06563 | OSCILLATOR SHAFT | 1 |
| 12 | SM-8060612-TP | SCREW M6 L=6 | 2 |
| 13 | 400-10575 | LOWER SHAFT | 1 |
| 14 | EA-9500B01-00 | CABLE BAND | 2 |
| 15 | 400-06578 | OIL WICK PRESSER | 1 |
| 16 | SM-8060610-TP | SCREW | 1 |
| 17 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 18 | 400-06573 | SHUTTLE ASM. | 1 |
| 19 | 400-06574 | SHUTTLE | (1) |
| 20 | B1820-210-D00 | SHUTTLE OIL FELT A | (2) |
| 21 | B1821-210-D00 | SHUTTLE OIL FELT A | (1) |
| 22 | B1822-215-P00 | INNER HOOK PRESSER SPRING | (2) |
| 23 | RE-0300000-K0 | E-RING 3 | (2) |
| 24 | 265-01858 | INNER HOOK PRESSER SPRING | (2) |
| 25 | 141-04004 | ONCE THROUGH OIL FELT PRESSER | (1) |
| 26 | SM-6020460-TP | SCREW M2 L=3.5 | (2) |
| 27 | 141-03907 | SHUTTLE ONCE THROUGH OIL FELT | (1) |
| 28 | 400-06577 | SHUTTLE LUBRICATING PLATE | (1) |
| 29 | SM-4030455-SP | SCREW | (2) |
| 30 | CQ-2000000-00 | OIL WICK | (2.6) |
| 31 | CQ-2000000-00 | OIL WICK | (1.4) |
| 32 | 236-30007 | TUBE | (1) |
| 33 | 236-30007 | TUBE | (0.6) |
| 34 | 135-29607 | SHUTTLE PACKING | (2) |
| 35 | 400-10471 | SHUTTLE -PACE-ADJUSTING | 1 |
| 36 | SM-6040650-TP | SCREW M4 L=6 | 1 |
| 37 | 400-06575 | SHUTTLE BEARING RING | 2 |
| 38 | 400-06576 | SHUTTLE OIL SEAL | 2 |
| 39 | SB-3080010-0A | BEARING | 2 |
| 40 | SB-3080010-0B | BEARING | 2 |
| 41 | SB-3080010-0C | BEARING | 2 |
| 42 | SB-3080010-0D | BEARING | 2 |
| 43 | B1815-210-000 | INNER HOOK UPPER SPRING | 1 |
| 44 | SM-6020460-TP | SCREW M2 L=3.5 | 2 |
| 45 | 141-03253 | INNER HOOK PRESSER ASM., A | 1 |
| 46 | 141-03352 | INNER HOOK PRESSER ASM., B | 1 |
| 47 | 141-03659 | INNER HOOK PRESSER ASM., C | 1 |
| 48 | 400-11512 | DRIVER ASM. | 1 |
| 49 | 400-14963 | SHUTTLE DRIVER ASM. | 1 |
| 50 | SS-6121212-TP | SCREW 3/16-28 L=12.0 | (1) |
| 51 | 400-11511 | SHUTTLE-DRIVER | (1) |
| 52 | 400-10879 | SHUTTLE-DRIVER | (1) |
| 53 | B1828-980-0BB | BOBBIN CASE ASM. (RACING PREVE) | 1 |
| 54 | 138-12102 | BOBBIN | 1 |
| 55 | 400-10473 | ORL WICK PERSSER | 1 |
| 56 | 400-10474 | LOWER SHAFT-GEAR-FELT | (1) |
| 57 | 400-10475 | LOWER SHAFT-GEAR-COVER | (1) |
| 58 | WP-0450801-SP | WASHER | 2 |
| 59 | SM-5040855-SN | SCREW | 2 |
| 60 | SL-4040891-SC | SCREW M4 L=8 | 1 |
| 61 | HX-0015000-0B | CABLE CLIP | 2 |
| 62 | SL-4040891-SC | SCREW M4 L=8 | 2 |
| 63 | SM-6040650-TP | SCREW M4 L=6 | 1 |
| 64 | 400-06840 | RUBBER BUSH | 2 |
| 65 | 4031101700 | OIL TANK ASM. | 1 |
| 66 | 400-06580 | SHUTTLE | 1 |
| 67 | - - - - | SHUTTLE (H) | 1 |
| 68 | - - - - | SHUTTLE (H) | 1 |
| 69 | - - - - | BOBBIN CASE ASM. | 1 |
| 70 | - - - - | BOBBIN | 1 |
| 71 | 400-10476 | SHUTTLE-ASM-SCRERW | 1 |
| 72 | SM-8061050-TP | SVREW | 1 |
| 73 | 40322019 | RUBBER PLUG | 1 |
| 74 | 12936003 | TERMINAL | 1 |
| 75 | 12921005 | TUBE | 0.3 |
| 76 | 403S11027 | SCREW M4 L=12 | 2 |
| 77 | 41736001 | TERMINAL L | 1 |
| 40227007 | INNER HOOK PRESSER SPRING | ||
| 40311046 | SHUTTLE LUBRICATING PLATE |
Page 12 — 5. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40330023 | TENSION RELEASE SOLENOID HV | 1 |
| 2 | 40311026 | SOLENOID COVER | 1 |
| 3 | 41712099 | SETTING PLATE SOLENOID | 1 |
| 4 | 417S30012 | SHOULDE SCREW 7-3 | 2 |
| 5 | 41722021 | O RING P7 | 2 |
| 6 | L02031 | BOLT M4X8 | 2 |
| 7 | W01001 | WASHER PLANT M4 | 2 |
| 8 | W02008 | WASHER SPRING 2-4 | 2 |
| 9 | 40328019 | WASHER | 2 |
| 27 | 4013100400 | THREAD-TENSION-1-ASM. | 1 |
| 28 | 40126010 | THREAD-TENSION-SHAFT | (1) |
| 29 | 401S16010 | NUT | (1) |
| 30 | 40112026 | THREAD TENSION DISK | (2) |
| 31 | 40127009 | FIRST-THREAD-TENSION-SPRING | (1) |
| 32 | 4033100700 | THREAD-TENSION-2-ASM. | 1 |
| 33 | 40303025 | THREAD-TENSION-POST-BASE | (1) |
| 34 | 40303024 | DISK-STOPPER-HOLDER-CAP | (1) |
| 35 | 403S16013 | THREAD-TENSION-SHAFT-COLLAR | (1) |
| 36 | 40327018 | DISK-STOPPER-SP | (3) |
| 37 | 40312123 | DISK-STOPPER | (1) |
| 38-1 | 40302011 | ASSY-THERAD-TENSION-POST | (1) |
| 38-2 | 40308011 | DISK-STOPPER | 1 |
| 38 | 40313011 | THREAD TENSION DISK | 2 |
| 39 | 403S14015 | AT-SOL-COLLAR-SCREW | (1) |
| 40 | 40327019 | THREAD TAKE-UP SPRING | (1) |
| 41 | 403S11048 | HOLD-CAP-SCREW | (3) |
| 42 | 403S16012 | SHAFT-NUT | 3 |
| 43 | 40329004 | POST-BASE-C-RING | (1) |
| 44 | 40326036 | THREAD-TENSION-SHAFT | (1) |
| 47 | 403S14016 | SCREW M6X16 | 1 |
Page 14 — 6. THREAD TRIMMER MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06711 | THREAD TRIMMER CAM | 1 |
| 2 | SM-4050552-TP | SCREW | 2 |
| 3 | WP-0450801-SP | WASHER | 1 |
| 4 | 400-40256 | CAM ROLLER SHAFT | 1 |
| 5 | NM-6040001-SP | NUT M4X0.7 | 2 |
| 6 | 400-06711 | THREAD TRIMMER LINK ASM. | 1 |
| 7 | SD-0800227-TP | HINGE SCREW D=8 H=3.2 | 1 |
| 8 | NM-6050001-SP | NUT M5 | 1 |
| 9 | 400-06716 | THREAD TRIMMER SHAFT | 1 |
| 10 | SM-8060812-TP | SCREW M6 L=8 | 1 |
| 11 | 400-06717 | CONNECTING BAR | 1 |
| 12 | 400-10525 | THREAD-TRIMMER-SENSOR-SLIT | 1 |
| 13 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 14 | HD-0022300-00 | PHOTO SENSOR | 1 |
| 15 | SL-4041291-SC | SCREW M4 L=12 | 1 |
| 16 | 400-10526 | THREAD-TRIMMER-SENSOR-BASE | 1 |
| 17 | SM-4040855-SP | SCREW | 2 |
| 18 | 400-06722 | NEEDLE PLATE ASM., A | 1 |
| 21 | B2417-280-000 | THREAD CUTTER LEVER SHAFT | (1) |
| 22 | B2426-280-000 | NEEDLE HOLE GUIDE | (1) |
| 25 | SS-1060210-TP | SCREW 3/32-56 L=2.2 | (2) |
| 26 | 400-06721 | NEEDLE PLATE | (1) |
| 27 | B2424-280-000 | FIXING KNIFE | (1) |
| 28 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (2) |
| 29 | B2418-280-000 | MOVING KNIFE LINK | (1) |
| 30 | B2416-280-000 | THREAD CUTTER LEVER RING | (1) |
| 31 | B2415-280-0A0 | THREAD CUTTER LEVER ASM. ,SMALL | (1) |
| 32 | B2414-280-0A0 | THREAD CUTTER LEVER ASM. ,LARGE | (1) |
| 33 | SS-6110430-TP | SCREW 11/64-40 L=4.0 | (1) |
| 34 | WP-0450846-SP | WASHER | (1) |
| 35 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 36 | B2423-280-00C | MOVING KNIFE WASHER C | (1) |
| 41 | B2421-280-0A0 | MOVING KNIFE ASM. | (1) |
| 42 | SD-0500091-TP | HINGE SCREW D=5 H=0.9 | (1) |
| 43 | SM-1040650-TP | SCREW M4 L=6 | 4 |
| 44 | 263-15606 | NEEDLE CAM ROLLER A | 1 |
| 48 | 400-29903 | PRESSER LIFTING MOTOR | 1 |
| 49 | SM-4051654-SP | SCREW M5 L=16 | 4 |
| 50 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 51 | WP-0450801-SP | WASHER 4.8X8.4X0.8 | 1 |
| 52 | SB-1100024-00 | BEARING | 1 |
| 53 | 400-06666 | SENSOR SLIT ASM | |
| 54 | SM-8050402-TP | SCREW M5 L=4 | 2 |
| 55 | SL-4031291-SC | SCREW M3X12 | 1 |
| 56 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 57 | 400-10443 | SENSOR_INSTALLING_BASE | 1 |
| 58 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 403S0022 | SCREW M4X0.7 L=8 | 1 | |
| 403S0004 | NEEDLE PLATE ASM. B | 1 |
Page 16 — 7. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-22901 | X FEED MOTOR | 1 |
| 2 | SM-4041655-SP | SCREW M4 L=16 | 4 |
| 3 | 265-01403 | X FEED GEAR | 1 |
| 4 | SM-8060602-TP | SCREW M6X6 | 2 |
| 5 | 400-22902 | Y FEED MOTOR | 1 |
| 403S11015 | SCREW M4 L=11 | ||
| 40312092 | Y FEED-MOTOR-BASE | ||
| 40325013 | Y FEED GEAR | ||
| 40325014 | CLOTH FEED ARM SHAFT | ||
| 40326011 | SCREW M6X8 | ||
| 403S14005 | SLIDE BLOCK STUD | ||
| 40326020 | SQUARE BLOCK | ||
| 40309003 | SCREW M6X8 | ||
| 40325016 | Y FEED GEAR | ||
| 40303007 | BUSHING, REAR | ||
| 40304009 | Y FEED ARM | ||
| 116S14004 | SCREW 1/4-40 L=6 | ||
| 401S20018 | HINGE STUD | ||
| 40312093 | CLOTH FEED SUPPORT PLAE | ||
| 403S11011 | SCREW | ||
| 40304010 | CLOTH FEED PLATE | ||
| 40312094 | CLOTH FEED PRESSER PLATE | ||
| 403S17002 | SCREW M4 L=6 | ||
| 40330022 | PHOTO SENSOR | ||
| 403S11043 | SCREW M4X0.7 L=12 | ||
| 40312024 | SENSOR INSTALLING BASE | ||
| 403S11027 | SCREW | ||
| 40312139 | CROSSFEED SENSOR SLIT | ||
| 40330010 | PHOTO SENSOR | ||
| 403S11044 | SCREW M3 L=12 | ||
| 40312037 | SENSOR INSTALLING BASE | ||
| 40312036 | LENGTHWISE FEED SENSOR SLIT | ||
| 401S11024 | SCREW 11/64-40 L=4.3 | ||
| 40312095 | SUPPORT PLATE | ||
| 403S13011 | SCREW M4X0.7 L=8 | ||
| 40301020 | FEED BRACKET B | ||
| 40109004 | WORK CLAMP FOOT MOUNTING BASE | ||
| 40126021 | BALL REATINER | ||
| 401S15007 | SCREW 15/64-28 L=4.7 | ||
| 40128012 | WASHER FOR DRIVING ARM | ||
| 40308010 | THRUST COLLAR | ||
| 403S14019 | SCREW M5 L=5 | ||
| 40328019 | WASHER | ||
| 40312096 | LIFTING LEVER RIGHT | ||
| 40312097 | LIFTING LEVER LEFT | ||
| 40127027 | CLOTH PRESSER SPRING | ||
| 40126022 | SPRING SUSPENSION | ||
| 40112051 | WORK CLAMP FOOT FACE PLATE | ||
| 401S17007 | SCREW 11/64-40 L=8.7 | ||
| 401S11021 | SCREW 11/64-40 L=7 | ||
| 40127017 | FINGERGUARD | ||
| 401S15008 | SCREW 1/8-44 L=2.8 | ||
| 40116004 | WORK CLAMP FOOT, RIGHT | ||
| 40116001 | WORK CLAMP FOOT, LEFT | ||
| 4031209800 | LEVER DRIVING PLATE L ASM. | ||
| 4031209900 | LEVER DRIVING PLATE R ASM. | ||
| S05030 | WASHER | ||
| 40128013 | SCREW M6.2X13X1 | ||
| 403S11035 | WASHER | ||
| 40312100 | HIDDEN-PLATE | ||
| 40315001 | FEED PLATE A | ||
| 403S13002 | SCREW M6 L=10 | ||
| 40326021 | LIFTING LEVER SHAFT B | ||
| 403S13016 | SCREW M4 L=20 |
Page 17 — 9. SENSOR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 400-06496 | SAFETY SW BASE | (1) |
| 8 | J236-38109 | SAFETY SWITCH ASM | (1) |
| 9 | 400-06497 | SAFETY SW ASM SHAFT | (1) |
| 10 | 236-38208 | SAFETY SWITCH SPRING | (1) |
| 11 | 236-38406 | SAFETY SWITCH NUT | (1) |
| 13 | SM-4021201-SC | SCREW M2 L=12 | (2) |
| 14 | EA-9500B01-00 | CABLE BAND | (1) |
| 15 | SM-4050855-SP | SCREW M5 L=8 | 1 |
| 19 | SL-4040881-SF | SCREW M4 L=8 | 4 |
| 21 | SM-4040855-SP | SCREW M4 L=8 | 1 |
| 22 | EA-9500B01-00 | CABLE BAND | 6 |
| 23 | EA-9500B02-00 | CABLE BAND 150 | 3 |
| 24 | HX-0015000-0K | CABLE CLIP | 1 |
| 25 | SM-4040855-SP | SCREW M4 L=8 | 1 |
| 26 | HX-0033900-00 | STUD | 4 |
| 400-05729 | AT SENSOR CABLE ASM | ||
| 400-05731 | Y SENSOR CABLE ASM | ||
| 400-05732 | PE SENSORCABLE ASM | ||
| 400-05730 | X SENSOR CABLE ASM | ||
| 400-05733 | TT SENSOR CABLE ASM | ||
| 400-06495 | SAFETY SW ASM | ||
| 400-05734 | SAFETY SW CABLE ASM | (1) | |
| 400-05664 | INT PCB ASM | 1 | |
| 400-05660 | INT PCB | (1) | |
| 400-05725 | INT CABLE ASM | (1) | |
| 141-15554 | HEAD GROUND CABLE A ASM | 1 | |
| 40311027 | SCREW M4 L=8 | 1 |
Page 18 — 10. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1013100700 | THREAD STAND ASM. | 1 |
Page 20 — 11. TABLE STAND COMPONENTS (JT-K44)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40332002 | TABLE | 1 |
| 111-58300 | STAND SIDE SUPPORT | (1) | |
| SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) | |
| 138-17754 | Z-STAND PEDAL ASM | (1) | |
| 111-59001 | PEDAL SHAFT BRACKET | (2) | |
| GPF-06080000 | PEDAL ADJUSTING PLATE | (1) | |
| GPF-060600A0 | PEDAL ASM. | (1) | |
| WS-0621210-KR | SPRING WASHER 6.2×11.4×1.2 | (2) | |
| WS-0861410-KR | SPRING WASHER 8.6×15×1.4 | (2) | |
| NM-6120001-SE | NUT M12 | (4) | |
| WP-1302501-SE | WASHER M12 | (4) | |
| 111-55108 | DRAWER | 1 | |
| 111-55207 | DRAWER SUPPORT | 2 | |
| SK-3311601-SE | WOOD SCREW D=3.1 L=16 | 6 |

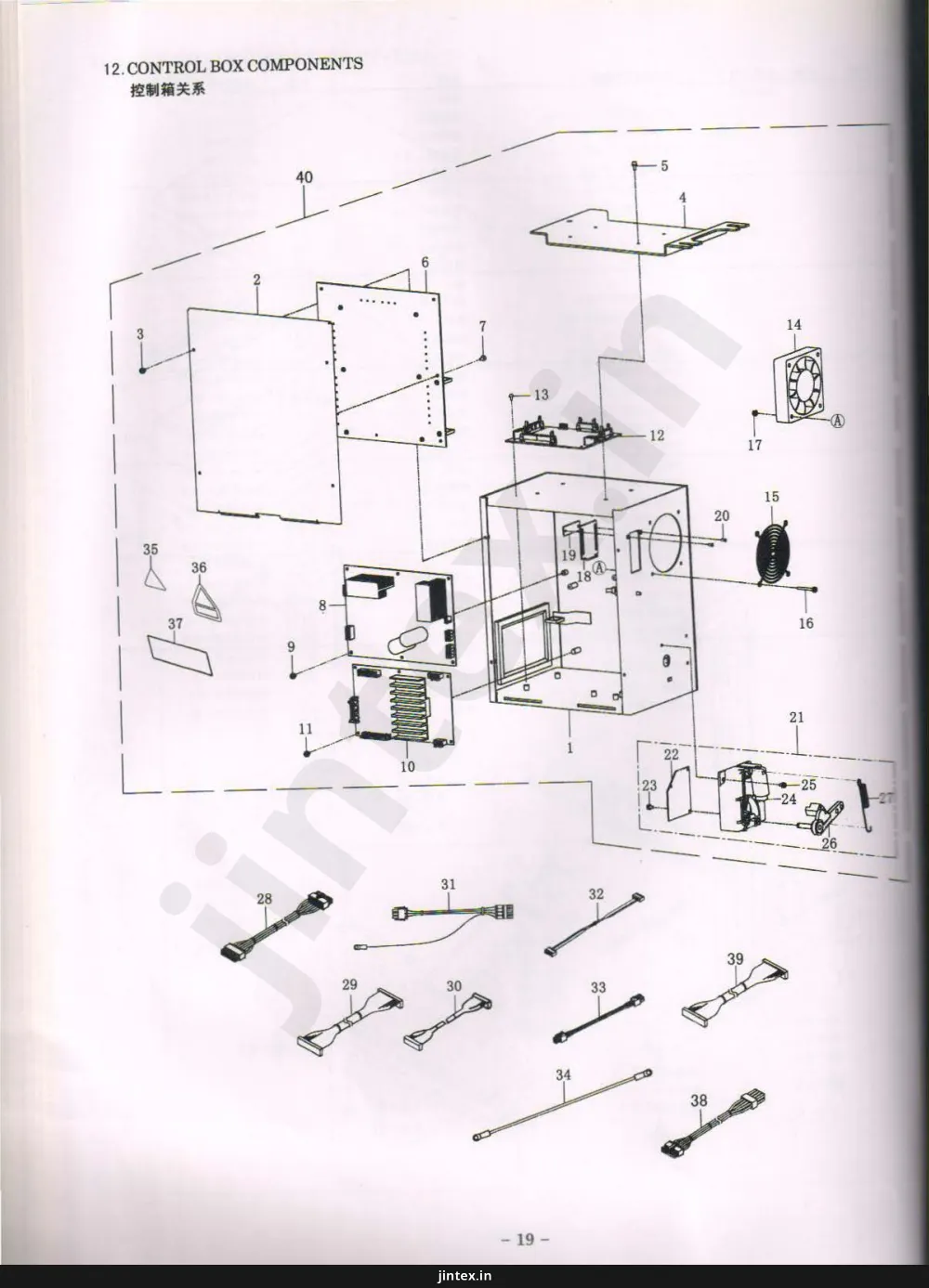

Page 22 — 12. CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40 | 4033100300 | CONTROL BOX ASM. | 1 |
Page 24 — 13. OPERATION PANEL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16 | s05035 | WOOD SCREW | 7 |
| 17 | 4133102000 | CONNECTING ROD ASM | 1 |
| 18 | 401S30019 | BOLT | 2 |
| 19 | 403S13020 | SCREW | 1 |
| 20 | W01018 | WASHER | 2 |
| 21 | 40128029 | SPRING WASHER ,M8 | 3 |
| 22 | 401S16018 | NUT M8 | 2 |
| 23 | W01018 | WASHER,8.4X17.4X1.6 | 1 |
| 24 | 40311014 | CORD STAPLE | 2 |
| 25 | 40511001 | CABLE CLAMP | 3 |
| 26 | 40311016 | CABLE CLAMP | 2 |
Page 26 — 13-1. OPERATION PANEL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | SL-4031081-SC | SCREW M3X10 | (4) |
| 8 | EA-9500B01-00 | CABLE BAND | (1) |
| 9 | SL-4031081-SC | SCREW M3X10 | (4) |
| 11 | SL-4041691-SC | SCREW M4X16 | 3 |
| 12 | SK-3382001-SE | WOOD SCREW D=3.8 L=12 | 4 |
Page 27 — 14. WIRING DIAGRAM 电线装配图
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| XS4 | POWER BOARD电源板 8P | 8P | |
| XS1 | 3P | 3P | |
| XS5 | 2P | 2P | |
| XS3 | 10P | 10P | |
| XS2 | 4P | 4P | |
| XS20 | SERV BOARD伺服板 3P | 3P | |
| XS21 | 26P | 26P | |
| XS23 | 16P | 16P | |
| XS22 | 4P | 4P | |
| XS40 | STEP BOARD步进板 4P | 4P | |
| XS41 | 4P | 4P | |
| XS44 | 6P | 6P | |
| XS45 | 6P | 6P | |
| XS42 | 16P | 16P | |
| XS43 | 16P | 16P | |
| XS46 | 6P | 6P | |
| XS47 | 6P | 6P | |
| XS50 | FOOT BOARD脚踏接口板 5P | 5P | |
| XS10 | INT BOARD接口板 红3P | 3P | |
| XS11 | 黄3P | 3P | |
| XS12 | 黑3P | 3P | |
| XS13 | 红4P | 4P | |
| XS14 | 黄6P | 6P | |
| XS15 | 红2P | 2P | |
| XS30 | 10P | 10P | |
| XS32 | 16P | 16P | |
| XS33 | 16P | 16P | |
| XS38 | 16P | 16P | |
| XS36 | 2P | 2P | |
| XS37 | 2P | 2P | |
| XS35 | 5P | 5P | |
| XS34 | 10P | 10P |
Page 28 — 14. WIRING DIAGRAM 电线装配图
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4033103500 | CONTROL BOX ASM | 1 |
| 23 | 40333007 | Y FEET MOTOR | 1 |
| 24 | 40333005 | 3 FEET MOTOR | 1 |
| 25 | 40333009 | 1 | |
| 26 | 40330023 | ASSY-AT-SOLENOID | 1 |
| 42 | 40333006 | SAFETY SW CABLE ASM. | 1 |
Page 30 — 15. ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B9118-232-000 | HEAD-COVER | 1 |
| 4 | 400-51987 | SAFETY PLATE BASE | (1) |
| 5 | B3120-372-000 | SAFETY PLATE | (1) |
| 6 | SM-4040655-SP | SCREW M4 L=6 | (2) |
| 7 | SM-4040855-SP | SCREW | (1) |
| 8 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 10 | WS-0610002-KN | SPRING WASHER 6.1X12.2X1.5 | 4 |
| 11 | 400-16195 | BED-HINGE-RUBBER | 2 |
| 13 | 400-13640 | GREA SE-B-TUBE | 1 |
| 14 | NM-6060001-SC | NUT M6 | 8 |
| 15 | WP-0651646-SC | WASHER | 4 |
| 16 | SM-6066002-TN | BOLT M6 L=60 | 4 |
| 17 | 141-01208 | HEAD SUPPORT BAR | 1 |
| 18 | B9121-220-0A0 | OILER (CONTAINING) | 1 |
| 19 | B9121-012-000 | OIL CAN | 1 |
| 20 | B8202-205-000 | OIL MANAGEMENT | 1 |
| 21 | SK-3311601-SE | WOOD SCREW D=3.1 L=16 | 4 |
| 22 | 229-33006 | SCREW DRIVER, IARGE | 1 |
| 23 | 229-33105 | SCREW DRIVER, MIDDLE | 1 |
| 24 | 229-33204 | SCREW DRIVER, SMALL | 1 |
| 25 | B9113-012-000 | WRENCH (9X10) | 1 |
| 26 | B9140-372-000 | HEXAGONAL WRENGH, SMALL | 1 |
| 27 | B9141-372-000 | HEXAGONAL WRENGH, LARGE | 1 |
| 28 | GCT-02906000 | HEXAGONAL SRANNER | 1 |
| 29 | MDP-500B1402 | NEEDLE DPX5#16-2 | 4 |
| 32 | 400-16194 | FRAME-SUPPORT-RUBBER | 2 |
| 33 | 138-12102 | BOBBIN | 3 |
| 34 | SM-6066002-TN | BOLT M6 L=60 | 1 |
| 35 | NM-6060001-SC | NUT M6 | 1 |
| 36 | WP-0651646-SC | WASHER | 1 |
| 42 | B1111-210-D00 | BED HINGE | 2 |
| 43 | B1115-210-D00 | HINGE RUBBER | 2 |
| 229-32800 | ACCESSORIE BAG | 1 | |
| 400-06484 | SAFETY PLATE ASM | 1 | |
| SM-6060002-TN | BOLT M6 L=60 | 1 | |
| MDP-170B2102 | NEEDLE DPX17 #21-2 | 4 | |
| MDP-500B1102 | NEEDLE DPX5 #11-2 | 4 | |
| B111-210-D00 | BED HINGE | 2 |
Page 32 — 20. EXCLUSIVE PARTS FOR JK-T1903AS-301, JK-T1903AS-302 (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06923 | THREAD TAKE UP B COMPL. | 1 |
| 3 | 400-06925 | THREAD TAKE UP LEVER | (1) |
| 4 | B1908-505-000 | THREAD PASS BUSH | (1) |
| 5 | SB-1080022-00 | BEARING | (2) |
| 6 | SB-1040016-00 | BEARING | (1) |
| 8 | ]400-06535 | NEEDLE BAR CRANK ROD | (1) |
| 9 | SB-1080023-00 | BEARING | (1) |
| 10 | 228-91006 | NEEDLE BAR CRANK ROD METAL | (1) |
| 11 | 400-06532 | THREAD TAKE UP CRANK | (1) |
| 12 | 400-06926 | NEEDLE ROD CRANK | (1) |
| 13 | B1903-552-000 | LEFT SCREW | (1) |
| 14 | 400-06525 | THREAD GUIDE | 1 |
| 15 | MDP-170B1400 | NEEDLE DPX17 #14 | 1 |
| 16 | SM-6061802-TP | SCREW | 1 |
| 17 | 400-11949 | CONNECTING ARM | 1 |
| 18 | B2619-372-000 | STOP MOTION TRIPPING LEVER OAM | 1 |
| 19 | B1853-512-00E | HOOK SHAFT WASHER | 1 |
| 20 | SD-0791271-SP | HINGE SCREW D=7.94 H=12.7 | 1 |
| 21 | 400-06937 | WIPER-CONNECTING-PLATE | 1 |
| 22 | 400-33047 | WIPER ASM | 1 |
| 23 | SS-5060310-SP | SCREW3/32-56 L=2.8 | 2 |
| 24 | 400-09860 | WIPER THREAD CATCH SPRING | 1 |
| 25 | 141-03352 | INNER HOOK PRESSER ASM., C | 1 |
| 26 | 400-06580 | SHUTTLE | 1 |
| 27 | 400-06725 | NEEDLE PLATE ASM., M | 1 |
| 29 | 400-06721 | NEEDLE PLATE | (1) |
| 30 | MAZ-15801000 | GUIDE | (1) |
| 32 | B2424-280-000 | FIXING KNIFE | (1) |
| 33 | B2421-280-0A0 | MOVING KNIFE ASM. | (1) |
| 34 | B2418-280-000 | MOVING KNIFE LINK | (1) |
| 35 | B2416-280-000 | THREAD CUTTER LEVER RING | (1) |
| 36 | B2415-280-0A0 | THREAD CUTTER LEVER ASM. ,SM | (1) |
| 37 | B2414-280-0A0 | THREAD CUTTER LEVER ASM. ,LA | (1) |
| 38 | B2417-280-000 | THREAD CUTTER LEVER SHAFT | (1) |
| 39 | SS-1060210-TP | SCREW 3/32-56 L=2.2 | (2) |
| 40 | SD-0500091-TP | HINGE SCREW D=5 H=0.9 | (1) |
| 41 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 42 | SS-6110430-TP | SCREW 11/64-40 L=4.0 | (1) |
| 43 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (2) |
| 44 | B2423-280-00A | MOVING KNIFE WASHER A | (1) |
| 49 | WP-0450846-SP | WASHER | (1) |
| 50 | SM-6030500-SN | SCREW | 1 |
| 51 | RC-0470611-KP | RETAINING RING 4.7 | 1 |
| 52 | SD-0640216-TP | HINGE SCREW D=6.35 H=2.1 | 1 |
| 53 | SM-1040650-TP | SCREW M4 L=6 | 4 |
| 54 | 400-10429 | COUNTER-WEIGHT-B | 1 |
Page 34 — 21. EXCLUSIVE PARTS FOR JK-T1903AS-301, JK-T1903AS-302 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141-45106 | CLOTH FEED PLATE | 1 |
| 2 | 400-06935 | CROTH FEED PRESSER PLATE B | 1 |
| 3 | 141-48407 | VERTICAL FEED SHAFT SPRING | 1 |
| 6 | 141-46104 | PICK-UP INSTALING BASE | (1) |
| 7 | 141-46203 | PICK-UP FOOTINSTALING BASE | (1) |
| 8 | 141-46302 | PICK-UP FOOTINSTALING BASE | (1) |
| 9 | B2552-372-000 | BUTTON CLAMP SLIDE | (1) |
| 10 | MAZ-15513000 | BUTTON CLAMP JAW LEVER SPRING | (1) |
| 11 | MAZ-15514000 | SUPPORT PLATE | (1) |
| 12 | MAZ-15515000 | SLIDE BLOCK | (1) |
| 13 | 135-40901 | STATIONING BLOCK SHAFT | (1) |
| 14 | 141-46401 | PRESSER PLATE | (1) |
| 16 | MAZ-15507000 | MIDDLE CLAMP JAW iLEVER ,R | (1) |
| 17 | MAZ-15509000 | SPRING,RIGHT | (1) |
| 18 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (1) |
| 19 | 141-49009 | PLATE L,R | (1) |
| 20 | SS-2060310-SP | SCREW 3/32-56 L=3 | (1) |
| 22 | MAZ-15508000 | MIDDLE CLAMP JAW LEVER ,L | (1) |
| 23 | MAZ-15510000 | SPRING,LEFT | (1) |
| 24 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (1) |
| 25 | 141-49108 | PLATE L,L | (1) |
| 26 | SS-2060310-SP | SCREW 3/32-56 L=3 | (1) |
| 35 | D3130-MIY-C00 | FINGER GUARD | (1) |
| 36 | 141-41402 | INSTALLING SHAFT | (1) |
| 37 | B2548-372-000 | SNaP FASTENER CLAMP STOP LEVER | (1) |
| 38 | B2549-372-000 | CLAMP SCREW A | (1) |
| 39 | B2553-372-000 | NUT | (1) |
| 40 | B2560-372-000 | BUTTON CLAMP STOP PIN | (2) |
| 41 | SD-0640391-TP | HINGE SCREW D=6.35 H=3.9 | (2) |
| 42 | SD-0550181-SP | HINGE SCREW D=5.5 H=1.8 | (1) |
| 43 | SD-0550301-SP | HINGE SCREW D=5.5 H=3 | (1) |
| 44 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 45 | SS-9110460-CP | SCREW 11/64-40 L=4 | (2) |
| 46 | NS-6150310-SP | NUT 15/64-28 | (1) |
| 47 | RE-0700000-K0 | E-RING 7 | (2) |
| 48 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 49 | D2548-232-D00 | SNAP RING,FOR CONNECTING ROD | (1) |
| 50 | MAZ-15502000 | PRESSURE PLATE | 1 |
| 51 | MAZ-15602000 | PRESSURE PLATE | 1 |
| 52 | SS-9110543-CP | SCREW 11/64-40 L=5.3 | 1 |
| 53 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
| 54 | B3125-012-000 | THREAD TENSION NUT | 2 |
| 55 | D2527-232-D00 | SLEEVE | 1 |
| 56 | 141-46906 | ADJUSTING SHAFT | 1 |
| 57 | 138-12003 | PRESSURE SPRING | 1 |
| 58 | 138-11906 | ACCEPT PLATE,UPPER | 1 |
| 59 | SM-5040855-SN | SCREW | 2 |
| 60 | MAZ-15516000 | MOVING PLATE | 1 |
| 61 | SS-9151120-CP | SCREW 15/64-28 L=11 | 2 |
| 62 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | 2 |
Page 36 — 22. ACCESSORIES PARTS FOR JK-T1903AS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4 | MDP-170B1402 | NEEDLEDPx17#14-2 | 4 |
| 11 | 178-48458 | BUTTON TRAY ASM | 1 |
| 12 | 400-33635 | BUTTON TRAY BASE | 1 |
| 13 | SM-6061202-TP | SCREW M6 L=12 | 1 |
| 14 | SK-3412001-SE | WOODSCREW D=4.1 L=12 | 2 |
| 16 | WP-0370316-SD | WASHER 3.7X8X0.3 | (2) |
| 17 | SS-9090813-TP | SCREW 9/64-40 L=8 | (1) |
| 18 | 141-46807 | INSTALLING BASE | (1) |
| 19 | 141-46708 | BUTTON RISING BAR | (1) |
| 20 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | (1) |
| 22 | MAZ-15507000 | SMALL CLAMP JAW LEVER ,R | (1) |
| 23 | MAZ-15509000 | SPRING,RIGHT | (1) |
| 24 | 141-48803 | PLATE K,R | (1) |
| 25 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (1) |
| 26 | SS-2060310-SP | SCREW 3/32-56 L=3 | (1) |
| 28 | MAZ-15508000 | SMALL CLAMP JAW LEVER ,L | (1) |
| 29 | 141-48902 | PLATE K,L | (1) |
| 30 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (1) |
| 31 | MAZ-15510000 | SPRING,LEFT | (1) |
| 32 | SS-2060310-SP | SCREW 3/32-56 L=3 | (1) |
| MDP-500B1402 | NEEDLEDPx5#14-2 | 4 | |
| MDP-500B1602 | NEEDLEDPx5#16-2 | 4 | |
| MDP-170B2102 | NEEDLEDPx7#21-2 | 4 | |
| 141-46757 | BUTTON RISING BAR ASM. | 1 | |
| 141-48852 | SMALL CLAMP JAW LEVER ASM, R | 1 | |
| 141-48951 | SMALL CLAMP JAW LEVER ASM, L | 1 |
Jack JK-T1900A — parts catalog
- Page 1 (cover): This is the cover page for the JK-T1900A Parts Book, Revised edition in July, 2013, for New JACK Sewing Machine.
- Page 2 (toc): This page is a table of contents for a sewing machine parts catalog, listing various components and their corresponding page numbers. It includes sections like Frame & Miscellaneous Cover Components, Shaft Components, and Control Box Components.
- Page 3 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated for reference.
- Page 4 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, quantities, and other references. It covers items from number 1 to 83.
- Page 5 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding details.
- Page 6 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and related part numbers.
- Page 7 (diagram): This page displays a diagram of presser lifter and wiper components, with numbered parts and their corresponding references.
- Page 8 (parts_list): This page contains a parts list for various components of a sewing machine, including screws, nuts, shafts, and sensors, with their corresponding part numbers and descriptions.
- Page 9 (diagram): This page displays a diagram of shuttle driver shaft components, with numbered parts and their corresponding references for identification.
- Page 10 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, bearings, oil seals, and more, with corresponding part numbers and descriptions.
- Page 11 (diagram): This page displays a diagram of thread tension components, with numbered parts and their corresponding references.
- Page 12 (parts_list): This page contains a parts list for various components of a sewing machine, including solenoids, screws, washers, and threads, with their corresponding part numbers, descriptions, quantities, and reference numbers.
- Page 13 (diagram): This page displays a diagram of the thread trimmer mechanism components, with numbered parts and their corresponding references.
- Page 14 (parts_list): This page lists parts for a sewing machine, including various screws, washers, cams, and sensors, along with their part numbers, descriptions, quantities, and related codes.
- Page 15 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 16 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, gears, plates, and sensors, with corresponding part numbers and descriptions.
- Page 17 (diagram): This page displays a diagram of sensor components and a corresponding parts list with part numbers, descriptions, quantities, and reference numbers.
- Page 18 (parts_list): This page lists the components for the thread stand, including part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram of table stand components for the JT-K44 sewing machine, with various parts numbered for identification.
- Page 20 (parts_list): This page contains a parts list for various components of a sewing machine, including table parts, stand assemblies, pedals, and drawers, with corresponding part numbers and quantities.
- Page 21 (diagram): This page displays a diagram of control box components, with numbered parts and their corresponding references.
- Page 22 (parts_list): This page contains a parts list for various components of a sewing machine, including control boxes, screws, drivers, boards, and cables, with their corresponding part numbers, quantities, and descriptions.
- Page 23 (diagram): This page displays a diagram of operation panel components, including various parts labeled with reference numbers.
- Page 24 (parts_list): This page contains a parts list for various components of the sewing machine, including operation panels, LCD components, screws, washers, and cable clamps, with corresponding part numbers, descriptions, quantities, and references.
- Page 25 (diagram): This page displays a diagram of operation panel components, with numbered parts indicated for reference.
- Page 26 (parts_list): This page contains a parts list for various components of the sewing machine, including operation box assemblies, panels, screws, and cables, with their corresponding part numbers, quantities, and descriptions.
- Page 27 (diagram): This page contains a wiring diagram for a sewing machine, illustrating connections between various boards, motors, sensors, and other components. It includes part numbers, descriptions, and reference numbers for each connection point.
- Page 28 (parts_list): This page contains a parts list for various components of the sewing machine, including control boxes, power boards, servo boards, system boards, step boards, pedal interface boards, and various cables and sensors. It lists part numbers, descriptions, quantities, and reference numbers.
- Page 29 (diagram): This page displays a diagram of accessory part components, with numbered illustrations of various parts and their corresponding reference numbers.
- Page 30 (parts_list): This page contains a parts list for sewing machine components, including part numbers, descriptions, quantities, and reference numbers.
- Page 31 (diagram): This page displays a diagram of exclusive parts for JK-T1903AS-301 and JK-T1903AS-302 sewing machines, with numbered components indicated.
- Page 32 (parts_list): This page contains a parts list for sewing machine components, including part numbers, descriptions, quantities, and related numbers.
- Page 33 (diagram): This page displays a diagram of exclusive parts for JK-T1903AS-301 and JK-T1903AS-302 sewing machines, with numbered components and their corresponding part numbers and descriptions.
- Page 34 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including feed plates, springs, screws, clamps, and nuts, with corresponding part numbers and descriptions.
- Page 35 (diagram): This page displays a diagram of accessories and parts for the JK-T1903AS sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 36 (parts_list): This page contains a parts list for various components of a sewing machine, including screws, plates, and assemblies, with their corresponding part numbers, descriptions, quantities, and reference numbers.
