Page 1 — JK-9270/80 PARTS BOOK
JK-9270/80 零件样本 PARTS BOOK New JACK Sewing Machine 2013 年 3 月版 Revised edition in March, 2013 jintex.in
Parts index — Jack JK-T9270 / JK-T9280tap a row to open its page
Page 2 — A. 主体部件 / Machine body
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 2 | Bracket | |
| 3 | 3 | Screw | |
| 4 | 4 | Screw | |
| 5 | 5 | Pin | |
| 12 | 12 | Plug | |
| 13 | 13 | Plug |
Page 3 — A、机壳部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-T9270-A02 | 底座固定板 | 2 |
| 2 | JK-T9270-A03 | 螺钉, SM6. 35 | 2 |
| 3 | JK-T9270-A04 | 木螺钉M6. 2X25 | 2 |
| 5 | JK-T9270-A04-02 | 垫套 | 2 |
| 6 | JK-T9270-A04-03 | 橡胶垫 | 4 |
| 7 | JK-T9270-A05 | 防震垫 | 2 |
| 8 | JK-T9270-A12 | 油窗 | 1 |
| 9 | JK-T9270-A12 | 油窗套 | 1 |
| 10 | JK-T9270-A13 | 油封 | 1 |
| 11 | JK-T9270-A14 | 回油线 | 1 |
Page 4 — B. 上轴部件 / Upper shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SHAFT | ||
| 2 | BALL BEARING | ||
| 3 | BALL BEARING | ||
| 4 | CIR CLIP | ||
| 5 | WASHER | ||
| 6 | FLANGE | ||
| 7 | SCREW | ||
| 8 | BUSH | ||
| 9 | COLLAR | ||
| 10-1 | SHAFT | ||
| 10-2 | SHAFT | ||
| 10-3 | SHAFT | ||
| 10-4 | SHAFT | ||
| 10-5 | SHAFT | ||
| 10-6 | SHAFT | ||
| 10-7 | SHAFT | ||
| 10-8 | SHAFT |
Page 5 — B、上轴部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40602001 | 上轴 | 1 |
| 2 | B04002 | 轴承, 6302ZZ | 1 |
| 3 | B06001 | 轴承6302VV | 2 |
| 4 | H01004 | 卡簧42 | 1 |
| 5 | 40128004 | 垫片 | 1 |
| 6 | 40612002 | 轴承盖 | 1 |
| 7 | 115S11010 | 螺钉SM4. 76-32X10 | 3 |
| 8 | 40608001 | 轴环 | 1 |
| 9 | 301S11015 | 螺钉 | 1 |
| 10 | 4060100100 | 上轮油盒组件 | 1 |
| 11 | 40601001 | 油盒 | 1 |
| 12 | 40611001 | 油窗 | 1 |
| 13 | 10122019 | O型圈 | 1 |
| 14 | 40612003 | 油窗盖 | 1 |
| 15 | 101S11005 | 螺钉 | 4 |
| 16 | 406S11001 | 加油螺钉 | 1 |
| 17 | 40622004 | 垫片 | 1 |
| 18 | 10122010 | O型圈 | 1 |
Page 6 — C. 针杆部件 / Needle bar mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Needle bar mechanism | ||
| 1-1 | Screw | ||
| 1-2 | Connecting rod | ||
| 2 | Washer | ||
| 3 | Screw | ||
| 4 | Screw | ||
| 5 | Screw | ||
| 6 | Needle bar | ||
| 7 | Needle bar sleeve | ||
| 8 | Needle bar sleeve | ||
| 9-1 | Needle bar support | ||
| 9-2 | Needle bar support | ||
| 9-3 | Needle bar support | ||
| 10 | Screw | ||
| 11-1 | Screw | ||
| 11-2 | Screw | ||
| 12 | Screw | ||
| 13 | Needle bar threader | ||
| 14 | Needle bar cap | ||
| 15 | Needle bar cap | ||
| 16 | Needle bar threader |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-T9270-C01 | 针杆连杆组件 | 1 | |
| JK-T9270-C01-01 | 防震橡胶垫 | 1 | |
| JK-T9270-C01-02 | 螺钉 | 1 | |
| JK-T9270-C01-03 | 挑线连杆销 | 1 | |
| JK-T9270-C01-04 | 挑线连杆 | 1 | |
| JK-T9270-C01-05 | 针杆连接轴 | 1 | |
| JK-T9270-C01-06 | 滚针轴承 | 1 | |
| JK-T9270-C02 | 针杆曲柄护板 | 1 | |
| JK-T9270-C03 | 针杆滑块 | 1 | |
| JK-T9270-C04 | 针杆滑块座 | 1 | |
| JK-T9270-C05 | 螺钉 | 2 | |
| JK-T9270-C06 | 针杆 | 1 | |
| JK-T9270-C07 | 针杆上套 | 1 | |
| JK-T9270-C08 | 针杆下套 | 1 | |
| JK-T9270-C09-01 | 针杆曲柄 | 1 | |
| JK-T9270-C10 | 螺钉 | 2 | |
| JK-T9270-C11-01 | 螺钉 | 3 | |
| JK-T9270-C13 | 橡胶塞 | 1 | |
| JK-T9270-C14 | 油封 | 1 | |
| JK-T9270-C15 | 油棉 | 1 | |
| JK-T9270-C16 | 油线夹 | 1 | |
| JK-T9270-C17 | 回油线 | 1 | |
| JK-T9270-C18 | 油线压紧簧 | 1 | |
| JK-T9280-C09-03 | 针杆曲柄 | 1 | |
| JK-T9280-C12 | 螺钉 | 2 |
Page 8 — D1. 拾压脚部件(9270) / Presser bar mechanism(9270)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 1-1 | Presser bar mechanism | |
| 1-2 | 1-2 | Presser bar mechanism | |
| 3-1 | 3-1 | Presser bar mechanism | |
| 3-2 | 3-2 | Presser bar mechanism | |
| 2 | 2 | Screw | |
| 4 | 4 | Screw | |
| 5 | 5 | Screw | |
| 6 | 6 | Spring | |
| 7 | 7 | Lever | |
| 8 | 8 | Screw | |
| 9 | 9 | Screw | |
| 10 | 10 | Lever | |
| 11 | 11 | Lever | |
| 12 | 12 | Chain | |
| 13 | 13 | Plate | |
| 14 | 14 | Plate | |
| 15 | 15 | Screw | |
| 16 | 16 | Bracket | |
| 17 | 17 | Screw | |
| 19 | 19 | Pin | |
| 20 | 20 | Washer | |
| 21 | 21 | Pin |
Page 9 — D1、拾牙脚部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-T9270-D01-01 | 压脚轴 | 1 |
| 2 | JK-T9270-D02 | 压脚螺母 | 1 |
| 3 | JK-T9270-D03-01 | 压脚轴套 | 1 |
| 4 | JK-T9270-D04 | 压杆导架 | 1 |
| 5 | JK-T9270-D05 | 压杆导架螺钉 | 1 |
| 6 | JK-T9270-D06 | 弹簧 | 1 |
| 7 | JK-T9270-D07 | 抬压脚架 | 1 |
| 8 | JK-T9270-D08 | 轴位螺钉 | 1 |
| 9 | JK-T9270-D09 | 抬压脚杆柱 | 1 |
| 10 | JK-T9270-D10 | 轴位螺钉 | 1 |
| 11 | JK-T9270-D11 | 杠杆弹簧 | 1 |
| 12 | JK-T9270-D12 | 抬压脚拉链 | 1 |
| 13 | JK-T9270-D13 | 面板 | 1 |
| 14 | JK-T9270-D14 | 面板垫 | 1 |
| 15 | JK-T9270-D15 | 螺钉 | 4 |
| 16 | JK-T9270-D16 | 挡板 | 1 |
| 17 | JK-T9270-D17 | 螺钉 | 2 |
| 18 | JK-T9270-D19 | 油封 | 1 |
| 19 | JK-T9270-D20 | 油封 | 1 |
| 20 | JK-T9270-D21 | 油封 | 1 |

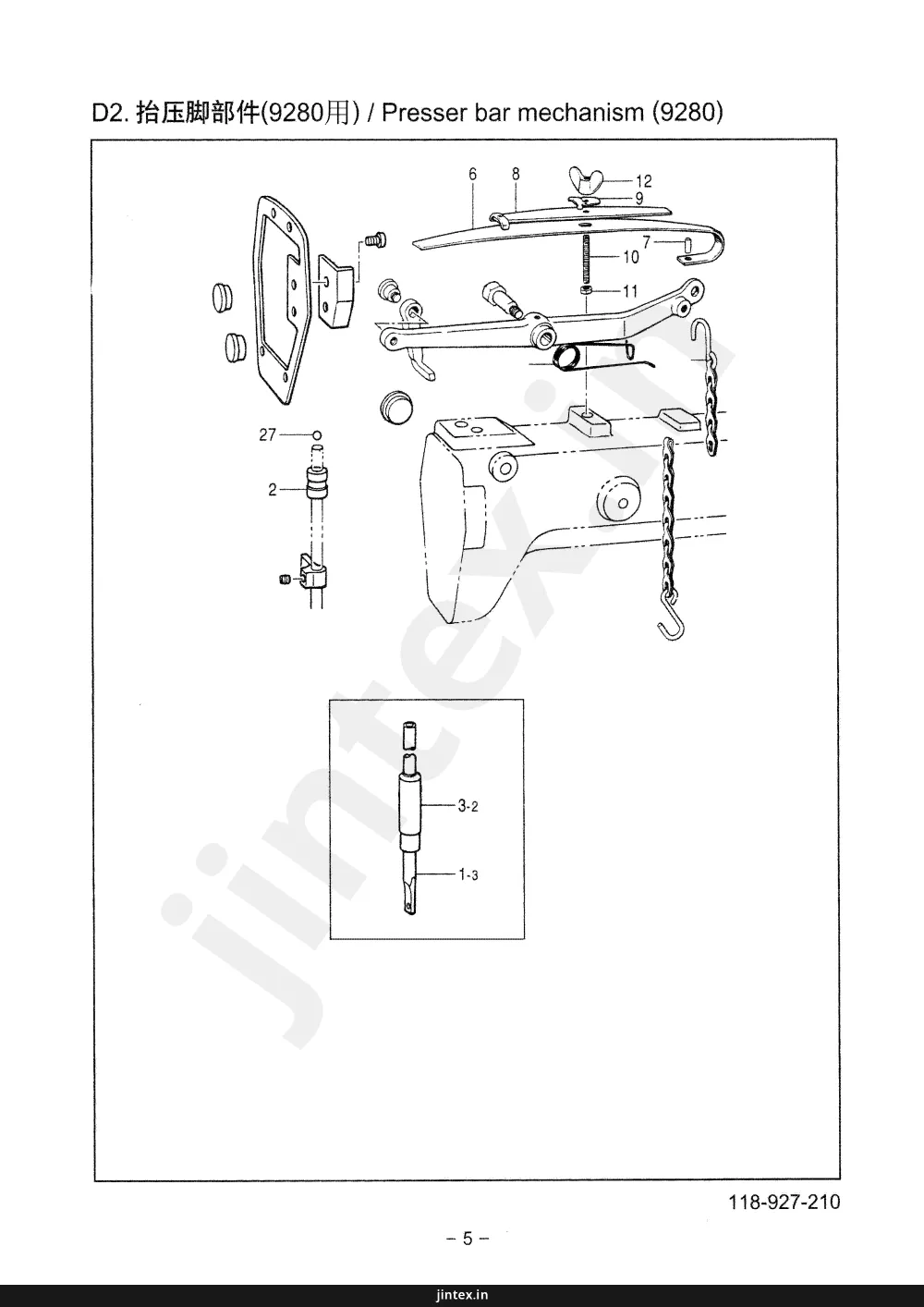

Page 10 — D2. 拾压脚部件(9280用) / Presser bar mechanism (9280)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 6 | 6 | |
| 8 | 8 | 8 | |
| 12 | 12 | 12 | |
| 9 | 9 | 9 | |
| 7 | 7 | 7 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 27 | 27 | 27 | |
| 2 | 2 | 2 | |
| 3-2 | 3-2 | 3-2 | |
| 1-3 | 1-3 | 1-3 |
Page 11 — D2、拾牙脚部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-T9280-D01-03 | 压脚轴 | 1 | |
| JK-T9280-D02 | 压脚轴上套 | 1 | |
| JK-T9280-D03-02 | 压脚轴下套 | 1 | |
| JK-T9280-D06 | 弹簧片 | 1 | |
| JK-T9280-D07 | 销子 | 1 | |
| JK-T9280-D08 | 压板 | 1 | |
| JK-T9280-D09 | 垫片 | 1 | |
| JK-T9280-D10 | 螺钉 | 1 | |
| JK-T9280-D11 | 螺母 | 1 | |
| JK-T9280-D12 | 调压螺母 | 1 | |
| JK-T9280-D27 | 钢珠 | 1 |
Page 12 — E. 带轮部件 / Pulley mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19 | 19 | Screw | |
| 20 | 20 | Screw | |
| 21 | 21 | Washer | |
| 17 | 17 | Base | |
| 14 | 14 | Plate | |
| 15 | 15 | Screw | |
| 16 | 16 | Washer | |
| 1-1 | Pulley | ||
| 1-2 | Pulley | ||
| 3-1 | Gear | ||
| 3-2 | Gear | ||
| 2 | 2 | Pulley | |
| 18 | 18 | Screw | |
| 8 | 8 | Belt | |
| 9 | 9 | Screw | |
| 4 | 4 | Washer | |
| 5 | 5 | Gear | |
| 6 | 6 | Washer | |
| 7 | 7 | Belt | |
| 10 | 10 | Arm | |
| 11 | 11 | Washer | |
| 12 | 12 | Arm | |
| 13 | 13 | Screw | |
| 25 | 25 | Bracket | |
| 22 | 22 | Gear | |
| 23 | 23 | Washer | |
| 24 | 24 | Belt | |
| 26 | 26 | Gear |
Page 13 — E、带轮部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 300260 | 上轮 | |
| 2 | 101S15001 | 上轮螺钉 | |
| 3 | 4063500400 | 上轴同步带轮 | |
| 4 | 116S14004 | 上轴带轮螺钉 | |
| 5 | 40635001 | 下轴同步带轮 | |
| 6 | 116S14004 | 下轮螺钉 | |
| 7 | 40635002 | 传动带 | |
| 8 | 300256 | 带轮箱 | |
| 9 | 101S11016 | 螺钉 | |
| 10 | 300261 | 带轮箱盖 | |
| 11 | 40611003 | 下带轮罩 | |
| 12 | 40622008 | 带轮箱垫 | |
| 13 | 115S11010 | 螺钉 | |
| 14 | 300257 | 底座 | |
| 15 | S01037 | 螺钉M12×30 | |
| 16 | W01016 | 垫片12 | |
| 17 | 40611004 | 上轮罩壳 | |
| 18 | 40612010 | 上轮顶盖 | |
| 19 | 105S11015 | 顶盖螺钉 | |
| 20 | 406S20003 | 上轮罩壳螺钉 | |
| 21 | 40622009 | 垫片 | |
| 22 | 4063501100 | 同步带轮 | |
| 23 | 116S14004 | 螺钉 | |
| 24 | 40635016 | 同步带轮 | |
| 25 | XXXX | 盖板 | |
| 26 | XXXX | 螺钉 | |
| 27 | 300551 | 上轮 (喷漆) |
Page 14 — F. 送料部件 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4-1-1 | 4-1-1 | Screw | |
| 4-2-1 | 4-2-1 | Screw | |
| 4-1 | 4-1 | Shaft | |
| 4-2 | 4-2 | Shaft | |
| 11 | 11 | Screw | |
| 10 | 10 | Screw | |
| 9 | 9 | Screw | |
| 7 | 7 | Pin | |
| 6 | 6 | Lever | |
| 5 | 5 | Arm | |
| 3 | 3 | Bracket | |
| 8 | 8 | Spring | |
| 2 | 2 | Shaft | |
| 16 | 16 | Washer | |
| 14 | 14 | Washer | |
| 15 | 15 | Spring | |
| 13 | 13 | Screw | |
| 12 | 12 | Screw | |
| 1-1-4 | 1-1-4 | Screw | |
| 1-1-5 | 1-1-5 | Bracket | |
| 1-1-1-1 | 1-1-1-1 | Screw | |
| 1-1 | 1-1 | Shaft | |
| 1-1-3 | 1-1-3 | Shaft | |
| 1-1-2-1 | 1-1-2-1 | Screw | |
| 1-2-4 | 1-2-4 | Screw | |
| 1-2-5 | 1-2-5 | Bracket | |
| 1-1-2-1 | 1-1-2-1 | Screw | |
| 1-2-1-1 | 1-2-1-1 | Screw | |
| 1-2-3 | 1-2-3 | Shaft | |
| 1-2 | 1-2 | Shaft | |
| 1-3-4 | 1-3-4 | Screw | |
| 1-3-5 | 1-3-5 | Bracket | |
| 1-3-1-1 | 1-3-1-1 | Screw | |
| 1-3 | 1-3 | Shaft | |
| 1-3-3 | 1-3-3 | Shaft | |
| 1-3-2-1 | 1-3-2-1 | Screw |
Page 15 — F、送料机构
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4061000100 | 送料凸轮组件 | ||
| 40610002 | 止动凸轮 | ||
| 40610003 | 针距调节凸轮 | ||
| 40625001 | 止动板 | ||
| 40627003 | 弹簧 | ||
| 303S20002 | 螺钉 | ||
| 403S14004 | 螺钉 | ||
| 400133 | 送料滑块 | ||
| 400135 | 送料偏心轮 | ||
| 400098 | 送料偏心轮 | ||
| 116S14004 | 螺钉 | ||
| 400136 | 送料牙架 | ||
| X X X | 牙架滑块 | ||
| 40604004 | 送料曲柄 | ||
| 40626004 | 曲柄销 | ||
| 101S15007 | 螺钉 | ||
| 40626005 | 送料偏心销 | ||
| 10122010 | O型圈 | ||
| 101S15010 | 螺钉 | ||
| 40626006 | 针距调节销 | ||
| 40627004 | 弹簧 | ||
| 10122010 | O型圈 | ||
| W01004 | 垫片5 | ||
| H05012 | 卡簧4 | ||
| 400098 | 送料偏心轮 | ||
| 4061001100 | 送布凸轮组件 |
Page 16 — G1. 零件关系 / Gauge parts (9270 Standard)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 14 | 14 | ||
| 20-1 | 20-1 | ||
| 20-2 | 20-2 | ||
| 21 | 21 | ||
| 21 | 21 | ||
| 22-1 | 22-1 | ||
| 22-2 | 22-2 | ||
| 23 | 23 | ||
| 23 | 23 | ||
| 5-1 | 5-1 | ||
| 5-1-1 | 5-1-1 | ||
| 5-1-2 | 5-1-2 | ||
| 5-2 | 5-2 | ||
| 5-2-1 | 5-2-1 | ||
| 5-2-2 | 5-2-2 | ||
| 5-2-2 | 5-2-2 | ||
| 5-2-3 | 5-2-3 | ||
| 5-3 | 5-3 | ||
| 5-3-1 | 5-3-1 | ||
| 5-3-2 | 5-3-2 | ||
| 5-3-3 | 5-3-3 | ||
| 5-3-4 | 5-3-4 | ||
| 5-3-5 | 5-3-5 | ||
| 5-3-6 | 5-3-6 | ||
| 9-1 | 9-1 | ||
| 9-2 | 9-2 | ||
| 10-1 | 10-1 | ||
| 10-2 | 10-2 | ||
| 13-1 | 13-1 | ||
| 13-1-1 | 13-1-1 | ||
| 13-2 | 13-2 | ||
| 13-2-1 | 13-2-1 | ||
| 13-3 | 13-3 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 |
Page 17 — G1、零件关系
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4063401400 | 针位组件 | 1 | |
| 40634002 | 针夹头 | 1 | |
| 209S14003 | 机针螺钉 | 2 | |
| 40617001 | 机针 | 2 | |
| 40615002 | 针板 | 1 | |
| 101S17002 | 针板螺钉 | 3 | |
| 40616002 | 压脚组件 | 1 | |
| 406S20005 | 螺钉 | 4 | |
| 40627005 | 弹簧 | 1 | |
| 406S15001 | 螺钉 | 1 | |
| 40627006 | 弹簧 | 1 | |
| 406S20006 | 螺钉 | 1 | |
| 101S11010 | 压脚螺钉 | 1 | |
| 40614002 | 送料牙齿 | 1 | |
| 402S11023 | 送料牙螺钉 | 1 | |
| 201S11011 | 护针固定螺钉 | 1 | |
| 40617008 | 护针 | 1 | |
| 40609005 | 滑块 | 1 | |
| 40612011 | 安装板 | 1 | |
| 40615021 | 卷边器 | 1 | |
| 406S11002 | 安装板螺钉 | 2 | |
| 40604007 | 护针架 | 1 | |
| 201S16001 | 母 | 1 | |
| 101S11010 | 螺钉 | 1 | |
| 40617011 | 前弯针 | 1 | |
| 40617017 | 后弯针 | 1 | |
| 101S11007 | 弯针螺钉 | 2 | |
| 40604005 | 前弯针架 | 1 | |
| 40626007 | 弯架销 | 1 | |
| 40604006 | 后弯针架 | 1 | |
| 105S11015 | 螺钉 | 2 |
Page 18 — G2. 零件关系(9280) / Gauge parts (9280)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | Gauge parts (9280) | ||
| 18-1 | Gauge parts (9280) | ||
| 18-2 | Gauge parts (9280) | ||
| 18-3 | Gauge parts (9280) | ||
| 19 | Gauge parts (9280) | ||
| 21 | Gauge parts (9280) |
Page 19 — G2、零件关系 (9280用)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S43401021 | JK-T9280-G02 | 机针 | 3 |
| --- | JK-T9280-G13-03 | 卷边器 | 1 |
| --- | JK-T9280-G18-01 | 中弯针 | 1 |
| --- | JK-T9280-G18-02 | 前弯针 | 1 |
| --- | JK-T9280-G18-03 | 后弯针 | 1 |
| 111443003 | JK-T9280-G19 | 螺钉 | 3 |
| 62671012 | JK-T9280-G21 | 螺钉 | 3 |
Page 20 — J. Lower shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT, LOWER | |
| 2 | 2 | BEARING, NEEDLE | |
| 3 | 3 | BEARING, NEEDLE | |
| 4 | 4 | COLLAR, THRUST | |
| 5 | 5 | SCREW, CAP | |
| 6 | 6 | BEARING, NEEDLE | |
| 7 | 7 | BEARING, NEEDLE | |
| 8 | 8 | BRACKET, MOUNTING | |
| 9 | 9 | SCREW, CAP | |
| 10 | 10 | WASHER, LOCK | |
| 11 | 11 | PIN, COTTER |
Page 21 — J、下轴部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-T9270-J01 | 下轴 | 1 |
| 2 | JK-T9270-J02 | 轴承6200Z | 1 |
| 3 | JK-T9270-J03 | 轴套 | 1 |
| 4 | JK-T9270-J04 | 下轴挡圈 | 1 |
| 5 | JK-T9270-J05 | 挡圈螺钉 | 2 |
| 6 | JK-T9270-J06 | 6302VV | 1 |
| 7 | JK-T9270-J07 | 卡簧42 | 1 |
| 8 | JK-T9270-J08 | 轴承盖 | 1 |
| 9 | JK-T9270-J09 | 轴承盖螺钉 | 3 |
| 10 | JK-T9270-J10 | 螺钉 | 1 |
| 11 | JK-T9270-J11 | 螺钉 | 1 |
Page 22 — K. 弯针部件 / Looper mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-1-1 | 15-1-1 | SCREW | |
| 15-3 | 15-3 | WASHER | |
| 15-2 | 15-2 | BEARING | |
| 15 | 15 | LOOPER MECHANISM | |
| 15-1 | 15-1 | LOOPER MECHANISM | |
| 5 | 5 | BRACKET | |
| 6 | 6 | SCREW | |
| 11 | 11 | SCREW | |
| 4 | 4 | SHAFT | |
| 3-1 | 3-1 | SCREW | |
| 3 | 3 | BRACKET | |
| 14 | 14 | SPRING | |
| 7,2 | 7,2 | LOOPER SHAFT | |
| 13 | 13 | WASHER | |
| 9 | 9 | SCREW | |
| 7,1 | 7,1 | LOOPER SHAFT | |
| 7-6 | 7-6 | SCREW | |
| 7-5 | 7-5 | SCREW | |
| 7-2 | 7-2 | LOOPER SHAFT | |
| 7-4 | 7-4 | LOOPER SHAFT | |
| 8 | 8 | SCREW | |
| 19-1 | 19-1 | SCREW | |
| 19 | 19 | SHAFT | |
| 17 | 17 | SHAFT | |
| 12-1 | 12-1 | SCREW | |
| 12 | 12 | BRACKET | |
| 16-1 | 16-1 | PIN | |
| 16-2 | 16-2 | PIN | |
| 10 | 10 | BASE | |
| 22 | 22 | PLATE | |
| 20 | 20 | PLATE | |
| 21 | 21 | BASE | |
| 27 | 27 | WASHER | |
| 26 | 26 | SCREW | |
| 25 | 25 | SCREW | |
| 23 | 23 | PLATE | |
| 24 | 24 | PLATE | |
| 2 | 2 | SHAFT | |
| 29-1 | 29-1 | SCREW | |
| 1-1 | 1-1 | SCREW | |
| 29 | 29 | BRACKET |
Page 23 — K, 弯针轴部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400138 | 离合滑块 | 1 |
| 2 | 40605003 | 弯针离合叉 | 1 |
| 3 | 201S11020 | 螺钉 | 1 |
| 4 | 40602005 | 弯针离合轴 | 1 |
| 5 | 40601005 | 弯针离合轴座 | 1 |
| 6 | 101S11020 | 螺钉 | 1 |
| 7 | 4060401100 | 离合架部件 | 1 |
| 8 | 40626008 | 曲柄连接销 | 2 |
| 9 | 406S300004 | 螺钉 | 2 |
| 10 | 40604012 | 离合曲柄 | 1 |
| 11 | 400139 | 离合架 | 1 |
| 12 | 40609004 | 滑块 | 1 |
| 13 | 40626009 | 销子 | 1 |
| 14 | 400141 | 曲柄 | 1 |
| 15 | 400637 | 曲柄滑块 | 1 |
| 16 | 40626010 | 销子 | 1 |
| 17 | 406S11004 | 螺钉 | 1 |
| 18 | 10122010 | O型垫圈 | 1 |
| 19 | 406S11005 | 螺钉 | 1 |
| 20 | 40608003 | 离合架挡圈 | 1 |
| 21 | 209S14003 | 螺钉 | 2 |
| 22 | 001004 | O形圈4×1.8 | 1 |
| 23 | 101S15007 | 螺钉 | 1 |
| 24 | 4060401400 | 弯针摆杆部件 | 1 |
| 25 | 40604015 | 弯针摆杆 | 1 |
| 26 | 201S11020 | 螺钉 | 1 |
| 27 | 401S16002 | 螺母 | 1 |
| 28 | 20128015 | 垫片 | 1 |
| 29 | 40603007 | 弯针轴后套 | 1 |
| 30 | 40603008 | 弯针轴前套 | 1 |
| 31 | 40608004 | 挡圈 | 1 |
| 32 | 201S11020 | 螺钉 | 1 |
| 33 | 40612012 | 下仓盖 | 1 |
| 34 | 40622010 | 下仓盖垫 | 1 |
| 35 | 101S11010 | 螺钉 | 11 |
| 36 | 40612013 | 下轴前盖 | 1 |
| 37 | 40622011 | 垫片 | 1 |
| 38 | 201S12001 | 螺钉 | 4 |
| 39 | 401S11029 | 螺钉 | 1 |
| 40 | 10122010 | O型圈 | 1 |
| 41 | 40602006 | 弯针轴 | 1 |
| 42 | 400140 | 拾牙偏心轮 | 1 |
| 43 | 209S14003 | 螺钉 | 1 |
| 44 | 400201 | 拾牙偏心轮 | 1 |
Page 24 — L1. Upper threading mechanism (9270)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BASE | ||
| 2-1 | UPPER THREADING MECHANISM | ||
| 2-2 | UPPER THREADING MECHANISM | ||
| 3 | SCREW | ||
| 4 | SPRING | ||
| 5 | SPRING | ||
| 6 | SCREW | ||
| 8 | LEVER | ||
| 9 | SCREW | ||
| 10 | SHAFT | ||
| 11 | SCREW | ||
| 12 | THREAD GUIDE ASSEMBLY | ||
| 12-1 | BRACKET | ||
| 12-2 | GUIDE | ||
| 12-3 | SPRING | ||
| 12-4 | SCREW | ||
| 12-5 | SCREW | ||
| 12-6 | SCREW | ||
| 13 | BRACKET | ||
| 14 | SCREW | ||
| 15 | BRACKET | ||
| 16 | SCREW | ||
| 17 | BRACKET | ||
| 18 | SCREW | ||
| 19 | BRACKET | ||
| 20 | THREAD GUIDE | ||
| 21 | SPRING | ||
| 22 | SCREW | ||
| 23 | BRACKET | ||
| 24 | BRACKET | ||
| 7-1 | THREAD GUIDE ASSEMBLY | ||
| 7-1-1-1 | BRACKET | ||
| 7-1-1-2 | BRACKET | ||
| 7-1-1-3 | BRACKET | ||
| 7-1-1-4 | BRACKET | ||
| 7-1-1-5 | BRACKET | ||
| 7-1-1-6 | SPRING | ||
| 7-1-1-7 | SPRING | ||
| 7-1-1-8 | SPRING | ||
| 7-1-1-9 | SPRING | ||
| 7-1-1-10 | SPRING | ||
| 7-1-1-12 | SPRING | ||
| 7-1-3 | SHAFT | ||
| 7-1-4 | BRACKET | ||
| 7-1-5 | BRACKET | ||
| 7-2 | THREAD GUIDE ASSEMBLY | ||
| 7-2-1-1 | BRACKET | ||
| 7-2-1-2 | BRACKET | ||
| 7-2-1-3 | BRACKET | ||
| 7-2-1-4 | BRACKET | ||
| 7-2-1-5 | BRACKET | ||
| 7-2-1-6 | SPRING | ||
| 7-2-1-7 | SPRING | ||
| 7-2-1-8 | SPRING | ||
| 7-2-1-9 | SPRING | ||
| 7-2-1-10 | SPRING | ||
| 7-2-1-12 | SPRING | ||
| 7-2-2 | BRACKET | ||
| 7-2-3 | SHAFT | ||
| 7-2-4 | BRACKET | ||
| 7-2-5 | BRACKET |
Page 25 — L1、上钱过线部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40612014 | 面线导线支架板 | 1 |
| 2 | 40613027 | 导线板 | 2 |
| 3 | 101S11019 | 螺钉 | 4 |
| 4 | 40613001 | 过线勾 | 1 |
| 5 | 201S11010 | 螺钉 | 1 |
| 6 | 101S11016 | 螺钉 | 1 |
| 7 | 4061303100 | 面线夹线器部件 | 1 |
| 8 | 300264 | 面线松线器座 | 1 |
| 9 | 406S30006 | 夹线器螺钉 | 2 |
| 10 | 40613008 | 夹线导线板 | 2 |
| 11 | 40628004 | 垫片 | 2 |
| 12 | 40613009 | 夹线板 | 4 |
| 13 | 40612017 | 松线座 | 2 |
| 14 | 40627007 | 夹线簧 | 2 |
| 15 | 40611008 | 转动套 | 2 |
| 16 | 40611009 | 夹线调节螺母(绿) | 1 |
| 17 | 40611010 | 夹线调节螺母(红) | 1 |
| 18 | 40612018 | 松线座 | 2 |
| 19 | 40626011 | 顶针 | 2 |
| 20 | 40602007 | 松线轴 | 1 |
| 21 | 406S30007 | 螺钉 | 1 |
| 22 | 201S16003 | 螺母 | 1 |
| 23 | 40604016 | 松线曲柄 | 1 |
| 24 | 209S14003 | 螺钉 | 1 |
| 25 | 40612015 | 连接板 | 1 |
| 26 | 406S20007 | 螺钉 | 2 |
| 27 | 40605005 | 挑线杆部件 | 1 |
| 28 | 40613002 | 挑线过线板 | 1 |
| 29 | 201S11005 | 螺钉 | 2 |
| 30 | 40613003 | 过线压板 | 1 |
| 31 | 20727002 | 弹簧 | 1 |
| 32 | 207S20003 | 轴位螺钉 | 1 |
| 33 | 201S11008 | 螺钉 | 1 |
| 34 | 40613004 | 过线板 | 1 |
| 35 | 101S11010 | 螺钉 | 1 |
| 36 | 40613005 | 张力缓线勾 | 1 |
| 37 | 101S11010 | 螺钉 | 1 |
| 38 | XXXX | 导线板 | 1 |
| 39 | XXXX | 螺钉 | 1 |
| 40 | XXXX | 螺钉 | 1 |
| 41 | 40613006 | 挑线过线架 | 1 |
| 42 | 40628003 | 垫片 | 1 |
| 43 | 406S30005 | 螺钉 | 1 |
| 44 | 300268 | 防护罩 | 1 |
| 45 | 105S11015 | 螺钉 | 1 |
Page 26 — L2. 上线过线部件 (9280) / Upper threading mechanism (9280)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-4 | 21-4 | ||
| 21-1 | 21-1 | ||
| 21-3 | 21-3 | ||
| 21-5 | 21-5 | ||
| 33 | 33 | ||
| 18-1 | 18-1 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 26 | 26 | ||
| 30 | 30 | ||
| 7-1-1-9 | 7-1-1-9 | ||
| 7-1-1-10 | 7-1-1-10 | ||
| 7-1-1-8 | 7-1-1-8 | ||
| 7-1-1-7 | 7-1-1-7 | ||
| 7-1-1-6 | 7-1-1-6 | ||
| 7-1-1-12 | 7-1-1-12 | ||
| 7-1-1-5 | 7-1-1-5 | ||
| 7-1-1-4 | 7-1-1-4 | ||
| 7-1-1-2 | 7-1-1-2 | ||
| 7-1-1-3 | 7-1-1-3 | ||
| 7-1-2 | 7-1-2 | ||
| 7-1-1-1 | 7-1-1-1 | ||
| 7-1-3 | 7-1-3 | ||
| 7-1-4 | 7-1-4 | ||
| 7-1-5 | 7-1-5 | ||
| 7-2-1-9 | 7-2-1-9 | ||
| 7-2-1-10 | 7-2-1-10 | ||
| 7-2-1-8 | 7-2-1-8 | ||
| 7-2-1-7 | 7-2-1-7 | ||
| 7-2-1-6 | 7-2-1-6 | ||
| 7-2-1-12 | 7-2-1-12 | ||
| 7-2-1-5 | 7-2-1-5 | ||
| 7-2-1-4 | 7-2-1-4 | ||
| 7-2-1-2 | 7-2-1-2 | ||
| 7-2-1-3 | 7-2-1-3 | ||
| 7-2-2 | 7-2-2 | ||
| 7-2-1-1 | 7-2-1-1 | ||
| 7-2-4 | 7-2-4 | ||
| 7-2-5 | 7-2-5 | ||
| 7-2-3 | 7-2-3 | ||
| 15 | 15 | ||
| 17 | 17 | ||
| 16 | 16 | ||
| 2-2 | 2-2 | ||
| 2-1 | 2-1 | ||
| 7-1 | 7-1 | ||
| 7-2 | 7-2 |
Page 27 — L2、上线过线部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-T9280-L01 | 面线导线支架组 | 1 |
| 2 | JK-T9280-L18-01 | 打线传动轴 | 1 |
| 3 | JK-T9280-L21-01 | 打线曲柄 | 1 |
| 4 | JK-T9280-L21-03 | 连杆 | 1 |
| 5 | JK-T9280-L21-04 | 螺钉 | 1 |
| 6 | JK-T9280-L21-05 | 连接柱 | 1 |
| 7 | JK-T9280-L26 | 压线板座 | 1 |
| 8 | JK-T9280-L28 | 松线轴 | 1 |
| 9 | JK-T9280-L29 | 弹簧 | 1 |
| 10 | JK-T9280-L30 | 压线板 | 4 |
| 11 | JK-T9280-L33 | 松线偏心套 | 1 |
Page 28 — M1. 下线过线部件 (9270) / Lower threading mechanism (9270)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 32-20 | 32-20 | ||
| 32-11 | 32-11 | ||
| 32-10 | 32-10 | ||
| 32-7 | 32-7 | ||
| 32-18 | 32-18 | ||
| 32-21 | 32-21 | ||
| 32-7 | 32-7 | ||
| 32-13 | 32-13 | ||
| 32-19 | 32-19 | ||
| 32-12 | 32-12 | ||
| 32-13 | 32-13 | ||
| 32-12 | 32-12 | ||
| 32-7 | 32-7 | ||
| 32-6 | 32-6 | ||
| 32-15 | 32-15 | ||
| 32-2 | 32-2 | ||
| 32-3 | 32-3 | ||
| 32-1 | 32-1 | ||
| 32-5 | 32-5 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 32-9 | 32-9 | ||
| 32-8 | 32-8 | ||
| 32-16 | 32-16 | ||
| 32-17 | 32-17 | ||
| 32-14 | 32-14 | ||
| 32-17 | 32-17 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 21 | 21 | ||
| 20 | 20 | ||
| 12 | 12 | ||
| 19 | 19 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 36 | 36 | ||
| 35-1 | 35-1 | ||
| 1 | 1 | ||
| 3 | 3 | ||
| 7 | 7 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 28 | 28 | ||
| 9 | 9 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 12 | 12 | ||
| 27 | 27 | ||
| 16 | 16 | ||
| 15 | 15 | ||
| 11 | 11 | ||
| 10 | 10 | ||
| 2-1 | 2-1 | ||
| 23-1 | 23-1 | ||
| 2-1 | 2-1 | ||
| 22-1 | 22-1 | ||
| 24-1 | 24-1 | ||
| 25-1 | 25-1 | ||
| 26-1 | 26-1 | ||
| 8-1 | 8-1 | ||
| 2-2 | 2-2 | ||
| 53 | 53 | ||
| 23-2 | 23-2 | ||
| 52 | 52 | ||
| 51 | 51 | ||
| 2-2 | 2-2 | ||
| 22-2 | 22-2 | ||
| 24-2 | 24-2 | ||
| 25-2 | 25-2 | ||
| 26-2 | 26-2 | ||
| 8-2 | 8-2 | ||
| 48-1 | 48-1 | ||
| 47-1 | 47-1 | ||
| 37-1 | 37-1 | ||
| 48-2 | 48-2 | ||
| 37-2 | 37-2 | ||
| 49 | 49 | ||
| 50 | 50 |
Page 29 — M1、下线过线部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40612021 | 底线导线安装板 | 1 |
| 2 | 101S11019 | 螺钉 | 4 |
| 3 | 40602021 | 支撑板 | 1 |
| 4 | 305S11005 | 螺钉 | 1 |
| 5 | 201S11010 | 螺钉 | 1 |
| 6 | 201S11010 | 螺钉 | 1 |
| 7 | 300265 | 过线管(喷漆) | 1 |
| 8 | 201S11009 | 螺钉 | 1 |
| 9 | 300266 | 底线外盖 | 1 |
| 10 | 40627012 | 底线外盖卡簧 | 2 |
| 11 | 201S11009 | 螺钉 | 2 |
| 12 | 40612022 | 盖板固定板 | 2 |
| 13 | 201S11010 | 螺钉 | 4 |
| 14 | 40612023 | 转动架 | 2 |
| 15 | 201S11009 | 螺钉 | 2 |
| 16 | 40622005 | 缓冲垫 | 2 |
| 17 | 40601009 | 左转动架 | 1 |
| 18 | 40626014 | 转动架销 | 2 |
| 19 | 40601010 | 右转动架 | 1 |
| 20 | 201S11009 | 螺钉 | 2 |
| 21 | 40613012 | 夹线器安装板 | 1 |
| 22 | 201S11010 | 螺钉 | 2 |
| 23 | 40613013 | 过线板 | 1 |
| 24 | 201S11010 | 螺钉 | 2 |
| 25 | 11613010 | 过线钩 | 1 |
| 26 | 11613012 | 螺钉 | 1 |
| 27 | 4061301400 | 打线下凸轮架部件 | 1 |
| 28 | 300267 | 打线下凸轮盖 | 1 |
| 29 | 40627009 | 卡簧 | 1 |
| 30 | 101S11019 | 螺钉 | 1 |
| 31 | 40601011 | 底线转向过线板 | 1 |
| 32 | 40626015 | 打线下凸轮盖销 | 1 |
| 33 | 40612025 | 凸轮导线架 | 1 |
| 34 | 101S11005 | 螺钉 | 2 |
| 35 | 40612026 | 底线转向导板 | 1 |
| 36 | 101S11019 | 螺钉 | 2 |
| 37 | 40627010 | 导线钢丝 | 1 |
| 38 | 409S11011 | 螺钉 | 1 |
| 39 | 40613015 | 导线架 | 1 |
| 40 | 40613016 | 导线架 | 1 |
| 41 | 409S11011 | 螺钉 | 1 |
| 42 | 40609007 | 底线打线架 | 1 |
| 43 | 201S11005 | 螺钉 | 2 |
| 44 | 40612027 | 底线打线架 | 1 |
| 45 | 201S11005 | 螺钉 | 1 |
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40613017 | 压线钢丝 | ||
| 40613018 | 导线架 | ||
| 101S11019 | 螺钉 | ||
| W01005 | 垫圈3 | ||
| P03014 | 销5×12.5 | ||
| 301S11007 | 螺钉 | ||
| 4061301900 | 打线凸轮 | ||
| 209S14003 | 凸轮紧固螺钉 | ||
| 40613020 | 底线过线管 | ||
| 101S15007 | 螺钉 | ||
| 40619005 | 切线刀 | ||
| 201S11010 | 螺钉 | ||
| 40612028 | 右弯针盖 | ||
| 40612029 | 左弯针盖 | ||
| P03015 | 销2×8.5 | ||
| 40612030 | 弯针盖压板 | ||
| 101S11010 | 螺钉 | ||
| 406S30008 | 夹线螺钉 | ||
| 40613023 | 夹线板 | ||
| 40627011 | 弹簧 | ||
| 406S16002 | 夹线螺母 | ||
| 40613027 | 导线板 | ||
| 40613021 | 过线管 | ||
| 406S30008 | 夹线螺钉 | ||
| 201S16003 | 螺母 | ||
| 40613023 | 夹线板 | ||
| 40627011 | 弹簧 | ||
| 406S16002 | 夹线螺母 | ||
| 40601012 | 护针支架 | ||
| 40613024 | 导线架 | ||
| 201S11037 | 螺钉 | ||
| 40613025 | 导线勾 | ||
| 101S11019 | 螺钉 | ||
| 40612032 | 左弯针盖 | ||
| 40612031 | 右弯针盖 | ||
| 40613026 | 打线凸轮 | ||
| 300552 | 过线管(喷漆) | ||
| 4061204500 | 底线导线安装板 |
Page 31 — Z1. 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Accessory tray | ||
| 2-1 | Screwdriver | ||
| 2-2 | Screwdriver | ||
| 2-3 | Screwdriver | ||
| 3-1 | Wrench | ||
| 3-2 | Wrench | ||
| 4 | Pin | ||
| 5 | Spring | ||
| 6 | Oil bottle | ||
| 7 | Oil can | ||
| 8 | Cloth | ||
| 10 | Foot pedal | ||
| 11 | Shaft assembly | ||
| 11-1 | Shaft | ||
| 12 | Foot pedal bracket | ||
| 13 | Lever | ||
| 14 | Shaft | ||
| 15 | Shaft | ||
| 16 | Bracket | ||
| 17 | Shaft | ||
| 18 | Spring | ||
| 19 | Spring | ||
| 20 | Washer | ||
| 21 | Nut | ||
| 22 | Washer | ||
| 23 | Rod | ||
| 24 | Bracket | ||
| 25 | Screw | ||
| 26 | Switch | ||
| 27 | Bracket | ||
| 28 | Screw | ||
| 29 | Wire |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40631001 | 附件袋 | 1 | |
| 30131015 | 螺丝刀2.6x70 | 1 | |
| 30131016 | 螺丝刀5.5x190 | 1 | |
| 30131006 | 扳手8x10 | 1 | |
| 30131017 | 镊子 | 1 | |
| 30111010 | 油壶 | 1 | |
| 40631002 | 机头罩 | 1 | |
| 40632001 | 操作板 | 1 | |
| 4063200200 | 传动轴固定架部件 | 2 | |
| 40632009 | 螺钉 | 4 | |
| 40632003 | 抬压脚踏板 | 1 | |
| 40632004 | 控制杠杆 | 1 | |
| 406S30010 | 螺钉 | 2 | |
| 40632005 | 传动轴 | 1 | |
| 40632006 | 安装座 | 2 | |
| 406S30011 | 木螺钉 | 4 | |
| 4063200700 | 传动杆连接部件 | 2 | |
| 4063200800 | 传动杆连接部件 | 1 | |
| 40632009 | 止动板 | 2 | |
| 406S16003 | 螺母 | 2 | |
| 406S30012 | 螺钉 | 2 | |
| 30131008 | 内六角2 | 1 | |
| 30131010 | 内六角3 | 1 | |
| 30131012 | 内六角4 | 1 | |
| 40617001 | 机针 | 10 | |
| 40631003 | 线团架组件 | 1 | |
| 40631004 | 线团架组件 | 1 | |
| 40637001 | 标志牌 | 1 | |
| 40637002 | 型号牌 | 1 | |
| 40631005 | 泡沫箱(上、下) | 1 | |
| 40631006 | 纸箱 | 1 | |
| R03001 | 铆钉2.5×4 | 2 |
Page 33 — 9270-2PL直驱拖布轮
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9 | 9 | Spring | |
| 10 | 10 | Spring | |
| 11 | 11 | Shaft | |
| 12 | 12 | Lever | |
| 13 | 13 | Bracket | |
| 14 | 14 | Screw | |
| 15 | 15 | Lever | |
| 16 | 16 | Screw | |
| 42 | 42 | Screw | |
| 8 | 8 | Shaft | |
| 3 | 3 | Lever | |
| 5 | 5 | Shaft | |
| 4 | 4 | Washer | |
| 6 | 6 | Screw | |
| 7 | 7 | Washer | |
| 17 | 17 | Shaft | |
| 18 | 18 | Link | |
| 19 | 19 | Screw | |
| 20 | 20 | Lever | |
| 21 | 21 | Shaft | |
| 44 | 44 | Pin | |
| 22 | 22 | Lever | |
| 23 | 23 | Lever | |
| 24 | 24 | Spring | |
| 25 | 25 | Lever | |
| 26 | 26 | Lever | |
| 27 | 27 | Screw | |
| 28 | 28 | Shaft | |
| 29 | 29 | Lever | |
| 30 | 30 | Screw | |
| 31 | 31 | Shaft | |
| 32 | 32 | Shaft | |
| 33 | 33 | Lever | |
| 2 | 2 | Shaft | |
| 37 | 37 | Lever | |
| 46 | 46 | Screw | |
| 43 | 43 | Screw | |
| 35 | 35 | Bracket | |
| 36 | 36 | Screw | |
| 1 | 1 | Shaft | |
| 41 | 41 | Screw | |
| 38 | 38 | Screw | |
| 39 | 39 | Washer | |
| 40 | 40 | Washer |
Page 34 — 9270-2PL直驱拖布轮
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40622018 | 上胶轮 | 1 | |
| 4061402500 | 上拖轮组件 | 1 | |
| 4061402500 | 下拖轮组件 | 1 | |
| 40622020 | 下胶轮 | 1 | |
| 40601048 | 下拖轮支架 | 1 | |
| 406s20012 | 轴位螺钉 | 1 | |
| B04033 | 轴承 | 2 | |
| S05119 | 下拖轮固定螺钉 | 2 | |
| 40603019 | 调节螺母 | 1 | |
| 40627014 | 压脚弹簧 | 1 | |
| 40602017 | 长轴 | 1 | |
| 40603016 | 长轴铜套(后) | 1 | |
| 40601032 | 边盖 | 1 | |
| 40601031 | 抬压扳手 | 1 | |
| 40602013 | 固定销子 | 1 | |
| 4060402400 | 拉杆组件 | 1 | |
| 40619005 | 剪线刀片 | 1 | |
| 40609009 | 压杆连接块 | 1 | |
| S05038 | 压杆连接块螺钉 | 1 | |
| 40612047 | 连接板 | 1 | |
| 40603020 | 挡圈 | 2 | |
| S05004 | 调节连杆螺钉 | 2 | |
| 40605010 | 调节连杆 | 2 | |
| 40612045 | 松线连杆 | 1 | |
| 40612048 | 刻度指示片 | 2 | |
| 401s16002 | 螺母 | 2 | |
| 406S20010 | 调节杆轴位螺钉 | 1 | |
| 40610012 | 偏心轮 | 1 | |
| B07036 | 滚针轴承 | 1 | |
| 40605009 | 连杆 | 1 | |
| 40612050 | 偏心轮挡片 | 1 | |
| 40603013 | 长轴铜套 | 1 | |
| 40622016 | 橡胶塞 | 2 | |
| 40601046 | 上拖布轮支架 | 1 | |
| H03006 | 开口挡圈 | 1 | |
| 40612046 | 星轮连杆 | 1 | |
| 40626025 | 上拖轮轴 | 1 | |
| 40602015 | 滚轴 | 6 | |
| 40625002 | 星轮 | 2 | |
| 40627013 | 弹簧 | 6 | |
| 403S11017 | 刀片固定螺钉 | 2 | |
| 406S11013 | 螺钉 | 6 | |
| 40602016 | 压脚杆 | 1 | |
| 409s11013 | 挡片固定螺钉 | 1 | |
| S09002 | 挡圈固定螺钉 | 4 |
Page 35 — 9280-2PL双拖轮
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Main body | ||
| 2 | Gasket | ||
| 3 | Screw | ||
| 4 | Assembly | ||
| 5 | Screw | ||
| 6 | Bracket | ||
| 7 | Screw | ||
| 8 | Clip | ||
| 9 | Screw | ||
| 10 | Assembly | ||
| 10-1 | Housing | ||
| 10-4 | Shaft | ||
| 11 | Lever | ||
| 13 | Assembly | ||
| 15 | Assembly | ||
| 15-2 | Wheel | ||
| 15-3 | Shaft | ||
| 4-1 | Base | ||
| 4-2 | Screw | ||
| 4-3 | Screw | ||
| 4-4 | Screw | ||
| 4-5 | Screw | ||
| 4-6 | Plate | ||
| 4-7 | Bearing | ||
| 4-8 | Washer | ||
| 4-9 | Shaft | ||
| 4-10 | Shaft | ||
| 4-11 | Lever | ||
| 4-12 | Shaft | ||
| 4-13 | Screw |
Page 36
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-T9280-2PL-01 | 机壳下节 | 1 | |
| JK-T9280-2PL-02 | 弹簧片 | 2 | |
| 201S11020 | 螺钉 | 1 | |
| JK-T9280-2PL-04 | 下拖轮组件 | 1 | |
| JK-T9280-2PL-0401 | 下拖轮支架 | 1 | |
| JK-T9280-2PL-0402 | 支架盖板 | 1 | |
| 406S11011 | 螺钉 | 3 | |
| JK-T9280-2PL-0404 | 下拖布轮 | 1 | |
| JK-T9280-2PL-0405 | 星轮 | 4 | |
| 406S11013 | 星轮螺钉 | 12 | |
| 40602015 | 滚轴 | 12 | |
| 40627013 | 弹簧 | 12 | |
| 40604024 | 拨盘 | 1 | |
| 40626023 | 拨盘销 | 1 | |
| 40605025 | 拖轮连杆 | 1 | |
| 40626024 | 拖布轮轴销 | 1 | |
| H03006 | 开口挡圈 | 3 | |
| 401S11012 | 螺钉 | 2 | |
| JK-T9280-2PL-0601 | 上剪线刀 | 1 | |
| JK-T9280-2PL-0602 | 下剪线刀 | 1 | |
| 201S11009 | 螺钉 | 2 | |
| JK-T9280-2PL-08 | 护针支架 | 1 | |
| 406S20011 | 轴位螺钉 | 1 | |
| JK-T9280-2PL-10 | 上拖轮组件 | 1 | |
| JK-T9280-2PL-1001 | 上拖轮架 | 1 | |
| JK-T9280-2PL-1002 | 上拖布轮 | 1 | |
| JK-T9280-2PL-1003 | 拉杆片 | 1 | |
| JK-T9280-2PL-1004 | 拖布轮轴 | 1 | |
| JK-T9280-2PL-11 | 左弯针盖 | 1 | |
| JK-T9280-2PL-13 | 针位组 | 1 |
Page 37 — 9280-PL后拖轮部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21 | Spring Washer | ||
| 20 | Spring | ||
| 19 | Pin | ||
| 22 | Bush | ||
| 18 | Lever | ||
| 15 | Shaft | ||
| 17 | Rear Wheel Assembly | ||
| 23 | Cover | ||
| 13-1 | Bush | ||
| 11 | Bracket | ||
| 10 | Screw | ||
| 24 | Shaft | ||
| 36 | Nut | ||
| 13 | Screw | ||
| 14 | Shaft | ||
| 9 | Nut | ||
| 8 | Screw | ||
| 7 | Washer | ||
| 37 | Screw | ||
| 6 | Lever | ||
| 5 | Shaft | ||
| 25 | Lever | ||
| 26 | Lever | ||
| 17-7 | Screw | ||
| 27 | Bracket | ||
| 4 | Lever | ||
| 3 | Washer | ||
| 2 | Nut | ||
| 17-9 | Shaft | ||
| 17-8 | Lever | ||
| 17-6 | Screw | ||
| 28 | Bracket | ||
| 17-10 | Wheel | ||
| 17-1 | Bracket | ||
| 29 | Bracket | ||
| 17-2 | Screw | ||
| 17-3 | Pin | ||
| 17-4 | Pin | ||
| 17-5 | Bush | ||
| 35 | Bracket |
Page 38 — P L .后 拖 轮 部 件 (9280XH)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-T9280XH-PL001 | 主轴偏心轮 | 1 |
| 2 | JK-T9280XH-PL002 | 固定螺母 | 1 |
| 4 | JK-T9280XH-PL004 | 主轴连杆 | 1 |
| 5 | JK-T9280XH-PL005 | 偏心调节杆 | 2 |
| 6 | JK-T9280XH-PL006 | 偏心调节杆轴位螺钉 | 1 |
| 7 | JK-T9280XH-PL007 | 固定螺母SM15/64"×28 | 1 |
| 8 | JK-T9280XH-PL008 | 拉杆球头 | 2 |
| 10 | JK-T9280XH-PL010 | 固定螺钉 | 1 |
| 11 | JK-T9280XH-PL011 | 连接片 | 1 |
| 12 | JK-T9280XH-PL012 | 固定螺钉 | 4 |
| 13 | JK-T9280XH-PL013 | 压脚轴连接块 | 1 |
| 13-1 | JK-T9280XH-PL013-1 | 螺钉 | 1 |
| 14 | JK-T9280XH-PL014 | 拉杆轴 | 1 |
| 15 | JK-T9280XH-PL015 | 固定销子 | 1 |
| 16 | JK-T9280XH-PL016 | 固定螺母 | 1 |
| 17 | JK-T9280XH-PL017 | 拖轮组件 | 1 |
| 17-1 | JK-T9280XH-PL017-1 | 拖轮支架 | 1 |
| 17-2 | JK-T9280XH-PL017-2 | 螺钉 | 1 |
| 17-3 | JK-T9280XH-PL017-3 | 销子 | 1 |
| 17-4 | JK-T9280XH-PL017-4 | 螺钉 | 6 |
| 17-5 | JK-T9280XH-PL017-5 | 滚珠 | 6 |
| 17-6 | JK-T9280XH-PL017-6 | 星轮 | 2 |
| 17-7 | JK-T9280XH-PL017-7 | 弹簧 | 6 |
| 17-8 | JK-T9280XH-PL017-8 | 拉杆片 | 1 |
| 17-9 | JK-T9280XH-PL017-9 | 拖轮齿 | 1 |
| 17-10 | JK-T9280XH-PL017-10 | 卡簧 | 1 |
| 18 | JK-T9280XH-PL018 | 拾轮扳手 | 1 |
| 19 | JK-T9280XH-PL019 | 拖轮轴 | 1 |
| 20 | JK-T9280XH-PL020 | 拖轮轴弹簧 | 1 |
| 21 | JK-T9280XH-PL021 | 调节螺母 | 1 |
| 22 | JK-T9280XH-PL022 | 长轴 | 1 |
| 23 | JK-T9280XH-PL023 | 边盖 | 1 |
| 24 | JK-T9280XH-PL024 | 套筒 | 1 |
| 25 | JK-T9280XH-PL025 | 挡圈 | 1 |
| 26 | JK-T9280XH-PL026 | 螺钉 | 4 |
| 27 | JK-T9280XH-PL027 | 固定螺钉 | 2 |
| 28 | JK-T9280XH-PL028 | 挡圈 | 1 |
| 29 | JK-T9280XH-PL029 | 橡皮挡板 | 2 |
| 35 | JK-T9280XH-PL035 | 套筒(后) | 1 |
| 36 | JK-T9280XH-PL036 | 拉杆轴下套 | 1 |
| 37 | JK-T9280XH-PL037 | 刻度指示板 | 2 |
Page 39 — 9280-PS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | BEARING | |
| 3 | 3 | WASHER | |
| 4 | 4 | SPRING | |
| 5 | 5 | COLLAR | |
| 6 | 6 | SCREW | |
| 7 | 7 | BEARING | |
| 8 | 8 | SCREW | |
| 9 | 9 | WASHER | |
| 10 | 10 | SPRING | |
| 11 | 11 | SHAFT | |
| 12 | 12 | SCREW | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 17 | 17 | SCREW | |
| 19 | 19 | SHAFT | |
| 20 | 20 | BEARING | |
| 21 | 21 | SHAFT | |
| 22 | 22 | SHAFT | |
| 23 | 23 | SCREW | |
| 26 | 26 | BEARING | |
| 27 | 27 | SHAFT | |
| 28 | 28 | SHAFT | |
| 30 | 30 | CAP | |
| 31 | 31 | CAP | |
| 32 | 32 | SHAFT | |
| 33 | 33 | BEARING | |
| 34 | 34 | SHAFT | |
| 35 | 35 | SHAFT | |
| 36 | 36 | SHAFT | |
| 37 | 37 | SHAFT | |
| 38 | 38 | BEARING | |
| 39 | 39 | BEARING | |
| 40 | 40 | BEARING | |
| 41 | 41 | FLANGE | |
| 42 | 42 | SCREW | |
| 43 | 43 | COLLAR | |
| 44 | 44 | GEAR | |
| 45 | 45 | BELT | |
| 46 | 46 | BELT | |
| 47 | 47 | SCREW | |
| 48 | 48 | HOUSING | |
| 49 | 49 | SCREW | |
| 50 | 50 | SCREW | |
| 51 | 51 | SCREW | |
| 52 | 52 | SCREW | |
| 54 | 54 | SCREW | |
| 55 | 55 | SCREW | |
| 56 | 56 | BRACKET | |
| 57 | 57 | BRACKET | |
| 58 | 58 | SCREW | |
| 59 | 59 | GEAR | |
| 60 | 60 | GEAR | |
| 61 | 61 | SCREW | |
| 62 | 62 | SHAFT | |
| 63 | 63 | SHAFT | |
| 64 | 64 | GEAR | |
| 65 | 65 | GEAR | |
| 66 | 66 | SCREW | |
| 67 | 67 | BELT | |
| 68 | 68 | BELT | |
| 69 | 69 | GEAR | |
| 69-1 | 69-1 | GEAR | |
| 69-2 | 69-2 | GEAR | |
| 70 | 70 | GEAR | |
| 71 | 71 | SCREW | |
| 72 | 72 | BELT | |
| 73 | 73 | PLATE | |
| 74 | 74 | SCREW | |
| 75 | 75 | SHAFT | |
| 75-1 | 75-1 | SHAFT | |
| 75-2 | 75-2 | SHAFT | |
| 75-3 | 75-3 | SHAFT | |
| 76 | 76 | SCREW | |
| 77 | 77 | SHAFT | |
| 78 | 78 | SHAFT | |
| 79 | 79 | SCREW | |
| 80 | 80 | SCREW | |
| 81 | 81 | BRACKET | |
| 82 | 82 | SCREW | |
| 83 | 83 | SHAFT | |
| 84 | 84 | BASE | |
| 85 | 85 | SHAFT | |
| 86 | 86 | LEVER | |
| 87 | 87 | SCREW | |
| 88 | 88 | SCREW | |
| 89 | 89 | SCREW | |
| 90 | 90 | SHAFT |
Page 40 — 9280-PS后拖轮部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-T9280-PS01 | 变速箱 | 1 | |
| JK-T9280-PS02 | 箱盖密封垫 | 1 | |
| JK-T9280-PS03 | 箱体盖 | 1 | |
| JK-T9280-PS04 | 箱盖螺钉 | 8 | |
| JK-T9280-PS05 | 0型圈 | 1 | |
| JK-T9280-PS06 | 加油孔螺丝 | 2 | |
| JK-T9280-PS07 | 开口挡圈4 | 1 | |
| JK-T9280-PS08 | 调节钮套圈 | 1 | |
| JK-T9280-PS09 | 调节钮套筒 | 1 | |
| JK-T9280-PS10 | 调节钮弹簧 | 1 | |
| JK-T9280-PS11 | 偏心调节钮 | 1 | |
| JK-T9280-PS12 | 压板螺钉 | 6 | |
| JK-T9280-PS13 | 压板 | 1 | |
| JK-T9280-PS14 | 0型圈 | 1 | |
| JK-T9280-PS15 | 输出轴后轴承座 | 1 | |
| JK-T9280-PS16 | 滚针轴承(小) | 1 | |
| JK-T9280-PS17 | 轴承套螺钉 | 4 | |
| JK-T9280-PS18 | 轴承套B | 1 | |
| JK-T9280-PS19 | 输出轴 | 1 | |
| JK-T9280-PS20 | 轴承套挡圈螺钉 | 4 | |
| JK-T9280-PS21 | 轴承套挡圈 | 1 | |
| JK-T9280-PS22 | 轴承座 | 1 | |
| JK-T9280-PS23 | 螺钉M4×4 | 8 | |
| JK-T9280-PS24 | 滚针轴承(大) | 1 | |
| JK-T9280-PS25 | 轴承套A | 1 | |
| JK-T9280-PS26 | 输出轴挡圈 | 1 | |
| JK-T9280-PS27 | 输出轴前套 | 1 | |
| JK-T9280-PS28 | 油封10×20×7 | 1 | |
| JK-T9280-PS29 | 标尺窗油封 | 1 | |
| JK-T9280-PS30 | 标尺窗 | 1 | |
| JK-T9280-PS31 | 轴套油塞 | 1 | |
| JK-T9280-PS32 | 输出轴后套 | 1 | |
| JK-T9280-PS33 | 挡圈 | 1 | |
| JK-T9280-PS34 | 连杆 | 1 | |
| JK-T9280-PS35 | 连杆销 | 1 | |
| JK-T9280-PS36 | 偏心调节器组件 | 1 | |
| JK-T9280-PS37 | 输入轴 | 1 | |
| JK-T9280-PS38 | 油封10×26×7 | 2 | |
| JK-T9280-PS39 | 深沟球轴承 | 2 | |
| JK-T9280-PS40 | 红钢纸垫圈 | 1 | |
| JK-T9280-PS41 | 轴承刻线压板 | 1 | |
| JK-T9280-PS42 | 螺钉M6×6 | 4 | |
| JK-T9280-PS43 | 针距离度盘 | 1 | |
| JK-T9280-PS44 | 同步轮XL | 1 | |
| JK-T9280-PS45 | 同步带XL | 1 | |
| JK-T9280-PS46 | 同步带护罩 | 1 | |
| JK-T9280-PS47 | 同步带罩固定螺钉 | 2 | |
| JK-T9280-PS48 | 输出轴后套 | 1 |
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-T9280-PS49 | 星轮固定轴套 | ||
| JK-T9280-PS50 | 星轮B | ||
| JK-T9280-PS51 | 滚子 | ||
| JK-T9280-PS52 | 星轮固定螺钉 | ||
| JK-T9280-PS53 | 星轮垫圈 | ||
| JK-T9280-PS54 | 星轮A | ||
| JK-T9280-PS55 | 滚子弹簧 | ||
| JK-T9280-PS56 | 拖布轮组件 | ||
| 40601046 | 拖轮支架 | ||
| JK-T9280-PS58 | 支架轴承 | ||
| JK-T9280-PS59 | 拖布轮 | ||
| JK-T9280-PS60 | 胶轮拖布轮 | ||
| JK-T9280-PS61 | 拖布轮紧定螺钉 | ||
| 40602019 | 大同步轮轴 | ||
| JK-T9280-PS63 | 小同步轮轴 | ||
| JK-T9280-PS64 | 调整薄垫片 | ||
| JK-T9280-PS65 | 调整厚垫片 | ||
| 406s20011 | 上罩壳固定螺钉 | ||
| 40612055 | 下罩壳 | ||
| JK-T9280-PS68 | 下罩壳螺钉柱 | ||
| 4063501200 | 大同步轮组件 | ||
| 40635013 | 大同步轮XL型 | ||
| 40612056 | 大同步轮挡片一 | ||
| 40635014 | 小同步轮XL型 | ||
| JK-T9280-PS71 | 同步轮紧定螺钉 | ||
| 40635018 | 同步带 | ||
| 40612057 | 大同步轮挡片2 | ||
| JK-T9280-PS74 | 大同步轮挡片螺钉 | ||
| 40626027 | 上罩壳组件 | ||
| 40612060 | 上罩壳 | ||
| 40626022 | 上罩壳螺钉柱 | ||
| 40626028 | 上罩限位销 | ||
| JK-T9280-PS76 | 拖布轮支架螺钉 | ||
| 40602010 | 调压杆 | ||
| 40603021 | 调压杆轴套 | ||
| 40609009 | 调压杆夹 | ||
| S05038 | 调压杆夹螺钉 | ||
| 40612047 | 连接片 | ||
| 409S11013 | 连接片固定螺钉 | ||
| 40627013 | 调压弹簧 | ||
| 40601032 | 端面盖 | ||
| 40603019 | 调压螺母 | ||
| 40601031 | 扳手 | ||
| 406S11009 | 端面盖固定螺钉 | ||
| 40602013 | 扳手销 | ||
| JK-T9280-PS89 | 万向节接头 | ||
| JK-T9280-PS90 | 传动轴 | ||
| JK-T9280-PS | 后拖轮组件 |
Jack JK-T9270 / JK-T9280 — parts catalog
- Page 1 (cover): This is the cover page for the JK-9270/80 Parts Book, revised edition in March 2013.
- Page 2 (diagram): This page displays a diagram of the machine body and its associated components, with reference numbers pointing to specific parts.
- Page 3 (parts_list): This page lists parts for A, 机壳部件, including part numbers like JK-T9270-A02 and descriptions such as Cushion assy.
- Page 4 (diagram): This page displays a diagram of the Upper shaft mechanism, detailing various components with reference numbers and part numbers.
- Page 5 (parts_list): This page lists parts for the B, upper shaft components, including part numbers, names, quantities, and other related information.
- Page 6 (diagram): This page displays a diagram of the needle bar mechanism, with numbered parts and their corresponding part numbers and descriptions.
- Page 7 (parts_list): This page lists parts for needle bar components, including part numbers, names, quantities, and other product numbers.
- Page 8 (diagram): This page displays a diagram of the presser bar mechanism (9270) with various parts labeled with reference numbers and some part numbers.
- Page 9 (parts_list): This page lists parts for the D1, Presser Foot Component section, including part numbers, names, quantities, and other product codes.
- Page 10 (diagram): This page displays a diagram of the presser bar mechanism (9280) with numbered parts and a separate inset diagram showing parts labeled 3-2 and 1-3.
- Page 11 (parts_list): This page lists parts for D2, presser foot components, including part numbers, descriptions, quantities, and other identifiers.
- Page 12 (diagram): This page displays a diagram of the pulley mechanism, with numbered parts and their corresponding part numbers and descriptions.
- Page 13 (parts_list): This page lists pulley components for industrial sewing machines, including part numbers, names, quantities, and related product codes.
- Page 14 (diagram): This page displays a diagram of the feed mechanism, with numbered parts and sub-assemblies indicated by reference numbers.
- Page 15 (parts_list): This page lists parts for the F, Feeding Mechanism section, including part numbers, names, quantities, and other related information.
- Page 16 (diagram): This page displays a diagram of gauge parts for the 9270 Standard sewing machine, with various components labeled with reference numbers and some parts listed with their corresponding part numbers and descriptions.
- Page 17 (parts_list): This page contains a parts list for JK-T9270 series sewing machines, detailing part numbers, names, quantities, and related product numbers for various components.
- Page 18 (diagram): This page displays a diagram of gauge parts for model 9280, with various components labeled with reference numbers.
- Page 19 (parts_list): This page lists parts for the G2 series, including needles, loopers, and screws, with their corresponding part numbers and descriptions.
- Page 20 (diagram): This page displays a diagram of the lower shaft mechanism, with numbered parts including bearings, shafts, and fasteners.
- Page 21 (parts_list): This page lists parts for the lower shaft, including part numbers, names, quantities, and other identifiers.
- Page 22 (diagram): This page displays a diagram of the looper mechanism, detailing various components with their corresponding reference numbers and part numbers.
- Page 23 (parts_list): This page lists parts for K, 弯针轴部件, including part numbers, names, quantities, and other details.
- Page 24 (diagram): This page displays a diagram of the upper threading mechanism (9270) for an industrial sewing machine, along with detailed breakdowns of sub-assemblies labeled <2针用> and <3针用>.
- Page 25 (parts_list): This page lists parts for the upper thread guide, including part numbers, names, quantities, and related product numbers.
- Page 26 (diagram): This page displays a diagram of the upper threading mechanism (9280) for an industrial sewing machine, with detailed breakdowns of sub-assemblies labeled 2-1 and 2-2.
- Page 27 (parts_list): This page lists parts for L2, upper thread components, including part numbers, descriptions, quantities, and other details.
- Page 28 (diagram): This page displays a diagram of the lower threading mechanism (9270) for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 29 (parts_list): This page contains a parts list for M1, lower thread guide components, listing part numbers, names, quantities, and other related information.
- Page 30 (parts_list): This page lists parts for JK-T9270-M32-18 through JK-T9280-M01, including part numbers, descriptions, quantities, and remarks.
- Page 31 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 32 (parts_list): This page lists parts for Z1, accessories, including part numbers, names, quantities, and other product numbers.
- Page 33 (diagram): This page displays a diagram of the 9270-2PL direct drive sewing machine's needle bar and related components, with numbered parts for identification.
- Page 34 (parts_list): This page lists parts for the 9270-2PL direct drive sewing machine, including part numbers, names in Chinese and English, quantities, and other details.
- Page 35 (diagram): This page displays a diagram of the 9280-2PL double towing wheel assembly, with various components labeled with reference numbers for identification.
- Page 36 (parts_list): This page lists parts for the 9280-2PL double wheel sewing machine, including part numbers, descriptions, quantities, and English names.
- Page 37 (diagram): This page displays a diagram of rear wheel components for the 9280-PL model, with numbered parts and their corresponding details.
- Page 38 (parts_list): This page lists parts for the PL rear pulley assembly (9280XH), including part numbers, descriptions, quantities, and manufacturer part numbers.
- Page 39 (diagram): This page displays a diagram of various components of the 9280-PS sewing machine, including shafts, gears, belts, and housing parts, with corresponding reference numbers for identification.
- Page 40 (parts_list): This page lists parts for the 9280-PS rear wheel assembly, including part numbers, names, quantities, and English descriptions.
- Page 41 (parts_list): This page lists parts for JK-T9280-PS series, including part numbers, descriptions, quantities, and remarks.
Page 2 — A. 主体部件 / Machine body
A. 主体部件 / Machine body 118-927-050
Page 3 — A、机壳部件
A、机壳部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-A02 40612001 底座固定板 2 105337001 Cushion assy 2 JK-T9270-A03 201S11029 螺钉, SM6. 35 2 105146001 Screw, SM6. 35 3 JK-T9270-A04 406S30001 木螺钉M6. 2X25 2 0B0622502 Wood screw, round, M6. 2×2.5 5 JK-T9270-A04-02 40603001 垫套 2 --- Matress Protector 6 JK-T9270-A04-03 40622001 橡胶垫 4 --- Rubber pad 7 JK-T9270-A05 40622002 防震垫 2 105341051 Base cushion 8 JK-T9270-A12 20911003 油窗 1 150697001 Oil gauge window 9 JK-T9270-A12 20922003 油窗套 1 --- Oil gauge window bush 10 JK-T9270-A13 40622003 油封 1 104449009 Oil line 11 JK-T9270-A14 40623003 回油线 1 --- Oil line jintex.in
Page 4 — B. 上轴部件 / Upper shaft mechanism
B. 上轴部件 / Upper shaft mechanism 118-927-109
Page 5 — B、上轴部件
B、上轴部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-B01 40602001 上轴 1 S40314001 Upper shaft 2 JK-T9270-B02 B04002 轴承, 6302ZZ 1 076302850 Ball bearing, 6302ZZ 3 JK-T9270-B03 B06001 轴承6302VV 2 072630260 Ball bearing, 6303VV 4 JK-T9270-B04 H01004 卡簧42 1 048420242 Retaining ring, C42 5 JK-T9270-B05 40128004 垫片 1 S40315051 Brearing spacer 6 JK-T9270-B06 40612002 轴承盖 1 S40316051 Brearing presser 7 JK-T9270-B07 115S11010 螺钉SM4. 76-32X10 3 062711012 Screw, SM4. 76-32×10 8 JK-T9270-B08 40608001 轴环 1 S40318051 Upper shaft collar 9 JK-T9270-B09 301S11015 螺钉 1 S40317001 Screw SM9. 53 10 JK-T9270-B10 4060100100 上轮油盒组件 1 S40812001 Oil tank assy 11 JK-T9270-B10-01 40601001 油盒 1 S4083001 Oil tank 12 JK-T9270-B10-02 40611001 油窗 1 104547001 Oil gauge window 13 JK-T9270-B10-03 10122019 O型圈 1 081014670 O ring pw 14 14 JK-T9270-B10-04 40612003 油窗盖 1 151074009 Oil gauge cover 15 JK-T9270-B10-05 101S11005 螺钉 4 100257010 Screw, SM3. 57 16 JK-T9270-B10-06 406S11001 加油螺钉 1 111193001 Oil feeding pipe cap 17 JK-T9270-B10-07 40622004 垫片 1 105071001 Oil tank packing 18 JK-T9270-B10-08 10122010 O型圈 1 111194001 O ring jintex.in
Page 6 — C. 针杆部件 / Needle bar mechanism
C. 针杆部件 / Needle bar mechanism 14 15 7 6 16 13 1 1-1 2 5 3 9-1 11-1 < 9270-1, -2 > 9-2 11-1 < 9270-3 > 10 9-3 11-2 12 < 9280 > 118-927-118
Page 7
C、针棒部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-C01 4060500100 针杆连杆组件 1 S40268001 Thread take-up lever assy 2 JK-T9270-C01-01 40622005 防震橡胶垫 1 142274009 Rubber cap4. 2 3 JK-T9270-C01-02 101S11005 螺钉 1 140004001 Screw, SM3. 57 4 JK-T9270-C01-03 40626001 挑线连杆销 1 Thread take-up lever pin 5 JK-T9270-C01-04 40605002 挑线连杆 1 Thread take-up lever 6 JK-T9270-C01-05 40626002 针杆连接轴 1 Needle bar connecting shaft 7 JK-T9270-C01-06 10124001 滚针轴承 1 Needle bearing 8 JK-T9270-C02 10112003 针杆曲柄护板 1 107153001 Washer 9 JK-T9270-C03 400134 针杆滑块 1 102630001 Needle bar guide slide block 10 JK-T9270-C04 40601002 针杆滑块座 1 145688000 Needle bar guide 11 JK-T9270-C05 201S11009 螺钉 2 062670612 Screw pan, SM3. 57-40×6 12 JK-T9270-C06 40602009 针杆 1 113605051 Needle bar 13 JK-T9270-C07 40603002 针杆上套 1 S18874001 Needle bar bush, U 14 JK-T9270-C08 40603003 针杆下套 1 111024101 Needle bar bush, D 15 JK-T9270-C09-01 40604001 针杆曲柄 1 S40271051 Thread take-up crank, MH 16 JK-T9270-C10 116S14005 螺钉 2 014771022 Screw, SM6. 35 17 JK-T9270-C11-01 116S14005 螺钉 3 100251001 Screw SM6. 35 18 JK-T9270-C13 40622006 橡胶塞 1 111863001 Needle bar cork 19 JK-T9270-C14 40622014 油封 1 140890009 Oil cup 20 JK-T9270-C15 10123002 油棉 1 151927001 Oil cotton 21 JK-T9270-C16 10112053 油线夹 1 109993001 Clutch felt wick nipper 22 JK-T9270-C17 40623002 回油线 1 Oil line 23 JK-T9270-C18 10127015 油线压紧簧 1 Ring 24 JK-T9280-C09-03 40604003 针杆曲柄 1 S40273051 Thread take-up crank, H 25 JK-T9280-C12 409S14003 螺钉 2 123006001 Set screw, (CP)SM6. 35
Page 8 — D1. 拾压脚部件(9270) / Presser bar mechanism(9270)
D1. 拾压脚部件(9270) / Presser bar mechanism(9270) 15 13 15 3-1 1-1 < -1,-2,-3 > 3-2 < -A > 14 16 21 9 17 19 20 6 4 5 8 7 11 2 10 12 118-927-210
Page 9 — D1、拾牙脚部件
D1、拾牙脚部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-D01-01 40602002 压脚轴 1 S06259001 Presser bar 2 JK-T9270-D02 406S30002 压脚螺母 1 S40299001 Adjust screw 3 JK-T9270-D03-01 40603004 压脚轴套 1 111025001 Adjust screw bar 4 JK-T9270-D04 40609002 压杆导架 1 S40798050 Adjust screw bar clamp 5 JK-T9270-D05 101S15007 压杆导架螺钉 1 014760622 SET SCREW, SOCKET, SM5. 95 6 JK-T9270-D06 40627001 弹簧 1 S40298051 Spring 7 JK-T9270-D07 40612004 抬压脚架 1 105103001 Presser bar lifter 8 JK-T9270-D08 406S20001 轴位螺钉 1 105104001 Shoulder screw, SM5. 95 9 JK-T9270-D09 300258 抬压脚杆柱 1 105105009 Knee lifter lever 10 JK-T9270-D10 406S20002 轴位螺钉 1 102921002 Shoulder screw, SM7. 94 11 JK-T9270-D11 40627002 杠杆弹簧 1 105106001 Twist spring 12 JK-T9270-D12 30131018 抬压脚拉链 1 105333001 Presser foot lifter chain assy 13 JK-T9270-D13 300259 面板 1 S40300001 Pace plate 14 JK-T9270-D14 40622007 面板垫 1 S40301001 Packing 15 JK-T9270-D15 406S11009 螺钉 4 151927001 Screw, pan SM4. 37-40×10 16 JK-T9270-D16 40611002 挡板 1 S40279001 Front lid 17 JK-T9270-D17 101S11007 螺钉 2 062680512 Screw, pan SM4. 37-40×5 18 JK-T9270-D19 40122017 油封 1 117934009 Rubber cap, 13. 5 19 JK-T9270-D20 40122005 油封 1 15915009 Rubber cap, 20. 5 20 JK-T9270-D21 40122005 油封 1 15915009 Rubber cap, 20. 5 jintex.in
Page 10 — D2. 拾压脚部件(9280用) / Presser bar mechanism (9280)
D2. 拾压脚部件(9280用) / Presser bar mechanism (9280) 6 8 12 9 7 10 11 27 2 3-2 1-3 118-927-210 - 5 - jintex.in
Page 11 — D2、拾牙脚部件
D2、拾牙脚部件 1 JK-T9280-D01-03 40602003 压脚轴 1 S0626001 Presser bar 2 JK-T9280-D02 40603005 压脚轴上套 1 105091001 Presser bar bush, U 3 JK-T9280-D03-02 40603006 压脚轴下套 1 S40300001 Presser bar bush, D 4 JK-T9280-D06 40612006 弹簧片 1 105094009 Presser plate sping 5 JK-T9280-D07 40626003 销子 1 105095001 Pin 6 JK-T9280-D08 40612007 压板 1 105096009 Plate spring assy 7 JK-T9280-D09 40612008 垫片 1 105100001 Washer 8 JK-T9280-D10 406S30003 螺钉 1 148006001 Adjust screw 9 JK-T9280-D11 116S16006 螺母 1 21710212 Nut, 2 SM4.76 10 JK-T9280-D12 406S16001 调压螺母 1 148007051 Presser bar lifter 11 JK-T9280-D27 40624006 钢珠 1 71063550 Rubber cap, 20.5
Page 12 — E. 带轮部件 / Pulley mechanism
E. 带轮部件 / Pulley mechanism 19 2 9 13 18 19 20 21 8 14 15 16 1-1 < 9270, 用 > 1-2 9280 用 > 3-1 < 9270-1, -2, -3 9280-5, -7 > 3-2 26 9270-PS 25 22 23 24 118-927-120 -7- jintex.in
Page 13 — E、带轮部件
E、带轮部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-E01-01 300260 上轮 1 S40280001 Pulley assy. M 2 JK-T9270-E02 101S15001 上轮螺钉 2 014781032 Set screw, socket SM6. 35 3 JK-T9270-E03-01 4063500400 上轴同步带轮 1 S40265001 Timing belt wheel assy, upper 4 JK-T9270-E04 116S14004 上轴带轮螺钉 2 014770622 Set screw, socket SM6. 35 5 JK-T9270-E05 40635001 下轴同步带轮 1 S40818001 Timing belt wheel assy, lower 6 JK-T9270-E06 116S14004 下轮螺钉 2 014770622 Set screw, socket SM6. 35 7 JK-T9270-E07 40635002 传动带 1 S40819000 Timing belt 8 JK-T9270-E08 300256 带轮箱 1 S40258001 Belt cover 9 JK-T9270-E09 101S11016 螺钉 6 062711612 Screw pan SM4. 76-32×16 10 JK-T9270-E10 300261 带轮箱盖 1 S40259001 Belt cover plate 11 JK-T9270-E11 40611003 下带轮罩 1 116577051 Rotary hook shaft cover 12 JK-T9270-E12 40622008 带轮箱垫 1 105141001 Packing 13 JK-T9270-E13 115S11010 螺钉 2 062710812 Screw pan SM4. 76-32×8 14 JK-T9270-E14 300257 底座 1 S40796001 Pulley cover base 15 JK-T9270-E15 S01037 螺钉M12×30 2 105144001 Bolt 16 JK-T9270-E16 W01016 垫片12 2 142627001 Washer 17 JK-T9270-E17 40611004 上轮罩壳 1 S40261001 Pulley cover, A 18 JK-T9270-E18 40612010 上轮顶盖 1 S40262001 Pulley cover, B 19 JK-T9270-E19 105S11015 顶盖螺钉 3 062680712 Screw pan SM4. 37-40×7 20 JK-T9270-E20 406S20003 上轮罩壳螺钉 4 155558001 Stud screw, SM6. 35 21 JK-T9270-E21 40622009 垫片 8 S40797000 Pulley cover sheet 22 JK-T9270-E22 4063501100 同步带轮 1 150659001 Timing pulley assy, B 23 JK-T9270-E23 116S14004 螺钉 2 14760622 Set screw, socket SM5. 95 24 JK-T9270-E24 40635016 同步带轮 1 150661001 Pulley timing belt, A 25 JK-T9270-E25 XXXX 盖板 1 S40264001 Pulley belt cover 26 JK-T9270-E26 XXXX 螺钉 2 62680812 Screw, pan SM4. 37-40×8 27 JK-T9280-E01-02 300551 上轮(喷漆) 1 S40281001 Pulley assy, H
Page 14 — F. 送料部件 / Feed mechanism
F. 送料部件 / Feed mechanism 11 10 9 4-1-1 4-2-1 4-1 4-2 7 6 3 8 2 16 14 15 13 12 < 9270-1 > 1-1-4 1-1-5 1-1-1-1 1-1 1-1-3 1-1-2-1 < 9270-2, -3 > 1-2-4 1-2-5 1-1-2-1 1-2-1-1 1-2-3 < 9280 > 1-3-4 1-3-5 1-3-1-1 1-3 1-3-3 1-3-2-1 118-927-202 jintex.in
Page 15 — F、送料机构
F、送料机构 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-F01-01 4061000100 送料凸轮组件 1 S40274001 Eccentric wheel assy, M 2 JK-T9270-F01-0101 40610002 止动凸轮 1 Pin, spring AW3 3 JK-T9270-F01-0102 40610003 针距调节凸轮 1 Pin, spring AW3 6 JK-T9270-F01-0103 40625001 止动板 1 S38309001 Rachter stopper 7 JK-T9270-F01-0104 40627003 弹簧 1 S39585001 Twist spring 8 JK-T9270-F01-0105 303S20002 螺钉 1 S39586001 Screw, M3 14 JK-T9270-F02 403S14004 螺钉 2 012060632 Set screw, socket M6×6 15 JK-T9270-F03 400133 送料滑块 1 S40282000 Eccentric wheel sleeve 11 JK-T9270-F04-01 400135 送料偏心轮 1 183949001 Eccentric wheel with screw, M 12 JK-T9270-F04-02 400098 送料偏心轮 1 183950001 Eccentric wheel with screw, H 13 JK-T9270-F04-0101 116S14004 螺钉 2 014770622 Set screw, socket SM5. 35 16 JK-T9270-F05 400136 送料牙架 1 S40285001 Feed bar slide block assy 17 JK-T9270-F05-01 X X X 牙架滑块 1 Feed bar slider 18 JK-T9270-F06 40604004 送料曲柄 1 S40288000 Feed lifting connencting shaft 19 JK-T9270-F07 40626004 曲柄销 1 S40289051 Feed lifting rock shaft 20 JK-T9270-F08 101S15007 螺钉 1 014760622 Set screw socket SM5. 95 21 JK-T9270-F09 40626005 送料偏心销 1 S41311051 Feed bar eccentrics shaft 22 JK-T9270-F10 10122010 O型圈 1 081006070 O ring, P6 23 JK-T9270-F11 101S15010 螺钉 1 014761030 Set screw, socket SM5. 95 24 JK-T9270-F12 40626006 针距调节销 1 S40290051 Push button 25 JK-T9270-F13 40627004 弹簧 1 S40800001 Spring 26 JK-T9270-F14 10122010 O型圈 1 081005070 O ring, P5 27 JK-T9270-F15 W01004 垫片5 1 025710132 Washer, plain S4. 76 28 JK-T9270-F16 H05012 卡簧4 1 048040342 Retaining ring, E4 29 JK-T9280-F04-02 400098 送料偏心轮 1 183940001 Eccentric wheel with screw, H 30 JK-T9280-F01-03 4061001100 送布凸轮组件 1 S40291001 Eccentric wheel assy, H jintex.in
Page 16 — G1. 零件关系 / Gauge parts (9270 Standard)
G1. 零件关系 / Gauge parts (9270 Standard) 1-1 1 2 3 8 4 6 21 20-2 20-1 23 22-2 21 23 22-1 14 12 11 <2 3/16固定护针用> 5-1-1 5-1-2 5-1 <固定护针用> 9-1 10-1 <移动护针用> 9-2 17 18 19 10-2 <1/8, 5/32用> 13-1-1 13-1 <3/16, 1/4 MH用> 13-2-1 13-2 <1/4M用> 13-3 <2 3/16固定护针用,-3用以外> 5-3-3 5-3 5-3-6 5-2-1 5-2-3 5-2-2 5-2 5-3-1 5-3-2 5-3-4 5-3-5 118-927-231 jintex.in
Page 17 — G1、零件关系
G1、零件关系 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-1 (1/4) 4063401400 针位组件 1 --- Needle asm. 2 JK-T9270-G01 40634002 针夹头 1 183978-001 Needle calmpassy w/s 3 JK-T9270-G01-01 209S14003 机针螺钉 2 103408002 Set csrew,SM4. 37 4 JK-T9270-G02 40617001 机针 2 S36861-012 Needle 5 JK-T9270-G03 40615002 针板 1 S11508-101 Needle plate 6 JK-T9270-G04 101S17002 针板螺钉 3 100032004 Screw flat SM4. 37 7 JK-T9270-G05-03 40616002 压脚组件 1 S40363-001 Presser foot assy 8 JK-T9270-G05-0301 406S20005 螺钉 4 147871001 Pin 9 JK-T9270-G05-0302 40627005 弹簧 1 S40358001 Spring 10 JK-T9270-G05-0303 406S15001 螺钉 1 111105002 Screw, SM2. 38 11 JK-T9270-G05-0304 40627006 弹簧 1 S40360001 Spring 12 JK-T9270-G05-0305 406S20006 螺钉 1 147932001 Shoulder screw, SM2. 38 13 JK-T9270-G06 101S11010 压脚螺钉 1 060670812 Screw bind SM3. 57-40×8 14 JK-T9270-G07 40614002 送料牙齿 1 S40370-001 Feed dog 15 JK-T9270-G08 402S11023 送料牙螺钉 1 105173004 Screw, SM4. 76 16 JK-T9270-G09-02 201S11011 护针固定螺钉 1 111143003 Set screw, SM3. 57 17 JK-T9270-G10-02 40617008 护针 1 148973-001 Needle guard 18 JK-T9270-G11 40609005 滑块 1 S40399001 Lapper guide plate 19 JK-T9270-G12 40612011 安装板 1 105129001 Lapper guide plate washer 20 JK-T9270-G13-03 40615021 卷边器 1 S09679-001 Lapper assy 21 JK-T9270-G14 406S11002 安装板螺钉 2 105130001 Screw, SM3. 57 22 JK-T9270-G17 40604007 护针架 1 148876001 Needle guard bracket 23 JK-T9270-G18 201S16001 母 1 021670102 Nut, SM3. 57 24 JK-T9270-G19 101S11010 螺钉 1 062671012 Screw pan SM3. 57-40×10 25 JK-T9270-G20-01 40617011 前弯针 1 S40393-001 Lopper, S 26 JK-T9270-G20-02 40617017 后弯针 1 S40394-001 Lopper, L 27 JK-T9270-G21 101S11007 弯针螺钉 2 062680612 Screw, pan SM4. 37-40×6 28 JK-T9270-G22-01 40604005 前弯针架 1 S06315001 Looper holder, S 29 JK-T9270-G22-0102 40626007 弯架销 1 --- Pin 30 JK-T9270-G22-02 40604006 后弯针架 1 S06314001 Looper holder, L 31 JK-T9270-G23 105S11015 螺钉 2 062681012 Screw pan SM4. 37-40×10
Page 18 — G2. 零件关系(9280) / Gauge parts (9280)
G2. 零件关系(9280) / Gauge parts (9280) 2 18-2 18-1 18-3 19 21 118-928-231
Page 19 — G2、零件关系 (9280用)
G2、零件关系 (9280用) 1 JK-T9280-G02 40617005 机针 3 S43401021 Needle, TVX5 (#21) 2 JK-T9280-G13-03 4061502700 卷边器 1 --- 3 JK-T9280-G18-01 40617015 中弯针 1 --- Lopper, M 4 JK-T9280-G18-02 40617013 前弯针 1 --- Lopper, s 5 JK-T9280-G18-03 40617019 后弯针 1 --- Lopper, L 6 JK-T9280-G19 301S11023 螺钉 3 111443003 Set screw, SM3. 57 7 JK-T9280-G21 206S11001 螺钉 3 62671012 Screw, pan SM3. 57-40X10
Page 20 — J. Lower shaft mechanism
J. 下轴部件 / Lower shaft mechanism 1 11 2 3 4 5 6 7 8 9 10 118-927-305 jintex.in
Page 21 — J、下轴部件
J、下轴部件 序号 图号 1 JK-T9270-J01 2 JK-T9270-J02 3 JK-T9270-J03 4 JK-T9270-J04 5 JK-T9270-J05 6 JK-T9270-J06 7 JK-T9270-J07 8 JK-T9270-J08 9 JK-T9270-J09 10 JK-T9270-J10 11 JK-T9270-J11 件号 40602004 B03003 40608005 40608002 209S14003 B06007 H01004 40612002 115S11010 406S11003 101S11023 名称 下轴 轴承6200Z 轴套 下轴挡圈 挡圈螺钉 6302VV 卡簧42 轴承盖 轴承盖螺钉 螺钉 螺钉 件数同类产品编号 Name of parts 1 105147101 Lower shaft 1 072620070 Ball bearing, 6200Z 1 072620180 Shaft sleeve 1 105150000 Lower shaft collar 2 102716004 Set screw, SM4. 37 1 072630260 Ball bearing, 6320VV 1 048420242 Retaining rig, C42 1 S40316051 Bearing presser 3 062711012 Screw, pan SM4. 76-32×10 1 105155001 Screw, SM4. 35 1 105156002 Screw, SM4. 37
Page 22 — K. 弯针部件 / Looper mechanism
K. 弯针部件 / Looper mechanism 15-1-1 15-3 15-2 15 15-1 5 6 11 4 3-1 14 7,2 3 9 13 7,1 7-6 7-5 7-2 7-4 8 19-1 19 17 12-1 12 16-1 16-2 10 22 20 21 27 26 25 23 24 2 29-1 1-1 29 118-927-306 jintex.in
Page 23 — K, 弯针轴部件
K, 弯针轴部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-K02 400138 离合滑块 1 S40302000 Slidee 2 JK-T9270-K03 40605003 弯针离合叉 1 181993101 Lopper feeding fork assy 3 JK-T9270-K03-01 201S11020 螺钉 1 105176001 Screw, SM4. 37 4 JK-T9270-K04 40602005 弯针离合轴 1 105177001 Lopper feeding fork shaft 5 JK-T9270-K05 40601005 弯针离合轴座 1 105178100 Lopper fork shaft bracket 6 JK-T9270-K06 101S11020 螺钉 1 105179001 Screw, SM4. 76 7 JK-T9270-K07 4060401100 离合架部件 1 S40303001 Looper connecting rod assy 8 JK-T9270-K07-01 40626008 曲柄连接销 2 105183001 Looper link shaft 9 JK-T9270-K07-02 406S300004 螺钉 2 105184000 Screw, SM2. 38 10 JK-T9270-K07-03 40604012 离合曲柄 1 S40792001 Looper lever 11 JK-T9270-K07-04 400139 离合架 1 Looper holder 12 JK-T9270-K07-05 40609004 滑块 1 Slider 13 JK-T9270-K06 40626009 销子 1 Pin 14 JK-T9270-K07 400141 曲柄 1 Lever 15 JK-T9270-K07-08 400637 曲柄滑块 1 Lever slider 16 JK-T9270-K08 40626010 销子 1 S140793051 Pin 17 JK-T9270-K09 406S11004 螺钉 1 105191001 Screw, SM4. 37 18 JK-T9270-K10 10122010 O型垫圈 1 081010870 O ring, S10 19 JK-T9270-K11 406S11005 螺钉 1 100260001 Set screw, SM5. 95 20 JK-T9270-K12 40608003 离合架挡圈 1 181987001 Block plate 21 JK-T9270-K12-01 209S14003 螺钉 2 100366001 Screw 22 JK-T9270-K13 001004 O形圈4×1.8 1 081003670 O ring 23 JK-T9270-K14 101S15007 螺钉 1 014761030 Screw SM5. 95 24 JK-T9270-K15 4060401400 弯针摆杆部件 1 105193101 Ball link assy 25 JK-T9270-K15-01 40604015 弯针摆杆 1 183185101 26 JK-T9270-K15-0101 201S11020 螺钉 1 105176001 Set screw 27 JK-T9270-K15-02 401S16002 螺母 1 100022004 Nut, SM5. 95 28 JK-T9270-K15-03 20128015 垫片 1 105198000 Washer 29 JK-T9270-K17 40603007 弯针轴后套 1 105201000 Looper shaft bush, F 30 JK-T9270-K18 40603008 弯针轴前套 1 148877100 Looper shaft bush, B 31 JK-T9270-K19 40608004 挡圈 1 181971001 Looper shaft set collar 32 JK-T9270-K19-01 201S11020 螺钉 1 062680812 Screw, pan SM4. 37-40×8 33 JK-T9270-K20 40612012 下仓盖 1 S40306001 Front feed arm cap 34 JK-T9270-K21 40622010 下仓盖垫 1 S40307001 Packing 35 JK-T9270-K22 101S11010 螺钉 11 105216001 Screw, SM3. 57 36 JK-T9270-K23 40612013 下轴前盖 1 105217059 Ball bearing 37 JK-T9270-K24 40622011 垫片 1 S40308001 Packing 38 JK-T9270-K25 201S12001 螺钉 4 062670512 Screw, pan SM3. 57-40×5 39 JK-T9270-K26 401S11029 螺钉 1 140518001 Packing 40 JK-T9270-K27 10122010 O型圈 1 081007070 O ring, P7 41 JK-T9270-K16-02 40602006 弯针轴 1 S16490101 Looper shaft 42 JK-T9270-K29 400140 拾牙偏心轮 1 S36862001 Eccentric wheel with screw 43 JK-T9270-K29-01 209S14003 螺钉 1 153675001 Set screw, socket SM4. 37 44 JK-T9280-K01 400201 拾牙偏心轮 1 181126001 Eccentric wheel with screw
Page 24 — L1. Upper threading mechanism (9270)
L1.上过线部件(9270)/Upper threading mechanism (9270) 24 23 12 12-6 12-2 12-3 12-1 12-5 <2针用> 7-1-1-9 7-1-1-10 7-1-1-8 7-1-1-7 7-1-1-6 7-1-1-12 7-1-1-5 7-1-4 7-1-5 7-1-3 2-1 7-1 7-1-1-2 7-1-1-3 7-1-1-4 7-1-1-1 11 10 3 8 9 11 15 16 21 20 22 <3针用> 7-2-1-9 7-2-1-10 7-2-1-8 7-2-1-7 7-2-1-6 7-2-1-12 7-2-1-5 7-2-1-4 7-2-1-2 7-2-1-3 7-2-2 7-2-1-1 7-2-3 7-2-4 7-2-5 17 19 2-2 18 6 5 4 1 118-927-412 jintex.in
Page 25 — L1、上钱过线部件
L1、上钱过线部件 序号 图号 1 JK-T9270-L01 2 JK-T9270-L02-01 3 JK-T9270-L03 4 JK-T9270-L04 5 JK-T9270-L05 6 JK-T9270-L06 7 JK-T9270-L07 8 JK-T9270-L07-0101 9 JK-T9270-L07-0101 10 JK-T9270-L07-0101 11 JK-T9270-L07-0101 12 JK-T9270-L07-0101 13 JK-T9270-L07-0101 14 JK-T9270-L07-0101 15 JK-T9270-L07-0101 16 JK-T9270-L07-0101 17 JK-T9270-L07-0101 18 JK-T9270-L07-0101 19 JK-T9270-L07-0102 20 JK-T9270-L07-0103 21 JK-T9270-L07-0104 22 JK-T9270-L07-0105 23 JK-T9270-L08 24 JK-T9270-L09 25 JK-T9270-L10 26 JK-T9270-L11 27 JK-T9270-L12 28 JK-T9270-L12-01 29 JK-T9270-L12-02 30 JK-T9270-L12-03 31 JK-T9270-L12-04 32 JK-T9270-L12-05 33 JK-T9270-L12-06 34 JK-T9270-L13 35 JK-T9270-L14 36 JK-T9270-L15 37 JK-T9270-L16 38 JK-T9270-L17 39 JK-T9270-L18 40 JK-T9270-L19 41 JK-T9270-L20 42 JK-T9270-L21 43 JK-T9270-L22 44 JK-T9270-L23 45 JK-T9270-L24 件号 40612014 40613027 101S11019 40613001 201S11010 101S11016 4061303100 300264 406S30006 40613008 40628004 40613009 40612017 40627007 40611008 40611009 40611010 40612018 40626011 40602007 406S30007 201S16003 40604016 209S14003 40612015 406S20007 40605005 40613002 201S11005 40613003 20727002 207S20003 201S11008 40613004 101S11010 40613005 101S11010 XXXX XXXX XXXX 40613006 40628003 406S30005 300268 105S11015 名称 面线导线支架板 导线板 螺钉 过线勾 螺钉 螺钉 面线夹线器部件 面线松线器座 夹线器螺钉 夹线导线板 垫片 夹线板 松线座 夹线簧 转动套 夹线调节螺母(绿) 夹线调节螺母(红) 松线座 顶针 松线轴 螺钉 螺母 松线曲柄 螺钉 连接板 螺钉 挑线杆部件 挑线过线板 螺钉 过线压板 弹簧 轴位螺钉 螺钉 过线板 螺钉 张力缓线勾 螺钉 导线板 螺钉 螺钉 挑线过线架 垫片 螺钉 防护罩 螺钉 件数 1 2 4 1 1 1 1 1 2 2 2 4 2 2 2 1 1 2 2 1 1 1 1 1 1 2 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 同类产品编号 111070109 105221001 062630412 105222001 062670512 062712012 111075059 145440001 110813001 110832009 145446001 144103009 144104001 S30564000 S30565002 S30565003 159805001 105231000 111076151 105233002 105234003 105235251 151601002 105236001 105237002 S40310001 S40312001 062660512 105243001 105244000 105245001 100064005 S40313051 062670712 111077001 060670812 111083001 111188001 111084001 S37186001 062710812 Name of parts Upper thread guide Thread retainer Screw pan SM2. 35-56×4 Thread guide Screw, pan SM3. 57-40×5 Screw, pan SM4. 76-32×20 Upper thread regulator assy Upper thread tension bracket Tension stun Needle thread guide Tension disc felt Tension disc Tension disc presser Thread tension adjust spring Tension spring washer Tension nut, green Tension nut, red Tension disc presser Pin Tension release shaft Set screw, SM4. 37 Nut, SM4. 37 Tension release crank Set screw, SM4. 37 Tension release connecting rod Shoulder screw, SM3. 57 Upper thread take-up assy Upper thread guide Screw, pan SM3. 18×5 Upper thread take-up holder Spring Shoulder screw, SM2. 38 Screw, SM3. 57 Upper thread guide Screw pan SM3. 57-40×7 Tension release lever Screw bind SM3. 57-40×8 Thread guide set plate Screw pan SM2. 38-56×4 Screw, flat SM2. 38 Upper thread thake-up guide Washer Screw flat SM3. 57 Thread thke-up cover Screw pan SM4. 76-32×8 jintex.in
Page 26 — L2. 上线过线部件 (9280) / Upper threading mechanism (9280)
L2. 上线过线部件 (9280) / Upper threading mechanism (9280) 21-4 21-1 21-3 21-5 33 18-1 28 29 26 30 <2针用>通用9270 7-1-1-9 7-1-1-10 7-1-1-8 7-1-1-7 7-1-1-6 7-1-1-12 7-1-1-5 7-1-4 7-1-5 7-1-1-4 7-1-1-2 7-1-1-3 7-1-2 7-1-1 7-1-3 2-1 7-1 <3针用>通用9270 7-2-1-9 7-2-1-10 7-2-1-8 7-2-1-7 7-2-1-6 7-2-1-12 7-2-1-5 7-2-1-4 7-2-1-2 7-2-1-3 7-2-2 7-2-1-1 7-2-4 7-2-5 7-2-3 2-2 15 17 16 2-2 118-928-412 jintex.in
Page 27 — L2、上线过线部件
L2、上 线 过 线 部 件 1 JK-T9280-L01 4061204400 面线导线 支架 组 1 111070109 upper therad guide 2 JK-T9280-L18-01 40602008 打线传动轴 1 3 JK-T9280-L21-01 40604017 打线曲柄 1 111079001 T/release connecting rod assy 4 JK-T9280-L21-03 40605006 连杆 1 149011051 Tension release link 5 JK-T9280-L21-04 406S20008 螺钉 1 115132002 Shoulder screw, M4.76 6 JK-T9280-L21-05 40626012 连接柱 1 111082051 Tension relwase stud 7 JK-T9280-L26 40612020 压线 板座 1 111089001 upper therad tension bracket 8 JK-T9280-L28 40626013 松线轴 1 111189001 upper thread stup assy 9 JK-T9280-L29 40627008 弹簧 1 111093001 Spring 10 JK-T9280-L30 40613011 压线板 4 105277001 Lower thread tension plate 11 JK-T9280-L33 40610010 松线偏心套 1 181060001 jintex.in
Page 28 — M1. 下线过线部件 (9270) / Lower threading mechanism (9270)
M1. 下线过线部件 (9270) / Lower threading mechanism (9270) 32-20 32-11 32-10 32-7 32-18 32-21 32-7 32-13 32-19 32-12 32-13 32-12 32-1 32-5 39 40 46 45 42 43 44 38 2-1 23-1 2-1 22-1 24-1 25-1 26-1 <2针用> 32-7 32-6 32-15 32-2 32-3 34 35 32-9 32-8 32-16 32-17 32-14 32-17 13 14 21 20 12 19 15 16 17 36 35-1 1 3 7 4 5 6 28 9 30 31 13 14 12 27 16 15 11 10 2-2 53 23-2 22-2 24-2 25-2 26-2 <3针用> 52 51 8-1 8-2 2-2 48-1 47-1 37-1 <固定针用> 48-2 37-2 49 50 <移动针用> 118-927-413 jintex.in
Page 29 — M1、下线过线部件
M1、下线过线部件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-M01 40612021 底线导线安装板 1 111095009 Lower thread guide retainer 2 JK-T9270-M03 101S11019 螺钉 4 111073001 Screw flat SM2. 38 3 JK-T9270-M04 40602021 支撑板 1 111096009 Lower thread guide support 4 JK-T9270-M05 305S11005 螺钉 1 062670412 Screw pan SM3. 57-40×4 5 JK-T9270-M06 201S11010 螺钉 1 062670512 Screw pan SM3. 57-40×5 6 JK-T9270-M07 201S11010 螺钉 1 062671012 Screw pan SM3. 57-40×10 7 JK-T9270-M8-1 300265 过线管(喷漆) 1 InglInde guide tube assy 8 JK-T9270-M09 201S11009 螺钉 1 062670812 Screw pan SM3. 57-40×8 9 JK-T9270-M10 300266 底线外盖 1 S40319001 Front cover 10 JK-T9270-M11 40627012 底线外盖卡簧 2 S40320051 Front cover spring 11 JK-T9270-M12 201S11009 螺钉 2 060670512 Screw pan SM3. 57-40×5 12 JK-T9270-M13 40612022 盖板固定板 2 S40321051 Front conver hook 13 JK-T9270-M14 201S11010 螺钉 4 062670612 Screw pan SM3. 57-40×6 14 JK-T9270-M15 40612023 转动架 2 S40322051 Hing 15 JK-T9270-M16 201S11009 螺钉 2 062670612 Screw pan SM3. 57-40×6 16 JK-T9270-M17 40622005 缓冲垫 2 142274009 Rubber cap 4. 2 17 JK-T9270-M18 40601009 左转动架 1 105257009 Thread guide hing assy, L 18 JK-T9270-M18-02 40626014 转动架销 2 Pin 19 JK-T9270-M19 40601010 右转动架 1 105260009 Thread guide hing assy, R 20 JK-T9270-M20 201S11009 螺钉 2 062671012 Screw pan SM3. 57-40×6 21 JK-T9270-M21 40613012 夹线器安装板 1 S40323001 Lower thread guide 22 JK-T9270-M27 201S11010 螺钉 2 062670612 Screw pan SM3. 57-40×6 23 JK-T9270-M28 40613013 过线板 1 S40325001 Lower thread guide 24 JK-T9270-M29 201S11010 螺钉 2 062670612 Screw pan SM3. 57-40×6 25 JK-T9270-M30 11613010 过线钩 1 112658001 Arm thread guide M 26 JK-T9270-M31 11613012 螺钉 1 108960002 Screw flat SM3. 57 27 JK-T9270-M32 4061301400 打线下凸轮架部件 1 S40266051 Lower thread take-up bracket 28 JK-T9270-M32-01 300267 打线下凸轮盖 1 105280009 Thread take-up lever cover 29 JK-T9270-M32-02 40627009 卡簧 1 105281001 Spring, plate 30 JK-T9270-M32-03 101S11019 螺钉 1 122771002 Screw, SM2. 38 31 JK-T9270-M32-04 40601011 底线转向过线板 1 105284101 Take-up lever bracket 32 JK-T9270-M32-05 40626015 打线下凸轮盖销 1 105285000 Take-up lever cov. Shaft 33 JK-T9270-M32-06 40612025 凸轮导线架 1 S40326051 Take-up lever bracket 34 JK-T9270-M32-07 101S11005 螺钉 2 062670612 Screw pan SM3. 57-40×6 35 JK-T9270-M32-08 40612026 底线转向导板 1 105287001 Guide plate 36 JK-T9270-M32-09 101S11019 螺钉 2 105288001 Screw SM2. 38 37 JK-T9270-M32-10 40627010 导线钢丝 1 S40327051 Lower thread guide 38 JK-T9270-M32-11 409S11011 螺钉 1 060660416 Screw bind SM3. 18-40×4 39 JK-T9270-M32-12 40613015 导线架 1 S40795101 Lower thread guide 40 JK-T9270-M32-1201 40613016 导线架 1 Screw bind SM3. 18-40×4 41 JK-T9270-M32-13 409S11011 螺钉 1 060660416 Screw bind SM3. 18-40×4 42 JK-T9270-M32-14 40609007 底线打线架 1 S40328051 Thread release base 43 JK-T9270-M32-15 201S11005 螺钉 2 062660412 Scerw pan SM3. 18-40×4 44 JK-T9270-M32-16 40612027 底线打线架 1 S40329051 Lower thread presser 45 JK-T9270-M32-17 201S11005 螺钉 1 062660412 Scerw pan SM3. 18-40×4
Page 30
46 JK-T9270-M32-18 40613017 压线钢丝 1 105296001 Thread guide 47 JK-T9270-M32-19 40613018 导线架 1 111112001 Lower thread guide plate 48 JK-T9270-M32-20 101S11019 螺钉 1 105288001 Screw SM2. 38 49 JK-T9270-M32-21 W01005 垫圈3 1 026030136 Washer, plain S3 50 JK-T9270-M33 P03014 销5×12.5 1 047501242 Pin spring roll AW5 51 JK-T9270-M34 301S11007 螺钉 2 100064005 Screw SM3. 57 52 JK-T9270-M35 4061301900 打线凸轮 1 S40330051 Lower thread take-up W/S, M 53 JK-T9270-M35-01 209S14003 凸轮紧固螺钉 2 014680422 Set screw, socket SM4. 37 54 JK-T9270-M36 40613020 底线过线管 1 105300101 Lower thread feed bar guide 55 JK-T9270-M38 101S15007 螺钉 1 013760610 Set screw, SM5. 95 56 JK-T9270-M39-1 40619005 切线刀 1 Thread trimmer guide plate 57 JK-T9270-M41 201S11010 螺钉 1 062670612 Screw, pan SM3. 57-40×6 58 JK-T9270-M42 40612028 右弯针盖 1 S40335051 Looper cover, RA 59 JK-T9270-M43 40612029 左弯针盖 1 S40338051 Looper cover, LA 60 GB/T879-1986 P03015 销2×8.5 1 047200842 Pin, spring roll AW2 61 JK-T9270-M45 40612030 弯针盖压板 2 S40799051 Spring 62 JK-T9270-M46 101S11010 螺钉 1 062670712 Screw, pan SM3. 57-40×7 63 JK-T9270-M54 406S30008 夹线螺钉 1 S08987001 Thread tension control stud 64 JK-T9270-M56 40613023 夹线板 2 144504001 Thread guide disc 65 JK-T9270-M57 40627011 弹簧 1 S40324001 Thread guide spring 66 JK-T9270-M58 406S16002 夹线螺母 1 155510001 Tension nut 67 JK-T9270-M02-01 40613027 导线板 2 105221001 Thread retaniner 68 JK-T9270-M08-01 40613021 过线管 1 105251009 Inglinde guide tube assy 69 JK-T9270-M22-01 406S30008 夹线螺钉 2 S08987001 Thread tension control stud 70 JK-T9270-M23-01 201S16003 螺母 2 021680202 Nut, SM4. 37 71 JK-T9270-M24-01 40613023 夹线板 4 144504001 Thread guide disc 72 JK-T9270-M25-01 40627011 弹簧 2 S40324001 Thread guide spring 73 JK-T9270-M26-01 406S16002 夹线螺母 2 155510001 Tension nut 74 JK-T9270-M37-02 40601012 护针支架 1 147291001 Looper thread guide bracket 75 JK-T9270-M47-02 40613024 导线架 1 S16487151 Looper thread guide 76 JK-T9270-M48-02 201S11037 螺钉 1 062671412 Screw pan SM3. 57-40×14 77 JK-T9270-M49 40613025 导线勾 1 S40341001 Looper thread guide 78 JK-T9280-M50 101S11019 螺钉 1 062630412 Screw pan SM2. 38-56×4 79 JK-T9280-M43-01 40612032 左弯针盖 1 S40339051 Looper cover, lb 80 JK-T9280-M42-01 40612031 右弯针盖 1 S40336051 Looper cover, rb 81 JK-T9280-M35 40613026 打线凸轮 1 S40342051 Lower thread take-up w/S, H 82 JK-T9280-M08-02 300552 过线管(喷漆) 1 111097009 Inglinde guide tube assy 83 JK-T9280-M01 4061204500 底线导线安装板 1 111095009 Lower thread guider retaner Jinte.in
Page 31 — Z1. 附件 / Accessories
Z1. 附件 / Accessories 1 2-1 8 3-2 6 7 2-2 10 11 17 16 11-1 14 13 15 5 4 25 27 24 26 28 29 <9270 3针, 9280 3针> 2-3 < 9280-7 > 23 118-927-910 jintex.in
Page 32
Z1、附件 序号 图号 件号 名称 件数 同类产品编号 Name of parts 1 JK-T9270-Z01 40631001 附件袋 1 122991001 2 JK-T9270-Z01-01 30131015 螺丝刀2.6x70 1 105344001 3 JK-T9270-Z02-01 30131016 螺丝刀5.5x190 1 101572101 4 JK-T9270-Z03-02 30131006 扳手8x10 1 100887001 5 JK-T9270-Z05 30131017 镊子 1 117466000 6 JK-T9270-Z06 30111010 油壶 1 114483002 7 JK-T9270-Z08 40631002 机头罩 1 144228001 8 JK-T9270-Z10 40632001 操作板 1 133636009 9 JK-T9270-Z11 4063200200 传动轴固定架部件 2 180827009 10 JK-T9270-Z11-01 40632009 螺钉 4 151604001 11 JK-T9270-Z12 40632003 抬压脚踏板 1 117437109 12 JK-T9270-Z13 40632004 控制杠杆 1 109656009 13 JK-T9270-Z14 406S30010 螺钉 2 100463001 14 JK-T9270-Z15 40632005 传动轴 1 106062009 15 JK-T9270-Z16 40632006 安装座 2 109657009 16 JK-T9270-Z17 406S30011 木螺钉 4 0B1512502 17 JK-T9270-Z18 4063200700 传动杆连接部件 2 105359001 18 JK-T9270-Z19 4063200800 传动杆连接部件 1 181225001 19 JK-T9270-Z20 40632009 止动板 2 116016001 20 JK-T9270-Z21 406S16003 螺母 2 021400106 21 JK-T9270-Z22 406S30012 螺钉 2 062401406 22 JK-T9270-Z02-3 30131008 内六角2 1 S01943001 23 JK-T9270-Z03 30131010 内六角3 1 24 JK-T9270-Z03-01 30131012 内六角4 1 142721001 25 JK-T9270-Z04 40617001 机针 10 ***** 26 JK-T9270-Z09-01 40631003 线团架组件 1 S29854109 27 JK-T9270-Z09-02 40631004 线团架组件 1 S29864109 28 40637001 标志牌 1 ----- 29 40637002 型号牌 1 ----- 30 40631005 泡沫箱(上、下) 1 ----- 31 40631006 纸箱 1 ----- 32 GB/T827-1986 R03001 铆钉2.5×4 2 -----
Page 33 — 9270-2PL直驱拖布轮
9270-2PL直驱拖布轮 9 10 11 12 13 14 15 16 42 8 3 5 4 6 7 17 21 44 22 23 24 25 26 27 28 29 30 2 31 37 46 43 35 36 1 38 39 41 40 32 33
Page 34 — 9270-2PL直驱拖布轮
9270-2PL直驱拖布轮 序号 图号 件号 名称 件数 Name of parts 1 JK-T9270-2PL-01 40622018 上胶轮 1 upper plastic wheel 2 JK-T9270-2PL-02 4061402500 上拖轮组件 1 Upper plastic wheel ass. 3 JK-T9270-2PL-03 4061402500 下拖轮组件 1 Lower plastic wheel ass. 4 JK-T9270-2PL-04 40622020 下胶轮 1 Lower plastic wheel 5 JK-T9270-2PL-05 40601048 下拖轮支架 1 Lower plastic wheel bracket 6 JK-T9270-2PL-06 406s20012 轴位螺钉 1 Screw 7 JK-T9270-2PL-07 B04033 轴承 2 Bearing 8 GB/T 70.1-2000 螺栓 S05119 下拖轮固定螺钉 2 Lower plastic wheel set screw 9 JK-T9280XH-PL021 40603019 调节螺母 1 Adjusting screw 10 JK-T9280XH-PL020 40627014 压脚弹簧 1 Presser spring 11 JK-T9280XH-PL022 40602017 长轴 1 Long shaft 11 JK-T9280XH-PL035 40603016 长轴铜套(后) 1 Long shaft tube (back) 12 JK-T9280XH-PL023 40601032 边盖 1 Top cover 13 JK-T9280XH-PL018 40601031 抬压扳手 1 Lift pressure wrench 14 JK-T9280XH-PL015 40602013 固定销子 1 Wrench pin 15 JK-T9280XH-PL014-1 4060402400 拉杆组件 1 Joint bearing base 16 JK-T9270-M39-1 40619005 剪线刀片 1 Thread cutter blade 18 JK-T9280XH-PL013 40609009 压杆连接块 1 Voltage regulating rod clamp 19 JK-T9280XH-PL013-1 S05038 压杆连接块螺钉 1 Voltage regulating rod clamp screw 20 JK-T9280XH-PL011 40612047 连接板 1 Connecting Piece 21 JK-T9280XH-PL028 40603020 挡圈 2 Block ring 22 JK-T9280XH-PL027 S05004 调节连杆螺钉 2 Adjusting rod screw 23 JK-T9280XH-PL005 40605010 调节连杆 2 Adjusting rod 24 JK-T9280XH-PL033 40612045 松线连杆 1 Thread tension connecting rod 25 JK-T9280XH-PL037 40612048 刻度指示片 2 Dial indicating piece 26 JK-T1850-0128 401s16002 螺母 2 Screw 27 JK-T9280XH-PL006 406S20010 调节杆轴位螺钉 1 Adjusting rod screw 28 JK-T9280XH-PL001-1 40610012 偏心轮 1 Eccentric wheel 29 JK-T9280XH-PL004-2 B07036 滚针轴承 1 Needle bearing 30 JK-T9280XH-PL004 40605009 连杆 1 Connecting rod 31 JK-T9280XH-PL004-3 40612050 偏心轮挡片 1 Eccentric wheel piece 32 JK-T9280XH-PL024 40603013 长轴铜套 1 Long shaft tube 33 JK-T9280XH-PL029 40622016 橡胶塞 2 Rubber plug 35 JK-T9280-2PL-1001 40601046 上拖布轮支架 1 Upper puller bracket 36 JK-T1850-0734 H03006 开口挡圈 1 Open ring 37 JK-T9280XH-PL017-8 40612046 星轮连杆 1 Star wheel connecting rod 38 JK-T9280-2PL-1004 40626025 上拖轮轴 1 Upper puller shaft 39 JK-T9280XH-PL017-5 40602015 滚轴 6 Rolling axis 40 JK-T9280XH-PL017-6 40625002 星轮 2 Star wheel 41 JK-T9280XH-PL017-7 40627013 弹簧 6 Spring 42 JK-T1900A-0130 403S11017 刀片固定螺钉 2 Blade set screw 43 JK-T9280-2PL-0406 406S11013 螺钉 6 Screw 44 JK-T9280XH-PL019 40602016 压脚杆 1 Presser foot rod 45 JK-T373-0401 409s11013 挡片固定螺钉 1 Block piece set screw 46 JK-T9280XH-PL012 S09002 挡圈固定螺钉 4 Block ring set screw jintex.in
Page 35 — 9280-2PL双拖轮
9280-2PL双拖轮 1 2 3 4 5 6 7 8 9 10 10-1 10-4 11 13 15 15-2 15-3 4-1 4-2 4-3 4-4 4-5 4-6 4-7 4-8 4-9 4-10 4-11 4-12 4-13 jintex.in
Page 36
9280-2PL 双拖轮 序号 图号 公司件号 名称 用量 Name of parts 1 JK-T9280-2PL-01 301743 机壳下节 1 Machine frame 2 JK-T9280-2PL-02 40612051 弹簧片 2 Spring piece 3 JK-T9280-2PL-03 201S11020 螺钉 1 Screw 4 JK-T9280-2PL-04 4061401000 下拖轮组件 1 Lower puller ass. 5 JK-T9280-2PL-0401 40601045 下拖轮支架 1 Lower puller bracket 6 JK-T9280-2PL-0402 40612052 支架盖板 1 Base cover 7 JK-T9280-2PL-0403 406S11011 螺钉 3 Screw 8 JK-T9280-2PL-0404 40614018 下拖布轮 1 Puller 9 JK-T9280-2PL-0405 40625002 星轮 4 Star wheel 10 JK-T9280-2PL-0406 406S11013 星轮螺钉 12 Screw 11 JK-T9280-2PL-0407 40602015 滚轴 12 Rolling axis 12 JK-T9280-2PL-0408 40627013 弹簧 12 Spring 13 JK-T9280-2PL-0409 40604024 拨盘 1 Rotary plate 14 JK-T9280-2PL-0410 40626023 拨盘销 1 Rotary plate pin 15 JK-T9280-2PL-0411 40605025 拖轮连杆 1 Puller connecting rod 16 JK-T9280-2PL-0412 40626024 拖布轮轴销 1 Puller shaft pin 17 JK-T9280-2PL-0413 H03006 开口挡圈 3 Open block ring 18 JK-T9280-2PL-05 401S11012 螺钉 2 Screw 19 JK-T9280-2PL-0601 40619003 上剪线刀 1 Upper knife blade 20 JK-T9280-2PL-0602 40619004 下剪线刀 1 Lower knife blade 21 JK-T9280-2PL-07 201S11009 螺钉 2 Screw 22 JK-T9280-2PL-08 40604025 护针支架 1 Needle guide bracket 23 JK-T9280-2PL-09 406S20011 轴位螺钉 1 Screw 24 JK-T9280-2PL-10 4061401200 上拖轮组件 1 Upper puller ass. 25 JK-T9280-2PL-1001 40601046 上拖轮架 1 Upper puller bracket 26 JK-T9280-2PL-1002 40614013 上拖布轮 1 Upper puller 27 JK-T9280-2PL-1003 40612046 拉杆片 1 Star wheel connecting rod 28 JK-T9280-2PL-1004 40626025 拖布轮轴 1 Puller shaft 29 JK-T9280-2PL-11 40612053 左弯针盖 1 Looper cover, LA 30 JK-T9280-2PL-13 4063402000 针位组 1 Needle group
Page 37 — 9280-PL后拖轮部件
9280-PL后拖轮部件 21 20 19 22 18 15 17 23 13-1 11 10 24 36 13 14 9 8 7 37 6 5 25 26 17-7 27 4 3 2 17-9 17-8 17-6 28 17-10 17-1 29 17-2 17-3 17-4 17-5 35 jintex.in
Page 38 — P L .后 拖 轮 部 件 (9280XH)
P L .后 拖 轮 部 件 (9280XH) 序号 图 号 用 量 名 称 公司 件 号 备 注 1 JK-T9280XH-PL001 1 主轴偏心轮 40610011 2 JK-T9280XH-PL002 1 固定螺母 401s16002 4 JK-T9280XH-PL004 1 主轴连杆 40605009 5 JK-T9280XH-PL005 2 偏心调节杆 40605010 6 JK-T9280XH-PL006 1 偏心调节杆轴位螺钉 406S20010 7 JK-T9280XH-PL007 1 固定螺母SM15/64"×28 401s16002 8 JK-T9280XH-PL008 2 拉杆球头 4060402100 10 JK-T9280XH-PL010 1 固定螺钉 409s11013 11 JK-T9280XH-PL011 1 连接片 40612047 12 JK-T9280XH-PL012 4 固定螺钉 S09002 13 JK-T9280XH-PL013 1 压脚轴连接块 40609009 13-1 JK-T9280XH-PL013-1 1 螺钉 S05038 14 JK-T9280XH-PL014 1 拉杆轴 40602011 15 JK-T9280XH-PL015 1 固定销子 40602013 16 JK-T9280XH-PL016 1 固定螺母 401s16002 17 JK-T9280XH-PL017 1 拖轮组件 4061400800 17-1 JK-T9280XH-PL017-1 1 拖轮支架 40601030 17-2 JK-T9280XH-PL017-2 1 螺钉 403S14004 17-3 JK-T9280XH-PL017-3 1 销子 40602018 17-4 JK-T9280XH-PL017-4 6 螺钉 209S11013 17-5 JK-T9280XH-PL017-5 6 滚珠 40602015 17-6 JK-T9280XH-PL017-6 2 星轮 40625002 17-7 JK-T9280XH-PL017-7 6 弹簧 40627013 17-8 JK-T9280XH-PL017-8 1 拉杆片 40612046 17-9 JK-T9280XH-PL017-9 1 拖轮齿 40614009 17-10 JK-T9280XH-PL017-10 1 卡簧 H03006 18 JK-T9280XH-PL018 1 拾轮扳手 40601031 19 JK-T9280XH-PL019 1 拖轮轴 40602016 20 JK-T9280XH-PL020 1 拖轮轴弹簧 40627014 21 JK-T9280XH-PL021 1 调节螺母 40603019 22 JK-T9280XH-PL022 1 长轴 40602017 23 JK-T9280XH-PL023 1 边盖 40601032 24 JK-T9280XH-PL024 1 套筒 40603013 25 JK-T9280XH-PL025 1 挡圈 40603020 26 JK-T9280XH-PL026 4 螺钉 403S14004 27 JK-T9280XH-PL027 2 固定螺钉 S05004 28 JK-T9280XH-PL028 1 挡圈 40603020 29 JK-T9280XH-PL029 2 橡皮挡板 40622016 35 JK-T9280XH-PL035 1 套筒(后) 40603016 36 JK-T9280XH-PL036 1 拉杆轴下套 40603021 37 JK-T9280XH-PL037 2 刻度指示板 40612048 jintex.in
Page 39 — 9280-PS
9280-PS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 17 19 20 21 22 23 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 69-1 69-2 70 71 72 73 74 75 75-1 75-2 75-3 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 jintex.in
Page 40 — 9280-PS后拖轮部件
9280-PS后拖轮部件 序号 图号 件号 名称 件数 Name of parts 1 JK-T9280-PS01 XXXX 变速箱 1 Gear box body 2 JK-T9280-PS02 XXXX 箱盖密封垫 1 Cover sealedl washer 3 JK-T9280-PS03 XXXX 箱体盖 1 Body cover 4 JK-T9280-PS04 XXXX 箱盖螺钉 8 Cover screw 5 JK-T9280-PS05 XXXX 0型圈 1 0 type ring 6 JK-T9280-PS06 XXXX 加油孔螺丝 2 Oiled hole screw 7 JK-T9280-PS07 XXXX 开口挡圈4 1 0 type ring 8 JK-T9280-PS08 XXXX 调节钮套圈 1 Adjustable button bushing 9 JK-T9280-PS09 XXXX 调节钮套筒 1 Adjustable button tube 10 JK-T9280-PS10 XXXX 调节钮弹簧 1 Adjustable button spring 11 JK-T9280-PS11 XXXX 偏心调节钮 1 Eccentric adjusting button 12 JK-T9280-PS12 XXXX 压板螺钉 6 Presser plate screw 13 JK-T9280-PS13 XXXX 压板 1 Presser plate 14 JK-T9280-PS14 XXXX 0型圈 1 0 type ring 15 JK-T9280-PS15 XXXX 输出轴后轴承座 1 Back output bearing base 16 JK-T9280-PS16 XXXX 滚针轴承(小) 1 Needle bearing (small) 17 JK-T9280-PS17 XXXX 轴承套螺钉 4 Bearing tube screw 18 JK-T9280-PS18 XXXX 轴承套B 1 Bearing tube 19 JK-T9280-PS19 XXXX 输出轴 1 Output bearing 20 JK-T9280-PS20 XXXX 轴承套挡圈螺钉 4 Bearing tubelock ring screw 21 JK-T9280-PS21 XXXX 轴承套挡圈 1 Bearing tubelock ring 22 JK-T9280-PS22 XXXX 轴承座 1 Bearing base 23 JK-T9280-PS23 XXXX 螺钉M4×4 8 Screw M4×4 24 JK-T9280-PS24 XXXX 滚针轴承(大) 1 Needle bearing (Big) 25 JK-T9280-PS25 XXXX 轴承套A 1 Bearing tube A 26 JK-T9280-PS26 XXXX 输出轴挡圈 1 Output bearing block ring 27 JK-T9280-PS27 XXXX 输出轴前套 1 Output shaft bush 28 JK-T9280-PS28 XXXX 油封10×20×7 1 Oil seal 10×20×7 29 JK-T9280-PS29 XXXX 标尺窗油封 1 Scale window oil seal 30 JK-T9280-PS30 XXXX 标尺窗 1 Scale window 31 JK-T9280-PS31 XXXX 轴套油塞 1 Shaft tube oil plug 32 JK-T9280-PS32 XXXX 输出轴后套 1 Output shaft rear tube 33 JK-T9280-PS33 XXXX 挡圈 1 Block ring 34 JK-T9280-PS34 XXXX 连杆 1 Connecting rod 35 JK-T9280-PS35 XXXX 连杆销 1 Connecting rod pin 36 JK-T9280-PS36 XXXX 偏心调节器组件 1 Eccentric adjustor assm. 37 JK-T9280-PS37 XXXX 输入轴 1 Output shaft 38 JK-T9280-PS38 XXXX 油封10×26×7 2 Oil seal 10×26×7 39 JK-T9280-PS39 XXXX 深沟球轴承 2 Bearing 40 JK-T9280-PS40 XXXX 红钢纸垫圈 1 Washer 41 JK-T9280-PS41 XXXX 轴承刻线压板 1 Bearing dial presser plate 42 JK-T9280-PS42 XXXX 螺钉M6×6 4 Screw M6×6 43 JK-T9280-PS43 XXXX 针距离度盘 1 Needle distance dial 44 JK-T9280-PS44 XXXX 同步轮XL 1 Synchronous wheel xl 45 JK-T9280-PS45 XXXX 同步带XL 1 Synchronous belt xl 46 JK-T9280-PS46 XXXX 同步带护罩 1 Synchronous belt cover 47 JK-T9280-PS47 XXXX 同步带罩固定螺钉 2 Synchronous belt cover set screw 48 JK-T9280-PS48 XXXX 输出轴后套 1 Backward output shaft jintex.in
Page 41
49 JK-T9280-PS49 XXXX 星轮固定轴套 3 Star wheel set shaft tube 50 JK-T9280-PS50 XXXX 星轮B 1 Star wheel B 51 JK-T9280-PS51 XXXX 滚子 9 Roller 52 JK-T9280-PS52 XXXX 星轮固定螺钉 9 Star wheel set screw 53 JK-T9280-PS53 XXXX 星轮垫圈 1 Star wheel washer 54 JK-T9280-PS54 XXXX 星轮A 2 Star wheel A 55 JK-T9280-PS55 XXXX 滚子弹簧 9 Roller 56 JK-T9280-PS56 XXXX 拖布轮组件 1 Puller assembly 57 JK-T9280-PS57 40601046 拖轮支架 1 Roller bracket 58 JK-T9280-PS58 XXXX 支架轴承 2 Bracket bearing 59 JK-T9280-PS59 XXXX 拖布轮 1 Puller 60 JK-T9280-PS60 XXXX 胶轮拖布轮 1 Plastic roller 61 JK-T9280-PS61 XXXX 拖布轮紧定螺钉 2 Roller set screw 62 JK-T9280-PS62 40602019 大同步轮轴 1 Big synchronous wheel bearing 63 JK-T9280-PS63 XXXX 小同步轮轴 1 Small synchronous wheel bearing 64 JK-T9280-PS64 XXXX 调整薄垫片 1 Adjustable thin washer 65 JK-T9280-PS65 XXXX 调整厚垫片 1 Adjustable thick washer 66 JK-T9280-PS66 406s20011 上罩壳固定螺钉 1 Upper cover set screw 67 JK-T9280-PS67 40612055 下罩壳 1 Lower cover 68 JK-T9280-PS68 XXXX 下罩壳螺钉柱 1 Lower cover screw 69 JK-T9280-PS69 4063501200 大同步轮组件 1 Big synchronous wheel ass. 70 JK-T9280-PS69-1 40635013 大同步轮XL型 1 Big synchronous wheel XL type 71 JK-T9280-PS69-2 40612056 大同步轮挡片一 1 Big synchronous wheel block 1 72 JK-T9280-PS70 40635014 小同步轮XL型 1 Small synchronous wheel XL type 73 JK-T9280-PS71 XXXX 同步轮紧定螺钉 4 Synchronous wheel set screw 74 JK-T9280-PS72 40635018 同步带 1 Synchronous belt 75 JK-T9280-PS73 40612057 大同步轮挡片2 1 Big synchronous wheel block 2 76 JK-T9280-PS74 XXXX 大同步轮挡片螺钉 3 Big synchronous wheel block screw 77 JK-T9280-PS75 40626027 上罩壳组件 1 Upper cover assm. 78 JK-T9280-PS75-1 40612060 上罩壳 1 Upper cover 79 JK-T9280-PS75-2 40626022 上罩壳螺钉柱 1 Upper screw cover column 80 JK-T9280-PS75-3 40626028 上罩限位销 1 Upper cover limit pin 81 JK-T9280-PS76 XXXX 拖布轮支架螺钉 1 Puller bracket screw 82 JK-T9280-PS77 40602010 调压杆 1 Voltage regulating rod 83 JK-T9280-PS78 40603021 调压杆轴套 1 Voltage regulating rod shaft tube 84 JK-T9280-PS79 40609009 调压杆夹 1 Voltage regulating rod clamp 85 JK-T9280-PS80 S05038 调压杆夹螺钉 1 Voltage regulating rod clamp screw 86 JK-T9280-PS81 40612047 连接片 1 connecting piece 87 JK-T9280-PS82 409S11013 连接片固定螺钉 1 connecting piece set screw 88 JK-T9280-PS83 40627013 调压弹簧 1 Voltage regulating spring 89 JK-T9280-PS84 40601032 端面盖 1 Top cover 90 JK-T9280-PS85 40603019 调压螺母 1 Voltage regulating screw 91 JK-T9280-PS86 40601031 扳手 1 Wrench 92 JK-T9280-PS87 406S11009 端面盖固定螺钉 4 Top cover set screw 93 JK-T9280-PS88 40602013 扳手销 1 Wrench pin 94 JK-T9280-PS89 XXXX 万向节接头 2 Universal joint 95 JK-T9280-PS90 XXXX 传动轴 1 Rotating axis 96 JK-T9280-PS 4063100400 后拖轮组件 1 After the puller wheel device assm. jintex.in
