Jack JK-T9270 / JK-T9280 — Part Book

Jack JK-T9270 / JK-T9280 — parts catalog

Page 1 (cover): This is the cover page for the JK-9270/80 Parts Book, revised edition in March 2013.
Page 2 (diagram): This page displays a diagram of the machine body and its associated components, with reference numbers pointing to specific parts.
Page 3 (parts_list): This page lists parts for A, 机壳部件, including part numbers like JK-T9270-A02 and descriptions such as Cushion assy.
Page 4 (diagram): This page displays a diagram of the Upper shaft mechanism, detailing various components with reference numbers and part numbers.
Page 5 (parts_list): This page lists parts for the B, upper shaft components, including part numbers, names, quantities, and other related information.
Page 6 (diagram): This page displays a diagram of the needle bar mechanism, with numbered parts and their corresponding part numbers and descriptions.
Page 7 (parts_list): This page lists parts for needle bar components, including part numbers, names, quantities, and other product numbers.
Page 8 (diagram): This page displays a diagram of the presser bar mechanism (9270) with various parts labeled with reference numbers and some part numbers.
Page 10 (diagram): This page displays a diagram of the presser bar mechanism (9280) with numbered parts and a separate inset diagram showing parts labeled 3-2 and 1-3.
Page 11 (parts_list): This page lists parts for D2, presser foot components, including part numbers, descriptions, quantities, and other identifiers.
Page 12 (diagram): This page displays a diagram of the pulley mechanism, with numbered parts and their corresponding part numbers and descriptions.
Page 13 (parts_list): This page lists pulley components for industrial sewing machines, including part numbers, names, quantities, and related product codes.
Page 14 (diagram): This page displays a diagram of the feed mechanism, with numbered parts and sub-assemblies indicated by reference numbers.
Page 31 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
Page 32 (parts_list): This page lists parts for Z1, accessories, including part numbers, names, quantities, and other product numbers.
Page 33 (diagram): This page displays a diagram of the 9270-2PL direct drive sewing machine's needle bar and related components, with numbered parts for identification.
Page 34 (parts_list): This page lists parts for the 9270-2PL direct drive sewing machine, including part numbers, names in Chinese and English, quantities, and other details.
Page 35 (diagram): This page displays a diagram of the 9280-2PL double towing wheel assembly, with various components labeled with reference numbers for identification.
Page 36 (parts_list): This page lists parts for the 9280-2PL double wheel sewing machine, including part numbers, descriptions, quantities, and English names.
Page 37 (diagram): This page displays a diagram of rear wheel components for the 9280-PL model, with numbered parts and their corresponding details.
Page 38 (parts_list): This page lists parts for the PL rear pulley assembly (9280XH), including part numbers, descriptions, quantities, and manufacturer part numbers.
Page 39 (diagram): This page displays a diagram of various components of the 9280-PS sewing machine, including shafts, gears, belts, and housing parts, with corresponding reference numbers for identification.
Page 40 (parts_list): This page lists parts for the 9280-PS rear wheel assembly, including part numbers, names, quantities, and English descriptions.
Page 41 (parts_list): This page lists parts for JK-T9280-PS series, including part numbers, descriptions, quantities, and remarks.

Page 1 — JK-9270/80 PARTS BOOK

JK-9270/80 零件样本 PARTS BOOK New JACK Sewing Machine 2013 年 3 月版 Revised edition in March, 2013 jintex.in

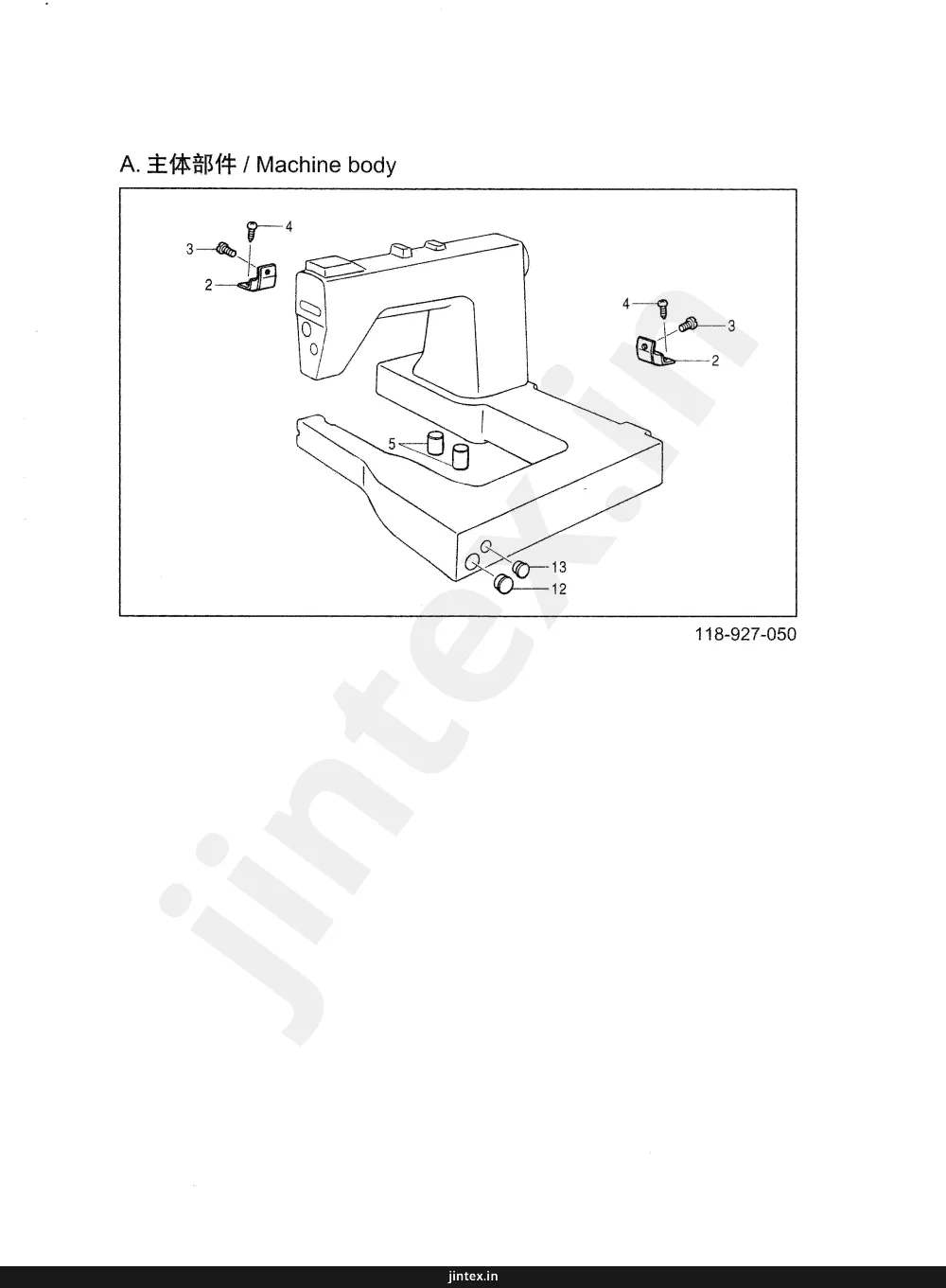

Page 2 — A. 主体部件 / Machine body

Jack JK-T9270 / JK-T9280 parts on page 2
Ref	Part number	Part name
2	2	Bracket
3	3	Screw
4	4	Screw
5	5	Pin
12	12	Plug
13	13	Plug

A. 主体部件 / Machine body 118-927-050

Page 3 — A、机壳部件

Jack JK-T9270 / JK-T9280 parts on page 3
Ref	Part number	Part name	Qty
1	JK-T9270-A02	底座固定板	2
2	JK-T9270-A03	螺钉, SM6. 35	2
3	JK-T9270-A04	木螺钉M6. 2X25	2
5	JK-T9270-A04-02	垫套	2
6	JK-T9270-A04-03	橡胶垫	4
7	JK-T9270-A05	防震垫	2
8	JK-T9270-A12	油窗	1
9	JK-T9270-A12	油窗套	1
10	JK-T9270-A13	油封	1
11	JK-T9270-A14	回油线	1

A、机壳部件序号图号件号名称件数同类产品编号 Name of parts 1 JK-T9270-A02 40612001 底座固定板 2 105337001 Cushion assy 2 JK-T9270-A03 201S11029 螺钉, SM6. 35 2 105146001 Screw, SM6. 35 3 JK-T9270-A04 406S30001 木螺钉M6. 2X25 2 0B0622502 Wood screw, round, M6. 2×2.5 5 JK-T9270-A04-02 40603001 垫套 2 --- Matress Protector 6 JK-T9270-A04-03 40622001 橡胶垫 4 --- Rubber pad 7 JK-T9270-A05 40622002 防震垫 2 105341051 Base cushion 8 JK-T9270-A12 20911003 油窗 1 150697001 Oil gauge window 9 JK-T9270-A12 20922003 油窗套 1 --- Oil gauge window bush 10 JK-T9270-A13 40622003 油封 1 104449009 Oil line 11 JK-T9270-A14 40623003 回油线 1 --- Oil line jintex.in

Page 4 — B. 上轴部件 / Upper shaft mechanism

Jack JK-T9270 / JK-T9280 parts on page 4
Ref	Part number	Part name	Qty
	1	SHAFT
	2	BALL BEARING
	3	BALL BEARING
	4	CIR CLIP
	5	WASHER
	6	FLANGE
	7	SCREW
	8	BUSH
	9	COLLAR
	10-1	SHAFT
	10-2	SHAFT
	10-3	SHAFT
	10-4	SHAFT
	10-5	SHAFT
	10-6	SHAFT
	10-7	SHAFT
	10-8	SHAFT

B. 上轴部件 / Upper shaft mechanism 118-927-109

Page 5 — B、上轴部件

Jack JK-T9270 / JK-T9280 parts on page 5
Ref	Part number	Part name	Qty
1	40602001	上轴	1
2	B04002	轴承, 6302ZZ	1
3	B06001	轴承6302VV	2
4	H01004	卡簧42	1
5	40128004	垫片	1
6	40612002	轴承盖	1
7	115S11010	螺钉SM4. 76-32X10	3
8	40608001	轴环	1
9	301S11015	螺钉	1
10	4060100100	上轮油盒组件	1
11	40601001	油盒	1
12	40611001	油窗	1
13	10122019	O型圈	1
14	40612003	油窗盖	1
15	101S11005	螺钉	4
16	406S11001	加油螺钉	1
17	40622004	垫片	1
18	10122010	O型圈	1

B、上轴部件序号图号件号名称件数同类产品编号 Name of parts 1 JK-T9270-B01 40602001 上轴 1 S40314001 Upper shaft 2 JK-T9270-B02 B04002 轴承, 6302ZZ 1 076302850 Ball bearing, 6302ZZ 3 JK-T9270-B03 B06001 轴承6302VV 2 072630260 Ball bearing, 6303VV 4 JK-T9270-B04 H01004 卡簧42 1 048420242 Retaining ring, C42 5 JK-T9270-B05 40128004 垫片 1 S40315051 Brearing spacer 6 JK-T9270-B06 40612002 轴承盖 1 S40316051 Brearing presser 7 JK-T9270-B07 115S11010 螺钉SM4. 76-32X10 3 062711012 Screw, SM4. 76-32×10 8 JK-T9270-B08 40608001 轴环 1 S40318051 Upper shaft collar 9 JK-T9270-B09 301S11015 螺钉 1 S40317001 Screw SM9. 53 10 JK-T9270-B10 4060100100 上轮油盒组件 1 S40812001 Oil tank assy 11 JK-T9270-B10-01 40601001 油盒 1 S4083001 Oil tank 12 JK-T9270-B10-02 40611001 油窗 1 104547001 Oil gauge window 13 JK-T9270-B10-03 10122019 O型圈 1 081014670 O ring pw 14 14 JK-T9270-B10-04 40612003 油窗盖 1 151074009 Oil gauge cover 15 JK-T9270-B10-05 101S11005 螺钉 4 100257010 Screw, SM3. 57 16 JK-T9270-B10-06 406S11001 加油螺钉 1 111193001 Oil feeding pipe cap 17 JK-T9270-B10-07 40622004 垫片 1 105071001 Oil tank packing 18 JK-T9270-B10-08 10122010 O型圈 1 111194001 O ring jintex.in

Page 6 — C. 针杆部件 / Needle bar mechanism

Jack JK-T9270 / JK-T9280 parts on page 6
Ref	Part number	Part name	Qty
	1	Needle bar mechanism
	1-1	Screw
	1-2	Connecting rod
	2	Washer
	3	Screw
	4	Screw
	5	Screw
	6	Needle bar
	7	Needle bar sleeve
	8	Needle bar sleeve
	9-1	Needle bar support
	9-2	Needle bar support
	9-3	Needle bar support
	10	Screw
	11-1	Screw
	11-2	Screw
	12	Screw
	13	Needle bar threader
	14	Needle bar cap
	15	Needle bar cap
	16	Needle bar threader

C. 针杆部件 / Needle bar mechanism 14 15 7 6 16 13 1 1-1 2 5 3 9-1 11-1 < 9270-1, -2 > 9-2 11-1 < 9270-3 > 10 9-3 11-2 12 < 9280 > 118-927-118

Page 7

Jack JK-T9270 / JK-T9280 parts on page 7
Part number	Part name	Qty
JK-T9270-C01	针杆连杆组件	1
JK-T9270-C01-01	防震橡胶垫	1
JK-T9270-C01-02	螺钉	1
JK-T9270-C01-03	挑线连杆销	1
JK-T9270-C01-04	挑线连杆	1
JK-T9270-C01-05	针杆连接轴	1
JK-T9270-C01-06	滚针轴承	1
JK-T9270-C02	针杆曲柄护板	1
JK-T9270-C03	针杆滑块	1
JK-T9270-C04	针杆滑块座	1
JK-T9270-C05	螺钉	2
JK-T9270-C06	针杆	1
JK-T9270-C07	针杆上套	1
JK-T9270-C08	针杆下套	1
JK-T9270-C09-01	针杆曲柄	1
JK-T9270-C10	螺钉	2
JK-T9270-C11-01	螺钉	3
JK-T9270-C13	橡胶塞	1
JK-T9270-C14	油封	1
JK-T9270-C15	油棉	1
JK-T9270-C16	油线夹	1
JK-T9270-C17	回油线	1
JK-T9270-C18	油线压紧簧	1
JK-T9280-C09-03	针杆曲柄	1
JK-T9280-C12	螺钉	2

C、针棒部件序号图号件号名称件数同类产品编号 Name of parts 1 JK-T9270-C01 4060500100 针杆连杆组件 1 S40268001 Thread take-up lever assy 2 JK-T9270-C01-01 40622005 防震橡胶垫 1 142274009 Rubber cap4. 2 3 JK-T9270-C01-02 101S11005 螺钉 1 140004001 Screw, SM3. 57 4 JK-T9270-C01-03 40626001 挑线连杆销 1 Thread take-up lever pin 5 JK-T9270-C01-04 40605002 挑线连杆 1 Thread take-up lever 6 JK-T9270-C01-05 40626002 针杆连接轴 1 Needle bar connecting shaft 7 JK-T9270-C01-06 10124001 滚针轴承 1 Needle bearing 8 JK-T9270-C02 10112003 针杆曲柄护板 1 107153001 Washer 9 JK-T9270-C03 400134 针杆滑块 1 102630001 Needle bar guide slide block 10 JK-T9270-C04 40601002 针杆滑块座 1 145688000 Needle bar guide 11 JK-T9270-C05 201S11009 螺钉 2 062670612 Screw pan, SM3. 57-40×6 12 JK-T9270-C06 40602009 针杆 1 113605051 Needle bar 13 JK-T9270-C07 40603002 针杆上套 1 S18874001 Needle bar bush, U 14 JK-T9270-C08 40603003 针杆下套 1 111024101 Needle bar bush, D 15 JK-T9270-C09-01 40604001 针杆曲柄 1 S40271051 Thread take-up crank, MH 16 JK-T9270-C10 116S14005 螺钉 2 014771022 Screw, SM6. 35 17 JK-T9270-C11-01 116S14005 螺钉 3 100251001 Screw SM6. 35 18 JK-T9270-C13 40622006 橡胶塞 1 111863001 Needle bar cork 19 JK-T9270-C14 40622014 油封 1 140890009 Oil cup 20 JK-T9270-C15 10123002 油棉 1 151927001 Oil cotton 21 JK-T9270-C16 10112053 油线夹 1 109993001 Clutch felt wick nipper 22 JK-T9270-C17 40623002 回油线 1 Oil line 23 JK-T9270-C18 10127015 油线压紧簧 1 Ring 24 JK-T9280-C09-03 40604003 针杆曲柄 1 S40273051 Thread take-up crank, H 25 JK-T9280-C12 409S14003 螺钉 2 123006001 Set screw, (CP)SM6. 35

Page 8 — D1. 拾压脚部件(9270) / Presser bar mechanism(9270)

Jack JK-T9270 / JK-T9280 parts on page 8
Ref	Part number	Part name
1-1	1-1	Presser bar mechanism
1-2	1-2	Presser bar mechanism
3-1	3-1	Presser bar mechanism
3-2	3-2	Presser bar mechanism
2	2	Screw
4	4	Screw
5	5	Screw
6	6	Spring
7	7	Lever
8	8	Screw
9	9	Screw
10	10	Lever
11	11	Lever
12	12	Chain
13	13	Plate
14	14	Plate
15	15	Screw
16	16	Bracket
17	17	Screw
19	19	Pin
20	20	Washer
21	21	Pin

D1. 拾压脚部件(9270) / Presser bar mechanism(9270) 15 13 15 3-1 1-1 < -1,-2,-3 > 3-2 < -A > 14 16 21 9 17 19 20 6 4 5 8 7 11 2 10 12 118-927-210

Page 10 — D2. 拾压脚部件(9280用) / Presser bar mechanism (9280)

Jack JK-T9270 / JK-T9280 parts on page 10
Ref	Part number	Part name
6	6	6
8	8	8
12	12	12
9	9	9
7	7	7
10	10	10
11	11	11
27	27	27
2	2	2
3-2	3-2	3-2
1-3	1-3	1-3

D2. 拾压脚部件(9280用) / Presser bar mechanism (9280) 6 8 12 9 7 10 11 27 2 3-2 1-3 118-927-210 - 5 - jintex.in

Page 11 — D2、拾牙脚部件

Jack JK-T9270 / JK-T9280 parts on page 11
Part number	Part name	Qty
JK-T9280-D01-03	压脚轴	1
JK-T9280-D02	压脚轴上套	1
JK-T9280-D03-02	压脚轴下套	1
JK-T9280-D06	弹簧片	1
JK-T9280-D07	销子	1
JK-T9280-D08	压板	1
JK-T9280-D09	垫片	1
JK-T9280-D10	螺钉	1
JK-T9280-D11	螺母	1
JK-T9280-D12	调压螺母	1
JK-T9280-D27	钢珠	1

D2、拾牙脚部件 1 JK-T9280-D01-03 40602003 压脚轴 1 S0626001 Presser bar 2 JK-T9280-D02 40603005 压脚轴上套 1 105091001 Presser bar bush, U 3 JK-T9280-D03-02 40603006 压脚轴下套 1 S40300001 Presser bar bush, D 4 JK-T9280-D06 40612006 弹簧片 1 105094009 Presser plate sping 5 JK-T9280-D07 40626003 销子 1 105095001 Pin 6 JK-T9280-D08 40612007 压板 1 105096009 Plate spring assy 7 JK-T9280-D09 40612008 垫片 1 105100001 Washer 8 JK-T9280-D10 406S30003 螺钉 1 148006001 Adjust screw 9 JK-T9280-D11 116S16006 螺母 1 21710212 Nut, 2 SM4.76 10 JK-T9280-D12 406S16001 调压螺母 1 148007051 Presser bar lifter 11 JK-T9280-D27 40624006 钢珠 1 71063550 Rubber cap, 20.5

Page 12 — E. 带轮部件 / Pulley mechanism

Jack JK-T9270 / JK-T9280 parts on page 12
Ref	Part number	Part name
19	19	Screw
20	20	Screw
21	21	Washer
17	17	Base
14	14	Plate
15	15	Screw
16	16	Washer
	1-1	Pulley
	1-2	Pulley
	3-1	Gear
	3-2	Gear
2	2	Pulley
18	18	Screw
8	8	Belt
9	9	Screw
4	4	Washer
5	5	Gear
6	6	Washer
7	7	Belt
10	10	Arm
11	11	Washer
12	12	Arm
13	13	Screw
25	25	Bracket
22	22	Gear
23	23	Washer
24	24	Belt
26	26	Gear

E. 带轮部件 / Pulley mechanism 19 2 9 13 18 19 20 21 8 14 15 16 1-1 < 9270, 用 > 1-2 9280 用 > 3-1 < 9270-1, -2, -3 9280-5, -7 > 3-2 26 9270-PS 25 22 23 24 118-927-120 -7- jintex.in

Page 13 — E、带轮部件

Jack JK-T9270 / JK-T9280 parts on page 13
Ref	Part number	Part name
1	300260	上轮
2	101S15001	上轮螺钉
3	4063500400	上轴同步带轮
4	116S14004	上轴带轮螺钉
5	40635001	下轴同步带轮
6	116S14004	下轮螺钉
7	40635002	传动带
8	300256	带轮箱
9	101S11016	螺钉
10	300261	带轮箱盖
11	40611003	下带轮罩
12	40622008	带轮箱垫
13	115S11010	螺钉
14	300257	底座
15	S01037	螺钉M12×30
16	W01016	垫片12
17	40611004	上轮罩壳
18	40612010	上轮顶盖
19	105S11015	顶盖螺钉
20	406S20003	上轮罩壳螺钉
21	40622009	垫片
22	4063501100	同步带轮
23	116S14004	螺钉
24	40635016	同步带轮
25	XXXX	盖板
26	XXXX	螺钉
27	300551	上轮 (喷漆)

E、带轮部件序号图号件号名称件数同类产品编号 Name of parts 1 JK-T9270-E01-01 300260 上轮 1 S40280001 Pulley assy. M 2 JK-T9270-E02 101S15001 上轮螺钉 2 014781032 Set screw, socket SM6. 35 3 JK-T9270-E03-01 4063500400 上轴同步带轮 1 S40265001 Timing belt wheel assy, upper 4 JK-T9270-E04 116S14004 上轴带轮螺钉 2 014770622 Set screw, socket SM6. 35 5 JK-T9270-E05 40635001 下轴同步带轮 1 S40818001 Timing belt wheel assy, lower 6 JK-T9270-E06 116S14004 下轮螺钉 2 014770622 Set screw, socket SM6. 35 7 JK-T9270-E07 40635002 传动带 1 S40819000 Timing belt 8 JK-T9270-E08 300256 带轮箱 1 S40258001 Belt cover 9 JK-T9270-E09 101S11016 螺钉 6 062711612 Screw pan SM4. 76-32×16 10 JK-T9270-E10 300261 带轮箱盖 1 S40259001 Belt cover plate 11 JK-T9270-E11 40611003 下带轮罩 1 116577051 Rotary hook shaft cover 12 JK-T9270-E12 40622008 带轮箱垫 1 105141001 Packing 13 JK-T9270-E13 115S11010 螺钉 2 062710812 Screw pan SM4. 76-32×8 14 JK-T9270-E14 300257 底座 1 S40796001 Pulley cover base 15 JK-T9270-E15 S01037 螺钉M12×30 2 105144001 Bolt 16 JK-T9270-E16 W01016 垫片12 2 142627001 Washer 17 JK-T9270-E17 40611004 上轮罩壳 1 S40261001 Pulley cover, A 18 JK-T9270-E18 40612010 上轮顶盖 1 S40262001 Pulley cover, B 19 JK-T9270-E19 105S11015 顶盖螺钉 3 062680712 Screw pan SM4. 37-40×7 20 JK-T9270-E20 406S20003 上轮罩壳螺钉 4 155558001 Stud screw, SM6. 35 21 JK-T9270-E21 40622009 垫片 8 S40797000 Pulley cover sheet 22 JK-T9270-E22 4063501100 同步带轮 1 150659001 Timing pulley assy, B 23 JK-T9270-E23 116S14004 螺钉 2 14760622 Set screw, socket SM5. 95 24 JK-T9270-E24 40635016 同步带轮 1 150661001 Pulley timing belt, A 25 JK-T9270-E25 XXXX 盖板 1 S40264001 Pulley belt cover 26 JK-T9270-E26 XXXX 螺钉 2 62680812 Screw, pan SM4. 37-40×8 27 JK-T9280-E01-02 300551 上轮(喷漆) 1 S40281001 Pulley assy, H

Page 14 — F. 送料部件 / Feed mechanism

Jack JK-T9270 / JK-T9280 parts on page 14
Ref	Part number	Part name
4-1-1	4-1-1	Screw
4-2-1	4-2-1	Screw
4-1	4-1	Shaft
4-2	4-2	Shaft
11	11	Screw
10	10	Screw
9	9	Screw
7	7	Pin
6	6	Lever
5	5	Arm
3	3	Bracket
8	8	Spring
2	2	Shaft
16	16	Washer
14	14	Washer
15	15	Spring
13	13	Screw
12	12	Screw
1-1-4	1-1-4	Screw
1-1-5	1-1-5	Bracket
1-1-1-1	1-1-1-1	Screw
1-1	1-1	Shaft
1-1-3	1-1-3	Shaft
1-1-2-1	1-1-2-1	Screw
1-2-4	1-2-4	Screw
1-2-5	1-2-5	Bracket
1-1-2-1	1-1-2-1	Screw
1-2-1-1	1-2-1-1	Screw
1-2-3	1-2-3	Shaft
1-2	1-2	Shaft
1-3-4	1-3-4	Screw
1-3-5	1-3-5	Bracket
1-3-1-1	1-3-1-1	Screw
1-3	1-3	Shaft
1-3-3	1-3-3	Shaft
1-3-2-1	1-3-2-1	Screw

F. 送料部件 / Feed mechanism 11 10 9 4-1-1 4-2-1 4-1 4-2 7 6 3 8 2 16 14 15 13 12 < 9270-1 > 1-1-4 1-1-5 1-1-1-1 1-1 1-1-3 1-1-2-1 < 9270-2, -3 > 1-2-4 1-2-5 1-1-2-1 1-2-1-1 1-2-3 < 9280 > 1-3-4 1-3-5 1-3-1-1 1-3 1-3-3 1-3-2-1 118-927-202 jintex.in

Page 31 — Z1. 附件 / Accessories

Jack JK-T9270 / JK-T9280 parts on page 31
Ref	Part number	Part name	Qty
	1	Accessory tray
	2-1	Screwdriver
	2-2	Screwdriver
	2-3	Screwdriver
	3-1	Wrench
	3-2	Wrench
	4	Pin
	5	Spring
	6	Oil bottle
	7	Oil can
	8	Cloth
	10	Foot pedal
	11	Shaft assembly
	11-1	Shaft
	12	Foot pedal bracket
	13	Lever
	14	Shaft
	15	Shaft
	16	Bracket
	17	Shaft
	18	Spring
	19	Spring
	20	Washer
	21	Nut
	22	Washer
	23	Rod
	24	Bracket
	25	Screw
	26	Switch
	27	Bracket
	28	Screw
	29	Wire

Z1. 附件 / Accessories 1 2-1 8 3-2 6 7 2-2 10 11 17 16 11-1 14 13 15 5 4 25 27 24 26 28 29 <9270 3针, 9280 3针> 2-3 < 9280-7 > 23 118-927-910 jintex.in

Page 32

Jack JK-T9270 / JK-T9280 parts on page 32
Part number	Part name	Qty
40631001	附件袋	1
30131015	螺丝刀2.6x70	1
30131016	螺丝刀5.5x190	1
30131006	扳手8x10	1
30131017	镊子	1
30111010	油壶	1
40631002	机头罩	1
40632001	操作板	1
4063200200	传动轴固定架部件	2
40632009	螺钉	4
40632003	抬压脚踏板	1
40632004	控制杠杆	1
406S30010	螺钉	2
40632005	传动轴	1
40632006	安装座	2
406S30011	木螺钉	4
4063200700	传动杆连接部件	2
4063200800	传动杆连接部件	1
40632009	止动板	2
406S16003	螺母	2
406S30012	螺钉	2
30131008	内六角2	1
30131010	内六角3	1
30131012	内六角4	1
40617001	机针	10
40631003	线团架组件	1
40631004	线团架组件	1
40637001	标志牌	1
40637002	型号牌	1
40631005	泡沫箱(上、下)	1
40631006	纸箱	1
R03001	铆钉2.5×4	2

Z1、附件序号图号件号名称件数同类产品编号 Name of parts 1 JK-T9270-Z01 40631001 附件袋 1 122991001 2 JK-T9270-Z01-01 30131015 螺丝刀2.6x70 1 105344001 3 JK-T9270-Z02-01 30131016 螺丝刀5.5x190 1 101572101 4 JK-T9270-Z03-02 30131006 扳手8x10 1 100887001 5 JK-T9270-Z05 30131017 镊子 1 117466000 6 JK-T9270-Z06 30111010 油壶 1 114483002 7 JK-T9270-Z08 40631002 机头罩 1 144228001 8 JK-T9270-Z10 40632001 操作板 1 133636009 9 JK-T9270-Z11 4063200200 传动轴固定架部件 2 180827009 10 JK-T9270-Z11-01 40632009 螺钉 4 151604001 11 JK-T9270-Z12 40632003 抬压脚踏板 1 117437109 12 JK-T9270-Z13 40632004 控制杠杆 1 109656009 13 JK-T9270-Z14 406S30010 螺钉 2 100463001 14 JK-T9270-Z15 40632005 传动轴 1 106062009 15 JK-T9270-Z16 40632006 安装座 2 109657009 16 JK-T9270-Z17 406S30011 木螺钉 4 0B1512502 17 JK-T9270-Z18 4063200700 传动杆连接部件 2 105359001 18 JK-T9270-Z19 4063200800 传动杆连接部件 1 181225001 19 JK-T9270-Z20 40632009 止动板 2 116016001 20 JK-T9270-Z21 406S16003 螺母 2 021400106 21 JK-T9270-Z22 406S30012 螺钉 2 062401406 22 JK-T9270-Z02-3 30131008 内六角2 1 S01943001 23 JK-T9270-Z03 30131010 内六角3 1 24 JK-T9270-Z03-01 30131012 内六角4 1 142721001 25 JK-T9270-Z04 40617001 机针 10 ***** 26 JK-T9270-Z09-01 40631003 线团架组件 1 S29854109 27 JK-T9270-Z09-02 40631004 线团架组件 1 S29864109 28 40637001 标志牌 1 ----- 29 40637002 型号牌 1 ----- 30 40631005 泡沫箱(上、下) 1 ----- 31 40631006 纸箱 1 ----- 32 GB/T827-1986 R03001 铆钉2.5×4 2 -----

Page 33 — 9270-2PL直驱拖布轮

Jack JK-T9270 / JK-T9280 parts on page 33
Ref	Part number	Part name
9	9	Spring
10	10	Spring
11	11	Shaft
12	12	Lever
13	13	Bracket
14	14	Screw
15	15	Lever
16	16	Screw
42	42	Screw
8	8	Shaft
3	3	Lever
5	5	Shaft
4	4	Washer
6	6	Screw
7	7	Washer
17	17	Shaft
18	18	Link
19	19	Screw
20	20	Lever
21	21	Shaft
44	44	Pin
22	22	Lever
23	23	Lever
24	24	Spring
25	25	Lever
26	26	Lever
27	27	Screw
28	28	Shaft
29	29	Lever
30	30	Screw
31	31	Shaft
32	32	Shaft
33	33	Lever
2	2	Shaft
37	37	Lever
46	46	Screw
43	43	Screw
35	35	Bracket
36	36	Screw
1	1	Shaft
41	41	Screw
38	38	Screw
39	39	Washer
40	40	Washer

9270-2PL直驱拖布轮 9 10 11 12 13 14 15 16 42 8 3 5 4 6 7 17 21 44 22 23 24 25 26 27 28 29 30 2 31 37 46 43 35 36 1 38 39 41 40 32 33

Page 34 — 9270-2PL直驱拖布轮

Jack JK-T9270 / JK-T9280 parts on page 34
Part number	Part name	Qty
40622018	上胶轮	1
4061402500	上拖轮组件	1
4061402500	下拖轮组件	1
40622020	下胶轮	1
40601048	下拖轮支架	1
406s20012	轴位螺钉	1
B04033	轴承	2
S05119	下拖轮固定螺钉	2
40603019	调节螺母	1
40627014	压脚弹簧	1
40602017	长轴	1
40603016	长轴铜套(后)	1
40601032	边盖	1
40601031	抬压扳手	1
40602013	固定销子	1
4060402400	拉杆组件	1
40619005	剪线刀片	1
40609009	压杆连接块	1
S05038	压杆连接块螺钉	1
40612047	连接板	1
40603020	挡圈	2
S05004	调节连杆螺钉	2
40605010	调节连杆	2
40612045	松线连杆	1
40612048	刻度指示片	2
401s16002	螺母	2
406S20010	调节杆轴位螺钉	1
40610012	偏心轮	1
B07036	滚针轴承	1
40605009	连杆	1
40612050	偏心轮挡片	1
40603013	长轴铜套	1
40622016	橡胶塞	2
40601046	上拖布轮支架	1
H03006	开口挡圈	1
40612046	星轮连杆	1
40626025	上拖轮轴	1
40602015	滚轴	6
40625002	星轮	2
40627013	弹簧	6
403S11017	刀片固定螺钉	2
406S11013	螺钉	6
40602016	压脚杆	1
409s11013	挡片固定螺钉	1
S09002	挡圈固定螺钉	4

9270-2PL直驱拖布轮序号图号件号名称件数 Name of parts 1 JK-T9270-2PL-01 40622018 上胶轮 1 upper plastic wheel 2 JK-T9270-2PL-02 4061402500 上拖轮组件 1 Upper plastic wheel ass. 3 JK-T9270-2PL-03 4061402500 下拖轮组件 1 Lower plastic wheel ass. 4 JK-T9270-2PL-04 40622020 下胶轮 1 Lower plastic wheel 5 JK-T9270-2PL-05 40601048 下拖轮支架 1 Lower plastic wheel bracket 6 JK-T9270-2PL-06 406s20012 轴位螺钉 1 Screw 7 JK-T9270-2PL-07 B04033 轴承 2 Bearing 8 GB/T 70.1-2000 螺栓 S05119 下拖轮固定螺钉 2 Lower plastic wheel set screw 9 JK-T9280XH-PL021 40603019 调节螺母 1 Adjusting screw 10 JK-T9280XH-PL020 40627014 压脚弹簧 1 Presser spring 11 JK-T9280XH-PL022 40602017 长轴 1 Long shaft 11 JK-T9280XH-PL035 40603016 长轴铜套(后) 1 Long shaft tube (back) 12 JK-T9280XH-PL023 40601032 边盖 1 Top cover 13 JK-T9280XH-PL018 40601031 抬压扳手 1 Lift pressure wrench 14 JK-T9280XH-PL015 40602013 固定销子 1 Wrench pin 15 JK-T9280XH-PL014-1 4060402400 拉杆组件 1 Joint bearing base 16 JK-T9270-M39-1 40619005 剪线刀片 1 Thread cutter blade 18 JK-T9280XH-PL013 40609009 压杆连接块 1 Voltage regulating rod clamp 19 JK-T9280XH-PL013-1 S05038 压杆连接块螺钉 1 Voltage regulating rod clamp screw 20 JK-T9280XH-PL011 40612047 连接板 1 Connecting Piece 21 JK-T9280XH-PL028 40603020 挡圈 2 Block ring 22 JK-T9280XH-PL027 S05004 调节连杆螺钉 2 Adjusting rod screw 23 JK-T9280XH-PL005 40605010 调节连杆 2 Adjusting rod 24 JK-T9280XH-PL033 40612045 松线连杆 1 Thread tension connecting rod 25 JK-T9280XH-PL037 40612048 刻度指示片 2 Dial indicating piece 26 JK-T1850-0128 401s16002 螺母 2 Screw 27 JK-T9280XH-PL006 406S20010 调节杆轴位螺钉 1 Adjusting rod screw 28 JK-T9280XH-PL001-1 40610012 偏心轮 1 Eccentric wheel 29 JK-T9280XH-PL004-2 B07036 滚针轴承 1 Needle bearing 30 JK-T9280XH-PL004 40605009 连杆 1 Connecting rod 31 JK-T9280XH-PL004-3 40612050 偏心轮挡片 1 Eccentric wheel piece 32 JK-T9280XH-PL024 40603013 长轴铜套 1 Long shaft tube 33 JK-T9280XH-PL029 40622016 橡胶塞 2 Rubber plug 35 JK-T9280-2PL-1001 40601046 上拖布轮支架 1 Upper puller bracket 36 JK-T1850-0734 H03006 开口挡圈 1 Open ring 37 JK-T9280XH-PL017-8 40612046 星轮连杆 1 Star wheel connecting rod 38 JK-T9280-2PL-1004 40626025 上拖轮轴 1 Upper puller shaft 39 JK-T9280XH-PL017-5 40602015 滚轴 6 Rolling axis 40 JK-T9280XH-PL017-6 40625002 星轮 2 Star wheel 41 JK-T9280XH-PL017-7 40627013 弹簧 6 Spring 42 JK-T1900A-0130 403S11017 刀片固定螺钉 2 Blade set screw 43 JK-T9280-2PL-0406 406S11013 螺钉 6 Screw 44 JK-T9280XH-PL019 40602016 压脚杆 1 Presser foot rod 45 JK-T373-0401 409s11013 挡片固定螺钉 1 Block piece set screw 46 JK-T9280XH-PL012 S09002 挡圈固定螺钉 4 Block ring set screw jintex.in

Page 35 — 9280-2PL双拖轮

Jack JK-T9270 / JK-T9280 parts on page 35
Ref	Part number	Part name	Qty
	1	Main body
	2	Gasket
	3	Screw
	4	Assembly
	5	Screw
	6	Bracket
	7	Screw
	8	Clip
	9	Screw
	10	Assembly
	10-1	Housing
	10-4	Shaft
	11	Lever
	13	Assembly
	15	Assembly
	15-2	Wheel
	15-3	Shaft
	4-1	Base
	4-2	Screw
	4-3	Screw
	4-4	Screw
	4-5	Screw
	4-6	Plate
	4-7	Bearing
	4-8	Washer
	4-9	Shaft
	4-10	Shaft
	4-11	Lever
	4-12	Shaft
	4-13	Screw

9280-2PL双拖轮 1 2 3 4 5 6 7 8 9 10 10-1 10-4 11 13 15 15-2 15-3 4-1 4-2 4-3 4-4 4-5 4-6 4-7 4-8 4-9 4-10 4-11 4-12 4-13 jintex.in

Page 36

Jack JK-T9270 / JK-T9280 parts on page 36
Part number	Part name	Qty
JK-T9280-2PL-01	机壳下节	1
JK-T9280-2PL-02	弹簧片	2
201S11020	螺钉	1
JK-T9280-2PL-04	下拖轮组件	1
JK-T9280-2PL-0401	下拖轮支架	1
JK-T9280-2PL-0402	支架盖板	1
406S11011	螺钉	3
JK-T9280-2PL-0404	下拖布轮	1
JK-T9280-2PL-0405	星轮	4
406S11013	星轮螺钉	12
40602015	滚轴	12
40627013	弹簧	12
40604024	拨盘	1
40626023	拨盘销	1
40605025	拖轮连杆	1
40626024	拖布轮轴销	1
H03006	开口挡圈	3
401S11012	螺钉	2
JK-T9280-2PL-0601	上剪线刀	1
JK-T9280-2PL-0602	下剪线刀	1
201S11009	螺钉	2
JK-T9280-2PL-08	护针支架	1
406S20011	轴位螺钉	1
JK-T9280-2PL-10	上拖轮组件	1
JK-T9280-2PL-1001	上拖轮架	1
JK-T9280-2PL-1002	上拖布轮	1
JK-T9280-2PL-1003	拉杆片	1
JK-T9280-2PL-1004	拖布轮轴	1
JK-T9280-2PL-11	左弯针盖	1
JK-T9280-2PL-13	针位组	1

9280-2PL 双拖轮序号图号公司件号名称用量 Name of parts 1 JK-T9280-2PL-01 301743 机壳下节 1 Machine frame 2 JK-T9280-2PL-02 40612051 弹簧片 2 Spring piece 3 JK-T9280-2PL-03 201S11020 螺钉 1 Screw 4 JK-T9280-2PL-04 4061401000 下拖轮组件 1 Lower puller ass. 5 JK-T9280-2PL-0401 40601045 下拖轮支架 1 Lower puller bracket 6 JK-T9280-2PL-0402 40612052 支架盖板 1 Base cover 7 JK-T9280-2PL-0403 406S11011 螺钉 3 Screw 8 JK-T9280-2PL-0404 40614018 下拖布轮 1 Puller 9 JK-T9280-2PL-0405 40625002 星轮 4 Star wheel 10 JK-T9280-2PL-0406 406S11013 星轮螺钉 12 Screw 11 JK-T9280-2PL-0407 40602015 滚轴 12 Rolling axis 12 JK-T9280-2PL-0408 40627013 弹簧 12 Spring 13 JK-T9280-2PL-0409 40604024 拨盘 1 Rotary plate 14 JK-T9280-2PL-0410 40626023 拨盘销 1 Rotary plate pin 15 JK-T9280-2PL-0411 40605025 拖轮连杆 1 Puller connecting rod 16 JK-T9280-2PL-0412 40626024 拖布轮轴销 1 Puller shaft pin 17 JK-T9280-2PL-0413 H03006 开口挡圈 3 Open block ring 18 JK-T9280-2PL-05 401S11012 螺钉 2 Screw 19 JK-T9280-2PL-0601 40619003 上剪线刀 1 Upper knife blade 20 JK-T9280-2PL-0602 40619004 下剪线刀 1 Lower knife blade 21 JK-T9280-2PL-07 201S11009 螺钉 2 Screw 22 JK-T9280-2PL-08 40604025 护针支架 1 Needle guide bracket 23 JK-T9280-2PL-09 406S20011 轴位螺钉 1 Screw 24 JK-T9280-2PL-10 4061401200 上拖轮组件 1 Upper puller ass. 25 JK-T9280-2PL-1001 40601046 上拖轮架 1 Upper puller bracket 26 JK-T9280-2PL-1002 40614013 上拖布轮 1 Upper puller 27 JK-T9280-2PL-1003 40612046 拉杆片 1 Star wheel connecting rod 28 JK-T9280-2PL-1004 40626025 拖布轮轴 1 Puller shaft 29 JK-T9280-2PL-11 40612053 左弯针盖 1 Looper cover, LA 30 JK-T9280-2PL-13 4063402000 针位组 1 Needle group

Page 37 — 9280-PL后拖轮部件

Jack JK-T9270 / JK-T9280 parts on page 37
Ref	Part number	Part name	Qty
	21	Spring Washer
	20	Spring
	19	Pin
	22	Bush
	18	Lever
	15	Shaft
	17	Rear Wheel Assembly
	23	Cover
	13-1	Bush
	11	Bracket
	10	Screw
	24	Shaft
	36	Nut
	13	Screw
	14	Shaft
	9	Nut
	8	Screw
	7	Washer
	37	Screw
	6	Lever
	5	Shaft
	25	Lever
	26	Lever
	17-7	Screw
	27	Bracket
	4	Lever
	3	Washer
	2	Nut
	17-9	Shaft
	17-8	Lever
	17-6	Screw
	28	Bracket
	17-10	Wheel
	17-1	Bracket
	29	Bracket
	17-2	Screw
	17-3	Pin
	17-4	Pin
	17-5	Bush
	35	Bracket

9280-PL后拖轮部件 21 20 19 22 18 15 17 23 13-1 11 10 24 36 13 14 9 8 7 37 6 5 25 26 17-7 27 4 3 2 17-9 17-8 17-6 28 17-10 17-1 29 17-2 17-3 17-4 17-5 35 jintex.in

Page 38 — P L .后拖轮部件 (9280XH)

Jack JK-T9270 / JK-T9280 parts on page 38
Ref	Part number	Part name	Qty
1	JK-T9280XH-PL001	主轴偏心轮	1
2	JK-T9280XH-PL002	固定螺母	1
4	JK-T9280XH-PL004	主轴连杆	1
5	JK-T9280XH-PL005	偏心调节杆	2
6	JK-T9280XH-PL006	偏心调节杆轴位螺钉	1
7	JK-T9280XH-PL007	固定螺母SM15/64"×28	1
8	JK-T9280XH-PL008	拉杆球头	2
10	JK-T9280XH-PL010	固定螺钉	1
11	JK-T9280XH-PL011	连接片	1
12	JK-T9280XH-PL012	固定螺钉	4
13	JK-T9280XH-PL013	压脚轴连接块	1
13-1	JK-T9280XH-PL013-1	螺钉	1
14	JK-T9280XH-PL014	拉杆轴	1
15	JK-T9280XH-PL015	固定销子	1
16	JK-T9280XH-PL016	固定螺母	1
17	JK-T9280XH-PL017	拖轮组件	1
17-1	JK-T9280XH-PL017-1	拖轮支架	1
17-2	JK-T9280XH-PL017-2	螺钉	1
17-3	JK-T9280XH-PL017-3	销子	1
17-4	JK-T9280XH-PL017-4	螺钉	6
17-5	JK-T9280XH-PL017-5	滚珠	6
17-6	JK-T9280XH-PL017-6	星轮	2
17-7	JK-T9280XH-PL017-7	弹簧	6
17-8	JK-T9280XH-PL017-8	拉杆片	1
17-9	JK-T9280XH-PL017-9	拖轮齿	1
17-10	JK-T9280XH-PL017-10	卡簧	1
18	JK-T9280XH-PL018	拾轮扳手	1
19	JK-T9280XH-PL019	拖轮轴	1
20	JK-T9280XH-PL020	拖轮轴弹簧	1
21	JK-T9280XH-PL021	调节螺母	1
22	JK-T9280XH-PL022	长轴	1
23	JK-T9280XH-PL023	边盖	1
24	JK-T9280XH-PL024	套筒	1
25	JK-T9280XH-PL025	挡圈	1
26	JK-T9280XH-PL026	螺钉	4
27	JK-T9280XH-PL027	固定螺钉	2
28	JK-T9280XH-PL028	挡圈	1
29	JK-T9280XH-PL029	橡皮挡板	2
35	JK-T9280XH-PL035	套筒(后)	1
36	JK-T9280XH-PL036	拉杆轴下套	1
37	JK-T9280XH-PL037	刻度指示板	2

P L .后拖轮部件 (9280XH) 序号图号用量名称公司件号备注 1 JK-T9280XH-PL001 1 主轴偏心轮 40610011 2 JK-T9280XH-PL002 1 固定螺母 401s16002 4 JK-T9280XH-PL004 1 主轴连杆 40605009 5 JK-T9280XH-PL005 2 偏心调节杆 40605010 6 JK-T9280XH-PL006 1 偏心调节杆轴位螺钉 406S20010 7 JK-T9280XH-PL007 1 固定螺母SM15/64"×28 401s16002 8 JK-T9280XH-PL008 2 拉杆球头 4060402100 10 JK-T9280XH-PL010 1 固定螺钉 409s11013 11 JK-T9280XH-PL011 1 连接片 40612047 12 JK-T9280XH-PL012 4 固定螺钉 S09002 13 JK-T9280XH-PL013 1 压脚轴连接块 40609009 13-1 JK-T9280XH-PL013-1 1 螺钉 S05038 14 JK-T9280XH-PL014 1 拉杆轴 40602011 15 JK-T9280XH-PL015 1 固定销子 40602013 16 JK-T9280XH-PL016 1 固定螺母 401s16002 17 JK-T9280XH-PL017 1 拖轮组件 4061400800 17-1 JK-T9280XH-PL017-1 1 拖轮支架 40601030 17-2 JK-T9280XH-PL017-2 1 螺钉 403S14004 17-3 JK-T9280XH-PL017-3 1 销子 40602018 17-4 JK-T9280XH-PL017-4 6 螺钉 209S11013 17-5 JK-T9280XH-PL017-5 6 滚珠 40602015 17-6 JK-T9280XH-PL017-6 2 星轮 40625002 17-7 JK-T9280XH-PL017-7 6 弹簧 40627013 17-8 JK-T9280XH-PL017-8 1 拉杆片 40612046 17-9 JK-T9280XH-PL017-9 1 拖轮齿 40614009 17-10 JK-T9280XH-PL017-10 1 卡簧 H03006 18 JK-T9280XH-PL018 1 拾轮扳手 40601031 19 JK-T9280XH-PL019 1 拖轮轴 40602016 20 JK-T9280XH-PL020 1 拖轮轴弹簧 40627014 21 JK-T9280XH-PL021 1 调节螺母 40603019 22 JK-T9280XH-PL022 1 长轴 40602017 23 JK-T9280XH-PL023 1 边盖 40601032 24 JK-T9280XH-PL024 1 套筒 40603013 25 JK-T9280XH-PL025 1 挡圈 40603020 26 JK-T9280XH-PL026 4 螺钉 403S14004 27 JK-T9280XH-PL027 2 固定螺钉 S05004 28 JK-T9280XH-PL028 1 挡圈 40603020 29 JK-T9280XH-PL029 2 橡皮挡板 40622016 35 JK-T9280XH-PL035 1 套筒(后) 40603016 36 JK-T9280XH-PL036 1 拉杆轴下套 40603021 37 JK-T9280XH-PL037 2 刻度指示板 40612048 jintex.in

Page 39 — 9280-PS

Jack JK-T9270 / JK-T9280 parts on page 39
Ref	Part number	Part name
1	1	SHAFT
2	2	BEARING
3	3	WASHER
4	4	SPRING
5	5	COLLAR
6	6	SCREW
7	7	BEARING
8	8	SCREW
9	9	WASHER
10	10	SPRING
11	11	SHAFT
12	12	SCREW
13	13	SCREW
14	14	SCREW
17	17	SCREW
19	19	SHAFT
20	20	BEARING
21	21	SHAFT
22	22	SHAFT
23	23	SCREW
26	26	BEARING
27	27	SHAFT
28	28	SHAFT
30	30	CAP
31	31	CAP
32	32	SHAFT
33	33	BEARING
34	34	SHAFT
35	35	SHAFT
36	36	SHAFT
37	37	SHAFT
38	38	BEARING
39	39	BEARING
40	40	BEARING
41	41	FLANGE
42	42	SCREW
43	43	COLLAR
44	44	GEAR
45	45	BELT
46	46	BELT
47	47	SCREW
48	48	HOUSING
49	49	SCREW
50	50	SCREW
51	51	SCREW
52	52	SCREW
54	54	SCREW
55	55	SCREW
56	56	BRACKET
57	57	BRACKET
58	58	SCREW
59	59	GEAR
60	60	GEAR
61	61	SCREW
62	62	SHAFT
63	63	SHAFT
64	64	GEAR
65	65	GEAR
66	66	SCREW
67	67	BELT
68	68	BELT
69	69	GEAR
69-1	69-1	GEAR
69-2	69-2	GEAR
70	70	GEAR
71	71	SCREW
72	72	BELT
73	73	PLATE
74	74	SCREW
75	75	SHAFT
75-1	75-1	SHAFT
75-2	75-2	SHAFT
75-3	75-3	SHAFT
76	76	SCREW
77	77	SHAFT
78	78	SHAFT
79	79	SCREW
80	80	SCREW
81	81	BRACKET
82	82	SCREW
83	83	SHAFT
84	84	BASE
85	85	SHAFT
86	86	LEVER
87	87	SCREW
88	88	SCREW
89	89	SCREW
90	90	SHAFT

9280-PS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 17 19 20 21 22 23 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 69-1 69-2 70 71 72 73 74 75 75-1 75-2 75-3 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 jintex.in

Page 40 — 9280-PS后拖轮部件

Jack JK-T9270 / JK-T9280 parts on page 40
Part number	Part name	Qty
JK-T9280-PS01	变速箱	1
JK-T9280-PS02	箱盖密封垫	1
JK-T9280-PS03	箱体盖	1
JK-T9280-PS04	箱盖螺钉	8
JK-T9280-PS05	0型圈	1
JK-T9280-PS06	加油孔螺丝	2
JK-T9280-PS07	开口挡圈4	1
JK-T9280-PS08	调节钮套圈	1
JK-T9280-PS09	调节钮套筒	1
JK-T9280-PS10	调节钮弹簧	1
JK-T9280-PS11	偏心调节钮	1
JK-T9280-PS12	压板螺钉	6
JK-T9280-PS13	压板	1
JK-T9280-PS14	0型圈	1
JK-T9280-PS15	输出轴后轴承座	1
JK-T9280-PS16	滚针轴承(小)	1
JK-T9280-PS17	轴承套螺钉	4
JK-T9280-PS18	轴承套B	1
JK-T9280-PS19	输出轴	1
JK-T9280-PS20	轴承套挡圈螺钉	4
JK-T9280-PS21	轴承套挡圈	1
JK-T9280-PS22	轴承座	1
JK-T9280-PS23	螺钉M4×4	8
JK-T9280-PS24	滚针轴承(大)	1
JK-T9280-PS25	轴承套A	1
JK-T9280-PS26	输出轴挡圈	1
JK-T9280-PS27	输出轴前套	1
JK-T9280-PS28	油封10×20×7	1
JK-T9280-PS29	标尺窗油封	1
JK-T9280-PS30	标尺窗	1
JK-T9280-PS31	轴套油塞	1
JK-T9280-PS32	输出轴后套	1
JK-T9280-PS33	挡圈	1
JK-T9280-PS34	连杆	1
JK-T9280-PS35	连杆销	1
JK-T9280-PS36	偏心调节器组件	1
JK-T9280-PS37	输入轴	1
JK-T9280-PS38	油封10×26×7	2
JK-T9280-PS39	深沟球轴承	2
JK-T9280-PS40	红钢纸垫圈	1
JK-T9280-PS41	轴承刻线压板	1
JK-T9280-PS42	螺钉M6×6	4
JK-T9280-PS43	针距离度盘	1
JK-T9280-PS44	同步轮XL	1
JK-T9280-PS45	同步带XL	1
JK-T9280-PS46	同步带护罩	1
JK-T9280-PS47	同步带罩固定螺钉	2
JK-T9280-PS48	输出轴后套	1

9280-PS后拖轮部件序号图号件号名称件数 Name of parts 1 JK-T9280-PS01 XXXX 变速箱 1 Gear box body 2 JK-T9280-PS02 XXXX 箱盖密封垫 1 Cover sealedl washer 3 JK-T9280-PS03 XXXX 箱体盖 1 Body cover 4 JK-T9280-PS04 XXXX 箱盖螺钉 8 Cover screw 5 JK-T9280-PS05 XXXX 0型圈 1 0 type ring 6 JK-T9280-PS06 XXXX 加油孔螺丝 2 Oiled hole screw 7 JK-T9280-PS07 XXXX 开口挡圈4 1 0 type ring 8 JK-T9280-PS08 XXXX 调节钮套圈 1 Adjustable button bushing 9 JK-T9280-PS09 XXXX 调节钮套筒 1 Adjustable button tube 10 JK-T9280-PS10 XXXX 调节钮弹簧 1 Adjustable button spring 11 JK-T9280-PS11 XXXX 偏心调节钮 1 Eccentric adjusting button 12 JK-T9280-PS12 XXXX 压板螺钉 6 Presser plate screw 13 JK-T9280-PS13 XXXX 压板 1 Presser plate 14 JK-T9280-PS14 XXXX 0型圈 1 0 type ring 15 JK-T9280-PS15 XXXX 输出轴后轴承座 1 Back output bearing base 16 JK-T9280-PS16 XXXX 滚针轴承(小) 1 Needle bearing (small) 17 JK-T9280-PS17 XXXX 轴承套螺钉 4 Bearing tube screw 18 JK-T9280-PS18 XXXX 轴承套B 1 Bearing tube 19 JK-T9280-PS19 XXXX 输出轴 1 Output bearing 20 JK-T9280-PS20 XXXX 轴承套挡圈螺钉 4 Bearing tubelock ring screw 21 JK-T9280-PS21 XXXX 轴承套挡圈 1 Bearing tubelock ring 22 JK-T9280-PS22 XXXX 轴承座 1 Bearing base 23 JK-T9280-PS23 XXXX 螺钉M4×4 8 Screw M4×4 24 JK-T9280-PS24 XXXX 滚针轴承(大) 1 Needle bearing (Big) 25 JK-T9280-PS25 XXXX 轴承套A 1 Bearing tube A 26 JK-T9280-PS26 XXXX 输出轴挡圈 1 Output bearing block ring 27 JK-T9280-PS27 XXXX 输出轴前套 1 Output shaft bush 28 JK-T9280-PS28 XXXX 油封10×20×7 1 Oil seal 10×20×7 29 JK-T9280-PS29 XXXX 标尺窗油封 1 Scale window oil seal 30 JK-T9280-PS30 XXXX 标尺窗 1 Scale window 31 JK-T9280-PS31 XXXX 轴套油塞 1 Shaft tube oil plug 32 JK-T9280-PS32 XXXX 输出轴后套 1 Output shaft rear tube 33 JK-T9280-PS33 XXXX 挡圈 1 Block ring 34 JK-T9280-PS34 XXXX 连杆 1 Connecting rod 35 JK-T9280-PS35 XXXX 连杆销 1 Connecting rod pin 36 JK-T9280-PS36 XXXX 偏心调节器组件 1 Eccentric adjustor assm. 37 JK-T9280-PS37 XXXX 输入轴 1 Output shaft 38 JK-T9280-PS38 XXXX 油封10×26×7 2 Oil seal 10×26×7 39 JK-T9280-PS39 XXXX 深沟球轴承 2 Bearing 40 JK-T9280-PS40 XXXX 红钢纸垫圈 1 Washer 41 JK-T9280-PS41 XXXX 轴承刻线压板 1 Bearing dial presser plate 42 JK-T9280-PS42 XXXX 螺钉M6×6 4 Screw M6×6 43 JK-T9280-PS43 XXXX 针距离度盘 1 Needle distance dial 44 JK-T9280-PS44 XXXX 同步轮XL 1 Synchronous wheel xl 45 JK-T9280-PS45 XXXX 同步带XL 1 Synchronous belt xl 46 JK-T9280-PS46 XXXX 同步带护罩 1 Synchronous belt cover 47 JK-T9280-PS47 XXXX 同步带罩固定螺钉 2 Synchronous belt cover set screw 48 JK-T9280-PS48 XXXX 输出轴后套 1 Backward output shaft jintex.in

Page 41

Jack JK-T9270 / JK-T9280 parts on page 41
Ref	Part number	Part name	Qty
	JK-T9280-PS49	星轮固定轴套
	JK-T9280-PS50	星轮B
	JK-T9280-PS51	滚子
	JK-T9280-PS52	星轮固定螺钉
	JK-T9280-PS53	星轮垫圈
	JK-T9280-PS54	星轮A
	JK-T9280-PS55	滚子弹簧
	JK-T9280-PS56	拖布轮组件
	40601046	拖轮支架
	JK-T9280-PS58	支架轴承
	JK-T9280-PS59	拖布轮
	JK-T9280-PS60	胶轮拖布轮
	JK-T9280-PS61	拖布轮紧定螺钉
	40602019	大同步轮轴
	JK-T9280-PS63	小同步轮轴
	JK-T9280-PS64	调整薄垫片
	JK-T9280-PS65	调整厚垫片
	406s20011	上罩壳固定螺钉
	40612055	下罩壳
	JK-T9280-PS68	下罩壳螺钉柱
	4063501200	大同步轮组件
	40635013	大同步轮XL型
	40612056	大同步轮挡片一
	40635014	小同步轮XL型
	JK-T9280-PS71	同步轮紧定螺钉
	40635018	同步带
	40612057	大同步轮挡片2
	JK-T9280-PS74	大同步轮挡片螺钉
	40626027	上罩壳组件
	40612060	上罩壳
	40626022	上罩壳螺钉柱
	40626028	上罩限位销
	JK-T9280-PS76	拖布轮支架螺钉
	40602010	调压杆
	40603021	调压杆轴套
	40609009	调压杆夹
	S05038	调压杆夹螺钉
	40612047	连接片
	409S11013	连接片固定螺钉
	40627013	调压弹簧
	40601032	端面盖
	40603019	调压螺母
	40601031	扳手
	406S11009	端面盖固定螺钉
	40602013	扳手销
	JK-T9280-PS89	万向节接头
	JK-T9280-PS90	传动轴
	JK-T9280-PS	后拖轮组件

49 JK-T9280-PS49 XXXX 星轮固定轴套 3 Star wheel set shaft tube 50 JK-T9280-PS50 XXXX 星轮B 1 Star wheel B 51 JK-T9280-PS51 XXXX 滚子 9 Roller 52 JK-T9280-PS52 XXXX 星轮固定螺钉 9 Star wheel set screw 53 JK-T9280-PS53 XXXX 星轮垫圈 1 Star wheel washer 54 JK-T9280-PS54 XXXX 星轮A 2 Star wheel A 55 JK-T9280-PS55 XXXX 滚子弹簧 9 Roller 56 JK-T9280-PS56 XXXX 拖布轮组件 1 Puller assembly 57 JK-T9280-PS57 40601046 拖轮支架 1 Roller bracket 58 JK-T9280-PS58 XXXX 支架轴承 2 Bracket bearing 59 JK-T9280-PS59 XXXX 拖布轮 1 Puller 60 JK-T9280-PS60 XXXX 胶轮拖布轮 1 Plastic roller 61 JK-T9280-PS61 XXXX 拖布轮紧定螺钉 2 Roller set screw 62 JK-T9280-PS62 40602019 大同步轮轴 1 Big synchronous wheel bearing 63 JK-T9280-PS63 XXXX 小同步轮轴 1 Small synchronous wheel bearing 64 JK-T9280-PS64 XXXX 调整薄垫片 1 Adjustable thin washer 65 JK-T9280-PS65 XXXX 调整厚垫片 1 Adjustable thick washer 66 JK-T9280-PS66 406s20011 上罩壳固定螺钉 1 Upper cover set screw 67 JK-T9280-PS67 40612055 下罩壳 1 Lower cover 68 JK-T9280-PS68 XXXX 下罩壳螺钉柱 1 Lower cover screw 69 JK-T9280-PS69 4063501200 大同步轮组件 1 Big synchronous wheel ass. 70 JK-T9280-PS69-1 40635013 大同步轮XL型 1 Big synchronous wheel XL type 71 JK-T9280-PS69-2 40612056 大同步轮挡片一 1 Big synchronous wheel block 1 72 JK-T9280-PS70 40635014 小同步轮XL型 1 Small synchronous wheel XL type 73 JK-T9280-PS71 XXXX 同步轮紧定螺钉 4 Synchronous wheel set screw 74 JK-T9280-PS72 40635018 同步带 1 Synchronous belt 75 JK-T9280-PS73 40612057 大同步轮挡片2 1 Big synchronous wheel block 2 76 JK-T9280-PS74 XXXX 大同步轮挡片螺钉 3 Big synchronous wheel block screw 77 JK-T9280-PS75 40626027 上罩壳组件 1 Upper cover assm. 78 JK-T9280-PS75-1 40612060 上罩壳 1 Upper cover 79 JK-T9280-PS75-2 40626022 上罩壳螺钉柱 1 Upper screw cover column 80 JK-T9280-PS75-3 40626028 上罩限位销 1 Upper cover limit pin 81 JK-T9280-PS76 XXXX 拖布轮支架螺钉 1 Puller bracket screw 82 JK-T9280-PS77 40602010 调压杆 1 Voltage regulating rod 83 JK-T9280-PS78 40603021 调压杆轴套 1 Voltage regulating rod shaft tube 84 JK-T9280-PS79 40609009 调压杆夹 1 Voltage regulating rod clamp 85 JK-T9280-PS80 S05038 调压杆夹螺钉 1 Voltage regulating rod clamp screw 86 JK-T9280-PS81 40612047 连接片 1 connecting piece 87 JK-T9280-PS82 409S11013 连接片固定螺钉 1 connecting piece set screw 88 JK-T9280-PS83 40627013 调压弹簧 1 Voltage regulating spring 89 JK-T9280-PS84 40601032 端面盖 1 Top cover 90 JK-T9280-PS85 40603019 调压螺母 1 Voltage regulating screw 91 JK-T9280-PS86 40601031 扳手 1 Wrench 92 JK-T9280-PS87 406S11009 端面盖固定螺钉 4 Top cover set screw 93 JK-T9280-PS88 40602013 扳手销 1 Wrench pin 94 JK-T9280-PS89 XXXX 万向节接头 2 Universal joint 95 JK-T9280-PS90 XXXX 传动轴 1 Rotating axis 96 JK-T9280-PS 4063100400 后拖轮组件 1 After the puller wheel device assm. jintex.in

Part Books

Search
