Juki DDL-7000A-7 Parts Book (PDF)
Text index — Juki DDL-7000A-7
Page 5 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25175 | FACE_PLATE_ASM. | 1 |
| 2 | 400-12126 | FACE_PLATE_PACKING | 1 |
| 3 | SS-6080320-SP | SCREW_1/8-44_L=2.5 | 1 |
| 4 | 229-00757 | FACE_PLATE_OIL_SHIELD_ASM. | 1 |
| 5 | TA-0850604-RO | RUBBER_PLUG | 2 |
| 6 | TA-1250705-RO | RUBBER_PLUG | 1 |
| 7 | 401-12907 | GROUND_WIRE_ASM. | 1 |
| 8 | SS-4120925-SP | SCREW_3/16-28_L=9 | 8 |
| 9 | TA-2100904-RO | RUBBER_PLUG | 1 |
| 10 | 402-25177 | WINDOW_PLATE | 1 |
| 11 | 400-12129 | SIDE_PLATE_PACKING | 1 |
| 12 | CM-3002000-01 | ATTENTION_SEAL | 2 |
| 13 | 401-02261 | SAFETY_LABEL_S | 1 |
| 14 | 229-01805 | GROUND_MARK | 1 |
| 15 | SS-4120615-SP | SCREW_3/16-28_L=6 | 1 |
| 16 | TA-2000502-RO | RUBBER_PLUG | 1 |
| 17 | 114-00801 | THROAT_PLATE_J | 1 |
| 18 | SL-6052592-TN | BOLT | 1 |
| 19 | TA-2101002-R0 | RUBBER_PLUG | 1 |
| 20 | 401-11022 | MAGNET_CORD_RUBBER | 1 |
| 21 | 229-45463 | THREAD_TENSION_ASM. | 1 |
| 22 | 229-45414 | THREAD_TENSION_POST | (1) |
| 23 | 229-45604 | THREAD_TENSION_GUIDE | (1) |
| 24 | 229-45802 | THREAD_TENSION_DISK | (2) |
| 25 | 229-45505 | THREAD_TENSION_SPRING | (1) |
| 26 | 229-45703 | THREAD_TENSION_NUT | (1) |
| 27 | SS-4120615-SP | SCREW_3/16-28_L=6 | 1 |
| 28 | 402-25185 | THREAD_TAKE-UP_LEVER_COVER | 1 |
| 29 | SS-4120615-SP | SCREW_3/16-28_L=6 | 1 |
| 30 | 110-91006 | ARM_THREAD_GUIDE_(HA) | 1 |
| 31 | 229-21001 | SCREW | 1 |
| 32 | 401-26850 | THREAD_TENSION_ASM. | 1 |
| 33 | 229-21308 | THREAD_TENSION_NUT | (1) |
| 34 | 229-21407 | ROTATION_STOPPER | (1) |
| 35 | 401-12420 | THREAD_TENSION_SPRING_M | (1) |
| 36 | 229-21803 | DISK_STOPPER | (1) |
| 37 | 131-38201 | THREAD_TENSION_DISK | (2) |
| 38 | 229-21209 | THREAD_TENSION_POST | (1) |
| 39 | 229-21605 | THREAD_TAKE-UP_SPRING | (1) |
| 40 | 229-45307 | THREAD_TENSION_POST_BASE | (1) |
| 41 | SS-8090670-SP | SCREW_9/64-40_L=5.5 | (1) |
| 42 | SS-8150710-TP | SCREW_15/64-28_L=7 | 1 |
| 43 | 229-20904 | TENSION_RELEASING | 1 |
| 44 | B1109-552-000 | THROAT_PLATE | 1 |
| 45 | SS-2110920-TP | SCREW_11/64-40_L=8.5 | 2 |
| 46 | 401-87311 | ARM_THREAD_GUIDE_B | 1 |
| 47 | 229-20607 | ARM_THREAD_GUIDE_B | 1 |
| 48 | SS-6110610-TP | SCREW_11/64-40_L=6 | 1 |
| 49 | TA-1250406-RO | RUBBER_PLUG_D=12.5_L=4 | 2 |
| 50 | SS-4120925-SP | SCREW_3/16-28_L=9 | 3 |
| 51 | 229-01250 | SLIDE_PLATE_ASM. | 1 |
| 52 | 229-01201 | SLIDE_PLATE | (1) |
| 53 | 229-01300 | SLIDE_PLATE_SPRING | (1) |
| 54 | SS-6060210-SP | SCREW_3/32-56_L=1.9 | (2) |
| 55 | 401-87738 | ARM_THREAD_GUIDE | 1 |
| 56 | WT-0530002-KS | TOOTHED_WASHER_D=5.3 | 1 |
| 57 | NS-6090310-SP | NUT_9/64-40 | 1 |
| 58 | 400-99083 | RULER_STOP_SEAT | 1 |
| 59 | SS-7110720-SP | SCREW_11/64-40_L=7 | 2 |
| 60 | 401-26305 | SCREW_5/16-24_L=35 | 1 |
| 61 | SL-6053092-TN | SCREW | 1 |
| 62 | SL-6054592-TN | SCREW | 1 |
| 63 | EA-9500B01-00 | CABLE_BAND | 1 |
| 64 | 401-26308 | CORD_CLAMP | 1 |
| 65 | 114-03805 | THREAD_GUIDE_C_FITTING_PLATE | 1 |
| 66 | WP-0371016-SD | WASHER_3.7X8X1 | 1 |
| 67 | 229-01003 | BED_SCREW_STUD | 3 |
| 68 | 401-32099 | BED_STD_R | 1 |
| 69 | SS-4151215-SP | SCREW_15/64-28_L=12 | 1 |
| 70 | 229-63458 | THREAD_TENSION_ASM. | 1 |
| 71 | 229-63409 | THREAD_TENSION_SPRING | (1) |
| 72 | 229-62054 | THREAD_TENSION_ASM. | 1 |
| 73 | 229-21506 | THREAD_TENSION_DISK | (2) |
| 74 | 229-62005 | THREAD_TENSION_SPRING | (1) |
Page 7 — 2. BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-18885 | BOBBIN_WINDER_UNIT | 1 |
| 2 | 401-89600 | BTW_BASE | (1) |
| 3 | 262-60208 | BTW_CAM_PLATE | (1) |
| 4 | 262-60307 | BTW_BASE_SHAFT | (1) |
| 5 | 262-60406 | BTW_SHAFT_BASE | (1) |
| 6 | 262-60505 | BTW_CAM_LEVER | (1) |
| 7 | 262-60604 | BTW_WHEEL | (1) |
| 8 | 262-60802 | BTW_BEARING_SPACER | (1) |
| 9 | 262-61008 | BTW_LEVER_SHAFT | (1) |
| 10 | 262-61206 | BTW_SPACER | (1) |
| 11 | 262-61305 | BTW_BEARING | (2) |
| 12 | 262-61503 | BTW_WHEEL_RUBBER | (1) |
| 13 | 262-61602 | BOBBIN_SPRING | (1) |
| 14 | 262-61701 | BTW_SPRING | (1) |
| 15 | 400-11144 | BTW_TORSION_SPRING | (1) |
| 16 | 401-10975 | BTW_SHAFT | (1) |
| 17 | 400-21933 | BTW_LEVER | (1) |
| 18 | RC-0560711-KP | RETAINING_RING | (1) |
| 19 | RE-0400000-K0 | E-RING_4 | (1) |
| 20 | SM-5040655-SN | SCREW | (1) |
| 21 | SM-8040802-TP | SCREW_M4X8 | (2) |
| 22 | SM-8050502-TP | SCREW_M5_L=5 | (1) |
| 23 | WP-0450826-SC | WASHER_4.5X10X0.8 | (1) |
| 24 | 401-19475 | OIL_GUARD | (1) |
| 25 | 401-10731 | BOBBIN_THREAD_TENSION_ASSY | 1 |
| 26 | 401-10734 | BOBBIN_THREAD_ROD_ASSY | (1) |
| 27 | NS-6120630-SP | NUT_3/16-28 | (1) |
| 28 | 229-21506 | THREAD_TENSION_DISK | (2) |
| 29 | D7133-555-B00 | CONNECTING_ROD_SPRING | (1) |
| 30 | 229-45703 | THREAD_TENSION_NUT | (1) |
| 31 | SM-0050801-SC | SCREW | 1 |
| 32 | SM-0050801-SC | SCREW | 3 |
| 33 | 401-63521 | PACKING | 1 |
| 34 | 400-37008 | THREAD_CUTTER | 1 |
| 35 | 401-13241 | BTW_SPACER | 1 |
Page 9 — 3. MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-8151150-TP | SCREW_15/64-28_L=10.5 | 1 |
| 2 | 401-06138 | THREAD_TAKE-UP_CRANK_SHAFT_ASM. | 1 |
| 3 | 110-02904 | ROLLER_FELT | 1 |
| 4 | 229-18072 | THREAD_TAKE-UP_LEVER_ASM. | 1 |
| 5 | 229-18064 | THREAD_TAKE-UP_LEVER_ASM. | (1) |
| 229-18403 | NEEDLE_BEARING_A | ||
| 229-18502 | NEEDLE_BEARING_B | ||
| 229-18601 | NEEDLE_BEARING_C | ||
| 229-18700 | NEEDLE_BEARING_D | ||
| 229-18106 | NEEDLE_BAR_CRANK | ||
| 229-06606 | LEFT_SCREW | ||
| 229-18304 | COUNTER_WEIGHT_ASM. | ||
| SS-7681650-TP | SCREW_9/32-28_L=16 | ||
| 401-10376 | COUNTER_WEIGHT | ||
| SS-8681650-TP | SCREW_9/32-28_L=16 | ||
| SS-6661110-SP | SCREW_1/4-40_L=6 | ||
| RO-0442401-00 | RUBBER_RING | ||
| 229-10053 | FEED_DRIVE_ECCENTRIC_CAM_ASM. | ||
| 229-10004 | FEED_DRIVE_ECCENTRIC_CAM | ||
| RC-1850001-KP | SNAP_RING_18.5 | ||
| 401-37502 | THRUST_COLLAR_ASM. | ||
| SS-8660610-TP | SCREW_1/4-40_L=6 | ||
| 401-37503 | MAIN_SHAFT_THRUST_COLLAR | ||
| B1215-552-000 | OIL_ADJUSTING_COLLAR | ||
| 229-03306 | BUSHING_INTERMEDIATE | ||
| SS-4090615-SP | SCREW_9/64-40_L=6 | ||
| 229-19203 | OIL_PROTECTING_RUBBER | ||
| 225-38805 | DRIVING_WHEEL | ||
| 401-11424 | FILTER | ||
| SM-80608A2-TP | SCREW_M6_L=8 | ||
| 402-27630 | HAND_PULLY | ||
| 402-25291 | MAIN_SHAFT_BUSHING_REAR | ||
| 229-03207 | MAIN_SHAFT_BUSHING_FRONT | ||
| 402-22686 | AC_SERVO_MOTOR | ||
| SL-6051692-TN | BOLT | ||
| SL-6041242-TN | BOLT | ||
| RO-0291801-00 | RUBBER_RING | ||
| 229-10103 | THRUST_COLLAR | ||
| 229-03900 | ADJUSTING_PIN | ||
| 402-22701 | MAIN_SHAFT | ||
| 401-39216 | OIL_SEAL | ||
| 229-70552 | FEED_ECCENTRIC_CAM_ASM. | ||
| 229-70503 | FEED_ECCENTRIC_CAM_L | ||
| 229-72806 | FEED_ECCENTRIC_CAM_SETSCREW | ||
| 110-62858 | LINK_THREAD_TAKE-UP_LEVER_ASM. | ||
| 110-17068 | LINK_THREAD_TAKE-UP_LEVER_ASM. | ||
| 110-62809 | NEEDLE_BAR_CRANK | ||
| B1408-552-000 | NEEDLE_BAR_CRANK_ROD | ||
| B1903-552-000 | LEFT_SCREW | ||
| B1905-541-A00 | NEEDLE_BEARING | ||
| B1905-541-B00 | NEEDLE_BEARING | ||
| B1905-541-C00 | NEEDLE_BEARING | ||
| B1905-541-D00 | NEEDLE_BEARING |

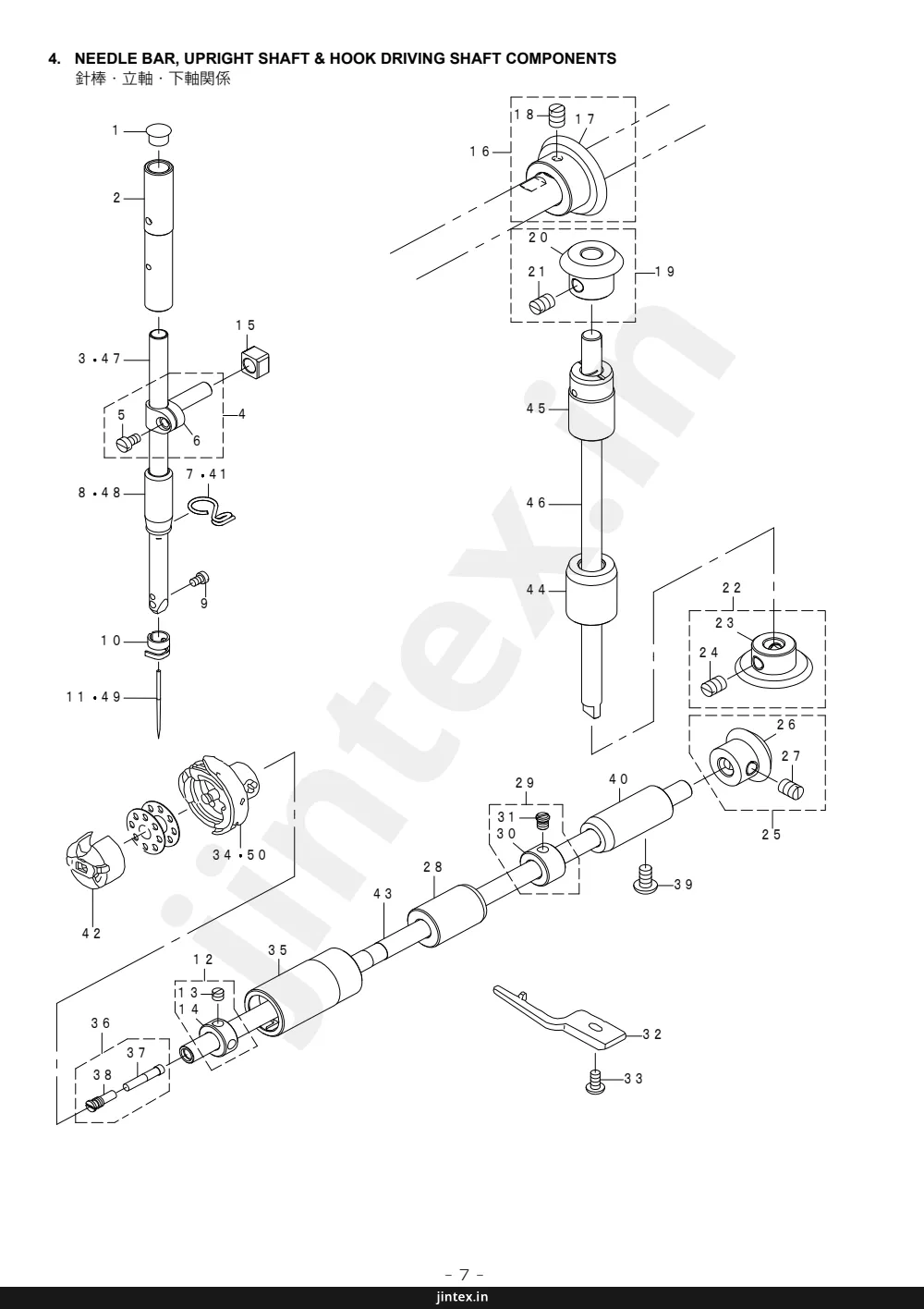

Page 11 — 4. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TA-0850604-RO | RUBBER_PLUG | 1 |
| 2 | 229-06101 | NEEDLE_BAR_BUSHING_UPPER | 1 |
| 3 | 229-39508 | NEEDLE_BAR | 1 |
| 4 | 229-06457 | NEEDLE_BAR_HOLDER_ASM. | 1 |
| 5 | SS-6090670-TP | SCREW_9/64-40_L=6 | (1) |
| 6 | 229-06408 | NEEDLE_ROD_HOLDER | (1) |
| 7 | 400-23223 | NEEDLE_BAR_THREAD_GUIDE | 1 |
| 8 | 229-06200 | NEEDLE_BAR_BUSHING_LOWER | 1 |
| 9 | SS-7080510-TP | SCREW_1/8-44_L=4.5 | 1 |
| 10 | 229-70404 | NEEDLE_BAR_THREAD_HOOK | 1 |
| 11 | MDB-100B1400 | NEEDLE_DBX1_#14 | 1 |
| 12 | 229-17058 | THRUST_COLLAR_ASM._FRONT | 1 |
| 13 | SS-8110410-TP | SCREW_11/64-40_L=3.5 | (2) |
| 14 | 229-17009 | THRUST_COLLAR_FRONT | (1) |
| 15 | 400-90058 | SLIDE_BLOCK | 1 |
| 16 | 400-90002 | UPPER_LARGE_BEVEL_GEAR_ASM. | 1 |
| 17 | 400-90006 | UPPER_LARGE_BEVEL_GEAR | (1) |
| 18 | SS-8660810-TP | SCREW_1/4-40_L=8 | (2) |
| 19 | 400-90003 | UPPER_SMALL_BEVEL_GEAR_ASM. | 1 |
| 20 | 400-90007 | UPPER_SMALL_BEVEL_GEAR | (1) |
| 21 | SS-8660810-TP | SCREW_1/4-40_L=8 | (2) |
| 22 | 400-90004 | LOWER_LARGE_BEVEL_GEAR_ASM. | 1 |
| 23 | 400-90008 | LOWER_LARGE_BEVEL_GEAR | (1) |
| 24 | SS-8660810-TP | SCREW_1/4-40_L=8 | (2) |
| 25 | 400-90005 | LOWER_SMALL_BEVEL_GEAR_ASM. | 1 |
| 26 | 400-90009 | LOWER_SMALL_BEVEL_GEAR | (1) |
| 27 | SS-8660810-TP | SCREW_1/4-40_L=8 | (2) |
| 28 | 401-27191 | HOOK_DRIVING_SHAFT_M | 1 |
| 29 | 401-36014 | THRUST_COLLAR_ASM. | 1 |
| 30 | 401-36013 | HOOK_DRIVING_SHAFT_THRUST_COLLAR | (1) |
| 31 | SS-6110420-TP | SCREW_11/64-40_L=4.8 | (2) |
| 32 | 229-16407 | BOBBIN_CASE_POSITIONING_FINGER | 1 |
| 33 | SS-6111210-SP | SCREW_11/64-40_L=12 | 1 |
| 34 | 401-53440 | HOOK_ASM. | 1 |
| 35 | 401-27177 | HOOK_DRIVING_SHAFT_F | 1 |
| 36 | 229-16555 | OIL_SEAL_SCREW_ASM. | 1 |
| 37 | 110-15906 | OIL_WICK | (1) |
| 38 | 229-16506 | SET_SCREW | (1) |
| 39 | SS-4120915-SP | SCREW_3/16-28_L=9 | 1 |
| 40 | 229-16308 | HOOK_DRIVING_SHAFT_BUSH_REAR | 1 |
| 41 | 401-41523 | NEEDLE_BAR_THREAD_GUIDE_P | 1 |
| 42 | 402-11519 | BOBBIN_CASE_ASM. | 1 |
| 43 | 401-27192 | HOOK_DRIVING_SHAFT | 1 |
| 44 | 229-05202 | UPRIGHT_SHAFT_BUSHING_LOWER | 1 |
| 45 | 229-05103 | UPRIGHT_SHAFT_BUSHING_UPPER | 1 |
| 46 | 229-05004 | UPRIGHT_SHAFT | 1 |
| 47 | 229-70206 | NEEDLE_BAR | 1 |
| 48 | 401-71515 | NEEDL_BAR_BUSHING | 1 |
| 49 | MDP-500B2100 | NEEDLE_DPX5_#21 | 1 |
| 50 | 400-35058 | HOOK_ASM. | 1 |
Page 13 — 5. HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-07802 | HAND_LIFTER | 1 |
| 2 | B1521-555-000 | SCREW | 1 |
| 3 | RO-0371801-00 | RUBBER_RING | 1 |
| 4 | 229-08552 | HAND_LIFTER_CAM_ASM. | 1 |
| 5 | 400-60989 | PRESSER_BAR_BUSHING_LOWER | 1 |
| 6 | SS-7091110-TP | SCREW_9/64-40_L=10.5 | 1 |
| 7 | 229-08701 | LINK_SHAFT | 2 |
| 8 | RE-0500000-KO | E-RING | 3 |
| 9 | B1524-012-0BA | PRESSER_FOOT_ASM. | 1 |
| 10 | B1505-552-000-A | PRESSER_SPRING | 1 |
| 11 | 229-08909 | HINGE_SCREW | 1 |
| 12 | SD-0720331-SP | HINGE_SCREW_D=7.24_H=3.3 | 1 |
| 13 | 229-09006 | KNEE_LIFTER_CONNECTING_ROD | 1 |
| 14 | 229-08800 | KNEE_LIFTER_LINK | 1 |
| 15 | SS-4110515-SP | SCREW_11/64-40_L=5 | 1 |
| 16 | SS-4110515-SP | SCREW_11/64-40_L=5 | 1 |
| 17 | SS-4150915-SP | SCREW_15/64-28_L=9 | 1 |
| 18 | 229-44508 | WIRE_PRESSER_A | 2 |
| 19 | SS-4120615-SP | SCREW_3/16-28_L=6 | 1 |
| 20 | D1524-555-EBL | PRESSER_FOOT_ASM. | 1 |
| 21 | NS-6620310-SP | NUT_3/16-32 | 2 |
| 22 | RE-0500000-KO | E-RING | 2 |
| 23 | 229-20201 | RETURN_SPRING | 1 |
| 24 | 229-20409 | THREAD_RELEASE_PIN_SPRING | 1 |
| 25 | 229-45109 | WIRE_CABLE_SUPPORT | 1 |
| 26 | 229-20300 | THREAD_RELEASE_SUPPORTING_PIN | 1 |
| 27 | SS-4120615-SP | SCREW_3/16-28_L=6 | 1 |
| 28 | 401-32068 | THREAD_RELEASE_WIRE_ASM. | 1 |
| 29 | 229-20102 | TENSION_RELEASE_SHAFT | 1 |
| 30 | 229-07554 | PRESSER_SPRING_REGULATOR_ASM. | 1 |
| 31 | 229-07604 | PRESSER_SPRING_REGULATOR_NUT | (1) |
| 32 | 229-07505 | PRESSER_SPRING_REGULATOR | (1) |
| 33 | 229-07406 | PRESSER_SPRING | 1 |
| 34 | 400-98388 | PRESSER_BAR_GUIDE_BRACKET | 1 |
| 35 | 400-17805 | PRESSER_BAR | 1 |
| 36 | 229-07307 | THREAD_GUIDE | 1 |
| 37 | SS-8660810-TP | SCREW_1/4-40_L=8 | 1 |
| 38 | SS-6090910-SP | SCREW_9/64-40_L=9 | 2 |
| 39 | 229-08354 | KNEE_LIFTING_CROSS_ROD_ASM. | 1 |
| 40 | 229-08156 | LIFTING_LINK_ASM. | (1) |
| 41 | RE-0500000-KO | E-RING | (2) |
| 42 | 229-08008 | LIFTING_PLATE | (1) |
| 43 | 229-08305 | KNEE_LIFTER_SIDE_ROD | (1) |
| 44 | 401-32067 | WIRE_PRESSER_BASE | 1 |
| 45 | 229-07703 | PRESSER_GUIDE_BAR | 1 |
| 46 | 401-27189 | WIRE_PRESSER_SUPPORT | 1 |
Page 15 — 6. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-41108 | FEED_ADJUST_ROD | 1 |
| 2 | 229-11507 | WALKING_FOOT_PIN_C | 1 |
| 3 | SS-6090670-TP | SCREW_9/64-40_L=6 | 2 |
| 4 | 229-11606 | FEED_REGULATOR | 1 |
| 5 | SS-6121860-SP | SCREW_3/16-28_L=18 | 1 |
| 6 | SS-7120770-SH | SCREW_3/16-28_L=7 | 1 |
| 7 | 229-11804 | FEED_REGULATOR_SCREW | 1 |
| 8 | 229-12109 | FEED_REGULATOR_PIN_SPRING | 1 |
| 9 | 229-12000 | FEED_REGULATOR_PIN | 1 |
| 10 | 401-01726 | FEED_DIAL | 1 |
| 11 | 229-10251 | CONNECTING_ROD_ASM. | 1 |
| 12 | 229-10202 | ROCKER_SHAFT_CONNECTING_ROD | (1) |
| 13 | 229-11101 | WALKING_FOOT_PIN_C | (1) |
| 14 | SS-6090620-TP | SCREW | (1) |
| 15 | 229-15003 | CONNECTING_ROD | 1 |
| 16 | RO-0922702-00 | RUBBER_RING | 1 |
| 17 | 110-10311 | LEVER_SPRING | 1 |
| 18 | RE-0500000-KO | E-RING | 2 |
| 19 | 229-12257 | FEED_REVERSE_ARM_ASM. | 1 |
| 20 | 229-12505 | FEED_REVERSE_ARM_SCREW | 1 |
| 21 | 401-15888 | LEVER_STOPPER_ASSY | 1 |
| 22 | 110-37405 | SPRING | 1 |
| 23 | 110-09800 | FEED_REGULATOR_BUSHING | 1 |
| 24 | 229-10905 | WALKING_FOOT_PIN_A | 2 |
| 25 | 400-89548 | CONNECTING_LINK_B | 2 |
| 26 | 400-93417 | CONNECTING_LINK_A | 2 |
| 27 | 229-40951 | FEED_ADJUST_LINK_ASM. | 1 |
| 28 | 229-10806 | ADJUST_LINK_FULCRUM_SHAFT_A | 2 |
| 29 | SS-6151220-SP | SCREW_15/64-28_L=11.5 | 2 |
| 30 | SS-6090620-TP | SCREW | 3 |
| 31 | 229-40803 | FEED_BAR_SHAFT | 1 |
| 32 | RC-0150001-KP | RETAINING_RING_13.8 | 1 |
| 33 | 401-33950 | FEED_DOG_M | 1 |
| 34 | SS-4080620-TP | SCREW_1/8-44_L=6 | 2 |
| 35 | 229-40753 | FEED_BASER_ASM. | 1 |
| 36 | 229-40704 | FEED_BASER | (1) |
| 37 | B1706-555-000 | VERTICAL_FEED_SQUARE_BLOCK_SHAFT | (1) |
| 38 | 229-13503 | WASHER | (1) |
| 39 | 229-13602 | VERTICAL_FEED_SQUARE_BLOCK | (1) |
| 40 | 229-11002 | WALKING_FOOT_PIN_B | 1 |
| 41 | 401-10379 | ASSY_FEED_ROCKER_ARM | 1 |
| 42 | 401-10378 | FEED_ROCKER_ARM | (1) |
| 43 | SS-6121610-SP | SCREW_3/16-28_L=15.5 | (1) |
| 44 | 401-09422 | FEED_ARM_ASM | 1 |
| 45 | 401-08863 | FEED_ARM | (1) |
| 46 | SS-7121610-SP | SCREW_3/16-28_L=15.5 | (1) |
| 47 | SD-1000801-SH | HINGE_SCREW_D=10_H=8 | 1 |
| 48 | 229-15201 | FEED_DRIVING_SHAFT | 1 |
| 49 | 401-37504 | THRUST_COLLAR_ASM | 1 |
| 50 | SS-8660610-TP | SCREW_1/4-40_L=6 | (2) |
| 51 | 401-37505 | FEED_ROCKER_SHAFT_THRUST_COLLAR | (1) |
| 52 | 229-13008 | FEED_ROCKER_SHAFT_BUSHING | 2 |
| 53 | SS-7110740-TP | SCREW_11/64-40_L=7 | 1 |
| 54 | RC-0150001-KP | RETAINING_RING_13.8 | 1 |
| 55 | 229-40654 | FEED_ROCKER_ASM. | 1 |
| 56 | SS-7121410-TP | SCREW_3/16-28_L=14 | (1) |
| 57 | WP-0480856-SP | WASHER_4.8X8.4X0.8 | (1) |
| 58 | 229-40605 | FEED_ARM | (1) |
| 59 | 229-15359 | DRIVING_SHAFT_CRANK_ASM. | 1 |
| 60 | 229-15300 | RIVING_SHAFT_CRANK | (1) |
| 61 | SS-7111120-SP | SCREW_11/64-40_L=10.5 | (1) |
| 62 | 401-02264 | FEED_REVER_ASM. | 1 |
| 63 | 229-12703 | FEED_LEVER | (1) |
| 64 | SM-8061010-TP | SCREW | (2) |
| 65 | 402-30589 | REGULATOR_SPRING_HOOK_PLATE | 1 |
| 66 | SS-4110515-SP | SCREW_11/64-40_L=5 | 2 |
| 67 | 401-00812 | FEED_LEVER_SHAFT | 1 |
| 68 | 229-12802 | FEED_LEVER_SHAFT_BUSHING | 1 |
| 69 | RO-0781901-00 | RUBBER_RING | 1 |
| 70 | 402-30521 | FEED_SPRING_HOOK_PLATE | 1 |
| 71 | 401-33779 | FEED_ROCKER_SHAFT | 1 |
| 72 | NS-6680410-SP | NUT_9/32-28 | 1 |
| 73 | 229-70750 | HORIZONTAL_FEED_ROD_ASM. | 1 |
| 74 | 229-70701 | HORIZONTAL_FEED_ROD | (1) |
| 75 | 229-71204 | FEED_REGULATOR_BASE_PIN | 1 |
| 76 | 229-71303 | FEED_REGULATOR_BASE | 1 |
| 77 | 400-31240 | FEED_ADJUST_LINK_ASM. | 1 |
| 78 | 400-39673 | FEED_ADJUST_ROD | 1 |
| 79 | 229-70859 | HORIZONTAL_FEED_ARM_ASM. | 1 |
| 80 | 229-70800 | HORIZONTAL_FEED_AR | (1) |
| 81 | 229-71709 | FEED_REVERSE_SPRING | 1 |
| 82 | 229-71550 | FEED_LEVER_ARM_ASM. | 1 |
| 83 | 400-39674 | FEED_DIAL | 1 |
| 84 | 114-03003 | FEED_J | 1 |
| 85 | 402-25300 | FEED_REGULATOR_SPRING_7H | 1 |
| 86 | HX-0018900-00 | SPIRAL_TUBE | 0.1 |
| 87 | 400-10395 | ADJUSTING_LINK_FULCRUM_SHAFT_B | 1 |
| 88 | 229-72251 | VERTICAL_FEED_ARM_ASM. | 1 |
| 89 | 229-72202 | VERTICAL_FEED_ARM | (1) |
| 90 | SS-6121210-SP | SCREW_3/16-28_L=12 | (1) |
| 91 | 400-31249 | HINGE_SCREW | 1 |
Page 17 — 7. THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-27152 | THREAD_TRIMMER_CAM | 1 |
| 2 | 401-27153 | SPACER | 2 |
| 3 | SS-8661012-TP | SCREW | 2 |
| 4 | 401-27154 | COUNTER_KNIFE | 1 |
| 5 | SS-1090520-TP | SCREW_9/64-40_L=5 | 1 |
| 6 | 401-27155 | LOWER_THREAD_FINGER | 1 |
| 7 | WP-0371016-SD | WASHER_3.7X8X1 | 1 |
| 8 | SS-7090610-SP | SCREW_9/64-40_L=6 | 1 |
| 9 | 401-27156 | MOVING_KNIFE_HOLDER | 1 |
| 10 | 401-27157 | KNIFE_HOLDER_PRESSER_ASSY | 1 |
| 11 | WP-0450826-SC | WASHER_4.5X10X0.8 | 2 |
| 12 | SS-4111415-SP | SCREW_11/64-40_L=14 | 2 |
| 13 | 401-87740 | MOVING_KNIFE | 1 |
| 14 | 113-51806 | SCREW | 2 |
| 15 | 401-27161 | THREAD_TRIMMER_CONNECTING_ROD | 1 |
| 16 | SD-0600291-TP | HINGE_SCKEW_D=6_H=2.9 | 2 |
| 17 | NS-6110350-SP | NUT_11/64-40 | 1 |
| 18 | 401-84556 | THREAD_TRIMMER_ARM | 1 |
| 19 | 401-27163 | LEVER_STOPPER | 1 |
| 20 | SS-4121415-SP | SCREW_3/16-28_L=14 | 1 |
| 21 | 401-27164 | SPRING | 1 |
| 22 | 401-27165 | FORKED_SHAFT | 1 |
| 23 | 401-27166 | COLLAR | 1 |
| 24 | 401-27167 | FORKED_SHAFT_BUSH | 1 |
| 25 | SS-8110422-TP | SCREW_11/64-40_L=4 | 1 |
| 26 | 401-27168 | THREAD_TRIMMER_CAM_LEVER_ASSY | 1 |
| 27 | SS-8660612-TP | SCREW_1/4-40_L=6 | 1 |
| 28 | 401-27180 | THREAD_TRIMMER_CAMLEVER_SHAFT | 1 |
| 29 | 401-27181 | COLLAR | 1 |
| 30 | 401-27182 | SPRING | 1 |
| 31 | 401-27183 | CUSHION | 1 |
| 32 | WP-0820816-SD | WASHER_8.2X16X0.8 | 1 |
| 33 | RE-0600000-K0 | E-RING_6 | 1 |
| 34 | 401-32143 | THREAD_TRIMMER_SOLENOID_ASM | 1 |
| 35 | SS-4151215-SP | SCREW_15/64-28_L=12 | 1 |
| 36 | SD-0850751-SP | HINGE_SCREW_D=8.50_H=7.5 | 1 |
| 37 | 401-27188 | THREAD_RELEASE_LEVER | 1 |
| 38 | 401-27190 | RETURN_SPRING | 1 |
Page 18 — 8. AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-30319 | LED_BT_SWITCH_ASSY_7A | 1 |
| 2 | 229-53509 | PLUNGER_ARM_PIN | 1 |
| 3 | SS-4151215-SP | SCREW_15/64-28_L=12 | 2 |
| 4 | 401-30594 | REVERSE_FEED_SOLENOID | 1 |
| 5 | 229-54002 | PLUNGER_SPRING | 1 |
| 6 | RE-0500000-KP | E-RING_5 | 2 |
| 7 | 111-01300 | REVERSE_FEED_CONNECTING_SHAFT | 1 |
| 8 | RE-0900000-KO | E-RING_9 | 1 |
| 9 | 229-53657 | CONNECTING_ARM_ASM. | 1 |
| 10 | RE-0400000-KP | E-RING_4 | 1 |
| 11 | 401-32066 | CONNECTING_LINK | 1 |
| 12 | RE-1200000-KO | E-RING_12 | 1 |
| 13 | WP-1602616-SZ | WASHER_16X24X2.6 | 1 |
| 14 | 229-53400 | RUBBER_PLUNGER | 1 |
| 15 | RE-0400000-KO | E-RING_4 | 2 |
Page 19 — 9. EXCLUSIVE PARTS TYPE NB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25399 | THREAD_NIPPER_SET | 1 |
| 2 | SS-1110640-TP | SCREW_11/64-40_L=5.5 | 2 |
| 3 | G1164-870-000 | SUCTION_O-RING | 1 |
| 4 | 134-03605 | RUBBER_PLATE | 1 |
Page 21 — 10. OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-24708 | OIL_SIGHT_WINDOW | 1 |
| 2 | RO-1952401-00 | RUBBER_RING | 1 |
| 3 | 229-24401 | MAIN_SHAFT_OIL_TUBE | 1 |
| 4 | SS-4120615-SP | SCREW_3/16-28_L=6 | 1 |
| 5 | 229-25101 | OIL_FELT_PRESSER | 1 |
| 6 | 229-24153 | OIL_RETURN_TUBE_ASM. | 1 |
| 7 | 229-24302 | HOLDER | (1) |
| 8 | CQ-2520000-00 | OIL_WICK | 0.21 |
| 9 | 401-27179 | OIL_REGULATOR_SPRING | 1 |
| 10 | 401-27193 | HOOK_OIL_TUBE | 1 |
| 11 | WS-0451040-KP | SPRING_WASHER_4.5X8.5X1 | 1 |
| 12 | 229-23056 | LUBRICATING_OIL_PUMP_ASM. | 1 |
| 13 | 229-23312 | OIL_PUMP_INSTALLING_BASE | (1) |
| 14 | 229-23015 | OIL_PUMP | (1) |
| 15 | 229-23700 | OIL_PUMP_IMPELLER | (1) |
| 16 | SE-4301041-SR | SCREW_D=3_L=10 | (1) |
| 17 | 229-23205 | LUBRICATING_OIL_PUMP_COVER | (1) |
| 18 | 229-23809 | OIL_PUMP_IMPELLER_COVER | (1) |
| 19 | 229-23403 | PLUNGER | (1) |
| 20 | 229-23601 | PLUNGER_SPRING | (1) |
| 21 | 229-23502 | PLUNGER_SCREW | (1) |
| 22 | 229-23908 | HOOK_DRIVING_SHAFT_OIL_TUBE | (1) |
| 23 | SL-4030851-SF | SCREW_M3_L=8 | (3) |
| 24 | SS-4150915-SP | SCREW_15/64-28_L=9 | 1 |
| 25 | SS-6111010-TP | SCREW_11/64-40_L=9.5 | 1 |
| 26 | 229-47105 | OIL_PUMP_SUPPORT | 1 |
| 27 | WS-0651310-KP | SPRING_WASHER_6.5X11X1.3 | 1 |
| 28 | 229-24609 | RUBBER_JOINT | 1 |
| 29 | 401-27178 | OIL_REGULATOR_SCREW | 1 |
Page 23 — 11. OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-11876 | OIL_RESERVER_ASM. | 1 |
| 2 | 401-05821 | OIL_RESERVOIR | (1) |
| 3 | 229-31901 | OIL_RESERVOIR_GASKET | (1) |
| 4 | B1116-210-D00 | FRAME_SUPPORT_RUBBER | (4) |
| 5 | SS-6700710-SH | SCREW_5/16-24_L=7 | (1) |
| 6 | RO-0982401-00 | RUBBER_RING | (1) |
| 7 | 229-32156 | KNEE_LIFTER_ROTATION_ARM_ASM. | (1) |
| 8 | 229-32107 | KNEE_LIFTING_ROTATING_ARM | (1) |
| 9 | NM-6060001-SE | NUT_M6 | (2) |
| 10 | SM-8063012-TR | SCREW_M6_L=30 | (2) |
| 11 | 229-32206 | SPRING | (1) |
| 12 | RE-1000000-K0 | E-RING_10 | (1) |
| 13 | 229-32453 | BRACKET_ASM. | (1) |
| 14 | 229-32404 | BRACKET | (1) |
| 15 | 229-34707 | SCREW | (2) |
| 16 | 401-01720 | SCREW_M6 | (1) |
| 17 | 401-01541 | KNEE_PRESS_CROSS_SHAFT | (1) |
| 18 | NM-6060001-SE | NUT_M6 | (1) |
| 19 | 229-34251 | KNEE_PAD_PLATE_ASM. | 1 |
| 20 | 229-34608 | KNEE_PAD_UPRIGHT_SHAFT | (1) |
| 21 | 229-34400 | KNEE_PAD_PLATE_RUBBER | (1) |
| 22 | 229-34202 | KNEE_PAD_PLATE | (1) |
| 23 | 229-34301 | KNEE_PAD_PLATE_SUPPORT | (1) |
| 24 | SM-9061203-SE | SCREW_M6_L=12 | (1) |
| 25 | 229-34509 | KNEE_PAD_PLATE_COVER | (1) |
| 26 | B8228-125-000 | OIL_RESERVOIR_MAGNET | 1 |
| 27 | 229-31703 | KNEE_LIFTER_PUSH_ROD | 1 |
Page 24 — 12. PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25188 | CONTROL_BOX_1P | 1 |
| 2 | 402-25280 | CONTROL_BOX_3P | 1 |
| 3 | 401-31478 | CONNECTING_ROD_ASSY | 1 |
| 4 | 402-15705 | ACCESSORIES_PARTS_ASSY | 1 |
| 5 | 402-24061 | ACCESSORIES_PARTS_3P_ASSY | 1 |
| 6 | 401-18323 | POWER_SWITCH_ASSY | 1 |
| 7 | SK-3512001-SE | WOOD_SCREW_D=5.1_L=20 | 2 |
| 8 | 402-15706 | PEDAL_SENSOR_BASE_ASSY | 1 |
| 9 | MAO-11532000 | CORD_STAPLE | 4 |
Page 25 — 13. ACCESSORIE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-30788 | ACCESSORIE_BAG_ASSY | 1 |
| 2 | 229-32800 | ACCESSORIE_BAG | (1) |
| 3 | 229-31604 | FRAME_SUPPORT_BAR | (1) |
| 4 | 229-32909 | BOBBIN | (1) |
| 5 | 229-58300 | NEEDLE_THREAD_GUIDE_PIN | (1) |
| 6 | 229-31703 | KNEE_LIFTER_PUSH_ROD | (1) |
| 7 | 402-25224 | SAFETY_INSTRUCTION_MANUAL(1K) | 1 |
| 8 | 401-02087 | JUKI_MACHINE_OIL_7 | 1 |
| 9 | 401-37214 | RUBBER_HINGE_ASM. | 1 |
| 10 | 229-58003 | FRAME_BUBBER_CUSHION | (2) |
| 11 | 229-26208 | NAIL | (8) |
| 12 | 401-37215 | HINGE_COMPL. | (2) |
| 13 | 229-26505 | WASHER | (2) |
| 14 | 229-26000 | RUBBER_CUSHION | (2) |
| 15 | MDB-100B1402 | NEEDLE_DBX1#14-2 | 1 |
| 16 | MDP-500B2102 | NEEDLE_DPX5#21-2 | 1 |
Page 27 — 14. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-96354 | THREAD_STAND_ASM. | 1 |
| 2 | 400-85784 | SPOOL_REST_ROD_(LOWER) | (1) |
| 3 | 400-85785 | SPOOL_REST_ROD_(UPPER) | (1) |
| 4 | 400-85786 | SPOOL_REST_ARM_(LOWER) | (1) |
| 5 | 400-85787 | SPOOL_REST_ARM_(UPPER) | (1) |
| 6 | 400-85788 | SPOOL_REST | (2) |
| 7 | 400-85789 | SPOOL_REST_CUSHION | (2) |
| 8 | 400-85790 | SPOOL_PIN | (2) |
| 9 | 400-85791 | SPOOL_RETAINER | (2) |
| 10 | 400-85792 | SPOOL_REST_ROD_JOINT | (1) |
| 11 | 400-85793 | SPOOL_REST_ROD_RUBBER_CAP | (1) |
| 12 | 400-85794 | THREAD_GUIDE | (2) |
| 13 | 400-85795 | THREAD_GUIDE_BUSHING | (2) |
| 14 | 400-96325 | SPOOL_REST_ROD_NUT | (1) |
| 15 | WP-1612616-SE | WASHER_16X30X2.6 | (2) |
| 16 | 400-85796 | SPOOL_REST_ROD_RUBBER_CUSHION | (2) |
| 17 | 400-96326 | SPOOL_REST_ARM_LOWER_SCREW | (1) |
| 18 | NM-6050001-SE | NUT_M5 | (2) |
| 19 | 400-96327 | SPOOL_REST_ARM_UPPER_SCREW | (1) |
| 20 | NM-6050001-SE | NUT_M5 | (2) |
| 21 | WS-0510002-KN | SPRING_WASHER_M5 | (2) |
| 22 | WP-0531001-SC | WASHER_M5 | (2) |
| 23 | SM-4051405-SE | SCREW_M5_L=14 | (2) |
| 24 | NM-6050001-SE | NUT_M5 | (2) |
Page 28 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | B1109-552-000 | SL-4030851-SF | 44 |
| 39 | B1116-210-D00 | SL-6041242-TN | 4 |
| 38 | B1213-552-000-A | SL-6051692-TN | 40 |
| 18 | B1215-552-000 | SL-6052592-TN | 26 |
| 61 | B1408-552-000 | SL-6053092-TN | 52 |
| 62 | B1505-552-000-A | SL-6054592-TN | 10 |
| 31 | B1521-555-000 | SM-0050801-SC | 2 |
| 32 | B1706-555-000 | SM-0050801-SC | 37 |
| 23 | B1903-552-000 | SM-4051405-SE | 53 |
| 21 | B1905-541-A00 | SM-8040802-TP | 54 |
| 22 | B1905-541-B00 | SM-8050502-TP | 55 |
| 33 | B1905-541-C00 | SM-80608A2-TP | 56 |
| 12 | B1905-541-D00 | SM-8063012-SE | 57 |
| 10 | B8228-125-000 | SM-8063012-TR | 26 |
| 24 | CM-3002000-01 | SM-9061203-SE | 12 |
| 14 | CQ-2520000-00 | SS-1090520-TP | 8 |
| 16 | D1524-555-EBL | SS-1110640-TP | 20 |
| 45 | D7133-555-B00 | SS-2110920-TP | 29 |
| 12 | EA-9500B01-00 | SS-4080620-TP | 63 |
| 10 | G1164-870-000 | SS-4090615-SP | 3 |
| 10 | HX-0018900-00 | SS-4110515-SP | 86 |
| 12 | MAO-11532000 | SS-4110515-SP | 9 |
| 14 | MDB-100B1400 | SS-4110515-SP | 11 |
| 2 | MDB-100B1402 | SS-4120615-SP | 15 |
| 2 | MDP-500B2100 | SS-4120615-SP | 49 |
| 2 | MDP-500B2102 | SS-4120615-SP | 16 |
| 10 | NM-6050001-SE | SS-4120615-SP | 18 |
| 10 | NM-6050001-SE | SS-4120615-SP | 24 |
| 18 | NM-6060001-SE | SS-4120915-SP | 9 |
| 8 | NM-6060001-SE | SS-4120915-SP | 18 |
| 14 | NS-6090310-SP | SS-4121415-SP | 57 |
| 10 | NS-6110350-SP | SS-4150915-SP | 17 |
| 14 | NS-6120630-SP | SS-4151215-SP | 27 |
| 2 | NS-6620310-SP | SS-4151215-SP | 21 |
| 14 | NS-6680410-SP | SS-4151215-SP | 72 |
| 2 | RC-0150001-KP | SS-6060210-SP | 32 |
| 12 | RC-0150001-KP | SS-6080320-SP | 54 |
| 12 | RC-0560711-KP | SS-6090620-TP | 18 |
| 12 | RC-1850001-KP | SS-6090620-TP | 22 |
| 8 | RE-0400000-KP | SS-6090670-TP | 10 |
| 12 | RE-0400000-KO | SS-6090670-TP | 4 |
| 10 | RE-0400000-KO | SS-6091040-TP | 15 |
| 8 | RE-0500000-KP | SS-6110420-TP | 15 |
| 2 | RE-0500000-KO | SS-6110610-TP | 10 |
| 10 | RE-0500000-KO | SS-6111010-TP | 10 |
| 8 | RE-0500000-KO | SS-6111010-TP | 10 |
| 12 | RE-0500000-KO | SS-6121210-SP | 10 |
| 12 | RE-0600000-KO | SS-6121210-SP | 12 |
| 12 | RE-0900000-KO | SS-6121860-SP | 15 |
| 12 | RE-1000000-KO | SS-6151220-SP | 20 |
| 6 | RE-1200000-KO | SS-6661110-SP | 15 |
| 4 | RO-0291801-00 | SS-6700710-SH | 6 |
| 14 | RO-0371801-00 | SS-7090610-SP | 10 |
| 10 | RO-0442401-00 | SS-7091110-TP | 6 |
| 2 | RO-0781901-00 | SS-7110720-SP | 12 |
| 12 | RO-0922702-00 | SS-7110740-TP | 12 |
| 6 | RO-0982401-00 | SS-7111120-SP | 20 |
| 12 | RO-1952401-00 | SS-7121410-TP | 18 |
| 12 | SD-0600291-TP | SS-7121610-SP | 14 |
| 6 | SD-0720331-SP | SS-7681650-TP | 10 |
| 2 | SD-0850751-SP | SS-8090670-SP | 14 |
| 10 | SD-1000801-SH | SS-8090670-SP | 12 |
| 14 | SE-4301041-SR | SS-8104225-TP | 18 |
| 6 | SK-3512001-SE | SS-8150710-TP | 21 |
| 1 | SS-8660610-TP | SS-8151150-SP | 6 |
| 17 | SS-8660610-TP | SS-8660610-TP | 6 |
| 24 | SS-8660610-TP | SS-8660610-TP | 6 |
| 31 | SS-8660610-TP | SS-8660610-TP | 6 |
| 43 | 229-03900 | SS-8660610-TP | 6 |
| 46 | 229-05004 | SS-8660610-TP | 8 |
| 45 | 229-05103 | SS-8660610-TP | 8 |
| 44 | 229-05202 | SS-8660610-TP | 8 |
| 2 | 229-06101 | SS-8660610-TP | 8 |
| 8 | 229-06200 | SS-8660610-TP | 8 |
| 6 | 229-06408 | SS-8660610-TP | 8 |
| 4 | 229-06457 | SS-8660610-TP | 8 |
| 11 | 229-06606 | SS-8660610-TP | 6 |
| 36 | 229-07307 | SS-8660610-TP | 10 |
| 33 | 229-07406 | SS-8660610-TP | 10 |
| 32 | 229-07505 | SS-8660610-TP | 10 |
| 30 | 229-07554 | SS-8660610-TP | 10 |
| 31 | 229-07604 | SS-8660610-TP | 10 |
| 45 | 229-07703 | SS-8660610-TP | 10 |
| 1 | 229-07802 | SS-8660610-TP | 10 |
| 42 | 229-08008 | SS-8660610-TP | 10 |
| 73 | 229-15605 | SS-8660610-TP | 2 |
| 28 | 229-21506 | SS-8660610-TP | 4 |
| 39 | 229-21605 | SS-8660610-TP | 2 |
| 36 | 229-21803 | SS-8660610-TP | 2 |
| 14 | 229-23015 | SS-8660610-TP | 18 |
| 12 | 229-23056 | SS-8660610-TP | 18 |
| 17 | 229-23205 | SS-8660610-TP | 18 |
| 13 | 229-23312 | SS-8660610-TP | 18 |
| 19 | 229-23403 | SS-8660610-TP | 18 |
| 21 | 229-23502 | SS-8660610-TP | 18 |
| 20 | 229-23601 | SS-8660610-TP | 18 |
| 15 | 229-23700 | SS-8660610-TP | 18 |
| 18 | 229-23809 | SS-8660610-TP | 18 |
| 22 | 229-23908 | SS-8660610-TP | 18 |
| 6 | 229-24153 | SS-8660610-TP | 18 |
| 7 | 229-24302 | SS-8660610-TP | 18 |
| 3 | 229-24401 | SS-8660610-TP | 18 |
Page 29 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-24708 | ||
| 28 | 229-24609 | ||
| 5 | 229-25101 | ||
| 14 | 229-26000 | ||
| 11 | 229-26208 | ||
| 13 | 229-26505 | ||
| 3 | 229-31604 | ||
| 27 | 229-31703 | ||
| 6 | 229-31703 | ||
| 3 | 229-31901 | ||
| 8 | 229-32107 | ||
| 6 | 229-32323 | ||
| 13 | 229-32453 | ||
| 2 | 229-32800 | ||
| 4 | 229-32909 | ||
| 22 | 229-34202 | ||
| 25 | 229-34509 | ||
| 20 | 229-34608 | ||
| 15 | 229-34707 | ||
| 58 | 229-40605 | ||
| 55 | 229-40654 | ||
| 36 | 229-40704 | ||
| 35 | 229-40753 | ||
| 31 | 229-40803 | ||
| 27 | 229-40951 | ||
| 1 | 229-41108 | ||
| 18 | 229-44508 | ||
| 25 | 229-45109 | ||
| 40 | 229-45307 | ||
| 2 | 229-45414 | ||
| 21 | 229-45463 | ||
| 25 | 229-45505 | ||
| 23 | 229-45604 | ||
| 26 | 229-45703 | ||
| 30 | 229-45703 | ||
| 24 | 229-45802 | ||
| 26 | 229-47105 | ||
| 14 | 229-53400 | ||
| 15 | 229-53509 | ||
| 2 | 229-53657 | ||
| 5 | 229-54002 | ||
| 22 | 229-58003 | ||
| 5 | 229-58300 | ||
| 74 | 229-62005 | ||
| 71 | 229-63409 | ||
| 70 | 229-63458 | ||
| 47 | 229-70206 | ||
| 10 | 229-70404 | ||
| 47 | 229-70503 | ||
| 46 | 229-70552 | ||
| 73 | 229-70701 | ||
| 80 | 229-70800 | ||
| 79 | 229-70859 | ||
| 75 | 229-71204 | ||
| 76 | 229-71303 | ||
| 82 | 229-71550 | ||
| 81 | 229-71709 | ||
| 89 | 229-72202 | ||
| 88 | 229-72251 | ||
| 48 | 229-72806 | ||
| 3 | 262-60208 | ||
| 4 | 262-60307 | ||
| 5 | 262-60406 | ||
| 6 | 262-60505 | ||
| 7 | 262-60604 | ||
| 8 | 262-60802 | ||
| 9 | 262-61008 | ||
| 21 | 401-18323 | ||
| 4 | 401-19475 | ||
| 2 | 401-26305 | ||
| 2 | 401-26308 | ||
| 2 | 401-26850 | ||
| 14 | 401-27152 | ||
| 14 | 401-27153 | ||
| 14 | 401-27154 | ||
| 14 | 401-27155 | ||
| 14 | 401-27156 | ||
| 14 | 401-27157 | ||
| 14 | 401-27161 | ||
| 14 | 401-27163 | ||
| 14 | 401-27164 | ||
| 14 | 401-27165 | ||
| 14 | 401-27166 | ||
| 14 | 401-27167 | ||
| 8 | 401-27168 | ||
| 18 | 401-27177 | ||
| 18 | 401-27178 | ||
| 14 | 401-27179 | ||
| 14 | 401-27180 | ||
| 14 | 401-27181 | ||
| 14 | 401-27182 | ||
| 14 | 401-27183 | ||
| 14 | 401-27188 | ||
| 10 | 401-27189 | ||
| 14 | 401-27190 | ||
| 8 | 401-27191 | ||
| 8 | 401-27192 | ||
| 18 | 401-27193 | ||
| 15 | 401-30594 | ||
| 22 | 401-30788 | ||
| 21 | 401-31478 | ||
| 15 | 401-32066 | ||
| 10 | 401-32067 | ||
| 2 | 401-32099 | ||
| 14 | 401-32143 | ||
| 12 | 401-33779 | ||
| 12 | 401-33950 | ||
| 8 | 401-36013 | ||
| 8 | 401-36014 | ||
| 22 | 401-37214 | ||
| 22 | 401-37215 | ||
| 6 | 401-37502 | ||
| 6 | 401-37503 | ||
| 12 | 401-37504 | ||
| 12 | 401-37505 | ||
| 6 | 401-39216 | ||
| 8 | 401-41523 | ||
| 8 | 401-53440 | ||
| 4 | 401-63521 | ||
| 14 | 401-71515 | ||
| 14 | 401-84556 | ||
| 2 | 401-87311 | ||
| 2 | 401-87738 | ||
| 14 | 401-87740 | ||
| 8 | 402-11519 | ||
| 21 | 402-15705 | ||
| 21 | 402-15706 | ||
| 4 | 402-18885 | ||
| 6 | 402-22686 | ||
| 6 | 402-22701 | ||
| 21 | 402-24061 | ||
| 2 | 402-25175 | ||
| 2 | 402-25177 | ||
| 2 | 402-25185 | ||
| 21 | 402-25188 | ||
| 22 | 402-25224 | ||
| 21 | 402-25280 | ||
| 6 | 402-25291 | ||
| 12 | 402-25300 | ||
| 16 | 402-25399 |
Juki DDL-7000A-7 — parts catalog
- Page 1 (cover): This is the cover page for the DDL-7000A-7 Parts List, providing information on how to access the online parts book.
- Page 2 (text): This page provides instructions on how to use the parts list, including explanations for reference numbers, quantity codes, and symbols used for different part types.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated by reference numbers.
- Page 5 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes, with Japanese translations for many descriptions.
- Page 6 (diagram): This page displays a diagram of bobbin winder components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for a bobbin winder unit, including various screws, springs, and shafts, with their corresponding part numbers and descriptions.
- Page 8 (diagram): This page displays a diagram of main shaft and thread take-up lever components, with numbered parts for identification.
- Page 9 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 57.
- Page 10 (diagram): This page displays a diagram of needle bar, upright shaft, and hook driving shaft components, with numbered parts for identification.
- Page 11 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes, with items numbered from 1 to 50.
- Page 12 (diagram): This page displays a diagram of hand lifter components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details items like hand lifters, screws, rings, and various assemblies.
- Page 14 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts indicated by reference numbers.
- Page 15 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, quantities, and remarks. It covers parts from reference number 1 to 91.
- Page 16 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like thread trimmers, screws, washers, and levers.
- Page 18 (diagram): This page displays a diagram of automatic reverse feed components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram and parts list for exclusive parts type NB, including a thread nipper set, screws, suction O-ring, and rubber plate.
- Page 20 (diagram): This page displays a diagram of oil lubrication components for the sewing machine, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for an industrial sewing machine, including oil sight windows, screws, tubes, and pump components, with their corresponding part numbers and quantities.
- Page 22 (diagram): This page displays a diagram of oil reservoir components, with numbered parts and their corresponding details.
- Page 23 (parts_list): This page lists parts for the knee lifter assembly, including oil reservoirs, screws, nuts, and brackets, with their corresponding part numbers and quantities.
- Page 24 (parts_list): This page lists parts for the PSC Unit, including control boxes, connecting rods, accessories, power switches, screws, sensors, and cord staples, with their corresponding part numbers and quantities.
- Page 25 (parts_list): This page lists accessory parts components with their corresponding part numbers, descriptions, and quantities. It includes items like bags, bars, pins, oil, and needles.
- Page 26 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 27 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities, with items like thread stands, spool rests, and various screws and washers.
- Page 28 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page references, and reference numbers in diagrams.
- Page 29 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
- Page 30 (text): This page contains the heading "MEMO" and ruled lines for notes, along with a page number and website at the bottom.
- Page 32 (cover): This page is the cover of the JUKI CORPORATION parts catalog, featuring company contact information and copyright details.
